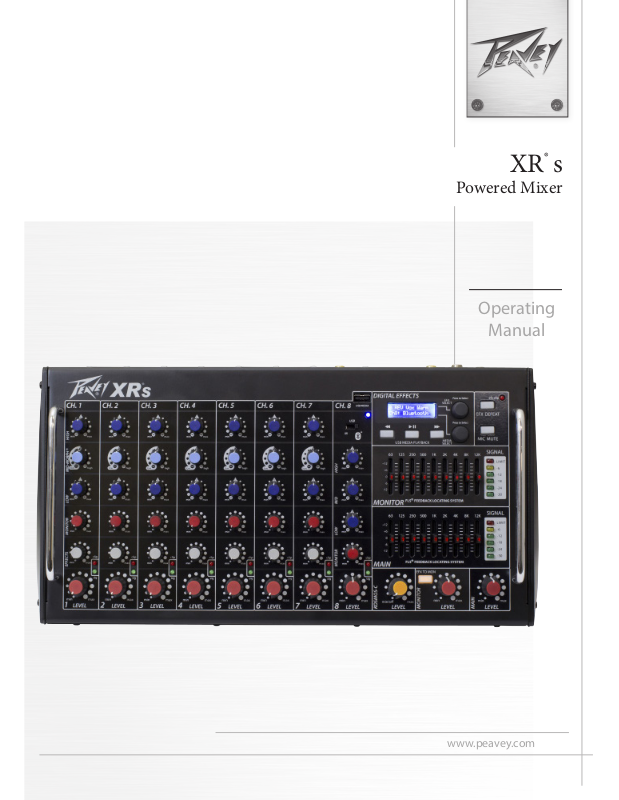

XR
Powered Mixer
Operating
Manual
®
s
www.peavey.com
FCC/ICES Compliancy Statement
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS Standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, that may cause undesired operation.
Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de
brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void
the user’s authority to use the equipment.
Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
2
ENGLISH
XR®s
Powered Mixer
Congratulations on the purchase of your new XR®s powered mixer from Peavey®. e Peavey XRs is a revolutionary all in one powered
mixer. Everything a musician or DJ needs providing up to eight combination XLR and ¼” inputs using Peavey’s award winning mic
preamps and dual 500 Watt ampliers for crystal clear audio reproduction. e Peavey XRs uses exclusive features like Mid-Morph to
accurately improve tone and clarity of vocals. Feedback is quickly and easily identied and removed with Peavey’s dual 9-band graphic
EQ’s combined with our patented and revolutionary FLS Feedback Locating System. e XRs is equipped with Peavey’s exclusive
Kosmos-C technology, which drastically enhances the low end of the audio spectrum. Built-in 24-bit digital eects compliment the
already feature packed unit.
Before you begin using your powered mixer it is very important to ensure that the product has the proper AC voltage
supplied. You can nd the proper voltage for your amp printed next to the IEC line (power) cord on the rear panel of the unit.
FEATURES:
• FLS® Feedback Locating System
• Mid-Morph® EQ
• Kosmos®-C
• On-board 24- bit digital effects with mute button
• Digital effects parameter control
• Combination XLR and 1/4” input jacks
• Dual 9-Band Graphic EQ with FLS
• Master Mic Mute
• Footswitchable effects defeat
• Global 48 Volt Phantom Power
• RCA, 1/8” Media input
• Bluetooth® Streaming Audio In
• Selectable Main or Monitor dual power section
• RCA Record outputs
• LED Meter bridge
• Power amp sub-sonic filter
• Clip and signal presence LED indicators
• Main and Monitor 1/4” line level outputs
• DDT™ Speaker protection circuit
VENTILATION: For proper ventilation, allow 6” (15.5 cm) clearance on all sides.
3
Channel Strip for Channels 1-7
HIGH
LOW
MONITOR MID
LEVEL
2
CH. 2
min max
min max
min max
clip
sig
min max
high
min max
LEVEL
3
CH. 3
min max
min max
min max
clip
sig
min max
high
min max
LEVEL
4
CH. 4
min max
min max
min max
clip
sig
min max
high
min max
LEVEL
5
CH. 5
min max
min max
min max
clip
sig
min max
high
min max
LEVEL
6
CH. 6
min max
min max
min max
clip
sig
min max
high
min max
LEVEL
7
CH. 7
min max
min max
min max
clip
sig
min max
high
min max
8
CH. 8
min max
min max
min max
min max
min max
PAD
2
PAD
3
PAD
4
PAD
5
PAD
6 7
INPUT SELECT
MEDIA
XLR-1/4”
RCA
1
MIC/LINE INPUT (CH.1-8)
is combination input jack can accept either a ¼” (balanced or unbalanced) input or a XLR
balanced, low-impedance connection. e tip is positive on the ¼” balanced input, and pin 2 is
positive on the XLR
PAD (CH. 1-6)
2
When engaged, the pad reduces the input signal by 25dB. If you notice distortion from a
particular channel or if the channel becomes loud very quickly, try engaging this switch. In addition to increasing the dynamic range, the channel can now accommodate a higher input level
before clipping occurs, which may be helpful when close-mic’ing a loud guitar amp or drum
kit, for example.
HIGH EQ
3
is High EQ shelving type of active tone control varies the treble frequencies (+/- 15 dB at
12kHz) and is designed to remove noise or add brilliance to the signal, depending on the quality of the source.
MID-MORPH EQ (CH. 1-7)
4
Where most mid-range controls work at just one frequency, the Mid-Morph works at two.
When turned counterclockwise, it cuts at 250Hz to reduce frequencies that muddy the sound.
When turned clockwise, it boosts at 4kHz to add intelligibility to vocals. Either way, improved
vocal or instrument denition can be achieved.
1
2
3
4
1
CH. 1
min max
HIGH
PAD
5
LOW EQ
A shelving type of EQ that varies the bass frequency levels (+/- 15dB at 80Hz). Low EQ adds
depth to thin-sounding signals or cleans up the muddy ones. As with any EQ, use sparingly.
Too much of this EQ can give you a booming bottom end.
MONITOR SEND
6
e monitor send adjusts the level of the channel signal added to the monitor send (16).
EFFECTS SEND (CH. 1-7)
7
is control adjusts the level of channel signal added to the eects mix. e signal is sent to the
internal eects processor. Turning the knob to the le (0) will turn o the eects on the associated channel, while turning the knob to the right will increase the amount of the selected eect.
8
CLIP
When this LED turns on or blinks red, it is an indication that the signal in the channel is
potentially too strong and could cause distortion. Turn down the Level control (10) until the
Clip light is no longer present. If you are having diculty getting a clean signal, try varying the
output of the connected device, if possible.
9
SIG
When this LED is green, it is an indication the mixer is receiving signal at the input of the channel. If you are having trouble getting sound out of the mixer and this LED is not on, check the
microphone, instrument or cable that is connected to the channel.
5
6
7
10
MID-MORPHLOW
min max
min max
MONITOR
min max
EFFECTS
min max
1
LEVEL
high
clip
sig
8
9
4
Media Input
INPUT SELECT
MEDIA
XLR-1/4”
RCA
8
L
R
ENABLE
ACTIVE
GLOBAL PHANTOM
POWER
L
R
SUB OUT MONO
MAIN OUT
MONITOR OUT
TRS BAL
TRS BAL
TRS BAL
NON-POWERED OUTPUTS
RECORD OUT
MONMAIN
POWER AMP 2
ASSIGN
UNBAL
3.5mm
TRS
11
12 14 15 16 17
13 18 19 20
11
MIC/LINE INPUT
is combination input jack can accept either a ¼” (balanced or unbalanced) input or a XLR balanced, low-impedance connection. e tip is
positive on the ¼” balanced input, and pin 2 is positive on the XLR
12
MEDIA INPUTS (CH.7 RCA and 3.5mm)
ese inputs, both RCA and 3.5mm jacks accept a stereo input from the output of an MP3 Player, CD player, tape deck or other similar device.
INPUT SELECT SWITCH (CH. 7)
13
is switch allows the user to select the input signal being sent to channel 7. In the “up” position, the Mic-Line preamp is active. In the “down”
position, the RCA- 3.5mm media inputs are active.
14
MIC/LINE INPUT
is combination input jack can accept either a ¼” (balanced or unbalanced) input or a XLR balanced, low-impedance connection. e tip is
positive on the ¼” balanced input, and pin 2 is positive on the XLR.
RCA RECORD OUT
15
is pair of RCA jacks provides a signal to the recording inputs of a CD recorder, stereo tape deck or other recording device.
NOTE: Do not connect a single device to the Media Inputs (12) and Record Outputs (15). is improper setup forms a loop, which can cause
severe feedback.
16a
MAIN OUT (TRS Balanced)
is ¼” jack provides a signal from the main mix (aer the graphic EQ) for an external power amplier. An external power amplier, such as
our IPR series of ampliers, can then drive additional speakers.
16b
MONITOR OUT (TRS Balanced)
is ¼” jack provides a signal from the monitor mix (aer the graphic EQ) for an external power amplier. An external power amplier, such
as our IPR series of ampliers, can then drive additional speakers.
17
SUB/MONO OUT (TRS Balanced)
is ¼” jack provides a signal that passes all signals under 150Hz. is can be used to drive an external subwoofer amplier or a powered sub.
e level of signal tracks the main output.
5
Media Input
18
GLOBAL PHANTOM POWER
is switch, when depressed, applies +48 VDC to all input XLR connectors to power microphones that need phantom power to work.
is switch applies +48 VDC voltage to the input XLR connectors to power microphones requiring phantom power.
If phantom power is used, do not connect unbalanced dynamic microphones or other devices to the XLR
inputs that cannot handle this Voltage.
19
PHANTOM POWER LED
is LED shines when the PHANTOM POWER is activated.
20
POWER AMP 2 ASSIGN
is switch allows the user to select the signal that is assigned to power amp 2 (52). e user can either elect to send the Main mix signal or
the Monitor mix signal to the second internal power amplier. is allows the user to run both power amps for mains or use power amp 1 for
mains and power amp 2 for monitors.
6

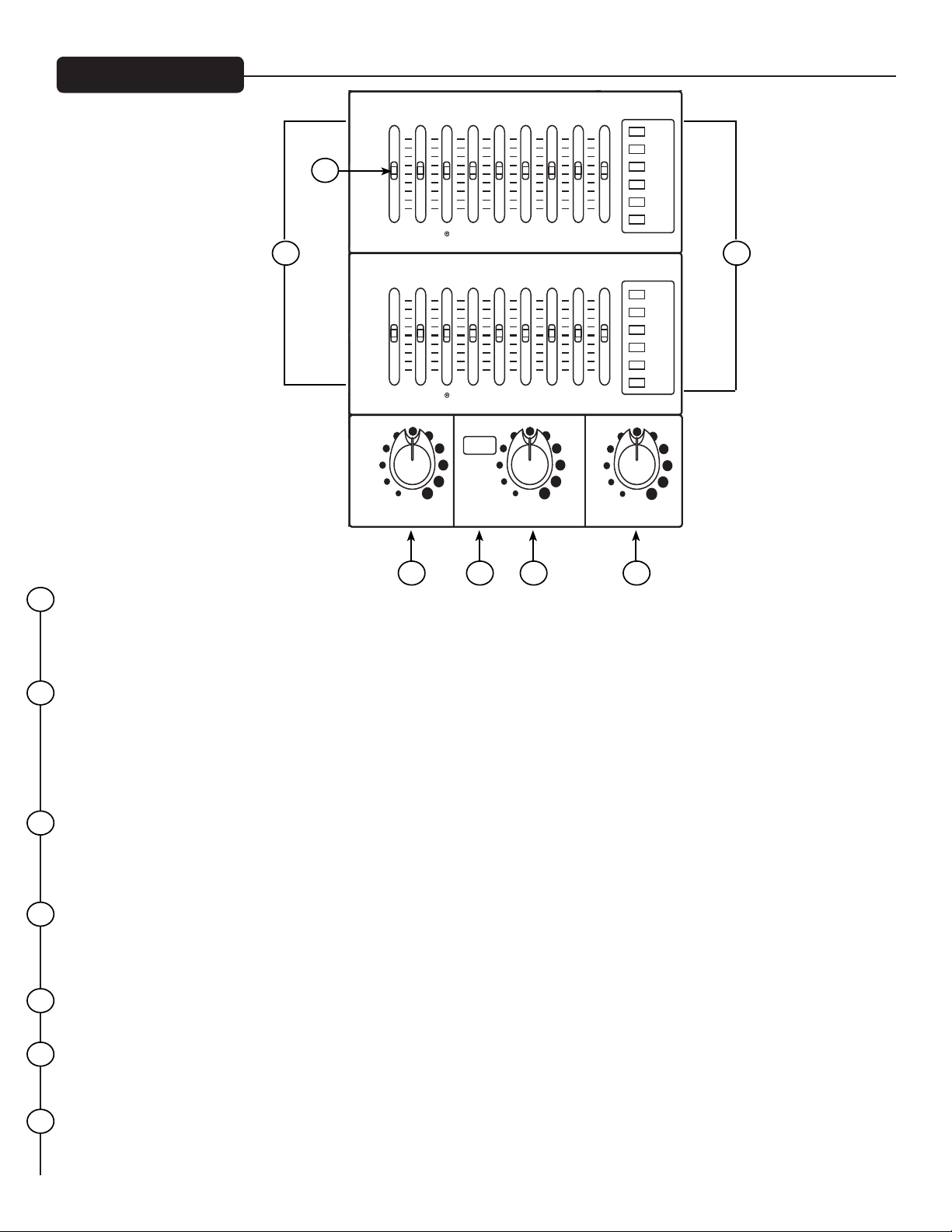

Channel Strip for Channel 8
LEVEL LEVEL LEVEL
USB MEDIA PLAYBACK
DIGITAL EFFECTS
Press to Select
Press to Select
EFX
SELECT
MEDIA
SELECT
MIC
EFX
MUTE
DEFEAT
efx clip
+12
+6
0
-6
-12
63 125 250 500 1K 2K 4K 8K 12K
FLS FEEDBACK LOCATING SYSTEM
SIGNAL
MONITOR
+12
+6
0
-6
-12
63 125 250 500 1K 2K 4K 8K 12K
FLS FEEDBACK LOCATING SYSTEM
SIGNAL
MAIN
KOSMOS-C
MONITOR
MAIN
min max
min/o max
min max
EFX TO MON
-6
-12
LIMIT
-18
-24
-30
-6
-12
LIMIT
-18
-24
-30
21
USB MEDIA JACK (CH. 8)
A-type USB connector that a removable data storage device can be connected to playback music
USB Playback:
First, select the proper input for channel 8 by sliding the input selection switch (23) to the
USB position. e bottom of the LCD display will say “Insert USB drive”.
Insert your USB drive into the USB Media Jack (21) at the top of channel 8. e Media Player
will now enter "Folder Navigation Mode". In this mode, you can scroll through a list of all
folders on the USB drive. Once you select a folder, the Media Player will enter "Song Navigation
Mode" which allows you to scroll through a list of all songs contained in the selected folder. If
there are no songs in the selected folder, the LCD will display "No Songs". To return to Folder
Navigation Mode, scroll to the very beginning of the list and select the <FOLDERS> option.
Once a song is nished playing, the Media Player will automatically start playing the next song.
Once the Media Player reaches the last song, it will automatically loop back to the beginning of
the list.
22
BLUETOOTH ACTIVE LED (CH 8)
e blue “Bluetooth Active LED” indicates the status of the Bluetooth connection. If the LED
is o, the Bluetooth module is powered o. If the LED is slowly ashing, the XRs is not paired
with any device, but is available for connection.. When the LED is lit solid, the source device is
properly paired to the mixer and ready to play.
Bluetooth Operation:
To listen to music via the Bluetooth wireless connection, you must rst pair (link) your XRs
mixer with your Bluetooth phone and/or music device.
Turn o any Bluetooth devices previously paired with the XRs mixer.
Turn on the Bluetooth feature on your phone or music device.
Make sure the XRs is ready for a Bluetooth connection.
e Bluetooth Active LED should be blinking and the LCD will say, “Bluetooth Input”.
Place your phone or music device in Bluetooth search mode. e phone or music device will
begin searching for the XRs.
Select “Peavey Mixer” from the search results on your phone or music device.
You will be prompted to enter a pin number. Enter the pin#, it is 7878.
If the pairing is successful, the Bluetooth Active LED will stop blinking and stay lit.
You are now ready to begin streaming through Bluetooth to the mixer. e level can be adjusted
from the connected source or by the level control in Channel 8.
e XRs mixer will remember up to 10 devices that it was previously paired with and will automatically connect to the last device with which it was paired when turned on. To clear the paired device
memory, make sure the mixer is in Bluetooth mode and press and hold the Previous button (35),
Play/Pause button (36), and Next button (37) for 5 seconds. e XRs mixer will ask if you would
like to clear the Bluetooth memory. Select "Y" using the Media Select knob to clear the memory.
e XRs mixer will go through the process of clearing the memory, which should take approximately 15 seconds.
23
24
25
26
27
30
CH. 8
USB
IN
min max
HIGH
min max
min max
LOW
min max
MONITOR MID
min max
LEVEL
8
21
USB MEDIA
22
clip
28
29
sig
7

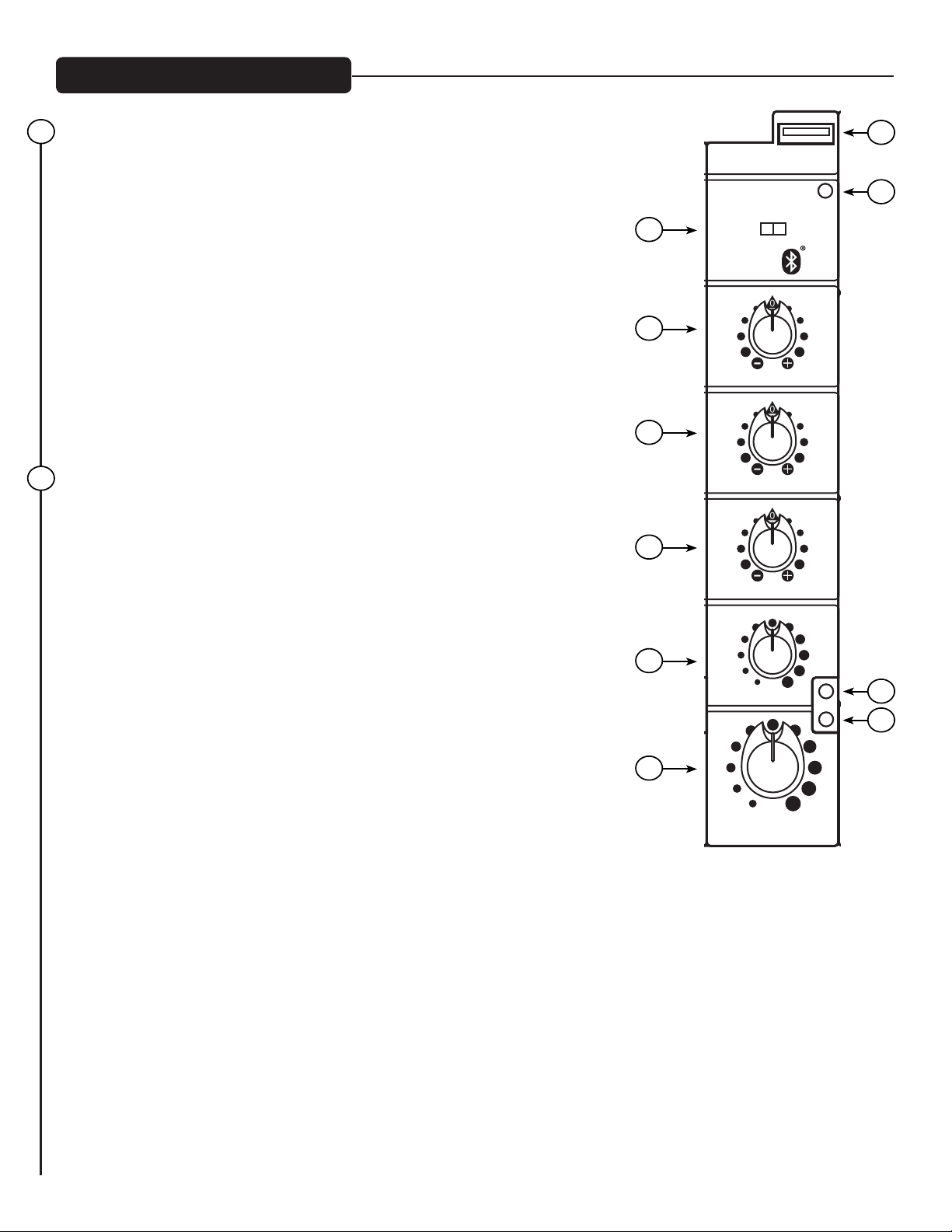

Channel Strip for Channel 8
23
XLR/USB/BLUETOOTH SWITCH (CH. 8)
is switch allows the user to select the input signal being sent to channel 8. It can select between the Mic-Line preamp (XLR), the USB A connector or a wireless Bluetooth connection from an external device (phone, ipod or tablet).
24
HIGH EQ
is High EQ shelving type of active tone control varies the treble frequencies (+/- 15 dB at 12kHz) and is designed to remove noise or add
brilliance to the signal, depending on the quality of the source.
25
MID EQ (CH. 8)
e mid EQ is a band-pass (peak/notch) type of active tone control that varies the mid-range frequencies (+/-15dB at 450Hz).
26
LOW EQ
A shelving type of EQ that varies the bass frequency levels (+/- 15dB at 80Hz). Low EQ adds depth to thin-sounding signals or cleans up the
muddy ones. As with any EQ, use sparingly. Too much of this EQ can give you a booming bottom end.
MONITOR SEND
27
e monitor send adjusts the level of the channel signal added to the monitor send.
28
CLIP
When this LED turns on or blinks red, it is an indication that the signal in the channel is potentially too strong and could cause distortion.
Turn down the Level control (12) until the Clip light is no longer present. If you are having diculty getting a clean signal, try varying the
output of the connected device, if possible.
29
SIG
When this LED is green, it is an indication the mixer is receiving signal at the input of the channel. If you are having trouble getting sound out
of the mixer and this LED is not on, check the microphone, instrument or cable that is connected to the channel.
30
LEVEL
is control sets the signal level sent to the main mix.
8
Front Panel
USB MEDIA PLAYBACK
DIGITAL EFFECTS
Press to Select
Press to Select
EFX
SELECT
MEDIA
SELECT
MIC
EFX
MUTE
DEFEAT
efx clip
31
DIGITAL EFFECTS LCD DISPLAY
31 32
36 3735
333834
39
e top row of this LCD displays the currently selected Eect and the bottom row displays the status of the media inputs of channel 8. If channel 8 is in “USB” mode, it can also be used for navigating the folders on the USB drive or displaying the current song playing.
32
EFX SELECT
e EFX select knob is used to navigate through the EFX presets. Turning the encoder changes the selection in the display. e new selection
will be blinking in the display, push the EFX Select encoder to choose the new eect. Once the eect has been selected, you can now edit the
eect. To do this, press the EFX Select encoder, the display will change to the current parameter setting of the preset. Turn the EFX Select encoder to change the parameter up or down. Press the encoder again to exit the parameter edit mode. To restore the EFX presets back to factory
settings, press and hold the EFX Select encoder for 5 seconds and select "Y" when prompted.
33
EFX DEFEAT
is button mutes the eects being sent to the main mix and monitor mix, allowing the user to listen to a dry signal at the main outputs.
When muted, the switch will be red. is can also be activated with a momentary footswitch. See (53).
34
EFX CLIP
is LED blinks red when the signal being sent to the eects section is too high and is causing distortion. Find the source of the hot signal by
reducing the EFX send (7) on each channel until the LED is no longer lighting (blinking red).
35
REW/PREV
A short press will rewind to the beginning of the current song. Pressing this button twice will take you to the previous song on the USB drive.
A long press will rewind through the current song, release to play when you reach the desired spot in the song.
36
PLAY/PAUSE
e play/pause button toggles the current song between play and pause. When the > is displayed, the song will be playing. When II is displayed, the song is paused.
37
FF/NEXT
A short press will advance the media player to the next song on the USB drive. A long press will fast forward through the current song, release
to play when you reach the desired spot in the song.
MEDIA SELECT
38
Once a USB device is connected in channel 8, you can use the “Media Select” encoder to navigate through the folders/songs on the drive. Once
the desired le is displayed on the screen, press the Media Select knob to cue that le. Use the controls on the mixer for play, pause, forward
and reverse.
39
MIC MUTE
Depressing this button mutes the mic/line inputs in all 8 channels. e media inputs (RCA and 3.5mm) jacks on channel 7 and the USB/BT
inputs on channel 8 are still “live”. is allows you to play break music, while muting all of the microphone inputs.
9
Front Panel
USB MEDIA PLAYBACK
DIGITAL EFFECTS
Press to Select
Press to Select
EFX
SELECT
MEDIA
SELECT
MIC
EFX
MUTE
DEFEAT
efx clip
+12
+6
0
-6
-12
63 125 250 500 1K 2K 4K 8K 12K
FLS FEEDBACK LOCATING SYSTEM
SIGNAL
MONITOR
+12
+6
0
-6
-12
63 125 250 500 1K 2K 4K 8K 12K
FLS FEEDBACK LOCATING SYSTEM
SIGNAL
MAIN
KOSMOS-C
MONITOR
MAIN
min max
min/o max
min max
EFX TO MON
-6
-12
LIMIT
-18
-24
-30
-6
-12
LIMIT
-18
-24
-30
40
41 42
40
FLS
When feedback occurs, the corresponding LED of the frequency that is closest to the frequency that is feeding back will illuminate over the
slider to be adjusted. Slowly bring the corresponding slider down until feedback is gone. e LED will remain illuminated for a few seconds
aer the feedback is gone. If the feedback doesn’t return, all of the LEDs will become active again, acting as a normal EQ.
GRAPHIC EQ
41
ese nine-band Equalizers are designed to either be used to reduce feedback or to adjust the overall frequency response of the signal being
sent to the ampliers. Subtle adjustments made with the graphic equalizer can improve the way your loudspeaker system sounds in the room.
You should be aware however, that setting large amounts of boost or arbitrary curves can reduce amplier headroom, leading to early distortion or just plain bad or unintelligible sound. Working with the FLS, the graphic EQ can also be used to reduce feedback. Each band of EQ can
supply up to 12dB of boost or cut.
42
LEVEL LED LADDER
ese LEDs indicate the signal level of the main mix and the monitor mix. e top LED indicates LIMIT and activation of our revolutionary
DDT speaker protection circuit. Peavey’s award winning speaker protection is built into the XRs powered mixer and is activated automatically
to maximize the power amplier without fear of distortion.
43
KOSMOS-C
e Kosmos-C uses special circuitry to enrich the sound of your system. is is not just a simple bass boost. It provides “natural bass enhancement” by adding harmonically related bass signals that track the envelope of the original signal. e amount of eect is greatly inuenced by
the source material and some experimenting may be necessary to get the best results.
44
EFX TO MON
is switch toggles the EFX return signal being sent to the monitors. When it is lit, the eects signal is being sent to the monitors.
MONITOR LEVEL
45
e Monitor level control adjusts the level of the signal coming out of the Monitor send ¼” jack (15b). It can also be assigned to feed the 2nd
power amplier via the selector switch (20) on top of the mixer.
46
MAIN LEVEL
e Main level control sets the level of the main mix and the overall volume of the powered mixer.
43 44 45 46
10
Back Panel
47 48 51 52
POWER
ON
50/60 Hz 185 WATTS
Consumo de energia 185 Wh
A/C
FUSE
FOR 220-240V OPERATION,
FUSE MUST BE CHANGED
TO T5AH/250V
230V
115V
FOR 115V OPERATION,
FUSE MUST BE CHANGED
TO T10AH/250V
115V
T10AH/250V
220-240V
T5AH/250V
PIN 7878
WARNING:
THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN OR MOISTURE
AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT
BE PLACED ON THIS APPARATUS. TO PREVENT THE RISK OF FIRE
AVIS:
DECHARGE ELECTRIQUE, CET APPAREIL NE DOIT PAS ETRE EXPOSE
A LA PLUIE OU A L’HUMIDITE ET AUCUN OBJET REMPLI DE LIQUIDE,
TEL QU’UN VASE, NE DOIT ETRE POSE SUR CELUI-CI. REMPLACER
FCC ID: I4S-XRs
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJEC T
TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
CAUTION
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
AVIS:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
HAZARD, REPLACE WITH SAME TYPE 250 VOLT FUSE.
DANS LE BUT DE REDUIRE LES RISQUES D’INCENDIE OU DE
PAR UN FUSIBLE DE MEME TYPE ET DE 250 VOLTS.
CAN-ICES-3B/NMB-3B
A PRODUCT OF PEAVEY ELECTRONICS CORP.
DESIGNED AND ENGINEERED IN U.S.A.
IC: 3642B-XRs
MADE IN CHINA
CONNECTORS COMPATIBLE
WITH TWIST-LOCK
CONNECTORS AND 1/4”
SPEAKER CABLE
SPEAKER OUTPUTS
MINIMUM LOAD
4 OHMS PER AMPLIFIER
MAIN
PINOUT
TWIST-LOCK
1/4”
CLASS 2 WIRING
NEG
1-
SLV
MAIN/MONITOR
(WITH FRONT PANEL MONITOR SWITCH ACTIVE
THESE OUTPUTS RECEIVE SIGNAL FROM MONITOR SECTION)
POWER AMP 1
POWER AMP 2
FOOTSWITCH
EFFECTS DEFEAT
535049
47
POWER SWITCH
is is the main power switch.
48
FUSE
is is the main safety fuse for the AC line voltage. Only replace with a fuse of the exact type and rating. If the fuse continues to open, do not
over fuse. Take the unit to an authorized Peavey service center.
NOTE: If the main AC voltage is changed, the fuse must also be changed to one of the appropriate rating for the voltage you are switching to.
49
AC Power Inlet
is is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide
power to the unit. Damage to the equipment may result if improper line voltage is used. Never break o the ground pin on any equip-
ment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and
the third wire should be grounded properly. To prevent the risk of shock or re hazard, always make sure that the amplier and all associated
equipment is properly grounded.
NOTE: FOR UK ONLY
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: (1) e wire which is coloured green and yellow must be connected to the terminal which is
marked by the letter E, or by the Earth symbol, or coloured green or green and yellow. (2) e wire which is coloured blue must be
connected to the terminal which is marked with the letter N, or the colour black. (3) e wire which is coloured brown must be con-
nected to the terminal which is marked with the letter L, or the colour red.
To avoid the risk of electrical shock, do not place ngers or any other objects into empty tube sockets while power is being supplied to unit.
50
Voltage Selector Switch
is switch allows the user to select between 115VAC / 60Hz or 230VAC / 50Hz. To change the voltage selector, you must rst un-
screw and remove the plastic cover that protects the switch. Aer changing the voltage, please replace the plastic cover to ensure the
voltage level is not inadvertently altered.
NOTE: e fuse MUST be changed to the appropriate value to match the voltage you have selected. Please see the note on the back of the
mixer for the correct value.
51
POWER AMP 1 SPEAKER OUTPUTS (MAIN MIX)
Dual two-conductor ¼” – Speakon combination jacks that can be connected to your speakers. Each amplier has a minimum load impedance
of 4 ohms. is means you can connect either one 4-ohm, one 8-ohm or two 8-ohm speakers to each amplier. Do not operate below rated
minimum impedance. For maximum power transfer and to prevent damage to your amplier, be sure to use speaker cables and not instrument cables to connect to the speakers. We recommend the use of 18-guage or larger speaker wire.
Back Panel
52
POWER AMP 2 SPEAKER OUTPUTS (MAIN MIX or MONITOR MIX)
Dual two-conductor ¼” – Speakon combination jacks that can be connected to your speakers. Each amplier has a minimum load impedance of 4 ohms. is means you can connect either one 4-ohm, one 8-ohm or two 8-ohm speakers to each amplier. Do not operate below
rated minimum impedance. For maximum power transfer and to prevent damage to your amplier, be sure to use speaker cables and not
instrument cables to connect to the speakers. We recommend the use of 18-guage or larger speaker wire. e signal going to Power Amp 2 is
determined by the position of the Power Amp 2 Assign switch (20). In the “MAIN” position, the main mix is fed to power amp 1 and power
amp 2. In the “MON” position, the main mix is fed to power amp 1 and the monitor mix is fed to power amp 2.
53
Footswitch (TRS) Eects Defeat/Mic Mute (Global)
is 1/4" (TRS) jack accepts a momentary 1/4" TRS dual button footswitch (Peavey part # 03014070) designed to defeat the eects (tip to
sleeve) and activate the MIC MUTE switch (39, ring to sleeve). e status of either function will be displayed by the lighting of the switch on
the front panel. If the eects are muted, either by the footswitch or the front panel switch (33), the EFX MUTE switch will glow red. If the
Mics are muted, either by the footswitch or the front panel switch (39), the MIC MUTE switch will glow red.
A single button footswitch (Peavey part # 03050680) can be used, but it will only work on the "Eects Defeat". In this case, the "Mic Mute"
status can only be toggled by the front panel switch (39).
12
Effects (parameter)
PLATE TIME DESCRIPTION PREDELAY ROOM ROOM SIZE FRONT END HP BACK END LP MORE DESCRIPTIVE
DAMP FACTOR NAME
P1 Bright 35 ms
P2 Gentle LP 48 ms
P3 Med LP 62 ms
P4 Hard LP 78 ms
P5 Dark 95 ms
HALL TIME
H1 Vox Fox 35 ms Med Med Subtle Subtle Med Hall
H2 Vox Huge 42 ms Med Large Subtle Subtle Cathedral
H3 Vox Glow 10 ms Med Large Subtle Subtle Auditorium
H4 Strings 30 ms Med Med Subtle Subtle Concert Hall
H5 Brass Hall 35 ms High Med Subtle Moderate Concert Hall 2
ROOM TIME
R1 Vox Air 30 ms Low Small Aggressive Subtle Hard Walls
R2 Vox Club 35 ms High Small Subtle Moderate Club
R3 Snare Low 70 ms Low Small Moderate Subtle Bathroom
R4 AC GTR 42 ms Med Small Moderate Subtle Med Walls
R5 Brass Room 40 ms High Med Subtle Moderate Med Room Damped Walls
DELAY TIME
D1 Double
D2 Slapback
D3 Bright, Few Repeats
D4 Bright, More Repeats
D5 Bright, Most Repeats
D6 Dark, Few Repeats
D7 Dark, More Repeats
D8 Dark, Most Repeats
ENHANCE CUTOFF FREQ
E1 Light Harmonics
E2 Moderate Harmonics
E3 Heavy Harmonics
CHORUS RATE PREDELAY CHORUS TIME RATE MODULATION
C1 High Depth, Slow Rate 10 ms 20 ms 0.1 – 1 Hz Random Sine
C2 Mod Depth, Wide Rate 10 ms 5 ms 0.5 - 4 Hz Random Sine
C3 Short Depth, Wide Rate 10 ms 2 ms 0.5 - 6 Hz Sine
C4 Short Depth, Fast Rate 5 ms 1 ms 5 - 15 Hz Random Sine
C5 High Depth, Mod Rate 2 ms 20 ms 0.2 - 3 Hz Random Sine
13
13
2
1
2
1
2
1
2
1
HI PASS
HI PASS

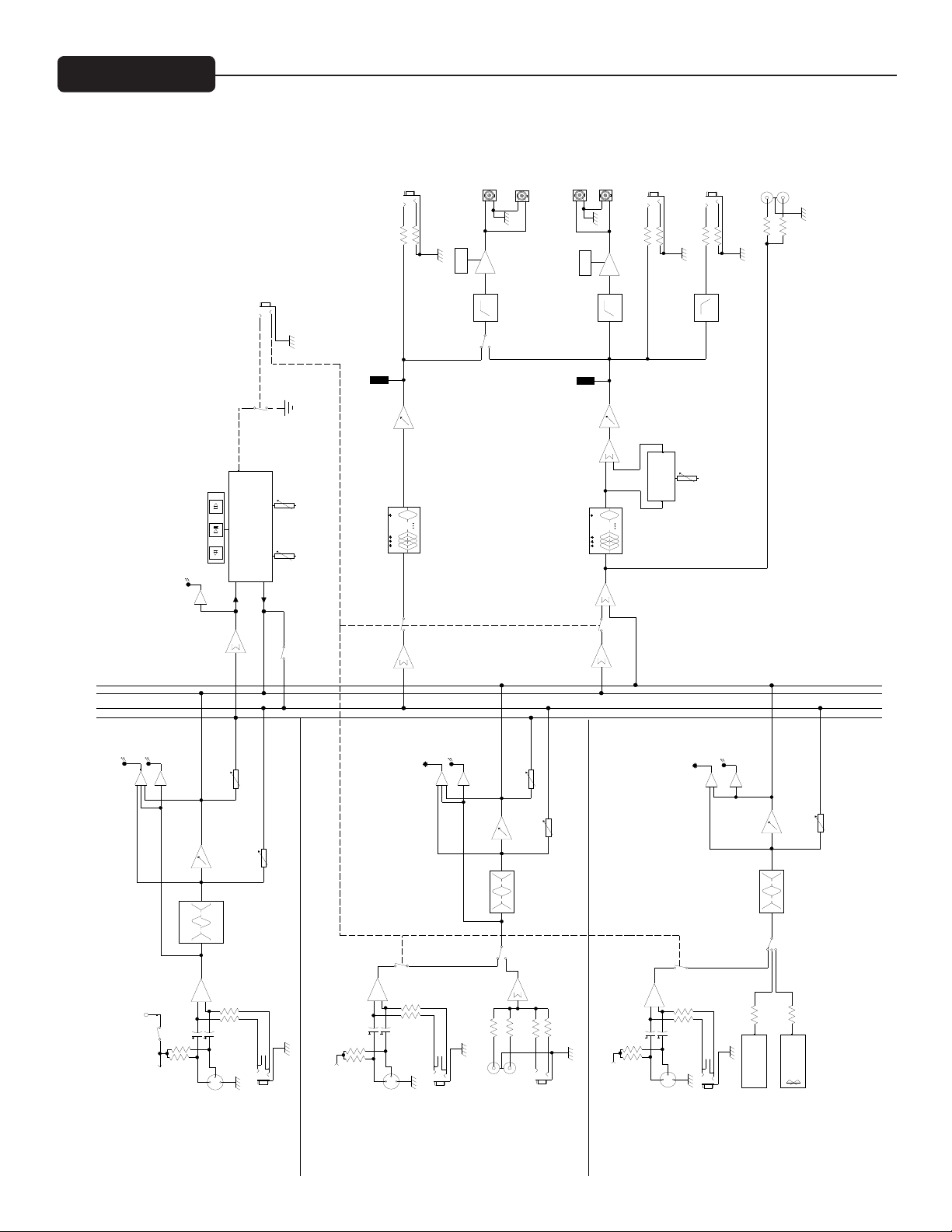

Peavey Electronics Corp.
D
4
3
2
1
CBA
Sheet Title:
Title:
Sheet
Date:
of
D
CONFIDENTIAL
Meridian, MS 39305
5022 Hartley Peavey Drive
+48V
LO
80Hz
4kHz
MID-MORPH
12kHz
HI
400Hz
EQ
LO MID HI
Graphic EQ with FLS
Graphic EQ with FLS
EQ
LO MID HI
LO PASS
LINE
MUTE
MICS
AMP1
AMP2
EFX
EFX
OUT
KOSMOS - C
CLIP
FOOTSWITCH
DEFEAT
REC
OUT
AMP2
OUT
AMP1
MAIN
OUT
MON
LEVEL
SIGNAL
CLIP
LEVEL
EFX
SIGNAL
LEFT
RIGHT
SUM
MP3 IN
SIGNAL
MIC PRE
EFX
CLIP
MON
EFX
EQ
LEVEL
USB INPUT
EQ
LEVEL
MONITOR
MONITOR
MONITOR
CLIP
LIMITER
LIMITER
LEVEL
MUTE
MICS
DEFEAT / MUTE MICS
VOLUME
ASSIGN
VOLUME
MONITOR
LOW
INPUT
BLUETOOTH
SUB
EFX
EFX
MEDIA
SELECTOR
TO MONITOR
MIC PRE
MIC PRE
AMP2
EQ
9 - BAND EQ
9 - BAND EQ
XLR
USB
Bluetooth
MUTE
MICS
SPEAKER
OUTPUTS
CHANNEL 8
CHANNEL 7
CHANNEL 1 - 6
CH. 1-6
CH. 7/8
MAIN
SELECTOR
EFFECTS
MEDIA
MUTE
MICS
MEDIA
XLR-LINE/
XLR
LINE
LINE
XLR
XLR
PHANTOM
PHANTOM
2
3
1
XRSBLK
3-16-2015_13:312 2
2
3
1
2
3
1
PHANTOM
Block Diagram
14
14
Specifications
INPUT SENSITIVITY:
Mic In to full power at the power amp. Master Volume Nom.
Full Nominal
-40 dBu -22 dBu
Line In to full power at the power amp. Master Volume Nom.
Full Nominal
-10 dBu +8 dBu
CHANNEL EQ:
Shelving EQ
Low EQ 80 Hz ±15 dB
Mid-Morph
Low 250 Hz ±15 dB
High 4 kHz ±15 dB
High EQ 12 kHz ±15 dB
CLIP LED:
Clip LEDs come on 3 dB before clipping.
FREQUENCY RESPONSE:
All controls nominal (detent)
Mic to Main 20 Hz – 20 kHz +0, -1 dB
Line to Main 20 Hz – 30 kHz +0, -1 dB
Mic to Amp 50 Hz – 20 kHz +0, -3 dB
Line to Amp 40 Hz – 20 kHz +0, -3 dB
PHANTOM POWER:
+48 VOLTS
NOISE:
Main = Main line output, 22 – 22 kHz filter
Amp 1 = Amplifier output, loaded at 4 Ohms, through AP
AUX-0025 switching amplifier filter
All controls full down.
Main <-95 dBu
Amp 1 <-60 dBu
Master Volume nominal
Main <-88 dBu
Amp 1 <-55 dBu
THD:
All controls nominal
<0.01% @ main line output, -30 dBu in mic input Channel 1
<0.5% @ amp 1 @ 400 Watts into 4 Ohms
All controls nominal
<0.005% @ main line output, +4 dBu in line input Channel 1
<0.5% @ amp 1 @ 400 Watts into 4 Ohms
MASTER EQ:
80Hz ±12 dB
250Hz ±12 dB
500Hz ±12 dB
1kHz ±12 dB
2kHz ±12 dB
4kHz ±12 dB
10kHz ±12 dB
METER ARRAY:
LIMIT
-6 dB
-12 dB
-18 dB
-24 dB
-30 dB
AMP LIMITER:
Limits amplifier power just before clipping. The limiter holds the amp power
without clipping and can be driven up to 18 dB past maximum output.
AMPLIFIER OUTPUT POWER:
120VAC
Both channels loaded at 8 ohms: 280 Watts RMS per ch
Both channels loaded at 4 ohms: 500 Watts RMS per ch
POWER REQUIREMENTS:
Domestic: 120VAC 50/60Hz 200 Watts Nominal
Export: 230VAC 50/60Hz 200 Watts Nominal
SIZE:
Dimensions: H x W x D
7.75" x 15.5" x 9.375"
19.69cm x 39.37cm x 23.81cm
WEIGHT: 13 lbs.
5.9 kgs
Features and specifications subject to change without notice.
Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305
(601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • EX000139 • ©2011
15
Logo referenced in Directive 2002/96/EC Annex IV
The bar is the symbol for marking of new waste and
13 August 2005
Warranty registration and information for U.S. customers available online at
Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278
www.peavey.com
www.peavey.com/warranty
or use the QR tag below
Features and specications subject to change without notice.
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
is applied only to equipment manufactured after
Loading...
