FFrreeqquueennccyy rraannggee ((--1100 ddBB,, hhaallff
ssppaaccee))::
52 Hz to 21 kHz
FFrreeqquueennccyy rreessppoonnssee ((±±33 ddBB,, hhaallff
ssppaaccee))::
68 Hz to 17 kHz
SSeennssiittiivviittyy ((11WW//11MM))::
98 dB
PPoowweerr rraattiinngg ((pprrooggrraamm))::
500 Watts
PPoowweerr ccaappaacciittyy ((ppeeaakk))::
1000 Watts
MMaaxxiimmuumm SSPPLL::
127 dB
TTrraannssdduucceerr ccoommpplleemmeenntt::
Sheffield
®
Pro 1200+™12"
premium woofer and 14XT™1.4"
titanium diaphragm dynamic
compression driver on a 90 x
40˚ coverage constant
directivity horn
DDrriivveerr pprrootteeccttiioonn::
Sound Guard
™
IV for the
compression driver provides
long- and medium-term
overload and overdrive
protection
NNoommiinnaall ccoovveerraaggee ppaatttteerrnn::
90˚ x 40˚
EElleeccttrroo--aaccoouussttiicc ccrroossssoovveerr
ffrreeqquueennccyy::
2.9 kHz
NNoommiinnaall iimmppeeddaannccee::
8 Ohms
IInnppuutt ccoonnnneeccttiioonnss::
Two 1/4" phone jacks in parallel
EEnncclloossuurree mmaatteerriiaallss aanndd ffiinniisshh::
Trapezoidal, black carpetcovered enclosure with dado
joined 1/2" MDF (Medium
Density Fiberboard), and a fulllength, black powder-coated
steel grille
DDiimmeennssiioonnss ((HH xx WW xx DD))::
22.375" x 17.75" x 12.5625"
56.833 cm x 45.085 cm x
31.909 cm
WWeeiigghhtt::
40 lbs. (18.18 kg)
MMoouunnttiinngg oorr ssuussppeennssiioonn::
Die-cast aluminum 1-3/8" polemount cup for stand-mounting
FFeeaattuurreess
• Two-way sound reinforcement
monitor enclosure
• 30˚ and 45˚ dual angle
monitoring
• Peavey exclusive Sheffield Pro
1200+ woofer with 2.5" voice
coil
• 1.4" 14XT titanium diaphragm
compression driver
• Sound Guard IV tweeter
protection
• 500 Watt program/1000 Watt
peak power handling
• Heavy duty crossover network
for driver protection and EQ
• Lightweight trapezoidal
enclosure
• 90˚ x 40˚ coverage constant
directivity horn for better offaxis tonality
• High quality, heavy duty carpet
covering
• Steel handle
• Rugged dado and rabbet
construction for lightweightyet-strong joints
• T-Nut speaker mounting
• Heavy duty, full-length steel
grille
• SA-1 die-cast aluminum pole
mount

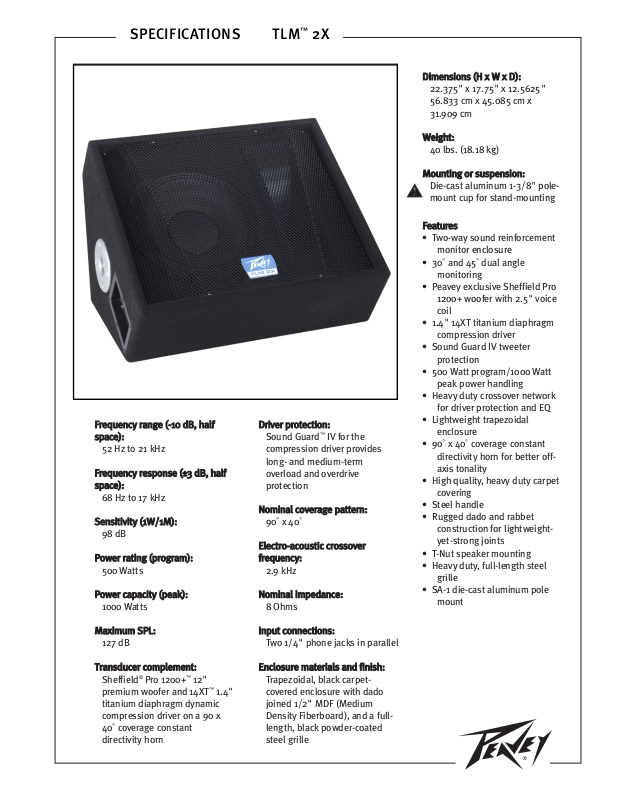

SPECIFICATIONS TLM™2X
Page 2
Features and specifications subject to change without notice.
Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com
©2003 Printed in the U.S.A. 2/03
80305060
SPECIFICATIONS TLM™2X
DDeessccrriippttiioonn
The TLM2X is a two-way floor
monitor utilizing a 12" Sheffield
®
Pro 1200+™woofer and a 14XT
™
titanium diaphragm dynamic
compression driver mounted on a
90˚ x 40˚ coverage constant
directivity horn. The lightweight, yet
rugged, carpet-covered monitor
enclosure with stand-mount cup
facilitates portable use a stage
monitor or in other sound
reinforcement applications.
The dual-angle enclosure provides a
choice of 30˚ and 45˚ monitoring
angles for full monitoring utility. A
full-length, black powder-coated
steel grille provides driver
protection and a professional
appearance.
The TLM 2X speaker system is rated
at 500 Watts program power
handling, and the full crossover
network includes high voltage film
capacitors and Sound Guard
™
IV
tweeter protection for clear, punchy
sound and excellent long-term
reliability. Two 1/4" phone jack
input connectors make hook-up and
daisy-chaining to other monitors a
breeze.
33 ++ 22 YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY
NNOOTTEE::
For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898.
Amplitude Response (1W 1m On-Axis)
110
100
90
80
dB SPL (re 20 Pa)
70
60
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 1
Frequency (Hz)
