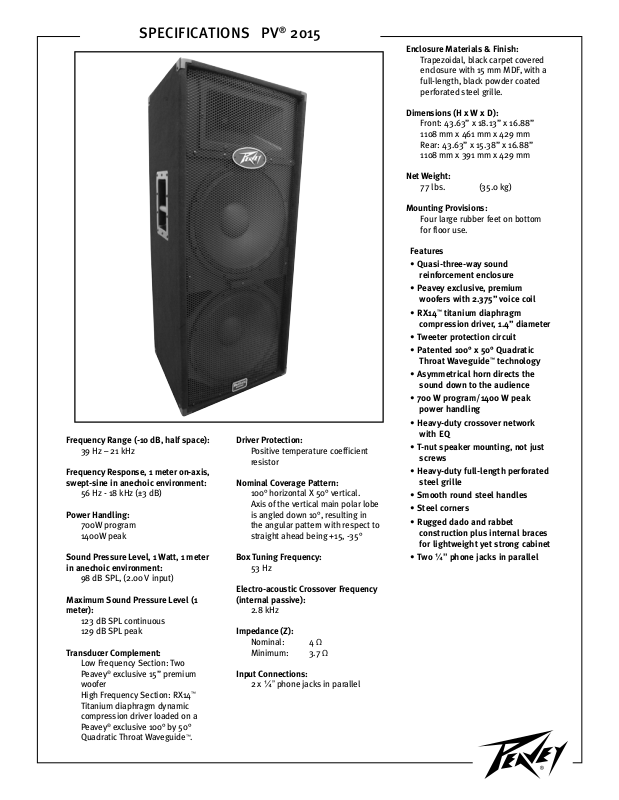

SPECIFICATIONS
Frequency Range (-10 dB, half space):
39 Hz – 21 kHz
Frequency Response, 1 meter on-axis,
swept-sine in anechoic environment:
56 Hz - 18 kHz (±3 dB)
Power Handling:
700W program
1400W peak
Sound Pressure Level, 1 Watt, 1 meter
in anechoic environment:
98 dB SPL, (2.00 V input)
Maximum Sound Pressure Level (1
meter):
123 dB SPL continuous
129 dB SPL peak
Transducer Complement:
Low Frequency Section: Two
®
exclusive 15” premium
Peavey
woofer
High Frequency Section: RX14
Titanium diaphragm dynamic
compression driver loaded on a
®
exclusive 100° by 50°
Peavey
Quadratic Throat Waveguide
™
™
.
PV®
2015
Driver Protection:
Positive temperature coefficient
resistor
Nominal Coverage Pattern:
100° horizontal X 50° vertical.
Axis of the vertical main polar lobe
is angled down 10°, resulting in
the angular pattern with respect to
straight ahead being +15, -35°
Box Tuning Frequency:
53 Hz
Electro-acoustic Crossover Frequency
(internal passive):
2.8 kHz
Impedance (Z):
Nominal: 4 Ω
Minimum: 3.7 Ω
Input Connections:
2 x ¼” phone jacks in parallel
Enclosure Materials & Finish:
Trapezoidal, black carpet covered
enclosure with 15 mm MDF, with a
full-length, black powder coated
perforated steel grille.
Dimensions (H x W x D):
Front: 43.63” x 18.13” x 16.88”
1108 mm x 461 mm x 429 mm
Rear: 43.63” x 15.38” x 16.88”
1108 mm x 391 mm x 429 mm
Net Weight:
77 lbs. (35.0 kg)
Mounting Provisions:
Four large rubber feet on bottom
for floor use.
Features
• Quasi-three-way sound
reinforcement enclosure
• Peavey exclusive, premium
woofers with 2.375” voice coil
™
• RX14
titanium diaphragm
compression driver, 1.4” diameter
• Tweeter protection circuit
• Patented 100° x 50° Quadratic
™
Throat Waveguide
technology
• Asymmetrical horn directs the
sound down to the audience
• 700 W program/1400 W peak
power handling
• Heavy-duty crossover network
with EQ
• T-nut speaker mounting, not just
screws
• Heavy-duty full-length perforated
steel grille
• Smooth round steel handles
• Steel corners
• Rugged dado and rabbet
construction plus internal braces
for lightweight yet strong cabinet
• Two ¼” phone jacks in parallel
Page 2
SPECIFICATIONS
Logo referenced in Directive 2002/96/EC Annex IV
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
The bar is the symbol for marking of new waste and
is applied only to equipment manufactured after
13 August 2005
Description
®
2015 is a full range
The PV
quasi-three-way speaker system
utilizing a pair of 15” premium
woofers and a RX14
diaphragm dynamic compression
driver for the highs. This high
performance driver is mounted on
a Peavey
®
patented asymmetric
Quadratic Throat Waveguide
covered under US patent #6,059,069
with smooth, even response, low
distortion and good high frequency
dispersion. This horn has an
asymmetrical vertical polar response,
aiming the main energy lobe down
10°, so it is aimed at the audience,
instead of over their heads. This
helps reduce ceiling reflections
for greater clarity and gain before
feedback. The constant directivity
characteristics provide the even
coverage needed for a successful
sound reinforcement application.
The lightweight, yet rugged,
carpet-covered trapezoidal
enclosure is ideal for portable use
for live music or speech sound
reinforcement, as well as music
playback. A full-length, black powder
coated perforated steel grille
provides driver protection, and a
professional appearance.
The crossover network includes
tweeter protection, and driver EQ, for
clear punchy sound, and good long
term reliability. Two 1/4” phone jacks
are connected in parallel for flexible
wiring options.
™
titanium
™
,
PV®
2015
3 + 2 YEAR LIMITED WARRANTY
NOTE: For details, refer to the
warranty statement. Copies of this
may be obtained by contacting
Peavey Electronics Corporation., PO
Box 2898, Meridian, MS 39301-2898
Features and specifications are subject to change without notice.
