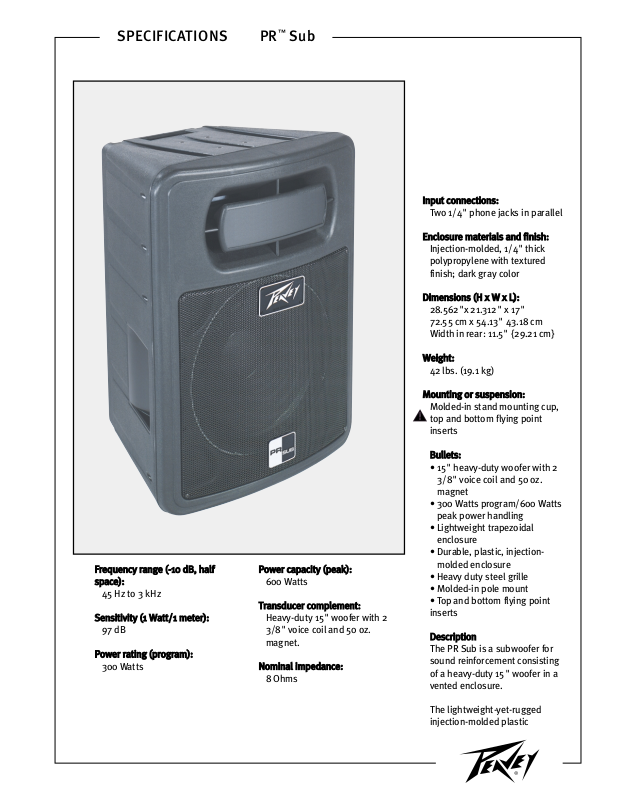

Peavey PR SUB DATASHEET
FFrreeqquueennccyy rraannggee ((--1100 ddBB,, hhaallff
ssppaaccee))::
45 Hz to 3 kHz
SSeennssiittiivviittyy ((11 WWaatttt//11 mmeetteerr))::
97 dB
PPoowweerr rraattiinngg ((pprrooggrraamm))::
300 Watts
PPoowweerr ccaappaacciittyy ((ppeeaakk))::
600 Watts
TTrraannssdduucceerr ccoommpplleemmeenntt::
Heavy-duty 15" woofer with 2
3/8" voice coil and 50 oz.
magnet.
NNoommiinnaall iimmppeeddaannccee::
8 Ohms
IInnppuutt ccoonnnneeccttiioonnss::
Two 1/4" phone jacks in parallel
EEnncclloossuurree mmaatteerriiaallss aanndd ffiinniisshh::
Injection-molded, 1/4" thick
polypropylene with textured
finish; dark gray color
DDiimmeennssiioonnss ((HH xx WW xx LL))::
28.562"x 21.312" x 17"
72.55 cm x 54.13" 43.18 cm
Width in rear: 11.5" {29.21 cm}
WWeeiigghhtt::
42 lbs. (19.1 kg)
MMoouunnttiinngg oorr ssuussppeennssiioonn::
Molded-in stand mounting cup,
top and bottom flying point
inserts
BBuulllleettss::
• 15" heavy-duty woofer with 2
3/8" voice coil and 50 oz.
magnet
• 300 Watts program/600 Watts
peak power handling
• Lightweight trapezoidal
enclosure
• Durable, plastic, injectionmolded enclosure
• Heavy duty steel grille
• Molded-in pole mount
• Top and bottom flying point
inserts
DDeessccrriippttiioonn
The PR Sub is a subwoofer for
sound reinforcement consisting
of a heavy-duty 15" woofer in a
vented enclosure.
The lightweight-yet-rugged
injection-molded plastic
SPECIFICATIONS PR™Sub
80305072
Features and specifications subject to change without notice.
Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 • (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com
©2003 Printed in the U.S.A. 7/03
SPECIFICATIONS PR™Sub
enclosure with molded-in standmount cup facilitates portable use
for augmenting the bass for live
music, DJ use or speech. A black
powder-coated steel grille provides
driver protection and a professional
appearance.
The PR Sub speaker system is rated
at 300 Watts program power
handling, and the woofer features a
2 3/8" diameter voice coil and a 50
oz. magnet for excellent long term
reliability. Two 1/4" phone jack input
connectors make hook-up and
daisy-chaining to other speakers a
breeze.
33 ++ 22 YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY
NNOOTTEE::
For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898.
PR 15 Input Plate
