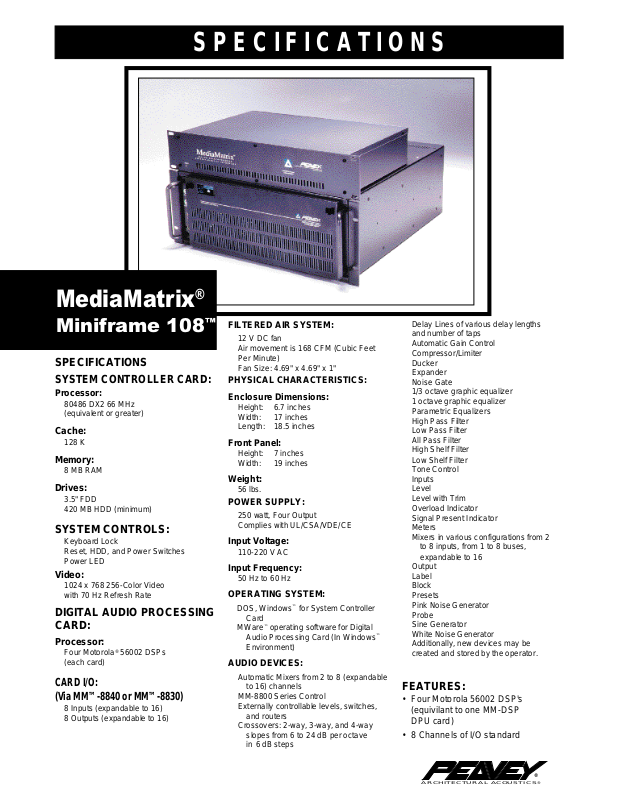

S P E C I F I C A T I O N S
MediaMatrix
®
Miniframe 108
SPECIFICATIONS
SYSTEM CONTROLLER CARD:
Processor:
80486 DX2 66 MHz
(equivalent or greater)
Cache:
128 K
Memory:
8 MB RAM
Drives:
3.5" FDD
420 MB HDD (minimum)
SYSTEM CONTROLS:
Keyboard Lock
Reset, HDD, and Power Switches
Power LED
Video:
1024 x 768 256-Color Video
with 70 Hz Refresh Rate
DIGITAL AUDIO PROCESSING
CARD:
Processor:
Four Motorola® 56002 DSPs
(each card)
CARD I/O:
(Via MM™-8840 or MM™-8830)
8 Inputs (expandable to 16)
8 Outputs (expandable to 16)
™
FILTERED AIR SYSTEM:
12 V DC fan
Air movement is 168 CFM (Cubic Feet
Per Minute)
Fan Size: 4.69" x 4.69" x 1"

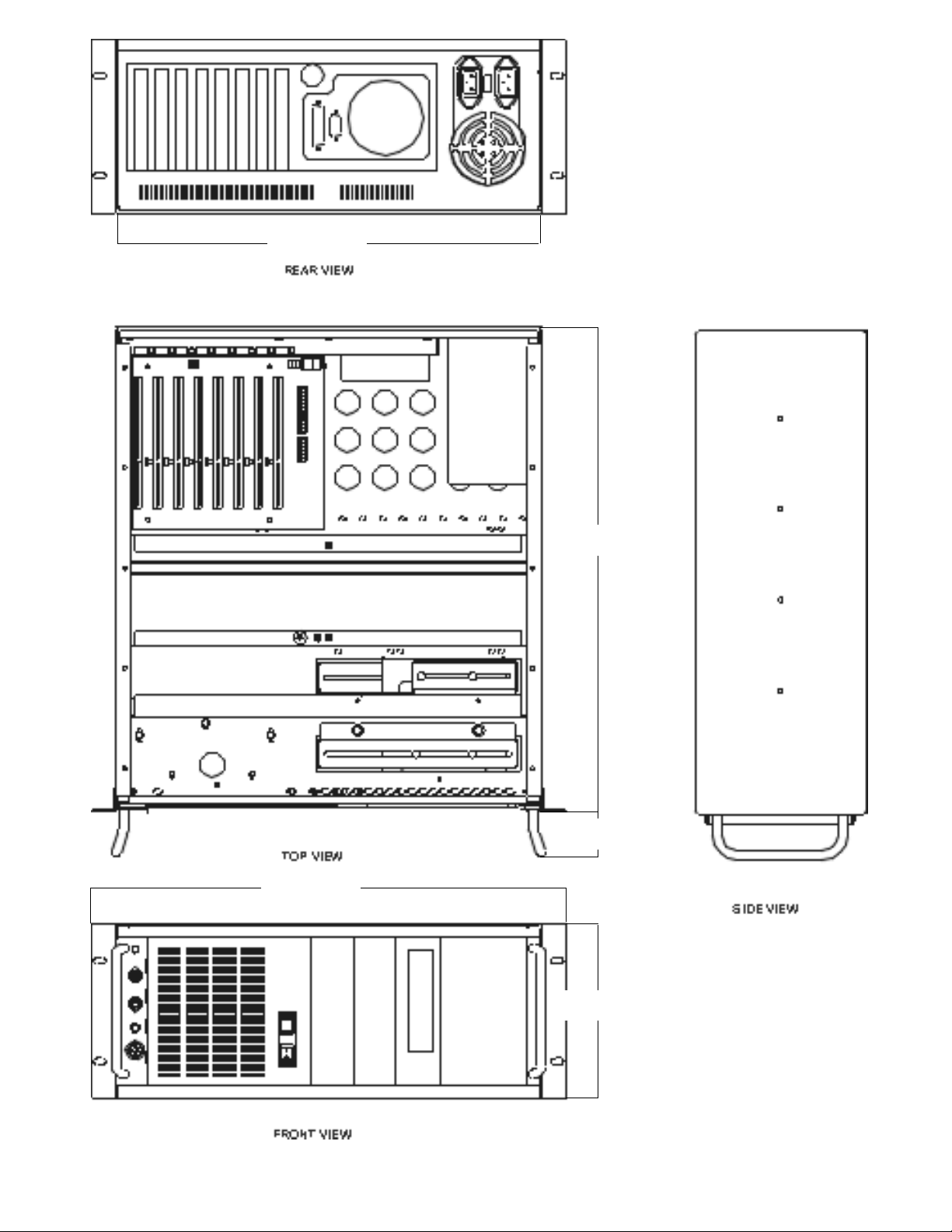

PHYSICAL CHARACTERISTICS:
Enclosure Dimensions:
Height: 6.7 inches
Width: 17 inches
Length: 18.5 inches
Front Panel:
Height: 7 inches
Width: 19 inches
Weight:
56 lbs.
POWER SUPPLY:
250 watt, Four Output
Complies with UL/CSA/VDE/CE
Input Voltage:
110-220 V AC
Input Frequency:
50 Hz to 60 Hz
OPERATING SYSTEM:
DOS, Windows™ for System Controller
Card
™
MWare
operating software for Digital
Audio Processing Card (In Windows
Environment)
AUDIO DEVICES:
Automatic Mixers from 2 to 8 (expandable
to 16) channels
MM-8800 Series Control
Externally controllable levels, switches,
and routers
Crossovers: 2-way, 3-way, and 4-way
slopes from 6 to 24 dB per octave
in 6 dB steps
Delay Lines of various delay lengths
and number of taps
Automatic Gain Control
Compressor/Limiter
Ducker
Expander
Noise Gate
1/3 octave graphic equalizer
1 octave graphic equalizer
Parametric Equalizers
High Pass Filter
Low Pass Filter
All Pass Filter
High Shelf Filter
Low Shelf Filter
Tone Control
Inputs
Level
Level with Trim
Overload Indicator
Signal Present Indicator
Meters
Mixers in various configurations from 2
to 8 inputs, from 1 to 8 buses,
expandable to 16
Output
Label
Block
Presets
Pink Noise Generator
Probe
Sine Generator
™
White Noise Generator
Additionally, new devices may be
created and stored by the operator.
FEATURES:
• Four Motorola 56002 DSP's
(equivilant to one MM-DSP
DPU card)
• 8 Channels of I/O standard
RCHITECTURAL ACOUSTIC
®
®
![](/html/19/1909/190914cb6b8639d20ffe4d435a5f6f45756db0f2277ea0ba6eb84e9d5991d066/bg2.png)
(expandable to 16)
• Standard 19" NEMA rack-mount
enclosure
• 1024 x 768 256-Color Video with a
70Hz refresh rate
• 250 Watt, 4 output power supply
• Lockable front control panel
• Heavy-duty, all-welded construction
• Three (3) switches for keyboard lock,
processor reset, and auxiliary
functions
• 420 MB HDD
• 3.5" FDD
DESCRIPTION
The MediaMatrix® Miniframe 108 is
the heart of an unprecedented digital
audio system. The system is based on
an open architecture that utilizes a
system controller card and one or more
digital processing cards employing four
(4) Motorola 56002 DSP chips. When
attached to the MM™-8830 or
MM™-8840 Digital Interface, it provides 8
inputs and 8 outputs. The maximum system capacity is 16 total inputs and outputs. The MediaMatrix MWare™ operating software provides the user/designer
the ability to design, wire (in the soft domain), and troubleshoot a complete digital
audio system. The user can then control
all the parameters of the system or create
custom panels, or even devices, to provide solutions not previously available.
The MWare™ operating software
provides system diagnostics, system
design, audio devices, and DSP
compiling features, which run under the
familiar Windows™ environment.
ARCHITECTURAL &
ENGINEERING
SPECIFICATIONS
The audio processing shall be in the
digital domain following the input source
and shall remain until power amplification is required. The audio processing
system shall be able to provide a list of
audio devices, which may be chosen
and configured into the system at any
time, from a device menu running under
the familiar Windows™ environment.
The list shall include, but not be limited
to, Automatic Mixers from 2 to 16
channels; Digital Interface controls;
externally controllable levels, switches,
and routers; Crossovers: 2-way, 3-way,
and 4-way slopes configurable from 6 to
24 dB per octave in 6 dB steps; Delay
lines of various delay lengths and
number of taps; Automatic Gain
Control; Compressor/Limiter; Ducker;
Expander; Noise Gate; 1/3 octave
graphic equalizer; 1 octave graphic
equalizer; Parametric Equalizers from 1
to 8 band; High Pass Filter; Low Pass
Filter; All Pass Filter; High Shelf Filter;
Low Shelf Filter; Tone Control; Inputs;
Level; Level with Trim; Overload
Indicator; Signal Present Indicator;
Peak Meter; R.M.S. Meter; Mixers in
various configurations from 2 to 8 inputs
(expandable to 16), from 1 to 16 buses;
Output; Label; Block; Presets; Routers
from 1x1 to 16x16; Pink Noise Generator; Probe; Sine Generator; White Noise
Generator; and the ability to create and
store new devices as required.
The hardware shall consist of
one (1) system controller card and
digital audio processing card with four
(4) Motorola 56002 DSP chips. The
system shall have diagnostics software
available for troubleshooting system
hardware. The system shall have a
minimum of a 250 Watt power supply.
The system shall be a MediaMatrix
Miniframe 108™.
®
