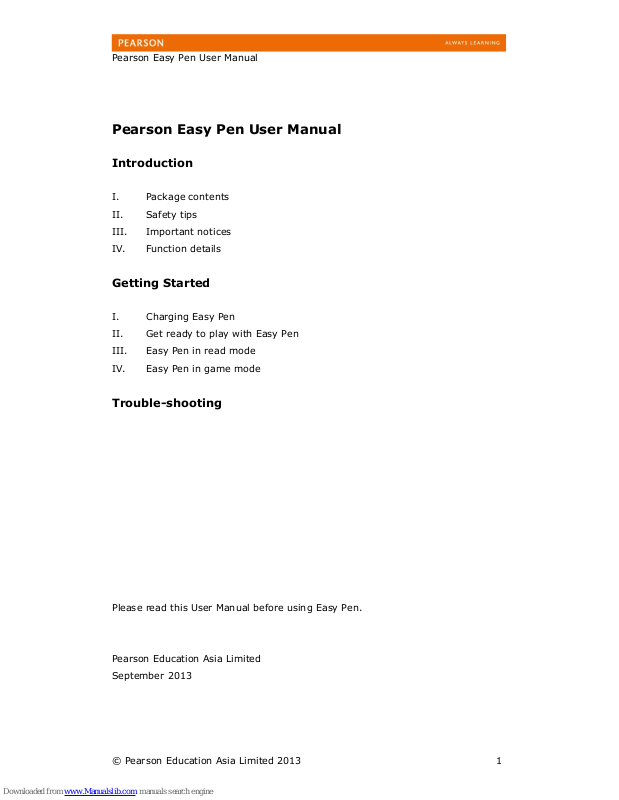

Pearson Easy Pen EP1, Easy Pen EP2 User Manual
Pearson Easy Pen User Manual
© Pearson Education Asia Limited 2013 1
Pearson Easy Pen User Manual
Introduction
I. Package contents
II. Safety tips
III. Important notices
IV. Function details
Getting Started
I. Charging Easy Pen
II. Get ready to play with Easy Pen
III. Easy Pen in read mode
IV. Easy Pen in game mode
Trouble-shooting
Please read this User Manual before using Easy Pen.
Pearson Education Asia Limited
September 2013
Pearson Easy Pen User Manual
© Pearson Education Asia Limited 2013 2
Introduction
Welcome to using Pearson Easy Pen!
I. Package contents
Your Pearson Easy Pen Pack contains the following items:
Easy Pen
User Manual
USB Cable
Warranty Card
II. Safety tips
To prevent damage to your Easy Pen or injury to yourself or to others,
please read the following safety tips before using Easy Pen.
1. Not suitable for children under the age of 3 due to small parts.
2. Adult supervision is required when using Easy Pen.
3. Generally, it is not necessary to charge Easy Pen before first use.
4. When the low battery signal (red Status Indicator) is on, please charge it by
connecting Easy Pen to your computer using the PC’s USB port and the included
USB cable.
5. Check USB connector and USB cable regularly to ensure no damage occurs.
6. If any damage occurs, stop using Easy Pen and contact the Pearson Easy Pen
Service Centre immediately for inspection.
7. Do not apply excessive force or attempt to dismantle and repair Easy Pen on
your own.
8. Do not expose Easy Pen to excessive sunlight, high temperature, high pressure,
moisture, strong static electricity or intense magnetic power.
Pearson Easy Pen User Manual
© Pearson Education Asia Limited 2013 3
III. Important notices
WARNING: TO PREVENT OR REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT EXPOSE EASY PEN TO ANY FORM OF MOISTURE.
Easy Pen
1. Pearson will not be held liable for any damages resulting from the attempt of
dismantle of the product by the user.
2. Keep Easy Pen away from strong sunlight or high moisture areas, such as
bathroom.
3. Keep food and beverages away from the product.
4. Do not spill liquid of any kind on this product as it may render it inoperative.
5. Disconnect from USB cable before cleaning.
6. Do not clean any part of Easy Pen with benzene, thinner, detergent or other
chemical solvent as this may cause permanent damage that is not covered by
the warranty. When necessary, clean it with a slightly damp cloth (with cold
water).
7. Allow to dry before use.
8. Avoid dropping the product.
9. Never try to dismantle it.
USB cable
1. Use the USB cable provided by Pearson only for charging the product or
downloading data from the computer.
2. Using any other cable may exceed the limits by FCC and other regulatory
emissions.
3. USB connectors and cable used with Easy Pen must be regularly examined for
damage at the cord, plug and other parts and, in the event of such damage, the
cable must not be used until the damage has been repaired.
Electro-Magnetic interference
The normal function of Easy Pen may be disturbed by strong electro-magnetic
interference. If so, simply use the tip of a pencil to press the Reset button on Easy
Pen to resume normal operation. In case the problem persists, please try using Easy
Pen in other areas on the page.
Pearson Easy Pen User Manual
© Pearson Education Asia Limited 2013 4
Protect your hearing
1. Long-term exposure to loud sounds may result in permanent hearing loss.
When using headphones or ear buds, it is recommended to set the volume of
Easy Pen to a lower range, and listen for short periods of time.
2. Turn the volume down immediately if you cannot hear people speaking near
you.
3. Limit the play time to 30 minutes, followed by a quiet period. If you experience
ringing in your ears or hear muffled speech, stop listening immediately and
have your hearing checked as soon as possible.
4. When using Easy Pen without headphones or ear buds, do not hold it near the
ears for listening.
