Paxton OEM PROXIMITY User Manual

22/12/2010

Ins-30151 OEM PROXIMITY Mifare reader 34bit Wiegand

Suitability

Security-sensitive doors

Wet environments

Mounted on metal surface

Readers mounted together

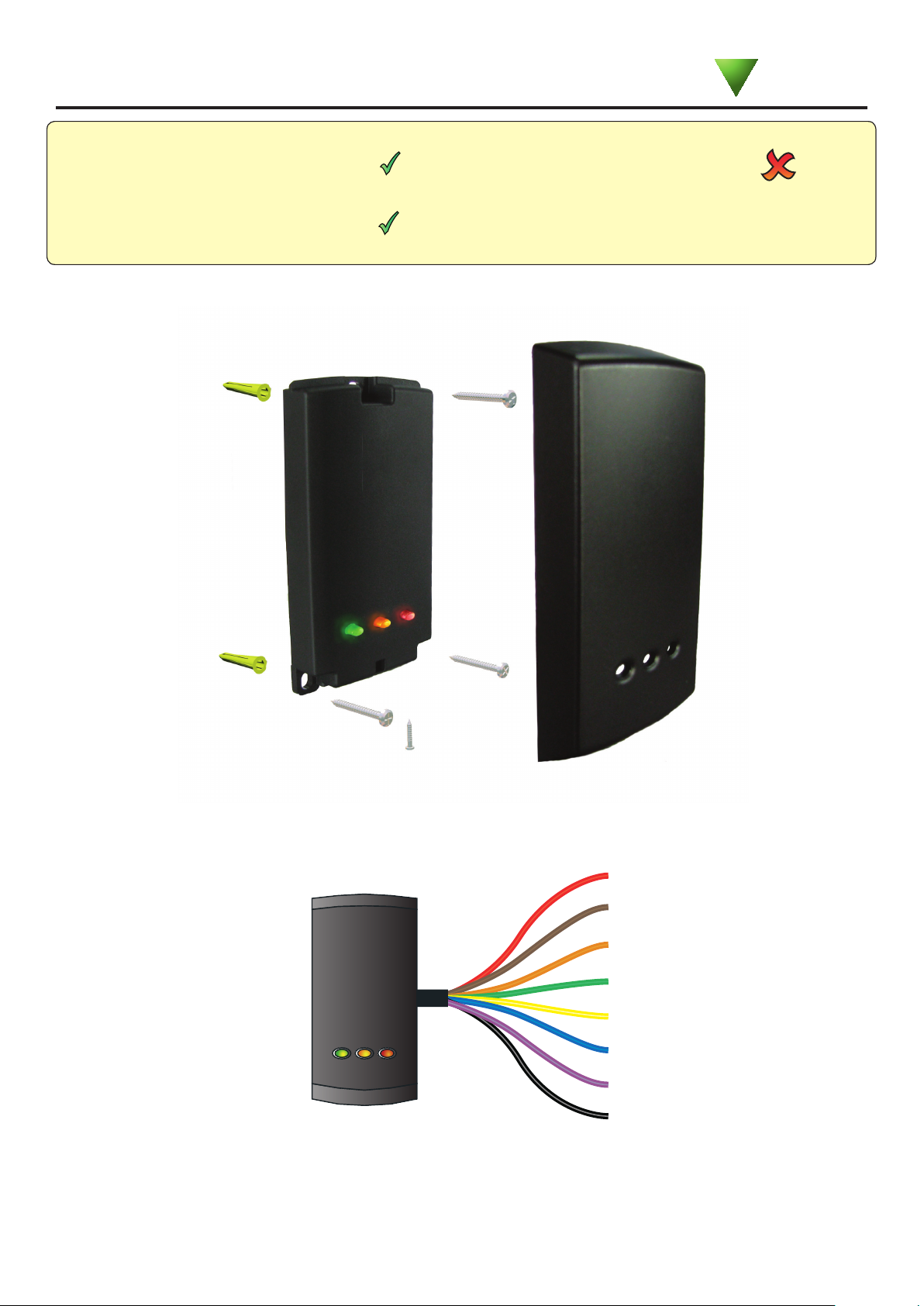

Fitting

Paxton

300 mm

between

readers

Wire outputs

+12V DC

Red LED

Amber LED

Green LED

Data 0

Data 1

Not Required

0V

Cable extensions

Readers can be extended using Belden CR9540 10-core overall screened cable to a maximum of 100 metres.

Specications

Environment

Operating temperatures - all items

Waterproof

Cable length

Electrical

Voltage

Current

Carrier frequency

Wiegand format

Dimensions

Min

-35 °C

Min

10V DC 14V DC

Width

50 mm 100 mm

Max

+66 °C

Max

170 mA

Height

Yes - Rated IPX7

5 metres

13.56 MHz

34 bits

Depth

15 mm

Token type and read range

Mifare 1K 50 mm

Mifare 4K 40 mm

This product is not suitable for retail sale. All warranties are invalid if this product is not installed by a competent person.

Mifare Ultralight / C 25 mm

Mifare Desre 20 mm

The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596
