1. Setting Up
Push the 415 Rewind power switch
1.
Place the rewind on a level surface. Be sure it is at least
2.
OFF
.
ten inches away from the supply exit of the printer
(Figure 1).
Squarely align the rewind’s hub flange with the edge of the
3.
supply. See Appendix A, "Rewind Alignment."

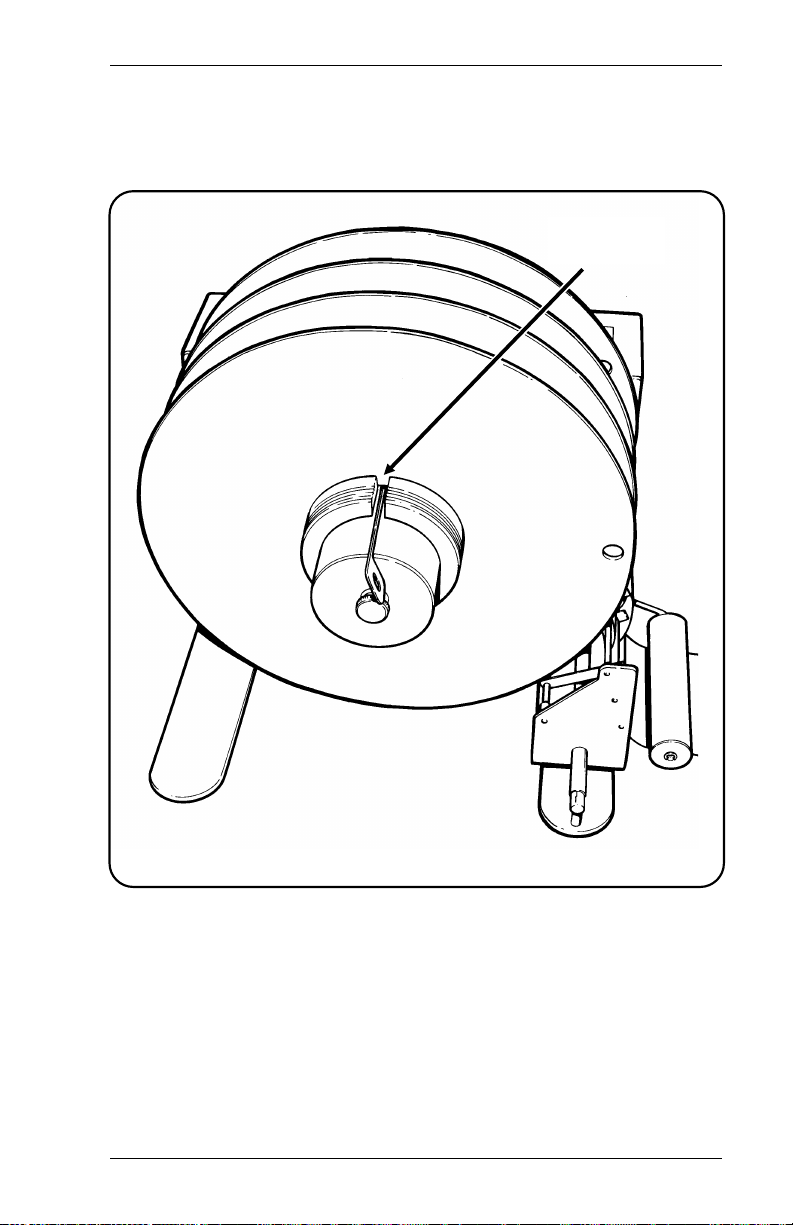

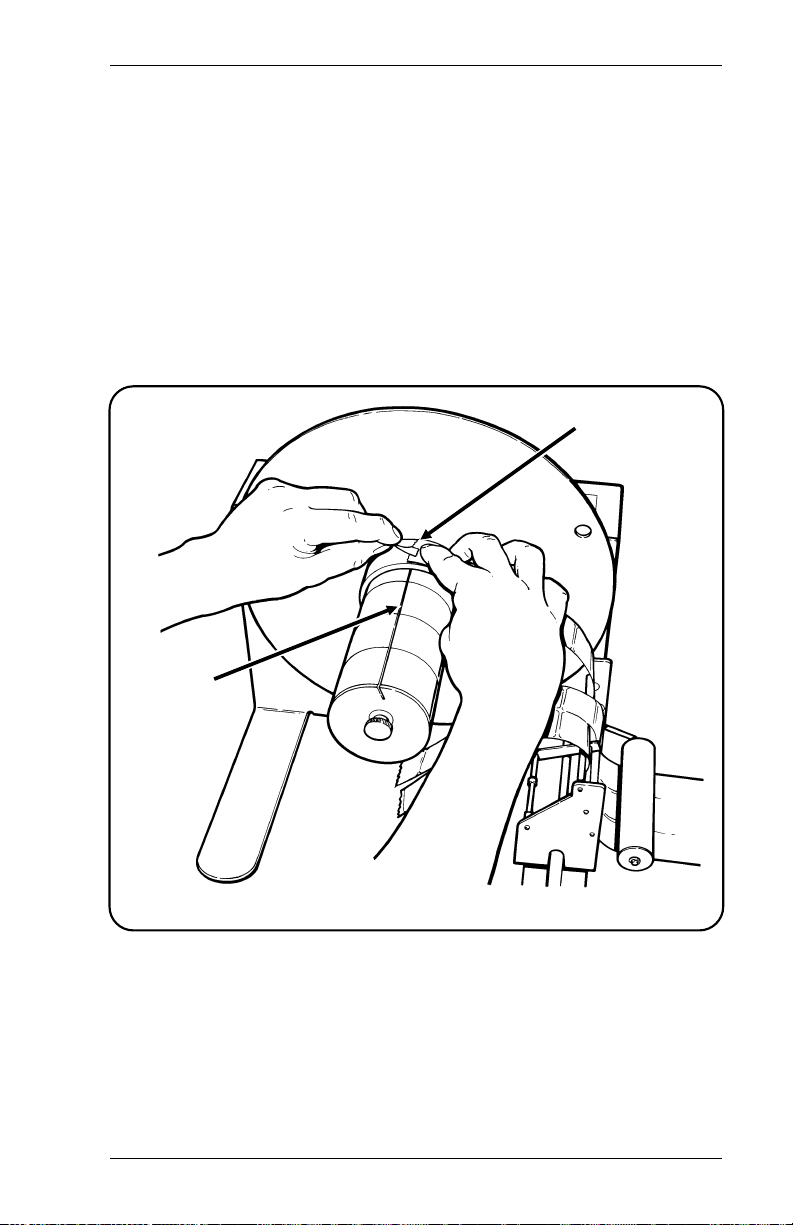

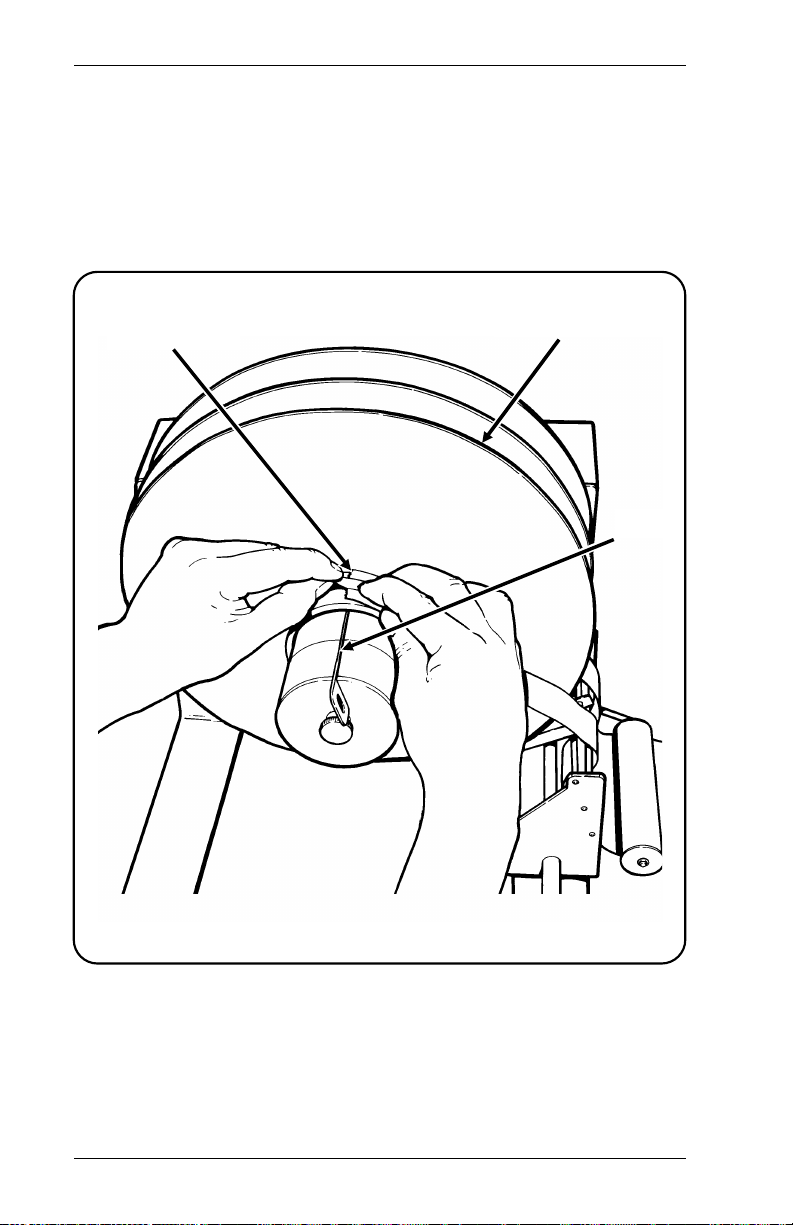

Hub
Flange
Printer
Supply
Hub
Exit
Power
Switch
Figure 1
1
Monarch 415 Rewind Operator’s Handbook
Plug the power cord into the rewind (Figure 2). Then, plug
4.
the power cord into a grounded electrical outlet.
Fuse Holder
Power
Switch
Power
Cord
Figure 2
2
2. Connecting Supplies
Rewinding on the Hub
Slide the supply guide away from the hub flange and pull it
1.
away from the hub.
Print or feed enough supplies from the printer to wrap
2.
around the hub one and one half times.
Hold the hub flange and twist the hub
3.
clockwise
stops.
Thread the supply strip under the dancer roller.
4.
Fold and insert the end of the supply strip into the slot
5.
(Figure 3). Be sure the supply is against the hub flange.
Hub
Flange
Slot
Dancer
Roller
Supply
Strip
Supply
Guide
until it
Figure 3
3
Monarch 415 Rewind Operator’s Handbook
Turn the hub and hub flange at least one full turn
6.
counterclockwise
Push the supply guide against the hub then slide it against
7.
to tighten the supply strip.
the supply.

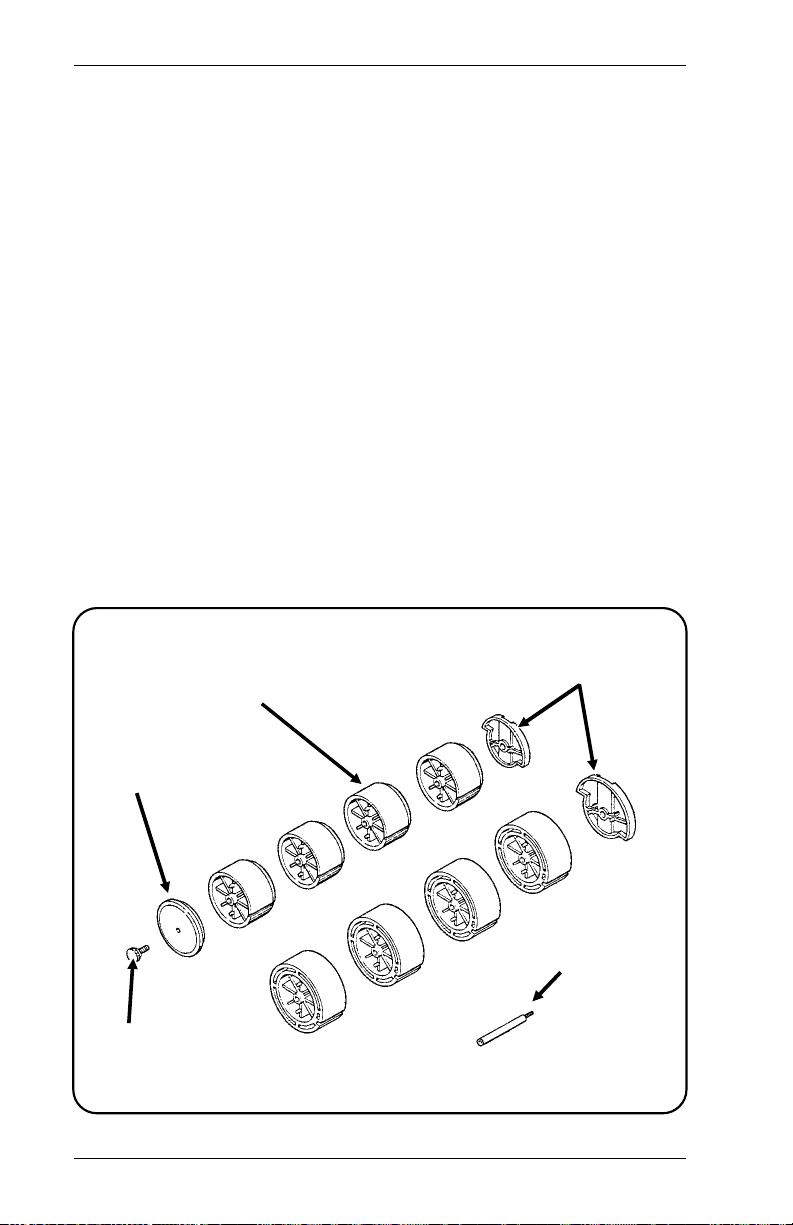

NOTE:
Units with 3" hubs have a flanged disk instead of
a supply guide.
Slide this disk over the hub and against the
stock/core (Figure 4).
Figure 4
4
2. Connecting Supplies
Rewinding on a Paper Core
Slide the supply guide away from the hub flange and pull it
1.
away from the hub.
Push the paper core on the hub until it is against the hub
2.
flange.
Hold the hub flange and twist the hub
3.
clockwise
until the
paper core is tight.
Tape the supply strip to the paper core (Figure 5). Be sure
4.
the supply is against the hub flange.
Hub
Flange
Supply
Tape
Strip
Paper
Core
Hub
Figure 5
5
