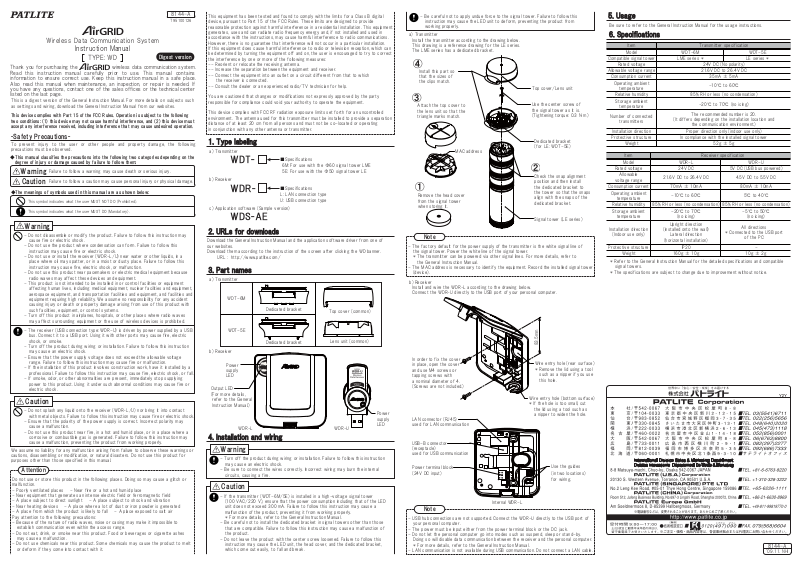

T95100126

Wireless Data Communication System

Instruction Manual

TYPE: WD

Thank you for purchasing the 　wireless data communication system.
Read this instruction manual carefully prior to use. This manual contains
information to ensure correct use. Keep this instruction manual in a safe place.
Also read this manual when maintenance, an inspection, or repair is needed. If
you have any questions, contact one of the sales offices or the technical center
listed on the last page.

This is a digest version of the General Instruction Manual. For more details on subjects such
as settings and wiring, download the General Instruction Manual from our websites.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

-Safety Precautions-

To prevent injury to the user or other people and property damage, the following
precautions must be observed.

◆This manual classifies the precautions into the following two categories depending on the
degree of injury or damage caused by failure to follow them:

Warning

Caution

◆The meanings of symbols used in this manual are as shown below:

This symbol indicates what the user MUST NOT DO (Prohibited).

This symbol indicates what the user MUST DO (Mandatory).

Failure to follow a warning may cause death or serious injury.

Failure to follow a caution may cause personal injury or physical damage.

Digest version

Warning

- Do not disassemble or modify the product. Failure to follow this instruction may
cause fire or electric shock.

- Do not use the product where condensation can form. Failure to follow this
instruction may cause fire or electric shock.

- Do not use or install the receiver (WDR-L/U) near water or other liquids, in a
place where oil may spatter, or in a moist or dusty place. Failure to follow this
instruction may cause fire, electric shock, or malfunction.

- Do not use this product near pacemakers or electric medical equipment because
radio waves may affect these devices and equipment.

- This product is not intended to be installed in or control facilities or equipment
affecting human lives, including medical equipment, nuclear facilities and equipment,
aerospace equipment, and transportation facilities and equipment, and facilities and
equipment requiring high reliability. We assume no responsibility for any accident
causing injury or death or property damage arising from use of this product with
such facilities, equipment, or control systems.

- Turn off this product in airplanes, hospitals, or other places where radio waves
may affect surrounding equipment or the use of wireless devices is prohibited.

- The receiver (USB connection type: WDR-U) is driven by power supplied by a USB
bus. Connect it to a USB port. Using it with other ports may cause fire, electric
shock, or smoke.

- Turn off the product during wiring or installation. Failure to follow this instruction
may cause an electric shock.

- Ensure that the power supply voltage does not exceed the allowable voltage
range. Failure to follow this instruction may cause fire or malfunction.

- If the installation of this product involves construction work, have it installed by a
professional. Failure to follow this instruction may cause fire, electric shock, or fall.

- If smoke, odor, or other abnormalities are present, immediately stop supplying
power to this product. Using it under such abnormal conditions may cause fire or
electric shock.

Caution

- Do not splash any liquid onto the receiver (WDR-L/U) nor bring it into contact
with metal objects. Failure to follow this instruction may cause fire or electric shock.

- Ensure that the polarity of the power supply is correct. Incorrect polarity may

cause a malfunction.

- Do not use this product near fire, in a hot and humid place, or in a place where a

corrosive or combustible gas is generated. Failure to follow this instruction may
cause a malfunction, preventing the product from working properly.

We assume no liability for any malfunction arising from failure to observe these warnings or
cautions, disassembling or modification, or natural disasters. Do not use this product for
purposes other than those specified in this manual.

Attention

Do not use or store this product in the following places. Doing so may cause a glitch or
malfunction.

- Poorly ventilated places - Near fire or a hot and humid place

- Near equipment that generates an intense electric field or ferromagnetic field

- A place subject to direct sunlight - A place subject to shock and vibration

- Near heating devices - A place where a lot of dust or iron powder is generated

- A place from which the product is likely to fall - A place exposed to salt air
Pay attention to the following precautions:

- Because of the nature of radio waves, noise or casing may make it impossible to
establish communication even within the access range.

- Do not eat, drink, or smoke near this product. Food or beverages or cigarette ashes
may cause a malfunction.

- Do not use chemicals near this product. Some chemicals may cause the product to melt
or deform if they come into contact with it.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.

This device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. The antenna used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.

1. Type labeling

a) Transmitter

WDT-

b) Receiver

WDR-

c) Application software (Sample version)

■Specifications
6M: For use with the Φ60 signal tower LME
5E: For use with the Φ50 signal tower LE

■Specifications
L: LAN connection type
U: USB connection type

WDS-AE

2. URLs for downloads

Download the General Instruction Manual and the application software driver from one of
our websites.
Download them according to the instruction of the screen after clicking the WD banner.

URL : http://www.patlite.com/

3. Part names

a) Transmitter

WDT-6M

Dedicated bracket

WDT-5E

Dedicated bracket

b) Receiver

Power
supply
LED

Output LED
(For more details,
refer to the General
Instruction Manual.)

WDR-L

4. Installation and wiring

Warning

- Turn off the product during wiring or installation. Failure to follow this instruction
may cause an electric shock.

- Be sure to connect the wires correctly. Incorrect wiring may burn the internal
circuits, causing a fire.

Caution

- If the transmitter (WDT-6M/5E) is installed in a high-voltage signal tower
(100 VAC/220 V), ensure that the power consumption including that of the LED
unit does not exceed 300 mA. Failure to follow this instruction may cause a
malfunction of the product, preventing it from working properly.
* For more details, refer to the General Instruction Manual.

- Be careful not to install the dedicated bracket in signal towers other than those
that are compatible. Failure to follow this instruction may cause a malfunction of
the product.

- Do not leave the product with the center screw loosened. Failure to follow this
instruction may cause the LED unit, the head cover, and the dedicated bracket,
which come out easily, to fall and break.

Top cover (common)

Lens unit (common)

WDR-U

Power
supply
LED

- Be careful not to apply undue force to the signal tower. Failure to follow this
instruction may cause the LED unit to deform, preventing the product from
working properly.

a) Transmitter
Install the transmitter according to the drawing below.
This drawing is a reference drawing for the LE series.
The LME series has a dedicated bracket.

④

Install this part so
that the sizes of
the clips match.

Top cover/Lens unit

③

Attach the top cover to
the lens unit so that the
triangle marks match.

MAC address

Use the center screw of
the signal tower as it is.
(Tightening torque: 0.3 N･m)

Dedicated bracket
(for LE: WDT-5E)

②

Check the snap alignment
position and then install

①

Remove the head cover
from the signal tower
when storing it.

Note

- The factory default for the power supply of the transmitter is the white signal line of
the signal tower. Power the white line of the signal tower.
* The transmitter can be powered via other signal lines. For more details, refer to
the General Instruction Manual.

- The MAC address is necessary to identify the equipment. Record the installed signal tower
(device).

b) Receiver
Install and wire the WDR-L according to the drawing below.
Connect the WDR-U directly to the USB port of your personal computer.

In order to fix the cover
in place, open the cover
and use M4 screws or
tapping screws with
a nominal diameter of 4.
(Screws are not included.)

LAN connector (RJ45)
used for LAN communication

USB-B connector
(receptacle)
used for USB communication

Power terminal block
(24V DC input)

Note

- USB hub connections are not supported. Connect the WDR-U directly to the USB port of
your personal computer.

- The power must be input either from the power terminal block or the DC jack.

- Do not let the personal computer go into modes such as suspend, sleep or stand-by.
Doing so will disable data communication between the receiver and the personal computer.
* For more details, refer to the General Instruction Manual.

LAN communication is not available during USB communication. Do not connect a LAN cable.

-

v
v

Internal WDR-L

the dedicated bracket to
the tower so that the snaps
align with the snaps of the
dedicated bracket.

Signal tower (LE series)

83.5mm

Wire entry hole (rear surface)
* Remove the lid using a tool
such as a nipper if you use
this hole.

Wire entry hole (bottom surface)
* If the hole is too small, cut
the lid using a tool such as
a nipper to widen the hole.

Use the guides
(in two locations)
for wiring.

5. Usage

Be sure to refer to the General Instruction Manual for the usage instructions.

6. Specifications

Item Transmitter specification

Model WDT-6M

Compatible signal tower

Rated voltage

Allowable voltage range

Consumption current

Operating ambient

temperature
Relative humidity
Storage ambient

temperature

Number of connected

transmitters

Installation direction

Weight

Item

Model WDR-L

Rated voltage

Allowable

voltage range

Consumption current

Operating ambient

temperature
Relative humidity
Storage ambient

temperature

Installation direction

(Indoor use only)

Protective structure

Weight

* Refer to the General Instruction Manual for the detailed specifications and compatible
signal towers.
* The specifications are subject to change due to improvement without notice.

85% RH or less (no condensation)

LME series * LE series *

(It differs depending on the installation location and

In compliance with the installed signal towerProtective structure

24V DC

21.6V DC to 26.4V DC

70mA ± 10mA

-10℃ to 60℃

-20℃ to 70℃
(no icing)

Upright direction

(installed onto the wall)

Lateral direction

(horizontal installation)

IP20

160g ± 10g

24V DC (No polarity)

21.6V DC to 26.4V DC
35mA ± 5mA

-10℃ to 60℃

85% RH or less (no condensation)

-20℃ to 70℃ (no icing)

The recommended number is 20.

the communication environment.)

Proper direction only (indoor use only)

52g ± 5g

Receiver specification

85% RH or less (no condensation)

* Connected to the USB port

WDT-5E

WDR-U

5V DC (USB bus powered)

4.5V DC to 5.5V DC

80mA ± 10mA

5℃ to 40℃

-5℃ to 50℃
(no icing)

All directions

of the PC

-

10g ± 2g

8144-A

'09.11. NHI
