Page 1
ø118
3-M5
ø102
18
142
120
°
120°
Wire Entry Hole
ø
70
Mounting Hole
3-
ø
6
45
Nameplate
Specications
Mounting Dimensions
How to Order
SKHE - -
Color
R: Red
Y: Am ber
G: Green
B: Blue
Rate d Voltage
Alarm
Model
12 : DC 12V
24 : DC 24V
100: AC 100V
200: AC 200V
Blank: Without
B: With
The PATLITE LED revolving warning light
uses a unique and patented reecting
system, solely designed for these models.
Even though the dispersion characteristics
of the LED chip is less than an
incandescent bulb, PATLITE’s unique
design creates an equivalent dispersion
eect with the light reector.
The uniquely designed reectors not
only reect upward and to the side,
but also downward; this cannot be
achieved by incandescent bulb type
revolving warning lights. The
PATLITE LED revolving warning light
is suitable for applications where high
visibility from a low angle is required.
Dimensions (Unit: mm)
(12/24V Only)
Newly developed reector for LED revolving warning light

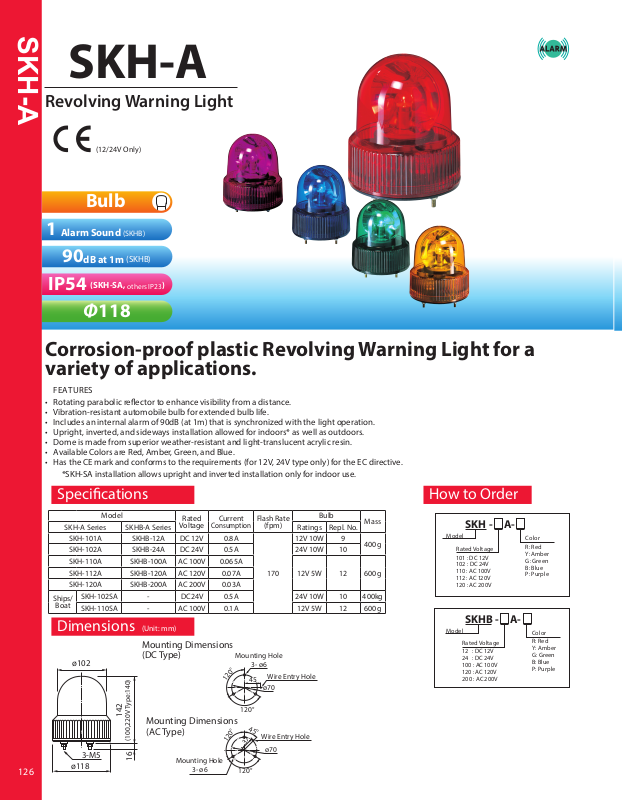

SKH-A
SKH-A
Revolving Warning Light
(12/24V Only)
Bulb
1
Alarm Sound
(SKHB)
90
IP54
dB at 1m
(SKH-SA,
(SKHB)
others IP23
)
Φ118
Corrosion-proof plastic Revolving Warning Light for a
variety of applications.
FEATURES
• Rotating parabolic reector to enhance visibility from a distance.
• Vibration-resistant automobile bulb for extended bulb life.
• Includes an internal alarm of 90dB (at 1m) that is synchronized with the light operation.
• Upright, inverted, and sideways installation allowed for indoors* as well as outdoors.
• Dome is made from superior weather-resistant and light-translucent acrylic resin.
• Available Colors are Red, Amber, Green, and Blue.
• Has the CE mark and conforms to the requirements (for 12V, 24V type only) for the EC directive.
*SKH-SA installation allows upright and inverted installation only for indoor use.
Specications
SKH-A Series SKHB-A Series Ratings Repl. No.
SKH-101A SKHB-12A DC 12V 0.8A
SKH-102A SKHB-24A DC 24V 0.5A 24V 10W 10
SKH-110A SKHB-100A AC 100V 0.065A
Model
Rated
Voltage
Current
Consumption
SKH-120A SKHB-200A AC 200V 0.03A
SKH-102SA - DC24V 0.5A 24V 10W 10 400kg
Ships/
Boat
SKH-110SA - AC 100V 0.1A 12V 5W 12 600g
Dimensions (Unit: mm)
ø102
Mounting Dimensions
(DC Type)
Mounting Hole
120°
45
120°
120°
45°
37
120°
126
ø118
3-M5
142
(100,220V Type:140)
16
Mounting Dimensions
(AC Type)
Mounting Hole
3- ø6
Flash Rate
(fpm)
170
3- ø6
Wire Entry Hole
ø70
Wire Entry Hole
ø70
Bulb
12V 10W 9
12V 5W 12 600gSKH-112A SKHB-120A AC 120V 0.07A
Mass
400g
How to Order
SKH - A-
Model
Rate d Voltage
101 : DC 12V
102 : DC 24V
110 : AC 100V
112 : AC 120V
120 : AC 200V
SKHB - A-
Model
Rate d Voltage
12 : DC 12V
24 : DC 24V
100 : AC 100V
120 : AC 120V
200 : AC 200V
Color
R: Red
Y: Am ber
G: Green
B: Blue
P: Purple
Color
R: Red
Y: Am ber
G: Green
B: Blue
P: Purple
