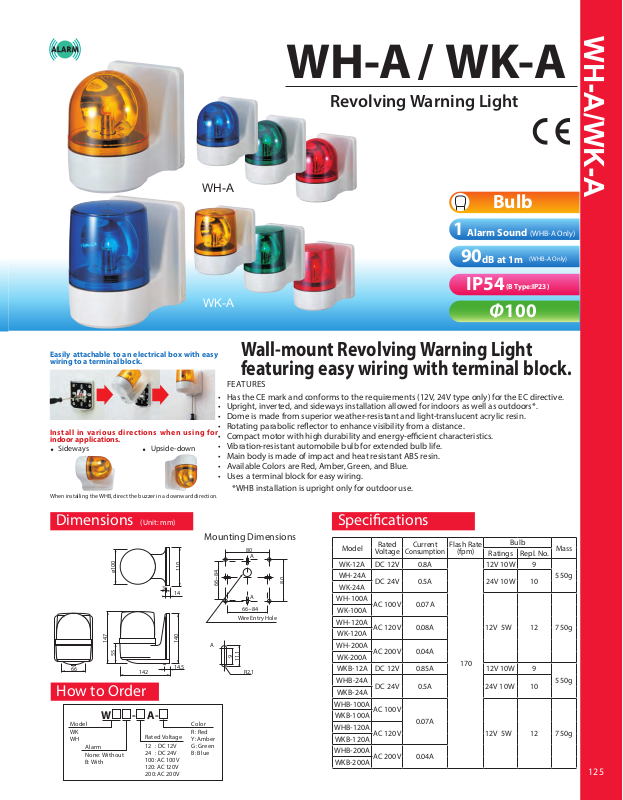

Patlite WH-A, WK-A Catalog

WH-A/WK-A

WH-A

WK-A

Easily attachable to an electrical box with easy
wiring to a terminal block.

Install in various directions when using for
indoor applications.

Sideways

•

When installing the WHB, direct the buzzer in a downward direction.

Upside-down

•

WH-A

/ WK-A

Revolving Warning Light

Bulb

1

Alarm Sound

90

dB at 1m

IP54

(WHB-A Only)

(WHB-A Only)

(B Type:IP23)

Φ100

Wall-mount Revolving Warning Light
featuring easy wiring with terminal block.

FEATURES

• Has the CE mark and conforms to the requirements (12V, 24V type only) for the EC directive.

• Upright, inverted, and sideways installation allowed for indoors as well as outdoors*.

• Dome is made from superior weather-resistant and light-translucent acrylic resin.

• Rotating parabolic reector to enhance visibility from a distance.

• Compact motor with high durability and energy-ecient characteristics.

• Vibration-resistant automobile bulb for extended bulb life.

• Main body is made of impact and heat resistant ABS resin.

• Available Colors are Red, Amber, Green, and Blue.

• Uses a terminal block for easy wiring.
*WHB installation is upright only for outdoor use.

Dimensions (Unit: mm)

3

147

55 ø100

66

142

How to Order

Model
WK
WH

W - A-

Alarm
None: Without
B: With

Rate d Voltage
12 : DC 12V

24 : DC 24V
100: AC 100V
120: AC 120V
200: AC 200V

14

14.5

Mounting Dimensions

110

66~84

140

Color
R: Red
Y: Am ber
G: Green
B: Blue

A

9

80

A

A

66~84

Wire Entry Hole

11.1

R2.1

Specications

Model

WK-12A DC 12V 0.8A

80

WH-24A

WK-24A

WH-100A

WK-100A

WH-120A

WK-120A

WH-200A

WK-200A

WKB-12A DC 12V 0.85A 12V 10W 9

WKB-24A

WHB-100A

WKB-100A

WHB-120A

WKB-120A

WHB-200A

WKB-200A

Rated

Voltage

DC 24V 0.5A 24V 10W 10

AC 100V 0.07A

AC 120V 0.08A

AC 200V 0.04A

DC 24V 0.5A 24V 10W 10

AC 100V

AC 120V

AC 200V 0.04A

Current

Consumption

0.07A

Flash Rate

(fpm)

170

Bulb

Ratings Repl. No.

12V 10W 9

12V 5W 12 750g

12V 5W 12 750g

Mass

550g

550gWHB-24A

125
