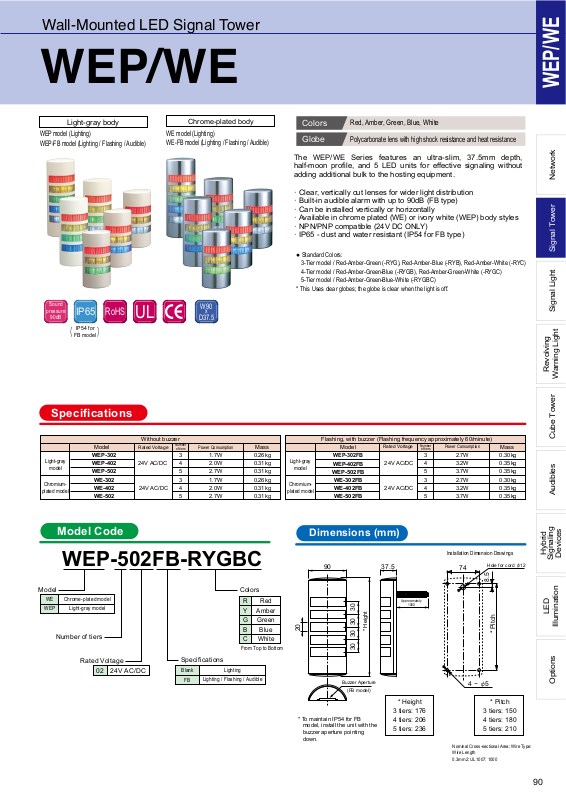

Wall-Mounted LED Signal Tower

WEP/WE

WEP/WE

Light-gray body

WEP model (Lighting)
WEP-FB model (Lighting / Flashing / Audible)

Sound

pressure

IP65

90dB

IP54 fo r

（ 　　　 ）

FB model

RoHS

UL

Chrome-plated body

WE model (Lighting)
WE-FB model (Lighting / Flashing / Audible)

W90

x

D37.5

Colors

Globe

Red, Amber, Green, Blue, White

Polycarbonate lens with high shock resistance and heat resistance

The WEP/WE Series features an ultra-slim, 37.5mm depth,
half-moon profile, and 5 LED units for effective signaling without
adding additional bulk to the hosting equipment.

· Clear, vertically cut lenses for wider light distribution

· Built-in audible alarm with up to 90dB (FB type)

· Can be installed vertically or horizontally

· Available in chrome plated (WE) or ivory white (WEP) body styles

· NPN/PNP compatible (24V DC ONLY)

· IP65 - dust and water resistant (IP54 for FB type)

● Standard Colors:

3-Tier model / Red-Amber-Green (-RYG), Red-Amber-Blue (-RYB), Red-Amber-White (-RYC)
4-Tier model / Red-Amber-Green-Blue (-RYGB), Red-Amber-Green-White (-RYGC)
5-Tier model / Red-Amber-Green-Blue-White (-RYGBC)
* This Uses clear globes; the globe is clear when the light is off.

6LJQDO7RZHU

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

Specifications

Light-gray

model

Chromium-

plated model

Model

WEP-302
WEP-402
WEP-502

WE-302
WE-402
WE-502

Without buzzer

Rated Voltage

24V AC/DC

24V AC/DC

Number

of tiers

3
4
5
3
4
5

Power Consumption

Model Code

WEP-502FB-RYGBC

Model

Chrome-plated model

WE

Light-gray model

WEP

Number of tiers

Rated Voltage

24V AC/DC02

Specifications

Blank

Lighting / Flashing / Audible

FB

1.7W

2.0W

2.7W

1.7W

2.0W

2.7W

Colors

From Top to Bott om

Lighting

&XEH7RZHU

$XGLEOHV

Mass

0.26kg

0.31kg

0.31kg

0.26kg

0.31kg

0.31kg

Light-gray

model

Chromium-

plated model

Flashing, with buzzer (Flashing frequency approximately 60/minute)

Model

WEP-302FB
WEP-402FB

WEP-502FB

WE-302FB
WE-402FB
WE-502FB

Rated Voltage

24V AC/DC

24V AC/DC

Number

of tiers

3
4
5
3
4
5

Power Consumption

2.7W

3.2W

3.7W

2.7W

3.2W

3.7W

Mass

0.30kg

0.35kg

0.35kg

0.30kg

0.35kg

0.35kg

Dimensions (mm)

Installation Dimension Drawings

90 37.5

R

Red

Y

Amber

G

Green

B

Blue

C

White

20

* To maintain IP54 for FB

model, install the unit with the
buzzer aperture pointing
down.

30303030

* Height

Buzzer Aperture

(FB model)

Approximately

1000

* Height
3 tiers: 176
4 tiers: 206
5 tiers: 236

Nominal Cross-sectional Area; Wire Type:
Wire Length

0.3mm2: UL1007: 1000

74

Hole for cord φ12

8.5

* Pitch

4 − φ5

* Pitch
3 tiers: 150
4 tiers: 180
5 tiers: 210

+\EULG

'HYLFHV

6LJQDOLQJ

/('

,OOXPLQDWLRQ

2SWLRQV 1HWZRUN

90

WEP/WE

6LJQDO7RZHU

6LJQDO/LJKW

Wiring Diagram

[WEP-□□□(FB) model] / [WE-□□□(FB) model]

● Lighting type

5
4
3
2
1

4
3
2

1

LED5 Red

LED4 Orange

LED3 Green

LED2 Blue

LED1 White

Amber

LED4 Red

LED3 Orange

LED2 Green

LED1 Blue

Amber

External Contact

Lighting

External Contact

Protective Fuse (1A)

External Contact

Lighting

External Contact

Protective Fuse (1A)

Power supply

Power supply

● Flashing type

LED5 Red

LED4 Orange

LED3 Green

LED2 Blue*

5

LED1 White*

4

Buzzer 1 - Purple*

3

Buzzer 2 - Sky blue*

2

1

Flashing enable common line

Lighting enable common line

LED4 Red

LED3 Orange

LED2 Green

LED1 Blue*

4

Buzzer 1 - Purple*

3

Buzzer 2 - Sky blue*

2
1

Flashing enable common line -

Lighting enable common line -

- Brown*
Gray*

- Yellow

Brown*

Gray*

Yellow

External Contact

Lighting
/ Buzzer

Flashing

External Contact Protective

Fuse (1A)

External Contact

Lighting
/ Buzzer

Flashing

External Contact Protective

Fuse (1A)

Power supply

Power supply

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

+\EULG

'HYLFHV

6LJQDOLQJ

/('

,OOXPLQDWLRQ

2SWLRQV 1HWZRUN

LED3 Red

3
2

LED2 Orange

LED1 Green

1

Amber

■ Signal Wire Color List

5-Tier model

5

4

3

2

1

4

3

2

1

3

2

1

Wire Color

Red

5

Orange

4

Green

3

Blue

2

White

1

4-Tier model

Wire Color

Red

4

Orange

3

Green

2

Blue

1

3-Tier model

Wire Color

Red

3

Orange

2

Green

1

External Contact

Lighting

External Contact

Protective Fuse (1A)

External Contact

External Contact Protective

Fuse (1A)

Power supply

LED3 Red

LED2 Orange

LED1 Green

Buzzer 1 - Purple*

3

Buzzer 2 - Sky blue*

2
1

Flashing enable common line -

Lighting enable common line -

Brown*

Gray*

Yellow

■ Audible

Type of Sound

Fast Intermittent

Slow Intermittent

None

Audible 1

Audible 2

Wire Color

Purple - Signal Wire

Sky blue - Signal Wire

■ Signal Wire Voltage and Current per tier

LED

Signal Wire Current

Red, Amber

Green, Blue,

White

WEP/WE

VoltageModel

Signal Wire

Voltage

24V AC/DC 24V AC/DC

* Set aside ample capacity for the external contact, considering the Signal Wire

Current and Inrush Current.

● For FB models, avoid simultaneous Lighting and Flashing inputs to a tier from an external

contact as it may illuminate other tiers.

● Please note that the FB model requires 2 common signal lines on the PC output unit, for

lighting and flashing.

● For safety, please make sure you have an external protective fuse in place.

● A malfunction may occur if you connect multiple units serially. Please control each unit

with a separate contact.

* For non-FB mode, there is no sky blue, purple, gray, and brown lead lines.

Audible

Signal Wire

Current

40mA14.3mA24.0mA

Lighting
/ Buzzer

Flashing

Power supply

Inrush Current

250mA
