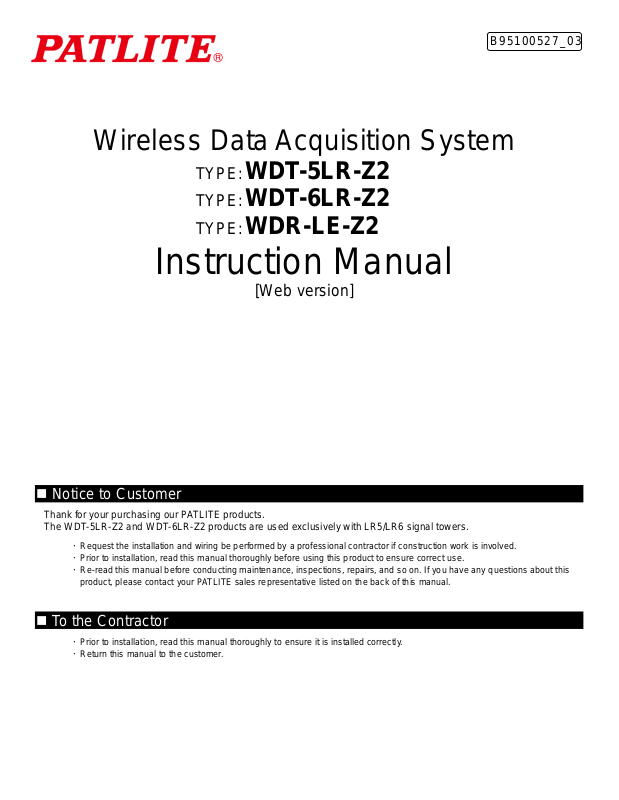

Wireless Data Acquisition System
TYPE: WDT-5LR-Z2
TYPE: WDT-6LR-Z2
TYPE: WDR-LE-Z2
Instruction Manual
[Web version]
Notice to Customer
Thank for your purchasing our PATLITE products.
The WDT-5LR-Z2 and WDT-6LR-Z2 products are used exclusively with LR5/LR6 signal towers.
Request the installation and wiring be performed by a professional contractor if construction work is involved.
Prior to installation, read this manual thoroughly before using this product to ensure correct use.
Re-read this manual before conducting maintenance, inspections, repairs, and so on. If you have any questions about this
product, please contact your PATLITE sales representative listed on the back of this manual.
To the Contractor
Prior to installation, read this manual thoroughly to ensure it is installed correctly.
Return this manual to the customer.
B95100527_03
Wireless Data Acquisition System Instruction Manual
2
■ Table of Contents
1. Before you begin ................................................................................................................................................................ 4
1.1 About Safety Symbols ................................................................................................................................................. 4
1.2 Safety Precautions ....................................................................................................................................................... 5
2. Contents ............................................................................................................................................................................. 9
2.1 About the Contents ...................................................................................................................................................... 9
(1) WDT-5LR-Z2/WDT-6LR-Z2 ....................................................................................................................................... 9
(2) WDR-LE-Z2 ............................................................................................................................................................... 9
3. Models .............................................................................................................................................................................. 10
3.1 About Models ............................................................................................................................................................. 10
(1) WDT (transmitter) .................................................................................................................................................... 10
(2) WDR (receiver) ........................................................................................................................................................ 10
4. Part Names and Dimensions ........................................................................................................................................... 11
4.1 About Part Names and Dimensions .......................................................................................................................... 11
(1) WDT (transmitter) .................................................................................................................................................... 11
(2) WDR (receiver) ........................................................................................................................................................ 11
5. Operation Overview ......................................................................................................................................................... 13
5.1 About the WD System ............................................................................................................................................... 13
5.2 System Configuration ................................................................................................................................................ 13
(1) Glossary .................................................................................................................................................................. 13
(2) System Configuration .............................................................................................................................................. 14
5.3 WD System Operation Overview ............................................................................................................................... 16
5.4 About Visualization Application Software................................................................................................................... 16
5.5 Function Table............................................................................................................................................................ 17
(1) WDT ........................................................................................................................................................................ 17
(2) WDR ........................................................................................................................................................................ 18
6. Installation ........................................................................................................................................................................ 20
6.1 Before Installation ...................................................................................................................................................... 20
(1) What is the WD Wireless Network? ........................................................................................................................ 20
(2) About Grouping and ExtendedPanID ...................................................................................................................... 22
(3) About the MAC Address .......................................................................................................................................... 23
(4) How many WDT you can connect to WDR ............................................................................................................. 23
6.2 About the Installation Environment ............................................................................................................................ 24
(1) Installation Environment Main Points ...................................................................................................................... 24
(1-1) About the Influence of Surrounding Radio Waves ......................................................................................... 25
(1-2) Distance Between Devices ............................................................................................................................. 26
(1-3) Ensuring Line of Sight .................................................................................................................................... 26
(1-4) WDR Installation Position and Obstacles ....................................................................................................... 27
(2) About the Signal Tower Power Supply status ......................................................................................................... 27
6.3 Equipment Settings .................................................................................................................................................... 27
(1) Setup Information .................................................................................................................................................... 27
(2) Equipment Settings ................................................................................................................................................. 28
6.4 Equipment Installation ............................................................................................................................................... 28
(1) WDT Installation ...................................................................................................................................................... 28
(2) WDR Installation ...................................................................................................................................................... 29
(3) Check the Connection Between WDT and WDR .................................................................................................... 29
7. Operation ......................................................................................................................................................................... 30
7.1 How to Use the WDT ................................................................................................................................................. 30
(1) WDT Wiring ............................................................................................................................................................. 30
(2) Attaching and Detaching the WDT .......................................................................................................................... 31
(3) Setting up the WDT Main Unit ................................................................................................................................. 36
(4) WDT DIP Switch Operations ................................................................................................................................... 37
(5) Checking WDT Indicator Operation ......................................................................................................................... 38
(6) Initializing the WDT ................................................................................................................................................. 38
Wireless Data Acquisition System Instruction Manual
3
7.2 How to Use the WDR ................................................................................................................................................. 39
(1) Mounting the WDR .................................................................................................................................................. 39
(2) WDR Wiring ............................................................................................................................................................. 41
(3) Setting up the WDR Main Unit ................................................................................................................................ 45
(4) WDR DIP Switch Operations ................................................................................................................................... 46
(5) Initializing WDR LAN communication settings ........................................................................................................ 47
8. Function Details ............................................................................................................................................................... 48
8.1 WDT Function ............................................................................................................................................................ 48
(1) Functions Related to Wireless Data Transmission .................................................................................................. 48
(2) Functions Related to Signal Tower Input ................................................................................................................. 51
(3) Install, Initialize, and Change Settings Functions .................................................................................................... 54
9. Replacement and Optional Parts ..................................................................................................................................... 56
9.1 Replacement Parts .................................................................................................................................................... 56
(1) WDT ........................................................................................................................................................................ 56
9.2 Optional Parts ............................................................................................................................................................ 56
10. Troubleshooting ............................................................................................................................................................... 57
10.1 Troubleshooting ......................................................................................................................................................... 57
(1) WDT ........................................................................................................................................................................ 57
(2) WDR ........................................................................................................................................................................ 58
11. Specifications ................................................................................................................................................................... 59
11.1 Specifications ............................................................................................................................................................. 59
(1) WDT ........................................................................................................................................................................ 59
(2) WDR ........................................................................................................................................................................ 60
Wireless Data Acquisition System Instruction Manual
4
1. Before you begin
1.1 About Safety Symbols
To prevent injuries to the user and other personnel, as well as to prevent damage to assets, note the following:
◆ The following symbols classify warnings and cautions, and describe the level of harm and damage that will occur when the
corresponding instructions are ignored.
WARNING
This symbol indicates, "Failure to follow the instructions may lead to death or serious injury."
CAUTION
This symbol indicates, "Failure to follow the instructions may lead to injury or property
damage."
◆ The following symbols classify and describe the content of associated messages.
Prohibited
This symbol identifies "Prohibited" operations that should never be carried out.
Mandatory
This symbol identifies "Mandatory" instructions that should always be carried out.
This symbol identifies general "Caution" related information.
Wireless Data Acquisition System Instruction Manual
5
1.2 Safety Precautions
WARNING
Prohibited
◆ This Wireless Data Acquisition System (hereafter referred to as "this product") is an attachment for
existing machinery and equipment that work with LR series signal towers (LR5 and LR6). This
product sends changes in the operation status of signal towers via a wireless transmitter to a
receiver that collects the data. Do not use this product for any other purpose.
◆ Do not use this product in the vicinity of implanted cardiac pacemakers and other medical
equipment, as this product's radio waves may affect the performance of these devices.
◆ Do not use or install the receiver (WDR-LE-Z2) in locations where liquids such as water is present,
oil will splatter, or locations that are humid or dusty. Failure to follow these instructions could result
in fire, electric shock or product failure.
◆ To prevent accidents, do not use this product other than for its intended purpose and do not run
operations or maintenance other than those described in this manual.
◆ This product is not intended for use where high reliability is required and where human life is
involved, such as medical equipment, atomic energy equipment and machinery, aviation and
aerospace, transportation, and control of other equipment. If this product is used for these
applications, we cannot be held responsible in the event of injury or property damage.
◆ Do not modify or disassemble this product. Failure to follow these instructions could result in fire or
electric shock.
◆ Do not use this product when there is condensation. Failure to follow these instructions could result
in fire or electric shock.
◆ Do not allow liquids to enter the receiver (WDR-LE-Z2), and do not allow it to have contact with
metallic objects. Failure to follow these instructions could result in fire or electric shock.
Mandatory
◆ Request the installation and wiring be performed by a professional contractor if construction work is
involved. Failure to follow this instruction could result in fire, electric shock or falls.
◆ Turn off the power before performing any electric wiring or product installation. Failure to follow this
instruction could result in electric shock.
◆ Always use a power supply within the operating voltage range. Failure to follow this instruction
could result in fire or product failure.
◆ In places such as aircraft and hospitals, turn off this product where usage of wireless devices is
prohibited and where its radio waves affect surrounding equipment.
◆ We cannot foresee all circumstances concerning the handling and dangers associated with this
product. Therefore, not every possible danger is indicated in this instruction manual. To prevent
accidents when operating or maintaining this product, in addition to the safety guidelines identified
in the instructions of this manual, follow all general safety guidelines.
◆ In the unlikely event that there is an abnormal situation such as smoke or odors emitting from the
product, immediately cut the power supplied to the product. Continued use of the product in this
condition could result in fire or electric shock.
Wireless Data Acquisition System Instruction Manual
6
CAUTION
Prohibited
◆ Do not install this product near other electrical appliances. If you install this product near a
facsimile, personal computer, television, microwave oven, or equipment using a motor, this product
may not operate properly.
◆ Do not use this product with the O-ring removed. Waterproofing will be affected, and potentially
cause equipment failure.
◆ Do not use this product in applications that require a high-degree of reliability or real-time
performance. If there are communication problems, this product cannot retrieve accurate data.
◆ Do not use this product near fire, in hot or humid environments, or where corrosive or flammable
gas is present. Failure to follow this instruction could cause a malfunction and the product may not
operate properly.
◆ Do not use or store this product in the following locations. Failure to follow this instruction could
result in a malfunction or product failure.
Environments with poor breathability and ventilation
Near equipment that generate strong electrical or strong magnetic fields
Places exposed to direct sunlight
Locations subject to shock and vibration
Near heating appliances
Environments where there is dust, iron powder, and so on
Places near fire or environments with high temperatures and humidity
Locations where the product may experience a drop
Locations exposed to salty sea air
Mandatory
◆ Operate this product only after thorough testing in the customer environment.
◆ Pay close attention to the polarity of the power supply before connection. Connecting the power
supply incorrectly may cause equipment failure.
◆ To clean this product, wipe with a soft cloth dampened with water. Do not wipe with cleaners
containing thinners, benzene, gasoline, or oil.
◆ Although this product has a high level of security, there is the potential for third-parties to intercept
communications as this product uses radio waves.
◆ When using this product, pay close attention to the following:
Due to the nature of radio waves, communication can be disabled even over insignificant
distances as a result of noise or other environmental factors.
Do not use this product near chemicals. This product could melt or become deformed if any
chemicals adhere to it.
To prevent static electricity, discharge the static electrical charge in your body before starting
work. (You can discharge static electricity by touching your hand on grounded metal objects.)
Wireless Data Acquisition System Instruction Manual
7
CAUTION
◆ Operation under the following conditions could cause the wireless communication distance to
become shorter than specified, and increase reaction times:
Metal obstructions, such as steel doors or reinforced concrete, are between the transmitter and
receiver.
Transmitter or receiver is mounted on a metal surface.
When used near powerful radio waves, such as those emitted by broadcasting stations.
When used near power lines or other high-voltage lines.
◆ About the Operating Environment
We have tested the product with out of the box computers in a normal operating environment.
However, depending on your operating environment, which includes the computer main unit,
peripheral devices and applications in use, there may be cases where this product will not run
properly.
◆ The software copyrights are held by our company.
Do not use this software in other products, or duplicate or modify a portion or all the software
without prior written permission.
◆ Disposing this product
When disposing of this product, follow the rules and regulations on how to handle recyclable
materials as outlined in your community.
◆ About this manual
The contents of this manual are subject to change without notice.
Images in this manual are for illustration purposes only, and may differ from the actual product.
Additionally, the illustration may hide parts of the product for ease of explanation.
This manual is copyrighted. No part of the manual, including drawings or technical information,
can be copied or duplicated in any manner, without prior consent.
When transferring ownership of this product, include the instruction manual (digest version).
If you have any questions or need further information, contact your nearest PATLITE sales
representative.
We cannot warrant against breakdowns caused by disassembling this product, natural disasters, or handling of
this product that is contrary to any warnings or precautions.
Avoid using this product in ways other than those described in this manual.
We cannot be held responsible for damages and injuries caused by failing to pay attention, or failing to follow
precautions, when operating or running maintenance on this product.
Wireless Data Acquisition System Instruction Manual
8
인증받은자의 상호: PATLITE CORPORATION
제품명/모델명:특정소출력무선기기(무선데이타통신시스템용무선기기)/WDR-LE-Z2
제조자 및 제조국가: PATLITE CORPORATION / JAPAN
제조년월:2017-8
인증번호: MSIP-CRM-PAt-WDRZ2
◆ 해당 무선설비는 전파혼신 가능 성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
인증받은자의 상호: PATLITE CORPORATION
제품명/모델명:특정소출력무선기기(무선데이타통신시스템용무선기기)/
WDT-6LR-Z2/WDT-5LR-Z2
제조자 및 제조국가: PATLITE CORPORATION / JAPAN
제조년월:2017-8
인증번호: MSIP-CRM-PAt-WDTZ2
해당 무선설비는 전파혼신 가능 성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
Wireless Data Acquisition System Instruction Manual
9
2. Contents
2.1 About the Contents
(1) WDT-5LR-Z2/WDT-6LR-Z2
Product: 1 unit
Instruction Manual (digest version): 1 copy
(2) WDR-LE-Z2
Product: 1 unit
Ferrite core: 1
Instruction Manual (digest version): 1 copy
Wireless Data Acquisition System Instruction Manual
10
3. Models
3.1 About Models
(1) WDT (transmitter)
Model
WDT-5LR-Z2 (Compatible LR Series Signal Tower size: Φ 50)
WDT-6LR-Z2 (Compatible LR Series Signal Tower size: Φ 60)
① LR Signal Tower Models
This product
Compatible LR Series Signal Tower
Model
Model
Size
Rated Voltage
WDT-5LR-Z2
LR5-□-01
Ф 50
12 VDC
LR5-□-02
24 VDC
WDT-6LR-Z2
LR6-□-02
Ф 60
24 VDC
LR6-□-M2
100 to 240 VAC
(2) WDR (receiver)
Model
WDR-LE-Z2 (LE: LAN/USB connector model for overseas only)
Wireless Data Acquisition System Instruction Manual
11
4. Part Names and Dimensions
4.1 About Part Names and Dimensions
(1) WDT (transmitter)
① Part Names
Front View Rear View Bottom View
② Part Dimensions
Front View (units: mm)
(2) WDR (receiver)
① Part Names (main unit)
Front View Bottom View
Wireless Data Acquisition System Instruction Manual
12
② Part Names (inside the main unit)
Front View (inside the main unit)
③ Part Dimensions
Front View Front View (inside the main unit) Bottom View
Wireless Data Acquisition System Instruction Manual
13
5. Operation Overview
5.1 About the WD System
To collect data available on equipment in your facility, the WD system transmits associated information (such as equipment
operation data) to a host computer over the WD wireless network. By using visualization application software, you can use
collected information to: a) accurately view utilization of capacity b) trigger improvement activities, and c) optimize
operations. This application is not limited to production facilities and can be applied to other areas.
5.2 System Configuration
(1) Glossary
Term
Description
WD system
Generic name to identify the whole system. Includes multiple WD wireless
networks and the host PC.
WD wireless network
The part of the wireless network that consists of one WDR and multiple WDT
(up to 30 units).
Signal Tower information
Status of the signal tower from which the WD system collects data.
WDT
Transmitter on a WD wireless network. The WDT collects signal tower
information from a signal tower and transmits the information wirelessly to a
WDR.
WDR
Receiver on a WD wireless network. The WDR receives signal tower
information from multiple WDT and transmits the information to the host PC.
Host PC
Personal computer for operation of the WD system.
WDS
Application software for WDT and WDR settings, and for collecting signal
tower information in the WD system as CSV log data.
Visualization application
software
Application software installed on the host PC. Use this application to display
information collected by the WD system in a Gantt chart or graph. Must be
provided by the customer.*
Maintenance PC
At maintenance, personal computer for setting up the WDT and WDR.
* For information on visualization application software, refer to ☞ "5.4 About Visualization Application Software".
Wireless Data Acquisition System Instruction Manual
14
(2) System Configuration
① Run Time System Configuration
Diagram
Configuration
Item
Number of configuration items
Models
WDT
1 to 30 units*1 per receiver
WDT-5LR-Z2 or WDT-6LR-Z2 (this product)
WDR
1 to 20 units*2
WDR-LE-Z2
WDS
1
WDS-WIN01
Host PC*3
1
–
* 1 For more information, refer to ☞ "6.1(4) How many WDT you can connect to WDR".
* 2 When collecting CSV log data with WDS-WIN01.
* 3 When connecting the WDR directly to the host PC with a LAN cable, use a cross cable.
Wireless Data Acquisition System Instruction Manual
15
② Maintenance System Configuration (using the power supply input kit)
Diagram
Configuration
Item
Number of configuration items
Models
WDT
Number as required
WDT-5LR-Z2 (this product)
WDT-6LR-Z2 (this product)
Power supply input kit (option)
1
WDX-5LRB
WDX-6LRB
AC Adaptor (option)
1
ADP-001
WDR
1
WDR-LE-Z2
WDS
1
WDS-WIN01
Maintenance PC
1
–
LAN Cable
*2 *3
1
–
USB Cable
*4 *5
1
–
* 2 When configuring the WDR LAN settings, connect with a LAN cable.
* 3 When connecting the WDR directly to the host PC with a LAN cable, use a cross cable.
* 4 Use a USB cable 3 m or shorter.
* 5 Do not connect the LAN and USB cables at the same time.
Wireless Data Acquisition System Instruction Manual
16
5.3 WD System Operation Overview
WDT transmits signal tower information via the WDR to the WDS on the host PC.
WDS collects the information and stores it as CSV log data. Load the data into visualization application software.
You can also load WDR signal tower information directly into the visualization application software.
5.4 About Visualization Application Software
CAUTION
◆ The customer needs to provide the visualization application software.
◆ Select a visualization application software suitable for customer visualization requirements.
There are two ways the WD system passes collected information to the visualization application software: 1) CSV Assisted
2) Socket Communication.
◆ Pattern 1: CSV Assisted
WD System
Transmit Signal Tower
information
⇒
WDS
Save loaded signal tower
information as CSV data
⇒
Visualization Application Software
Visualization of loaded CSV data
Visualization Application Software Preparation
References
1
When using software packages from PATLITE
partners that support the WD system
☞ Please contact our sales office. *
2
When customer develops their own solution
Refer to ☞ this manual.
Refer to ☞ "WDS-WIN01 Instruction Manual".
◆ Pattern 2: Socket Communication
WD System
Transmit Signal Tower information
⇒
Visualization Application Software
Read signal tower information
Visualize data
Visualization Application Software Preparation
References
1
When using software packages from PATLITE
partners that support the WD system
☞ Please contact our sales office.*
2
When customer develops their own solution
Refer to ☞ this manual.
Refer to ☞ "Application Notes".
Wireless Data Acquisition System Instruction Manual
17
5.5 Function Table
(1) WDT
① Wireless Data Transmission Function
Function
Description
References
Signal Tower
Transmission
Information
Function whereby the WDT transmits the status of the
signal tower wirelessly to the WDR. There are two
transmission modes for the transmission:
• Immediate transmission mode
Send immediately after the status of the signal tower
changes.
• Request transmission mode
Send only after receiving a signal tower status
request from the host PC.
Refer to ☞ "8.1(1)①
Signal Tower
Transmission
Information"
Select Signal Tower
Information Format
This function is for selecting one of two types of signal
tower information, Extended Format or Standard Format.
Select using a DIP switch.
• Extended Format
Sets up six types of signal tower information.
• Standard Format
Format compatible with WDT-5E-Z2 and
WDT-6M-Z2.
Sets up five types of signal tower information.
Refer to ☞ "8.1(1)②
Select Format of Signal
Tower Information"
Maintain Signal Tower
Status
When a transmission failure occurs between the signal
tower signal input and the actual transmission, this
function temporarily retains the transmission information in
the WDT.
Refer to ☞ "8.1(1)③
Maintain Signal Tower
Status"
Mesh Network
Transmission
Function that automatically connects the WDT over the
optimum communication route to the WDR for transmitting
the information.
Refer to ☞ "8.1(1)④
Mesh Network
Transmission"
Simple Counter
Function
By using a pulse input on a single signal wire, count up the
number of pulse inputs (increment 1 at a time) and store
the accumulated value (count) on the WDT.
The count is sent only when a request is received
from the host PC.
You can use WDS-WIN01 (1.02 or later) to clear the
count to zero.
Refer to ☞ "8.1(1)⑤
Simple Counter
Function"
There are two ways to select the counter signal wire:
"Using a DIP switch on the unit" (selection fixed as blue)
and "Using WDS-WIN01" (any selection).
Refer to ☞ "8.1(1)⑥
Selecting the signal wire
for a simple counter"
Wireless Data Acquisition System Instruction Manual
18
② Signal Wire Input Functions
Function
Description
References
Determine Signal
Tower Input
Function for determining the input status from the signal
tower. There are two settings, Normal and Flashing. You can
set this up on the WDS-WIN01 software.
This function cannot determine the input status from inputs
in a simple counter function.
Refer to ☞ "8.1(2)①
Determine Signal
Tower Input"
③ Install, Initialize, and Change Settings Functions
Function
Description
References
Display
Communication
Quality
Displays the communication quality as one of three levels for
the wireless connection between the WDT and WDR.
Refer to ☞ "8.1(3)①
Display
Communication
Quality"
Display WDT Call
When the device receives a specific command from the host
PC, the indicator flashes blue for approximately 10 seconds.
Refer to ☞ "8.1(3)②
Display WDT Call"
Display WDT MAC
address
A label on the body of the WDT identifies its MAC address.
Refer to ☞ "6.1(3)
About the MAC
Address"
Periodic
Transmission
Function for automatically transmitting from the WDT the
current signal tower status. Select by toggling a DIP switch
on the unit.
Refer to ☞ "8.1(3)③
Periodic Transmission"
Initialization
Function for resetting the unit to its factory default settings.
Select by toggling a DIP switch on the unit.
Refer to ☞ "8.1(3)④
Initialization"
(2) WDR
CAUTION
◆ You cannot operate the Contact Switch Function from the WDS. You can create these with the
visualization application software provided by the customer.
① Communication Functions
Function
Description
WDT Wireless
Communication
Function
Function to communicate with multiple WDT wirelessly.
Using this function, you can communicate with up to 30 WDT units.
Wireless Data Acquisition System Instruction Manual
19
Host PC Communication
Function
Function to communicate with one host PC via LAN or USB.
You can connect one session at a time for a LAN connection.
② Install, Initialize, and Change Settings Functions
Function
Description
Display Power Supply
Status
Function for using an indicator (green LED) to display the WDR power supply
input status. Green light: Power ON, light off: Power OFF
Initialize Network
Settings
Function for resetting the LAN network settings to its factory default. Select by
toggling a DIP switch on the unit.
③ Contact Terminal Block Control Function
Function
Description
Contact Switch Function
By receiving commands from the host PC, this function controls the ON/OFF
state of the contact terminal. This is a normally open contact.
Display Contact Status
This function displays the state of the contact with an LED indicator (red OUTPUT
LED). Red light: ON, light off: OFF
Wireless Data Acquisition System Instruction Manual
20
6. Installation
6.1 Before Installation
(1) What is the WD Wireless Network?
① About the WD Wireless Network
The WD wireless network operates on the IEEE802.15.4 (ZigBee) compliant 2.4 GHz frequency.
Although it runs on the same 2.4 GHz frequency as a wireless LAN (Wi-Fi), because it conforms to IEEE802.15.4 the WD
wireless network can operate without connecting to a wireless LAN. However, if the frequencies used overlap, the WD
wireless network could experience transmission delays and other communication issues.
The wireless communication is encrypted. The encryption standard used is AES-CCM (Advanced Encryption
Standard-Counter with CBC-MAC), with an encryption key of 128 bits.
② About Selecting a Wireless Channel
The WD wireless network uses 16 wireless channels (CH11 to CH26).
Select a wireless channel to avoid conflict with the frequency band of the LAN's wireless channel in your installation
environment.
The relationship between frequency bands of channels on the WD wireless network and on the wireless LAN is as follows.
Wireless Data Acquisition System Instruction Manual
21
The frequency of channels on the WD wireless network is as follows.
Channel
Mid-range frequency
(MHz)
Bandwidth (MHz)
CH11
2,405
2
CH12
2,410
2
CH13
2,415
2
CH14
2,420
2
CH15
2,425
2
CH16
2,430
2
CH17
2,435
2
CH18
2,440
2
CH19
2,445
2
CH20
2,450
2
CH21
2,455
2
CH22
2,460
2
CH23
2,465
2
CH24
2,470
2
CH25
2,475
2
CH26
2,480
2
③ Example Wireless Channel Selection
When the wireless LAN uses three channels (CH1, CH6, and CH11), select either CH15, CH20, CH25, or CH26.
In most cases selecting CH25 or CH26 will enable you to avoid the wireless LAN channels.
Wireless Data Acquisition System Instruction Manual
22
(2) About Grouping and ExtendedPanID
The WD system requires grouping each WD wireless network (one WDR with multiple connected WDT). You can define the
group by setting the ExtendedPanID property on the WDR and WDT to the same value. The ExtendedPanID consists of 16
single-byte, alphanumeric characters. Setup range: 0000 0000 0000 0000 to FFFF FFFF FFFF FFFE.
The following are examples of how you can set the ExtendedPanID and wireless channels for devices in multiple groups.
If there are multiple channels available for selection, you should use separate wireless channels for each group. By
distributing groups over multiple channels, you can reduce the payload concentrated on each wireless channel.
CAUTION
Prohibited
◆ When there are multiple WDR in your system, do not use duplicate ExtendedPanID values. The
product may not operate properly.
Mandatory
◆ When the WDT ExtendedPanID is 0000 0000 0000 0000, it is grouped with WDR that have
ExtendedPanID set arbitrarily. In this scenario, because the grouped wireless network is unstable,
set any value other than 0000 0000 0000 0000 during configuration.
Wireless Data Acquisition System Instruction Manual
23
(3) About the MAC Address
For identification, fixed addresses are assigned to WDT and WDR.
This address is called a MAC address (IEEE address).
The MAC address is printed on a nameplate on the back of the WDT.
The MAC address is printed on a nameplate on the back of the WDR.
(4) How many WDT you can connect to WDR
The number of WDT units you can connect to a WDR is limited by how often signal tower information is sent to the WDR.
Limit the number of WDT so that the WDR processes an average of about 120 times per minute. If you connect WDT so they
exceed this limit for the WDR, some of the signal tower information may not be able to reach the host PC.
Estimated Signal Tower transmissions per unit
WDT connection limit
4 times per minute
30 units
6 times per minute
20 units
12 times per minute
10 units
24 times per minute
5 units
120 times per minute
1 unit
Wireless Data Acquisition System Instruction Manual
24
6.2 About the Installation Environment
(1) Installation Environment Main Points
There are five essential points to consider at installation.
Item
Description
1
◆ There is no influence in radio waves at the installation site. Also, the radio waves at the installation site
should not change over time.
Refer to ☞ "6.2(1-1) About the Influence of Surrounding Radio Waves"
2
◆ The distance between devices (WDR, WDT) does not exceed recommendations.
Refer to ☞ "6.2(1-2) Distance Between Devices"
The recommended distance between all WDT and WDR is within line of sight.
3
◆ Line of sight between each device (WDR, WDT).
To ensure good line of sight, the location should not be cluttered and should be free of any obstacles.
Refer to ☞ "6.2(1-3) Ensuring Line of Sight”
4
◆ WDR placement is appropriate.
Install in a location as high as possible.
And away from obstacles that could disrupt radio waves.
Refer to ☞ "6.2(1-4) WDR Installation Position and Obstacles"
5
◆ Each device is always powered, and the mesh network is always available.
If power is not available for one of the WDT, the communication path could get interrupted and
information may not be transmitted.
Wireless Data Acquisition System Instruction Manual
25
(1-1) About the Influence of Surrounding Radio Waves
If the WD wireless network is affected by radio interference from electronics, microwave ovens, or other manufacturing
equipment, normal operation may not be possible. Check the radio wave environment before installation and confirm there is
no radio interference on the wireless radio bands you are planning to use.
Causes of Radio Interference
Description
Wireless devices
Wireless devices using the same frequency or nearby frequencies.
Noise from equipment
Noise caused by power supply circuits, electronic circuits, or oscillators.
Surrounding noise
Noise from motors and engine equipment.
Noise from power transmission lines, power supplies, and industrial
equipment.
Noise from microwave ovens, fluorescent lamps, and so on.
Surrounding obstacles*
Interference caused by fading of own radio waves.
* Various obstacles (wall, floor, ceiling, pillar, equipment) may exist in the installation environment. The reception
of radio waves changes depending on the relationship between the position of each device (WDR, WDT),
obstacles, and the surrounding environment. As shown in the figure below, radio waves transmitted from a
single point are delivered to each device (WDR, WDT) from multiple directions, such as when radio waves
travel in a direct line, and when radio waves reflect off obstacles. Radio wave interference could be caused by
this scenario, and operation may not be possible due to canceling radio waves.
When wireless LAN and in-house PHS access points are installed in the surrounding environment, install WDR so they are 5
to 10 m or more away from access points.
Wireless Data Acquisition System Instruction Manual
26
(1-2) Distance Between Devices
Place the WDT within a 20 m radius (recommended line-of-site distance) of the WDR.
If more distance is required, add another WDT.
(1-3) Ensuring Line of Sight
Good line of sight for each device (WDR, WDT) and free of any obstacles hereafter referred to as the Fresnel Zone - is
required. The Fresnel zone is a three-dimensional space, whose size is estimated as follows:
Line of sight L: 20 m ⇒ Fresnel zone diameter D: about 1.6 m
Line of sight L: 10 m ⇒ Fresnel zone diameter D: about 1.2 m
If you cannot set up the Fresnel zone, sometimes the available communication distance may be shorter than
usual due to obstacles inhibiting communication.
When installing on a metal plate or concrete wall, install the devices in the Fresnel zone so they are free of any obstacles.
Wireless Data Acquisition System Instruction Manual
27
(1-4) WDR Installation Position and Obstacles
When installing onto a pillar such as the I-beam in a building, install the WDR in a direction that promotes the propagation of
radio waves.
When storing the WDR in a box, use a resin box with radio wave permeability.
(2) About the Signal Tower Power Supply status
To operate the WDT, you need to constantly supply power to the LR series signal tower's power line.
For more information, refer to ☞ "7.1 Wiring".
6.3 Equipment Settings
This section describes the steps for setting up and installing equipment. Refer to ☞ "7 Operation" as well as instruction
manuals of related products.
(1) Setup Information
Have the information for the settings below prepared beforehand.
Information required
Description
Information about the
equipment to connect
Equipment name and other identifiable equipment information
Information about the
target Signal Tower
Model, power supply specifications, operation information
WDT and WDR
common settings
Wireless settings
ExtendedPanID
Refer to ☞ "6.1(2) About
Grouping and ExtendedPanID"
Wireless channels
Refer to ☞ "6.1(1) What is the
WD Wireless Network?"
WDT settings
Run time settings
Determine Signal
Tower Input
Refer to ☞ "8.1(2)① Determine
Signal Tower Input"
Power supply settings
*1
Simple counter function
Refer to ☞ "8.1(1)⑥Selecting
the signal wire for a simple
counter"
Transmission mode
Refer to ☞ "8.1(1) Functions
Related to Wireless Data
Transmission"
WDR settings
Wireless settings
Network startup method
*2
LAN communication
IP address
*3
Subnet mask
–
Default gateway
DNS server port number
–
Wireless Data Acquisition System Instruction Manual
28
* 1 For this product's settings, select the "Power line". For more information, refer to ☞ "WDS-WIN01 Instruction Manual".
* 2 For network startup method, use "Auto Startup". For more information, refer to ☞ "WDS-WIN01 Instruction Manual".
* 3 Prepare beforehand the number of IP addresses required for use with the WDR.
NOTICE
◆ Information about settings is required not only for installing equipment, but also when adding equipment, maintaining
the system, relocating, and for efficient and accurate work. Prepare the setup information before starting installation.
(2) Equipment Settings
Using the setup information in 6.3(1), begin the setup.
For information on system configuration when setting up the equipment, refer to ☞ "5.2(2)② Maintenance System
Configuration (using the power supply input kit)
Use the system configuration software WDS-WIN01 for equipment settings.
Install WDS-WIN01 on the maintenance PC and set up the equipment.
For using WDS-WIN01, refer to ☞ the "WDS-WIN01 Instruction Manual".
The setup procedure is as follows.
Step
Item
References
1
Prepare required equipment and create
maintenance environment
Refer to ☞ "WDS-WIN01 Instruction Manual".
Refer to ☞ "7.1(3) Setting up the WDT Main Unit"
Refer to ☞ "7.1(4) WDT DIP Switch Operations"
2
Communication settings between WDR and
Maintenance PC
3
WDT setup
4
WDR setup
6.4 Equipment Installation
CAUTION
Mandatory
◆ When deciding the installation location of each device, carefully review the following procedure
regarding installation location. The installation location could cause problems such as unstable
operation or communication failure.
◆ Install each device after completing equipment settings.
(1) WDT Installation
The steps for installing the WDT are as follows.
Step
Item
References
1
Wire the LR series signal tower.
Refer to ☞ "7.1(1) WDT Wiring"
2
Attach the WDT to the LR series signal tower.
Refer to ☞ "7.1(2) Attaching and Detaching the
WDT"
Wireless Data Acquisition System Instruction Manual
29
1. Wire the LR series signal tower.
If wiring is already done, check the wiring.
If wiring is insufficient, complete the wiring.
2. Attach the WDT to the LR series signal tower.
Install the WDT with its setup complete.
(2) WDR Installation
Step
Item
References
1
Mounting the WDR
Refer to ☞ "7.2(1) Mounting the WDR"
2
WDR wiring procedure
Refer to ☞ "7.2(2) WDR Wiring"
(3) Check the Connection Between WDT and WDR
Step
Item
References
1
Check the WDT wireless status
Refer to ☞ "8.1(3)① Display Communication Quality"
2
Check WDT and WDR setup items
Refer to ☞ "WDS-WIN01 Instruction Manual".
1. Check the WDT wireless status.
Turn on the WDT and WDR.
Check the WDT wireless status with its indicator. Refer to ☞ "8.1(3)① Display Communication Quality"
2. Check WDT and WDR setup items.
Use WDS-WIN01 to check the content of the setup items.
Wireless Data Acquisition System Instruction Manual
30
7. Operation
7.1 How to Use the WDT
(1) WDT Wiring
For the wiring method, carefully read and follow the instructions in the LR Series Instruction Manual.
WARNING
Prohibited
◆ Before any wiring or fuse replacement, disconnect the power. Failure to follow this instruction
could result in a short-circuit.
◆ Supply only the correct power, direct current or alternating current, and use the proper voltage.
Failure to follow this instruction could result in fire.
CAUTION
Mandatory
◆ About the WDT power supply
To operate the WDT, you need to constantly supply power to the LR series signal tower's power
line.
◆ Signal tower rated voltage: 12 / 24 VDC
Applicable models: LR5-□01 / LR5-□02 / LR6-□02
◆ Signal tower rated voltage: 100 to 240 VAC
Applicable models: LR6-□M2
Wireless Data Acquisition System Instruction Manual
31
CAUTION
Mandatory
◆ To protect external equipment, install a fuse on the power supply side.
Recommended fuse: 250 V / 1 A 5x20 mm Fast-blow glass tube fuse.
* When the signal tower rated voltage is 100 to 240 VAC, use the following parts.
If you are not using a regulated power supply, use a fuse that meets or exceeds Class CC.
Use a fuse holder with UL Standards certification.
◆ Insulate the leads of unused signal wires, one by one. Failure to follow this instruction could result
in a short-circuit.
(2) Attaching and Detaching the WDT
WARNING
Mandatory
◆ Before any work is done, disconnect the power.
CAUTION
Prohibited
◆ Do not apply excessive force to the unit or body. Failure to follow this instruction could result in
equipment damage.
◆ Do not touch the connectors on the unit or body, or the LED in LED units. Failure to follow this
instruction could result in equipment damage.
◆ Securely lock each unit when attaching. Failure to follow this instruction could result in equipment
damage.
NOTICE
◆ The maximum number of attachments per Signal Tower is five LED units + one buzzer unit + this product. Do not
attach units beyond that.
Wireless Data Acquisition System Instruction Manual
32
CAUTION
Prohibited
◆ Attach this product to the upper part of the adjoining body unit. If you attach this product on top of
an LED unit, it is difficult to assess the status shown by the lamp on this product.
CAUTION
Prohibited
◆ Do not detach multiple connected units (except head cover) from this product or the body unit.
◆ When detaching units (this product, LED unit, or buzzer unit) from the body unit or this product,
detach units one at a time. Failure to follow these instructions could result in equipment damage.
Wireless Data Acquisition System Instruction Manual
33
① Attaching the WDT to the LR Series Signal Tower
■ Attaching
■ Attaching
■ Detaching
■ Positioning Mark
Locked
Unlocked
Wireless Data Acquisition System Instruction Manual
34
② The following are the steps for attaching the WDT to the LR series signal tower.
Attach or detach units in the prescribed order, beginning with 1.
Detach and attach units one at a time.
③ The following are the steps for detaching the WDT from the LR series signal tower.
Detach units in the prescribed order, from 1 to 5.
Detach and attach units one at a time.
Wireless Data Acquisition System Instruction Manual
35
CAUTION
◆ If this product does not attach properly to the body unit, confirm the tab of the cylinder-shaped part
at the top of this product is fitted correctly into the groove. If the tab is outside the groove as shown
in Figure 1, refer to Figure 2 on how to reposition it. Additionally, depending on how it is removed,
the tab may come out of the groove (as shown in Figure 1) when detaching this product from the
body unit. If the product is attached again while the tab is still in this state, it may become damaged.
Figure 1
CAUTION
◆ If this product does not attach properly to the body unit, follow the steps below.
Figure 2
In the center of the underside of the product, turn the cylinder-shaped part counter-clockwise.
Turn the cylinder-shaped part until it snaps into place, then attach it to the body unit.
Figure 3
Wireless Data Acquisition System Instruction Manual
36
(3) Setting up the WDT Main Unit
① Setting up the Main Unit
WDS-WIN01 configuration software is required. Download the software from our website. Install the software
on the computer that will be used to set up and configure the system. (Member registration is required for
downloading from the home page.) For more information about usage and setup, refer to ☞ "WDS-WIN01
Instruction Manual".
② Setup Items
Setup items are as follows.
Setup item
References
Wireless settings
ExtendedPanID
Refer to ☞ "6.1(2) About Grouping and ExtendedPanID"
Wireless channels
Refer to ☞ "6.1(1) What is the WD Wireless Network?"
Operation settings
Determine signal
tower input
Refer to ☞ "8.1(2)① Determine Signal Tower Input"
Power supply settings
*1
Simple counter settings
Refer to ☞ "8.1(1)⑥ Selecting the signal wire for a
simple counter"
Transmission mode
Refer to ☞ "8.1(1) Functions Related to Wireless Data
Transmission"
* 1 For this product's settings, use "Power Supply Wire". Refer to ☞ "WDS-WIN01 Instruction Manual".
③ Required Equipment
For information on system configuration when setting up the equipment, refer to ☞ "5.2(2)② Maintenance System
Configuration (using the power supply input kit)
Use the system configuration software WDS-WIN01 for equipment settings.
Install WDS-WIN01 on the maintenance PC and set up the equipment.
For information about using WDS-WIN01, refer to ☞ "WDS-WIN01 Instruction Manual".
The setup procedure is as follows.
Step
Item
References
1
Prepare required equipment and create
maintenance environment
Refer to ☞ "5.2(2)② Maintenance System
Configuration (using the power supply input kit)
2
Communication settings between WDR and
Maintenance PC
Refer to ☞ "WDS-WIN01 Instruction Manual"
3
WDT setup
4
WDR setup
Wireless Data Acquisition System Instruction Manual
37
(4) WDT DIP Switch Operations
① DIP Switch Operations
CAUTION
Prohibited
◆ Do not use excessive force on this product. Failure to follow this instruction will result in equipment
damage.
◆ Do not use sharp tipped objects with this product. Operation may become impossible as scratches
develop on switches and switch contacts are interfered with.
DIP switches for this product are on the bottom of the main unit.
DIP switch
DIP Switch Settings
Switch number
Description
Initial settings
1
Initialize setting values
OFF
OFF
Normally use with this setting OFF.
ON
Initializes the value for various settings.
Refer to ☞ "7.2(5)① Initialization Process"
2
Methods for defining Count Input signal wire
OFF
OFF
Define in the simple counter settings.
ON
Use blue signal wire (fixed).
Refer to ☞ "8.1(1)⑥ Selecting the signal wire for a simple counter"
3
Select format of signal tower information
OFF
OFF
Send in standard format.
ON
Send in extended format.
Refer to ☞ "8.1(1)② Select Format of Signal Tower Information"
4
Periodic Transmission
OFF
OFF
Normally use with this setting OFF.
ON
Send transmissions at regular intervals.
Refer to ☞ "8.1(3)③ Periodic Transmission"
Wireless Data Acquisition System Instruction Manual
38
(5) Checking WDT Indicator Operation
① Checking wireless communication status
Check using the indicator on the main unit.
For more information, refer to ☞ "8.1(3)① Display Communication Quality".
(6) Initializing the WDT
① Initialization process
Follow the instructions to run initialization.
Step
Item
1
Turn on DIP switch 1 on the product.
2
Turn on the power.
After a few seconds, the indicator repeatedly alternates between red and green.
3
Turn off the power.
4
Turn off DIP switch 1 on the product.
5
Complete
* For the list of settings that are initialized, refer to ☞ "8.1(3)④ Initialization".
Wireless Data Acquisition System Instruction Manual
39
7.2 How to Use the WDR
(1) Mounting the WDR
WARNING
Mandatory
◆ Before any work is done, disconnect the power.
◆ After cutting open wiring access, remove any burrs. Failure to follow these instructions could result
in broken wires.
◆ Be careful when cutting open wiring access. Failure to follow this instruction could result in injury.
◆ Turn off the power before performing any electric wiring or product installation. Do not touch the
board directly. Failure to follow this instruction could result in malfunction.
◆ Turn off the power before performing any electric wiring or product installation. Failure to follow this
instruction could result in electric shock.
◆ When working in narrow or high places, pay attention to safety and follow all safety protocols.
Failure to follow this instruction could result in injury.
◆ Maintain secure and stable footing when working. Failure to follow this instruction could result in
injury.
◆ Do not drop any tools or parts. Failure to follow this instruction could result in injury.
Prohibited
◆ Do not use or install the WDR in locations where liquids such as water is present, oil will splatter, or
locations that are humid or dusty. Failure to follow this instruction could result in fire, electric shock
or product failure.
CAUTION
Mandatory
◆ When using this product in Korea, supply power with the AC adaptor provided (ADP-001). Do not
supply power directly to the 24 Vdc power terminal block.
◆ When using this product in Brazil, supply power with the AC adaptor provided (ADP-001). Do not
supply power directly to the 24 Vdc power terminal block.
Wireless Data Acquisition System Instruction Manual
40
■ Mounting Method
Step
Item
1
Remove the cover.
2
Cut to increase the size of the wiring access.
1) When the size of the wiring access is appropriate
If the current wiring access is large enough, use it without cutting.
2) When wiring access insufficient (backside)
When using the wiring access from the rear of the unit, cut open the cover (colored) with
nippers.
3) When wiring access insufficient (bottom)
When using the wiring access from the bottom of the unit, and the current access is too
small, remove the cover (colored) and cut to increase the size of the access with nippers.
3
Affix the WDR.
Use M4 screws or tapping screws with a nominal diameter of 4 mm.
* Screws are not included. The thickness of the receiver's case is 3 mm.
Consider the thickness of the case when selecting screws.
Wireless Data Acquisition System Instruction Manual
41
(2) WDR Wiring
① Power Supply Wiring
WARNING
Mandatory
◆ Before any work is done, disconnect the power.
◆ For the DC jack, use only the supplied AC adaptor.
◆ Input power from either the power terminal block or the DC jack. Failure to follow this instruction
could result in equipment failure.
◆ Do not connect the USB cable and LAN connector at the same time.
WDR will not operate properly.
NOTICE
◆ Use 28-14 AWG wires.
◆ Use the two guides for securing wires.
■ When Connecting to LAN
Step
Item
1
Wiring for WDR main unit's power supply.
1) When using AC Adaptor
Insert the AC adaptor into the DC jack. (When using AC Adaptor)
* At this point, do not turn on the power.
Wireless Data Acquisition System Instruction Manual
42
Step
Item
2) When using the Power Terminal Block
Insert the leads of wires into the contact terminal block connectors. (When using a contact
terminal block)
* At this point, do not turn on the power.
Wrap the lead wire around a ferrite core.
2
Insert the LAN cable into the WDR main unit's LAN connector.
* LAN cable is not included.
3
Insert the other end of the LAN cable into the PC.
* When connecting the WDR directly to the host PC with a LAN cable, use a cross cable.
4
Turn on the power.
Wireless Data Acquisition System Instruction Manual
43
■ When Connecting via USB
Step
Item
1
Connect a USB cable to the WDR main unit.
* USB cable is not included.
* Power is supplied via the bus for the USB cable.
2
Insert the USB cable to the PC.
NOTE:
On the first USB connection, the [Found New Hardware] wizard starts up. For more information, refer to
☞ "WDS-WIN01 Instruction Manual".
② Using Contact Output
NOTICE
◆ Use 24-20 AWG wires.
Wireless Data Acquisition System Instruction Manual
44
Step
Item
1
Connecting a 24 VDC revolving warning light
Connecting a 100 VAC signal tower
NOTE:
Contact capacity is 24 VDC 500 mA.
When using contact outputs, you can control them with contact control commands.
* For information about contact control commands, refer to ☞ "Application Notes".
CAUTION
◆ You cannot operate the Contact Switch Function from the WDS. You can create these with the
visualization application software provided by the customer.
Wireless Data Acquisition System Instruction Manual
45
(3) Setting up the WDR Main Unit
① Setting up the Main Unit
WDS-WIN01 configuration software is required. Download the software from our website and install on the
computer that will be used to set up the system. (Member registration is required for downloading from the home
page.)
For more information about usage and setup, refer to ☞ "WDS-WIN01 Instruction Manual".
② Setup Items
Setup items are as follows.
Setup Item
References
Wireless settings
ExtendedPanID
Refer to ☞ "6.1(2) About Grouping and
ExtendedPanID"
Wireless channels
Refer to ☞ "6.1(1) What is the WD
Wireless Network?"
LAN communication
LAN communication settings
Refer to ☞ "6.3(1) Setup Information"
③ Required equipment
For information on system configuration when setting up the equipment, refer to ☞ "5.2(2)② Maintenance
System Configuration (using the power supply input kit)
Use the system configuration software WDS-WIN01 for equipment settings.
Install WDS-WIN01 on the maintenance PC and set up the equipment.
For information about using WDS-WIN01, refer to ☞ "WDS-WIN01 Instruction Manual".
The setup procedure is as follows.
■ When Connecting via USB
Step
Item
References
1
Prepare required equipment and create
maintenance environment
Refer to ☞ "5.2(2)② Maintenance System
Configuration (using the power supply input kit)
2
Communication settings between WDR and
Maintenance PC
Refer to ☞ "WDS-WIN01 Instruction Manual".
3
USB driver setup
4
WDT setup
5
WDR setup
Wireless Data Acquisition System Instruction Manual
46
■ When Connecting to LAN
Step
Item
References
1
Prepare required equipment and create
maintenance environment
Refer to ☞ "5.2(2)② Maintenance System
Configuration (using the power supply input kit)
2
Application for outputting wireless settings and
signal tower information to CSV
Refer to ☞ "Downloading WDS-WIN 01 from our
website"
3
Communication settings between WDR and
Maintenance PC
Refer to ☞ "WDS-WIN01 Instruction Manual".
4
WDT setup
5
WDR setup
(4) WDR DIP Switch Operations
① DIP Switch Operations
CAUTION
Prohibited
◆ Do not use excessive force on this product. Failure to follow this instruction will result in equipment
damage.
◆ Do not use sharp tipped objects with this product. Operation may become impossible as scratches
develop on switches and switch contacts are interfered with.
DIP switches for this product are inside the main unit.
DIP switch
DIP Switch Settings
Switch number
Description
Initial settings
1
Initialize LAN communication settings
OFF
• OFF
Normally use with this setting OFF.
• ON
Initializes LAN communication settings.
Refer to ☞ "7.2(5) Initializing WDR LAN communication settings"
2
OFF (static)
OFF
3
OFF (static)
OFF
4
OFF (static)
OFF
Wireless Data Acquisition System Instruction Manual
47
(5) Initializing WDR LAN communication settings
WARNING
Mandatory
◆ During initialization, do not turn off the power. Failure to follow this instruction could result in
equipment failure.
① Initialization Process
Resets the network settings to their default values.
Step
Item
1
Power down the WDR.
2
Turn on DIP switch 1 on the product.
3
Power up the WDR. The power LED (green) lights up.
4
Wait for the output LED (red) to light up. (About 60 seconds)
5
After confirming the output LED (red) turned on, power down the WDR.
6
Turn off DIP switch 1 on the product.
② Initial Settings
Item
Default value
IP address
192.168.0.1
Subnet mask
255.255.255.0
Default gateway
0.0.0.0
DNS server
0.0.0.0
Local port
10001
Wireless Data Acquisition System Instruction Manual
48
8. Function Details
8.1 WDT Function
(1) Functions Related to Wireless Data Transmission
① Signal Tower Transmission Information
Function whereby the WDT transmits the status of the signal tower wirelessly to the WDR. There are two transmission modes
for the transmission:
Transmission mode
Description
Immediate
transmission mode
Send immediately after the status of the signal tower changes.
Request transmission
mode
Send only after receiving a signal tower status request from the host PC.
Signal tower information transmitted by the WDT is as follows.
Signal Tower information
Description
Signal display
Buzzer*
Red
Amber
Green
Blue
White
Status
light on / flashing / light off
sound / no sound
* Only when extended format is selected.
Relationship between the units and wiring
WDT transmits information input to the signal tower, regardless of the type (LED unit, Buzzer unit) and number of units
connected.
② Select Format of Signal Tower Information
Using a DIP switch, this function selects the format of signal tower information transmitted by the WDT.
You can select the following two communication formats.
Function
Description
Extended Format
Sets up six types of signal tower information (red, amber, green, blue, white, and
buzzer).
Standard Format
Format compatible with WDT-5E-Z2 and WDT-6M-Z2.
Sets up five types of signal tower information (red, amber, green, blue, and white).
Wireless Data Acquisition System Instruction Manual
49
③ Maintain Signal Tower Status
When a transmission failure occurs between the signal tower signal input and the actual transmission, this function
temporarily retains the transmission information in the product.
Once communication is possible again, information that was retained is transmitted in sequential order from old to new.
The function can retain up to 32 units of information.
④ Mesh Network Transmission
Function that automatically connects the WDT over the optimum communication route to the WDR for transmitting the
information. A dense mesh status increases communication redundancy.
Mesh Status
⑤ Simple Counter Function
By using a pulse input on a single signal wire, count up the number of pulse inputs (increment 1 at a time) and store the
accumulated value (count) on the WDT.
At startup the count is 0 (initial value).
The value range of the count is 0 to 4,294,967,295.
Pulse inputs are determined using the following criteria.
CAUTION
◆ When the count exceeds the upper limit, the count returns to 1.
◆ When the power is shut down, the counter is cleared to 0.
◆ The signal tower information defined in the counter settings is not sent, regardless of changes in status (signal tower
information is treated as if the light is off and buzzer is off).
Wireless Data Acquisition System Instruction Manual
50
⑥ Selecting the signal wire for a simple counter
Use one of the following to select the signal wire.
Signal wire selection method
DIP Switch
Wire used by the simple counter
Using a DIP switch on the unit
Blue (fixed)
Using WDS-WIN01
You can select any one of red, amber,
green, blue, white, or buzzer.
Wireless Data Acquisition System Instruction Manual
51
(2) Functions Related to Signal Tower Input
① Determine Signal Tower Input
There are two types of decisions for signal tower inputs, Normal and Flashing. Selection is done with WDS-WIN01. If there is
no flashing state, use "Normal".
Setting
Determination
Description
Normal
Light on
When the signal input status changes from "light off" to "light on", the result is
"light on" and information is transmitted.
Light off
When the signal input status changes from "light on" to "light off", the result is
"light off" and information is transmitted.
Flashing*
Flashing
When the signal input repeatedly changes "light on" to "light off" to "light on" to
"light off" and so on, the result is "flashing" and information is transmitted. You
can select from 3 different time periods in WDS-WIN01 before flashing is
determined.
Flashing (short)
Flashing (medium)
Flashing (long)
Light on
When the signal input status changes from "light off" to "light on", the result is
"light on" and information is transmitted.
Light off
When the signal input status changes from "light on" to "light off", the result is
"light off" and information is transmitted.
* Flashing is determined when there are two status changes within a defined period.
This period is called "SS seconds".
You can select "SS seconds" from three different time periods.
Flashing (short): SS seconds = 0.7 seconds
Flashing (medium): SS seconds = 1.5 seconds
Flashing (long): SS seconds = 2.5 seconds
Wireless Data Acquisition System Instruction Manual
52
The status and determination operations are as follows. (Information in square brackets "[ ]" represent buzzer
operation.)
Setting
Determination
Description
Change in state
Operation result
Normal
Light on
Light off →
light on
Light off
Light on →
light off
Flashing
Flashing
Light off →
flashing
Light on →
flashing
Light on
Light off →
light on
Flashing →
Light on
Light off
Light on →
light off
Flashing →
light off
Wireless Data Acquisition System Instruction Manual
53
CAUTION
◆ Maintain each of the signal tower's light off and light on states for 100 ms or longer. It is difficult to determine state
changes when they occur faster than 100 ms.
◆ When using normal determination and you need to change the input state of multiple signal towers at the same time,
the interval between these state changes need to be within 20 ms.
◆ When using normal determination and the input state of multiple signal towers change at different times, these state
changes should be longer than 100 ms of each other.
Wireless Data Acquisition System Instruction Manual
54
(3) Install, Initialize, and Change Settings Functions
① Display Communication Quality
You can use this product's display status indicator to determine the wireless communication status.
The indicator operates as follows.
Indicator Light
Wireless Connection Status
Green pulse
Indicates a good status.
This status indicates the product can communicate directly with the WDR without
relying on other WDT.
(If the WDT and WDR are close together (within tens of centimeters), WDT may
display a red pulse.
For an accurate display, use the units with a separation of about 1 m.)
Amber pulse
Direct wireless connection with the WDR is not good, but the connection with nearby
WDT is good.
If nearby WDT have a green pulse, the WDT will be used as a repeater for
communication.
Red pulse
Connection is not good with any WDR or WDT in the WD wireless network.
Red light
Product is waiting to join the WD Network.
Pulse is where the lamp fades between bright and dark repeatedly.
When the indicator light displays something other than the above, refer to ☞ "10.1 Troubleshooting".
② Display WDT Call
When the device receives a specific command from the host PC, the WDT indicator flashes blue for approximately
10 seconds. Display is also possible with a WDS-WIN01 operation.
③ Periodic Transmission
By setting DIP switch 4 ON, the WDT transmits the current signal tower status every 10 seconds.
If the frequency of signal tower information is low (a few times per hour), you can use this function so communication is more
stable than when using immediate transmission mode.
④ Initialization
Use this switch to reset all the settings in the main unit to their initial state. Initialized items and their initial settings are as
follows.
Wireless Data Acquisition System Instruction Manual
55
Settings
Item
Initial settings
ExtendedPanID
0000 0000 0000 0000
Frequency Channel
Select all
Determine signal tower input
Flashing (medium)
Power supply
Power line
Transmission mode
Immediate transmission
Simple counter settings
Do not use
Wireless Data Acquisition System Instruction Manual
56
9. Replacement and Optional Parts
9.1 Replacement Parts
Several kinds of parts are available to the customer for exchange or replacement.
(1) WDT
WDT-5LR replacement parts
WDT-6LR replacement parts
O-ring 50
O-ring 60
5 pieces
5 pieces
9.2 Optional Parts
The following options and related parts are available for this product.
Software
Power Supply Input Kit
WDS-WIN01
WDX-5LRB
WDX-6LRB
AC Adaptor
ADP-001
Wireless Data Acquisition System Instruction Manual
57
10. Troubleshooting
10.1 Troubleshooting
(1) WDT
Issue
Checklist
Indicator does not light up.
Check if the unit is installed correctly.
Even if the signal tower is ON all the time, power may not be
supplied to the WDT main unit. Correctly wire the power
supply for the signal tower.
The indicator flashes red (not pulsing).
Turn off the power on the WDT and turn on again.
If it continues to flash red, it may be an indication that the
settings are corrupted. Initialize the product and set up again.
The indicator does not change from a red
light to a red pulse.
Wireless connection with WDR is in progress.
Depending on the radio wave environment, it may take some
time to complete the connection. Check the indicator again
after about 5 minutes.
Check if the WDR is working properly.
The ExtendedPanID in the WDR must match the wireless
channel setting for a connection. Make sure the settings are
correct.
Check for any sources of noise (such as microwave ovens) in
the surrounding area that could impede wireless
communication.
The indicator flashes blue.
When the host sends a call command to the WDT, the
indicator flashes blue for a short period of time.
The indicator flashes alternating between
green and red
Starting up in initialization mode. If operations are normal, turn
off DIP switch 1 on the product.
The host cannot determine if the WDT is
available.
If a wireless connection cannot be completed, the host cannot
check if the WDT is available. Check if the indicator on the
target WDT is pulsing, to indicate connection is complete.
Wireless Data Acquisition System Instruction Manual
58
(2) WDR
Issue
Checklist
Power LED indicator (green) does not light up.
When using the DC jack, connect only the supplied AC
adaptor.
When using the power terminal block, check the polarity
(+/-) of the power lines and turn on the power supply.
When power is supplied from an USB cable, do not use a
hub.
Normal operation may not be possible as the current may
be insufficient.
Power LED indicator (green) and output LED
indicator (red) are flashing.
There may be a problem with the hardware.
Please contact your local sales representative.
Contact output does not output.
Wire correctly and check the operation.
Send the correct command.
The host and USB are connected, but
communication does not work.
Select the correct port and connect the COM port.
Operation when connecting via a hub has not been
confirmed. Use this product by connecting directly to the
USB port.
The host and LAN are connected, but
communication does not work.
Default is 192.168.0.1:10001. If you changed the IP
address, set that IP address and connect. If you do not
know the IP address anymore, initialize the LAN
communication settings and check the communication
again.
Refer to ☞ "7.2(2) WDR Wiring".
There is no notice on the host that the WDT
has powered down.
Notices from the 30th or later connected WDT is not
output.
Wireless Data Acquisition System Instruction Manual
59
11. Specifications
11.1 Specifications
(1) WDT
Model
WDT-5LR-Z2
WDT-6LR-Z2
Connected model
LR5 Series Signal Tower
Body unit top attachment
LR6 Series Signal Tower
Body unit top attachment
Rated Voltage *
24 VDC
Operating Voltage Range *
19.0 to 26.4 VDC
Rated Current Consumption *
Maximum 55 mA
Ambient Operating Temperature
-10 °C to +50 °C
Ambient Operating Humidity
85% RH or less, no condensation
Storage Ambient Temperature
-20 °C to +60 °C
Storage Ambient Humidity
85% RH or less, no condensation
Mounting Location
Indoors
Mounting Direction
Upright
Protection Rating
IP65 (IEC 60529), NEMA TYPE 4X,13
Mass
74 g
85 g
Communication Standard
IEEE 802.15.4 (wireless communication)
Communication Frequency
2405 to 2480 MHz (16 channels)
Communication Distance
Approximately 30 m from source (reference value)
External Contact Input
Control signal input
Number of Contacts
6 points (red, amber, green, blue, white, buzzer)
Input Reaction Time
100 ms or longer
Display Unit
Indicator for monitoring the status
Operation Unit
DIP switches
* This is the specification for a single product.
Specifications may change without prior notice.
Wireless Data Acquisition System Instruction Manual
60
(2) WDR
Model
WDR-LE-Z2
(LE: LAN/USB connector model for overseas only)
Rated Voltage
24 VDC
Operating Voltage Range
21.6 to 26.4 VDC
Rated Current Consumption
45 mA (on standby) 55 mA (at maximum)
Ambient Operating Temperature
-10 °C to +60 °C (no condensation)
Storage Ambient Temperature
-20 °C to +70 °C, free from freezing
Relative Humidity
85% RH or less, no condensation
Mounting Location
Indoors
Mounting Method
Horizontal installation, wall mount
Protection Rating
IP20
Mass
170 g
Wireless Communication
Standard
IEEE 802.15.4
Wireless Communication
Frequency
2405 to 2480 MHz (16 channels)
Communication Distance
Approximately 30 m from source (reference value)
External Contact Output
1 point (24 VDC, 500 mA)
Wireless Data Acquisition System Instruction Manual
61
Loading...
