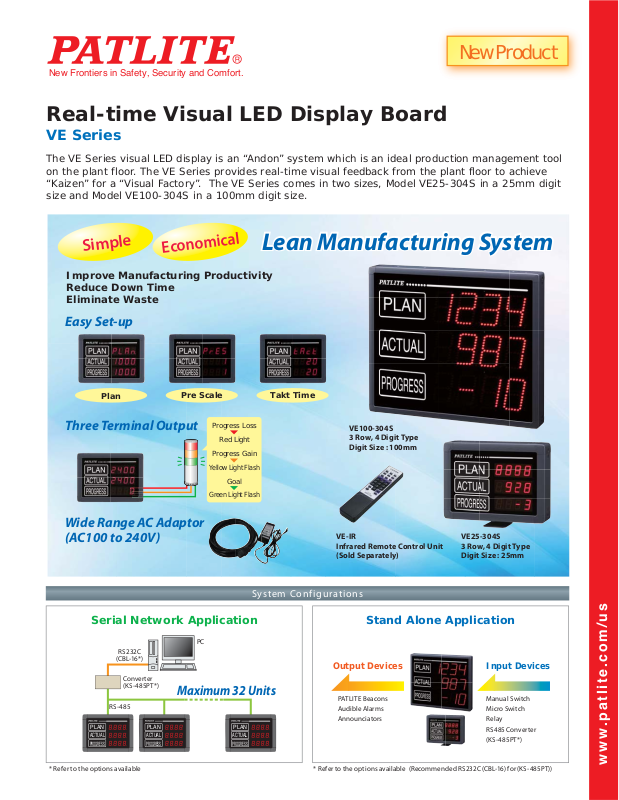

Patlite VE Series Catalog Page

New Product

Lean Manufacturing System

New Frontiers in Safety, Security and Comfort.

Real-time Visual LED Display Board

VE Series

The VE Series visual LED display is an “Andon” system which is an ideal production management tool
on the plant floor. The VE Series provides real-time visual feedback from the plant floor to achieve
“Kaizen” for a “Visual Factory”. The VE Series comes in two sizes, Model VE25­size and Model VE100-304S in a 100mm digit size.

Lean Manufacturing System

Simple

Economical

Improve Manufacturing Productivity
Reduce Down Time
Eliminate Waste

Easy Set-up

304S in a 25mm digit

Plan

Three Terminal Output

Pre Scale Takt Time

進度＋

Progress Loss

Red Light

進度＋

Progress Gain

進度＋

Yellow Light Flash

Goal

Green Light Flash

VE100-304S
3 Row, 4 Digit Type
Digit Size : 100mm

Wide Range AC Adaptor
(AC100 to 240V)

System Configurations

Serial Network Application Stand Alone Application

PC

Maximum 32 Units

PLAN
ACTUAL
PROGRESS

RS-485

PLAN
ACTUAL
PROGRESS

RS232C

(CBL-16*)

Converter
(KS-485PT*)

PLAN
ACTUAL
PROGRESS

VE-IR
Infrared Remote Control Unit
(Sold Separately)

PATLITE Beacons
Audible Alarms
Announciators

VE25-304S
3 Row, 4 Digit Type
Digit Size : 25mm

Input DevicesOutput Devices

Manual Switch
Micro Switch
Relay
RS485 Converter
(KS-485PT*)

* Refer to the options available

* Refer to the options available (Recommended RS232C (CBL-16) for (KS-485PT))

www.patlite.com/us

Dimensions

PLAN
ACTUAL
PROGRESS

PLAN

ACTUAL

PROGRESS

FG

Results

S

u

btra

ct

Stop

Clear

Achieve

Gain

L

oss

Input Output

Fin

is

h

COM

C

OM

Model VE25-304S

27

68

95.5

20016

270

φ6

40

19

Terminal

60

8.2

Bracket

52.5

Plug

PowerCord

2800mm

70

Screwless Terminal ­No Tools Required

Cage clamp terminals, just push and
release for secure contact. No tools
are required.

Model VE100-304S

95 95

MountingHol e

205

580 70

Plug

68

19

Ter m i na l

M64

480

187.5

173 . 5

PowerCord

2800mm

Unit:mm

Options

20130 S ．

Am Soeldnermoos 8, D-85399 Hallbergmoos, Germany
TEL.[phone] FAX.[phone]

Remote Control

Model: VE-IR

For

VE25-304S

VE100-304S

PLAN

PLAN

AC Adaptor

Model: VE-AD01

For

VE25

VE100

Western Ave．, Torrance,

CA 90501, U.S.A.

TEL.[phone]

http://www.patlite.com/us E-mail: [e-mail]

E-mail:[e-mail]

Display Board Label

［Made to Order］

For

VE25-304S
VE100-304S

RS232C/RS485 Converter

Model: KS-485PT

For

VE25-304S
VE100-304S

FAX.[phone]

Brackets （Set of 2）

Model: VE-01

For

VE100

Connector Cable （1m）

Model: CBL-16

For

VE25-304S
VE100-304S

To ensure correct use of these products, read the “Instruction Manual” prior to use.
Failure to follow all safeguards can result in fire, electric shock, or other accidents.
Specifications are subject to change without notice.

PATLITE Corporation reserves the right to modify product specifications
without prior notice within our policy of continual product deveropment.
