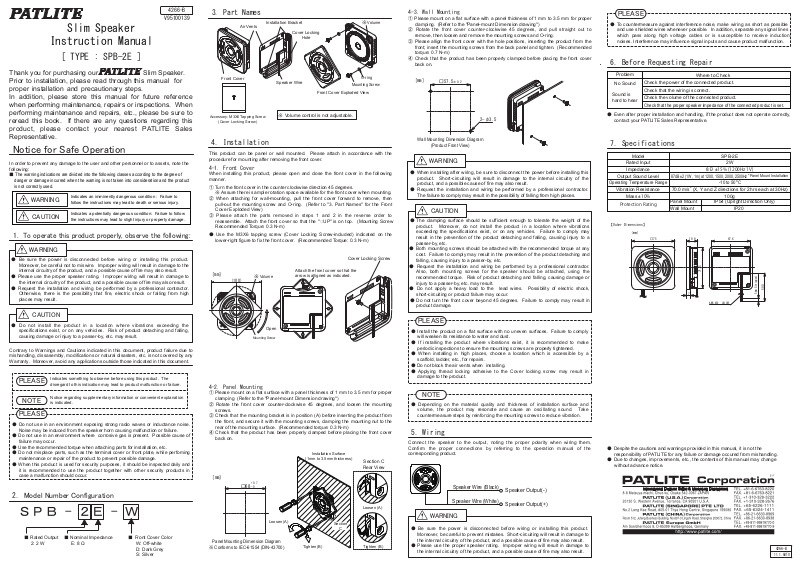

PATLITE SPB-2E User Manual

4266-B

V95100139

Slim Speaker

Instruction Manual

[ TYPE : SPB-2E ]

Thank you for purchasing our Slim Speaker. Prior to installation, please read through this manual for proper installation and precautionary steps. In addition, please store this manual for future reference when performing maintenance, repairs or inspections. When performing maintenance and repairs, etc., please be sure to reread this book. If there are any questions regarding this product, please contact your nearest PATLITE Sales Representative.

Notice for Safe Operation

In order to prevent any damage to the user and other personnel or to assets, note the following:

■

The warning indications are divided into the following classes according to the degree of danger or damage incurred when the warning is not taken into consideration and the product is not correctly used.

WARNING

CAUTION

To operate this product properly, observe the following:

WARNING

警告

● Be sure the power is discon nected before wiring or i nstalling this produc t.

Moreover, be careful not to miswire. Improper wiring will result in damage to the internal circuitry of the product, and a possible cause of fire may also result.

● Please use the proper speaker rating. Improper wiring will result in damage to

the internal circuitry of the product, and a possible cause of fire may also result.

● Request the installation and wiring be performed by a professional contractor.

Otherwise, there is the possibility that fire, electric shock or falling from high places may result.

CAUTION

注意

● Do not install the product in a location where vi brations exceeding the

specifications exist, or on any vehicles. Risk of product detaching and falling, causing damage or injury to a passer-by, etc. may result.

Contrary to Warnings and Cautions indicated in this document, product failure due to mishandling, dissasembly, modifications or natural disasters, etc. is not covered by any Warranty.

Moreover, avoid any applications outside those indicated in this document.

PLEASE

NOTE

PLEASE

● Do not use in an environment exposing strong radio waves or inductance noise.

Noise may be induced from the speaker horn causing malfunction or failure.

● Do not use in an environment where corrosive gas is present. Possible cause of

failure may occur.

● Use the recommended torque when attaching parts for installation, etc.

● Do not misplace parts, such as the terminal cover or front plate, while perfoming

maintenance or repair of the product to prevent possible damage.

● When this product is used for security purposes, it should be inspected daily and

it is recommended to use the product together with other security products in case a malfunction should occur.

2. Model Number Configuration

Indicates an imminently dangerous condition : Failure to follow the instructions may lead to death or serious injury.

Indicates a potentially dangerous condition: Failure to follow the instructions may lead to slight injury or property damage.

Indicates something to observe before using this product. The disregard to this indication may lead to product malfunction or failure.

Notice regarding supplementary information or convenient explanation is indicated.

ＳＰＢ - ２Ｅ - Ｗ

■ Rated Output

2: 2 W

■ Nominal Impedance

E: 8 Ω

■ Front Cover Color

W: Off-white D: Dark Grey S: Silver

3. Part Names

Volume

Air Vents

Front Cover

Accessory: M3X6 Tapping Screw

(Cover Locking Screw)

Installation Bracket

Cover Locking

Hole

Speaker Wire

Front Cover Exploded View

※ Volume control is not adjustable.

※

O-ring

Mounting Screw

4. Installation

This product can be panel or wall mounted. Please attach in accordance with the procedure for mounting after removing the front cover.

4-1. Front Cover

When installing this product, please open and close the front cover in the following manner.

① Turn the front cover in the counter clockwise direction 45 degrees.

※ Assure there is ample rotation space available for the front cover when mounting.

② When attaching for wall-mounting, pull the front cover forward to remove, then

pull-out the mounting screw and O-ring. (Refer to "3. Part Names" for the Front Cover Exploded View)

③ Please attach the pa rts remo ved in st eps 1 an d 2 in the rev erse orde r to

reassemble. Attach the front cover so that the "�UP" is on top. (Mounting Screw Recommended Torque: 0.3 N-m)

● Use the M3X6 tapping screw (Cover Locking Screw-included) indicated on the

lower-right figure to fix the front cover. (Recommended Torque: 0.3 N-m)

Cover Locking Screw

[mm]

4-2. Panel Mounting

① Please mount on a flat surface with a panel thickness of 1 mm to 3.5 mm for proper

clamping (Refer to the "Panel-mount Dimension drawing")

② Rotate the front cover counter-clockwise 45 degrees, and loosen the mounting

screws.

③ Check that the mounting bracket is in position (A) before inserting the product from

the front, and secure it with the mounting screws, clamping the mounting nut to the rear of the mounting surface. (Recommended torque: 0.3 N-m)

④ Check that the product has been properly clamped before placing the front cover

back on.

[mm]

Panel Mounting Dimension Diagram

※ Conforms to IEC-61554 (DIN-43700)

(100)

□68

Volume

※

Open

Mounting Screw

+0.7

-0

Attach the front cover so that the arrow is alligned as indicated.

Loosen (A)

Installation Surface

(1mm to 3.5mm thickness)

Section

Tighten (B)

Section C Rear View

Loosen (A)

Tighten (B)

4-3. Wall Mounting

① Please mount on a flat surface with a panel thickness of 1 mm to 3.5 mm for proper

clamping. (Refer to the "Panel-mount Dimension drawing")

② Rotate the fron t cover counter-clock wise 45 degrees, and pull st raight out to

remove, then loosen and remove the mounting screws and O-ring.

③ Please allign the front cover with the hole positions, inserting the product from the

front; insert the mounting screws from the back panel and tighten. (Recommended torque: 0.7 N-m)

④ Check that the product has been properly clamped before placing the front cover

back on.

[mm]

Wall Mounting Dimension Diagram

±0.2

□57.5

(Product Front View)

2-φ3.5

WARNING

● When installing after wiring, be sure to disconnect the power before installing this

product. Short-circuiting will result in damage to the internal circuitry of the product, and a possible cause of fire may also result.

● Request the installation and wiring be performed by a professional contractor.

The failure to comply may result in the possibility of falling from high places.

CAUTION

● The clamping surface should be sufficient enough to tolerate the weight of the

product. Moreover, do not install the product in a location where vibrations exceeding the specifications exist, or on any vehicles. Failure to comply may result in the prevention of the product detaching and falling, causing injury to a passer-by, etc.

● Both mounting screws should be attached with the recommended torque at any

cost. Failure to comply may result in the prevention of the product detaching and falling, causing injury to a passer-by, etc.

● Request the installation and wiring be performed by a professional contractor.

Also, both m ounting sc rews for the s peaker shou ld be attac hed, using t he recommended torque. Risk of product detaching and falling, causing damage or injury to a passer-by, etc. may result.

● Do not apply a heavy load to the lead wires. Possibility of electric shock,

short-circuiting or product failure may occur.

● Do not turn the front cover beyond 45 degrees. Failure to comply may result in

product damage.

PLEASE

● Install the product on a flat surface with no uneven surfaces. Failure to comply

will weaken its resistance to water and dust.

● If installing the product where

periodic inspections to ensure the mounting screws are properly tightened.

● When installing in high places, choose a location which is accessible by a

scaffold, ladder, etc., for repairs.

● Do not block the air vents when installing.

● Applying thread locking adhesive to the Cover locking sc rew may result in

damage to the product.

vibrations exist, it is recomme nded to make

NOTE

● Depending on the material quality and thickness of installation surface and

volume, th e product m ay resonat e and caus e an oscil lating soun d. Take countermeasure steps by reinforcing the mounting screws to reduce vibration.

5. Wiring

Connect the speaker to the output, noting the proper polarity when w iring them. Confirm the proper connection s by referring to the operation manual of the corresponding product.

Speaker Wire

WARNING

● Be sure the power is discon nected before wiring or i nstalling this produc t.

Moreover, be careful to prevent mistakes. Short-circuiting will result in damage to the internal circuitry of the product, and a possible cause of fire may also result.

● Please use the proper speaker rating. Improper wiring will result in damage to

the internal circuitry of the product, and a possible cause of fire may also result.

(Black)

(White)

Speaker Output(-)

Speaker Output(+)

PLEASE

● To countermeasure against interference noise, make wiring as short as possible

and use shielded wires whenever possible. In addition, separate any signal lines which pass along high voltage cables o r is susceptible to r eceive inductio n noises. Interference may influence signal inputs and cause product malfunction.

6. Before Requesting Repair

Problem

No Sound

Sound is hard to hear

● Even after proper installation and handling, if the product does not operate correctly,

contact your PATLITE Sales Representative.

Check the power of the connected product.

Check that the wiring is correct.

Check the volume of the connected product.

Check that the proper speaker impedance of the connected product is set.

Where to Check

7. Specifications

8Ω±

71.5

AWG #22 UL1007

SPB-2E

15%(1200Hz1V)

-10 to 50oC

100g

67.6

Panel Mount Installation

500

5mm Stripped

4266-B

'11.1.AUTO

Model Rated Input Impedance

Output Sound Level

Operating Temperature Range

Vibration Resistance

Mass ±

10%

ProtectionRating

【Outer Dimensions】

(mm)

● Despite the cautions and warnings provided in this manual, it is not the

responsibility of PATLITE for any failure or damage occured from mishandling.

● Due to changes, improvements, etc., the contents of this manual may change

without advance notice.

87dB ±2 (1W, 1m) at 1200, 1500, 2000, 2500Hz

70.0 m/s2 (X, Y and Z directions for 2 hrs each at 30Hz)

Panel Mount IP54 (Upright Direction Only) Wall Mount IP20

19.9□75
