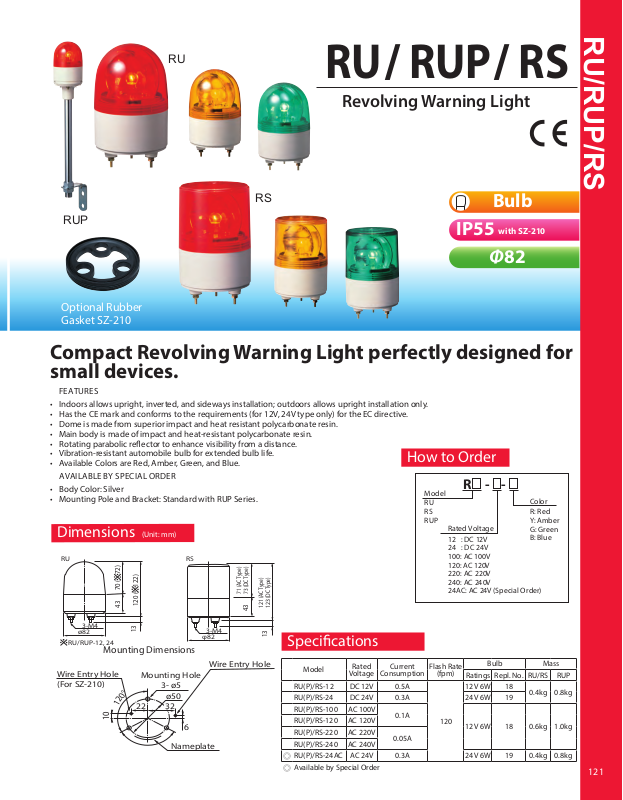

Patlite RU, RUP, RS Catalog Page

RU

RU

/

Revolving Warning Light

/

RU/RUP/RS

RSRUP

RS

Bulb

RUP

IP55

with SZ-210

Φ82

Optional Rubber
Gasket SZ-210

Compact Revolving Warning Light perfectly designed for
small devices.

FEATURES

• Indoors allows upright, inverted, and sideways installation; outdoors allows upright installation only.

• Has the CE mark and conforms to the requirements (for 12V, 24V type only) for the EC directive.

• Dome is made from superior impact and heat resistant polycarbonate resin.

• Main body is made of impact and heat-resistant polycarbonate resin.

• Rotating parabolic reector to enhance visibility from a distance.

• Vibration-resistant automobile bulb for extended bulb life.

• Available Colors are Red, Amber, Green, and Blue.
AVAILABLE BY SPECIAL ORDER

• Body Color: Silver

• Mounting Pole and Bracket: Standard with RUP Series.

70 ( 72)

120 ( 122)

43

(Unit: mm)

RS

71 (AC Type)

73 (DC Type)

(AC Type)

121

43

Dimensions

RU

(DC Type)

123

How to Order

Model
RU

RS
RUP

R - -

Rated Voltage
12 : DC 12V

24 : DC 24V
100: AC 100V
120: AC 120V
220: AC 220V
240: AC 240V
24AC: AC 24V (Special Order)

Color
R: Red

Y: Am ber
G: Green
B: Blue

3-M4

ø82

RU/RUP-12, 24

Wire Entry Hole
(For SZ-210)

Mounting Dimensions

10

13

Mounting Hole

120°

22

3- ø5

ø50

32

6

Nameplate

3-M4

φ82

Wire Entry Hole

13

Specications

Model

RU(P)/RS-12 DC 12V 0.5A
RU(P)/RS-24 DC 24V 0.3A 24V 6W 19

RU(P)/RS-100 AC 100V

RU(P)/RS-120 AC 120V

RU(P)/RS-220 AC 220V

RU(P)/RS-240 AC 240V

RU(P)/RS-24AC AC 24V 0.3A 24V 6W 19 0.4kg 0.8kg

◎

Available by Special Order

◎

Rated

Voltage

Current

Consumption

0.1A

0.05A

Flash Rate

(fpm)

120

Bulb Mass
Ratings Repl. No. RU/RS RUP
12V 6W 18

12V 6W 18 0.6kg 1.0kg

0.4kg 0.8kg

121
