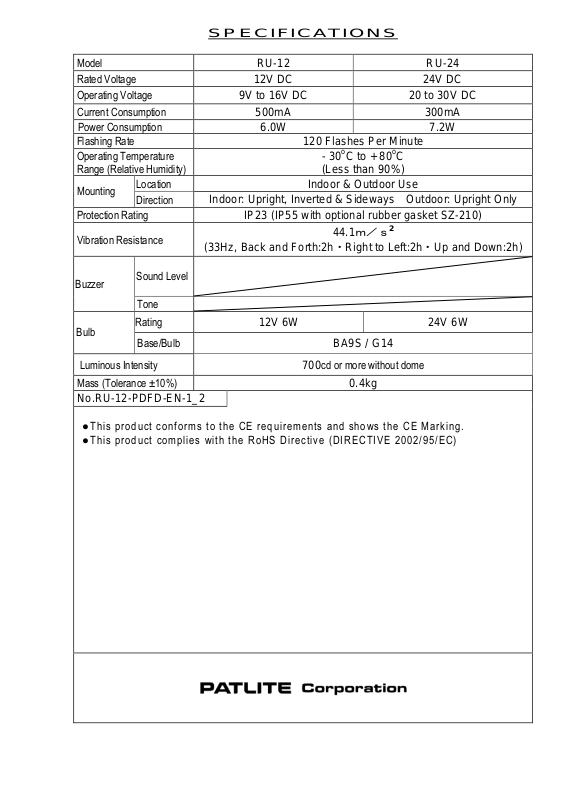

Patlite RU-12, RU-24 Specifications

SPECIFICATIONS

Model
Rated Voltage
Operating Voltage
Current Consumption

Power Consumption
Flashing Rate
Operating Temperature

Range (Relative Humidity)

Mounting

Location
Direction

Protection Rating

Vibration Resistance

Buzzer

Sound Level

Tone

Rating

Bulb

Base/Bulb

RU-12 RU-24

12V DC 24V DC

9V to 16V DC 20 to 30V DC

500mA 300mA

6.0W 7.2W
120 Flashes Per Minute

- 30oC to + 80oC
(Less than 90%)

Indoor & Outdoor Use

Indoor: Upright, Inverted & Sideways Outdoor: Upright Only

IP23 (IP55 with optional rubber gasket SZ-210)

44.1ｍ／ｓ2

(33Hz, Back and Forth:2h・Right to Left:2h・Up and Down:2h)

12V 6W

BA9S / G14

24V 6W

Luminous Intensity

Mass (Tolerance ±10%)

No.RU-12-PDFD-EN-1_2

700

cd or more without dome

0.4kg

●This product conforms to the CE requirements and shows the CE Marking.

●This product complies with the RoHS Directive (DIRECTIVE 2002/95/EC)
