RLE
RLE

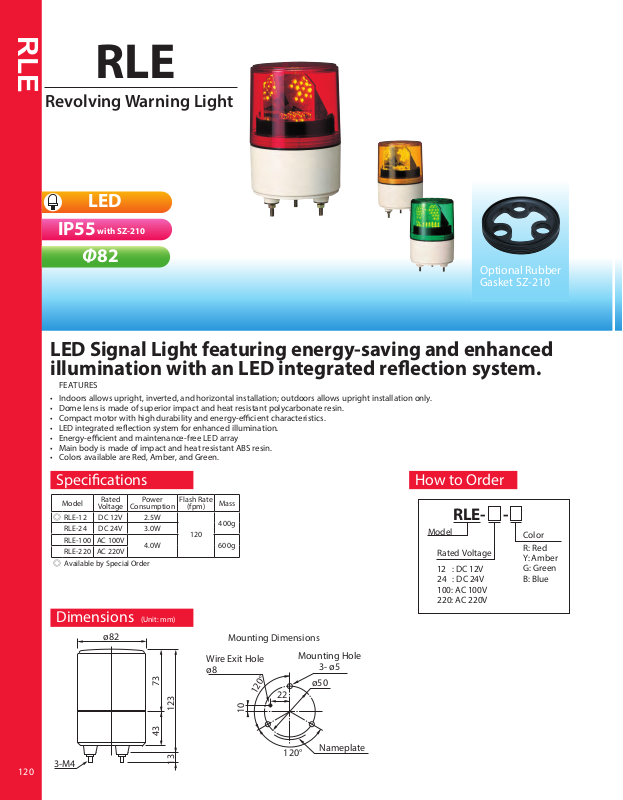

Revolving Warning Light
LED
IP55
with SZ-210
Φ82
LED Signal Light featuring energy-saving and enhanced
illumination with an LED integrated reection system.
FEATURES
• Indoors allows upright, inverted, and horizontal installation; outdoors allows upright installation only.
• Dome lens is made of superior impact and heat resistant polycarbonate resin.
• Compact motor with high durability and energy-ecient characteristics.
• LED integrated reection system for enhanced illumination.
• Energy-ecient and maintenance-free LED array
• Main body is made of impact and heat resistant ABS resin.
• Colors available are Red, Amber, and Green.
Optional Rubber
Gasket SZ-210
Specications
Model
RLE-12 DC 12V 2.5W
◎
RLE-24 DC 24V 3.0W
RLE-100 AC 100V
RLE-220 AC 220V
Available by Special Order
◎
Dimensions (Unit: mm)
120
3-M4
Rated
Voltage
ø82
Power
Consumption
4.0W 600g
43 73
Flash Rate
(fpm)
120
123
13
Mass
400g
Mounting Dimensions
Wire Exit Hole
ø8
10
120°
Mounting Hole
22
ø50
120°
3- ø5
Nameplate
How to Order
RLE- -
Model
Rated Voltage
12 : DC 12V
24 : DC 24V
100: AC 100V
220: AC 220V
Color
R: Red
Y: Amber
G: Green
B: Blue
