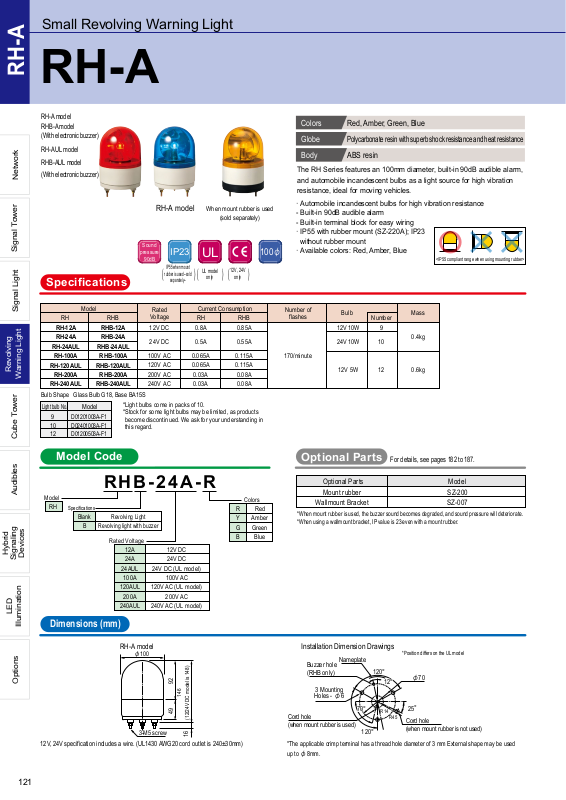

Patlite RH-A Catalog Page

Small Revolving Warning Light

(12/24V DC model is 148)

RH-A

RH-A

RH-A model
RHB-A model
(With electronic buzzer)

RH-AUL model

RHB-AUL model

(With electronic buzzer)

RH-A model

Signal Tower

Specifications

Sound

pressure

IP23

90dB

IP55 when mount

rubber is used–sold

( )

separately–

When mount rubber is used

(sold separately)

UL

( )

only

12V, 24V

only

UL model

( )

100

Colors Red, Amber, Green, Blue

Globe

Polycarbonate resin with superb shock resistance and heat resistance

Body ABS resin

The RH Series features an 100mm diameter, built-in 90dB audible alarm,
and automobile incandescent bulbs as a light source for high vibration
resistance, ideal for moving vehicles.

· Automobile incandescent bulbs for high vibration resistance

- Built-in 90dB audible alarm

- Built-in terminal block for easy wiring

· IP55 with rubber mount (SZ-220A); IP23
without rubber mount

· Available colors: Red, Amber, Blue

φ

<IP55 compliant range when using mounting rubber>

Signal Light

Revolving

Warning Light

Cube Tower

Audibles

Hybrid

Devices

Signaling

LED

Illumination

Model

RH RHB

RHB-24AUL

RHB-100A

RHB-200A

Model

RHB-12A

*Light bulbs come in packs of 10.
*Stock for some light bulbs may be limited, as products

become discontinued. We ask for your understanding in
this regard.

RH-12A
RH-24A RHB-24A

RH-24AUL

RH-100A

RH-120AUL RHB-120AUL

RH-200A

RH-240AUL RHB-240AUL

Bulb Shape Glass Bulb G18, Base BA15S

Light bulb No.

9

D01201003A-F1

10

D02401003A-F1

12

D01200503A-F1

Model Code

RHB-24A-R

Model

RH

Specifications

Blank

Dimensions (mm)

Revolving Light

Revolving light with buzzer

B

Rated Volt age

120AUL

240AUL

12A
24A

24AUL

100A

200A

Rated

Voltage

12V DC

24V DC

100V AC
120V AC
200V AC
240V AC

12V DC
24V DC

24V DC (UL model)

100V AC

120V AC (UL model)

200V AC

240V AC (UL model)

Current Consumption

RH

0.8A

0.5A

0.065A

0.065A

0.03A

0.03A

RHB

0.85A

0.55A

0.115A

0.115A

0.08A

0.08A

Colors

R
Y
G
B

Red
Amber
Green

Blue

Number of

flashes

12V 10W

24V 10W

170/minute

12V 5W

Optional Parts

Bulb

Number

9

10

12

Mass

0.4kg

0.6kg

For details, see pages 182 to 187.

Optional Parts Model
Mount rubber

Wallmount Bracket

*When mount rubber is used, the buzzer sound becomes degraded, and sound pressure will deteriorate.
*When using a wallmount bracket, IP value is 23 even with a mount rubber.

SZ-200
SZ- 007

RH-A model

φ100

Options Network

146

49 92

3-M5 screw

12V, 24V specification includes a wire. (UL1430 AWG20 cord outlet is 240±30mm)

16

121

Installation Dimension Drawings

3 Mounting

Holes - φ6

Nameplate

120°

70°

120°

Buzzer hole
(RHB only)

Cord hole
(when mount rubber is used)

*The applicable crimp terminal has a thread hole diameter of 3 mm External shape may be used
up to φ8mm.

*Position differs on the UL model

φ70

12°

12°

25°

R14

R45

Cord hole
(when mount rubber is not used)
