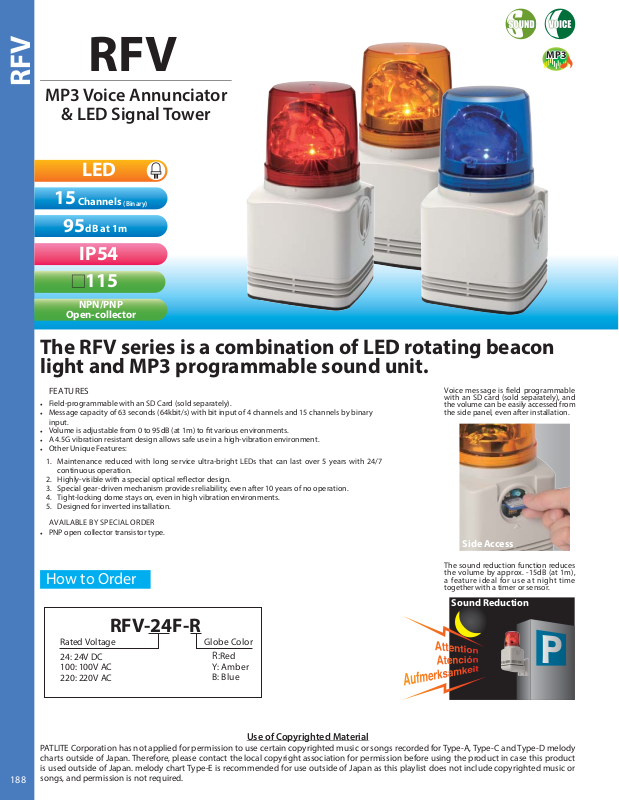

RFV
RFV
MP3 Voice Annunciator
& LED Signal Tower
LED
15
Channels
95
dB at 1m
IP54
115
NPN/PNP
Open-collector
(Binary)
MP3
The RFV series is a combination of LED rotating beacon
light and MP3 programmable sound unit.
FEATURES
Field-programmable with an SD Card (sold separately).
•
Message capacity of 63 seconds (64kbit/s) with bit input of 4 channels and 15 channels by binary
•
input.
Volume is adjustable from 0 to 95dB (at 1m) to t various environments.
•
A 4.5G vibration resistant design allows safe use in a high-vibration environment.
•
Other Unique Features:
•
1. Maintenance reduced with long service ultra-bright LEDs that can last over 5 years with 24/7
continuous operation.
2. Highly-visible with a special optical re ector design.
3. Special gear-driven mechanism provides reliability, even after 10 years of no operation.
4. Tight-locking dome stays on, even in high vibration environments.
5. Designed for inverted installation.
AVAILABLE BY SPECIAL ORDER
PNP open collector transistor type.
•
How to Order
RFV-24F-R
Rated Voltage
24: 24V DC
100: 100V AC
220: 220V AC
Globe Color
R:Red
Y: Amber
B: Blue
Voice message is field programmable
with an SD card (sold separately), and
the volume can be easily accessed from
the side panel, even after installation.
Side Access
The sound reduction function reduces
the volume by approx. -15dB (at 1m),
a feature ideal for use at night time
together with a timer or sensor.
Sound Reduction
Use of Copyrighted Material
PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded for Type-A, Type-C and Type-D melody
charts outside of Japan. Therefore, please contact the local copyright association for permission before using the product in case this product
is used outside of Japan. melody chart Type-E is recommended for use outside of Japan as this playlist does not include copyrighted music or
songs, and permission is not required.
188
Wiring
RFV
Common Line (Brown)
LED Warning Light (Red)
Audio CH1 (Sky Blue)
Audio CH2 (Yellow)
Audio CH3 (Pink)
Audio CH4 (Light Green)
Audio STOP (Green)
Sound Reduction (Purple)
Dimensions
Power Supply (White)
Power Supply (Black)
Fuse
External Contact
NPN Open Collector
Power
Supply
Options
RF-001: Wall Mount Bracket
RF-002 Ceiling Mount Bracket
RFV
Mount
Rubber
W
3-M5
115
ø100
ø8
95
215
14.8
ø70
350mm
120°
400mm
36°
120°
Front
Signal Line
Power Line
Wire Entry Hole: ø15
R41
Cover Position
Mounting Hole: 3-ø6
(Unit: mm)
PATLITE Playlist Editor 2
(Free Version)
(OS: Windows® 2000/XP/Vista)
The new PATLITE Playlist Editor 2 is required to
>
change the audio message data for this product.
The SD Card does not contain the Playlist Editor
>
software or any audio messages.
Options
SD Card
(2 GB)
SDV-2GP
Speci cations
Series Model
RFV-24 DC 24V DC 24V ±10% 18 W
RFV
RFV-100 AC 100V AC 100V ±10%
RFV-220 AC 220V AC 220V ±10%
Actual sound level will depend on sound type and operating conditions.
Even when starting two or more units simultaneously, a lag will occur during message playback.
※）
Rated
Voltage
Operating
Voltage Range
Maximum
Power
Consumption
16W 1.2kg
Sound Level
Max. 95dB
(at 1m)
Operating
Temperature
-10oC - +50oC
(85%RH or less)
Range
Flashes per
Minute
115 ±15
Protection Rating
IP54
(When Flush-mounted)
Vibration
Resistance
19.6m/s
2
Mass
1.0kg
189
