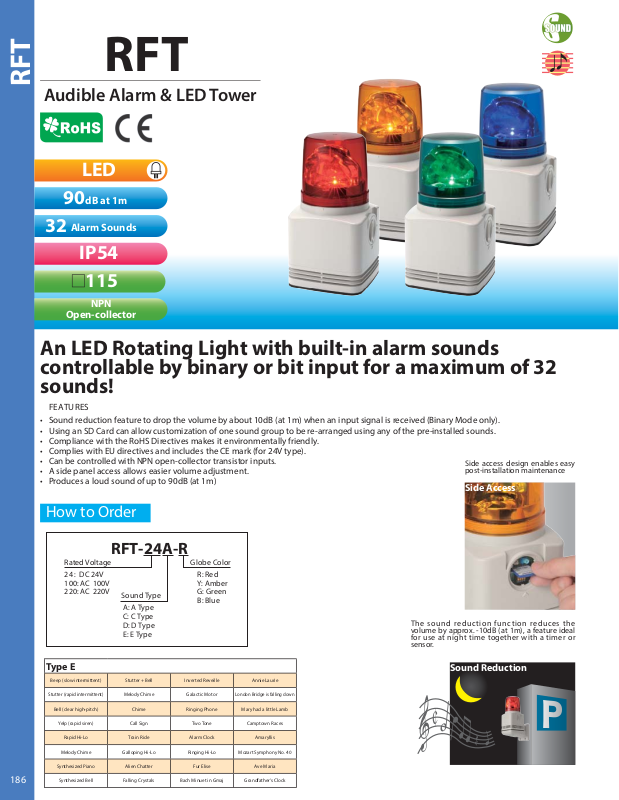

Patlite RFT Catalog

RFT

RFT

Audible Alarm & LED Tower

LED

90

dB at 1m

Alarm Sounds

32

IP54

115

NPN

Open-collector

An LED Rotating Light with built-in alarm sounds
controllable by binary or bit input for a maximum of 32
sounds!

FEATURES

• Sound reduction feature to drop the volume by about 10dB (at 1m) when an input signal is received (Binary Mode only).

• Using an SD Card can allow customization of one sound group to be re-arranged using any of the pre-installed sounds.

• Compliance with the RoHS Directives makes it environmentally friendly.

• Complies with EU directives and includes the CE mark (for 24V type).

• Can be controlled with NPN open-collector transistor inputs.

• A side panel access allows easier volume adjustment.

• Produces a loud sound of up to 90dB (at 1m)

How to Order

RFT-24A-R

Rated Voltage

24 : DC 24V
100: AC 100V
220: AC 220V

Sound Type

A: A Type
C: C Type
D: D Type
E: E Type

Globe Color

R: Red
Y: Amber
G: Green
B: Blue

The sound reduction function reduces the
volume by approx. -10dB (at 1m), a feature ideal
for use at night time together with a timer or
sensor.

Side access design enables easy
post-installation maintenance

Side Access

186

Type E

Beep (slow intermittent) Stutter + Bell Inverted Reveille Annie Laurie

Stutter (rapid intermittent)

Bell (clear high-pitch) Chime Ringing Phone Mary had a little Lamb

Yelp (rapid siren) Call Sign Two Tone Camptown Races

Rapid Hi-Lo Train Ride Alarm Clock Amaryllis

Melody Chime Galloping H i-Lo Ringing Hi-Lo Mozart Symphony No. 40

Synthesized Piano Alien Chatter Fur Elise Ave Maria

Synthesized Bell Falling Crystals Bach Minuet in Gmaj Grandfather’s Clock

Melody Chime Galactic Motor

London Bridge is falling down

Sound Reduction

Wiring

RFT

Power Supply (White)

Power Supply (Black)

Common Line (Brown)
LED Warning Light (Red)

Audio CH1 (Sky Blue)

Audio CH2 (Yellow)
Audio CH3 (Pink)
Audio CH4 (Light Green)

Audio CH5 (Purple)

Audio CH6 (Orange)
Audio CH7 (Green)

Audio CH8 (Blue)

Fuse

External Contact

Options

RF-001: Wall Mount Bracket

󱾁

RF-002 Ceiling Mount Bracket

󱾁

RFT

Dimensions

Mount
Rubber

3-M5

W

115

ø100

ø8

95

215

14.8

NPN Open Collector

Mounting Dimensions

120°

ø70

120°

Front

350mm

Signal Line

400mm

Power Line

36°

PATLITE Playlist Editor 2
(Free Version)

(OS: Windows® 2000/XP/Vista)

The new PATLITE Playlist Editor 2 is required to

>



change the audio message data for this product.
The SD Card does not contain the Playlist Editor

>



software or any audio messages.

Wire Entry Hole: ø15

R41

Cover Position

Mounting Hole: 3-ø6

(Unit: mm)

Options

SD Card
(2 GB)

SDV-2GP

Speci cations

Series Model

RFT-24 DC 24V DC 24V ±10% 12 W

RFT

RFT-100 AC 100V AC 100V ±10% 13 W
RFT-220 AC 220V AC 220V ±10% 13 W

Actual sound level will depend on sound type and operating conditions.

Even when starting two or more units simultaneously, a lag will occur during message playback.

※）

Rated

Voltage

Operating

Voltage Range

Maximum

Power

Consumption

Sound Level

Max. 90dB

(at 1m)

Operating

Temperature

Range

-10oC - +50oC

(85%RH or less)

Flashes per

Minute

115 ±15

Protection Rating

IP54

(When Flush-mounted)

Vibration

Resistance

19.6m/s

2

Mass

1.0kg

1.2kg

187
