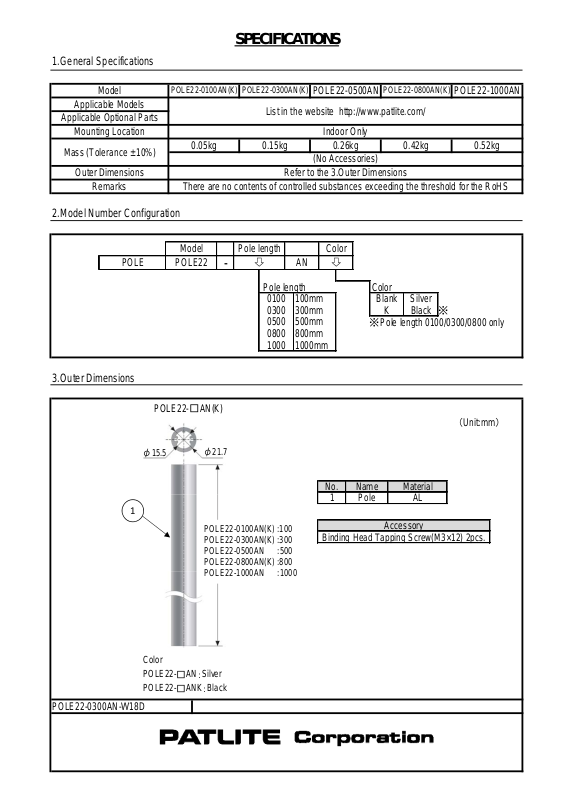

Patlite POLE22 Specifications

1.General Specifications

A

A

※

y

SPECIFICATIONS

Model

Applicable Models

Applicable Optional Parts

Mounting Location

Mass (Tolerance ±10%)

Outer Dimensions

POLE22-0100AN(K) POLE22-0300AN(K)

2.Model Number Configuration

POLE POLE22

POLE22-0500AN

List in the website http://www.patlite.com/

Indoor Only

0.05kg 0.15kg 0.26kg 0.42kg 0.52kg
(No Accessories)

Refer to the 3.Outer Dimensions

There are no contents of controlled substances exceeding the threshold for the RoHSRemarks

Model Pole length

-

⇩

Pole length Color

0100
0300 300mm
0500 500mm
0800 800mm
1000 1000mm

AN

100mm

Color

⇩

POLE22-0800AN(K)

Blank Silver

KBlack

Pole length 0100/0300/0800 onl

POLE22-1000AN

※

3.Outer Dimensions

POLE22-□AN(K)

φ15.5

1

φ21.7

POLE22-0100AN(K) :100
POLE22-0300AN(K) :300
POLE22-0500AN :500
POLE22-0800AN(K) :800
POLE22-1000AN :1000

（Unit:mm）

No. Material

Binding Head Tapping Screw( M3×12) 2pcs.

Name

1

Pole

L

ccessory

Color
POLE22-□AN：Silver
POLE22-□ANK：Black

POLE22-0300AN-W18D
