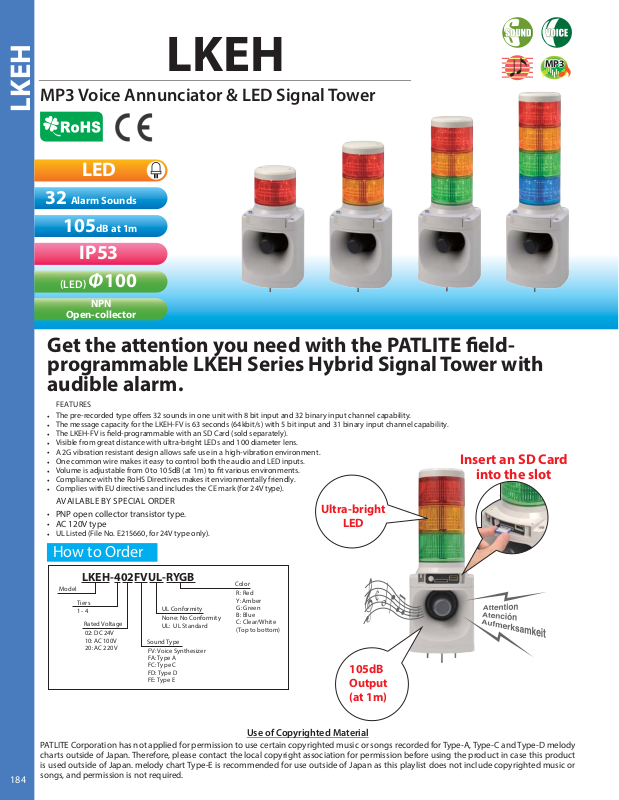

Patlite LKEH Catalog
LKEH
MP3 Voice Annunciator & LED Signal Tower
LKEH
LED
Alarm Sounds
32
MP3
105
dB at 1m
IP53
Φ100
LED
NPN
Open-collector
Get the attention you need with the PATLITE eldprogrammable LKEH Series Hybrid Signal Tower with
audible alarm.
FEATURES
The pre-recorded type o ers 32 sounds in one unit with 8 bit input and 32 binary input channel capability.
•
The message capacity for the LKEH-FV is 63 seconds (64kbit/s) with 5 bit input and 31 binary input channel capability.
•
The LKEH-FV is eld-programmable with an SD Card (sold separately).
•
Visible from great distance with ultra-bright LEDs and 100 diameter lens.
•
A 2G vibration resistant design allows safe use in a high-vibration environment.
•
One common wire makes it easy to control both the audio and LED inputs.
•
Volume is adjustable from 0 to 105dB (at 1m) to t various environments.
•
Compliance with the RoHS Directives makes it environmentally friendly.
•
Complies with EU directives and includes the CE mark (for 24V type).
•
AVAILABLE BY SPECIAL ORDER
• PNP open collector transistor type.
• AC 120V type
UL Listed (File No. E215660, for 24V type only).
•
Ultra-bright
LED
Insert an SD Card
into the slot
How to Order
LKEH-402FVUL-RYGB
Model
Tiers
1 - 4
Rated Volta ge
02: DC 24V
10: AC 100V
20: AC 220V
PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded for Type-A, Type-C and Type-D melody
charts outside of Japan. Therefore, please contact the local copyright association for permission before using the product in case this product
is used outside of Japan. melody chart Type-E is recommended for use outside of Japan as this playlist does not include copyrighted music or
songs, and permission is not required.
184
UL Conformity
None: No Conformity
UL: UL Stan dard
Sound Type
FV: Voice Synthe sizer
FA: Type A
FC: Type C
FD: Type D
FE: Type E
Color
R: Red
Y: Am ber
G: Green
B: Blue
C: Clear/White
(Top to bottom)
Use of Copyrighted Material
105dB
Output
(at 1m)
pply
Wiring
Flashing Common Line (Brown)
Common Line (Yellow)
Red LED Unit (Red)
Yellow LED Unit (Yellow)
Green LED Unit (Green)
Blue LED Unit (Blue)
White LED Unit (Bright Green)
Audio CH1 (Sky Blue)
Audio CH2 (Yellow)
Audio CH3 (Pink)
Audio CH4 (Bright Green)
Audio CH5 (Red)
Audio STOP (Green)
Cable
Sound Reduction (Purple)
(Gray)
BUSY + (Orange)
BUSY - (Blue)
Power Supply + (White)
Cable
(Black)
Power Su
- (Black)
Sound Charts
NPN Open Collector
Load
L
Fuse
Open Circuit: 24V DC
Closed Circuit: 90mA
Open Circuit: 24V DC
Closed Circuit: 6mA
+
External Contact
Visual Signal Line
Audio Signal Line
Max 24V DC, 500mA
Power
Supply *2
Flashing Common Line (Brown)
Common Line (Yellow)
Red LED Unit (Red)
Yellow LED Unit (Orange)
Green LED Unit (Green)
Blue LED Unit (Blue)
White LED Unit (Bright Green)
Audio CH1 (Sky Blue)
Audio CH2 (Yellow)
Audio CH3 (Pink)
Audio CH4 (Bright Green)
Audio CH5 (Red)
Audio CH6 (Orange)
Cable
Audio CH7 (Green)
(Gray)
Audio CH8 (Blue)
Sound Reduction (Purple)
Power Supply + (White)
Cable
Power Supply - (Black)
(Black)
NPN Open Collector
( )
Fuse
Options
Wall-mount Bracket SZ-023
External
Contact
*1
*1
*1
*1
*1
Visual Signal Line:
Open Circuit: 24V DC
Closed Circuit: 90mA
Audio Signal Line:
Open Circuit: 24V DC
Closed Circuit: 6mA
PATLITE Playlist Editor 2
Power
Supply
(Free Version)
Bracket Material:Steel
Cover Material: ABS Resin
*1
*1
(OS: Windows® 2000/XP/Vista)
> The new PATLITE Playlist Editor 2 is required to
change the audio message data for this product.
> The SD Card does not contain the Playlist Editor
software or any audio messages.
LKEH
Options
SD Card
(2 GB)
SDV-2GP
Type A (Japan Only)
Beep (slow intermittent)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Stutter + Bell
Fur Elise Maiden’s Prayer Bach Minuet in Gmaj Annie Laurie
London Bridge is falling down
Cuckoo Song Village Blacksmith On the Bridge of Avignon Daydream Believer
Amaryllis Mozart Symphony No. 40 Quiet Lakeside Ich bin ein Musikante
Spanish Romance Katyusha Grandfather’s Clock Ave Maria
Stutter (rapid intermittent)
Synthesized Melody Chime
Hol-di-ri-Dia Mary had a little Lamb Camptown Races
Bell (clear high-pitch) Yelp (rapid siren)
Chime Call Sign
Type C (Japan Only)
Beep (slow intermittent)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Stutter + Bell
Can’t take my eyes o of you
Amairono Kamino Otome Les Champs-Elysees Canon Rara Sunshine
Uchuusenkan Yamamoto Oshiete Makenaide
I don’t Wanna Miss a Thing
Gattsudaze Odoru Ponpokorin Imasugu Kisu Mi Truth
Stutter (rapid intermittent)
Synthesized Melody Chime
Top of the World The Entertainer Amazing Grace
Yozorano Mukou Aiwa Katsu Haruyo Koi
Bell (clear high-pitch) Yelp (rapid siren)
Chime Call Sign
Gonna Fly Now (Theme from “Rocky”)
Speci cations
Type D (Japan Only)
Beep (slow intermittent)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Runner Mamotte Agetai Chime Call Sign
Iribiao Kikinagara September Doyoubino Koibito Akino Kehai
Saafu Tengoku Sukii Tengoku
I’ve been working on the Railroad
Schubert’s Lullaby
Yellow Rose of Texas Yankee Doodle
Stutter (rapid intermittent)
Iro White-blend Happy Birthday Hi Ho
The Bear Song Toys Go “Cha-cha-cha” Konnako Irukana
Rudolph the red-nosed Reindeer
Bell (clear high-pitch) Yelp (rapid siren)
She Wore a Yellow Ribbon My Darling, Clementine
When the Saints Go Marching In
Londonderry Air
Type E (Worldwide)
Beep (slow intermittent) Stutter + Bell Inverted Reveille Annie Laurie
Stutter (rapid intermittent)
Bell (clear high-pitch) Chime Ringing Phone Mary had a little Lamb
Yelp (rapid siren) Call Sign Two Tone Camptown Races
Rapid Hi-Lo Train Ride Alarm Clock Amaryllis
Melody Chime Galloping Hi-Lo Ringing H i-Lo Mozart Symphony No. 40
Synthesized Piano Alien Chatter Fur Elise Ave Maria
Synthesized Bell Falling Crystals Bach Minuet in Gmaj Grandfather’s Clock
Melody Chime Galactic Motor
London Bridge is falling down
Dimensions
Operating
Voltage
Range
Model
Rated
Voltage
LKEH- 102F
LKEH- 202F 2 12.4W 1.6kg
LKEH- 302F 3 14.2W 1.8kg
DC 24V DC 24V ±10%
Number of
Tiers
Power
Consumption
1 10.6W 1.4kg
Mass
ø100
Shaft
Height
1Tier:265.2
2Tiers:325.3
3Tiers:385.4
60
4Tiers:445.5
LKEH- 402F 4 16.0W 2.0kg
LKEH- 110F
LKEH- 210F 2 20.0W 2.3kg
LKEH- 310F 3 23.0W 2.5kg
AC 100V AC 100V ±10%
1 17.0W 2.1kg
LKEH- 410F 4 26.0W 2.7kg
LKEH- 120F
LKEH- 220F 2 20.0W 2.3kg
LKEH- 320F 3 23.0W 2.5kg
AC 220V AC 220V ±10%
1 17.0W 2.1kg
Height
142
152
MountingDimensions
3-ø6
5
120°
16.2
Front
77
ø
70
120°
2-ø10
(Unit:mm)
LKEH- 420F 4 26.0W 2.7kg
(Note) The sound pressure level is based on measurements under controlled conditions (voice-synthesized 1 kHz sine wave played back from a distance of
1 meter), therefore the surrounding environmental conditions and message content will result in di erent values for the sound pressure level.
Even when starting two or more units simultaneously, a lag will occur during message playback.
※）
185
