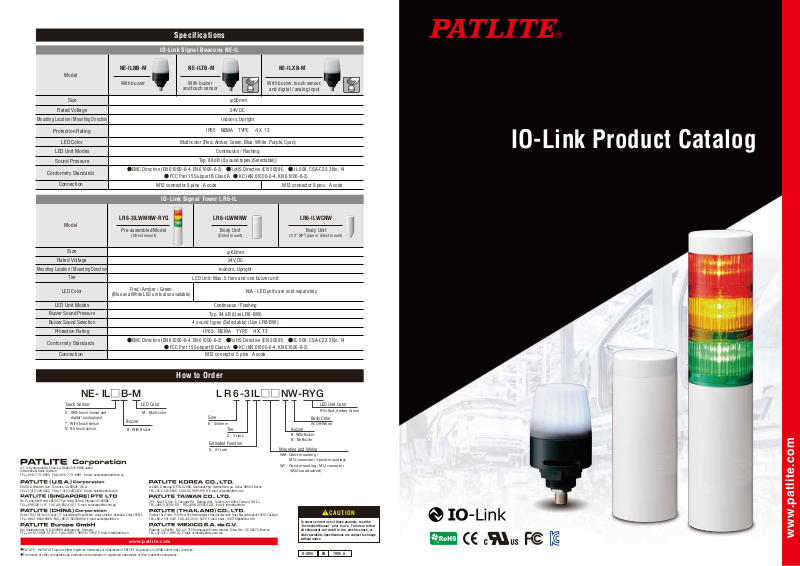

Page 1
Specifications
www.patlite.com
IO-Link Signal Beacons NE-IL
Model
Size
Rated Voltage
Mounting Location / Mounting Direction
Protection Rating
LED Color
LED Unit Modes
Sound Pressure
Conformity Standards
Connection
Model
Size
Rated Voltage
Mounting Location / Mounting Direction
Tier
LED Color
LED Unit Modes
Buzzer Sound Pressure
Buzzer Sound Selection
Protection Rating
Conformity Standards
Connection
NE-ILNB-M
With buzzer
EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581) ●UL 508, CSA-C22.2 No. 14
●
M12 connector 5 pins A code M12 connector 8 pins A code
and touch sensor
Multi-color (Red, Amber, Green, Blue, White, Purple, Cyan)
FCC Part 15 Subpart B Class A ● KC (KN 61000-6-4, KN 61000-6-2)
●
IO-Link Signal Tower LR6-IL
LR6-3ILWMNW-RYG
Pre-assembled Model
(Direct mount)
Red / Amber / Green
(Blue and White LED units also available)
EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581) ●UL 508, CSA-C22.2 No. 14
●
FCC Part 15 Subpart B Class A ● KC (KN 61000-6-4, KN 61000-6-2)
●
NE-ILTB -M
With buzzer
56mm
φ
24V DC
Indoors, Upright
IP65 NEMA TYPE ４X, 13
Continuous / Flashing
Typ. 88 dB [8 sound types (Selectable)]
LR6-ILWMNW
Body Unit
(Direct mount)
60mm
φ
24V DC
Indoors, Upright
LED Unit: Max. 5 tiers and one buzzer unit
N/A - LED units are sold separately
Continuous / Flashing
Typ. 84 dB (Use LR6-BW)
4 sound types (Selectable) (Use LR6-BW)
IP65 NEMA TYPE ４X, 13
M12 connector 5 pins A code
NE-ILXB-M
With buzzer, touch sensor,
and digital / analog input
LR6-ILWCNW
Body Unit
(1/2” NP T pipe or direc t mount)
IO-Link Product Catalog
How to Order
NE- IL□B-M
Touch Sensor
X : With touch sensor and
digital / analog input
T : With touch sensor
N : No touch sensor
4-1-3, Kyutaromachi, Chuo-ku, Osaka 541-0056 Japan
International Sales Division
TEL.+81-6-7711-8953 FAX.+81-6-7711-8961 E-mail: [email protected]
20130 S. Western Ave. Torrance, CA 90501, U.S.A.
TEL.+1-310-328-3222 FAX.+1-310-328-2676 E-mail: [email protected]
No.2 Leng Kee Road, #05-01 Thye Hong Centre, Singapore 159086
TEL.+65-6226-1111 FAX.+65-6324-1411 E-mail: [email protected]
Room 1102-1103, No.55, Lane 777, Guangzhong Road (West), Jing an District, Shanghai, China 200072
TEL.+86-21-6630-8969 FAX.+86-21-6630-8938 E-mail: [email protected]
Am Soeldnermoos 8, D-85399 Hallbergmoos, Germany
TEL.+49 -811-9981-9770-0 FAX.+49-811-9981-9770-90 E-mail: [email protected]
PATLITE，the PATLITE logo are either registered trademarks or trademarks of PATLITE Corporation in JAPAN and/or other countries.
The names of other companies and products are trademarks or registered trademarks of their respective companies.
LED Color
M : Multi-color
Buzzer
B : With Buzzer
A-2603, Daesung D-POLIS, 606, Seobusaet-gil, Geumcheon-gu, Seoul, 08504, Korea
TEL.+82-2-523-6636 FAX.+82-2-861-9919 E-mail: [email protected]
2F-1, No.215, Sec. 2, Chengde Rd., Datong Dist., Taipei City 10364, Taiwan (R.O.C.)
TEL.+886-2-2555-1611 FAX.+886-2-2555-1621 E-mail: [email protected]
Olympia Thai Tower, 15th Floor 444 Ratchadapisek Road Samsennok, Huay Kwang Bangkok 10310, Thailand
TEL.+66-2-541-5431 FAX.+66-2-541-5429 E-mail: [email protected]
Plaza de La Paz No. 102, int. 712 Guanajuato Puerto Interior, Silao, Gto, C.P.36275, Mexico
TEL.+52-472-748-9124 E-mail: [email protected]
www.patlite.com
LR6-3 IL□□NW-RYG
Size
Φ60mm
6 :
Tier
3 tiers
3 :
Extended Function
IO-Link
IL :
Buzzer
B: With Buzzer
N : No Buzzer
Mounting and Wiring
WM : Direct mounting /
M12 connector (3-point mounting)
WC : Direct mounting / M12 connector
(M30 nut attached)
To ensure correct use of these products, read the
“Instruction Manual” prior to use. Failure to follow
all safeguards can result in fire, electric shock, or
other accidents.Specifications are subject to change
without notice.
LED Unit Color
RYG: Red, Amber, Green
Body Color
W: O-White
CAUTION
O-AI06 1906 AEN
Page 2
IO-Link is an open-standard protocol that enables bi-directional data
communication between devices and the master. Incorporate PATLITE signal
Solution
Various Industrial Equipment
devices into IO-Link to facilitate and enhance manufacturing processes.

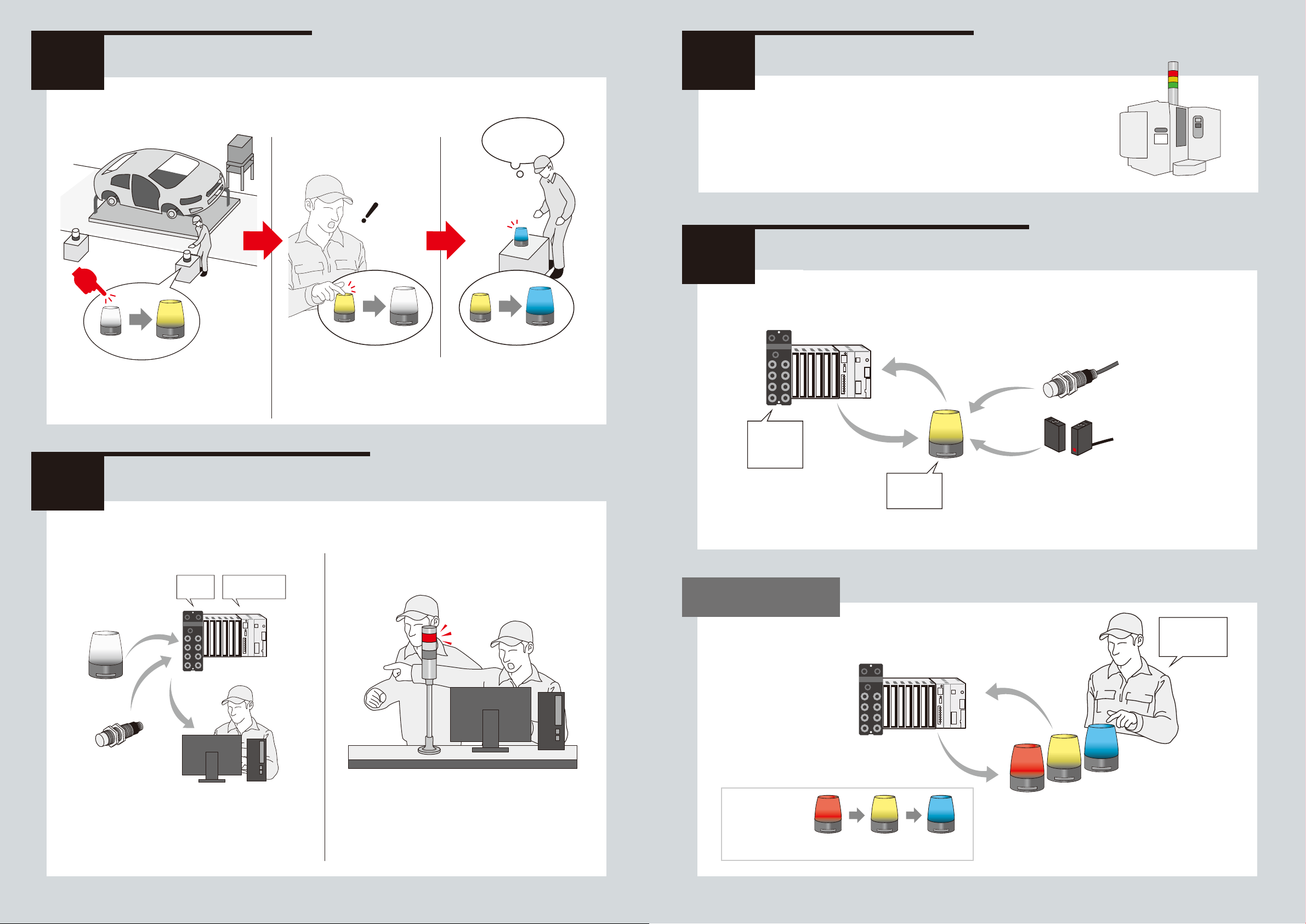

Solution
Automotive Production Line
01
Call for parts and notify managers of issues.
03
Reduce wiring costs and device setup time.
Solution
Devices Not Compatible with IO-Link
04
Solution
IO-Link master
Food and Beverage Production Line
Real-time
sensor metrics
Real-time sensor metrics
02
Analog input
sensor(4 to 20 mA)
10:05 a.m.
Threshold
exceeded
Acquire real-time equipment status and collect operational metrics.
1 2
Enables integration of non-compatible devices into IO-Link.
Alarm
commands
Digital input sensor
Status
indications
Page 3
Solution
Automotive Production Line
Solution
Various Industrial Equipment
01
Call for parts or request assistance with a single touch
When an issue arises, the personnel at the
production site touches the NE-IL to activate
the visual and audible alarms of the NE-IL at the
manager's site.
The manager instantly notices the alarms, and determines where and what
the issue is according to the illuminated color. The manager can touch the
NE-IL to send notification back to the production site to indicate that help
is on the way.
Help is
coming!
03
Standardizing with IO-Link reduces overall costs
The NE-IL Signal Beacons and LR6-IL Signal Towers can be connected to IO-Link with
a single M12 cable. This minimizes wiring requirements, which reduces labor and costs.
In addition, IO-Link allows for easy replacement of old or damaged devices, as it automatically impor ts previous settings to the new device.
Solution
Devices Not Compatible with IO-Link
04
Devices Not Compatible with IO-Link
IO-Link master
Real-time
sensor metrics
Real-time sensor metrics
Analog input sensor
(4 to 20 mA)
Solution
Food and Beverage Production Line
02
Anticipate issues and enhance predictive maintenance
PATLITE
NE-IL
Company A
Proximity Sensor
IO-Link master
10:05 a.m.
Threshold
exceeded
Alarm
commands
Example of Use
Achieve timely responses to issues
Status
indications
IO-Link master
Digital input sensor
For devices that are not compatible with IO-Link, the digital / analog
inputs on the NE-ILXB-M model can be used as an IO-Link hub.
Real-time sensor metrics are sent to the beacon, which sends this data
to the master. The master can then send specific commands to activate
the beacon alarms.
Maintenance
complete
Confirmation
Signal
commands
The IO-Link master acquires real-time operational data of
the sensors and other devices that are connected. This
data can be monitored remotely, and collected for fur ther
analysis.
3 4
When device abnormalities such as water or dust obstruction is
detected, the IO-Link master sends commands to the LR6-IL
Signal Tower to activate its visual and audible alarms to indicate
the specific problem. Identify device issues before it happens to
avoid equipment malfunctions and halts in production.
Color-code each
state for easy
recognition
Normal
Maintenance
required
Maintenance
completed
With 7 colors achievable on the NE-IL signal beacon, it is
possible to color-code multiple statuses. The master sends
commands to activate a specific NE-IL beacon to indicate which
device / equipment requires maintenance. Once maintenance is
complete, touch the NE-IL to confirm back to the master.
Page 4

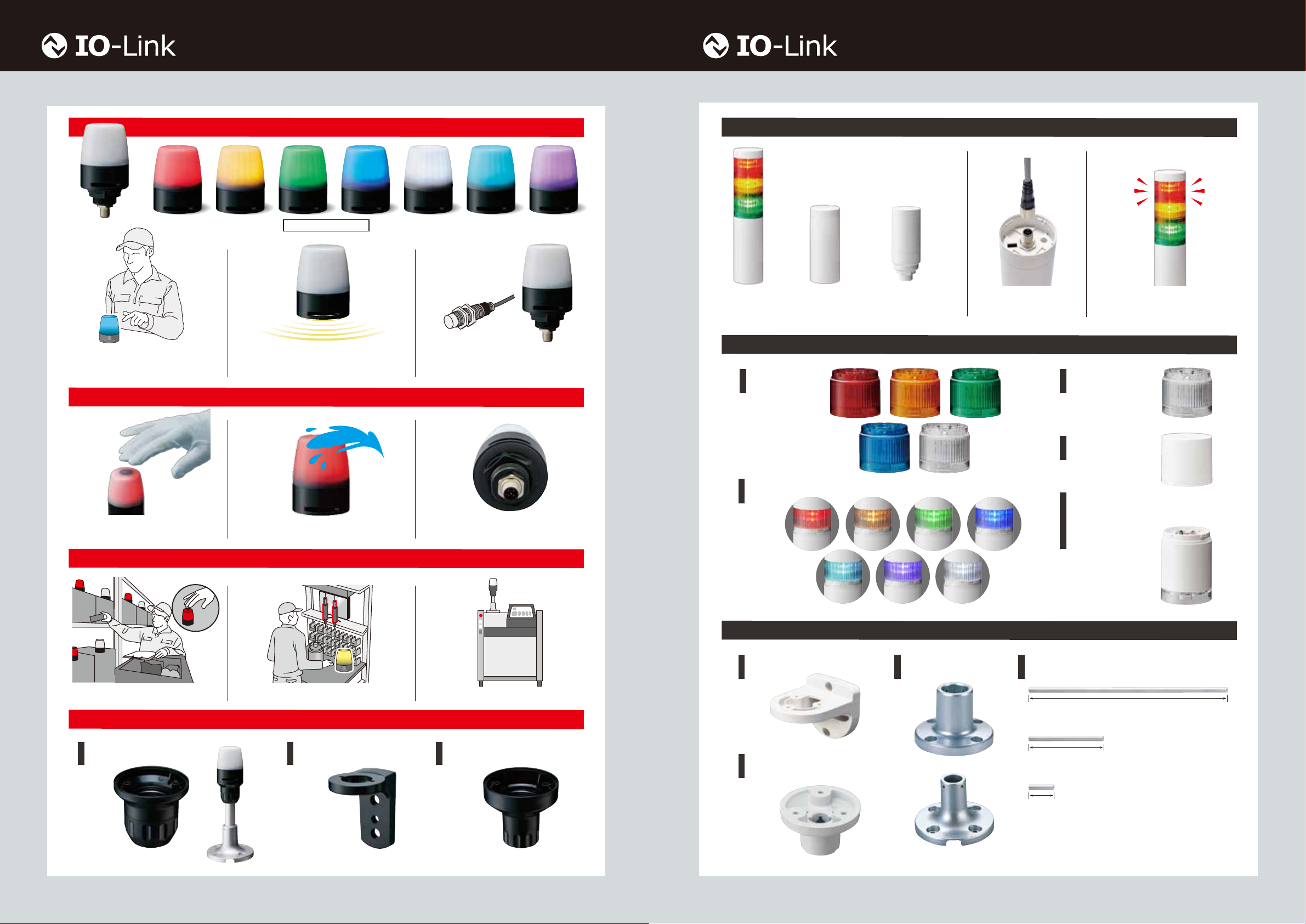

Signal Beacons NE-IL Signal Tower LR6-IL
2-way communication (commands
from the master and indications via
touch sensor)
Features
7 colors in 1 light
Buzzer can be sounded in combination
with continuous/flashing light and
touch sensor
Durable and Versatile
Digital/analog input to connect
devices that are not compatible with
IO-Link (XB model only)
Pre-assembled
model
Solid Color
LR6-E-R/Y/G/B/C
Body unit
(Direct mount)
Body unit
(1/2” NPT pipe
or direct mount)
Features
M12 connector
for easy connection
Compatible Units
Select from a variety of LED
colors and buzzer sounds
Clear Globe
LR6-E-RZ/YZ/GZ/BZ
Buzzer Unit
LR6-BW
Touch sensor is able to detect bare
or gloved hands - even when wet
High protection rating for operation in
harsh environments (IP65)
Compatible with M12 connector for
easy connection
Other Application Examples
Pick-to-light Status indications at production cells Real-time equipment status monitoring
Options
Upper Bracket
NE-001D
Wall Mount Bracket
NE-002D
1/2" NPT Bracket
SZP-092D
Multi-Color
LR6-E-MZ
Wall Mount Bracket
SZK-003W
Upper Bracket
SZP-004W
Options
Pole Bracket
SZ-016A
SZ-010
Wireless Data
Acquisition System
Transmitter
WDT-6LR-Z2
Cost-effective, retrofit solution for
selec t PATLITE Sign al Towers
enabling wireless data acquisition
and real-time monitoring.
Pole
POLE-800A21
POLE-300A21
300mm
POLE-100A21
100 mm
800mm
ex.
5 6
