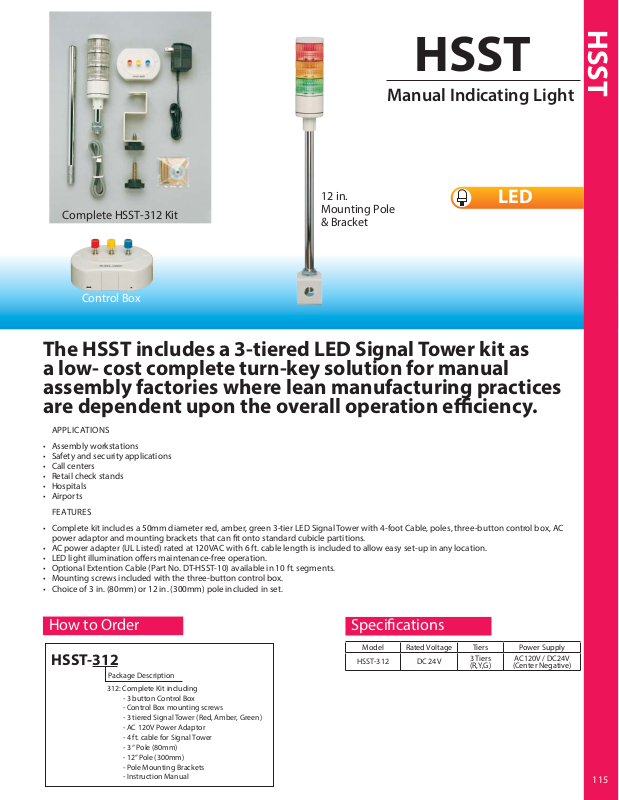

Patlite HSST Catalog Page

HSST

Manual Indicating Light

HSST

Complete HSST-312 Kit

12 in.
Mounting Pole
& Bracket

LED

Control Box

The HSST includes a 3-tiered LED Signal Tower kit as
a low- cost complete turn-key solution for manual
assembly factories where lean manufacturing practices
are dependent upon the overall operation e ciency.

APPLICATIONS

• Assembly workstations

• Safety and security applications

• Call centers

• Retail check stands

• Hospitals

• Airports

FEATURES

• Complete kit includes a 50mm diameter red, amber, green 3-tier LED Signal Tower with 4-foot Cable, poles, three-button control box, AC
power adaptor and mounting brackets that can  t onto standard cubicle partitions.

• AC power adapter (UL Listed) rated at 120VAC with 6 ft. cable length is included to allow easy set-up in any location.

• LED light illumination o ers maintenance-free operation.

• Optional Extention Cable (Part No. DT-HSST-10) available in 10 ft. segments.

• Mounting screws included with the three-button control box.

• Choice of 3 in. (80mm) or 12 in. (300mm) pole included in set.

How to Order

HSST-312

Package Description

312: Complete Kit including

- 3 button Control Box

- Control Box mounting screws

- 3 tiered Signal Tower (Red, Amber, Green)

- AC120V Power Adaptor

- 4 ft. cable for Signal Tower

- 3 “ Pole (80mm)

- 12” Pole (300mm)

- Pole Mounting Brackets

- Instruction Manual

Speci cations

Model Rated Voltage Tiers Power Supply

HSST-312 DC 24V

3 Tiers
(R,Y,G)

AC120V / DC24V

(Center Negative)
