PATLITE EHV User Manual
Horn Type Annunciator
On-board Memory Size
2 MByte (including management domain)
32 kb/sec., 64 kb/sec. (Standard), 128 kb/sec.
Maximum Playback Time
Total of 220 sec. (at standard bit rate, one MP3 file)
Playback File
MPEG1-Audio Layer Ⅲ (MP3)
Constant bit rate (CBR) Only
Joint Stereo and Dual Channel not available.
※1
-
※1
※2
○
※2
FCC Part15 SubpartB Class A
-
EH□-M1
EH□-M2
EH□-M3
Conformity Standards
UL 464, CSA22.2 No. 205-M1983
-
-
○
KC (KN22, KN24)
ECE Regulation No. 10
※1
※2 UL Listed (File No.S24210)
○○-
EMC Directive (EN 61000-6-4, EN 61000-6-2)
○
EMC Directive (EN 13309)
RoHS Directive (EN 50581)
○
-
--○
-
○
-
○
EH□-M2
EH□-M3
5.1 W (at 48 V DC)
Max : 110 dB (Directly in front at 1m from horn, alarm Stutter (rapid intermittent
Playback Channel Inputs
Bit : 8 / Binary : 63
Bit : 8 / Binary : 32
Playback Delay Time
300 ms or less (At Signal / Power Input)
6.9 W (at 240 V AC)
EHS
5.6 W (at 48 V DC)
5.3 W (at 240 V AC)
EHV
Alarm
Condition
Playback Sound
MP3 Data / Alarm / Melody (Standard)
Alarm / Melody (Standard)
Maximum Volume with -6 dB 1 kHz sound)
Model
Sound
Level
Max : 105 dB (Directly in front at 1m
and -6 dB 1 kHz sound playback)
5.0 W (Voltage contact ・ PNP, at 24 V DC)
5.9 W (Voltage contact ・ PNP, at 24 V DC)
45.0 m/s2 IEC 60068-2-6:2007
70.0 m/s2 JIS D 1601-1995 Class 3 Class B
(It is recommended only for the EH□-M3 to attach in the upright position when using the Vibration Absorption Rubber)
Voltage applied between terminal and chassis without bre aking insulation.
500 V AC for 1 min.
1500 V AC for 1 min.
1000 V AC for 1 min.
SD Card, SDHC Card
Recommended SD Card: SDV-2GP (Option)
File Format
FAT16, 32
Volume adjustable from minimum to maximum
Sound reduction input to reduce from current level (depending on settings)
Mass (Tolerance ±10%)
1.25 kg
250m/s2 6ms 1000times (one direction each of 3 axis)、500m/s2 11ms 3times (both directions each of 3 axis)
IEC 60068-2-27:2008
Indoor / Outdoor
Upright, Sideways, Inverted (Case is to be pointed in downward direction)
Condition
Upright Position
Insulation Resistance
More than 1MΩ at 500V DC between terminal and chassis
Location
Position
90-264 V AC 50/60Hz
10-60 V DC
Protection Rating
IP65 (IEC 60529)
Operating Ambient Humidity
85 % or less RH (no condensation)
Storage Ambient
-30℃ to 60
Storage Ambient Humidity
85 % or less RH (no condensation)
Operating Ambient
-20℃ to 50℃
EH□-M2
EH□-M3
Rated Voltage
12-24 V DC
100-240 V AC 50/60Hz
12-48 V DC
Operating Voltage Range
10.8-3.5 V DC
Model
EH□-M1

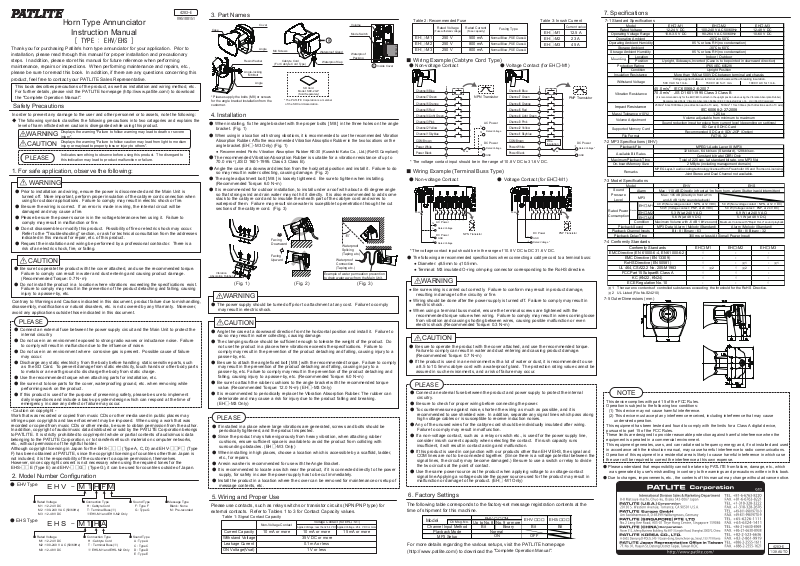

Instruction Manual
[ TYPE : EHV/EHS ]
Thank you for purchasing Patlite's horn type annunciator for your application. Prior to
installation, please read through this manual for proper installation and precautionary
steps. In addition, please store this manual for future reference when performing
maintenance, repairs or inspections. When performing maintenance and repairs, etc.,
please be sure to reread this book. In addition, if there are any questions concerning this
product, feel free to contact your PATLITE Sales Representative.
This book describes precautions of the product, as well as installation and wiring method, etc.
For further details, please visit the PATLITE homepage (http://www.patlite.com/) to download
the "Complete Operation Manual".
Safety Precautions
In order to prevent any damage to the user and other personnel or to assets, note the following:
The following symbols classifies the following precautions into two catagories and explains the
◆
level of harm inflicted when caution is disregarded while using this product.
WARNING
CAUTION
PLEASE
1. For safe application, observe the following:
WARNING
● Prior to installation and wiring, ensure the power is disconnected and the Main Unit is
turned off. More important, perform proper insulation of the cabtyre cord connection when
using for outdoor applications. Failure to comply may result in electric shock or fire.
● Be sure the wiring is correct. If an error is made in wiring, the internal circuit will be
damaged and may cause a fire.
● Please be sure the power source is in the voltage tolerance when using it. Failure to
comply may result in malfunction or fire.
● Do not disassemble or modify this product. Possibility of fire or electric shock may occur.
Refer to the "Troubleshooting" section, or ask for technical consultation from the addresses
indicated in this manual for repair, etc. of this product.
● Request the installation and wiring be performed by a professional contractor. There is a
risk of an electric shock, fire, or falling.
CAUTION
● Be sure to operate the product with the cover attached, and use the recommended torque.
Failure to comply can result in water and dust entering and causing product damage.
(Recommended Torque: 0.7 N・m)
● Do not install the product in a location where vibrations exceeding the specifications exist.
Failure to comply may result in the prevention of the product detaching and falling, causing
injury to a passer-by, etc.
Contrary to Warnings and Cautions indicated in this document, product failure due to mishandling,
disassembly, modifications or natural disasters, etc. is not covered by any Warranty. Moreover,
avoid any applications outside those indicated in this document.
PLEASE
● Connect an external fuse between the power supply circuit and the Main Unit to protect the
internal circuitry.
● Do not use in an environment exposed to strong radio waves or inductance noise. Failure
to comply will result in malfunction due to the influence of noise.
● Do not use in an environment where corrosive gas is present. Possible cause of failure
may occur.
● Discharge any static electricity from the body before handling static sensitive parts, such
as the SD Card. To prevent damage from static electricity, touch hands or other body parts
to metals or an earth ground to discharge the body from static charge.
● Use the recommended torque when attaching parts for installation, etc.
● Be sure not to lose parts for the cover, waterproofing ground, etc. when removing while
performing work on the product.
● If this product is used for the purpose of preserving safety, please be sure to implement
daily inspections and include a back-up system design which can respond at the time of
emergency, in case any defect or failure may occur.
- Caution on copyright -
Work that was recorded or copied from music CDs or other media used in public places may
infringe upon copyrights and law enforcement may be imposed. When using a work that was
recorded or copied from music CDs or other media, be sure to obtain permission from the author.
In addition, copyright of audio/music data distributed or sold by the PATLITE Corporation belongs
to PATLITE. It is strictly prohibited to copy/reprint whole or partial contents of audio/music data
belonging to the PATLITE Corporation, or to transfer/sell such material on computer networks,
etc., without permission of the rightful holder.
Although copyright licensing in Japan for the EHSF) has been obtained at PATLITE, since the copyright licensing of countries other than Japan is
not included, it is the responsibility of the customer to acquire permission, themselves.
However, since copyright consent is not necessary when using the required tones for the
EHS-□□E (Type E) and EHV-□□G□ (Type G), it can be used for countries outside of Japan.
2. Model Number Configuration
● EHV Type
■ Rated Voltage
M1 : 12-24 V DC
M2 : 100-240 V AC (50/60Hz)
M3 : 12-48 V DC
● EHS Type
■ Rated Voltage
M1 : 12-24 V DC
M2 : 100-240 V AC (50/60Hz)
M3 : 12-48 V DC
Displays the warning "Failure to follow warning may lead to death or severe
injury".
Displays the warning "Failure to follow caution may lead from light to medium
injury or maylead to property loss or injury to others".
Indicates something to observe before using this product. The disregard to
this indication may lead to product malfunction or failure.
(Type A, C, D) and EHV-□□F□ (Type
□□□
ＥＨＶ - Ｍ１ＨＦＭ
■ Connection Type
H : Cabtyre Cord
T : Terminal Buss(※)
※EHV-M1 and EHV-M2 Only
■ Sound Type
F : Type F
G : Type G
ＥＨＳ - Ｍ１ＨＡ
■ Connection Type
H : Cabtyre Cord
T : Terminal Buss(※)
※EHS-M1 and EHS-M2 Only
■ Sound Type
A : Type A
C : Type C
D : Type D
E : Type E
■ Message Type
Blank : None
M : Pre-recorded
4283-E
V95100151
3. Part Names
Volume
Mode Switch
Waterproof
Packing
A
Inside Cover
Resin Washer
Angle-locking
M8 Bolt
Angle
Cover
Angle
Case
* Please supply the bolts (M8) or screws
for the angle bracket installation from the
customer.
M4 Screws
Cabtyre Cord
(For Cabtyre Cord Type)
SD Card
Model: SDV-2GP
(Sold Separately)
* The PATLITE Corporation is a member
of the SD Card Association.
A
Waterproof Gland
Waterproof Cap
4. Installation
● When installing, fix the angle bracket with the proper bolts [ M8 ] in the three holes on the angle
bracket. (Fig. 1)
●
When using in a location with strong vibrations, it is recommended to use the recommended Vibration
Absorption Rubber. Affix the recommended Vibration Absorption Rubber in the two locations on the
angle bracket.
● Recommended Parts: Vibration Absorption Rubber KE-30 (Kurashiki Kako Co., Ltd.)(RoHS Compliant)
●The recommended Vibration Absorption Rubber is suitable for a vibration resistance of up to
70.0 m/s
● Angle the case at a downward direction from the horizontal position and install it. Failure to do
so may result in water collecting, causing damage. (Fig. 2)
● The angle adjustment bolt [ M8 ] is loosely tightened. Be sure to tighten when installing.
(Recommended Torque: 6.0 N・m)
● It is recommended for outdoor installation, to install under a roof with about a 45 degree angle
so that strong wind and rain water may not hit it directly. It is also recommended to add some
slack to the cabtyre cord and to insulate the sheath part of the cabtyre cord and wires to
waterproof them. Failure may result since water is suceptible to penetration through the cut
sections of the cabtyre cord. (Fig. 3)
Vibration
Absorption Rubber
(EH□-M3 Only) (Fig. 1)
2
(JIS D 1601-1995. Class 3 Class B).
Facing
Downward
Facing
Upward
Waterproof
Splicing
(Taping etc.)
Waterproof
Connection
(Taping etc.)
Example of water permeation prevention
to drain water away from the Main Unit.
(Fig. 2)(Fig. 1) (Fig. 3)
WARNING
● The power supply should be turned off prior to attachment at any cost. Failure to comply
may result in electric shock.
CAUTION
● Angle the case at a downward direction from the horizontal position and install it. Failure to
do so may result in water collecting, causing damage.
● The clamping surface should be sufficient enough to tolerate the weight of the product. Do
not use the product in a place where vibrations exceeds the specifications. Failure to
comply may result in the prevention of the product detaching and falling, causing injury to a
passer-by, etc.
● Be sure to attach the angle fixed bolt [ M8 ] with the recommended torque. Failure to comply
may result in the prevention of the product detaching and falling, causing injury to a
passer-by, etc. Failure to comply may result in the prevention of the product detaching and
falling, causing injury to a passer-by, etc. (Recommended Torque: 6.0 N・m)
● Be sure to attach the rubber cushions to the angle bracket with the recommended torque
value. (Recommended Torque: 12.0 N・m) (EH□-M3 Only)
● It is recommended to periodically replace the Vibration Absorption Rubber. The rubber can
deteriorate and may cause a risk for injury due to the product falling and breaking.
(EH□-M3 Only)
PLEASE
● If installed in a place where large vibrations are generated, screws and bolts should be
periodically tightened, and the product inspected.
● Since the product may shake vigorously from heavy vibration, when attaching rubber
cushions, ensure sufficient space is available to avoid the product from colliding with
surrounding obstacles. (EH□-M3 Only)
● When installing in high places, choose a location which is accessible by a scaffold, ladder,
etc., for repairs.
● A resin washer is recommended for use with the Angle Bracket.
● It is recommended to locate a switch near the product, if it is connected directly to the power
supply, for safety in case the power supply has to be cut immediately.
● Install the product in a location where the cover can be removed for maintenance or setup of
message contents, etc.
5. Wiring and Proper Use
Please use contacts, such as relay switchs or transistor circuits (NPN/PNP type) for
external contacts. Refer to Tables 1 to 3 for Contact Capacity values.
Table 1: Signal Contact Capacity
Non-Voltage Contact
Current Capacity
10 mA or more 10 mA or more 15 mA or more
Withstand Voltage
Leakage Current
ON Voltage(Vsat)
Voltage Contact (for EH□-M1)
Applied Voltage : less than 26.4 V DC
Applied Voltage : 26.4 V DC or more
35 V DC or more
0.1 mA or less
1 V or less
Table 2: Recommended Fuse
Rated Voltage
(Fuse withstand voltage)
EH□-M1
EH□-M2
EH□-M3
SD Card
■ Wiring Example (Cabtyre Cord Type)
● Non-voltage Contact
Channel8 Blue
Channel7 Green
Channel6 Orange
Channel5 Red
Channel4 Light Green
Channel3 Pink
Channel2 Yellow
Channel1 Skyblue
COM Brown
Power White
Power Black
250 V 500 mA
250 V
250 V
Rated Current
(Fuse capacity)
800 mA
800 mA
NPN Transistor
Fuse
Fusing Type
Normal Blow, PSE Class A
Normal Blow, PSE Class A
Normal Blow, PSE Class A
● Voltage Contact (for EH□-M1)
Channel8 Blue
Channel7 Green
Channel6 Orange
Channel5 Red
Channel4 Light Green
AC Power
Ｌ
Ｎ
DC Power
＋
－
Rated Voltage
Rated Voltage
GND
Channel3 Pink
Channel2 Yellow
Channel1 Skyblue
COM Brown
Power White
Power Black
Table 3: Inrush Current
EH□-M1
EH□-M2
EH□-M3
Wire
Insulation
Fuse
* The voltage contact input should be in the range of 10.8 V DC to 31.6 V DC.
■ Wiring Example (Terminal Buss Type)
● Non-voltage Contact
Fuse
AC Power
Ｎ
Rated Voltage
Ｌ
－
＋
DC Power
GND
Rated Voltage
NPN Transistor
* The voltage contact input should be in the range of 10.8 V DC to DC 31.6 V DC.
●
The following are recommended specifications when connecting a cabtyre cord to a terminal buss:
●
Diameter: φ8.5mm to φ10.5mm.
● Terminal: M3 insulated O-ring crimping connector corresponding to the RoHS directive.
● Voltage Contact (for EH□-M1)
Fuse
－
＋
DC Power
GND
Rated Voltage *
PNP Transistor
WARNING
● Be sure wiring is carried out correctly. Failure to conform may result in product damage,
resulting in damage to the circuitry or fire.
● Wiring should be done after the power supply is turned off. Failure to comply may result in
electric shock.
● When using a terminal buss model, ensure the terminal screws are tightened with the
recommended torque value when wiring. Failure to comply may result in wires coming loose
from vibration and causing shorting between wires, causing posible malfunction or even
electric shock.(Recommended Torque: 0.3 N・m)
CAUTION
● Be sure to operate the product with the cover attached, and use the recommended torque.
Failure to comply can result in water and dust entering and causing product damage.
(Recommended Torque: 0.7 N・m)
● If the product is used in an environment with a lot of water or dust, it is recommended to use
a 8.5 to 10.5mm cabtyre cord with a waterproof gland. The protection rating value cannot be
assured in such environments, and a risk of failure may occur.
PLEASE
● Connect an external fuse between the product and power supply to protect the internal
circuitry.
● Be sure to check for proper wiring before connecting the power.
● To countermeasure against noise, shorten the wiring as much as possible, and it is
recommended to use shielded wire. In addition, separate any signal lines which pass along
high voltage cables or is susceptible to receive induction noises.
● Any of the unused wires for the cabtyre cord should be individually insulated after wiring.
Failure to comply may result in malfunction.
● If a non-voltage contact, such as a relay or switch etc., is used for the power supply line,
consider inrush current capacity when selecting the contact. If inrush capacity runs
insufficient, it will result in contact arcing and malfunction.
● If this product is used in conjunction with our products other than EHV/EHS, the signal and
COM lines are not to be connected together. (Since there is a voltage potential between the
signal lines, the circuitry may become damaged.) Be sure to use a switch or relay to divide
the two circuits at the point of contact.
● Use the same power source as the product when applying voltage to a voltage-contact
signal line.Applying a voltage outside the power source used for the product may result in
malfunction or damage to the product. (EH□-M1 Only)
6. Factory Settings
The following table corresponds to the factory-set message registration contents at the
time of shipment for this machine.
EHV-
□□□
M
Model
Channel Input Method
Ch Msg. No.
Playback Mode
MP3 Setup
Up to No. 8 No. 9 or more
Normal
ON OFF
EHV-
For more details regarding the various setups, visit the PATLITE homepage
(http://www.patlite.com/) to download the
"Complete Operation Manual".
□□□
BitBit Binary
EHS-
□□□
Bit
Current value
12.5 A
23 A
45 A
PNP Transistor
DC Power
＋
Rated Voltage *
－
GND
7. Specifications
7-1 Standard Specifications
℃
Mounting
Withstand Voltage
Vibration Resistance
Impact Resistance
Volume Adjustment
Supported Memory Card
Recommended Parts: Vibration Absorption Rubber KE-30 (Kurashiki Kak o Co., Ltd.)(RoHS Compliant)
7-2 MP3 Specifications (EHV)
Available Bit Rates
Remarks
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Licens ing.
7-3 Model Specifications
Pressure
Rated Power
Consumption
7-4
Conformity Standards
There are no contents of controlled substances exceeding the threshold for the RoHS Directive.
Standard
MP3
4.0 W (Non-voltage contact ・ NPN, at 12 V DC)
EH□-M1
5.0 W (Non-voltage contact ・ NPN, at 12 V DC)
Maximum Volume with "Rapid Hi-Lo" sound playback
○
-
7-5 Outer Dimensions (mm)
NOTE
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undersired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
● Please understand that responsibility cannot be taken by PATLITE from failure, damage, etc., which
was generated by user's mishandling in contrary to the warnings and precautions written in this book.
● Due to changes, improvements, etc., the contents of this manual may change without advance notice.
4283-E
'13.9.AUTO
Loading...
