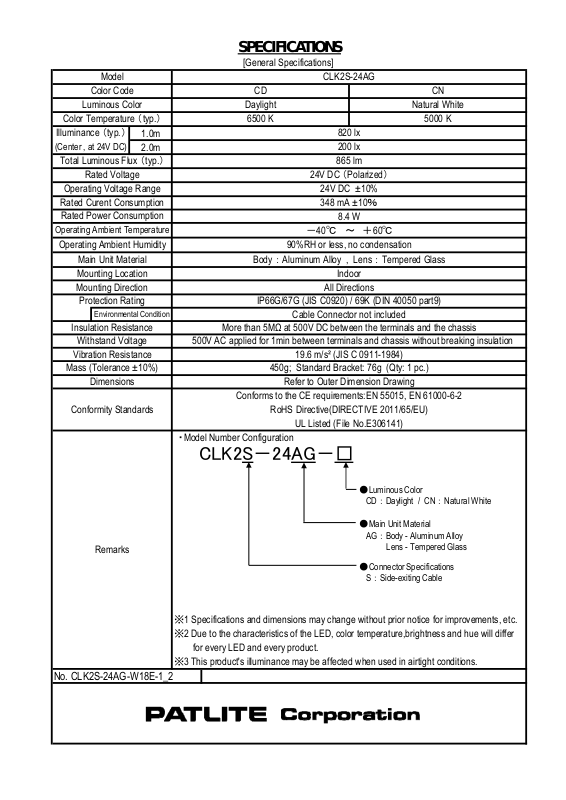

SPECIFICATIONS
[General Specifications]
Model
Color Code
Luminous Color
Color Temperature （typ.） 6500 K
Illuminance （typ.）
(Center , at 24V DC)
Total Luminous Flux （typ.）
Rated Voltage
Operating Voltage Range 24V DC ±10%
Rated Curent Consumption
Rated Power Consumption
Operating Ambient Temperature
Operating Ambient Humidity
Main Unit Material
Mounting Location
Mounting Direction
Protection Rating
Environmental Condition
Insulation Resistance
Withstand Voltage
Vibration Resistance
Mass (Tolerance ±10%)
Dimensions
Conformity Standards
1.0m
2.0m
More than 5MΩ at 500V DC between the terminals and the chassis
500V AC applied for 1min between terminals and chassis without breaking insulation
・Model Number Configuration
CD CN
Daylight Natural White
90%RH or less, no condensation
Body ： Aluminum Alloy , Lens ： Tempered Glass
IP66G/67G (JIS C0920) / 69K (DIN 40050 part9)
Cable Connector not included
450g; Standard Bracket: 76g (Qty: 1 pc.)

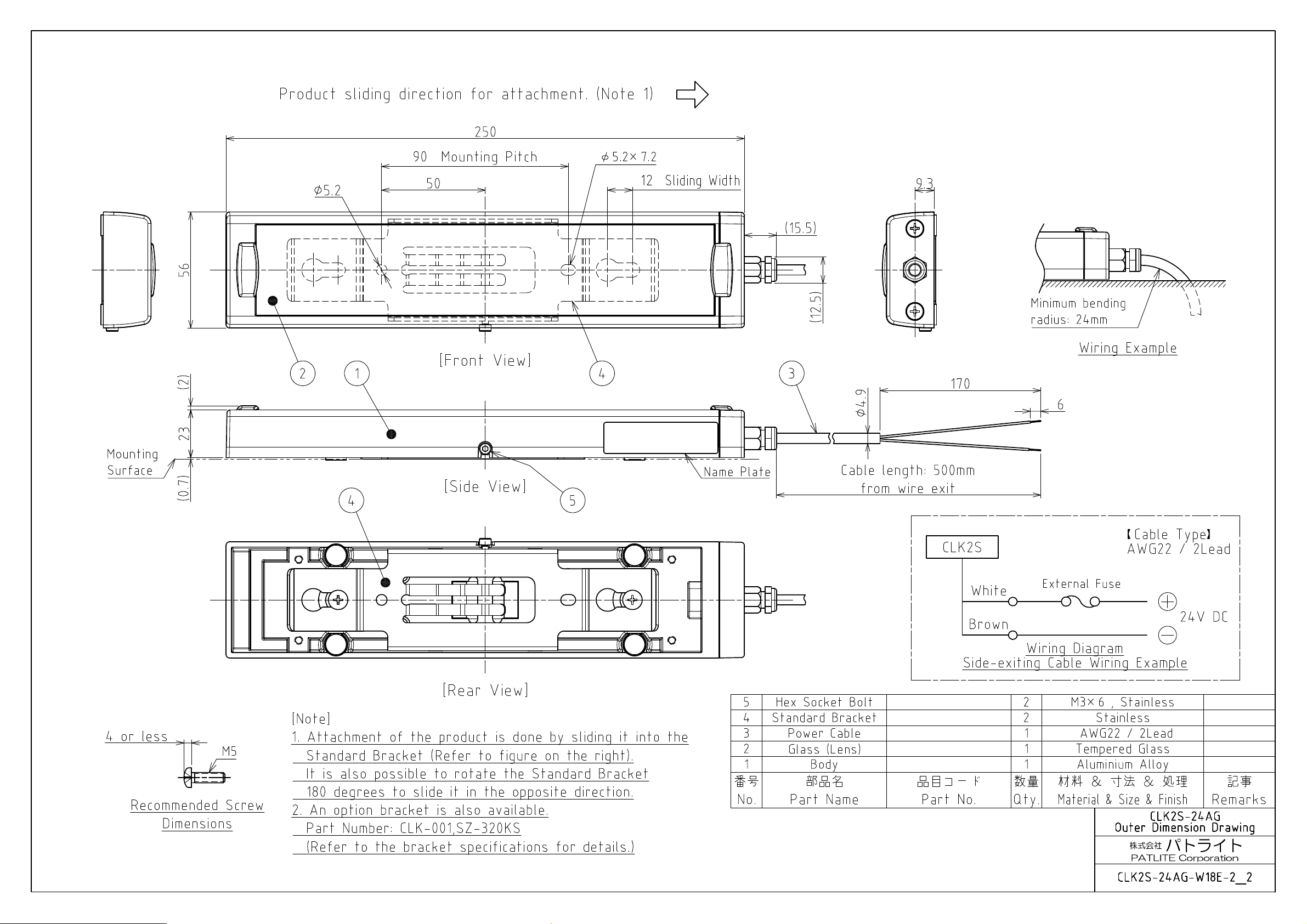

Refer to Outer Dimension Drawing
Conforms to the CE requirements:EN 55015, EN 61000-6-2
RoHS Directive(DIRECTIVE 2011/65/EU)
CLK2S-24AG
820 lx
200 lx
865 lm
24V DC （Polarized）
348 mA ±10％
8.4 W
－40℃ ～ ＋60℃
Indoor
All Directions
19.6 m/s² (JIS C 0911-1984)
UL Listed (File No.E306141)
5000 K
Remarks
No. CLK2S-24AG-W18E-1_2
CLK2S－24AG－□
●Luminous Color
CD ： Daylight / CN ： Natural White
●Main Unit Material
AG ： Body - Aluminum Alloy
Lens - Tempered Glass
●Connector Specifications
S ： Side-exiting Cable
※1 Specifications and dimensions may change without prior notice for improvements, etc.
※2 Due to the characteristics of the LED, color temperature,brightness and hue will differ
for every LED and every product.
※3 This product's illuminance may be affected when used in airtight conditions.
