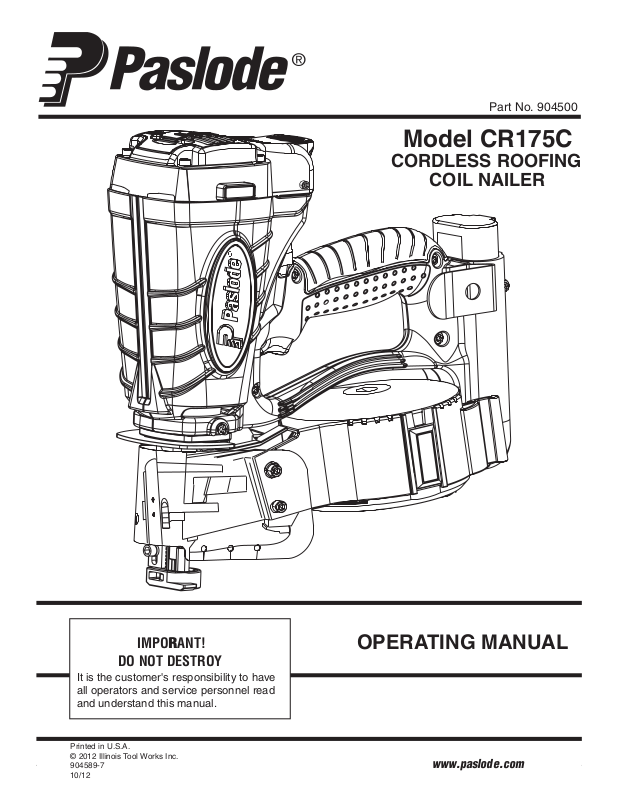

Paslode CR175C User Manual

Part No. 904500

Model CR175C

CORDLESS ROOFING

COIL NAILER

IMPORANT!R

DO NOT DESTROY

It is the customer's responsibility to have all operators and service personnel read and understand this manual.

10/12

OPERATING MANUAL

www.paslode.com

Contents

Introduction and Warranty............................................... 2

An Overview of Paslode Cordless Roofing Nailer

........................................................................................ 3

Safety Instructions........................................................... 4

Battery and Charger........................................................ 7

egaPtcejbuS

Fuel Cartridge................................. 9

Preparing the Paslode Cordless Roofing Nailer

for Use............................................................................12

Paslode Cordless Roofing Nailer Operation

Servicing ....................................................................... 14

Troubleshooting ............................................................ 16

The battery charger system meets all safety requirements for power tools.

.................................

..................

Paslode

is a trademark

An Ilinois Tool Works Company 888 Forest Edge Drive Vernon Hills, Illinois 60061 www.paslode.com

Power Nailers are made in the U.S.A.

is a member of:

Introduction and Warranty

Paslode Cordless Roofing Nailer Operating Manual

This manual is intended to acquaint you with the Paslode Cordless Roofing Nailer. Unlike other power fastening tools, the Cordless Roofing Nailer is powered by an internal combustion linear motor. In simpler terms, your Cordless Roofing Nailer is powered by a motor similar to the one that powers an automobile. The Cordless Roofing Nailer ignites a fuel and air mixture to produce the energy to drive the motor, which in turn drives the fastener. The Cordless Roofing Nailer is totally selfcontained. It carries its own fuel supply and battery, along with a supply of fasteners. For ease of use, this manual is divided into sections (see Contents). Each section of the manual is written with you,the tool operator, in mind. We have left out many of the technical terms so that you can easily understand how to get the maximum performance from your Cordless Roofing Nailer, and how to avoid damaging the tool or injuring yourself. But, to accomplish this, we need you to do two things:

1. READ THE MANUAL FROM COVER TO COVER BEFORE USING THE TOOL.

The Cordless Roofing Nailer should be handled like other power fastening tools that you use. Like most tools, when used improperly injury could result . If you are going to allow others to use the Cordless Roofi ngNailer, it is your responsibility to make sure that they also read and comply with the instructions in this manual before attempting to operate the tool. Should you have questions about the Cordless R o o f i n g Nailer, or wish to obtain additional copies of this manual, please contact your Paslode

® representative. The spacebelow is pro-

vided so that you may record your representative's name, address, and telephone number.

Name

Address

piZ etatSytiC

2. FOLLOW ALL INSTRUCTIONS IN THE MANUAL.

Paslode Cordless Warranty and Limitations

Paslode warranties that new Cordless power fastening tools, parts and accessories will be free from defects in material and workmanship for the period shown below, after the date of delivery to the original user.

ONE-YEAR LIMITED WARRANTY

A one-year warranty will apply to all parts, except those listed below as normal wearing parts, or parts which are specifically covered by an extended warranty.

FIVE-YEAR EXTENDED LIMITED WARRANTY

A five-year warranty will apply to all molded nylon parts:

• Cap and Grille

• Handle Halves and Actuator

• Trigger

90-DAY LIMITED WARRANTY

A 90-day warranty applies to the following parts, which are considered normal wear parts:

• Bumper

• Driver Blades

• Seal Rings

Telephone Number

WARRANTY STATEMENT

This warranty is limited to tools sold and service requested in the United States. To obtain information on warranty service in the United States, refer to the Service Center listing that was provided with your tool.

Paslode's sole liability hereunder will be to replace any part or accessory which proves to be defective within the specific time period. Any replacement part or accessory provided in accordance with this warranty will carry a warranty for the balance of the period of warranty applicable to the part it replaces. This warranty does not apply to part replacement required due to normal wear.

This warranty is void on any tool which has been subjected to misuse, abuse, accidental or intentional damage, use with fasteners, fuel, batteries, or battery chargers not meeting Paslode specification, size, or quality, improperly maintained, repaired with other replacement parts, damaged in transit or handling, or which, in Paslode's opinion, has been altered or repaired in a way that affects or detracts from the performance of the tool.

PASLODE MAKES NO WARRANTY, EXPRESSED OR IMPLIED, RELATING TO MERCHANTABILITY, FITNESS, OR OTHERWISE, EXCEPT AS STATED ABOVE, and Paslode's liability AS STATED ABOVE AND AS ASSUMED ABOVE is in lieu of all other warranties arising out of, or in connection with, the use and performance of the tool, except to the extent other wise provided by applicable law. PASLODE SHALL IN EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, OR DAMAGES, INCLUDING, BUT NOT LIMITED TO, DAMAGES MAY ARISE FROM LOSS OF ANTICIPA TION, SPOILAGE OF MATERIALS, INCREASED COST OR OTHERWISE.

Paslode reserves the right to change specifications, equipment or designs.

than genuine Paslode

CONSEQUENTIAL

WHICH

TED PROFITS OR PRODUC-

OF OERATION,

Description

The Paslode Cordless Roofing Nailer is a self-contained, fully portable nailer that uses liquid hydrocarbon fuel to power a unique linear drive internal combustion motor.

In order for you to fully understand the information contained in this manual, you need a basic understanding of the Cordless R o o f i n g Nailer. As you can see in the illustration below, the Cordless Roofing Nailer is made up of three major areas: handle, motor, and magazine.

As you examine the Cordless Roofing Nailer, become familiar with the three major areas and the various components located in each of them.

The Handle Assembly

contains the fuel cartridge, battery,

The Motor Assembly contains the cover and filter, the motor housing, the nose, and the work contacting element.

The Magazine Assembly contains the components to load and control the fastener.

Specifications

Dimensions: Weight-with battery 6.78 lbs.

Height 12-3/8 inches Length 11.5 inches Magazine Coil

Cycle Rate: Intermittent Operation – 2 to 3 nails

per second

NOTE: Exceeding these cycle rates could cause the tool to overheat, resulting in loss of performance or damage to tool components.

y using the Paslode Cordless Roofing Nailer at its recom-

mended

cycle rate, you will be able to drive

several thousand

nails in a typical workday.

Fasteners: Coil Roofing, .120 Dia. 7/8” to 1-3/4” length

Magazine Capacity: 1 Coil, or 120 Nails

Batte

ry : 6 volts DC - Provides enough energy to

drive approximately 2200 fasteners on a full charge.

An Overview of the Paslode Cordless Roofing Nailer

belt hook

Magazine Assembly

fuel cartridge compartment

cap

removable grille & filter

Handle Assembly (soft grip)

battery compartment

battery indicator light

(opposite side)

motor housing

soft

touch

trigger

Motor Assembly

Handle Assembly

belt hook

battery compartment

(opposite side)

battery indicator light, and the trigger for the Cordless Roofing Nailer.

Fuel Cartridge: Quickload™ fuel cartridge.

Liquid hydrocarbon - Provides enough fuel to drive approximately 1000 fasteners.

cap

motor housing

Motor Assembl

debis shield

wear pads

(soft grip)

battery

battery indicator light

Magazine Assembly

adjustable depth

adjustable depth of drive

of drive

Safety Instructions

The following safety instructions have been included in this booklet to provide you with basic information necessary for safe operation of the Paslode Cordless Roofing Nailer. DO NOT ATTEMPT TO OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTAND ALL SAFETY PRECAUTIONS AND MANUAL INSTRUCTIONS.

DANGER

The Cordless Roofing Nailer is an internal combustion

device. It produces hot exhaust

gases that may ignite flammable materials. This tool must not be used in a combustible environment or in the presence of combustible materials, such as flammable chemicals, adhesives, gasoline, or solvents.

WARNING

Do not expose the tool to temperatures in excess of 120° F (49° C). Fuel and/ or the battery may burst, releasing flammable gas.

WARNING

This tool must be operated

only in a well ventilated environment, because the

tool exhausts carbonmonoxide similar to a gas chain saw or lawn mower. Exposure

to carbonmonoxide may cause dizziness, nausea or unconsciousness.

WARNING

Do not attempt to operate this tool until you have read and understood all safety precautions and manual instructions. Failure to follow all safety precautions and instructions may result in permanent loss of vision, serious personal or even fatal injury,

property damage, and/or

tool damage.

WARNING

ALWAYS keep the Cordless Roofing Nailer fuel cartridge, battery and battery charger out of the reach of children.

Safety Instructions

WARNING

Always wear EYE and EAR safety gear when working with or in the vicinity of the Paslode Cordless Roofing Nailer.

1. Eye protection must meet the requirements of ANSI Standard Z87.1 and should have side shields for increased protection.

2. NEVER ASSUME THE TOOL IS EMPTY.

Never point the tool at yourself or anyone else.

3. NEVER ENGAGE IN "HORSEPLAY" WITH THE TOOL.

The Cordless Roofing Nailer is not a toy – it is a tool. Careless and improper use may result in a serious accident.

4. NEVER CARRY THE TOOL WITH YOUR FINGER ON, OR SQUEEZING, THE TRIGGER.

7. NEVER REMOVE OR DISABLE THE WORK CONTACTING ELEMENT.

This device helps reduce the possibility of accidental fastener discharge by preventing the tool from operating until it is completely against the work surface.

NEVER operate the tool if the work contacting element is not working properly.

ALWAYS POINT THE TOOL AWAY FROM YOURSELF AND OTHERS WHEN CLEARING JAMS OR REMOVING FASTENERS.

NEVER OPERATE THE CORDLESS ROOFING

NAILER IF PARTS ARE LOOSE, DAMAGED OR

MISSING.

10. DO NOT DRIVE FASTENERS INTO KNOTS OR ON TOP OF OTHER FASTENERS.

fastener may ricochet and cause serious injury.

11. OPERATE THE TOOL ONLY ON THE WORKPIECE.

WARNING

This practice may result in the a fastener.

5. NEVER OPERATE A MALFUNCTIONING TOOL.

Refer to the servicing or troubleshooting section of this manual to correct the problem. If the problem cannot be corrected, stop using the tool and report it to your supervisor or Paslode

6. DO NOT LOAD FASTENERS WITH THE TRIGGER AND/OR WORK CONTACTING ELEMENT PRESSED IN.

A fastener may be accidentally discharged.

representative.

accidental discharge of

The Paslode Cordless Roofing Nailer should be

operated only when it is in contact surface.

with the work

Safety Instructions

12. NEVER DRIVE FASTENERS INTO AREAS WITH CONCEALED HAZARDS.

Always check the area behind the work surface for electrical wiring, gas pipes, water pipes, sewer drains or other potential hazards.

13. ALWAYS MAINTAIN SECURE AND UNOBSTRUCTED FOOTING WHEN ON LADDERS, PLATFORMS OR OTHER HIGH LOCATIONS.

WARNING

Never over-reach, since tool recoil may cause a loss of balance. Always be aware of edges and drop-offs when nailing on roof tops and other high locations. Keep them in full view.

14. ALLOW ONLY QUALIFIED PERSONNEL TO OPERATE

THE PASLODE CORDLESS ROOFING NAILER.

15. PROPERLY STORE FUEL CARTRIDGE.

WARNING

Always store fuel cartridges where they will not be exposed to an open flame, sparks or temperatures

above 120° F (49°C).

16. ALWAYS STORE THE TOOL WITH THE FUEL CARTRIDGE AND BATTERY REMOVED.

Store the fuel cartridges in the case with the Cordless Roofing Nailer.

17. KEEP THE TOOL CLEAN.

A clean tool is less likely to jam or malfunction.

18. KEEP YOUR HANDS CLEAR OF THE WORK AREA SURFACE.

WARNING

Only persons who have read and fully understand all tool operation safety and main-

tenance instructions should

be allowed to operate the

tool.

Battery Disposal:

The Paslode batteries contain cadmium and must be recycled or disposed of properly. It is illegal in some areas to place a nickel-cadmium battery into the trash or solid waste stream. You may contact your local recycling center for information on where to return the spent battery or call 1-800-822-8837 for information on Ni-Cd battery recycling in your area.

A fastener may exit at an angle unexpectedly and cause injury.

Battery and Charging System

The Paslode Cordless tools come with a rechargeable battery and its own charging system. This charging system is the only one that will work with Paslode batteries (either round or oval ). The first step in preparing a new tool for operation is to fully charge the battery. New batteries are shipped discharged and must be charged prior to first use. Batteries will take 5 minutes to 2 hours (time will be dependant on the amount of discharge of the

battery) to recharge.

Important Charging Notes

Warning

CHEMICAL/EXPLOSION HAZARD Read ALL instructions before charging or using battery. Failure to follow ALL instructions may result in fire, severe burns, or release of toxic materials.

Charging Instructions

1. Remove wall mount unit with the orange label from the tool case and plug into a 120V AC outlet. Set orange charger on a stable surface and insert wall mount unit’s plug into plug receptacle on the back of the charger (see picture). A green light indicates power is on and charger circuit is ready.

2. Remove the battery from tool or case and insert terminals down into charger. The red light will come on indicating that the battery is charging and the green light will go out.

NOTE

If battery is completely discharged, the red light and the green light may flash back and forth. This safety feature slowly recharges the battery until it is ready to accept the full charging current. If the red and green lights continue to flash after 25 min minutes, replace the battery.

3. After charging is complete, the red light will go out and the green light will come on, indicating that the battery is fully charged. The charger will keep the battery at full charge until it is removed.

Battery Disposal:

4. Unplug the wall mount unit from the charger and remove the wall mount unit from the 120V AC outlet.

CHARGING TIMES:

First charge (new battery) 2 hours Discharged Battery 5 minutes to 2 hours

CHARGING DON'TS:

1. Do not charge battery outdoors or in temperatures below 40°F (5°C).

2. Do not allow metal objects to come in contact with battery terminals.

3. Do not puncture or attempt to open battery case or cells.

4. Do not store battery where it will be subjected to temperatures above 120°F (49°C).

5. Do not incinerate battery.

6. Do not use a defective battery charger, one that over-heats and/or smokes when plugged in.

7. Do not immerse the battery in water.

Charging System Accessories:

Battery - Part No. 404717 Battery Charger Kit - Part No. 900200 Wall Mount Transformer* - Part No. 900477 Battery Charger Base* - Part No. 900476 Automotive Adapter* - Part No. 900507

* Cannot use with previous (gray in color) charging system components.

Battery and Charging System

Inserting Battery

Battery Indicator Light

On the right side of the handle is a small plastic lens. This is the battery indicator light. When you insert a fully-charged battery into the tool, you will see a blinking green light. If the indicator light blinks red, recharge the battery.

BATTERY INDICATOR LIGHT

ATTERY INDICATOR LIGHT

1. Load the battery, contacts first, into the Cordless Roofing Nailer.

2. Push battery down into its locked position.

3. To remove battery, push in on locking tab and slide battery out.

NOTE: If battery is left in tool for an extended period, the battery will discharge completely and will require recharging.

IMPORTANT: Should your battery terminals become corroded and cause poor electrical contact, clean the terminals using a soft cloth.

Clean the contacts

Quicklode™ Fuel Cartridge

Fuel Cartridge

There is a second container inside the fuel cartridge. This inner container holds the fuel. The space between the inner container and the outer cylinder is filled with a gas, called the propellant, which is under pressure.

WARNING

EXPLOSION/FIRE HAZARD

Read ALL safety instructions before using or handling the fuel cell. Failure to follow ALL instructions may result in explosion or fire.

This may cause serious

personal injuries or prop-

erty damage.

Keep the fuel cartridge away from heat, sparks and open flame. Do not smoke when handling or operating tool or fuel cartridge.

Exposure to temperatures above120°F (49°

cause the fuel cartridge to

burst, gas.

WARNING

C) may

releasing flammable

To eject the fuel, propellant pressure squeezes the inner fuel container much as you squeeze a tube of toothpaste. This squeezing action ensures that all the fuel is used, and that the Cordless Nailer can operate in any position.

However, over time the propellant pressure diminishes until it is no longer able to squeeze the inner fuel container. This is why a nailer using a fuel cartridge beyond the “Best Use Before” date may not work consistently or at all.

If you expose the empty or expired fuel cartridge to extreme temperatures, the propellant gas will expand and could cause the container to burst, releasing flammable gases.

The fuel contains a small amount of oil to keep the tool lubricated during use. It is not necessary to oil the tool during normal operation. When cleaning the tool, use only Paslode Cordless tool oil. Using oils not formulated for the Paslode Cordless Tool, may cause loss of power and may damage the internal parts of the tool's motor.

DANGER

1. Do not attempt to remove or reuse the fuel cartridge cap.

2. Do not attempt to install the fuel cartridge cap on

other fuel cells. This may result in damage to the tool and injury to the user and by standers!

Sunlight can raise the inside temperature of an unventilated motor vehicle or storage container to above 140°F (60°C).

Never puncture or attempt to open the fuel; it is nonrefillable.

Never incinerate, reclaim or recycle the fuel.

Never smoke while installing or operating the fuel cartridge or tool.

Never inhale the spray.

Keep out of the reach of children.

Store fuel cartridge(s) in well-ventilated areas only.

NOTE

Never attempt to refill the cartridge! Replace with fresh fuel cartridge, and dispose of spent

cartridge properly.

2. When replacing fuel cartridge also clean or replace air filter for optimum tool operation.

NOTE: Altitude Restriction

Paslode Cordless tools are powered by an internal combustion engine and are effected by altitude. The tool may lose power or not cycle consistantly at elevations of 5000 feet or greater.

Fuel Cartridge

NOTE:

Paslode Cordless fuel cartridges are marked with a “Best Use Before” date on the bottom of the can.

For maximum performance use fuel before the “Best Use Before” date.

DANGER

Paslode Cordless Fuel Cartridges are flammable. Do not remove fuel cartridge cap or install on other fuel cartridges!

Paslode Cordless Fuel Cell/Cartridge Disposal Guidelines

Paslode the industry leader in cordless technology provides this information to assist users with the proper disposal of discarded fuel cells/cartridges. Acceptable disposal options vary depending on the type of fuel cell/cartridge users. All users must cons federal, state and local solid waste regulations to ensure that discarded fuel cells/cartridges are disposed of properly. Users contact their local solid waste authority for further guidance.

ider

must

Discarded fuel cells/cartridges (used or unused) may be considered hazardous waste under the Resource Conservation and Recovery Act (RCRA) depending on several factors as described in the paragraphs that follow. Upon disposal used and unused fuel cells/cartridges may be classified as ignitable hazardous waste (waste code D001) under U.S. EPA regulations.

Hazardous waste generated by homeowners and contractors who perform routine maintenance for homeowners in their homes are not regulated by RCRA. In general, "household wastes" generated by homeowners and their contractors are exempt from hazardous waste regulation because those wastes are expressly excluded from the definition of hazardous waste. For example US EPA has excluded as "household waste" aerosol cans that contain residual product and propellent. Thus under regulations homeowners and contractors may dispose of discarded fuel cells/cartridges as general refuse in a properly permitted municipal landfill. These users must still contact their local solid waste authority to determine if any state or local regulation prohibits or restricts such disposal.

Paslode takes no responsibility for proper fuel cell/cartridge disposal. Proper disposal remains the responsibility of sellers and users. All sellers and users must contact their local solid waste authority to determine if any prohibits or restricts disposal. Users may obtain more information about U.S. EPA hazardous waste regulations at the following internet address: www.epa.gov/epaoswee.osw/hazwaste.htm

Alternatively users may contact U.S. EPA's RCRA Superfund Call Center at 1-800-424-9346 to receive more information.

federal, state or local regulation

federal hazardous waste

+ 25 hidden pages

Paslode CR175C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
