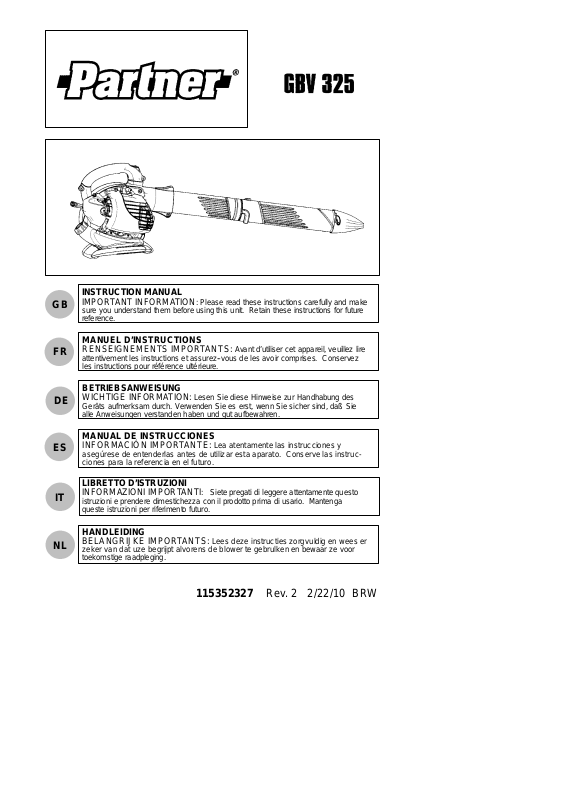

INSTRUCTION MANUAL
IMPORTANT INFORMATION
GB
sure you understand them before using this unit. Retain these instructions for future
reference.
: Please read these instructions carefully and make
MANUEL D’INSTRUCTIONS
RENSEIGNEMENTS IMPORTANTS:
FR
attentivement les instructions et assurez- -vous de les avoir comprises. Conservez
les instructions pour référence ultérieure.
Avant d’utiliser cet appareil, veuillez lire
BETRIEBSANWEISUNG
WICHTIGE INFORMA TI ON:
DE
Geräts aufmerksam durch. Verwenden Sie es erst, wenn Sie sicher sind, daß Sie
alle Anweisungen verstanden haben und gut aufbewahren.
Lesen Sie diese Hinweise zur Handhabung des
MANUAL DE INST RU CCION ES
INFORMACIÓN IMPORTANTE:
ES
asegúrese de entenderlas antes de utilizar esta aparato. Conserve las instrucciones para la referencia en el futuro.
Lea atentamente las instrucciones y
LIBRETTO D’ISTRUZIONI
INFORMAZIONI IMPORT ANTI
IT
istruzioni e prendere dimestichezza con il prodotto prima di usario. Mantenga
queste istruzioni per riferimento futuro.
: Siete pregati di leggere attentamente questo
HANDLEIDING
BELANGRIJKE IMPORTANTS:
NL
zeker van dat uze begrijpt alvorens de blower te gebrulken en bewaar ze voor
toekomstige raadpleging.
Lees deze instructies zorgvuldig en wees er
115352327 Rev. 2 2/22/10 BRW
KEY TO SYMBOLS
WARNING: This blower
can be dangerous! Careless
or improper use can
cause serious or even fatal
injury.
Read and understand the
instruction manual before
using the blower.
Approved protective goggles
or visor, ear protection, and
face mask in dusty e nvironments
must be worn.
Always wear approved,
protective gloves.
WARNI NG: Be sure the
bottom cover i s secured or
the vacuum tube is properly
installed. Avoid the impeller
blade with your hand or any
foreign object.
Instructi ons on
how to open
vacuum inlet
cover.
SAFETY RULES
WARNING: Failure to follow all
Safety Rules and Precautions can result in
serious injury.
KNOW YOUR UNIT
S Read your instruction manual carefully until
you completely understand and can follow all
warnings and safety rules before operating
the unit.
D Restrict unit to users who understand andwill
follow all warnings and safety rules in this
manual.
WARNING: Inspect area before start-
ing unit. Remove all debris and hard objects
such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or
damage during operation.
Use your unit as a blower for:
D Sweeping debris or grass clippings from
driveways, sidewalks, patios, etc.
D Blowing grass clippings, straw, or leaves into
piles, around joints, or between bricks.
Use your unit as a vacuum for:
D Pickingup drymaterialsuchas leaves,grass,
small twigs, and bits of paper.
D For best results during vacuum use, operate
your unit at high speed.
Use unleaded or quality
leaded petrol and two
stroke oil.
WARNING: The blow er may throw
objects at high ve loc ity that can
ricochet and hi t the operato r. This
may cause serio us eye damage .
WARNI NG: The muffler is very
hot during and after use. Do not
touch the muffler, muffler guard, or
surrounding surfaces, or allow
combustible materia l such a s dry
grassorfueltodoso.

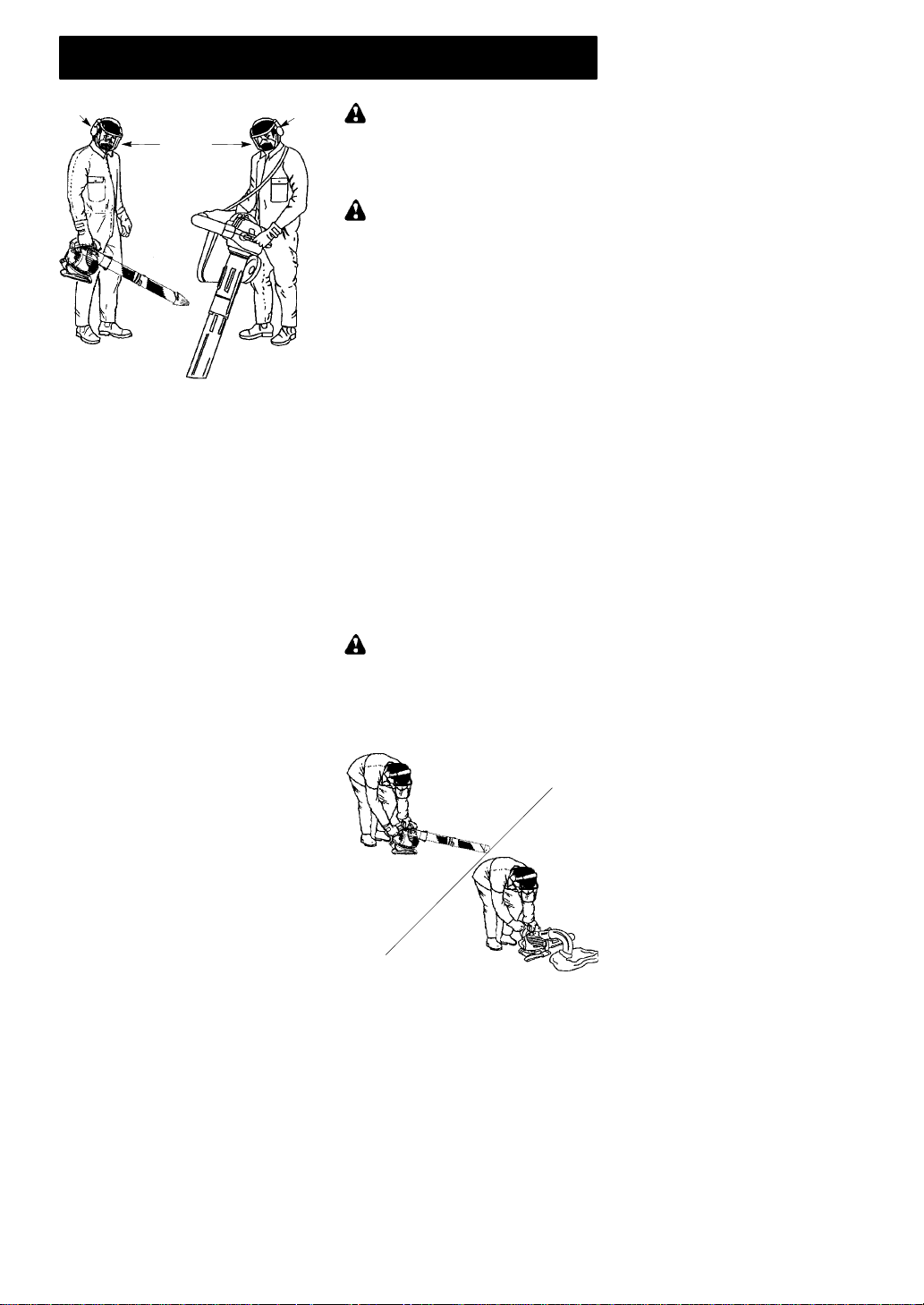

The blower operator must make sure
that no bystanders or animals come
nearer than 15 meters.
Whenever several operators are
working in the same work area , they
should maintain a safe distance of at
least 15 meters from one another.
Sound pressure
level at 7,5 meters
D Move slowly back and forth over the material
as you vacuum. Avoid forcing the unit into a
pile of debris as this can clog the unit.
D Keep the vacuum tube about an inch above
the grou n dfo rbe stresu l t s.
Sound power
level
PLAN AHEAD
WARNING: This machine produces
anelectromagnetic field duringoperation.Under
some circumstances, this field may interfere
with active or passive medical implants. To reduce therisk ofserious orfatalinjury, werecommend persons with medical implants to consult
their physician and the medical implant
manufacturer before operating this machine.
D Always weareyeandear protection whenop-
erating, servicing, or performing maintenance
on unit. Wearing eye protection will help to
prevent rocks or debris from being blown or
ricocheting into eyes and face which can result in blindness and/or serious injury. Eye
protection should be marked Z87.
D Always wear foot protection. Do not go bare-
foot or wear sandals.
D Always wear respirator or face mask when
working with unit in dusty environments.
D Secure hairaboveshoulder length. Secure or
remove jewelry, loose clothing, or clothing
with loosely hanging straps, ties, tassels, etc.
They can be caught in moving parts.
-- 2 --
D Do not operate unit when you aretired, ill,up-
set, or if you are under the influence of alcohol, drugs, or medication.
D Keep children, bystanders, andanimals away
fromworkarea aminimumof 15meters when
starting or operating unit. Do not pointblower
nozzle in the direction of people or pets.
FUEL SAFETY
D Eliminate all sources of sparks or flame (in-
cluding smoking, open flames, or work that
can cause sparks) in the areas where fuel is
mixed, poured, or stored.
D Mix and pour fuel in an outdoor area; store
fuel ina cool, dry,well ventilated place; usean
approved, marked container for all fuel purposes.
D Do not smoke while handling fuel or whileop-
erating the unit.
D Make sure the unitisproperly assembled and
in good operating condition.
D Do not fill fuel tank while engine is hot or run-
ning.
D Avoid spilling fueloroil. Wipe upfuel spills be-
fore starting engine.
D Move at least 3meters away fromfueland fu-
eling site before starting engine.
D Always store petrol in a container approved
for flammable liquids.
OPERATEYOUR UNIT SAFELY
WARNING: Stop the engine before
opening the vacuum inlet door. The engine
must be stopped and the impeller blades no
longer turningto avoid serious injury from the
rotating blades.
D This garden blower/vacuum is only designed
for blowing away or removal of leaves and
other debris on the ground.
D Inspect unit before each use for worn, loose,
missing, or damaged parts. Do not use until
unit is in proper working order.
D Keep outside surfaces free of oil and fuel.
D Never start or run engine inside a closed
room or building. Breathing exhaust fumes
can kill.
D Mufflers fitted with catalytic converters get
very hot during use and remain so for some
time after stopping. This also applies at idle
speed. Contact can result inburns to theskin.
Remember the risk of fire!
D To avoid static electricity shock, do not wear
rubber gloves or any other insulated gloves
while operating unit.
D Do notsetunit onany surface exceptaclean,
hard area while engine is running. Debris
such as gravel, sand, dust, grass, etc. could
be picked up by the air intake and thrown out
through discharge opening, damaging unit,
property, orcausing serious injury tobystanders or operator.
D Avoid dangerous environments. Do notusein
unventilated areas orwhereexplosive vapors
or carbon monoxide build up could be present.
D Do not overreach or use from unstable sur-
faces such as ladders, trees, steep slopes,
rooftops, etc. Keepfirm footing andbalanceat
all times.
D Never place objects inside the blower tubes;
always direct the blowing debris away from
people, animals,glass, andsolid objects such
as trees, automobiles, walls, etc. The force of
air can cause rocks, dirt, or sticks to be
thrown ortoricochet which can hurt peopleor
animals, breakglass, orcause otherdamage.
D Never run unit without the proper equipment
attached. When using your unit as a blower,
always install blower tubes. When using your
unit as a vacuum, always install vacuum
tubes and vacuum bag assembly. Make sure
vacuum bag assembly is completely zipped.
D Check airintake opening,blower tubes, vacu-
um tubes, and elbow tube frequently, always
with engine stopped and spark plug disconnected. Keep vents and discharge tubes free
of debris which can accumulate and restrict
proper air flow.
D Never place any object in the airintakeopen-
ing as this could restrict proper air flow and
cause damage to the unit.
D Neveruseforspreadingchemicals, fertilizers,
or other substances which may contain toxic
materials.
D Toavoid spreading fire,donot use nearleafor
brush fires, fireplaces, barbecue pits, ashtrays, etc.
D Use only for jobs explained in this manual.
MAINTAIN YOUR UNIT PROPERLY
D Have all maintenance other than the recom-
mended procedures described in the instruction manual performed by an authorized service dealer.

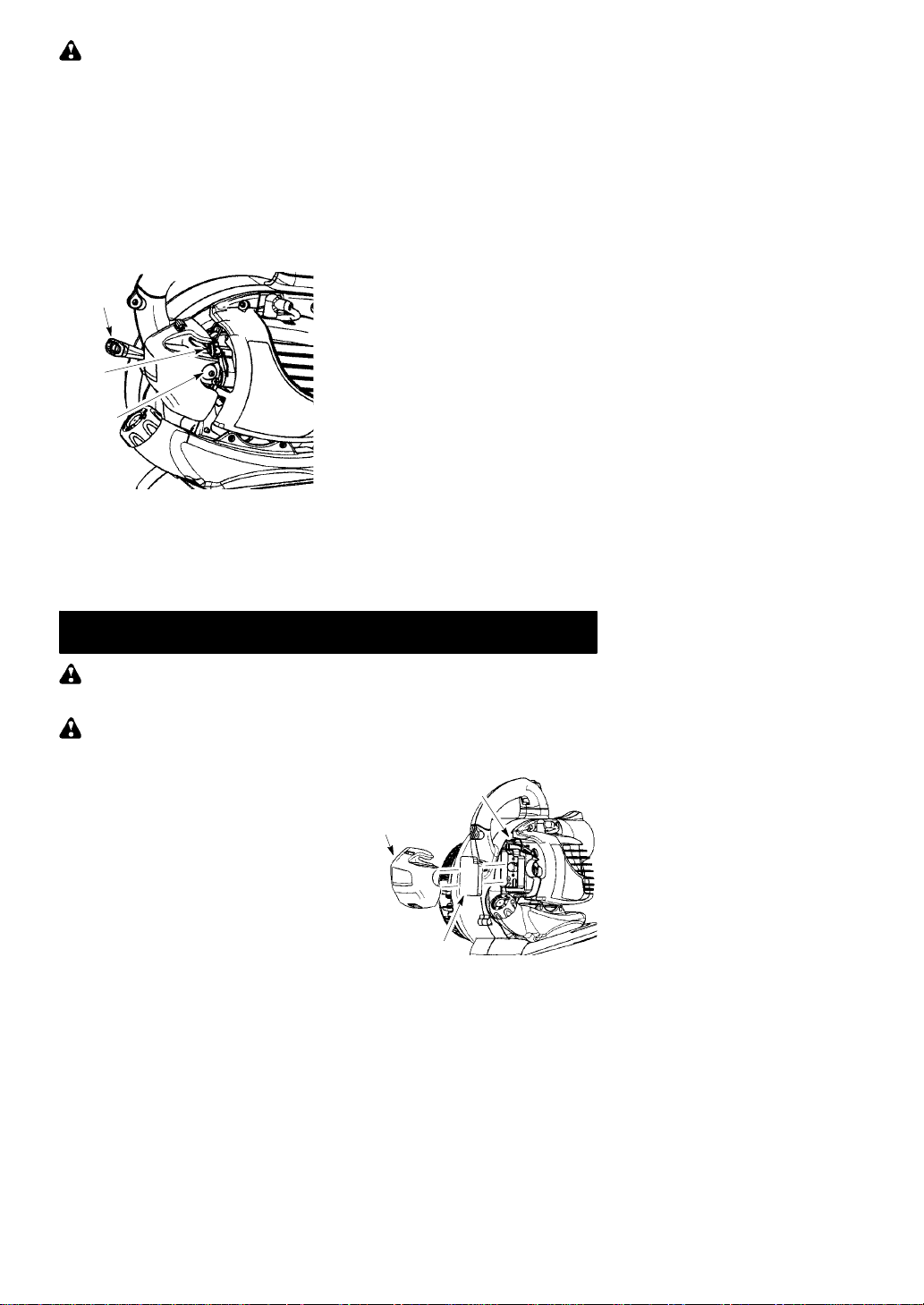

D Disconnect spark plug before performing
maintenance except for carburetor adjustments.
D Use onlyrecommended Partnerrepla cement
parts; use of any other parts may void your
warranty and cause damage to your unit.
D Empty fuel tank before storing the unit. Use
upfuelleftincarburetor by starting engineand
letting it run until it stops.
D Do not use any accessory or attachment
other than those recommended by manufacturer for use with your unit.
D Do not store the unit or fuel in a closed area
where fuel vapors can reach sparks or an
open flame from hot water heaters, electric
motor s or switch es,furnaces, etc.
D Store in a dry area out of reach of children.
D Secure the machine during transport.
SAFETY NOTICE: Exposure to vibrations
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in thefingers, hands, andjointsofpeople prone to circulation disorders or abnormal
swelling. Prolonged use in cold weather has
been linked to blood vessel damage in otherwise healthy people.If symptoms occur such as
numbness, pain,loss ofstrength, changeinskin
color or texture, or loss of feeling in the fingers,
hands, or joints, discontinue the use of this tool
and seek medical attention. An antivibration
system does not guarantee the avoidance of
these problems.Users whooperate power tools
on a continual and regular basis must monitor
closely their physical condition andthe condition
of this tool.
-- 3 --
14
WHAT IS WHAT?
15
2
1
6
5
3
WHAT IS WHAT?
1. Throttle trigger 9. Upper blower tube
2. STOP switch 10. Lower blower tube
3. Primer button 11. High--speed nozzle
4. Choke lever 12. Elbow tube
5. Fuel cap 13. Vacuum bag
6. Starter rope 14. Upper vacuum tube
7. Vacuum handle 15. Lower vacuum tube
8. Spark plug 16. Instruction manual
8
4
7
ASSEMBLY
CARTON CONTENTS
Check carton contents againstthe followinglist.
S Blower
S Upper blower tube
S Lower blower tube
S High velocity nozzle
S Elbow tube
S Vacuum bag
S Upper vacuum tube
S Lower vacuum tube
S Screw for vacuum tube assembly
NOTE: It is normal for the fuel filter to rattle
in the empty fuel tank.
ASSEMBLY

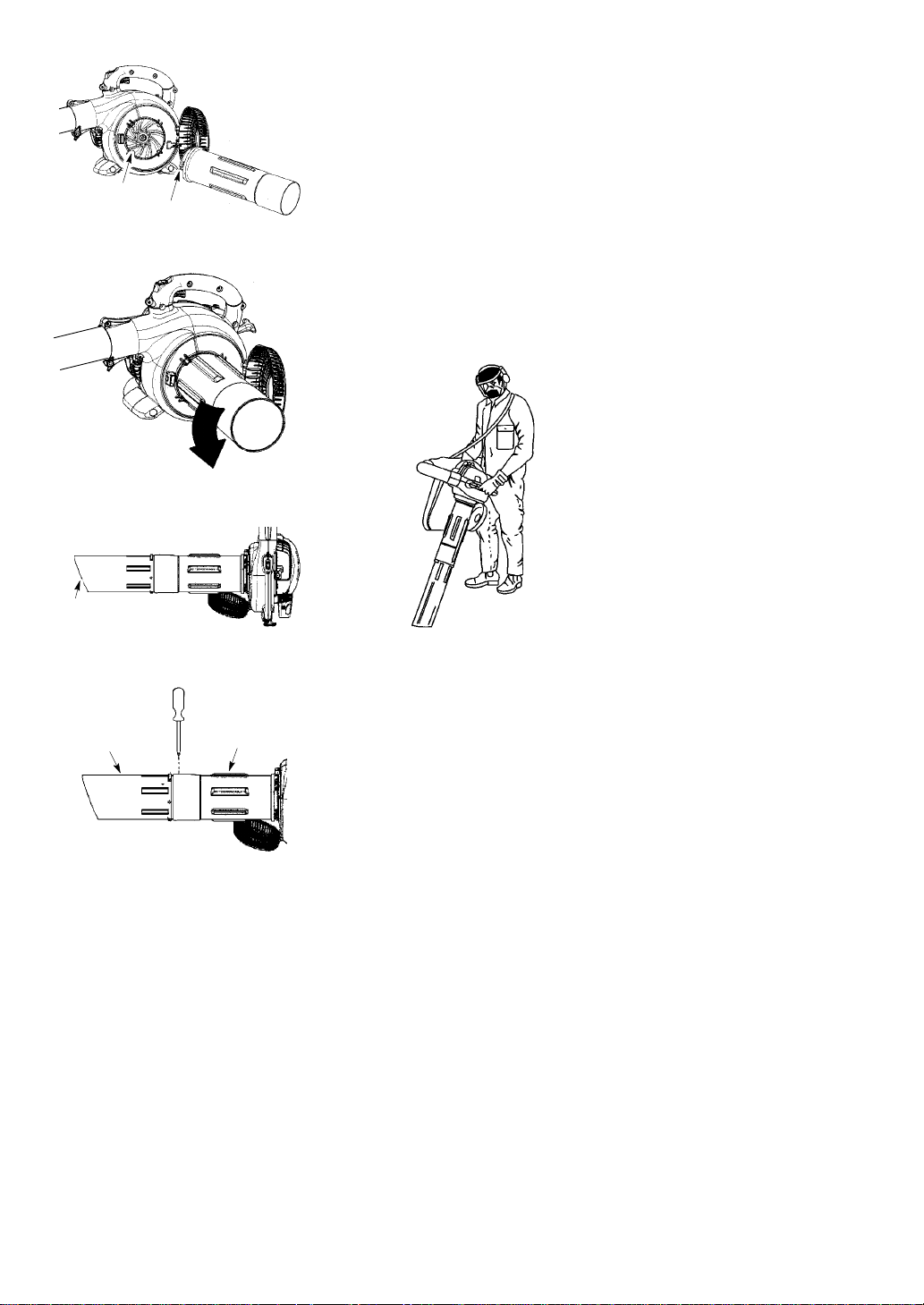

WARNING: Stop engine and besure
the impeller blades have stopped turning before opening the vacuum inlet door or attempting to insert or remove the vacuum or
blower tubes. The rotating blades can cause
serious injury. Always disconnect the spark
plug before performing maintenance or accessing movable parts.
WARNING: If received assembled,
repeatallsteps toensureyourunit isproperly
-- 4 --
12
13
9
10
11
16
assembled andallfasteners are secure. Followall safetyinformationin themanual andon
the unit.
D A standard screwdriver is required for as-
sembly.
BLOWER ASSEMBLY

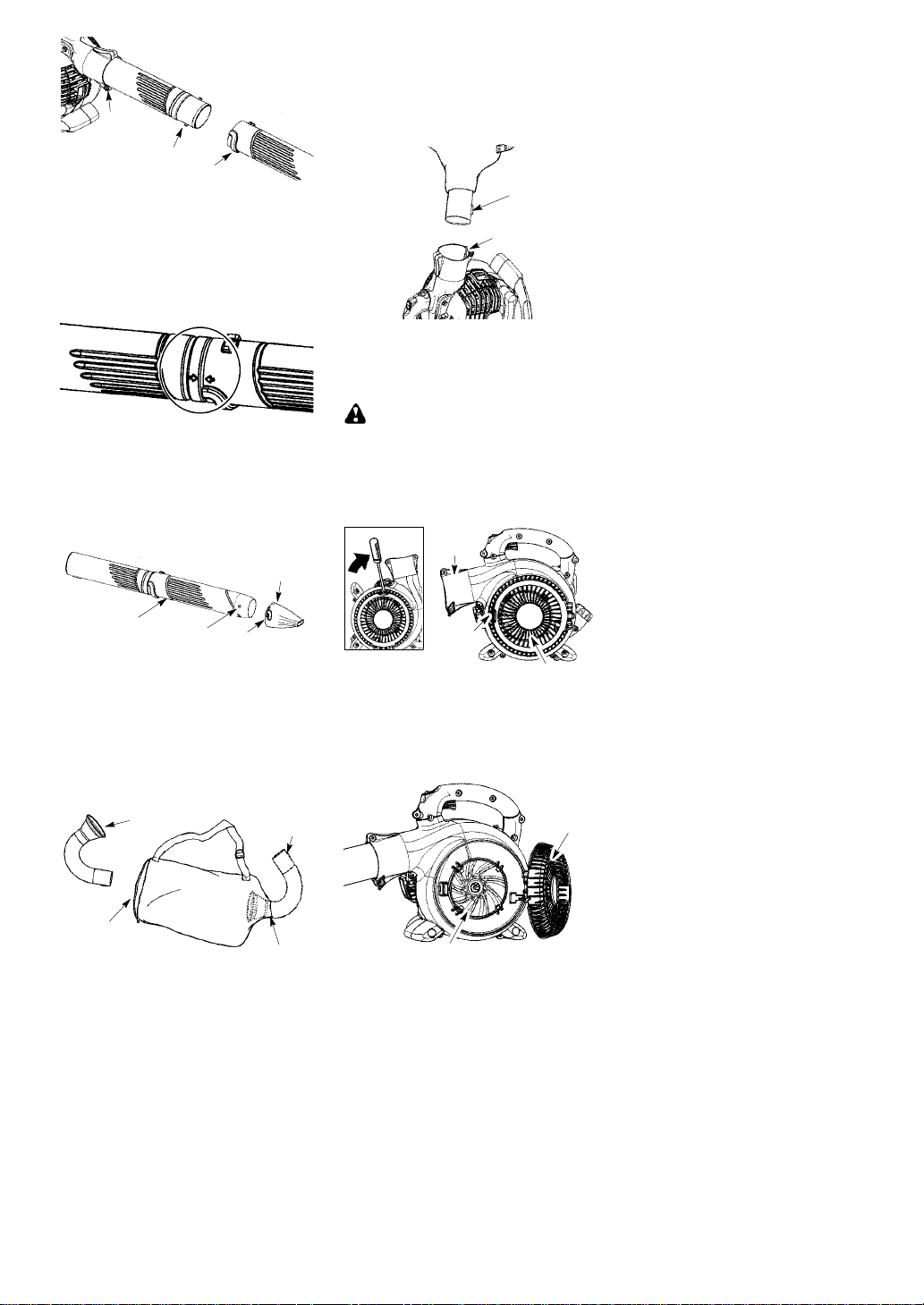

BLOWER TUBE ASSEMBLY
1. Align theribon the upper blower tubewith
the groove in the blower outlet; slide the
tube into place.
NOTE: The tube clamp bolt must be loose
enough to allow blower tube to be inserted in
blower outlet. Loosen the bolt by turning counterclockwise (do not remove nuts).
Blower Outlet
Rib
Groove
2. Secure the tube by turning the bolt clockwise.
3. Align the slots on the lower blower tube
with the tabs on the upper blower tube.
Upper Blower
Tube
Lower Blower
Slot
Tube
High--Speed
Nozzle
Tube
clamp
bolt and
nut
4. Slide thelowerblower tube ontotheupper
blower tube.
5. Turn thelower blower tubeclockwise until
a click is felt to secure the lower blower
tube to the upper blower tube.
NOTE: When the upper and lower blower
tubes are assembled together properly, the
arrows on both tubes will be aligned.
6. Toremove thetubes, turnthe boltcounterclockwise to loosen the tubes (do not removen uts); remove the tubes.

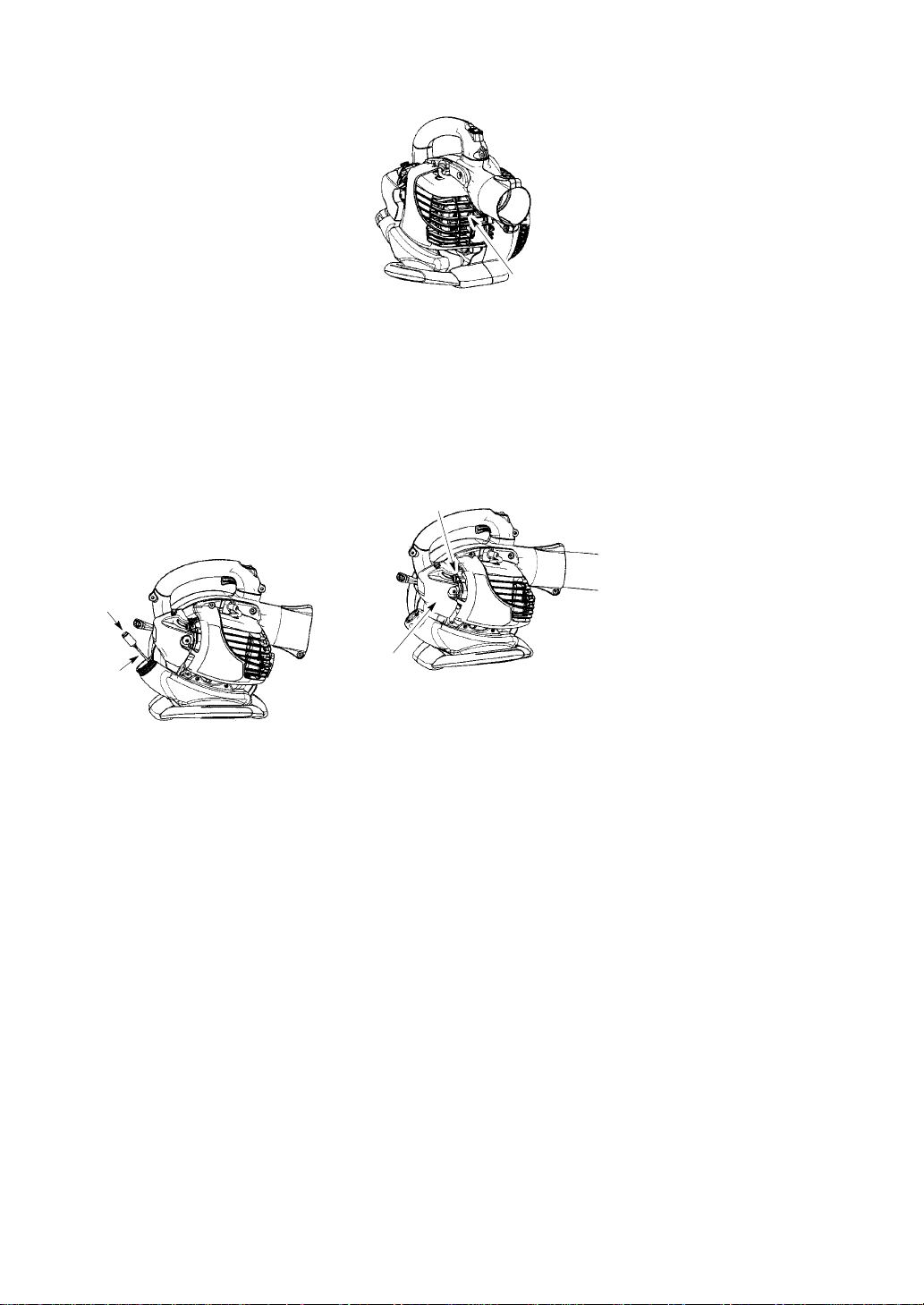

HIGH-- SPEED NOZZLE ASSEMBLY
When greater air speed is desired, use the
high--speed nozzle.
1. Align the slots on the nozzle with the tabs
on the lower blower tube.
Tab
NOTE: Make sure edge of the small open-
ing is flush against the flared area of the elbow tube, and the rib on the elbow tube is
on the bottom.
3. Close thezipperonthebag. Makesurethe
zipper is closed completely.
4. Remove blower tubes from engine.
Rib
Groove
5. Insert theelbowtubeinto theblower outlet.
Make sure elbow tube rib is aligned with
the blower outlet groove.
6. Turnknobclockwise tosecure elbowtube.
VACUUMTUBE ASSEMBLY
WARNING: Stop engine andbesure
the impeller blades have stopped turning before opening the vacuum inlet door or attempting to insert or remove the vacuum or
blower tubes. The rotating blades can cause
serious injury.
1. Insert thetipof ascrewdriverintothe latch
area of the vacuum inlet.
LatchArea
Blower
Outlet
Lower Blower
Tube
2. Slide the nozzle onto the lower blower tube.
3. Turn the nozzle clockwise until a click is
felt tosecure thenozzletothelower blower tube.
Tab
Slot
VA CUUM ASSEMBLY
VACUUM BAG A SSEMBLY
1. Open the zipper on the vacuum bag and
insert the elbow tube.
2. Push the small end of the elbow tube
through the small opening in the bag.
Zipper
Opening
Elbow
Tube
Small Opening
Rib
Latch
Area
Vacuum Inlet Cover
2. Gently tilt thehandle ofthe screwdrivertoward the front of the unit to release the
latch while pulling up on the vacuum inlet
cover with your other hand.
3. Hold the vacuuminletcover openuntil upper vacuum tube is installed.
Vacuum Inlet
-- 5 --
Vacuum
Inlet
Cover
c
4. Align thetabs on theinsideof the vacuuminlet with the slots on the upper vacuum tube.
Tab
5. Push the uppervacuum tubeinto the vacuum inlet.Turn the tubecounterclockwise
until a click is felt to secure thetube tothe
blower unit.
6. Align slantedend oflowervacuum tubeas
shown. Push lower vacuum tube into upper
vacuum tube until the lower tube is securely
seated in the upper tube (about 7 cm).
Slot
HOW TO CONVERT UNIT FROM
VACUUM USE TO BLOWER USE
1. Remove the elbow tube and vacuum bag
by turning the knob counterclockwise to
loosen the elbow tube.
2. Remove the vacuum tubes by turning the
tubes clockwise.
3. Close the vacuum inlet cover and make
sure it is latched closed.
4. Reinstall the blower tubes (see BLOWER
TUBE ASSEMBLY).
SHOULDER STRAP ADJUSTMENT
1. Hold the unit as shown with the muffler side
facing away from your body and clothes.
2. Pass the shoulder strap over your head
and onto your right shoulder.
3. Extend your leftarmtoward the rearofthe
vacuum bag.
4. Adjust shoulder strap until the vacuum
bag/shoulder strap seam lies between
your thumb and index finger.
5. Make sure air flows freely from the elbow
tube intobag. If bagis kinked, theunitwill
not operate properly.
Slanted end of
lower vacuum tube
7. When vacuum tubes are fitted together,
locatethe label on the lower portion of the
upper tube. Perma nently assemble the two
tubes together with the supplied screw.
Lower
Vacuum
Tube
Upper
Vacuum
Tube
-- 6 --
OPERATION
OPERATING POSITION
Hearing Protection
Blower Vacuum
OPERATING TIPS
S While vacuuming or blowing debris, hold
the unit with the muffler side facing away
from yourbodyand clothes (seeOPERATING POSITION).
S To reduce the risk of hearing loss
associated with sound level(s), hearing
protection is required.
S To reduce the risk of injury associated with
contacting rotating parts, stop the engine before installing or removing attachments. Do
not operate without guard(s) in place.
S Operate power equipment only atreasonable
hours- -not early in the morning or late at night
when peoplem ightbe disturbed. Comply with
times listed in localordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m.,
Monday though Saturday.
S To reduce noise levels, limit the number of
pieces of equipment used at any one time.
S To reduce noise levels, operate power
blowers at the lowest possible throttle
speed to do the job.
S Use rakes andbrooms toloosendebris be-
fore blowing.
S In dusty conditions, slightly dampen sur-
faces orusea mister attachment whenwater is available.
S Conserve water by using power blowers
instead of hoses for many lawn and garden
applications, including areas such as gutters,
screens, patios, grills, porches, and gardens.
S Watchoutforchildren, pets,open windows,
or freshly washed cars. Blow debris away
safely.
S Use thefullblower nozzleextension sothe
air stream can work close to the ground.
S After using blowers and other equipment,
CLEAN UP! Dispose of debris in trash receptacles.
Hearing Protection
Eye
Protection
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you
begin. If you do not understand the safety
rules, donot attemptto fuelyour unit. Contact
an authorized service dealer.
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
This engine is certified to operate on
unleaded petrol. Before operation, petrol
must be mixed with a good quality 2-cycle
air-cooled engineoil. Werecommend Partner
brand oil mixed at a ratio of 40:1 (2.5%). A
40:1 ratio is obtained by mixing 5 liters of
unleaded petrol with 0,125 liter of oil. When
mixing fuel, follow theinstructions printed on
the container. Always read and follow the
safety rules before fueling your unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol)canattract moisturewhichleads to
separation andformation ofacids during storage. Acidic gas can damage the fuel system
of anengine whilein storage. To avoid engine
problems, empty the fuelsystem beforestorage for30days or longer.Drainthe gas tank,
start theengine andlet itrun untilthefuellines
andcarburetor areempty. Usefreshfuelnext
season. Never use engine or carburetor
cleanerproductsinthe fueltank orpermanent
damage may occur.
HOW TO STOP YOUR ENGINE
S Release the throttle trigger.
S Push and hold the STOP switch in the
STOP position until the engine stops.
BEFORE STARTING THE ENGINE
WARNING: YouMUSTmakesurethe
tubes are secure before using the unit.
D Fuel engine. Move at least 3 meters away
from the fueling site.
D Hold the unit in the starting position as
shown. Make sure the blower end is directed away from people, animals, glass,
and solid objects.
STARTING POSITION
Blower
Vacuum
-- 7 --
WARNING: When starting engine,
A
hold the unit as illustrated. Do not set unit on
any surface except a clean, hard area when
starting engineor whileengineisrunning.Debris such as gravel, sand, dust, grass, etc.
could be picked up by the air intake and
thrown out through the discharge opening,
damagingtheunitor property,or causingserious injury to bystanders or the operator.
STAR TIN G A COLD ENGINE (or a
warm engine afterr unni ngout of fuel)
1. Slowly press the primer bulb 6 times.
2. Movechokelevertothe FULL CHOKEposition.
3. Squeeze the throttle trigger fully and hold
through all remaining steps.
Starter
Handle
Choke
Lever
Primer
Bulb
4. Pull starter rope handle sharply until engine
sounds as ifitis trying to start, but donot pull
rope more than 6 times.
5. As soon as engine sounds as if it is trying to
start, move choke lever to HALF CHOKE
position.
6. Pull starter rope sharply until engine runs,
but no more than 6 pulls.
NOTE:Ifthe en-
ginedoesn’tstartafter 6pulls (atthe HALF
CHOKE position),move thechoke leverto
the FULL CHOKE position and press the
primer bulb6 times. Squeezeand holdthe
throttle trigger and pull the starter rope 2
more times. Move the choke lever to the
HALF CHOKEpositionand pullthe starter
rope until the engine runs, but no more
than6 pulls. Ifthe enginestill doesn’tstart,
it is probably flooded. Proceed toSTARTING A FLOODED ENGINE.
7. Once the engine starts, allow it to run 10seconds, then move the choke lever to the
RUN position. Allow the unit to run for 30
more seconds at RUN before releasing the
throttle trigger.
the chokeleverin theRUN position,move
thechoke leverto theHALFCHOKE position andpull theropeuntilengine runs,but
no more than 6 pulls.
STARTING A WARM ENGINE
1. Move the cho kelever to the HALFCHOK E
position.
2. Squeeze the throttle trigger fully and hold
through all remaining steps.
3. Pull starter rope sharply until engine runs,
but no more than 6 pulls.
4. Allow engine to run 15 seconds, then move
the choke lever to RUN.
NOTE: Ifenginehas not started, pull starter
rope5more pulls.If enginestill doesnot run,it
is probably flooded.
STARTING A FL OODED ENGINE
Flooded engines can be started by placing the
choke lever in the RUN position; then, pull the
rope to clear the engine of excess fuel. This
could require pulling the starter handle many
times depending on how badly the unit is
flooded. If the unit still doesn’t start, refer to
TROUBLESHOOTING TABL E.
NOTE: If engine dies with
MAINTENANCE
WARNING: Avoid touching muffler
unless engine and muffler are cold. A hot
muffler can cause serious burns.
WARNING: Disconnect the spark
plug before performing maintenance except
for carburetor adjustments.
CHECK FOR LOOSE
FASTENERS AND PARTS
S Muffler
S Spark Plug Boot
S Air Filter
S Housing Screws
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
S Fuel T ank. Discontinue use of unit if fuel
tank is damaged or leaks.
S VacuumBag-- Discontinue use of vacuum
bag if it is torn or damaged.
INSPECT AND CLEAN UNIT & LABELS
S After each use, inspect complete unit for
looseordamagedparts. Clean theunit and
decals usinga dampcloth withamilddetergent.
S Wipe off unit with a clean dry cloth.
CLEAN AIR FILTER
Button
Air Filter
Cover
ir Filter
-- 8 --
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation or yearly, whichever
comesfirst.
1. Clean the cover and the area around it to
keepdebrisfrom fallingintothe carburetor
chamber when the cover is removed.
NOTE: Move choke lever to RUN position
before opening air filter cover.
2. Remove parts as illustrated.
NOTE: Do not clean filter in gasoline or
other flammable solvent. Doing so can
create a fire hazard or produce harmful
evaporative emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Apply a few drops of oil to the filter;
squeeze filter to distribute oil.
6. Replace parts.
REPLACE SPARK PLUG
Replace spark plug each year to ensure the
engine starts easier and runs better. Set
spark plug gap at 0.6 mm. Ignition timing is
fixed, nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug fromcylinder anddiscard.
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 19 mm
socket wrench.
4. Reinstall the spark plug boot.
REPLACE FUEL FILTER
T oreplacefuelfilter ,drain unitbyrunningit dry of
fuel, then remove fuel cap/retainer assembly
fromtank. Pullfilter fromtank andremove itfrom
fuelline.Installnew fuelfilter onfuelline; reinstall
parts.
CHECK MUFFLER MOUNTING
SCREWS
Once each year, ensure muffler mounting
screws are secure and tightened properly to
prevent damage.
Muffler
Mounting
Screw
CARBURETOR ADJUSTMENTS
The carburetor has been carefully set at the
factory.Adjustmentsmay benecessary ifyou
notice any of the following conditions:
S Engine will not idle when the throttle is re-
leased.
Idle Speed Adjustment
Allowenginetoidle.Adjust speeduntil engine
runs without stalling (idle speed too slow).
S Turn idle speed screw clockwise to in-
crease enginespeedif enginestalls ordies.
S Turnidlespeed screw counterclockwise to
decrease engine speed.
Idle Speed Screw
Fuel Filter
Fuel Line
Air
Filter
Cover
Ifyourequire furtherassistance orare unsure
about performing this procedure, contact an
authorized service dealer.
-- 9 --
STORAGE
WARNING: Prepare unit for storage at
end ofseason orifit will not beusedfor 30 days
or more.
S Allow engine to cool, and secure the unit be-
fore storing or transporting.
S Store unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric motors or switches, furnaces, etc.
S Storeunitwith allguards inplace.Position unit
so that any sharp object cannot accidentally
cause injury.
S Store unitand fuel well outof the reachofchil-
dren.
EXTERNAL SURFACES
S If your unit is to be stored for a period of time,
clean it thoroughly before storage. Store in a
clean dry area.
S Lightly oil external metal surfaces.
INTERNAL ENGINE
S Remove spark plug and pour 1 teaspoon of
2-cycle engine oil (air cooled) through the
spark plug opening. Slowly pull the starter
rope 8 to 10 times to distribute oil.
S Replace spark plug with new one of recom-
mended type and heat range.
S Clean air filter.
S Check entire unit for loose screws, nuts, and
bolts. Replace any damaged,broken, orworn
parts.
S Start each season using only fresh fuel hav-
ing the proper gasoline to oil ratio.
OTHER
S Do not store gasoline from one season to
another.
S Replace your gasoline can if it starts to rust.
TROUBLESHOOTING TABLE
WARNING: Always stop unitanddisconnect sparkplug beforeperforming anyof the
recommended remedies below other than remedies that require operation of the unit.
TROUBLE CAUSE REMEDY
Engine will not
start.
Engine will not
idle properly.
Engine will not
accelerate,
lacks power, or
dies under a
load.
Engine
smokes
excessively.
Engine
runs hot.
1.Engine flooded.
2.Fuel tank empty.
3.Spark plug not firing.
4.Fuel not reaching carburetor.
5.Compression low.
1.Fuel not reaching carburetor.
2.Carburetor requires adjustment.
3.Crankshaft seals worn.
4.Compression low.
1.Air filter dirty.
2.Fuel not reaching carburetor.
3.Spark plug fouled.
4.Spark arresting screen clogged.
5.Carburetor requires adjustment.
6.Carbon build up.
7.Compression low.
1.Choke partially on.
2.Fuel mixture incorrect.
3.Air filter dirty.
4.Carburetor requires adjustment.
1.Fuel mixture incorrect.
2.Spark plug incorrect.
3.Carburetor requires adjustment.
4.Carbon build up.
1.See “Starting Instructions.”
2.Fill tank with correct fuel mixture.
3.Install new spark plug.
4.Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5.Contact an authorized service dealer.
1.Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
2.Contact an authorized service dealer.
3.Contact an authorized service dealer.
4.Contact an authorized service dealer.
1.Clean or replace air filter.
2.Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
3.Clean or replace spark plug; re-gap.
4.Replace screen.
5.Contact an authorized service dealer.
6.Contact an authorized service dealer.
7.Contact an authorized service dealer.
1.Adjust choke.
2.Empty fuel tank and refill with
correct fuel mixture.
3.Clean or replace air filter.
4.Contact an authorized service dealer.
1.See “Fueling Your Unit.”
2.Replace with correct spark plug.
3.Contact an authorized service dealer.
4.Contact an authorized service dealer.
-- 10 --
DECLARATION OF CONFORMITY
EC Declaration of Conformity (Only applies to Europe)
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46--36--146500, as authorised
representative intheCommunity,declarethat thegardenblower/vacuum modelPartnerGBV
325withserialnumbersdating from2009 andonwards (theyearis clearly statedon therating
plate, followed by the serial number), comply with the requirements of the COUNCIL’S
DIRECTIVES:
of 17 May 2006 “relating to machinery” 2006/42/EC;
of15 December 2004“relating toelectromagneticcompatibility”2004/108/EC, andapplicable
supplements; and
of 8May 2000 “relatingtothe noise emissions in theenvironment” inaccordance with Annex
Vof2000/14/EC. For information relating to noise emissions, see Technical data section.
The following standards have been applied: EN ISO 12100-1/A1:2009, EN ISO
12100-2/A1:2009, CISPR 12:2007.
SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, S--754 50 Uppsala, Sweden, has
performed voluntary type examination on behalf of Husqvarna AB. The certificate(s) are
numbered: SEC/09/2024.
09-- 11-- 0 1
Ronnie E. Goldman, Director of Engineering
Authorized representative for Husqvarna AB and
responsible for technical documentation
-- 11 --
TECHNICAL DATA
MODEL: GBV 325
ENGINE
Cylinder displacement, cm
Maximum Engine Power, according to ISO 8893, kW 0,75
Idle Speed +/-- 400, rpm 3700
Catalytic converter muffler Yes
IGNITION SYSTEM
Spark plug Champion RCJ--6Y
Electrode gap, mm 0,6
FUEL AND LIBRICATION SYSTEM
Fuel tank capacity, cm
WEIGHT
Weight without fuel and tubes, kg 4,25
NOISE EMISSIONS
(see Note 1)
Sound power level, measured dB(A) 103,9
Sound power level, guaranteed L
SOUND LEVELS
(see Note 2)
Equivalent sound pressure level at the operator’s ear, measured
according to ISO 22868, dB(A)
Equipped with blower tubes and nozzle (original) 96,7
Equipped with vacuum tubes (original) 98,6
VIBRATION LEVELS
(see Note 3)
Equivalent vibration levels (a
according to ISO 22867, m/s
Equipped with blower tubes and nozzle (original), right 10,1
Equipped with vacuum tubes (original), left/right 8,2/10,4
3
3
dB(A) 108,0
WA
) at handles, measured
hv,eq
2
25
540
Note 1: Noise emissions in the environment measured as sound power (L
with EC directive 2000/14/EC. Reported sound power level for the machine has been measured with the original cutting attachment that gives the highest level. The difference between
guaranteed and measured sound power is that the guaranteed sound power also includes
dispersion in the measurement result and the variations between different machines of the
same model according to Directive 2000/14/EC.
Note 2: Reported data for equivalent sound pressure level for the machine has a typical
statistical dispersion (standard deviation) of 1 dB(A).
Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s
2
.
) in conformity
WA
-- 12 --
Loading...
