Partner EM-70 Unpacking And Setup Instructions

EM-70

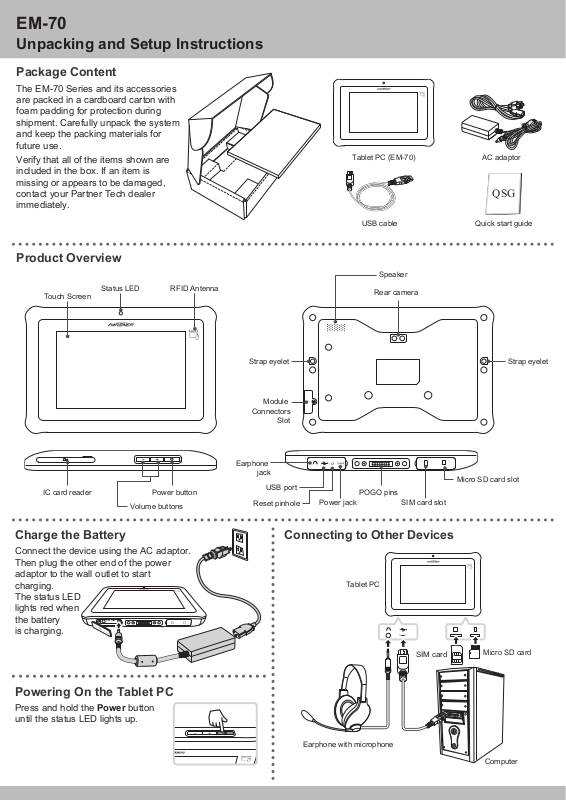

Unpacking and Setup Instructions

Package Content

The EM-70 Series and its accessories
are packed in a cardboard carton with
foam padding for protection during
shipment. Carefully unpack the system
and keep the packing materials for
future use.

Verify that all of the items shown are
included in the box. If an item is
missing or appears to be damaged,
contact your Partner Tech dealer
immediately.

Product Overview

Touch Screen

Status LED

RFID Antenna

Tablet PC (EM-70)

Speaker

Rear camera

AC adaptor

QSG

Quick start guideUSB cable

IC card reader

Power button

Volume buttons

Connect the device using the AC adaptor.
Then plug the other end of the power
adaptor to the wall outlet to start
charging.
The status LED
lights red when
the battery
is charging.

Strap eyelet Strap eyelet

Module

Connectors

Slot

Earphone

jack

USB port

Reset pinhole

Power jack

POGO pins

SIM card slot

Micro SD card slot

Connecting to Other DevicesCharge the Battery

Tablet PC

Powering On the Tablet PC

Press and hold the Power button
until the status LED lights up.

Earphone with microphone

SIM card

Micro SD card

Computer

Optional Modules

Using the MSR Module

A. MSR Module Installation

1. Remove the screw securing the
module connectors slot cover.

2. Align the guides on the MSR module
through the guides on the side of the
Tablet PC.

3. Attach three screws to secure the
MSR module to the Tablet PC.

B. Testing the MSR Module

Launch the test application. Then swipe a
magnetic stripe card through the MSR module.
Data appears on
the screen if the test
is successful.

Using the RFID Module

Launch the test application. Then place the RFID card
on the upper-right corner of the Tablet PC to scan the
card.
Data on the card is read and displayed on the screen.

Using the Barcode Scanner
Module

Launch the test application.
Then aim the scanner on the barcode
and press the scanner trigger button.
Data appears on the screen if
the test is successful.

Using the IC Card Reader

Launch the test application. Then open the IC card reader
cover and insert a smart card into the slot.
Once the device successfully reads the data on the smart card
and the read data appears on the screen.

www.partner.com.tw

© 2013 Partner Tech Corp. All Rights Reserved
