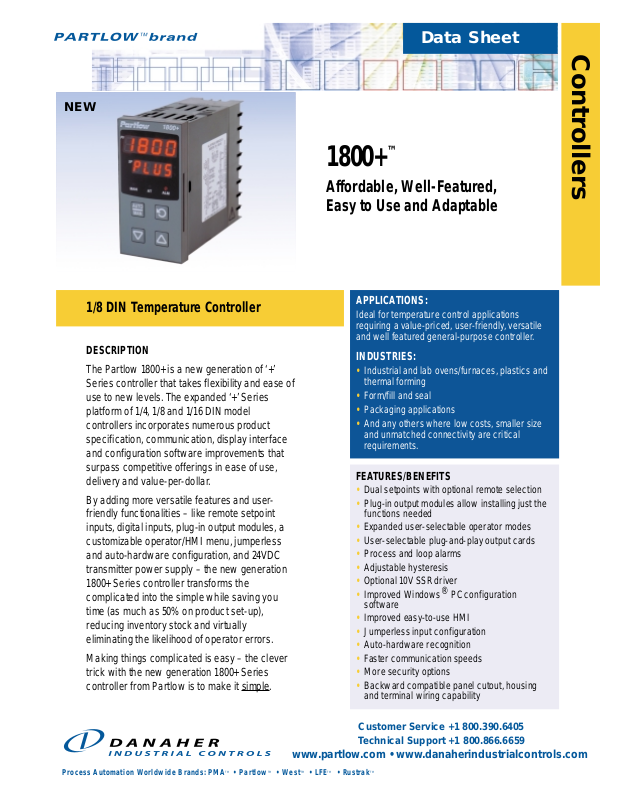

Partlow 1800+ Specifications

Data Sheet

Customer Service +1 800.390.6405

Technical Support +1 800.866.6659

www.partlow.com • www.danaherindustrialcontrols.com

Process Automation Worldwide Brands: PMA

• Partlow

• WestTM• LFE

• Rustrak

1800+

™

Affordable, Well-Featured, Easy to Use and Adaptable

APPLICATIONS:

Ideal for temperature control applications requiring a value-priced, user-friendly, versatile and well featured general-purpose controller.

INDUSTRIES:

• Industrial and lab ovens/furnaces, plastics and

thermal forming

• Form/fill and seal

• Packaging applications

• And any others where low costs, smaller size

and unmatched connectivity are critical requirements.

FEATURES/BENEFITS

• Dual setpoints with optional remote selection

• Plug-in output modules allow installing just the

functions needed

• Expanded user-selectable operator modes

• User-selectable plug-and-play output cards

• Process and loop alarms

• Adjustable hysteresis

• Optional 10V SSR driver

• Improved Windows®PC configuration

software

• Improved easy-to-use HMI

• Jumperless input configuration

• Auto-hardware recognition

• Faster communication speeds

• More security options

• Backward compatible panel cutout, housing

and terminal wiring capability

DESCRIPTION

The Partlow 1800+ is a new generation of ‘+’ Series controller that takes flexibility and ease of use to new levels. The expanded ‘+’ Series platform of 1/4, 1/8 and 1/16 DINmodel controllers incorporates numerous product specification, communication, display interface and configuration software improvements that surpass competitive offerings in ease of use, delivery and value-per-dollar.

By adding more versatile features and userfriendly functionalities – like remote setpoint inputs, digital inputs, plug-in output modules, a customizable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply – the new generation 1800+ Series controller transforms the complicated into the simple while saving you time (as much as 50% on product set-up), reducing inventory stock and virtually eliminating the likelihood of operator errors.

Making things complicated is easy – the clever trick with the new generation 1800+ Series controller from Partlow is to make it simple

1/8 DIN Temperature Controller

NEW

Controllers

Process Automation Worldwide Brands: PMA

• Partlow

• WestTM• LFE

• Rustrak

Customer Service +1 800.390.6405

Technical Support +1 800.866.6659

www.partlow.com • www.danaherindustrialcontrols.com

1800+

™

Affordable, Well-Featured, Easy to Use and Adaptable

RATINGS/AGENCY APPROVALS

Safety: CE, UR, cUR, UL file# E67237 EMC: Certified EN61326 Other: ISO 9002 registered

PROTECTION

IEC IP66; NEMA 4X (front panel) IEC IP20 (behind the panel protection)

PHYSICAL DIMENSIONS

Panel Cutout: 1.77˝ (45mm) × 3.62˝ (92mm) Width: 1.89˝ (48mm) Depth: 3.93˝ (100mm) Height: 3.78˝ (96mm) Weight: 0.46 lbs (0.21kg) Mounting: Plug-in with panel mounting fixing

strap

OPTIONS/ACCESSORIES

NEW 24VDC transmitter power supply option NEW Faster RS-485 serial communication

speeds and user-selectable (Modbus®or ASCII) option

Digital Input 1 (Optional): Selects between two

setpoints or auto/manual tune control; volt free or TTL input

Basic Remote Setpoint Input (Optional):

0–20mA, 4–20mA, 0–10V, 2–10V, 0–5V; scalable –1999 to 9999; local or remote setpoint selected from front panel

Full Remote Setpoint Input (0ptional): 0–20mA,

4–20mA, 0–5V, 1–5V, 0–10V, 2–10V, 0–100mV; scaleable –1999 to 9999; potentiometer (2kΩ minimum); local or remote setpoint selected from front panel; digital input can be configured to switch between setpoints (either setpoint 1 and 2 or between local setpoint and remote setpoint) or between auto and manual control modes. Not available on Model 1160+

Optional Choice of LED colors: (red/red,

red/green, green/red, green/green); plus five indicators

WARRANTY

3 years

* Specifications are for base models with standard

features only unless otherwise noted. Specifications subject to change without notice in accordance with our DBS policy of continuous improvement. All product and brand names are trademarks of their respective owners. All rights reserved.

1/8 DIN Temperature Controller

STANDARD FEATURES

Dual setpoints with optional remote selection Plug-in output modules installing just the

functions needed

NEW Improved HMI; four button operation, dual

4-digit LED displays 4 per second input sample rate Universal input Full PID or ON/OFF control Heat/Cool operation (with dual outputs ordered) Selectable pre-tune, self-tune, manual tune Ramping setpoint Process and Loop alarms

NEW Jumperless input configuration NEW Auto-detection of installed output

modules. NEW Improved PC configuration software

(comms option not required) Construction/Enclosure: Rugged ABS plastic

housing

ENVIRONMENTAL CHARACTERISTICS

Operating Temp.:32° to 131°F (0° to 55°C) Storage Temp.:–4° to 176°F (–20° to 80°C) Humidity: 20% to 95% non-condensing RH

ELECTRICAL

Supply Voltage:100–240V 50/60Hz; optional

24VDC (20–48VAC / 22–65 VDC) Power Consumption: 5W / 7.5VA max

DISPLAY

Type: Dual 4 digit displays, Red or Green,

7 segment LED

Height: 10mm (0.39”) upper display,

8mm (0.31”) lower display

Annunciators: LED indicators for output and

status

INPUTS

Standard Universal input (T/C, RTD and DC

Linear): T/Cs: J, K, C, R, S, T, B, L, N and Pt 20% Rh vs. Pt

40% Rh RTD: 3-wire; PT100; 50Ω per lead maximum

(balanced)

DC Linear (scalable –1999 to +9999):

Volts:0–5, 1–5, 0–10 or 2–10VDC

DC milliamps: 0–20mA or 4–20mA DC millivolts: 0–50, 10–50mV

OUTPUTS

All output types are user-selectable and

customizable based on desired application; choose from the following output types:

Max. # of Outputs: Three for control, alarm,

24VDC transmitter power supply or retransmit of process value or setpoint

Relay: Optional SPDT; 240VAC 2.0A resistive.

Lifetime: >500,000 operations at rated voltage/ current

SSR Driver: Optional drive capability: >10VDC

nominal into 500Ω minimum

DC Linear: Optional 0–20mA , 4–20mA into 500Ω

max.; 0–10V, 1–5V, 2–10V, 0–5V into 500Ω minimum; control outputs have 2% over/under drive applied; accuracy ±0.25% (mA into 250Ω load, V into 2kΩ load); degrading linearly to ±0.5% for increasing burden to specified limits

Triac: Optional 0.01 to 1A AC, 20 to 280Vrms,

47–63Hz (limit 2)

Transmitter Power Supply: Optional 24VDC

(limit 1)

OUTPUT FUNCTIONS

All output functions are user-selectable and

customizable based on the application:

Heat Power Cool Power Process Alarm (reverse or direct)

Modes (Alarms 1 and 2): High/low, SP

deviation, band, logical OR/AND

Loop Alarm (reverse or direct) Retransmit (setpoint or process value)

ELECTRICAL PERFORMANCE

GENERAL: Accuracy: ±0.1% of input range ±1 LSD (T/C

CJC better than 1°C)

Input Sample Rate: 4 per second; 14 bit resolution Impedance: >10MΩ for thermocouple and mV

ranges, 47kΩ for V ranges and 5Ω for mA ranges

Sensor Break Detection: <2 seconds (except

zero based DC ranges), control O/Ps turn off, high alarms activate for T/C and mV ranges, low alarms activate for RTD, mA or V ranges

COMMUNICATIONS INTERFACE

User-selectable: 2-wire, RS-485 serial

communications option with choice of Modbus®or ASCII protocol; 1200 to 19,200 baud

PC Configuration: Off-line configuration from

serial port to dedicated configuration socket (comms option not required)

SPECIFICATIONS*
