Parrot PATPF723400AA Instruction manual
Hydrofoil Drone
NEWZ ORAK
User Guide
Table Of Contents
Before getting started
Flying

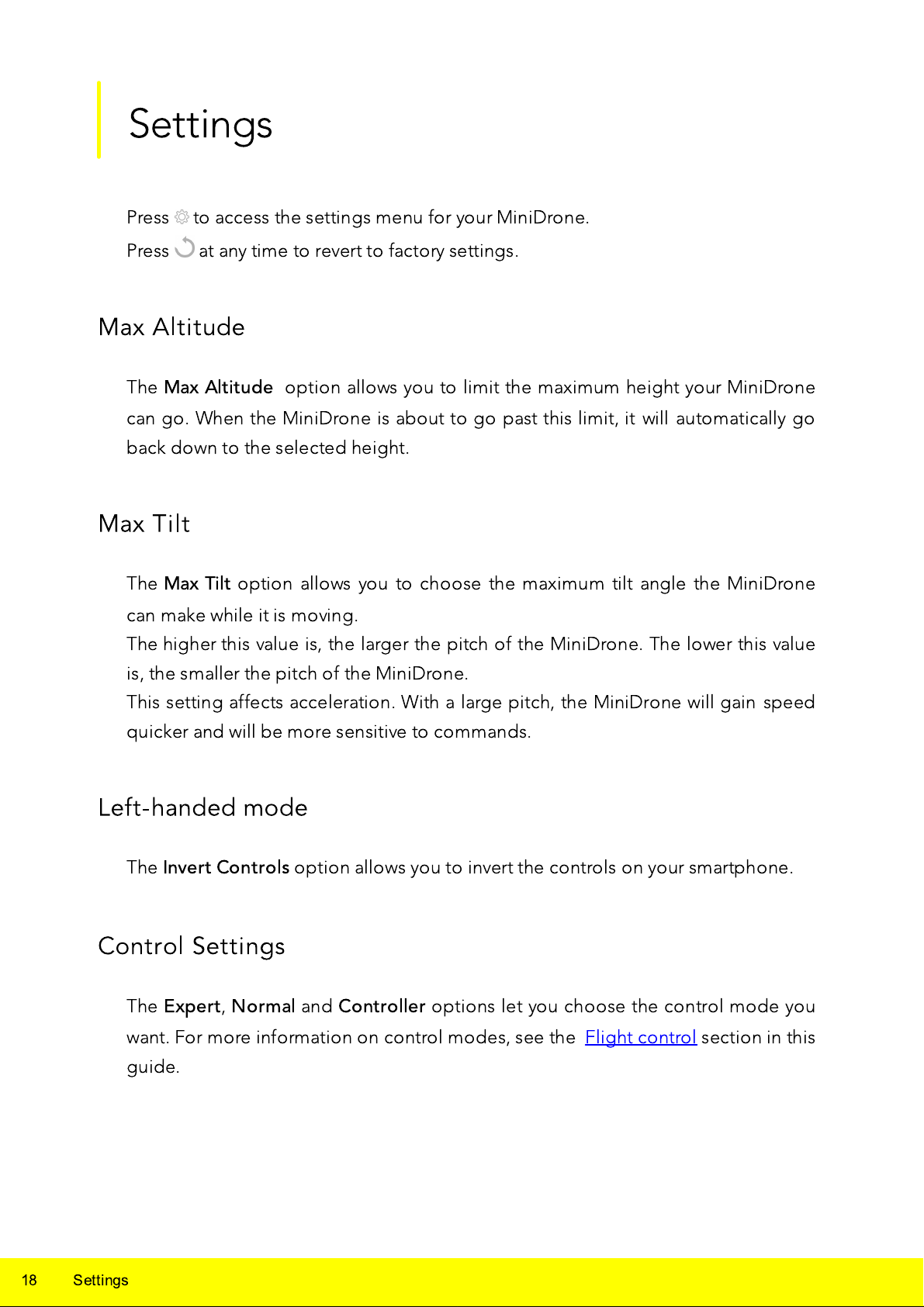

Settings
.......................................................................................................................................................4
.......................................................................................................................................................4Assembling the Hydrofoil
.......................................................................................................................................................5Charging the battery
.......................................................................................................................................................6Setting up the MiniDrone on the Hydrofoil
.......................................................................................................................................................6Switching on the MiniDrone
.......................................................................................................................................................6Compatibility
.......................................................................................................................................................7Downloading the app
.......................................................................................................................................................7Connecting a smartphone
.......................................................................................................................................................8
.......................................................................................................................................................9Controlling the MiniDrone with the Hydrofoil

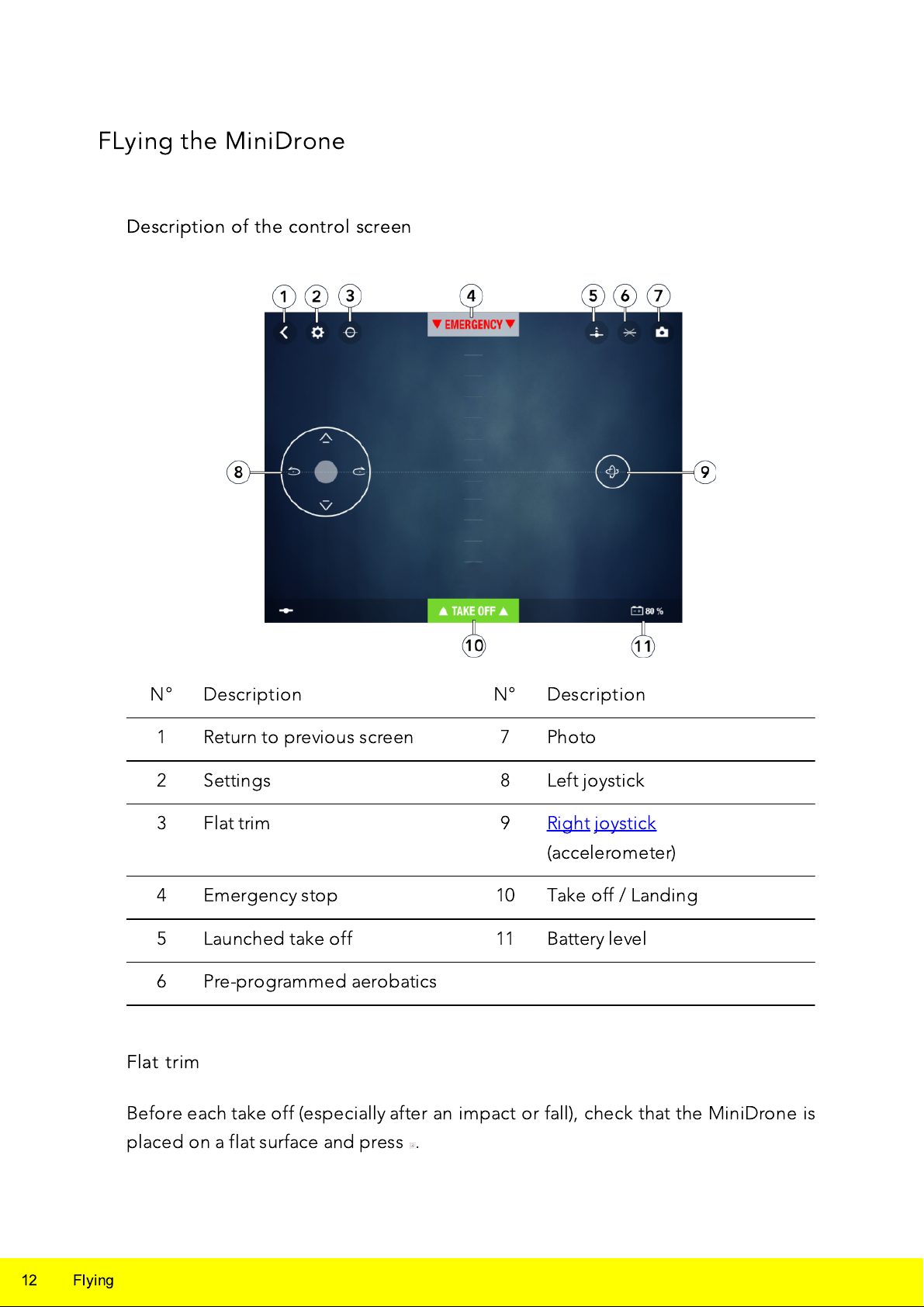

.......................................................................................................................................................12FLying the MiniDrone
.......................................................................................................................................................16Battery
.......................................................................................................................................................16Photos
.......................................................................................................................................................16Retrieving or deleting photos
.......................................................................................................................................................17Videos
.......................................................................................................................................................18
.......................................................................................................................................................18Max Altitude
.......................................................................................................................................................18Max Tilt
.......................................................................................................................................................18Left-handed mode
.......................................................................................................................................................18Control Settings
.......................................................................................................................................................19Automatic Recording
.......................................................................................................................................................19Max Vertical Speed
.......................................................................................................................................................19Max Rotation Speed
.......................................................................................................................................................19Accessory
.......................................................................................................................................................19Short-Circuit
.......................................................................................................................................................20Charge Settings
.......................................................................................................................................................20Network Name
.......................................................................................................................................................20Versions
Academy Drone
Updates
General Information
.......................................................................................................................................................21
.......................................................................................................................................................23
.......................................................................................................................................................24
.......................................................................................................................................................24Precautions for use and maintenance
.......................................................................................................................................................25Accessories and spare parts
.......................................................................................................................................................25Battery
.......................................................................................................................................................25Warranty
.......................................................................................................................................................25Modifications
.......................................................................................................................................................26Recycling this product
.......................................................................................................................................................26Declaration of Conformity
.......................................................................................................................................................26Registered trademarks
.......................................................................................................................................................27Notice regarding the right to privacy
Before getting started
Assembling the Hydrofoil
A T10 screwdriver (supplied) is needed to assemble the Hydrofoil. Do not over-
tighten the screws.
1. Remove the elastic band from the hull.
2. Screw the arm onto the hull with 2 screws (diagram A).
3. Insert the MiniDrone support into the slot on the central spindle (diagram B).
4. Screw the central spindle onto the hull with 4 screws (diagram C).
5. Insert the two lateral floats into the ends of the arm.
6. Insert then screw the two lateral fins into the floats with 2 screws (diagram D).
7. Insert then screw the tail fin into the slot located at the rear of the hull with 1
screw (diagram E).
In order to avoid any risk of the Hydrofoil losing its
shape, keep it on its original support.
4
Before getting started
Charging the battery
1. Insert the battery into the compartment provided (photos A and B). The small
triangle on the battery indicates which side should be on top. The direction the
triangle is pointing in shows which way the battery should be inserted.
2. Plug in the MiniDrone (photos C and D):
·
When using a charger with a minimum power rating of 2.4 A, charging time is
approximately 25 minutes.
·
When charging through a computer using the USB cable, charging time is
approximately 1 hour and 30 minutes.
To remove the battery, lift the flap located underneath the battery and slide it to
the rear.
Before getting started
5
Setting up the MiniDrone on the Hydrofoil
Before setting up the MiniDrone, assemble the Hydrofoil and check the battery has
been installed correctly.
1. Insert the front of the MiniDrone in its support, the head facing the front of the
Hydrofoil. Ensure that the two front lugs on the support are inserted into the
front arms of the MiniDrone (photo A).
2. Fasten the clip on the rear of the MiniDrone (photo B).
Switching on the MiniDrone
Insert the battery into the slot or press the On/Off button
underneath the MiniDrone.
Then place your MiniDrone on a flat surface so it can
complete its initialisation phase.
The eyes of the MiniDrone will turn red, amber, and then
green.
Compatibility
You need a smartphone or tablet that supports
MiniDrone.
For more information, go to the Compatibility page on our website.
Bluetooth® 4.0 to use the
6
Before getting started
Downloading the app
Log into the App StoreTM or Google Play
TM
and download the free FreeFlight3 app.
Connecting a smartphone
Since the MiniDrone uses
normal list of
Bluetooth® devices shown on your phone. You will only be able to
see it and connect to it via the FreeFlight3 app.
1. Activate the
Bluetooth® function on your smartphone.
2. Launch the FreeFlight3 app.
3. Press to bring up the list of MiniDrones located near your smartphone.
> The MiniDrone will connect to your smartphone automatically. A pop-up window
saying "Sending status" and then "Connected" will appear.
> The icon shows which MiniDrone is currently connected.
> The icon indicates the status of the Bluetooth® connection between your
Bluetooth® Low Energy, it will not be displayed in the
smartphone and the MiniDrone. The number of bars displayed indicates the quality
of the connection.
If your phone doesn't automatically connect to the MiniDrone, select the name of
your MiniDrone from the list.
Before getting started
7
Flying
1. FreeFlight3 アプリ
メイ ン 画 面 が 表 示 され ま す 。
ケーションを起動させる
2. MiniDroneをノーマル
モードでコントロールするには、 フリーフライト
を押します。
MiniDroneをコン
トローラー
MiniDrone
モードで撮影するには、
マイドローンを撮影する
の飛行中にスマートフォンで撮影できます。 コントロールモードについての情報は、｢飛
行中のミニドローンをコントロールする｣欄をご覧ください。
コント ロ ー ル画 面 が 表 示 されます 。
ポップアップで、
られます
·
MiniDrone 装 着 パ ー ツつ き
·
、MiniDrone 装 着 パーツ な し
:
MiniDrone
のコントロールモードを選択するよう尋ね
を押します。
コントローラー
モードで、
8
Flying
Controlling the MiniDrone with the Hydrofoil
No.
Description
No.
Description
1
Return to previous screen
5
Left joystick
(accelerometer)
2
Settings
6
Right joystick
3
Emergency stop
7
Take Off / Landing
4
8
Battery level
Description of the control screen
Start-up
1. Place the MiniDrone on the water.
2. Press
> The MiniDrone motors will start up. The MiniDrone will lift itself 90° on its
support and start to move.

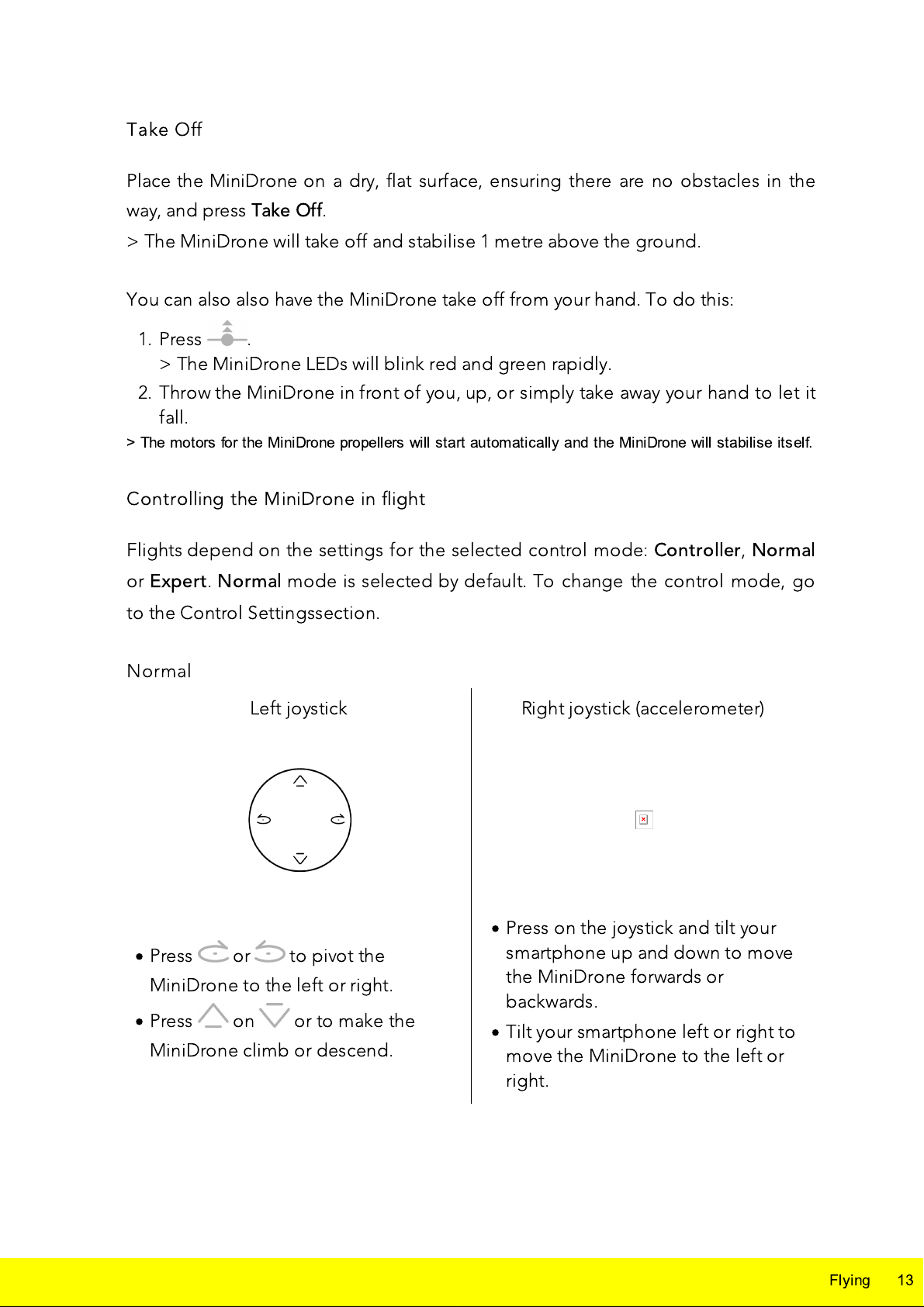

Take Off
.
Flying
9
