Parrot Orak, Newz User Manual

Download
Hydrofoil Drone
NEWZ ORAK
User Guide
Table Of Contents
Before getting started
Flying
Settings
.......................................................................................................................................................4
...........................................................................................................................................................................................................4Assembling the Hydrofoil
...........................................................................................................................................................................................................5Charging the battery
...........................................................................................................................................................................................................6Switching on the MiniDrone
...........................................................................................................................................................................................................6Compatibility
...........................................................................................................................................................................................................7Downloading the app
...........................................................................................................................................................................................................7Connecting a smartphone
.......................................................................................................................................................8
...........................................................................................................................................................................................................9Controlling the MiniDrone with the Hydrofoil
...........................................................................................................................................................................................................12FLying the MiniDrone
...........................................................................................................................................................................................................16Battery
...........................................................................................................................................................................................................16Photos
...........................................................................................................................................................................................................16Retrieving or deleting photos
...........................................................................................................................................................................................................17Videos
.......................................................................................................................................................18
...........................................................................................................................................................................................................18Max Altitude
...........................................................................................................................................................................................................18Max Tilt
...........................................................................................................................................................................................................18Left-handed mode
...........................................................................................................................................................................................................18Control Settings
...........................................................................................................................................................................................................19Automatic Recording
...........................................................................................................................................................................................................19Max Vertical Speed
...........................................................................................................................................................................................................19Max Rotation Speed
...........................................................................................................................................................................................................19Accessory
...........................................................................................................................................................................................................19Short-Circuit
...........................................................................................................................................................................................................19Charge Settings
...........................................................................................................................................................................................................20Network Name
...........................................................................................................................................................................................................20Versions
Academy Drone Updates General Information
.......................................................................................................................................................21
.......................................................................................................................................................23
.......................................................................................................................................................24
...........................................................................................................................................................................................................24Precautions for use and maintenance
...........................................................................................................................................................................................................24Accessories and spare parts
...........................................................................................................................................................................................................25Battery
...........................................................................................................................................................................................................25Warranty
...........................................................................................................................................................................................................25Modifications
...........................................................................................................................................................................................................26Recycling this product
...........................................................................................................................................................................................................26Declaration of Conformity
...........................................................................................................................................................................................................26Registered trademarks
...........................................................................................................................................................................................................27Notice regarding the right to privacy

Before getting started

Assembling the Hydrofoil

A T10 screwdriver (supplied) is needed to assemble the Hydrofoil. Do not over- tighten the screws.
1. Remove the elastic band from the hull.
2. Screw the arm onto the hull with 2 screws (diagram A).
3. Insert the MiniDrone support into the slot on the central spindle (diagram B).
4. Screw the central spindle onto the hull with 4 screws (diagram C).
5. Insert the two lateral floats into the ends of the arm.
6. Insert then screw the two lateral fins into the floats with 2 screws (diagram D).
7. Insert then screw the tail fin into the slot located at the rear of the hull with 1 screw (diagram E).
In order to avoid any risk of the Hydrofoil losing its shape, keep it on its original support.
4
Before getting started

Charging the battery

1. Insert the battery into the compartment provided (photos A and B). The small triangle on the battery indicates which side should be on top. The direction the triangle is pointing in shows which way the battery should be inserted.
2. Plug in the MiniDrone (photos C and D):
·
When using a charger with a minimum power rating of 2.4 A, charging time is approximately 25 minutes.
·
When charging through a computer using the USB cable, charging time is approximately 1 hour and 30 minutes.
To remove the battery, lift the flap located underneath the battery and slide it to the rear.
Before getting started
5

Setting up the MiniDrone on the Hydrofoil

Before setting up the MiniDrone, assemble the Hydrofoil and check the battery has been installed correctly.
1. Insert the front of the MiniDrone in its support, the head facing the front of the Hydrofoil. Ensure that the two front lugs on the support are inserted into the front arms of the MiniDrone (photo A).
2. Fasten the clip on the rear of the MiniDrone (photo B).

Switching on the MiniDrone

Insert the battery into the slot or press the On/Off button underneath the MiniDrone. Then place your MiniDrone on a flat surface so it can complete its initialisation phase. The eyes of the MiniDrone will turn red, amber, and then green.

Compatibility

You need a smartphone or tablet that supports MiniDrone. For more information, go to the Compatibility page on our website.
Bluetooth® 4.0 to use the
6
Before getting started

Downloading the app

Log into the App StoreTM or Google Play
TM
and download the free FreeFlight3 app.

Connecting a smartphone

Since the MiniDrone uses normal list of
Bluetooth® devices shown on your phone. You will only be able to
see it and connect to it via the FreeFlight3 app.
1. Activate the
Bluetooth® function on your smartphone.
2. Launch the FreeFlight3 app.
3. Press to bring up the list of MiniDrones located near your smartphone.
> The MiniDrone will connect to your smartphone automatically. A pop-up window saying "Sending status" and then "Connected" will appear. > The icon shows which MiniDrone is currently connected.
> The icon indicates the status of the Bluetooth® connection between your
Bluetooth® Low Energy, it will not be displayed in the
smartphone and the MiniDrone. The number of bars displayed indicates the quality of the connection. If your phone doesn't automatically connect to the MiniDrone, select the name of your MiniDrone from the list.
Before getting started
7

Flying

1. Launch the FreeFlight3 app.
> The main screen will appear.
2. Press
Drone
you film your MiniDrone with your smartphone while you are flying it. For more information on control modes, see the Controlling the MiniDrone in flight section.
> The control screen will appear.
A pop-up will ask you to choose the control mode for your MiniDrone:
·
the MiniDrone with hulls,
·
the MiniDrone without hulls.
Free Flight
to control the MiniDrone in
to control the MiniDrone in
Controller
Normal
mode.
mode. Press
Controller
mode lets
Film My
8
Flying

Controlling the MiniDrone with the Hydrofoil

No.
Description
No.
Description
1
Return to previous screen
5
Left joystick
(accelerometer)
2
Settings
6
Right joystick
3
Emergency stop
7
Take Off / Landing
4
8
Battery level

Description of the control screen

Start-up

1. Place the MiniDrone on the water.
2. Press > The MiniDrone motors will start up. The MiniDrone will lift itself 90° on its
support and start to move.
Take Off
.
Flying
9

Navigation

Left joystick (accelerometer)
Right joystick
·
This joystick will only appear once Take Off has been pressed.
·
Press the joystick and tilt your smartphone up or down to increase or decrease the motor speed of the MiniDrone.
·
Tilt your smartphone left or right to move the MiniDrone to the left or right.
·
Drag the joystick left or right to pivot the MiniDrone to the left or right.
Left joystick (accelerometer)
·
Press the joystick and tilt your smartphone up or down to increase or decrease the motor speed of the MiniDrone.
·
Tilt your smartphone left or right to move the MiniDrone to the left or right.
N
avigation depends on the settings for the selected control mode:
Controller
,
Normal
or
Expert. Normal
mode is selected by default. To change the control
mode, see the Control Settingssection.
Normal
Expert
10
Flying
Controller
Left joystick
Right joystick
·
Drag the cursor up or down to increase or decrease the motor speed of the MiniDrone.
·
Drag the cursor left or right to pivot the MiniDrone to the left or right.
The
Controller
mode lets you film the MiniDrone with the camera on your
smartphone while you are driving it.
To do this, press . Videos are automatically saved to the gallery in the FreeFlight
3 app. To stop recording, press again.

Stopping

Press Only press
Landing
Emergency
to stop the motors on the MiniDrone.
in the event of a genuine emergency. The four motors will
cut out immediately.
Flying
11

FLying the MiniDrone

N°
Description
N°
Description
1
Return to previous screen
7
2
Settings
8
Left joystick
3

Flat trim

9
Right joystick
(accelerometer)
4
Emergency stop
10
Take off / Landing
5
Launched take off
11
Battery level
6
Pre-programmed aerobatics

Description of the control screen

Flat trim
Before each take off (especially after an impact or fall), check that the MiniDrone is placed on a flat surface and press .
12
Flying

Take Off

Left joystick
Right joystick (accelerometer)
·
Press or to pivot the MiniDrone to the left or right.
·
Press on or to make the MiniDrone climb or descend.
·
Press on the joystick and tilt your smartphone up and down to move the MiniDrone forwards or backwards.
·
Tilt your smartphone left or right to move the MiniDrone to the left or right.
Place the MiniDrone on a dry, flat surface, ensuring there are no obstacles in the way, and press
Take Off
.
> The MiniDrone will take off and stabilise 1 metre above the ground.
You can also also have the MiniDrone take off from your hand. To do this:
1. Press . > The MiniDrone LEDs will blink red and green rapidly.
2. Throw the MiniDrone in front of you, up, or simply take away your hand to let it fall.
> The motors for the MiniDrone propellers will start automatically and the MiniDrone will stabilise itself.

Controlling the MiniDrone in flight

Flights depend on the settings for the selected control mode: or
Expert. Normal
mode is selected by default. To change the control mode, go
Controller, Normal
to the Control Settingssection.
Normal
Flying
13
Expert
Left joystick
Right joystick
·
Press or to pivot the MiniDrone to the left or right.
·
Press on or to make the MiniDrone climb or descend.
·
Hold down the middle button and tilt your smartphone to move the MiniDrone.
·
Drag your finger from the middle of the joystick to the or to make a quarter turn to the left or right.
·
Drag your finger from the middle of the joystick to the or to make a half turn to the left or right.
Left joystick
Right joystick
·
Press or to pivot the MiniDrone to the left or right.
·
Press on or to make the MiniDrone climb or descend.
·
Drag the joystick up or down to move the MiniDrone forwards or backwards.
·
Drag the joystick left or right to move the MiniDrone to the left or right.
Controller
The
Controller
14
Flying
smartphone while you are flying it.
To do this, press . Videos are automatically saved to the gallery in the FreeFlight3 app.
mode lets you film the MiniDrone with the camera on your
To stop recording, press again.
Back loop
Front loop
Left loop
Right loop
N
o trick

Pre-programmed aerobatics

1. Press the Loop icon to bring up the list of pre-programmed aerobatics. By default, no trick is selected.
2. Press the desired trick.
> The icon is displayed in place of
.
3. Tap your smartphone screen twice to perform the selected trick.
4. Press on the aerobatic icon again to edit it.

Landing

Make sure that the MiniDrone is above a flat, dry and unobstructed surface, then press
Only press
Landing
Emergency
to land your MiniDrone.
in the event of a genuine emergency. The motors will immediately cut out and the MiniDrone will fall from whatever height it is currently at.
Flying
15

Battery

The A fully charged battery lasts for around 7 minutes when the hulls are attached to the MiniDrone, and around 9 minutes if the hulls aren't used. The indicator turns red when the battery level is low. When the battery level is too low, bring the MiniDrone back towards you or land it.
icon shows the battery level for your MiniDrone.

Photos

Press the button to take a photo using the MiniDrone vertical camera. The photo will be saved in the MiniDrone memory. You can save hundreds of photos in the MiniDrone internal memory. When the memory is full, a warning message will appear telling you it is no longer possible to take photos.

Retrieving or deleting photos

To retrieve or delete photos, your smartphone must be connected to the MiniDrone.
1. Bring up the context menu. To do this:
·
If the control screen is open, press then .
·
If the main screen is open, press .
2. Press
> The list of stored photos in the MiniDrone memory will appear.
3. Select one or more files.
4. Press
> The files will be transferred to the FreeFlight3 gallery and into your smartphone's memory.
You can also retrieve or delete them by connecting the MiniDrone to your computer using the USB cable. To do this, the battery for the MiniDrone must be installed. Once connected, the MiniDrone will show up as a USB drive on your computer. You can then copy files using your computer.
Internal Memory
Delete
or
Transfer
.
.
16
Flying

Videos

You can film your MiniDrone using your smartphone while you are flying it. To do this, the
Controller
control mode must be activated. For more information, go to
the Control Settingssection.
To record a video, press . The icon will flash during recording. Frame your MiniDrone with your smartphone.
To stop recording, press . The icon will change to
.
The videos will be automatically saved in the FreeFlight3 gallery and in your phone's memory. To open the gallery:
1. Open the FreeFlight3 home screen.
2. Press then
Gallery
.
Flying
17

Settings

Press to access the settings menu for your MiniDrone. Press at any time to revert to factory settings.

Max Altitude

The
Max Altitude
can go. When the MiniDrone is about to go past this limit, it will automatically go back down to the selected height.

Max Tilt

option allows you to limit the maximum height your MiniDrone
The
Max Tilt
can make while it is moving. The higher this value is, the larger the pitch of the MiniDrone. The lower this value is, the smaller the pitch of the MiniDrone. This setting affects acceleration. With a large pitch, the MiniDrone will gain speed quicker and will be more sensitive to commands.
option allows you to choose the maximum tilt angle the MiniDrone

Left-handed mode

The
Invert Controls
option allows you to invert the controls on your smartphone.

Control Settings

The
Expert, Normal
want. For more information on control modes, see the Flight control section in this
and
Controller
options let you choose the control mode you
18
guide.
Settings

Automatic Recording

The
Auto Rec
option is available in
Controller
mode only. It is used to automatically trigger video recording as soon as you press information on video recording, see the Video section.
Take Off

Max Vertical Speed

The
Max Vertical Speed
downward speed of the MiniDrone when you press the or buttons.
option allows you to set the maximum upward and

Max Rotation Speed

The
Max Rotation Speed
for the MiniDrone when you press the or buttons.
option allows you to set the maximum rotation speed

Accessory

. For more
Activate the hydrofoil. Activate the hydrofoil.
Hydrofoil
None
option when you are driving the MiniDrone without the
option when you are driving the MiniDrone with the

Short-Circuit

The
Short-Circuit
impact to the propellers on your MiniDrone. This option is deactivated by default, but is useful if you are a beginner pilot.
option allows you to cut the motors in the event of prolonged

Charge Settings

The
Charge Settings
battery level of your MiniDrone.
screen shows you the last type of charging used and the
Settings
19

Network Name

The
Network Name
MiniDrone will be seen by your smartphone in the FreeFlight3 app. The name change will take effect once the MiniDrone has been restarted. The MiniDrone network name can only contain numbers, letters and underscores. It must not be longer than 32 characters.
option allows you to edit the
Bluetooth® name of how the

Versions

The
General Information
·
The version number of the FreeFlight3 app currently installed on your smartphone.
·
The version number of the firmware installed on your MiniDrone.
·
The hardware version of your MiniDrone.
shows you:
20
Settings
Academy Drone
N°
Description
1
Accessing the FreeFlight3 application home screen
2
V
isualizing the map of the flights
3
Accessing your list of drones
4
Accessing your list of flights
An internet connection is necessary to use the Drone Academy. To launch the Drone Academy:
1. Launch the
2. Press
A profile is necessary to access the Drone Academy.
To create a profile:
1. Press
2. Type a user name, a password and an e-mail address.
3. Press > The Drone Academy main screen appears
Drone Academy.
Sign up
Register your profile
FreeFlight3
now.
application.
.

Academy Drone

21
5
Modifying and disconnecting your profile
6
Sending a Drone Academy invitation
To modify or delete your profile:
1. Press the Profile tab.
2. Press
3. Press Logout or Edit.
4. If you edit your profile slide the screens towards left to complete your profile.
To register a MiniDrone press
My drones.
The first time you connect the MiniDrone to your smartphone, a pop-up ask you to register your MiniDrone in the Drone Academy.
To consult the shared flights:
1. Press
Map.
2. Press to search flights amongst:
·
your flights or other user's flights,
·
the type of media.
Press to search flights by user or place.
To consult and share your flights:
1. Press My pilotings.
>The list of your flights appears. You can sort them by date, rank or type.
2. Press the flight you wish to share.
3. Press Public to share the flight. You can also:
·
press the stars to rate the flight,
·
press the tabs at the bottom of the screen to consult the flight information.
22
Academy Drone
Updates
Press
There are two ways to update your MiniDrone:

Updates

·Via USB by downloading the update file from our website. This method requires
a computer. Check that the MiniDrone battery is installed and fully charged before carrying out updates via USB link.
·Via the FreeFlight3 app by pressing
to check if any software updates are available for the MiniDrone.
Updates
.
Updates
23

General Information

Precautions for use and maintenance

The MiniDrone is not suitable for children under 14 years of age.
The MiniDrone is a model aircraft designed for recreational and leisure purposes. The pilot must always maintain direct visual contact with the MiniDrone and control its trajectory. The MiniDrone should only be used in suitable spaces so you are always able to ensure the safety of nearby people, animals and property. There are some public places where you may not be permitted to use your MiniDrone. When you are using the MiniDrone alone, ensure you do so in accordance with the civil aviation rules in your country. Keep the MiniDrone away from high voltage power lines, buildings, and any other potentially dangerous areas. Only use accessories specified by the manufacturer. The MiniDrone and all its components are fragile and should be handled with care. Only use the MiniDrone on fresh water. If sand, sea salt, seaweed or any other biological matter gets into the MiniDrone, irreversible damage may be caused and it will no longer function properly. Do not use the MiniDrone in adverse weather conditions (rain, strong winds, snow) or when visibility is poor (at night). Ensure you keep the MiniDrone within a reasonable distance in order to maintain the your smartphone at all times. Make sure to anticipate how long you can use your MiniDrone for and how far it can go according to the battery life, so that you can recover it safely. The propellers of the MiniDrone can cause injury to people or property when in use. Do not touch the MiniDrone once you've started it up. Wait until the propellers have completely stopped before handling the MiniDrone. Do not leave the MiniDrone in direct sunlight.
Bluetooth® connection with
24

Accessories and spare parts

Accessories and spare parts are available from your Parrot retailer or from our website store.parrot.com
General Information

Battery

Failure to comply with instructions may cause permanent damage to the battery or its surroundings, and may cause injury. Always use a LiPo battery charger. Never charge via a discharge lead. Never trickle charge or charge below 2.5 V. Never allow the battery temperature to exceed 60°C (140°F). Never disassemble or modify the wiring in the battery pack, or puncture the battery cell. Never place the battery on top of flammable materials or leave it unattended while charging. Always charge in a fireproof location. Always make sure that the charger output voltage corresponds to the battery voltage. Always keep out of reach of children. Incorrect use of the battery can cause fires, explosions or other damage.
The battery terminals should not be allowed to short-circuit. The product must only be connected to class II appliances that display the symbol
opposite.

Warranty

For the warranty conditions please refer to the retailer’s General Conditions of Sale where you purchased your MiniDrone.

Modifications

The explanations and specifications in this guide are given for information purposes only and may be modified without prior notice. They are deemed to be correct at time of going to press. The utmost care has been taken when writing this guide,as part of the aim to provide you with accurate information. However, Parrot shall not be held responsible for any consequences arising from any errors or omissions in the guide, nor for any damage or accidental loss of data resulting directly or indirectly from the use of the information herein. Parrot reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users. As part of our ongoing concern to upgrade and improve our products, the product that you have purchased may differ slightly from the model described in this guide. If so, a later version of this guide might be available in electronic format at Parrot’s website
General Information
25
at www.parrot.com.

Recycling this product

The symbol on this product and on its literature shows that at the end of its life, it is not to be disposed of with household waste. The uncontrolled
disposal of waste is harmful to the environment: please separate this from other types of waste and dispose of responsibly. Private individuals are invited to contact the retailer who sold them the product or to ask advice from their local authority to find out how and where it can be recycled.

Declaration of Conformity

Parrot SA, 174 quai de Jemmapes, 75010 Paris, France, declares under their sole responsibility that the product described in this user guide complies with E 301489-17, EN300328, EN71-1, EN71-2, EN62115 technical standards following the provision of the Radio Equipment, Telecommunication Equipment directive (1999/5/EC R&TTE), and of the General Safety directive (2001/95/EC).
N
The Declaration of Conformity is available on our website:
www.parrot.com/fr/ce/?airborne-cargo-drone

Registered trademarks

Parrot, Parrot MiniDrones and the Parrot logo are trade-marks of PARROT SA. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc. The
Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Parrot SA is under license. All other trademarks mentioned in this guide are protected and are the property of
their respective owners.
26
General Information

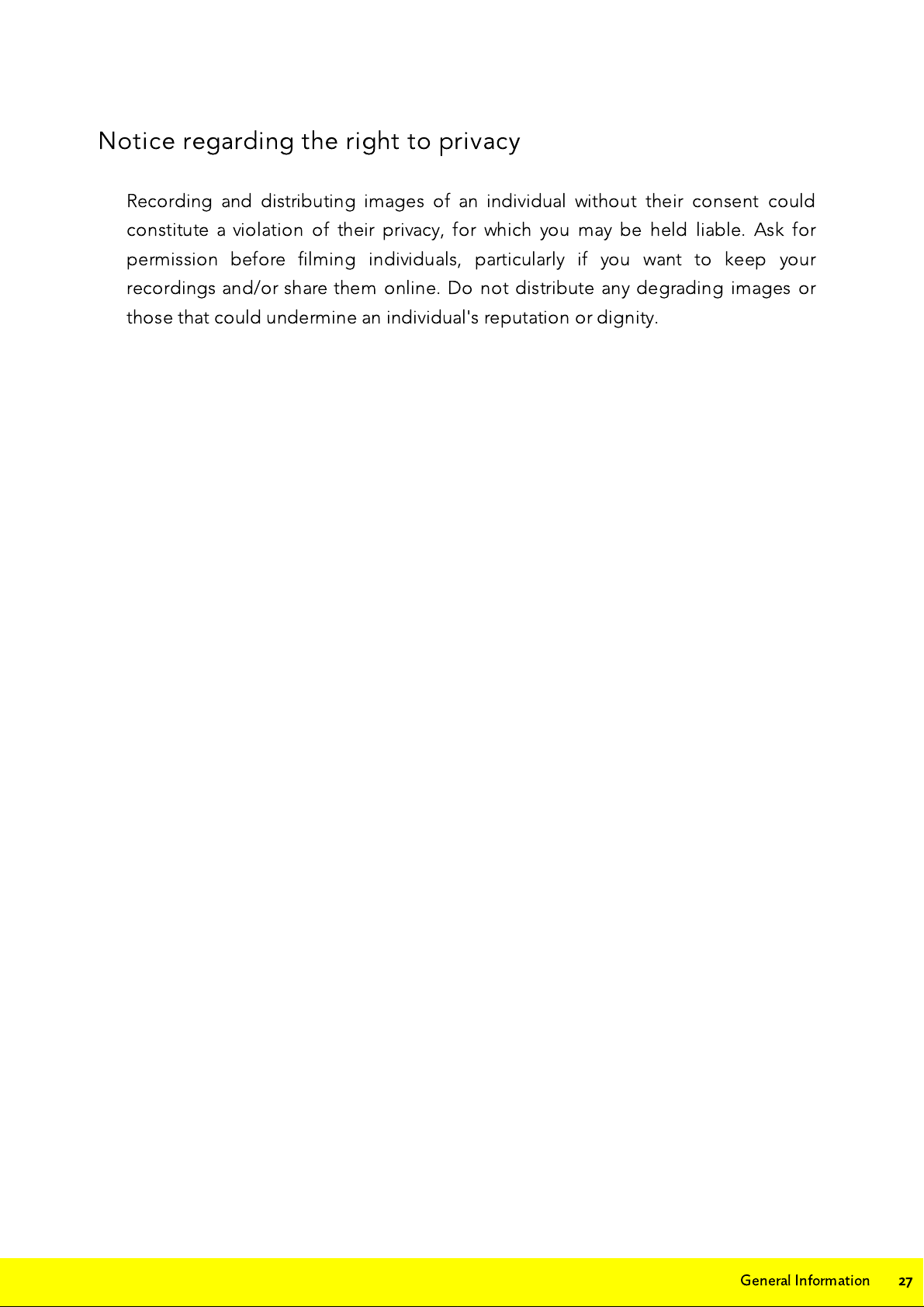

Notice regarding the right to privacy

Recording and distributing images of an individual without their consent could constitute a violation of their privacy, for which you may be held liable. Ask for permission before filming individuals, particularly if you want to keep your recordings and/or share them online. Do not distribute any degrading images or those that could undermine an individual's reputation or dignity.
General Information
27
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
