Parkside AIR TOOL SET User Manual
AIR TOOl SET
AIR TOOL SET
Operation and Safety Notes
TRYKLUFT-TILBEHØR
Brugs- og sikkerhedsanvisninger
DRUCKLUFT-ZUBEHÖR-SET
Bedienungs- und Sicherheitshinweise
TRYCKLUFTSTILLBEHÖR, SET
Bruksanvisning och säkerhetsanvisningar
ΣΕΤ ΕΞΑΡΤΗΜΑΤΩΝ ΑΕΡΟΣ
Υποδείξεις χειρισμού και ασφαλείας
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.
Vik ut båda bildsidorna och ha den till hands när du läser igenom anvisningarna och gör dig bekant med
apparatens / maskinens funktioner.
Før du læser, vend begge sidene med billeder frem og bliv bekendt med alle apparatets funktioner.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
GB / IE / CY Operation and Safety Notes Page 5
SE Bruksanvisning och säkerhetsanvisningar Sidan 11
DK Brugs- og sikkerhedsanvisninger Side 17
GR / CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 23
DE / AT / CH Bedienungs- und Sicherheitshinweise Seite 29
1
2
3
6
4
5
7
6
8
4
10 12 13 911 161514
14 15 16
9
Table of contents
Introduction
Proper use ......................................................................................................................Page 6
Features and equipment ................................................................................................Page 6
Included items ................................................................................................................ Page 6
Technical data ................................................................................................................Page 6
Safety advice
Original accessories / attachments .............................................................................. Page 7
Bringing into use
Connecting the compressed air source .......................................................................Page 7
Using the tyre inflator gauge ........................................................................................ Page 7
Using the blow gun ........................................................................................................Page 8
Maintenance and cleaning .........................................................................Page 8
Service centre ........................................................................................................Page 8
Warranty ...................................................................................................................Page 8
Disposal ....................................................................................................................... Page 9
Declaration of Conformity / Manufacturer................................... Page 9
5 GB/IE/CY
Introduction
The following pictograms are used in these operating instructions / on the device:
Read instruction manual!
Observe caution and safety notes!
Wear hearing protection and
protective glasses
Air tool set
Q
Introduction
Please make sure you familiarise yourself
fully with the way the device works be-
fore you use it for the first time and that
you understand how to handle the device correctly.
To help you do this please read the accompanying
operating instructions. Keep these instructions in a
safe place. If you pass the device on to anyone
else, please ensure that you also pass on all the
documentation.
Q
Proper use
This tyre inflator gauge is intended for pumping up
cycle tyres, inflatable boots, inflatable mattresses,
balls etc. The blow gun is intended for cleaning
and blowing out material from objects and difficult
to access places. Any other use or modification to
the device shall be considered as improper use and
could give rise to considerable risk of accident. We
will not accept liability for loss or damage arising
from improper use. The device is intended for private
domestic use only.
Keep children away from the device!
Dispose packaging and appliance in
an environmentally-friendly way!
6
Trigger
7
Blow gun
8
Extension nozzle
Accessory:
9
Cap for 14, 15,
10
Ball needle
11
Universal adapter,
16
for valves with internal Ø of approx. 9 mm
12
Universal adapter,
for valves with internal Ø of approx. 6 mm
13
Valve adapter, e.g. for cycle tyre valves
14
Universal adapter.
for valves with internal Ø of approx. 8 mm
15
Adapter for screw valves, e.g. on inflatable
dinghies
16
Adapter for deflator valves
Q
Included items
1 x Tyre inflator gauge
1 x Blow gun
2 x Extension nozzles
1 x Adapter set (8-piece)
1 x Operating instructions
Q
Features and equipment
1
Gauge
2
Tyre inflator gauge
3
Deflator valve
4
Plug-in nipple
5
Hose with valve connector, straight
6 GB/IE/CY
Q
Technical data
Working pressure: Max. 8 bar
Compressed air quality: Cleaned, oil- and
condensate-free
Safety advice
WARNING!
and instructions. Failure to observe the safety
advice and instructions could result in serious injury
and / or damage to property.
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!
WARNING!
TION! Working with nitrogen presents
a danger of suffocation! Work in well
ventilated spaces only.
WARNING!
Never exceed the maximum allowable working
air pressure of 8 bar. Use a pressure reducer
to set the working air pressure.
WARNING!
Never point the device at people or
animals.
WARNING!
Never use oxygen or other combustible gas as
the energy source.
WARNING!
First disconnect the hose from the
compressed air source and only then
disconnect the compressed air supply
hose from the device. This will ensure that
the compressed air supply hose does not wave
around or recoil in an uncontrolled manner.
J For your own safety, wear
equipment.
J Keep children and other peo
you to lose control of the device.
J Disconnect the device from the compressed air
source before carrying out any repairs or maintenance of the device or moving it to another
location.
J When removing the hose coupling, hold the
hose tightly in your hand to avoid injury
caused by the hose shooting backwards.
Read all the safety advice
DANGER OF SUFFOCA-
DANGER OF INJURY!
DANGER OF INJURY!
DANGER OF INJURY!
DANGER OF INJURY!
suitable personal protective
ple
away while you are operating
the device. Distractions can cause
Safety advice / Bringing into use
J Look out for damage on the device.
Check the device for damage before bringing it
into use. Do not use the device if you discover
any defects.
J Do not kink the device’s hose, otherwise you
may damage it.
Q
Original accessories /
attachments
J Use only the accessories and attach-
ments detailed in the operating instructions. The use of accessories other than
those recommended in the operating instructions
could lead to you being in danger of injury.
Q
Bringing into use
Q
Connecting the
compressed air source
NOTE: Operate the product only with cleaned, conden-
sate- and oil-free compressed air and never exceed the
maximum working air pressure at the device of 8 bar.
NOTE: The compressed air source must be fitted
with a (filter) / pressure reducer so that the air pressure can be regulated.
j Connect the product to a suitable compressed air
source by connecting the quick-release coupling
of the air supply hose with the plug-in nipple
the product. It locks itself in place automatically.
Q

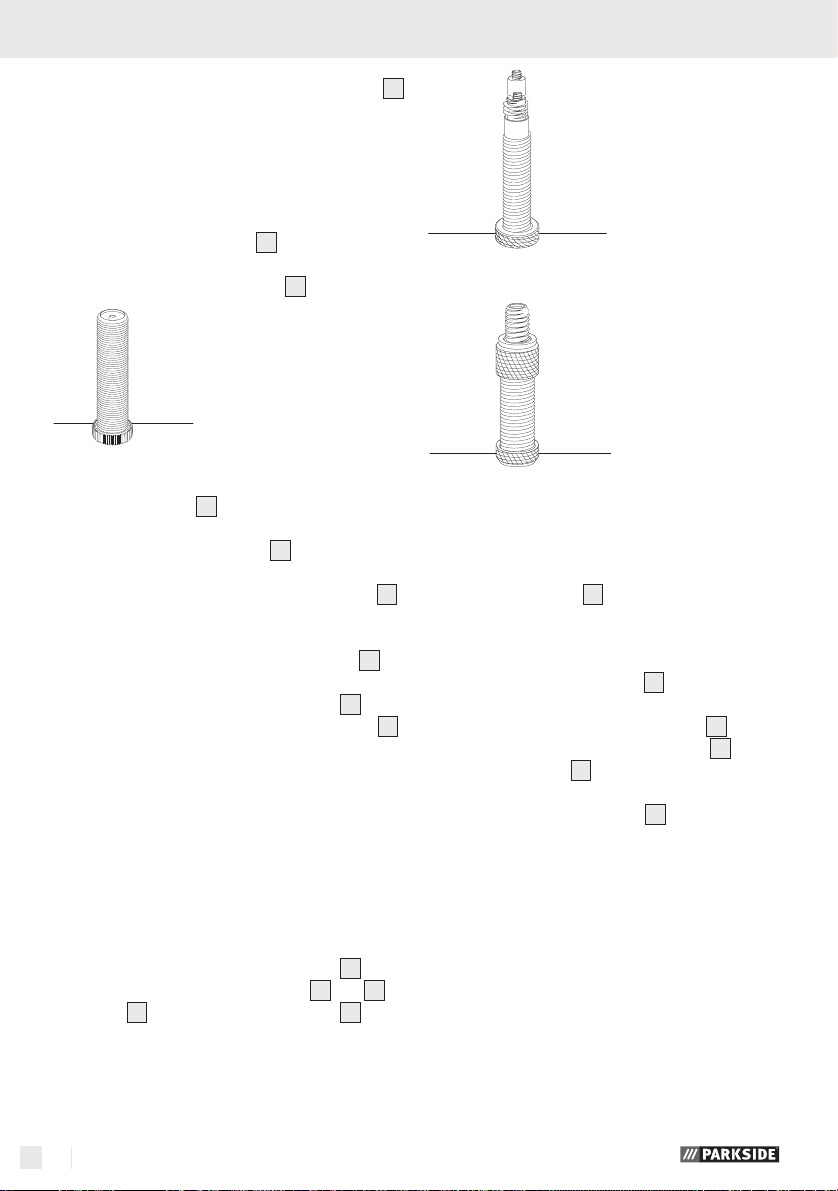

Using the tyre inflator gauge
1. Place the valve connector 5 on to the valve.

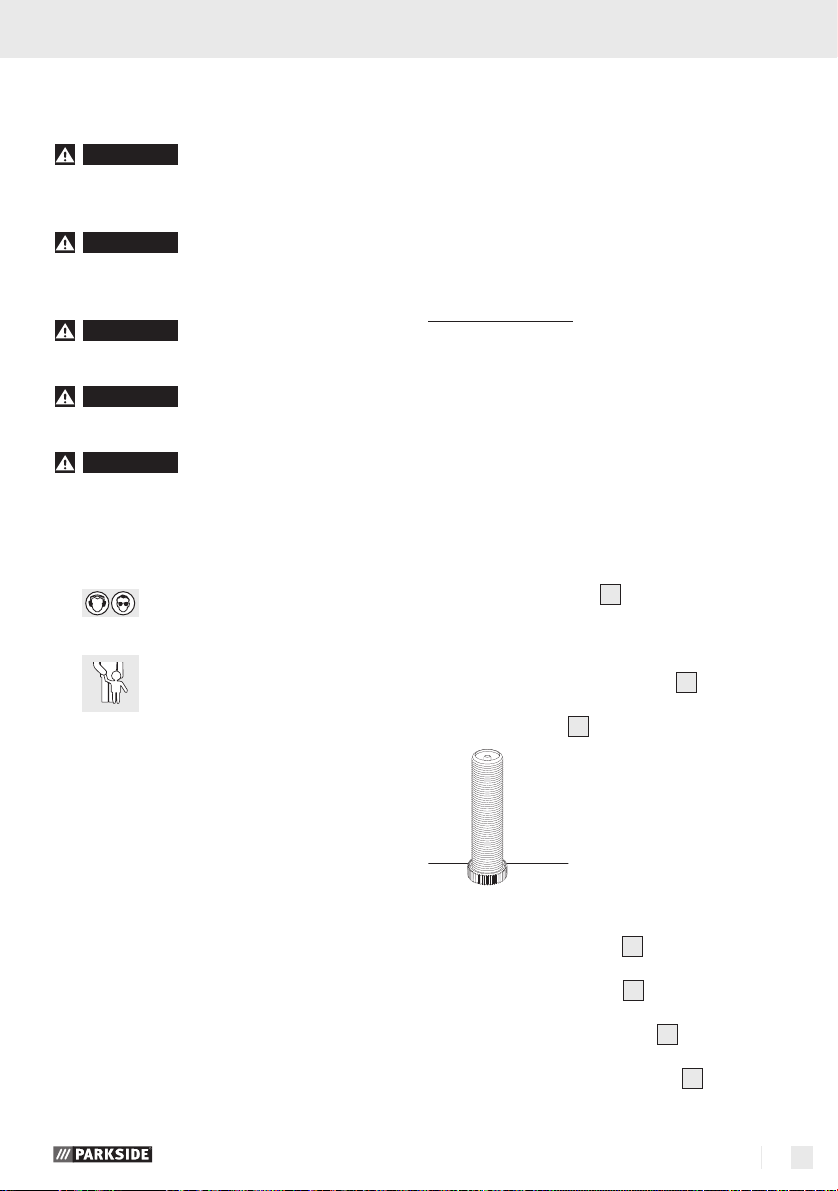

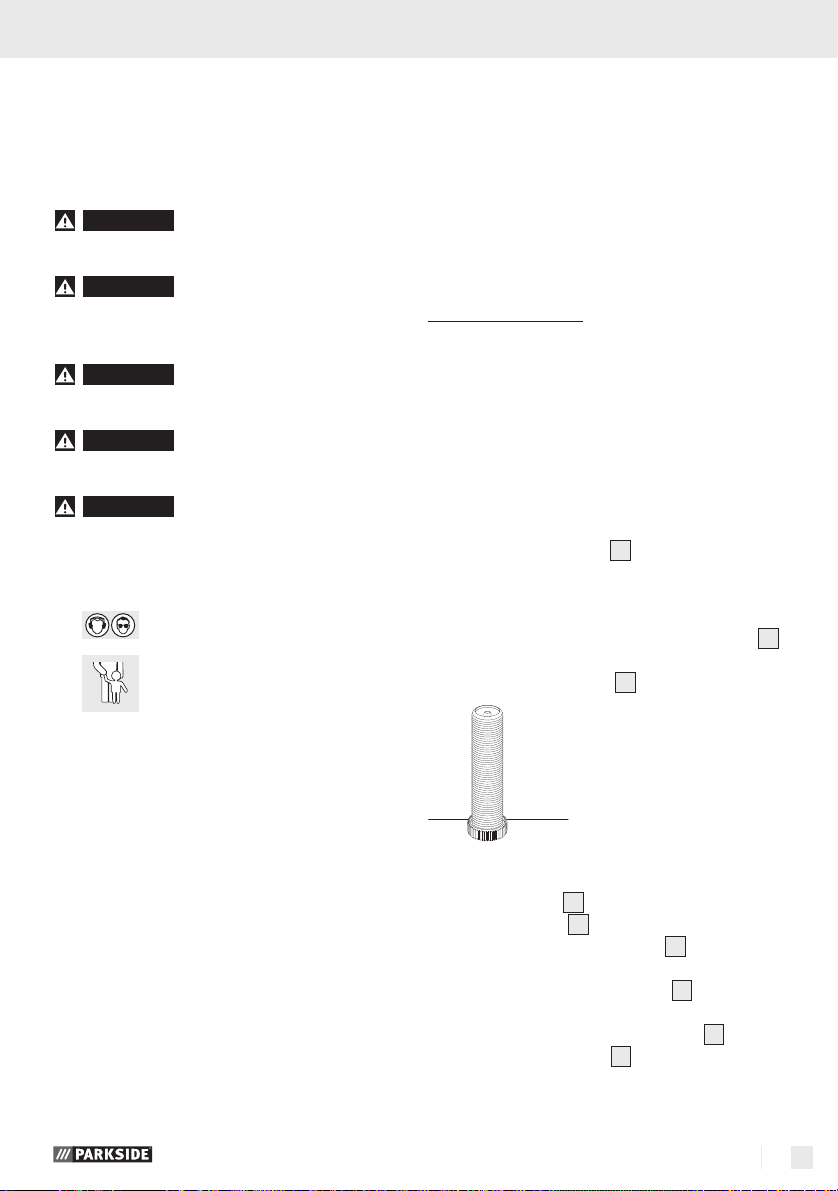

Schrader valve, car tyre valve
(e.g. often used on mountain bikes)
4
to
2
7 GB/IE/CY
Bringing into use / Maintenance and cleaning / Service centre / Warranty
2. Press the trigger 6 to start the delivery of air.
3. Release the trigger
Read off the filling pressure on the gauge
6
to stop the delivery of air.
1
4. If the object is overfilled with air (air pressure
too high): Press the deflator valve
3
to release
some air.
5. Press the lever of the valve connector
wards and pull the valve connector
5
5
off the
down-
valve.
6. After you finish work, disconnect the device
from the compressor.
NOTE: First disconnect the hose from the compressor and only then disconnect the compressed
air supply hose from the device. This will ensure
that the compressed air supply hose does not
wave around in an uncontrolled manner.
Using accessories:
j Press the lever of the valve connector
insert the desired accessory
9
cap
into the valve connector 5.
10
5
and
to 13 or the
Q
Using the blow gun
.
1. Screw an extension nozzle 8 on to the blow
7
gun
.
2. Press the trigger
3. Release the trigger
6
to start the delivery of air.
6
to stop the delivery of air.
7
4. After you finish work, disconnect the device
from the compressor.
NOTE: First disconnect the hose from the compressor and only then disconnect the compressed
air supply hose from the device. This will ensure
that the compressed air supply hose does not
wave around in an uncontrolled manner.
Q
Maintenance and cleaning
J DANGER OF INJURY! Always disconnect
the device from the compressed air source before you clean or maintain it.
The device requires no maintenance.
J Do not use sharp objects for cleaning the device.
Do not allow any liquids to enter the device.
Otherwise the device could be damaged.
j Clean the device frequently; for best results, do
this immediately after you have finished using it.
j Clean the housing with a dry cloth.

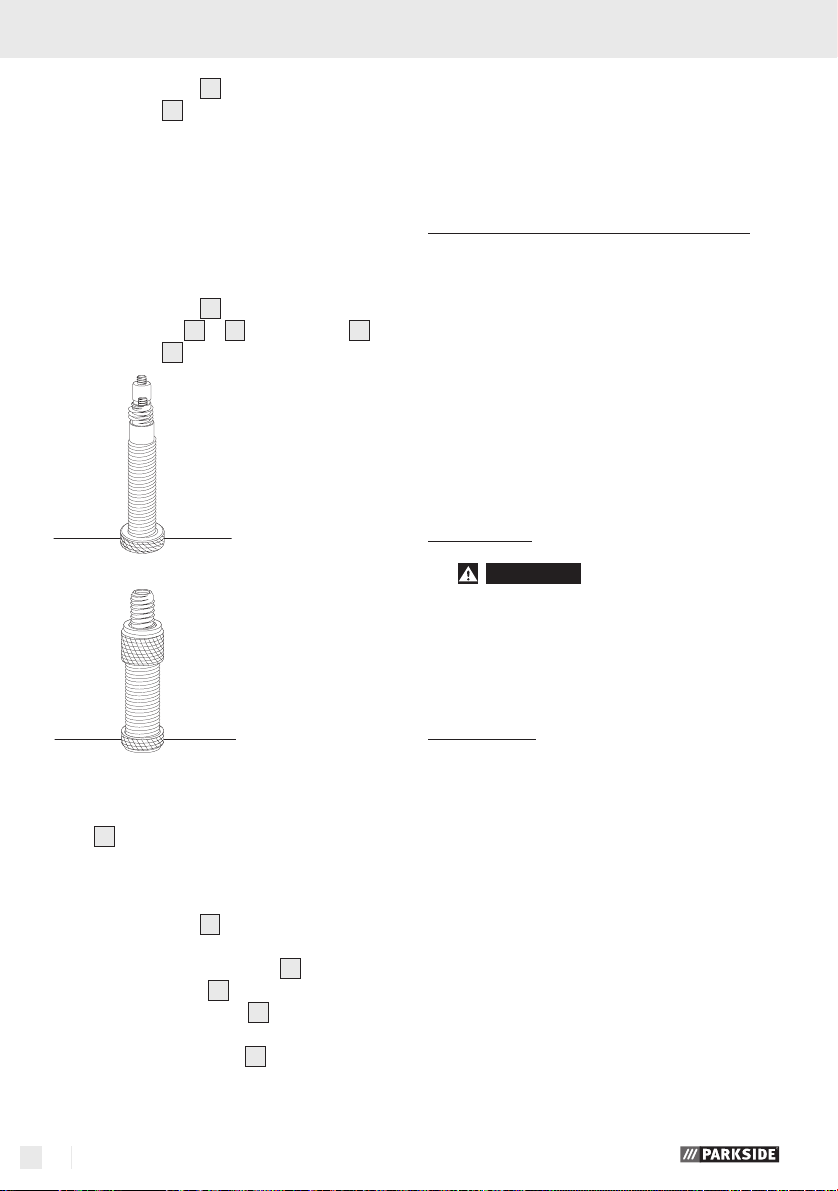

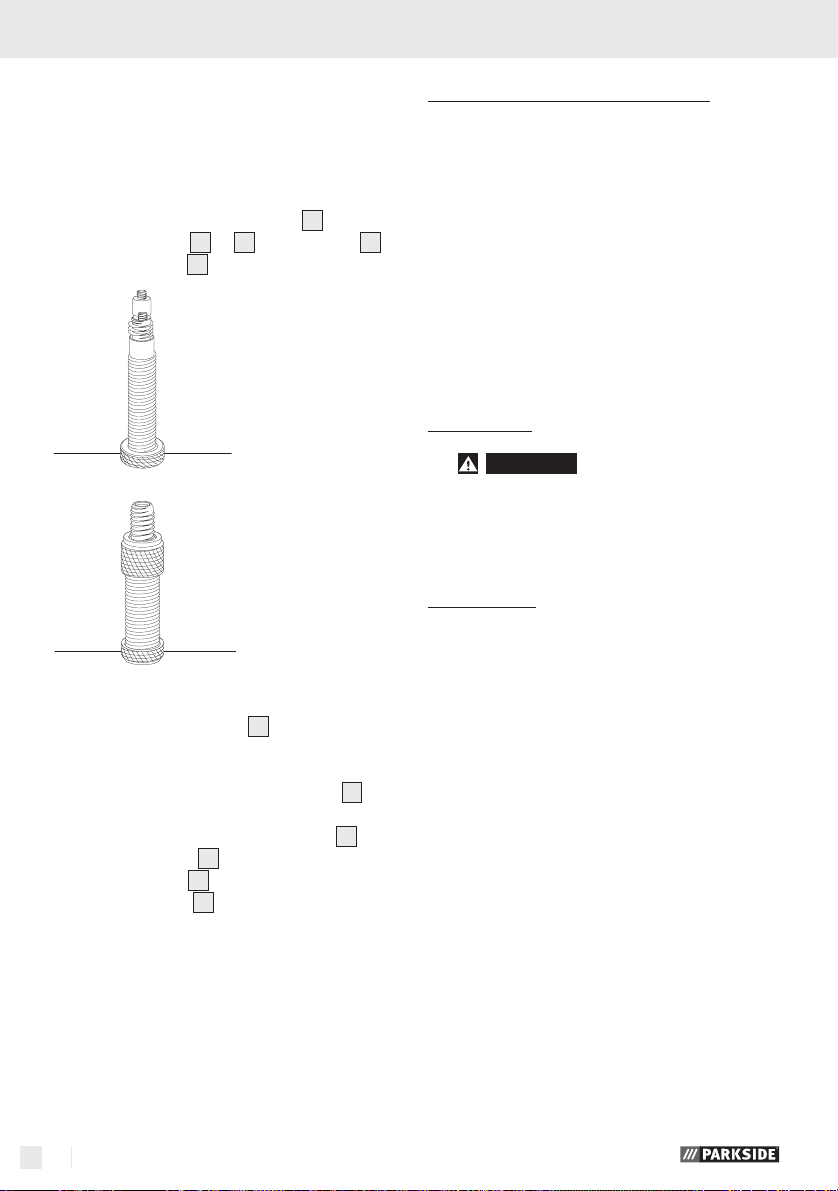

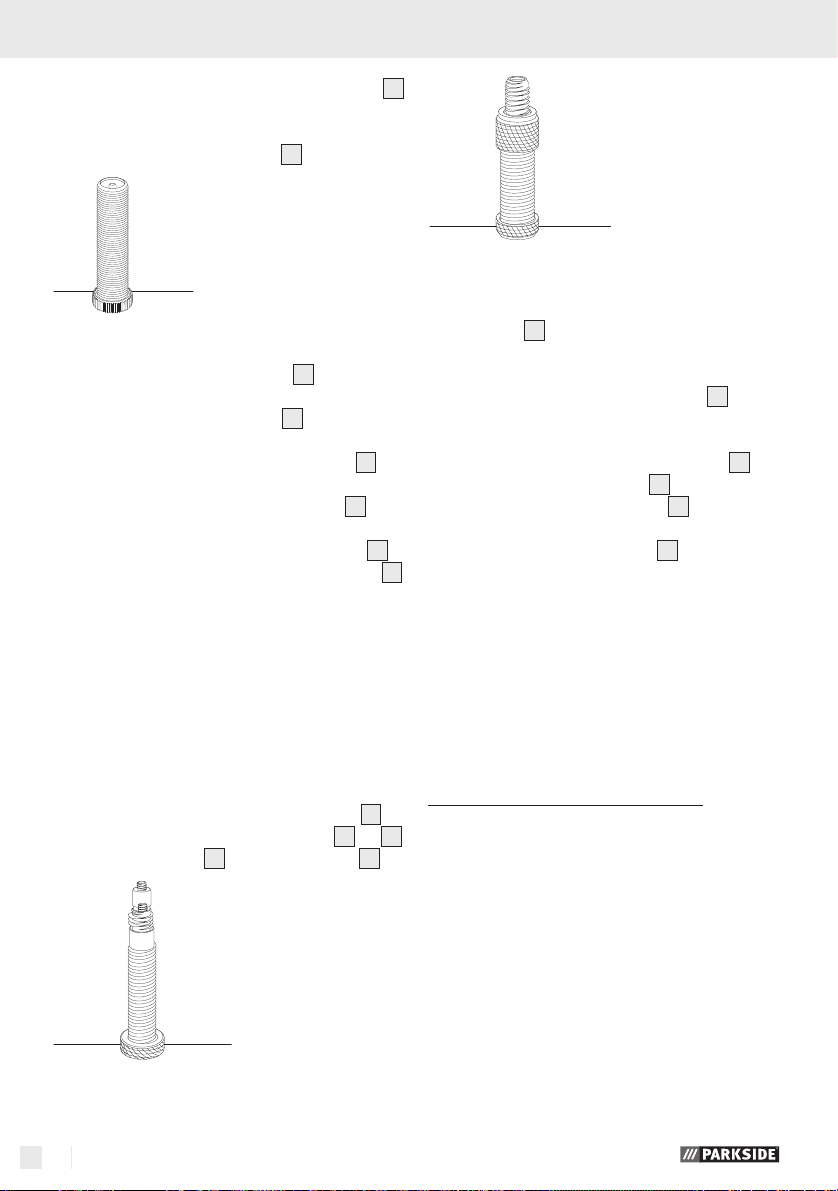

Presta valve, e.g. cycle tyre valve
Dunlop valve, traditional cycle tyre valve
TIP: Use the valve adapter
13
for the cycle tyre
valves shown.
8 GB/IE/CY
Q
Service centre
J
WARNING!
Have your device
repaired only by qualified specialist
personnel using original manufacturer
parts only. This will ensure that your device
remains safe to use.
Q
Warranty
This appliance is guaranteed for 3 years
from the date of purchase. It has been carefully produced and meti-culously checked
before delivery. Please keep your receipt
as proof of purchase. Contact your service
centre by telephone in case of questions
Warranty / Disposal / Declaration of Conformity / Manufacturer
pertaining to the warranty. Your goods
can
be transmitted free of cost only in this
manner. This warranty applies only to the
initial
purchaser and is non-transferable.
The warranty covers only material or manufacturing faults, not normal wear or damage to fragile
parts such as switches or rechargeable batteries.
The appliance is intended solely for private, not
commercial, use.
If this product has been subjected to improper or inappropriate handling, abuse, or interventions not
carried out by one of our authorised sales and
service outlets, the warranty will be considered void.
This warranty does not affect your statutory rights.
GB
DES Ltd
Units 14-15
Bilston Industrial Estate
Oxford Street
Bilston (Great Britain)
WV14 7EG
Tel.: 0870 / 787-6177
Fax: 0870 / 787-6168
e-mail: support.uk@kompernass.com
IE
Contact your local refuse disposal authority for
more details of how to dispose of your worn out
electrical devices.
Q
Declaration of Conformity /
Manufacturer
We, Kompernaß GmbH, Burgstr. 21,
D-44867 Bochum, Germany, declare that this
product complies with the following EU directives:
Machinery Directive
(98 / 37 / EC)
Applicable harmonised standards:
DIN EN 1953:1998
DIN 31000:1979-03
Type / Device description:
Air tool set
Bochum, 30.06.2009
Hans Kompernaß
- Managing Director -
Kompernaß Service Ireland
Tel.: 1850 930 412 (0,082 €/Min.)
* Standard call rates apply.
Mobile operators may vary.
e-mail: support.ie@kompernass.com
Q
Disposal
The packaging is wholly composed of
environmentally-friendly materials that can
be disposed of at a local recycling centre.
Do not dispose of the product with
household rubbish!
We reserve the right to make technical modifications
in the course of product development.
9 GB/IE/CY
10
Innehållsförteckning
Inledning
Avsedd användning......................................................................................................Sidan 12
De olika delarna ...........................................................................................................Sidan 12
Leveransens omfattning ................................................................................................Sidan 12
Tekniska data ................................................................................................................Sidan 12
Säkerhetsanvisningar ...................................................................................Sidan 12
Originaltillbehör / -extra utrustning .............................................................................Sidan 13
Användning
Ansluta tryckluftskälla ...................................................................................................Sidan 13
Använda tryckluftstestverktyg......................................................................................Sidan 13
Använda tryckluftspistol ...............................................................................................Sidan 14
Underhåll och rengöring .............................................................................Sidan 14
Service .........................................................................................................................Sidan 14
Garanti ........................................................................................................................Sidan 14
Avfallshantering .................................................................................................Sidan 15
Konformitetsdeklaration / Tillverkarintyg ..................................Sidan 15
11 SE
Loading...
