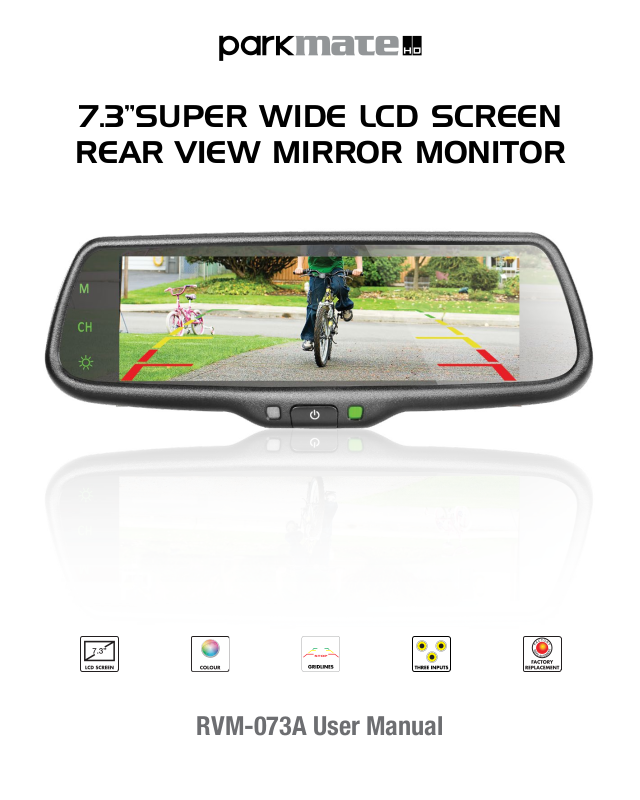

Parkmate RVM-073A User Manual

7.3”SUPER WIDE LCD SCREEN

REAR VIEW MIRROR MONITOR

RVM-073A User Manual

Thank you for purchasing the Parkmate RVM-073A rear view mirror monitor. This state of
the art Parkmate product is packed with features including a 7.3” monitor embedded into
the rear view mirror that displays the video feed from up to three installed rear or side view
cameras. This product uses the most advanced technology and components to provide
you with a long service life and integrates perfectly with the factory look of your vehicle to
add a high level of safety and security to your driving experience..

Please note: Although this product will minimise your blind spots while driving, it does not
remove the responsibility of driving the vehicle from the driver. The legal responsibility and
safe driving practice remains with the driver at all times.

You have purchased this Parkmate product with the understanding that this rear view mirror
monitor has been designed to be used as an aid only. We highly recommend that you have
this product professionally installed to ensure that all features function correctly and are
optimised for your vehicle.

Please note: The
recommended that the

RVM-073A does not include any rear or side view cameras. It is

RVM-073A is used with Parkmate brand reverse cameras. To view

the full range of Parkmate reverse cameras please visit www.parkmate.com.au or contact
your local Parkmate dealer.

SPECIFICATIONS

Screen Size

Display Screen

Display Resolution

Aspect Ratio

Working Voltage

Video Input

Signal System

7.3"

TFT-LCD

1280 x 390

16:5

DC 12V

Video-In (e.g. GPS / DVD (default) + Reverse Camera-In

PAL / Auto / NTSC

PACKAGE CONTENTS

• 7.3 inch wide LCD Display Mirror

• Wire Harness

• User’s Manual

• Cable Shield

• Connector Shield

• Remote Control

2

PRODUCT DIAGRAM

5

6
7

8

10

1 2 3 4

15

14

13

12

8

1. 7.3 inch display 11. ACC+

2. Light sensor 12. Ground

16

17

18

3. Screen sleep button 13. Left signal power

11

4. Power Indicator 14. Right signal power

5. Display reverse camera output 15. Reverse signal power

6. Input select 16. Left video input

7. Colour mode select 17. Reverse camera

19 20

8. Speaker 18. Right video input

9. Input 19. Connector shield

10. Bracket 20. Cable shield

WIRING OPTIONS

To install the RVM-073A connect the Rear View Mirror Monitor to the supplied harness, then connect the
harness to the wiring of the vehicle as per the diagram below.

CTR1 (Green)

Reverse light (optional)

Turn right signal (optional)

Red to ACC +12V

Black to GND

Turn left signal (optional)

Please note: cameras sold separately.

9

Black to GND
Red to ACC +12V

Reverse Camera
(not included)

Black to GND
Red to ACC +12V

Left Video

Black to GND
Red to ACC +12V

3

ADVISED POSITIONING OF THE CAMERAS

PLEASE NOTE: REVERSE CAMERA AND SIDE CAMERAS ARE

NOT SUPPLIED WITH THE RVM-073A. IF YOU HAVE PURCHASED
A REVERSE CAMERA PLEASE FOLLOW THE INSTALLATION

INSTRUCTIONS SUPPLIED WITH THE CAMERA

1. When the rear view mirror monitor is powered on and the reverse

Right video

Left video

Reverse Camera

gear of the vehicle is engaged, the system will automatically switch
from the video source to reverse camera video. When reverse gear is
disengaged the system will revert back to the original video source.

2. When the rear view mirror monitor’s screen is powered off and the
reverse gear is engaged, the screen will engage and automatically
switch to the camera signal and display the reverse camera video.
When reverse gear is disengaged the system will power down again.

INSTALLATION GUIDE

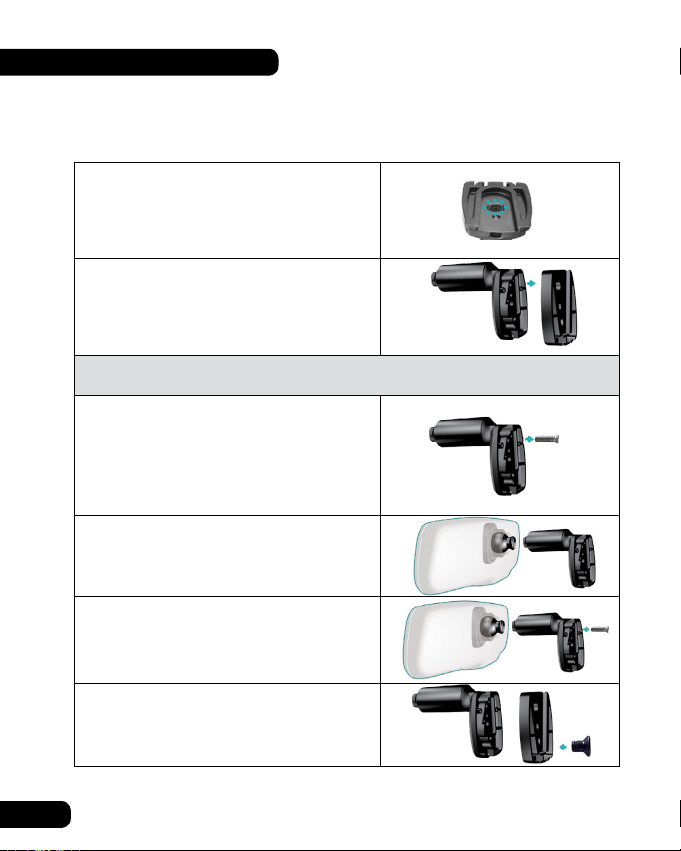

Your Parkmate RVM-073A mirror monitor comes bundled with a generic mounting bracket to fit to
your original windscreen mirror base. You will need to remove your original mirror and replace it with the
supplied RVM-073A mirror and bracket to correctly install this product. The generic mount used by the
RVM-073A is designed to fit most vehicles. Please check that your vehicle uses a compatible mount
before attempting to install the RVM-073A. (See Page 6 for information on vehicle specific mounting
options.)

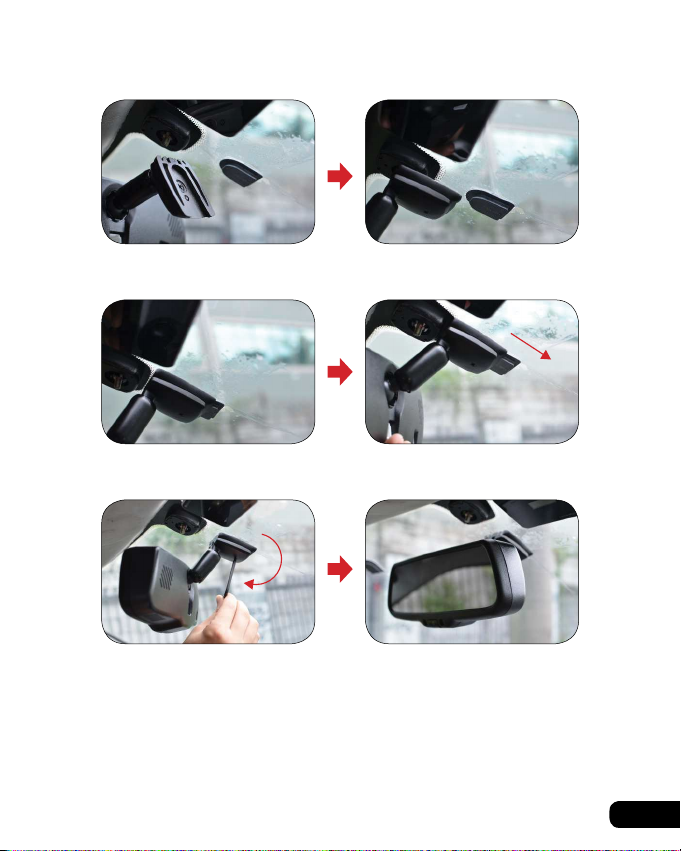

Original Car Rear View Mirror Remove the original rear view mirror

Note: The rear view mirror in some cars may be harder to remove than others. If you are having difficulties

removing your original rear view mirror, please do not use excessive force as you risk breaking your
windscreen. If you are having any difficulty removing your vehicle’s original mirror, we recommend you seek
a professional installer.

leaving the metal base on the windscreen

4
