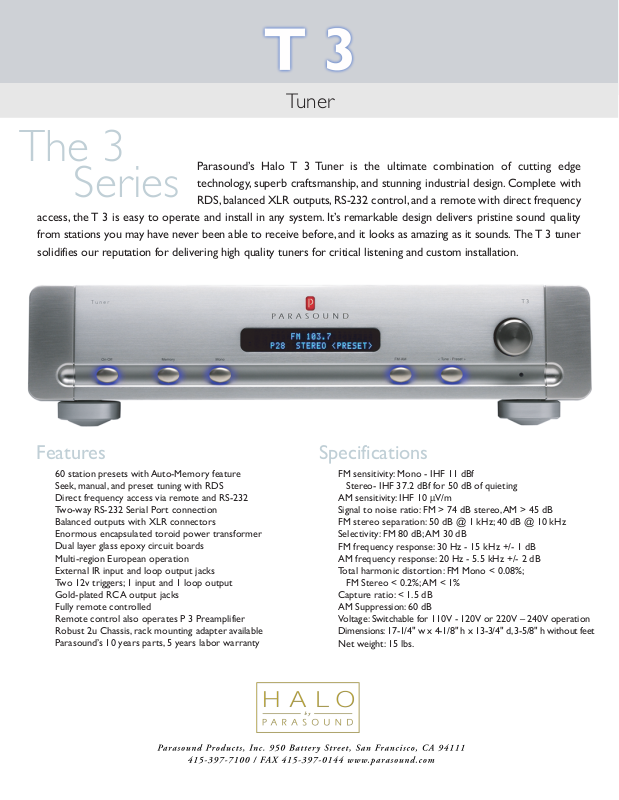

Parasound T-3-E Brochure

Tuner

The 3

Parasound’s Halo T 3 Tuner is the ultimate combination of cutting edge

Series

access, the T 3 is easy to operate and install in any system. It’s remarkable design delivers pristine sound quality
from stations you may have never been able to receive before, and it looks as amazing as it sounds. The T 3 tuner
solidifies our reputation for delivering high quality tuners for critical listening and custom installation.

technology, superb craftsmanship, and stunning industrial design. Complete with
RDS, balanced XLR outputs, RS-232 control, and a remote with direct frequency

Features

60 station presets with Auto-Memory feature
Seek, manual, and preset tuning with RDS
Direct frequency access via remote and RS-232
Two-way RS-232 Serial Port connection
Balanced outputs with XLR connectors
Enormous encapsulated toroid power transformer
Dual layer glass epoxy circuit boards
Multi-region European operation
External IR input and loop output jacks
Two 12v triggers; 1 input and 1 loop output
Gold-plated RCA output jacks
Fully remote controlled
Remote control also operates P 3 Preamplifier
Robust 2u Chassis, rack mounting adapter available
Parasound’s 10 years parts, 5 years labor warranty

Specifications

FM sensitivity: Mono - IHF 11 dBf

Stereo- IHF 37.2 dBf for 50 dB of quieting

AM sensitivity: IHF 10 µV/m
Signal to noise ratio: FM > 74 dB stereo, AM > 45 dB
FM stereo separation: 50 dB @ 1 kHz; 40 dB @ 10 kHz
Selectivity: FM 80 dB; AM 30 dB
FM frequency response: 30 Hz - 15 kHz +/- 1 dB
AM frequency response: 20 Hz - 5.5 kHz +/- 2 dB
Total harmonic distortion: FM Mono < 0.08%;

FM Stereo < 0.2%; AM < 1%

Capture ratio: < 1.5 dB
AM Suppression: 60 dB
Voltage: Switchable for 110V - 120V or 220V – 240V operation
Dimensions: 17-1/4" w x 4-1/8" h x 13-3/4" d, 3-5/8" h without feet
Net weight: 15 lbs.
