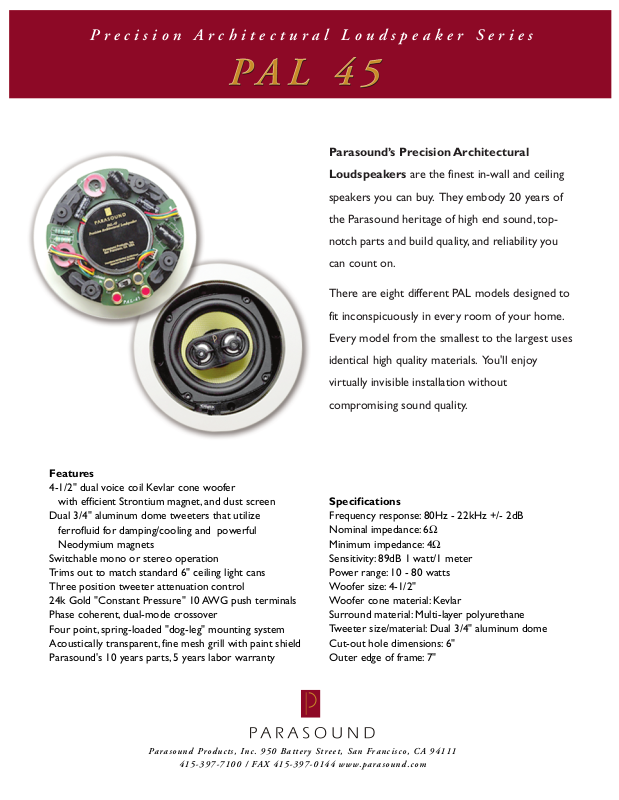

Parasound PAL-45 Brochure

Precision Architectural Loudspeaker Series

Parasound’s Precision Architectural

Loudspeakers are the finest in-wall and ceiling

speakers you can buy. They embody 20 years of

the Parasound heritage of high end sound, top-

notch parts and build quality, and reliability you

can count on.

There are eight different PAL models designed to

fit inconspicuously in every room of your home.

Features

4-1/2" dual voice coil Kevlar cone woofer
 with efficient Strontium magnet, and dust screen
Dual 3/4" aluminum dome tweeters that utilize
 ferrofluid for damping/cooling and powerful
 Neodymium magnets
Switchable mono or stereo operation
Trims out to match standard 6" ceiling light cans
Three position tweeter attenuation control
24k Gold "Constant Pressure" 10 AWG push terminals
Phase coherent, dual-mode crossover
Four point, spring-loaded "dog-leg" mounting system
Acoustically transparent, fine mesh grill with paint shield
Parasound's 10 years parts, 5 years labor warranty

Every model from the smallest to the largest uses

identical high quality materials. You'll enjoy

virtually invisible installation without

compromising sound quality.

Specifications

Frequency response: 80Hz - 22kHz +/- 2dB
Nominal impedance: 6Ω
Minimum impedance: 4Ω
Sensitivity: 89dB 1 watt/1 meter
Power range: 10 - 80 watts
Woofer size: 4-1/2"
Woofer cone material: Kevlar
Surround material: Multi-layer polyurethane
Tweeter size/material: Dual 3/4" aluminum dome
Cut-out hole dimensions: 6"
Outer edge of frame: 7"

Parasound Products, Inc. 950 Battery Street, San Francisco, CA 94111

415-397-7100 / FAX [phone] www.parasound.com
