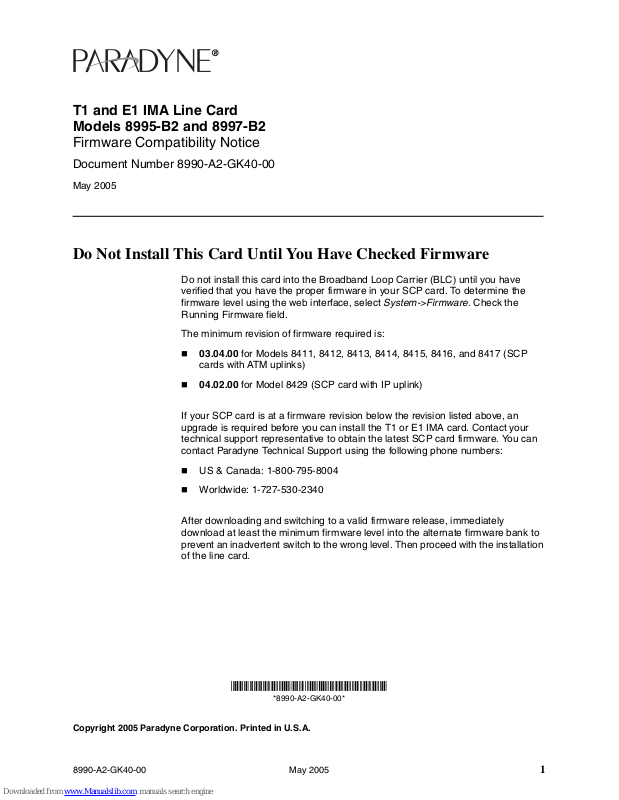

Paradyne 8995, 8997 Release Note
8990-A2-GK40-00 May 2005 1
T1 and E1 IMA Line Card
Models 8995-B2 and 8997-B2
Firmware Compatibility Notice
Document Number 8990-A2-GK40-00
May 2005
Do Not Install This Card Until You Have Checked Firmware
Do not install this card into the Broadband Loop Carrier (BLC) until you have
verified that you have the proper firmware in your SCP card. To determine the
firmware level using the web interface, select System->Firmware. Check the
Running Firmware field.
The minimum revision of firmware required is:
03.04.00 for Models 8411, 8412, 8413, 8414, 8415, 8416, and 8417 (SCP
cards with ATM uplinks)
04.02.00 for Model 8429 (SCP card with IP uplink)
If your SCP card is at a firmware revision below the revision listed above, an
upgrade is required before you can install the T1 or E1 IMA card. Contact your
technical support representative to obtain the latest SCP card firmware. You can
contact Paradyne Technical Support using the following phone numbers:
US & Canada: 1-800-795-8004
Worldwide: 1-727-530-2340
After downloading and switching to a valid firmware release, immediately
download at least the minimum firmware level into the alternate firmware bank to
prevent an inadvertent switch to the wrong level. Then proceed with the installation
of the line card.
*8990-A2-GK40-00*
*8990-A2-GK40-00*
Copyright 2005 Paradyne Corporation. Printed in U.S.A.
