VOICE DIALER MODULE
“SECURITY HAS A VOICE”
USER’S GUIDE
TABLE OF CONTENTS
1.0 INTRODUCTION................................................................................. 2
1.1 SYSTEM FEATURES........................................................................................ 2
LOSSARY OF TERMS.................................................................................... 3
1.2 G
2.0 BASIC OPERATION........................................................................... 4
2.1 STAND-BY MODE ........................................................................................... 4
IALER MODE................................................................................................ 4
2.2 D
3.0 USER’S OPENING MENU .................................................................. 6
4.0 USER’S PROGRAMMING MODE ...................................................... 8
4.1 STORE TELEPHONE NUMBERS........................................................................ 9
4.2 D
ELETE TELEPHONE AND PAGER NUMBERS.................................................. 10
ECORD VOICE OR PAGER MESSAGES......................................................... 11
4.3 R
4.3.1 Voice Messages......................................................... .................................... . 12
4.3.2 Program Output Labels (messages) ............................................................... 12
4.3.3 Pager Messages........................................... .................................... .............. 12

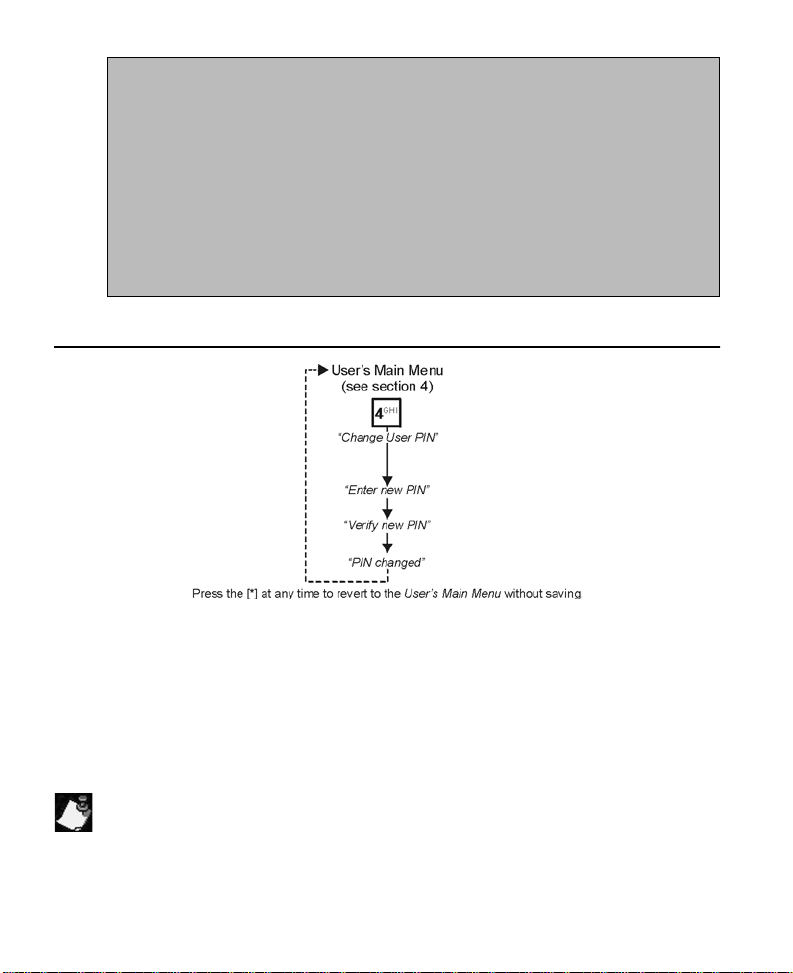

4.4 CHANGE USER PIN (DEFAULT: 1234) .......................................................... 13
4.5 T
ELEPHONE NUMBER ASSIGNMENT .............................................................. 14
EST MESSAGE SENDING............................................................................. 15
4.6 T
5.0 PROGRAMMING DATA SHEET ...................................................... 16
6.0 INDEX................................................................................................ 18
7.0
1.0 INTRODUCTION
The ParaVoxTM Voice Dialer provides remote voice and pager messaging
capabilities for almost any security alarm panel. The ParaVox can advise users of
almost any security situation such as burglary, fire, or flood by calling the user and
playing a pre-recorded message or by paging and leaving a numerical message.
Fully programmable over the telephone (no external keypad required), the ParaVox
guides the end user through all system functions with a full set of voice prompts. All
the user needs to remember is their P.I.N. (Personal Identification Number)
The ParaVox Voice Dialer ha s f our i np ut z one s, programmable to accept a variety of
input configurations and devices. These zone inputs can be linked to four different
32-digit telephone numbers delivering up to four different messages (voice or
pager). Programmable dial-out priority allows the dialer to contact the most
important number first. Based on the installation requirements, the ParaVox can use
two 30 second messages or four 15 second messages.
The ParaVox's two programmable outputs can be used for remote activation of
almost any device by telephone, such as turning on air conditioning or heat,
extinguishing lights, activating a sprinkler system, or opening a garage door.
1.1 SYSTEM FEATURES
• Voice and pager dial-out capabilities.
• Both DTMF and pulse dialing (pulse dialing is not recommended).
• Program mable inpu ts with N.C ./N.O. tri ggering, with or wi thout EOL (End
of Line) resistor and +12Vdc-input trigger capability.
• Each zone can dial-out a maximum of four 32-digit telephone numbers.
Each telephone number is individually allocated for either voice or pager.
• Dial-out priority can be set for each zone, enabling the most important
number to be dialed first.
• The called party can terminate received alarm activation message with
DTMF acknowledgment.
• Remote pr ogra mming from a ny D TMF c apable teleph one. Please not that
a dedicated telephone line is required to program the ParaVox. Do not
connect the ParaVox to the same telephone line that will be used to call
and program the ParaVox.
2 User’s Guide
• The dialer can be co nfi gure d to provide four 15 seconds or two 3 0 s econds
messages.
• Programmable ring and busy tone (cadence) signals for use in different
countries.
• Automatic Gain Control (AGC) provides excellent recorded speech quality.
• All system information, messages, telephone, pager and PIN numbers are
stored in secure NV (non-volatile) RAM.
• Reset jumper to return system to default factory settings.
1.2 GLOSSARY OF TERMS
PSTN Public Switched Telephone Network
PABX Private Access Branch Exchange
PIN Personal Identificatio n Numb er
DTMF Dual Tone Multiple Frequency
EOL End of Line
PPS Pulses Per Second
Kiss off User acknowledges receipt of voice messages by pressing the [#] or
[*] key twice within 2 seconds. Kiss off can also be performed locally if
Zone 4 is programmed as a Local Reset switch.
ParaVox 3
2.0 BASIC OPERATION
2.1 STAND-BY MODE
In this mode, the voice dialer is idle and waits for one of two events to occur:
1) When calling the ParaVox to enter the User's Opening Menu, it waits a pre-
determined number of rings (programmed by installer) then seizes the line and
enters the User's Op eni ng Menu (see section 3.0 on page 6).
2) When one of the four zones on the ParaVox has triggered, the ParaVox
immediately enters the Dialer Mode (see section 2.2 below).
2.2 DIALER MODE
When a zone has triggered, the ParaVox:
1) Seizes the telephone line and disconnects all other telephones.
2) Dials the first telephone/pager number assigned to the triggered zone (see
section 4.5 on page 14). If it's a Pager Number go to item #8. If it's a Voice
Message Number go to item #3.
Voice Message Number:
3) After dialing the number and after the Post Dial Delay has elapsed (see section
4.1 on page 9), the ParaVox will begin transmitting the recorded message linked
to the triggered zone (see section 4.3 on page 11). It will transmit the message
the number of times defined by the Voice Message Opt ions (programmed by
installer) or until a "kiss off" is received.
4) To acknowledge receipt ("kiss off") of the message and to cancel any further
dialing attempts to this number, you must press the [#] key twice within 2
seconds. To cancel all further dialing attempts to all numbers you must press the
[*] key twice.
5) After "kiss off", the ParaVox will dial the next number in the dial-out list and it will
no longer attempt to dial t his nu mber a gain re gardles s of th e num ber of "Re dials "
(programmed by installer).
6) If the ParaVox does not receive a "kiss of f ", it w il l ha ng up , que ue th e num be r for
redial and dial the next number in the dial-out list.
7) If after dialing the number, there is a busy signal, the ParaVox will hang up,
4 User’s Guide
queue the number for redial, wait for 4 seconds and dial the next number in the
dial-out list.
Pager Number:
8) After dialing the number and after the Post Dial Delay has elapsed (see section
4.1 on page 9), the ParaVox will begin transmitting the recorded numerical
message linked to the triggered zone (see section 4.3 on page 11).
9) After transmitting the message, it will hang up and dial the next number in the
dial-out list. Since the ParaVox assumes tha t th e pager service has receiv ed an d
relayed the message, acknowledgment ("kiss off") of the message is not
required and the ParaVox no longer attempts to dial this number again
regardless of the number of "Redials" .
10) If after dialing the number there is a busy signal, the voice dialer will hang up,
queue the number for redial, wait for 4 seconds and dial the next number in the
dial-out list.
Please note that pager numbers are dialed only once, regardless of
the Redials setting unless the number was busy. Also note that
telephone numbers are not redialed once "kiss off" is received.
ParaVox 5
3.0 USER’S OPENING MENU
To enter the User’s Opening Menu:
The User's Ope ning Menu allows you to activate or deactivate the programmable
outputs. The programmable outputs (PGM1 & PGM2) can be used for remote
switching of other devices. For example, a PGM can be used to turn on air
conditioning or heat, extinguish lights, activate a sprinkler system, or open a garage
door. Speak to your installer for more information.
The User's Opening Menu also provides access to the User's Progra mming Mode
(see section 4.0 on page 8). While in any of the user menus, detailed voice prompts
will guide you through all the available selections.
6 User’s Guide
Press the [*] key at any time to return to the previous menu without saving
(except when recording messages). In most situations you can type over
voice prompts rather than waiting for the voice prompt to end.
The ParaVox will repeat the voice prompts four times, if no actions
are made in this time, the ParaVox will automatically hang up.
ParaVox 7
4.0 USER’S PROGRAMMING MODE
To enter the User's Programming Mode:
1) From the User's Opening Menu (see section 3.0 on page 6) press the [3] key.
2) Once in the User's Programming Mode you will have access to the User's Main
Menu. Select the desired action as demonstrated below.
Entering the User's Programming Mode allows you to set most of the ParaVox's
parameters. Please note that while in the User's Programming Mode, detailed voice
prompts will guide you through all available selections.
Pressing the [*] key at any time will revert to the preceding step without
saving. Y ou do not have to wai t for the voic e promp ts to end before pressin g a
key.
The ParaVox will repeat the voice prompts four times, if no actions
are made in this time, the ParaVox will automatically hang up.
8 User’s Guide
4.1 STORE TELEPHONE NUMBERS
The ParaVox unit can store up to four telephone numbers in locations [1] to [4] and
up to four pager numbers in location numbers [5] to [8]. When a telephone number
location is assig ned to a z one (se e s ec tio n 4.5 on page 14), the ParaVox will dial the
number programmed here whenever the zone is triggered. The telephone numbers
are programmed into the desired locations as described above.
When entering numbers, do not wait more than 4 seconds between key
presses. Afte r entering a number, make sur e to press the [# ] key and then
select a Post Dial Delay as shown above.
ParaVox 9
4.2 DELETE TELEPHONE AND PAGER NUMBERS
Previously stored voice message telephone numbers and pager telephone numbers
can be deleted by entering option [1] or [2] from the Delete Telephone Numbers
menu. Select the desired voice message telephone or pager number location.
Deletion is confirmed by entering [1] for yes or [2] for no.
When you delete a telephone number, the ParaVox will
automatically remove the number from all zone assignments.
10 User’s Guid e
4.3 RECORD VOICE OR PAGER MESSAGES
ParaVox 11
4.3.1 Voice Messages
If key [1] is selected from the Store Messages menu, you will be able to
record voice messages. Depending on the selected Voice Message Length
(programmed by the installer) you will be able to record two 30 second
messages or four 15 second messages. Each recorded message is linked to
a specific zone input as shown in the figure on the previous page. When a
triggered zone has been programmed to dial-out a voice message telephone
number (see section 4.5 on page 14) and when the number is reached, the
ParaVox will play the recorded message linked to the triggered zone.
Default Messages:
"Trigger of zone x detected. Key hash twice or star twice to accept."
Sample Voice Messages:
"Liquid level above normal"
"Smoke detected in the archiv e room "
We recommend adding the following to your voice messages:
"...press the [#] or [*] key twice to acknowledge message"
4.3.2 Program Output Labels (messages)
Selecting the [2] key from the Store Messages menu allows the user to
record voice prompts linked to the programmable outputs (3 seconds
maximum) as shown in the diagram on page 11. These messages are played
when entering the User's Opening Menu and when changing the state of the
programmable output s (see se cti on 3.0 on p ag e6).
Default Labels (messages):
"Output 1 is <on/off>"
"Output 2 is <on/off>"
4.3.3 Pager Messages
If key [3] is selected from the Store Messages menu, you will be able to
record numerical pager messages. Up to four 32-digit pager messages can
be programmed each of which is linked to a specific zone input as shown in
the figure on the previous page. When a triggered zone has been
programmed to dial-out a pager number (see section 4.5 on page 14) and
when the number is reached, the voice dialer will transmit the recorded
numerical message linked to the triggered zone.
12 User’s Guid e
Sample Program Output Labels:
"Garage door is open"
"Air conditioning is off"
EXAMPLE:
In the following example notice how the messages are linked to the
triggered zone and not the telephone numbers.
Zone 4 is programmed to dial telephone number locations 1 and 2. When
zone 4 has triggered, the ParaVox will dial the telephone number stored in
"telephone number location 1". After the Post Dial Delay, the ParaVox will
play the messa ge rec orded in "Voice Message Lo cation 4 ". The ParaVox
will proceed by dial in g the num be r rec orde d in "telephone number location
1". After the Post Dial Delay, the ParaVox will play the message recorded
in "Voice Message Location 4".
4.4 CHANGE USER PIN (DEFAULT: 1234)
The ParaVox system supports up to four user PINs, which can be 4 or 6 digits in
length as programmed by your installer.
After entering the User's Programmi ng Mo de , press the [4] key to enter the Change
User PIN menu and enter the new PIN twice. After entering the PIN twice the
ParaVox automatically saves the PIN into a User PIN location. Only the PIN used to
enter the User's Opening Menu can be changed. The [*] key can be pressed at any
time to exit without saving.
Programming a user PIN for the first time:
Enter the User's Main Menu using the default User PIN (1234). Then change
the PIN to the desired number. To program subsequent User PINs, exit and
re-enter the User's Main Menu using the default PIN.
ParaVox 13
Please note that the default User PIN (1234) is only erased after
programming all 4 user PINs. Therefore, if only one user is going to
use the system, we recommend programming the same user PIN in
all four locations in order to erase the default PIN.
4.5 TELEPHONE NUMBER ASSIGNMENT
The ParaVox can assign up to four telephone or pager numbers to each of the four
zone inputs. This means each zone has a prioritized sequence of dial-outs
customized to suit the input. Since voice and pager messages are linked to specific
zones, telephone numbers assigned to a zone will play the same voice messages
and pager numbers will send the same numerical message.
Select the desired zone and enter up to four telephone and/or pager number
locations (one through eight) in the order of dial-out preference. If a location that
14 User’s Guid e
corresponds to an empty voice or pager number is selected, an "error" message is
played and the user can enter another location. To disable a zone, enter zero in all
four number locat ion s f or that zone. Press the [*] star key after the last entry to en ter
less than four entries and access the review menu.
4.6 TEST MESSAGE SENDING
To test dialer functionality, enter the Test Message Sending menu and enter a digit
between one and ei ght co rrespon ding to the d esired telep hone n umber locati on (se e
section 4.1 on page 9). If an empty location is selected (no number is stored there),
the "error" prompt will be played. Another selection can then be entered.
After selecting the desired telephone number location, the ParaVox will dial the
selected telephone number and after the Post Dial Delay it will play the message
recorded in Message Location 1.
Telephone numbers 1 to 4 will always play the voice message
stored in Voice Message Location 1. Pager numbers 5 to 8 will
always play the pager message stored in Pager Message Location
5.
EXAMPLE:
To test the message transmission of telephone number 4. Press the [6] key from
the User’s Main Menu, then press the [4] key to select Telephone Number
Location 4. The ParaVox will dial the number stored in Telephone Number
Location 4. When the Post Dial Delay has elapsed, the ParaVox will transmit the
message programmed in Voice Message Location 1.
ParaVox 15
5.0 PROGRAMMING DATA SHEET
The following pages have been provided to record the ParaVox's settings.
Personal Identification Numbers (PINs)
User PIN Length (set by installer): _____
User PIN 1 (section 4.4): __________ Default: 1234
User PIN 2 (section 4.4): __________ Default: 1234
User PIN 3 (section 4.4): __________ Default: 1234
User PIN 4 (section 4.4): __________ Default: 1234
Telephone and Dialing Parameters
Redials (set by installer): _____ (0 to 3)
Rings for Answering (set by installer): _____ (1 to 8)
Ans. Override (set by installer): _____ (24 to 60 sec.)
Voice Message & Pager Telephone Numbers (section 4.1)
Location 1 #:________________________________ Post Dial Delay:________
Location 2 #:________________________________ Post Dial Delay:________
Location 3 #:________________________________ Post Dial Delay:________
Location 4 #:________________________________ Post Dial Delay:________
Location 5 #:________________________________ Post Dial Delay:________
Location 6 #:________________________________ Post Dial Delay:________
Location 7 #:________________________________ Post Dial Delay:________
Location 8 #:________________________________ Post Dial Delay:________
Recorded Voice Messages (section 4.3.1)
Message Length (set by installer): _____
Message Repeats (set by installer): _____
Kiss off Options (set by installer): _____
Location 1 / Zone 1:_________________________________________________
Location 2 / Zone 2:_________________________________________________
Location 3 / Zone 3:_________________________________________________
Location 4 / Zone 4:_________________________________________________
16 User’s Guid e
Recorded Pager Messages (section 4.3.3)
Location 5 / Zone 1:_________________________________________________
Location 6 / Zone 2:_________________________________________________
Location 7 / Zone 3:_________________________________________________
Location 8 / Zone 4:_________________________________________________
Recorded Output Labels (section 4.3.2)
Location 1 / Output 1 off:______________________________________________
Location 2 / Output 1 on:______________________________________________
Location 3 / Output 2 off:______________________________________________
Location 4 / Output 2 on:______________________________________________
Assign Numbers to Zones (section 4.5)
1st Location 2nd Location 3rd Location 4th Location
Zone 1: ____ ____ ____ ____
Zone 2: ____ ____ ____ ____
Zone 3: ____ ____ ____ ____
Zone 4: ____ ____ ____ ____
Notes
Zone 1: _______________________________________________________
Zone 2: _______________________________________________________
Zone 3: _______________________________________________________
Zone 4: _______________________________________________________
ParaVox 17
6.0 INDEX
A
Assigning Telephone Numbers .............. 14
B
Basic Operation ..................................... 4
C
Change User PIN ................................13
D
Data Sheet .........................................16
Deleting Telephone & Pager Numbers ... 10
Dialer Mode ..........................................4
F
Features ............................................... 2
G
Glossary ...............................................3
I
Introduction ...........................................2
M
Menu, User’s Opening ............................6
Messages, Record ...............................11
Mode
Dialer
............................................4
Stand-by .......................................4
User’s Programming .......................8
N
Number
............................................5
Pager
Voice Message ..............................4
O
Opening Menu, User’s ............................6
Operation, Basic ....................................4
P
Pager Messages ..................................12
Pager Messages Recording ..................11
Pager Number .......................................5
Pager Numbers, Deleting ......................10
PIN, Change .......................................13
Program Output Labels .........................12
Program User PIN ................................13
Programming Data Sheet ......................16
Programming Mode, User .......................8
R
Record Messages ................................11
Record Voice or Page Messages ...........11
Recording Messages
Pager Messages
Program Output Labels .................12
Voice Messages ...........................12
Recording Voice/Pager Messages .........11
..........................12
S
Sending Test Messages .......................15
Stand-by Mode ......................................4
Store Telephone Numbers ......................9
System Features ....................................2
T
Telephone Number Assignment .............14
Telephone Numbers, Deleting ...............10
Telephone Numbers, Storing ...................9
Terms, Glossary ....................................3
Test Message Sending .........................15
Paravox 18
U
User PIN, Change ................................13
User PIN, Changing .............................13
User Programming Mode ........................8
User’s Opening Menu .............................6
User’s Programming Mode
Change User PIN
Deleting Pager Numbers ................10
Deleting Telephone Numbers .........10
Recording Messages .....................11
Store Telephone Numbers ...............9
Telephone Number Assignment ......14
Test Message Sending ..................15
..........................13
V
Voice Message Number ..........................4
Voice Message Recording .....................11
Voice Messages ..................................12
19 User's Guide
WARRANTY
The Seller warrants its products to be free from defects in materials and
workmanship under normal use for a period of one year. Except as specifically
stated herein, all express or implied warranties whatsoever, statutory or otherwise,
including without limitation, any implied warranty of merchantability and fitness for a
particular purpose, are expr\essly excluded. Because Seller does not install or
connect the products and because the products may be used in conjunction with
products not manufactured by Seller, Seller cannot guarantee the performance of
the security system. Seller obligation and liability under this warranty is expressly
limited to repairing or replacing, at Seller's option, any product not meeting the
specifications. In no event shall the Seller be liable to the buyer or any other person
for any loss or damages whether direct or indirect or consequential or incidental,
including without limitation, any damages for lost profits, stolen goods or claims by
any other party caused by defective goods or otherwise arising from the improper,
incorrect or otherwise faulty installation or use of the merchandise sold.
PRINTED IN CANADA - 06/2002
PVOXEU-03
Loading...
