Paradox Grafica DNE-K07 Programming Manual

Grafica Graphic LCD Keypad Module

DNE-K07

Grafica Keypads can be used with DGP-848 and DGP-NE96 control panels only. Grafica will not function with DGP-48 control panels.

The keypad’s serial number can be found on the keypad’s PC board. The keypad’s serial number can also be viewed by pressing and holding the [0] key,
entering the [

SECTION [001] : Keypad Partition Assignment SECTION [002] : System Options

Option OFF ON Option OFF ON

[1] Partition 1 N Disabled
[2] Partition 2 N Disabled
[3] Partition 3 N Disabled
[4] Partition 4 N Disabled

[5] Partition 5 (DGP-NE96 only) N Disabled
[6] Partition 6 (DGP-NE96 only) N Disabled
[7] Partition 7 (DGP-NE96 only) N Disabled
[8] Partition 8 (DGP-NE96 only) N Disabled

INSTALLER CODE] and then entering section [000].

U Enabled
U Enabled
U Enabled
U Enabled

U Enabled
U Enabled
U Enabled
U Enabled

U = Default setting

[1] Display Code Entry
[2] Display Exit Delay N Disabled
[3] Display Entry Delay N Disabled
[4] Confidential Mode

(not for UL installations)

[5] T o exit Confidential Mode
[6] Exit Delay Beep N Disabled
[7] Future Use N N/A N N/A
[8] Keypad Tamper

U Disabled

U Disabled

U

Enter code

U Disabled

N Enabled

U Enabled
U Enabled

N Enabled

N

Press Button

U Enabled

N Enabled

SECTION [003] : Beep on Trouble

Option OFF ON

[1] System & Clock Trouble Beep
[2] Communicator Trouble Beep
[3] Module & Combus Trouble Beep
[4]

All Zone Trouble Beep

[5] to [8]

Future Use N N/A N N/A

Section #

[004]

Confidential Mode Timer

___/___/___ (005 to 255 seconds; Default: 120 seconds)

U Disabled
U Disabled
U Disabled
U Disabled

N Enabled
N Enabled
N Enabled
N Enabled

USING THE MEMORY KEY

[100] Download all from the Memory Key (Grafica keypad sections [001] to [004] and all user, zone, door and area labels) to the Grafica keypad.
[110] Copy the Grafica keypad sections [001] to [004] and all user, zone, door and area labels to the Memory Key.

Download Contents of the Memory Key to the Grafica Keypad.

1) Insert the Memory Key onto the keypad’s connector (refer to “Memory Key Connector” on page 4).

2) To download the contents of the Memory Key, enter the keypad’s programming mode and enter section [100].

3) Once the keypad emits a confirmation beep, wait for a second confirmation beep and then remove the Memory Key.

Digiplex & DigiplexNE - 1 - Modules Programming Guide

Copy Contents of the Grafica Keypad to the Memory Key.

1) Insert the Memory Key onto the keypad’s connector (refer to “Memory Key Connector” on page 4). Ensure that the write protect jumper is on (refer to
"Memory Key (PMC-3)" below).

2) To copy the contents to the Memory Key, enter the keypad’s programming mode and enter section [110].

3) Once the keypad emits a confirmation beep, wait for a second confirmation beep and then remove the Memory Key . Remove the Memory Key’s jumper
if you do not wish to accidentally overwrite its contents.

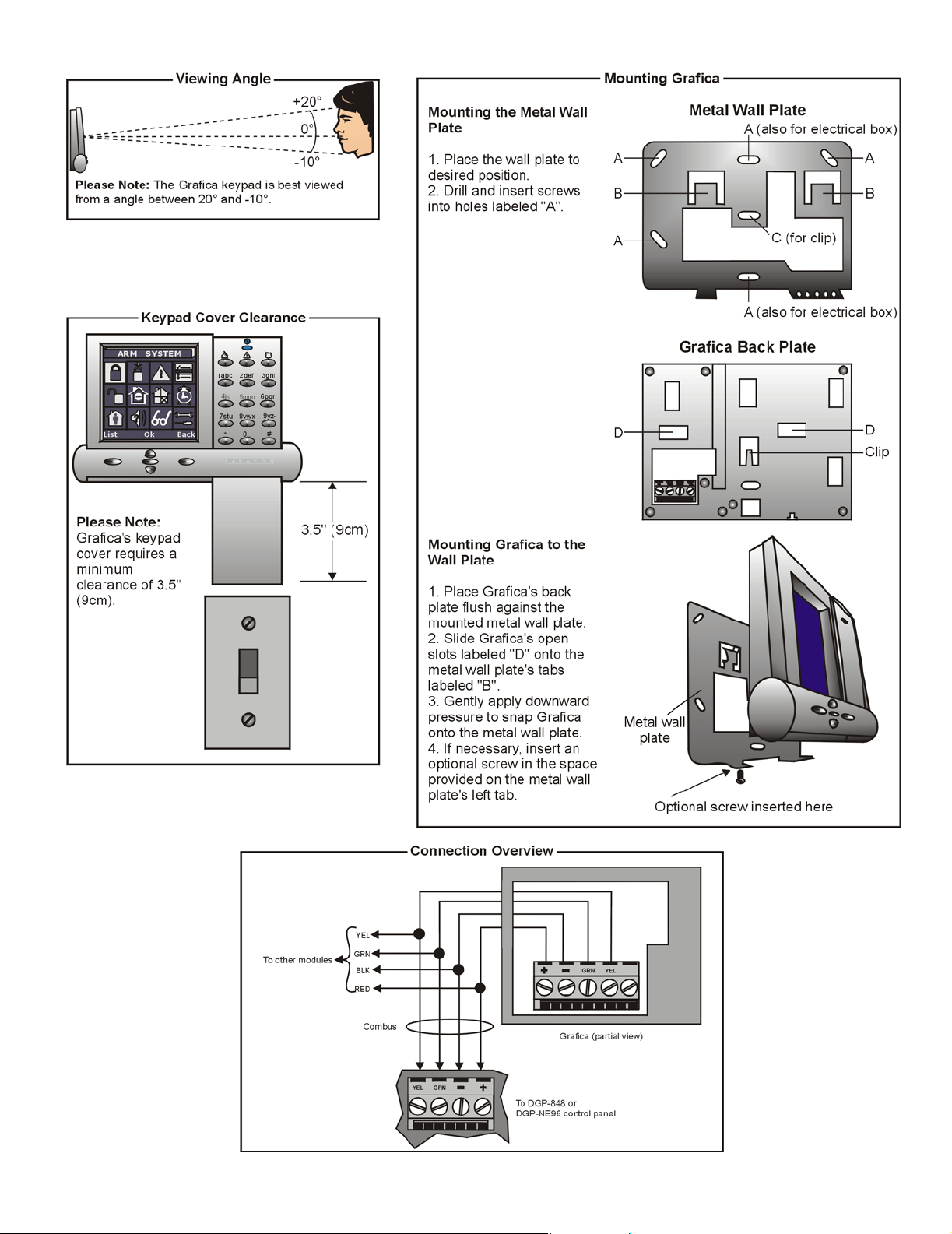

MEMORY KEY CONNECTOR

MEMORY KEY (PMC-3)

Jumper ON:
Can copy and download
contents.

The memory key will only function with a keypad that has the DGP2 or DNE prefix in the model number. Only the PMC-3 memory key will
function with DGP2 and DNE keypads.

PMC-3

Jumper OFF:
Cannot override the contents
of the memory key.

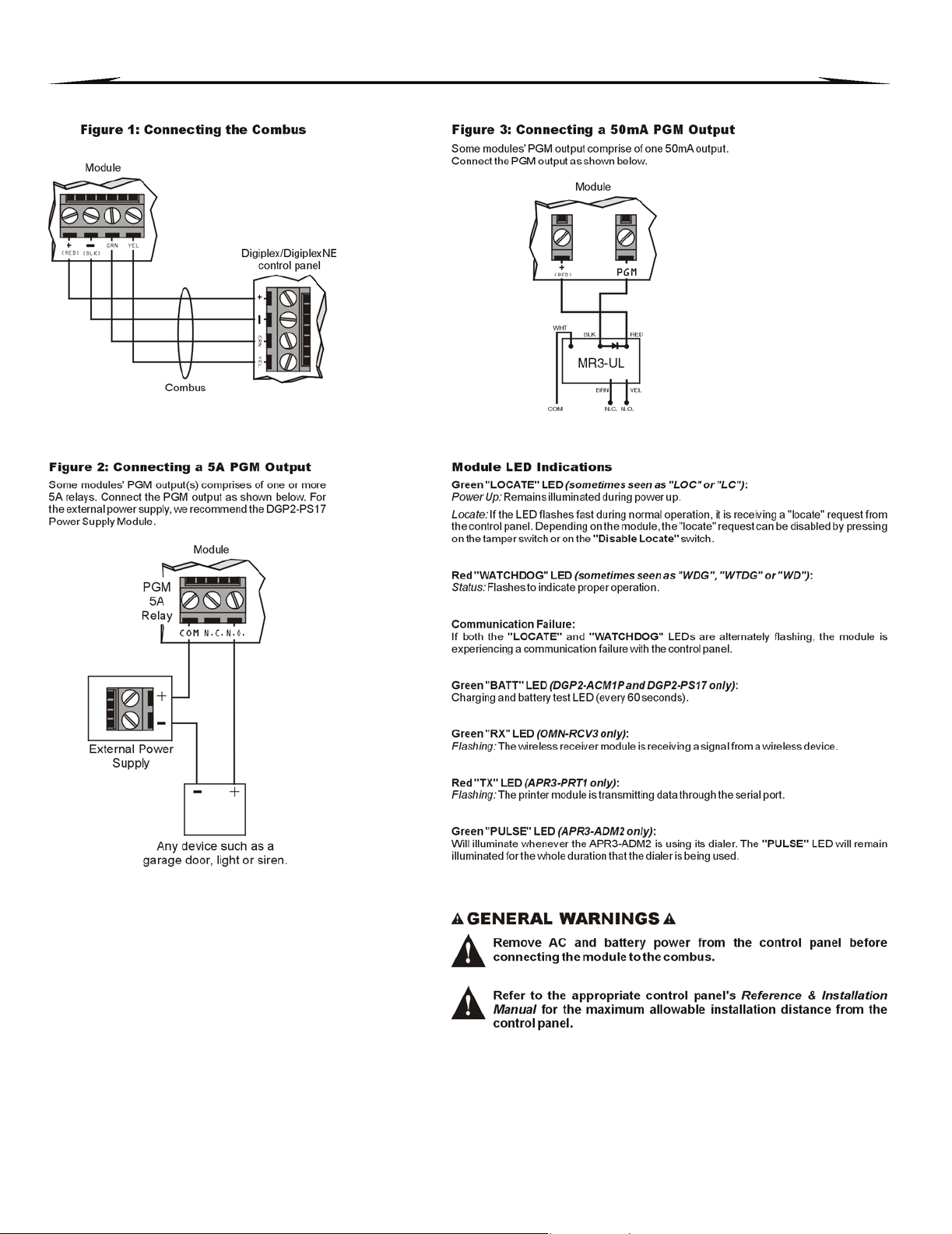

Digiplex & DigiplexNE - 2 - Modules Programming Guide
