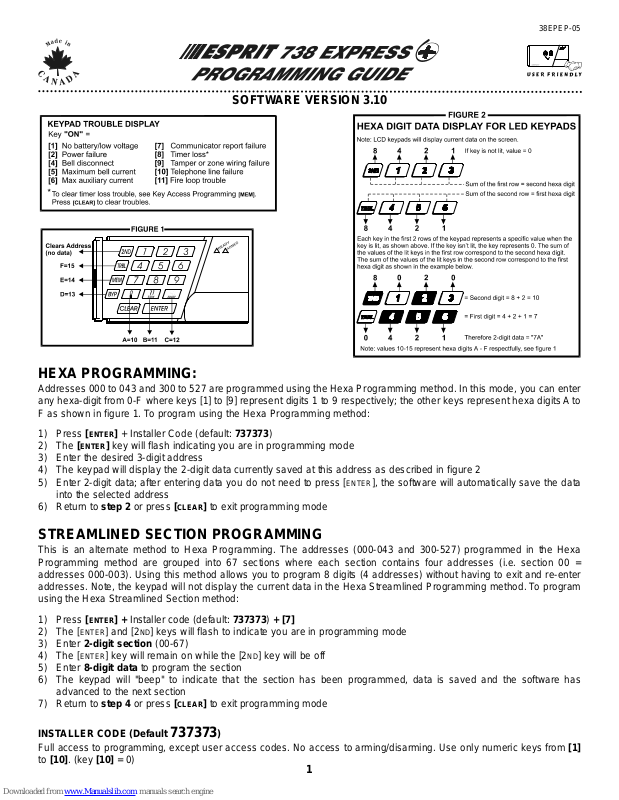

SOFTWARE VERSION 3.10

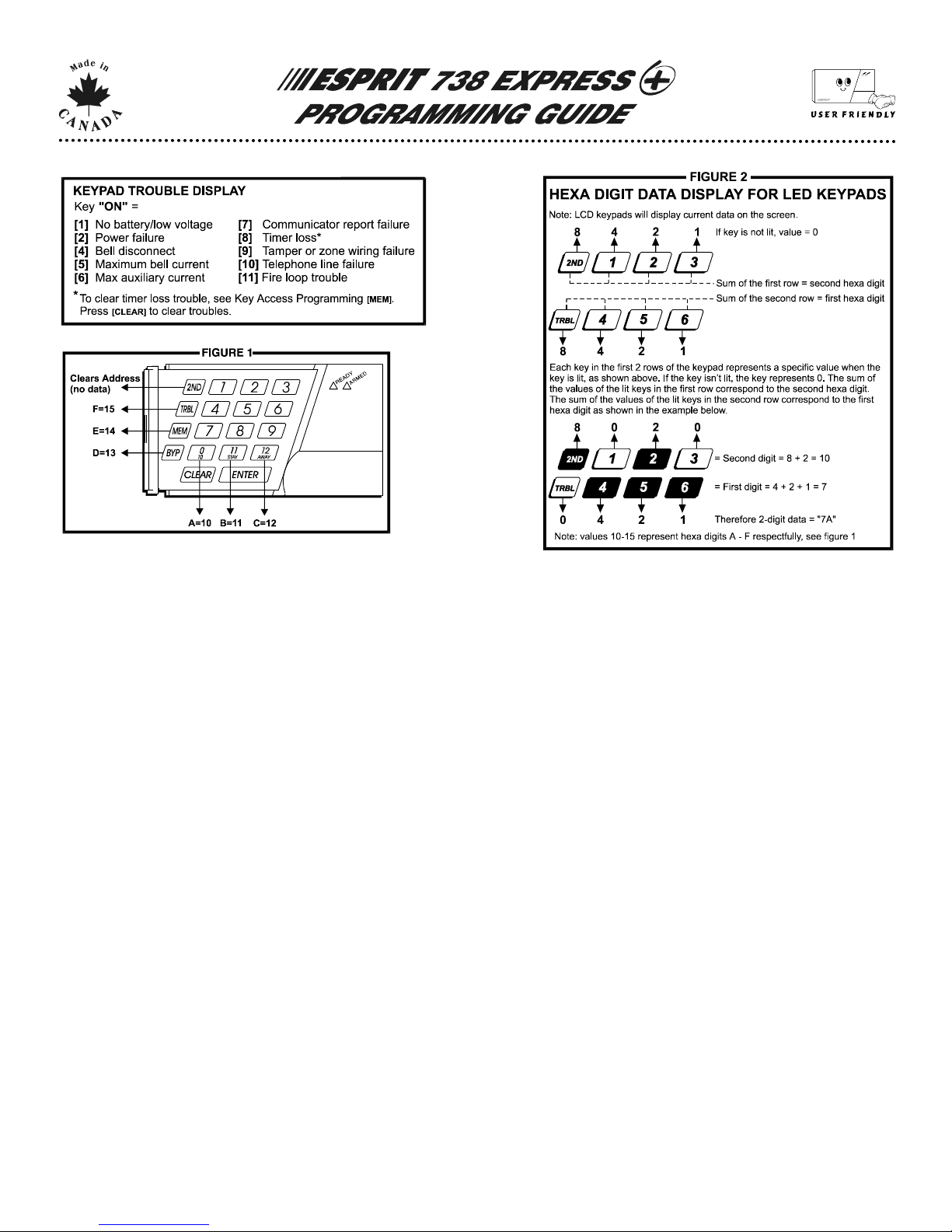

HEXA PROGRAMMING:
Addresses 000 to 043 and 300 to 527 are programmed using the Hexa Programming method. In this mode, you can enter
any hexa-digit from 0-F where keys [1] to [9] represent digits 1 to 9 respectively; the other keys represent hexa digits A to
F as shown in figure 1. To program using the Hexa Programming method:
1) Press [
ENTER] + Installer Code (default: 737373)
2) The [ENTER] key will flash indicating you are in programming mode
3) Enter the desired 3-digit address
4) The keypad will display the 2-digit data currently saved at this address as described in figure 2
5) Enter 2-digit data; after entering data you do not need to press [
ENTER], the software will automatically save the data
into the selected address
6) Return to step 2 or press [
CLEAR] to exit programming mode
STREAMLINED SECTION PROGRAMMING
This is an alternate method to Hexa Programming. The addresses (000-043 and 300-527) programmed in the Hexa
Programming method are grouped into 67 sections where each section contains four addresses (i.e. section 00 =
addresses 000-003). Using this method allows you to program 8 digits (4 addresses) without having to exit and re-enter
addresses. Note, the keypad will not display the current data in the Hexa Streamlined Programming method. To program
using the Hexa Streamlined Section method:
1) Press [
ENTER]+ Installer code (default: 737373) + [7]
2) The [ENTER] and [2ND] keys will flash to indicate you are in programming mode
3) Enter 2-digit section (00-67)
4) The [ENTER] key will remain on while the [2ND] key will be off
5) Enter 8-digit data to program the section
6) The keypad will "beep" to indicate that the section has been programmed, data is saved and the software has
advanced to the next section
7) Return to step 4 or press [
CLEAR] to exit programming mode
INSTALLER CODE (Default
737373)
Full access to programming, except user access codes. No access to arming/disarming. Use only numeric keys from [1]
to [10]. (key [10] = 0)
1
38EPEP-05

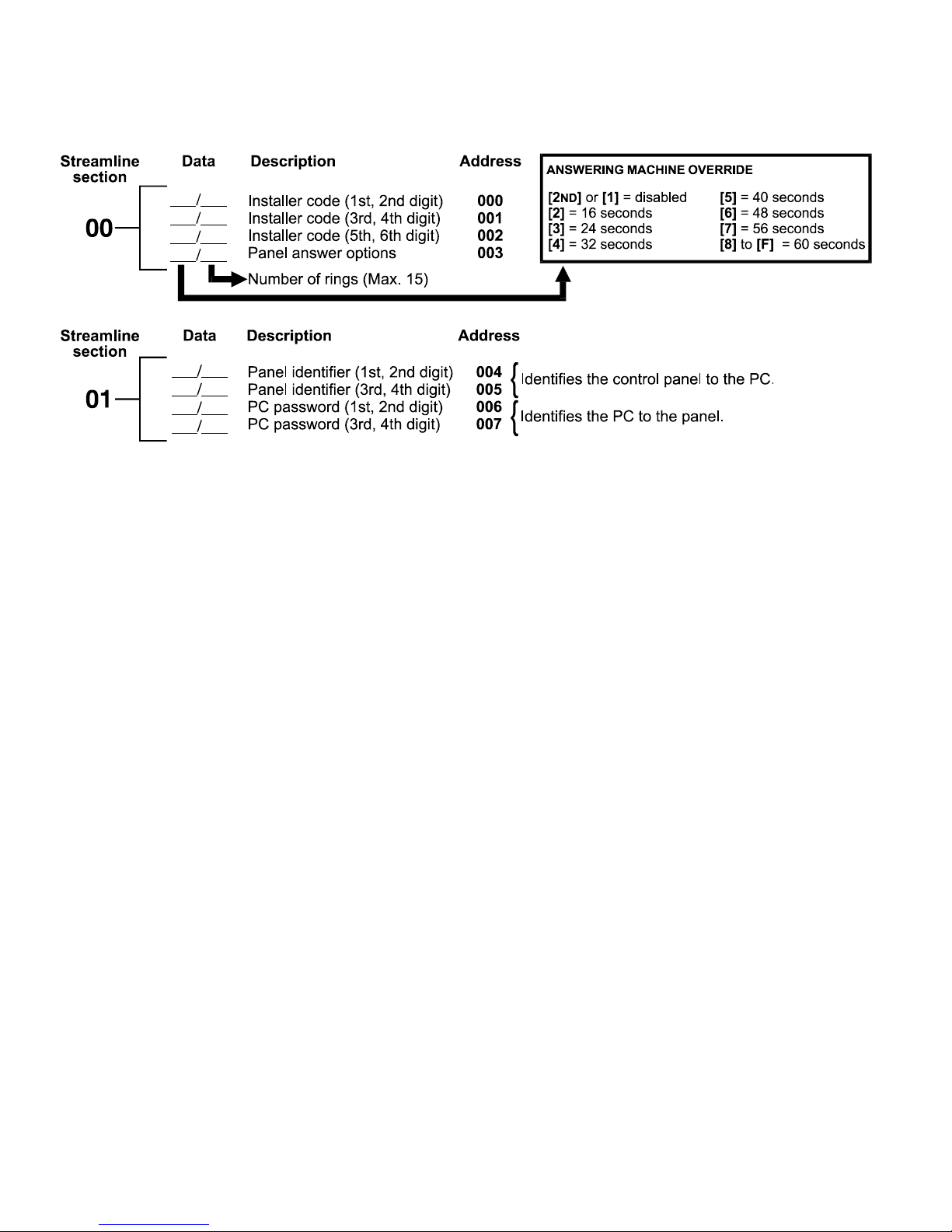

PANEL ANSWER OPTIONS
First digit disables “Answering Machine Override” (key [2
ND] or key [1]), or determines period of time between first and
second call (see table below). Second digit determines number of rings required before panel will answer. If [2ND][2ND] is
entered, panel will not answer. (Default value is [2ND] [8].)
TELEPHONE AND ACCOUNT NUMBERS
If only one central station phone number is used, program the same number for telephone number 1 and 2. If only one
account number is required, the same number must be entered for both account "A" and "B". (No Default)
[10] = the number "0" [BYP] = switch from pulse to tone while dialing
[11] =
*
[MEM
]
= pause 4 seconds
[12] = # [TRBL
]
= end of number
COMPUTER TELEPHONE NUMBER (View at addresses 008 to 015.)
02__ / __ / __ / __ / __ / __ / __ / __ 03 __ / __ / __ / __ / __ / __ / __ / __
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
CENTRAL STATION TELEPHONE NUMBER 1 (View at addresses 016 to 023.)
04 __ / __ / __ / __ / __ / __ / __ / __ 05 __ / __ / __ / __ / __ / __ / __ / __
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
CENTRAL STATION TELEPHONE NUMBER 2 (View at addresses 024 to 031.)
06 __ / __ / __ / __ / __ / __ / __ / __ 07 __ / __ / __ / __ / __ / __ / __ / __
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
ACCOUNT "A" AND "B": (View at addresses 032 to 035.)
08 __ / __ / __ / __ __ / __ / __ / __
1 2 3 4 5 6 7 8
AB
2
Press [
TRBL] to end phone
number if less than 16 digits
are programmed.
Press [TRBL] to end phone
number if less than 16 digits
are programmed.
For 3 digit account numbers,
enter "skip" ([2
ND]) as first
digit.
Press [
TRBL
] to end phone
number if less than 16 dig
its
are programmed.
Streamline
section
Streamline
section
Streamline
section
Streamline
section
Streamline
section
Streamline
section
Streamline
section
3

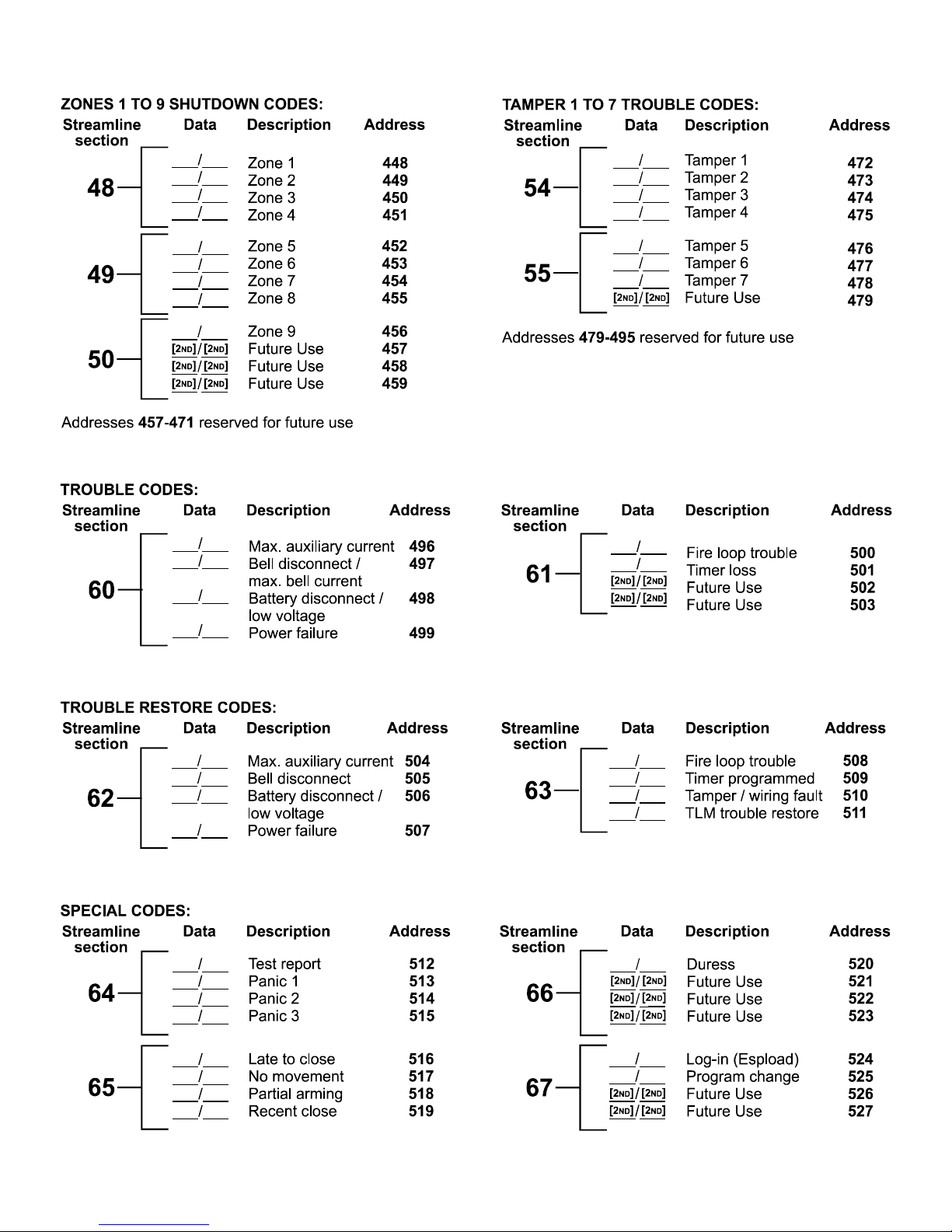

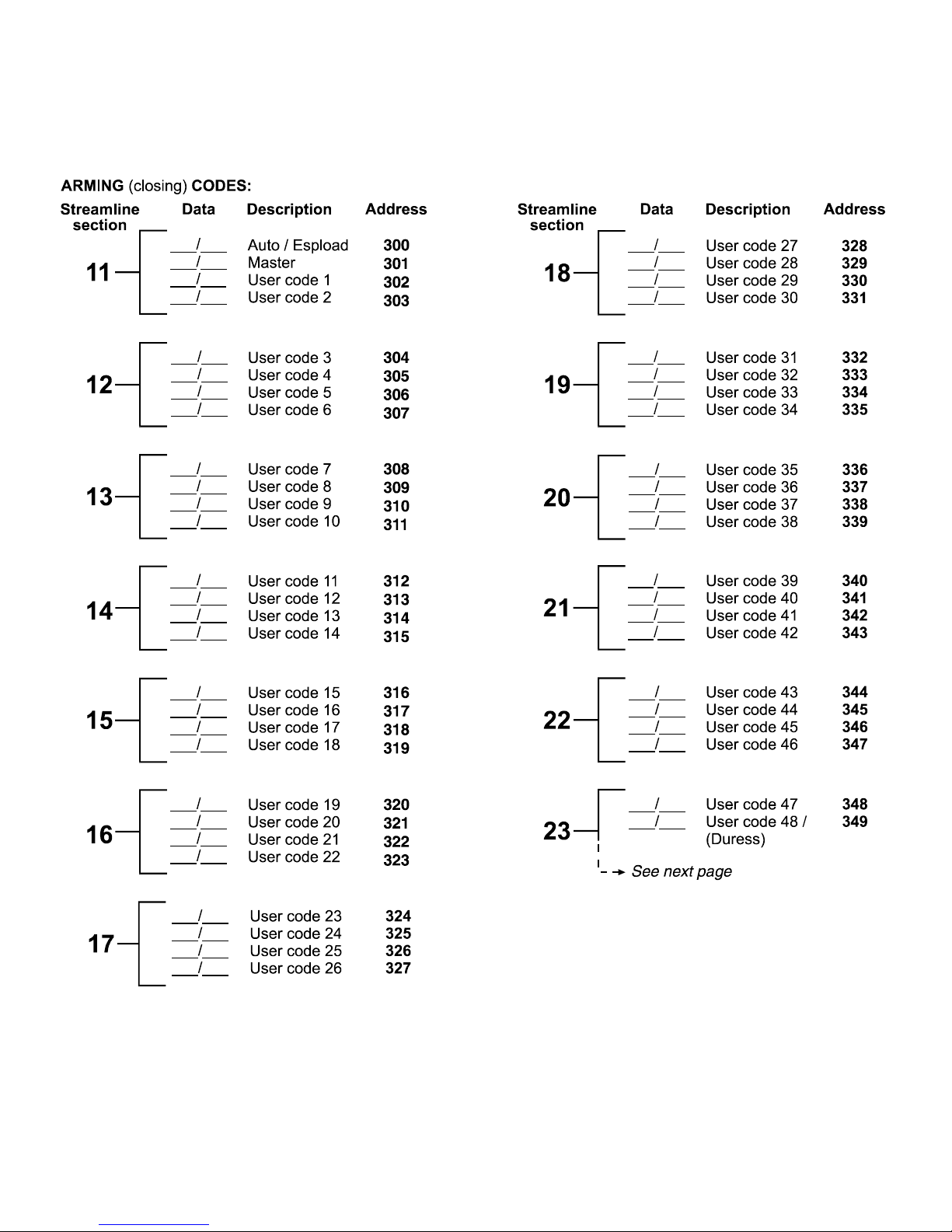

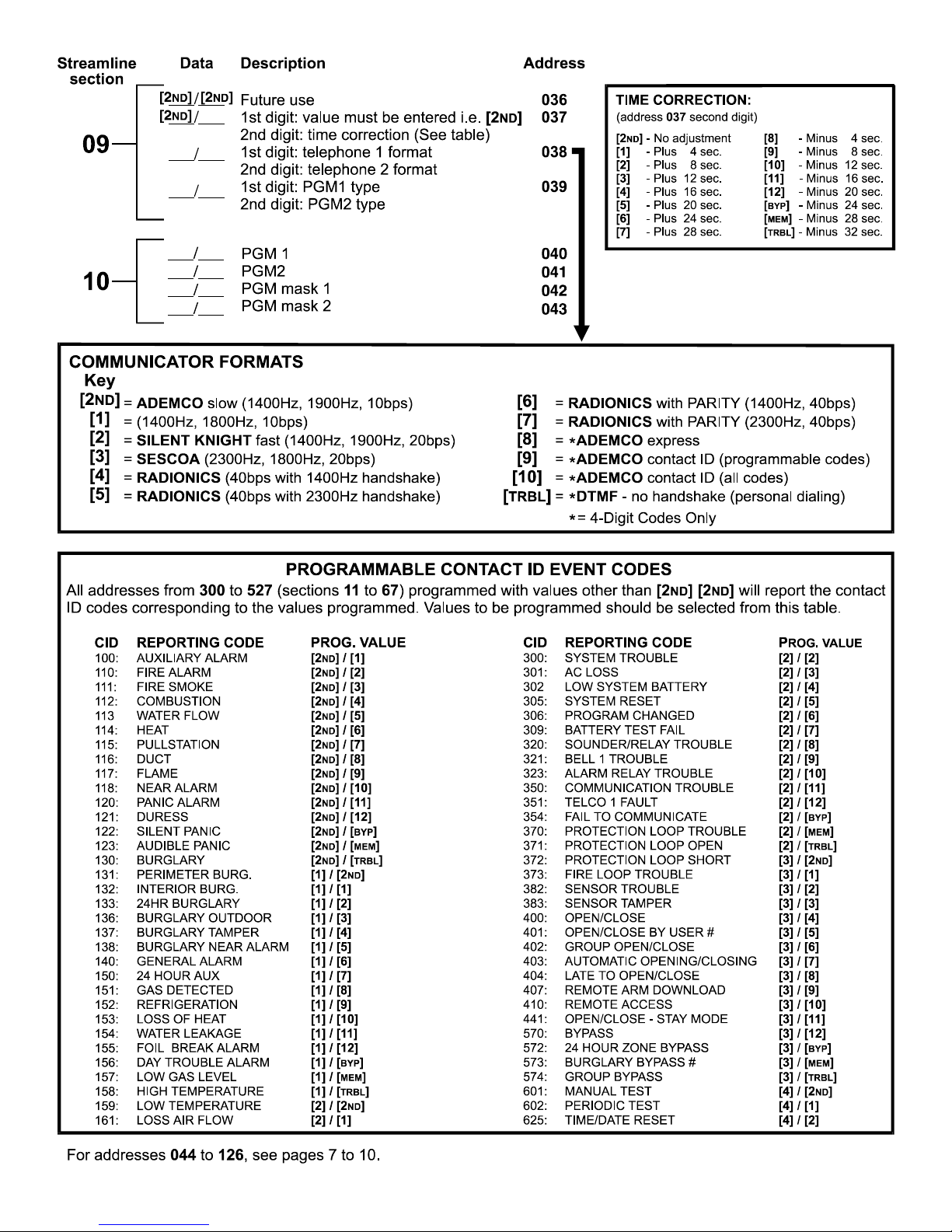

REPORTING CODES: All digits from [1] to [F] are valid. [2ND] = digit will not be reported except for contact I.D.
programmable codes. For single digit reporting enter "skip" ([2
ND]) as first digit. (Default = “empty" [2ND][2ND
])
If CONT ACT I.D. format (all codes) is selected, addresses 300 to 527 (sections 1 1- 67) do not have to be programmed.
(Select Contact I.D. (all codes) - key [10] for both central station numbers at section 09 - address 038.)
4

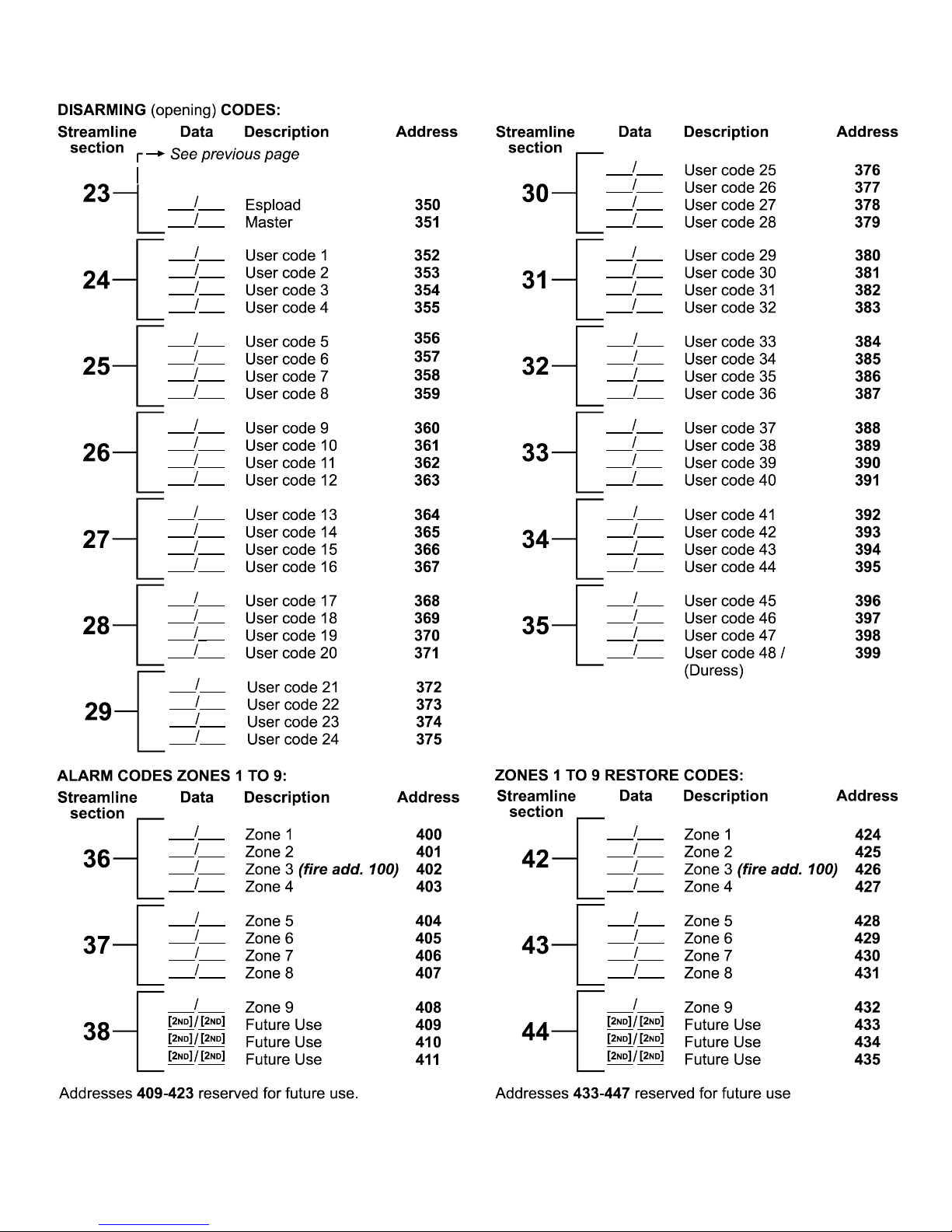

REPORTING CODES: (reset code “empty”)
5
REPORTING CODES: (reset code “empty”)
6
DECIMAL PROGRAMMING
1) Press [
ENTER]+ Installer Code (Default: 737373)
2) The [ENTER] key will flash to indicate you are in programming mode
3) Enter 3-digit address (044-061)

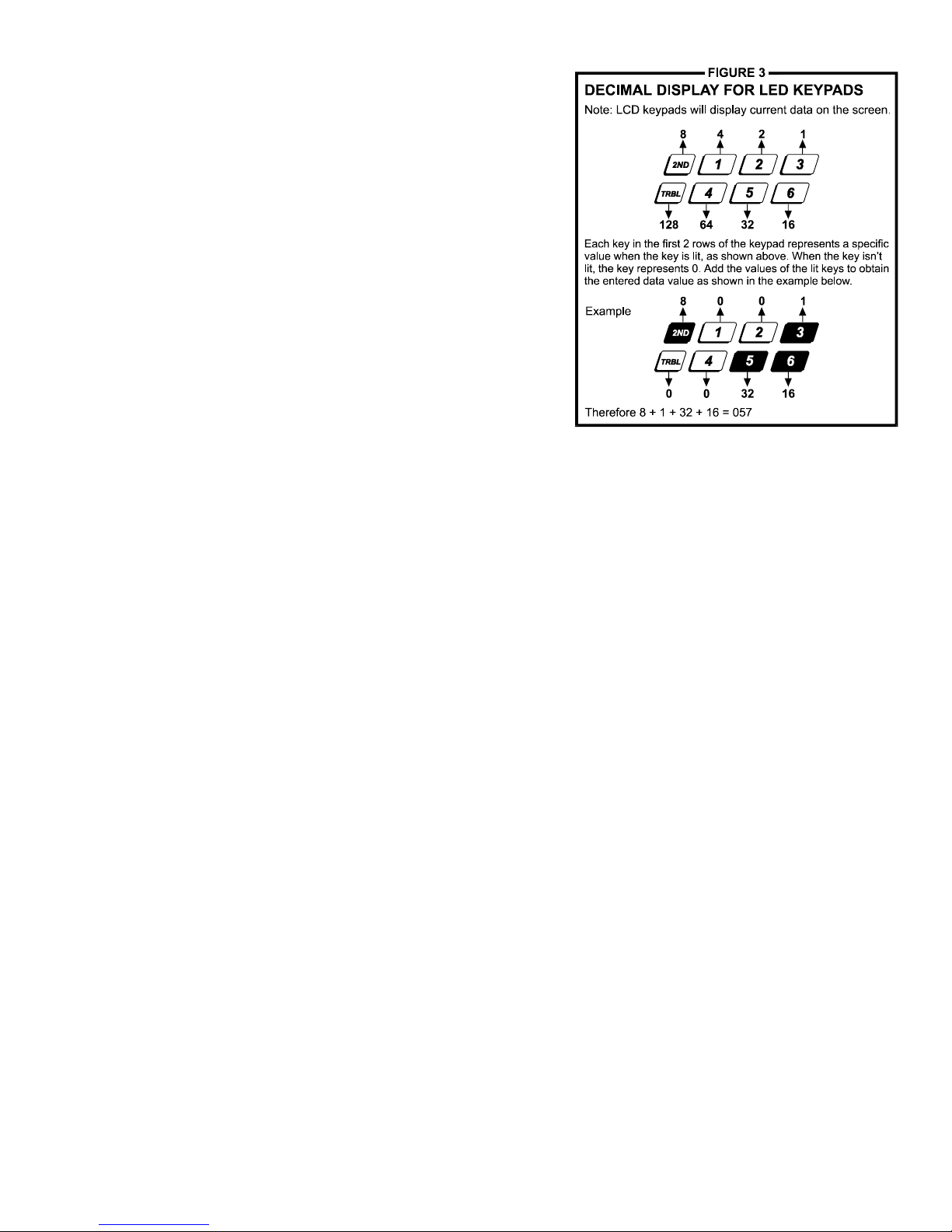

4) The keypad will now display the current 3-digit data currently saved at
this address as described in figure 3
5) Enter 3-digit data (000-255) value; after entering data you do not need
to press [
ENTER], the software will automatically save the data into the
selected address
6) Return to step 2 or press [CLEAR] to exit programming mode
044: ___/___/___ (hours) Auto arm time (between "000" and "023")
045: ___/___/___ (minutes) Auto arm time (between "000" and "059")
046: ___/___/___ (days) Auto test report every ? days (between "001"
and "255") (000 = disabled)
047: ___/___/___ (hours) Auto test report (between "000" and "023")
048: ___/___/___ (minutes) Auto test report (between "000" and "059")
049: ___/___/___ (seconds) Exit delay (factory default 60 seconds)
050: ___/___/___ (seconds) Entry delay 1 (factory default 45 seconds)
051: ___/___/___ (seconds) Entry delay 2 (factory default 45 seconds)
052: ___/___/___ (minutes) Bell cut-off time (factory default 5 minutes)
053: ___/___/___ ( x 15 mSec.) Zone speed (factory default 600 mSec.)
054: ___/___/___ (minutes) Power failure report delay (factory default 30 minutes) (000 = disabled)
055: ___/___/___ ( x 15 minutes) "No movement" report time (factory default 8 hours) (000 = disabled)
056: ___/___/___ PGM timer setting (001 to 127 for seconds and 129 to 255 for minutes) (factory default 5 seconds)
Add 128 to desired value in minutes (i.e. for 5 minutes: enter 5 + 128 = 133)
057: ___/___/___ Intellizone delay (in seconds, minimum = 10 seconds) (factory default 48 seconds)
058: ___/___/___ Installer code lock (147 = locked, 000 = unlocked)
059: ___/___/___ (seconds) Programmable delay before alarm transmission (5 to 63 seconds) (000 = disabled)
060: ___/___/___ (seconds) Recent closing delay (000 = disabled)
061: ___/___/___ Future Use
7

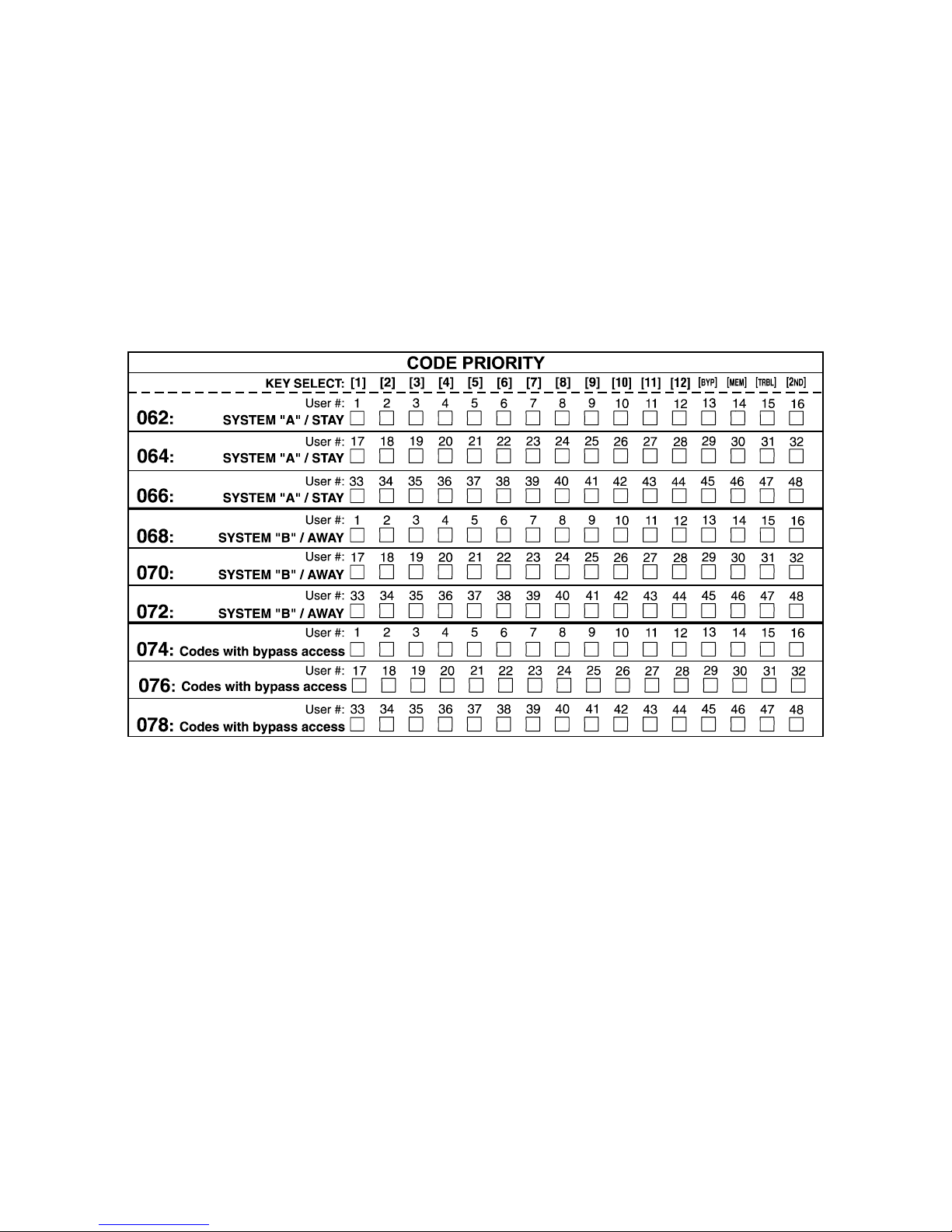

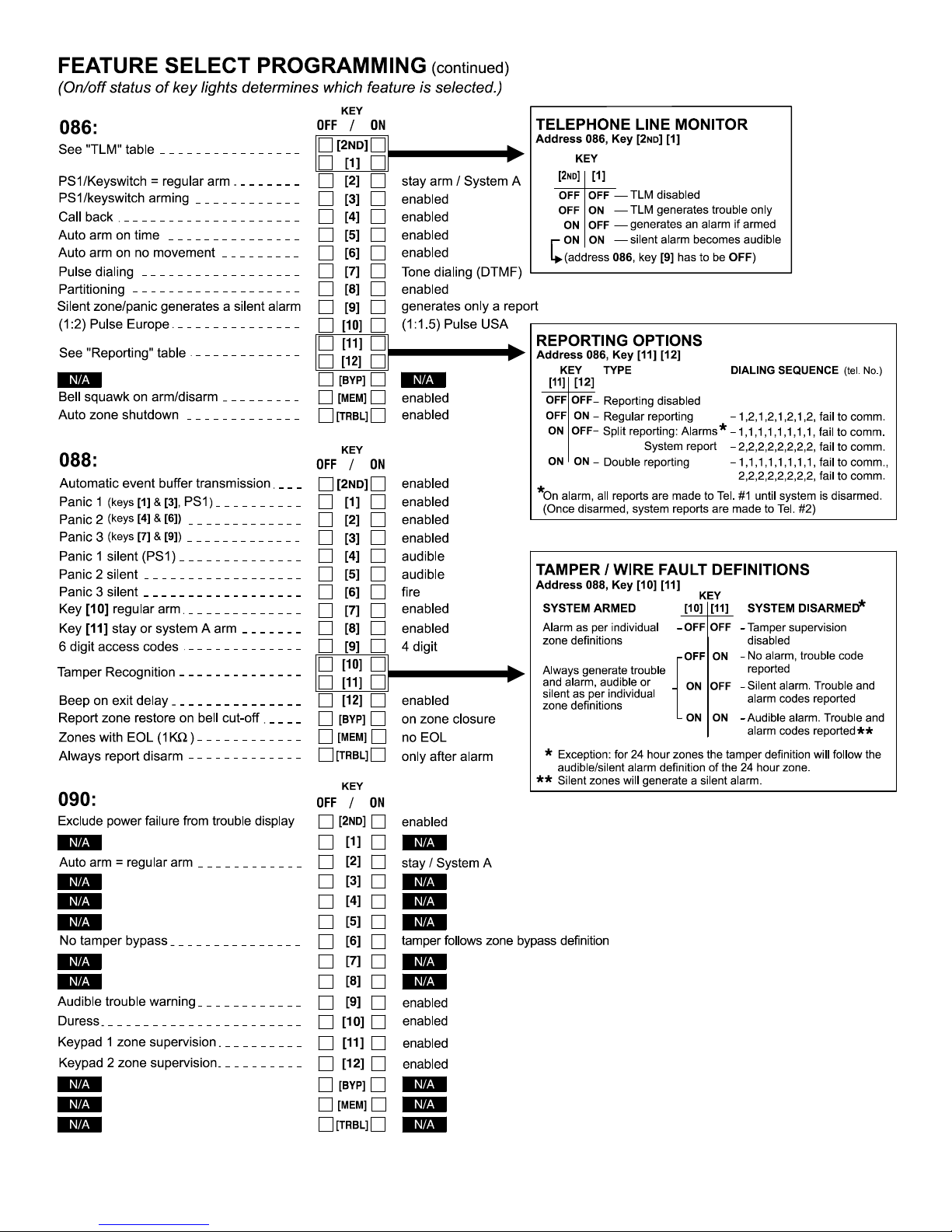

FEATURE SELECT PROGRAMMING
Addresses 062 to 126 are programmed using the Feature Select Programming method. In this method, every key on the
keypad in each address represents an option or feature. Pressing a key will display it on the keypad and pressing it again
will extinguish the key . The On/Of f status of each key determines the selected feature. To program using the Feature Select
Programming method:
1) Press [
ENTER] + Installer Code (Default: 737373)
2) The [
ENTER] key will flash to indicate you are in programming mode
3) Enter 3-digit address (062-126)
4) After entering the address, the keypad will display the feature selection status. Turn the keys On/Off by pressing the
appropriate key until the desired options are set. Then press the [
ENTER
] key to accept, there will be a confirmation
"beep" indicating the options have been accepted. The [ENTER] key will flash to indicate that the software is awaiting the
next address entry
5)
Return to step 3 to continue programming or press [CLEAR
] to exit programming mode
Addresses 080 to 085 for future use.
8
9

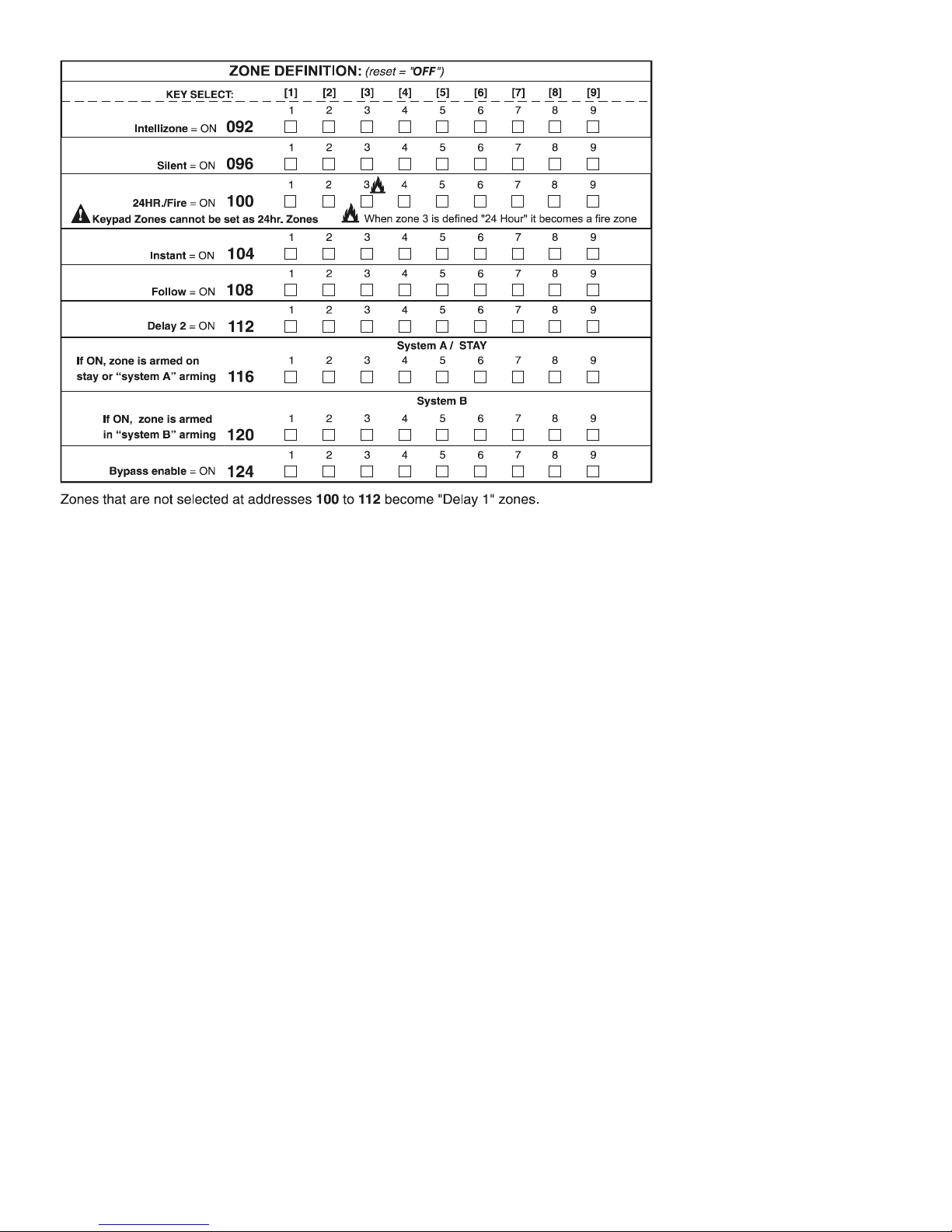

Note: Do not use the Intellizone feature and an entry delay for the same zone, otherwise an alarm may occur as a user
tries to disarm the system.
KEY ACCESS PROGRAMMING
Programs features quickly, without entering addresses or section numbers.
To activate “key access programming”, press [ENTER], followed by installer, master or user code 1. (Code required depends
on the feature you wish to access - see below.) Press the key corresponding to the desired feature.
Press [ENTER] or [CLEAR] to exit.
key
[8] Installer test mode (installer code only)
In installer test mode, a confirmation beep (intermittent) indicates test is "on", a "rejection" beep (long) indicates
test is "off". The bell will squawk during walk testing to indicate opened, functional zones.
[9] "Auto arming" time program (all 3 codes)
Key [9] flashes. Enter two digits (00 to 23) for hours + 2 digits (00 to 59) for minutes.
[MEM
] "Panel time" and clear "trouble 8" (all 3 codes)
Key [
MEM] flashes. Enter two digits (00 to 23) for hours + 2 digits (00 to 59) for minutes.
[BYP] Test report (all 3 codes)
Reporting is enabled at address 086, keys [11], [12]. Avalue must be entered at address 512, and both telephone
and account numbers must be programmed.
[TRBL] Call Espload via telephone (all 3 codes)
Panel identifier and PC password (addresses 004-007) and computer telephone number (addresses 008-015) must
be programmed.
[AWAY] Answer Espload (all 3 codes)
This feature is available when using the ADP-1 adapter. In Espload, "blind dial" must be activated in "modem
setup" section, and panel phone number programmed (works also without ADP-1).
[
STAY] Cancel communication attempts (master code and user 1 can only stop calls to Espload)
Until next reportable event (installer code - all communications)
When communicating with Espload, it is impossible to enter programming mode.
10

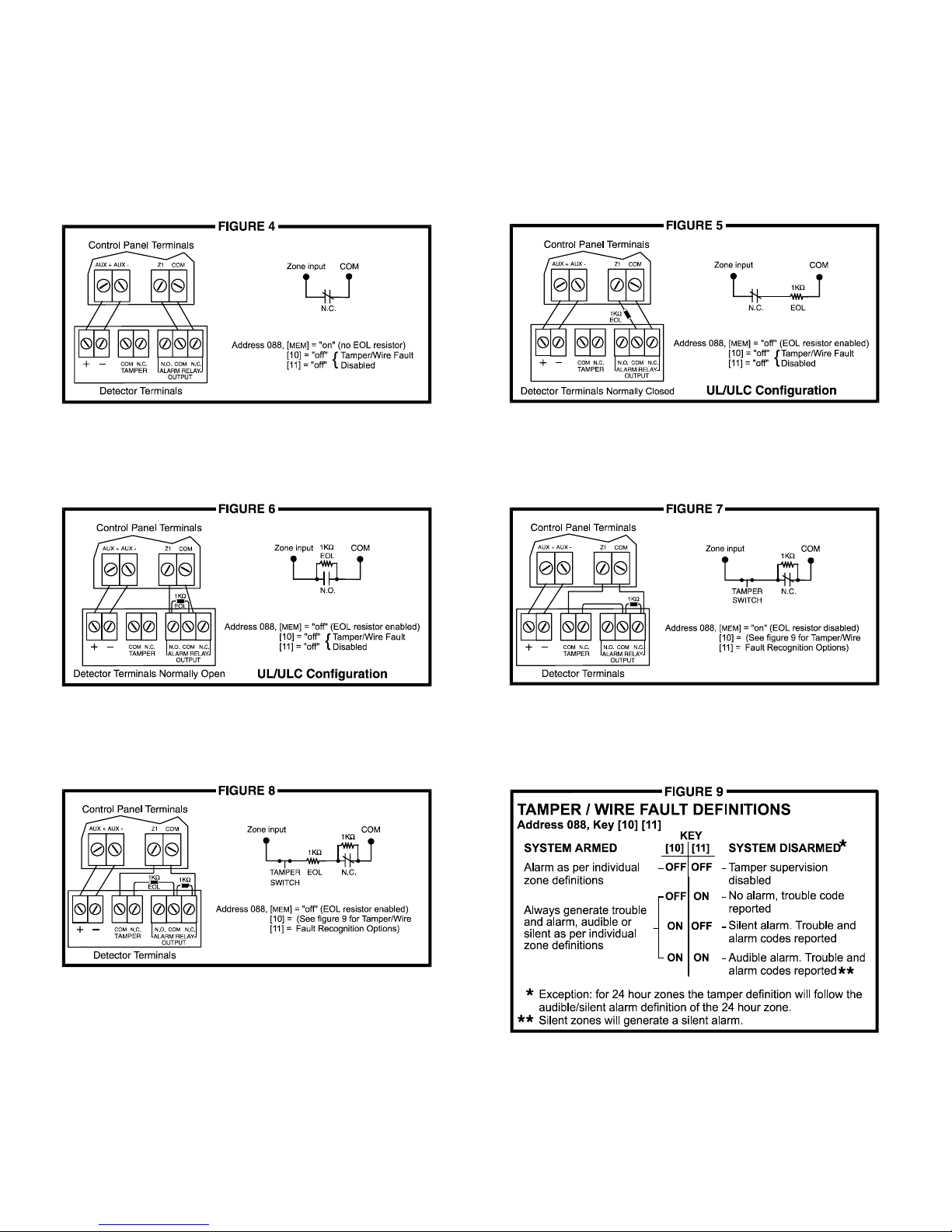

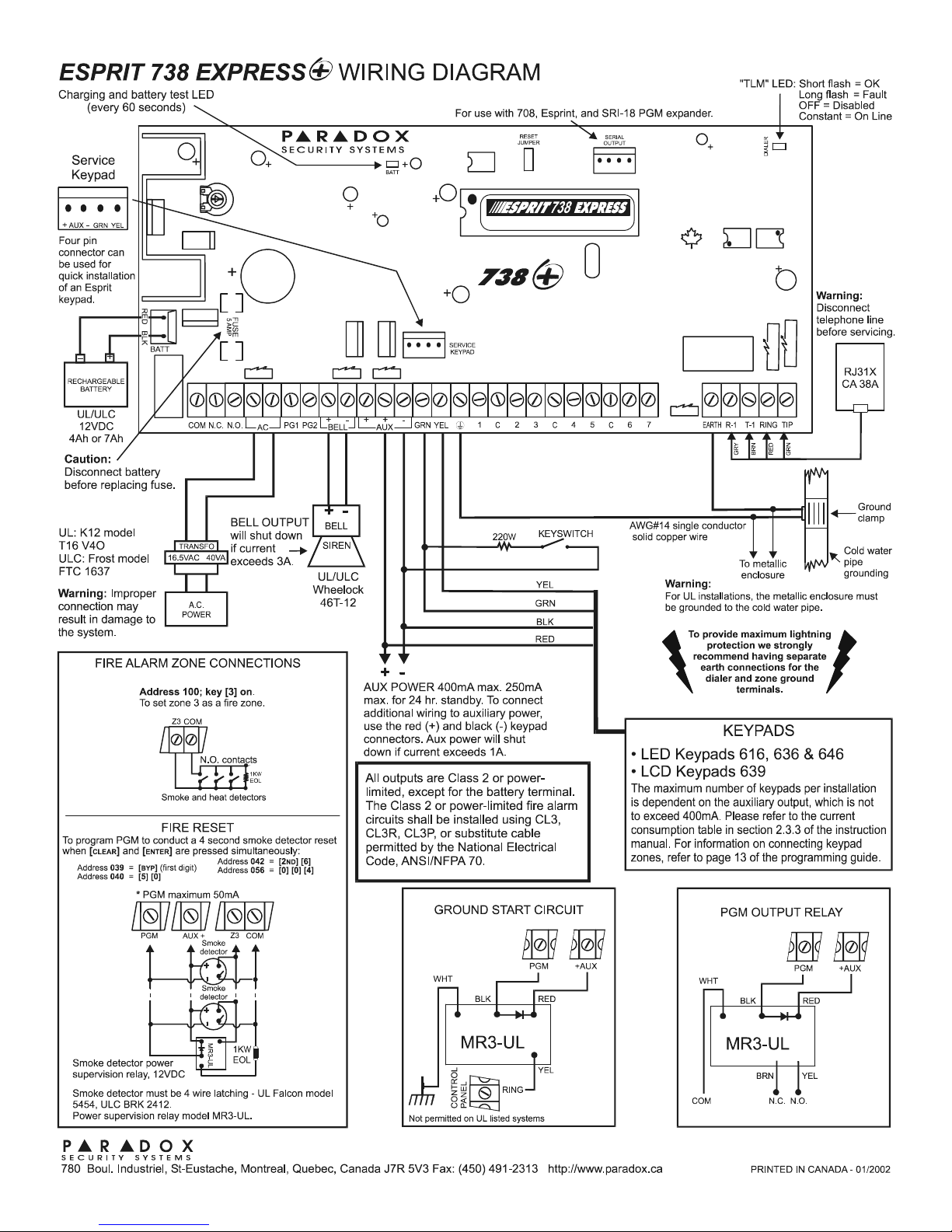

CONNECTION DIAGRAMS
The system hardware will recognize the following zone conditions:
SINGLE ZONE CONNECTIONS
N.C. Contacts, Without EOL Resistor N.C. Contacts, With EOL Resistor (UL/ULC)
N.O. Contacts, With EOL Resistor (UL/ULC) N.C Contacts, Without EOL Resistor, With Tamper
Recognition
N.C. Contacts, With EOL Resistor, With Tamper and
Wire Fault Recognition (UL/ULC)
11

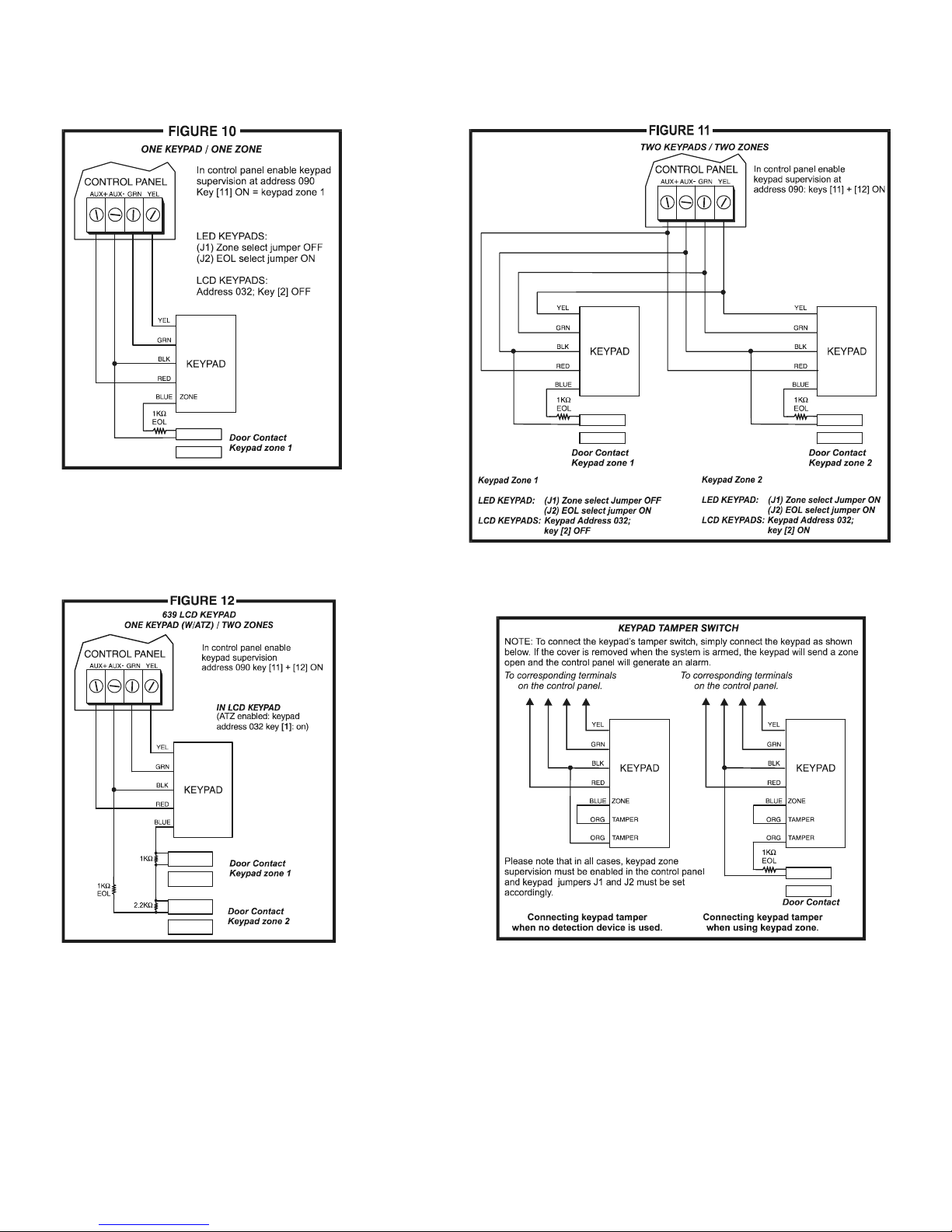

KEYPAD ZONE CONNECTION DIAGRAMS
Note: Keypad zones always use (1K
OHM) EOL resistor.
12
