Panasonic TX-P65VT50J, TX-P50VT50J Operating Instructions

Page 1

Operating Instructions

Plasma Television

Model No.

TX-P50VT50J TX-P55VT50J TX-P65VT50J

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.

English

TQB0E2267U

Page 2

Do not display any still part of the image for a long period

In such cases the still part of the image remains dimly on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still image parts:

●

Channel number, channel logo and other logos

●

Still or moving pictures viewed in 4:3 or 14:9 aspect ratio

●

Video games

●

Images from PC

o avoid image retention, the contrast is lowered automatically and the screen becomes dim after a few minutes if

T no signals are sent or no operations are performed. (p. 116)

Notice for DVB / Data broadcasting / IPTV functions

●

This TV is designed to meet the standards (as of August, 2011) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial services, DVB-C (MPEG2 and MPEG4-A MPEG4-AVC(H.264)) digital satellite services. Consult your local dealer for availability of DVB-T or DVB-S services in your area. Consult your cable service provider for availability of DVB-C services with this TV.

●

This TV may not work correctly with the signal which does not meet the standards of DVB-T, DVB-C or DVB-S.

●

Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.

●

Not all CI modules work properly with this TV. Consult your service provider about the available CI module.

●

This TV may not work correctly with CI module that is not approved by the service provider.

●

Additional fees may be charged depending on the service provider.

●

The compatibility with future services is not guaranteed.

●

Check the latest information on the available services at the following website. (English only)

http://panasonic.jp/support/global/cs/tv/

VC(H.264)) digital cable services and DVB-S (MPEG2 and

Page 3

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral devices.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Rovi Corporation and/or its subsidiaries and related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the GUIDE Plus+/Rovi Guide system and cannot guarantee service availability in your area. In no event shall Rovi Corporation and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the GUIDE Plus+/Rovi Guide system.

“Full HD 3D Glasses™” Logo indicates compatibility between TV products and 3D Eyewear which are compliant with the “Full HD 3D Glasses™” format, and does not indicate picture quality of TV products.

Be Sure to Read

Safety Precautions ···············································4

Quick Start Guide

Accessories / Options ···········································6

Identifying Controls ·············································10

Basic Connection················································ 13

Auto Setup ··························································16

Enjoy your TV!

Basic

Using “VIERA Connect” ······································20

Watching TV ·······················································21

Using TV Guide ·················································· 25

Viewing Teletext ·················································· 28

Watching External Inputs ····································30

Viewing 3D images ·············································32

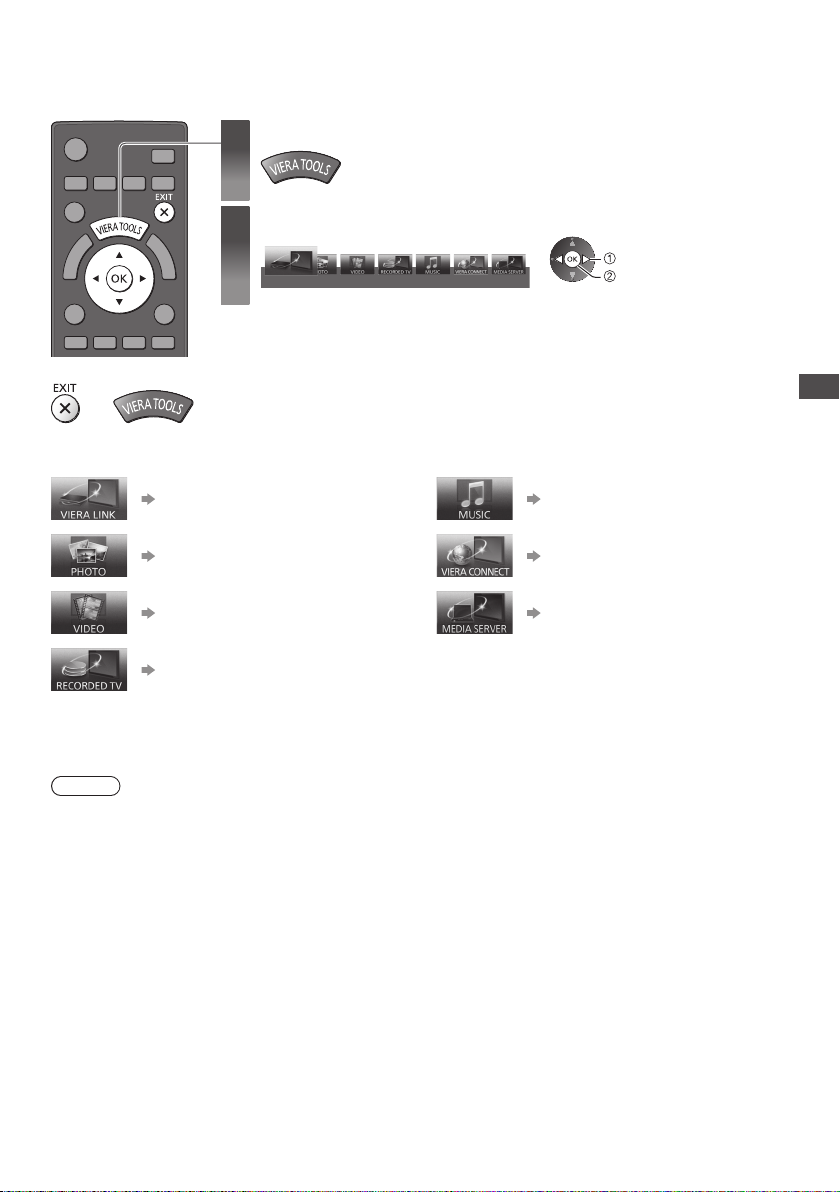

How to Use VIERA TOOLS ································39

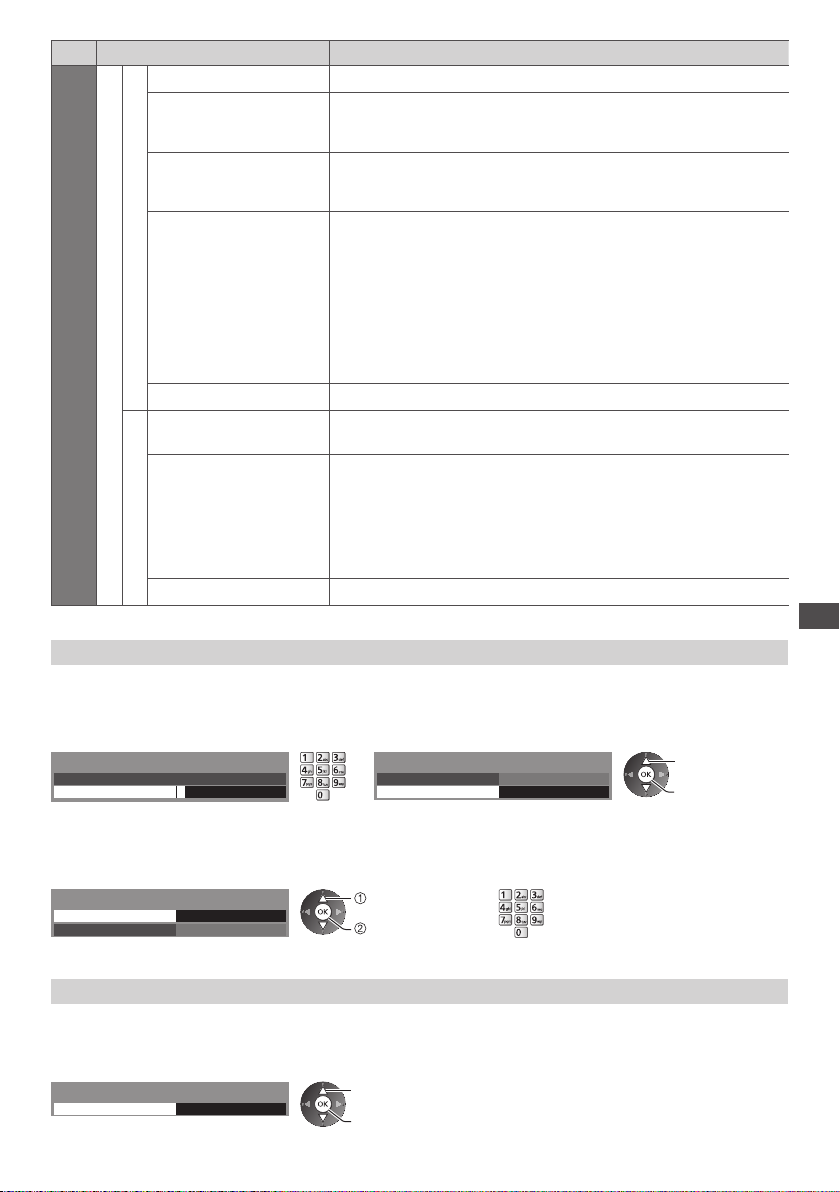

How to Use Menu Functions ······························40

Advanced

Retuning from Setup Menu································· 51

Tuning and Editing Channels ·····························55

Timer Programming ············································59

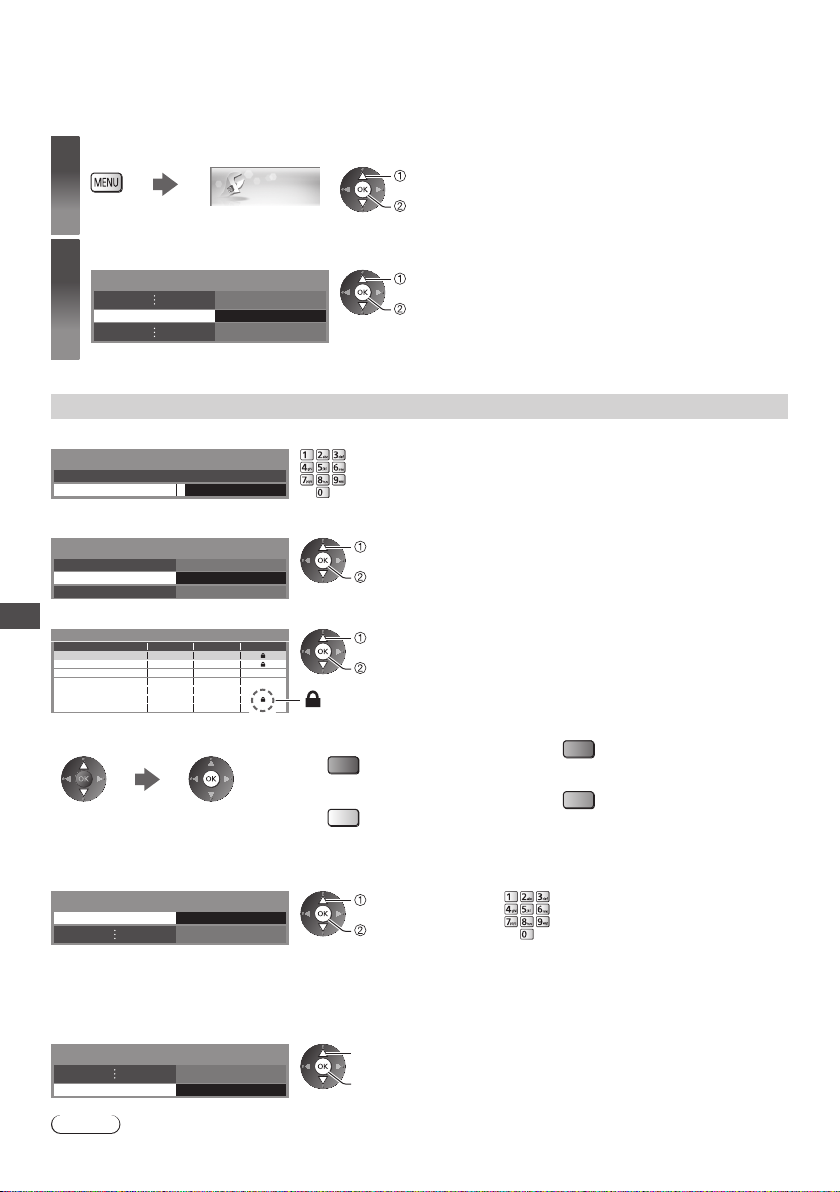

Child Lock ···························································62

Using Data Service Application ··························63

Using Common Interface ····································64

Shipping Condition ·············································65

Updating the TV Software ··································66

Multi Window ······················································67

Advanced Picture Settings ·································68

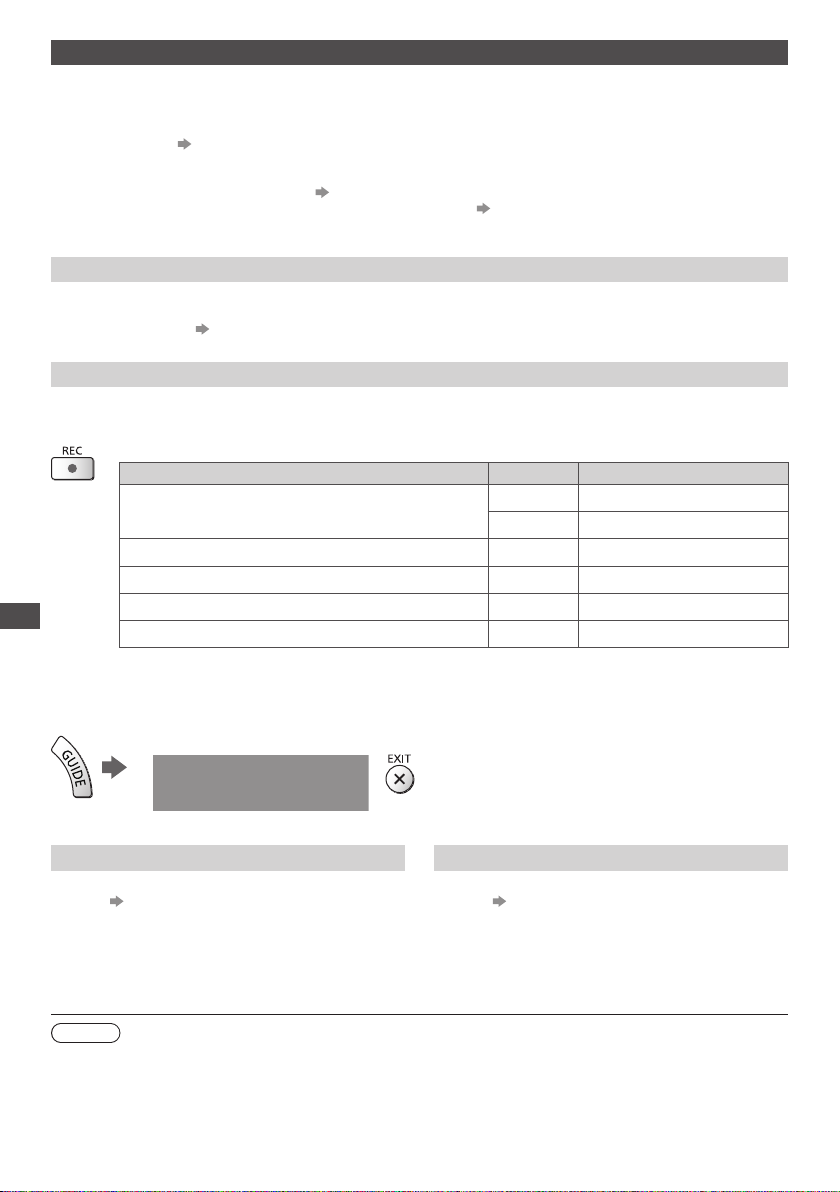

USB HDD / SD Card Recording ·························70

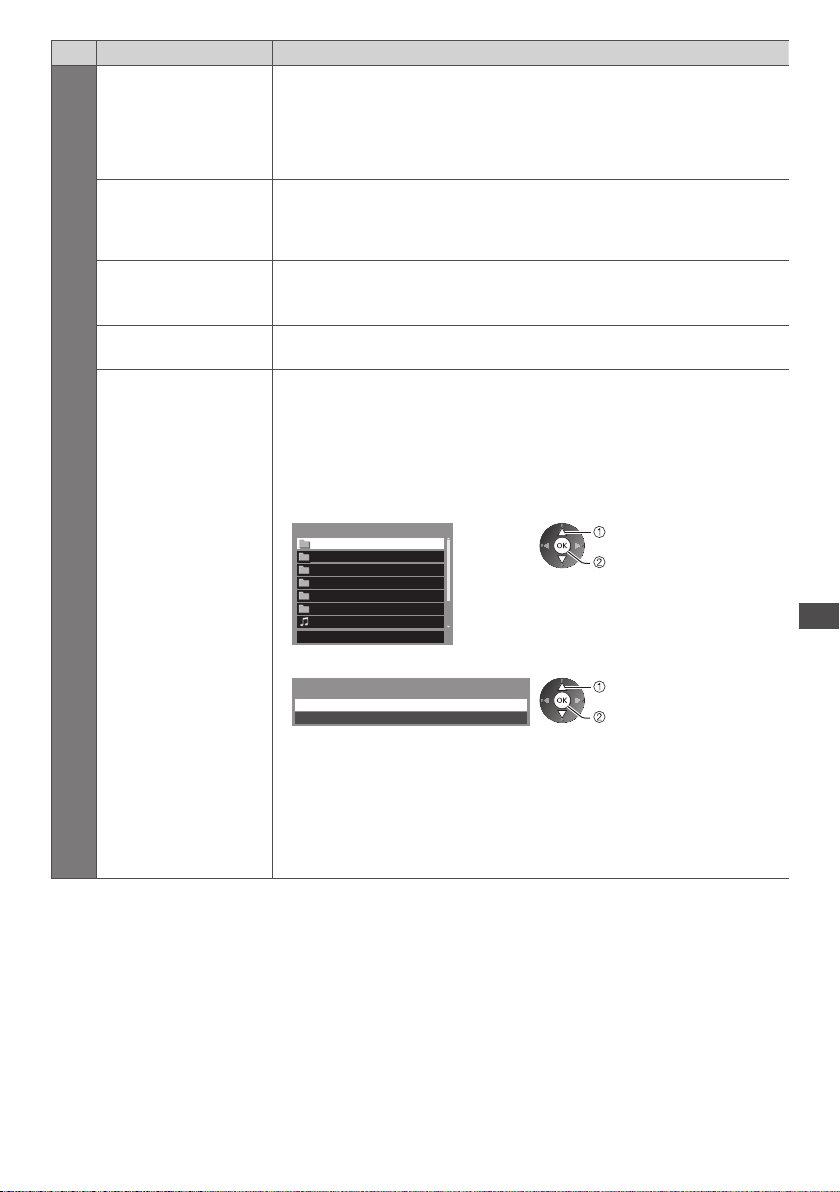

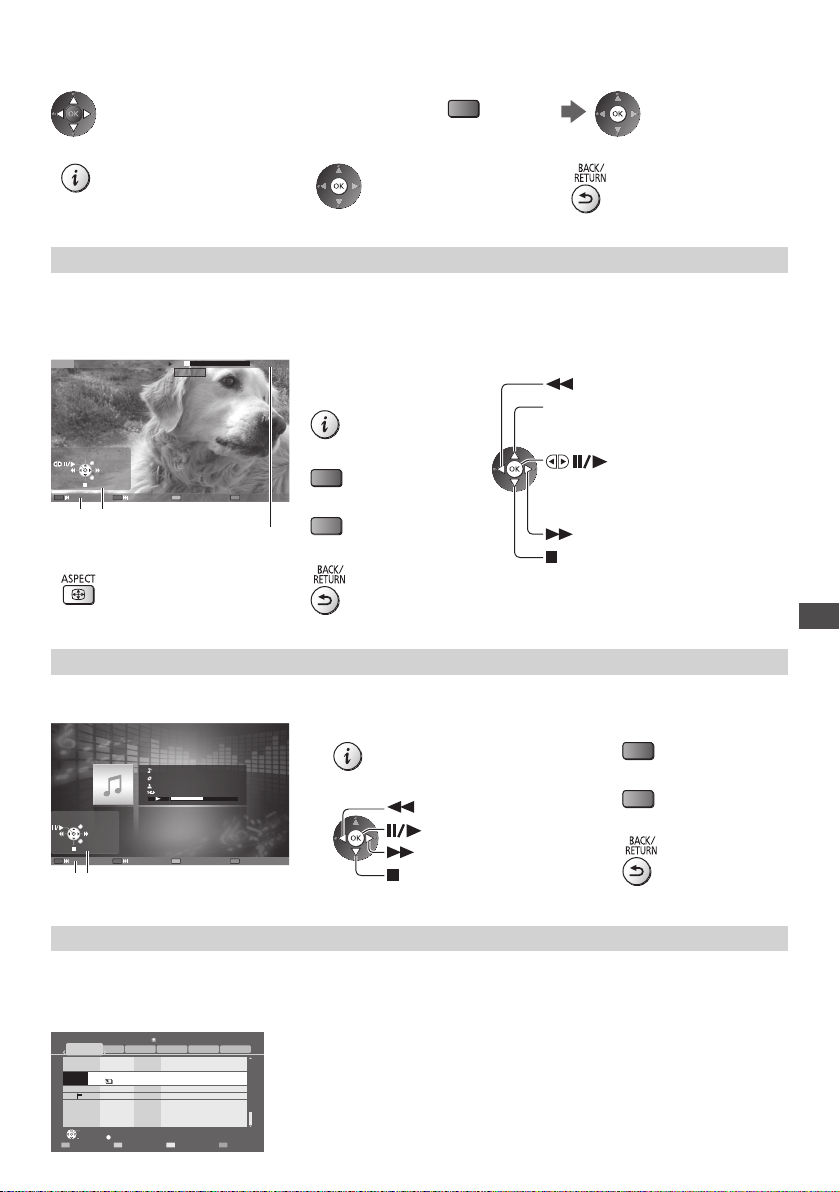

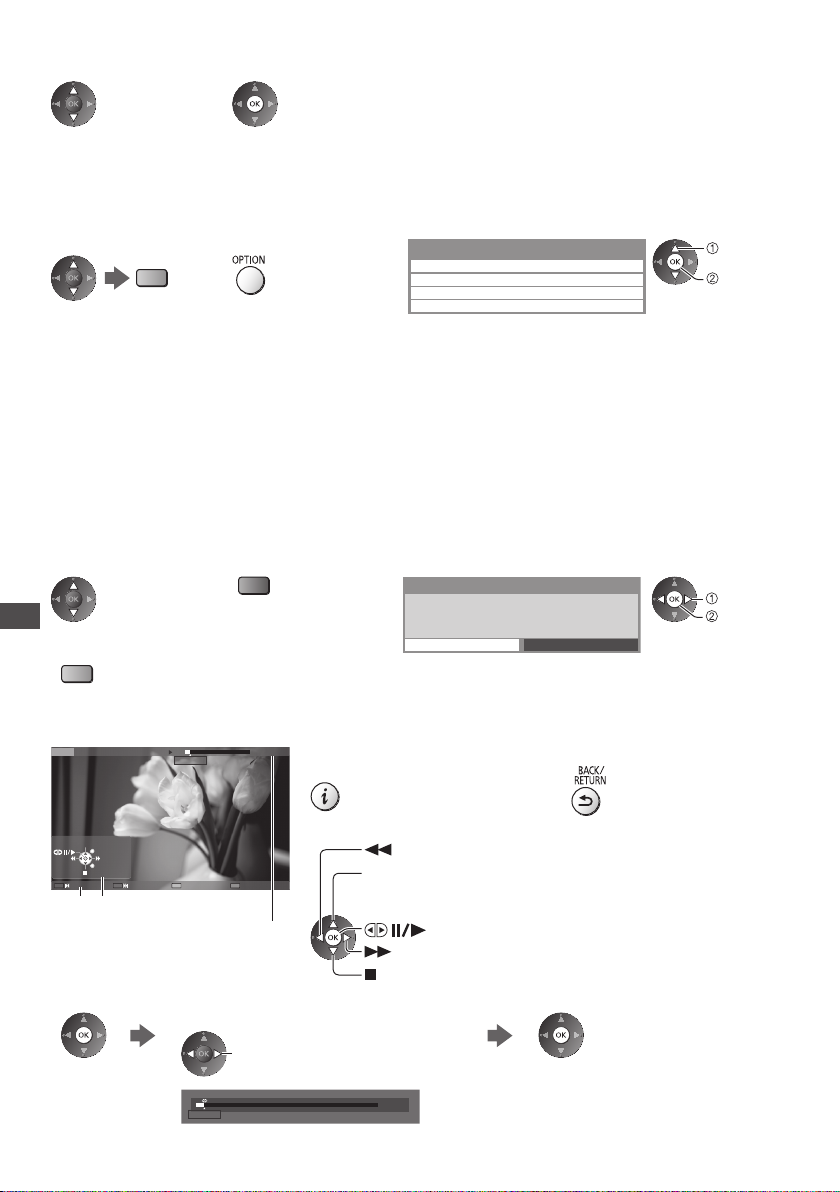

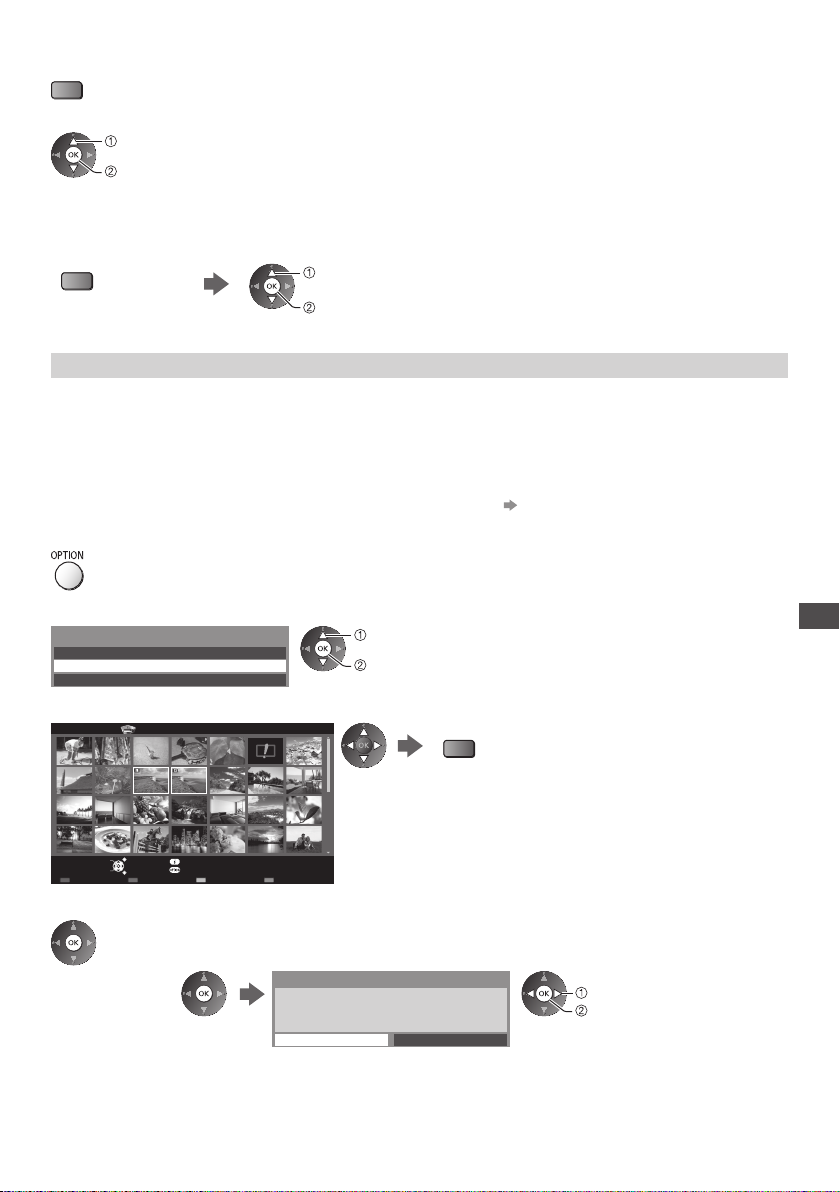

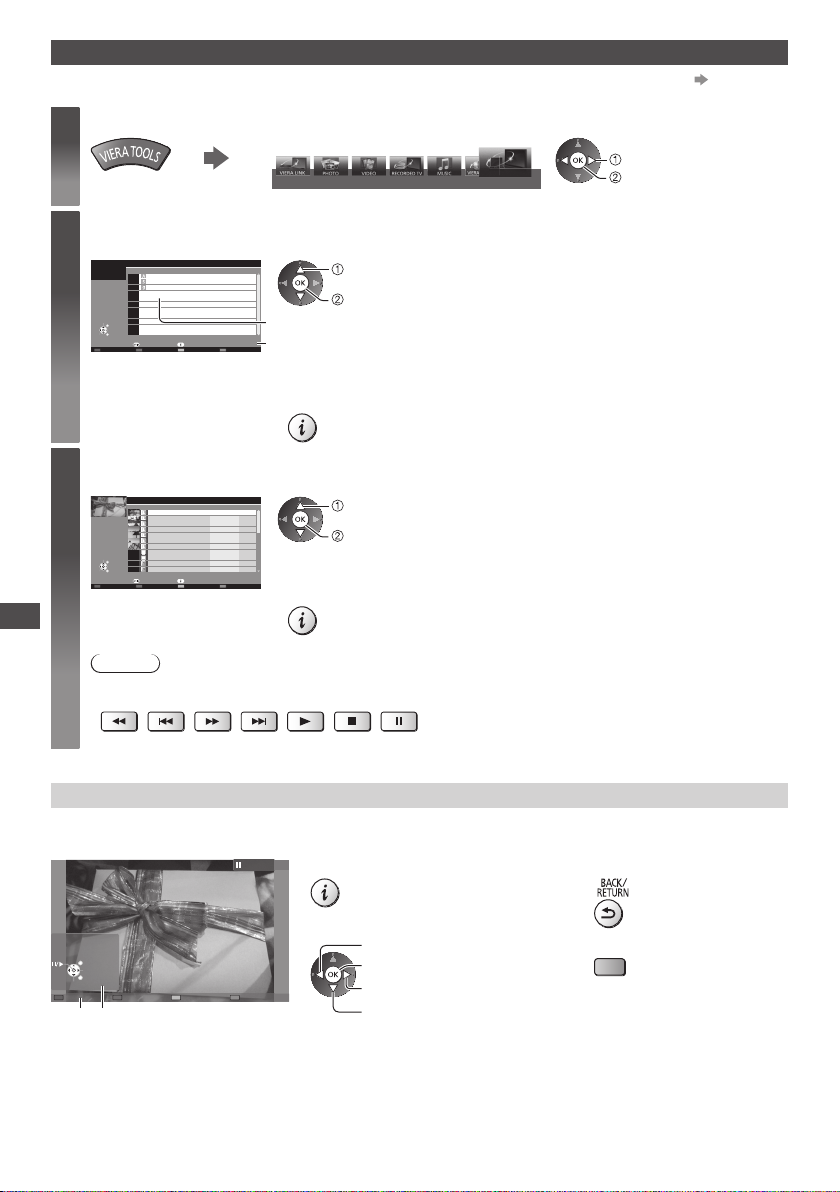

Using Media Player ············································74

Using Network Services (DLNA / VIERA Connect) ····································85

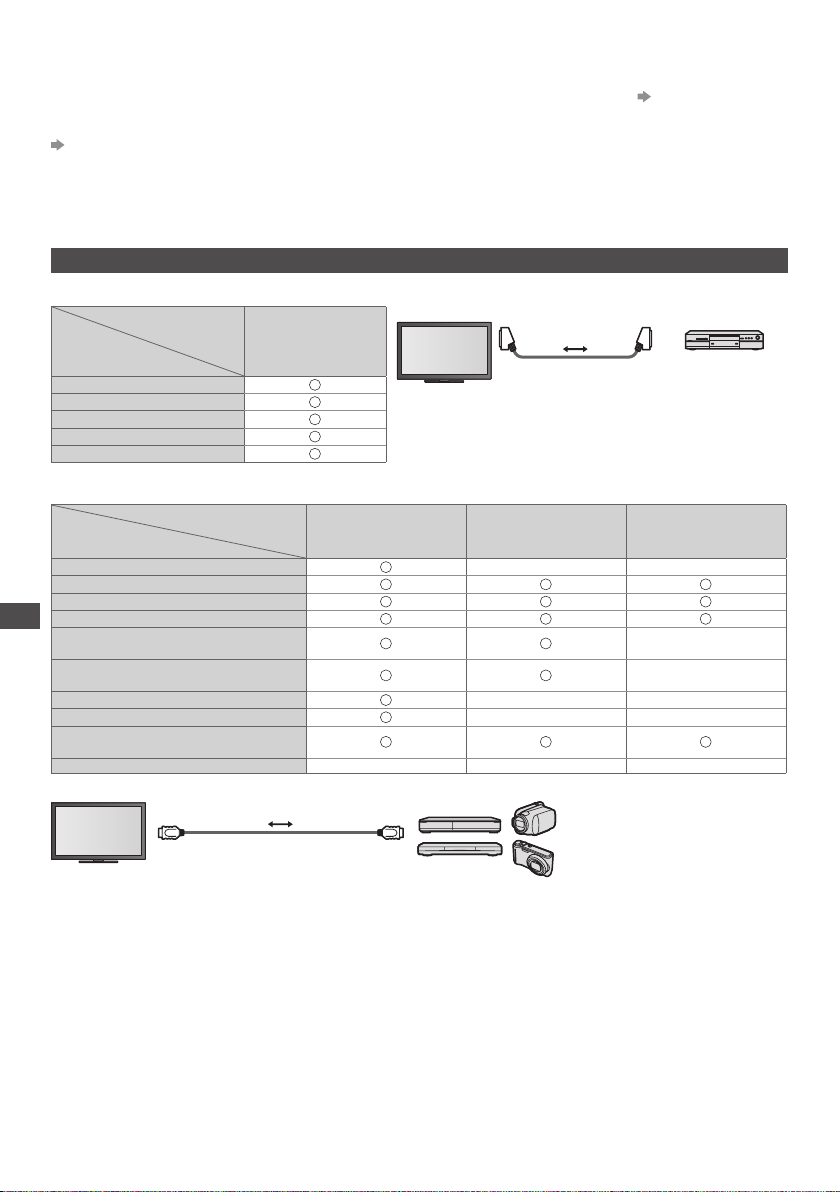

Link Functions (Q-Link / VIERA Link) ·················96

External Equipment ··········································104

Others

Technical Information········································107

FAQs································································· 116

Maintenance ····················································· 119

Licence ····························································· 120

Specifications ···················································121

Page 4

Safety Precautions

Warning

Safety Precautions

Handling the mains plug and lead

●

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)

●

Ensure that the mains plug is easily accessible.

●

Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing

•

connection.

●

Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

●

Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.)

●

Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)

Do not move the TV with the lead plugged in the socket outlet.

•

Do not place a heavy object on the lead or place the lead near a high-temperature object.

•

Do not twist the lead, bend it excessively or stretch it.

•

Do not pull on the lead. Hold onto the mains plug body when disconnecting the lead.

•

Do not use a damaged mains plug or socket outlet.

•

If you find any abnormality, remove the mains plug immediately!

Power source

●

This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.

Do not remove covers and NEVER modify the TV yourself

●

Do not remove the rear cover as live parts are accessible when it is removed. serviceable parts inside. (High-voltage components may cause serious electrical shock.)

●

Have the TV checked, adjusted, or repaired at your local Panasonic dealer.

There are no user

Do not expose to direct sunlight and other sources of heat

●

Avoid exposing the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

AC 220-240 V 50 / 60 Hz

Do not expose to rain or excessive moisture

●

To prevent damage which might result in electric shock or fire, do not expose this moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

TV to rain or excessive

Do not insert foreign objects into the TV

●

Do not allow any objects to drop into the TV through the air vents. (Fire or electrical shock may result.)

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base

●

The TV may fall off or tip over.

Use only the dedicated pedestals / mounting equipment

●

Using an unapproved pedestal or other fixtures may make the your local Panasonic dealer to perform setup.

●

Use approved pedestals (p. 8) / wall-hanging brackets (p. 7).

TV unstable, risking injury. Be sure to ask

Do not allow children to handle SD Card

●

As with any small object, SD Cards can be swallowed by young children. Please remove SD Card immediately after use and store out of reach of children.

Page 5

Radio waves

●

Do not use the TV, 3D Eyewear and VIERA Touch Pad Controller in any medical institutions or locations with medical equipment. Radio waves from the the medical equipment and cause accidents due to the malfunction.

●

Do not use the TV, 3D Eyewear and VIERA Touch Pad Controller near any automatic control equipment such as automatic doors or fire alarms. Radio waves from the TV, 3D Eyewear and VIERA Touch Pad Controller may interfere with the automatic control equipment and cause accidents due to the malfunction.

●

Keep the distance at least 22 cm from the built-in wireless LAN part, 3D Eyewear and VIERA Touch Pad Controller when you have a cardiac pacemaker pacemaker.

●

Do not disassemble or alter the built-in wireless LAN, 3D Eyewear and VIERA Touch Pad Controller in any way.

TV, 3D Eyewear and VIERA Touch Pad Controller may interfere with

. Radio waves from the part may interfere with the operation of the

Caution

When cleaning the TV, remove the mains plug

●

Cleaning an energized TV may cause electrical shock.

When the TV is not going to be used for a long period of time, remove the mains plug

●

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Transport only in upright position

●

Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry

Allow sufficient space around the TV for

Do not block the rear air vents

●

Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical shock.

Do not expose your ears to excessive volume from the headphones

●

Irreversible damage can be caused.

Do not apply strong force or impact to the display panel

●

This may cause damage resulting in injury.

The TV is heavy. Handle the TV by 2 or

more people. Support as shown to avoid injury by the TV tipping or falling.

radiated heat

Minimum distance

●

When using the pedestal, keep the space between the bottom of the TV and

the surface where the TV is set.

●

In case of using

(cm)

Wall-hanging bracket, follow the manual of it.

Safety Precautions

Built-in wireless LAN

●

To use the built-in wireless LAN, an access point needs to be obtained.

●

Do not use the built-in wireless LAN to connect to any wireless network (SSID∗) for which you do not have usage rights. Such networks may be listed as a result of searches. However

∗

SSID is a name for identifying a particular wireless network for transmission.

●

Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.

●

Data transmitted and received over radio waves may be intercepted and monitored.

●

The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference, keep the mobile phones and the devices that use 2.4 GHz and 5 GHz signals when using the built-in wireless LAN.

●

When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV off with Mains power On / Off switch, then turn it on again.

●

Additional information for built-in wireless LAN and access point may be on the following website. (English only)

http://panasonic.jp/support/global/cs/tv/

TV away from the devices such as other wireless LAN devices, microwaves,

Bluetooth® wireless technology

●

The TV, 3D Eyewear and VIERA Touch Pad Controller use the 2.4 GHz radio frequency ISM band (Bluetooth avoid malfunctions or slow response caused by radio wave interference, keep the TV, 3D Eyewear and VIERA Touch Pad Controller away from the devices such as other wireless LAN devices, other Bluetooth devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

, using them may be regarded as illegal access.

). To

Page 6

Accessories / Options

Standard accessories

Remote Control

●

N2QAYB000715

Quick Start Guide

VIERA Touch Pad Controller

●

N2QBYB000015

(p. 7, 11)

Pedestal

(p. 8)

(TX-P50VT50J) (TX-P55VT50J, TX-P65VT50J)

Mains lead

(p. 13)

Batteries (4)

●

(p. 7)

3D Eyewear (2)

●

N5ZZ00000257

(p. 33)

Clamper

(p. 15)

Accessories / Options

Ferrite core (2)

(Large size)

(p. 15)

Use the Ferrite cores to comply with the EMC standard.

Terminal adaptors

●

AV1 (SCART) adaptor

(p. 14)

●

Accessories may not be placed all together. Take care not to throw them away unintentionally.

●

This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally

Ferrite core

(Middle size)

(p. 104)

●

AV2 (COMPONENT / VIDEO) adaptor

(p. 104, 105)

. Keep these parts out of reach of young children.

Ferrite core

(Small size)

(p. 105)

Operating Instructions

Pan European Guarantee Card

Optional accessories

Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories.

3D Eyewear

(Rechargeable type)

●

TY-ER3D4ME

●

TY-ER3D4SE

Communication Camera

●

TY-CC20W

●

If you need 3D Eyewear additionally, please purchase this optional accessory.

●

Use Panasonic 3D Eyewear supporting Bluetooth wireless technology.

●

For more information (English only): http://panasonic.net/avc/viera/3d/eu.html

●

This camera can be used on VIERA Connect (p. 20, 86).

●

Depending on the area, this optional accessory may not be available. For details, consult your local Panasonic dealer

Page 7

Wall-hanging bracket

●

TY-WK4P1RW (TX-P50VT50J)

●

TY-WK5P1RW (TX-P55VT50J)

●

TY-WK6P1RW (TX-P65VT50J)

a: 400 mm b: 300 mm

●

Tilting angle for this TV: 0 (vertical) to 10 degrees

Rear of the TV

Holes for wall-hanging bracket installation

●

Tilting angle for this TV: 0 (vertical) to 20 degrees

Depth of screw:

●

TX-P50VT50J, TX-P55VT50J

minimum 10 mm, maximum 16 mm

Diametre: M8

Screw for fixing the (not supplied with the TV)

(View from the side)

a: 500 mm b: 300 mm

●

Tilting angle for this TV: 0 (vertical) to 10 degrees

●

TX-P65VT50J

minimum 17 mm, maximum 23 mm

TV onto the wall-hanging bracket

a: 684 mm b: 300 mm

Warning

●

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’ licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.

●

Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.

●

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

●

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

●

To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

s performance and safety, be absolutely sure to ask your dealer or a

Installing / removing batteries

Caution

●

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control / touch pad

controller

●

Do not mix old and new batteries.

●

Do not mix different battery types (such as alkaline and manganese batteries).

●

Do not use rechargeable (Ni-Cd) batteries.

●

Do not burn or break up batteries. Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

●

Do not disassemble or modify the remote control / touch pad controller.

■ Remote Control

Pull open

Hook

Note the correct polarity

(+ or -)

Quick Start Guide

Accessories / Options

■ VIERA Touch Pad Controller

Slide open

Note the correct polarity (+ or -)

Page 8

Attaching / removing the pedestal

)

Warning

Do not disassemble or modify the pedestal.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than the one provided with this TV.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

Quick Start Guide

●

If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately

During set-up, make sure that all screws are securely tightened.

●

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

●

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

Accessories / Options

●

If two or more people are not present, the TV may be dropped, and personal injury may result.

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure. (p. 9)

●

Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

Assembly screw

(black)

(5) (TX-P50VT50J) (1)

TX-P55VT50J

(

TX-P65VT50J

M4 × 10

Neck

●

TXFBL5Z0084 (TX-P50VT50J)

●

TXFBL5Z0087

TX-P55VT50J

(

TX-P65VT50J

■ Assembling the pedestal

Insert the tabs of the neck into the base

firmly

Tabs (bottom)

Assembly screw

(silver)

(7) (TX-P50VT50J) (12)

TX-P55VT50J

(

TX-P65VT50J

M5 × 16

Cover

●

TXFBL5Z0092 (TX-P50VT50J)

●

TXFBL5Z0057

TX-P55VT50J

(

TX-P65VT50J

Turn the base over and fix the neck securely

with assembly screws

●

Do not hold the neck when turning over the base.

Bracket

●

TBL5ZA3254 (TX-P50VT50J)

●

TBL5ZA3200

Base

●

TBL5ZX0243 (TX-P50VT50J)

●

TBL5ZX0327 (TX-P55VT50J)

●

TBL5ZX0426 (TX-P65VT50J)

(3) (TX-P50VT50J) (4) (TX-P55VT50J, TX-P65VT50J)

TX-P55VT50J

(

TX-P65VT50J

TX-P50VT50J

Screw hole

Back of the base

TX-P55VT50J

TX-P65VT50J

Page 9

Attach the bracket to the tabs of the neck

and fix with assembly screws

Tabs (top)

Attach the cover and fix securely with assembly

screw

Quick Start Guide

■ Securing the TV

Use the assembly screws (TX-P50VT50J) / (TX-P55VT50J, TX-P65VT50J) to fasten securely.

●

Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.

●

Carry out the work on a horizontal and level surface.

Arrow mark

(TX-P50VT50J) / (TX-P55VT50J, TX-P65VT50J)

Hole for pedestal installation

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Remove the assembly screws 2 Pull out the pedestal from the TV. 3 Remove the assembly screw from the cover. 4 Remove the assembly screws from the bracket.

5 Remove the assembly screws from the back of the base and pull out the neck.

Adjusting the panel to your desired angle (TX-P50VT50J)

●

Do not place any objects within the full rotation range.

(TX-P50VT50J) / (TX-P55VT50J, TX-P65VT50J) from the TV.

Accessories / Options

10°

(View from the top)

10°

Page 10

Identifying Controls

Remote Control

1 2 3

Quick Start Guide

4 5

Identifying Controls

10 11

Standby On / Off switch

●

Switches TV on or off standby.

3D button (p. 36)

●

Switches the viewing mode between 2D and 3D.

[Main Menu] (p. 40)

●

Press to access Picture, Sound, Network, Timer and Setup Menus.

Information (p. 22)

●

Displays channel and programme information.

VIERA TOOLS (p. 39)

●

Displays some special feature icons and accesses easily.

INTERNET ([VIERA Connect]) (p. 20, 86)

●

Displays VIERA Connect home screen.

●

Confirms selections and choices.

●

Press after selecting channel positions to quickly change channel.

●

Displays the Channel List.

21 22

[Option Menu] (p. 23)

●

Easy optional setting for viewing, sound, etc.

Coloured buttons

(red-green-yellow-blue)

●

Used for the selection, navigation and operation of various functions.

Sound Mute

●

Switches sound mute on or off.

Teletext (p. 28)

●

Switches to teletext mode.

Volume Up / Down

Numeric buttons

●

Changes channel and teletext pages.

●

Sets characters.

●

When in Standby mode, switches TV on (press for about 1 second).

Surround (p. 44)

●

Switches surround sound setting.

Light

●

Lights the buttons for about 5 seconds (except the buttons “25”).

Input mode selection

●

TV - switches DVB-S / DVB-C / DVB-T / Analogue mode. (p. 21)

●

AV - switches to AV input mode from Input Selection list. (p. 30)

Exit

●

Returns to the normal viewing screen.

TV Guide (p. 25)

Cursor buttons

●

Makes selections and adjustments.

Return

●

Returns to the previous menu / page.

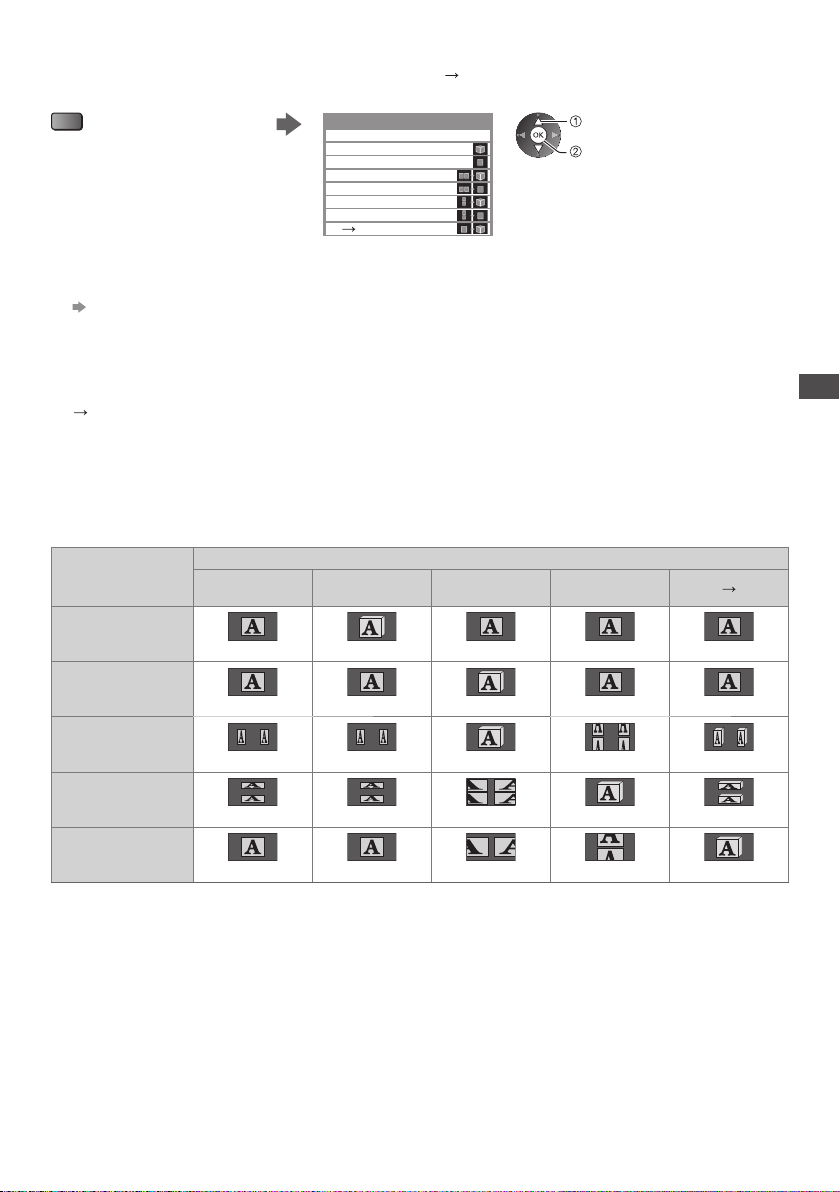

Aspect (p. 24)

●

Changes aspect ratio.

Subtitles (p. 22)

●

Displays subtitles.

Channel Up / Down

Last view (p. 24)

●

Switches to previously viewed channel or input mode.

Operations for contents, connected equipment,

etc. (p. 31, 73, 75, 92, 102)

Page 11

VIERA Touch Pad Controller

This touch pad controller is designed for the convenient operations, especially, on VIERA Connect or internet contents. You can operate the TV intuitively with this controller.

●

The touch pad controller can be used by registering to this TV with Bluetooth wireless technology. Setup screen to register will appear in “Auto Setup” for first using the TV. (p. 19)

●

After registering, you can operate the TV without pointing this controller at the TV (except Standby On / Off switch).

●

To use Standby On / Off switch, point the controller directly at the TV's remote control signal receiver (p. 12) because it works with the infrared. (Y

∗

The behaviour may vary depending on the mode or content.

ou can operate the switch without registration.)

Standby On / Off switch

●

∗

Same function of the remote control button 1 (p. 10).

Touch pad (see below)

3 4

Exit

●

Same function of the remote control button 17 (p. 10).

VIERA TOOLS / On-screen remote control

●

VIERA TOOLS: Same function of the remote control button 5 (p. 10).

●

On-screen remote control: Press and hold to display the remote control GUI (Graphical User Interface). Press again to move the position of GUI. (To change the page of GUI, slide your finger to the left / right on the touch pad.)

Volume Up / Down

●

Same function of the remote control button 12 (p. 10).

[Option Menu]

Return

●

Same function of the remote control button 20 (p. 10).

Channel Up / Down

●

Same function of the remote control button 23 (p. 10).

INTERNET ([VIERA Connect])

●

Same function of the remote control button 6 (p. 10).

■ Touch Pad

Quick Start Guide

Identifying Controls

●

Tap the centre of the pad for “OK”.

●

Slide your finger to move the cursor (on internet contents or [Cursor Settings] in [VIERA Controller] (p. 46)), select the item, adjust levels, etc.

Touch Pad

●

Trace the fringe to scroll.

Note

●

It is recommended to hold the touch pad controller with your hand when using.

●

The battery power will be used whenever you use the touch pad controller (including the touch of the touch pad) even if not operating the

TV. It may decrease the battery life.

Page 12

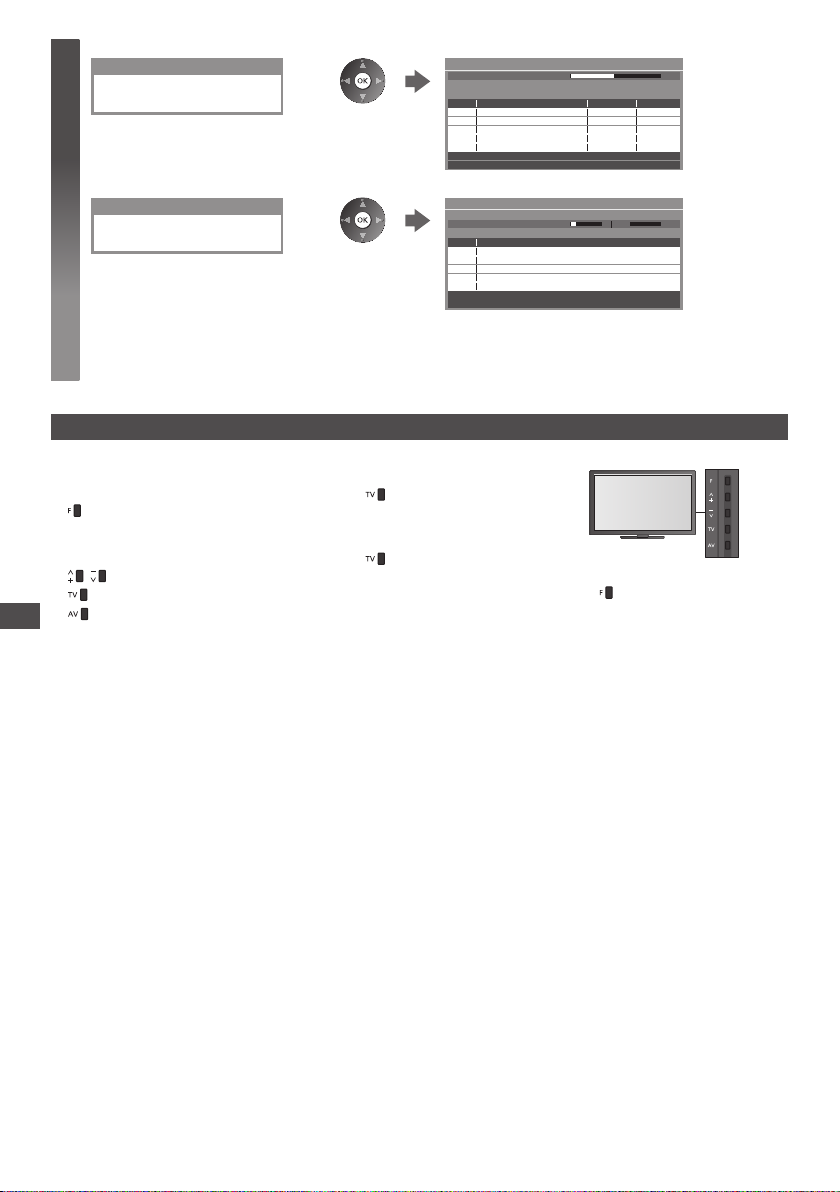

Indicator / Control panel

mode

RETURN

Function select

●

[Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [T

int] (NTSC signal) / [Bass]∗ / [Treble]∗ / [Balance] / [Auto Setup] (p. 51 - 54) ∗ [Music] or [Speech] mode in the Sound Menu

Channel Up / Down, Value change (when using the

F button), Switching the TV on (press either button

Quick Start Guide

for about 1 second when in Standby mode)

Changes the input mode

Mains power On / Off switch

●

Use to switch the mains power.

5 6 7

If you turned the TV off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV on with Mains power On / Off switch.

When pressing the control panel button (1 - 4), the

Identifying Controls

control panel guide appears on the right side of the screen for 3 seconds to highlight the pressed button.

Remote control signal receiver

●

Do not place any objects between the TV remote control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System)

sensor

●

Senses brightness to adjust picture quality when [Eco Mode] in the Picture Menu is set to [On].

(p. 42)

Power and Timer LED

Red: Standby Green: On Orange: Timer Programming On Orange (flash):

Recording of Timer Programming, Direct TV Recording or One Touch Recording in progress

Red with orange flash:

Standby with Timer Programming On, Direct TV Recording or One Touch Recording

●

The LED blinks when the TV receives a command from the remote control.

Using the On Screen Displays - Operation guide

Many features available on this TV can be accessed via the On Screen Display menu.

■ Operation guide

Operation guide will help you to operate by using the remote control.

Example: [Sound Menu]

Main Menu


Sound

Network

Timer

Setup

Select

elec

EXIT

EXI

Change

han

RETURN

Operation guide

Mode Music

Bass T

reble Balance Headphone Volume Surround Auto Gain Control Volume Correction Speaker Distance to Wall

Selects your favourite sound

elects your favourite sound

mode.

Off Off

Over 30cm

Page up

Page u

Page down

Page dow

1/2

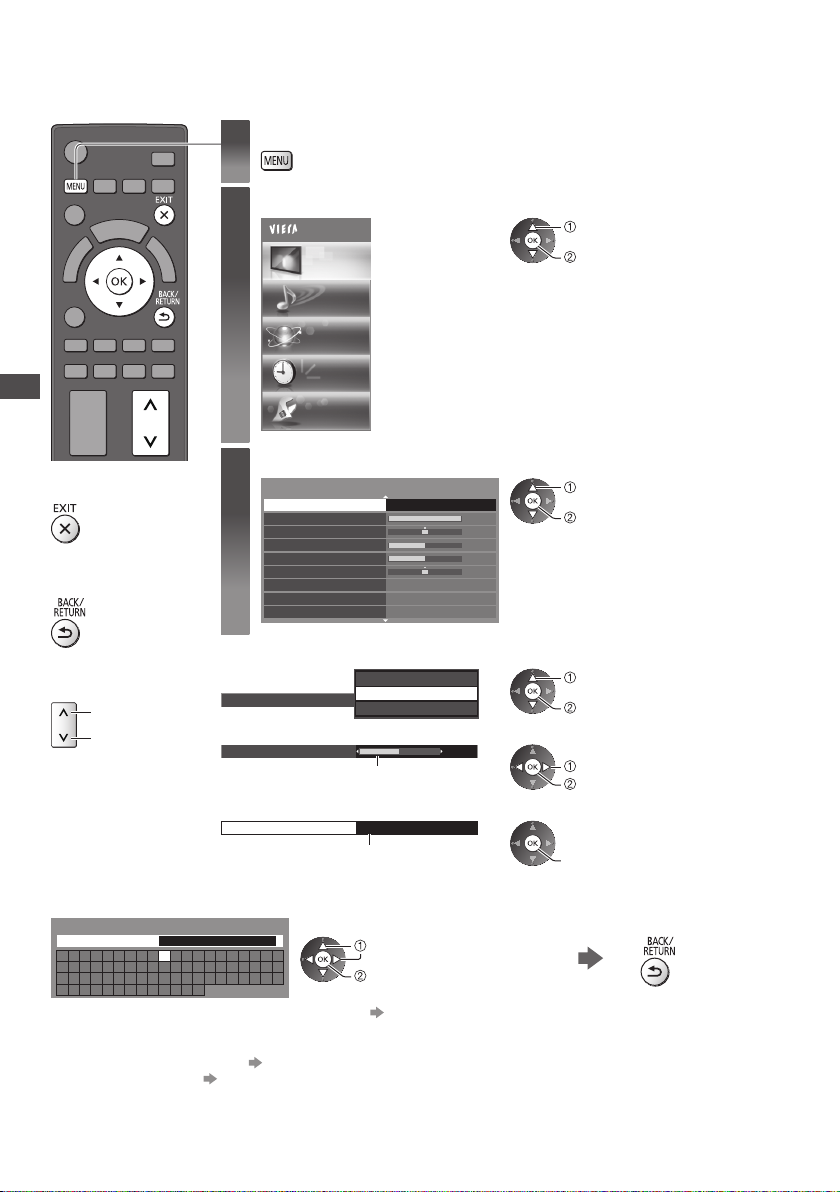

■ How to use remote control

Open the main menu

Move the cursor / select from a range of options / select the menu item (up and down only) / adjust

0 0 0

levels (left and right only)

Access the menu / store settings after adjustments have been made or options have been set

Return to the previous menu

Exit the menu system and return to the normal viewing screen

Rear side of the

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:

No signal is received and no operation is performed for 30 minutes in Analogue TV mode.

•

[Off Timer] is active in the Timer Menu. (p. 23)

•

No operation is performed for the period selected in [Auto Standby] (p. 45).

•

●

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

Page 13

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details (p. 32, 33)

Terminals

CI slot (p. 64)

SD Card slot (p. 70, 74)

Headphone jack (p. 105)

USB 1 - 3 port (p. 70, 74, 104)

HDMI1 - 4 (p. 14, 104)

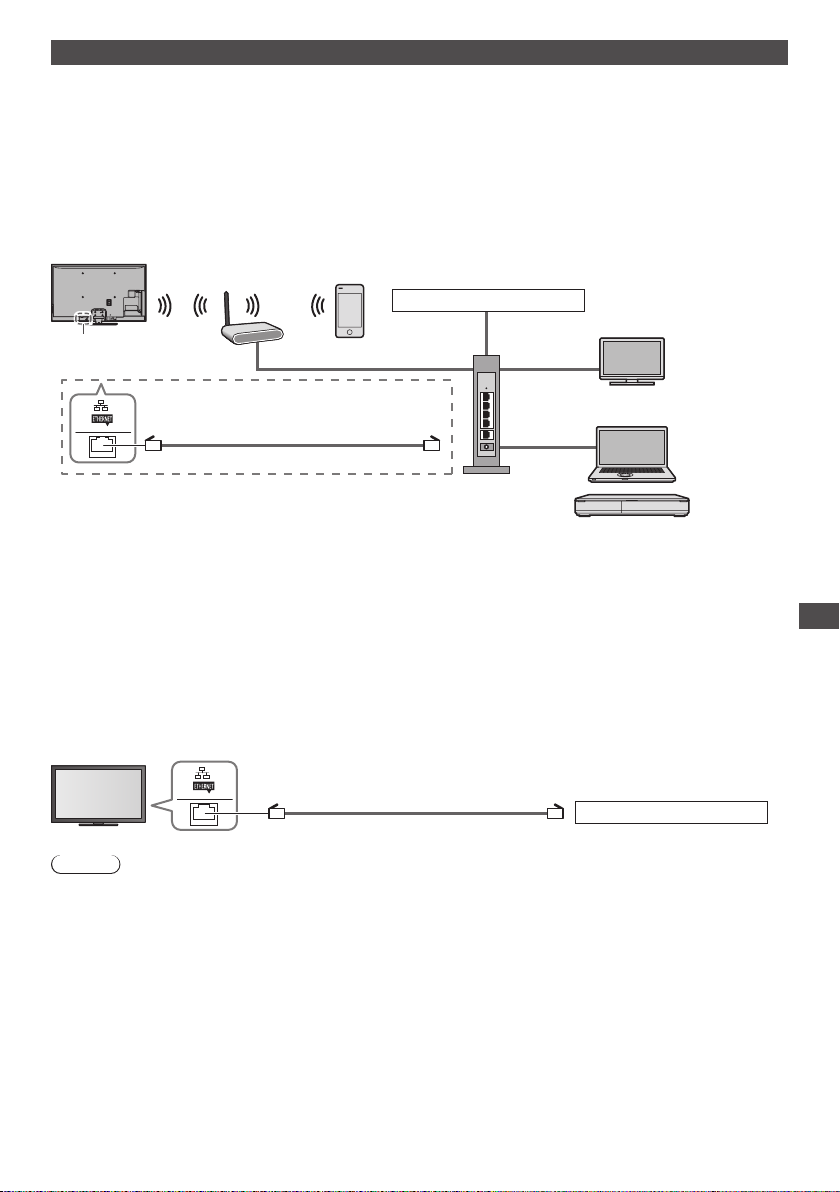

ETHERNET (p. 15)

Satellite terminal (see below)

Terrestrial / cable terminal

(see below) DIGITAL AUDIO OUT (p. 105)

AV1 (SCART) (p. 14)

SERVICE PORT

This terminal is for special applications used by authorized service dealers.

AV2 (COMPONENT / VIDEO)

(p. 104, 105)

Satellite dish

6 8 7 9

10 12 11

Connections

Mains lead, satellite dish and aerial

■ DVB-S

Quick Start Guide

Basic Connection

Satellite cable

■ DVB-C, DVB-T, Analogue

Mains lead

RF cable

■ Mains lead

AC 220-240 V 50 / 60 Hz

Make sure that

Push until both side tabs click

Note

To ensure your satellite dish is correctly installed, please consult your local dealer.

●

Also please consult the received satellite broadcasting companies for details.

●

Selectable satellites and dish alignment to tune DVB-S channels (p. 52)

the mains lead is securely fixed.

Terrestrial aerial

Cable

To remove from the TV:

tabs

Press both tabs and pull on mains connector to release

Page 14

AV devices

■ Player / 3D compatible player

Player / 3D-compatible player

Quick Start Guide

■ DVD Recorder / VCR

Basic Connection

■ DVD Recorder / VCR and Set top box

HDMI cable

AV1 (SCART)

adaptor

RF cable

HDMI cable

AV1 (SCART)

adaptor

Terrestrial

DVD Recorder / VCR

∗

SCART cable

RF cable

Set top box

SCART cable

∗

aerial

Cable

Terrestrial aerial

SCART cable

RF cable

DVD Recorder / VCR

Note

●

Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 98).

●

Q-Link and VIERA Link connection

●

Please also read the manual of the equipment being connected.

●

Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.

●

When using a SCART or HDMI cable, use the fully wired one.

●

Check the type of terminals and cable plugs are correct when connecting.

(p. 96, 97)

RF Cable

∗

Supplied with this TV

Page 15

Network

To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

●

If you do not have any broadband network services, please consult your retailer for assistance.

●

Prepare the internet environment for wired connection or wireless connection.

●

Setup of the network connection will start after the tuning (when first using the TV). (p. 17 - 19)

■ Wired connection

LAN cable (Unshielded)

●

Use the Unshielded Twist Pair (UTP) LAN cable.

∗

Less than 10 cm

Internet environment

Quick Start Guide

Ferrite core - Large size (supplied)

Installing the Ferrite core

Pull back the tabs (in two places)

■ Wireless connection

Access point

Built-in wireless LAN

Using clamper

●

Do not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).

●

Fix cables with clampers as necessary.

●

When using the optional accessory, follow the

s assembly manual to fix cables.

option’

Wind the cable twice Close

Internet environment

■ Clamper (Standard accessory)

Attach the clamper Bundle the cables

Insert the clamper in a hole

To remove from the TV: To loosen:

snaps

Keep pushing both side snaps

hole

hooks

knob

Basic Connection

Set the tip in the hooks

Keep pushing the knob

Page 16

Auto Setup

Search and store TV channels automatically.

●

These steps are not necessary if the setup has been completed by your local dealer.

●

Please complete connections (p. 13 - 15) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch on

Quick Start Guide

Auto Setup

●

Takes a few seconds to be displayed.

●

If the red LED shows on the TV, press the Standby On / Off switch on the remote control for about 1 second.

Select the language

Menüsprache

Deutsch Dansk Polski Srpski

English Svenska čeština Hrvatski

Français Norsk Magyar Slovenščina

Italiano Suomi Slovenčina Latviešu

Español Türkçe Български eesti keel

Português Еλληνικά Română Lietuvių

Nederlands

Select your country

Country

Germany

Austria France Norway Hungary

Italy Finland Slovakia

Spain Luxembourg Slovenia

Portugal Belgium Croatia

Switzerland Netherlands Estonia

Malta Turkey Lithuania

Andorra Greece Others

Select the mode to tune

TV Signal Selection

Denmark

Sweden Czech

DVB-S DVB-C

DVB-T

Analogue

Start Auto Setup

Poland

select

set

select

set

●

Depending on the country you select, select your Region or store the Child LockPIN number (“0000” cannot be stored) by following the on-screen instructions.

select

tune / skip tuning

: tune (search for the available channels)

: skip tuning

Select [Start Auto Setup]

TV Signal Selection

DVB-S DVB-C DVB-T Analogue

●

Auto Setup will start to search for TV channels and store them. The stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.

Auto Setup screen varies depending on the country you select.

Start Auto Setup

select

access

Page 17

1 DVB-S Search Mode 2 DVB-S Satellite Search

Search Mode

Free Channels

All Channels

select

set

3 [DVB-S Auto Setup]

DVB-S Auto Setup

Satellite Progress This will take about 30 minutes.

No. Channel Name Type

CBBC Channel

BBC Radio Wales

Free TV

: 3 Pay TV: 0 Radio: 0

Astra 19.2° E

0% 100%

100

Free TV

100

Free TV

100

Free TV

Searching

Quality

DVB-S Auto Setup

Satellite Progress This will take up to 40 minutes.

Satellite

Astra 19.2°E Hot Bird 13°E

Press EXIT to skip Satellite installation

4 [DVB-C Network Settings]

●

Depending on the country you select, select your cable provider beforehand by following the on-screen instructions.

DVB-C Network Settings

Frequency Auto Network ID

Start Auto Setup

select [Start Auto Setup]

access

Normally set [Frequency] and [Network ID] to [Auto]. If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.

5 [DVB-C Auto Setup] 6 [DVB-T Auto Setup]

DVB-C Auto Setup

Progress

This will take about 3 minutes.

No. Channel Name Type

CBBC Channel

BBC Radio Wales

Free TV

: 3 Pay TV: 0 Radio: 0

0% 100%

Searching

Free TV Free TV Free TV

Quality

100 100 100

DVB-T Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

Free TV

: 4 Pay TV: 0 Radio: 0

●

Depending on the country you select, the channel selection screen will be displayed after DVB-T the same logical channel number. Select your preferred channel or exit the screen for automatic selections.

7 [Analogue Auto Setup] 8 Preset Download

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

Analogue: 2

CH 2 78 41CC 1

Searching

If Q-Link, VIERA Link or similar technology (p. 98, 99) compatible recorder is connected, channel, language and country / region settings are automatically downloaded to the recorder.

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

●

If downloading has failed, you can download later through the Setup Menu.

Checking LNB2

0% 100%

Searching Satellite

Auto

CH 5 69

Free TV Free TV Free TV Free TV

Searching

[Download] (p. 46)

Quality

100 100 100

Auto Setup if multiple channels have

Quick Start Guide

Auto Setup

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 20, 86).

●

Please note that this TV does not support wireless public access points.

●

Ensure the network connections (p. 15) and network environment are completed before starting setup.

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Set later

[Wired] “Wired connection” (p. 15) [Wireless] “Wireless connection” (p. 15)

●

select

access

To setup later on or skip this step

Select [Set later] or

Page 18

■ [Wired]

1. Select [Auto]

Acquire IP Address

Quick Start Guide

2. Go to the next step

■ [Wireless]

Auto Setup

Access points found automatically are listed.

1. Select your desired access point

Available Wireless Networks

No. Network Name(SSID) Status Wireless type

1 2 3

●

To search access points again

2. Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings: Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

3. Enter the encryption key of the access point

Wireless Network Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

4. After the access point setting is finished, perform the connection test

5. Go to the next step

Auto Manual

select

access

(Press twice)

Access Point A Access Point B Access Point C

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

(blue)

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

Automatically setup is done and the test of the network connection starts.

●

To set manually, select [Manual] and set each item. For details

(p. 89)

select

access

: Encrypted access point

●

For the information of the highlighted

●

For [WPS(Push button)] (p. 19)

(red)

access point

●

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

Set characters

select

set

●

You can set characters by using numeric buttons.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

●

To set manually, select [Manual] and set each item. For details

(p. 89)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

●

To set manually (p. 91)

(yellow)

Store

(Press twice)

Page 19

[WPS(Push button)]

1. Press the WPS button on the access point until the light flashes

2. Connect the TV with the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the wireless access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the wireless access point.

3. After the access point setting is finished, perform the connection test

4. Go to the next step

Select [Pairing]

Follow the on-screen instructions to use the touch pad controller (supplied).

●

To skip this step

Select [Set later] or

Select [Home]

Select [Home] viewing environment to use in your home environment.

Please select your viewing environment.

Home Shop

Connect

Connection Test

(Press twice)

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

●

Ensure that your access point supports WPS for this setup.

●

WPS: Wi-Fi Protected Setup™

●

If the connection has failed, check the settings and positions of your access point.

●

To register later on or for detailed settings

[VIERA Touch Pad Controller] (p. 46)

select

set

And then, follow the on-screen instructions.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

●

To set manually, select [Manual] and set each item. For details

(p. 89)

■ [Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

●

You can return to viewing environment selection screen at the stage of Shop confirmation screen.

1 Return to viewing environment

selection screen

Shop

You have selected shop mode

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition. [Shipping Condition] (p. 65)

2 Select [Home]

Please select your viewing environment.

Home Shop

Quick Start Guide

Auto Setup

select

set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the Satellite cable, RF cable, and then, follow the on-screen instructions.

Note

●

To check the channel list

●

To edit or hide (skip) channels

●

To retune all channels

●

To add the available TV mode later [Add TV Signal] (p. 47)

●

To initialise all settings [Shipping Condition] (p. 65)

“Using TV Guide” (p. 25)

“Tuning and Editing Channels” (p. 55 - 58)

[Auto Setup] (p. 51 - 54)

Page 20

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from VIERA Connect home screen.

●

This TV does not support full web browser function and some features of the websites may not be available.

Turn power on

●

Press for about 1 second.

●

Mains power On / Off switch should be on. (p. 12)

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed

Using “VIERA Connect”

■

To exit from VIERA Connect

●

To set the VIERA Connect introduction banner display of

[VIERA Connect

Banner] (p. 48)

●

Setup menu (Items in [Setup] may change without notice.)

Customize HomeScreen Changes the position of each services on VIERA Connect home screen

My Account

Lock Sets to restrict access to some services Restrictions Sets to restrict reveal of the restricted services Beep Sets beep sound On or Off when operating VIERA Connect Notices Displays the information of VIERA Connect

●

You may operate the internet contents with the free cursor of the VIERA Touch Pad Controller (supplied).

●

Video communication (for example Skype™) requires an exclusive Communication Camera TY-CC20W.

“Optional accessories” (p. 6)

For details, read the manual of the Communication Camera.

●

You can connect a keyboard and a gamepad for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information

“USB connection” (p. 113), “Bluetooth Setup” (p. 113), “Operations from Keyboard / Gamepad” (p. 114)

●

Example: VIERA

Depending on the usage conditions, it may take a while to read all the data. Messages might be displayed before VIERA Connect home screen. Please read these instructions carefully and follow the on-screen instructions.

Confirms or removes the account information of the TV you entered on VIERA Connect

Connect home screen

BACK

●

To go to the next level, select [MORE].

●

To back to the previous level, select [BACK].

●

To return to VIERA Connect home screen

Note

●

If you cannot access VIERA Connect, check the network connections (p. 15) and settings (p. 17 - 19).

●

For more information of VIERA Connect

(p. 86)

Page 21

Watching TV

Turn power on

Every time you turn on the TV, this banner appears at the bottom of the screen. You can access to VIERA Connect easily and enjoy the various contents. (p. 20)

●

Select the mode

TV Selection

DVB-S

DVB-C DVB-T Analogue

Select a channel

Volume

●

Press for about 1 second.

●

Mains power On / Off switch should be on. (p. 12)

■ VIERA Connect introduction banner appears

To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect). To set this banner display off [VIERA Connect Banner] (p. 48)

●

The selectable modes vary depending on the stored channels (p. 16).

select

access

●

You can also select the mode pressing the TV button repeatedly on the remote control or the TV (p. 12).

●

If [TV Selection] menu is not displayed, press the TV button to switch the mode.

●

down

To select a more than two-digit channel position number

, e.g. 399

Watching TV

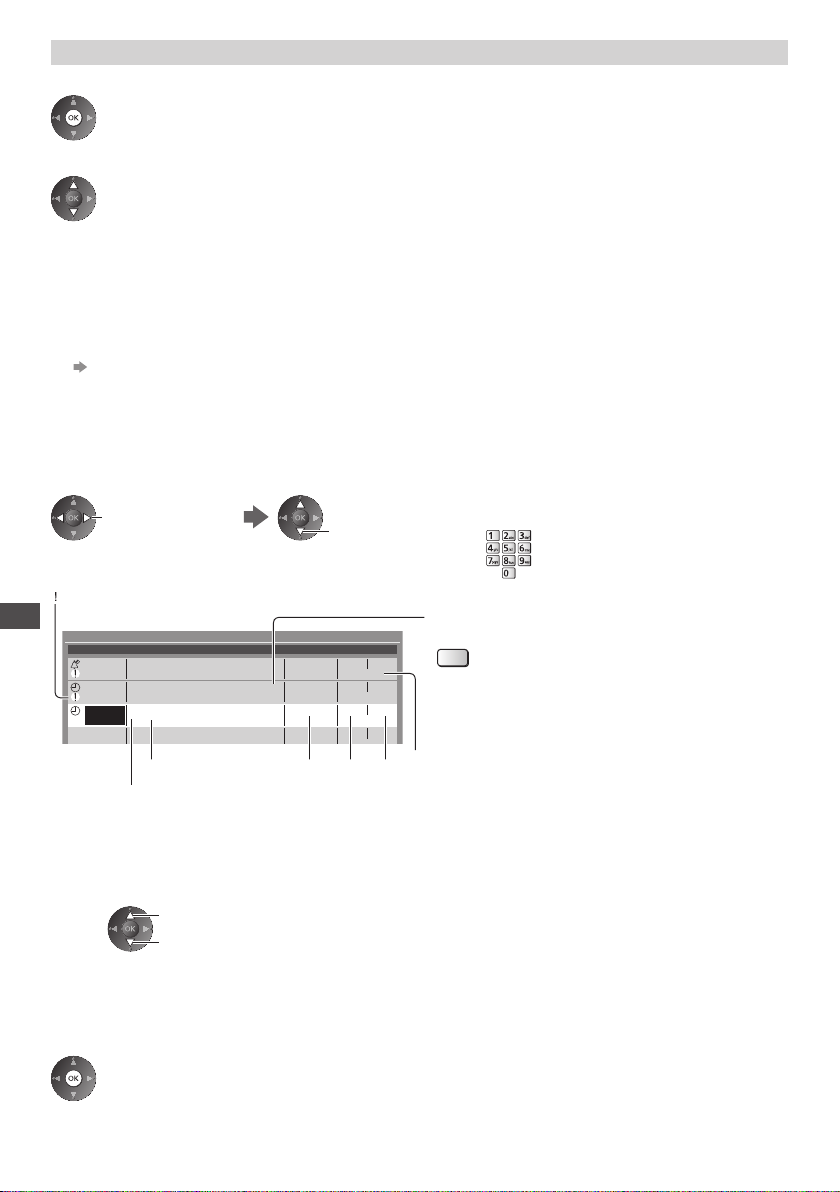

■ To select from the Channel List

●

All DVB-T Channels

6 Cartoon Nwk 7 BBC Radio Wales 8 BBC Radio Cymru

1 BBC ONE Wales

2 BBC THREE 3 BBCi 4 CBBC Channel

Sorting 123...

select channel

watch

To sort channel names in alphabetical order

(red)

●

To change the category

(blue)

■ To select a channel using Information banner (p. 22)

1 Display Information banner if it is not displayed

2 While the banner is displayed, select the channel

select channel

watch

■ To select a channel using TV Guide (p. 25)

1 Display TV Guide 2 Select the current

programme or channel

select

access

●

The postcode entry or update may be required depending on the country you select (p. 16). Follow the on-screen instructions.

Note

●

To watch pay-TV

“Using Common Interface” (p. 64)

3 Select [View] (DVB)

Das Erste 19:30- 20:00

View Timer Programming

select

watch

Page 22

Other useful functions

Display Information banner

●

Watching TV

Features available / Message meanings

Also appears when changing a channel.

Example: DVB

ZDF

Channel position and name

Channel type ([Radio], [Data], [HDTV], etc.) /

Encrypted channel ( ) / TV mode ( , , , )

Programme

Current time

Sound mute on

[Bad signal]

Poor TV signal quality

[Dolby D+], [Dolby D], [HE-AAC]

Dolby Digital Plus, Dolby Digital or HE-AAC audio track

Subtitle service available

HDTV

2 3 6 7 4 5

Coronation Street 20:00 - 20:55 Now

Dolby D+Bad signal

Dolby D+ Bad signal

Programme Start / Finish time (DVB)

Channel number, etc. (Analogue) Progress time indicator of the selected programme

(DVB) Category

●

To change the category (DVB)

Teletext service available

Multiple audio available

Multiple video available

Multiple audio and video available

(blue)

All DVB-T Channels

20:35

Change category Info

select

set

[Stereo], [Mono]

Audio mode

Data service (Hybrid Broadcast Broadband TV application) available (p. 63)

1 - 90

Off Timer remaining time

●

For settings

(p. 23)

●

To confirm another tuned channel name

●

To hide

Display subtitles

Display / hide subtitles (if available)

●

To change the language for DVB (if available)

[Preferred Subtitles] (p. 48)

Note

●

If you press this button in Analogue mode, it switches to teletext service and calls up a favourite page (p. 28). Press

button to return to TV mode.

the EXIT

●

Subtitles may not be displayed properly in 3D images.

●

To watch the channel listed in the banner

●

Extra information (DVB)

(Press again to hide the banner)

●

Information on the next programme (DVB)

●

To set display timeout

[Banner Display Timeout] (p. 48)

Page 23

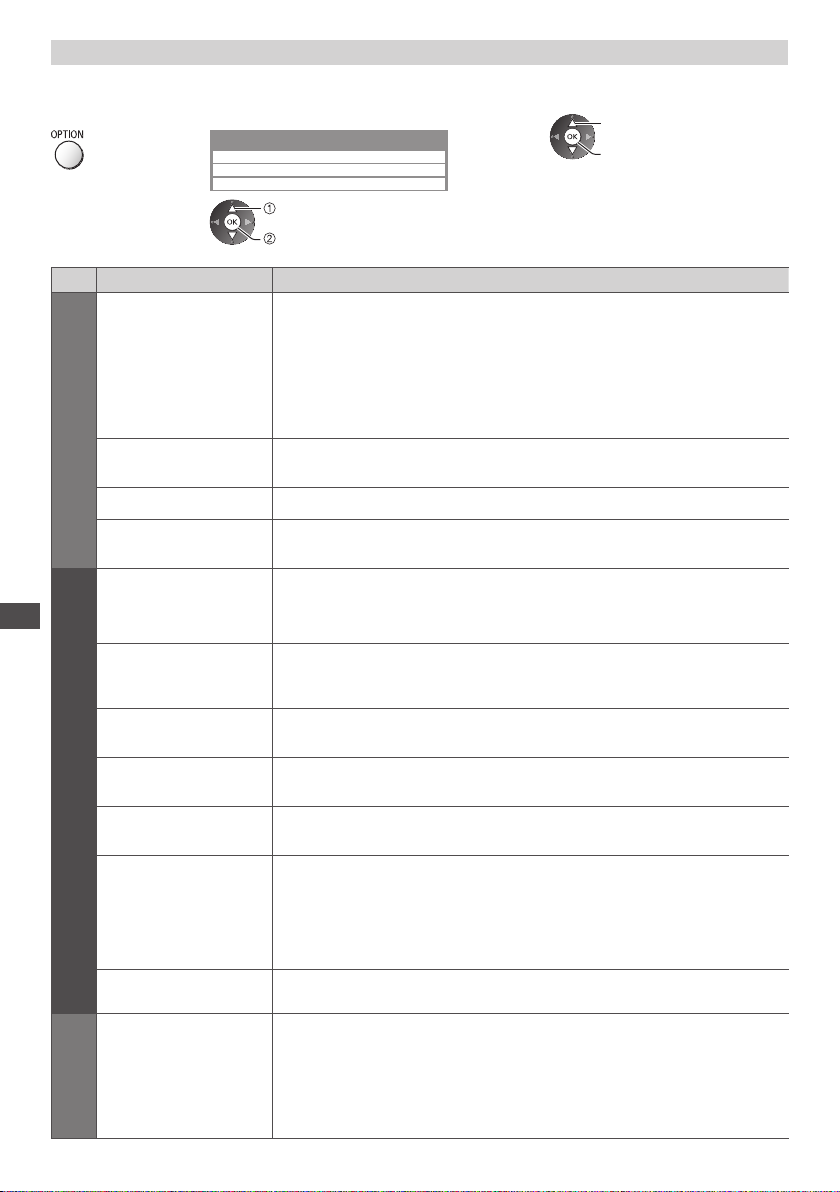

Display the selectable settings for the current status

Confirm or change the current status instantly

●

To change

select

access

[Multi Video] (DVB) Selects from a group of multiple videos (if available)

●

This setting is not memorised and it will return to the default setting once you exit the current programme.

[Multi Audio] (DVB) Selects between alternative language for sound tracks (if available)

●

This setting is not memorised and it will return to the default setting once you exit the current

[Dual Audio] (DVB) Selects stereo / monaural (if available)

[Sub Channel] (DVB) Selects the multifeed programme sub channel (if available)

[Subtitle Language] (DVB) Selects the language in which subtitles should appear (if available)

eletext Character Set]

Sets the teletext language font

(p. 48)

select / change

store

programme.

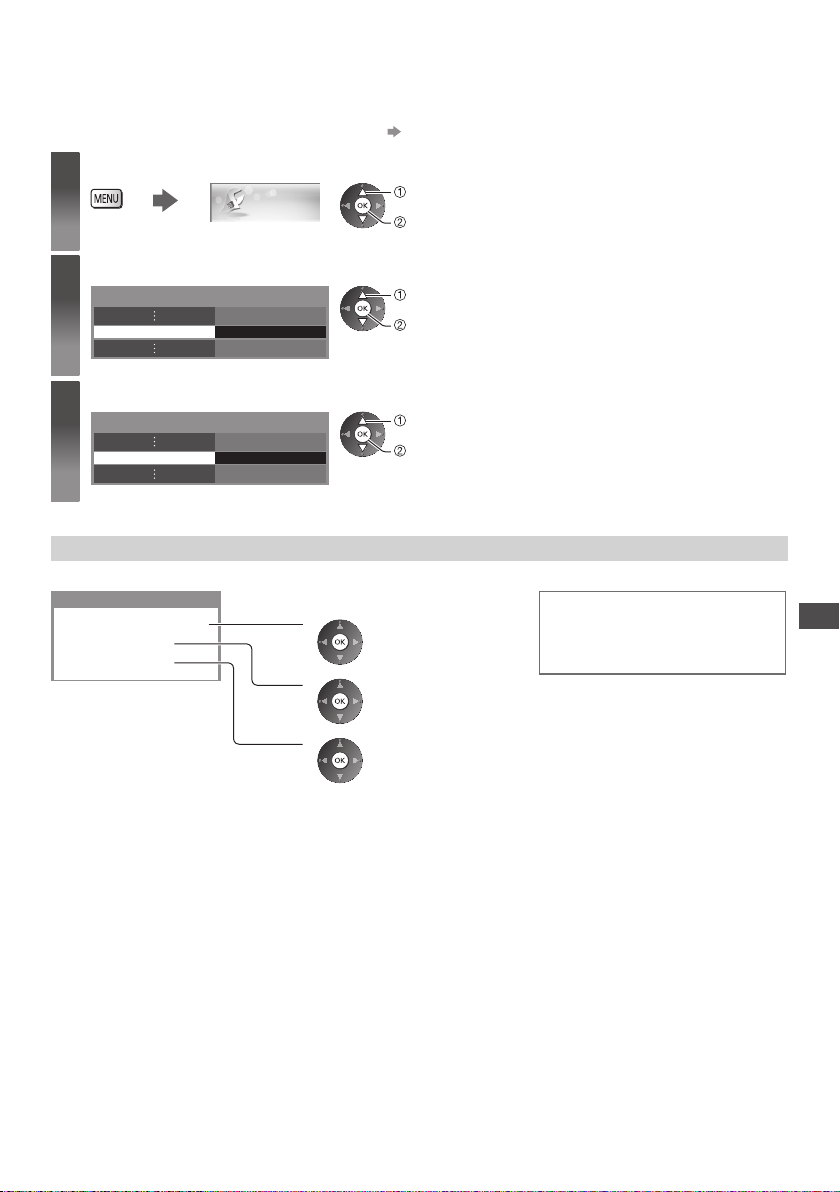

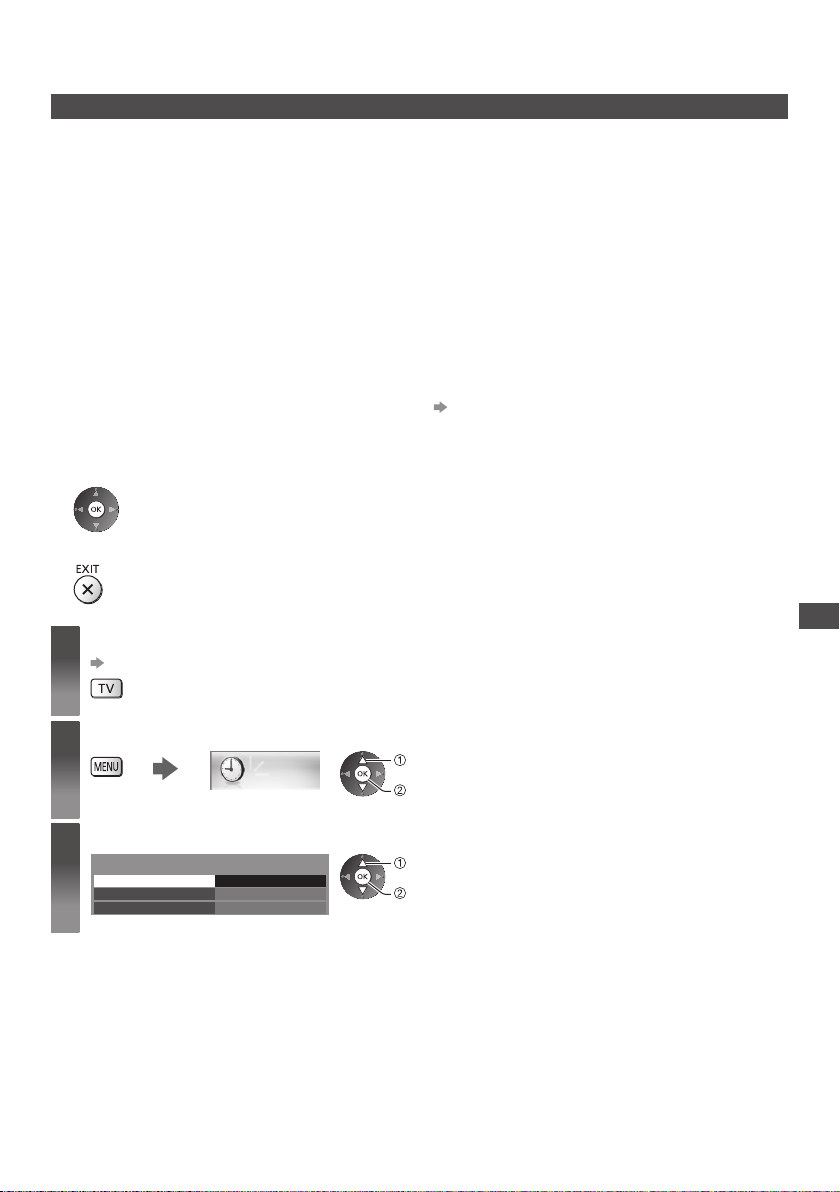

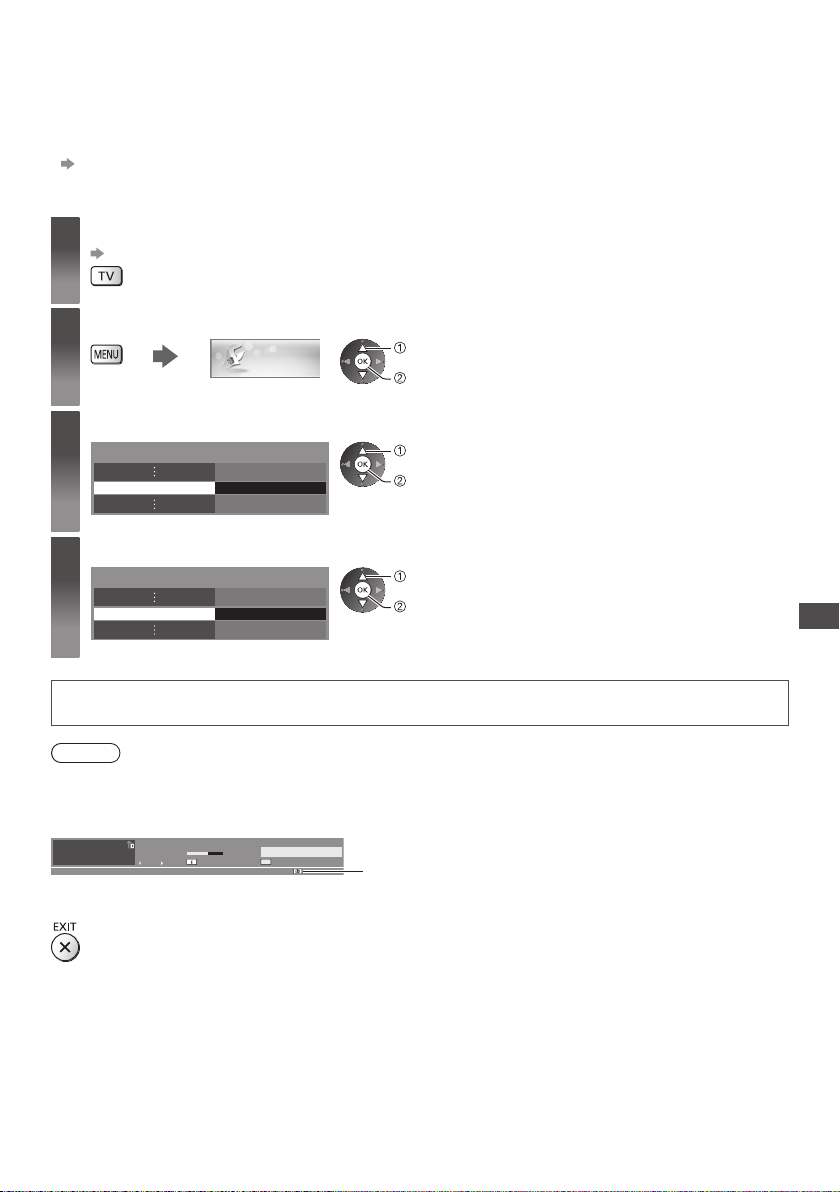

Off Timer

Turn the TV to Standby mode automatically after a fixed period

1 Display the menu

2 Select [Timer]

Timer

select

access

3 Select [Off Timer] and set the time in 15-minute increments

imer Programming

Off Timer

Auto Standby

Off

15 30 45 60 75 90

minutes minutes minutes minutes minutes minutes

select [Off Timer]

access

●

To cancel, set to [Off] or turn the TV off.

●

To confirm the remaining time

●

When the remaining time is within 3 minutes, the remaining time will flash on the screen.

[Teletext Language] (DVB) Selects between alternative language for teletext (if available)

[MPX] (Analogue) Selects multiplex sound mode (if available)

(p. 44)

[Volume Correction]

Adjusts volume of individual channel or input mode

[Safely remove USB]

Takes this operation to remove the connected USB device safely from the TV

select the time

store

“Display Information banner” (p. 22)

Watching TV

Page 24

Aspect

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 107).

■ To change the aspect ratio manually

1 Display Aspect Selection list

Aspect Selection

Auto

[Auto] [4:3 Full]

The best ratio is chosen and the image

Watching TV

expanded to fill the screen. For details (p. 107)

[16:9] [Zoom1]

Directly displays the image at 16:9 without distortion (anamorphic).

[14:9] [Zoom2]

Displays the image at the standard 14:9 without distortion.

[Just] [Zoom3]

Displays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.

[4:3]

Displays the image at the standard 4:3 without distortion.

Note

●

Aspect cannot be changed in teletext service and 3D mode.

●

Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.

16:9 14:9 Just 4:3 4:3 Full Zoom1 Zoom2 Zoom3

Select

EXIT

Change

RETURN

Aspect Selection list

2 While the list is displayed, select the mode

●

select

store

You can also change the mode only using the

button.

ASPECT

(Press repeatedly until you reach the desired mode.)

Displays a 4:3 image enlarged horizontally to fit the screen.

Displays a 16:9 letterbox or 4:3 image without distortion.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Last view

Switch to previously viewed channel or input mode easily

●

Press again to return to the current view.

Note

●

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.

●

Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

Page 25

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

●

This function varies depending on the country you select (p. 16).

●

The postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.

“View advertisement” (p. 26)

●

DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] and [A] may be displayed to distinguish DVB-T and Analogue channels. There will be no programme listings for Analogue channels.

●

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before

TV Guide is completely shown.

Select the mode

(p. 21)

View TV Guide

■

To return to TV

●

Press again to change the layout ([Landscape] / [Portrait]).

iew [Landscape] to see several channels.

V View [Portrait] to see one channel by time.

Example: [Landscape]

5 7

Wed 26.10.2011 10:46

Wed 26.10.2011 All T

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

Example: [Portrait]

Wed 26.10.2011 10:46

Wed 26.10.2011 All T

D BBC ONE1 D BBC THREE7DE414 D BBC FOUR70

19:30-20:00

20:00-20:30

20:30-21:00

21:00-22:00

22:00-23:00

23:00-23:30

TV Guide: Landscape

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS The Bill Red Cap

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal. 10 O’ clock News BBC

Das Erste

DIY SOS

The Bill

Red Cap

Live junction

POP 100

Coronation Street

E4 BBC FOUR BBC 2W

TV Guide: Portrait

ypes All Channels

The Bill Good bye

Pepsi Char.

CoastSpring watchPanorama

ypes All Channels

Current date and time

TV Guide date

TV Guide time

Programme

Channel position and

name [D]: DVB-T

[A]: Analogue

Depending on the country you select, you can select the TV Guide type

[Default Guide] (p. 48)

If you select [Channel List], the channel list will appear when the GUIDE button is pressed.

Using TV Guide

■ To watch the programme

1 Select the current programme or channel

select

access

2 Select [View] (DVB)

Das Erste 19:30- 20:00

View Timer Programming

●

To use Timer Programming

select

watch

(p. 27)

Page 26

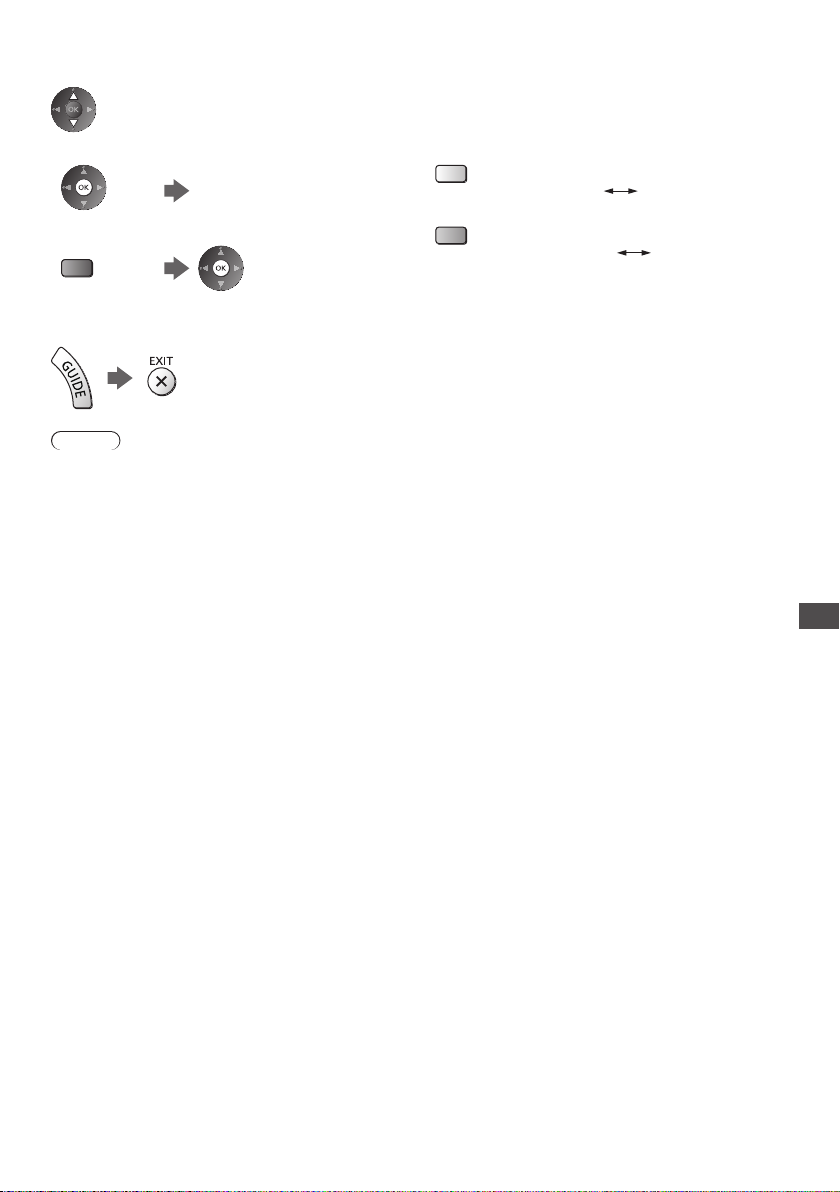

■ To the previous day (DVB)

(red)

■ To view a channel list of the selected type

(DVB)

(yellow)

Prog.Type

All Types

Movie

News

Using TV Guide

(Type list)

select type

view

■ To the next day (DVB)

(green)

■ To view a channel list of the selected category

(blue)

(Category list)

Viewing Teletext

Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting) TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

●

Fast overview of the teletext information available

●

Easy to use step-by-step selection of the topical subject

●

Page status information at the bottom of the screen

●

Available page up / down

(red) (green)

What is List mode?

Viewing Teletext

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

■ To change mode [Teletext] (p. 48)

●

To select among subject blocks

(blue)

“Store frequently viewed pages” (p. 29)

Switch to Teletext

Sub page number

<< 01 02 03 04 05 06 07 >>

TELETEXT

INFORMATION

Current page number

17:51 28 Feb

Time / date

Colour bar

●

To select next subject within the subject block (After the last subject, it moves to the next subject block.)

(yellow)

●

Displays the index page (content varies depending on the broadcasters).

Select the page

(Press three times)

■

To return to TV

Reveal hidden data

Reveal hidden words e.g. quiz page answers

(red)

●

Press again to rehide.

■ To adjust contrast

down

Coloured button

(Corresponds to the colour bar)

As the blue bar is displayed

Call up a favourite page

View a favourite page stored

Call up the page stored on the blue button (List mode).

●

Factory setting is “P103”.

Page 29

FULL / TOP / BOTTOM

(green)

(TOP) (BOTTOM) Normal (FULL)

(Expand the TOP half) (Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once

(Press twice)

●

Operations can be made only in teletext screen.

Select [Picture and text] On or Off

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

As page is displayed

Corresponding coloured button

press and hold

■ To change stored pages

Coloured button you want to change

View sub page

View sub page (Only when Teletext is more than one page)

Enter new page number

Appears at top of the screen

●

■ To view specific sub page

(blue)

Enter the 4-digit number Example: P6

The number changes to

The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch

press and hold

TV.

white.

Viewing Teletext

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

(yellow)

●

The news page provides a function that indicates arrival of the latest news (“News Flash”).

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

(yellow)

Page 30

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

●

To connect the equipment (p. 13 - 15, 104 - 106)

The remote control is capable of operating the contents or external equipment.

Turn the TV on

When connecting with SCART (p. 14)

Receives input signals automatically when playback starts

●

Input signals are automatically identified by the SCART (pin 8) terminal.

●

This function is also available for HDMI connections (p. 104).

If input mode is not switched automatically

Perform and

●

Check the setup of the equipment.

(p. 31)

Watching External Inputs

■

To return to TV

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2 HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

●

You can also select the input using the AV button on the remote control or the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected.

●

To switch between [COMPONENT] and [VIDEO] in [AV2], move the indicator by pressing left and right cursor button.

●

[SD Card/USB]: Switches to Media Player.

●

You can label or skip each input mode (except [SD Card/USB]).

“Input Labels” (p. 48)

Skipped inputs will not be displayed when the AV button is pressed.

View

AV1

Displays the selected mode

select

watch

“Using Media Player” (p. 74)

Note

●

If the external equipment has an aspect adjustment function, set it to “16:9”.

●

For details, read the manual of the equipment or ask your local dealer.

Page 31

Operating the contents or equipment with the TV remote control

You can operate the contents in Media Player / media servers, recording functions or the connected equipment with the below buttons of this TV remote control.

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip

VCR:

Rewind, view the picture rapidly in reverse

DVD / video content:

Skip to the previous track, title or chapter

Rewind / Search

VCR:

Rewind, view the picture rapidly in reverse

DVD / video content:

Search backward

Fast-forward / Skip

VCR:

Fast-forward, view the picture rapidly forward

DVD / video content:

Skip to the next track, title or chapter

Fast-forward / Search

VCR:

Fast-forward, view the picture rapidly forward

DVD / video content:

Search forward

Pause

Pause / Resume DVD:

Press and hold to play at slow speed

[Direct TV Rec] (p. 98, 100) [One Touch Recording] (p. 72)

Watching External Inputs

How to change the code

Each type of the Panasonic equipment has its own remote control code. Change the code according to the equipment you want to operate.

Press and hold Standby On / Off switch during the following operations

Enter the appropriate code, see table below

DVD Recorder, DVD Player, Blu-ray Disc Player 70

Using in USB HDD / SD Card Recording (p. 72), Media Player (p. 75),

DLNA features (p. 92), Direct TV Recording (p. 98, 100),

Note

●

Confirm if the remote control works correctly after changing the code.

●

The codes may be reset to default values if batteries are replaced.

●

Some operations may not be possible on some equipment models.

Press

Type of the equipment, features Code

Player theatre, Blu-ray Disc theatre 71

VCR 72

Equipment using in VIERA Link (p. 101)

73 (default)

Page 32

Viewing 3D images

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear. “Standard accessories” (p. 6) This TV supports [Frame Sequential]

∗

1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately

played back.

∗

2, ∗3: Other available 3D formats

●

How to view the 3D images

Warning

Small Parts

●

3D Eyewear contains small parts (battery, etc.) and must be kept out of reach of small children to avoid accidental ingestion.

Disassembly

●

Do not disassemble or modify the 3D Eyewear.

Lithium Battery

●

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Viewing 3D images

Caution

To use 3D Eyewear safely and comfortably, please read these instructions fully.

3D Eyewear

●

Do not drop, bend, exert pressure on, or step on the 3D Eyewear.

●

Be careful of the tips of the frame when putting on the 3D Eyewear.

●

Always keep the 3D Eyewear in a cool, dry place.

●

Be careful not to trap a finger in the hinge section of the 3D Eyewear.

●

Do not exert pressure on or scratch the surface of the liquid crystal shutter of the 3D Eyewear.

iewing 3D Content

●

Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing medical conditions.

●

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation. When you set the effect by using [3D Adjustment], take into account that the vision of 3D images varies among different individuals.

●

Take an appropriate break after viewing a 3D movie.

●

Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.

●

Be careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged.

●

The 3D Eyewear must only be worn when viewing 3D content.

●

Use the 3D Eyewear where there is no interference from other devices with Bluetooth signal.

●

If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear.

●

Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.

●

Do not use the 3D Eyewear at a distance less than the recommended distance. The recommended viewing distance is at least 3 times of the image height. TX-P50VT50J: 1.9 m or more TX-P55VT50J: 2.1 m or more TX-P65VT50J: 2.4 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times of the height of the actual image. (That makes the distance closer than above recommended figure.)

(p. 36)

∗

, [Side by Side]

∗

and [Top and Bottom]

∗

3D formats.

Page 33

3D Eyewear Use

●

Pay special attention when children are using the 3D Eyewear. 3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear.

●

Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury

●

Remove the 3D Eyewear before moving around to avoid falling or accidental injury.

●

Use the 3D Eyewear only for the intended purpose and nothing else.

●

Do not use 3D Eyewear in the condition of high temperature.

●

Do not use if the 3D Eyewear is physically damaged.

●

Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.

●

Stop using the 3D Eyewear immediately if a malfunction or fault occurs.

●

Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.

●

In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

Lithium Battery

●

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

3D Eyewear

●

Use the supplied 3D Eyewear or Panasonic 3D Eyewear that has this

“Full HD 3D Glasses™” logo indicates products that are compatible with the active shutter 3D glasses technology standards licensed by the Full HD 3D Glasses Initiative. The RF mark on the logo means the wireless system (Bluetooth Eyewear and the TV that have the same mark together.

logo and supports Bluetooth

Note

●

Use the 3D Eyewear within approximately 3.2 m from the TV. You cannot view the 3D images with the 3D Eyewear too far from the

●

The range may be shortened depending on the obstacles between the TV and the 3D Eyewear, or the surrounding environment.

●

There are differences in the viewing range of the 3D Eyewear among individuals.

●

The 3D Eyewear may not operate correctly at the outside of the viewing range.

●

3D Eyewear can be worn over vision correction glasses.

TV, because of the difficulty of receiving radio waves from the TV.

wireless technology.

wireless technology), and you can use the 3D

Viewing 3D images

Storing and cleaning the 3D Eyewear

●

Clean using a soft, dry cloth.

●

Wiping the 3D Eyewear with a soft cloth that is covered in dust or dirt may scratch the eyewear. Shake off any dust from the cloth before use.

●

Do not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.

●

Do not dunk the 3D Eyewear in liquid such as water when cleaning.

●

Avoid storing the 3D Eyewear in hot or highly humid locations.

●

As the liquid crystal shutters (lens) are fragile and easily broken, be very careful when cleaning them.

Page 34

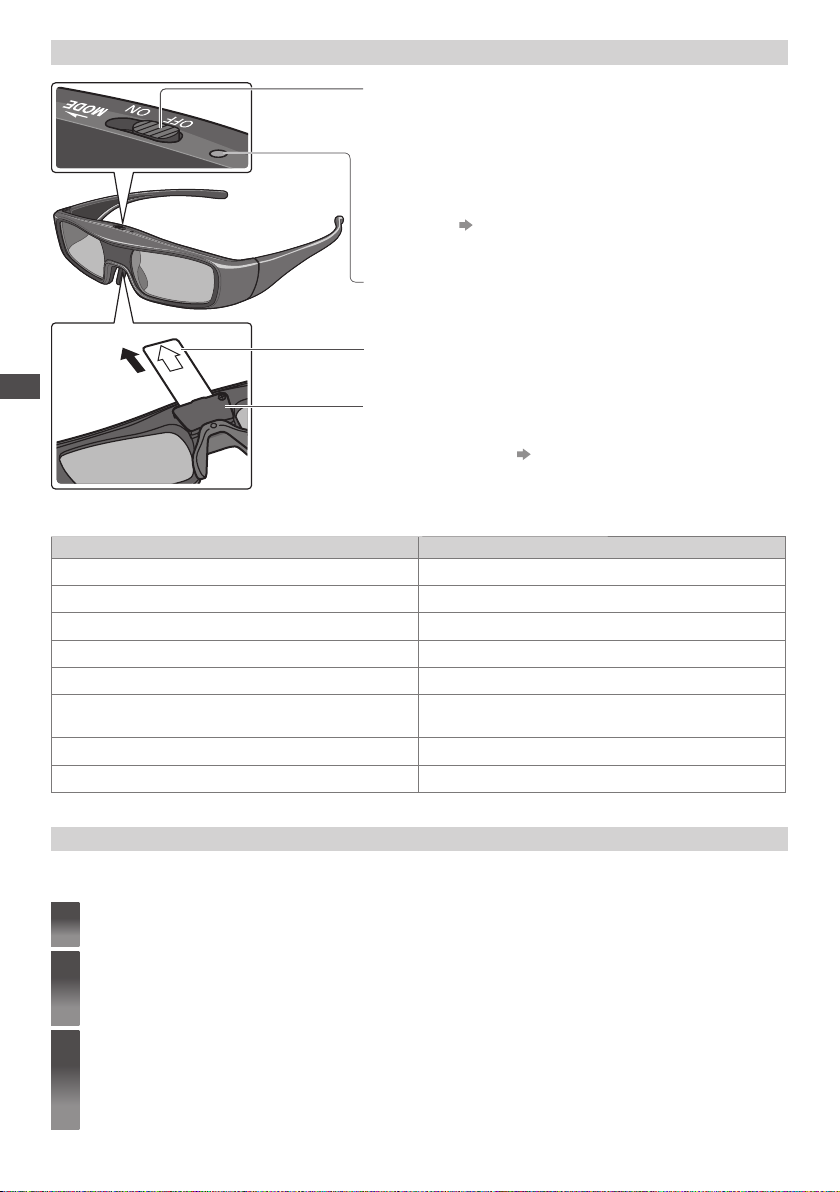

Part names and functions

Power switch

ON / OFF

●

Slide the tab to the “ON” / “OFF” position to switch the power

On / Of

MODE

●

Slide the tab to the “MODE” position to change the mode between 3D and 2D (view a 3D image in 2D).

●

This is also used when registering the 3D Eyewear to the TV. For details

Indicator lamp

Lights or flashes during use to show the status.

Insulating sheet

“Registration” (see below)

Viewing 3D images

Pull

Battery cover

●

When using for the first time, remove the insulating sheet. Pull the insulating sheet.

●

To replace the battery

“Replacing the battery” (p. 35)

■ Indicator lamp status

Indicator lamp Status

Lights red for 2 seconds when turned on Sufficient battery level

Flashes 5 times when turned on Low battery level

Flashes red and green alternately Under registering

Flashes green once every 2 seconds Under reconnecting to the TV

Lights green for 3 seconds Registering or reconnecting is successfully completed.

Flashes red 3 times

Flashes red once every 2 seconds when in use 3D mode is selected

Flashes red twice every 4 seconds when in use 2D mode is selected

Registration

First registration

Perform the first registration when the 3D Eyewear is used for the first time.

Turn the TV on

Slide the power switch from “OFF” to “ON”

The 3D Eyewear will be turned on and start registration. Place the 3D Eyewear within 50 cm from the TV while registration in progress.

Automatically power off (Registering or connecting fails or connection is lost)

The green LED lights on the 3D Eyewear for 3 seconds when the

registration is successfully completed

After first registration, the 3D Eyewear will reconnect with TV automatically when 3D Eyewear is turned on near the TV in 3D mode.

Page 35

■ Registration again

When connection with registered TV fails, or when using with another TV, re-register the 3D Eyewear.

1 Turn the TV on 2 Within 50 cm from the TV, hold the power switch on the “MODE” position for more than 2 seconds

●

Release the power switch when registration starts.

3 The green LED lights for 3 seconds when the registration is successfully completed

Note

●

If the registration failed, the 3D Eyewear will be turned off. In this case, turn off the TV and perform from step 1.

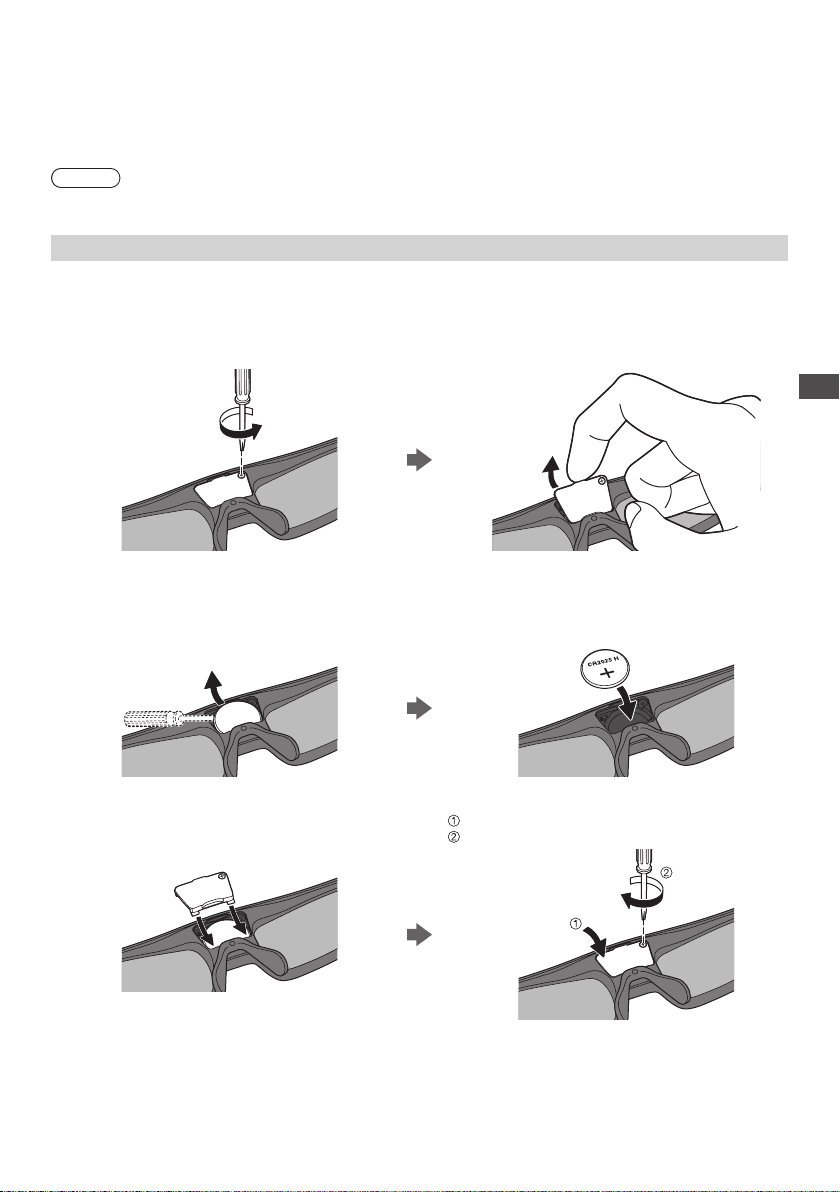

Replacing the battery

When the battery is running low, the indicator lamp flashes 5 times on turning the 3D Eyewear on. In this case, early battery replacement is recommended.

●

Dispose of the old batteries as non-burnable rubbish, or in line with the waste disposal regulations in your local area.

1 Loosen the screw and remove the cover using with a precision Phillips (No.0, plus +) screwdriver

●

The screw is not removed from the cover.

Viewing 3D images

2 Replace the battery

●

If difficulty, remove it with the tip of the driver.

●

Use the specified type of battery (coin-shaped lithium battery CR2025).

●

Note the correct polarity (+ or -).

3 Replace and fasten the cover

Push the cover firmly until it clicks. Tighten the screw.

Page 36

To view the 3D images

You can enjoy the 3D images in a variety of ways. (Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)

■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)

●

Connect the 3D-compatible player via a fully wired HDMI compliant cable.

●

If input mode is not switched automatically, select the input mode connected to the player. (p. 30)

●

If you use the non 3D-compatible player, the images will be displayed on 2D mode.

■ 3D-supported broadcast

●

Please consult the suppliers of contents or programmes for availability of this service.

■ 3D photos and 3D videos taken by 3D-compatible Panasonic products

●

Available in Media Player (p. 74) and Network services (p. 92)

■ 2D images converted to 3D

●

Set to [2D

Preparations

Perform the First Registration when the 3D Eyewear is used for the first time.

Viewing 3D images

Note

●

The 3D image or 3D effect may not be available in the following conditions:

Multi window (p. 67) is active.

•

VIERA Connect home screen (p. 20) is displayed.

•

[Ext Rec.] or [LT1] / [LT2] of Timer Programming (p. 59) is in progress.

•

[LT1] / [LT2] of One Touch Recording (p. 72) is in progress.

•

Direct TV Recording (p. 98, 100) is in progress.

•

As for the contents of the Frame Sequential format and Side by Side (Full), no images will be displayed in these conditions.

●

If light appears to flicker under fluorescents or dimmers when using the 3D Eyewear, change the setting of [3D Refresh Rate]. (p. 42)

●

3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.

●

Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.

●

Do not use the 3D Eyewear as sunglasses.

●

3D effects may be perceived differently depending on the person.

3D] mode in [3D Mode Selection]. (p. 37)

“Registration” (p. 34)

Turn the 3D Eyewear on and put it on

●

Connection status and battery status are displayed on the bottom right of the screen.

View the 3D images

●

Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D images. If you select [Y switch is next turned on. Select [No] if you do not want to display this message again.

●

Turn off the 3D Eyewear after using it.

es], this message will be displayed again in the same condition after Mains power On / Off

Changing 2D - 3D mode

You can easily change the viewing mode between 2D and 3D using the 3D button.

[3D] / [2D] / [2D

Displays the appropriate image that you desire without selecting 3D format.

●

This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format manually

Select the mode

3D Mode Selection

2D3D3D

3D]:

●

select

set

Items of [3D Mode Selection] vary depending on the condition.

Page 37

■ To change 3D format manually

When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.

During the above operation Select the mode

(red)

3D Mode Selection (Manual)

Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D Top and Bottom - 3D Top and Bottom - 2D 2D 3D

[Original]:

Displays the source image as it is.

●

Use to identify the format type of the source image.

“Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format”

(see below)

[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] / [Top and Bottom - 3D] / [Top and Bottom - 2D]:

Displays the mode you select.

●

Not valid on Analogue and AV mode

[2D

3D]:

Converts 2D images into 3D.

●

Please note the 3D images appear slightly different from the originals.

●

Using this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law

Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.

Source image format

[Original]

[Frame

Sequential - 3D]

[3D Mode Selection]

[Side by Side

- 3D]

select

set

[Top and

Bottom - 3D]

[2D

Viewing 3D images

3D]

Frame Sequential

Side by Side (Full)

Side by Side

Top and Bottom

Normal format (2D)

∗

1: When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed

without 3D effect.

●

Depending on the player or broadcasts, the image may be different from the above illustrations.

Normal 3D

∗

Normal 3D

∗

Normal 3D

∗

Normal 3D

Page 38

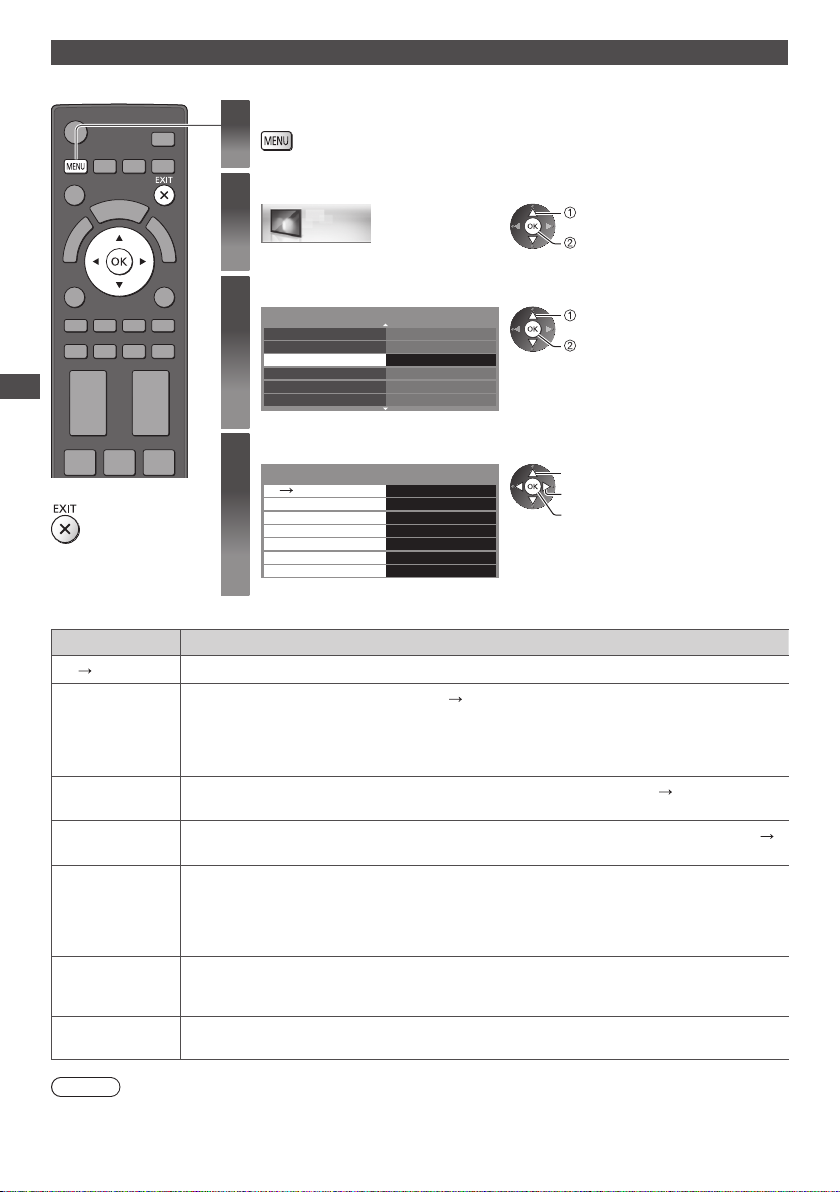

3D Settings

If the 3D images are not displayed correctly or seem unusual, adjust and setup the 3D settings.

Display the menu

Select [Picture]

3D Depth


Access On

Mid Access Normal Off On On Access

2/2

Viewing 3D images

■

To return to TV

Select [3D Settings]

P-NR Off Picture in Picture

3D Settings

Screen Display Advanced Settings Reset to Defaults

Select one of the following functions and set

3D Settings

2D 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

select

access

select

access

select adjust access / store

Item Adjustments / Configurations (alternatives)

2D 3D Depth

3D Adjustment

Picture Sequence

Edge Smoother

3D Detection

3D Signal Message

Safety Precautions

Note

●

[3D Adjustment] and [Picture Sequence] will not be memorised when changing the input mode or channel.

Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]

Adjustment of the 3D effect (except in [2D

●

Set to [On] to enable [Effect] setting.

●

When setting to [On], a safety precaution message will appear. Read it carefully and press the BACK/RETURN button to go to [Effect] setting.

[Effect]: Adjusts the 3D depth according to the contents or to your preference.

Select [Reverse] if you feel that the sense of depth is unusual (except in [2D

[Normal] / [Reverse]

Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D 3D] mode) [Off] / [On]

Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]

[On (Advance)]: Detects all the 3D format signals and displays the 3D image automatically. [On]: Detects the particular 3D format signals (Frame Sequential, etc.) and displays the 3D

image automatically.

●

To view 3D images without any notifications and operations, set to [On (Advance)].

Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]

●

For DVB, Component and HDMI input

●

This function is not available when [3D Detection] is set to [On (Advance)].

Displays the precautions for viewing 3D images

3D] mode) [Off] / [On]

3D] mode)

Page 39

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

Display icons of the feature

Select a feature

VIERA Link

■

To return to TV

select

access

How to Use VIERA TOOLS

■ Follow the operations of each feature

[VIERA Link]

∗

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

(p. 100 - 103)

∗

[Photo]

(p. 76)

∗

[Video]

(p. 80)

[Recorded TV]

(p. 81)

∗

Note

●

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

∗

[Music]

(p. 84)

[VIERA Connect]

(p. 20, 86)

[Media Server]

(p. 92)

∗

Page 40

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

How to Use Menu Functions

■

To return to TV at any time

■

To return to the previous screen

■

To change menu pages

down

■ Enter characters by free input menu

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

●

You can set characters by using numeric buttons.

■ To reset the settings

●

Picture or sound settings only

●

To initialise all settings

■ Choose from among alternatives

Colour Balance

■ Adjust using the slide bar

Sharpness

■ Go to the next screen

Child Lock Access

[Shipping Condition] (p. 49)

●

Displays the functions that can be set (varies according to the input signal).

Select the menu

Main Menu


Sound

Network

imer

Setup

Select the item

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness T

int Colour Balance Vivid Colour Eco Mode Off

Displays the next screen

Set characters one by one

[Reset to Defaults] in the Picture Menu (p. 43) or Sound Menu (p. 45)

Warm Off

Cool

Normal

arm

Moved

select

set

“Characters table for numeric buttons” (p. 114)

1/2

5 0

select

access

select

access

select

store

change

store

access

Store

Page 41

Menu list

Viewing Mode


Item Adjustments / Configurations (alternatives)

Selects your favourite picture mode for each input [Dynamic] / [Normal] / [Cinema] / [THX Cinema] / [THX Bright Room] /

[Game] / [Professional1] / [Professional2] [Dynamic]:

Improves contrast and sharpness for viewing in a bright room.

[Normal]:

Normal use for viewing in a normal lighting condition.

[Cinema]:

Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.

[THX Cinema]∗:

Reproduces the original image quality precisely in a darkened room.

●

[THX3D Cinema] is displayed instead of [THX Cinema] in 3D mode.

[THX Bright Room]∗:

Reproduces the original image quality precisely in a bright room.

●

Not valid on 3D mode

[Game]:

Provides suitable images for fast response signal when playing games.

●

Not valid on TV mode

●

To display a continuous record of time spent using Game mode

[Playing Time Display] (p. 48)

[Professional1 / 2]:

Allows you to set the professional picture settings in [Advanced Settings], [Colour Gamut], [Lock Settings] and [Copy Adjustment]. (p. 68)

●

This mode is available only when [Advance(isfccc)] in the Setup Menu is set to [On].

●

If the certified professional dealer sets these modes, [Professional1] and [Professional2] may be displayed as [isf Day] and [isf Night].

In each Viewing Mode, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Colour Remaster], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored for each input. Additionally, you can adjust and setup the detailed settings when [Advance(isfccc)] in the Setup Menu is set to [On]. (p. 49)

●

You can set [Viewing Mode] in 2D and 3D mode for each.

∗

THX modes are used to mirror the picture settings used by professional filmmakers, faithfully reproducing the image quality of THX Certified movies. THX Certified movies have the THX logo on the disc. THX modes are not available in the mode of Media Player (photo / music) and network service operations.

How to Use Menu Functions

Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance

ivid Colour

Colour Remaster

Adjusts the levels of these options according to your personal preference

Adjusts the picture hue to suit your taste

●

For NTSC signal reception

Sets the overall colour tone of the picture [Cool] / [Normal] / [W

●

Not valid when [Viewing Mode] is set to THX modes, [Professional1] or [Professional2]

Automatically adjusts colours to vivid ones [Off] / [On]

●

Not valid when [Viewing Mode] is set to [Professional1] or [Professional2]

Displays the vivid images with the expanded colour gamut [Off] / [On] / [Auto]

●

For HDMI input or video contents of Media Player (when [Viewing Mode] is set to [Dynamic], [Normal] or [Cinema])

●

Set to [Auto] to use this function effectively.

arm]

Page 42

Item Adjustments / Configurations (alternatives)

Eco Mode

P-NR

3D-COMB

Picture in Picture Displays two windows at once (p. 67)

How to Use Menu Functions

3D Settings Adjusts and sets to view 3D images (p. 38)

Screen Display


1080p Pure Direct

Automatic Brightness Control function Adjusts picture settings automatically depending on ambient lighting conditions

[Off] / [On]

Picture Noise Reduction Reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max] / [Auto]

●

Not valid when [Viewing Mode] is set to [Game] or [1080p Pure Direct] is set to [On]

Makes still or slow moving pictures more vivid [Off] / [On]

●

Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to [On] to display sharper and more accurate colours.

●

For PAL / NTSC signal reception in TV mode or from composite (except 3D mode)

urns the screen off when you select [Off]

[Off] / [On]

●

The sound is active even if the screen turns off.

●

Press any buttons (except Standby) to turn the screen on.

●

This function is effective in reducing power consumption when listening to the sound without watching the

Reproduces the original image quality in detail for 1080p (HDMI) input signal

[Off] / [On]

●

Not valid on 3D or multi window mode

TV screen.

Intelligent Frame Creation

Advanced Settings

24p Smooth Film

Film Cadence Detection

3D Refresh Rate

Side Panel

Automatically compensates the picture frame rate and removes juddering movements to make the images smooth [Off] / [Min] / [Mid] / [Max]

●

Depending on the contents, images may be noisy. To prevent the noise, change the setting.

●

Not valid on multi window mode or when [Viewing Mode] is set to [Game]

Automatically compensates the picture frame rate to make the 24p source movie images smooth [Off] / [Min] / [Mid] / [Max]

●

This is available only for 24p signal input and displayed instead of [Intelligent Frame Creation].

●

Not valid on multi window mode or when [Viewing Mode] is set to [Game]

Improves vertical resolution for movie images [Off] / [On]

●

This function is available for the interlaced signal (except in the mode of multi window

, VIERA Connect or when [Viewing Mode] is set to [Game]).

Reduces juddering and flicker noises of the 3D images when using the 3D Eyewear [Auto] / [100Hz] / [120Hz]

[100Hz]:

If light appears to flicker under fluorescents (or dimmers) of 50 Hz.

[120Hz]:

If light appears to flicker under fluorescents (or dimmers) of 60 Hz.

Adjusts the brightness of the side panel [Off] / [Low] / [Mid] / [High]

●

The recommended setting is [High] to prevent panel “image retention”.

Page 43

Item Adjustments / Configurations (alternatives)

Selects the screen area displaying the image [Off] / [On] [On]:

Enlarges the image to hide the edge of the image.

[Off]:

16:9 Overscan

Displays the image in the original size.

●

Set to [On] if noise is generated on the edge of the screen.

●

This function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].

●

This function can be memorised separately for SD (Standard definition) and HD (High definition) signals.

●

Not valid on VIERA Connect

V Colour System

Advanced Settings


DVI Input Setting

Pixel Orbiter

Scrolling Bar

Reset to Defaults

Mode

Sound

Selects optional colour system based on video signals in AV mode

[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]

Changes the black level of the image for HDMI input mode with DVI input signal manually [Normal] / [Full]

●

When the DVI input signal from the external equipment (especially from PC) is displayed, the black level may not be suitable. In this case, select [Full].

●

The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal

Selects the mode for wobbling of the image to prevent panel “image retention”

[Auto] / [On] [Auto]:

Automatically works only for the appropriate images and you rarely recognise the wobbling.

Displays scrolling bar pattern to assist elimination of panel “image retention”

●

Press the OK button to start scrolling and press any buttons (except Standby) to exit this mode.

●

For positive effect to eliminate “image retention”, it may be necessary to display for a long time.

Press the OK button to reset the current Picture V input to the default settings

Selects your favourite sound mode [Music] / [Speech] / [User]

●

The selected mode affects all input signals.

[Music]:

Improves sound quality for watching music videos, etc.

[Speech]:

Improves sound quality for watching news, drama, etc.

●

In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those settings will be stored for each mode.

[User]:

Adjusts the sounds manually by using the equaliser to suit your favourite sound quality.

●

For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and [Treble]. Select [Equaliser] and adjust the frequency.

[Equaliser] (p. 44)

iewing Mode of the selected

How to Use Menu Functions

Bass Adjusts level to enhance or minimise lower, deeper sound output

Treble Adjusts level to enhance or minimise sharper, higher sound output

Page 44

Equaliser

Balance Adjusts volume level of right and left speakers

Item Adjustments / Configurations (alternatives)

Adjusts the frequency level to suit your favourite sound quality

●

This function is available when [Mode] is set to [User].

●

Select the frequency and change the frequency level by using the cursor button.

●

To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency.

●

To reset the levels of each frequency to the default settings, select [Reset to Defaults] by using the cursor button, and then press the OK button.

Headphone V

How to Use Menu Functions

Surround

Auto Gain Control

Sound

Volume Correction Adjusts the volume of individual channel or input mode

Speaker Distance to Wall

MPX

Audio Preference

olume Adjusts the volume of the headphones

Surround sound settings

[Off] / [V-Audio] / [V-Audio Surround] / [V-Audio ProSurround] [V-Audio]:

Provides a dynamic enhancer of width to simulate improved spatial effects.

[V-Audio Surround]:

Provides a dynamic enhancer of width and depth to simulate improved spatial effects.

[V-Audio ProSurround]:

Provides a more progressive enhancer and reverberation to simulate improved spatial effects.

●

Switching is also possible by the SURROUND button on the remote control (p. 10).

Automatically regulates large sound level dif inputs [Off] / [On]

Compensates for the low frequency sound due to the distance between the speakers and the wall [Over 30cm] / [Up to 30cm]

●

If the back space between the TV and wall is over 30 cm, [Over 30cm] is recommended.

●

If the back space between the TV and wall is within 30 cm, [Up to 30cm] is recommended.

Selects multiplex sound mode (if available)

[Stereo]: Use this normally [Mono]: When stereo signal cannot be received. [M1] / [M2]: Available while mono signal is transmitted.

●

For Analogue mode

Selects the initial setting for audio tracks

[Auto] / [Multichannel] / [Stereo] / [MPEG]

●

Selectable options vary depending on the country you select.

[Auto]: Automatically selects the audio tracks if programme has more than two

[Multichannel]: The priority is given to multi-channel audio track. [Stereo]: The priority is given to stereo (2ch) audio track. [MPEG]: The priority is given to MPEG.

●

Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.

●

HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission.

●

MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality.

●

Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes.

●

For DVB mode

The priority is given in the following order - Dolby Digital Plus, HE-

tracks. AAC, Dolby Digital, MPEG.

ferences between channels and

Page 45

Sound

Item Adjustments / Configurations (alternatives)

Audio Type

SPDIF Selection

Narration settings for visually impaired users (only available in some countries)

[Standard] / [Visual Impaired]

●

Set to [Visual Impaired] to activate the narration sound track when available on the broadcast.

●

For DVB mode

SPDIF:

A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as

Dolby Digital Bitstream. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

●

For DVB mode or video contents of Media Player / Network services (p. 83, 95)

●

ARC (Audio Return Channel): A function of digital audio output using HDMI cable

12)

AL AUDIO OUT and HDMI2

HDMI1 / 2 / 3 / 4 Input

SPDIF Delay

Reset to Defaults

Connection Test, Network Connection, Wireless Network Settings, IP/DNS Settings

Selects to fit the input signal [Digital] / [Analogue] (p. 1 [Digital]: When sound is carried via the HDMI cable connection [Analogue]: When sound is not carried via the HDMI-DVI adaptor cable

●

For HDMI input

Adjusts the delay time of the sound output from DIGIT (ARC function) terminals if the sound does not synchronise the image

●

For DVB mode

Press the OK button to reset the current Sound Mode, [Balance], [Headphone

olume] and [Surround] to the default settings

Sets the network setting to use in your network environment (p. 89, 90)

connection

Network

Network Link Settings Sets to control the TV with the devices connected to the network (p. 88)

Software Update Checks for available software updates from the Panasonic website

New Software Message

Network Status Displays the network status (MAC Address, current network settings, etc.)

Timer Programming

Selects whether to give a notification message when new software is found via network [Off] / [On]

Sets a timer to record or remind forthcoming programmes (p. 59)

●

For DVB mode

How to Use Menu Functions

Off Timer

Timer

Auto Standby

Sets the duration of time until the TV automatically goes into Standby mode [Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p. 23)

Sets the duration of time that the TV will remain on when no operation is performed [Off] / [2] / [4] (hours)

●

Starting Timer Programming automatically does not affect this function.

●

Automatic input switching with the connected equipment affects this function and time-count will be reset.

●

The notification message will appear 3 minutes before going into Standby mode.

Page 46

Eco Navigation

Recording Setup Settings for the recording feature of the USB HDD / SD Card (p. 71)

Bluetooth Setup Settings for the specific devices supporting Bluetooth wireless technology (p. 113)

VIERA Touch Pad Controller

Item Adjustments / Configurations (alternatives)

Automatically sets the TV to the most suitable energy-saving mode

●

If you press the OK button, the following items are set as below: [Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save] [On] [Intelligent Auto Standby] [On (No reminder)] [Auto Standby] [2 hours]

Pairing

How to Use Menu Functions

Cursor Settings Sets for the cursor of the touch pad controller

VIERA Link Sets to use VIERA Link functions [Off] / [On] (p. 99)

Setup

HDMI Content Type

AV1 out

Link Settings

Power on Link Sets to use Power on Link function [Off] / [On] (p. 98, 99)

Power off Link Sets to use Power of

Standby Power Save

Registers the VIERA Touch Pad Controller (supplied) to this TV

●

Only 1 touch pad controller can be registered.

Automatically adjusts the picture settings according to the received HDMI content via HDMI cable [Off] / [Auto]

●

This function is available if the connected equipment supports HDMI Content T

ype.

●

The content type information will be displayed for several seconds when this function works.

Chooses the signal to be transmitted from the TV to Q-Link

[TV] / [AV2] / [Monitor] [Monitor]: Image displayed on screen

●

Component and HDMI signals cannot be output.

f Link function [Off] / [On] (p. 98, 99)

Controls the connected equipment to reduce power consumption in Standby [Off] / [On] (p. 100)

●

This function is available when [VIERA Link] is set to [On] and [Power off Link] is set to [On].

Intelligent Auto Standby

Download

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption

[Off] / [On (W

●

This function is available when [VIERA Link] is set to [On].

Downloads channel, language and country / region settings to Q-Link or VIERA

●

DVB-S and DVB-C channel settings cannot be downloaded.

ith reminder)] / [On (No reminder)] (p. 100)

Link compatible equipment connected to the TV

Page 47

Child Lock Applies access control for channels or inputs to prevent unwanted access (p. 62)

Item Adjustments / Configurations (alternatives)

Setup

Favourites Edit

Channel List Skips the unwanted channels or edits channels (p. 56)

Auto Setup Automatically searches for the receivable channels (p. 51 - 54)

uning Searches for the channels manually (p. 57)

Manual T

Update Channel List

Favourite Network

New Channel Message

Tuning Menu

Service Replacement

∗

Signal Condition

Creates a list of favourite channels (p. 55)

●

Not valid on Analogue mode

Updates the channel list while keeping your settings (p. 58)

●

For DVB mode

Selects your favourite network for each broadcasters (only available in some countries)

●

For DVB-C or DVB-T mode

Selects whether to give a notification message when a new channel is found [Off] / [On] (p. 58)

●

For DVB mode

Set to [On] to enable a message to switch to the available service (only available in some countries) [Off] / [On]

●

For DVB-C mode

Checks the signal condition (p. 58)

●

Not valid on Analogue mode

How to Use Menu Functions

Antenna System

LNB Configuration

Attenuator

Add TV Signal

Sets the antenna system to use plural LNBs for receiving several satellites [One LNB] / [MiniDiSEqC] / [DiSEqC 1.0] / [Single Cable] (p. 51)

●

This TV supports DiSEqC Version 1.0.

●

For DVB-S mode

Selects the satellite for each LNB (p. 51)

●

For DVB-S mode

Automatically reduces the DVB-C signal to avoid the interference [Off] / [On]

●

If the DVB-C signal is too strong, the interference may occur. In this case set to [On] to reduce the signal automatically

Adds the TV mode

●

This function is available if you skip any modes to tune in [Auto Setup] for first using the

●

To operate, refer to the “Auto Setup” operations for first using the TV (p. 16).

TV.

Page 48

Item Adjustments / Configurations (alternatives)

OSD Language Changes language for on-screen displays

Preferred Audio 1 / 2

Language

Preferred Subtitles 1 / 2

Preferred Teletext

How to Use Menu Functions

Setup

Preferred Subtitle Type

Teletext Teletext display mode [TOP (FLOF)] / [List] (p. 28)

Teletext Character Set

Display Settings

Default Guide

Selects the first and second preferred language for DVB multi audio (depending on the broadcaster)

Selects the first and second preferred language for DVB subtitles (depending on the broadcaster)

●

To display subtitles

Selects the preferred language for DVB teletext service (depending on the broadcaster)

Selects the preferred subtitle type [Standard] / [Hard of Hearing]

●

[Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).

●

[Preferred Subtitles 1 / 2] in [Language] are given priority.

Selects teletext language font [West] / [East1] / [East2] [West]: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc. [East1]: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. [East2]: Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the default TV Guide type when the GUIDE button is pressed (only available in some countries) [Channel List] / [TV Guide]

[TV Guide]:

Electronic Programme Guide (EPG) is available.

●

To use EPG

[Channel List]:

The channel list will appear instead of EPG.

(p. 22)

(p. 25)

Input Labels

Banner Display

imeout

VIERA Connect Banner

Playing Time Display

Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in [TV Selection] (p. 21), [Input Selection] (p. 30) or banner

●

To name each input mode freely, select [User input] and set characters (maximum 10 characters).

●

To skip the input mode, select [Skip].

Sets how long the Information banner stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 20, 21)

Set to [On] to display a continuous record of time spent using Game mode in the top right of the screen every 30 minutes [Off] / [On]

●

This function is available when [Viewing Mode] is set to [Game].

(p. 41)

Page 49

Item Adjustments / Configurations (alternatives)

Data Service Application

Display Settings

Radio Mode

Channel T Effect

Common Interface Sets to watch encrypted channels, etc. (p. 64)

DivX® VOD Displays DivX VOD registration code (p. 110)

Advance(isfccc)

ransition

Setup

Keyboard Layout

Sets to use Hybrid Broadcast Broadband TV application (depending on the selected country and broadcaster) [Off] / [Auto Start Off] / [Auto Start On] (p. 63)

●

For DVB mode

Sets the timer for turning of selected [Off] / [5] / [10] / [15] / [20] (seconds)

●

The sound is active even if the screen turns off. This function is effective in reducing power consumption when listening to a radio channel.

●

Press any buttons except Standby, Volume Up / Down and MUTE buttons to turn the screen on.

●

Not valid on Analogue mode

Enables the transition effect when changing channels [Off] / [On]

Enables the advanced picture settings [Off] / [On]

●

Set to [On] to display the advanced items in the Picture Menu - [Advanced Settings], [Lock Settings] and [Copy displayed when [Viewing Mode] is set to [Professional1] or [Professional2]. (p. 68)

●

[isfccc] is the picture setting for the certified professional dealer. For details, consult your local dealer.

Selects the language that your USB or Bluetooth Keyboard supports

●

For the information of using Keyboard (p. 114)

f the screen automatically when a radio channel is

How to Use Menu Functions

Adjustment]. [Copy Adjustment] will be

Shipping Condition Resets all settings to the original condition (p. 65)

System Menu

System Update Downloads new software to this TV (p. 66)

Software Licence Displays the software licence information

System Information Displays the system information of this TV

Device Information Displays the device information of this TV

GUIDE Plus+ Settings

Other Settings

Update

Postcode

System Information

Performs the update of the GUIDE Plus+ schedule and advertising information for the GUIDE Plus+ system (only available in some countries) (p. 26)

Sets your postcode to display advertisements in the GUIDE Plus+ system (only available in some countries) (p. 26)

Displays the system information of the GUIDE Plus+ system (only available in some countries)

Page 50

Item Adjustments / Configurations (alternatives)

Automatically selects the input when the TV is turned on [TV] / [AV]

●

Power on Preference

Set to [TV] to view picture from TV tuner. Set to [AV] to view input from the external equipment connected to the

●

The external equipment must be switched on and sending a control signal for automatic switching at power on to occur

AV1 or HDMI1 terminal, e.g. set top box.

Other Settings

Setup

USB Charge in Standby

Power Save

ime Zone

Enables to supply the power from the USB port in Standby mode [Off] / [On]

●

Available for charging the rechargeable 3D Eyewear (optional)

●

This function is available when in Standby mode.

Reduces brightness of the picture to economise on power consumption

[Off] / [On]

Adjusts the time data

●

The time data will be corrected based on GMT.

How to Use Menu Functions

Exchange Channel List

∗

The settings in [Tuning Menu] are applicable only for the selected TV mode. The menu name varies depending on the TV mode. ([DVB-S Tuning Menu] / [DVB-C Tuning Menu] / [DVB-T Tuning Menu] / [Analogue Tuning Menu])

●

A different menu will be displayed when [Advance(isfccc)] in the Setup Menu is set to [On] or in the mode of Media Player / network service operations. (p. 68, 75 - 84, 92 - 95)

●

Only available items can be selected.

Exports / Imports DVB-S Channel List settings using the SD Card to share the same settings with VIERA

which has the same function

Page 51

Retuning from Setup Menu

Automatically retune the channels received in the area.

●

This function is available if channel tuning is already performed.

●

Only the selected mode is retuned. All the previous tuning settings are erased.

●

If Child Lock PIN number (p. 62) has been set, the PIN number is required.

●

If tuning has not been done completely [Manual Tuning] (p. 57)

DVB-S channels

Select DVB-S

(p. 21)

Display the menu and select [Setup]

Select [DVB-S Tuning Menu]

Set [Antenna System] and [LNB Configuration]

DVB-S Tuning Menu Access

DVB-S Tuning Menu

Setup

select

access

select

access

Antenna System DiSEqC 1.0 LNB Configuration Access

1 Select [Antenna System] and set

You can receive several satellites if you have DiSEqC control antenna system.

DVB-S Tuning Menu

Antenna System DiSEqC 1.0

[One LNB]: Compatible with single LNB. [MiniDiSEqC]: Up to 2 LNBs can be controlled. [DiSEqC 1.0]: Up to 4 LNBs can be controlled. [Single Cable]: When using the Single Cable router

select

access / store

●

This TV supports DiSEqC Version 1.0.

, up to 8 user bands are available.

2 Select [LNB Configuration]

DVB-S Tuning Menu

LNB Configuration Access

select

access

3 Set [LNB] and [Satellite]

Set [LNB] first, then set [Satellite] for the selected LNB.

LNB Configuration

Signal Quality Signal Strength

LNB

LNB Low Band Frequency LNB High Band Frequency

Satellite

Test Transponder Frequency

010 010

AA 9750 MHz 10600 MHz Astra 19.2° E 10744 MHz

select set

Retuning from Setup Menu

Page 52

[LNB]:

●

If you set to [One LNB], [LNB] is not selectable.

●

If you set to [MiniDiSEqC] or [Single Cable], select from LNB AA and AB.

●

If you set to [DiSEqC 1.0], select from LNB AA, AB, BA and BB.

[Satellite]:

●

Select [No Satellite] if you do not know the connected satellite (available satellite will be searched in Auto Setup).

●

Select [User defined] to set [Test Transponder Frequency] manually.

●

If you set to [Single Cable], additional settings are required. Set [User Band], [User Band Frequency] and [PIN] (depending on the Single Cable router you use). For details, read the manual of the Single Cable router

4 Store

■ Selectable satellites and dish alignment to tune DVB-S channels:

Intelsat at 85.2°East

•

ABS 1 at 75°East

•

Express at 53° East

•

Intelsat at 45° East

•

Turksat at 42° East

•

Express at 40° East

•

Hellas at 39° East

•

Eutelsat at 36° East

•

Eurobird at 33° East

•

Astra at 28.2° East

•

Arabsat at 26° East

•

Eurobird at 25.5° East

•

●

To ensure your satellite dish is correctly installed, please consult your local dealer.

●

Also please consult the received satellite broadcasting companies for details.

Select [Auto Setup]

Retuning from Setup Menu

DVB-S Tuning Menu

Astra at 23.5° East

•

Eutelsat at 21.5° East

•

Astra at 19.2° East

•

Eutelsat at 16° East

•

Hot Bird at 13° East

•

Eutelsat at 10° East

•

Eurobird at 9° East

•

Eutelsat at 7° East

•

Astra at 4.8° East

•

Thor at 0.8° West /

•

Amos at 4° West

•

Atl. Bird at 5° West

•

Atl. Bird at 7° West

•

Atl. Bird at 8° West

•

Atl. Bird at 12.5° West

•

Telstar at 15° West

•

NSS at 22° West

•

Intelsat at 24.5° West

•

Hispasat at 30° West

•

Intelsat at 1° West

select

Access Auto Setup

access

Set the satellite, search mode and scan mode

DVB-S Auto Setup Settings

Satellite Search Mode Scan Mode

Start scan

Astra 19.2° E Free Channels Quick

select

access / store

●

After settings, select [Start scan].

[Full]: Scans the whole frequency range. [Quick]: Scans the suitable frequency for the selected satellite.

Start Auto Setup (Settings are made automatically)

DVB-S Auto Setup

All DVB-S tuning data will be erased

DVB-S Auto Setup

Satellite Progress This will take about 20 minutes.

No. Channel Name Type

CBBC Channel

BBC Radio Wales

Free TV

: 3 Pay TV: 0 Radio: 0

Astra 19.2° E

0% 100%

Searching

When the operation is completed, the channel at the lowest position will be displayed.

Free TV Free TV Free TV

Quality

100 100 100

Page 53

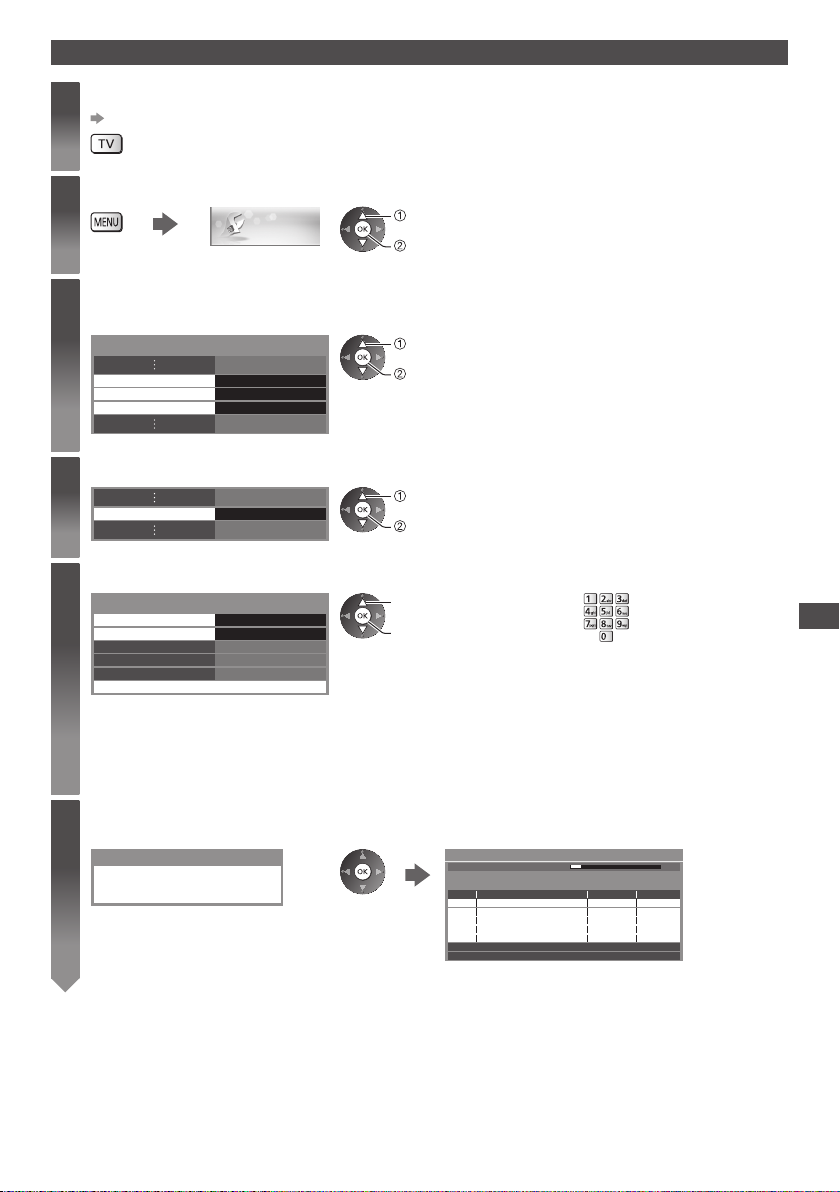

DVB-C, DVB-T, Analogue channels

Select DVB-C, DVB-T or Analogue

(p. 21)

Display the menu and select [Setup]

Select [DVB-C Tuning Menu], [DVB-T Tuning Menu] or [Analogue

Tuning Menu]

Select [Auto Setup]

Set the Auto Setup settings (DVB-C)

●

DVB-C Tuning Menu Access DVB-T Tuning Menu Access Analogue Tuning Menu Access

Auto Setup Access

DVB-C Auto Setup Settings

Search Mode Free Channels Scan Mode

Frequency Symbol Rate Network ID

Start scan

Quick Auto Auto Auto

Setup

[Scan Mode]

[Full]: Scans the whole frequency range. [Quick]: Scans the suitable frequency in your country.

Normally set [Frequency], [Symbol Rate] and [Network ID] to [Auto]. If [Auto] is not displayed or if necessary, enter the value specified by your cable provider with numeric buttons.

select

access

select

access

select

access

select

access / store

●

After settings, select [Start scan].

Retuning from Setup Menu

Start Auto Setup (Settings are made automatically)

DVB-C:

DVB-C Auto Setup

All DVB-C tuning data will be erased

DVB-C Auto Setup

Progress

This will take about 3 minutes.

No. Channel Name Type

CBBC Channel

BBC Radio Wales

Free TV

: 3 Pay TV: 0 Radio: 0

0% 100%

Free TV

100

Free TV

100

Free TV

100

Searching

Quality

Page 54

DVB-T:

DVB-T Auto Setup

All DVB-T tuning data will be erased

Analogue:

Analogue Auto Setup

All analogue tuning data will be erased

DVB-T Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

Free TV

: 4

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

CH 5 69

Free TV Free TV Free TV

Pay TV: 0

Free TV

Searching

CH 2 78 41CC 1

Radio: 0

Quality

100 100 100

●

The channel, language and country / region settings are downloaded to Q-Link or VIERA Link compatible equipment connected to the

TV.

When the operation is completed, the channel at the lowest position will be displayed.

Auto setup using the buttons on the TV

For Auto Setup, using the buttons on the TV (p. 12)

1 Press the F button repeatedly until [Auto

Setup] appears

3 Set the search mode and scan mode

(DVB-S, DVB-C)

(select the item)

(set)

(store)

Retuning from Setup Menu

Analogue: 2

2 Access [Auto Setup]

4 Start [Auto Setup]

Searching

●

To return to TV

●

Control panel OSD appears when pressing the control panel button.

Page 55

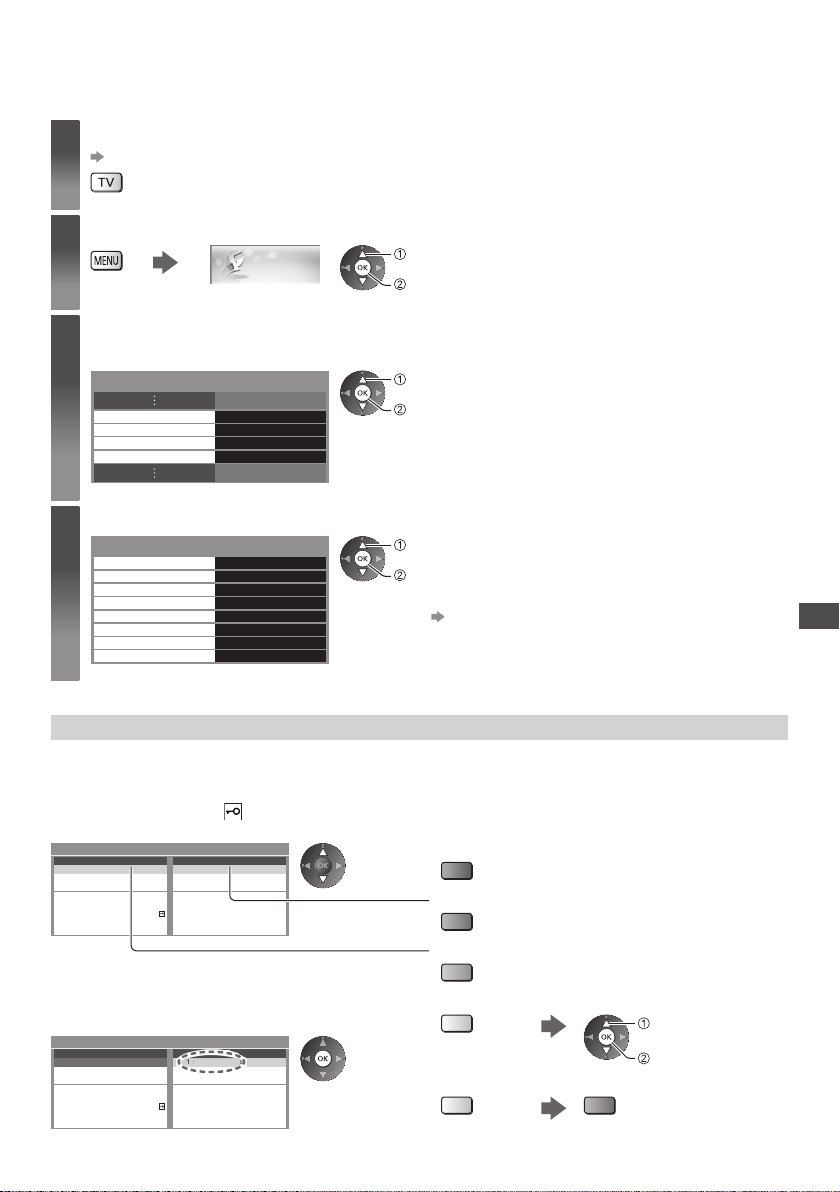

Tuning and Editing Channels

e Wale

es1

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select the mode

(p. 21)

Display the menu and select [Setup]

Select [DVB-S Tuning Menu], [DVB-C Tuning Menu], [DVB-T Tuning

Menu] or [Analogue Tuning Menu]

Select one of the following functions

DVB-C Tuning Menu Access DVB-T Tuning Menu Access Analogue Tuning Menu Access

DVB-C Tuning Menu

Favourites Edit Channel List Auto Setup Manual T

uning Update Channel List New Channel Message Signal Condition Attenuator Off

Access DVB-S Tuning Menu

Access Access Access Access Access On Access

Setup

select

access

select

access

●

The displayed item depends on the selected mode.

select

access

●

The function items vary depending on the country you select (p. 16).

●

[Auto Setup]

“Retuning from Setup Menu” (p. 51 - 54)

Tuning and Editing Channels

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4). The DVB Favourites lists are available from “Category” in the Information banner (p. 22) and the TV Guide screen (p. 25).

1 Select a channel to list ( : Encrypted channel)

Example: DVB-C

DVB-C Favourites Editor

All DVB-C Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

2 Add it to the Favourites list

Example: DVB-C

DVB-C Favourites Editor

All DVB-C Channels Favourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

Sorting 123...

Favourit

1 BBC One Wales

BBC On

●

To sort channel names in alphabetical order

(red)

●

To display other Favourites

(green)

●

To change the category

(blue)

●

To add continuous block of channels to the list at once

(yellow)

●

To add all channels to the list

(yellow)

make the block

add

(green)

Page 56

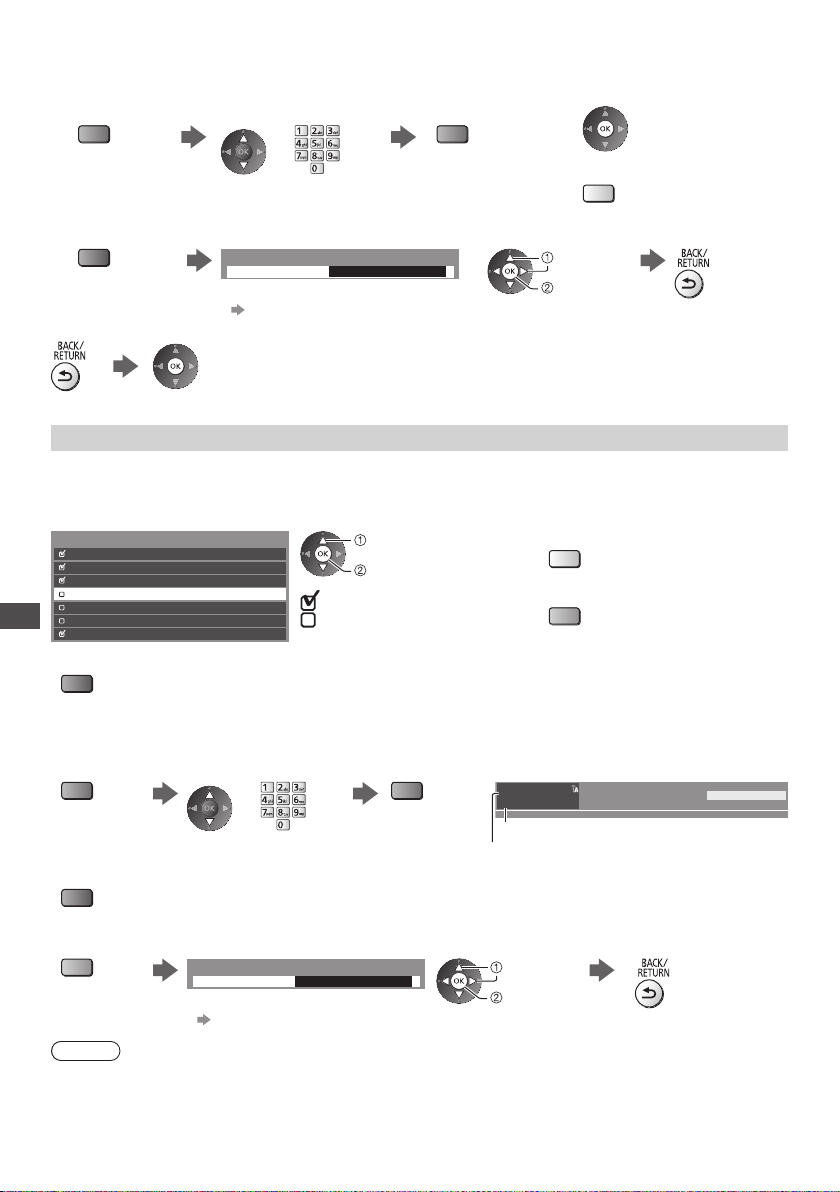

■ To edit Favourites list

While the cursor is in the Favourites field to edit

●

To move the channel

(green)

●

To name the Favourites

(red)

3 Store

Skip unwanted channels, Edit Channels [Channel List]

You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.

Select a channel and reveal / hide

Example: DVB-C

All DVB-C Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales

Tuning and Editing Channels

7 BBC THREE

●

To sort channel names in alphabetical order (DVB)

(red)

Select the new position Store

Set characters (maximum 10 characters) Store

User input

Name

●

To use numeric buttons

(p. 114)

Sorting 123...

: [Reveal]

select

[Reveal] / [Hide]

: [Hide] (skip)

(green)

●

To delete the channel

●

To delete all channels

(yellow)

select

set

●

To reveal all channels

(yellow)

●

To change the category (DVB)

(blue)

■ To edit channels

●

To swap / move the channel position (if available)

(green)

●

To retune each channel ([Manual Tuning] (p. 57)) (Analogue)

(red)

●

To rename the channel name (Analogue)

(blue)

Note

●

If a VCR is connected only with the RF cable in Analogue mode, edit [VCR].

Select the new position Store

(green)

Set characters (maximum 5 characters) Store

Edit channel name

Name

●

To use numeric buttons

(p. 114)

Example: Analogue

Channel position

select

set

ITV

Channel name

CH23 SC1

23:35

All Analogue Channels

Page 57

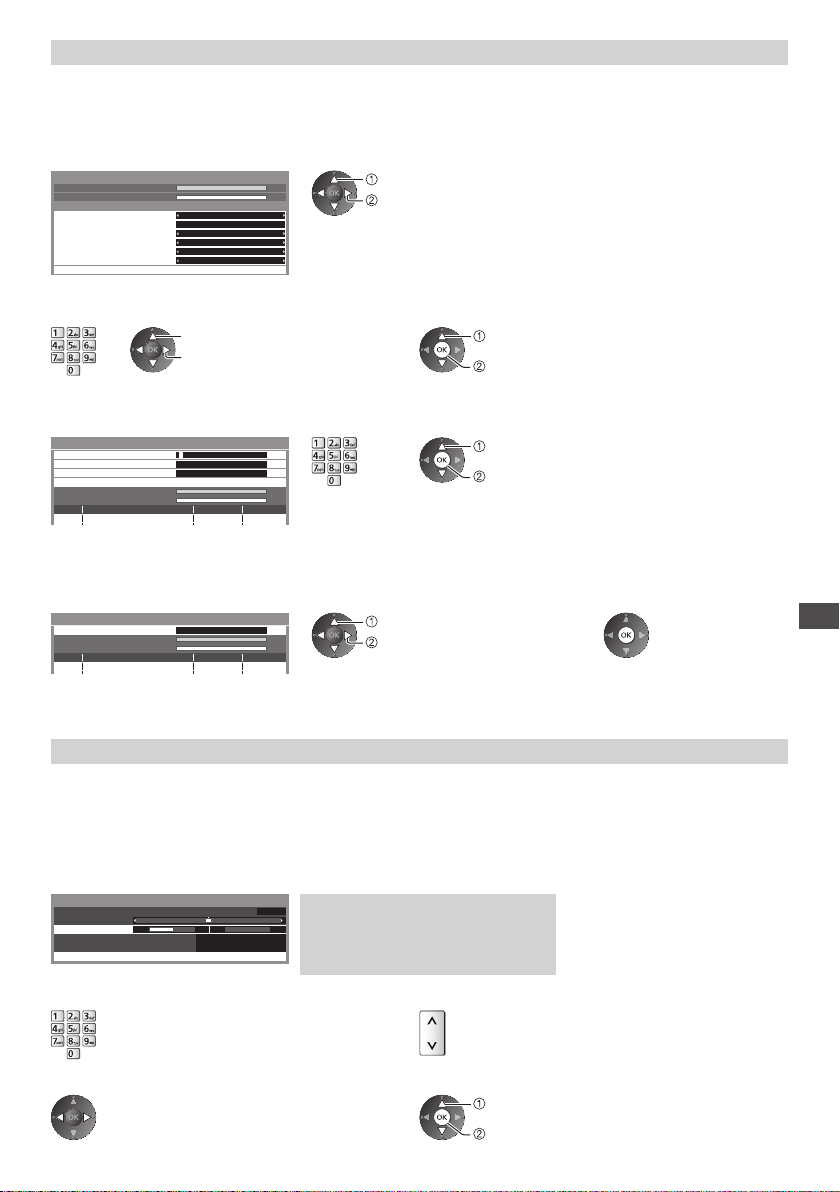

Set DVB channel manually [Manual Tuning]

Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function.

●

All channels found will be added to the Channel List.

DVB-S:

1 Set the satellite

DVB-S Manual Tuning

Signal Quality Signal Strength

Satellite T

ransponder Frequency Symbol Rate Polarisation Modulation Service ID

Start scan

Astra 19.2° E 10847 MHz Auto Horizontal Auto Auto

100% 100%

2 Set [Transponder Frequency], [Symbol Rate],

[Polarisation], [Modulation] and [Service ID]

select change

DVB-C:

select set

●

Please consult the received satellite broadcasting companies for the setting.

3 Select [Start scan]

select

access

1 Enter the frequency 2 Select [Start scan]

DVB-C Manual Tuning

Frequency

Service ID

Signal Quality Signal Strength

Channel Name Type New

No.

●

Normally set [Symbol Rate] and [Service ID] to [Auto].

DVB-T

Start scan

74,00 MHz4 Auto Symbol Rate Auto

100% 100%

select

access

1 Adjust frequency for each channel 2 Search

DVB-T Manual Tuning

Frequency

Signal Quality Signal Strength

No. Channel Name Type New

●

Set where the level of [Signal Quality] becomes the maximum.

[CH21]

474,00 MHz

100 100%

select channel adjust frequency

Tuning and Editing Channels

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]:

Use to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.).

[Manual Tuning]:

Set Analogue channel manually after Auto Setup.

●

Set [Sound System] and [Colour System], and then perform this function. Normally set [Colour System] to [Auto].

●

If a VCR is connected only with the RF cable, select channel position [0].

Analogue Manual Tuning

Fine Tuning

Manual Tuning

Sound System Colour System

278 411

Store

SC1 Auto

CH331 BBC1

SC1: PAL B, G, H / SECAM B, G SC2: PAL I SC3: PAL D, K / SECAM D, K F: SECAM L, L’

1 Select the channel position 2 Select the channel

3 Search 4 Select [Store]

select

store

Page 58

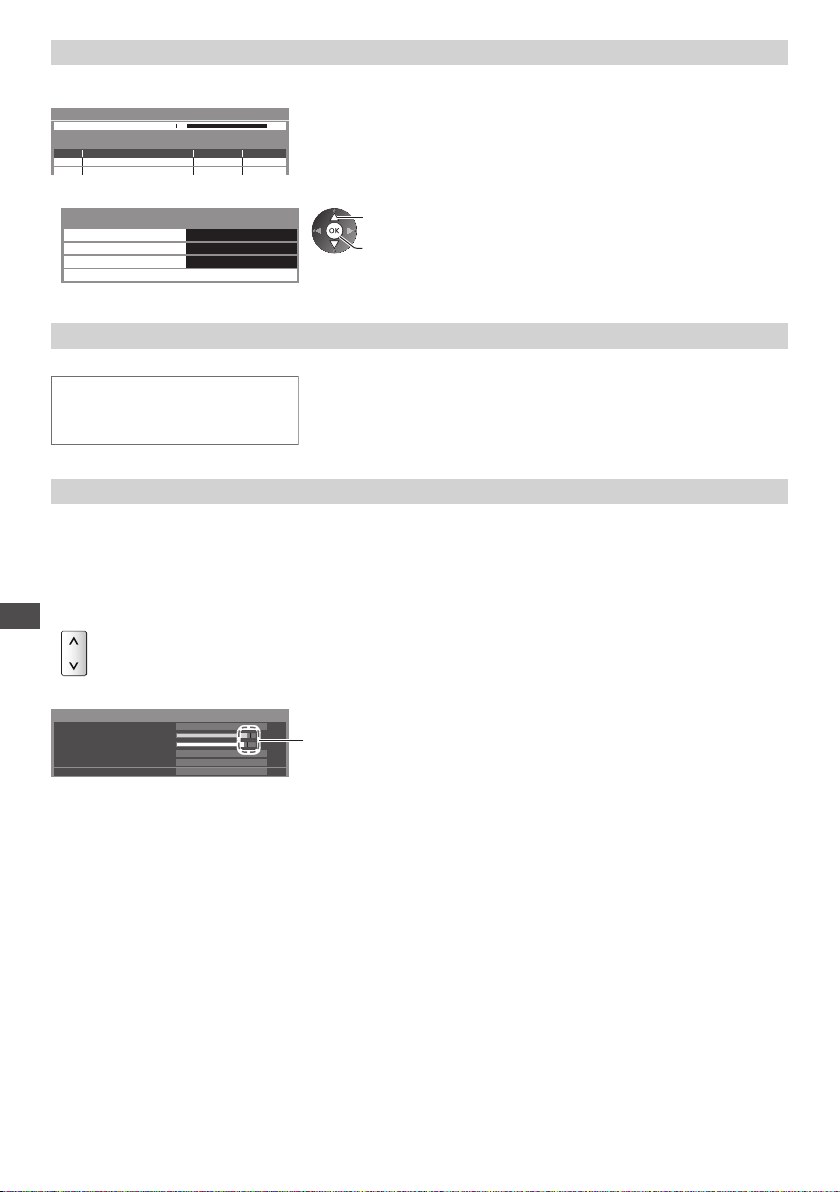

Update DVB channel automatically [Update Channel List]

You can add new channels, delete removed channels, update channel name and position automatically to the channel list.

DVB-T Update Channel List

Progress

This will take about 3 minutes.

CH 5 69

Channel Name Type Quality

●

The channel list is updated while keeping your settings in [Favourites Edit], [Channel List], [Child Lock], etc.

●

Depending on the signal condition, the update may not work properly.

●

To update DVB-S channels, set [Satellite], [Search Mode] and [Scan Mode] before updating.

DVB-S Update Channel List Settings

Satellite Search Mode Scan Mode

Start scan

Astra 19.2° E Free Channels Quick

select

access / store

●

After settings, select [Start scan].

Display a notification message [New Channel Message] (DVB)

Selects whether to give a notification message when a new DVB channel is found.

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

●

Selecting OK will perform [Update Channel List].

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition. A good Signal Strength is not an indication of suitable signal for DVB reception.

●

Use the Signal Quality indicator as follows.

Green bar: Good

•

Yellow bar: Poor

•

Red bar: Bad (Check the Terrestrial aerial, cable or Satellite dish)

•

●

To change the channel

Tuning and Editing Channels

Example:

DVB-C Signal Condition

Channel Name Signal Quality Signal Strength Bit Error Rate Network Name Parameter

70 CBBC Channel

0.00E+00 Wenvoe 802,00 MHz, 64 QAM, 6940 kS/s

9080%

These bars show the maximum signal value of the selected

channel.

Page 59

Timer Programming

Timer Programming from Menu

●

This function is not available in Analogue mode.

●

Timer Programming can store up to 15 events.

●

Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider

●

For recording using Timer Programming, the TV must be either on or in Standby. For reminders to be displayed, the TV must be on.

●

No other channel can be selected while the recording of Timer Programming is in progress.

●

Recording an encrypted (copy-protected) programme may not be possible.

●

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the and [Link Settings] (p. 46) are completed, no setting of the recorder is required. Also read the manual of the recorder.

●

If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder. For preparations of a recorder, read the manual of the recorder.

●

For more information of the USB HDD / SD Card Recording (p. 70, 111)

●

Recording to the external equipment via SCART is always in standard definition (composite video), even if the original programme is in high definition.

●

2 minutes before the starting time, a reminder message appears if you are watching TV.

To remove the message and start the programming

•

To cancel the programming

•

TV. If a recorder compatible with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 98, 99)

Select DVB-S, DVB-C or DVB-T

(p. 21)

Display the menu and select [Timer]

Select [Timer Programming]

Off Timer Auto Standby

Access Timer Programming Of Off

Timer

Timer Programming

select

access

select

access

Page 60

Set timer programming event details

Start making the settings

2 Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or [Reminder])

[Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.]:

Records the programme to the external recorder, the USB HDD or the SD Card. When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV. For [USB HDD Rec.] and [SD Card Rec.], you can select a recording mode: [DR]: Direct recording (normal mode) [LT1]: Long time recording [LT2]: Extra long time recording

“Recording time for the USB HDD / SD Card Recording” (p. 111)

[Reminder]:

Reminds you to watch the programme. When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

: Overlapped timer programming events

Timer Programming

Function No. Date Start End Channel Name

Reminder

D 7 BBC7 17:00 18:30

Ext Rec.

<TIMER>

D 1 BBC1 STTL 18:00 20:00

<TIMER>

C 3 ITV1

<TIMER>

------

[S]: DVB-S [C]: DVB-C [D]: DVB-T

●

You cannot change the mode within the menu.

Channel number

Date

one day ahead

daily or weekly (press repeatedly)

●

[Daily Sun-Sat]: Sunday to Saturday

●

[Daily Mon-Sat]: Monday to Saturday

●

[Daily Mon-Fri]: Monday to Friday

●

[Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun]: Same time on the same day every week

set

Wed 26.10.2011 10:46

Wed 26.10.2011

Thu 27.10.2011

(90 min.)

(120 min.)

21:30 22:30

(60 min.)

--:----:-- --:--

2 3 4

Duration (automatic display)

●

1, 3 and 4 can also be entered with numeric buttons.

Records with subtitles (if available)

●

To indicate this

(yellow)

(Press again to remove subtitles)

Starting time

Ending time

4 Store

Page 61

■ To edit a timer programming event

Select the event

●

To change a timer programming event

Correct as necessary (p. 60)

●

To delete a timer programming event

(red)

●

To record with subtitles (if available)

(yellow)

●

To cancel a timer programming event temporarily

(blue)

Each time pressed:

•

auto

Each time pressed:

•

cancel

off

stop cancelling

■ To unlock the tuner and stop recording

Note

●

Check that the LED is orange. If not, timer programming events are not active or not stored.

●

Timer Programming reminder messages will remain displayed until one of the following occurs:

You press the OK button to view the programme or the EXIT button to cancel the reminder.

•

The timer programming event that the reminder is set for ends.

•

●

“!” identifies that two or more timer programming events are overlapped. [Ext Rec.], [USB HDD Rec.] and [SD Card Rec.] are given priority over [Reminder]. As for the overlapped recording events, the first event starts and finishes as programmed. The next event can then start.

●

The recording of Timer Programming will automatically change to the programmed channel a few seconds before the start time.

●

To stop recording the timer programming event, it may be necessary to stop the recorder manually.

●

The recording of Timer Programming will be performed even if the TV is in [REW LIVE TV] recording (p. 73) or [Pause Live TV] recording (p. 101). In this case, [REW LIVE TV] recording or [Pause Live TV] recording will be cancelled.

Timer Programming

Page 62

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.

Display the menu and select [Setup]

Select [Child Lock]

Control channel audience [Child Lock]

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

2 Select [Child Lock List]

Child Lock

Change PIN

Child Lock List

Parental Rating

3 Select the channel / input to be locked

Child Lock List - TV and AV Sorting 123...

Child Lock

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1

*****2 AV1 AV

●

To cancel Select the locked channel / input

Child Lock Access

* * * *

Access No limit

Type

Free TV

DVB-C

Free TV

DVB-T

Free TV

DVB-T

Analogue

Analogue External

Setup

Lock

: Appears when the channel / input is locked

●

To sort channel names in alphabetical order

(red)

●

To cancel all locks

select

access

select

access

●

Enter the PIN number twice at first setting.

●

Make a note of the PIN number in case you forget it.

●

“0000” may be stored as the default PIN number which depends on the country you select (p. 16).

select

access

select

lock

●

To lock all

●

To jump to the top of the next input

(yellow)

(green)

(blue)

■ To change the PIN number

1. Select [Change PIN] 2. Enter a new PIN number twice

Child Lock

Change PIN

Access

select

access

■ To set Parental Rating

To watch the DVB programme that has the rating information over the selected age, enter the PIN number to watch (depending on the broadcaster).

Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock

Parental Rating

No limit

select

access / store

Note

●

Setting [Shipping Condition] (p. 65) erases the PIN number and all settings.

●

The availability of this function depends on the country you select (p. 16).

Page 63

Using Data Service Application

You can enjoy Hybrid Broadcast Broadband TV application that is one of the interactive data services for digital broadcasting.

●

To use Hybrid Broadcast Broadband TV application fully, you need a broadband network environment. Ensure the network connections and network settings are completed.

“Network connections” (p. 87), “Network Setup” (p. 88 - 91)

●

Not all the data service are available depending on the country, area and broadcaster.

●

Depending on the connection environment, the internet connection may be slow or may not be successful.

Select DVB-S, DVB-C or DVB-T

(p. 21)

Display the menu and select [Setup]

Select [Display Settings]

Select [Data Service Application] and set to [Auto Start On]

Access Display Settings

Display Settings

Data Service Application Auto Start On

Setup

select

access

select

access

select

access / set

Using Data Service Application

Notification message will appear when the application is available. Follow the onscreen instructions.

Note

●

Operations may vary depending on the broadcaster. Follow the on-screen instructions.

●

On-screen instructions may not correspond to the remote control buttons.

■ To check the availability of the application

BBC ONE WALES

Coronation Street 20:00 - 20:55 Now Info

All DVB-T Channels

Change category

20:35

“D” is displayed if programme has Hybrid Broadcast Broadband TV application

■ To stop the application

Page 64

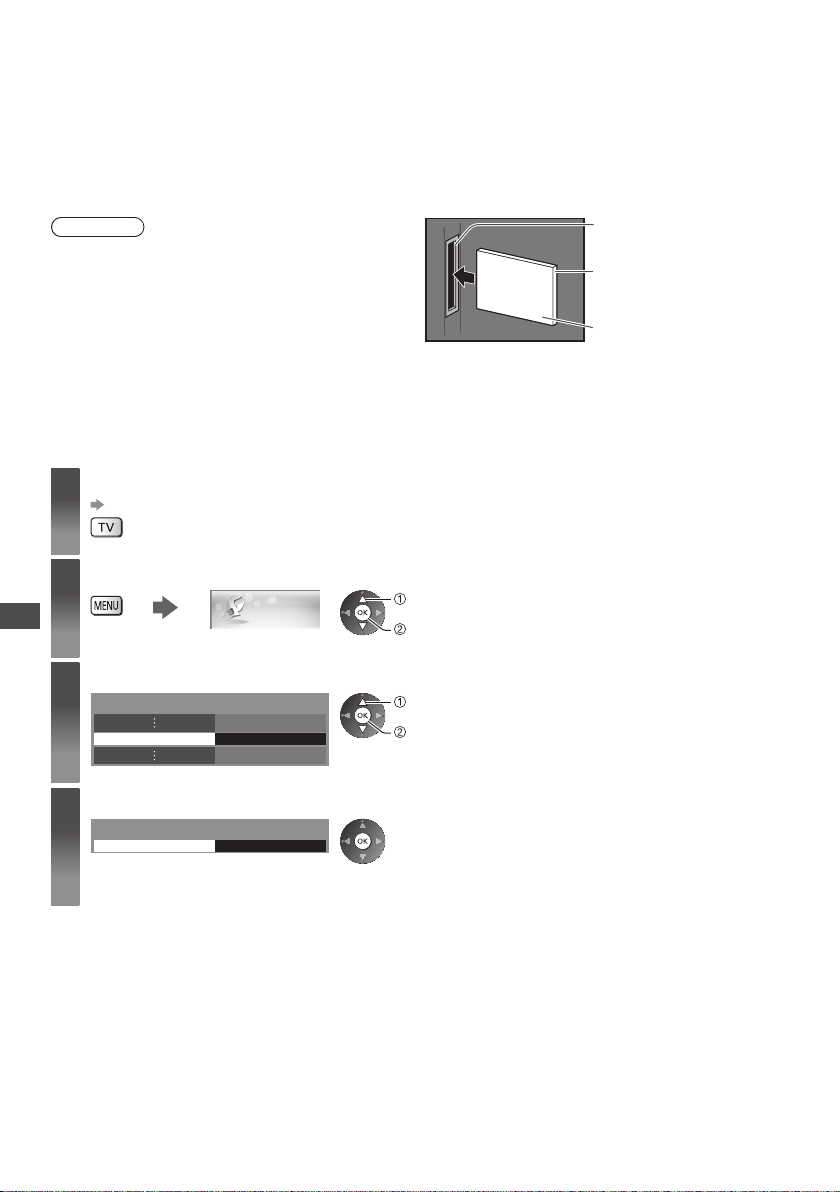

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

●

This function may not be available in some countries or regions.

●

Video and audio signals may not be output depending on broadcasts or services. Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the approved CI module by the broadcaster. Consult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

●

Turn off Mains power On / Off switch whenever inserting

or removing the CI module.

●

If a view card and a card reader come as a set, first

insert the card reader

card reader.

●

Insert the module in the correct direction.

Insert the CI module (optional)

●

The features that appear on screen are dependent on the contents of the selected CI module.

●

Normally encrypted channels will appear. Follow the on-screen instructions.

If encrypted channel does not appear, perform below.

●

For more details, read the manual of the CI module, or check with the broadcaster.

Select DVB-S, DVB-C or DVB-T

(p. 21)

Display the menu and select [Setup]

Using Common Interface

, then insert the view card into the

Setup

Rear of the TV

select

access

CI slot

Insert or remove completely

CI module

Select [Common Interface]

Common Interface Access

Access Common Interface and follow the on-screen instructions

Common Interface

Slot 1:

●

On-screen instructions may not correspond to the remote control buttons.

Module inserted

select

access

Page 65

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [USB HDD Setup] are reset (channels, picture, sound settings, etc.).

●

To retune TV channels only, e.g. after moving house

Display the menu and select [Setup]

Select [System Menu]

Select [Shipping Condition]

System Menu Access

System Menu

Shipping Condition Access

Setup

Restore Settings [Shipping Condition]

Check the message and initialise 2 Follow the on-screen instructions

Shipping Condition

All tuning data will be erased

Are you sure ?

“Retuning from Setup Menu” (p. 51 - 54)

select

access

select

access

select

access

Reset to Factory Shipping Condition

(Confirm)

(Start [Shipping Condition])

●

[Auto Setup] will automatically start. (p. 16)

Completed.

TV will automatically restart.

Do not turn off

Shipping Condition

Page 66

Updating the TV Software

A new version of software may be released for download to enhance the performance or operations of the TV. If there is an update available, a notification message is displayed when the channel has the update information.

●

To download

(Press the EXIT button not to download)

You can update new software automatically or update manually.

Display the menu and select [Setup]

Select [System Menu]

Select [System Update]

Update TV’s software system [System Update]

Updating the TV Software

■ To update automatically

Select [Auto Update Search in Standby]

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be

updated (it may change TV functions).

If you do not want to do so, set [Auto Update Search in

Standby] to [Off].

System Menu Access

System Menu

System Update Access

Off

Setup

select

access

select

access

select

access

select

access / store

●

Every time you set, the TV automatically performs a search in Standby and downloads an update, if any software updates are available.

●

The automatic updating is performed under the following conditions:

Standby (TV turned off with the remote control)

•

Recording of Timer Programming, Direct TV

•

Recording or One Touch Recording is not in progress.

■ To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

System Update Search Now

Off Access

Note

●

Download may take for about 60 minutes.

●

During software download and update, DO NOT switch off the TV.

●

The notification message might be a reminder. In this case, the schedule information (the date that the new version

can be used) will appear

. You can set the reservation for update. The update will not start when the TV is off.

select

access

several minutes) and displays a corresponding message if any

3 Download

Page 67

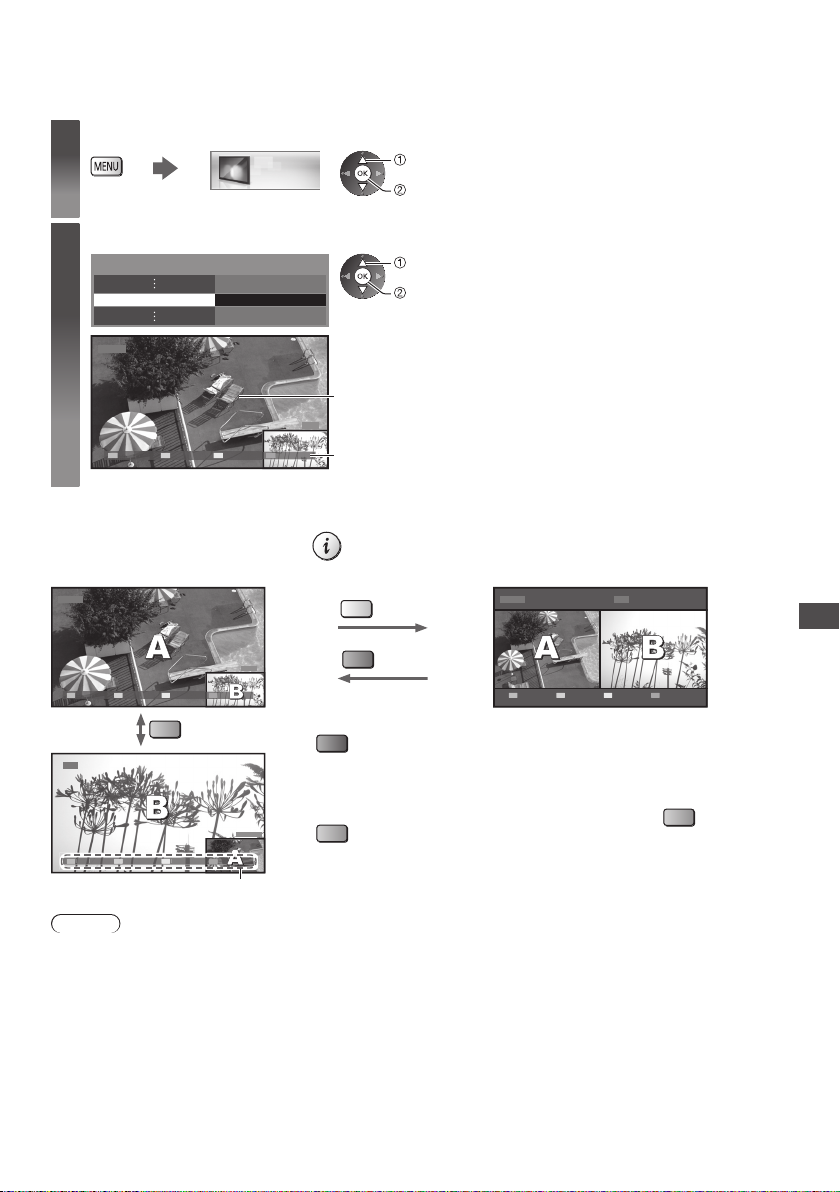

Multi Window

Swap

Enjoy viewing the digital TV programme and external input (AV, Component or HDMI) at once.

Display the menu and select [Picture]

Select [Picture in Picture]

■ How to operate in multi window

Display the colour bar if it is not displayed

Picture-in-Picture mode [PinP] Picture-and-Picture mode [PandP]

1 DVB-T

AV 1

Note

●

Each input mode can only be displayed either on main screen or sub screen.

●

The sound comes from only the main screen in multi window.

●

You cannot change the aspect ratio in multi window.

●

HDMI is available only for main screen.

●

Some signals are reformatted for suitable viewing on your display.

Picture in Picture Access

1 DVB-T

EXIT

PandP Swap

PandP Swap EXIT

(blue)

PandP Swap EXIT PandP

Colour bar

AV 1

1 DVB-T


AV 1

●

To exit multi window

●

To change the input mode or channel of sub screen

1 Swap sub screen

for main screen

select

access

select

access

●

Remote control operations apply to the main screen.

Main screen

Sub screen

(yellow)

1 DVB-T AV 1

(green)

EXIT PinP Swap

(red)

2 Change the input mode

or channel by the remote

(blue)

control (p. 21, 30)

3 Swap again

(blue)

Multi Window

Page 68

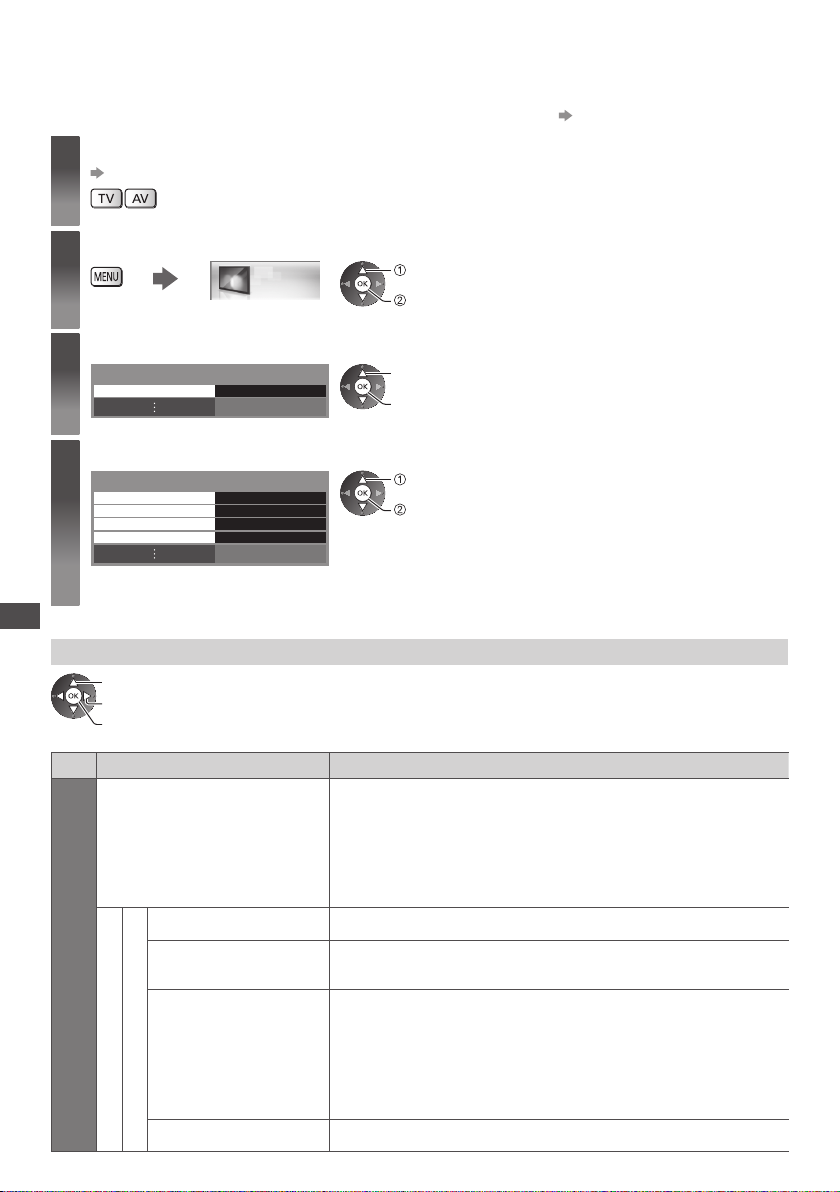

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each input and Viewing Mode (except THX modes).

●

To use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu. (p. 49)

Select the input mode to adjust and setup

(p. 21, 30)

Display the menu and select [Picture]

Select [Viewing Mode] and set the mode

Select one of the following functions

Advanced Picture Settings

Adjust the detailed picture settings [Colour Gamut], [Advanced Settings]

Viewing Mode Dynamic

Colour Gamut Advanced Settings Lock Settings Copy Adjustment

select adjust access / store

Remaster Access Access Access


●

[Colour Management] and [More Detailed Adjustment] are available when [V [Professional2].

select

access

select

access / store

select

access

●

[Colour Gamut] is available when [Viewing Mode] is set to [Professional1] or [Professional2]. (For HDMI input or video contents of Media Player)

●

[Copy Adjustment] is available when [Viewing Mode] is set to [Professional1] or [Professional2].

iewing Mode] in the Picture Menu is set to [Professional1] or

Colour Gamut


Advanced Settings

Item Adjustments / Configurations (alternatives)

Reproduces image colour precisely according to the colour gamut standards [Remaster] / [Rec. 709] / [SMPTE-C] / [EBU]

[Remaster]: Displays deep colours by expanding the colour gamut at a

[Rec. 709]: Standard for HD (High definition) [SMPTE-C]: Standard for NTSC [EBU]: Standard for PAL

R-Gain, G-Gain, B-Gain Adjusts the white balance of bright red / green / blue area

R-Cutoff, G-Cutoff, B-Cutoff

White Balance

More Detailed Adjustment

Reset to Defaults Press the OK button to reset to the default White Balance

Adjusts the white balance of dark red / green / blue area

Adjusts more detailed White Balance items

[Input Signal Level]:

Adjusts the input signal level.

[R-Gain] / [G-Gain] / [B-Gain]:

Adjusts the detailed white balance of bright red / green / blue area.

[Reset to Defaults]:

Press the OK button to reset to the default detailed White Balance.

maximum.

Page 69

Advanced Settings


Item Adjustments / Configurations (alternatives)

R-Hue, G-Hue, B-Hue Adjusts the picture hue of red / green / blue area

R-Saturation, G-Saturation, B-Saturation

R-Luminance,

Colour Management

G-Luminance, B-Luminance

More Detailed Adjustment

Reset to Defaults Press the OK button to reset to the default Colour Management

Gamma

More Detailed Adjustment

Reset to Defaults Press the OK button to reset to the default Gamma

Adjusts the saturation of red / green / blue area

Adjusts the luminance of red / green / blue area

Adjusts more detailed Colour Management items

[Y-Hue] / [C-Hue] / [M-Hue]:

Adjusts the picture hue of yellow / cyan / magenta area.

[Y-Saturation] / [C-Saturation] / [M-Saturation]:

Adjusts the saturation of yellow / cyan / magenta area.

[Y-Luminance] / [C-Luminance] / [M-Luminance]:

Adjusts the luminance of yellow / cyan / magenta area.

[Reset to Defaults]:

Press the OK button to reset to the default detailed Colour Management.

Switches the gamma curve [S Curve] / [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

●

Please note the numerical values are reference for the adjustment.

Adjusts more detailed Gamma items

[Input Signal Level]:

Adjusts the input signal level.

[Gain]:

Adjusts the gain of gamma for selected signal level.

[Reset to Defaults]:

Press the OK button to reset to the default detailed Gamma.

Lock the picture setting [Lock Settings]

[White Balance] and [Gamma] can be locked for each Viewing Mode and each input. Additionally, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Gamut], [Colour Management] and [Reset to Defaults] in the Picture Menu can be locked for [Professional1] and [Professional2].

1 Enter the PIN number (4 digits) 2 Select [Adjustment Lock] and set to [On]

Lock Settings-PIN Entry

Please enter new PIN

●

Enter the PIN number twice at first setting.

●

Make a note of the PIN number in case you forget it.

* * * *

Lock Settings

Change PIN

select

On Adjustment Lock

access / store

■ To change the PIN number

1. Select [Change PIN] 2. Enter a new PIN number twice

Lock Settings

Change PIN

Adjustment Lock

Access On

Copy the settings to the other input [Copy Adjustment]

You can copy the selected [Professional1] or [Professional2] settings to that of the other input. The settings of [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Gamut], [White Balance], [Colour Management] and [Gamma] will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

select

access

select

access / store

●

You cannot copy to the locked mode.

Advanced Picture Settings

Page 70

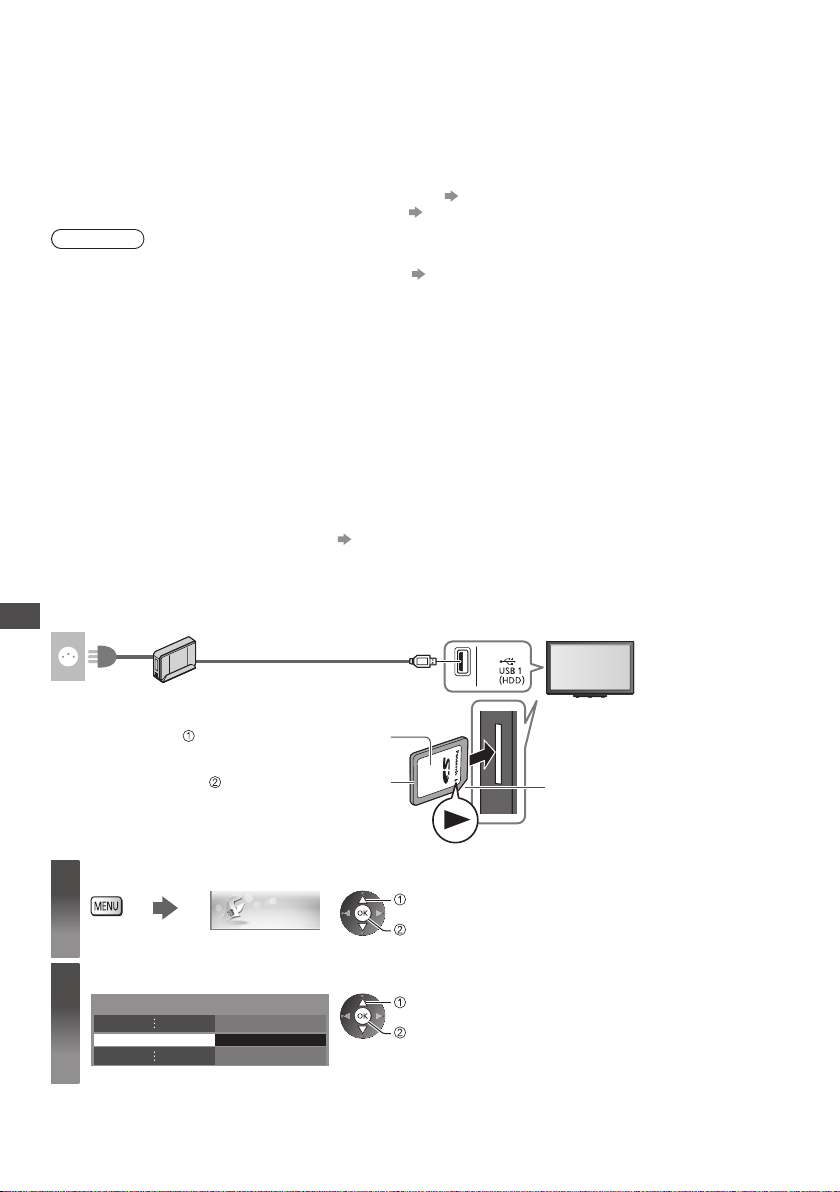

USB HDD / SD Card Recording

You can record the digital TV programmes to the connected USB HDD or inserted SD Card and enjoy playing back in various ways.

●

Analogue TV programme cannot be recorded on the USB HDD / SD Card.

●

The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.

●

Not all the programmes can be recorded depending on the broadcaster and service provider.

●

You cannot copy the recorded contents of the USB HDD.

●

It is recommended to use the SD Card formatted with this TV.

●

For more information of the USB HDD and the SD Card (p. 111)

Caution

●

All data in the USB HDD / SD Card will be erased in the following cases:

When formatting the USB HDD / SD Card with this TV “Setting for USB HDD / SD Card” (p. 71)

•

When formatting the USB HDD / SD Card to use on PC, etc.

•

●

When the TV is repaired due to a malfunction, you may have to format the USB HDD again with this TV to use it. (All

data will be erased when formatting.)

●

In order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special

operations or tools may be necessary to format on your PC. For details, read the manual of the USB HDD.)

●

The data recorded on the USB HDD / SD Card with this TV can only be played back on this TV. You cannot play back

its contents with another TV (including the TV of the same model number) or any equipment.

●

Do not turn the TV off, pull out the mains plug or remove the USB HDD / SD Card during operation (formatting,

recording, etc.). It may cause malfunction of the device or damage the recorded data. (Also when the electric outage

occurs.) It is recommended to back up the data (if any) of the SD Card before using with this TV.

■ Preparation for USB HDD / SD Card

USB HDD

Connect the USB HDD to the USB 1 port with the USB cable.

●

Be sure to connect the USB HDD to the socket outlet.

●

To remove the USB HDD safely from the TV (p. 23, 72)

●

Check the type of terminals and cable plugs are correct when connecting.

SD Card

●

Unlock the write-protection switch (on the left side of the SD Card) to record and play back.

socket outlet

USB HDD / SD Card Recording

(p. 72)

USB cable

USB HDD

Gently insert the SD Card with

the label surface facing front.

Push until a click is heard.

To remove, push it again.

Display the menu and select [Setup]

Select [Recording Setup]

Recording Setup Access

Setup

Cutout

select

access

select

access

Page 71

Setting for USB HDD / SD Card

Format and setup the USB HDD with this TV in order to use it for recording. Depending on the conditions of the SD Card, the recording may not work properly. Formatting the SD Card with this TV will resolve this problem. (All data will be erased when formatting.)

●

Before the settings, connect the USB HDD / SD Card (p. 70) and be sure to turn on the USB HDD.

●

Prepare the USB HDD for the exclusive use of recording with this TV.

Select [USB HDD Setup] or [SD Card Formatting] and set

●

Recording Setup

USB HDD Setup

SD Card Information Access

Access

Access SD Card Formatting

select

access

To check the information of the inserted SD

[SD Card Information]

Card

Setup the USB HDD [USB HDD Setup]

All the USB devices recognised as a mass storage device will be listed.

●

You can only choose one USB HDD for recording at a time.

●

You cannot change the settings for the USB HDD while recording is in progress.

●

Please note that USB HDD will be formatted and all data in it will be erased after this setup.

1 Select the USB HDD for recording and start setup

USB HDD Setup

Product Name

USB Drive A

USB Flash Disk

select

access

●

Some USB HDD may not be displayed.

●

For the information of the highlighted device

2 Caution and confirmation of using USB HDD

Select [Yes] to proceed

USB HDD Formatting

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the USB

HDD may not be available with your repaired TV.

Continue?

Yes No

select [Yes]

set

USB HDD Formatting

To use this device for recording,

it must be formatted first.

Yes No

select [Yes]

set

Continue?

USB HDD Formatting

This device will be formatted and

all contents deleted.

Yes No

select [Yes]

set

Are you sure?

3 Confirmation of USB HDD name

USB HDD Formatting

Name : USB Drive A

Edit name?

Yes No

The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].

Set characters Store

USB HDD

Name

●

You can set characters by using

USB HDD 1

numeric buttons.

select

set

select

set

4 Confirmation to enable USB HDD for recording

If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Formatting

Do you want to enable this device now for recording?

When disconnecting any USB device,

always use the "Safely Remove USB" function

in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

Yes No

select [Yes]

set

USB HDD / SD Card Recording

Page 72

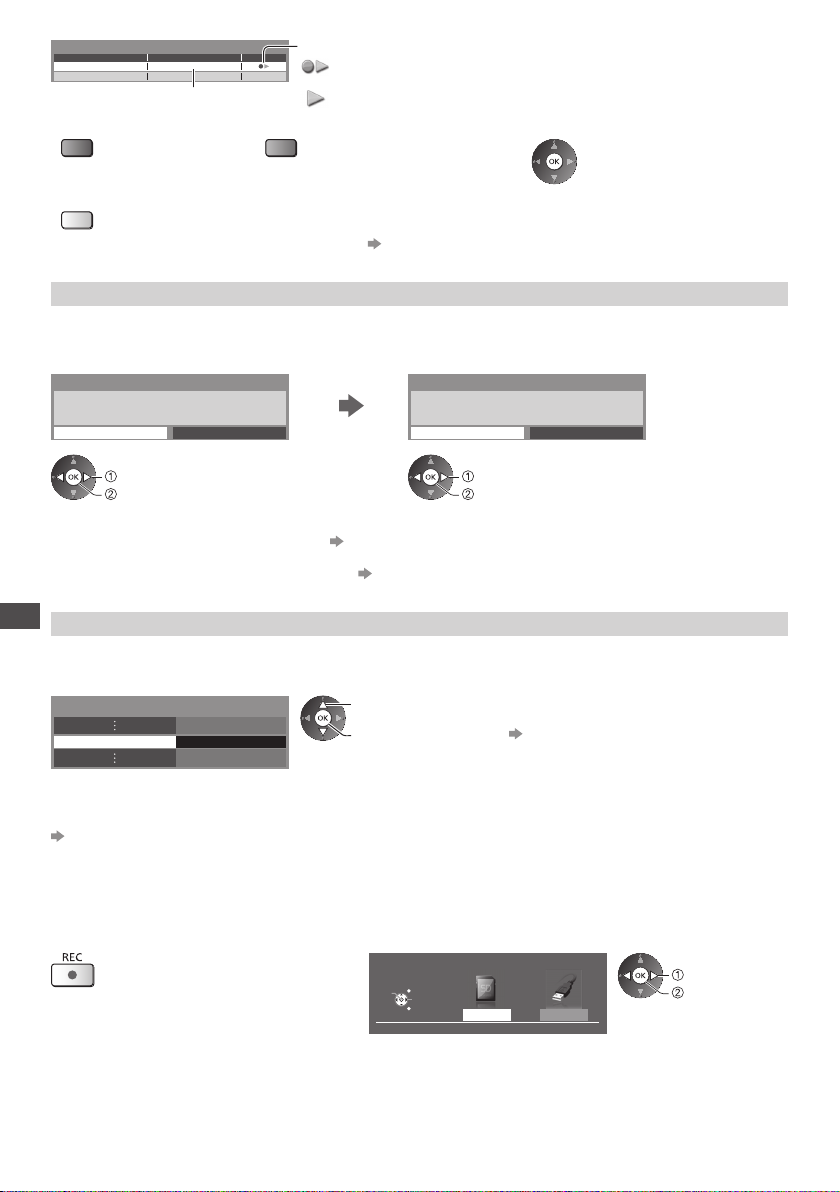

USB HDD Setup

Product Name

USB Drive A

USB Flash Disk

USB HDD name is displayed

●

To format

(red)

USB HDD 1

Mode

The USB HDD is available for recording / playing back.

Only one USB HDD on the list is available for recording.

The USB HDD is available for playing back.

●

To edit USB HDD name

(green)

●

To change the mode

●

To remove the USB HDD safely from the TV

(yellow)

To set “Safely remove USB” in other conditions (p. 23)

•

SD Card Formatting

Formats the inserted SD Card.

●

Please note that all data in the SD Card will be erased after formatting.

Caution and confirmation of using SD Card and start format

SD Card Formatting

●

If the formatting has failed,

Ensure the SD Card is inserted correctly. (p. 70)

•

Ensure the write-protection switch is unlocked.

•

Check your SD Card is suitable for recording. (p. 111)

•

One touch direct TV recording - What you see is What you record [One Touch Recording]

USB HDD / SD Card Recording

Records the current programme in the USB HDD or the SD Card immediately.

●

Confirm the code of the remote control is “73” (p. 31).

Format SD card.

Are you sure?

Yes No

select [Yes]

set

Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes)

Recording Setup

One Touch Recording 180 minutes

SD Card Formatting

All data stored on the SD card will be deleted during

select

access / store

formatting. Continue?

Yes No

select [Yes]

set

●

LED will turn to orange (flash) while One

ouch Recording is in progress.

“Indicator / Control panel” (p. 12)

■ Default REC Mode

You can select default recording mode for [One Touch Recording].

“Recording time for the USB HDD / SD Card Recording” (p. 111)

[DR]: Direct recording (normal mode) [LT1]: Long time recording [LT2]: Extra long time recording

■ To start One Touch Recording

Start

●

No other channel can be selected while the

recording is in progress.

■ When both USB HDD and SD Card are available

Select the recording device

Please select recording device

EXIT Select RETURN

SD Card

USB HDD1

select

set

Page 73

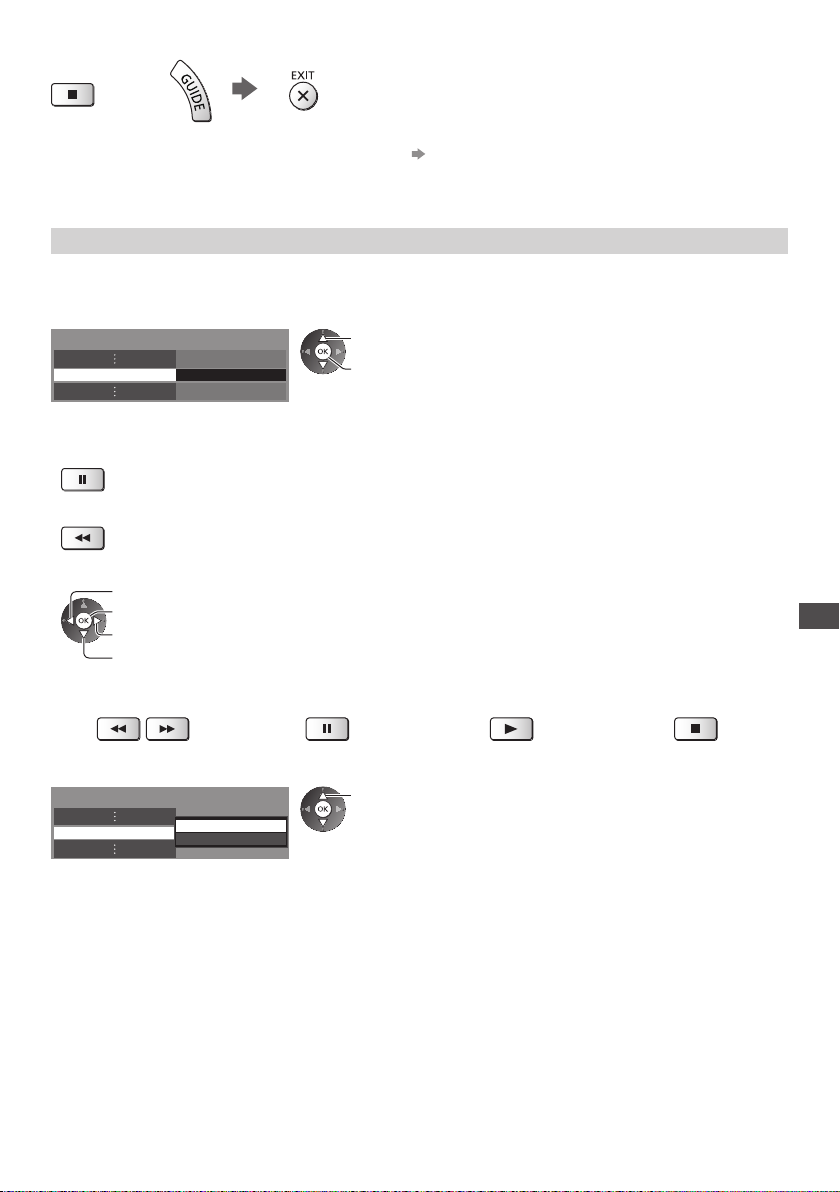

■ To stop recording on the way

■ To play back or delete the recorded contents “Recorded TV mode” (p. 81)

●

Even if One Touch Recording is in progress, you can play back all the contents. (Depending on the USB HDD / SD

Card, it may not be available or the recording may not work properly while playback.)

Record constantly [REW LIVE TV]

(USB HDD only)

Records the current programme constantly.

●

Confirm the code of the remote control is “73” (p. 31).

Select [Auto] to start [REW LIVE TV]

Recording Setup

REW LIVE TV Auto

select

access / store

●

When you select [Auto], the recording will start automatically

●

This recording will not start if the other recording is in progress, TV signal condition is bad or any images are not displayed.

■ To operate [REW LIVE TV]

●

To pause

●

To search backward (up to 90 minutes)

●

After pausing or searching backward, the following buttons are available to operate.

Search backward

Playback / Pause

Search forward

Return to the current programme

Search backward /

forward

Pause / Playback Playback

Return to the current

programme

USB HDD / SD Card Recording

■ To stop [REW LIVE TV]

●

Recording Setup

REW LIVE TV

●

[REW LIVE TV] will be stopped and the recorded content deleted automatically in the following conditions:

(Even if [REW LIVE TV] stops for the following conditions, as long as the setting is [Auto], the new recording will start

automatically in a condition that makes the recording available.)

Selected other channels

•

Selected locked channel

•

Selected invalid channel

•

No TV signal

•

When the other recording starts

•

When the TV is turned to Standby or off

•

Off

Auto

select [Off]

If you stop [REW LIVE TV], the recorded content for [REW LIVE

TV] will be deleted.

Page 74

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the recording devices (SD Card / exclusive USB HDD).

Photo mode:

Still pictures recorded by digital cameras will be displayed. Video mode:

(For SD Card / USB Flash Memory) Moving pictures recorded by digital video cameras will be played back. Recorded TV mode:

(For SD Card / exclusive USB HDD) TV programmes recorded on the USB HDD / SD Card with this TV will be played

back. Music mode:

Digital music data will be played back.

●

During the operation, audio signal is output from AV1, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

But no video signals are output.

To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 97) and set to use theatre speakers

(p. 103).

●

[Date] shows the date on which the recording was made by the recording equipment. The file without record of the

date is shown “**/**/****”.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

Partly degraded files might be displayed at a reduced resolution.

●

Picture setting may not work depending on the conditions.

●

The folder and file names may be different depending on the digital camera or digital video camera used.

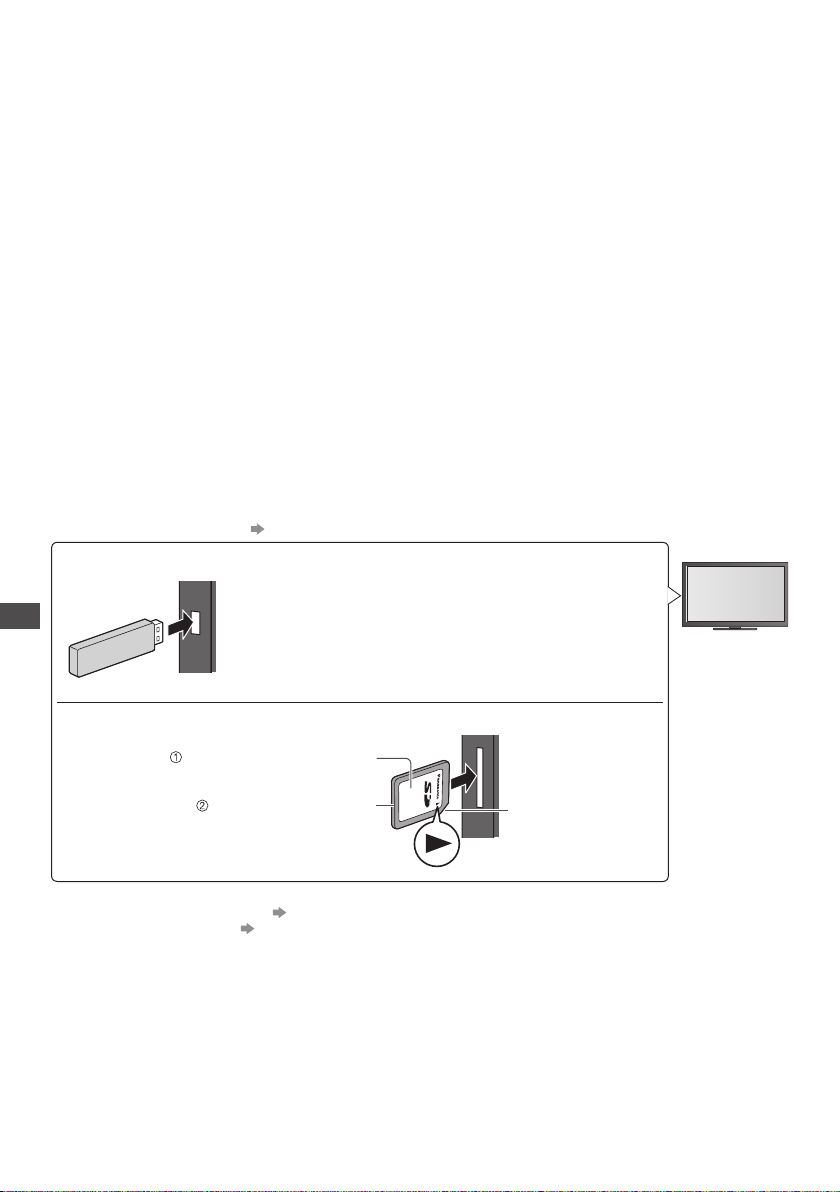

■ To insert or remove the SD Card / USB Flash Memory

●

For the USB HDD Connection

USB Flash Memory

Using Media Player

AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 46).

(p. 70)

●

Insert or remove straightly and completely.

●

Before removing the USB Flash Memory, ensure to perform “Safely remove USB” (p. 23).

●

Connect the USB Flash Memory to the USB 1, 2 or 3 port.

SD Card

Gently insert the SD Card with

the label surface facing front.

Push until a click is heard.

To remove, push it again.

●

Check the type of terminals and devices are correct when connecting.

●

For the information of the devices

●

For the supported file format

“Devices for recording or playing back” (p. 111)

“Supported file format in Media Player and media servers” (p. 108, 109)

Cutout

Page 75

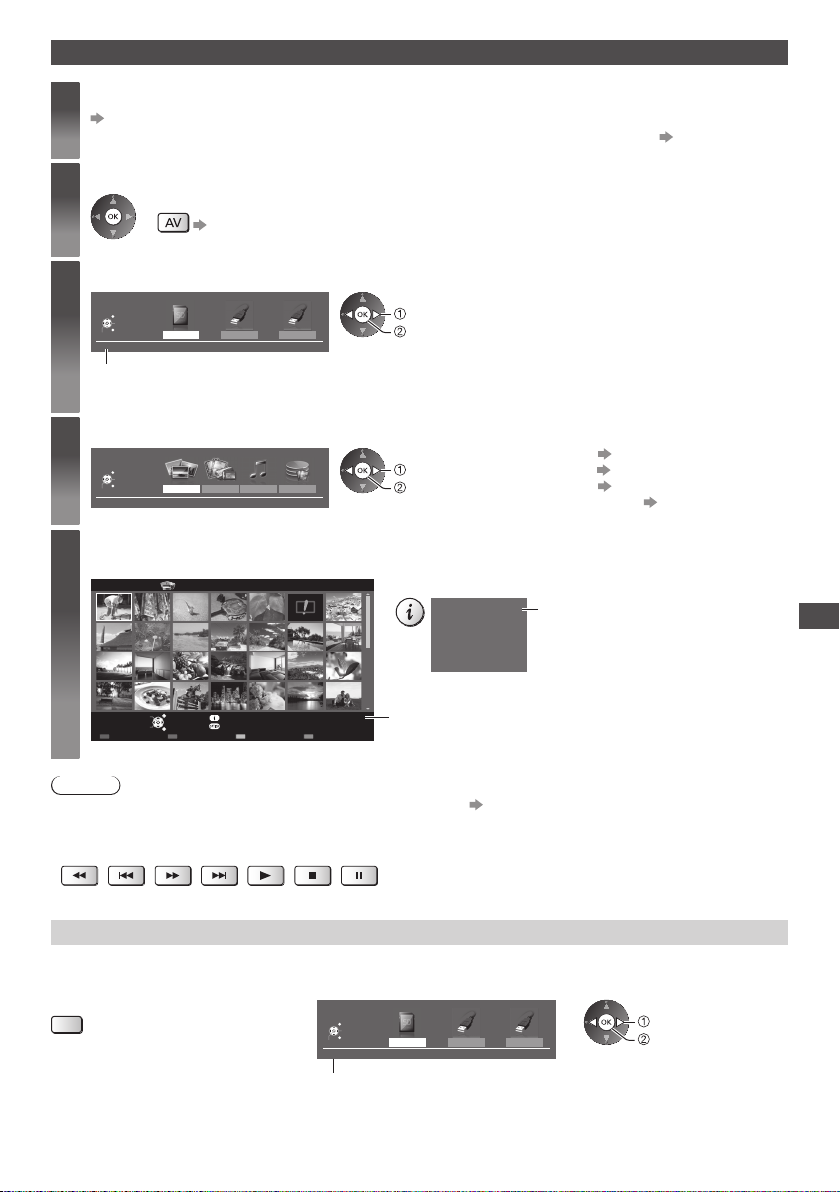

Starting Media Player

Insert the SD Card or USB Flash Memory to the TV

(p. 74)

●

To play back contents in the USB HDD, check the connection and settings are completed.

Confirm the message and start Media Player

●

You can also start by pressing following button.

“Watching External Inputs” (p. 30)

Select the device to access

Drive Select

EXIT Select RETURN

Access

SD Card

Selected device name

SD Card

USB HDD1 USB Flash...

●

If two or more devices are not connected, this step will be skipped.

Select the content

Contents Select

EXIT Select RETURN

Access

SD Card

Photo Video Music

Recorded TV

Enjoy Media Player

Example: Thumbnail - [All photos]

Media Player Photo All photos

select

access

select

access

●

To display the information of the highlighted content

File name

Date

Pixel


23/10/2011

1600X1200

[Photo] (p. 76) [Video] (p. 80) [Music] (p. 84) [Recorded TV] (p. 81)

1/48

File number / Total file number

(p. 70, 71)

Using Media Player

EXIT RETURN

Info Option Menu

View

Select

Slideshow View Select Drive Select Contents Select

SD Card

Selected device name

Note

●

You can also access each mode directly by using VIERA TOOLS.

●

[Recorded TV] is available for contents recorded with this TV on the USB HDD / SD Card.

●

Select the appropriate device and content for playing back each file.

●

You can use the following buttons during playback. Confirm the code of the remote control is “73” (p. 31).

(p. 39)

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

(yellow)

2 Select the device to access

Drive Select

EXIT Select RETURN

Access

SD Card

Selected device name

SD Card

USB HDD1 USB Flash...

select

access

Page 76

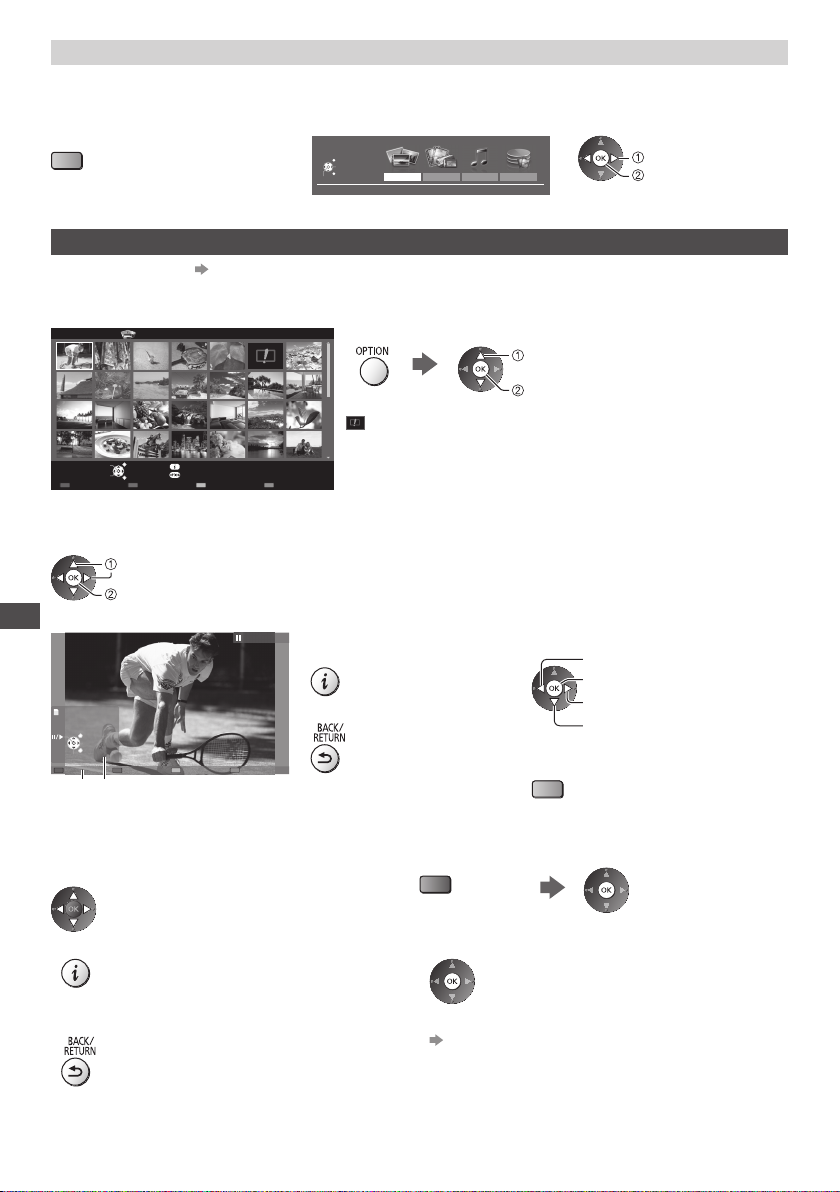

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.

●

The mode can be switched in the current device.

1 While the thumbnail is displayed,

display the contents selection

(blue)

2 Select the content

Contents Select

EXIT Select RETURN

Access

SD Card

Photo Video Music

Recorded TV

Photo mode

●

Supported file format

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [All photos]

Media Player Photo All photos

(p. 108)

●

To change the size of photos on a thumbnail screen

select [Change Size]

change

: Error display

select

access

EXIT RETURN

Info Option Menu

View

Select

Slideshow View Select Drive Select Contents Select

SD Card

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example:

Using Media Player

Single view

●

To display / hide the operation

●

To operate Single view

guide

●

Single view

EXIT Select RETURN

Stop

Operation guide

Rotate

To return to thumbnail

●

To rotate 90°

(blue)

[Slideshow] - Slideshow completes when all photos are viewed within the current thumbnail.

1 Select the file from the thumbnail of photos

for the first view

●

To display / hide the operation guide

●

To return to thumbnail

2 Start Slideshow

(red)

●

To pause (return to Single view)

●

To change the back ground music

“Photo Settings” (p. 78)

To the previous photo

Slideshow

To the next photo

Stop (return to thumbnail)

Page 77

■ To sort by folder, recorded date or recorded month

1 Display the view selection in the thumbnail view

(green)

2 Select the sort type

select

access

●

To return to the thumbnail of all photos

(green)

Multi Shot 3D

This TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.

●

This TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.

●

This function is available with photos recorded by digital cameras.

●

You cannot save the photo into the SD Card while SD Card recording is in progress or set in Timer Programming.

●

Depending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not

be possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take

another photo (for R).

●

To view the created 3D photo with 3D effect, you need the 3D Eyewear “Standard accessories” (p. 6)

1 Display the option menu in the thumbnail view

2 Select [Multi Shot 3D]

Option Menu

Slideshow Settings

Multi Shot 3D

Change Size

3 Select two photos for L (left) and R (right)

Media Player Photo Multi Shot 3D All photos

View

EXIT

Select

RETURN

Select

4 Create the 3D photo

[Folder view]:

Displays the thumbnail grouped by folder.

●

The files which are not into a folder will be collected to the folder named “/”.

[Sort by Date] / [Sort by Month]:

Displays the thumbnail grouped by the same date or month.

●

The group of the photos without a recorded date is shown as [Unknown].

select [All photos]

access

select

access

●

You can only select photos of the same recorded date and same pixels.

●

You may not be able to view the created 3D photo properly if you select the photos for L

Info Option Menu

●

If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to the photo selection screen (step 3).

●

To save the 3D photo in the SD Card

SD Card

The 3D image will be saved onto your media.

Continue?

(red)

and R oppositely.

No Yes

select [Yes]

save

After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to create another 3D photo or exit from [Multi Shot 3D] mode.

Using Media Player

Page 78

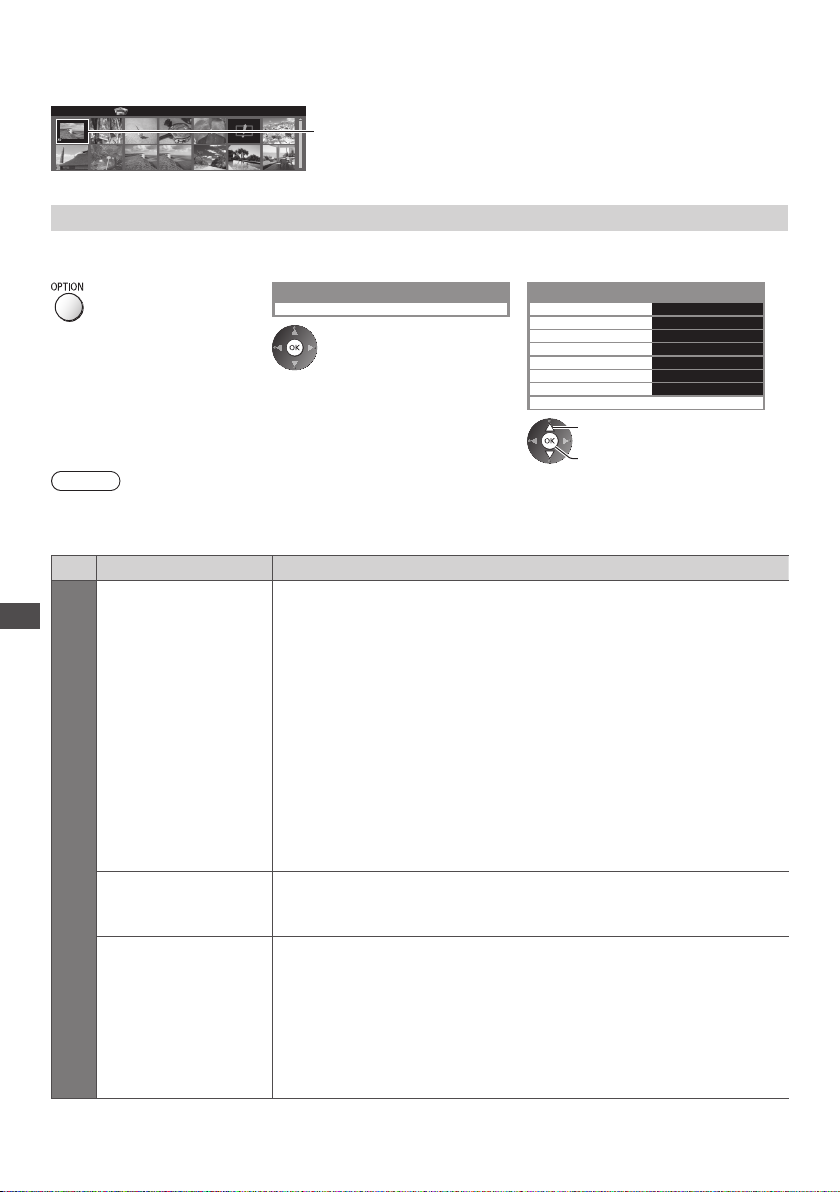

■ To enjoy the saved 3D photos

Saved 3D photos are displayed in the Thumbnail screen. Wear the 3D Eyewear and enjoy the 3D photos. Example: Thumbnail

Media Player Photo All photos

Saved 3D photo

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu

Note

●

Picture quality may become lower depending on the slideshow settings.

●

Picture setting may not work depending on the slideshow settings.

2 Select [Slideshow Settings]

Option Menu

Slideshow Settings

3 Select the items and set

Slideshow Settings

Frame Off Colour Effect T

ransition Effect Screen Mode Burst Playback Interval Repeat Back Ground Music

select

access / store

Off Fade Normal Off 5 seconds On

Using Media Player

Frame

Slideshow Settings

Colour Effect

ransition Effect

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow

[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi]:

9 photos are displayed orderly at once.

[Collage]:

Each photo is displayed at a random position and random scale.

[Drift (+ calendar)] / [Drift]:

Photos are displayed like flow images.

●

You can select to display the calendar or not. The month of calendar is turned by pressing the left or right cursor button.

[Gallery (+ calendar)] / [Gallery]:

The various sizes of photos in the frame are displayed.

●

You can select to display the calendar or not. The month of calendar is turned by pressing the left or right cursor button.

[Cinema]:

Photos are displayed like old films (sepia tone).

Selects the colour effect of photos on Single view and Slideshow

[Off] / [Sepia] / [Gray scale]

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side. [Dissolve]: Each photo is dissolved when switching to the next photo. [Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

[Random]: Each transition is selected at random.

●

up or moving down.

This function is available when [Frame] is set to [Off].

Page 79

Item Adjustments / Configurations (alternatives)

Selects enlarged or normal viewing on Single view and Slideshow

[Normal] / [Zoom]

●

Screen Mode

This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema] or when [T

●

Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

Selects whether to display burst photos in a fast-paced slideshow mode

Burst Playback

[Off] / [On]

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [T

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

Interval

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [T

Repeat Slideshow repeat [Off] / [On]

ransition Effect] is set to [Motion].

Slideshow Settings

Back Ground Music

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5] / [User] / [Auto]

●

[Type1 - 5] are the fixed music each installed in this TV.

[User]: Music data in the device registered by yourself will be played back.

o register the music

1. Select the music file Depending on the condition of the device, select folders until you reach the

desired music file.

Back Ground Music

PRIVATE

DCIM MISC 001photo 002photo 003music 01 song.mp3

Type1

select

access

2. Select [File] or [Folder]

File

Folder

select

set

[File]: The selected music file will be registered. [Folder]: All the music in the folder which contains the selected music file will be

registered.

●

If no music has been registered or the device which has the registered music is removed, no sound will be produced.

[Auto]: Music data stored in the root folder of the current device will be played

back randomly

●

If there is no available music data, no sound will be produced.

Using Media Player

Page 80

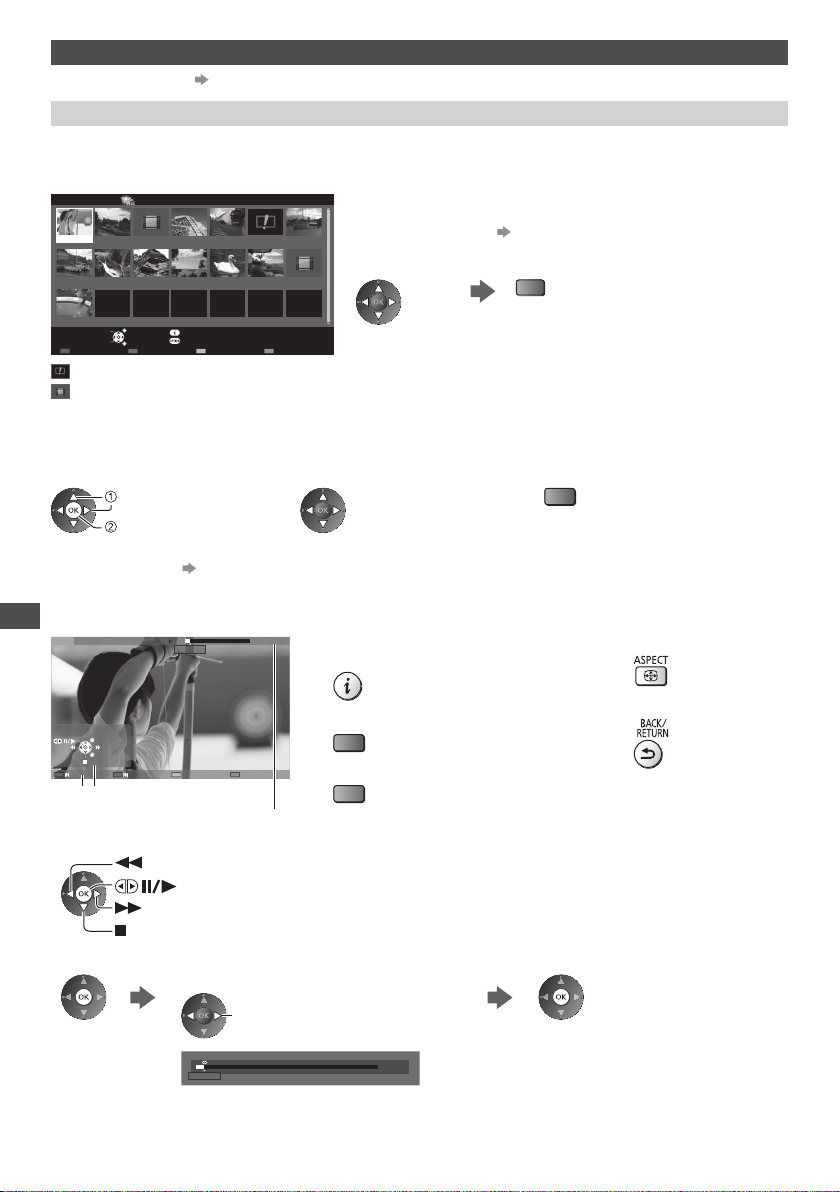

Video and Recorded TV mode

●

Supported file format

(p. 108, 109)

Video mode

(For SD Card / USB Flash Memory)

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Title view]

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room

2011_4

2011_9

Access

Select

Play Contents Select

: Error display : The file does not support thumbnail view.

EXIT RETURN

Info Option Menu

Drive Select

The preview will start when the title / scene is highlighted if it supports a preview.

●

Nature1

2011_7Nature2 Nature3 Nature4 Nature5 Nature6

SD Card

To turn off the preview “Video Setup” (p. 81)

●

To play back the selected title Select the title

Start playback

(red)

●

If you stopped the last playback on the

, the confirmation screen is displayed

way to select whether to start from where you stopped last time or from the beginning.

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback of the selected scene will start to the end of the title.

1 Select the title 2 Select the scene 3 Start playback

select

access

●

The structure of titles and scenes may vary depending on the digital video camera used.

●

To repeat playback

“Video Setup” (p. 81)

(red)

■ How to operate in the playback

Example: Playback

Using Media Player

SD 19/02/2011 11:21 00:15:39

EXIT

RETURN

00:02:05

Operation guide

●

To operate the playback

Information banner

Rewind

Pause (displays the time seek bar) / Playback

Fast forward

●

To jump to the specified time point

Stop

While the time seek bar is displayed

Press: Search about 10 seconds Press and hold: Search rapidly

00:02:05

●

To display / hide the operation guide and information banner

●

To the previous title / scene

(red)

●

To the next title / scene

(green)

00:15:39

●

To change aspect

●

To return to thumbnail

Page 81

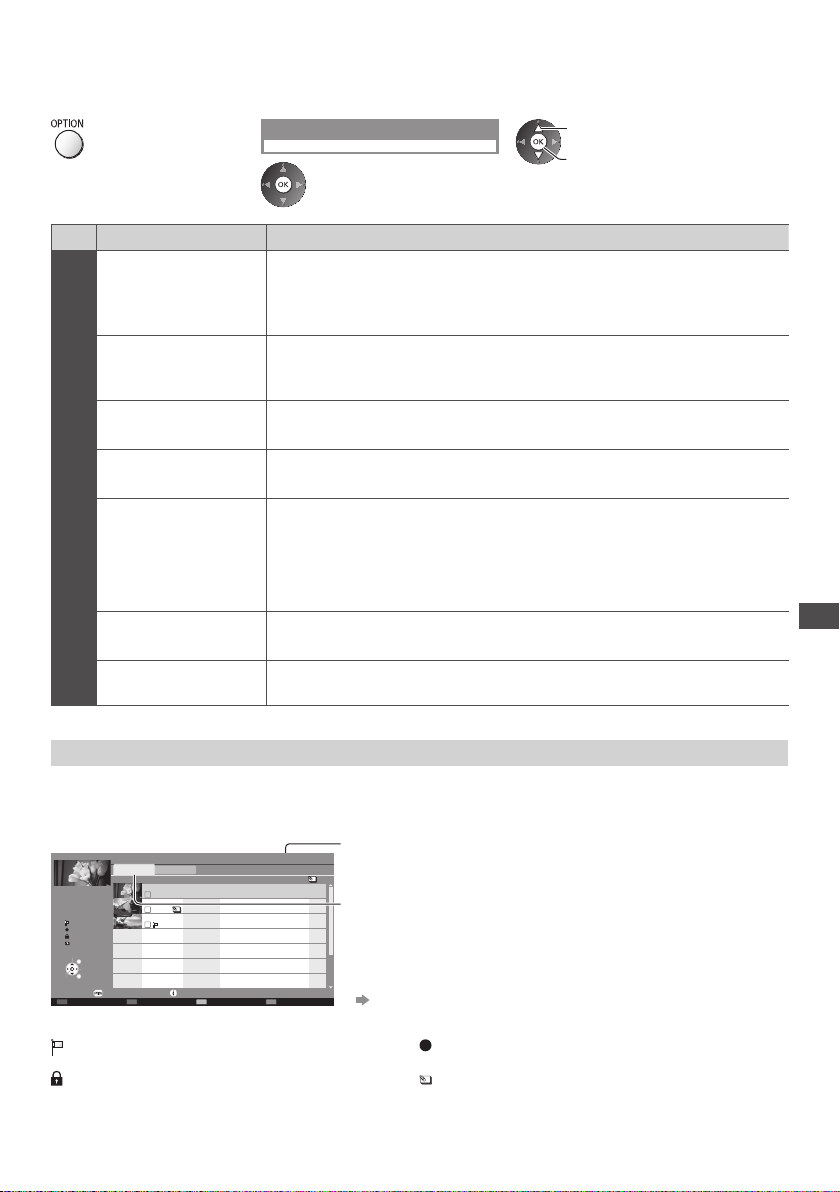

■ Video Setup

Setup the settings for Video mode.

●

Menu items and selectable options vary depending on the content.

1 Display the option menu 2 Select [Video Setup]

Option Menu

Video Setup

3 Select the items and set

select

access / store

Video Setup

Item Adjustments / Configurations (alternatives)

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]

●

Video Preview

Multi Audio, Dual Mono Audio

Subtitle

Subtitle T

ext

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off] to resolve this.

●

Only available in the thumbnail view

Selects between selectable sound tracks (if available)

●

It may take several seconds to change the sound.

●

Only available during playback

Subtitles On / Of

●

Only available during playback

Selects the font type to display subtitles correctly (if available)

●

Only available during playback

f (if available)

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen.

Aspect Change

Repeat

itle Selects from a group of titles (if available)

[Original]: Displays the content original size.

●

You can also change the aspect using the ASPECT button.

●

Aspect change may not work depending on the content.

●

Only available during playback

Playback repeat within the title or selected file (depending on the content)

[Off] / [On]

Recorded TV mode

(For SD Card / exclusive USB HDD)

Contents list of the selected device will be displayed.

●

For the SD Card, unlock the write-protection switch on the left side of the SD Card to play back.

Example: Contents list

Duration

00:20

Not Viewed Recording now Protected Grouped

Select

EXIT Select RETURN

Play

Option Menu

Delete

Media Player

All

BBC 1

ITV

BBC 2

Not V

Channel

Recorded TV

Remaining Capacity 500GB (50%)

iewed

Date

Das Erste

Thu 27/10

12:00

News

Mon 12/1

13:30

Cinema

Sat 17/1

13:50

Info

Chapter List Select

Title

(USB HDD only)

: Content not played back yet (Once you play back the

content, this icon will disappear.)

: Protected content cannot be deleted.

Remaining capacity of the selected device (This value may not be accurate depending on the condition.)

[All]:

All the recorded contents are listed. [Not Viewed] (USB HDD only): Contents not played back yet are listed.

●

USB HDD 1

You can also access the contents list directly by using VIERA TOOLS.

(p. 39)

: Content under recording (You can play back this

content even if under recording.)

: Two or more contents are grouped.

Using Media Player

Page 82

■ Playback from the list

1 Select the content

2 Start playback

●

If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning. (USB HDD only)

●

If the content has multiple programmes with the different parental ratings, the highest restriction is valid for the content. Once you unlock the restriction, all the programmes in the content can be played back.

■ To edit recording content (USB HDD only)

1 Select and tick the

content to edit

(blue)

[Create Group]:

Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group].

[Release Group]:

Select the created group to release, and then select [Release Group]. (To release several groups at once, tick all the desired groups.)

[Exclude from Group]:

Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the group, tick it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.)

[Change Protect Status]:

Select the content to protect from deletion, and then select [Change Protect Status]. Perform the same way to cancel the protection. (To change the status of several contents at once, tick all the desired contents.)

2 Display the option

3 Select the item and edit

Option Menu

Create Group Release Group Exclude from Group Change Protect Status

■ To delete the selected content

1 Select the content

●

Using Media Player

To select two or more contents

(blue)

2 Delete the content

(red)

3 Confirm

Delete

Are you sure you want to delete?

Yes

select

edit

select

set

■ How to operate in the playback

Example: Playback

Das ErsteUSB 00:15:39

Manual skip

EXIT

RETURN

Operation guide

●

To jump to the specified time point

00:02:05

Chapter List A-B repeat

Information banner

While the time seek bar is displayed

00:02:05

●

To display / hide the operation guide and information banner

●

To operate the playback

Rewind

[Manual skip]

●

Press to skip forward about 30 seconds.

●

Press and hold to skip backward about 15 seconds.

Fast forward

Stop

Press: Search about 10 seconds Press and hold: Search rapidly

00:15:39

●

To return to list

Pause (displays the time seek bar) / Playback

Page 83

●

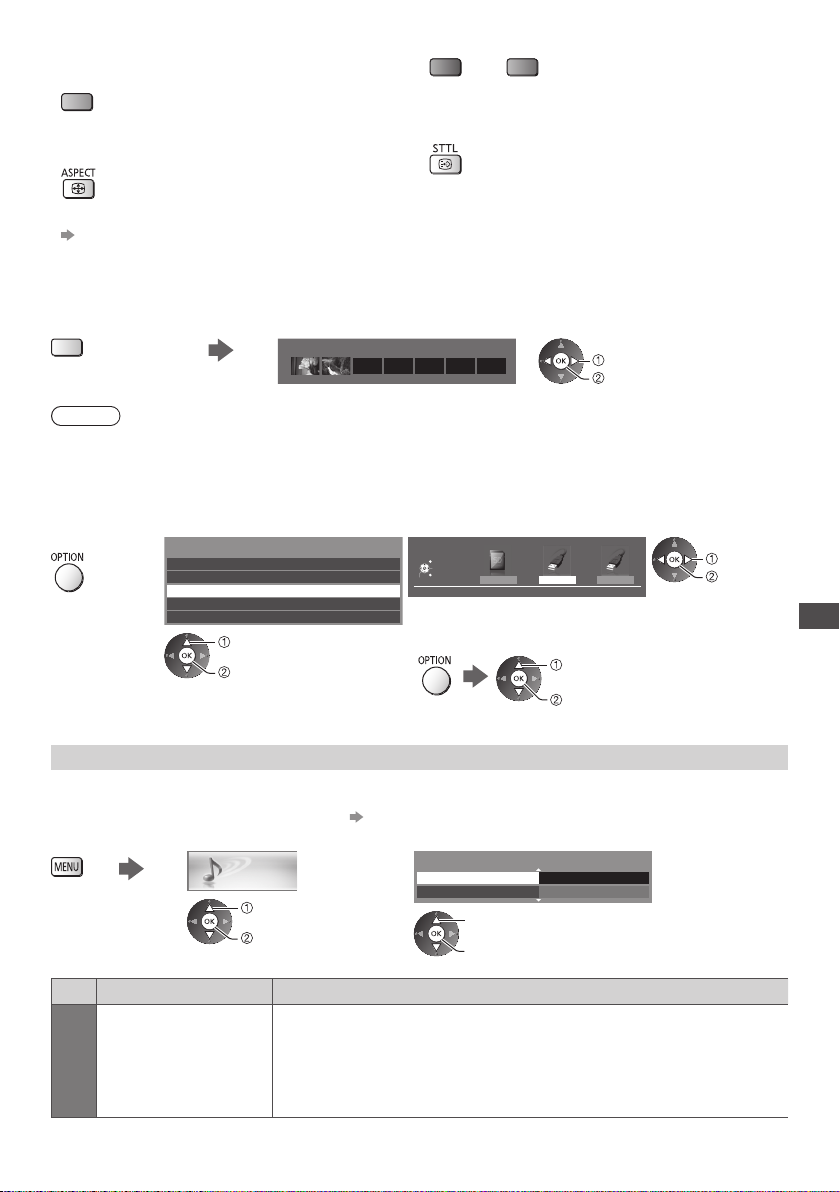

To repeat between the starting point “A” and finishing point “B”

Set “A” and “B” in order

The points will be reset by

(blue)

•

pressing this button again or other operations.

●

To change aspect

●

To the previous / next chapter

(red) / (green)

A recorded content is automatically divided into

•

chapters (about 5 minutes for each).

●

To display the subtitle (if available)

●

To confirm or change the current status (if available)

“Display the selectable settings for the current status” (p. 23)

■ Chapter List (USB HDD only)

You can start playback from the chapter list you select.

●

The chapter list is not displayed while the selected content is being recorded.

o play back from the chapter list

(yellow)

Chapter List

00:00:00 00:05:00

select

playback

Note

●

Depending on the recorded programmes, some playback operations may not work properly.

■ To change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 Display the

option menu

2 Select [Drive Select]

Option Menu

Create Group Release Group

Drive Select

Contents Select Change Protect Status

select

access

3 Select the device to access

Drive Select

EXIT Select RETURN

Access

USB HDD1

If you select the device to play back photos, videos or music, change to the appropriate content.

●

To change the content

SD Card

USB HDD1 USB Flash...

select [Contents Select]

access

select

access

Using Media Player

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

●

To confirm or change the current sound status (p. 81)

1 Display the menu and Select [Sound]

Sound

SPDIF Selection

Sound

select

access

Item Adjustments / Configurations (alternatives)

SPDIF: A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as

[PCM]: Digital output signal is fixed to PCM.

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

2 Select [SPDIF Selection] and set

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

Page 84

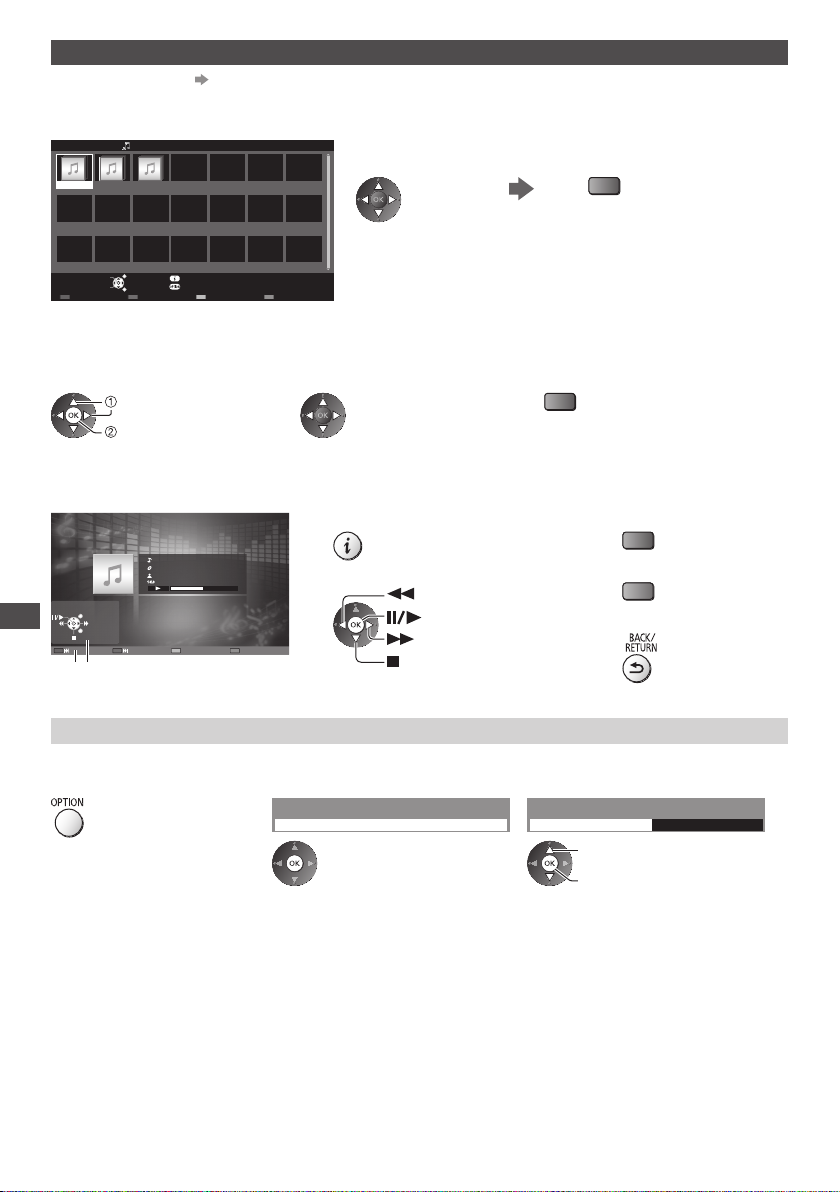

Music mode

●

Supported file format

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Folder view]

Media Player Music Folder view

My Music_1 My Music_2 My Music_3

(p. 109)

●

To play back the selected folder Select the folder

Start playback

(red)

Access

Select

Play Folder Contents Select

EXIT RETURN

Info Option Menu

Drive Select

SD Card

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

select

access

(red)

■ How to operate in the playback

Example: Playback

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

EXIT

Using Media Player

RETURN

Operation guide

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu

●

To display / hide the operation guide

●

To operate the playback

Rewind

Fast forward

Stop

2 Select [Music Setup]

Option Menu

Music Setup

Pause / Playback

3 Set

Music Setup Menu

Repeat One

[Folder]: Playback repeat within the

[One]: Playback repeat of the selected

one file

●

To the previous track

(red)

●

To the next track

(green)

●

To return to thumbnail

select

access / store

selected folder

Page 85

Using Network Services (DLNA / VIERA Connect)

DLNA

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org.

●

To enable this function, connect this TV to your home network.

“Network connections” (p. 87), “Network Setup” (p. 88)

■ Playback of sharing contents stored in the media server

Store photos, videos or music contents into the DLNA Certified media server (for example, PC with Windows 7 installed, DIGA Recorder, etc.) connected to your home network. And then you can enjoy these contents on this TV.

●

For watching and operating contents on this TV (p. 92)

●

For the supported file format (p. 108, 109)

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server software that has been tested for compatibility with this TV (as of January, 2011). Any other server software have not been tested with this TV, therefore compatibility and performance cannot be assured.

●

Windows 7 The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.

●

TwonkyMedia server

wonkyMedia server” is the product of PacketVideo Corporation.

“T To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia. Additional fees may be charged to obtain server software.

Note

●

For more information about the server software, please consult each software company.

●

When server software for the media server is installed on the PC, the data may be at risk of being accessed by other people. Please take care of the settings and connections under the network circumstances at the of at home when not using a router.

●

AVCHD and DivX files are not supported by DLNA functions of this TV, but can be played by Media Player (p. 74).

To use a DLNA compatible DIGA Recorder as a media server

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.

●

Please read the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.

fice, hotel or even

Using Network Services (DLNA / VIERA Connect)

■ Playback of sharing contents on this TV with the DMC (Digital Media Controller) network

equipment

You can enjoy contents stored in the media server by controlling with the DMC network equipment (PC with Windows 7 installed, smartphone, etc.) connected to your home network.

●

To use this function with Windows 7, set [DLNA Remote Control] and [DLNA Remote Volume] of this TV to [On].

(p. 88)

●

“Windows 7” is the OS that has been tested for compatibility of this TV (as of January, 2011). For the operations, refer to the help functions of Windows 7.

●

To use this function with your smartphone, set [Network Remote Control] of this TV to [On]. (p. 88) And you need to install the application for controlling VIERA in your smartphone. For the information of the application (English only): http://panasonic.jp/support/global/cs/tv/ For the operations, refer to the support information of the application.

Page 86

■ Sharing the TV programme or contents of this TV with the other network equipment

You can enjoy the current digital TV programme or the contents

∗

of this TV on the other DLNA Certified VIERA smartphone, etc. connected to your home network. For example, watching the continuation of the current programme on your smartphone in the other room, etc.

●

To use this function, set [DLNA Server Settings] of this TV.

●

To use this function with the other VIERA, select a name or MAC Address of this TV from the DLNA server list of the other VIERA, and then select the content to operate. Also refer to the manual of the other VIERA.

●

To use this function with your smartphone, you need to install the application for controlling VIERA in your

(p. 88)

smartphone. For the information of the application (English only): http://panasonic.jp/support/global/cs/tv/ For the operations, refer to the support information of the application.

∗

1: Available contents:

Contents that can be played back by Media Player of this TV and other network equipment

•

TV programmes recorded on the USB HDD with this TV (TV programmes recorded on the SD Card are not

•

available.)

∗

2: DLNA Certified VIERA of before the year 2009 may not be available. The compatibility with future products is not

guaranteed.

Note

●

When using this function, this TV must be on.

●

This function is available only with 1 piece of other equipment.

●

You may be able to control this TV for turning off the screen and muting the sound from your smartphone. For details, refer to the support information of the application.

●

This function may not be available in the following conditions of this TV:

While the recording is in progress.

•

While Video mode or Recorded TV mode in Media Player.

•

When in VIERA Connect.

•

When accessing the media server.

•

When the data service is active.

•

When selecting radio channels.

•

When watching encrypted (copy-protected) programmes.

•

When the broadcast prohibits the output of video and audio.

•

VIERA Connect

VIERA Connect is a gateway to the internet services unique to Panasonic.

Using Network Services (DLNA / VIERA Connect)

VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from VIERA Connect home screen.

●

To enable this function, connect this TV to a broadband network environment. “Network connections” (p. 87), “Network Setup” (p. 88)

●

For details about VIERA Connect operation (p. 20)

Note

●

VIERA Connect home screen is subject to change without notice.

●

This TV does not support full web browser function and some features of the websites may not be available.

●

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use VIERA You can update the software later manually. [Software Update] in [Network] (p. 91)

●

The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

●

Some content may be inappropriate for some viewers.

●

Some content may only be available for specific countries and may be presented in specific languages.

●

Depending on the connection environment, the internet connection may be slow or may not be successful.

●

During the operation, audio signal is output from AV1, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output.

AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 46). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 97) and set to use theatre speakers (p. 103).

●

You can restrict access to VIERA Connect.

●

VIERA Connect is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.

Connect.

[Child Lock] (p. 62)

∗

, your

Page 87

Network connections

To use only DLNA features, you need a home network environment and you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment.

●

If you do not have any broadband network services, please consult your retailer for assistance.

●

Dial-up internet connections cannot be used.

●

Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Wireless connection

Access point

Internet environment

Built-in wireless LAN

Wired connection

LAN cable (Unshielded)

●

Ensure to use a LAN straight cable for this connection.

●

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on this

●

If your modem has no broadband router functions, use a broadband router.

●

If your modem has broadband router functions but there are no vacant ports, use a hub.

●

Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

●

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

TV. Read the manual of the equipment.

Smartphone

DLNA Certified VIERA

Hub or Router

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Example 2

(For VIERA Connect)

You can connect this TV and the telecommunication equipment directly to use VIERA Connect features.

LAN cable (Unshielded)

Note

●

Contact your Internet Service Provider (ISP) or telecommunications company for further assistance regarding the network equipment.

●

Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications

. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be

company impossible.

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

Internet environment

Using Network Services (DLNA / VIERA Connect)

Page 88

Network Setup

●

Ensure the connections are completed before starting Network Setup.

“Network connections” (p. 87)

Display the menu and select [Network]

Network

select

access

Network Link settings

Sets the link settings to access and control this TV from the network equipment (PC with Windows 7 installed, smartphone, DLNA Certified VIERA, etc.) via the network.

1 Select [Network Link Settings]

Connection Test Network Connection Wired

Wireless Network Settings

IP/DNS Settings

Network Link Settings

Software Update New Software Message Network Status

select

access

Access

2 Select the items and set

Network Link Settings

VIERA Name DLNA

Remote Control DLNA Remote Volume Network Remote Control DLNA Server Settings Access

select

access / store

VIERA On On On

VIERA Name

Using Network Services (DLNA / VIERA Connect)

DLNA Remote Control Enables to control the TV using Windows 7 via the network [Off] / [On]

Network Link Settings

DLNA Remote Volume

Network Remote Control

DLNA Server Settings

Item Adjustments / Configurations (alternatives)

Sets your favourite name for this TV

●

This name will be used as the name of this TV on the screen of the other network equipment.

Enables to control the volume of the TV using Windows 7 via the network

[Off] / [On]

∗

DLNA Server

Enables to control the TV from the network equipment (smartphone, etc.)

[Off] / [On]

Enables to share the TV programme or contents of this TV with the network equipment (DLNA Certified VIERA, smartphone, etc.) [Off] / [On]

Selects whether to restrict the access to this TV for each equipment on the home network [Auto] / [Manual]

Registration Type

[Auto]: All the available equipment on the home network are accessible.

(maximum 16 equipment)

[Manual]: Sets the restrictions for each equipment in the [Remote Device List].

∗

Remote Device List Lists the accessible equipment to this TV on the home network

∗

Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

Page 89

Wired connection settings

This setting is for the network connection by using the LAN cable.

1 Select [Network Connection] and set to [Wired]

Connection Test

Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings Software Update New Software Message Network Status

Wired

select

access / store

2 Select [IP/DNS Settings] and set the items

select

IP/DNS Settings Access

access

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Default Gateway] and [DNS Address]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended).

●

IP/DNS Settings

Acquire IP Address Auto

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto

The available settings are displayed automatically.

Manual settings

Address], [Subnet Mask], [Default Gateway], [DNS Address])

([IP

select

access / store

3 Select [Proxy Settings] and set the items

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto

Access

select

access

●

After settings, return to the previous menu.

■ [Proxy]

Sets Proxy address.

●

This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser. Setting is required if specified by the provider.

1. Select [Proxy] 2. Enter the address

Proxy Settings

Proxy

Proxy Port

select

access

Proxy

Host

select

set

●

You can set characters by using numeric buttons.

3. Store

■ [Proxy Port]

Sets Proxy port number.

●

This number is also specified by the provider with the Proxy address.

1. Select [Proxy Port]

Proxy Settings

Proxy

Proxy Port

2. Move the cursor and enter the number

Using Network Services (DLNA / VIERA Connect)

Page 90

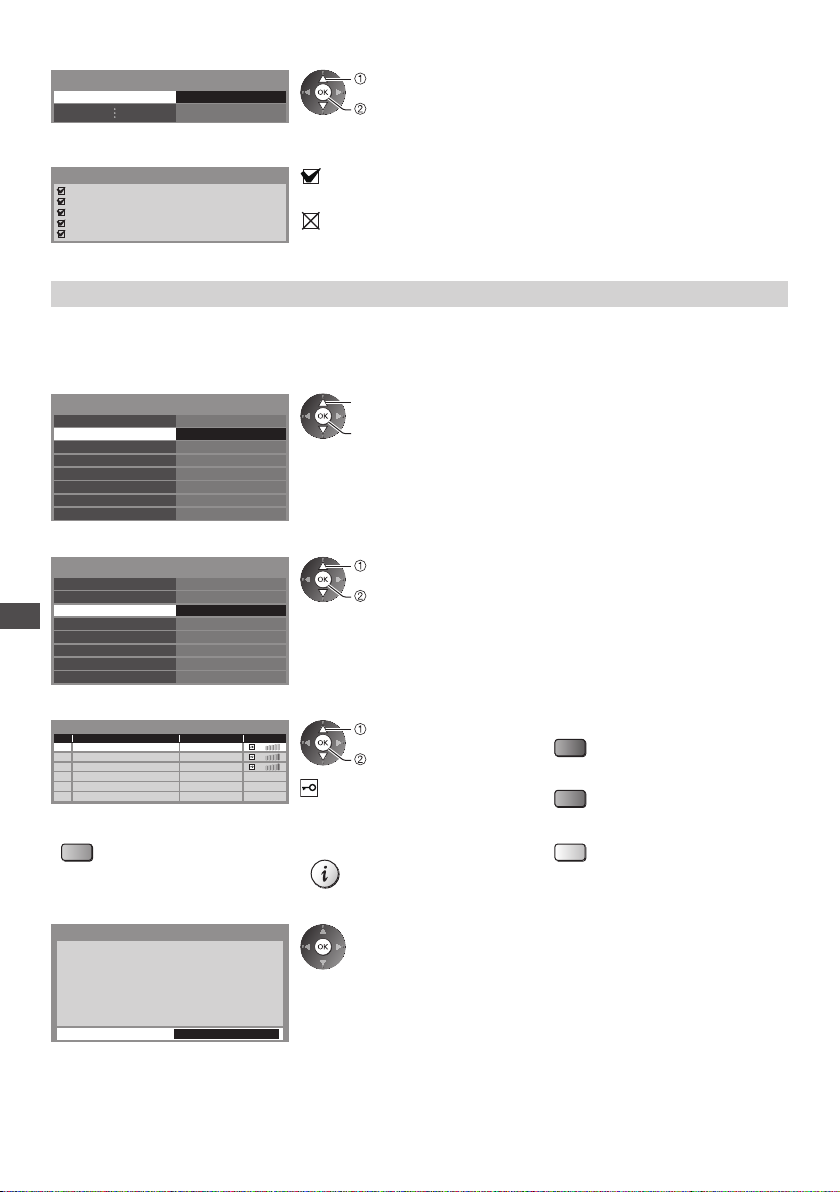

4 Select [Connection Test] and access to test

Connection Test Access

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

select

access

●

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then try again.

Wireless connection settings

This setting is for the wireless network connection.

●

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.

1 Select [Network Connection] and set to [Wireless]

Connection Test

Network Connection

Wireless Network Settings IP/DNS Settings Network Link Settings Software Update New Software Message Network Status

Wireless

select

access / store

2 Select [Wireless Network Settings]

Connection Test Network Connection

Wireless Network Settings

IP/DNS Settings

Using Network Services (DLNA / VIERA Connect)

Network Link Settings Software Update New Software Message Network Status

Wireless Access

select

access

●

When the access point is already set, [Current Settings] screen will be displayed. To change the settings, select [No] on this screen and go to the next step.

3 Select your desired access point

●

Available Wireless Networks

No. Network Name(SSID) Status Wireless type

1 2 3

Access Point A Access Point B Access Point C

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

●

To search access points again

(blue)

select

access

: Encrypted access point

●

For the information of the highlighted access point

For [WPS(Push button)] (p. 19)

(red)

●

For [WPS(PIN)] (p. 91)

(green)

●

To set manually (p. 91)

(yellow)

4 Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings: Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

●

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

Page 91

5 Enter the encryption key of the access point

Wireless Network Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

Set characters

select

set

●

You can set characters by using numeric buttons.

●

After settings, return to the previous menu.

Store

6 Select [Connection Test] and access to test

●

Connection Test Access

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

select

access

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then try again.

Performs automatic testing of the network connection for the

TV. (It takes a while

to test.)

If you continue to have difficulty, please contact your internet service provider.

■ [WPS(PIN)]

Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the wireless access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the wireless access point.

Connect

■ [Manual]

You can setup SSID, security type, encryption type, and encryption key manually. Follow the on-screen instructions and set manually.

●

When you use 11n (5 GHz) for the wireless system between the built-in wireless LAN and access point, select [AES] for the encryption type.

Network Name(SSID) Setting

Please input the network name(SSID).

Network Name(SSID)

XXXXXXX

Security Type Settings

Connection will be made with the following settings: Network Name(SSID) : XXXXXXX

Please select the security type.

Using Network Services (DLNA / VIERA Connect)

WPA2-PSK

WPA-PSK

Shared key

Open

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Select [Software Update]

Connection Test Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings

Software Update

New Software Message Network Status

Wired

Access On

select

access

●

Follow the on-screen instructions.

Page 92

Using DLNA® features

●

Ensure the preparation of the media server, network connections and network settings are completed.

Display [VIERA TOOLS] and select [Media Server]

Using Network Services (DLNA / VIERA Connect)

Select one of the media servers to access

Example: Media server list

Media Server

Select

EXIT

RETURN

Access

Select the file

Example: File list

Media Server

SERVER1

Pixel

3648x2736

Format

JPEG

Select

EXIT

RETURN

View

Option Menu

Slideshow

Note

●

Non-playable files are also listed but cannot be selected.

●

You can use the following buttons during playback. Confirm the code of the remote control is “73” (p. 31).

SERVER1 SERVER2 SERVER3 DIGA

Info Option Menu

P000102 2011-10-05 09:54 P000135 P000180 P000214 P000251 P000276 P000293 V100025 V100042 M10054 M10078

2011-11-20 13:18 2011-12-07 11:31 2011-12-10 15:20 2011-12-19 12:39 2011-12-25 14:06 2012-01-06 13:52 2012-01-12 15:56 2012-01-20 10:08 2012-01-28 14:48 2012-02-09 19:58

Info

Media Server

select

access

Available media servers

Total listed number

●

For the operations to access the other TV, select a name or MAC Address of the

TV from this list.

other

●

To display the information of the highlighted media server

select

access

●

Depending on the condition of media server, you may need to select the folder before selecting the file.

●

To display the information of the highlighted file

select

access

(p. 85 - 91)

For photo file

[Single view]

Example:

Single view

Stop

Operation guide

EXIT Select RETURN

- Photos are displayed one at a time.

Single view

●

To display / hide the operation guide

●

To operate Single view

To the previous photo

Slideshow

To the next photo

Stop (return to list)

Rotate

●

To return to list

●

To rotate 90°

(blue)

Page 93

[Slideshow] - Slideshow completes when all photos are viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow

●

To display / hide the operation guide

(red)

●

To pause (return to Single view)

●

To return to list

For video file

Playback

If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

Example: Playback

MEDIA SERVER

Manual skip

Operation guide

●

To change aspect

- Playback will start.

V100025 00:15:39

EXIT

RETURN

00:02:05

Information banner

●

To display / hide the operation guide and information banner

●

To the previous content

(red)

●

To the next content

(green)

●

To return to list

●

To operate the playback

Rewind

[Manual skip]

●

Press to skip forward about 30 seconds.

Pause (displays the time seek bar) / Playback

Fast forward

Stop

For music file

Playback

Example: Playback

Operation guide

- Playback will start.

EXIT

RETURN

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

●

To display / hide the operation guide

●

To operate the playback

Rewind

Pause / Playback

Fast forward

Stop

●

To the previous track

(red)

●

To the next track

(green)

●

To return to list

Using Network Services (DLNA / VIERA Connect)

For DIGA Recorder

Control the DIGA Recorder

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide.

Example:

DIRECT NAVIGATOR (Grouped Titles)

All

Bibel TV Bibel TV das Gespräch

OK RETURN

HDD

Liberty TV FR Journal Télévisé / Météo

19.08(Wed)

AV1

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

WDR aktuell

WDR Aachen

18.08(Tue)

WDR aktuell

WDR Wuppertal

18.08(Tue)

OPTION

Time Remaining 36:17 (DR)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Page 005/005

Delete TitleSelect

●

Before operating, register this TV on the DIGA Recorder.

●

For details, read the manual of the DIGA Recorder.

Page 94

Option menu for each content

Setup the settings for Photo, Video and Music file operations on this TV.

1 Display the

option menu

2 Select [Slideshow Settings], [Video Setup]

or [Music Setup]

Option Menu

Slideshow Settings Video Setup Music Setup

select

access

3 Select the items and set

select

access / store

Slideshow Settings

Transition Effect

Interval

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Video Preview

Using Network Services (DLNA / VIERA Connect)

Multi Audio, Dual Audio, Dual Mono Audio

Subtitle

Video Setup

Subtitle T

Subtitle Language

Aspect Change

Item Adjustments / Configurations (alternatives)

Selects the transition effect for switching the photo during the slideshow

ext

[Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

[Random]: Each transition is selected at random.

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

●

Selects the back ground music during Photo mode

[Off] / [T

Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]

●

Selects between selectable sound tracks (if available)

●

Subtitles On / Off (if available)

●

Selects the font type to display subtitles correctly (if available)

●

Selects the language in which subtitles should appear (if available)

●

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen. [Original]: Displays the content original size.

●

up or moving down.

This function is not available when [Transition Effect] is set to [Motion].

ype1] / [Type2] / [Type3] / [Type4] / [Type5]

Image may not be displayed for an instant in the thumbnail screen. Set the preview [Off] to resolve this.

It may take several seconds to change the sound. Only available during playback

Only available during playback

You can also change the aspect using the ASPECT button. Aspect change may not work depending on the content. Only available during playback

Repeat Playback repeat within the selected file [Off] / [On]

Music Setup

Repeat

Playback repeat [Off] / [Folder] / [One] [Folder]: Playback repeat within the selected folder. [One]: Playback repeat of the selected one file.

Page 95

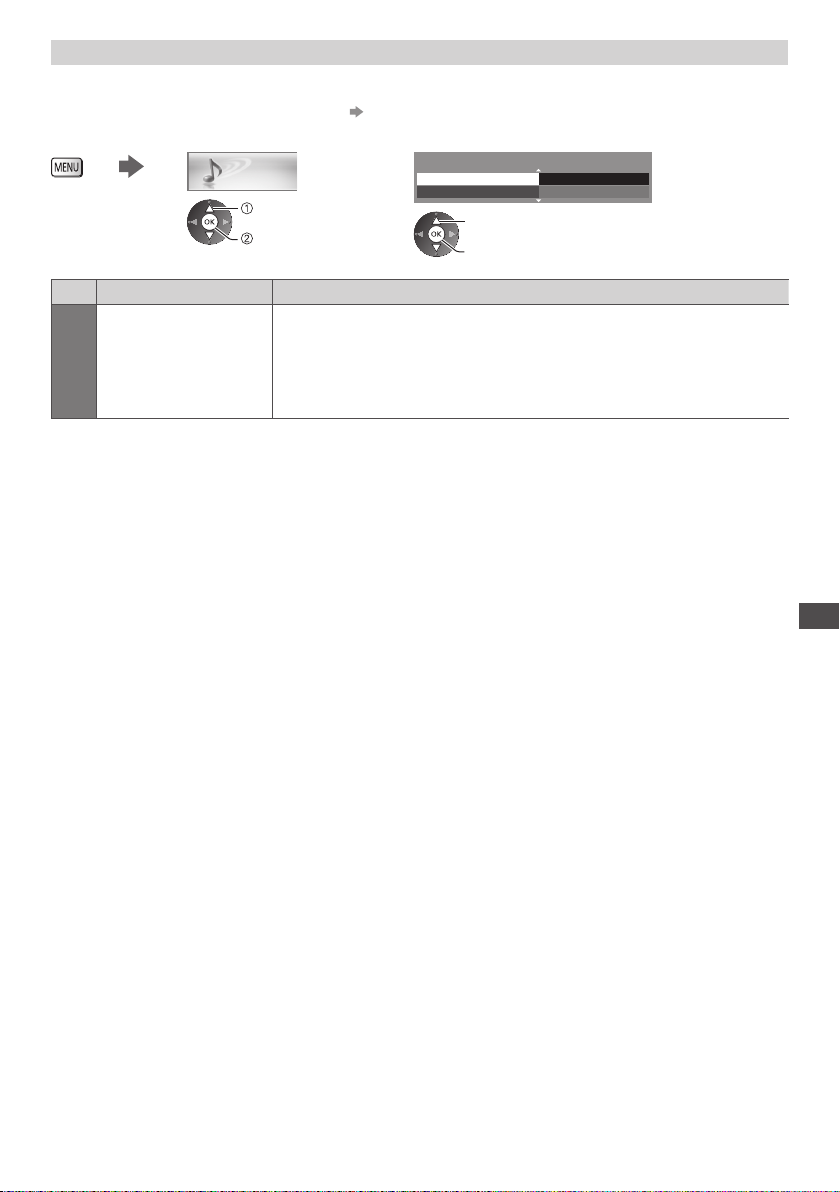

Audio output settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

●

To confirm or change the current sound status (p. 94)

1 Display the menu and Select [Sound]

Sound

select

access

2 Select [SPDIF Selection] and set

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

Sound

Item Adjustments / Configurations (alternatives)

SPDIF Selection

SPDIF: A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

Using Network Services (DLNA / VIERA Connect)

Page 96

Link Functions (Q-Link / VIERA Link)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 98) VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting.

(p. 99 - 103)

You can use Q-Link and VIERA Link functions together.

●

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of HDA

●

VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection)

Features Preset download

Easy playback Power on link Power off link Direct TV Recording

VIERA Link (HDMI connection)

Features Preset download

Easy playback Power on link Power off link

Link Functions (Q-Link / VIERA Link)

Reduce unnecessary power consumption in Standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control – – –

Connection

VI Control. Please read the manual of the equipment to confirm the version.

Connected equipment

DVD Recorder /

Connection

VCR with Q-Link

function

Connected equipment

DIGA Recorder with VIERA Link function

●

Use fully wired SCART cable.

●

Connect the DVD Recorder / VCR supporting Q-Link to the

s AV1 terminal via a SCART cable.

TV’

DVD Player / Blu-ray

Disc Player with

∗2 ∗

VIERA Link function

∗

∗2 ∗

∗

HDMI cable

SCART cable

DVD Recorder / VCR with Q-Link function

HD Video Camera / LUMIX Camera with VIERA Link function

– –

∗

–

– – – –

∗

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

∗

●

Use fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

Page 97

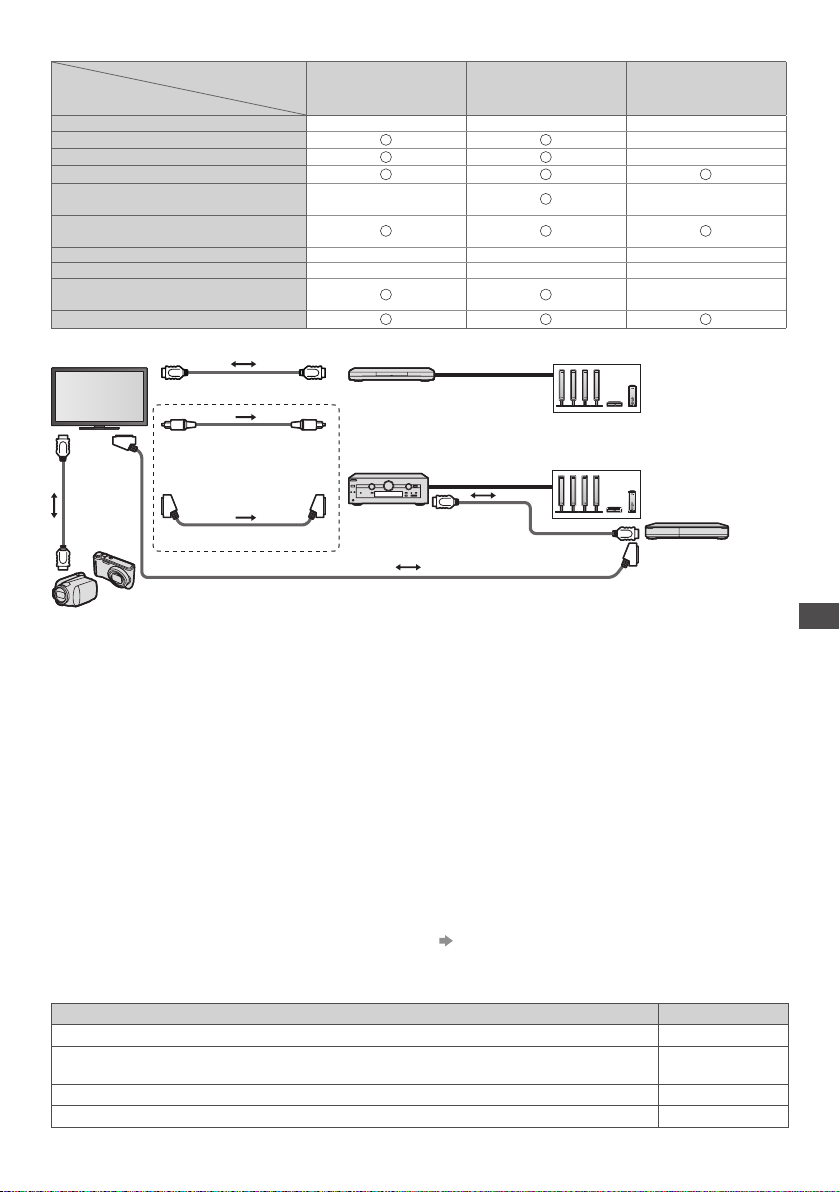

VIERA Link (HDMI and Audio out connections)

Connected equipment

Features Preset download – – –

Easy playback Power on link Power off link Reduce unnecessary power consumption in Standby Auto standby for unnecessary equipment Pause Live TV programme – – – Direct TV Recording – – – Control the menu of the connected equipment by VIERA remote control Speaker control

Connection

HDMI cable

Player theatre with

VIERA Link function

∗

–

∗3 ∗

∗

●

To use Player theatre / Blu-ray Disc theatre

Player theatre / Blu-ray Disc theatre with VIERA Link function

●

To use Amplifier

Amplifier with VIERA Link function

∗

HDMI cable

Optical digital

audio cable

SCART cable

HD Video Camera / LUMIX Camera with VIERA Link function

●

Use fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

Use fully wired SCART cable.

●

If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set [A

●

Use the optical digital audio cable or SCART cable for audio output from the TV.

∗

1: Available with the equipment which has “HDAVI Control 2

∗

2: Available with the equipment which has “HDAVI Control 3

∗

3: Available with the equipment which has “HDAVI Control 4

∗

4: Available with a DIGA Recorder which has HDD.

∗

5: This function is available regardless of the version of

V1 out] to [Monitor] in the Setup Menu (p. 46).

or later” function.

HDAVI Control when the recorder supports Q-Link and is connected via SCART cable.

Blu-ray Disc theatre

with VIERA Link

function

∗

Amplifier with

VIERA Link function

– –

∗

∗3 ∗

∗

–

∗

–

Speaker system

HDMI cable

DIGA Recorder with VIERA Link function

∗

6: While playing a disc.

∗

7: Except for watching a disc.

∗

8: If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable (Optical digital audio cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

Link Functions (Q-Link / VIERA Link)

VIERA Link Control of compatible equipment [VIERA Link Control] (p. 101)

●

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number Recorder (DIGA Recorder, etc.) 3 Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera,

Player theatre, Blu-ray Disc theatre, etc.) Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1 Tuner (Set top box, etc.) 4

TV. For example, DIGA Recorder connected to Amplifier

Page 98

Q-Link

Preparations

●

Connect the DVD Recorder / VCR with the following logos: “Q-Link”, “NEXTVIEWLINK”, “DA Corporation)”, “Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)”

●

Q-Link connection

●

Use fully wired SCART cable.

●

Set up the DVD Recorder / VCR. Read the manual of the recorder.

●

Q-Link terminal setup in the Setup Menu [AV1 out] (p. 46)

●

Download preset - channel, language and country / region settings

Features available

(p. 96)

TA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips

“Preset download” (see below)

Preset download

Channel, language and country settings can be downloaded to the recorder.

●

DVB-S and DVB-C channel settings cannot be downloaded.

●

To download settings [Download] (p. 46), [Auto Setup] (p. 16, 17, 51)

Direct TV Recording - What you see is What you record

Records the current programme in DVD Recorder / VCR immediately. (When USB HDD / SD Card for recording is connected in DVB mode, [One Touch Recording] starts.)

●

Confirm the code of the remote control is “73” (p. 31).

●

Available conditions:

Picture source Mode Recording from

TV TV monitor out

AV Recorder’s tuner

Link Functions (Q-Link / VIERA Link)

Analogue

DVB (USB HDD / SD Card for recording is not connected) TV TV monitor out

AV (watching recorder’s tuner) AV Recorder’s tuner

AV (watching recorder’s external input) AV Recorder’s external input

AV (watching TV’s external input) AV TV monitor out

●

When Direct TV Recording is performed, the recorder is automatically turned on if it is in Standby mode.

●

You can change channel or turn the TV off while the recorder is recording from its own tuner.

●

Changing channel is not available while the recorder is recording from the TV tuner.

■ To stop recording

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

Power on link and Easy playback

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p. 46)

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Note

●

Some recorders are not applicable. Read the manual of the recorder.

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p. 46)

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

●

This function works even if the TV enters Standby mode automatically by auto power standby function.

Page 99

VIERA Link “ ”

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 96, 97). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

●

Some functions are not available depending on the equipment’s version of HDAVI Control. Confirm the connected equipment’

●

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

●

Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

●

About applicable Panasonic equipment, consult your local Panasonic dealer.

Preparations

●

Connect the equipment supporting VIERA Link.

●

VIERA Link connection

●

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised. Recommended Panasonic’s HDMI cable part number:

●

Use fully wired SCART cable.

●

Set up the connected equipment. Read the manual of the equipment.

●

For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.

●

Download preset - channel, language and country / region settings “Preset download” (see below)

●

Set [VIERA Link] to [On] in the Setup Menu. [VIERA Link] (p. 46)

●

Set up the TV.

After connection, turn the equipment on and then switch the TV on. Select the input mode from HDMI1, HDMI2, HDMI3 or HDMI4 (p. 30), and make sure that an image is displayed correctly.

s version of HDAVI Control.

(p. 96, 97)

RP-CDHS15 (1.5 m)

•

This setup should be done each time when the following conditions occur:

for the first time

•

when adding or reconnecting equipment

•

when changing setup

•

RP-CDHS30 (3.0 m)

•

∗

RP-CDHS50 (5.0 m)

•

Features available

Preset download

Channel, language and country / region settings can be downloaded to the recorder.

●

DVB-S and DVB-C channel settings cannot be downloaded.

●

To download settings [Download] (p. 46), [Auto Setup] (p. 16, 17, 51)

Easy playback

Automatic input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p. 46)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p. 46)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

●

This function will work even if the TV enters Standby mode automatically by auto power standby function.

Link Functions (Q-Link / VIERA Link)

Page 100

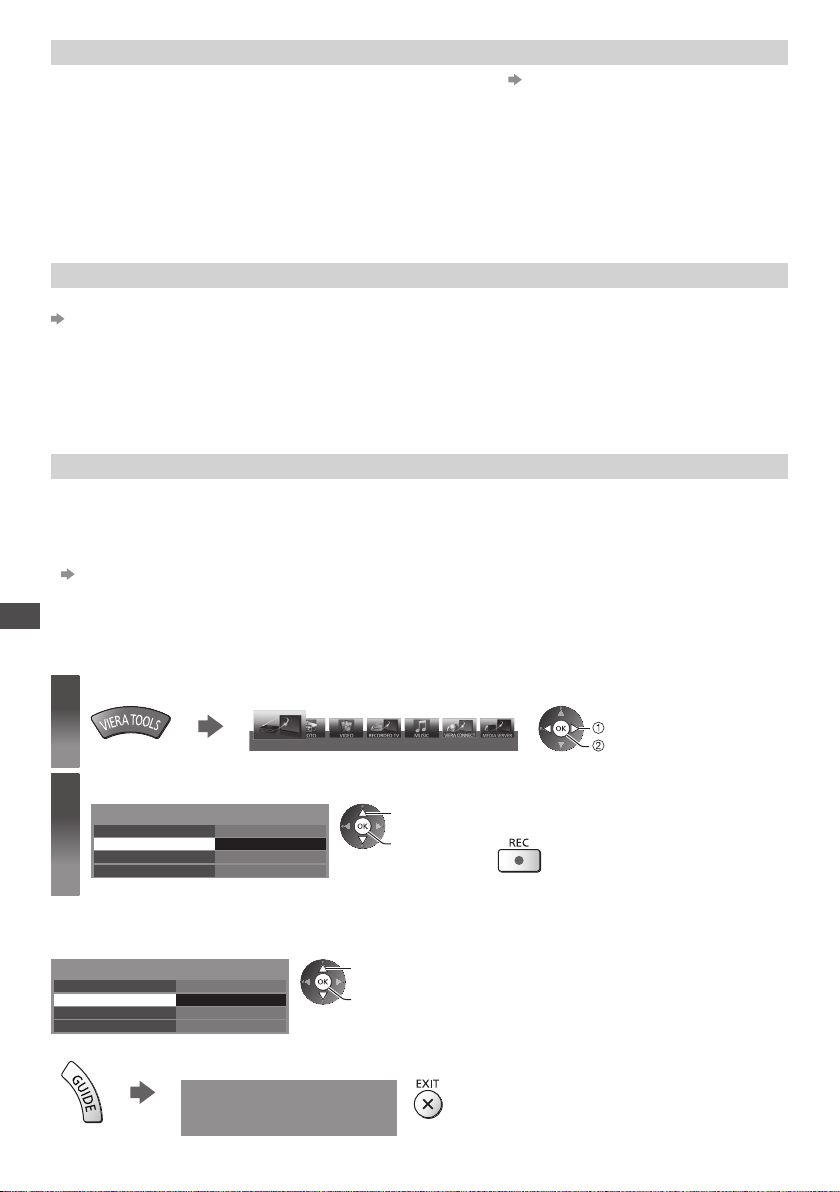

Reduce unnecessary power consumption in Standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 46)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronisation with the TV on / off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption of the connected equipment is automatically minimised. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time fast.

●

This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.

●

This function works when [Power off Link] is set to [On].

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function

[Intelligent Auto Standby] (p. 46)

When the TV is on, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI or when Speaker Selection is changed to [TV] (except for watching a disc).

●

If you select [On (With reminder)], the on-screen message will be displayed before the connected equipment turns to standby.

●

This function may not work properly depending on the connected equipment. If required, set to [Off].

Direct TV Recording - What you see is What you record [Direct TV Rec]

Records the current programme in the DIGA Recorder immediately.

●

If you connect a variety of recorders including other manufacturers’ recorders at the same time, connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1.

●

If you cannot operate, check the settings and the equipment.

“Summary of Q-Link and VIERA Link features” (p. 96, 97), “Preparations” (p. 99)

●

To record the programme which DIGA Recorder does not support, SCART connection is required and the programme is recorded by Q-Link function (p. 98).

●

Depending on the programme, SCART connection may be required to record.

Link Functions (Q-Link / VIERA Link)

●

You can change channel or turn the TV off while the recorder is recording from its own tuner.

●

You can not change channel while the recorder is recording from the TV tuner.

Display [VIERA TOOLS] and select [VIERA Link]

Select [Direct TV Rec] and start recording

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

●

You can also stop recording directly.

100

Start Stop Recorder Home Cinema

Unlock the tuner

Press EXIT to unlock and stop recording

VIERA Link

Start Start Recorder Home Cinema

Tuner Locked

select

access / stop

select

access / start

select

access

●

You can also start recording directly when the code of the remote control is “73” (p. 31).

(When USB HDD / SD Card for recording is connected in DVB mode, [One Touch Recording] starts.)
