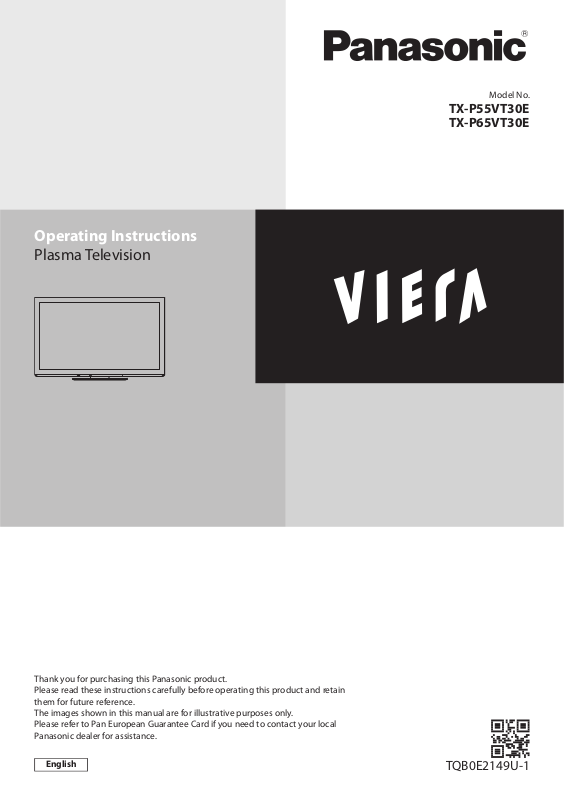

Panasonic TX-P65VT30E, TX-P55VT30E Operating Instructions

Page 1

Operating Instructions

Plasma Television

M odel No.

TX-P55VT30E TX-P65VT30E

T hank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. T he images shown in this manual are for illustrative purposes only. Please refer to Pan Eu Panasonic dealer for assistance.

English

ropean Guarantee Card if you need to contact your local

TQB0E2149U-1

Page 2

Experience an amazing level of multimedia excitement

Enjoy rich multimedia

SD Card

N etwork

Amplifier with

Speaker system

DVD Recorder

VCR

Notice for DVB / Data broadcasting / IPTV functions

T his TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial

•

services, DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services and DVB-S (MPEG2 and MPEG4-AVC(H.264)) digital satellite services.

C onsult your local dealer for availability of DVB-T or DVB-S services in your area. C onsult your cable service provider for availability of DVB-C services with this TV. T his TV may not work correctly with the signal which does not meet the standards of DVB-T, DVB-C or DVB-S.

•

N ot all the features are available depending on the country, area, broadcaster, service provider and satellite.

•

N ot all CI modules work properly with this TV. Consult your service provider about the available CI module.

•

T his TV may not work correctly with CI module that is not approved by the service provider.

•

Additional fees may be charged depending on the service provider.

•

T he compatibility with future services is not guaranteed.

•

C heck the latest information on the available services at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

U SB device

DVD Player

Blu-ray Disc Player

C amcorder

U SB HDD

Set top box

Page 3

Do not display a still picture for a long time

T his causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

C hannel number and other logos

•

Image displayed in 4:3 mode

•

V ideo game

•

C omputer image

•

T o prevent image retention, contrast is lowered automatically

after a few minutes if no signals are sent or no operations are performed. (p.122)

P anasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral

devices.

T he recording and playback of content on this or anyother device may require permission from the owner of the copyright

or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright

legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

T his product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i)

encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video.

No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM

SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/

OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/

Be Sure to Read

Safety Precautions····································································4

M aintenance ··············································································5

Quick Start Guide

Accessories / Options ······························································6

Identifying Controls ·································································9

B asic Connection ··································································· 11

Auto Setup ··············································································· 13

Enjoy your TV!

Basic Features

U sing “VIERA Connect” ························································18

Watching TV ············································································ 19

U sing TV Guide ······································································· 23

V iewing Teletext ····································································· 26

Watching External Inputs ··················································· 28

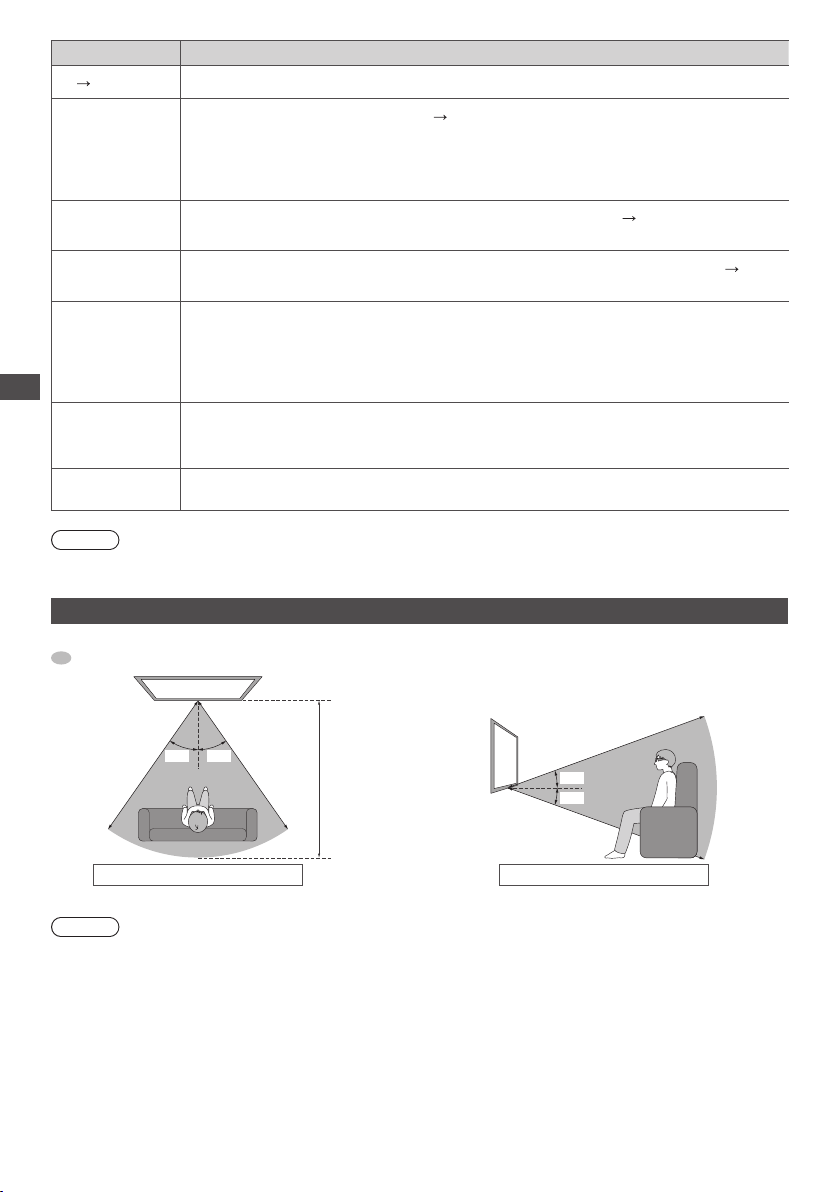

V iewing 3D images ······························································· 30

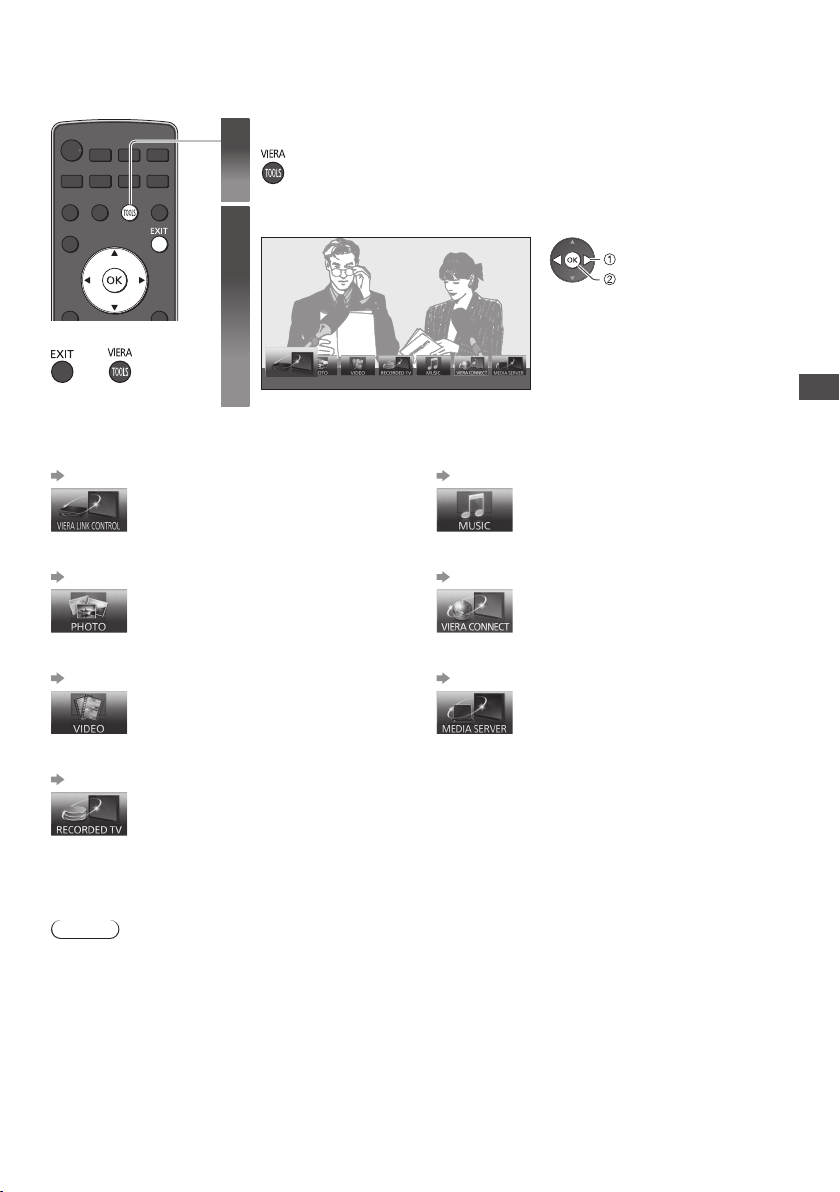

H ow to Use VIERA TOOLS ··················································· 39

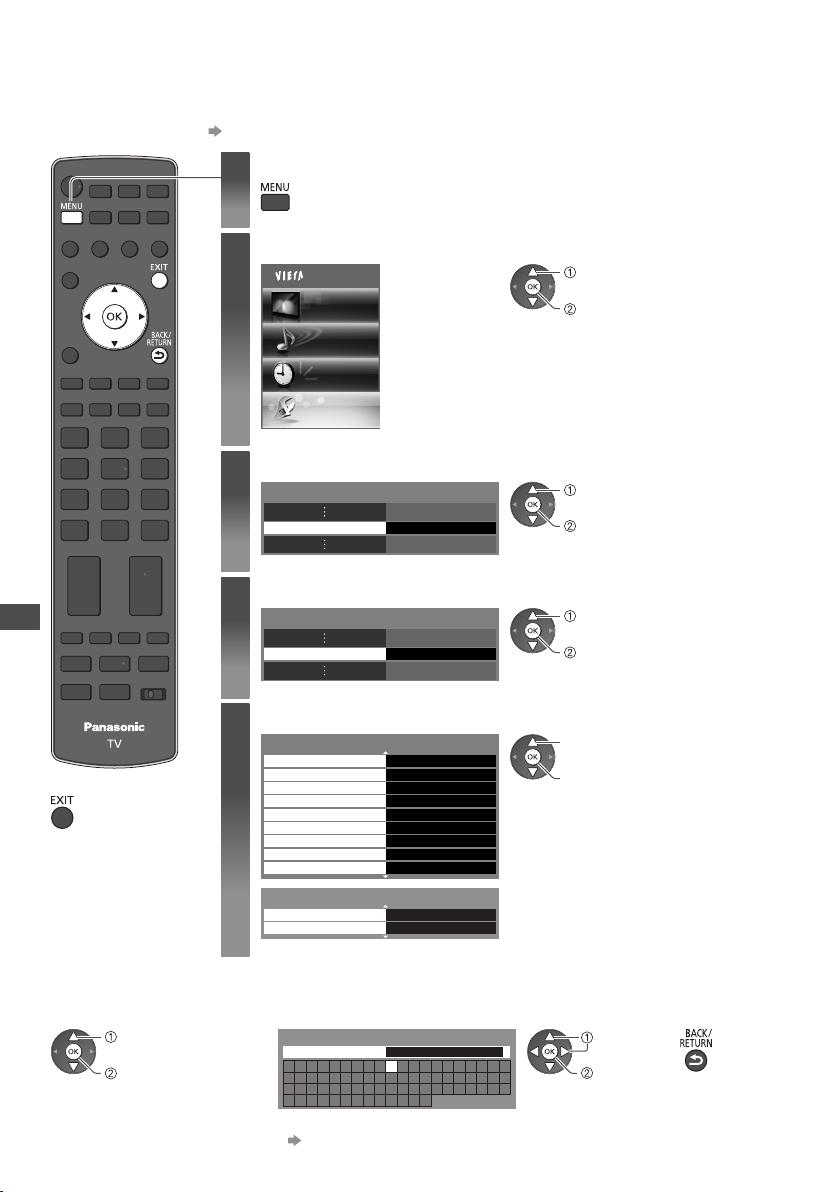

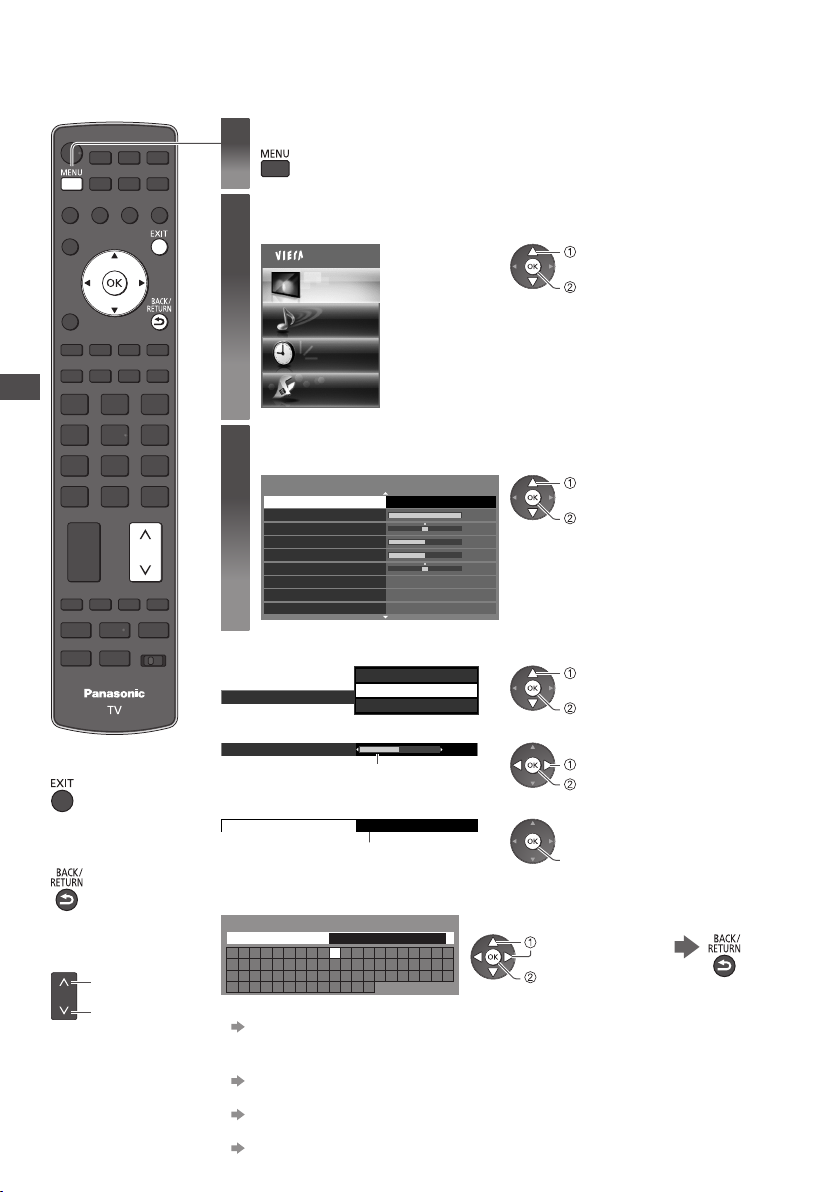

H ow to Use Menu Functions ············································· 40

Advanced Features

R etuning from Setup Menu ··············································· 50

Tuning and Editing Channels (DVB) ······························· 54

Tuning and Editing Channels (Analogue)····················· 58

T imer Programming ····························································· 60

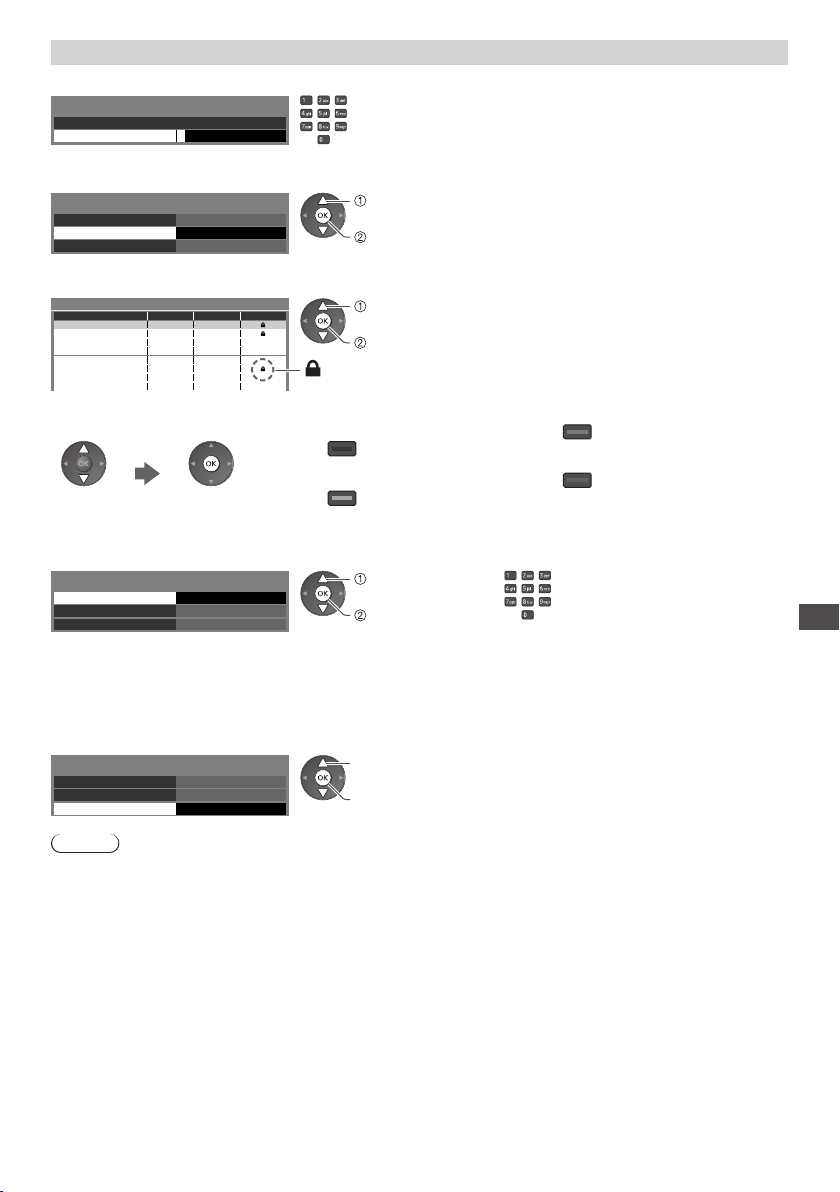

C hild Lock ················································································· 62

I nput Labels ············································································· 64

U sing MHP Services ······························································ 65

U sing Common Interface ··················································· 67

Shipping Condition ······························································ 68

U pdating the TV Software ··················································

Multi Window·········································································· 70

Advanced Picture Settings ················································· 71

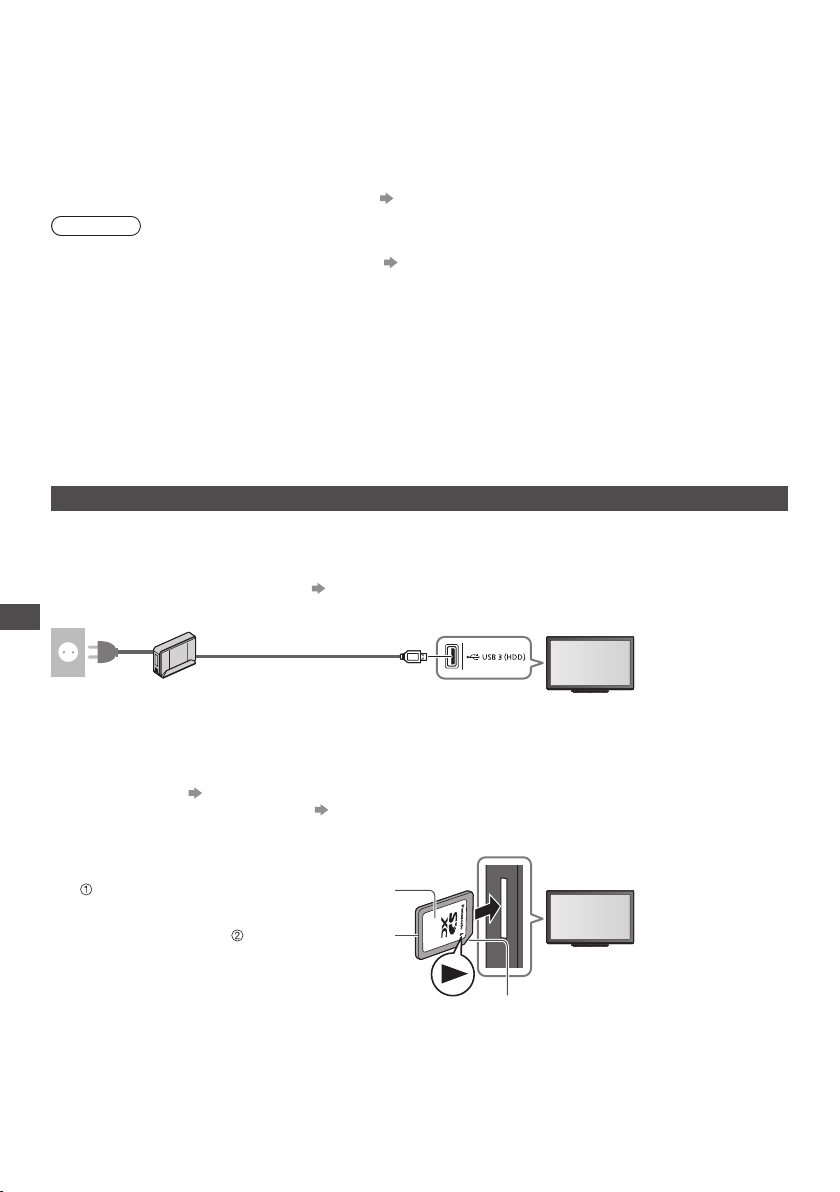

U SB HDD / SD Card Recording·········································· 74

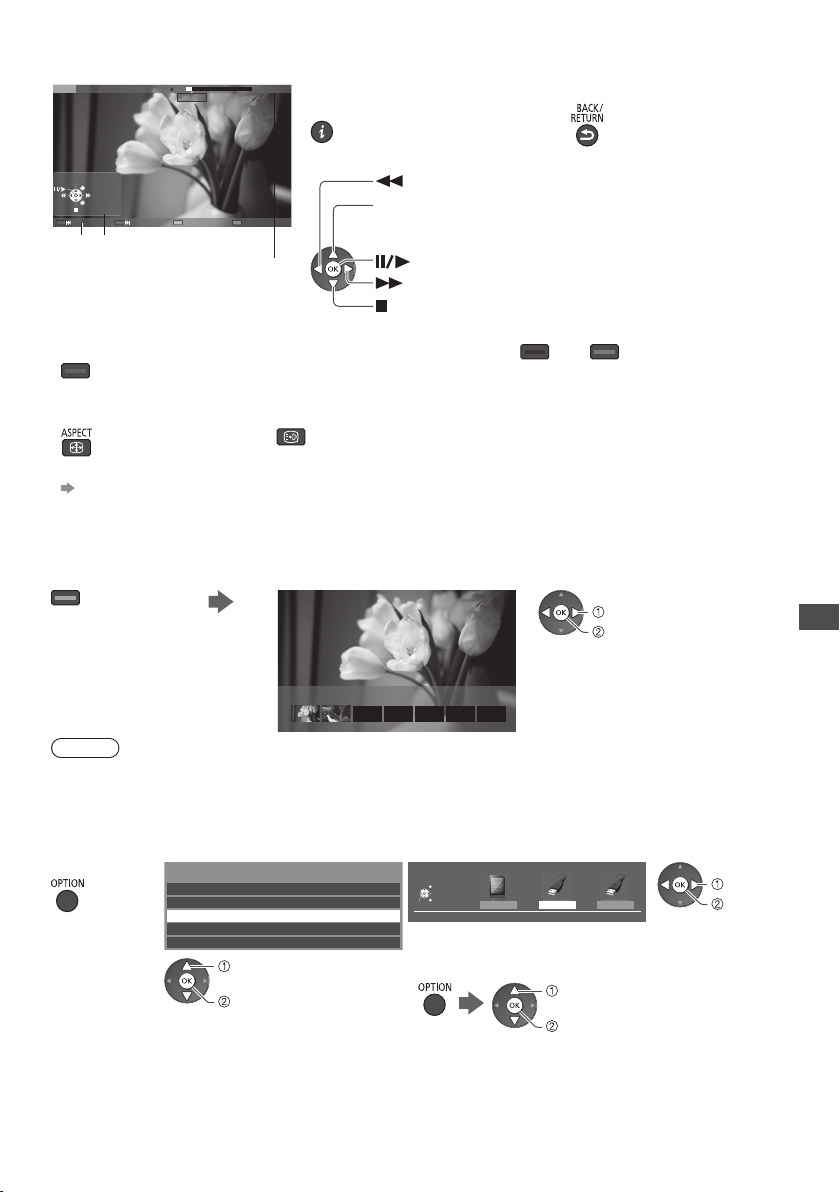

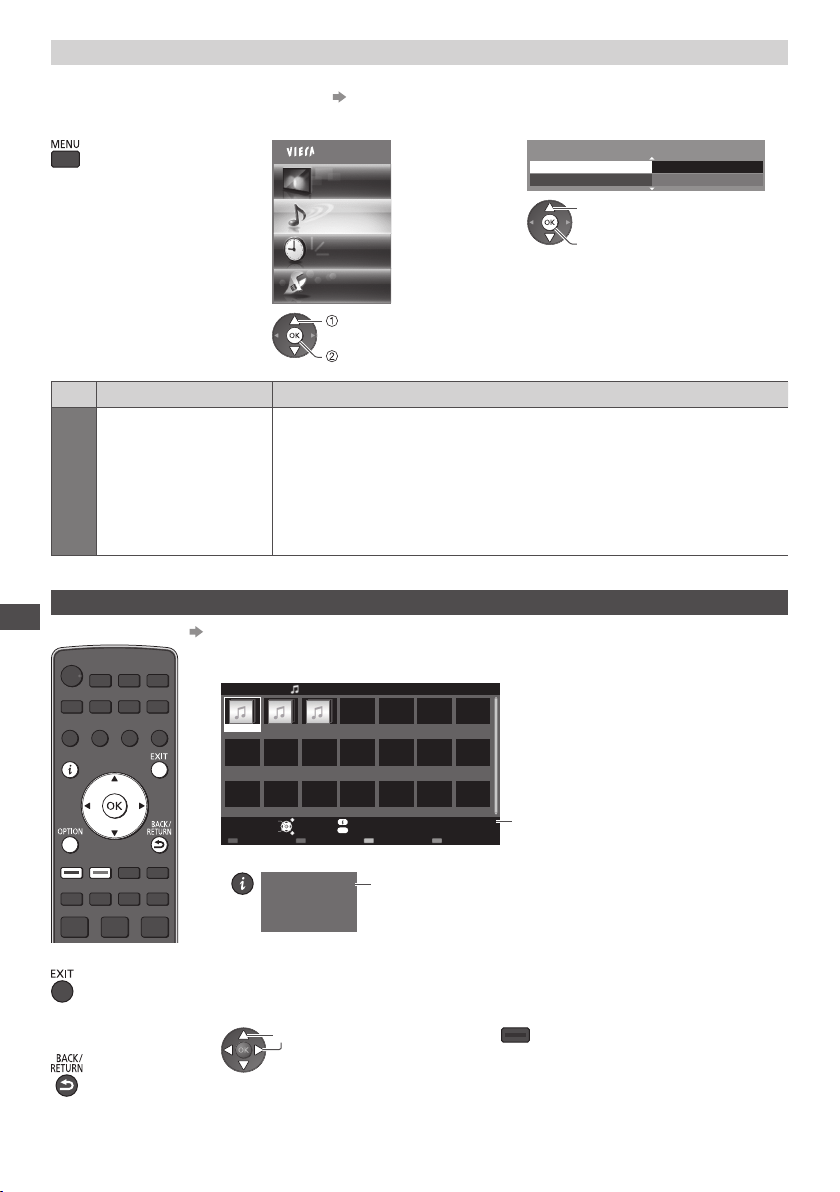

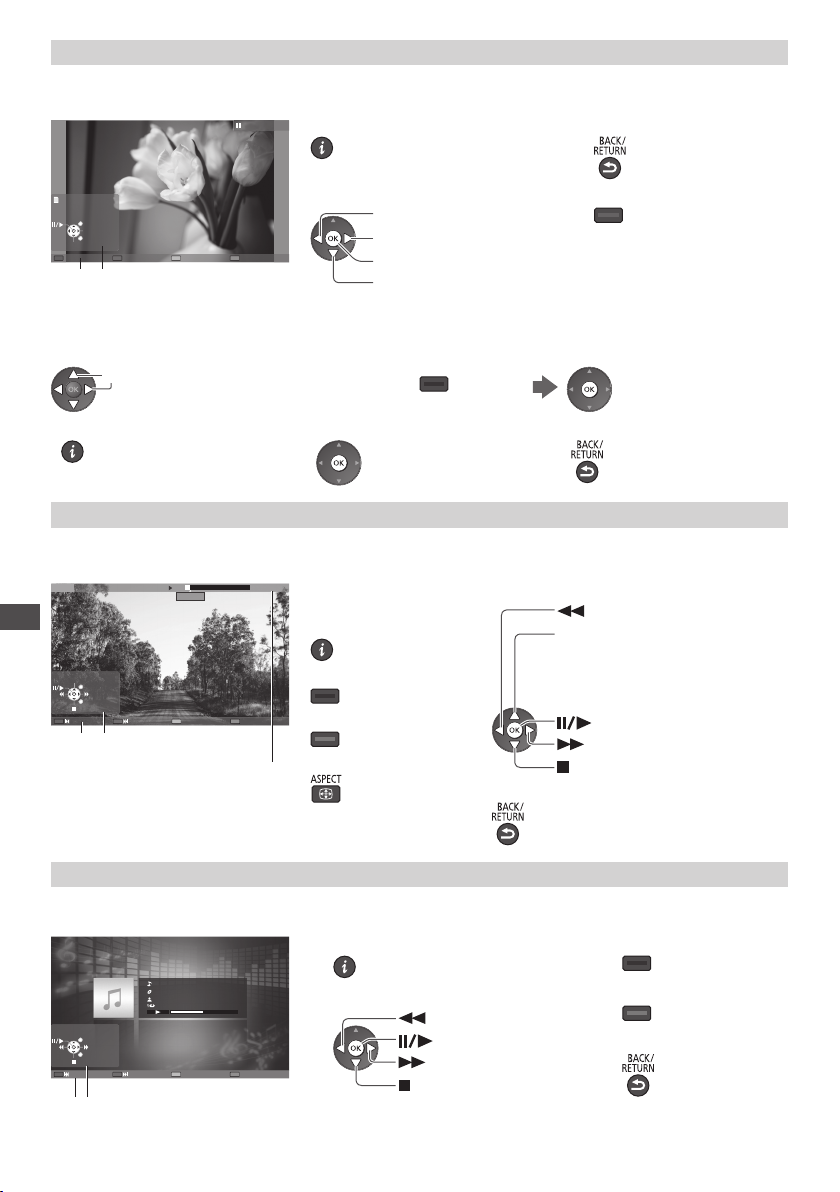

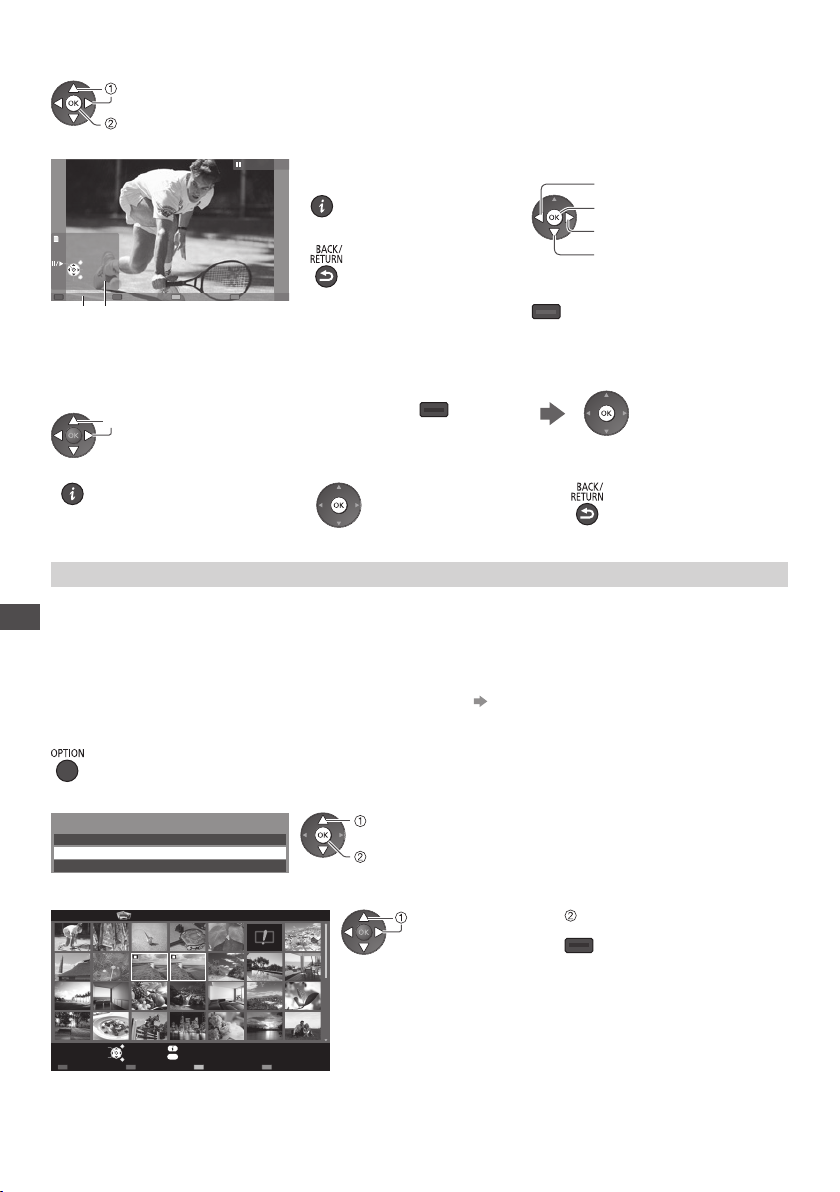

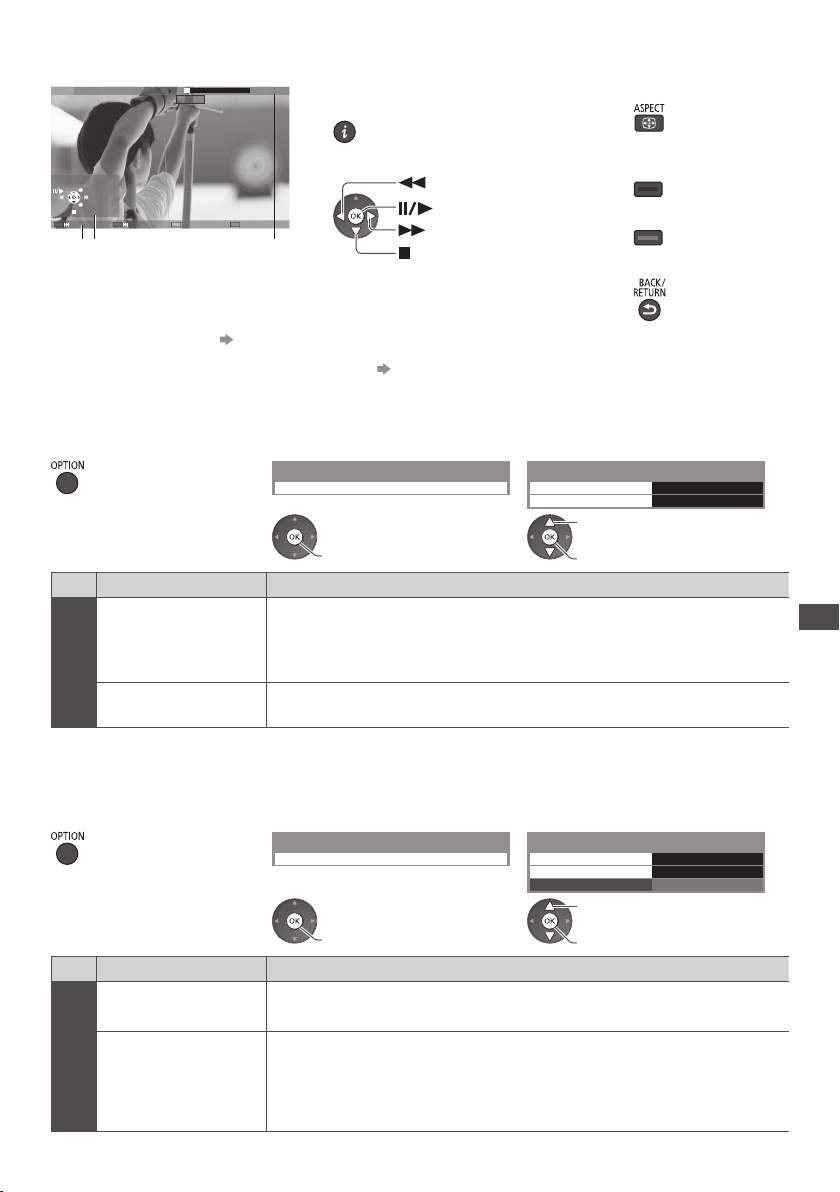

U sing Media Player ······························································· 79

U sing Network Services (DLNA / VIERA Connect)······ 92

L ink Functions (Q-Link / VIERALink) ·····························103

External Equipment ····························································112

FAQs, etc.

T echnical Information ························································115

FAQ s ·························································································122

L icence ····················································································125

Specifications ········································································126

Page 4

Safety Precautions

Warning

Safety Precautions

Handling the mains plug and lead

I nsert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)

•

E nsure that the mains plug is easily accessible.

•

E nsure the earth pin on the mains plug is securely connected to prevent electrical shock.

•

A n apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

D o not touch the mains plug with a wet hand. (This may cause electrical shock.)

•

D o not damage the mains lead. (A damaged lead may cause fire or electrical shock.)

•

D o not move the TV with the lead plugged in the socket outlet.

•

D o not place a heavy

•

D o not twist the lead, bend it excessively, or stretch it.

•

D o not pull on the lead. Hold onto the mains plug body when disconnecting lead.

•

D o not use a damaged mains plug or socket outlet.

object on the lead or place the lead near a high-temperature object.

If you find any abnormality, remove the mains plug immediately!

Power source

T his TV is designed to operate on AC 220-240 V, 50/60 Hz.

•

Do not remove covers and NEVER modify the TV yourself

D o not remove the rear cover as live parts are accessible

•

when it is removed. There are no user serviceable parts

inside. (High-voltage components may cause serious electrical shock.)

H ave the TV checked, adjusted, or repaired at your local

•

Panasonic dealer.

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other sources

•

of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

AC 220-240 V 50 / 60 Hz

Do not expose to rain or excessive moisture

T o prevent damage which might result in electric shock

•

or fire, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not insert foreign objects into the TV

D o not allow any objects to drop into the TV through the

•

air vents. (Fire or electrical shock may result.)

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base

T he TV may fall off or tip over.

•

Use only the dedicated pedestals / mounting equipment

U sing an unapproved pedestal or other fixtures may make

•

the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup. U se approved pedestals (p.7) / wall-hanging brackets

•

(p.6).

Do not allow children to handle SD Card

A s with any small object, SD Cards can be swallowed by

•

young children. Please remove SD Card immediately after use and store out of reach of children.

Page 5

Caution

When cleaning the TV, remove the mains plug

Cleaning an energized TV may cause electrical shock.

•

When the TV is not going to be used for a long period of time, remove the mains plug

T his TV will still consume some power even in the Off mode,

•

as long as the mains plug is still connected to a live socket outlet.

Transport only in upright position

Transporting the TV with its display panel facing upward or

•

downward may cause damage to the internal circuitry.

Allow sufficient space around the TV for radiated heat

M inimum distance

When using the

•

pedestal, keep the space between the bottom of the TV and the surface

where the TV is set. I n case of using

•

Wall-hanging bracket,

(cm)

follow the manual of it.

Do not block the rear air vents

Blocked ventilation by newspapers, table cloths, curtains,

•

etc. may cause overheating, fire or electrical shock.

Do not expose your ears to excessive volume from the headphones

Irreversible damage can be caused.

•

Do not apply strong force or impact to the display panel

T his may cause damage resulting in injury.

•

The TV is heavy. Handle the TV by 2 or more people. Support as shown to avoid injury by the TV tipping or falling.

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Pedestal

Regular care :

G ently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints.

Caution

D o not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.

•

T ake care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.

•

T ake care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade

•

surface quality or cause peeling of the paint. T he surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface

•

with your fingernail or other hard objects. D o not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade

•

surface quality.

For stubborn dirt :

D ampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Safety Precautions | Maintenance

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Page 6

Accessories / Options

Standard accessories

Remote Control

N2QAYB000593

•

Quick Start Guide

Batteries for the Remote Control (2)

•

(p. 7)

Pedestal

(p. 7)

(TX-P55VT30E) (TX-P65VT30E)

Wireless LAN Adaptor and exclusive stand

(p. 12 and p. 93)

Accessories / Options

Operating Instructions Pan European Guarantee Card

Terminal adaptors

Satellite adaptor

•

(p. 11, 112)

C omposite adaptor

•

(p. 112, 113)

Accessories may not be placed all together. Take care not to throw them away unintentionally.

•

T his product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young

•

children accidentally. Keep these parts out of reach of young children.

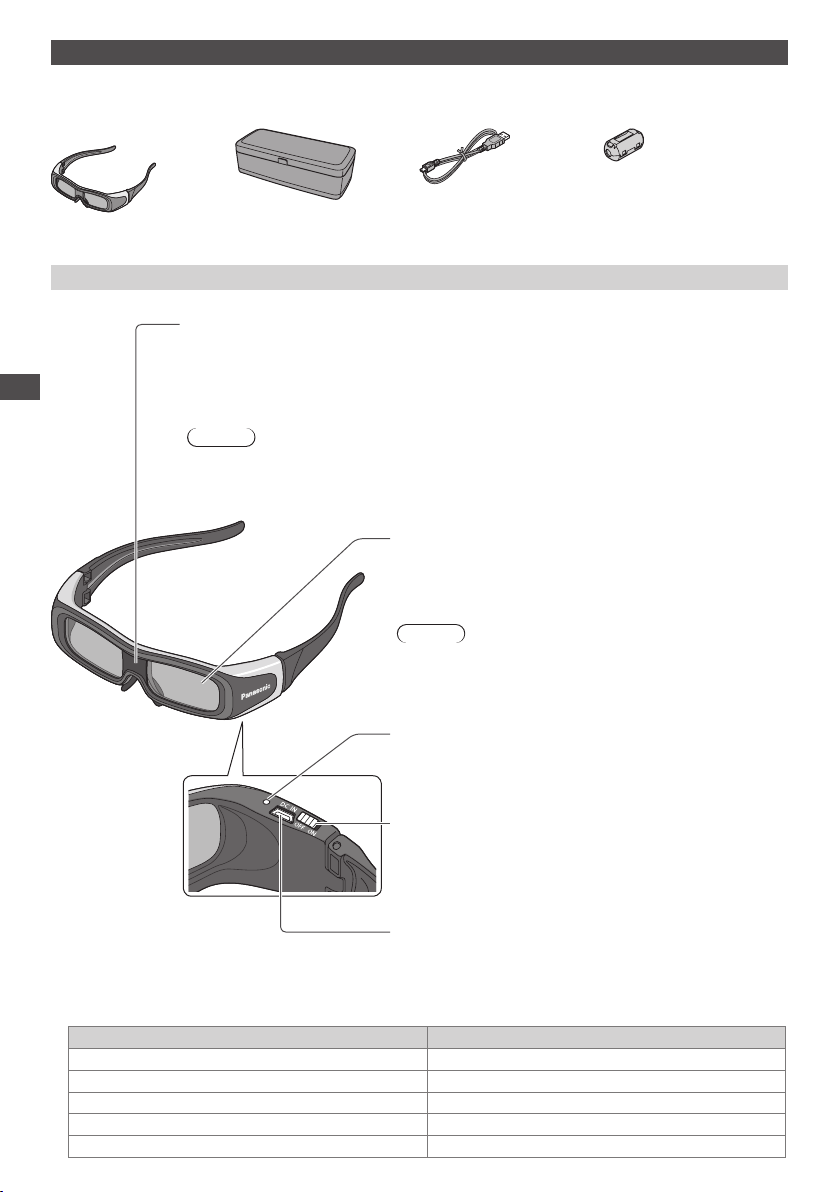

3D Eyewear set (2)

(p. 32)

RF adaptor

•

(p. 11, 12, 112)

Audio adaptor

•

(p. 113)

Clamper

(p. 11)

SCART adaptor

•

(p. 11, 12, 112)

O ptical digital audio adaptor

•

(p. 113)

Ferrite core (2)

(Large size)

(p. 12, 113)

U se the Ferrite cores to comply with the EMC standard.

Ferrite core

( Small size) (p. 114)

COMPONENT adaptor

•

(p. 112)

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

3D Eyewear set

(Battery type) (Rechargeable type)

TY-EW3D10E

•

Communication Camera

TY-CC10W

•

Wall-hanging bracket

TY-WK5P1RW (TX-P55VT30E)

•

TY-EW3D2LE

•

TY-EW3D2ME

•

TY-EW3D2SE

•

Caution

T his camera can be used on VIERA Connect (p. 18, 102).

•

Please also read the manual of the camera.

•

D epending on the area, this optional accessory may not be available.

•

F or details, consult your local Panasonic dealer.

T ilting angle for this TV :

•

0 (vertical) to 15 degrees

a : 500 mm b : 300 mm

If you need 3D Eyewears additionally, please purchase this optional accessory.

•

F or more information (English only) :

•

http://panasonic.net/avc/viera/3d/eu.html

TY-WK6P1RW (TX-P65VT30E)

•

T ilting angle for this TV :

•

0 (vertical) to 10 degrees

a : 684 mm b : 300 mm

Page 7

R ear of the TV

(View from the side)

H oles for wall-hanging bracket installation

Warning

U sing other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and

•

product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. C arefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV

•

from falling off. H andle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

•

T ake care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before

•

hanging bracket. T o prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

•

Depth of screw : minimum 10 mm,

maximum 16 mm

Diameter : M8

Screw for fixing the TV onto the wall-hanging bracket ( not supplied with the TV)

Installing / removing remote’s batteries

Quick Start Guide

Accessories / Options

N ote the correct

polarity (+ or -)

Pull open

H ook

Caution

I ncorrect installation may cause battery leakage and corrosion, resulting

•

in damage to the remote control. D o not mix old and new batteries.

•

D o not mix different battery types (such as alkaline and manganese

•

batteries). D o not use rechargeable (Ni-Cd) batteries.

•

D o not burn or breakup batteries.

•

B atteries must not be exposed to excessive heat such as sunshine, fire or the like. D o not disassemble or modify the remote control.

•

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.

O therwise the TV may fall over and become damaged, and personal injury may result.

•

Caution

Do not use any pedestal other than the one provided with this TV.

O therwise the TV may fall over and become damaged, and personal injury may result.

•

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer

•

immediately.

During set-up, make sure that all screws are securely tightened.

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough

•

to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may

•

result.

Two or more people are required to install and remove the TV.

If two or more people are not present, the TV may be dropped, and personal injury may result.

•

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure. (p. 8)

O therwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

•

Page 8

TX-P55VT30E

Assembly screw (8)

M5 × 25

Pole (2)

L : TBL5ZA3107

•

R : TBL5ZA3108

•

Base

TBL5ZX0059

•

Quick Start Guide

TX-P65VT30E

Assembly screw (6)

Assembly screw (4)

Accessories / Options

Assembling the pedestal

U se the assembly screws A / D to fasten the poles

/ F to the base C / G securely.

M ake sure that the screws are securely tightened.

•

F orcing the assembly screws the wrong way will strip

•

the threads.

(TX-P55VT30E)

“L” or “R” mark is stamped on the front of the

•

pole.

TX-P65VT30E)

(

U se the allen wrench H to tighten the screws.

•

M5 × 30

M6 × 25

Front

L R

Pole (2)

TBL5ZA3125

•

Base

TBL5ZX0171

•

Securing the TV

U se the assembly screws A / E to fasten securely.

T ighten the four assembly screws loosely at first, then

•

tighten them firmly to fix securely. C arry out the work on a horizontal and level surface.

•

(View from the bottom)

Allen wrench

Arrow mark

H ole for pedestal installation

Front

Removing the pedestal from the TV

B e sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Remove the assembly screws 2 Pull out the pedestal from the TV. 3 Remove the assembly screws A / D from the pole.

/ E from the TV.

Page 9

Identifying Controls

Remote Control

1 2

3 4

5 6 7

10 11

Standby On / Off switch

Switches TV On or Off standby

•

3D button (p.36)

Switches to the viewing mode between 2D and 3D

•

[Main Menu] (p.40)

Press to access Picture, Sound, Timer and Setup

•

Menus

Aspect (p.22)

C hanges aspect ratio

•

Light

L ights the buttons (numeric, sound mute, last view,

•

volume, channel) for about 5 seconds

[VIERA Link Menu] (p.107)

Information (p.20)

D isplays channel and programme information

•

16 17 18

19 20

24 25

C onfirms selections and choices

•

Press after selecting channel positions to quickly

•

change channel D isplays the Channel List

•

[Option Menu] (p.21)

E asy optional setting for viewing, sound, etc.

•

Teletext (p.26)

Switches to teletext mode

•

Subtitles (p.20)

D isplays subtitles

•

Numeric buttons

C hanges channel and teletext pages

•

Sets characters

•

When in Standby mode, switches TV On (Press for

•

about 1 second)

Sound Mute

Switches sound mute On or Off

•

Volume Up / Down

Input mode selection

TV - switches DVB-S / DVB-C / DVB-T / Analogue

•

mode (p.19) AV - switches to AV input mode from Input Selection

•

list (p.28)

Direct TV Recording (p.105,107)

R ecords programme immediately in DVD Recorder /

•

VCR with Q-Link or VIERA Link connection

TV Guide (p.23)

[VIERA Connect] (p.18, 102)

D isplays VIERAConnect home screen

•

VIERATOOLS (p.39)

D isplays some special feature icons and accesses

•

easily

Exit

R eturns to the normal viewing screen

•

Cursor buttons

M akes selections and adjustments

•

Return

R eturns to the previous menu / page

•

Coloured buttons

(red-green-yellow-blue)

U sed for the selection, navigation and operation of

•

various functions

Hold

Freeze / unfreeze picture (p.21)

•

H olds the current teletext page (teletext mode)

•

(p.26)

Index (p.26)

R eturns to the teletext index page (teletext mode)

•

Last view (p.22)

Switches to previously viewed channel or input mode

•

Channel Up / Down

Connected equipment operations

(p.29, 78, 80, 99, 110)

Quick Start Guide

Identifying Controls

Page 10

Quick Start Guide

Identifying Controls

T V

CI slot (p.67)

SD Card slot (p.74, 79)

USB 3 port (p.74, 114)

HDMI1 - 4 terminal (p.114)

Function select

[Volume] / [Contrast] / [Brightness] / [Colour] /

•

[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ / [Balance] / [Auto Setup] (p.50 - 53) ∗ [Music] or [Speech] mode in the Sound Menu

C hannel Up / Down, Value change (when using the F

button), Switching the TV On (press either button for about 1 second when in Standby mode)

Changes the input mode

9 10 11 8

Mains power On / Off switch

U se to switch the mains power.

•

If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

Remote control signal receiver

D o not place any objects between the TV remote

•

control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System)

sensor

Senses brightness to adjust picture quality when [Eco

•

Mode] in the Picture Menu is set to [On] (p.42)

Power and Timer LED

Red : Standby

•

Green : On Orange : T imer Programming On Orange (flash) :

R ecording of Timer Programming, Direct TV Recording or One Touch Recording in progress

Red with orange flash :

Standby with Timer Programming On, Direct TV Recording or One Touch Recording

T he LED blinks when the TV receives a command

•

from the remote control.

Infrared transmitter for 3D Eyewear

D o not place any objects between the transmitter

•

and 3D Eyewear.

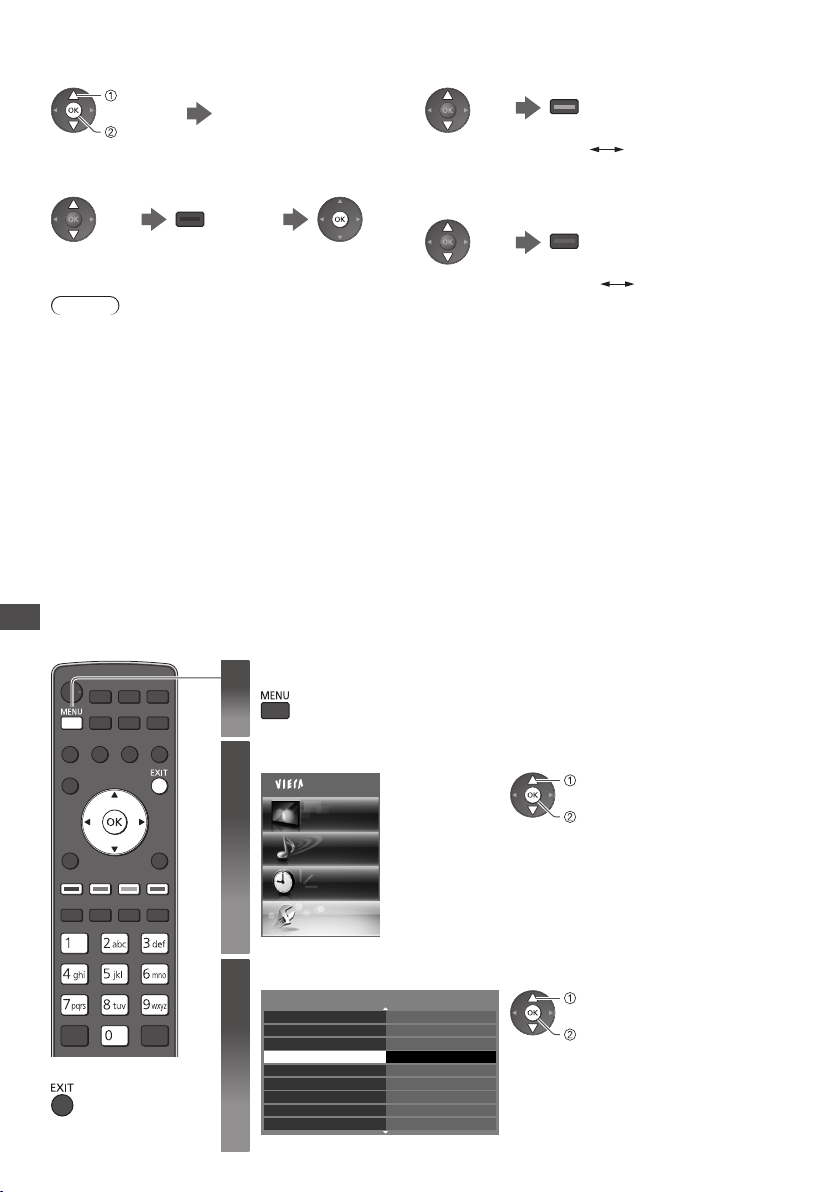

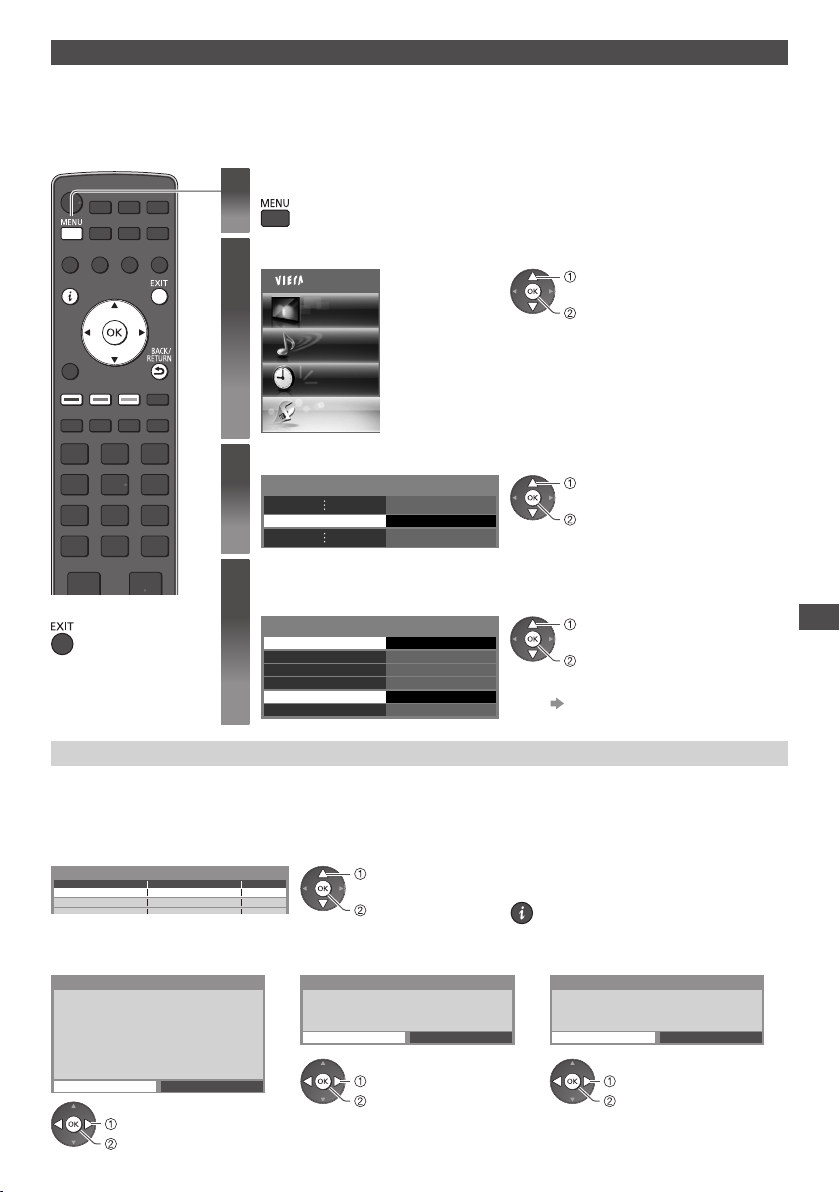

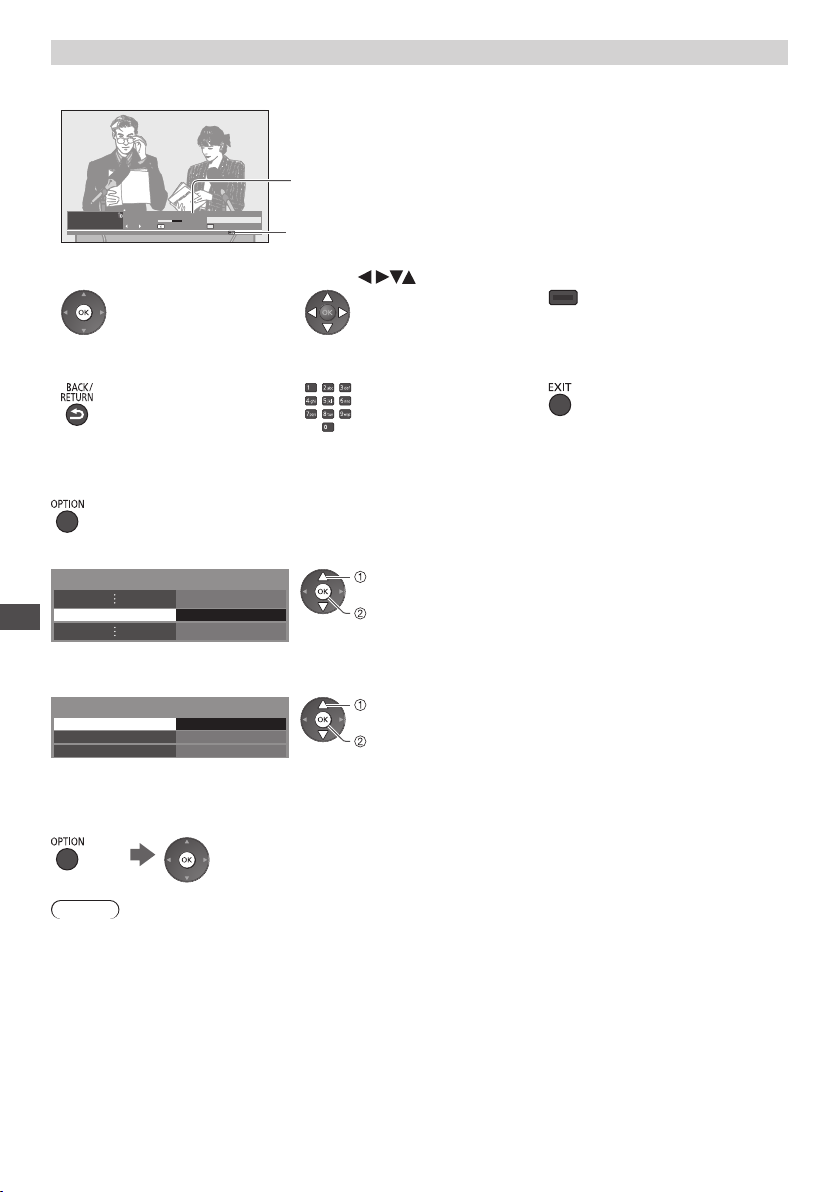

Using the On Screen Displays - Operation guide

M any features available on this TV

Operation guide

O peration guide will help you to operate by using the remote control.

Example : [Sound Menu]

Main Menu

C hange

M ode Music


B ass Treble

Sound

B alance H eadphone Volume

Timer

Surround Auto Gain Control

Setup

V olume Correction Speaker Distance to Wall

Select

Selects the basic sound mode.

EXIT

RETURN

O peration guide

can be accessed via the On Screen Display menu.

How to use remote control

O pen the main menu

M ove the cursor / select the menu item / select from a range of options

M ove the cursor / adjust levels / select from a range of

options

Access the menu / store settings after adjustments have been made or options have been set

R eturn to the previous menu

Off

Over 30cm

P age up

P age down

1/2

0 0 0

Auto power standby function

T he TV will automatically go to Standby mode in the following conditions :

•

no signal is received and no operation is performed for 30 minutes in Analogue TV mode

•

[Off Timer] is active in the Timer Menu (p.21)

•

no operation is performed for the period selected in [Auto Standby] (p.45)

T his function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

•

Exit the menu system and return to the normal viewing screen

Page 11

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. T here are some restrictions on placement for viewing 3D images

Example 1 Connecting dish or aerial

TV only

T o ensure your satellite dish is correctly installed, please consult your local dealer.

Also please consult the received satellite broadcasting companies for details.

•

Selectable satellites and dish alignment to tune DVB-S channels (p.51)

•

R ear of the TV

F or digital satellite broadcasts

•

Satellite adaptor (supplied)

F or digital cable, digital terrestrial and analogue

•

broadcasts

AC 220-240 V 50/60 Hz

RF adaptor (supplied)

. For details (p. 31, 38)

Satellite dish

Terrestrial aerial

Satellite cable

RF cable

Quick Start Guide

Basic Connection

Cable

M ains lead

■ Clamper (Standard accessory / Attached with the mains lead)

Attach the clamper Bundle the cables To remove from the TV : To loosen :

I nsert the clamper in a hole

D o not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).

•

F ix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s assembly manual to fix cables.

•

Example 2 Connecting DVD Recorder / VCR and Player

TV, DVD Recorder / VCR and Player

R ear of the TV

AC 220-240 V 50/60 Hz

hole

Terrestrial

aerial

Cable

hooks

Set the

tip in the hooks

RF adaptor (supplied)

Fully wired HDMI

compliant cable

SCART adaptor

(supplied)

RF cable

snaps

K eep pushing

both side snaps

k nob

Player / 3D-compatible player

Fully wired SCART cable

RF OUT

K eep pushing the knob

M ains lead

RF cable

RF IN

DVD Recorder or VCR

Page 12

Example 3 Connecting DVD Recorder / VCR and Set top box

TV, DVD Recorder / VCR and Set top box

R ear of the TV

Fully wired HDMI compliant cable

Cable

Set top box

Quick Start Guide

Basic Connection

AC 220-240 V 50/60 Hz

M ains lead

Terrestrial aerial

RF adaptor (supplied)

SCART adaptor (supplied)

RF cable

Fully wired

SCART cable

RF OUT

RF IN

Fully wired SCART cable

DVD Recorder or VCR

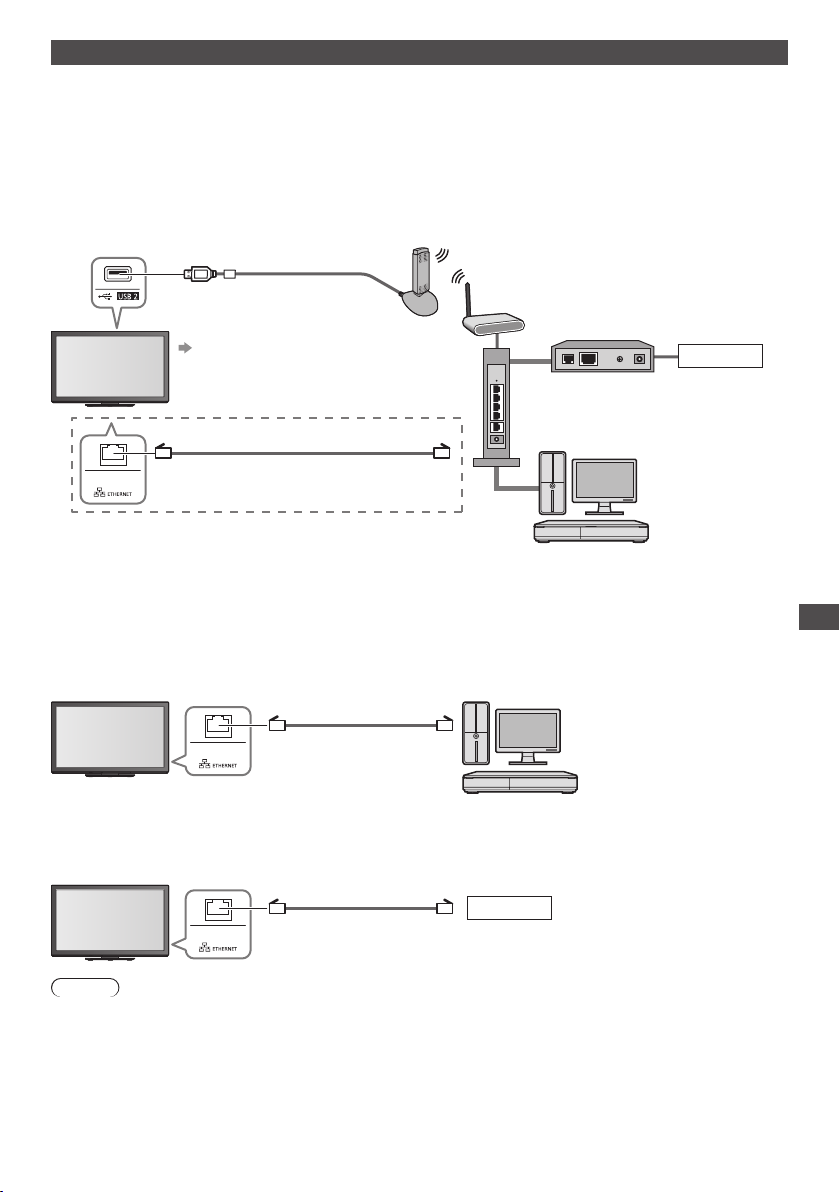

■ Connecting to the network environment (Network connections)

T o enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

C onnect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).

•

Setup of the network connection will start after the tuning (when first using the TV ) (p. 14 - 16)

•

R ear of the TV

Wired connection

L ess than

10cm

F or more information of the network connections (p. 93)

•

Wireless connection

Wireless LAN Adaptor and exclusive stand

“Standard accessories” (p. 6)

I nsert the Wireless LAN Adaptor to the stand straightly and

•

completely. C onnect to the USB 1 or 2 port.

•

F errite core - Large size (supplied)

LAN cable

L ess than 10cm

I nternet

environment

Installing the Ferrite core

Pull back the tabs (in two places)

Wind the cable twice

I nternet

environment

Access point

Press the cable through and close

Note

T o watch 3D contents (p. 30)

•

C onnect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.105).

•

F or HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI

•

cable (p.112). Q-Link and VIERA Link connection (p. 103, 104)

•

P l ease also read the manual of the equipment being connected.

•

K eep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,

•

distortion of image / sound may occur or operation of other equipment may be interfered.

Page 13

Auto Setup

Search and store TV channels automatically.

T hese steps are not necessary if the setup has been completed by your local dealer.

•

Please complete connections (p.11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup.

•

For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch On

Select the language

Select your country

Select the mode you want to tune

Select [Start Auto Setup]

•

Auto Setup screen varies depending on the country you select.

1 DVB-S Search Mode 2 DVB-S Satellite Search

T akes a few seconds to be displayed

•

If the red LED shows on the TV, press the Standby On / Off switch on the remote

•

control for about 1 second.

Menüsprache

Deutsch D anskPolskiSrpyski

E nglish Svenska č eština Hrvatski Français N orsk Magyar Slovenščina Italiano Suomi Slovenčina Latviešu

E spañol Türkçe Български eesti keel

P ortuguês Еλληνικά RomânăLietuvių

N ederlands

Country

G ermany D enmark Poland

Austria Sweden Czech France N orway Hungary

I taly Finland Slovakia

Spain Luxembourg Slovenia

P ortugal Belgium Croatia

Switzerland Netherlands E stonia

M alta Turk ey Lithuania

A ndorra Greece O thers

T V Signal Selection

DVB-S DVB-C

DVB-T

Analogue

Start Auto Setup

T V Signal Selection

DVB-S DVB-C DVB-T Analogue

Start Auto Setup

Auto Setup will start to search for TV channels and store them. T he stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.

Search Mode

Free Channels

All Channels

select mode

set

select

•

: tune (search for the available channels) : skip tuning

set

select

set

D epending on the country you select, select your Region or store the Child LockPIN number (“0000” cannot be stored) by following the on screen instructions.

select

tune / skip tuning

select

access

DVB-S Auto Setup

Satellite Progress T his will take up to 40 minutes.

Satellite

Astra 19.2°E Hot Bird 13°E

Press EXIT to skip Satellite installation

C hecking LNB2

0% 100%

Searching Satellite

Quick Start Guide

Auto Setup

Page 14

3 [DVB-S Auto Setup] 4 [DVB-C Network Settings]

DVB-S Auto Setup

Satellite Progress T his will take about 30 minutes.

N o. Channel Name Ty pe

CBBC Channel

BBC Radio Wales

Free TV: 3

Astra 19.2° E

0% 100%

Free TV Free TV Free TV

Pay TV: 0 Radio: 0

Searching

Quality

100 100 100

D epending on the country you select, select your cable provider

•

beforehand by following the on screen instructions.

DVB-C Network Settings

Frequency Auto N etwork ID

Start Auto Se

select [Start Auto Setup]

Auto

tup

Quick Start Guide

Auto Setup

access

N ormally set [Frequency] and [Network ID] to [Auto]. If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.

5 [DVB-C Auto Setup] 6 [DVB-T Auto Setup]

DVB-C Auto Setup

Progress

T his will take about 3 minutes.

N o. Channel Name Ty pe

CBBC Channel

BBC Radio Wales

Free TV: 3

0% 100%

Pay TV: 0 Radio: 0

Searching

Free TV Free TV Free TV

Quality

100 100 100

DVB-T Auto Setup

Progress

T his will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

Free TV: 4

D epending on the country you select, the channel selection screen will

•

be displayed after DVB-T Auto Setup if multiple channels have the same

CH 5 69

Free TV Free TV Free TV

V: 0

Searching

Free TV

Pay T

R adio: 0

Quality

100 100 100

logical channel number. Select your preferred channel or exit the screen for automatic selections.

7 [Analogue Auto Setup] 8 Preset Download

Analogue Auto Setup

Scan T his will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

A nalogue: 2

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p.18, 92).

T o setup the wireless connection, use the Wireless LAN Adaptor (supplied). (p. 17)

•

Please note that this TV does not support wireless public access points. E nsure the network connections (p. 12) and network environment are completed before starting setup.

•

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Se

CH 2 78 41CC 1

Searching

t later

If Q-Link, VIERALink or similar technology (p.105, 106) compatible recorder is connected, channel, language, country / region settings are automatically downloaded to the recorder.

Sending Preset Data

Please wait!

0% 100%

R emote control unavailable

I f d ownloading has failed, you can download later through the Setup

•

Menu. [Download] (p.46)

[Wired] “Wired connection” (p. 12) [Wireless] “Wireless connection” (p. 12)

T o setup later on or skip this step

select

access

•

Select [Set later] or

■ [Wired]

1 . Select [Auto]

Acquire IP Address

Auto M anual

select

access

2 . Go to the next step

(Press twice)

Automatically setup is done and the test of the network connection starts.

T o set manually, select [Manual] and set each item. For

•

details (p.95)

Connection Test

C heck network cable connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

: succeeded

T he test is successful and the TV is connected to the network.

C heck the settings and connections. And then select [Retry].

: failed

Page 15

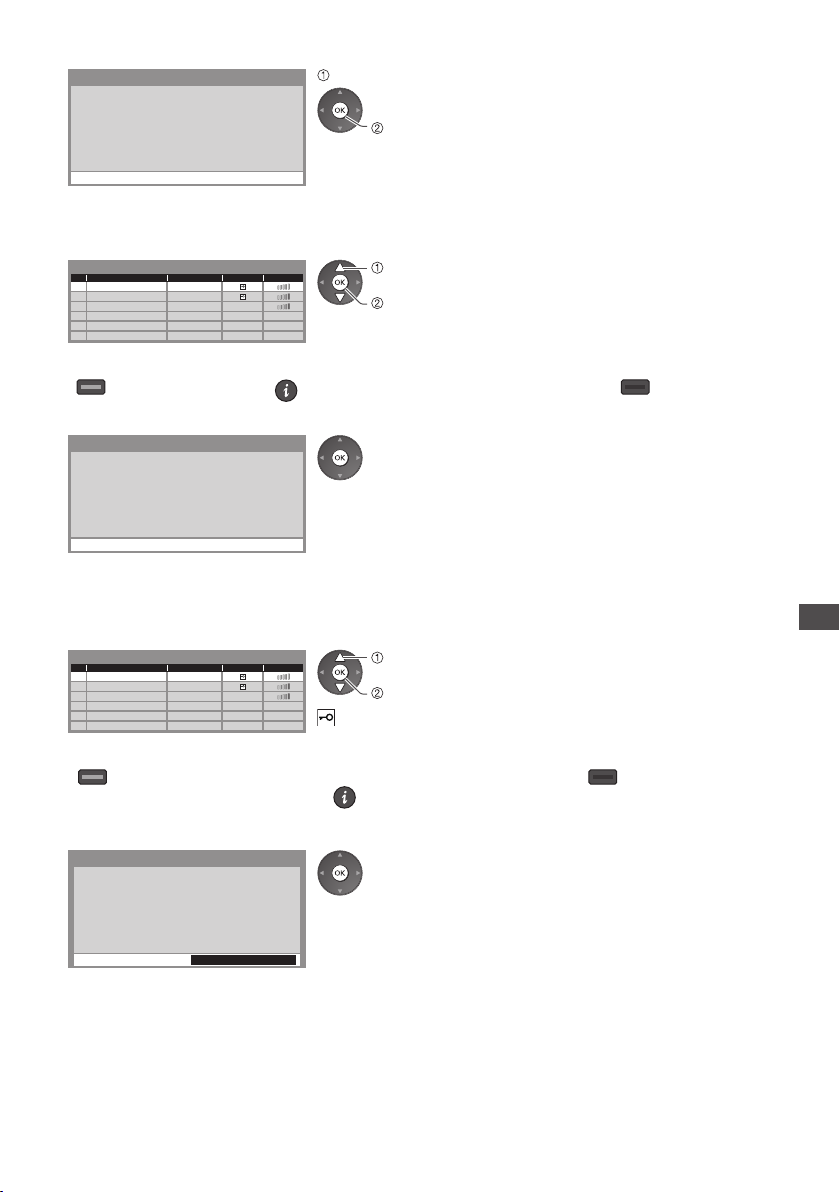

■ [Wireless]

Select the connection type

Connection Type

Please select network connection type.

Search for access point

WPS(P

ush button)

[Search for access point]

Access points found automatically are listed. 1 . Select your desired access point

Available Access Points

N o. Wireless type E ncrypt R eception

SSID

Access Point A Access Point B

Access Point C

T o search access points again

•

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

: Encrypted access point

F or the information of the

•

highlighted access point

2 . Access the encryption key input mode

Encryption Key Setting

C onnection will be made with the following settings:SSID : Access Point A

Authentication type : WPA- PSK E ncryption type : TKIP

Please input the encryption key.

E ncryption key

If the selected access point is not encrypted, the confirmation screen

•

will be displayed. It is recommended to select the encrypted access

point.

3 . Enter the encryption key of the access point

Access Point Settings

E ncryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

4 . Select [Yes]

Access Point Settings

E ncryption key is set to:- XXXXXXXX

Select 'Yes' to confirm. Select 'No' to change.

Y es

N o

Set characters

Y ou can set characters by using numeric buttons.

•

T o re-enter the encryption key, select [No].

•

If the connection has failed, check the encryption key, settings

•

and positions of your access point. And then, follow the on screen instructions.

5 . After the access point setting is finished, perform the connection test

Connection Test

C heck access point connection.

6 . Go to the next step

(Press twice)

C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

select

access

select

access

T o set manually (p.98)

•

(red)

select

set

select

set

: succeeded

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections. And then select [Retry].

T o set manually, select [Manual] and set each item.

•

For details (p.95)

Quick Start Guide

Auto Setup

Store

Page 16

[WPS(Push button)]

Quick Start Guide

Auto Setup

Select [Home]

Select [Home] viewing environment to use in your home environment.

1 . Press the WPS button on the access point until the light flashes 2 . Connect the Wireless LAN Adaptor and the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light ashes.

2) When the light is ashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

3 . After the access point setting is finished, perform the connection test

4 . Go to the next step

Please select your viewing environment.

H ome Shop

C onnect

Connection Test

(Press twice)

C heck access point connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

E nsure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

If the connection has failed, check the settings and positions of your

•

access point. And then, follow the on screen instructions.

: succeeded

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections. And then select [Retry].

T o set manually, select [Manual] and set each item.

•

For details (p.95)

select

set

■ [Shop] viewing environment (for shop display only)

[ Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

Y ou can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic

•

Demo Off / On selection screen.

1 Return to viewing environment selection

screen

Shop

Y ou have selected shop mode

Automatic Demo

Off O n

T o change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

[Shipping Condition](p.68)

2 Select [Home]

Please select your viewing environment.

H ome Shop

select

set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the satellite cable, RF cable, and then, follow the on screen instructions.

Note

T o check channel list at-a-glance “Using TV Guide” (p.23)

•

T o edit or hide (skip) channels “Tuning and Editing Channels” (p.54 - 59)

•

T o retune all channels [Auto Setup](p.50 -53)

•

T o add the available TV mode later [Add TV Signal] (p.46 - 48)

•

T o initialise all settings [Shipping Condition](p.68)

•

Page 17

Wireless LAN Adaptor

Caution

B e aware of the following limits before using the supplied Wireless LAN Adaptor.

T o use the Wireless LAN Adaptor, an access point needs to be obtained.

•

D o not use the Wireless LAN Adaptor to connect to any wireless network (SSID∗) for which you do not have usage rights.

•

Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.

∗

SSID is a name for identifying a particular wireless network for transmission.

D o not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture.

•

D o not bend, or subject the Wireless LAN Adaptor to strong impacts.

•

D o not disassemble or alter the Wireless LAN Adaptor in any way.

•

D o not attempt to install the Wireless LAN Adaptor in any incompatible device.

•

D o not remove the Wireless LAN Adaptor from the TV’s USB port during operations.

•

D ata transmitted and received over radio waves may be intercepted and monitored.

•

T o avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other wireless LAN

•

devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor. When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case,

•

turn the TV Off with Mains power On / Off switch, then turn it On again. D epending on the area, this Wireless LAN Adaptor may not be available.

•

Additional information for Wireless LAN Adaptor and access point may be on the following web site. (English only)

•

http://panasonic.jp/support/global/cs/tv/

Quick Start Guide

Auto Setup

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

T o setup the wireless connection (p.96 - 98)

•

Wireless LAN Adaptor

Customers can download a copy of the original DoC to our R&T http://www.doc.panasonic.de C ontact in the EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

T his product is intended to be used in the following countries. Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Italy,

Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia,

Iceland, Slovenia, Spain, Sweden

T his product is intended for general consumer. (Category3) T he WLAN feature of this product shall ex T his product on purpose to connect to access point of 2.4GHz or 5GHz WLAN.

Declaration of Conformity (DoC)

H ereby, “Panasonic Corporation” d eclares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

TE products from our DoC server:

clusively be used inside buildings.

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up?

No - Exit

Current network type : Wireless

Yes

N o

Page 18

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet cont photos, videos, games, etc. from VIERA Connect home screen.

T his TV has no full browser function and all features of websites may not be available.

•

Turn power on

Press for about 1 second

•

M ains power On / Off switch should be On (p.10).

•

ents such as

Using “VIERA Connect”

■

To exit from VIERA Connect

T o set the VIERA

•

Connect instruction banner display off

 [VIERA Connect

Banner] (p. 48)

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed

Example :

Welcome to VIERA Connect™

VIERA Connect™ home screen is subject to change without notice.

The services through VIERA Connect™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

Some content may only be available for specic countries and may be presented in specic languages.

E x ample : VIERAConnect home screen

ENTER

Some content may be inappropriate for some viewers.

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

T he button design varies

•

depending on the remote control.

T o go to the next level

•

[MORE]

T o back to the previous level

•

[BACK]

D epending on the usage conditions, it may take a

•

while to read all the data. M essages might be displayed before VIERAConnect

•

home screen. Please read these instructions carefully and follow the on screen instructions.

BACK

■ How to operate VIERAConnect (current as of January, 2011)

T o move the cursor / select the item

•

When the key words are displayed on colour bar

•

(red) (green) (yellow) (blue)

V ideo communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.

•

“Optional accessories” (p.6)

F or details, read the manual of the Communication Camera. Y ou can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.

•

Y ou can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information

Note

If you cannot access VIERA Connect, check the network connections (p. 12) and settings (p. 14 - 16).

•

F or more information of VIERA Connect (p. 102)

•

“USB connection” (p. 120)

T o access

•

When options with

•

numbers are displayed

T o return to the previous screen

•

T o return to VIERA Connect home

•

screen

Page 19

Watching TV

Turn power on

Select the mode

Press for about 1 second

•

M ains power On / Off switch should be On. (p.10)

•

■ VIERA Connect introduction banner appears

Y ou can access to VIERA Connect and enjoy the various contents. (p.18)

T o remove this banner, leave for about 5 seconds or press any buttons

•

(except the buttons to access VIERA Connect). T o set this banner display off [VIERA Connect Banner] (p. 48)

•

T he selectable modes vary depending on the

•

stored channels (p.13).

select

TV Selection

DVB-S

DVB-C

B-T

DV Analogue

access

Also possible to select the mode pressing the TV

•

button repeatedly on the remote control or side panel of the TV (p.10).

If [TV Selection] menu is not displayed, press the

•

TV button to switch the mode.

Watching TV

All DVB-T Channels

Change category

20:35

I nformation banner (p.20)

T o select a more than two-digit channel position

•

number, e.g. 399

V olume

Coronation Street

20:00 - 20:55

BBC ONE WALES

Select a channel

Now I nfo

u p

d own

■ To select from the Channel List

All DVB-T Channels

6Cartoon Nwk 7 BBC Radio Wales 8 BBC Radio Cymru

1 BBC ONE Wales

2 BBC THREE 3 BBCi 4 CBBC Channel

Sorting 123...

select channel

watch

T o sort channel names in

•

alphabetical order

(red)

T o change the category

•

(blue)

■ Select a channel using Information banner (p.20)

1 Display Information banner if it is not displayed

2 While the banner is displayed, select the channel

select channel

watch

■ Select a channel using TV Guide (p.23)

1 Display TV Guide 2 Select the current

programme or channel

select

T he postcode entry or update may be required depending on the country you select (p.13). Follow the on screen

•

instructions.

Note

T o watch pay-TV “Using Common Interface” (p.67)

•

access

3 Select [View] (DVB mode)

Das Erste

19:30- 20:00

V iew T imer Programming

select

watch

Page 20

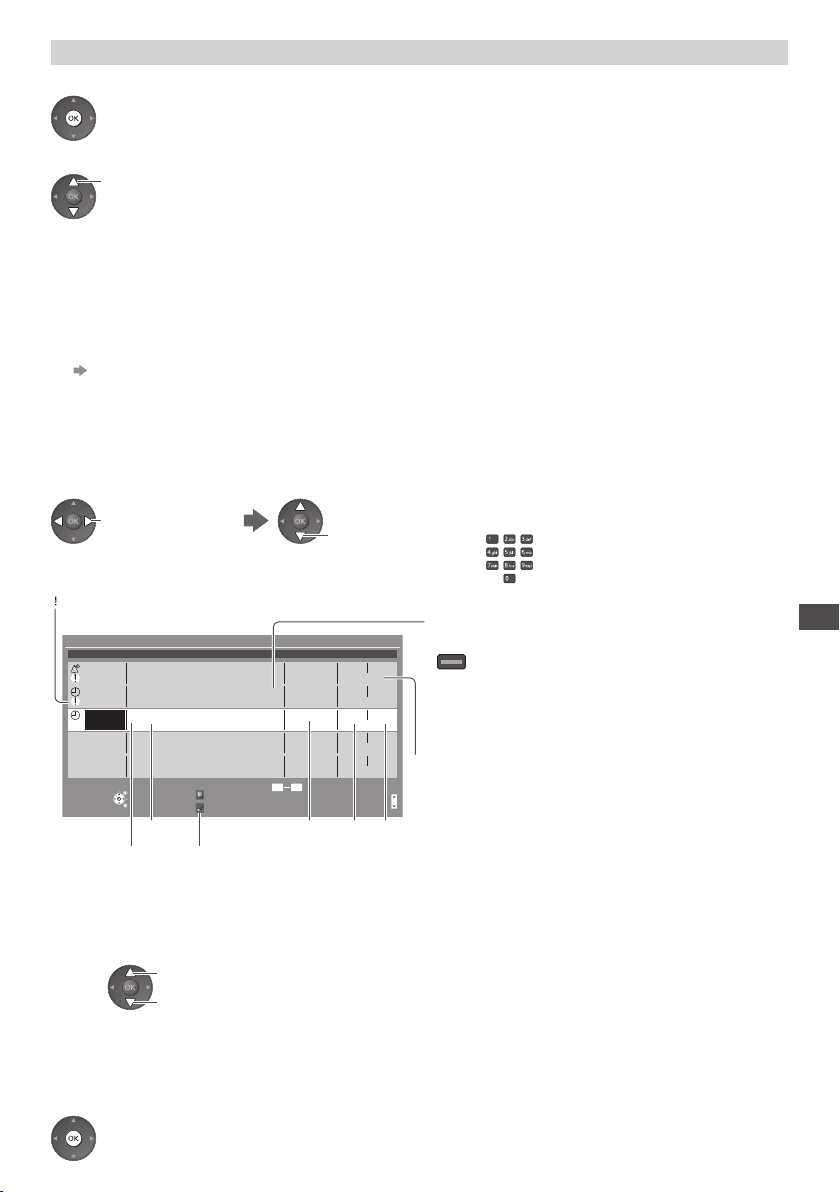

Other useful functions

Display Information banner

Watching TV

Features available / Message meanings

•

Also appears when changing a channel

•

Example : DVB

ZDF

C hannel position and name

C hannel type ([Radio], [Data], [HDTV], etc.) /

Encrypted channel ( ) / TV mode ( Programme

Current time

Sound mute On

[Bad signal]

P oor T V signal quality

[Dolby D+], [Dolby D], [HE-AAC]

D olby Digital Plus, Dolby Digital or HE-AAC audio track

Subtitle service available

T o confirm another tuned channel name

, , , )

HDTV

2 3 6 7 4 5

Coronation Street 20:00 - 20:55 Now

D olby D+ B ad signal

Programme Start/Finish time (DVB)

C hannel number, etc. (Analogue) Progress time indicator of the selected programme

(DVB) C ategory

T o change the category (DVB)

•

T eletext service available

Multiple audio available

Multiple video available

Multiple audio and video available

T o watch the channel listed in the

•

banner

(blue)

All DVB-T Channels

C hange category I nfo

•

20:35

select

[Stereo], [Mono]

Audio mode

MHP service available

1 - 90

Off Timer remaining time

F or settings (p.21)

•

I nformation on the next programme (DVB)

set

T o hide

•

Extra information (DVB)

•

(Press again to hide the banner)

T o set display timeout

•

[Banner Display Timeout] (p.48)

Display subtitles

Display / hide subtitles (if available)

•

T o change the language for DVB (if available)

•

[Preferred Subtitles] (p.48)

Note

If you press this button in Analogue mode, it switches to teletext service and calls up a favourite page (p.26). Press the EXIT button to return to TV mode. Subtitles may not be displayed properly in 3D images.

Page 21

Hold

Freeze / unfreeze picture

Display the selectable settings for the current status

Check or change the current status instantly

[Multi Video] (DVB mode)

Allows you to select from a group of multiple videos (if available)

•

[Multi Audio] (DVB mode) Allows you to select between alternative language for sound tracks (if available)

•

[Dual Audio] (DVB mode) Allows you to select stereo / monaural (if available)

T o change

•

T his setting is not memorized and it will return to the default setting once you exit the current programme.

select

access

[Sub Channel] (DVB mode) Allows you to select the multifeed programme - sub channel (if available)

[Subtitle Language] (DVB mode) Allows you to select the language

in which subtitles should appear (if available)

[Teletext Character Set]

Sets the teletext language font

[Setup Menu] (p.48)

[Teletext Language] (DVB mode)

Allows you to select between alternative language for teletext (if available)

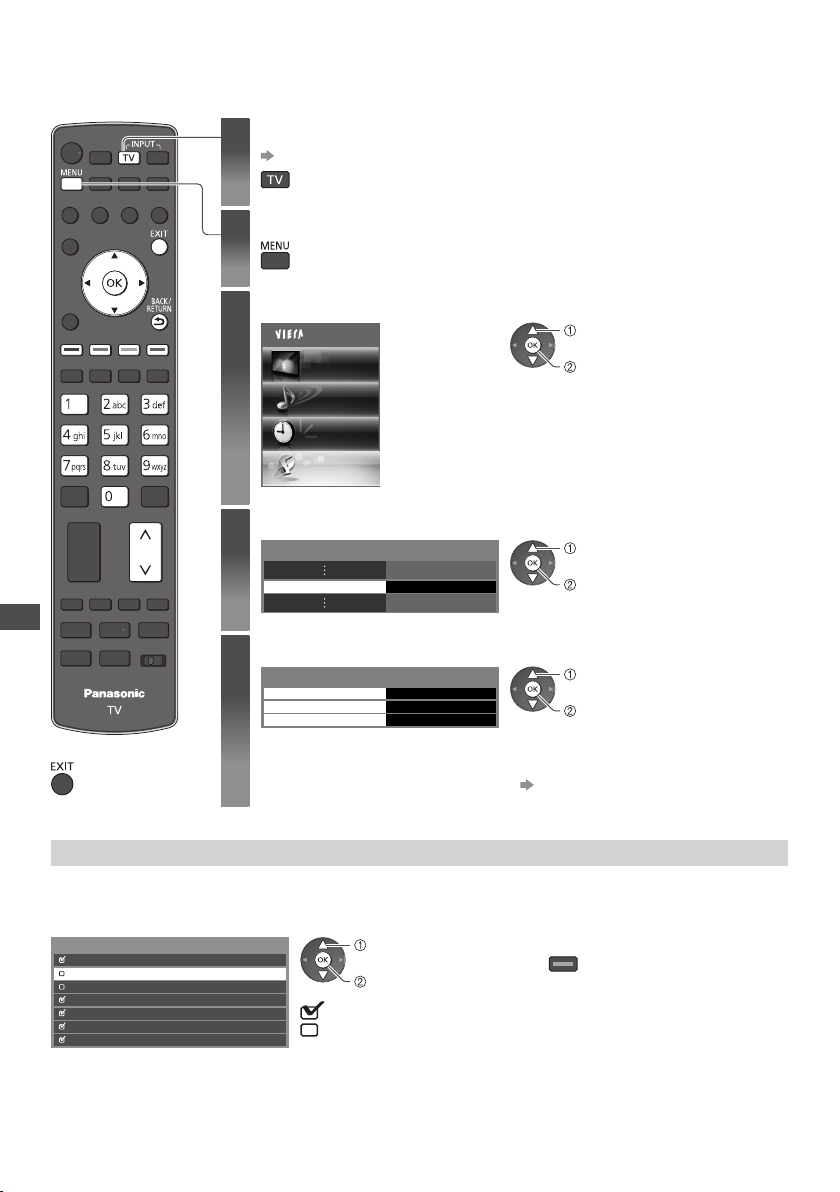

Off Timer

Turn the TV to Standby mode automatically after a fixed period

1 Display the menu

select / change

store

[MPX] (Analogue mode) Selects multiplex sound mode (if available)

[Sound Menu] (p.44)

[Volume Correction]

Adjusts volume of individual channel or input mode

[MHP App] (DVB mode) Allows you to load MHP application manually (if available)

(p.65)

[Safely remove USB]

T akes this operation to remove the connected USB device safely from the TV

Watching TV

2 Select [Timer]

Main Menu


Sound

Timer

Setup

3 Select [Off Timer] and set the time

T imer Programming

Off Timer

Auto Standby

Off

30 45 60 75 90

m inute m inute m inutes m inutes m inutes m inutes

s s

select

access

select [Off Timer]

access

T o cancel Set to [Off ] or turn the TV off.

•

T o confirm the remaining time “Display Information banner” (p.20)

•

When the remaining time is within 3 minutes, the remaining time will flash on the

•

screen.

select the time

store

Page 22

A s p e c t

Change the aspect ratio (image size)

E njoy viewing the image at its optimum size and aspect. Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p.115).

■ If you would like to change the aspect ratio manually

1 Display Aspect Selection list 2 While the list is displayed,

Aspect Selection

Auto

16:9 14:9 Just 4:3 4:3 F

ull Zoom1 Zoom2 Zoom3

Select

EXIT

Change

RETURN

A spect Selection list

select the mode

select

store

Y ou can also change the mode only

•

using the ASPECT button.

(Press repeatedly until you reach

the desired mode)

[Auto]

Watching TV

[16:9] [4:3 Full]

[14:9] [Zoom1]

[Just] [Zoom2]

[4:3] [Zoom3]

T he best ratio is chosen and the image expanded to fill the screen. F or details (p.115)

D irectly displays the image at 16:9 without distortion (anamorphic).

D isplays the image at the standard 14:9 without distortion.

D isplays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.

D isplays the image at the standard 4:3 without distortion.

D isplays a 4:3 image enlarged horizontally to fit the screen.

HD signal only

•

D isplays a 16:9 letterbox or 4:3 image without distortion.

D isplays a 16:9 letterbox (anamorphic) image full-screen without distortion.

D isplays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Note

A spect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.

•

A spect cannot be changed in teletext service and 3D mode (except for [2D 3D] mode in [3D Mode Selection] (p.36)).

•

A spect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

•

Last view

Switch to previously viewed channel or input mode easily

•

Press again to return to the present view.

•

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress. Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

Page 23

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcast

T his function varies depending on the country you select (p.13).

•

T he postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.

•

“View advertisement” (p.24)

DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] means DVB-T channel and [A] means Analogue

•

channel. There will be no programme listings for Analogue channels. When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV

•

Guide is completely shown.

Select the mode

(p.19)

View TV Guide

■

To return to TV

Press again to change the layout ([Landscape] / [Portrait]).

•

V iew [Landscape] to see many channels. V iew [Portrait] to see one channel at a time.

Example : [Landscape] (Displays by channel)

Wed 27.10.2010 10:46

rogramming

Timer P

-24 hours +24 hours Prog.Type Category

TV Guide: Landscape

Wed 27.10.2010 All Types All Channels

1 BBC ONE 20:00 - 20:30 DI

Y SOS : We open in the Battersbys

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS The Bill Red Cap

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal.

10 O’ clock News BBC

BBC FOUR

BBC 2W

105

BBCi

105

BBC Radi

Select channel

EXIT Select programme

RETURN

GUIDE

OPTION

Example : [Portrait] (Displays by time)

Wed 27.10.2010 10:46

Timer P

rogramming

TV Guide: Portrait

Wed 27.10.2010

D BBC ONE1 D BBC THREE7DE414 D BBC FOUR70

19:30-20:00

Das Erste

20:00-20:30

DIY SOS

20:30-21:00

The Bill

21:00-22:00

Red Cap

22:00-23:00

Live junction

23:00-23:30

POP 100

23:30-00:00

Rugby

Select programme

EXIT Select channel

RETURN

+24 hours Prog.Type C ategory

GUIDE

OPTION

ers).

Pepsi Char.

The Bill

Good bye

CoastSpring watchPanorama

NewsPop IdolI’m A Celebrity

The Bill15 To 1Rugby

Coronation Street

Info

Change display mode

Select Advert

All Types All Channels

Info

Change display mode

Select Advert

Page up

Page down

Page up

Page down

Current date and time

TV Guide date

TV Guide time

Programme

C hannel position and

name [D] : DVB-T

[A] : Analogue

Depending on the country you select, you can select the TV Guide type

 [Default Guide] in [Display

Settings] (p.48)

If you select [Channel List], the channel list will appear when the GUIDE button is pressed.

Using TV Guide

■ To watch the programme

1 Select the current programme or

channel

select

access

2 Select [View] (DVB mode)

Das Erste

19:30- 20:00

V iew T imer Programming

select

watch

T o use Timer Programming (p.25)

•

Page 24

■ To the previous day (DVB mode)

(red)

■ To view a channel list of the selected type

(DVB mode)

(yellow)

(Type list)

Prog.Type

Using TV Guide

All Types

Movie New

All Types

select type

view

■ To the next day (DVB mode)

(green)

■ To view a channel list of the selectedcategory

(blue)

(Category list)

Viewing Teletext

T eletext services are the text information provided by the broadcasters. T he features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

I n FLOF mode, four differently coloured subjects are situated at the bott one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting) TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

F ast overview of the teletext information available

•

E asy to use step-by-step selection of the topical subject

•

P age status information at the bottom of the screen

•

Available page up / down

(red) (green)

What is List mode?

Viewing Teletext

I n List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

T o select among subject blocks

(blue)

“Store frequently viewed pages” (p.27)

■ To change mode [Teletext] (p.48)

om of the screen. To access more information about

T o select next subject within the subject block (After the last subject, it moves to the next subject block.)

(yellow)

Switch to Teletext

Sub page number

<< 01 02 03 04 05 06 07 >>

TELETEXT

INFORMATION

Current page number

Select the page

■ To adjust contrast

■

To return to TV

Reveal hidden data

Reveal hidden words e.g. quiz page answers

(red)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

Press again to resume.

•

(Press three times)

Press again to rehide.

•

D isplays the index page (content varies

•

depending on the broadcasters)

17:51 28 Feb

u p

d own

T ime / date

C olour bar

C oloured button

(Corresponds to the colour bar)

A s the blue bar is displayed

INDEX

Return to the main index page

Call up a favourite page

View a favourite page stored

C all up the page stored on the blue button (List mode).

F actory setting is “P103”.

•

Page 27

FULL / TOP / BOTTOM

(TOP) (BOTTOM) Normal (FULL)

(green)

(Expand the TOP half )

(Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once

(Press twice)

O perations can be made only in teletext screen.

•

Select Picture and text On or Off

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

A s page is displayed

(Corresponding coloured button)

press and hold

■ To change stored pages

C oloured button you want to change

View sub page

View sub page (Only when Teletext is more than one page)

E nter new page number

A ppears at top of the screen

■ To view specific sub page

(blue)

T he number changes to white.

T he number of sub pages varies depending on the

•

broadcasters (up to 79 pages). I t may take some time for searching, during which time

•

you can watch TV.

E nter the 4-digit number Example : P6

press and hold

Viewing Teletext

Watch TV while waiting for update

View the TV picture while searching for a teletext page

T eletext automatically updates itself when new information becomes available.

T he news page provides a function that indicates arrival of latest news (“News Flash”).

•

(yellow)

C hanges to TV screen temporarily

P108

(You cannot change the channel.)

A ppears when updating is completed

V iew the updated page

(yellow)

Page 28

Watching External Inputs

C onnect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

T o connect the equipment (p.11, 12, 112 - 114)

•

T he remote control is capable of operating some functions of selected external equipment.

“Operating the equipment with the TV remote control” (p. 29)

Turn the TV on

When connecting with SCART as example 2 or 3 (p.11, 12)

R eceives input signals automatically when playback starts

I nput signals are automatically identified by the SCART (pin 8) terminal.

•

T his function is also available for HDMI connections (p.112).

•

If input mode is not switched automatically

P erform

and

C heck the setup of the equipment.

•

Watching External Inputs

■

To return to TV

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

Y ou can also select the input using the AV button on the remote control or the side panel

•

of the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected. [ SD Card/USB] : Switches to Media Player “Using Media Player” (p.79)

•

Y ou can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.64)

•

Skipped inputs will not be displayed when the AV button is pressed.

View

AV1

D isplays the selected mode

Note

If the external equipment has an aspect adjustment function, set it to “16:9”.

•

F or details, see the manual of the equipment or ask your local dealer.

•

select

watch

Page 29

Operating the equipment with the TV remote control

T he equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR

“How to change the code for the type of the equipment” (see below)

Select “TV” to use in USB HDD / SD Card Recording, Media Player, DLNA operations or VIERA Link

“USB HDD / SD Card Recording” (p. 77) “Media Player” (p. 80)

“Using DLNA® features” (p. 99) “VIERA Link Control” (p.110)

Standby

Set to Standby mode / Tur n on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR :

R ewind, view the picture rapidly in reverse

DVD / video content :

Skip to the previous track, title or chapter Press and hold to search backward

Fast-forward / Skip / Search

VCR :

F ast-forward, view the picture rapidly forward

DVD / video content :

Skip to the next track, title or chapter Press and hold to search forward

Pause

P ause / Resume DVD : Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

How to change the code for the type of the equipment

E ach type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

1 Set the position to “DVD/VCR”

Watching External Inputs

2 Press and hold during the following operations

E nter the appropriate code, see table below

Type of the equipment C ode

DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

Note

C onfirm if the remote control works correctly after changing the code.

•

T he codes may be reset to default values if batteries are replaced.

•

Some operations may not be possible on some equipment models.

•

Press

Page 30

Viewing 3D images

Y ou can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear (supplied). T his TV supports [Frame Sequential]

∗

1 : T he 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately

∗

2, ∗3 : Other available 3D formats

H ow to use the 3D Eyewear (p. 32)

•

H ow to view the 3D images (p. 35)

•

Danger

Prohibition of Heating

D o not put 3D Eyewear in fire, heat it or leave it in places that can get hot.

•

3D Eyewear contains a lithium-ion polymer rechargeable battery, so heating may result in combustion or rupture that may

•

cause burns or fire.

Warning

Viewing 3D images

Small Parts

3D Eyewear contains small parts (ferrite core, etc.) and must be kept out of reach of small children to avoid accidental

•

ingestion.

Disassembly

D o not disassemble or modify the 3D Eyewear.

•

When disposing this 3D Eyewear, r efer “Disposal” (p. 34) and disassemble properly for removing the rechargeable battery.

•

Charging

C harge by connecting the included charging cable to the USB port of this TV. Charging with other devices may result in

•

battery leakage, heating or rupture. D o not use the included charging cable for uses other than charging

•

“Standard accessories” (p. 6)

played back

∗

, [Side by Side]

∗

and [Top and Bottom]

∗

3D formats.

Page 31

Caution

To enjoy 3D images safely and comfortably, please read these instructions fully.

3D Eyewear

D o not drop, exert pressure on, or step on the 3D Eyewear.

•

B e careful of the tips of the frame when putting on the 3D Eyewear.

•

Always keep the 3D Eyewear in a cool, dry place.

•

B e careful not to trap a finger in the hinge section of the 3D Eyewear.

•

Viewing 3D Content

D o not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing

•

medical conditions. Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable

•

sensation.

When you set the effect by using [3D Adjustment], take into account that the vision of 3D images varies among different

•

individuals. T ake an appropriate break after viewing a 3D movie.

•

T ake a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.

•

B e careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance between the

•

user and screen can be misjudged. T he 3D Eyewear must only be worn when viewing 3D content.

•

If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off

•

automatically. If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), please

•

ensure to correct your vision before using the 3D Eyewear. Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.

•

D o not use the 3D Eyewear at a distance less than the recommended distance.

•

T he recommended viewing distance is at least 3 times of image height. TX-P55VT30E : 2.1 m or more TX-P65VT30E : 2.4 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times further than the height of the actual image. (That makes the distance closer than above recommended figure.)

3D Eyewear Use

P ay special attention when children are using the 3D Eyewear.

•

3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear. B efore using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury.

•

R emove the 3D Eyewear before moving around to avoid falling or accidental injury.

•

Always store the 3D Eyewear in the case supplied with the 3D Eyewear when not in use.

•

U se the 3D Eyewear only for the intended purpose and nothing else.

•

D o not use 3D Eyewear in the condition of high temperature.

•

D o not use if the 3D Eyewear is physically damaged.

•

D o not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear false operations.

•

D o not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D

•

Eyewear as this may cause the 3D Eyewear to malfunction. D o not expose the infrared receiver section to bright light such as direct sunshine and fluorescent light. The 3D image may

•

not be displayed correctly. Stop using the 3D Eyewear immediately if a malfunction or fault occurs.

•

Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.

•

I n rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

•

Viewing 3D images

Page 32

3D Eyewear

3D Eyewear set (2)

TY-EW3D2MA

•

3D Eyewear

N5ZZ00000223

•

3D Eyewear can be worn over vision correction glasses.

•

3D Eyewear case

Part names and functions

Infrared receiver

R eceives infrared signals from the TV.

3D Eyewear is controlled by receiving infrared signals from the TV, which allows you to view 3D

•

images. If the eyewear stops receiving infra-red signal from the TV, the power automatically switches off after

Viewing 3D images

•

5 minutes.

Note

D o not soil the infrared receiver section or attach stickers etc. to it.

•

Charging cable

Lenses - Liquid Crystal Shutter

C ontrols the images for 3D viewing.

T he left and right liquid crystal shutters are alternately opened

•

and closed in time with the images on the TV screen to achieve the 3D effect.

Note

D o not apply pressure to or scratch the surface of the liquid

•

crystal shutter.

Ferrite core

Indicator lamp

L ights or flashes during use or charging to show the status of the rechargeable battery.

Power switch

Switches on the 3D Eyewear power. T he 3D Eyewear is turned on by setting the power switch to “ON”.

t the power switch to “OFF” to turn off the 3D Eyewear.

Charging port

C onnect the charging cable.

■ Battery status shown by indicator lamp

Indicator lamp status Battery status

L ights for 2 seconds when turned on Sufficient battery level

Flashes 5 times when turned on L ow battery level

Flashes once every 2 seconds when in use O perating normally

L ights continuously when off Charging

L amp off

Power off

Page 33

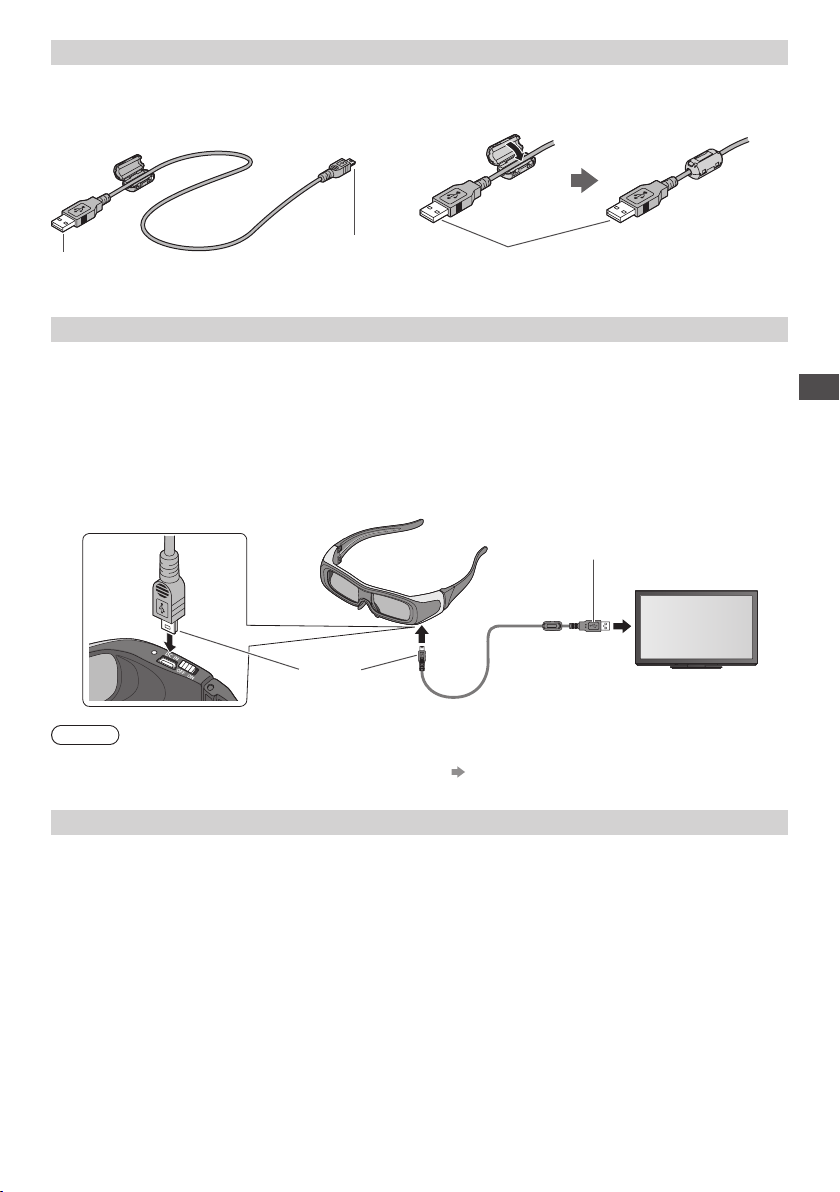

Attaching Ferrite Core

B e sure to attach the provided ferrite core to the charging cable to reduce interference or electrical noise.

1 Attach the ferrite core as close to USB connector of

the charging cable as shown.

2 Close the ferrite core until it clicks.

U SB connector

Charging the 3D Eyewear

Preparations

Set [USB Charge in Standby] in the Setup menu to [On].

•

Switch off the 3D Eyewear.

•

1 Turn the TV to Standby mode with the remote control. 2 Connect as shown in the diagram.

T he indicator lamp lights red, and charging starts.

•

When the indicator lamp turns off, charging is completed. (Approximately 2 hours required)

•

3 After charging is completed, remove the charging cable.

Note

D o not turn the TV Off with Mains power On / Off switch during charging.

•

F or the specification of the rechargeable battery in the 3D Eyewear (p. 127)

•

Storing and cleaning the 3D Eyewear

U se the supplied 3D Eyewear case to store the 3D Eyewear.

•

Avoid storing the 3D Eyewear in hot or highly humid locations.

•

U se a clean, soft and dry cloth to wipe the 3D Eyewear. Otherwise, dirt or dust may scratch the eyewear.

•

D o not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.

•

D o not submerge the 3D Eyewear in liquid such as water when cleaning.

•

During the long period of disuse, full charge the 3D Eyewear once every 6 months to keep the battery performance.

•

A s the liquid crystal shutters (lens) are fragile and easily broken, be very careful when cleaning them.

•

M ini USB connector

U SB connector

Viewing 3D images

Page 34

Disposal

A lithium-ion polymer rechargeable battery is built in to the 3D Eyewear. Please discard according to local regulations. When disposing this 3D Eyewear, d isassemble properly by following the procedure below, and remove the internal rechargeable battery.

Do not disassemble this 3D Eyewear except when disposing of it.

Danger

As the rechargeable battery is specifically for this 3D Eyewear, do not use it for any other device.

D o not charge the removed battery.

•

D o not throw the battery in a fire, or apply heat to it.

•

D o not pierce the battery with a nail, subject it to an impact, or dismantle or modify it.

•

D o not let the wires touch any other metal or each other.

•

D o not carry or store the battery with a necklace, hair pin, or the like.

•

D o not charge, use, or leave the battery in a hot location such as near a fire or under the hot sun.

•

D oing so may cause the battery to generate heat, ignite, or rupture.

Warning

Do not place the removed battery, screws, and other items within reach of infants.

Accidental swallowing of such an item may have an adverse effect on the body.

I n the event that you think such an item has been swallowed, consult a doctor immediately.

Viewing 3D images

•

In the event of fluid leaking from the battery, take the following measure, and do not touch the fluid with bare hands.

Fluid entering into an eye may cause loss of eyesight.

Wash the eye with water immediately without rubbing it, and then consult a doctor.

•

Fluid getting on your body or clothes may cause inflammation of the skin or injury.

Sufficiently rinse with clean water, and then consult a doctor.

•

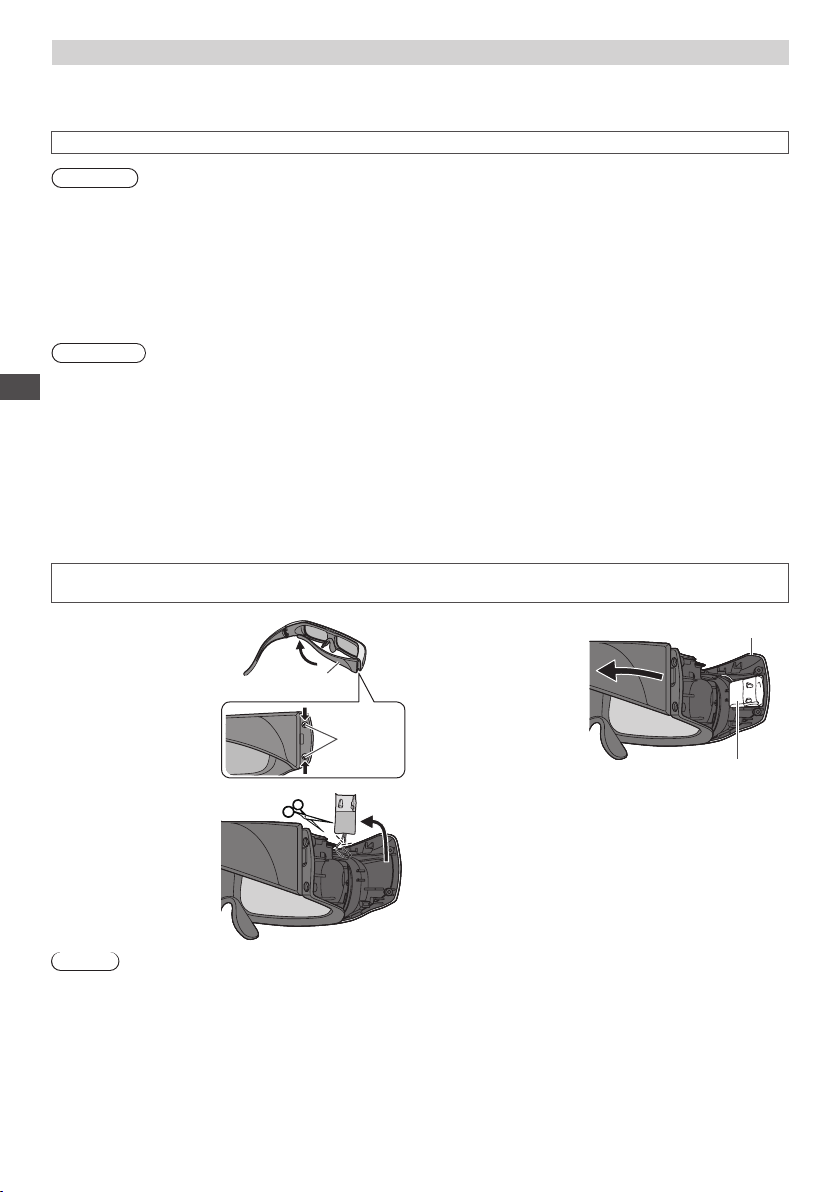

■ How to remove the battery

D isassemble this 3D Eyewear after the battery has run out of power.

The following figures are intended to explain how to dispose of the 3D Eyewear, not for describing how to repair. The 3D Eyewear cannot be repaired once it has been disassembled.

F old the part of the

frame without the power switch, and then remove the two screws on the inside of the hinge with a precision Phillips (plus+) screwdriver.

R emove the battery from

inside the side cover, and cut the two wires one by one with scissors.

I nsulate the wire parts

•

of the removed battery with cellophane tape.

Note

T ake sufficient care when performing this work so as not to injure yourself.

•

D o not damage or dismantle the battery.

•

Frame

Screws

B end the frame inwards

and pull it off from the side cover.

If it is difficult to

•

remove, insert a flat-blade (minus-)

screwdriver and force it off.

Side cover

B attery

Page 35

To view the 3D images

Y ou can enjoy the 3D images in a variety of ways. (Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)

■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)

C onnect the 3D-compatible player via a fully wired HDMI compliant cable.

•

If input mode is not switched automatically, select the input mode connected to the player. (p.28)

•

If you use the non 3D-compatible player, the images will be displayed on 2D mode.

•

■ 3D-supported broadcast

Please consult the suppliers of contents or programmes for availability of this service.

•

■ 3D photos and 3D videos taken by 3D-compatible Panasonic products

Available in Media Player (p. 81 - 83, 86) and Network services (p.100)

•

■ 2D images converted to 3D

Set to [2D 3D] mode in [3D Mode Selection] (p. 36)

Turn the 3D Eyewear on

Put on the 3D Eyewear

Watch the 3D images

Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D

•

images. If you select [Yes], this message will be displayed again in the same condition after Mains power On / Off switch is next turned On. Select [No] if you do not wish to display this message again.

Example :

Safety Precautions

To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation.

Always put the 3D Eyewear in the case provided after use.

Would you like to display this message again later?

Turn off the 3D Eyewear after using it

Yes No

Viewing 3D images

Note

T he 3D image or 3D effect may not be available in the following conditions :

•

Multi window (p. 70) is active.

•

VIERA Connect home screen (p. 18) is displayed.

•

[Ext Rec.] or [LT1] / [LT2] of Timer Programming (p. 60) is in progress.

•

[LT1] / [LT2] of One Touch Recording (p. 77) is in progress.

•

D irect TV Recording (p. 105, 107) is in progress. A s for the contents of the Frame Sequential format and Side by Side (Full), no images will be displayed in these conditions. If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D Eyewear, switch off the

•

fluorescent light or set [3D Refresh Rate] to [100Hz] (p. 42). 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.

•

D o not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer

•

screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear. D o not use the 3D Eyewear as sunglasses.

•

3D effects may be perceived differently depending on the person.

•

Page 36

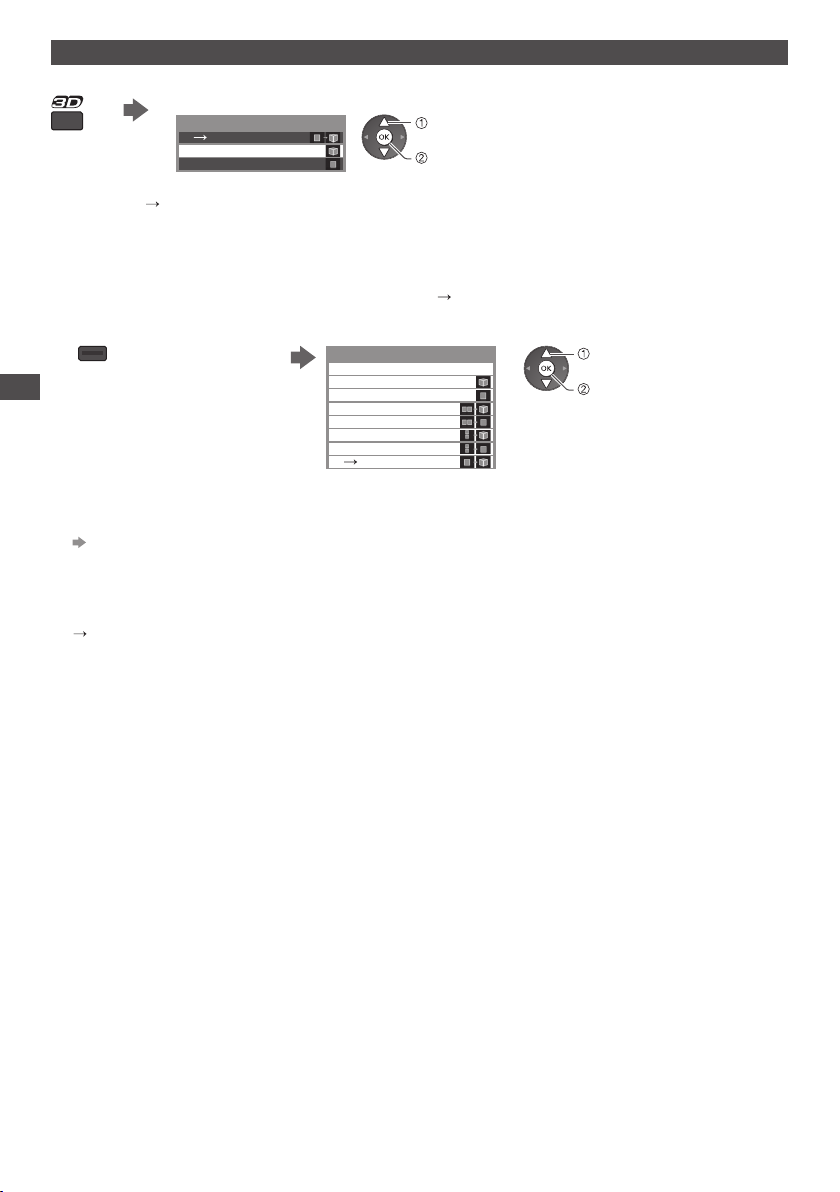

Changing 2D - 3D mode

Y ou can easily change the viewing mode between 2D and 3D using the 3D button.

Select the mode

3D Mode Selection

2D3D3D

select

set

I tems of [3D Mode Selection] vary

•

depending on the condition.

[3D] / [2D] / [2D

D isplays the appropriate image that you desire without selecting 3D format

T his mode may not work properly depending on the source image format. In this case, select the appropriate 3D format

•

manually.

3D] :

■ To change 3D format manually

When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.

During the above operation Select the mode

select

(red)

Viewing 3D images

[Original] :

D isplays the source image as it is

U se to identify the format type of the source image.

•

“Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format” (p.37)

[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] / [Top and Bottom - 3D] / [Top and Bottom - 2D] :

D isplays the mode you select

N ot valid on Analogue and AV mode

•

[2D

3D] :

C onverts 2D images into 3D

F or DVB, Analogue, AV, Component, HDMI, Media Player and network service operations.

•

O n-screen displays are also seen in 3D in this mode.

•

Please note the 3D images appear slightly different from the originals.

•

U sing this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as

•

shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.

3D Mode Selection (Manual)

Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D T op and Bottom - 3D T op and Bottom - 2D 2D 3D

set

Page 37

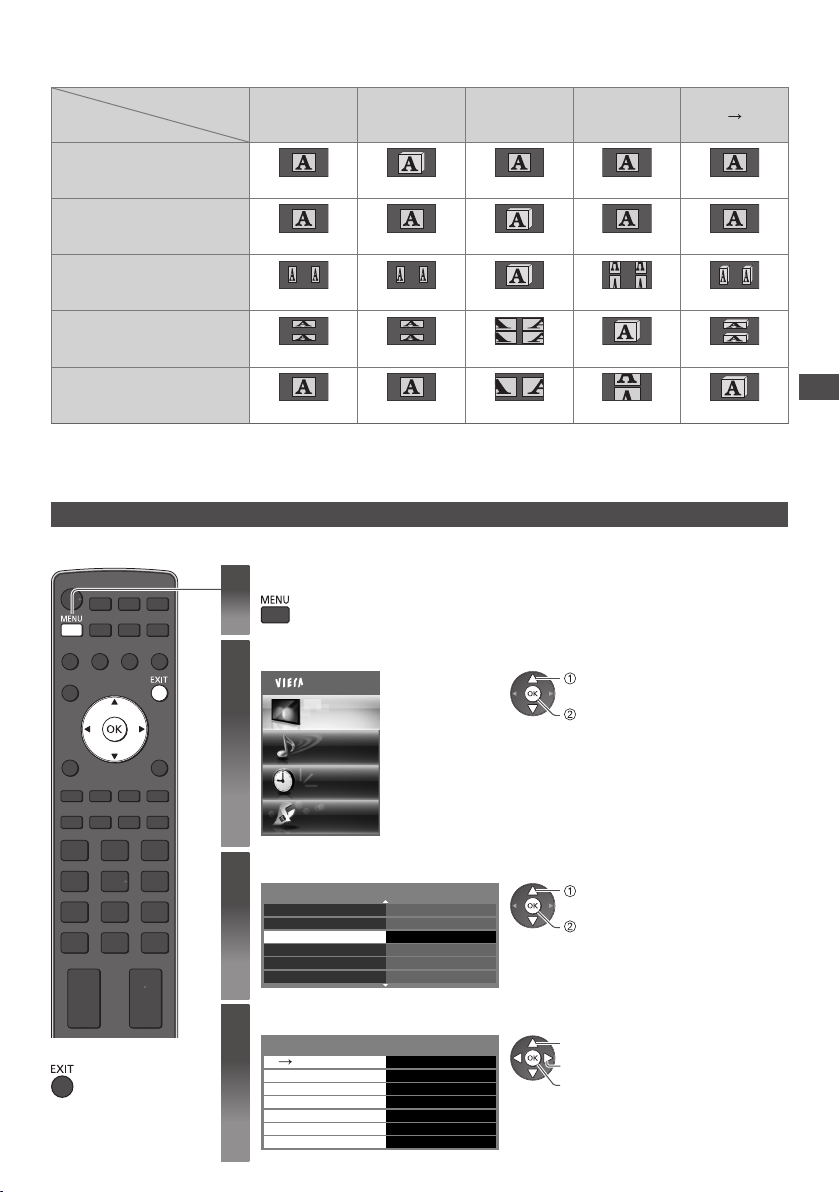

Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.

Source image format

[3D Mode Selection]

[Original]

[Frame

Sequential

- 3D]

[Side by Side

- 3D]

[Top and

Bottom - 3D]

[2D

3D]

Frame Sequential

Side by Side (Full)

Side by Side

Top and Bottom

Normal format (2D)

N ormal 3D

∗

N ormal 3D

∗

N ormal 3D

∗

N ormal 3D

∗

1 : When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed without

3D effect. D epending on the player or broadcasts, the image may be different from the above illustrations.

•

3D Settings

If the 3D images are not displayed correctly or seem unusual, please adjust and setup the 3D settings.

Display the menu

Select [Picture]

Main Menu


Sound

select

access

Viewing 3D images

■

To return to TV

imer

ettings

3D Depth

Detection

Setup

Access O n

M id Access N ormal Off O n O n Ac

cess

2/2

select

access

select

adjust access / store

Select [3D Settings]

P-NR Off P icture in Picture

3D S

Screen Display

vanced Settings

Ad R eset to Defaults

Select one of the following functions and set

3D Settings

2D 3D Adjustment P icture Sequence Edge Smoother 3D 3D Signal Message Safety Precautions

Page 38

Item Adjustments / Configurations (alternatives)

2D 3D Depth

3D Adjustment

Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]

Adjustment of the 3D effect (except in [2D

Set to [On] to enable [Effect] setting.

•

When setting to [On], a safety precaution message will appear. Read it carefully and then press the

•

BACK/RETURN button to go to [Effect] setting.

[Effect] : Adjust the 3D depth according to the contents or to your preference.

3D] mode) [Off] / [On]

Picture Sequence

Edge Smoother

3D Detection

Viewing 3D images

3D Signal Message

Safety Precautions

Note

[3D Adjustment] and [Picture Sequence] will not be memorized when changing the input mode or channel.

•

Select [Reverse] if you feel that the sense of depth is unusual (except in [2D

[Normal] / [Reverse]

Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D mode) [Off] / [On]

Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]

[On (Advance)] : Detects all the 3D format signals and displays the 3D image automatically. [On] : Detects the particular 3D format signals (Frame Sequential,

automatically.

T o view 3D images without any notifications and operations, set to [On (Advance)].

•

Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]

F or DVB, Component and HDMI

•

T his function is not available when [3D Detection] is set to [On (Advance)].

•

D isplays the precautions for viewing 3D images

etc.) and displays the 3D image

3D] mode)

Available range for the 3D Eyewear

If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.

: Coverage area for using the 3D Eyewear

A pprox.

3 .2 m

A pprox.

35°35°

3 .2 m

A pprox. 3 .2 m

A pprox. 3.2 m

20°

3D]

Note

Y ou cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving infrared signals

•

from the TV. T he range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the

•

dirt on the infrared sensors or the surrounding environment. If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically

•

even if in the coverage area. T here are differences in the viewing range of the 3D Eyewear among individuals.

•

T he 3D Eyewear may not operate correctly at the outside of the viewing range.

•

View from the top

View from the side

Page 39

How to Use VIERA TOOLS

Y ou can access some special features easily by using the VIERATOOLS function.

Display icons of the feature

Select a feature

■

To return to TV

■ Follow the operations of each feature

[VIERA Link Control]

“VIERA Link Control” (p.109)

[Photo]

“Photo mode” (p.81)

[ Video]

“Video mode” (p.86)

[Recorded TV ]

“Recorded TV mode” (p.88)

∗

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

∗

VIERA Link Control

∗

[Music]

“Music mode” (p.90)

[VIERA Connect]

“VIERA Connect” (p.18, 102)

[Media Server]

“Using DLNA® features” (p.99)

∗

select

access

How to Use VIERA TOOLS

Note

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to

•

view the demonstration after selecting the unavailable feature.

Page 40

How to Use Menu Functions

V arious menus allow you to make settings for the picture, sound, and other functions.

Display the menu

Select the menu

Example : [Picture Menu]

D isplays the functions that can be set (varies according to the input signal)

•

Main Menu


Sound

imer

select

access

How to Use Menu Functions

■

To return to TV at any time

■

To return to the previous screen

■

To change menu pages

u p

d own

Select the item

Example : [Picture Menu]

V iewing Mode Dynamic

C ontrast Brightness C olour Sharpness T int C olour Balance V ivid Colour Eco Mode Of

Setup

Warm Off

1/2

5 0

■ Choose from among alternatives

C ool

C olour Balance

N ormal

Wa rm

■ Adjust using the slide bar

Shar pness

M oved

■ Go to the next screen

C hild Lock Access

D isplays the next screen

■ Enter characters by free input menu

Y ou can enter names or numbers freely for some items.

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

Y ou can set characters by using numeric buttons.

•

 “Characters table for numeric buttons” (p.121)

Set characters one by one

■ To reset the settings

T o reset the picture settings only

•

 [Reset to Defaults] in the Picture Menu (p.43) T o reset the sound settings only

•

 [Reset to Defaults] in the Sound Menu (p.45)

T o initialise all settings

•

 [Shipping Condition] in the Setup Menu (p.49)

select

set

select

access

select

store

change

store

access

Store

Page 41

Menu list

Viewing Mode


Contrast, Brightness, Colour, Sharpness

Colour Balance

Vivid Colour

Colour Remaster

Item Adjustments / Configurations (alternatives)

B asic picture mode [Dynamic] / [Normal] / [Cinema] / [THX (True Cinema)] / [Game] / [Photo] /

[Professional1] / [Professional2]

I n each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.

Set for each input signal.

•

[Dynamic] :

Provides enhanced picture contrast and sharpness when viewing in a bright room.

[Normal] :

R ecommended for viewing under normal ambient room lighting conditions.

[Cinema] :

F or watching movies in a darkened room with the improved performance of contrast, black and colour reproduction

[THX (True Cinema)] :

Precisely reproduces the original quality of the image without any revision. R ecommended for playback of THX disc (disc with [THX] logo) THX mode is used to mirror the picture settings used by professional filmmakers, faithfully reproducing the image quality of THX Certified movies. THX Certified movies have the [THX] logo on a disc.

•

[True Cinema] is displayed instead of [THX] in the mode of Media Player and Network

•

service operations.

[Game] :

F ast response signal specifically to provide suitable images for playing games

N ot valid on TV mode

•

A continuous record of time spent using Game mode can be displayed in the top

•

right of the screen. [Playing Time Display](p.48)

[Photo] :

Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos

F or HDMI input, Media Player and network service operations

•

[Professional1 / 2] :

Allows you to set the professional picture settings in [Advanced Settings], [Lock Settings] and [Copy Adjustment] (p.71)

T his mode is available only when [Advance(isfccc)] in the Setup Menu is set to

•

[On]. N ot valid on VIERA Connect

•

If the certified professional dealer sets these modes, [Professional1] and

•

[Professional2] may be displayed as [isf Day] and [isf Night].

I ncreases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

F or NTSC signal reception only

•

Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]

N ot valid when [Viewing Mode] is set to [THX (True Cinema)], [Professional1] or

•

[Professional2].

Automatically adjusts colours to vivid ones [Off] / [On]

N ot valid when [Viewing Mode] is set to [Professional1] or [Professional2].

•

D isplays the vivid images with the expanded colour gamut [Off] / [On] / [Auto]

F or HDMI input mode or video contents in Media Player (p. 86)

•

N ot valid when [Viewing Mode] is set to [THX (True Cinema)] or [Photo].

•

Set to [Auto] to use this function effectively.

•

How to Use Menu Functions

Page 42

Reversal Film Effect

Item Adjustments / Configurations (alternatives)

Provides the picture effect such as the reversal film [Off] / [On]

T his function is available when [Viewing Mode] is set to [Photo].

•

How to Use Menu Functions

Eco Mode

P-NR

3D-COMB

Picture in Picture D isplays two windows at once (p. 70)

3D Settings Adjusts and sets to view 3D images (p.37)

Screen Display


Intelligent Frame Creation

24p Smooth Film

Advanced Settings

Automatic Brightness Control function Adjusts picture settings automatically dependent on ambient lighting conditions

[Off] / [On]

P icture Noise Reduction Automatically reduces unwant of a picture [Off] / [Min] / [Mid] / [Max]

M akes still or slow moving pictures look more vivid [Off] / [On]

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be

•

seen. Set to [On] to display sharper and more accurate colours. F or PAL or NTSC signal reception only

•

N ot valid on 3D, RGB, Component, HDMI and Media Player

•

Turns the screen off when you select [Off ]

[Off ] / [On]

T he sound is active even if the screen turns off.

•

Press any buttons (except Standby) to turn the screen on.

•

T his function is effective in reducing power consumption when listening to the sound

•

without watching the TV screen.

Automatically compensates the picture frame rate and removes juddering movements to make the images smooth [Off] / [Mid] / [Max]

D epending on the contents, images may be noisy. To prevent the noise, change the

•

setting. T his function is not available for selection (default to [Off]) when [Viewing Mode] is

•

set to [Game] or in the mode of multi window / network service operations.

Automatically compensates the picture frame rate to make the 24p sour images smooth [Off] / [Mid] / [Max]

T his is available only for 24p signal input and displayed instead of [Intelligent Frame

•

Creation]. T his function is not available for selection (default to [Off]) when [Viewing Mode] is

•

set to [Game] or in the mode of multi window / network service operations.

ed picture noise and flicker noise in the contoured parts

ce movie

Film Cadence Detection

3D Refresh Rate

Resolution Enhancer

Side Panel

Automatically makes the film sour

T his function is available for the interlaced signal (except when [Viewing Mode] is set

•

to [Game]).

R educes juddering and flicker noises of the 3D images [Auto] / [100Hz]

If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker

•

when using the 3D Eyewear, set to [100Hz].

E nhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]

T his function is available for SD (Standard definition) signal.

•

A s for HD (High definition) signal, this function is available when aspect mode is set

•

to [16:9] ([16:9 Overscan] is set to [On]), [4:3 Full] or [Zoom]. N ot valid on Media Player and network service operations

•

I ncreases the brightness of the side panel [Off] / [Low] / [Mid] / [High]

T he recommended setting is [High] to prevent panel “image retention”.

•

ce movie images clear [Off] / [On]

Page 43

Item Adjustments / Configurations (alternatives)

Selects the screen area displaying the image [Off] / [On] [On] :

E nlarged the image to hide the edge of the image.

[Off] :

16:9 Overscan

D isplayed the image in the original size. Set to [On] if noise is generated on the edge of the screen.

•

T his function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].

•

T his function can be memorized separately for SD (Standard definition) and HD (High

•

definition) signals. N ot valid on VIERA Connect

•

Advanced Settings


Reset to Defaults

Mode

Sound

AV Colour System

DVI Input Setting

Pixel Orbiter

crolling Bar

Selects optional colour system based on video signals in AV mode

[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]

C hanges the black level in the image for HDMI input mode with DVI input signal manually [Normal] / [F

When the DVI input signal from the external equipment, especially from PC, is

•

displayed, the black level may not be suitable. In this case, select [Full]. T he black level for HDMI input signal will be adjusted automatically.

•

F or HDMI input mode with DVI input signal only

•

Selects the mode for wobbling of the image to prevent panel “image retention”

[Auto] / [On] [Auto] :

Automatically works only for the appropriate images and you rarely recognise the wobbling.

Scrolls the vertical bar to prevent panel “image retention”

Press the OK button to start scrolling and press any buttons (except Standby) to exit

•

this mode.

Press the OK button to reset the present Picture Viewing Mode of the selected input to the default settings

Selects the basic sound mode [Music] / [Speech] / [User]

T he selected mode affects all input signals.

•

[Music] :

Improves sound quality for watching music videos, etc.

[Speech] :

Improves sound quality for watching news, drama, etc. Music and Speech modes use CONEQ™ brand equalization technology to improve

•

sound quality. CONEQ equalizes acoustic power frequency response and corrects time and phase alignment errors of a speaker system. Speakers with CONEQ perform as near-perfect electro-acoustic transducers providing true to the original sound with the highest musically and intelligibility.

I n Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those

•

settings will be stored for each mode.

[User] :

Adjusts the sounds manually by using the equaliser to suit your favourite sound quality. F or the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and

•

[Treble]. Select the [Equaliser] and adjust the frequency. [Equaliser] (p. 44)

ull]

How to Use Menu Functions

Bass I ncreases or decreases level to enhance or minimise lower, deeper sound output

Treble I ncreases or decreases level to enhance or minimise sharper, higher sound output

Page 44

Equaliser

Balance Adjusts volume level of right and left speakers

Item Adjustments / Configurations (alternatives)

Adjusts the frequency level to suit your favourite sound quality

T his function is available when [Mode] is set to [User].

•

Select the frequency and change the frequency level by using the cursor button.

•

If you want to enhance the bass sound, raise the level of the lower frequency. If you

•

want to enhance the treble sound, raise the level of the higher frequency. T o reset the levels of each frequency to the default settings, select the [Reset to

•

Defaults] by using the cursor button, and then press the OK button.

How to Use Menu Functions

Headphone

Surround

Auto Gain Control

Volume Correction Adjusts the volume of individual channel or input mode

Sound

Speaker Distance to Wall

MPX

Audio Preference

Volume Adjusts the volume of the headphones

Surround sound settings

[Off] / [V-Audio] / [V-Audio Surround] / [V-Audio ProSurround] [V-Audio] :

Provides a dynamic enhancer of width to simulate improved spatial effects

[V-Audio Surround] :

Provides a dynamic enhancer of width and depth to simulate improved spatial effects

[V-Audio ProSurround] :

Provides a more progressive enhancer and reverberation to simulate improved spatial effects

Adjusts the current volume level if it is extremely different from the previous viewed channel or input mode [

Adjusts the low frequency sound [

If the back space between the TV and wall is over 30 cm, [Over 30cm] is

•

recommended. If the back space between the TV and wall is within 30 cm, [Up to 30cm] is

•

recommended.

Selects multiplex sound mode (if available)

[Stereo] : Use this normally [Mono] : When stereo signal cannot be received [M1] / [M2] : Available while mono signal is transmitt

A nalogue mode only

•

Selects the initial setting for audio tracks [Auto] / [Multichannel] / [Stereo] / [MPEG]

Selectable options vary depending on the country you select.

•

[Auto] : Automatically selects the audio tracks if programme has more than two tracks.

The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG.

[Multichannel] : T he priority is given to multi-channel audio track. [Stereo] : T he priority is given to stereo (2ch) audio track. [MPEG] : T he priority is given to MPEG.

D olby Digital Plus and Dolby Digital are the methods of coding digital signals

•

developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio. HE-AAC is a perceptual coding method used to compress digital audio for efficient

•

storage and transmission. MPEG is an audio compression method that compresses audio to the smaller size

•

without any considerable loss of audio quality. D olby Digital Plus and HE-AAC are the technologies for HD (High definition)

•

programmes. DVB mode only

•

Off] / [On]

Over 30cm] / [Up to 30cm]

Page 45

SPDIF Selection

Sound

HDMI1 / 2 / 3 / 4 Input

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : D olby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream. MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

F or DVB mode, network video contents (p. 100) or Video mode of Media Player (p.86)

•

ARC (Audio Return Channel) : A function of digital audio output using HDMI cable

•

Select to fit the input signal [Digital] / [Analogue] (p.119)

[Digital] : HDMI cable connection [Analogue] : HDMI-DVI adaptor cable connection

HDMI input mode only

•

SPDIF Delay

Reset to Defaults

Timer Programming

Off Timer

Timer

Auto Standby

Eco Navigation

Recording Setup Settings for the recording feature of the USB HDD / SD Card (p. 75)

VIERA Link Sets to use VIERA Link functions [Off] / [On] (p.106)

Setup

HDMI Content Type

Link Settings

Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals if the sound does not synchronize the image

DVB mode only

•

Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings

Sets a timer to remind watching or record forthcoming programmes (p.60)

DVB mode only

•

Sets the time until the TV automatically goes to Standby mode [Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p.21)

Sets the time the TV automatically goes to Standby mode when no operation is performed for the selected times [

Starting Timer Programming automatically does not affect this function.

•

Automatic input switching with the connected equipment affects this function and

•

time-count will be reset. T he notification message will appear 3 minutes before going to Standby mode.

•

Automatically sets the TV to the most suitable energy-saving mode

If you press the OK button, the following items are set as below :

•

[Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save] [On] [Intelligent Auto Standby] [Auto Standby]

Adjusts the picture settings according to the content type signal from the connected equipment via HDMI cable [Off] / [Auto]

T his function is available if the connected equipment supports HDMI Content Type.

•

T he content type information will be displayed for several seconds when this function

•

works.

[2 hours]

Off] / [2] / [4] (hours)

[On (No reminder)]

How to Use Menu Functions

AV1 out

Power on Link Sets to use Power on Link function [Off] / [On] (p.105,106)

Power off Link Sets to use Power off Link function [Off] / [On] (p.105,106)

C hooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor] [Monitor] : Image displayed on screen

C omponent and HDMI signals cannot be output.

•

Page 46

Item Adjustments / Configurations (alternatives)

Standby Power Save

Link Settings

Intelligent Auto Standby

C ontrols the power consumption in Standby mode of the connected equipment to reduce the consumption [Off] / [On] (p.107)

T his function is available when [VIERA Link] is set to [On] and [Power off Link] is set

•

to [On].

M akes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption

Off] / [On (With reminder)] / [On (No reminder)] (p.107)

[

T his function is available when [VIERA Link] is set to [On].

•

How to Use Menu Functions

Download

Child Lock L ocks a channel / AV input to prevent access to it (p.62)

Favourites Edit Creates list of favourite DVB-S channels (p.54)

Channel List Skips the unwanted DVB-S channels or edits DVB-S channels (p.55)

D ownloads channel, language, country / region settings to a Q-Link or VIERALink compatible equipment connected to the TV

DVB-S and DVB-C channel settings cannot be downloaded.

•

Setup

Auto Setup Automatically sets the DVB-S channels received in the area (p.51)

Manual Tuning Sets the DVB-S channels manually (p.56)

Update Channel List U pdates DVB-S Channel List while keeping your settings (p.57)

DVB-S Tuning Menu

New Channel Message

Signal Condition C hecks the DVB-S signal condition (p.57)

Antenna System

LNB Configuration Selects the satellite for each LNB (p.51)

Add TV Signal

Selects whether to give a notification message when a new DVB-S channel is found [Off] / [On] (p.57)

Sets the ant [One LNB] / [MiniDiSEqC] / [DiSEqC 1.0] / [Single Cable] (p.50)

•

Adds the TV mode

•

enna system to use plural LNBs for receiving several satellites

T his TV supports DiSEqC Version 1.0.

T his function is available if you skip any modes to tune in [Auto Setup] for first using the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

Page 47

Item Adjustments / Configurations (alternatives)

Favourites Edit Creates list of favourite DVB-C channels (p.54)

Channel List Skips the unwanted DVB-C channels or edits DVB-C channels (p.55)

Auto Setup Automatically sets the DVB-C channels supplied (p.52)

Manual Tuning Sets the DVB-C channels manually (p.56)

Update Channel List U pdates DVB-C Channel List while keeping your settings (p.57)

DVB-C Tuning Menu

avourite Network Selects your favourite network for each broadcasters (only available in some countries)

Setup

New Channel Message

Service Replacement

Signal Condition C hecks the DVB-C signal condition (p.57)

Attenuator Automatically reduces the DVB-

Add TV Signal

Favourites Edit Creates list of favourite DVB-T channels (p.54)

Channel List Skips the unwanted DVB-T channels or edits DVB-T channels (p.55)

Auto Setup Automatically sets the DVB-T channels received in the area (p.53)

Manual Tuning Sets the DVB-T channels manually (p.56)

DVB-T Tuning Menu

Update Channel List U pdates DVB-T Channel List while keeping your settings (p.57)

avourite Network Selects your favourite network for each broadcasters (only available in some countries)

New Channel Message

Selects whether to give a notification message when a new DVB-C channel is found

Off] / [On] (p.57)

[

Set to [On] to enable a message to switch to the available service (only available in some countries) [Off] / [On]

C signal to avoid the interference [Off] / [On] (p.57)

Adds the TV mode

T his function is available if you skip any modes to tune in [Auto Setup] for first using

•

the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

•

Selects whether to give a notification message when a new DVB- [Off] / [On] (p.57)

T channel is found

How to Use Menu Functions

Signal Condition C hecks the DVB-T signal condition (p.57)

Adds the TV mode

T his function is available if you skip any modes to tune in [Auto Setup] for first using

Add TV Signal

•

the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

•

Page 48

How to Use Menu Functions

Setup

Item Adjustments / Configurations (alternatives)

Analogue Tuning Menu

Channel List Skips the unwanted Analogue channels or edits Analogue channels (p.58)

Auto Setup Automatically sets the Analogue channels received in the area (p.53)

Manual Tuning Sets the Analogue channels manually (p.59)

Adds the TV

Add TV Signal

•

OSD Language C hanges language for on screen displays

Language

Preferred Audio 1 / 2

Preferred Subtitles 1 / 2

Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster)

Preferred Subtitle Typ e

Selects the first and second preferred language for DVB multi audio (depending on the broadcaster)

Selects the first and second preferred language for DVB subtitles (depending on the broadcast

•

Selects the preferred subtitle type [Standard] / [Hard of Hearing]

•

Teletext T eletext display mode [TOP (FLOF)] / [List] (p.26)

Teletext Character Set

Default Guide

Display Settings

Input Labels L abels or skips each input terminal (p.64)

Banner Display Timeout

VIERA Connect Banner

Playing Time Display

Selects teletext language font [West] / [East1] / [East2] [West] : English, French, German, Greek, Italian, Spanish, Swedish, T

[East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. [East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the default TV Guide type when the GUIDE button is pressed (only available in

some countries) [ [T V Guide] :

[Channel List] :

Sets how long the Information banner (p.20) stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

Sets the VIERA Connect introduction banner display [

Set to [On] to display a continuous record of time spent using Game mode every 30 minutes [Off] / [On]

•

MHP Auto Start

Sets to [On] to start MHP application automatically (depending on the selected country and broadcaster) [Off] / [On] (p. 65)

•

Sets the timer for turning off the screen automatically when a radio channel is selected

[Off] / [5] / [10] / [15] / [20] (seconds)

•

Radio Mode

•

mode T his function is available if you skip any modes to tune in [Auto Setup] for first using the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

er)

T o display subtitles (p.20)

[Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster). [Preferred Subtitles 1 / 2] in [Language] are given priority.

urkish, etc.

Channel List] / [TV Guide]

Electronic Programme Guide (EPG) is available.

T o use EPG (p.23)

•

EPG is not available and the channel list will appear instead of it.

Off] / [On] (p. 18, 19)

T his function is available when [Game] is selected in [Viewing Mode] (p.41)

DVB-T mode only

T he sound is active even if the screen turns off. Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to turn the screen on. T his function is effective in reducing power consumption when listening to a radio channel. DVB mode only

Page 49

Common Interface U ses include to watch encrypted channels (p.67)

Network Setup Sets the network setting to use in your network environment (p.94)

DivX® VOD D isplays DivX VOD registration code (p.117)

Advance(isfccc)

System Menu

Setup

Other Settings

Item Adjustments / Configurations (alternatives)

E nables the advanced picture settings [

Set to [On] to enable the mode of [Professional1] and [Professional2] in [Viewing

•

Mode]. Set to [On] to display the advanced items in the Picture Menu - [Advanced Settings],

•

[Lock Settings] and [Copy Adjustment]. [Copy Adjustment] will be displayed when [Viewing Mode] is set to [Professional1] or [Professional2]. [ isfccc] is the picture setting for the certified professional dealer. For details, consult

•

your local dealer.

USB Keyboard Layout

Shipping Condition R esets all settings, for example, when moving house (p.68)

System Update D ownloads new software to this TV (p.69)

Licence

Software

Licence

Java Logo D isplays the Java logo

System Information D isplays the system information of this TV

GUIDE Plus+

Update

Settings

Postcode Sets your postcode to display advertisements in the GUIDE Plus+ system (p.24)

System Information

Power on Preference

USB Charge in Standby

Power Save R educes brightness of picture to economise on power consumption [Off] / [On]

Time Zone

Exchange Channel List

Selects the language that your USB Keyboard supports

F or the information of using USB Keyboard (p.120)

•

D isplays the software licence information

P erforms the update of the GUIDE Plus+ schedule and advertising information for the GUIDE Plus+ system (p.24)

D isplays the syst

Automatically selects the input when the TV is turned on [TV] / [AV] Set to [TV] to view picture from TV tuner. Set to [AV] to view input from an external equipment connected to the A terminal, e.g. set top box.

T he external equipment must be switched on and sending a control signal for

•

automatic switching at power on to occur.

Enables to supply the power from the USB port in Standby mode [

Available for charging 3D Eyewear (supplied)

•

T his function is available when in Standby mode.

•

Adjusts the time data

T he time data will be corrected based on GMT.

•

Set to [Auto] to adjust the time automatically according to your area.

•

Exports / Imports DVB-S Channel List settings using the SD Card to share the same

settings with VIERA which has the same function

em information of the GUIDE Plus+ system

Off] / [On]

How to Use Menu Functions

V1 or HDMI1

Off] / [On]

A different menu will be displayed when [Advance(isfccc)] in the Setup Menu is set to [On] or in the mode of Media Player /

•

network service operations. (p. 71, 80 - 91, 99-102) O nly available items can be selected.

•

Page 50

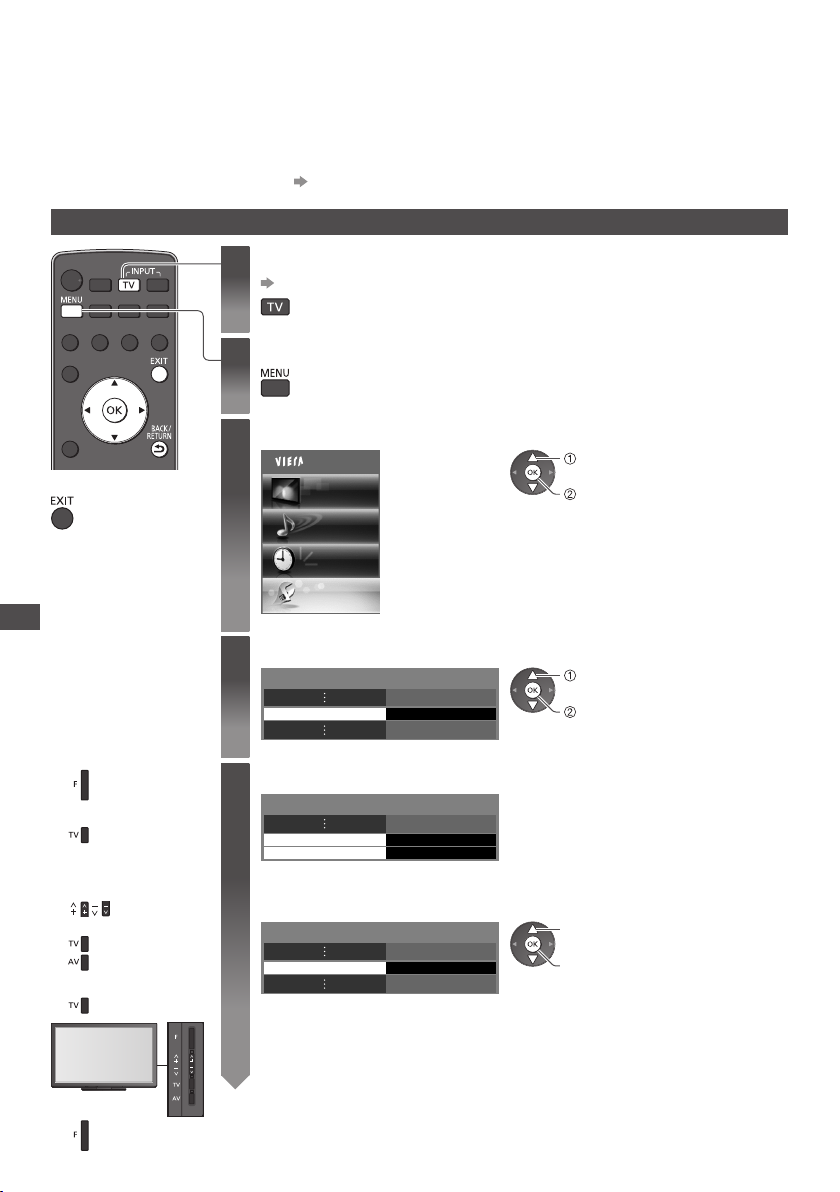

Retuning from Setup Menu

Automatically retune the channels received in the area.

T his function is available if channel tuning is already performed.

•

O nly the selected mode is retuned.

•

All the previous tuning settings are erased.

•

If Child Lock PIN number (p. 63) has been set, the PIN number is required.

•

If tuning has not been done completely [Manual Tuning] (p. 56, 59)

•

DVB-S channels

Select DVB-S

(p.19)

Display the menu

Select [Setup]

■

To return to TV

Main Menu


Sound

Timer

select

access

Retuning from Setup Menu

For Auto Setup, using the buttons on the side panel of the TV (p.10)

1 Press repeatedly until

[Auto Setup] appears

2 Access [Auto Setup]

3 Set the satellite,

search mode and scan mode

( select the item)

(set) (store)

4 Start [Auto Setup]

T o return to TV

•

Select [DVB-S Tuning Menu]

DVB-S Tuning Menu Access

Set [Antenna System] and [LNB Configuration]

DVB-S Tuning Menu

A ntenna System DiSEqC 1.0 LNB Configuration Access

Setup

select

access

1 Select [Antenna System] and set

Y ou can receive several satellites if you have DiSEqC control antenna system.

DVB-S Tuning Menu

A ntenna System DiSEqC 1.0

[One LNB] : compatible with single LNB [MiniDiSEqC] : up to 2 LNBs can be controlled [DiSEqC 1.0] : up to 4 LNBs can be controlled [Single Cable] : When using the Single Cable router, up to 8 user bands are available.

select

access / store

T his TV supports DiSEqC Version 1.0.

•

Page 51

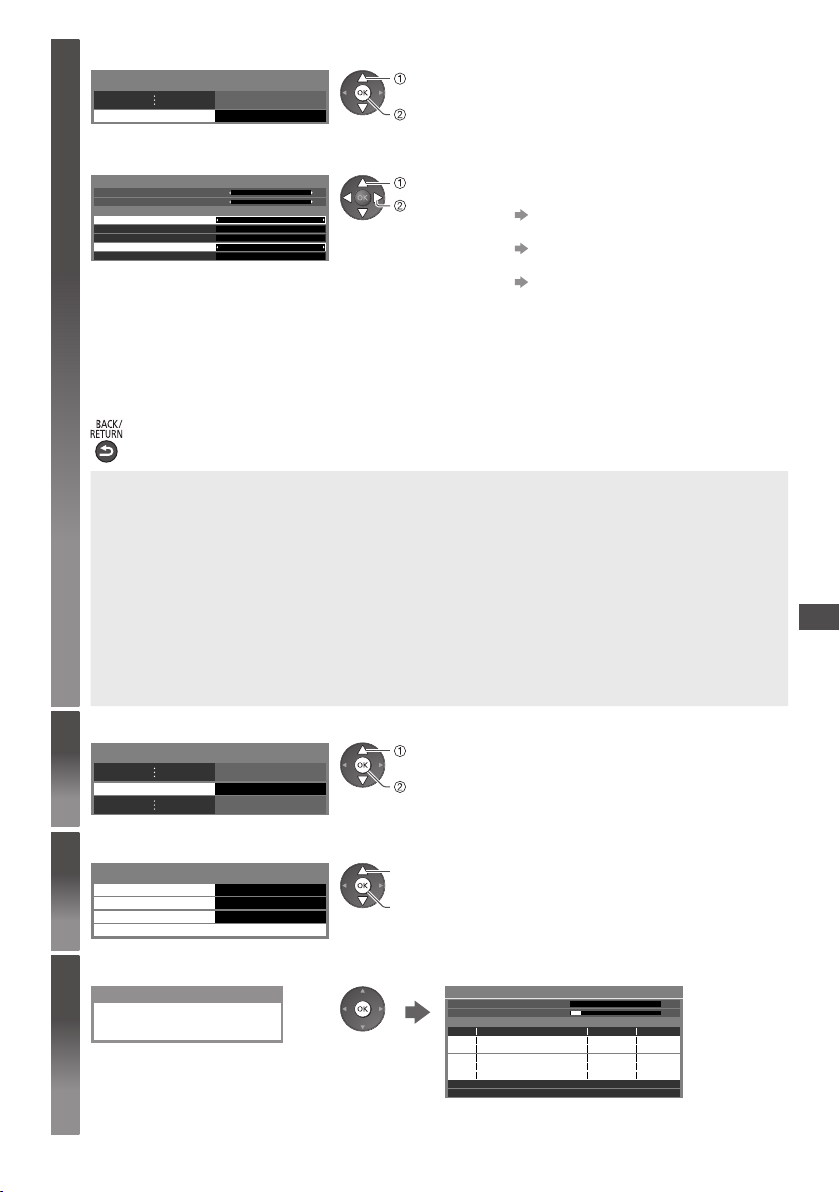

2 Select [LNB Configuration]

DVB-S Tuning Menu

select

LNB Configuration Access

access

3 Set [LNB] and [Satellite]

Set [LNB] first, then set [Satellite] for the selected LNB.

LNB Configuration

Signal Quality Signal Strength

LNB

requency

LNB Low Band F LNB High Band Frequency

Satellit

requency

Test Transponder F

010 010

AA 9750 MHz 10600 MHz Astra 19.2° E 10744 MHz

select

set

[LNB] :

If you set to [One LNB]

•

not selectable If you set to [MiniDiSEqC] or [Single Cable]

•

select between LNB AA and AB If you set to [DiSEqC 1.0]

•

select between LNB AA, AB, BA and BB

[Satellite] :

Select [No Satellite] if you do not know the connected satellite (available satellite will be searched in Auto Setup).

•

Select [User defined] to set [Test Transponder Frequency] manually.

•

If you set to [Single Cable], additional settings are required. Set [User Band], [User Band Frequency] and [PIN]

•

(depending on the Single Cable router you use). F or details, read the manual of the Single Cable router.

4 Store

■ Selectable satellites and dish alignment to tune DVB-S channels :

•

Express at 53° East

•

I ntelsat at 45° East

•

Turk sat at 42° East

•

Express at 40° East

•

H ellas at 39° East

•

Eutelsat at 36° East

•

Eurobird at 33° East

•

A stra at 28.2° East

•

Arabsat at 26° East

•

Eurobird at 25.5° East

T o ensure your satellite dish is correctly installed, please consult your local dealer.

•

Also please consult the received satellite broadcasting companies for details.

•

Select [Auto Setup]

DVB-S Tuning Menu

•

A stra at 23.5° East

•

Eutelsat at 21.5° East

•

A stra at 19.2° East

•

Eutelsat at 16° East

•

at 13° East

H ot Bird

•

Eutelsat at 10° East

•

Eurobird at 9° East

•

Eutelsat at 7° East

•

A stra at 4.8° East

•

T hor at 0.8° West / Intelsat at 1° West

select

•

Amos at 4° West

•

A tl. Bird at 5° West

•

A tl. Bird at 7° West

•

A tl. Bird at 8° West

•

A tl. Bird at 12.5° West

•

T elstar at 15° West

•

N SS at 22° West

•

I ntelsat at 24.5° West

•

H ispasat at 30° West

Retuning from Setup Menu

Access Auto Setup

access

Set the satellite, search mode and scan mode

DVB-S Auto Setup Settings

Satellite Search Mode Scan Mode

Start Auto Setup (Settings are made automatically)

DVB-S Auto Setup

All DVB-S tuning data will be erased

Start scan

Astra 19.2° E Free Channels Quick

After settings, select [Start scan].

•

select

access / store

[Full] : scans the whole frequency range [Quick] : scans the suitable frequency for the

DVB-S Auto Setup

Satellite Progress T his will take about 20 minutes.

N o. Channel Name Ty pe

CBBC Channel

BBC Radio Wales

Free TV: 3

Pay TV: 0 Radio: 0

When the operation is completed, the channel at the lowest position will be displayed.

selected satellite

Astra 19.2° E

0% 100%

100

Free TV

100

Free TV

100

Free TV

Searching

Quality

Page 52

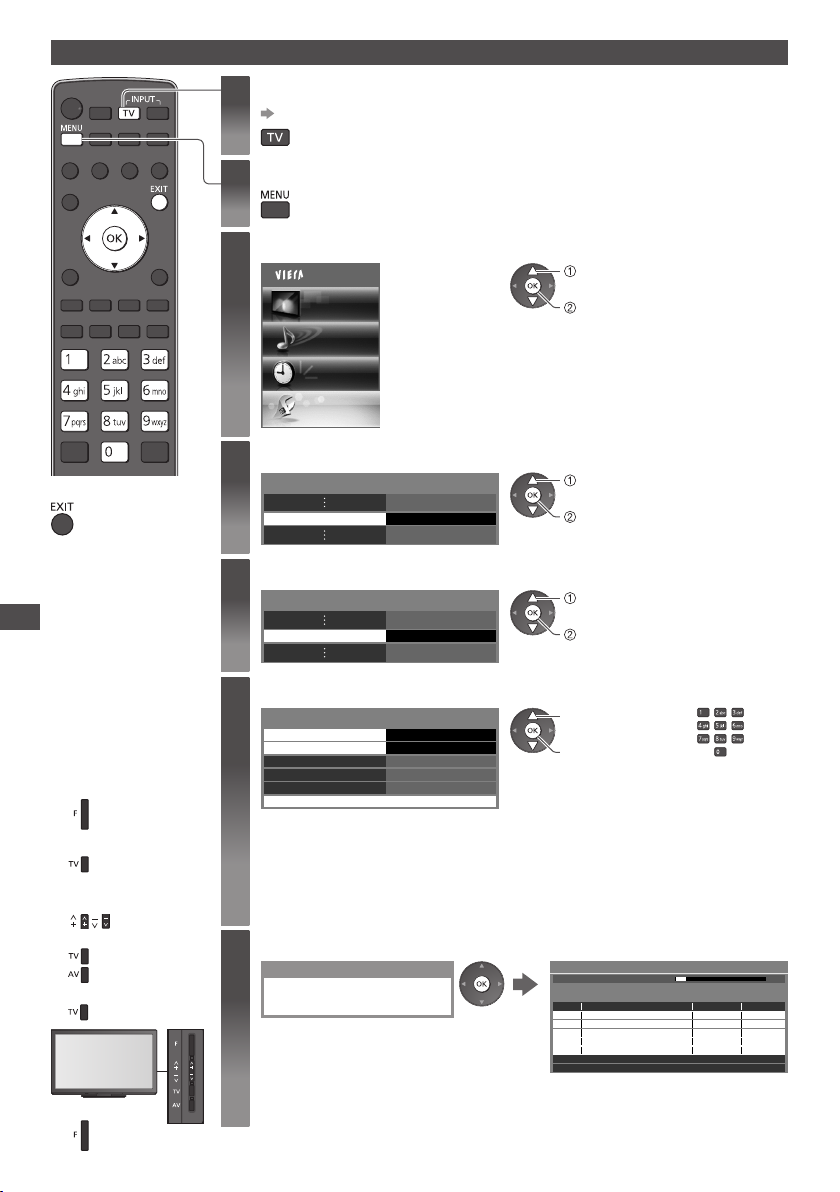

DVB-C channels

Select DVB-C

(p.19)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

■

To return to TV

Retuning from Setup Menu

For Auto Setup, using the buttons on the side panel of the TV (p. 10)

1 Press repeatedly until

[Auto Setup] appears

2 Access [Auto Setup]

3 Set the search mode

and scan mode

( select the item)

(set) (store)

4 Start [Auto Setup]

To return to TV

•

Select [DVB-C Tuning Menu]

DVB-C Tuning Menu Access

Select [Auto Setup]

DVB-C Tuning Menu

Auto Setup Access

Set the Auto Setup settings

DVB-C Auto Setup Settings

Search Mode Free Channels Scan Mode

Frequency Symbol Rate N etwork ID

[ Scan Mode]

•

[Full] : scans the whole frequency range [Quick] : scans the suitable frequency in your country

N ormally set [Frequency], [Symbol Rate] and [Network ID] to [Auto].

•

If [Auto] is not displayed or if necessary, enter [Frequency], [Symbol Rate] and [Network ID] specified by your cable provider with numeric buttons.

Start Auto Setup (Settings are made automatically)

DVB-C Auto Setup

When the operation is completed, the channel at the lowest position will be displayed.

Setup

Quick Auto Auto Auto

Start scan

All DVB-C tuning data will be erased

select

access

select

access

select

access / store

After settings, select [Start scan].

•

DVB-C Auto Setup

Progress

T his will take about 3 minutes.

N o. Channel Name Ty pe

CBBC Channel

BBC Radio Wales

Free TV: 3

0% 100%

Free TV Free TV Free TV

Pay TV: 0 Radio: 0

Searching

Quality

100 100 100

Page 53

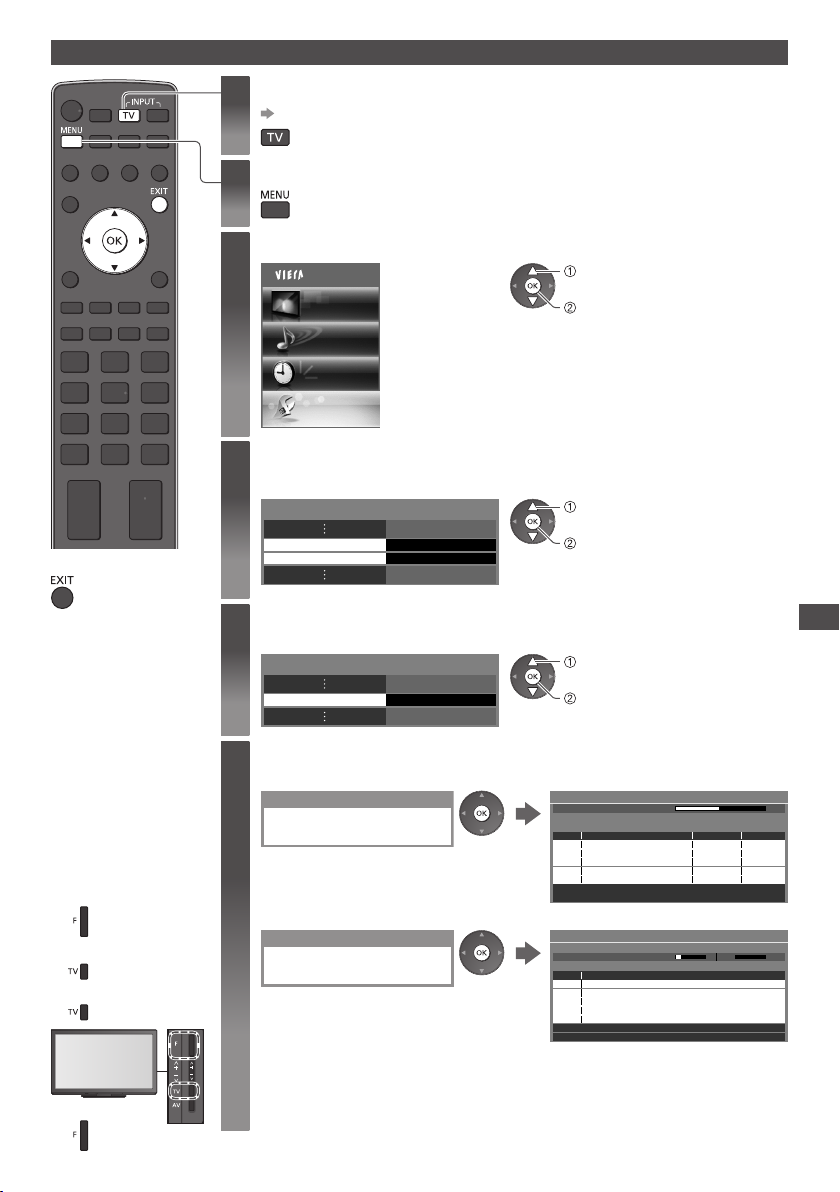

DVB-T or Analogue channels

Select DVB-T or Analogue

(p.19)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

■

To return to TV

For Auto Setup, using the buttons on the side panel of the TV (p.10)

1 Press repeatedly until

[Auto Setup] appears

2 Access [Auto Setup]

3 Start [Auto Setup]

T o return to TV

•

Select [DVB-T Tuning Menu] or [Analogue Tuning

Setup

Menu]

select

DVB-T Tuning Menu Access A nalogue Tuning Menu Access

Select [Auto Setup]

Example :

DVB-T Tuning Menu

Auto Setup Access

Start Auto Setup (Settings are made automatically)

DVB-T :

DVB-T Auto Setup

All DVB-T tuning data will be erased

A nalogue :

Analogue Auto Setup

All analogue tuning data will be erased

T he channel, language, country / region settings are downloaded to a Q-Link or

•

VIERALink compatible equipment connected to the TV.

When the operation is completed, the channel at the lowest position will be displayed.

access

T he displayed item depends on the selected

•

mode.

select

access

DVB-T Auto Setup

Progress

T his will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

Free TV: 4

Analogue Auto Setup

Scan T his will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

A nalogue: 2

CH 5 69

Free TV Free TV Free TV

V: 0

Searching

CH 2 78 41CC 1

Searching

Free TV

Pay T

R adio: 0

Retuning from Setup Menu

Quality

100 100 100

Page 54

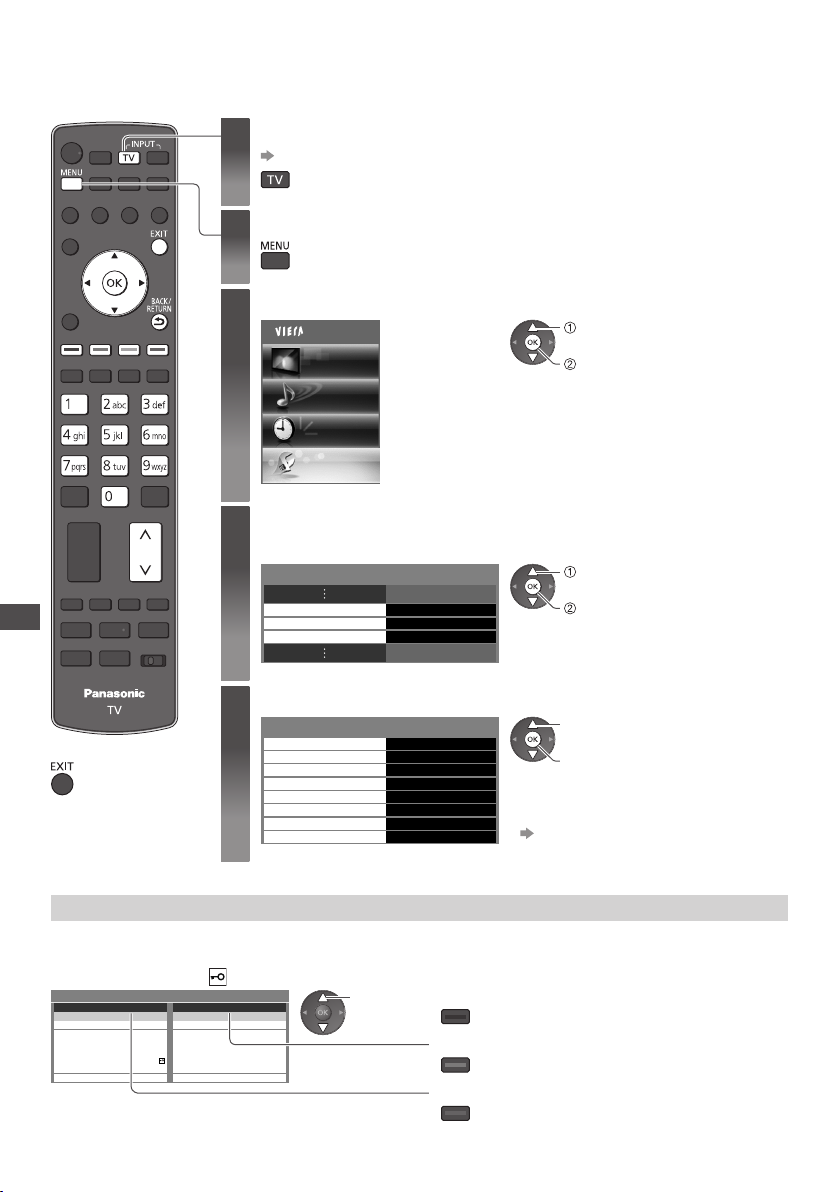

Tuning and Editing Channels (DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB-S, DVB-C or DVB-T

(p.19)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Select [DVB-S Tuning Menu], [DVB-C Tuning Menu] or

Setup

[DVB-T Tuning Menu]

select

cess DVB-S Tuning Menu

Access Access Access Access Access O n Access

Tuning and Editing Channels (DVB)

■

To return to TV

DVB-C Tuning Menu Access DVB-T Tuning Menu Access

Select one of the following functions

DVB-C Tuning Menu

F avourites Edit C hannel List

tup

Auto Se M anual Tuning U pdate Channel List N ew Channel Message Signal Condition A ttenuator Off

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4 : [Favourites]1 to 4). T he DVB Favourites lists are available from “Category” in the Information banner (p.20) and the TV Guide screen (p.23).

1 Select a channel to list ( : Encrypted channel)

DVB-C Favourites Editor

All DVB-C Channels F avourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

Sorting 123...

select

T o sort channel names in alphabetical order

•

(red)

T o display other Favourites

•

(green)

T o change the category

•

(blue)

access

T he displayed item depends on the selected

•

mode.

select

access / store

T he function items vary depending on the

•

country you select (p.13). [Auto Setup]

•

“Retuning from Setup Menu” (p.50 -53)

Page 55

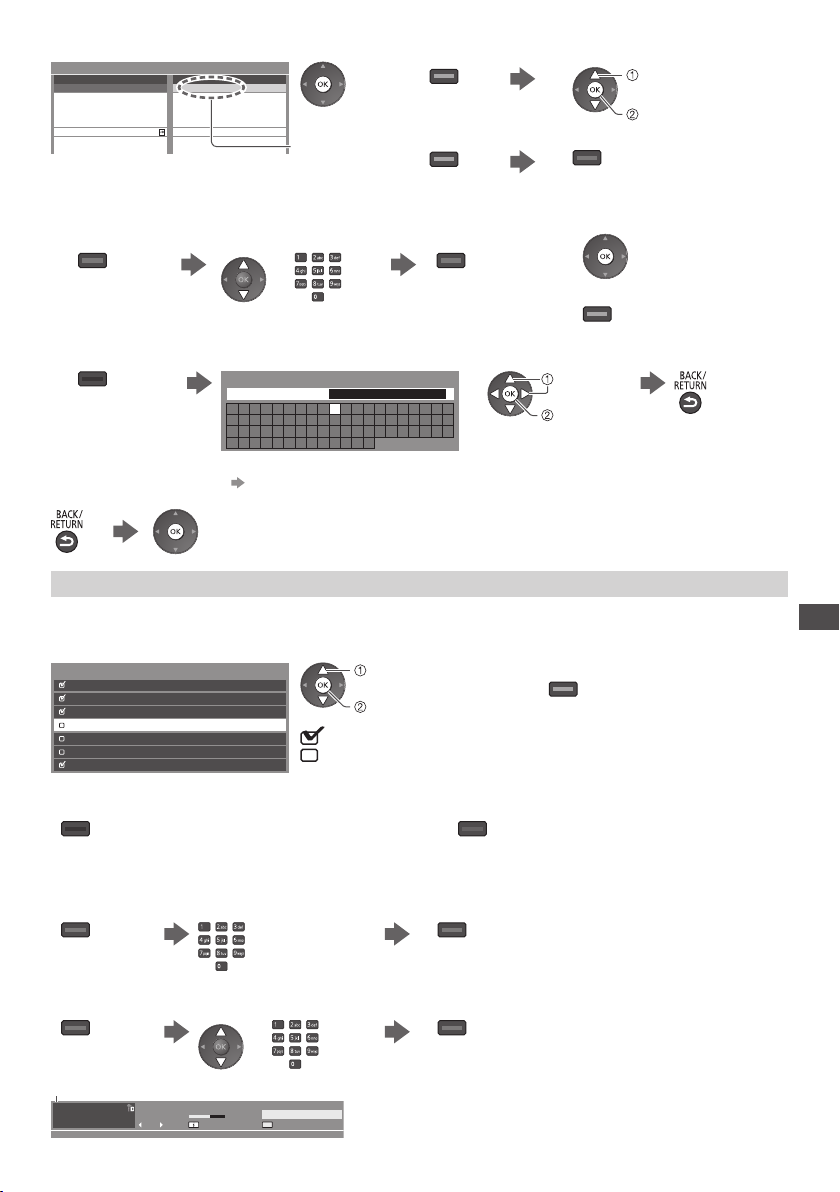

2 Add it to the Favourites list

DVB-C Favourites Editor

All DVB-C Channels F avourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

1 BBC One Wales

Sorting 123...

A channel is added

T o add continuous block of channels to the list at once

•

(yellow)

T o add all channels to the list

•

(yellow)

add

(green)

■ To edit Favourites list

While the cursor is in the Favourites field to edit

T o move the channel

•

Select the new position Store

(green)

T o name the Favourites

•

Set characters (maximum : ten characters) Store

(red)

3 Store

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.121)

(green)

T o delete the channel

•

T o delete all channels

•

select

set

(yellow)

make the block

Skip unwanted DVB channels, Edit DVB Channels [Channel List]

Y ou can hide unwanted DVB channels. T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB-C Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

Sorting 123...

select

[Reveal] / [Hide]

: [Reveal]

: [Hide] (skip)

T o reveal all channels

•

(yellow)

■ To sort channel list

T o sort channel names in alphabetical order

•

(red)

T o change the category

•

(blue)

■ To edit channels

Y ou can also edit each channel in Channel List.

T o swap the channel position (if available)

•

Enter the new position number Store

(green)

T o move the channel position (if available)

•

Select the new position Store

(green)

C hannel position

1 BBC ONE WALES

Coronation Street 20:00 - 20:55 Now I nfo

All DVB-T Channels

C hange category

20:35

(green)

Tuning and Editing Channels (DVB)

Page 56

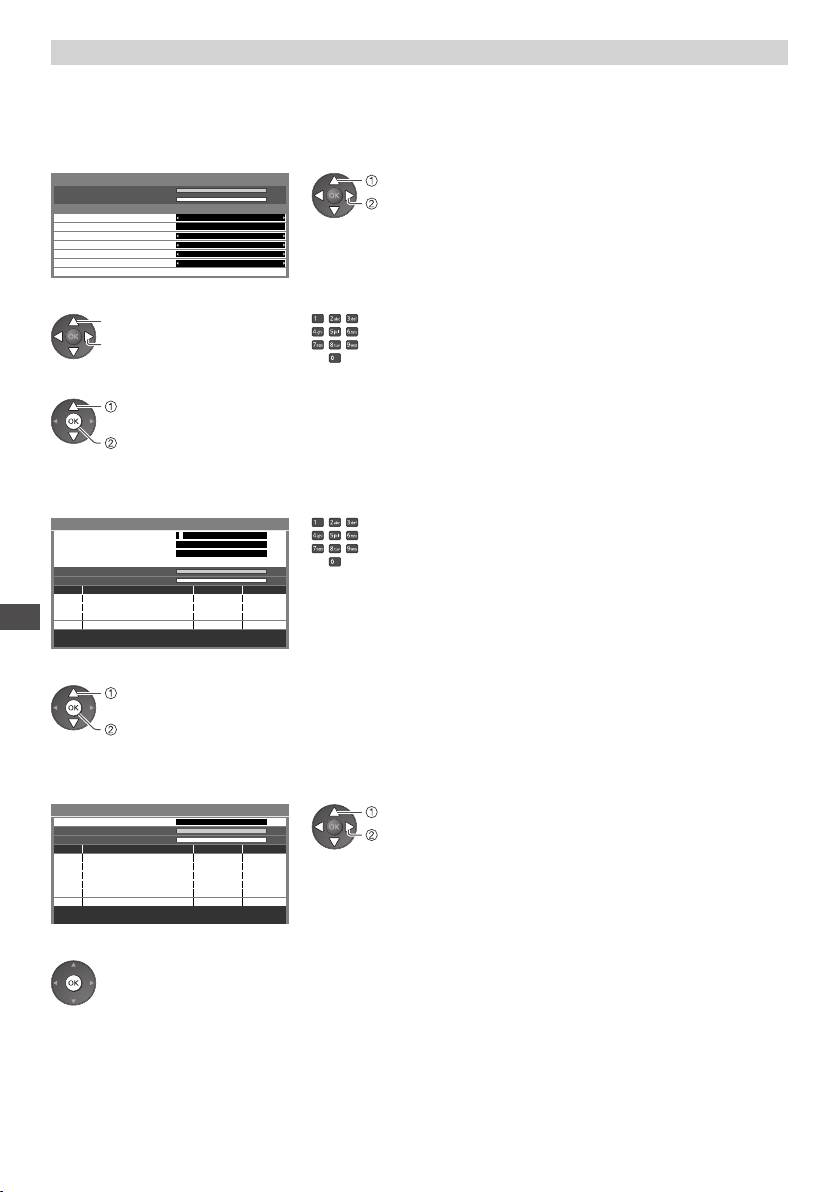

Set DVB channel manually [Manual Tuning]

N ormally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function.

All channels found will be added to the Channel List.

•

DVB-S :

1 Set the satellite

DVB-S Manual Tuning

Signal Quality Signal Strength

Satellite Transponder F

requency Symbol Rate Polar isation M odulation Service ID

Start scan

Astra 19.2° E 10847 MHz Auto H orizontal Auto Auto

100 % 100 %

select

set

Please consult the received satellite broadcasting companies for the setting.

•

2 Set [Transponder Frequency], [Symbol Rate], [Polarisation], [Modulation] and [Service ID]

select

c hange

3 Select [Start scan]

select

access

DVB-C :

1 Enter the frequency

DVB-C Manual Tuning

Frequency

Service ID Auto

Signal Quality Signal Strength

N o. Channel Name Ty pe N ew

Start scan

74,00 MHz4

Auto Symbol Rate

100 % 100 %

N ormally set [Symbol Rate] and [Service ID] to [Auto].

•

Tuning and Editing Channels (DVB)

Free TV: 0

Pay TV: 0 Radio: 0

opped

2 Select [Start scan]

select

access

DVB-T :

1 Adjust frequency for each channel

DVB-T Manual Tuning

Frequency

Signal Quality Signal Strength

N o. Channel Name Ty pe N ew

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

[CH21]

Stopped

2 Search

474,00 MHz

100 100 %

•

select channel

adjust frequency

Set where the level of [Signal Quality] becomes the maximum.

Page 57

Update DVB channel automatically [Update Channel List]

Y ou can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB-T Update Channel List

Progress

T his will take about 3 minute

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0

CH 5 69

Searching

C hannel List is updated while keeping your settings in [Favourites Edit],

•

[Channel List], [Child Lock], etc. D epending on the signal condition, the update may not work properly.

•

T o update DVB-S channels, the satellite, search mode and scan mode settings

•

are required before updating.

DVB-S Update Channel List Settings

Satellite Search Mode Scan Mode

Start scan

Astra 19.2° E Free Channels Quick

select

access / store

After settings, select [Start scan].

•

Display a notification message [New Channel Message]

Selects whether to give a notification message when a new DVB channel is found. [Off] / [On]

New channel s foun d!

Press OK to upd ate channel list.

Press EXIT to ignore.

Selecting OK will perform [Update Channel List].

•

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition. A good Signal Strength is not an indication of suitable signal for DVB reception.

Please use the Signal Quality indicator as follows :

[Signal Quality] :

Green bar Good

•

Y ellow bar Poor

•

R ed bar Bad (Check the Terrestrial aerial, cable or Satellite dish)

•

Example :

DVB-C Signal Condition

C hannel Name Signal Quality Signal Strength B it Error Rate N etwork Name Parameter

70 CBBC Channel

0.00E+00 Wenvoe 802,00 MHz, 64 QAM, 6940 kS/s

9080%

T hese bars show the maximum signal value of the selected channel.

T o change the channel

•

Tuning and Editing Channels (DVB)

Reduce the DVB-C signal [Attenuator]

If the DVB-C signal is too strong, the interference may occur. In this case set to [On] to reduce the signal automatically.

T his function is available only for DVB-C signal.

•

Page 58

Tuning and Editing Channels (Analogue)

Y ou can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

(p.19)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

select

access

Access

tup

Access Access

•

select

access

T he function items vary depending on the country you select (p.13). [Auto Setup]

“Retuning from Setup Menu” (p.53)

Tuning and Editing Channels (Analogue)

■

To return to TV

Select [Analogue Tuning Menu]

A nalogue Tuning Menu Access

Select one of the following functions

Analogue Tuning Menu

C hannel List Auto Se M anual Tuning

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]

Y ou can hide unwanted Analogue channels. T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

select

[Reveal] / [Hide]

: [Reveal]

: [Hide] (skip)

T o reveal all channels

•

(yellow)

Page 59

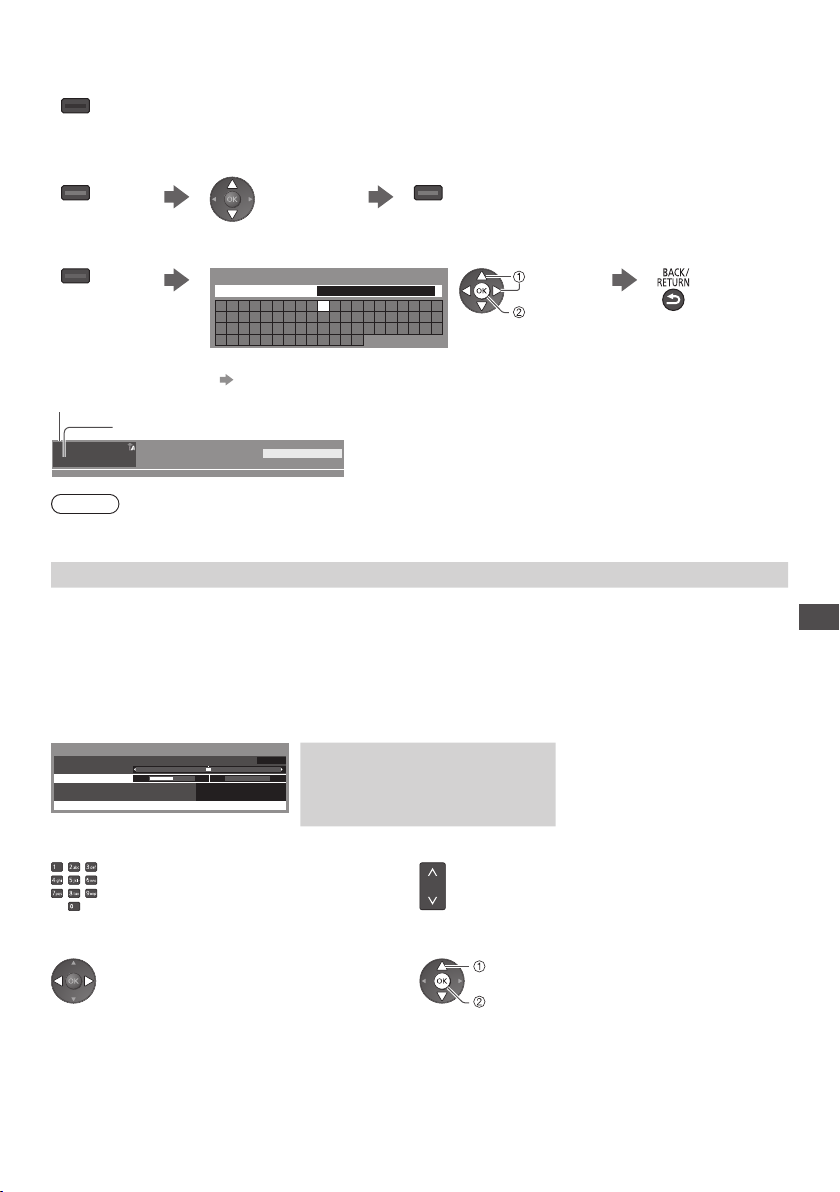

■ To edit channels

Y ou can also edit each channel in Channel List.

T o retune each channel ([Manual Tuning])

•

(red)

( see below) T o move the channel position

•

Select the new position Store

(green)

T o rename the channel name

•

Set characters (maximum : five characters) Store

(blue)

C hannel position

ITV

C hannel name

CH23 SC1

Edit channel name

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.121)

23:35

All Analogue Channels

Note

If a VCR is connected only with the RF cable, edit [VCR].

•

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]

U se to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)

[Manual Tuning]

Set Analogue channel manually after Auto Setup.

Set [Sound System] and [Colour System], and then perform this function.

•

N ormally set [Colour System] [Auto]. If a VCR is connected only with the RF cable, select channel position [0].

•

Analogue Manual Tuning

Fine Tu ning

uning

M anual T

Sound System C olour System

278 411

SC1 Auto

Store

CH331 BBC1

SC1 : PAL B, G, H / SECAM B, G SC2 : PAL I SC3 : PAL D, K / SECAM D, K F : SECAM L, L’

(green)

select

set

Tuning and Editing Channels (Analogue)

1 Select the channel position 2 Select the channel

3 Search 4 Select [Store]

select

store

Page 60

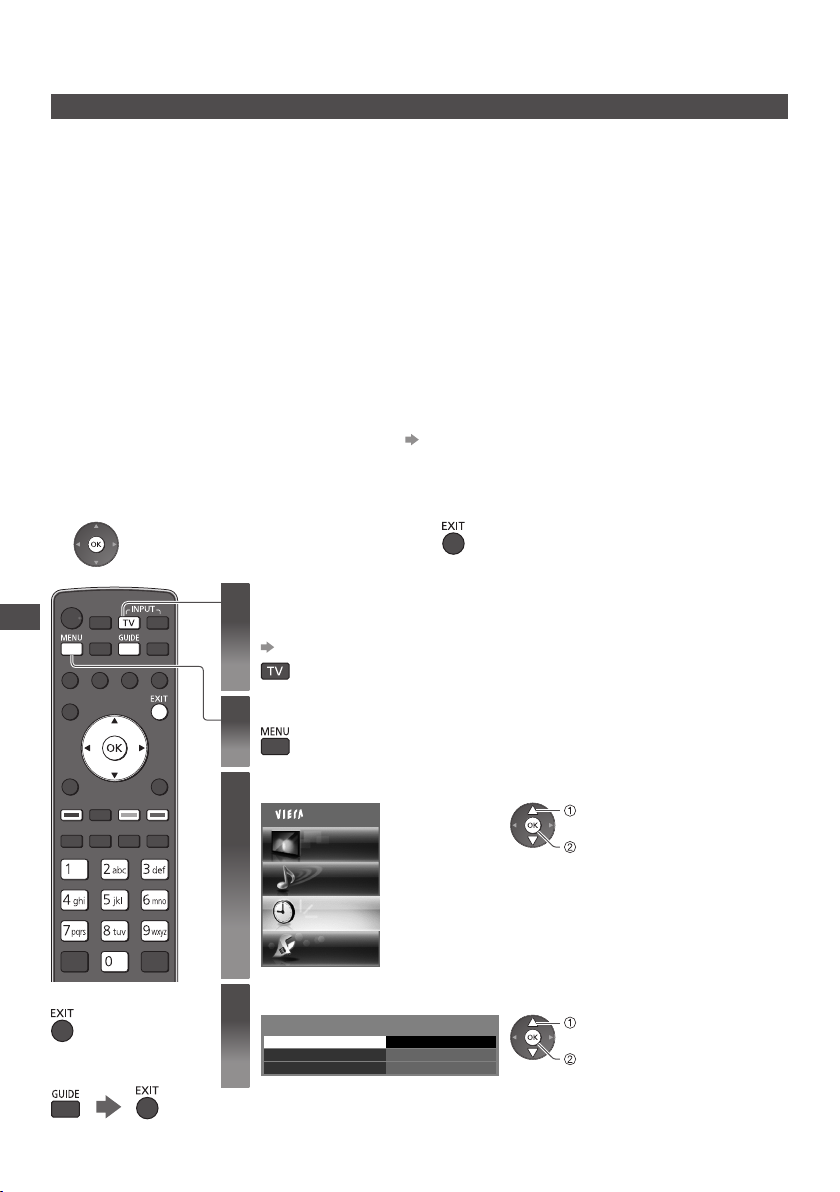

Timer Programming

Timer Programming from Menu

T he Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder, the USB HDD or the SD Card. At the correct time, the TV mode. TV Guide may also be used to set timer programming event (p.25).

T his function is not available in Analogue mode.

•

T imer Programming can store up to 15 events.

•

T imer Programming only works reliably if correct time information is received via the signal from the broadcaster or service

•

provider. F or recording using Timer Programming, the T V must be either On or in standby. For reminders to be displayed, the TV must

•

be On. N o other channel can be selected while the recording of Timer Programming is in progress.

•

I t may not be possible to record an encrypted programme (which is copy-protected).

•

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the

•

TV. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p.105,106) and the [Link Settings] (p.45) are completed, no setting of the recorder is required. Also read the manual of the recorder. If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder.

•

For preparations of a recorder, read the manual of the recorder. F or more information of the USB HDD / SD Card Recording. (p. 74, 118)

•

R ecordings to the external recorders are always in standard definition composite video via SCART, even if the original

•

programme is in high definition. 2 minutes before the starting time, a reminder message appears if you are watching TV.

•

T o remove the message and start the programming

will tune to the correct channel even if the TV is in Standby

•

T o cancel the programming

Timer Programming

■

To return to TV

■

To unlock the tuner and stop recording

Select the mode you want to set

(DVB-S, DVB-C or DVB-T)

(p.19)

Display the menu

Select [Timer]

Main Menu


Sound

Timer

Select [Timer Programming]

Off Timer Auto Standby

Setup

Access T imer Programming Of

Off

select

access

select

access

Page 61

Set timer programming event details [Timer Programming]

Start making the settings

2 Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or [Reminder])

select

[Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.] :

s before the starting time, a reminder message appears if you are watching TV.

F or [USB HDD Rec.] and [SD Card Rec.], you can select a recording mode:

[DR] : Direct recording (normal mode) [LT1] : Long time recording [LT2] : Extra long time recording “Recording time for the USB HDD / SD Card Recording” (p. 119)

[Reminder] :

to remind you to watch the programme When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

: Displayed if the timer programming events are overlapped

Timer Programming

Function No. Date Star t End Channel Name

Reminder

D 7 BBC7 17:00 18:30

Ext Rec.

C hange function

Store timer

<TIMER>

D 1 BBC1 ST TL 18:00 20:00

<TIMER>

C 3 ITV1

<TIMER>

------

------ --:----:-- --:--

EXIT Select RE

TURN

[ S] : DVB-S [C] : DVB-C [D] : DVB-T

Y ou cannot change the mode within the menu.

•

Channel number

Date

one day ahead

d aily or weekly (press repeatedly)

[Daily Sun-Sat] : Sunday to Saturday

•

[Daily Mon-Sat] : Monday to Saturday

•

[Daily Mon-Fri] : Monday to Friday

•

[ Wee kly Sat/Fri/Thu/Wed/Tue/Mon/Sun] : Same time on the same day every week

•

set

Wed 27.10.2010 10:46

Wed 27.10.2010

Thu 28.10.2010

(90 min.)

(120 min.)

21:30 22:30

(60 min.)

--:----:-- --:--

R ecords with subtitles (if available)

T o indicate this

•

(Press again to remove subtitles)

Duration (automatic display)

R emaining Capacity:

32GB (80%)

500GB (50%)

1/1

2 3 4

I nformation of the USB HDD / SD Card (if available)

3 4

1 , 3 and 4 can also be entered with numeric

•

buttons.

(yellow)

Starting time Ending time

4 Store

Timer Programming

Page 62

■ To change a timer programming event

Select the programme to be changed

select

access

C orrect as necessary (p.61)

■ To cancel a timer programming event

Select the programme to be deleted

(red)

Note

C heck that the LED is orange. If not, timer programmes are not active or not stored.

•

T imer Programming reminder messages will remain displayed until one of the following occurs :

•

Y ou press the OK button to view the programme or the EXIT button to cancel the reminder.

•

T he timer programming event that the reminder is set for ends.

“!” identifies that any timer programming events have overlapped. [Ext Rec.], [USB HDD Rec.] and [SD Card Rec.] are given

•

priority over [Reminder]. As for the overlapped two or more [Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.], the first timer programming event starts and finishes as programmed. The next timer programming event can then start.

T he recording of Timer Programming will automatically change to the programmed channel a few seconds before the start

•

time. T o stop recording the timer programming event directly prior to the start time, it may be necessary to stop the recorder

•

manually. T he recording of Timer Programming will be performed even if the TV is in REW LIVE TV recording (p.78) or Pause Live TV

•

recording (p.108). In this case, these recordings will be cancelled.

■ To record with subtitles (if available)

Select the programme to record with subtitles

(yellow)

E ach time pressed :

•

auto

off

■ To cancel a timer programming event

temporarily

Select the programme to be cancelled

(blue)

E ach time pressed :

•

c ancel

stop cancelling

Child Lock

Y ou can lock specific channels / AV input terminals and control who watches them.

Timer Programming | Child Lock

When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.

Display the menu

■

To return to TV

Select [Setup]

Main Menu


Sound

Timer

Select [Child Lock]

Eco Navigation R ecording Setup L ink Settings

C hild Lock

DVB-C Tuning Menu L anguage D isplay S C ommon Interface N etwork Setup

Setup

ettings

Access

select

access

1/2

select

access

Page 63

Control channel audience [Child Lock]

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

* * * *

E nter the PIN number twice at first setting.

•

M ake a note of the PIN number in case you forget it.

•

“0000” may be stored as the default PIN number which depends on

•

the country you select (p.13).

2 Select [Child Lock List]

Child Lock

C hange PIN

C hild Lock List

P arental Rating

Access N o limit

select

access

3 Select the channel / input to be locked

Child Lock List - TV and AV Sorting 123...

N ame I nput

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV2

T o cancel

•

Select the locked channel / input

DVB-C DVB-

T DVB-T A nalogue A nalogue A nalogue External External

Type

Free TV Free TV Free TV A nalogue A nalogue A nalogue

AV AV

L ock

select

lock

: Appears when the channel / input is locked

T o sort channel names in

•

alphabetical order

(red)

T o cancel all locks

•

(yellow)

T o lock all

(green)

T o jump to the top of the next input

(blue)

■ To change the PIN number

1 . Select [Change PIN] 2. Enter a new PIN number twice

Child Lock

C hange PIN

C hild Lock List P arental Rating

Access

N o limit

select

access

■ To set Parental Rating

T he availability of this function depends on the country you select (p.13).

•

If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to watch (depending on the broadcaster).

Select [Parental Rating] and set an age for the restriction of programmes.

select

access / store

Child Lock

C hange PIN C hild Lock List

P arental Rating

N o limit

Note

Setting [Shipping Condition] (p.68) erases the PIN number and all settings.

•

Child Lock

Page 64

Input Labels

F or easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment.

T o select the input mode (p.28)

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Select [Display Settings]

Select [Input Labels]

Display Settings

Setup

select

Access D isplay Settings

access

select

Input Labels

access

select

access / store

T he labels you set will be displayed in [Input Selection] menu (p.28), [T V Selection] menu (p.19) or banner.

If [Skip] is selected, you cannot select the

•

mode.

■

To return to TV

I nput Labels Access

Select an input terminal

Input Labels

AV1 AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4 DVB-S DVB-C DVB-C

Input Labels

DVB-T DVB-T A nalogue

DVD AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4 DVB-S

A nalogue

1/2

2/2

■ User input

Y ou can name each input mode freely.

1 Select [User input] 2 Set characters (maximum : ten characters) 3 Store

select

access

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.121)

select

set

Page 65

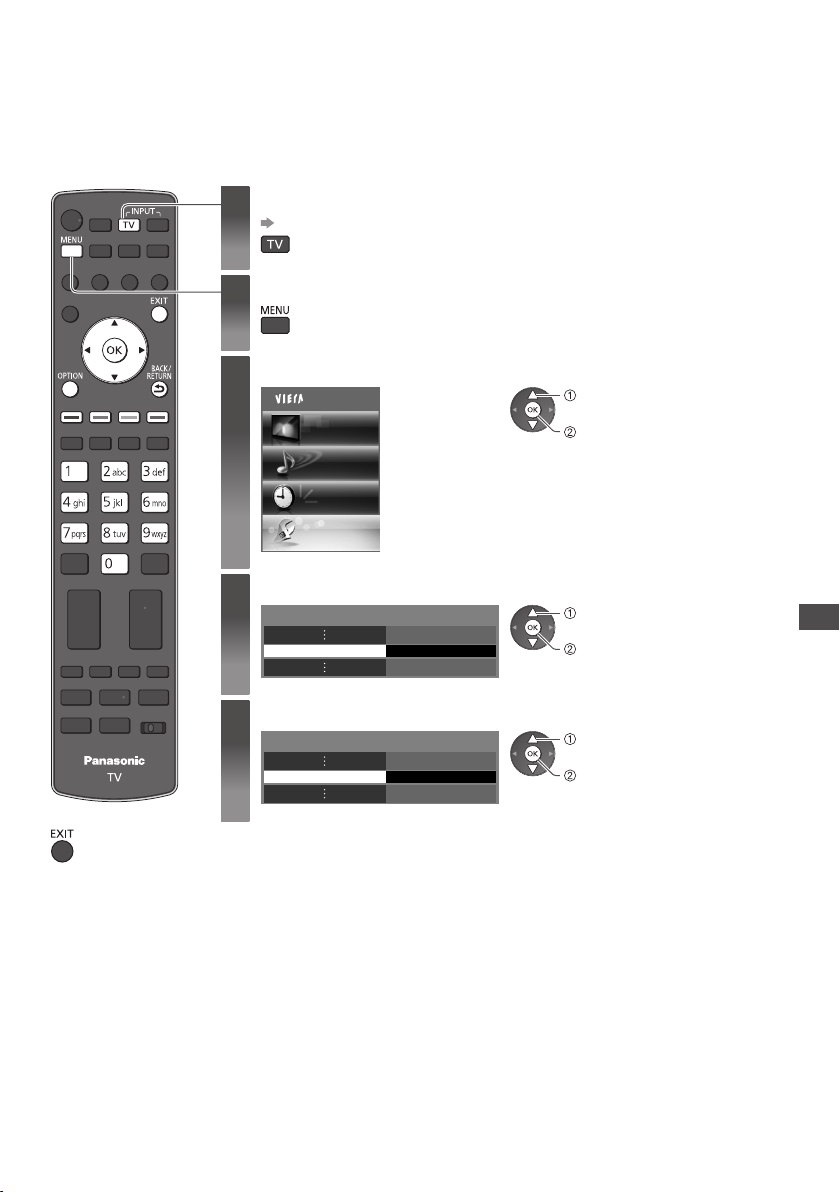

Using MHP Services

MHP (Multimedia Home Platform) is a standard of interactive services for digital broadcasting. MHP is a Java-based application, provided by broadcasters and you can load MHP services automatically on the TV (news, information, entertaining, etc.).

T he availability of this function depends on the country you select (p. 13).

•

T his function varies depending on the broadcasters.

•

Select DVB-T

(p.19)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

■

To return to TV

Select [Display Settings]

Select [MHP Auto Start] and set to [On]

Display Settings

MHP Auto Start O n

Setup

Access D isplay Settings

select

access

select

access / set

Using MHP Services

Page 66

Operating MHP application

Select a channel with MHP and follow the on screen operation guide.

O n screen operation guide may not correspond to the remote control buttons.

•

I nformation banner

BBC ONE WALES

Example :

Select, go

•

Coronation Street 20:00 - 20:55 Now I nfo

All DVB-T Channels

Change category

20:35

D isplayed if programme has MHP services

Symbol :

•

C oloured characters

•

Coloured button

B ack key

•

Numbers

•

R eturn to TV

•

■ To load MHP application manually

1 Display the option menu

2 Select [MHP App]

Option Menu

MHP App Access

Using MHP Services

select

access

3 Select an MHP application to start

Example :

select

MHP App

Launcher

Guide Game

N ot Starting N ot Starting N ot Starting

start

4 Follow the on screen guide

■ To stop MHP application

Note

While operating MHP application, you will find a short prompt shown on the upper right side of the screen (for example

•

“Loading”) to let you know what is happening.

Page 67

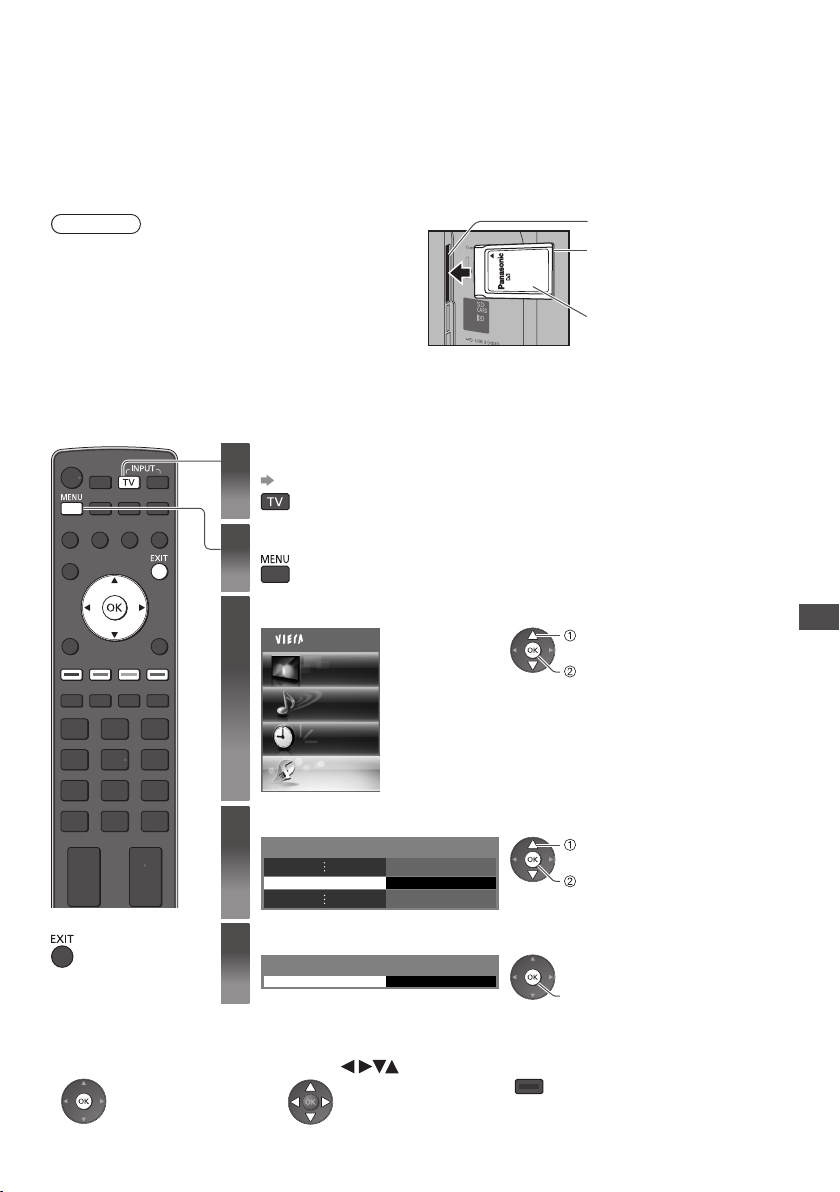

Using Common Interface

T he Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

T his function may not be available in some countries or regions.

•

V ideo and audio signals may not be output depending on broadcasts or services.

•

Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the approved CI module by the broadcaster. C onsult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

Turn Off Mains power On / Off switch whenever inserting or

•

removing the CI module. If a view card and a card reader come as a set, first insert the

•

card reader, then insert the view card into the card reader. I nsert the module in the correct direction.

•

Insert the CI module (optional)

T he features that appear on screen are dependent on the contents of the selected CI module.

•

N ormally encrypted channels will appear. Follow the on screen operation guide.

•

If encrypted channel does not appear, perform below. F or more details, see the manual of the CI module, or check with the broadcaster.

•

Select DVB-S, DVB-C or DVB-T

(p.19)

Display the menu

Select [Setup]

Main Menu


Sound

CI slot

I nsert or remove straightly and completely

CI module

Side of the TV

select

access

Using Common Interface

Timer

Setup

M odule inserted

■

To return to TV

Select [Common Interface]

C ommon Interface Access

Access Common Interface

Common Interface

Slot 1:

■ How to operate services by following the on screen operation guide

Example :

Select, go

•

O n screen operation guide may not correspond to the remote control buttons.

•

Symbol :

•

select

access

C oloured characters

•

Coloured button

Page 68

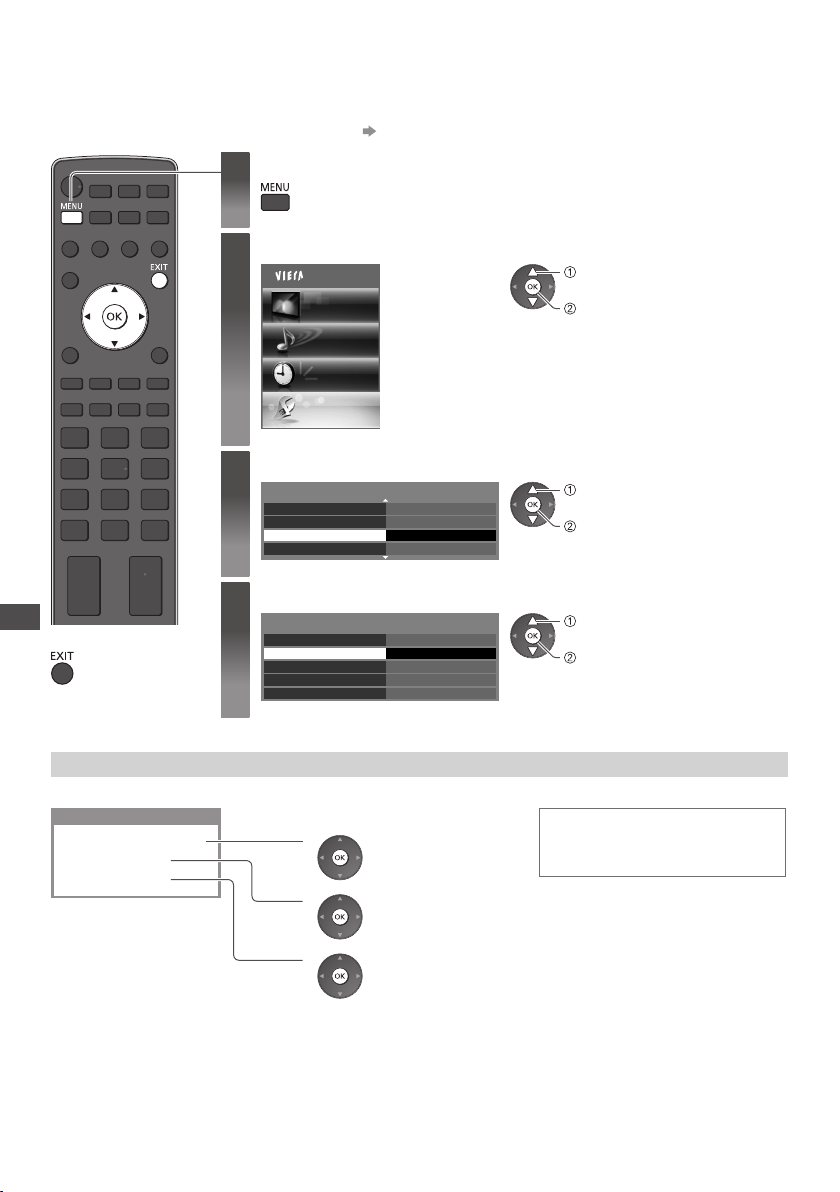

Shipping Condition

R esets the TV to its original condition, i.e. no channels tuned in. All settings other than [USB HDD Setup] are reset (channels, picture, sound settings, etc.).

T o retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p.50 - 53)

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

VOD

em Menu

ettings

em Update

Setup

Access Syst

E nglish(UK) Access

2/2

select

access

select

access

Shipping Condition

■

To return to TV

Select [System Menu]

DivX Advance(isfccc)

O ther S

Select [Shipping Condition]

System Menu

U SB Keyboard Layout

Shipping Condition

Syst L icence Menu System Information

Restore Settings [Shipping Condition]

Check the message and initialise 2 Follow the on screen instructions

Shipping Condition

All tuning data will be erased

Are you sure ?

(Confirm)

(Start [Shipping Condition])

Reset to Factory Shipping Condition

[Auto Setup] will automatically start

•

when Mains power On / Off switch is next turned On. (p.13)

Completed.

Please switch o TV.

Page 69

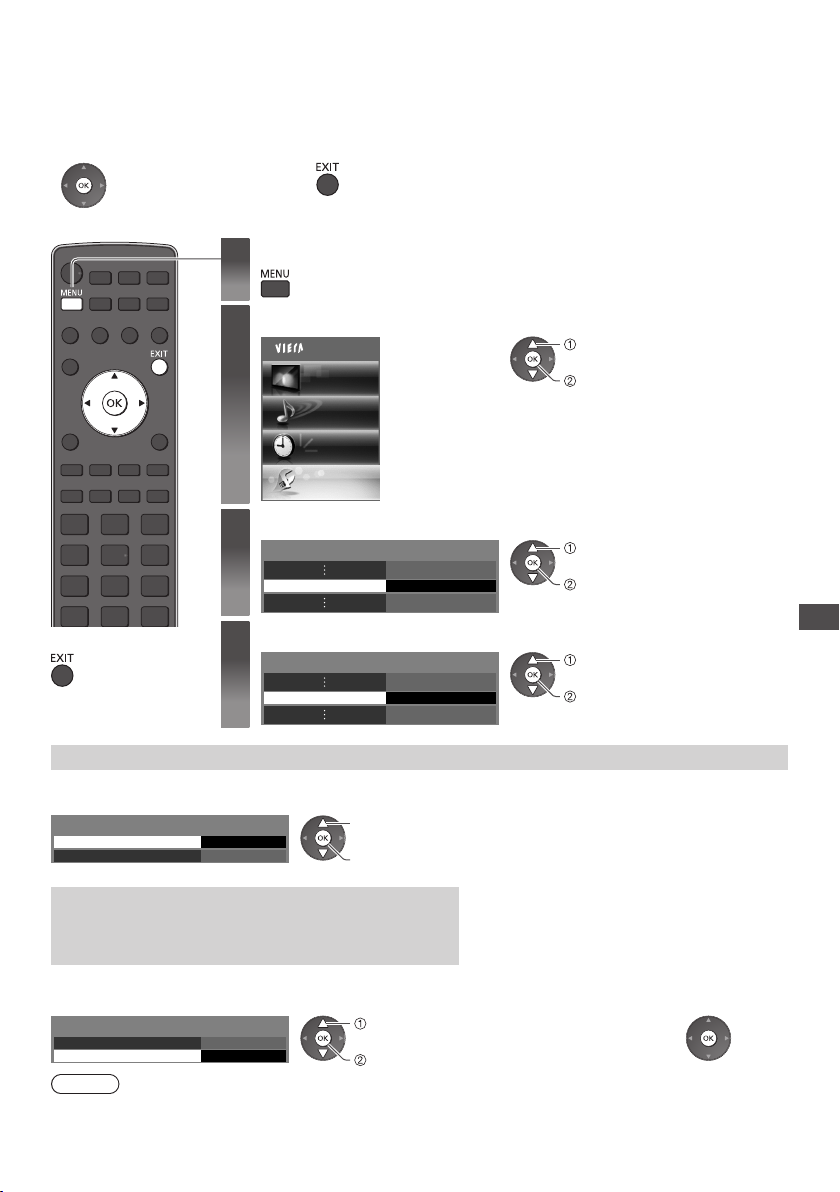

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV.

If there is an update available, a notification banner is displayed when the channel has the update information.

T o download

•

If you choose not to download

•

Y ou can update any new software automatically or update manually.

■

To return to TV

Display the menu

Select [Setup]

Main Menu


Sound

Timer

Setup

Select [System Menu]

System Menu Access

Select [System Update]

System Menu

System Update Access

select

access

select

access

select

access

Update TV’s software system [System Update]

■ To update automatically

Select [Auto Update Search in Standby]

System Update

Auto Update Search in Standby

Syst

em Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set [Auto Update Search in Standby] to [Off].

Off

select

access / store

Every time you set, the TV automatically performs a

•

search in standby and downloads an update, if any software updates are available.

T he automatic updating is performed under the

•

following conditions :

•

Standby (T V turned Off with the remote control)

•

R ecording of Timer Programming, Direct TV Recording or One Touch Recording is not in

progress

■ To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

Syst

em Update Search Now

Off Access

select

access

Note

D ownload may take for about 60 minutes.

•

During software download and update, DO NOT switch Off the TV.

•

T he message might be the notification beforehand. In this case, the schedule information (the date that the new version can

•

be used) will appear. You can set the reservation for update. The update will not start when the TV is set to Off.

several minutes) and displays a corresponding message if any

3 Download

Updating the TV Software

Page 70

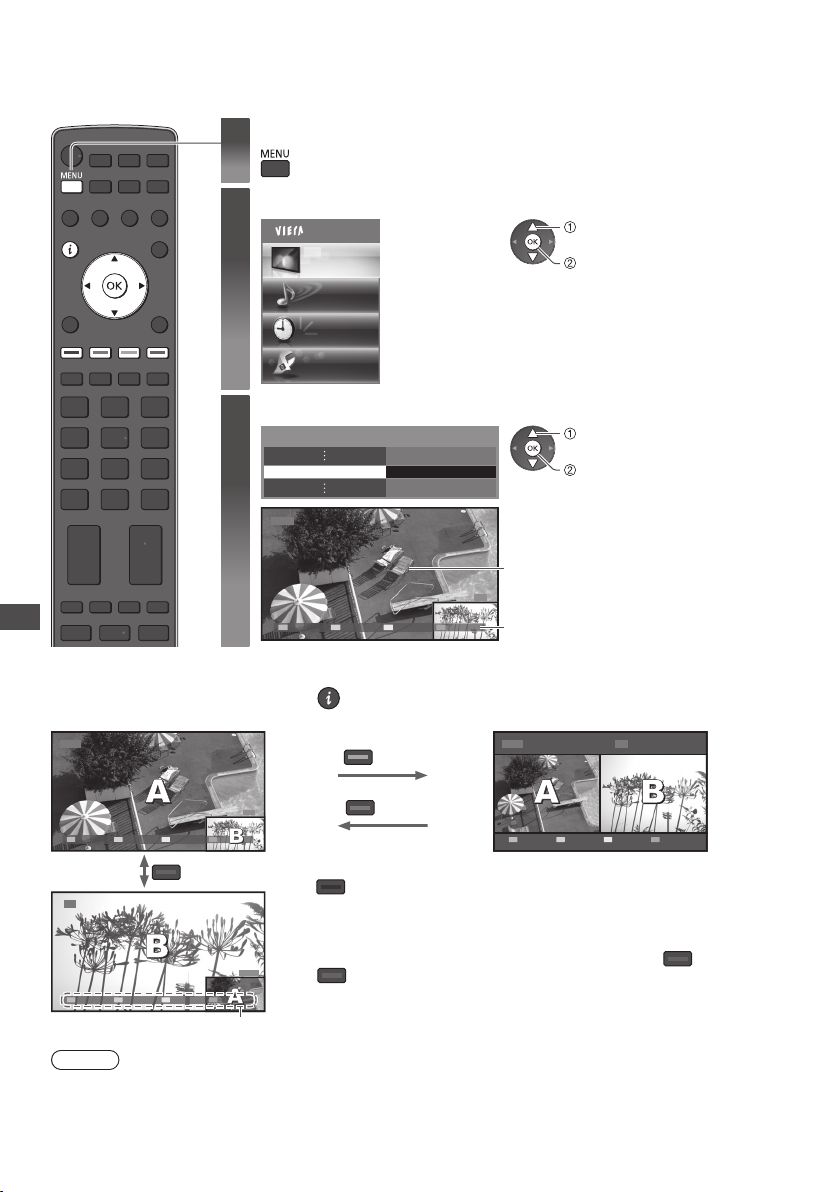

Multi Window

E njoy viewing the digital TV programme and external input (AV, COMPONENT or HDMI) at once.

Display the menu

Select [Picture]

Main Menu


Sound

Timer

select

access

Select [Picture in Picture]

P icture in Picture Access

1 DVB-T

Multi Window

Setup

select

access

R emote control operations apply to the main

•

screen.

M ain screen

AV1

EXIT

PandP Swap

Sub screen

■ How to operate in multi window

D isplay the colour bar if it is not displayed Picture-in-Picture mode [PinP] Picture-and-Picture mode [PandP]

1 DVB-T

AV1

PandP Swap EXIT

(blue)

1 DVB-T

PandP Swap EXIT

C olour bar

Note

E ach input mode can only be displayed either on main screen or sub screen.

•

T he sound comes from only the main screen in multi window.

•

Y ou cannot change the aspect ratio in multi window.

•

HDMI is available only for main screen.

•

Some signals are reformatted for suitable viewing on your display.

•

(yellow)

(green)

T o exit multi window

•

(red)

T o change the input mode or channel of sub screen

•

1 Swap sub screen

for main screen

(blue)

1 DVB-T AV1

EXIT PinP Swap

2 Change the input mode

or channel by the remote control (p.19, 28)

3 Swap again

(blue)

Page 71

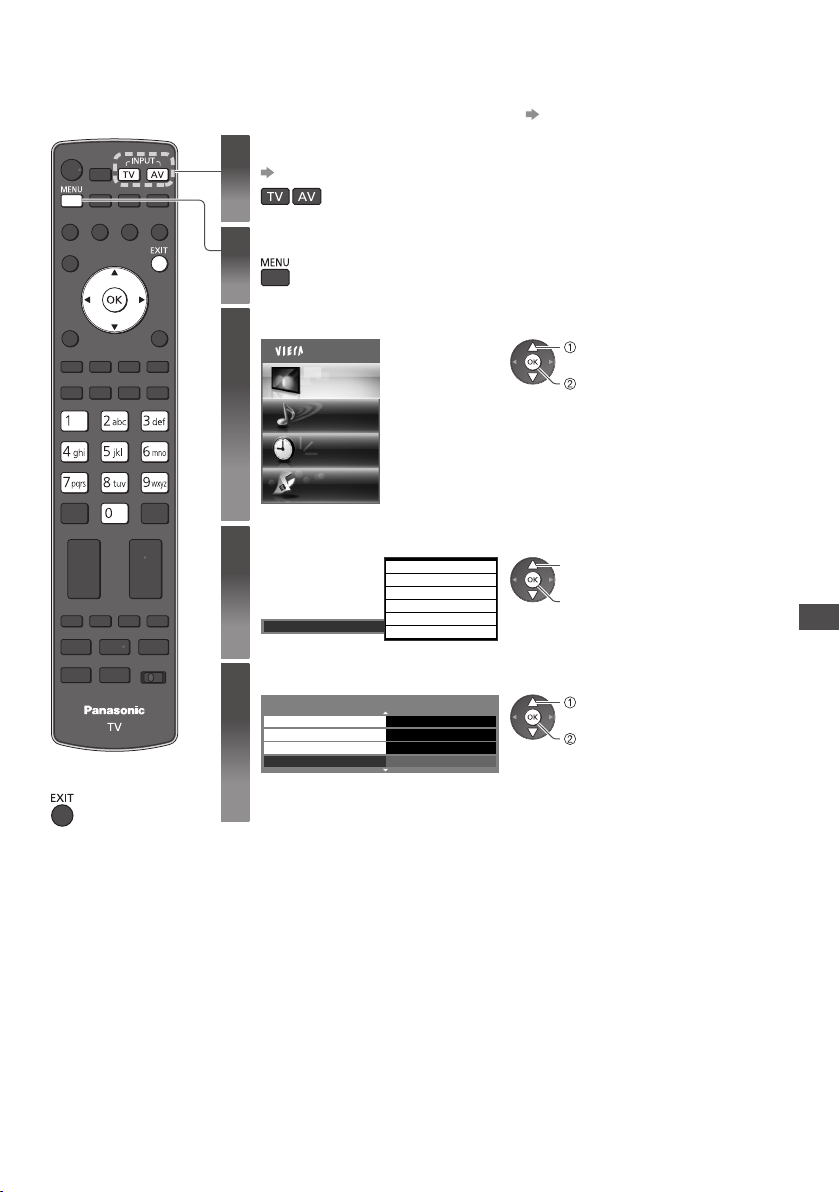

Advanced Picture Settings

Y ou can adjust and setup the detailed picture settings for each input and Viewing Mode.

T o use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu. (p.49)

•

Select the input mode to adjust and setup

(p.19, 28)

Display the menu

Select [Picture]

Main Menu


Sound

Timer

select

access

■

To return to TV

Select [Viewing Mode] and set the mode

V iewing Mode

Select one of the following functions

Advanced S L ock S C opy Adjustment

R eset to Defaults

Setup

ettings Access

ettings

Dynamic N ormal C inema True Cinema Professional1 Professional2

Access Access R eset

select

access / store

2/2

access

[Copy Adjustment] is available when

•

[Viewing Mode] in the Picture Menu is set to [Professional1] or [Professional2].

Advanced Picture Settings

select

Page 72

Adjust the detailed picture settings [Advanced Settings]

select

adjust

access / store

Advanced Settings

White Balance Access C olour Management G amma

Access Access

Advanced Picture Settings


Item Adjustments / Configurations (alternatives)

R-Gain Adjusts the white balance of bright red area

G-Gain Adjusts the white balance of bright green area

B-Gain Adjusts the white balance of bright blue area

R-Cutoff Adjusts the white balance of dark red area

White Balance

Cutoff Adjusts the white balance of dark green area

G-

B-Cutoff Adjusts the white balance of dark blue area

Adjusts more detailed White Balance items

[Input Signal Level] :

More Detailed Adjustment

Reset to Defaults Press the OK button to reset to the default White Balance

Advanced Settings

R-Hue Adjusts the picture hue of red area

G-Hue Adjusts the picture hue of green area

B-Hue Adjusts the picture hue of blue area

R-Saturation Adjusts the saturation of red area

G-Saturation Adjusts the saturation of green area

Colour Management

-Saturation Adjusts the saturation of blue area

R-Luminance Adjusts the luminance of red area

G-Luminance Adjusts the luminance of green area

B-Luminance Adjusts the luminance of blue area

More Detailed Adjustment

Reset to Defaults Press the OK button to reset to the default Colour Management

Adjusts the input signal level

[R-Gain] / [G-Gain] / [B-Gain] :

Adjusts the detailed whit

[Reset to Defaults] :

Press the OK button to reset to the default detailed White Balance

Adjusts more detailed Colour Management items

[Y-Hue] / [C-Hue] / [M-Hue] :

Adjusts the picture hue of yellow, cyan or magenta area

[Y-Saturation] / [C-Saturation] / [M-Saturation] :

Adjusts the saturation of yellow, cyan or magenta area

[Y-Luminance] / [C-Luminance] / [M-Luminance] :

Adjusts the luminance of yellow, cyan or magenta area

[Reset to Defaults] :

Press the OK button to reset to the default detailed Colour Management

e balance of bright red, green or blue area

Page 73

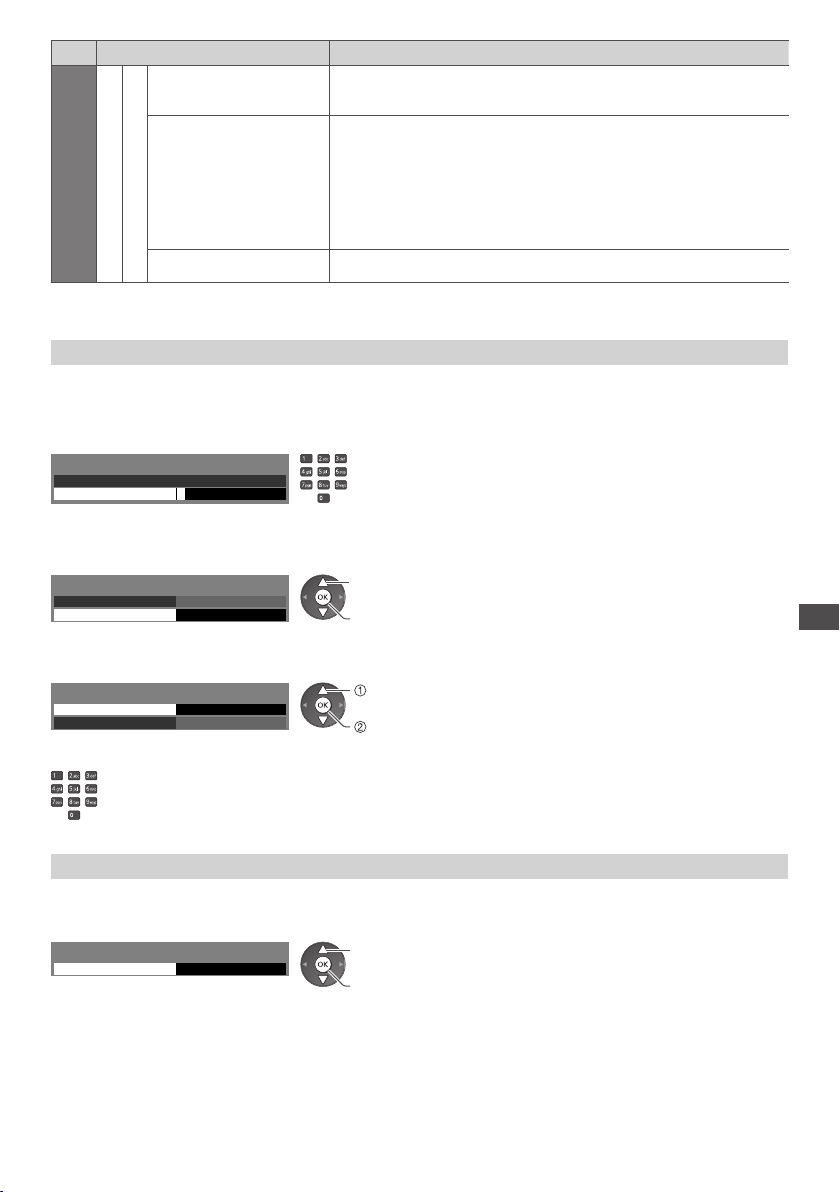

Advanced Settings


[Colour Management] is available when [Viewing Mode] in the Picture Menu is set to [Professional1] or [Professional2].

•

Gamma

Item Adjustments / Configurations (alternatives)

Gamma

More Detailed Adjustment

Reset to Defaults Press the OK button to reset to the default Gamma

Switches the gamma curve [S Curve] / [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

Please note the numerical values are reference for the adjustment.

•

Adjusts more detailed Gamma items

[Input Signal Level] :

Adjusts the input signal level

[Gain] :

Adjusts the gain of gamma for selected signal level

[Reset to Defaults] :

Press the OK button to reset to the default detailed Gamma

Lock the picture setting [Lock Settings]

Advanced Settings can be locked for each Viewing Mode and input. Additionally, [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Reset to Defaults] in the Picture Menu can be locked for [Professional1] and [Professional2].

1 Enter the PIN number (4 digits)

Lock Settings-PIN Entry

Please enter new PIN

* * * *

E nter the PIN number twice at first setting.

•

M ake a note of the PIN number in case you forget it.

•

2 Select [Adjustment Lock] and set to [On]

select

access / store

Lock Settings

C hange PIN

O n Adjustment Lock

■ To change the PIN number

1 . Select [Change PIN]

Lock Settings

C hange PIN

Adjustment Lock

2 . Enter a new PIN number twice

cess

O n

select

access

Advanced Picture Settings

Copy the settings to the other input [Copy Adjustment]

Y ou can copy the selected [Professional1] or [Professional2] settings to that of the other input. T he settings of [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Advanced Settings] will be copied.

Select the destination to copy to

Copy Adjustment

D estination All

select

access / store

Y ou cannot copy to the locked mode.

•

Page 74

USB HDD / SD Card Recording

Y ou can record the digital TV programmes to the connected USB HDD or inserted SD Card and enjoy playing back in various ways.

A nalogue TV programme cannot be recorded to the USB HDD / SD Card.

•

T he data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.

•

N ot all the programmes can be recorded depending on the broadcaster and service provider.

•

Y ou cannot copy the recorded contents.

•

F or more information of the USB HDD and the SD Card (p.118)

•

Caution

All data in the USB HDD / SD Card will be erased in the following cases :

•

When formatting the USB HDD / SD Card with this TV

•

When formatting the USB HDD / SD Card to use on PC

When the TV is repaired due to a malfunction, you may have to format the USB HDD / SD Card again with this TV to use it. (All

•

data will be erased when formatting.) I n order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools

•

may be necessary to format on your PC. For details, refer to the manual of the USB HDD.) Y ou may use the SD Card with other equipment after recording with this TV. However, you have to format again with this TV

•

for recording after using with the equipment. T he data recorded to the USB HDD / SD Card with this TV can only be played back on this TV. You cannot play back its

•

contents with another TV (including the TV of the same model number) or any equipment. D o not turn the TV off, disconnect the USB HDD or remove the SD Card during operation (formatting, recording, etc.). It may

•

cause malfunction of the device or damage the recorded data.

Preparation for USB HDD / SD Card

■ USB HDD

C onnect the USB HDD to the USB 3 port.

B e sure to connect the USB HDD to the socket outlet.

•

T o remove the USB HDD safely from the TV (p.21, 76)

•

socket outlet

USB HDD / SD Card Recording

U SB cable

“Setting for USB HDD / SD Card” (p. 75)

U SB HDD

■ SD Card

SD Card with a capacity of over 512 MB is available for recording with this TV.

•

T o record for a long time, a high capacity SD Card is necessary. F or more information “Devices for recording or playing back” (p. 118) T o confirm the approximate recording time “Recording time for the USB HDD / SD Card Recording” (p. 119)

•

E nsure the write-protection switch (on the left side of the SD Card) is unlocked. Otherwise, the recording and playback are

•

not available.

Gently insert the SD Card label surface facing front.

Push until a click is heard

Cutout

Page 75

Setting for USB HDD / SD Card

F ormat and setup the USB HDD / SD Card with this TV in order to use it for recording.

B efore the settings, connect the USB HDD / SD Card (p. 74) and be sure to turn on the USB HDD.

•

Prepare a new SD Card. Otherwise, you need to format the SD Card with this TV. (When formatting the SD Card, all data in it

•

will be erased.) Prepare the USB HDD / SD Card for the exclusive use of recording with this TV.

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Formatting

Information

Setup

Access 180 minutes Off

Access SD Card

access

T o check the information of the inserted SD

•

Card [SD Card Information]

■

To return to TV

Select [Recording Setup]

R ecording Setup Access

Select [USB HDD Setup] or [SD Card Formatting]

and set

Recording Setup

U SB HDD Setup

O ne Touch Recording REW LIVE D efault REC Mode DR

SD Card

Setup the USB HDD [USB HDD Setup]

All the USB devices recognised as a mass storage device will be listed.

Y ou can only choose one USB HDD for recording at a time.

•

Y ou cannot change the settings for the USB HDD while recording is in progress.

•

Please note that USB HDD will be formatted and all data in it will be erased when you format it.

•

1 Select the USB HDD for recording and start setup

USB HDD Setup

Product N ame

USB Drive A

USB Flash Disk

select

access

Some USB HDD may not be displayed.

•

F or the information of the highlighted device

•

2 Caution and confirmation of using USB HDD

Select [Yes] to proceed

USB HDD Formatting

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the USB

HDD may not be available with your repaired TV.

Continue?

Yes N o

select [Yes]

set

USB HDD Formatting

To use this device for recording,

it must be formatted rst.

Yes N o

select [Yes]

set

USB HDD Formatting

Continue?

select

This device will be formatted and

all contents deleted.

Are you sure?

Yes N o

select [Yes]

set

USB HDD / SD Card Recording

Page 76

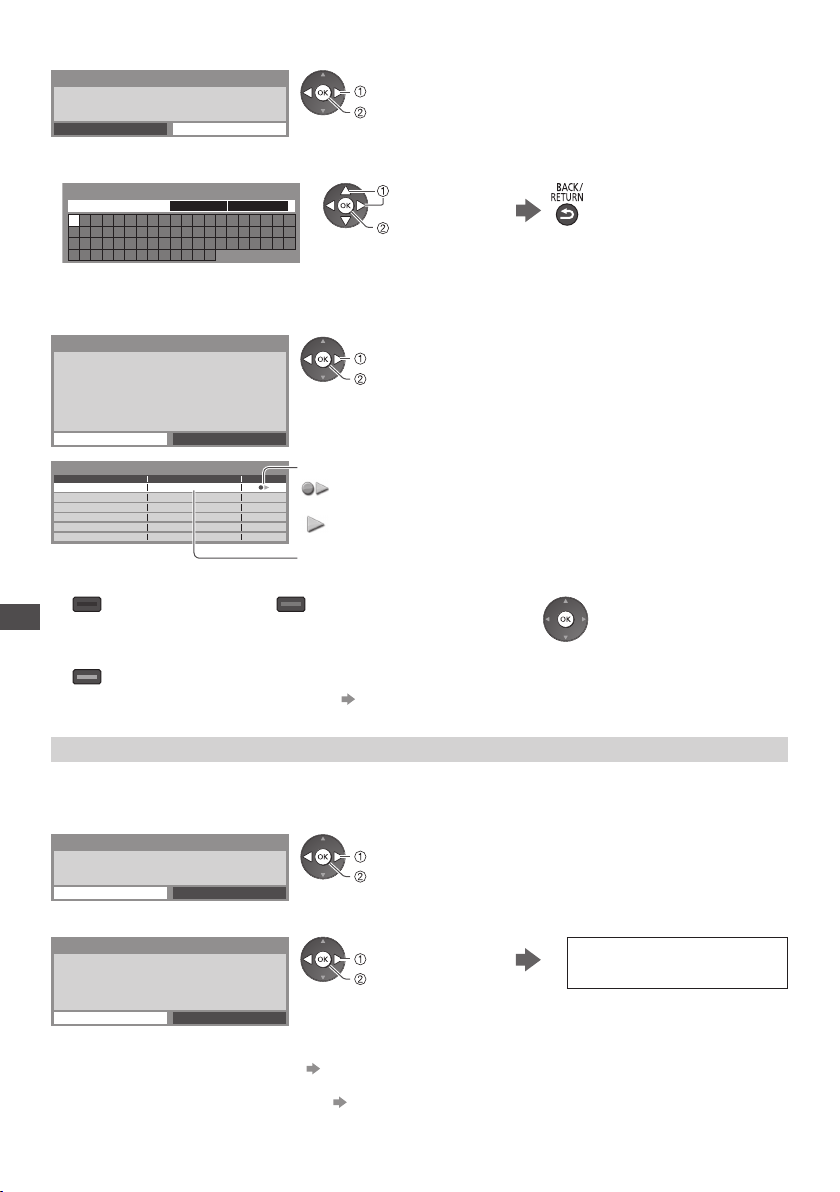

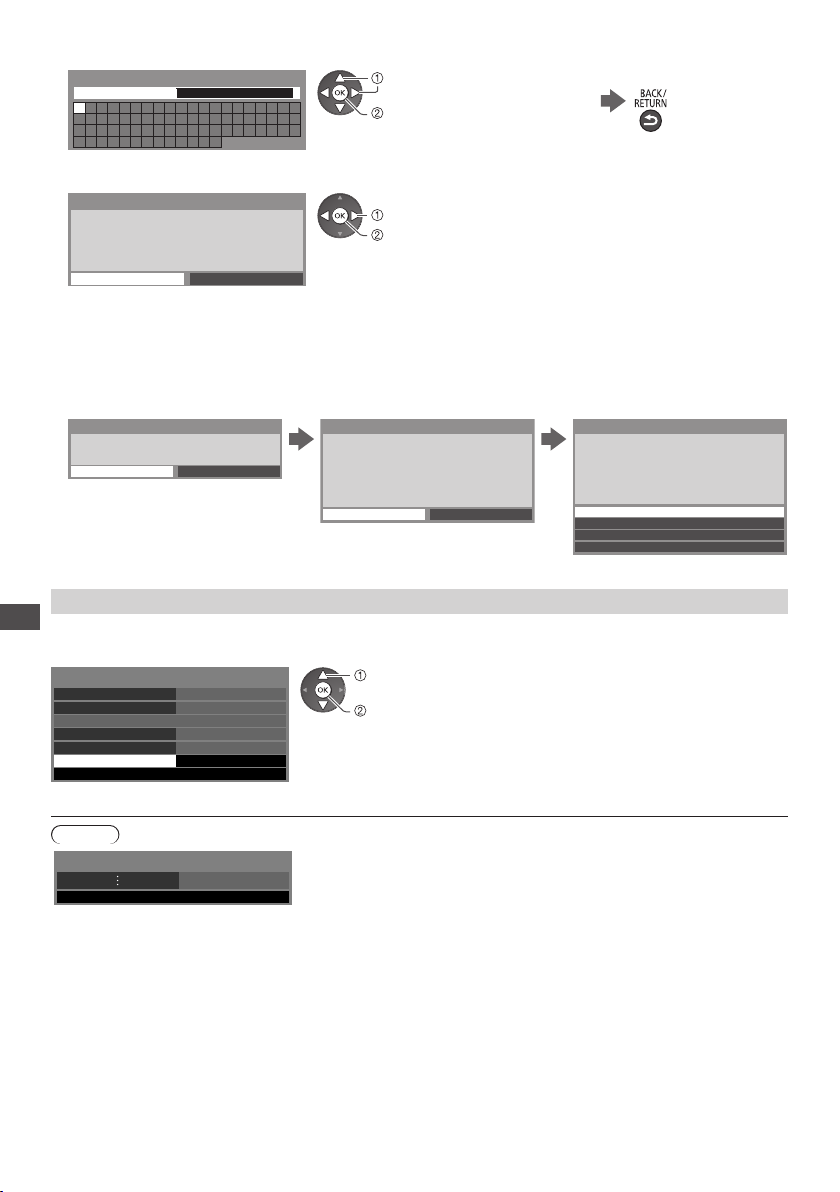

3 Confirmation of USB HDD name

USB HDD Formatting

N ame :

USB Drive A

Edit name?

Y es N o

The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].

Set characters Store

USB HDD

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

USB HDD 1

select

set

select

set

Y ou can set characters by using numeric buttons.

•

4 Confirmation to enable USB HDD for recording

If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Formatting

USB HDD Setup

Do you want to enable this

device now for recording?

When disconnecting any USB device,

always use the "Safely Remove USB" function

in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

Y es N o

Product N ame

USB Drive A

USB Flash Disk

USB HDD 1

T o format

•

(red) (green)

USB HDD / SD Card Recording

T o remove the USB HDD safely from the TV

•

(yellow)

T o set “ Safely remove USB” in other conditions (p. 21)

•

select [Yes]

set

M ode

T he USB HDD is available for recording / playing back.

O nly one USB HDD on the list can be available for recording. T he USB HDD is available for playing back.

U SB HDD name is displayed

T o edit USB HDD name

•

T o change the mode

•

SD Card Formatting

F ormats the inserted SD Card for recording with this TV.

Please note that all data in the SD Card will be erased after formatting.

•

1 Confirmation of formatting SD Card

SD Card Formatting

Y es N o

F ormat SD card.

Are you sure?

set

2 Caution of using SD Card

SD Card Formatting

Your SD card must be formatted before TV recordings

can be made. All data stored on the SD card will be

deleted during formatting. Continue?

Y es N o

If the formatting has failed,

•

E nsure the SD Card is inserted correctly. (p. 74)

•

E nsure the write-protection switch is unlocked.

•

C heck your SD Card is suitable for recording. (p. 118)

set

select [Yes]

SD formatting will start

Page 77

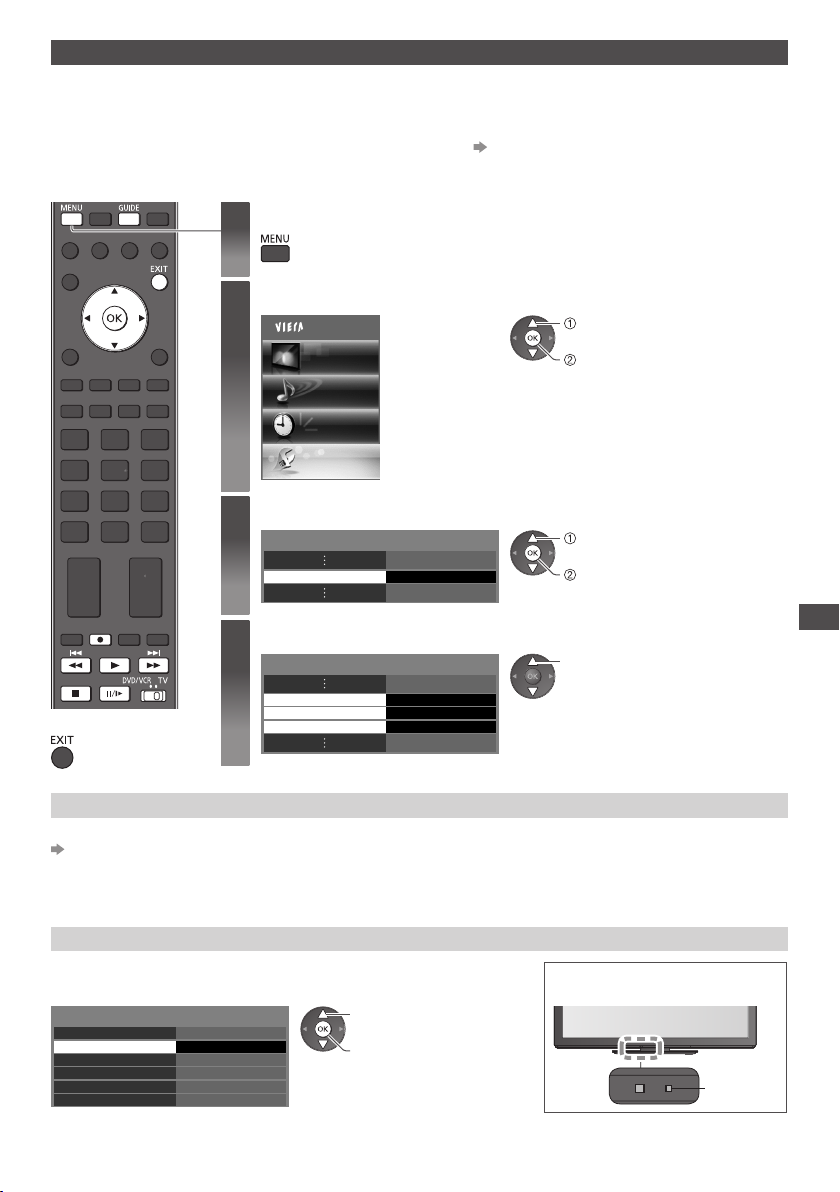

Recording the TV programme to USB HDD / SD Card

Y ou can record the current programme immediately by using [One Touch Recording]. Y ou can also record the current programme constantly for the selected period by using [REW LIVE TV] so that you can go back or pause the current programme.

[REW LIVE TV] is available only with USB HDD.

•

E nsure the connection and setup are completed before start recording (p.74 - 76)

•

D o not turn the TV off, disconnect the USB HDD or remove the SD Card during recording.

•

If the remaining capacity of the USB HDD / SD Card is run out, the recording cannot be done.

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Select [Recording Setup]

Setup

select

R ecording Setup Access

Select [One Touch Recording] or [REW LIVE TV]

Recording Setup

■

To return to TV

O ne Touch Recording REW LIVE TV D efault REC Mode DR

180 minutes Off

Default REC Mode

Y ou can select default recording mode for [One Touch Recording].

“Recording time for the USB HDD / SD Card Recording” (p. 119) [DR] : Direct recording (normal mode) [LT1] : Long time recording [LT2] : Extra long time recording

One touch direct TV recording - What you see is What you record [One Touch Recording]

R ecording the current programme in the USB HDD or the SD Card immediately.

Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes)

select

access / store

Recording Setup

U SB HDD Setup

O ne Touch Recording

REW LIVE

TV D efault REC Mode DR SD Card Formatting SD Card Information

180 minutes Off

access

select

LED will turn to orange (flash) while One Touch Recording is in progress.

USB HDD / SD Card Recording

LED

Page 78

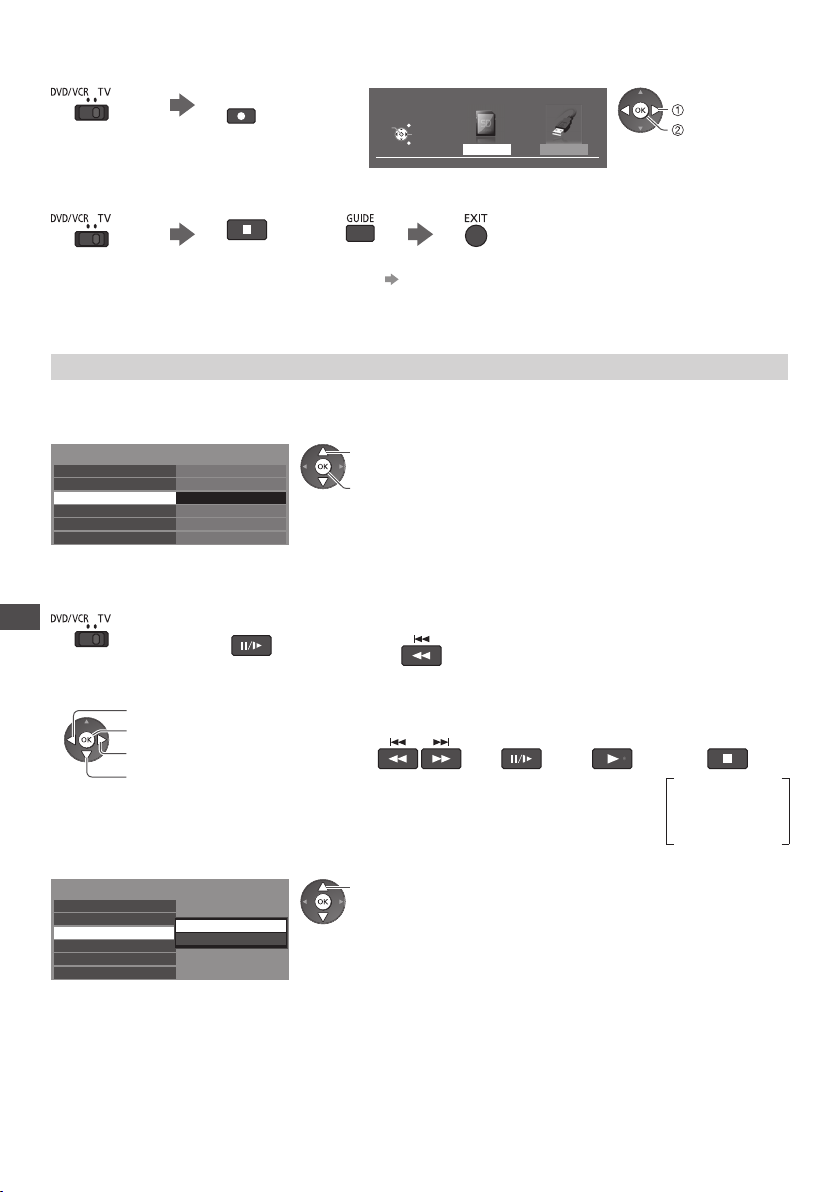

■ To start One Touch Recording

Set the position to “TV”

N o other channel can be selected while the

•

recording is in progress.

Start

■ When both USB HDD and SD Card are available

Select the recording device

Please select recording device

EXIT

Select RETURN

SD Card

USB HDD1

set

select

■ To stop recording on the way

■ To play back or delete the recorded contents “Recorded TV mode” (p.88)

Even if One Touch Recording is in progress, you can play back all the contents. (Depending on the USB HDD / SD Card, it may

•

not be available or the recording may not work properly while playback.)

Record constantly [REW LIVE TV]

(USB HDD only)

R ecording the current programme constantly.

Select [Auto] to start REW LIVE TV

Recording Setup

U SB HDD Setup O ne Touch Recording

REW LIVE

D efault REC Mode SD Card Formatting SD Card Information

180 minutes Auto DR

select

access / store

When you select [Auto], the recording will start automatically.

•

If the other recording is in progress, TV signal condition is bad or when any images

•

are not displayed, this recording will not start.

■ To operate the REW LIVE TV

Set the position to “TV”

USB HDD / SD Card Recording

After pausing or searching backward, the following buttons are available to operate.

•

search backward

playback / pause

search forward

stop (stops the current operation and goes back to live TV)

T o pause

•

T o search backward (up to 90 minutes)

•

(Press and hold)

search backward /

forward

(Press and hold)

pause /

playback

playback stop

stops the current

■ To stop the REW LIVE TV

Recording Setup

U SB HDD Setup O ne Touch Recording

REW LIVE

D efault REC Mode SD Card

Formatting

SD Card Information

REW LIVE TV will be stopped and the recorded content deleted automatically in the following conditions :

•

(Even if REW LIVE TV stops for the following conditions, as long as the setting is [Auto], the new recording will start automatically in a condition that makes the recording available.)

•

selected other channels

•

selected locked channel

•

selected invalid channel

Off

Auto

select [Off ]

If you stop the REW LIVE TV, the recorded content for the REW LIVE TV will be

•

deleted.

•

signal

no TV

•

w hen the other recording starts

•

w hen the TV

is turned off or standby

operation and

goes back to

liveTV

Page 79

Using Media Player

M edia Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the exclusive recording devices (USB HDD / SD Card VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

P hoto mode : Still pictures recorded by digital cameras will be displayed. V ideo mode : (For SD Card R ecorded TV mode :

Music mode : D igital music data will be played back.

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.45). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 104) and set to use theatre speakers (p. 111). [Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is

•

shown “**/**/****”. T he picture may not appear correctly on this TV depending on the recording equipment used.

•

D isplay may take some time when there are many files and folders.

•

P artly degraded files might be displayed at a reduced resolution.

•

P icture setting may not work depending on the conditions.

•

T he folder and file names may be different depending on the digital camera or digital video camera used.

•

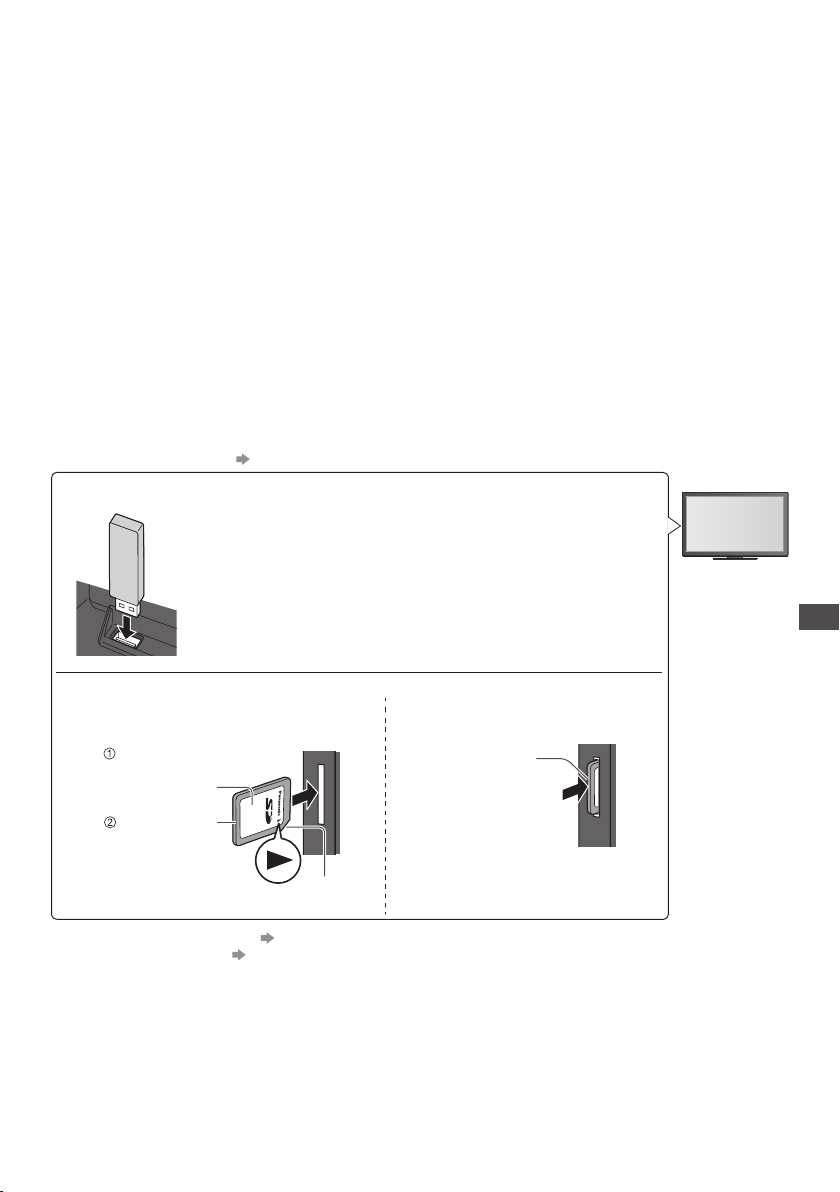

To insert or remove the SD Card / USB Flash Memory

F or the USB HDD Connection (p.74)

•

or USB Flash Memory) Moving pictures recorded by digital video cameras will be played back. (For exclusive USB HDD / SD Card) TV programmes recorded in the USB HDD / SD Card with this TV will be played back.

■ USB Flash Memory

I nsert or remove straightly and completely.

•

B efore removing the USB Flash Memory, ensure to perform “Safely remove

•

USB” (p.21). C onnect to the USB 1, 2 or 3 port.

•

■ SD Card

To insert the SD Card To remove the SD Card

Gently insert the

SD Card label surface

facing front.

Push until a click

F or the information of the devices “Devices for recording or playing back” (p.118)

•

F or the supported file format “Supported file format in Media Player and media servers” (p. 116, 117)

•

is heard

Cutout

Push the centre of

the card

Using Media Player

Page 80

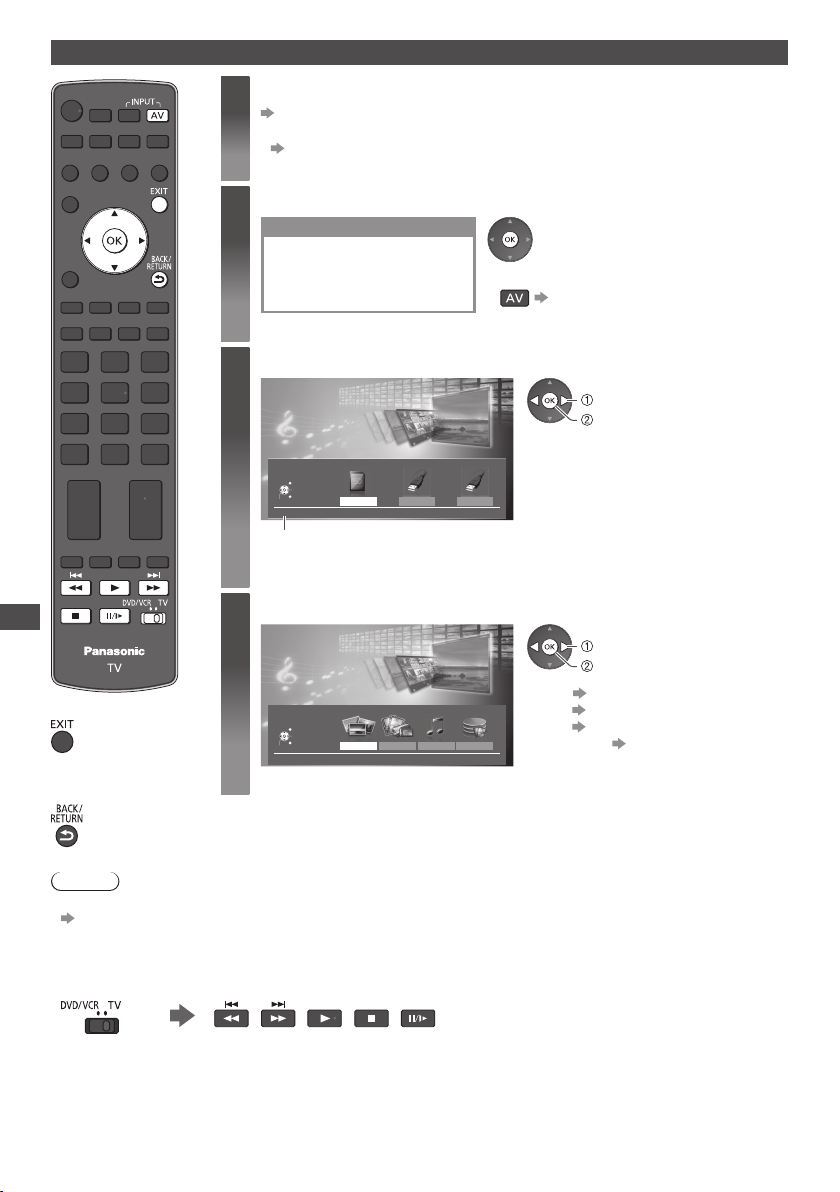

Starting Media Player

Using Media Player

■

To return to TV

■

To return to the previous screen

Insert the SD Card or USB Flash Memory to the TV

(p. 79)

T o play back contents in the USB HDD, check the connection and settings are completed.

•

(p. 74, 75)

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

Select the device you want to access to

M edia Player

Drive Select

EXIT Select RETURN

SD Card

Access

SD Card

Selected device name

Select the content

M edia Player

C ontents Select

EXIT Select RETURN

Access

SD Card

USB HDD1 USB Flash...

P hoto V ideo Music

Also possible by pressing following button.

•

“Watching External Inputs” (p.28)

select

access

If two or more devices are not connected,

•

this step will be skipped.

select

access

[Photo]  “Photo mode” (p.81) [Video]  “Video mode” (p.86) [Music]  “Music mode” (p.90)

R ecorded TV

[Recorded TV ] 

“Recorded TV mode” (p.88)

Note

Y ou can also access each mode directly by using VIERA TOOLS.

•

“How to Use VIERA TOOLS” (p. 39)

[Recorded TV ] is available for contents recorded with this TV on the USB HDD / SD Card.

•

Select the appropriate device and content for playing back each file.

•

Y ou can use the following buttons during playback.

•

Set the position to “TV”

Page 81

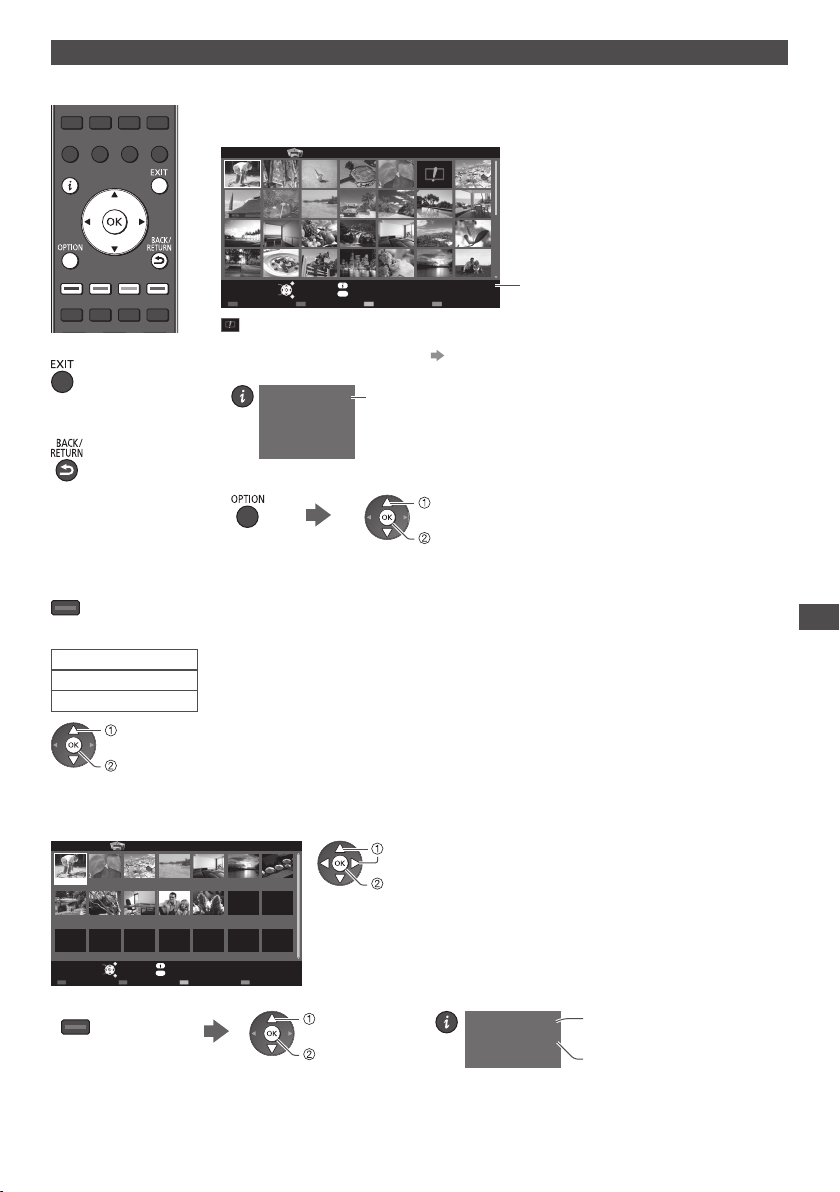

Photo mode

P hoto mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory.

T he thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [All photos]

Media Player Photo

All photos

SD Card

select [Change Size]

change

Selected device name

■

To return to TV

■

To return to the previous screen

V iew

Select

Slideshow View Select Drive Select C ontents Select

: Error display

T o change the back ground music “Photo Settings” (p.83)

•

T o display the information of the highlighted photo

•

F ile name

D ate

P ixel

T o change the size of photos on a thumbnail screen

•

EXIT RETURN


23/10/2010

1600X1200

I nfo

OPTION

O ption Menu

1/48

F ile number / Total file number

■ To sort by folder, recorded date or recorded month

1 Display the view selection

(green)

2 Select the sort type

F older view

Sort by Date

Sort by Month

select

access

3 Select one of the sorted groups to display the thumbnail of the selected group

Media Player Photo

23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010

24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010

[Folder view] :

D isplays the thumbnail grouped by folder

T he files which are not into a folder will be collected to the folder named “/”.

•

[Sort by Date] :

D isplays the thumbnail grouped by the same date

T he group of the photos without recorded date is shown as [Unknown].

•

[Sort by Month] :

D isplays the thumbnail grouped by the same month

T he group of the photos without recorded date is shown as [Unknown].

•

Sort by Date

select

thumbnail of the selected group

Using Media Player

Access

Select RETURN

Slideshow View Select C ontents Select

T o return to the thumbnail of all photos

•

(green)

I nfo

EXIT

OPTION

O ption Menu

Drive Select

SD Card

select

[All photos]

access

T o display the information of the highlighted group

•

F older name

Number of files

23/10/2010

Group number /

1/12

Total group number

F older name, date or month

Page 82

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example :

Single view

EXIT Select RETURN

Stop

O peration guide

Single view

R otate

T o display / hide the operation

•

guide

T o return to thumbnail

•

T o operate Single view

•

T o rotate 90°

•

T o the previous photo

Slideshow

T o the next photo

Stop (return to thumbnail)

(blue)

[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.

1 Select the file from the thumbnail of photos

for the first view

select

T o display / hide the operation guide

•

T o pause (return to Single view)

•

2 Start Slideshow

(red)

T o return to thumbnail

•

Multi Shot 3D

T his TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.

T his TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.

•

T his function is available with photos recorded by digital cameras.

Using Media Player

•

D epending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not be

•

possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take another photo (for R).

T o view the created 3D photo with 3D effect, you need the 3D Eyewear “Standard accessories” (p.6)

•

1 Display the option menu in the thumbnail view

2 Select [Multi Shot 3D]

Option Menu

Slideshow Settings

Multi Shot 3D

C hange Size

3 Select two photos for L (left) and R (right)

I nfo

OPTION

O ption Menu

Multi Shot 3D

Media Player Photo

V iew

EXIT RETURN

Select

L R

All photos

SD Card

select

access

select

Y ou can only select photos of the same recorded date and same pixels.

•

Y ou may not be able to view the created 3D photo properly if you select

•

the photos for L and R oppositely.

set

(red)

Page 83

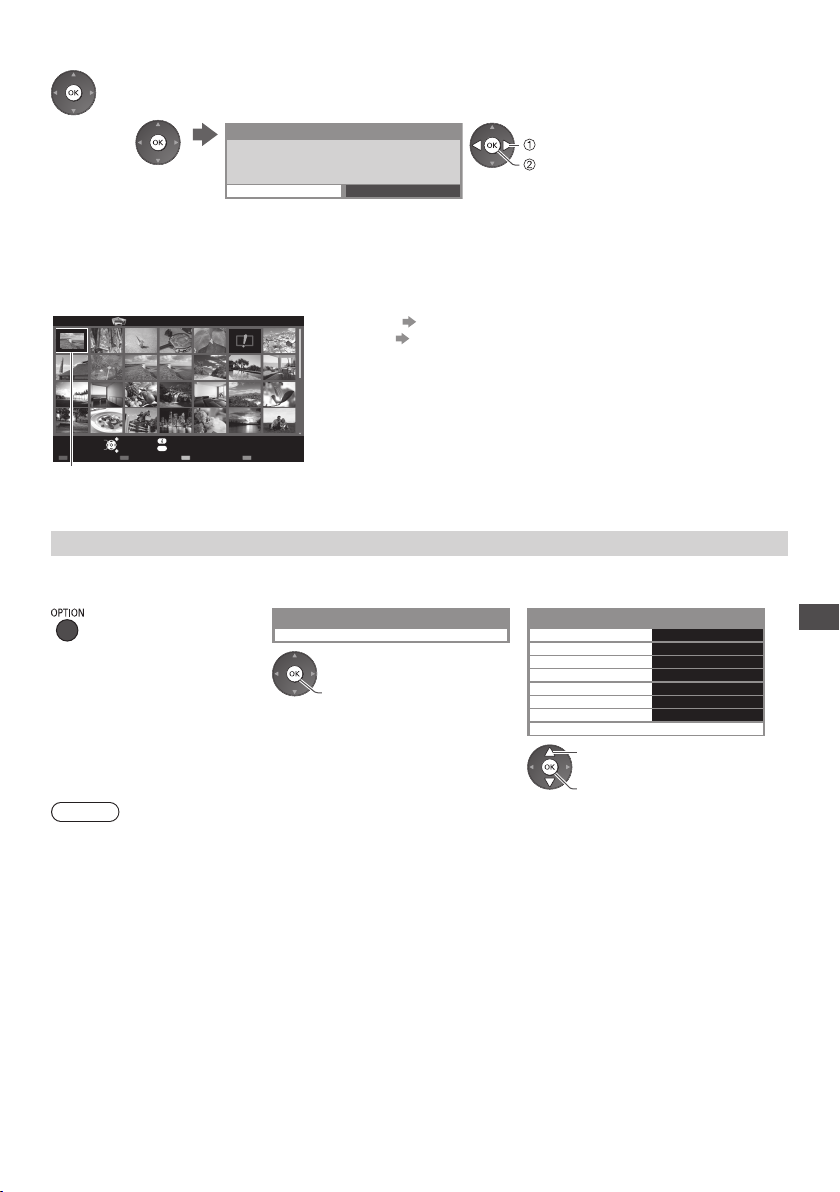

4 Create the 3D photo

If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to

•

the photo selection screen (step 3). T o save the 3D photo in the SD Card

•

The 3D image will be saved onto your media.

After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to create another 3D photo or exit from [Multi Shot 3D] mode.

■ To enjoy the saved 3D photos

Y ou can enjoy viewing the saved 3D photos.

Example : Thumbnail

Media Player Photo

All photos

Continue?

N o Y es

Single view (p.82)

•

Slideshow (p.82)

•

select [Yes]

save

Access

Select RETURN

Slideshow View Select C ontents Select

I nfo

EXIT

OPTION

O ption Menu

Drive Select

SD Card

Saved 3D photo

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set

Option Menu

Slideshow Settings

access

Note

P icture quality may become lower depending on the slideshow settings.

•

P icture setting may not work depending on the slideshow settings.

•

Slideshow Settings

Frame Off C olour Effect Transition Effect Screen Mode Burst Playback I nterval R epeat B ack Ground Music

select

access / store

Off F ade N ormal Off 5 seconds O n

Using Media Player

Page 84

Frame

Colour Effect

Slideshow Settings

Transition Effect

Using Media Player

Screen Mode

Burst Playback

Interval

Repeat Slideshow repeat [Off] / [On]

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow

[Off ] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi] :

9 photos are displayed orderly at once.

[Collage] :

E ach photo is displayed at a random position and random scale.

[Drift (+ calendar)] / [Drift] :

P hotos are displayed like flow images.

Y ou can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Gallery (+ calendar)] / [Gallery] :

T he various sizes of photos in the frame are displayed.

Y ou can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Cinema] :

P hotos are displayed like old films (sepia tone)

Selects the colour effect of phot

[Off] / [Sepia] / [Gray scale]

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade] : T he next photo fades in gradually.

: T he next photo slides and appears from the left side.

[Slide] [Dissolve] : E ach photo is dissolved when switching to the next photo. [Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or

[Random] : Each transition is selected at random.

•

Selects whether enlarged or normal viewing on Single view and Slideshow

[Normal] / [Zoom]

•

Selects whether to display burst photos in a fast-paced slideshow mode [Off] / [On]

•

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

•

moving down.

T his function is available when [Frame] is set to [Off].

T his function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema]. T his function is not available when [Transition Effect] is set to [Motion]. D epending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema]. T his function is not available when [Transition Effect] is set to [Motion].

os on Single view and Slideshow

Page 85

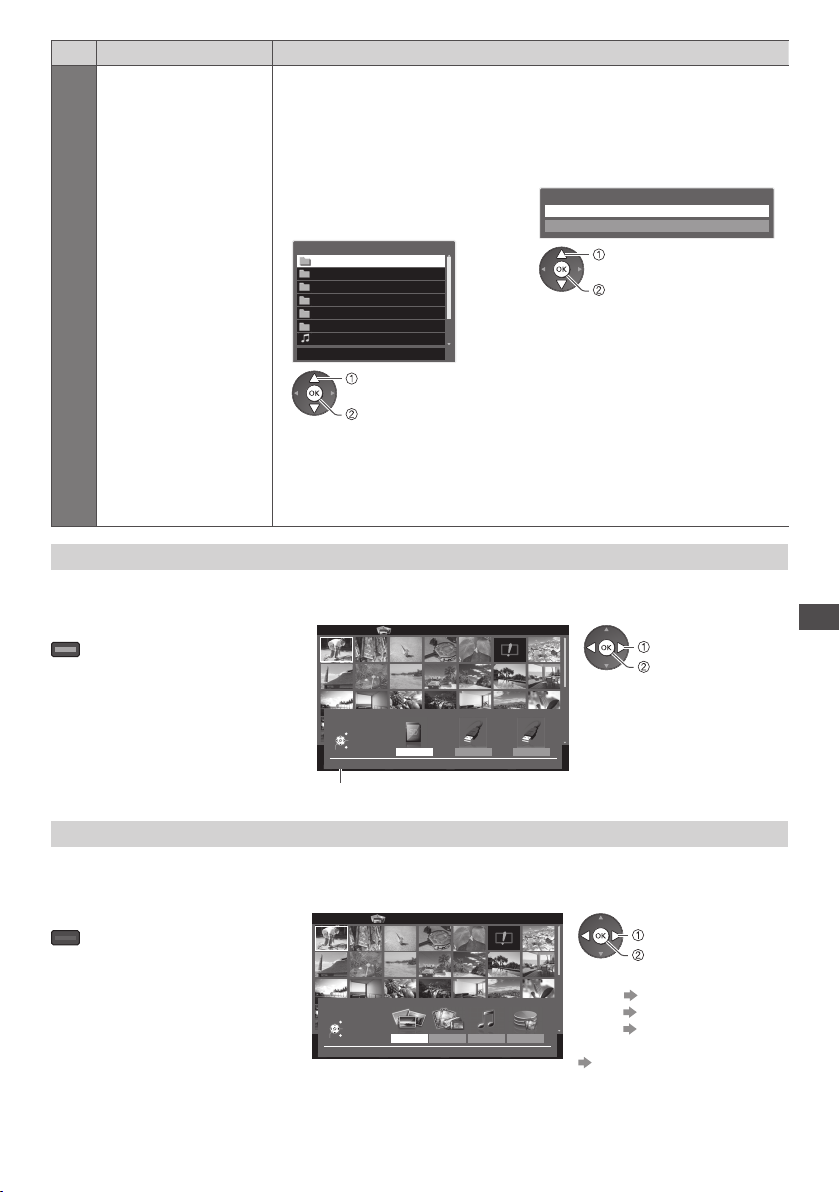

Item Adjustments / Configurations (alternatives)

Selects the back ground music during Photo mode

[Off ] / [Type1] / [Type2] / [Type3] / [User] / [Auto]

[Type1], [Type2] and [Type3] are the fixed music each installed in this TV.

•

[User] : Music data in the device registered by yourself will be played back.

To register the music

Slideshow Settings

Back Ground Music

1. Select the music file

D epending on the condition of the device, select folders until you reach the desired music file.

Back Ground Music

PRIVATE

DCIM MISC 001photo 002photo 003music 01 song.mp3

Type1

select

access

If no music has been registered or the device which has the registered music is

•

removed, no sound will be produced.

2. Select [File] or [Folder]

F ile

F older

select

set

[File] : T he selected music file will be

registered as back ground music.

[Folder] : All the music in the folder which

contains the selected music file will be registered as back ground music.

[Auto] : Music data stored in the root folder of the current device will be played back

randomly.

If there is no available music data, no sound will be produced.

•

Change the device

Y ou can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

(yellow)

2 Select the device you want to access to

Media Player Photo

All photos

select

access

Using Media Player

Drive Select

EXIT Select RETURN

V iew

EXIT

I nfo

SD Card

Access

Select RETURN

SD Card

Slideshow View Select Drive Select C ontents Select

OPTION

USB HDD1 USB Flash...

Selected device name

Change the contents

Y ou can switch to the other mode of Media Player from the thumbnail view.

T he mode can be switched in the current device.

•

1 While the thumbnail is displayed,

display the contents selection

(blue)

2 Select the contents

Media Player Photo

C ontents Select

EXIT Select RETURN

V iew

EXIT

I nfo

Select RETURN

P hoto V ideo Music

OPTION

Access

SD Card

Slideshow View Select Drive Select C ontents Select

All photos

Recorded TV

SD Card

select

access

“Photo mode” (p.81)

[Photo] [Video] “Video mode” (p.86) [Music]

SD Card

“Music mode” (p.90)

[Recorded TV ]

“Recorded TV mode” (p.88)

Page 86

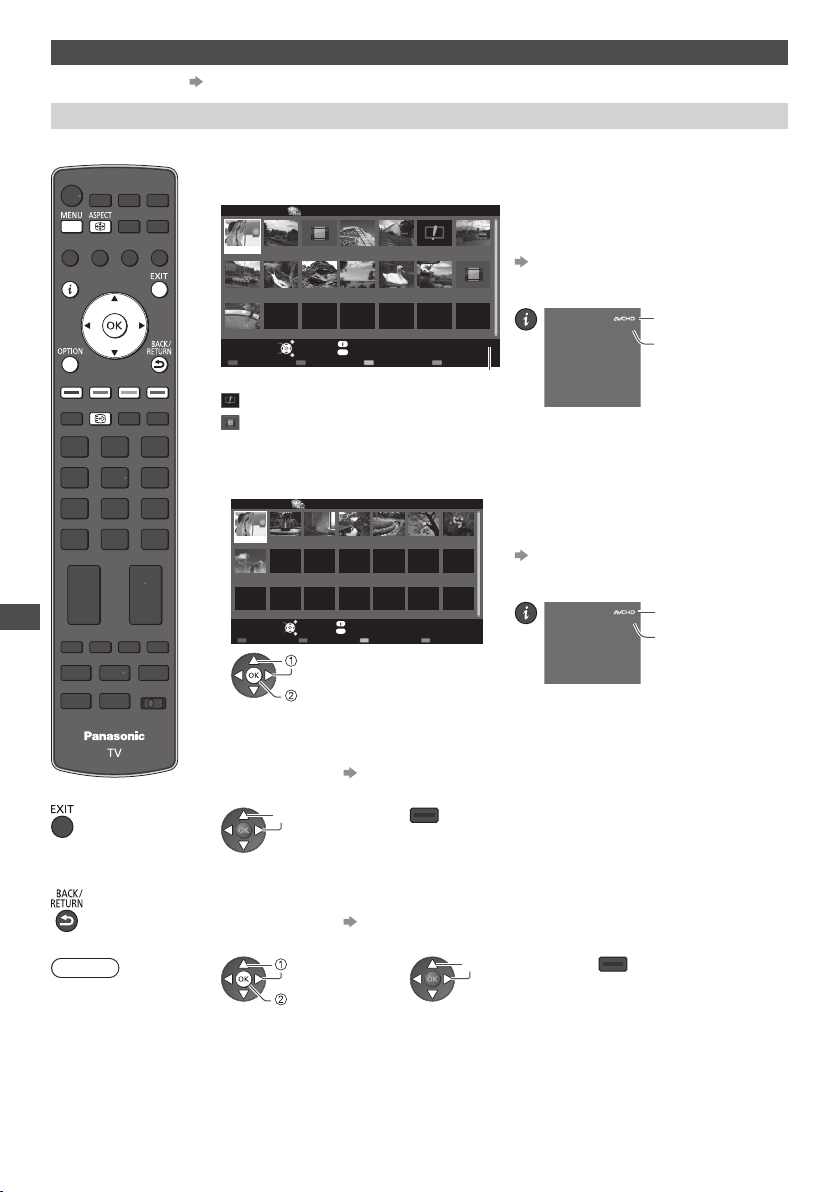

Video and Recorded TV mode

Supported file format (p.116)

•

Video mode

(For SD Card or USB Flash Memory)

T he thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Title view]

Media Player Video

Trip1 Trip2Trip3Trip4Trip5RoomNature1

2010_9

Play Contents Select

: Error display

: T he file does not support thumbnail view.

T o view the scenes of the title

•

Select the title

Example : Thumbnail - [Scene view]

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Using Media Player

Play

Nature3Nature4Nature5Nature6

Access

Select

Play

Select RETURN

EXIT RETURN

EXIT

OPTIONOPTION

OPTION

I nfo O ption Menu

select

access

Title view

2010_4 2010_7Nature2

Drive Select

SD Card

Selected device name

Title view > Trip1

SD Card

Drive Select

C ontents Select

T he preview will start when the title is highlighted if it supports a preview.

T o turn off the preview

•

 “Video Setup” (p.87) T o display the information of the highlighted

•

title

F ile format

19/02/2010 11:21

00h15m39s

1/15

Trip1

T itle number / Total title number

T itle

D ate & Time

Number of scenes

Duration

T he preview will start when the scene is highlighted if it supports a preview.

T o turn off the preview

•

“Video Setup” (p.87)

T o display the information of the highlighted

•

scene

F ile format

Scene

D ate & Time

Duration

Trip1_1

19/02/2010 11:21

00h04m12s

1/8

Scene number / Total scene number

■

To return to TV

■

To return to the previous screen

Note

T he structure of titles

•

and scenes may vary depending on the digital video camera used.

■ Playback from Title view

Playback of the selected title will start.

T o repeat playback “Video Setup” (p.87)

•

1 Select the title 2 Start playback

select

(red)

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback will start from the selected scene to the end of the title.

T o repeat playback “Video Setup” (p.87)

•

1 Select the title 2 Select the scene 3 Start playback

select

access

select

(red)

Page 87

■ How to operate in the playback

Example : Playback

SD 19/02/2010 11:21 00:15:39

EXIT

RETURN

O peration guide

00:02:05

I nformation banner

T o display / hide the operation guide and

•

information banner

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

■ To change the device “Change the device” (p.85)

■ To change the content in the current device “Change the contents” (p.85)

■ Video Setup

Setup the settings for Video mode.

1 Display the option menu

in the thumbnail view

Item Adjustments / Configurations (alternatives)

Video Setup

Video Preview

2 Select [Video Setup] 3 Select the items and set

Option Menu

V ideo Setup

access

Sets to start the preview of the title or scene in the thumbnail view [Off ] / [On]

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off]

•

to resolve this.

T o change aspect

•

T o the previous title /

•

scene

T o the next title / scene

•

T o return to thumbnail

•

Video Setup Menu

V ideo Preview O n R epeat

select

access / store

(red)

(green)

Off

Using Media Player

Repeat Playback repeat within the title or selected file (depending on the content) [Off] / [On]

■ Confirm or change the current status

Y ou can confirm or change the current status of the content.

M enu items and selectable options vary depending on the content.

•

1 Display the option menu

during playback

Video Setup

Item Adjustments / Configurations (alternatives)

Multi Audio

Aspect Change

2 Select [Video Setup] 3 Select the items and set

Option Menu

V ideo Setup

access

Allows you to select between selectable sound tracks (if available)

I t may take several seconds to change the sound.

•

[Aspect1] : Displays the content enlarged without distortion [Aspect2] : D isplays the content full-screen [Original] : Displays the content original size

Y ou can also change the aspect using the ASPECT button.

•

A spect change may not work depending on the content.

•

Video Setup Menu

Multi Audio Stereo A spect Change

R epeat

select

access / store

A spect1 Off

Page 88

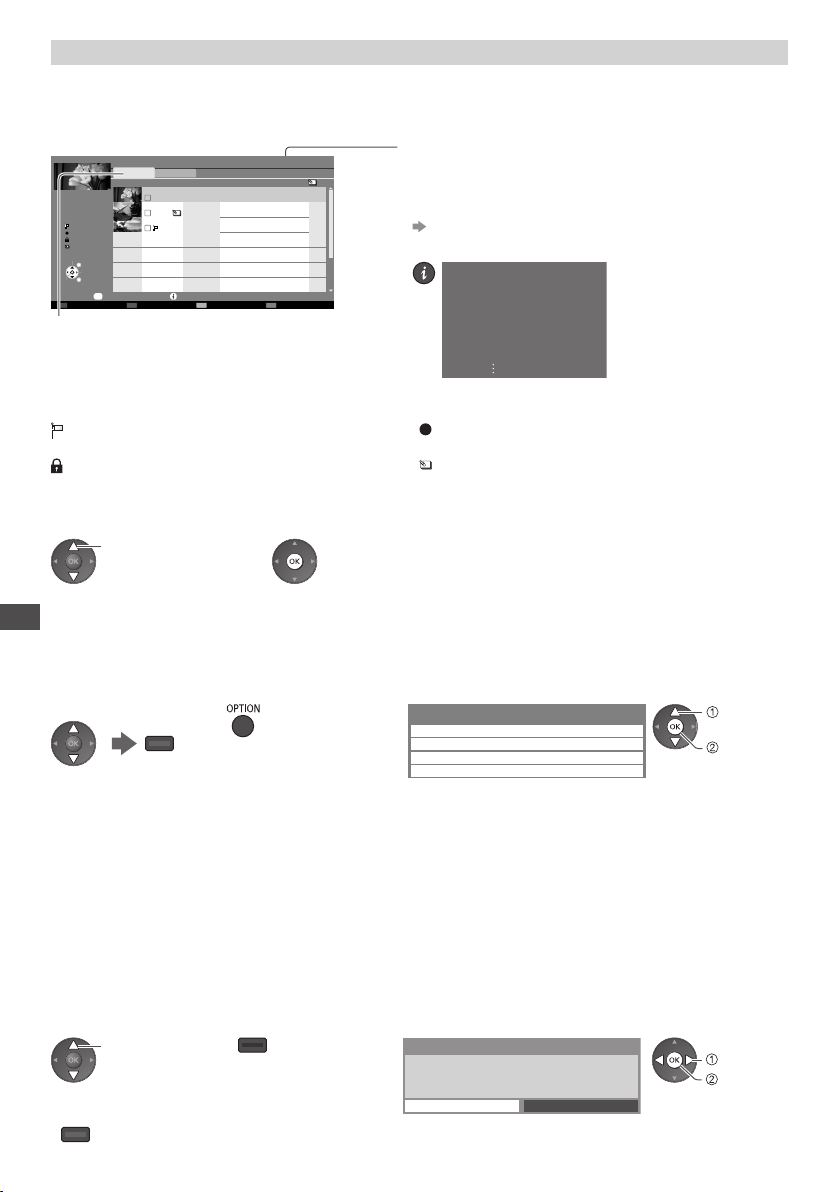

Recorded TV mode

(For exclusive USB HDD / SD Card)

C ontents list of the selected device will be displayed.

F or the SD Card, ensure the write-protection switch (on the left side of the SD Card) is unlocked to play back.

•

Example : Contents list

Duration

Not V iewed Recording now Protected Grouped

Select

Play

Delete

EXIT Select

RETURN

00:20

OPTION

Media Player

Option Menu

All

R ecorded T

N ot Viewed

C hannel Title D ate

BBC 1

ITV

BBC 2

R emaining Capacity 500GB (50%)

Das Erste

T hu 28/10

12:00

M on 10/1

News

13:30

t 15/1

Cinema

13:50

Info

Chapter List Select

[All] : All the recorded contents are listed. [Not Viewed] (USB HDD only) : C ontents not played back are listed.

USB HDD 1

R emaining capacity of the selected device (This value may not be accurate depending on the condition.)

Y ou can also access the contents list directly by using VIERA

•

TOOLS.

 “How to Use VIERA TOOLS” (p.39)

T o display the information of the highlighted content

•

- Channel DVB-T, BBC 1

- Title Das Erste

- Date & Time T hu 28/10/2010 12:00

- Duration 00:20

(USB HDD only)

: C ontent not played back (Once you play back the

content, this icon will disappear.)

: Protected content cannot be deleted.

: C ontent under recording (You can play back this cont ent

even if under recording.)

: Two or more contents are grouped.

■ Playback the content from the list

1 Select the content

select

Using Media Player

2 Start playback

If you stopped the last playback on the way, the confirmation screen asking

•

whether you wish to start from the last stopped part or beginning will be displayed. Select your desired option. (USB HDD only) If the content has multiple programmes with the different parental ratings,

•

the highest restriction is valid for the content. Once you unlock the restriction, all the programmes in the content can be played back.

■ To edit recording content (USB HDD only)

1 Select and tick the

content to edit

(blue)

[Create Group] : Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group]. [Release Group] : Select the created group you want to release, and then select [Release Group]. (To release several g desired groups.) [Exclude from Group] : Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the group, select it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.) [Change Protect Status] : Select the content you want to protect to delete, and then select [Change Protect Status]. Perform the same way to cancel the protection. (To change the status of several contents at once, tick all the desired contents.)

2 Display the option menu 3 Select the item and edit

Option Menu

Create Group R elease Group Exclude from Group C hange Protect Status

roups at once, tick all the

■ Delete the selected content

1 Select the content 2 Delete the content 3 Confirm

Delete

Are you sure you want to delete?

N o Y es

T o select two or more

•

contents

select

(blue)

(red)

select

edit

select

set

Page 89

■ How to operate in the playback

Example : Playback

Das ErsteUSB00:15:39

M anual skip

EXIT

RETURN

O peration guide

T o repeat between the starting point “A” and finishing point “B”

•

Set “A” and “B” in order

(blue)

T o change aspect

•

T o confirm or change the current status (if available)

•

“Display the selectable settings for the current status” (p.21)

00:02:05

Chapter List A-B repeat

I nformation banner

•

T he points will be reset by pressing this button again or other operations.

T o display / hide the operation guide

•

and information banner

T o operate the playback

•

T o display the subtitle (if available)

•

Rewind

[Manual skip]

Press to skip forward about 30 seconds

•

Press and hold to skip backward about 15 seconds

•

Pause / Playback

F ast forward

Stop

■ Chapter List (USB HDD only)

Y ou can start playback from the chapter list you select.

T he chapter list is not displayed while the selected content is being recorded.

•

T o play back from the chapter list

(yellow)

T o return to list

•

T o the previous / next chapter

•

(red) / (green)

•

A recorded content is automatically divided into chapters (about five minutes for each).

select

playback

Using Media Player

C hapter List

00:00:00 00:05:00

Note

D epending on the recorded programmes, some playback operations may not work properly.

•

■ Change the device

Y ou can change to the other device directly in the same mode if two or more devices are connected.

1 Display the

option menu

2 Select [Drive Select]

Option Menu

Create Group R elease Group

Drive Select

C ont

ents Select

C hange Protect Status

select

access

3 Select the device you want to access to

Drive Select

EXIT Select RETURN

SD Card

USB HDD1 USB Flash...

select [Contents Select]

access

Access

U SB HDD1

If you select the device to play back photos, videos or music, change to the appropriate content.

T o change the content

•

select

access

Page 90

Audio output Settings

Y ou can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

T o confirm or change the current sound status “Confirm or change the current status” (p.87)

•

1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set

Main Menu

access


Sound

Timer

select

etup

SPDIF Selection

R eset to Defaults

select

access / store

Auto R eset

2/2

Sound

SPDIF Selection

Music mode

Supported file format (p.116)

•

Using Media Player

■

To return to TV

■

To return to the previous screen

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream.

DTS is output as DTS. MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

T he thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Folder view]

Media Player Music

My Music_1 My Music_2 My Music_3

Access

Select

Play Folder Contents Select

T o display the information of the highlighted folder

•

F older name

Number of files

EXIT RETURN

My Music_1

I nfo

OPTION

O ption Menu

Drive Select

1/3

F older number / Total folder number

Folder view

SD Card

Selected device name

■ Playback from Folder view

All the files in the selected folder will be played back.

1 Select the folder 2 Start playback

select

(red)

Page 91

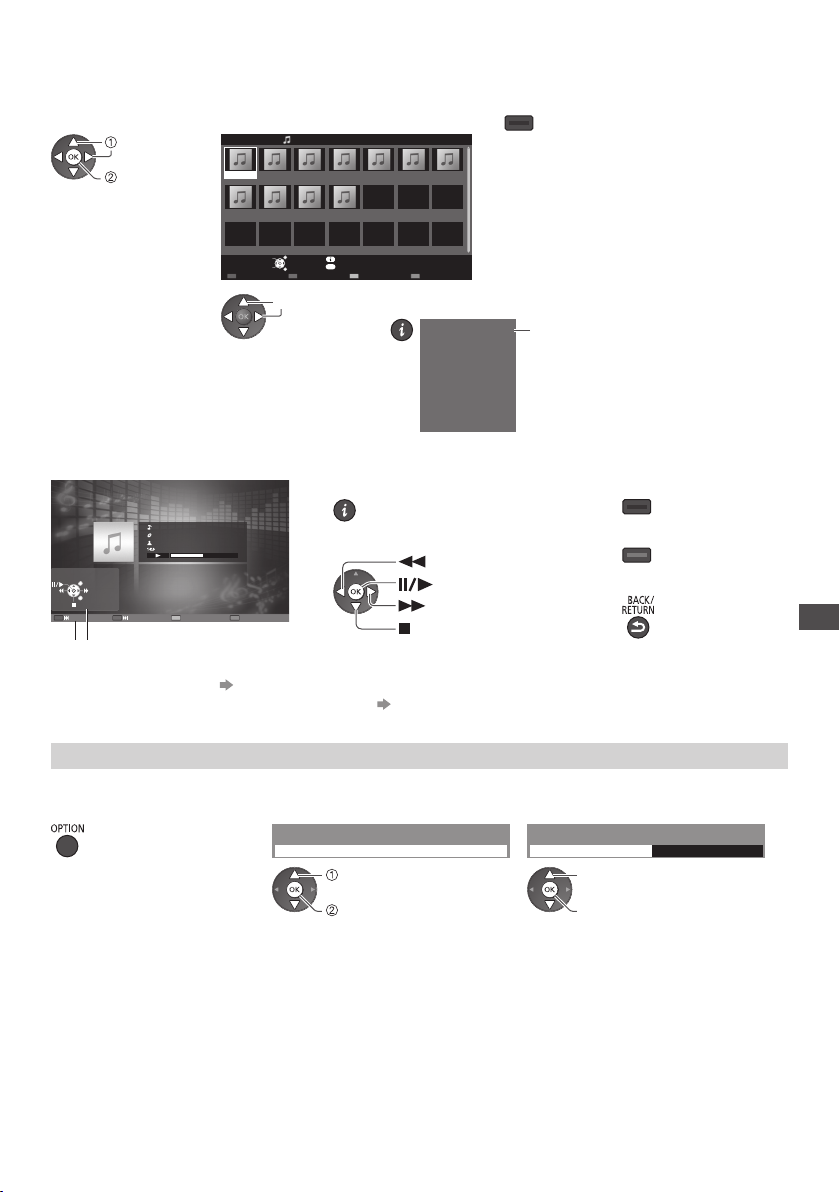

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

Example : Thumbnail - File view

select

access

Media Player Music

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_9 My Song_10 My Song_11My Song_8

Folder view > My Music_1

(red)

Play

Select RETURN

Play Folder

EXIT

select

I nfo

OPTION

O ption Menu

Drive Select

•

SD Card

C ontents Select

T o display the information of the highlighted file

1/11

T itle

My Song_1

Album

My Music_1

Artist

My Favourite

Track No.

Duration

00h03m29s

F ile number / Total file number

■ How to operate in the playback

Example : Playback

EXIT

RETURN

O peration guide

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

T o display / hide the operation guide

•

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

■ To change the device “Change the device” (p.85)

■ To change the content in the current device “Change the contents” (p.85)

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu 2 Select [Music Setup] 3 Set

Option Menu

Music Setup

select

Music Setup Menu

R epeat O ne

T o the previous track

•

(red)

T o the next track

•

(green)

T o return to thumbnail

•

select

Using Media Player

access

access / store

[Folder] : Playback repeat within the

selected folder

[One] : Playback repeat of the selected

one file

Page 92

Using Network Services (DLNA / VIERA Connect)

DLNA®

T his TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. I t allows you to share phot PC with windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy the contents on the TV screen. I t also allows you to control the TV with the DLNA Certified equipment connected to your home network. (DLNA Remote Control)

F or the supported file format (p. 116, 117)

•

AVCHD and DivX files are not supported by DLNA functions of this TV, but can be played by Media Player (p. 79).

•

■ Media server

Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “ Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server

software that has been tested for compatibility with this TV (current as of January, 2011). Any other server software have not been tested with this TV, therefore compatibility and performance cannot be assured.

Windows 7

•

T he setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7. TwonkyMedia server

•

“TwonkyMedia server” is the product of PacketVideo Corporation. T o obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia. Additional fees may be charged to obtain server software.

Note

F or more information about the server software, please consult each software company.

•

When server software for the media server is installed on the PC, the data may be at risk of being accessed by other

•

people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router.

Using Network Services (DLNA / VIERA Connect)

To use a DLNA compatible DIGA Recorder as a media server

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.

Please refer to the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.

•

■ DLNA Remote Control

Y ou can control the TV with the DLNA Certified equipment.

T o use this function, set the [Network Link Settings] (p. 94)

•

“ Windows 7” is the OS that has been tested for compatibility of this TV (current as of January, 2011). For the operations,

•

refer to the help functions of Windows 7.

os, videos (including 3D images) and music stored in the DLNA Certified media server (for example,

Network connection

Network setup

DLNA operations

 “Example 1” or “Example 2” in “Network connections” (p. 93)

(p. 94 - 98)

(p. 99 - 102)

VIERA Connect

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.

T his TV has no full browser function and all features of websites may not be available.

•

Network connection

Network setup

VIERA Connect operations

 “Example 1” or “Example 3” in “Network connections” (p. 93)

(p. 94 - 98)

(p. 18, 102)

Page 93

Network connections

T o use only DLNA features, you can operate the features without broadband network environment. T o use VIERA Connect features, you need a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on

•

this TV. Read the manual of the equipment. R equired speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is

•

not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Wireless connection

Access point

Wireless LAN Adaptor and Extension cable

“Standard accessories” (p. 6)

C onnect to the USB 1 or 2 port.

•

Wired connection

LAN cable

E nsure to use a LAN straight cable for this connection.

•

If your modem has no broadband router functions, use a broadband router.

•

If your modem has broadband router functions but there are no vacant ports, use a hub.

•

E nsure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

•

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

•

M odem

Hub or Router

Internet

DLNA Certified mediaserver (for example, PC, DIGARecorder, etc.)

Example 2

(For DLNA)

Y ou can connect the TV and the equipment directly to use DLNA features.

DLNA Certified mediaserver

LAN cable

(for example, PC, DIGARecorder, etc.)

Using Network Services (DLNA / VIERA Connect)

E nsure to use a LAN cross cable for this connection.

•

Example 3

(For VIERA Connect)

Y ou can connect the TV and the telecommunication equipment directly to use VIERA Connect features.

LAN cable

Note

C ontact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network

•

equipment. C onfirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company.

•

Depending on the contracts, additional fees may be charged or multiple connections to the int

Internet

ernet may be impossible.

Page 94

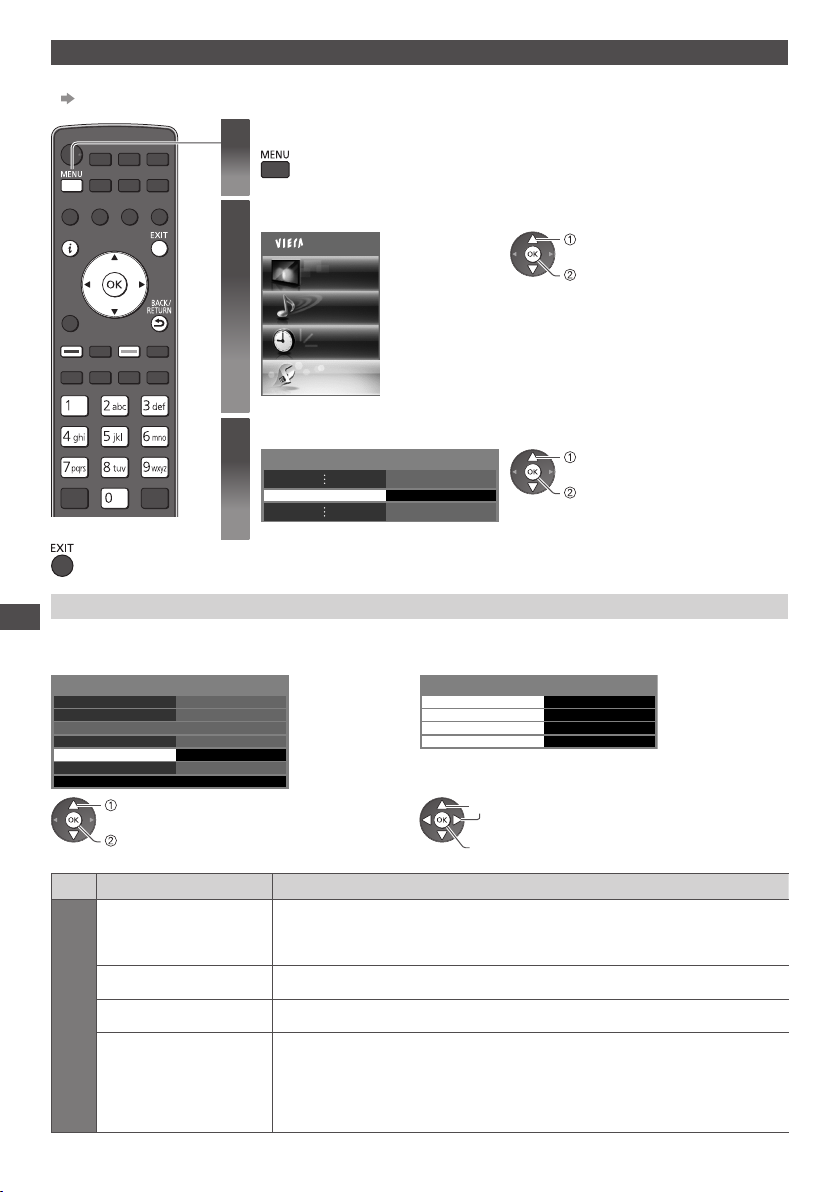

Network Setup

E nsure the connections are completed before starting Network Setup.

•

“Network connections” (p.93)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

■

To return to TV

Select [Network Setup]

N etwork Setup Access

Network Link settings

Sets the link settings to control this TV from the network equipment via the network.

Using Network Services (DLNA / VIERA Connect)

1 Select [Network Link Settings] 2 Select the items and set

Network Setup

C onnection Test N etwork Type Wired

Access Point Settings

IP/DNS Settings

N etwork Link Settings

Software Update MAC Address

select

access

Network Link Settings

VIERA Name

DLNA Remote Control E nables to control the TV using Windows 7 via the network [Off] / [On]

DLNA Remote Volume E nables to control the volume of the TV using Wi

Network Remote Control

Access

ab-cd-ef-gh-ij-kl

Item Adjustments / Configurations (alternatives)

Sets your favourite name for this TV

T his name will be used as the name of this TV on the screen of the other network

•

equipment.

E nables to control the TV from the network equipment (Smartphone, etc.) [Off ] / [On]

D epending on the area, this function may not be available. For details, consult your

•

local Panasonic dealer. F or more information of this function, visit the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

Network Link Settings

VIERA Name

Remote Control

DLNA DLNA Remote Volume N etwork Remote Control

select

access / store

select

access

VIERA

O n O n O n

ndows 7 via the network [Off] / [On]

Page 95

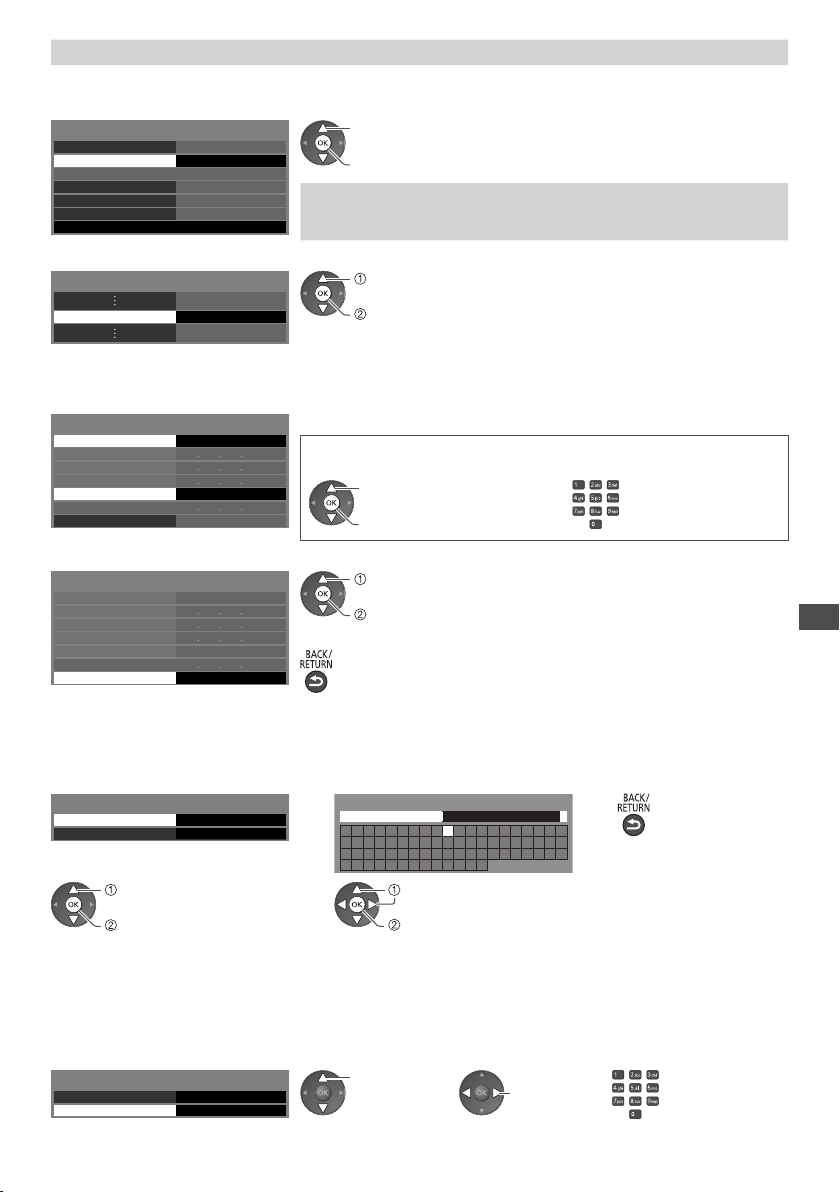

Wired connection settings

T his setting is for the network connection by using the LAN cable.

1 Select [Network Type] and set to [Wired]

Network Setup

C onnection Test

N etwork T

ype

Access Point S

IP/DNS Settings N etwork Link Settings Software Update MAC Address

ettings

Wired

ab-cd-ef-gh-ij-kl

select

access / store

If you make the network connection like “Example 2” (p.93), you do not have to set [Acquire DNS Address], [Proxy] and [Proxy Port].

2 Select [IP/DNS Settings] and set the items

Network Setup

select

IP/DNS Settings Access

access

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)

T he available settings are displayed automatically.

IP/DNS Settings

Acquire IP Address Auto

IP Address Subnet Mask G ateway

Acquire DNS A

DNS A

Proxy Settings

ddress

Auto

•

M anual settings ([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])

select

access / store

3 Select [Proxy Settings] and set the items

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask G ateway

Acquire DNS Address

DNS Address

Proxy

Settings

Auto

Access

•

select

access

After settings, return to [Network Setup] screen

■ [Proxy]

Sets Proxy address.

T his is the address of the relay server that is connected to the target server instead of the browser and sends data to the

•

browser. Setting is required if specified by the provider.

1 . Select [Proxy] 2. Enter the address 3 . Store

Proxy Settings

Proxy

Port

select

Proxy

H ost

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

Using Network Services (DLNA / VIERA Connect)

access

•

set

Y ou can set characters by using numeric buttons.

■ [Proxy Port]

Sets Proxy port number.

T his number is also specified by the provider with the Proxy address.

•

1 . Select [Proxy Port] 2. Move the cursor and enter the number

Proxy Settings

Proxy

Port

select

m ove

Page 96

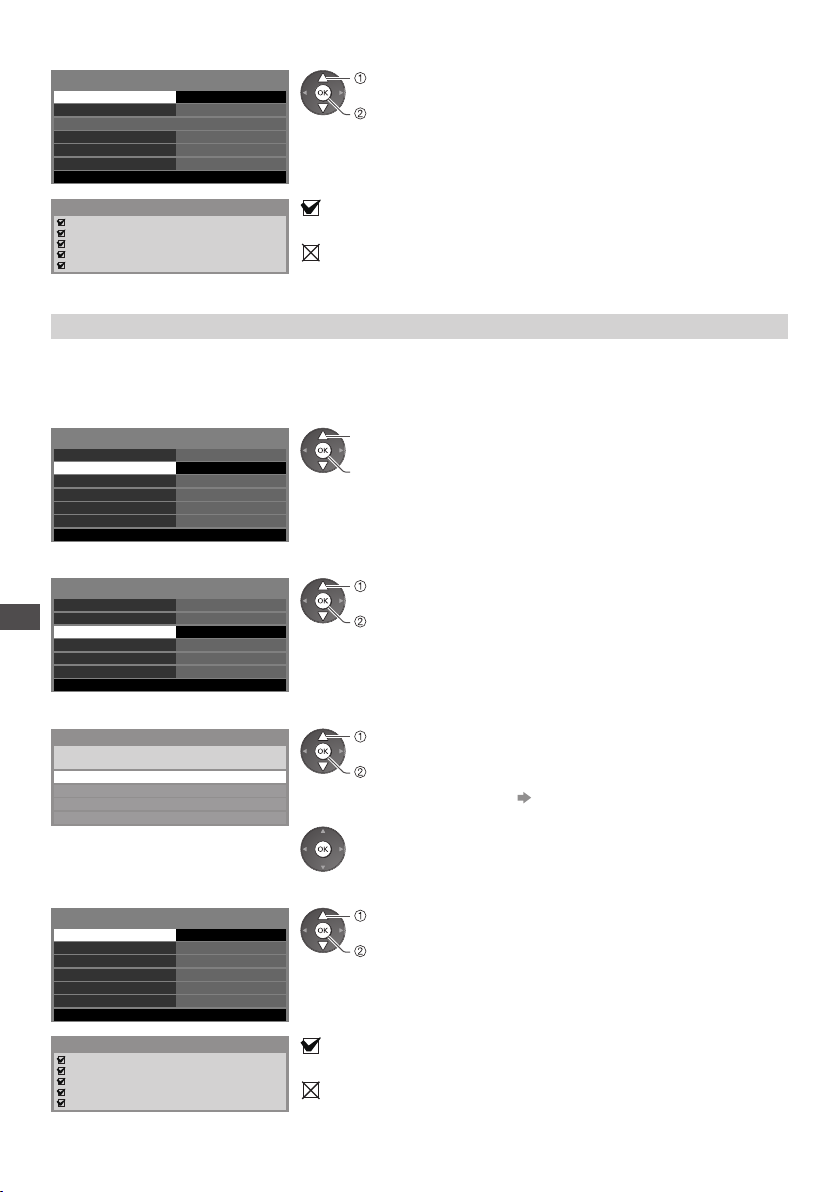

4 Select [Connection Test] and access to test

Network Setup

C onnection Test

N etwork T

ype

Access Point Settings

IP/DNS Settings N etwork Link Settings Software Update MAC Address

Connection Test

C heck network cable connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

Access Wired

ab-cd-ef-gh-ij-kl

•

: succeeded

select

access

P erforms automatic testing of the network connection for the TV. (It takes a while to test.)

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections, and then perform this function again.

Wireless connection settings

T his setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)

C onfirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of

•

the access point.

1 Select [Network Type] and set to [Wireless]

select

access / store

Network Setup

C onnection Test

N etwork T

ype

Access Point S IP/DNS Settings N etwork Link Settings Software Update MAC Address

ettings

Wireless

ab-cd-ef-gh-ij-kl

2 Select [Access Point Settings]

Network Setup

C onnection Test N etwork Type

Access Point S

Using Network Services (DLNA / VIERA Connect)

IP/DNS S N etwork Link Settings Software Update MAC Address

ettings

Wireless Access

ab-cd-ef-gh-ij-kl

•

select

access

When the access point is already set, [Current Settings] screen will be displayed. To change the settings, select [No] on this screen and go to the next step.

3 Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

arch for access point

M anual

•

select

access

F or details of each connection type (p.97,98) After settings, return to [Network Setup] screen

4 Select [Connection Test] and access to test

Network Setup

C onnection Test Access

ype

N etwork T Access Point Settings IP/DNS Settings N etwork Link Settings Software Update MAC Address

Connection Test

C heck access point connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

Wireless

ab-cd-ef-gh-ij-kl

select

access

P erforms automatic testing of the network connection for the TV. (It takes a while to test.)

: succeeded

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections, and then perform this function again.

If you continue to have difficulty, please contact your internet service provider.

Page 97

■ [WPS(Push button)]

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light ashes.

2) When the light is ashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

C onnect

press the WPS button on the access point until the light flashes

•

connect the Wireless LAN Adaptor and the access point

E nsure that your access point supports WPS for this setup. WPS : Wi-Fi Protected Setup™

■ [WPS(PIN)]

1 Select your desired access point

Available Access Points

N o. Wireless type E ncrypt R eception

1 2 3

SSID

Access Point A Access Point B Access Point C

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

T o search access points again

•

(yellow)

•

F or the information of the highlighted access point

select

access

E nsure that your access point supports WPS for this setup.

•

2 Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the access point.

C onnect

■ [Search for access point]

Access points found automatically are listed.

1 Select your desired access point

Available Access Points

N o. Wireless type E ncrypt R eception

1 2 3

SSID

Access Point A Access Point B Access Point C

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

T o search access points again

•

(yellow)

2 Access the encryption key input mode

Encryption Key Setting

C onnection will be made with the following settings:SSID : Access Point A

Authentication type : WPA- PSK E ncryption type : TKIP

Please input the encryption key.

E ncryption key

: Encrypted access point

•

select

access

F or the information of the highlighted

•

access point

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

T o set manually

•

T o set manually

•

(red)

Using Network Services (DLNA / VIERA Connect)

Page 98

3 Enter the encryption key of the access point (Set characters one by one)

Access Point Settings

E ncryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

set

Y ou can set characters by using numeric

•

buttons.

Store

4 Select [Yes]

Access Point Settings

E ncryption key is set to:- XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Y es

N o

select

confirm

T o re-enter the encryption key, select [No].

•

■ [Manual]

Y ou can setup SSID, authentication type, encryption type, and encryption key manually. F ollow the on screen instructions and set manually.

When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES]

•

for the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:- XXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes

N o

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Using Network Services (DLNA / VIERA Connect)

Select [Software Update]

Network Setup

C onnection Test N etwork Type

Access Point Settings

IP/DNS Settings N etwork Link Settings

Software Update

MAC Address

Wired

Access ab-cd-ef-gh-ij-kl

•

select

access

F ollow the on screen instructions

Authentication Type Settings

C onnection will be made with the following settings:-

SSID : XXXXXXX

Please select the authentication type.

WPA2-PSK

WPA

-P SK

Shared key

O pen

Note

Network Setup

MAC Address

ab-cd-ef-gh-ij-kl

[MAC Address]

MAC address is a unique address that identifies hardware in the network.

•

(for information only)

Page 99

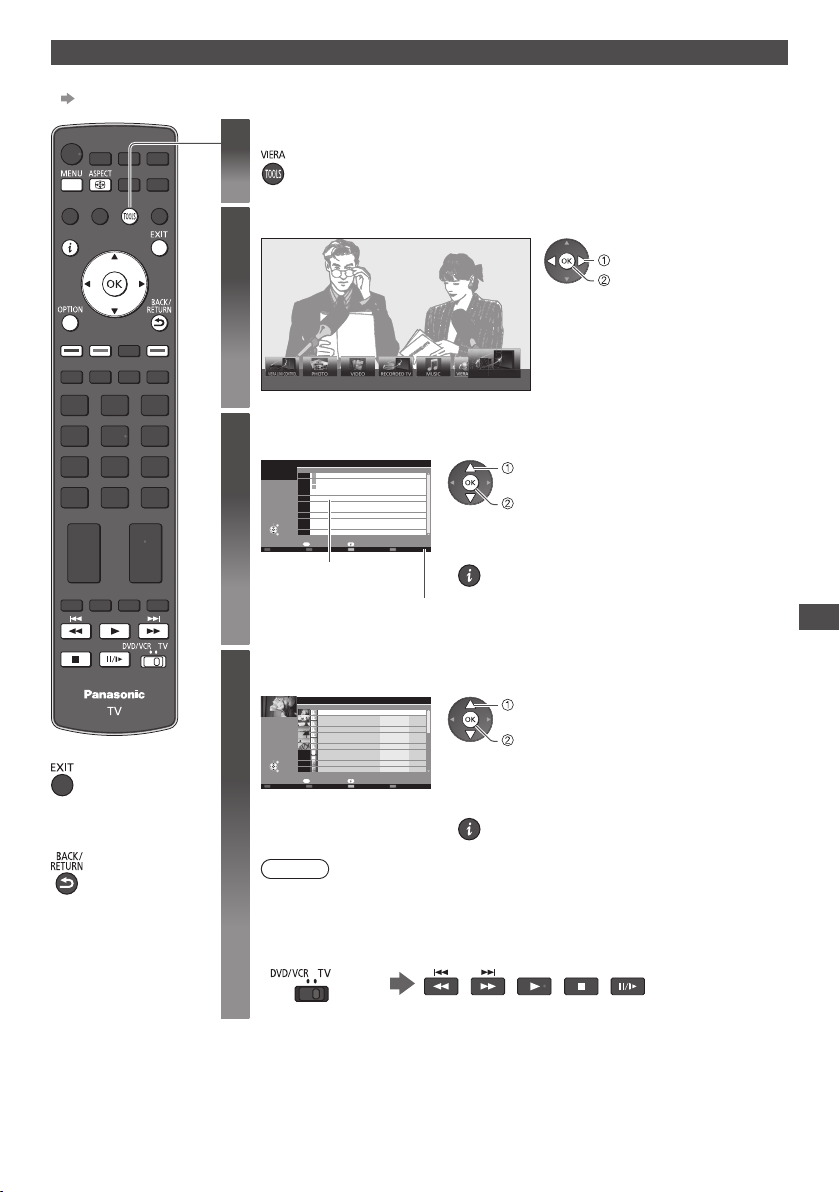

Using DLNA® features

E nsure the preparation of media server, network connections and network settings are completed.

•

“Media server” (p.92), “Network connections” (p.93), [Network Setup] (p.94 -98)

Display icons of the feature

Select [Media Server]

select

access

■

To return to TV

■

To return to the previous screen

Select one of the media servers you want to access

Example : Media server list

Media Server

SERVER1

SERVER2

SERVER3 DIGA

Select

EXIT

RETURN

Access

Info

OPTION

Option Menu

Available media servers

M edia Server

select

access

T o display the information of the highlighted media

•

server

T otal listed number

Select the file

Example : File list

Media Server

SERVER1

P000102 2010-10-05 09:54 P000135

Pixel

P000180

3648x2736

Format

P000214

JPEG

P000251 P000276 P000293 V100025

Select

V100042

EXIT

M10054 M10078

RETURN

View

OPTION

Option Menu

Slideshow

2010-11-20 13:18 2010-12-07 11:31 2010-12-10 15:20 2010-12-19 12:39 2010-12-25 14:06 2011-01-06 13:52 2011-01-12 15:56 2011-01-20 10:08 2011-01-28 14:48 2011-02-09 19:58

Info

•

select

access

D epending on the condition of media server, you may need to select the folder before selecting the file. T o display the information of the highlighted file

Note

N on-playable files are also listed but cannot be selected.

•

Turn the TV off, and then on again when changing or reconnecting the network

•

connection. Y ou can use the following buttons during playback.

•

Set the position to “TV”

Using Network Services (DLNA / VIERA Connect)

Page 100

For photo file

[Single view]

Example :

Single view

EXIT Select RETURN

Stop

O peration guide

- Photos are displayed one at a time.

Single view

R otate

T o display / hide the operation guide

•

T o operate Single view

•

T o the previousphoto

T o the next photo

Slideshow

Stop (return to list)

[Slideshow] - Slideshow will complete when all photos have been viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow

select

T o display / hide the operation guide

•

T o pause (return to Single view)

•

(red)

For video file

Playback

Example : Playback

MEDIA SERVER

Using Network Services (DLNA / VIERA Connect)

M anual skip

O peration guide

- Playback will start.

19/02/2010 11:21 00:15:39

EXIT

RETURN

00:02:05

I nformation banner

T o display / hide the

•

operation guide and information banner

T o the previous content

•

(red)

T o the next content

•

(green)

T o change aspect

•

T o operate the playback

•

T o return to list

•

T o return to list

•

T o rotate 90°

•

(blue)

T o return to list

•

Rewind

[Manual skip]

Press to skip forward about 30

•

seconds Press and hold to skip backward

•

about 15 seconds

Pause / Playback

F ast forward

Stop

For music file

Playback

Example : Playback

O peration guide

100

- Playback will start

EXIT

RETURN

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

T o display / hide the operation guide

•

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

T o the previous track

•

(red)

T o the next track

•

(green)

T o return to list

•
