Page 1

ORDER NO.PCZ1302028CE

Plasma Television

Model No. TX-P50X60B

GPF16D-E Chassis

Page 2

TABLE OF CONTENTS

PAG E PAG E

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals ------------------------------------------7

4 Specifications ------------------------------------------------------8 5 Technical Descriptions------------------------------------------9

5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE, Netflix and One-to-One-------------------9

6 Service Mode ----------------------------------------------------- 10

6.1. How to enter into Service Mode ---------------------- 10

6.2. Option - Mirror--------------------------------------------- 12

6.3. Service tool mode ----------------------------------------12

6.4. DRV Check - USBHDD Check------------------------ 13

6.5. Hotel mode------------------------------------------------- 13

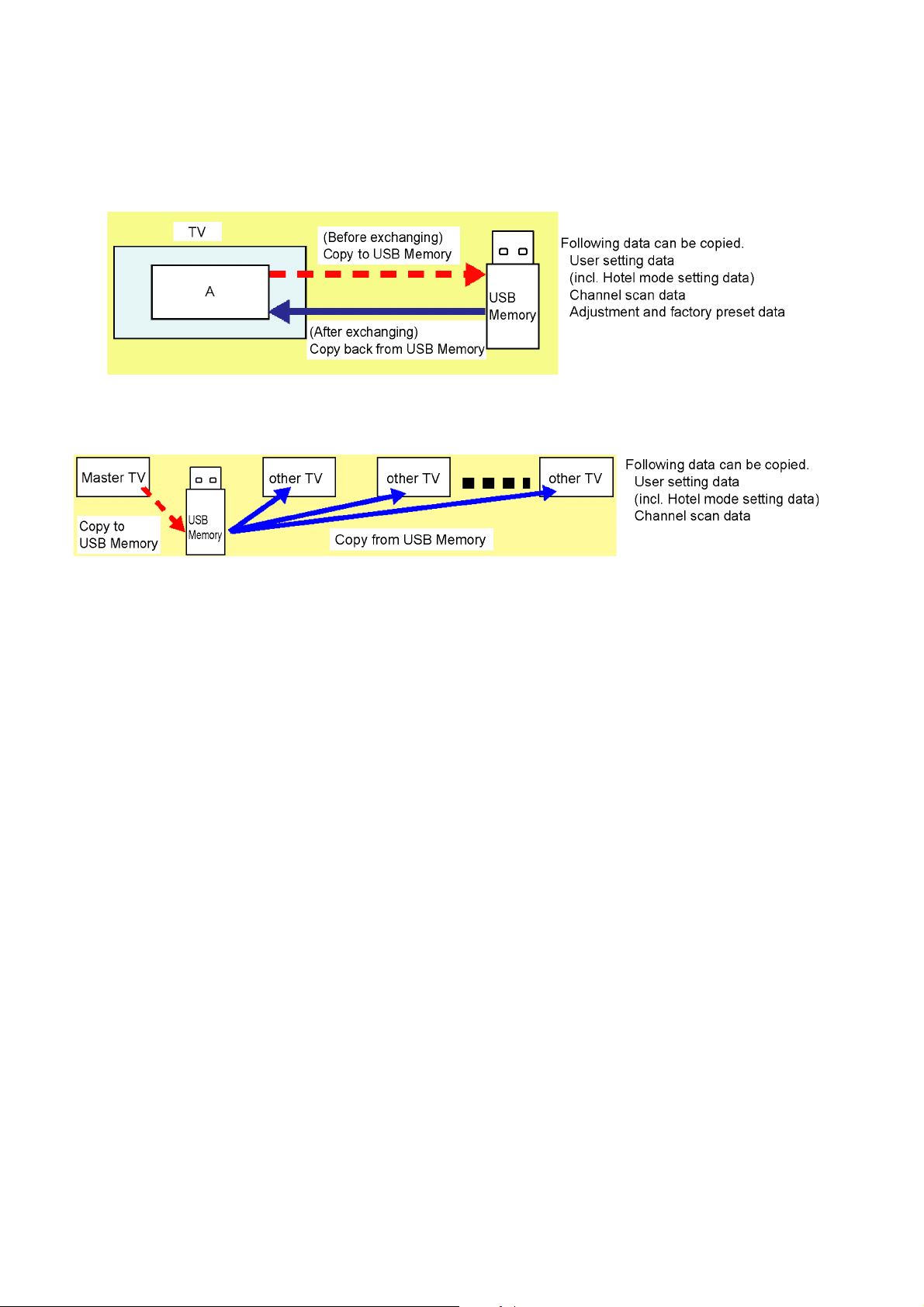

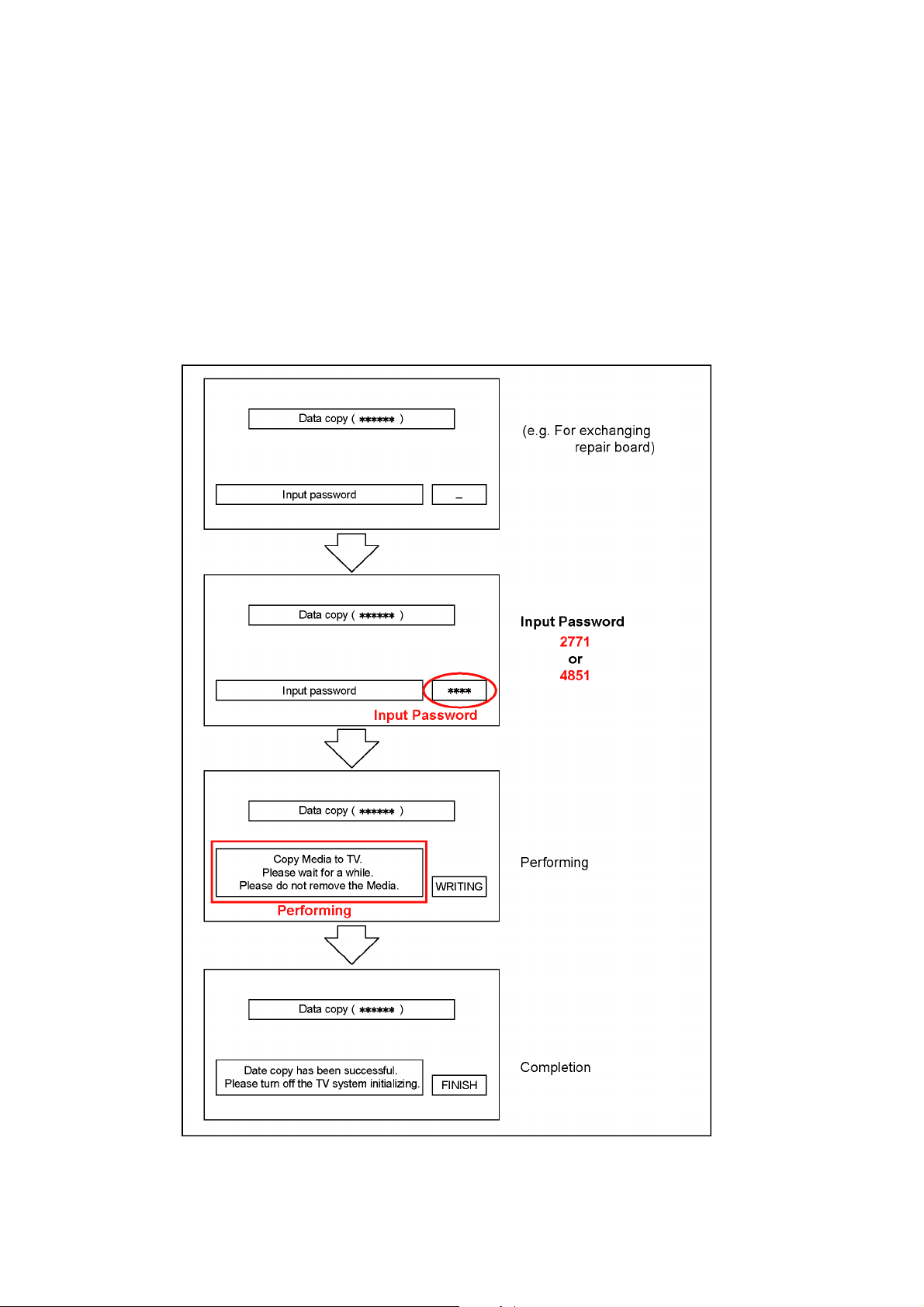

6.6. Data Copy by USB Memory --------------------------- 14

7 Troubleshooting Guide---------------------------------------- 17

7.1. Check of the IIC bus lines------------------------------ 17

7.2. Power LED Blinking timing chart --------------------- 18

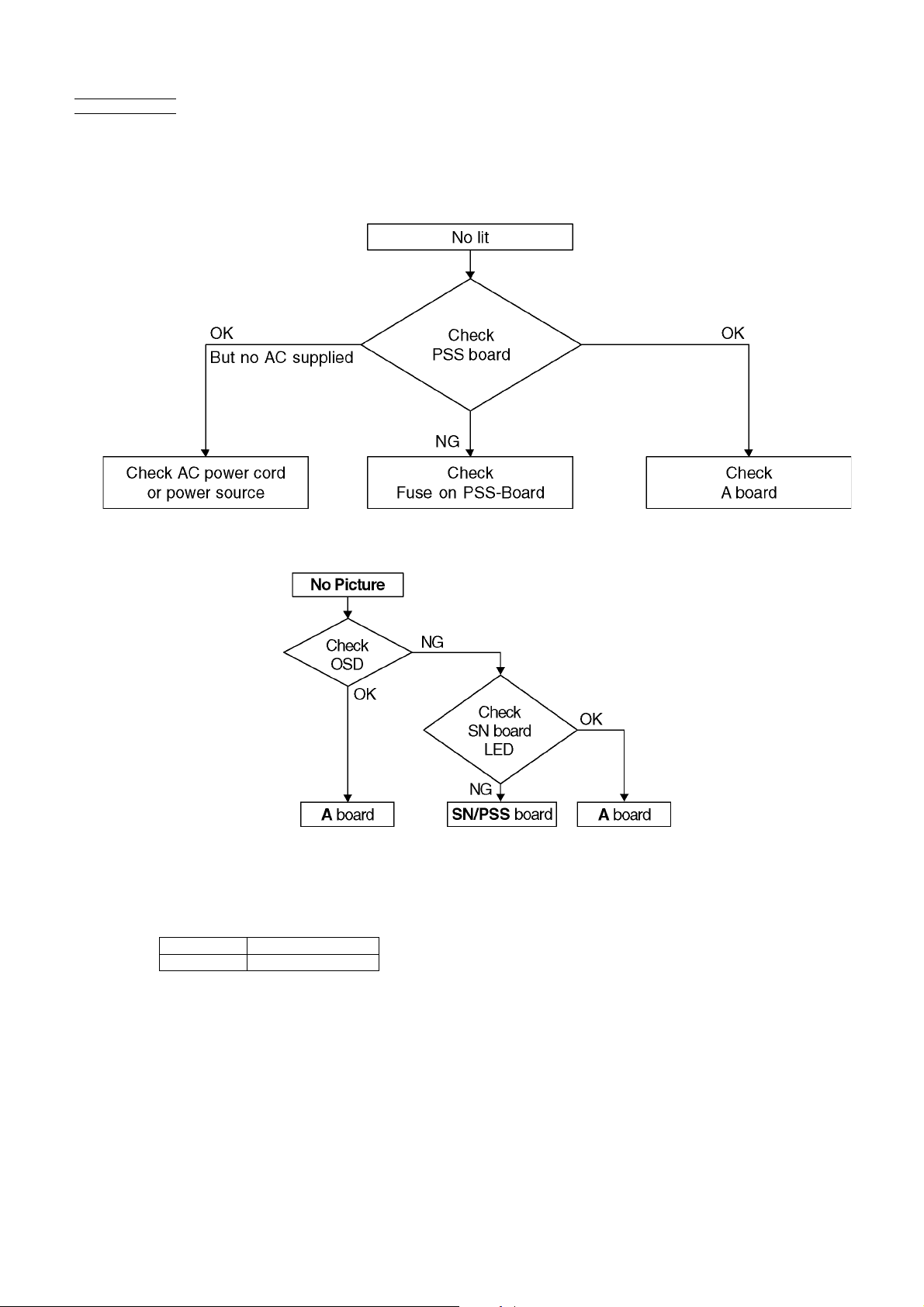

7.3. No Power--------------------------------------------------- 19

7.4. No Picture -------------------------------------------------- 19

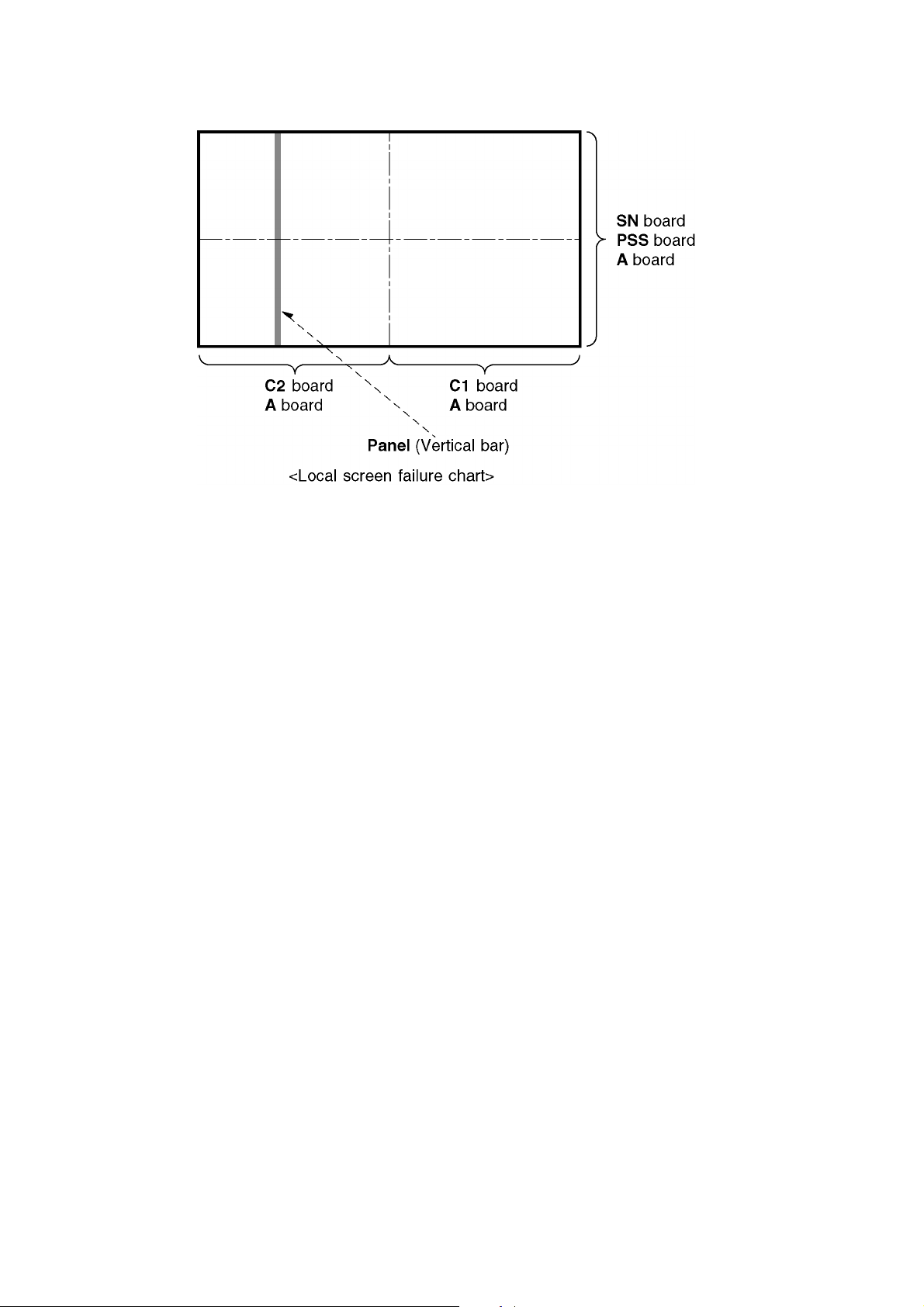

7.5. Local screen failure -------------------------------------- 20

8 Disassembly and Assembly Instructions --------------- 21

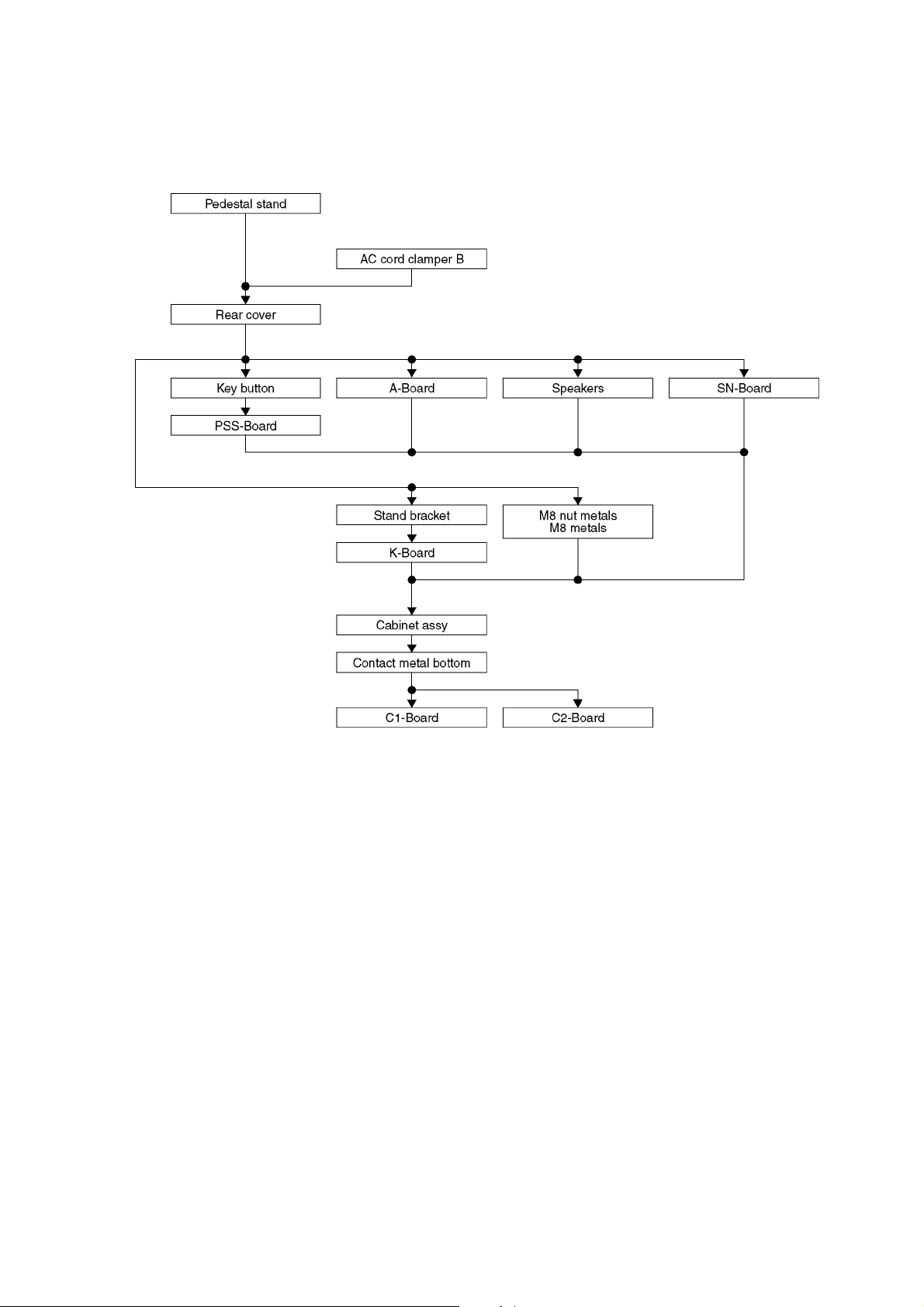

8.1. Disassembly Flow Chart for the Unit ---------------- 21

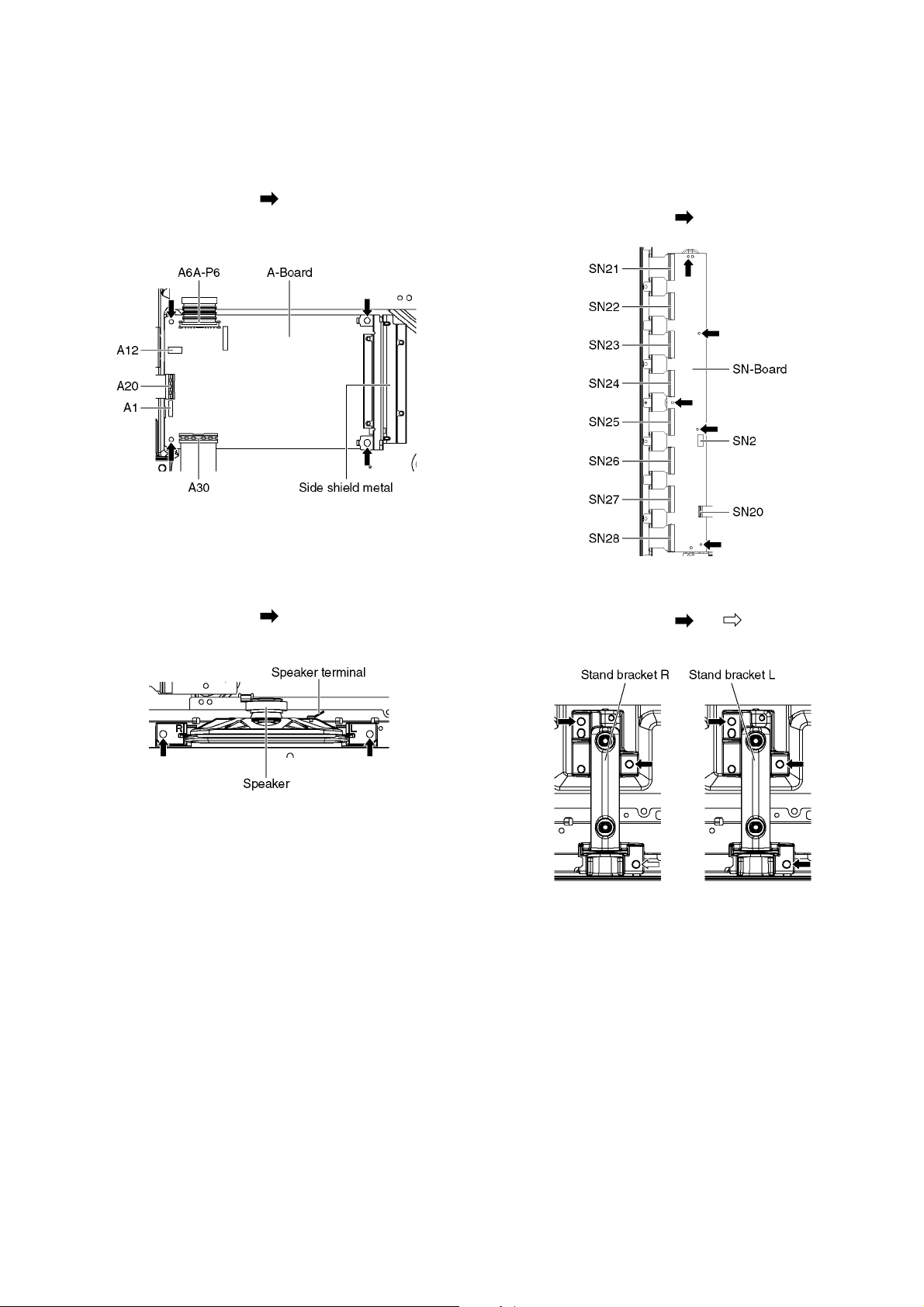

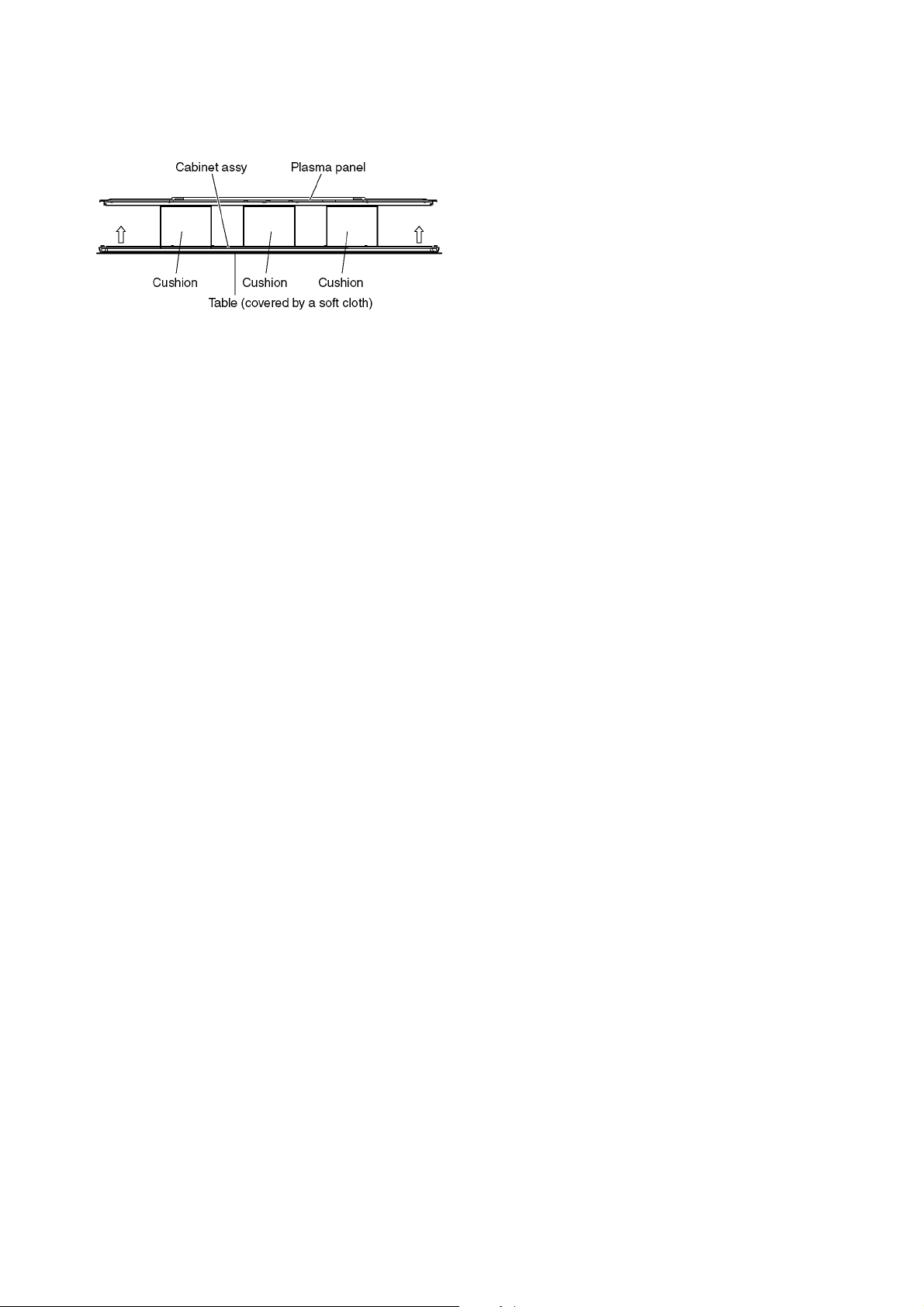

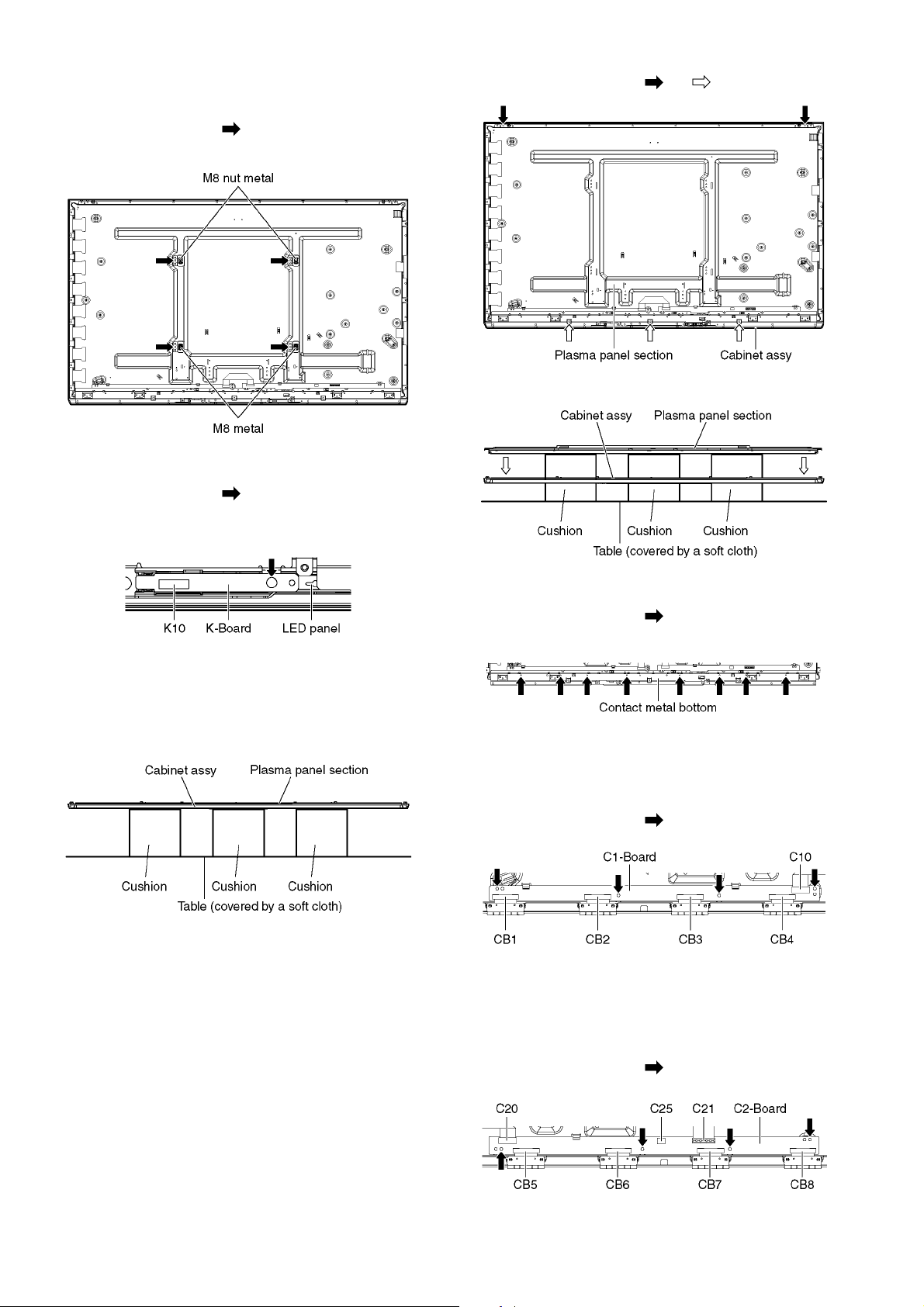

8.2. Disassembly Procedure for the Unit----------------- 22

9 Measurements and Adjustments -------------------------- 26

9.1. Adjustment -------------------------------------------------26

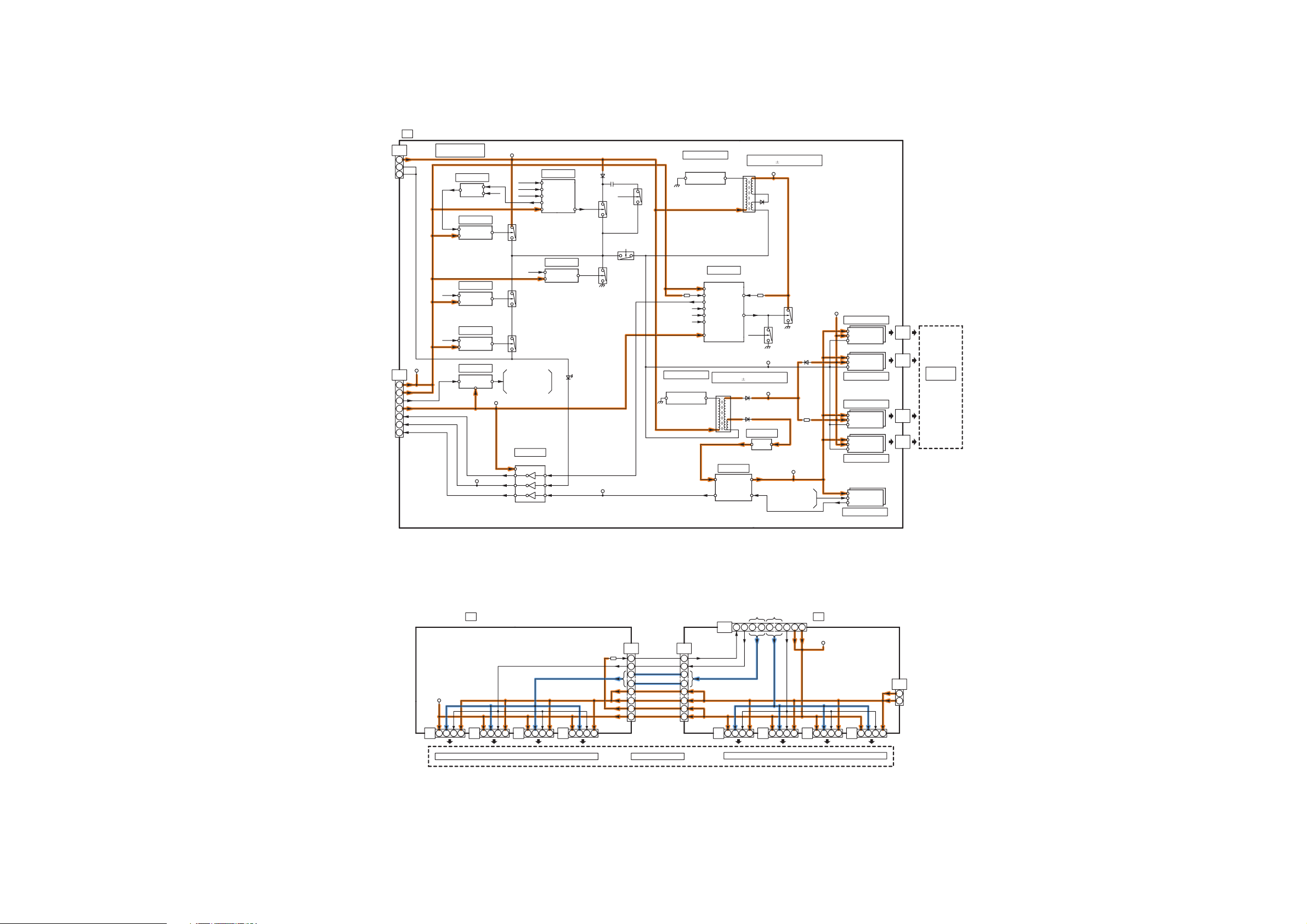

10 Block Diagram --------------------------------------------------- 29

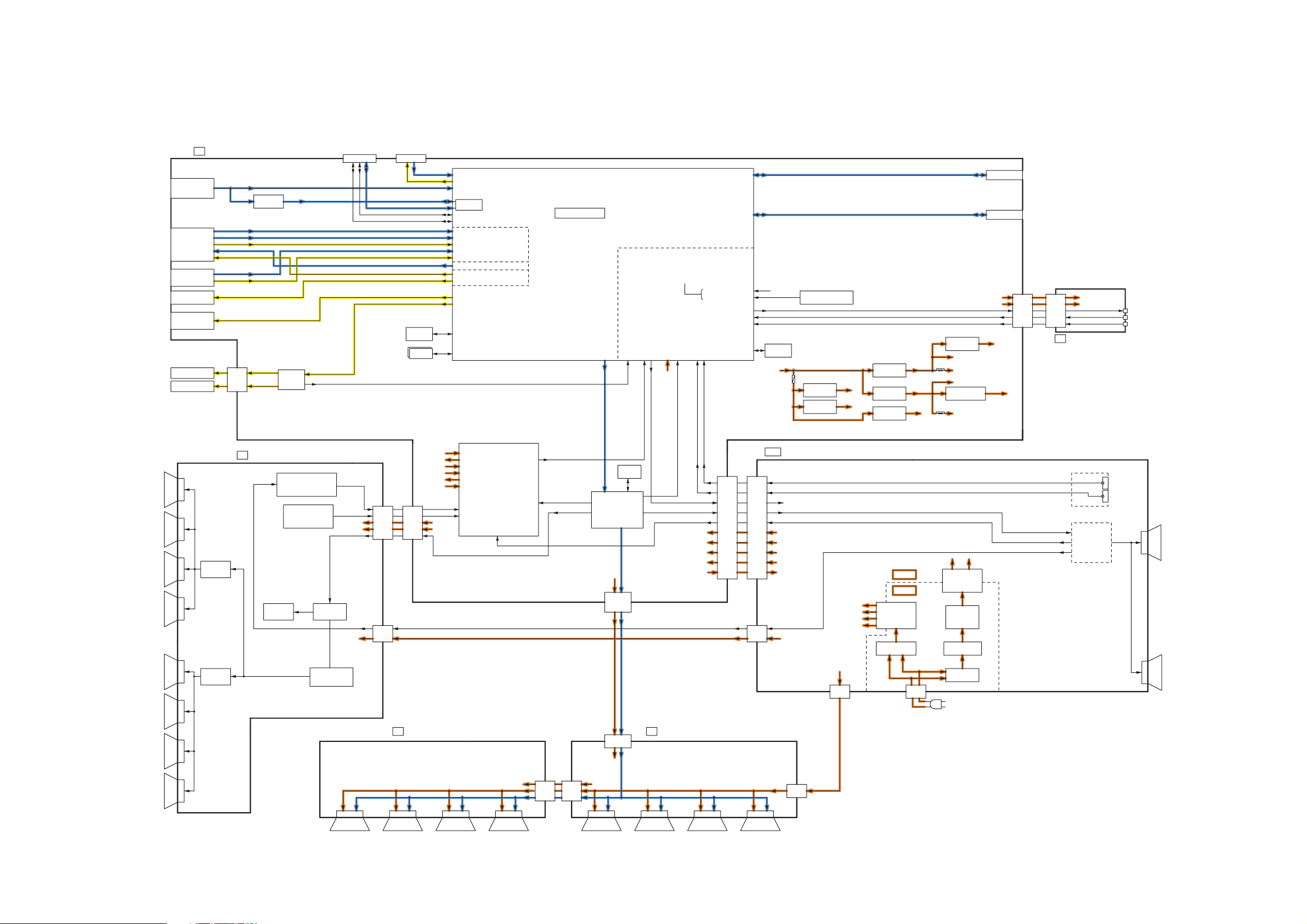

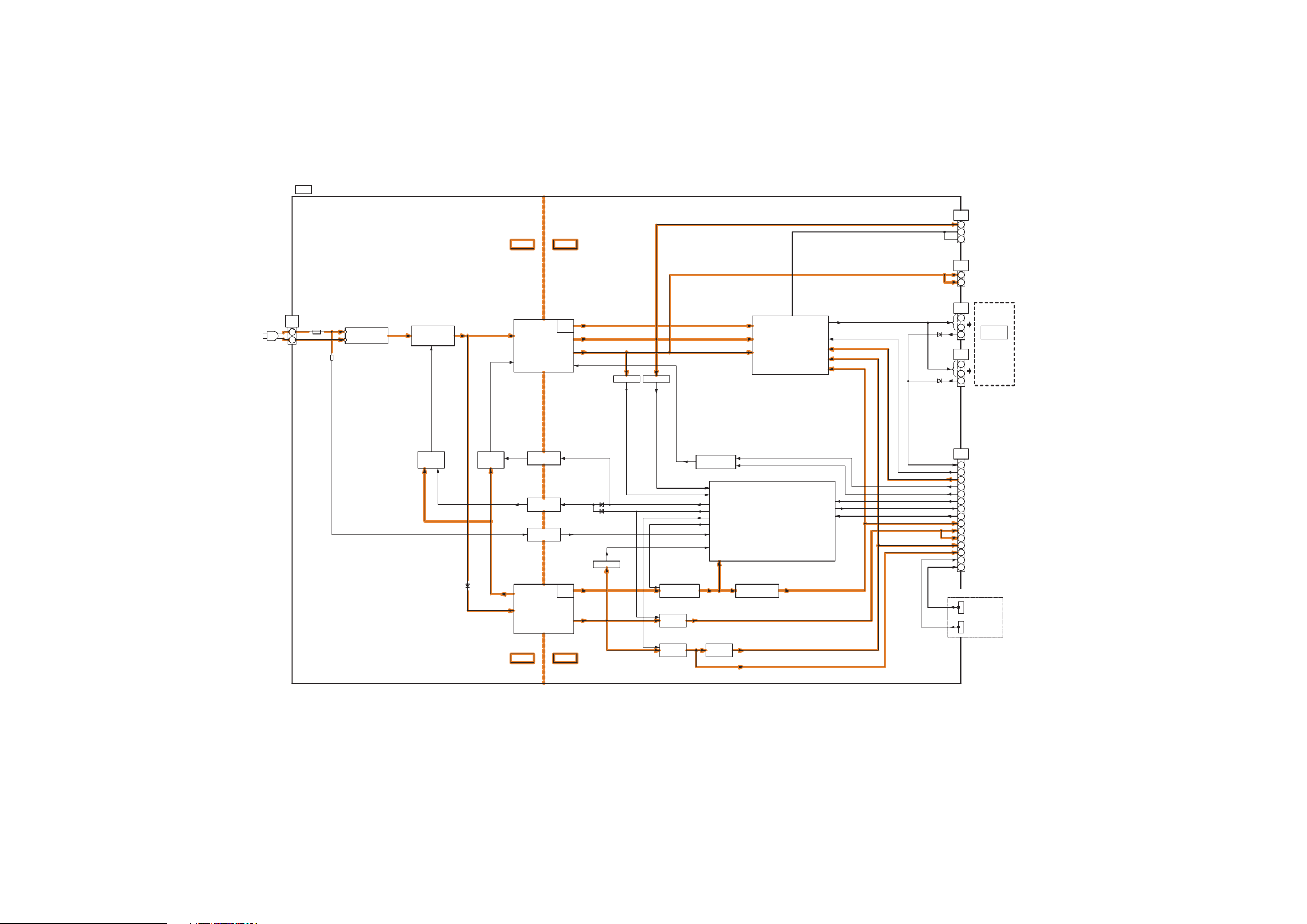

10.1. Main Block Diagram ------------------------------------- 29

10.2. Block (1/4) Diagram ------------------------------------- 30

10.3. Block (2/4) Diagram ------------------------------------- 31

10.4. Block (3/4) Diagram ------------------------------------- 32

10.5. Block (4/4) Diagram ------------------------------------- 33

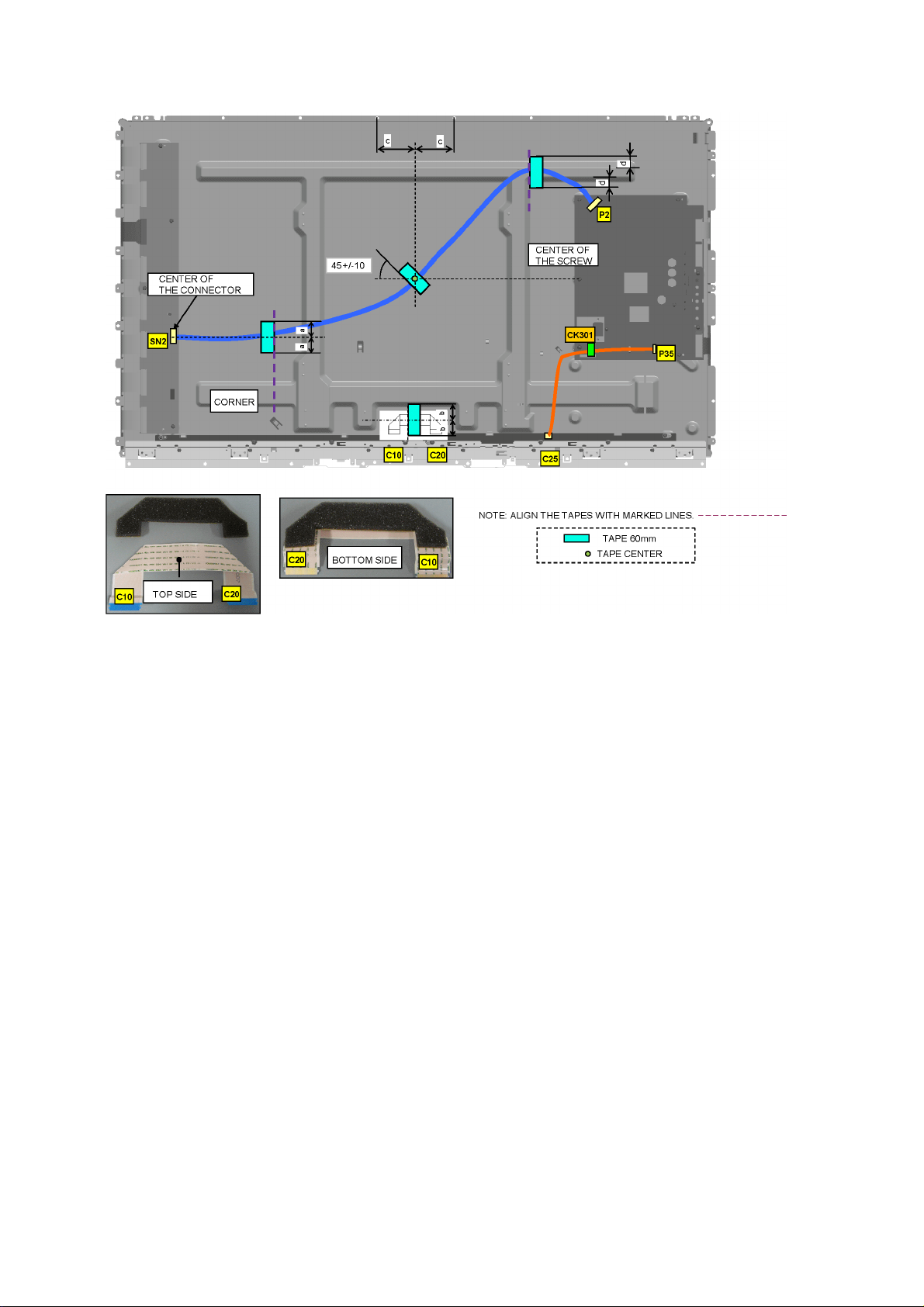

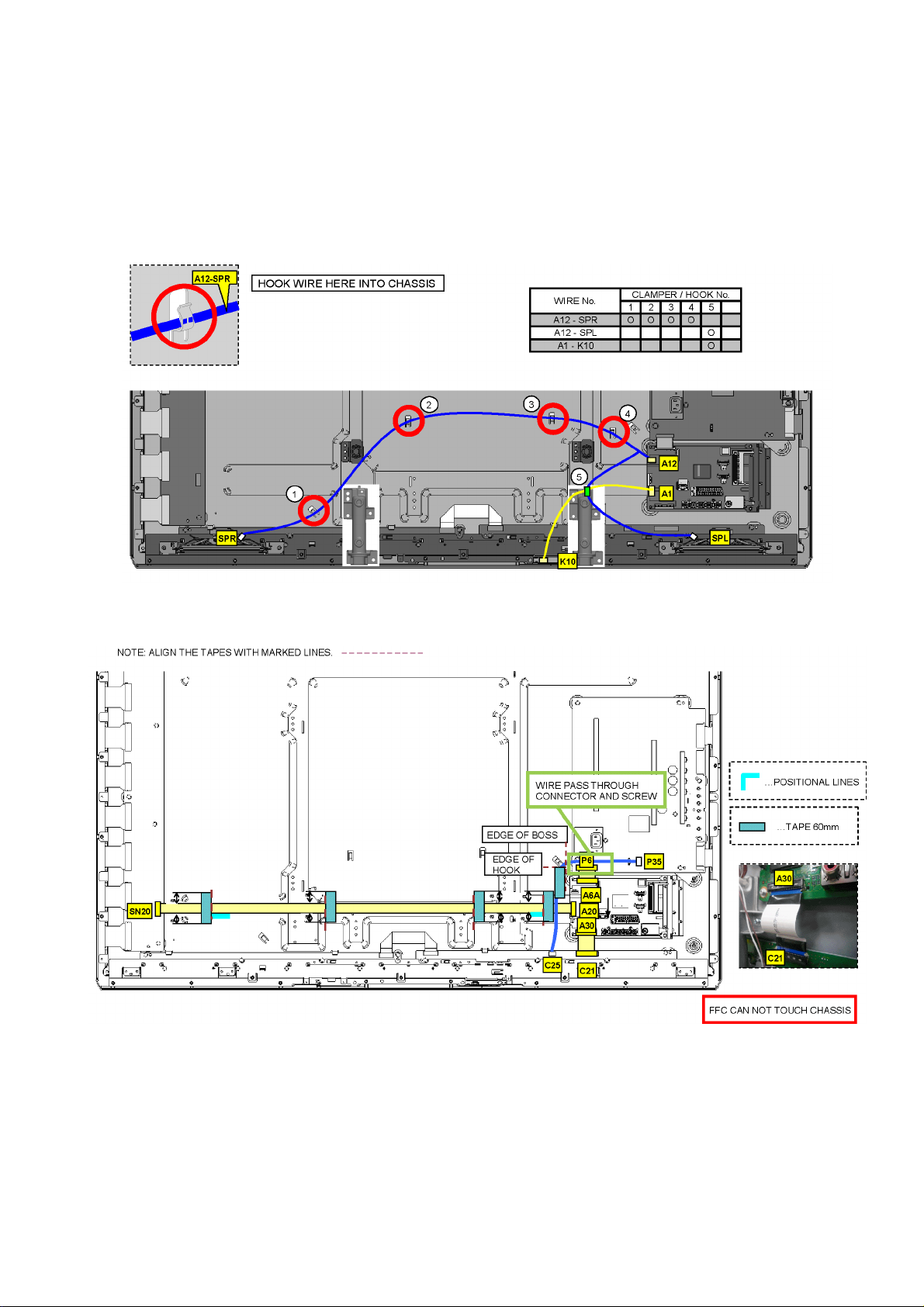

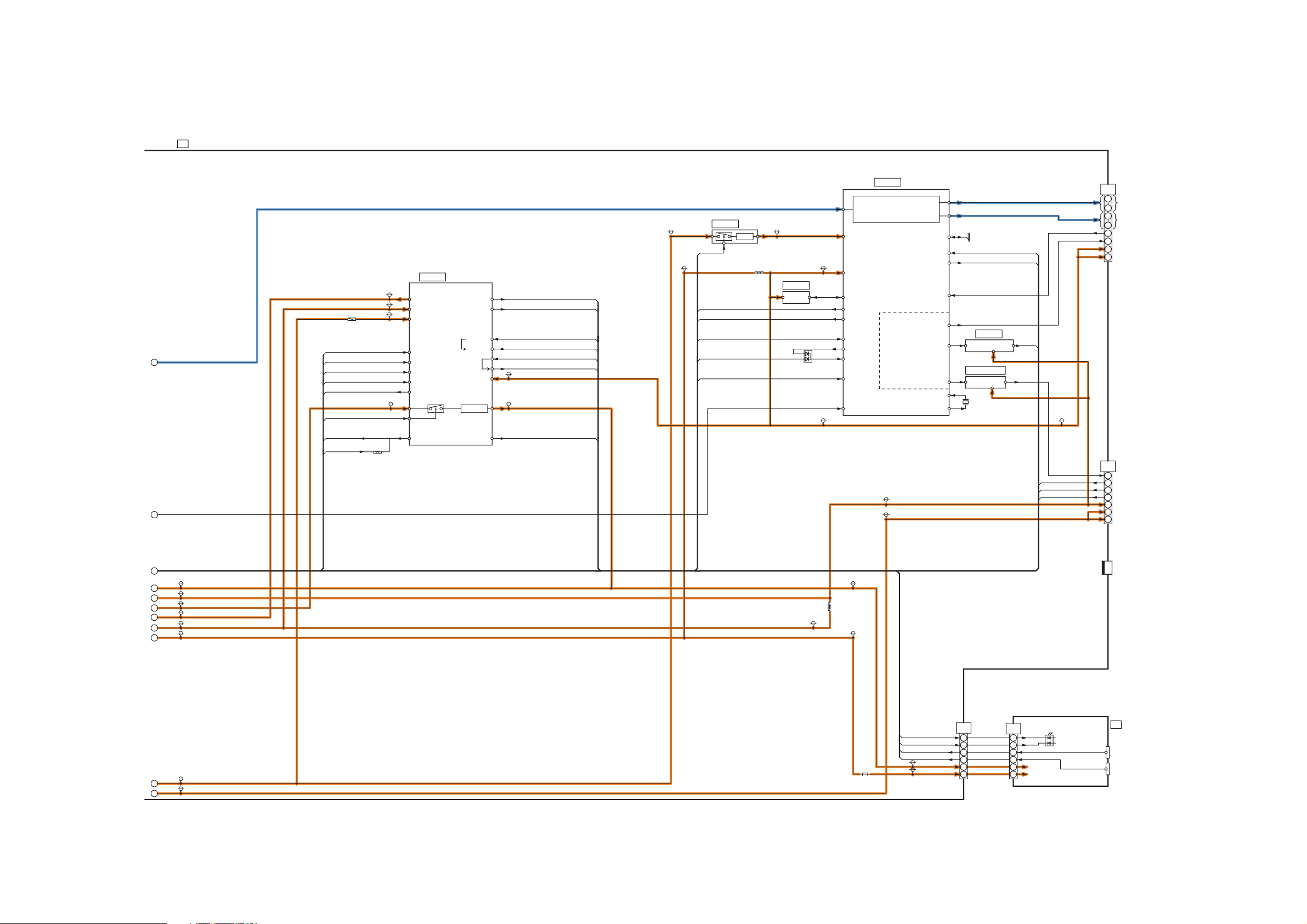

11 Wiring Connection Diagram --------------------------------- 35

11.1. Caution statement.--------------------------------------- 35

11.2. Wiring (1) --------------------------------------------------- 35

11.3. Wiring (2) --------------------------------------------------- 35

11.4. Wiring (3) --------------------------------------------------- 36

Page 3

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

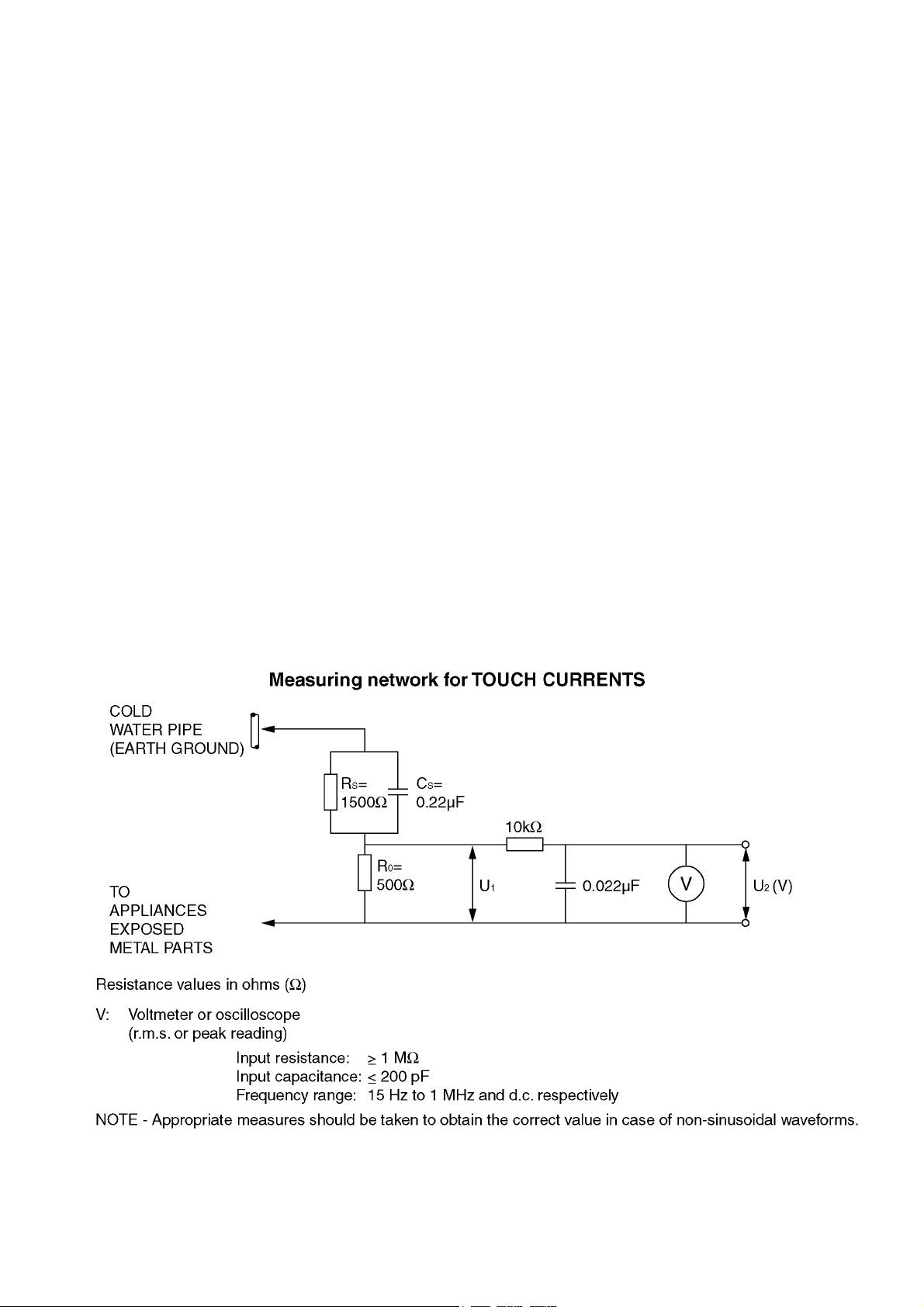

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c. The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

= 1.0 V,

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

and U2, does not exceed the following values:

Figure 1

Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

Page 5

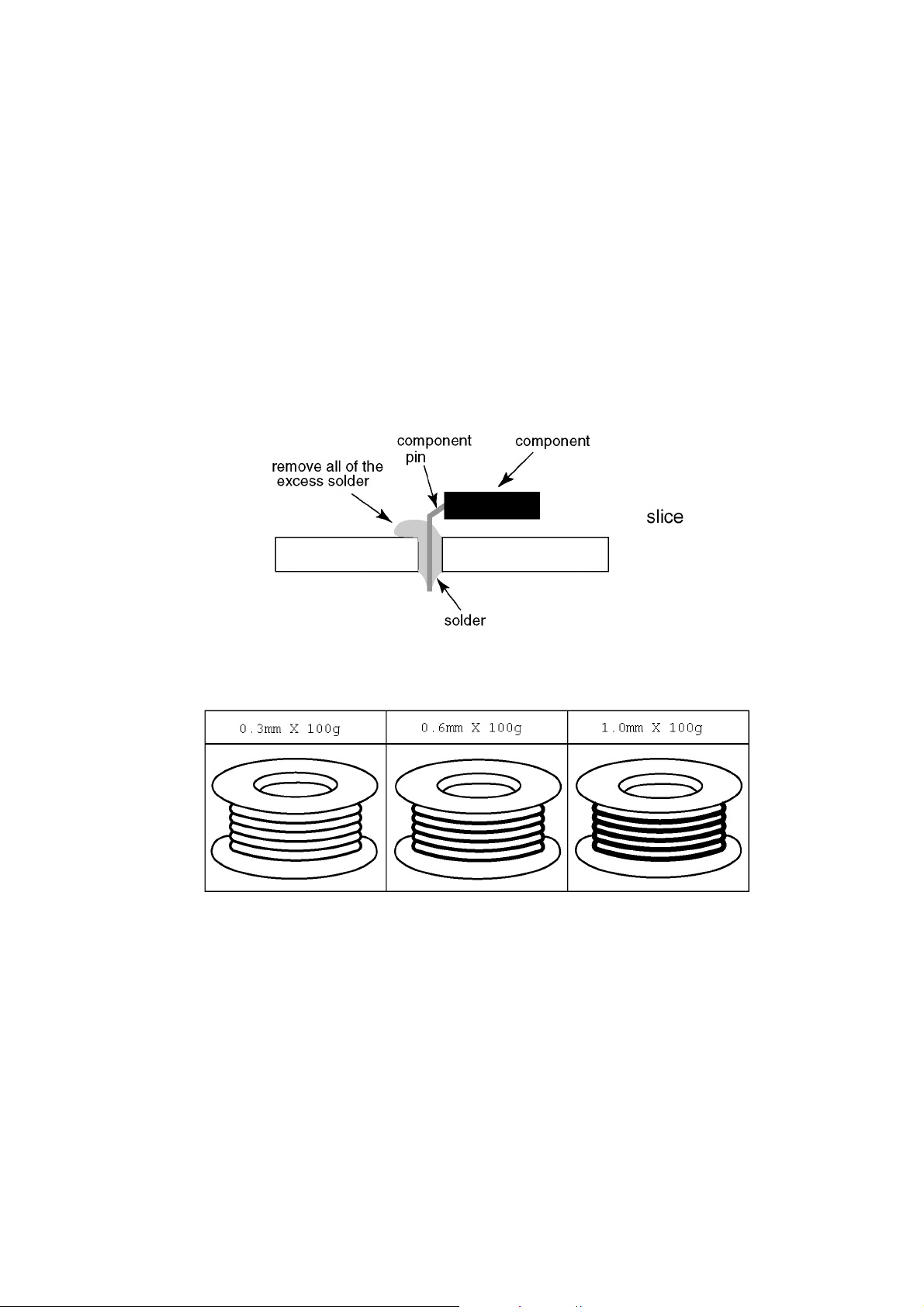

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

Page 6

3 Service Navigation

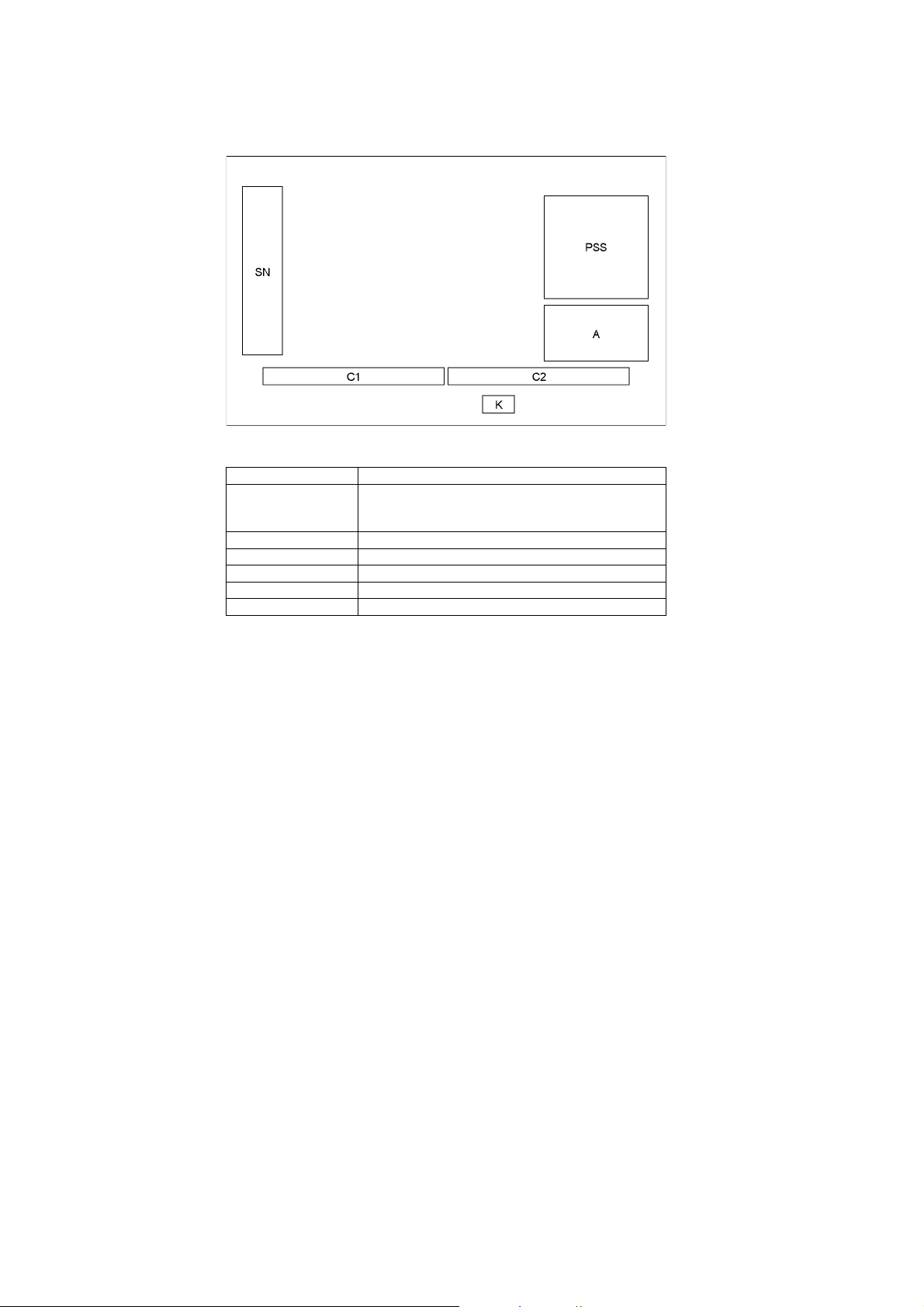

3.1. PCB Layout

Board Name Function

PSS Power Supply, Sustain Drive

A Main AV input, processing

K Remote receiver, Power LED, C.A.T.S sensor C1 Data Driver (Lower Right) C2 Data Driver (Lower Left) SN Scan Drive

Non serviceable. PSS-Board should be exchanged for service.

Page 7

3.2. Applicable signals

COMPONENT (Y, PB, PR) (from AV2 terminal), HDMI

Signal name COMPONENT HDMI 525 (480) / 60i, 60p * * 625 (576) / 50i, 50p * * 750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p, 50p, 24p *

* Mark: Applicable input signal

Page 8

4 Specifications

Q Product fiche

Energy efficiency class B Visible screen size (diagonal) 127 cm / 50 inches On mode average power consumption 132 W

Annual energy consumption* Rated power consumption 240 W

Standby power consumption* Off mode power consumption 0.30 W Display resolution 1,024 (W) × 768 (H)

: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days.

The actual energy consumption will depend on how the television is used.

: When the TV is turned off with the remote control and no function is active

Q Other information

Dimensions (W × H × D) 1,184 mm × 757 mm × 266 mm (With Pedestal)

Mass 21.5 Net (With Pedestal)

Power source AC 220-240 V, 50 / 60 Hz Panel Plasma panel Sound

Speaker (160 mm × 40 mm) × 2, 8 Ω Audio output 20 W (10 W + 10 W) Headphones M3 (3.5 mm) stereo mini Jack × 1

Operating conditions

Connection terminals

AV1 input / output SCART (Audio/Video in, Audio/Video out, RGB in) AV2 input (COMPONENT / VIDEO)

HDMI1 / 2 input TYPE A Connectors

Card slot Common Interface slot (complies with CI Plus) × 1 ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX USB USB2.0 DC 5 V, Max. 500 mA DIGITAL AUDIO output PCM / Dolby Digital / DTS, Fiber optic

Receiving systems / Band name (UK) DVB-T / T2 Digital terrestrial services.

(Ireland)

Aerial input UHF (UK) VHF / UHF (Ireland)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024

183 kWh

0.40 W

1,184 mm × 716 mm × 81 mm (TV only)

20.5 Net (TV only)

Temperature: 0 °C- 35 °C Humidity: 20 % - 80 % RH (non-condensing)

VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] Y: 1.0 V [p-p] (including synchronization) P

, PR: ±0.35 V [p-p]

HDMI1 : Content Type, Deep Colour, x.v.Colour™ HDMI2 : Content Type, Audio Return Channel, Deep Colour,

x.v.Colour™

• This TV supports [ HDAVI Control 5 ] function.

PAL I UHF E21-68 PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)

or NTSC disc playback from DVD player and recorder.

M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR).

DVB-T Digital terrestrial services. PAL I VHF A -J

PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR).

• Check the latest information on the available services at the following website. http://panasonic.net/viera/support

UHF E21-69 CATV S1 - S20 CATV S21 - S41 (Hyperband)

or NTSC disc playback from DVD player and recorder.

Page 9

5 Technical Descriptions

5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE, Netflix and Oneto-One

5.1.1. General information:

1. NAND Flash (IC8900) for spare parts has the seed of KEY for each.

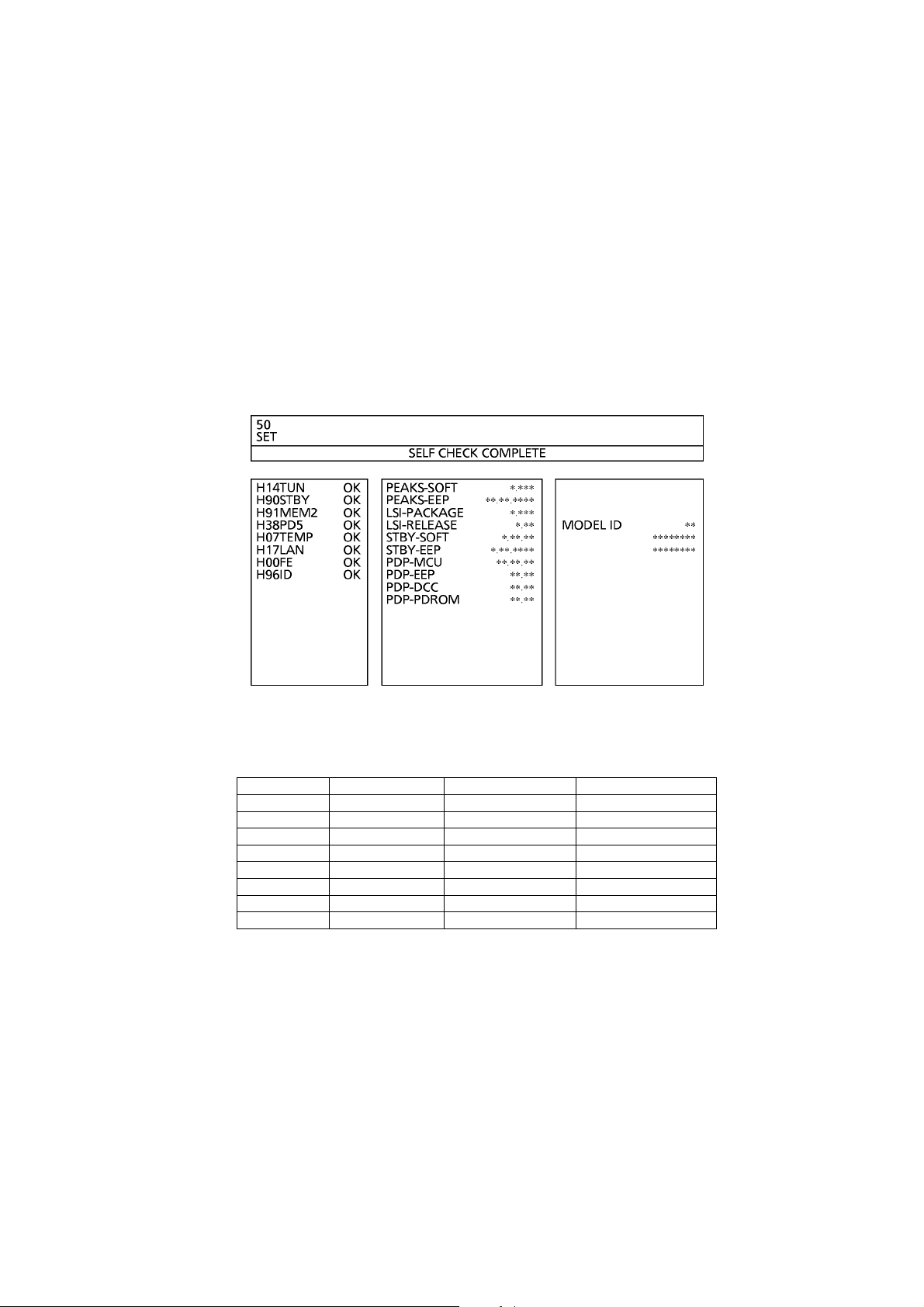

2. The final KEY data will be generated by Main IC (IC8000) when SELF CHECK was done and are stored in both Main IC (IC8000) and NAND Flash (IC8900). Five KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Main IC (IC8000) is replaced, NAND Flash (IC8900) should be also replaced with new one the same time. When NAND Flash (IC8900) is replaced, Main IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

Model No. Keys

One-to-One

(For USB Rec.)

TX-P50X60B None Yes None None None

CI Plus DTCP-IP WIDEVINE Netflix

Page 10

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [RED] button of the remote control three times within 2 seconds.

6.1.2. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Page 11

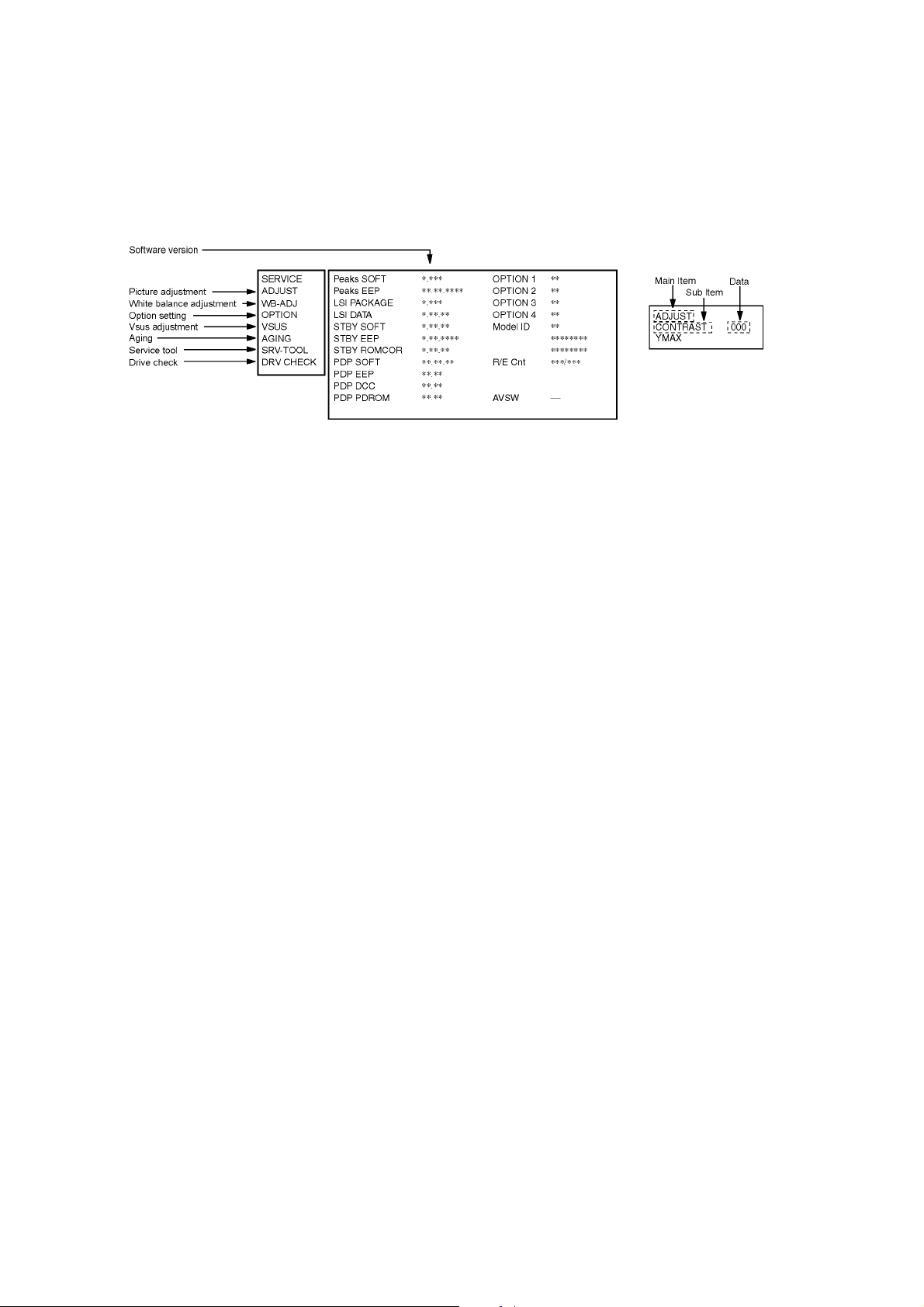

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 225

COLOR 36 TINT 00 SUB-BRT 800 H-POS 0 H-AMP 0 V-P OS 0 V-A MP 0

WB-ADJ R-CUT 80

G-CUT 80 B-CUT 80 R-DRV FF G-DRV FB B-DRV B1 ALL-CUT 80 ALL-DRV FF

OPTION Panel-Type 50HD Factory Preset

Boot ROM STBY-SET 00 EMERGENCY ON CLK MODE 00 CLOCK 000 Y/C Delay 0 OPT 1 00000100 OPT 2 11101110 OPT 3 00000001 OPT 4 00010000 EDID-CLK MID MIRROR 00 (See Option-Mirror)

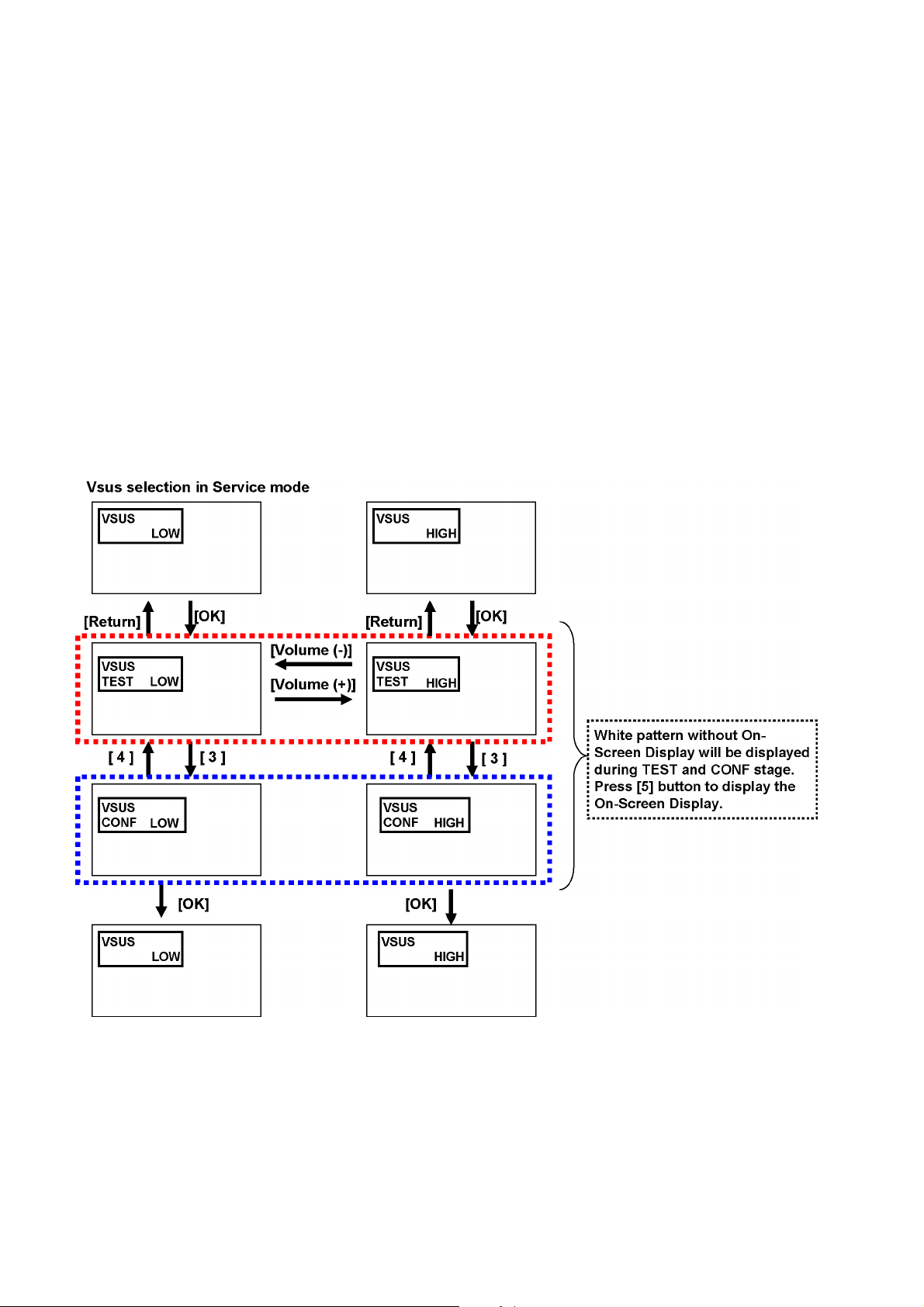

AMR-SELECT OFF VSUS LOW See Vsus selection AGING ALL WHITE Built-in test patterns can be

MIDDLE BLUE WITH MAGENTA OUTSIDE FRAME

MIDDLE STEP GREEN

MIDDLE STEP RED

LOW STEP WHITE

ALL BLUE

ALL GREEN

ALL RED

WHITE DIAGONAL STRIPE

RED DIAGONAL STRIPE

GREEN DIAGONAL STRIPE

BLUE DIAGONAL STRIPE

A-ZONE & B-ZONE

1% WINDOW

COLOR BAR

9 POINTS BRIGHT MEASURE

2 DOT OUTSIDE FRAME

DOUBLE FIXED 1% WINDOW

VERTICAL LINE SCROLL

ON/OFF

R/G/B/W ROTATION WITH COUNT DISPLAY

HALF FIXED ALL WHITE

ALL WHITE WITH COUNT DISPLAY SRV-TOOL 00 See Service tool mode DRV CHECK USBHDD CHECK 00 See DRV Check-USBHDD Check

displayed.

Page 12

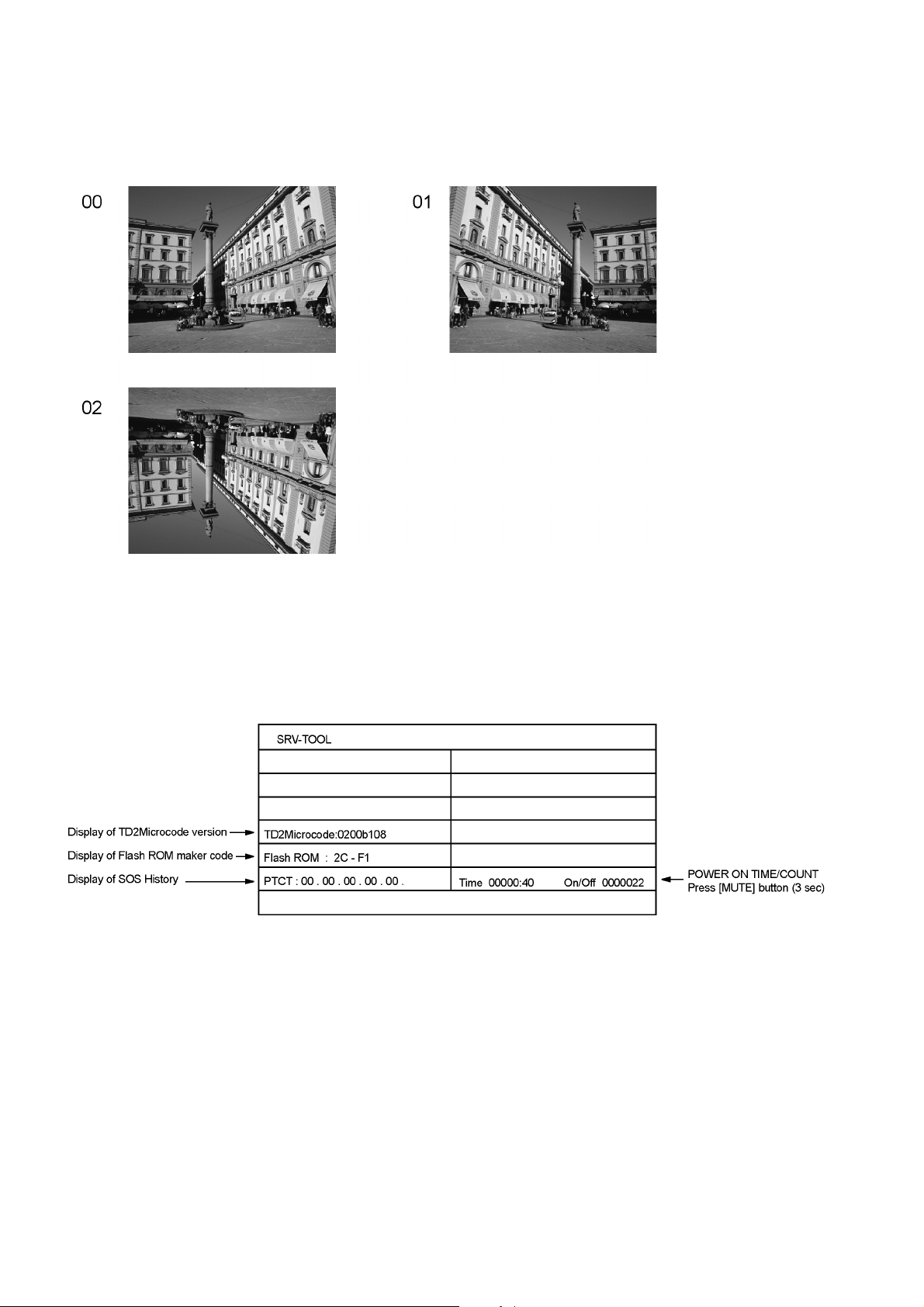

6.2. Option - Mirror

Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

6.3. Service tool mode

6.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.3.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

6.3.3. POWER ON Time, On/Off

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec. Time : Cumulative power on time, indicated hour : minute by decimal On/Off : Number of On/Off switching by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

6.3.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 13

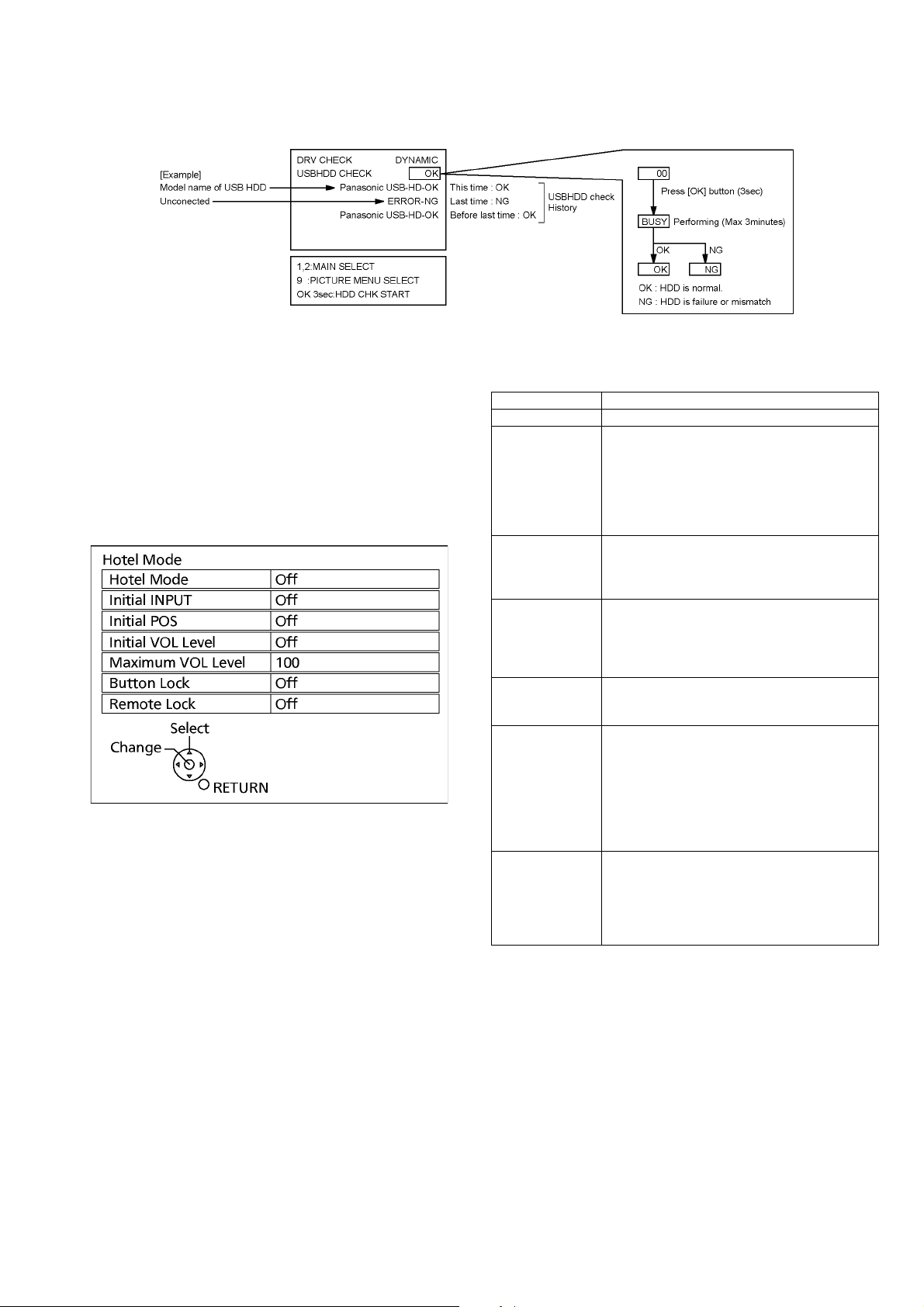

6.4. DRV Check - USBHDD Check

1. Select [DRV Check - USBHDD Check] in Service Mode.

2. Press [OK] button on the remote control for more than 3 seconds.

6.5. Hotel mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu: While pressing [VOLUME (-)] button of the main unit, press [AV] button of the remote control three times within 2 seconds.

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

4. Explain the Hotel mode setup menu

Item Function Hotel Mode Select hotel mode On/Off Initial INPUT Select input signal modes.

Initial POS Select programme number.

Initial VOL Level Adjust the volume when each time power is

Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock Select remote control key conditions.

Set the input, when each time power is switched on. Selection : Off,Analogue,DVB,AV1,AV2,HDMI1,HDMI2

• Off: give priority to a last memory. However, Euro model is compulsorily set to TV.

Selection : Off/0 to 99

• Off: give priority to a last memory

switched on. Selection/Range : Off/0 to 100

• Off: give priority to a last memory

Adjust maximum volume. Range : 0 to 100

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only F-key is invalid (Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid (only Volume/Mute can be selected.)

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

Page 14

6.6. Data Copy by USB Memory

Note:

SD card can not be used for Data Copy.

6.6.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to USB Memory and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to USB Memory and then copy to other TVs.

6.6.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty USB Memory.

1. Insert a empty USB Memory to your PC.

2. Right-click a blank area in a USB Memory window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd (b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in USB Memory.

Page 15

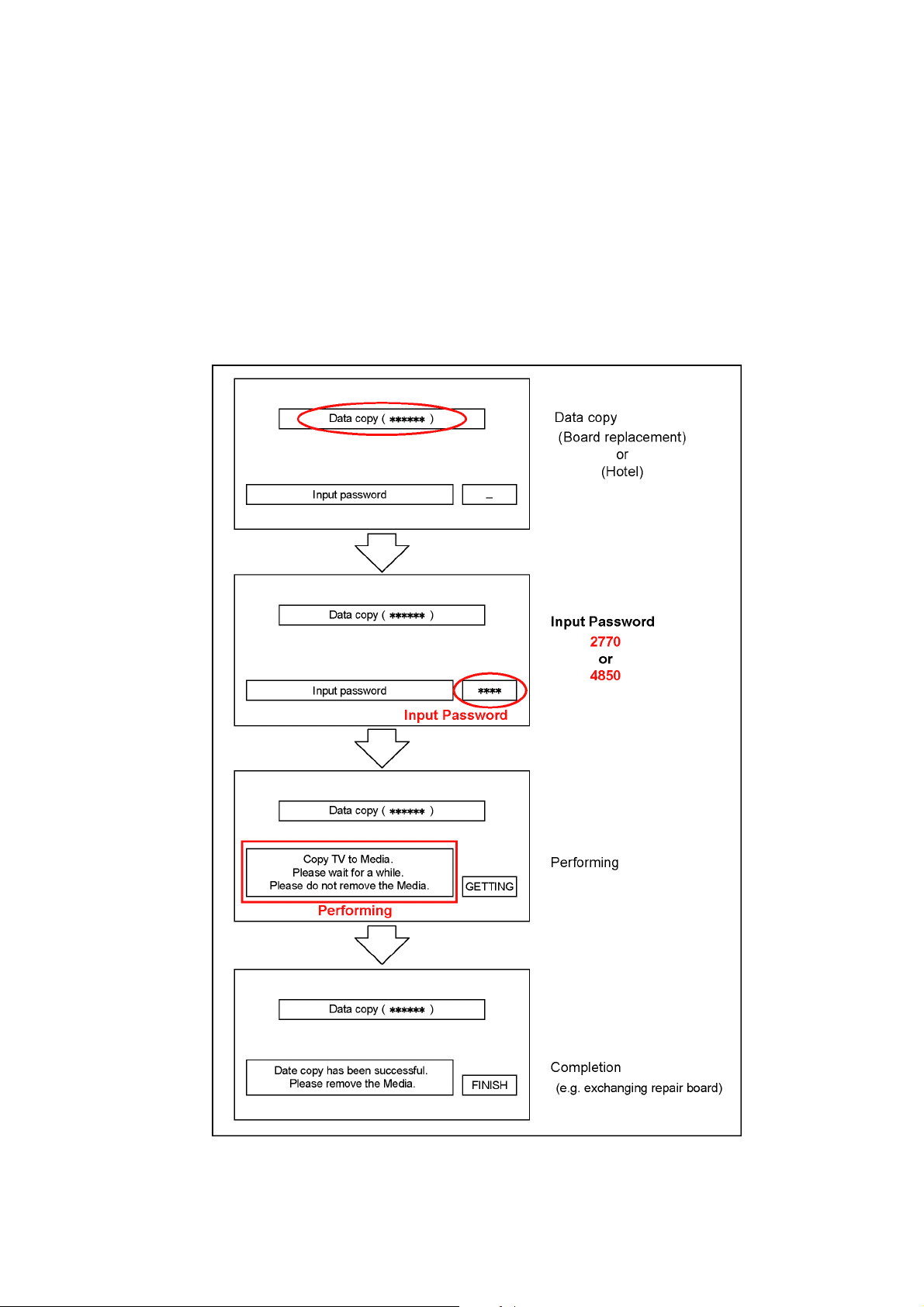

6.6.3. Data copy from TV set to USB Memory

1. Turn on the TV set.

2. Insert USB Memory with a startup file (pwd file) to USB terminal. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850 Data will be copied from TV set to USB Memory. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to USB Memory, remove USB Memory from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in USB Memory for data from TV set.

(a) For Board replacement : user_setup (b) For Hotel : hotel

Page 16

6.6.4. Data copy from USB Memory to TV set

1. Turn on the TV set.

2. Insert USB Memory with Data to USB terminal. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771 (b) For Hotel : 4851

Data will be copied from USB Memory to TV set.

4. After the completion of copying to USB Memory, remove USB Memory from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy). (b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

Page 17

7 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

7.1.1.2. Self-check indication and forced to factory shipment setting:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

7.1.2. Screen display

7.1.3. Check Point

Confirm the following parts if NG was displayed.

DISPLAY Check Ref. No. Description Check Point H14TUN TU6705 TUNER A-BOARD H90STBY IC8000 PEAKS-sLD8(STM) A-BOARD H91MEM2 IC8900 NAND FLASH A-BOARD H38PD5 IC9300 PD5L A-BOARD H07TEMP IC2001 TEMP SENSOR A-BOARD H17LAN LAN A-BOARD H00FE IC6800 DEMODULATOR A-BOARD H96ID ID A-BOARD

7.1.4. Exit

Disconnect the AC cord from wall outlet or press the [POWER] button on the main unit for 3 seconds to turn off and then turn on automatically.

Page 18

7.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

Blinking Times Contents Check point

1 Panel information SOS

PD Start SOS

2 P15V SOS A-Board

6Driver SOS1

(SN/PSS Energy recovery circuit) (A-SN FPC DET)

7Driver SOS2

(SN Connector DET) (SN Scan and Logic IC)

8Driver SOS3

(PSS FPC DET)

9 Discharge Control SOS A-Board

10 Sub 3.3V SOS

Tuner power SOS

12 Sound SOS A-Board

13 Emergency SOS A-Board

PSS-Board

SN-Board

PSS-Board

A-SN FPC

SN-Board

PSS-Board

PSS FPC

A-Board

SN-Board

PSS-Board

Speaker

Page 19

7.3. No Power

First check point There are following 3 states of No Power indication by power LED.

1. No lit

2. Green is lit then turns red blinking a few seconds later. (See Power LED Blinking timing chart)

3. Only red is lit.

7.4. No Picture

7.4.1. Drive circuits LED indicator

Check that the following LED on the SN-Board.

Power recovery LED

LED for check

SN D16583

Page 20

7.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

Page 21

8 Disassembly and Assembly Instructions

8.1. Disassembly Flow Chart for the Unit

This is a disassembly chart. When assembling, perform this chart conversely.

Page 22

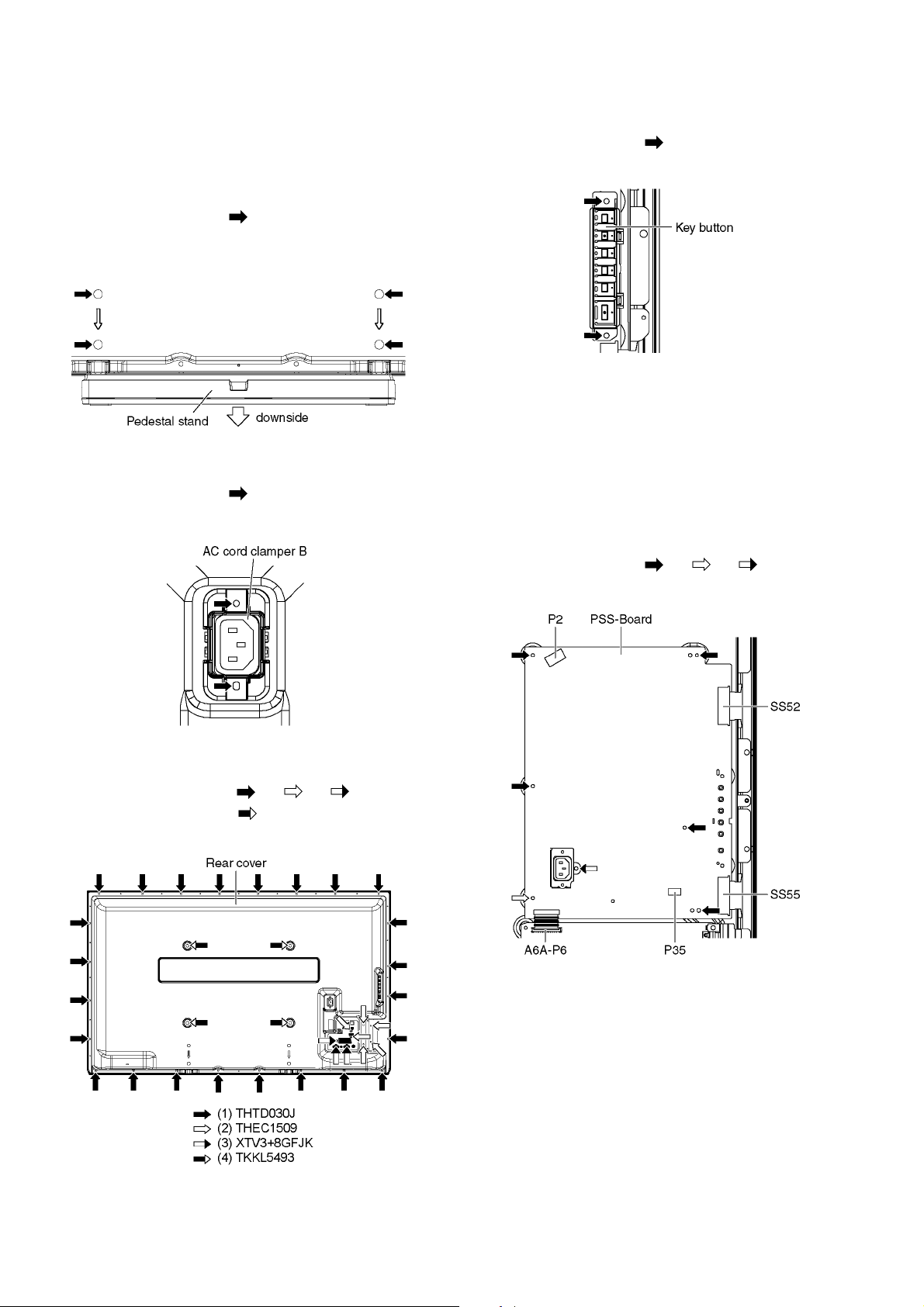

8.2. Disassembly Procedure for the Unit

8.2.1. Remove the Pedestal stand

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Remove the screws (×4 ).

3. Slide the Pedestal stand to the downside and remove the Pedestal stand.

8.2.2. Remove the AC cord clamper B

1. Remove the screws (×2 ) and remove the AC cord clamper B.

8.2.4. Remove the Key button

1. Remove the screws (×2 ).

2. Remove the Key button.

8.2.5. Remove the PSS-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Unlock the cable clampers, the hooks and the tapes to free the cables.

2. Disconnect the connectors (P2 and P35).

3. Disconnect the bridge connector (A6A-P6).

4. Disconnect the flexible cables (SS52 and SS55).

5. Remove the screws (×5 , ×1 , ×1 ) and remove the PSS-Board.

8.2.3. Remove the Rear cover

1. Remove the screws (×24 , ×6 , ×3 ).

2. Remove the M8 caps (×4 ).

3. Remove the Rear cover.

Page 23

8.2.6. Remove the A-Board

1. Unlock the cable clampers, the hooks and the tapes to free the cables.

2. Disconnect the connectors (A1 and A12).

3. Disconnect the bridge connector (A6A-P6).

4. Disconnect the flexible cables (A20 and A30).

5. Remove the screws (×4 ) and remove the Side shield metal.

6. Remove the A-Board.

8.2.8. Remove the SN-Board

1. Unlock the tapes to free cables.

2. Remove the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the SNBoard.

3. Disconnect the connector (SN2).

4. Disconnect the flexible cable (SN20).

5. Remove the screws (×5 ) and remove the SN-Board.

8.2.7. Remove the Speakers

1. Unlock the cable clampers, the hooks and the tapes to free the cables.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 each) and remove the Speakers (L, R).

8.2.9. Remove the Stand bracket

1. Remove the screws (×5 , ×1 ) and remove the Stand brackets (L, R).

Page 24

8.2.10. Remove the M8 nut metals and the M8 metals

1. Remove the screw (×1 each) and remove the M8 nut metals and the M8 metals.

8.2.11. Remove the K-Board

1. Remove the screw (×1 ).

2. Disconnect the connector (K10) and remove the K-Board from the LED panel.

2. Remove the screws (×2 , ×3 ).

3. Remove the Cabinet assy from the Plasma panel section.

8.2.12. Remove the Cabinet assy from the Plasma panel section.

1. Place the Cabinet assy on a flat surface of a table (covered by a soft cloth) and a cushion.

8.2.13. Remove the Contact metal bottom

1. Remove the screws (×8 ) and remove the Contact metal bottom.

8.2.14. Remove the C1-Board

1. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).

2. Disconnect the flexible cable (C10).

3. Remove the screws (×4 ) and remove the C1-Board.

8.2.15. Remove the C2-Board

1. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).

2. Disconnect the flexible cables (C20 and C21).

3. Disconnect the connector (C25).

4. Remove the screws (×4 ) and remove the C2-Board.

Page 25

8.2.16. Replace the Plasma panel

Caution:

Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion.

A new Plasma panel itself without Contact metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Contact metal bottom.

1. Place a carton box packed a new Plasma panel on the flat surface of the work bench.

2. Open a box and without taking a new Plasma panel.

3. Attach the Cabinet assy and each P.C.Board and so on, to the new Plasma panel.

Page 26

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.

2. Press [OK] button to go to TEST stage. White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On-Screen Display.

3. Press [VOL (-)] button to set to LOW.

4. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage. b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

5. Press [OK] button in CONF stage to store LOW or HIGH.

6. Exit Service Mode by pressing [Power] button.

Notes:

Do not overwrite because data is written in NAND Flash after executing adjustment of V-SUS Voltage.

Page 27

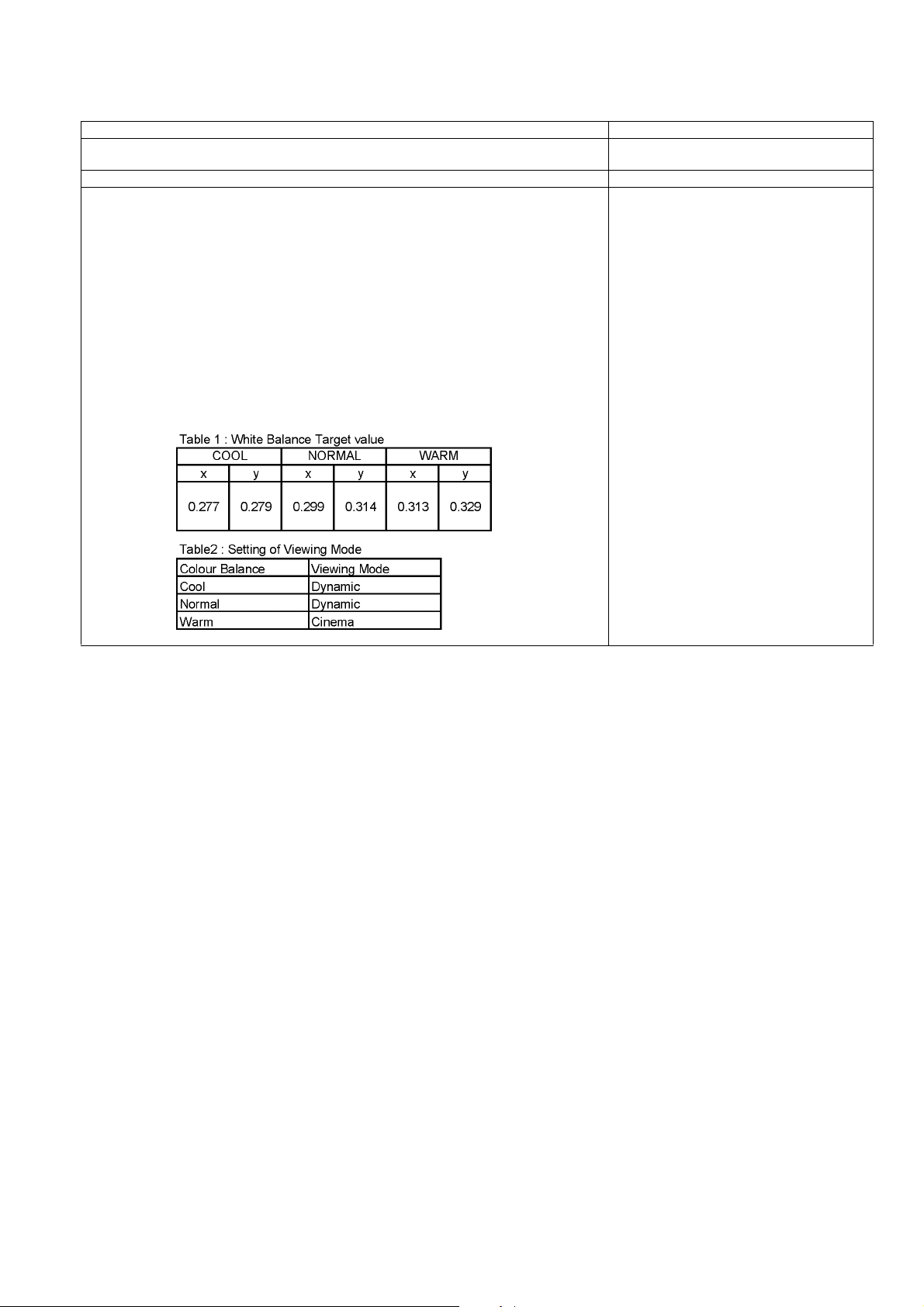

9.1.2. White balance adjustment

Name of measuring instrument Remarks

Color analyzer

(Minolta CS-2000 or equivalent)

Procedure Remarks

1. Enter the Service mode.

2. Receive the Analog-RF (except for no signal) or set CVBS/YUV/HDMI (no signal is available).

3. Select [WB-ADJ] by using [1] and [2] key in the remote controller.

4. Check that the colour balance and the viewing mode is the values written in table1 and 2.

5. [INNER PATTERN] is displayed by using [5] key by using [5] key in the remote controller.

6. Select [G-CUTOFF] by using the [3] and [4] key in the remote controller, and set the value to [80] by using the volume [+] and [-] key. Also, [B-CUTOFF] and [R-CUTOFF] set to [80]

7. Set [G-DRIVE] value to the initial data (ex. D0).

8. Set the color analyzer and adjust color point to the values written in table1 by using [BDRIVE] and [R-DRIVE]

9. Increase RGB-DRIVE value so that the maximum drive value of one of R-DRIVE or GDRIVE or B-DRIVE should become [FF] ([ALL-DRIVE] set to [FF].)

Page 28

Page 29

10 Block Diagram

10.1. Main Block Diagram

MAIN AV INPUT,PROCESSING

TUNER

SCART

VIDEO/

COMPONENT

HEADPHONES

DIGITAL

AUDIO OUT

SPEAKER(L)

SPEAKER(R)

IF_P/N

R/G/B

L/R

V_OUT

L/R_OUT

V/YPbPr/RGB

L/R

HP L/R

DIGITAL AUDIO OUT

A12

DVB-T2 DEMOD.

Parallel_ TS(FE)

AUDIO

AMP

CI SLOT

ARC (HDMI2)

HDMI1,2

Parallel_TS(CI)

NAND FLASH

DDR3

TMDS DATA

HDMI I/F

ARCOUT

IF_P/N

TS I/F

CI I/F

CI BUS

CVBS

R/G/B

L/R

V/YPbPr/RGB

L/R

VOUT1

LO2_L/R

HP_L/R

ICEOUT

ASDOUT0

NAND FLASH I/F

DDR3 I/F

AV IN

VIDEO OUT

AUDIO OUT

PEAKS sLD8

LVDS I/F

STM

(LED:12TIMES)

PANEL_SOS

SOUND_SOS

(LED:10TIMES)

(LED:2TIMES)

P15V_DET

PANEL_MAIN_ON

P15V

KEY3

(LED:6TIMES)

D_UHZ(FFC_OFF_DET)

LAN_TX/RX

USB_DP/DN

SUB3.3V_SENSE

TUNER_POWER_SOS

R/G_LED_ON

REMOTE_IN

C.A.T.S_SENSOR

DMD IIC1

KEYSCAN

SUB3.3V

TEMP SENSOR

TUNER_POWER_SOS

(LED:10TIMES)

DCDC

SUB1.5V

DCDC

SUB1.1V

DCDCIN

SUB1.5V

SUB1.1V

DCDC

SUB5V

DCDC

SUB3.3V

DCDC P1.2V

SUB5V

SUB3.3V

P1.2V

ETHERNET DATA

USB_DP/DN

DCDC

HDMI3.3V

SUB5V

P5VF15V

SUB3.3V

DCDC

EU_TU_1.8V

P3.3V

SUB3.3V

EU_TU_1.8V

ETHERNET

USB

HDMI3.3V

SUB3.3V

K10

POWER LED REMOTE RECEIVER C.A.T.S. SENSOR

STB3.3VSTB3.3V

LED_R/G

REMOTE_RECEIVER

C.A.T.S_SENSOR

SCAN DRIVER

SCAN DRIVE

BUFFER

SN-BOARD ENERGY RECOVERY SOS DETECT

(LED:6TIMES)

SN-BOARD SCAN DRIVE SOS DETECT

(LED:7TIMES)

CONTROL PULSE

VSCAN GEN.

VAD GEN.

SOS6_SC1

SOS7_SC2

P5V

P15V

SCAN CONTROL

MID

VSUS

SN20

SN2

STB5V

STB3.3V

SUB5V

SUB9V

P3.3V

SOS6_SC1

SOS7_SC2

A20

MID

VSUS

DATA DRIVER (RIGHT)

VDA

VIDEO DATA

F15V

P5V

P15V

SCAN CONTROL

SOS6_SC1

SOS7_SC2

ANALOG-ASIC

(LED:9TIMES)

(LED:6TIMES)

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

PANEL_SOS

SOS_DCC

P3.3V P3.3V

C20

C10

LVDS DATA

PD5L

P3.3V

A30

P3.3V

C21

P3.3V

SPI FLASH

VIDEO DATA

PANEL_MAIN_ON

SUSTAIN CONTROL

DATA DRIVER (LEFT)

VDA

VIDEO DATA

SOS8_SS

SOUND15V

STB5V

KEY3

P15V

F15V

P5V

KEYSCAN

POWER SUPPLY, SUSTAIN DRIVE

PSS

KEY1

KEY3

PANEL_ MAIN_ON

SUSTAIN CONTROL

SOS8_SS

A6A

SOUND15V

EV5V

P15V

F15V

P5V

MID

VSUS

VDA

(LED:8TIMES)

VSUS

VDA

COLD

HOT

SOUND15V

EV5V

P15V

F15V

STANDBY VOLTAGE CONVERTER

RECTIFIER

VDA

P35

VDA

C25

MAIN CONVERTER

POWER FACTOR CONTROL

RECTIFIER

RELAY

AC CORD

KEY BUTTON

SS-BLOCK

OPERATION KEYS

POWER SW

DATA DRIVER

Page 30

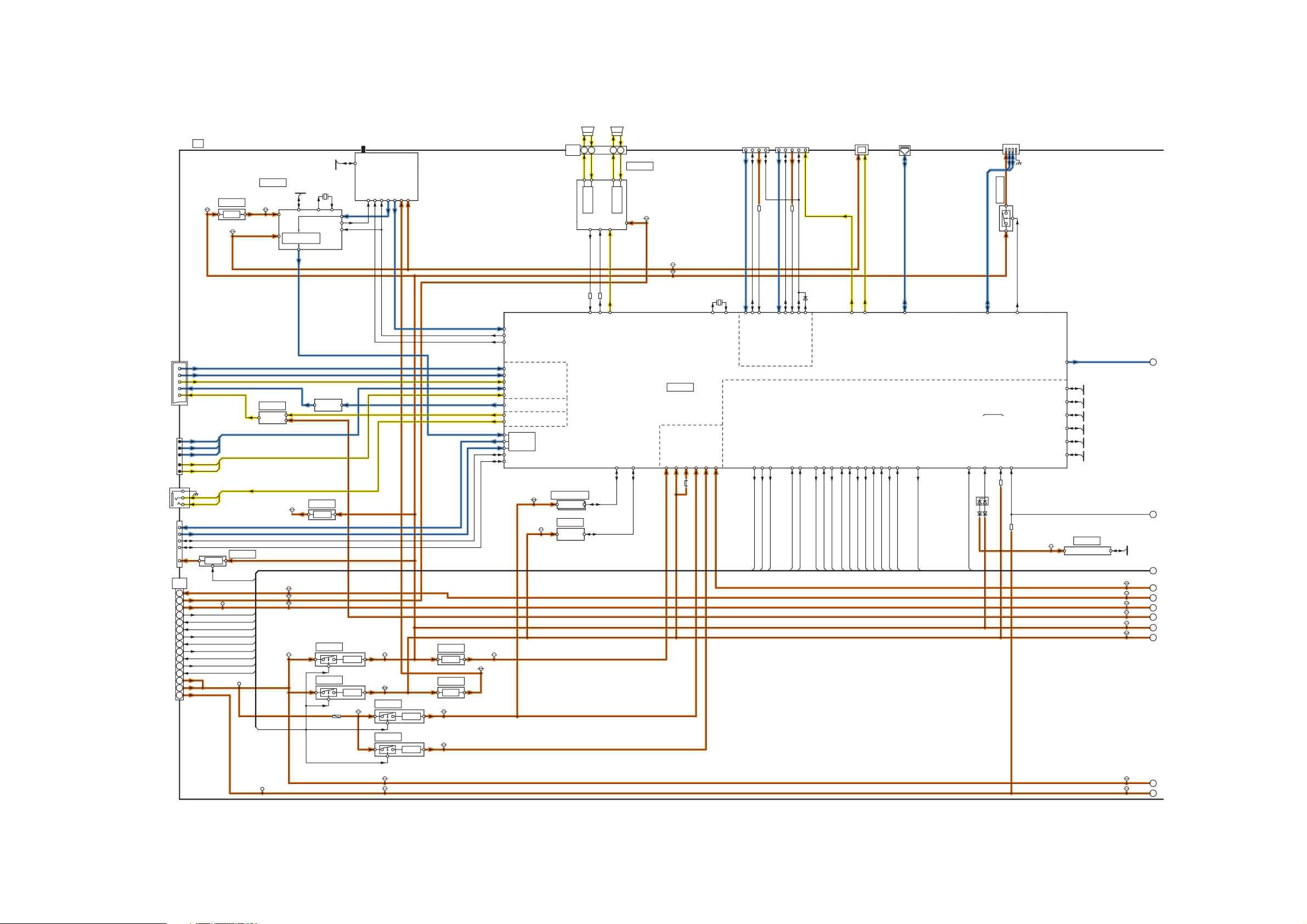

10.2. Block (1/4) Diagram

MAIN AV INPUT,PROCESSING

IC5702

SUB5V

1.2V

SUB3.3V

DMD_1.2V

IC6800

DVB-T2 DEMOD.

DMD_ IIC1

DEMODULATOR

DMD_ IIC0

X6800

41.0MHz

IFAGC

FE_XRST_T

ANT IN

IFAGC1

TU6705

TUNER

FE_XRST_T

IFAGC2

IF1_P/N

IF2_P/N

SPEAKER_L

SPEAKER_R

+5V

DDC_IIC2

HDMI_CEC

TMDS DATA

JK4702

HDMI2

CLOCK

+5V

DDC_IIC1

ARC

HDMI_CEC

JK4701

L(+)

SPEAKER

L(-)

L_OUT

SOS

RESET

R(+)

SPEAKER

IC4900

R(-)

AUDIO AMP

R_OUT

SOUND15V

SUB3.3V

SUB5V

X8300

25MHz

A12

1.8V

3.3V

HDMI1

TMDS DATA

CLOCK

D3101

DIGITAL

AUDIO

OUT

JK8650

ETHERNET

JK8601A

USB

IC8603

JK3011

SCART

JK3001

VIDEO/

COMPONENT

JK3111A

HEADPHONES

JK8400

CI SLOT

SOUND15V

SOS8_SS

SUSTAIN CONTROL

PANEL_MAIN_ON

KEYSCAN

STB5V_SWON

TUNER_SUB_ON

STB5V

P_S1

KEY3

P_S0

F15V

P15V

AXI

RX2

STB3.3V

L8702

PHY3.3V

SUB1.5V

AXO

SUB1.1V

IF_P/N

FE_XRST_T

IFAGC

R/G/B

L/R

V_OUT

L/R_OUT

IC3052

Q3051,52

VIDEO AMP

AMP

V/YPbPr/RGB

V/Y

L/R

HP_L/R

HP_R

HP_L

Parallel_TS(CI_IN)

Parallel_TS(CI_OUT)

CI DATA

CI BUS

A6A

P5V

CI_5V

CI_POWER_ON

[SRV STB5V]

TP2034

SUSTAIN CONTROL

PANEL_MAIN_ON

STB5V_SWON

TUNER_SUB_ON

[SRV F15V]

TP2032

IC8404

SOS8_SS

KEYSCAN

P_S1

KEY3

P_S0

SOUND15V

STB5V

DCDCEN

AVDDHP33V

P5V

F15V

IC8709

3.3V

IC8704

IC8705

PA2000

SUB5V

+5V

SUB3.3V

+3.3V

DCDCIN

SUB5V

SUB3.3V

IC8100

IC8101

SUB1.5V

+1.5V

SUB1.1V

+1.1V

Parallel_TS(FE)

IC8715

3.3V

IC5704

+1.8V

SUB1.5V

SUB1.1V

RGB_CVBS

EU_TU_1.8V

HDMI3.3V

CVBS

R/G/B

L/R

V/YPbPr/RGB

L/R

VOUT1

LO2_L/R

HP_L/R

TS I/F

CI I/F

CI BUS

SUB1.5V

SUB3.3V

AV IN

VIDEO OUT

AUDIOAUDIO OUT

IC8200,1

DDR3

IC8900

NAND FLASH

AMP_XRST

SOUND_SOS

(LED:12TIMES)

ASDOUT0

DDR3 I/F

NAND FLASH I/F

IC8000

PEAKS sLD8

POWER

SUB3.3V

HDMI3.3V

DDC_IIC2

HDMI_5V_DET2

HDMI I/F

TUNER_SUB_ON

PANEL_MAIN_ON

CI_POWER_ON

PANEL_MAIN_ON

TUNER_SUB_ON

RX1

DDC_IIC1

HDMI_CEC

HDMI_CEC_

HDMI_5V_DET1

KEYSCAN

KEY3

KEYSCAN

KEY3

PULL_ON

STM

DRVRST

XRST

PDP_DRVRST

REMOTE_IN

XRST

PD5L_XRST_SYS

REMOTE_IN

ICEOUT

ARCOUT

C.A.T.S_SENSOR

G_LED_ON

R_LED_ON

C.A.T.S

G_LED_ON

R_LED_ON

POWER_DET

PANEL_SOS

POWER_DET

PANEL_SOS

XRSTSTM

SW_OFF_DET

XRSTSTM

LAN_TX/RX

DISPEN

(LED:10TIMES)

(FFC_OFF_DET)D_UHZ

(LED:6TIMES)

D8772

D_UHZ

USB_DP/DN

TUNER_POWER_SOS

SUB3.3V_SENSE

D8771

D8773

VBUS0

P15V_DET

(LED:2TIMES)

LVDS I/F

SUB3.3V

DMD_ IIC0

DMD_ IIC1

SBI0 SBO0

STM_ IIC

IIC0

IIC1

IIC0

IIC1

DMD_ IIC0

DMD_ IIC1

SBI0 SBO0

STM_ IIC

IC2001

TEMP SENSOR

STB3.3V

STB5V

SUB9V

SUB5V

SUB3.3V

LVDS DATA

P15V_DET

P5V

DMD_ IIC1

[SRV P15V]

TP2033

F15V

P15V

F15V

P15V

Page 31

10.3. Block (2/4) Diagram

MAIN AV INPUT,PROCESSING

LVDS DATA

PA5017

SOS6_SC1

SOS7_SC2

SOS8_SS

SOS_DCC

PANEL_SOS

STB5V_SWON

SUB9V

SUB5V

F15V

STB5V

IC5000

SUB9V

SUB5V

DTV15V

SOS6_SC1 (LED:6TIMES) SOS7_SC2

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

SOS_DCC

(LED:9TIMES)

PANEL_SOS

ANALOG-ASIC

DTV_RST

DCDC_CTL

DRVRST_ IN

DRVRST_ OUT

BUFF_EN

STB3.3V

IC9300

PD5L

LVDS DATA

IC9803

F15V

DCDCEN

SUB3.3V

XRST

DCDCEN

PDP_DRVRST

DRVRST

UHZ

P3.3V

STB3.3V

SC_UHZ

D_UHZ

P_S0

P_S1

DRVRST

PD5L_XRST_SYS

DISPEN

+1.2V

P1.2V

R9809

P1.2V

IC9304

SPI FLASH

P3.3V

SI/SO

D9806

P3.3V

PLASMA AI CPG H/V Sync Control Sub Filed Processor

1.2V

3.3V

FLASH I/F

P_S0

P_S1

DRVRST

OFF_FLAG

XRSTSYS

DISPEN

P15V DET

SOS_DCC

C_3.3V_DET

DISCHARGE CONTROL

DATA DRIVER CONTROL

SUSTAIN CONTROL

SCAN CONTROL

VIDEO DATA

IIC0

UHZ

IC9402

SUSTAIN DATA BUFFER

D_UHZ

SOS_DCC

SUSTAIN CONTROL

IC9400,01

SCAN DATA BUFFER

X9300

20MHz

P3.3V

C21

A30

VIDEO DATA

3.3V_DET

DATA DRIVER CONTROL

P3.3V

POWER_DET

SW_OFF_DET

P15V_DET

STB3.3V

P5V

STB5V

SUB9V

SUB5V

SUB3.3V

F15V

P15V

VJ5000

POWER_DET

STBRST

XRSTSTM

SUB5V

R9804

SN20

A20

SC_UHZ

SOS6_SC1

P5V

P15V

STB3.3V

SUB3.3V

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

STB3.3V

SUB_AI3.3V

REMOTE_IN

SUB_AI3.3V

G_LED_ON

R_LED_ON

C.A.T.S

STB3.3V

K10

SOS7_SC2

CN0100

IIC0 IIC1 STM_IIC SBI0/SBO0

D2802

POWER LED

SCAN CONTROL

UHZ

SOS6

SOS7

P5V

P15V

FOR FACTORY USE

POWER LED REMOTE RECEIVER C.A.T.S. SENSOR

SN2800

C.A.T.S SENSOR

RM2800

REMOTE RECEIVER

Page 32

10.4. Block (3/4) Diagram

AC CORD

POWER SUPPLY,SUSTAIN DRIVE

PSS

F201

FREQUENCY RANGE (120Khz)

EMI FILTER PFC

B+(390V)

FREQUENCY RANGE (110Khz)

DC/DC HB LLC

SN2

Vsus

MID

COLDHOT

Vda

OPP

UVP/OVPOCP/OVP

Vsus

Vda

SS-BLOCK

SUSOUT

SUSTAIN CONTROL

P5V

15Vc

STB5V

FPC PROTECTOR

Vsus

MID

C25

P35

Vda

SS 52

PLASMA PANEL

PANEL

SUSTAIN

ELECTRODE

PFC ON/OFF

LLC ON/OFF

VCC

FREQUENCY RANGE (95Khz)

PHOTO COUPLER

FLYBACK

VOLTAGE SWITCHING

MCU

PANEL_MAIN_ON

STB5V_SW_ON

TUNER_SUB_ON

STB5V

Vsus_Vda_ON

F15V_ON

15Vs_ON

STBY5V_ON

AC_DET

SCP/OVP

OPP

COLDHOT

5V REGULATOR

FET SWITCH

F15V

15Vc OCP

SWITCHING REGULATOR

15Vc

15Vs

(LED:8TIMES)

P6 A6A

SOS8_SS

SUSTAIN CONTROL

P5V

P_S0

P_S1

PANEL_MAIN_ON

STB5V_SW_ON

TUNER_SUB_ON

STB5V

F15V

P15V

SOUND15V

KEY3

KEY1

KEY BOTTON

OPERATION KEYS

POWER SW

Page 33

10.5. Block (4/4) Diagram

SCAN CONTROL

A20

P15V

SOS6

SOS7

Vsus

UHZ

SCAN DRIVE

Reference Voltage

SN2

MID

Vsus Lo : 189V Vsus Hi : 194V

IC16603

AND

IC16501

CMH

BUFFER

SUSTAIN H

IC16502

CSH

BUFFER

RECOVERY H

IC16522

CSL

BUFFER

RECOVERY L

SRV_P15V

SN 20

P5V

SCAN CONTROL

IC16561

BUFFER

(LED:6TIMES)

SRV_P5V

TPSOS6

CMH

SRV_VSUS

CMH CML CSH CSL CPH

CPH

CERS

CMH

NCPH

Q16401 Q16402

CML

Q16441

Q16451

CERS

NCRC1 NCRC2 NCEL

IC16563

INVERTER

IC16600

SUSTAIN L

CIS SIUCEL OC1 OC2 CLK

BUFFER

IC16521

BUFFER

D16618

NCPH

Q16602

IC16784,85

PC16897

IPD CIRCUIT

VAD GEN.

Reference Voltage Vad = 205

T16471

TPVAD

5V(VFG_BASE)

Q16601

Q16421 Q16422

TPSOS7

CIS

Q16621 Q16622

SEPA

VFG

IC16921

IGBT CONTROL

NCEL

TPVFG

3V(VFG_BASE)

TPSN1

IC16795

F15V

VAD

Q16820

VSCN-F

SRV_VF5V

SCAN_PRO

Q16661

SRV_VFO

IC14901,02

PDP SCAN

DRIVER

PDP SCAN

DRIVER

IC14903,04

SN21 SN22

SN23 SN24

PLASMA PANEL

PANEL SCAN ELECTRODE

IC14951,52

Vfo

PDP SCAN

DRIVER

PDP SCAN

DRIVER

SN25 SN26

SN27 SN28

IC14953,54

F5V

SIU OC1 OC2 CLK

LOGIC IC

IC14961,62

CEL

NCRC1

NCRC2

IC16786,87

PC16723

IPD CIRCUIT

VSCN GEN.

MAIN_STOP0

UHZ

VFG

Reference Voltage Vscn = 147

T16472

IC16725

D16713 D16714

D16728

F5V

VOL

D16583 LED(G)

UHZ

(LED:7TIMES)

SRV_P3.3V

CB1

DATA DRIVER (RIGHT)

CB2

DATA DRIVER

CB3

CB4

C10

CONTROL DATA

VIDEO DATA

PLASMA PANEL

3.3V_DET

VDA

P3.3V

3.3V_DET

VIDEO DATA

CONTROL DATA

A30

C21

P3.3V

SRV_P3.3V

DATA DRIVER (LEFT)

VIDEO DATA

C20

140

CB5

CB6

CB7

CB8

P35

C25

VDA

DATA DRIVER

Page 34

Page 35

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.

11.2. Wiring (1)

11.3. Wiring (2)

Page 36
