Page 1

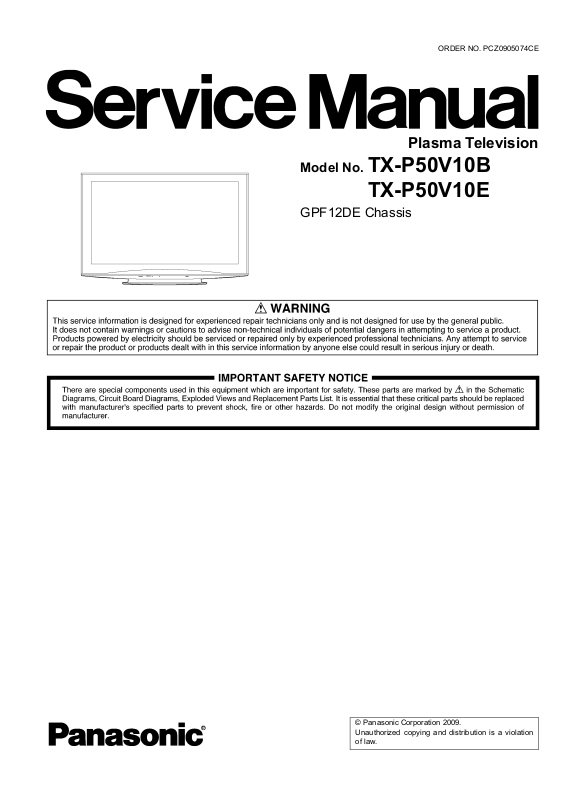

ORDER NO. PCZ0905074CE

Plasma Television

Model No. TX-P50V10B
TX-P50V10E
GPF12DE Chassis
© Panasonic Corporation 2009. Unauthorized copying and distribution is a violation of law.
Page 2
Page 3

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.
5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

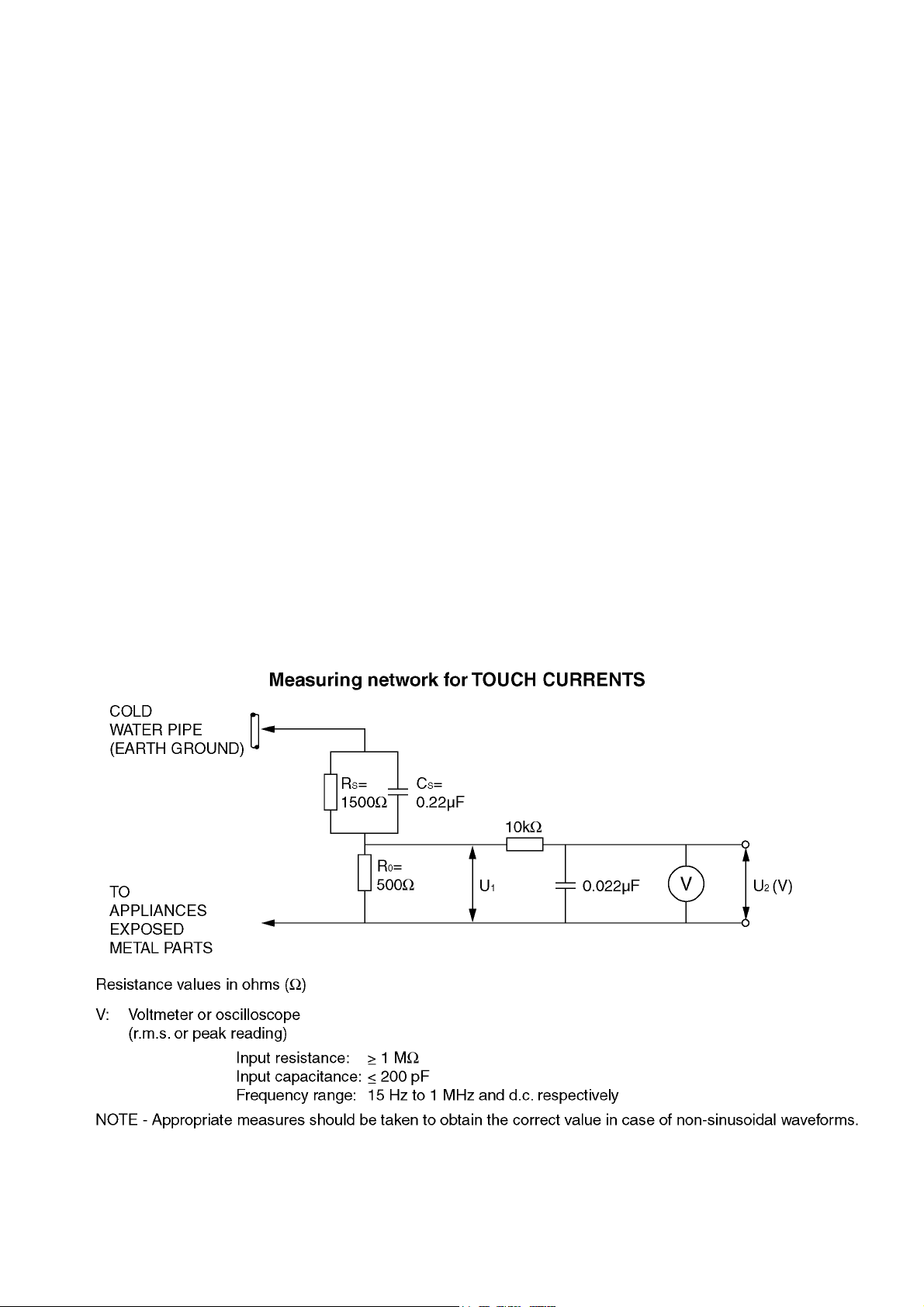

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUGH CURRENT) expressed as voltage U
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U
Note:
The limit value of U
mA d. c. The limit value U
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.
= 1.0 V,
1
= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0
2
= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.
1
and U2, does not exceed the following values:
1
Figure 1
3
Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec­trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi­num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara­ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush­ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).
4
Page 5

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol­der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

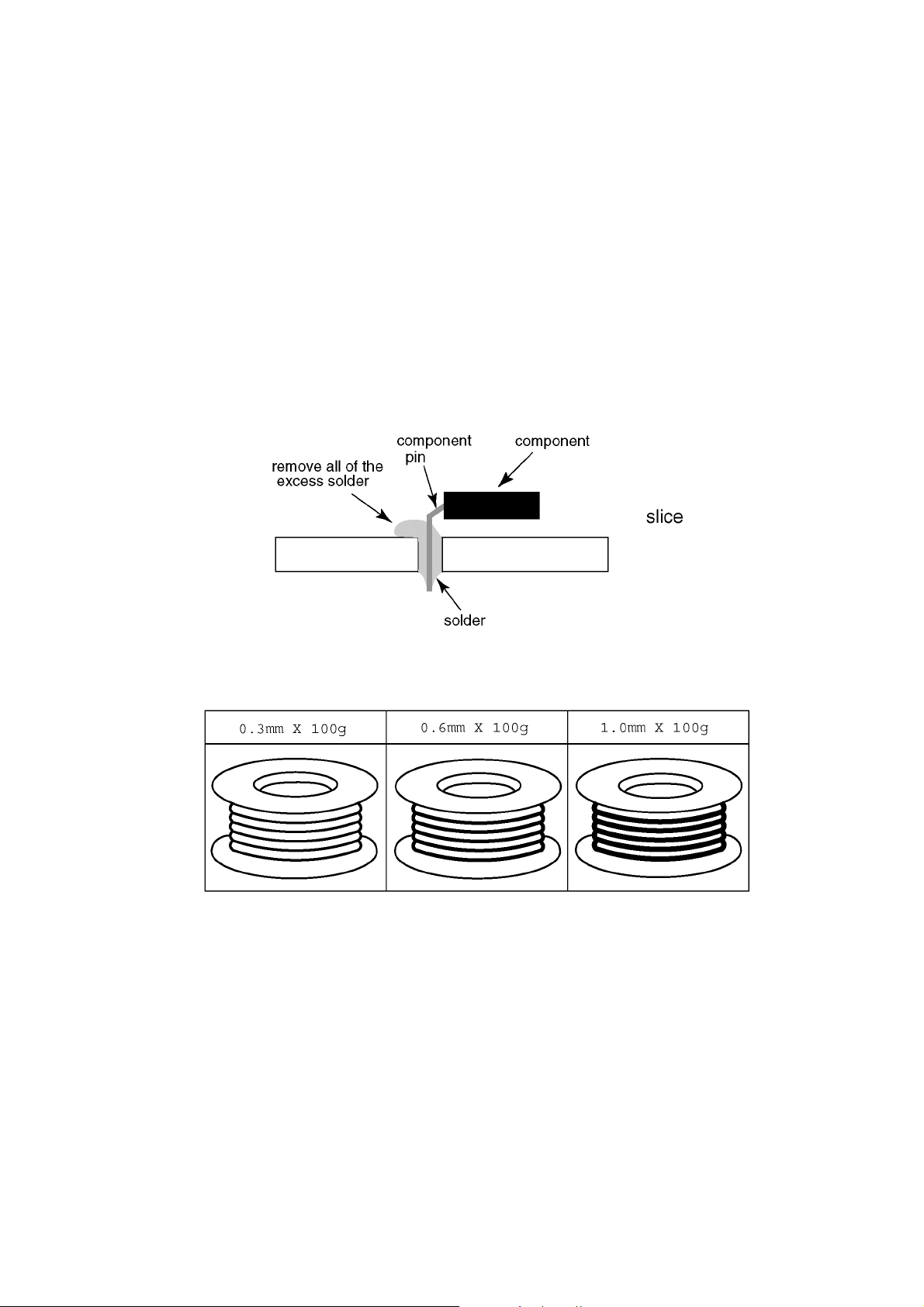

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How­ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
5
Page 6

3 Service Navigation

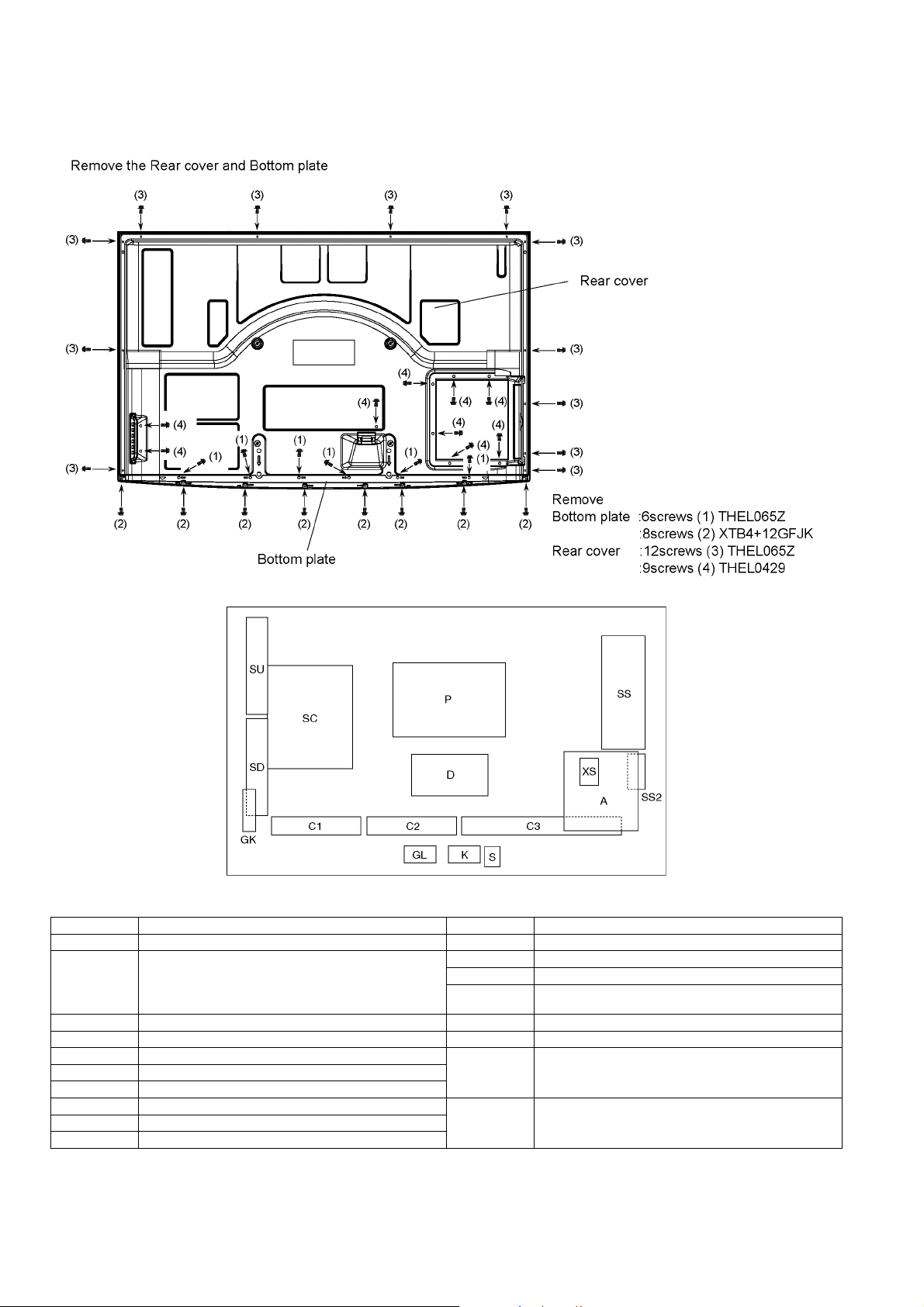

3.1. Service Hint

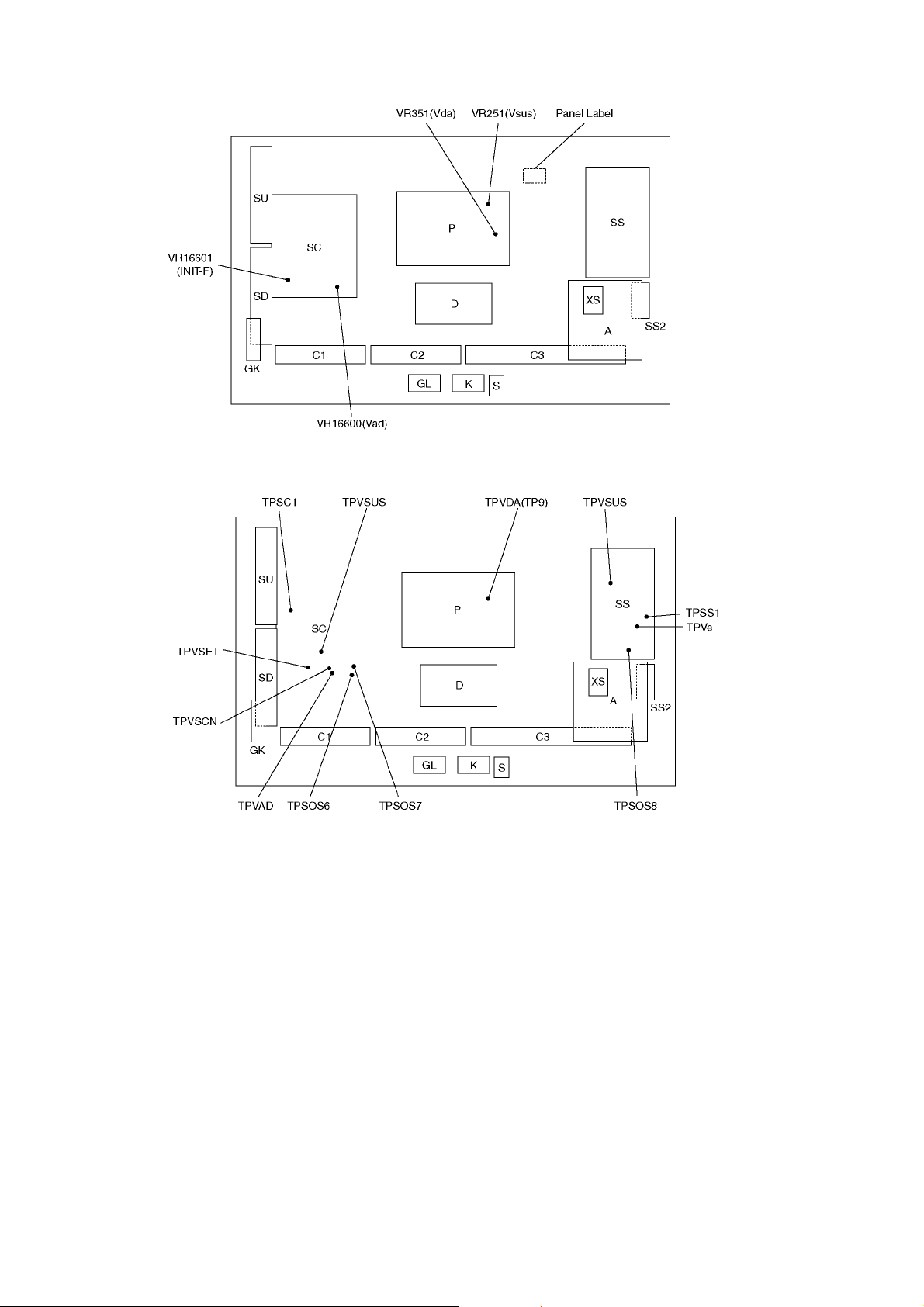

Board Name Function Board Name Function
P Power Supply C1 Data Driver (Lower Right) A DC-DC Converter, Tuner
Speaker out, AV Terminal, AV Switch, PC Digital Signal Processor, SYSTEM MPU, HDMI Switch Peaks-AVC, Ethernet
D Format Converter, Plasma AI, Sub-Field Processor SS Sustain Drive XS Sat Tuner SS2 Sustain out (Lower) GL SD LED SU Scan out (Upper)
K Remote receiver, Power LED, C.A.T.S sensor
S Power Switch GK Key Switch SD Scan out (Lower)
C2 Data Driver (Lower Center) C3 Data Driver (Lower Left) SC Scan Drive
Non-serviceable. SU-Board should be exchanged for service.
Non-serviceable. SD-Board should be exchanged for service.
6
Page 7

3.2. Applicable signals

COMPONENT (Y, PB, PR), HDMI
* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI
Signal name COMPONENT HDMI 525 (480) / 60i * * 525 (480) / 60p * * 625 (576) / 50i * * 625 (576) / 50p * * 750 (720) / 60p * * 750 (720) / 50p * * 1,125 (1,080) / 60i * * 1,125 (1,080) / 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p * 1,125 (1,080) / 24p *
PC (D-sub 15P)
Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 768 @60 Hz 47.70 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13 inch (640 × 480) 35.00 66.67 Macintosh16 inch (832 × 624) 49.73 74.55 Macintosh21 inch (1,152 × 870) 68.68 75.06
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00
Note
• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
7
Page 8

4 Specifications

Power Source AC 220-240 V, 50 / 60 Hz Power Consumption 435 W Power Consumption in Standby condition 0.4 W (Without monitor out recording)
32 W (With monitor out recording)
Display panel
Aspect Ratio 16:9 Visible screen size 127 cm (diagonal) 1,105 mm (W) × 622 mm (H) Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
Sound
Speaker 140 mm × 35 mm × 2 pcs, 6 Ω Audio Output 20 W ( 10 W + 10 W ), 10 % THD Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals VGA, SVGA, WVGA, XGA
SXGA, WXGA ...... (compressed)
Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz
Receiving Systems / Band name (B only) DVB-S / S2
(freesat Other Sat.) :
DVB-T : Digital terrestrial services via UHF aerial input. PAL I : UHF E21-68 PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC : Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) : Playback from NTSC Video recorders (VCR).
Receiving Systems / Band name (E only) PAL B, G, H, I,
SECAM B, G, SECAM L, L’ :
PAL D, K, SECAM D, K : VHF R1 - R2
PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR) DVB-T : Digital terrestrial services DVB-C : Digital cable services DVB-S / S2 : Digital satellite services
M.NTSC : Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) : Playback from NTSC Video recorders (VCR).
O TV signals may not be received in some areas.
Satellite dish input Female F-type 75 Ω
freesat services via Satellite dish input. Receiver frequency range - 950 MHz to 2,150 MHz LNB Power and Polarization - Vertical: +13 V Horizontal: +18 V Current: Max. 500 mA (overload protection) 22 kHz Tone - Frequency: 22 kHz ± 2 kHz Amplitude: 0.6 V ±0.2 V Symbol Rate - Max. 30 MS/s FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Demodulation - QPSK, 8PSK Not available for DiSEqC control.
or NTSC disc playback from DVD player and recorder.
VHF E2 - E12 VHF H1 - H2 (ITALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
VHF R3 - R5 VHF R6 - R12 UHF E21 - E69
Receiver frequency range - 950 MHz to 2,150 MHz LNB Power and Polarization - Vertical: +13 V Horizontal: +18 V Current: Max. 500 mA (overload protection) 22 kHz Tone - Frequency: 22 kHz ± 2 kHz Amplitude: 0.6 V ± 0.2 V Symbol Rate - Max. 30 MS/s FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Demodulation - QPSK, 8PSK DisEqC - Version 1.0
8
Page 9
Aerial input UHF (B only), VHF/UHF (E only) Operating Conditions
Temperature: 0 °C - 35 °C Humidity: 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link) AV2 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link) AV3
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω) S-VIDEO Mini DIN 4-pin Y:1.0 V [p-p] (75 Ω) C:0.286 V [p-p] (75 Ω) AUDIO L - R RCA PIN Type × 2 0.5 V [rms]
COMPONENT
VIDEO Y 1.0 V [p-p] (including synchronization)
, P
P
B
R
± 0.35 V [p-p]
AUDIO L - R RCA PIN Type × 2 0.5 V [rms]
Others
HDMI1 / 2 / 3 / 4 TYPE A Connectors HDMIâ„¢ (Version 1.3a with Deep Colour, x.v.Colourâ„¢)
O This TV supports [HDAVI Control 4] function.
PC HIGH-DENSITY D-SUB 15PIN R, G, B/ 0.7 V [p-p] (75 Ω)
HD, VD/TTL Level 2.0 - 5.0 V [p-p] (high impedance)
Card slot SD Card slot × 1 ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX
Output
AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance) DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber optic
Dimensions (W × H × D) 1,241 mm × 818 mm × 401 mm (With Pedestal)
1,241 mm × 774 mm × 84 mm (TV only)
Mass 36.0 kg Net (With Pedestal)
34.0 kg Net (TV only)
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.
• Pedestal: ST-42CS2WG / ST-50CS2WG (For safety approval)
9
Page 10

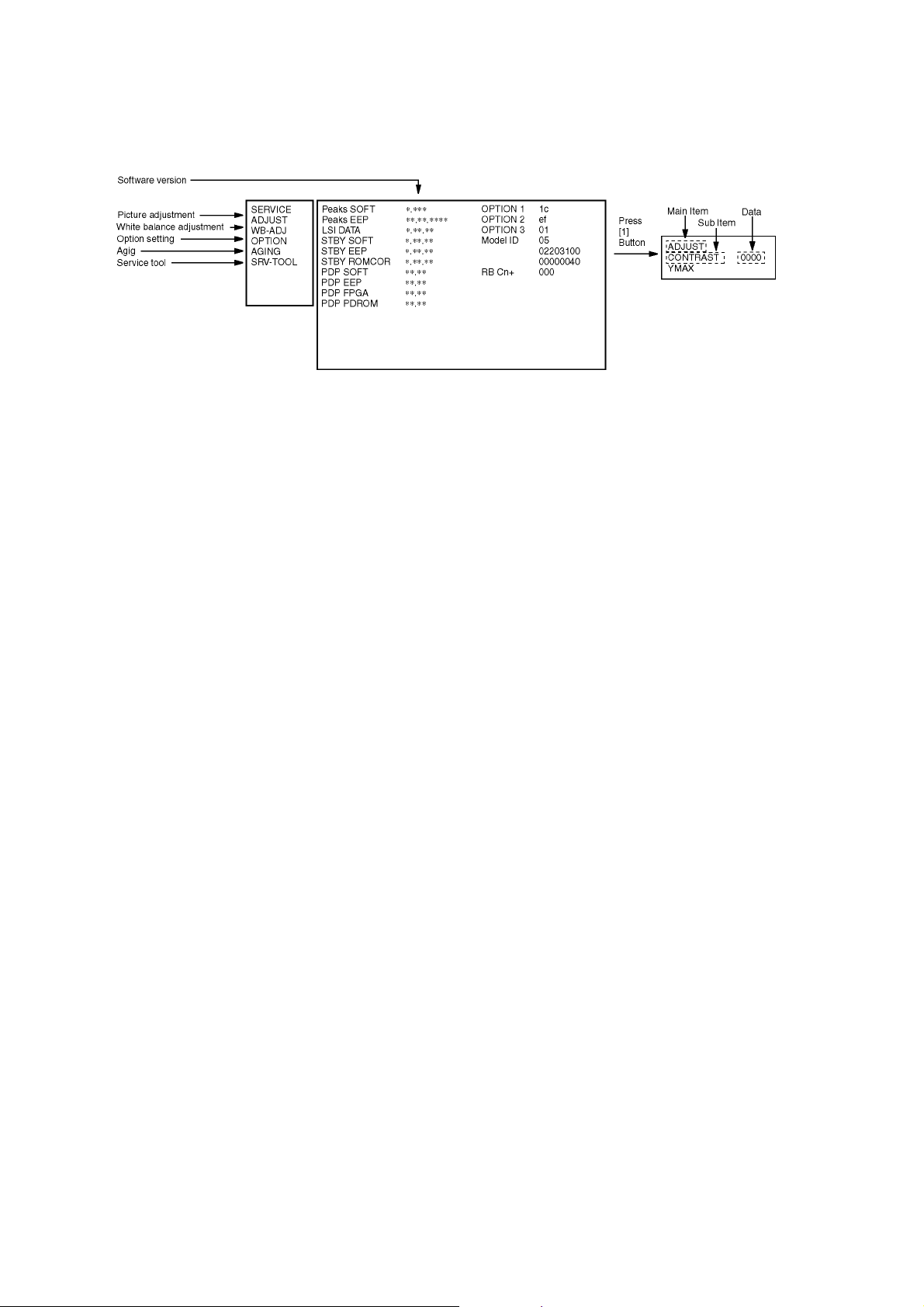

5 Service Mode

5.1. How to enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.

5.1.1. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [RED] button...All Sub items Selection in forward direction [GREEN] button...All Sub items Selection in reverse direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
10
Page 11

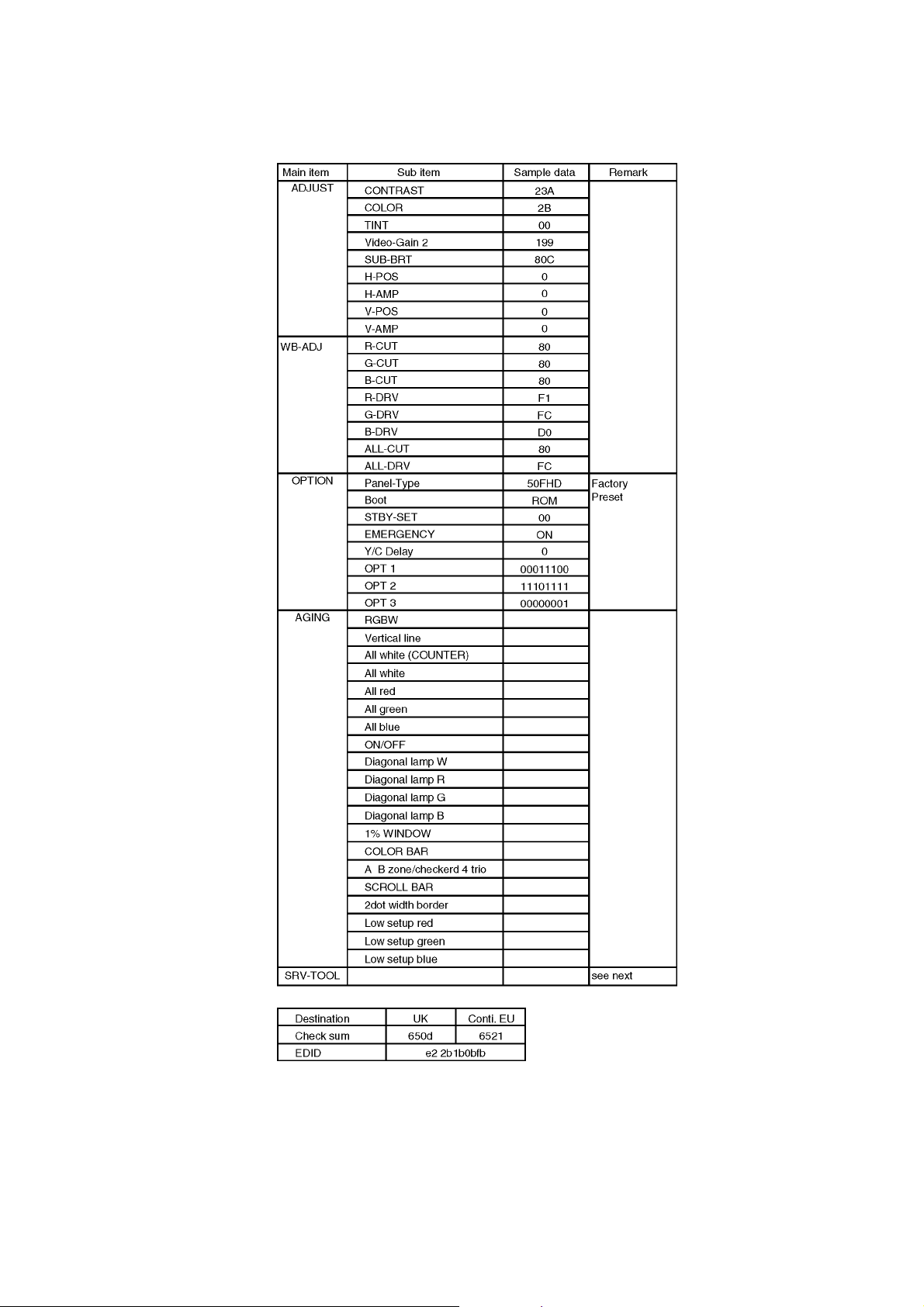

5.1.2. Contents of adjustment mode

• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.

5.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
11
Page 12

5.2. Service tool mode

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.

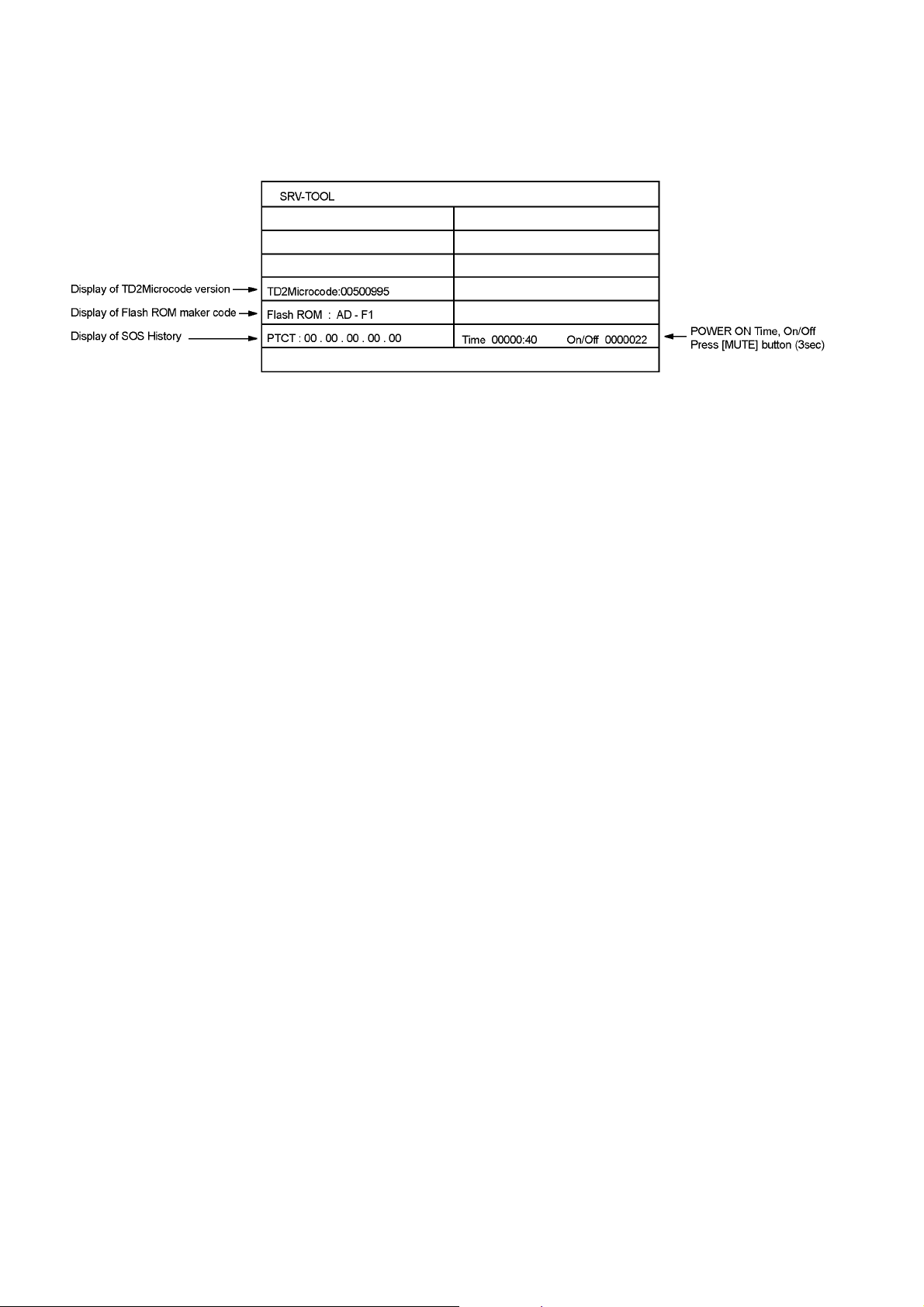

5.2.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

5.2.3. POWER ON Time, On/Off

Note : To display Time, On/Off menu, highlight position, then press MUTE for 3sec. Time : Cumulative power on time, indicated hour : minute by decimal On/Off : Number of On/Off switching by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
12
Page 13

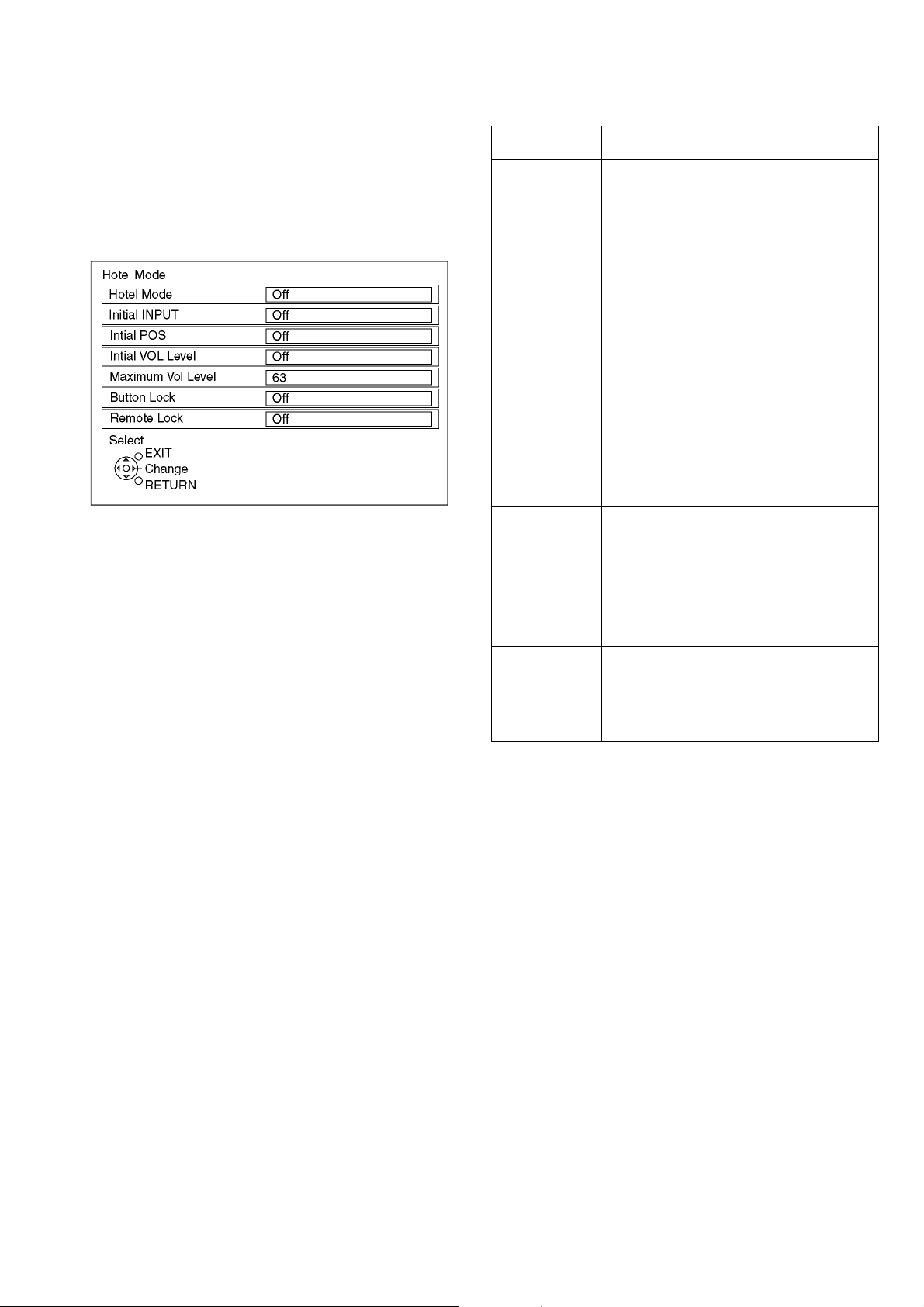

5.3. Hotel mode

1. Purpose Restrict a function for hotels.
2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol. [Down] + [REMOTE] : AV (3 times)
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
item Function Hotel Mode Select hotel mode ON/OFF Initial INPUT Select input signal modes.
Set the input, when each time power is switched on. Selection : Off/Analogue/DVB-S/DVB-T/AV1/AV2/AV2S/AV3/ AV3S/COMPONENT/PC/HDMI1/HDMI2/HDMI3
• Off: give priority to a last memory. However, Euro model is compulsorily set to TV.
• AVnS/AVnC: only Euro model selectable
• PC: selectable with VGA option
Initial POS Select programme number.
Selection : Off/0 to 99
• Off: give priority to a last memory
Initial VOL level Adjust the volume when each time power is
switched on. Selection/Range : Off/0 to 63
• Off: give priority to a last memory
Maximum VOL level
Button lock Select local key conditions.
Remote lock Select remote control key conditions.
Adjust maximum volume. Range : 0 to 63
Selection : Off/SETUP/MENU/ALL
• Off: altogether valid
• SETUP: only F-key is invalid (Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid (only Volume/Mute can be selected.)
• ALL: altogether invalid.
Selection : Off/SETUP/MENU
• Off: altogether valid
• SETUP: only Setup menu is invalid
• MENU: Picture/Sound/Setup menu are invalid
13
Page 14

6 Troubleshooting Guide

Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds. Self-check indication and forced to factory shipment setting: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con-
trol for more than 3 seconds.

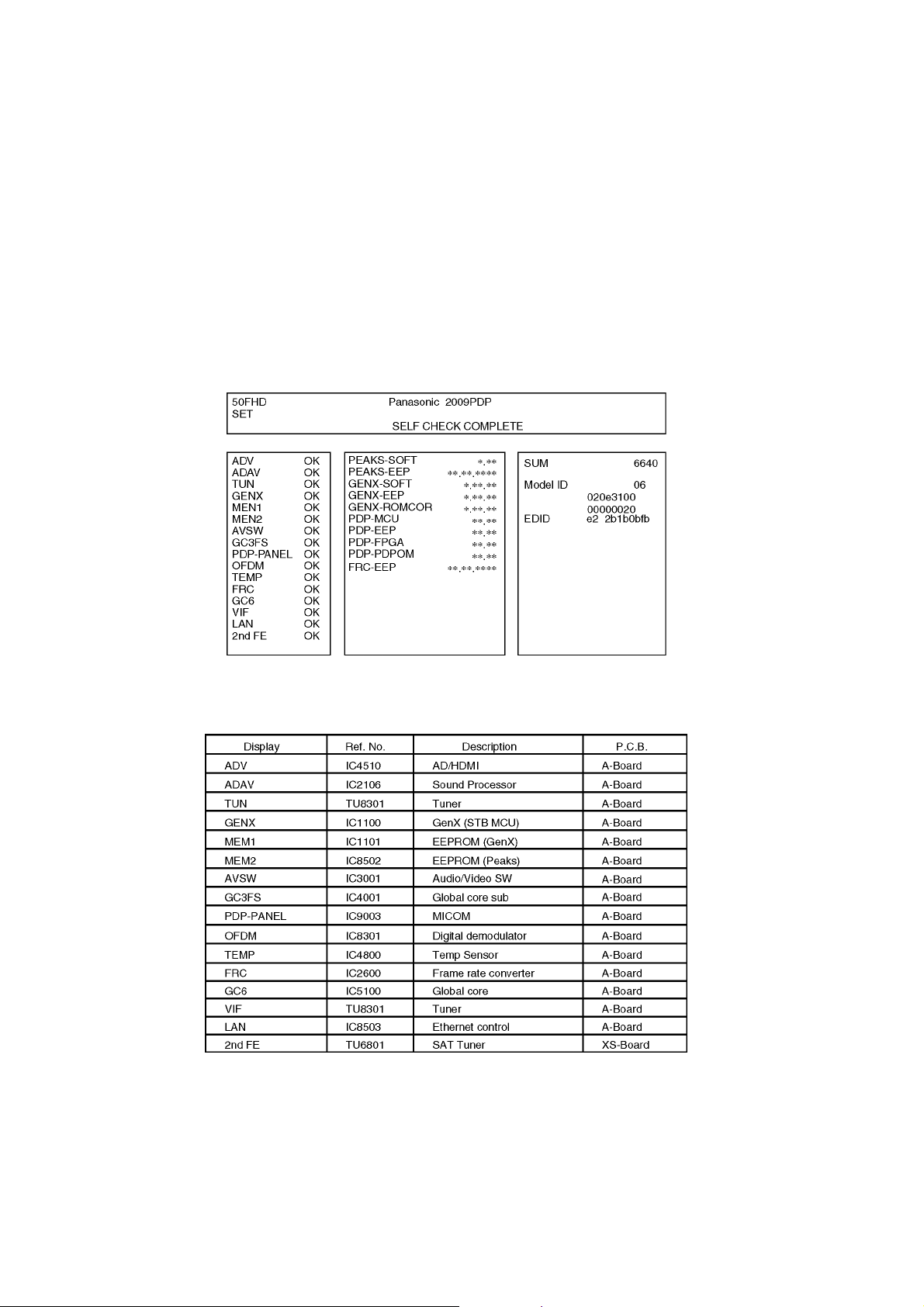

6.1.2. Screen display

6.1.3. Check Point

Confirm the following parts if NG was displayed.

6.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
14
Page 15

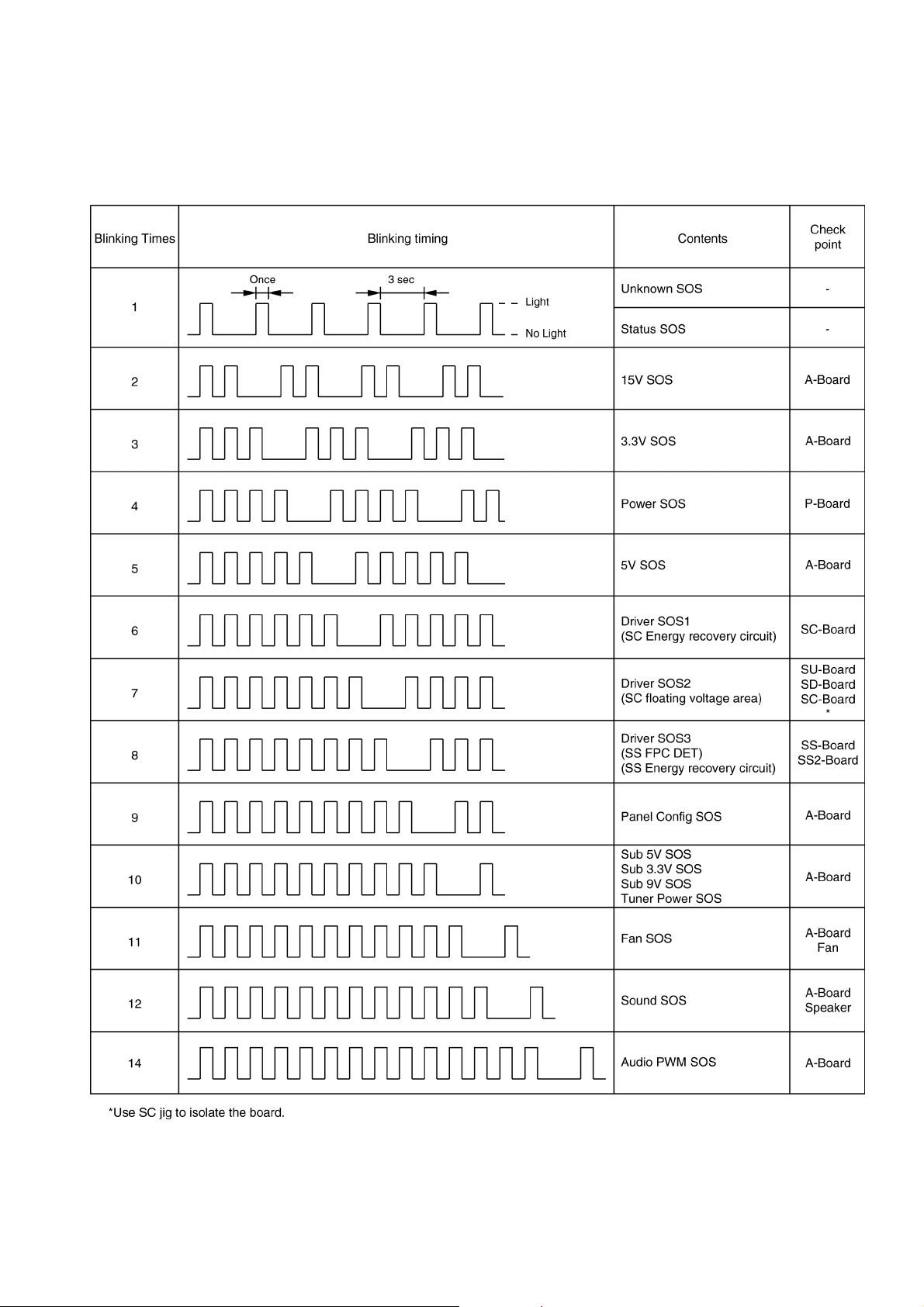

6.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.
2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
15
Page 16

6.3. No Power

First check point There are following 2 states of No Power indication by power LED.

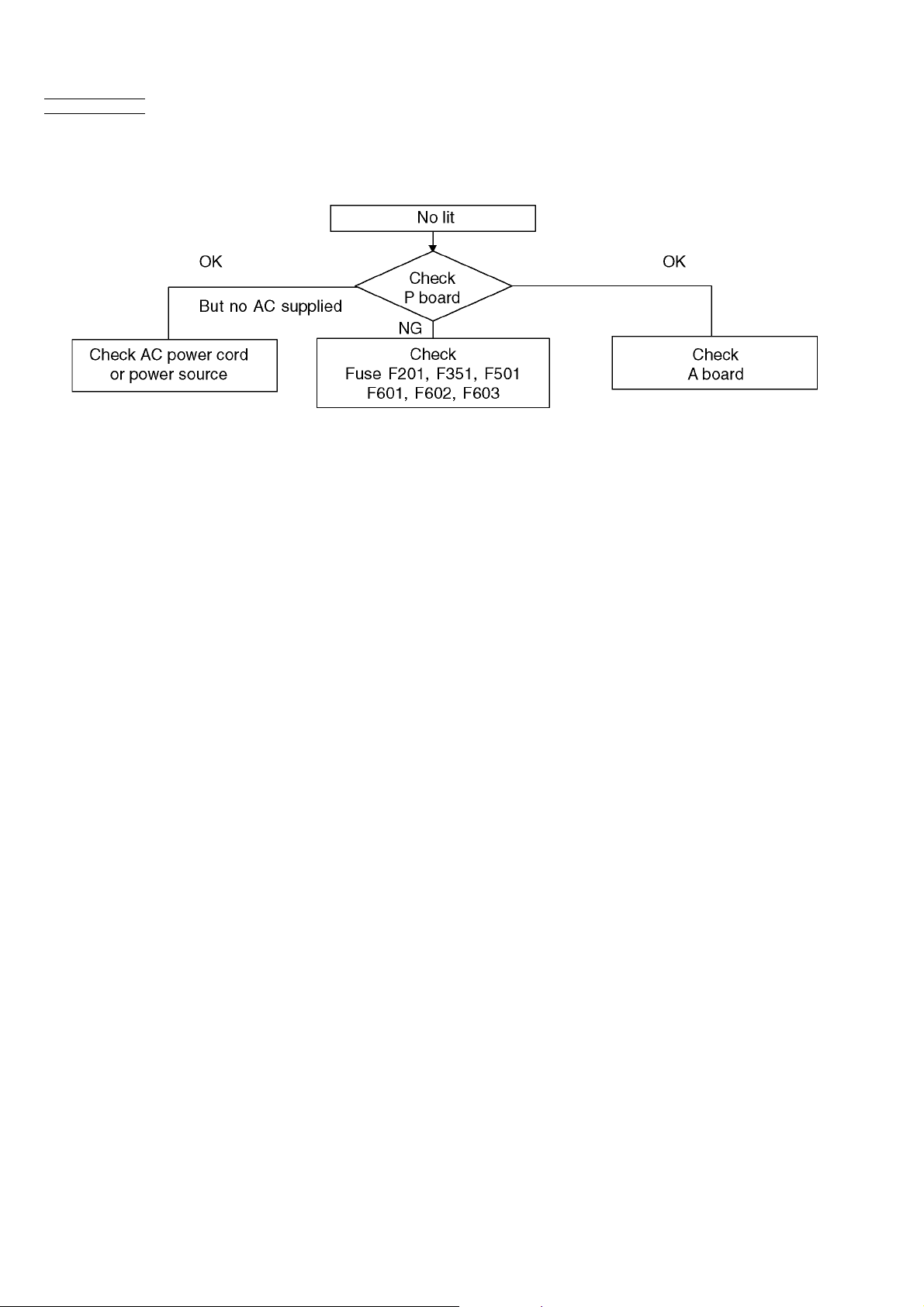

1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
16
Page 17

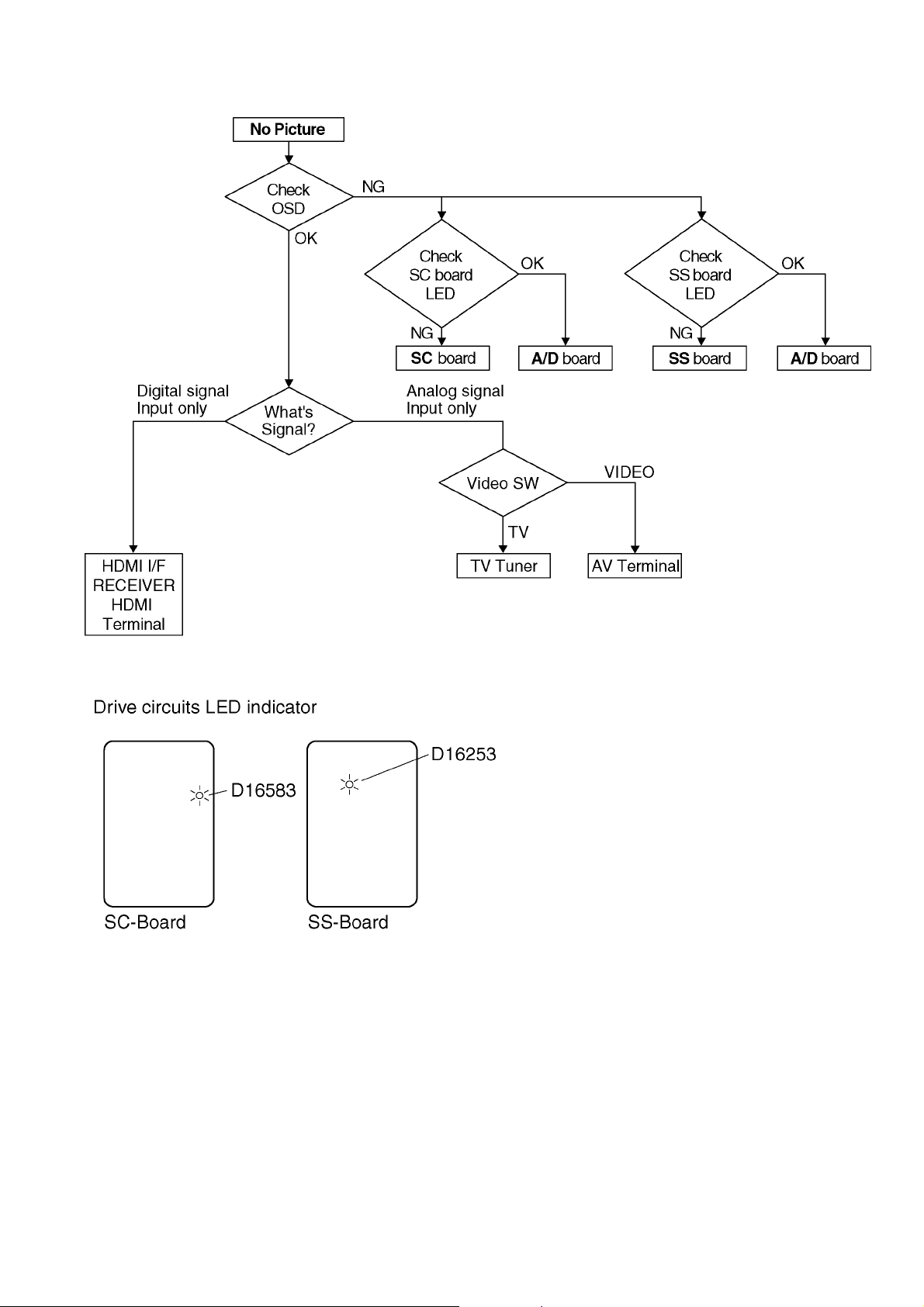

6.4. No Picture

17
Page 18

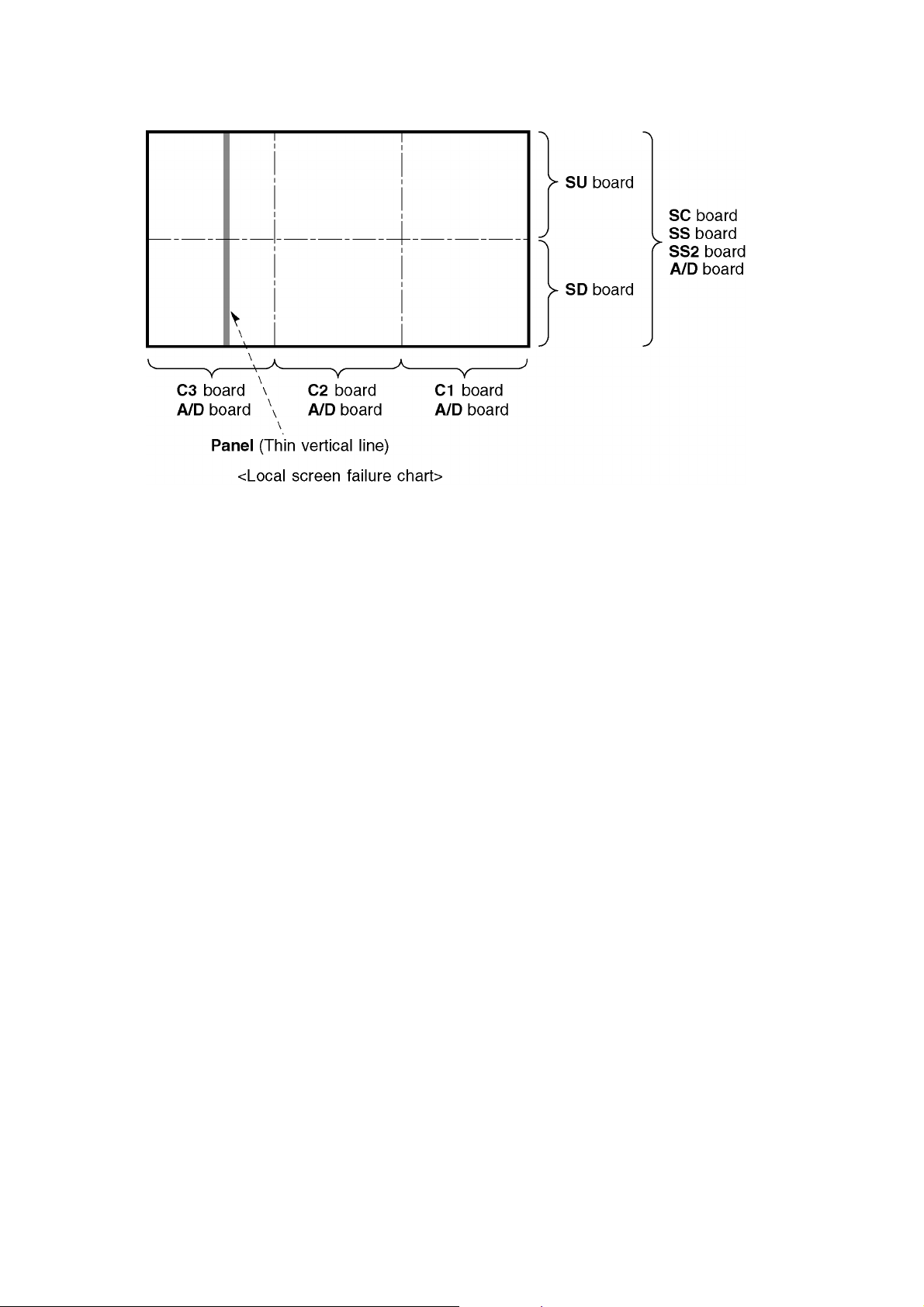

6.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.
Fig-1
18
Page 19

7 Service Fixture & Tools

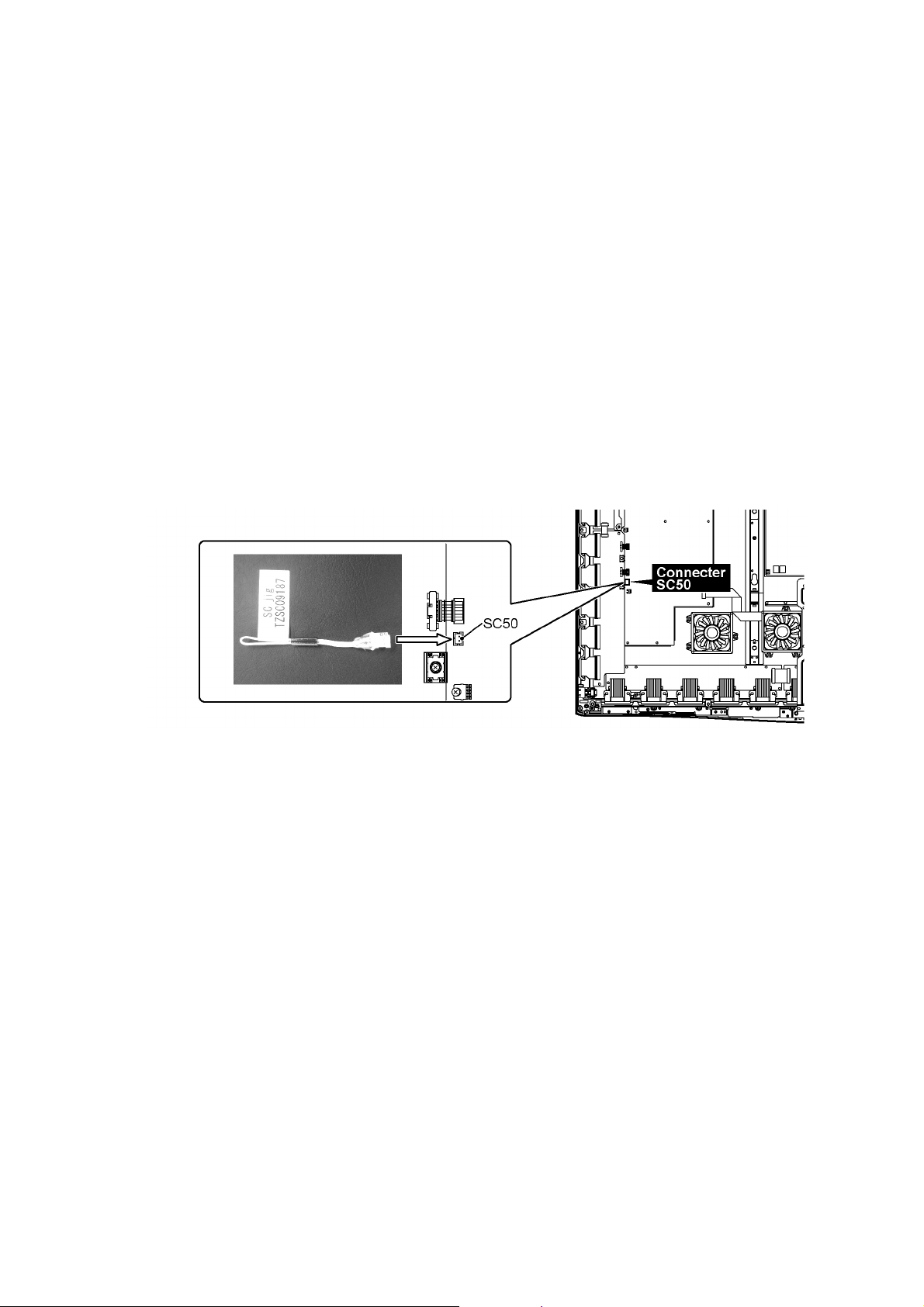

7.1. SC jig

Purpose:
To find the failure board (SC or SU/SD) when the power LED is blinking 7 times.
SC jig:
Jumper connector to connect to SC50 connector on SC board
Part number:
TZSC09187
How to use: Caution: Remove SC jig from SC board after inspection.
1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically. Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU board and stay connecting with SD board. The board will be damaged.)
2. Connect SC jig to connector SC50 at left bottom side of SC board
3. Turn of the TV/Display Unit and confirm the power LED blinking. LED blinking: Possible cause of failure is in SC board No LED blinking (Lighting or no lighting): Possible cause of failure is in SU or SD board
4. After inspection, turn off the TV/Display Unit and wait a few minutes to discharge.
5. Remove SC jig from SC board.
Remark: This SC jig can be used for all 2009 Plasma TV and Plasma Display.
19
Page 20

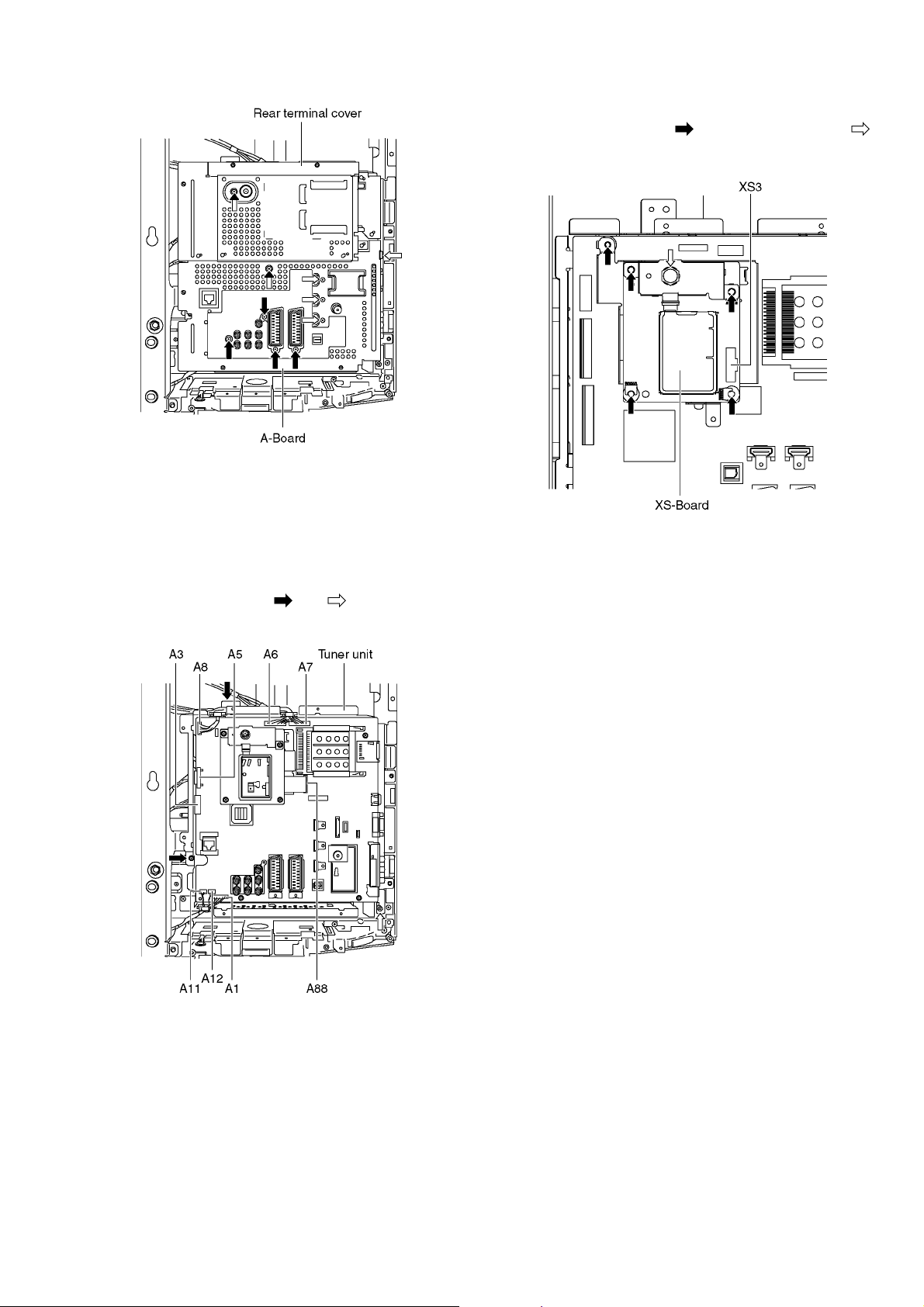

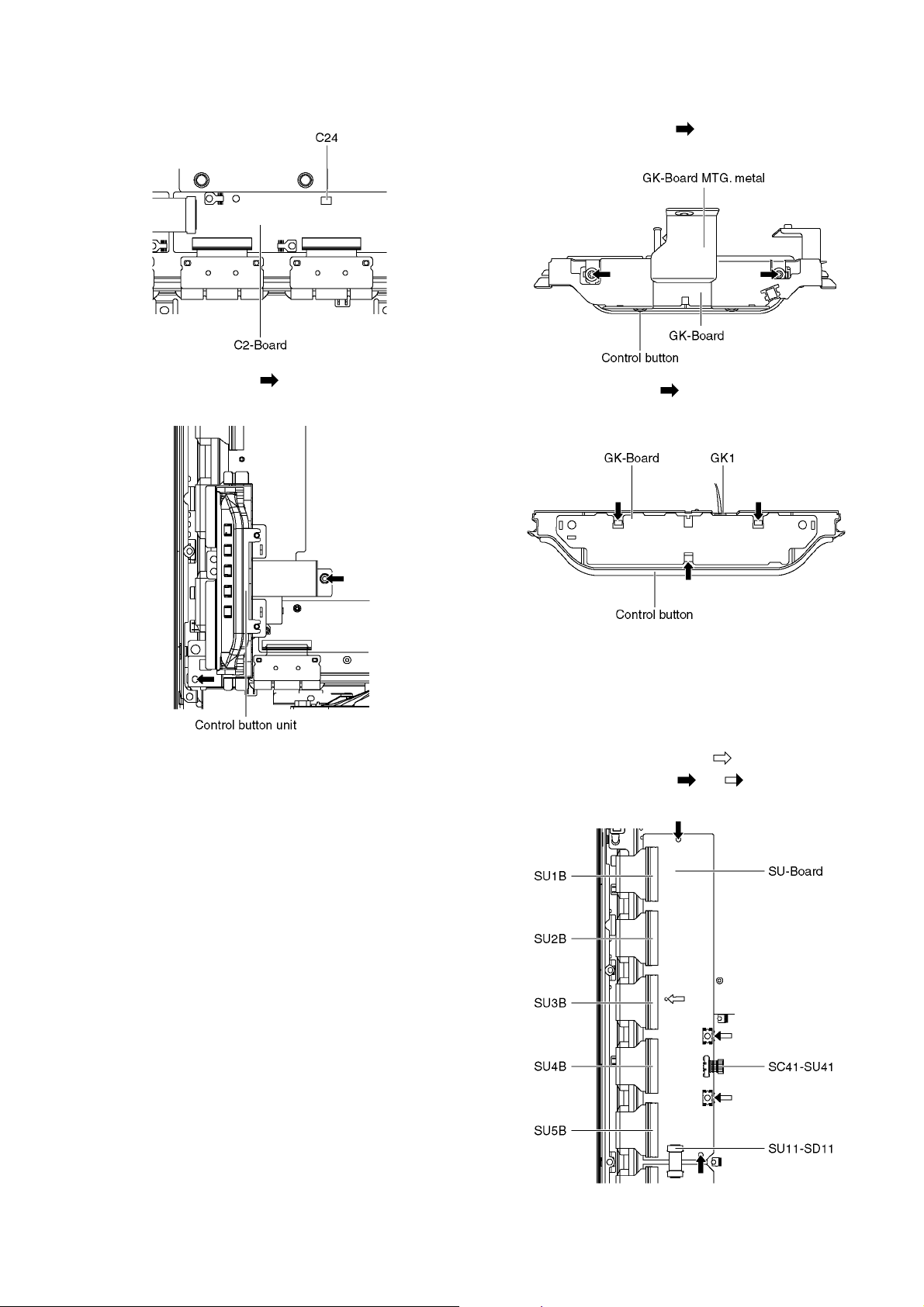

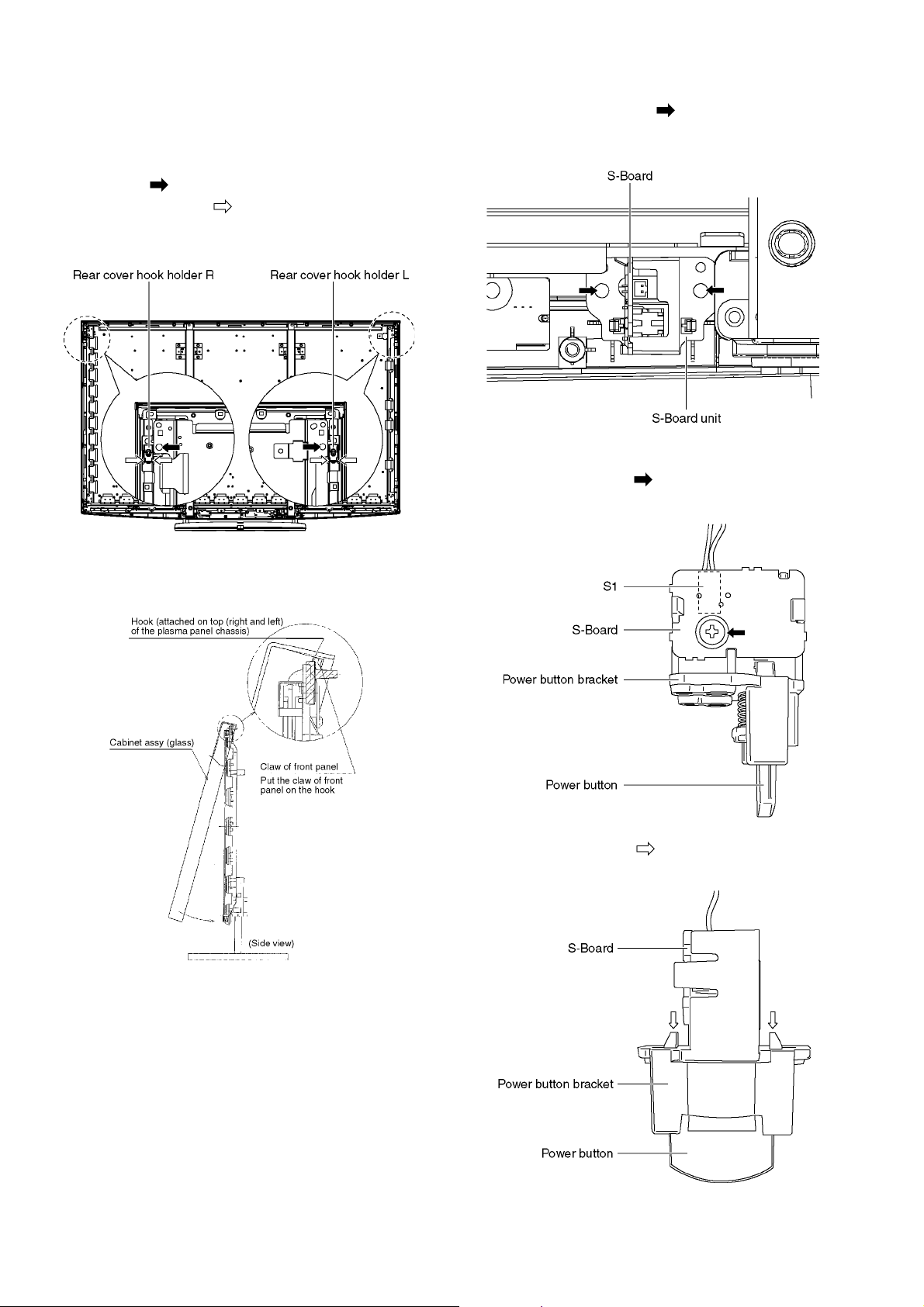

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

1. See Service Hint (Section 3)

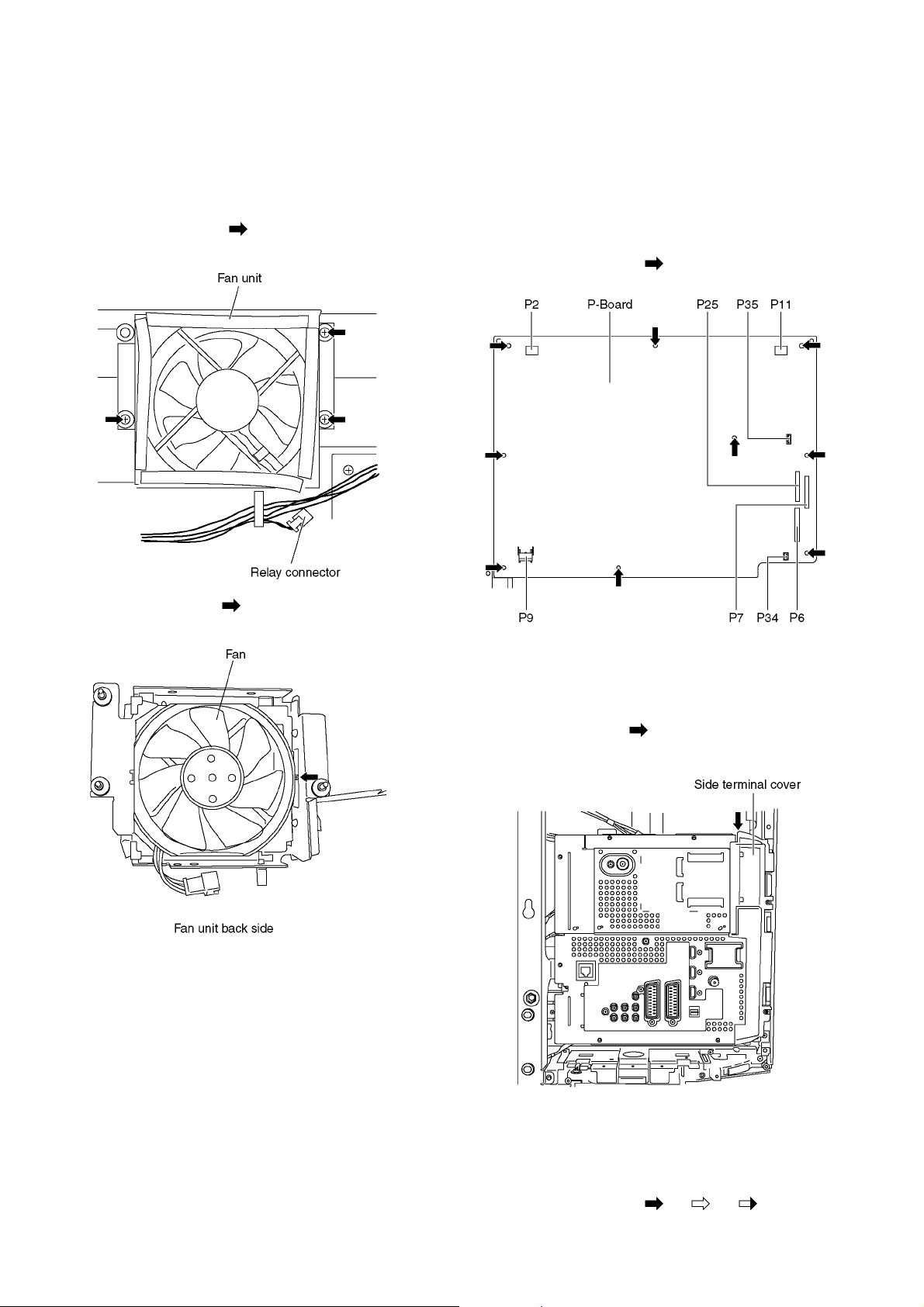

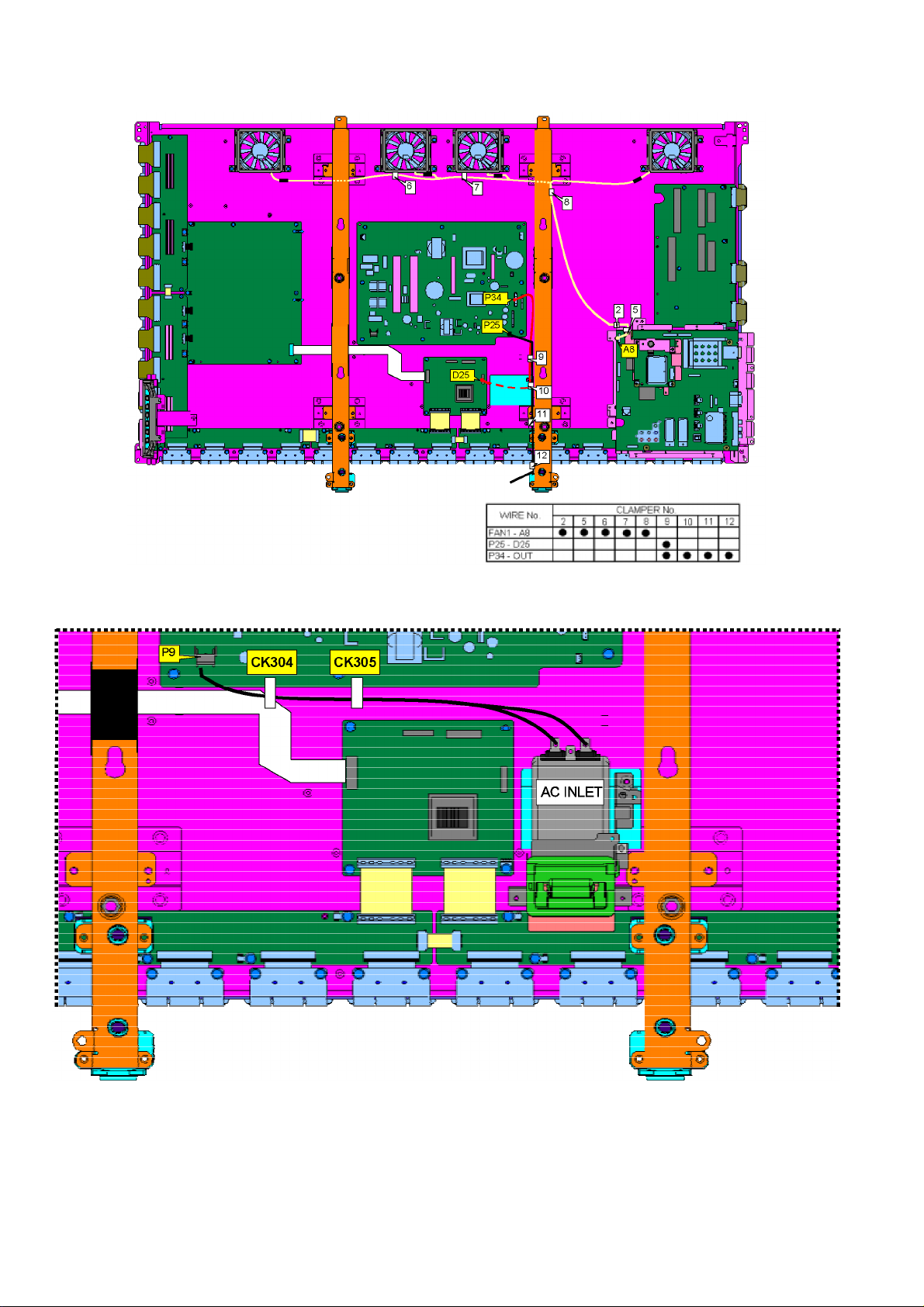

8.2. Remove the Fan

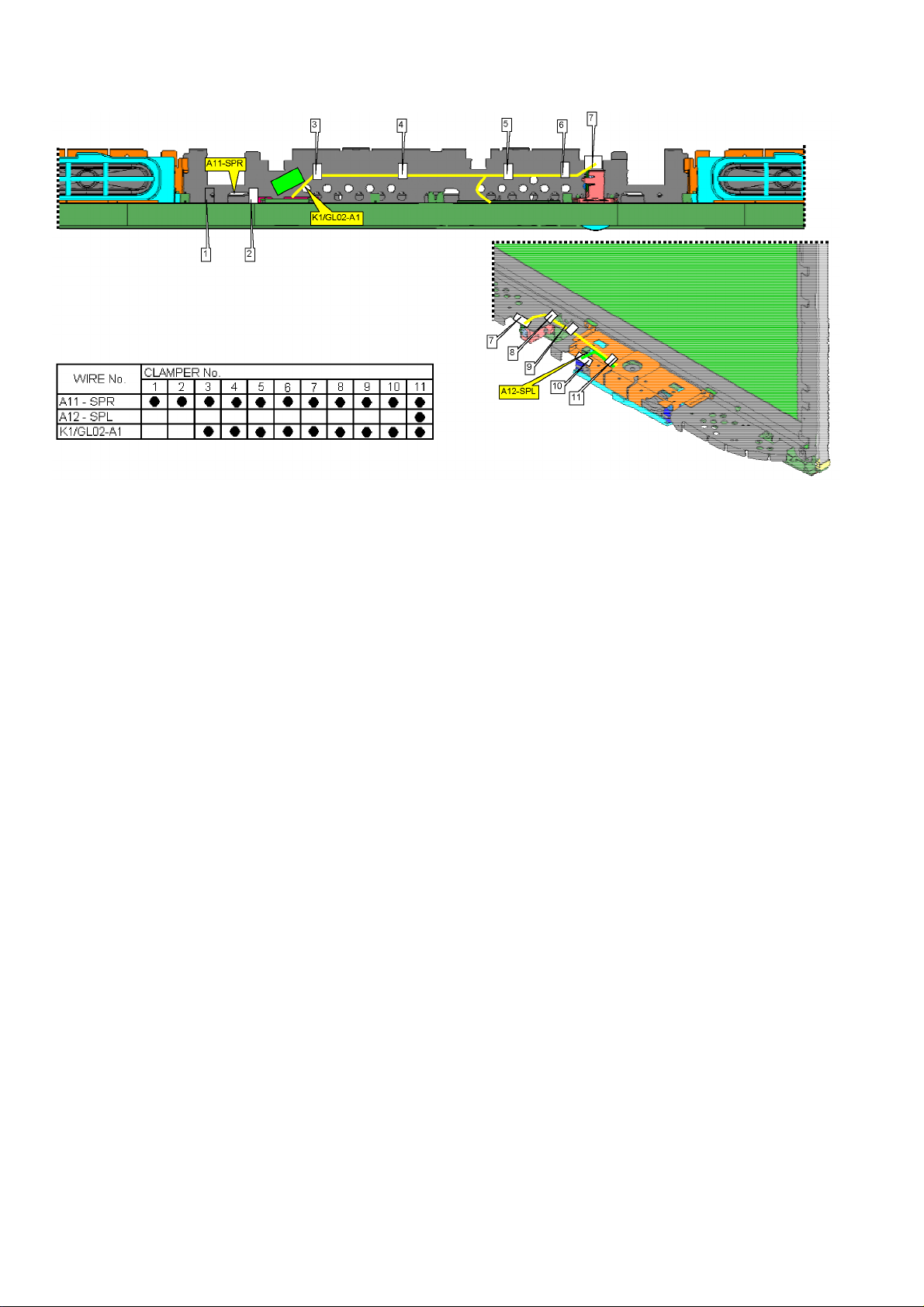

1. Unlock the cable clampers to free the cable.
2. Remove the screws (×3 ).
3. Remove the relay connectors and remove the Fan unit.

8.3. Remove the P-Board

Caution:
To remove P.C.B. wait 1 minute after power was off for dis­charge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable
2. Disconnect the connectors (P2, P6, P7, P9, P11, P25, P34 and P35).
3. Remove the screws (×9 ) and remove the P-Board.
4. Remove the screw (×1 ) on the back side.
5. Remove the Fan.

8.4. Remove the Side terminal cover and Rear terminal cover

1. Remove the claw (×1 ).
2. Remove the Side terminal cover.
3. Remove the Adjustment cover.
4. Remove the screws (×4 , ×4 , ×2 ).
20
Page 21
5. Remove the Rear terminal cover.

8.5. Remove the Tuner unit

1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (A1, A3, A5, A6, A7, A8, A11 and A12).
3. Disconnect the flexible cables (A88).
4. Remove the screws (×2 , ×1 ) and remove the Tuner unit.

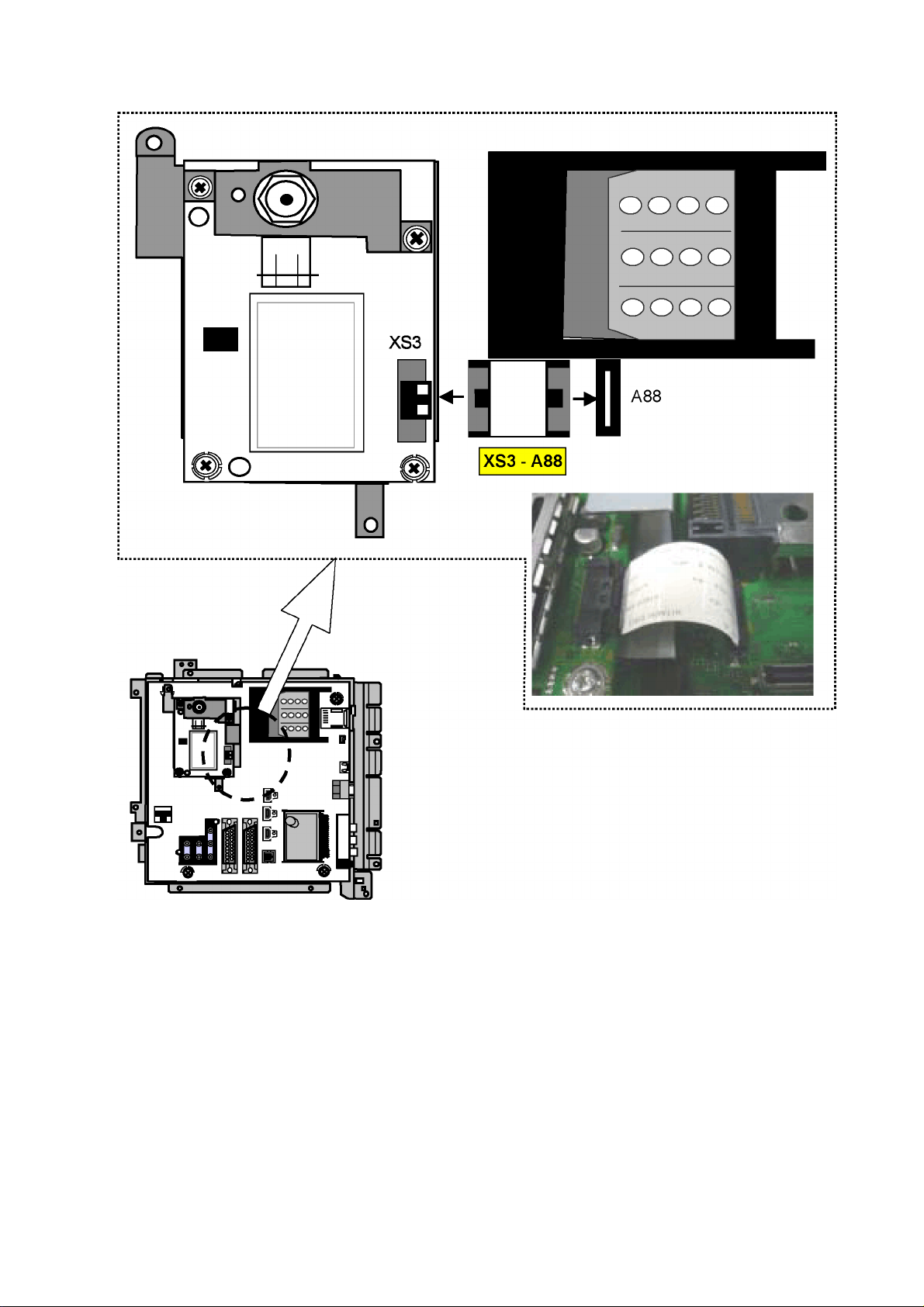

8.6. Remove the XS-Board

1. Disconnect the flexible cable (XS3).
2. Remove the screws (×5 ) and remove the nut (×1 ).
3. Remove the XS-Board.
21
Page 22

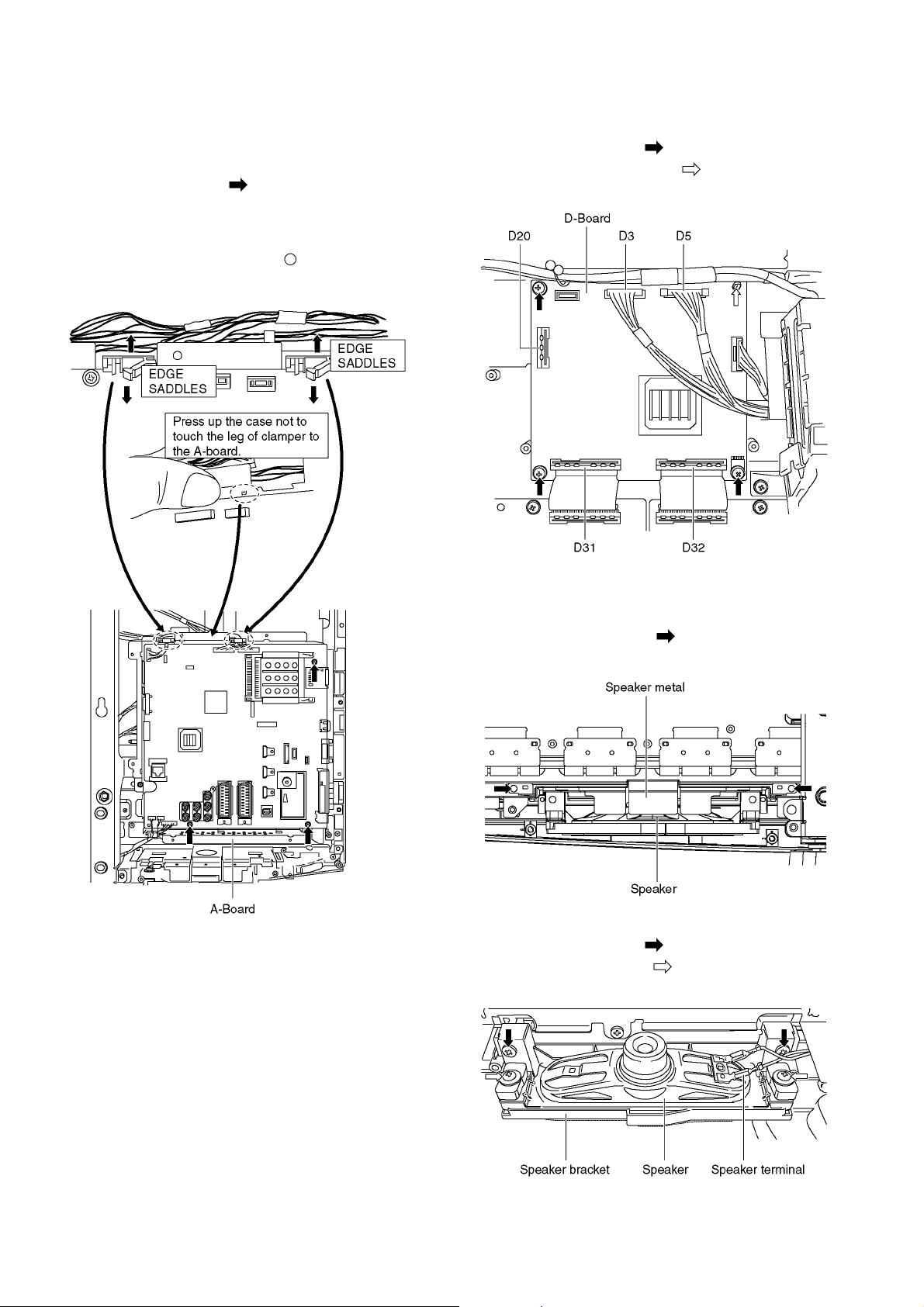

8.7. Remove the A-Board

1. Remove the Tuner unit. (See section 8.5.)
2. Remove two EDGE SADDLES at top of case. Twist the EDGE SADDLE to press up at the back and pull down the front side.
3. Remove the screws (×3 ) and remove the A-Board.
Caution :
Press up the case not to touch the leg of clamper to the A­board.
Pay attention two metal projection from back side when removal and assemble.

8.8. Remove the D-Board

1. Disconnect the connectors. (D3 and D5)
2. Disconnect the flexible cables. (D20, D31 and D32)
3. Remove the screws (×3 ).
4. Remove the molding prop (×1 ).
5. Remove the D-Board.

8.9. Remove the Speakers

1. Unlock the cable clampers to free the cable.
2. Remove the screws (×2 ) and remove the Speaker metals (L, R).
3. Disconnect the Speaker terminal.
4. Remove the screws (×2 ).
5. Remove the screws (×2 ) and remove the Speakers (L, R) from the Speaker brackets (L, R).
22
Page 23

8.10. Remove the Control button unit

1. Disconnect the connector (C24).

8.11. Remove the GK-Board

1. Remove the Control button unit. (See section 8.10.)
2. Remove the screws (×2 ).
3. Remove the GK-Board MTG. metal.
2. Remove the screws (×2 ).
3. Remove the Control button unit.
4. Remove the claw (×3 ).
5. Disconnect the connector (GK1).
6. Remove the GK-Board from Control button.

8.12. Remove the SU-Board

1. Remove the flexible cables (SU1B, SU2B, SU3B, SU4B and SU5B) connected to the SU-Board.
2. Remove the flexible cable (SU11-SD11) and the bridge connector (SC41-SU41).
3. Remove the molding prop (×1 ).
4. Remove the screws (×2 , ×2 ) and remove the SU- Board.
23
Page 24

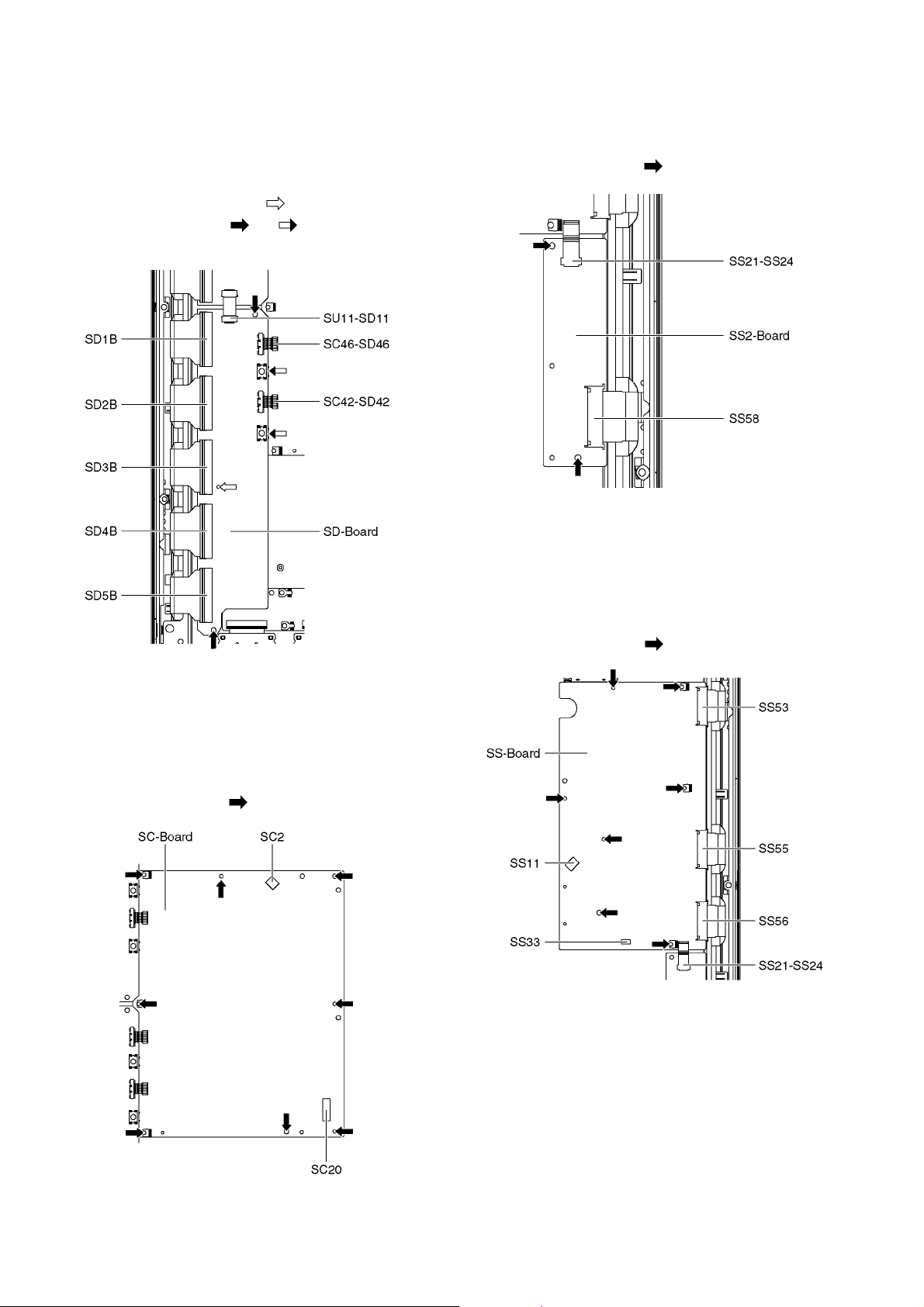

8.13. Remove the SD-Board

1. Remove the Control button unit. (See section 8.10.)
2. Remove the flexible cables (SD1B, SD2B, SD3B, SD4B and SD5B) connected to the SD-Board.
3. Remove the flexible cable (SU11-SD11) and the bridge connectors (SC42-SD42 and SC46-SD46).
4. Remove the molding prop (×1 ).
5. Remove the screws (×2 , ×2 ) and remove the SD- Board.

8.15. Remove the SS2-Board

1. Remove the Tuner unit. (See section 8.5.)
2. Disconnect the bridge connector (SS21-SS24) and dis­connect the flexible cable (SS58).
3. Remove the screws (×2 ) and remove the SS2-Board.

8.16. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.5.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (SS11 and SS33).
4. Disconnect the flexible cables (SS53, SS55 and SS56).
5. Disconnect the bridge connector (SS21-SS24).
6. Remove the screws (×7 ) and remove the SS-Board.

8.14. Remove the SC-Board

1. Remove the SU-Board and SD-Board. (See section 8.12. and 8.13.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connector (SC2).
4. Disconnect the flexible cable (SC20).
5. Remove the screws (×8 ) and remove the SC-Board.
24
Page 25

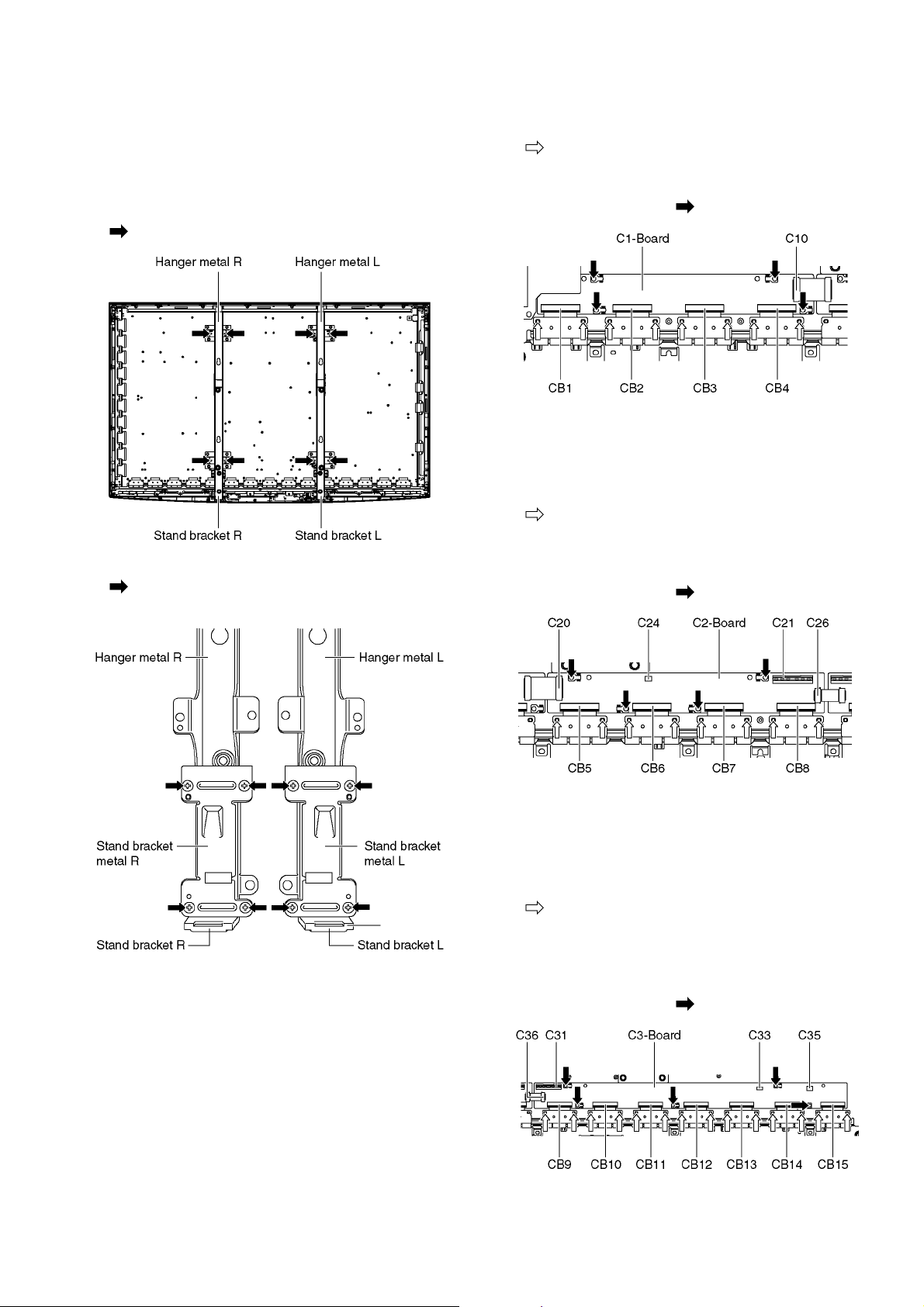

8.17. Remove the Hanger metals and the Stand brackets

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.
2. Remove the Hanger metals (L, R) fastening screws (×4
each) and remove the Hanger metals (L, R).
3. Remove the Stand brackets (L, R) fastening screws (×4
each) and remove the Stand bracket metals (L, R)
and the Stand brackets (L, R).

8.18. Remove the C1-Board

1. Remove the Control button unit. (See section 8.10.)
2. Remove the flexible cables holder fastening screws (×8
).
3. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).
4. Disconnect the flexible cable (C10).
5. Remove the screws (×4 ) and remove the C1-Board.

8.19. Remove the C2-Board

1. Remove the Hanger metal R and the Stand bracket R. (See section 8.17.)
2. Remove the flexible cables holder fastening screws (×8
).
3. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).
4. Disconnect the flexible cables (C20, C21 and C26).
5. Disconnect the connector (C24).
6. Remove the screws (×4 ) and remove the C2-Board.

8.20. Remove the C3-Board

1. Remove the Tuner unit. (See section 8.5.)
2. Remove the Hanger metal L and the Stand bracket L. (See section 8.17.)
3. Remove the flexible cables holder fastening screws (×14
).
4. Disconnect the flexible cables (CB9, CB10, CB11, CB12, CB13, CB14 and CB15).
5. Disconnect the flexible cables (C31 and C36).
6. Disconnect the connectors (C33 and C35).
7. Remove the screws (×5 ) and remove the C3-Board.
25
Page 26
8.21. Remove the Plasma panel sec­tion from the Cabinet assy (glass)
1. Remove the cabinet assy and the plasma panel fastening
screws (×2 ).
2. Remove the claw (×2 ).
3. Remove the Rear cover hook holders (L, R).

8.22. Remove the S-Board

1. Remove the screws (×2 ) and remove the S-Board unit.
2. Disconnect the connector (S1).
3. Remove the screw (×1).
4. Remove the S-Board from the Power button bracket.
4. For leaving the plasma panel from the front frame, pull the bottom of the cabinet assy forward, lift, and remove.
5. Remove the claws (×2 ).
6. Remove the Power button from the Power button bracket.
26
Page 27

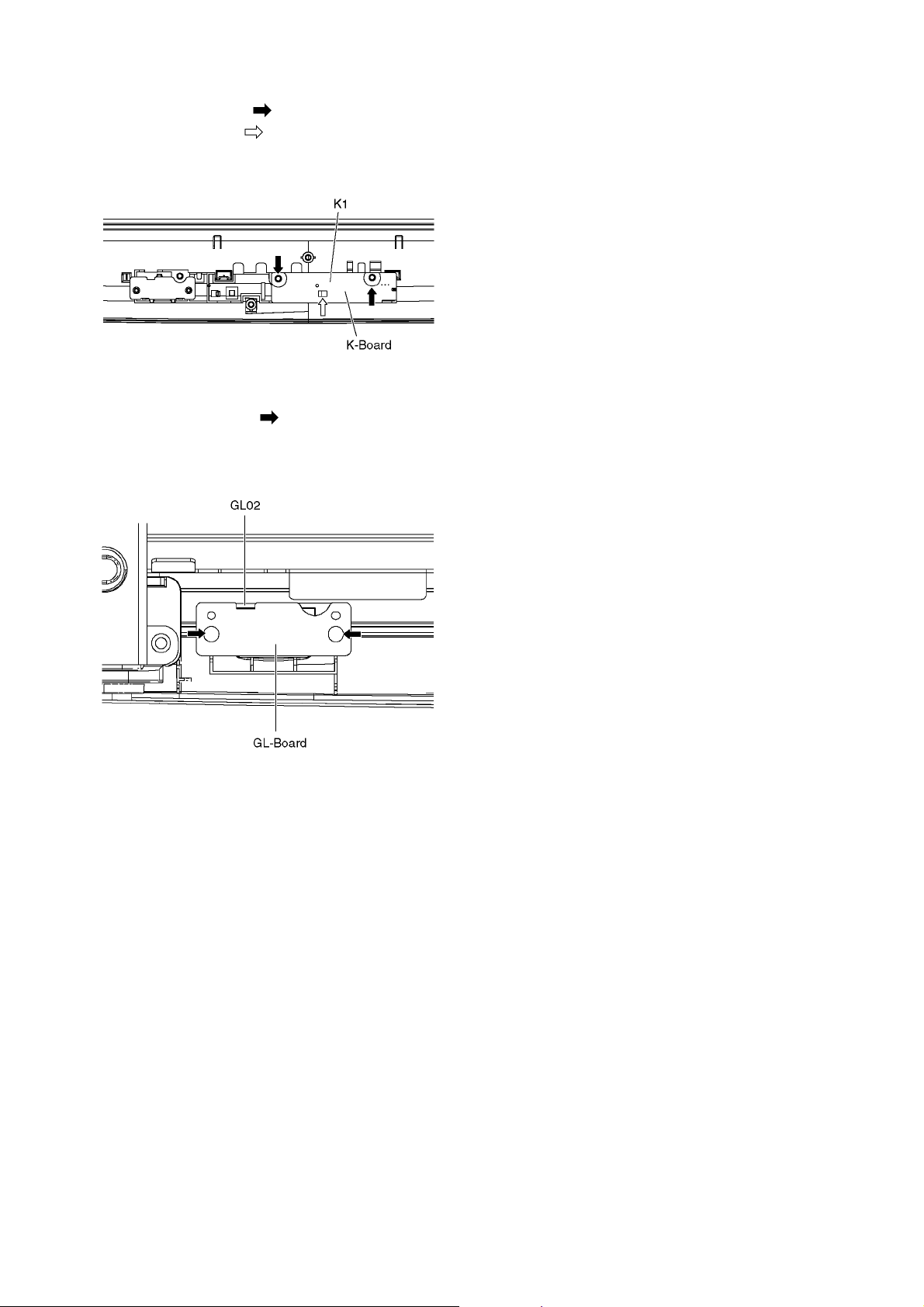

8.23. Remove the K-Board

1. Remove the screw (×2 ).
2. Remove the claw (×1 ).
3. Disconnect the connector (K1) and remove the K-Board from LED Panel.

8.24. Remove the GL-Board

1. Remove the screws (×2 ).
2. Disconnect the connector (GL02) and remove the GL­Board.

8.25. Replace the plasma panel

Caution:
A new plasma panel itself without Hanger metals is fragile. To avoid the damage to new plasma panel, carry a new plasma panel taking hold of the Hanger metals after assembling the Hanger metals and the Stand brackets.
1. Place a carton box packed a new plasma panel on the flat surface of the work bench.
2. Open a box and without taking a new plasma panel; Attach the C1-Board, C2-Board and the C3-Board, con­nect the flexible cables from the plasma panel to the C1­Board, C2-Board and the C3-Board, and fit the flexible cable holders.
3. Attach the Hanger metals and the Stand brackets to the new plasma panel.
4. Place the plasma panel on the servicing stand taking hold of the Hanger metals.
5. Attach the cabinet assy and each P.C.Board and so on, to the new plasma panel.
*When fitting the cabinet assy, be careful not to allow any debris, dust or handling residue to remain between the front glass and plasma panel.
27
Page 28

9 Measurements and Adjustments

9.1. Adjustment Procedure

9.1.1. Driver Set-up

9.1.1.1. Item / Preparation
1. Input a white signal to plasma video input.
2. Set the picture controls as follows. Picture menu: Dynamic PNR: Min Aspect: 16:9
Caution
1. First perform Vsus adjustment.
2. The Vscn voltages are measured from the Vad (Vad_base), but may be measured from the GND (GND_base) in an unavoidable case.
9.1.1.2. Adjustments
Adjust driver section voltages referring the panel data on the panel data label. Check or adjust the following voltages with the multimeter.
Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) Vsus ± 2V VR251(P) * Ve TPV E (S S) Ve ± 2.5V Fixed * Vset TPVSET (SC) 290V ± 9V Fixed Vad TPVAD (SC) - 195V ± 2V VR16600 (SC) Vscn TPVSCN (SC) Vad_base : 148V ± 1V
GND_base : - 47V ± 3V
Vda TP9 (P) 60V + 1V, - 2V Fixed
VR16841 (SC)

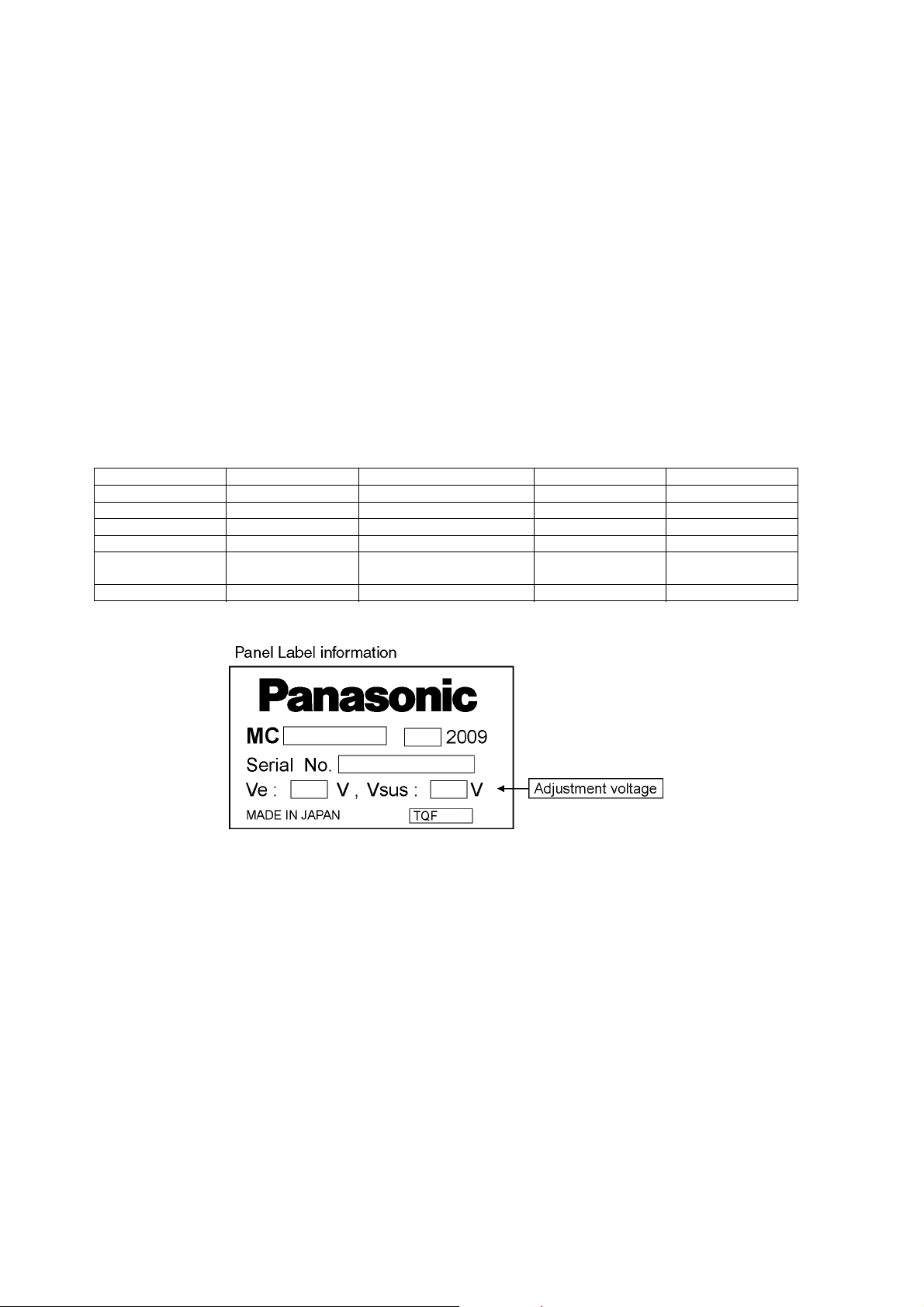

*See the Panel label.
28
Page 29

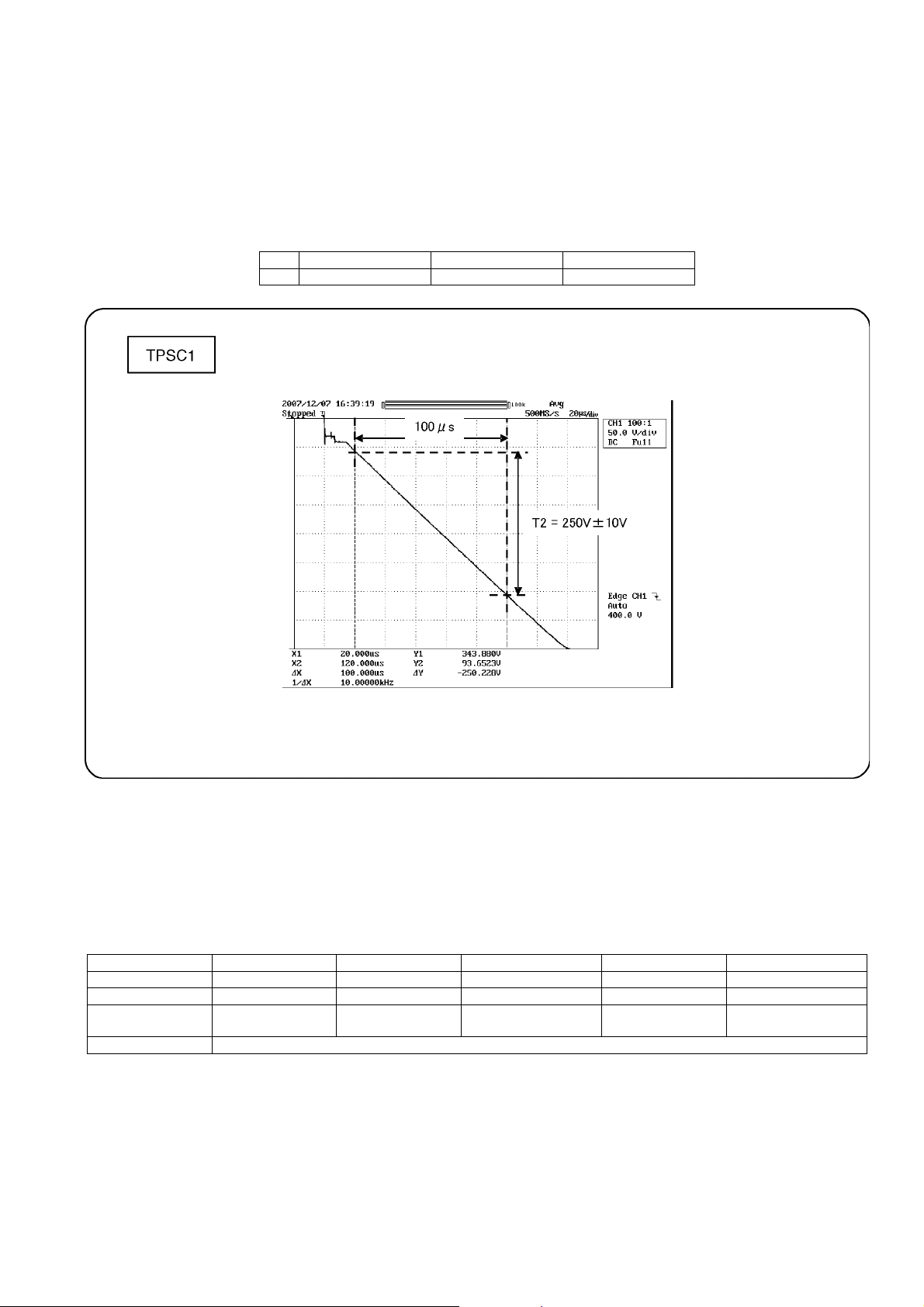

9.1.2. Initialization Pulse Adjust

1. Input the White signal to plasma video input.
2. Set the picture controls as follows. Picture menu : Dynamic PNR : Min Aspect : 16:9
3. Connect Oscilloscope to TPSC1 (SC). Check the voltage (T2) at 100μs period on the down slop.
Test point Volume Level
T2 TPSC1 (SC) VR16601 (SC) 250 V ± 10 V

9.1.3. P.C.B. (Printed Circuit Board) exchange

9.1.3.1. Caution
1. To remove P.C.B., wait 1 minute after power was off for discharge from electrolysis capacitors.
9.1.3.2. Quick adjustment after P.C.B. exchange
Adjust the following voltages with the multimeter.
P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * SC Board Vad TPVAD (SC) - 195V ± 2V VR16600 (SC) SC Board Vscn TPVSCN (SC) Vad_base : 148V ± 1V
GND_base : - 47V ± 3V
A/D Board White balance and Sub brightness for NTSC, PAL, HD, PC and 625i signals
*See the Panel label.
Caution:
Absolutely do not reduce Vsus below Ve not to damage the P.C.B.
29
VR16841 (SC)
Page 30

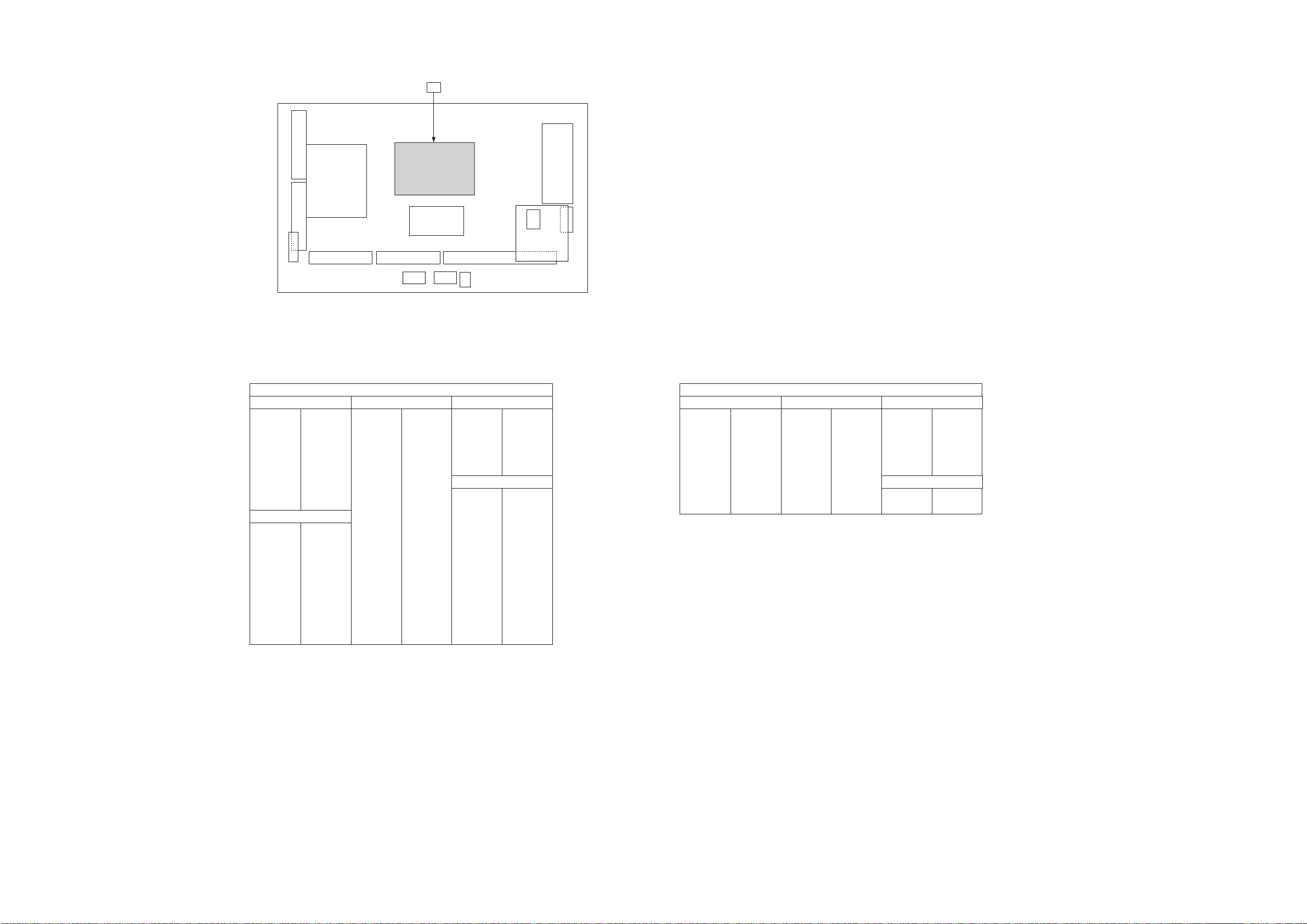

9.1.4. Adjustment Volume Location

9.1.5. Test Point Location

30
Page 31

9.2. Adjustment

9.2.1. Sub-Contrast adjustment

Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator
Steps Remarks
Adjustment of TV (RF system)
Note:
In adjustment, you must setting to modulation of signal at 85%.
Ref.:
RF signal modulation spec. UK models: 80% Other models: 90%

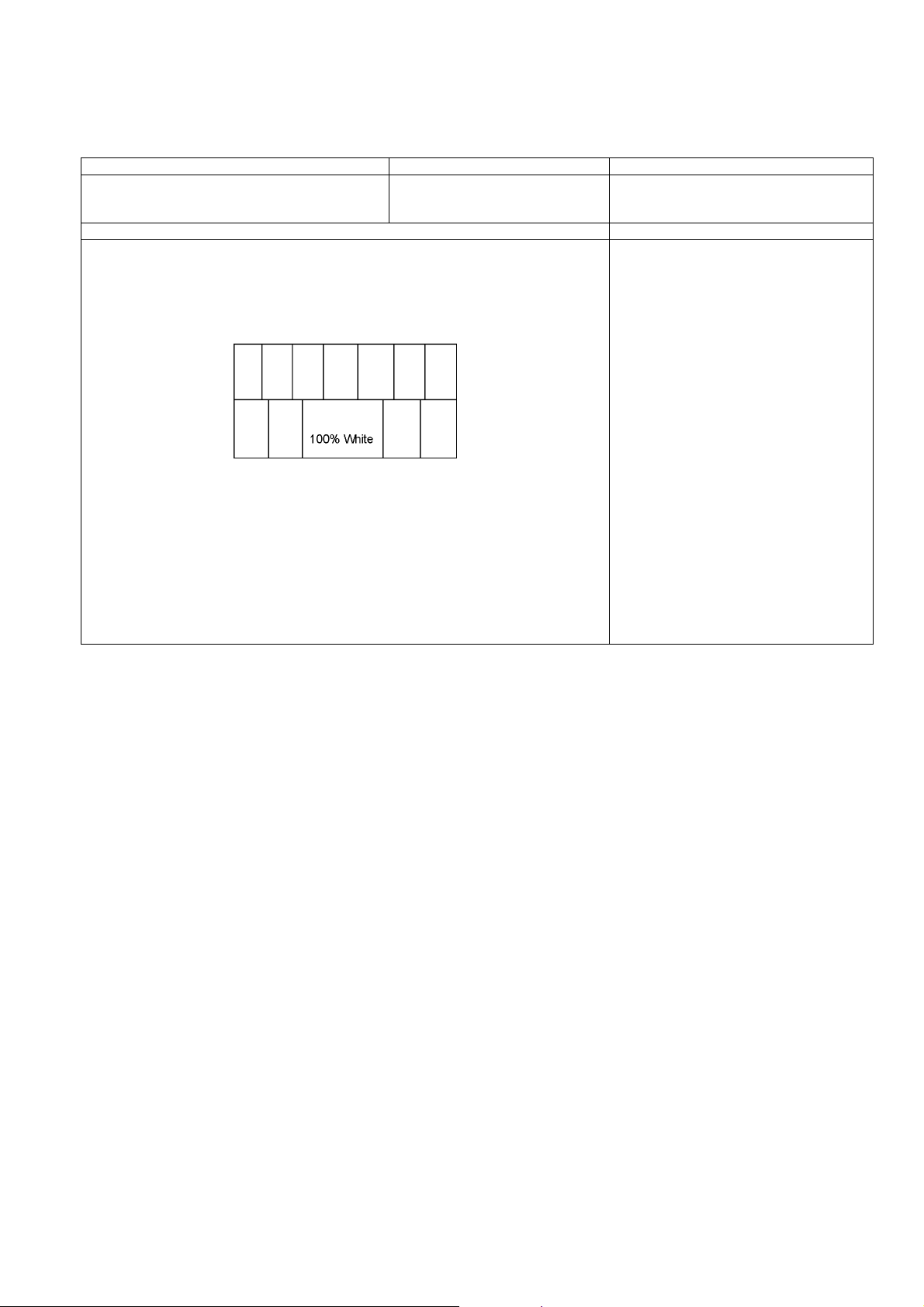

1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.
2. Goes into service adjustment mode.
3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
4. End.
Note:
Sub-contrast adjustment is unadjusted for AV/ HD input. But, when needing the adjustment cho­sen manually, please refer to [ alterna­tive method ].
31
Page 32
Steps Remarks

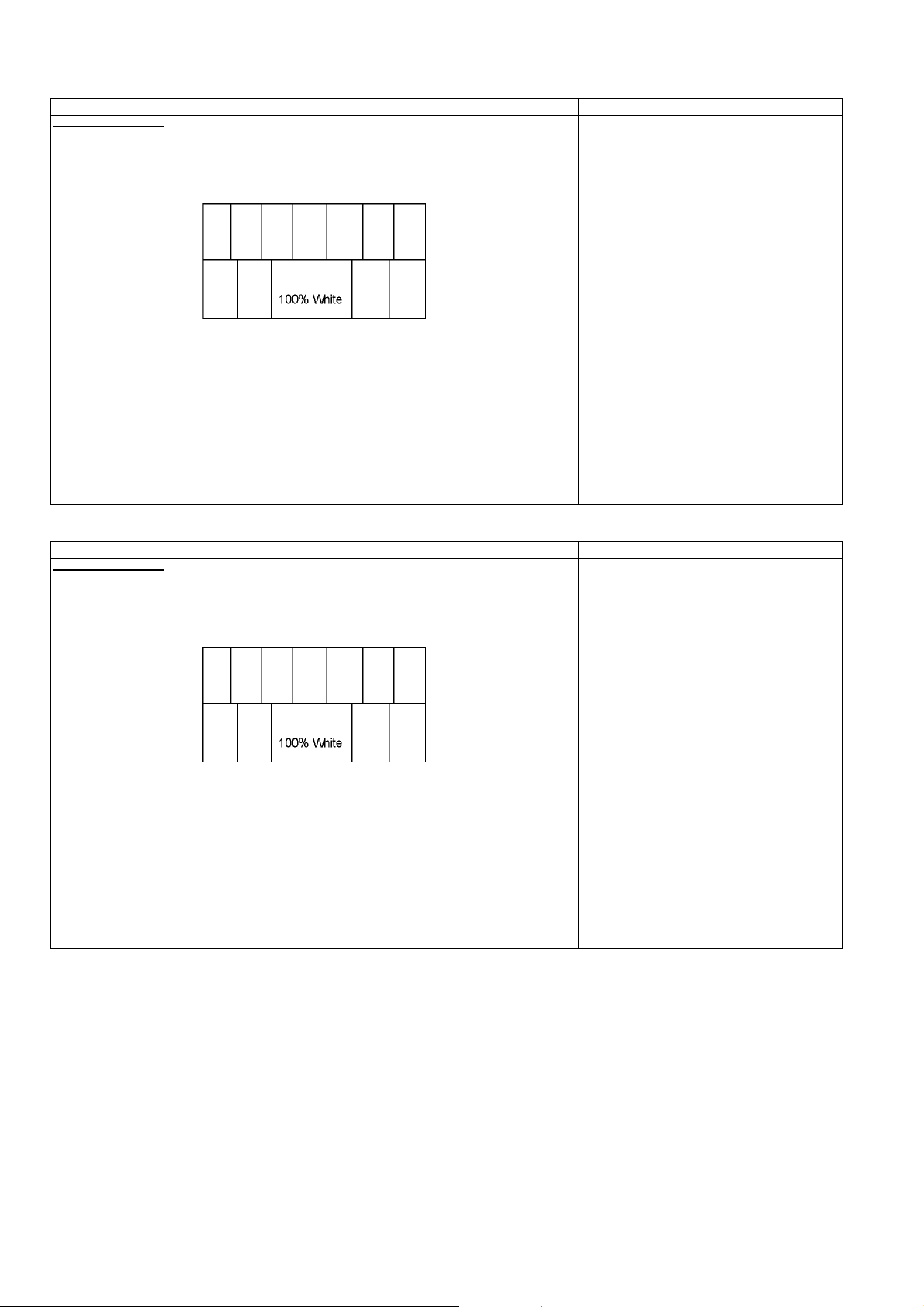

Another procedure
Adjustment of AV system
1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.
2. Goes into service adjustment mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
4. End.
Steps Remarks
Another procedure
Adjustment of HD system
1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.
2. Goes into service adjustment mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
4. End.
32
Page 33

9.2.2. RF white balance adjustment

Name of measuring instrument Connection Remarks W/ B pattern Color analyzer (Minolta CA-100 or equivalent)
Steps Remarks
• Make sure the front panel to be used on the final set is fitted.
• Make sure a color signal is not being shown before adjustment.
• Put the color analyzer where there is little colour variation. Adjustment Remarks
1. Display the white balance pattern.
2. Enter the service adjustment mode.
3. A number key [ 1 ] or [ 2 ] are operated and [ WB-ADJ ] is displayed. Check that the color balance is [ COOL ].
4. Select [ G-CUTOFF ] item, using the number-key [ 3 ] or [ 4 ], and set to [ 80 ], using the volume-key [ + ] or [ - ]. Also, [ B-CUTOFF ] and [ R-CUTOFF ] set to [ 80 ]
5. Set [ G-DRIVE ] at [ E0 ](37 inch / 42 inch), [ D0 ](50 inch).
6. Touch the signal receiver of color analyzer to the highlight window's center, and adjust B drive and R drive so x, y become the [ COLOR TEMP COOL ] in the below table.
7. All RGB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)
8. Set colorbalance to [ NORMAL ] using [ 7 ] key.
9. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].
10. Fix G drive at [ E0 ] (37 inch / 42inch), [ D0 ] (50 inch).
11. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP NORMAL ] in the below table.
12. All RGB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)
13. Set colorbalance to [ WARM ] using [ 7 ] key.
14. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].
15. Fix G drive at [ E0 ] (37 inch / 42 inch), [ D0 ] (50 inch).
16. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP WARM ] in the below table.
17. All RGB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)
RF input Panel surface
Picture menu : Dynamic ASPECT : 16:9
Highlight section Signal amplitude 75% Value is Hex.
33
Page 34

9.2.3. 1080i white balance adjustment

Name of measuring instrument Connection Remarks
1080i W/ B pattern Color analyzer (Minolta CA-100 or equivalent)
Steps Remarks
• Make sure the front panel to be used on the final set is fitted.
• Make sure a color signal is not being shown before adjustment.
• Put the color analyzer where there is little colour variation. Adjustment Remarks
1. Display the white balance pattern.
2. Enter the service adjustment mode.
3. A number key [ 1 ] or [ 2 ] are operated and [ WB-ADJ ] is displayed. Check that the color balance is [ COOL ].
4. Select [ G-CUTOFF ] item, using the number-key [ 3 ] or [ 4 ], and set to [ 80 ], using the volume-key [ + ] or [ - ]. Also, [ B-CUTOFF ] and [ R-CUTOFF ] set to [ 80 ]
5. Set [ G-DRIVE ] at [ E0 ](37 inch / 42 inch), [ D0 ](50 inch).
6. Touch the signal receiver of color analyzer to the highlight window's center, and adjust B drive and R drive so x, y become the [ COLOR TEMP COOL ] in the below table.
7. All RGB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)
8. Set colorbalance to [ NORMAL ] using [ 7 ] key.
9. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].
10. Fix G drive at [ E0 ] (37 inch / 42inch), [ D0 ] (50 inch).
11. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP NORMAL ] in the below table.
12. All RGB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)
13. Set colorbalance to [ WARM ] using [ 7 ] key.
14. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].
15. Fix G drive at [ E0 ] (37 inch / 42 inch), [ D0 ] (50 inch).
16. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP WARM ] in the below table.
17. All RGB drive increase so that the maximum drive value of RGB may become [ FC ]. ([ ALL-DRIVE ] set to [ FC ].)
Component input Panel surface
Picture menu : Dynamic
ASPECT : 16:9
Highlight section Signal amplitude 75% Value is Hex.
34
Page 35

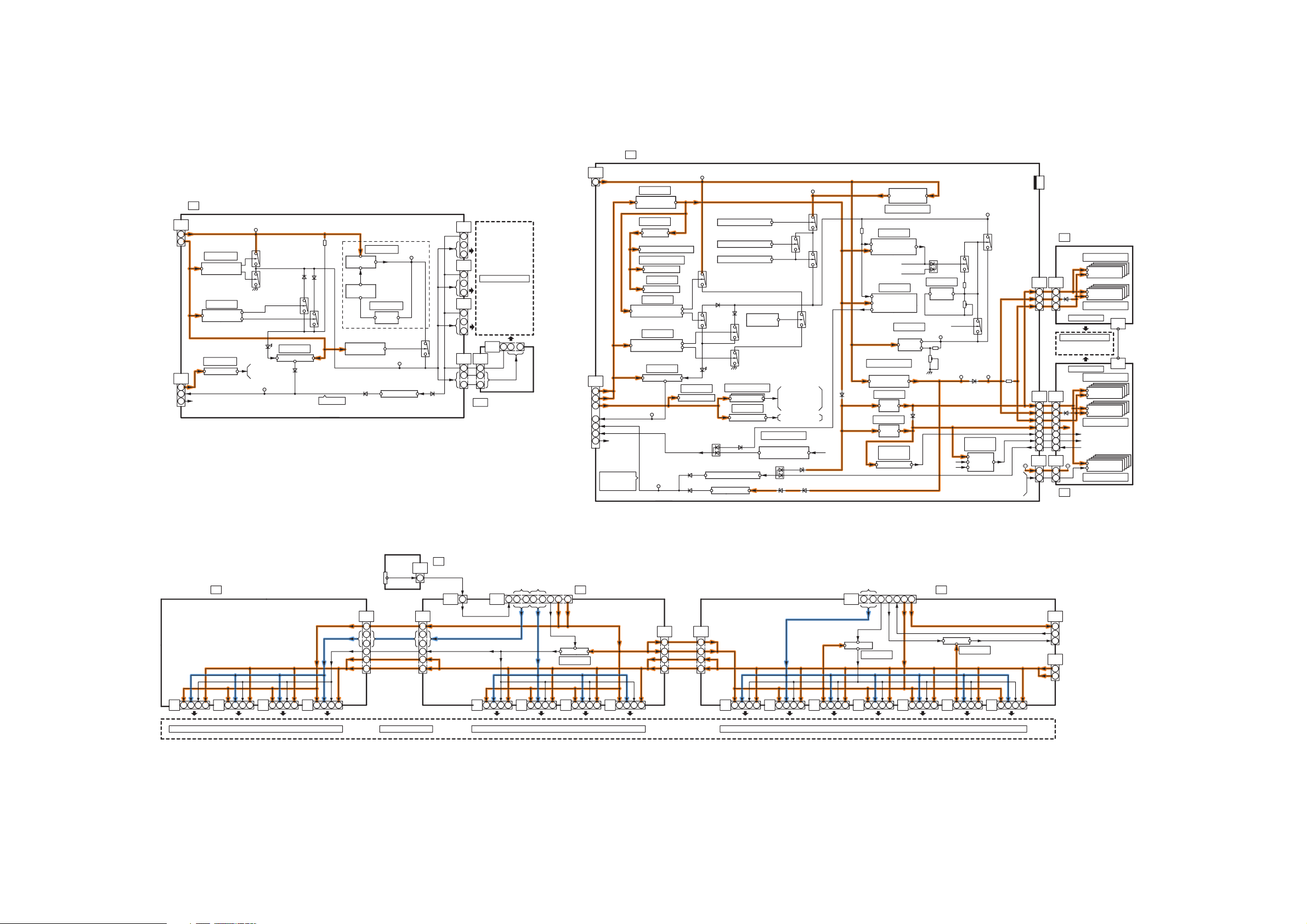

10 Block Diagram

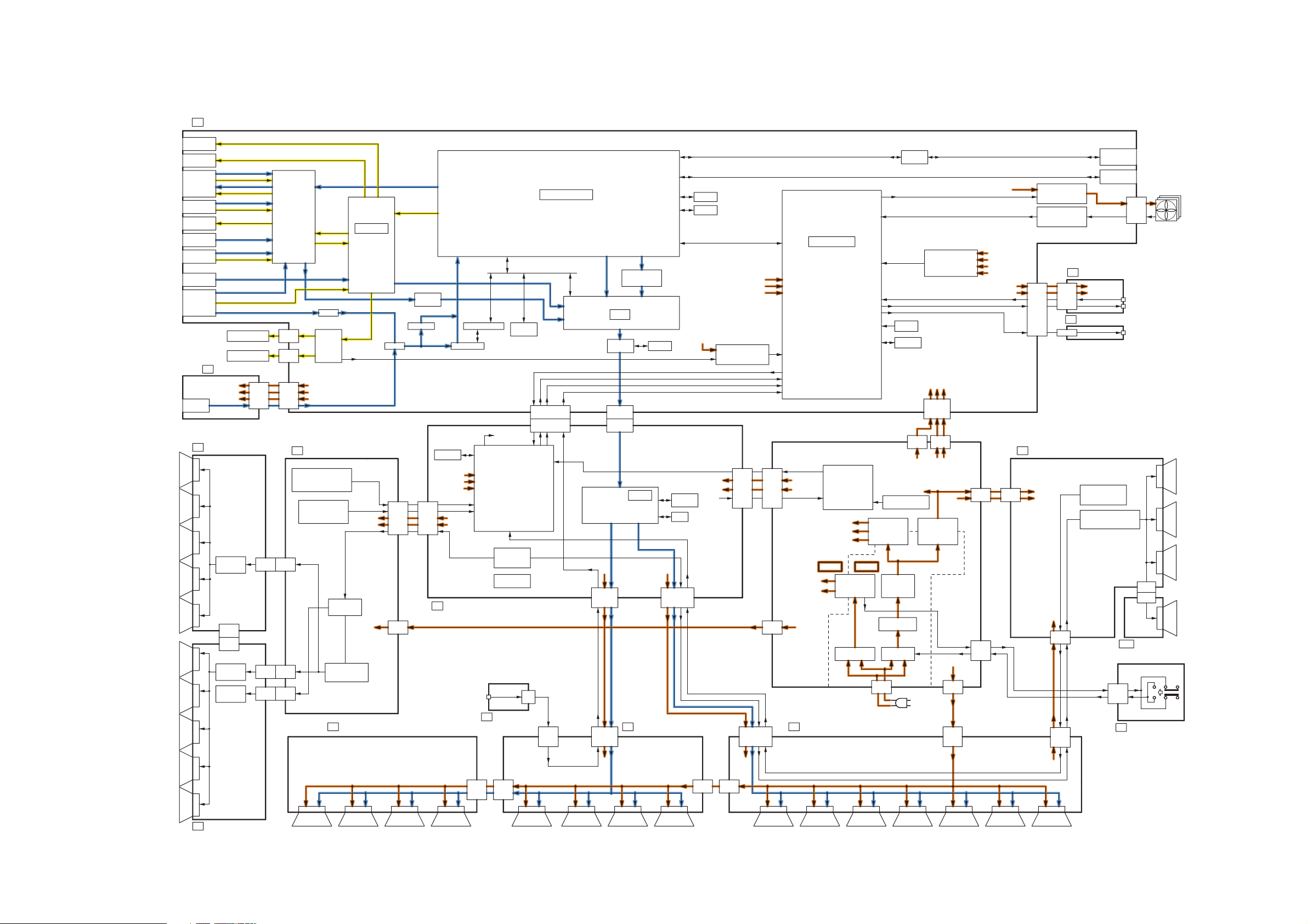

10.1. Main Block Diagram

A
DIGITAL SIGNAL PROCESSOR
AV1 AV2
COMP
PC
AV3
SAT TUNER
XS
+5V(S)
+15V(F)
SU
SCAN OUT (UPPER)
SCAN DRIVER
SCAN DRIVER
BUFFER
OPT OUT
HP L/R
Y,C,V
L,R
CVBS OUT
L,R OUT
Y,PB,PR
L,R
MONITOR L,R
R,G,B
Y,C,V
L,R
RF
SIF
IF
SPEAKER(L)
SPEAKER(R)
SU11
SD11
XS3
SU41 SC41
SD42
SD46
DIGITAL AUDIO
HEADPHONE
AUDIO OUT
HDMI 1,2,3,4
Tuner
Free­SAT
VIDEO SW
AUDIO SW
A12
A11
A88
SC
SC-BOARD ENEGRY RECOVERY SOS DETECT
(LED:6TIMES)
SC42
SC46
M-OUT
A-OUT
OFDM
L
AUDIO AMP
R
+3.3V(S)
+5V(S)
+15V(F)
SCAN DRIVE
SC-BOARD FLOTING PART SOS DETECT
(LED:7TIMES)
ADV7470
HDMI I/F RECEIVER
10bit A/D SOUND
PROCESSOR
PWM
SOS6_SC1
SOS7_SC2
+5V(P)
+15V(P)
SCAN CONTROL
CONTROL PULSE
VSCAN GEN. VSET GEN. VAD GEN.
DATA DRIVER (RIGHT)
C1
VSUS
Peaks AVC
I2S
HSDIN TS Parallel
(MAIN MPU+VIDEO PROCESSOR)
CUP-BUS
OSD_16bit
LOSD_OUT
LVDS_I/F
LVDS DATA
LVDS RX
GC6
FRC-Q
A5
D5
LVDS DATA
PEAKS IN
PD3-H
Y/UV_16bit
DDR2
VIDEO DATA
+5V(P)
GC3FS next
BUFFER RESET
TS SW
CONTROLLER
CI
NOR FLASH
DIGITAL VIDEO DATA
LOSD
LVDS DATA
A3
POWER SOS
(LED:2TIMES)
(LED:3TIMES)
(LED:5TIMES)
SUSTAIN CONTROL
D3
PLASMA AI CPG with SS H/V Sync Control Sub Filed Processor
+5V(P)
D31
SC20
EEPROM
+15V(P)
+3.3V(P)
+5V(P)
SOS6_SC1
SOS7_SC2
+5V(P)
D20
+15V(P)
SCAN CONTROL
D
FORMAT CONV., PLASMA AI
CONTROL SIGNAL
PANEL MICOM
(LED:4TIMES)
+15V(P) DET
+3.3V(P) DET
+5V(P) DET
SOS6_SC1
SOS7_SC2
(LED:8TIMES)
DISCHARGE CONTROL
(LED:6TIMES)
(LED:7TIMES)
SOS8_SS
Temp sensor
SC2
KEYSCAN1
VIDEO DATA
KEY SWITCH
KEYSCAN1
GK1
KEY SWITCH
GK
C24
KEYSCAN1
Vda
C10
C20
VIDEO DATA
+5V(P)
DATA DRIVER (CENTER)
C2
C21
+5V(P)
VIDEO DATA
FLASH MEMORY
DDR
D32
DDR2
CLKGEN
SOUND15V
+5V(P)
+15V(P)
PANEL MAIN ON
SOS8_SS
SOS8_SS
SUSTAIN CONTROL
VIDEO DATA
+5V(P)
C26
SBO2 SBI2
+9V(S)
+5V(S)
+3.3V(S)
SOUND SOS DET CIRCUIT
(LED:12TIMES)
D25
+5V(P)
C36
SYSTEM MPU
SUB+9V DET
SUB+5V DET
SUB+3.3V DET
SOUND SOS (LED:12TIMES)
PANEL STB_ON
PAMEL SOS
PANEL STATUS+3.3V(S)
KEYSCAN1
+5V(P)
P25
+15V(P)
F15V
STB5V
VSUS
P2
DATA DRIVER (LEFT)
C3
C31
(LED:11TIMES)
(LED:10TIMES)
R/G_LED_ON
PS SOS4 (LED:4TIME)
POWER MICOM
ON/OFF CONTROL
Vda
+15V(P)
+5V(P)
COLD
STANBY VOLTAGE RECTIFIER
RECTIFIER
PCI BUS
FAN MAX
FAN SOS
TUNER SOS
REMOTE
SD_LED_ON
HOT
TUNER SOS
IIC1
P-BOARD SOS DETECT
PROCESS VOLTAGE RECTIFIER
POWER FACTOR CONTROL
RECTIFIER
RELAY
P9
SOS8_SS
SUSTAIN CONTROL
Vda
VIDEO DATA
ETHER NET IF
RESET
EEPROM
P7
VSUS
AC CORD
STB5V
SUSTAIN VOLTAGE RECTIFIER
TUNER SOS DET CIRCUIT
(LED:10TIMES)
+15V(F)
+5V(STB)
+15V(SOUND)
A7
P6
F15V
SOUND15V
VSUS
+15V(P)
MAIN SW2
MAIN SW1
Vda
P35
C35
Vda
ETHERNET DATA
+3.3V(STB)
P11
P34
SD CARD DATA
FAN MAX
FAN SOS
F15V
SUB9V
SUB5V
BT30V
+5V(S)
SS11
F15V
A1
SS
SUSTAIN DRIVE
FAN POWER
FAN SOS DET CIRCUIT
(LED:11TIMES)
VSUS
+15V(P)
+5V(P)
+5V(P)
K1
GL
GL02
SUSTAIN CONTROL
SOS8_SS
SS33
C33
K
LED/RMT
+3.3V(STB)
+5V(S)
SD LED
SS-BOARD SOS DETECT
(LED:8TIME)
VSUS GEN. VE GEN. ENERGY RECOVERY
MAIN SW2
MAIN SW1
10BASE-T/
100BASE-TX
ETHERNET
SD CARD
SLOT
+9/7.2V
S1B
A8
REMOTE
LED
SD LED
SS21
SS24
SS2
SUSTAIN CONNECTOR (LOWER)
POWER SW
POWER SWITCH
S
FAN_A-C
ON
SCAN OUT (LOWER)
SD
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
35
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
DATA DRIVER
Page 36

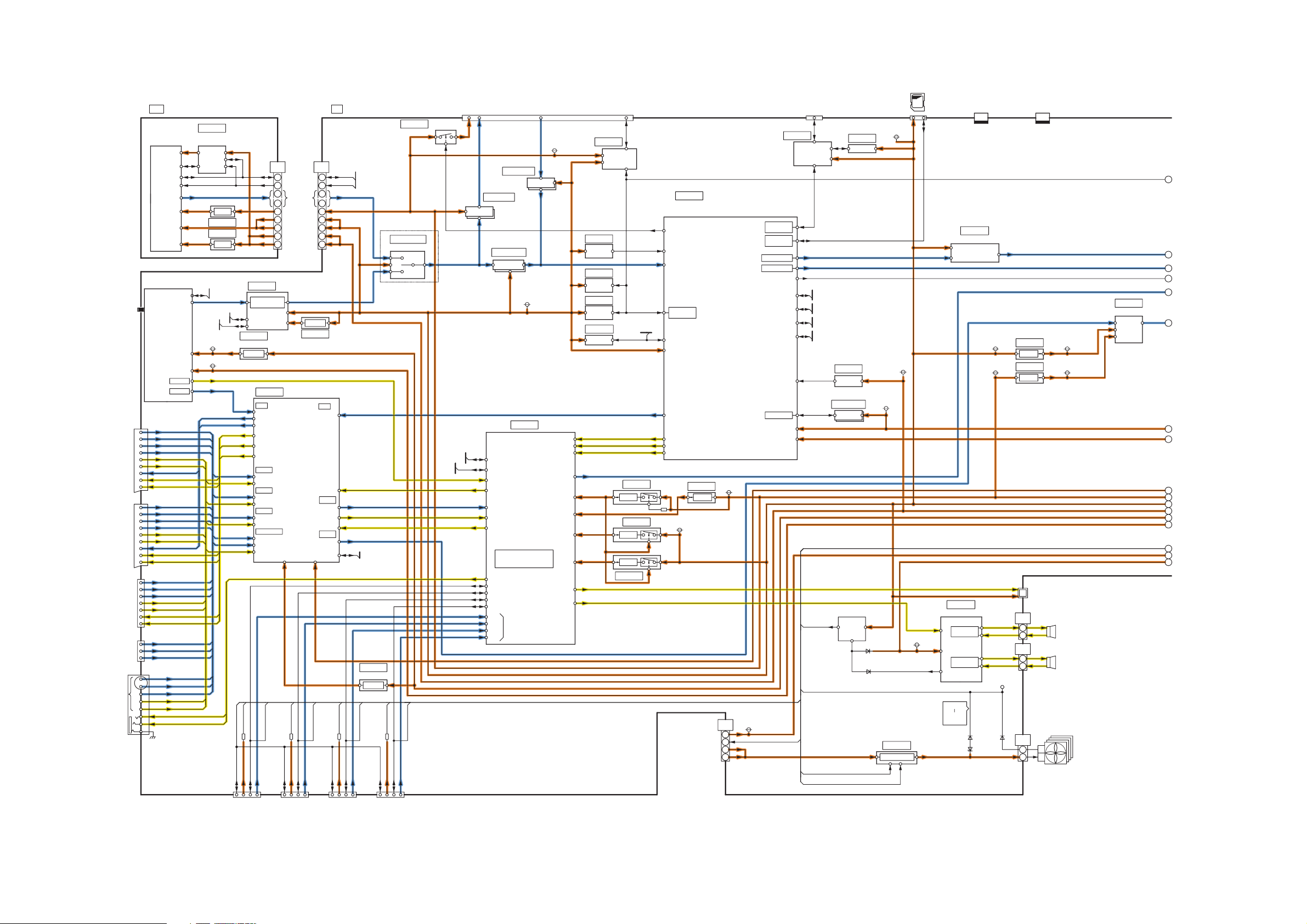

10.2. Block (1/5) Diagram

XS
B1
SDA
SCL
B2
B3
VDD
BT30V
AUDIO
VIDEO
AV1_V
AV1_RED
AV1_BLUE
AV1_LIN
AV1_RIN
AV1_VOUT
AV1_LOUT
AV1_ROUT
AV2_V_Y
AV2_BLUE
AV2_LIN
AV2_RIN
AV2_VOUT
AV2_LOUT
AV2_ROUT
LNB SUPPLY CONTOL
IIC_TU
5V
SIF,AM
RF
AV3_Y
AV3_C
AV3_V
AV3_L
AV3_R
HP_L
HP_R
IC6801
TUNER5V
BT30V
VCC
SDA
SCL
+3.3V
IC6802
IC6803
+1V
IIC2
IIC_TU
IC2960
TUNER+5V
HDMI_CEC
JK4700 HDMI 4
ANT IN
JK3002
JK3003
JK3100A
JK3707
HEADPHONE
AV1
AV2
YPBPR
AUDIO IN/OUT
JK3001
PC IN
AV3
TU6801
Sat Tuner
DISEQC
TS IF
TU2901
TUNER
IFD_OUT1/2
LIN
RIN
LOUT
ROUT
R
G
B
AV1_GREEN
AV2_RED_C
AV2_GREEN
Y
PB
PR
IC8301
DIGITAL DEMODULATOR
+5V
IC3001
TV
RF
AV1_VOUT
AV2_VOUT
AV1_L,ROUT
AV2_L,ROUT
L,ROUT
AV1
V,R,G,B
L,R
AV2
V,Y,C,R,G,B
L,R
AV3
V,Y,C
L,R
COMP/PC
Y,PB,PR
R,G,B
L,R
DDC0_IIC
+5V
DDC IIC
TMDS DATA
XS3
18
FE SDA
FE SCL
20
7
TS DATA
16
24
+5V(S)
26
+3.3V(S)
27
+3.3V(S)
29
+15V(F)
30
+15V(F)
OFDM
3.3V
1.8V
IC8302
AV SW
CVBS/S/YUV /RGB(PC)
MONITOR L,R
+5V
DDC3_IIC
HDMI 5V DET0
+5V
HDMI_CEC
CLOCK
DDC IIC
JK4502
HDMI 3 HDMI 1HDMI 2
A88
13
11
24
15
7
5
4
2
1
+1.8V
DVB
DVB_CVBS
L,R(TV)
MAIN
L,R(AV)
SUB V
+9V
HDMI 5V DET3
TMDS DATA
CLOCK
A
DIGITAL SIGNAL PROCESSOR
IIC2
SUB
IIC2
IC3003
AVSW+5V
DDC2_IIC
HDMI 5V DET2
+5V
HDMI_CEC
DDC IIC
TMDS DATA
CLOCK
JK4500
JK8301
10BASE-T/
100BASE-TX
JK8401
CI SLOT
ETHERNET
IC8403
CI 5V
SUB5V
IC8401
CI ASIC
IC8503
ETHERNET CONTROL
IC8408,9
BUFFER
IC8001
Peaks AVC
(MAIN MPU+VIDEO SIGNAL PROCESSOR)
CI POWER ON
CLOCK
PARALLEL TS
CPU BUS I/F
IIC3
3.3V
PCI BUS I/F
SD CARD I/F
LVDS_I/F
LOSD_OUT
GC6 RST
OSD_16bit
IIC0
IIC1
IIC2
SBI2 SBO2
LVDS DATA
B ONLY
IC8303,4,5
TS SW
BUFFER
IC8404,5
IC8410,11
BUFFER
SUB3.3V
IC8004
CLOCK GEN
IC8581
NAND FLASH
IC8580
BOOT ROM
IC8502
EEPROM
IIC3
IC5470
RESET
RESET
IC8002,03
IC4510
DVB_CVBS
IECOUT
IIC1
IIC2
SIF,AM
L,R(TV OUT)
MAIN Y/U/V
L,R(AV IN)
L,R(MONITOR)
HDMI I/F RECEIVER 10bit A/D SOUND PROCESSOR
HP OUT
DDCD_IIC
DDCC_IIC
DDCB_IIC
DDCA_IIC
RXD
RXC
HDMI IN
RXB
RXA
+5V
DDC1_IIC
HDMI 5V DET1
+5V
HDMI_CEC
DDC IIC
TMDS DATA
CLOCK
DAUDIO
DMIX0
DIGTAL VIDEO OUT
+3.3V
+3.3V
+1.8V
+1.8V
DIGITAL SOUND OUT
SP OUT
R/G/B_36bit
IC4511
+3.3V
IC4512
+1.8V
+1.8V
IC4513
IECOUT
DAUDIO
DMIX0
SUB3.3V
TUNER_SUB_ON
IC2008
3.3V
STB5V
+15Vc_FAN
+15Vc_FAN
SUB5V
P7
A7
5
6
1
2
STB5V
DDR I/F
TV SUB ON
DDR2
1.8V
1.2V
SOUND SOS
(LED:12 TIMES)
SOUND SOS
FAN SOS
FAN MAX
FAN ON
Q2022
SOUND SOS DET
IC8504
EEPROM
D2014
FAN15V
SD CARD SLOT
D2017
JK8302
SUB1.8V
SUB3.3V
F15V
IC2801
FAN CONT.
PWM L/R
SOUND15V
FOR FACTORY USE FOR FACTORY USE
IC5110
LVDS RX
3.3V
SUB3.3V
OPTICAL AUDIO OUT
IC2301
AUDIO AMP
SPEAKER
L_OUT
+15V
SPEAKER
R_OUT
SOS
SOS DET
FAN A
FAN STOP
OVER
FAN D
D2810
D2809
VOLTAGE
D2805 D2806 D2807 D2808
+9/7.2V
(LED:11TIMES)
SUB5V
TP2802
L(+)
L(-)
R(+)
R(-)
Y/UV_16bit
IC4002
1.8V
IC4005
3.3V
A12
1
2
A11
1
3
A8
CN0101CN0100
D3015
OPTICAL
AUDIO
OUT
3
1
FAN A-D
SUB_FS_1.8V
SUB_FS_3.3V
SPEAKER_L
SPEAKER_R
IC4001
GC3FS next
+1.8V
+3.3V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
JK4501
36
Page 37

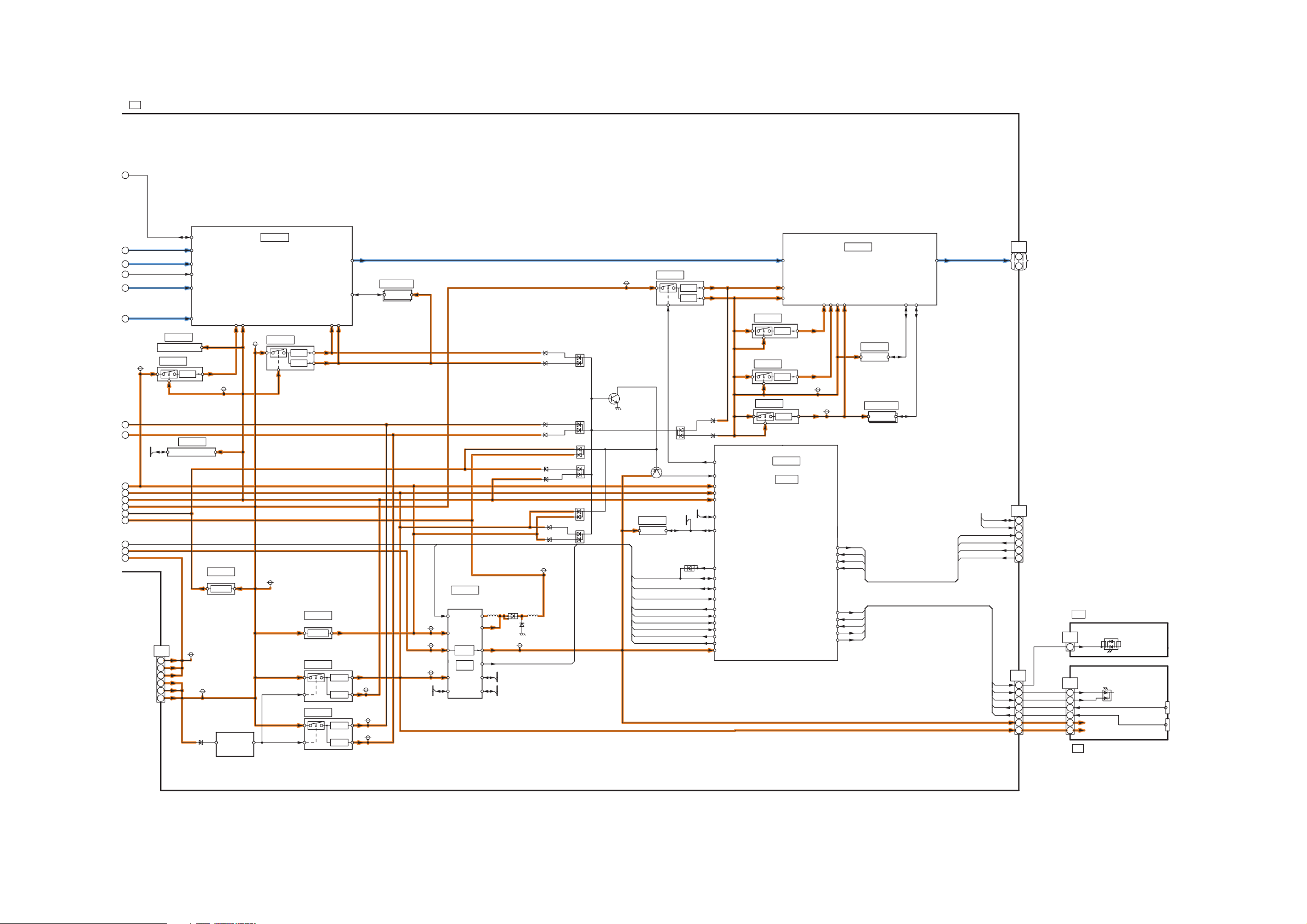

10.3. Block (2/5) Diagram

A
DIGITAL SIGNAL PROCESSOR
1
CPU BUS
Y/UV_16bit
2
OSD_16bit
3
4
R/G/B_36bit
5
6
CLK BUFFER
IC5300
SUB5V
7
8
IIC1
9
10
11
12
13
14
15
16
17
P6
A6
1
+15V_S
3
+15V_S
5
+15V_S
7
F+15V
8
F+15V
9
F+15V
IC5320
GC6+3.3V
+3.3V
IC1000
TEMP SENSOR
S_15V
EXB BUS
PORT-C
LOSD
GC6 RST
PORT-A
PORT-B
F15V
D5612
(+5.6V)
SUB3.3V
IC2802
SUB+6V
+6V
Q5605,06
OVER CURRENT PROTECT
+3.3V
+3.3V
F15V
IC5100
GC6
IC5312
F15V
GC6+1.8V GC6+1.2V
+1.2V
+1.8V
IC5481
SUB+9V
+9V
IC5600
IC5601
DDR I/F
+3.3V
+1.8V
+1.2V
+1.2V
+5V
LVDS
+1.8V
LVDS DATA
SUB3.3V
SUB1.8V
SUB1.2V
IC5001,02
DDR2
PANEL IIC1
SUB9V
STB5V
SUB5V
TV SUB ON
ANALOG ASIC
IC5480
STB3.3V
STB_RESET
DTV5V
STB +3.3V
MUTE
IC2600
RMIN
+2.5V
+1.05V
+3.3V
FRC-Q
+1.8V
IC2605
EEPROM
IC2611,12
DDR2
Dual 10bit LVDS
FRC 1.05V
IC2601
FRC 3.3V
+1.0V
+3.3V
GC6_1.2V
GC6_1.8V
D5446
D5445
F15V
D5435
Q5432
SUB9V
SUB5V
L5421
D5421 D5422
D5443
D5444
D5582
D5449
BT30V
SUB1.8V
SUB1.2V
SUB6V BT30V
SUB6V
SUB3.3V
D5423
L5544
DRV
STB3.3V
IIC0
EEP_ IIC1
D5442
D5441
STB_RESET
D5434
D5431
D5437
D5432
D5433
Q5431
IC1101
EEPROM
HDMI_CEC
DDC0,1,2,3_IIC
+5V(HDMI)DET 0,1,2,3
TV SUB ON
SOUND SOS
STB RESET
FAN SOS
FAN MAX
FAN ON
EEP_ IIC1
D5436
D1107
D5448
D5447
TV MAIN ON
TUNER SOS
(LED:10TIMES)
SUB9V DET
SUB5V DET
SUB3.3V DET
IIC3
IIC3
IIC1
HDMI_CEC_ PU_ON
HDMI_CEC
DDC_IIC
DDC_IIC
+5V(HDMI) DET 0,1,2,3
TV SUB ON
SOUND SOS
(LED:12TIMES)
STB RESET
FAN SOS
(LED:11TIMES)
FAN MAX
FAN ON
STB3.3V
IC2607
IC2606
IC2604
Rx
+1.05V
+3.3V
FRC 2.5V
+2.5V
FRC A1.05V
+1.0V
FRC 1.8V
+1.8V
IC1100
SYSTEM MPU
GenX8
FRC_3.3V
FRC_1.8V
PANEL STB_ON
PANEL SOS
PANEL STATUS
KEYSCAN
SD_LED_ON
AI_SENSOR
G_LED_ON
R_LED_ON
LVDS DATA
Tx
DDR I/F
IIC
IIC0
PANEL STB_ON
PANEL SOS
PANEL STATUS
KEY_SCAN
D5A5
1
31
IIC_DATA1
7
IIC_CLK1
8
PANEL_STBY_ON
2
ALARM
4
READY
3
KEY_SCAN
15
A1
12
2
3
AI_SENSOR
9
1
4
11
LVDS Dual 10bit
D3A3
SD_LED
G_LED_ON
R_LED_ON
RMIN
STB+3.3V
SUB+5V
GL 02
K1
11
1
2
3
9
1
4
GL
K
SD LED
D7800
SD LED
D2520
POWER LED
G
R
RMT/LED/AI
PC2511
AI SENSOR
RM2501
REMOTE
37
Page 38

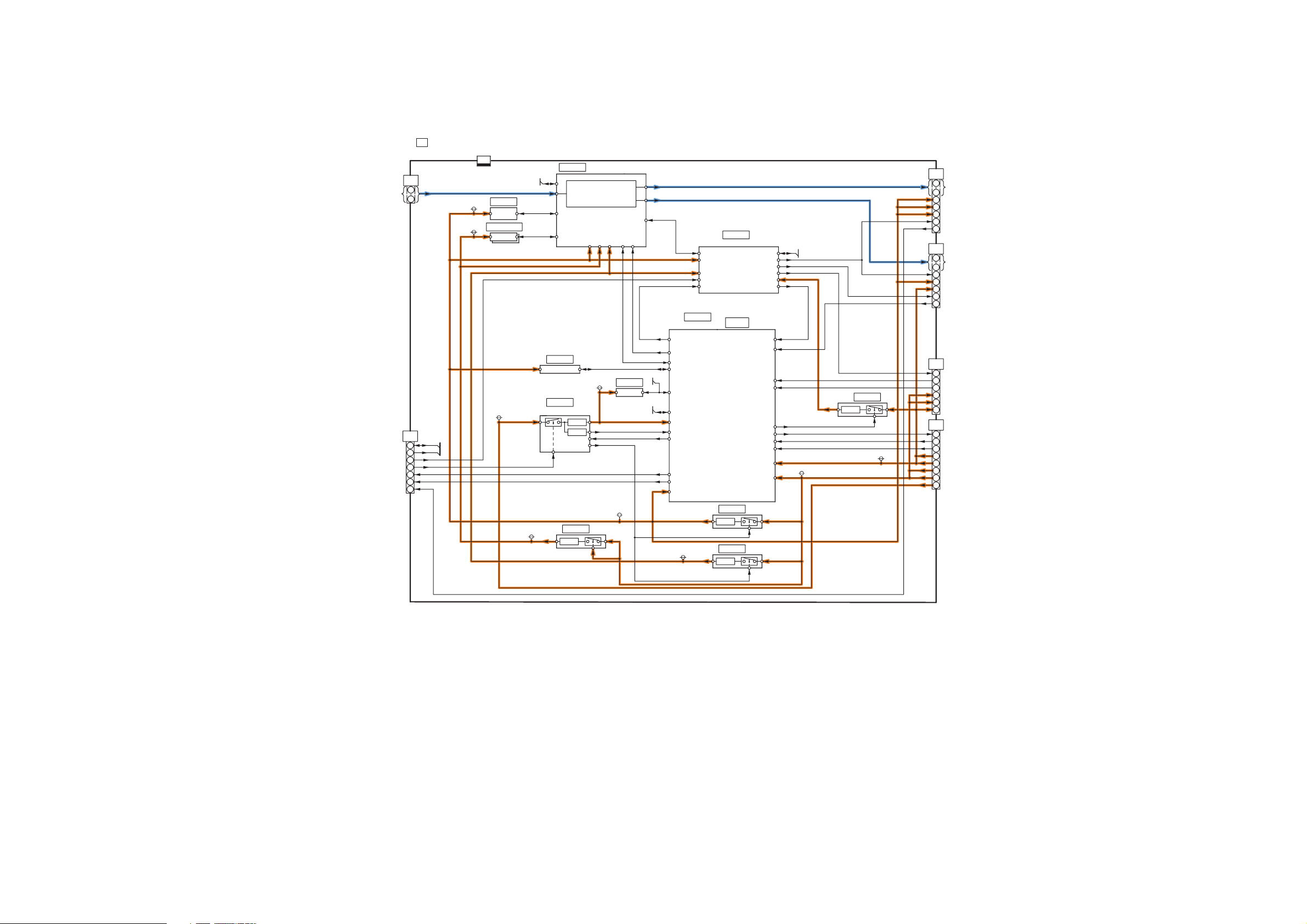

10.4. Block (3/5) Diagram

LVDS Dual 10bit
IIC_DATA1
IIC_CLK1
DISPEN
PANEL_STBY_ON
ALARM
READY
KEY_SCAN
D
FORMAT CONV., PLASMA AI
FOR FACTORY USE
IC9300
*PLASMA AI *CPG with SS *H/V Sync Control *Sub Filed Processor
FLASH I/F
DDR I/F
+3.3V
RESET
IC9807
+1.8V
PD3H
+3.3V
STB_D3.3V
+1.8V
+1.2V
P3.3V
OSD I/F
IC9001
EEPROM
VIDEO DATA
VIDEO DATA
Config(CCLK,DDTATA,PROGB), FPCLK,FPDATA[1:0],FVSEL
DRVRST FPGARST XRST
XRST, XRSTSYS
IIC2
IIC1
PANEL MICOM
OSD I/F
IIC3
IIC2
IIC1
+3.3V(STB)
RESET
POWER ON/OFF
PANEL SOS
PANEL STATUS
+3.3V(P) DET
(LED:3 TIMES)
P1.2V
IC9003
+3.3V
+1.2V
DISPEN
IC9500
DISCHARGE CONTROL
CONTROL DATA
SUSTAIN CONTROL
SCAN CONTROL
Config(DONE)
GenX7
SOS8_SS
(LED:8 TIMES)
(LED:6 TIMES)
SOS6_SC1
SOS7_SC2
(LED:7 TIMES)
AUX_ON/OFF
PANEL MAIN ON
VDATA_DET
POWER SOS
(LED:4 TIMES)
+5V(P) DET
(LED:5 TIMES)
+15V(P) DET
(LED:2 TIMES)
IC9805
+3.3V
IC9806
+1.2V
+2.5V
C11
D31
10
VIDEO DATA
60
66
+3.3V(P)
67
+3.3V(P)
68
+3.3V(P)
CONTROL DATA
1
KEYSCAN
IIC2
IC9808
+2.5V
P5V
P15V
C21
D32
3
VIDEO DATA
45
CONTROL DATA
66
+3.3V(P)
68
+5V(P)
SUSTAIN CONTROL
63
SOS8_SS
D20
SC20
SCAN CONTROL
14
SOS6_SC1
15
SOS7_SC2
29
+15V(P)
30
+15V(P)
1
+5V(P)
P25
D25
11
PANEL_MAIN_ON
13
VDATA_DET
12
SOS4_PS
5
+5V
6
+5V
1
+15V
2
+15V
9
STBY5V
D5
D6
A5
1
31
P3.3V
P1.8V
IC9303
FLASH MEMORY
IC9902,3
DDR
IIC2
ADDR/DATA
IC9002
TEMP SENSOR
IC9004
STB5V_M
D3
A3
IIC1
7
8
1
2
4
3
15
STB+3.3V/RESET
P1.8V
38
Page 39

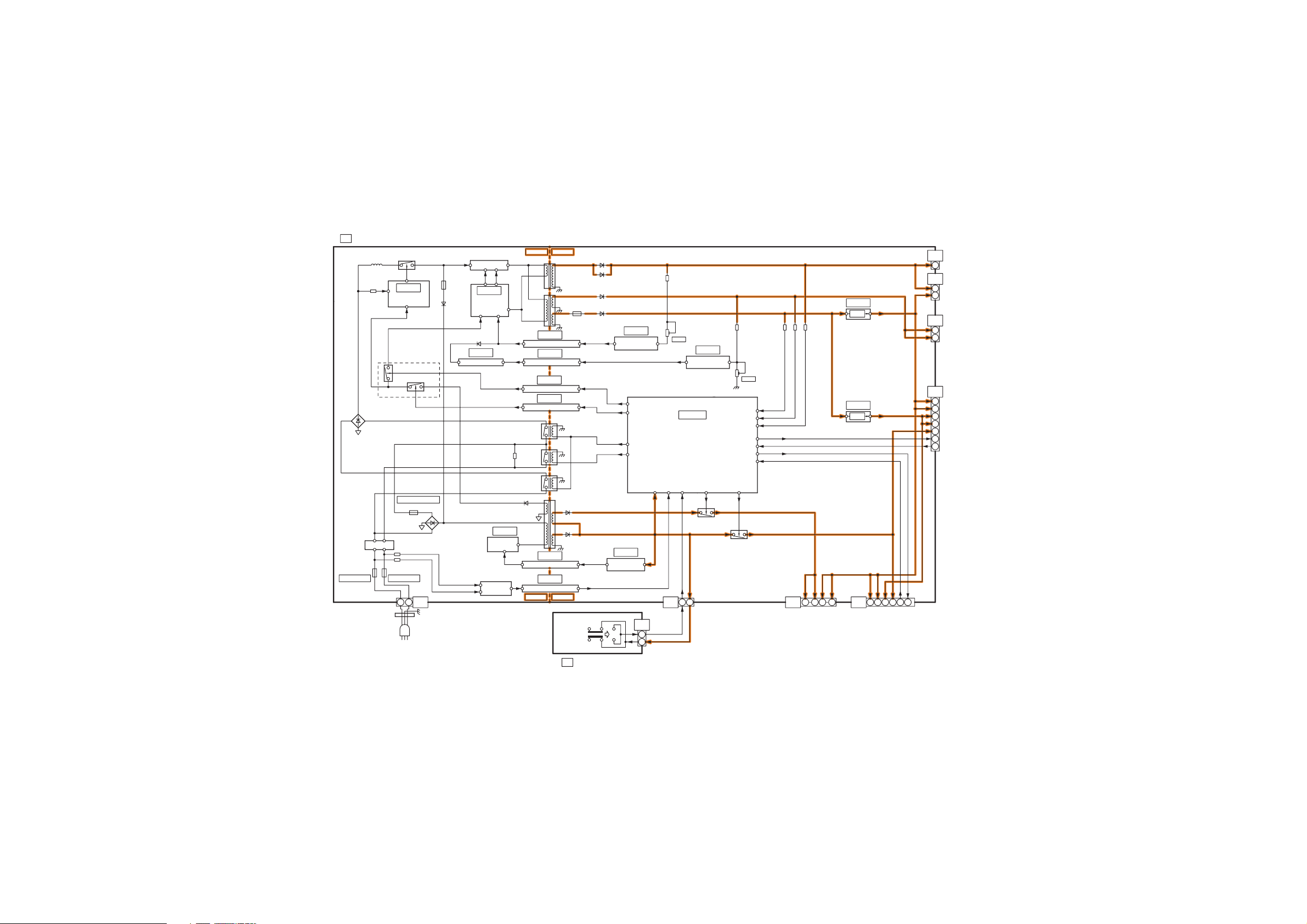

10.5. Block (4/5) Diagram

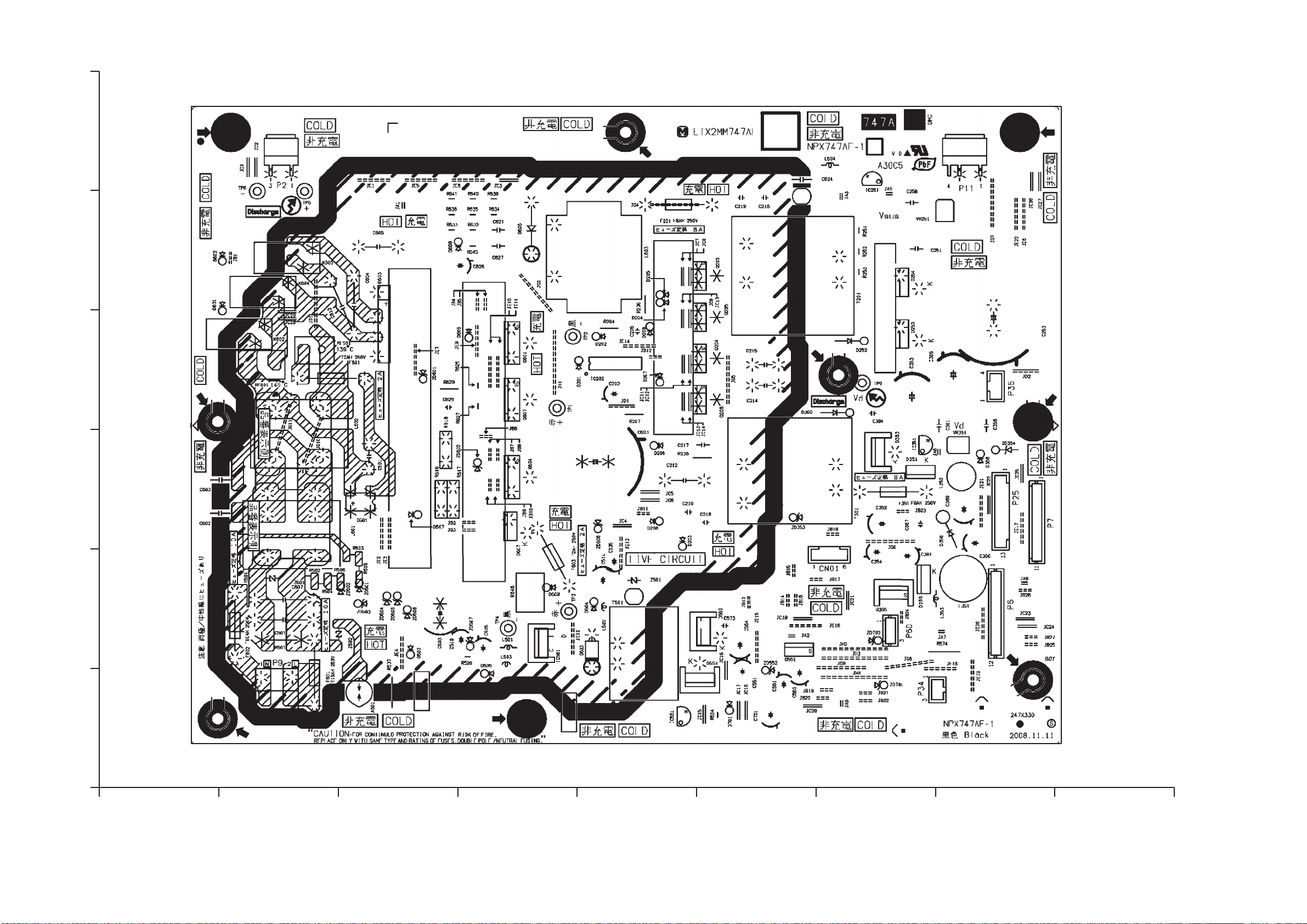

PA6POWER SUPPLY
L603
D603
RECTIFIER
FILTER
F601 F602
T8AH 250V
NEUTRAL
Q601,Q604
IC601
Q602,Q603
PFC CONTROL
BIAS CONTROL
Q501
Q503,Q504
T630mAL 250V
F501
L601,L602
T8AH 250V
LIVE
2
1
AC CORD
COLD
Q203-Q206
RESONANCE
F603
IC202
Q201,Q202 Q207,Q208
D603
POWER CONTROL
D203
IC201
COMPARATOR
BIAS_MAIN
BIAS_PFC
LIVE
NEUTRAL
D501
RECTIFIER
IC501
STB CONTROL
Q502,Q505,Q506
AC DET
P9
HOT
T201
T301
PC201
PHOTO COUPLER
PC301
PHOTO COUPLER
PC503
PHOTO COUPLER
PC501
PHOTO COUPLER
RF601
D504
PC502
PHOTO COUPLER
PC504
PHOTO COUPLER
K604
K602
K605
T501
F351
D253
D254
D353
D351
IC251
Vsus ERROR DET
BIAS_MAIN
BIAS_PFC
MAIN RELAY_ON
RUSH RELAY_ON
POWER MICOM
AC DET
+5V
Vsus
VR251
Vda ERROR DET
IC701
MAIN SW_ON
IC351
(LED:4TIMES)
POWER SOS
PANEL_MAIN_ON
TV SUB ON
F_15V_ON
15V_IN
Vda_IN
Vsus_IN
ALL_OFF
STB5V_
Vda
VR351
ON/OFF
15V
IC352
15V
IC353
5V
Vsus
Vda
+15V(P)
+5V(P)
Q551
D552
D551
Q557
+5V(STB)
IC551
STB ERROR DET
COLDHOT
31
P34
P6
FSTB+15V
751
+15V(SND)
9
3
10
5
1
2
P7
P2
SC2
1
Vsus
P11
SS11
1
Vsus
4
+15V(P)
C25
P35
1
Vda
2
Vda
D25
P25
1
+15V(P)
2
+15V(P)
+5V(P)
6
+5V(P)
9
+5V(STB)
12
SOS4_PS
11
PANEL_MAIN_ON
6
8
A7
SW2500 POWER
SWITCH
S1B
ON
MAIN SW1
1
MAIN SW2
3
FSTB+15V
FSTB+15V
+15V(SND)
+15V(SND)
+15V(P)
+15V(P)
+5V(P)
+5V(STB)
TV SUB ON
ALL_OFF
POWER SWITCH
S
39
Page 40

10.6. Block (5/5) Diagram

SS
SUSTAIN DRIVE
SS
P11
11
1
Vsus
+15V
4
UMH
IC16131
VSUS Gen.
DRIVER
UML
IC16151
ENERGY
RECOVERY
IC16241
BUFFER
SS
C33
33
1
+5V(P)
7
SOS8_SS
SUSTAIN CONTROL
SUSTAIN CONTROL
TPVSUS
USH
USL
D16253 LED(G)
UEH UML UMH
TPSOS8
(LED:8TIMES)
Q16001 Q16002 Q16004
Q16021 Q16022 Q16023
USL USH
D16041 D16042
Q16041
Q16051
IC16251
ERROR DET
D16255
D16051 D16052
FPC DET
VE GEN.
PHOTO COUPLER
PC16191
VE Gen.
DRIVER
D16280
IPD CIRCUIT
IC16304
PC16301
IC16312
SHUNT
REG.
UEH
Q16280
ERROR DET
TPSS1
Q16101 Q16102
TPVE
D16282
SCAN DRIVE
SC
16V-F
CMH
CSH
CSL
CML
IC16691
NAND GATE
D16480
D16820
TPVSUS
Q16401 Q16402 Q16403
D16461 D16462
Q16441
D16583 LED(G)
D16493
UHZ
PHOTO COUPLER
PC16601
PHOTO COUPLER
PC16603
PHOTO COUPLER
PC16684
PHOTO COUPLER
D16481 D16482
IC16561,62
BUFFER
IC16563
INVERTER
D16920
PC16480
Q16876
ERROR DET
Q16451
Q16421 Q16422 Q16423
PC16685
COUPLER
SEPA PROTECT CIRCUIT
CPH2
Q16607
CERS
CPH1
VOH
CIS
Q16621 Q16622
VOL
CML CMH CSH CSL
CIS
IC16490,91
Q16490
D16473
D16821
Q16604
Q16601
CPH1 CPH2 CERS CEL
CRC1
D16791
D16871
TPVSET
SIU OC1 OC2 CLK SEL
CRC2
CERS
15V_F
SCNR_PRO
Vscn
D16721
(15V_F)
IC16661
COMPARATOR
IC16920
COMPARATOR
IC16786,87
IPD CIRCUIT
VSCN GEN. SHUNT REG
IC16724
+5V
(SC1)
IC16725
+5V
(SC2)
IC16792 IC16793
VHIZ GEN.
VSET GEN. SHUNT REG
IC16788,89
CRC1
CRC2
IC16784
IPD CIRCUIT
VAD
GEN.
D16725
IPD CIRCUIT
Q16608
D16901
IC16692
SHUNT
REG.
VR16601
(INIT-F)
TPVAD
VR16600
(VAD)
CML CSL
Q16818
TPVSCN
Q16661
CEL
D16859 D16860
IC16564 IC16801
F_5V_A
F_5V_B
VSET23 GEN.
VF_GND
TPSC1
VSCN-F
VSET23
FOR FACTORY
SC50
USE
SCAN OUT (UPPER)
SU
IC14601-04
SCAN
SC
SU
41
41
8
8
4
4
Vfo
Vfo
VHIZ
SIU OC1 OC2 CLK SEL
2
2
SD
SC
42
42
3
3
8
8
9
9
5
5
6
6
4
4
2
2
SD
SC
5V
46
46
1
1
SD
DRIVER
SCAN
DRIVER
IC14605-08
SU1B-SU5B
PLASMA PANEL
PANEL SCAN ELECTRODES
SD1B-SD5B
IC14801-04
SCAN
DRIVER
SCAN
DRIVER
IC14805-08
VHIZ
VSET23
SCNR_PRO
5V
LOGIC IC
IC14901-05
SCAN OUT (LOWER)
SU 11
SD 11
P2
SC2
1
Vsus
IC16791
DC/DC
CONVERTER
SCAN CONTROL
IC16771
Vad+5V
PC16461
PHOTO COUPLER
IC16464,65
INVERTER
IC16773
INVERTER
IC16501
CSH/CMH GATE DRIVE CIRCUIT
IC16521
CSL/CML GATE DRIVE CIRCUIT
IC16581
ERROR DET
TPSOS6
(LED:6TIMES)
TPSOS7
(LED:7TIMES)
SS 53
1
2
13
SS 55
1
PLASMA PANEL
2
PANEL SUSTAIN
ELECTRODE
13
SS 56
1
2
13
SS
2
1
13
58
SS
SS
21
24
7
7
1
1
6
6
SS2
SUSTAIN CONNECTOR (LOWER)
SCAN CONTROL
D20
+15V(P)
+15V(P)
+5V(P)
SOS6_SC1
SOS7_SC2
SC 20
7
6
35
22
21
19
UHZ
VOLTAGE DROP ERROR DET
MAIN_STOP
VSCN
15V_F
CB1
DATA DRIVER (RIGHT)
C1
CB2
CB3
CB4
KEY SWITCH
C10 C20
+5V(P)
40
33
VIDEO DATA
9
CONTROL DATA
4
1
GK
KEY SWITCH
GK1
KEYSCAN1
1
D31
1
C24
1
8
32
Vda
37
Vda
40
68
C21
CB5
VIDEO DATA
KEYSCAN1
3559
CB6
33
VIDEO DATA
CONTROL DATA
9
+3.3V(P)
+3.3V(P)
13
BUFFER
IC17201
CB7
C2
DATA DRIVER (CENTER)
CB8
C26
20
18
C36
+5V(P)
1
+5V(P)
3
Vda
5
1
16
Vda
20
CB9
CB 10
CB
11
D32
C31
BUFFER
CB 12
VIDEO DATA
IC17300
SOS8_SS
SUSTAIN CONTROL
CONTROL DATA
62466
3
CB
13
+3.3V(P)
1
+3.3V(P)
DATA DRIVER (LEFT)
C3
BUFFER
IC17302
CB
14
SS33
C33
1
+5V(P)
7
SOS8_SS
SUSTAIN CONTROL
P35
C35
1
Vda
2
Vda
CB 15
PANEL DRIVER PANEL DRIVERPANEL DRIVER PLASMA PANEL
40
Page 41

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:
Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.

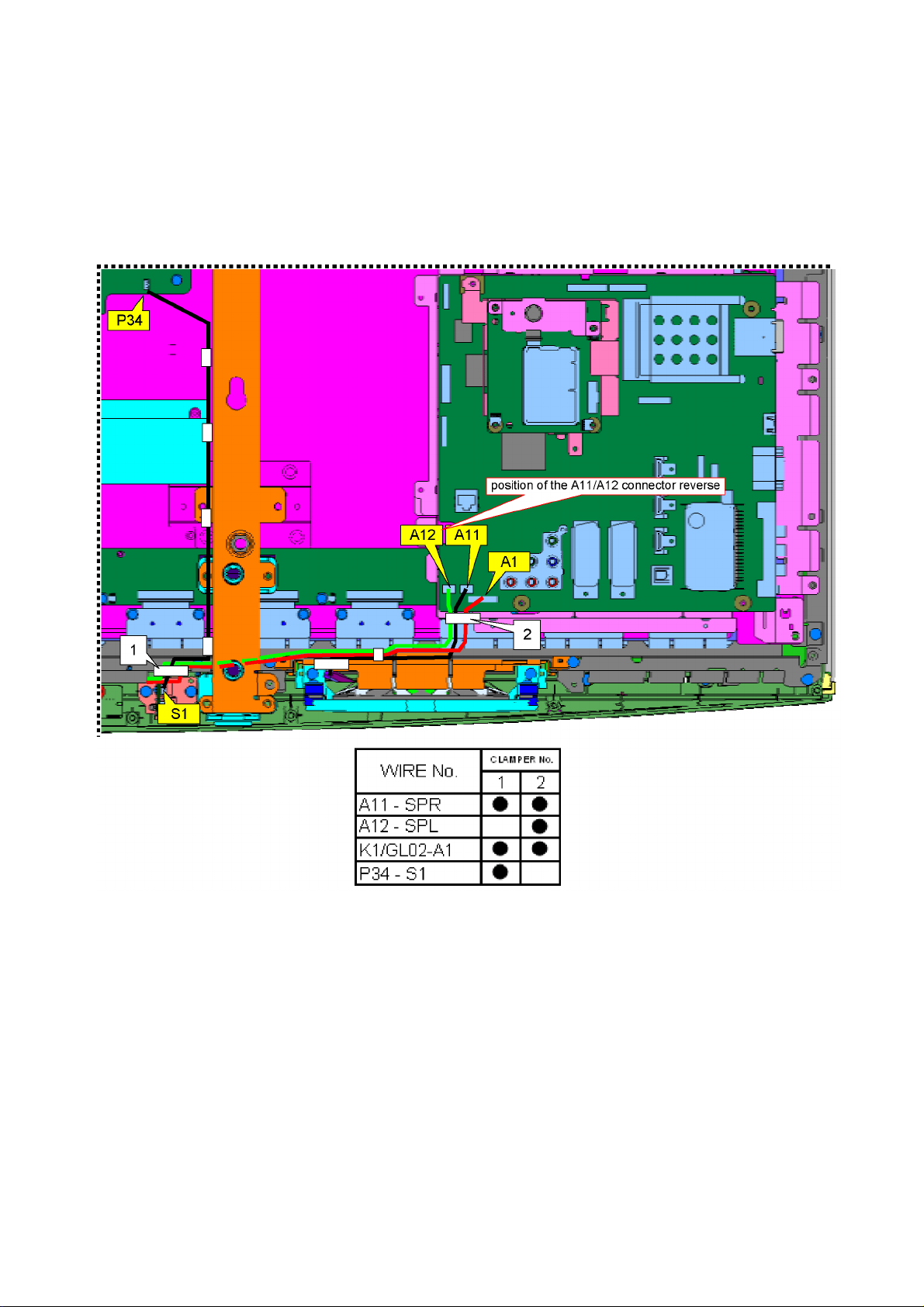

11.2. Wiring (1)

41
Page 42

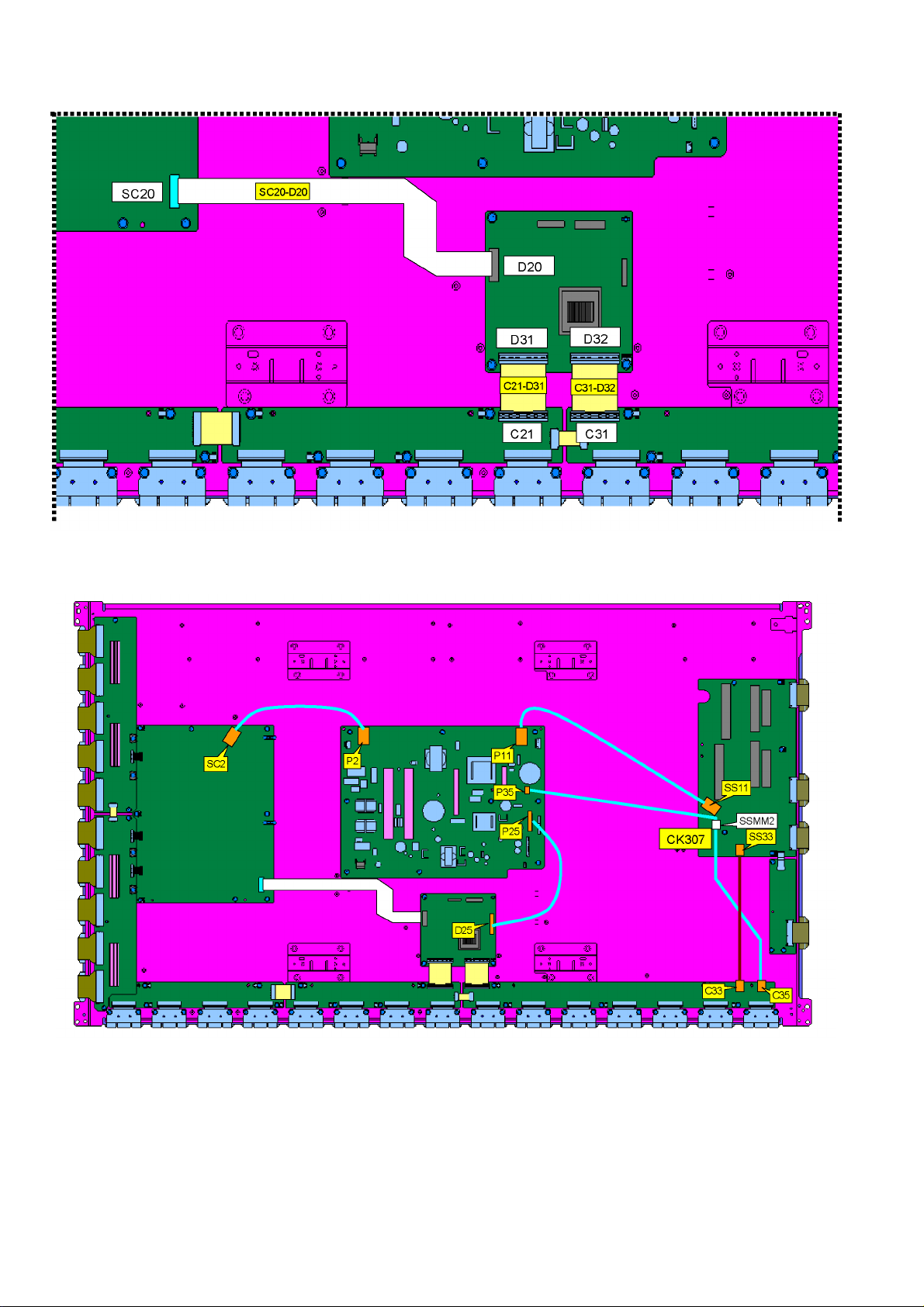

11.3. Wiring (2)

11.4. Wiring (3)

42
Page 43

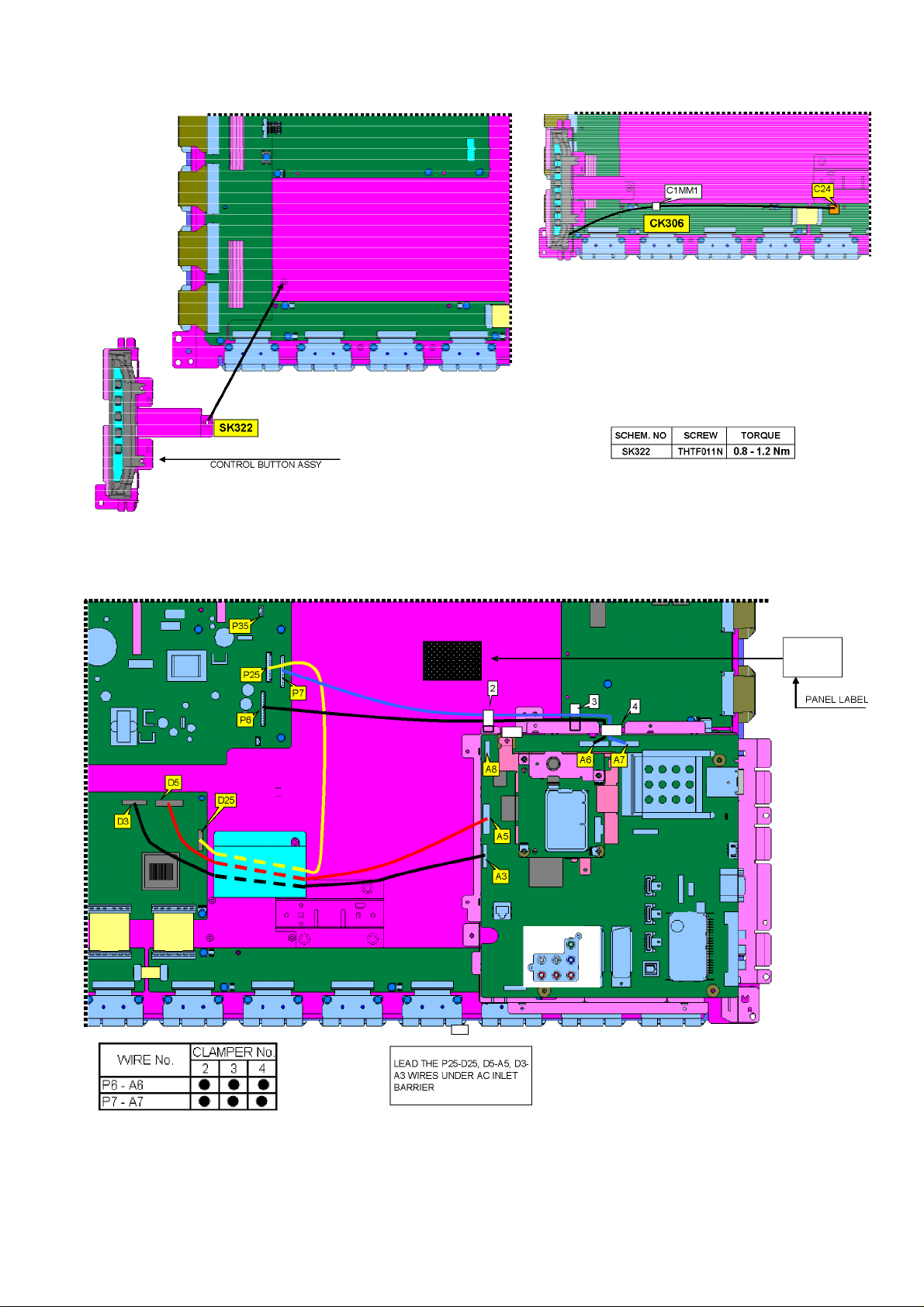

11.5. Wiring (4)

11.6. Wiring (5)

43
Page 44

11.7. Wiring (6)

11.8. Wiring (7)

44
Page 45

11.9. Wiring (8)

45
Page 46

11.10. Wiring (9)

46
Page 47

12 Schematic Diagram

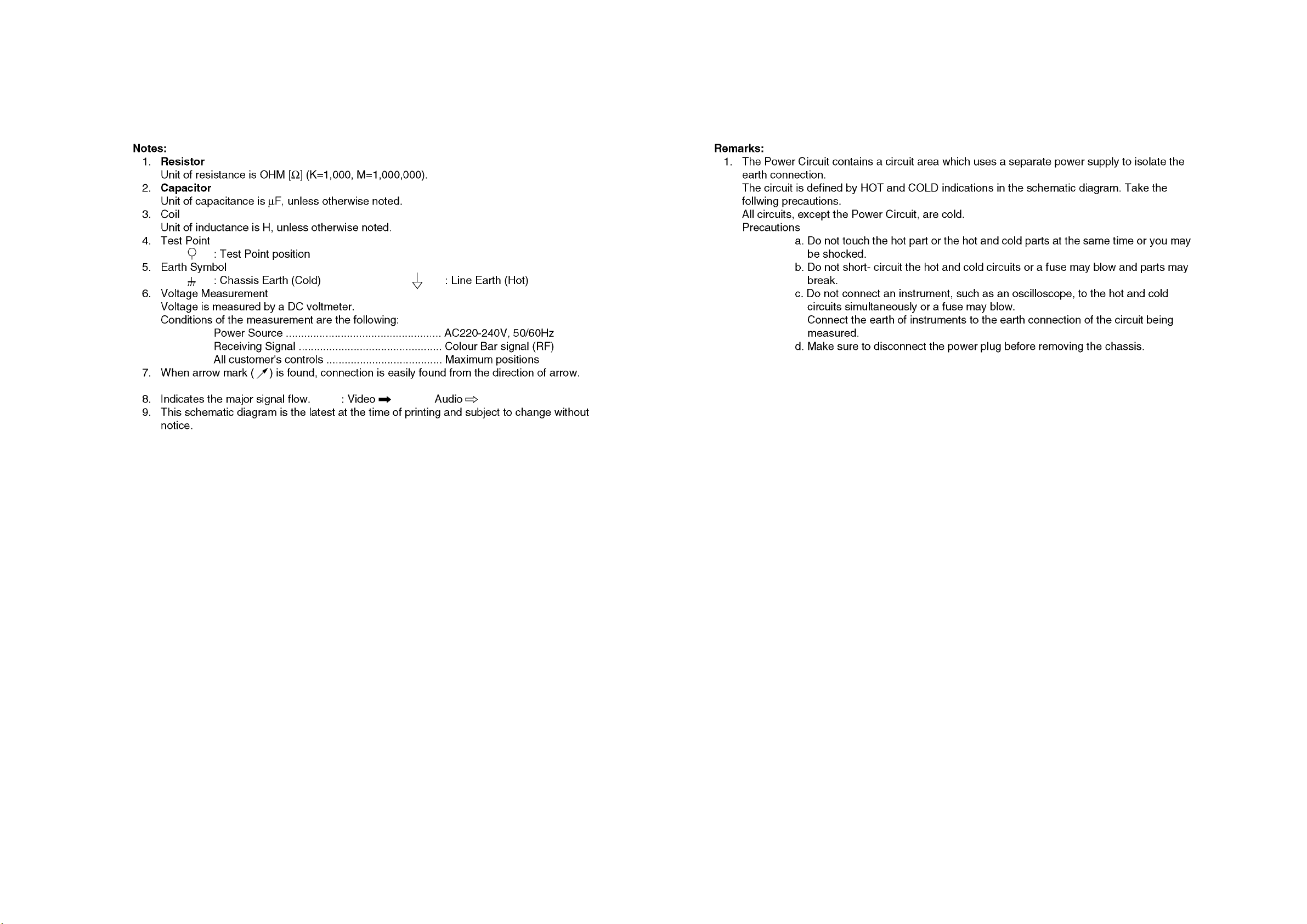

12.1. Schematic Diagram Note

47
Page 48

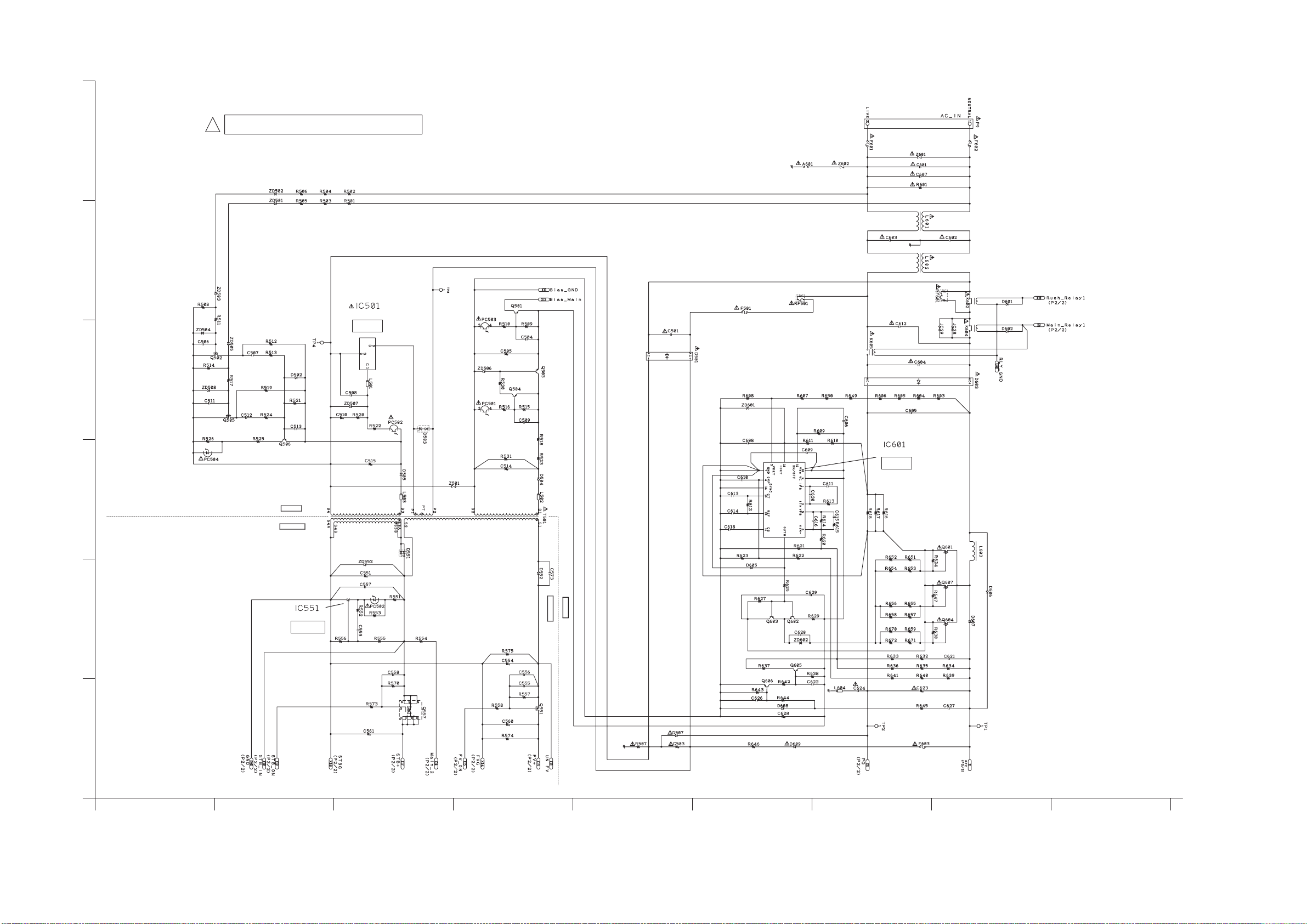

12.2. P-Board (1/2) Schematic Diagram

P-BOARD ETX2MM747MFK (1/2)
!
A
B
MIP3E50MY
STB CONTROL
TO AC CORD
C
VIFA5502MTE1
PFC CONTROL
D
E
HOT
COLD
VIKIA431A
STB ERROR DET
COLD
HOT
F
2 896
4
5
731
48
Page 49

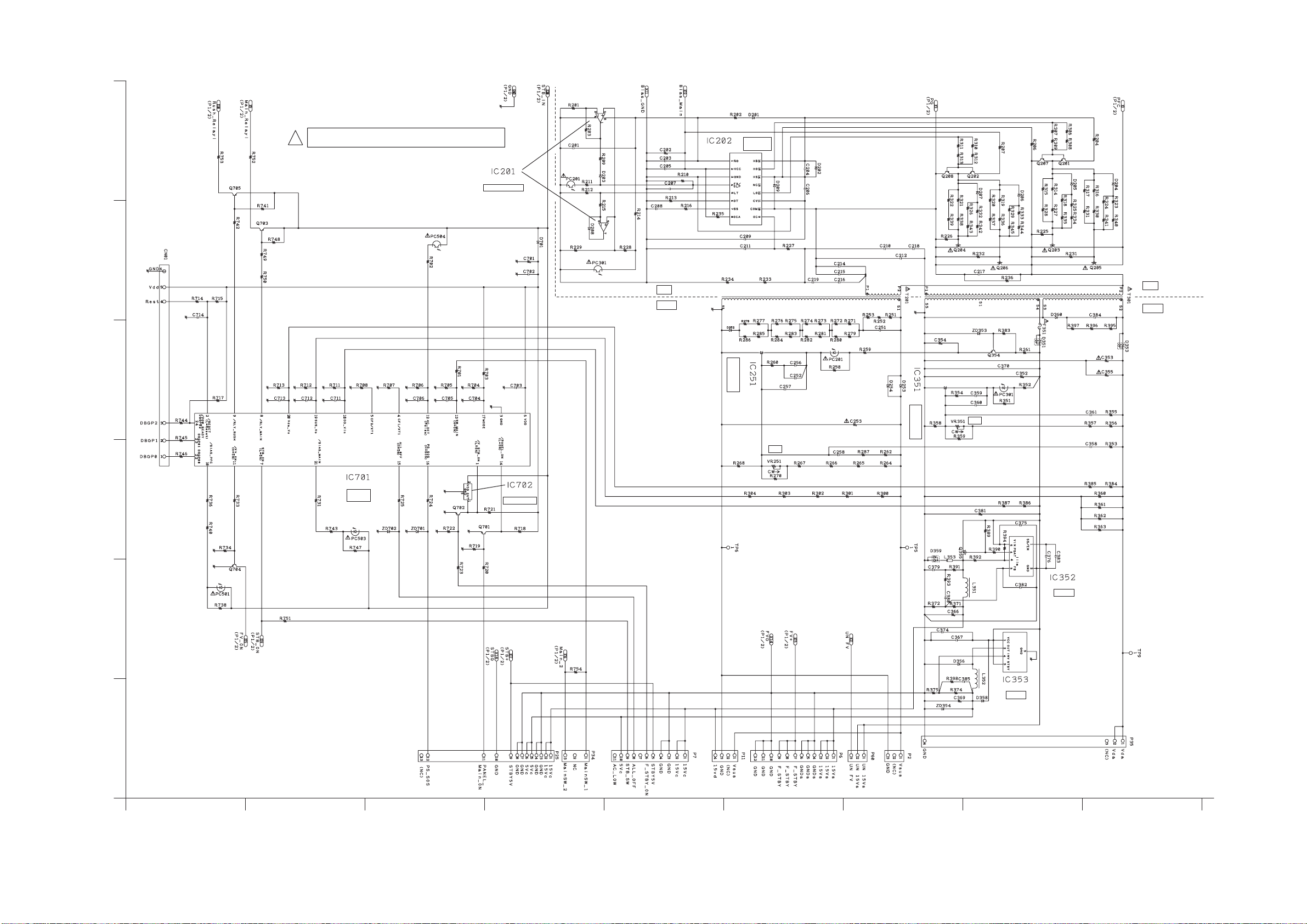

12.3. P-Board (2/2) Schematic Diagram

P-BOARD ETX2MM747MFK (2/2)
A
B
!
VINJM2904ME1
COMPARATOR
VISSC9101M
POWER CONTROL
HOT
COLD
ERROR DET
Vsus
VIKIA431A
VIKIA431A
HOT
COLD
C
ERROR DET
Vda
Vda
Vsus
VILC87F2G081
POWER
D
MICOM
VIR3111N40AT
REGULATOR
VISC2628T
+15(P)
E
VIBD9703FP
+5(P)
F
TO C3-BOARD (C35)
TO A-BOARD (A25)
2 896
4
TO S-BOARD (S1)
TO A-BOARD (A7)
TO SS-BOARD (SS11)
5
TO A-BOARD (A7)
731
TO SC-BOARD (SC2)
49
Page 50

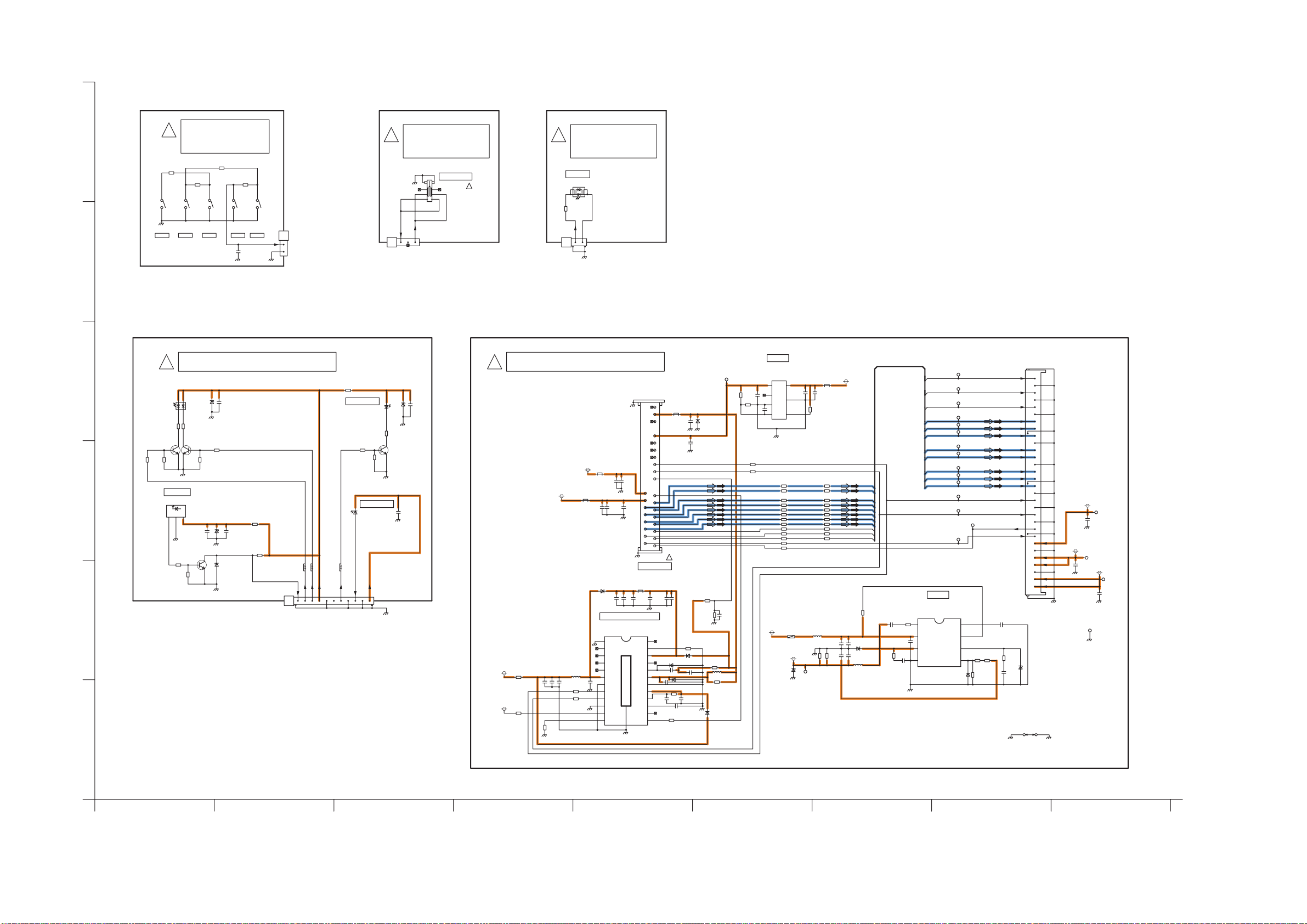

12.4. GK, GL, K, S and XS-Board Schematic Diagram

!
GK-BOARD
A
R3770
14.3k
1%
EVQ11G05R
SW3759
F
+/ TV AV-/
TXNGK1EQUE
R3775
7.15k
1%
R3771
6.65k
EVQ11G05R
SW3761
1%
EVQ11G05R
SW3760
R3772
1.74k
EVQ11G05R
KEYSCAN
C3752
50V
1000p
SW3762
1%
EVQ11G05R
SW3763
TO C2-BOARD
GK1
(C24)
1
KEYSCAN
2
B
TO P-BOARD (P34)
!
S-BOARD TXN/S1DTUE
123
*S1B
12V
STB_PS
PUSH
POWER SW
SW2500
K0F162B00002
!
GL-BOARD TXNGL1EBUE
SD LED
D7800
R7800
TO A-BOARD (A1)
B3AEB0000107
0
GL02
1
2
!
1%
C6823
6.3V
2.2u
R6818 120k
R6812
R6813
C6822
470p
47
47
IF3.3V
IC6802
C0CBCBE00001
1
VOUT
VIN
2
NC
SUB
3
GND
4
CNCONT
50V
R6846 120
R6844 120
R6845
R6842 120
R6843 120
R6840 120
R6841 120
R6821 120
R6822 120
R6823 120
R6824 120
R6825
R6826 47
DTV12V
PA6802
K5H1022A0031
D6813
B0BC4R700007
7
6
5
120
47
VDD1.0V
SUB5V
L6816
J0JGC0000020
+
C6824
C6825
6.3V
6.3V
1u
100u
R6815
10k
CH0CLK
CH0VAL
CH0SYNC
MDO0
MDO1
MDO2
MDO3
MDO4
MDO5
MDO6
MDO7
0
R6848
0
R6849
0
R6850
0
R6851
0
R6852
0
R6853
0
R6854
0
R6855
0
R6856
0
R6857
0
R6858
TP6804
TP6803
TP6802
TP6821
IS0DATA
TP6820
TP6819
MDO4
MDO3
MDO2
MDO1
MDO0
TP6818
TP6817
TP6816
TP6815
TP6801
TP6805
TP6806
TP6807
TP6808
VDD1V
IC6803
C0DBAYY00462
R6829
100
1
BOOT
2
VIN
C6832
25V
0.1u 3
SW
4
GND
C6866
50V
1000p
B0BC4R700007
SS
EN
COMP
FB
D6809
C6842
8
7
6
5
0.015u
R6832
R6831
470
2.2k
1%
1%
R6830
10k
1%
TP6812
L6806
G1C100MA0291
R6834
10
R6827
100k
C6829
C6827
25V
25V
10u
10u
D6808 B0JCPD000021
C6828
C6830
6.3V
6.3V 22u
22u
L6807
R6833
G1C4R7ZA0083
10
C6831
50V
0.01u
R6863
2.2
!
K-BOARD TXN/K1EQUE
S
R_LED_ON
STBY3.3V
*R2581
0
*Q2519
2SD0601A0L
*D2526
MAZ80560ML
C2511
16V
0.1u
C2517 50V
0.01u
Modem_LED
*D2525
B3ACB0000225
<
*R2565
2k
1%
*R2561
5.6k
*R2562
3.3k
AI_SENSOR
PC2511
B3JB00000046
S
VJ3
10
11
GND
PSM_LEDR
Modem_LED
GND(D_PCB_MODE)
AI_SENSOR
GND
SUB5V
C
C2515
D2524
MAZ80560ML
*D2520
G
Q2513
2SD0601A0L
R2556 10k
*R2531
210
1%
R2530 47k
REMOCON
RM2501
B3RAD0000160
OUT
123
R2542
R
*R2525
1.27k
1%
Q2511
2SD0601A0L
VCC
GND
Q2510
2SD0601A0L
47k
R2520
220k
B3AGB0000057
D
E
50V
0.01u
R2557
22k
*R2524
47k
D2512
MAZ80560ML
C2512
10V 10u
MAZ80560ML
R2517
47
C2521
50V
0.01u
R2516
D2530
22k
TO A-BOARD (A1)
S
VJ1
VJ2
123456789
K1
REMOCON
G_LED_ON
!
XS-BOARD TXNXS1EBUB
VDD1.0V
J0JJC0000015
C6851
25V
1u
C6802
PA6801
K5H252YA0023
R6801
C6801
L6801
25V
25V
G1C220MA0291
0.1u
220u
+
10k
C6852
1000p
R6803
R6804 47
R6802
10k
DTV12V
SUB3.3V
SUB3.3V
J0JGC0000020
L6814
C6805
6.3V 220u
B0JCPD000021
50V
47
L6815
+
C6808
4V
220u
+
C6848
6.3V
=
1u
C6806
D6803
50V
0.47u
+
C6804
35V
100u
LNB SUPPLY/CONTOL
IC6801
C1AB00002948
1
DETIN
2
VCTRL
3
NC
4
NC
5
NC
6
LX
7
P-GND
8
SDA
9
SCL
10
ADDR
11
DSQOUT
12
DSQIN
TP6814
R6817
75k
R6859
R6860
2.2k
2.2k
R6814
4.7
L6813 220u
R6811 15
1/2W
D6812
B0ECKM000019
1%
C6864
50V
8200p
NC
L6817
1
J0JHC0000116
B1
2
C6821
NC
3
B2
4
NC
5
NC
6
NC
7
SDA
8
SCL
9
DISEQCIN1
C6815
16V
10
0.1u
B3
DISEQCOUT1
11
VDD
12
D03
13
C6807
D13
14
16V
D23
15
0.01u D33 TP6809
16
D43
17
D53 18
D63
19
20
D73
CLK_OUT
21
22
D/PN
STROUT
23
24
ERROR
RESETB
25
26
TU6801
J3BBCBC00004
SAT TUNER
C6849
50V
0.1u
Thermal Pad
L6802
J0JJC0000015
C6809
ISEL
VoTX
VoRX
A-GND
Vcc-l
EXTM
C6816
50V
0.47u
+
35V
100u
24
NC
23
22
Vup
D6804
21
B0JCMD000010
NC
C6818
20
25V
10u
19
18
C6813
0.22u
25V
17
Vcc
C6817
16
25V
0.22u
15
BYP
14
TTX
13
R6808
!
D6805
B0JCMD000010
C6814
25V
0.22u
0
50V 180p
C6812
16V
0.1u
C6850
50V
0.1u
R6807
D6806
B0ECKM000019
C6819
50V
R6809
100
C6820
0.1u
D6811
B0ECKM000019
16k
0.01u
25V
F
25V
CH0SYNCCH0SYNC
CH0VALCH0VAL
CH0CLKCH0CLK
IRQ
D6810
B0BC4R700007
R6835
3.9k
C6843
50V
3900p
XS3
K1KY30B00006
<
TO
SIDE
A-BOARD (A88)
1
2
3
4
5
6
MDO7MDO7
7
MDO6MDO6
8
MDO5MDO5
G1
9
10
MDO4
11
MDO3
12
13
MDO2
14
MDO1
15
MDO0
G2
16
17
SDA
18
19
SCL
20
21
RESET
22
G3
23
24
25
26
27
28
29
30
TERM
SUFFIX
AB
JS6801
SUB3.3V
SUB5V
C6845
16V
0.1u
TP6810
C6846
25V
0.1u DTV12V
TP6811
C6847
25V
0.1u
TP6813
1 7
4
5
50
932 68
Page 51

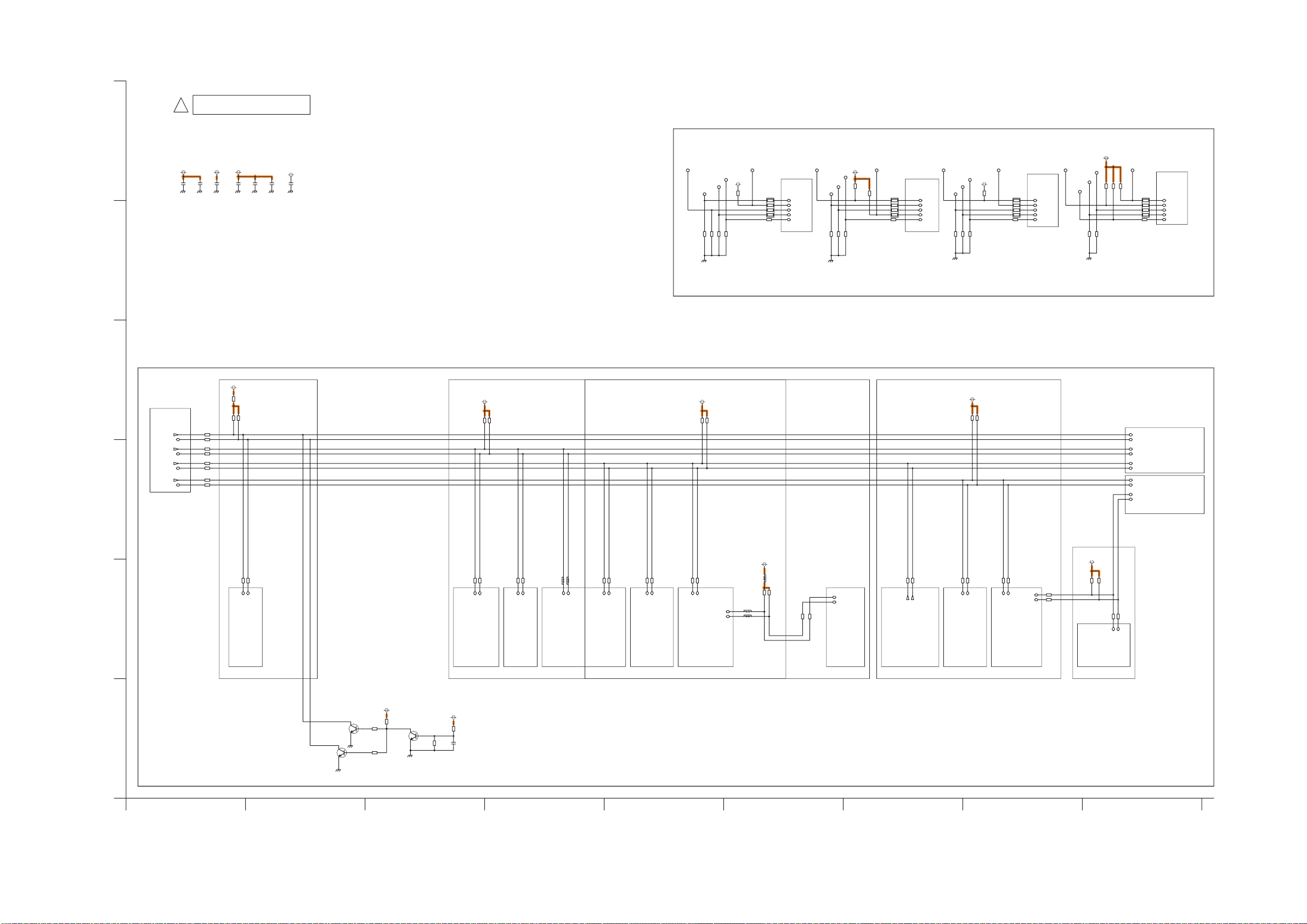

12.5. A-Board (1/22) Schematic Diagram

!
A-BOARD (1/22)
IIC
A
REF No. 0900-0999
1.8V_GCDDR
SUB5V
C1011
0.1u
C1012
C1017
16V
16V
16V
0.1u
0.1u
SUB3.3V
SUB5V_CI_SW
C1016
C1014
C1013
16V
16V
0.1u
0.1u
C1015
16V
16V
0.1u
0.1u
B
PDP-FHD(AVC31/GC6/FRCQ/PD3H)
TP0901
TDI
TCK TCK
TP0904
TRST
10k
10k
R0907
R0902
TP0905
TDO
TP0902
TMS
SUB3.3V
TP0903
R0990 10k
EXB28V680JX
47k
10k
R0905
R0906
FRC_3.3V
TO 18/22
IC4100
GC3FS
GC3FS_TDI
GC3FS_TDO
GC3FS_TRST
GC3FS_TCKTCK
GC3FS_TMS
TP0917
TDI
TP0918
TCK
TP0916
TRST
TP0919
TMS
*R0971
10k
TP0920
TDO
2.7k
10k
10k
*R0987
*R0993
*R0988
*R0989
10k
*R0944
EXB28V680JX
*R0908
TO 19/22
IC2600
FRC-Q
FRCQ_TDOGC6-TDI
FRCQ_TDI
FRCQ_TCK
FRCQ_TRST
FRCQ_TMS
68
TP0907
TDI
IC8001
R0901
AVC
TRST
TDO
TDI
TMS
R0900
68
TP0908
TP0906
TRST TRST
10k
R0970
TP0910
SUB3.3V
TDO
TP0909
TMS
R0967
10k
R0991
R0904
10k
EXB28V680JX
R0903
10k
47k
R0969
R0968
68
TO 16/22TO 2/22
IC5100
GC6
GC6-TRST
GC6-TCK
GC6-TDO
GC6-TMS
TP0912
TDI
TP0913
TCK
TP0911
10k
*R0983
TP0915
TDO
TP0914
TMS
SUB_FS_3.3V
*R0984
*R0982
10k
EXB28V680JX
*R0981
10k
47k
*R0985
*R0986
68
JTAG
C
TO 2/22
IC8001
AVC31
SCL0
SDA0
SCL1
SDA1
SBT2
SCL2
SBT0
SDA2
SCL3
XECS5
XECS3
SDA3
D
E
FRC_3.3V
R0962
4.7k
PEAKS_SCL3
R0946
22
IC8601
Peaks EEP 16k
TO 6/22
SUB3.3V
PEAKS_SDA3
R0945 22
LITE2-EEP_SDA
LITE2-EEP_SCL
R0961
4.7k
PEAKS_SDA3
PEAKS_SCL3
R0912
R0911
22
22
GENX_SDA0
GENX_SCL0
GENX_SCL1
GENX_SDA1
R0913
22
22
R0914
IC1100
GenX8
TO 8/22
STB3.3V
R0916
4.7k
IC1101
GenX EEP 8k
TO 8/22
R0915
4.7k
R0918
R0917
22
22
GENX-EEP_SCL
GENX-EEP_SDA
CN0101
PEAKS_SCL0
PEAKS_SDA0
PEAKS_SCL1
PEAKS_SDA1
PEAKS_SCL2
PEAKS_SDA2
PEAKS_SCL3
PEAKS_SDA3
ADJ-GENX_SCL
ADJ_GENX_SDA
Development Connector
TO 18/22
TO 22/22
TO 22/22
TO 22/22
(Lite2 E2PROM)
TO 18,22/22
(GenX4 Loarder/E2PROM)
Adjustment Connector
CN0100
*R0996
0
R0955
R0956
4.7k
4.7k
68
R0948
68
R0947
68
R0950
68
R0949
68
R0952
68
R0951
68
R0954
68
R0953
*R0932
IC2600
TO 19/22
PEAKS_SCL0
68
FRC-Q
PEAKS_SDA0
FRCQ_SCL
PEAKS_SCL0
PEAKS_SDA0
*R0931
68
FRCQ_SDA
PEAKS_SCL1
PEAKS_SDA1
PEAKS_SCL2
PEAKS_SDA2
PEAKS_SCL3
PEAKS_SDA3
SUB3.3V
R0958
4.7k
PEAKS_SCL1
PEAKS_SDA1
R0909
22
TMP-SENS_SCL
IC1000
TEMP SENSOR
TO 22/22
R0910 22
TMP-SENS_SDA
R0957
4.7k
PEAKS_SCL1
R0963
22
IC4001
GC3FS
TO 18/22
GC3FS_SCL
GC3FS_SDA
PEAKS_SDA1
R0933
VJUMP1005-S
R0934
R0964 22
S
ADV_SCL
S
ADV_SDA
VJUMP1005-S
IC4510
ADV7470
(ADV)
TO 9/22
R0920
22
ADAV_SCL
IC4510
ADV7470
ADAV4622
TO 9/22
PEAKS_SDA2
PEAKS_SCL2
R0919
22
ADAV_SDA
R0930
22
IC3001
TO 13/22
PEAKS_SCL2
AV-SW_SCL
AV-SW
PEAKS_SDA2
R0929
22
AV-SW_SDA
SUB3.3V
R0960
R0959
4.7k
4.7k
PEAKS_SCL2
PEAKS_SDA2
SUB5V
P
*R0940
*R0939
0
0
FE_SCL
FE_SDA
FE-OUT_SCL
FE-OUT_SDA
IC8301
FE
TO 4/22
VJUMP1005-P
R0941
VJUMP1005-S
R0942
VJUMP1005-S
R0943
*R0937
*R0938
4.7k
4.7k
S
S
*R0928
22
TUNER_SCL
TUNER_SDA
*R0927
TU2901
22
TUNER
TO 15/22
PEAKS_SCL2
*R0936
22
FE1_SCL
TO TU-PWB IIC
Free-SAT NIM HK digital FE
TO 6/22
PEAKS_SDA2
*R0935
22
FE1_SDA
STB3.3V
*R0974
*R0972
47k
*Q0903
2SD0601ASL
F
*Q0904
2SD0601ASL
10k
*R0977
10k
*Q0905
2SD0601ASL
FRC_3.3V
*R0979
10k
*C0901
*R0975
10V
47k
4.7u
IIC
1
4
5
51
73 96
82
Page 52

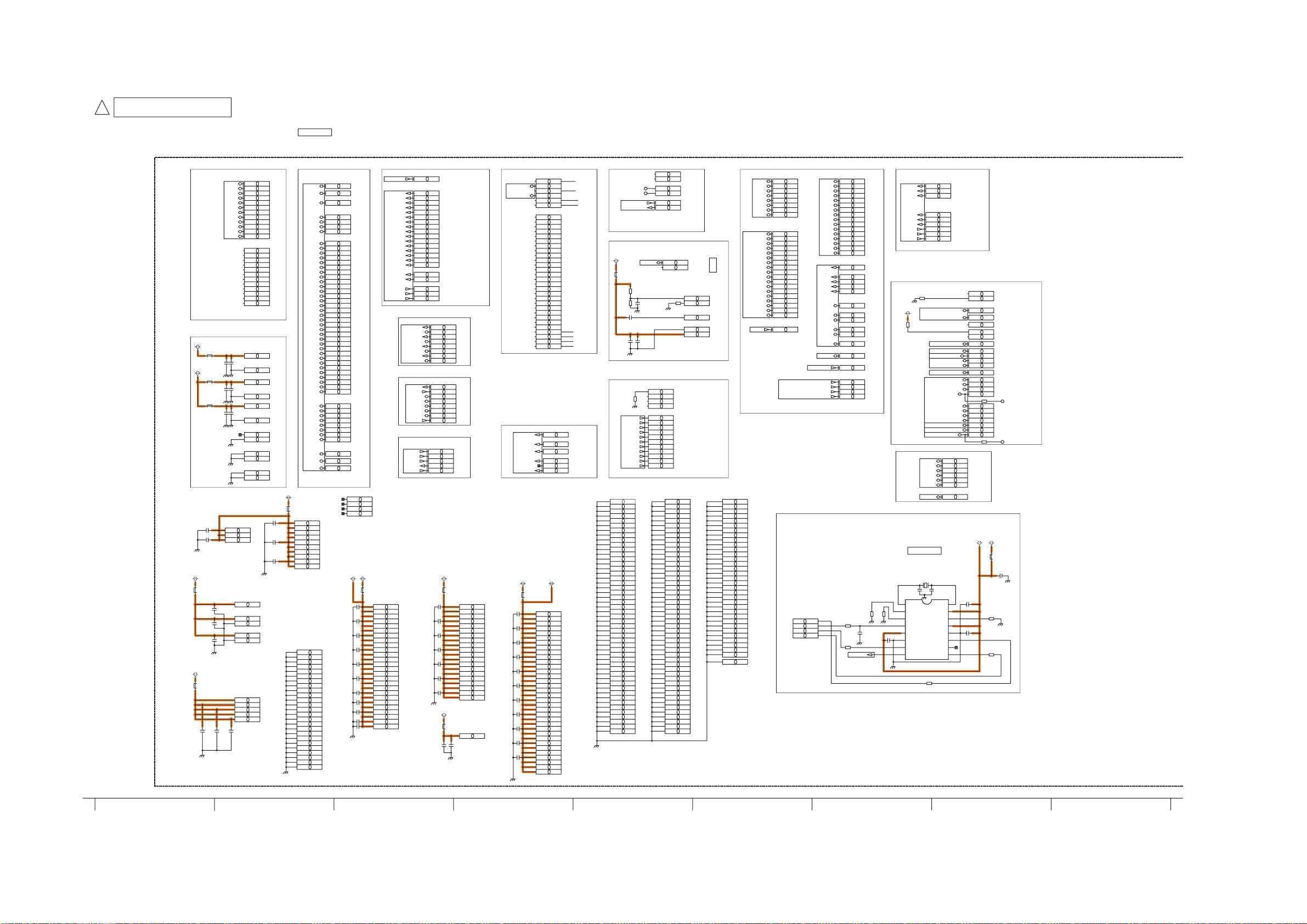

12.6. A-Board (2/22) Schematic Diagram

!
A-BOARD (2/22)
Peaks-COMMON
REF No. 8000-8999
SUB3.3V
SUB3.3V
C8070
SUB1.2V
SUB3.3V
0.1u
16V
LVDS I/F
USB I/F
L8011
J0JHC0000045
L8012
J0JHC0000045
L8013
J0JHC0000045
C8006
16V
C8009
10V
L8009
J0JHC0000045
C8072
16V
0.1u
C8073
16V
0.1u
C8074
16V
0.1u
L8008 J0JHC0000045
C8071
0.1u
C8083
C8067
C8081
0.1u
10u
16V
TO 16/22
TA1N
TA1P
TB1N
TB1P
TC1N
TC1P
TCLK1N
TCLK1P
TD1N
TD1P
TE1N
TE1P
16V
0.1u
16V
0.1u
16V
0.1u
*IC8001 P19 VDDA
*IC8001 V19 VDDA
*IC8001 W17 VDDA
C8085
16V
0.1u
MN2WS0058
*IC8001
*IC8001 A27 TA1P
*IC8001 B28 TB1N
*IC8001 A28 TB1P
*IC8001 B29 TC1N
*IC8001 B30 TC1P
*IC8001 C29 TCLK1N
*IC8001 C30 TCLK1P
*IC8001 D29 TD1N
*IC8001 D30 TD1P
*IC8001 E29 TE1N
*IC8001 E30 TE1P
*IC8001 F29 TA2N
*IC8001 F30 TA2P
*IC8001 G29 TB2N
*IC8001 G30 TB2P
*IC8001 H29 TC2N
*IC8001 H30 TC2P
*IC8001 J29 TCLK2N
*IC8001 J30 TCLK2P
*IC8001 K29 TD2N
*IC8001 K30 TD2P
*IC8001 L29 TE2N
*IC8001 L30 TE2P
*IC8001 F14 VDDUSB
C8084 50V
1000p
*IC8001 E14 VSSUSB
*IC8001 F11 VDDAUSB
C8069 50V 1000p
*IC8001 E11 VSSAUSB
*IC8001 C11 VDDPUSB
C8082 50V 1000p
*IC8001 B13 XO
*IC8001 A13 XI
*IC8001 A10 USBDP
*IC8001 B10 USBDN
*IC8001 A11 USBATEST
*IC8001 B11 USBRREF
*IC8001 T18 DPAVDD
*IC8001 V2 M1A1AVDD
*IC8001 U6 M1A1AVSS
*IC8001 M25 V2AVDD
*IC8001 N25 V2AVSS
*IC8001 G25 LVVDD33
*IC8001 H25 LVVDD33
*IC8001 J25 LVVDD33
*IC8001 K25 LVVDD33
*IC8001 L25 LVVDD33
B27 TA1N
J0JHC0000045
Peaks AVC
IC8002
MN2WS0058
PCI BUS I/F
TO 7/22
*IC8001 E16 PCRST
PCRST
*IC8001 B16 PCIDSELA
PCIDSELA
PCCLKO0
*IC8001 C17 PCCLKO0 *IC8001 C25 SBI2
PCCXBE0
*IC8001 F17 PCCXBE0
*IC8001 B17 PCCXBE1
PCCXBE1
PCCXBE2
*IC8001 E17 PCCXBE2
PCCXBE3
*IC8001 A17 PCCXBE3
*IC8001 A25 PCAD0
PCAD0
PCAD1
*IC8001 E24 PCAD1
*IC8001 C24 PCAD2
PCAD2
PCAD3
*IC8001 B24 PCAD3
PCAD4
*IC8001 F23 PCAD4
PCAD5
*IC8001 A24 PCAD5
PCAD6
*IC8001 C23 PCAD6
PCAD7
*IC8001 B23 PCAD7
*IC8001 E23 PCAD8
PCAD8
*IC8001 A23 PCAD9
PCAD9
*IC8001 F22 PCAD10
PCAD10
PCAD11
*IC8001 C22 PCAD11
PCAD12
*IC8001 B22 PCAD12
*IC8001 A22 PCAD13
PCAD13
PCAD14
*IC8001 E22 PCAD14
*IC8001 C21 PCAD15
PCAD15
*IC8001 F21 PCAD16
PCAD16
PCAD17
*IC8001 B21 PCAD17
*IC8001 E21 PCAD18
PCAD18
PCAD19
*IC8001 A21 PCAD19
*IC8001 F20 PCAD20
PCAD20
PCAD21
*IC8001 C20 PCAD21
PCAD22
*IC8001 E20 PCAD22
*IC8001 B20 PCAD23
PCAD23
PCAD24
*IC8001 A20 PCAD24
PCAD25
*IC8001 C19 PCAD25
PCAD26
*IC8001 B19 PCAD26
*IC8001 F19 PCAD27
PCAD27
*IC8001 A19 PCAD28
PCAD28
*IC8001 E19 PCAD29
PCAD29
*IC8001 B18 PCAD30 XIRQ1
PCAD30
*IC8001 F18 PCAD31
PCAD31
PCXSERR
*IC8001 F15 PCXSERR
PCXPERR
*IC8001 B15 PCXPERR
PCXSTOP
*IC8001 C15 PCXSTOP
*IC8001 A15 PCXFRAME
PCXFRAME
*IC8001 A14 PCXTRDY
PCXTRDY
PCXIRDY
*IC8001 E15 PCXIRDY
PCDEVSEL
*IC8001 C16 PCDEVSEL
PCPAR
*IC8001 A16 PCPAR
*IC8001 F16 PCIRQ0
PCIRQ0
PCBRQ0
*IC8001 E18 PCBRQ0
PCBGT0
*IC8001 A18 PCBGT0
SUB1.2V
L8004
C8007
16V
0.1u *IC8001 R19 VDDR
*IC8001 U19 VDDR
*IC8001 V17 VDDR
*IC8001 W18 VDDR
C8008
16V
0.1u *IC8001 AE18 VDDR
*IC8001 AF18 VDDR
*IC8001 AG18 VDDR
*IC8001 AH18 VDDR
C8010
10u
10V
*IC8001 AJ18 VDDR
*IC8001 AK18 VDDR
*IC8001 A29 LVVSS
*IC8001 A30 LVVSS
*IC8001 C28 LVVSS
*IC8001 D27 LVVSS
*IC8001 D28 LVVSS
*IC8001 E27 LVVSS
*IC8001 E28 LVVSS
*IC8001 F26 LVVSS
*IC8001 F27 LVVSS
*IC8001 F28 LVVSS
*IC8001 G26 LVVSS
*IC8001 G27 LVVSS
*IC8001 G28 LVVSS
*IC8001 H26 LVVSS
*IC8001 H27 LVVSS
*IC8001 H28 LVVSS
*IC8001 J26 LVVSS
*IC8001 J27 LVVSS
*IC8001 J28 LVVSS
*IC8001 K26 LVVSS
*IC8001 K27 LVVSS
*IC8001 K28 LVVSS
*IC8001 L26 LVVSS
*IC8001 L27 LVVSS
*IC8001 L28 LVVSS
*IC8001 C27 TSTAIO
*IC8001 U18 DTCPOUT
*IC8001 M26 V2TCPOUT
*IC8001 V3 M1A1TCPOUT
1.8V_DDRI/F
C8011
16V
0.1u
C8012
16V
0.1u
C8013
16V
0.1u
C8014
16V
0.1u
C8015
6.3V 1u
C8016
6.3V 1u
C8017
10V 10u
C8077
16V
0.1u
C8078
16V
0.1u
C8079
16V
0.1u
SUB1.8V
C8080
16V
0.1u
L8003
J0JHC0000045
*IC8001 P27 VDDIO
*IC8001 P30 VDDIO
*IC8001 T25 VDDIO
*IC8001 T27 VDDIO
*IC8001 U28 VDDIO
*IC8001 V29 VDDIO
*IC8001 W25 VDDIO
*IC8001 Y29 VDDIO
*IC8001 AA28 VDDIO
*IC8001 AB26 VDDIO
*IC8001 AB27 VDDIOCK
*IC8001 AC30 VDDIO
*IC8001 AD28 VDDIO
*IC8001 AE25 VDDIO
*IC8001 AF23 VDDIO
*IC8001 AF26 VDDIO
*IC8001 AF29 VDDIO
*IC8001 AG22 VDDIO
*IC8001 AG25 VDDIOCK
*IC8001 AG27 VDDIO
*IC8001 AH21 VDDIO
*IC8001 AH26 VDDIO
*IC8001 AJ20 VDDIO
*IC8001 AJ25 VDDIO
*IC8001 AK24 VDDIO
*IC8001 AK30 VDDIO
LOSD OUT--> PIO
TO 5/22
VOUTENB
TO 17/22
VI2P1
VI2P0
VI1CK208F
VI1CK204F
VI1CVBS0
VI1CVBS1
VI1CVBS2
VI1CVBS3
LCSCK
LCSID
ADIN
ADCCK
DSRCK
VI2P5
SLRCK
VI2P6
VI2P2
VI2P3
VI2P7
VI2P8
VI2P9
IIC I/F
TO 1/22
SCL2
SDA2
SCL3
SDA3
SD CARD I/F
TO 6/22
JTAG
TO 1/22
*IC8001 M30 VOUTENB
*IC8001 E4 VI2P1
*IC8001 C4 VI2P0
*IC8001 D5 VI1CK208F
*IC8001 D6 VI1CK204F
*IC8001 F7 VI1CVBS0
*IC8001 E7 VI1CVBS1
*IC8001 C7 VI1CVBS2
*IC8001 E8 VI1CVBS3
*IC8001 B14 LCSCK
*IC8001 C14 LCSID
*IC8001 E13 ADIN
*IC8001 D13 ADCCK
*IC8001 F13 DSRCK
*IC8001 G5 VI2P5
*IC8001 D14 SLRCK
*IC8001 J5 VI2P6
*IC8001 F5 VI2P2
*IC8001 F4 VI2P3
*IC8001 J6 VI2P7
*IC8001 G2 VI2P8
*IC8001 J3 VI2P9
*IC8001 T2 SCL0
SCL0
SDA0
*IC8001 T3 SDA0
SCL1
*IC8001 T6 SCL1
*IC8001 U1 SDA1
SDA1
SBT2
*IC8001 AK7 SBT2
*IC8001 AH8 SBT0
SBT0
XECS5
*IC8001 AE4 XECS5
*IC8001 AH1 XECS3
XECS3
*IC8001 AK16 SDCLK
SDCLK
*IC8001 AF15 SDCD
SDCD
*IC8001 AH16 SDCMD
SDCMD
SDDAT0
*IC8001 AE15 SDDAT0
SDDAT1
*IC8001 AK15 SDDAT1
SDDAT2
*IC8001 AF16 SDDAT2
*IC8001 AE16 SDDAT3
SDDAT3
*IC8001 AJ15 SDWP
SDWP*IC8001 D11 VSSPUSB
TMS
*IC8001 W1 TMS
*IC8001 W2 TRST
TRST
TCK
*IC8001 V5 TCK
*IC8001 W3 TDO
TDO
*IC8001 V6 TDI
TDI
C8018
16V
0.1u
C8019
16V
0.1u
C8020
16V
0.1u
C8021
16V
0.1u
C8022
6.3V 1u
C8023
10V 10u
C8024
10V 10u
C8076
16V
0.1u
SUB1.2V
SUB1.2V
L8002 J0JHC0000045
L8010 J0JHC0000045
10V
10u
LOSDOUT0
LOSDOUT1
LOSDOUT2
LOSDOUT3
LOSDOUT4
LOSDOUT5
LOSDOUT6
LOSDOUT7
LOSDOUT8
LOSDOUT9
LOSDOUT10
LOSDOUT11
LOSDOUT12
LOSDOUT13
LOSDOUT14
LOSDOUT15
LOSDOUT_CLK_O
LOSDOUT_H_O
LOSDOUT_V_I
LOSDOUT_CLK_I
LOSDOUT_H_I
*IC8001 AE17 VDD12
*IC8001 AF17 VDD12
*IC8001 AG17 VDD12
*IC8001 AH17 VDD12
*IC8001 AJ17 VDD12
AK17 VDD12
*IC8001
*IC8001 R12 VDD12
*IC8001 T12 VDD12
*IC8001 U12 VDD12
*IC8001 U13 VDD12
*IC8001 U14 VDD12
*IC8001 U15 VDD12
*IC8001 V12 VDD12
*IC8001 V13 VDD12
*IC8001 V14 VDD12
*IC8001 V15 VDD12
*IC8001 W12 VDD12
*IC8001 W13 VDD12
*IC8001 W14 VDD12
*IC8001 W15 VDD12
*IC8001 M19 LVVDD12
FOR ADV7470
TO 11/22
VI1CKOUT
VI1CLK
AUDIO IF
TO 5/22
DAUDIO
SRCK0
DMIX0
LRCK0
IECOUT0
SUB3.3V
C8025
16V
0.1u
C8026
16V
0.1u
C8027
16V
0.1u
C8028
16V
0.1u
C8029
16V
0.1u
C8030
6.3V 1u
C8031
6.3V 1u
C8032
10V 10u
C8063
6.3V 1u
C8064
6.3V 1u
C8065
16V
0.1u
*IC8001 H1 VI1ENB
*IC8001 A5 VI1CKOUT
*IC8001 J2 VI1CLK2
*IC8001 C6 VI1CLK
*IC8001 G1 VI1VSYNC
*IC8001 H2 VI1HSYNC
*IC8001 A6 VI1P22
*IC8001 B6 VI1P23
*IC8001 B5 VI1P24
*IC8001 C5 VI1P25
*IC8001 A4 VI1P26
*IC8001 E6 VI1P4
*IC8001 B4 VI1P5

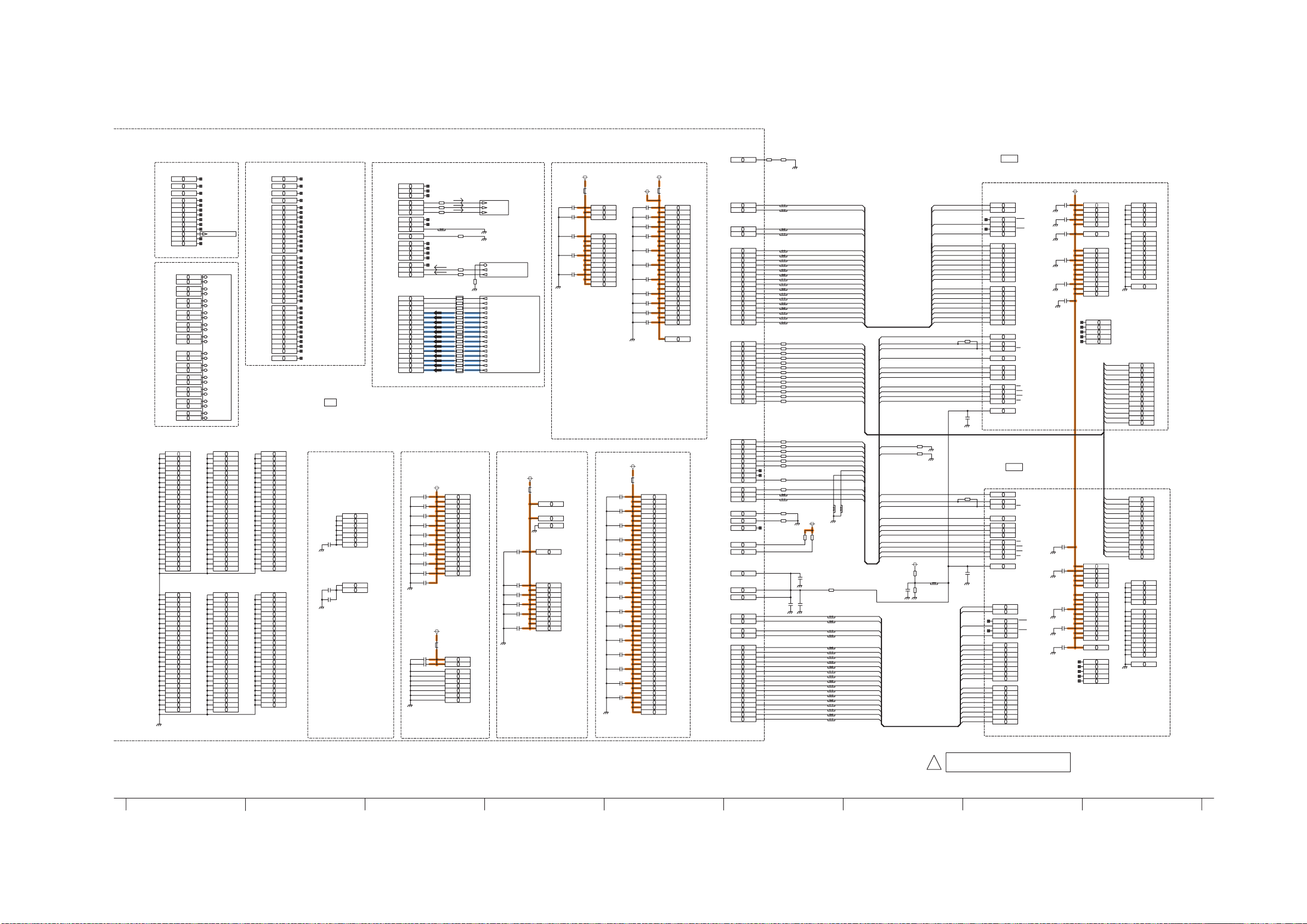

*IC8001 C2 VI1P6
*IC8001 C1 VI1P7
*IC8001 D3 VI1P27
*IC8001 D2 VI1P8
*IC8001 E3 VI1P9
*IC8001 D1 VI1P28
*IC8001 E2 VI1P29
*IC8001 E1 VI1P12
*IC8001 F3 VI1P13
*IC8001 F2 VI1P14
*IC8001 H5 VI1P15
*IC8001 H6 VI1P16
*IC8001 F1 VI1P17
*IC8001 G3 VI1P18
*IC8001 H3 VI1P19
*IC8001 A7 VI1P2
*IC8001 B7 VI1P3
*IC8001 K6 VI1P0
*IC8001 K1 VI1P21
*IC8001 K2 VI1P10
*IC8001 J1 VI1P11
*IC8001 E12 DAUDIO
*IC8001 B12 SRCK0
*IC8001 A12 DMIX0
*IC8001 F12 LRCK0
*IC8001 C12 DACCK0
*IC8001 F8 IECOUT0
L8001 J0JHC0000045
*IC8001 A26 VDD33
*IC8001 AC4 VDD33
*IC8001 AD4 VDD33
*IC8001 AE8 VDD33
*IC8001 AF7 VDD33
*IC8001 AG6 VDD33
*IC8001 AG11 VDD33
*IC8001 AG12 VDD33
*IC8001 AG15 VDD33
*IC8001 AG16 VDD33
*IC8001 AH5 VDD33
*IC8001 AJ4 VDD33
*IC8001 AK3 VDD33
*IC8001 B26 VDD33
*IC8001 C26 VDD33
*IC8001 D7 VDD33
*IC8001 D8 VDD33
*IC8001 D15 VDD33
*IC8001 D16 VDD33
*IC8001 D19 VDD33
*IC8001 D20 VDD33
*IC8001 D23 VDD33
*IC8001 D24 VDD33
*IC8001 D26 VDD33
*IC8001 F25 VDD33
*IC8001 G4 VDD33
*IC8001 H4 VDD33
*IC8001 M4 VDD33
*IC8001 L4 VDD33
*IC8001 R4 VDD33
*IC8001 T4 VDD33
*IC8001 W4 VDD33
*IC8001 Y4 VDD33
*IC8001 E26 VDD33
VDD3.3V
VI1P0
VI1P1
VI1P10
VI1P11
VI1VSYNC
VI1HSYNC
VI1P21
VI1P20
SRCK0
DMIX0
SERIAL I/F
SBI1
TP8406
TP8405
SBO1
TO 8/22
GenX8
Analog Video I/F
VDD3.3V
L8007
J0JHC0000045
R8004
24k
R8005
10k
C8005
6.3V 1u
C8033
16V
0.1u
CH,IS IF
R8412
10k
TO 5/22
XRTS0
XDTR0
XDSR0
XDCD0
XCTS0
XRI0
TXD0
RXD0
SMTCLK1
SMTD1
SMTRST1
*IC8001 A1 VSS
*IC8001 A2 VSS
*IC8001 A3 VSS
*IC8001 A8 VSS
*IC8001 AA4 VSS
*IC8001 AA27 VSS
*IC8001 AB4 VSS
*IC8001 AB29 VSS
*IC8001 AC25 VSS
*IC8001 AC28 VSS
*IC8001 AD27 VSS
*IC8001 AE6 VSS
*IC8001 AE7 VSS
*IC8001 AE19 VSS
*IC8001 AE22 VSS
*IC8001 AE26 VSS
*IC8001 AE29 VSS
*IC8001 AF6 VSS
*IC8001 AF13 VSS
*IC8001 AF14 VSS
*IC8001 AF19 VSS
*IC8001 AF21 VSS
*IC8001 AF25 VSS
*IC8001 AF27 VSS
*IC8001 AG5 VSS
*IC8001 AG9 VSS
*IC8001 AG10 VSS
*IC8001 AG13 VSS
*IC8001 AG14 VSS
*IC8001 AG19 VSS
*IC8001 AG20 VSS
*IC8001 AG24 VSS
*IC8001 AG29 VSS
*IC8001 AH4 VSS
*IC8001 AH11 VSS
*IC8001 AH13 VSS
*IC8001 AH15 VSS
*IC8001 AH19 VSS
*IC8001 AH23 VSS
*IC8001 AH27 VSS
*IC8001 AH30 VSS
*IC8001 AJ3 VSS
*IC8001 AJ29 VSS
*IC8001 AK1 VSS
*IC8001 AK2 VSS
*IC8001 AJ13 VSS
*IC8001 AJ16 VSS
*IC8001 AJ19 VSS
*IC8001 AJ22 VSS
SBI2
SBO2
TO 5/22
MVDACO1
C8003
6.3V
1u
C8034
16V
0.1u
*IC8001 AK14 CH0CLK
*IC8001 AE14 CH0VAL
*IC8001 AH14 CH0PSYNC
*IC8001 AJ14 CH0DATA
*IC8001 AJ8 XRTS0
*IC8001 AE9 XDTR0
*IC8001 AK8 XDSR0
*IC8001 AF9 XDCD0
*IC8001 AH9 XCTS0
*IC8001 AE10 XRI0
*IC8001 AJ9 TXD0
*IC8001 AK9 RXD0
*IC8001 AH10 SMTCLK1
*IC8001 AJ10 SMTD1
*IC8001 AF10 SMTRST1
*IC8001 F24 SBI0
*IC8001 B25 SBO0
*IC8001 AK6 IS1VAL
*IC8001 AG8 IS1PSYNC
*IC8001 E25 SBO2
*IC8001 E10 MVDACO1
*IC8001 D9 MVDACO2
*IC8001 B9 VVREF
*IC8001 F10 MVIREF
R8006
24k
*IC8001 C9 VCOMP
*IC8001 A9 DAAVSS1
*IC8001 E9 DAAVDD1
*IC8001 AJ26 VSS
*IC8001 AK13 VSS
*IC8001 AK19 VSS
*IC8001 AK25 VSS
*IC8001 AK28 VSS
*IC8001 B1 VSS
*IC8001 B2 VSS
*IC8001 B3 VSS
*IC8001 B8 VSS
*IC8001 C3 VSS
*IC8001 C8 VSS
*IC8001 C10 VSS
*IC8001 C13 VSS
*IC8001 C18 VSS
*IC8001 D4 VSS
*IC8001 D10 VSS
*IC8001 D12 VSS
*IC8001 D17 VSS
*IC8001 D18 VSS
*IC8001 D21 VSS
*IC8001 D22 VSS
*IC8001 E5 VSS
*IC8001 F6 VSS
*IC8001 F9 VSS
*IC8001 G7 VSS
*IC8001 J4 VSS
*IC8001 K4 VSS
*IC8001 M5 VSS
*IC8001 M12 VSS
*IC8001 M13 VSS
*IC8001 M14 VSS
*IC8001 M15 VSS
*IC8001 M16 VSS
*IC8001 M17 VSS
*IC8001 M18 VSS
*IC8001 M27 VSS
*IC8001 N4 VSS
*IC8001 N12 VSS
*IC8001 N13 VSS
*IC8001 N14 VSS
*IC8001 N15 VSS
*IC8001 N16 VSS
*IC8001 N17 VSS
*IC8001 N18 VSS
*IC8001 N19 VSS
*IC8001 N29 VSS
*IC8001 P4 VSS
*IC8001 P12 VSS
*IC8001 P13 VSS
Y
C
Serial
Parallel
Cmp
Cmp
*IC8001 P14 VSS
*IC8001 P15 VSS
*IC8001 P16 VSS
*IC8001 P17 VSS
*IC8001 P18 VSS
*IC8001 R13 VSS
*IC8001 R14 VSS
*IC8001 R15 VSS
*IC8001 R16 VSS
*IC8001 R17 VSS
*IC8001 R18 VSS
*IC8001 R26 VSS
*IC8001 R28 VSS
*IC8001 T13 VSS
*IC8001 T14 VSS
*IC8001 T15 VSS
*IC8001 T16 VSS
*IC8001 T17 VSS
*IC8001 T19 VSS
*IC8001 T29 VSS
*IC8001 U4 VSS
*IC8001 U16 VSS
*IC8001 U17 VSS
*IC8001 U26 VSS
*IC8001 V4 VSS
*IC8001 V16 VSS
*IC8001 V18 VSS
*IC8001 V27 VSS
*IC8001 W16 VSS
*IC8001 W19 VSS
*IC8001 W28 VSS
*IC8001 W30 VSS
*IC8001 Y26 VSS
*IC8001 AH29 FPENF
CPU BUS I/F
TO 5/22
EA0
EA1
EA2
EA3
EA4
EA5
EA6
EA7
TO 6/22
VI2P12
EA08
VI2P13
EA09
VI2P14
EA10
VI2P15
EA11
VI2P16
EA12
EA13
VI2P17
VI2P18
EA14
VI2P19
EA15
VI2P22
EA16
VI2P23
EA17
VI2P24
EA18
VI2P25
EA19
VI2P26
EA20
VI2P27
EA21
VI2P28
EA22
VI2P29
EA23
EA24
VI2P4
EA25
VI2CLK2
TO 18/22
XRST
*IC8001 Y1 EA0
*IC8001 W6 EA1
*IC8001 W5 EA2
*IC8001 Y2 EA3
*IC8001 Y5 EA4
*IC8001 Y3 EA5
*IC8001 AA1 EA6
*IC8001 AA2 EA7
*IC8001 M3 VI2P12
*IC8001 M6 VI2P13
*IC8001 M2 VI2P14
*IC8001 N5 VI2P15
*IC8001 N6 VI2P16
*IC8001 N3 VI2P17
*IC8001 P6 VI2P18
*IC8001 N2 VI2P19
*IC8001 P2 VI2P22
*IC8001 R6 VI2P23
*IC8001 P1 VI2P24
*IC8001 R3 VI2P25
*IC8001 R2 VI2P26
*IC8001 R5 VI2P27
*IC8001 R1 VI2P28
*IC8001 T1 VI2P29
*IC8001 G6 VI2P4
*IC8001 N1 VI2CLK2
*IC8001 D25 XRST
TO 5/22
PORT15[1]
SCARD_IRQ
PORT15[2]
PORT15[3]
CLOCK GEN
TO 5,16/22
FE0_IRQ
HDMI_IRQ
*IC8001AH28CK33IN
*IC8001N26VC27
*IC8001M29CK74
*IC8001P25CK27A
TO 5/22
TO 6/22
TO 5/22
BOOTSWAP
XNMIRQ
ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ED8
ED9
ED10
ED11
ED12
ED13
ED14
ED15
ECLK
XECS0
XECS1
XECS2
XECS4
ERXW
XEWE0
XEWE1
ESZ0
ESZ1
XERE
XEDK
XIRQ2
XIRQ3
*IC8001 Y6 ED0
*IC8001 AA3 ED1
*IC8001 AB1 ED2
*IC8001 AA5 ED3
*IC8001 AB2 ED4
*IC8001 AB3 ED5
*IC8001 AC1 ED6
*IC8001 AA6 ED7
*IC8001 AB5 ED8
*IC8001 AB6 ED9
*IC8001 AC2 ED10
*IC8001 AD1 ED11
*IC8001 AC3 ED12
*IC8001 AD2 ED13
*IC8001 AE1 ED14
*IC8001 AE2 ED15
*IC8001 AF1 ECLK
*IC8001 AD5 XECS0
*IC8001 AG2 XECS1
*IC8001 AD6 XECS2
*IC8001 AG3 XECS4
*IC8001 AF2 ERXW
*IC8001 AE3 XEWE0
*IC8001 AF3 XEWE1
*IC8001 AD3 ESZ0
*IC8001 AG1 ESZ1
*IC8001 AC5 XERE
*IC8001 AC6 XEDK
*IC8001 AG28 BOOTSWAP
*IC8001 U2 XNMIRQ
*IC8001 U5 XIRQ1
*IC8001 U3 XIRQ2
*IC8001 V1 XIRQ3
10k
R8088
R8086
C8052
100k
6.3V 1u
R8091
47
AX_CLKLAN
TO 7/22
10k
R8090
C8053
16V
0.01u
POD,CI I/F
TO 5/22
*IC8001 AH2 XECS6
XECS6
XEXDMK0
*IC8001 AE5 XEXDMK0
XEXDMR0
*IC8001 AF4 XEXDMR0
*IC8001 AE11 SMTSEL1
SMTSEL1
*IC8001 AK10 SMTCMD1
SMTCMD1
*IC8001 AF12 SMTRST0
SMTRST0
SMTD0
*IC8001 AF11 SMTD0
*IC8001 AK11 SMTCMD0
SMTCMD0
SMTSEL0
*IC8001 AE12 SMTSEL0
COMMON PORT .etc
R2832
47k
TO 5/22
SUB3.3V
CI POWER ON
R8109
2.2k
TO 16/22
(OSD_FLAG)
TO 17/22
TO 15/22
TO 5/22
EEPROM_WP
TO 6/22
TO 5/22
INT_PANEL_CEC
TO 18/22 TO 5/22 TO 4,6/22
NAND IF
TO 6/22
NFALE
NFCLE
XNFWP
XNFCE
XNFRE
XNFWE
TO 5/22
NANDRYBY
CLOCK GEN
IC8004
C0ZBZ0001567
X8001
H0J270500120
C8054
50V 12p
1
X1
2
S0
3
S1
4
VIN
5
VDD1
6
GND1
7
CLK1
74.25MHz
8
CLK2
25MHz
R8096
SDBOOT
DDR_SEL
GC6_XRST
DISPEN
IS0PSYNC
XETS_CI
XEAB
GC6_IRQ1
(USB_OCP)
W_HDMI_INT
FE_SW
VI2P20
GC6_IRQ0
CI OCP
CI_XRST
POWER_DET
CI IRQ
VI2P21
FE_XRST
*IC8001 AK4 NFALE
*IC8001 AH6 NFCLE
*IC8001 AJ1 XNFWP
*IC8001 AG4 XNFCE
*IC8001 AF5 XNFRE
*IC8001 AJ2 XNFWE
*IC8001 AG7 NANDRYBY
C8055 50V
0.5p
X2
VDD3
S2
VDD2
GND2
CLK4
33.3MHz
CLK3
24MHz
REFOUT
27MHz
82
AUDCLK
SMTCLK0
VI2CLK
IS0CLK
IS0VAL
IS0DATA
VI1P20
VI1P1
VI2ENB
VI2P11
VI2P10
IS1CLK
IS1DATA
RMCO
CH1VAL
16
15
14
13
12
11
10
9
XECS7
XPDCE2
XPDOE
XPDWE
XPDIOWR
XPDIORD
XEDBA
XPDWT
XPDCD1
XPDCD2
*IC8001 AH12 CH1PSYNC
*IC8001 AK12 CH1CLK
*IC8001 M28 AUDCLK
*IC8001 AJ11 SMTCLK0
*IC8001 AJ12 CH1DATA
*IC8001 L3 VI2HSYNC
*IC8001 L6 VI2VSYNC
*IC8001 M1 VI2CLK
*IC8001 AJ5 IS0CLK
*IC8001 AH7 IS0VAL
*IC8001 AK5 IS0PSYNC
*IC8001 AJ6 IS0DATA
*IC8001 AH3 XECS7
*IC8001 K3 VI1P20
*IC8001 K5 VI1P1
*IC8001 L1 VI2ENB
*IC8001 P3 VI2P20
R8960
*IC8001 L5 VI2P11
*IC8001 L2 VI2P10
*IC8001 AF8 IS1CLK
*IC8001 AJ7 IS1DATA
*IC8001 T5 RMCO
*IC8001 AE13 CH1VAL
*IC8001 P5 VI2P21
R8959
SUB_XO_3.3V
C8057
0.1u
16V
C8056
0.1u
16V
PWM1
PWM2
PORT0[0]
PORT5[4]
PORT5[7]
PORT6[4]
PORT6[5]
PORT6[7]
PORT7[3]
PORT7[4]
PORT7[5]
PORT7[6]
PORT14[2]
PORT15[4]
PORT15[5]
PORT15[6]
PORT15[7]
TP8000
68
SDRAM_CHK1
PORT16[1]
PORT16[2]
PORT16[3]
PORT16[4]
PORT16[5]
PORT16[6]
PORT16[7]
TP8001
68
SDRAM_CHK2
SUB3.3V
L8005 J0JHC0000045
C8058
10V 10u
*R8095
10k
R8093
47
52
16131210 14 1711 15 18
Page 53

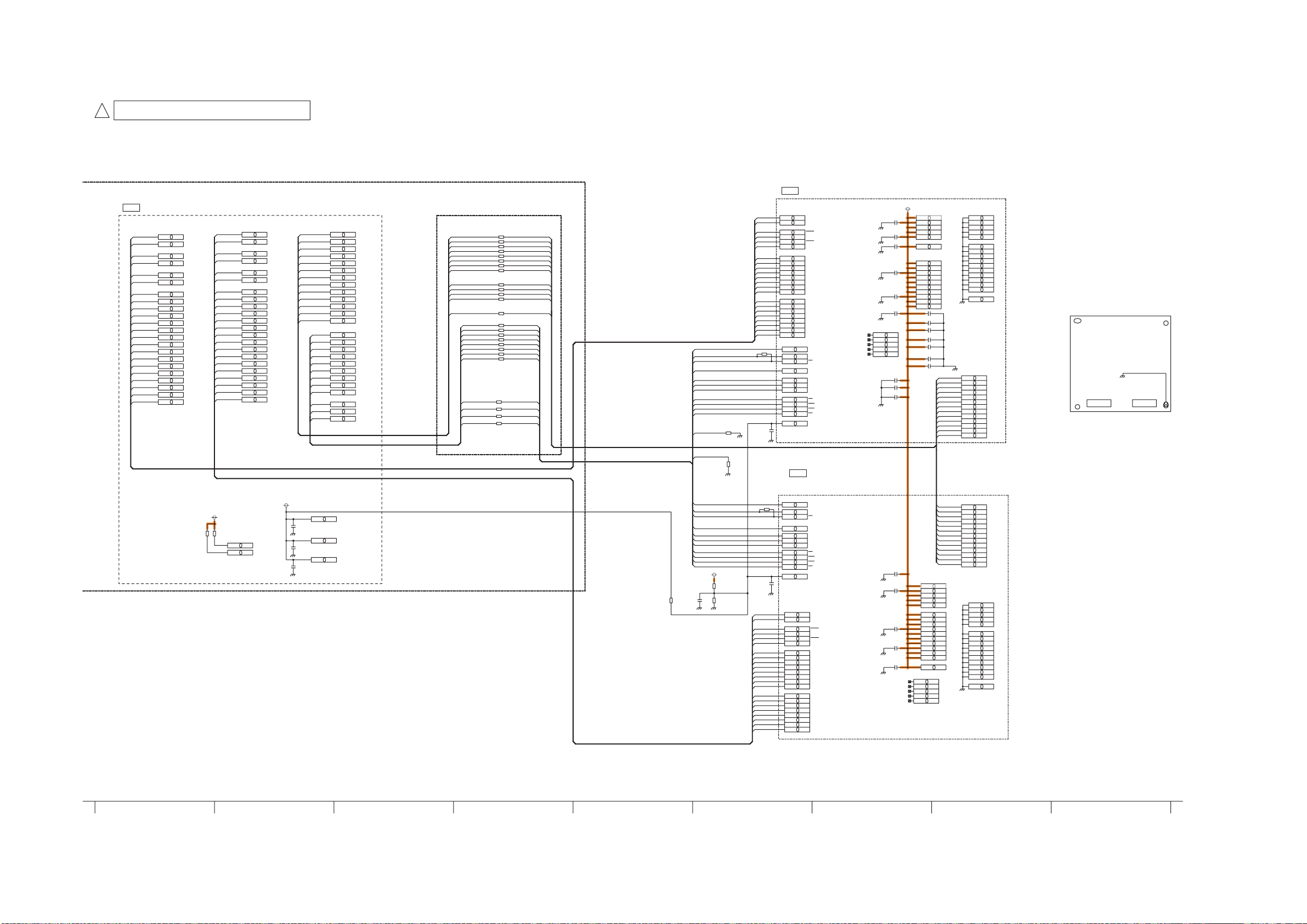

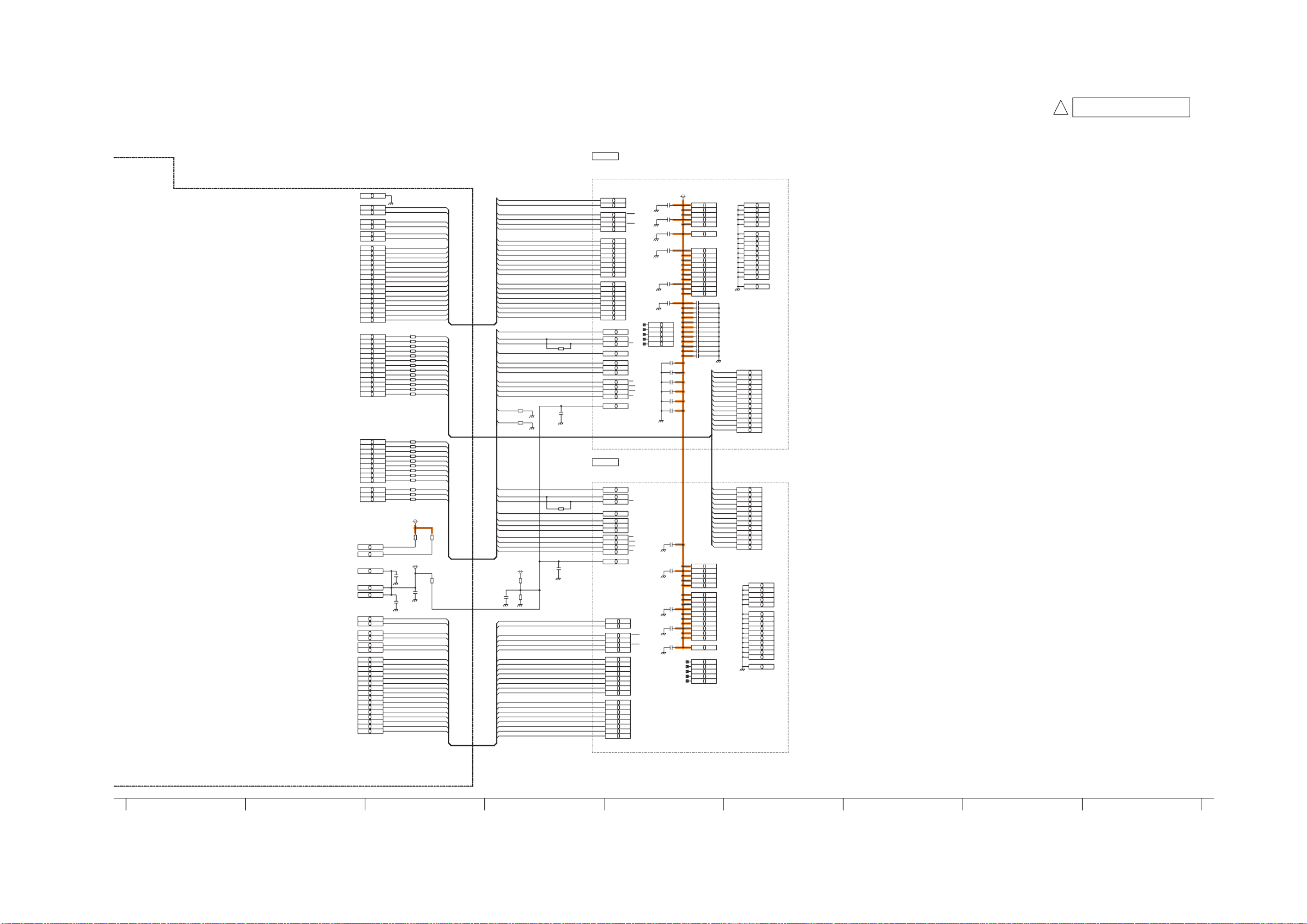

12.7. A-Board (3/22) Schematic Diagram

IC8002
MN2WS0058
*IC8001AK29TSTSEL
*IC8001R30MMDM0
*IC8001U29MMDM1
*IC8001R29MMDQS0
*IC8001U30MMDQS1
*IC8001T28MMXDQS0
*IC8001T30MMXDQS1
*IC8001R27MMDQ0
*IC8001R25MMDQ1
*IC8001P29MMDQ2
*IC8001P28MMDQ3
*IC8001P26MMDQ4
*IC8001N27MMDQ5
*IC8001N30MMDQ6
*IC8001N28MMDQ7
*IC8001U25MMDQ8
*IC8001U27MMDQ9
*IC8001V28MMDQ10
*IC8001V30MMDQ11
*IC8001V25MMDQ12
*IC8001V26MMDQ13
*IC8001Y30MMDQ14
*IC8001W29MMDQ15
*IC8001AE27MMA0
*IC8001AB28MMA1
*IC8001AF28MMA2
*IC8001AA26MMA3
*IC8001AE30MMA4
*IC8001Y25MMA5
*IC8001AF30MMA6
*IC8001AB30MMA7
*IC8001AG30MMA8
*IC8001AC29MMA9
*IC8001AA29MMA10
*IC8001AJ30MMA11
*IC8001AA25MMA12
*IC8001W26MMBA0
*IC8001AA30MMBA1
*IC8001Y27MMBA2
*IC8001Y28MMXWE
*IC8001AC26MMXRAS
*IC8001AD26MMXCAS
*IC8001AE28MMXCS1
*IC8001AC27MMXCS0
*IC8001W27MMCKE
*IC8001AB25MMODT
*IC8001AD30MMCK
*IC8001AD29MMXCK
*IC8001AJ28MMRDRV
*IC8001AD25MMRODT
*IC8001AG26MMVCAL
*IC8001T26MMVREF0
*IC8001AF22MMVREF1
*IC8001AH24MMDM2
*IC8001AH22MMDM3
*IC8001AJ24MMDQS2
*IC8001AK22MMDQS3
*IC8001AJ23MMXDQS2
*IC8001AK23MMXDQS3
*IC8001AF24MMDQ16
*IC8001AG23MMDQ17
*IC8001AH25MMDQ18
*IC8001AK26MMDQ19
*IC8001AE23MMDQ20
*IC8001AE24MMDQ21
*IC8001AK27MMDQ22
*IC8001AJ27MMDQ23
*IC8001AE21MMDQ24
*IC8001AG21MMDQ25
*IC8001AJ21MMDQ26
*IC8001AK21MMDQ27 IC8003 H9 DQ5
*IC8001AF20MMDQ28
*IC8001AE20MMDQ29
*IC8001AH20MMDQ30
*IC8001AK20MMDQ31
!
A-BOARD (3/22)
Peaks-COMMON
REF No. 8000-8999
DDR2_0
IC8002
C3ABTG000007
CH0DM0
CH0DM0
CH0DM1
CH0DQS0
CH0DQS1
CH0XDQS0
CH0XDQS1
CH0DQ0
CH0DQ1
CH0DQ2
CH0DQ3
CH0DQ4
CH0DQ5
CH0DQ6
CH0DQ7
CH0DQ8
CH0DQ9
CH0DQ10
CH0DQ11
CH0DQ12
CH0DQ13
CH0DQ14
CH0DQ15
1.8V_DDRI/F
R8082
CH0A0
47
CH0A1
47
CH0A2
47
CH0A3
47
CH0A4
47
CH0A5
47
CH0A6
47
CH0A7
47
CH0A8
47
CH0A9
47
CH0A10
47
CH0A11
47
CH0A12
47
CH0BA0
47
CH0BA1
47
CH0BA2
47
CH0XWE
47
CH0XRAS
47
CH0XCAS
47
CH0XCS1
47
CH0XCS0
47
CH0CKE
47
CH0ODT
47
CH0CK
0
CH0XCK
0
R8083
75
300
VREF
R8030
100
C8037
0.1u 16V
CH0DM2
CH0DM3
CH0DQS2
CH0DQS3
CH0XDQS2
CH0XDQS3
CH0DQ16
CH0DQ17
CH0DQ18
CH0DQ19
CH0DQ20
CH0DQ21
CH0DQ22
CH0DQ23
CH0DQ24
CH0DQ25
CH0DQ26
CH0DQ27
CH0DQ28
CH0DQ29
CH0DQ30
CH0DQ31
R8056
R8057
R8058
R8059
R8060
R8061
R8062
R8063
R8064
R8065
R8066
R8067
R8068
R8069
R8070
R8071
R8072
R8073
R8075
R8076
R8100
R8077
R8078
R8026
R8027
C8051 16V
0.1u
C8038 16V
0.1u
CH0DM1
CH0XDQS0
CH0DQS0
CH0XDQS1
CH0DQS1
CH0DQ5
CH0DQ7
CH0DQ1
CH0DQ3
CH0DQ2
CH0DQ0
CH0DQ6
CH0DQ4
CH0DQ8
CH0DQ11
CH0DQ12
CH0DQ15
CH0DQ14
CH0DQ13
CH0DQ10
CH0DQ9
CH0ODT
CH0CK
CH0XCK
CH0CKE
CH0BA0
CH0BA1
CH0BA2
CH0XWE
CH0XRAS
CH0XCAS
CH0XCS0
CH0CKE
CH0ODT
CH0CK
CH0XCK
CH0CKE
CH0BA0
CH0BA1
CH0BA2
CH0XWE
CH0XRAS
CH0XCAS
CH0XCS1
1.8V_DDRI/F
R8031
1k
1%
R8032
C8039
1k
0.1u 16V
1%
CH0DM3
CH0DM2
CH0XDQS3
CH0DQS3
CH0XDQS2
CH0DQS2
CH0DQ30
CH0DQ28
CH0DQ27
CH0DQ25
CH0DQ24
CH0DQ26
CH0DQ29
CH0DQ31
CH0DQ18
CH0DQ17
CH0DQ22
CH0DQ21
CH0DQ16
CH0DQ23
CH0DQ20
CH0DQ19
R8074
220
R8101
10k
C8040
R8081
10k
16V
0.1u
220
R8097
C8041
16V
0.1u
IC8002 B3 UDM
IC8002 F3 LDM
IC8002 A8 UDQS
IC8002 B7 UDQS
IC8002 E8 LDQS
IC8002 F7 LDQS
IC8002 B9 DQ15
IC8002 B1 DQ14
IC8002 D9 DQ13
IC8002 D1 DQ12
IC8002 D3 DQ11
IC8002 D7 DQ10
IC8002 C2 DQ9
IC8002 C8 DQ8
IC8002 F9 DQ7
IC8002 F1 DQ6
IC8002 H9 DQ5
IC8002 H1 DQ4
IC8002 H3 DQ3
IC8002 H7 DQ2
IC8002 G2 DQ1
IC8002 G8 DQ0
IC8002 K9 ODT
IC8002 J8 CK
IC8002 K8 CK
IC8002 K2 CKE
IC8002 L2 BA0
IC8002 L3 BA1
IC8002 L1 BA2
IC8002 K3 WE
IC8002 K7 RAS
IC8002 L7 CAS
IC8002 L8 CS
IC8002 J2 VREF
DDR2_1
IC8003
C3ABTG000007
IC8003 K9 ODT
IC8003 J8 CK
IC8003 K8 CK
IC8003 K2 CKE
IC8003 L2 BA0
IC8003 L3 BA1
IC8003 L1 BA2
IC8003 K3 WE
IC8003 K7 RAS
IC8003 L7 CAS
IC8003 L8 CS
IC8003 J2 VREF
IC8003 B3 UDM
IC8003 F3 LDM
IC8003 A8 UDQS
IC8003 B7 UDQS
IC8003 E8 LDQS
IC8003 F7 LDQS
IC8003 B9 DQ15
IC8003 B1 DQ14
IC8003 D9 DQ13
IC8003 D1 DQ12
IC8003 D3 DQ11
IC8003 D7 DQ10
IC8003 C2 DQ9
IC8003 C8 DQ8
IC8003 F9 DQ7
IC8003 F1 DQ6
IC8003 H1 DQ4
IC8003 H3 DQ3
IC8003 H7 DQ2
IC8003 G2 DQ1
IC8003 G8 DQ0
C8046
16V
C8042
4V
C8043
16V
C8047
16V
C8048
16V
C8036
10V
IC8002 A2 NC
IC8002 E2 NC
IC8002 R3 NC
IC8002 R7 NC
IC8002 R8 NC
C8201
16V
C8202
16V
C8099
16V
C8100
16V
C8101
16V
C8102
16V
C8035
10V
C8044
16V
C8049
16V
C8050
16V
C8045
16V
0.1u
68u
0.1u
0.1u
0.1u
10u
10u
1.8V_DDRI/F
+
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
IC8002
IC8002 E1 VDD
IC8002 M9 VDD
IC8002 J9 VDD
IC8002 R1 VDD
IC8002 J1 VDDL
IC8002 A9 VDDQ
IC8002 C1 VDDQ
IC8002 C3 VDDQ
IC8002 C7 VDDQ
IC8002 C9 VDDQ
IC8002 E9 VDDQ
IC8002 G1 VDDQ
IC8002 G3 VDDQ
IC8002 G7 VDDQ
IC8002 G9 VDDQ
16V
C8086
16V
C8087
16V
C8088
16V
C8089
16V
C8090
16V
C8092
16V
C8093
16V
C8094
16V
C8095
16V
C8096
16V
C8097
16V
C8098
IC8003
IC8003 E1 VDD
IC8003 M9 VDD
IC8003 J9 VDD
IC8003 R1 VDD
IC8003 A9 VDDQ
IC8003 C1 VDDQ
IC8003 C3 VDDQ
IC8003 C7 VDDQ
IC8003 C9 VDDQ
IC8003 E9 VDDQ
IC8003 G1 VDDQ
IC8003 G3 VDDQ
IC8003 G7 VDDQ
IC8003 G9 VDDQ
IC8003 J1 VDDL
IC8003 A2 NC
IC8003 E2 NC
IC8003 R3 NC
IC8003 R7 NC
IC8003 R8 NC
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
A1 VDD
CH0A0
CH0A1
CH0A2
CH0A3
CH0A4
CH0A5
CH0A6
CH0A7
CH0A8CH0ODT
CH0A9
CH0A10
CH0A11
CH0A12
CH0A0
CH0A1
CH0A2
CH0A3
CH0A4
CH0A5
CH0A6
CH0A7
CH0A8
CH0A9
CH0A10
CH0A11
CH0A12
A1 VDD
IC8002 A3 VSS
IC8002 E3 VSS
IC8002 J3 VSS
IC8002 N1 VSS
IC8002 P9 VSS
IC8002 A7 VSSQ
IC8002 B2 VSSQ
IC8002 B8 VSSQ
IC8002 D2 VSSQ
IC8002 D8 VSSQ
IC8002 E7 VSSQ
IC8002 F2 VSSQ
IC8002 F8 VSSQ
IC8002 H2 VSSQ
IC8002 H8 VSSQ
IC8002 J7 VSSDL
IC8002 M8 A0
IC8002 M3 A1
IC8002 M7 A2
IC8002 N2 A3
IC8002 N8 A4
IC8002 N3 A5
IC8002 N7 A6
IC8002 P2 A7
IC8002 P8 A8
IC8002 P3 A9
IC8002 M2 A10
IC8002 P7 A11
IC8002 R2 A12
IC8003 M8 A0
IC8003 M3 A1
IC8003 M7 A2
IC8003 N2 A3
IC8003 N8 A4
IC8003 N3 A5
IC8003 N7 A6
IC8003 P2 A7
IC8003 P8 A8
IC8003 P3 A9
IC8003 M2 A10
IC8003 P7 A11
IC8003 R2 A12
IC8003 A3 VSS
IC8003 E3 VSS
IC8003 J3 VSS
IC8003 N1 VSS
IC8003 P9 VSS
IC8003 A7 VSSQ
IC8003 B2 VSSQ
IC8003 B8 VSSQ
IC8003 D2 VSSQ
IC8003 D8 VSSQ
IC8003 E7 VSSQ
IC8003 F2 VSSQ
IC8003 F8 VSSQ
IC8003 H2 VSSQ
IC8003 H8 VSSQ
IC8003 J7 VSSDL
23 262521 22 24 2719 20
53
Page 54

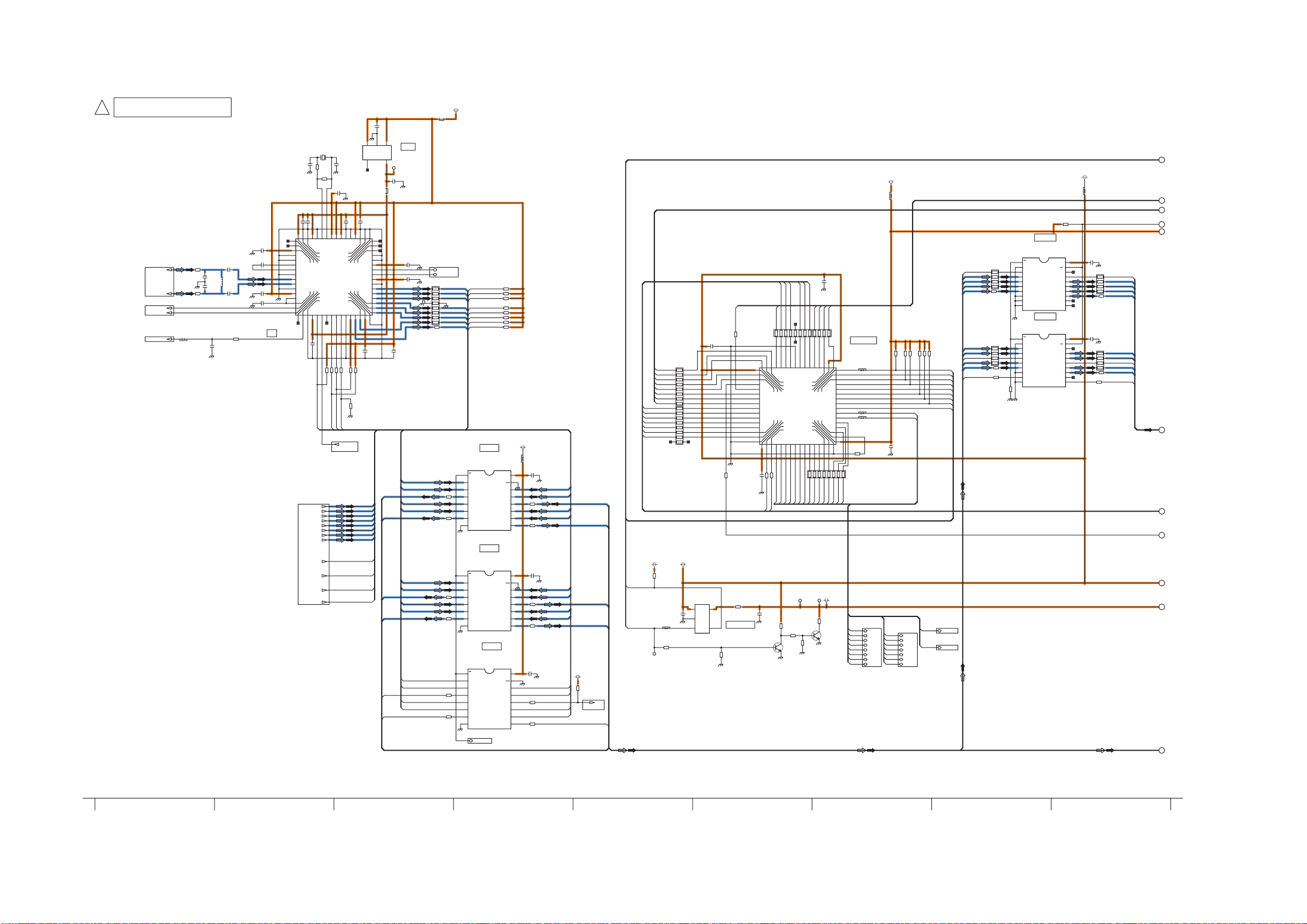

12.8. A-Board (4/22) Schematic Diagram

!
A-BOARD (4/22)
Peaks-DEST REF No. 8000-8999
TO 15/22
TO 1/22
FE-OUT_SDA
FE-OUT_SCL
TO 15/22
SUB3.3V
FE0_MDO0
FE1_MDO0
FE0_MDO1
FE1_MDO1
J0JHC0000045
TO 1/22
*R8301
EXB2HV680JV
*R8308
*L8301
1
SUB3.3V
R8402
P
VJUMP2012-P
BUFFER
*IC8404
C0JBAZ002692
1
*R8454
FE_SDA
FE_SCL
2.2k
*R8681
FE0_MDO7
FE0_MDO7
FE0_MDO6
FE0_MDO6
FE0_MDO5
FE0_MDO5
FE0_MDO4
FE0_MDO4
FE0_MDO3
FE0_MDO3
FE0_MDO2
FE0_MDO2
FE0_MDO1
FE0_MDO1
FE0_MDO0
FE0_MDO0
68
TS
*IC8303
C0JBAR000305
1
A/B
2
1A
3
1B
*R8361
68
4
1Y
5
2A
6
2B
*R8362
68
7
2Y
8
GND
FE_SW
2.2k
*R8680
2.2k
*R8679
*R8678
2.2k
2.2k
*R8675
*R8671
2.2k
2.2k
*R8670
2.2k
*R8322
*R8333 EXB2HV101JV
CI_DA7
CI_DA6
CI_DA5
CI_DA4
CI_DA3
CI_DA2
CI_DA1
CI_DA0
CI_EAA1
CI_EAA2
CI_EAA3
CI_EAA4
CI_EAA5
CI_EAA6
SUB3.3V
R8302 VJUMP2012-P
P
*C8322
16V
0.1u
16
Vcc
15
OE
14
4A
13
4B
12
4Y
11
3A
10
3B
9
3Y
FE0_MDO3
FE1_MDO3
*R8364
68
FE0_MDO2
FE1_MDO2
*R8363
68
FE_MDO3
FE_MDO2
CI_EAA7
*R8335
EXB2HV680JV
CI_REG-
*R8339
68
C8344
16V
0.1u
*R8338
C8345
68
EXB2HV680JV
17
18
20
21
22
23
24
25
26
27
28
29
30
16V
0.1u
*R8336
15
16
CI_RESET_5VOUT
NREG5VOUT
ED5VIO2
ED5VIO1
ED5VIO0
EA5VOUT1
EA5VOUT2
EA5VOUT3
EA5VOUT4
EA5VOUT5
33
34
68
*R8439
CI_EAA8
CI_EAA12
CI_EAA10
CI_EAA11
CI_CE1-
10
13
14
NOE5V/EA10
ED5VIO7
NCE5VOUT
EA5VOUT1011EA5VOUT1212EA5VOUT11
ED5VIO6
NWE5V/EA11
ED5VIO5
VDD5V1
ED5VIO419ED5VIO3
EA5VOUT631EA5VOUT732GND
VDD5V2
EA5VOUT8
EA5VOUT13
EA3VIN137EA3VIN238EA3VIN339EA3VIN440EA3VIN541EA3VIN642EA3VIN743ED3VIO044ED3VIO145ED3VIO2
35
36
68
*R8442
AA_EA2
AA_EA1
AA_EA3
AA_EA4
AA_EA5
CI_EAA13
C8343 16V
0.1u
CI_EAA9
CI_EAA14
CI_EAA15
CI_WE-
CI_OE-
CI_IOWR-
CI_IORD-
*R8337
EXB28V680JX
CI ASIC
*IC8401
C1AB00002913
R8346
1
2
3
4
6
8
9
GND
EA5VOUT9
NIORD3V/EA13
EA5VOUT157EA5VOUT14
VDDADR
NIORD5V/EA95NIOWR5V/EA8
NOE3V/EA14
NWE3V/EA15
NOE_ADR
NREG3VIN
CI_RESET_3VIN
VDD3V50MODE51ED3VIO5
GND
ED3VIO4
ED3VIO3
AA_ED1
AA_ED0
AA_ED2
AA_EA7
AA_EA6
NCE3VIN
NOE_DAT
NIOWR3V/EA12
ED3VIO7
ED3VIO6
46
AA_ED4
AA_ED3
VJUMP1005-S
S
64
63
62
61
60
59
58
57
56
VJUMP1005-S
R8343
LE
S
55
VJUMP1005-S
R8342
RNW
S
54
53
52
49
*R8340
47
48
0
*R8332
EXB2HV101JV
AA_ED5
AA_ED7
AA_ED6
10k
10k
10k
10k
10k
R8272
*R8476
*R8477
*R8479
*R8415 2.2k
C8346 16V
0.1u
AA_XEAS
AA_ERXW
*R8345
AC_XPDOE
AC_XPDWE
AC_XPDCE2
AC_XEDBA
AC_CI_RESET
AC_XEAB
AC_REG
AC_IOWR
AC_IORD
FE_CH0PSYNC
FE_MDO0
FE_MDO1
FE_MDO2
FE_MDO3
FE_MDO4
FE_MDO5
FE_CH0VAL
FE_MDO6
FE_MDO7
FE_CH0CLK
EXB28V151JX
*R8464
*R8467
EXB28V151JX
*R8468
*R8469
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
68
9
A8
10
GND
BUFFER
*IC8405
C0JBAZ002692
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
68
9
A8
10
GND
68
*R8347
0
SUB5V
P
R8401 VJUMP3216-P
*R8512
2.2k XCIETS
C8409
16V
0.1u
20
Vcc
19
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Vcc
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
*R8470
18
EXB28V151JX
C8405
16V
0.1u
*R8463
EXB28V151JX
*R8430
CI_PKTSTINA
CI_DATAINA0
CI_DATAINA1
CI_DATAINA2
CI_DATAINA3
*R8432
150
CI_DATAINA4
CI_DATAINA5
CI_ENINA
CI_DATAINA6
CI_DATAINA7
*R8431
150
CI_CLKINA
100
17
16
15
14
13
12
11
20
19
18
17
16
15
14
13
12
11
2
3
4
5
6
SUB5V
7
8
*C8328
10V 1u
*IC8302
C0DBFYY00028
1
2
OSCEN
TRSTN
*C8311
50V 12p
*C8335
CVSS
CVDD
68
FE0_CLK
VI2P21
FE_XRST
16V
0.1u
DVDD37DVSS38CVSS39CVDD
TSDATA218TSDATA319TSDATA4
2.2k
2.2k
*R8323
*R8324
*R8328 10k
FE1_MDO0
FE1_MDO1
FE1_MDO2
FE1_MDO3
FE1_MDO4
FE1_MDO5
FE1_MDO6
FE1_MDO7
J0JHC0000045
*C8340
35A036
TCLK
CVSS
CVDD
TDO31TDI32TMS
DVDD
DVSS
TSDATA7
TSDATA6
TSDATA5
14
3
VIN
CE
NC
16V
0.1u
34
SDA
SCL
15
*C8314 16V
0.1u
1.8V
VSS
VOUT
5
4
TP8301
*C8327
2.2u
*L8304
10V
33
30
29
28
27
*C8320
16V 0.1u
26
25
*C8321
24
16V 0.1u
23
22
21
20
17
16
*C8313
16V
0.1u
FE_MDO0
FE_MDO1
30.0MHz
*X8301
H0J300500027
*C8312
50V
*R8312
12p
1k
*R8313
*C8319
2.2M 16V
0.1u
*C8334
*C8333
16V
16V
0.1u
0.1u
40
41
42
44
45
46
47
48
*C8331
*C8309
*R8354
R8356
VJUMP1005-S
68
*C8316
16V 270p
*C8317
16V 270p
*R8353
68
S
*C8306
10V
0.47u
IFD1
IFD2
IFAGC
16V
0.1u
*L8303
G1CR15JA0020
*C8307
16V
0.1u
*R8305
1k
*C8330
16V 0.1u
*C8332
16V 0.1u
*C8336
16V 0.1u
*IC8301
C1AB00003049
49
16V
0.1u
52
AVSS_Q
53
GUARD_Q
54
DAREFP
55
DAREFM
56
GUARD_I
57
AINM_I
58
AINP_I
59
AVSS_I
60
AVDD_I
61
REFIN
62
1
XVDD
XVSS
XTALI43XTALO
DIVDD
DIVSS
PADVSS
TESTMODE
PADVDD
AINP_Q50AINM_Q51AVDD_Q
REFOUT63TUNERDAT64TUNERCLK
RF_IFAGC_Q_GPIO1
IFAGC_I
CVSS
CVDD5INTRPTN6RESETN7TSERR_GPIO28TSSYNC9TSVALID10TSCLK11DVSS12DVDD13TSDATA0
2
3
4
TSDATA1
FE
16V 0.1u
*C8329
68
10k
*R832768*R8325
*R8326
*R8395
FE0_PSYNC
FE0_XIRQ
FE0_VAL
TO 2,6/22
TO 6/22
FE1_MDO0
FE1_MDO1
FE1_MDO2
FE1_MDO3
FE1_MDO4
FE1_MDO5
FE1_MDO6
FE1_MDO7
FE_SW
FE1_CLK
FE1_VAL
FE1_PSYNC
FE1_XIRQ
FE1_CLK
FE1_VAL
FE1_PSYNC
FE1_XIRQ
FE_MDO4
FE_MDO5
FE_CH0CLK
FE_CH0VAL
FE0_MDO4
FE1_MDO4
FE0_MDO5
FE1_MDO5
FE0_CLK
FE1_CLK
FE0_VAL
FE1_VAL
*IC8304
C0JBAR000305
1
A/B
2
1A
3
1B
*R8365
68
4
1Y
5
2A
6
2B
*R8366
68
7
2Y
8
GND
*C8323
16V
0.1u
16
Vcc
15
OE
14
4A
13
4B
12
4Y
11
3A
10
3B
9
3Y
FE0_MDO7
FE1_MDO7
*R8368
68
FE0_MDO6
FE1_MDO6
*R8367
68
FE_MDO7
FE_MDO6
IS1CLK
CI_OCP
CI_POWER_ON
FE_SW
*IC8305
C0JBAR000305
1
A/B
2
1A
3
1B
*R8369
68
4
1Y
5
2A
6
2B
*R8370
68
7
2Y
8
GND
TO 5/22
AA_FE_SW
*C8324
16V
0.1u
16
Vcc
15
OE
14
4A
13
4B
*R8396
68
12
4Y
11
3A
10
3B
*R8371
68
9
3Y
FE0_XIRQ
FE1_XIRQ
FE0_PSYNC
FE1_PSYNC
SUB3.3V
*R8676
10k
TO 5/22
AA_XIRQ2
FE_CH0PSYNC
TP8404
SUB3.3V
R8471 10k
R8403
VJUMP1005-S
*R8404
SUB5V_CI_SW
9
SUB_CI_5V
TP8401
2SD0601A0L
TP8403
*C8410
16V
0.1u
*R8407
*R8418
47k
680
*R8416
22k
*R8417
100k
*Q8402
2SD0601A0L
AA_ED0
AA_ED1
AA_ED2
AA_ED3
AA_ED4
AA_ED5
AA_ED6
AA_ED7
TO 5,6,16/22
AA_ED0
AA_ED1
AA_ED2
AA_ED3
AA_ED4
AA_ED5
AA_ED6
AA_ED7
AA_EA1
AA_EA2
AA_EA3
AA_EA4
AA_EA5
AA_EA6
AA_EA7
TO 5,6,16/22
AA_EA1
AA_EA2
AA_EA3
AA_EA4
AA_EA5
AA_EA6
AA_EA7
AA_XEAS
AA_ERXW
TO 5,16/22
TO 5/22
AA_XEAS
AA_ERXW
SPDATA
10
11
*R8406
5
VOUT
4
/OC
*R8405
10k
POWER_SW
*IC8403
C0ZBZ0001584
0.1
*Q8401
1
C8408
VIN
16V
0.1u 2
GND
3
EN
S
10k
28
31
3229 3530 3433 36
54
Page 55

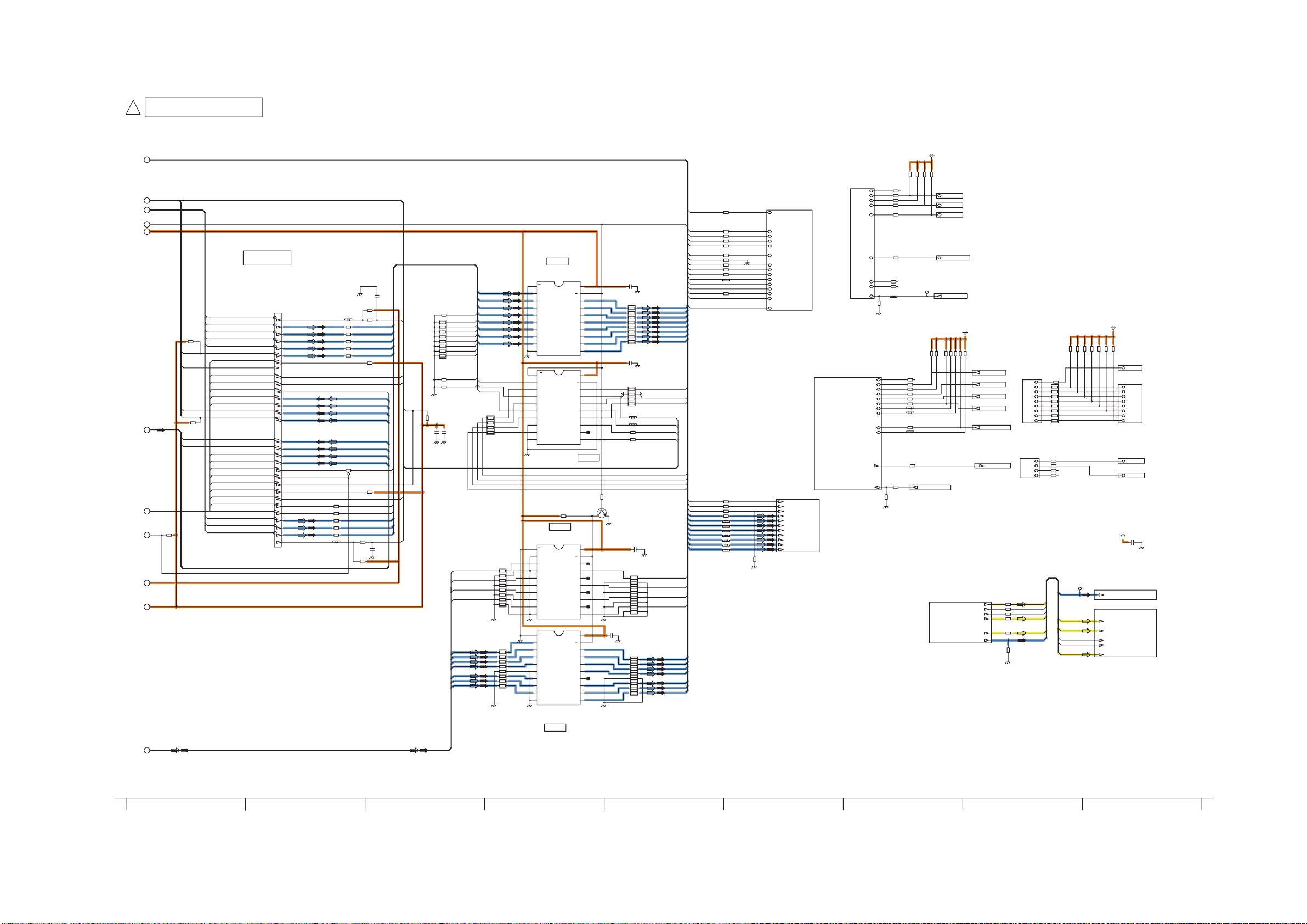

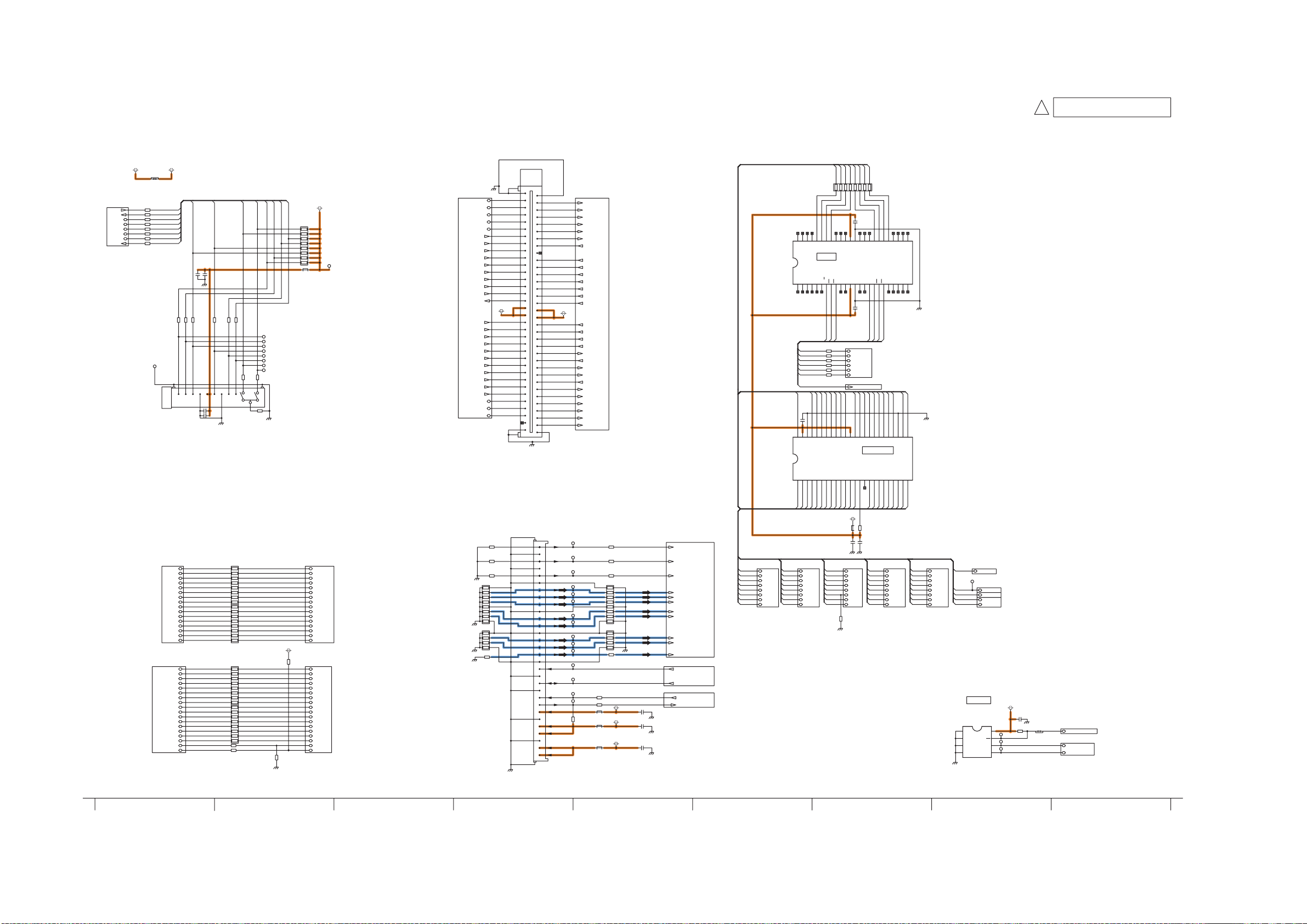

12.9. A-Board (5/22) Schematic Diagram

!
A-BOARD (5/22)
Peaks-DEST REF No. 8000-8999
1
2
3
4
5
CI SLOT
*C8417
25V
0.01u
*R8410
CI_DA3
CI_DA4
CI_DA5
*R8450
CI_DA6
10k
CI_DA7
CI_CE1-
CI_OE-
CI_WE-
CI_IREQ-
*R8433
6
CI_ENINA
CI_CLKINA
22k
7
*R8434
47k
8
CE1#
CI_EAA11
CI_EAA12
CI_EAA10
CI_EAA9
CI_EAA14
CI_EAA15
IREQ#
VPP1
MIVAL
MCLKI
CI_EAA13
CI_EAA8
CI_EAA7
CI_EAA6
CI_EAA5
CI_EAA4
CI_EAA3
CI_EAA2
CI_EAA1
CI_DA0
CI_DA1
CI_DA2
TO 6/22
CI_DA3
CI_CD1-
CI_DA4
CI_MDO3
CI_DA5
CI_MDO4
CI_DA6
CI_MDO5
CI_DA7
CI_MDO6
CI_CE1-
CI_EAA11
CI_OE-
CI_EAA12
CI_EAA10
CI_EAA9
CI_EAA14
CI_EAA15
CI_WE-
CI_IREQ-
CI_ENINA
CI_CLKINA
CI_EAA13
CI_EAA8
CI_EAA7
CI_EAA6
CI_EAA5
CI_EAA4
CI_EAA3
CI_EAA2
CI_EAA1
CI_MDO7
CI_CE2-
CI_IORD-
CI_IOWR-
CI_PKTSTINA
CI_DATAINA0
CI_DATAINA1
CI_DATAINA2
CI_DATAINA3
CI_DATAINA4
CI_DATAINA5
CI_DATAINA6
CI_DATAINA7
CI_MCLKO
CI_RESET
CI_RESET
CI_WAIT-
CI_INPACK-
CI_REG-
CI_MOVAL
CI_MOSTRT
CI_DA0
CI_MDO0
CI_DA1
CI_MDO1
CI_DA2
CI_MDO2
CI_CD2-
A10
OE#
A11
A9
A8
A13
A14
WE#
VCC
A12
A7
A6
A5
A4
A3
A2
A1
A0
VJUMP1005-S
*R8461
*R8421
*R8422
*R8423
*R8424
*R8459
*R8458
*R8425
*R8457
*R8456
R8462
9
10
VJUMP1005-S
CI_CE2-
S
22k
R8409
*R8465
10k
AS_CD1-
S
CI_DATAOUTA3
68
CI_DATAOUTA4
68
CI_DATAOUTA5
68
CI_DATAOUTA6
68
CI_DATAOUTA7
68
CE2#
*R8435
10k
VS1#
CI_IORD-5.0V
CI_IOWR-5.0V
CI_PKTSTINA
CI_DATAINA0
CI_DATAINA1
CI_DATAINA2
CI_DATAINA3
VCC
VPP2
MDI4
CI_DATAINA4
CI_DATAINA5
MDI5
CI_DATAINA6
MDI6
CI_DATAINA7
MDI7
*R8460
68
MCLKO
CI_CLKOUTA
TP8402
RESET
WAIT#
*R8491
22k
INPACK#
CI_REG-5.0V
REG#
CI_ENOUTA
68
CI_PKTSTOUTA
68
CI_DATAOUTA0
68
CI_DATAOUTA1
68
CI_DATAOUTA2
68
*R8466
10k
AS_CD2-
CD2#
*C8416
25V
0.01u
*R8411
22k
CI_WAIT-
BUFFER
*IC8408
C0JBAU000025
1
CI_DATAOUTA0
CI_DATAOUTA1
*R8445
100k
*R8437
EXB2HV104JV
*R8438
100k
*R8440
100k
*R8436
10k
+
*C8412
*C8411
10V
100u
CI_DATAOUTA2
CI_DATAOUTA3
CI_DATAOUTA3
CI_DATAOUTA4
CI_PKTSTOUTA
CI_DATAOUTA0
CI_DATAOUTA5
CI_DATAOUTA1 AC_CHDI5
CI_DATAOUTA6
CI_DATAOUTA2
CI_DATAOUTA4
CI_DATAOUTA7
CI_DATAOUTA5
CI_DATAOUTA6
CI_DATAOUTA7
CI_CLKOUTA
CI_CLKOUTA
CI_ENOUTA
CI_ENOUTA
CI_PKTSTOUTA
*R8488
EXB28V680JX
XPDCD1
XPDCD2
XPDWT
16V
0.1u
XCI_IREQ
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
1
1G
2
1A1
3
2Y4
4
1A2
5
2Y3
6
1A3
7
2Y2
8
1A4
9
2Y1
10
GND
*IC8409
C0JBAZ002811
20
Vcc
19
G2
18
Y1
17
Y2
16
Y3
15
Y4
14
Y5
13
Y6
12
Y7
11
Y8
20
VCC
19
2G
18
1Y1
17
2A4
16
1Y2
15
2A3
14
1Y3
13
2A2
12
1Y4
11
2A1
BUFFER
*R8244
*R8245
10k
10k
*Q8200
2SD0601A0L
BUFFER
*IC8410
C0JBAU000025
FE_CH0CLK
FE_CH0VAL
FE_CH0PSYNC
FE_MDO0
FE_MDO1
FE_MDO2
FE_MDO3
FE_MDO4
FE_MDO5
FE_MDO6
FE_MDO7
*R8426
EXB2HV680JV
*R8428
EXB2HV680JV
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
*IC8411
C0JBAU000025
BUFFER
20
Vcc
19
G2
18
Y1
17
Y2
16
Y3
15
Y4
14
Y5
13
Y6
12
Y7
11
Y8
Vcc
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
C8418
16V
0.1u
20
19
18
17
16
15
14
13
12
11
C8413
16V
0.1u
*R8441
EXB2HV680JV
C8414
16V
0.1u
*R8487
EXB28V680JX
*R8453
EXB2HV680JV
*R8455
EXB2HV680JV
C8415
S
S
16V
0.1u
R8447 VJUMP1005-S
R8448 VJUMP1005-S
*R8446
68
*R8449
68
XPDCD1
XPDCD2
XPDWT
XCI_IREQ
CI_WAIT-
CI_IREQ-
AC_XETS_CI
AS_CD1-
AS_CD2-
AC_CHDI0
AC_CHDI1
AC_CHDI2
AC_CHDI3
AC_CHDI4
AC_CHDI6
AC_CHDI7
AC_CHCLK
AC_CHVAL
AC_CHSYNC
SMTCMD0
SMTSEL0
AC_XPDWT
AC_CHCLK
AC_CHVAL
AC_CHSYNC
AC_CHDI0
AC_CHDI1
AC_CHDI2
AC_CHDI3
AC_CHDI4
AC_CHDI5
AC_CHDI6
AC_CHDI7
CH1VAL
AC_CI_RESET
AC_XPDCE2
AC_XPDOE
AC_XPDWE
AC_XEAB
AC_XETS_CI
AC_REG
AC_IOWR
AC_IORD
AC_XEDBA
AC_XPDWT
SMTCMD0
SMTSEL0
CI_POWER_ON
IS1CLK
CH1VAL
AC_CHVAL
AC_CHSYNC
AC_CHCLK
AC_CHDI0
AC_CHDI1
AC_CHDI2
AC_CHDI3
AC_CHDI4
AC_CHDI5
AC_CHDI6
AC_CHDI7
SUB3.3V
10k
10k
10k
R8661 10k
R8716
R8663
R8575
R8576
R8577
R8667
R8578
R8508
R8582 68
R8585 68
R8897
R8898 10k
R8608
R8963 10k
S
VJUMP1005-S
R8637
R8653
R8638
R8639
R8683
R8652
VJ8601
VJ8600
R8493
VJ8602
*R8692
68
68
68
68
68
68
68
R8746
68
68
68
68
68
68
VJUMP1005-S
S
VJUMP1005-S
S
68
VJUMP1005-S
S
68
TO 8,16/22
G-DTV_VOUTENB
TO 6/22
AA_XECS0
TO 16/22
AA_XECS2
TO 4,16/22
AA_XEAS
TO 6,16/22
AA_XERE
TP8851
TO 8/22
G-SD_BOOT_STS
10k
R8609
R8698 10k
SUB3.3V
10k
R8642 10k
R8618
R8654 10k
TO 14/22
MVDACO1
(DVB_CVBS)
TO 9/22
DIGITAL AUDIO
with AUDIO DESCRIPTION DATA
AH_DAUDIO
MAIN AUDIO DATA
AH_DMIX0
COMMON LR/SR CLK
AH_SRCK0
AH_LRCK0
for PHOTO OUT
AH_IECOUT0
TO 6/22
AA_ERXW
TO 4,6,16/22
AA_EA0
AA_EA1
AA_EA2
AA_EA3
AA_EA4EA4
AA_EA5
AA_EA6
AA_EA7
TO 6,16/22
AA_XEWE0
TO 16/22
AA_XEWE1
SUB5V
C8510
10V 10u
R8677 2.2k
TO 2/22
R8640 10k
R8665 2.2k
Optical_5.1ch
MAIN AUDIO DATA
COMMON LR/SR CLK
SUB3.3V
R8517 10k
R8672
EXB2HV680JV
R8619 10k
R8514
68
68
68
68
68
TP8501
MVDACO1
Comp.
AH_DAUDIO
AH_DMIX0
AH_SRCK0
AH_LRCK0
AH_IECOUT0
R8515 2.2k
R8496 2.2k
R8494 2.2k
R8516 2.2k
TO 6/22
AB_NANDRYBY
TO 4/22
AA_XIRQ2
TO 9/22
AA_XIRQ3
TO 16/22
AA_GC6_IRQ1
TO 16/22
AA_GC6_IRQ0
TO 4/22
AA_FE_SW
IECOUT0
SRCK0
LRCK0
DMIX0
DMIX0
DAUDIO
MVDACO1
R8501 100
R8502 330
R8503 330
R8504 330
*R8506 330
TO 2/22
ERXW
EA0
EA1
EA2
EA3
EA5
EA6
EA7
TO 2/22
R8647
XEWE0
R8651
XEWE1
R8579
ESZ0
R8580
ESZ1
AH_IECOUT0
AH_SRCK0
AH_LRCK0
AH_DMIX0
AH_DAUDIO
MVDACO1
R8510 160
TO 2/22
ECLK
XECS0
XECS1
NANDRYBY
FE_IRQ
GC6_IRQ1
USB_OCP
GC6_IRQ0
CI_OCP
CI_IRQ
XNMIRQ
XECS2
XECS4
XERE
XEDK
BOOTSWAP
AUDCLK
XNMIRQ
XIRQ0
NANDRYBY
XIRQ1
XIRQ1
XIRQ2
XIRQ2
XIRQ3HDMI_IRQ
XIRQ3
XIRQ4
VI1P20
XIRQ5
VI1P1
VI2ENB
XIRQ6
XIRQ7
XIRQ8
VI2P11
XIRQ9
XIRQ10
VI2P10
XIRQ11
IS1CLK
IS1DATA
XIRQ12
XIRQ13
RMCO
CH1VAL
XIRQ14
XIRQ15
VI2P20
FE_SW
VOUTENB
68
*R8864
R8860
68
68
*R8856
*R8857
68
*R8489
68
*R8862
68
*R8855
10k
*R8859
68
*R8858
68
*R8954
68
S
R8854
VJUMP1005-S
*R8899
68
TO 2/22
IS1DATA
XECS6
XEXDMK0
XEXDMR0
IS0DATA
IS0PSYNC
SMTSEL1
SMTCMD1
SMTRST0
SMTD0
SMTCMD0
SMTSEL0
SMTCLK0
IS1CLK
CH1VAL
CI_XRST
XPDCE2
XPDOE
XPDWE
XEAB
XETS_CI
REG
XPDIOWR
XPDIORD
XEDBA
XPDWT
XPDCD1
XPDCD2
CI POWER ON
CI OCP
CI INPACK
CI IRQ
TO 2/22
SCARD_IRQ
W_HDMI_INT
INT_PANEL_CEC
CI_INPACK
POWER_DET
*R8598
68
*R8599
68
*R8600
68
*R8601
68
S
R8602
VJUMP1005-S
S
R8603
VJUMP1005-S
S
R8604
VJUMP1005-S
S
R8605
VJUMP1005-S
S
R8701
VJUMP1005-S
S
R8635
VJUMP1005-S
S
R8712
VJUMP1005-S
R8520
TO 2/22
XRTS0
HSVALIN
XDTR0
HSSYNIN
XDSR0
HSBCLKIN
XDCD0
HSDIN0
HSDIN1
XCTS0
XRI0
HSDIN2
TXD0
HSDIN3
RXD0
HSDIN4
HSDIN5
SMTCLK1
SMTD1
HSDIN6
SMTRST1
10k
HSDIN7
11
453937 42 43 4438 40 41
55
Page 56

12.10. A-Board (6/22) Schematic Diagram

SUB3.3V
SUB_SD_3.3V
R8801
P
TO 2/22
SDCLK
SDCD
SDCMD
SDDAT0
SDDAT1
SDDAT2
SDDAT3
SDWP
SD/IC_CARD
AD_SDCLK
R8610
68
AD_SDCD
R8611
68
R8612
68
R8613
68
R8614
68
R8615
68
R8616
68
R8617
68
TP8565
SD
AD_SDCMD
AD_SDDAT0
AD_SDDAT1
AD_SDDAT2
AD_SDDAT3
AD_SDWP
JK8302
AD_SDCMD
C8535
C8544
16V
0.01u
68
68
R8803
R880568R8802
R8806
1234567
9
GND
SDCMD
SDDAT2
SDDAT3
C8533
16V
0.1u
C8532
16V
47u
4V 22u
3.3V
AD_SDCD
68
R8804
SDDAT0
68
R8807
8
SDDAT1
AD_SDWP
R880868R8703
101112
D.SW
R8660
AD_SDDAT2
AD_SDDAT3
TP8555
TP8554
TP8553
TP8552
TP8551
TP8550
TP8549
TP8548
68
W.P.
0
AD_SDCLK
68
GND
SDCLK
+
AD_SDDAT0
AD_SDDAT1
EXB2HV103JV
R8674
L8501
J0JHC0000045
SUB_SD_3.3V
TP8564
TO 5/22
CI_DA3
CI_DA4
CI_DA5
CI_DA6
CI_DA7
CI_CE1-
CI_EAA11
CI_OE-
CI_EAA12
CI_EAA10
CI_EAA9
CI_EAA14
CI_EAA15
CI_WE-
CI_IREQ-
CI_ENINA
CI_CLKINA
CI_EAA13
CI_EAA8
CI_EAA7
CI_EAA6
CI_EAA5
CI_EAA4
CI_EAA3
CI_EAA2
CI_EAA1
CI_DA0
CI_DA1
CI_DA2
CE1#
A10
OE#
A11
A9
A8
A13
A14
WE#
IREQ#
VCC
VPP1
MIVAL
MCLKI
A12
A7
A6
A5
A4
A3
A2
A1
A0
CI CONNECTOR
*JK8401
GND
1
35
2
36
3
37
4
38
5
39
6
40
7
41
8
42
9
43
10
44
11
45
12
46
13
47
14
48
15
49
16
50
17
SUB_CI_5V
51
18
52
19
53
20
54
21
55
22
56
23
57
24
58
25
59
26
60
27
61
28
62
29
63
30
64
31
65
32
66
33
67
IOIS16#
34
68
PC-CARD
GND
SUB_CI_5V
TO 5/22
CI_CD1-
CD1#
CI_MDO3
CI_MDO4
CI_MDO5
CI_MDO6
CI_MDO7
CI_CE2­CE2#
VS1#
CI_IORD-
CI_IOWR-
CI_PKTSTINA
CI_DATAINA0
CI_DATAINA1
CI_DATAINA2
CI_DATAINA3
VCC
VPP2
CI_DATAINA4
MDI4
CI_DATAINA5
MDI5
CI_DATAINA6
MDI6
CI_DATAINA7
MDI7
CI_MCLKO
MCLKO
CI_RESET
RESET
CI_WAIT-
WAIT#
CI_INPACK­INPACK#
CI_REG-
REG#
CI_MOVAL
CI_MOSTRT
CI_MDO0
CI_MDO1
CI_MDO2
CI_CD2-
CD2#
AA_ED6
AA_ED5
AA_ED4
AA_ED7
45NC46NC47NC48
NC
1NC2NC3NC4NC5NC6NC7
AB_XNFCE
AB_XNFWE
AB_XNFRE
AB_NFALE
AB_NFCLE
AB_XNFWP
AB_NANDRYBY
AA_EA17
C8582
16V
0.1u
48
A16
A152A143A134A125A116A107A98A89A1910NC11NC12NC13NC14NC15NC16A1817A1718A719A620A521A422A323A224A1
1
I/O442I/O543I/O644I/O7
FLASH
R/B8RE9CE10NC11NC12Vcc13Vss14NC15NC16CLE17ALE18WE19WP20NC21NC22NC23NC24NC
AB_NANDRYBY
AB_XNFCE
AB_XNFRE
68
*R8623
68
*R8624
*R8625
68
68
R8699
68
R8627
68
*R8655
AA_ED6
AA_ED7
AA_ED5
AA_ED15
AA_ED13
AA_ED14
40D541
42D643
44D745
46
47
D13
D14
Vss
BYTE#
D15/A-1
AA_ED3
38NC39NC40NC41
*IC8581
TVRQ639:E TVRQ692:B
TO 2/22
TO 5/22
AA_ED4
AA_ED11
AA_ED12
38D439
D12
*IC8580A
AA_ED0
AA_ED1
AA_ED2
*R8622
EXB2HVR000V
C8583
16V
0.1u
33NC34NC35NC36
Vss37Vcc
C8584
16V
0.1u
AB_XNFWE
AB_NFCLE
AB_NFALE
XNFCE
XNFWE
XNFRE
NFALE
NFCLE
XNFWP
AB_NANDRYBY
AA_ED9
AA_ED3
AA_ED1
AA_ED2
AA_ED10
35D336
D10
D1137Vcc
BOOT ROM
C3ZBM0000081
AB_XNFWP
AA_ED8
AA_ED0
29D030D831D132D933D234
I/O030I/O131I/O232I/O3
AA_XERE
AA_XECS0
!
A-BOARD (6/22)
Peaks-MODEL REF No. 8000-8999
25NC26NC27NC28NC29
AA_EA1
25A026
CE#27Vss28OE#
TO 2/22
EA08
EA09
EA10
EA11
EA12
EA13
EA14
EA15
EA16
EA17
EA18
EA19
EA20
EA21
EA22
EA23
EA24
EA25
TO 2/22
ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ED8
ED9
ED10
ED11
ED12
ED13
ED14
ED15
VI2P12
VI2P13
VI2P14
VI2P15
VI2P16
VI2P17
VI2P18
VI2P19
VI2P22
VI2P23
VI2P24
VI2P25
VI2P26
VI2P27
VI2P28
VI2P29
VI2P4
VI2CLK2
R8688
EXB2HV680JV
EXB2HV680JV
EXB2HV680JV
EXB2HV680JV
R8558
R8607
R8689
R8690
R8673
68
68
R8697
2.2k
SUB3.3V
R8691
10k
TO 4,6,16/22
AA_ED0
AA_ED1
AA_ED2
AA_ED3
AA_ED4
AA_ED5
AA_ED6
AA_ED7
AA_ED8
AA_ED9
AA_ED10
AA_ED11
AA_ED12
AA_ED13
AA_ED14
AA_ED15
TO 6/22
AA_EA8
AA_EA9
AA_EA10
AA_EA11
AA_EA12
AA_EA13
AA_EA14
AA_EA15
AA_EA16
AA_EA17
AA_EA18
AA_EA19
AA_EA20
AA_EA21
AA_EA22
AA_EA23
AA_EA24
AA_EA25
46 515049 545347 48
*R8500
EXB2HV103JV
*R8507
EXB28V103JX
AA_EA15
AA_EA11
AA_EA13
AA_EA12
AA_EA10
AA_EA9
AA_EA21
AA_EA20
L8580
J0JHC0000075
C8581
TO 4,6,16/22
AA_EA1
AA_EA3
AA_EA4
AA_EA5
AA_EA6
AA_EA7
AA_EA8
SUB3.3V
0.1u
*R8643
AA_XEWE0
16V
2.2k
XRST_2
AA_EA1
AA_EA2
AA_EA3
AA_EA4
AA_EA5
AA_EA6
AA_EA7
AA_EA8
AA_EA22
AA_EA3
AA_EA5
AA_EA8
AA_EA6
AA_EA18
AA_EA4
AA_EA7
AA_EA19
R8581 10k
C8580 16V
0.1u
AA_EA9
AA_EA10AA_EA2
AA_EA11
AA_EA12
AA_EA13
AA_EA14
AA_EA15
AA_EA16
AA_EA9
AA_EA10
AA_EA11
AA_EA12
AA_EA13AA_ED4
AA_EA14
AA_EA15
AA_EA16
AA_EA2
AA_EA17
AA_EA18
AA_EA19
AA_EA20
AA_EA21
AA_EA22AA_ED5
AA_EA23
AA_EA24
TO 6/22
AA_EA17
AA_EA18
AA_EA19
AA_EA20
AA_EA21
AA_EA22
AA_EA23
AA_EA24
AA_EA25
AA_XECS0
AA_XEWE0
AA_XERE
*IC8502
TVRQ640:E TVRQ641:B
1
NC
2
NC
3
NC
4
VSS
TO 6/22
TP8745
EEPROM
AA_EA25
TO 18/22
XRST_2
AA_XECS0
AA_XEWE0
AA_XERE
VCC
WC
SCL
SDA
8
7
6
5
TO 5/22
TO 5,16/22
SUB3.3V
C8508
0.01u
R8511
TP8563
TP8561
TP8562
16V
R8644
TO 2/22
VJUMP1005-S
S
4.7k XECS7
TO 1/22
LITE2-EEP_SCL
LITE2-EEP_SDA
EEPROM_WP
AA_EA14
AA_EA16
<
TS_PSYNC
TS_VAL
TS_CLK
FE_SDA
FE_SCL
FE_XRST
SUB3.3V
SUB3.3V
SUB5V
GND
GND
GND
MDO7
MDO6
MDO5
GND
MDO4
MDO3
GND
MDO2
MDO1
MDO0
GND
GND
GND
XIRQ
GND
GND
TOP
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
*A88A TO XS-BOARD (XS3)
*R8682
10k
*R8769
10k
*R8770
10k
*R8771
10k
*R8372
TP8210
TP8211
TP8212
TP8220
TP8219
TP8218
TP8217
TP8216
TP8215
TP8214
TP8213
TP8209
TP8208
TP8207
TP8206
*R8394
68
*R8373
68
*R8374
68
*R8355 EXB2HV680JV
*R8498
EXB28V680JX
*R8499
68
*R8377
68
*R8378
68
SUB5V
SUB3.3V
F15V
25V
25V
25V
*L8355
J0JHC0000075
10k
*L8356
J0JHC0000075
*L8358
J0JHC0000075
TO 4/22
FE1_PSYNC
FE1_VAL
FE1_CLK
FE1_MDO7
FE1_MDO6
FE1_MDO5
FE1_MDO4
FE1_MDO3
FE1_MDO2
FE1_MDO1
FE1_MDO0
TO 1/22
FE1_SDA
FE1_SCL
TO 2,4/22
VI2P21
FE_XRST
PORT16[7]
*C8951
*C8952
*C8430
FE1_XIRQ
10u
10u
10u
TO 4,6,16/22
AA_ED0
AA_ED1
AA_ED2
AA_ED3
AA_ED4 XRST_2
AA_ED6
AA_ED7
TO 6,16/22 TO 6/22
AA_ED8
AA_ED9
AA_ED10
AA_ED11
AA_ED12
AA_ED13
AA_ED14
AA_ED15
AA_ED8
AA_ED9
AA_ED10
AA_ED11
AA_ED12
AA_ED13
AA_ED14
AA_ED15
AA_ED0
AA_ED1
AA_ED2
AA_ED3
AA_ED5
AA_ED6
AA_ED7
56
Page 57

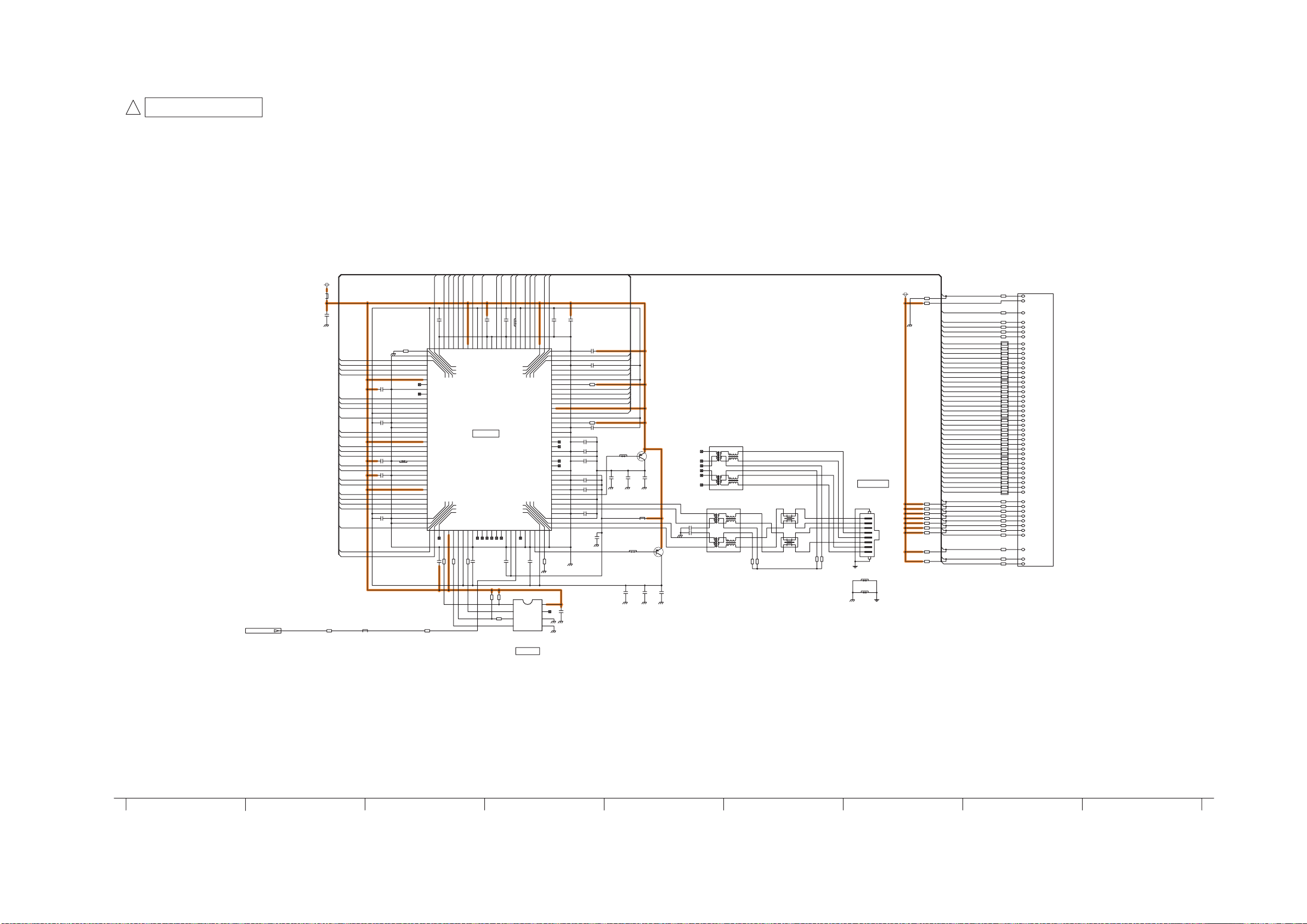

12.11. A-Board (7/22) Schematic Diagram

!
A-BOARD (7/22)
Peaks-MODEL REF No. 8000-8999
TO 2/22
AX_CLKLAN
J0JHC0000045
SUB3.3V
PCIAD20
LED2
AB_PCAD11
AB_PCAD21
AB_PCAD22
AB_PCAD23
AB_PCAD24
AB_PCAD25
AB_PCAD26
AB_PCAD27
AB_PCCXBE3
0.1u
0.1u
S
16V
16V
51
VSSPST
116NC117
*C8617
*R8758
49
PCIAD2250PCIAD21
LED0
118NC119
16V
0.1u
*R8696
10k
47
*C8568
R8831
47
48
GND
PCIAD23
VDD33
PCIAD26
PCIAD27
VSS
RSET
AVDD15
VSSPST
AVDD33
XTAL1
XTAL2
120
121
122
*C8618
16V
0.1u
1
CS
2
SK
3
DI
4
DO
*IC8504
C3EBCG000100
VJUMP1005-S
44
CBEB345VDD1546IDSEL
VSSPST
MDI0+2MDI0-3AVDD18
VSS
123
124
41
42
PCIAD2543PCIAD24
PCIAD30
PCIAD31
VDD15
PCIAD2937PCIAD28
PCICLK
PCIRSTB
VDD33
INTAB
VDD15
ISOLATEB
VSSPST
AVDD18
AVDD18
AVDD33
AVDD33
CTRL18
AVDD18
MDI1-
MDI1+
VSS
CTRL15
125
126
VCC
NC
TEST
GND
*C8569
52
GND
LED1
115
10k
0.1u
0.1u
16V
16V
*C8567
*C8610
40
39
*C8561
38
36
GND
35
34
33
32
PMEB
31
REQB
30
GNTB
29
28
27
26
25
24
23
GND
22
21
20
NC
19
NC
18
VSS
17
16
NC
15
NC
14
VSS
13
12
VSS
11
10
VSS
VSS
127
128
1%
*R8702
2.49k
8
7
6
5
16V 0.1u
AB_PCAD28
AB_PCAD29
*C8566
16V 0.1u
AB_PCAD30
*R8714 10k
*R8657
*C8560
16V
*C8559
16V
*C8556
16V
*C8615
16V
*C8616
9
16V
8
7
6
5
*C8555
4
16V
1
*C8546
16V
0.1u
AB_PCAD31
AB_PCBRQ
AB_PCBGNT
AB_PCCLK0
AB_PCRST
AB_PCIRQ
10k
*C8611
16V
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
*C8562
10V 10u
VJUMP1005-S
*C8557
VJUMP1005-S
VJ8789
16V
0.1u
VJ8790
*Q8503
B1ADKC000002
S
*C8558
*C8612
16V
0.1u
10V 10u
*L8508
J0JHC0000045
B1ADKC000002
S
*Q8504
*C8571
10V 10u
RX+
TX-
TX+
*C8613
*C8614
10V
10V
10u
10u
RX-
*C8570
16V
0.01u
*C8565
16V
0.01u
*T8302
G5BYC0000015
1
2
3
4
5
6
*T8301
G5BYC0000015
1
2
3
4
5
6
12
11
10
9
8
7
*L8511
J0ZZB0000101
12
11
10
9
8
7
*R8381
75
2
1
43
2
1
43
*L8512
J0ZZB0000101
*R8382
75
*R8384
*R8383
75
75
ETHERNET
*JK8301
K2LC1YYA0005
TX+
1
TX-
2
RX+
3
4
5
RX-
6
7
8
VJ8500
VJUMP1608-P
P
VJ8501
VJUMP1608-P
P
AB_PCAD17
AB_PCAD18
AB_PCAD19
AB_PCAD20
*L8507
*C8545
10V 10u
*R8631
*C8547
16V 0.1u
*C8548
16V
*C8549
16V
*C8550
16V
*C8551
16V
10k
0.1u
P
0.1u
R8786
VJUMP1005-P
0.1u
0.1u
AB_PCXTRDY
AB_PCDEVSEL
AB_PCXSTOP
AB_PCXPERR
AB_PCXSERR
AB_PCPAR
AB_PCCXBE1
AB_PCAD15
AB_PCAD14
AB_PCAD13
AB_PCAD12
AB_PCAD11
AB_PCAD10
AB_PCAD9
AB_PCAD8
AB_PCCXBE0
AB_PCAD7
AB_PCAD6
AB_PCAD5
AB_PCAD4
AB_PCAD3
AB_PCAD2
AB_PCAD1
AB_PCAD0
*R8092
*L8509
82
J0JHC0000045
AB_PCAD16
AB_PCCXBE2
AB_PCXIRDY
AB_PCXFRAME
0.1u
16V
*C8609
53
54
55
56
57
60
61
62
63
64
65
66
FRAMEB
67
DEVSELB
68
STOPB
69
PERRB
70
VDD33
71
NC
72
GND
73
NC
74
SERRB
75
PAR
76
CBEB1
77
VDD15
78
PCIAD15
79
GND
80
VSSPST
81
PCIAD14
82
PCIAD13
83
VDD33
84
PCIAD12
85
PCIAD11
86
PCIAD10
87
M66EN
PCIAD9
89
PCIAD8
90
VSSPST
91
CBEB0
92
PCIAD7
93
VDD33
94
PCIAD6
95
PCIAD5
96
PCIAD4
97
PCIAD3
98
VDD15
99
100
101
EECS
102
103
104
105
106
0.1u
16V
*C8552
*R8694
0
TRDYB
GND
107
47
*R8754
CBEB2
VSSPST
VSSPST
VDD33
CLKRUNB
PCIAD2
108
47
*R8755
EED0
GND
IRDYB
VDD15
PCIAD1
PCIAD0
LANWAKE
EEDI
109
110
VDD15
VDD33
PCIAD19
PCIAD1858PCIAD1759PCIAD16
*IC8503
C1CB00002987
LAN I/F
VDD15
EESK
GND
LED3
111
112
113
114
47
*C8608
16V
0.1u
*R8756
*R8757
SUB3.3V
AB_PCRST
10k
R8715
*R8748
10k
AB_PCCLK0
AB_PCCXBE0
AB_PCCXBE1
AB_PCCXBE2
AB_PCCXBE3
AB_PCAD0
AB_PCAD1
AB_PCAD2
AB_PCAD3
AB_PCAD4
AB_PCAD5
AB_PCAD6
AB_PCAD7
AB_PCAD8
AB_PCAD9
AB_PCAD10
AB_PCAD11
AB_PCAD12
AB_PCAD13
AB_PCAD14
AB_PCAD15
AB_PCAD16
AB_PCAD17
AB_PCAD18
AB_PCAD19
AB_PCAD20
AB_PCAD21
AB_PCAD22
AB_PCAD23
AB_PCAD24
AB_PCAD25
AB_PCAD26
AB_PCAD27
AB_PCAD28
AB_PCAD29
AB_PCAD30
AB_PCAD31
*R8752
R8751
R8750
R8768
R8629
R8628
*R8749
R8630
R8747
AB_PCXSERR
10k
AB_PCXPERR
10k
AB_PCXSTOP
10k
AB_PCXFRAME
10k
AB_PCXTRDY
10k
AB_PCXIRDY
10k
AB_PCDEVSEL
10k
AB_PCPAR
AB_PCIRQ
10k
AB_PCBRQ
10k
AB_PCBGNT
EXB2HV121JV
EXB2HV121JV
EXB2HV121JV
EXB2HV121JV
R8742
*R8743
*R8744
R8745
TO 2/22
R8724
68
PCRST
R8726
*R8727
*R8728
R8729
R8730
*R8731
R8732
R8733
R8734
R8735
R8736
*R8737
R8738
R8739
R8740
*R8741
PCIDSELA
68
PCCLKO0
120
PCCXBE0
120
PCCXBE1
120
PCCXBE2
120
PCCXBE3
PCAD0
PCAD1
PCAD2
PCAD3
PCAD4
PCAD5
PCAD6
PCAD7
PCAD8
PCAD9
PCAD10
PCAD11
PCAD12
PCAD13
PCAD14
PCAD15
PCAD16
PCAD17
PCAD18
PCAD19
PCAD20
PCAD21
PCAD22
PCAD23
PCAD24
PCAD25
PCAD26
PCAD27
PCAD28
PCAD29
PCAD30
PCAD31
120
PCXSERR
120
PCXPERR
120
PCXSTOP
120
PCXFRAME
120
PCXTRDY
120
PCXIRDY
120
PCDEVSEL
120
PCPAR
120
PCIRQ0
120
PCBRQ0
68
PCBGT0
EEPROM
55 6059 6158 636256 57
57
Page 58

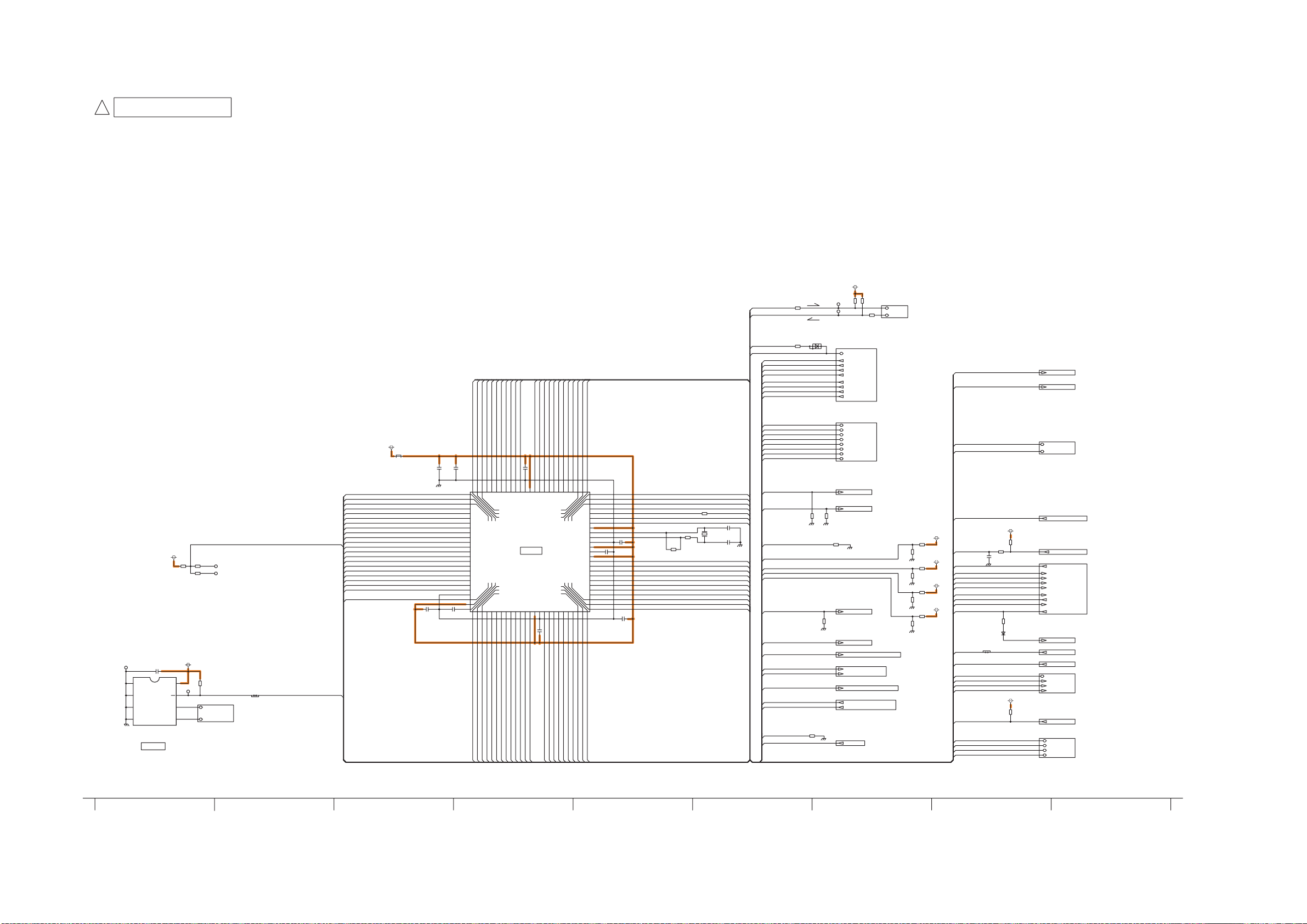

12.12. A-Board (8/22) Schematic Diagram

!
A-BOARD (8/22)
GenX REF No. 1100-1499
G-HPD0
G-HPD1
G-HPD2
G-INV_PSU_ON
G-R_LED_ON
G-G_LED_ON
G-HDMI_5V_DET0
G-SD_LED_ON
G-ACTIVE_STBY_LED_ON
G-DDCSDA0
G-DDCSCL0
G-FACT
G-DDCSDA1
G-GENX-EEP_WP
G-DDCSCL1
G-HDMI_5V_DET1
G-DDCSDA2
G-DDCSCL2
G-PEAKS_SERIAL_SBO
G-PEAKS_SERIAL_SBI
G-MAIN3.3V_SENSE
GENX_SDA0
GENX_SCL0
G-HDMI_5V_DET2
TP1103
1
NC
2
NC
3
E2
4
VSS
*IC1101
TVRQ392
EEPROM
STB3.3V
R1243
R1236
47k
47k
STB3.3V
C1117
16V
0.1u
8
VCC
TP1102
7
WC
6
SCL
5
SDA
R1237
1k
TO 1/22
R1209
4.7k
GENX-EEP_SCL
GENX-EEP_SDA
TP1400
TP1401
R1207
VJUMP1005-S
S
STB3.3V
L1100
J0JYC0000068
P41.TMIO1
P42.TMIO2
P43,TMIO3
P44,TMIO4
P03,SBT0B
P04,SBO0B
PD0,DDCSDA0
PD1,DDCSCL0
PD2,DDCSDA1
PD3,DDCSCL1
PD4,DDCSDA2
PD5,DDCSCL2
P65,USBO2
P66,USBI2
P70,SDA0
P71,SCL0
SUB3.3V
R1225
R1224
R1181
TP1107
G-HDMI_5V_DET3
G-DDCSCL0
G-PANEL_READY
0
TP1108
D1107
R1182
MA3X704A0L
27k
R1415
R1414
10k
10k
R1416
10k
R2930
15k
G-PEAKS_SERIAL_SBO
G-PEAKS_SERIAL_SBI
G-HDMI_CEC_PU_ON
G-HDMI_CEC
G-HDMI_5V_DET0
G-HDMI_5V_DET1
G-HDMI_5V_DET2
G-HPD0
G-HPD1
G-SDATA
G-SCLOCK
G-NRST
27p
22p
G-FAN_SOS
G-FAN_MAX
G-EDID_WP
G-HPD2
G-HPD3
G-DDCSDA0
G-DDCSDA1
G-DDCSCL1
G-DDCSDA2
G-DDCSCL2
G-DDCSDA3
G-DDCSCL3
G-ADV_XRST
G-AUDIO_XRST
G-INV_PSU_ON
G-SUB3.3V_SENSE
G-DTV9V_SENSE
G-SUB5V_SENSE
G-MAIN3.3V_SENSE
G-HQ_XRST
G-TV_MAIN_ON
G-PANEL_STBY_ON/PANEL_VCC_ON
G-ECO_ON/INVERTER_ON
G-TV_SUB_ON
G-GRAB_MODULE_IIC/PWM_POW_ON
G-PANEL_ALARM/INVERTER_SOS
G-ACTIVE_ANTENNA_DET
G-RF_AFT1
G-FACT
G-HPD3
G-TRCD3
G-TRCD0
G-TRCST
G-TRCD1
G-TRCD2
TRCD1 / (NC)
P40,TMIO0,SYSCLK
TRCD2 / (NC)
TRCD0 / (NC)
TRCD3 / (UND)
79
83
TRCD080TRCD181TRCD282TRCD3
P40_TMIO0_SYSCLK
P02
SDATA
SCLOCK
PE4_VPPEX
P3052P3153P32
P17
P15
P16
P13
P14
P12
G-ADV_XRST
G-HQ_XRST
G-BACK_VOUTENB
G-MID_VOUTENB
G-SOURCE_XRST/PANEL_TEST_ON
G-TRCCLK
TRCST / (N.C.)
78
NRST
NBOOT
PE2
PE1
IVDD
OSCXI
OSCXO
VSS
NTEST
VDD
IVDD
PE3
PE0
P37
P36
P35
P34
P33
48
P17
GENX_SDA1
G-EXTRG0
EXTRG0 / (UND)
TRCCLK / (N.C.)
76
77
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
51
49
50
P72,SDA1
P73,SCL1
GENX_SCL1
SDATA / (UND)
SCLOCK / (UND)
P02
NRST
NBOOT / (N.C.)
PE2
PE1
IVDD
OSCXI
OSCXO
C1108
16V
0.1u
VSS
R1163
C1109
1u10V
NTEST
1M
VDD
IVDD
PE4,VPPEX / (PE4)
PE3
PE0
P37
P36
P35
P34
P33
P32
P31
P30
C1123
1u10V
R1153
10MHz
470
R1197 0
G-ACTIVE_ANTENNA_ON
G-MAIN_FAN_ON
G-SD_PWR_CTRL
C1106
50V
X1100
H0J100500035
C1107
50V
G-DTV_VOUTENB
G-SD_BOOT_STS
G-GENX-EEP_WP
G-SRQ_GENX
G-SW_OFF_DET
G-DTV_XRST
G-MON_MUTE
G-SP_HP_MUTE
G-TV_SUB_ON
G-QLINK2
G-QLINK1
G-DDCSDA3
G-DDCSCL3
G-CLK74SEL
G-HDMI_CEC
G-SIF_FIL_ON
G-HDMI_5V_DET3
G-HDMI_CEC_PU_ON
P76,CEC0
PD7,DDCSCL3
P64,SBI1
P63,SBO1
PF4
PD6,DDCSDA3
C1103
C1102
10V
16V
0.1u
10u
95
96
98
99
100
1
4
P76_CEC0
P44_TMIO4
P63_SBO1
P00
P01
PF3
PF1
P26
VSS
PF2
IVDD
C1112
VDD
0.1u
16V
5
PD6_DDCSDA397PD7_DDCSCL3
P00
P64_SBI1
6
PF4
P01
7
PF3
8
P03_SBT0B
9
P04_SBO0B
10
P41_TMIO12P42_TMIO23P43_TMIO3
PD0_DDCSDA0
11
PD1_DDCSCL0
12
PD2_DDCSDA1
13
PD3_DDCSCL1
14
PF1
15
PD4_DDCSDA2
16
PD5_DDCSCL2
17
P65_USBO2
18
P66_USBI2
19
P26
PF224IVDD25VDD
20
P70_SDA0
P60_SBO0A
21
P71_SCL0
P61_SBT0A
22
P62_SBI0A
VSS
23
C1111
1u10V
P05_IRQ630P06_IRQ731P07_IRQ832P50_RMIN_IRQ033P20_IRQ134P21_IRQ235P22_IRQ336P23_IRQ437P24_IRQ538P2539IVDD40VSS41P1042P1143P1244P1345P1446P1547P16
27
28
29
26
P05,IRQ6
P07,IRQ8
P06,IRQ7
P60,SBO0A
P62,SBI0A
P61,SBT0A
G-RMIN
G-SRQ_GENX
G-ECO_ON/INVERTER_ON
G-SOS
G-SOUND_SOS
G-TV_MAIN_ON
G-PANEL_STBY_ON/PANEL_VCC_ON
G-PANEL_LED_ON
G-ACTIVE_ANTENNA_DET
4mA
P74,CECAVL1B
PF0
P84,ADIN4
P85,ADIN5
P75,CECAVL1A
C1104
90
92
93
94
PF0
P84_ADIN491P85_ADIN5
P74_CECAVL1B
P75_CECAVL1A
IC1100
MNZSFH9GP83
GenX8
P21,IRQ2
P22,IRQ3
P23,IRQ4
P20,IRQ1
P50,RMIN,IRQ0
G-SUB3.3V_SENSE
G-PANEL_READY
G-DTV9V_SENSE
G-MAIN3.3V_SENSE
G-PANEL_ALARM/INVERTER_SOS
G-RF_AFT1
GENX-KEY1
P83,ADIN3
IVDD
VSS
P82,ADIN2
0.1u
16V
88
89
VSS
IVDD
P73_SCL1
P72_SDA1
0.1u
16V
C1114
P25
VSS
IVDD
P24,IRQ5
G-GRAB_MODULE_IIC/PWM_POW_ON
G-SUB5V_SENSE
G-AI_SENSOR
P81,ADIN1
P80,ADIN0
84
P80_ADIN085P81_ADIN186P82_ADIN287P83_ADIN3
TRCST
TRCCLK
EXTRG0
P10
P11
G-HDMI_REP_EN
G-AUDIO_XRST
10k
TO 10/22
G-HDMI_CEC
G-HDMI_5V_DET0
G-HDMI_5V_DET1
G-HDMI_5V_DET2
G-HDMI_5V_DET3
G-HPD0
G-HPD1
G-HPD2
G-HPD3
TO 10/22
G-DDCSDA0
G-DDCSCL0
G-DDCSDA1
G-DDCSCL1
G-DDCSDA2
G-DDCSCL2
G-DDCSDA3
G-DDCSCL3
TO 9,13/22
G-ADV_XRST
TO 12/22
G-AUDIO_XRST
R1413
47k
TO 18,19/22
G-HQ_XRST
TO 19/22
G-TV_MAIN_ON
TO 15/22
G-PANEL_STBY_ON/PANEL_VCC_ON
TO 22/22
G-ECO_ON/INVERTER_ON
G-TV_SUB_ON
TO 18/22
G-GRAB_MODULE_IIC/PWM_POW_ON
TO 15/22
G-PANEL_ALARM/INVERTER_SOS
G-PANEL_READY
TO 15/22
G-RF_AFT1
10k
TO 2/22
SBI2
SBO2
R1179
0
G-SD_BOOT_STS
G-DTV_VOUTENB
G-QLINK1
G-QLINK2
G-SOUND_SOS
SUB3.3V
R1410
10k
R1411
100k
R1404
68k
R1405
33k
R1407
47k
R1406 68k
*R1408
10k
R1401
100k
SUB9V
SUB5V
FRC_3.3V
GENX-KEY1
G-RMIN
G-R_LED_ON
G-G_LED_ON
G-ACTIVE_STBY_LED_ON
G-SD_LED_ON
G-FAN_MAX
G-FAN_SOS
G-MAIN_FAN_ON
G-AI_SENSOR
G-NRST
G-SOS
G-SW_OFF_DET
G-DTV_XRST
G-SP_HP_MUTE
G-MON_MUTE
G-SRQ_GENX
GENX_SDA0
GENX_SCL0
GENX_SDA1
GENX_SCL1
STB3.3V
R1221
7.15k
1%
C1122
R1255
25V
1k
0.01u
R1173
330
D1112
MA2J72800L
S
R1146
VJUMP1005-S
STB3.3V
R1203
47k
TO 5/22
G-SD_BOOT_STS
TO 5,16/22
G-DTV_VOUTENB
TO 14/22
G-QLINK1
G-QLINK2
TO 12/22
G-SOUND_SOS
TO 15,22/22
G-KEY1
G-RMIN
G-R_LED_ON
G-G_LED_ON
G-ACTIVE_STBY_LED_ON
G-SD_LED_ON
G-FAN_MAX
G-FAN_SOS
G-MAIN_FAN_ON
G-AI_SENSOR
TO 18/22
OFF_HOGO
TO 16,18/22
STB_RST
TO 21/22
G-SOS
TO 18/22
G-SW_OFF_DET
G-DTV_XRST
G-SP_HP_MUTE
G-MON_MUTE
TO 22/22
G-SRQ_GENX
TO 1/22
GENX_SDA0
GENX_SCL0
GENX_SDA1
GENX_SCL1
TO 22/22
66 68 69 70 7164 65 67 72
58
Page 59

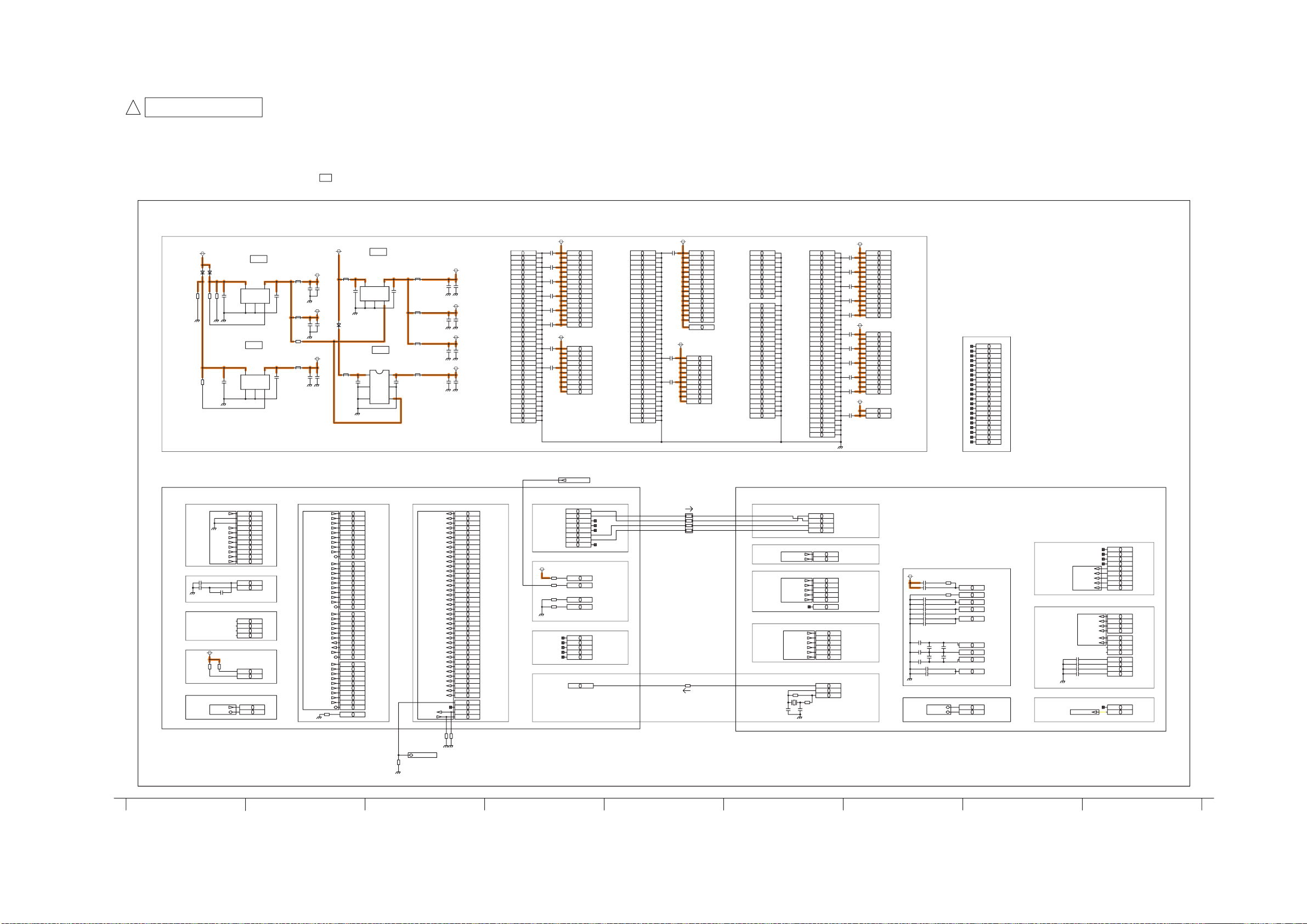

12.13. A-Board (9/22) Schematic Diagram

!
A-BOARD (9/22)
ADV
REF No. 4500-4799
ADV
IC4510
C1AB00003045
PowerSupply
SUB5V
D4577
D4576
B0HCMM000014
B0HCMM000014
10k
100k
R4624
C2118
10V
4.7u
R4699
C4605
10V
4.7u
IC2008
C0DBGYY00578
R4698
100k
R2190
4.7k
ADV7496
AnalogInput
TO 11/22
AIN9 RXA_CP
AIN6
AIN5
AIN4
SOY
SOY2
FBIN
PC_VS
PC_HS
AD ref
C4547
0.1u
16V
C4555
C4550
10u
10V
16V
0.1u
HPDET
CEC
DVDDIO_3.3V
R4642
R4620
47k
47k
IIC2
ADV_SCL
3.3V
IC4511
C0DBGYY00578
4
VOUT
VIN
VSS
ON/OFF
NC
2
3
3.3V
4
VOUT
VIN
VSS
ON/OFF
NC
2
3
IC4510 B10 AIN9
IC4510 A10 AIN8
IC4510 A11 AIN7
IC4510 A12 AIN6
IC4510 A13 AIN5
IC4510 A14 AIN4
IC4510 A15 SYNC2
IC4510 B11 SYNC3
IC4510 D11 FB
IC4510 D12 VS_IN1
IC4510 D13 HS_IN1
IC4510 B8 REFN
IC4510 A8 REFP
IC4510 W2 RXB_5V
IC4510 W3 RXC_5V
IC4510 Y1 RXD_5V
IC4510 W1 RXA_5V
IC4510 C13 AVLINK
IC4510 V4 CEC
IC4510 AA14 SCL
IC4510 AA13 SDATA
TVDD_3.3V
SUB3.3V
DVDDIO_3.3V
L4513
J0JCC0000059
5
C4603 10V
2.2u
1
J0JYC0000068
5
C2111 10V
4.7u
1
C4602
C4601
10V
16V
0.1u
10u
TVDD_3.3V
L4512
J0JCC0000059
C4599
C4600
10V
16V
10u
0.1u
R4623
0
AAVDD_3.3V
L2032
C2192
C2102
10V
16V
0.1u
10u
HDMI IN
TO 10/22 TO 11/22
RXA_CN
RXA_0P
RXA_0N
RXA_1P
RXA_1N
RXA_2P
RXA_2N
ADV-DDCA_SCL
ADV-DDCA_SDA
RXB_CP
RXB_CN
RXB_0P
RXB_0N
RXB_1P
RXB_1N
RXB_2P
RXB_2N
ADV-DDCB_SCL
ADV-DDCB_SDA
RXC_CP
RXC_CN
RXC_0P
RXC_0N
RXC_1P
RXC_1N
RXC_2N
ADV-DDCC_SCL
ADV-DDCC_SDA
RXD_CP
RXD_CN
RXD_0P
RXD_0N
RXD_1P
RXD_1N
RXD_2P
RXD_2N
ADV-DDCD_SCL
ADV-DDCD_SDA
R4631
1%
499
IC4513
C0DBGYY00618
L4514
J0JYC0000068
4
C4616
VIN
10V
4.7u
NC
3
D4583 B0HCMM000014
IC4512
C0CBCAG00039
L4515
J0JYC0000068
6
VIN
C4606
10V
5
4.7u VSS
4
NC
IC4510 B5 RXA_C+
IC4510 A5 RXA_C-
IC4510 B4 RXA_0+
IC4510 A4 RXA_0-
IC4510 B3 RXA_1+
IC4510 A3 RXA_1-
IC4510 B2 RXA_2+
IC4510 A2 RXA_2-
IC4510 G4 DDCA_SCL
IC4510 F4 DDCA_SDA
IC4510 D2 RXB_C+
IC4510 D1 RXB_C-
IC4510 E2 RXB_0+
IC4510 E1 RXB_0-
IC4510 F2 RXB_1+
IC4510 F1 RXB_1-
IC4510 G2 RXB_2+
IC4510 G1 RXB_2-
IC4510 H4 DDCB_SCL
IC4510 J4 DDCB_SDA
IC4510 J2 RXC_C+
IC4510 J1 RXC_C-
IC4510 K2 RXC_0+
IC4510 K1 RXC_0-
IC4510 L2 RXC_1+
IC4510 L1 RXC_1-
IC4510 M2 RXC_2+
IC4510 M1 RXC_2-
IC4510 P4 DDCC_SCL
IC4510 R4 DDCC_SDA
IC4510 P2 RXD_C+
IC4510 P1 RXD_C-
IC4510 R2 RXD_0+
IC4510 R1 RXD_0-
IC4510 T2 RXD_1+
IC4510 T1 RXD_1-
IC4510 U2 RXD_2+
IC4510 U1 RXD_2-
IC4510 T4 DDCD_SCL
IC4510 U4 DDCD_SDA
IC4510 L4 RTERM
1.8V
J0JYC0000068
5
VOUT
C4617 10V
4.7u
VSS
ON/OFF
1
2
1.8V
1
VOUT
C4607
10V
4.7u
2
VSS
3
ON/OFF
J0JYC0000068
L4518
J0JYC0000068
L4519
J0JYC0000068
PVDD 1.8V
C4631
C4608
10V
16V
0.1u
10u
VAVDD_1.8V
L4517
AVDD 1.8V
C4635
C4613
6.3V
10V
1u
10u
CVDD_1.8V
CVDD 1.8V
C4598
C4595
10V
16V
10u
0.1u
DVDD_1.8V
DVDD 1.8V
C4633
C4637
10V
16V
0.1u
10u
PVDD_1.8V
L4516
DigitalVideoOUT
IC4510 AB2 P0
ADV_P0
IC4510 AC2 P1
ADV_P1
IC4510 AB3 P2
ADV_P2
IC4510 AC3 P3
ADV_P3
IC4510 AB4 P4
ADV_P4
IC4510 AC4 P5
ADV_P5
IC4510 AB5 P6
ADV_P6
IC4510 AC5 P7
ADV_P7
IC4510 AB6 P8
ADV_P8
IC4510 AC6 P9
ADV_P9
IC4510 AB8 P10
ADV_P10
ADV_P11
IC4510 AC8 P11
ADV_P12
IC4510 AB9 P12
IC4510 AC9 P13
ADV_P13
IC4510 AB10 P14
ADV_P14
IC4510 AC10 P15
ADV_P15
IC4510 AB11 P16
ADV_P16
ADV_P17
IC4510 AC11 P17
ADV_P18
IC4510 AC13 P18
IC4510 AB13 P19
ADV_P19
IC4510 AC14 P20
ADV_P20
IC4510 AB14 P21
ADV_P21
IC4510 AC15 P22
ADV_P22
IC4510 AB15 P23
ADV_P23
IC4510 AC16 P24
ADV_P24
ADV_P25
IC4510 AB16 P25
IC4510 AB18 P26
ADV_P26
ADV_P27RXC_2P
IC4510 AC18 P27
IC4510 AB19 P28
ADV_P28
ADV_P29
IC4510 AC20 P29
IC4510 AB20 P30
ADV_P30
ADV_P31
IC4510 AC21 P31
IC4510 AB21 P32
ADV_P32
IC4510 AC22 P33
ADV_P33
IC4510 AB22 P34
ADV_P34
IC4510 AB23 P35
ADV_P35
IC4510 AA1 HS
ADV_HS
ADV_VS_FIELD
IC4510 AA2 VS_FIELD
ADV_DE
IC4510 Y2 DE
IC4510 Y13 INT
IC4510 Y14 SYNC_OUT/INT2
IC4510 AC19 LLC/BLC
R4665
47k
IC4510 AA18 DCLKIN
R4666
47k
ADV_CLKOA
TO 5/22
AA_XIRQ3
R4652
47k
IC4510A1DGND
IC4510A6DGND
IC4510AA7DGND
IC4510AA12DGND
IC4510AA17DGND
IC4510AB1DGND
IC4510AB7DGND
IC4510AB12DGND
IC4510AC23DGND
IC4510AB17DGND
IC4510AC1DGND
IC4510AC7DGND
IC4510AC12DGND
IC4510AC17DGND
IC4510C1DGND
IC4510C3DGND
IC4510C4DGND
IC4510C5DGND
IC4510D4DGND
IC4510D5DGND
IC4510E3DGND
IC4510E4DGND
IC4510F3DGND
IC4510J3DGND
IC4510J10DGND
IC4510J11DGND
IC4510J12DGND
IC4510J13DGND
IC4510J14DGND
IC4510J15DGND
IC4510J16DGND
IC4510J17DGND
IC4510J20AGND
IC4510K10DGND
IC4510K11DGND
IC4510K12DGND
C4642
16V
0.1u
C4632
16V
0.1u
C4634
16V
0.1u
C4640
16V
0.1u
C4638
16V
0.1u
C4636
16V
0.1u
CVDD_1.8V
C4574
16V
0.1u
C4580
16V
0.1u
TO 8,13/22
HDMISoundOUT
VideoControl
DVDDIO_3.3V
R4707
47k
2.2k
R4656
R4674
10k
R4677
10k
EEPROM
IC4510 B1 TVDD
IC4510 B6 TVDD
IC4510 C2 TVDD
IC4510 C6 TVDD
IC4510 D3 TVDD
IC4510 D6 TVDD
IC4510 G3 TVDD
IC4510 H1 TVDD
IC4510 H2 TVDD
IC4510 H3 TVDD
IC4510 M3 TVDD
IC4510 N2 TVDD
IC4510 N3 TVDD
IC4510 U3 TVDD
IC4510 V2 TVDD
IC4510 V3 TVDD
IC4510 J7 CVDD
IC4510 J8 CVDD
IC4510 J9 CVDD
IC4510 K7 CVDD
IC4510 K8 CVDD
IC4510 K9 CVDD
IC4510 L7 CVDD
IC4510 L8 CVDD
IC4510 M7 CVDD
IC4510 M8 CVDD
G-ADV_XRST
IC4510Y9SCLK
IC4510Y8LRCLK
IC4510Y10I2S3
IC4510AA10I2S2
IC4510Y11I2S1
IC4510AA11I2S0
IC4510AA9SPDIF
IC4510AA8CLK_24.576
IC4510 AA3 PWRDNB
IC4510 AA22 RESETB
IC4510 B7 TEST0
IC4510 A7 TEST1
IC4510 Y6 EP_MISO
IC4510 AA4 EP_MOSI
IC4510 AA5 EP_CS
IC4510 AA6 EP_SCK
IC4510 AA23 SHARED_EDID
IC4510C15VCLKIN
M13DGND
DVDD_1.8V
C4626
16V
0.1u
IC4510K13DGND
IC4510K14DGND
IC4510K15DGND
IC4510K16DGND
IC4510K17DGND
IC4510L3DGND
IC4510K3DGND
IC4510L9DGND
IC4510L10DGND
IC4510L11DGND
IC4510L12DGND
IC4510L13DGND
IC4510L14DGND
IC4510L15DGND
IC4510L16DGND
IC4510L17DGND
IC4510M4DGND
IC4510M9DGND
IC4510M10DGND
IC4510M11DGND
IC4510M12DGND
IC4510
IC4510M14DGND
IC4510M15DGND
IC4510M16DGND
IC4510M17DGND
IC4510N1DGND
IC4510N7DGND
IC4510N8DGND
IC4510N9DGND
IC4510N10DGND
IC4510N11DGND
IC4510N12DGND
IC4510N13DGND
IC4510N14DGND
IC4510N15DGND
C4644
0.1u
C4645
0.1u
DVDDIO_3.3V
16V
16V
IC4510 P10 DVDD
IC4510 P11 DVDD
IC4510 P12 DVDD
IC4510 P13 DVDD
IC4510 P14 DVDD
IC4510 P15 DVDD
IC4510 P16 DVDD
IC4510 P17 DVDD
IC4510 R11 DVDD
IC4510 R12 DVDD
IC4510 R13 DVDD
IC4510 R14 DVDD
IC4510 R15 DVDD
IC4510 R16 DVDD
IC4510 R17 DVDD
IC4510 R10 DVDD
IC4510 AA16 DVDDIO
IC4510 U9 DVDDIO
IC4510 U10 DVDDIO
IC4510 U11 DVDDIO
IC4510 U12 DVDDIO
IC4510 U13 DVDDIO
IC4510 U14 DVDDIO
IC4510 U15 DVDDIO
IC4510 U16 DVDDIO
IC4510 Y16 DVDDIO
IC4510N16DGND
IC4510N17DGND
IC4510P3DGND
IC4510P7DGND
IC4510P8DGND
IC4510P9DGND
IC4510R3DGND
IC4510R7DGND
IC4510R8DGND
IC4510R9DGND
IC4510T3DGND
IC4510T7DGND
IC4510T8DGND
IC4510T9DGND
IC4510T10DGND
IC4510T11DGND
IC4510T12DGND
IC4510T13DGND
IC4510T14DGND
IC4510T15DGND
IC4510T16DGND
IC4510T17DGND
IC4510U7DGND
IC4510U8DGND
IC4510U17DGND
IC4510U22DGND
IC4510V1DGND
IC4510W20DGND
IC4510W21DGND
IC4510W22DGND
IC4510W23DGND
IC4510Y7DGND
IC4510Y12DGND
IC4510Y17DGND
VAVDD_1.8V
C4628
16V
0.1u
C4629
16V
0.1u
C4630
16V
0.1u
C4585
16V
0.1u
C4575
16V
0.1u
C2251
10V 10u
C2216
16V
0.1u
C2049
16V
0.1u
C2050
16V
0.1u
C2023
16V
0.1u
C4643
16V
0.1u
AAVDD_3.3V
PVDD_1.8V
IC4510 B12 VAVDD
IC4510 B13 VAVDD
IC4510 B14 VAVDD
IC4510 C10 VAVDD
IC4510 C11 VAVDD
IC4510 C12 VAVDD
IC4510 C14 VAVDD
IC4510 D10 VAVDD
IC4510 D14 VAVDD
IC4510 G9 VAVDD
IC4510 G10 VAVDD
IC4510 G11 VAVDD
IC4510 G12 VAVDD
IC4510 G13 VAVDD
IC4510 C21 AAVDD
IC4510 D21 AAVDD
IC4510 E21 AAVDD
IC4510 F20 AAVDD
IC4510 F21 AAVDD
IC4510 G16 AAVDD
IC4510 G17 AAVDD
IC4510 G20 AAVDD
IC4510 G21 AAVDD
IC4510 H21 AAVDD
IC4510 J21 AAVDD
IC4510 J22 AAVDD
IC4510 J23 AAVDD
IC4510 G7 PVDD
IC4510 G8 PVDD
NC
IC4510 AA15 NC
IC4510 AA19 NC
IC4510 AA20 NC
IC4510 AA21 NC
IC4510 C7 NC
IC4510 C8 NC
IC4510 D7 NC
IC4510 D8 NC
IC4510 K4 NC
IC4510 N4 NC
IC4510 W4 NC
IC4510 Y3 NC
IC4510 Y4 NC
IC4510 Y5 NC
IC4510 Y15 NC
IC4510 Y18 NC
IC4510 Y19 NC
IC4510 Y20 NC
IC4510 Y21 NC
IC4510 Y22 NC
IC4510 Y23 NC
IC4510A9AGND
IC4510A16AGND
IC4510A23AGND
IC4510B9AGND
IC4510B15AGND
IC4510B16AGND
IC4510C9AGND
IC4510C16AGND
IC4510C17AGND
IC4510C18AGND
IC4510C19AGND
IC4510C20AGND
IC4510D9AGND
IC4510D16AGND
IC4510D17AGND
IC4510D18AGND
IC4510D19AGND
IC4510D20AGND
IC4510G14AGND
IC4510G15AGND
IC4510H7AGND
IC4510H8AGND
IC4510H9AGND
IC4510H10AGND
IC4510H11AGND
IC4510H12AGND
IC4510H13AGND
IC4510H14AGND
IC4510H15AGND
IC4510H16AGND
IC4510H17AGND
IC4510H20AGND
IC4510K20AGND
IC4510K21AGND
IC4510K22AGND
IC4510L20AGND
IC4510L21AGND
IC4510L22AGND
IC4510L23AGND
ADAV4622
HDMISoundInput
IC4510 N20 BCLK1/SPDIF_IN4
IC4510 N21 LRCLK1/SPDIF_IN3
IC4510 T20 SDIN1
EXB28V330JX
R2172
R4648
SoundControl
DTVSoundInput
AnalogSoundIN
SystemClock
68
H0J245500089
TO 12/22
TO 5/22
X2010
C2055
50V 15p
ARESETB
AH_SRCK0
AH_LRCK0
AH_DMIX0
AH_DAUDIO
AH_IECOUT0
TO 12/22
R2003
MUTEB
SIF_IN2
SIF_IN1
AUXIN1L
AUXIN1R
AUXIN2L
AUXIN2R
1M
IC4510 R20 SDIN3/SPDIF_IN0
IC4510 M21 ARESETB
IC4510 U23 MUTEB
IC4510 U20 BCLK2/SPDIF_IN6
IC4510 U21 LRCLK2/SPDIF_IN5
IC4510 R21 SDIN2
IC4510 T21 SDIN0
IC4510 P20 BCLK0/SPDIF_IN2
IC4510 P21 LRCLK0/SPDIF_IN1
IC4510 A17 SIF_IN2
IC4510 A18 SIF_IN1
IC4510 B21 AUXIN1L
IC4510 A21 AUXIN1R
IC4510 B22 AUXIN2L
IC4510 A22 AUXIN2R
IC4510 D15 MCLK_OUT
IC4510 V23 XIN
IC4510 V22 XOUT
R2002
1k C2056 50V 12p
IIC2
Filter
AAVDD_3.3V
C2244 0.1u
16V
C2245 1000p
50V
C2106 0.1u16V
C2108 10u
10V
C2105 0.1u16V
C2107 10u10V
C2059 10u10V
C2058 0.1u16V
C2114
0.1u
16V
C2112
C2115
0.1u
16V
C2113
C2117
10u
0.1u
16V
C2124 0.1u
16V
C2137 10u
10V
TO 1/22TO 1/22
ADAV_SCL
ADAV_SDAADV_SDA
R2019
10V 10u
10V
R2020
2k
IC4510 K23 PLL_LF
20k
IC4510 E20 ISET
IC4510 B20 FILTA
IC4510 A20 VREF_AUDIO
IC4510 B23 FILTD
C2109
IC4510 B19 SIF_REFP
16V
0.1u IC4510 A19 SIF_REFCM
C2110 16V
IC4510 B18 SIF_REFN
0.1u
IC4510 B17 SIF_PGA_REF
IC4510 V20 AUDIO_SCL
IC4510 V21 AUDIO_SDA
PWM OUT
AnalogSoundOUT
DigitalSoundOUT
TO 12/22
PWM3A
PWM3B
PWM4A
PWM4B
PWM_READY
TO 12/22
AUDIOOUT_L
AUDIOOUT_R
TV_L
TV_R
HPOUT1L
HPOUT1R
C2135 16V 0.01u
C2136
16V 0.01u
C2127
16V
C2125
16V
TO 13/22
SPDIF_OUTADV_LLC
0.01u
0.01u
IC4510 R23 PWM1A
IC4510 R22 PWM1B
IC4510 P23 PWM2A
IC4510 P22 PWM2B
IC4510 N23 PWM3A
IC4510 N22 PWM3B
IC4510 M23 PWM4A
IC4510 M22 PWM4B
IC4510 T23 PWM_READY
IC4510 D22 AUXOUT1L
IC4510 D23 AUXOUT1R
IC4510 C22 AUXOUT2L
IC4510 C23 AUXOUT2R
IC4510 H22 HPOUT1L
IC4510 H23 HPOUT1R
IC4510 G22 HPOUT2L
IC4510 G23 HPOUT2R
IC4510 F22 AUXOUT3L
IC4510 F23 AUXOUT3R
IC4510 E22 AUXOUT4L
IC4510 E23 AUXOUT4R
IC4510 T22 SDO0
IC4510 M20 SPDIF_OUT
59
80777673 7574 7978 81
Page 60

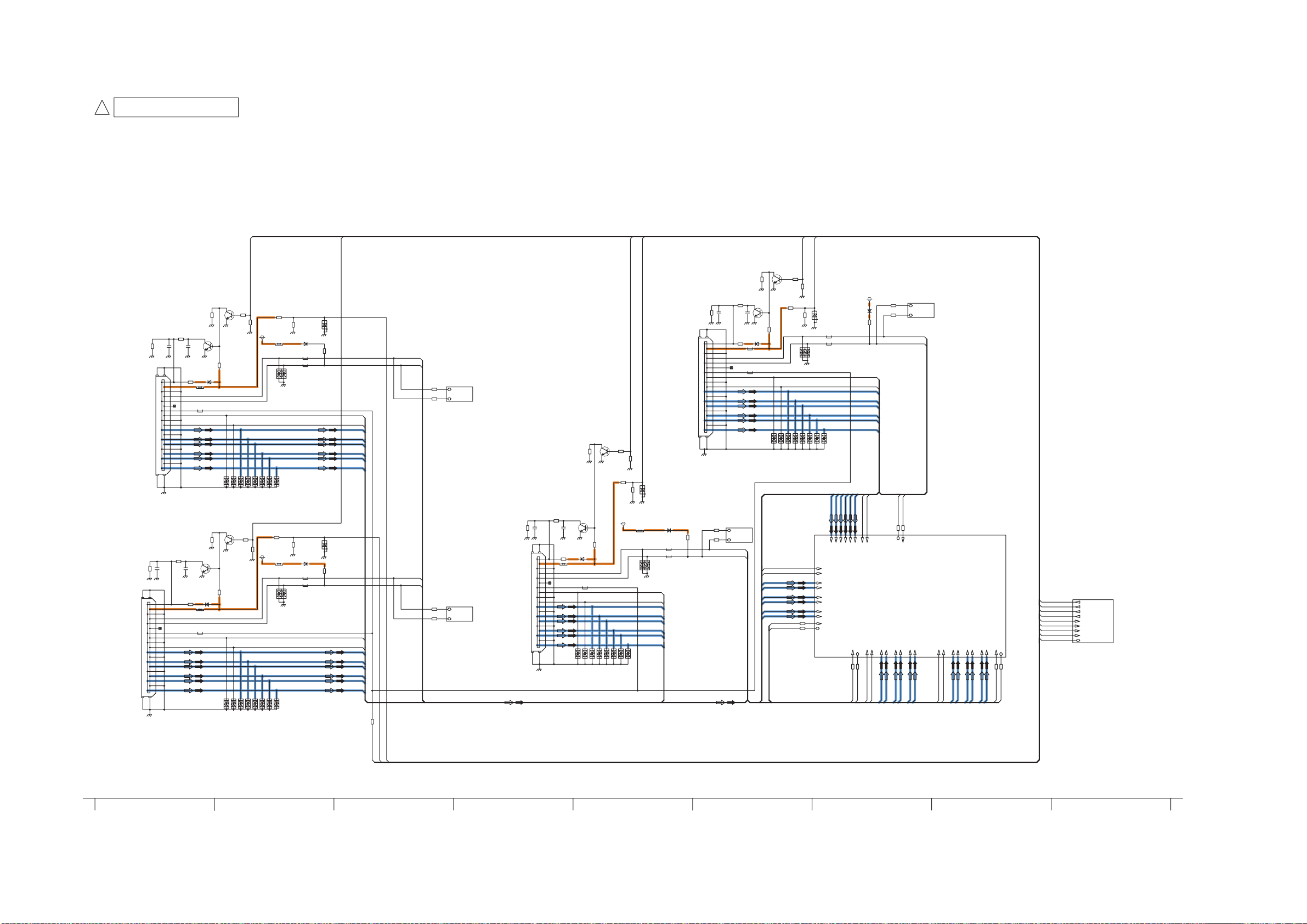

12.14. A-Board (10/22) Schematic Diagram

!
A-BOARD (10/22)
ADV_V REF No. 4500-4799
HDMI1
HDMI2
JK4500
JK4501
R4500
HPDT
+5V
DDCG
SDA
SCL
N.C.
CEC
CLK-
CLKG
CLK+
D0-
D0G
D0+
D1-
D1G
D1+
D2-
D2G
D2+
G-HPD1
Q4533
B1ABCF000231
R4525
R4529 10k
Q4534
B1ABCF000231
R4531 10k
D4587
EZAEG2A50AX
R4507
D4588
EZAEG2A50AX
10k
D4589
R4524
R4506
R4658
47k
Q4501
R4503
33
C4501
R4501
16V
10k
0.1u
HPDT
19
+5V
DDCG
17
SDA
SCL
15
N.C.
CEC
13
CLK-
CLKG
11
CLK+
D0-
9
D0G
D0+
7
D1-
D1G
5
D1+
D2-
3
D2G
D2+
1
C4500 16V
10k
0.1u
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
B1ABCF000231
C4503 16V
0.1u
D4526
R4505
MA2J11100L
1k
18
16
14
12
10
8
6
4
2
P
L4501
VJUMP1608-P
L4503
J0JYC0000068
R4534
47k
R4502
Q4500
33
B1ABCF000231
C4502 16V
0.1u
D4525
R4504
MA2J11100L
1k
P
L4500
VJUMP1608-P
L4502
J0JYC0000068
47k
D4590
EZAEG2A50AX
10k
47k
R4530
10k
R4533
47k
B0BC5R6A0275
R4667
D4541
VJUMP1608-P
P
MA2J11100L
L4506
J0JYC0000068
L4507
J0JYC0000068
D4517
D4520
EZAEG2A50AX
EZAEG2A50AX
D4594
D4593
EZAEG2A50AX
EZAEG2A50AX
R4528
10k
R4532
47k
B0BC5R6A0275
D4542
R4671
MA2J11100L
VJUMP1608-P
PP
L4504
J0JYC0000068
L4505
J0JYC0000068
D4518
D4512
EZAEG2A50AX
EZAEG2A50AX
D4591
EZAEG2A50AX
EZAEG2A50AX
STB5V
D4592
EZAEG2A50AX
STB5V
G-HPD2
D4611
R4540 47k
RXC_CN
RXC_CP
RXC_0N RXD_2P
RXC_0P
RXC_1N
RXC_1P
RXC_2N
RXC_2P
D4513
R4538
47k
RXB_CN
RXB_CP
RXB_0N
RXB_0P
RXB_1N
RXB_1P
RXB_2N
RXB_2P
DDCC_SDA
DDCC_SCL
DDCB_SDA
DDCB_SCL
R4543
TO 8/22
0
G-DDCSCL1
R4541
0
G-DDCSDA1
B1ABCF000231
R4740
47k
R4729
Q4520
33
B1ABCF000231
C4703
C4702
R4728
10k
HDMI3
JK4502
HPDT
19
+5V
DDCG
17
SDA
SCL
15
N.C.
CEC
13
CLK-
CLKG
11
R4539
TO 8/22
0
G-DDCSCL2
R4542
0
G-DDCSDA2
CLK+
D0-
D0G
D0+
D1-
D1G
D1+
D2-
D2G
D2+
16V
16V
0.1u
0.1u
R4739
10k
D4615
R4734
MA2J11100L
1k
18
L4524
VJUMP1608-P
16
14
12
10
9
8
7
6
5
4
3
2
1
L4521
J0JYC0000068
D4503
EZAEG2A50AX
D4505
EZAEG2A50AX
D4507
EZAEG2A50AX
Q4535
D4509
D4511
EZAEG2A50AX
EZAEG2A50AX
R4733
10k
R4732
R4735
STB5V
D4516
EZAEG2A50AX
47k
10k
R4736
47k
D4521
EZAEG2A50AX
G-HPD3
VJUMP1608-P
D4523
EZAEG2A50AX
R4746
D4573
EZAEG2A50AX
P
G-HDMI_5V_DET3
D4617
B0BC5R6A0275
D4574
RXA_CN
RXA_CP
RXA_0N
RXA_0P
RXA_1N
RXA_1P
RXA_2N
RXA_2P
MA2J11100L
J0JYC0000068
J0JYC0000068
EZAEG2A50AX
HDMI4
D4575
L4522
L4523
JK4700
G-HPD0
D4701
EZAEG2A50AX
R4701
10k
D4702
R4700
10k
R4718
47k
R4702
D4706
D4703
EZAEG2A50AX
R4600
R4599
47k
EZAEG2A50AX
D4704
EZAEG2A50AX
EZAEG2A50AX
D4705
0
0
G-HDMI_5V_DET0
D4584 B0BC5R6A0275
L4525
J0JYC0000068
L4526
J0JYC0000068
D4707
EZAEG2A50AX
D4708
D4709
EZAEG2A50AX
EZAEG2A50AX
RXC_CN
RXC_CP
RXC_0N
RXC_0P
RXC_1N
RXC_1P
RXC_2N
RXC_2P
ADV-DDCC_SCL
ADV-DDCC_SDA
EZAEG2A50AX
RXA_2P
RXA_2N
RXA_2P
RXA_2N
RXA_1P
RXA_1P
RXA_1N
MA2J11100L
RXA_0P
RXA_1N
D4713
R4705
RXA_0N
RXA_0N
RXA_0P
ADV-DDCD_SCL
ADV-DDCD_SDA
0
0
R4613
R4614
DDCD_SDA
DDCD_SCL
RXA_CP
STB5V
R4710
TO 8/22
0
G-DDCSCL0
R4711
0
RXD_0N
RXD_0P
R4604
RXD_0P
DDCA_SDA
0
TO 9/22
RXD_1N
RXD_1N
DDCA_SCL
R4607 0
ADV-DDCA_SCL
ADV-DDCA_SDA
RXD_1P
RXD_1P
G-DDCSDA0
DDCD_SDA
DDCD_SCL
RXD_2N
RXD_2N
RXD_2P
RXD_2P
RXB_CN
RXB_CN
RXB_CP
RXB_CP
RXB_0N
RXB_0N
RXB_0P
RXB_0P
RXB_1N
RXB_1N
RXB_1P
RXB_1P
RXB_2N
RXB_2N
RXB_2P
RXB_2P
ADV-DDCB_SCL
ADV-DDCB_SDA
0
0
R4615
R4616
DDCB_SDA
DDCB_SCL
G-HPD0
G-HPD3
G-HPD2
G-HPD1
G-HDMI_5V_DET0
G-HDMI_5V_DET3
G-HDMI_5V_DET2
G-HDMI_5V_DET1
G-HDMI_CEC
TO 8/22
G-HPD0
G-HPD3
G-HPD2
G-HPD1
G-HDMI_5V_DET0
G-HDMI_5V_DET3
G-HDMI_5V_DET2
G-HDMI_5V_DET1
G-HDMI_CEC
47k
RXD_CN
RXD_CP
RXD_0N
RXD_0P
RXD_1N
RXD_1P
RXD_2N
RXA_CN
RXA_CP
RXA_CN
RXD_CN
RXD_CP
RXD_CN
RXD_CP
RXD_0N
Q4538
B1ABCF000231
R4619
47k
Q4700
R4716
2SD0601A0L
33
C4700
R4713
HPDT
19
+5V
DDCG
17
SDA
SCL
15
N.C.
CEC
13
CLK-
CLKG
11
CLK+
D0-
9
D0G
D0+
7
D1-
D1G
5
D1+
D2-
3
D2G
D2+
1
R4738 47k
C4701
16V
10k
16V
0.1u
0.1u
R4606
10k
D4548
R4717
MA2J11100L
1k
18
16
14
12
10
8
6
4
2
R4708
R4709
L4700
J0JYC0000068
L4701
J0JYC0000068
D4700
EZAEG2A50AX
TO 8/22
0
G-DDCSCL3
0
G-DDCSDA3
DDCA_SDA
DDCA_SCL
RXC_CN
RXC_CP
RXC_0N
RXC_0P
RXC_1N
RXC_1P
RXC_2N
RXC_2P
DDCC_SCL
DDCC_SDA
D4595
EZAEG2A50AX
D4596
EZAEG2A50AX
D4597
EZAEG2A50AX
D4598
EZAEG2A50AX
D4599
EZAEG2A50AX
D4600
EZAEG2A50AX
D4601
EZAEG2A50AX
D4602
EZAEG2A50AX
R4552
22
G-HDMI_CEC
G-HDMI_5V_DET2
G-HDMI_5V_DET1
84 86 8982 8887 9083 85
60
Page 61

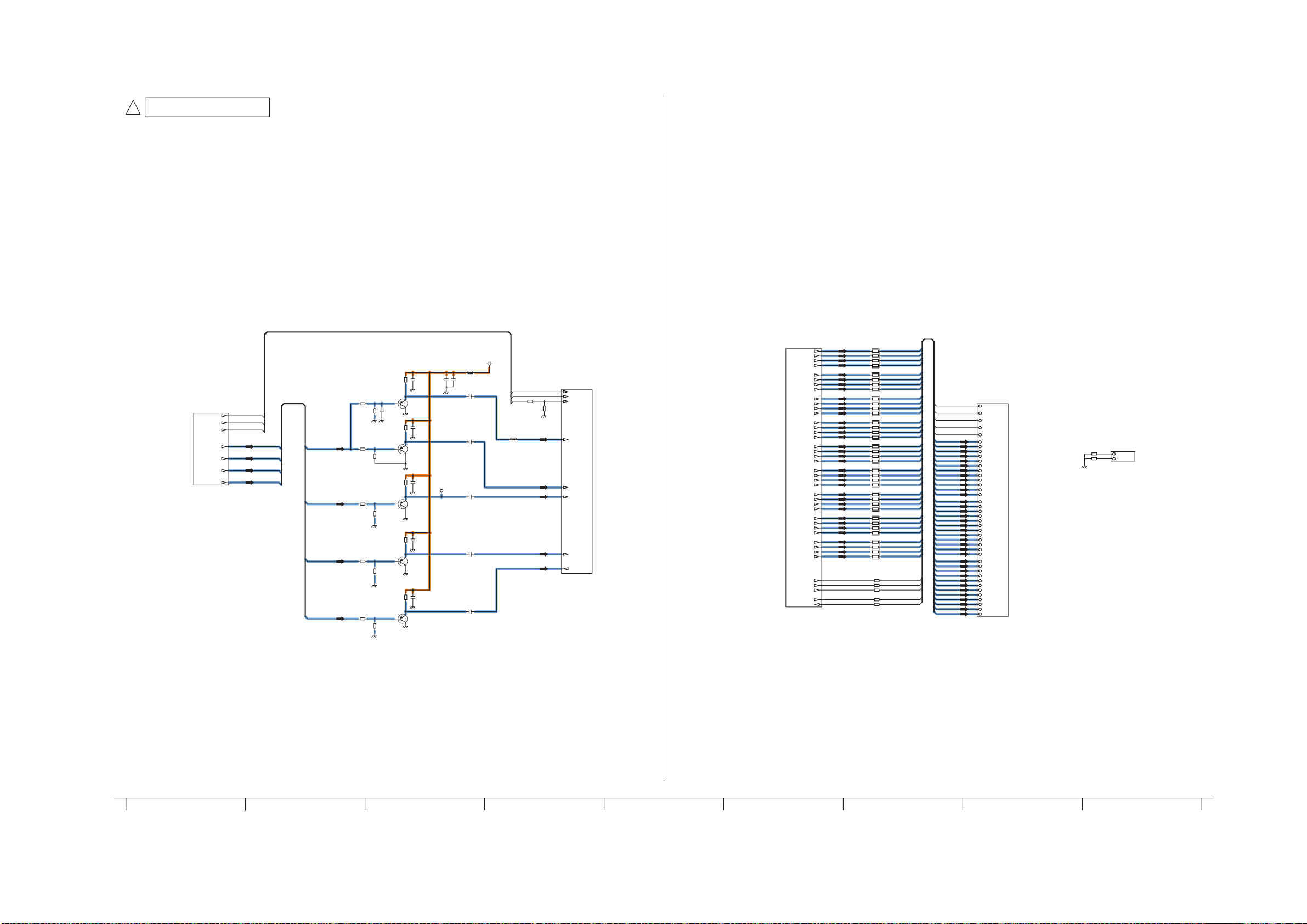

12.15. A-Board (11/22) Schematic Diagram

!
A-BOARD (11/22)
ADV_V REF No. 4500-4799
TO 13/22
MAIN_Y/CVBS
MAIN_PB/C
MAIN_PR
RGB_CVBS
RGB_FB
TO 9/22
SUB9V
L4511
J0JYC0000068
R4601
C4625
1k
16V
0.1u
Q4517
R4587
2SB0709ASL
604
C4533
R4593
50V
RGB_FB
PC_HS
PC_VS
PC_HS
PC_VS
MAIN_Y/CVBS
MAIN_PB/C
RGB_CVBS
RGB_CVBS
MAIN_PR
MAIN_Y/CVBS
MAIN_PB/C
MAIN_PR
2.2k 68p
*C4537
*R4608
16V
1k
Q4516
Q4515
0.1u
C4624
R4598
16V
1k
0.1u
C4535
R4597
16V
1k
0.1u
C4534
R4596
16V
1k
0.1u
Q4514
2SB0709ASL
*Q4519
2SB0709ASL
*R4664
604
*R4605
2.2k
R4626
220
Y
R4592
806
2SB0709ASL
R4627 220
R4589
806
2SB0709ASL
R4634
220
R4588
806
+
C4554
C4551
16V
16V
47u
0.1u
C4553
1000p
50V
*C4567
0.1u
16V
TP4512
YIN
C4552
16V
0.1u
PB/C
C4549
16V
0.1u
PR
C4548
16V
0.1u
R4673
VJUMP1005-S
PC_HS
PC_VS
RGB_FB
*R4622
S
TO 9/22
PC_HS
PC_VS
FBIN
*R4609
1k
1.2k
SOY
RGB_CVBS
SOY
AIN9
YIN
AIN4
PB/C
AIN6
PR
AIN5
ADV_VS_FIELD
ADV_P0
ADV_P1
ADV_P2
ADV_P3
ADV_P4
ADV_P5
ADV_P6
ADV_P7
ADV_P8
ADV_P9
ADV_P10
ADV_P11
ADV_P12
ADV_P13
ADV_P14
ADV_P15
ADV_P16
ADV_P17
ADV_P18
ADV_P19
ADV_P20
ADV_P21
ADV_P22
ADV_P23
ADV_P24
ADV_P25
ADV_P26
ADV_P27
ADV_P28
ADV_P29
ADV_P30
ADV_P31
ADV_P32
ADV_P33
ADV_P34
ADV_P35
ADV_HS
ADV_DE
ADV_LLC
ADV_CLKOA
ADV_P0
ADV_P1
ADV_P2
ADV_P3
ADV_P4
ADV_P5
ADV_P6
ADV_P7
ADV_P8
ADV_P9
ADV_P10
ADV_P11
ADV_P12
ADV_P13
ADV_P14
ADV_P15
ADV_P16
ADV_P17
ADV_P18
ADV_P19
ADV_P20
ADV_P21
ADV_P22
ADV_P23
ADV_P24
ADV_P25
ADV_P26
ADV_P27
ADV_P28
ADV_P29
ADV_P30
ADV_P31
ADV_P32
ADV_P33
ADV_P34
ADV_P35
ADV_HS
ADV_VS_FIELD
ADV_DE
ADV_LLC
ADV_CLKOA
EXB28V680JX
EXB28V680JX
EXB28V680JX
EXB28V680JX
EXB28V680JX
EXB28V680JX
EXB28V680JX
EXB28V680JX
EXB28V680JX
R4635
R4639
R4640
R4678
R4679
R4649
R4799
R4646
R4645
R4636
R4638
R4637
R4651
R4650
GC6_GYIA11
GC6_GYIA10
GC6_GYIA9
GC6_GYIA8
GC6_GYIA7
GC6_GYIA6
GC6_GYIA5
GC6_GYIA4
GC6_GYIA3
GC6_GYIA2
GC6_GYIA1
GC6_GYIA0
GC6_BUIA11
GC6_BUIA10
GC6_BUIA9
GC6_BUIA8
GC6_BUIA7
GC6_BUIA6
GC6_BUIA5
GC6_BUIA4
GC6_BUIA3
GC6_BUIA2
GC6_BUIA1
GC6_BUIA0
GC6_RVIA11
GC6_RVIA10
GC6_RVIA9
GC6_RVIA8
GC6_RVIA7
GC6_RVIA6
GC6_RVIA5
GC6_RVIA4
GC6_RVIA3
GC6_RVIA2
GC6_RVIA1
GC6_RVIA0
GC6_HSIA
68
GC6_VSIA
68
GC6_ENBIA
68
GC6_CLKIA
68
GC6_CLKOA
68
GC6_HSIA
GC6_VSIA
GC6_ENBIA
GC6_CLKOA
GC6_CLKIA
GC6_RVIA11
GC6_RVIA10
GC6_RVIA9
GC6_RVIA8
GC6_RVIA7
GC6_RVIA6
GC6_RVIA5
GC6_RVIA4
GC6_RVIA3
GC6_RVIA2
GC6_RVIA1
GC6_RVIA0
GC6_BUIA11
GC6_BUIA10
GC6_BUIA9
GC6_BUIA8
GC6_BUIA7
GC6_BUIA6
GC6_BUIA5
GC6_BUIA4
GC6_BUIA3
GC6_BUIA2
GC6_BUIA1
GC6_BUIA0
GC6_GYIA11
GC6_GYIA10
GC6_GYIA9
GC6_GYIA8
GC6_GYIA7
GC6_GYIA6
GC6_GYIA5
GC6_GYIA4
GC6_GYIA3
GC6_GYIA2
GC6_GYIA1
GC6_GYIA0
TO 16/22
GC6_HSIA
GC6_VSIA
GC6_ENBIA
GC6_CLKOA
GC6_CLKIA
GC6_RVIA11
GC6_RVIA10
GC6_RVIA9
GC6_RVIA8
GC6_RVIA7
GC6_RVIA6
GC6_RVIA5
GC6_RVIA4
GC6_RVIA3
GC6_RVIA2
GC6_RVIA1
GC6_RVIA0
GC6_BUIA11
GC6_BUIA10
GC6_BUIA9
GC6_BUIA8
GC6_BUIA7
GC6_BUIA6
GC6_BUIA5
GC6_BUIA4
GC6_BUIA3
GC6_BUIA2
GC6_BUIA1
GC6_BUIA0
GC6_GYIA11
GC6_GYIA10
GC6_GYIA9
GC6_GYIA8
GC6_GYIA7
GC6_GYIA6
GC6_GYIA5
GC6_GYIA4
GC6_GYIA3
GC6_GYIA2
GC6_GYIA1
GC6_GYIA0
R4610
TO 2/22
47k
VI1CKOUT
VI1CLK
R4611
47k
61
96959291 97 9893 9994
Page 62

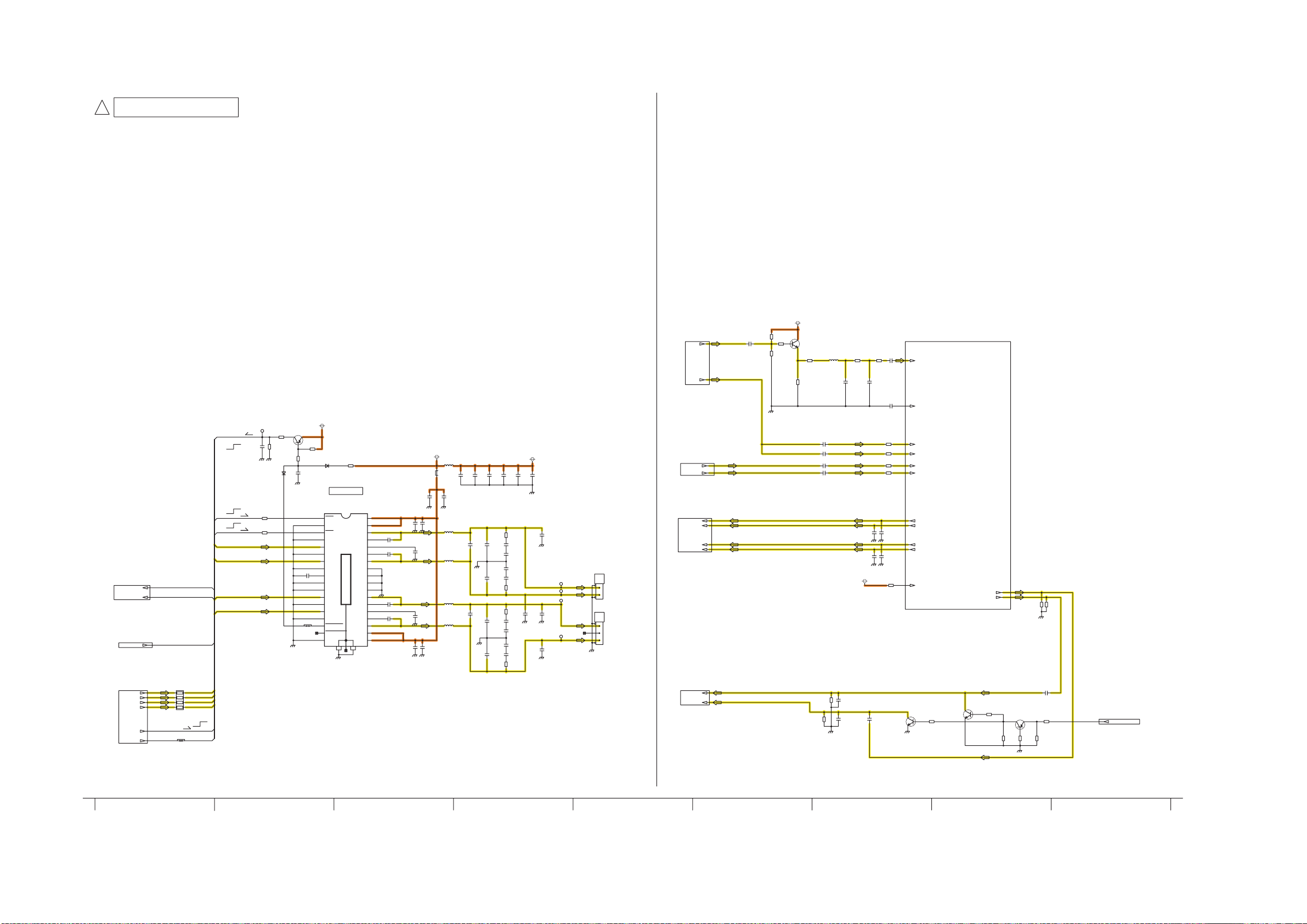

12.16. A-Board (12/22) Schematic Diagram

!
A-BOARD (12/22)
ADV_A
REF No. 2000-2499
R2114
Q2022
B1ADCE000022
2.2k
C2302
16V
0.1u
C2313
10V
R2325
VJUMP1005-S
S
R2115
2.2k
1u
SUB9V
D2014
MA2J11100L
C1AB00002875
1
STBY
2
NC1
3
MUTE
4
NC2
5
PWM_A1
6
NC3
7
PWM_B1
8
NC4
9
VREG5
10
GND
11
NC5
12
PWM_B2
13
NC6
14
PWM_A2
15
NC7
16
NOD_THERM
17
NOD_OUTSHDN
18
NC8
AUDIO AMP
IC2301
Thermal Pad
R2118
470
OUT_CH1_P
BOOT_CH1_P
BOOT_CH1_N
OUT_CH1_N
OUT_CH2_N
BOOT_CH2_N
BOOT_CH2_P
OUT_CH2_P
PVD1
PVD1
VDDA1
PGND1
PGND1
PGND2
PGND2
VDDA2
PVD2
PVD2
TO 8/22
G-AUDIO_XRST
G-SOUND_SOS
TO 18/22
TO 9/22
PWM_READY
AMP_MUTE
ARESETB
TP2008
R2142
2.2k
OPERATE
To SOS
C2301
R2141
16V
1k
0.1u
D2017
MA2J11100L
R2129
10
R2137
10
G-SOUND_SOS
OPERATE
SOS
RESET
AMP_MUTE
PWM_READY
MUTE
PWM_READY
PWM_L+
PWM_L-
G-AUDIO_XRST
PWM_R+
G-SOUND_SOS
PWM_R-
AMP_MUTE
R2316
EXB28V220JX
R2126
VJUMP1005-S
PWM_R+
PWM_R-
PWM_L+
PWM_L-
PWM_READY
MUTE
PWM_READY
G-AUDIO_XRST
S
PWM4A
PWM4B
PWM3A
PWM3B
SUB5V
R2015
C2096
16V
TO 15/22
SIF
AM
10k
0.1u
R2016
10k
Q2001
B1ABCF000231
R2132
470
R2007
220
R2008
470
L2001
G1C150KA0038
R2006
C2092
50V 22p
C2120
50V
R2032
56p
0
470
C2091
50V 10p
C2121
50V 56p
SIF_IN1
SIF_IN2
ADV-COMMON
ADV7470
TO 9/22
*C2261
10u
10V
SOUND15V
L2023
G1C3R0ZA0156
L2018
J0JHC0000042
+
C2361
25V
470u
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
C2359
C2309
50V
25V
1000p
C2317
50V
0.1u
C2319
50V
0.1u
C2321
50V
0.1u
C2323
50V
0.1u
C2353
50V
1000p
L2010
1u
G1C220MA0291
C2305 25V
L2012
1u
G1C220MA0291
L2014
G1C220MA0291
C2390
25V
L2016
1u
G1C220MA0291
C2303 25V 1u
C2410
C2411
C2412
25V
1u
C2362 25V 10u
C2325
0.47u
C2331
0.47u
C2409
25V
25V
1000p
1u
1u
C2333
25V
50V
0.1u
0.022u
C2335
25V
0.1u
50V
C2341
25V
0.1u
0.022u
0.022u
C2343
25V
0.1u
S_15V
C2408
C2407
50V
25V
25V 10u
1u
R2127
3.3
C2337 50V
0.022u
C2377
50V
0.022u
C2375
50V
C2339 50V
0.022u
R2121
3.3
R2125
3.3
C2345
50V
0.022u
C2379
50V
C2381
50V
C2347 50V
0.022u
R2123
3.3
C2389
50V
1000p
TO SPEAKER
TP2010
TP2012
TP2014
C2385
C2387
50V
50V
1000p
1000p
TP2017
C2383
50V
1000p
A12
1
2
TO SPEAKER
A11
1
2
3
L+
L-
R+
NC
R-
TO 13/22
TO 14/22
AUDIOOUT_L
AUDIOOUT_R
TO 14/22
HP_LOUT
HP_ROUT
AV_L
AV_R
TV_L
TV_R
*C2262
10V
10u
C2263
10V
10u
C2264
10V
10u
C2201
R2017
25V
10k
0.033u
C2202
R2018
25V
10k
0.033u
DVDDIO_3.3V
C2099
6.3V 220u
*R2047
28k
C2123 16V
0.01u
C2128 16V
0.01u
R2023
10k
Q2063
2SD0601ASL
AUXIN2L
28k
AUXIN2R
28k
AUXIN1L
28k
AUXIN1R
TV_L
TV_R
AUDIOOUT_L
AUDIOOUT_R
MUTEB
Q2064
2SD0601ASL
R2110
100
HPOUT1R
HPOUT1L
R2111
R2093
R2092
10k
10k
C2098
6.3V 220u
+
100
Q2065
R2122
2SB0709ASL
100
R2119 1M
R2120
R2124 10k
47k
TO 18/22
HP_MUTE
*R2048
R2050
R2051
C2122
16V
0.01u
C2129
16V
0.01u
+
62
105100 102 107103 106104101 108
Page 63

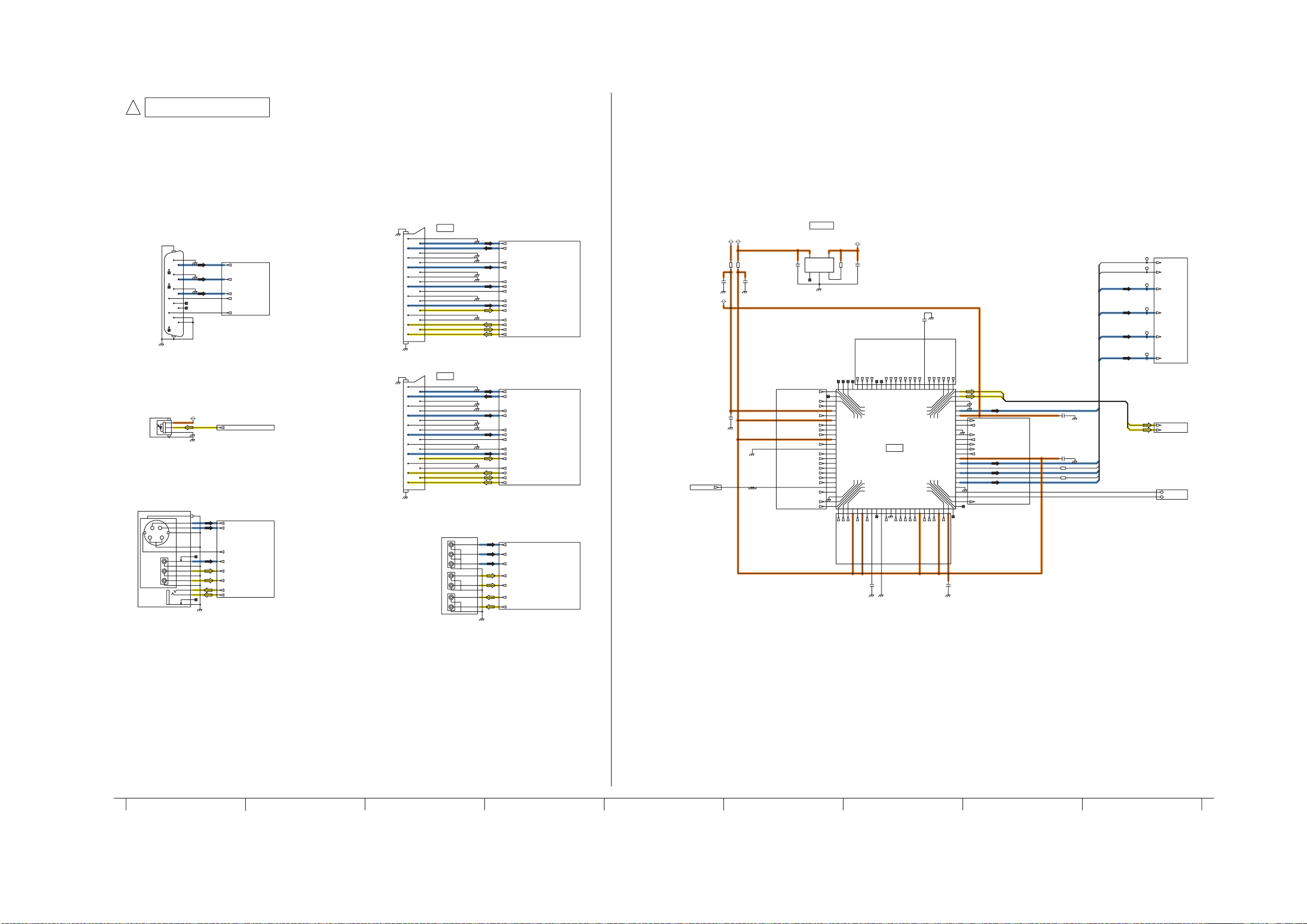

12.17. A-Board (13/22) Schematic Diagram

!
A-BOARD (13/22)
AVSW REF No. 3000-3399
JK3001
D3015
K7AAAY000003
JK3707 K4AK17B00004
K1FY115B0021
11
12
13
14
15
DRIVE IC
YC
V
L
R
C3118
10V
1u
AVSW_R076PIN_FBIN/O1
AVSW_R079PIN_CVBSIN6
AVSW_R081PIN_CVBSIN5
AVSW_R083PIN_YIN4
AVSW_R084PIN_TDET8
AVSW_R085PIN_CIN4
AVSW_R090PIN_TDET7
AVSW_R092PIN_TDET6
AVSW_R093PIN_PBIN1
AVSW_R094PIN_L3DET1
AVSW_R095PIN_CYIN1
AVSW_R097PIN_PRIN1
AVSW_R099PIN_BIN
AVSW_R100PIN_VDIN
AVSW5V
IC3003
C0DBGYY00281
5
VOUT4VIN
VSS
1NC2
TO 14/22
SUB6V
C3119
R3014
10V
10k
CE
1u
3
TO 14/22
AVSW_R071PIN_R7IN
AVSW_R070PIN_L7IN
AVSW_R069PIN_R6IN
AVSW_R068PIN_L6IN
73
74
75
76
77
78
79
CVBSin6
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
100
R8in
L9in
VCC9V
R9in
CVBSin5
T DET9
Yin4
T DET8
CVBSin7
FBin1/O1
FBin2/O2
Cin4
VCC5V
PBin2/B3
L3 DET2
CYin2/G3
T DET7
PRin2/R3
T DET6
PBin1
L3 DET1
CYin1
HD VD/FBKMUTE
PRin1
1
2
3
AVSW_R001PIN_GIN
AVSW_R002PIN_HDIN
IC3001
C1AB00002855
GND99Bin
VDin
Gin
HDin
Rin
T DET55CVBSin46T DET47CVBSin38BG9Yin310S2 DET311R2/Cin312GND13G2/Yin214S2 DET215B2/Cin216T DET317CVBSin118T DET219G1/Yin120S2 DET121B1/Cin122T DET1
4
AVSW_R003PIN_RIN
AVSW_R007PIN_CVBS3
AVSW_R005PIN_CVBSIN4
C3147
10V 10u
AVSW_R062PIN_L3IN
AVSW_R061PIN_R2IN
AVSW_R063PIN_R3IN
AVSW_R064PIN_L4IN
AVSW_R065PIN_R4IN
AVSW
AVSW_R014PIN_S2DET2
AVSW_R015PIN_B2/CIN2
AVSW_R013PIN_G2/YIN2
AVSW_R011PIN_R2/CIN3
C3146
10V
10u
AVSW_R059PIN_R1IN
AVSW_R056PIN_L1OUT
AVSW_R060PIN_L2IN
AVSW_R058PIN_L1IN
57
58
L1in59R1in60L2in61R2in62L3in63R3in64L4in65R4in66L5in67R5in68L6in69R6in70L7in71R7in72L8in
AU1/2Vcc
R2out
L3out
G/CY/Y/CVBSout7
R3out
C/Y+C/CVBSout5
Y/Y+C/CVBSout4
G/CY/CVBSout1
R1
VCC5V
CVBSin2
AVSW_R016PIN_TDET3
AVSW_R019PIN_G1/YIN1
AVSW_R017PIN_CVBSIN1
AVSW_R052PIN_L3OUT
AVSW_R053PIN_R2OUT
AVSW_R054PIN_L2OUT
AVSW_R055PIN_R1OUT
52
53
54
L2out55R1out56L1out
VCC9V
CVBS/Y+Cout3
SAG CVBSout3
R4out50L4out
AU_GND
GND
SAG CVBSout5
S2out
SAG CVBSout4
VCC5V
R/Prout1
VD out1
B/PB/Cout1
HD out1
State out27FBout/T DET1028SDA
GND
SCL
23
24
AVSW_R020PIN_S2DET1
AVSW_R023PIN_CVBSIN2
AVSW_R021PIN_B1/CIN1
AVSW_R051PIN_R3OUT
51
49
48
47
O3
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
26
25
C3139 16V
0.1u
AV_L
AV_R
AVSW_R044PIN_CVBS/Y+COUT3
AVSW_R043PIN_SAGCVBSOUT3
AVSW_R041PIN_C/Y+C/CVBSOUT5
AVSW_R040PIN_SAGCVBSOUT5
AVSW_R039PIN_S2OUT
AVSW_R038PIN_Y/Y+C/CVBSOUT4
AVSW_R037PIN_SAGCVBSOUT4
AV-SW_SCL
AV-SW_SDA
AVSW_R027PIN_FBOUT/TDET10
TO 14/22
PC_HS
PC_VS
MAIN_Y/CVBS
MAIN_PB/C
MAIN_PR
RGB_CVBS
RGB_CVBS
C3141
0.1u
16V
C3140
0.1u
16V
MAIN_PR
PC_VS
68
R3236
MAIN_PB/C
PC_HS
68
R3237
MAIN_Y/CVBS
PC_HS
TP3009
PC_VS
TP3021
MAIN_Y/CVBS MAIN_Y/CVBS/G
TP3004
MAIN_PB/C MAIN_PB/C/B
TP3005
MAIN_PR MAIN_PR/R
TP3006
RGB_CVBS RGB_CVBS
TO 12/22
AV_L
AV_L
AV_R
AV_R
TO 1/22
AV-SW_SCL
AV-SW_SDA
TO 11/22
TP3008
AV2
20
18
16
14
12
10
8
6
4
2
*JK3003
K1FY121A0008
20
18
16
14
12
10
8
6
4
2
*JK3002
K1FY121A0008
GND(PLUG)
GND(VIDEO IN)
GND(VIDEO)
Chroma/RED in
GND(RED/C)
GND(GREEN)
GND(AUDIO)
AV1
TV VIDEO OUT
GND(VIDEO IN)
GND(VIDEO)
GND(GREEN)
GND(AUDIO)
VIDEO IN
VIDEO OUT
FB IN
GND(FB)
GREEN IN
Q-LINK
AV2 SLOW
BLUE IN
L IN
GND(BLUE)
TV L OUT
R IN
TV R OUT
GND(PLUG)
VIDEO IN
FB IN
RED IN
GND(FB)
GND(RED)
GREEN IN
AV1 SLOW
BLUE IN
GND(BLUE)
TV L OUT
R IN
TV R OUT
Y
PB
PR
AUDIO IN
L
R
AUDIO OUT
L
R
*JK3100A K2HA7YYA0004
TO 14/22
E_AV2_VIN(20P)/A_AV3_V__TERMINAL
E_AV2_VOUT(19P)_TERMINAL
E_AV2_FB(16P)_TERMINAL
E_AV2_RED/C(15PIN)_TERMINAL
NC
NC
L IN
PB
PR
Y
G
L
R
G
L
R
G
E_AV2_NC(12P)_TERMINAL
E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL
E_AV2_Q-LINK(10P)_TERMINAL
E_AV2_SLOW(_8P)_TERMINAL
E_AV2_BLUE(_7PIN)_TERMINAL
E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL
E_AV2_GND(AUDIO)(_4P)_TERMINAL
E_AV2_LOUT(_3PIN)_TERMINAL
E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL
E_AV2_ROUT(_1PIN)_TERMINAL
TO 14/22
E_AV1_VIN(20P)/A_AV2_V__TERMINAL
E_AV1_VOUT(19P)/A_VOUT__TERMINAL
E_AV1_FB(16P)_TERMINAL
E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL
E_AV1_NC(12P)_TERMINAL
E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL
E_AV1_Q-LINK(10P)_TERMINAL
E_AV1_SLOW(_8P)_TERMINAL
E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL
E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL
E_AV1_GND(AUDIO)(_4P)_TERMINAL
E_AV1_LOUT(_3PIN)_TERMINAL
E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL
E_AV1_ROUT(_1PIN)_TERMINAL
TO 14/22
E_YPBPR_Y/A_AV1C_Y__TERMINAL
E_YPBPR_PB/A_AV1C_PB__TERMINAL
E_YPBPR_PR/A_AV1C_PR__TERMINAL
E_PC_LIN/A_AV1_LIN__TERMINAL
E_PC_RIN/A_AV1_RIN__TERMINAL
RCA_AUDIOOUT_L__TERMINAL
RCA_AUDIOOUT_R__TERMINAL
SUB9V_VIDEO
TO 8,9/22
G-ADV_XRST
21
19
6
1
7
2
8
3
9
4
10
5
VCC
Vin
GND
SHIELD
C
Y
G
CY-G
G
V-SW
V
V-G
L
L-G
R
R-G
2
3
4
1
SUB3.3V
TO 14/22
PC_R_TERMINAL
PC_G_TERMINAL
PC_B_TERMINAL
PC_HD_TERMINAL
PC_VD_TERMINAL
TO 14/22
OPT_SPDIF_TERMINAL
TO 14/22
SIDE_C_TERMINAL
SIDE_Y_TERMINAL
SIDE_S_PLUG_DET_TERMINAL
SIDE_VIN_TERMINAL
SIDE_LIN_TERMINAL
SIDE_RIN_TERMINAL
SIDE_HP_L_TERMINAL
SIDE_HP_R_TERMINAL
17
15
13
11
9
7
5
3
1
21
19
17
15
13
11
9
7
5
3
1
AVSW5V
SUB9V
R3113
R3112
0
0
+
C3138
10V
100u
C3143
16V
0.1u
TO 14/22
AVSW_R078PIN_FBIN2/O2
C3145
16V
0.1u
AVSW_R087PIN_PBIN2/B3
AVSW_R089PIN_CYIN2/G3
AVSW_R091PIN_PRIN2/R3
S
R3239
VJUMP1005-S
111 114109 115110 112 116 117113
63
Page 64

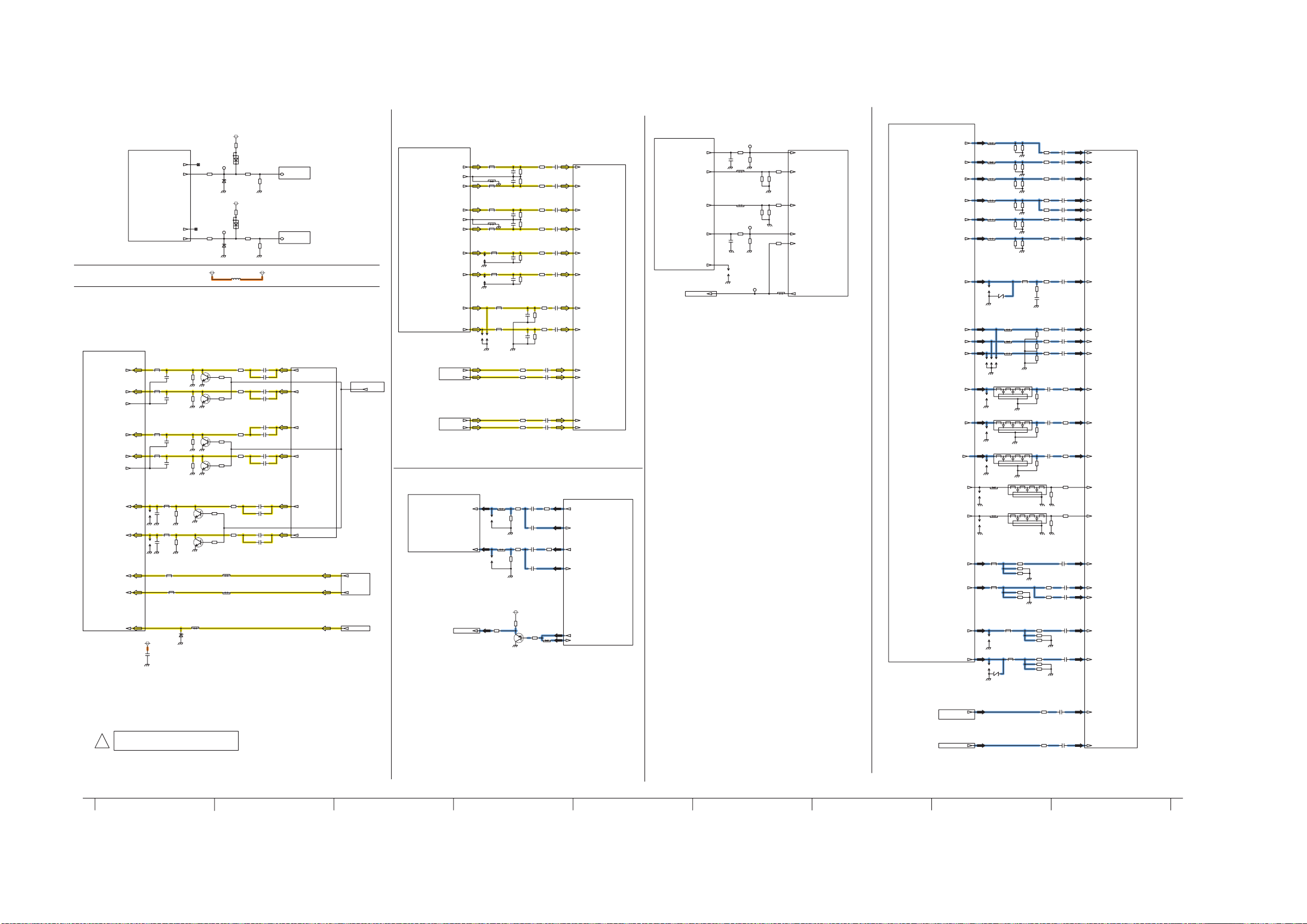

12.18. A-Board (14/22) Schematic Diagram

TO 13/22
E_AV1
E_AV1_LOUT(_3PIN)_TERMINAL
E_AV1_ROUT(_1PIN)_TERMINAL
E_AV1_GND(AUDIO)(_4P)_TERMINAL
E_AV2
E_AV2_LOUT(_3PIN)_TERMINAL
E_AV2_ROUT(_1PIN)_TERMINAL
E_AV2_GND(AUDIO)(_4P)_TERMINAL
AUDIO OUT
RCA_AUDIOOUT_L__TERMINAL
RCA_AUDIOOUT_R__TERMINAL
HP
SIDE_HP_L_TERMINAL
SIDE_HP_R_TERMINAL
OPT
OPT_SPDIF_TERMINAL
TO 13/22
E_AV1
E_AV1_NC(12P)_TERMINAL
E_AV1_Q-LINK(10P)_TERMINAL
E_AV2
E_AV2_NC(12P)_TERMINAL
E_AV2_Q-LINK(10P)_TERMINAL
J0JCC0000287
SUB3.3V
16V
*L3004
*L3005
J0JCC0000287
*L3008
J0JCC0000287
*L3009
J0JCC0000287
C3023
0.1u
L3014
J0JCC0000287
C3003 50V 560p
L3015
J0JCC0000287
C3002 50V 560p
L3034
J0JCC0000364
J0JCC0000364
MAZ81400ML
TERMINAL ETC
AUDIO
IN
VIDEO
DET
VIDEO
IN
TO 13/22
STB5V
*R3106
27k
*D3339
*R3153
68
MAZ81400ML
*R3089
68
MAZ81400ML
MOUT_9V
MA3X704A0L
TP3015
*R3207
TP3014
STB5V
L3025
G1C100MA0072
*R3108
27k
*D3048
MA3X704A0L
*R3206
22
*R3288
22
*D3014
*D3013
TO 8/22
QLINK_AV1
G-QLINK2
47k
TO 8/22
QLINK_AV2
G-QLINK1
*R3287
47k
SUB9V
AUDIO OUT
*Q3002
B1ABCF000231
*C3009
*R3006
50V
100k
560p
*C3004
*R3007
50V
100k
560p
*Q3003
B1ABCF000231
*Q3004
B1ABCF000231
*C3012
*R3010
50V
100k
560p
*C3005
50V
*R3011
560p
100k
*Q3005
Q3001
B1ABCF000231
R3025 100k
Q3000
B1ABCF000231
R3024
100k
L3035
R3030
VJUMP1005-S
S
D3001
B1ABCF000231
R3019
R3021
2.2k
2.2k
*R3008
2.2k
*R3009
2.2k
*R3012
2.2k
*R3013
2.2k
VJUMP1005-S
VJUMP1005-S
*R3028
330
*C3020
*C3018
10V
*C3021
10V
*R3029
*C3019
330
10V
*C3030
*R3042
10V
330
*C3029
10V
*C3028
10V
*R3041
*C3027
330
10V
R3146
330
C3116
10V
C3117
10V
C3114
10V
R3120
C3115
330
10V
R3107
S
R3105
S
10V
10u
10u
10u
10u
HP_LOUT
HP_ROUT
SPDIF_OUT
TO 13/22
10u
10u
10u
10u
10u
10u
10u
10u
AVSW_R056PIN_L1OUT
AVSW_R055PIN_R1OUT
AVSW_R054PIN_L2OUT
AVSW_R053PIN_R2OUT
AVSW_R052PIN_L3OUT
AVSW_R051PIN_R3OUT
TO 12/22
HP_LOUT
HP_ROUT
TO 9/22
SPDIF_OUT
TO 18/22
MONITOROUT_MUTE
TO 13/22
E_AV1
E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL
E_AV1_GND(AUDIO)(_4P)_TERMINAL
E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL
E_AV2
E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL
E_AV2_GND(AUDIO)(_4P)_TERMINAL
E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL
E_AV3
SIDE_LIN_TERMINAL
SIDE_RIN_TERMINAL
PC
E_PC_LIN/A_AV1_LIN__TERMINAL
E_PC_RIN/A_AV1_RIN__TERMINAL
AUDIO OUT
TO 13/22
E_AV1
E_AV1_VOUT(19P)/A_VOUT__TERMINAL
E_AV2
E_AV2_VOUT(19P)_TERMINAL
TO 12/22
AUDIOOUT_L
AUDIOOUT_R
TO 12/22
TV_L
TV_R
TO 18/22
SUB_Y
L IN
R IN
J0JCC0000287
VJUMP1005-S
J0JCC0000287
J0JCC0000287
VJUMP1005-S
J0JCC0000287
J0JCC0000287
J0JCC0000287
L3002
JS3000
S
L3003
L3006
JS3001
S
L3007
L3029
L3030
J0JCC0000287
J0JCC0000287
TV_L
TV_R
VJUMP1005-S
VJUMP1005-S
*R3301
L3010
L3011
JS3010
JS3015
*R3174
0
*Q3300
2SB0709A0L
C3047
10V
R3050
C3007
560p
C3008
560p
C3010
50V
560p
C3011
50V
560p
C3257
50V
560p
C3099
50V
560p
S
R3169
100k
S
100k
220
R3000
22k
50V
R3001
R3049
22k
220
50V
R3052
220
R3002
22k
R3003
R3051
22k
220
R3043
220
R3717
22k
R3045
220
R3716 22k
R3004
C3013
22k
50V
560p
C3014
R3005
50V
22k
560p
R3033
220
R3034
220
R3037
220
R3038
220
C3095
10V
R3167
100u
+
75
C3103
10V 100u
+
*C3097
10V
*R3172
100u
+
75
*C3102
10V 100u
+
MOUT_9V
*R3300
360
*R3307
220
VJUMP1005-S
R3047
220
R3048
C3024
220
C3022
C3025
C3026
R3161
R3219
10V 1u
10V 1u
10V 1u
10V 1u
0
R3176
0
S
1u
C3046
10V
1u
C3049
10V
1u
C3048
10V
1u
C3039
10V
1u
C3041
10V 1u
C3043
10V 1u
C3044
10V 1u
TO 13/22
AVSW_R062PIN_L3IN
AVSW_R063PIN_R3IN
AVSW_R064PIN_L4IN
AVSW_R065PIN_R4IN
AVSW_R068PIN_L6IN
AVSW_R069PIN_R6IN
AVSW_R070PIN_L7IN
AVSW_R071PIN_R7IN
AUDIOOUT_L
AVSW_R058PIN_L1IN
AUDIOOUT_R
AVSW_R059PIN_R1IN
AVSW_R060PIN_L2IN
AVSW_R061PIN_R2IN
TO 13/22
E_AV1_VOUT
AVSW_R044PIN_CVBS/Y+COUT3
AVSW_R043PIN_SAGCVBSOUT3
E_AV2_VOUT
AVSW_R038PIN_Y/Y+C/CVBSOUT4
AVSW_R037PIN_SAGCVBSOUT4
AVSW_R041PIN_C/Y+C/CVBSOUT5
AVSW_R040PIN_SAGCVBSOUT5
TO 13/22
E_AV1
E_AV1_SLOW(_8P)_TERMINAL
E_AV1_FB(16P)_TERMINAL
E_AV2
E_AV2_FB(16P)_TERMINAL
E_AV2_SLOW(_8P)_TERMINAL
E_AV3
SIDE_S_PLUG_DET_TERMINAL
TO 11/22
RGB_FB
TP3022
*R3091
21.5k
*C3064
1000p
*C3065
1000p
50V
50V
VJUMP1005-S
VJUMP1005-S
*R3094
13k
S
JS3011
*R3073
150
JS3018
S
*R3079
150
TP3023
*R3092
21.5k
*R3182
13k
TP3007
VJUMP1005-S
*R3143
*R3098 150
*R3150
*R3104
150
*R3100
R3238
100k
RGB_FB
68
68
S
TO 13/22
AVSW_R014PIN_S2DET2
AVSW_R076PIN_FBIN/O1
AVSW_R078PIN_FBIN2/O2
E_AV2_SLOW
AVSW_R020PIN_S2DET1
AVSW_R094PIN_L3DET1
AVSW_R027PIN_FBOUT/TDET10
E_AV1
E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL
E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL
E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL
E_AV2
E_AV2_RED/C(15PIN)_TERMINAL
E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL
E_AV2_BLUE(_7PIN)_TERMINAL
E_AV3
SIDE_C_TERMINAL
E_YPbPr
E_YPBPR_Y/A_AV1C_Y__TERMINAL
E_YPBPR_PB/A_AV1C_PB__TERMINAL
E_YPBPR_PR/A_AV1C_PR__TERMINAL
PC
PC
PC_G_TERMINAL
E_AV1
E_AV1_VIN(20P)/A_AV2_V__TERMINAL
E_AV2
E_AV2_VIN(20P)/A_AV3_V__TERMINAL
E_AV3
SIDE_VIN_TERMINAL
SIDE_Y_TERMINAL
PC_R_TERMINAL
PC_B_TERMINAL
PC_HD_TERMINAL
PC_VD_TERMINAL
JS3012
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
J0JCC0000287
J0JCC0000287
JS3013
JS3014
JS3016
JS3019
JS3020
L3017
S
S
S
S
S
S
R
B
G
R3228
R3229
L3018
EZJP0V080GA
D3055
EZJP0V080GA
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
FL3003
J0HABB000004
1
2
FL3005 J0HABB000004
1
2
FL3004 J0HABB000004
1
2
S
S
J0JCC0000287
J0JCC0000287
D3054
*R3188
*R3193
*R3198
*R3083
*R3204
*R3082
JS3007
JS3008
JS3009
L3026
150
150
150
150
150
150
S
S
S
FL3001 J0HABB000003
3
4
FL3002
J0HABB000003
3
4
R3240
*R3072
*R3097
*R3077
*R3102
L3028
J0JCC0000287
*R3074
R3140
C3092
R3226
4.7k
R3227
4.7k
10V
C3090
10V
C3091
10V
*C3088 10V
C3072
16V
*C3089 10V
*C3087
10V
C3077
16V
C3086
10V 10u
C3085
10V
C3084
10V
C3144
10V 10u
10V 10u
10V 10u
10V 10u
TO 13/22
10u
AVSW_R091PIN_PRIN2/R3
10u
AVSW_R089PIN_CYIN2/G3
10u
AVSW_R087PIN_PBIN2/B3
10u
AVSW_R011PIN_R2/CIN3
0.1u AVSW_R021PIN_B1/CIN1
10u
AVSW_R013PIN_G2/YIN2
10u
AVSW_R015PIN_B2/CIN2
0.1u AVSW_R085PIN_CIN4
AVSW_R095PIN_CYIN1
10u
AVSW_R093PIN_PBIN1
10u
AVSW_R097PIN_PRIN1
R3191
68
AVSW_R003PIN_RIN
R3189
68
AVSW_R099PIN_BIN
R3190
68
AVSW_R001PIN_GIN
R3223
68
AVSW_R002PIN_HDIN
R3225
68
AVSW_R100PIN_VDIN
10V 10u
C3071
C3070
C3073
C3074
AVSW_R079PIN_CVBSIN6
AVSW_R023PIN_CVBSIN2
AVSW_R019PIN_G1/YIN1
AVSW_R081PIN_CVBSIN5
AVSW_R083PIN_YIN4
220
150
R3138
220
*R3075
150
R3139
220
*R3076
150
*R3136
220
*R3087
R3117
150
220
*R3137
220
*R3081
150
*R3135
220
*R3205
150
L3027
R3123
220
R3121
75
C3075
10V
1u
R3134
82
R3084
75
R3133
82
R3085
75
R3132
82
R3086
75
C3109
10u
10V
3
4
R3230
75
C3108
10u
10V
3
R3234
4
75
C3107
10u
10V
3
4
R3232 75
1
2
1
2
220
150
150
R3116
220
150
220
*R3115
150
R3118
220
150
*R3187
150
*R3213
R3119
220
150
*R3212
150
*R3186
!
A-BOARD (14/22)
AVSW REF No. 3000-3399
*C3078
*R3245
TO 5/22
TO 15/22
MAIN_RF_CVBS
DVB_CVBS
MVDACO1
10V 10u
220
C3083
10V
R3128
10u
220
AVSW_R017PIN_CVBSIN1
AVSW_R005PIN_CVBSIN4
122 124121120 123 125 126118 119
64
Page 65

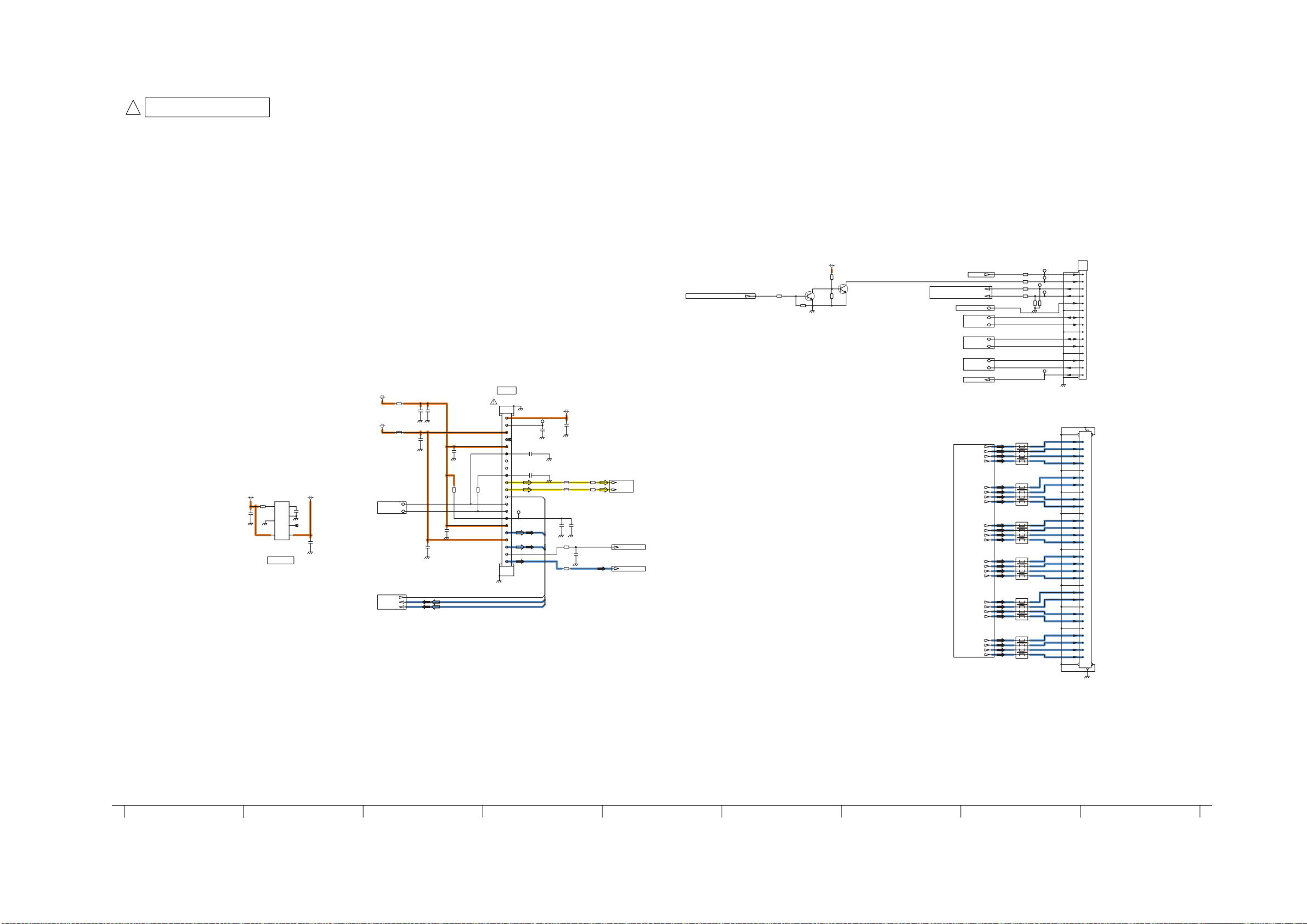

12.19. A-Board (15/22) Schematic Diagram

!
A-BOARD (15/22)
TUNER
REF No. 2900-2999
LVDS-MODEL
CRNo.4200-4499
C2960
SUB6V
10V
1u
R2960
10k
Cont
5
Sub
6
Vin
7
IC2960
C0DBGHF00001
TUNER5V
STB5V
R4856
Q4831
10k
2SD0601ASL
R4857
47k
TO 8/22
G-PANEL_ALARM/INVERTER_SOS
TO 8/22
G-PANEL_STBY_ON/PANEL_VCC_ON
Q4832
2SD0601ASL
R4853
100k
R4854
100k
TO 1,18,22/22
TUNER5V
R2916
0
+
C2912
C2916
16V
6.3V
0.1u
BT30V
L2901
J0JCC0000278
TUNER5V
Cn
C2961
4
50V 470p
GND
3
NC
2
Vo
1
C2962
6.3V 1u
TO 1/22
TUNER_SCL
TUNER_SDA
TO 4/22
IFAGC
IFD1
IFD2
100u
C2914
50V
0.1u
C2907 16V
0.1u
*R2942
0
C2922 16V
0.1u
C2937
50V
0.1u
TUNER
*TU2901
ENG37E18KF
+B_active_ANT
1
AGC_Monitor
2
BTL
3
4
BB
*C2927
50V
5
100p
SCL
6
NC
7
NC
*C2928
50V
8
100p
SDA
9
Audio-out
10
SIF-out
*R2941
0
11
IF-AGC
12
NC
13
NC
TP2904
14
+B
15
VB
16
IFD-out1
17
NC
18
IFD-out2
19
AFT-out
20
Video-out
21
ACT5V
TP2901
C2902 50V
2200p
*C2923
16V
0.1u
*L2902
*R2909
TO 12/22
J0JCC0000269
IFAGC
J0JCC0000269
C2906
16V
0.1u
IFD1
IFD2
Vout
IFAGC
IFD1
IFD2
0
AM
SIF
R2905
L2904
0
C2929 50V 1000p
R2915
220
C2920 50V
0.01u
R2927
0
TO 8/22
G-RF_AFT1
TO 14/22
MAIN_RF_CVBS
G-PANEL_READY
TO 22/22
IIC_CONT/C_SEL
TO 22/22
PANEL_SDA2
PANEL_SCL2
TO 22/22
TO 8,22/22
TO 20/22
1ST_PIX_TA-
1ST_PIX_TA+
1ST_PIX_TB-
1ST_PIX_TB+
1ST_PIX_TC-
1ST_PIX_TC+
1ST_PIX_TCLK-
1ST_PIX_TCLK+
1ST_PIX_TD-
1ST_PIX_TD+
1ST_PIX_TE-
1ST_PIX_TE+
2ND_PIX_TA-
2ND_PIX_TA+
2ND_PIX_TB-
2ND_PIX_TB+
2ND_PIX_TC-
2ND_PIX_TC+
2ND_PIX_TCLK-
2ND_PIX_TCLK+
2ND_PIX_TD-
2ND_PIX_TD+
2ND_PIX_TE-
2ND_PIX_TE+
TO 2/22
IS0VAL
GENX7_SDA
GENX7_SCL
AR_RXD_PC
AR_TXD_PC
G-KEY1
R4832
R4844
R4834
R4842
*L4800
J0JYD0000033
*L4801
J0JYD0000033
*L4802
J0JYD0000033
*L4803
J0JYD0000033
*L4804
J0JYD0000033
*L4805
J0JYD0000033
R4841
100k
100
100
1k
1k
1234
1234
1234
1234
1234
1234
TP4202
TP4203
TP4201
TP4204
R4833 100k
TP4801
TO D-BOARD
A3
(D3)
1
DISPEN
2
PANEL_STB_ON
3
READY
4
ALARM
5
IIC_CONT
6
GND
7
IIC_DATA1
8
IIC_CLK1
9
GND
10
IIC_DATA2
11
IIC_CLK2
12
GND
13
RXD
14
TXD
15
Key
1st pixel TA-
31
1st pixel TA+
30
1st pixel TB-
29
1st pixel TB+
28
GND
27
1st pixel TC-
26
1st pixel TC+
25
GND
24
1st pixel TCLK-
23
1st pixel TCLK+
22
GND
21
1st pixel TD-
20
1st pixel TD+
19
1st pixel TE-
18
1st pixel TE+
17
LVDS_DET
16
2nd pixel TA-
15
2nd pixel TA+
14
2nd pixel TB-
13
2nd pixel TB+
12
GND
11
2nd pixel TC-
10
2nd pixel TC+
9
GND
8
2nd pixel TCLK-
7
2nd pixel TCLK+
6
GND
5
2nd pixel TD-
4
2nd pixel TD+
3
2nd pixel TE-
2
2nd pixel TE+
1
65
TO D-BOARD
A5
(D3)
134133128127 135131130129 132
Page 66

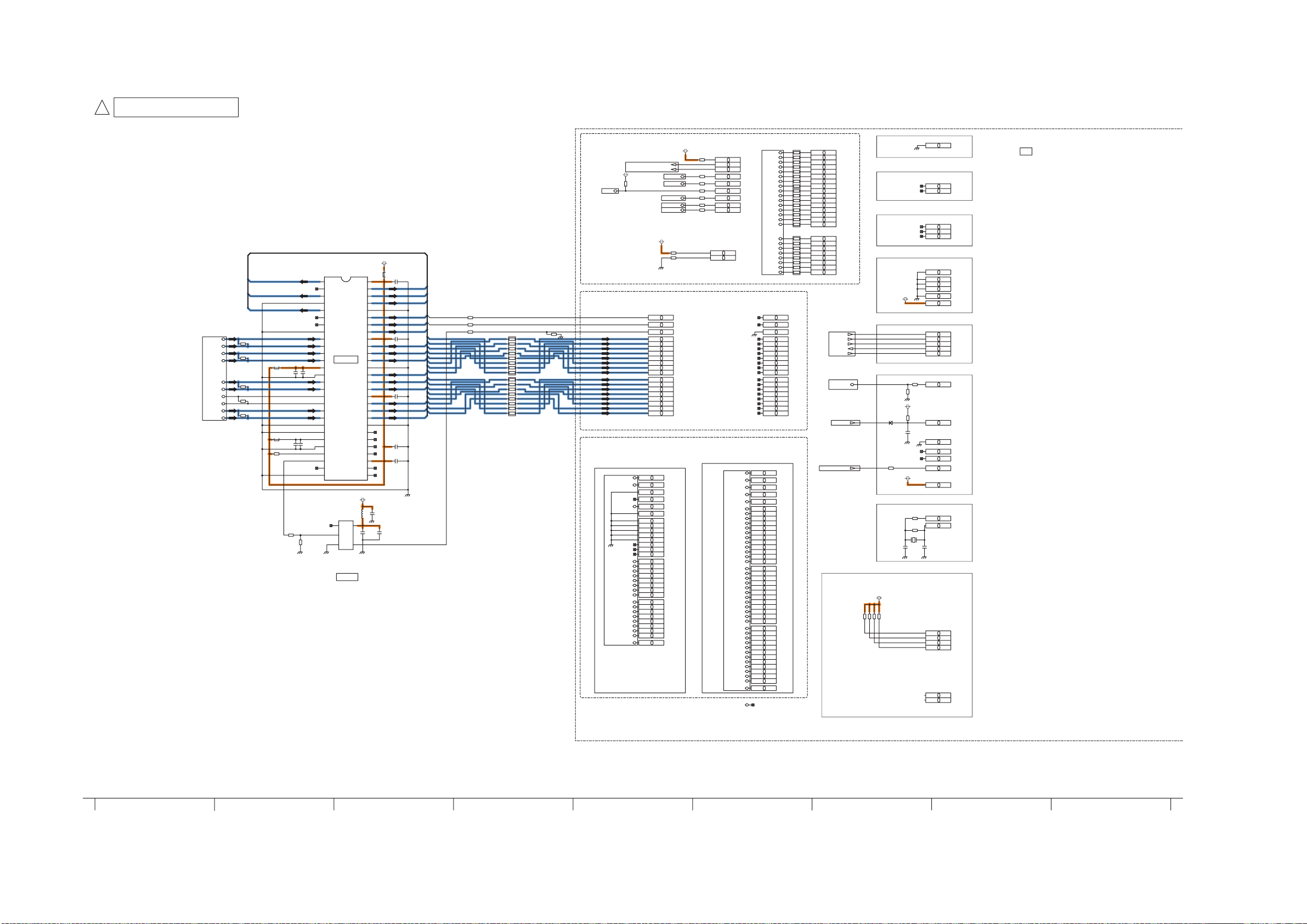

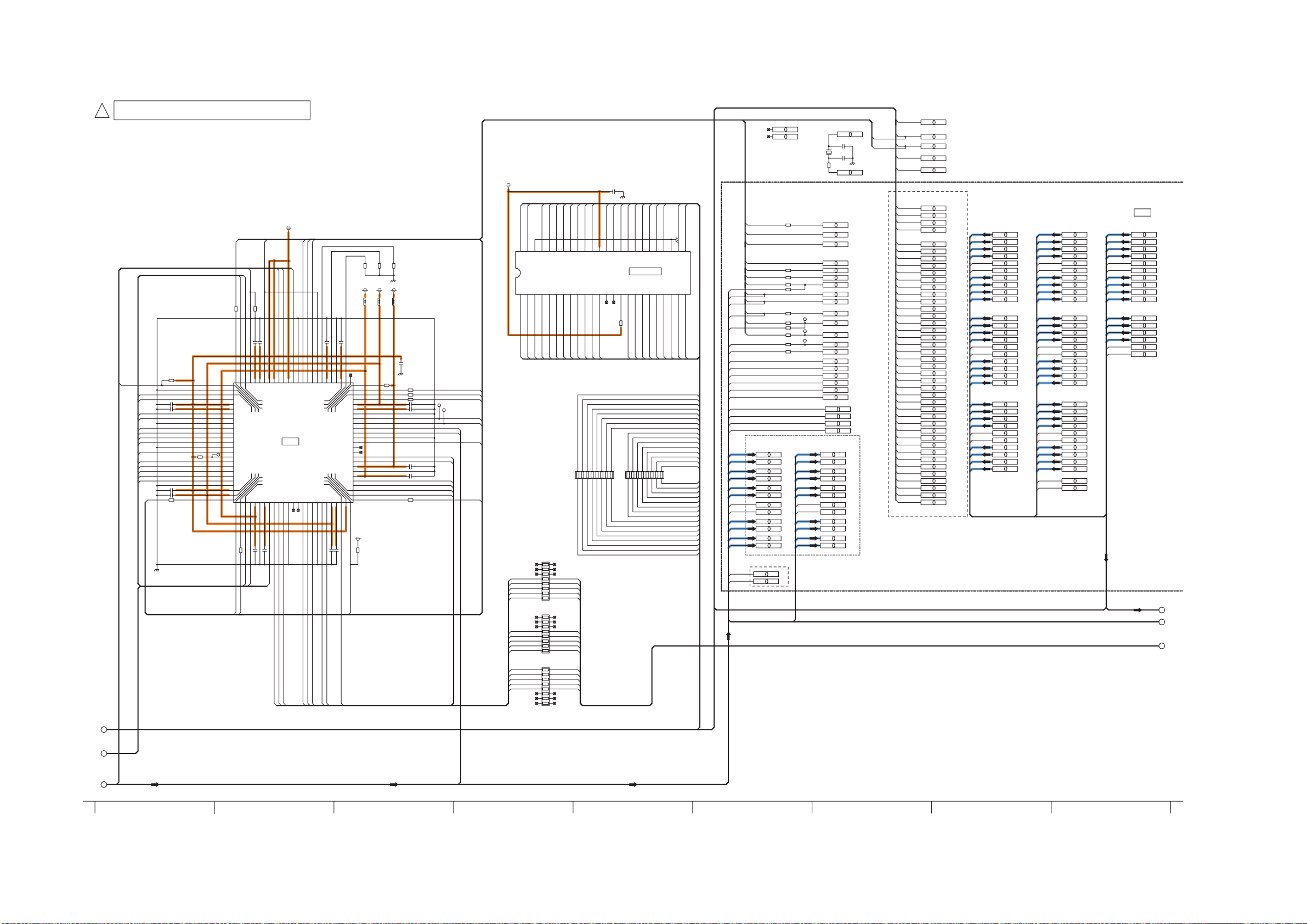

12.20. A-Board (16/22) Schematic Diagram

!
A-BOARD (16/22)
GC6
CRNo. 5000-5399 5851-5999
RC3
RD6
RC4
GND
RC5
RC6
RD0
LVDSGND
RA-
RA+
RB-
RB+
LVDS Rx
LVDSVCC
LVDSGND
RC-
RC+
RCLK-
RCLK+
RD-
RD+
LVDSGND
PLLGND
PLLVCC
PLLGND
PDWN
CLKOUT
RA0
GND
G1C100MA0072
1
NC
2
3
GND
IC5320
C0JBAB000703
BUFFER
IC5110
C0JBCZ000519
L5010
5
VCC
A
4
Y
J0JHC0000045
SUB3.3V
TO 2/22
TA1N
TA1P
TB1N
TB1P
TC1N
TC1P
TCLK1N
TCLK1P
TD1N
TD1P
RX_Y7
RX_HP
RX_VP
R5097 100
R5098 100
L5007
J0JHC0000045
C5080
10V
L5008
J0JHC0000045
R5102
10k
10u
C5081
R5111
R5099 100
R5100 100
R5101 100
1
2
3
4
5
6
7
8
9
10
11
12
13
C5082 16V
14
0.1u
15
16
17
18
19
20
21
22
23
C5083 16V
10V
24
10u
0.1u
25
26
27
28
68
R5112 10k
4.7k
R5206
R5207
LSI test
LVDS test
PLL test
DRAM test
JTAG
CTRL
D5201
MA2J72800L
XTAL
H0J270500113
SUB3.3V
4.7k
4.7k
4.7k
R5204
R5104
IC5100 P27 TEST
IC5100 H6 TSTAIO0
IC5100 K6 TSTAIO1
IC5100 M6 TESTIO_OUT
IC5100 N5 TESTIO_SYS
IC5100 AH2 TESTIO_DDR
IC5100 G26 DRAMTEST
IC5100 L26 PTESTDRAM2
IC5100 F26 PTESTDRAM1
IC5100 H26 PTESTDRAM0
GC6_3.3V
IC5100 P26 WLBI
IC5100 R27 RON
IC5100 AA27 TMS
IC5100 AA26 TRST
IC5100 W27 TCK
IC5100 AC26 TDO
IC5100 J26 TDI
R5096
100
IC5100 M26 NRST
R5151
10k
GC6_3.3V
R5224 33k
IC5100 F27 CCLIN
C5202
16V
0.1u
IC5100 K26 LCDMODE
IC5100 E6 SSOUT
R5225
68
IC5100 E7 PWMK
IC5100 V26 OEMUTE
SUB3.3V
IC5100 V27 OEBLK
R5209
0
IC5100 V1 XTALOUT
R5208
IC5100 U1 XTALIN
1M
X5200
C5200
C5201 50V
50V
18p
18p
MASTER
GC6_SDA1
IC5100 AC27 SDA1
GC6_SCL1
IC5100 AB26 SCL1
GC6_SDA2
IC5100 AB27 SDA2
GC6_SCL2
IC5100 Y26 SCL2
IC5100 AD26 SDA
IC5100 AD27 SCL
GC6
IC5100
MN84527
EXB-BUS (PEAKS)
SUB3.3V
R5095
AA_XERE
R5227
R5230
R5106
R5089
R5223
R5107
R5108
R5109
10k
GC6_EXBSEL1
GC6_EXBSEL0
10k
PORT-A(ADV7495)
10k
IC5100 C30 XIRQ2
IC5100 D28 XIRQ1
IC5100 D29 XIRQ0
100
IC5100 D30 XEAS
100
IC5100 E28 XECS
100
IC5100 E29 XEDK
100
IC5100 E30 XERE
100
IC5100 F29 XEWE1
100
IC5100 F28 XEWE0
IC5100 E27 EXBSEL1
IC5100 G28 EXBSEL0
PORT-D (PEAKS Sub)
TO Sheet ADV-SYSTEM
TO 5/22
AA_GC6_IRQ1
(IRQ VBI)
AA_GC6_IRQ0
(IRQ IPR)
SUB3.3V
TO 4,5/22
R5213
TO 2,5/22
2.2k
XEDK
TO 5,6/22
TO 5,6/22
SUB3.3V
L5009
C5079
56
VCC
RC2
RC1
RC0
GND
RB6
RD5
RD4
VCC
RB5
RB4
RB3
GND
RB2
RD3
RD2
VCC
RB1
RB0
RA6
GND
RA5
RD1
RA4
RA3
VCC
RA2
RA1
C5085 16V
0.1u
10u10V
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
C5086 10V 10u
C5087
10V
10u
RX_Y6
RX_Y5
RX_Y4
RX_HP
RX_Y3
RX_Y1
RX_Y0
C5075
16V
0.1u RX_Y2
RX_C7
RX_C6
RX_C5
RX_C1
RX_C0
C5076
16V
0.1u RX_C4
RX_C3
RX_C2
C5077
16V
0.1u
C5078
16V
0.1u
R5176
RX_VP
RX_Y7
RX_Y6
RX_Y5
RX_Y4
RX_Y3
RX_Y2
RX_Y1
RX_Y0
RX_C7
RX_C6
RX_C5
RX_C4
RX_C3
RX_C2
RX_C1
RX_C0
68
R5177
68
68
R5178
R5179
EXB2HV680JV
R5180
EXB2HV680JV
R5110
47k
PORT-C (PEAKS Main)
PORT-B(GC3FS_next)
TO Sheet FS-SYSTEM
TO 18/22
GC6_HSIB
GC6_VSIB
GC6_CLKIB
GC6_BUIB7
GC6_BUIB6
GC6_BUIB5
GC6_BUIB4
GC6_BUIB3
GC6_BUIB2
GC6_BUIB1
GC6_BUIB0
GC6_GYIB7
GC6_GYIB6
GC6_GYIB5
GC6_GYIB4
GC6_GYIB3
GC6_GYIB2
GC6_GYIB1
GC6_GYIB0
GC6_FRCKO2
TO 5/22
TO 5/22
SUB3.3V
IC5100 D16 HSIC
IC5100 E16 VSIC
IC5100 A18 CLKIC
IC5100 A20 YIC7
IC5100 B20 YIC6
IC5100 A19 YIC5
IC5100 B19 YIC4
IC5100 C19 YIC3
IC5100 B18 YIC2
IC5100 C18 YIC1
IC5100 D18 YIC0
IC5100 E18 UVIC7
IC5100 B17 UVIC6
IC5100 C17 UVIC5
IC5100 D17 UVIC4
IC5100 E17 UVIC3
IC5100 A16 UVIC2
IC5100 B16 UVIC1
IC5100 C16 UVIC0
IC5100 AJ27 HSIB
IC5100 AK28 VSIB
IC5100 AF23 ENBIB
IC5100 AF24 CLKOB
IC5100 AK20 CLKIB
IC5100 AG25 CLKIB2
IC5100 AJ24 RVIB7
IC5100 AK24 RVIB6
IC5100 AG23 RVIB5
IC5100 AG24 RVIB4
IC5100 AF22 RVIB3
IC5100 AF21 RVIB2
IC5100 AG21 RVIB1
IC5100 AG22 RVIB0
IC5100 AH23 BUIB7
IC5100 AJ23 BUIB6
IC5100 AK23 BUIB5
IC5100 AH22 BUIB4
IC5100 AJ22 BUIB3
IC5100 AK22 BUIB2
IC5100 AH21 BUIB1
IC5100 AJ21 BUIB0
IC5100 AK27 GYIB7
IC5100 AH26 GYIB6
IC5100 AJ26 GYIB5
IC5100 AK26 GYIB4
IC5100 AH25 GYIB3
IC5100 AJ25 GYIB2
IC5100 AK25 GYIB1
IC5100 AH24 GYIB0
IC5100 AE27 FRCKO2
AA_XEAS
AA_XECS2
AA_XEWE1
AA_XEWE0
TO 11/22
GC6_HSIA
GC6_VSIA
GC6_ENBIA
GC6_CLKOA
GC6_CLKIA
GC6_RVIA11
GC6_RVIA10
GC6_RVIA9
GC6_RVIA8
GC6_RVIA7
GC6_RVIA6
GC6_RVIA5
GC6_RVIA4
GC6_RVIA3
GC6_RVIA2
GC6_RVIA1
GC6_RVIA0
GC6_BUIA11
GC6_BUIA10
GC6_BUIA9
GC6_BUIA8
GC6_BUIA7
GC6_BUIA6
GC6_BUIA5
GC6_BUIA4
GC6_BUIA3
GC6_BUIA2
GC6_BUIA1
GC6_BUIA0
GC6_GYIA11
GC6_GYIA10
GC6_GYIA9
GC6_GYIA8
GC6_GYIA7
GC6_GYIA6
GC6_GYIA5
GC6_GYIA4
GC6_GYIA3
GC6_GYIA2
GC6_GYIA1
GC6_GYIA0
GC6_FRCKO1
GC6_FRCKO1
TO 4,5,6/22
IIC
VBI
IPR
IC5100 R29 HSIA
IC5100 T27 VSIA
IC5100 R30 ENBIA
IC5100 AE29 CLKOA
IC5100 AF30 CLKIA
IC5100 AC28 RVIA11
IC5100 AD30 RVIA10
IC5100 AD29 RVIA9
IC5100 AD28 RVIA8
IC5100 AF29 RVIA7
IC5100 AF28 RVIA6
IC5100 AG30 RVIA5
IC5100 AG29 RVIA4
IC5100 AG28 RVIA3
IC5100 AH30 RVIA2
IC5100 AH29 RVIA1
IC5100 AJ30 RVIA0
IC5100 W28 BUIA11
IC5100 Y30 BUIA10
IC5100 Y29 BUIA9
IC5100 Y28 BUIA8
IC5100 AA30 BUIA7
IC5100 AA29 BUIA6
IC5100 AA28 BUIA5
IC5100 AB30 BUIA4
IC5100 AB29 BUIA3
IC5100 AB28 BUIA2
IC5100 AC30 BUIA1
IC5100 AC29 BUIA0
IC5100 R28 GYIA11
IC5100 T30 GYIA10
IC5100 T29 GYIA9
IC5100 T28 GYIA8
IC5100 U30 GYIA7
IC5100 U29 GYIA6
IC5100 U28 GYIA5
IC5100 V30 GYIA4
IC5100 V29 GYIA3
IC5100 V28 GYIA2
IC5100 W30 GYIA1
IC5100 W29 GYIA0
IC5100 M27 FRCKO1
AA_ED15
AA_ED14
AA_ED13
AA_ED12
AA_ED11
AA_ED10
AA_ED9
AA_ED8
AA_ED7
AA_ED6
AA_ED5
AA_ED4
AA_ED3
AA_ED2
AA_ED1
AA_ED0
AA_EA7
AA_EA6
AA_EA5
AA_EA4
AA_EA3
AA_EA2
AA_EA0
IC5100 C15 HSID
IC5100 E11 VSID
IC5100 B15 CLKID
IC5100 D15 YID7
IC5100 E15 YID6
IC5100 A14 YID5
IC5100 B14 YID4
IC5100 C14 YID3
IC5100 A13 YID2
IC5100 B13 YID1
IC5100 C13 YID0
IC5100 D13 UVID7
IC5100 E13 UVID6
IC5100 A12 UVID5
IC5100 B12 UVID4
IC5100 C12 UVID3
IC5100 D12 UVID2
IC5100 E12 UVID1
IC5100 D11 UVID0
R5231
EXB2HV680JV
R5232
EXB2HV680JV
R5087
EXB2HV680JV
IC5100 P30 ED15
IC5100 P29 ED14
IC5100 P28 ED13
IC5100 N30 ED12
IC5100 N29 ED11
IC5100 N28 ED10
IC5100 M30 ED9
IC5100 M29 ED8
IC5100 M28 ED7
IC5100 L30 ED6
IC5100 L29 ED5
IC5100 L28 ED4
IC5100 K30 ED3
IC5100 K29 ED2
IC5100 K28 ED1
IC5100 J30 ED0
IC5100 J29 EA7
IC5100 J28 EA6
IC5100 H30 EA5
IC5100 H29 EA4
IC5100 H28 EA3
IC5100 G30 EA2
IC5100 G29 EA1AA_EA1
IC5100 F30 EA0
TO 1/22
GC6-TMS
GC6-TRST
GC6-TCK
GC6-TDO
GC6-TDI
TO 2/22
GC6_XRST
TO 8,18/22
TO 5,8/22
G-DTV_VOUTENB
IIC I/F
VI2CLK
STB_RST
66
141136 137 139 140 143138 142 144
Page 67

12.21. A-Board (17/22) Schematic Diagram

VBI
IC5100P4HSOH
IC5100P5VSOH
IC5100U3CLKOH
IC5100R5VBOH9
IC5100R4VBOH8
IC5100T5VBOH7
IC5100T4VBOH6
IC5100T3VBOH5
IC5100U5VBOH4
IC5100U4VBOH3
TO 19/22
IC5100V5VBOH2
FRC_EEPROM_WP
IC5100V4VBOH1
IC5100V3VBOH0
LVDS
IC5100 A1 VSS
IC5100 A11 VSS
IC5100 A15 VSS
IC5100 A17 VSS
IC5100 A21 VSS
IC5100 A29 VSS
IC5100 B2 VSS
IC5100 B21 VSS
IC5100 B28 VSS
IC5100 C3 VSS
IC5100 C27 VSS
IC5100 D4 VSS
IC5100 D26 VSS IC5100 B30 VDD33
IC5100 E5 VSS
IC5100 E25 VSS
IC5100 F6 VSS
IC5100 F7 VSS
IC5100 F8 VSS
IC5100 F11 VSS
IC5100 F15 VSS
IC5100 F16 VSS
IC5100 F19 VSS
IC5100 F20 VSS
IC5100 F23 VSS
IC5100 U2 VSS
IC5100 U6 VSS
IC5100 U14 VSS
IC5100 U15 VSS
IC5100 U16 VSS
IC5100 U17 VSS
IC5100 U18 VSS
IC5100 U25 VSS
IC5100 V2 VSS
IC5100 V6 VSS
IC5100 V13 VSS
IC5100 V16 VSS
IC5100 V17 VSS
IC5100 V18 VSS
IC5100 W1 VSS
IC5100 W2 VSS
IC5100 W3 VSS
IC5100 W4 VSS
IC5100 W5 VSS
IC5100 W6 VSS
IC5100 W12 VSS
IC5100 W15 VSS
IC5100 W18 VSS
IC5100 W26 VSS
IC5100 Y4 VSS
TO 19/22
GC6_TA2P
IC5100R1TA2P
GC6_TA2M
IC5100R2TA2M
IC5100P1TB2P
GC6_TB2P
GC6_TB2M
IC5100P2TB2M
GC6_TCLK2P
IC5100M1TCLK2P
GC6_TCLK2M
IC5100M2TCLK2M
IC5100N1TC2P
GC6_TC2P
GC6_TC2M
IC5100N2TC2M
IC5100L1TD2P
GC6_TD2P
IC5100L2TD2M
GC6_TD2M
IC5100K1TE2P
GC6_TE2P
IC5100K2TE2M
GC6_TE2M
GC6_TA1P
IC5100J1TA1P
IC5100J2TA1M
GC6_TA1M
IC5100H1TB1P
GC6_TB1P
GC6_TB1M
IC5100F1TCLK1P
GC6_TCLK1P
GC6_TCLK1M
IC5100F2TCLK1M
IC5100G1TC1P
GC6_TC1P
GC6_TC1M
IC5100G2TC1M
IC5100E1TD1P
GC6_TD1P
IC5100E2TD1M
GC6_TD1M
IC5100D1TE1P
GC6_TE1P
GC6_TE1M
IC5100D2TE1M
IC5100 G7 VSS
IC5100 J27 VSS
IC5100 K25 VSS
IC5100 K27 VSS
IC5100 L5 VSS
IC5100 L6 VSS
IC5100 L27 VSS
IC5100 M13 VSS
IC5100 M14 VSS
IC5100 M17 VSS
IC5100 M18 VSS
IC5100 N3 VSS
IC5100 N4 VSS
IC5100 N13 VSS
IC5100 N14 VSS
IC5100 N15 VSS
IC5100 N16 VSS
IC5100 N17 VSS
IC5100 N18 VSS
IC5100 N25 VSS
IC5100 P3 VSS
IC5100 P6 VSS
IC5100 P12 VSS
IC5100 P13 VSS
IC5100 P14 VSS
IC5100 Y27 VSS
IC5100 AA5 VSS
IC5100 AA25 VSS
IC5100 AB2 VSS
IC5100 AB6 VSS
IC5100 AC3 VSS
IC5100 AD4 VSS
IC5100 AE1 VSS
IC5100 AE4 VSS
IC5100 AE5 VSS
IC5100 AE8 VSS
IC5100 AE17 VSS
IC5100 AE18 VSS
IC5100 AE22 VSS
IC5100 AE23 VSS
IC5100 AE24 VSS
IC5100 AE28 VSS
IC5100 AE30 VSS
IC5100 AF2 VSS
IC5100 AF4 VSS
IC5100 AF6 VSS
IC5100 AF11 VSS
IC5100 AF14 VSS
IC5100 AF16 VSS
IC5100 AF18 VSS
PORT-E (Digital Out)
IC5100E8HSOE
IC5100E10
VSOE
IC5100C11PTVEN
IC5100B11CLKOE
IC5100B8ROE9
IC5100A8ROE8
IC5100D9ROE7
IC5100C9ROE6
IC5100B9ROE5
IC5100A9ROE4
IC5100D10ROE3
IC5100C10ROE2
IC5100B10ROE1
IC5100A10ROE0
IC5100A2BOE9
IC5100B3BOE8
IC5100A3BOE7
IC5100C4BOE6
IC5100B4BOE5
IC5100A4BOE4
IC5100D5BOE3
IC5100C5BOE2
IC5100B5BOE1
IC5100A5BOE0
IC5100D6GOE9
IC5100C6GOE8
IC5100B6GOE7
IC5100A6GOE6
IC5100D7GOE5
IC5100C7GOE4
IC5100B7GOE3
IC5100A7GOE2
IC5100D8GOE1
IC5100C8GOE0
IC5100E9FRCKO3
GC6
IC5100
MN84527
IC5100 P15 VSS
IC5100 P16 VSS
IC5100 P17 VSS
IC5100 P18 VSS
IC5100 P25 VSS
IC5100 R3 VSS
IC5100 R6 VSS
IC5100 R12 VSS
IC5100 R13 VSS
IC5100 R14 VSS
IC5100 R15 VSS
IC5100 R16 VSS
IC5100 R17 VSS
IC5100 R18 VSS
IC5100 T1 VSS
IC5100 T2 VSS
IC5100 T6 VSS
IC5100 T12 VSS
IC5100 T13 VSS
IC5100 T14 VSSIC5100 F12 VSS
IC5100 T15 VSS
IC5100 T16 VSS
IC5100 T17 VSS
IC5100 T18 VSS
IC5100 T25 VSS
IC5100 AF25 VSS
IC5100 AG1 VSS
IC5100 AG3 VSS
IC5100 AG5 VSS
IC5100 AG7 VSS
IC5100 AG13 VSS
IC5100 AG26 VSS
IC5100 AH1 VSS
IC5100 AH3 VSS
IC5100 AH8 VSS
IC5100 AH12 VSS
IC5100 AH16 VSS
IC5100 AH27 VSS
IC5100 AJ2 VSS
IC5100 AJ4 VSS
IC5100 AJ6 VSS
IC5100 AJ9 VSS
IC5100 AJ15 VSS
IC5100 AJ18 VSS
IC5100 AJ28 VSS
IC5100 AK3 VSS
IC5100 AK12 VSS IC5100AA2MMDQ26
IC5100 AK21 VSS
IC5100 AK29 VSS
C5048
6.3V
2.2u
C5049
16V
0.1u
C5050
6.3V 1u
IC5100 M19 DRAM12_7
IC5100 N19 DRAM12_6
IC5100 P19 DRAM12_5
IC5100 T19 DRAM12_4
IC5100 U19 DRAM12_3
IC5100 V19 DRAM12_2
IC5100 W19 DRAM12_1
IC5100 J25 PVPPDRAM2
IC5100 Y25 PVPPDRAM1
LOSD
MOSDVSO
ALPHA0
MOSDHSI
R5088
R5077
68
0
IC5100AG2MCLK
1.8V_GCDDR
C5001
SUB3.3V
L5004
J0JHC0000045
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
1u
10u10V
10u
10u10V
3.3V(1)
GC6_1.8V
16V
0.1u
C5002
16V
0.1u
C5003
16V
0.1u
C5004
16V
0.1u
C5005
6.3V 1u
C5006
6.3V 1u
C5007
10V
10u
C5008
16V
0.1u
C5009
16V
0.1u
C5010
16V
0.1u
C5011
16V
0.1u
IC5100 A30 VDD33
IC5100 B1 VDD33
IC5100 B29 VDD33
IC5100 C1 VDD33
IC5100 C2 VDD33
IC5100 C28 VDD33
IC5100 C29 VDD33
IC5100 D3 VDD33
IC5100 D14 VDD33
IC5100 D27 VDD33
IC5100 E3 VDD33
IC5100 E4 VDD33
IC5100 E14 VDD33
IC5100 E26 VDD33
IC5100 F4 VDD33
IC5100 F5 VDD33
IC5100 F9 VDD33
IC5100 F10 VDD33
IC5100 F13 VDD33
IC5100 F14 VDD33
IC5100 F17 VDD33
IC5100 F18 VDD33
IC5100 F21 VDD33
IC5100 F22 VDD33
IC5100 F24 VDD33
IC5100 F25 VDD33
IC5100 G5 VDD33
IC5100 G6 VDD33
IC5100 G25 VDD33
IC5100 G27 VDD33
IC5100 H25 VDD33
IC5100 H27 VDD33
IC5100 L25 VDD33
IC5100 M25 VDD33
IC5100 N26 VDD33
IC5100 N27 VDD33
IC5100 R25 VDD33
IC5100 R26 VDD33
IC5100 T26 VDD33
IC5100 U26 VDD33
IC5100 U27 VDD33
IC5100 V25 VDD33
IC5100 W25 VDD33
IC5100 AB25 VDD33
IC5100 AC25 VDD33
L5001 J0JHC0000045
IC5100 Y2 VDDIO
IC5100 AA3 VDDIO
IC5100 AB4 VDDIO
IC5100 AC5 VDDIO
IC5100 AD1 VDDIO
IC5100 AE2 VDDIO
IC5100 AE6 VDDIO
IC5100 AE12 VDDIO
IC5100 AE15 VDDIO
IC5100 AF3 VDDIO
IC5100 AF5 VDDIO
IC5100 AF9 VDDIO
IC5100 AG4 VDDIO
IC5100 AG15 VDDIO
IC5100 AG17 VDDIO
IC5100 AH10 VDDIO
IC5100 AH14 VDDIO
IC5100 AJ3 VDDIO
IC5100 AJ5 VDDIO
IC5100 AJ11 VDDIO
IC5100 AJ13 VDDIO
IC5100 AK1 VDDIO
IC5100 AK8 VDDIO
IC5100 AK17 VDDIO
IC5100 AF7 VDDIOCK
S
R5017
IC5100AJ16MMDM0
IC5100AK15MMDM1
IC5100AK16MMDQS0
IC5100AH15MMDQS1
IC5100AG16MMDQ0
IC5100AE16MMDQ1
IC5100AJ17MMDQ2
IC5100AH17MMDQ3
IC5100AF17MMDQ4
IC5100AG18MMDQ5
IC5100AK18MMDQ6
IC5100AH18MMDQ7
IC5100AE14MMDQ8
IC5100AG14MMDQ9
IC5100AJ14MMDQ10
IC5100AK14MMDQ11
IC5100AE13MMDQ12
IC5100AF13MMDQ13
IC5100AH13MMDQ14
IC5100AK13MMDQ15
IC5100AG8MMA0
IC5100AK9MMA1
IC5100AK6MMA2
IC5100AE11MMA3
IC5100AE9MMA4
IC5100AF10MMA5
IC5100AK7MMA6
IC5100AK10MMA7
IC5100AJ7MMA8
IC5100AJ10MMA9
IC5100AK11MMA10
IC5100AG9MMA11
IC5100AG10MMA12
IC5100AG11MMBA0
IC5100AH9MMBA1
AH11MMBA2
IC5100
IC5100AJ12MMXWE
IC5100AJ8MMXRAS
IC5100AE10MMXCAS
IC5100AF8MMXCS1
IC5100AF12MMXCS0
IC5100AG12MMCKE
IC5100AH6MMODT
IC5100AK4MMCK
IC5100AK5MMXCK
IC5100AG6MMMONB
IC5100AH5MMMONA
IC5100AH4MMPCLKEXT
IC5100AJ1MMRDRV
IC5100AK2MMRODT
IC5100AE7MMVCAL
IC5100AF15MMVREF0
IC5100AB5MMVREF1
IC5100AC2MMDM2
IC5100AB1MMDM3
IC5100AC1MMDQS2
IC5100AB3MMDQS3
IC5100AD5MMDQ16
IC5100AC4MMDQ17
IC5100AD2MMDQ18
IC5100AD3MMDQ19
IC5100AC6MMDQ20
IC5100AD6MMDQ21
IC5100AF1MMDQ22
IC5100AE3MMDQ23
IC5100AA6MMDQ24
IC5100AA4MMDQ25
IC5100AA1MMDQ27
IC5100Y5MMDQ28
IC5100Y6MMDQ29
IC5100Y3MMDQ30
IC5100Y1MMDQ31
VJUMP1005-S
S
R5032
VJUMP1005-S
R5018
S
VJUMP1005-S
S
R5019
VJUMP1005-S
S
R5033
VJUMP1005-S
S
R5034
VJUMP1005-S
S
R5035
VJUMP1005-S
S
R5036
VJUMP1005-S
S
R5037
VJUMP1005-S
S
R5038
VJUMP1005-S
S
R5039
VJUMP1005-S
S
R5040
VJUMP1005-S
S
R5041
VJUMP1005-S
S
R5042
VJUMP1005-S
S
R5043
VJUMP1005-S
S
R5044
VJUMP1005-S
S
R5045
VJUMP1005-S
S
R5046
VJUMP1005-S
S
R5047
VJUMP1005-S
S
R5048
VJUMP1005-S
R5049
47
R5050
47
R5051
47
R5052
47
R5053
47
R5054
47
R5055
47
R5056
47
R5057
47
R5058
47
R5059
47
R5060
47
R5061
47
R5062
47
R5063
47
R5064
47
R5065
47
R5066
47
R5068
47
R5070
47
R5071
47
S
VJUMP1005-S
R5020
S
VJUMP1005-S
R5021
R5079
10k
R5080
10k
1.8V_GCDDR
R5075
75
C5067
0.1u
16V
C5054
C5053
16V
0.1u
0.1u
16V
G_CH0DM0
G_CH0DM1
G_CH0DQS0
G_CH0DQS1
G_CH0DQ0
G_CH0DQ1
G_CH0DQ2
G_CH0DQ3
G_CH0DQ4
G_CH0DQ5
G_CH0DQ6
G_CH0DQ7
G_CH0DQ8
G_CH0DQ9
G_CH0DQ10
G_CH0DQ11
G_CH0DQ12
G_CH0DQ13
G_CH0DQ14 G_CH0DQ10
G_CH0DQ15
G_CH0A0
G_CH0A1
G_CH0A2
G_CH0A3
G_CH0A4
G_CH0A5
G_CH0A6
G_CH0A7
G_CH0A8
G_CH0A9
G_CH0A10
G_CH0A11
G_CH0A12
G_CH0BA0
G_CH0BA1
G_CH0BA2
G_CH0XWE
G_CH0XRAS
G_CH0XCAS
G_CH0XCS1
G_CH0XCS0
G_CH0CKE
G_CH0ODT
G_CH0CK
G_CH0XCK
S
S
R5091
R5090
VJUMP1005-S
VJUMP1005-S
R5076 300
R5024
100
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
VJUMP1005-S
G_CH0DM2
G_CH0DM3
G_CH0DQS2
G_CH0DQS3
G_CH0DQ16
G_CH0DQ17
G_CH0DQ18
G_CH0DQ19
G_CH0DQ20
G_CH0DQ21
G_CH0DQ22
G_CH0DQ23
G_CH0DQ24
G_CH0DQ25
G_CH0DQ26
G_CH0DQ27
G_CH0DQ28
G_CH0DQ29
G_CH0DQ30
G_CH0DQ31
R5072
R5073
R5022
R5023
R5001
R5002
R5003
R5004
R5005
R5006
R5007
R5008
R5009
R5010
R5011
R5012
R5013
R5014
R5015
R5016
G_CH0ODT
G_CH0CK
G_CH0XCK
G_CH0CKE
G_CH0BA0
G_CH0BA1
G_CH0BA2
G_CH0XWE
G_CH0XRAS
G_CH0XCAS
G_CH0XCS0
G_CH0ODT
G_CH0CKE
G_CH0ODT
G_CH0CKE
G_CH0BA0
G_CH0BA1
G_CH0BA2
G_CH0XWE
G_CH0XRAS
G_CH0XCAS
G_CH0XCS1
G_CH0DM0
G_CH0DM1
G_CH0DQS0
G_CH0DQS1
G_CH0DQ5
G_CH0DQ7
G_CH0DQ1
G_CH0DQ3
G_CH0DQ2
G_CH0DQ0
G_CH0DQ6
G_CH0DQ4
G_CH0DQ8
G_CH0DQ11
G_CH0DQ12
G_CH0DQ15
G_CH0DQ14
G_CH0DQ13
G_CH0DQ9
R5067
220
C5056 16V
0.1u
R5082
10k
R5074
10k
R5078
1.8V_GCDDR
R5025
270
R5029
VJUMP1005-P
C5055
16V
0.1u
P
R5026 270
G_CH0DM3
G_CH0DM2
G_CH0DQS3
G_CH0DQS2
G_CH0DQ30
G_CH0DQ28
G_CH0DQ27
G_CH0DQ25
G_CH0DQ24
G_CH0DQ26
G_CH0DQ29
G_CH0DQ31
G_CH0DQ18
G_CH0DQ17
G_CH0DQ22
G_CH0DQ21
G_CH0DQ16
G_CH0DQ23
G_CH0DQ20
G_CH0DQ19
C5057 16V
0.1u
GC6_1.2V
IC5100E21MOSDHSO2
IC5100E23MOSDVSO2
IC5100E24CLKOD2
R5148
R5149
R5150
VJUMP1005-P
47
47
47
R5103
P
R5211
EXB2HV560JV
EXB2HV560JV
IC5100C20MOSDHSO
IC5100E22
IC5100C21CLKOD
IC5100
D19OSDEXTHIN
IC5100E19OSDEXTVIN
IC5100B27FRCH_CLKIN
IC5100C26CLKIN_EXTOSD
IC5100C22OSDYSI
IC5100B22OSDYMI
IC5100A22ALPHA1
IC5100D21
IC5100E20OSDFLAG
IC5100D20
IC5100A28CLKOSDIN1
IC5100A27OSDI15
IC5100B26OSDI14
IC5100A26OSDI13
IC5100D25OSDI12
IC5100C25OSDI11
IC5100B25OSDI10 IC5001 A2 NC
IC5100A25OSDI9
IC5100D24OSDI8
IC5100C24OSDI7
IC5100B24OSDI6
IC5100A24OSDI5
IC5100D23OSDI4
IC5100C23OSDI3
IC5100B23OSDI2
IC5100A23OSDI1
IC5100D22OSDI0IC5100H2TB1M
TO 2/22
VI2P9
VI2P7
VI2P8
10k
TO 2/22
IS0CLK
R5186 10k
TO 2/22
VI2P3
VI2P2
VI2P6
SLRCK
VI2P5
DSRCK
ADCCK
ADIN
LCSID
LCSCK
VI1CVBS3
VI1CVBS2
VI1CVBS1
VI1CVBS0
VI1CK204F
VI1CK208F
VI2P0
VI2P1
(OSD_FLAG)
LOSDOUT_H_O
LOSDOUT_CLK_O
LOSDYS
LOSDYM
LOSD ALPHA(no use)
R[3]
R[2]
R[1]
R[0]
G[4]
G[3]
G[2]
G[1]
G[0]
B[3]
B[2]
B[1]
B[0]
47
R5152
100
R5153
R5185
R5184
L5002 J0JHC0000045
C5012
IC5100 U12 VDDA
16V
0.1u IC5100 W13 VDDA
C5013
IC5100 W17 VDDA
10u10V
C5014
IC5100 U13 VDDR
16V
0.1u IC5100 V12 VDDR
IC5100 V15 VDDR
IC5100 W14 VDDR
C5015
IC5100 W16 VDDR
16V
0.1u IC5100 AE19 VDDR
IC5100 AF19 VDDR
IC5100 AG19 VDDR
C5016
IC5100 AH19 VDDR
10u
10V
IC5100 AJ19 VDDR IC5100 AH7 VDDIO
IC5100 AK19 VDDR
DDR2
C5047
6.3V 1u
C5042
C5043
C5044
6.3V 1u
C5045
6.3V 1u
C5046
16V
16V
10V
GC6_3.3V
L5006
J0JHC0000045
IC5100 R19 VDD33D_DRAM
IC5100 G4 LVVDD
0.1u IC5100 H4 LVVDD
IC5100 H5 LVVDD
0.1u IC5100 J4 LVVDD
IC5100 J5 LVVDD
IC5100 J6 LVVDD
IC5100 K4 LVVDD
IC5100 K5 LVVDD
IC5100 L4 LVVDD
IC5100 M4 LVVDD
10u
3.3V(2)
IC5100 V14 AVDD_DPLL
IC5100 M5 AVDD_PLL
IC5100 N6 AVSS_PLL
C5027
C5028
C5029
C5030
C5031
C5032
C5033
6.3V 1u
C5034
6.3V 1u
C5035
6.3V
C5036
6.3V 1u
C5037
6.3V 1u
C5038
6.3V 1u
C5039
C5040
C5041
16V
16V
16V
16V
16V
16V
10V
C5017
C5018
C5019
C5020
C5021
6.3V 1u
C5022
6.3V 1u
C5023
6.3V 1u
C5024
6.3V 1u
C5025
C5026
C5073
6.3V 2.2u
GC6_1.2V
IC5100 M15 VDD12
16V
0.1u IC5100 M16 VDD12
IC5100 AD25 VDD12
16V
0.1u IC5100 AE20 VDD12
IC5100 AE21 VDD12
16V
0.1u IC5100 AE25 VDD12
IC5100 AE26 VDD12
16V
0.1u IC5100 AF20 VDD12
IC5100 AF26 VDD12
IC5100 AF27 VDD12
IC5100 AG20 VDD12
IC5100 AG27 VDD12
IC5100 AH20 VDD12
IC5100 AH28 VDD12
IC5100 AJ20 VDD12
IC5100 AJ29 VDD12
IC5100 AK30 VDD12
10V
10u
10u10V
GC6_1.2V
L5005 J0JHC0000045
C5072
16V
0.1u IC5100 M12 LVVDD12
IC5100 N12 LVVDD12
IC5100 F3 LVVSS
IC5100 G3 LVVSS
IC5100 J3 LVVSS
IC5100 L3 LVVSS
IC5100 M3 LVVSS
IC5100 H3 LVVSS
IC5100 K3 LVVSS
1.2V
220
DDR2
IC5001
C3ABRY000038
IC5001 B3 UDM
IC5001 F3 LDM
IC5001 A8 UDQS
IC5001 B7 UDQS
IC5001 E8 LDQS
IC5001 F7 LDQS
IC5001 B9 DQ15
IC5001 B1 DQ14
IC5001 D9 DQ13
IC5001 D1 DQ12
IC5001 D3 DQ11
IC5001 D7 DQ10
IC5001 C2 DQ9
IC5001 C8 DQ8
IC5001 F9 DQ7
IC5001 F1 DQ6
IC5001 H9 DQ5
IC5001 H1 DQ4
IC5001 H3 DQ3
IC5001 H7 DQ2
IC5001 G2 DQ1
IC5001 G8 DQ0
IC5001 K9 ODT
IC5001 J8 CK
IC5001 K8 CK
IC5001 K2 CKE
IC5001 L2 BA0
IC5001 L3 BA1
IC5001 L1 NC
IC5001 K3 WE
IC5001 K7 RAS
IC5001 L7 CAS
IC5001 L8 CS
IC5001 J2 VREF
DDR2
IC5002
C3ABRY000038
IC5002 K9 ODT
IC5002 J8 CK
IC5002 K8 CK
IC5002 K2 CKE
IC5002 L2 BA0
IC5002 L3 BA1
IC5002 L1 NC
IC5002 K3 WE
IC5002 K7 RAS
IC5002 L7 CAS
IC5002 L8 CS
IC5002 J2 VREF
IC5002 B3 UDM
IC5002 F3 LDM
IC5002 A8 UDQS
IC5002 B7 UDQS
IC5002 E8 LDQS
IC5002 F7 LDQS
IC5002 B9 DQ15
IC5002 B1 DQ14
IC5002 D9 DQ13
IC5002 D1 DQ12
IC5002 D3 DQ11
IC5002 D7 DQ10
IC5002 C2 DQ9
IC5002 C8 DQ8
IC5002 F9 DQ7
IC5002 F1 DQ6
IC5002 H9 DQ5
IC5002 H1 DQ4
IC5002 H3 DQ3
IC5002 H7 DQ2
IC5002 G2 DQ1
IC5002 G8 DQ0
1.8V_GCDDR
C5062
16V
C3ABRY000038
0.1u
IC5001
C5058
IC5001 E1 VDD
4V
IC5001 M9 VDD
68u
+
IC5001 J9 VDD
IC5001 R1 VDD
C5059
16V
0.1u
IC5001 J1 VDDL
IC5001 A9 VDDQ
C5063
16V
IC5001 C1 VDDQ
0.1u
IC5001 C3 VDDQ
IC5001 C7 VDDQ
IC5001 C9 VDDQ
IC5001 E9 VDDQ
C5064
16V
IC5001 G1 VDDQ
0.1u
IC5001 G3 VDDQ
IC5001 G7 VDDQ
C5052
IC5001 G9 VDDQ
10V 10u
C5051
10u
10V
IC5002
C5060
16V
0.1u IC5002 E1 VDD
IC5002 M9 VDD
IC5002 J9 VDD
IC5002 R1 VDD
IC5002 A9 VDDQ
IC5002 C1 VDDQ
IC5002 C3 VDDQ
C5065
16V
0.1u IC5002 C7 VDDQ
IC5002 C9 VDDQ
IC5002 E9 VDDQ
IC5002 G1 VDDQ
C5066
16V
0.1u IC5002 G3 VDDQ
IC5002 G7 VDDQ
IC5002 G9 VDDQ
C5061
16V
0.1u IC5002 J1 VDDL
IC5002 A2 NC
IC5002 E2 NC
IC5002 R3 NC
IC5002 R7 NC
IC5002 R8 NC
A1 VDD
IC5001 E2 NC
IC5001 R3 NC
IC5001 R7 NC
IC5001 R8 NC
G_CH0A0
G_CH0A1
G_CH0A2
G_CH0A3
G_CH0A4
G_CH0A5
G_CH0A6
G_CH0A7
G_CH0A8
G_CH0A9
G_CH0A10
G_CH0A11
G_CH0A12
G_CH0A0
G_CH0A1
G_CH0A2
G_CH0A3
G_CH0A4
G_CH0A5
G_CH0A6
G_CH0A7
G_CH0A8
G_CH0A9
G_CH0A10
G_CH0A11
G_CH0A12
A1 VDD
IC5001 A3 VSS
IC5001 E3 VSS
IC5001 J3 VSS
IC5001 N1 VSS
IC5001 P9 VSS
IC5001 A7 VSSQ
IC5001 B2 VSSQ
IC5001 B8 VSSQ
IC5001 D2 VSSQ
IC5001 D8 VSSQ
IC5001 E7 VSSQ
IC5001 F2 VSSQ
IC5001 F8 VSSQ
IC5001 H2 VSSQ
IC5001 H8 VSSQ
IC5001 J7 VSSDL
IC5001 M8 A0
IC5001 M3 A1
IC5001 M7 A2
IC5001 N2 A3
IC5001 N8 A4
IC5001 N3 A5
IC5001 N7 A6
IC5001 P2 A7
IC5001 P8 A8
IC5001 P3 A9
IC5001 M2 A10
IC5001 P7 A11
IC5001 R2 A12
C3ABRY000038
IC5002 M8 A0
IC5002 M3 A1
IC5002 M7 A2
IC5002 N2 A3
IC5002 N8 A4
IC5002 N3 A5
IC5002 N7 A6
IC5002 P2 A7
IC5002 P8 A8
IC5002 P3 A9
IC5002 M2 A10
IC5002 P7 A11
IC5002 R2 A12
IC5002 A3 VSS
IC5002 E3 VSS
IC5002 J3 VSS
IC5002 N1 VSS
IC5002 P9 VSS
IC5002 A7 VSSQ
IC5002 B2 VSSQ
IC5002 B8 VSSQ
IC5002 D2 VSSQ
IC5002 D8 VSSQ
IC5002 E7 VSSQ
IC5002 F2 VSSQ
IC5002 F8 VSSQ
IC5002 H2 VSSQ
IC5002 H8 VSSQ
IC5002 J7 VSSDL
!
A-BOARD (17/22)
147 148 149145 153150146 151 152
67
GC6
CRNo. 5000-5399 5851-5999
Page 68

12.22. A-Board (18/22) Schematic Diagram

!
A-BOARD (18/22)
AG_VI2CLK
AG_UB0
AG_UB1
AG_UB2
AG_UB3
AG_UB4
AG_UB5
AG_UB6
AG_UB7
AG_YG0
AG_YG1
AG_YG2
AG_YG3
AG_YG4
AG_YG5GC6_GYIB5
AG_YG6
AG_YG7
AG_HPO
AG_VPO
SUB_FS_3.3V
*C4047
10V
1u
MODEL FPD PDP STB-RESET REF No. 5400-5499
AG_UB0
AG_UB2
AG_UB1
AG_VI2CLK
5
4
VIN
VOUT
VSS
ON/OFF
NC
1
2
3
*C4051
16V
0.1u
TO 16/22
UVIN2
UVIN3
UVIN4
UVIN5
UVIN6
UVIN7
UVIN8
UVIN9
YIN2
YIN3
YIN4
YIN5
YIN6
YIN7
YIN8
YIN9
GC6_FRCKO2
GC6_BUIB0
GC6_BUIB1
GC6_BUIB2
GC6_BUIB3
GC6_BUIB4
GC6_BUIB5
GC6_BUIB6
GC6_BUIB7
GC6_GYIB0
GC6_GYIB1
GC6_GYIB2
GC6_GYIB3
GC6_GYIB4
GC6_GYIB5
GC6_GYIB6
GC6_GYIB7
GC6_HSIB
GC6_VSIB
GC6_CLKIB
FS-COMMON FS-SYSTEM CRNo.4000-4199
Analog ASIC CRNO.5480-5499
GC6_BUIB0
GC6_BUIB1
GC6_BUIB2
GC6_BUIB3
GC6_BUIB4
GC6_BUIB5
GC6_BUIB6
GC6_BUIB7
GC6_GYIB0
GC6_GYIB1
GC6_GYIB2
GC6_GYIB3
GC6_GYIB4
GC6_GYIB6
GC6_GYIB7
GC6_HSIB
GC6_VSIB
GC6_CLKIB
*R4047
100
EXB2HV680JV
*R4031
*R4032
*R4033
*R4029
*R4030
EXB2HV680JV
TO 1/22
TO 8/22
G-HQ_XRST
TO 14/22
*R4049
47k
GC3FS_SDA
GC3FS_SCL
68
68
68
*IC4005
C0CBCBC00227
SUB FS3.3V
SUB_Y
AG_UB3
VJUMP1608-P
*L4008
J0JYC0000068
*C4049
16V
*R4045
TP4000
L4003
P
0.1u
SUB_FS_1.8V
10k
SUB_FS_1.8V
*C4036
10V
1u
*IC4002
C0CBCAC00358
AG_UB6
AG_UB70VAG_YG2
AG_UB4
AG_UB5
SUB_FS_1.8V
*C4010
16V
0.1u
*C4011
16V
0.1u
*C4006
16V
0.1u
*C4005
16V
0.1u
*R4046
100
SUB5V
*C4050
10V 1u
J0JYC0000068
*R4039
*R4034
750
*R4035
1.24k
*C4008
16V
0.1u
*L4002
J0JHC0000045
SUB9V
*L4009
*C4053
*C4055
16V
1k
0.1u
*C4016
16V
4.7u
*Q4000
2SA207700L
78
79
80
1
2
3
4
UBOUT2
5
VDDI
6
UBOUT1
7
UBOUT0
8
CLKO
9
VDDE
10
VSS
11
VDDI
12
FRCLKIN
13
TEST
14
SDA
15
SCL
16
CTRL0
17
CTRL1
18
22
23
21
*C4013
16V
0.1u
*C4014
16V
0.1u
*C4015
16V
0.1u
*C4054
10u
16V
+
*C4056
16V
16V
0.1u
47u
AG_YG3
AG_YG4
AG_YG0
AG_YG1
69
74
75
76
77
VSS
VDDI
VDDE
UBOUT7
VSS
UBOUT3
NRST19VSS20VDDE
AVD125AVS126MON127YIN28RT229RB230AVD231AVS232MON233UIN34RT335RB336AVD337AVS3
24
UBOUT6
UBOUT5
UBOUT4
VDDE
*IC4001
C1AB00002687
GC3FS-next
VPD
RT1
RB1
*C4021
16V
0.1u
YGOUT7
*C4025
YGOUT470YGOUT371YGOUT272YGOUT173YGOUT0
MON3
0.1u
AG_VPO
AG_YG6
AG_YG7
AG_HPO
AG_YG5
62
63
64
66
67
68
VSS
VDDE
VDDI
YGOUT665YGOUT5
PLLVS
HPO
VDDI
VPO
BXS
VDDE
VSS
VDDE
CW358
PLLVD
VSS
AOUT
AVS4
AVD4
VREF
VDDI
TDO42VDDE43VSS
TCK
TDI
TMS
VIN
TRST
38
39
16V
SUB FS1.8V
*C4027
16V
0.1u
61
60
59
58
57
*C4032
16V
56
55
54
53
52
51
*C4030
50
16V
0.1u
49
48
47
46
45
44
41
40
*L4006
J0JHC0000045
0.1u
*C4033
16V
0.1u
*C4045
*C4034
16V
0.1u
5
4
VIN
VOUT
VSS
ON/OFF
NC
1
2
3
*R4044
10k
*C4038
16V
0.1u
*C4040
*R4043
50V
2k
15p
*C4039
25V
16V
0.1u
0.01u
TO 1/22
GC3FS_TCK
GC3FS_TMS
GC3FS_TRST
GC3FS_TDO
GC3FS_TDI
SUB3.3V
*L4004
J0JYC0000068
*C4028
0.1u
*C4035
16V
1u
10V
TO 8/22
G-GRAB_MODULE_IIC/PWM_POW_ON
TO 21/22
BT_DRIVE
BT_FB
TO 8/22
G-SW_OFF_DET
TO 8/22
TO 6/22
TO 2/22
TO 2/22
POWER_DET
G-DTV_XRST
RMCO
XRST_2
XRST
C5483
SUB3.3V
R5486
D5486
10k
MA2J72800L
R5485
100
TO 22/22
STB_5V_SWON
SUB3.3V
R5473
R5484
39k
L5544
G1C470MA0291
R5488
0
TP5401
C5486
25V
3900p
C5485
0.1u
16V
R5489 10k
47k
C5470 16V
0.01u
IC5470
C0EBM0000026
PANEL
R5470
2.2k
R5472
47
R5471
100
SUB5V
+
C5484
10V
6.3V
10u
47u
STB_RST
R5570
RESET
HP_MUTE
Analog ASIC
IC5480
C1ZBZ0003972
FB
15
GND
16
FC
17
PGND
18
DRV
19
DTV5VOUT
20
DTV5VIN
21
EN_DCDC
22
CD
23
STB_RST
24
SCL
25
SDA
26
SEL
27
CLKIN
28
100
SUB5V
MONITOR_MUTE
AUDIO_MUTE_IN
MUTE_VCC
EN_CLKBF
R5412
10k
1
OUT
5Cd4
DTB9V
SP_MUTE
AMUTE
STB3.3V
STB5V
SCL0
SEL=L
SDA0
SCL1
SEL=H
SDA1
CLKOUT
D5470
MA3X152D0L
Vdd
C5471
10V
0.047u
TO 8/22
OFF_HOGO
Q5478
R5413
22k
R5571
10k
R5418
100k
R5419
47k
2
3
GND
NC
14
13
12
11
10
9
8
7
6
Peaks
5
4
TV-GenX
3
2
1
2SD0601A0L
C5530 16V
0.1u
TO 8,16,18/22
STB_RST
Q5475
2SD0601ASL
C5531
10V
2.2u
F15V
R5474
10k
R5475
C5473
25V
12k
0.01u
Q5480
R5490
47k
J0JYC0000068
MONITOROUT_MUTE
R5491
R5492
47k
1M
SUB9V
R5493
20k
R5494
10k
STB3.3V
B0HCMM000014
STB5V
D5481
L5480
C5487
6.3V 1u
B1ADCE000022
SUB9V
C5482
+
10V
220u
SUB5V
R5482
15
D5482
B0HCMM000014
C5488
6.3V 1u
TO 14/22TO 12/22
MONITOROUT_MUTE
TO 8,16,18/22
STB_RST
TO 8/22
G-MON_MUTE
G-SP_HP_MUTE
TO 12/22
AMP_MUTE
PEAKS_SCL0
PEAKS_SDA0
ADJ-GENX_SCL
ADJ_GENX_SDA
GENX7_SDA
GENX7_SCL
TO 1/22
TO 1,18/22
TO 1,15,22/22
156154 157155 161160 162159158
68
Page 69

12.23. A-Board (19/22) Schematic Diagram

!
A-BOARD (19/22)
TO 17/22
1st pixel TA-
1st pixel TA+
1st pixel TB-
1st pixel TB+
1st pixel TC-
1st pixel TC+
1st pixel TCLK-
1st pixel TCLK+
1st pixel TD-
1st pixel TD+
1st pixel TE-
1st pixel TE+
2nd pixel TA-
2nd pixel TA+
2nd pixel TB-
2nd pixel TB+
2nd pixel TC-
2nd pixel TC+
2nd pixel TCLK-
2nd pixel TCLK+
2nd pixel TD-
2nd pixel TD+
2nd pixel TE-
2nd pixel TE+
GC6_TA2M
GC6_TA2P
GC6_TB2M
GC6_TB2P
GC6_TC2M
GC6_TC2P
GC6_TCLK2M
GC6_TCLK2P
GC6_TD2M
GC6_TD2P
GC6_TE2M
GC6_TE2P
GC6_TA1M
GC6_TA1P
GC6_TB1M
GC6_TB1P
GC6_TC1M
GC6_TC1P
GC6_TCLK1M
GC6_TCLK1P
GC6_TD1M
GC6_TD1P
GC6_TE1M
GC6_TE1P
*R2743
EXB28VR000X
*R2744
EXB28VR000X
*R2745
EXB28VR000X
*R2746
EXB28VR000X
*R2747
EXB28VR000X
*R2748
EXB28VR000X
Zport(input)
JEIDA 10bit
C1AB00003090
100
100
100
100
100
100
100
100
100
100
100
100
*IC2600 A2 P_ZA_RX0_N
*IC2600
A1 P_ZA_RX0_P
*IC2600 B2 P_ZA_RX1_N
*IC2600 B1 P_ZA_RX1_P
*IC2600 C2 P_ZA_RX2_N
*IC2600 C1 P_ZA_RX2_P
*IC2600 D2 P_ZA_CLK_N
*IC2600 D1 P_ZA_CLK_P
*IC2600 E2 P_ZA_RX3_N
*IC2600 E1 P_ZA_RX3_P
*IC2600 F2 P_ZA_RX4_N
*IC2600 F1 P_ZA_RX4_P
*IC2600 G2 P_ZB_RX0_N
*IC2600 G1 P_ZB_RX0_P
*IC2600 H2 P_ZB_RX1_N
*IC2600 H1 P_ZB_RX1_P
*IC2600 J2 P_ZB_RX2_N
*IC2600 J1 P_ZB_RX2_P
*IC2600 K2 P_ZB_CLK_N
*IC2600 K1 P_ZB_CLK_P
*IC2600 L2 P_ZB_RX3_N
*IC2600 L1 P_ZB_RX3_P
*IC2600 M2 P_ZB_RX4_N
*IC2600 M1 P_ZB_RX4_P
FRC Q
IC2600
C1AB00003090
*R2641
*R2642
*R2643
*R2644
*R2645
0
*R2646
*R2647
*R2648
*R2649
*R2650
*R2651
*R2652
TO 8/22
G-TV_MAIN_ON
*TP2610
S
+
*C2623
25V 47u
FRC 1.8V
*IC2604
C0CBCAG00039
6
VIN
5
VSS
4
NC
ON/OFF
J0JHC0000075
VOUT
VSS
*L2602
1
2
3
*L2601
VJ2600
VJUMP1005-P
P
*Q2605
2SD0601A0L
FRC 3.3V/D1.05V
1
CTL1
2
CS1
3
FB1
4
VO1
5
ILIM1
6
GND
7
CVBLPF
8
CTL2
9
ILIM2
10
VO2
11
FB2
12
CS2
*R2634
47k
TV_ON OFF
*Q2604
2SD0601A0L
CB1
DRVH1
LX1
DRVL1
VCC
VB
PGND
DRVL2
C0DBAYY00480
*IC2601
LX2
DRVH2
CB2
TEST
*R2635
10k
*R2600
68
*R2601
47k
*C2615
*R2613
2k
*R2612
3.6k
*R2610
10k
*R2609
10k
*R2615
2.2k
*R2616
3.6k
*R2621
270
*C2612
25V
25V
4700p
*C2616
25V 2700p
0.01u
*C2613
1u16V
*R2614
10
*C2614
10V
0.047u
*R2607
22k
*C2601
*R2608
16V
68k
1u
*C2604
16V
0.1u
24
P
R2617
VJUMP1005-P
23
22
P
R2618
VJUMP1005-P
21
20
19
18
17
16
15
14
13
*C2605
25V
0.1u
P
R2619
VJUMP1005-P
P
R2620
VJUMP1005-P
*C2602
*C2603
10V
16V
0.1u
4.7u
S1G1S2G2
*C2608
*C2609
25V
25V
10u
10u
D2 D2 D1 D1
*Q2602
*C2606
B1MBEDA00015 25V 10u
*Q2603
B1MBEDA00015
S1G1S2G2
*C2610
*C2607
D2 D2 D1 D1
25V
25V
10u
10u
G1C2R2Z00007
G1C4R7Z00014
TP2601
*L2603
*C2618
+
0.1u
*C2621
4V
68u
*C2620
4V
68u
+
TP2602
*L2604
G1C100MA0203
16V
*L2615
J0JYC0000068
*C2636
10V
4.7u
*PA2601
K5H5022A0031
*C2622
25V
1u
FRC_1.8V
*C2640
10V
4.7u
*L2605
J0JHC0000045
*C2641
*C2645
16V
16V
0.1u
0.1u
F15V
FRC_3.3V
*X2600
H0J270500113
TO 1/22
FRCQ_TDI
FRCQ_TDO
FRCQ_TMS
FRCQ_TCK
FRCQ_TRST
*C2652
50V 12p
*L2617
J0JHC0000045
*C2650
*C2653
16V
0.1u
*L2618
J0JHC0000045
*C2651
*C2654
16V
0.1u
TDI
TDO
TMS
TCK
TRST
FRC_D1.05V
FRC_3.3V
FRC_DDR_1.8V
*C2649
16V
0.1u
FRC_3.3V
*IC2600 P1 XOUT
*IC2600 R1 XIN
*C2655
50V 18p
*C2660
16V
0.1u
*C2659
16V
0.1u
*IC2600 A4 TDI
*IC2600 B5 TDO
*IC2600 A5 TMS
*IC2600 B4 TCLK
*IC2600 A3 TRST_N
*IC2600 A6 TM
*IC2600 P4 VDD33OSC
*IC2600 N4 VSS33OSC
*IC2600 D7 VDD33
*IC2600 D8 VDD33
*IC2600 M4 VDD33
*C2663
6.3V 1u
*C2656
10V
16V
10u
0.1u
*C2657
16V
16V
0.1u
0.1u
JTAG
EEPROM
*IC2605
TVRQ696
*C2658
16V
0.1u
TO 17/22
FRC_EEPROM_WP
TO 8/22
G-HQ_XRST
TP2604
1
NC
2
E1
3
E2
4
Vss
TP2605
TP2603
TP2609
TO 1/22
*IC2600 A11 GPIO00
*IC2600 B10 GPIO01
*IC2600 A10 GPIO02
*IC2600 B9 GPIO03
*IC2600 A9 GPIO04
*IC2600 B8 GPIO05
*IC2600 A8 GPIO06
FRCQ_SCL
FRCQ_SDA
8
Vcc
*R2658
2.2k
7
/WC
6
SCL
5
SDA
68
*R2660
22
*R2656
22
*R2657
68
*R2742
*R2629
1k
47
*R2655
GPIO port
*IC2600 B7 GPIO07
*IC2600 A7 GPIO08
*IC2600 P2 GPIO09
*IC2600 P3 GPIO10
*IC2600 R2 GPIO11
*IC2600 R3 GPIO12
*R2662
*R2659
2.2k
2.2k
*IC2600 N3 MSCL
*IC2600 M3 MSDA
*IC2600 N1 SSCL
*IC2600 N2 SSDA
*IC2600 B6 RESET_N
*C2637
*R2622
2.2k
*C2662
10V
4.7u
Cont
5
NC
6
NC
7
Vin
8
*IC2607
C0CBCAD00090
FRC A1.05V
*IC2606
C0DBFYY00062
10V
1u
FRC 2.5V
1
5
VIN
VOUT
2
VSS
3
4
CE
NC
GND
4
*C2635
Cn
3
NC
2
*C2664
6.3V 1u
Vout
1
FRC_A1.05V
*C2668
*C2666
16V
10V
0.1u
4.7u
*L2609
J0JHC0000045
*C2669
16V
0.1u
*L2610
J0JHC0000045
*C2670
16V
0.1u
*L2611
J0JHC0000045
*C2647
*C2671
16V
0.1u
16V
0.01u
*C2665
16V
FRC_2.5V
*R2661
4.7k
0.1u
*L2608
J0JHC0000045
+
*C2667
*C2639
16V
68u
0.1u
4V
*C2646
4V
22u
4V 22u
J0JHC0000045
*C2672
16V
*L2612
J0JHC0000045
*C2673
16V
0.1u
*L2613
*C2674
16V
0.1u
0.1u
*IC2600 T13 VDD105DLL
*C2675
4V 22u
*IC2600 R13 VSS
*IC2600 R4 VDD105PLL
*C2676
16V
0.1u *IC2600 T4 VSS105PLL
*IC2600 T9 VDD105MPLL
*C2677
16V
0.1u *IC2600 T10 VSS105MPLL
*C2661
4V 22u
*C2638
4V 22u
*C2678
16V
0.1u
*C2679
16V
0.1u
*C2682
16V
0.1u
*C2683
16V
0.1u
*C2680
16V
0.1u
*C2681
16V
0.1u
*IC2600 D14 VDDLX25PLL
*IC2600 C14 VSS
*IC2600 H4 VDDLZ25PLL
*IC2600 J3 VSS
*IC2600 J4 VDDLZ25
*IC2600 K19 VDDLY25PLL
*IC2600 M19 VDDLY25
*IC2600 H19 VDDLY25
*IC2600 D12 VDDLX25
*IC2600 D16 VDDLX25
165163 166164 170169 171168167
69
Page 70

12.24. A-Board (20/22) Schematic Diagram

!
A-BOARD (20/22)
FRC_D1.05V
*C2684
Xport(Out1st)
JEIDA 10bit
*R2632
0
*C2685
16V
4V
0.1u
68u
4
+
*C2687
*C2688
*C2689
*C2690
*C2691
*C2692
*C2693
*C2694
*C2695
*C2686
16V
0.1u
16V
0.1u
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
16V
0.1u
0.1u
16V
0.1u
16V
0.1u
16V
*IC2600 K7 VSS105_S
*IC2600 C5 VSS
*IC2600 C6 VSS
*IC2600 C7 VSS
*IC2600 C8 VSS
*IC2600 C9 VSS
*IC2600 C10 VSS
*IC2600 C11 VSS
*IC2600 C12 VSS
*IC2600 C13 VSS
*IC2600 C15 VSS
*IC2600 C16 VSS
*IC2600 C17 VSS
*IC2600 C18 VSS
*IC2600 C19 VSS
*IC2600 C20 VSS
*IC2600 D3 VSS
*IC2600 D4 VSS
*IC2600 D5 VSS
*IC2600 D6 VSS
*IC2600 D9 VSS
*IC2600 D10 VSS
*IC2600 D11 VSS
*IC2600 D13 VSS
*IC2600 D15 VSS
*IC2600 D17 VSS
*IC2600 D18 VSS
*IC2600 D19 VSS
*IC2600 D20 VSS
*IC2600 E3 VSS
*IC2600 E4 VSS
*IC2600 E19 VSS
*IC2600 E20 VSS
*IC2600A13P_XA_TX0_N
*IC2600B13P_XA_TX0_P
*IC2600A14P_XA_TX1_N
*IC2600B14P_XA_TX1_P
*IC2600A15P_XA_TX2_N
*IC2600B15P_XA_TX2_P
*IC2600A16P_XA_CLK_N
*IC2600B16P_XA_CLK_P
*IC2600A17P_XA_TX3_N
*IC2600B17P_XA_TX3_P
*IC2600A18P_XA_TX4_N
*IC2600B18P_XA_TX4_P
*IC2600A19P_XB_TX0_N*IC2600N21P_YB_TX2_P
*IC2600B19P_XB_TX0_P
*IC2600A20P_XB_TX1_N
*IC2600B20P_XB_TX1_P
*IC2600A22P_XB_TX2_N
*IC2600A21P_XB_TX2_P
*IC2600B22P_XB_CLK_N
*IC2600B21P_XB_CLK_P
*IC2600C22P_XB_TX3_N
*IC2600C21P_XB_TX3_P
*IC2600D22P_XB_TX4_N
*IC2600D21P_XB_TX4_P
*IC2600 G7 VDD105
*IC2600 G8 VDD105
*IC2600 G9 VDD105
*IC2600 H7 VDD105
*IC2600 H8 VDD105
*IC2600 H9 VDD105
*IC2600 J8 VDD105
*IC2600 J9 VDD105
*IC2600 J10 VDD105
*IC2600 K9 VDD105
*IC2600 K10 VDD105
*IC2600 J7 VDD105_S
*IC2600 N9 VDD105
*IC2600 N10 VDD105
*IC2600 P8 VDD105
*IC2600 P9 VDD105
*IC2600 P10 VDD105
*IC2600 R7 VDD105
*IC2600 R8 VDD105
*IC2600 R9 VDD105
*IC2600 T7 VDD105
FRC_DDR_1.8V
*C2697
*C2698
16V
0.1u
16V
0.1u
*C2699
16V
0.1u
*IC2600 F3 VSS
*IC2600 F4 VSS
*IC2600 F19 VSS
*IC2600 F20 VSS
*IC2600 G3 VSS
*IC2600 G4 VSS
*IC2600 G10 VSS
*IC2600 G11 VSS
*IC2600 G12 VSS
*IC2600 G13 VSS
*IC2600 G19 VSS
*IC2600 G20 VSS
*IC2600 H3 VSS
*IC2600 H10 VSS
*IC2600 H11 VSS
*IC2600 H12 VSS
*IC2600 H13 VSS
*IC2600 H20 VSS
*IC2600 J11 VSS
*IC2600 J12 VSS
*IC2600 J19 VSS
*IC2600 J20 VSS
*IC2600 K3 VSS
*IC2600 K4 VSS
*IC2600 K8 VSS
*IC2600 K11 VSS
*IC2600 K12 VSS
*IC2600 K15 VSS
*IC2600 K16 VSS
*IC2600 K20 VSS
FRC Q
IC2600
C1AB00003090
Yport(Out2nd)
L21P_YB_TX0_P
TP2606
*IC2600 B11 PWM
TP2607
*IC2600 B12 H
TP2608
*IC2600 A12 V
*IC2600E21P_YA_TX0_P
*IC2600E22P_YA_TX0_N
*IC2600F21P_YA_TX1_P
*IC2600F22P_YA_TX1_N
*IC2600G21P_YA_TX2_P
*IC2600G22P_YA_TX2_N
*IC2600H21P_YA_CLK_P
*IC2600H22P_YA_CLK_N
*IC2600J21P_YA_TX3_P
*IC2600J22P_YA_TX3_N
*IC2600K21P_YA_TX4_P
*IC2600K22P_YA_TX4_N
*IC2600
*IC2600L22P_YB_TX0_N
*IC2600M21P_YB_TX1_P
*IC2600M22P_YB_TX1_N
*IC2600N22P_YB_TX2_N
*IC2600P21P_YB_CLK_P
*IC2600P22P_YB_CLK_N
*IC2600R21P_YB_TX3_P
*IC2600R22P_YB_TX3_N
*IC2600T21P_YB_TX4_P
*IC2600T22P_YB_TX4_N
DDR2
IC2611
220
*C2749
50V 100p
*C2748
50V 100p
C1AB00003090
*IC2611=F3 LDM
*IC2611=B3 UDM
*IC2611=E8 LDQS
*IC2611=F7 LDQS
*IC2611=A8 UDQS
*IC2611=B7 UDQS
*IC2611=B9 DQ15
*IC2611=B1 DQ14
*IC2611=D9 DQ13
*IC2611=D1 DQ12 = *IC2611
D3 DQ11
*IC2611=D7 DQ10
*IC2611=C2 DQ9
*IC2611=C8 DQ8
*IC2611=F9 DQ7
*IC2611=F1 DQ6
*IC2611=H9 DQ5
*IC2611=H1 DQ4
*IC2611=H3 DQ3
*IC2611=H7 DQ2 = *IC2611
G2 DQ1
*IC2611=G8 DQ0
*IC2611=K9 ODT
*IC2611=J8 CK
*IC2611=K8 CK
*IC2611=K2 CKE
*IC2611=L2 BA0
*IC2611=L3 BA1
*IC2611=L1 NC
*IC2611=K3 WE
*IC2611=K7 RAS
*IC2611=L7 CAS
*IC2611=L8 CS
*IC2611=J2 VREF
*C2722
*C2719
*C2720
*C2723
*C2724
*C2725
FRC_DDR_1.8V
0.1u
16V
4V
68u
16V
0.1u
0.1u
16V
16V
0.1u
10u
10V
*IC2611=A2 NC
*IC2611=E2 NC
*C2726
10V 10u
*C2727
16V
0.1u
*C2728
16V
0.1u
*C2729
16V
0.1u
*C2721
+
*C2742
16V
*C2743
16V
*C2744
16V
*C2745
16V
*C2746
16V
*C2747
16V
16V
0.1u
C3ABSY000036
*IC2611
A1 VDD
*IC2611=E1 VDD
*IC2611=M9 VDD
*IC2611=J9 VDD
*IC2611=R1 VDD
*IC2611=J1 VDDL
*IC2611=A9 VDDQ
*IC2611=C1 VDDQ
*IC2611=C3 VDDQ
*IC2611=C7 VDDQ
*IC2611=C9 VDDQ
*IC2611=E9 VDDQ
*IC2611=G1 VDDQ
*IC2611=G3 VDDQ
*IC2611=G7 VDDQ
*IC2611=G9 VDDQ
*C2730
*C2731
*C2732
*C2733
*C2734
*C2735
*C2736
*C2737
*C2738
*C2739
*C2740
*C2741
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
*IC2611=A3 VSS
*IC2611=E3 VSS
*IC2611=J3 VSS
*IC2611=N1 VSS
*IC2611=P9 VSS
*IC2611=A7 VSSQ
*IC2611=B2 VSSQ
*IC2611=B8 VSSQ
*IC2611=D2 VSSQ
*IC2611=D8 VSSQ
*IC2611=E7 VSSQ
*IC2611=F2 VSSQ
*IC2611=F8 VSSQ
*IC2611=H2 VSSQ
*IC2611=H8 VSSQ
*IC2611=J7 VSSDL
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
0.1u
16V
F_CH0A0
F_CH0A1
F_CH0A2
F_CH0A3
F_CH0A4
F_CH0A5
F_CH0A6
F_CH0A7
F_CH0A8
F_CH0A9
F_CH0A10
F_CH0A11
F_CH0A12
*IC2611=M8 A0
*IC2611=M3 A1
*IC2611=M7 A2
*IC2611=N2 A3
*IC2611=N8 A4
*IC2611=N3 A5
*IC2611=N7 A6
*IC2611=P2 A7 =
P8 A8
*IC2611
*IC2611=P3 A9
*IC2611=M2 A10
*IC2611=P7 A11
*IC2611=R2 A12
*IC2611=R8 NC
*IC2611=R3 NC
*IC2611=R7 NC
A13
A14
A15
TO 15/22
1ST_PIX_TA-
1st pixel TA-
1ST_PIX_TA+
1st pixel TA+
1ST_PIX_TB-
1st pixel TB-
1ST_PIX_TB+
1st pixel TB+
1ST_PIX_TC-
1st pixel TC-
1ST_PIX_TC+
1st pixel TC+
1st pixel TCLK-
1ST_PIX_TCLK-
1st pixel TCLK+
1ST_PIX_TCLK+
1ST_PIX_TD-
1st pixel TD-
1st pixel TD+
1ST_PIX_TD+
1ST_PIX_TE-
1st pixel TE-
1ST_PIX_TE+
1st pixel TE+
LVDS_DET
2ND_PIX_TA-
2nd pixel TA-
2ND_PIX_TA+
2nd pixel TA+
2ND_PIX_TB-
2nd pixel TB-
2ND_PIX_TB+
2nd pixel TB+
2ND_PIX_TC-
2nd pixel TC-
2ND_PIX_TC+
2nd pixel TC+
2ND_PIX_TCLK-
2nd pixel TCLK-
2ND_PIX_TCLK+
2nd pixel TCLK+
2ND_PIX_TD-
2nd pixel TD-
2ND_PIX_TD+
2nd pixel TD+
2nd pixel TE-
2ND_PIX_TE-
2ND_PIX_TE+
2nd pixel TE+
16V 0.1u
16V 0.1u
16V 0.1u
16V
16V
0.1u
0.1u
*C2706
16V
0.1u
*IC2600 G14 VDD105
*IC2600 G15 VDD105
*IC2600 G16 VDD105
*IC2600 H14 VDD105
*IC2600 H15 VDD105
*IC2600 H16 VDD105
*IC2600 J13 VDD105
*IC2600 J14 VDD105
*IC2600 J15 VDD105
*IC2600 J16 VDD105
*IC2600 K13 VDD105
*IC2600 K14 VDD105
*IC2600 N13 VDD105
*IC2600 N14 VDD105
*IC2600 P13 VDD105
*IC2600 P14 VDD105
*IC2600 P15 VDD105
*IC2600 R14 VDD105
*IC2600 R15 VDD105
*IC2600 R16 VDD105
*IC2600 T14 VDD105
*IC2600 T16 VDD105
*IC2600 P7 VDD18
*IC2600 P16 VDD18
*IC2600 T8 VDD18
*IC2600 T12 VDD18
*IC2600 T15 VDD18
*IC2600 L3 VSS
*IC2600 L4 VSS
*IC2600 L7 VSS
*IC2600 L8 VSS
*IC2600 L9 VSS
*IC2600 L10 VSS
*IC2600 L11 VSS
*IC2600 L12 VSS
*IC2600 L13 VSS
*IC2600 L14 VSS
*IC2600 L15 VSS
*IC2600 L16 VSS
*IC2600 L19 VSS
*IC2600 L20 VSS
*IC2600 M7 VSS
*IC2600 M8 VSS
*IC2600 M9 VSS
*IC2600 M10 VSS
*IC2600 M11 VSS
*IC2600 M12 VSS
*IC2600 M13 VSS
*IC2600 M14 VSS
*IC2600 M15 VSS
*IC2600 M16 VSS
*IC2600 M20 VSS
*IC2600 N7 VSS
*IC2600 N8 VSS
*IC2600 N11 VSS
*IC2600 N12 VSS
*IC2600 N15 VSS
*IC2600 N16 VSS
*IC2600 N19 VSS
*IC2600 N20 VSS
*IC2600 P11 VSS
*IC2600 P12 VSS
*IC2600 P19 VSS
*IC2600 P20 VSS
*IC2600 R10 VSS
*IC2600 R11 VSS
*IC2600 R12 VSS
*IC2600 R19 VSS
*IC2600 R20 VSS
*IC2600 T2 VSS
*IC2600 T3 VSS
*IC2600 T11 VSS
*IC2600 T19 VSS
*IC2600 T20 VSS
*IC2600 U2 VSS
*IC2600 U3 VSS
*IC2600 U4 VSS
*IC2600 U19 VSS
*IC2600 U20 VSS
*IC2600 U22 VSS
*IC2600 V4 VSS
*IC2600 V19 VSS
*IC2600 W4 VSS
*IC2600 W8 VSS
*IC2600 W9 VSS
*IC2600 W10 VSS
*IC2600 W11 VSS
*IC2600 W13 VSS
*IC2600 W14 VSS
*IC2600 W15 VSS
*IC2600 W16 VSS
*IC2600 W17 VSS
*IC2600 W18 VSS
*IC2600 W19 VSS
*C2701
*C2702
*C2703
*C2704
*C2705
*C2700
16V
0.1u
DRAM_DQ25
*IC2600Y20DRAM_DM0
*IC2600Y19DRAM_DM1
*IC2600AB20DRAM_DQS0
*IC2600AA21DRAM_DQS0_N
*IC2600AB22DRAM_DQS1
*IC2600AA22DRAM_DQS1_N
*IC2600V20DRAM_DQ0
*IC2600Y17DRAM_DQ1
*IC2600V21DRAM_DQ2
*IC2600AA20DRAM_DQ3
*IC2600AB16DRAM_DQ4
*IC2600U21DRAM_DQ5
*IC2600AA17DRAM_DQ6
*IC2600W22DRAM_DQ7
*IC2600W20DRAM_DQ8
*IC2600AA18DRAM_DQ9
*IC2600AB21DRAM_DQ10
*IC2600AA19DRAM_DQ11
*IC2600Y18DRAM_DQ12
*IC2600W21DRAM_DQ13
*IC2600AB18DRAM_DQ14
*IC2600Y21DRAM_DQ15
*R2720
*IC2600AA9DRAM_A0
*R2721
*IC2600AB8DRAM_A1
*R2722
*IC2600AA8DRAM_A2
*R2723
*IC2600Y9DRAM_A3
*R2724
*IC2600Y8DRAM_A4
*R2725
*IC2600AA7DRAM_A5
*R2726
*IC2600Y7DRAM_A6
*R2727
*IC2600AA14DRAM_A7
*R2728
*IC2600Y14DRAM_A8
*R2729
*IC2600Y15DRAM_A9
*R2730
*IC2600AA15DRAM_A10
*R2731
*IC2600AA16DRAM_A11
*R2732
*IC2600Y16DRAM_A12
*R2733
*IC2600AA11DRAM_BA0
*R2734
*IC2600Y11DRAM_BA1
*R2735
*IC2600Y10DRAM_BA2
*R2736
*IC2600AA13DRAM_WE_N
*R2737
*IC2600AB14DRAM_RAS_N
*R2738
*IC2600Y13DRAM_CAS_N
*R2739
*IC2600AB12DRAM_CS_N
*R2740
*IC2600Y12DRAM_CKE
*R2741
*IC2600AA12DRAM_ODT
VJ2626 VJUMP1005-S
*IC2600AA10DRAM_CK
VJ2627 VJUMP1005-S
*IC2600AB10DRAM_CK_N
*IC2600W5DRAM_TEST_ANALOG
*IC2600W6DRAM_TEST_D1
*IC2600W7DRAM_TEST_D2
*IC2600W12DRAM_VREF
*C2707
50V
100p
*IC2600AB1DRAM_DM2
*IC2600Y2DRAM_DM3
*IC2600Y3DRAM_DQS2
*IC2600AA3DRAM_DQS2_N
*IC2600AA4DRAM_DQS3
*IC2600AB4DRAM_DQS3_N
*IC2600AB2DRAM_DQ16
*IC2600V2DRAM_DQ17
*IC2600AA2DRAM_DQ18
*IC2600V3DRAM_DQ19
*IC2600U1DRAM_DQ20
*IC2600AB6DRAM_DQ21
*IC2600W3DRAM_DQ22
*IC2600AA6DRAM_DQ23
*IC2600Y5DRAM_DQ24
*IC2600W2
*IC2600Y4DRAM_DQ26
*IC2600AA1DRAM_DQ27
*IC2600W1DRAM_DQ28
*IC2600Y6DRAM_DQ29
*IC2600Y1DRAM_DQ30
*IC2600AA5DRAM_DQ31
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
S
S
TP2633
TP2634
TP2635
F_CH0DM2
F_CH0DM3
F_CH0DQS2
F_CH0XDQS2
F_CH0DQS3
F_CH0XDQS3
F_CH0DQ16
F_CH0DQ17
F_CH0DQ18
F_CH0DQ19
F_CH0DQ20
F_CH0DQ21
F_CH0DQ22
F_CH0DQ23
F_CH0DQ24
F_CH0DQ25
F_CH0DQ26
F_CH0DQ27
F_CH0DQ28
F_CH0DQ29
F_CH0DQ30
F_CH0DQ31
F_CH0DM0
F_CH0DM1
F_CH0DQS0
F_CH0XDQS0
F_CH0DQS1
F_CH0XDQS1
F_CH0DQ0
F_CH0DQ1
F_CH0DQ2
F_CH0DQ3
F_CH0DQ4
F_CH0DQ5
F_CH0DQ6
F_CH0DQ7
F_CH0DQ8
F_CH0DQ9
F_CH0DQ10
F_CH0DQ11
F_CH0DQ12
F_CH0DQ13
F_CH0DQ14
F_CH0DQ15
F_CH0A0
F_CH0A1
F_CH0A2
F_CH0A3
F_CH0A4
F_CH0A5
F_CH0A6
F_CH0A7
F_CH0A8
F_CH0A9
F_CH0A10
F_CH0A11
F_CH0A12
F_CH0BA0
F_CH0BA1
F_CH0BA2
F_CH0XWE
F_CH0XRAS
F_CH0XCAS
F_CH0XCS
F_CH0CKE
F_CH0ODT
F_CH0CK
F_CH0XCK
VJ2628
VJUMP1005-S
S
*C2709
16V
0.1u
F_CH0DM0
F_CH0DM1
F_CH0XDQS0
F_CH0DQS0
F_CH0XDQS1
F_CH0DQS1
F_CH0DQ15
F_CH0DQ14
F_CH0DQ13
F_CH0DQ12
F_CH0DQ11
F_CH0DQ10
F_CH0DQ9
F_CH0DQ8
F_CH0DQ7
F_CH0DQ6
F_CH0DQ5
F_CH0DQ4
F_CH0DQ3
F_CH0DQ2
F_CH0DQ1
F_CH0DQ0
F_CH0ODT
F_CH0CK
F_CH0XCK
F_CH0CKE
F_CH0BA0
F_CH0BA1
F_CH0BA2
F_CH0XWE
F_CH0XRAS
F_CH0XCAS
F_CH0XCS
F_CH0ODT
F_CH0CKE
F_CH0XCS
F_CH0CK
F_CH0XCK
FRC_DDR_1.8V
*R2713
1k
*C2715
16V
0.1u
*R2715
*R2719
VJUMP1005-S
*R2714
1k
*R2718
*C2717
10k
16V
0.1u
*R2716
10k
*R2717
10k
220
VJ2629
S
*C2718
16V
0.1u
174172 175173 179178 180177176
70
Page 71

12.25. A-Board (21/22) Schematic Diagram

!
A-BOARD (21/22)
POWER-Peaks
REF No. 5600-5749
POWER-MODEL
REF No. 5400-5499
VJ5600
VJUMP1005-P
P
R5630
3.3k C5624
50V
3300p
R5621
0
R5632
4.02k
R5631
3.9k
R5622
0
R5629
2.1k
F15V
R5651 10k
Q5606
2SD0601A0L
R5649
22k
R5654
10k
Q5605
2SD0601A0L
R5655
47k
C5601
R5650
25V
68k
TO 22/22
0.01u
DCDC_CTL1
R5638
24k
C5650
50V
1500p
R5656
0
R5639
3.9k
R5605
2.2k
R5657
0
C5607
50V
R5604
2700p
3.9k
D5641
MAZ80560LL
R5653
2.2k
C5651
R5652
10V
47k
2.2u
C5621
25V
R5634 16k
C5644
R5633 12k
C5616
16V
C5623
50V
2700p
0.027u
R5658
20k
C5606
1u16V
R5610
R5603
20k
C5604
25V
6800p
0.01u
1u16V
R5635
VJUMP1005-P
5.6
SUB1.2V/1.8V
1
CTL1
2
CS1
3
FB1
4
VO1
5
ILIM1
6
GND
7
CVBLPF
8
CTL2
5.6
9
ILIM2
10
VO2
11
FB2
12
CS2
VJ5601
P
SUB3.3V/5V
1
CTL1
2
CS1
3
FB1
4
VO1
5
ILIM1
6
GND
7
CVBLPF
8
CTL2
9
ILIM2
10
VO2
11
FB2
12
CS2
DRVH1
DRVL1
PGND
IC5601
DRVL2
C0DBAYY00480
DRVH2
TEST
DRVH1
DRVL1
PGND
DRVL2
IC5600
C0DBAYY00480
DRVH2
TEST
F15V
L5604
G1C100MA0203
C5611
C5619
25V
25V 10u
10u
C5612
C5618
25V
25V 10u
10u
C5626
24
0.1u
16V
CB1
LX1
VCC
LX2
CB2
CB1
LX1
VCC
LX2
CB2
VJ5602
23
VJUMP1005-P
P
22
VJ5603
21
VJUMP1005-P
20
19
VB
18
VJ5604
17
VJUMP1005-P
P
16
VJ5605
15
VJUMP1005-P
P
14
13
C5627
C5622
10V
16V
4.7u
0.1u
C5645
16V
0.1u
24
VJ5608
23
VJUMP1005-P
P
22
VJ5609
21
VJUMP1005-P
P
20
19
VB
18
17
16
15
14
13
C5643
25V
0.1u
VJ5606 VJUMP1005-P
P
VJ5607 VJUMP1005-P
P
C5605 10V
C5603 16V
4.7u
0.1u
S1G1S2G2
SUB1.2V
L5601
G1C3R3Z00004
D2 D2 D1 D1
Q5601
B1MBDDA00003
C5620
25V
0.1u
L5600
S1G1S2G2
Q5602
B1MBDDA00003
S1G1S2G2
Q5609
B1MBDDA00003
S1G1S2G2
Q5600
B1MBDDA00003
G1C2R2Z00007
D2 D2 D1 D1
L5614
G1C6R8Z00010
D2 D2 D1 D1
L5602
G1C4R7Z00014
D2 D2 D1 D1
TP5602
C5641
+
16V
C5629
0.1u
2.5V 68u
C5628
2.5V 68u
+
TP5601
SUB1.8V
L5608
G1C100MA0077
C5615
C5642
25V
25V
10u
10u
TP5641
+
C5646
C5648
6.3V
16V
100u
0.1u
C5602 4V
TP5600
68u
+
C5640
C5637
C5636
16V
0.1u
C5638
16V
16V
0.1u
16V
0.1u
0.1u
J0JHC0000045
+
C5631 25V 47u
SUB5V
SUB3.3V
C5639
16V
0.1u
S
L5605
PA5600
K5H5022A0031
C5632 25V 1u
SUB9V
IC5481
C0DBEJG00001
3
(FIN)
SUB5V
R5497
10k
C5490
10V
4.7u
F15V
SUB9V
TP5400
BT30V
TP5421
L5421
G1C100MA0072
C5424
R5421
C5423
50V
50V
D5421
15k
1000p
B0BC03900015
0.47u
GND
CTL2Vcc4OUT5C
1
C5401
25V 10u
R5422
100k
+
C5426
C5425
35V
50V
22u
0.47u
R5423
3.4k
R5499 294k
R5496
47k
C5402 25V 10u
D5423
MA3X78900L
C5427
50V 82p
D5422
MAZ83600ML
STB3.3V
TO 18/22
BT_DRIVE
BT_FB
Q5431
2SB0709A0L
R5433
1k
D5431
MA3X152D0L
D5432
MA3X152D0L
Q5432
2SD0601ASL
R5452
100k
R5434
10k
R5451
1k
R5431
2.2k
R5432
3.3k
C5431
16V
0.1u
TP5431
TO 8/22
SOS
C5432 16V
0.1u
R5435
220
R5437
470
R5439
470
R5441
220
SUB5V
D5442
MAZ80680LL
D5433
MA3X152E0L
SUB1.2V
D5444
MAZ80680LL
D5434
MA3X152E0L
GC6_1.2V
D5446
MAZ80680LL
D5435
MA3X152E0L
FRC_D1.05V
*D5448
MAZ80680LL
*D5436 MA3X152E0L
SUB3.3V
D5449
MAZ80680LL
D5437
MA3X152E0L
G-SOS
SUB6V
BT30V
SUB9V
SUB5V
SUB9V
D5441 MAZ81200ML
R5453
R5454
4.7k
4.7k
SUB1.8V
D5443 MAZ80680LL
R5455
R5456
4.7k
4.7k
GC6_1.8V
D5445 MAZ80680LL
R5457
R5458
4.7k
4.7k
FRC_3.3V
*D5447
MAZ80680LL
*R5459
*R5460
4.7k
4.7k
SUB6V
D5582 MAZ81200ML
R5540
R5461
4.7k
4.7k
181 184183182 188187 189186185
71
Page 72

12.26. A-Board (22/22) Schematic Diagram

!
A-BOARD (22/22)
Set
REF No. 2750-2899
POWER-GC6
CR No.5300-5399
FPD
REF No. 2750-2899
VJ5300
VJUMP1005-P
P
R5330
3.3k
R5336
R5332
4.02k
R5331
3.9k
R5337
R5329
2.1k
TO 21/22
DCDC_CTL1
3300p
C5324
0
0
C5321
50V
25V
6800p
R5334
16k
C5344
1u16V
R5335
R5333
12k
2700p
C5316
16V
C5323
0.033u
50V
TO 1,18/22
TO 1/22
TO 15/22
5.6
TO 8/22
G-SRQ_GENX
ADJ-GENX_SCL
ADJ_GENX_SDA
PEAKS_SCL3
PEAKS_SDA3
PANEL_SCL2
PANEL_SDA2
IIC_CONT/C_SEL
GC6 1.2V/1.8V
1
2
3
4
5
6
7
8
9
10
11
12
MODEL
REF No. 2750-2899
CTL1
CS1
FB1
VO1
ILIM1
GND
CVBLPF
CTL2
ILIM2
VO2
FB2
CS2
CB1
DRVH1
LX1
DRVL1
VCC
PGND
IC5312
DRVL2
C0DBAYY00480
LX2
DRVH2
CB2
TEST
R0180
100
EZJZ0V120JA
D1002
VB
EZJZ0V120JA
24
23
22
21
20
19
18
17
16
15
14
13
C5322
10V
4.7u
EZAEG2A50AX
D1004
D1003
EZAEG2A50AX
C5326
16V
EZAEG2A50AX
EZAEG2A50AX
D1005
D1006
0.1u
C5320
25V
0.1u
C5327
16V
0.1u
EZAEG2A50AX
D1007
D1008
TP0102
TP0104
TP0105
TP0106
TP0107
TP0108
TP0109
TP0110
EZAEG2A50AX
EZAEG2A50AX
D1009
TP0101
D1010
TO 1/22
TMP-SENS_SDA
TMP-SENS_SCL
B1MBDDA00003
B1MBDDA00003
CN0100
1
2
3
4
5
6
7
8
9
10
11
S1G1S2G2
Q5312
S1G1S2G2
Q5318
D2 D2 D1 D1
D2 D2 D1 D1
FOR FACTORY USE
STB5V
GenX5_SRQ
GND
GenX8_SDA1
PEAKS_SCL3
PEAKS_SDA3
Panel_SCL
Panel_SDA
GenX7_SRQ
G1C2R2Z00007
G1C2R2Z00007
(GenX8 Loarder/E2PROM)GenX8_SCL1
(GenX8 Loarder/E2PROM)
(PEAKS E2PROM)
(PEAKS E2PROM)
(Panel Dpr.E2PROM)
(Panel Dpr.E2PROM)
R1010
10k
L5301
C5329
2.5V 68u
C5328
2.5V 68u
L5302
1
SDA
2
SCL
3
ALERT
4
GND
IC1000
C1ZBZ0003775
TEMP SENSOR
+
+
C5319
25V 10u
C5318
25V 10u
TP5312
C5341
16V
0.1u
TP5318
IC5300
C0CBCBD00062
L5304
G1C100MA0203
C5311
25V
10u
GC6 3.3V
8
V+
7
A0
6
A1
5
A2
SUB6V
39
1
2
3
4
IC2802
C0DBAYY00462
1
BOOT
2
VIN
3
SW
4
GND
FAN VCC
IC2801
C0DBAYY00462
BOOT
VIN
SW
GND
SS
EN
COMP
FB
B0BC4R700007
COMP
8
7
6
5
D2802
C2872
25V
D2801
+
D2810 MA2J11100L
D2870
B0JCME000037
L2870
G1C101M00029
TP2804
C2821 25V
0.1u
0.01u
C2803
25V
0.01u
C2802
25V
0.1u
TO 8/22
TO 8,15/22
TO 8/22
TO 8/22
C2873
25V
0.1u
R2801
39
G-RMIN
G-G_LED_ON
G-R_LED_ON
G-KEY1
G-ACTIVE_STBY_LED_ON
G-AI_SENSOR
G-SD_LED_ON
TO
F15V
S
L5305
PA5300
K5H5022A0031
J0JHC0000045
C5332
25V
1u
C5312 25V 10u
SUB3.3V
R5324
47k
4
ON/OFF
NC
3
TO 1,15,18/22
SUB3.3V
C1009 16V
0.1u
VSS
2
TO 1/22
TO 1/22
TO 1/22
TO 15/22
C1010 25V 1u
GC6_1.2V
GC6_1.8V
SUB5V
L5303
J0JYC0000068
C5302
C5303 10V
16V
1u
0.1u
5
VIN
VOUT
1
GC6_3.3V
TP5300
C5301
10V
1u
STB5V
CN0101
FOR
TP1062
FACTORY USE
1
STB5V
2
STB3.3V
3
IIC_CONT/SRQ
4
IIC_CONT
5
Panel_SCL
6
Panel_SDA
7
PEAKS_SCL1
8
PEAKS_SBI0(Diag Control)
9
PEAKS_SDA1
10
PEAKS_SBO0(Diag Control)
11
PEAKS_SCL2
12
Panel_TXD
13
PEAKS_SDA2
14
Panel_RXD
15
PEAKS_SCL0
16
NC(REMOCON)
17
PEAKS_SDA0
18
NC(LED_R)
19
GND
20
NC(D_PDB_MODE)
(Panel Dpr.E2PROM)
(Panel Dpr.E2PROM)
(Device Control)
(Device Control)
(Device Control)
(Device Control)
(Device Control)
(Device Control)
PEAKS_SCL1
PEAKS_SDA1
AD_SBI0
AD_SBO0
PEAKS_SCL2
PEAKS_SDA2
AR_TXD_PC
AR_RXD_PC
GENX7_SCL
GENX7_SDA
STB3.3V
TP0154
TP1052
TP1053
TP1054
TP0153
TP1055
TP0155
TP1056
TP1057
TO 8/22
G-TV_SUB_ON
G-ECO_ON/INVERTER_ON
TO 18/22
STB_5V_SWON
STB5V
TPS0N
TPEC0
R2822
47k
TP2805
TO K-BOARD (K1) TO GL-BOARD (GL02)
ACTIVE_STBY_LED_ON
AI_SENSOR
G_LED_ON
R_LED_ON
STB3.3V
P-BOARD (P6)
TO P-BOARD (P7)
TPST5
100
R2820
100
R2821
+
C2824 16V
R2823
10u
47k
TO FAN
A8
1
FAN_Vcc_1
2
GND_1
3
FAN_SOS_1
4
FAN_Vcc_2
5
GND_2
6
FAN_SOS_2
7
FAN_Vcc_3
8
GND_3
9
FAN_SOS_3
10
FAN_Vcc_4
11
GND_4
12
FAN_SOS_4
TP2751
A1
1
RMIN
2
3
4
5
GND
6
KEY1
7
8
GND
9
10
GND
11
SUB5V
12
SD-LED
13
GND
14
GND
TP2752
TP2755
TP2756
TP2754
TP2757
TP2753
TP2758
TP2750
A6
+15V_S
1
+15V_S
2
+15V_S
3
S_GND
4
S_GND
5
S_GND
6
F+15V
7
F+15V
8
F+15V
9
10
GND
11
GND
12
GND
A7
+15Vc_FAN
1
+15Vc_FAN
2
3
GND
4
GND
5
STB5V
6
TUNER_SUB_ON
7
ECO_ON
8
ALL_OFF
9
STBY5V_SW
10
P5V(MON)/P12V-ON
11
N.C.
SUB5V
S_15V
TP2872
TPS15V
F15V
TPF15V
TP2810
TP2801
TP2803
SUB5V
STB3.3V
SUB5V
R2851
22k
R2853
Q2851
1k
R2850
75
Q2850
2SB0709A0L
2SD0601A0L
VJ2870
VJUMP1005-P
P
C2871
TP2871
25V 10u
C2874
SUB6V
MAZ81200ML
MAZ81100ML
R2810
4.7k D2805
MA2J11100L
R2811
4.7k
D2806
MA2J11100L
R2812
4.7k D2807
MA2J11100L
R2813
4.7k D2808
MA2J11100L
R2751
22k
R2752
47k
R2855
1k
R2854 100k
10V
TP2870
100u
D2871
C2807
25V
B0JCME000037
10u
C2801
C2809
16V
16V
10u
10u
L2803
G1C330M00027
TP2802
D2809
R2815
470
R2814
4.7k
NORMAL SOS
D2811
MAZ80330LL
+
C2753
C2752
25V
6.3V 47u
0.01u
C2875
25VR2870
0.022u
8
SS
R2871
TO 21/22
10k
7
EN
6
5
FB
R2874
10k
C2806
0.1u
R2818
R2805
4.7k
R2803 1k
R2804 330
DCDC_CTL1
C2878
R2873
R2872
50V
0
68k
4700p
R2875
2.2k
25V
R2819
1k
47k
R2806
5.6k
C2805 50V 4700p
R2802
20k
TO 8/22
G-MAIN_FAN_ON
D2803
B0BC4R700007
R2817
0
R2816
G-FAN_MAX
G-FAN_SOS
47k
190 193192191 197196 198195194
72
Page 73

12.27. D-Board (1/4) Schematic Diagram

RCLK_E+
RCLK_E+
101112131415161718192021222324252627282930
100
R9241
RCLK_E-
RCLK_E-
TO A-BOARD (A5)
RC_E+
RC_E-
GND
GND
100
R9238
RC_E+
RC_E-
RB_E+
D5
RA_E-(MSB)
RB_E-
RA_E+(MSB)
RB_E+
123456789
100
100
R9240
R9239
RA_E-
RA_E+
RB_E-
1
2
TXD
TDO
TRST
1011121314151617181920
TRST
INEXCH
C9048
15
16
P1017P1118P1219P1320P1421P1522P16
VSS
IC9003
MNZSFH8KPF4
PANEL MPU
GenX7
P5V
TDI
TDO
TDI
0.1u
16V
14
IVDD
C9053 16V
0.1u
FOR FACTORY USE
TCK
SDA2
TMS
AR_STB_SDA02
R9859
TMS
TCK
ALARM
READY
REM_IN
EEP_WR_CTL
10
P2011P2112P2213P23
P62_SBI0A
P61_SBT0A
P50_RMIN_IRQ0
P60_SBO0A
P40_TM0IO
P75_SCL2
P74_SDA2
SOS8
SOS4_PS
SOS6
SCL2
AR_STB_SCL02
EXB38V101JV
STB_SCL02
STB_SDA02
22
R9185
8
9
P71_SCL0
SOS7
IIC_CONT
AR_TXD_PC
AR_RXD_PC
TXD_PC
RXD_PC
FVSEL
XRST_SYS
22
R9186
7
P70_SDA0
PA1_VSYNC_IRQ1
VDD
PA7_VCLKOUT
P41_TM1IO77P42_TM2IO78P43_TM3IO
P44_TM4IO_SYSCLK
C9046 16V
0.1u
R9149
4.7k
C9065 16V
0.1u
!
A
B
TO P-BOARD (P25)
STBY5V
PANEL_MAIN_ON
SOS4_PS
C
VDATA_DET
TO SC-BOARD (SC20)
D
CERS
CRC1
SC_FPGANRST
SOS6_SC1
SOS7_SC2
E
CPH2
CPH1
CMH
+15V
+15V
CRC2
F
CQR5
D-BOARD TZTNP02DRUE (1/4)
0.1u
0.1u
0.1u
P5V
C9832 10V 10u
R9848
R9849
R9228 47
R9229 47
C9823
25V 10u
PANEL_MAIN_ON
VDATA_DET
SOS6_SC1
SOS7_SC2
P15V
C9858 25V 10u
P15V
C9837
SOS4_PS
SC_UHZ
FL9803
TP9196
D25
F1J1E104A148
1
+15V
2
+15V
3
GND
4
GND
5
+5V
6
+5V
7
GND
8
GND
9
10
GND
11
12
13
D20
SIDE
P5V
1
SIU
2
CLK
3
GND
4
5
SEL
6
GND
7
OC2
8
9
10
OC1
11
CIS
12
GND
13
14
15
GND
16
UHZ
17
18
GND
19
CEL
20
CSH
21
GND
22
CSL
23
24
GND
25
26
CML
27
NC
28
29
30
NC
31
NC
32
33
34
GND
35
TERM
G
G
0V
TP9862
FL9805
F1J1E104A148
G
G
FL9806
TP9006
F1J1E104A148
G
G
R9145 100
R9120 100
100
R9115
C9840
25V
0.01u
EXB2HV470JV
R9110 100
R9142 100
R9202 100
EXB2HV470JV
C9859
25V
0.01u
C9844 25V
0.01u
10V 10u
P5V
FP_CERS
FP_CRC1
FP_FPGANRST
FP_CPH2
FP_CPH1
FP_CRC2
FP_CQR5
FP_SIU
FP_CLK
FP_SEL
FP_OC2
FP_OC1
FP_CIS
FP_CEL
FP_CSH
FP_CSL
FP_CMH
FP_CML
REMOCON
SDA1
LED_R
GND
GND
3.3V
1
PGND
2
PGND
3
P3.3V
L9001
G1C3R3Z00004
C9072
C9073
6.3V
6.3V 22u
22u
PGND
4
SW
5
SW
C9071
6
SW
25V
0.1u 7
BOOT
C9076
8
NC
16V
0.015u 9
SS/DELAY
10
GND
VIN
VIN
VIN
NC
NC
EN
PSET
IC9805
C0DBAYY00477
RT
FC
FB
1.8V
1
PGND
2
PGND
P1.8V
R9902
R9874
22
C9845
16V
0.1u
STB5V_M
C9846
16V
0.1u
22
L9002
G1C6R8Z00008
C9083
C9084
6.3V
6.3V
22u
22u
3
PGND
4
SW
5
SW
6
SW
C9082
7
0.1u25V
BOOT
8
NC
C9087
0.056u10V
9
SS/DELAY
10
GND
VIN
VIN
VIN
NC
NC
EN
PSET
IC9807
RT
C0DBAYY00477
FC
FB
1.2V
1
PGND
2
PGND
3
C9066
25V
C9863
25V
0.1u
4700p
IIC_SW
17
S_SCL2
18
S_SDA2
19
S_SCL1
20
S_SDA1
21
STB33VIN
22
P33V
23
P_ON_OFF
24
STB5V_IN
25
GND
26
CE
27
A1
28
A2
29
A3
30
A4
31
A5
32
PGND
4
SW
5
SW
6
SW
7
BOOT
8
NC
9
SS/DELAY
10
GND
ANALOG ASIC
IC9004
P1.2V
R9873
R9900
22
22
STB5V_M
D9110
B0JCGD000002
L9802
G1C6R8Z00010
C9067
C9068
6.3V
6.3V 22u
22u
R9129
68k
C9033
16V 0.1u
C9036
10V
D9800
B0JCPD000026
STB3.3V
10u
R9132 100
IC9806
P33V_IN
16
P_SCL2
15
P_SDA2
14
P_SCL1
13
P_SDA1
12
VIN_OR
11
DCDC_OE
10
GND
9
STB33V
8
CD_OUT
7
RESET
6
Y1
5
Y2
4
Y3
3
Y4
2
C1ZBZ0003983
Y5
1
VIN
VIN
VIN
NC
NC
EN
PSET
RT
C0DBAYY00478
FC
FB
25V
C9037
FP_UHZ
20
19
18
17
16
15
14
13
12
11
20
19
18
17
16
15
14
13
12
11
20
19
18
17
16
15
14
13
12
11
0.01u
C9077
25V 10u
C9080
R9079 27k
R9078 43k
C9079
R9081
C9088
25V 10u
C9091
R9091 27k
R9088 18k
R9089
15k
C9869
25V 10u
C9882
R9893 56k
R9077 11k
C9874
R9872 10k
C9055
16V
0.1u
R9201
R9200
R9871
47k
P15V
200p50V
22p50V
P15V
200p50V
P15V
200p50V
100p50V
C9034
16V 0.1u
C9035
10V
C9078 25V 10u
C9074
2200p50V
R9080
15k
C9089 25V 10u
C9085
2200p
50V
R9092
12k
C9872 25V 10u
C9069
2200p
50V
R9894
18k
P3.3V
R9223
R9225
2.7k
2.7k
10
10
P15V
10k
R9868 100k
STB3.3V
R9121
10u
100k
C9054 50V 200p
P3V_SCL02
P3V_SDA02
P3V_SCL01
P3V_SDA01
REM_IN
C9899
AUX_ON/OFF
NRST
SOS6
SOS7
SOS8
P5V
IC9808
C0CBCAC00365
10V 10u
R9898
10k
R9899
10k
IIC_SW
PROG_M
LED_G
LED_R
RXD_PC
TXD_PC
IIC_CONT
NRST
VDATA_DET
VIN4VOUT
R9897
10k
ON/OFF
Q9807
2SD0601A0L
X9000
H2C1005A0041
P2.5V
5
VSS
1
R9070
10k
2
NC
3
R9152
R9153
C9926
10V
10u
10k
10k
C9045
16V
C9044
10V
10V
C9062 4.7u
R9194
470
C9063
16V
0.1u
LED_R
STB3.3V
2.7k
R9154
2.7k
R9155
26
27
28
29
30
31
32
33
34
0.1u
4.7u
35
36
37
38
39
40
41
42
43
44
45
46
47
48
FPGA2.5V
LED_G
RXD
SCL1
AR_TXD_PC
AR_RXD_PC
R9854
100
P3V_SDA01
REMOCON
P3V_SCL01
LED_G
STB_SCL01
22
R9150
P31
P32
P33
P34
P35
P36
P37
VPPEX_(N.C.)
IVDD
VDD
RONA
VSS
OSCXO
OSCXI
IVDD
P64_SBI1
P63_SBT1
NBOOT_(N.C.)
NRST
IIC_CONT
STB_SDA01
22
0
*R9098
0
R9214
R9151
24
25
23
EXCLKSEL
P72_SDA1
P73_SCL1
P30
P66_SBI2
P65_SBT2
NTEST49SCLOCK_(UND)50SDATA_(UND)
ENTRG0_(UND)
ENTRG1_(UND)
TRCCLK_(UND)
TRCST_(UND)55TRCD0_(UND)56TRCD1_(UND)57TRCD2_(UND)58TRCD3_(UND)59P80_ADIN060P81_ADIN161P82_ADIN262P83_ADIN363IVDD64VSS65P84_ADIN466P85_ADIN567P86_ADIN668P87_ADIN769P90_ADIN870P91_ADIN971P92_ADIN1072P93_ADIN11
51
52
53
54
C9064
R9073
16V
4.7k
0.1u
C9040
16V
0.1u
P15V
R9215
R9205
100k
33k
R9207
R9206
24k
56k
P3.3V
R9203
22k
C9052
16V
0.1u
IIC_INT
AR_IIC_CONT
AR_STB_SCL02
STB_SCL02
SFVRST
P05_IRQ65P06_IRQ76P07_IRQ8
PA0_HSYNC
PA2_R00
PA3_G00
IVDD
OSDXI
PA4_B00
PA5_YSOUT
PA6_HOUT
P54_IRQ5
P53_IRQ4
P52_IRQ3
P51_IRQ2
P04_SBO0B
P03_SBT0B
STBY5V
STBY3.3V
AR_STB_SDA02
R9839
STB_SDA02
SIN
MCCLK
R9130 47
2
3
4
VSS
P02
P01
P00
73
74
22
22
R9220
R9219
STB_SDA03
STB_SCL03
123456789
D6
STB5V_M
STB3.3V
AR_IIC_CONT
EXB38V101JV
SFRST
R9188 2.7k
R9187
R9164
P3.3V
R9124 47
1
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
76
75
PANEL_MAIN_ON
TO A-BOARD (A3)
DISPEN
123456789
D3
100
R9840 22
R9231
C9825 50V 100p
IIC_CONT
DRVMUTE
2.7k
10k
R9072
1k
C9047
16V
EXB38V470JV
R9095
R9217
2.7k
2.7k
R9218
READY
PANEL_STBY_ON
100
100
R9232
R9230
READY
PANEL_STBY_ON
C9061
16V
0.1u
0.1u
R9119
R9212 47
R9213 47
10k
10k
R9166
LVDS_DET
RE_E-(LSB)
RD_E-
RD_E+
GND
RE_O-(LSB)
RE_O+(LSB)
GND
RCLK_O-
RCLK_O+
RD_O+
RE_O+
STB_SCL03
STB_SDA03
RD_O-
31
100
100
100
R9246
R9243
R9245
RCLK_O-
RD_O-
RE_O-
RD_O+
RCLK_O+
TP9313
IIC_DATA2
IIC_CLK1
GND
TP9204
P3V_SCL01
TP9203
GND
IIC_CLK2
1011121314
TP9202
TP9201
AR_RXD_PC
AR_STB_SCL02
AR_STB_SDA02
OSD_CLKIN
OSD_HIN
OSD_VIN
OSD_R
OSD_G
OSD_B
OSD_YS
OSD_HI
OSD_CKI
XI_DONE
P_ON/OFF
AUX_ON/OFF
DRVRST
XRST
FPGANRST
RXD
*R9096
TXD
AR_TXD_PC
0
KEY_SCAN
15
KEYSCAN_D
XRST
GND
IIC_DATA1
IIC_CONT
ALARM
TP9200
AR_IIC_CONT
100
R9233
P3V_SDA01
ALARM
R9071
22k
R9107
3.3k
P3.3V
10k
R9189
GND
GND
RC_O-
RC_O+
100
R9242
RC_O-
RC_O+
TEMP SENSOR
IC9002
C1ZBZ0003577
1
SCL
2
GND
3
A1
RB_O+
100
R9235
RB_O+
SDA
A0
VDD
RE_E+(LSB)
RA_O+(MSB)
RB_O-
RA_O-(MSB)
100
R9234
RA_O+
RA_O-
RB_O-
6
5
P3.3V
4
C9056
16V
0.1u
100
100
100
R9237
R9244
R9236
INEXCH
RE_E+
RD_E+
RD_E-
RE_E-
TP9316
TP9315
TP9314
EEPROM
0V
*IC9001
1
E0
2
E1
3
E2
4
VSS
TVRQ612
VCC
WC
SCL
SDA
STB3.3V
8
7
6
5
STB_SDA02
TP9000
STB_SCL02
EEP_WR_CTL
C9057
16V
0.1u
STB_SCL01
STB_SDA01
STB_SDA02
STB_SCL02
IIC_SW
1
P_ON/OFF
SOS7_SC2
SOS6_SC1
PANEL_STBY_ON
SOS8_SS
SC_UHZ
REMOCON
3
4
5
82 73 96
73
Page 74

12.28. D-Board (2/4) Schematic Diagram

!
D-BOARD TZTNP02DRUE (2/4)
L8R_FCCLK
FP_SEL
R9402
47
R9618
XI_DONE
FP_SIU
FP_CLK
FP_CERS
FP_CRC2
FP_OC2
FP_CRC1
FP_FPGANRST
FP_OC1
FP_CIS
FP_CPH2
FP_CEL
FP_UHZ
FP_CSH
FP_CSL
TMS
SC_PULSE
330
16V 0.1u
C9543
16V 0.1u
C9544
R9594
10k
C9546
16V 0.1u
16V 0.1u
C9545
R9600
68
50
51
52
53
IO_L01N_1
54
VCCO_1
55
VCCINT
56
IO_L02P_1
57
IO_L02N_1
58
GND
59
IO_L03P_1/RHCLK0
60
IO_L03N_1/RHCLK1
61
IO_L04P_1/RHCLK2
62
IO_L04N_1/RHCLK3
63
GND
64
TP9500
IO_L05P_1/RHCLK4
65
IO_L05N_1/RHCLK5
66
IO_L06P_1/RHCLK6
67
IO_L06N_1/RHCLK7
68
IP/VREF_1
69
IO_L07P_1
70
IO_L07N_1
71
GND
72
73
76
TDO
TCK
L8R_TDO
P3.3V
L8R_CLKMO
DRVRST
FPGANRST
40
41
IO/M1
IO_L02N_2/MOSI/CSI_B
IO_L06P_2/D2/GCLK2
IO_L06N_2/D1/GCLK3
XRST
36
37
38
39
GND
IO_L02P_2/DOUT/BUSY
IP_L05N_2/M2/GCLK1
IO_L04N_2/D3/GCLK15
IP_L05P_2/RDWR_B/GCLK0
L8R_FPCLK
L8R_FPDAT1
FPDAT0
33
34
35
IO/D5
VCCINT
IO_L04P_2/D4/GCLK14
L8R_FPDAT0
DRVMUTE
FP_CQR5
DIN
10k
R9604
16V 0.1u
16V 0.1u
C9538
C9539
42
43
44
45
46
47
48
49
VCCO_2
VCCAUX
IO_L08N_2/VS1
IO_L07P_2/M0
IO_L08P_2/VS2
IO_L09P_2/VS0
IO_L09N_2/CCLK
IO_L07N_2/DIN/D0
GND
DONE
IO_L01P_1
FPGA
IC9500
C1ZBZ0003760
VCCO_174VCCAUX75TMS
TDO
TCK
IO_L01P_0
IO_L01N_080VCCINT81GND82VCCO_083IO_L02P_0/GCLK484IO_L02N_0/GCLK585IO_L03P_0/GCLK686IO_L03N_0/GCLK787GND88IP_L04P_0/GCLK889IP_L04N_0/GCLK990IO_L05P_0/GCLK1091IO_L05N_0/GCLK1192IO93GND94IO_L06P_095IO_L06N_0/VREF_096VCCAUX97VCCO_0
77
78
79
16V 0.1u
16V 0.1u
C9550
C9549
R9601 68
FP_CPH1
FP_CMH
TCK
FP_CML
DD_LED1
DD_PCD1
DD_PCD2
IO_L07N_0/HSWAP
IO_L07P_0
DD_CLRD1
DD_ODED1
DD_LED2
MODEL
HFSEL
C9536 16V 0.1u
30
31
32
VCCO_2
IP/VREF_2
IO_L03P_2/D7/GCLK12
IO_L03N_2/D6/GCLK13
IO_L06N_3/LHCLK7
IO_L06P_3/LHCLK6
IO_L05N_3/LHCLK5
IO_L05P_3/LHCLK4
IO_L01N_2/INIT_B
IO_L01P_2/CSO_B
IO_L04N_3/LHCLK3
IO_L04P_3/LHCLK2
IO_L03N_3/LHCLK1
IO_L03P_3/LHCLK0
PROG_B2IO_L01P_33IO_L01N_3
TDI
IO_L02N_3/VREF_3
16V 0.1u
C9547
DD_PCD3
DD_PCD4
29
GND
IO_L07P_3
VCCAUX
VCCO_3
IO_L07N_3
VCCO_3
IO_L02P_3
16V 0.1u
C9548
C9537 16V 0.1u
28
GND
GND
GND
VCCINT
98
DD_ODED2
TRST
IC9300 AG5 TRST
IC9300 A4 OCKOUTD
for LVDS_TX
IC9300 A5 OCKOUTU
H0J200500076
P3.3V
XRST
RMA16
FR_RMD15
FR_RMD07
FR_RMD14
FR_RMD06
FR_RMD13
FR_RMD05
to PD3/FPGA
0V
45
46
47
48
A16
VSS
BYTE#
SASEL
27
26
25
24
23
22
21
20
19
18
17
16
15
14
IP
13
12
11
10
9
8
7
6
5
4
1
99
100
P3.3V
R9588
TDI
L8R_TDO2
10k
R9592
VJ9011
VJUMP1608-P
4.7k
10k
R9591
P2.5VP1.2V
VJ9010
VJUMP1608-P
10k
R9585
P3.3V
PPP
VJ9009
VJUMP1608-P
C9889 10V
10u
R9578
4.7k
R9586 47
R9587 47
R9616 47
16V 0.1u
C9542
16V 0.1u
C9541
C9540
16V 0.1u
C9535
16V 0.1u
R9611 68
FP_UEH
FP_USL
FP_USH
FP_UML
FP_UMH
DD_CLRD2
TP9311
P3V_SCL02
P3V_SDA02
SFLATCH
SFVRST
SFRST
TP9312
FP_HD
FP_VD
FVSEL
L8R_PROG
DQ15/A-1
A152A143A134A125A116A107A98A89A1910NC11WE#12RESET#13NC14NC15RY/BY#16A1817A1718A719A620A521A422A323A224A1
1
RMA12
RMA13
RMA14
RMA15
R9609
EXB2HV470JV
FP_UEH
FP_USL
FP_USH
FP_UML
FP_UMH
R9610
EXB2HV470JV
DD_LED2
DD_PCD3
DD_PCD4
DD_ODED2
DD_CLRD2
R9608
EXB2HV470JV
DD_LED1
DD_PCD1
DD_PCD2
DD_ODED1
DD_CLRD1
44
RMA11
DQ7
RMA10
EXB2HV151JV
40
41
42
43
DQ6
DQ13
DQ14
RMA08
RMA19
RMA09
R9425
UEH_C
USL_C
USH_C
UML_C
UMH_C
D-LED2
D-PCD3
D-PCD4
D-ODED2
D-CLRD2
D-LED1
D-PCD1
D-PCD2
D-ODED1
D-CLRD1
FR_RMD12
FR_RMD04
38
39
DQ5
DQ12
*IC9303
TVRQ615
L8R_ROMWE
RMA20
C9469
16V
0.1u
FR_RMD03
FR_RMD11
35
36
37
DQ4
VCC
DQ11
R9385
4.7k
L8R_ROMRST
DATA_DRIVER
SS_PULSE
FR_RMD00
29
DQ030DQ831DQ132DQ933DQ2
RMA05
L8R_ROMOE
RMA04
R9426
EXB2HV151JV
RMA00
L8R_ROMCE
25A026
27
CE#
VSS28OE#
RMA03
RMA01
RMA02
FR_RMD08
FR_RMD09
FR_RMD10
FR_RMD11
FR_RMD12
FR_RMD13
FR_RMD14
FR_RMD15
FR_RMD07
FR_RMD06
FR_RMD05
FR_RMD04
FR_RMD03
FR_RMD02
FR_RMD01
FR_RMD00
RMD00
RMD01
RMD02
RMD03
RMD04
RMD05
RMD06
RMD07
RMD15
RMD14
RMD13
RMD12
RMD11
RMD10
RMD09
RMD08
SIN
SFRST
SFVRST
FVSEL
OSD_HIN
OSD_VIN
OSD_CLKIN
OSD_YS
OSD_R
OSD_B
OSD_G
OSD_CKI
OSD_HI
XRST
XRST_SYS
PROG_M
MCCLK
RA_O+
RA_O-
RB_O+
RB_O-
RC_O+
RC_O-
RCLK_O+
RCLK_O-
RD_O+
RD_O-
RE_O+
RE_O-
P3V_SDA02
P3V_SCL02
L8R_CLKMO
L8R_FCCLK
L8R_PROG
SFLATCH
L8R_FPCLK
L8R_FPDAT1
L8R_FPDAT0
SFRST
SFVRST
FVSEL
FP_HD
FP_VD
FR_RMD02
FR_RMD01
FR_RMD10
FR_RMD09
FR_RMD08
34
DQ3
DQ10
PD3H_ROM
RMA06
RMA18
RMA07
RMA17
R9970 47
R9988 47
R9598 47
R9977 47
R9975 47
R9967 47
R9987 47
R9968 47
R9989 47
R9969 47
LVDS_INPUT
IC9300 AN12 RXOAP
IC9300 AP12 RXOAN
IC9300 AN13 RXOBP
IC9300 AP13 RXOBN
IC9300 AN14 RXOCP
IC9300 AP14 RXOCN
IC9300 AN15 RXOCKP
IC9300 AP15 RXOCKN
IC9300 AN16 RXODP
IC9300 AP16 RXODN
IC9300 AN17 RXOEP
IC9300 AP17 RXOEN
IIC
IC9300 AK16 SDA
IC9300 AJ17 SCL
R9983
47
RA_E+
RA_E-
RB_E+
RB_E-
RC_E+
RC_E-
RCLK_E+
RCLK_E-
RD_E+
RD_E-
RE_E+
RE_E-
IC9300 AP20 XI
C9972
50V
X9900
C9971
50V
R9966
390
IC9300 AP19 XO
IC9300 AK3 CKMO
IC9300 AJ4 FCCLK
IC9300 AH6 PROG
IC9300 AM1 SFLATCH
IC9300 AJ5 FPCLK
IC9300 AL1 FPDAT1
IC9300 AL2 FPDAT0
IC9300 AM2 SFRST
IC9300 AK6 SFVRST
IC9300 AK17 FVSEL
TP9076
IC9300 AK18 OSDHO
TP9078
IC9300 AL3 SFVO
TP9077
IC9300 AL18 OSDVO
IC9300 AL17 OSDCKO
IC9300 AJ20 OSDYSI
IC9300 AK19 OSDRI
IC9300 AJ19 OSDBI IC9300 F33 LVDOD10P
IC9300 AL19 OSDGI
IC9300 AK20 OSDCKI
IC9300 AL20 OSDHI
IC9300 AK1 XRST
IC9300 AH5 XRSTSYS
IC9300 AN1 PROG_M
IC9300 AJ18 MCCLK
IC9300 AN6 RXEAP
IC9300 AP6 RXEAN
IC9300 AN7 RXEBP
IC9300 AP7 RXEBN
IC9300 AN8 RXECP
IC9300 AP8 RXECN
IC9300 AN9 RXECKP
IC9300 AP9 RXECKN
IC9300 AN10 RXEDP
IC9300 AP10 RXEDN
IC9300 AN11 RXEEP
IC9300 AP11 RXEEN
18p
15p
20MHz(SS)
CCLK for FPGA
SIN for ucom
NCS for ucom
SOUT for ucom CDAT for FPGA
TMS
TCK
TMS
TCK
TDO
TDI
L8R_ROMRST
L8R_ROMOE
L8R_ROMWE
L8R_ROMCE
RMD00
RMD01
RMD02
RMD03
RMD04
RMD05
RMD06
RMD07
RMD08
RMD09
RMD10
RMD11
RMD12
RMD13
RMD14
RMD15
RMA00
RMA01
RMA02
RMA03
RMA04
RMA05
RMA06
RMA07
RMA08
RMA09
RMA10
RMA11
RMA12
RMA13
RMA14
RMA15
RMA16
RMA17
RMA18
RMA19
RMA20
Low Active
IC9300 AG6 TMS
IC9300 AJ2 TCK
IC9300 AH4 TDO
IC9300 AJ3 TDI
to FLASH
IC9300 AH3 ROMRESET
IC9300 AG4 ROMOE
IC9300 AH2 ROMWE
IC9300 AG3 ROMCE
IC9300 AD6 VI
IC9300 AC4 DOUTDD00
IC9300 AE6 DI2
IC9300 AD4 DOUTDB00
IC9300 AE5 DI0
IC9300 AE4 MASK
IC9300 AF5 DI5
IC9300 AF4 DI4
IC9300 AD2 DOUTDF00
IC9300 AD1 DOUTDE00
IC9300 AE2 DOUTDC00
IC9300 AE1 DOUTDA00
IC9300 AF3 DI1
IC9300 AF2 CKI
IC9300 AF1 HI
IC9300 AG1 DI3
IC9300 AA3 DOUTDB03
IC9300 Y1 DOUTDD03
IC9300 Y2 DOUTDF03
IC9300 Y3 DOUTDB04
IC9300 AA5 DOUTDC03
IC9300 W1 DOUTDC04
IC9300 V6 DOUTDE03
IC9300 W2 DOUTDE04
IC9300 V4 DOUTDF04
IC9300 V3 DOUTDE05
IC9300 W4 DOUTDB05
IC9300 U1 DOUTDA06
IC9300 R6 DOUTDD05
IC9300 U2 DOUTDB06
IC9300 P6 DOUTDF05
IC9300 U3 DOUTDC06
IC9300 W5 DOUTDA03
IC9300 Y5 DOUTDA04
IC9300 W3 DOUTDA05
IC9300 V2 DOUTDC05
IC9300 V5 DOUTDD04
DD1_2P
DD1_2N
DD1_1P
DD1_1N
DRVCLK1P
DRVCLK1N
DD2_2P
DD2_2N
DD2_1P
DD2_1N
DD3_2P
DD3_2N
DD3_1P
DD3_1N
DRVCLK2P
DRVCLK2N
DD4_2P
DD4_2N
DD4_1P
DD4_1N
DD5_2P
DD5_2N
DD5_1P
DD5_1N
DRVCLK3P
DRVCLK3N
DD6_2P
DD6_2N
DD6_1P
DD6_1N
IC9300 P33 LVDOD0P
IC9300 P34 LVDOD0N
IC9300 N33 LVDOD1P
IC9300 N34 LVDOD1N
IC9300 N29 LVDOD2P
IC9300 N30 LVDOD2N
IC9300 M33 LVDOD3P
IC9300 M34 LVDOD3N
IC9300 L33 LVDOD4P
IC9300 L34 LVDOD4N
IC9300 J33 LVDOD6P
IC9300 J34 LVDOD6N
IC9300 H33 LVDOD7P
IC9300 H34 LVDOD7N
IC9300 J29 LVDOD8P
IC9300 J30 LVDOD8N
IC9300 G33 LVDOD9P
IC9300 G34 LVDOD9N
IC9300 F34 LVDOD10N
IC9300 B31 LVDOD12P
IC9300 A31 LVDOD12N
IC9300 B30 LVDOD13P
IC9300 A30 LVDOD13N
IC9300 F27 LVDOD14P
IC9300 E27 LVDOD14N
IC9300 B29 LVDOD15P
IC9300 A29 LVDOD15N
IC9300 B28 LVDOD16P
IC9300 A28 LVDOD16N
DD7_2P
DD7_2N
DD7_1P
DD7_1N
DRVCLK4P
DRVCLK4N
DD8_2P
DD8_2N
DD8_1P
DD8_1N
DD9_2P
DD9_2N
DD9_1P
DD9_1N
DRVCLK6P
DRVCLK6N
DD10_2P
DD10_2N
DD10_1P
DD10_1N
DD11_2P
DD11_2N
DD11_1P
DD11_1N
DRVCLK7P
DRVCLK7N
DD12_2P
DD12_2N
DD12_1P
DD12_1N
DRVCLK5P
DRVCLK5N
IC9300 B26 LVDOD18P
IC9300 A26 LVDOD18N
IC9300 B25 LVDOD19P
IC9300 A25 LVDOD19N
IC9300 F24 LVDOD20P
IC9300 E24 LVDOD20N
IC9300 B24 LVDOD21P
IC9300 A24 LVDOD21N
IC9300 B23 LVDOD22P
IC9300 A23 LVDOD22N
IC9300 B21 LVDOD24P
IC9300 A21 LVDOD24N
IC9300 B20 LVDOD25P
IC9300 A20 LVDOD25N
IC9300 F19 LVDOD29P
IC9300 E19 LVDOD29N
IC9300 B19 LVDOD27P
IC9300 A19 LVDOD27N
IC9300 B18 LVDOD28P
IC9300 A18 LVDOD28N
IC9300 B17 LVDOD30P
IC9300 A17 LVDOD30N
IC9300 B16 LVDOD31P
IC9300 A16 LVDOD31N
IC9300 F15 LVDOD35P
IC9300 E15 LVDOD35N
IC9300 B15 LVDOD33P
IC9300 A15 LVDOD33N
IC9300 B14 LVDOD34P
IC9300 A14 LVDOD34N
IC9300 F23 LVDOD23P
IC9300 E23 LVDOD23N
DD13_2P
DD13_2N
DD13_1P
DD13_1N
DRVCLK8P
DRVCLK8N
DD14_2P
DD14_2N
DD14_1P
DD14_1N
DD15_2P
DD15_2N
DD15_1P
DD15_1N
DRVCLK9P
DRVCLK9N
IC9300
MN84528
PD3H
IC9300 B11 LVDOD39P
IC9300 A11 LVDOD39N
IC9300 B10 LVDOD40P
IC9300 A10 LVDOD40N
IC9300 F11 LVDOD41P
IC9300 E11 LVDOD41N
IC9300 B9 LVDOD42P
IC9300 A9 LVDOD42N
IC9300 B8 LVDOD43P
IC9300 A8 LVDOD43N
IC9300 B7 LVDOD45P
IC9300 A7 LVDOD45N
IC9300 B6 LVDOD46P
IC9300 A6 LVDOD46N
IC9300 F8 LVDOD47P
IC9300 E8 LVDOD47N
11
12
13
1
2
3
11 1210 14 1715 1813 16
74
Page 75

12.29. D-Board (3/4) Schematic Diagram

D-BOARD TZTNP02DRUE (3/4)
!
IC9300
MN84528
PD3H
IC9300 M29 LVDOD5P
IC9300 M30 LVDOD5N
IC9300 H29 LVDOD11P
IC9300 H30 LVDOD11N
IC9300 F26 LVDOD17P
IC9300 E26 LVDOD17N
IC9300 F20 LVDOD26P
IC9300 E20 LVDOD26N
IC9300 F16 LVDOD32P
IC9300 E16 LVDOD32N
IC9300 B13 LVDOD36P
IC9300 A13 LVDOD36N
IC9300 B12 LVDOD37P
IC9300 A12 LVDOD37N
IC9300 F12 LVDOD38P
IC9300 E12 LVDOD38N
IC9300 F9 LVDOD44P
IC9300 E9 LVDOD44N
IC9300 K33 LVDRCK0P
IC9300 K34 LVDRCK0N
IC9300 E33 LVDRCK1P
IC9300 E34 LVDRCK1N
IC9300 B32 LVDRCK2P
IC9300 A32 LVDRCK2N
IC9300 B27 LVDRCK3P
IC9300 A27 LVDRCK3N
IC9300 B22 LVDRCK4P
IC9300 A22 LVDRCK4N
IC9300 Y21 DTCPOUT
IC9300 C6 TCPOUT_1
IC9300 AK7 TCPOUT_2
IC9300 AJ8 TESTIO
IC9300 AC5 DOUTDA01
IC9300 Y6 DOUTDA02
IC9300 T3 DOUTDA07
IC9300 R3 DOUTDA08
IC9300 L6 DOUTDA09 IC9300 N2 DOUTDB09
IC9300 N5 DOUTDA10
IC9300 K1 DOUTDA11
IC9300 H3 DOUTDA12
IC9300 G1 DOUTDA13
IC9300 F2 DOUTDA14
IC9300 D2 DOUTDA15
IC9300 AC6 DOUTDD01
IC9300 AA6 DOUTDD02
IC9300 U6 DOUTDD06 IC9300 R5 DOUTDE06
IC9300 P5 DOUTDD07
IC9300 P3 DOUTDD08
IC9300 M2 DOUTDD09
IC9300 K2 DOUTDD10
IC9300 J2 DOUTDD11
IC9300 J4 DOUTDD12
IC9300 G5 DOUTDD13
IC9300 E2 DOUTDD14
IC9300 B5 DOUTDD15
IC9300 AB3 DRVCKD0
IC9300 AB4 DRVCKD1
IC9300 T1 DRVCKD2
IC9300 T2 DRVCKD3
IC9300 L2 DRVCKD4
IC9300 L1 DRVCKD5
IC9300 G3 DRVCKD6
IC9300 G2 DRVCKD7
TP9084
TP9085
TP9086
TP9088
IC9300 AD3 DOUTDB01
IC9300 AB2 DOUTDB02
IC9300 T5 DOUTDB07
IC9300 P2 DOUTDB08
IC9300 K3 DOUTDB10
IC9300 M4 DOUTDB11
IC9300 K5 DOUTDB12
IC9300 H5 DOUTDB13
IC9300 F3 DOUTDB14
IC9300 C1 DOUTDB15
IC9300 AC2 DOUTDE01
IC9300 AA1 DOUTDE02
IC9300 R2 DOUTDE07
IC9300 M6 DOUTDE08
IC9300 L5 DOUTDE09
IC9300 N4 DOUTDE10
IC9300 J1 DOUTDE11
IC9300 J5 DOUTDE12
IC9300 H6 DOUTDE13
IC9300 F4 DOUTDE14
IC9300 E6 DOUTDE15
TP9079
IC9300 AL5 EXTTRMO0
TP9080
IC9300 AP4 EXTTRMO1
TP9081
IC9300 AM4 EXTTRMI0
TP9082
TP9087
TP9083
IC9300 AN4 EXTTRMI1
IC9300 AK2 PRCKO
C9906
C9907
16V
C9908
C9909
C9910
16V
C9911
C9912
C9914
16V
C9915
C9916
C9917
C9918
C9100
C9101
C9102
C9160
6.3V 1u
C9161
6.3V 1u
C9162
6.3V 1u
C9163
6.3V
C9164
6.3V 1u
C9165
6.3V
C9166
6.3V 1u
C9167
6.3V 1u
C9112
C9111
C9961
P1.2V
L9903
J0JHC0000117
IC9300 N14 VDD12
0.1u
16V
IC9300 N15 VDD12
0.1u
IC9300 N19 VDD12
IC9300 N20 VDD12
IC9300 N21 VDD12
IC9300 P15 VDD12
0.1u
16V
IC9300 P16 VDD12
0.1u
16V
IC9300 P17 VDD12
IC9300 P18 VDD12
IC9300 P19 VDD12
IC9300 P20 VDD12
0.1u
IC9300 P21 VDD12
0.1u
16V
IC9300 P22 VDD12
0.1u
16V
IC9300 P29 VDD12
0.1u
IC9300 P30 VDD12
0.1u
16V
IC9300 P31 VDD12
0.1u
16V
IC9300 R21 VDD12
IC9300 R22 VDD12
IC9300 R29 VDD12
IC9300 R30 VDD12
IC9300 R32 VDD12
0.1u
16V
IC9300 R33 VDD12
IC9300 R34 VDD12
0.1u
16V
IC9300 T13 VDD12
0.1u
16V
IC9300 T14 VDD12
0.1u
16V
IC9300 T29 VDD12
0.1u
16V
IC9300 T30 VDD12
IC9300 T31 VDD12
IC9300 T32 VDD12
IC9300 T33 VDD12
IC9300 T34 VDD12
1u
IC9300 U13 VDD12
IC9300 U14 VDD12
1u
IC9300 V13 VDD12
IC9300 V14 VDD12
IC9300 W13 VDD12
IC9300 W14 VDD12
10u
10V
10u
10V
10u
10V
L9900
J0JHC0000117
C9968
16V
0.1u
C9716
16V
C9136
16V
C9134
16V
C9169
6.3V 1u
C9168
6.3V 1u
C9135
16V
C9715
16V
C9140
16V
0.1u
C9141
10V
C9920
0.1u
C9139
10V
10u
16V
10u
0.1u
0.1u
0.1u
0.1u
0.1u
IC9300 V22 VDDR
IC9300 Y22 VDDR
IC9300 AA20 VDDR
IC9300 AB21 VDDR
IC9300 AJ22 VDDR
IC9300 AK22 VDDR
IC9300 AL22 VDDR
IC9300 AM22 VDDR
IC9300 AN22 VDDR
IC9300 AP22 VDDR
IC9300 U22 VDDA
IC9300 AA22 VDDA
IC9300 AB20 VDDA
L9700
J0JHC0000117
IC9300 N16 MLVVDD12
IC9300 N17 MLVVDD12
IC9300 N18 MLVVDD12
IC9300 N22 MLVVDD12
IC9300 AB13 LVVDD12
IC9300 AB14 LVVDD12
IC9300 AC1 DOUTDC01
IC9300 AB1 DOUTDC02
IC9300 R1 DOUTDC07
IC9300 P4 DOUTDC08
IC9300 N6 DOUTDC09
IC9300 M5 DOUTDC10
IC9300 J3 DOUTDC11
IC9300 H2 DOUTDC12
IC9300 G4 DOUTDC13
IC9300 E1 DOUTDC14
IC9300 D5 DOUTDC15
IC9300 AB5 DOUTDF01
IC9300 AA2 DOUTDF02
IC9300 U5 DOUTDF06
IC9300 T4 DOUTDF07
IC9300 N1 DOUTDF08
IC9300 M3 DOUTDF09
IC9300 K6 DOUTDF10 IC9300 R31 VDD12
IC9300 L4 DOUTDF11
IC9300 H4 DOUTDF12
IC9300 F1 DOUTDF13
IC9300 D1 DOUTDF14
IC9300 C5 DOUTDF15
C9900
C9956
C9901
C9902
C9903
C9905
C9904
C9973
C9143
6.3V 1u
C9142
6.3V 1u
C9960
10V
16V
16V
16V
16V
16V
16V
16V
16V
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
10u
P1.8V_DDR2
P1.8V
L9904
J0JHC0000117
IC9300 V31 VDDIO
IC9300 V34 VDDIO
IC9300 Y29 VDDIO
IC9300 Y31 VDDIO
IC9300 AA32 VDDIO
IC9300 AB33 VDDIO
IC9300 AC29 VDDIO
IC9300 AD33 VDDIO
IC9300 AE32 VDDIO
IC9300 AF30 VDDIO
IC9300 AG34 VDDIO
IC9300 AH32 VDDIO
IC9300 AJ29 VDDIO
IC9300 AK27 VDDIO
IC9300 AK30 VDDIO
IC9300 AK33 VDDIO
IC9300 AL26 VDDIO
IC9300 AL31 VDDIO
IC9300 AM25 VDDIO
IC9300 AM30 VDDIO
IC9300 AN24 VDDIO
IC9300 AN29 VDDIO
IC9300 AP28 VDDIO
IC9300 AP34 VDDIO
IC9300 AF31 VDDIOCK
IC9300 AL29 VDDIOCK
P3.3V
VJ9702
VJUMP1608-P
IC9300 D8 MLVVDD33
C9701
IC9300 D9 MLVVDD33
0.1u
16V
IC9300 D10 MLVVDD33
IC9300 D11 MLVVDD33
C9703
IC9300 D12 MLVVDD33
0.1u
16V
C9702
IC9300 D13 MLVVDD33
0.1u
16V
IC9300 D14 MLVVDD33
C9709
IC9300 D15 MLVVDD33
0.1u
16V
IC9300 D16 MLVVDD33
C9713
IC9300 D17 MLVVDD33
0.1u
16V
IC9300 D18 MLVVDD33
C9700
IC9300 D19 MLVVDD33 IC9300 AJ7 VSS
0.1u
16V
IC9300 D20 MLVVDD33
C9704
IC9300 D21 MLVVDD33
0.1u
16V
IC9300 D22 MLVVDD33
C9714
IC9300 D23 MLVVDD33
16V
0.1u
IC9300 D24 MLVVDD33
IC9300 D25 MLVVDD33
C9706
IC9300 D26 MLVVDD33
16V
0.1u
C9145
IC9300 D27 MLVVDD33
6.3V 1u
IC9300 D28 MLVVDD33
C9146
IC9300 D29 MLVVDD33
6.3V 1u
IC9300 E10 MLVVDD33
C9147
IC9300 E13 MLVVDD33
6.3V 1u
C9148
IC9300 E14 MLVVDD33
6.3V 1u
C9149
IC9300 E17 MLVVDD33
6.3V 1u
C9150
IC9300 E18 MLVVDD33
6.3V 1u
L9701
J0JHC0000117
C9957
C9976
C9977
C9158
6.3V 1u
C9159
6.3V 1u
IC9300 AJ10 LVVDD33
0.1u
16V
IC9300 AJ11 LVVDD33
0.1u
16V
IC9300 AJ12 LVVDD33
0.1u
16V
IC9300 AJ13 LVVDD33
IC9300 AJ14 LVVDD33
IC9300 AK10 LVVDD33
IC9300 AK11 LVVDD33
IC9300 AK12 LVVDD33
IC9300 AK13 LVVDD33
IC9300 AK14 LVVDD33
IC9300 E21 MLVVDD33
IC9300 E22 MLVVDD33
IC9300 E25 MLVVDD33
IC9300 E28 MLVVDD33
IC9300 F10 MLVVDD33
IC9300 F13 MLVVDD33
IC9300 F14 MLVVDD33
IC9300 F17 MLVVDD33
IC9300 F18 MLVVDD33
IC9300 F21 MLVVDD33
IC9300 F22 MLVVDD33
IC9300 F25 MLVVDD33
IC9300 F28 MLVVDD33
IC9300 F31 MLVVDD33
IC9300 G30 MLVVDD33
IC9300 G31 MLVVDD33
IC9300 H31 MLVVDD33
IC9300 J31 MLVVDD33
IC9300 K29 MLVVDD33
IC9300 K30 MLVVDD33
IC9300 K31 MLVVDD33
IC9300 L29 MLVVDD33
IC9300 L30 MLVVDD33
IC9300 L31 MLVVDD33
IC9300 M31 MLVVDD33
IC9300 N31 MLVVDD33
J0JHC0000117
C9980
0.1u
16V
C9138
16V
0.1u
C9144
16V
0.1u
L9901
IC9300 D7 A1AVDD_1
IC9300 AL6 A1AVDD_2
IC9300 W21 DPAVDD
C9921
16V
C9113
16V
C9114
16V
C9923
16V
C9922
16V
C9115
16V
C9958
16V
C9967
16V
C9913
16V
C9924
16V
C9970
16V
C9949
16V
C9950
16V
C9925
16V
C9954
16V
C9965
16V
C9151
6.3V
C9152
6.3V 1u
C9153
6.3V 1u
C9154
6.3V 1u
C9155
6.3V 1u
C9156
6.3V 1u
C9157
6.3V 1u
C9124
10V
C9123
10V
C9962
10V
C9966
10V
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
0.1u
1u
10u
10u
10u
10u
IC9300 E29 MONOUT
P
IC9300 B1 VDD33
IC9300 C2 VDD33
IC9300 D3 VDD33
IC9300 E3 VDD33
IC9300 E4 VDD33
IC9300 F5 VDD33
IC9300 G6 VDD33
IC9300 H1 VDD33
IC9300 J6 VDD33
IC9300 K4 VDD33
IC9300 M1 VDD33
IC9300 P1 VDD33
IC9300 V1 VDD33
IC9300 AC3 VDD33
IC9300 AF6 VDD33
IC9300 AJ9 VDD33
IC9300 AK9 VDD33
IC9300 AL8 VDD33
IC9300 AM5 VDD33
IC9300 AM6 VDD33
IC9300 AM7 VDD33
IC9300 AN5 VDD33
IC9300 AP5 VDD33
IC9300 C30 TEST0
IC9300 D30 TEST1
IC9300 C31 TEST
IC9300 A1 VSS
IC9300 A2 VSS
IC9300 A3 VSS
IC9300 A33 VSS
IC9300 A34 VSS
IC9300 B2 VSS
IC9300 B3 VSS
IC9300 B4 VSS
IC9300 B33 VSS
IC9300 B34 VSS
IC9300 C3 VSS
IC9300 C4 VSS
IC9300 C32 VSS
IC9300 C33 VSS
IC9300 C34 VSS
IC9300 D4 VSS
IC9300 D31 VSS
IC9300 D32 VSS
IC9300 D33 VSS
IC9300 D34 VSS
IC9300 E5 VSS
IC9300 E7 VSS
IC9300 E30 VSS
IC9300 E31 VSS
IC9300 F6 VSS
IC9300 F7 VSS
IC9300 F29 VSS
IC9300 F30 VSS
IC9300 G7 VSS
IC9300 G29 VSS
IC9300 L3 VSS
IC9300 N3 VSS
IC9300 N13 VSS
IC9300 P13 VSS
IC9300 P14 VSS
IC9300 R4 VSS
IC9300 R13 VSS
IC9300 R14 VSS
IC9300 R15 VSS
IC9300 R16 VSS
IC9300 R17 VSS
IC9300 R18 VSS
IC9300 R19 VSS
IC9300 R20 VSS
IC9300 T6 VSS
IC9300 T15 VSS
IC9300 T16 VSS
IC9300 T17 VSS
IC9300 T18 VSS
IC9300 T19 VSS
IC9300 T20 VSS
IC9300 T21 VSS
IC9300 T22 VSS
IC9300 U4 VSS
IC9300 U15 VSS
IC9300 U16 VSS
IC9300 U17 VSS
IC9300 U18 VSS
IC9300 U19 VSS
IC9300 U20 VSS
IC9300 U21 VSS
IC9300 U29 VSS
IC9300 U30 VSS
IC9300 U33 VSS
IC9300 V15 VSS
IC9300 V17 VSS
IC9300 V18 VSS
IC9300 V19 VSS
IC9300 V20 VSS
IC9300 V21 VSS
IC9300 V29 VSS
IC9300 W15 VSS
IC9300 W16 VSS
IC9300 W17 VSS
IC9300 W18 VSS
IC9300 W19 VSS
IC9300 W20 VSS
IC9300 W22 VSS
IC9300 W30 VSS
IC9300 W32 VSS
IC9300 Y4 VSS
IC9300 Y13 VSS
IC9300 Y14 VSS
IC9300 Y15 VSS
IC9300 Y16 VSS
IC9300 Y17 VSS
IC9300 Y18 VSS
IC9300 Y19 VSS
IC9300 Y20 VSS
IC9300 Y33 VSS
IC9300 AA4 VSS
IC9300 AA13 VSS
IC9300 AA14 VSS
IC9300 AA15 VSS
IC9300 AA16 VSS
IC9300 AA17 VSS
IC9300 AA18 VSS
IC9300 AA19 VSS
IC9300 AA21 VSS
IC9300 AA30 VSS
IC9300 AB6 VSS
IC9300 AB15 VSS
IC9300 AB16 VSS
IC9300 AB17 VSS
IC9300 AB18 VSS
IC9300 AB19 VSS
IC9300 AB22 VSS
IC9300 AB31 VSS
IC9300 AC32 VSS
IC9300 AC34 VSS
IC9300 AD5 VSS
IC9300 AD30 VSS
IC9300 AE3 VSS
IC9300 AE31 VSS
IC9300 AF33 VSS IC9300 AM31 VSS
IC9300 AG2 VSS
IC9300 AG29 VSS
IC9300 AG32 VSS
IC9300 AH1 VSS
IC9300 AH31 VSS
IC9300 AJ1 VSS
IC9300 AJ6 VSS
IC9300 AJ15 VSS
IC9300 AJ21 VSS
IC9300 AJ23 VSS
IC9300 AJ26 VSS
IC9300 AJ30 VSS
IC9300 AJ33 VSS
IC9300 AK5 VSS
IC9300 AK15 VSS
IC9300 AK21 VSS
IC9300 AK23 VSS
IC9300 AK25 VSS
IC9300 AK29 VSS
IC9300 AK31 VSS
IC9300 AL4 VSS
IC9300 AL16 VSS
IC9300 AL21 VSSIC9300 V16 VSS
IC9300 AL23 VSS
IC9300 AL24 VSS
IC9300 AL28 VSS
IC9300 AL33 VSS
IC9300 AM3 VSS
IC9300 AM17 VSS
IC9300 AM18 VSS
IC9300 AM19 VSS
IC9300 AM20 VSS
IC9300 AM21 VSS
IC9300 AM23 VSS
IC9300 AM27 VSS
IC9300 AM34 VSS
IC9300 AN2 VSS
IC9300 AN18 VSS
IC9300 AN19 VSS
IC9300 AN20 VSS
IC9300 AN21 VSS
IC9300 AN23 VSS
IC9300 AN26 VSS
IC9300 AN30 VSS
IC9300 AN33 VSS
IC9300 AP1 VSS
IC9300 AP18 VSS
IC9300 AP21 VSS
IC9300 AP23 VSS
IC9300 AP29 VSS
IC9300 AP32 VSS
IC9300 AP33 VSS
0V
IC9300 C7 MLVVSS
IC9300 C8 MLVVSS
IC9300 C9 MLVVSS
IC9300 C10 MLVVSS
IC9300 C11 MLVVSS
IC9300 C12 MLVVSS
IC9300 C13 MLVVSS
IC9300 C14 MLVVSS
IC9300 C15 MLVVSS
IC9300 C16 MLVVSS
IC9300 C17 MLVVSS
IC9300 C18 MLVVSS
IC9300 C19 MLVVSS
IC9300 C20 MLVVSS
IC9300 C21 MLVVSSIC9300 W6 VDD33
IC9300 C22 MLVVSS
IC9300 C23 MLVVSS
IC9300 C24 MLVVSS
IC9300 C25 MLVVSS
IC9300 C26 MLVVSS
IC9300 C27 MLVVSS
IC9300 C28 MLVVSS
IC9300 C29 MLVVSS
IC9300 E32 MLVVSS
IC9300 F32 MLVVSS
IC9300 G32 MLVVSS
IC9300 H32 MLVVSS
IC9300 J32 MLVVSS
IC9300 K32 MLVVSS
IC9300 L32 MLVVSS
IC9300 M32 MLVVSS
IC9300 N32 MLVVSS
IC9300 P32 MLVVSS
IC9300 AJ16 IICsync
IC9300 AK4 OCKIN
IC9300 AM32 CK33IN
IC9300 AM33 FPENF
IC9300 AP3 ID0
IC9300 AN3 ID1
IC9300 AP2 ID2
IC9300 AK8 WLBI
IC9300 AL32 V_TEST
IC9300 AL9 LVVSS
IC9300 AL10 LVVSS
IC9300 AL11 LVVSS
IC9300 AL12 LVVSS
IC9300 AL13 LVVSS
IC9300 AL14 LVVSS
IC9300 AL15 LVVSS
IC9300 AM8 LVVSS
IC9300 AM9 LVVSS
IC9300 AM10 LVVSS
IC9300 AM11 LVVSS
IC9300 AM12 LVVSS
IC9300 AM13 LVVSS
IC9300 AM14 LVVSS
IC9300 AM15 LVVSS
IC9300 AM16 LVVSS
IC9300 D6 A1AVSS_1
IC9300 AL7 A1AVSS_2
11
12
KEYSCAN_D
13
D-LED1
D-ODED1
SIDE
123456789
LE1
GND
KEY_SCAN
DRVRST
D-PCD2
D-PCD1
D-CLRD1
Q9301
2SD0601A0L
P3.3V
TP9010
Q9302
R9370
2SD0601A0L
10k
R9391
100k
C9468 25V
0.01u
SIDE
D32
TO C2-BOARD (C21)
5V/3.3V_DET
DD9_1P
DD9_2N
DD9_2P
DD9_1N
DRVCLK6N
123456789
GND
GND
DD9_2-
DD9_1-
DD9_2+
DD9_1+
DRVCLK6-
DD10_2P
DD10_1N
DD10_2N
DRVCLK6P
101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555758596061626364656667
GND
DD10_2-
DD10_1-
DD10_2+
DRVCLK6+
DD10_1P
DD10_1+
GND
KEY_SCAN
DD11_2N
DD11_2-
DD11_2P
DD11_2+
DD11_1N
DD11_1-
DD11_1P
DD11_1+
DRVCLK7N
GND
DD1_2N
DD1_2P
DD1_1N
DD1_1P
101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555758596061626364656667
PC1
PC2
GND
GND
CLR1
ODE1
DD1_1-
DD1_2-
DD1_2+
DD1_1+
DD2_2N
DD2_2P
DD2_1N
DD2_1P
DD3_2N
DD3_2P
DD3_1N
DRVCLK1N
DRVCLK1P
GND
GND
DD2_2-
DD2_1-
DD2_2+
DD2_1+
DD3_1P
GND
DD3_2-
DD3_1-
DD3_2+
DD3_1+
DD4_2N
DD4_2P
DD4_1N
DD4_1P
DD5_2N
DD5_2P
DD5_1N
DRVCLK2N
DRVCLK2P
GND
GND
DD4_2-
DD4_1-
DD4_1+
DD4_2+
DD5_1P
GND
DD5_2-
DD5_1-
DD5_2+
DD5_1+
DD6_2N
DD6_2P
DD6_1N
DD6_1P
DD7_2N
DD7_2P
DD7_1N
DRVCLK3N
DRVCLK3P
GND
GND
DD6_2-
DD6_1-
DD6_2+
DRVCLK3-
DRVCLK3+
DD6_1+
DD7_1P
GND
DD7_2-
DD7_1-
DD7_2+
DD7_1+
DD8_2N
DD8_2P
DD8_1N
DRVCLK4N
DRVCLK4P
GND
DRVCLK4-
DRVCLK4+
DD8_1P
DRVCLK5N
DRVCLK5P
56
GND
GND
DD8_2-
DD8_1-
DD8_2+
DD8_1+
DRVCLK5-
DRVCLK5+
VJUMP2012-P
GND
P3.3V
0
*R9211
VJ9301
P
R9371
100k
R9369
4.7k
TERM
68
D31
P5V/P3.3V
P5V/P3.3V
P5V/P3.3V
TO C1-BOARD (C11)
NC
19 20 2321 24 272622 25
75
DRVCLK7-
DRVCLK7P
DRVCLK7+
SOS8_SS
UEH_C
USL_C
USH_C
UML_C
UMH_C
D-PCD4
D-PCD3
D-LED2
DD12_1P
DD12_1+
DD13_1N
DD13_2P
DD13_1P
DD13_2N
GND
DD13_2-
DRVCLK1-
DD13_2+
DRVCLK1+
DD13_1-
DD13_1+
GND
DRVCLK8N
DRVCLK8-
DD12_1N
DD12_2N
DD12_2P
GND
DD12_2-
DD12_1-
DD12_2+
DRVCLK8P
DRVCLK8+
DD14_1N
DD14_2P
DD14_2N
GND
DD14_2-
DD14_2+
DD14_1-
DD14_1P
DD14_1+
DD15_1N
DD15_2N
DD15_2P
DD15_1P
DRVCLK9N
DRVCLK9P
GND
DD15_2-
DD15_1-
DD15_2+
DD15_1+
DRVCLK2-
DRVCLK2+
LE2
GND
GND
GND
DRVCLK9-
DRVCLK9+
D-ODED2
ODE2
D-CLRD2
R9116
100
P3.3V
0
*R9222
P5V
P
P
VJ9300
VJ9302
VJUMP2012-P
VJUMP2012-P
TERM
56
PC4
PC3
GND
CLR2
USL
UEH
USH
UML
GND
UMH
DRVSOS8
68
NC
NC
GND
P5V_SS
P5V/P3.3V
Page 76

12.30. D-Board (4/4) Schematic Diagram

D-BOARD TZTNP02DRUE (4/4)
!
IC9300
MN84528
PD3H
L8R_DM0
L8R_DM1
L8R_DQS0
L8R_DQS1
L8R_XDQS0
L8R_XDQS1
L8R_DQ0
L8R_DQ1
L8R_DQ2
L8R_DQ3
L8R_DQ4
L8R_DQ5
L8R_DQ6
L8R_DQ7
L8R_DQ8
L8R_DQ9
L8R_DQ10
L8R_DQ11
L8R_DQ12
L8R_DQ13
L8R_DQ14
L8R_DQ15
to DDR
IC9300 W34 MMDM0
IC9300 AA33 MMDM1
IC9300 W33 MMDQS0
IC9300 AA34 MMDQS1
IC9300 Y32 MMXDQS0
IC9300 Y34 MMXDQS1
IC9300 W31 MMDQ0
IC9300 W29 MMDQ1
IC9300 V33 MMDQ2
IC9300 V32 MMDQ3
IC9300 V30 MMDQ4
IC9300 U31 MMDQ5
IC9300 U34 MMDQ6
IC9300 U32 MMDQ7
IC9300 AA29 MMDQ8
IC9300 AA31 MMDQ9
IC9300 AB32 MMDQ10
IC9300 AB34 MMDQ11
IC9300 AB29 MMDQ12
IC9300 AB30 MMDQ13
IC9300 AD34 MMDQ14
IC9300 AC33 MMDQ15
L8R_DM2
L8R_DM3
L8R_DQS2
L8R_DQS3
L8R_XDQS2
L8R_XDQS3
L8R_DQ16
L8R_DQ17
L8R_DQ18
L8R_DQ19
L8R_DQ20
L8R_DQ21
L8R_DQ22
L8R_DQ23
L8R_DQ24
L8R_DQ25
L8R_DQ26
L8R_DQ27
L8R_DQ28
L8R_DQ29
L8R_DQ30
L8R_DQ31
DDR-Terminate
IC9300 AM28 MMDM2
IC9300 AM26 MMDM3
IC9300 AN28 MMDQS2
IC9300 AP26 MMDQS3
IC9300 AN27 MMXDQS2
IC9300 AP27 MMXDQS3
IC9300 AK28 MMDQ16
IC9300 AL27 MMDQ17
IC9300 AM29 MMDQ18
IC9300 AP30 MMDQ19
IC9300 AJ27 MMDQ20
IC9300 AJ28 MMDQ21
IC9300 AP31 MMDQ22
IC9300 AN31 MMDQ23
IC9300 AJ25 MMDQ24
IC9300 AL25 MMDQ25
IC9300 AN25 MMDQ26
IC9300 AP25 MMDQ27
IC9300 AK24 MMDQ28
IC9300 AJ24 MMDQ29
IC9300 AM24 MMDQ30
IC9300 AP24 MMDQ31
L8R_A0
L8R_A1
L8R_A2
L8R_A3
L8R_A4
L8R_A5
L8R_A6
L8R_A7
L8R_A8
L8R_A9
L8R_A10
L8R_A11
L8R_A12
L8R_BA0
L8R_BA1
L8R_BA2
L8R_XWE
L8R_XRAS
L8R_XCAS
L8R_XCS1
L8R_XCS0
L8R_CKE
L8R_ODT
L8R_CK
L8R_XCK
IC9300 AJ31 MMA0
IC9300 AF32 MMA1
IC9300 AK32 MMA2
IC9300 AE30 MMA3
IC9300 AJ34 MMA4
IC9300 AD29 MMA5
IC9300 AK34 MMA6
IC9300 AF34 MMA7
IC9300 AL34 MMA8
IC9300 AG33 MMA9
IC9300 AE33 MMA10
IC9300 AN34 MMA11
IC9300 AE29 MMA12
IC9300 AC30 MMBA0
IC9300 AE34 MMBA1
IC9300 AD31 MMBA2
IC9300 AD32 MMXWE
IC9300 AG30 MMXRAS
IC9300 AH30 MMXCAS
IC9300 AJ32 MMXCS1
IC9300 AG31 MMXCS0
IC9300 AC31 MMCKE
IC9300 AF29 MMODT
IC9300 AH34 MMCK
IC9300 AH33 MMXCK
L8R_A0
L8R_A1
L8R_A2
L8R_A3
L8R_A4
L8R_A5
L8R_A6
L8R_A7
L8R_A8
L8R_A9
L8R_A10
L8R_A11
L8R_A12
L8R_BA0
L8R_BA1
L8R_BA2
L8R_XWE
L8R_XRAS
L8R_XCAS
L8R_XCS1
L8R_XCS0
L8R_CKE
L8R_ODT
L8R_CK
L8R_XCK
IC9902
C3ABRY000040
DDR2
P1.8V_DDR2
L8R_DM0
IC9902 B3 UDM
L8R_DM1
IC9902 F3 LDM
L8R_XDQS0
R9998
L8R_DQS0
L8R_XDQS1
L8R_DQS1
L8R_DQ5
L8R_DQ7
L8R_DQ1
L8R_DQ3
L8R_DQ2
L8R_DQ0
L8R_DQ6
L8R_DQ4
L8R_DQ8
L8R_DQ11
L8R_DQ12
L8R_DQ15
L8R_DQ14
L8R_DQ13
L8R_DQ10
L8R_DQ9
C9987
0.1u
16V
220
IC9902 A8 UDQS
IC9902 B7 UDQS
IC9902 E8 LDQS
IC9902 F7 LDQS
IC9902 B9 DQ15
IC9902 B1 DQ14
IC9902 D9 DQ13
IC9902 D1 DQ12
IC9902 D3 DQ11
IC9902 D7 DQ10
IC9902 C2 DQ9
IC9902 C8 DQ8
IC9902 F9 DQ7
IC9902 F1 DQ6
IC9902 H9 DQ5
IC9902 H1 DQ4
IC9902 H3 DQ3
IC9902 H7 DQ2
IC9902 G2 DQ1
IC9902 G8 DQ0
IC9902 K9 ODT
IC9902 J8 CK
IC9902 K8 CK
IC9902 K2 CKE
IC9902 L2 BA0
IC9902 L3 BA1
IC9902 L1 NC
IC9902 K3 WE
IC9902 K7 RAS
IC9902 L7 CAS
IC9902 L8 CS
IC9902 J2 VREF
IC9902 A2 NC
IC9902 E2 NC
IC9902 R3 NC
IC9902 R7 NC
IC9902 R8 NC
R9405
R9406
R9407
R9408
R9409
R9410
R9411
R9412
R9413
R9414
R9415
R9416
R9404
R9417
R9418
R9419
R9420
R9421
R9422
R9423
R9424
R9085
R9086
R9083
R9084
L8DR_A0
47
L8DR_A1
47
L8DR_A2
47
L8DR_A3
47
L8DR_A4
47
L8DR_A5
47
L8DR_A6
47
L8DR_A7
47
L8DR_A8
47
L8DR_A9
47
L8DR_A10
47
L8DR_A11
47
L8DR_A12
47
L8DR_BA0
47
L8DR_BA1
47
L8DR_BA2
47
L8DR_XWE
47
L8DR_XRAS
47
L8DR_XCAS
47
L8DR_XCS1
47
L8DR_XCS0
47
L8DR_CKE
47
L8DR_ODT
47
L8DR_CK
0
L8DR_XCK
0
L8DR_ODT
L8DR_CK
L8DR_XCK
L8DR_CKE
L8DR_BA0
L8DR_BA1
L8DR_BA2
L8DR_XWE
L8DR_XRAS
L8DR_XCAS
L8DR_XCS0
L8DR_ODT
R9403
10k
C3ABRY000040
IC9902
C9993
16V
0.1u
+
C9989
68u
4V
C9990
16V
0.1u
C9994
16V
0.1u
C9995
16V
0.1u
C9985
10V
10u
C9312
16V
0.1u
C9313
16V
0.1u
C9314
16V
0.1u
A1 VDD
IC9902 E1 VDD
IC9902 M9 VDD
IC9902 J9 VDD
IC9902 R1 VDD
IC9902 J1 VDDL
IC9902 A9 VDDQ
IC9902 C1 VDDQ
IC9902 C3 VDDQ
IC9902 C7 VDDQ
IC9902 C9 VDDQ
IC9902 E9 VDDQ
IC9902 G1 VDDQ
IC9902 G3 VDDQ
IC9902 G7 VDDQ
IC9902 G9 VDDQ
C9300
16V
0.1u
C9302
16V
0.1u
C9303
16V
0.1u
C9305
16V
0.1u
C9306
16V
0.1u
C9310
16V
0.1u
C9311
16V
0.1u
L8DR_A0
L8DR_A1
L8DR_A2
L8DR_A3
L8DR_A4
L8DR_A5
L8DR_A6
L8DR_A7
L8DR_A8
L8DR_A9
L8DR_A10
L8DR_A11
L8DR_A12
IC9902 A3 VSS
IC9902 E3 VSS
IC9902 J3 VSS
IC9902 N1 VSS
IC9902 P9 VSS
IC9902 A7 VSSQ
IC9902 B2 VSSQ
IC9902 B8 VSSQ
IC9902 D2 VSSQ
IC9902 D8 VSSQ
IC9902 E7 VSSQ
IC9902 F2 VSSQ
IC9902 F8 VSSQ
IC9902 H2 VSSQ
IC9902 H8 VSSQ
IC9902 J7 VSSDL
IC9902 M8 A0
IC9902 M3 A1
IC9902 M7 A2
IC9902 N2 A3
IC9902 N8 A4
IC9902 N3 A5
IC9902 N7 A6
IC9902 P2 A7
IC9902 P8 A8
IC9902 P3 A9
IC9902 M2 A10
IC9902 R2 A12
D31 D32
0V
K4AZ01D00004
ZA9001
L8DR_CKE
VREF
P1.8V_DDR2
R9398
R9399
300
75
IC9300 AN32 MMRDRV
IC9300 AH29 MMRODT
C9081 16V
0.1u
C9952 16V
0.1u
C9953 16V
0.1u
IC9300 AL30 MMVCAL
IC9300 Y30 MMVREF0
IC9300 AK26 MMVREF1
R9087
L8DR_ODT
L8DR_CK
L8DR_XCK
L8DR_CKE
L8DR_BA0
L8DR_BA1
L8DR_BA2
L8DR_XWE
L8DR_XRAS
L8DR_XCAS
L8DR_XCS1
C9986
16V
100
0.1u
R9999
10k
R9401
P1.8V_DDR2
R9996
1k
R9997
1k
L8R_DM3
L8R_DM2
L8R_XDQS3
L8R_DQS3
L8R_XDQS2
L8R_DQS2
L8R_DQ30
L8R_DQ28
L8R_DQ27
L8R_DQ25
L8R_DQ24
L8R_DQ26
L8R_DQ29
L8R_DQ31
L8R_DQ18
L8R_DQ17
L8R_DQ22
L8R_DQ21
L8R_DQ16
L8R_DQ23
L8R_DQ20
L8R_DQ19
C9988
16V
0.1u
C3ABRY000040
220
DDR2
IC9903
IC9903 K9 ODT
IC9903 J8 CK
IC9903 K8 CK
IC9903 K2 CKE
IC9903 L2 BA0
IC9903 L3 BA1
IC9903 L1 NC
IC9903 K3 WE
IC9903 K7 RAS
IC9903 L7 CAS
IC9903 L8 CS
IC9903 J2 VREF
IC9903 B3 UDM
IC9903 F3 LDM
IC9903 A8 UDQS
IC9903 B7 UDQS
IC9903 E8 LDQS
IC9903 F7 LDQS
IC9903 B9 DQ15
IC9903 B1 DQ14
IC9903 D9 DQ13
IC9903 D1 DQ12
IC9903 D3 DQ11
IC9903 D7 DQ10
IC9903 C2 DQ9
IC9903 C8 DQ8
IC9903 F9 DQ7
IC9903 F1 DQ6
IC9903 H9 DQ5
IC9903 H1 DQ4
IC9903 H3 DQ3
IC9903 H7 DQ2
IC9903 G2 DQ1
IC9903 G8 DQ0
L8DR_A0
IC9903 M8 A0
L8DR_A1
IC9903 M3 A1
L8DR_A2
IC9903 M7 A2
L8DR_A3
IC9903 N2 A3
L8DR_A4
IC9903 N8 A4
L8DR_A5
IC9903 N3 A5
L8DR_A6
IC9903 N7 A6
L8DR_A7
IC9903 P2 A7
L8DR_A8
IC9903 P8 A8
L8DR_A9
IC9903 P3 A9
L8DR_A10
IC9903 M2 A10
L8DR_A11
IC9903 P7 A11
L8DR_A12
A1 VDD
IC9903 R2 A12
IC9903 A3 VSS
IC9903 E3 VSS
IC9903 J3 VSS
IC9903 N1 VSS
IC9903 P9 VSS
IC9903 A7 VSSQ
IC9903 B2 VSSQ
IC9903 B8 VSSQ
IC9903 D2 VSSQ
IC9903 D8 VSSQ
IC9903 E7 VSSQ
IC9903 F2 VSSQ
IC9903 F8 VSSQ
IC9903 H2 VSSQ
IC9903 H8 VSSQ
IC9903 J7 VSSDL
C9984
10V
10u
C3ABRY000040
0.1u
0.1u
0.1u
0.1u
IC9903
IC9903 E1 VDD
IC9903 M9 VDD
IC9903 J9 VDD
IC9903 R1 VDD
IC9903 A9 VDDQ
IC9903 C1 VDDQ
IC9903 C3 VDDQ
IC9903 C7 VDDQ
IC9903 C9 VDDQ
IC9903 E9 VDDQ
IC9903 G1 VDDQ
IC9903 G3 VDDQ
IC9903 G7 VDDQ
IC9903 G9 VDDQ
IC9903 J1 VDDL
IC9903 A2 NC
IC9903 E2 NC
IC9903 R3 NC
IC9903 R7 NC
IC9903 R8 NC
C9991
16V
C9996
16V
C9997
16V
C9992
16V
76
3428 29 3230 33 363531
Page 77

12.31. C1-Board Schematic Diagram

C1-BOARD TNPA4767
!
A
B
ZA17100
K4AD01Z00001
ZA17101
1 55155 155
K4AD01Z00001
ZA17103
K4AD01Z00001
40
C10
1
155
ZA17102
K4AD01Z00001
C1_P5_3.3V
R17123
1k
5V_DET
DD3_1+
DD3_2+
TEST1(GND)
DD3_2-
DD3_1-
DRVCLK2-
DRVCLK2+
VDA
C17110
6.8
6.8
VDD2
R17117
VDD2NCVDD2
VDD2
250V
R17118
0.15u
TERM
55
NC
DM
VDD2
VDD2
100
100
R17111
32
GND
A2(-)
GND
NC(GND)
NC(GND)
200
R17112
R17113
33343536373839404142434445474849515253
NC
GND
GND
GND
GND
GND
A1(-)
A1(+)
A2(+)
CLK(-)
GND
GND
CLK(+)
GND(TEST)
DD1_2+
DD1_1-
DD1_1+
TEST1(GND)
DD1_2-
100
R17101
GND
A2(-)
GND
NC(GND)
NC(GND)
A2(+)
DRVCLK1+
DRVCLK1-
VDA
C17104
6.8
6.8
250V
R17106
100
200
R17102
R17103
GND
GND
GND
GND
A1(-)
A1(+)
CLK(-)
CLK(+)
GND
GND
GND(TEST)
R17108
0.15u
TERM
SIDE
55
CB1
NC
VDD2
VDD2NCVDD2
VDD2
NC
GND
DM
VDD2
VDD2
1345789
DM
NC
VDD2
VDD2
CB3
TO PANEL DATA DRIVER
C17108
250V
0.15u
NC
NC
VDD2
VDD2
VDD2
VDD2
AB_LED1
AB_PCD1
AB_ODED1
AB_CLRD1
111213141516171819202122232425262728293031
NC
CLR
GND
GND
GND
GND
GND
GND
LE(LEN)
C1_P5_3.3V
C17106
10V
1u
HBLK(ODE)
LBLK(BLK)
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
AB_PCD1
AB_LED1
AB_CLRD1
AB_ODED1
C17102
4.7k
C
R17100
SIDE
1345789
DM
NC
VDD2
VDD2
CB1
TO PANEL DATA DRIVER
250V
0.15u
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
NC
NC
GND
VDD2
VDD2
GND
VDD2
VDD2
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C1_P5_3.3V
C17100
10V 1u
LBLK(BLK)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
D
DD2_2-
DD2_2+
DD2_1+
NC(GND)
DD2_1-
DRVCLK1+
DRVCLK1-
C17105
6.8
6.8
250V
R17109
100
100
R17104
GND
A2(-)
200
R17105
R17107
GND
GND
GND
GND
A1(-)
A1(+)
A2(+)
GND
GND
CLK(-)
CLK(+)
GND(TEST)
R17110
0.15u
TERM
SIDE
55
CB2
NC
GND
NC
VDD2
VDD2
VDD2
DM
NC
VDD2
VDD2
VDD2
1345789
DM
NC
VDD2
VDD2
CB4
TO PANEL DATAPANEL DATA DRIVER
C17109
250V
0.15u
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
NC
NC
GND
GND
VDD2
GND
VDD2
VDD2
VDD2
AB_LED1
AB_PCD1
AB_ODED1
AB_CLRD1
C17103
250V
0.15u
SIDE
1345789
E
DM
TO
NC
CB2
NC
VDD2
VDD2
VDD2
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
NC
GND
GND
VDD2
VDD2
VDD2
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C1_P5_3.3V
C17101
10V
1u
LBLK(BLK)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
TEST1(GND)
GND
NC(GND)
DRIVER
AB_PCD1
AB_LED1
AB_CLRD1
AB_ODED1
LBLK(BLK)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
TEST1(GND)
GND
NC(GND)
GND
GND
GND
LE(LEN)
HBLK(ODE)
C1_P5_3.3V
C17107
10V
1u
NC(GND)
DD4_1-
DD4_2-
DD4_1+
DD4_2+
100
R17114
GND
A2(-)
A2(+)
DRVCLK2+
DRVCLK2-
VDAVDA
C17111
6.8
6.8
100
200
R17115
R17116
NC
GND
GND
GND
GND
GND
A1(-)
GND
GND
A1(+)
CLK(-)
CLK(+)
GND(TEST)
250V
R17119
R17120
0.15u
TERM
55
NC
VDD2
VDD2
VDD2
DM
NC
VDD2
VDD2
VDD2
AB_LED1
AB_ODED1
AB_PCD1
AB_CLRD1
DD1_2-
DD1_2+
DD1_1-
DD1_1+
DRVCLK1-
CB3
CB4
DRVCLK1+
DD2_2-
DD2_2+
DD2_1-
DD2_1+
DD3_2-
DD3_2+
DD3_1-
DD3_1+
DRVCLK2-
DRVCLK2+
DD4_2-
DD4_2+
DD4_1-
DD4_1+
R17124
VDA
220k
TERM
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
SIDE
C10
TO C2-BOARD (C20)
5V/3.3V_DET
LE1
ODE1
PC1
CLR1
GND
DD1_2-
DD1_2+
DD1_1-
DD1_1+
GND
DRVCLK1-
DRVCLK1+
GND
DD2_2-
DD2_2+
DD2_1-
DD2_1+
GND
DD3_2-
DD3_2+
DD3_1-
DD3_1+
GND
DRVCLK2-
DRVCLK2+
GND
DD4_2-
DD4_2+
DD4_1-
9
DD4_1+
8
GND
7
NC
6
NC
5
NC
4
VDA
3
VDA
2
VDA
1
VDA
F
4
735
8
9621
77
Page 78

12.32. C2-Board (1/2) Schematic Diagram

C2-BOARD TNPA4768 (1/2)
!
A
B
1
C2_P5_3.3V
SIDE
DRVCLK1-
DRVCLK1+
DRVCLK2-
DRVCLK2+
DD1_2-
DD1_2+
DD1_1-
DD1_1+
DD2_2-
DD2_2+
DD2_1-
DD2_1+
DD3_2-
DD3_2+
DD3_1-
DD3_1+
DD4_2-
DD4_2+
DD4_1-
DD4_1+
1
2
LE1
3
ODE1
4
PC1
5
CLR1
6
GND
7
8
9
10
11
GND
12
13
14
GND
15
16
17
18
19
GND
20
21
22
23
24
GND
25
26
27
GND
28
29
30
31
32
GND
33
NC
34
NC
35
NC
36
VDA
37
VDA
38
VDA
39
VDA
40
TERM
C20
TO C1-BOARD (C10)
5V/3.3V_DET
C
D
E
AB_LED1_C1
AB_ODED1_C1
AB_PCD1_C1
AB_CLRD1_C1
VDA
5V_DET_2
DRVCLK1-
DRVCLK1+
DRVCLK2-
DRVCLK2+
DD1_2-
DD1_2+
DD1_1-
DD1_1+
DD2_2-
DD2_2+
DD2_1-
DD2_1+
DD3_2-
DD3_2+
DD3_1-
DD3_1+
DD4_2-
DD4_2+
DD4_1-
DD4_1+
SIDE
1345789
NC
VDD2
VDD2
CB5
TO PANEL DATA DRIVER
SIDE
1345789
NC
VDD2
VDD2
CB6
TO PANEL DATA DRIVER
C17201
250V
0.15u
NC
NC
VDD2
VDD2
VDD2
VDD2
C17203
250V
0.15u
NC
NC
VDD2
VDD2
VDD2
VDD2
AB_LED2
AB_PCD2
AB_ODED2
AB_CLRD2
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
GND
GND
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C2_P5_3.3V
C17200
10V
1u
AB_PCD2
AB_LED2
AB_ODED2
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
GND
GND
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C2_P5_3.3V
C17202
10V
1u
LBLK(BLK)
AB_CLRD2
LBLK(BLK)
NC
CLR
VDD1
VDD1
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
NC(GND)
NC(GND)
NC(GND)
GND
TEST1(GND)
GND
TEST1(GND)
DD5_1-
DD5_2+
DD5_2-
DD5_1+
DRVCLK3+
DRVCLK3-
VDA
C17204
6.8
6.8
250V
R17204
R17206
100
R17200
GND
A2(-)
NC(GND)DMNC(GND)
DD6_2-
DD6_2+
100
R17203
GND
A2(-)
NC(GND)DMNC(GND)
200
100
R17202
R17201
GND
A1(-)
A2(+)
DD6_1-
DD6_1+
100
R17205
GND
A1(-)
A2(+)
GND
GND
A1(+)
CLK(-)
CLK(+)
GND(TEST)
DRVCLK3+
DRVCLK3-
200
R17207
GND
GND
A1(+)
CLK(-)
CLK(+)
GND(TEST)
NC
GND
GND
GND
GND
NC
GND
GND
GND
GND
0.15u
TERM
55
NC
NC
VDD2
VDD2
VDD2
VDA
6.8
6.8
R17209
R17210
NC
VDD2
VDD2
VDD2
DM
VDD2
VDD2
VDD2
C17207
250V
0.15u
TERM
55
NC
DM
VDD2
VDD2
VDD2
2
3
F
3
5
6
87421
9
78
Page 79

12.33. C2-Board (2/2) Schematic Diagram

!
C2-BOARD TNPA4768 (2/2)
TO GK-BOARD (GK1)
1
2
AB_PCD2
AB_LED2
AB_ODED2
C17212
250V
0.15u
SIDE
1345789
NC
NC
VDD2
VDD2
VDD2
CB7
TO PANEL DATA DRIVER
11121314151617181920212223
NC
GND
GND
GND
GND
VDD2
VDD2
VDD2
GND
C2_P5_3.3V
LE(LEN)
GND
HBLK(ODE)
C17210
10V
1u
C24
AB_CLRD2
LBLK(BLK)
GND
ODE1
LE1
KEY
GND
68
TERM
*R17231
0
*R17230
0
1
2
AA_LED1
TEST1(GND)
AA_ODED1
DD7_2-
100
R17214
GND
GND
NC(GND)DMNC(GND)
KEY
GND
24
25262728293031
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
GND
PC2
PC1
CLR1
AA_PCD1
AA_PCD2
AA_CLRD1
DD7_2+
DD7_1-
DD7_1+
100
R17215
32
33343536373839404142434445474849515253
GND
A2(-)
A1(-)
A1(+)
A2(+)
GND
GND
DRVCLK1-
DD1_2-
DD1_2+
DD1_2-
DD1_2+
DRVCLK4+
DRVCLK4-
100
R17216
GND
CLK(-)
DRVCLK1+
DD1_1-
DD1_1+
55
5758596061626364656667
56
DD1_1-
DD1_1+
DRVCLK1-
DRVCLK1+
GND
GND
GND
GND
CLK(+)
GND(TEST)
GND
DD2_2-
DD2_1-
DD2_2+
DD2_1+
DD2_2-
DD2_2+
DD2_1-
DD2_1+
VDA
6.8
R17220
NC
GND
VDD2
VDD2
VDD2
GND
DD3_1+
DD3_1+
VDD2
GND
DRVCLK2+
DRVCLK2-
DRVCLK2-
DRVCLK2+
TERM
55
DM
NC
DD3_2-
DD3_1-
DD3_2+
DD3_2-
DD3_2+
DD3_1-
C17214
6.8
250V
R17221
0.15u
NC
VDD2
VDD2
GND
DD4_2-
DD4_1-
DD4_2+
DD4_1+
DD4_2-
DD4_2+
DD4_1-
DD4_1+
GND
DD5_1+
DD5_1+
AB_LED2
AB_ODED2
AB_PCD2
AB_CLRD2
DRVCLK3-
DRVCLK3-
DRVCLK3+
DRVCLK3+
GND
DD6_2-
DD6_2-
5V_DET_2
AB_LED1_C1
AB_ODED1_C1
AB_PCD1_C1
AB_CLRD1_C1
DD6_2+
DD6_2+
DD6_1-
DD7_2-
DD7_1-
DD6_1+
DD7_2+
DD7_1+
GND
DD6_1-
DD6_1+
DD7_2-
DD7_2+
DD7_1-
DD7_1+
R17224
EXB38V470JV
R17225
EXB38V470JV
C2_P5_3.3V
C17216
16V
0.1u
DD8_2-
DD8_1-
DD8_2+
GND
DD8_2-
DD8_2+
IC17201
C0JBAU000073
101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354
DD8_1-
GND
A8
A7
A6
A5
A4
BUFFER
A3
A2
A1
G1
DD8_1+
DD8_1+
10
9
8
7
6
5
4
3
2
1
GND
DRVCLK4+
DRVCLK4-
DRVCLK4-
DRVCLK4+
Y8
11
Y7
12
Y6
13
Y5
14
Y4
15
Y3
16
Y2
17
Y1
18
G2
19
Vcc
20
NC
DRVCLK5+
DRVCLK5-
GND
GND
DRVCLK5-
DRVCLK5+
P5V/P3.3V
P5V/P3.3V
P5V/P3.3V
TO D-BOARD
123456789
C21
SIDE
(D31)
C2_P5_3.3V
R17228
0
C2_P5_3.3V
R17226
680
R17227
EXB38V681JV
*C17241
50V
100p
AA_ODED1
AA_CLRD1
AA_LED1
AA_PCD1
AA_PCD2
VDA
R17229
220k
TERM
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SIDE
C26
TO C3-BOARD (C36)
NC
5V/3.3V_DET
NC
GND
GND
GND
GND
GND
GND
NC
NC
NC
VDA
VDA
VDA
VDA
VDA
DD5_2-
DD5_1-
DD5_2+
DD5_2-
DD5_2+
DD5_1-
3
DD8_2-
DD8_2+
DD8_1-
DD8_1+
DRVCLK5-
DRVCLK5+
VDA
C17215
6.8
6.8
100
100
R17217
GND
A2(-)
100
R17218
R17219
NC
GND
GND
GND
A1(-)
A1(+)
A2(+)
CLK(-)
CLK(+)
GND
GND
GND(TEST)
GND
GND
250V
R17222
R17223
0.15u
TERM
55
NC
VDD2
VDD2
VDD2
DM
NC
VDD2
VDD2
VDD2
ZA17200
K4AD01Z00001
40
C20
1
1
11
55 5511
ZA17201
K4AD01Z00001
21
C24
55
ZA17203
K4AD01Z00001
ZA17202
K4AD01Z00001
68
1
C21
20
C26
55
SIDE
1345789
NC
VDD2
VDD2
CB8
TO PANEL DATA DRIVER
AB_PCD2
AB_LED2
AB_CLRD2
AB_ODED2
C17213
250V
0.15u
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
NC
NC
VDD2
VDD2
VDD2
VDD2
GND
GND
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C2_P5_3.3V
C17211
10V
1u
LBLK(BLK)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
TEST1(GND)
GND
NC(GND)DMNC(GND)
11 1210 1815 1614 1713
79
Page 80

12.34. C3-Board (1/2) Schematic Diagram

C3-BOARD TNPA4769 (1/2)
!
A
1
2
B
DD11_1+
DD11_1+
GND
DD12_2-
DD12_1-
DD13_2-
DD12_1+
DD12_1+
DD13_1-
DD13_2+
DD13_1+
GND
DD13_2-
AA_CLRD2
AA_PCD4
AA_PCD3
AA_ODED2
AA_LED2
*C17341
DD13_2+
GND
GND
DRVCLK8+
DRVCLK8-
DD13_1-
DRVCLK8+
DD13_1+
DRVCLK8-
50V
100p
R17300
EXB38V681JV
GND
DD14_2-
DD14_1-
DD14_2+
DD14_1+
DD14_1-
DD14_2-
DD14_2+
DD14_1+
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
R17301
680
DD15_2-
DD15_2+
DD15_1-
DD15_2-
DD15_2+
IC17300
C0JBAU000073
DD15_1-
DD15_1+
BUFFER
GND
DD15_1+
20
Vcc
19
G2
18
Y1
17
Y2
16
Y3
15
Y4
14
Y5
13
Y6
12
Y7
11
Y8
DRVCLK7-
DRVCLK7-
DRVCLK7+
DRVCLK7+
DD12_2-
DD12_2+
DD12_2+
DD12_1-
GND
DRVCLK9-
DRVCLK9-
C3_P5_3.3V
DRVCLK9+
DRVCLK9+
GND
GND
ODE2
LE2
PC3
AA_LED2
AA_ODED2
AA_PCD3
C17301
16V
0.1u
R17302
EXB38V470JV
R17303
EXB38V470JV
PC4
AA_PCD4
AB_CLRD32
AB_CLRD31
AB_PCD32
AB_PCD31
AB_ODED32
AB_ODED31
AB_LED32
AB_LED31
UMH
GND
GND
CLR2
AA_CLRD2
AA_UMH
101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354
AA_UML
DRVSOS8
NC
NC
UML
USH
USL
UEH
AA_USH
AA_USL
AA_UEH
AA_UEH
AA_USL
AA_USH
AA_UML
AA_UMH
P5V_SS
GND
P5V/P3.3V
TO D-BOARD
123456789
C31
SIDE
(D32)
SS_5V
C3_P5_3.3V
R17360
0
SS_5V
Vcc
G2
Y1
Y2
Y3
Y4
BUFFER
Y5
Y6
Y7
Y8
C17315
20
16V
0.1u
19
18
17
16
15
14
13
12
11
R17325
EXB38V470JV
R17326
EXB38V470JV
AB_UEH
AB_USL
AB_USH
AB_UML
AB_UMH
R17321
EXB38V681JV
R17323
EXB38V681JV
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
IC17302
C0JBAZ002692
9
A8
10
GND
DRVCLK6+
DD9_2+
DD9_2+
DRVCLK6-
DD10_2-
DD10_1-
DD11_2-
55
DD10_1+
DD10_1+
DD11_1-
DD11_2+
GND
DD11_1-
DD11_2+
DD11_2-
DRVCLK6-
DRVCLK6+
DD10_2+
GND
5758596061626364656667
56
DD10_1-
DD10_2-
DD10_2+
GND
DD9_1-
DD9_1+
DD9_1+
DD9_1-
5V/3.3V_DET
GND
DD9_2-
68
TERM
5V_DET_3
DD9_2-
C
TO C2-BOARD (C26)
C36
NC
5V/3.3V_DET
NC
GND
D
GND
GND
GND
GND
GND
NC
NC
NC
VDA
VDA
VDA
VDA
VDA
C3_P5_3.3V
SIDE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TERM
5V_DET_3
VDA
VDA
R17344
220k
TO
123
4
C35
P-BOARD (P35)
NC
GND
VDA
VDA
AB_UEH
AB_USL
AB_USH
AB_UML
AB_UMH
8
GND
SOS8_SS
SS_5V
TO
1234567
C33
SS-BOARD
UML
UMH
USH
(SS33)
P5V
UEH
USL
E
F
3
5
6
87421
9
80
Page 81

12.35. C3-Board (2/2) Schematic Diagram

C3-BOARD TNPA4769 (2/2)
!
1
2
AB_LED31
AB_PCD31
AB_ODED31
AB_CLRD31
C17302
250V
0.15u
SIDE
1345789
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
DD9_2-
DD9_1-
DD9_2+
DD9_1+
DRVCLK6-
DRVCLK6+
100
R17304
200
100
R17306
R17305
VDA
C17304
6.8
6.8
250V
R17307
R17308
0.15u
TERM
55
SIDE
1345789
C17319
250V
0.15u
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
AB_LED32
AB_ODED32
AB_PCD32
AB_CLRD32
DD13_1-
DD13_1+
DD13_2-
DD13_2+
100
R17332
DRVCLK8-
DRVCLK8+
200
100
R17334
R17333
VDA
6.8
6.8
R17335
R17336
C17321
250V
0.15u
TERM
55
DM
CB9
TO PANEL DATA DRIVER
SIDE
1345789
DM
CB10
TO PANEL DATA DRIVER
SIDE
1345789
DM
CB11
TO PANEL DATA DRIVER
SIDE
1345789
DM
CB12
TO PANEL DATA DRIVER
NC
NC
VDD2
VDD2
VDD2
NC
VDD2
VDD2
VDD2
NC
VDD2
VDD2
VDD2
NC
VDD2
VDD2
VDD2
NC
GND
GND
VDD2
VDD2
VDD2
C17305
250V
0.15u
111213141516171819202122232425262728293031
NC
NC
VDD2
NC
VDD2
NC
VDD2
GND
GND
VDD2
VDD2
C17310
250V
0.15u
11121314151617181920212223
NC
GND
GND
VDD2
VDD2
C17316
250V
0.15u
111213141516171819202122232425262728293031
NC
GND
GND
VDD2
VDD2
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C3_P5_3.3V C3_P5_3.3V
C17300
10V
1u
AB_PCD31
AB_LED31
AB_ODED31
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C3_P5_3.3V
C17303
10V
1u
AB_LED31
AB_PCD31
AB_ODED31
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C3_P5_3.3V
C17306
10V 1u
AB_PCD31
AB_LED31
AB_ODED31
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C3_P5_3.3V
C17313
10V
1u
LBLK(BLK)
AB_CLRD31
LBLK(BLK)
AB_CLRD31
LBLK(BLK)
AB_CLRD31
LBLK(BLK)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
24
252627282930313233343536373839404142434445474849515253
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
NC
CLR
VDD1
VDD1
NC(GND)
NC(GND)
NC(GND)
TEST1(GND)
TEST1(GND)
TEST1(GND)
TEST1(GND)
GND
GND
A2(-)
NC(GND)
NC(GND)
DD10_2-
DD10_2+
100
R17309
32
GND
GND
A2(-)
NC(GND)
NC(GND)
DD11_2-
DD11_2+
100
R17318
GND
GND
A2(-)
NC(GND)
NC(GND)
DD12_2-
DD12_2+
100
R17327
32
GND
GND
A2(-)
NC(GND)
NC(GND)
GND
GND
A1(-)
A2(+)
A1(+)
CLK(-)
DD10_1-
DD10_1+
DRVCLK6+
DRVCLK6-
100
200
R17310
R17312
33343536373839404142434445474849515253
GND
GND
A1(-)
A2(+)
A1(+)
CLK(-)
DD11_1+
DD11_1-
DRVCLK7-
DRVCLK7+
200
100
R17320
R17319
GND
GND
A1(-)
A1(+)
A2(+)
33343536373839404142434445474849515253
A2(+)
CLK(-)
DD12_1+
DD12_1-
DRVCLK7-
DRVCLK7+
100
200
R17328
R17329
GND
GND
A1(-)
A1(+)
CLK(-)
GND
GND
GND
GND
GND
CLK(+)
GND(TEST)
GND
GND
GND
GND
GND
CLK(+)
GND(TEST)
GND
GND
GND
GND
GND
CLK(+)
GND(TEST)
GND
GND
GND
GND
GND
CLK(+)
GND(TEST)
NC
NC
VDD2
VDD2
VDD2
VDA
6.8
6.8
R17313
R17314
NC
NC
VDD2
VDD2
VDD2
VDA
6.8
6.8 R17324
R17322
NC
NC
VDD2
VDD2
VDD2
VDA
6.8
6.8 R17331
R17330
NC
NC
VDD2
VDD2
VDD2
DM
NC
VDD2
VDD2
VDD2
C17307
250V
0.15u
TERM
55
DM
NC
VDD2
VDD2
VDD2
C17314
250V
0.15u
TERM
55
DM
NC
VDD2
VDD2
VDD2
C17318
250V
0.15u
TERM
55
DM
NC
VDD2
VDD2
VDD2
DM
NC
VDD2
VDD2
VDD2
CB13
TO PANEL DATA DRIVER
SIDE
1345789
DM
NC
VDD2
VDD2
VDD2
CB14
TO PANEL DATA DRIVER
SIDE
1
3
4
578
DM
CB15
TO PANEL DATA DRIVER
68
1
C36
20
155 155155
NC
NC
VDD2
VDD2
VDD2
1
C31
ZA17300
K4AD01Z00001
CB9
NC
NC
NC
VDD2
K4AD01Z00001
1
GND
GND
VDD2
VDD2
VDD2
C17322
250V
0.15u
111213141516171819202122232425262728293031
NC
GND
VDD2
VDD2
ZA17301
GND
VDD2
VDD2
C17325
250V
0.15u
9
1112131415161718192021222324252627282930313233343536373839404142434445474849515253
NC
GND
GND
GND
VDD2
CB10 CB11
55
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C17317
10V
1u
AB_PCD32
AB_LED32
AB_ODED32
GND
GND
GND
GND
LE(LEN)
HBLK(ODE)
C3_P5_3.3V
C17320
10V
1u
AB_LED32
AB_PCD32
AB_ODED32
GND
GND
GND
LE(LEN)
LBLK(BLK)
HBLK(ODE)
C3_P5_3.3V
C17323
10V
1u
ZA17304
K4AD01Z00001
LBLK(BLK)
AB_CLRD32
LBLK(BLK)
AB_CLRD32
CLR
CLR
VDD1
CLR
VDD1
VDD1
VDD1
1
NC
VDD1
NC(GND)
NC
VDD1
NC(GND)
NC
NC(GND)
CB12 CB13
GND
NC(GND)
NC(GND)
TEST1(GND)
GND
NC(GND)
NC(GND)
TEST1(GND)
GND
NC(GND)
NC(GND)
TEST1(GND)
155
NC(GND)
GND
GND
GND
GND
GND
A1(-)
A2(-)
A2(+)
NC(GND)
NC(GND)
DD14_1+
DD14_2-
DD14_2+
DD14_1-
100
100
R17338
R17337
32
33343536373839404142434445474849515253
GND
GND
A1(-)
A2(-)
A2(+)
NC(GND)
NC(GND)
DD15_1+
DD15_2-
DD15_1-
DD15_2+
100
100
R17342
R17343
GND
GND
A2(-)
A1(-)
A2(+)
NC(GND)
A1(+)
155155
GND
GND
A1(+)
CLK(-)
CLK(+)
GND(TEST)
DRVCLK8-
DRVCLK8+
200
R17339
GND
GND
GND
GND
GND
A1(+)
CLK(-)
CLK(+)
GND(TEST)
DRVCLK9-
DRVCLK9+
100
R17345
GND
GND
GND
ZA17302
K4AD01Z00001
GND
GND(TEST)
K4AD01Z00001
CB15
GND
CLK(-)
CLK(+)
CB14
ZA17303
NC
GND
GND
NC
GND
NC
VDD2
VDD2
VDD2
VDA
6.8
6.8 R17341
R17340
NC
NC
VDD2
VDD2
VDD2
VDA
6.8
6.8
R17346
R17347
NC
VDD2
VDD2
VDD2
VDD2
DM
NC
VDD2
VDD2
VDD2
C17324
250V
0.15u
TERM
55
DM
NC
VDD2
VDD2
VDD2
C17327
250V
0.15u
TERM
55
DM
NC
VDD2
VDD2
4.7k
R17348
11 1210 1815 1614 1713
81
Page 82

12.36. SC-Board (1/4) Schematic Diagram

SC-BOARD TNPA4782AF (1/4)
!
A
TO P-BOARD (P2)
B
C
TP24
D
TP25
E
F
SC2
1
Vsus
3
GND
TO A-BOARD (A33)
SC20
TERM
35
P5V
SIU
34
CLK
33
GND
32
CERS
31
SEL
30
GND
29
OC2
28
CRC1
SC_FPGANRST
27
26
OC1
25
CIS
24
GND
23
SOS6
22
SOS7
21
GND
20
UHZ
19
CPH2
18
GND
17
CEL
16
CSH CSH
15
GND
14
CSL
13
CPH1
12
GND
11
CMH
10
CML
9
NC
8
P15V
7
P15V
6
NC
5
NC
4
CRC2
3
RSV
2
GND
1
SIDE
15V
TP8
TP9
TP28
TP29
1
TP2
TP1
+
*C16413
*C16412
220V 180u
TP4
TP5
TP16
TP17
TP18
TP36
TP19
TP38
TP21
TP22
TP70
TP52
TP15
TP37
TP23
TP20
TP14
TP39
TP40
TP11
TP97
TP26
TP10
TP88
TP89
TP6
TP7
TP82
TP34
TP33
TP31
TP30
TP32
SC_FPGANRST
TP35
+
+
*C16419
*C16414
250V
220V
1.5u
180u
P5V
SIU
R16561
CLK
EXB38V470JV
CERS
SEL
R16565
EXB38V472JV
OC2
R16562
CRC1
EXB38V470JV
OC1
CIS
R16566
EXB38V472JV
R16563
EXB38V470JV
CPH2
CEL
CSL
CPH1
CMH
CML
R16568
EXB38V472JV
R16564
EXB38V470JV
EXB38V472JV
R16579
EXB38V470JV
UHZ
CIS
CRC2
RSV
*C16415
220V
220V
180u
180u
R16567
TP98
R16570
EXB38V472JV
VSUS
+
IC16561
C0JBAZ002692
+
C16563
10V 100u
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
1
G1
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
IC16562
C0JBAZ002692
C16564
16V
1u
14
13
12
11
10
9
IC16563
C0JBAB000388
INVERTER
BUFFER
BUFFER
5V
20
Vcc
19
G2
18
Y1
17
Y2
16
Y3
15
Y4
14
Y5
13
Y6
12
Y7
11
Y8
20
Vcc
19
G2
18
Y1
17
Y2
16
Y3
15
Y4
14
Y5
13
Y6
12
Y7
11
Y8
1
2
3
4
5
6
78
TP46
AA_SIU
AA_CLK
AA_CERS
AA_SEL
AA_OC2
AA_SC_FPGANRST
AA_OC1
MAIN_STOP0
AA_CPH2
AA_CEL
AA_CSH
AA_CSL
TP3
AA_CPH1
AA_CMH
AA_CML
AA_CML2
R16591
EXB38V472JV
~CIS
AA_CRC2
AA_CIS
AA_UHZ
AA_CRC1
C16562
16V
1u
5V
R16476
4.7k
C16565
50V
0.01u
C16566
50V
0.01u
R16590
C16593
1000p
SOS7_SC2
D16480
MA2J11100L
TPSOS6
TP71
TP72
TPSOS7
220
R16592
50V
4.7k
IC16581
C0BBBA000024
1
A_OUTPUT
2
A_-INPUT
3
A_+INPUT
4
GND
ERROR DET
B_OUTPUT
B_-INPUT
B_+INPUT
R16588
10k
R16587
2.2k
15V
8
VCC
7
6
5
R16593
1.4k
R165851kR16583
C16582
R16586
2.15k
MID
D16583
C16581
25V
B3ABB0000210
1u
(GREEN LED)
R16582
39k
39k
R16584
16V
6.8k
1u
VOLTAGE ERROR DET OPERATES AT 139V OR MORE AND 67V OR LESS
2
3
1
3
54
7
962 8
82
Page 83

12.37. SC-Board (2/4) Schematic Diagram

1
SC-BOARD TNPA4782AF (2/4)
!
AA_CMH
AA_CML2
AA_CSH
MID
*D16461
MA3DF46000LW
*D16462
MA3DF46000LW
*Q16441
B1JAEP000006
D16411
MA2J11100L
IC16771
C0CBADC00072
C16771
16V 1u
PC16461
R16416
10k
R16410
C16441
50V
3900p
B3PBA0000457
1
R16411
270
2
390
3
45
R16441
5.6
R16533
VRH
Q16531
B1HFPFA00001
47k
C16533
R16414
50V
0.1u
8
7
6
TP91
TP90
R16415
330
VAD
R16531
10
R16532
47k
C16471
630V
1000p
IC16464
330
C0JBAB000715
INVERTER
IC16465
C0JBAB000715
INVERTER
C16524
25V
4.7u
VSUS
*L16402
G0C1R1KA0206
*L16403
G0C1R1KA0206
*L16406
G0C1R1KA0206
C16535
50V
0.1u
1
5
NC
VCC
2
IN_A
3
4
GND
OUT_Y
1
5
NC
VCC
2
IN_A
3
4
GND
OUT_Y
C16501
25V 1u
R16501
100
R16502
C16536
100
50V
0.1u
MIDF
Vad+5V
10
11
12
13
14
15
16
1
VOUT
COM
2
IC16501
C0ZBZ0001324
NC
9
NC
VCC
HIN
NC
LIN
GND
NC
FET DRIVER
CSH/CMH GATE DRIVE CIRCUIT
VIN 3
Vad+5V
16V_F
C16772
25V
4.7u
VCC2
Vcom
1
R16534
D16534
B0ECHR000001
HO
8
C16502
25V
4.7u
VB
7
VS
6
NC
5
NC
4
3
C16522
25V
4.7u
2
D16522
B0ECKP000047
LO
1
D16524
B0ECKP000047
R16504
75
D16503
B0ECHR000001
R16523
75
1
R16536
D16536
B0ECHR000001
++
Q16501
C16503
25V 470u
C16523
25V 470u
R16503
10
R16511
47k
R16505
R16513
10
47k
B1HFPFA00001
R16512
Q16502
B1HFPFA00001
R16514
47k
47k
*D16401
B0FACR000006
*D16402
B0FACR000006
*Q16401
2PG0110000RP
R16401
7.5
*Q16402
2PG0110000RP
R16402
7.5
C16504
25V
4.7u
*Q16403
2PG0110000RP
R16403
7.5
C16401
630V 5600p
VAD
VOH
VFG
VOL
Vad+5VVad+5V
VSUSVSUS
16V_F
11
12
13
14
15
16
17
*C16631
250V
3u
2
MID
*C16632
250V
3u
D16451
B0ECKP000047
*C16633
250V
3u
*Q16451
B1JAEP000006
*C16634
250V
3u
*D16481
B0FACP000001
*D16482
B0FACP000001
R16451
5.6
*L16412
G0C1R1KA0206
*L16413
G0C1R1KA0206
*L16414
G0C1R1KA0206
TP92
VRL
Q16551
B1HFPFA00001
R16553
47k
TP93
C16491
630V
1000p
R16468
82k
R16467
82k
R16466
D16466
56k
MA2J11100L
R16465
27k
R16551
10
R16552
47k
MID
AA_CSL
AA_CML
15V
R16509
1
IC16521
C0ZBZ0001324
NC
9
NC
10
VCC
11
HIN
12
R16521
100
C16521
NC
25V
13
1u
LIN
14
R16522
100
GND
15
NC
16
HO
VB
VS
NC
NC
VCC2
Vcom
LO
D16523
B0ECHR000001
8
7
C16525
25V
4.7u
6
5
4
3
C16505
25V
1u
2
1
R16506
10
R16516
47k
R16507
10
R16518
47k
Q16521
B1HFPFA00001
Q16522
B1HFPFA00001
R16517
47k
R16519
47k
*Q16421
R16421
7.5
*Q16422
R16422
7.5
*Q16423
B1JADP000005
R16423
7.5
*D16421
MA3DF40000LW
*D16422
MA3DF40000LW
B1JADP000005
B1JADP000005
C16421
630V
5600p
VAD
18
FET DRIVER
CSL/CML GATE DRIVE CIRCUIT
3
19
121110 15 1613 17 1814
83
Page 84

12.38. SC-Board (3/4) Schematic Diagram

VSUS
11
12
AA_CPH2
AA_CERS
AA_CPH1
SEPA PROTECT CIRCUIT
IC16490
C0DBZMC00006
47k
47k
47k
47k
47k
MA3X152E0L
SHUNT REG
IC16661
C0BBBA000024
1
A_OUTPUT
2
A_-INPUT
3
2.2k
R16927
22k
D16702
MA2J11100L
A_+INPUT
4
GND
R16921
2.61k
R16922
IC16773
C0JBAB000715
R16896
33k
D16920
R16926
R16712
1k
AA_CERS
13
14
15
16
17
18
AA_CIS
AA_UHZ
AA_CEL
AA_CRC1
AA_CRC2
VOH
VFG
VOL
Vad+5V
Vad+5V
MA3X152E0L
VAD
R16891
R16892
R16893
R16894
R16895
D16678
MAZ815000L
5V
D16493
R16923
10k
R16497
47k
Q16920
B1ABCN000007
C16707
R16717
50V
22p
1k
R16707
3.9k
Q16701
B1ADCN000007
Q16702
B1ABCF000231
R16711
4.7k
R16920
2k
1
2
3
INVERTER
CATHODE
D16491
MA2J11100L
COMPARATOR
B_OUTPUT
B_-INPUT
B_+INPUT
IC16920
10k
C0BBBA000024
1
A_OUTPUT
2
A_-INPUT
3
A_+INPUT
4
GND
NC
VCC
IN_A
GND
OUT_Y
R16494
R16495
2k
680
4
3
ANODE
1NC2
REFERENCE
D16492
MAZ80470ML
R16685
220
8
VCC
R16897
1.54k
7
6
R16898
2.37k
5
B_OUTPUT
B_-INPUT
B_+INPUT
5
C16708
50V
R16776
0.1u
4
5V
C16490
16V
TP67 TP68
1u
R16496
47
3
4
Q16490
+INPUT
OUTPUT
2SK3018T106
GND
2
1
1
2
34
R16686
-INPUT
R16493
10k
PC16685
B3PBA0000496
10k
R16900
R16901
R16899
2.26k
10k
4.7k
VCC
5
IC16491
C0BBAA000008
SEPA PROTECT
6
5
Vad+5V
16V_F
C16891
25V 1u
C16685 50V
0.1u
COMPARATOR
8
VCC
7
6
5
Q16818
B1CBGD000001
47
R16777
10k
C16773
25V
4.7u
R16769
75
C16753
25V
4.7u
TP65 TP66
R16602
1k
PC16601
B3PBA0000498
R16604
330
PC16603
B3PBA0000498
R16684
R16498
10k
TP103
C16641 630V 2200p
F1K2J222A014
TP104
R16655
10k
R16656
4.7k
Q16649
B1ABCN000007
R16652
8.2k D16653
MA2J11100L
D16902
MA2J11100L
D16901
MA3X152E0L
R16904
22k
R16690
4.7k
Q16670
B1ADCN000007
R16691
56k
R16692
Q16671
1.5k B1ABCF000231
4
12
3
4
12
3
PC16684
B3PBA0000496
1
2
220
34
R16761
10
R16762
47k
5V
5V
IC16691
C0JBAC000363
NAND GATE
1
5
VCC
IN_B
2
IN_A
3
4
GND
OUT
Q16662
2SD0601AQL
R16661
R16662
1.2k
10k
C16675
390p
50V
IC16692
C0DBZMC00006
R16675
R16694
56k
R16695
1.5k
C16602
50V 22p
6
5
Q16762
B1HFPFA00001
C16692
50V
0.1u
R16654
4
3
SHUNT REG
4.7k
Q16675
B1ADCN000007
Q16676
B1ABCF000231
C16684
50V
0.1u
D16490
B0ECKP000047
R16490
130k
R16491
120k
R16492
150k
B0ECKP000047
47
R16657
10k
REFERENCE
ANODE
CATHODE
R16699
10k
R16763
D16865
Q16608
B1CBGD000001
3
VR16601
NC
R16631
10k
C16755
25V
4.7u
D16407
MA22D3900L
47k
5k
1
2
R16633
R16766
15V
R16658
6.49k
R16663
2
INIT-F
Q16663
2SB0709ASL
22k
0
R16653
1.8k
Q16647
B1CBGD000001
6.8k
R16679
7.5k
1
R16765
1
D16765
B0ECHR000001
C16756
25V
4.7u
R16681
10
D16671
R16621
220
R16673
MA2J11100L
D16654
MA2J11100L
Q16645
2SD0601AQL
Q16678
B1ABCF000231
4.7k
R16680
4.7k
AA_SC_FPGANRST
MAIN_STOP0
R16677
R16678
VFG
*Q16621
B1JADN000004
2k
2k
D16669
MA2J11100L
D16648
MAZ80510LL
C16661
630V
1000p
R16687
27k
R16688
12.7k
C16668
50V
220p
5V
MA2J11100L
PC16480
B3PBA0000498
R16682
10
R16646
1.18k
Q16646
2SB0709ASL
C16662
630V
1000p
R16475
4.7k
D16474
IC16471
C0DBEKA00003
D16625
MAZ82000ML
VOL
R16622
220
D16650
MA2J11100L
C16664
50V 82p
D16662
MAZ81500ML
Q16677
2SD0601AQL
D16677
MA3X152D0L
R16666
22k
34
SHUNT REG
*Q16622
D16663
MAZ81500ML
R16473
560
12
B1JADN000004
R16667
2k
R16668
2k
C16665
50V 82p
Q16668
2SD0601AQL
R16474
1k
470
R16634
D16602
MAZ81500ML
VOL
C16645
630V
1000p
R16650
C16666
50V
82p
D16664
MAZ81500ML
R16660
D16624
B0ECKP000047
C16646
630V
1000p
100k
R16665
33
2.2k
3
2
1
Q16602
2SD0601AQL
R16605
1.8k
K
A
NC
MAZ81500ML
D16649 MA2J11100L
R16664
2k
R16674
2k
C16603
630V 1000p
MA2J11100L
D16725
C16604
630V 1000p
R16617
2.2k
R16606
10k
Q16604
B1CHPM000001
B0ECKP000047
D16606
B0ECKM000038
R16608
1k
R16612
47
5V_F_A
C16725
25V
4.7u
IC16724
C0CBADC00072
IC16725
C0CBADC00072
5V_F_B
C16724
25V
4.7u
G
S
D
R16869
47k
D16619
R16611
68k
R16609
1k
D16618
B0ECKP000047
D
*Q16601
B1CERR000025
S
G
VIN 3
1
VOUT
COM
2
5V_F_A
5V_F_B
VIN 3
1
+
VOUT
COM
2
D16608
MAZ81200ML
D16616
MA3X152E0L
R16627
22
R16628
D16646
MAZ81500ML
D16645
REF
4
A
5
47k
MAZ80510LL
MAZ81500ML
*Q16661
B1JAER000003
R16471
3.9k
R16472
2.2k
R16615
R16607
6.65k
D16605
1.1k
D16647
16V_F
5V_F_A
SCNR_PRO
D16473
MA3X152D0L
Q16624
2SB0709ASL
Q16607
B1CBGD000001
D16610
MA2J11100L
Q16603
2SB0709ASL
R16648
2k
R16651
2k
R16649
33
D16673
R16480
4.7k
Q16471
B1ABCF000231
*D16621
B0FBCN000006
*D16641
B0FBCN000006
D16652
B0ECKP000047
*Q16660
B1CERR000025
B0ECHR000001
C16472
D16674
B0ECHR000001
25V
1u
D16615
MA2J11100L
MAZ82000ML
R16791
D16476
MA2J11100L
R16479
10k
D16679
C16608
D16791
1k
B0ECKP000047
50V
220p
VOH
VOL
MAZ80510LL
Q16606
2SD0601AQL
D16604
MA3X152E0L
D16607
R16610
MA2J11100L
100k
*D16622
B0FBCN000006
*D16642
B0FBCN000006
VSCN_F
+
C16691
160V 100u
R16478
5.6k
CHA
D16475
16V_F16V_F
VSET
VSUS
R16613
47k
R16614
68k
C16723
25V
4.7u
D16721
C16721
B0ECHR000001
50V
100u
SC-BOARD TNPA4782AF (3/4)
!
VFG
IC16791
N0BF2GB00001
GND2GND3N.C.4Vin5Vin6N.C.
1
15V
DC/DC CONVERTER
+
C16791
25V
220u
16V_F
COM10COM11Vo-F16V12Vo-F32V
9
VADVAD
32V_F
+
+
C16795
C16796
25V
25V
470u
470u
21
22
23
24
25
26
27
28
29
3019
84
252019 26 2723 2421 22
Page 85

12.39. SC-Board (4/4) Schematic Diagram

21
VSUS:198V
34
PC16896
B3PBA0000498
Q16816
2SD0601AQL
C16843
50V
0.1u
*
R16713
100k
R16833
10k
12
TPVSUS
Q16874
B1CBGD000001
R16847
4.7k
C16868
10V
D16719
B0ECKP000047
R16825
150k
10
DRAIN
IC16784
MIP9L02MBS
VAD GEN.
SOURCE2BY3FB5VCC
1
C16856
10V
1u
IC16788
MIP3900MSSCF
C16866
10V 1u
C16867
1u
R16841
56k
D16710
MAZ815000L
8
VOUT
C16857
50V
4700p
VAD:-185V
4
3
2
1
10V
1u
R16838
TPVAD
L16699
G0C471KA0167
LS
FB
CL
VDD
56k
6
GND7V01
C16858
16V
0.1u
VSET GEN.
R16806
1k
L16472
G0ZZ00002183
SOURCE
SOURCE
DRAIN
5
7
8
TP94
VSET
22
VSUS
23
Q16882
B1ABCF000231
+
*C16417
220V 180u
R16789
10k
VFG
24
VSCN_F
25
D16715
B0ECHR000001
Q16884
2SD0601A0L
L16697
G0C102KA0187
D16711
B0ECHR000001
TP64
Q16667
2SB0709A0L
IC16789
C0DBZMC00006
SHUNT REG
R16845
R16846
VR16600
VAD
R16844
1.24k
TPVSET
R16731
100k
R16714
R16715
76.8k
82k
50k
47k
10k
SC-BOARD TNPA4782AF (4/4)
C16842
160V 100u
D16871
MAZ82400ML
+
VSCN_F
!
R16774
27k
15V
*
D16821
MAZ83600ML
R16755
VSCN:VAD+145V
VSCN
TPVSCN
R16860
8.2
D16859
B0HCKS000002
D16860
B0HCKS000002
G0ZZ00002183
12k
R16751
Q16876
150k
B1ABCF000231
R16783
150k
MA2J11100L
R16756
R16750
12k
12k
D16874
MAZ80510LL
ERROR DET
-20<Vad+Vscn=-40<-60V
TPSC1
L16851
TP96
5V
SOS7_SC2
R16752
D16820
4.7k
MA3X152E0L
D16875
R16775
4.7k
R16753
220k
R16696
2.2
*C16460
630V
1800p
VFG
TP59
TP60
TP61
TP62
9
8
7
6
5
4
3
2
1
TO SD-BOARD (SD46)
SC46
9
8
7
6
5
4
3
Vfo
2
1
TO SU-BOARD (SU41)
SC41
R16719
TP45
22
AA_SEL
TP41
AA_SIU
R16720
22
TP42
AA_OC2
R16721
22
TP43
AA_CLK
R16722
22
TP44
AA_OC1
R16723
22
5V_F_A
ZA16401
K4CD01000011
ZA16411 TUXJ490
ZA16412
TUXJ490
ZA16402
K4CD01000011
SC46 SC41SC42
ZA16421
TUXJ490
+
C16822
C16823
400V
D16714
MAZ815000L
C16869
50V
0.1u
4
1NC2
R16785
R16786
R16787
C16821
R16733
100k
100k
D16824
MAZ83300ML
33k
630V
47u
5600p
IC16786
MIP3900MSSCF
12
34
B1CBGD000001
Q16815
B1ABCN000007
R16744
127k
R16794
200k
R16795
200k
D16717
MAZ83300ML
Q16875
B1ABCF000231
R16796
56k
VSCN GEN.
Q16817
C16844
10k
50V
0.1u
R16826
R16749
10k
TP95
D16720
DRAIN
SOURCE
SOURCE
PC16723
B3PBA0000498
B0ECKP000047
5
7
8
34
D16713
B0ECHR000001
R16772
4.7k
12
L16698
G0C681MA0065
R16773
1k
ANODE
CATHODE
3
R16851
470k
4
IC16787
C0DBZMC00006
1NC2
REFERENCE
SHUNT REG
R16870
68k
C16863
50V
0.1u
C16864
50V
0.1u
D16712
MAZ815000L
R16831
71.5k
R16832
71.5k
R16880
0
R16873
2.49k
LS
4
FB
3
CL
2
VDD
1
R16829
1k
C16862
10V
1u
C16861
C16860
16V
10V
0.1u
1u
VAD
R16735
50V
187k
0.1u
R16736
187k
R16737
205k
470k
R16734
4.99k
PC16722
B3PBA0000498
R16822
82k
R16823
82k
D16825
R16824
MAZ83300ML
33k
VSET:290V
R16877
680
R16848
4.7k
3
ANODE
CATHODE
REFERENCE
C16813
+
220V 220u
1
2
3
ZA16422
VAD
AA_CML
AA_CSL
R16801
R16802
47k
47k
TP101
Q16801
5V_F_B
R16819
VAD
26
27
28
29
32V_F
100k
R16820
100k
R16821
MA2J11100L
100k
R16818
33k
R16919
8.25k
IC16793
C0DBZMC00006
SHUNT REG
R16798
C16797
2.2k 50V
ANODE
CATHODE
0.1u
1
VCC
-INPUT
2
GND
3
+INPUT
OUTPUT
IC16792
C0BBAA000008
COMPARATOR
VHIZ GEN.
5
R16799
1k
4
R16797
22
AB_HIZ
D16792
4
3
1NC2
REFERENCE
R16742
10k
Q16743
2SD0601A0L
MA2J11100L
Q16810
TP84
TP83
B1ABCF000231
D16478
R16746
B0HCKS000002
47k
D16477
R16745
R16747
22k
10k
1
5
NC
VCC
2
IN_A
3
4
GND
OUT_Y
IC16564
C0JBAB000715
INVERTER
VSET23 GEN.
R16813
2.2k C16814
IC16801
C0DBZMC00006
AB_VSET23
3
ANODE
CATHODE
REFERENCE
SHUNT REG
50V 560p
R16814
22.1k
4
1NC2
R16812
1.8k
D16811
MA2J11100L
R16573
22
B1ADCN000007
R16815
2.49k
VAD
TP102
R16804
100k
AB_HIZ
AB_VSET23
Vfo
SC42
9
8
7
6
5
4
3
2
1
TO SD-BOARD (SD42)
5V_F_B
5V_F_A
SCNR_PRO
TP79
TP78
TP81
TP80
CHA
TP51
SC50
1
2
3300p
*C16903
FOR FACTORY USE
TUXJ490
ZA16403
630V
K4CD01000011
30
28
29 3531 33
30 32 34 36
85
Page 86

12.40. SS-Board (1/2) Schematic Diagram

SS-BOARD TNPA4783AF (1/2)
!
A
TO P-BOARD (P11)
SS11
1
VSUS
GND
3
15V
4
VSUS
TP1
TP5
TP6
B
C
D
VSUS:198V
TPVSUS
L16271
G0ZZ00002183
TP2
TP8
TP7
TP10
TP9
+
+
+
*C16012
220V 180u
C16104
C16105
25V
47p
*C16018
*C16013
220V 180u
+
*C16271 25V 47p
*C16014
220V
220V
180u
250u
25V
330u
R16031
82k
R16032
82k
R16033
56k
D16032
MA2J11100L
R16034
27k
*C16204
+
+
*C16015
*C16016
250V
220V
1.5u
250u
R16155
1
D16151
B0ECKP000047
AA_USH
AA_USL
NC
9
NC
10
VCC
11
R16151
100
HIN
12
C16151
25V
NC
1u
13
R16152
100
LIN
14
GND
15
NC
16
IC16151
C0ZBZ0001324
FET DRIVER
ENERGY
RECOVERY
HO
8
VB
7
C16152
25V
4.7u
VS
6
NC
5
NC
4
VCC2
3
Vcom
2
LO
1
R16171
10
R16172
R16154
75
B0ECKP000047
Q16055
B1HFPFA00001
R16173
47k
C16153
25V
4.7u
R16159
1
D16152
D16153
B0ECKP000047
C16154
25V
4.7u
Q16056
B1HFPFA00001
R16181
10
R16182
47k
47k
R16183
47k
*Q16041
B1JAEN000007
R16041
5.6
C16041
50V
3900p
R16051
5.6
*Q16051
B1JAEN000007
D16050
B0ECKP000047
*C16201
*C16203
*C16202
250V
250V
3u
*D16041
MA3DF46000LW
*D16042
MA3DF46000LW
*D16051
B0FBCN000008
*D16052
B0FBCN000008
250V
250V
3u
3u
3u
C16071
630V
1000p
TP38
C16092
630V
1000p
*L16001
G0CR82KA0147
TP39
*L16002
G0CR82KA0147
*L16003
G0CR82KA0147
NC
9
NC
10
NC
11
R16131
100
AA_UMH
AA_UML
=
*L16012
G0CR82KA0147
=
*L16013
G0CR82KA0147
TP41
TP40
*L16014
G0CR82KA0147
=
HIN
12
NC
13
R16132
100
LIN
14
GND
15
NC
16
IC16131
C0ZBZ0000895
FET DRIVER
VSUS Gen.
DRIVER
HO
8
VB
7
C16131
25V
4.7u
VS
6
NC
5
NC
4
VCC
3
C16135
25V
GND
2
1u
LO
1
Q16141
B1HFPFA00001
R16141
10
R16142
D16131
R16134
B0ECKP000047
75
R16137
C16133
25V
1
4.7u
Q16161
B1HFPFA00001
R16161
10
*Q16001
B1JADN000006
R16001
7.5
*Q16002
B1JADN000006
R16002
7.5
47k
47k
R16143
*Q16004
B1JADN000006
R16004
7.5
*Q16021
B1JADN000006
R16021
7.5
*Q16022
B1JADN000006
R16022
7.5
*Q16023
B1JADN000006
R16023
47k
47k
7.5
R16163
R16162
*D16002
B0FBCN000005
C16002
630V 5600p
*D16001
B0FBCN000005
C16023
630V 5600p
1
2
TO C3-BOARD (C33)
SS33
1
P5V
2
UEH
3
USL
4
USH
5
UML
E
SOS8_SS
6
UMH
7
8
GND
TP14
TP13
1
R16241
EXB38V470JV
TP16
TP17
TP18
TP19
R16242
EXB38V472JV
TP20
R16230
47
TP22
TP37
R16280
C16243
50V
0.01u
2.2k
TPSOS8
1G
2
1A1
3
2Y4
4
1A2
5
2Y3
6
1A3
7
2Y2
8
1A4
9
2Y1
10
GND
IC16241
C0JBAZ002811
BUFFER
R16231
4.7k
D16281
TP33
MAZ80510LL
20
VCC
19
2G
18
1Y1
17
2A4
16
1Y2
15
2A3
14
1Y3
13
2A2
12
1Y4
11
2A1
TP34
TP21
F
AA_UMH
*D16022
B0FBCN000008
C16244
C16242
10V
16V
4.7u
1u
AA_UEH
AA_USL
AA_USH
AA_UML
AA_SOS8
AA_SOS8
R16258
10k
D16255
MA2J11100L
32
R16257
27k
Q16251
2SD0601A0L
C16252
25V
1u
D16253
1
R16260
2.2k
A_OUTPUT
2
A_-INPUT
3
A_+INPUT
4
GND
IC16251
C0BBBA000024
ERROR DET
B_OUTPUT
B_-INPUT
B_+INPUT
VCC
-
4
B3ABB0000210
8
(GREEN LED)
7
6
5
R16252
R16255
1.2k
39k
R16253
39k
C16251
R16254
16V
6.8k
1u
R16256
1.5k
R16251
1.4k
51 768
*D16021
B0FBCN000008
9
3
4
86
Page 87

12.41. SS-Board (2/2) and SS2-Board Schematic Diagram

SS-BOARD TNPA4783AF (2/2)
!
1
*D16284
AA_SOS8
FPC DET
MA3X152D0L
*C16284
50V
0.1u
C16285
50V
0.1u
D16285
MA3X152D0L
C16286
50V
0.1u
C16280
25V
D16280
MA2J11100L
1u
TP36
C16195
25V
4.7u
R16281
10k
Q16280
2SD0601A0L
R16282
220
D16282
MAZ80680ML
R16283
47k
R16284
220k
C16287
50V
0.1u
*R16287
330k
R16288
330k
R16289
330k
R16290
330k
R16285
62k
TP51
TP53
TP54
TP56
TP43
*SS53
SIDE
1
2
3
4
5
6
7
8
9
10
11
12
13
PANEL SUSTAIN ELECTRODE
TERM
ZA16003
K4CD01000011
ZA16002
K4CD01000011
2
*C16198
630V
R16110
47k
1k
R16194
R16196
L16303
G0C471KA0167
7.5
7.5
D16193
B0ECKP000047
D16194
B0ECKP000047
1000p
R16332
470k
C16319
0.1u
Q16191
B1HFPFA00001
C16331
R16320
68k
C16318
50V
0.1u
50V
3
ANODE
CATHODE
250V
1u
4
1NC2
REFERENCE
TP42
*C16328
D16315
MAZ81500ML
D16101
MA22D3900L
47k
R16116
R16102
L16222
+
G0ZZ00002183 220V 180u
*R16307
*R16318
*R16317
TPVe
Ve:135V
68k
62k
2.7k
R16319
2.49k
R16195
B0ECKP000047
1
PC16191
AA_UEH
R16192
10k
AA_UML
D16192
MA2J11100L
3
C16317
10V
1u
B3PBA0000496
1
2
R16191
150
34
R16330
1k
C16316
16V
0.1u
IC16304
MIP3900MSSCF
LS
4
FB
3
CL
2
VDD
1
C16315
10V
1u
B0ECKP000047
6
5
VE GEN.
R16193
75
R16109
10
+
+
+
+
*C16182
*C16181
C16192
C16191
25V
25V
0.1u
4.7u
D16316
B0ECKP000047
DRAIN
5
SOURCE
7
SOURCE
8
*C16183
25V
4.7u
PC16301
B3PBA0000498
25V
4.7u
34
D16317
B0ECKP000047
+
*C16314
220V 180u
R16334
4.7k
12
IC16312
C0DBZMC00006
SHUNT REG.
R16335
25V
4.7u
D16191
D16195
TPSS1
L16103
G0ZZ00002183
*SS55
R16101
220
R16103
10
R16104
10
220
D
*Q16101
2SK417300L
S
G
Q16102
2SK399500L
G
S
D
470k
R16105
33k
33k
R16310
R16309
33k
33k
R16311
R16302
SS21
SS24
1
1
2
2
3
3
4
4
5
5
6
6
7
7
SIDE
1
2
3
4
5
6
PANEL
7
SUSTAIN ELECTRODE
8
9
10
11
12
13
TERM
*SS56
SIDE
1
2
3
4
5
6
PANEL
7
SUSTAIN ELECTRODE
8
9
10
11
12
13
TERM
!
SS2-BOARD TNPA4804
SS58
1
2
3
4
5
6
7
8
9
10
11
12
13
SIDE
PANEL SUSTAIN ELECTRODE
TERM
TP31TP29
TP30
TP25
TP26
TP24 TP27
ZA16001
K4CD01000011
TP28
12 17151311 181610 14
87
Page 88

13 Printed Circuit Board

13.1. P-Board

P-BOARD (FOIL SIDE) ETX2MM747MFK
6
5
4
3
2
1
ABCDEFGH I
88
Page 89
P
Parts Location
IC
IC201 E-3 IC202 E-4 IC251 C-6 IC351 B-3 IC352 C-2 IC353 B-3 IC501 E-2 IC551 D-1 IC601 G-4 IC701 C-2 IC702 C-1
PHOTO COUPLER
PC201 D-3 PC301 D-2 PC501 D-2 PC502 F-2 PC503 D-2 PC504 F-2
P-BOARD (FOIL SIDE)
TRANSISTOR
Q201 E-5 Q202 E-4 Q203 D-5 Q204 D-4 Q205 D-5 Q206 D-4 Q207 E-4 Q208 E-4 Q354 C-3 Q355 C-2 Q501 F-4 Q502 G-2 Q503 E-2 Q504 F-3 Q505 G-2 Q506 F-2 Q551 C-2 Q557 D-1 Q602 F-4 Q603 F-3 Q605 G-5 Q606 G-5 Q701 C-1 Q702 C-1 Q703 C-1 Q704 D-2 Q705 C-2
TEST POINT
TP1 E-4 TP2 E-4 TP3 E-2 TP4 F-2 TP5 H-6 TP6 H-6 TP9 C-4
VOLUME
VR251 B-5 VR351 B-3
Parts Location
IC
IC202 E-4 IC251 G-6 IC351 G-3 IC501 D-2 IC551 E-1
P-BOARD (COMPONENT SIDE)
TRANSISTOR
Q203 F-5 Q204 F-4 Q205 F-5 Q206 F-4 Q355 G-2 Q551 F-2 Q501 D-4 Q504 D-3
TEST POINT
TP1 D-4 TP2 E-4 TP3 D-2 TP4 D-2 TP5 B-5 TP6 B-6 TP9 G-4
VOLUME
VR251 G-5 VR351 H-3
89
Page 90
P-BOARD (COMPONENT SIDE) ETX2MM747MFK
6
5
4
3
2
1
ABCDEFGH I
90
Page 91

13.2. GK, K, S and SS2-Board

SS2-BOARD (FOIL SIDE) TNPA4804
6
6
SS24
7
1
2
TNPA4804
SEE REVERSE FOR ORDER NO.
S-BOARD (FOIL SIDE) TXN/S1DTUE
S
TNPA4858
SS2
PbF
SS58
113 113
1
SEE REVERSE
FOR ORDERNO.
SW2500
PbF
1
S1
1331
SS2
5
SS2-BOARD (COMPONENT SIDE) TNPA4804
SS2MM2
4
11 3131
SS58
SS2MM1
TNPA4804
ORDER
NO.
6
SS2
PbF
1
SS24
7
2
1
S-BOARD (COMPONENT SIDE) TXN/S1DTUE
TNPA4858
ORDER NO.
S
1
PbF
131
3
S1
SW2500
GK
SK
K-BOARD (FOIL SIDE) GK-BOARD (FOIL SIDE) TXNGK1EQUE
3
SW3763
ZA3702
R3772
C3753
2
GK1
C3752
1
C3754
SW3762
R3775
PbF
R3771
SW3761
GK
1
SW3760
TNPA4875
SEE REVERSE FOR ORDER NO.
SW3759
R3770
ZA3701
TXN/K1EQUE
TNPA4857
SEE REVERSE FOR ORDER NO.
C2517
D2526
R2562
R2565
Q2519
1
R2561
R2581
R2582
K
R2563
PbF
C2524
C2522
VJ3
VJ1
R2569
VJ2
C2523
R2556
R2530
C2525
R2557
R2531
Q2513
R2570
R2571
Q2522
D2530
R2520
Q2510
R2542
R2516
C2512
D2512
C2521
R2517
K-BOARD (COMPONENT SIDE)
2
GK-BOARD (COMPONENT SIDE)
TXN/K1EQUE TXNGK1EQUE
1
C2515
Q2511
K1
C2527
ORDER
TNPA4857
NO.
PbF
1
K
D2525
11
R2524
R2525
D2524
SW3759
ZA3701
F
SW3761
TNPA4875
ORDER
NO.
RM2501
+/
SW3760
-/
SW3762
TV
SW3763
2
1
GK1
GK1
AV
ZA3702
D2582
PC2511
C2511
C2510
C2526
D2528
D2520
1
ABCDEFGH I
91
Page 92

13.3. GL and XS-Board

GL-BOARD (FOIL SIDE) TXNGL1EBUE
6
R7800
1
JS7801
D7800
C7801
2
GL02
TNPA4693
PbF
GL
1
ORDER
LEPR
NO.
GL-BOARD (COMPONENT SIDE) TXNGL1EBUE
PbF
1
GL
TNPA4693
SEE REVERSE FOR ORDER NO.
LEPR
XS
5
XS-BOARD (FOIL SIDE) TXNXS1EBUB
C856
TP807
TP808
TP821
4
C849
C806
L802
3
C850
C816
D815
D805
C820
C813
R862
PA801
ERROR D/PN D73 D53 D33 D13 VDD B3
C865
R810
C817
D816
C814
RESETB STROUT CLKOUT
D63 D43 D23 D03
DISEQCOUT1
C810
R804
R803
C811
R861
R802
R808
R801
R857 R855 R853 R851 R849
2
TNPA4851
REVERSE FOR SUFFIX.SEE
CR NO.6
L814
TP813
1
TP819
TP817
C855 C854 C862 C860 C858
1
PbF
TP803
TP815
XS
R826 R825 R823 R821 R840 R842 R844
TU801
C842
R827
C841
R835
C843 D809 R830
R831
C848
C815
R838
TP806
C838
DISEQCIN1
TP805
R860
R819
C807
C857
R839
R859
R848
C864
L817
R829
R832
R813
R846
R812
R847
C812
B1
C831
TP801
C821
R863
D810
C836
C834
TP812
SDASCL
B2
TP810
R818
C832
R817
C866
C846
R816
C847
TP814
TP804
TP802
TP820
TP818
TP816
C853 C863 C861 C845
TP809
TP811
R824 R822 R841 R843 R845
C859
L816
D807
R858 R856 R854 R852 R850
XS-BOARD (COMPONENT SIDE) TXNXS1EBUB
TU801
R834
D813
JS801 JS803
JS804
5
R833
AC
CR NO.6
JS802
AB
BB
BA
8
ZA804
C824
IC802
C823
ZA801
ZA002
C808
C825
PbF
XS1
XS2
XS3
XS4
1
30130301130
L815
R815
7
5
C829
PA802
D811
C827
4
1
R820
C822
SUFFIX.
IC803
1
4
L807
L806
C828
C830
D808
ZA003
TNPA4851
L801
12
13
R809
C801
1
C802
D803
C852
ZA004
XS
C851
C804
24
ZA001
1
IC801
THERMALPAD
R807
D806
C805
D812
L813
GL
C809
D804
ZA802
C819
C818
R811
R814
ZA803
Parts Location
ICIC
IC6801 G-3 IC6802 D-2 IC6803 E-2
XS-BOARD
TEST POINT
TP6801 C-3 TP6802 D-4 TP6803 B-4 TP6804 D-4 TP6805 C-3 TP6806 C-3 TP6807 C-4 TP6808 C-4 TP6809 D-3 TP6810 C-3 TP6811 D-3 TP6812 C-1 TP6813 B-1 TP6814 C-2 TP6815 B-4 TP6816 D-4 TP6817 B-4 TP6818 D-4 TP6819 B-4 TP6820 D-4 TP6821 B-4
ABCDEFGH I
92
Page 93

13.4. A-Board

A-BOARD (FOIL SIDE) A-P50V10B A-P50V10E
6
C8512
D8500
5
4
3
2
1
20
2
JK3707
JK3707
8
R2871
1
R2870
C2872
R2872
R2874
R2873
CN1102
JK4700
11
JK3001
15
C2600
R2605
R2602
R2606
R2608
R2607
R2634
R2603
TP2810
CL5440
CL5435
R5455
D5434
D5436
CL5439
CL5436
R5456
CL5438
CL5433
D5433
D5435
CL5437
CL5434
CL5441
CL5442
D5437
VJ5601
C5645
VJ5608
24
1
R5656
R5638
TP5641
C5638
D5442
D5423
D5422
C5427
R5422
R1421
51
C1111
R1003
Q2904
C2904
Q2001
R2132
Q2001
R2008
C8311
R8313
C8319
IC8301
C8313
R8325 R8328 C8315
VJ5609
C5605
IC5600
R5610
C5606
C5650
R5603
R5658
D5449
L5480
C5487
R5423
Q5475
R5419
C5531
Q5478
R0914
R0913
R1414 R1415 R1422
C1114
R1406
R1407
R1404
R1405
26
R1203
TP0109
TP0110
TP1056
TP2903
C2905
L2903
3
IC2901
4
7
C2960
R2960
CL0900
R0924 R0923
CL0901
5
Q0900
C2120
R2032
L2033
L2039
C2091 R2006 C2092
R2007
C2093
L2001
C8327
L8304
C8335
C8340
33
C8314
R8308
R8301
R8322
R8670
R8671
R8675
R8679
R8678
R5461
VJ5606
VJ5607
C5603
13
IC5600
C5607
R5657
R5604
C5604
R5605
12
TP5600
L5544
R5570
TP5401
Q5475
D5470
R5418 R5413 R5571 C5530
Q5478
IC8502
TP1103
1
45
1
C1400
C1402
4
TP0101
TP0104
TP0105
TP0106
TP0107
C5637
D4583
L4515
1
IC2901
5
R0940
R0922
Q0901
R0939
R0921
Q0900
Q2023
R2095
C2103
Q2023
R2094
C2100
4
3
IC8302
IC8302
5
1
TP8301
IC8301
C8320
C8321
CL8317
17
R8681
R8680
TNPH0795
R8707
TP8549
TP8548
R8703
JK8302
R2875
C2875
C2877
C2878
IC2802
5
C2873
IC2802
C2871
C2870
VJ2870
4
TP2872
L2870
D2871
TP2870
D5582
19
CN1102
R1109 R1108 R1107 R1106 R1105 R1103 R1102
R1104
R1101 R1200 R1100
1
D4707
D4706
D4714
D4715
6
1
JK3001
5
TP8550
TP8551
TP8565
TP8552
C8533
C8532
TP8553
C8535
C8544
TP8554
TP8555
L8501
C5651
TP8564
R5655
D2870
TP2871
C2874
C5422
C5421
CL2618
TP5421
L5421
X1100
R4710
76
L4526
R4613
D1112
R4705
L4525
R4711
R1173
R4614
TP1400
R1243
R1236
R1237
TP1401
C1104
R3288
R3207
TP3015
D3339
R3206
R3287
R3106
TP3014
100
TP5431
D3048
R3108
C5643
D5641
R5636
R5652
R5653
R5637
Q5606
R5654
C5649
R5651
R5639
Q5605
R5649
C5601
R5650
C5424
C5425
C5426
C5423
R5421
D5421
C1107
C1106
R1153
C1109
C1105
R1146
R5470
R2816
R1163
IC1100
C1112
R1413
R0911
R0912
1
IC1100
TP0154
CL8041
TP1052
CL8042
TP0153
TP1053
TP1054
TP0155
TP1055
TP1062
TP1057
CL9014
CL9015
TP0102
10
Q2904
R2924
R2930
R2922 R2921
C2901
D2901
C2902
C2925
R2902
+BACTIVEANT AGCMONITOR
BTL
TP2901
BTMONITOR
BB
C2934
RFAGC
TU2901
+B
SCL
SW1
SW2
ATTSW
SDA
AUDIOOUT
SIFOUT
BTMONITOR
IFAGC
SCL
SDA
TP2904
VB
IFDOUT1
BTL
IFDOUT2
AFTOUT
VIDEOOUT
C2927
+B
C2928
RFAGCMONITOR
C2933
R2941 C2924
C2929
C2906
R2942
C2931
C2932
R2915
C2920
Q2903
R2910
C2917
V
L
IFMONITOR
R
D2902
C2962
R2961
1
C2923
IC2960
R2916
C2916
4
C2961
C2921
C2907
IC2960
C2912
R2926
R2901
TU2901C
TU2901D
R2940
R2907
Q2902
Q2902
R2908
TU2901B
R2909
L2902
TU2901TU2901A
R2015
R2904
R2906
R2016
Q2901
R2905
C2096
L2904
Q2901
R0925 R0927
X8301
R0926 R0928
C8312
R8312
C8333
C8334
C8310
49
C8316
C8331
C8330
R8354
C8308
L8303
C8309
R8353
C8307
C8317
C8332
C8336
R0941
R0942
64
R2928
R0938
R8305
R8356
C8306
R0937
1
C8329
R0943
R8321
R8395
Q2903
R8327
R8326
R8323
R8324
CL8313
CL2903
R2927 R2911
L2905
R5453
R5454
R5412
C4606
C8328
D5486
R5486
IC1101
4
IC8502
IC1101
6
Q0901
IC8410
R8438
TP2805
R8453
R8497
R8484
R8486
R8485
R8426
10
IC8410
R8440
R8448
R8447
11
JK8401
R8474
IC8304
1
R8310 R8358 R8365 R8311 R8359 R8366
8
1
C8426
R8316 R8360 R8369 R8317 R8375 R8370
IC8305
8
C8422 C8421
1
R8303 R8320 R8361 R8304 R8357 R8362
8
IC8303
R8334
CL8754
TP8745
CL8811
CL8809
C8508
8
TP8563
R8644
TP8561
R8511
R0946
TP8562
R0945
8
C1117
R1209
TP1102 R1207 R1202
R0916
R0917
R0915
R0918
5
TP0108
R4625
IC4512
3
C4607
C4633
L4519
IC4512
1
D4575
R4746
R4607
R4708
R4738
R4709
R4604
C8326
D8301
L8301
L3024
S3035
D3017
L3023
S3036
D3019
D3050
R3147
S3037
1
SEE REVERSE FOR ORDER NO.
C2824
TPS0N
TPEC0
R8455
R8712 R8635 R8701
R8482
R8483
R8605 R8604 R8603 R8602
C8416 R8466
R8428
R8411
10
R8462
1
1
R8456
R8457
IC8411
R8425
C8418
C8415
R8458
R8459
R8491
20
TP8402
R8436
20
IC8304
IC8305
IC8303
R8434
11
IC8411
R8460
R8445
C8323
R8314
16
R8385
R8433
R8368 R8315
R8450
R8386 R8367
R8435
9
C8324
16
R8392 R8393
R8424
R8396
R8423
R8319
R8422
R8387
9
R8421
R8371
R8461
R8302
C8322
R8409
16
R8306
R8410
R8376
R8465
R8364
C8417
R8307 R8379 R8363
9
TP8220
TP8218
TP8211
TP8210
CN8701
TP8216
TP8213
TP8212
R8769
R8770
R8682
R8771
R8499
TP8207
R8500
R8507
R8333
C8344
CL8466
17
CL8464
R8335
CL8465
CL8467
33
TNPH0795 B
JK4501
D4611
D4533
D4534
R4533
R4530
D4517
D4520
L4507
L4506
R4541
R4599
C4637
R4600
R4543
R4540
D4541
R4591
R4667
Q4533
Q4533
R4658
JK4500
D4535
D4536
Q4534
A
D3015
R4534
R4590
D4542
R4671
L4523
L4522
JK4502
D3015
C3023
R4528
D4512
D4518
R4616
Q4534
L4504
L4505
R4542 R4539
R4615
R4538
D4574
D4562
D4573
D4563
TP3023
CL3100
PbF
R3030
R3031
D3001
TPST5
TP2801
C2807
C2808
TPF15V
C2802
IC2801
C2804
4
5
C2805
R2802
D2803
IC2801
8
68
34
67
33
JK8401
36
2
1
35
TP8219
TP8217
TP8206
TP8215
TP8209
TP8214
TP8208
IC8401
A88A
IC8401
C8345
R8439
R8619
R8442
29
C8580
L8580
25
CL8596
48
56
IC4513
D4513
R4532
IC8403
R8394
CL8471
R8336
CL8472
CL8473
R8337
1
CL8474
CL8435
R8406
1
CL8475
C8408
R8346
IC8403
5
R8855
R8471
64
R8403
3
TP8404
4
R8417
R8416
CL8350
TP8403
Q8402
R8343 R8342
R8345
R8418
Q8402
C8346
CL8469
R8654
R8609
CL8598
C8582
C8581
R8583
C4595
C4598
1
3
20
TP8401
49
IC8580
IC8580A
IC8580
IC4511
R4612
C4603
R4623
1
R4621
5
IC4511
C4605
R4699
4
3
R4624 R4682 R4683
D4576
R4680 R4681
C4642
R4620
R4642
C4632
R4631
C4612
C4640
C4634
C4638
C4636
R4622
C4608
L4516
C4631
C4635
C4613
L4518
L4517
C4617
5
IC4513
C4537
C4567
4
R4608
L4514
C4616
TP3006
21
1
C2806
R2818
R2801
C2816
C2803
D2802
R2819
R2803
R2804
TP2803
C8080
+
C8042
C8035
C8041
C8045
C8049
C8050
C8044
C8011
C8098
C8100
R8097
R8031
C8039
R8032
C8012
C8090
C8089
R8082
C8102
R8585
R8615 R8612 R8616 R8614 R8617
R8610
R8611
R8613
C8025
R8954
R8520
R8600
R8598
C8410
R0952
R0951
R8601
C8064
R8599
TP8406
R0960
R0959
CL8430
R8856
R8857
R8859
R8667
R8864
R8664
CL8876
28 24
R5472
1
1
L4512
L4513
C4601
C4599
C4602
C4600
R4665
R4652
C4644
R0934
R0933
R4648
R0919
R0920
R4707
C4645
C4646
C4596
C4626
C4614
C4619
C4574
R2126
C4580
C2023
C4628
C4629
C2050
C2245
C4643
C2049
R2172
C4630
C2216
C2244
C4585
R2019
C2251
C2129
C4575
C2124
C2128
R4609
C2122
C2137
C2121
R4630
C2123
R4632
C2112
C2113
TP4512
C2114
C2115
C2117
C4552
C4534
C4549
C4624
C4535
C4548
R4706 C4553
R4596
R4597
R4598
TP3004
TP3005
TP3021
20
AV3S
TP3022
JK3003
JK3002
JK3003
2
1
AV3
2
AV2
JK3100
Q2601
R2604
Q2601
D2801
C2801
C2809
Q2600
TP2802
Q2600
L2803
R2805
R2806
C2810
C8036
R8101
C8046
C8040
R8074
C8201
C8092
C8086
R8061
R8073
R8081
R8100
R8069
R8056
R8075
R8068
R8059
R8077
R8078
R8071
R8058
R8030
C8101
C8088
C8013
C8077
R8083
C8037
C8014
C8078
C8016
L8004
C8015
C8017
C8051
C8010
C8009
C8008
C8018
C8019
C8026
C8023
C8020
C8022
C8024
TP8405
C8032
C8031
C8030
C8029
C8073
C8028
R8508
R8543
R0901
R8638
R0900
R0907
R8576
R8579
TP0904
R0906
TP0903
TP0905
R8640
R8663
R8746
R0902
R0905
R0990
TP0902
TP0901
R8683
4
R5324
IC5300
C5302
IC5300
5
L5303
C5303
R0967
R0970
R0969 R0991
R0968
X2010
1
R2058
FL2000
R2020
3
C2058
C2059
C2108
C2105C2106
C2107
R4673
R4676
C4625
R4633
R4601
D3004
L3017
JS3011
D3003
Q3004
Q3002
21
JK3002
JK3100
1
AV2
C2601
Q2605
Q2604
R2633
R2601
TPS15V
R2600
D5441
TP2610
TP5400
D5607
C8047
C8043
C8048
C8202
C8087
R8963
R8608
C8038
C8070
C8074
C8071
L8010
C8075
C8085
C8076
L8009
C8006
C8007
C8072
L8011
C8063
R8006
C8021
L8002
R8509
C8027
VJ8601
R8493
C8065
CL8889
R8494
R8515
R8607
R8639
R8637
R0950
R0949
R0947
R0948
R8959
R8800
R8676
R0958
R0957
3
C5300
C5301
TP5300
1
R0904
TP0906
TP0907
TP0910
TP0908
R0903
TP0909
C2102
IC2008
R2190
5
IC2008
L2032
C2111
4
C2118
D4577
L4006
R4698
C4032
C4040
R4043
C4038
CL4001
R0984
TP0912
R0992
TP0915
R0983
TP0911
R0985
TP0913
Q3005
Q3003
C3030
S3022
R3074
R3188
JS3012
D3027
R3193
R3075
JS3013
D3028
R3198
D3101
R3076
JS3014
D3030
C5631
VJ5600
L5605
L5604
C5622
C5635
VJ5602
VJ5604
VJ5603
C5626
24
C5620
IC5601
IC5601
R5630
C5624
R5621
R5632
1
R5635
TP5602
C5621
R5634
C5644
C5641
D5444
X8001
1
C8099
C8053
8
C8052
CL8003
R8091
R8086
TP8851
R8897
R8898
L8001
L8008
C8084
C8083
L8012
C8067
C8069
C8033
C8034
R8558
R5153
CL8201
CL8959
R8960 R8692
TP8001
R8691
TP8000
C2192
C4031
C4037
C4033
C4030 C4045
C4034
R3010
Q3004
R3042
C3029
Q3002
R3006
R3028
C3018
R3159
C3123
C3124
AV1
D5443
C8055
C8054
16
C8056
C8057
IC8004
R8096
9
CL8004
IC8004
R8093
R5471 R8646 R8645
R8740
R8747
R8767
R8727 R8729
R8739
R8724
R8715
R8731
R8749
R8752
R8736
R8723
R8628
R8718
R8503
R8506
C8082
C8081
R8750
L8013
R8751 R8768 R8629
C8003
R8510
R8005
L8007
R8004
R5152
C8005
C5084
R5103
D5201
R5149
R5226
R5211
R5227
R5228
R5224
R5229
R5230
C5202 R5222
C5027
R5087
C5049
C5029
R5096
R5151
C5030
R5225
CL008
R5204
C5050
CL009
R5104
CL010
CL011
C5023
C5019
R5207
R0965
R0966
R5206
R4047
IC4002
C4036
4
3
IC4002
C4026
C4028
L4004
R4048
5
R4044
1
C4035
C4006
C4029
C4010
C4011
C4027
C4004
CL4004
CL4003
C4039
R0963
C4008
R0981
C4016
R0964
R0986
TP0914
C4053
R4039
Q4000
Q4000
C4009
TP4000
R4035
C4054
R4034
C4055
L4009
R3011
R3013
C3028
R3012
R3041
Q3005
C3027
R3029
C3019
R3009
R3008
R3007
Q3003
C3021
C3022
R3033
C3024
R3034
C3020
C3025
R3037
R3038
C3026
C3047
R3050
C3046
R3049
R3052
C3049
R3051
C3048
R3043
C3039
C3041
R3045
R3158
CL2615
R3150
R3152
R3104
R3151
R3079
C3144
R3097
R3072
R3187
R3213
R3240
D3010
D3012
JS3007
D3011
R3101
L3019
S3130
S3134
S3142
S3033
AV1
R5633
C5040
R4049
51
R3121
C5632
VJ5605
D5608
R5148
C5033
C5035
C5036
Q3300
R3118
JK3100A
R3078
VJ2600
IC2601
C2617
C2602
C2611
L2601
PA5600
PA2601
C5627
13
L2602
C2622
C2623
C5623
R5629
R5622
R5631
12
C5616
TP1108
TP5601
TP1107
R8719
R8722
R5177
R5176
C5075
C5076
R5150
CL5100
CL5206
C5028
C5039
C5034
C5047
C5048
C5025
C5024
C5020
C5011
R5037
R5034
R5038
C5063
R5027
C5064
Q3300
76
C3074
C3073
R3119
C3075
R3005 C3014
D3007
L3011
S3032
C5021
C5010
R5033
Q3007
C3141
C3077
R3123
Q3000
S3030
C5080
C5017
C5012
R5017
R3307
1
4
C5082
R5088
C5001
R5018
R5019
R5030
Q3007
R3220
C3091
R3139
R3004 C3013 L3010
IC2605
IC2605
C5081
L5007
C5077
C5026
C5022
C5018
C5014
C5013
R5077
C5067
C5002
R5032
R5045
R5042
R5046
R5041
C5059
C5062
+
R3175
R3176
R3219
R3218
IC3001
IC3001
C3090
C3092
R3140
R3138
S3031
MONITOROUT
C2652
8
R2658
C2658
R2662
R2659
5
C2654
L2618
C2663
C2651
5
IC2607
8
IC2607
C5083
R5111
R5112
R5102
3
L5008
IC5320
4
C5078
C5085
R5105
R5178
R5110 C5074
L5006
CL5210
CL5205
CL5208
L5004
CL5203
CL5209
C5031
C5032
C5037
C5044
C5042
C5046
C5038
C5043
C5041
C5045
C5073
C5072
L5005
L5002
C5015
C5016
C5053
C5007
C5006
C5005
C5003
C5054
C5008
R5049
R5061
R5064
R5052
R5060
R5070
R5071
R5053
R5054
R5062
R5068
R5074
R5081
R5090
C5056
R5067
C5052
C5058
TP3008
TP3009
26
R0930
R0929
R3237
R3236
C3151
C3140
R3225
100
R3189
TP3007
R3234
C3108
C3086
C3085
C3084
R3132
R3134
R3133
Q3001
Q3000
C3003
R3024
L3014
L3015
C3002
R3025
S3131
S3137
C1011
AUDIOOUTAUDIOIN
13
C2603 R2620
R2619
R2618
R2617 C2604
X2600
R0997
R0996
R3019
R2716
R2653
CL5204
R2742
R5080
R5024
Q3001
12
R2616
R2621
C2616
R2615
C2614
R2609
TP2602
C2613
R2614
IC2601
R2610
R2611
C2612
24
C2615
R2612
C2605
R2613
1
C2606
D5448
TP2601
R2635
C2740
R2718
C2729
C2744
C2746
C2742
C2745
C2721
C2747
C2743
C2728
C2727
C2741
C2726
TP2635
TP2634
TP2633
C2655
C2647
C2671
C2677
L2611
C2646
C2676
C2691
R0955
R0956
C2670
C2695
L2610
C2687
C2660
C2653
C2697
L2617
C2656
C2650
C2657
C2681
C2683
4
CL2613
C2635
C2638
C2664
L2613
R2661
C2674
C2665
C2673
1
L2608
+
IC5320
1
5
L4811
L4810
L4809
L4808
L4807
CL5202
L4806
CL5201
C5201
R5208 R5209
C5200
CL5001
R5075
C5004
R5001
R5023
R5002
R5022
R5079
R5076
R5005
R5006
R5073
R5072
C5055
R5025
R5026
R5029
R5085
R5086
C5071
R5031
C5066
C5070
C5061
C5065
C5060
C5057
C5051
R5082
C5329
D5445
C5328
D5446
TP5312
L5001
R5332
1
C5321
R5330
R5336
+
C1012
C5324
C3139
R3077
R3102
TP5318
R5334
C5344
R3116
R5335
C3071
C5323
R5329
C3072
R3117
R5337
C3070
R3115 R3201
R3204
C3078
R3125
C3098
R3245
R3081
C3087
R3135
R3149
C3089
R3137
R3087
C3088
R3136 C3154
R3083
1
C3093
R3129
TP8501
C3083
R3128
R3223
R3190
R3191
C3107
C3109
R3230
R3232
C2753
TP2750
C2752
TP2758
TP2753
TP2603
C2618
C2640
C2645
C2641
L2605
C2619
C2649
3
C2720
C2730
C2723
R2732
R2723
R2729
R2725
R2740
R2734
R2721
R2727
R2733
R2735
R2736
R2730
C2675
C2699
C2698
C2700
C2692 C2693 C2694 C2706
C2680
C2702
C2690
C2689
C2703
C2678
C2704
C2705
C2688
C2701
C2659
C2672
C2667
C2661
C2682
C2639
L2612
C8567
C8610
R8766
R8831
C8545
C8557
C8566
L8507
R8630
R8714
C8612
VJ8789
Q8504
Q8503
C8561
C8611
R8657
Q8504
C8560
C8559
C8613
C8614
VJ8790
C8615 C8616
C8556 C8555
R8633
R8632
C8553
R8702
X5200
C8572
C8573
6
R5010
R5013
T8302
R5014
R5009
C5009
R5028
7
8
+
IC5312
C5320
24
C5326
C5322
IC5312
C5327
C5316
R5331
R5333
13
12
C3143
TP2008
R2129
R2137
C2313
C3142
C2406
C2305
C2217
C2318
R2191
C2333
C2335
C2387
C2389
L2023
TP2010
C2432
C2433
C2408
R2127
C2409
C2337
C2377
TP2756
TP2755
R2751
R2752
D2752
TP2754
TP2757
C2751
L2754
C2731
C2679
C8571
7
C2322
R2121
L8508
C8562
C8617
R8694
R2192
TP2605
1
IC2604
C2722
C8568
Q8503
C8554
1
JK8301
PA5300
VJ5300
R2141
C2320
TP2012
C2339
C2375
C2822
TP2804
D2811
C2821
D2809
R2814
D2810
C2823
D2805
R2815
D2807
TP2604
D2806
C2410
D2808
C2719
C2636
CL2617
6
L2615
IC2604
C2748
R2719
+
L2609
C2669
R2755
R2754
R2753
R2750
R2749
C8569
C8558
X8500
C8608
C8570
R8382
12
JK8301
L5305
C5332
C2301
R2142
C2326
R2193
C2345
C2379
TP2751
+
4
C2725
C2733
R2714
C2715
VJ2629
R2713
C2717
C2738
C2737
C2724
C2736
C2732
C2735
C2734
C2739
C2696
C2685
+
C2686
R2632
C2684
CL4820
CL4832
CL4819
CL4831
R2756
CL4818
CL4830
CL4829
CL4817
CL4828
CL4816
CL4815
CL4827
CL4826
CL4814
CL4825
CL4813
CL4824
CL4812
CL4811
CL4823
R0987
R0993
R0988
CL4822
CL4810
CL4821
CL4809
TP0917
TP0919
TP0920
TP0918
C2411
R0989
TP0916
R0971
C8609
R4836
R4835
R4832
TP2609
R8631
TP4202
R1416
TP4203
R4844
C8547
R4833
R4834
TP4201
TP4204
C8548
8
C8546
5
C8549
R4842 R4841
R8786
IC8504
4
1
IC8504
R8756
R8758
R8757
R8696
C8552
TP4801
C8565
R8381
2
1
R2319
R2325
L3021
C3138
R3112
R2118
R2115
C2390
Q2022
D2017
D2014
R2114
C2324
C2327
C2328
Q2022
C2302
R2194
C2412
C2343
C2341
C2385
C2383
TP2014
TP2017
C2434
C2435
R2123
R2125
C2347
C2381
TP2752
Parts Location
IC
IC1100 B-3 IC1101 B-3 IC2008 D-3 IC2601 E-6 IC2604 F-6 IC2605 E-5 IC2607 E-4 IC2801 D-6 IC2802 A-5 IC2901 B-2 IC2960 B-2 IC3001 E-2 IC4002 D-3 IC4511 C-3 IC4512 B-3 IC4513 C-2 IC5300 D-3 IC5312 E-2 IC5320 E-4 IC5600 B-5 IC5601 E-5 IC8004 D-5 IC8301 B-1 IC8302 B-2 IC8303 C-5 IC8304 C-5 IC8305 C-5 IC8401 C-4 IC8403 C-4 IC8410 B-5 IC8411 C-5 IC8502 B-4 IC8504 F-4 IC8580 C-4
TRANSISTOR
Q0900 B-2 Q0901 B-2 Q2001 B-2 Q2022 F-1 Q2023 B-2 Q2600 D-6 Q2601 D-6 Q2604 D-6 Q2605 D-6 Q2901 B-2 Q2902 B-2 Q2903 B-1 Q2904 B-2 Q3000 E-1 Q3001 E-1 Q3002 D-2 Q3003 D-2 Q3004 D-2 Q3005 D-2
A-BOARD (FOIL SIDE)
Q3007 E-2 Q3300 E-2 Q4000 D-2 Q4533 C-3 Q4534 C-2 Q5475 B-4 Q5478 B-4 Q5605 B-5 Q5606 B-5 Q8402 C-4 Q8503 F-4 Q8504 E-4
TEST POINT
TP0101 B-3 TP0102 B-3 TP0104 B-3 TP0105 B-3 TP0106 B-3 TP0107 B-3 TP0108 B-3 TP0109 B-3 TP0110 B-3 TP0153 B-3 TP0154 B-3 TP0155 B-3 TP0901 D-4 TP0902 D-4 TP0903 D-4 TP0904 D-4 TP0905 D-4 TP0906 D-3 TP0907 D-3 TP0908 D-3 TP0909 D-3 TP0910 D-3 TP0911 D-2 TP0912 D-2 TP0913 D-2 TP0914 D-2 TP0915 D-2 TP0916 F-4 TP0917 F-4 TP0918 F-4 TP0919 F-4 TP0920 F-4 TP1052 B-3 TP1053 B-3 TP1054 B-3 TP1055 B-3 TP1056 B-3 TP1057 B-3 TP1062 B-3 TP1102 B-3 TP1103 B-4 TP1107 E-5 TP1108 E-5
TP1400 A-4 TP1401 A-4 TP2008 F-2 TP2010 F-1 TP2012 F-1 TP2014 F-1 TP2017 F-1 TP2601 E-6 TP2602 E-6 TP2603 F-6 TP2604 F-6 TP2605 F-6 TP2609 F-4 TP2610 D-6 TP2633 E-5 TP2634 E-5 TP2635 E-5 TP2750 E-1 TP2751 F-1 TP2752 F-1 TP2753 E-1 TP2754 F-1 TP2755 F-1 TP2756 E-1 TP2757 E-1 TP2758 E-1 TP2801 C-6 TP2802 D-6 TP2803 D-5 TP2804 F-6 TP2805 C-6 TP2810 D-6 TP2870 A-4 TP2871 A-5 TP2872 A-5 TP2901 B-2 TP2903 B-2 TP2904 A-2 TP3004 D-2 TP3005 D-2 TP3006 C-2 TP3007 E-2 TP3008 E-2 TP3009 E-2 TP3014 A-3 TP3015 A-3 TP3021 D-2 TP3022 D-2 TP3023 C-1 TP4000 E-2 TP4201 F-4 TP4202 F-4 TP4203 F-4 TP4204 F-4 TP4512 D-2 TP4801 F-3 TP5300 D-3
TP5312 E-2 TP5318 E-2 TP5400 D-6 TP5401 B-4 TP5421 A-4 TP5431 B-3 TP5600 B-5 TP5601 E-5 TP5602 D-5 TP5641 B-5 TP8000 D-4 TP8001 D-4 TP8206 C-4 TP8207 C-4 TP8208 C-4 TP8209 C-4 TP8210 C-4 TP8211 C-4 TP8212 C-4 TP8213 C-4 TP8214 C-4 TP8215 C-4 TP8216 C-4 TP8217 C-4 TP8218 C-4 TP8219 C-4 TP8220 C-4 TP8301 B-2 TP8401 C-4 TP8402 C-5 TP8403 C-4 TP8404 C-4 TP8405 D-4 TP8406 D-4 TP8501 E-2 TP8548 A-5 TP8549 B-5 TP8550 B-5 TP8551 B-5 TP8552 B-5 TP8553 B-5 TP8554 B-5 TP8555 B-5 TP8561 B-4 TP8562 B-4 TP8563 B-4 TP8564 A-5 TP8565 A-5 TP8745 B-4 TP8851 D-5 TPEC0 C-6 TPF15V D-6 TPS0N C-6 TPS15V D-6 TPST5 C-6
A
ABCDEFGH I
93
Page 94
A-BOARD (COMPONENT SIDE) A-P50V10B A-P50V10E
6
5
1
C2817
R2810
C2818
R2811
A8
12
R2715
IC2611
3
4
A5
1
R2812
C2819
C2820
A8
CL2606
R2622
C2662
C2637
IC2606
1
CL2604
31
CL2603
IC2606
5
L4805
L4804
L4801 L4802 L4803
L4800
R2660
R2656
R2813
R2657
D5447
7
CN2600
IC2611 IC2611-A
1AA1
CL2605
CL2601
CL2602
1
C2668
C2666
+
C2620
C2621
CN2600
+
R2717
CL2610
CL2612
CL2608
CL2609
R2726
R2724
R2739
R2728
R2738
R2722
R2731
R2737
R2741
R2720
VJ2626
VJ2627
IC2600
1
R2641
R2643
R2655
R0944
R2642
R0908
R2629
TP2608
TP2607
TP2606
A5
4
Q5312
Q5318
IC2301
A12
1
39
R2747
IC8503
IC8503
R2746
R2745
1
R2744
IC5100
128
C8618
R2743
1
R5007
R5004
R5012
R5016
R5008
R5003
R5011
12
L8512
C5319
C5311C5312
C5318
9
28
C2319
1
R5015
R8383 R8384
8
36
L2012
C2325
A12
IC5002
1
A
VJ8500
C5341
L5301
Q5312
L5302
Q5318
C2361
1
C3118
5
C2359
C2309
L2018
C2362
C2365
IC3003
1
C2317
C2405
IC3003
C2407
L2010
Q2851
Q2851
R2854
R2855
Q2850
FL2756
Q2850
C2754
L2759
FL2757
FL2752
FL2753
FL2755
A1
14
1
65
A3
A3
C8550
15
C8551
R8754
R8755
103
C8399
6
3
T8301
7
L8511
C8351
JK8301
JK8301
VJ8501
127
L5304
2
10
18
C2303
IC2301
C2364
19
C2353
C2323
C2321
27
L2014
L2016
C2331
3
1
A11
1
2
A11
L2751
D2751
L2604
IC2612 IC2612-A
CL2607
A
Q2603
Q2603
L2603
Q2602
Q2602
C2707
C2718
C2749
VJ2628
C2709
C2708
A
A
1
1
IC2612
CL2611
R0931 R0932
R2652
R2650
R2649
R2648
R2647
R2646
IC2600
R2645
R2644
28
IC5110
29
L5009
C5079
R2748
1
A
R5058
R5057
R5021
R5066
R5069
R5020
R5078
R5055
R5050
R5051
R5056
R5091
IC5002
R5084
R5083
C5068
C5069
C3102
C3147
C3104
R3148
R3289
R3239
R3238
R3100
C3119
R3113
R3314
4
3
R3014
R2852
R2853
R2851
R2850
MONITOROUT
FL2758
AUDIOOUT
A1
R0979 R1408
C2607
C2610
C5612
C5618
C2608
C2609
Q5602
Q5602
D5602
CN1101
CN1101
4
1
R1225
R1224
R1179
R1181
C5628
C5636
L8005
R8742
R8743
R8744
R8745
R8717
C8700
R8765
R8728
R8725
C1013
R5099
R5098
R5100
R5097
R5101
1
IC5110
56
R5184
R5180
R5179
IC5100
Q2605
C5611
C5619
Q5601
D5601
L5601
L5600
+
+
L8003
C5629
C8060
C8058
R8095
R8094
L8509
C8059
IC8001
R8741 R8726
R8730 R8737 R8748 R8738 R8733 R8732 R8734 R8735
R8504 R8502 R4611
R4610
1
A
R8518
R5185
R5095
R5089 R5223 R5109
1
Q2604
Q5601
IC8002
IC8002
1
A
R8087
R8092
R8088
R8089
R8090
C8094
C8093
IC8001
R8652
R8665
R8111
R8109
VJ8602
R8516
VJ8600
R8501
R8673
R8688
R8496
CL8479
R5106 R5213 R5107 R5108
R5231
TNPH0795 A
R4650
R5065
R5063
R5059
R5039
R5036
R5043
R5047
R4028
R4029
R5035
R5044
R5048
R5040
IC4001
IC5001
A
IC5001
C3170
R3177
R3178
C3097
R3161 R3160
Q3006
R3172
D3039
JS3015
R3174
C3145
C3150
C3114
C3115
C3117
C3116
C3146
R3120
R3146
JK3100A
R3021
AUDIOIN
R4030
R4031
R4032
61
80
1
R4033
C4007 C4005
1
C4013
21
C4014
R4046
C4015
R3302 R3301
R3300
L3025
C3095
C3160
R3162 R3163
AV1
Q3006
C3112
C3113
C3148
C3153
C3149
C3043
C3044
C3152
R3143
R3047
R3048
R3098
R3073
R3186
R3212
JS3008
JS3009
D3045
R3085
R3084
R5492
R5491
C4050
L4008
C4047
C4049
IC4001
5
IC4005
R4045
C4048
C4051
1
41
C4021
C4025
R0982
C4020
C4023
C4024
C4018
L4002
C4056
C3103
D3038
R3167
R3169
JS3010
AV1
R3086
R3103
D3046
Q5480
Q5480
C5481
R5490
A6
A6
C5402
5
IC5481
R5499
R5496
C8095
R8076
R8063
R8072
R8066
R8026
R8027
R8070
R8065
R8057
R8060
R8062
R8690
R8672
R8689
C5640
R5232
R4646
R4645
R4656
R2002
R2003
C2055 C2056
R2023
R2316
R2092 R2093
C2125
C2136
C2135
C2127
C2261
R2047
C2265
L4003
C2262
4
C2266
R2048
IC4005
R2050
C2263
CL4005
R2051
C2264
3
Q4517
C4551
C4554
R4587
R4593
L4511
21
AV2
JK3002
JK3100
1
S3034
12
C5401
D5487
1
C5490
R5497
IC5481
C8079
IC8003
A
1
IC8003
R8067
R8064
C8096
C8097
R8390
CL8438
R8412 R8391
CL8436
R8388
R8389
CL8437
CL8439
R2832
C1014
R8899
R8854
R8858
R8653 R8677
Q8401
R8489 R8862 R5186
R8860
24
R8624
R8655
R8699
R8575
R8651
R8577
R8578
R0953
R0954
R8716
R8514
R8662
R8647
CL8470
R0961
R0962
R8668
R8580
R8661
R8581
25
R4649
R4640
R4678
R4679
R4799
R4666
R4651
IC4510
C2110
C2109
C4547
C4550
C4555
Q4515
Q4514
Q4516
R4589
C4532
C4533
C4529
R4626
R4627
R4592
R4588
R4634
20
S3023
D3031
AV2
JS3019
D3014
R3153
C3130
D3100
R3091
R3094
C3064
D3032
JS3020
R3082
R3205
L3002
R3000
C3007
C3008
R3001
L3003
JS3000
L3004
C3009
2
L3005
C3004
JK3100
JK3002
C8430
R8350
R8658
IC8581
R4677
C4530
21
1
A7
1
68
34
67
33
JK8401
2
36
1
35
R8801
C8952
R0935 R0936
L8355
C8951
L8358
L8357
R5474
L8359
C5473
L8356
R5475
C8431
R8451
R8452
R8349
C8343
R8404
R8405
Q8401
R8408
CL8868
CL8867
CL8875
R8407
R8567
CL8870
CL8874
R8478
R8623
R8627
R8666
R8625
C8584
1
CL8468
R8344
R8272
R8341
R8513
R8340
IC8581
R8332
R8622
48
C8583
R4635
R4639
R4636
R4637
R4638
IC4510
A
1
R4674
R4659
Q4519
Q4514
Q4515
Q4516
Q4519
Q4517
C4542
R4605
R4664
AV3
D3009
D3005
D3006
L3018
JS3018
JS3016
AV3S
JK3003
JK3003
Q2066
A7
R2823 R2821
R2822
R2820
11
R8472
R8441
C8413
20
IC8408
1
IC8408
R8437
C8411
C8412
11
R8430 R8431
IC8405
R8463
20
C8405
R8432
11
IC8404
R8470
R8512 C8409
C1015
R8401
20
1
R8378
R8415 R8476 R8477 R8479
R8669
R8642
R8355
R8498
R8372
R8374
C8953 R8377
A88A
R8698
R8643
R8641
R8618
R8538
R8656
C5639
R8373
A88A
R8338
C8510
R8339
30
74
1
C5472
C5471
4
5
IC5470
C1016
R8517
R8621
CN8701
3
IC5470
CL5470
R5473 C5470
1
JK4501
D4594
1
D4593
D4592
D4591
D4590
JK4501JK4502
D4589
D4588
D4587
L4503
19
L4501
D4552
D4526
R4527
R4501
C4505
R4505
C4501
C4503
R4503
D4501
R4507
R4525
Q4501
Q4501
R4529
R4660
D4602
1
D4601
D4600
D4599
D4598
JK4500
D4597
D4596
D4595
L4502
19
L4500
D4551
D4525
R4526
D4500
R4524
R4500
R4504
Q4500
R4502
C4500
C4502
R4535
JK4502
1
19
L4524
R4732
R4733
R4737
D4615
Q4535
C4702
R4734
Q4520
C4703
R4727
D4561
R4728
R4729
Q4520
D3015
C2099
C2098
C2202
Q2064
Q2064
Q2065
Q2067
R2097
20
D4523
D4521
D4516
D4511
D4509
D4507
D4505
D4503
L4521
D4585
R3089
C3129
D3013
R4552
D4528
R3182
C3065
D3025
R3092
L3006
C3010
R3002
JS3001
R3003
C3011
L3007
2
C3012
L3008
D3015
C3005
L3009
Q2063
Q2063
Q2067
R2110
R2111
R2124
R2096
R2120
R2122
Q2066
Q2065
R2119
R8475
R8488
11
10
IC8409
10
11
R8487
R8446
R8449
R8469
10
C8428 R8468 C8427
R8467
C8425
1
10
C8424 R8464 C8423
R8454
R8347
1
R8348
R8697
R8582
38
R8260
37
+BACTIVEANT
AGCMONITOR
BTMONITOR
AUDIOOUT
SIFOUT
IFAGC
BTMONITOR
+B
RFAGC
RFAGCMONITOR
IFMONITOR IFDOUT1
JK4500
R4506
C4504
R4531
Q4500
C4704
D4617
R4735
R4736
R4730
R4740
R4739
Q4535
C2201
+B
SCL SDA
CL2614
CL8888
R8244
IC8404
ATTSW
R8245
R8297
Q8200
C8414
IC8405
C5484
C1017
BTL
SCL
SW1
SW2
VIDEOOUT
PbF
R8296
CL8455
20
R8402
JK8401
Q5600
1
D5482
CN8701
BB
SDA
VB
BTL
IFDOUT2 AFTOUT
Q8200
1
IC8409
R5482
C5483
D5481
R1409
Q4832
D1004
D1005
D1006
D1007
D1009
D1010
8
C5615
Q5600
+
R5489
28
C5489
Q4831
CN0100
1
D1002
D1008
11
5
C1010
R5460
R5459
R5458
R5457
L5608
L5602
C5602
C5486
R5484
R5488
R5483
R5487
C5485
IC5480
R5495
R5493
R5494
C5488
R4851
R4856
R4857
Q4831
CN0100
IC1000
IC1000
C1009
R1010
TNPH0795
R5540
R8674
C5642
Q5609
Q5609
L5614
Q5605 Q5606
C5646
C5648
Q0904
15
Q0904
IC5480
C5482
14
R5485
R2807
D2804
R2817
D1402
D1401
R1182
C1108
C1110
C1123
D1107
R1410 R1411
C1401
Q4832
C4831
R4852
R4854
C1403
R5440
R4853
R1401
R4855
R5442
1
2
CN0101
19
R0180 D1003
TU2901CTU2901D
TU2901TU2901A
TU2901B
4
FL3011
R2018
R0909
1
R0910
FL3012
R2017
ORDER
R8706
R8808 C8513 R8807
C8528
R8804
C8529
R8802
C8530
C8527
R0980
R0978
R0977
R0974
Q0905
R0972
R0973
Q0903
Q0903
L1100
R1420
R1197
R5434 C5432
R5439
R5433
D5432
R5441
Q5431
CN0101
20
R3105
L3035
C3057
R3068
L3034
C3056
R3067
R3107
A
1
NO.
R8659
R8660
10
8
C8531 R8803
R8805
1
R8806
9
JK8302
A
JK8302
C0901
Q0905
R0975
Parts Location
A-BOARD (COMPONENT SIDE)
TRANSISTOR
Q0903 E-4 Q0904 E-4 Q0905 E-4 Q2063 D-1 Q2064 D-1 Q2065 D-1 Q2066 D-1 Q2067 D-1 Q2602 B-6 Q2603 B-6 Q2850 B-1 Q2851 B-1 Q3006 B-2 Q4500 D-2 Q4501 D-3 Q4514 C-2 Q4515 C-2 Q4516 C-2 Q4517 C-2 Q4519 D-2 Q4520 D-2 Q4535 D-2 Q4538 F-3 Q4700 F-3 Q4831 E-3 Q4832 E-3
Q5312 A-2 Q5318 A-2 Q5431 E-3 Q5432 E-3 Q5480 C-1 Q5600 E-5 Q5601 C-6 Q5602 B-6 Q5609 E-5 Q8200 E-5 Q8401 D-4
TEST POINT
TP2606 B-4 TP2607 A-4 TP2608 B-4
C1102
Q5432
Q5431
Q5432
C3100
C3101
R4726
D4709
1
R4725
D4708
R4724
D4705
R4723
D4704
R4722
D4703
R4721
D4702
JK4700
R4720
JK4700
D4701
R4719
D4700
L4701
R4619
11
15
CN8702
19
Q4538
L4700
R4701
R4717
D4548
R4713
D4710
R4712
Q4700
C4700
D4586
Q4700
C4705
C4701
R4716
R4700
R4718
R4603
R4602
R5437
D3338
FL3003
R3231
S3029
D3336
FL3004
R3233
S3028
JK3001
S3027
R3235
FL3005
D3334
R3227
R3224
R3226
R3222
FL3001 FL3002
R3124
S3706
D3340
C3105
R3099
D3055
L3027
D3054
L3026
C2914
C2915
L3028
C2913
C2922
C2930
C3257 R3717
C2937
JK3001
S3026
D3302
C3132
R3229
S3025
R3228
C3131
D3301
S3704
S3705
L2901
V
S3703
D3052
L
S3701
L3029
JK3707
R
S3702
L3030
R3716
C3099
C1103
D4713
R4702
D4584
R1221
R4606
R1255
C1122
R5438
Q4538
D5431
R5431
R5435
R5436
C5431
R5432
R5452
CL5431
6
1
R5451
CL5432
10
5
1
CN8702
4
TU2901
IC
IC1000 E-1 IC2301 A-2 IC2600 B-5 IC2606 A-5 IC2611 A-5 IC2612 B-5 IC3003 B-2 IC4001 C-3 IC4005 C-3 IC4510 C-3 IC5001 B-2 IC5002 B-3 IC5100 B-3 IC5110 B-4 IC5470 D-4 IC5480 E-4 IC5481 C-6 IC8001 C-4 IC8002 C-5 IC8003 C-5 IC8404 D-5 IC8405 D-5 IC8408 D-5 IC8409 E-5 IC8503 A-4 IC8581 D-4
JK3707
CL2616
ABCDEFGH I
94
Page 95

13.5. D-Board

D-BOARD (FOIL SIDE) TZTNP02DRUE
6
TP9200
CL9044
CL9105
TP9204
TP204
CL9149
R9186
CL9200
R9119
R9401
TP9203
R9207
CL9150
C9316
C9305
TP203
CL9165
R9164
CL9202
CL9015
C9306
C9317
C9303
PbF
CL9043
R9859
CL9042
CL9031
TP201
TP9202
R9854
TP9201
R9097
C9092
TP202
R9220
CL9109
CL9159
R9197
CL9016
CL9014
C9960
L9904
CL9121
R9212
C9315
R9219
R9189
CL9611
R9213
C9047
C9996
C9992
C9301
L9906
L9903
CL9134
CL9211
C9061
C9991
C9997
C9988
R9107 R9166
CL9092
R9095
CL9590
C9984
TNPA4751
SEE REVERSE FOR ORDER NO.
CR NO.9
CL9306
R9604
CL9163
CL9164
R9585
R9589
CL9591
R9587
R9592
CL9083
R9898 R9899
C9987
C9990
C9993
123
CL9271
TP500
R9846
CL9593
CL9589
R9593
Q807
Q9807
C9969
C9982
R9403
R9998
C9995
TP9500
R9590
R9591
4
C9994
CL9274
CL9273
R9847
3
C9926
IC808
C9985
IC9808
CL9608
R9897
CL9270
CL9272
CL9090
R9611
CL9171
1
C9899
C9981
5
R9900
R9873
1
R9874
R9902
R9096
TP200
CL9152
R9244
R9200
C9854
CL9146CL9135
CL9145
CL9308
R9871
CL9169
D9110
CL9005
C9837
R9116
R9868
IC9004
R9129 C9033
C9036
C9845
CL9147
R9426
CL9108
R9128
CL9115
CL9602
C9037
CL9599
IC004
C9050
C9051
CL9112
CL9600
C9049
CL9113
CL9111
R9609
CL9601
R9132 C9032
CL9110
CL9598
R9970
CL9592
R9992
CL9045
CL9141
CL9116
CL9582
1
32
CL9048
CL9581
C9054
R9204
C9913
C9154
C9967
C9958
C9922
C9155
C9962
CL9117
CL9140
R9610
TP078
TP9078
VJ9702
CL9102
CL9093
R9995
R9976
C9970
C9923
C9114
C9156
CL9148
CL9580
CL9579
CL9595
C9124
L9701
C9115
C9151
C9925 C9954
C9113
C9921
C9701
C9965
C9138
C9966
C9157
C9980
C9950
C9153
C9949
C9924
L9901
C9160
C9152
C9977
C9123
C9145
C9703
CL9221
C9976
C9158
C9168
L9700
C9100
C9161
C9135
C9715
C9906
C9908
C9909
C9910
C9162
C9702
CL9216
CL9232
C9957
C9159
C9907
C9146
CL9079
C9112
CL9114
R9975
TP076
L9900
C9911
C9147
C9709
CL9614
C9716
CL9020
CL9018
CL9615
R9967
R9987
TP9076
R9969
CL9078
C9912
C9136
CL9142
C9052
R9203
C9039
CL9106
CL9021
CL9019
R9402
CL9613
R9989
TP077
TP9077
C9309
C9081
C9953
C9902
C9956
C9142
C9968
C9901
C9900
C9952
C9141
C9140
C9143
C9166
C9101
C9918
C9164
C9917
C9165
C9111
C9706
C9150
C9149
C9714
C9700
CL9198
C9704
R9395
R9396
TNPA4751 B
CL9460
C9915
C9914
C9139
C9920
C9144
C9134
C9163
C9148
C9713
C9916
C9169
TP010
TP9010
C9311
R9399
C9904
C9905
R9397
CL9066
R9215
R9398
C9903
C9102
R9206
R9087
C9973
R9205
R9187
R9155
R9154
C9314
R9996 R9997
C9310
C9986
C9167
CL9214
R9188
CL9082
R9407
R9422
R9086
R9404
R9408
R9419 R9085
CL9222
R9185
R9150
R9151
R9405
R9421
R9424
R9410
R9417
R9999
C9961
R9201
R9225
R9223
C9055
16
TP9000
TP9000
5
4
3
2
TP006
TP9006
TP196
CL9132
CL9129
CL9128
CL9879
C9028
CL9867
CL9137
CL9324
CL9136
CL9328
17
CL9004
C9029
FL9806
FL9805
TP9196
CL9139
CL9319
CL9138
CL9321
R9394
CL9003
C9846
C9855
TP9862
R9385
R9400
C9853
TP862
CL9144
CL9312
CL9143
CL9316
IC002
TP313
CL9854
13
R9110
CL9834
CL9835
C9863
C9076
C9087
D
IC9002
R9142
CL9878
CL9011
CL9836
CL9832
CL9855
CL9162
CL9166
TP314
4
TP9313
CL9877
CL9833
CL9831
CL9157
CL9160
TP9314
6
C9056
TP9315
TP315
TP9316
TP316
CL9852
R9848
R9202
R9849
CL9876
R9872
R9081
R9089
CL9158
C9874
C9079
C9090
R9608
CL9837
R9894
R9080
R9092
CL9012
CL9839
CL9841
CL9843
CL9847
CL9849
CL9851
CL9297
CL9296
R9077
R9078
R9088
CL9603
CL9605
CL9838
CL9840
CL9842
CL9845
CL9844
CL9846
CL9848
CL9850
C9070 C9069
R9893
C9882
C9075 C9074
R9079
C9080
C9086 C9085
R9091
C9091
CL9596
CL9604
CL9606
CL9894
R9229
R9228
CL9893
CL9858
Parts Location
IC
IC9002 F-6 IC9004 A-5 IC9808 E-4
TRANSISTOR
Q9807 E-4
D
D-BOARD (FOIL SIDE)
TEST POINT
TP9000 A-5 TP9006 A-4 TP9010 C-1 TP9076 C-4 TP9077 C-4 TP9078 B-4 TP9196 A-4 TP9200 D-6 TP9201 D-6 TP9202 D-5 TP9203 D-6 TP9204 D-6 TP9313 F-5 TP9314 F-6 TP9315 F-6 TP9316 F-5 TP9500 E-6 TP9862 A-4
1
ABCDEFGH I
95
Page 96
D-BOARD (COMPONENT SIDE) TZTNP02DRUE
6
R9214
CL9168
D
C9053
R9098
C9040
R9099
R9211
R9210
C9064
R9073
CL9225
CL9208
R9070
CL9030
C9308
Q301
51
C9307
1
R9103
26
CL9029
IC003
Q302
C9063
R9194
C9045
Q9301
Q9302
D3
CL9024
CL9161
C9062
C9044
CL9379
CL9201
CL9300
R9233
CL9023
CL9378
CL9231
CL9299
R9232
CL9156
C9041
X9000
C9042
R9153 R9152
C9972
CL9298
R9231
CL9155
X9900
R9965
CL9923
CL9304
R9230
CL9170
R9966
CL9924
C9971
R245
31
R9245
R243
R9243
R246
R9246
R237
R235
R242
R9235
R9242
D5
R241
R238
R234
R9234
D5
R239
R240
R236
R9236
R9237
R9241
R9238
CL9154
CL9080
R9239
R9240
1
R9968
CL9594
R9988
CL9100
CL9131
R9598
CL9101
CL9103
R9977
CL9104
R9983
CL9217
C9038 R9121
C9035
C9034
D25
CL9866
C9823
48
R9198
R9199
IC303
CL9000
CL9001
TP9084
TP9085
TP9086
TP9087
CL9921
CL9926
TP9079
TP9080
TP9081
TP9082
TP9088
R9425
VJ9302
1
CL9301
CL9302
CL9305
TP9083
CL9380
IC9300
A
IC300
GND GND
GND GND
C9468 R9371
R9370
R9391
R9369
D32
CL9107
16 8
GND
1
EXTTRMO0 EXTTRMO1
EXTTRMI0 EXTTRMI1 PRCKO
D32
FL9803
CL9309
CL9311CL9303
CL9313
FL9302
CL9064
R9115
R9120
R9145
C9856
5
C9844
CL9315
CL9317
R9222
R9221
FL9301
VJ9300
4
CL9008
CL9859
CL9863
C9469
IC9303
CL9118
CL9119
CL9002
IC9001
CL9323
CL9325
CL9120
CL9122
C9058
C9057
D25
CL9123CL9307
CL9124
CL9125
CL9126
ZA9001
1
IC001
8
CL9127
Parts Location
D-BOARD (COMPONENT SIDE)
IC
113
25
24
IC9001 F-5 IC9003 C-5 IC9300 D-3 IC9303 F-3 IC9500 B-5 IC9805 A-3 IC9806 A-3 IC9807 A-2 IC9902 B-3 IC9903 C-4
TRANSISTOR
Q9301 D-1 Q9302 D-1
R9071
C9989
51
C9537
26
CL9607
CL9099
R9586
R9616
VJ9009
1
C9539 C9538
15
D3
C9825
R9165
R9840
CL9009
R9217
R9218
CL9210
C9046
76
CL9073
CL9133
CL9094
C9536
R9578
+
C9312
C9313
CL9612
IC500
CL9017
100
A
IC902
1
CL9151
1
R9124
IC9903
R9130
CL9153
CL9130
R9094
C9302
IC9003
R9093
C9304
C9048
IC903
A
TNPA4751 A
ORDER
1
NO.
68
CL9063
R9072
R9423
R9412
R9415
R9420
VJ9301
FL9300
C9065
R9216
C9300
R9149
R9416 R9413 R9411 R9409 R9083 R9084
R9414
R9406
R9418
19
20
CL9811
CL9814
CL9812
CL9815
CL9817
D6
C9891
76
C9550
C9549
CL9587
CL9588
C9547
C9548
100
D6
VJ9011
CL9046
R9601
CL9032
CL9041
R9588
CL9314
R9901
5
1
C9840
C9832
CL9813
D20
4
C9859
35
CL9816
C9858
D20
11
IC806
IC9806
20
C9869
3
C9872
IC805
11
IC9805
20
C9077
C9078
IC807
11
CL9167
2
CR NO.9
20
IC9807
C9089
C9088
10
C9066
D9800
1
10
C9071
1
C9072
C9073
10
C9082
1
C9083
C9084
R9600
C9545
1
C9546
C9535
C9067
C9068
L9001
L9002
1
2
C9540
TP312
VIN
L9802
CL9310
IC9500
TP9312
HIN
R9594
TP311
R9839
CL9875
C9890
C9544
C9543
C9541
TP9311
VJ9010
PbF
R9618
C9542
C9889
CL9084
CL9081
IC9902
TNPA4751
1
CL9007
D31
D31
1
D
TEST POINT
TP9079 E-2 TP9080 E-2 TP9081 E-2 TP9082 E-2 TP9083 F-2 TP9084 E-2 TP9085 E-2 TP9086 E-2 TP9087 E-2 TP9088 E-2 TP9311 B-4 TP9312 B-4
ABCDEFGH I
96
Page 97

13.6. C1-Board

6
5
C1-BOARD (FOIL SIDE) TNPA4767
C1
4
TNPA4767
1C1
SEE REVERSE FOR ORDER NO.
PbF
12 3
3
C1-BOARD (COMPONENT SIDE) TNPA4767
R123
R124
40
C10
1
ZA102
55
55
C1MM2
2
ZA100
C102 C103
R100
1
1
C100
R101
CB1
R102
C104 C105
R103 R104
R108
55
55
R106
ZA101
1
1
C101
C1MM1
CB2
R105
CR NO.17
R107
PbF
TNPA4767
ORDER
NO.
1 C1
C1MM5
R110
55
55
R109
CB3
C108
1
1
R112
R111
C106 C107
C110 C111
R113 R114
R118
55
55
R117
C1MM3
C1MM6
R120
R119
CB4
C109
1
1
ZA103
R115
R116
1
ABCDEFGH I
97
Page 98

13.7. C2-Board

6
5
Parts Location
C2-BOARD
ICIC
IC17201 F-2
C2
C2-BOARD (FOIL SIDE) TNPA4768
4
C2
3
TNPA4768
SEE REVERSE FOR ORDER NO.
1
PbF
12 3
C2-BOARD (COMPONENT SIDE) TNPA4768
1
2
ZA200
C20
C2MM1
CR NO.17
FL201
12
R230
R231
TNPA4768
ORDER
NO.
C24
C2MM2
C2MM3
1
C2
R224
R225
PbF
CB5
C200
C201
40
1
1
R200
R201
R202
C204
R206
55
55
R204
ZA201
CB6
1
1
C203
C202
R203
R205
R207
C207
R210
55
55
R209
ZA203
C212
1
1
11
20
C216
C210
R214
R226
IC201
R215
1
R216
10
C242
R227
C214
C241
CB7
55
55
R221
R220
ZA202
C2MM4
R222
R223
68
68
C21
CB8
C213
1
1
C211
R217
R218
R219
FL200
R228
R229
C215
20
1
1
55
55
C26
1
1
20
1
ABCDEFGH I
98
Page 99

13.8. C3-Board

6
5
Parts Location
C3-BOARD
ICIC
IC17300 C-2 IC17302 D-2 IC17311 B-2
4
C3-BOARD (FOIL SIDE)
C3
TNPA4769
SEE REVERSE FOR ORDER NO.
C31TNPA4769
3
PbF
321
C3-BOARD (COMPONENT SIDE) TNPA4769
C376
R392
1
3
C375
R391
4
C374
6
168
168
1
2
FL302
R360
C36
CB9
20
1
1
R307
R308
C31
R305
C300
R304
IC311
ZA301
C3MM1
R306
C304
C302
55
55
ZA300
CB10
C3MM2
C303
R309
C307 1
R310
C342
C301
R302
1
20
R300
R301
IC300
R303
10
11
C341
C305
R312
R313
55
55 1
R314
CB11
1
1
C3MM3
C310
C306
R318
R321
C315
20
R325
1
10 11
R323
IC302
R326
C314
R319
R320
R322
55
55
R324
ZA304
CB12
1
TNPA4769
ORDER
1
C37
C316
NO.
4
C318
R328
R327
R329
C313
R330
55
55
R331
1C3
C3MM4
PbF
1
8 14
C33
CB13
C3MM5
CB14
C317
C321
R332
R334
R335
C319
1
1
R336
R333
55
55
CR NO.17
C322
1
1
ZA303
ZA302
R344
C326
R346
1
1
R347
C35
C320
R338
R337
R340
C324
R339
55
55
R341
C3MM6
CB15
R343
R348
C327
C325
R342
R345
C323
55
551
1
ABCDEFGH I
99
Page 100

13.9. SC-Board

6
5
SC-BOARD (FOIL SIDE) TNPA4782AF
ZA421 ZA422 ZA411ZA412
SC41
C415
C450
C460
C440
A
K
TP103
D623
C414
9
K
A
A
D622
TP96
C413
TP78
TP60
TP81
TP80
TP51
TP79
TP61
SC50
9
8
SC42
VR601
21
1
TP62
2
TP31
TP83
TP32
TP29
TP84
TP102
TP101
TP67
TP28
TP35
1
SC46
C691
TP42
TP43
TP44
2
E
G
C
Q661
8
G
C902
TP45
9
TP41
Q660
S
D
1
C901
D621
C900
G
E
AAKA
C
Q623
28
E
C
TP104
Q622
L851
C721
E
G
G
C
Q621
C903
TP59
TP63
R696
TP34
C806
L416
L413
D641
A
A
A
K
Q421
C
GE
Q451Q452
G
E
C
K
A
GE
L412
TP92
G
D482
K
D
S
G
Q601
C822
TP64
5
8
L699
D642D643
A
AKA
C417
L414L415
L411
TP93
AA
D481
AA
K
R713
IC784
1
10
C813
IC786
85
41
C795
L698
TP98
5
6
41
IC788
L697
VR600
C842
12
12
C796
TP40
TP18
TP21
C563
TP22
TP15
VR841
TP6
IC791
TP14
TP23
R731
TP11
R860
C791
TP65
L472
TP33
TP30
TP7
1
1
TP97
TP25
TP26
C592
D422
A
D402
A
4
A
A
K
PbF
CRNo.16
Q403
D401
A
G
K
TNPA4782
SEE REVERSE FOR ORDER NO.
Q402
C
G
E
1
1
SC
Q401
C
E
GCE
2
3
K
C
D421
A
A
K
Q422Q423
C
EG
3
C419
3
SC2
TP4
C412
TP5
TP1TP2
L406
L404L405
C503
TP94
C523
1
L403
L402
L401
C634
C633
C632
C631
2
TP90
D462
TP91
Q443
K
AA
K
E
G
E
A
A
D461
C
C
Q441Q442
G
G
E
C
D441
K
AA
E
C
R774
1
TP95
TP36
TP19
TP38
TP17
TP16
TP24
TP52
TP70
TP37
TP20
TP39
TP8
TP10
TP88
TP89
TP9
ABCDEFGH I
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
