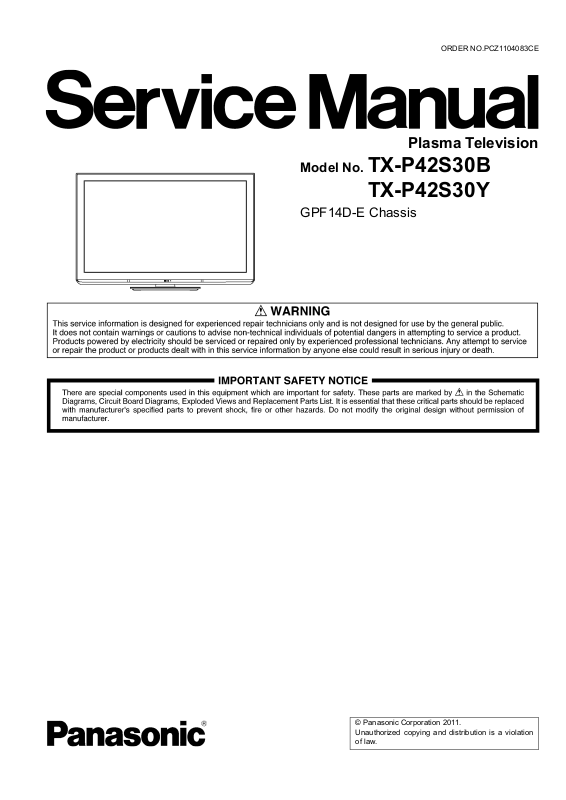

Page 1

ORDER NO.PCZ1104083CE

Plasma Television

Model No. TX-P42S30B

TX-P42S30Y

GPF14D-E Chassis

Page 2

TABLE OF CONTENTS

PAG E PAG E

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals ------------------------------------------7

4 Specifications ------------------------------------------------------8 5 Technical Descriptions---------------------------------------- 10

5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE and One-to-One -------------------------- 10

6 Service Mode ----------------------------------------------------- 11

6.1. How to enter into Service Mode ---------------------- 11

6.2. Option - Mirror--------------------------------------------- 13

6.3. Service tool mode ---------------------------------------- 13

6.4. Hotel mode------------------------------------------------- 14

6.5. Data Copy by SD Card --------------------------------- 15

7 Troubleshooting Guide---------------------------------------- 18

7.1. Check of the IIC bus lines------------------------------ 18

7.2. Power LED Blinking timing chart --------------------- 19

7.3. No Power--------------------------------------------------- 19

7.4. No Picture -------------------------------------------------- 20

7.5. Local screen failure -------------------------------------- 21

8 Disassembly and Assembly Instructions --------------- 22

8.1. Remove the Rear cover -------------------------------- 22

8.2. Remove the AC inlet ------------------------------------ 22

8.3. Remove the P-Board ------------------------------------ 22

8.4. Remove the Side terminal cover --------------------- 22

8.5. Remove the Tuner unit --------------------------------- 22

8.6. Remove the A-Board ------------------------------------ 23

8.7. Remove the Speakers ---------------------------------- 23

8.8. Remove the SN-Board---------------------------------- 23

8.9. Remove the SS-Board ---------------------------------- 23

8.10. Remove the Stand bracket and the M8 nut inlet metals------------------------------------------------- 24

8.11. Remove the Contact metal bottom B---------------- 24

8.12. Remove the Plasma panel section from the Cabinet assy----------------------------------------------- 24

8.13. Remove the Contact metals --------------------------- 25

8.14. Remove the C1-Board ---------------------------------- 25

8.15. Remove the C2-Board ---------------------------------- 25

8.16. Remove the K-Board ------------------------------------ 25

8.17. Replace the Plasma panel ----------------------------- 25

9 Measurements and Adjustments -------------------------- 26

9.1. Adjustment ------------------------------------------------- 26

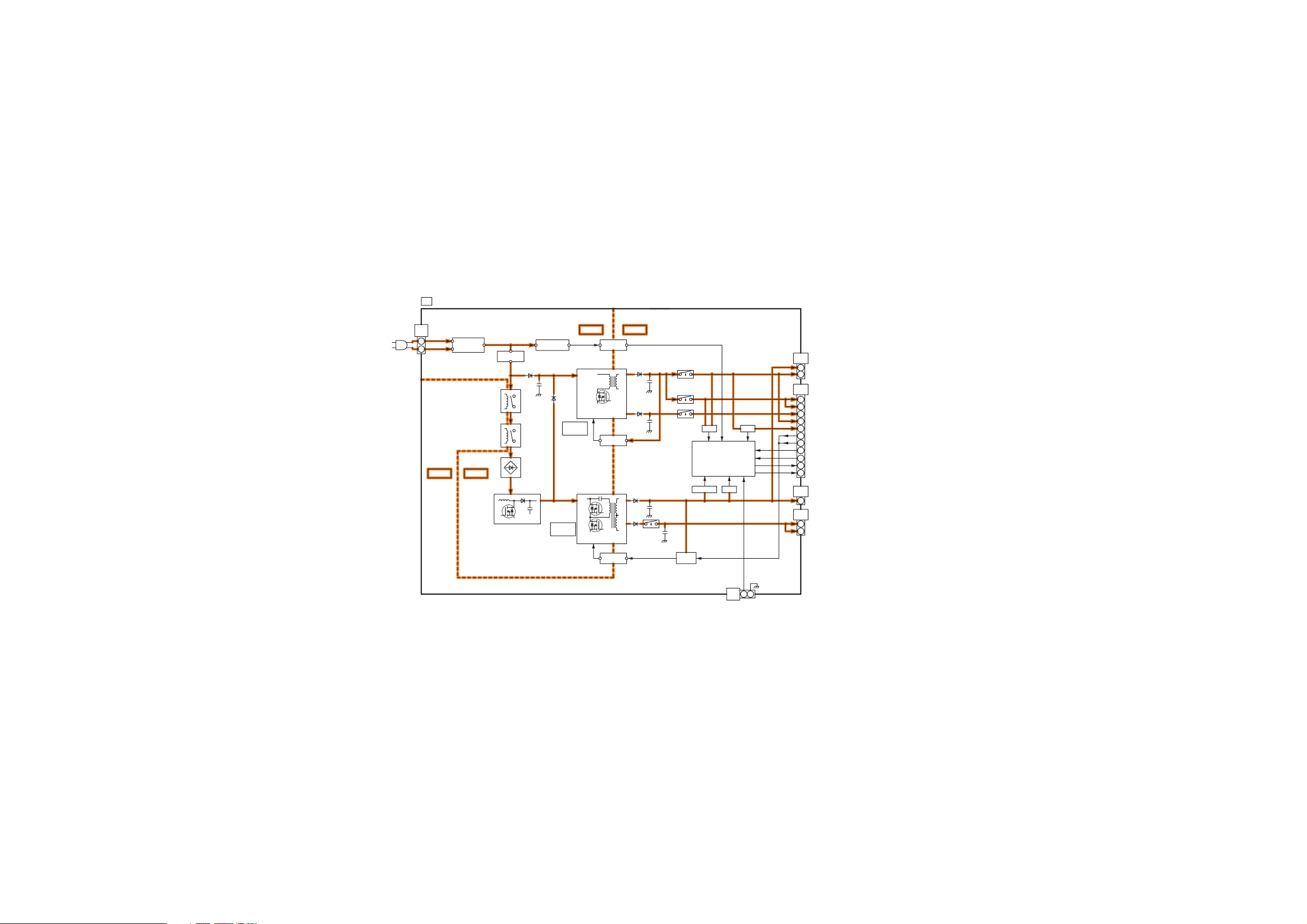

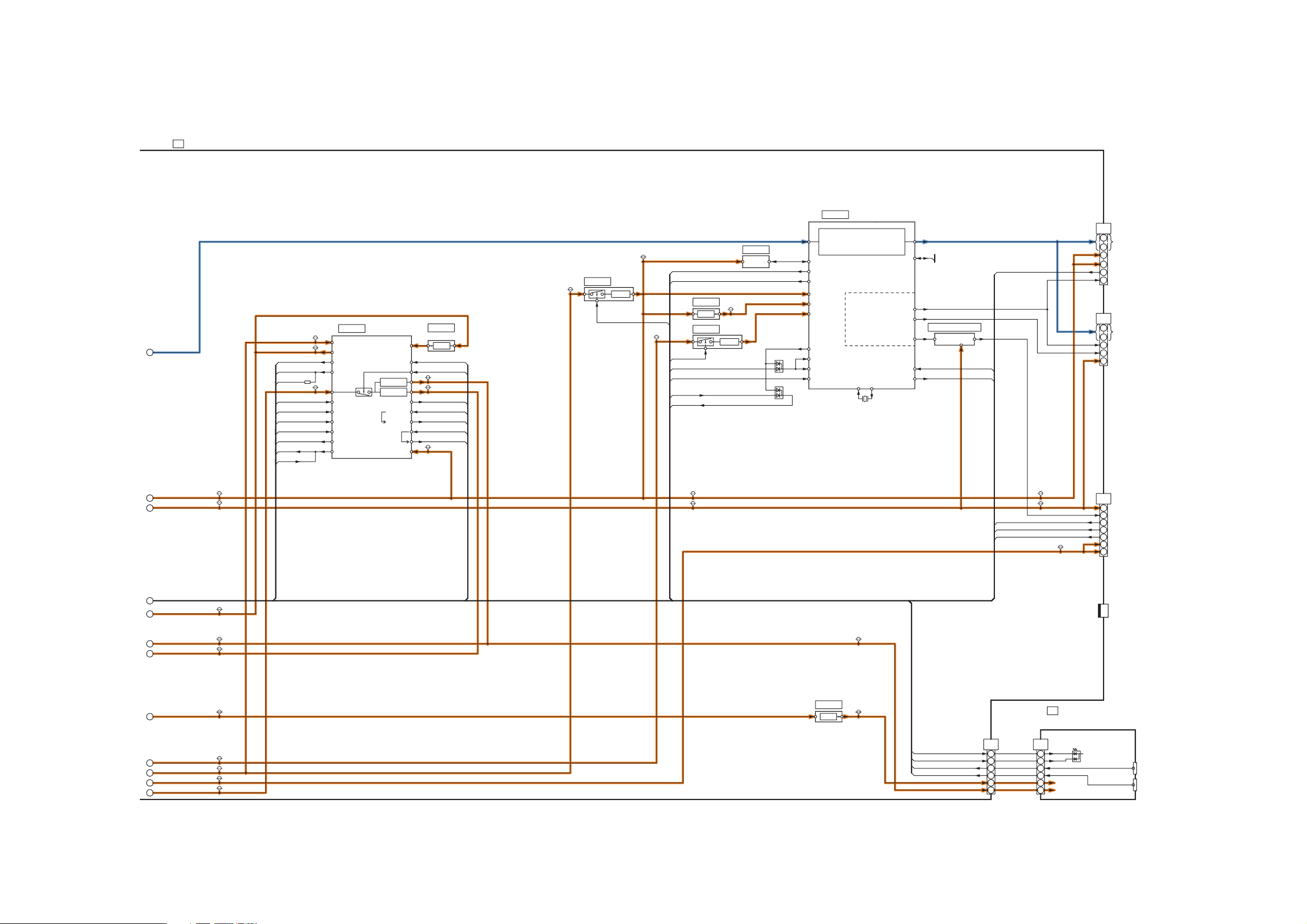

10 Block Diagram --------------------------------------------------- 33

10.1. Main Block Diagram ------------------------------------- 33

10.2. Block (1/4) Diagram ------------------------------------- 34

10.3. Block (2/4) Diagram ------------------------------------- 35

10.4. Block (3/4) Diagram ------------------------------------- 36

10.5. Block (4/4) Diagram ------------------------------------- 37

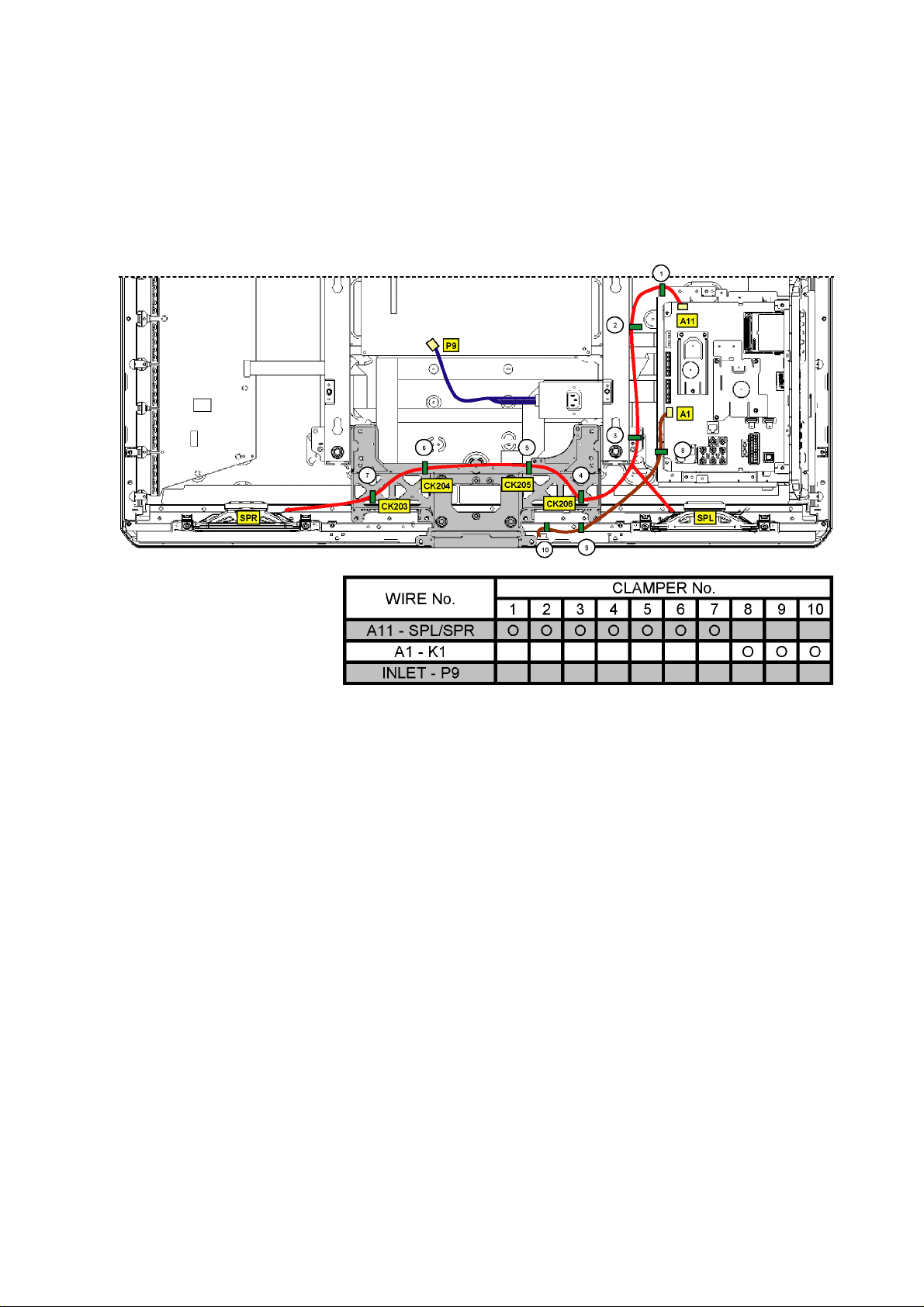

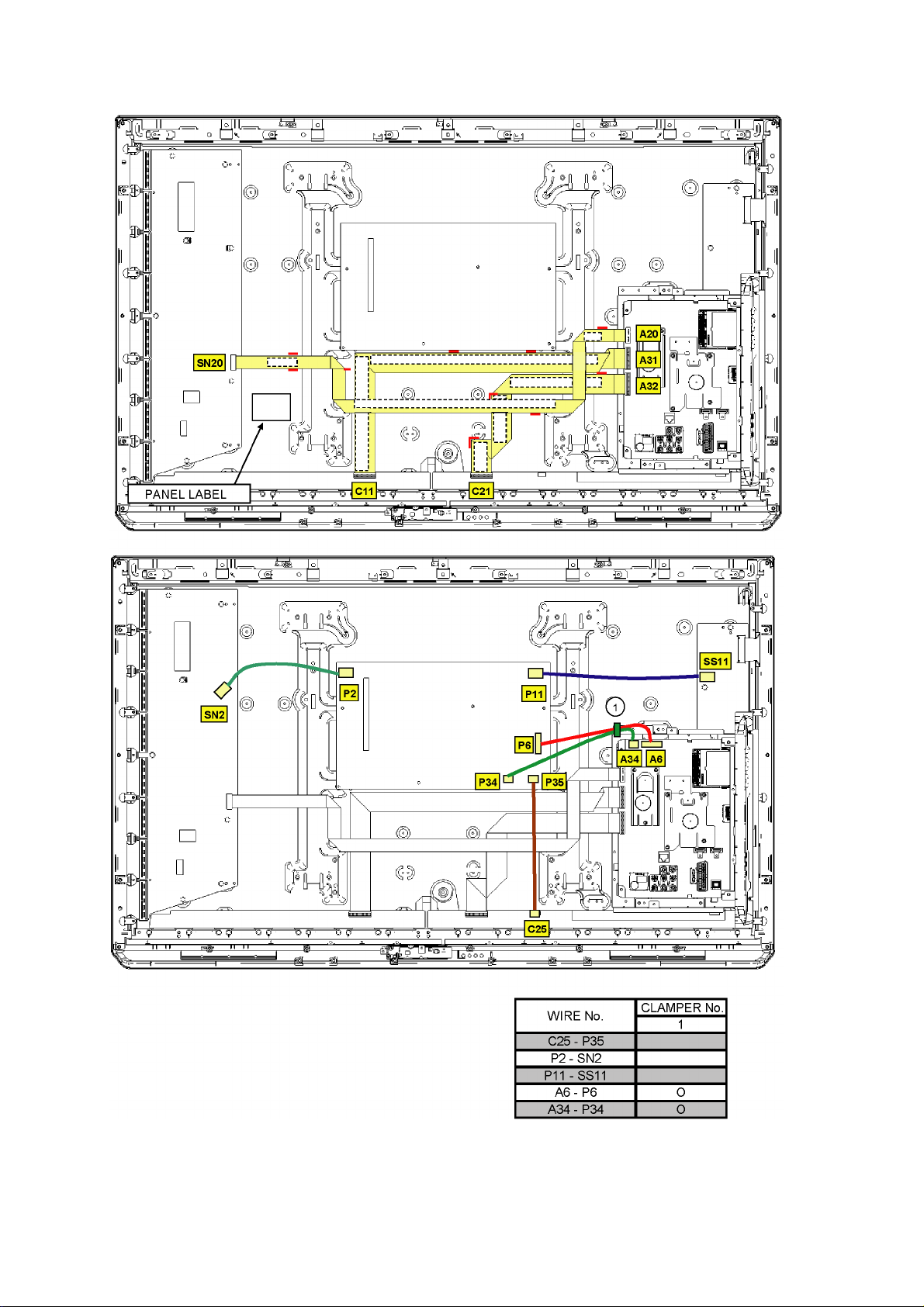

11 Wiring Connection Diagram --------------------------------- 39

11.1. Caution statement.--------------------------------------- 39

11.2. Wiring (1) --------------------------------------------------- 39

11.3. Wiring (2) --------------------------------------------------- 40

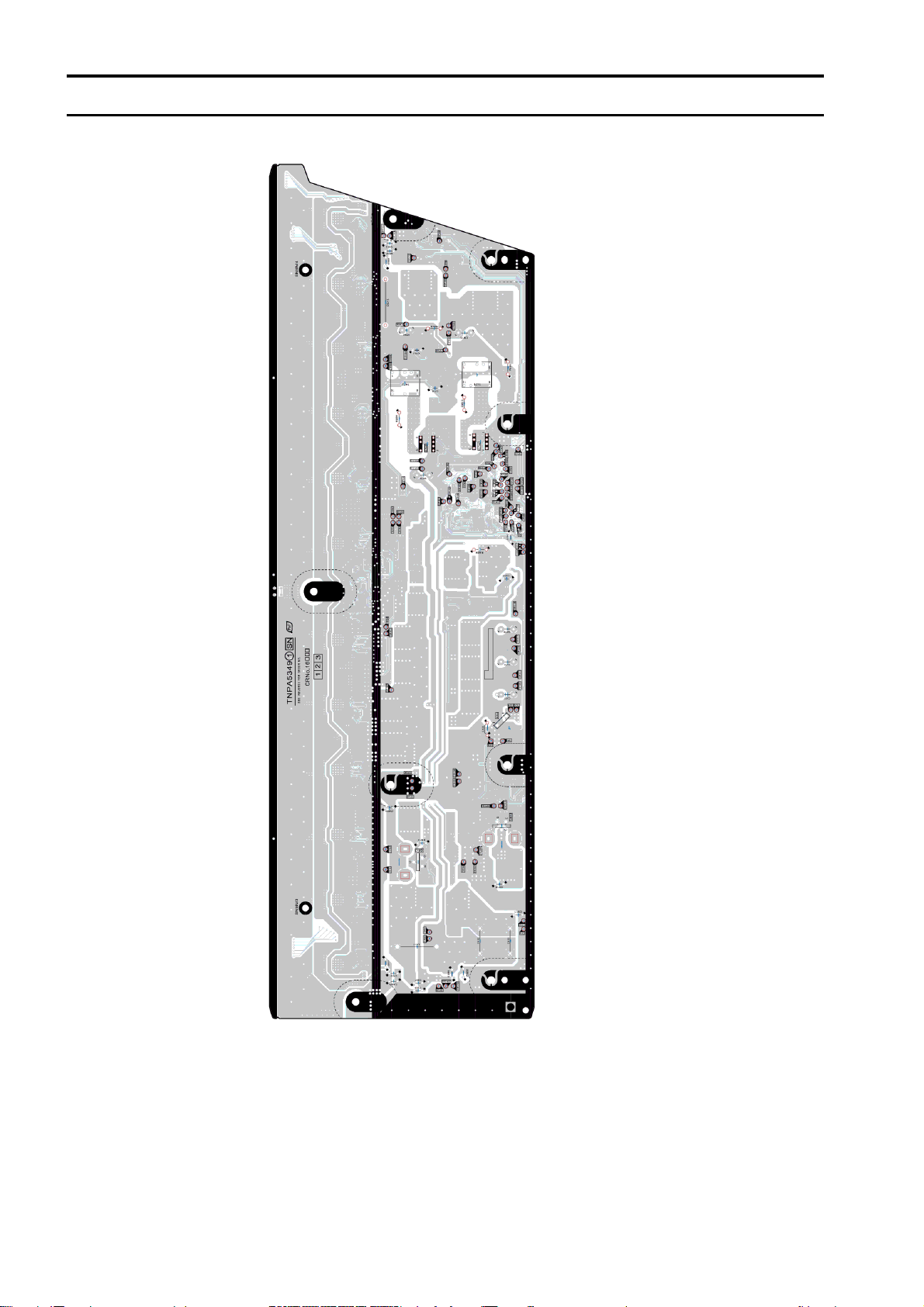

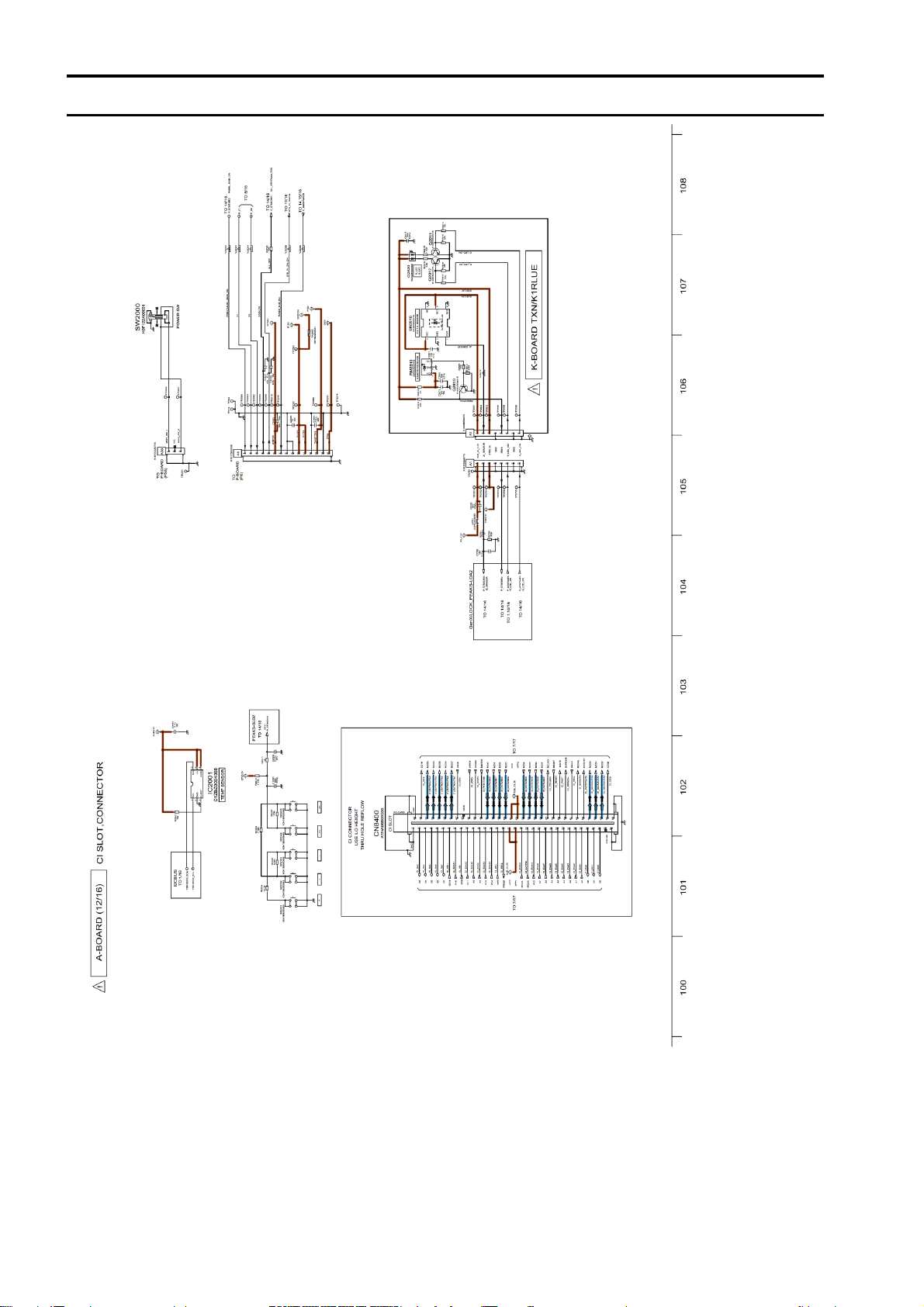

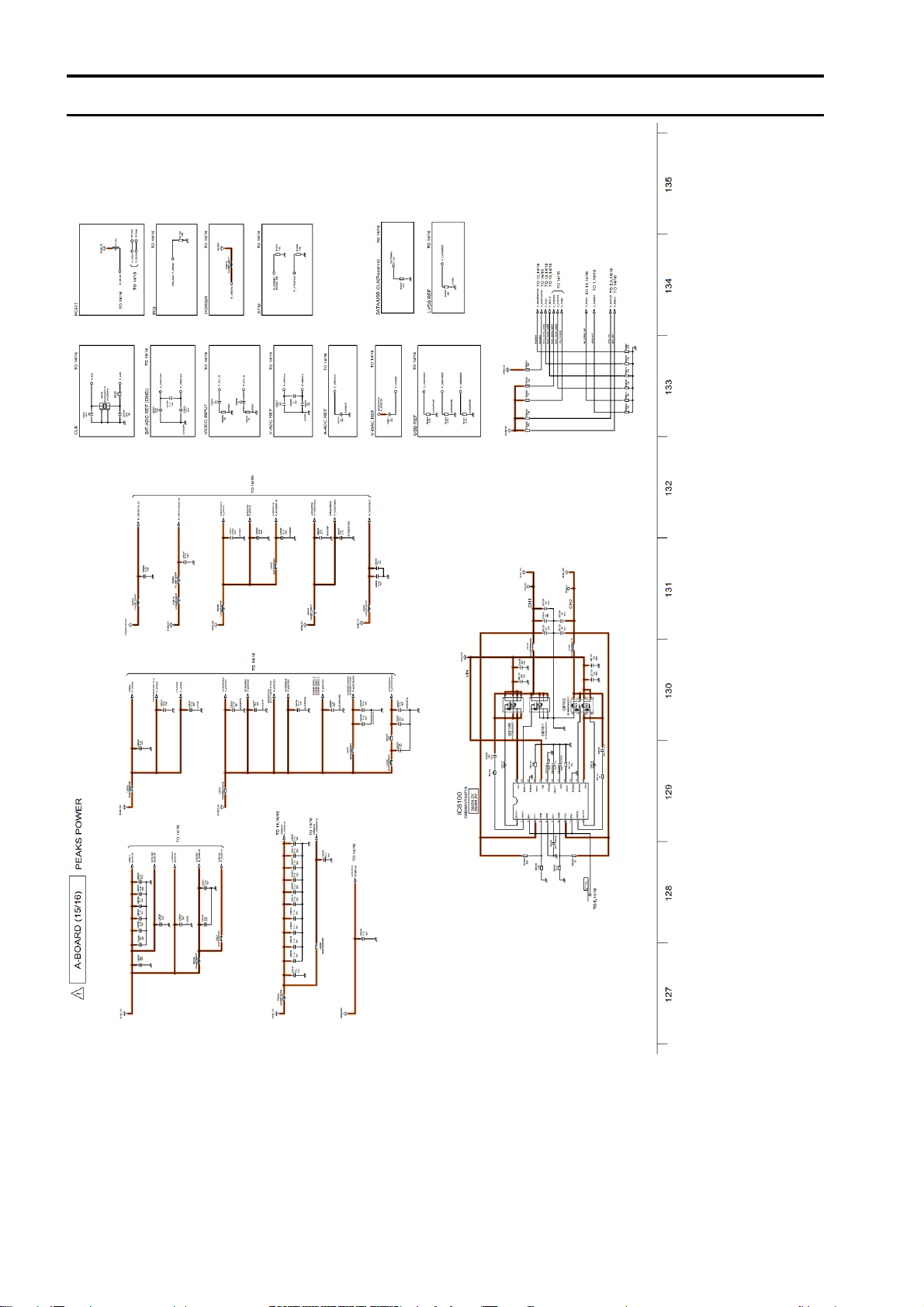

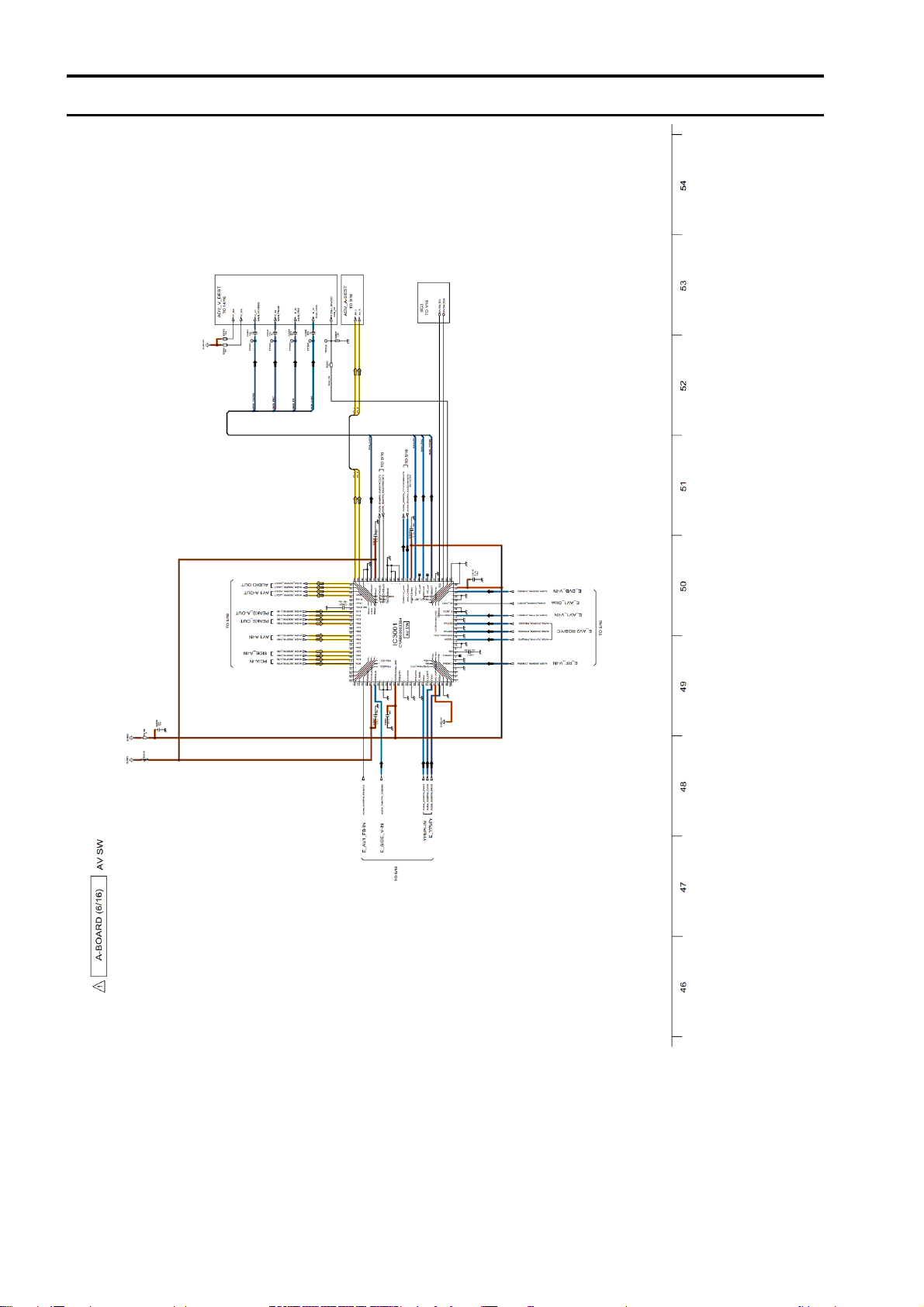

12 Schematic Diagram 13 Printed Circuit Board 14 Exploded View

Page 3

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c. The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

= 1.0 V,

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

and U2, does not exceed the following values:

Figure 1

Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

Page 5

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

Page 6

3 Service Navigation

3.1. PCB Layout

Board Name Function Board Name Function

P Power Supply

Non serviceable P-Board should be exchange for service

A Main AV input, processing SS Sustain Drive K Remote receiver, Power LED, C.A.T.S. sensor

C1 Data Driver (Lower Right) C2 Data Driver (Lower Left) SN Scan Drive

Page 7

3.2. Applicable signals

COMPONENT (Y, PB, PR), HDMI

* Mark: Applicable input signal

Signal name COMPONENT HDMI 525 (480) / 60i, 60p * * 625 (576) / 50i, 50p * * 750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p, 50p, 24p *

PC (from HDMI terminal)

Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

Page 8

4 Specifications

Power Source AC 220-240 V, 50 / 60 Hz Power Consumption

Rated Power Consumption 255 W On mode Average Power Consumption (Y) Standby Power Consumption 0.30 W

Display panel

Aspect Ratio 16:9 Visible screen size 106 cm (diagonal)

Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Sound

Speaker (160 mm × 40 mm) × 2, 6 Ω Audio Output 20 W (10 W + 10 W) Headphones M3 (3.5 mm) stereo mini Jack × 1

Receiving Systems / Band name (UK) DVB-T / T2 Digital terrestrial services.

Receiving Systems / Band name (Ireland)

Receiving Systems / Band name (Y)

Aerial input UHF (UK) VHF / UHF (Ireland/Y) Operating Conditions

Connection Terminals

AV1 (SCART) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link) AV2 input VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

COMPONENT input Y: 1.0 V [p-p] (including synchronization)

HDMI1 / 2 / 3 input TYPE A Connectors

Card slot SD CARD slot × 1

ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX USB 1 / 2 USB2.0 DC 5 V, Max. 500 mA

121 W (based on IEC 62087 Ed.2 measurement method)

16.00 W (With monitor out recording)

921 mm (W) × 518 mm (H)

PAL I UHF E21-68 PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR). DVB-T Digital terrestrial services. PAL I VHF A -J

PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR). PAL B, G, H, I, SECAM B, G, SECAM L, L

VHF E2 - E12 VHF H1 - H2 (ITALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)

PAL D, K, SECAM D, K

VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69

PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR) DVB-T/T2 Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264)) DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))

• Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Temperature: 0 °C- 35 °C Humidity: 20 % - 80 % RH (non-condensing)

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

, PR: ±0.35 V [p-p]

HDMI1 / 3 : Content Type, Deep Colour, x.v.Colour™ HDMI2 : Content Type, Audio Return Channel, Deep Colour,

• This TV supports " HDAVI Control 5 " function.

Common Interface slot (complies with CI Plus (Y)) × 1

or NTSC disc playback from DVD player and recorder.

UHF E21-69 CATV S1 - S20 CATV S21 - S41 (Hyperband)

or NTSC disc playback from DVD player and recorder.

x.v.Colour™

Page 9

AUDIO IN RCA PIN Type × 2 0.5 V [rms] AUDIO OUT RCA PIN Type × 2 0.5 V [rms] (high impedance) DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic

Dimensions (W × H × D) 1,023 mm × 671 mm × 288 mm (With Pedestal)

1,023 mm × 637 mm × 93 mm (TV only)

Mass 23.0 kg Net (With Pedestal)

20.0 kg Net (TV only)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024

Page 10

5 Technical Descriptions

5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE and One-to-One

5.1.1. General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902). Three KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

Model No. Keys

One-to-One

(For USB Rec.) TX-P42S30B None None None Yes TX-P42S30Y None Yes None Yes

CI Plus DTCP-IP WIDEVINE

Page 11

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.

Note:

Service Mode can not be entered when 3D signal input. Input 2D signal to enter Service Mode.

6.1.2. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [RED] button...All Sub items Selection in reverse direction [GREEN] button...All Sub items Selection in forward direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Page 12

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 277

COLOR 36 TINT 00 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0

WB-ADJ R-CUT 80

G-CUT 80 B-CUT 80 R-DRV EE G-DRV FF B-DRV 86 ALL-CUT 80 ALL-DRV FF

OPTION Panel-Type 42FHD Factory Preset

Boot ROM STBY-SET 00 EMERGENCY ON Y/C Delay OPT 1 00010100 OPT 2 11101110 OPT 3 00000001 OPT 4 00010000 EDID-CLK MID MIRROR 00 (See Option-Mirror)

AMR-SELECT OFF VSUS LOW See Vsus selection AGING ALL WHITE Built-in test patterns can be

ALL BLUE WITH WHITE OUTSIDE FRAME

ALL GREEN

ALL RED

LOW STEP WHITE

LOW STEP BLUE

LOW STEP GREEN

LOW STEP RED

WHITE DIAGONAL STRIPE

RED DIAGONAL STRIPE

GREEN DIAGONAL STRIPE

BLUE DIAGONAL STRIPE

A-ZONE & B-ZONE

1% WINDOW

COLOR BAR

9 POINTS BRIGHT MEASURE

2 DOT OUTSIDE FRAME

ALL BLUE

DOUBLE FIXED 1% WINDOW

VERTICAL LINE SCROLL

ON/OFF OR WHITE

R/G/B/W ROTATION

HALF FIXED ALL WHITE

ALL WHITE WITH COUNT DISPLAY SRV-TOOL See Service tool mode

displayed.

Destination B Y Check sum a75c a76b

Page 13

6.2. Option - Mirror

Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

6.3. Service tool mode

6.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.3.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

6.3.3. POWER ON Time, On/Off

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec. Time : Cumulative power on time, indicated hour : minute by decimal On/Off : Number of On/Off switching by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

6.3.4. Exit

1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 14

6.4. Hotel mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu: While pressing [VOLUME (-)] button of the main unit, press [AV] button of the remote control three times within 2 seconds.

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function Hotel Mode Select hotel mode On/Off Initial INPUT Select input signal modes.

Set the input, when each time power is switched on. Selection : Off/Analogue/DVB(B)/DVB-C(Y)/DVB-T(Y)/AV1/ AV2/COMPONENT/HDMI1/HDMI2/HDMI3

• Off: give priority to a last memory. However, Euro model is compulsorily set to TV.

• AVnS/AVnC: only Euro model selectable

Initial POS Select programme number.

Selection : Off/0 to 99

• Off: give priority to a last memory

Initial VOL Level Adjust the volume when each time power is

switched on. Selection/Range : Off/0 to 100

• Off: give priority to a last memory

Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock Select remote control key conditions.

Private Information Select private information for VIERA Cast is Keep

Adjust maximum volume. Range : 0 to 100

Selection : Off/SETUP/MENU/ALL

• Off: altogether valid

• SETUP: only F-key is invalid (Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid (only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset

• Keep: private information for VIERA Cast is keep

• Reset: private information for VIERA Cast is reset

Page 15

6.5. Data Copy by SD Card

6.5.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.

6.5.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty SD card.

1. Insert a empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd (b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in SD card.

Page 16

6.5.3. Data copy from TV set to SD Card

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in SD card for data from TV set.

(a) For Board replacement : user_setup (b) For Hotel : hotel

Page 17

6.5.4. Data copy from SD Card to TV set

1. Turn on the TV set.

2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771 (b) For Hotel : 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy). (b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

Page 18

7 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

7.1.1.2. Self-check indication and forced to factory shipment setting:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

7.1.2. Screen display

7.1.3. Check Point

Confirm the following parts if NG was displayed.

DISPLAY Check Ref. No. Description Check P.C.B. TUN TU4801 TUNER A-BOARD STBY IC8000 PEAKS-LDA3(STM) A-BOARD MEM1 IC8902 PEAKS EEPROM A-BOARD MEM2 IC8901 STM EEPROM A-BOARD AVSW IC3001 AUDIO/VIDEO SW A-BOARD TEMP IC2001 TEMP SENSOR A-BOARD LAN IC8601 ETHERPHY A-BOARD FE IC6700 OFDM A-BOARD ID2 A-BOARD LP1 IC9300 LP1 A-BOARD

7.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 19

7.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

Blinking Times Contents Check point

1 Panel information SOS

PD5 Start SOS 3 P+ 3.3V SOS A-Board 4 Power SOS P-Board 5 P+ 5V SOS A-Board 6 Driver SOS1

(SN Energy recovery circuit)

(A-SN FPC DET) 7 Driver SOS2

(SN Connector DET)

(SN Scan and Logic IC) 8 Driver SOS3

(SS FPC DET)

(SS Energy recovery circuit) 9 Discharge Control SOS A-Board

10 Sub 5V SOS

Sub 3.3V SOS

BE (sLD) SOS

Tuner power SOS

12 Sound SOS A-Board

13 Emergency SOS A-Board 14 IROM SOS (ROM in Peaks IC) A-Board

SN-Board

A-SN FPC

SN-Board

SS-Board

SS FPC

A-Board SN-Board SS-Board

P-Board

Speaker

P-Board

7.3. No Power

First check point There are following 3 states of No Power indication by power LED.

1. No lit.

2. Green is lit then turns red blinking a few seconds later. (See 7.2.)

3. Only red is lit.

Page 20

7.4. No Picture

Page 21

7.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

Page 22

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

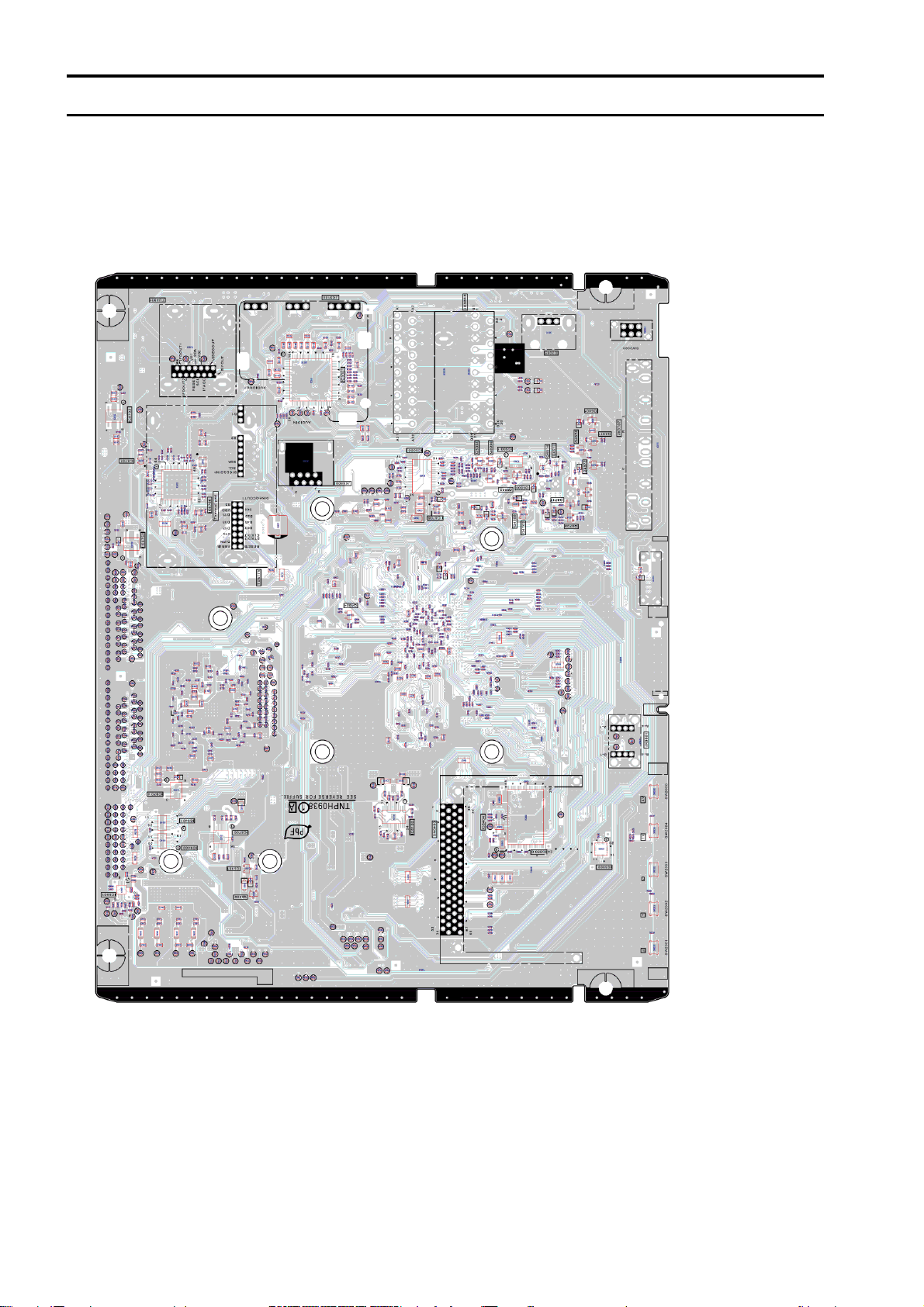

1. See PCB Layout (Section 3)

8.2. Remove the AC inlet

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connector (P9).

2. Remove the screw (×1 ) and remove the AC inlet.

8.3. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connectors (P2, P6, P9, P11, P34 and P35).

2. Remove the screws (×5 ) and remove the P-Board.

8.4. Remove the Side terminal cover

1. Remove the screws (×2 ).

2. Remove the Side terminal cover.

8.5. Remove the Tuner unit

1. Remove the Side terminal cover. (See section 8.4.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the connectors (A1, A6, A11 and A35).

4. Disconnect the flexible cables (A20, A31 and A32).

5. Remove the screws (×3 ) and remove the Tuner unit.

Page 23

8.6. Remove the A-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remove the screws (×2 ) and remove the A-Board.

8.8. Remove the SN-Board

1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the SN-Board.

2. Disconnect the connector (SN2).

3. Disconnect the flexible cable (SN20).

4. Remove the screws (×8 ) and remove the SN-Board.

8.7. Remove the Speakers

1. Unlock the cable clampers to free the cable.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 each) and remove the Speakers (L, R).

8.9. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Disconnect the connector (SS11).

3. Disconnect the flexible cable (SS33).

4. Disconnect the flexible cables (SS61 and SS66).

5. Remove the screws (×5 ) and remove the SS-Board.

Page 24

8.10. Remove the Stand bracket and

8.11. Remove the Contact metal bot-

the M8 nut inlet metals

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Unlock the cable clampers to free the cable.

3. Remove the AC inlet. (See section 8.2.)

4. Remove the Stand bracket fastening screws (×9 ) and remove the Stand bracket.

5. Remove the M8 nut inlet metals (L, R) fastening screws

(×2 each) and remove the M8 nut inlet metals (L, R).

tom B

1. Remove the Stand bracket. (See section 8.10.)

2. Remove the screws (×6 , ×6 ).

3. Remove the Contact metal bottom B.

8.12. Remove the Plasma panel section from the Cabinet assy

1. Place the Cabinet assy on a flat surface of a table (covered by a soft cloth) and a cushion.

2. Remove the Contact metal bottom B. (See section 8.11.)

3. Remove the screws (×7 ).

4. Remove the Plasma panel section from the Cabinet assy.

Page 25

8.13. Remove the Contact metals

1. Remove the Cabinet assy. (See section 8.12.)

2. Remove the Tape from the Contact metals.

3. Remove the screws (×8 ).

4. Remove the Contact metal side (L, R).

5. Remove the screws (×6 ).

6. Remove the Contact metal top.

7. Remove the screws (×15 ).

8. Remove the Contact metal bottom A.

8.15. Remove the C2-Board

1. Remove the Contact metal bottom A. (See section 8.13.)

2. Disconnect the flexible cables (CB8, CB9, CB10, CB11, CB12, CB13, CB14 and CB15).

3. Disconnect the flexible cables (C20, C21 and C23).

4. Disconnect the connector (C25).

5. Remove the screws (×4 ) and remove the C2-Board.

8.16. Remove the K-Board

1. Remove the Contact metal bottom B. (See section 8.11.)

2. Remove the claw (×1 ).

3. Disconnect the connector (K1) and Remove the K-Board from LED Panel.

8.14. Remove the C1-Board

1. Remove the Contact metal bottom A. (See section 8.13.)

2. Disconnect the flexible cables (CB1, CB2, CB3, CB4, CB5, CB6 and CB7).

3. Disconnect the flexible cables (C10 and C11).

4. Remove the screws (×4 ) and remove the C1-Board.

8.17. Replace the Plasma panel

Caution:

Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion.

A new plasma panel itself without Contact metals is fragile. To avoid the damage to new plasma panel, carry a new plasma panel taking hold of the Contact metals.

1. Place a carton box packed a new plasma panel on the flat surface of the work bench.

2. Open a box and without taking a new plasma panel.

3. Attach the cabinet assy and each P.C.Board and so on, to the new plasma panel.

Page 26

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.

2. Press [OK] button to go to TEST stage. White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On-Screen Display.

3. Press [VOL (-)] button to set to LOW.

4. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage. b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

5. Press [OK] button in CONF stage to store LOW or HIGH.

6. Exit Service Mode by pressing [Power] button.

Page 27

9.1.2. Sub-Contrast adjustment

Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator

Steps Remarks Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of TV (RF system)

Note:

In adjustment, you must setting to modulation of signal at 80%(B) / 90%(Y).

1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.

2. Goes into service mode.

3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Note:

Sub-contrast adjustment is unadjusted for AV/ HD input. But, when needing the adjustment chosen manually, please refer to [ alternative method ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Steps Remarks

Another procedure

Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of AV system

1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.

2. Goes into service mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Page 28

Steps Remarks

Another procedure

Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of HD system

1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.

2. Goes into service mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Page 29

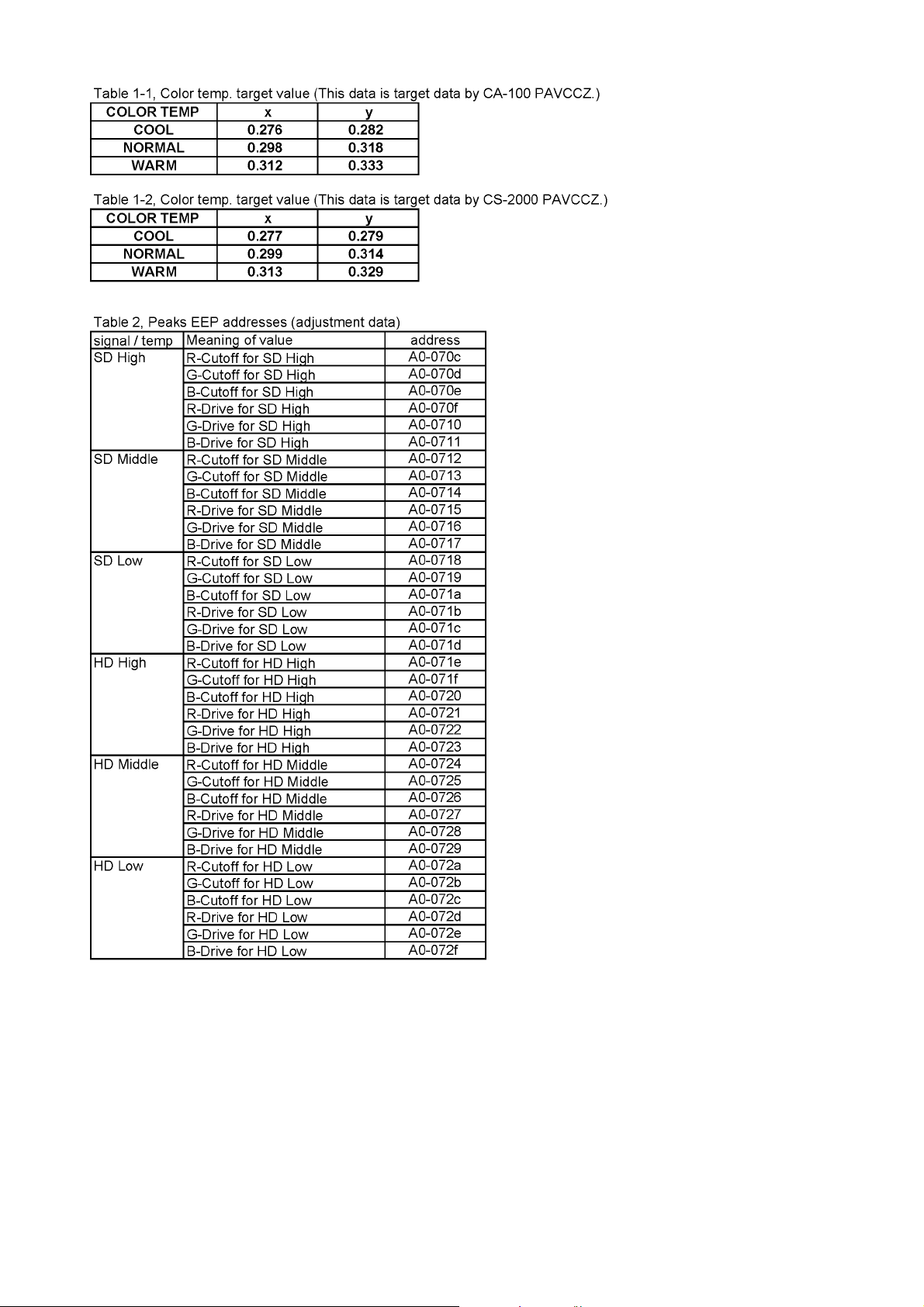

9.1.3. White balance adjustment

The adjusting method is different according to the PEAKS EEPROM version.

[copy adjustment] : Peaks EEPROM ver.1.00[Differential and copy adjustment] : Peaks EEPROM ver.1.**-

Name of measuring instrument Connection Remarks W/ B pattern Color analyzer (Minolta CA-100 or equivalent)

Steps Remarks

[copy adjustment] Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation.

Note:

Copy Adjustment method in service mode. When you push [OK] key in each item, Adjustment data is copied between HD data and SD data.

1. Enter the service mode. Please receive the Analog-RF. Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.)

2. A number key [1] or [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [COOL].

3. A number key [0] is operated and select [METHOD 01].

4. A number key [5] is operated and [INNER PATTERN] is displayed.

Panel surface

Picture menu : Dynamic ASPECT : 16:9

Condition is same at alternative method too.

METHOD=01 copy adjustments

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-]. Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [D0].

7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive so x, y become the [COLOR TEMP COOL] in the below table1.

8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

9. Set color temp to [NORMAL] using [7] key.

10. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].

11. Set [G-DRIVE] at [D0].

12. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP NORMAL] in the below table1.

13. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

14. Set color temp to [WARM] using [7] key.

15. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].

16. Set [G-DRIVE] at [D0].

17. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP WARM] in the below table1.

18. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

19. Confirm [METHOD=01].

Please refer table2-3 to address.

Asking matter to execute white balance difference adjustment. Please feed back the DAC value in the adjusted each color temperature in an internal pattern.

Page 30

Steps Remarks

[Differential and copy adjustment]

Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB of HD (or PAL) copies the adjustment data from an adjusted format side.

Note:

The adjustment does only color temp. [NORMAL]. A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by operating a [OK] key. As for WB of HD (or RF), the adjustment data from an adjusted format side is copied simultaneously. Text color of the adjusted value changes into red → black at the same time too.

1. Enter the service mode. Please receive the Analog-RF. Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.)

2. A number key [1] and [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [NORMAL].

3. A number key [0] is operated and select [METHOD 03].

4. A number key [5] is operated and [INNER PATTERN] is displayed.

METHOD=03 Differential and copy adjustment

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-]. Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [D0].

7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive so x, y become the [COLOR TEMP NORMAL] in the table 1.

8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

9. A number key [0] is operated and select [METHOD=01].

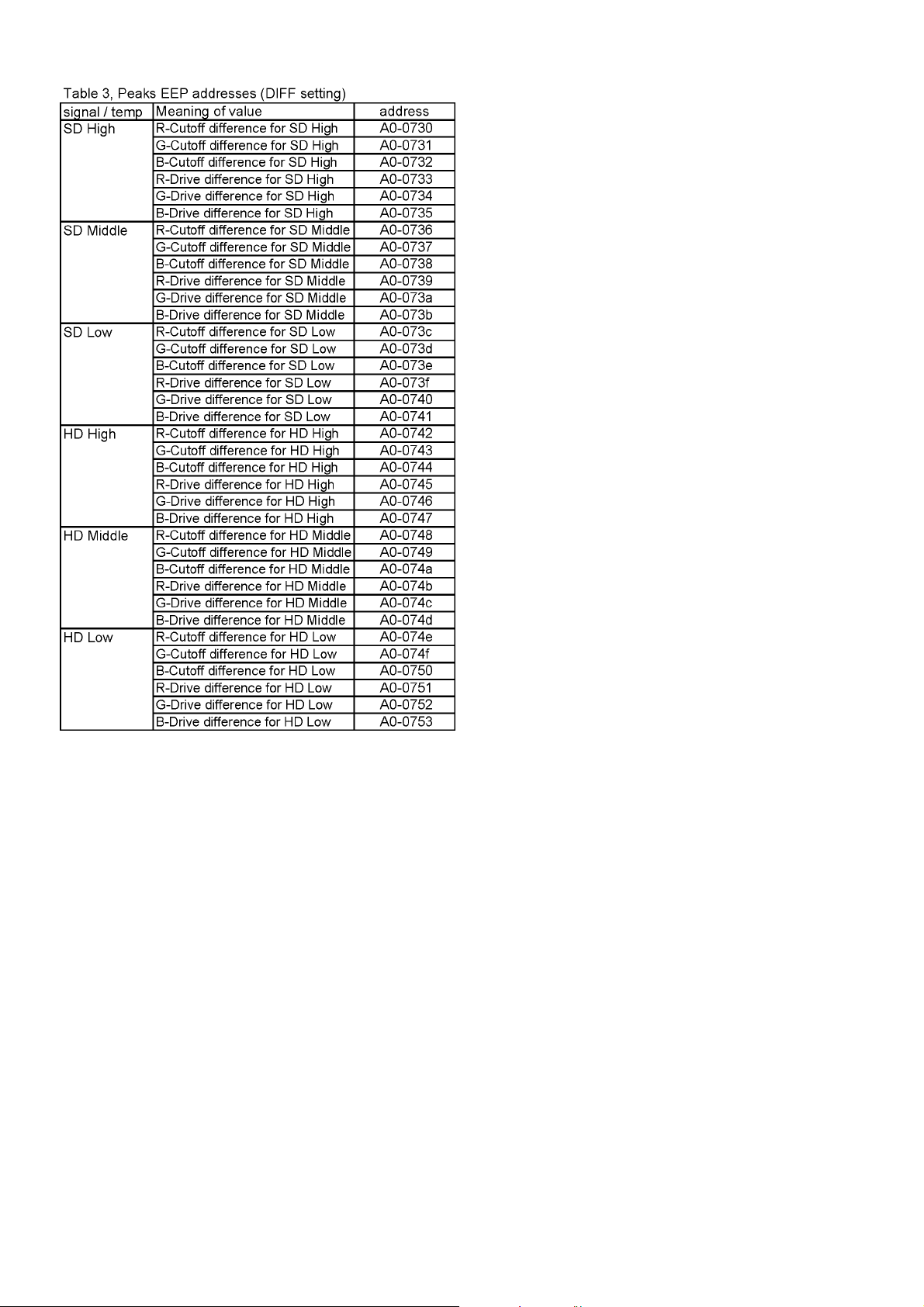

Please refer table2-3 to address.

Page 31

Page 32

Page 33

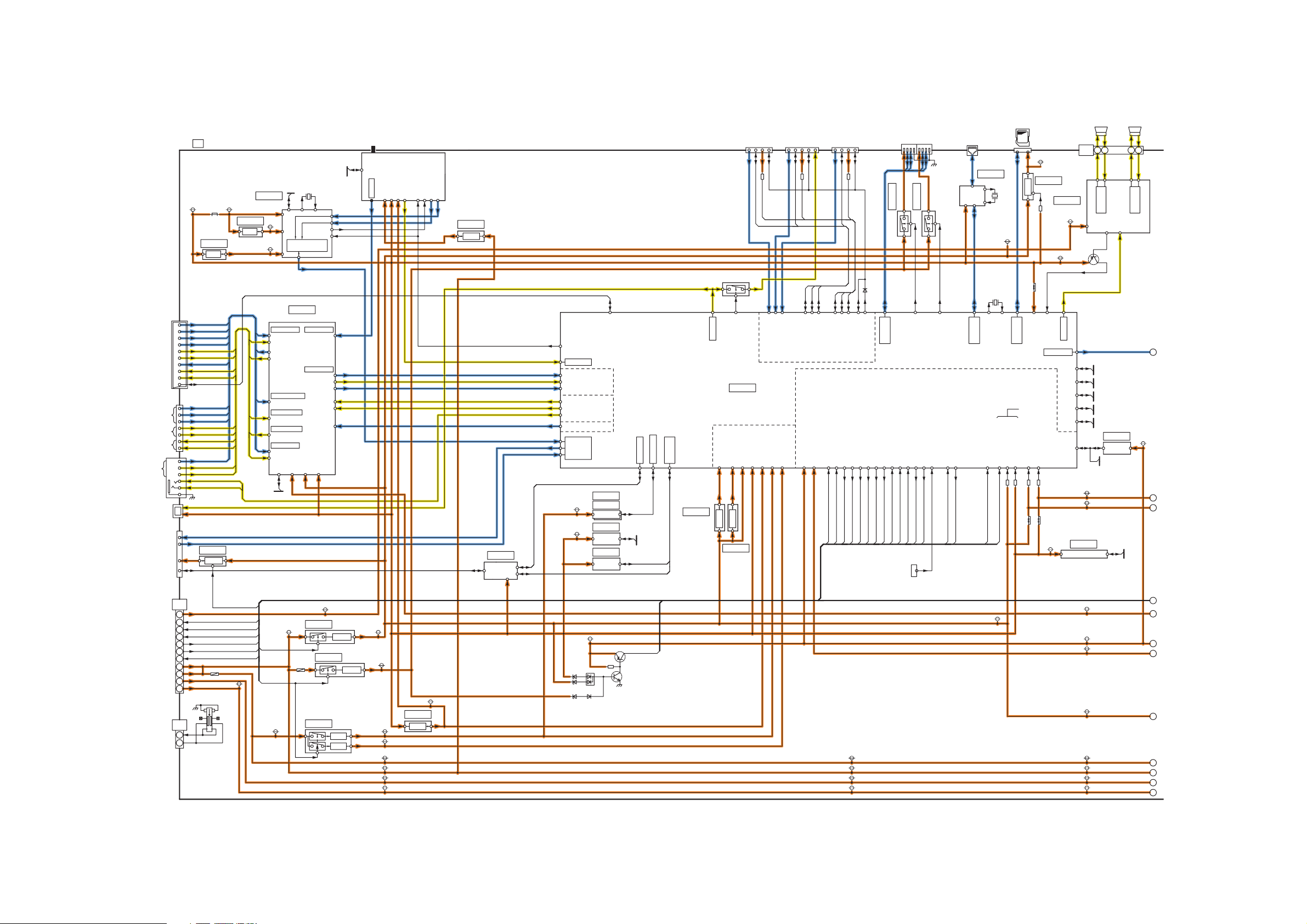

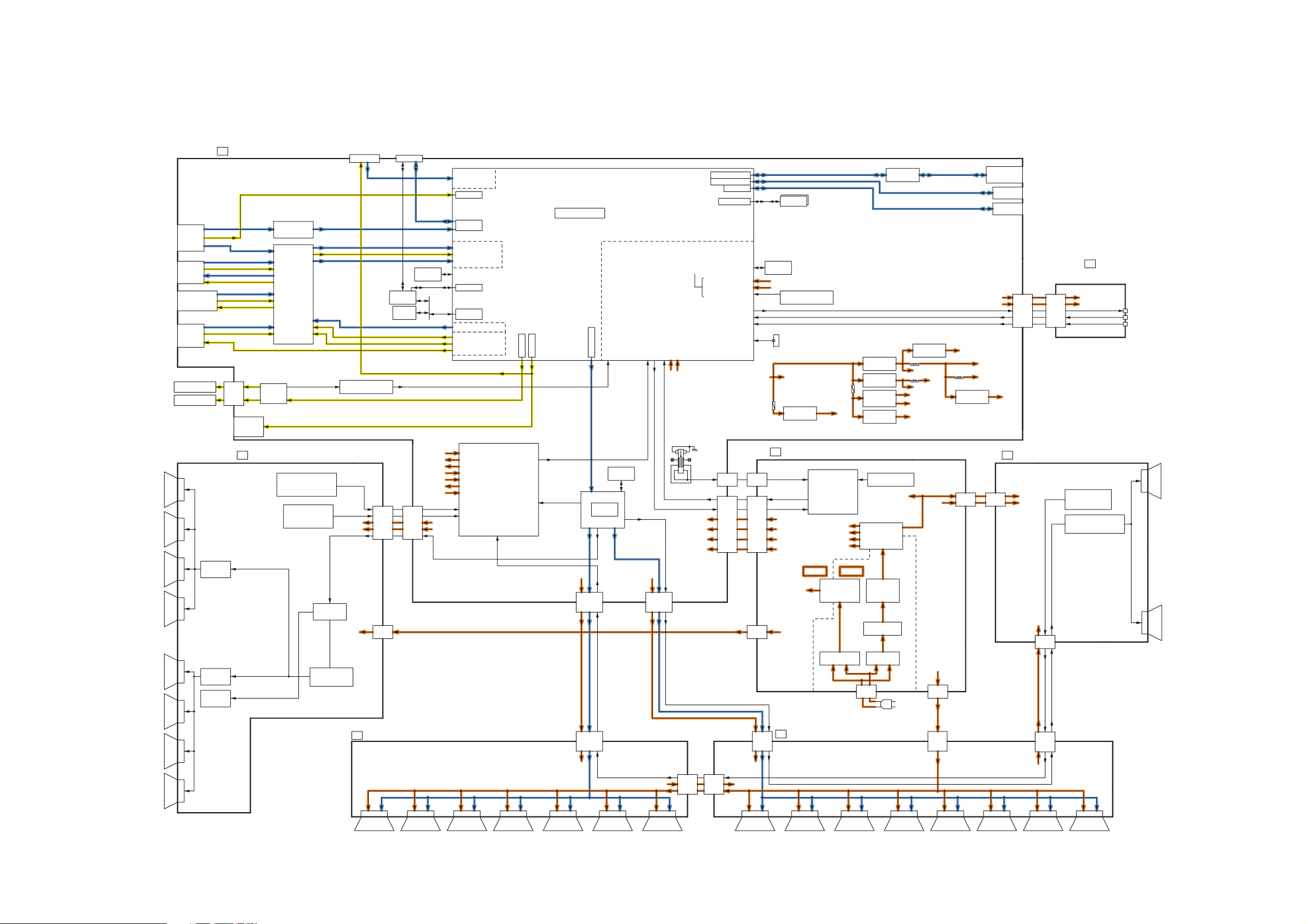

10 Block Diagram

10.1. Main Block Diagram

MAIN AV INPUT,PROCESSING

IFD_OUT

SIF_OUT

TUNER

V/R/G/B

L/R

V OUT

AV1

L/R OUT

L/R

HP L/R

SCAN DRIVER

BUFFER

Y/PB/PR

L/R

L/R OUT

A11

DIGITAL

AUDIO

OUT

AUDIO

AMP

SCAN DRIVE

COMPONENT

AUDIO OUT

AV2

HEAD_ PHONE

SPEAKER(L)

SPEAKER(R)

OFDM

AV SW

SN-BOARD ENERGY RECOVERY SOS DETECT

(LED:6TIMES)

SN-BOARD FLOATING PART SOS DETECT

(LED:7TIMES)

VSCAN GEN.

VAD GEN.

TS(FE)

Y/PR/PB

L/R

RGB_CVBS

CONTROL PULSE

HDMI1-3

ARC (HDMI2)

SOUND_SOS DET

(LED:12TIMES)

SOS6_SC1

SOS7_SC2

P+5V

P+15V

SCAN CONTROL

VSUS

TMDS DATA

SN20

SN2

CI SLOT

CI BUFFER

NAND FLASH

A20

Parallel_ TS(CI)

PEAKS EEPROM

CI DATA

CPU BUS

DVB_CVBS

LO1_L/R

LO2_L/R

HP_L/R

STB1.2V

STB3.3V

SUB5V

SUB9V

P+3.3V

SOS6_SC1

SOS7_SC2

STB5V

F15V

P+5V

P+15V

SCAN CONTROL

HDMI I/F RECEIVER

SIF I/F

TS I/F

Y/PR/PB

L/R

AV IN

CI I/F

CPU BUS I/F

VDAC

VIDEO OUT

LO1_L/R

AUDIO

LO2_L/R

OUT

HP_L/R

DIGITAL_AUDIO_OUT

ANALOG-ASIC

(LED:9TIMES)

SOS6_SC1

SOS7_SC2

(LED:8TIMES)

ARC (HDMI2)

PWM

(LED:6TIMES)

(LED:7TIMES)

SOS8_SS

PWM

SOS_DCC

IECOUT

PEAKS-LDA3

P+3.3V

LVDS I/F

LVDS DATA

VIDEO

DATA

A31

VIDEO DATA

LP1

SOS8_SS

(LED:12TIMES)

SOUND_SOS

PANEL_SOS

SPI FLASH

STM

SUSTAIN CONTROL

VIDEO DATA

(LED:4TIMES)

SOS4_PS

PANEL_SOS

PANEL_MAIN_ON

P+5V

A32

(LED:10TIMES)

(LED:3TIMES)

(LED:5TIMES)

P+3.3V_DET

P+5V_DET

P+5V

P+3.3V

PUSH

POWER SWITCH

MAIN_SW1

SOS4_PS

PANEL_MAIN_ON

STB5V

P+15V

F15V

SOUND15V

SUSTAIN CONTROL

VIDEO DATA

P+5V

LAN CON I/F

SD CARD I/F

USB I/F

DDR3 I/F

SUB5V_SENSE

SUB3.3V_SENSE

TUNER_POWER_SOS

LED_R/G

REMOTE_IN

C.A.T.S_SENSOR

A35

KEY1

P34

F15V

STM EEPROM

SUB5V

SUB3.3V

TUNER_POWER_SOS

KEY SWITCH

MAIN SW1

STB5V

P+15V

F15V

SOUND15V

VSUS

DDR3

(LED:10TIMES)

F15V

DCDC

USB5V

POWER SUPPLY

POWER MICOM

PS SOS4 (LED:4TIMES)

ON/OFF CONTROL

COLD HOT

STB5V

USB5V

Vda

P+15V

F15V

SOUND15V

STANDBY VOLTAGE CONVERTER

RECTIFIER

DCDCIN

DCDC

P+3.3V

DCDC

SUB5V

DCDC SUB1.5V SUB1.2V

DCDC

P+1.1V

P-BOARD SOS DETECT

MAIN CONVERTER

POWER FACTOR CONTROL

RECTIFIER

RELAY

ETHERPHY

AC CORD

SUB1.5V

SUB1.2V

P+1.1V

VSUS

P+2.5V

P+3.3V

SUB5V

DCDC

ETHERNET DATA

SD CARD DATA

P+5V

VSUS

P+15V

Vda

P35

P+2.5V

DCDC

SUB1.8V

P11

ETHERNET

SD CARD

USB

USB_1-2

POWER LED REMOTE RECEIVER C.A.T.S. SENSOR

SUB3.3V

STB3.3V

SUB3.3V

VDDSD 18V33V

SUB1.8V

SS11

SUSTAIN DRIVE

VSUS

P+15V

P+5V

SOS8_SS

SS-BOARD SOS DETECT

(LED:8TIMES)

VSUS GEN. VE GEN. ENERGY RECOVERY

SUSTAIN CONTROL

SUB3.3V

STB3.3V

LED_R/G

REMOTE_RECEIVER

C.A.T.S_SENSOR

SS33

DATA DRIVER (RIGHT)

DATA DRIVER

VDA

VIDEO DATA

DATA DRIVER

C11

P+3.3V

DATA DRIVER

SOS8_SS

P+3.3V

DATA DRIVER

DATA DRIVER (LEFT)

C21

P+5V

P+3.3V

C20

C10

DATA DRIVER

SOS8_SS

SUSTAIN CONTROL

VDA

VIDEO DATA

DATA DRIVER

C25

VDA

DATA DRIVER

C23

P+5V

DATA DRIVER

Page 34

10.2. Block (1/4) Diagram

JK3707

SIDE

HEADPHONE

PANEL_MAIN_ON

STB5V_SW_ON

TUNER_SUB_ON

JK3002

AV1

JK3100

COMPONENT

AUDIO IN

AUDIO OUT

AV2

D3015

DIGITAL AUDIO OUT

CN8400

CI SLOT

SOUND15V

SOS4_PS

MAIN_SW_1

MAIN_SW_2

P_S1

P_S0

F15V

P+15V

STB5V

P34 A35

MAIN AV INPUT,PROCESSING

SUB3.3V

L6700

IC6750

1.2V

AV1_VIN

AV1_RED

AV1_GREEN

AV1_BLUE

AV1_LIN

AV1_RIN

AV1_VOUT

AV1_LOUT

AV1_ROUT

AV1_QLINK

LIN

RIN

LOUT

ROUT

LIN

RIN

HP_L

HP_R

DIGITAL AUDIO OUT

Parallel_TS(CI_IN)

Parallel_TS(CI_OUT)

IC8404

CI_5V

PA2005

PUSH

SW2000

POWER SWITCH

T2_3.3V

CI_POWER_ON

PANEL_MAIN_ON

SOS4_PS

STB5V_SW_ON

TUNER_SUB_ON

STB5V

IC6701

2.5V

P_S1

P_S0

IC6700

OFDM

2.5V

T2_

1.2V

DCDCEN2

DCDCEN

DCDCIN

IIC3

DVB T/T2/C DEMODULATOR

AV1

V/R/G/B

L/R

VOUT

L/ROUT

COMPONENT

Y/PB/PR

AUDIO IN

L/R

AUDIO OUT

L/ROUT

AV2

L/R

IIC3

F15V

IC3001

AV SW

SOUND15V

PA5400

X6700

41.0MHz

DVB_CVBS

IF_AGC

FE_XRST

TUNER

RF_CVBS

MAIN

Y/PR/PB

LO1_L/R

LO2_L/R

3.3V

IC8701

IC8100

L/R

IC5440

+1.5V

+1.2V

DMD_ IIC0

SUB5V

+5V

SUB1.5V SUB1.2V

USB5V

+5V

ANT IN

SUB5V

SUB1.5V

SUB1.2V

DCDCIN

P+15V

STB5V

F15V

VIDEO

USB5V

TU4801

TUNER

3.3V

1.8V

SIF_OUT

SUB1.8V

IC8702

+1.8V

FE_XRST

IF_AGC

IFD_OUT1

IFD_OUT2

IC4800

TU5V

RGB_CVBS

DVB_CVBS

Parallel_TS(DVB/FE)

IC8403

CI BUFFER

USB5V

SUB5V

FE_XRST

SIF I/F

Y/PR/PB

L/R

LO1_L/R

LO2_L/R

HP_L/R

VDAC

TS I/F

SUB1.5V

SUB3.3V

D8712

SUB3.3V

D8713

D8719

AV IN

AUDIO OUT

VIDEO OUT

CI DATA

PEAKS EEPROM

STB3.3V

D8711

D8720

IC8200

IC8201

DDR3

IC8902

IC8900

NAND FLASH

QLINK1

Q8711

CI I/F

IIC1

CPU BUS

TUNER_ POWER_SOS

Q8709

OVERVOLTAGE DETECTION

DDR3 I/F

CPU BUS

I/F

IC8706

HDMI3.3V

IECOUT

HDMI3.3V

HDMI

AVDD3.3V

TMDS DATA

Q4514

ARC_OFF

IC8000

PEAKS-LDA3

AVDD3.3V

SUB5V

AVDD

IC8714

JK4703

HDMI IN 3

CLOCK

DDC_IIC1

VCC

SUB3.3V

+5V

SUB1.8V

HDMI_

5VDET1

RX2

HDMI_CEC

RX1

SUB1.5V

JK4702

+5V

TMDS DATA

CLOCK

DDC_IIC4

HDMI_

5VDET2

RX0

DDC_IIC2

HDMI I/F RECEIVER

STM

STB3.3V

SUB1.2V

ARC

HDMI_CEC

DDC_IIC0

DDC_IIC1

STB1.2V

JK4700

HDMI IN 1HDMI IN 2

TMDS DATA

CLOCK

HDMI_5VDET2

XRSTSTM

XRST

XRSTSTM

XRST

DCDCIN

F15V

P+15V

STB5V

+5V

DDC_IIC0

HDMI_

HDMI_5VDET0

HDMI_5VDET1

DRVRST

LP1_XRSTSYS

DRVRST

VOL.DN/CH.DN

HDMI_CEC

5VDET0

PULL_ON

HDMI_CEC

HDMI_CEC_

SDVOLC

R_LED_ON

TUNER_SUB_ON

R_LED_ON

SDVOLC

TUNER_SUB_ON

KEY SWITCH

USB I/F

G_LED_ON

TV AV

C.A.T.S

SW2001 SW2002VOL.UP/CH.UP SW2003 SW2004 SW2005

JK8601

USB1,2

USB SW

IC8602

USB1VBUS

PANEL_SOS

REMOTE_IN

C.A.T.S_SENSOR

PANEL_MAIN_ON

REMOTE_IN

PANEL_MAIN_ON

PANEL_SOS

USB SW

IC8603

KEY1

CI_POWER_ON

KEY1

CI_POWER_ON

USB0VBUS

POWER_DET

JK8600

ETHERNET

SW_OFF_DET

IC8601

ETHERPHY

24.576MHz

LAN CON

I/F

SUB5V

X8600

25MHz

SUB5V

X8300

AXO

AXI

SOS4_PS

TUNER_POWER_SOS

(LED:4TIMES)

SOS4_PS

TUNER_POWER_SOS

SD DATA:4bit

SD CARD

I/F

(LED:10TIMES)

SUB5V_SENSE

SUB3.3V_SENSE

VJ8702

CN8600

SD CARD

SD3.3V

IC8604

SD3.3V

+3.3V

VJ8699

LVDS I/F

VDDSD1.8V3.3V

P+5V_DET

P+3.3V_DET

(LED:3TIMES)

(LED:5TIMES)

VJ8709

SUB3.3V

IC4900

AUDIO AMP

SOUND15V

SUB3.3V

(LED

:12TIMES)

SOUND SOS

IIC0

IIC1

IIC3

DMD_ IIC0

SBI0 SBO0

STM IIC

P+3.3V

TEMP SENSOR

STB3.3V

STB1.2V

DCDCIN

PWM

SUB9V

SUB5V

P+15V

STB5V

P+5V

IC2001

F15V

SPEAKER_L

A11

Q8710

LVDS DATA

SPEAKER_R

L(-)

L_OUT

SPEAKER

SOS

IC8901

STM EEPROM

STM IIC

PWM L/R

IIC3

R(+)

STB3.3V

R(-)

R_OUT

SPEAKER

L(+)

15V

IIC0

IIC1

IIC3

DMD_ IIC0

SBI0 SBO0

Page 35

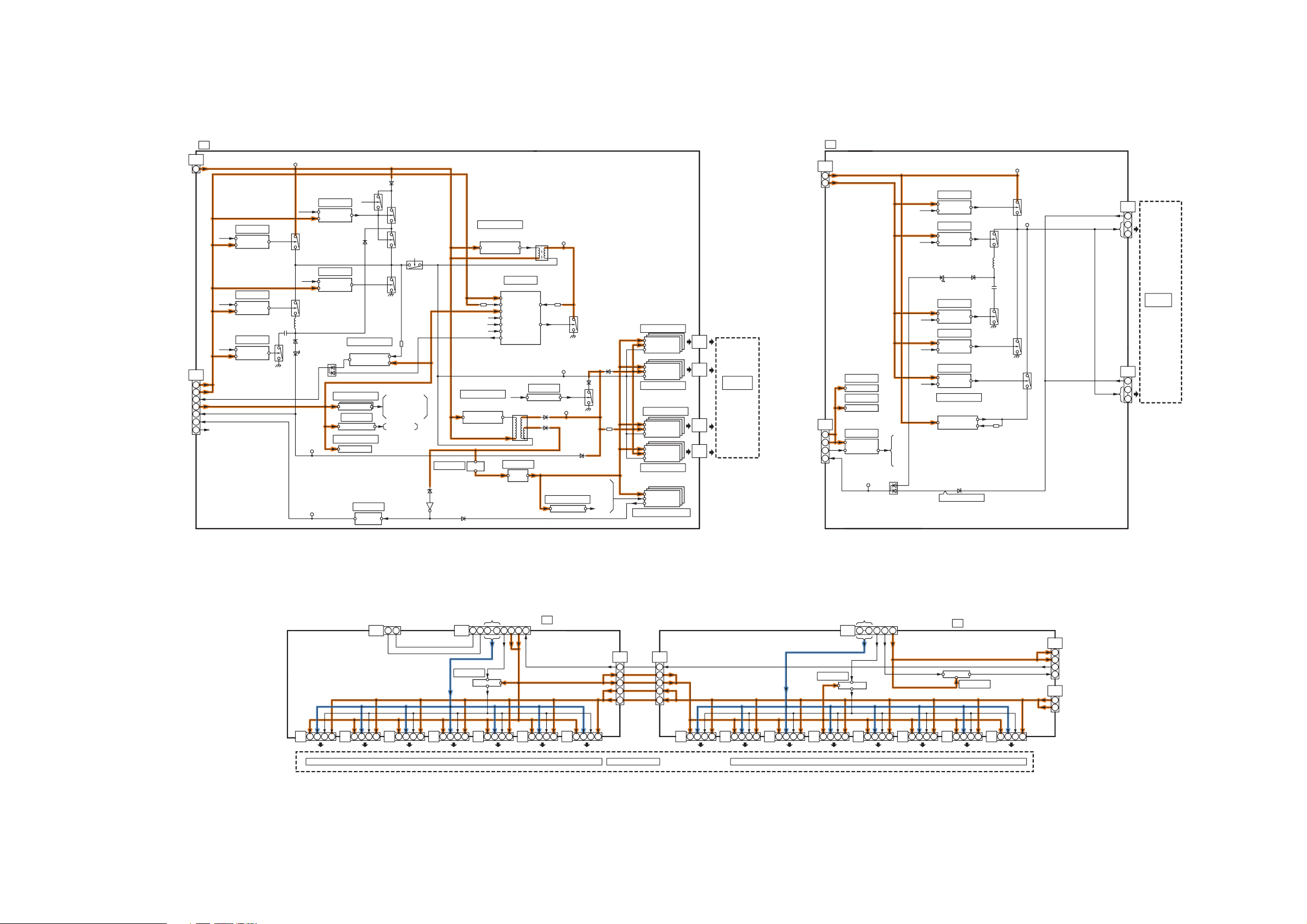

10.3. Block (2/4) Diagram

MAIN AV INPUT,PROCESSING

LVDS DATA

SUB9V

DCDCEN0

DCDCEN2

XRST

SOS6_SC1

SOS7_SC2

SOS8_SS

SOS_DCC

PANEL_SOS

POWER_DET

SW_OFF_DET

F15V

STB5V

IC5000

DTV15V

SUB9V

DCDC_CTL

DTV_RST

SOS6_SC1 (LED:6TIMES) SOS7_SC2

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

SOS_DCC

(LED:9TIMES)

PANEL_SOS

POWER_DET

ANALOG-ASIC

SD_UHS

STB+3.3V

STB+1.2V

STBRST

DRVRST_ IN

DRVRST_ OUT

BUFF_EN

UHZ

SUB5V

IC5002

ASIC 5V

+5V

SDVOLC

STB5V_SW_ON

STB3.3V

STB1.2V

XRSTSTM

DRVRST

PDP_DRVRST

SC_UHZ

P+3.3V

D_UHZ

F15V

IC8707

DCDCEN

P+3.3V

+3.3V

P+3.3V

DCDCIN

P_S0

P_S1

DCDCEN

LP1_XRSTSYS

PDP_DRVRST

DCDCEN0

DCDCEN

IC8704

+2.5V

IC8700

P+2.5V

P+1.1V

+1.1V

IC9304

SPI FLASH

LVDS DATA

SI/SO

D9806

D9807

IC9300

PLASMA AI CPG H/V Sync Control Sub Filed Processor

FLASH I/F

P_S0

P_S1

3.3V

2.5V

1.1V

OFF_FLAG

XRST

XRSTSYS

PDP_DRVRST

LP1

DISCHARGE CONTROL

DATA DRIVER CONTROL

SUSTAIN CONTROL

X9300

SCAN CONTROL

SOS_DCC

C11

A31

VIDEO DATA

IIC0

SOS8_SS

IC9400,01,02

SCAN DATA BUFFER

UHZ

D_UHZ

SOS_DCC

VIDEO DATA

P+3.3V

SOS8_SS

DATA DRIVER CONTROL

C21

A32

VIDEO DATA

DATA DRIVER CONTROL

SUSTAIN CONTROL

P+5V

P+3.3V

P+5V

SUB9V

STB3.3V

STB1.2V

SUB5V

DCDCIN

F15V

P+15V

STB5V

P+3.3V

P+5V

IC6776

3.3V

STB3.3V

B2_3.3V

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

SC_UHZ

SOS6_SC1

SOS7_SC2

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

SUB_AI3.3V

STB3.3V

P+3.3V

P+5V

P+15V

A20

CN0100

IIC0 IIC1 STM_IIC SBO0/SBI0

POWER LED REMOTE RECEIVER C.A.T.S. SENSOR

D2820

POWER LED

SN20

P+5V

SCAN CONTROL

UHZ

SOS6_SC1

SOS7_SC2

P+15V

FOR FACTORY USE

SN2810

C.A.T.S SENSOR

RM2810

REMOTE RECEIVER

Page 36

10.4. Block (3/4) Diagram

POWER SUPPLY

AC CORD

COLD HOT

Fuse (Live) (Neutral)

Relay for prevention of inrush current

Relay for AC input cutting

FILTER

POWER FACTOR CONTROL

COLDHOT

AC Vin Detection

OCP/OVP LATCH

STANDBY VOLTAGE CONVERTER

MAIN CONVERTER

PHOTO COUPLER

T101

T501

FEED BACK

SS11

FET SW

Drop IC

UVP

OCP

POWER MICOM

OVP/UVP/OCP Latch

SW ON/OFF

UVP

OVP/UVP

ERROR DET

P34

P11

P35

Vsus

P+15V

SOUND15V

Vsus

Vda

F15V

STB5V

P+15V

P_S1

P_S0

PANEL_MAIN_ON

TUNER_SUB_ON

SOS4_PS

STB5V_SW_ON

SN2

C25

A35

MAIN SW 1

Page 37

10.5. Block (4/4) Diagram

SCAN DRIVE

SN2

Vsus

IC16501

CMH

BUFFER

SUSTAIN H

IC16502

CSH

BUFFER

RECOVERY H

IC16522

CSL

BUFFER

SCAN CONTROL

A20

P+15V

P+5V

SOS6

SOS7

RECOVERY L

UHZ

SCAN CONTROL

Q16451

TPVSUS

CPH1

Q16401 Q16402

Q16441

MID

D16583 LED(G)

(LED:6 TIMES)

(LED:7 TIMES)

CML

TPSOS6

TPSOS7

IC16684

BUFFER

VOL

IC16521

BUFFER

SUSTAIN L

D16493

Q16607

CML

IC16490,91

VOL ERROR DET

IC16561,62

BUFFER

IC16563

INVERTER

IC16564,65

IC16471

CERS

CPH1

SHUNT REG

D16618

Q16421 Q16422

CML CMH CSH CSL

CRC1

Q16600

Q16601

Q16621 Q16622

CPH1 CIS CERS CEL

CRC2

Q16471

CIS

SEPA

SUSTAIN DRIVE

P11

Vsus

P+15V

IC16784,85

PC16897

IPD CIRCUIT

VAD GEN.

VFG

SHUNT REG

CRC1

CRC2

CEL

IC16921

IGBT CONTROL

T16471

TPVAD

Q16661

IC14601-03

PDP SCAN

DRIVER

SN21 SN22

UMH

USH

USL

UML

MAIN H

IC16131

BUFFER

IC16151

BUFFER

RECOVERY H

D16254

LED(G)

RECOVERY L

IC16152

BUFFER

IC16132

BUFFER

MAIN L

D16825

VSCN-F

SIU OC1 OC2 CLK SEL VHIZ

5V_F

PDP SCAN

DRIVER

IC14604-06

IC14801-03

Vfo

PDP SCAN

DRIVER

PDP SCAN

DRIVER

IC14804-06

LOGIC IC

IC14901,02,04

TPVFG

VFG

IC16691

NAND

D16713 D16714

D16728

Q16660

TPSN1

IC16792,93

VHIZ GEN.

IC16795

D16791

IPD CIRCUIT

D16473

IC16786,87

PC16723

VSCN GEN. SHUNT REG

F15V

SCNR_PRO

SIU OC1 OC2 CLK SEL

15V_F

CEL

T16472

IC16724

+5V

SN23 SN24

SN25 SN26

SN27 SN28

PLASMA PANEL

PANEL SCAN ELECTRODE

SUSTAIN CONTROL

SOS8_SS

IC16243

INV

IC16244

AND

C23

IC16241

P+5V

BUFFER

D16255

TPSOS8

(LED:8 TIMES)

UEH

USL

USH

UML

UMH

UEH

BUFFER

IC16304,12

PC16301

IPD CIRCUIT

VE GEN.

SHUNT REG

D16282

FPC PROTECTOR

IC16191

Q16001 Q16002

Q16041

Q16051

Q16021 Q16022

Q16101 Q16102

TPVSUS

TPSS1

SS 61

PLASMA PANEL

PANEL SUSTAIN ELECTRODE

SS 66

CB1

CB2

KEYSCAN

51 42

KEY

VIDEO DATA

CONTROL DATA

P+3.3V

C14

KEYSCAN

KEY

C11

A31NO USE

IC17102

BUFFER

CB3

CB4

CB5

CB6

DATA DRIVER

SOS8_SS

DATA DRIVER (RIGHT)

CB7

C10

SOS8_SS

P+3.3V

VDA

PLASMA PANEL

C20

CB8

CB9

CB 10

IC17201

A32

54 1

C21

BUFFER

VIDEO DATA

CONTROL DATA

DATA DRIVER

P+5V

SUSTAIN CONTROL

DATA DRIVER (LEFT)

BUFFER

IC17202

CB 14

C23

SS33

P+5V

SOS8_SS

SUSTAIN CONTROL

C25

P35

VDA

CB 15

Page 38

Page 39

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.

11.2. Wiring (1)

Page 40

11.3. Wiring (2)

Page 41

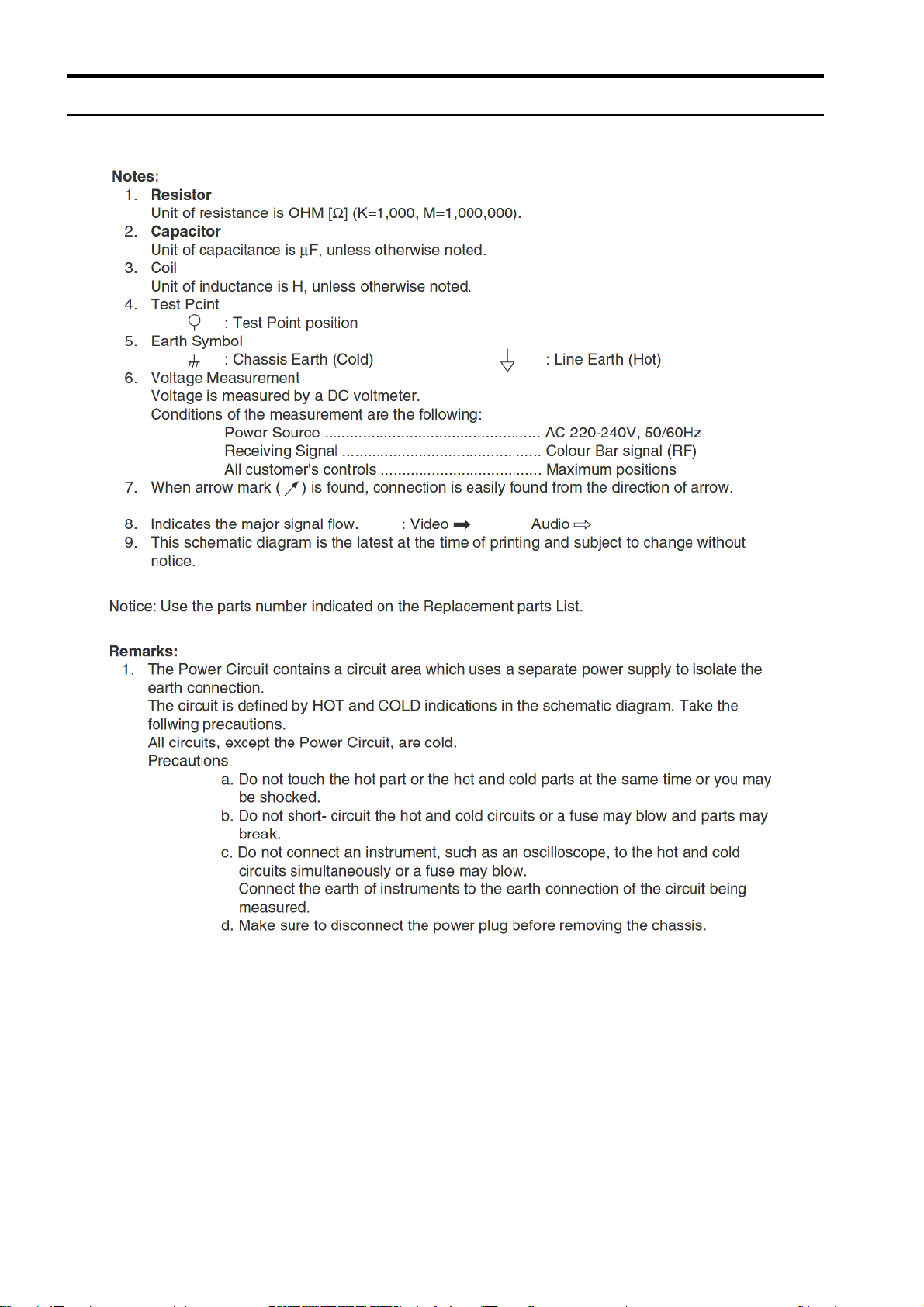

Model No. : TX-P42S30B/Y Schematic Diagram Note

S-1

Page 42

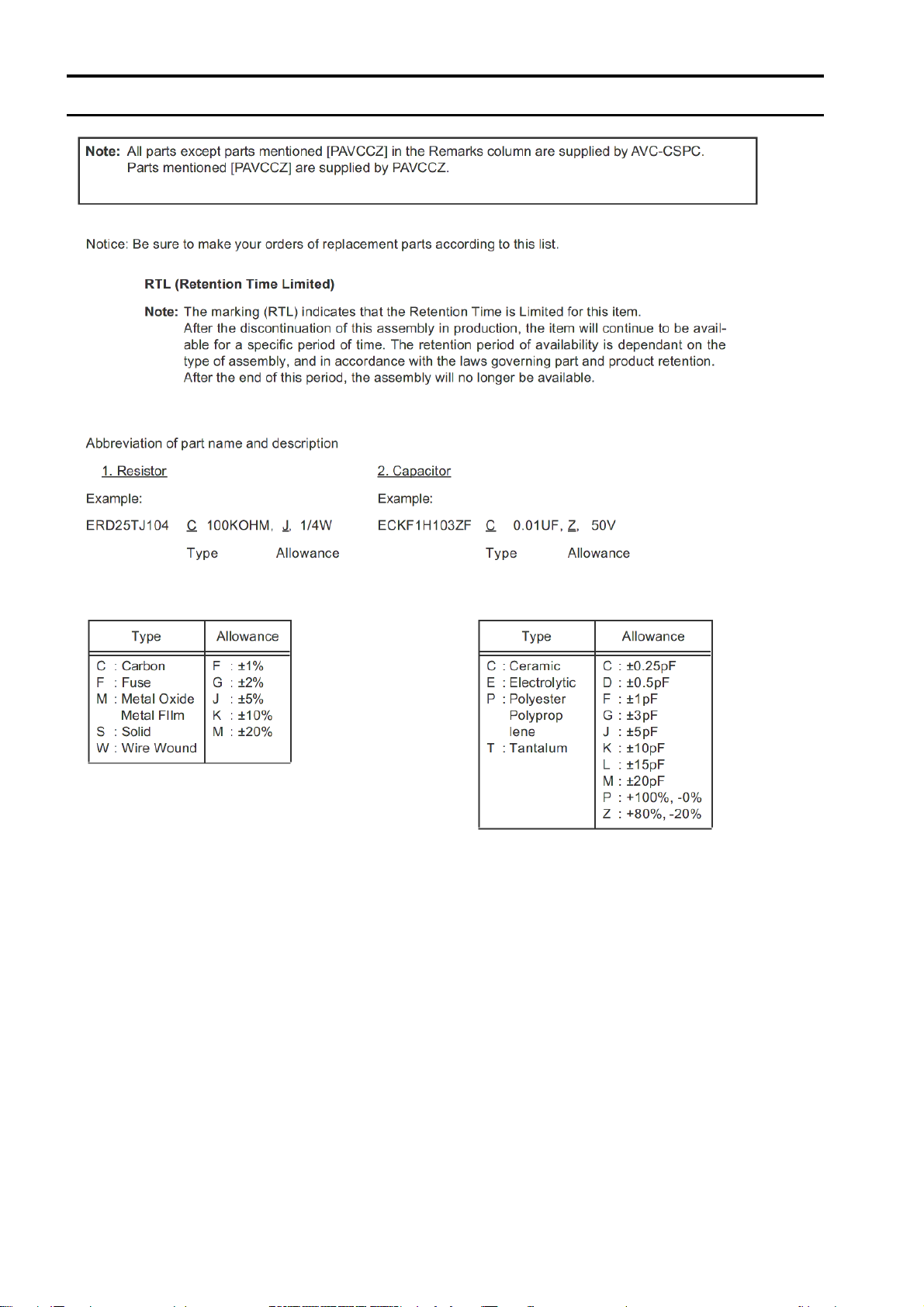

Model No. : TX-P42S30B/Y Replacement Parts List Note

S-2

Page 43

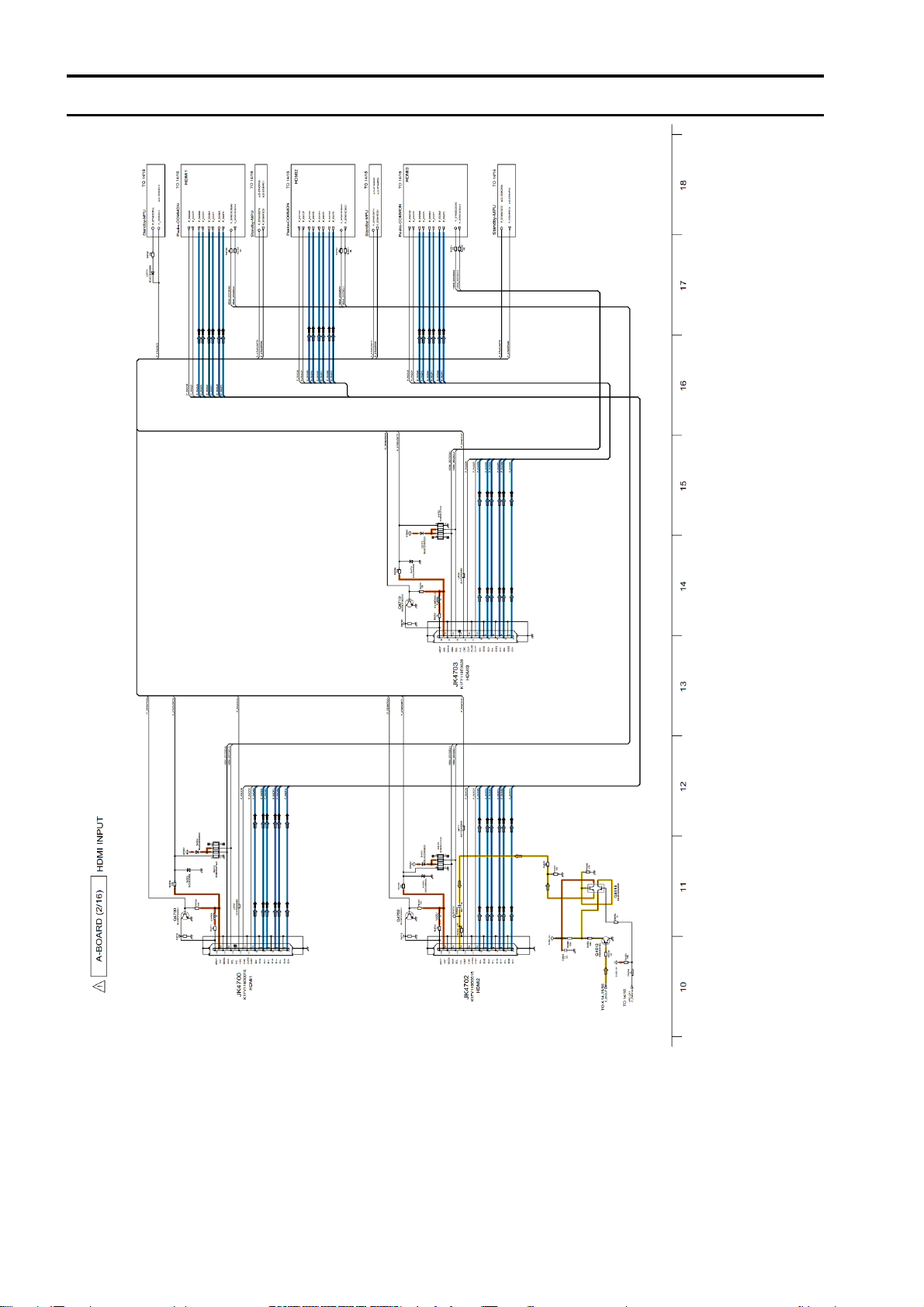

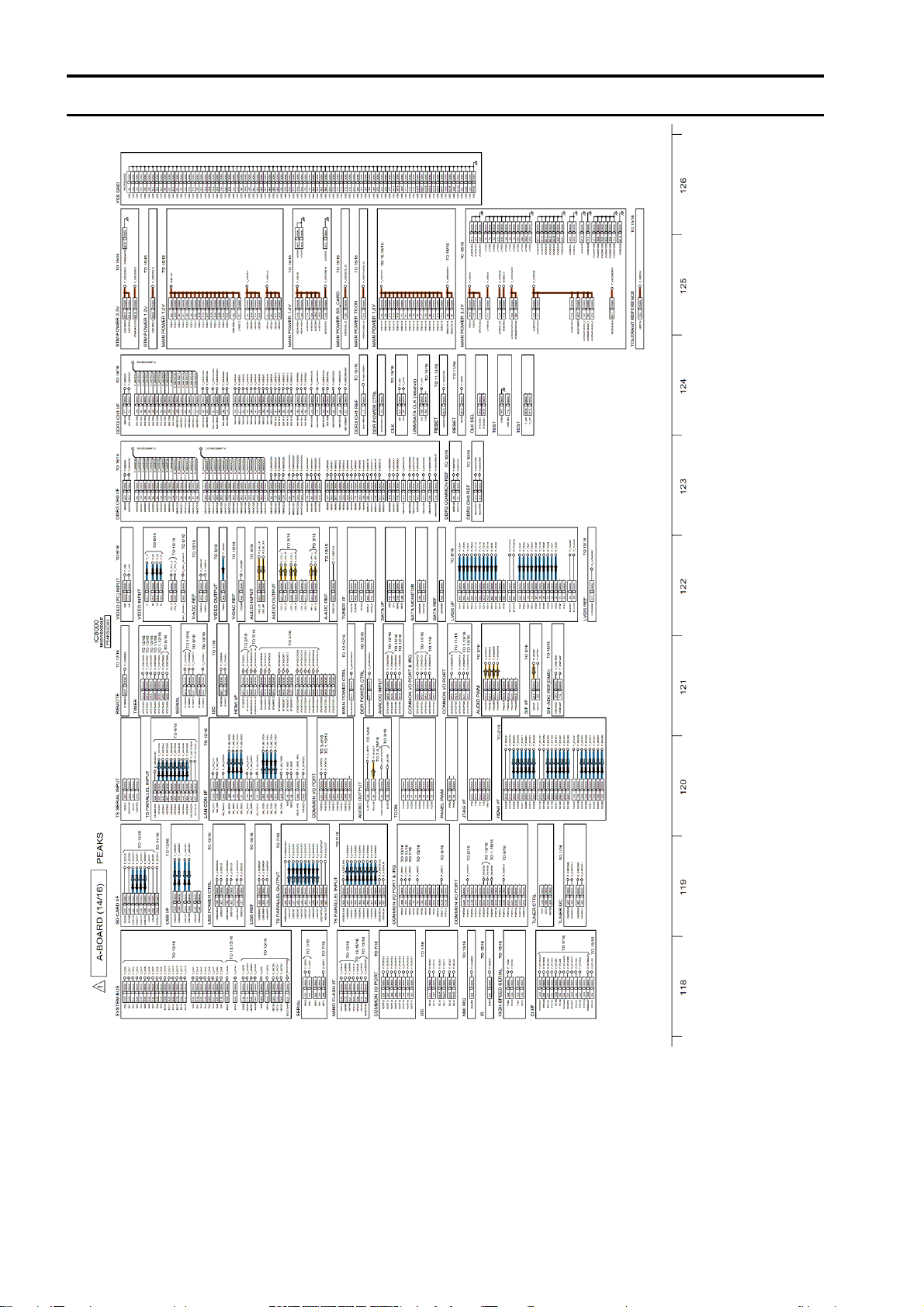

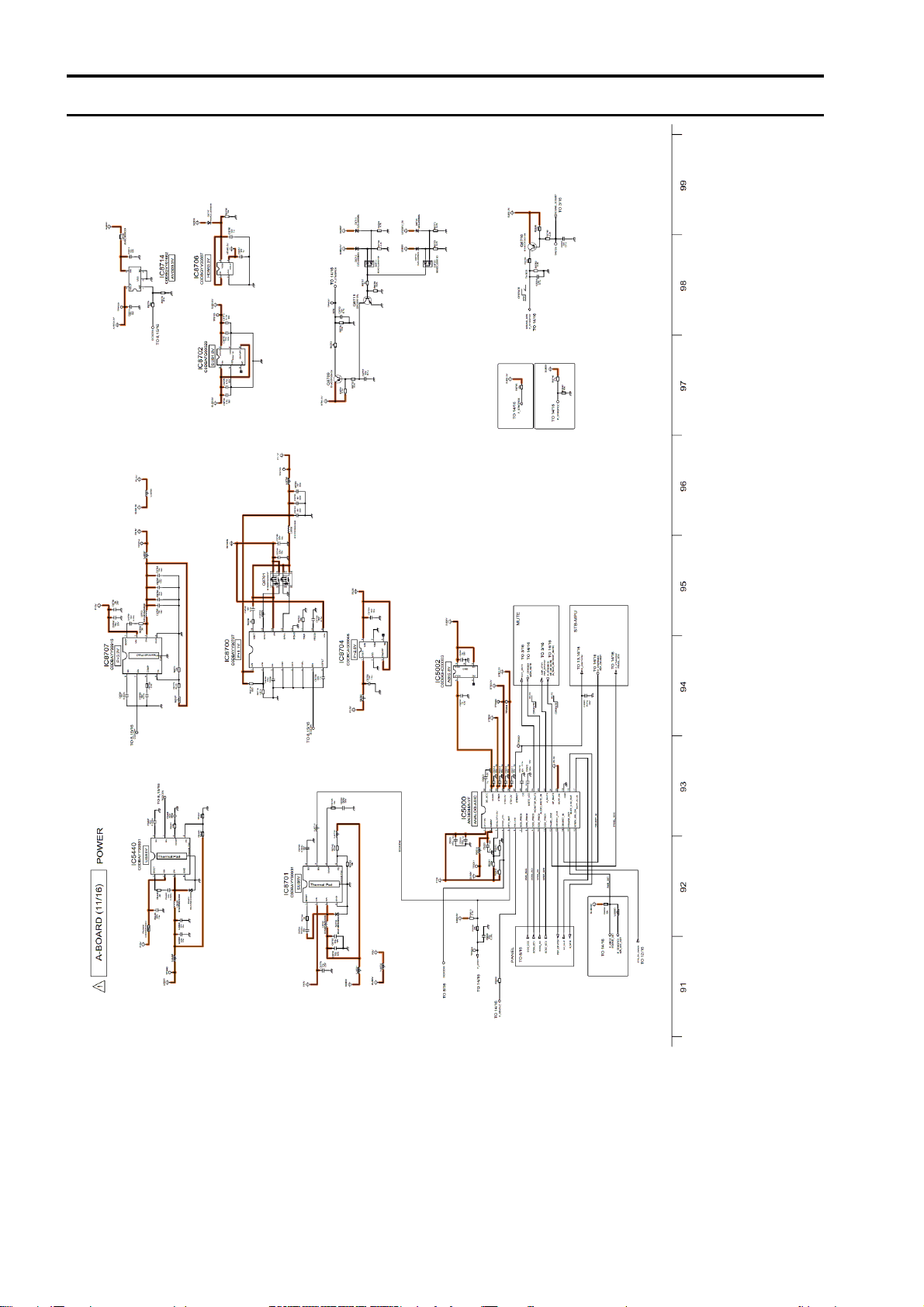

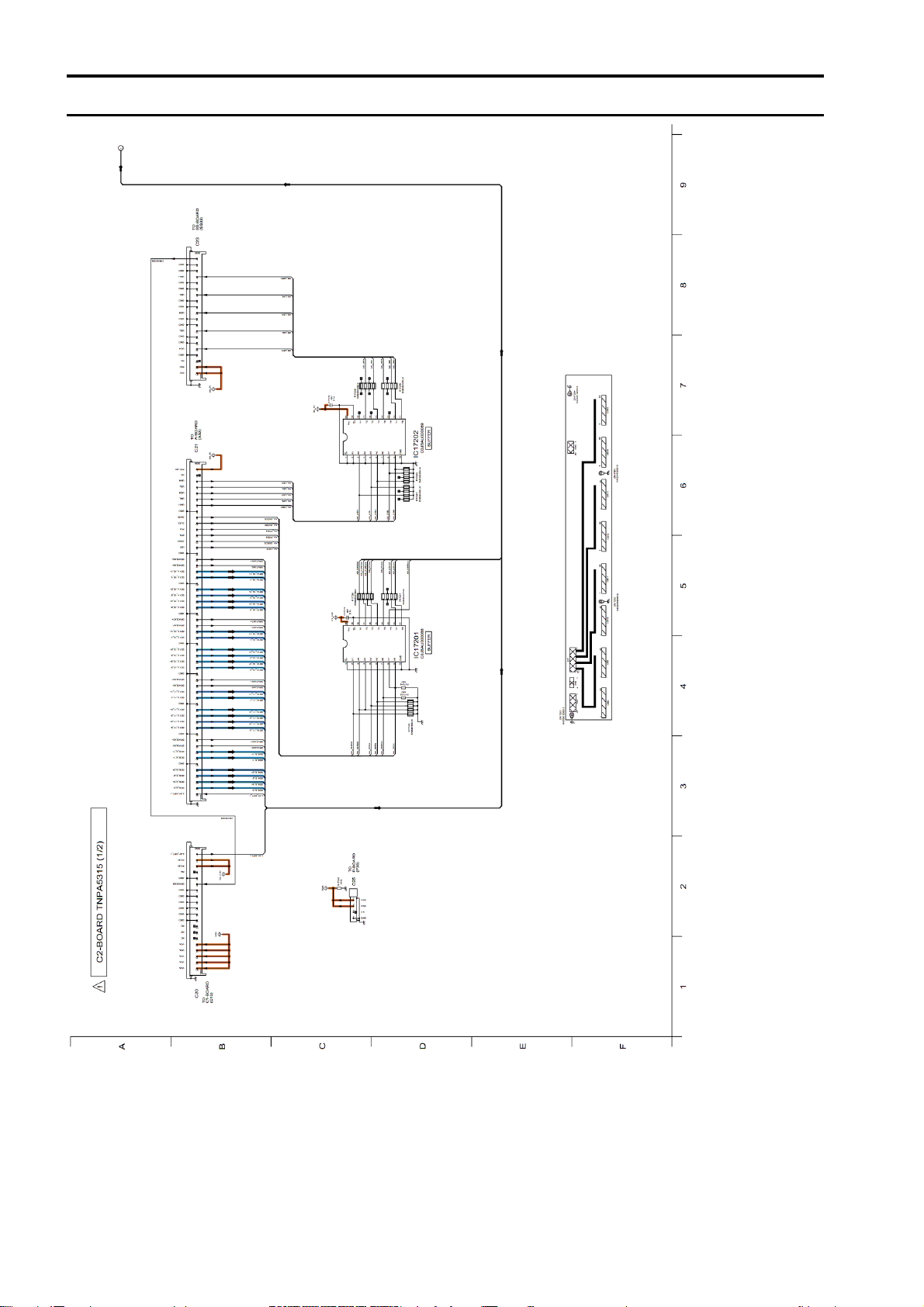

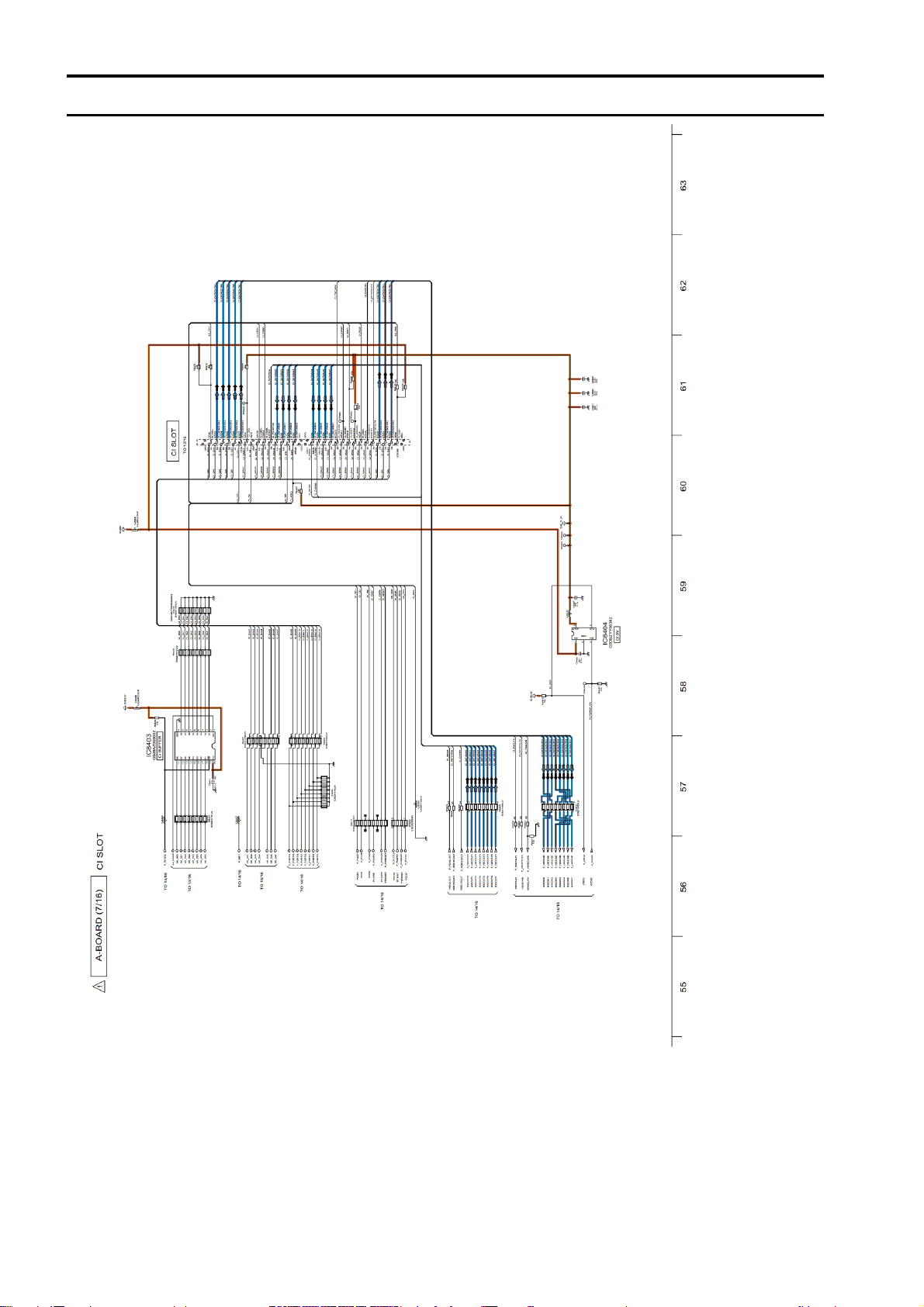

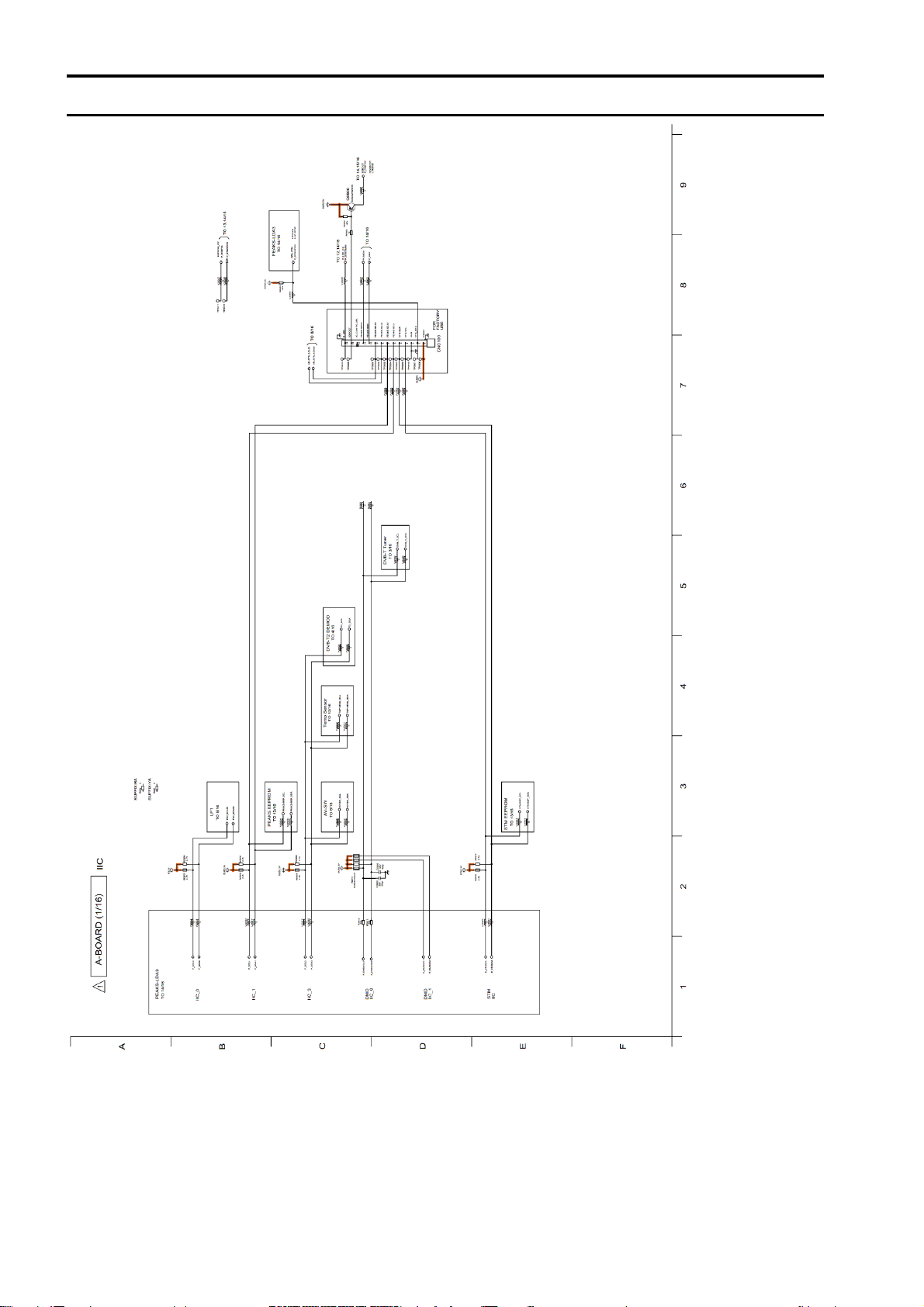

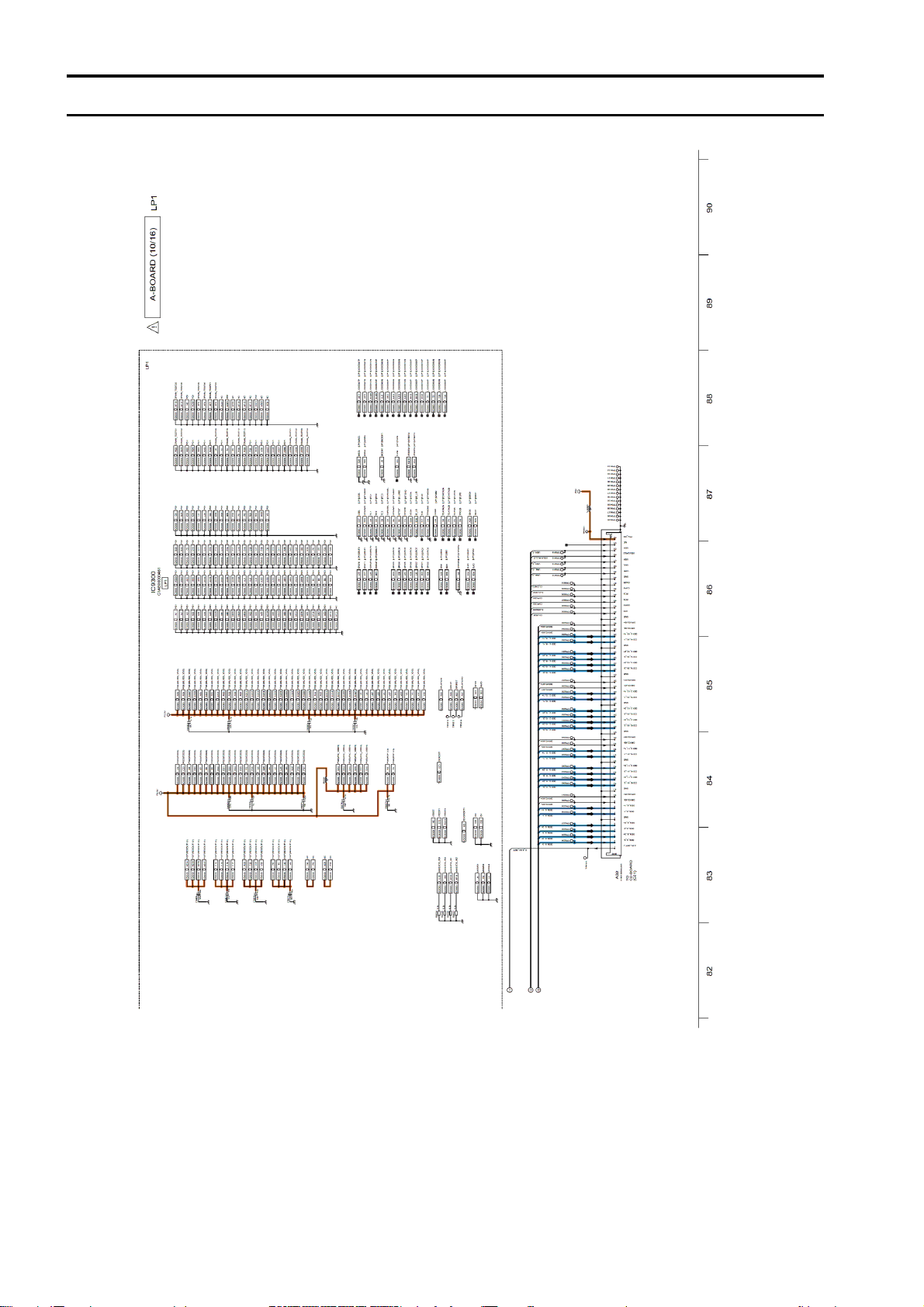

Model No. : TX-P42S30B/Y A-Board (1/16)

S-3

Page 44

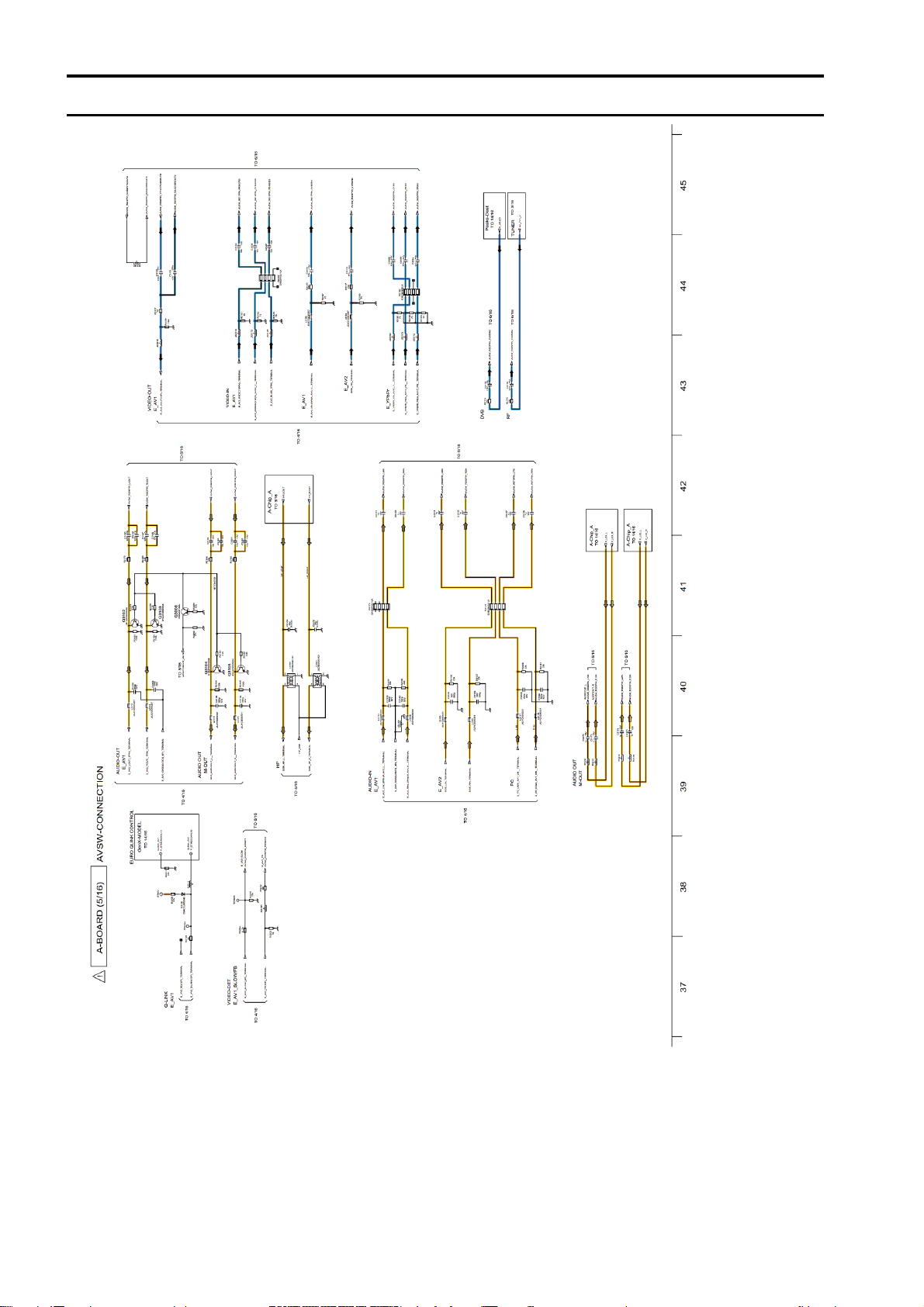

Model No. : TX-P42S30B/Y A-Board (2/16)

S-4

Page 45

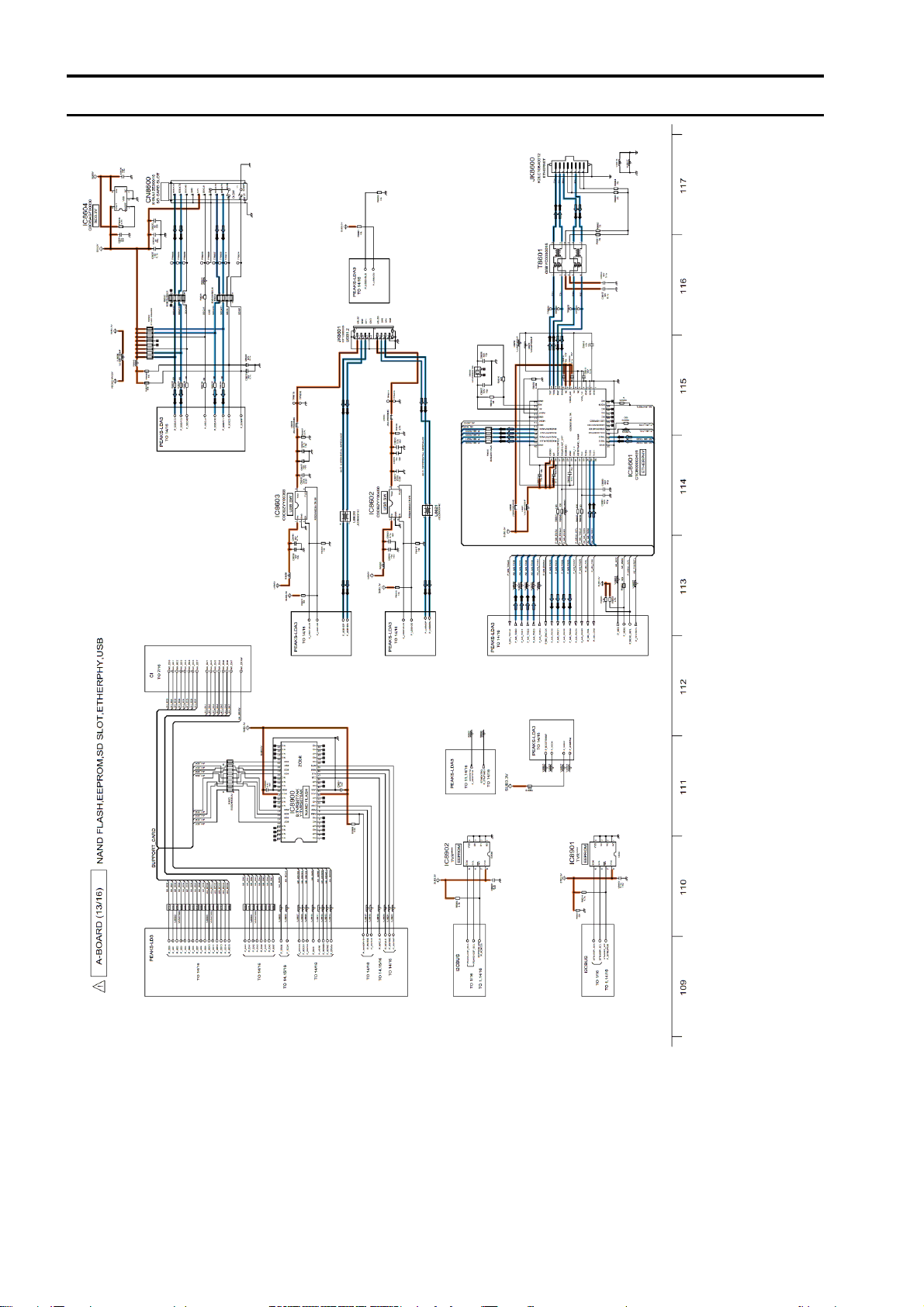

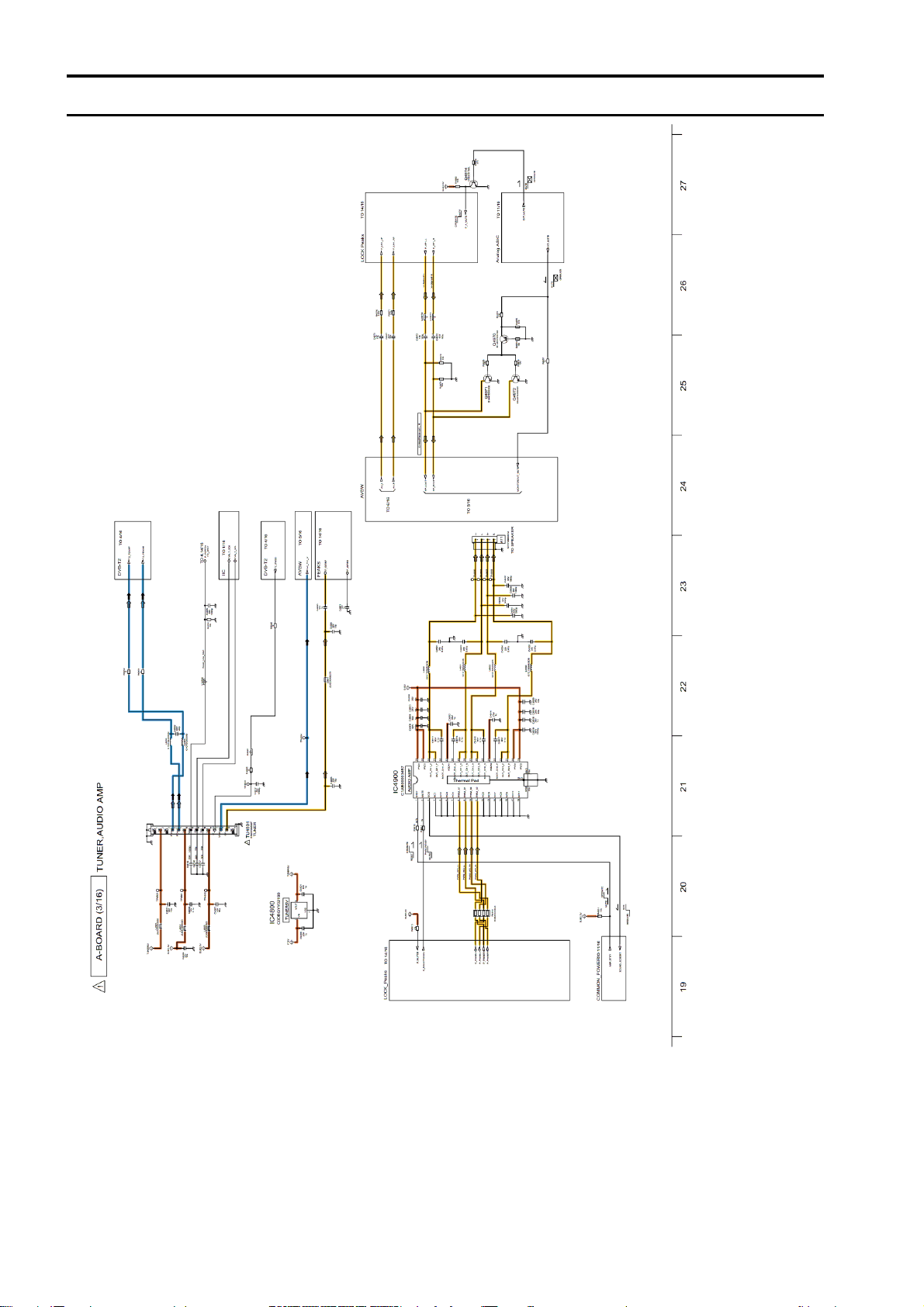

Model No. : TX-P42S30B/Y A-Board (3/16)

S-5

Page 46

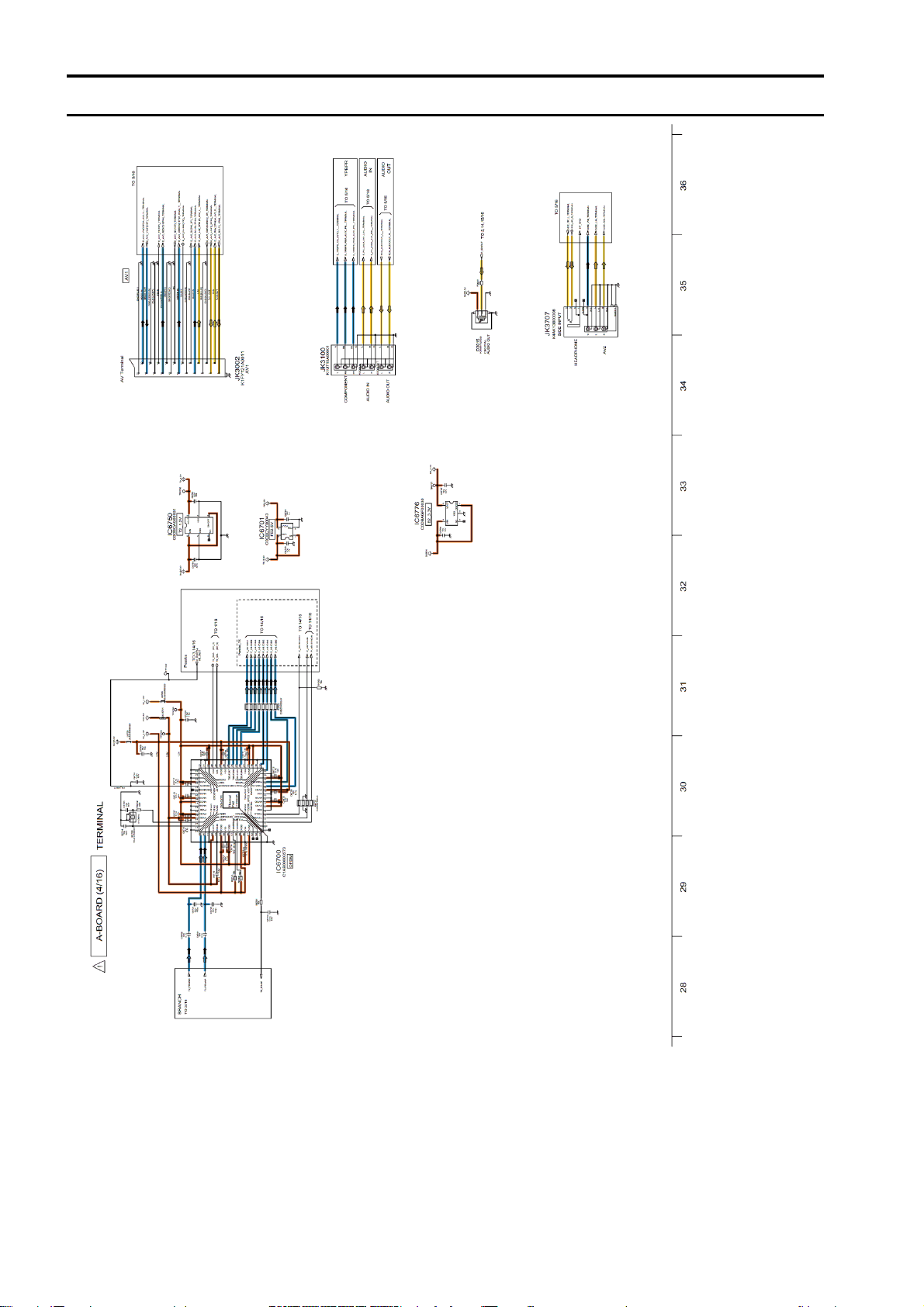

Model No. : TX-P42S30B/Y A-Board (4/16)

S-6

Page 47

Model No. : TX-P42S30B/Y A-Board (5/16)

S-7

Page 48

Model No. : TX-P42S30B/Y A-Board (6/16)

S-8

Page 49

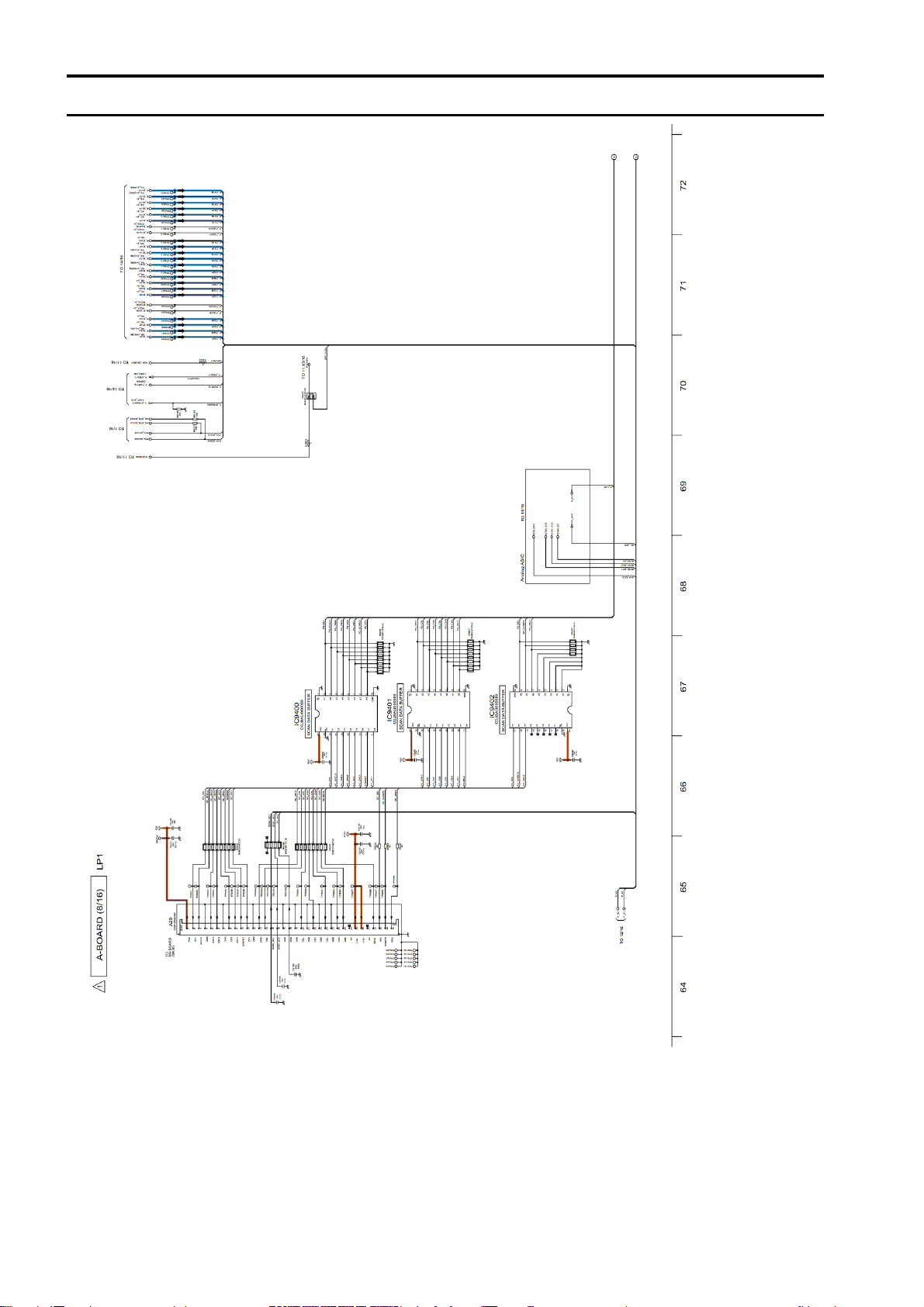

Model No. : TX-P42S30B/Y A-Board (7/16)

S-9

Page 50

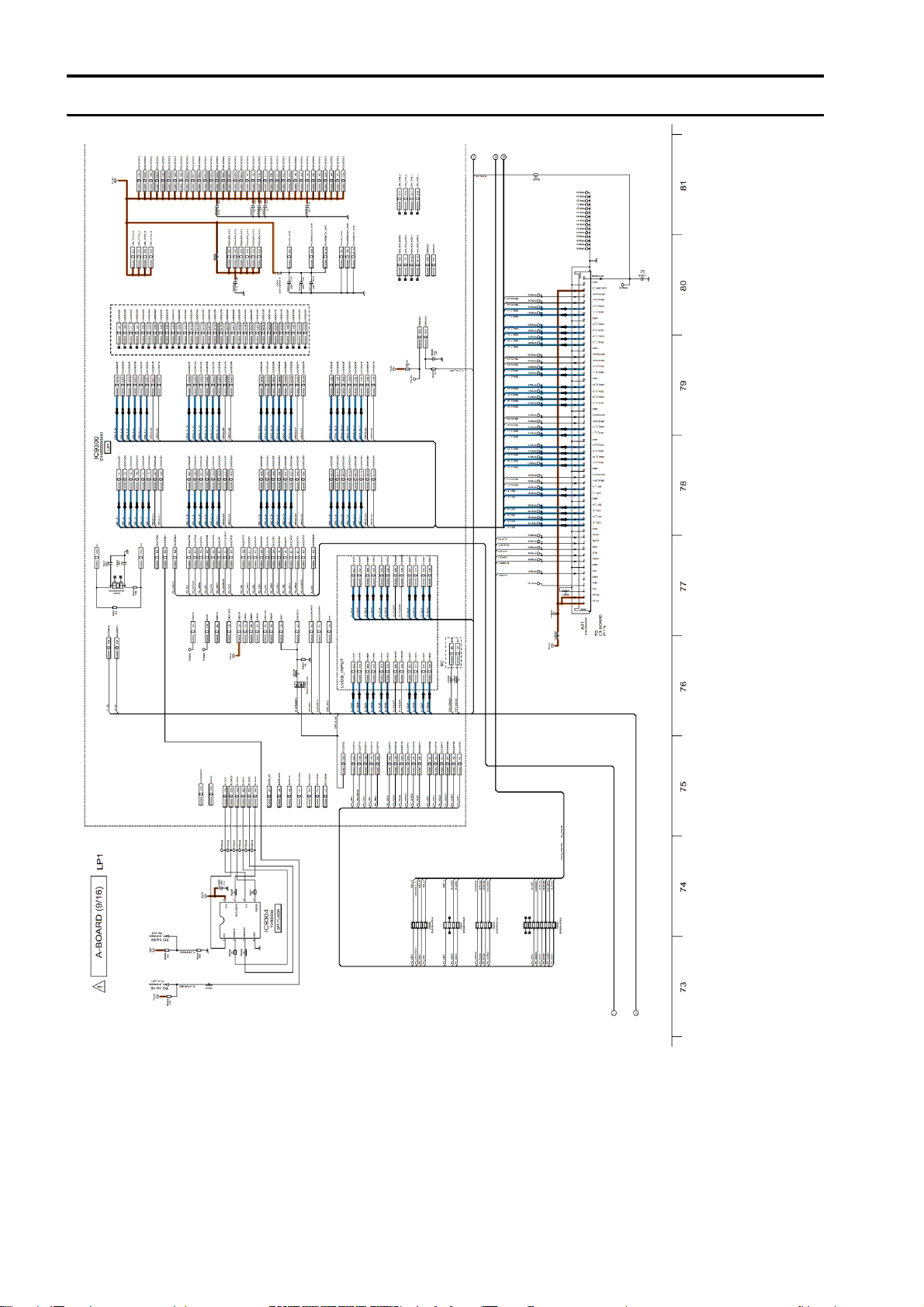

Model No. : TX-P42S30B/Y A-Board (8/16)

S-10

Page 51

Model No. : TX-P42S30B/Y A-Board (9/16)

S-11

Page 52

Model No. : TX-P42S30B/Y A-Board (10/16)

S-12

Page 53

Model No. : TX-P42S30B/Y A-Board (11/16)

S-13

Page 54

Model No. : TX-P42S30B/Y A-Board (12/16) and K-Board

S-14

Page 55

Model No. : TX-P42S30B/Y A-Board (13/16)

S-15

Page 56

Model No. : TX-P42S30B/Y A-Board (14/16)

S-16

Page 57

Model No. : TX-P42S30B/Y A-Board (15/16)

S-17

Page 58

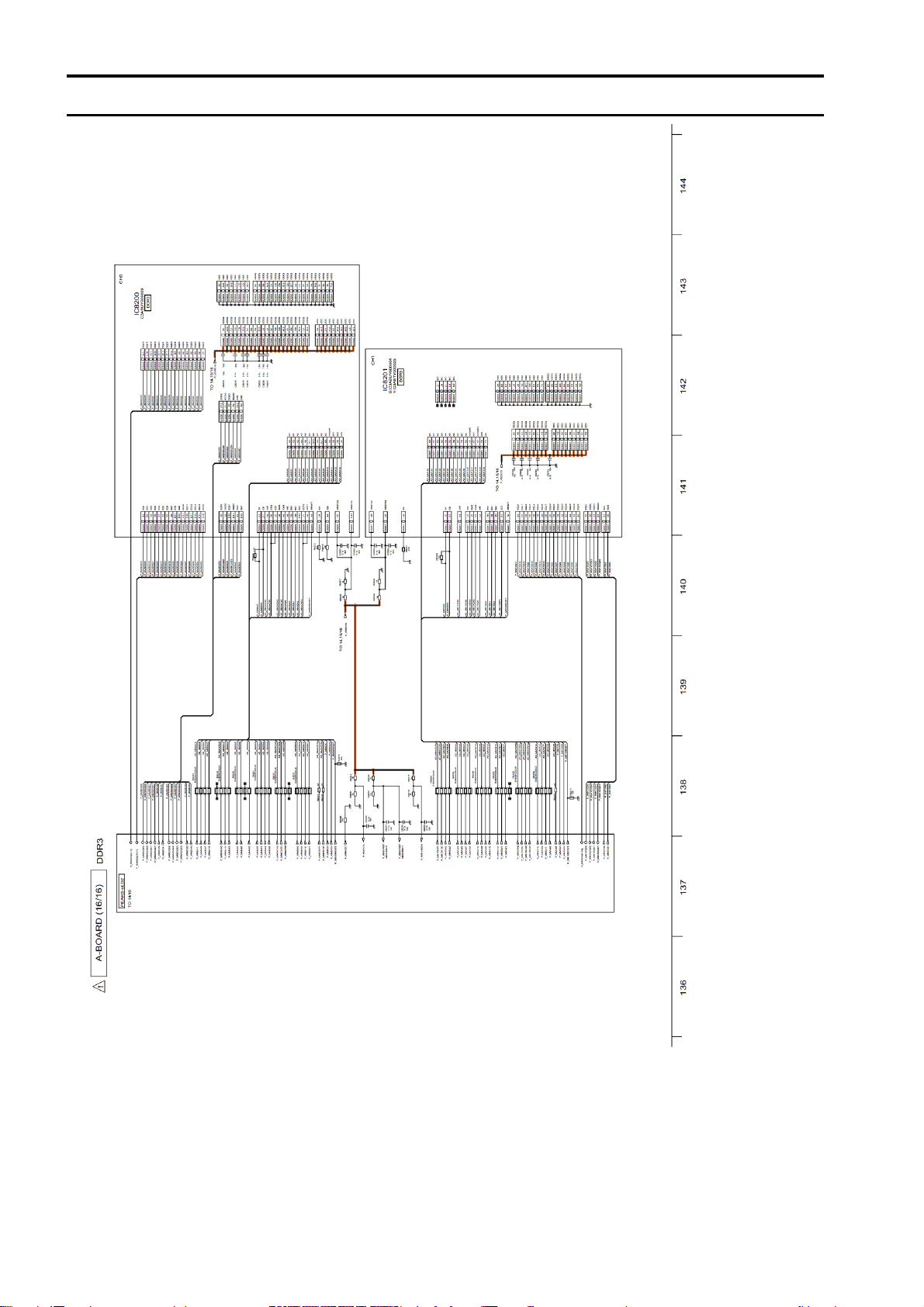

Model No. : TX-P42S30B/Y A-Board (16/16)

S-18

Page 59

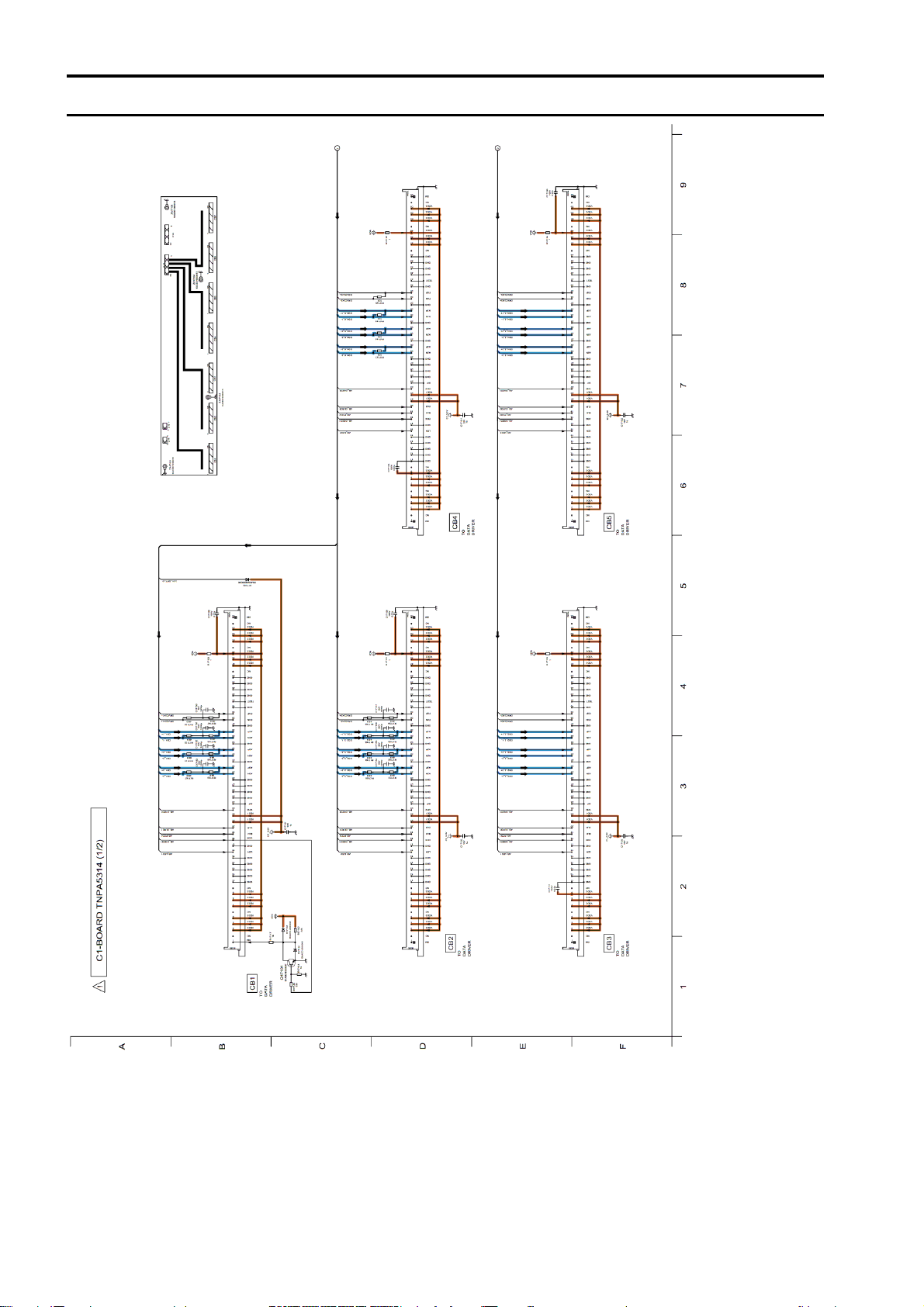

Model No. : TX-P42S30B/Y C1-Board (1/2)

S-19

Page 60

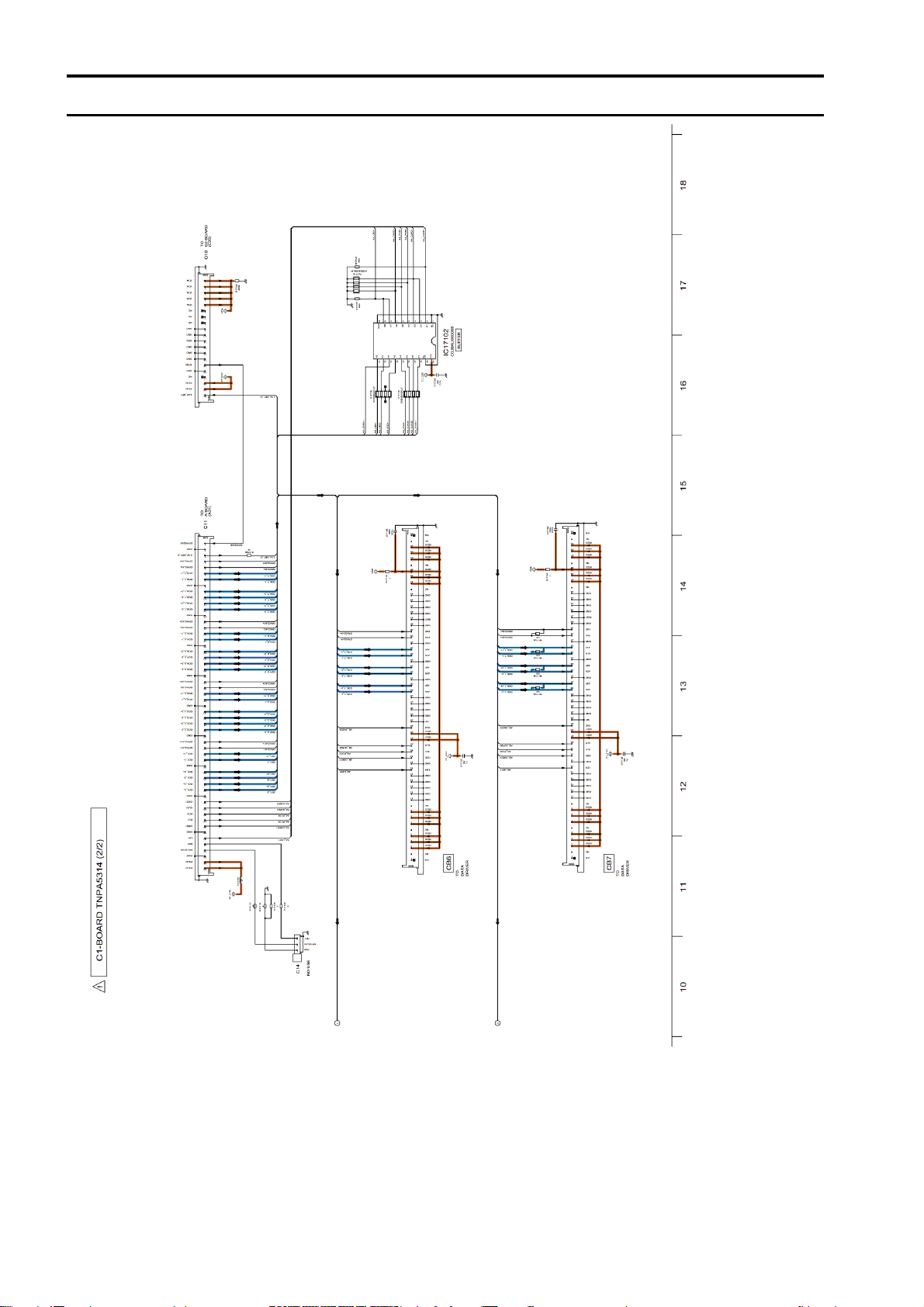

Model No. : TX-P42S30B/Y C1-Board (2/2)

S-20

Page 61

Model No. : TX-P42S30B/Y C2-Board (1/2)

S-21

Page 62

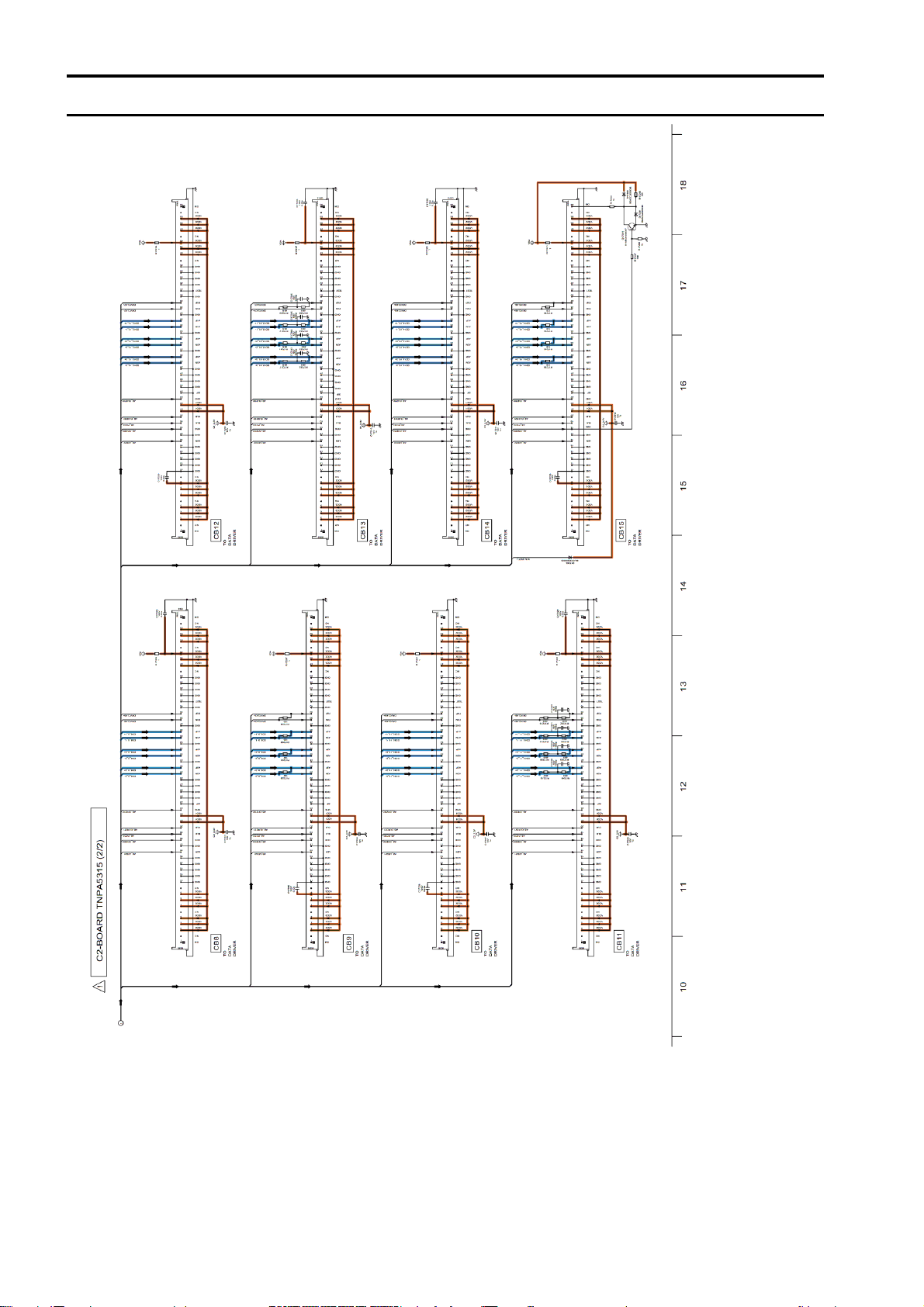

Model No. : TX-P42S30B/Y C2-Board (2/2)

S-22

Page 63

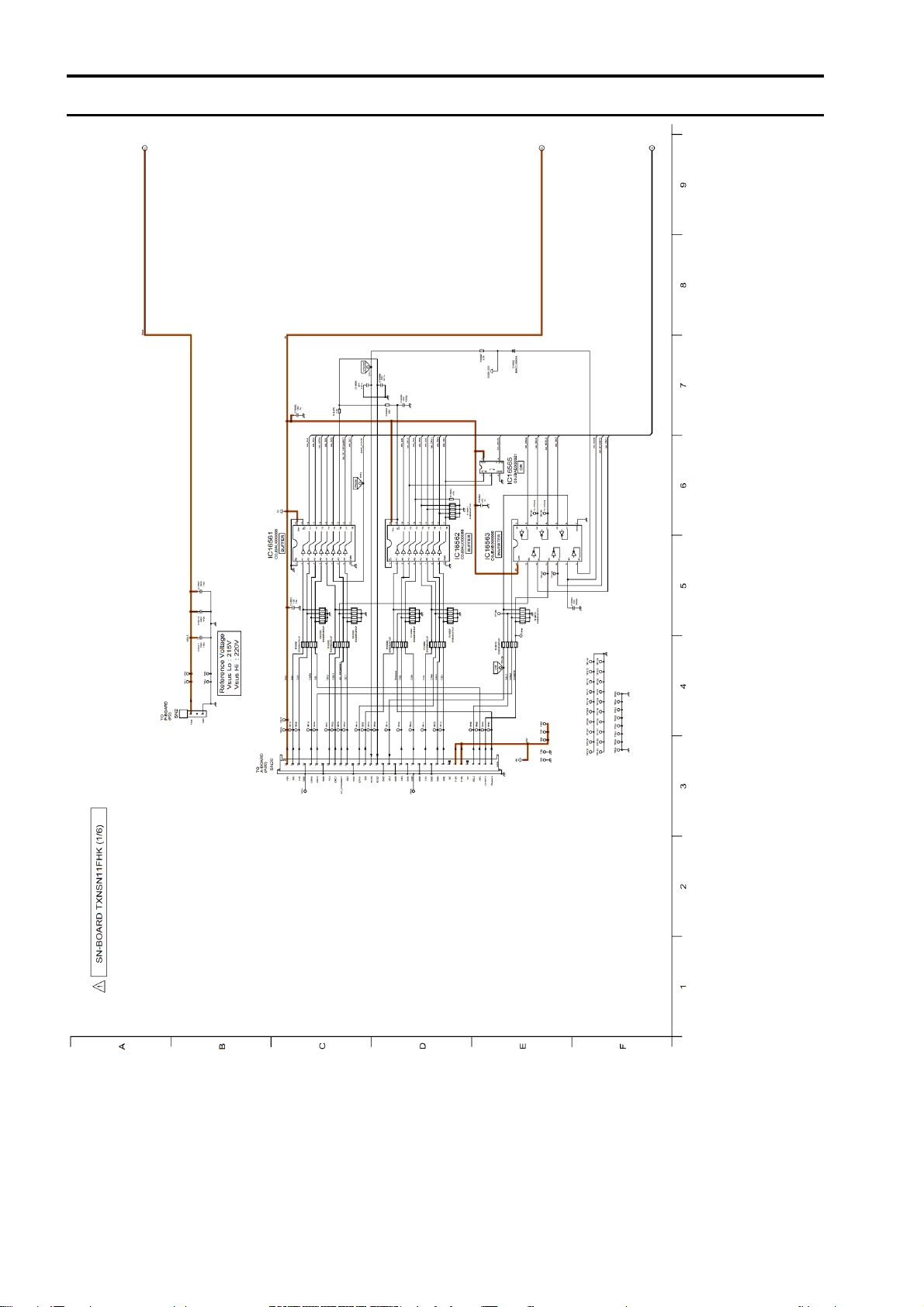

Model No. : TX-P42S30B/Y SN-Board (1/6)

S-23

Page 64

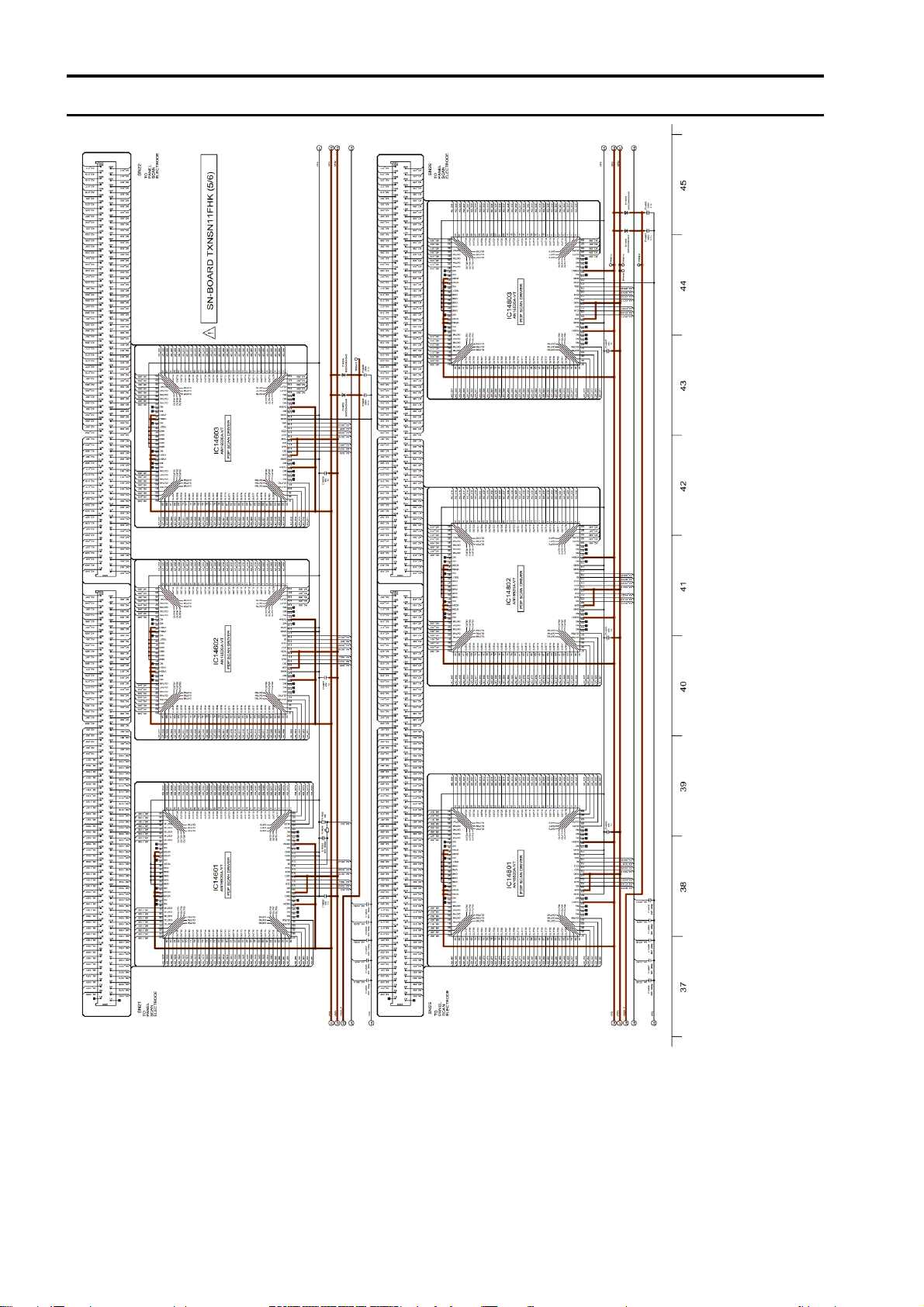

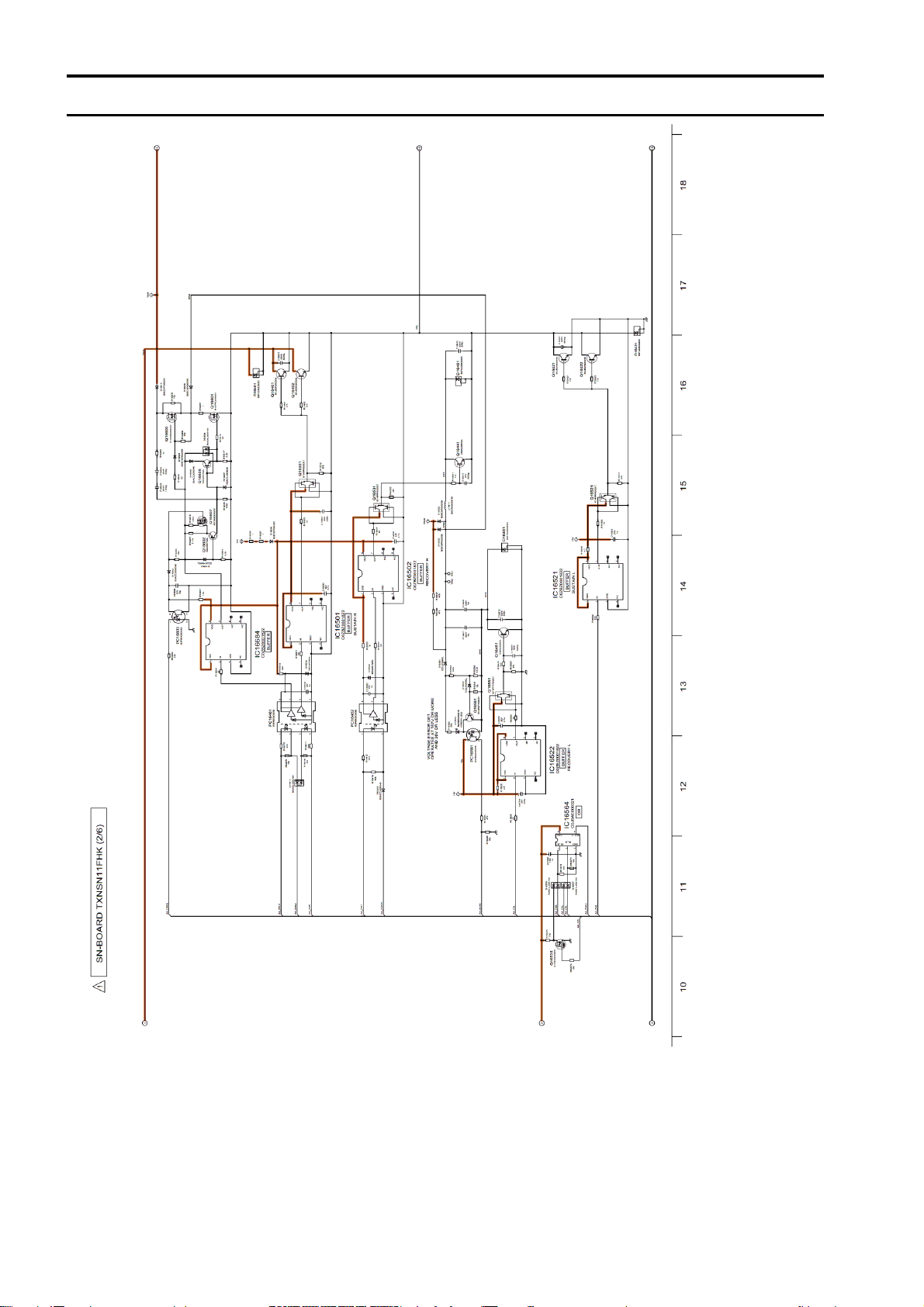

Model No. : TX-P42S30B/Y SN-Board (2/6)

S-24

Page 65

Model No. : TX-P42S30B/Y SN-Board (3/6)

S-25

Page 66

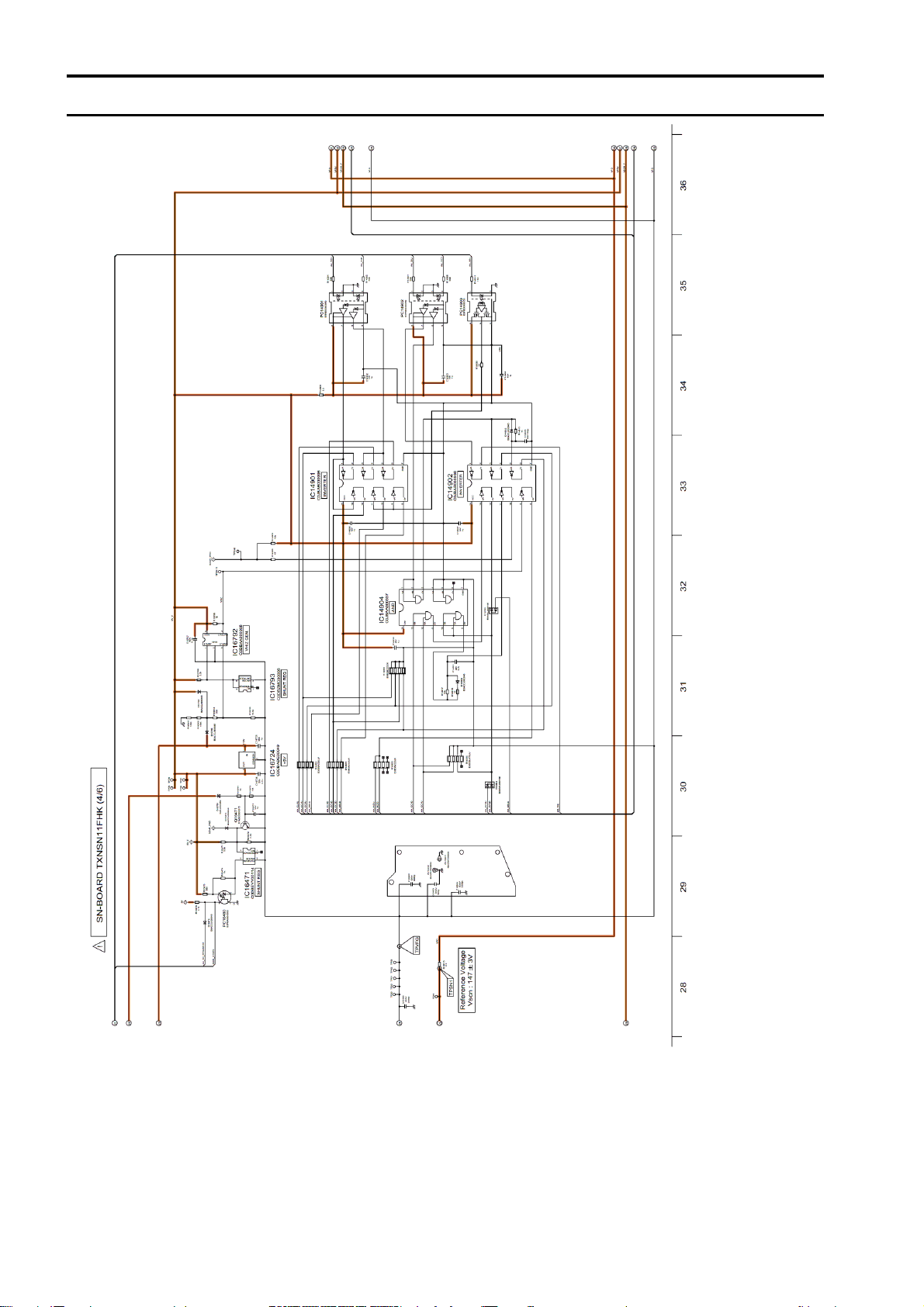

Model No. : TX-P42S30B/Y SN-Board (4/6)

S-26

Page 67

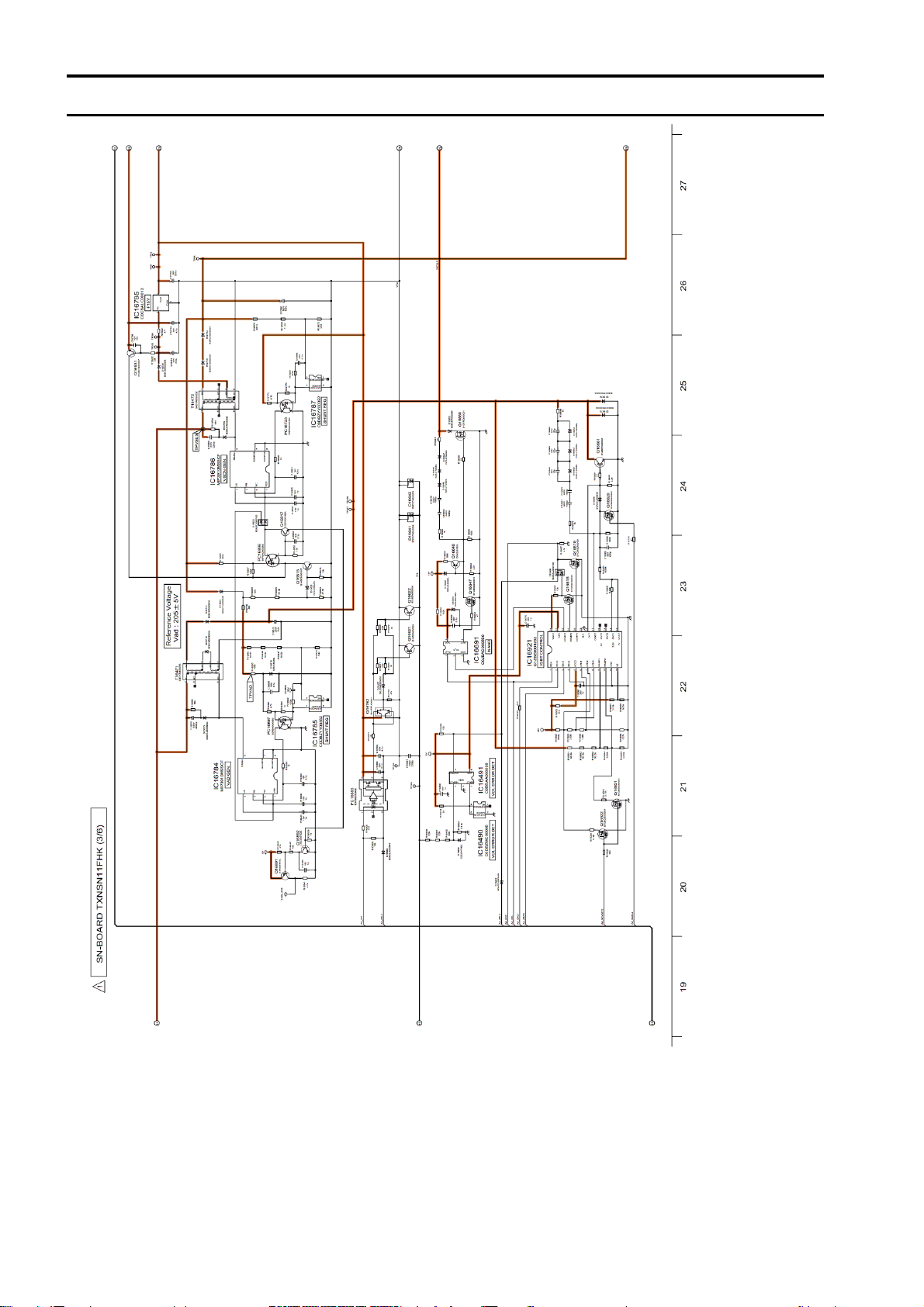

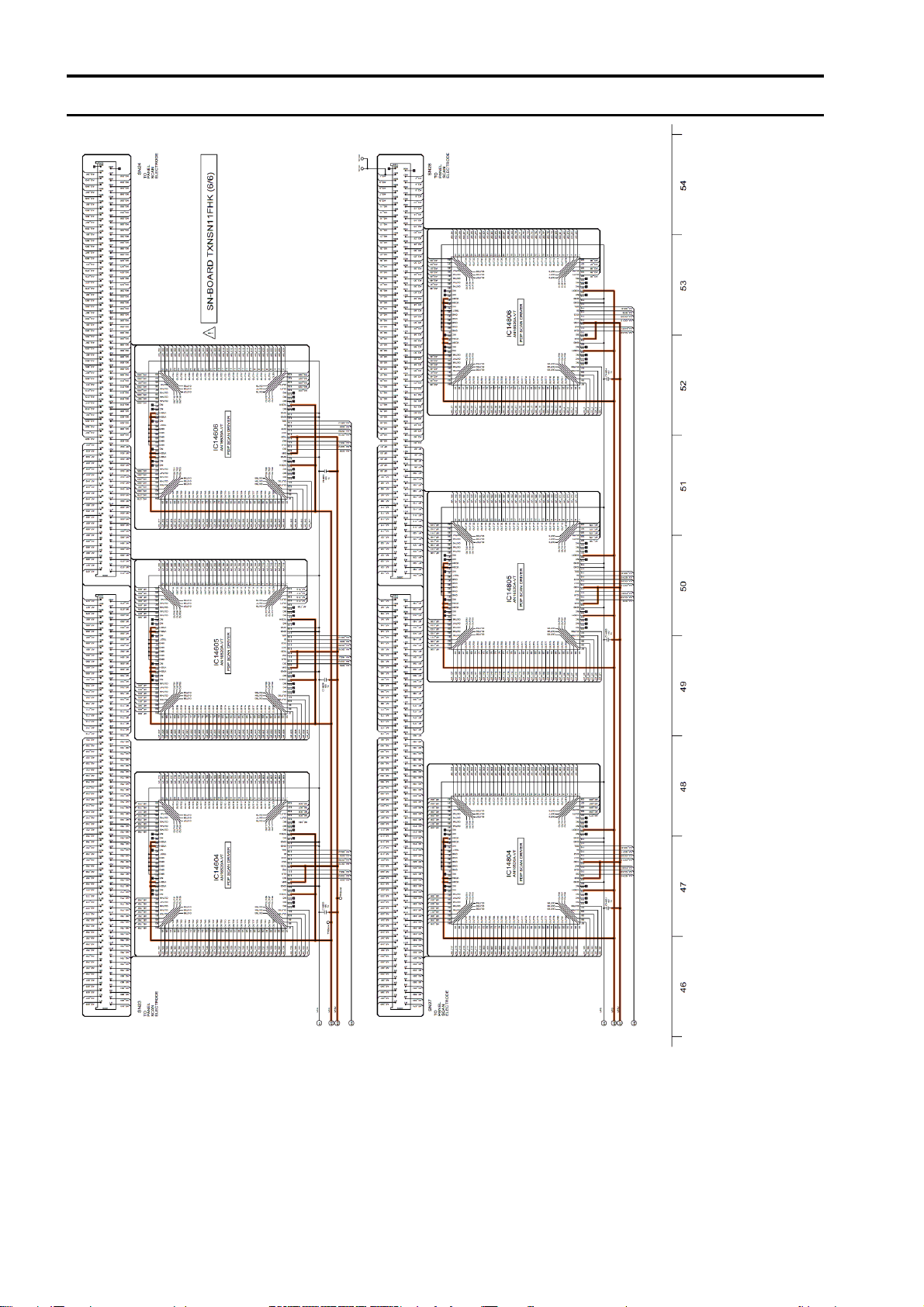

Model No. : TX-P42S30B/Y SN-Board (5/6)

S-27

Page 68

Model No. : TX-P42S30B/Y SN-Board (6/6)

S-28

Page 69

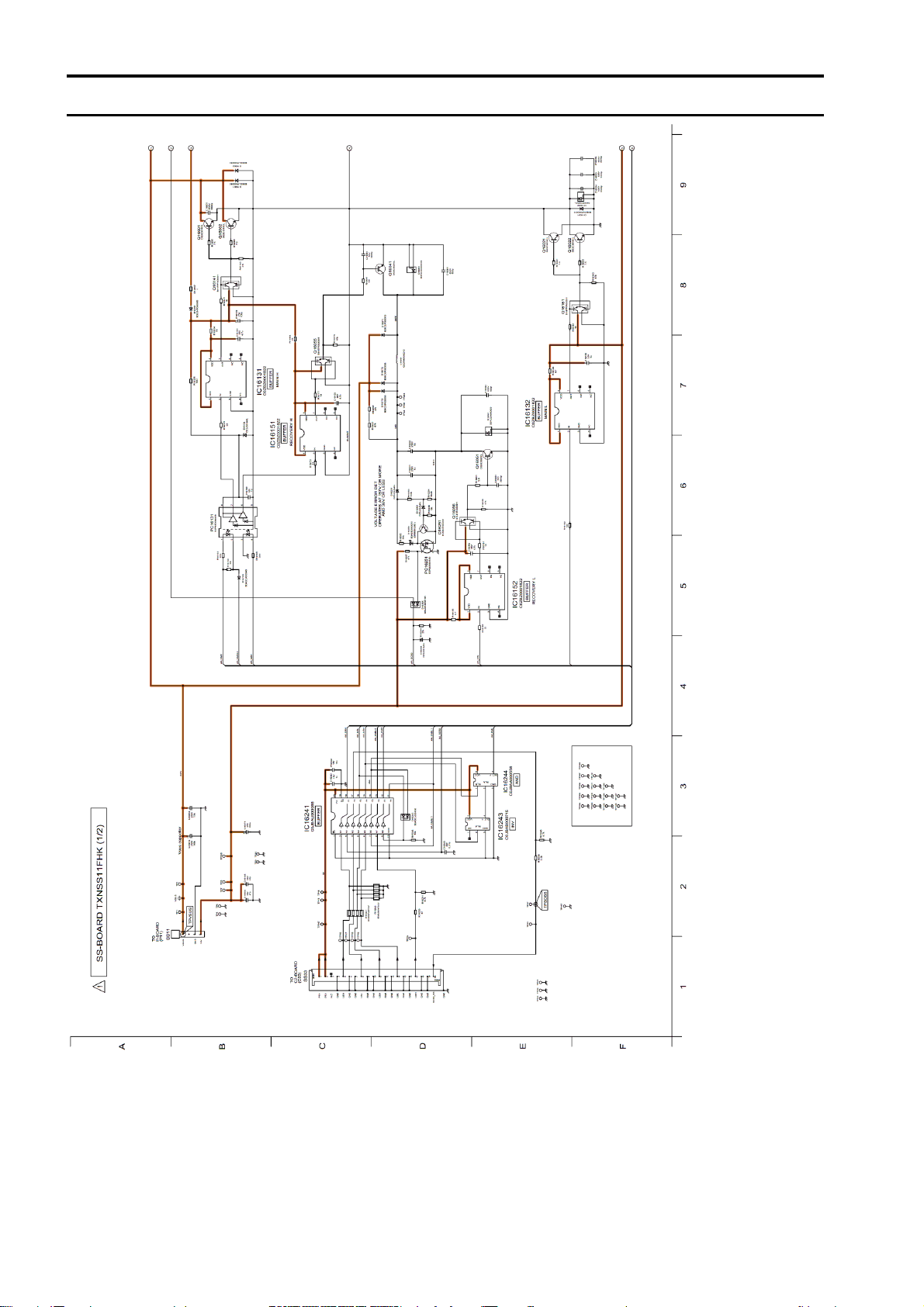

Model No. : TX-P42S30B/Y SS-Board (1/2)

S-29

Page 70

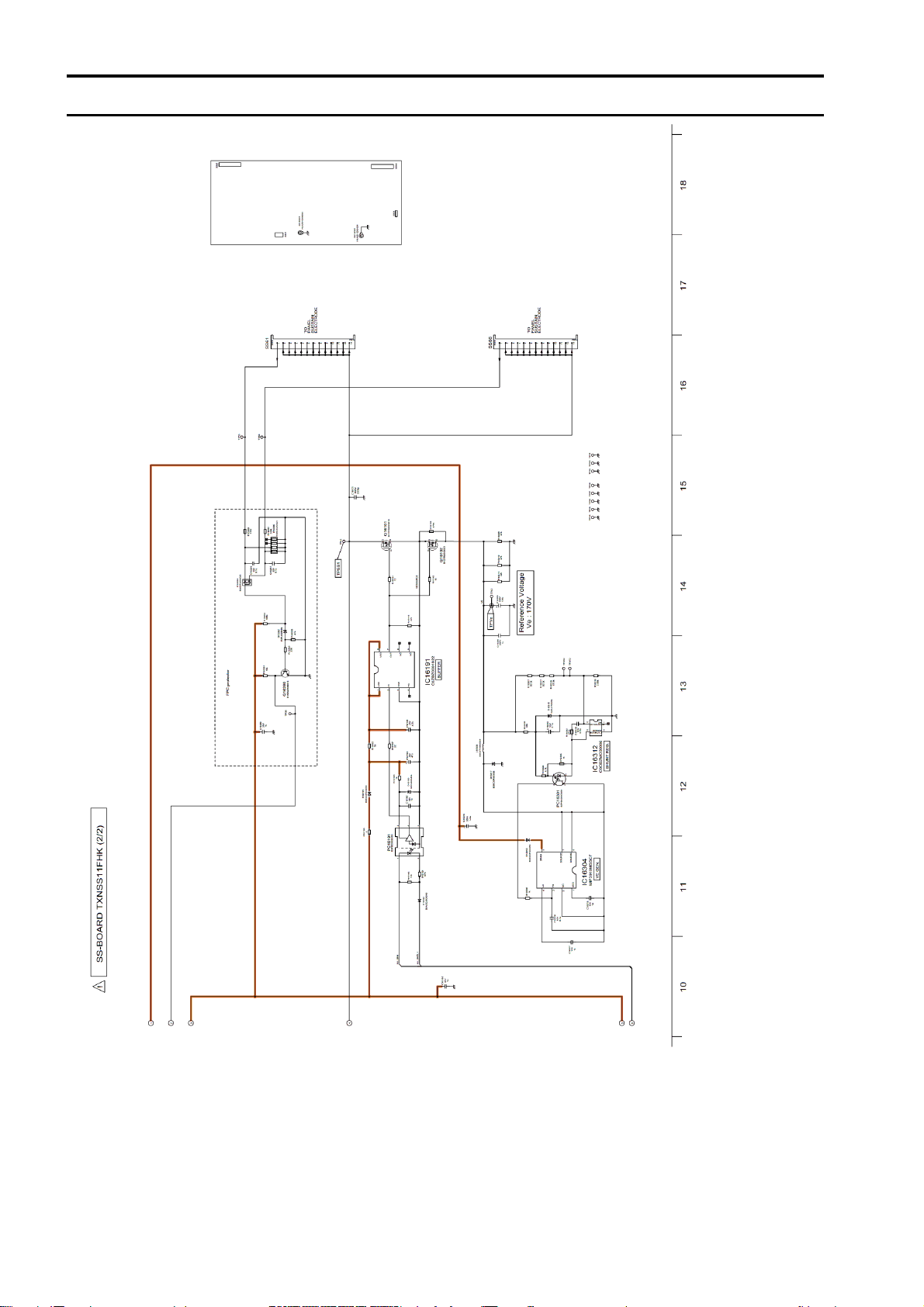

Model No. : TX-P42S30B/Y SS-Board (2/2)

S-30

Page 71

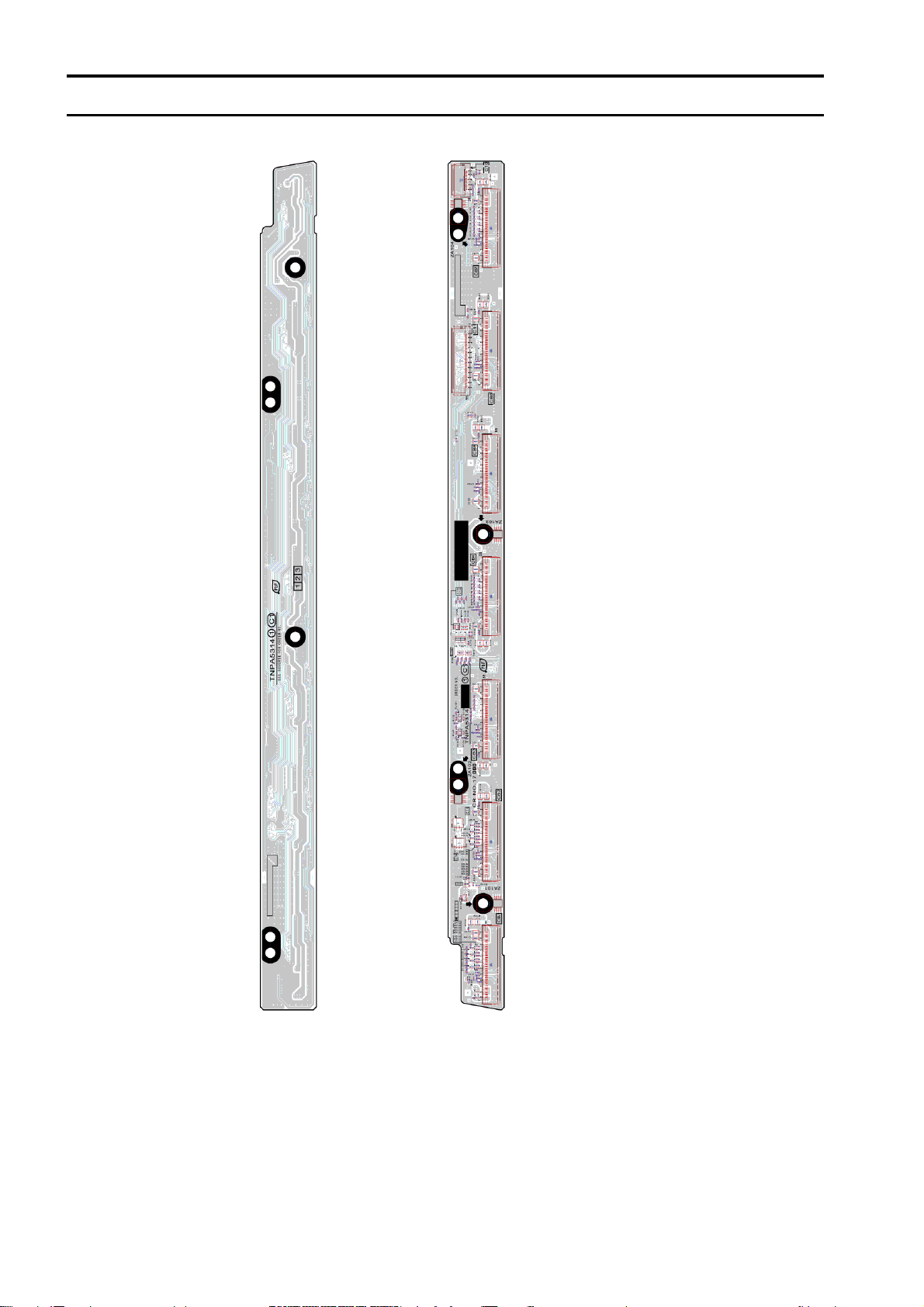

Model No. : TX-P42S30B/Y A-Board (Foil side)

S-31

Page 72

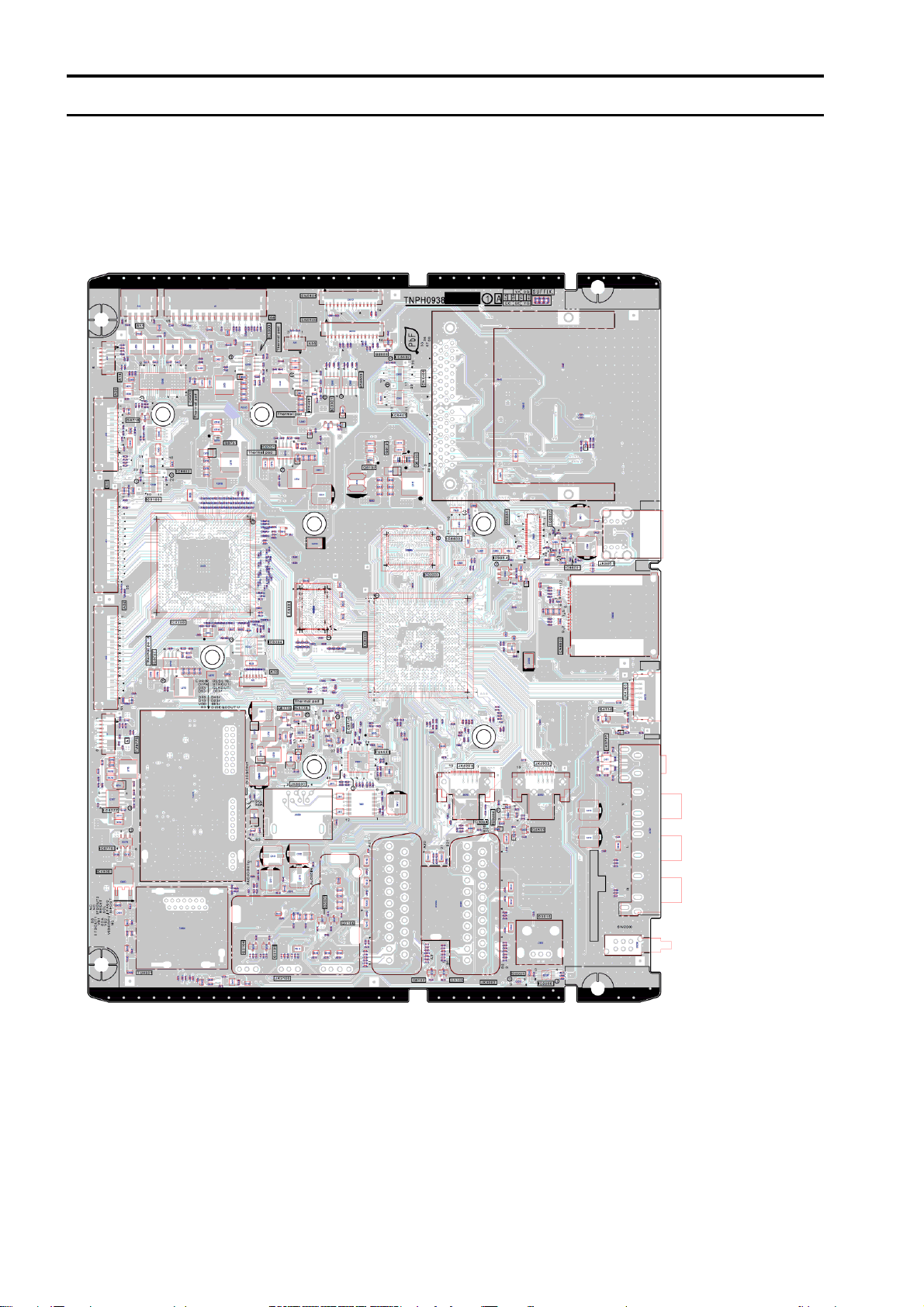

Model No. : TX-P42S30B/Y A-Board (Component side)

S-32

Page 73

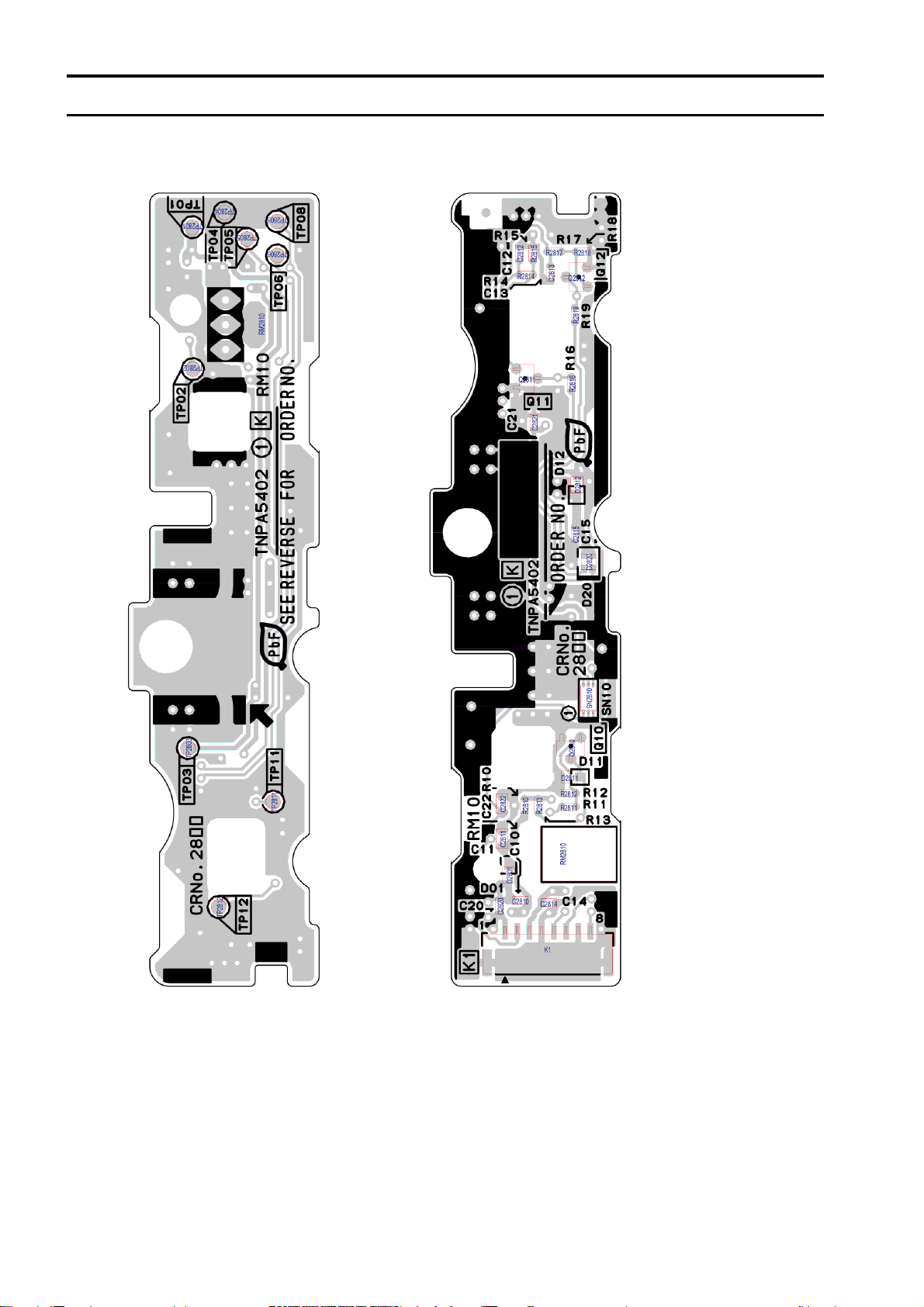

Model No. : TX-P42S30B/Y K-Board

S-33

Page 74

Model No. : TX-P42S30B/Y C1-Board

S-34

Page 75

Model No. : TX-P42S30B/Y C2-Board

S-35

Page 76

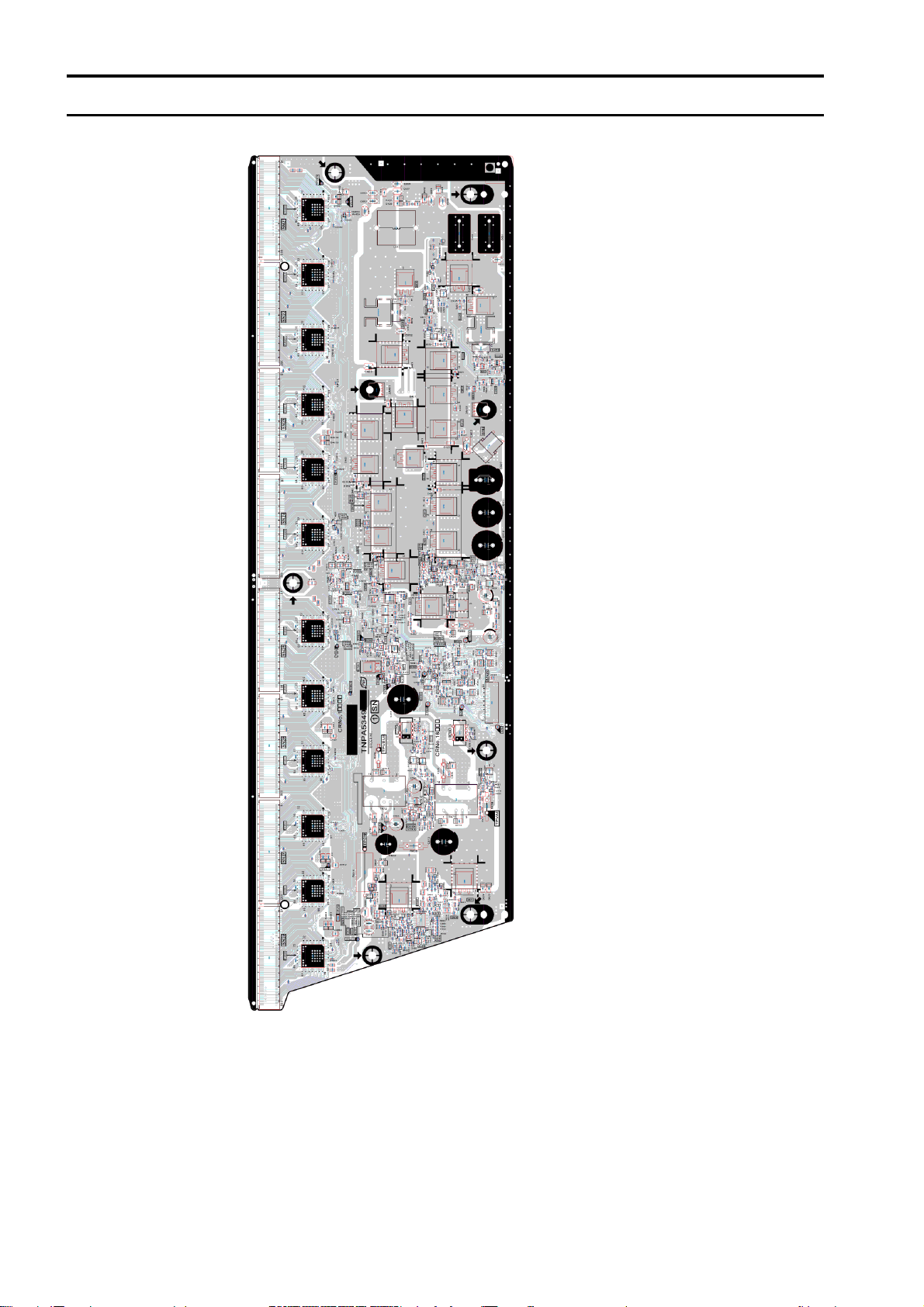

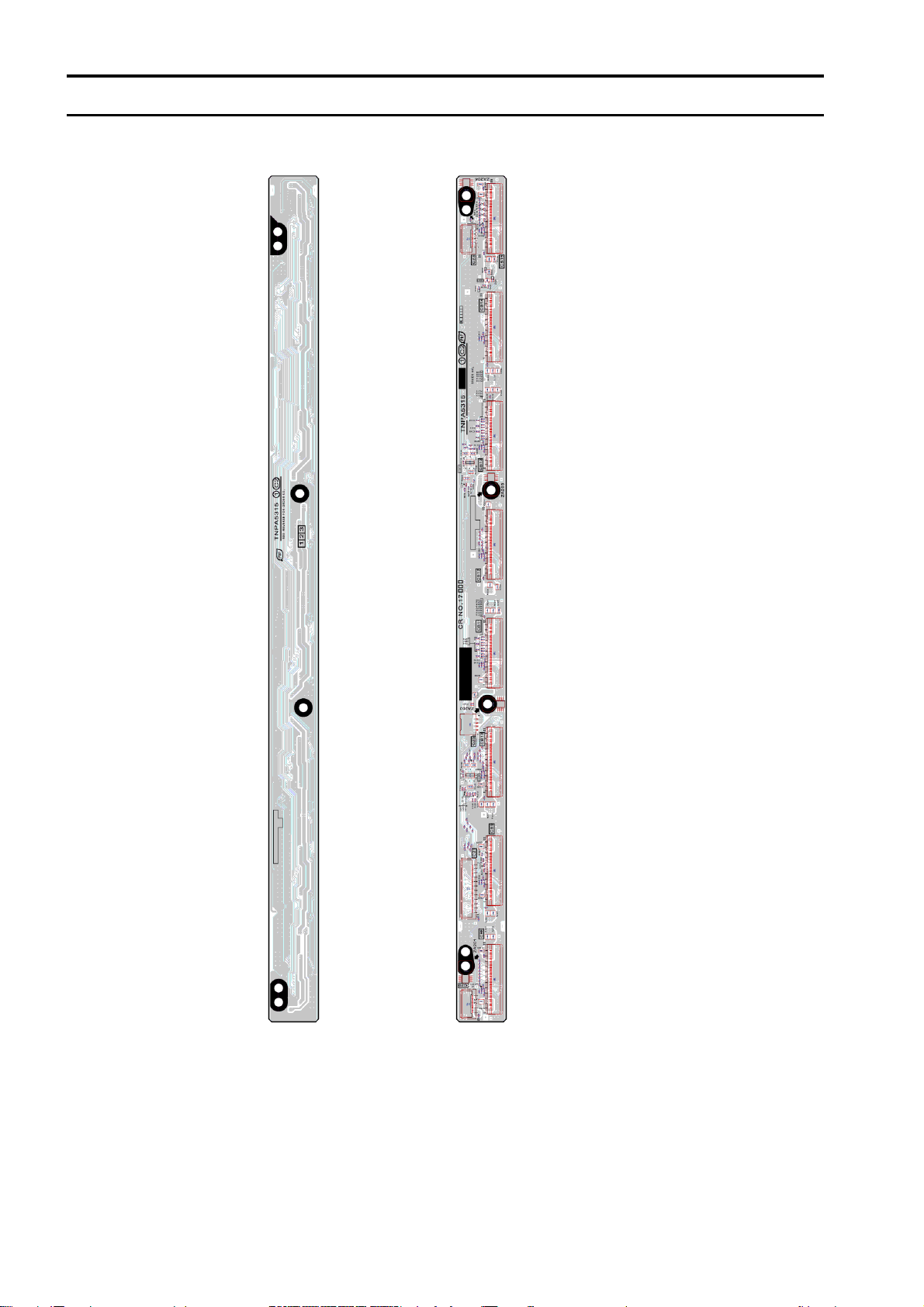

Model No. : TX-P42S30B/Y SN-Board (Foil side)

S-36

Page 77

Model No. : TX-P42S30B/Y SN-Board (Component side)

S-37

Page 78

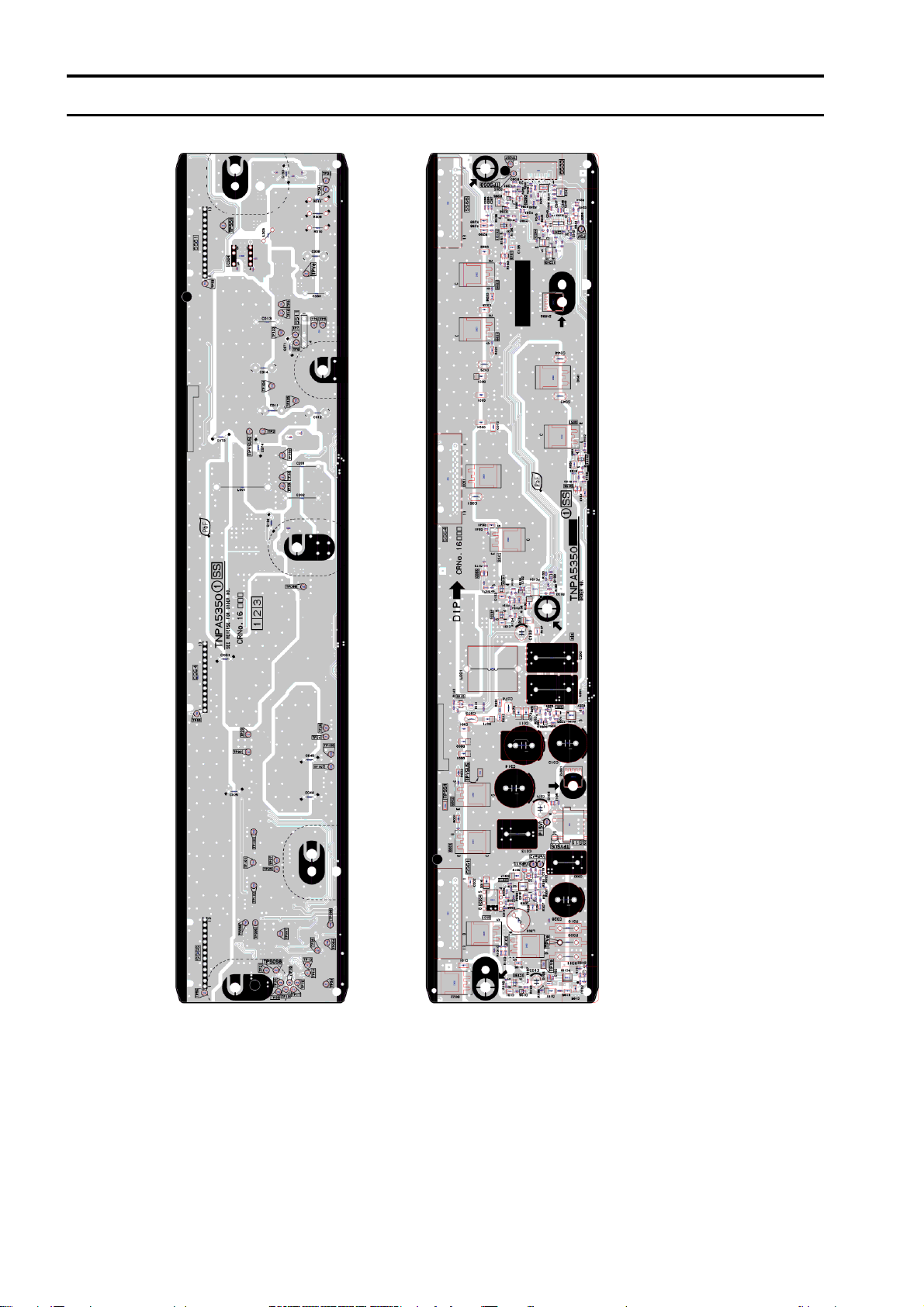

Model No. : TX-P42S30B/Y SS-Board

S-38

Page 79

Model No. : TX-P42S30B/Y Parts List

S-39

Safety

Ref.

No.

PCB N0AE5JK00008 CIRCUIT BOARD P 1 PAVCCZ

PCB A-P42S30B CIRCUIT BOARD A 1 (RTL)PAVCCZ P42S30B

PCB A-P42S30Y CIRCUIT BOARD A 1 (RTL)PAVCCZ P42S30Y

PCB TXN/K1RLUE CIRCUIT BOARD K 1 (RTL)PAVCCZ

PCB TNPA5314 CIRCUIT BOARD C1 1 (RTL)

PCB TXNC211FHK CIRCUIT BOARD C2 1 (RTL)PAVCCZ

PCB TXNSN11FHK CIRCUIT BOARD SN 1 (RTL)PAVCCZ

PCB TXNSS11FHK CIRCUIT BOARD SS 1 (RTL)PAVCCZ

A1 K1KY08AA0719 8P CONNECTOR 1

A6 K1KY15B00006 15P CONNECTOR 1 PAVCCZ

A11 K1KY04B00013 4P CONNECTOR 1 PAVCCZ

A20 K1MY35BA0345 35P CONNECTOR 1

A31 K1MY55BA0345 55P CONNECTOR 1

A32 K1MY55BA0345 55P CONNECTOR 1

A35 K1KY03AA0719 3P CONNECTOR 1

C0900 F1G1H101A565 C 100PF 50V 1

C0901 F1G1H101A565 C 100PF 50V 1

C2000 F1G1E1030005 C 0.01UF 25V 1

C2003 F1J1A106A087 C 10UF, 10V 1

C2004 F1J1E105A231 C 1 UF 25V 1

C2008 F1G1H1020008 C 1000PF 50V 1

C2009 F1G1E1030005 C 0.01UF 25V 1

C2010 F1G1C104A077 C 0.1UF 16V 1

C2014 F1G1C104A077 C 0.1UF 16V 1

C2017 F1G1C104A077 C 0.1UF 16V 1

C2026 F1G1H1020008 C 1000PF 50V 1

C2752 F1G1E1030005 C 0.01UF 25V 1

C2810 ECJ1VB1H103K C 0.01UF, 50V 1

C2811 F1J1A106A087 C 10UF, 10V 1

C2815 ECJ1VB1H103K C 0.01UF, 50V 1

C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3001 F1G1A105A047 C 1UF 10V 1

C3002 F1G1A105A047 C 1UF 10V 1

C3003 F1G1C104A077 C 0.1UF 16V 1

C3004 F1G1C104A077 C 0.1UF 16V 1

C3005 F1G1A105A047 C 1UF 10V 1

C3006 F1G1A105A047 C 1UF 10V 1

C3011 F1J1A106A043 C 10UF, 10V 1

C3016 F1G1C104A077 C 0.1UF 16V 1

C3018 F1G1C104A077 C 0.1UF 16V 1

C3019 F1G1C104A077 C 0.1UF 16V 1

C3020 F1J1A106A043 C 10UF, 10V 1

C3084 F1J1A106A043 C 10UF, 10V 1

C3085 F1J1A106A043 C 10UF, 10V 1

C3086 F1J1A106A043 C 10UF, 10V 1

C3105 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3106 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3108 F1G1E333A091 C 0.033UF 25V 1

C3109 F1G1E333A091 C 0.033UF 25V 1

C3111 F1G1A105A047 C 1UF 10V 1

C3112 F1G1A105A047 C 1UF 10V 1

C3113 F1J1A106A043 C 10UF, 10V 1

C3120 F2H1A101A040 C 100UF, 10V 1 PAVCCZ

C3121 F2H1A101A040 C 100UF, 10V 1 PAVCCZ

C3124 F1J1A106A087 C 10UF, 10V 1

C3130 F1J1A106A087 C 10UF, 10V 1

C3131 F1J1A106A087 C 10UF, 10V 1

C3132 F1J1A106A087 C 10UF, 10V 1

C3135 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3136 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 80

Model No. : TX-P42S30B/Y Parts List

S-40

Safety

Ref.

No.

C3139 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3140 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3145 F1J1A106A087 C 10UF, 10V 1

C3146 F1J1A106A087 C 10UF, 10V 1

C3147 F1J1A106A087 C 10UF, 10V 1

C3148 F1J1A106A087 C 10UF, 10V 1

C3151 F1G1A105A047 C 1UF 10V 1

C3152 F1G1A105A047 C 1UF 10V 1

C3153 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3154 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3155 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3156 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3157 F1G1A105A047 C 1UF 10V 1

C3158 F1G1A105A047 C 1UF 10V 1

C3159 F1J1A106A043 C 10UF, 10V 1

C3160 F1J1A106A043 C 10UF, 10V 1

C3161 F1J1A106A043 C 10UF, 10V 1

C3162 F1J1A106A043 C 10UF, 10V 1

C3163 F1J1A106A043 C 10UF, 10V 1

C3172 F1G1A105A047 C 1UF 10V 1

C3173 F1G1A105A047 C 1UF 10V 1

C3174 F1G1A105A047 C 1UF 10V 1

C3175 F1G1A105A047 C 1UF 10V 1

C3178 F1J1A106A043 C 10UF, 10V 1

C3179 F1J1A106A043 C 10UF, 10V 1

C4546 F1G1A105A047 C 1UF 10V 1

C4548 F1G1A105A047 C 1UF 10V 1

C4800 F1G1A105A047 C 1UF 10V 1

C4801 F1G1A105A047 C 1UF 10V 1

C4802 F1G1H220A565 C 22PF, 50V 1

C4807 F1J1A106A043 C 10UF, 10V 1

C4808 F1G1C104A077 C 0.1UF 16V 1

C4811 F1J1A106A043 C 10UF, 10V 1

C4812 F1G1H1020008 C 1000PF 50V 1

C4816 F1G1H1020008 C 1000PF 50V 1

C4817 F1G1H330A565 C 33PF, 50V 1

C4818 F1G1H330A565 C 33PF, 50V 1

C4820 F1J1E105A231 C 1 UF 25V 1

C4821 ECJ1VB1A105K C 1UF, 10V 1

C4823 F1G1H1020008 C 1000PF 50V 1

C4825 F1G1H150A565 C 15PF, 50V 1

C4826 F1G1H150A565 C 15PF, 50V 1

C4899 F1J1A106A043 C 10UF, 10V 1

C4908 F1G1H1020008 C 1000PF 50V 1

C4909 F1J1E105A231 C 1 UF 25V 1

C4910 F1K1E106A136 C 10UF, 25V 1

C4911 F1H1H104A970 C 0.1UF, , 50V 1

C4912 F1J1E105A231 C 1 UF 25V 1

C4913 F1H1H104A970 C 0.1UF, , 50V 1

C4914 F1J1E105A231 C 1 UF 25V 1

C4915 F1H1H104A970 C 0.1UF, , 50V 1

C4916 F1K1E106A136 C 10UF, 25V 1

C4917 F1H1H104A970 C 0.1UF, , 50V 1

C4918 F1J1E105A231 C 1 UF 25V 1

C4919 F1G1H1020008 C 1000PF 50V 1

C4921 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4922 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4924 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4925 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4934 F1G1H1020008 C 1000PF 50V 1

C4935 F1G1H1020008 C 1000PF 50V 1

C4936 F1G1H1020008 C 1000PF 50V 1

Part No. Part Name & Description Q'ty Remarks

Page 81

Model No. : TX-P42S30B/Y Parts List

S-41

Safety

Ref.

No.

C4937 F1G1H1020008 C 1000PF 50V 1

C4938 F1K1E106A136 C 10UF, 25V 1

C4939 F1K1E106A136 C 10UF, 25V 1

C4970 F1J1A106A087 C 10UF, 10V 1

C4971 F1J1A106A087 C 10UF, 10V 1

C4972 F2H1A101A040 C 100UF, 10V 1 PAVCCZ

C4973 F2H1A101A040 C 100UF, 10V 1 PAVCCZ

C5000 F1G1E1030005 C 0.01UF 25V 1

C5002 F1J1E105A231 C 1 UF 25V 1

C5003 F1H1C105A145 C 1 uF 16 V 1

C5012 EEEHB1C101UP C 100PF, J, 16V 1

C5013 ECJ1VB1A105K C 1UF, 10V 1

C5014 ECJ1VB1A105K C 1UF, 10V 1

C5015 ECJ1VB1A105K C 1UF, 10V 1

C5016 ECJ1VB1A105K C 1UF, 10V 1

C5017 ECJ1VB1A105K C 1UF, 10V 1

C5018 F1G1C104A077 C 0.1UF 16V 1

C5020 F1G1E1030005 C 0.01UF 25V 1

C5023 F1K1E106A136 C 10UF, 25V 1

C5031 ECJ1VB1A105K C 1UF, 10V 1

C5032 ECJ1VB1A105K C 1UF, 10V 1

C5440 F1K1E106A136 C 10UF, 25V 1

C5442 F1G1C223A081 C 0.022UF, 16V 1

C5443 F1J1A106A043 C 10UF, 10V 1

C5444 F1J1A106A043 C 10UF, 10V 1

C5447 F1G1A333A032 C0.033UF, 10V 1

C5448 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C6700 F1G1C104A077 C 0.1UF 16V 1

C6701 F1G1C104A077 C 0.1UF 16V 1

C6702 F1G1C104A077 C 0.1UF 16V 1

C6703 F1G1H100A565 C 10PF 50V 1

C6704 F1G1H100A565 C 10PF 50V 1

C6705 F1G1C104A077 C 0.1UF 16V 1

C6707 F1G1C104A077 C 0.1UF 16V 1

C6708 F1G1C104A077 C 0.1UF 16V 1

C6709 F1J1A106A087 C 10UF, 10V 1

C6711 F1G1C104A077 C 0.1UF 16V 1

C6712 F1G1C104A077 C 0.1UF 16V 1

C6713 F1G1C104A077 C 0.1UF 16V 1

C6714 F1G1C104A077 C 0.1UF 16V 1

C6715 F1G1C104A077 C 0.1UF 16V 1

C6716 F1G1C104A077 C 0.1UF 16V 1

C6717 F1G1C104A077 C 0.1UF 16V 1

C6718 ECJ1VB1A105K C 1UF, 10V 1

C6719 F1G1C104A077 C 0.1UF 16V 1

C6720 F1J1A106A087 C 10UF, 10V 1

C6721 F1G1H101A565 C 100PF 50V 1

C6722 F1G1H101A565 C 100PF 50V 1

C6723 F1G1C104A077 C 0.1UF 16V 1

C6724 F1G1C104A077 C 0.1UF 16V 1

C6727 F1G1C104A077 C 0.1UF 16V 1

C6729 F1G1C104A077 C 0.1UF 16V 1

C6730 ECJ1VB1A105K C 1UF, 10V 1

C6750 F1J1A475A087 C 4.7UF, 10V 1

C6751 F1J1A106A087 C 10UF, 10V 1

C6787 F1J1A106A087 C 10UF, 10V 1

C6788 F1J1A106A087 C 10UF, 10V 1

C8001 F1G1C104A077 C 0.1UF 16V 1

C8002 F1J1A106A087 C 10UF, 10V 1

C8003 F1G1C104A077 C 0.1UF 16V 1

C8004 F1G1C104A077 C 0.1UF 16V 1

C8005 F1G1C104A077 C 0.1UF 16V 1

Part No. Part Name & Description Q'ty Remarks

Page 82

Model No. : TX-P42S30B/Y Parts List

S-42

Safety

Ref.

No.

C8006 F1G1C104A077 C 0.1UF 16V 1

C8007 F1G1C104A077 C 0.1UF 16V 1

C8008 F1G1C104A077 C 0.1UF 16V 1

C8009 F1J1A106A087 C 10UF, 10V 1

C8011 F1G1C104A077 C 0.1UF 16V 1

C8013 F1G1C104A077 C 0.1UF 16V 1

C8014 F1G1C104A077 C 0.1UF 16V 1

C8015 F1G1C104A077 C 0.1UF 16V 1

C8016 F1G1C104A077 C 0.1UF 16V 1

C8017 F1J1A106A087 C 10UF, 10V 1

C8018 F1G1C104A077 C 0.1UF 16V 1

C8019 F1G1C104A077 C 0.1UF 16V 1

C8020 F1G1C104A077 C 0.1UF 16V 1

C8021 F1G1C104A077 C 0.1UF 16V 1

C8022 F1J1A106A087 C 10UF, 10V 1

C8023 F1J1A106A087 C 10UF, 10V 1

C8024 F1J0G2260001 C 22 UF 4 V 1

C8026 F1G1C104A077 C 0.1UF 16V 1

C8027 F1G1C104A077 C 0.1UF 16V 1

C8028 F1G1C104A077 C 0.1UF 16V 1

C8030 F1G1C104A077 C 0.1UF 16V 1

C8032 F1G1C104A077 C 0.1UF 16V 1

C8036 F1G1C104A077 C 0.1UF 16V 1

C8039 F1G1C104A077 C 0.1UF 16V 1

C8041 F1G1H1020008 C 1000PF 50V 1

C8042 F1G1C104A077 C 0.1UF 16V 1

C8043 F1G1C104A077 C 0.1UF 16V 1

C8044 F1G1C104A077 C 0.1UF 16V 1

C8045 F1G1C104A077 C 0.1UF 16V 1

C8047 F1G1C104A077 C 0.1UF 16V 1

C8048 F1G1C104A077 C 0.1UF 16V 1

C8049 F1J1A106A087 C 10UF, 10V 1

C8050 F1G1C104A077 C 0.1UF 16V 1

C8051 F1J1A106A087 C 10UF, 10V 1

C8052 F1G1C104A077 C 0.1UF 16V 1

C8053 F1G1C104A077 C 0.1UF 16V 1

C8054 F1G1C104A077 C 0.1UF 16V 1

C8055 F1G1C104A077 C 0.1UF 16V 1

C8056 F1G1C104A077 C 0.1UF 16V 1

C8057 F1G1C104A077 C 0.1UF 16V 1

C8100 F1G1E682A123 C 6800 pF 25 V 1

C8102 F1J1A475A087 C 4.7UF, 10V 1

C8104 F1H1C105A145 C 1 uF 16 V 1

C8106 F1G1C223A081 C 0.022UF, 16V 1

C8108 F1G1C104A077 C 0.1UF 16V 1

C8110 F1G1C104A077 C 0.1UF 16V 1

C8112 F1K1E106A136 C 10UF, 25V 1

C8114 F1K1E106A136 C 10UF, 25V 1

C8116 F1K1E106A136 C 10UF, 25V 1

C8118 F1K1E106A136 C 10UF, 25V 1

C8120 F1J0G2260001 C 22 UF 4 V 1

C8122 F1J0G2260001 C 22 UF 4 V 1

C8124 F1J0G2260001 C 22 UF 4 V 1

C8126 F1J0G2260001 C 22 UF 4 V 1

C8128 F1J0G2260001 C 22 UF 4 V 1

C8200 F1G1C104A077 C 0.1UF 16V 1

C8201 F1G1C104A077 C 0.1UF 16V 1

C8202 F1G1C104A077 C 0.1UF 16V 1

C8203 F1G1C104A077 C 0.1UF 16V 1

C8204 F1G1C104A077 C 0.1UF 16V 1

C8205 F1J1A106A087 C 10UF, 10V 1

C8206 F1G1C104A077 C 0.1UF 16V 1

Part No. Part Name & Description Q'ty Remarks

Page 83

Model No. : TX-P42S30B/Y Parts List

S-43

Safety

Ref.

No.

C8208 F1G1C104A077 C 0.1UF 16V 1

C8210 F1G1C104A077 C 0.1UF 16V 1

C8213 F1G1C104A077 C 0.1UF 16V 1

C8214 F1J1A106A087 C 10UF, 10V 1

C8216 F1G1C104A077 C 0.1UF 16V 1

C8218 F1G1C104A077 C 0.1UF 16V 1

C8219 F1G1C104A077 C 0.1UF 16V 1

C8222 F1G1C104A077 C 0.1UF 16V 1

C8223 F1G1C104A077 C 0.1UF 16V 1

C8224 F1G1C104A077 C 0.1UF 16V 1

C8225 F1G1C104A077 C 0.1UF 16V 1

C8226 F1G1C104A077 C 0.1UF 16V 1

C8227 F1G1C104A077 C 0.1UF 16V 1

C8300 F1G1H9R0A732 C 9 PF, 50V 1

C8301 F1G1H8R0A564 C 8 PF, 50V 1

C8302 F1G1C104A077 C 0.1UF 16V 1

C8303 F1G1C104A077 C 0.1UF 16V 1

C8304 F1G1C104A077 C 0.1UF 16V 1

C8305 F1G1A105A047 C 1UF 10V 1

C8306 F1G1A105A047 C 1UF 10V 1

C8307 F1G1A105A047 C 1UF 10V 1

C8308 F1G1A105A047 C 1UF 10V 1

C8309 F1G1A105A047 C 1UF 10V 1

C8310 F1G1A105A047 C 1UF 10V 1

C8311 F1G1A105A047 C 1UF 10V 1

C8401 F1G1C104A077 C 0.1UF 16V 1

C8402 F1K0J226A049 C 22UF, 6.3V 1 PAVCCZ

C8403 F1K0J226A049 C 22UF, 6.3V 1 PAVCCZ

C8406 F1G1C104A077 C 0.1UF 16V 1

C8407 F1G1C104A077 C 0.1UF 16V 1

C8411 F1G1C104A077 C 0.1UF 16V 1

C8603 F1J1A106A087 C 10UF, 10V 1

C8604 F1G1C104A077 C 0.1UF 16V 1

C8605 F1G1C104A077 C 0.1UF 16V 1

C8607 F1G1H100A565 C 10PF 50V 1

C8608 F1G1H100A565 C 10PF 50V 1

C8609 F1G1C104A077 C 0.1UF 16V 1

C8611 F1G1C104A077 C 0.1UF 16V 1

C8615 F1J1A106A087 C 10UF, 10V 1

C8616 F1J1A106A087 C 10UF, 10V 1

C8617 F1G1C104A077 C 0.1UF 16V 1

C8619 F1G1C104A077 C 0.1UF 16V 1

C8620 F1G1C104A077 C 0.1UF 16V 1

C8627 F1G1C104A077 C 0.1UF 16V 1

C8628 F1J0G2260001 C 22 UF 4 V 1

C8629 F1J0G2260001 C 22 UF 4 V 1

C8630 F2H0J2210005 C 220UF, 6.3V 1

C8631 F2H0J2210005 C 220UF, 6.3V 1

C8632 F1J1A106A087 C 10UF, 10V 1

C8633 F1G1C104A077 C 0.1UF 16V 1

C8636 F1J1A106A043 C 10UF, 10V 1

C8637 F1J1A106A087 C 10UF, 10V 1

C8638 F1G1C104A077 C 0.1UF 16V 1

C8639 F1J1A106A087 C 10UF, 10V 1

C8640 F1G1C104A077 C 0.1UF 16V 1

C8641 F1J1A106A043 C 10UF, 10V 1

C8642 F1J1A106A087 C 10UF, 10V 1

C8643 F1G1C104A077 C 0.1UF 16V 1

C8644 F1G1C104A077 C 0.1UF 16V 1

C8660 F1G1H470A565 C 47PF, 50V 1

C8661 F1G1H470A565 C 47PF, 50V 1

C8738 F1J1A475A087 C 4.7UF, 10V 1

Part No. Part Name & Description Q'ty Remarks

Page 84

Model No. : TX-P42S30B/Y Parts List

S-44

Safety

Ref.

No.

C8739 F1H1C105A145 C 1 uF 16 V 1

C8740 F1G1E122A123 C 1200pF 25V 1 PAVCCZ

C8742 F1G1C104A077 C 0.1UF 16V 1

C8744 F1K1E106A136 C 10UF, 25V 1

C8746 F1K1E106A136 C 10UF, 25V 1

C8748 F1J0G2260001 C 22 UF 4 V 1

C8750 F1J0G2260001 C 22 UF 4 V 1

C8753 F1J0G2260001 C 22 UF 4 V 1

C8754 F1J1A106A087 C 10UF, 10V 1

C8756 F1J1A106A087 C 10UF, 10V 1

C8763 F1G1C104A077 C 0.1UF 16V 1

C8764 F1G1C223A081 C 0.022UF, 16V 1

C8765 F1J1A106A043 C 10UF, 10V 1

C8766 F1J1A106A043 C 10UF, 10V 1

C8768 F1G1A333A032 C0.033UF, 10V 1

C8769 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C8771 F1J1A475A087 C 4.7UF, 10V 1

C8772 F1J1A106A087 C 10UF, 10V 1

C8773 F1G1C104A077 C 0.1UF 16V 1

C8774 F1G1C104A077 C 0.1UF 16V 1

C8776 F1K1E106A136 C 10UF, 25V 1

C8777 F1G1C104A077 C 0.1UF 16V 1

C8780 ECJ1VB1A105K C 1UF, 10V 1

C8781 ECJ1VB1A105K C 1UF, 10V 1

C8786 F1G1C104A077 C 0.1UF 16V 1

C8787 F1G1C104A077 C 0.1UF 16V 1

C8789 F1K1E106A136 C 10UF, 25V 1

C8790 F1K1E106A136 C 10UF, 25V 1

C8791 F1G1C223A081 C 0.022UF, 16V 1

C8792 F1G1C1030008 C 0.01UF 16V 1

C8793 F1G1C1030008 C 0.01UF 16V 1

C8795 F1J1A106A043 C 10UF, 10V 1

C8796 F1J1A106A043 C 10UF, 10V 1

C8797 F1J1A106A043 C 10UF, 10V 1

C8798 F1J1A106A043 C 10UF, 10V 1

C8810 F1J1A106A043 C 10UF, 10V 1

C8813 F1J1A106A043 C 10UF, 10V 1

C8900 F1G1C104A077 C 0.1UF 16V 1

C8901 F1G1C104A077 C 0.1UF 16V 1

C8902 F1G1C104A077 C 0.1UF 16V 1

C8903 F1G1C104A077 C 0.1UF 16V 1

C9099 F1G1C104A077 C 0.1UF 16V 1

C9100 F1J1A106A087 C 10UF, 10V 1

C9101 F1G1E1030005 C 0.01UF 25V 1

C9102 F1K1E106A136 C 10UF, 25V 1

C9103 F1G1E1030005 C 0.01UF 25V 1

C9104 F1G1C104A077 C 0.1UF 16V 1

C9105 F1G1C104A077 C 0.1UF 16V 1

C9106 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C9108 F1G1C104A077 C 0.1UF 16V 1

C9300 F1G1C104A077 C 0.1UF 16V 1

C9301 F1G1H150A565 C 15PF, 50V 1

C9302 F1G1H180A565 C 18PF, 50V 1

C9308 F1G1C104A077 C 0.1UF 16V 1

C9311 F1G1C104A077 C 0.1UF 16V 1

C9312 F1J1A106A087 C 10UF, 10V 1

C9313 F1G1C104A077 C 0.1UF 16V 1

C9328 F1G1C104A077 C 0.1UF 16V 1

C9330 F1G1A105A047 C 1UF 10V 1

C9331 F1G1A105A047 C 1UF 10V 1

C9332 F1G1A105A047 C 1UF 10V 1

C9337 F1J1A106A087 C 10UF, 10V 1

Part No. Part Name & Description Q'ty Remarks

Page 85

Model No. : TX-P42S30B/Y Parts List

S-45

Safety

Ref.

No.

C9362 F1G1C104A077 C 0.1UF 16V 1

C9366 F1G1A105A047 C 1UF 10V 1

C9371 F1J1A106A087 C 10UF, 10V 1

C9375 F1G1C104A077 C 0.1UF 16V 1

C9380 F1G1C104A077 C 0.1UF 16V 1

C9389 F1G1A105A047 C 1UF 10V 1

C9392 F1J1A106A087 C 10UF, 10V 1

C9400 F1G1C104A077 C 0.1UF 16V 1

C9401 F1G1C104A077 C 0.1UF 16V 1

C9402 F1G1C104A077 C 0.1UF 16V 1

C9404 F1G1C104A077 C 0.1UF 16V 1

C9407 F1G1C104A077 C 0.1UF 16V 1

C9409 F1J1A106A087 C 10UF, 10V 1

C9411 F1J1A106A087 C 10UF, 10V 1

C9413 F1J1A106A087 C 10UF, 10V 1

C9415 F1J1A106A087 C 10UF, 10V 1

CN0100 K1KA14A00248 14P CONNECTOR 1

CN8400 K1NA68B00059 68P CONNECTOR 1 PAVCCZ

CN8600 K1NA12E00016 12P CONNECTOR 1

D2820 B3AGB0000065 LED 1 PAVCCZ

D3015 K7AAAY000006 PHOTO LINK 1

D3130 B0ACCJ000048 DIODE 1

D4703 DZ2J056M0L ZENER DIODE 1

D4704 B0JCCD000020 DIODE 1 PAVCCZ

D4720 DZ2J056M0L ZENER DIODE 1

D4721 B0JCCD000020 DIODE 1 PAVCCZ

D4773 B0JCCE000008 DIODE 1

D4774 DZ2J056M0L ZENER DIODE 1

D4775 B0JCCD000020 DIODE 1 PAVCCZ

D5401 B0JCMD000066 ZENER DIODE 1

D8711 B0ADCJ000100 DIODE 1

D8712 DZ2J068M0L ZENER DIODE 1

D8713 DZ2J068M0L ZENER DIODE 1

D8717 B0ACCJ000048 DIODE 1

D8718 B0JCMD000066 ZENER DIODE 1

D8719 DZ2J068M0L ZENER DIODE 1

D8720 B0ADCJ000100 DIODE 1

D8721 DZ2J068M0L ZENER DIODE 1

D9806 B0ADCJ000100 DIODE 1

D9807 B0ADCJ000100 DIODE 1

IC2001 C1ZBZ0004368 IC 1 PAVCCZ

IC3001 C1AB00003384 IC 1 PAVCCZ

IC4800 C0DBGYY02190 IC 1 PAVCCZ

IC4900 C1AB00003457 IC 1 PAVCCZ

IC5000 AN34044A-VF IC 1 PAVCCZ

IC5002 C0DBGHC00003 IC 1

IC5440 C0DBAYY00931 IC 1 PAVCCZ

IC6700 C1AB00003273 IC 1 PAVCCZ

IC6701 C0CBCYY00043 IC 1

IC6750 C0CBCAG00031 IC 1

IC6776 C0DBAGF00030 IC 1

IC8000 MN2WS0200LE IC 1 PAVCCZ

IC8100 C0DBAYY00715 IC 1

IC8200 C3ABUY000009 IC 1 PAVCCZ

IC8201 C3ABTY000025 IC 1 P42S30Y

IC8201 C3ABUY000004 IC 1 PAVCCZ P42S30B

IC8403 C0JBAZ003032 IC 1 PAVCCZ

IC8404 C0DBZYY00382 IC 1 PAVCCZ

IC8601 C1CB00003491 IC 1

Part No. Part Name & Description Q'ty Remarks

Page 86

Model No. : TX-P42S30B/Y Parts List

S-46

Safety

Ref.

No.

IC8602 C0DBZYY00450 IC 1 PAVCCZ

IC8603 C0DBZYY00368 IC 1

IC8604 C0DBAGF00030 IC 1

IC8700 C0DBAYY00737 IC 1

IC8701 C0DBAYY00931 IC 1 PAVCCZ

IC8702 C0DBAFG00029 IC 1 PAVCCZ

IC8704 C0CBCAG00046 IC 1

IC8706 C0DBGYY00887 IC 1

IC8707 C0DBAYY00915 IC 1 PAVCCZ

IC8714 C0DBGYY01682 IC 1 PAVCCZ

IC8900 TVRS076AK IC 1 PAVCCZ P42S30Y

IC8900 TVRS077AK IC 1 PAVCCZ P42S30B

IC8901 TVR**** IC 1 PAVCCZ

IC8902 TVR**** IC 1 PAVCCZ

IC9300 C1AB00003461 IC 1 PAVCCZ

IC9304 TVRS209 IC 1 PAVCCZ

IC9400 C0JBAU000089 IC 1 PAVCCZ

IC9401 C0JBAU000089 IC 1 PAVCCZ

IC9402 C0JBAU000089 IC 1 PAVCCZ

JK3002 K1FY121A0011 CONNECTOR 1 PAVCCZ

JK3100 K1U710A00001 CONNECTOR 1 PAVCCZ

JK3707 K4AK13B00008 TERMINAL BOARD 1

JK4700 K1FY119D0015 CONNECTOR 1 PAVCCZ

JK4702 K1FY119D0015 CONNECTOR 1 PAVCCZ

JK4703 K1FY119E0028 CONNECTOR 1 PAVCCZ

JK8600 K2LC108A0012 JACK 1 PAVCCZ

JK8601 K1FY208B0008 CONNECTOR 1

K1 K1KA08B00270 8P CONNECTOR 1

L2751 J0JHC0000045 CHIP INDUCTOR 1

L3100 J0JYC0000331 CHIP INDUCTOR 1

L3101 J0JYC0000331 CHIP INDUCTOR 1

L3104 J0JCC0000287 CHIP INDUCTOR 1

L3108 J0JCC0000287 CHIP INDUCTOR 1

L3111 J0JCC0000287 CHIP INDUCTOR 1

L3112 J0JCC0000287 CHIP INDUCTOR 1

L3113 J0JYC0000331 CHIP INDUCTOR 1

L3116 J0JYC0000331 CHIP INDUCTOR 1

L3117 J0JYC0000331 CHIP INDUCTOR 1

L3118 J0JYC0000331 CHIP INDUCTOR 1

L3119 J0JYC0000331 CHIP INDUCTOR 1

L3120 J0JYC0000331 CHIP INDUCTOR 1

L3300 J0ZZB0000150 FILTER 1 PAVCCZ

L3301 J0ZZB0000150 FILTER 1 PAVCCZ

L4702 J0JYC0000068 CHIP INDUCTOR 1

L4708 J0JYC0000068 CHIP INDUCTOR 1

L4717 J0JYC0000068 CHIP INDUCTOR 1

L4800 G1CR39J00009 INDUCTION COIL 1

L4801 G1CR39J00009 INDUCTION COIL 1

L4802 J0JGC0000020 CHIP INDUCTOR 1

L4803 J0JGC0000020 CHIP INDUCTOR 1

L4805 J0JGC0000020 CHIP INDUCTOR 1

L4807 J0JCC0000278 CHIP INDUCTOR 1

L4900 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L4901 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L4902 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L4903 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L5440 G1C6R8MA0445 INDUCTION COIL 1 PAVCCZ

L6700 J0JGC0000020 CHIP INDUCTOR 1

L6705 J0JGC0000020 CHIP INDUCTOR 1

Part No. Part Name & Description Q'ty Remarks

Page 87

Model No. : TX-P42S30B/Y Parts List

S-47

Safety

Ref.

No.

L8001 J0JCC0000287 CHIP INDUCTOR 1

L8002 J0JHC0000045 CHIP INDUCTOR 1

L8003 J0JHC0000045 CHIP INDUCTOR 1

L8005 J0JKC0000021 CHIP INDUCTOR 1

L8006 J0JCC0000287 CHIP INDUCTOR 1

L8007 J0JCC0000287 CHIP INDUCTOR 1

L8100 G1C4R7MA0416 INDUCTION COIL 1

L8102 G1C3R3MA0460 INDUCTION COIL 1 PAVCCZ

L8600 J0JHC0000045 CHIP INDUCTOR 1

L8603 J0JHC0000045 CHIP INDUCTOR 1

L8604 J0JHC0000045 CHIP INDUCTOR 1

L8620 J0ZZB0000142 FILTER 1

L8621 J0ZZB0000142 FILTER 1

L8700 G1C2R2MA0449 INDUCTION COIL 1 PAVCCZ

L8702 G1C6R8MA0445 INDUCTION COIL 1 PAVCCZ

L8703 G1C6R8MA0445 INDUCTION COIL 1 PAVCCZ

L8705 D0GBR00J0004 M 0 OHM J 1/10W 1

L8706 J0JGC0000020 CHIP INDUCTOR 1

L9303 J0JHC0000117 CHIP INDUCTOR 1

PA2005 K5H4022A0031 FUSE 1

PA5400 K5H5022A0031 FUSE 1

Q0900 B1ADCF000194 TRANSISTOR 1 PAVCCZ

Q2810 B1ABCE000015 TRANSISTOR 1

Q2811 B1ABCE000015 TRANSISTOR 1

Q2812 B1ABCE000015 TRANSISTOR 1

Q3008 DSA2001S0L TRANSISTOR 1

Q3102 B1AAFB000004 TRANSISTOR 1 PAVCCZ

Q3103 B1AAFB000004 TRANSISTOR 1 PAVCCZ

Q3104 B1AAFB000004 TRANSISTOR 1 PAVCCZ

Q3105 B1AAFB000004 TRANSISTOR 1 PAVCCZ

Q4513 DSA2001S0L TRANSISTOR 1

Q4514 B1HFCEA00001 TRANSISTOR 1 PAVCCZ

Q4700 B1ABCF000231 TRANSISTOR 1

Q4702 B1ABCF000231 TRANSISTOR 1

Q4710 B1ABCF000231 TRANSISTOR 1

Q4970 B1ADCF000194 TRANSISTOR 1 PAVCCZ

Q4971 B1AAFB000002 TRANSISTOR 1

Q4972 B1AAFB000002 TRANSISTOR 1

Q4974 DSC2001S0L TRANSISTOR 1

Q8100 B1CFRD000077 FET 1 PAVCCZ

Q8101 B1CFRD000077 FET 1 PAVCCZ

Q8102 B1MBEDA00027 FET 1

Q8701 B1MBEDA00027 FET 1

Q8709 B1ADCF000194 TRANSISTOR 1 PAVCCZ

Q8710 B1ADCF000194 TRANSISTOR 1 PAVCCZ

Q8711 DSC2001S0L TRANSISTOR 1

R004 D0GBR00J0004 M 0 OHM J 1/10W 1 P42S30B

R007 D0GBR00J0004 M 0 OHM J 1/10W 1 P42S30Y

R0902 D0GA473JA015 M 47KOHM, J,1/16W 1

R0903 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0904 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0905 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0906 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0907 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0908 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0909 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0910 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0911 EXB28V332J M 3.3 KOHM 1/32 W 1

R0912 D0GA101JA015 M 100 OHM, J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 88

Model No. : TX-P42S30B/Y Parts List

S-48

Safety

Ref.

No.

R0913 D0GA101JA015 M 100 OHM, J,1/16W 1

R0951 D0GA473JA015 M 47KOHM, J,1/16W 1

R0952 D0GA102JA023 M1KOHM, J.1/16 W 1

R1201 D0GA103JA015 M 10KOHM,J,1/16W 1

R1202 D0GA103JA015 M 10KOHM,J,1/16W 1

R1305 D0GA103JA015 M 10KOHM,J,1/16W 1

R1350 D0GA103JA015 M 10KOHM,J,1/16W 1

R2004 D1BA1432A014 M14.3KOHM,J.1/16 W 1 PAVCCZ

R2005 D1BA6651A014 M6.65KOHM,J.1/16 W 1 PAVCCZ

R2006 D1BA7151A014 M7.15KOHM,J.1/16 W 1

R2007 ERJ2RKF1741 M 1.74KOHM, F 1/16 W 1

R2010 D1BA7151A014 M7.15KOHM,J.1/16 W 1

R2011 D0GA102JA023 M1KOHM, J.1/16 W 1

R2012 D0GA103JA015 M 10KOHM,J,1/16W 1

R2705 D0GA101JA015 M 100 OHM, J,1/16W 1

R2752 D0GA184JA023 M 180KOHM J.1/16W 1

R2810 D0GB470JA065 M 47 OHM,J,1/10W 1

R2811 D0GB104JA065 M 100KOHM J 1/10W 1

R2812 D0GB224JA065 M 220KOHM,J,1/10W 1 PAVCCZ

R2813 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCCZ

R2814 D0GB103JA065 M 10K OHM J 1/10W 1

R2815 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R2816 D1BB1621A055 M1.62KOHM,J.1/10W 1

R2817 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCCZ

R2818 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R2819 D1BB4301A055 M4.30KOHM,J.1/10W 1

R3001 D0GA102JA023 M1KOHM, J.1/16 W 1

R3002 D0GA122JA023 M 1.2KOHM, J,1/16W 1

R3003 D0GA103JA015 M 10KOHM,J,1/16W 1

R3004 D0GA103JA015 M 10KOHM,J,1/16W 1

R3030 D0GA101JA015 M 100 OHM, J,1/16W 1

R3104 D0GBR00J0004 M 0 OHM J 1/10W 1

R3106 D0GA333JA023 M 33KOHM,J,1/16W 1

R3107 D0GA333JA023 M 33KOHM,J,1/16W 1

R3109 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3117 D0GA221JA023 M220 OHM, J.1/16 W 1

R3121 EXB28V221J M220 OHM 1/32 W 1

R3129 D0GA104JA023 M100KOHM, J.1/16 W 1

R3137 D0GD750JA052 M 75 OHM,J,1/8W 1 PAVCCZ

R3141 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3142 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3143 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3147 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3153 D0GA221JA023 M220 OHM, J.1/16 W 1

R3157 EXB28V221J M220 OHM 1/32 W 1

R3163 D0GA104JA023 M100KOHM, J.1/16 W 1

R3164 D0GA104JA023 M100KOHM, J.1/16 W 1

R3167 D0GA333JA023 M 33KOHM,J,1/16W 1

R3168 D0GA333JA023 M 33KOHM,J,1/16W 1

R3171 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3172 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3173 EXB28V221J M220 OHM 1/32 W 1

R3174 D0GA221JA023 M220 OHM, J.1/16 W 1

R3175 D0GA221JA023 M220 OHM, J.1/16 W 1

R3179 D0GA331JA023 M 330 OHM, J,1/16W 1

R3180 D0GA331JA023 M 330 OHM, J,1/16W 1

R3181 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1

R3182 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1

R3183 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1

R3184 D0GA104JA023 M100KOHM, J.1/16 W 1

R3185 D0GA104JA023 M100KOHM, J.1/16 W 1

R3186 D0GA333JA023 M 33KOHM,J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 89

Model No. : TX-P42S30B/Y Parts List

S-49

Safety

Ref.

No.

R3187 D0GA333JA023 M 33KOHM,J,1/16W 1

R3190 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3191 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3192 EXB28V820JX M 82 OHM 1/32 W 1

R3194 D0GA331JA023 M 330 OHM, J,1/16W 1

R3195 D0GA331JA023 M 330 OHM, J,1/16W 1

R3198 D0GA680JA023 M 68 OHM, J,1/16W 1

R3202 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3204 D1BA2152A014 M21.5KOHM,J.1/16 W 1 PAVCCZ

R3206 D1BA1302A014 M 13KOHM,J.1/16 W 1

R3208 D0GA273JA023 M 27K OHM J ,1/16W 1

R3212 D0GA680JA023 M 68 OHM, J,1/16W 1

R3213 D0GA473JA015 M 47KOHM, J,1/16W 1

R3290 D0GA473JA015 M 47KOHM, J,1/16W 1

R3291 D0GA473JA015 M 47KOHM, J,1/16W 1

R4548 D0GA220JA023 M22 OHM, J.1/16 W 1

R4549 D0GA151JA023 M 150 OHM, J,1/16W 1

R4550 D0GA151JA023 M 150 OHM, J,1/16W 1

R4551 D0GA151JA023 M 150 OHM, J,1/16W 1

R4552 D0GA560JA023 M 56 OHM, J,1/16W 1

R4553 D0GA103JA015 M 10KOHM,J,1/16W 1

R4554 D0GA102JA023 M1KOHM, J.1/16 W 1

R4563 D0GA103JA015 M 10KOHM,J,1/16W 1

R4599 D0GA473JA015 M 47KOHM, J,1/16W 1

R4702 D0GA103JA015 M 10KOHM,J,1/16W 1

R4708 D0GA103JA015 M 10KOHM,J,1/16W 1

R4709 D0GA103JA015 M 10KOHM,J,1/16W 1

R4710 EXB28V473JX M 47KOHM 1/32 W 1

R4711 D0GA102JA023 M1KOHM, J.1/16 W 1

R4715 D0GA103JA015 M 10KOHM,J,1/16W 1

R4721 D0GA103JA015 M 10KOHM,J,1/16W 1

R4722 D0GA103JA015 M 10KOHM,J,1/16W 1

R4723 EXB28V473JX M 47KOHM 1/32 W 1

R4724 D0GA102JA023 M1KOHM, J.1/16 W 1

R4748 D0GA680JA023 M 68 OHM, J,1/16W 1

R4749 D0GA680JA023 M 68 OHM, J,1/16W 1

R4750 D0GA680JA023 M 68 OHM, J,1/16W 1

R4751 D0GA680JA023 M 68 OHM, J,1/16W 1

R4781 D0GA680JA023 M 68 OHM, J,1/16W 1

R4783 D0GA103JA015 M 10KOHM,J,1/16W 1

R4784 D0GA103JA015 M 10KOHM,J,1/16W 1

R4785 D0GA680JA023 M 68 OHM, J,1/16W 1

R4789 D0GA103JA015 M 10KOHM,J,1/16W 1

R4792 EXB28V473JX M 47KOHM 1/32 W 1

R4793 D0GA102JA023 M1KOHM, J.1/16 W 1

R4798 D0GA273JA023 M 27K OHM J ,1/16W 1

R4802 D0GAR00J0005 M 0 OHM, 1/16W 1

R4814 D0GA103JA015 M 10KOHM,J,1/16W 1

R4910 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R4911 D0GA102JA023 M1KOHM, J.1/16 W 1

R4913 D0GA103JA015 M 10KOHM,J,1/16W 1

R4914 EXB28V220J M 22 OHM 1/32 W 1

R4921 D0GA103JA015 M 10KOHM,J,1/16W 1

R4970 D1BB1403A055 M 140KOHM,J.1/10W 1

R4971 D1BB1403A055 M 140KOHM,J.1/10W 1

R4972 D0GA103JA015 M 10KOHM,J,1/16W 1

R4973 D0GA103JA015 M 10KOHM,J,1/16W 1

R4974 D0GA101JA015 M 100 OHM, J,1/16W 1

R4975 D0GA473JA015 M 47KOHM, J,1/16W 1

R4976 D0GA103JA015 M 10KOHM,J,1/16W 1

R4978 D0GA101JA015 M 100 OHM, J,1/16W 1

R4979 D0GA101JA015 M 100 OHM, J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 90

Model No. : TX-P42S30B/Y Parts List

S-50

Safety

Ref.

No.

R4984 D0GA473JA015 M 47KOHM, J,1/16W 1

R4985 D0GA103JA015 M 10KOHM,J,1/16W 1

R4987 D0GA102JA023 M1KOHM, J.1/16 W 1

R5000 D0GA102JA023 M1KOHM, J.1/16 W 1

R5001 D0GA473JA015 M 47KOHM, J,1/16W 1

R5009 D0GA103JA015 M 10KOHM,J,1/16W 1

R5010 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R5011 D0GA104JA023 M100KOHM, J.1/16 W 1

R5012 D0GA223JA023 M 22K OHM J 1/16W 1

R5013 D0GA103JA015 M 10KOHM,J,1/16W 1

R5440 D0GA390JA023 M 39 OHM, J,1/16W 1

R5441 D1BB1002A055 M 10KOHM,J.1/10W 1

R5442 D1BB1002A055 M 10KOHM,J.1/10W 1

R5443 D1BB5362A055 M53.6KOHM,J.1/10W 1 PAVCCZ

R6701 D0GA103JA015 M 10KOHM,J,1/16W 1

R6702 D0GA471JA023 M 470OHM, J,1/16W 1

R6707 EXB28V680JX M 68 OHM 1/32 W 1

R6708 EXB2HV680J M 68 OHM 1/16 W 1

R6709 D0GA103JA015 M 10KOHM,J,1/16W 1

R6710 D0GA103JA015 M 10KOHM,J,1/16W 1

R6942 D0GAR00J0005 M 0 OHM, 1/16W 1

R6951 D0GAR00J0005 M 0 OHM, 1/16W 1

R6952 D0GAR00J0005 M 0 OHM, 1/16W 1

R8008 D0GA331JA023 M 330 OHM, J,1/16W 1

R8100 D1BB1271A087 M1.27KOHM,J.1/16W 1 PAVCCZ

R8102 D1BB2101A087 M 2.1KOHM,J.1/10W 1

R8104 D1BB8200A087 M 820 OHM,J.1/10W 1

R8106 D1BB2001A087 M 2KOHM,J.1/10W 1

R8108 D0GB100JA065 M 10 OHM J 1/10W 1

R8110 D0GB100JA065 M 10 OHM J 1/10W 1

R8114 D0GA303JA023 M 30K OHM J 0.063W 1 PAVCCZ

R8118 D0GA183JA023 M 18K OHM J.1/16W 1

R8200 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8201 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8202 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8203 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8204 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8205 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8206 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8207 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8208 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8209 D0GA111JA023 M 110 OHM, J.1/16W 1

R8210 D0GA111JA023 M 110 OHM, J.1/16W 1

R8211 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8212 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8213 D0GA103JA015 M 10KOHM,J,1/16W 1

R8214 D0GA103JA015 M 10KOHM,J,1/16W 1

R8215 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8216 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8217 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8218 EXB28V220J M 22 OHM 1/32 W 1

R8219 EXB28V220J M 22 OHM 1/32 W 1

R8220 EXB28V220J M 22 OHM 1/32 W 1

R8221 EXB28V220J M 22 OHM 1/32 W 1

R8222 EXB28V220J M 22 OHM 1/32 W 1

R8223 EXB28V220J M 22 OHM 1/32 W 1

R8224 EXB28V220J M 22 OHM 1/32 W 1

R8225 EXB28V220J M 22 OHM 1/32 W 1

R8226 EXB28V220J M 22 OHM 1/32 W 1

R8227 EXB28V220J M 22 OHM 1/32 W 1

R8228 EXB28V220J M 22 OHM 1/32 W 1

R8229 EXB28V220J M 22 OHM 1/32 W 1

Part No. Part Name & Description Q'ty Remarks

Page 91

Model No. : TX-P42S30B/Y Parts List

S-51

Safety

Ref.

No.

R8230 D0GA220JA023 M22 OHM, J.1/16 W 1

R8231 D0GA220JA023 M22 OHM, J.1/16 W 1

R8232 D0GA220JA023 M22 OHM, J.1/16 W 1

R8301 D0GA471JA023 M 470OHM, J,1/16W 1

R8302 D0GA360JA023 M 36 OHM, J,1/16W 1 PAVCCZ

R8303 D0GA360JA023 M 36 OHM, J,1/16W 1 PAVCCZ

R8304 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8305 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8307 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8400 D0GA680JA023 M 68 OHM, J,1/16W 1

R8401 D0GA680JA023 M 68 OHM, J,1/16W 1

R8402 D0GA680JA023 M 68 OHM, J,1/16W 1

R8403 D0GA680JA023 M 68 OHM, J,1/16W 1

R8404 D0GA680JA023 M 68 OHM, J,1/16W 1

R8405 D0GA680JA023 M 68 OHM, J,1/16W 1

R8406 EXB2HV680J M 68 OHM 1/16 W 1

R8407 EXB2HV680J M 68 OHM 1/16 W 1

R8408 EXB2HV680J M 68 OHM 1/16 W 1

R8409 EXB28V680JX M 68 OHM 1/32 W 1

R8410 EXB2HV680J M 68 OHM 1/16 W 1

R8411 EXB2HV680J M 68 OHM 1/16 W 1

R8418 D0GA103JA015 M 10KOHM,J,1/16W 1

R8421 EXB2HV101J M 100 OHM 1/16 W 1

R8424 D0GA223JA023 M 22K OHM J 1/16W 1

R8425 D0GA223JA023 M 22K OHM J 1/16W 1

R8426 D0GA473JA015 M 47KOHM, J,1/16W 1

R8427 D0GA473JA015 M 47KOHM, J,1/16W 1

R8429 D0GA103JA015 M 10KOHM,J,1/16W 1

R8433 D0GA103JA015 M 10KOHM,J,1/16W 1

R8434 D0GA103JA015 M 10KOHM,J,1/16W 1

R8435 D0GA223JA023 M 22K OHM J 1/16W 1

R8436 EXB2HV101J M 100 OHM 1/16 W 1

R8437 EXB2HV473JV M 47 kOHM 1/16 W 1

R8438 EXB2HV103JV M 10 kOHM 1/16 W 1

R8440 D0GA103JA015 M 10KOHM,J,1/16W 1

R8441 D0GA103JA015 M 10KOHM,J,1/16W 1

R8442 D0GA103JA015 M 10KOHM,J,1/16W 1

R8601 D0GA101JA015 M 100 OHM, J,1/16W 1

R8602 D0GA101JA015 M 100 OHM, J,1/16W 1

R8603 D0GA101JA015 M 100 OHM, J,1/16W 1

R8606 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8607 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8608 D0GA102JA023 M1KOHM, J.1/16 W 1

R8609 D1BA6491A014 M6.49KOHM,J.1/16 W 1

R8610 D0GA221JA023 M220 OHM, J.1/16 W 1

R8615 D0GA105JA023 M 1M OHM, J,1/16W 1

R8616 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8617 D0GA103JA015 M 10KOHM,J,1/16W 1

R8618 D0GA103JA015 M 10KOHM,J,1/16W 1

R8620 D0GA103JA015 M 10KOHM,J,1/16W 1

R8621 D0GA103JA015 M 10KOHM,J,1/16W 1

R8624 D0GA560JA023 M 56 OHM, J,1/16W 1

R8625 D0GA560JA023 M 56 OHM, J,1/16W 1

R8626 D0GA560JA023 M 56 OHM, J,1/16W 1

R8627 D0GA560JA023 M 56 OHM, J,1/16W 1

R8628 D0GA560JA023 M 56 OHM, J,1/16W 1

R8629 D0GA560JA023 M 56 OHM, J,1/16W 1

R8630 D1HG1038A002 NETWORK RESISTER 1

R8632 EXB28V560JX M 56 OHM 1/32 W 1

R8634 EXB28V560JX M 56 OHM 1/32 W 1

R8635 EXB28V101JX M 100 OHM 1/32 W 1

R8636 D0GA220JA023 M22 OHM, J.1/16 W 1

Part No. Part Name & Description Q'ty Remarks

Page 92

Model No. : TX-P42S30B/Y Parts List

S-52

Safety

Ref.

No.

R8637 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8638 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8639 D0GA103JA015 M 10KOHM,J,1/16W 1

R8640 D0GA103JA015 M 10KOHM,J,1/16W 1

R8648 D0GA273JA023 M 27K OHM J ,1/16W 1

R8656 D0GA103JA015 M 10KOHM,J,1/16W 1

R8661 D0GA103JA015 M 10KOHM,J,1/16W 1

R8681 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8682 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8683 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8684 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8697 D0GA101JA015 M 100 OHM, J,1/16W 1

R8698 D0GA101JA015 M 100 OHM, J,1/16W 1

R8699 D0GA101JA015 M 100 OHM, J,1/16W 1

R8716 D1BB1911A087 M1.91KOHM,J.1/16W 1 PAVCCZ

R8718 D1BB8200A087 M 820 OHM,J.1/10W 1

R8720 D0GB100JA065 M 10 OHM J 1/10W 1

R8722 D0GA273JA023 M 27K OHM J ,1/16W 1

R8742 D1BB5362A055 M53.6KOHM,J.1/10W 1 PAVCCZ

R8743 D1BB1002A055 M 10KOHM,J.1/10W 1

R8744 D0GA390JA023 M 39 OHM, J,1/16W 1

R8745 D1BB1002A055 M 10KOHM,J.1/10W 1

R8746 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R8747 D0GA683JA023 M 68KOHM, J,1/16W 1

R8748 D0GA473JA015 M 47KOHM, J,1/16W 1

R8749 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R8750 D0GA392JA023 M 3.9KOHM, J,1/16W 1

R8751 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R8752 D0GA332JA023 M 3.3KOHM, J,1/16W 1

R8753 D0GA102JA023 M1KOHM, J.1/16 W 1

R8754 D0GA103JA015 M 10KOHM,J,1/16W 1

R8755 D0GA221JA023 M220 OHM, J.1/16 W 1

R8756 D0GA104JA023 M100KOHM, J.1/16 W 1

R8757 D0GD102JA052 M 1.0KOHM,J,1/8W 1 PAVCCZ

R8758 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8759 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8760 D0GA103JA015 M 10KOHM,J,1/16W 1

R8765 D0GA103JA015 M 10KOHM,J,1/16W 1

R8768 D0GA390JA023 M 39 OHM, J,1/16W 1

R8769 D1BB4301A055 M4.30KOHM,J.1/10W 1

R8770 D1BB3922A055 M39.2KOHM, 1/10W 1 PAVCCZ

R8771 D1BB1002A055 M 10KOHM,J.1/10W 1

R8772 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8773 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8774 D0GA563JA023 M 56KOHM, J,0.063W 1 PAVCCZ

R8775 D0GA473JA015 M 47KOHM, J,1/16W 1

R8811 D0GA103JA015 M 10KOHM,J,1/16W 1

R8816 D0GA103JA015 M 10KOHM,J,1/16W 1

R8818 D0GA103JA015 M 10KOHM,J,1/16W 1

R8819 D0GA103JA015 M 10KOHM,J,1/16W 1

R8820 D0GA103JA015 M 10KOHM,J,1/16W 1

R8821 D0GA473JA015 M 47KOHM, J,1/16W 1

R8824 D0GA103JA015 M 10KOHM,J,1/16W 1

R8831 D0GA103JA015 M 10KOHM,J,1/16W 1

R8835 D0GA103JA015 M 10KOHM,J,1/16W 1

R8848 D0GA102JA023 M1KOHM, J.1/16 W 1

R8849 D0GA103JA015 M 10KOHM,J,1/16W 1

R8852 D0GA243JA023 M 24K OHM J 0.063W 1

R8909 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R8910 D0GA103JA015 M 10KOHM,J,1/16W 1

R8914 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8921 D0GA223JA023 M 22K OHM J 1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 93

Model No. : TX-P42S30B/Y Parts List

S-53

Safety

Ref.

No.

R8964 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8972 EXB2HV680J M 68 OHM 1/16 W 1

R9035 D0GA103JA015 M 10KOHM,J,1/16W 1

R9103 D0GA101JA015 M 100 OHM, J,1/16W 1

R9104 D0GA101JA015 M 100 OHM, J,1/16W 1

R9105 D0GA473JA015 M 47KOHM, J,1/16W 1

R9198 EXB28V101JX M 100 OHM 1/32 W 1

R9203 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R9205 D0GA333JA023 M 33KOHM,J,1/16W 1

R9206 D0GA563JA023 M 56KOHM, J,0.063W 1 PAVCCZ

R9208 EXB2HV470JV M 47 OHM 1/16 W 1

R9209 EXB2HV470JV M 47 OHM 1/16 W 1

R9224 D0GA470JA023 M 47 OHM, J,1/16W 1

R9226 D0GA470JA023 M 47 OHM, J,1/16W 1

R9247 D0GA470JA023 M 47 OHM, J,1/16W 1

R9307 D0GA330JA023 M 33 OHM, J,1/16W 1

R9308 D0GA330JA023 M 33 OHM, J,1/16W 1

R9320 D0GA182JA023 M 1.8KOHM, J,0.063W 1

R9321 D0GA105JA023 M 1M OHM, J,1/16W 1

R9324 D0GB122JA065 M 1.2KOHM J 1/10W 1 PAVCCZ

R9325 D0GB122JA065 M 1.2KOHM J 1/10W 1 PAVCCZ

R9326 D0GB122JA065 M 1.2KOHM J 1/10W 1 PAVCCZ

R9327 D0GB122JA065 M 1.2KOHM J 1/10W 1 PAVCCZ

R9329 D0GA102JA023 M1KOHM, J.1/16 W 1

R9330 D0GA102JA023 M1KOHM, J.1/16 W 1

R9400 EXB2HV103JV M 10 kOHM 1/16 W 1

R9401 EXB2HV103JV M 10 kOHM 1/16 W 1

R9402 EXB28V103JX M 10KOHM 1/32 W 1

R9608 EXB2HV470JV M 47 OHM 1/16 W 1

R9609 EXB28V470JX M 47 OHM 1/32 W 1

R9610 EXB28V470JX M 47 OHM 1/32 W 1

R9611 EXB28V470JX M 47 OHM 1/32 W 1

R9907 D0GA101JA015 M 100 OHM, J,1/16W 1

RM2810 B3RAD0000168 REMOTE SENSOR 1

SN2810 B3JB00000078 IC 1

SW2000 K0F122A00031 SWITCH 1

SW2001 K0H1BA000445 SWITCH 1

SW2002 K0H1BA000445 SWITCH 1

SW2003 K0H1BA000445 SWITCH 1

SW2004 K0H1BA000445 SWITCH 1

SW2005 K0H1BA000445 SWITCH 1

T8601 G5BYC0000015 TRANS 1

TU4801 ENGS7302D5F TUNER 1 PAVCCZ

X6700 H0J410500001 CRYSTAL 1

X8300 H0J245500110 CRYSTAL 1 PAVCCZ

X8600 H0J250500109 CRYSTAL 1

X9300 H0J200500091 CRYSTAL 1 PAVCCZ

C10 K1MY20BA0345 20P CONNECTOR 1

C11 K1MY55BA0345 55P CONNECTOR 1

C14 K1KY03AA0719 3P CONNECTOR 1

C20 K1MY20BA0345 20P CONNECTOR 1

C21 K1MY55BA0345 55P CONNECTOR 1

C23 K1MY20BA0345 20P CONNECTOR 1

C25 K1KY04B00013 4P CONNECTOR 1 PAVCCZ

C14602 F1H1C105A145 C 1 uF 16 V 1

Part No. Part Name & Description Q'ty Remarks

Page 94

Model No. : TX-P42S30B/Y Parts List

S-54

Safety

Ref.

No.

C14603 F1G1H1020008 C 1000PF 50V 1

C14605 F1G1H391A731 C 390PF, 50V 1

C14606 F1G1H391A731 C 390PF, 50V 1

C14607 F1G1H1020008 C 1000PF 50V 1

C14608 F1G1H391A731 C 390PF, 50V 1

C14609 F1G1H391A731 C 390PF, 50V 1

C14612 F1H1C105A145 C 1 uF 16 V 1

C14616 F1H1C105A145 C 1 uF 16 V 1

C14620 F1H1C105A145 C 1 uF 16 V 1

C14629 F1H1C105A145 C 1 uF 16 V 1

C14633 F1H1C105A145 C 1 uF 16 V 1

C14651 F1L2E104A028 C 0.10UF, 250V 1

C14652 F1L2E104A028 C 0.10UF, 250V 1

C14803 F1H1C105A145 C 1 uF 16 V 1

C14806 F1G1H1020008 C 1000PF 50V 1

C14807 F1G1H391A731 C 390PF, 50V 1

C14808 F1G1H391A731 C 390PF, 50V 1

C14809 F1G1H391A731 C 390PF, 50V 1

C14810 F1G1H391A731 C 390PF, 50V 1

C14813 F1H1C105A145 C 1 uF 16 V 1

C14817 F1H1C105A145 C 1 uF 16 V 1

C14821 F1H1C105A145 C 1 uF 16 V 1

C14825 F1H1C105A145 C 1 uF 16 V 1

C14834 F1H1C105A145 C 1 uF 16 V 1

C14851 F1L2E104A028 C 0.10UF, 250V 1

C14852 F1L2E104A028 C 0.10UF, 250V 1

C14902 F1H1C105A145 C 1 uF 16 V 1

C14903 F1H1C105A145 C 1 uF 16 V 1

C14904 F1H1C105A145 C 1 uF 16 V 1

C14905 F1G1H101A565 C 100PF 50V 1

C14906 F1H1C105A145 C 1 uF 16 V 1

C14907 F1H1C105A145 C 1 uF 16 V 1

C14910 F1H1C105A145 C 1 uF 16 V 1

C14911 F1K1E475A134 C 4.7UF 25V 1

C16001 F1L2J562A022 C 5600PF, 630V 1

C16012 F2A2E141A217 E 140UF, 250V 1

C16013 F0C2E155A286 C 1.5UF, 250V 1 PAVCCZ

C16023 F1L2J1020001 C 1000PF, 630V 1

C16024 F1L2J332A022 C 3300PF, 630V 1

C16025 F1E2J222A002 C 2200PF, 630V 1

C16041 ECJ1VB1H392K C 3900UF, 50V 1

C16044 F1E2J821A002 C 820PF, 630V 1

C16051 ECJ1VB1H392K C 3900UF, 50V 1

C16061 F1E2J821A002 C 820PF, 630V 1

C16101 F1L2J222A022 C 2200PF, 630V 1

C16104 F1H1E470A130 C 47PF, 25V 1

C16105 F1H1E470A130 C 47PF, 25V 1

C16131 F1K1E475A134 C 4.7UF 25V 1

C16132 F1H1C105A145 C 1 uF 16 V 1

C16133 F2A1E101A089 E 100UF 25V 1

C16135 F1K1E105A029 C 1UF, 25V 1

C16153 F1K1E475A134 C 4.7UF 25V 1

C16154 F1K1E475A134 C 4.7UF 25V 1

C16191 F1K1E475A134 C 4.7UF 25V 1

C16192 F1H1C105A145 C 1 uF 16 V 1

C16193 F2A1E470B725 E 47UF, 25V 1 PAVCCZ

C16195 F1K1E105A029 C 1UF, 25V 1

C16201 F0C2E405A278 C 4UF, 250V 1 PAVCCZ

C16202 F0C2E405A278 C 4UF, 250V 1 PAVCCZ

C16242 F1H1C105A145 C 1 uF 16 V 1

C16243 ECJ1VB1H103K C 0.01UF, 50V 1

C16244 F1J1A106A087 C 10UF, 10V 1

Part No. Part Name & Description Q'ty Remarks

Page 95

Model No. : TX-P42S30B/Y Parts List

S-55

Safety

Ref.

No.

C16271 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16280 F1K1E105A029 C 1UF, 25V 1

C16286 F1H1H104A970 C 0.1UF, , 50V 1

C16287 F1H1H104A970 C 0.1UF, , 50V 1

C16314 F2A2E141A217 E 140UF, 250V 1

C16315 ECJ1VB1A105K C 1UF, 10V 1

C16316 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16317 ECJ1VB1A105K C 1UF, 10V 1

C16318 F1J1H104A717 C 0.1UF, 50V 1

C16319 F1J1H104A717 C 0.1UF, 50V 1

C16328 F2A2T1210001 E 120UF, 220V 1 PAVCCZ

C16330 F0C2E105A286 C 1 UF 250 V 1 PAVCCZ

C16401 F1L2J562A022 C 5600PF, 630V 1

C16411 F2A2E141A217 E 140UF, 250V 1

C16413 F2A2E141A217 E 140UF, 250V 1

C16421 F1L2J562A022 C 5600PF, 630V 1

C16441 ECJ1VB1H392K C 3900UF, 50V 1

C16451 ECJ1VB1H392K C 3900UF, 50V 1

C16453 F1E2J821A002 C 820PF, 630V 1

C16460 F1E2J222A002 C 2200PF, 630V 1

C16472 ECJ1VB1A105K C 1UF, 10V 1

C16490 F1H1C105A145 C 1 uF 16 V 1

C16502 F1K1E475A134 C 4.7UF 25V 1

C16503 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16505 F1K1E105A029 C 1UF, 25V 1

C16506 F1H1C105A145 C 1 uF 16 V 1

C16507 F0C2E155A286 C 1.5UF, 250V 1 PAVCCZ

C16531 F1K1E475A134 C 4.7UF 25V 1

C16534 F1H1C105A145 C 1 uF 16 V 1

C16551 F1K1E475A134 C 4.7UF 25V 1

C16561 F1J1A106A087 C 10UF, 10V 1

C16562 F1H1C105A145 C 1 uF 16 V 1

C16564 F1H1C105A145 C 1 uF 16 V 1

C16565 ECJ1VB1H103K C 0.01UF, 50V 1

C16566 ECJ1VB1H103K C 0.01UF, 50V 1

C16567 F1H1C105A145 C 1 uF 16 V 1

C16584 ECJ1VB1H392K C 3900UF, 50V 1

C16593 ECJ1XC1H102J C 1000PF, J, 50V 1

C16602 F1H1H2200008 C 22PF, 50V 1

C16603 F1K2J102A014 C 1000PF, 630V 1

C16604 F1K2J102A014 C 1000PF, 630V 1

C16631 F0C2E405A278 C 4UF, 250V 1 PAVCCZ

C16632 F0C2E405A278 C 4UF, 250V 1 PAVCCZ

C16641 F1K2J222A014 C 2200PF ,630V 1

C16645 F1K2J102A014 C 1000PF, 630V 1

C16646 F1K2J102A014 C 1000PF, 630V 1

C16661 F1K2J102A038 C 1000PF, 630V 1

C16662 F1K2J102A038 C 1000PF, 630V 1

C16664 ECJ1XC1H820J C 82PF, J, 50V 1

C16665 ECJ1XC1H820J C 82PF, J, 50V 1

C16666 ECJ1XC1H820J C 82PF, J, 50V 1

C16668 F1H1H821A831 C 820 PF, 50V 1 PAVCCZ

C16685 F1H1H104A970 C 0.1UF, , 50V 1

C16692 F1H1H104A970 C 0.1UF, , 50V 1

C16723 F1K1E105A029 C 1UF, 25V 1

C16724 F1K1E475A134 C 4.7UF 25V 1

C16753 F1K1E475A134 C 4.7UF 25V 1

C16770 F1H1C105A145 C 1 uF 16 V 1

C16791 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16793 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16794 F1J1A106A087 C 10UF, 10V 1

C16795 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 96

Model No. : TX-P42S30B/Y Parts List

S-56

Safety

Ref.

No.

C16796 F1K1E475A134 C 4.7UF 25V 1

C16797 F1H1H104A970 C 0.1UF, , 50V 1

C16813 F2A2T1210001 E 120UF, 220V 1 PAVCCZ

C16833 F1K2J222A014 C 2200PF ,630V 1

C16834 F1K2J222A014 C 2200PF ,630V 1

C16842 F2A2C1010028 E 100UF, 160V 1 PAVCCZ

C16843 ECJ1VB1A105K C 1UF, 10V 1

C16844 F1J1H104A717 C 0.1UF, 50V 1

C16854 F1J1H104A717 C 0.1UF, 50V 1

C16856 ECJ1VB1A105K C 1UF, 10V 1

C16858 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16859 F1J1H104A717 C 0.1UF, 50V 1

C16860 ECJ1VB1A105K C 1UF, 10V 1

C16861 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16862 ECJ1VB1A105K C 1UF, 10V 1

C16863 F1J1H104A717 C 0.1UF, 50V 1

C16865 F1H1C105A145 C 1 uF 16 V 1

C16891 F1K1E105A029 C 1UF, 25V 1

C16902 F1E2J332A002 C 3300PF, 630V 1

C16910 F1E2J821A002 C 820PF, 630V 1

C16912 F1E2J821A002 C 820PF, 630V 1

C16914 F1L2J332A022 C 3300PF, 630V 1

C17101 ECJ1VB1A105K C 1UF, 10V 1

C17102 ECJ1VB1A105K C 1UF, 10V 1

C17103 ECJ1VB1A105K C 1UF, 10V 1

C17108 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17109 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17111 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17131 ECJ1VB1A105K C 1UF, 10V 1

C17132 ECJ1VB1A105K C 1UF, 10V 1

C17134 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17136 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17137 ECJ1VB1A105K C 1UF, 10V 1

C17138 ECJ1VB1A105K C 1UF, 10V 1

C17139 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17142 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17143 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17150 ECJ1XC1H102J C 1000PF, J, 50V 1

C17151 ECJ1XC1H102J C 1000PF, J, 50V 1

C17152 ECJ1XC1H102J C 1000PF, J, 50V 1

C17153 ECJ1XC1H102J C 1000PF, J, 50V 1

C17154 ECJ1XC1H102J C 1000PF, J, 50V 1

C17155 ECJ1XC1H102J C 1000PF, J, 50V 1

C17156 ECJ1XC1H102J C 1000PF, J, 50V 1

C17157 ECJ1XC1H102J C 1000PF, J, 50V 1

C17201 ECJ1VB1A105K C 1UF, 10V 1

C17203 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17204 ECJ1VB1A105K C 1UF, 10V 1

C17205 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17207 ECJ1VB1A105K C 1UF, 10V 1

C17208 ECJ1VB1A105K C 1UF, 10V 1

C17209 ECJ1VB1A105K C 1UF, 10V 1

C17210 ECJ1VB1A105K C 1UF, 10V 1

C17211 ECJ1VB1A105K C 1UF, 10V 1

C17212 ECJ1VB1A105K C 1UF, 10V 1

C17213 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17214 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17226 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17229 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17230 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17233 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17235 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 97

Model No. : TX-P42S30B/Y Parts List

S-57

Safety

Ref.

No.

C17236 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ

C17239 ECJ1XC1H102J C 1000PF, J, 50V 1

C17240 ECJ1XC1H102J C 1000PF, J, 50V 1

C17241 ECJ1XC1H102J C 1000PF, J, 50V 1

C17242 ECJ1XC1H102J C 1000PF, J, 50V 1

C17243 ECJ1XC1H102J C 1000PF, J, 50V 1

C17244 ECJ1XC1H102J C 1000PF, J, 50V 1

C17245 ECJ1XC1H102J C 1000PF, J, 50V 1

C17246 ECJ1XC1H102J C 1000PF, J, 50V 1

CB1 K1MY55B00002 55P CONNECTOR 1

CB2 K1MY55B00002 55P CONNECTOR 1

CB3 K1MY55B00002 55P CONNECTOR 1

CB4 K1MY55B00002 55P CONNECTOR 1

CB5 K1MY55B00002 55P CONNECTOR 1

CB6 K1MY55B00002 55P CONNECTOR 1

CB7 K1MY55B00002 55P CONNECTOR 1

CB8 K1MY55B00002 55P CONNECTOR 1

CB9 K1MY55B00002 55P CONNECTOR 1

CB10 K1MY55B00002 55P CONNECTOR 1

CB11 K1MY55B00002 55P CONNECTOR 1

CB12 K1MY55B00002 55P CONNECTOR 1

CB13 K1MY55B00002 55P CONNECTOR 1

CB14 K1MY55B00002 55P CONNECTOR 1

CB15 K1MY55B00002 55P CONNECTOR 1

D14652 B0ECKM000046 DIODE 1

D14654 B0ECKM000046 DIODE 1

D14703 B0ADCJ000100 DIODE 1

D14852 B0ECKM000046 DIODE 1

D14853 B0ECKM000046 DIODE 1

D14902 B0ACCJ000048 DIODE 1

D14903 B0ACCJ000048 DIODE 1

D14904 B0ADCJ000100 DIODE 1

D16001 B0ECLP000010 DIODE 1 PAVCCZ

D16002 B0ECLP000010 DIODE 1 PAVCCZ

D16021 B0ECLP000010 DIODE 1 PAVCCZ

D16022 DA3CF30ACL ZENER DIODE 1 PAVCCZ

D16041 B0FCCN000003 DIODE 1

D16051 B0FCCN000003 DIODE 1

D16071 B0ECLP000010 DIODE 1 PAVCCZ

D16072 B0ECKP000055 DIODE 1

D16073 B0ECKP000055 DIODE 1

D16131 B0ECKP000055 DIODE 1

D16133 B0ACCJ000048 DIODE 1

D16134 DZ2J051M0L ZENER DIODE 1

D16191 B0ECKP000055 DIODE 1

D16192 B0ACCJ000048 DIODE 1

D16193 DZ2J051M0L ZENER DIODE 1

D16243 B0ADCJ000100 DIODE 1

D16251 DZ2J330M0L ZENER DIODE 1

D16252 DZ2J330M0L ZENER DIODE 1

D16253 DZ2J051M0L ZENER DIODE 1

D16254 B3ABB0000210 LED 1

D16255 B0ADCJ000100 DIODE 1

D16282 DZ2J068M0L ZENER DIODE 1

D16285 B0ADEJ000035 ZENER DIODE 1

D16315 DZ2J150M0L ZENER DIODE 1

D16316 B0ECKP000055 DIODE 1

D16317 B0ECKP000055 DIODE 1

D16401 B0FCCN000003 DIODE 1

D16407 B0JCME000093 DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 98

Model No. : TX-P42S30B/Y Parts List

S-58

Safety

Ref.

No.

D16411 B0ADCJ000100 DIODE 1

D16413 B0ACCJ000048 DIODE 1

D16421 B0FCBN000001 DIODE 1 PAVCCZ

D16432 B0ECKP000055 DIODE 1

D16433 B0ECKP000055 DIODE 1

D16461 B0FCCN000003 DIODE 1

D16473 B0ACCJ000048 DIODE 1

D16474 B0ACCJ000048 DIODE 1

D16481 B0FCCN000003 DIODE 1

D16491 B0ACCJ000048 DIODE 1

D16492 DZ2J047M0L ZENER DIODE 1

D16493 B0ADCJ000100 DIODE 1

D16506 DZ2J051M0L ZENER DIODE 1

D16534 DZ2J051M0L ZENER DIODE 1

D16536 B0ECKP000055 DIODE 1

D16537 B0ADCJ000100 DIODE 1

D16538 B0ADCJ000100 DIODE 1

D16581 DZ2J330M0L ZENER DIODE 1

D16582 DZ2J330M0L ZENER DIODE 1

D16583 B3ABB0000210 LED 1

D16602 DZ2J043M0L ZENER DIODE 1

D16603 B0ACCJ000048 DIODE 1

D16604 B0ADCJ000100 DIODE 1

D16605 B0ACCJ000048 DIODE 1

D16607 B0ACCJ000048 DIODE 1

D16608 B0ECKP000055 DIODE 1

D16609 B0ECKP000055 DIODE 1

D16618 B0ECKP000055 DIODE 1

D16641 B0FCCN000004 DIODE 1 PAVCCZ

D16642 B0FCCN000004 DIODE 1 PAVCCZ

D16645 DZ2J150M0L ZENER DIODE 1

D16646 DZ2J150M0L ZENER DIODE 1

D16647 DZ2J150M0L ZENER DIODE 1

D16648 DZ2J043M0L ZENER DIODE 1

D16651 DZ2J051M0L ZENER DIODE 1

D16652 B0ECKP000055 DIODE 1

D16662 DZ2J150M0L ZENER DIODE 1

D16663 DZ2J150M0L ZENER DIODE 1

D16664 DZ2J150M0L ZENER DIODE 1

D16669 B0ACCJ000048 DIODE 1

D16673 B0ECHR000004 DIODE 1 PAVCCZ

D16674 B0ECHR000004 DIODE 1 PAVCCZ

D16685 B0ACCJ000048 DIODE 1

D16710 DZ2J15000L ZENER DIODE 1

D16711 B0ECHR000004 DIODE 1 PAVCCZ

D16712 B0ECHR000004 DIODE 1 PAVCCZ

D16713 B0ECHS000002 DIODE 1 PAVCCZ

D16714 B0ECHS000002 DIODE 1 PAVCCZ

D16720 B0ECHR000004 DIODE 1 PAVCCZ

D16728 B0ECKP000055 DIODE 1

D16791 DZ2J240M0L ZENER DIODE 1

D16792 B0ACCJ000048 DIODE 1

D16795 B0ACCJ000048 DIODE 1

D16822 B0ACCJ000048 DIODE 1

D16823 B0ADCJ000100 DIODE 1

D16824 B0ACCJ000048 DIODE 1

D16825 DZ2J330M0L ZENER DIODE 1

D16833 B0ECHR000004 DIODE 1 PAVCCZ

D17101 B0ACCJ000048 DIODE 1

D17102 B0ACCJ000048 DIODE 1

D17103 B0JCCD000020 DIODE 1 PAVCCZ

D17201 B0ACCJ000048 DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 99

Model No. : TX-P42S30B/Y Parts List

S-59

Safety

Ref.

No.

D17202 B0ACCJ000048 DIODE 1

D17203 B0JCCD000020 DIODE 1 PAVCCZ

IC14601 AN16520A-VT IC 1 PAVCCZ

IC14602 AN16520A-VT IC 1 PAVCCZ

IC14603 AN16520A-VT IC 1 PAVCCZ

IC14604 AN16520A-VT IC 1 PAVCCZ

IC14605 AN16520A-VT IC 1 PAVCCZ

IC14606 AN16520A-VT IC 1 PAVCCZ

IC14801 AN16520A-VT IC 1 PAVCCZ

IC14802 AN16520A-VT IC 1 PAVCCZ

IC14803 AN16520A-VT IC 1 PAVCCZ

IC14804 AN16520A-VT IC 1 PAVCCZ

IC14805 AN16520A-VT IC 1 PAVCCZ

IC14806 AN16520A-VT IC 1 PAVCCZ

IC14901 C0JBAB000996 IC 1 PAVCCZ

IC14902 C0JBAB000996 IC 1 PAVCCZ

IC14904 C0JBAA000557 IC 1 PAVCCZ

IC16131 C0ZBZ0001822 IC 1 PAVCCZ

IC16132 C0ZBZ0001822 IC 1 PAVCCZ

IC16151 C0ZBZ0001822 IC 1 PAVCCZ

IC16152 C0ZBZ0001822 IC 1 PAVCCZ

IC16191 C0ZBZ0001822 IC 1 PAVCCZ

IC16241 C0JBAU000088 IC 1

IC16243 C0JBAB000715 IC 1

IC16244 C0JBAA000558 IC 1 PAVCCZ

IC16304 MIP3910MSSCF IC 1

IC16312 C0DBZMC00006 IC 1

IC16471 C0DBEYY00114 IC 1

IC16490 C0DBZMC00006 IC 1

IC16491 C0BBAA000008 LINEAR IC 1

IC16501 C0ZBZ0001822 IC 1 PAVCCZ

IC16502 C0ZBZ0001822 IC 1 PAVCCZ

IC16521 C0ZBZ0001822 IC 1 PAVCCZ

IC16522 C0ZBZ0001822 IC 1 PAVCCZ

IC16561 C0JBAU000088 IC 1

IC16562 C0JBAU000088 IC 1

IC16563 C0JBAB000996 IC 1 PAVCCZ

IC16564 C0JBAE000321 IC 1

IC16565 C0JBAE000321 IC 1

IC16684 C0ZBZ0001822 IC 1 PAVCCZ

IC16691 C0JBAC000509 IC 1 PAVCCZ

IC16724 C0CBADE00049 IC 1

IC16784 MIP3910MSSCF IC 1

IC16785 C0DBZYY00352 IC 1

IC16786 MIP3910MSSCF IC 1

IC16787 C0DBZYY00352 IC 1

IC16792 C0BBAA000008 LINEAR IC 1

IC16793 C0DBZMC00006 IC 1

IC16795 C0CBALC00012 IC 1

IC16921 C1ZBZ0004292 IC 1 PAVCCZ

IC17102 C0JBAU000088 IC 1

IC17201 C0JBAU000088 IC 1

IC17202 C0JBAU000089 IC 1 PAVCCZ

L16001 G0CR46KA0216 PEAKING COIL 1 PAVCCZ

L16303 G0C471MA0049 PEAKING COIL 1

L16411 G0CR43KA0216 PEAKING COIL 1 PAVCCZ

PC14901 B3PBE0000059 IC 1 PAVCCZ

PC14902 B3PBE0000059 IC 1 PAVCCZ

PC14903 B3PBE0000050 IC 1

Part No. Part Name & Description Q'ty Remarks

Page 100

Model No. : TX-P42S30B/Y Parts List

S-60

Safety

Ref.

No.

PC16131 B3PBE0000058 IC 1 PAVCCZ

PC16191 B3PBE0000060 IC 1 PAVCCZ

PC16251 B3PBA0000580 IC 1 PAVCCZ

PC16301 B3PBA0000580 IC 1 PAVCCZ

PC16461 B3PBE0000058 IC 1 PAVCCZ

PC16462 B3PBE0000060 IC 1 PAVCCZ

PC16480 B3PBA0000580 IC 1 PAVCCZ

PC16581 B3PBA0000580 IC 1 PAVCCZ

PC16603 B3PBA0000580 IC 1 PAVCCZ

PC16685 B3PBA0000496 IC 1

PC16723 B3PBA0000580 IC 1 PAVCCZ

PC16896 B3PBA0000580 IC 1 PAVCCZ

PC16897 B3PBA0000580 IC 1 PAVCCZ

Q16001 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16002 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16021 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16022 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16041 DG3C3020CL TRANSISTOR 1 PAVCCZ

Q16051 DG3C3020CL TRANSISTOR 1 PAVCCZ

Q16055 B1HFPFA00001 TRANSISTOR 1

Q16056 B1HFPFA00001 TRANSISTOR 1

Q16101 B1CFRM000015 FET 1

Q16102 B1CFRM000023 FET 1 PAVCCZ

Q16141 B1HFPFA00001 TRANSISTOR 1

Q16161 B1HFPFA00001 TRANSISTOR 1

Q16251 B1ABCF000231 TRANSISTOR 1

Q16280 B1ABCE000015 TRANSISTOR 1

Q16401 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16402 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16421 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16422 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16441 DG3C3020CL TRANSISTOR 1 PAVCCZ

Q16451 DG3C3020CL TRANSISTOR 1 PAVCCZ

Q16471 B1ABCE000015 TRANSISTOR 1

Q16501 B1HFPFA00001 TRANSISTOR 1

Q16521 B1HFPFA00001 TRANSISTOR 1

Q16531 B1HFPFA00001 TRANSISTOR 1

Q16538 B1CBGD000001 FET 1

Q16551 B1HFPFA00001 TRANSISTOR 1

Q16581 B1ABCF000231 TRANSISTOR 1

Q16600 B1CFRM000020 FET 1 PAVCCZ

Q16601 B1CFRQ000021 FET 1 PAVCCZ

Q16602 DSA2001S0L TRANSISTOR 1

Q16606 DSC2001S0L TRANSISTOR 1

Q16607 B1CBGD000001 FET 1

Q16621 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16622 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16646 DSA2001S0L TRANSISTOR 1

Q16647 B1CBGD000001 FET 1

Q16660 B1CFRQ000021 FET 1 PAVCCZ

Q16661 B1JBER000002 TRANSISTOR 1 PAVCCZ

Q16762 B1HFPFA00001 TRANSISTOR 1

Q16815 B1ABCN000007 TRANSISTOR 1

Q16817 DSC2001Q0L TRANSISTOR 1

Q16818 B1CBGD000001 FET 1

Q16819 B1CBGD000001 FET 1

Q16820 B1CBGD000001 FET 1

Q16891 DSA2001S0L TRANSISTOR 1

Q16892 DSC2001Q0L TRANSISTOR 1

Q16921 B1CBGD000001 FET 1

Q16922 B1CBGD000001 FET 1

Part No. Part Name & Description Q'ty Remarks
