Panasonic TX-L42ET50B Operating Instructions

Page 1

Operating Instructions

LCD Television

Model No.

TX-L42ET50B TX-L47ET50B

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

English

UK and Ireland model

TQB0E2239

Page 2

Features

Smart VIERA

Digital smart life to create new and exciting TV experiences (Networking / Easy Operation / Picture Quality / Eco / Design)

3D technology

You can enjoy viewing 3D images on this TV by wearing the 3D Eyewear.

RealD 3D

This TV and 3D Eyewear use the 3D technology of RealD. RealD is one of the inventors in 3D technology.

DVB-T tuner built-in

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.

DVB-T2 tuner built-in

DVB-T2 is an advanced digital terrestrial system for more efficient transmission. Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

Using USB devices

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 63, 72) Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 66) USB keyboard, gamepad, etc. are available. (p. 101)

Timer Programming (p. 26, 54)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder or formatted USB HDD.

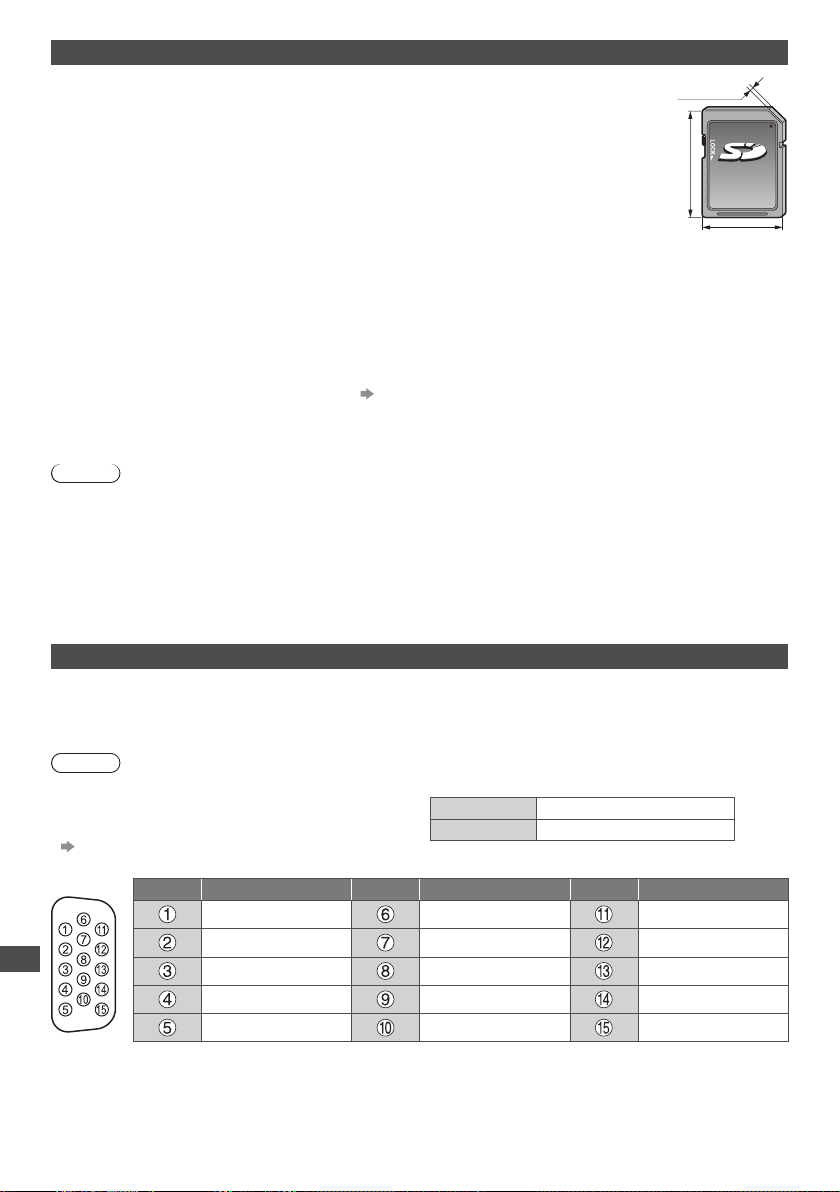

SDXC Card

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

DLNA

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. (p. 81)

VIERA Connect - Enjoy great web entertainment

(p. 20, 84)

VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, EPG, communication tools, etc. from VIERA Connect home screen.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 85)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

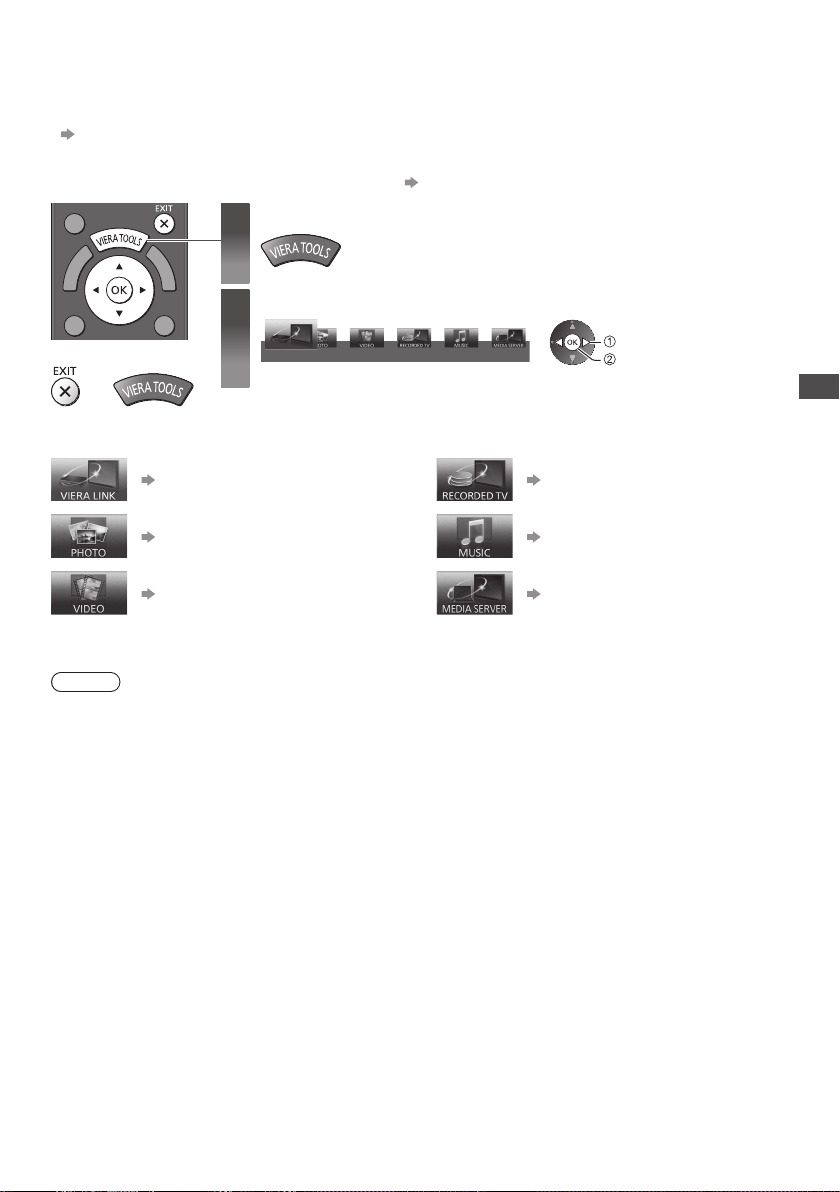

VIERA TOOLS - Display special feature icons for easy accessibility (p. 37)

Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.

Dolby Digital Plus / Dolby Pulse decoders

It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby Digital Bitstream (multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.

Owner ID (p. 58)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.

Voice Guidance (p. 23, 42)

Voice Guidance narrates the operation of the basic features (EPG, on-screen messages, etc.) to assist visually-impaired users.

Supports Audio Description signal (p. 23, 42)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired users.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

●

To retune your TV [Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 50) Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

●

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases,

despite good reception of analogue channels.

Notice for DVB / Data broadcasting / IPTV functions

This TV is designed to meet the standards (as of August, 2011) of digital services.

●

Not all the features are available depending on the country, area, broadcaster, service provider and network

environment.

●

The compatibility with future services is not guaranteed.

●

Check the latest information on the available services at the following website.

http://panasonic.jp/support/global/cs/tv/

Page 3

Transport only in upright position

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral devices.

Contents

Be Sure to Read

Safety Precautions ···············································4

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Rovi Corporation and/or its subsidiaries and related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the Rovi Guide system and cannot guarantee service availability in your area. In no event shall Rovi Corporation and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the Rovi Guide system.

“Full HD 3D Glasses™” Logo indicates compatibility between TV products and 3D Eyewear which are compliant with the “Full HD 3D Glasses™” format, and does not indicate picture quality of TV products.

Quick Start Guide

Accessories / Options ···········································7 Identifying Controls ············································· 11 Basic Connection················································ 13 Auto Setup ··························································16

Enjoy your TV!

Basic

Using “VIERA Connect” ······································20 Watching TV ·······················································21 Using TV Guide ··················································25 Viewing Teletext ·················································· 28 Watching External Inputs ····································31 Viewing 3D images ·············································33 How to Use VIERA TOOLS ································37 How to Use Menu Functions ······························38

Advanced

Retuning from Setup Menu································· 50 Tuning and Editing Channels ·····························51 Timer Programming ············································54 Child Lock ···························································56 Shipping Condition ·············································57 Owner ID ····························································58 Using Common Interface ····································59 Updating the TV Software ··································60 Displaying PC Screen on TV ······························61 Advanced Picture Settings ·································62 USB HDD Recording ··········································63 Using Media Player ············································66 Using Network Services (DLNA / VIERA Connect) Link Functions (Q-Link / VIERA Link) ·················85 External Equipment ············································93

···76

Others

Technical Information··········································96 FAQs·································································105 On-screen messages ·······································107 Maintenance ····················································· 110 Glossary ··························································· 110 Licence ····························································· 111 Index ································································· 113 Specifications ··················································· 114

Page 4

Safety Precautions

Warning

Safety Precautions

■ Mains plug and lead

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

●

This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.

●

Insert the mains plug fully into the socket outlet.

●

Ensure that the mains plug is easily accessible.

●

Remove the mains plug when cleaning the TV.

●

Do not touch the mains plug with a wet hand.

●

Do not damage the mains lead.

Do not place a heavy object on

•

the lead.

Do not place the lead near a high

•

temperature object.

Do not pull on the lead.

•

Hold onto the mains plug body when disconnecting the plug.

Do not move the TV with the lead plugged into a socket outlet.

•

Do not twist the lead, bend it excessively or stretch it.

•

Do not use a damaged mains plug or socket outlet.

•

Ensure the TV does not crush the mains lead.

•

●

Do not use any mains lead other than that provided with this TV.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This TV is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer.

Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this TV. The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety. If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

or the BSI mark on the body of the fuse.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V 50 / 60 Hz

Example 1

Example 2

Page 5

Warning

■ Take care

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

●

Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.

●

Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

●

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

●

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base.

●

Do not insert foreign objects into the TV through the air vents.

●

Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

●

Do not apply strong force or impact to the display panel.

●

This TV is designed for Table-top use.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■ Small object

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

●

Keep the dangerous parts out of reach of young children.

●

Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

■ Radio waves

●

Do not use the TV in any medical institutions or locations with medical equipment. Radio waves from the TV may interfere with the medical equipment and cause accidents due to the malfunction.

●

Do not use the TV near any automatic control equipment such as automatic doors or fire alarms. Radio waves from the TV may interfere with the automatic control equipment and cause accidents due to the malfunction.

●

Keep the distance at least 22 cm from the built-in wireless LAN part when you have a cardiac pacemaker. Radio waves from the part may interfere with the operation of the pacemaker.

●

Do not disassemble or alter the built-in wireless LAN in any way.

Safety Precautions

Caution

■ Ventilation

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

●

Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

●

Whether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Minimum distance

(cm)

Page 6

■ Moving the TV

Before moving the TV, disconnect all cables.

■ When not in use for a long time

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live

Safety Precautions

socket outlet.

●

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

■ Excessive volume

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

■ Built-in wireless LAN

●

To use the built-in wireless LAN, an access point needs to be obtained.

●

Do not use the built-in wireless LAN to connect to any wireless network (SSID∗) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.

∗

SSID is a name for identifying a particular wireless network for transmission.

●

Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.

●

Data transmitted and received over radio waves may be intercepted and monitored.

●

The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, microwaves, mobile phones and the devices that use 2.4 GHz and 5 GHz signals when using the built-in wireless LAN.

●

When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV off with Mains power On / Off switch, then turn it on again.

●

Additional information for built-in wireless LAN and access point may be on the following website.

http://panasonic.jp/support/global/cs/tv/

Bluetooth® wireless technology

●

The TV uses the 2.4 GHz radio frequency ISM band (Bluetooth®). To avoid malfunctions or slow response caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, other Bluetooth devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

Page 7

Accessories / Options

Standard accessories

Remote Control

●

N2QAYB000715

Batteries for the Remote Control (2) (p. 8)

●

Pedestal (p. 8)

TX-L42ET50B

●

TBL5ZX04401

●

TBL5ZA30091

●

TBL5ZB30092

TX-L47ET50B

●

TBL5ZX0218

●

TBL5ZA30091

●

TBL5ZB30092

Clamper (p. 15)

●

TMME289

Quick Start Guide

Mains lead (p. 13)

●

K2CT2YY00090

Operating Instructions

Production Registration Leaflet

●

Accessories may not be placed all together. Take care not to throw them away unintentionally.

●

This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.

Terminal adaptors

AV1 (SCART) adaptor

(p. 14)

●

K1HY20YY0011

AV2 (COMPONENT / VIDEO) adaptor

(p. 93)

●

K2KYYYY00206

Optional accessories

Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories.

Wall-hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

●

Holes for wall-hanging bracket installation

400 mm

Rear of the TV

(View from the side)

Warning

●

Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the consumer. Always be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage. Any damage resulting from not having a professional installer mount your unit will void your warranty.

●

When any optional accessories or wall hanging brackets are used, always ensure that the instructions provided are followed fully.

●

Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.

●

Take care when fixing wall brackets to the wall. Wall mounted equipment shall not be grounded by metal within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

●

To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Depth of screw:

minimum 6 mm maximum 8 mm

Diametre: M8

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Accessories / Options

Page 8

3D Eyewear

●

TY-ER3D4ME

●

TY-ER3D4SE

Communication Camera

●

TY-CC20W

Quick Start Guide

●

If you need 3D Eyewears, please purchase this optional accessory.

●

Use Panasonic 3D Eyewear supporting Bluetooth wireless technology.

●

For more information: http://panasonic.net/avc/viera/3d/eu.html

●

This camera can be used on VIERA Connect (p. 20, 84).

●

Depending on the area, this optional accessory may not be available. For details, consult your local Panasonic dealer.

Installing / removing remote’s batteries

Accessories / Options

Hook

Note the correct

polarity (+ or -)

Pull open

Caution

●

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

●

Do not mix old and new batteries.

●

Replace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).

●

Do not use rechargeable (Ni-Cd) batteries.

●

Do not burn or break up batteries. Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

●

Make sure you dispose of batteries correctly.

●

Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.

●

Do not disassemble or modify the remote control.

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than the one provided with this TV.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

●

If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.

●

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

●

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

●

If two or more people are not present, the TV may be dropped, and personal injury may result.

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure. (p. 10)

●

Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

Page 9

Assembly screw (4)

●

XSS5+15FNK

M5 × 15

Assembly screw (4)

●

XYN4+F10FJK

M4 × 10

Assembly screw (2)

●

XYN4+F10FJK

M4 × 10

Bracket

●

TBL5ZA30091

Cover

●

TBL5ZB30092

■ Preparations

Take out the pedestal and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

●

Use a firm table bigger than the TV.

●

Do not hold the screen panel part.

●

Make sure not to scratch or break the TV.

Base

●

TBL5ZX04401 (TX-L42ET50B)

●

TBL5ZX0218 (TX-L47ET50B)

Quick Start Guide

Accessories / Options

■ Assembling the pedestal

Attach the bracket assembly screws

●

Forcing the assembly screws the wrong way will strip the threads.

●

Hold the bracket not to fall over.

to the tabs of the top of the base and fix with

■ Securing the TV

Attach the pedestal

tabs

Attach the cover

and fix securely with assembly screws .

Tabs (top)

Front

Align the 3 tabs on the bracket with the grooves on the back of the TV and insert them. Make sure the centre tab is in the hole of the TV. Slide in the bracket aligning the arrow marks (↓↑) on the TV and the bracket.

Tighten the 4 assembly screws loosely at first, then tighten them firmly to fix securely.

Page 10

■ Moving the TV

Hold the specified parts as shown to stand the TV up and move it with two people.

Quick Start Guide

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Put the TV onto a work table with the screen panel down on the clean and soft cloth.

Accessories / Options

2 Remove the assembly screws 3 Remove the assembly screws from the TV. 4 Remove the pedestal from the TV. 5 Remove the assembly screws from the bracket.

Adjusting the panel to your desired angle

●

Do not place any objects within the full rotation range.

Preventing the TV from falling over

Using the fall-prevent screw hole and a screw (commercially available), securely fix the body of the pedestal to the installation surface.

●

The place where the pedestal is to be fixed should be thick enough and made of hard material.

from the cover.

(View from the top)

15°

Screw (not supplied) Diametre: 3 mm Length: 15 - 20 mm

Screw hole

Page 11

Identifying Controls

Remote Control

10 11

Standby On / Off switch

●

Switches TV on or off standby.

3D button (p. 34)

●

Switches the viewing mode between 2D and 3D.

[Main Menu] (p. 38)

●

Press to access Picture, Sound, Network, Timer and Setup Menus.

Information (p. 22)

●

Displays channel and programme information.

VIERA TOOLS (p. 37)

●

Displays some special feature icons and accesses easily.

INTERNET ([VIERA Connect]) (p. 20, 84)

●

Displays VIERA Connect home screen.

●

Confirms selections and choices.

●

Press after selecting channel positions to quickly change channel.

21 22

[Option Menu] (p. 23)

●

Easy optional setting for viewing, sound, etc.

Coloured buttons

(red-green-yellow-blue)

●

Used for the selection, navigation and operation of various functions.

Sound Mute

●

Switches sound mute on or off.

Teletext (p. 28)

●

Switches to teletext mode.

Volume Up / Down

Numeric buttons

●

Changes channel and teletext pages.

●

Sets characters.

●

When in Standby mode, switches TV on (Press for about 1 second).

Surround (p. 41)

●

Switches surround sound setting.

Light

●

Lights the buttons for about 5 seconds (except the buttons “25”).

Input mode selection

●

TV - switches DVB / Analogue mode. (p. 21)

●

AV - switches to AV input mode from Input Selection list. (p. 31)

Exit

●

Returns to the normal viewing screen.

TV Guide (p. 25)

Cursor buttons

●

Makes selections and adjustments.

Return

●

Returns to the previous menu / page.

Aspect (p. 24)

●

Changes aspect ratio.

Subtitles (p. 24)

●

Displays subtitles.

Channel Up / Down

Last view (p. 22)

●

Switches to previously viewed channel or input mode.

Operations for contents, connected equipment,

etc. (p. 32, 65, 67, 81, 91)

Quick Start Guide

Identifying Controls

Page 12

Indicator / Control panel

1 2 3

Quick Start Guide

Remote control signal receiver

●

Do not place any objects between the TV remote

Identifying Controls

control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System)

sensor

●

Senses brightness to adjust picture quality when [C.A.T.S.] in the Picture Menu is set to [On].

(p. 39)

Power and Timer LED

Red: Standby Green: On Orange: Timer Programming On Orange (flash):

Recording of Timer Programming, Direct TV Recording or One Touch Recording in progress

Rear side of the TV

When pressing the control panel button (4 - 7), the control panel guide appears on the right side of the screen for 3 seconds to highlight the pressed button.

Standby with Timer Programming On, Direct TV Recording or One Touch Recording

●

The LED blinks when the TV receives a command from the remote control.

Function select

●

[Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ / [Balance] / [Auto Setup] (p. 50, 51) ∗ [Music] or [Speech] mode in the Sound Menu

Channel Up / Down, Value change (when using the

F button), Switching the TV on (press either button for about 1 second when in Standby mode)

Changes the input mode

Mains power On / Off switch

●

Use to switch the mains power. If you turned the TV off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV on with Mains power On / Off switch.

Red with orange flash:

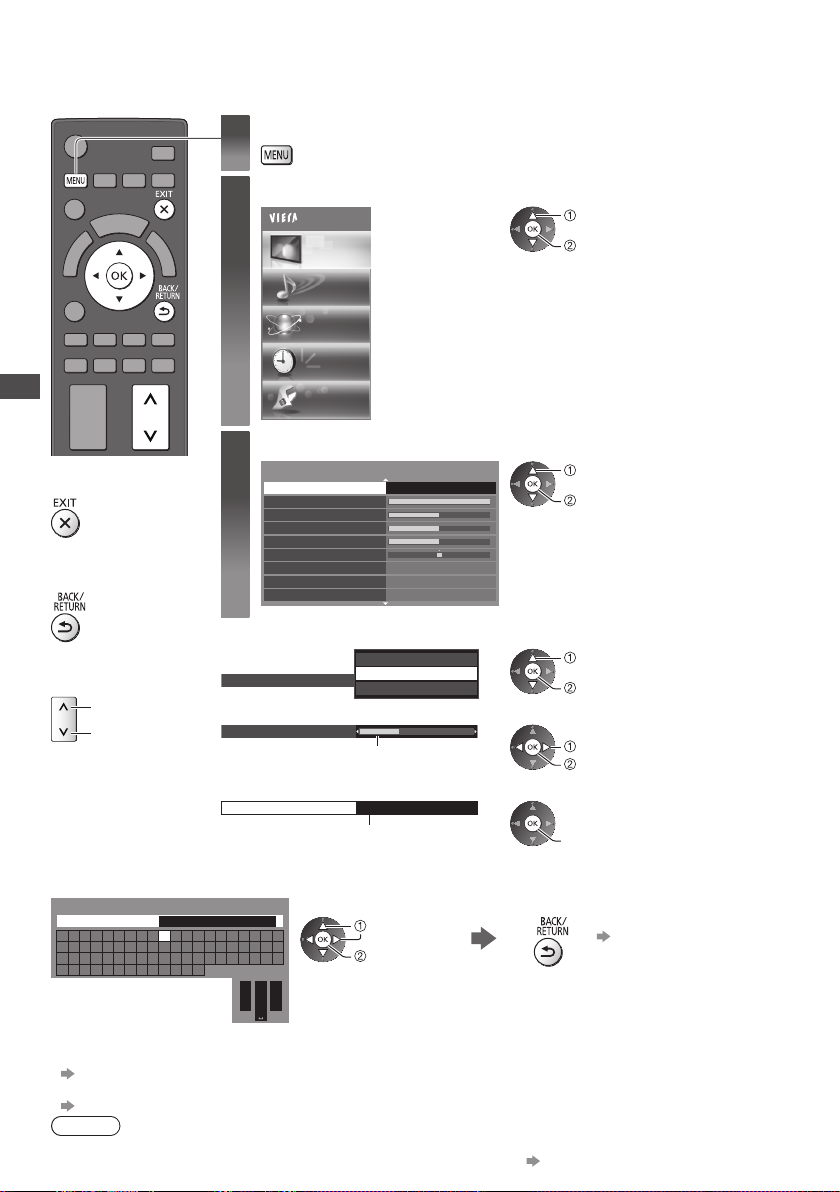

Using the On Screen Displays - Operation guide

Many features available on this TV can be accessed via the On Screen Display menu.

■ Operation guide

Operation guide will help you to operate by using the remote control.

Example: [Sound Menu]

Owner ID

Please enter new PIN

EXIT

* * * *

PIN entry

PIN entr

Operation guide

■ How to use remote control

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:

No signal is received and no operation is performed for 30 minutes in Analogue TV mode.

•

[Off Timer] is active in the Timer Menu. (p. 23)

•

No operation is performed for the period selected in [Auto Standby] (p. 42).

•

●

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

Open the main menu

Move the cursor / select from a range of options / select the menu item (up and down only) / adjust levels (left and right only)

Access the menu / store settings after adjustments have been made or options have been set

Return to the previous menu

Exit the menu system and return to the normal viewing screen

Page 13

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details (p. 33)

Terminals

6 7 8

CI slot (p. 59)

SD Card slot (p. 66)

USB 1 - 3 port (p. 66, 93)

HDMI1 - 4 (p. 14, 93)

Headphone jack (p. 94)

ETHERNET (p. 15)

Connections

Mains lead and aerial

9 10 11

■ DVB, Analogue

Terrestrial terminal (see below)

DIGITAL AUDIO OUT (p. 94)

PC terminal (p. 93)

AV1 (SCART) (p. 14)

AV2 (COMPONENT / VIDEO) (p. 93)

Quick Start Guide

Basic Connection

Terrestrial aerial

Mains lead

AC 220-240 V 50 / 60 Hz

■ Mains lead

●

RF cable

Aerial input terminal

Insert the mains plug (supplied) firmly into place.

When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Page 14

AV devices

■ Player / 3D compatible player

Player / 3D-compatible player

Quick Start Guide

■ DVD Recorder / VCR

Basic Connection

Aerial input terminal

AV1 (SCART)

■ DVD Recorder / VCR and Satellite receiver

AV1 (SCART)

adaptor

Aerial input terminal

RF cable

HDMI cable

adaptor

RF cable

HDMI cable

∗

SCART cable

DVD Recorder / VCR

Satellite receiver

SCART cable

DVD Recorder / VCR

RF Cable

RF cable

RF Cable

∗

Supplied with this TV

Terrestrial aerial

Note

●

Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 87).

●

Q-Link and VIERA Link connection (p. 85, 86)

●

Please also read the manual of the equipment being connected.

●

Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.

●

When using a SCART or HDMI cable, use the fully wired one.

●

Check the type of terminals and cable plugs are correct when connecting.

Page 15

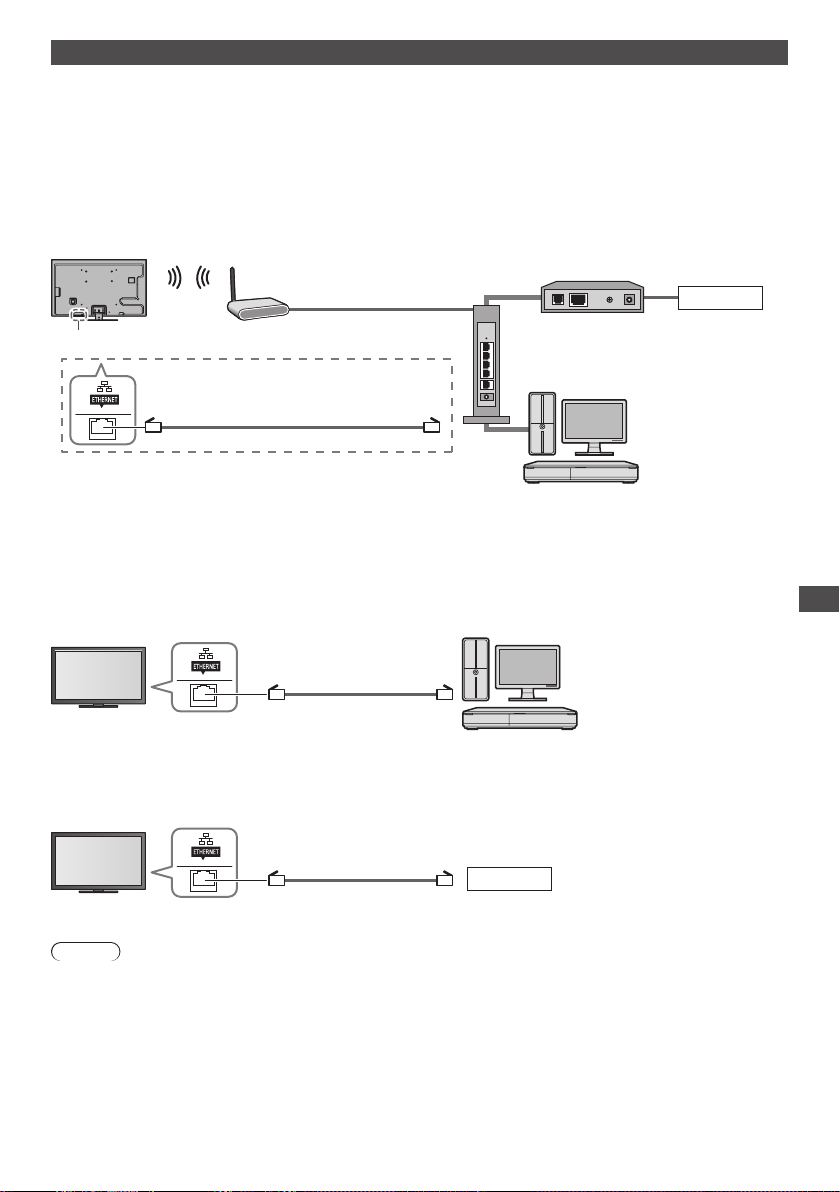

Network

To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

●

If you do not have any broadband network services, please consult your retailer for assistance.

●

Prepare the internet environment for wired connection or wireless connection.

●

Setup of the network connection will start after the tuning (when first using the TV). (p. 17, 18)

■ Wired connection

Quick Start Guide

LAN cable (Shielded)

●

Use the Shielded Twist Pair (STP) LAN cable.

■ Wireless connection

Access point

Built-in wireless LAN

Using clamper

●

Do not bundle the RF cable and mains lead together (could cause distorted image).

●

Fix cables with clampers as necessary.

●

When using the optional accessory, follow the option’s assembly manual to fix cables.

Internet environment

■ Clamper (Standard accessory)

Attach the clamper Bundle the cables

Insert the clamper in a hole

To remove from the TV: To loosen:

snaps

Keep pushing both side snaps

hole

hooks

knob

Basic Connection

Set the tip in the hooks

Keep pushing the knob

Page 16

Auto Setup

Search and store TV channels automatically.

●

These steps are not necessary if the setup has been completed by your local dealer.

●

Please complete connections (p. 13 - 15) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch on

Quick Start Guide

Auto Setup

●

Takes a few seconds to be displayed.

●

If the red LED shows on the TV, press the Standby On / Off switch on the remote control for about 1 second.

Select your country

Country Selection

United Kingdom Ireland

Example:

Auto Setup - DVB and Analogue

DVB Scan Analogue Scan This will take about 6 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk 29 33 -BBC1

Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

Auto Setup will start to search for TV channels and store them.

●

Actual number of channels may differ due to channel duplication.

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

CH 21 68 CH 21 68

Searching

Free TV Free TV Free TV Free TV Analogue Analogue

Quality

10 10 10

select

set

Example:

Auto Setup - DVB and Analogue

DVB Scan Analogue Scan This will take about 6 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 100Cartoon Nwk CH29 CH33 -BBC1

Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2

CH 5 69 CH 1 99 41H: 21

Free TV Free TV Free TV Free TV Analogue Analogue

Searching

If Q-Link or similar technology (p. 87) compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)

●

If downloading has failed, you can download later through the Setup Menu.

“Q-Link Download” (p. 43)

Quality

100 100 100

●

Region selection screen may appear.

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

select region

access

(select repeatedly until you reach the available region)

Page 17

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 20, 76).

●

Please note that this TV does not support wireless public access points.

●

Ensure the network connections (p. 15) and network environment are completed before starting setup.

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Set later

[Wired] “Wired connection” (p. 15) [Wireless] “Wireless connection” (p. 15)

●

select

access

To setup later on or skip this step

Select [Set later] or

■ [Wired]

1. Select [Auto]

Acquire IP Address

Auto Manual

select

access

2. Go to the next step

(Press twice)

Automatically setup is done and the test of the network connection starts.

●

To set manually, select [Manual] and set each item. For details (p. 79)

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

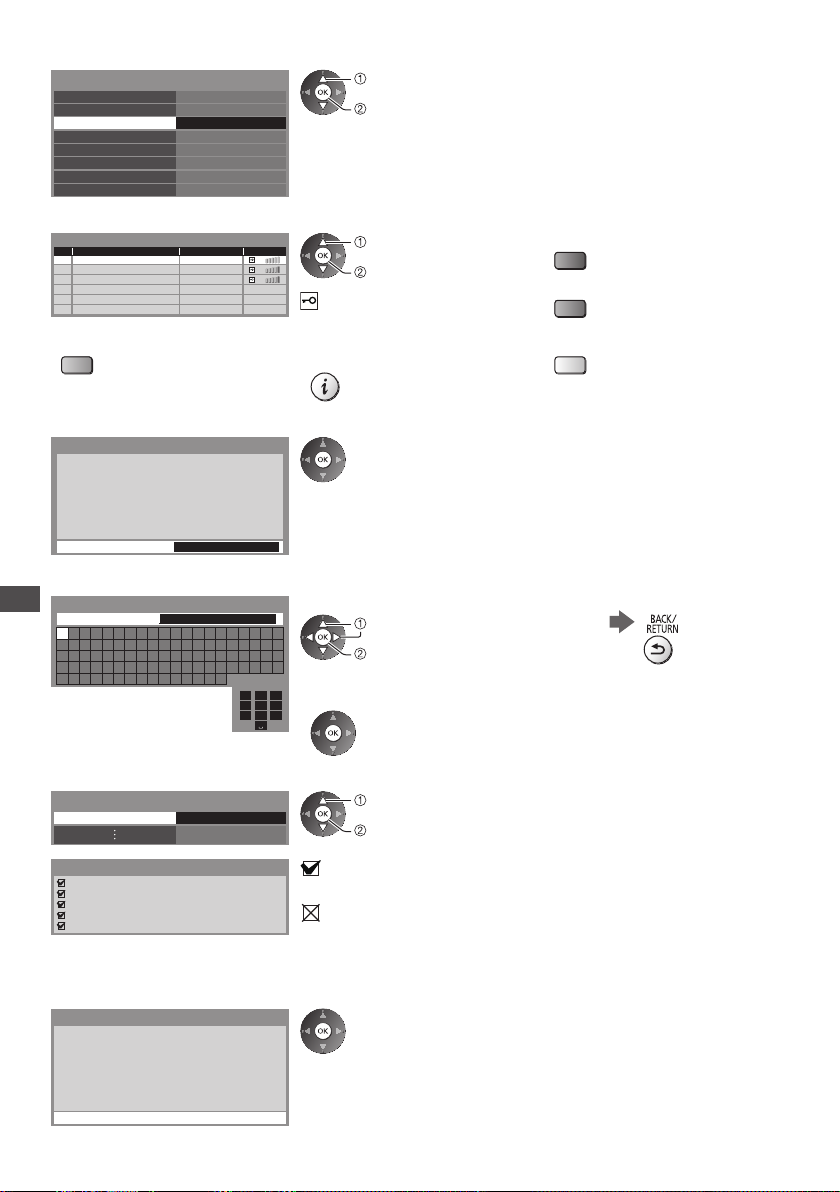

■ [Wireless]

Access points found automatically are listed.

1. Select your desired access point

Available Wireless Networks

No. Network Name(SSID) Status Wireless type

1 2 3

Access Point A Access Point B Access Point C

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

●

To search access points again

(blue)

2. Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings: Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

3. Enter the encryption key of the access point

Wireless Network Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

access

: Encrypted access point

●

For the information of the highlighted access point

●

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

Set characters

select

set

●

You can set characters by using numeric buttons.

●

For [WPS(Push button)] (p. 18)

(red)

●

To set manually (p. 81)

(yellow)

Quick Start Guide

Auto Setup

Store

Page 18

4. After the access point setting is finished, perform the connection test

Quick Start Guide

5. Go to the next step

[WPS(Push button)]

1. Press the WPS button on the access point until the light flashes

Auto Setup

2. Connect the TV with the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

3. After the access point setting is finished, perform the connection test

4. Go to the next step

Input Owner ID

Owner ID

Please enter new PIN

●

Make a note of the PIN number in case you forget it. The PIN number cannot be reset.

●

You can input or change the Owner ID later. “Owner ID” (p. 58)

●

To skip this step

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

(Press twice)

Connect

Connection Test

(Press twice)

●

Ensure that your access point supports WPS for this setup.

●

WPS: Wi-Fi Protected Setup™

●

If the connection has failed, check the settings and positions of your access point. And then, follow the on-screen instructions.

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

* * * *

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

●

To set manually, select [Manual] and set each item. For details

(p. 79)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

●

To set manually, select [Manual] and set each item. For details (p. 79)

●

This step will be skipped in the Auto Setup after [Shipping Condition] (p. 57) is performed.

Page 19

■ How to input Owner ID

1 Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

* * * *

●

Enter the PIN number twice at first setting.

2 Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE

* * * *

select

access

3 Enter your name, house number and postcode

User input

NAME

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . _*

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Set characters

select

set

●

You can set characters by using numeric buttons.

“Characters table for numeric

buttons” (p. 103)

Return to select other items

●

Select the next item and repeat the operations.

4 Exit to go to next step

Select [Home]

Select [Home] viewing environment to use in your home environment.

Please select your viewing environment.

Home Shop

select

set

■ [Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

●

You can return to viewing environment selection screen at the stage of Shop confirmation screen.

1 Return to viewing environment

selection screen

Shop

You have selected shop mode

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition. [Shipping Condition] (p. 57)

2 Select [Home]

Please select your viewing environment.

Home Shop

Quick Start Guide

Auto Setup

select

set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the RF cable, and then, follow the on-screen instructions.

Note

●

To check the channel list “Using TV Guide” (p. 25)

●

To edit or hide (skip) channels “Tuning and Editing Channels” (p. 51 - 53)

●

To retune all channels [Auto Setup] (p. 50)

●

To initialise all settings [Shipping Condition] (p. 57)

Page 20

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, EPG, communication tools, etc. from VIERA Connect home screen.

●

This TV does not support full web browser function and some features of the websites may not be available.

Turn power on

●

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed

●

Press for about 1 second.

●

Mains power On / Off switch should be on. (p. 12)

Using “VIERA Connect”

●

Example: VIERA Connect home screen

■

To exit from VIERA Connect

●

To set the VIERA Connect introduction banner display off

[VIERA Connect

Banner] (p. 44)

●

Video communication (for example Skype™) requires an exclusive Communication Camera TY-CC20W.

“Optional accessories” (p. 8)

For details, read the manual of the Communication Camera.

●

You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information “USB connection” (p. 101)

Depending on the usage conditions, it may take a while to read all the data. Messages might be displayed before VIERA Connect home screen. Please read these instructions carefully and follow the on-screen instructions.

●

To go to the next level, select [MORE].

●

To back to the previous level, select [BACK].

●

To return to VIERA Connect home

BACK

screen

Note

●

If you cannot access VIERA Connect, check the network connections (p. 15) and settings (p. 17, 18).

●

For more information of VIERA Connect (p. 84)

Page 21

Watching TV

Turn power on

Select the mode

Select a channel

Volume

■ To select a channel using Information banner (p. 22)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

1 Display Information banner if it is not displayed

■ To select a channel using TV Guide (p. 25)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

1 Display TV Guide 2 Select the current

Note

●

To watch pay-TV “Using Common Interface” (p. 59)

programme or channel

●

Press for about 1 second.

●

Mains power On / Off switch should be on. (p. 12)

■ VIERA Connect introduction banner appears

Every time you turn on the TV, this banner appears at the bottom of the screen. You can access to VIERA Connect easily and enjoy the various contents. (p. 20)

●

To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect).

●

To set this banner display off [VIERA Connect Banner] (p. 44)

●

The banner is subject to change.

●

You can also select the mode pressing the TV button repeatedly on the remote control or the TV (p. 12).

down

select

access

DVB channel position numbers run from 1 onwards. Analogue channel position numbers run in the ranges 0 - 99.

●

To select a more than two-digit channel position number, e.g. 399

2 While the banner is displayed, select the channel

select channel

watch

3 Select [View] (DVB)

Das Erste 19:30- 20:00

View

Timer Programming

select

watch

Watching TV

Page 22

Other useful functions

Mute

Display Information banner

●

Watching TV

Features available / Message meanings

●

Also appears when changing a channel.

Example: DVB

ZDF

Mute

Bad signal

Channel position and name

Channel type ([Radio], [Data], [HDTV], etc.) /

Encrypted channel ( ) / TV mode ( , ) Programme

Current time

[Mute]

Sound mute on

[Bad signal]

Poor TV signal quality

[Dolby D+], [Dolby D], [HE-AAC]

Dolby Digital Plus, Dolby Digital or HEAAC audio track

[Also in

]

Same programme available as HD broadcast

●

To display the extra information for details

To confirm another tuned channel name

Bad signal

2 3 6 7 4 5

HDTV

Coronation Street 20:00 - 20:55 Now

[AD]

Audio Description service available

●

This function can aid visuallyimpaired viewers by adding an additional audio track to describe events on screen.

●

For settings (p. 42)

[STTL]

Subtitle service available

[TEXT]

Teletext service available

[Multi Audio]

Multiple audio available

●

To watch the channel listed in the banner

All DVB Channels

Multi Audio TEXT STTL AD

Programme Start / Finish time (DVB)

20:35

Select favourites Info

Channel number, etc. (Analogue) Progress time indicator of the selected programme

(DVB) [All DVB Channels] or [Favourites]1 to 4 (p. 51)

(DVB)

●

To switch

(blue)

[Stereo], [Mono], [NICAM]

Audio mode

1 - 90

Off Timer remaining time

●

For settings (p. 23)

●

Information on the next programme (DVB)

●

To hide

●

[AD], [STTL], [TEXT], [Multi Audio] indications are displayed as

●

Extra information (DVB)

available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.

Last view

Switch to previously viewed channel or input mode easily

●

Press again to return to the current view.

Note

●

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.

●

Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

(Press again to hide the banner)

●

To set display timeout

[Banner Display Timeout] (p. 44)

Example:

BBC ONE WALES

Coronation Street 20:00 - 20:55 Now

[AD]

]

20:35

All DVB Channels

Select favourites

Page 23

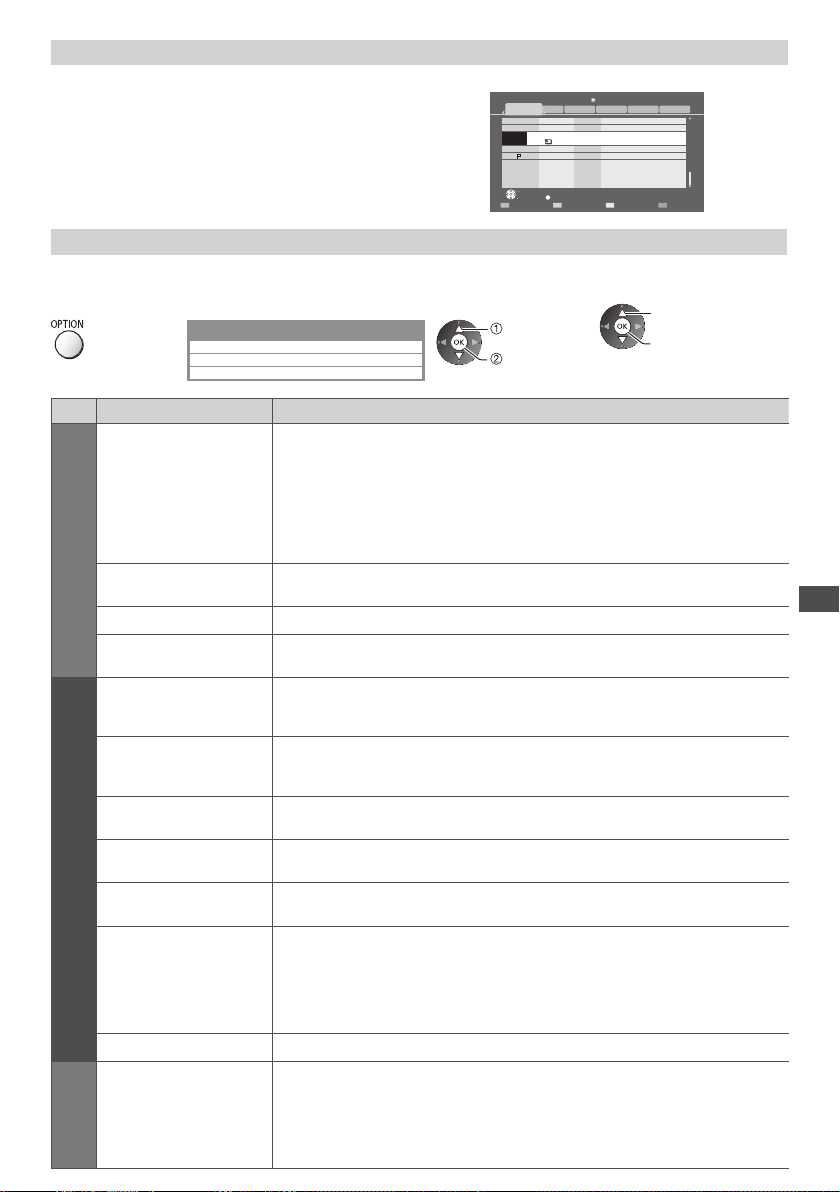

Display the selectable settings for the current status

Confirm or change the current status instantly

●

To change

[Multi Audio / AD]

select

access

(DVB) Selects between alternative language or Audio Description for sound tracks (if available)

●

Set Audio Description [Auto] in the Sound Menu (p. 42) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track.

●

This setting is not memorised and it will return to the default setting once you exit the current programme.

[Audio Description] (DVB) Set to [Auto] if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

●

To adjust the volume for Audio Description [Audio Description Menu]

(p. 42)

[Multi Audio] Selects between alternative language for sound tracks (if available)

●

This setting is not memorised and it will return to the default setting once you exit the current programme.

[Voice Guidance Settings] Guidance settings for visually impaired users (p. 42)

[Monaural Audio] (DVB) Selects stereo / monaural (if available)

●

This setting is not memorised and it will return to the default setting once you exit the current programme.

[Subtitle Language] (DVB) Selects the language in which subtitles should appear (if available)

●

This setting is not memorised and it will return to the default setting once you exit the current programme.

select / change

store

(DVB)

[Teletext Character Set]

Sets the teletext language font

(p. 44)

[Teletext Language] (DVB) Selects between alternative language for teletext (if available)

[NICAM] (Analogue) Switches NICAM sound (if available)

(p. 41)

[Volume Correction]

Adjusts volume of individual channel or input mode

[Safely remove USB]

Takes this operation to remove the connected USB device safely from the TV

Watching TV

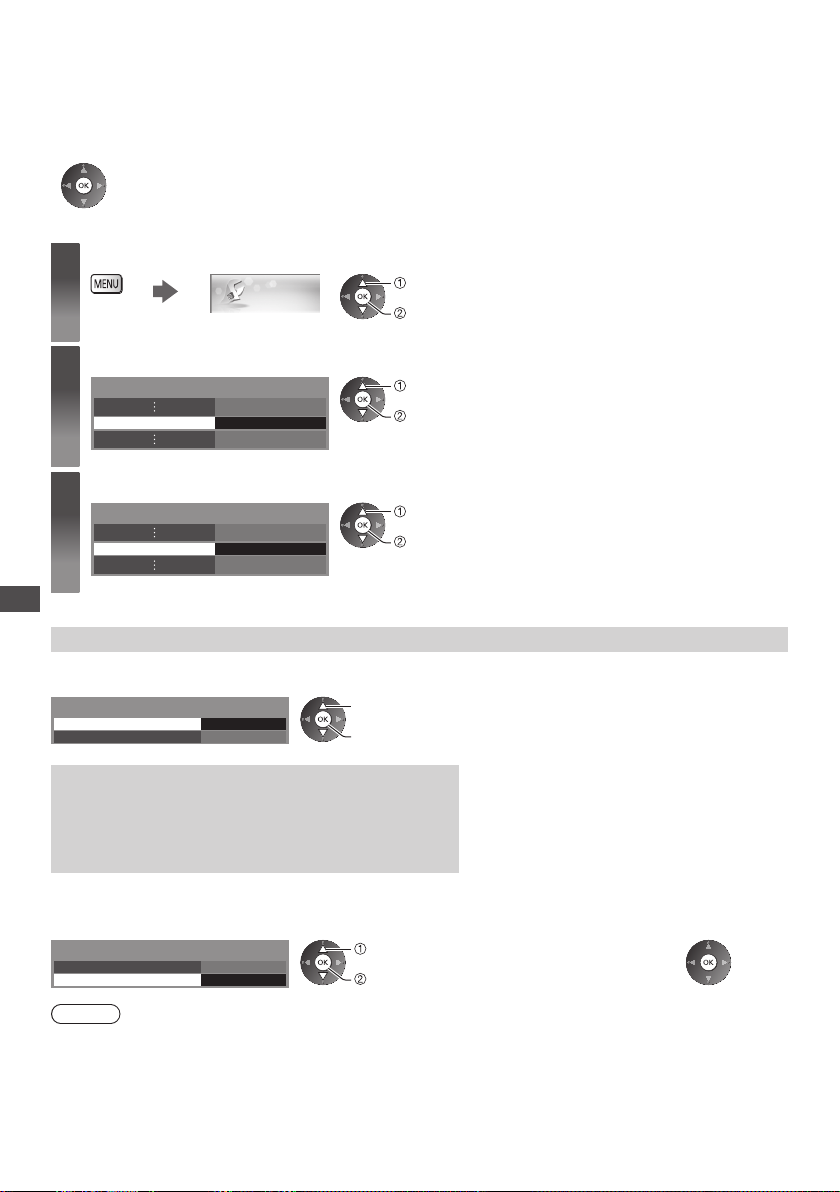

Off Timer

Turn the TV to Standby mode automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

1 Display the menu

2 Select [Timer]

Timer

select

access

3 Select [Off Timer] and set the time in 15-minute increments

Timer Programming

Off Timer

Auto Standby

Off

15 30 45 60 75 90

minutes minutes minutes minutes minutes minutes

select [Off Timer]

access

●

To cancel, set to [Off] or turn the TV off.

●

To confirm the remaining time “Display Information banner” (p. 22)

●

When the remaining time is within 3 minutes, the remaining time will flash on

select the time

store

the screen.

Page 24

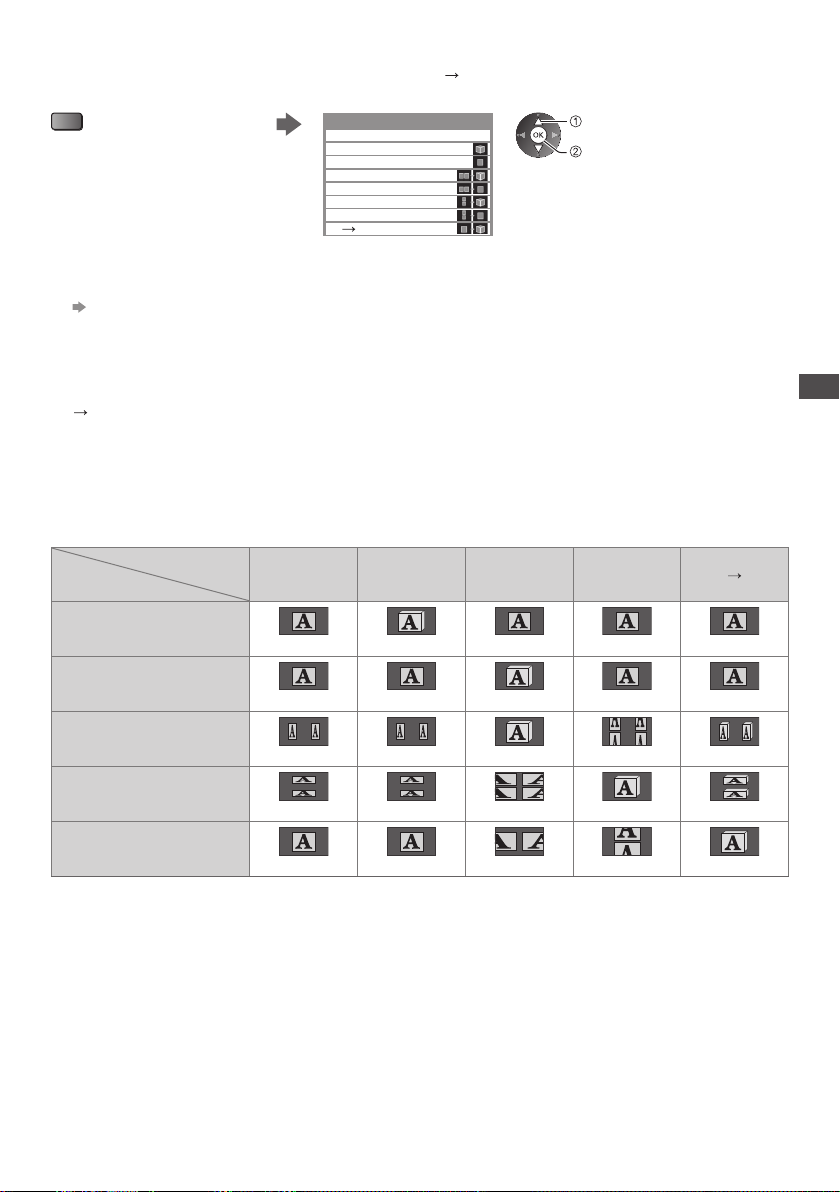

Aspect

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 96).

■ To change the aspect ratio manually

1 Display Aspect Selection list

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Change

Aspect Selection list

Select

EXIT

RETURN

2 While the list is displayed,

select the mode

select

store

[Auto]

The best ratio is chosen and the image expanded to fill the screen.

Watching TV

For details (p. 96)

[16:9] [Zoom1]

Directly displays the image at 16:9 without distortion (anamorphic).

[14:9] [Zoom2]

Displays the image at the standard 14:9 without distortion.

[4:3] [Zoom3]

Displays the image at the standard 4:3 without distortion.

Note

●

Only [16:9] and [4:3] are available in PC input mode.

●

Aspect cannot be changed in teletext service and 3D mode.

●

Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.

●

You can also change the mode only using the ASPECT button.

(Press repeatedly until you reach the desired mode.)

Displays a 16:9 letterbox or 4:3 image without distortion.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Display subtitles

●

Subtitles may not be displayed properly in 3D images.

■ DVB

Display / hide subtitles (if available)

●

To change the language for DVB (if available) [Preferred Subtitles] (p. 44)

■ Analogue

Display subtitles Hide subtitles

Note

●

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 29)

●

You cannot change the channel when this function is active.

Page 25

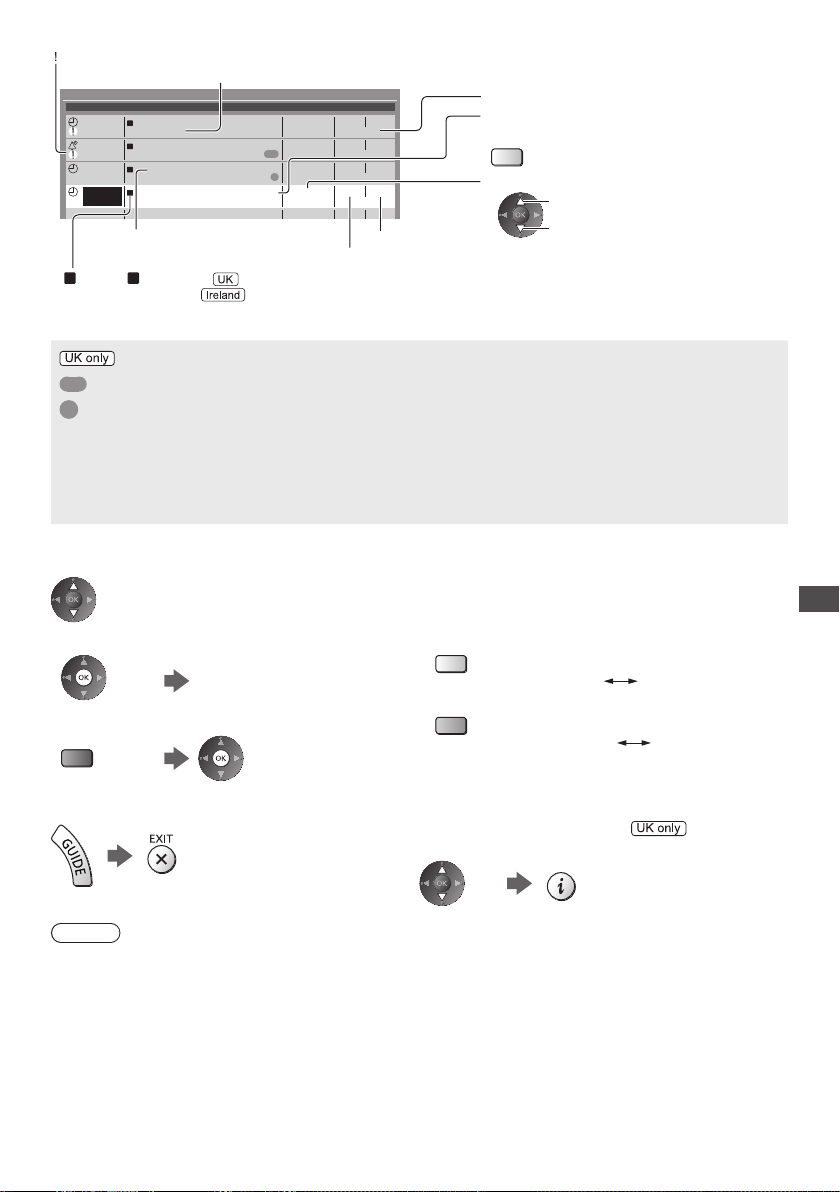

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

●

DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue channel. There will be no programme listings for Analogue channels.

●

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.

Select the mode

(p. 21)

View TV Guide

Example:

■

To return to TV

3 4

6 7

■ To change the layout of TV Guide

D D D D D D D

Some programmes may also be broadcast in HD

●

Programme Current date and time

19:30 20:00 20:30 21:00 21:30

Time:

Das Erste DIY SOS Holiday News

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal.

10 O’ clock News BBC

BBC FOUR

BBC 2W

72 105

BBCi

719

BBC Radi

You can select HD or SD broadcast before viewing or setting Timer Programming.

[TV Guide View] (p. 43)

Wed 26 Oct Search All Channels

1 BBC ONE

20:00 - 20:30 DIY SOS : We open in the Battersbys

■ To watch the programme

1 Select the current programme or

channel

select

access

2 Select [View] (DVB)

Das Erste 19:30- 20:00

View Timer Programming

select

●

watch

To use Timer Programming

(p. 26)

■ To the previous day (DVB)

(red)

■ To the next day (DVB)

(green)

■ View details of the programme (DVB)

1 Select the programme 2 View details

●

Press again to return to TV Guide.

5 6 7

TV Guide Wed 26 Oct 2011 10:46

Pepsi Char.

The Bill Good bye CoastSpring watchPanorama NewsPop IdolI’m A Celebrity Sports15 To 1Rugby

Coronation Street

Also in

TV Guide date

TV Guide time

[D]: DVB

[A]: Analogue Channel position and

name

●

If a programme exists in both HD and SD broadcasts, the [View Options] screen will be displayed to select HD or SD broadcast. (DVB)

DIY SOS

View Options

101 BBC ONE 19:30-20:00 Wed 26 Oct 2011

119 BBC HD 19:30-20:00 Wed 26 Oct 2011

select

watch

Using TV Guide

Page 26

■ To view a channel list of the selected category

(blue)

(Category list)

Category

All Channels

All HD Channels

All DVB Channels

All Analogue Channels

Free DVB Channels

TV/Data DVB Channels

Favourites1

Favourites2

Favourites3

Favourites4

select category

view

Only Analogue channels are listed

●

To list favourite channels

(p. 51)

■ To search programme types and view a channel list of the searched programmes (DVB)

(yellow)

(Type list)

All Types

Movie

News

Prog.Type

All Types

select type

view

Using TV Guide

(Search list)

Search Titles...

Movie

News and Factual

■ To search programme titles and view a list of the searched programmes (DVB)

(yellow)

(Search list)

Search Titles...

Movie

News and Factual

1 Select

[Search Titles...]

select

access

2 Set characters

(maximum 19 characters)

select

set

●

To use numeric buttons “Characters table for

numeric buttons” (p. 103)

3 Start [Search]

(green)

●

All the programme titles including the word you set will be listed.

●

Searching without any characters will list all programmes including current programmes.

Timer Programming (DVB)

The Timer Programming menu allows you to choose programmes that you want to remind watching or record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.

1 Select the forthcoming programme 2 Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder])

select

set

●

LED will turn to orange if Timer Programming is set. (Orange LED will flash if the recording of Timer Programming is in progress.)

“Indicator / Control panel” (p. 12)

(Timer Programming screen)

Timer Programming

Function No. Channel Name Date Start End

Ext Rec.

<TIMER>

--- --/-- --:-- --:-----

--- --/-- --:--

---

--- --/-- --:-- --:-----

Wed 26 Oct 2011 10:46

Wed 26 Oct 2011

20:00D 12 BBC ONE

(30 min.)

(--- min.)

20:30

--:--

[Ext Rec.] / [USB HDD Rec.] / [Reminder]

“Set timer programming event details” (p. 54)

select

store

Page 27

■ To check / change / cancel a timer

■ To return to TV Guide

programming event

“Timer Programming” (p. 54, 55)

■ If you select the current programme ■ If a programme exists in both HD and SD

A confirmation screen asking whether you want to watch or record the programme appears. Select [Timer Programming] and set [Ext Rec.] or [USB HDD Rec.] to record from the time you finish the timer programming event setting.

Das Erste 19:30- 20:00

View

Timer Programming

select

access

Note

●

This function is not available in Analogue mode.

●

Timer Programming reminder messages will remain displayed until one of the following occurs:

You press the OK button to view the programme or the EXIT button to cancel the reminder.

•

The timer programming event that the reminder is set for ends.

•

●

No other channel can be selected while the recording of Timer Programming is in progress.

●

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 87, 88) and [Link Settings] (p. 43) are completed, no setting of the recorder is required. Also read the manual of the recorder.

●

When recording programmes to the USB HDD, be sure to format the USB HDD and enable it to record in [Recording Setup] (p. 63).

●

For more information of the USB HDD Recording (p. 63, 100)

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Function No. Date Start End Channel Name

Ext Rec. Wed 26 Oct

Reminder

Ext Rec.

---

“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)

Note

●

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.

●

While making the Split Programme programming event for [Ext Rec.] or [USB HDD Rec.], you cannot record any channels between the interrupted programmes.

●

The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.

●

The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button even if it is between the interrupted programmes.

●

The Split Programme programming does not work if the separated parts are broadcast on different channels.

(Timer Programming screen)

7 BBC ONE

DIY SOS

14 E4 21:00 22:30

The Bill

72 BBC 2W

<TIMER>

BBC ONE1

Red Cap

------

Wed 226 Oct 2011 10:46

Guide

Wed 26 Oct

Guide

Wed 26 Oct

Thu 27 Oct

S/P

20:00 20:30

(30 min.)

(90 min.)

22:45 23:00

(15 min.)

10:30 11:30

(60 min.)

--:----:-- --:--

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

broadcasts

The [Timer Options] screen will be displayed to select HD or SD broadcast.

DIY SOS

Timer Programming

Function No. Channel Name Date Start End

Ext Rec.

Timer Options

101 BBC ONE 19:30-20:00 Wed 26 Oct 2011

119 BBC HD 19:30-20:00 Wed 26 Oct 2011

(Timer Programming screen)

DIY SOS

--- --/-- --:-- --:-----

Wed 26 Oct 2011 10:46

Wed 26 Oct

19:30119 BBC HD 20:00

HD broadcast is set.

(30 min.)

(--- min.)

will be displayed if

Example:

Wed 26 Oct Search All Channels

1 BBC ONE

20:00 - 20:30 DIY SOS : We open in the Battersbys

D D D D D D D

19:30 20:00 20:30 21:00 21:30

Time:

Das Erste DIY SOS Holiday News

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal.

10 O’ clock News BBC

BBC FOUR

BBC 2W

72 105

BBCi

719

BBC Radi

TV Guide

Coronation Street

Pepsi Char.

The Bill Good bye CoastSpring watchPanorama NewsPop IdolI’m A Celebrity Sports15 To 1Rugby

“ ” or “ ” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

select

set

Also in

Using TV Guide

Page 28

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

●

The availability of teletext services for a programme is indicated by [TEXT] in the information banner.

Information banner

Coronation Street

20:00 - 20:55

BBC ONE WALES

Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the teletext services may be the same as the analogue teletext services (p. 29).

Now

TEXT

All DVB Channels

Select favourites

20:35

Displayed if programme has teletext service

(p. 22)

Digital teletext (MHEG)

Digital teletext services differ greatly from analogue teletext.

Viewing Teletext

When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

Select DVB

(p. 21)

Switch to Teletext

●

DVB programmes have digital teletext services (MHEG).

Example:

17:51 28 Feb

■ How to operate services

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on-screen commands may not correspond exactly to the remote control buttons.

●

Select, go

●

Symbol:

■

To return to TV

●

Back key

●

Coloured characters

Coloured button

●

When options with numbers are displayed

Note

●

As soon as you switch to a digital channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete.

●

While navigating digital teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

Page 29

Analogue teletext

Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

“Store frequently viewed pages” (p. 30)

■ To change mode [Teletext] (p. 44)

Switch to Teletext

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

Time / date

●

Displays the index page (content varies depending on the broadcasters).

TELETEXT

INFORMATION

Colour bar

Current page number

Select the page

down

Coloured button

(Corresponds to the colour bar)

■ To adjust contrast

As the blue bar is displayed

■

To return to TV

(Press twice)

Viewing Teletext

Reveal hidden data

Reveal hidden words e.g. quiz page answers

(red)

●

Press again to rehide.

Subtitles

View a favourite page stored

●

Factory setting is “P888” (subtitle service) on the blue button (List mode).

Page 30

FULL / TOP / BOTTOM

(TOP) (BOTTOM) Normal (FULL)

(green)

(Expand the TOP half) (Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once

●

Viewing Teletext

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

As page is displayed

(Corresponding coloured button)

press and hold

Operations can be made only in Teletext screen.

●

Each time pressed: Teletext TV and Teletext

■ To change stored pages

Coloured button you want to change

View sub page

View sub page (Only when Teletext is more than one page)

Enter new page number

Appears at top of the screen

■ To view specific sub page

(blue)

The number changes to white.

●

The number of sub pages varies depending on the broadcasters (up to 79 pages).

●

It may take some time for searching, during which time you can watch TV.

Enter the 4-digit number Example: P6

press and hold

●

If you wish to use Subtitles, do not change number on blue button.

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

(yellow)

●

The news page provides a function that indicates arrival of the latest news (“News Flash”).

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

(yellow)

Page 31

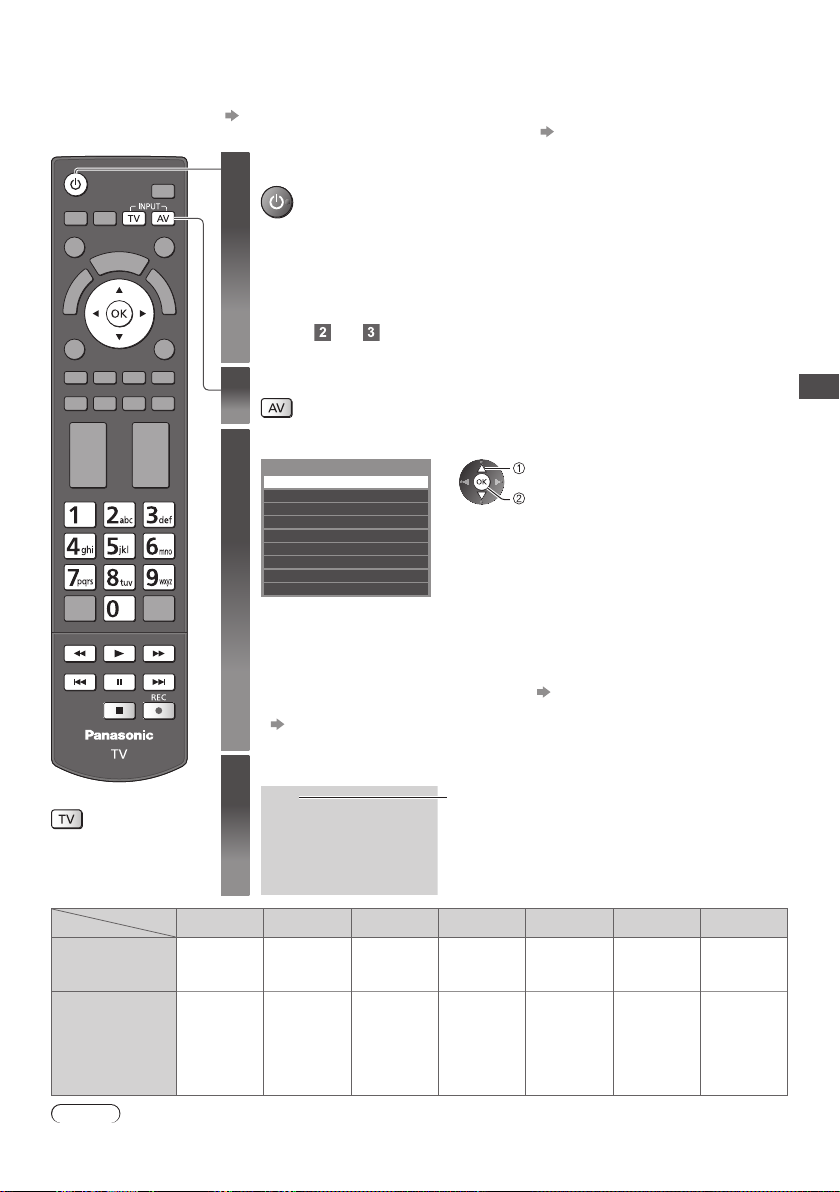

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

●

To connect the equipment (p. 13 - 15, 93 - 95)

The remote control is capable of operating the contents or external equipment.

Turn the TV on

When connecting with SCART (p. 14)

Receives input signals automatically when playback starts

●

Input signals are automatically identified by the SCART (pin 8) terminal.

●

This function is also available for HDMI connections (p. 93).

If input mode is not switched automatically

Perform and

●

Check the setup of the equipment.

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV1

■

To return to TV

AV2 PC HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

●

You can also select the input using the AV button on the remote control or the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected.

●

To switch between [COMPONENT] and [VIDEO] in [AV2], move the indicator by pressing left and right cursor button.

●

[SD Card/USB]: Switches to Media Player. “Using Media Player” (p. 66)

●

You can label or skip each input mode (except [SD Card/USB]).

“Input Labels” (p. 44)

Skipped inputs will not be displayed when the AV button is pressed.

View

AV1

Displays the selected mode

(p. 32)

select

watch

Watching External Inputs

Terminal

Manual input (default setting in “Input Labels”)

Auto input (EC mode or VIERA Link)

AV 1 AV2 PC HDMI1 HDMI2 HDMI3 HDMI4

AV 1

AV1-RGB

EC/AV1

EC/AV1-RGB

COMPONENT

VIDEO

− −

PC HDMI1 HDMI2 HDMI3 HDMI4

EC/HDMI1

Applicable

for

EC mode

and

VIERA Link

Note

●

If the external equipment has an aspect adjustment function, set it to [16:9].

●

For details, read the manual of the equipment or ask your local dealer.

EC/HDMI2

Applicable

for

VIERA Link

EC/HDMI3

Applicable

for

VIERA Link

EC/HDMI4 Applicable

for

VIERA Link

Page 32

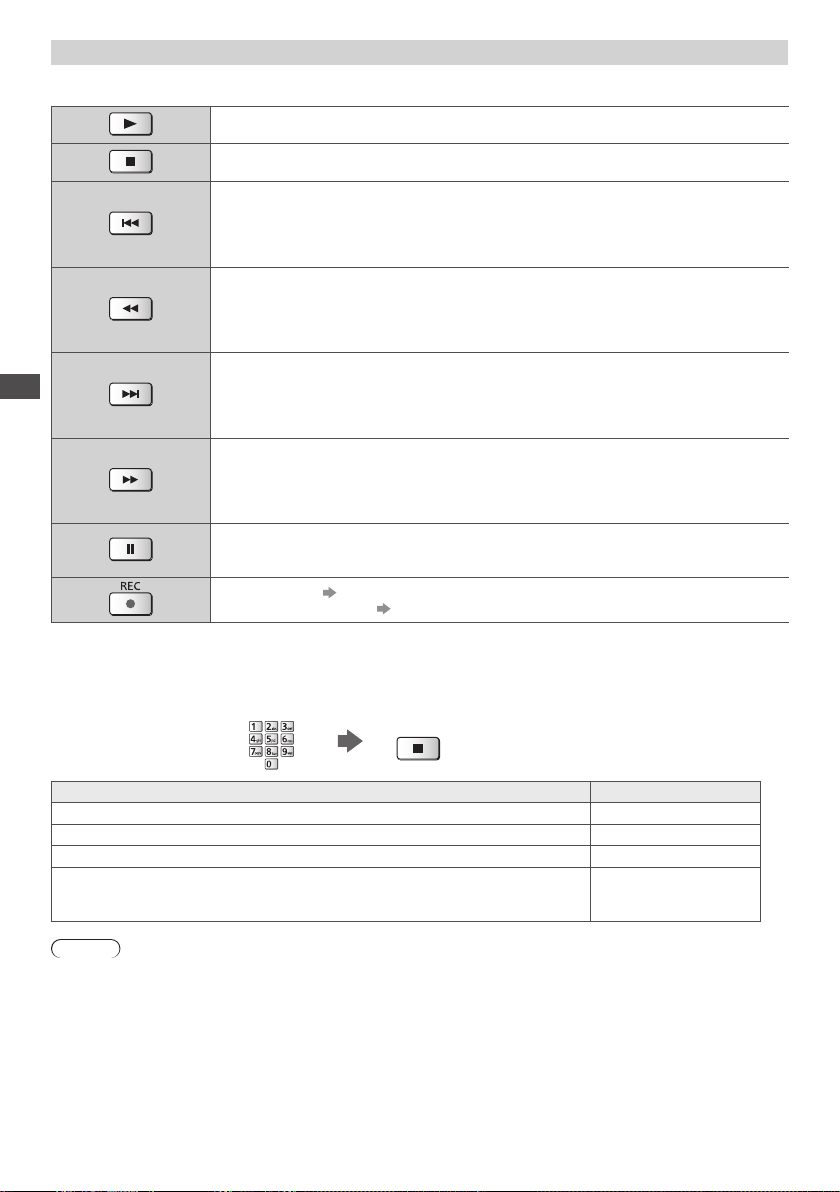

Operating the contents or equipment with the TV remote control

You can operate the contents in Media Player / media servers, recording functions or the connected equipment with the below buttons of this TV remote control.

Watching External Inputs

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip

VCR:

Rewind, view the picture rapidly in reverse

DVD / video content:

Skip to the previous track, title or chapter

Rewind / Search

VCR:

Rewind, view the picture rapidly in reverse

DVD / video content:

Search backward

Fast-forward / Skip

VCR:

Fast-forward, view the picture rapidly forward

DVD / video content:

Skip to the next track, title or chapter

Fast-forward / Search

VCR:

Fast-forward, view the picture rapidly forward

DVD / video content:

Search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

[Direct TV Rec] (p. 87, 89) [One Touch Recording] (p. 65)

How to change the code

Each type of the Panasonic equipment has its own remote control code. Change the code according to the equipment you want to operate.

Press and hold Standby On / Off switch during the following operations

Enter the appropriate code, see table below

Type of the equipment, features Code

DVD Recorder, DVD Player, Blu-ray Disc Player 70

Player theatre, Blu-ray Disc theatre 71

VCR 72

Using in USB HDD Recording (p. 65), Media Player (p. 67),

DLNA features (p. 81) or Direct TV Recording (p. 87, 89)

Equipment using in VIERA Link (p. 90)

Press

Note

●

Confirm if the remote control works correctly after changing the code.

●

The codes may be reset to default values if batteries are replaced.

●

Some operations may not be possible on some equipment models.

73 (default)

Page 33

Viewing 3D images

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear. “Optional accessories” (p. 8) This TV supports [Frame Sequential]

∗

1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately

played back.

∗

2, ∗3: Other available 3D formats

●

How to view the 3D images (p. 34)

Caution

To use 3D Eyewear safely and comfortably, please read these instructions fully.

Viewing 3D Content

●

Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing medical conditions.

●

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation. When you set the effect by using [3D Adjustment], take into account that the vision of 3D images varies among different individuals.

●

Take an appropriate break after viewing a 3D movie.

●

Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.

●

Be careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged.

●

The 3D Eyewear must only be worn when viewing 3D content.

●

Use the 3D Eyewear where there is no interference from other devices with Bluetooth signal.

●

If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear.

●

Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.

●

Do not use the 3D Eyewear at a distance less than the recommended distance. The recommended viewing distance is at least 3 times of the image height. TX-L42ET50B: 1.6 m or more TX-L47ET50B: 1.8 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times of the height of the actual image. (That makes the distance closer than above recommended figure.)

3D Eyewear Use

●

Pay special attention when children are using the 3D Eyewear. 3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear.

●

Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury.

●

Remove the 3D Eyewear before moving around to avoid falling or accidental injury.

●

Use the 3D Eyewear only for the intended purpose and nothing else.

●

Do not use 3D Eyewear in the condition of high temperature.

●

Do not use if the 3D Eyewear is physically damaged.

●

Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.

●

Stop using the 3D Eyewear immediately if a malfunction or fault occurs.

●

Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.

●

In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

∗

, [Side by Side]

∗

and [Top and Bottom]

∗

3D formats.

Viewing 3D images

3D Eyewear (optional)

●

Use the Panasonic 3D Eyewear that has this logo and supports

“Full HD 3D Glasses™” logo indicates products that are compatible with the active shutter 3D glasses technology standards licensed by the Full HD 3D Glasses Initiative. The RF mark on the logo means the wireless system (Bluetooth Eyewear and the TV that have the same mark together.

Note

●

Use the 3D Eyewear within approximately 3.2 m from the TV. You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving radio waves from the TV.

●

The range may be shortened depending on the obstacles between the TV and the 3D Eyewear, or the surrounding environment.

●

There are differences in the viewing range of the 3D Eyewear among individuals.

●

The 3D Eyewear may not operate correctly at the outside of the viewing range.

Bluetooth® wireless technology.

wireless technology), and you can use the 3D

Page 34

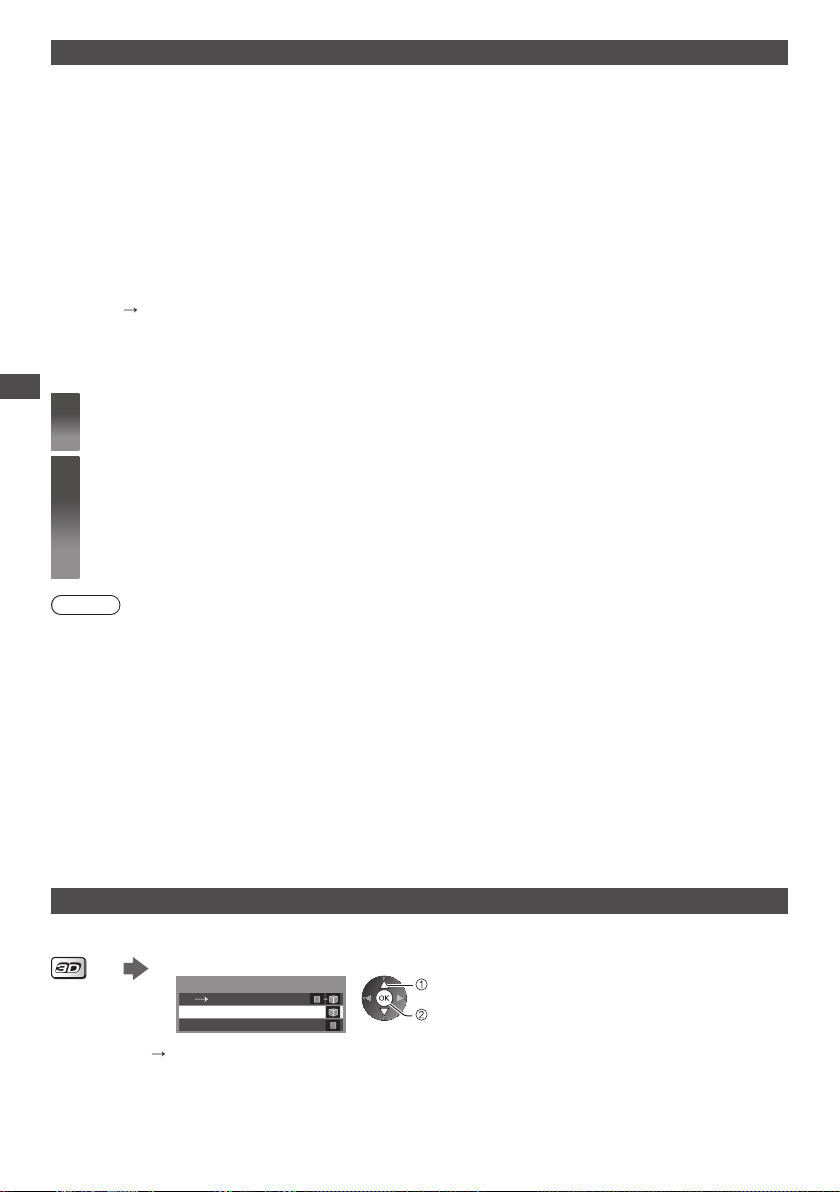

To view the 3D images

You can enjoy the 3D images in a variety of ways. (Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)

■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)

●

Connect the 3D-compatible player via a fully wired HDMI compliant cable.

●

If input mode is not switched automatically, select the input mode connected to the player. (p. 31)

●

If you use the non 3D-compatible player, the images will be displayed on 2D mode.

■ 3D-supported broadcast

●

Please consult the suppliers of contents or programmes for availability of this service.

■ 3D photos and 3D videos taken by 3D-compatible Panasonic products

●

Available in Media Player (p. 68, 69, 71) and Network services (p. 82)

■ 2D images converted to 3D

●

Set to [2D 3D] mode in [3D Mode Selection]. (p. 35)

Preparations

Perform the First Registration when the 3D Eyewear is used for the first time. For details, read the manual of the 3D Eyewear.

Viewing 3D images

Turn the 3D Eyewear on and put it on

●

Connection status and battery status are displayed on the bottom right of the screen.

View the 3D images

●

Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D images. If you select [Yes], this message will be displayed again in the same condition after Mains power On / Off switch is next turned on. Select [No] if you do not want to display this message again.

●

Turn off the 3D Eyewear after using it.

Note

●

3D Eyewear is not included. Please purchase as necessary. (p. 8)

●

For more detail about using and wearing the 3D Eyewear, read the manual of the 3D Eyewear.

●

The 3D image or 3D effect may not be available in the following conditions:

VIERA Connect home screen (p. 20) is displayed.

•

[Ext Rec.] of Timer Programming (p. 54) is in progress.

•

Direct TV Recording (p. 87, 89) is in progress.

•

As for the contents of the Frame Sequential format and Side by Side (Full), no images will be displayed in these conditions.

●

If light appears to flicker under fluorescents or dimmers when using the 3D Eyewear, change the setting of [3D Refresh Rate]. (p. 40)

●

3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.

●

Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.

●

Do not use the 3D Eyewear as sunglasses.

●

3D effects may be perceived differently depending on the person.

Changing 2D - 3D mode

You can easily change the viewing mode between 2D and 3D using the 3D button.

●

This function is not available in PC mode.

[3D] / [2D] / [2D

Displays the appropriate image that you desire without selecting 3D format.

●

This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format manually.

Select the mode

3D Mode Selection

2D3D3D

3D]:

●

select

set

Items of [3D Mode Selection] vary depending on the condition.

Page 35

■ To change 3D format manually

When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.

During the above operation Select the mode

(red)

3D Mode Selection (Manual)

Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D Top and Bottom - 3D Top and Bottom - 2D 2D 3D

[Original]:

Displays the source image as it is.

●

Use to identify the format type of the source image.

“Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format”

(see below)

[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] / [Top and Bottom - 3D] / [Top and Bottom - 2D]:

Displays the mode you select.

●

Not valid on Analogue and AV mode

3D]:

[2D

Converts 2D images into 3D.

●

Please note the 3D images appear slightly different from the originals.

●

Using this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.

Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.

Source

[3D Mode Selection]

image format

[Original]

[Frame

Sequential

- 3D]

[Side by Side

- 3D]

select

set

[Top and

Bottom - 3D]

[2D

Viewing 3D images

3D]

Frame Sequential

Side by Side (Full)

Side by Side

Top and Bottom

Normal format (2D)

∗

1: When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed

without 3D effect.

●

Depending on the player or broadcasts, the image may be different from the above illustrations.

Normal 3D

∗

Normal 3D

∗

Normal 3D

∗

Normal 3D

Page 36

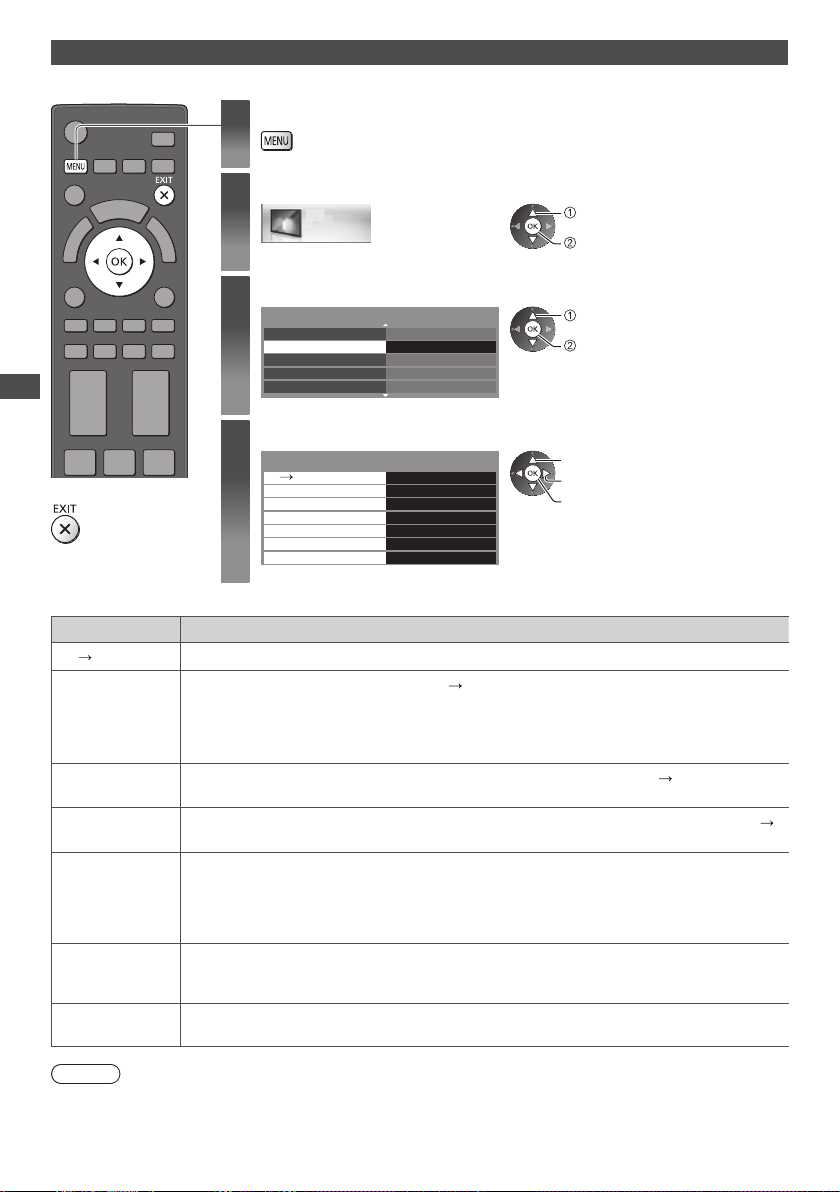

3D Settings

If the 3D images are not displayed correctly or seem unusual, adjust and setup the 3D settings.

Display the menu

Select [Picture]


P-NR Off

3D Settings

Screen Display Advanced Settings Reset to Defaults

3D Settings

2D 3D Depth 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

Access On

Mid Access Normal Off On On Access

2/2

Viewing 3D images

■

To return to TV

Select [3D Settings]

Select one of the following functions and set

Item Adjustments / Configurations (alternatives)

2D 3D Depth

3D Adjustment

Picture Sequence

Edge Smoother

3D Detection

3D Signal Message

Safety Precautions

Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]

Adjustment of the 3D effect (except in [2D

●

Set to [On] to enable [Effect] setting.

●

When setting to [On], a safety precaution message will appear. Read it carefully and press the BACK/RETURN button to go to [Effect] setting.

[Effect]: Adjusts the 3D depth according to the contents or to your preference.

Select [Reverse] if you feel that the sense of depth is unusual (except in [2D

[Normal] / [Reverse]

Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D 3D] mode) [Off] / [On]

Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]

[On (Advance)]: Detects all the 3D format signals and displays the 3D image automatically. [On]: Detects the particular 3D format signals (Frame Sequential, etc.) and displays the 3D

image automatically.

●

To view 3D images without any notifications and operations, set to [On (Advance)].

Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]

●

For DVB, Component and HDMI input

●

This function is not available when [3D Detection] is set to [On (Advance)].

Displays the precautions for viewing 3D images

3D] mode) [Off] / [On]

select

access

select

access

select adjust access / store

3D] mode)

Note

●

[3D Adjustment] and [Picture Sequence] will not be memorised when changing the input mode or channel.

Page 37

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

●

For [VIERA Link] function to operate correctly, ensure the connections and settings are completed.

“Summary of Q-Link and VIERA Link features” (p. 85), “Preparations” (p. 88)

After connection, turn the equipment on and then switch the TV on.

●

For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo, video or music data on it and insert it into the SD Card slot or USB port properly. “Using Media Player” (p. 66)

Display icons of the feature

Select a feature

■

To return to TV

VIERA Link

select

access

How to Use VIERA TOOLS

■ Follow the operations of each feature

[VIERA Link]

∗

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

(p. 90)

[Photo]

(p. 68)

[Video]

(p. 71)

∗

[Recorded TV]

(p. 72)

[Music]

(p. 75)

[Media Server]

(p. 81)

Note

●

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

∗

Page 38

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

●

Displays the functions that can be set (varies according to the input signal).

Select the menu

Main Menu


Sound

Network

Timer

select

access

How to Use Menu Functions

■

To return to TV at any time

■

To return to the previous screen

■

To change menu pages

down

Select the item

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S.

■ Choose from among alternatives

Colour Balance

■ Adjust using the slide bar

Sharpness

Setup

Cool

Normal

Warm

Moved

Warm Off Off

1/2

select

access

select

store

change

store

■ Go to the next screen

Child Lock Access

Displays the next screen

access

■ Enter characters by free input menu

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

Set characters one by one

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

Store● You can set characters by

using numeric buttons.

“Characters table for

numeric buttons” (p. 103)

■ To reset the settings

●

Picture or sound settings only

[Reset to Defaults] in the Picture Menu (p. 40) or Sound Menu (p. 42)

●

To initialise all settings

[Shipping Condition] (p. 45)

Note

●

If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment. To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 57)

Page 39

Menu list

Viewing Mode

Item Adjustments / Configurations (alternatives)

Selects your favourite picture mode for each input [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game]

[Dynamic]:

Improves contrast and sharpness for viewing in a bright room.

[Normal]:

The [Colour Balance] default setting is set to [Cool]. This is ideal for natural day light conditions.

●

For indoor lighting conditions, change the [Colour Balance] setting to [Normal] or [Warm] for best picture viewing. If [Reset to Defaults] is performed, the [Colour Balance] setting will return to [Cool].

[Cinema]:

Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.

[True Cinema]:

Reproduces the original image quality precisely without any revision.

[Game]:

Provides suitable images for fast response signal when playing games.

●

Not valid on TV mode

●

To display a continuous record of time spent using Game mode

[Playing Time Display] (p. 44)

In each Viewing Mode, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [C.A.T.S.], [P-NR] and [3D-COMB] can be adjusted and stored. Additionally, you can adjust the detailed settings when [Advance(Calibration)] in the Setup Menu is set to [On].

●

You can set [Viewing Mode] in 2D and 3D mode for each.

(p. 45)

How to Use Menu Functions

Contrast, Brightness, Colour, Sharpness


Tint

Colour Balance

Vivid Colour

C.A.T.S.

P-NR

3D-COMB

3D Settings Adjusts and sets to view 3D images (p. 36)

Screen Display

Adjusts the levels of these options according to your personal preference

Adjusts the picture hue to suit your taste

●

For NTSC signal reception

Sets the overall colour tone of the picture [Cool] / [Normal] / [Warm]

●

Not valid when [Viewing Mode] is set to [True Cinema]

Automatically adjusts colours to vivid ones [Off] / [On]

●

Not valid on PC mode

Contrast Automatic Tracking System (Automatic Brightness Control function) Adjusts picture settings automatically depending on ambient lighting conditions

[Off] / [On]

●

Set to [On] to make the suitable contrast setting automatically. The default setting is [On] when [Viewing Mode] is set to [Normal].

Picture Noise Reduction Reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max] / [Auto]

●

Not valid on PC mode or when [Viewing Mode] is set to [Game]

Makes still or slow moving pictures more vivid [Off] / [On]

●

Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to [On] to display sharper and more accurate colours.

●

For PAL / NTSC signal reception in TV mode or from composite (except 3D mode)

Turns the screen off when you select [Off]

[Off] / [On]

●

The sound is active even if the screen turns off.

●

Press any buttons (except Standby) to turn the screen on.

●

This function is effective in reducing power consumption when listening to the sound without watching the TV screen.

Page 40

Item Adjustments / Configurations (alternatives)

Automatically compensates the picture frame rate and removes juddering

Intelligent Frame Creation

24p Smooth Film

Clear Cinema

movements to make the images smooth [Off] / [Min] / [Mid] / [Max]

●

Depending on the contents, images may be noisy. To prevent the noise, change the setting.

●

Not valid on PC mode or when [Viewing Mode] is set to [Game]

Automatically compensates the picture frame rate to make the 24p source movie images smooth [Off] / [Min] / [Mid] / [Max]

●

This is available only for 24p signal input and displayed instead of [Intelligent Frame Creation].

●

Not valid on PC mode or when [Viewing Mode] is set to [Game]

Improves vertical resolution for movie images [Off] / [On]

●

This function is available for the interlaced signal (except in the mode of PC, VIERA Connect or when [Viewing Mode] is set to [Game]).

Advanced Settings

How to Use Menu Functions


3D Refresh Rate

16:9 Overscan

DVI Input Setting

Reset to Defaults

Sound

Mode

Reduces juddering and flicker noises of the 3D images when using the 3D Eyewear [Auto] / [100Hz] / [120Hz]

[100Hz]:

If light appears to flicker under fluorescents (or dimmers) of 50 Hz.

[120Hz]:

If light appears to flicker under fluorescents (or dimmers) of 60 Hz. If flicker noises appear with 50 Hz input signal.

Selects the screen area displaying the image [Off] / [On]

[On]:

Enlarges the image to hide the edge of the image.

[Off]:

Displays the image in the original size.

●

Set to [On] if noise is generated on the edge of the screen.

●

This function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].

●

This function can be memorised separately for SD (Standard definition) and HD (High definition) signals.

●

Not valid on PC mode or VIERA Connect

Changes the black level of the image for HDMI input mode with DVI input signal manually [Normal] / [Full]

●

When the DVI input signal from the external equipment (especially from PC) is displayed, the black level may not be suitable. In this case, select [Full].

●

The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal

Press the OK button to reset the current Picture Viewing Mode to the default settings

Selects your favourite sound mode [Music] / [Speech] / [User]

●

The selected mode affects all input signals.

[Music]:

Improves sound quality for watching music videos, etc.

[Speech]:

Improves sound quality for watching news, drama, etc.

●

In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those settings will be stored for each mode.

[User]:

Adjusts the sounds manually by using the equaliser to suit your favourite sound quality.

●

For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and [Treble]. Select [Equaliser] and adjust the frequency. [Equaliser] (p. 41)

Page 41

Bass Adjusts level to enhance or minimise lower, deeper sound output

Treble Adjusts level to enhance or minimise sharper, higher sound output

Equaliser

Balance Adjusts volume level of right and left speakers

Headphone Volume Adjusts the volume of the headphones

Item Adjustments / Configurations (alternatives)

Adjusts the frequency level to suit your favourite sound quality

●

This function is available when [Mode] is set to [User].

●

Select the frequency and change the frequency level by using the cursor button.

●

To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency.

●

To reset the levels of each frequency to the default settings, select [Reset to Defaults] by using the cursor button, and then press the OK button.

Surround sound settings [Off] / [V-Audio] / [V-Audio Surround]

[V-Audio]:

Surround

Auto Gain Control

Sound

Volume Correction Adjusts the volume of individual channel or input mode

Speaker Distance to Wall

Preferred Multi Audio

NICAM

SPDIF Selection

Provides a dynamic enhancer of width to simulate improved spatial effects.

[V-Audio Surround]:

Provides a dynamic enhancer of width and depth to simulate improved spatial effects.

●

Switching is also possible by the SURROUND button on the remote control (p. 11).

Automatically regulates large sound level differences between channels and inputs [Off] / [On]

Compensates for the low frequency sound due to the distance between the speakers and the wall [Over 30cm] / [Up to 30cm]

●

If the back space between the TV and wall is over 30 cm, [Over 30cm] is recommended.

●

If the back space between the TV and wall is within 30 cm, [Up to 30cm] is recommended.

Selects the preferred language for digital channel multi audio (depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]

Near Instantaneous Companded Audio Multiplex Reproduces NICAM stereo sound [Off] / [On]

●

Off if reception is poor (FM monaural sound)

●

For Analogue mode

SPDIF: A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as

Dolby Digital Bitstream. MPEG is output as PCM.

How to Use Menu Functions

HDMI1 / 2 / 3 / 4 Input

[PCM]: Digital output signal is fixed to PCM.

●

For DVB mode or video contents of Media Player / Network services (p. 74, 84)

●

ARC (Audio Return Channel): A function of digital audio output using HDMI cable

Selects to fit the input signal [Digital] / [Analogue] (p. 101) [Digital]: When sound is carried via the HDMI cable connection [Analogue]:

●

For HDMI input

When sound is not carried via the HDMI-DVI adaptor cable connection

Page 42

Voice Guidance Settings

Voice Guidance

Speed Selects the readout speed for the voice guidance [Normal] / [Fast]

Volume Selects the volume for the voice guidance [Min] / [Mid] / [Max]

User Level Selects the level of verbosity for voice guidance [Beginner] / [Expert]

Sound

Audio Description

Audio Description Menu

Item Adjustments / Configurations (alternatives)

Set to [On] to enable voice guidance of the basic features (EPG, on-screen messages, etc.) for visually impaired users [Off] / [On]

Narration settings for visually impaired users [Off] / [Auto] Set to [Auto] to activate the narration sound track when available on the broadcast.

●

The availability of audio description sound track is indicated by [AD] in the information banner (p. 22).

●

For DVB mode

How to Use Menu Functions

Volume

Speakers

Headphones

Reset to Defaults

Connection Test, Network Connection, Wireless Network Settings, IP/DNS Settings

Network

Network Link Settings Sets to control the TV with the devices connected to the network (p. 78)

Software Update Checks for available software updates from the Panasonic website

New Software Message

Network Status Displays the network status (MAC Address, current network settings, etc.)

Timer Programming Sets a timer to record or remind forthcoming programmes (p. 54)

Off Timer

Timer

Adjusts the volume for Audio Description

●

For DVB mode

Set to [On] to activate the description sound track from TV speakers [Off] / [On]

●

For DVB mode

Set to [On] to activate the description sound track from headphones [Off] / [On]

●

For DVB mode

Press the OK button to reset the current Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings

Sets the network setting to use in your network environment (p. 78)

Selects whether to give a notification message when new software is found via network [Off] / [On]

Sets the duration of time until the TV automatically goes into Standby mode

[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p. 23)

Auto Standby

Sets the duration of time that the TV will remain on when no operation is performed [Off] / [2] / [4] (hours)

●

Starting Timer Programming automatically does not affect this function.

●

Automatic input switching with the connected equipment affects this function and time-count will be reset.

●

The notification message will appear 3 minutes before going into Standby mode.

Page 43

TV Guide Settings

Eco Navigation

Recording Setup Settings for the recording feature of the USB HDD (p. 63)

Item Adjustments / Configurations (alternatives)

Changes the layout of TV Guide [Normal] / [Full] / [Info]

TV Guide View

VIERA Link Sets to use VIERA Link functions [Off] / [On] (p. 88)

HDMI Content Detection

[Normal]: Default TV Guide screen [Full]: Displays channels and programmes full-screen without the operation guide [Info]: Displays details of the selected programme at the bottom without the

operation guide

Automatically sets the TV to the most suitable energy-saving mode

●

If you press the OK button, the following items are set as below: [C.A.T.S.], [VIERA Link], [Standby Power Save], [Power Save] [On] [Intelligent Auto Standby] [Auto Standby]

Automatically adjusts the picture settings according to the received HDMI content via HDMI cable [Off] / [Auto]

●

This function is available if the connected equipment supports HDMI Content Type.

●

The content type information will be displayed for several seconds when this function works.

[2 hours]

[On (No reminder)]

How to Use Menu Functions

Link Settings

AV1 out

Setup

Standby Power Save

Intelligent Auto Standby

Q-Link Download

Child Lock Applies access control for channels or inputs to prevent unwanted access (p. 56)

Favourites Edit

Tuning Menu*

Channel List Skips the unwanted channels or edits channels (p. 52)

Auto Setup Automatically searches for the receivable channels (p. 50)

Channel Sorting by Region

Manual Tuning Searches for the channels manually (p. 53)

Chooses the signal to be transmitted from the TV to Q-Link

[TV] / [AV2] / [Monitor] [Monitor]: Image displayed on screen

●

Component and HDMI signals cannot be output.

Controls the connected equipment to reduce power consumption in Standby [Off] / [On] (p. 89)

●

This function is available when [VIERA Link] is set to [On].

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption [Off] / [On (With reminder)] / [On (No reminder)] (p. 89)

●

This function is available when [VIERA Link] is set to [On].

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Creates a list of favourite channels (p. 51)

●

Not valid on Analogue mode

Automatically sorts tuned channels according to the available region (p. 52)

●

For DVB mode

Page 44

Item Adjustments / Configurations (alternatives)

Update Channel List

Tuning Menu*

Updates the channel list while keeping your settings (p. 53)

●

For DVB mode

New Channel Message

Signal Condition

Language

Preferred Audio 1 / 2

Preferred Subtitles 1 / 2

How to Use Menu Functions

Setup

Preferred Teletext

Preferred Subtitle Type

Teletext Analogue teletext display mode [FASTEXT] / [List] (p. 28)

Teletext Character Set

Preferred Subtitles

Display Settings

Input Labels

Selects whether to give a notification message when a new channel is found [Off] / [On] (p. 53)

●

For DVB mode

Checks the signal condition (p. 53)

●

Not valid on Analogue mode

Selects the first and second preferred language for digital channel multi audio (depending on the broadcaster)

Selects the first and second preferred language for digital channel subtitles (depending on the broadcaster)

●

To display subtitles (p. 24)

Selects the preferred language for digital channel teletext service (depending on the broadcaster)

Selects the preferred subtitle type [Standard] / [Hard of Hearing]

●

[Hard of Hearing] provides aids in understanding and enjoyment with digital channel subtitles (depending on the broadcaster).

●

[Preferred Subtitles 1 / 2] in [Language] are given priority.

Selects teletext language font [West] / [East1] / [East2] [West]: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc. [East1]: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. [East2]: Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the preferred language for digital channel subtitles (depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]

●

To display subtitles (p. 24)

●

provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).

Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in [Input Selection] (p. 31) or banner

●

To name each input mode freely, select [User input] and set characters (maximum 10 characters).

●

To skip the input mode, select [Skip].

Banner Display Timeout

VIERA Connect Banner

Playing Time Display

Radio Mode

Sets how long the Information banner stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 20, 21)

Set to [On] to display a continuous record of time spent using Game mode in the top right of the screen every 30 minutes [Off] / [On]

●

This function is available when [Viewing Mode] is set to [Game]. (p. 39)

Sets the timer for turning off the screen automatically when a radio channel is selected [Off] / [5] / [10] / [15] / [20] (seconds)

●

The sound is active even if the screen turns off. This function is effective in reducing power consumption when listening to a radio channel.

●

Press any buttons except Standby, Volume Up / Down and MUTE buttons to turn the screen on.

●

Not valid on Analogue mode

Page 45

DivX® VOD Displays DivX VOD registration code (p. 99)

Item Adjustments / Configurations (alternatives)

Advance(Calibration)

USB Keyboard Layout

Shipping Condition Resets all settings to the original condition (p. 57)

Owner ID Inputs the owner ID (p. 58)

System Menu

Common Interface Sets for watching encrypted channels, etc. (p. 59)

System Update Downloads new software to this TV (p. 60)

Software Licence Displays the software licence information

Setup

System Information Displays the system information of this TV

Device Information Displays the device information of this TV

Power on Preference

Other Settings

Power on Channel List

Enables the advanced picture settings [Off] / [On]

●

Set to [On] to display the advanced items in the Picture Menu. (p. 62)

Selects the language that your USB Keyboard supports

●

For the information of using USB Keyboard (p. 101)

Automatically selects the input when the TV is turned on [TV] / [AV]

●

Set to [TV] to view picture from TV tuner. Set to [AV] to view input from the external equipment connected to the AV1 or HDMI1 terminal, e.g. satellite receiver.

●

The external equipment must be switched on and sending a control signal for automatic switching at power on to occur.

Automatically selects All Channels or Favourites list in the Information banner when the TV is turned on [All Channel List] / [Last]

●

Set to [All Channel List] to display all the channels. Set to [Last] to display the one you selected last time.

●

Not valid on Analogue mode

How to Use Menu Functions

USB Charge in Standby

Power Save

∗

The settings in [Tuning Menu] are applicable only for the selected TV mode. The menu name varies depending on the TV mode. ([DVB Tuning Menu] / [Analogue Tuning Menu])

●

A different menu will be displayed when [Advance(Calibration)] in the Setup Menu is set to [On] or in the mode of PC input, Media Player or network service operations. (p. 61, 62, 66 - 75, 81 - 84)

●

Only available items can be selected.

Enables to supply the power from the USB port in Standby mode [Off] / [On]

●

Available for charging the rechargeable 3D Eyewear (optional)

●

This function is available when in Standby mode.

Reduces brightness of the picture to economise on power consumption

[Off] / [On]

Page 46

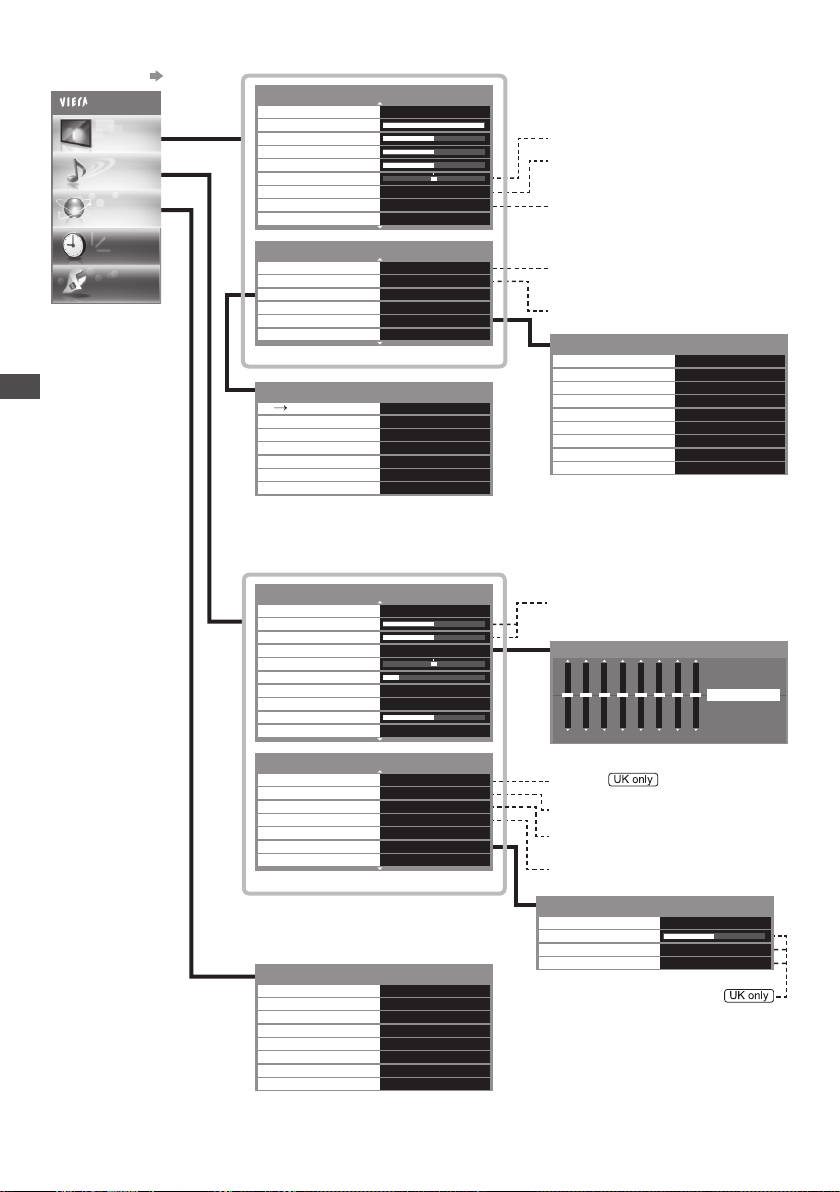

Overview (Picture, Sound, Network, Timer, Setup)

How to operate (p. 38)

Main Menu


Sound

Network

Timer

Setup

How to Use Menu Functions

Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S.

P-NR Off 3D-COMB 3D Settings Screen Display

Reset to Defaults

3D Settings

2D 3D Depth 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

Warm Off Off

Off Access On Access Advanced Settings Reset

Mid Access Normal Off On On Access

(p. 39, 40)

(p. 36)

1/2

For NTSC

Not valid when [Viewing Mode] is set to [True Cinema]

Not valid on PC mode

2/2

Not valid on PC mode or when [Viewing Mode] is set to [Game]

For NTSC / PAL

Advanced Settings

White Balance Access Colour Management Gamma Intelligent Frame Creation 24p Smooth Film Clear Cinema

16:9 Overscan DVI Input Setting

Access Access Off Off Off Auto 3D Refresh Rate Off Normal

(p. 40, 62)

Mode Music Bass Treble Equaliser Balance Headphone Volume Surround Auto Gain Control Volume Correction Speaker Distance to Wall Over 30cm

Preferred Multi Audio English NICAM SPDIF Selection HDMI1 Input Voice Guidance Settings Audio Description Reset to Defaults

Connection Test Network Connection Wired Wireless Network Settings IP/DNS Settings Network Link Settings Software Update New Software Message Network Status

Access

Off Off

Off Auto Digital Access Access Reset

Access

Access Access Access Access On Access

1/2

2/2

(p. 40 - 42)

(p. 78 - 81)

Available when [Mode] is set to [Music] or [Speech]

Equaliser

Reset to Defaults

150 250 500 1k 2k 4k 8k 12k Hz

Available when [Mode] is set to [User]

For DVB

For Analogue

For DVB, network video contents or Video mode For HDMI input

Audio Description Menu

Audio Description Volume Speakers Headphones

For DVB (p. 42)

Off

Off Off

Page 47

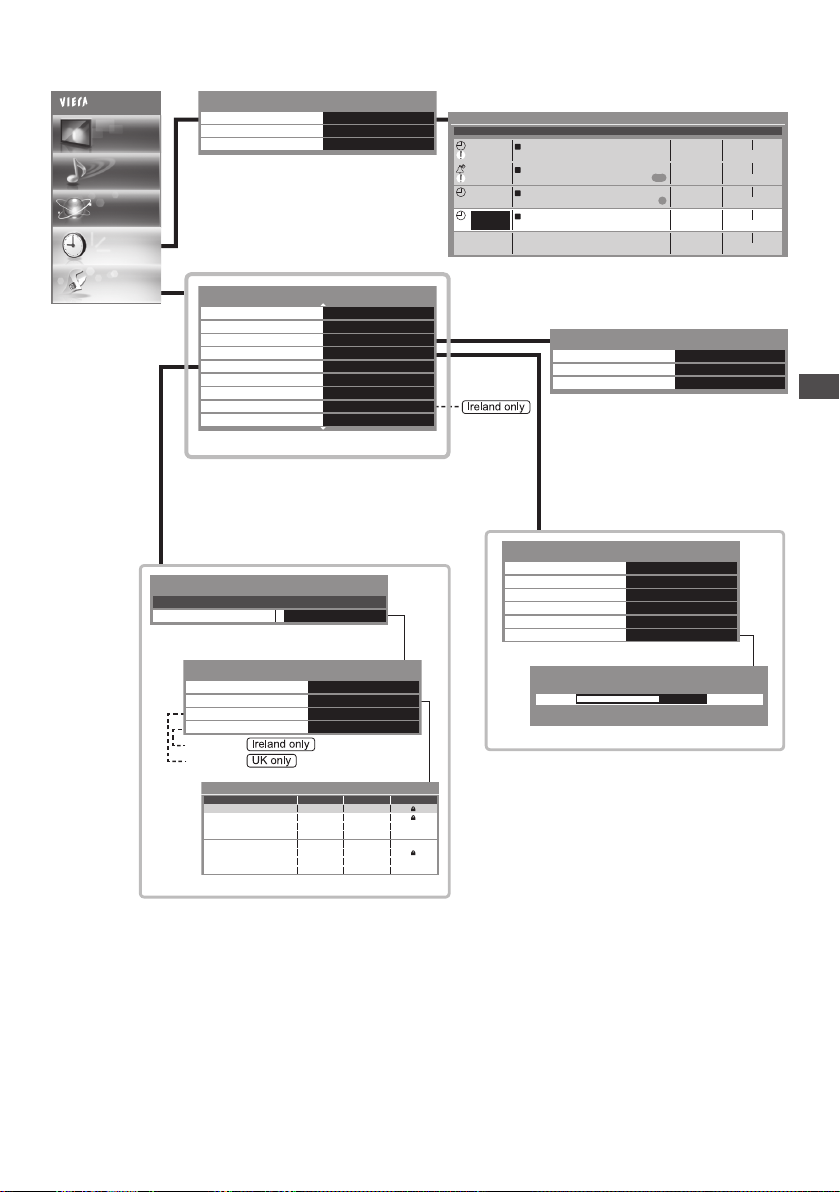

Main Menu


Sound

Network

Timer

Setup

Off Timer Auto Standby

TV Guide Settings Access Eco Navigation

Link Settings Child Lock DVB Tuning Menu Analogue Tuning Menu Language Display Settings

Child Lock-PIN Entry

Please enter new PIN

* * * *

Child Lock

Change PIN Child Lock List Freeview Players

For DVB For DVB

Child Lock List - TV and AV

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV2

DVB DVB DVB Analogue Analogue Analogue External External

Access Timer Programming Off Off

Access Access Recording Setup Access Access Access Access Access Access

Access Access Unlock No limit Parental Rating

(p. 43 - 45)

(p. 56)

Type

Free TV Free TV Free TV Analogue Analogue Analogue AV AV

(p. 42)

(p. 56)

Lock

Timer Programming

1/2

Function No. Date Start End Channel Name

Ext Rec.

72 BBC 2W 20:00 21:30

Reminder

Ext Rec.

<TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

------ --:----:-- --:--

Recording Setup

USB HDD Setup One Touch Recording Rewind LIVE TV

Link Settings

VIERA Link HDMI Content Detection AV1 out Standby Power Save Intelligent Auto Standby Q-Link Download

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

On Off TV On On (No reminder) Access

STTL

Guide

S/P

Wed 26 Oct 2011 10:46

Wed 26 Oct

Thu 27 Oct

Access 180 minutes Off

(p. 43)

(90 min.)

21:00 22:00

(60 min.)

22:45 23:00

(15 min.)

10:30 11:30

(60 min.)

(p. 54)

(p. 43)

How to Use Menu Functions

Page 48

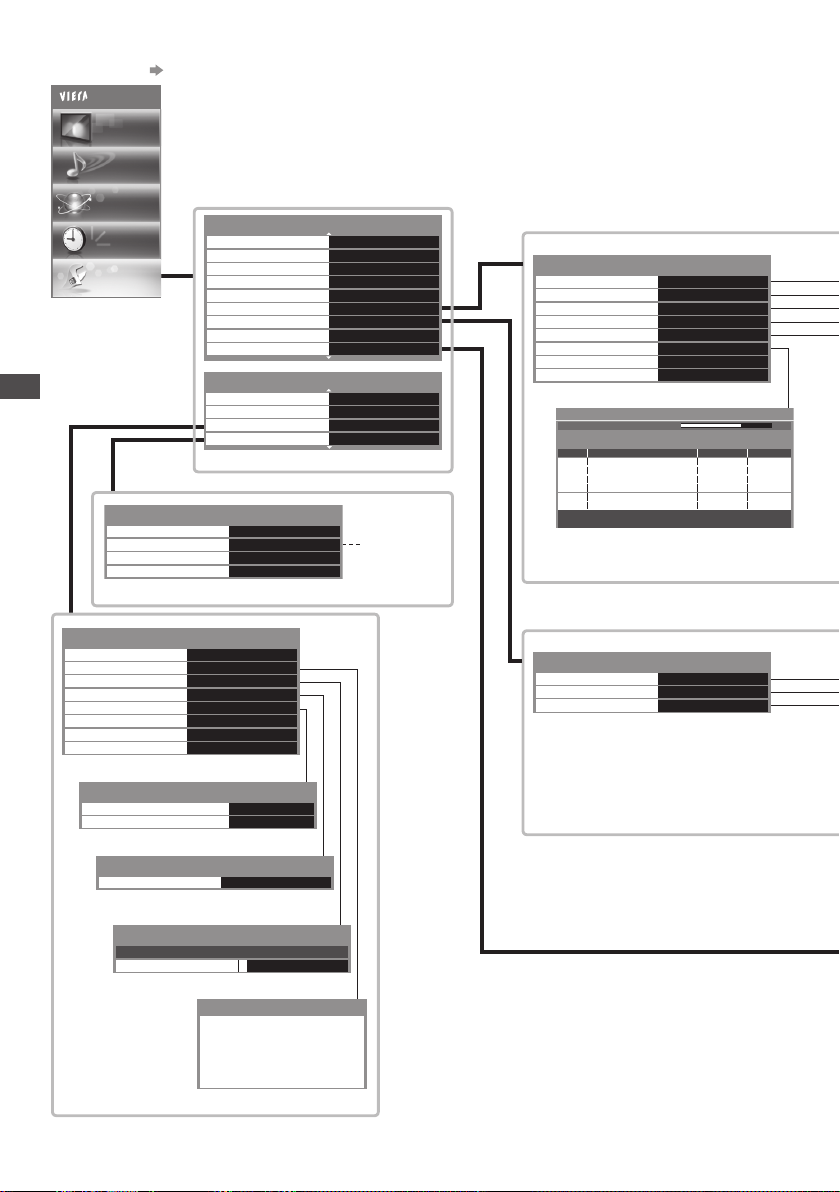

Overview (Setup)

How to operate (p. 38)

Main Menu


Sound

Network

Timer

Setup

TV Guide Settings Access Eco Navigation

Link Settings Child Lock DVB Tuning Menu Analogue Tuning Menu Language Display Settings

How to Use Menu Functions

Other Settings

Power on Preference Power on Channel List USB Charge in Standby

System Menu

USB Keyboard Layout Shipping Condition Owner ID Common Interface System Update Software Licence System Information

System Update

Auto Update Search in Standby System Update Search Now

Common Interface

Slot 1:

For DVB (p. 59)

English(UK) Access Access Access Access Access Access Access Device Information

TV Last Off Off Power Save

(p. 45)

Off Access

(p. 60)

Module inserted

(p. 45)

Access Access Recording Setup Access Access Access Access Access Access

Access DivX® VOD Off Advance(Calibration) Access System Menu Access Other Settings

(p. 43 - 45)

For DVB

1/2

DVB Tuning Menu

Favourites Edit Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

2/2

For DVB (p. 50 - 53)

DVB Update Channel List

Progress

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Data: 0 Radio: 0

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

For Analogue (p. 50 - 53)

Access Access Access Access Access Access On Access

CH 21 68

Searching

Access Access Access

(p. 53)

Owner ID

Please enter new PIN

* * * *

Shipping Condition

All tuning data will be erased

Are you sure ?

(p. 58)

(p. 57)

Page 49

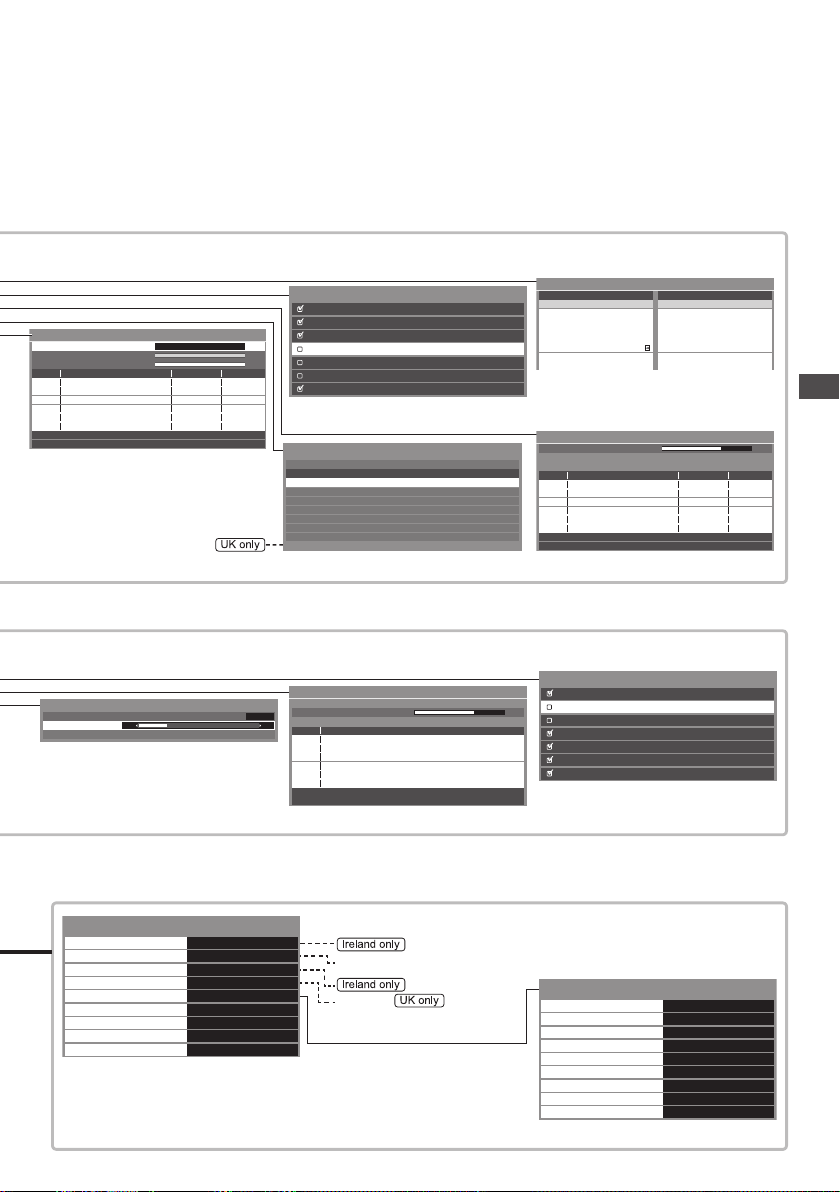

DVB Manual Tuning

Frequency

Signal Quality Signal Strength

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Data: 0 Radio: 0

Searching

[CH21]

474,00 MHz 0 0

(p. 53)

All DVB Channels

70 CBBC Channel 72 Cartoon Nwk

105 BBCi

10 10

719 BBC Radio Wales

720 BBC Radio Cymru

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

1 BBC ONE Wales 7 BBC THREE

(p. 52)

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

DVB Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

Free TV: 4 Pay TV: 0 Data: 0 Radio: 0

Searching

(p. 51)

CH 21 68

Quality

Free TV

(p. 50)

How to Use Menu Functions

Analogue Manual Tuning

Manual Tuning

21 68

Display Settings

Preferred Subtitle Type Teletext Teletext Character Set Preferred Subtitles Input Labels Banner Display Timeout VIERA Connect Banner

Radio Mode

Store

Standard FASTEXT West English Access 3 seconds On On Playing Time Display Off

CH331 BBC1

(p. 53)

(p. 44)

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

29 30

Analogue: 2

CH 21 68

Searching

For Analogue

For DVB

Analogue Channel List

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

(p. 52)

(p. 50)

Input Labels

AV1 AV2 PC PC HDMI1 HDMI2 HDMI3 HDMI4 DVB Analogue Analogue

DVD AV2

HDMI1 HDMI2 HDMI3 HDMI4 DVB

(p. 44)

Page 50

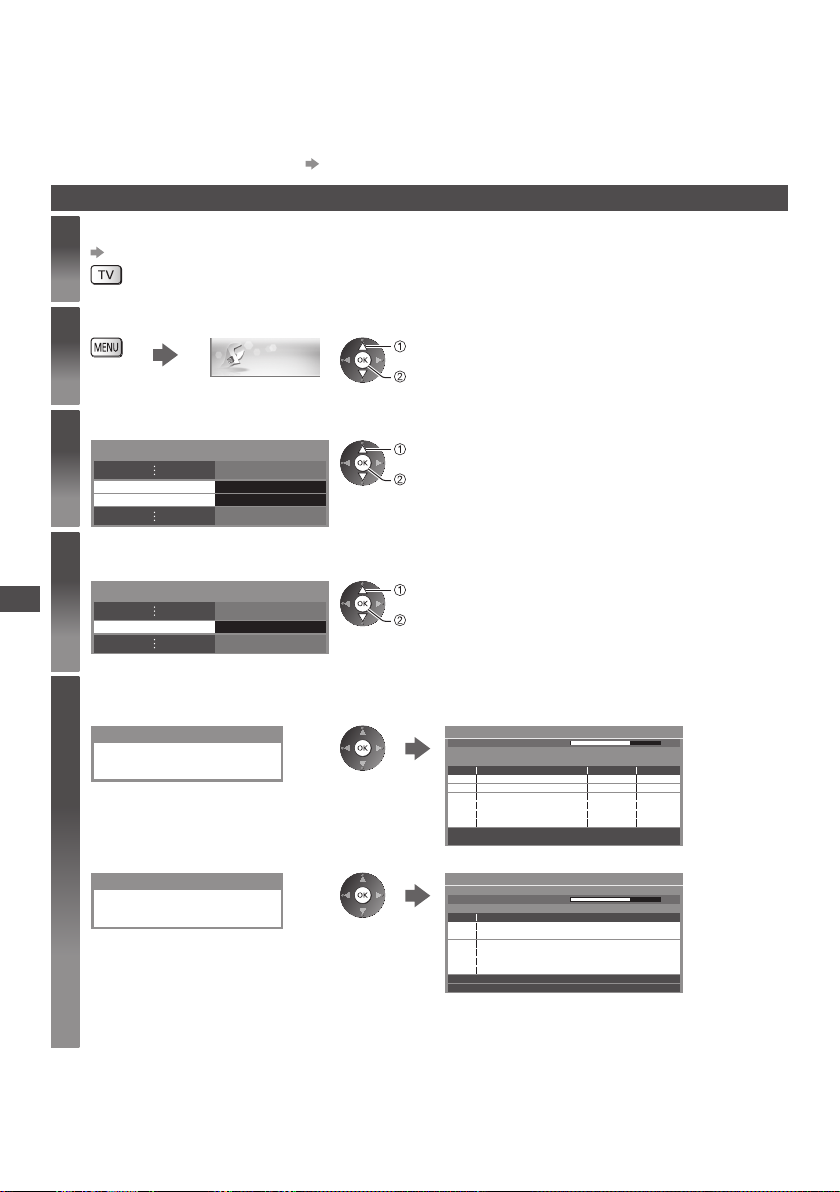

Retuning from Setup Menu

Automatically retune the channels received in the area.

●

This function is available if channel tuning is already performed.

●

Only the selected mode is retuned. All the previous tuning settings are erased.

●

If Child Lock PIN number (p. 56) has been set, the PIN number is required.

●

If tuning has not been done completely [Manual Tuning] (p. 53)

DVB or Analogue channels

Select the mode

(p. 21)

Display the menu and select [Setup]

Select [DVB Tuning Menu] or [Analogue Tuning Menu]

Select [Auto Setup]

Example:

Retuning from Setup Menu

DVB Tuning Menu Analogue Tuning Menu

DVB Tuning Menu

Auto Setup Access

Access Access

Setup

select

access

select

access

●

The displayed item depends on the selected mode.

select

access

Start Auto Setup (Settings are made automatically)

Example: DVB

DVB Auto Setup

All DVB tuning data will be erased

DVB Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

Free TV: 4 Pay TV: 0 Data: 0 Radio: 0

CH 21 68

Quality

Free TV

Searching

Example: Analogue

Analogue Auto Setup

All analogue tuning data will be erased

●

The analogue settings are downloaded to a Q-Link compatible equipment connected to the TV in Analogue mode.

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

29 30

Analogue: 2

CH 21 68

Searching

When the operation is completed, the channel at the lowest position will be displayed.

Page 51

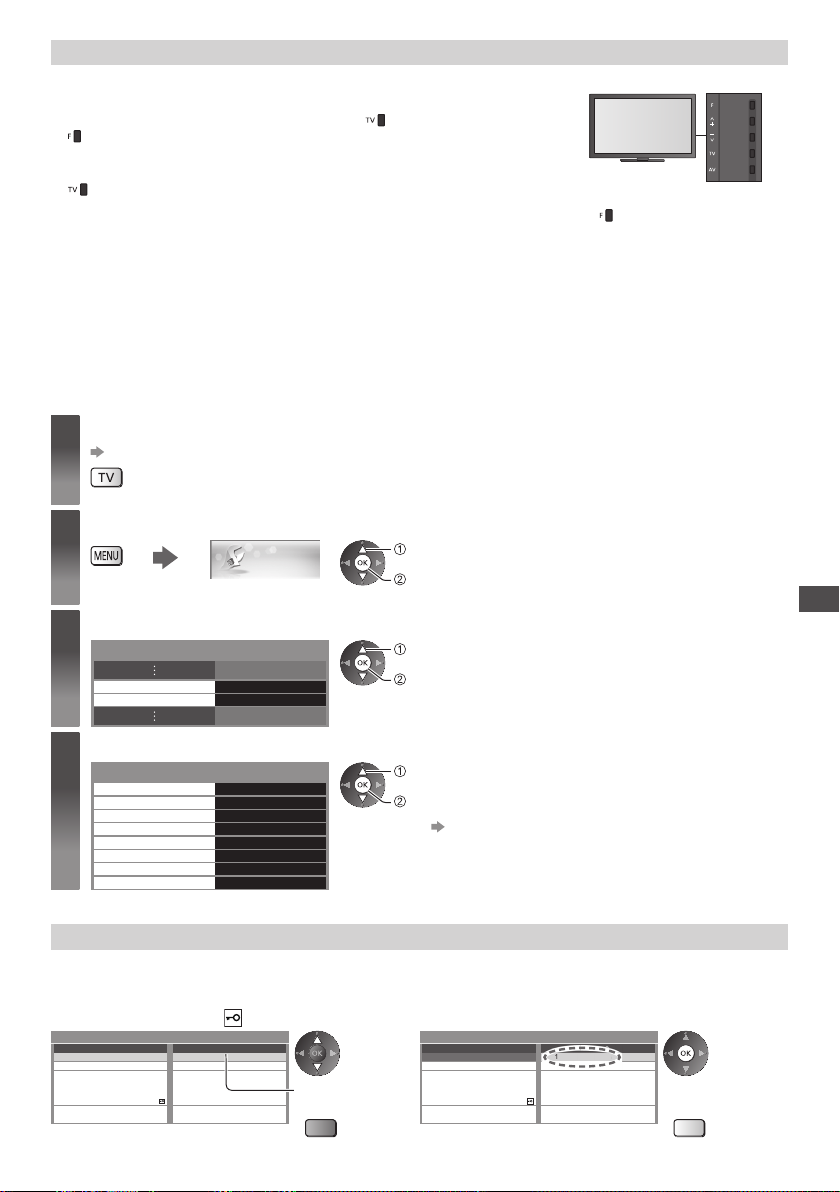

Auto setup using the buttons on the TV

es1

For Auto Setup, using the buttons on the TV (p. 12)

1 Press the F button repeatedly until [Auto

Setup] appears

2 Access [Auto Setup]

3 Start [Auto Setup]

●

To return to TV

●

Control panel OSD appears when pressing the control panel button.

Tuning and Editing Channels

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select the mode

(p. 21)

Display the menu and select [Setup]

Select [DVB Tuning Menu] or [Analogue Tuning Menu]

Select one of the following functions

DVB Tuning Menu Analogue Tuning Menu

DVB Tuning Menu

Favourites Edit Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access Access

Access Access Access Access Access Access On Access

Setup

select

access

select

access

select

access

●

[Auto Setup] “Retuning from Setup Menu” (p. 50)

Retuning from Setup Menu | Tuning and Editing Channels

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4). The DVB Favourites lists are available for switching in the Information banner (p. 22) and from [Category] in the TV Guide screen (p. 25).

1 Select a channel to list ( : Encrypted channel)

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

●

To display other Favourites

(green) (yellow)

2 Add it to the Favourites list

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

vourit

1 BBC One Wales

BBC One Wale

●

To add all channels to the list

Page 52

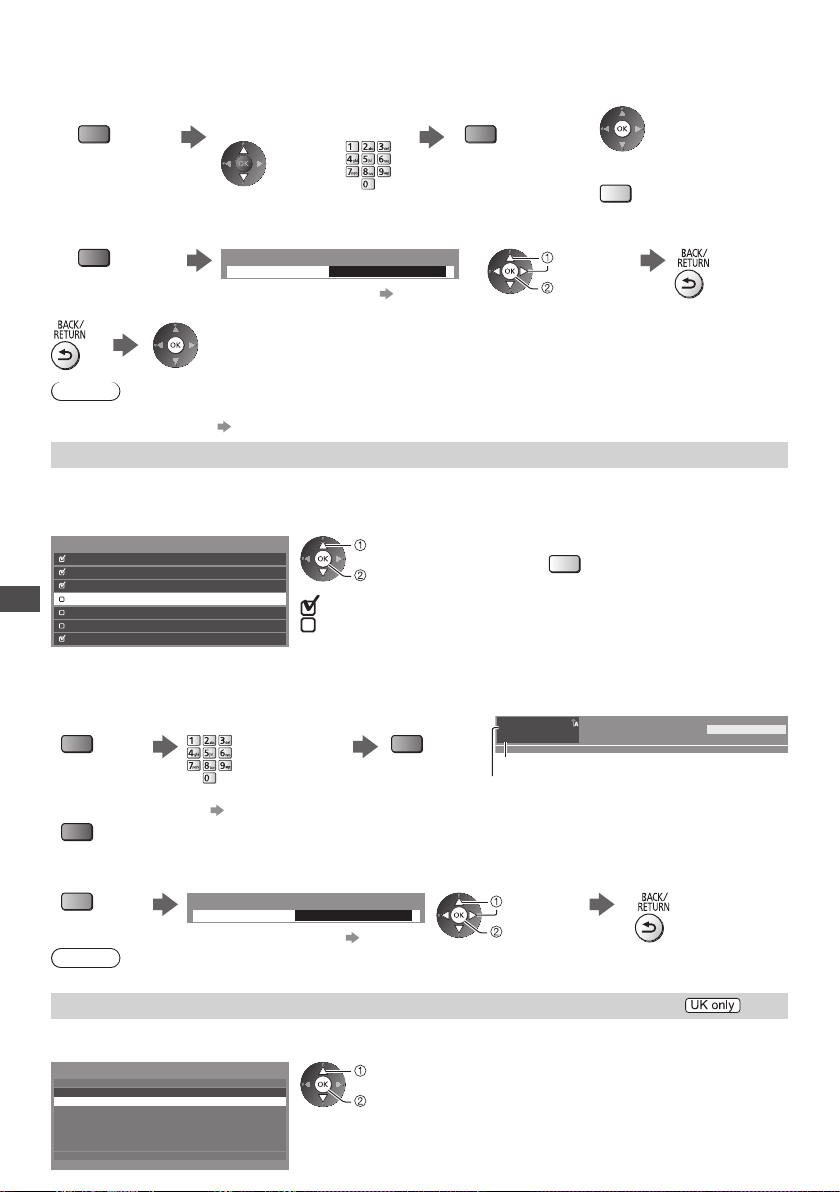

■ To edit Favourites list

While the cursor is in the Favourites field to edit

●

To move the channel

Select the

(green)

new position

●

To name the Favourites

Select the

turn

Store

(green)

●

To delete the channel

●

To delete all channels

(yellow)

Set characters (maximum 10 characters) Store

3 Store

(red)

User input

Name

●

To use numeric buttons (p. 103)

select

set

Note

●

Channel position numbers (known as logical channel numbers) can be swapped in Channel List. To swap the channel position number [Channel List] (see below)

Skip unwanted channels, Edit Channels [Channel List]

You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.

Select a channel and reveal / hide

Example: DVB

All DVB Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

Tuning and Editing Channels

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

: [Reveal]

: [Hide] (skip)

select

[Reveal] / [Hide]

●

To reveal all channels

(yellow)

■ To edit channels

●

To swap the channel position number (logical channel number) (DVB)

Enter the new position number Store

(green)

●

To retune each channel [Manual Tuning] (p. 53) (only for the revealed channels)

(red)

●

To rename the channel name (Analogue)

(green)

Set characters (maximum 5 characters) Store

(blue)

Edit channel name

Name

●

To use numeric buttons (p. 103)

Note

●

If a VCR is connected only with the RF cable in Analogue mode, edit [VCR].

Sort DVB channels according to the region [Channel Sorting by Region]

You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear nearer the top of your Channel List. Normally, you should select [Best signal quality (All Regions)].

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

select region

access

●

If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the top of your Channel List. If you have any image or sound problems, select [Best signal quality (All Regions)] instead.

Example: Analogue

ITV

CH23 SC1

Channel name

Channel position

select

set

(select repeatedly until you reach the available region)

23:35

All Analogue Channels

Page 53

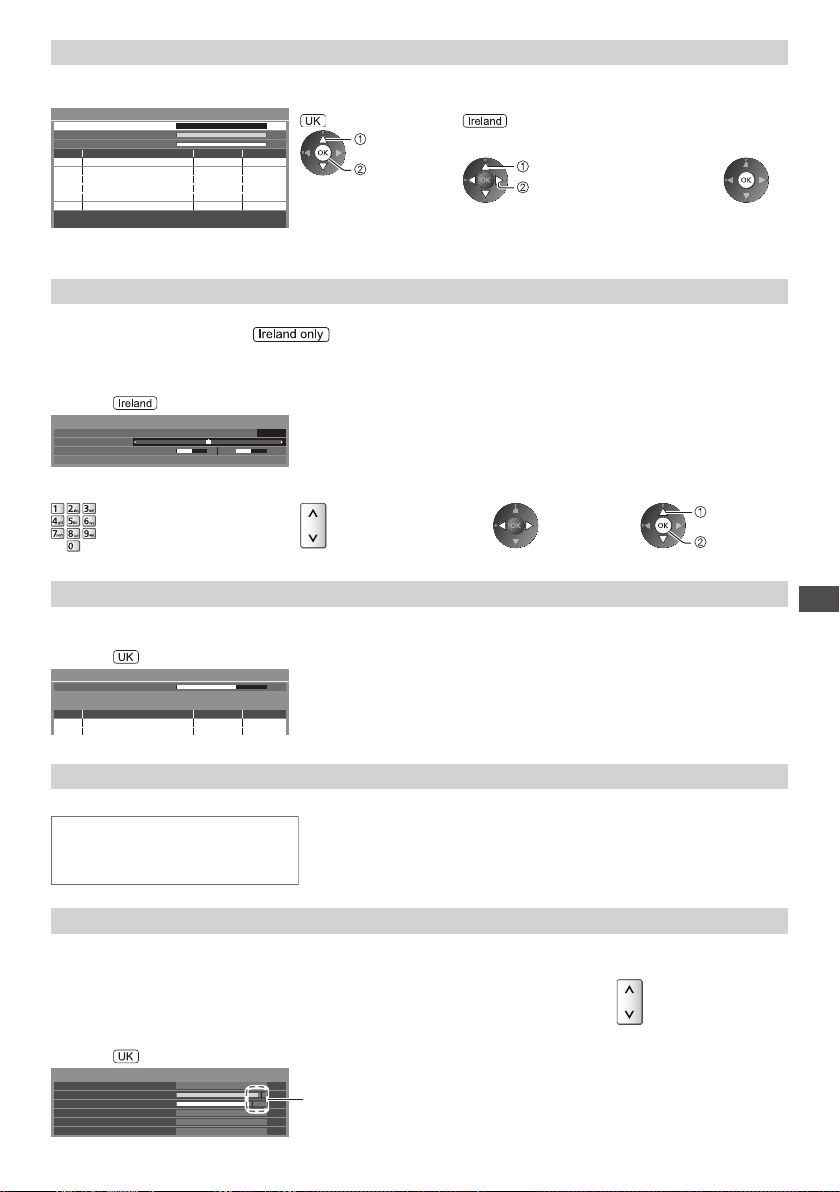

Set DVB channel manually [Manual Tuning]

Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

DVB Manual Tuning

Frequency

Signal Quality Signal Strength

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

●

All channels found will be added to the Channel List.

Searching

[CH21]

474,00 MHz 0 0

10 10

select frequency

1 Adjust frequency for each channel 2 Search

select channel adjust frequency

●

Set where the level of [Signal Quality] becomes the maximum.

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]: Use to make small adjustments to the tuning of an individual programme (affected by weather

[Manual Tuning]: Set Analogue channel manually after Auto Setup.

●

If a VCR is connected only with the RF cable, select channel position [0].

Example:

Analogue Manual Tuning

Fine Tuning Manual Tuning

conditions, etc.).

CH 1 99 41H: 21

Store

CH331 BBC1

1 Select the channel position 2 Select the channel 3 Search 4 Select [Store]

select

store

Update DVB channel automatically [Update Channel List]

You can add new channels, delete removed channels, update channel name and position automatically to the channel list.

Example:

DVB Update Channel List

Progress

This will take about 3 minutes.

CH Channel Name Type Quality

CH 21 68

●

The channel list is updated while keeping your settings in [Favourites Edit], [Channel List], [Child Lock], etc.

●

Depending on the signal condition, the update may not work properly.

Tuning and Editing Channels

Display a notification message [New Channel Message] (DVB)

Selects whether to give a notification message when a new DVB channel is found.

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

●

Selecting OK will perform [Update Channel List].

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition. A good Signal Strength is not an indication of suitable signal for DVB reception.

Use the Signal Quality indicator as follows.

●

Green bar: Good

●

Yellow bar: Poor

●

Red bar: Bad (Check the Terrestrial aerial)

Example:

DVB Signal Condition

Channel Name Signal Quality Signal Strength Bit Error Rate Network Name Frequency

70 CBBC Channel 0 0

0.00E+00

Wenvoe

802,00 MHz [CH62]

These bars show the maximum signal value of the selected

channel.

●

To change the channel

Page 54

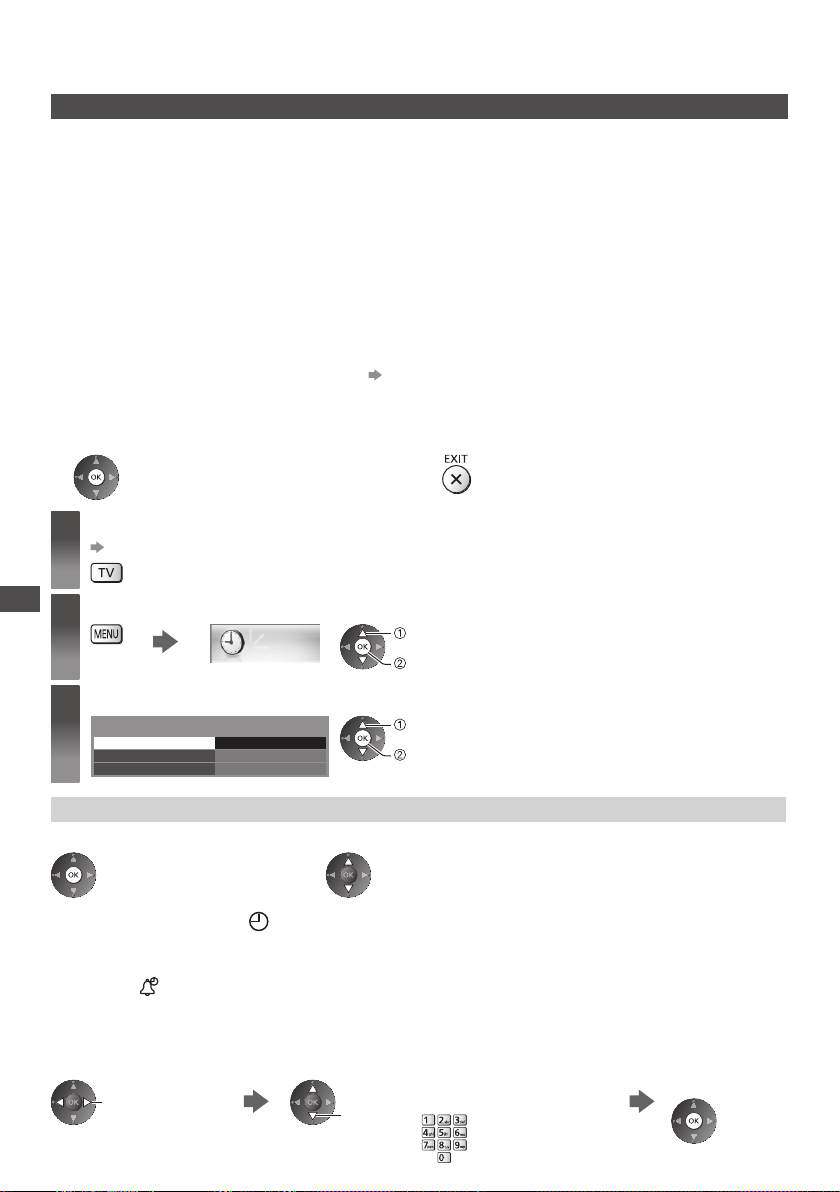

Timer Programming

Timer Programming from Menu

●

Timer Programming can store up to 15 events.

●

Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.

●

For recording using Timer Programming, the TV must be either on or in Standby. For reminders to be displayed, the TV must be on.

●

No other channel can be selected while the recording of Timer Programming is in progress.

●

Recording an encrypted (copy-protected) programme may not be possible.

●

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV. If a recorder compatible with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 87, 88) and [Link Settings] (p. 43) are completed, no setting of the recorder is required. Also read the manual of the recorder.

●

If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder. For preparations of a recorder, read the manual of the recorder.

●

For more information of the USB HDD Recording (p. 63, 100)

●

Recording to the external equipment via SCART is always in standard definition (composite video), even if the original programme is in high definition.

●

2 minutes before the starting time, a reminder message appears if you are watching TV.

To remove the message and start the programming

•

To cancel the programming

•

Select the tuner you want to use (DVB or Analogue)

(p. 21)

Timer Programming

Display the menu and select [Timer]

Select [Timer Programming]

Off Timer Auto Standby

Access Timer Programming Off Off

Timer

select

access

select

access

Set timer programming event details

1 Start making the settings 2 Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder])

[Ext Rec.] / [USB HDD Rec.] : Records the programme to the external recorder or the USB HDD.

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.

[Reminder]

When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.

: Reminds you to watch the programme.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

set

●

1, 3 and 4 can also be entered with numeric buttons.

Store

Page 55

: Overlapped timer programming events

Timer programming - Programmes according to the time setting

Timer Programming

Function No. Date Start End Channel Name

Ext Rec.

72 BBC 2W 20:00 21:30

Reminder

Ext Rec.

<TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

------ --:----:-- --:--

1 Channel number

: DVB / A : Analogue

D: DVB / A: Analogue

●

You cannot change the mode within the menu.

STTL

Guide

S/P

Wed 26 Oct 2011 10:46

Wed 26 Oct

21:00 22:00

Wed 26 Oct

22:45 23:00

Thu 27 Oct

10:30 11:30

(90 min.)

(60 min.)

(15 min.)

(60 min.)

4 Ending time

3 Starting time

Duration (automatic display) Records with subtitles (if available)

●

To indicate this

( Press again to remove subtitles)

(yellow)

2 Date

one day ahead

daily or weekly (press repeatedly)

●

[Daily Sun-Sat]: Sunday to Saturday

●

[Daily Mon-Sat]: Monday to Saturday

●

[Daily Mon-Fri]: Monday to Friday

●

[Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun]: Same time on the same day every week

Guide

: Guide link programming - Programmes according to the TV Guide signal (p. 27)

: Split Programme programming (p. 27)

S/P

●

These functions are not available in Analogue mode. Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

■ To edit a timer programming event

Select the event

●

To change a timer programming event

Correct as necessary (p. 54)

●

To delete a timer programming event

(red)

●

To record with subtitles (if available)

(yellow)

●

To cancel a timer programming event temporarily

(blue)

Each time pressed:

•

auto

Each time pressed:

•

cancel

off

stop cancelling

■ To unlock the tuner and stop recording ■ To view details of the programming (only for

Guide link programming)

Select the programme

Note

●

Check that the LED is orange. If not, timer programming events are not active or not stored.

●

Timer Programming reminder messages will remain displayed until one of the following occurs:

You press the OK button to view the programme or the EXIT button to cancel the reminder.

•

The timer programming event that the reminder is set for ends.

•

●

“!” identifies that two or more timer programming events are overlapped. [Ext Rec.] and [USB HDD Rec.] are given priority over [Reminder]. As for the overlapped recording events, the first event starts and finishes as programmed. The next event can then start.

●

The recording of Timer Programming will automatically change to the programmed channel a few seconds before the start time.

●

To stop recording the timer programming event, it may be necessary to stop the recorder manually.

●

The recording of Timer Programming will be performed even if the TV is in [Rewind LIVE TV] recording (p. 65) or [Pause Live TV] recording (p. 90). In this case, [Rewind LIVE TV] recording or [Pause Live TV] recording will be cancelled.

●

Press again to return to Timer Programming menu.

Timer Programming

Page 56

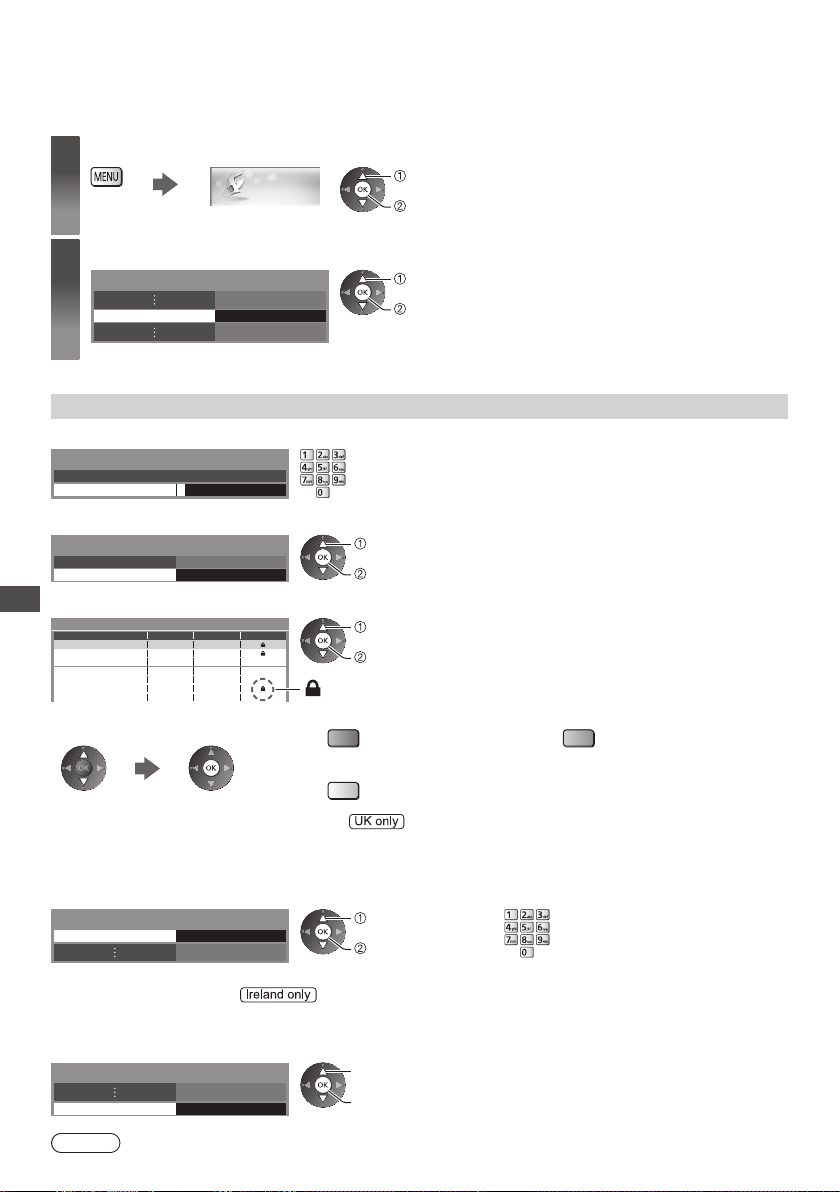

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.

Display the menu and select [Setup]

Select [Child Lock]

Control channel audience [Child Lock]

1 Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

2 Select [Child Lock List]

Child Lock

Change PIN

Child Lock List

3 Select the channel / input to be locked

Child Lock

Child Lock List - TV and AV Sorting 123...

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV

●

To cancel Select the locked channel / input

●

In DVB mode, additional lock item will appear. [Freeview Players]: Applies access control for some MHEG services.

Child Lock Access

* * * *

Access

Type

DVB

Free TV

DVB

Free TV

DVB

Free TV

Analogue

External

Setup

Lock

: Appears when the channel / input is locked

●

To lock all

●

To cancel all locks

select

access

select

access

●

Enter the PIN number twice at first setting.

●

Make a note of the PIN number in case you forget it.

select

access

select

lock

●

To jump to the top of the next input

(green)

(yellow)

(blue)

■ To change the PIN number

1. Select [Change PIN] 2. Enter a new PIN number twice

Child Lock

Change PIN

Access

select

access

■ To set Parental Rating

To watch the DVB programme that has the rating information over the selected age, enter the PIN number to watch (depending on the broadcaster).

Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock

Parental Rating

No limit

select

access / store

Note

●

Setting [Shipping Condition] (p. 57) erases the PIN number and all settings.

Page 57

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [Owner ID] and [USB HDD Setup] are reset (channels, picture, sound settings, etc.).

●

To retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p. 50)

Display the menu and select [Setup]

Select [System Menu]

Select [Shipping Condition]

Restore Settings [Shipping Condition]

1 Check the message and initialise 2 Follow the on-screen instructions

Shipping Condition

All tuning data will be erased

System Menu Access

System Menu

Shipping Condition Access

Are you sure ?

Setup

select

access

select

access

select

access

(Confirm)

(Start [Shipping Condition])

Reset to Factory Shipping Condition

●

[Auto Setup] will automatically start. (p. 16)

Completed.

TV will automatically restart.

Do not turn off

Shipping Condition

Page 58

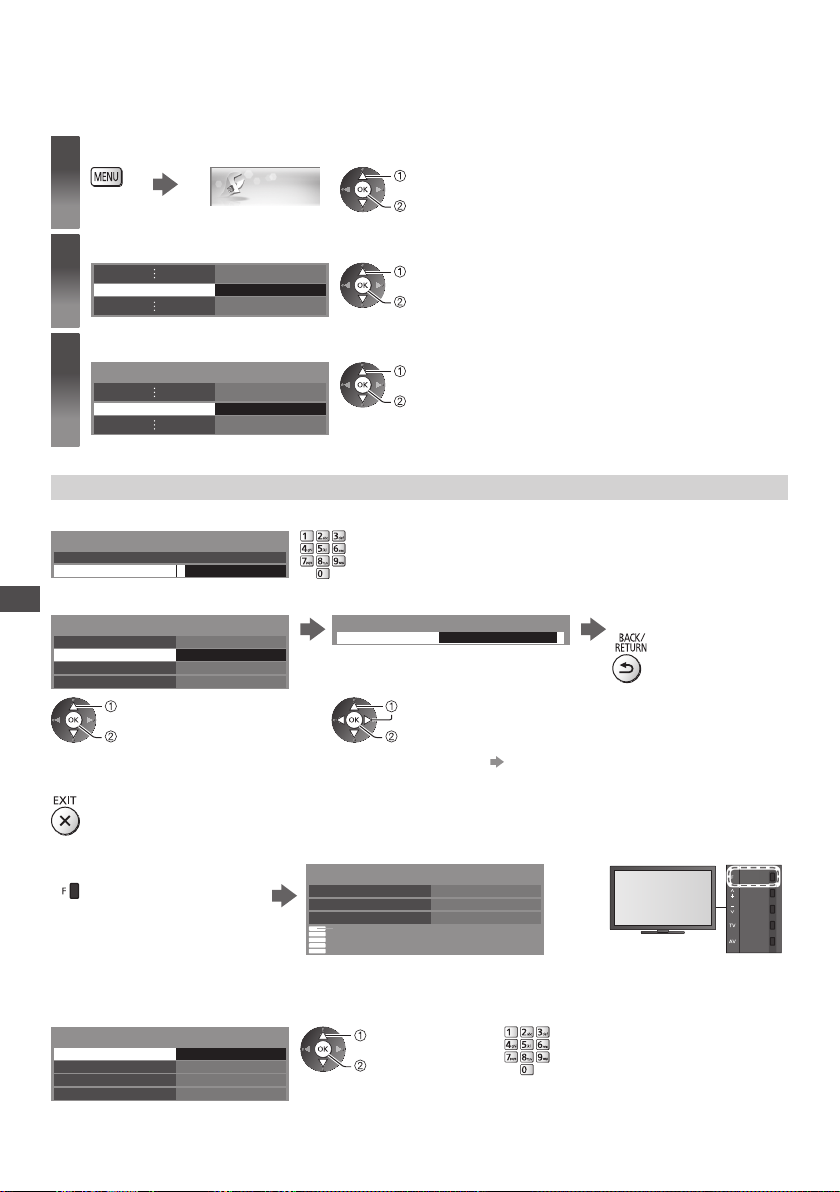

Owner ID

Entry of the PIN number and personal information (your name, address and postcode). In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.

Display the menu and select [Setup]

Select [System Menu]

Select [Owner ID]

Input owner ID [Owner ID]

1 Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

2 Select the item (NAME / HOUSE NO / POSTCODE) and set characters

Owner ID

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE

3 Exit the menu

System Menu

select

access

Access System Menu

Access Owner ID

* * * *

Setup

●

select

access

select

access

select

access

●

Enter the PIN number twice at first setting.

●

Make a note of the PIN number in case you forget it. The PIN number cannot be reset.

User input

NAME

select

set

To use numeric buttons (p. 103)

Return to select other items

●

Select the next item and repeat the operations.

■ To check the personal information stored

Hold down for about 5 seconds

Owner ID

NAME HOUSE NO POSTCODE

EXIT

●

The PIN number is not displayed.

* * * * * * * * * * * * * * * *

■ To change the PIN number

1. Select [PIN] 2. Enter a new PIN number twice

Owner ID-Data Entry

NAME HOUSE NO POSTCODE

* * * *

select

access

Page 59

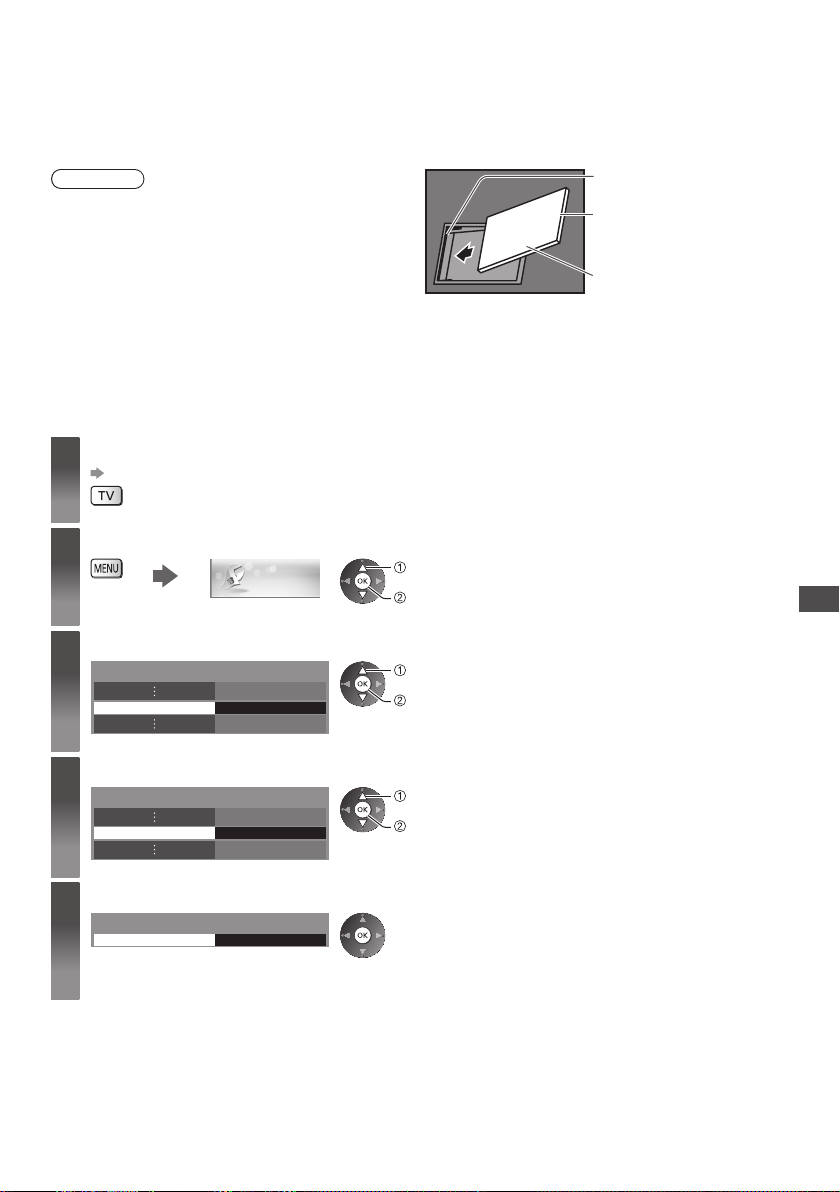

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV works only for Pay TV modules complying with CI standard.

●

This function is not available for BskyB’s Sky channels.

●

Video and audio signals may not be output depending on broadcasts or services.

Caution

●

Turn off Mains power On / Off switch whenever inserting or removing the CI module.

●

If a view card and a card reader come as a set, first insert the card reader, then insert the view card into the card reader.

●

Insert the module in the correct direction.

●

Remove the CI module from the TV when placing the TV facing upward. This may cause damages to the CI module and CI slot.

Insert the CI module (optional)

●

The features that appear on screen are dependent on the contents of the selected CI module.

●

Follow the instructions that came with the viewing card to tune in the encrypted channels. If encrypted channels do not appear, perform the below to verify the card is recognised by the TV.

●

For more details, read the manual of the CI module, or check with the broadcaster.

Select DVB

(p. 21)

Display the menu and select [Setup]

Select [System Menu]

System Menu Access

Setup

Rear of the TV

select

access

select

access

CI slot

Insert or remove completely

CI module

Using Common Interface

Select [Common Interface]

Common Interface Access

Access Common Interface and follow the on-screen instructions

Common Interface

Slot 1:

●

On-screen instructions may not correspond to the remote control buttons.

Module inserted

select

access

Page 60

Updating the TV Software

A new version of software may be released for download to enhance the performance or operations of the TV. In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.

●

To download

(Press the EXIT button not to download)

You can update new software automatically or update manually.

Display the menu and select [Setup]

Select [System Menu]

Select [System Update]

Updating the TV Software

Update TV’s software system [System Update]

■ To update automatically

Select [Auto Update Search in Standby]

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not want to do so, set [Auto Update Search in Standby] to [Off]. The notification banner will keep appearing during the period of new software availability, usually 2 to 3 days.

System Menu Access

System Menu

System Update Access

Off

Setup

select

access

select

access

select

access

select

access / store

●

Automatically performs a search in standby and downloads an update, if any software updates are available.

●

The automatic updating is performed at night under the following conditions:

Standby (TV turned off with the remote control)

•

Recording of Timer Programming, Direct TV

•

Recording or One Touch Recording is not in progress.

■ To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

System Update Search Now

Off Access

Note

●

Download may take up to 60 minutes.

●

During software download and update, DO NOT perform any operations on the TV or switch Off the TV.

select

access

several minutes) and displays a corresponding message if any

3 Download

Page 61

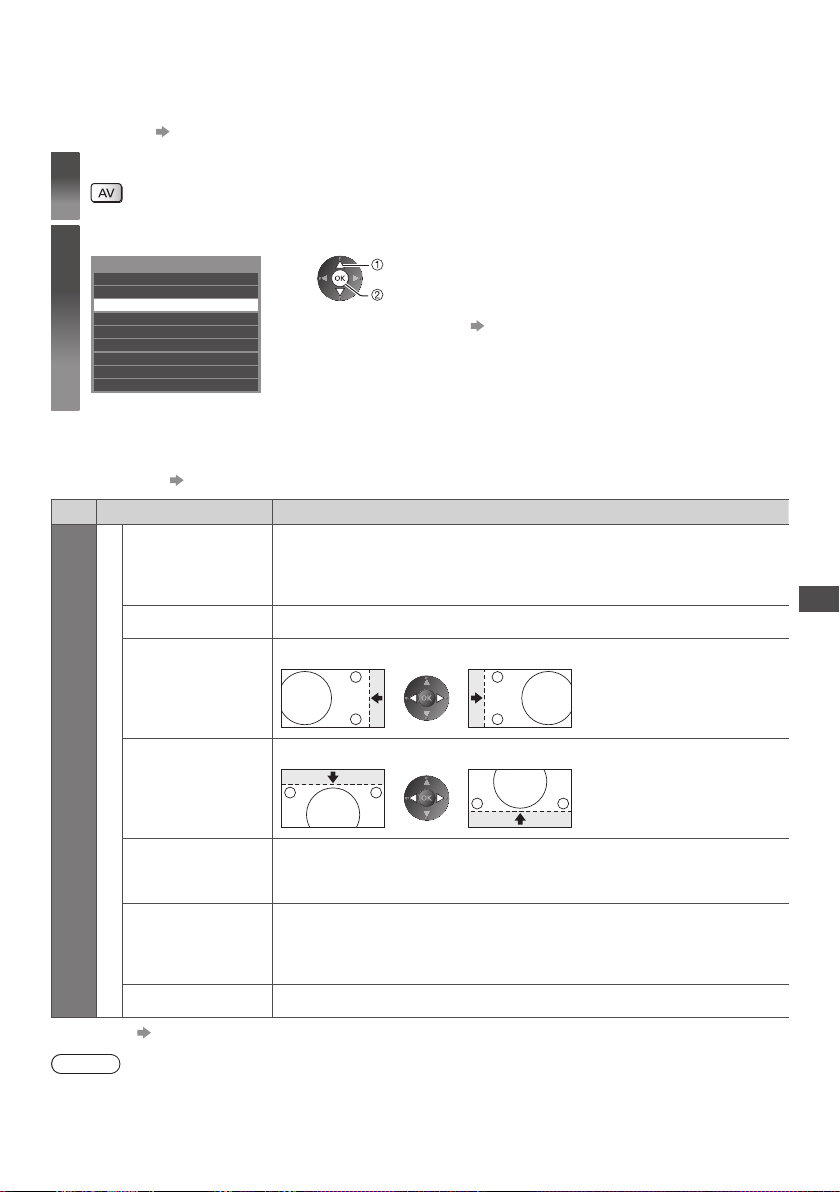

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

●

To connect PC (p. 93)

Select the external input

Select [PC]

Input Selection

AV1 AV2

HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

PC menu setting

●

To make settings “How to Use Menu Functions” (p. 38)

PC Setup

Setup

●

Other items (p. 39 - 45, 62)

Note

●

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p. 101).

Item Adjustments / Configurations (alternatives)

Switches to a wide view:

Input Resolution

Clock Set to the minimum level if noise occurs

H-pos

V-pos

Clock Phase

Sync

Reset to Defaults Press the OK button to reset [PC Setup] to the default settings

VGA (640 × 480 pixels) / WVGA (852 × 480 pixels) / XGA (1,024 × 768 pixels) / WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)

●

Options change depending on signals

Adjusts horizontal position

Adjusts vertical position

Eliminates flicker and distortion

●

Adjust after Clock adjustment

●

Set to the minimum level if noise occurs

Chooses another synchronous signal if the image is distorted

[H & V] / [On Green] [H & V]: by the horizontal and vertical signals from your PC [On Green]: by the green signal from your PC (if available)

select

access

●

Corresponding signals (p. 102)

●

If [H-freq.] or [V-freq.] is shown in red, the signals may not be supported.

Displaying PC Screen on TV

Page 62

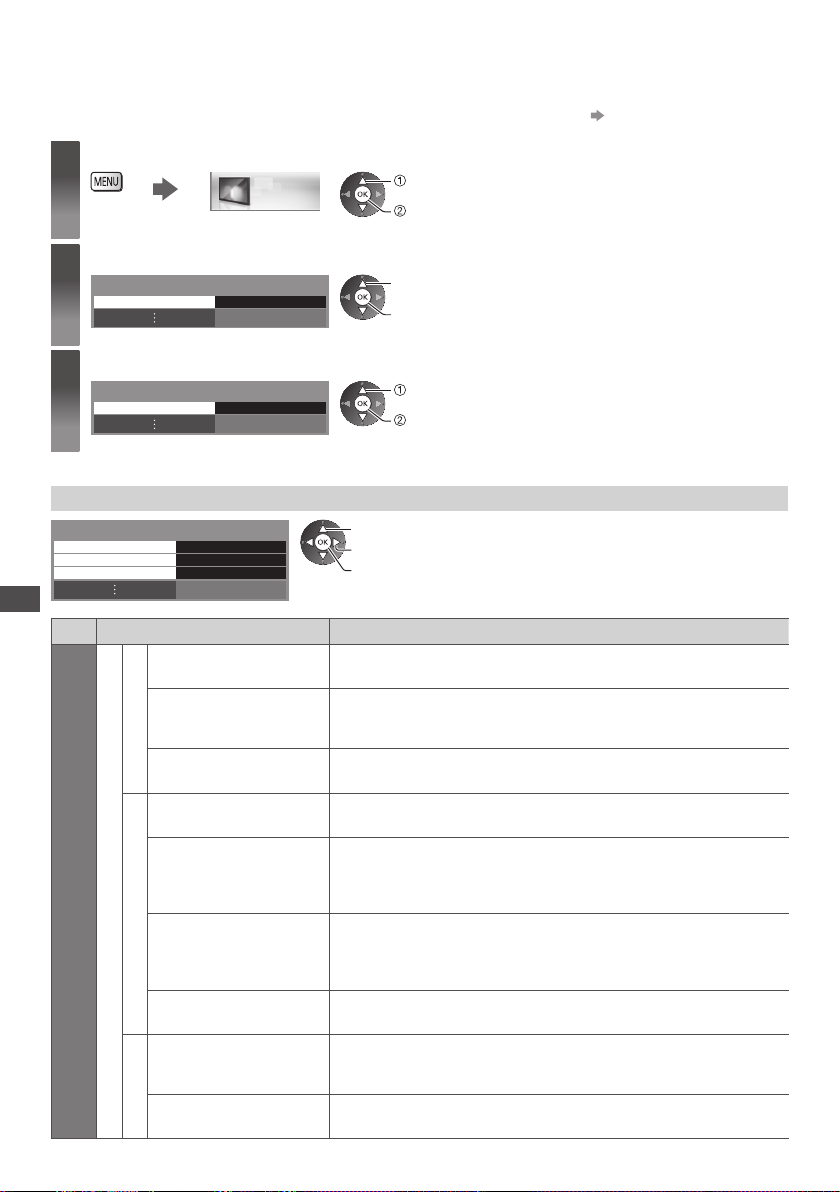

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each Viewing Mode.

●

To use this function completely, set [Advance(Calibration)] to [On] in the Setup Menu. (p. 45)

●

For PC input mode, some functions are available without setting [Advance(Calibration)].

Display the menu and select [Picture]

Select [Viewing Mode] and set the mode

Select [Advanced Settings]

Adjust the detailed picture settings [Advanced Settings]

Advanced Settings

White Balance Access Colour Management Gamma

Advanced Picture Settings

Viewing Mode Dynamic

Advanced Settings Access

Access Access

Item Adjustments / Configurations (alternatives)

White Balance

R-Gain, G-Gain, B-Gain Adjusts the white balance of bright red / green / blue area


select

access

select

access / store

select

access

select adjust access / store

●

[Colour Management] is available when [Viewing Mode] in the Picture Menu is set to [True Cinema].

Advanced Settings


Colour Management

Gamma

R-Cutoff, G-Cutoff, B-Cutoff

Reset to Defaults Press the OK button to reset to the default White Balance

R-Hue, G-Hue, B-Hue Adjusts the picture hue of red / green / blue area

R-Saturation, G-Saturation, B-Saturation

R-Luminance, G-Luminance, B-Luminance

Reset to Defaults Press the OK button to reset to the default Colour Management

Gamma

Reset to Defaults Press the OK button to reset to the default Gamma

Adjusts the white balance of dark red / green / blue area

Adjusts the saturation of red / green / blue area

Adjusts the luminance of red / green / blue area

Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

●

Please note the numerical values are reference for the adjustment.

Page 63

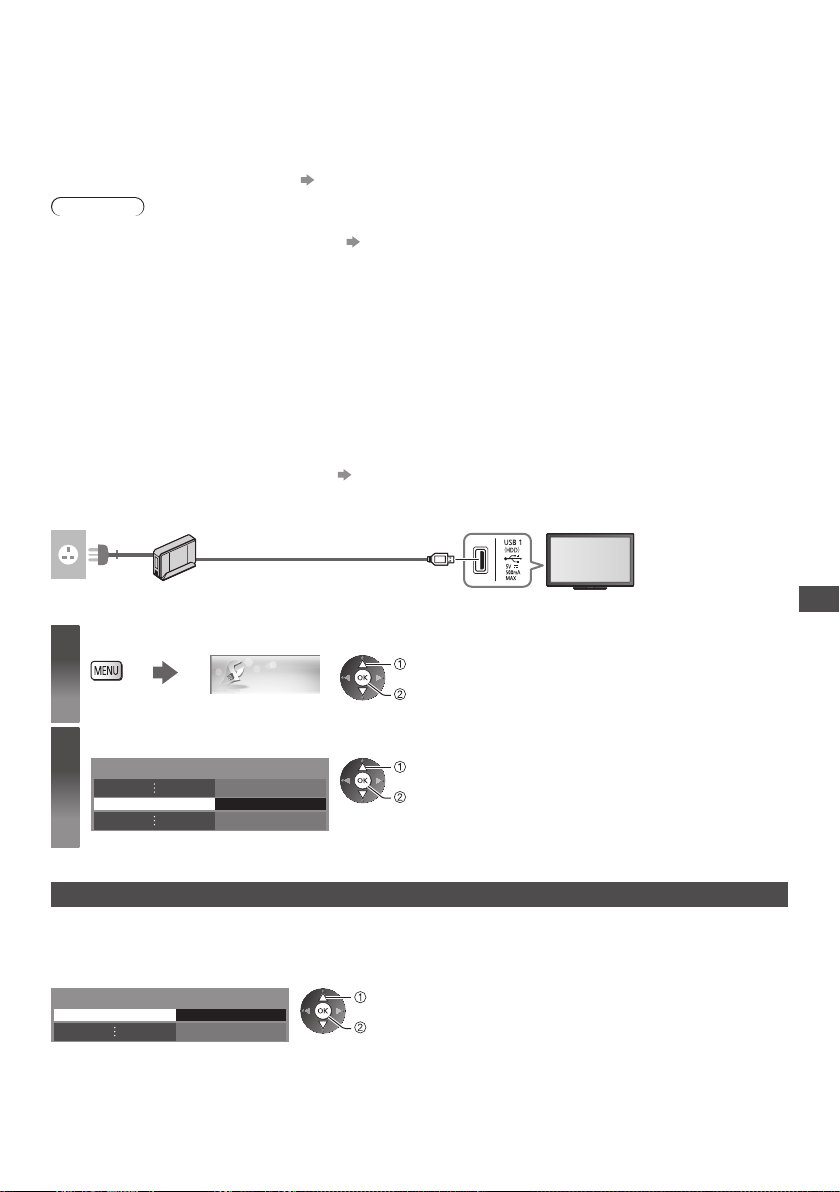

USB HDD Recording

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

●

Analogue TV programme cannot be recorded on the USB HDD.

●

The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.

●

Not all the programmes can be recorded depending on the broadcaster and service provider.

●

You cannot copy the recorded contents.

●

For more information of the USB HDD (p. 100)

Caution

●

All data in the USB HDD will be erased in the following cases:

When formatting the USB HDD with this TV “Setting for USB HDD” (see below)

•

When formatting the USB HDD to use on PC

•

●

When the TV is repaired due to a malfunction, you may have to format the USB HDD again with this TV to use it. (All data will be erased when formatting.)

●

In order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools may be necessary to format on your PC. For details, read the manual of the USB HDD.)

●

The data recorded on the USB HDD with this TV can only be played back on this TV. You cannot play back its contents with another TV (including the TV of the same model number) or any equipment.

●

Do not turn the TV off, remove the USB HDD during operation (formatting, recording, etc.). It may cause malfunction of the device or damage the recorded data.

■ Preparation for USB HDD

Connect the USB HDD to the USB 1 port with the USB cable.

●

Be sure to connect the USB HDD to the socket outlet.

●

To remove the USB HDD safely from the TV (p. 23, 64)

●

Check the type of terminals and cable plugs are correct when connecting.

socket outlet

USB cable

USB HDD

Display the menu and select [Setup]

Setup

select

access

USB HDD Recording

Select [Recording Setup]

Recording Setup Access

select

access

Setting for USB HDD

Format and setup the USB HDD with this TV in order to use it for recording.

●

Before the settings, connect the USB HDD (p. 63) and be sure to turn on the USB HDD.

●

Prepare the USB HDD for the exclusive use of recording with this TV.

Select [USB HDD Setup] and set

Recording Setup

USB HDD Setup

Access

select

access

Page 64

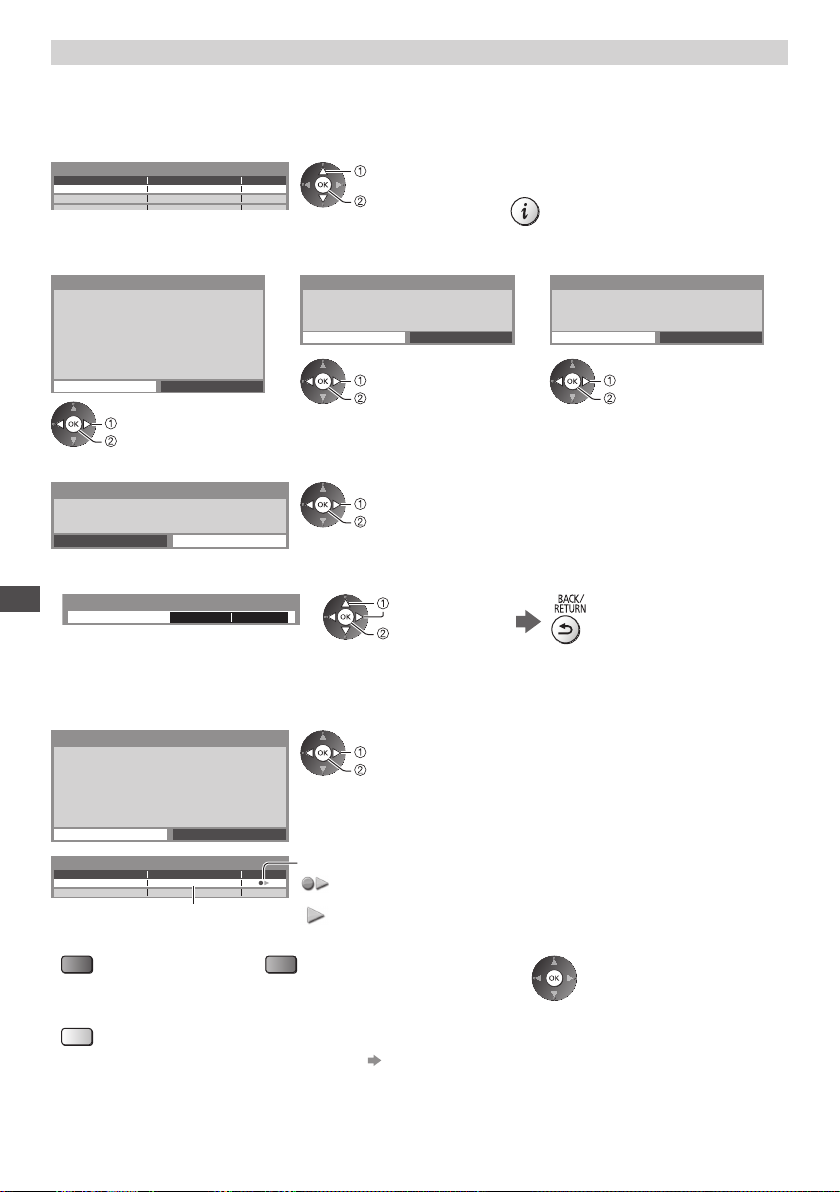

Setup the USB HDD [USB HDD Setup]

All the USB devices recognised as a mass storage device will be listed.

●

You can only choose one USB HDD for recording at a time.

●

You cannot change the settings for the USB HDD while recording is in progress.

●

Please note that USB HDD will be formatted and all data in it will be erased after this setup.

1 Select the USB HDD for recording and start setup

USB HDD Setup

Product Name

USB Drive A

USB Flash Disk

select

access

●

Some USB HDD may not be displayed.

●

For the information of the highlighted device

2 Caution and confirmation of using USB HDD

Select [Yes] to proceed

USB HDD Formatting

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the USB

HDD may not be available with your repaired TV.

Continue?

Yes No

select [Yes]

set

USB HDD Formatting

To use this device for recording,

it must be formatted first.

Yes No

select [Yes]

set

Continue?

USB HDD Formatting

This device will be formatted and

all contents deleted.

Yes No

select [Yes]

set

Are you sure?

3 Confirmation of USB HDD name

USB HDD Formatting

Name : USB Drive A

Edit name?

Yes No

The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].

Set characters Store

USB HDD

Name

USB HDD Recording

●

You can set characters by using

USB HDD 1

numeric buttons.

select

set

select

set

4 Confirmation to enable USB HDD for recording

If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Formatting

USB HDD Setup

●

Do you want to enable this device now for recording?

When disconnecting any USB device, always use the "Safely Remove USB" function in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

Yes No

Product Name

USB Drive A

USB Flash Disk

USB HDD 1

USB HDD name is displayed

To format

(red)

●

To edit USB HDD name

To remove the USB HDD safely from the TV

(yellow)

To set “Safely remove USB” in other conditions (p. 23)

•

select [Yes]

set

Mode

The USB HDD is available for recording / playing back.

Only one USB HDD on the list is available for recording.

The USB HDD is available for playing back.

●

To change the mode

(green)

Page 65

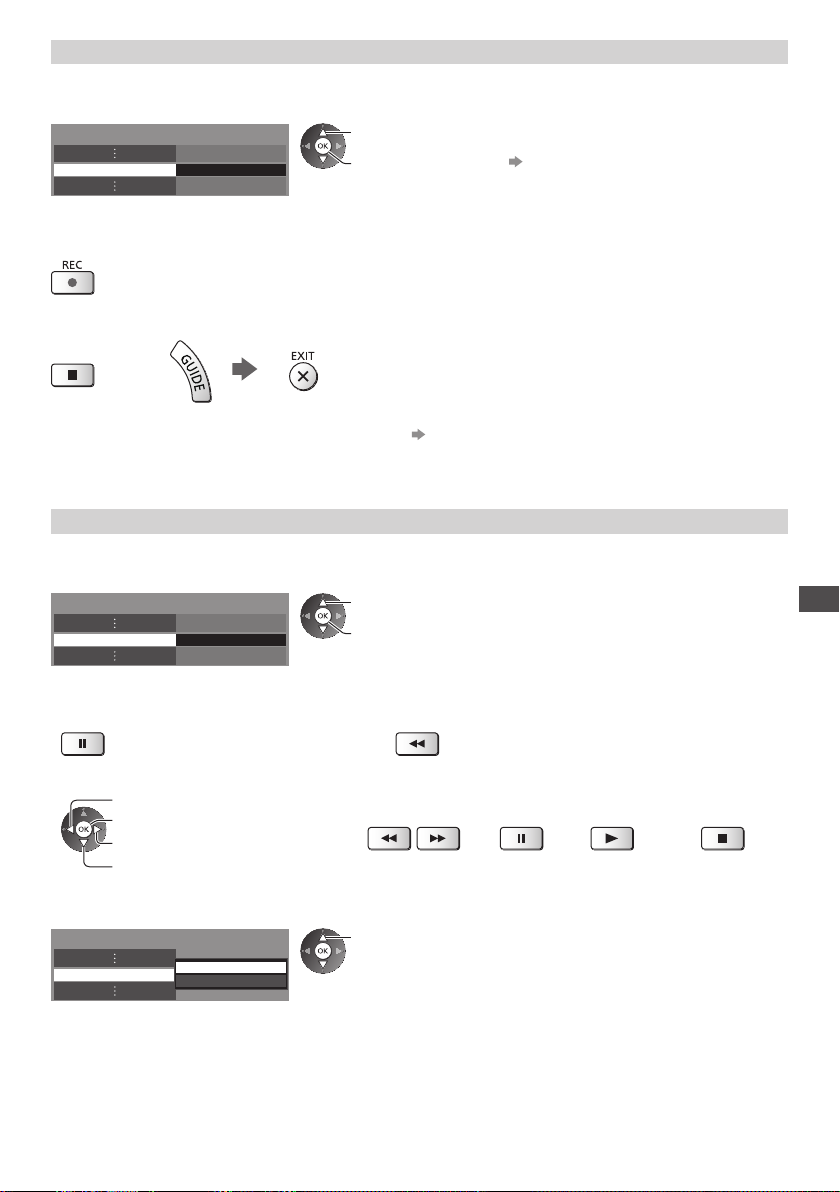

One touch direct TV recording - What you see is What you record [One Touch Recording]

Records the current programme in the USB HDD immediately.

●

Confirm the code of the remote control is “73” (p. 32).

Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes)

Recording Setup

One Touch Recording 180 minutes

select

access / store

●

LED will turn to orange (flash) while One Touch Recording is in progress.

“Indicator / Control panel” (p. 12)

■ To start One Touch Recording

Start

●

No other channel can be selected while the recording is in progress.

■ To stop recording on the way

■ To play back or delete the recorded contents “Recorded TV mode” (p. 72)

●

Even if One Touch Recording is in progress, you can play back all the contents. (Depending on the USB HDD, it may not be available or the recording may not work properly while playback.)

Record constantly [Rewind LIVE TV]

Records the current programme constantly.

●

Confirm the code of the remote control is “73” (p. 32).

Select [Auto] to start [Rewind LIVE TV]

Recording Setup

Rewind LIVE TV

Auto

select

access / store

●

When you select [Auto], the recording will start automatically.

●

This recording will not start if the other recording is in progress, TV signal condition is bad or any images are not displayed.

■ To operate [Rewind LIVE TV]

●

To pause

●

After pausing or searching backward, the following buttons are available to operate.

Search backward

Playback / Pause

Search forward

Return to the current programme

●

To search backward (up to 90 minutes)

Search backward /

forward

Pause /

Playback

Return to the

current programme

USB HDD Recording

■ To stop [Rewind LIVE TV]

●

Recording Setup

Rewind LIVE TV

●

[Rewind LIVE TV] will be stopped and the recorded content deleted automatically in the following conditions: (Even if [Rewind LIVE TV] stops for the following conditions, as long as the setting is [Auto], the new recording will start automatically in a condition that makes the recording available.)

Selected other channels

•

Selected locked channel

•

Selected invalid channel

•

Off

Auto

select [Off]

No TV signal

•

When the other recording starts

•

When the TV is turned to Standby or off

•

If you stop [Rewind LIVE TV], the recorded content for [Rewind LIVE TV] will be deleted.

Page 66

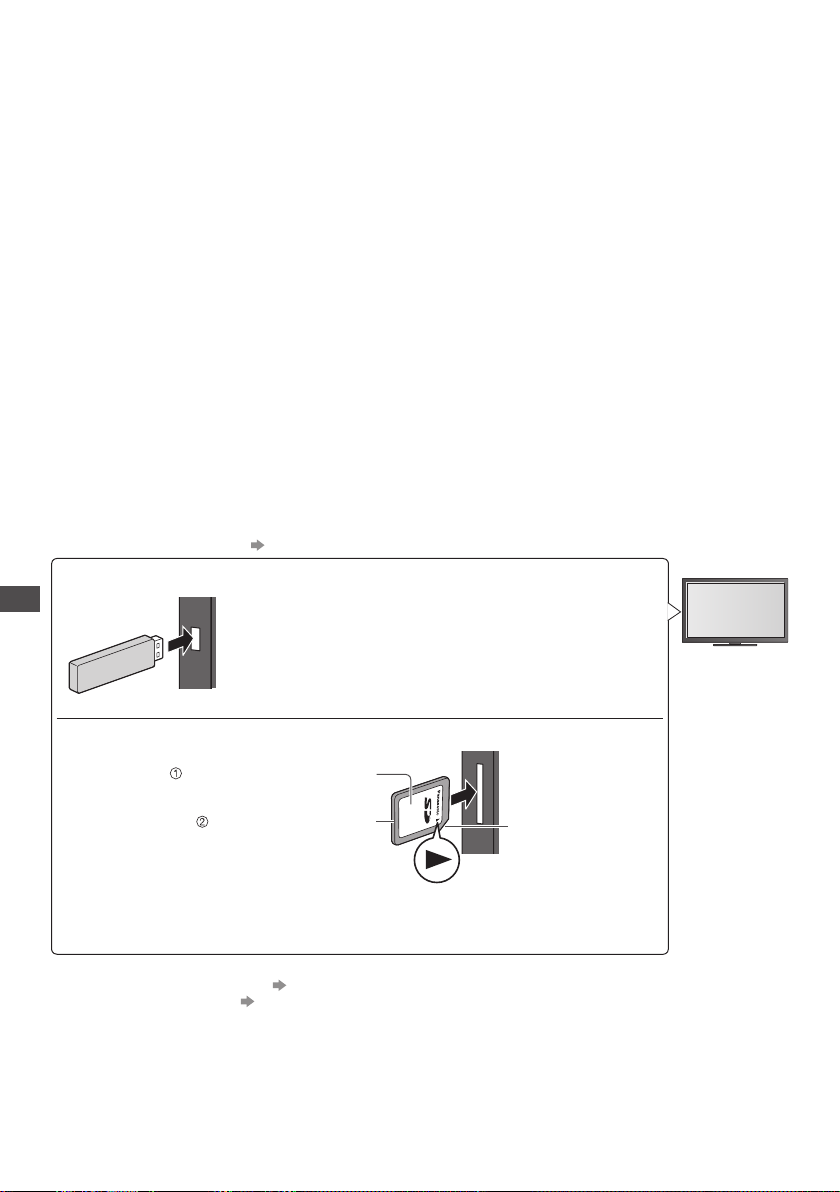

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the formatted USB HDD. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

Photo mode:

Still pictures recorded by digital cameras will be displayed.

Video mode:

(For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be played back.

Recorded TV mode:

(For exclusive USB HDD) TV programmes recorded on the USB HDD with this TV will be played back.

Music mode:

Digital music data will be played back.

●

During the operation, audio signal is output from AV1, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 43). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 86) and set to use theatre speakers (p. 92).

●

[Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is shown “**/**/****”.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

Partly degraded files might be displayed at a reduced resolution.

●

Picture setting may not work depending on the conditions.

●

The folder and file names may be different depending on the digital camera or digital video camera used.

■ To insert or remove the SD Card / USB Flash Memory

●

For the USB HDD Connection (p. 63)

USB Flash Memory

●

Using Media Player

Insert or remove straightly and completely.

●

Before removing the USB Flash Memory, ensure to perform “Safely remove USB” (p. 23).

●

Connect the USB Flash Memory to the USB 1, 2 or 3 port.

SD Card

Gently insert the SD Card with

the label surface facing front.

Push until a click is heard.

To remove, push it again.

●

When connecting a USB device to the USB 1 port, there may be a difficulty to insert / remove the SD Card. In this case, confirm a USB device is not active and insert / remove the SD Card carefully.

●

Check the type of terminals and cable plugs are correct when connecting.

●

For the information of the devices “Devices for recording or playing back” (p. 100)

●

For the supported file format “Supported file format in Media Player and media servers” (p. 97, 98)

Cutout

Page 67

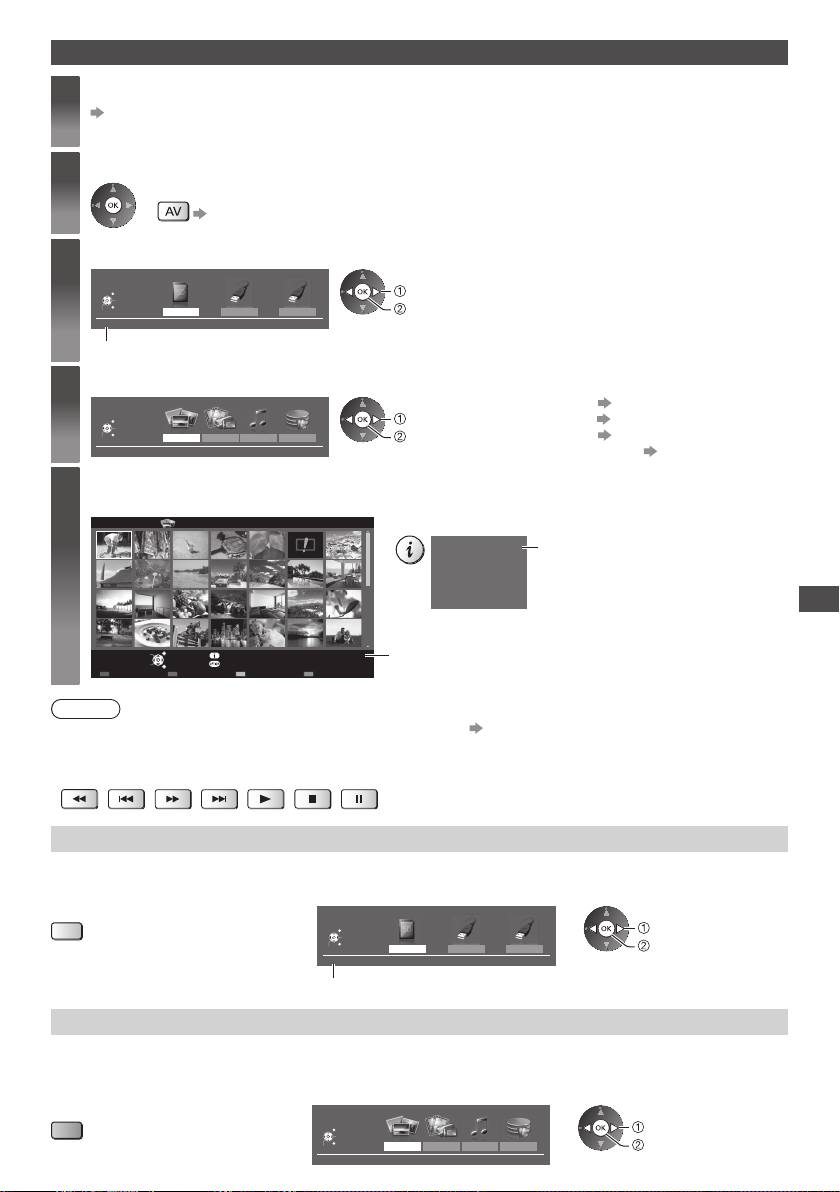

Starting Media Player

Insert the SD Card or USB Flash Memory to the TV

(p. 66)

●

To play back contents in the USB HDD, check the connection and settings are completed. (p. 63, 64)

Confirm the message and start Media Player

●

You can also start by pressing following button.

“Watching External Inputs” (p. 31)

Select the device to access

Drive Select

EXIT Select RETURN

Access

SD Card

Selected device name

SD Card

USB HDD1 USB Flash...

●

If two or more devices are not connected, this step will be skipped.

Select the content

Contents Select

EXIT Select RETURN


Access

SD Card

Video Music

Recorded TV

Enjoy Media Player

Example: Thumbnail - [All photos]

Media Player Photo All photos

select

access

select

access

●

To display the information of the highlighted content

File name

Date

Size


23/10/2011

1600X1200

[Photo] (p. 68) [Video] (p. 71) [Music] (p. 75)

[Recorded TV] (p. 72)

1/48

File number / Total file number

Using Media Player

EXIT RETURN

Info Option Menu

View

Select

Slideshow View Select Drive Select Contents Select

SD Card

Selected device name

Note

●

You can also access each mode directly by using VIERA TOOLS. (p. 37)

●

[Recorded TV] is available for contents recorded with this TV on the USB HDD.

●

Select the appropriate device and content for playing back each file.

●

You can use the following buttons during playback. Confirm the code of the remote control to “73” (p. 32).

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

(yellow)

2 Select the device to access

Drive Select

EXIT Select RETURN

Access

SD Card

Selected device name

SD Card

USB HDD1 USB Flash...

select access

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.

●

The mode can be switched in the current device.

1 While the thumbnail is displayed,

display the contents selection

(blue)

2 Select the contents

Contents Select

EXIT Select RETURN


Access

SD Card

Video Music

Recorded TV

select

access

Page 68

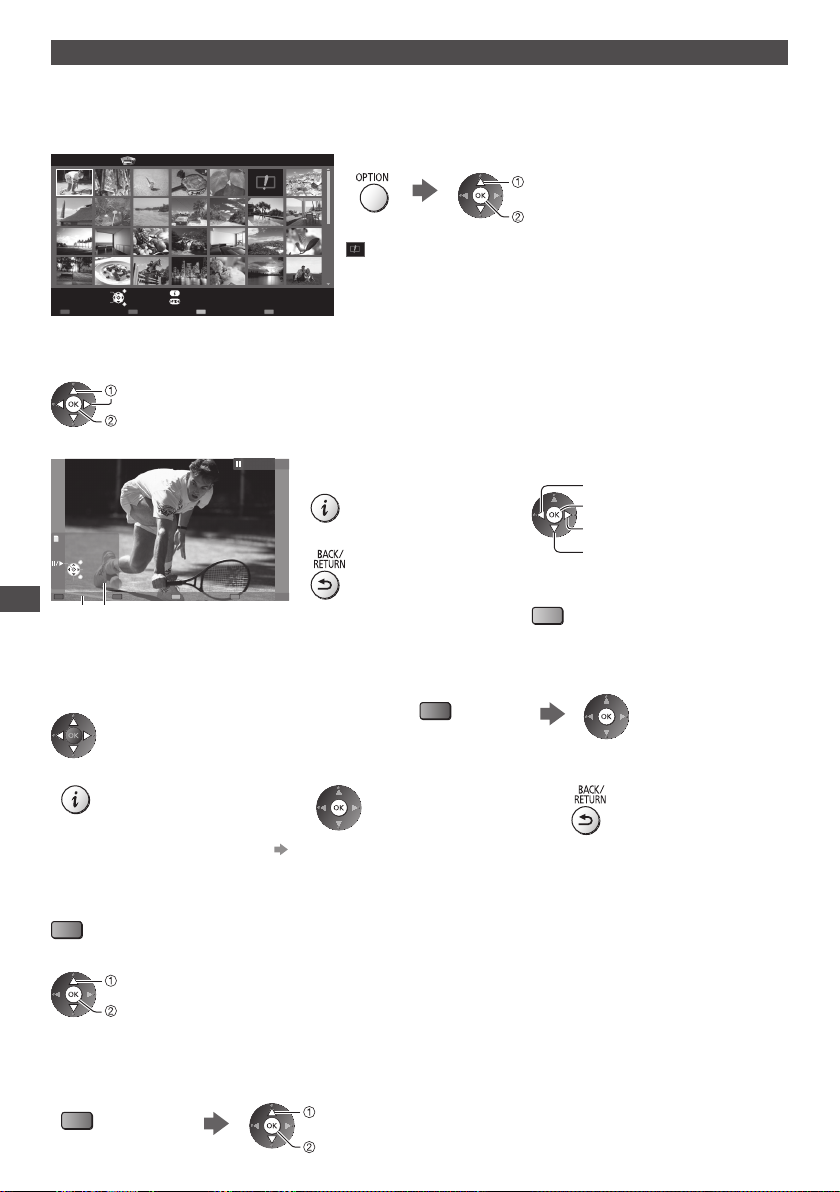

Photo mode

Photo mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory.

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [All photos]

Media Player Photo All photos

●

To change the size of photos on a thumbnail screen

select [Change Size]

change

: Error display

EXIT RETURN

Info Option Menu

View

Select

Slideshow View Select Drive Select Contents Select

SD Card

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example:

Single view

●

To display / hide the operation

●

To operate Single view

guide

●

Single view

EXIT Select RETURN

Stop

Operation guide

Using Media Player

Rotate

To return to thumbnail

●

To rotate 90°

(blue)

[Slideshow] - Slideshow completes when all photos are viewed within the current thumbnail.

1 Select the file from the thumbnail of photos

for the first view

●

To display / hide the operation guide

●

To change the back ground music “Photo Settings” (p. 69)

●

To pause (return to Single view)

2 Start Slideshow

(red)

●

To the previous photo

Slideshow

To the next photo

Stop (return to thumbnail)

To return to thumbnail

■ To sort by folder, recorded date or recorded month

1 Display the view selection in the thumbnail view

(green)

2 Select the sort type

select

access

●

To return to the thumbnail of all photos

(green)

[Folder view]:

Displays the thumbnail grouped by folder.

●

The files which are not into a folder will be collected to the folder named “/”.

[Sort by Date] / [Sort by Month]:

Displays the thumbnail grouped by the same date or month.

●

The group of the photos without a recorded date is shown as [Unknown].

select [All photos]

access

Page 69

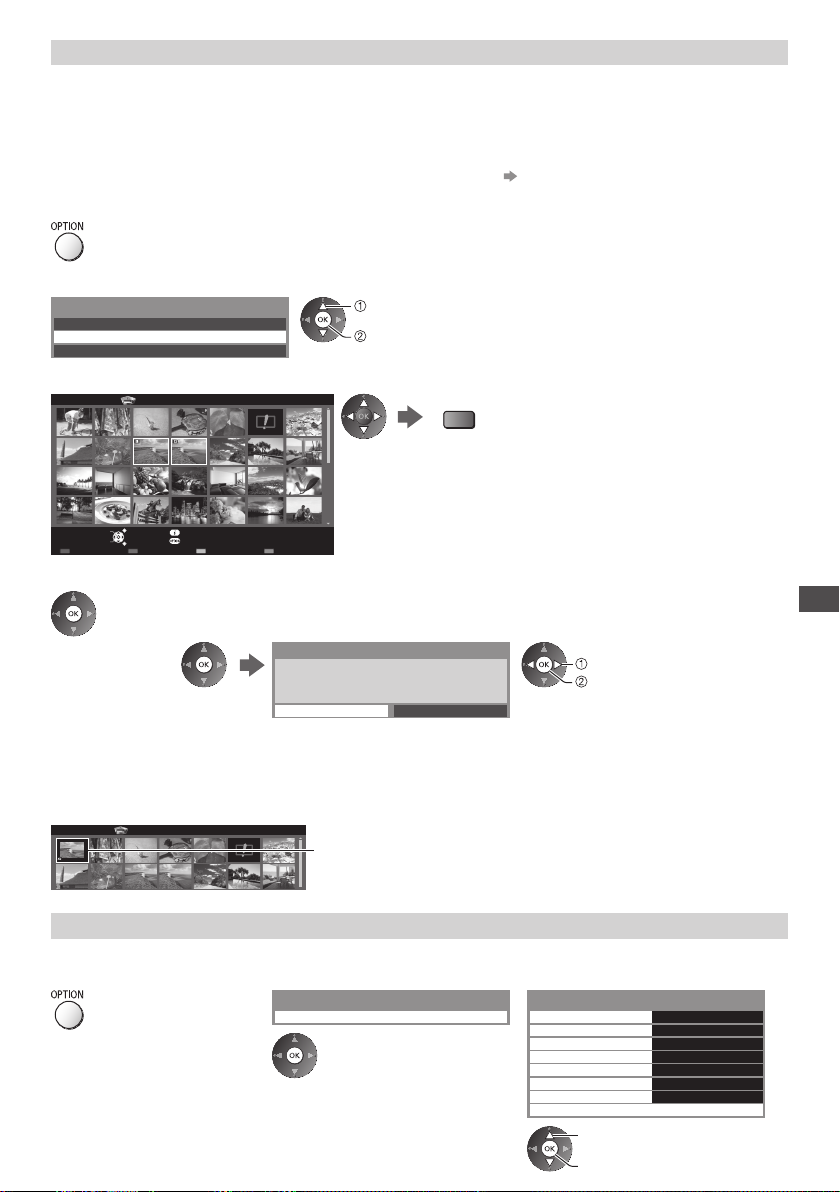

Multi Shot 3D

This TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.

●

This TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.

●

This function is available with photos recorded by digital cameras.

●

Depending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not be possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take another photo (for R).

●

To view the created 3D photo with 3D effect, you need the 3D Eyewear “Optional accessories” (p. 8)

1 Display the option menu in the thumbnail view

2 Select [Multi Shot 3D]

Option Menu

Slideshow Settings

Multi Shot 3D

Change Size

select

access

3 Select two photos for L (left) and R (right)

Media Player Photo Multi Shot 3D All photos

●

You can only select photos of the same recorded date and same pixels.

●

You may not be able to view the created 3D photo properly if you

(red)

select the photos for L and R oppositely.

View

Select

EXIT RETURN

Info Option Menu

SD Card

4 Create the 3D photo

●

If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to the photo selection screen (step 3).

●

To save the 3D photo in the SD Card

Continue?

The 3D image will be saved onto your media.

select [Yes]

No Yes

save

After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to create another 3D photo or exit from [Multi Shot 3D] mode.

■ To enjoy the saved 3D photos

Saved 3D photos are displayed in the Thumbnail screen. Wear the 3D Eyewear and enjoy the 3D photos. Example: Thumbnail

Media Player Photo All photos

Saved 3D photo

Using Media Player

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu

2 Select [Slideshow Settings]

Option Menu

Slideshow Settings

3 Select the items and set

Slideshow Settings

Frame Off Colour Effect Transition Effect Aspect Burst Playback Interval Repeat Back Ground Music

select

access / store

Off Fade Original Off 5 seconds On

Page 70

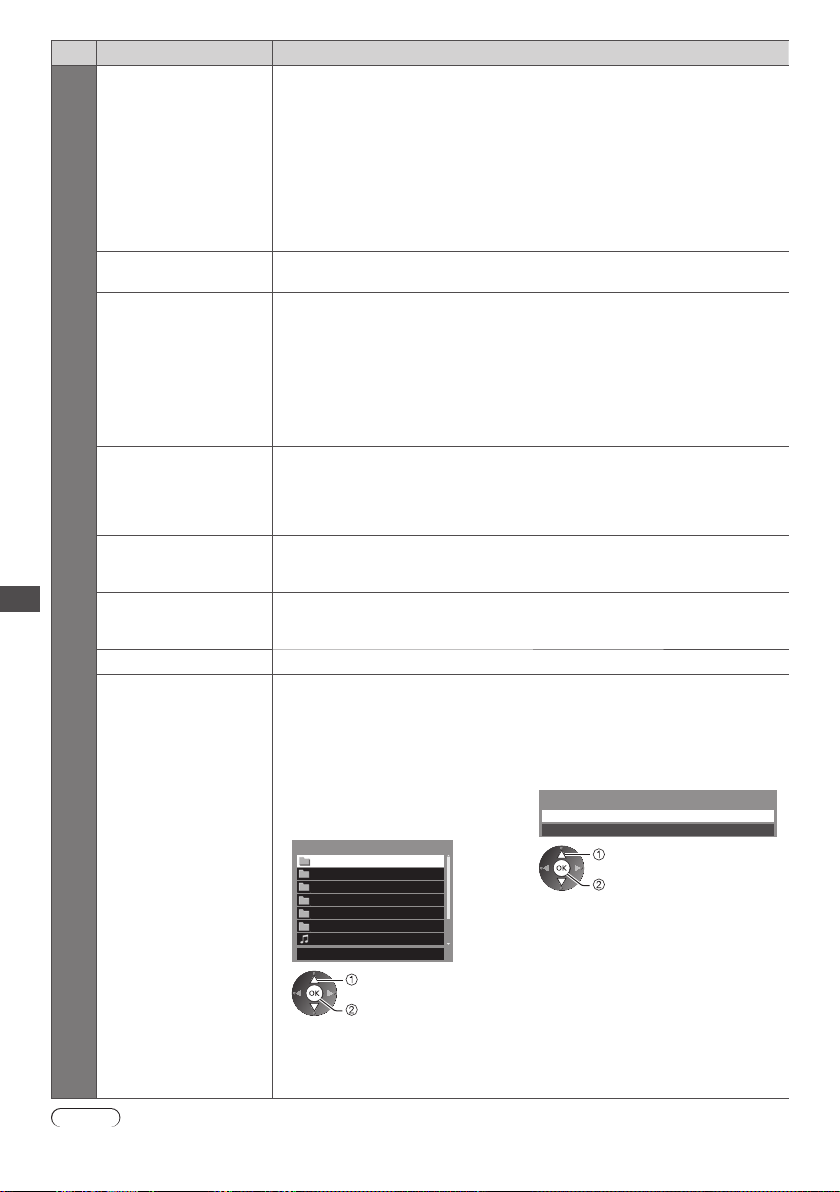

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow [Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi]: 9 photos are displayed orderly at once. [Collage]: Each photo is displayed at a random position and random scale. [Drift (+ calendar)] / [Drift]: Photos are displayed like flow images.

Frame

●

You can select to display the calendar or not. The month of calendar is turned by pressing the left or right cursor button.

[Gallery (+ calendar)] / [Gallery]: The various sizes of photos in the frame are displayed.

●

You can select to display the calendar or not. The month of calendar is turned by pressing the left or right cursor button.

[Cinema]: Photos are displayed like old films (sepia tone).

Selects the colour effect of photos on Single view and Slideshow [Off] / [Sepia] / [Gray scale]

Colour Effect

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side.

Transition Effect

[Dissolve]: Each photo is dissolved when switching to the next photo. [Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

up or moving down.

[Random]: Each transition is selected at random.

●

This function is available when [Frame] is set to [Off].

Selects enlarged or normal viewing on Single view and Slideshow [Original] / [Zoom]

●

Aspect

Slideshow Settings

This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema] or when [Transition Effect] is set to [Motion].

●

Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

Selects whether to display burst photos in a fast-paced slideshow mode [Off] / [On]

●

Burst Playback

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [Transition Effect] is set to [Motion].

Using Media Player

Interval

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

●

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [Transition Effect] is set to [Motion].

Repeat Slideshow repeat [Off] / [On]

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5] / [User] / [Auto]

●

[Type1 - 5] are the fixed music each installed in this TV.

[User]: Music data in the device registered by yourself will be played back.

To register the music

1. Select the music file Depending on the condition of the

device, select folders until you reach the desired music file.

Back Ground Music

PRIVATE

Back Ground Music

DCIM MISC 001photo 002photo 003music 01 song.mp3

Type1

select

access

●

If no music has been registered or the device which has the registered music is removed, no sound will be produced.

[Auto]:

Music data stored in the root folder of the current device will be played back randomly.

●

If there is no available music data, no sound will be produced.

Note

●

Picture quality may become lower depending on the slideshow settings.

●

Picture setting may not work depending on the slideshow settings.

2. Select [File] or [Folder]

File

Folder

select

set

[File]: The selected music file will be

registered.

[Folder]: All the music in the folder

which contains the selected music file will be registered.

Page 71

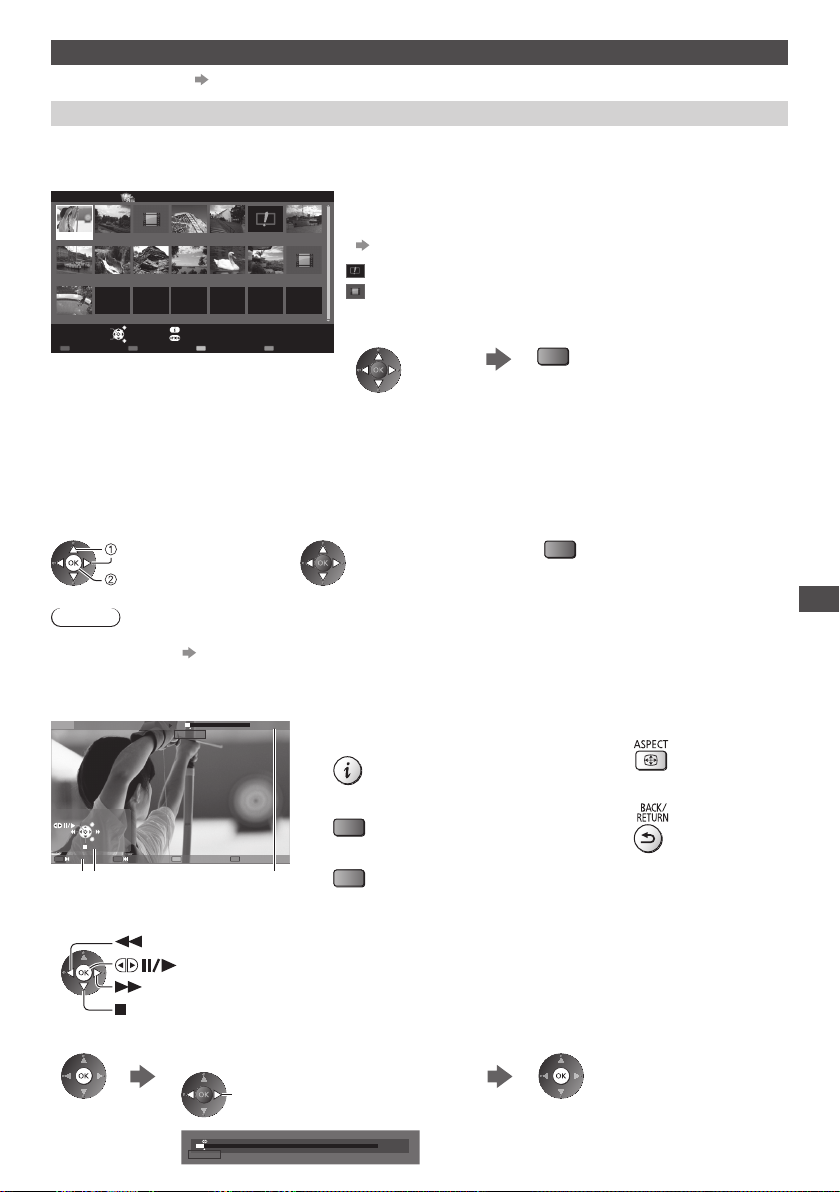

Video and Recorded TV mode

●

Supported file format (p. 97, 98)

Video mode

(For SD Card or USB Flash Memory)

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Title view]

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room

2011_4

2011_9

Access

Select

Play Contents Select

EXIT RETURN

Info Option Menu

Drive Select

The preview will start when the title / scene is highlighted if it supports a preview.

●

Nature1

2011_7Nature2 Nature3 Nature4 Nature5 Nature6

SD Card

To turn off the preview “Video Setup” (p. 72)

: Error display : The file does not support thumbnail view.

●

To play back the selected title Select the title

Start playback

(red)

●

If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback of the selected scene will start to the end of the title.

1 Select the title 2 Select the scene 3 Start playback

select

access

Note

●

The structure of titles and scenes may vary depending on the digital video camera used.

●

To repeat playback “Video Setup” (p. 72)

(red)

Using Media Player

■ How to operate in the playback

Example: Playback

SD 19/02/2011 11:21 00:15:39

EXIT

RETURN

Operation guide

●

To operate the playback

Rewind

Fast forward

●

To jump to the specified time point

00:02:05

Information banner

Pause (displays the time seek bar) / Playback

Stop

While the time seek bar is displayed

Press: Search about 10 seconds Press and hold: Search rapidly

00:02:05

●

To display / hide the operation guide and information banner

●

To the previous title / scene

(red)

●

To the next title / scene

(green)

00:15:39

●

To change aspect

●

To return to thumbnail

Page 72

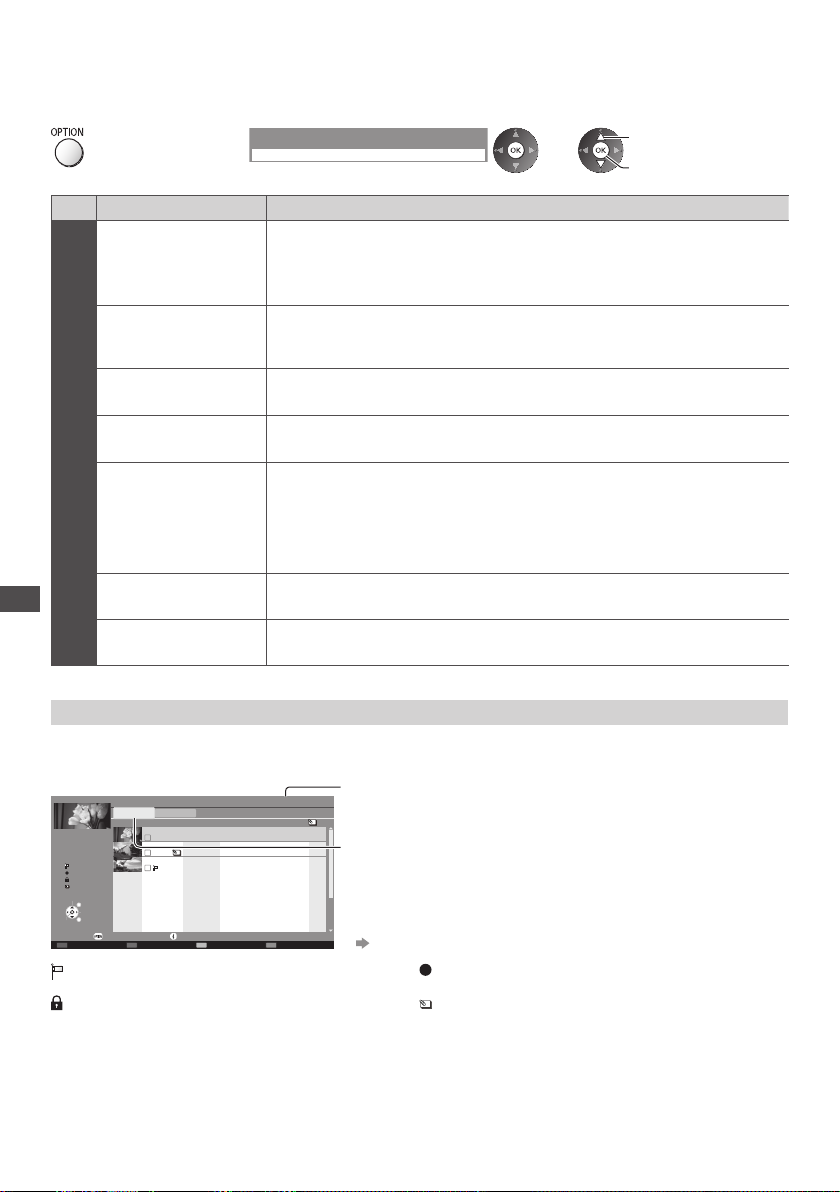

■ Video Setup

Setup the settings for Video mode.

●

Menu items and selectable options vary depending on the content.

1 Display the option menu 2 Select [Video Setup]

Option Menu

Video Setup

3 Select the items and set

select

access / store

Video Setup

Item Adjustments / Configurations (alternatives)

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]

●

Video Preview

Multi Audio, Dual Mono Audio

Subtitle

Subtitle Text

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off] to resolve this.

●

Only available in the thumbnail view

Selects between selectable sound tracks (if available)

●

It may take several seconds to change the sound.

●

Only available during playback

Subtitles On / Off (if available)

●

Only available during playback

Selects the font type to display subtitles correctly (if available)

●

Only available during playback

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen.

Aspect Change

Repeat

Using Media Player

[Original]: Displays the content original size.

●

You can also change the aspect using the ASPECT button.

●

Aspect change may not work depending on the content.

●

Only available during playback

Playback repeat within the title or selected file (depending on the content)

[Off] / [On]

Title Selects from a group of titles (if available)

Recorded TV mode

(For exclusive USB HDD)

Contents list of the selected device will be displayed.

Example: Contents list

Duration

00:20

Not Viewed Recording now Protected Grouped

Select

EXIT Select RETURN

Play

Option Menu

Delete

: Content not played back yet (Once you play back the

content, this icon will disappear.)

: Protected content cannot be deleted.

Media Player

All

BBC 1

ITV

BBC 2

Channel

Recorded TV

Not Viewed

Info

Thu 27/10

Mon 12/1

Sat 17/1

Remaining Capacity 500GB (50%)

Date

12:00

13:30

13:50

Title

Das Erste

News

Cinema

Chapter List Select

USB HDD 1

Remaining capacity of the selected device (This value may not be accurate depending on the condition.)

[All]:

All the recorded contents are listed. [Not Viewed]: Contents not played back yet are listed.

●

You can also access the contents list directly by using VIERA TOOLS.

(p. 37)

: Content under recording (You can play back this

content even if under recording.)

: Two or more contents are grouped.

Page 73

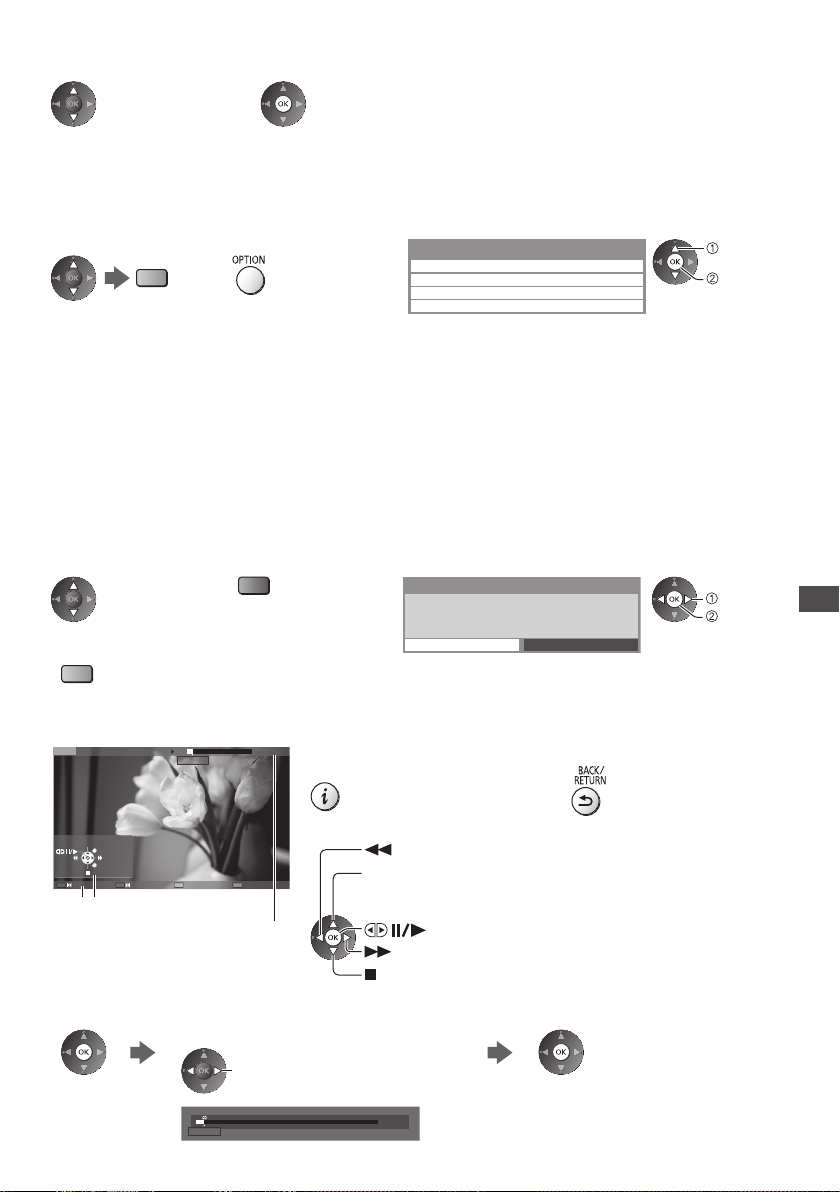

■ Playback from the list

1 Select the content

2 Start playback

●

If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

●

If the content has multiple programmes with the different parental ratings, the highest restriction is valid for the content. Once you unlock the restriction, all the programmes in the content can be played back.

■ To edit recording content

1 Select and tick the

content to edit

(blue)

[Create Group]:

Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group].

[Release Group]:

Select the created group to release, and then select [Release Group]. (To release several groups at once, tick all the desired groups.)

[Exclude from Group]:

Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the group, tick it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.)

[Change Protect Status]:

Select the content to protect from deletion, and then select [Change Protect Status]. Perform the same way to cancel the protection. (To change the status of several contents at once, tick all the desired contents.)

2 Display the option

3 Select the item and edit

Option Menu

Create Group Release Group Exclude from Group Change Protect Status

select

edit

■ To delete the selected content

1 Select the content

●

To select two or more contents

(blue)

2 Delete the content

(red)

3 Confirm

Delete

Are you sure you want to delete?

Yes

select

set

Using Media Player

■ How to operate in the playback

Example: Playback

Das ErsteUSB 00:15:39

Manual skip

EXIT

RETURN

Operation guide

●

To jump to the specified time point

00:02:05

Information banner

While the time seek bar is displayed

Press: Search about 10 seconds Press and hold: Search rapidly

00:02:05

●

To display / hide the operation guide and information banner

●

To operate the playback

Rewind

[Manual skip]

●

Press to skip forward about 30 seconds.

●

Press and hold to skip backward about 15 seconds.

Pause (displays the time seek bar) / Playback

Fast forward

Stop

00:15:39

●

To return to list

Page 74

●

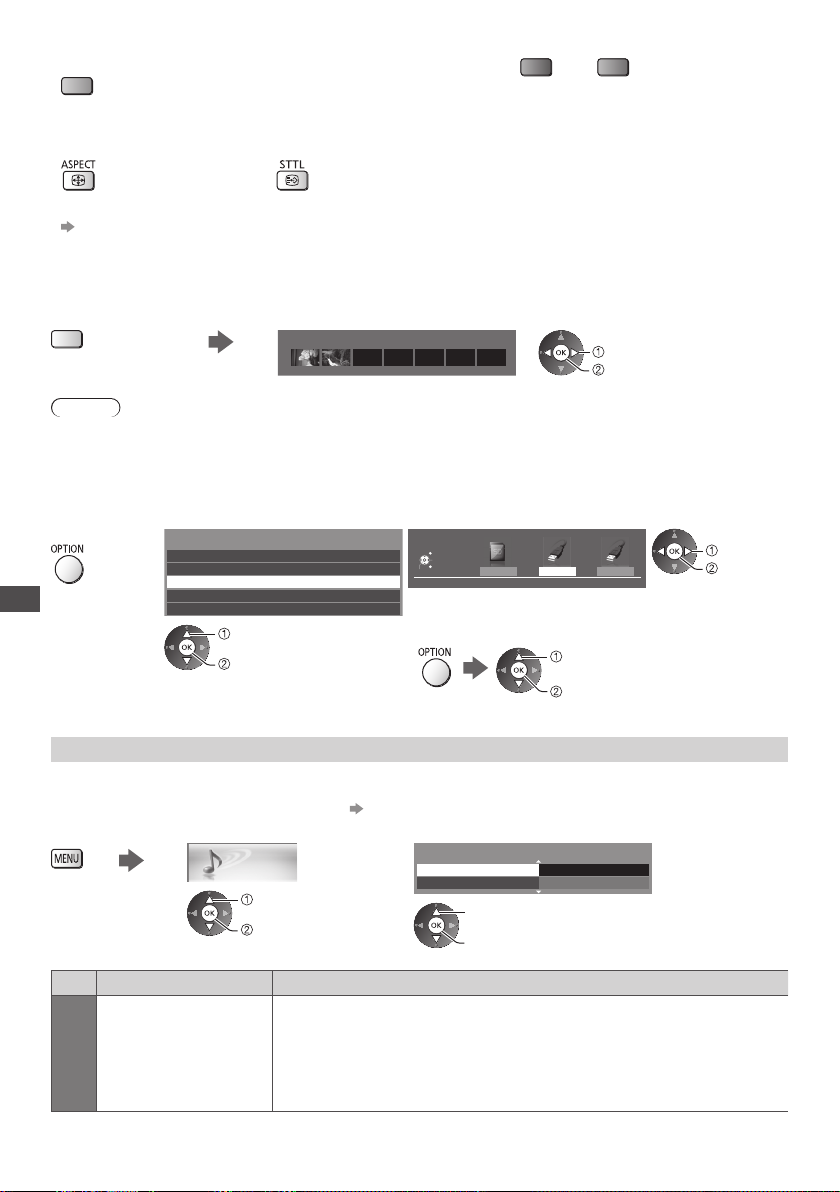

To repeat between the starting point “A” and finishing point “B” Set “A” and “B” in order

The points will be reset by pressing this button

(blue)

●

To change aspect

•

again or other operations.

●

To display the subtitle (if available)

●

To the previous / next chapter

(red) / (green)

A recorded content is automatically

•

divided into chapters (about 5 minutes for each).

●

To confirm or change the current status (if available)

“Display the selectable settings for the current status” (p. 23)

■ Chapter List

You can start playback from the chapter list you select.

●

The chapter list is not displayed while the selected content is being recorded.

To play back from the chapter list

(yellow)

Chapter List

00:00:00 00:05:00

select

playback

Note

●

Depending on the recorded programmes, some playback operations may not work properly.

■ To change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 Display the

option menu

Using Media Player

2 Select [Drive Select]

Option Menu

Create Group Release Group

Drive Select

Contents Select Change Protect Status

select

access

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

●

To confirm or change the current sound status (p. 72)

1 Display the menu and Select [Sound]

Sound

select

access

3 Select the device to access

Drive Select

EXIT Select

Access

USB HDD1

RETURN

SD Card

USB HDD1 USB Flash...

If you select the device to play back photos, videos or music, change to the appropriate content.

●

To change the content

select [Contents Select]

access

2 Select [SPDIF Selection] and set

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

select access

Sound

Item Adjustments / Configurations (alternatives)

SPDIF Selection

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

Page 75

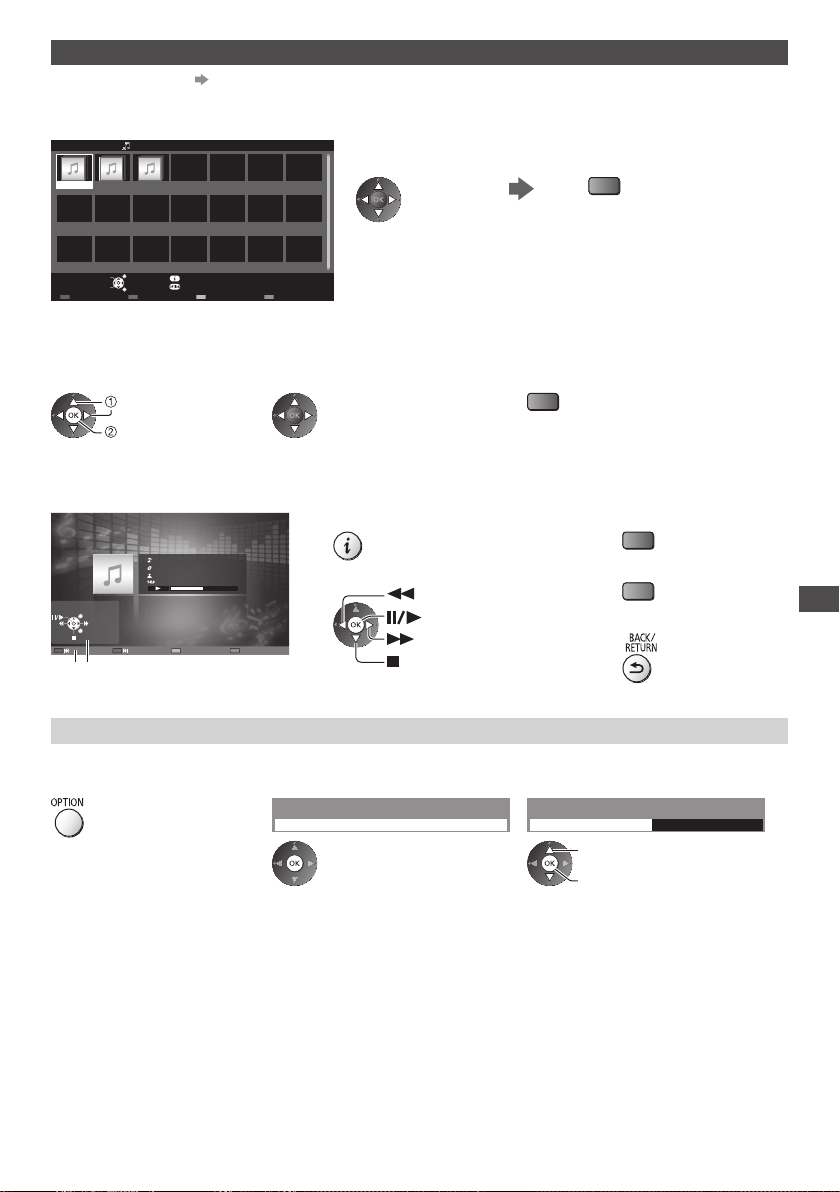

Music mode

●

Supported file format (p. 98)

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Folder view]

Media Player Music Folder view

My Music_1 My Music_2 My Music_3

●

To play back the selected folder Select the folder

Start playback

(red)

Access

Select

Play Folder Contents Select

EXIT RETURN

Info Option Menu

Drive Select

SD Card

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

select

access

(red)

■ How to operate in the playback

Example: Playback

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

EXIT

RETURN

Operation guide

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu

●

To display / hide the operation guide

●

To operate the playback

Rewind

Fast forward

Stop

2 Select [Music Setup]

Option Menu

Music Setup

Pause / Playback

●

3 Set

Music Setup Menu

Repeat One

select

access / store

[Folder]: Playback repeat within the

[One]: Playback repeat of the selected

selected folder

one file

To the previous track

(red)

To the next track

(green)

To return to thumbnail

Using Media Player

Page 76

Using Network Services (DLNA / VIERA Connect)

DLNA

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. It allows you to share photos, videos (including 3D images) and music stored in the DLNA Certified media server (for example, PC with Windows 7 installed, DIGA Recorder, etc.) connected to your home network, and enjoy the contents on the TV screen. It also allows you to control the TV with the DLNA Certified equipment connected to your home network. (DLNA Remote Control)

●

For the supported file format (p. 97, 98)

●

AVCHD and DivX files are not supported by DLNA functions of this TV, but can be played by Media Player (p. 66).

■ Media server

Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server software that has been tested for compatibility with this TV (as of January, 2011). Any other server software have not been tested with this TV, therefore compatibility and performance cannot be assured.

●

Windows 7 The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.

●

TwonkyMedia server “TwonkyMedia server” is the product of PacketVideo Corporation. To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia. Additional fees may be charged to obtain server software.

Note

●

For more information about the server software, please consult each software company.

●

When server software for the media server is installed on the PC, the data may be at risk of being accessed by other people. Please take care of the settings and connections under the network circumstances at the office,

Using Network Services (DLNA / VIERA Connect)

hotel or even at home when not using a router.

To use a DLNA compatible DIGA Recorder as a media server

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.

●

Please read the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.

■ DLNA Remote Control

You can control the TV with the DLNA Certified equipment.

●

To use this function, set [Network Link Settings]. (p. 78)

●

“Windows 7” is the OS that has been tested for compatibility of this TV (as of January, 2011). For the operations, refer to the help functions of Windows 7.

Network connection

Network setup

DLNA operations

“Example 1”, “Example 2” (p. 77)

(p. 78 - 81)

(p. 81 - 84)

VIERA Connect

●

This TV does not support full web browser function and some features of the websites may not be available.

Network connection

Network setup

VIERA Connect operations

“Example 1”, “Example 3” (p. 77)

(p. 78 - 81)

(p. 20, 84)

Page 77

Network connections

To use only DLNA features, you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment.

●

If you do not have any broadband network services, please consult your retailer for assistance.

●

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on this TV. Read the manual of the equipment.

●

Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Wireless connection

Access point

Built-in wireless LAN

Wired connection

LAN cable (Shielded)

●

Ensure to use a LAN straight cable for this connection.

●

If your modem has no broadband router functions, use a broadband router.

●

If your modem has broadband router functions but there are no vacant ports, use a hub.

●

Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

●

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

Modem

Hub or Router

Internet

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Example 2

(For DLNA)

You can connect the TV and the equipment directly to use DLNA features.

DLNA Certified media server (for example, PC,

LAN cable (Shielded)

●

Ensure to use a LAN cross cable for this connection.

DIGA Recorder, etc.)

Example 3

(For VIERA Connect)

You can connect the TV and the telecommunication equipment directly to use VIERA Connect features.

Using Network Services (DLNA / VIERA Connect)

LAN cable (Shielded)

Internet

Note

●

Contact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network equipment.

●

Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.

Page 78

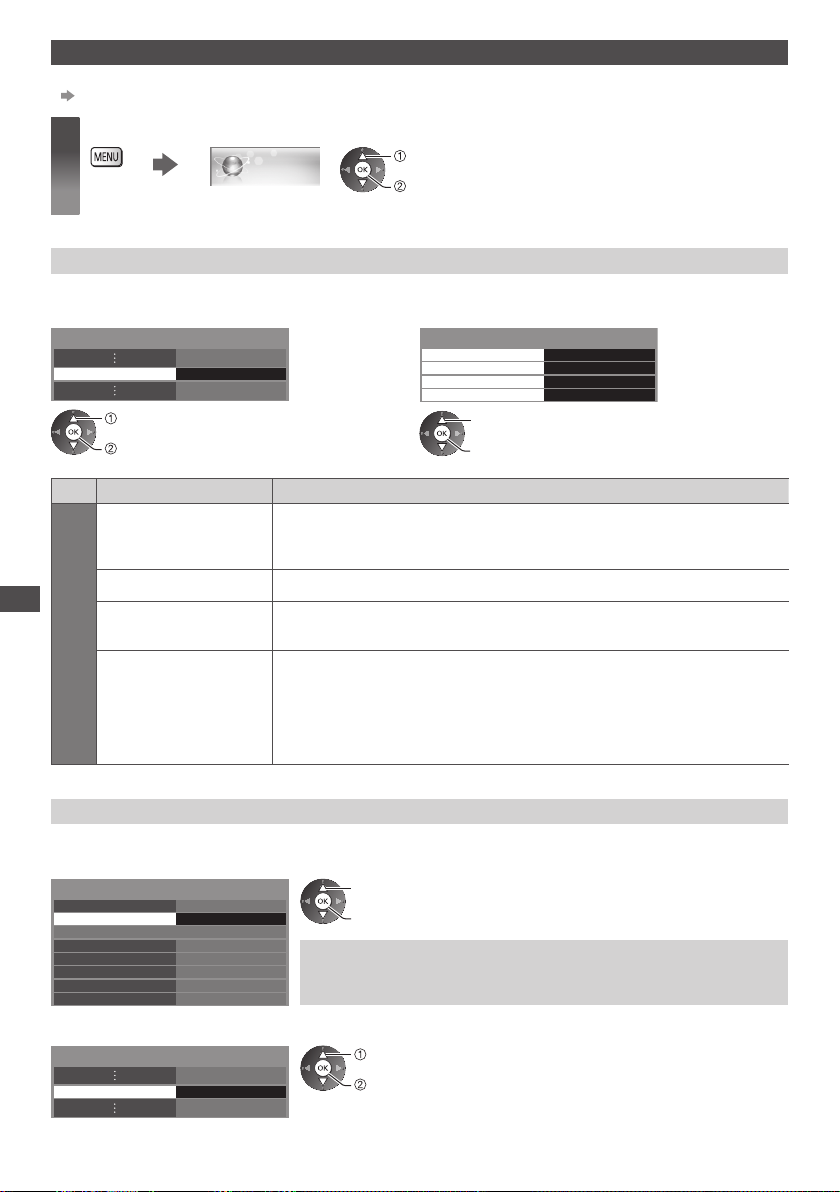

Network Setup

●

Ensure the connections are completed before starting Network Setup.

“Network connections” (p. 77)

Display the menu and select [Network]

Network

select

access

Network Link settings

Sets the link settings to control this TV from the network equipment via the network.

1 Select [Network Link Settings]

Access Network Link Settings

select

access

2 Select the items and set

Network Link Settings

VIERA Name DLNA Remote Control DLNA Remote Volume Network Remote Control

select

access / store

VIERA On On On

Network Link Settings

VIERA Name

Item Adjustments / Configurations (alternatives)

Sets your favourite name for this TV

●

This name will be used as the name of this TV on the screen of the other network equipment.

DLNA Remote Control Enables to control the TV using Windows 7 via the network [Off] / [On]

Using Network Services (DLNA / VIERA Connect)

DLNA Remote Volume

Enables to control the volume of the TV using Windows 7 via the network

[Off] / [On]

Enables to control the TV from the network equipment (Smartphone, etc.)

[Off] / [On]

●

Network Remote Control

Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

●

For more information of this function: http://panasonic.jp/support/global/cs/tv/

Wired connection settings

This setting is for the network connection by using the LAN cable.

1 Select [Network Connection] and set to [Wired]

Connection Test

Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings Software Update New Software Message Network Status

Wired

select

access / store

If you make the network connection like “Example 2” (p. 77), you do not have to set [Acquire DNS Address], [Proxy] and [Proxy Port].

2 Select [IP/DNS Settings] and set the items

select

IP/DNS Settings Access

access

Page 79

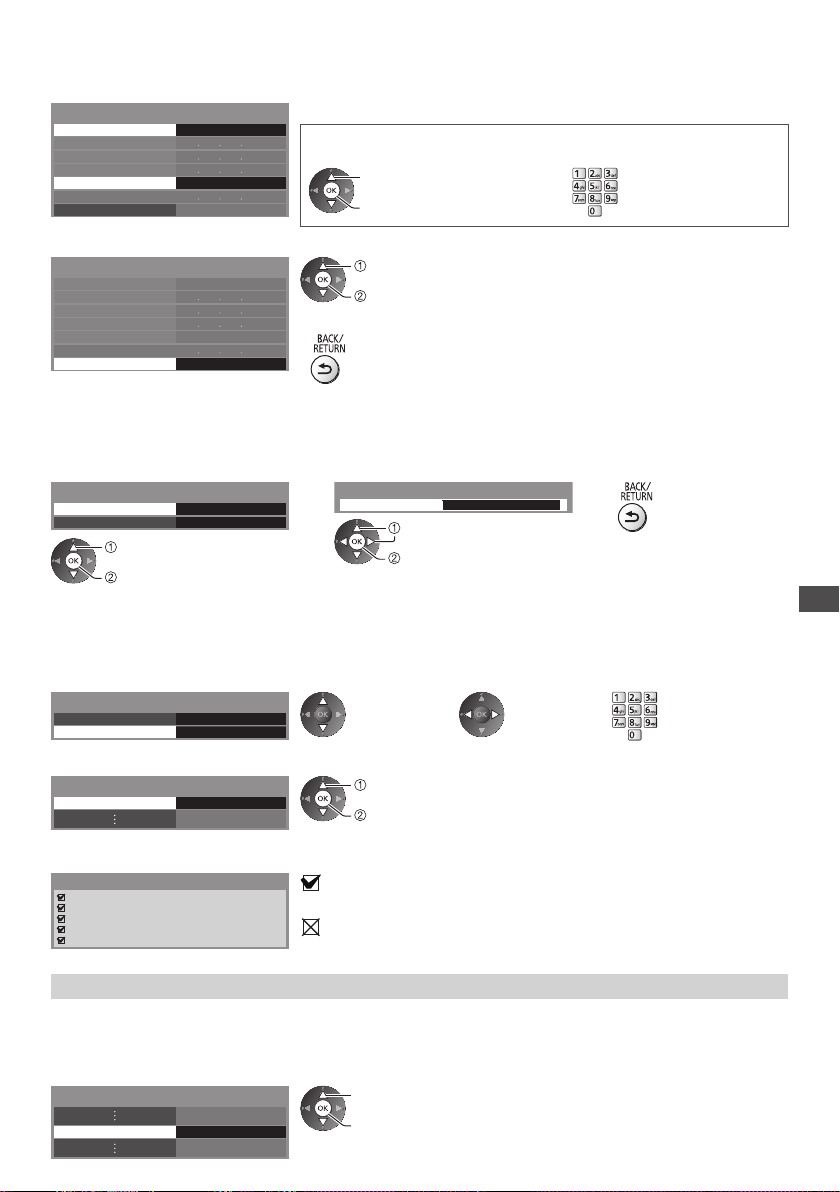

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Default Gateway], [Primary DNS] and [Secondary DNS]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended).

●

IP/DNS Settings

Acquire IP Address Auto

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto

The available settings are displayed automatically.

Manual settings ([IP Address], [Subnet Mask], [Default Gateway], [Primary DNS], [Secondary DNS])

select

access / store

3 Select [Proxy Settings] and set the items

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto

Access

select

access

●

After settings, return to the previous menu.

■ [Proxy]

Sets Proxy address.

●

This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser. Setting is required if specified by the provider.

1. Select [Proxy] 2. Enter the address

Proxy Settings

Proxy

Proxy Port

select

access

Proxy

Host

select

set

●

You can set characters by using numeric buttons.

3. Store

■ [Proxy Port]

Sets Proxy port number.

●

This number is also specified by the provider with the Proxy address.

1. Select [Proxy Port]

Proxy Settings

Proxy

Proxy Port

4 Select [Connection Test] and access to test

Connection Test Access

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

●

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].

select

access

2. Move the cursor and enter the number

Using Network Services (DLNA / VIERA Connect)

Wireless connection settings

This setting is for the wireless network connection.

●

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.

1 Select [Network Connection] and set to [Wireless]

select

Network Connection Wireless

access / store

Page 80

2 Select [Wireless Network Settings]

Connection Test Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings Software Update New Software Message Network Status

Wireless Access

select

access

●

When the access point is already set, [Current Settings] screen will be displayed. To change the settings, select [No] on this screen and go to the next step.

3 Select your desired access point

Available Wireless Networks

Network Name(SSID)

No.

Access Point A

Access Point B

Access Point C

Wireless type

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

●

To search access points again

(blue)

Status

select

access

: Encrypted access point

●

For the information of the highlighted access point

4 Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings: Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

●

If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

5 Enter the encryption key of the access point

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Set characters

select

set

●

You can set characters by using numeric buttons.

●

After settings, return to the previous menu.

Wireless Network Settings

Encryption key

Using Network Services (DLNA / VIERA Connect)

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

6 Select [Connection Test] and access to test

Connection Test Access

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

select

access

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry]. If you continue to have difficulty, please contact your internet service provider.

■ [WPS(PIN)]

Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the wireless access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the wireless access point.

Connect

●

For [WPS(Push button)] (p. 18)

(red)

●

For [WPS(PIN)] (see below)

(green)

●

To set manually (p. 81)

(yellow)

Store

●

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

Page 81

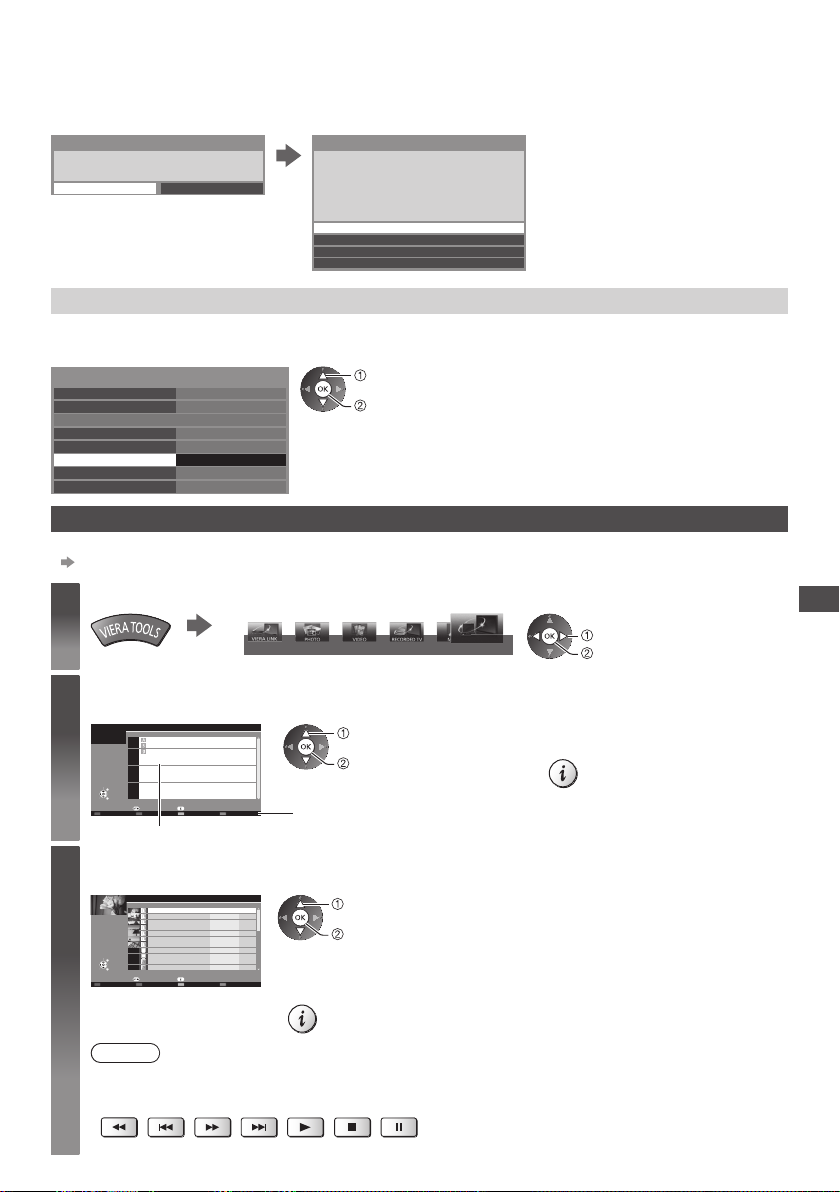

■ [Manual]

You can setup SSID, security type, encryption type, and encryption key manually. Follow the on-screen instructions and set manually.

●

When you use 11n (5 GHz) for the wireless system between the built-in wireless LAN and access point, select [AES] for the encryption type.

Wireless Network Settings

Please input the network name(SSID).

SSID

XXXXXXX

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Select [Software Update]

Connection Test Network Connection

Wireless Network Settings

IP/DNS Settings Network Link Settings

Software Update

New Software Message Network Status

Wired

Access On

Using DLNA® features

●

Ensure the preparation of the media server, network connections and network settings are completed.

“Media server” (p. 76), “Network connections” (p. 77), “Network Setup” (p. 78 - 81)

Display [VIERA TOOLS] and select [Media Server]

Select one of the media servers to access

Example: Media server list

Select

EXIT

RETURN

Access

Available media servers

Select the file

Example: File list

Size

3648x2736

Format

JPEG

Select

EXIT

RETURN

View

Slideshow

Note

●

Non-playable files are also listed but cannot be selected.

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

●

You can use the following buttons during playback. Confirm the code of the remote control to “73” (p. 32).

Media Server

SERVER1 SERVER2 SERVER3 DIGA

Option Menu

Info

Media Server

SERVER1

P000102 2011-10-05 09:54 P000135 P000180 P000214 P000251 P000276 P000293 V100025 V100042 M10054 M10078

Info

Option Menu

2011-11-20 13:18 2011-12-07 11:31 2011-12-10 15:20 2011-12-19 12:39 2011-12-25 14:06 2012-01-06 13:52 2012-01-12 15:56 2012-01-20 10:08 2012-01-28 14:48 2012-02-09 19:58

Security Type Settings

Connection will be made with the following settings: Network Name(SSID) : XXXXXXX

Please select the security type.

WPA2-PSK

WPA-PSK

Shared key

Open

select

access

●

Follow the on-screen instructions.

Media Server

select

access

select

access

●

To display the information of the highlighted media server

Total listed number

select

access

●

Depending on the condition of media server, you may need to select the folder before selecting the file.

●

To display the information of the highlighted file

Using Network Services (DLNA / VIERA Connect)

Page 82

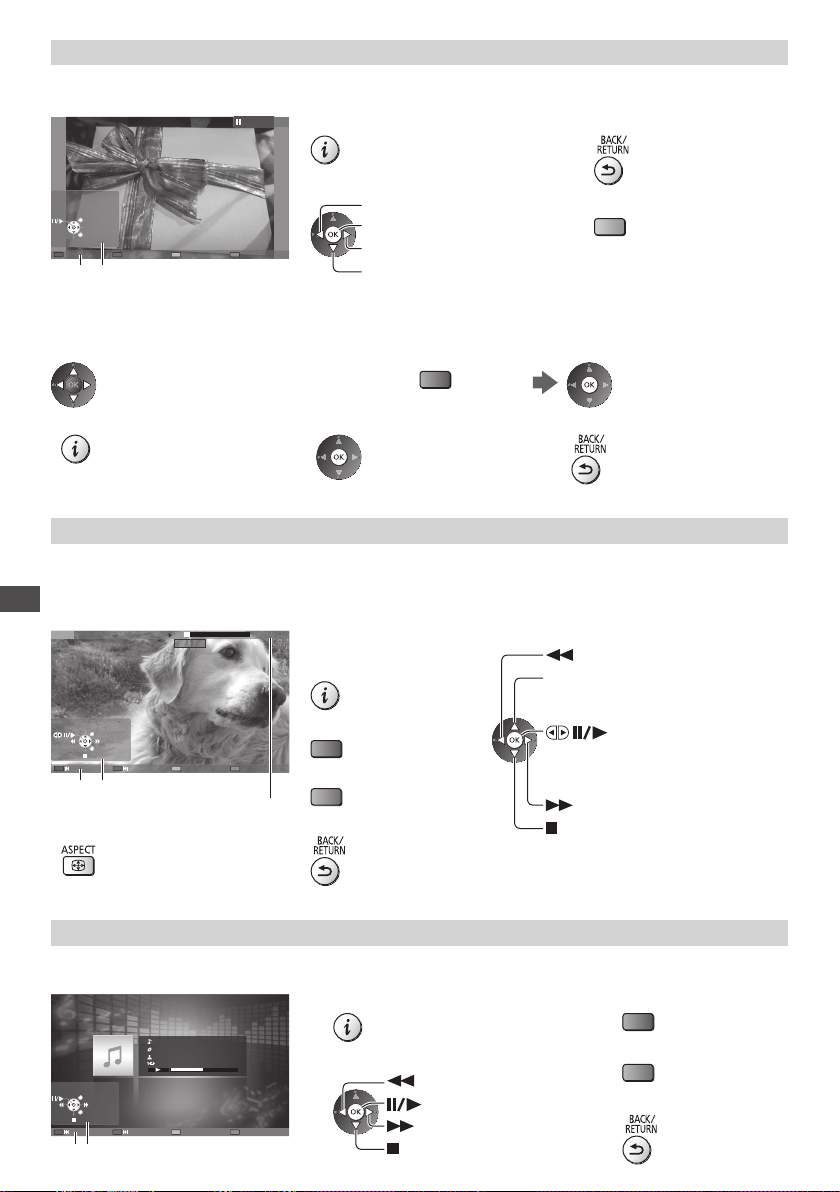

For photo file

[Single view] - Photos are displayed one at a time.

Example:

Single view

EXIT Select RETURN

Stop

Operation guide

Single view

Rotate

●

To display / hide the operation guide

●

To operate Single view

To the previous photo

Slideshow

To the next photo

Stop (return to list)

[Slideshow] - Slideshow completes when all photos are viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow

●

To return to list

●

To rotate 90°

(blue)

●

To display / hide the operation guide

(red)

●

To pause (return to Single view)

●

To return to list

For video file

Playback

●

If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

Example: Playback

Using Network Services (DLNA / VIERA Connect)

MEDIA SERVER

Manual skip

Operation guide

●

To change aspect

- Playback will start.

19/02/2011 11:21 00:15:39

EXIT

RETURN

00:02:05

Information banner

●

To display / hide the operation guide and information banner

●

To the previous content

(red)

●

To the next content

(green)

●

To return to list

●

To operate the playback

Rewind

[Manual skip]

●

Press to skip forward about 30 seconds.

Pause (displays the time seek bar) / Playback

Fast forward

Stop

For music file

Playback

Example: Playback

Operation guide

- Playback will start.

EXIT

RETURN

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

●

To display / hide the operation guide

●

To operate the playback

Rewind

Pause / Playback

Fast forward

Stop

●

To the previous track

●

To the next track

●

To return to list

(red)

(green)

Page 83

For DIGA Recorder

Control the DIGA Recorder

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide.

●

Before operating, register this TV on the DIGA Recorder.

●

For details, read the manual of the DIGA Recorder.

Option menu for each content

Setup the settings for Photo, Video and Music file operations.

1 Display the

option menu

2 Select [Slideshow Settings], [Video Setup] or

[Music Setup]

Option Menu

Slideshow Settings Video Setup Music Setup

Example:

DIRECT NAVIGATOR (Grouped Titles)

All

Liberty TV FR Journal Télévisé / Météo

AV1

Bibel TV Bibel TV das Gespräch

WDR Aachen

WDR Wuppertal

OK RETURN

select

access

HDD

Time Remaining 36:17 (DR)

WDR aktuell

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Page 005/005

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

OPTION

3 Select the items and set

select

access / store

Delete TitleSelect

Item Adjustments / Configurations (alternatives)

Selects the transition effect for switching the photo during the slideshow

Slideshow Settings

Transition Effect

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side. [Dissolve]: Each photo is dissolved when switching to the next photo. [Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

up or moving down.

[Random]: Each transition is selected at random.

Interval

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

●

This function is not available when [Transition Effect] is set to [Motion].

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Video Preview

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5]

Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]

●

Image may not be displayed for an instant in the thumbnail screen. Set the preview [Off] to resolve this.

Multi Audio, Monaural Audio, Dual Mono Audio

Video Setup

Subtitle

Subtitle Text

Subtitle Language

Selects between selectable sound tracks (if available)

●

It may take several seconds to change the sound.

●

Only available during playback

Subtitles On / Off (if available)

●

Only available during playback

Selects the font type to display subtitles correctly (if available)

●

Only available during playback

Selects the language in which subtitles should appear (if available)

●

Only available during playback

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen.

Aspect Change

Repeat Playback repeat within the selected file [Off] / [On]

Music Setup

[Original]: Displays the content original size.

●

You can also change the aspect using the ASPECT button.

●

Aspect change may not work depending on the content.

●

Only available during playback

Using Network Services (DLNA / VIERA Connect)

Repeat

Playback repeat [Off] / [Folder] / [One] [Folder]: Playback repeat within the selected folder. [One]: Playback repeat of the selected one file.

Page 84

Audio output settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

●

To confirm or change the current sound status (p. 72)

1 Display the menu and Select [Sound]

Sound

select

access

2 Select [SPDIF Selection] and set

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

Sound

SPDIF Selection

Item Adjustments / Configurations (alternatives)

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

VIERA Connect

You can access VIERA Connect and enjoy various network contents.

●

VIERA Connect requires a broadband internet connection. Dial-up internet connections cannot be used.

●

Ensure the network connections and network settings are completed.

“Network connections” (p. 77), “Network Setup” (p. 78 - 81)

●

For details about VIERA Connect operation (p. 20)

●

Setup & Help menu (Items in [Setup & Help] may change without notice.)

Customize HomeScreen Changes the position of each services on VIERA Connect home screen

Using Network Services (DLNA / VIERA Connect)

My Account

Lock Sets to restrict access to some services Restrictions Sets to restrict reveal of the restricted services Beep Sets beep sound On or Off when operating VIERA Connect Notices Displays the information of VIERA Connect Help Explains the setup items and operations in VIERA Connect

Note

●

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use VIERA Connect. You can update the software later manually. [Software Update] in [Network] (p. 81)

●

VIERA Connect home screen is subject to change without notice.

●

The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

●

Some content may be inappropriate for some viewers.

●

Some content may only be available for specific countries and may be presented in specific languages.

●

Depending on the connection environment, the internet connection may be slow or may not be successful.

●

You can restrict access to VIERA Connect. [Child Lock] (p. 56)

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

Confirms or removes the account information of the TV you entered on VIERA Connect

Page 85

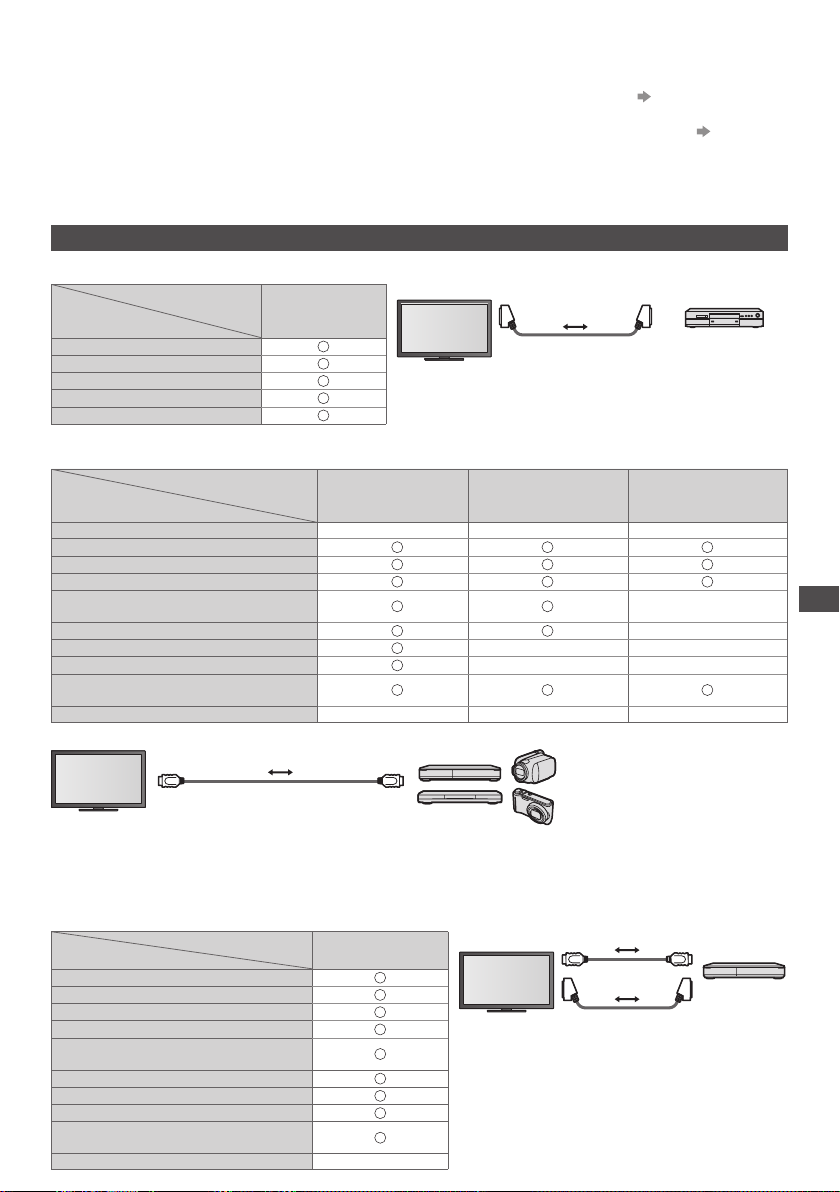

Link Functions (Q-Link / VIERA Link)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 87) VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control,

convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting. You can use Q-Link and VIERA Link functions together.

●

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of HDAVI Control. Please read the manual of the equipment to confirm the version.

●

VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection)

Connected equipment

Features Analogue channel download

Easy playback Power on link Power off link Direct TV Recording

DVD Recorder /

VCR with Q-Link

function

Connection

SCART cable

●

Use fully wired SCART cable.

●

Connect the DVD Recorder / VCR supporting Q-Link to the TV’s AV1 terminal via a SCART cable.

VIERA Link (HDMI connection)

Connected equipment

Features

DIGA Recorder with VIERA Link function

Analogue channel download – – – Easy playback Power on link Power off link Reduce unnecessary power consumption in Standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control – – –

∗

∗ ∗3 ∗

∗

Connection

HDMI cable

●

Use fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

DVD Player / Blu-ray

Disc Player with

VIERA Link function

∗

– – – –

∗

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

HD Video Camera /

LUMIX Camera with

VIERA Link function

VIERA Link (HDMI and SCART connections)

Connection

HDMI cable

SCART cable

●

Use a fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

Use a fully wired SCART cable.

●

Connect the equipment supporting VIERA Link to the TV’s AV1 terminal via a SCART cable.

Features

Connected equipment

DIGA Recorder with VIERA Link function

Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control –

∗

∗ ∗2 ∗

∗

(p. 88 - 92)

DVD Recorder / VCR with Q-Link function

–

∗

DIGA Recorder with VIERA Link function

Link Functions (Q-Link / VIERA Link)

Page 86

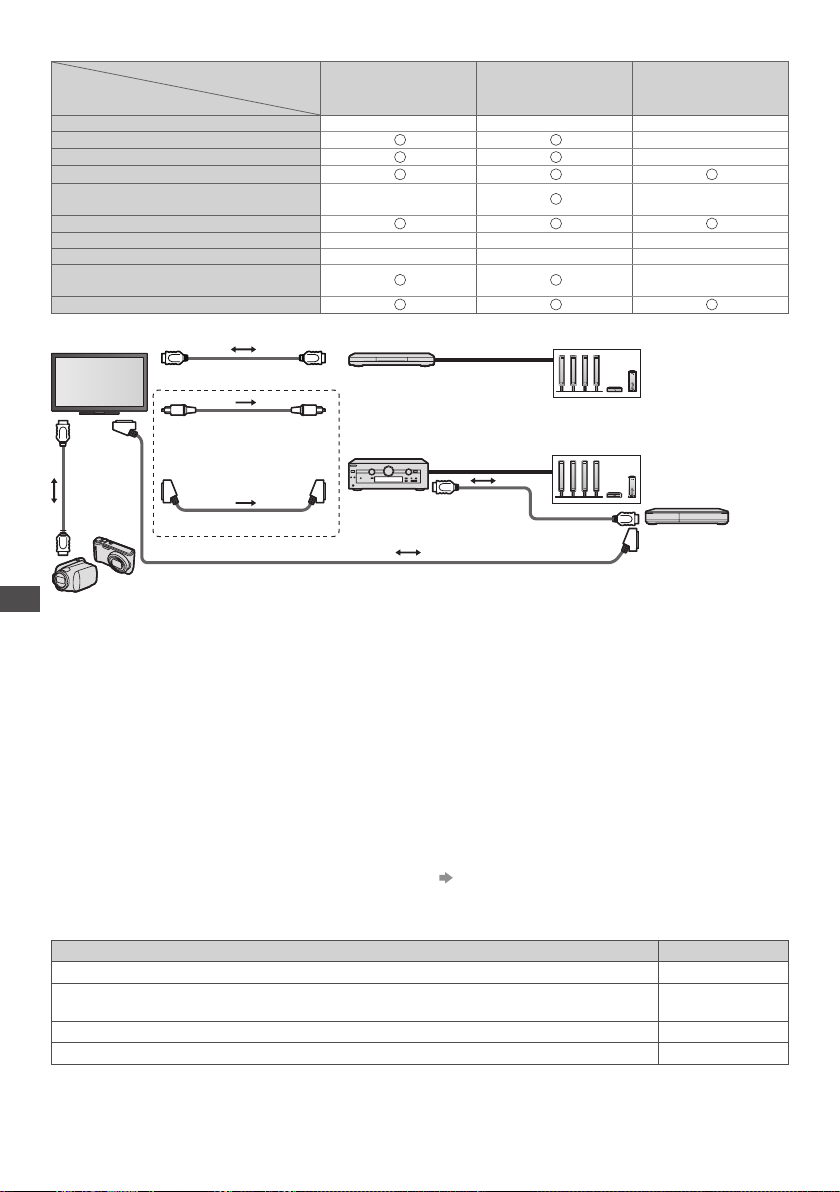

VIERA Link (HDMI and Audio out connections)

Connected equipment

Features Analogue channel download – – –

Easy playback Power on link Power off link Reduce unnecessary power consumption in Standby Auto standby for unnecessary equipment Pause Live TV programme – – – Direct TV Recording – – – Control the menu of the connected equipment by VIERA remote control Speaker control

Connection

HDMI cable

Player theatre with

VIERA Link function

∗

–

∗3 ∗

∗

●

To use Player theatre / Blu-ray Disc theatre

Player theatre / Blu-ray Disc theatre with VIERA Link function

●

To use Amplifier

Amplifier with VIERA Link function

∗

HDMI cable

Optical digital

audio cable

SCART cable

HD Video Camera / LUMIX Camera with VIERA Link function

Link Functions (Q-Link / VIERA Link)

●

Use fully wired HDMI compliant cable.

●

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

●

Use fully wired SCART cable.

●

If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set [AV1 out] to [Monitor] in the Setup Menu (p. 43).

●

Use the optical digital audio cable or SCART cable for audio output from the TV.

∗

1: Available with the equipment which has “HDAVI Control 2

or later” function.

∗

2: Available with the equipment which has “HDAVI Control 3

or later” function.

∗

3: Available with the equipment which has “HDAVI Control 4

or later” function.

∗

4: Available with a DIGA Recorder which has HDD.

Blu-ray Disc theatre

with VIERA Link

function

∗

Amplifier with

VIERA Link function

∗

∗3 ∗

∗

Speaker system

HDMI cable

DIGA Recorder with VIERA Link function

∗

5: While playing a disc.

∗

6: Except for watching a disc.

∗

7: If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable (Optical digital audio cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

– –

–

∗

–

VIERA Link Control of compatible equipment [VIERA Link Control] (p. 90)

●

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number Recorder (DIGA Recorder, etc.) 3 Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera,

Player theatre, Blu-ray Disc theatre, etc.) Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1 Tuner (Set top box, etc.) 4

Page 87

Q-Link

Preparations

●

Connect the DVD Recorder / VCR with the following logos: “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)”

●

Q-Link connection (p. 85)

●

Use fully wired SCART cable.

●

Set up the DVD Recorder / VCR. Read the manual of the recorder.

●

Q-Link terminal setup in the Setup Menu [AV1 out] (p. 43)

●

Download Analogue channel setting “Analogue channel download” (see below)

Features available

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

●

To download the Analogue channel settings [Q-Link Download] (p. 43), [Auto Setup] (p. 16, 50)

Direct TV Recording - What you see is What you record

Recording the current programme on a DVD Recorder / VCR immediately. (When USB HDD for recording is connected in DVB mode, [One Touch Recording] starts.)

●

Confirm the code of the remote control to “73” (p. 32).

●

Available conditions:

Analogue

DVB (USB HDD for recording is not connected) TV TV monitor out

AV (watching recorder’s tuner) AV Recorder’s tuner

AV (watching recorder’s external input) AV Recorder’s external input

AV (watching TV’s external input) AV TV monitor out

●

When Direct TV Recording is performed, the recorder is automatically turned on if it is in Standby mode.

●

You can change channel or turn the TV off while the recorder is recording from its own tuner.

●

Changing channel is not available while the recorder is recording from the TV tuner.

Picture source Mode Recording from

TV TV monitor out

AV Recorder’s tuner

■ To stop recording

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

Link Functions (Q-Link / VIERA Link)

Power on link and Easy playback

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

●

This function works even if the TV enters Standby mode automatically by auto power standby function.

Note

●

Some recorders are not applicable. Read the manual of the recorder.

Page 88

VIERA Link “ ”

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 85, 86). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

●

Some functions are not available depending on the equipment’s version of HDAVI Control. Confirm the connected equipment’s version of HDAVI Control.

●

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

●

Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

●

For information about applicable Panasonic equipment, consult your local Panasonic dealer or refer to www.panasonic.co.uk

Preparations

●

Connect the equipment supporting VIERA Link.

●

VIERA Link connection (p. 85, 86)

●

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised. Recommended Panasonic’s HDMI cable part number:

RP-CDHS15 (1.5 m)

•

●

Use fully wired SCART cable.

●

Set up the connected equipment. Read the manual of the equipment.

●

For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.

●

Download Analogue channel setting “Analogue channel download” (see below)

●

Set [VIERA Link] to [On] in the Setup Menu. [VIERA Link] (p. 43)

●

Set up the TV.

After connection, turn the equipment on and then switch the TV on. Select the input mode from HDMI1, HDMI2, HDMI3 or HDMI4 (p. 31), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time

•

when adding or reconnecting equipment

Link Functions (Q-Link / VIERA Link)

•

when changing setup

•

RP-CDHS30 (3.0 m)

•

∗

RP-CDHS50 (5.0 m)

•

Features available

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

●

To download the Analogue channel settings

[Q-Link Download] (p. 43), [Auto Setup] (p. 16, 50)

Easy playback

Automatic input switching - When the connected equipment is operated (during playback or menu operations, etc.), the input mode is switched automatically. When playback is stopped or menus are exited, the input mode returns to the original setting.

Power on link

Power off link

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

●

This function will work even if the TV enters Standby mode automatically by auto power standby function.

Page 89

Reduce unnecessary power consumption in Standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 43)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronisation with the TV on / off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption of the connected equipment is automatically minimised. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time fast.

●

This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function

[Intelligent Auto Standby] (p. 43)

When the TV is on, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI, the connected equipment will go into Standby mode / or when Speaker Selection is changed to [TV] (except for watching a disc).

●

If you select [On (With reminder)], the on-screen message will be displayed before the connected equipment turns to standby.

●

This function may not work properly depending on the connected equipment. If required, set to [Off].

Direct TV Recording - What you see is What you record [Direct TV Rec]

Records the current programme in the DIGA Recorder immediately.

●

If you connect a variety of recorders including other manufacturers’ recorders at the same time, connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1.

●

If you cannot operate, check the settings and the equipment.

“Summary of Q-Link and VIERA Link features” (p. 85, 86), “Preparations” (p. 88)

●

To record the programme which DIGA Recorder does not support, SCART connection is required and the programme is recorded by Q-Link function (p. 87).

●

Depending on the programme, SCART connection may be required to record.

●

You can change channel or turn the TV off while the recorder is recording from its own tuner.

●

You can not change channel while the recorder is recording from the TV tuner.

Display [VIERA TOOLS] and select [VIERA Link]

VIERA Link

select

access

Link Functions (Q-Link / VIERA Link)

Select [Direct TV Rec] and start recording

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

Start Start Recorder Home Cinema

select

access / start

●

You can also start recording directly when the code of the remote control is “73” (p. 32).

(When USB HDD for recording is connected in DVB mode, [One Touch Recording] starts.)

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu

Pause Live TV

Direct TV Rec

VIERA Link Control Speaker Selection

●

You can also stop recording directly.

Start Stop Recorder Home Cinema

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

select

access / stop

Page 90

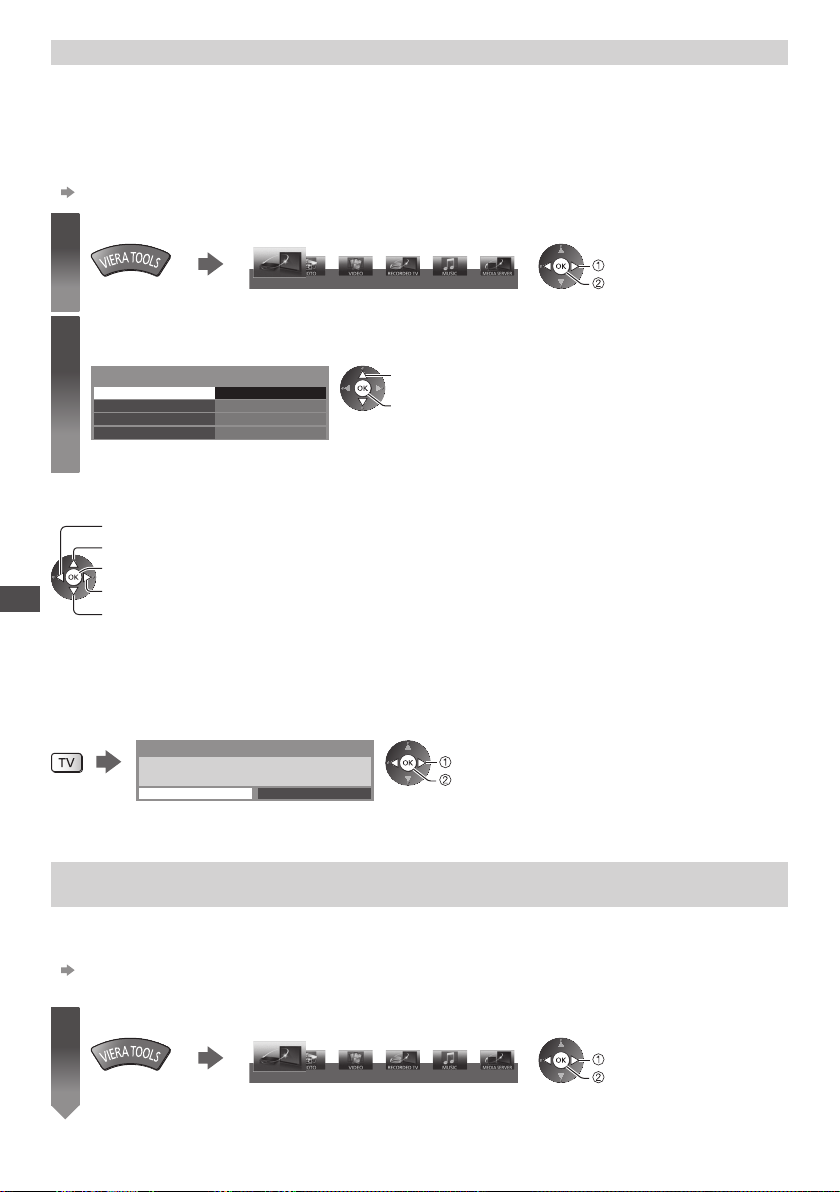

Pause Live TV programme [Pause Live TV]

You can pause the current TV programme and resume later. The current TV programme will be recorded on HDD of the connected DIGA Recorder.

●

This function is available with a DIGA Recorder which has HDD.

●

If you connect a variety of recorders including other manufacturers’ recorders at the same time, connect the DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1.

●

If you cannot operate, check the settings and the equipment.

“Summary of Q-Link and VIERA Link features” (p. 85, 86), “Preparations” (p. 88)

Display [VIERA TOOLS] and select [VIERA Link]

Select [Pause Live TV] and pause

The TV picture will be paused.

VIERA Link Menu

Pause Live TV

Direct TV Rec VIERA Link Control Speaker Selection

Start Start Recorder Home Cinema

VIERA Link

select

access / pause

●

The current TV programme is recorded on HDD from where it was paused.

●

If the paused TV picture disappears after a few minutes, press OPTION button to restore the pause picture.

●

Follow the operation guide to operate [Pause Live TV] function.

select

access

■ To operate [Pause Live TV]

●

Operations may vary depending on the recorder. In this case, follow the operation guide or read the manual of the recorder.

Link Functions (Q-Link / VIERA Link)

Search backward

Pause

Playback

Search forward

Stop

●

If you stop playback, the recorded programme will be deleted from HDD.

■ To return to current TV (Stop playback of [Pause Live TV] / cancel pause)

Select [Yes]

Pause Live TV

Yes

Stop Pause Live TV?

●

If you stop playback or cancel pause, the recorded programme will be deleted from HDD.

Control the menu of the connected equipment by VIERA remote control [VIERA Link Control]

You can control some functions of the connected equipment with this TV remote control pointing at the TV’s signal receiver.

●

If you cannot operate, check the settings and the equipment.

“Summary of Q-Link and VIERA Link features” (p. 85, 86), “Preparations” (p. 88)

●

For details of the operations for the connected equipment, read the manual of the equipment.

Display [VIERA TOOLS] and select [VIERA Link]

VIERA Link

select

stop

select

access

Page 91

Select [VIERA Link Control]

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Select the equipment to access

Select the type of the connected equipment and access.

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [Digital Camera] / [Other]

●

The displayed item may vary depending on the connected equipment.

●

[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.

●

[Other] means Tuner set top box.

Start Start Recorder Home Cinema

Start Start Recorder

rder

Home Cinema

select

access

select

access

The menu of the accessed equipment will be displayed.

(Input mode will be changed automatically)

Operate the menu of the equipment

●

Confirm the code of the remote control to “73” (p. 32).

Follow the operation guide

●

To display the operation guide

If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be displayed.

●

Available VIERA remote control buttons depend on the connected equipment.

Note

●

Some operations may not be available depending on the equipment. In this case use its own remote control to operate the equipment.

Link Functions (Q-Link / VIERA Link)

■ If multiple recorders or players are connected

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Start Start

rder

Recorder2 Home Cinema

[Recorder1-3 / Player1-3]

The number is given from the TV’s lower number of HDMI terminal connected to the same type equipment. For example, two recorders to HDMI2 and HDMI3, the recorder connected to HDMI2 is displayed as [Recorder1], and the recorder connected to HDMI3 is displayed as [Recorder2].

■ If you access non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Direct TV Rec

VIERA Link Control

Speaker Selection

Start Start Recorder

rder

Home Cinema

The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it. Use its own remote control to operate the equipment.

Page 92

Speaker control [Speaker Selection]

You can control the theatre speaker with this TV remote control pointing at the TV’s signal receiver.

●

If you cannot operate, check the settings and the equipment.

“Summary of Q-Link and VIERA Link features” (p. 85, 86), “Preparations” (p. 88)

Display [VIERA TOOLS] and select [VIERA Link]

Link Functions (Q-Link / VIERA Link)

Select [Speaker Selection]

VIERA Link Menu

Pause Live TV Direct TV Rec VIERA Link Control

Speaker Selection

Set to [Home Cinema] or [TV]

[Home Cinema]:

The sound is from theatre speakers. Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.

●

Volume up / down

●

Mute

●

The sound of TV speakers is mute.

●

When the equipment is turned off, TV speakers will be active.

[TV]:

TV speakers are active.

select

store

Start Start Recorder Home Cinema

VIERA Link

select

access

select

access

Multi-channel sound

If you want to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect it with HDMI cable and Optical digital audio cable (p. 86), and then select [Home Cinema]. If your Amplifier has “HDAVI Control 5” function, you only need to connect it with HDMI cable to the TV’s HDMI2 terminal. To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 86).

Note

●

These functions may not work properly depending on the connected equipment.

●

Image or sound may not be available for the first few seconds when input mode is switched.

●

“HDAVI Control 5” is the newest standard (as of November, 2011) for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.

●

To confirm this TV’s version of HDAVI Control [System Information] (p. 45)

Page 93

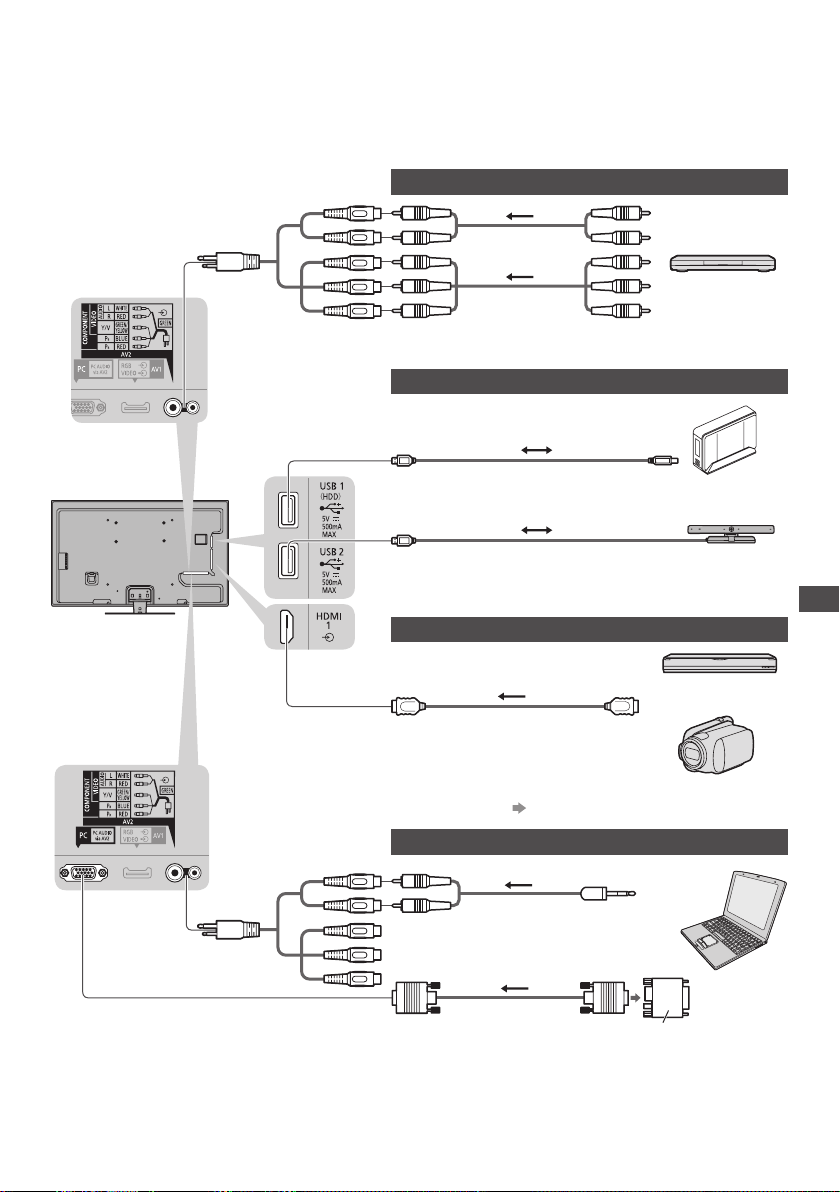

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the basic connection (p. 13 - 15), the table (p. 95), and the specifications (p. 114, 115).

●

Check the type of terminals and cable plugs are correct when connecting.

To watch DVDs

(Listening)

Rear of the TV

(COMPONENT / VIDEO)

AV2

adaptor (supplied)

AV2

(COMPONENT / VIDEO)

adaptor (supplied)

(Viewing)

USB devices

USB cable

HDMI equipment

Fully wired HDMI

compliant cable

●

HDMI connection (p. 101)

DVD Player

USB HDD

Communication

Camera

External Equipment

Recorder / Player

Camcorder

(Listening)

(Viewing)

Conversion adaptor (if necessary)

Computer

Page 94

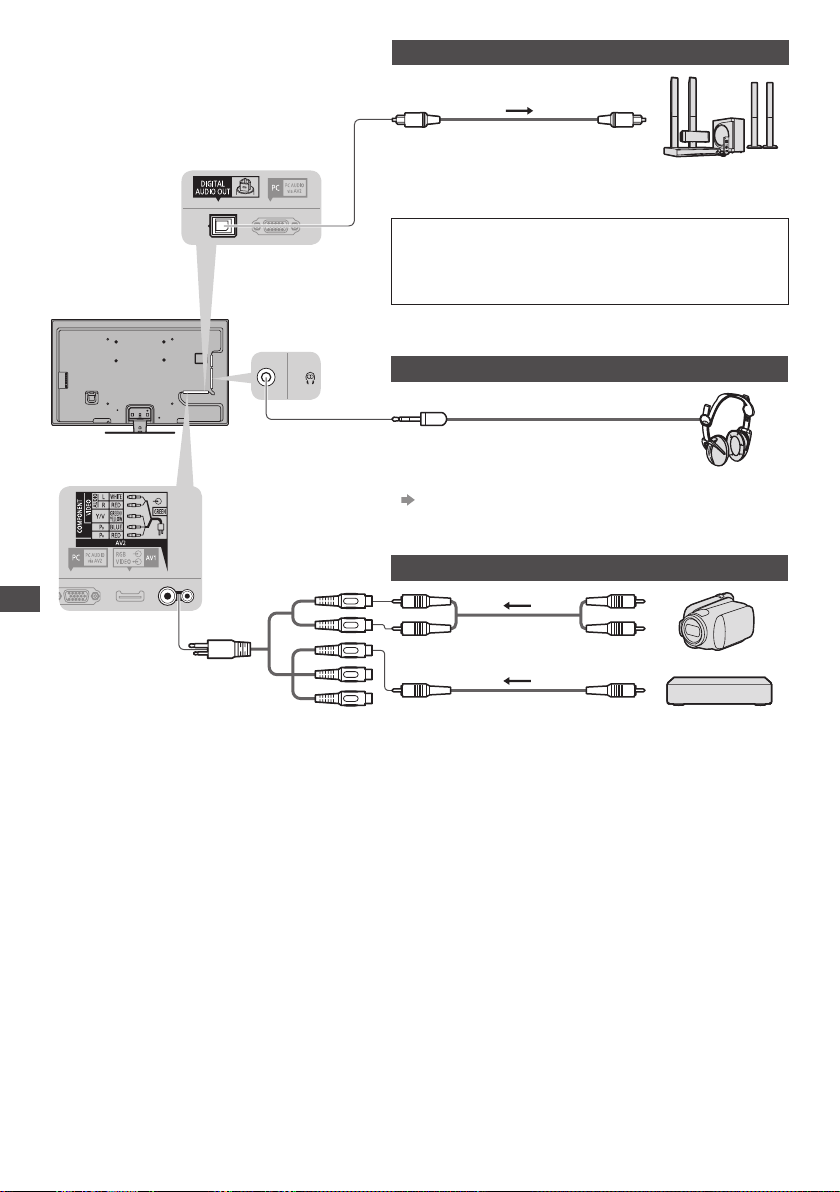

Rear of the TV

To listen with speakers

Optical digital audio

cable

To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

Amplifier with

speaker system

Headphones

(M3 stereo mini plug)

●

To adjust volume [Headphone Volume] (p. 41)

Camcorder / Game equipment

External Equipment

(COMPONENT / VIDEO)

AV2

adaptor (supplied)

(Listening)

Camcorder

(Viewing)

Game equipment

Page 95

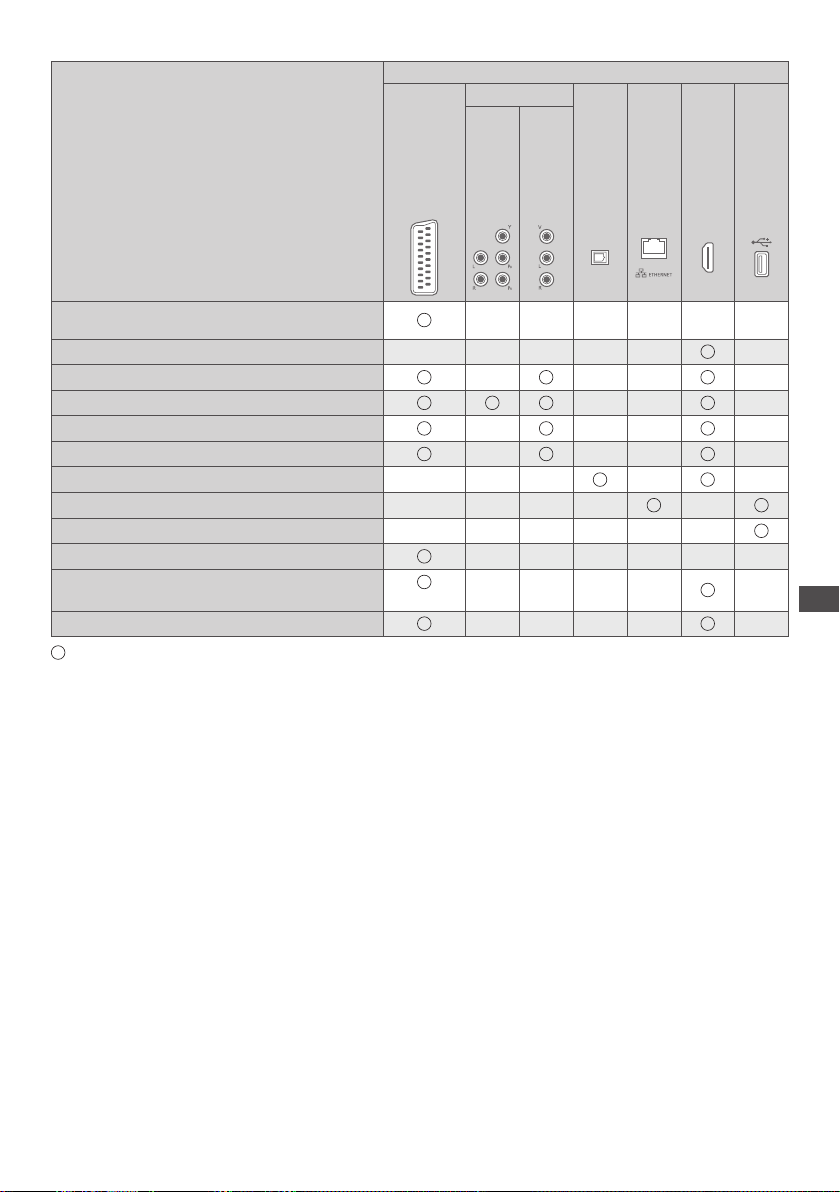

Types of connectable equipment to each terminal

Features

Terminal

∗

AV 2

AV 1

∗

COMPONENT

VIDEO

AUDIO OUT

DIGITAL

ETHERNET

HDMI 1 - 4

USB 1 - 3

To record / playback videocassettes / DVDs (VCR / DVD Recorder)

To watch 3D contents (Blu-ray Disc Player)

To watch satellite broadcasts (Set top box)

To watch DVDs (DVD Player)

To watch camcorder images (Video camera)

To play games (Game equipment)

To use amplifier with speaker system

To use network services

USB HDD Recording

Q-Link

VIERA Link

Direct TV Recording

: Recommended Connection

∗

1: To connect the equipment, the terminal adaptor (supplied) is necessary.

∗

2: Use HDMI1 for automatic input switching.

∗

3: Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio

Return Channel) function.

∗

4: Use USB 2 port for connecting the Communication Camera.

∗

5: Use USB 1 port for connecting the USB HDD.

(with HDMI)

∗

External Equipment

Page 96

Technical Information

Auto Aspect

The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 24)

■ Aspect Control Signal

[WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found. The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio. This function will work in any aspect mode.

Aspect Control Signal

Input terminal Input signal format

AV1 / AV2 (Composite)

AV 2 (Component)

HDMI1 HDMI2 HDMI3 HDMI4

DVB

M.NTSC 6.0 MHz – PA L PAL 525/60 – M.NTSC – NTSC – 525 (480) / 60i, 60p – 625 (576) / 50i, 50p 750 (720) / 60p, 50p – 1,125 (1,080) / 60i, 50i – 525 (480) / 60i, 60p – 625 (576) / 50i, 50p – 750 (720) / 60p, 50p – 1,125 (1,080) / 60i, 50i – 1,125 (1,080) / 60p, 50p, 24p –

Widescreen signal

(WSS)

■ Auto mode

Auto mode determines the best aspect ratio to fill the screen using a four step process (WSS, Control signal through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen). This process may take several minutes, depending on the darkness of the image. Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to fill the screen.

Technical Information

If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

●

The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top and bottom of the screen may appear.

●

If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. Read the manual of the VCR.

Control signal

through SCART (pin8) /

HDMI terminal

PA L I

Page 97

Supported file format in Media Player and media servers

■ Photo

Format File extension

.jpg

JPEG

.jpeg .mpo

Image resolution

(pixel)

8 × 8 to 30,719 × 17,279

Details / Restrictions

DCF and EXIF standards Sub-sampling: 4:4:4, 4:2:2, 4:2:0

●

Progressive JPEG is not supported.

■ Video

Container File extension Video codec Audio codec Details / Restrictions

AVCHD Standard Ver. 2.0

AVCHD .mts H.264 Dolby Digital

SD-Video .mod

MOV

AV I

MKV .mkv

.mov .qt

.avi .divx

MPEG1 MPEG2

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP Motion JPEG MPEG1 MPEG2 MPEG4 SP/ASP

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP MPEG1 MPEG2 MPEG4 SP/ASP VC-1 Windows Media

Video Ver. 9

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP MPEG1 MPEG2 MPEG4 SP/ASP

Dolby Digital MPEG Audio

AAC Dolby Digital Dolby Digital

Plus DTS core HE-AAC LPCM MPEG Audio MP3

AAC ADPCM Dolby Digital Dolby Digital

Plus DTS core HE-AAC LPCM MPEG Audio MP3 WMA WMA Pro

AAC Dolby Digital Dolby Digital

Plus DTS core HE-AAC MPEG Audio MP3

(AVCHD 3D, AVCHD Progressive)

●

The data may not be available if a folder structure on the device is modified.

SD-Video Standard Ver. 1.31 (Entertainment Video Profile)

●

The data may not be available if a folder structure on the device is modified.

●

This TV supports Motion JPEG recorded by Panasonic LUMIX

∗

Camera

●

This TV is not available for playing back Motion JPEG with the media server.

∗

1: Some products of before the year

●

Certified to play DivX Plus HD video file in Media Player For details of DivX (p. 99)

●

Some subtitles or chapter functions may not be available.

2004 may not be available. The compatibility with future products is not guaranteed.

Technical Information

Page 98

Container File extension Video codec Audio codec Details / Restrictions

AAC Dolby Digital Dolby Digital

Plus HE-AAC LPCM MP3 WMA

●

Copy-protected files cannot be played back.

ASF

.asf .wmv

DivX3 DivX4 DivX5 DivX6 MPEG4 SP/ASP VC-1 Windows Media

Video Ver. 9

WMA Pro

DivX3 DivX4 DivX5 DivX6 H.264 BP/MP/HP MPEG1 MPEG2

MP4

.f4v .m4v .mp4

MPEG4 SP/ASP

FLV .flv H.264

3GPP

.3gp .3g2

.mpg .mpeg .vob .vro

H.264 MPEG4 SP/ASP

H.264 MPEG1 MPEG2 VC-1

∗

AAC Dolby Digital Dolby Digital

Plus HE-AAC MPEG Audio MP3

AAC MP3

AAC HE-AAC

∗

AAC Dolby Digital Dolby Digital

∗

Plus HE-AAC

∗

LPCM MPEG Audio

∗

MP3

●

This TV supports this container recorded by Panasonic products. For details, read the manual of the products.

–

∗

2: This codec can be played back only in

Media Player.

AAC

Dolby Digital H.264 MPEG1 MPEG2

∗

VC-1

Dolby Digital

Plus

DTS core

HE-AAC

MPEG Audio

∗

MP3

∗3: This codec can be played back only in

∗

Media Player.

Technical Information

.m2ts .tp .trp .ts

■ Music

Codec File extension Restrictions

MP3 .mp3 –

AAC .m4a

WMA WMA Pro

.wma

FLAC .flac –

Note

●

Some files may not be played back even if they fulfil these conditions.

●

Do not use two-byte characters or other special codes for data.

●

The device may become unusable with this TV if the file or folder names are changed.

●

Copy-protected files cannot be played back.

●

Copy-protected files cannot be played back.

●

WMA Lossless is not supported.

Page 99

DivX

DivX Certified® to play DivX® and DivX Plus® HD (H.264/MKV) video up to 1080p HD including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

■ Subtitle text file of DivX

Subtitles format - MicroDVD, SubRip, TMPlayer

●

The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.

●

If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: “.srt”, “.sub”, “.txt”.

●

To confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option Menu.

●

Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or the subtitles may not be displayed at all.

Note

●

Depending on how you make SD Card, USB Flash Memory or the media server, files and folders may not be displayed in the order you numbered.

●

Depending on how you create the files and the structure of folders, the files and folders may not be displayed.

●

When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified obtain your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more information on how to complete your registration.

device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To

■ To show DivX VOD registration code

[DivX® VOD] (p. 45)

●

If you want to generate the new registration code, you have to deregister the current registration code. After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX® VOD] in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be able to play any contents that you purchased using the current registration code. You will obtain the new registration code by pressing the OK button on the deregistration code screen.

●

If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able to play this content. ([Your device is not authorized to play this DivX protected video.] is displayed.)

■ Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. ([This DivX rental has expired.] is displayed.)

●

When playing this content, the number of remaining plays is reduced by one in the following conditions:

If you exit the current application.

•

If you play the other content.

•

If you go to the next or previous content.

•

Technical Information

Page 100

Devices for recording or playing back

■ SD Card

Card format:

SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity):

SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), miniSD Card (2 GB) (requiring miniSD adaptor)

●

If miniSD Card is used, insert / remove it together with the adaptor.

●

Check the latest information on the card type at the following website. http://panasonic.jp/support/global/cs/tv/

●

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

2.1 mm

32 mm

■ USB Flash Memory (for playing back in Media Player)

USB Flash Memory format: FAT16, FAT32 or exFAT

●

A USB HDD formatted by PC is not supported in Media Player.

■ USB HDD (for recording the digital TV programmes with this TV and playing back in Media Player)

The capacity of USB HDD that has been tested for the performance with this TV is from 160 GB to 3 TB.

●

Connect the USB HDD to the socket outlet to record and play back properly with this TV.

●

Format the USB HDD with this TV before using. (p. 63)

●

Regarding the performance, not all USB HDDs are guaranteed. Check the USB HDDs that have been tested for the performance with this TV at the following website. http://panasonic.jp/support/global/cs/tv/

Note

●

Data modified with a PC may not be displayed.

●

Do not remove the device while the TV is accessing data. Otherwise this can damage device or TV.

●

Do not touch the pins on the device.

●

Do not subject the device to a high pressure or impact.

●

Insert the device in the correct direction. Otherwise this can damage device or TV.

●

Electrical interference, static electricity, or erroneous operation may damage the data or device.

●

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

●

PC signals that can be input: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).

●

A PC adaptor is not necessary for the DOS/V-compliant D-sub 15-pin connector.

Note

Technical Information

●

Some PC models cannot be connected to this TV.

●

When using PC, set the colour display quality of PC to the highest position.

●

For details of the applicable PC signals “Input signal that can be displayed” (p. 102)

●

D-sub 15-pin connector signal

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

NC (not connected)

GND (Ground)

●

Max. display resolution

4:3 1,440 × 1,080 pixels 16:9 1,920 × 1,080 pixels

GND (Ground)

NC (not connected)

GND (Ground)

NC (not connected)

24 mm

100
