Panasonic TX-L37E30Y, TX-L42E30Y, TX-L32E30Y Operating Instructions

T

Operating Instructions

LCD Television

M odel No.

TX-L32E30Y
TX-L37E30Y
TX-L42E30Y

T hank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
T he images shown in this manual are for illustrative purposes only.
Please refer to Pan Eu
Panasonic dealer for assistance.

English

ropean Guarantee Card if you need to contact your local

QB0E2099U-1

Experience an amazing level of multimedia
excitement

Enjoy rich multimedia

U SB device

SD Card

N etwork

Amplifier with

Speaker system

DVD Recorder

VCR

DVD Player

Blu-ray Disc Player

Notice for DVB / Data broadcasting / IPTV functions

T his TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial

•

services and DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services.
C onsult your local dealer for availability of DVB-T services in your area.
C onsult your cable service provider for availability of DVB-C services with this TV.
T his TV may not work correctly with the signal which does not meet the standards of DVB-T or DVB-C.

•

N ot all the features are available depending on the country, area, broadcaster and service provider.

•

N ot all CI modules work properly with this TV. Consult your service provider about the available CI module.

•

T his TV may not work correctly with CI module that is not approved by the service provider.

•

Additional fees may be charged depending on the service provider.

•

T he compatibility with future services is not guaranteed.

•

C heck the latest information on the available services at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

U SB HDD

C amcorder

P ersonal computer

Set top box

2

Transport only in upright position

P anasonic does not guarantee operation and performance
of peripheral devices made by other manufacturers; and we
disclaim any liability or damage arising from operation and/

or performance from usage of such other maker’s peripheral

.

devices

Contents

Be Sure to Read

Safety Precautions····································································4

M aintenance ··············································································5

T he recording and playback of content on this or anyother
device may require permission from the owner of the copyright

or other such rights in that content. Panasonic has no authority
to and does not grant you that permission and explicitly
disclaims any right, ability or intention to obtain such permission
on your behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable copyright

legislation in your country. Please refer to that legislation for
more information on the relevant laws and regulations involved
or contact the owner of the rights in the content you wish to
record or playback.

T his product is licensed under the AVC patent portfolio license
for the personal and non-commercial use of a consumer to (i)

encode video in compliance with the AVC Standard (“AVC Video”)
and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC Video.

No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT
IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM

SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/

OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS
REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/

Quick Start Guide

Accessories / Options ······························································6

Identifying Controls ·································································8

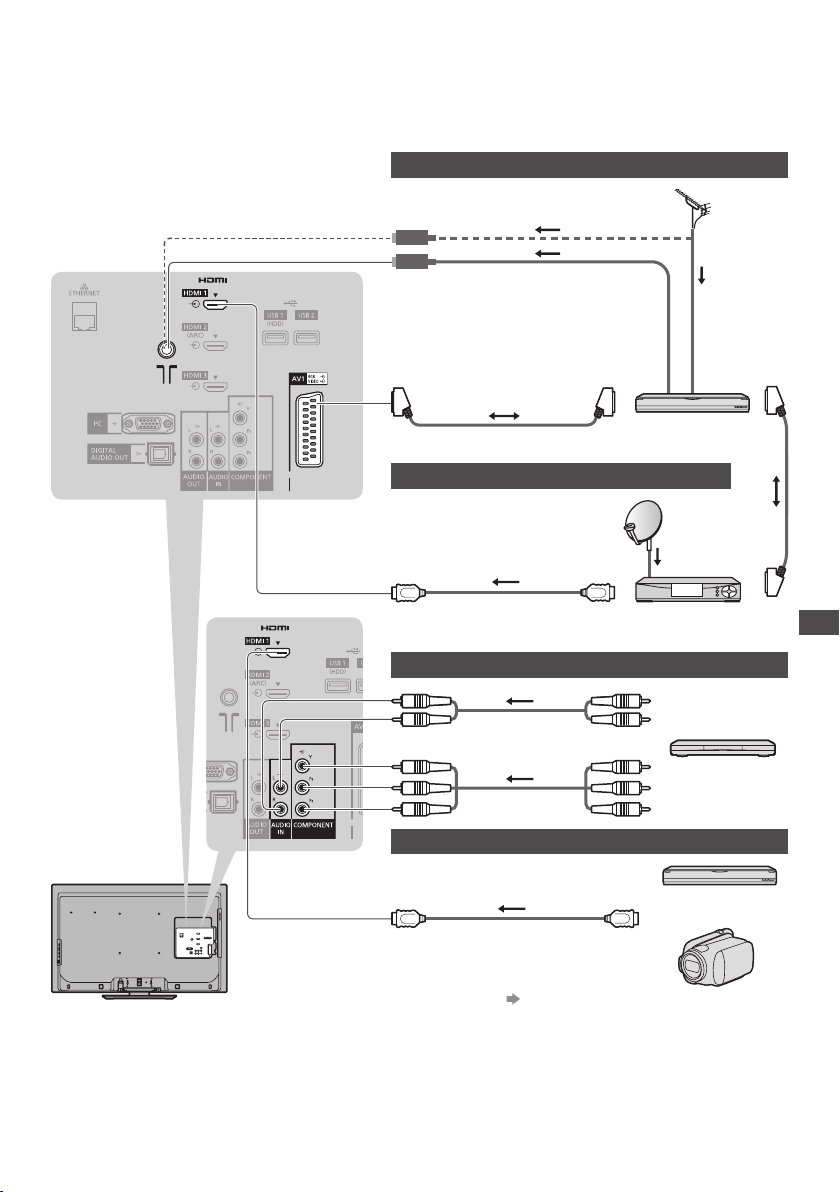

B asic Connection ··································································· 10

Auto Setup ··············································································· 12

Enjoy your TV!

Basic Features

U sing “VIERA Connect” ························································16

Watching TV ············································································ 17

U sing TV Guide ······································································· 21

V iewing Teletext ·····································································24

Watching External Inputs ··················································· 26

H ow to Use VIERA TOOLS ··················································· 28

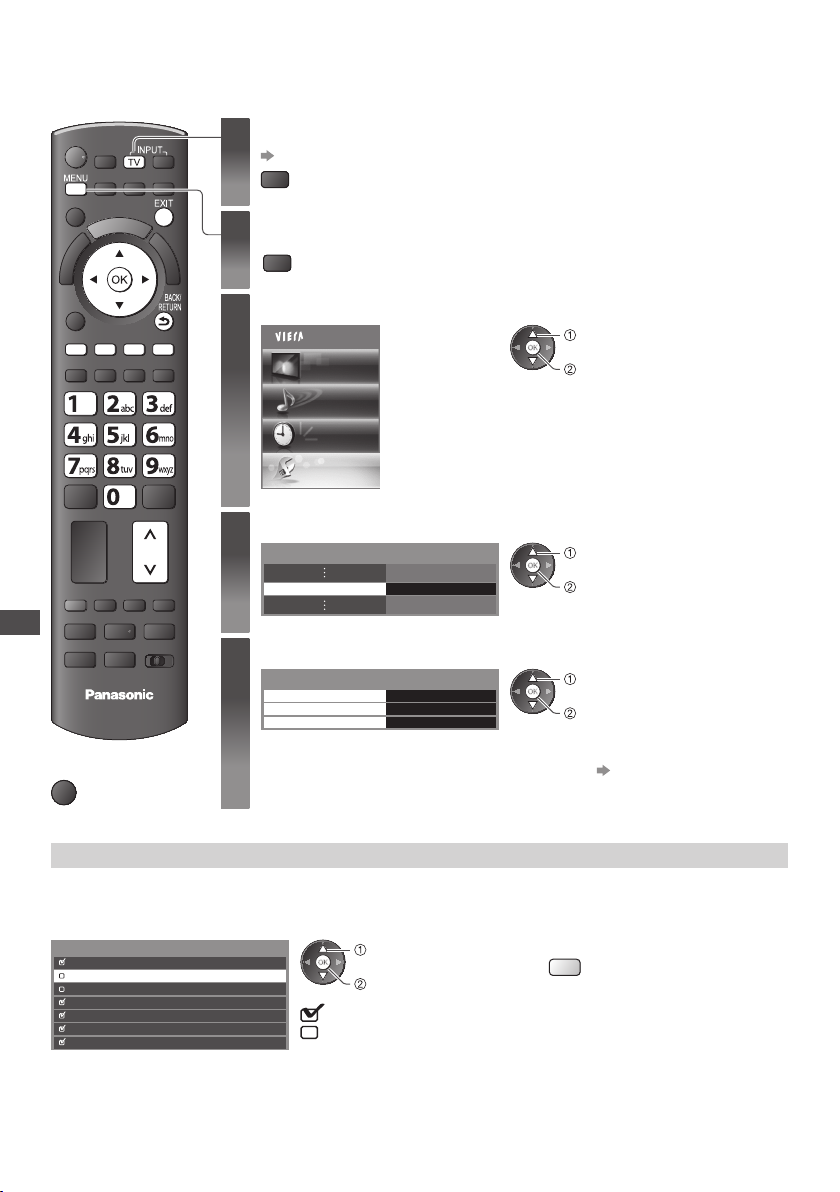

H ow to Use Menu Functions ············································· 29

Advanced Features

R etuning from Setup Menu ··············································· 37

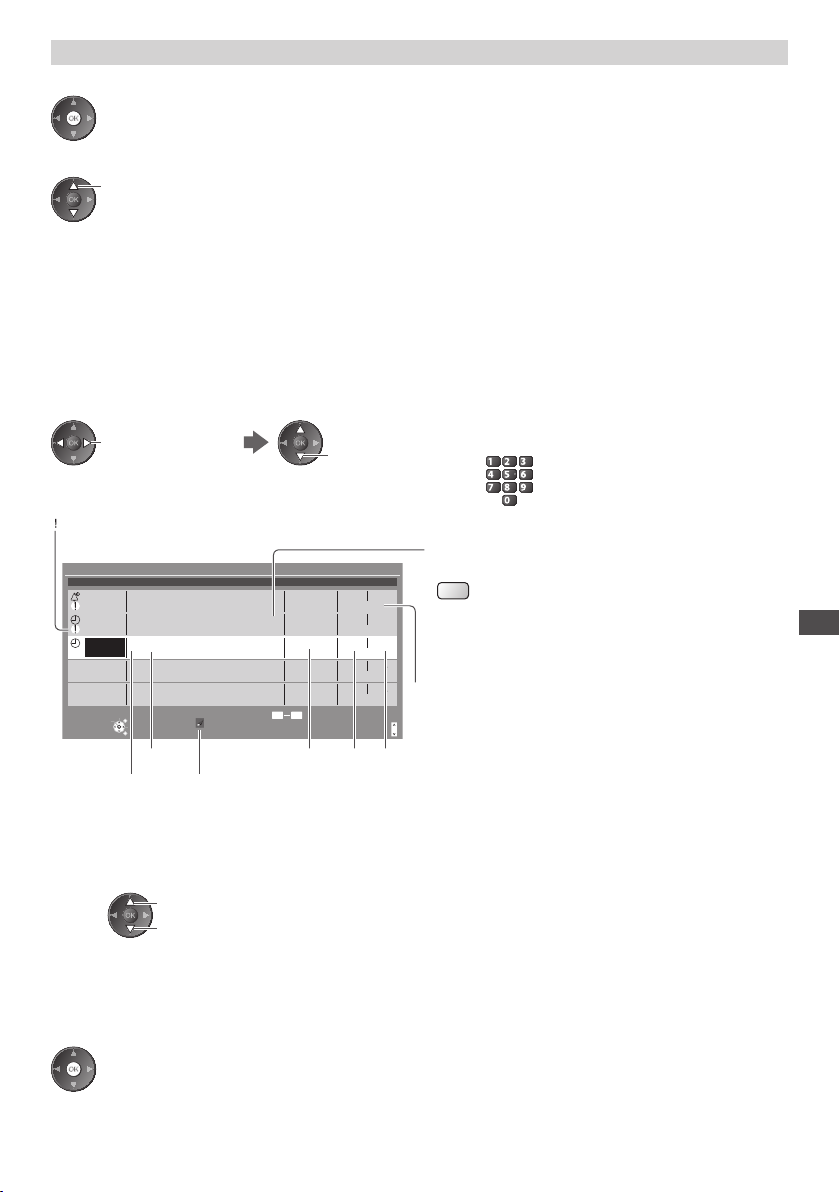

Tuning and Editing Channels (DVB) ······························· 39

Tuning and Editing Channels (Analogue)····················· 42

T imer Programming ····························································· 44

C hild Lock ················································································· 46

I nput Labels ············································································· 48

U sing Common Interface ··················································· 49

Shipping Condition ······························································ 50

U pdating the TV Software ·················································· 51

D isplaying PC Screen on T

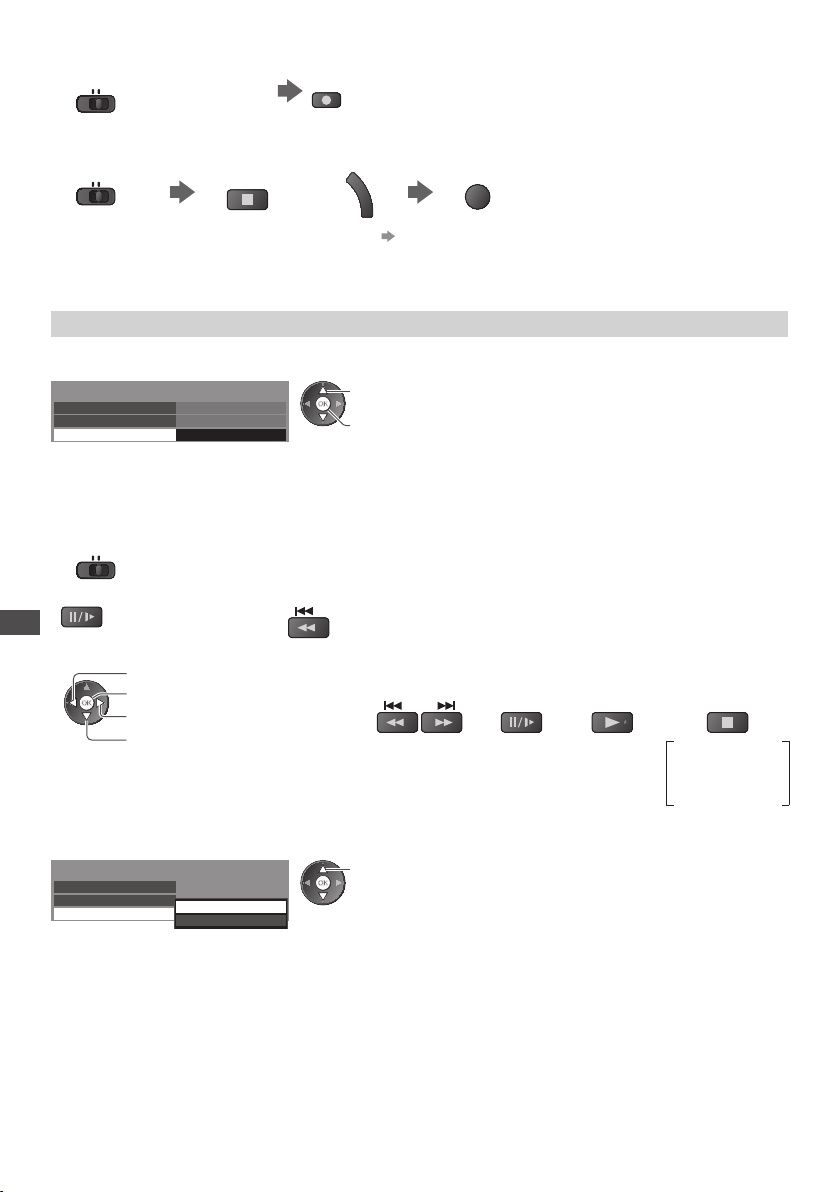

U SB HDD Recording ····························································· 53

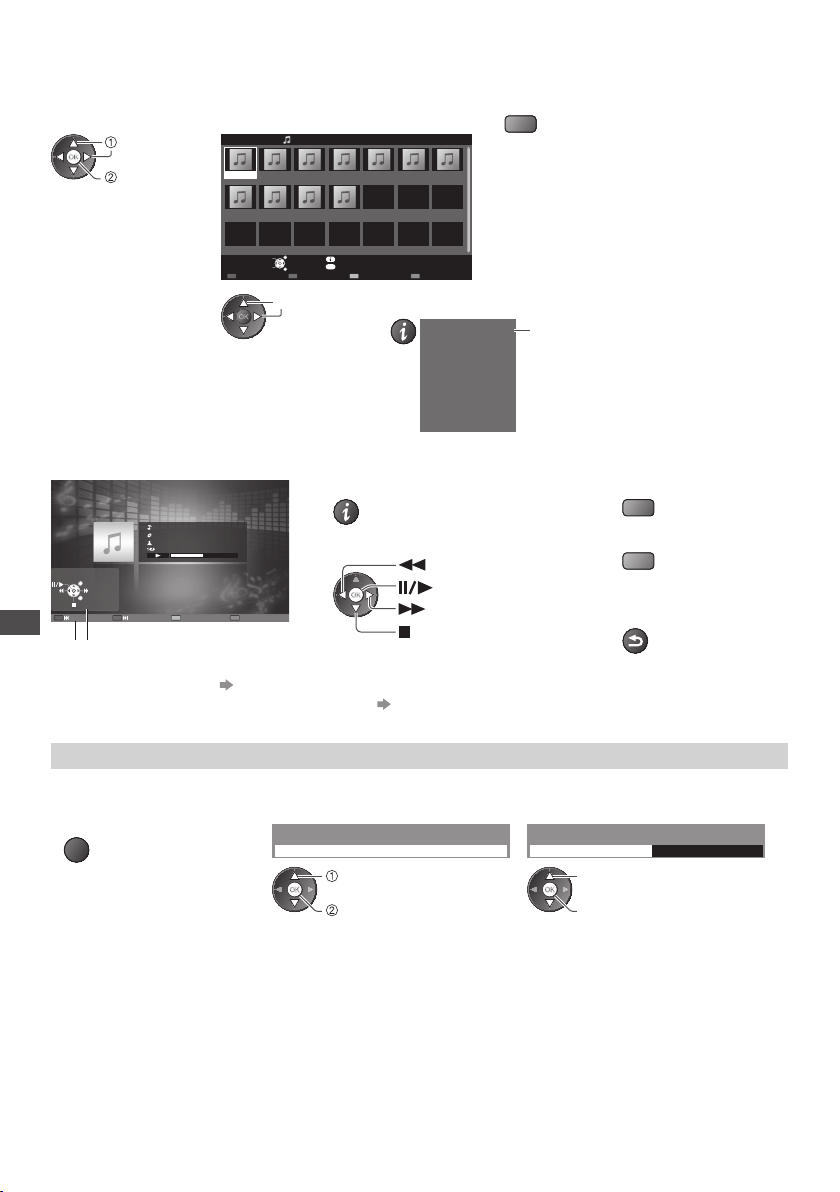

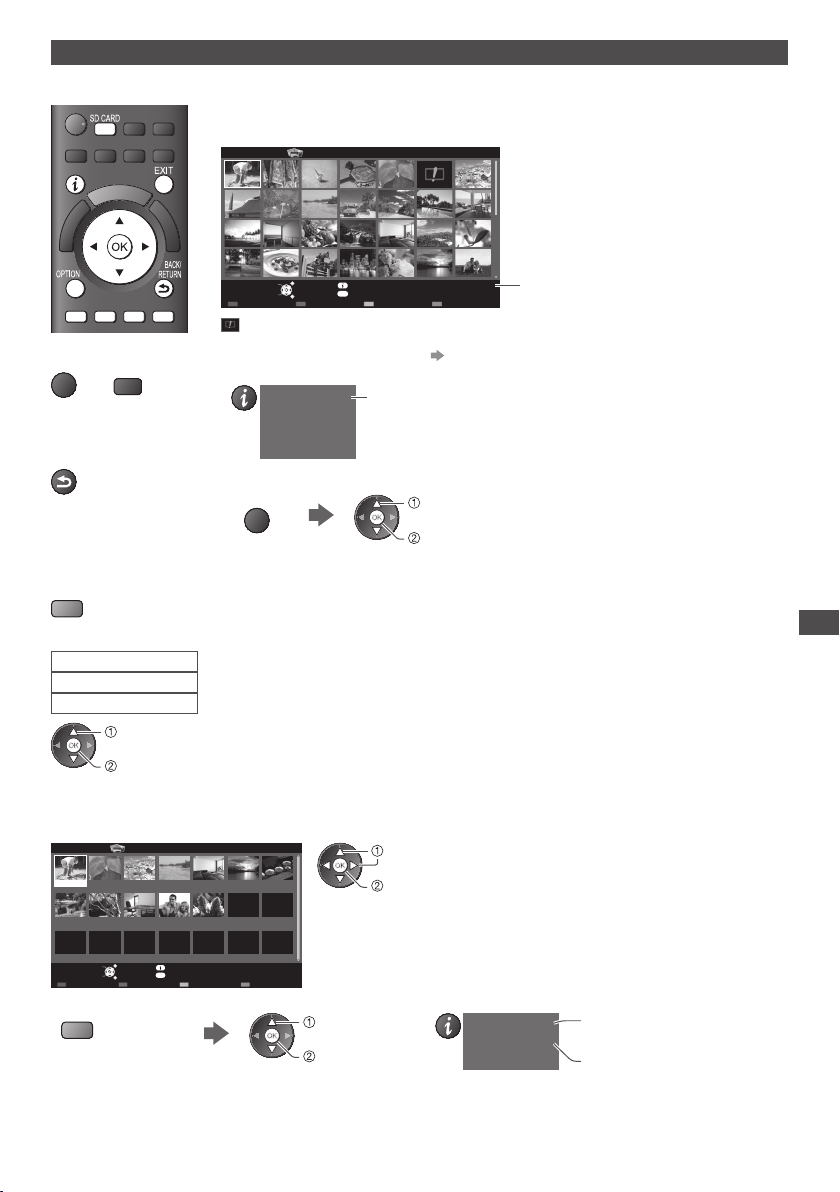

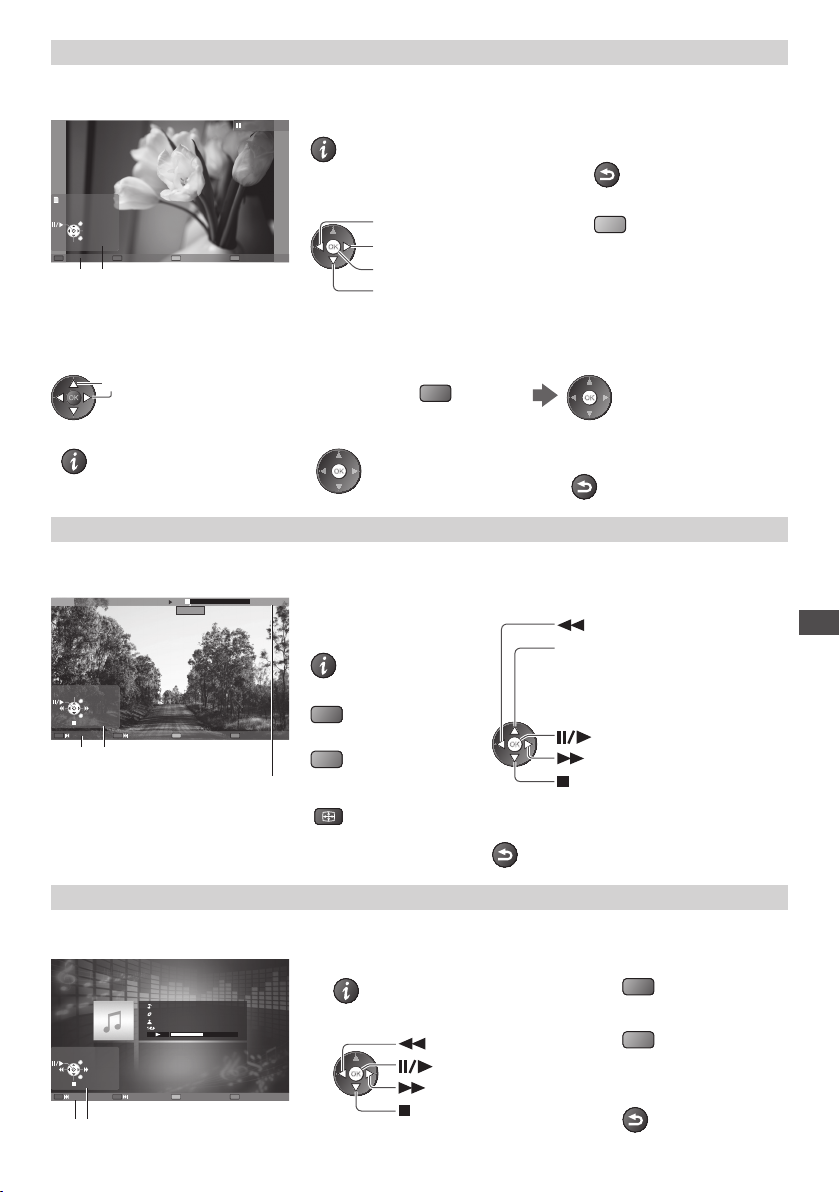

U sing Media Player ······························································· 57

U sing Network Services (DLNA / VIERA Connect)

L ink Functions (Q-Link / VIERALink) ······························· 80

External Equipment ······························································ 89

V ··············································· 52

··········· 69

FAQs, etc.

T echnical Information ··························································92

FAQ s ···························································································99

L icence ····················································································101

Specifications ········································································102

3

Safety Precautions

Warning

Safety Precautions

Handling the mains plug and lead

I nsert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)

•

E nsure that the mains plug is easily accessible.

•

D o not touch the mains plug with a wet hand. This may cause electrical shock.

•

D o not damage the mains lead, damaged lead may cause fire or electrical shock.

•

•

D o not move the TV with the lead plugged into a socket outlet.

•

D o not place a heavy object on the lead or place the lead near a high temperature object.

•

D o not twist the lead, bend it excessively or stretch it.

•

D o not pull on the lead. Hold onto the mains plug body when disconnecting the plug.

•

D o not use a damaged mains plug or socket outlet.

•

E nsure the TV does not crush the mains lead.

If you find any
abnormality,
remove the mains plug
immediately!

Power source / Installation

T his TV is designed for:

•

•

AC 220-240 V, 50 / 60 Hz

•

T able-top use

Do not remove covers and
NEVER modify the TV yourself

H igh voltage components may cause serious electrical

•

shock, do not remove the rear cover as live parts are
accessible when it is removed.

T here are no user serviceable parts inside.

•

H ave the TV checked, adjusted or repaired at your local

•

Panasonic dealer.

Do not expose the TV to direct sunlight and
other sources of heat

Avoid exposing the TV to direct sunlight and other sources

•

of heat.

To prevent the spread
of fire, keep candles or
other open flames away
from this product at all
times

AC 220-240 V
50 / 60 Hz

Do not expose to rain or
excessive moisture

T o prevent damage which might result in electric shock or

•

fire, do not expose this TV to rain or excessive moisture.
T his TV must not be exposed to dripping or splashing

•

water and objects filled with liquid, such as vases, must
not be placed on top of or above the TV.

Do not place foreign objects inside the TV

D o not allow any objects to drop into the TV through the

•

air vents as fire or electric shock may result.

Do not place the TV on sloped or unstable
surfaces, and ensure that the TV does not
hang over the edge of the base

T he TV may fall or tip over.

•

Use only original dedicated pedestal /
mounting equipment

U sing an unapproved pedestal or other fixtures may make

•

the TV unstable, risking injury. Be sure to ask your local
Panasonic dealer to perform the setup or installation.
U se approved pedestals (p.7) / wall-hanging brackets

•

(p.6).

Do not allow children to handle SD Card or
dangerous parts

A s with any small object, the SD Card could be swallowed

•

by young children. Please remove SD Card immediately
after use and store out of reach of children.

T his product contains possibly dangerous parts that

•

can be breathed in or swallowed by young children
accidentally. Keep these parts out of reach of young
children.

4

Caution

When cleaning the TV, remove the mains
plug

Cleaning an energized TV may cause electric shock.

•

Remove the mains plug from the wall socket
when the TV is not in use for a prolonged
period of time

T his TV will still consume some power even in the Off mode,

•

as long as the mains plug is still connected.

Do not expose your ears to excessive volume
from the headphones

Irreversible damage can be caused.

•

Do not apply strong force or impact to the
display panel

T his may cause damage resulting in injury.

•

Do not block the rear air vents

Adequate ventilation is essential to prevent failure of

•

electronic components.
V entilation should not be impeded by covering the

•

ventilation openings with items such as newspapers, table
cloths and curtains.
We recommend that a gap of at least 10 cm is left all

•

around this TV even when placed inside a cabinet or
between shelves.

When using the pedestal, keep the space between the

•

bottom of the TV and the surface where the TV is set.
If pedestal is not used, ensure the vents in the bottom of

•

the TV are not blocked.

M inimum distance

10

10

10

10

Safety Precautions | Maintenance

(cm)

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Pedestal

Regular care :

G ently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to clean the dirt or
fingerprints.

Caution

D o not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.

•

T ake care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.

•

T ake care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade

•

surface quality or cause peeling of the paint.
T he surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface

•

with your fingernail or other hard objects.
D o not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade

•

surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

For stubborn dirt :

D ampen a soft cloth with clean water or diluted neutral detergent
(1 part detergent to 100 parts water). Then wring the cloth and
wipe the surface. Finally, wipe away all the moisture.

5

Accessories / Options

Standard accessories

Remote Control Batteries for the

N2QAYB000490

•

or
N2QAYB000672

•

Remote Control (2)

R6

•

(p.7)

Pedestal

(p.7)

Quick Start Guide

Operating Instructions Pan European Guarantee Card

Accessories may not be placed all together. Take care not to throw them away unintentionally.

•

T his product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young

•

children accidentally. Keep these parts out of reach of young children.

Accessories / Options

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please
refer to the manual of the optional accessories.

Wireless LAN Adaptor

DY-WL10E-K

•

Communication Camera

TY-CC10W

•

Wall-hanging bracket

TY-WK3L2RW

•

T he angle of wall-hanging bracket can

be adjusted in “zero tilting (vertical)”
and “10-degree tilting” for this TV.

Warning

F ailure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the consumer. Always

•

be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause equipment to fall, resulting in injury and
product damage. Any damage resulting from not having a professional installer mount your unit will void your warranty.

When any optional accessories or wall hanging brackets are used, always ensure that the instructions provided are followed fully.

•

D o not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat.

•

Doing so may warp or damage plastic cabinet parts.
T ake care when fixing wall brackets to the wall. Wall mounted equipment shall not be grounded by metal within the wall.

•

Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
T o prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

•

Caution

T o use the Wireless LAN Adaptor, an access point needs to be obtained.

•

I t is recommended to use the Wireless LAN Adaptor with the extension cable.

•

T o avoid malfunctions caused by radio wave interference, keep the TV away from the devices such

•

as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when
using the Wireless LAN Adaptor.
D epending on the area, this optional accessory may not be available.

•

Additional information for Wireless LAN Adaptor and access point may be on the following website.

•

(English only)
http://panasonic.jp/support/global/cs/tv/

Caution

T his camera can be used on VIERA Connect (p. 16, 79).

•

Please also read the manual of the camera.

•

D epending on the area, this optional accessory may not be available.

•

F or details, consult your local Panasonic dealer.

R ear of the TV

200 mm

200 mm

H oles for wall-hanging bracket installation

Screw for fixing the TV onto the wall-hanging
bracket (not supplied with the TV)

(View from the side)

Depth of screw :
minimum 4 mm,
maximum 17 mm
Diameter : M6

6

Attaching the pedestal

Warning

Do not disassemble or modify the pedestal.

O therwise the TV may fall over and become damaged, and personal injury may result.

•

Caution

Do not use any pedestal other than the one provided with this TV.

O therwise the TV may fall over and become damaged, and personal injury may result.

•

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer

•

immediately.

During assembly, use only screws supplied and make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough

•

to support the TV. It might fall over and become damaged and personal injury may result.

Ensure that the TV does not fall over.

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may

•

result.

Two or more people are required to install and remove the TV.

If two or more people are not present, the TV may be dropped, and personal injury may result.

•

Assembly screw (4)

A

M5 × 15

B

Assembly screw (4)

M4 × 30

Assembling the pedestal

1

U se the assembly screws A to fasten the bracket

to the base D securely.

C

M ake sure that the screws are securely

•

tightened.
F orcing the assembly screws the wrong way

•

will strip the threads.

A

C

H old the bracket not to

D

fall over

C

Bracket

TBL5ZA3017

•

TX-L32E30Y

()

TX-L37E30Y

TBL5ZA3014

•

(TX-L42E30Y)

2

Securing the TV

U se the assembly screws B to fasten securely.

T ighten the four assembly screws loosely at first, then tighten

•

them firmly to fix securely.
C arry out the work on a horizontal and level surface.

•

D

Base

TBL5ZX0140 (TX-L32E30Y)

•

TBL5ZX0144 (TX-L37E30Y)

•

TBL5ZX0149 (TX-L42E30Y)

•

B

B

Quick Start Guide

Accessories / Options

Front

Installing / removing remote’s batteries

1

Pull open

H ook

2

Close

N ote the correct

polarity (+ or -)

F oam mat or thick soft cloth

Caution

I ncorrect installation may cause battery leakage and corrosion, resulting

•

in damage to the remote control.
D o not mix old and new batteries.

•

R eplace only with same or equivalent type. Do not mix different battery

•

types (such as alkaline and manganese batteries).
D o not use rechargeable (Ni-Cd) batteries.

•

D o not burn or break up batteries.

•

D o not expose batteries to excessive heat such as sunshine, fire or the like.

•

M ake sure you dispose of batteries correctly.

•

E nsure batteries are replaced correctly, there is danger of explosion and

•

fire if battery is reversed.
D o not disassemble or modify the remote control.

•

7

Identifying Controls

Remote Control

INPUT

SD CARD

ASPECT

MENU

I

V

k

n

i

L

A

R

E

I

V

OPTION

TEXT

STTL

ghi

REC

Switches TV On or Off standby

Switches to SD Card and USB device viewing /
listening mode

Press to access Picture, Sound, Timer and Setup
Menus

C hanges aspect ratio

D isplays channel and programme information

D isplays some special feature icons and accesses
easily

T

O

A

R

E

INDEX HOLD

abc def

jkl

tuvpqrs

PROGRAMME

DVD/VCR

TV

AVTV

DIRECT TV REC

EXIT

O

L

S

G

U

I

D

E

BACK/

RETURN

mno

wxyz

LAST VIEW

TV

15
16

17
18

19

20

21

22

23
24

25

26

27

Quick Start Guide

Identifying Controls

1
2
3

4
5
6

7

8

9

10
11

12

13

14

Standby On / Off switch

1

•

[ Media Player] (p.57)

2

•

[Main Menu] (p.29)

3

•

Aspect (p.20)

4

•

Information (p.18)

5

•

VIERATOOLS (p.28)

6

•

[VIERA Link Menu] (p.84)

7

OK

8

C onfirms selections and choices

•

Press after selecting channel positions to quickly

•

change channel
D isplays the Channel List

•

[Option Menu] (p.19)

9

E asy optional setting for viewing, sound, etc.

•

Teletext (p.24)

10

Switches to teletext mode

•

Subtitles (p.18)

11

D isplays subtitles

•

Numeric buttons

12

C hanges channel and teletext pages

•

Sets characters

•

When in Standby mode, switches TV On (Press for

•

about 1 second)

Sound Mute

13

Switches sound mute On or Off

•

Volume Up / Down

14

Input mode selection

15

TV - switches DVB-C / DVB-T / Analogue mode

•

(p.17)

AV - switches to AV input mode from Input Selection

•

list (p.26)

Direct TV Recording (p.82,84)

16

R ecords programme immediately in DVD Recorder /

•

VCR with Q-Link or VIERA Link connection

[VIERA Connect] (p.16, 79)

17

D isplays VIERAConnect home screen

•

Exit

18

R eturns to the normal viewing screen

•

TV Guide (p.21)

19

Cursor buttons

20

M akes selections and adjustments

•

Return

21

R eturns to the previous menu / page

•

Coloured buttons

22

(red-green-yellow-blue)

U sed for the selection, navigation and operation of

•

various functions

Hold

23

Freeze / unfreeze picture (p.19)

•

H olds the current teletext page (teletext mode)

•

(p.24)

Index (p.24)

24

R eturns to the teletext index page (teletext mode)

•

Last view (p.20)

25

Switches to previously viewed channel or input mode

•

Channel Up / Down

26

Connected equipment operations

27

(p.27, 56, 58, 76, 87)

8

T V

1

2

3

4

5

6

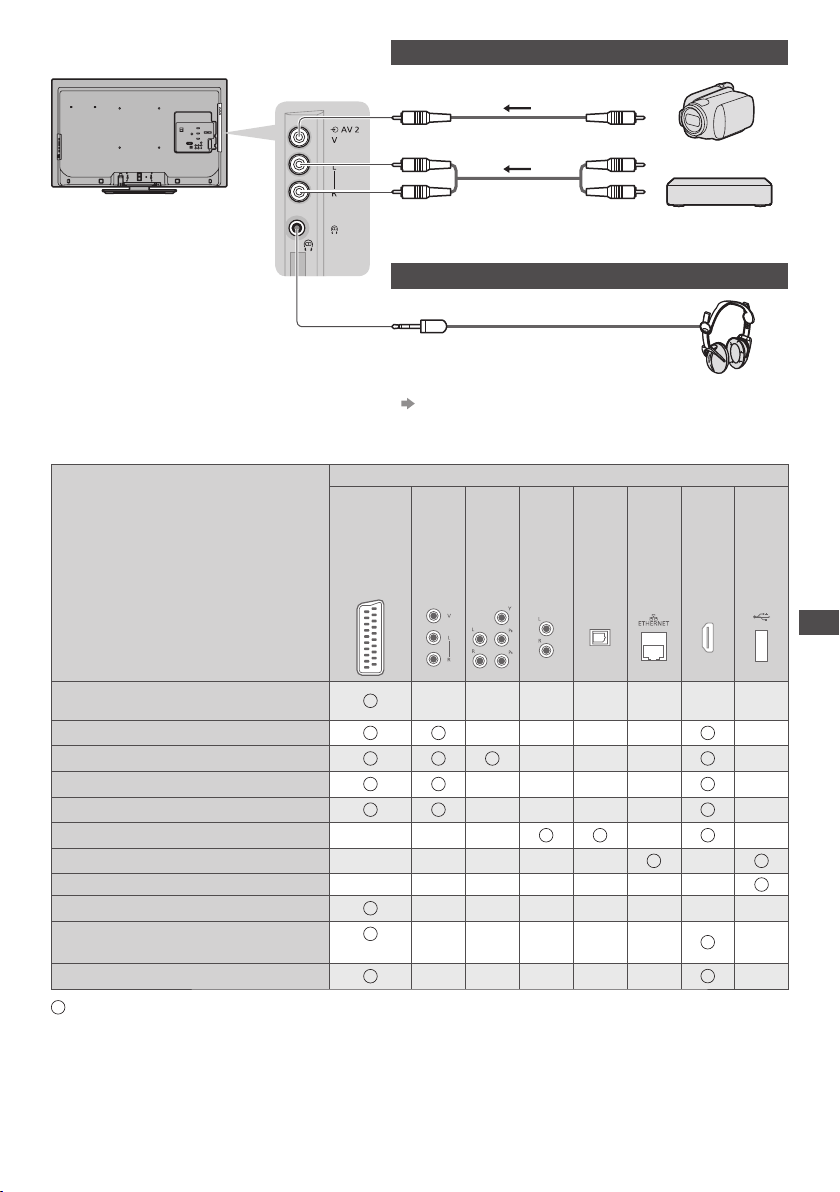

AV2 terminals (p.91)

1

Headphones jack (p.91)

2

CI slot (p.49)

3

SD Card slot (p.57)

4

HDMI4 terminal (p.91)

5

USB 3 port (p.91)

6

Function select

7

[Volume] / [Contrast] / [Brightness] / [Colour] /

•

[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ /
[Balance] / [Auto Setup] (p.37, 38)
∗ [Music] or [Speech] mode in the Sound Menu

11 12 13

C hannel Up / Down, Value change (when using the F

8

F

7

8

TV

9

AV

10

button), Switching the TV On (press either button for
about 1 second when in Standby mode)

Changes the input mode

9

Mains power On / Off switch

10

U se to switch the mains power.

•

If you turned the TV Off during Standby mode by the
remote control last time, the TV will be in Standby
mode when you turn the TV On with Mains power On
/ Off switch.

Remote control signal receiver

11

D o not place any objects between the TV remote

•

control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System)

12

sensor

Senses brightness to adjust picture quality when [Eco

•

Mode] in the Picture Menu is set to [On] (p.30)

Power and Timer LED

13

Red : Standby

•

Green : On
Orange : T imer Programming On
Orange (flash) :

R ecording of Timer Programming, Direct TV
Recording or One Touch Recording in progress

Red with orange flash :

Standby with Timer Programming On, Direct TV
Recording or One Touch Recording

T he LED blinks when the TV receives a command

•

from the remote control.

Quick Start Guide

Identifying Controls

Using the On Screen Displays - Operation guide

M any features available on this TV

Operation guide

O peration guide will help you to operate by using the
remote control.

Example : [Sound Menu]

Main Menu

C hange

M ode Music


B ass
Treble

Sound

B alance
H eadphone Volume

Timer

Surround
Auto Gain Control

Setup

V olume Correction
Speaker Distance to Wall

Select

Selects the basic sound mode.

EXIT

RETURN

O peration guide

can be accessed via the On Screen Display menu.

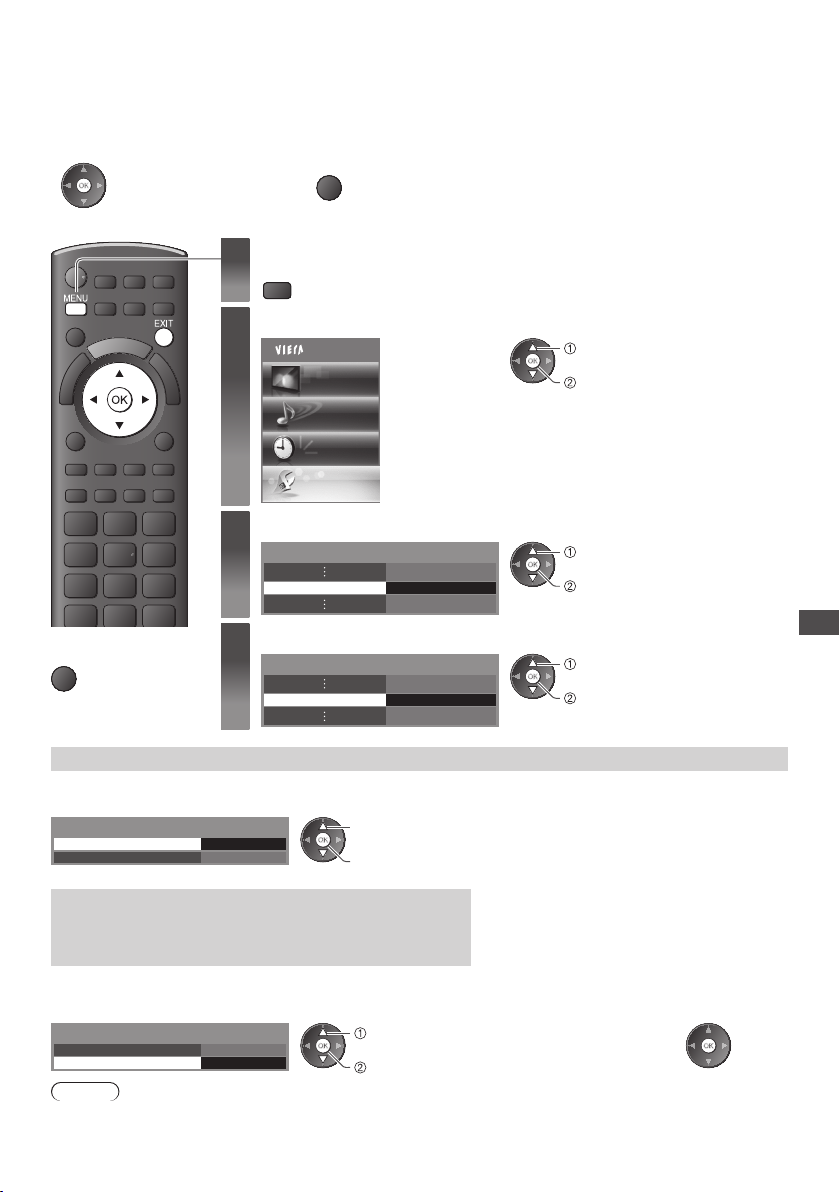

How to use remote control

MENU

O pen the main menu

M ove the cursor / select the menu item / select from a
range of options

M ove the cursor / adjust levels / select from a range
of options

Access the menu / store settings after adjustments
have been made or options have been set

BACK/

R eturn to the

RETURN

previous menu

Of

f

Off

Over 30cm

P age up

P age down

1/2

0
0
0

11

0

Exit the menu system

EXIT

and return to the
normal viewing screen

Auto power standby function

T he TV will automatically go to Standby mode in the following conditions :

•

no signal is received and no operation is performed for 30 minutes in Analogue TV mode

•

[Off Timer] is active in the Timer Menu (p.19)

•

no operation is performed for the period selected in [Auto Standby] (p.33)

T his function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

•

9

Basic Connection

External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

Example 1
Connecting aerial

TV only

R ear of the TV Terrestrial aerial

Quick Start Guide

Example 2
Connecting DVD Recorder / VCR

TV, DVD Recorder or VCR

R ear of the TV

Terrestrial aerial

Basic Connection

AC 220-240 V
50/60 Hz

M ains lead

Cable

RF cable

■ How to use the clamper

bundling the mains lead

To loosen :

k nob

Bundle the cables

hooks

To remove from the TV:

D o not bundle the RF cable and mains lead together (could cause distorted image).

•

F ix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s assembly manual to fix cables.

•

K eep pushing the
knob

Set the tip in the
hooks

snaps

K eep pushing both side

snaps

AC 220-240 V
50/60 Hz

RF OUT

RF IN

M ains lead

RF cable

DVD Recorder or VCR

Fully wired
SCART cable

Cable

RF cable

Note

C onnect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.82).

•

F or HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI

•

cable (p.89).
Q-Link and VIERA Link connection (p. 80, 81)

•

P l ease also read the manual of the equipment being connected.

•

K eep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,

•

distortion of image / sound may occur or operation of other equipment may be interfered.

10

Example 3
Connecting DVD Recorder / VCR and Set top box

TV, DVD Recorder / VCR and Set top box

R ear of the TV

Terrestrial aerial

Cable

RF cable

AC 220-240 V
50/60 Hz

M ains lead

Fully wired HDMI

compliant cable

Set top box

Fully wired
SCART cable

Fully wired
SCART cable

DVD Recorder or
VCR

RF cable

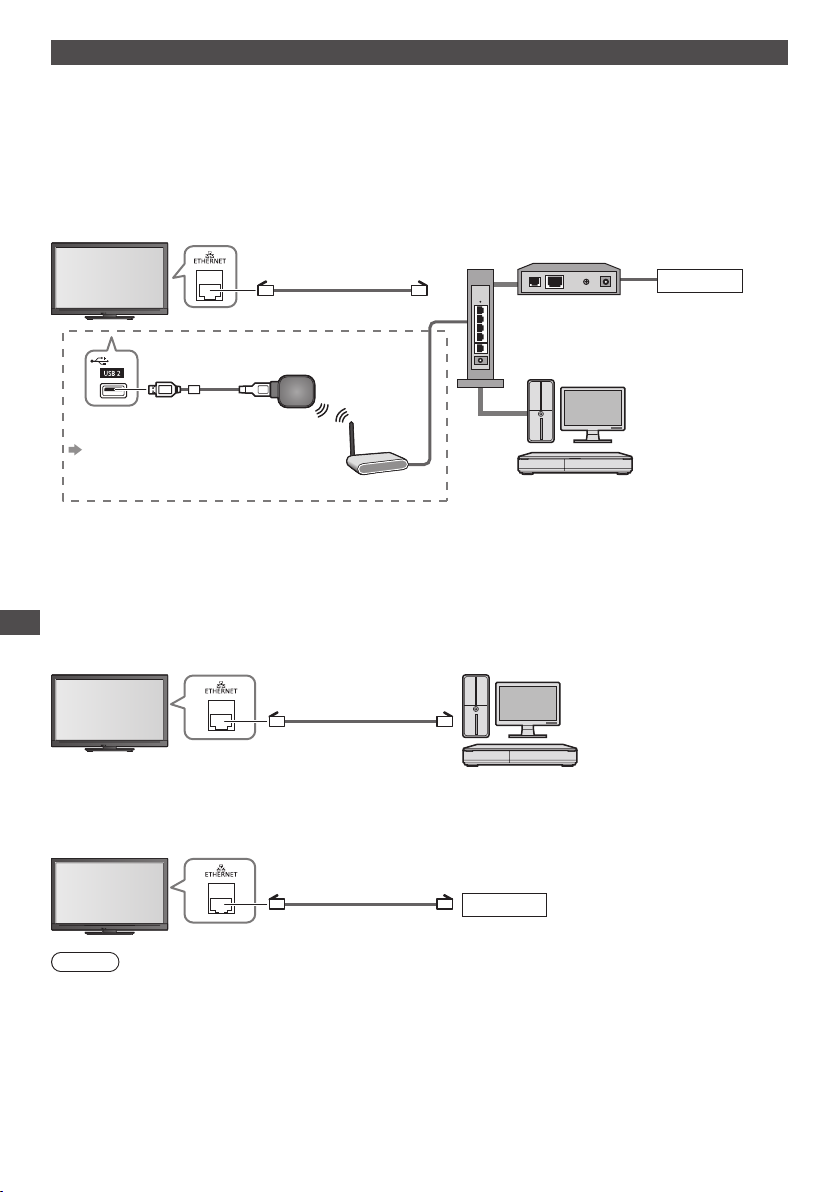

■ Connecting to the network environment (Network connections)

T o enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network
environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

C onnect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).

•

Setup of the network connection will start after the tuning (when first using the TV) (p. 13 - 15)

•

R ear of the TV

Wired connection

LAN cable (Shielded)

U se the Shielded Twist Pair (STP) LAN cable.

•

environment

Quick Start Guide

Basic Connection

RF IN

RF OUT

I nternet

Wireless connection

Wireless LAN Adaptor and Extension cable

“Optional accessories” (p. 6)

C onnect to the USB 1, 2 or 3 port.

•

Note

F or more information of the network connections (p. 70)

•

I nternet

environment

Access point

11

Auto Setup

Search and store TV channels automatically.

T hese steps are not necessary if the setup has been completed by your local dealer.

•

Please complete connections (p.10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup.

•

For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch On

Quick Start Guide

Auto Setup

1

2

3

4

5

TV

T akes a few seconds to be displayed

•

If the red LED shows on the TV, press the Standby On / Off switch on the

•

remote control for about 1 second.

Select the language

Menüsprache

Deutsch D anskPolskiSrpyski

E nglish Svenska č eština Hrvatski

Français N orsk Magyar Slovenščina

Italiano Suomi Slovenčina Latviešu
E spañol Türkçe Български eesti keel

P ortuguês Еλληνικά RomânăLietuvių

N ederlands

select

set

Select your country

Country

G ermany D enmark Poland

Austria Sweden Czech
France Norway Hungary

I taly Finland Slovakia

Spain Luxembourg Slovenia

P ortugal Belgium Croatia

Switzerland Netherlands E stonia

M alta Turk ey Lithuania

A ndorra Greece O thers

select

•

set

D epending on the country you select,
select your Region or store the Child Lock­PIN number (“0000” cannot be stored) by
following the on screen instructions.

Select the mode you want to tune

TV Signal Selection

DVB-C

DVB-T

Analogue

Start Auto Setup

select

tune / skip tuning

: tune (search for the available channels)
: skip tuning

Select [Start Auto Setup]

TV Signal Selection

DVB-C
DVB-T
Analogue

Auto Setup will start to search for TV channels and store them.

•

T he stored channels and sorted channel order vary depending on the country, area,
broadcasting system and conditions of signal reception.

Auto Setup screen varies depending on the country you select.

Start Auto Setup

select

access

12

1 [DVB-C Network Settings]

5

D epending on the country you select, select your cable provider beforehand by following the on screen instructions.

•

DVB-C Network Settings

Frequency Auto
N etwork ID

Start Auto Se

Auto

select

[Start Auto Setup]

access

tup

abc def

jkl

ghi

mno

tuvpqrs

wxyz

N ormally set [Frequency] and [Network ID] to [Auto].
If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with
numeric buttons.

2 [DVB-C Auto Setup] 3 [DVB-T Auto Setup]

DVB-C Auto Setup

Progress

T his will take about 3 minutes.

N o. C hannel Name Type

CBBC Channel

1

BBC Radio Wales

2

E4

3

Free TV: 3

0% 100%

Pay TV: 0 Radio: 0

Searching

Free TV
Free TV
Free TV

Quality

100
100
100

DVB-T Auto Setup

Progress

T his will take about 3 minutes.

CH Channel Name Type

CBBC Channel

62

BBC Radio Wales

62

E4

62
62 100Cartoon Nwk

Free TV: 4

D epending on the country you select, the channel selection screen will

•

be displayed after DVB-T Auto Setup if multiple channels have the same

CH 5 69

Free TV
Free TV
Free TV

V: 0

Free TV

Searching

Pay T

R adio: 0

Quality

100
100
100

logical channel number. Select your preferred channel or exit the screen
for automatic selections.

4 [Analogue Auto Setup] 5 Preset Download

Analogue Auto Setup

Scan
T his will take about 3 minutes.

CH Channel Name

CH 29
CH 33 BBC1

A nalogue: 2

Setup the network connection

6

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p.16, 69).

T o setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required.

•

Please note that this TV does not support wireless public access points.
E nsure the network connections (p. 11) and network environment are completed before starting setup.

•

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Se

CH 2 78 41CC 1

Searching

t later

If Q-Link, VIERALink or similar technology (p.82, 83) compatible
recorder is connected, channel, language, country / region settings are
automatically downloaded to the recorder.

Sending Preset Data

Please wait!

0% 100%

R emote control unavailable

I f d ownloading has failed, you can download later through the Setup

•

Menu. [Download] (p.34)

[Wired] “Wired connection” (p. 11)
[Wireless] “Wireless connection” (p. 11)

T o setup later on or skip this step

select

access

•

Select [Set later] or

EXIT

■ [Wired]

1 . Select [Auto]

Acquire IP Address

Auto M anual

select

access

2 . Go to the next step

(Press twice)

Automatically setup is done and the test of the network

7

connection starts.

T o set manually, select [Manual] and set each item. For

•

details

Connection Test

C heck network cable connection.
C heck acquired IP address.
C heck for devices using same IP address.
C heck gateway connection.
C heck server connection.

(p.72)

: succeeded

T he test is successful
and the TV is connected
to the network.

: failed

C heck the settings and
connections, and then
select [Retry].

Quick Start Guide

Auto Setup

13

Quick Start Guide

Auto Setup

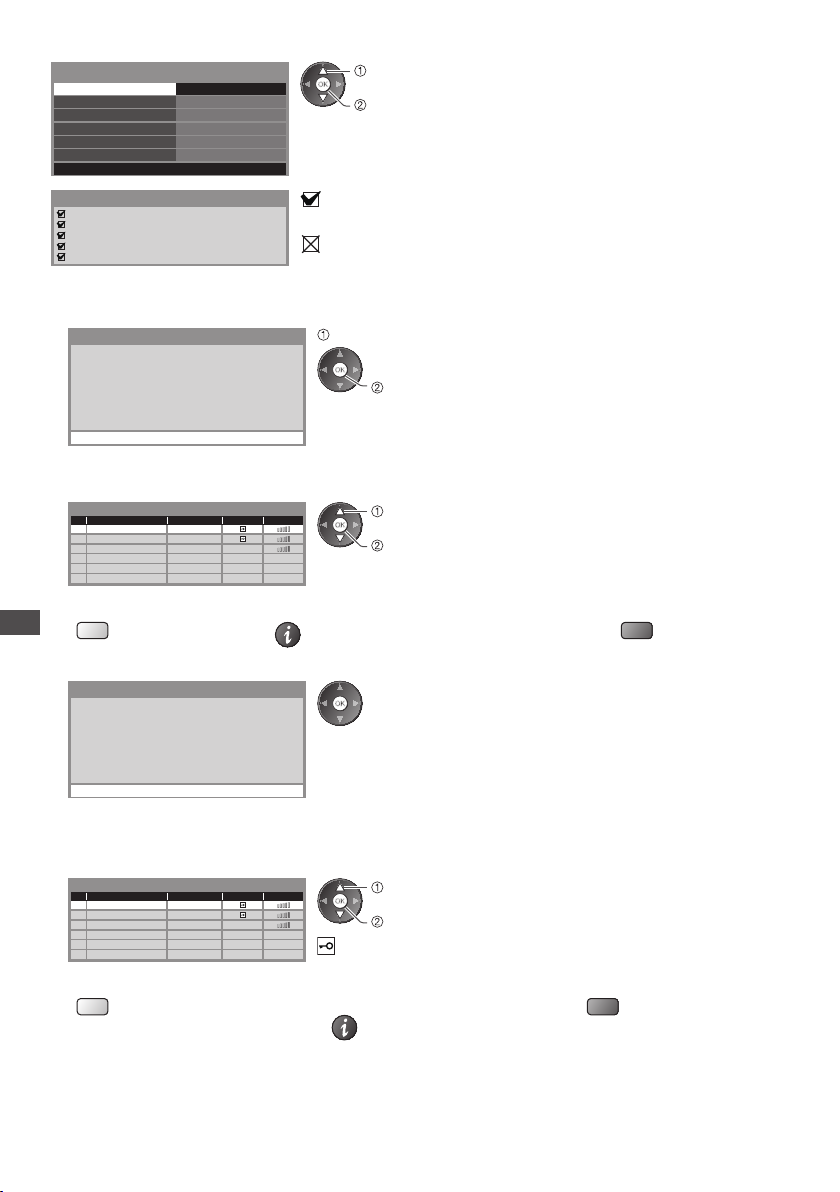

■ [Wireless]

6

Select the connection type

Connection Type

Please select network connection type.

Search for access point

WPS(P

ush button)

access

[Search for access point]

Access points found automatically are listed.
1 . Select your desired access point

Available Access Points

N o. Wireless type E ncrypt Reception

SSID

1

Access Point A
Access Point B

2

Access Point C

3

T o search access points again

•

(yellow)

11n(2.4GHz)
11n(5GHz)
11n(5GHz)

: Encrypted access point

F or the information of the

•

highlighted access point

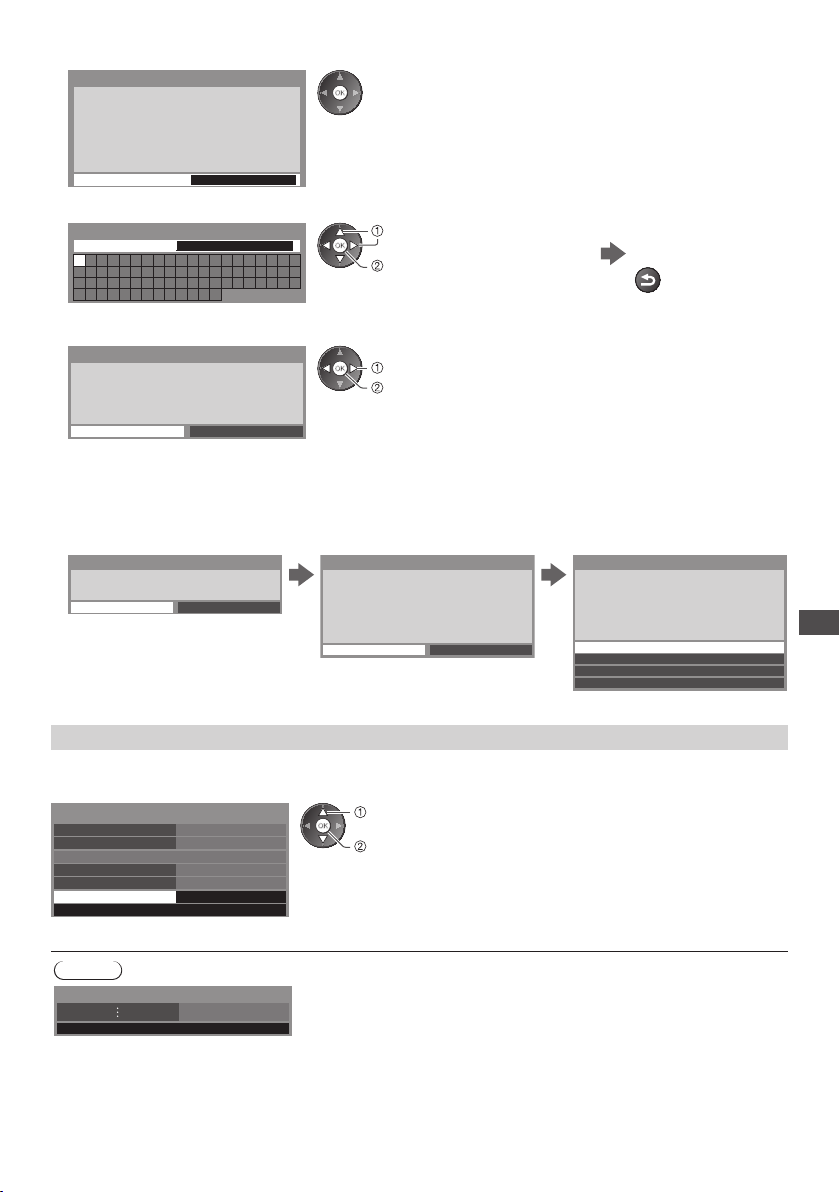

2 . Access the encryption key input mode

Encryption Key Setting

C onnection will be made with the following settings:-
SSID : Access Point A
Authentication type : WPA- PSK
E ncryption type : TKIP

Please input the encryption key.

E ncryption key

If the selected access point is not encrypted, the confirmation screen

•

will be displayed. It is recommended to select the encrypted access

point.

3 . Enter the encryption key of the access point

Access Point Settings

E ncryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

4 . Select [Yes]

Access Point Settings

E ncryption key is set to:-
XXXXXXXX

Select 'Yes' to confirm.
Select 'No' to change.

Y es

N o

Set characters

Y ou can set characters by using numeric buttons.

•

T o re-enter the encryption key, select [No].

•

If the connection has failed, check the encryption key, settings

•

and positions of your access point. And then, follow the on screen
instructions.

5 . After the access point setting is finished, perform the connection test

Connection Test

C heck access point connection.

6 . Go to the next step

C heck acquired IP address.
C heck for devices using same IP address.
C heck gateway connection.
C heck server connection.

7

select

select

access

T o set manually (p.75)

•

(red)

select

set

select

set

: succeeded

T he test is successful and the TV is connected to the
network.

: failed

C heck the settings and connections, and then select
[Retry].

T o set manually, select [Manual] and set each item. For

•

details (p.72)

Store

BACK/

RETURN

14

(Press twice)

[WPS(Push button)]

6

1 . Press the WPS button on the access point until the light flashes
2 . Connect the Wireless LAN Adaptor and the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the access
point until its light ashes.

2) When the light is ashing select ‘Connect’ on
TV.

If you are unsure, please check the instruction
manual of the access point.

3 . After the access point setting is finished, perform the connection test

4 . Go to the next step

Select [Home]

7

Select [Home] viewing environment to use in your home environment.

Please select your viewing environment.

H ome Shop

C onnect

Connection Test

(Press twice)

C heck access point connection.
C heck acquired IP address.
C heck for devices using same IP address.
C heck gateway connection.
C heck server connection.

7

E nsure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

If the connection has failed, check the settings and positions of your

•

access point. And then, follow the on screen instructions.

: succeeded

T he test is successful and the TV is connected to the
network.

: failed

C heck the settings and connections, and then select
[Retry

].

T o set manually, select [Manual] and set each item. For

•

details (p.72)

select

set

■ [Shop] viewing environment (for shop display only)

[ Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

Y ou can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic

•

Demo Off / On selection screen.

1 Return to viewing environment selection

screen

Shop

Y ou have selected shop mode

Automatic Demo

Off O n

T o change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

[Shipping Condition](p.50)

2 Select [Home]

Please select your viewing environment.

H ome Shop

BACK/

RETURN

Quick Start Guide

Auto Setup

select

set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.

Note

T o check channel list at-a-glance “Using TV Guide” (p.21)

•

T o edit or hide (skip) channels “Tuning and Editing Channels” (p.39 - 43)

•

T o retune all channels [Auto Setup](p.37,38)

•

T o add the available TV mode later [Add TV Signal] (p.34,35)

•

T o initialise all settings [Shipping Condition](p.50)

•

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be
displayed for the setup.

T o setup the wireless connection (p.73 - 75)

•

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to
set it up?

No - Exit

Current network type : Wireless

Yes

N o

15

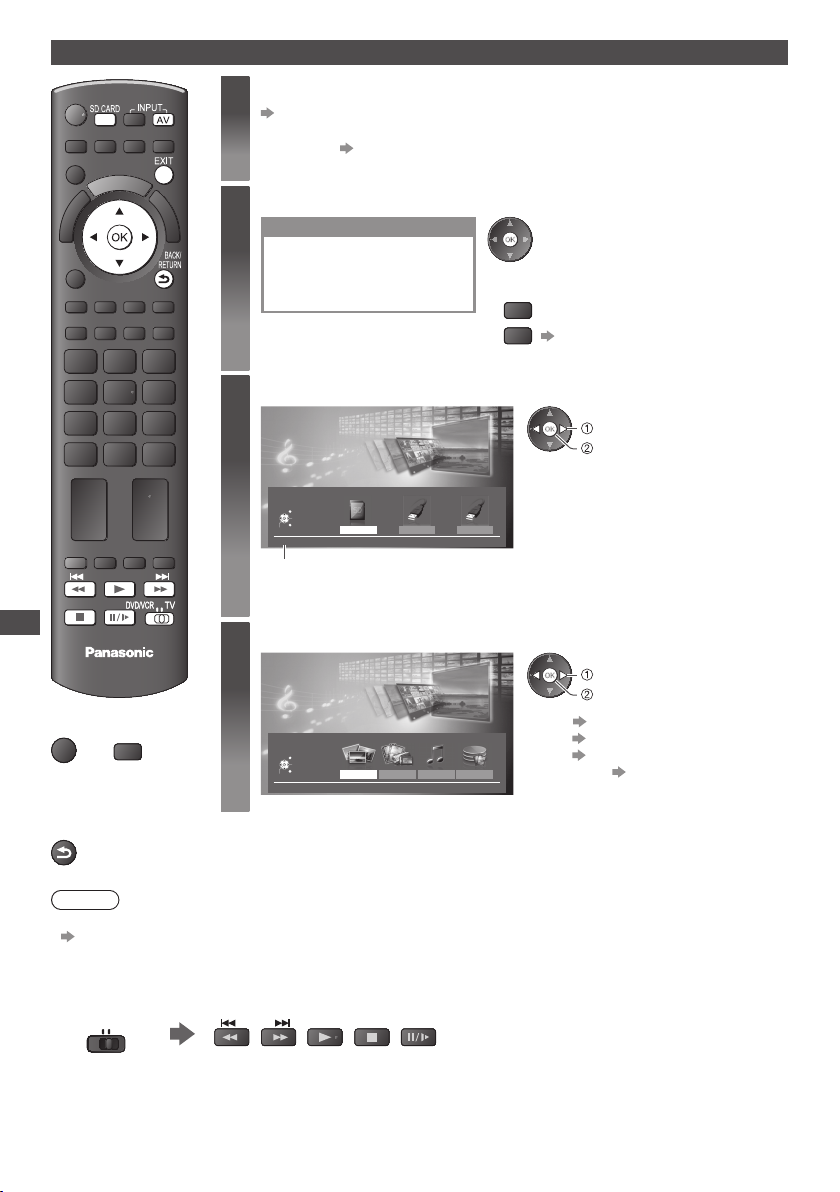

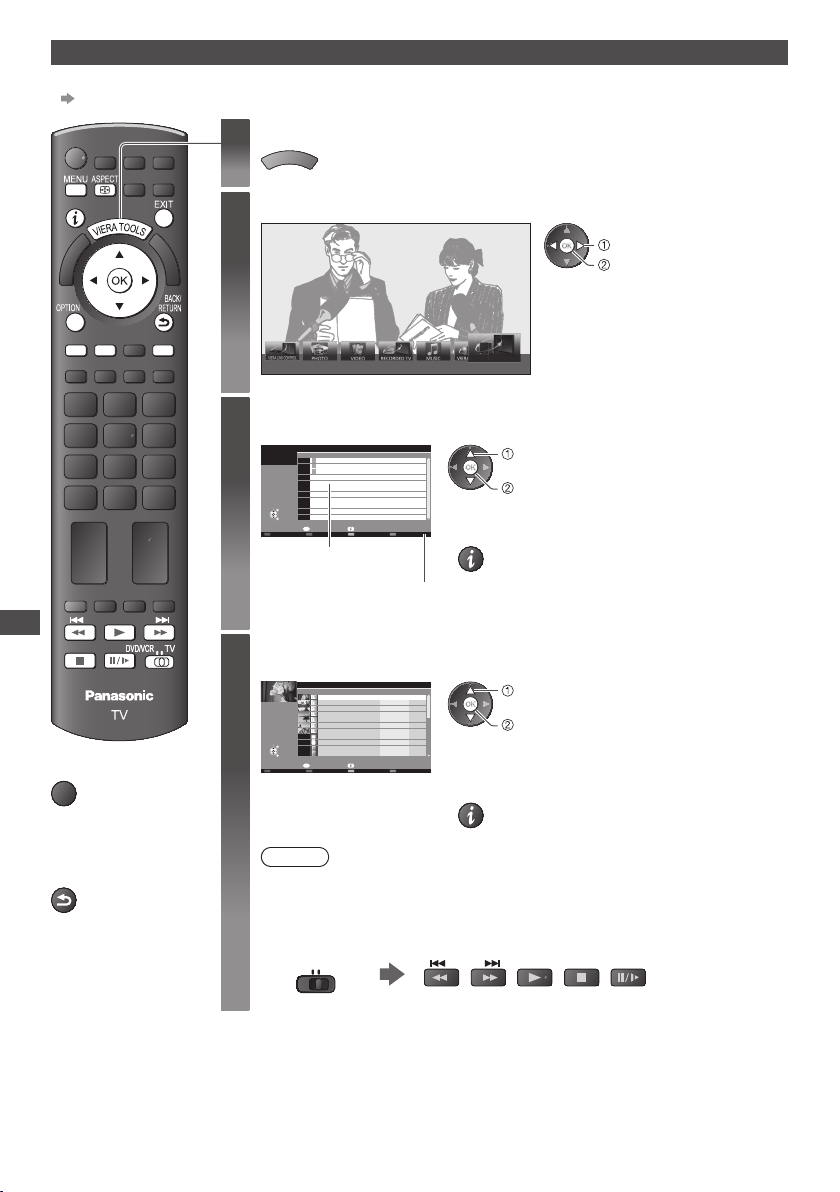

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet cont
photos, videos, games, etc. from VIERA Connect home screen.

T his TV has no full browser function and all features of websites may not be available.

•

Turn power on

1

Press for about 1 second

•

M ains power On / Off switch should be On. (p.9)

•

ents such as

Using “VIERA Connect”

■

To exit from
VIERA Connect

EXIT

T o set the VIERA

•

Connect instruction
banner display off

 [VIERA Connect

Banner] (p. 36)

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

2

While the banner is displayed

Example :

Welcome to VIERA Connect™

VIERA Connect™ home screen is subject to change without notice.

The services through VIERA Connect™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

Some content may only be available for specic countries and may be presented in specic languages.

Example : VIERAConnect home screen

ENTER

Some content may be inappropriate for some viewers.

Every time you turn on the TV, VIERA Connect introduction
banner appears. The banner is subject to change.

T he button design varies

•

depending on the remote
control.

T o go to the next level

•

[MORE]

T o back to the previous level

•

[BACK]

MORE

INTERNET

or

D epending on the usage conditions, it may take a

•

while to read all the data.
M essages might be displayed before VIERAConnect

•

home screen.
Please read these instructions carefully and follow the
on screen instructions.

BACK

■ How to operate VIERAConnect (current as of January, 2011)

T o move the cursor / select the item

•

When the key words are displayed on colour bar

•

(red) (green) (yellow) (blue)

V ideo communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.

•

“Optional accessories” (p.6)

F or details, read the manual of the Communication Camera.

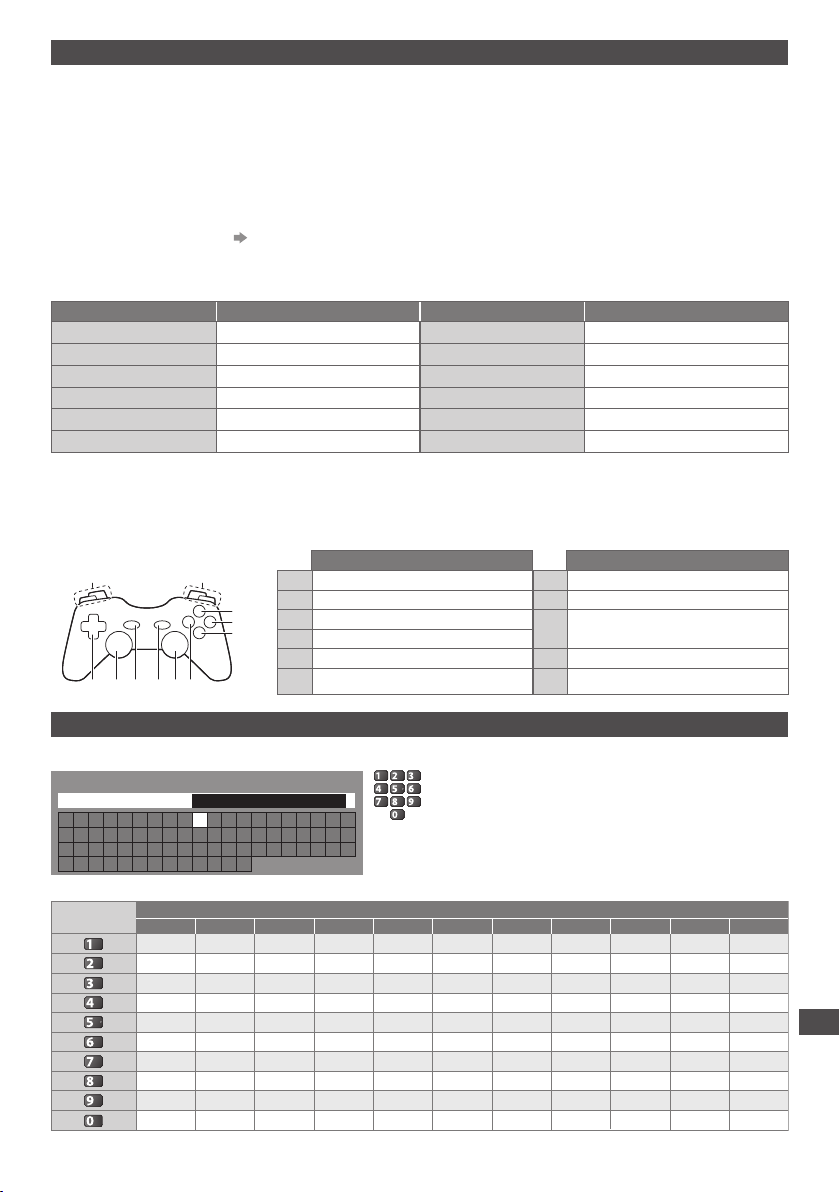

Y ou can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.

•

Y ou can also operate the TV with a keyboard or a gamepad other than VIERA Connect features

“USB connection” (p. 97)

Note

If you cannot access VIERA Connect, check the network connections (p. 11) and settings (p. 13 - 15).

•

F or more information of VIERA Connect (p. 79)

•

16

T o access

•

When options with

•

numbers are displayed

abc def

jkl

ghi

mno

tuvpqrs

wxyz

T o return to the previous screen

•

BACK/

RETURN

T o return to VIERA Connect home

•

screen

INTERNET

. For more information

Watching TV

Turn power on

1

Select the mode

2

Press for about 1 second

•

M ains power On / Off switch should be On. (p.9)

•

■ VIERA Connect introduction banner appears

Y ou can access to VIERA Connect and enjoy the various contents.

(p.16)

T o remove this banner, l eave for about 5 seconds or press any

•

buttons (except the buttons to access VIERA Connect).
T o set this banner display off [VIERA Connect Banner] (p. 36)

•

TV

TV Selection

DVB-C

DVB-T

nalogue

A

T he selectable modes vary depending on the

•

stored channels (p.12).

select

access

Also possible to select the mode pressing the TV

•

button repeatedly on the remote control or side
panel of the TV. (p.9)

If [TV Selection] menu is not displayed, press the

•

TV button to switch the mode.

Watching TV

or

All DVB-T Channels

Change category

20:35

I nformation banner (p.18)

abc def

T o select a more than two-digit channel position

•

jkl

ghi

mno

number, e.g. 399

tuvpqrs

wxyz

wxyz

wxyz

def

V olume

Coronation Street

1

20:00 - 20:55

BBC ONE WALES

Select a channel

3

Now I nfo

u p

d own

■ To select from the Channel List

All DVB-T Channels

6Cartoon Nwk
7 BBC Radio Wales
8 BBC Radio Cymru

1 BBC ONE Wales

2 BBC THREE
3 BBCi
4 CBBC Channel

Sorting 123...

select channel

watch

T o sort channel names in

•

alphabetical order

(red)

T o change the category

•

(blue)

■ Select a channel using Information banner (p.18)

1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel

select channel

watch

■ Select a channel using TV Guide (p.21)

1 Display TV Guide

G

U

I

D

E

T he postcode entry or update may be required depending on the country you select (p.12). Follow the on screen

•

instructions.

Note

T o watch pay-TV “Using Common Interface” (p.49)

•

2 Select the current

programme or channel

select

access

3 Select [ View] (DVB mode)

Das Erste

19:30- 20:00

V iew T imer Programming

select

watch

17

Other useful functions

Display Information banner

Display Information banner

Watching TV

Features available / Message meanings

Also appears when changing a channel

•

1

Example : DVB

1

ZDF

C hannel position and name

1

C hannel type ([Radio], [Data], [HDTV], etc.) /

2

Encrypted channel ( ) /
TV mode (
Programme

3

Current time

4

, , )

HDTV

2 3 6 7 4 5

Coronation Street
20:00 - 20:55
Now

D olby D+ B ad signal

All DVB-T Channels

C hange category I nfo

Programme Start/Finish time (DVB)

5

C hannel number, etc. (Analogue)
Progress time indicator of the selected programme

6

(DVB)
C ategory

7

T o change the category (DVB)

•

(blue)

20:35

45

select

set

Sound mute On

[Bad signal]

P oor T V signal quality

[Dolby D+], [Dolby D], [HE-AAC]

D olby Digital Plus, Dolby Digital or
HE-AAC audio track

Subtitle service available

T o confirm another tuned channel

•

name

T o hide

•

EXIT

Extra information (DVB)

•

(Press again to hide the banner)

T eletext service available

Multiple audio available

Multiple video available

T o watch the channel listed in the

•

banner

Multiple audio and video available

[Stereo], [Mono]

Audio mode

1 - 90

Off Timer remaining time

F or settings (p.19)

•

I nformation on the next programme

•

(DVB)

T o set display timeout

•

[Banner Display Timeout] (p.36)

Display subtitles

Display / hide subtitles (if available)

STTL

•

T o change the language for DVB (if available)

•

[Preferred Subtitles] (p.35)

Note

If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page (p.24). Press the
EXIT button to return to TV mode.

18

Hold

Freeze / unfreeze picture

HOLD

Display the selectable settings for the current status

Check or change the current status instantly

OPTION

[Multi Video] (DVB mode)
Allows you to select from a group of
multiple videos (if available)

•

[Multi Audio] (DVB mode)
Allows you to select between
alternative language for sound tracks
(if available)

•

T o change

•

T his setting is not memorized and it
will return to the default setting once
you exit the current programme.

T his setting is not memorized and it
will return to the default setting once
you exit the current programme.

select

access

[Dual Audio] (DVB mode)
Allows you to select stereo / monaural
(if available)

[Sub Channel] (DVB mode)
Allows you to select the multifeed
programme - sub channel (if available)

[Subtitle Language] (DVB mode)
Allows you to select the language

in which subtitles should appear (if
available)

[Teletext Character Set]

Sets the teletext language font

[Setup Menu] (p.35)

Off Timer

Turn the TV to Standby mode automatically after a fixed period

1 Display the menu

MENU

2 Select [ Timer]

Main Menu


Sound

select

access

select / change

store

[Teletext Language] (DVB mode)
Allows you to select between alternative
language for teletext (if available)

[MPX] (Analogue mode)
Selects multiplex sound mode (if
available)

[Sound Menu] (p.32)

[Volume Correction]

Adjusts volume of individual channel or
input mode

[Safely remove USB]

T akes this operation to remove the
connected USB device safely from the TV

Watching TV

Timer

Setup

3 Select [Off Timer] and set the time

T imer Programming

Off Timer

Auto Standby

Off

15

30
45
60
75
90

m inute
m inute
m inutes
m inutes
m inutes
m inutes

s
s

select [Off Timer]

access

T o cancel Set to [Off] or turn the TV off.

•

T o confirm the remaining time “Display Information banner” (p.18)

•

When the remaining time is within 3 minutes, the remaining time will flash on the

•

screen.

select the time

store

19

A s p e c t

Change the aspect ratio (image size)

E njoy viewing the image at its optimum size and aspect.

ASPECT

Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect
ratio automatically according to the “Aspect Control Signal” (p.92).

■ If you would like to change the aspect ratio manually

1 Display Aspect Selection list 2 While the list is displayed,

Watching TV

ASPECT

[Auto]

[16:9] [4:3 Full]

[14:9] [Zoom1]

[Just] [Zoom2]

[4:3] [Zoom3]

T he best ratio is chosen and the image expanded to fill the screen.
F or details (p.92)

D irectly displays the image at 16:9
without distortion (anamorphic).

D isplays the image at the standard 14:9
without distortion.

D isplays a 4:3 image full-screen.
Stretching is only noticeable at the left
and right edges.

D isplays the image at the standard 4:3
without distortion.

Aspect Selection

Auto

16:9
14:9
Just
4:3
4:3 F

ull
Zoom1
Zoom2
Zoom3

Select

EXIT

Change

RETURN

A spect Selection list

select the mode

select

store

Note

A spect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.

•

O nly [16:9] and [4:3] are available in PC input mode.

•

N ot available in teletext service.

•

A spect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

•

Y ou can also change the mode only

•

using the ASPECT button.

ASPECT

D isplays a 4:3 image enlarged
horizontally to fit the screen.

HD signal only

•

D isplays a 16:9 letterbox or 4:3 image
without distortion.

D isplays a 16:9 letterbox (anamorphic)
image full-screen without distortion.

D isplays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At 16:9, displays the image at its
maximum (with slight enlargement).

(Press repeatedly until you reach

the desired mode)

Last view

Switch to previously viewed channel or input mode easily

LAST VIEW

•

•

Press again to return to the present view.

•

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording
is in progress.
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

20

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the
forthcoming broadcasts over the next seven days (depending on the broadcast

T his function varies depending on the country you select (p.12).

•

T he postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.

•

“View advertisement” (p.22)

DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] means DVB-T channel and [A] means Analogue

•

channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV

•

Guide is completely shown.

Select the mode

1

(p.17)

TV

View TV Guide

2

G

Press again to change the layout ([Landscape] / [Portrait]).

•

U

I

D

V iew [Landscape] to see many channels.

E

V iew [Portrait] to see one channel at a time.

Example :
[Landscape] (Displays by channel)

Wed 27.10.2010

1

10:46

3

5

7

Timer P

rogramming

-24 hours +24 hours Pr og.Type Category

TV Guide: Landscape

Wed 27.10.2010 All Types All Channels

1 BBC ONE

Y SOS : We open in the Battersbys

20:00 - 20:30 DI

D

D

D

D

D

D

D

Select channel

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS The Bill Red Cap

BBC ONE

1

Hot Wars Holiday Program

BBC THREE

7

Emmerdal.

E4

14

10 O’ clock News BBC

BBC FOUR

70

BBC 2W

72

105

BBCi

105

BBC Radi

EXIT
Select programme

RETURN

GUIDE

OPTION

Example :
[Portrait] (Displays by time)

TV Guide: Portrait

Wed 27.10.2010

D BBC ONE1 D BBC THREE7DE414 D BBC FOUR70

19:30-20:00

Das Erste

20:00-20:30

DIY SOS

20:30-21:00

The Bill

21:00-22:00

Red Cap

22:00-23:00

Live junction

23:00-23:30

POP 100

23:30-00:00

Rugby

Select programme

EXIT
Select channel

RETURN

+24 hours Prog.Type Category

GUIDE

OPTION

■

To return to T V

EXIT

Wed 27.10.2010
10:46

rogramming

Timer P

ers).

Coronation Street

Pepsi Char.

Info

Change display mode

Select Advert

All Types All Channels

Info

Change display mode

Select Advert

The Bill

Good bye

CoastSpring watchPanorama

NewsPop IdolI’m A Celebrity

The Bill15 To 1Rugby

Page down

Page down

Current date and time

1

TV Guide date

2

2

TV Guide time

3

4

Programme

4

Advertisement

5

C hannel position and

6

6

Page up

7

name

[D] : DVB-T
[A] : Analogue

Depending on the country
you select, you can select the
TV Guide type

 [Default Guide] in [Display

Settings] (p.35)

If you select [Channel List], the
channel list will appear when
the GUIDE button is pressed.

Page up

Using TV Guide

■ To watch the programme

1 Select the current programme or

channel

select

access

2 Select [ View] (DVB mode)

Das Erste

19:30- 20:00

V iew T imer Programming

select

watch

T o use Timer Programming (p.23)

•

21

■ To the previous day (DVB mode)

(red)

■ To view a channel list of the selected type

(DVB mode)

(yellow)

All Types

Movie
New

s

Prog.Type

All Types

(Type list)

select type

view

■ To the next day (DVB mode)

(green)

■ To view a channel list of the selectedcategory

(blue)

(Category list)

Category

All Channels

All Channels

All DVB-T Channels
All Analogue Channels
Free T V
Pay TV
HDTV
Free Radio
Pay Radio
Favourites1
Favourites2
Favourites3
Favourites4

select category

view

O nly Analogue channels are listed

T o list favourite channels (p.39)

•

Using TV Guide

Other useful functions

View details of the programme (DVB mode)

Select the programme 2 View details

1

select

Press again to return to TV Guide.

•

View advertisement

Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or Analogue mode

T he postcode entry or update is required. Follow the on screen instructions.

Also possible to setup manually from the Setup Menu

•

[Update] / [Postcode] in [GUIDE Plus+ Settings] (p.36)

E nter your postcode when using this function for the first time. If you enter an incorrect postcode for your area, or no

•

postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

T o display the latest advertisement

•

[Update] in [GUIDE Plus+ Settings] (p.36)

■ To change advertisements ■ To return to TV Guide

OPTION

Note

T o update the information continuously, the TV must be left in Standby mode.

•

22

or

BACK/

RETURN

Timer Programming (DVB mode)

T imer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.

1 Select the forthcoming programme

select

set

LED will turn to orange if
Timer Programming is set.
(Orange LED will flash if the recording of
Timer Programming is in progress.)

■ To check / change / cancel a timer

programming event

“Timer Programming” (p.44 - 46)

2 Select the function ([Ext Rec.],[USB HDD Rec.] or [Reminder])

Timer Programming

Function No. Channel Name Date Star t End

Ext Rec.

---

Select timer

Edit timer

[Ext Rec.] / [USB HDD Rec.] :

to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched automatically and the
video and audio signals will be output. 2 minute
reminder message appears if you are watching TV.

[Reminder] :

LED

to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minute
start time. Press the OK button to switch to the programmed channel.

(Timer Programming screen)

<TIMER>

--- --/-- --:-- --:-----

--- --/-- --:--

--- --/-- --:-- --:-----

--- --/-- --:-- --:-----

Remaining Capacity:

EXIT

RETURN

500GB (50%)

Wed 27.10.2010 10:46

Wed 27.10.2010

20:00D 12 BBC ONE

09

■ To return to TV Guide

BACK/

RETURN

(30

(--- min.)

(--- min.)

(--- min.)

(--- min.)

select

20:30

min.)

--:--

1/1

store

s before the starting time, a

s before the

■ If you select the current programme

A confirmation screen asking whether you wish to watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] or [USB HDD Rec.] to record from the time you finish the timer programming

event setting.

Das Erste

19:30- 20:00

V iew T imer Programming

Note

T his function is not available in Analogue mode.

•

T imer Programming only works reliably if correct time information is received via the signal from the broadcaster or service

•

provider.
N o other channel can be selected while the recording of Timer Programming is in progress.

•

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the

•

TV.
If a compatible recorder with Q-Link, VIERALink or similar technologies is connected to the TV (p.82, 83) and the [Link
Settings] (p.33) are completed, no setting of the recorder is required. Also read the manual of the recorder.
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording

•

Setup] (p.53).

select

access

Using TV Guide

23

Viewing Teletext

T eletext services are the text information provided by the broadcasters.
T he features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

I n FLOF mode, four differently coloured subjects are situated at the bott
one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects
shown.

What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

F ast overview of the teletext information available

•

E asy to use step-by-step selection of the topical subject

•

P age status information at the bottom of the screen

•

Available page up / down

(red) (green)

What is List mode?

I n List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be

Viewing Teletext

altered and stored in the TV’s memory.

■ To change mode

[Teletext] (p.35)

1

To select among subject blocks

(blue)

“Store frequently viewed pages” (p.25)

Switch to Teletext

TEXT

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Current page number

om of the screen. To access more information about

T o select next subject within the subject
block
(After the last subject, it moves to the next
subject block.)

(yellow)

D isplays the index page (content varies

•

depending on the broadcasters)

T ime / date

C olour bar

Select the page

2

abc def

jkl

ghi

tuvpqrs

■

To return to T V

EXIT

■ To adjust contrast

MENU

(Press three times)

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU

(red)

Press again to rehide.

•

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

Press again to resume.

HOLD

•

24

mno

or

wxyz

u p

d own

or

C oloured button
(Corresponds to the colour bar)

A s the blue bar is displayed

INDEX

Return to the main index page

INDEX

Call up a favourite page

View a favourite page stored

C all up the page stored on the blue button (List mode).

F actory setting is “P103”.

STTL

•

FULL / TOP / BOTTOM

MENU

(TOP) (BOTTOM) Normal (FULL)

(green)

(Expand the TOP half )

(Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once

MENU

(Press twice)

O perations can be made only in teletext screen.

•

Select Picture and text On or Off

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

A s page is displayed

(Corresponding
coloured button)

press and hold

■ To change stored pages

C oloured button you
want to change

View sub page

View sub page (Only when Teletext is more than one page)

E nter new page number

abc def

jkl

ghi

mno

tuvpqrs

wxyz

A ppears at top of the screen

■ To view specific sub page

MENU

(blue)

T he number changes to white.

press and hold

mno

T he number of sub pages varies depending on the

•

broadcasters (up to 79 pages).
I t may take some time for searching, during which time

•

you can watch TV.

E nter the 4-digit number
Example : P6

Viewing Teletext

Watch TV while waiting for update

View the TV picture while searching for a teletext page

T eletext automatically updates itself when new information becomes available.

MENU

T he news page provides a function that indicates arrival of latest news (“News Flash”).

•

(yellow)

C hanges to TV screen temporarily

P108

(You cannot change the channel.)

A ppears when updating
is completed

V iew the updated
page

(yellow)

25

Watching External Inputs

C onnect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

T o connect the equipment (p.10, 11, 89 - 91)

•

T he remote control is capable of operating some functions of selected external equipment.

“Operating the equipment with the TV remote control” (p. 27)

Turn the TV on

1

When connecting with SCART as example 2 or 3 (p.10, 11)

R eceives input signals automatically when playback starts

I nput signals are automatically identified by the SCART (pin 8) terminal.

•

T his function is also available for HDMI connections (p.89).

•

If input mode is not switched automatically

2

3

and

C heck the setup of the equipment.

•

Y ou can also select the input using the AV button on the remote control or the side
panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
[ SD Card/USB] : Switches to Media Player “Using Media Player” (p.57)
Y ou can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.48)
Skipped inputs will not be displayed when the AV button is pressed.

Watching External Inputs

■

To return to T V

TV

TV

P erform

Display the input selection menu

2

AV

Select the input mode connected to the equipment

3

Input Selection

AV1

AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV
SD Card/USB

•

•

•

View

4

AV1

select

watch

26

D isplays the selected mode

Note

If the external equipment has an aspect adjustment function, set it to “16:9”.

•

F or details, see the manual of the equipment or ask your local dealer.

•

Operating the equipment with the TV remote control

T he equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc
theatre or VCR

DVD/VCR

TV

PROGRAMME

REC

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 55)
“Media Player” (p. 58)

“Using DLNA® features” (p. 76)
“VIERA Link Control” (p.86)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR :

R ewind, view the picture rapidly in reverse

DVD / video content :

Skip to the previous track, title or chapter
Press and hold to search backward

Fast-forward / Skip / Search

VCR :

F ast-forward, view the picture rapidly forward

DVD / video content :

Skip to the next track, title or chapter
Press and hold to search forward

Pause

P ause / Resume
DVD : Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

How to change the code for the type of the equipment

E ach type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.

1 Set the position to “DVD/VCR”

DVD/VCR

TV

2 Press and hold during the following operations

E nter the appropriate code, see
table below

DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Type of the equipment C ode

Player theatre, Blu-ray Disc theatre 71

VCR 72

Press

Watching External Inputs

Note

C onfirm if the remote control works correctly after changing the code.

•

T he codes may be reset to default values if batteries are replaced.

•

Some operations may not be possible on some equipment models.

•

27

How to Use VIERA TOOLS

Y ou can access some special features easily by using the VIERATOOLS function.

Display icons of the feature

1

2

■

To return to T V

EXIT

How to Use VIERA TOOLS

■ Follow the operations of each feature

[VIERA Link Control]

“VIERA Link Control” (p.86)

[Photo]

“Photo mode” (p.59)

[ Video]

“Video mode” (p.63)

[Recorded TV ]

“Recorded TV mode” (p.65)

∗

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

or

T

O

A

O

R

L

E

S

I

V

When two or more compatible equipment are
connected, a selection screen will be displayed.
Please select the correct description and access.

∗

∗

∗

T

O

A

O

R

L

E

S

I

V

Select a feature

VIERA Link Control

[Music]

“Music mode” (p.67)

[VIERA Connect]

“VIERA Connect” (p.79)

[Media Server]

“Using DLNA® features” (p.76)

select

access

∗

∗

Note

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to

•

view the demonstration after selecting the unavailable feature.

28

How to Use Menu Functions

V arious menus allow you to make settings for the picture, sound, and other functions.

Display the menu

1

MENU

Select the menu

2

Example : [Picture Menu]

D isplays the functions that can be set (varies according to the input signal)

•

Main Menu


Sound

T

imer

select

access

TV

■

To return to T V at any
time

EXIT

■

To return to the
previous screen

BACK/

RETURN

■

To change menu
pages

u p

d own

Select the item

3

Example : [Picture Menu]

V iewing Mode Dynamic

C ontrast
Brightness
C olour
Sharpness
T int
C olour Balance
V ivid Colour
Eco Mode Of

Setup

Warm
Off

1/2

60

0

30

5
0

f

■ Choose from among alternatives

C ool

C olour Balance

N ormal

Warm

■ Adjust using the slide bar

Sharpness

M oved

■ Go to the next screen

C hild Lock Access

D isplays the next screen

5

■ Enter characters by free input menu

Y ou can enter names or numbers freely for some items.

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

Y ou can set characters by using numeric buttons.

•

 “Characters table for numeric buttons” (p.97)

Set characters one by one

select

■ To reset the settings

T o reset the picture settings only

•

 [Reset to Defaults] in the Picture Menu (p.31)

T o reset the sound settings only

•

 [Reset to Defaults] in the Sound Menu (p.33)
T o initialise all settings

•

 [Shipping Condition] in the Setup Menu (p.36)

set

select

access

select

store

change

store

access

How to Use Menu Functions

Store

BACK/

RETURN

29

How to Use Menu Functions

Menu list

Menu

Viewing Mode

Contrast, Brightness,
Colour, Sharpness


Tint

Colour Balance

Vivid Colour

Reversal Film Effect

Eco Mode

P-NR

3D-COMB

Screen Display

Item Adjustments / Configurations (alternatives)

B asic picture mode

[Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo]

I n each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint],
[Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted
and stored to suit your particular viewing requirement.

Set for each input signal.

•

[Dynamic] :

Provides enhanced picture contrast and sharpness when viewing in a bright room.

[Normal] :

R ecommended for viewing under normal ambient room lighting conditions.

[Cinema] :

F or watching movies in a darkened room with the improved performance of contrast,
black and colour reproduction

[True Cinema] :

Precisely reproduces the original quality of the image without any revision.

[Game] :

F ast response signal specifically to provide suitable images for playing games

N ot valid on TV mode

•

A continuous record of time spent using Game mode can be displayed in the top

•

right of the screen. [Playing Time Display](p.36)

[Photo] :

Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos

F or HDMI input, Media Player and network service operations

•

I ncreases or decreases the levels of these options according to your personal
preference

With an NTSC signal source connected to the TV
suit your taste

F or NTSC signal reception only

•

Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]

N ot valid when [Viewing Mode] is set to [True Cinema].

•

Automatically adjusts colours to vivid ones [Off] / [On]

N ot valid on PC signal

•

Provides the picture effect such as the reversal film [Off] / [On]

T his function is available when [Viewing Mode] is set to [Photo].

•

Automatic Brightness Control function
Adjusts picture settings automatically dependent on ambient lighting conditions

[Off] / [On]

P icture Noise Reduction
Automatically reduces unwant
of a picture [Off] / [Min] / [Mid] / [Max]

N ot valid on PC signal

•

M akes still or slow moving pictures look more vivid [Off] / [On]

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be

•

seen. Set to [On] to display sharper and more accurate colours.
F or PAL or NTSC signal reception only

•

N ot valid on RGB, Component, PC, HDMI and Media Player

•

Turns the screen off when you select [Off ]

[Off] / [On]

T he sound is active even if the screen turns off.

•

Press any buttons (except Standby) to turn the screen on.

•

T his function is effective in reducing power consumption when listening to the sound

•

without watching the TV screen.

ed picture noise and flicker noise in the contoured parts

, the picture hue can be adjusted to

30

Menu

Item Adjustments / Configurations (alternatives)

Automatically compensates the picture frame rate and removes juddering movements
to make the images smooth [Off] / [Mid] / [Max]

Intelligent Frame
Creation

D epending on the contents, images may be noisy. To prevent the noise, change the

•

setting.
T his function is not available for selection (default to [Off]) when [Viewing Mode] is

•

set to [Game] or in the mode of PC / network service operations.

Advanced Settings


Reset to Defaults

24p Smooth Film

Film Cadence
Detection

Resolution Enhancer

16:9 Overscan

AV Colour System

DVI Input Setting

Automatically compensates the picture frame rate to make the 24p sour
images smooth [Off] / [Mid] / [Max]

T his is available only for 24p signal input and displayed instead of [Intelligent Frame

•

Creation].
T his function is not available for selection (default to [Off]) when [Viewing Mode] is

•

set to [Game] or in the mode of PC / network service operations.

Automatically makes the film source movie images clear [

T his function is available for the interlaced signal (except when [Viewing Mode] is set

•

to [Game]).

E nhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]

T his function is available for SD (Standard definition) signal.

•

A s for HD (High definition) signal, this function is available when aspect mode is set

•

to [16:9] ([16:9 Overscan] is set to [On]), [4:3 Full] or [Zoom].
N ot valid on network service operations and Media Player

•

Selects the screen area displaying the image [Off] / [On]

[On] :

E nlarged the image to hide the edge of the image.

Off] :

[

D isplayed the image in the original size.
Set to [On] if noise is generated on the edge of the screen.

•

T his function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].

•

T his function can be memorized separately for SD (Standard definition) and HD (High

•

definition) signals.
N ot valid on PC and VIERA Connect

•

Selects optional colour system based on video signals in AV mode

[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]

C hanges the black level in the image for HDMI input mode with DVI input signal
manually [Normal] / [F

When the DVI input signal from the external equipment, especially from PC, is

•

displayed, the black level may not be suitable. In this case, select [Full].
T he black level for HDMI input signal will be adjusted automatically.

•

F or HDMI input mode with DVI input signal only

•

Press the OK button to reset the present Picture Viewing Mode of the selected input to
the default settings

ull]

Off] / [On]

ce movie

How to Use Menu Functions

Sound

Mode

Selects the basic sound mode [Music] / [Speech] / [User]

T he selected mode affects all input signals.

•

[Music] :

Improves sound quality for watching music videos, etc.

[Speech] :

Improves sound quality for watching news, drama, etc.
I n Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those

•

settings will be stored for each mode.

[User] :

Adjusts the sounds manually by using the equaliser to suit your favourite sound
quality.
F or the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and

•

[Treble]. Select the [Equaliser] and adjust the frequency.

[Equaliser] (p. 32)

31

Menu

Bass I ncreases or decreases level to enhance or minimise lower, deeper sound output

Treble I ncreases or decreases level to enhance or minimise sharper, higher sound output

Item Adjustments / Configurations (alternatives)

How to Use Menu Functions

Adjusts the frequency level to suit your favourit

T his function is available when [Mode] is set to [User].

•

Select the frequency and change the frequency level by using the cursor button.

•

Equaliser

Balance Adjusts volume level of right and left speakers

Headphone

Surround

Auto Gain Control

Volume Correction Adjusts the volume of individual channel or input mode

Sound

Speaker Distance to Wall

MPX

Volume Adjusts the volume of the headphones

If you want to enhance the bass sound, raise the level of the lower frequency. If you

•

want to enhance the treble sound, raise the level of the higher frequency.
T o reset the levels of each frequency to the default settings, select the [Reset to

•

Defaults] by using the cursor button, and then press the OK button.

Surround sound settings [Off] / [V-Audio] / [V-Audio Surround]
[V-Audio] :

Provides a dynamic enhancer of width to simulate improved spatial effects

[V-Audio Surround] :

Provides a dynamic enhancer of width and depth to simulate improved spatial effects

Adjusts the current volume level if it is extremely different from the previous viewed
channel or input mode [

Adjusts the low frequency sound [Over 30cm] / [Up to 30cm]

If the back space between the TV and wall is over 30 cm, [Over 30cm] is

•

recommended.
If the back space between the TV and wall is within 30 cm, [Up to 30cm] is

•

recommended.

Selects multiplex sound mode (if available)

[Stereo] : Use this normally
[Mono] : When stereo signal cannot be received
[M1] / [M2] : Available while mono signal is transmitt

A nalogue mode only

•

Off] / [On]

e sound quality

ed

32

Audio Preference

Selects the initial setting for audio tracks [Auto] / [Multichannel] / [Stereo] / [MPEG]

Selectable options vary depending on the country you select.

•

[Auto] : Automatically selects the audio tracks if programme has more than two tracks.

The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby
Digital, MPEG.

[Multichannel] : T he priority is given to multi-channel audio track.
[Stereo] : T he priority is given to stereo (2ch) audio track.
[MPEG] : T he priority is given to MPEG.

D olby Digital Plus and Dolby Digital are the methods of coding digital signals

•

developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be
multi-channel audio.
HE-AAC is a perceptual coding method used to compress digital audio for efficient

•

storage and transmission.
MPEG is an audio compression method that compresses audio to the smaller size

•

without any considerable loss of audio quality.
D olby Digital Plus and HE-AAC are the technologies for HD (High definition)

•

programmes.
DVB mode only

•

Menu

SPDIF Selection

Sound

HDMI1 / 2 / 3 / 4 Input

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : D olby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream.
MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

F or DVB mode, network video contents (p. 77) or Video mode of Media Player (p.63)

•

ARC (Audio Return Channel) : A function of digital audio output using HDMI cable

•

Select to fit the input signal [Digital] / [Analogue] (p.96)

[Digital] : HDMI cable connection
[Analogue] : HDMI-DVI adaptor cable connection

HDMI input mode only

•

SPDIF Delay

Reset to Defaults

Timer Programming

Off Timer

Timer

Auto Standby

Eco Navigation

Recording Setup F ormats the connected USB HDD and sets the condition (p. 53)

Setup

VIERA Link Sets to use VIERA Link functions [Off ] / [On] (p.83)

Link Settings

HDMI Content Type

Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC
function) terminals if the sound does not synchronize the image

DVB mode only

•

Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume]
and [Surround] to the default settings

Sets a timer to remind watching or record forthcoming programmes (p.44)

DVB mode only

•

Sets the time until the TV automatically goes to Standby mode
[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p.19)

Sets the time the TV automatically goes to Standby mode when no operation is
performed for the selected times [

Starting Timer Programming automatically does not affect this function.

•

Automatic input switching with the connected equipment affects this function and

•

time-count will be reset.
T he notification message will appear 3 minutes before going to Standby mode.

•

Automatically sets the TV to the most suitable energy-saving mode

If you press the OK button, the following items are set as below :

•

[Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save] [On]
[Intelligent Auto Standby] [On (No reminder)]
[Auto Standby] [2 hours]

Adjusts the picture settings according to the content type signal from the connected
equipment via HDMI cable [Off] / [Auto]

T his function is available if the connected equipment supports HDMI Content Type.

•

T he content type information will be displayed for several seconds when this function

•

works.

Off] / [2] / [4] (hours)

How to Use Menu Functions

AV1 out

C hooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor]
[Monitor] : Image displayed on screen

C omponent, PC and HDMI signals cannot be output.

•

33

Menu

Item Adjustments / Configurations (alternatives)

Power on Link Sets to use Power on Link function [Off ] / [On] (p.82,83)

Power off Link Sets to use Power off Link function [Off] / [On] (p.82,83)

C ontrols the power consumption in Standby mode of the connected equipment to

Link Settings

Standby Power Save

reduce the consumption [Off] / [On] (p.84)

T his function is available when [VIERA Link] is set to [On] and [Power off Link] is set

•

to [On].

How to Use Menu Functions

Intelligent Auto
Standby

Download

Child Lock Locks a channel / AV input to prevent access to it (p.46)

Favourites Edit Creates list of favourite DVB-C channels (p.39)

Channel List Skips the unwanted DVB-C channels or edits DVB-C channels (p.40)

Auto Setup Automatically sets the DVB-C channels supplied (p.37)

Manual Tuning Sets the DVB-C channels manually (p.41)

Setup

Update Channel List U pdates DVB-C Channel List while keeping your settings (p.41)

DVB-C Tuning Menu

avourite Network Selects your favourite network for each broadcasters (only available in some countries)

F

New Channel
Message

Service Replacement

Signal Condition C hecks the DVB-C signal condition (p.41)

Attenuator Automatically reduces the DVB-

Add TV Signal

M akes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption

Off] / [On (With reminder)] / [On (No reminder)] (p.84)

[

T his function is available when [VIERA Link] is set to [On].

•

D ownloads channel, language, country / region settings to a Q-Link or VIERALink
compatible equipment connected to the TV

DVB-C channel settings cannot be downloaded.

•

Selects whether to give a notification message when a new DVB-C channel is found

Off] / [On] (p.41)

[

Set to [On] to enable a message to switch to the available service (only available in
some countries) [Off] / [On]

C signal to avoid the interference [Off] / [On] (p.41)

Adds the TV mode

T his function is available if you skip any modes to tune in [Auto Setup] for first using

•

the TV.
T o operate, refer to the “Au to Setup” operations for first using the TV (p.12,13).

•

34

Favourites Edit Creates list of favourite DVB-T channels (p.39)

DVB-T Tuning Menu

Channel List Skips the unwanted DVB-T channels or edits DVB-T channels (p.40)

Auto Setup Automatically sets the DVB-T channels received in the area (p.38)

Manual Tuning Sets the DVB-T channels manually (p.41)

Menu

Item Adjustments / Configurations (alternatives)

Update Channel List U pdates DVB-T Channel List while keeping your settings (p.41)

Favourite Network Selects your favourite network for each broadcasters (only available in some countries)

DVB-T Tuning Menu

New Channel
Message

Signal Condition C hecks the DVB-T signal condition (p.41)

Add TV Signal

Channel List Skips the unwanted Analogue channels or edits Analogue channels (p.42)

Analogue Tuning Menu

Auto Setup Automatically sets the Analogue channels received in the area (p.38)

Selects whether to give a notification message when a new DVB-
[Off] / [On] (p.41)

Adds the TV mode

T his function is available if you skip any modes to tune in [Auto Setup] for first using

•

the TV.
T o operate, refer to the “Au to Setup” operations for first using the TV (p.12,13).

•

T channel is found

Setup

Manual Tuning Sets the Analogue channels manually (p.43)

Adds the TV

Add TV Signal

•

•

OSD Language C hanges language for on screen displays

Language

Preferred Audio 1 / 2

Preferred Subtitles
1 / 2

Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster)

Preferred Subtitle
Typ e

Selects the first and second preferred language for DVB multi audio (depending on the
broadcaster)

Selects the first and second preferred language for DVB subtitles (depending on the
broadcast

•

Selects the preferred subtitle type [Standard] / [Hard of Hearing]

•

•

Teletext T eletext display mode [TOP (FLOF)] / [List] (p.24)

Display Settings

Teletext Character
Set

Default Guide

Selects teletext language font [West] / [East1] / [East2]
[West] : English, French, German, Greek, Italian, Spanish, Swedish, T

[East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
[East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the default TV Guide type when the GUIDE button is pressed (only available in

some countries) [
[TV Guide] :

[Channel List] :

mode
T his function is available if you skip any modes to tune in [Auto Setup] for first using
the TV.
T o operate, refer to the “Au to Setup” operations for first using the TV (p.12,13).

er)

T o display subtitles (p.18)

[Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles
(depending on the broadcaster).
[Preferred Subtitles 1 / 2] in [Language] are given priority.

urkish, etc.

TV Guide] / [Channel List]

Electronic Programme Guide (EPG) is available.

T o use EPG (p.21)

•

EPG is not available and the channel list will appear instead of it.

How to Use Menu Functions

Input Labels L abels or skips each input terminal (p.48)

35

Menu

Display Settings

Common Interface U ses include to watch encrypted channels (p.49)

How to Use Menu Functions

Network Setup Sets the network setting to use in your network environment (p.71)

DivX® VOD D isplays DivX VOD registration code (p.94)

Setup

System Menu

Other Settings

A different menu will be displayed in the mode of PC input, Media Player or network service operations. (p.52, 58 - 68,

•

76-79)
O nly available items can be selected.

•

Item Adjustments / Configurations (alternatives)

Banner Display
Timeout

VIERA Connect
Banner

Playing Time Display

Radio Mode

USB Keyboard
Layout

Shipping Condition R esets all settings, for example, when moving house (p.50)

System Update D ownloads new software to this TV (p.51)

Software Licence D isplays the software licence information

System Information D isplays the syst

GUIDE Plus+

Update

Settings

Postcode Sets your postcode to display advertisements in the GUIDE Plus+ system (p.22)

System
Information

Power on Preference

Power Save R educes brightness of picture to economise on power consumption [

Time Zone

Sets how long the Information banner (p.18) stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 16, 17)

Set to [On] to display a continuous record of time spent using Game mode ever
minutes [Off] / [On]

T his function is available when [Game] is selected in [Viewing Mode] (p.30)

•

Sets the timer for turning off the screen automatically when a radio channel is selected

[Off] / [5] / [10] / [15] / [20] (seconds)

T he sound is active even if the screen turns off.

•

Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to

•

turn the screen on.
T his function is effective in reducing power consumption when listening to a radio

•

channel.
DVB mode only

•

Selects the language that your USB Keyboard supports

F or the information of using USB Keyboard (p.97)

•

em information of this TV

P erforms the update of the GUIDE Plus+ schedule and advertising information for the
GUIDE Plus+ system (p.22)

D isplays the syst

Automatically selects the input when the TV is turned on [TV] / [AV]
Set to [TV] to view picture from TV tuner.
Set to [AV] to view input from an external equipment connected to the A
terminal, e.g. set top box.

T he external equipment must be switched on and sending a control signal for

•

automatic switching at power on to occur.

Adjusts the time data

T he time data will be corrected based on GMT.

•

Set to [Auto] to adjust the time automatically according to your area.

•

em information of the GUIDE Plus+ system

y 30

V1 or HDMI1

Off] / [On]

36

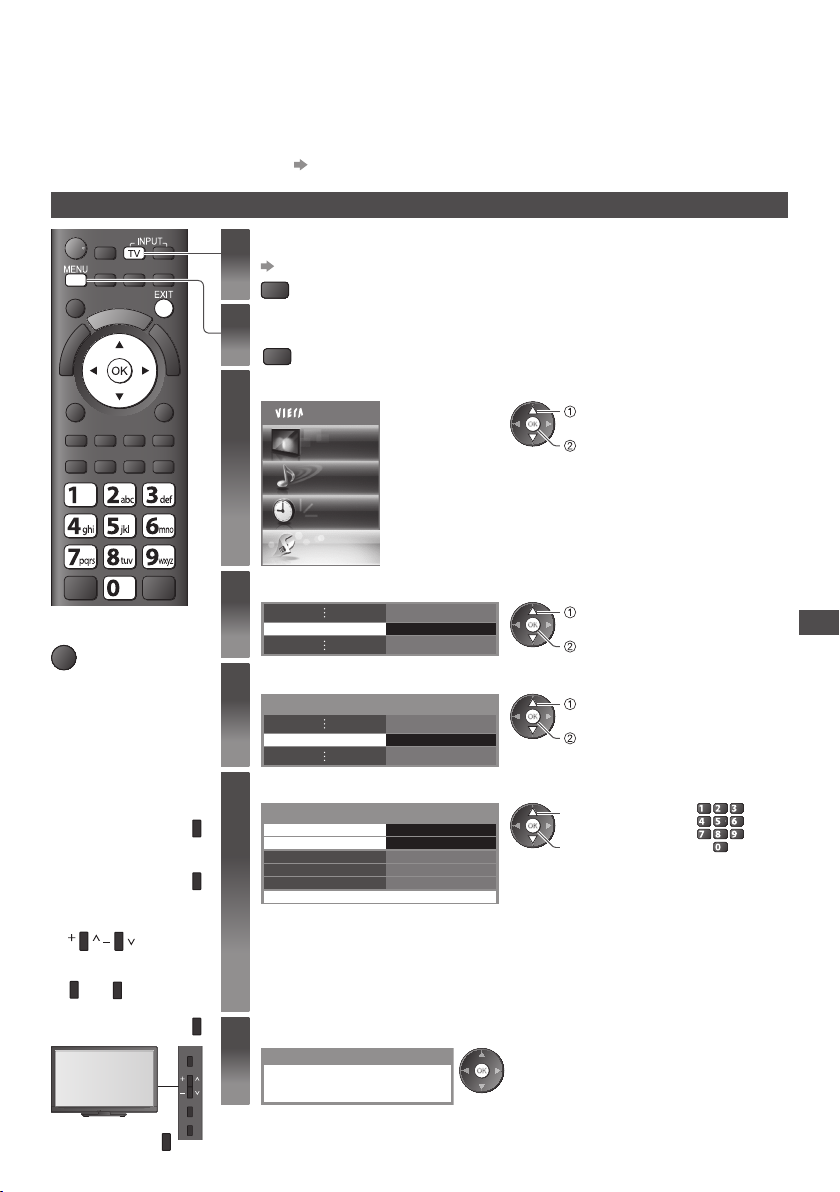

Retuning from Setup Menu

Automatically retune the channels received in the area.

T his function is available if channel tuning is already performed.

•

O nly the selected mode is retuned. All the previous tuning settings are erased.

•

If Child Lock PIN number (p. 47) has been set, the PIN number is required.

•

If tuning has not been done completely [Manual Tuning] (p. 41, 43)

•

DVB-C channels

Select DVB-C

1

(p.17)

TV

Display the menu

2

MENU

Select [Setup]

3

Main Menu


Sound

Timer

select

access

■

To return to T V

EXIT

For Auto Setup, using
the buttons on the side
panel of the TV (p. 9)

1 Press repeatedly

until [Auto Setup]
appears

2 Access [Auto Setup]

3 Set the search mode

and scan mode

(select the item)

TV

(set) AV (store)

4 Start [Auto Setup]

To return to TV

•

F

Select [DVB-C Tuning Menu]

4

DVB-C Tuning Menu Access

Select [Auto Setup]

5

DVB-C Tuning Menu

Auto Setup Access

Set the Auto Setup settings

6

F

TV

TV

F

TV

AV

DVB-C Auto Setup Settings

Search Mode Free Channels
Scan Mode

Frequency
Symbol Rate
N etwork ID

[ Scan Mode]

•

[Full] : scans the whole frequency range
[Quick] : scans the suitable frequency in your country

N ormally set [Frequency], [Symbol Rate] and [Network ID] to [Auto].

•

If [Auto] is not displayed or if necessary, enter [Frequency], [Symbol Rate] and [Network
ID] specified by your cable provider with numeric buttons.

Start Auto Setup (Settings are made automatically)

7

DVB-C Auto Setup

Setup

Quick
Auto
Auto
Auto

Start scan

All DVB-C tuning data will be erased

select

access

select

access

select

access / store

After settings, select [Start scan].

•

When the operation is completed, the
channel at the lowest position will be
displayed.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Retuning from Setup Menu

37

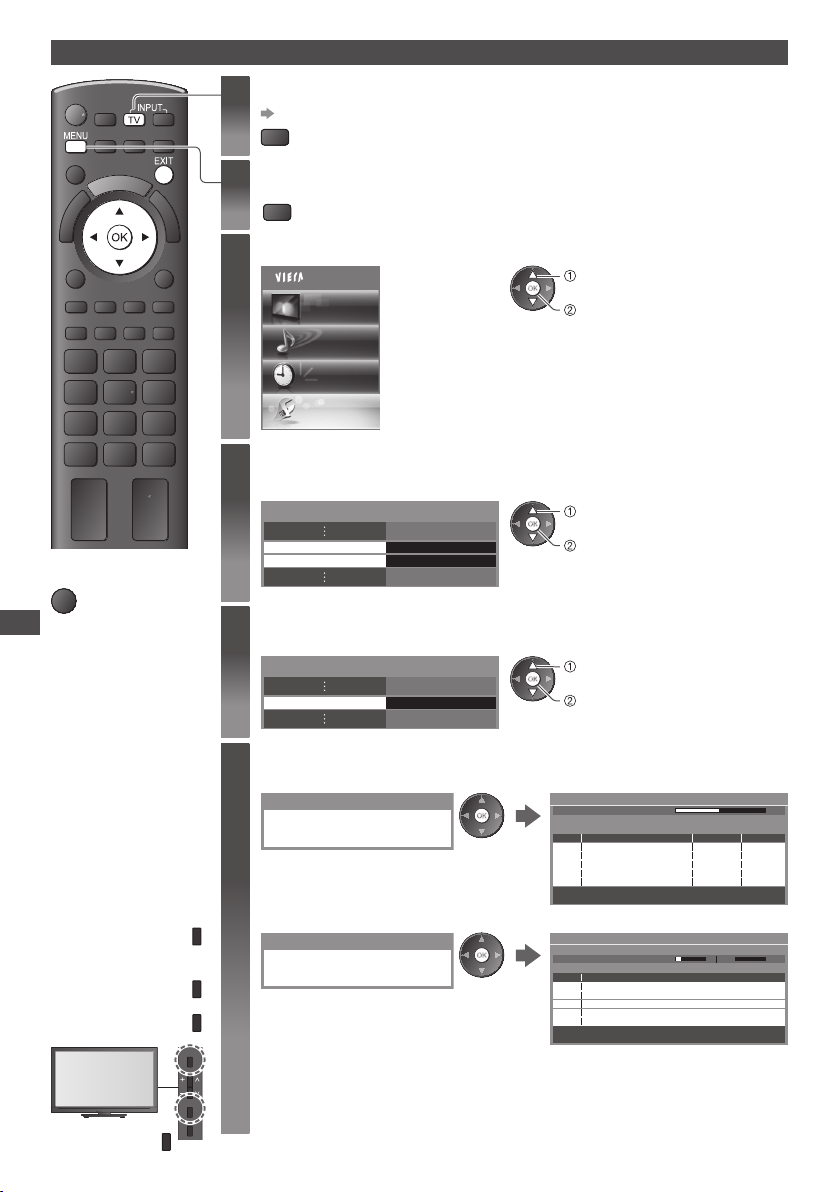

DVB-T or Analogue channels

Select DVB-T or Analogue

1

(p.17)

TV

Display the menu

2

MENU

Select [Setup]

3

Main Menu


Sound

Timer

select

access

■

To return to T V

EXIT

Retuning from Setup Menu

For Auto Setup, using
the buttons on the side
panel of the TV (p.9)

1 Press repeatedly

until [Auto Setup]
appears

2 Access [Auto Setup]

3 Start [Auto Setup]

T o return to TV

•

38

Select [DVB-T Tuning Menu] or [Analogue Tuning

4

Setup

Menu]

DVB-T Tuning Menu Access
A nalogue Tuning Menu Access

Select [Auto Setup]

5

Example :

DVB-T Tuning Menu

Auto Setup Access

Start Auto Setup (Settings are made automatically)

6

DVB-T :

DVB-T Auto Setup

All DVB-T tuning data will be erased

F

TV

TV

A nalogue :

Analogue Auto Setup

All analogue tuning data will be erased

F

TV

AV

F

T he channel, language, country / region settings are downloaded to a Q-Link or

•

VIERALink compatible equipment connected to the TV.

When the operation is completed, the channel at the lowest position will be
displayed.

select

access

T he displayed item depends on the selected

•

mode.

select

access

DVB-T Auto Setup

Progress

T his will take about 3 minutes.

CH Channel Name Type

CBBC Channel

62

BBC Radio Wales

62

E4

62
62 100Cartoon Nwk

Free TV: 4

Analogue Auto Setup

Scan
T his will take about 3 minutes.

CH Channel Name

CH 29
CH 33 BBC1

A nalogue: 2

CH 5 69

Free TV
Free TV
Free TV

V: 0

Searching

CH 2 78 41CC 1

Searching

Free TV

Pay T

R adio: 0

100
100
100

Quality

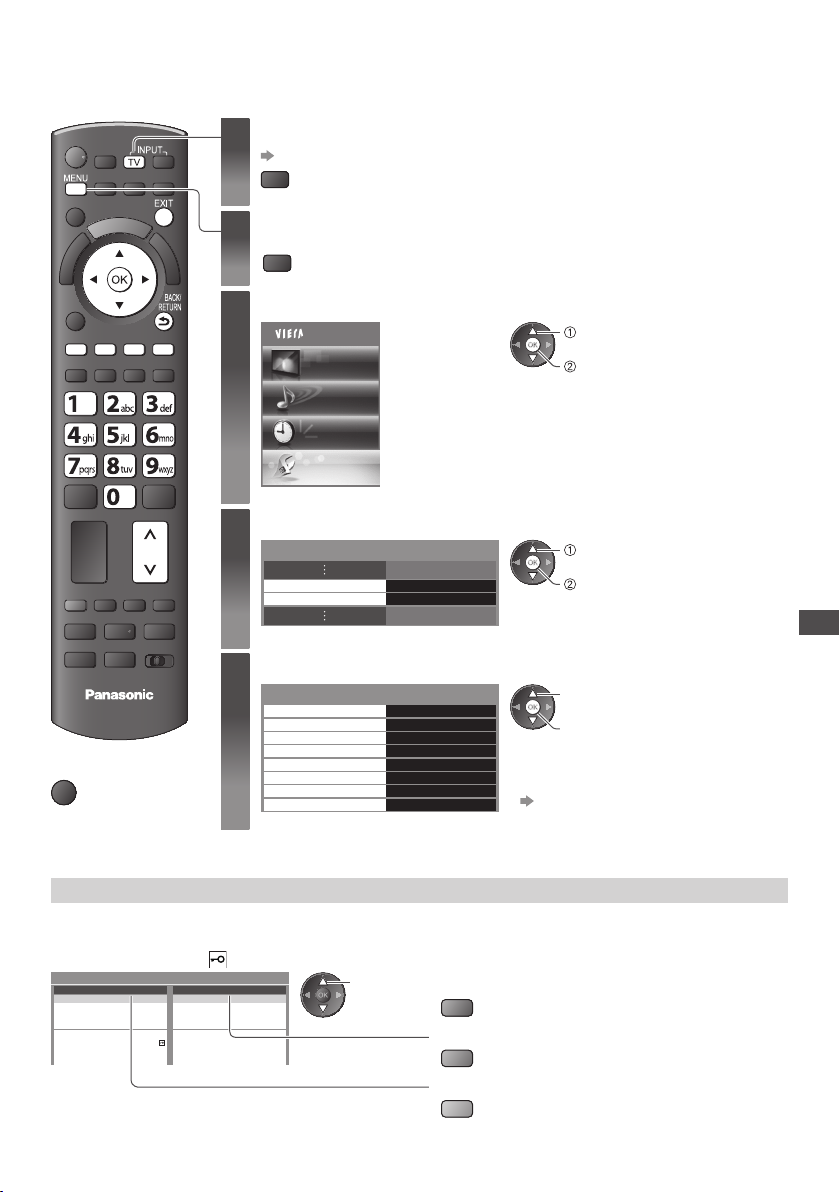

Tuning and Editing Channels (DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB-C or DVB-T

1

(p.17)

TV

Display the menu

2

MENU

Select [Setup]

3

Main Menu


Sound

Timer

select

access

Setup

select

access

T he displayed item depends on the selected

•

mode.

Access
Access

tup

Access
Access
Access
O n
Access

select

access / store

T he function items vary depending on the

•

country you select (p.12).
[Auto Setup]

•

 “Retuning from Setup Menu” (p.37,38)

TV

■

To return to T V

EXIT

Select [DVB-C Tuning Menu] or [DVB-T Tuning Menu]

4

DVB-C Tuning Menu Access
DVB-T Tuning Menu Access

Select one of the following functions

5

DVB-C Tuning Menu

F avourites Edit
C hannel List
Auto Se
M anual Tuning
U pdate Channel List
N ew Channel Message
Signal Condition
A ttenuator Off

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4 : [Favourites]1 to 4).
T he DVB Favourites lists are available from “Category” in the Information banner (p.18) and the T V Guide screen (p.21).

1 Select a channel to list ( : Encrypted channel)

DVB-C Favourites Editor

All DVB-C Channels Favourites1

1 BBC One Wales
7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

Sorting 123...

select

T o sort channel names in alphabetical order

•

(red)

T o display other Favourites

•

(green)

T o change the category

•

(blue)

Tuning and Editing Channels (DVB)

39

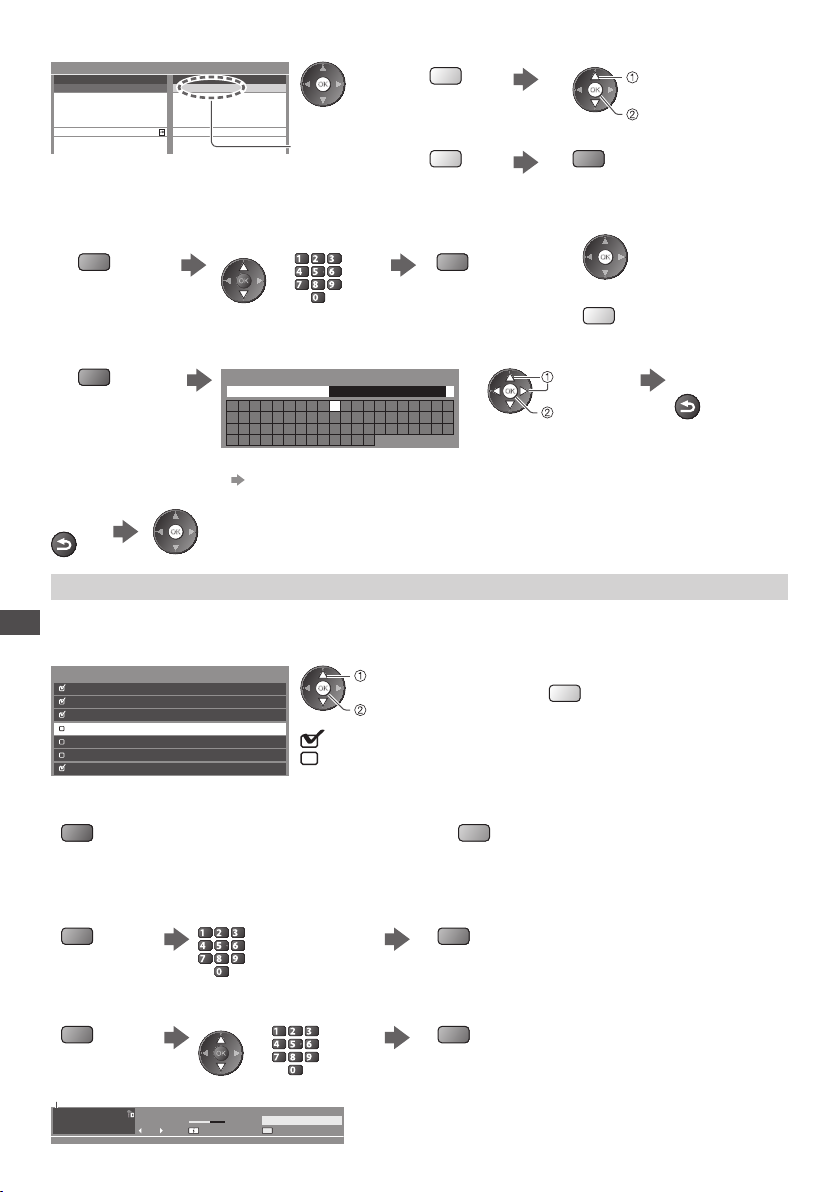

2 Add it to the Favourites list

DVB-C Favourites Editor

All DVB-C Channels Favourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

1 BBC One Wales

Sorting 123...

A channel is added

T o add continuous block of channels to the list at once

•

(yellow)

T o add all channels to the list

•

(yellow) (green)

■ To edit Favourites list

While the cursor is in the Favourites field to edit

T o move the channel

•

Select the new position Store

(green)

T o name the Favourites

•

or

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(green)

T o delete the channel

•

T o delete all channels

•

Set characters (maximum : ten characters) Store

(red)

3 Store

BACK/

RETURN

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.97)

select

set

Skip unwanted DVB channels, Edit DVB Channels [Channel List]

Y ou can hide unwanted DVB channels.
T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Tuning and Editing Channels (DVB)

Select a channel and reveal / hide

All DVB-C Channels

70 CBBC Channel

72 Cartoon Nwk
105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales
7 BBC THREE

Sorting 123...

: [Reveal]
: [Hide] (skip)

select

[Reveal] / [Hide]

T o reveal all channels

•

(yellow)

■ To sort channel list

T o sort channel names in alphabetical order

•

(red)

T o change the category

•

(blue)

■ To edit channels

Y ou can also edit each channel in Channel List.

T o swap the channel position (if available)

•

Enter the new position number Store

(green)

T o move the channel position (if available)

•

Select the new position Store

(green)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

or

(green)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(green)

make the block

add

(yellow)

BACK/

RETURN

C hannel position

1
BBC ONE WALES

40

Coronation Street
20:00 - 20:55
Now I nfo

All DVB-T Channels

C hange category

20:35

Set DVB channel manually [Manual Tuning]

N ormally use [Auto Setup] or [Update Channel List] to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

All channels found will be added to the Channel List.

•

DVB-C :

1 Enter the frequency 2 Select [Start scan]

DVB-C Manual Tuning

Frequency

Service ID Auto

Signal Quality
Signal Strength

N o. C hannel Name Type N ew

Start scan

74,00 MHz4

Auto Symbol Rate

100 %
100 %

abc def

jkl

ghi

mno

tuvpqrs

wxyz

N ormally set [Symbol Rate] and

•

[Service ID] to [Auto].

select

access

Free TV: 0

Pay TV: 0 Radio: 0

opped

St

DVB-T :

1 Adjust frequency for each channel 2 Search

DVB-T Manual Tuning

Frequency

Signal Quality
Signal Strength

N o. C hannel Name Type N ew

Pay TV: 0 Radio: 0 Data: 0

Free TV: 0

Stopped

[CH21]

474,00 MHz

100
100 %

%

select channel

adjust frequency

Set where the level of [Signal Quality]

•

becomes the maximum.

Update DVB channel automatically [Update Channel List]

Y ou can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB-T Update Channel List

Progress

T his will take about 3 minute

CH Channel Name Type Quality

Free TV: 0 Pay T V: 0 Radio: 0

CH 5 69

s.

Searching

C hannel List is updated while keeping your settings in [Favourites Edit],

•

[Channel List], [Child Lock], etc.
D epending on the signal condition, the update may not work properly.

•

Display a notification message [New Channel Message]

Selects whether to give a notification message when a new DVB channel is found. [Off] / [On]

New channel s foun d!

Press OK to upd ate channel list.

Press EXIT to ignore.

Selecting OK will perform [Update Channel List].

•

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition.
A good Signal Strength is not an indication of suitable signal for DVB reception.

Please use the Signal Quality indicator as follows :

[Signal Quality] :

Green bar Good

•

Y ellow bar Poor

•

R ed bar Bad (Check the Terrestrial aerial or cable)

•

Example :

DVB-C Signal Condition

C hannel Name
Signal Quality
Signal Strength
B it Error Rate
N etwork Name
Parameter

70 CBBC Channel

0.00E+00
Wenvoe
802,00 MHz, 64 QAM, 6940 kS/s

9080%

T hese bars show the maximum signal value of the selected channel.

%

T o change the channel

•

Tuning and Editing Channels (DVB)

Reduce the DVB-C signal [Attenuator]

If the DVB-C signal is too strong, the interference may occur. In this case set to [On] to reduce the signal automatically.

T his function is available only for DVB-C signal.

•

41

Tuning and Editing Channels (Analogue)

Y ou can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

1

(p.17)

TV

Display the menu

2

MENU

Select [Setup]

3

Main Menu


Sound

Timer

select

access

Setup

select

access

Access

tup

Access
Access

•

•

select

access

T he function items vary depending on the
country you select (p.12).
[Auto Setup] “Retuning from Setup

Menu” (p.38)

Tuning and Editing Channels (Analogue)

■

To return to T V

EXIT

TV

Select [Analogue Tuning Menu]

4

A nalogue Tuning Menu Access

Select one of the following functions

5

Analogue Tuning Menu

C hannel List
Auto Se
M anual Tuning

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]

Y ou can hide unwanted Analogue channels.
T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

1 BBC1

2 *****

3 *****
4 *****
5 *****
6 *****
7 *****

: [Reveal]
: [Hide] (skip)

select

[Reveal] / [Hide]

T o reveal all channels

•

(yellow)

42

■ To edit channels

Y ou can also edit each channel in Channel List.

T o retune each channel ([Manual Tuning])

•

(red)

( see below)
T o move the channel position

•

Select the new position Store

(green)

T o rename the channel name

•

Set characters (maximum : five characters) Store

(blue)

Edit channel name

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.97)

(green)

select

set

BACK/

RETURN

C hannel position

C hannel name

1

ITV

CH23 SC1

All Analogue Channels

23:35

Note

If a VCR is connected only with the RF cable, edit [VCR].

•

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]

U se to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)

[Manual Tuning]

Set Analogue channel manually after Auto Setup.

Set [Sound System] and [Colour System], and then perform this function.

•

N ormally set [Colour System] [Auto].
If a VCR is connected only with the RF cable, select channel position [0].

•

Analogue Manual Tuning

Fine Tu ning

M anual Tuning

em

Sound Syst
C olour System

278 411

SC1
Auto

Store

CH331 BBC1

SC1 : PAL B, G, H / SECAM B, G
SC2 : PAL I
SC3 : PAL D, K / SECAM D, K
F : SECAM L, L’

Tuning and Editing Channels (Analogue)

1 Select the channel position 2 Select the channel

abc def

jkl

ghi

mno

tuvpqrs

wxyz

3 Search 4 Select [Store]

select

store

43

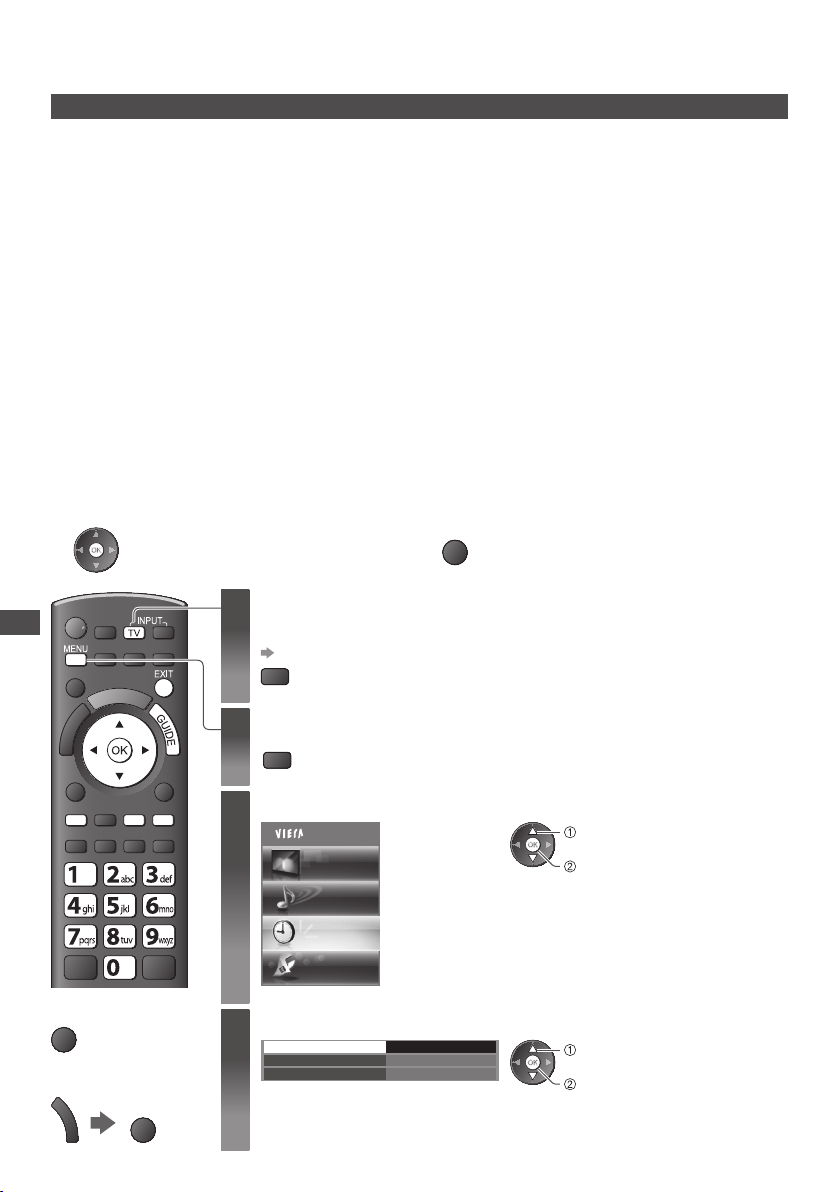

Timer Programming

Timer Programming from Menu

T he Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external
recorder or the USB HDD. At the correct time, the TV will tune to the correct channel even if the TV
TV Guide may also be used to set timer programming event (p.23).

T his function is not available in Analogue mode.

•

T imer Programming can store up to 15 events.

•

T imer Programming only works reliably if correct time information is received via the signal from the broadcaster or service

•

provider.
F or recording using Timer Programming, the T V must be either On or in standby. For reminders to be displayed, the TV must

•

be On.
N o other channel can be selected while the recording of Timer Programming is in progress.

•

I t may not be possible to record an encrypted programme (which is copy-protected).

•

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the

•

TV.
If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p.82,83) and the [Link
Settings] (p.33) are completed, no setting of the recorder is required. Also read the manual of the recorder.
If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder.

•

For preparations of a recorder, read the manual of the recorder.
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording

•

Setup] (p.53).
R ecordings to the external recorders are always in standard definition composite video via SCART, even if the original

•

programme is in high definition.
2 minutes before the starting time, a reminder message appears if you are watching TV.

•

•

T o remove the message and start the programming

1

Timer Programming

Select the mode you want to set
(DVB-C or DVB-T)

(p.17)

TV

•

T o cancel the programming

EXIT

is in Standby mode.

■

To return to T V

EXIT

■

To unlock the tuner
and stop recording

G

U

I

D

E

44

EXIT

Display the menu

2

MENU

Select [Timer]

3

Main Menu


Sound

Timer

Select [Timer Programming]

4

Off Timer
Auto Standby

Setup

Access T imer Programming
Of

f

Off

select

access

select

access

Set timer programming event details [Timer Programming]

1

Start making the settings

2 Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder])

select

[Ext Rec.] / [USB HDD Rec.] :

to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2
minute

s before the starting time, a reminder message appears if you are watching TV.

[Reminder] :

to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minute

s before the start time.

Press the OK button to switch to the programmed channel.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

: Displayed if the timer programming events are overlapped

Timer Programming

Function No. Date Start End Channel Name

Reminder

D 7 BBC7 17:00 18:30

Ext Rec.

Ext Rec.

Store timer

C hange function

<TIMER>

D 1 BBC1 STTL 18:00 20:00

<TIMER>

C 3 ITV1

<TIMER>

------

------ --:----:-- --:--

EXIT
Select
RE

TURN

1

[C] : DVB-C
[D] : DVB-T

Y ou cannot change the mode within the menu.

•

Channel number

1

Date

2

one day ahead

d aily or weekly (press repeatedly)

[Daily Sun-Sat] : Sunday to Saturday

•

[Daily Mon-Sat] : Monday to Saturday

•

[Daily Mon-Fri] : Monday to Friday

•

[ Wee kly Sat/Fri/Thu/Wed/Tue/Mon/Sun] : Same time on the same day every week

•

set

Wed 27.10.2010 10:46

R emaining Capacity:

500GB (50%)

Wed 27.10.2010

Wed 27.10.2010

Thu 28.10.2010

0

(90 min.)

(120 min.)

21:30 22:30

(60 min.)

--:----:-- --:--

9

1/1

2 3 4

I nformation of the USB HDD (if available)

1 , 3 and 4 can also be entered with numeric

•

buttons.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

R ecords with subtitles (if available)

T o indicate this

•

(yellow)

(Press again to remove subtitles)

Duration (automatic display)

Starting time

3

Ending time

4

4 Store

Timer Programming

45

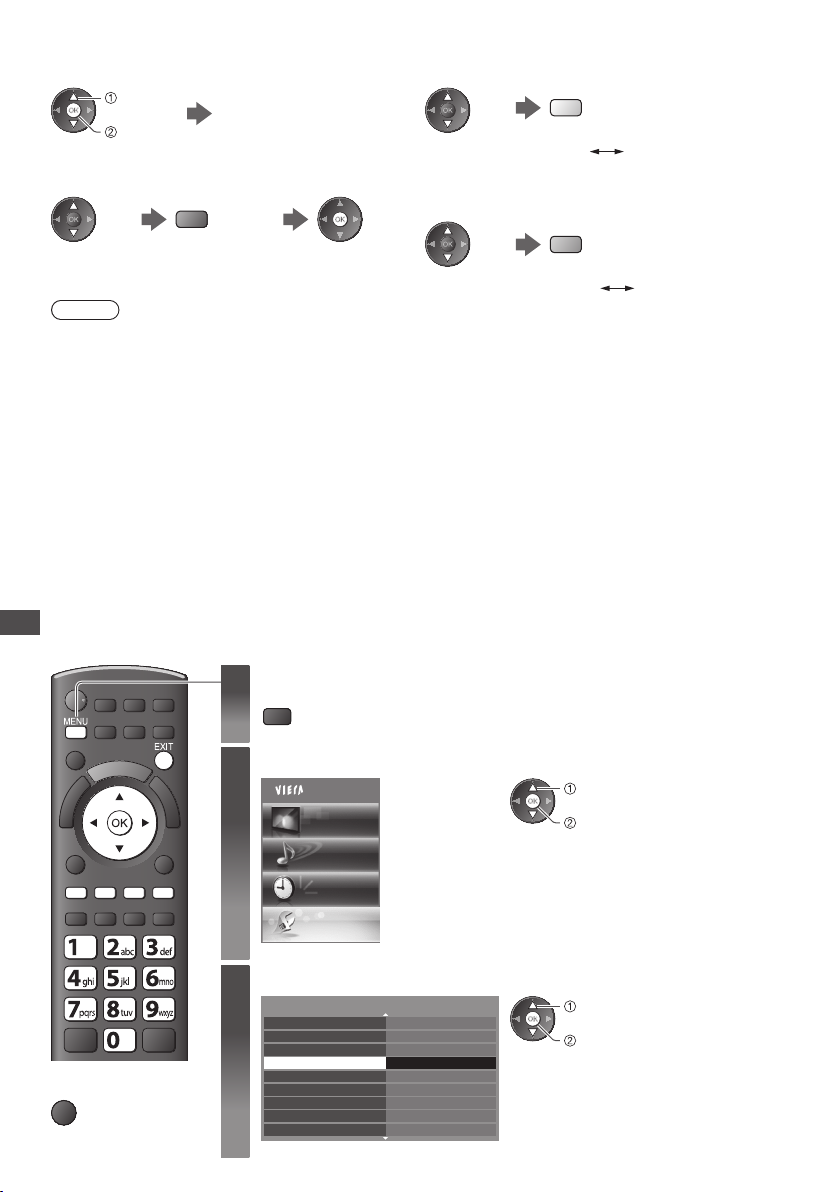

■ To change a timer programming event

Select the programme to be changed

select

access

C orrect as necessary (p.45)

■ To cancel a timer programming event

Select the programme to be deleted

(red)

Note

C heck that the LED is orange. If not, timer programmes are not active or not stored.

•

T imer Programming reminder messages will remain displayed until one of the following occurs :

•

•

Y ou press the OK button to view the programme or the EXIT button to cancel the reminder.

•

T he timer programming event that the reminder is set for ends.

“!” identifies that any timer programming events have overlapped. [Ext Rec.] and [USB HDD Rec.] are given priority over

•

[Reminder]. As for the overlapped two or more [Ext Rec.] / [USB HDD Rec.], the first timer programming event starts and
finishes as programmed. The next timer programming event can then start.
T he recording of Timer Programming will automatically change to the programmed channel a few seconds before the start

•

time.
T o stop recording the timer programming event directly prior to the start time, it may be necessary to stop the recorder

•

manually.
T he recording of Timer Programming will be performed even if the TV is in REW LIVE TV recording (p.56) or Pause Live TV

•

recording (p.85). In this case, these recordings will be cancelled.

■ To record with subtitles (if available)

Select the programme to record with subtitles

(yellow)

E ach time pressed :

•

auto

off

■ To cancel a timer programming event

temporarily

Select the programme to be cancelled

(blue)

E ach time pressed :

•

c ancel

stop cancelling

Child Lock

Y ou can lock specific channels / AV input terminals and control who watches them.

Timer Programming | Child Lock

When the locked channel / input is selected, a message appears; by entering the PIN number, y ou can watch it.

Display the menu

1

MENU

46

■

To return to T V

EXIT

Select [Setup]

2

Main Menu


Sound

Timer

Select [Child Lock]

3

Eco Navigation
R ecording Setup
L ink Settings

C hild Lock

DVB-C Tuning Menu
L anguage
D isplay S
C ommon Interface
N etwork Setup

Setup

ettings

Access

select

access

1/2

select

access

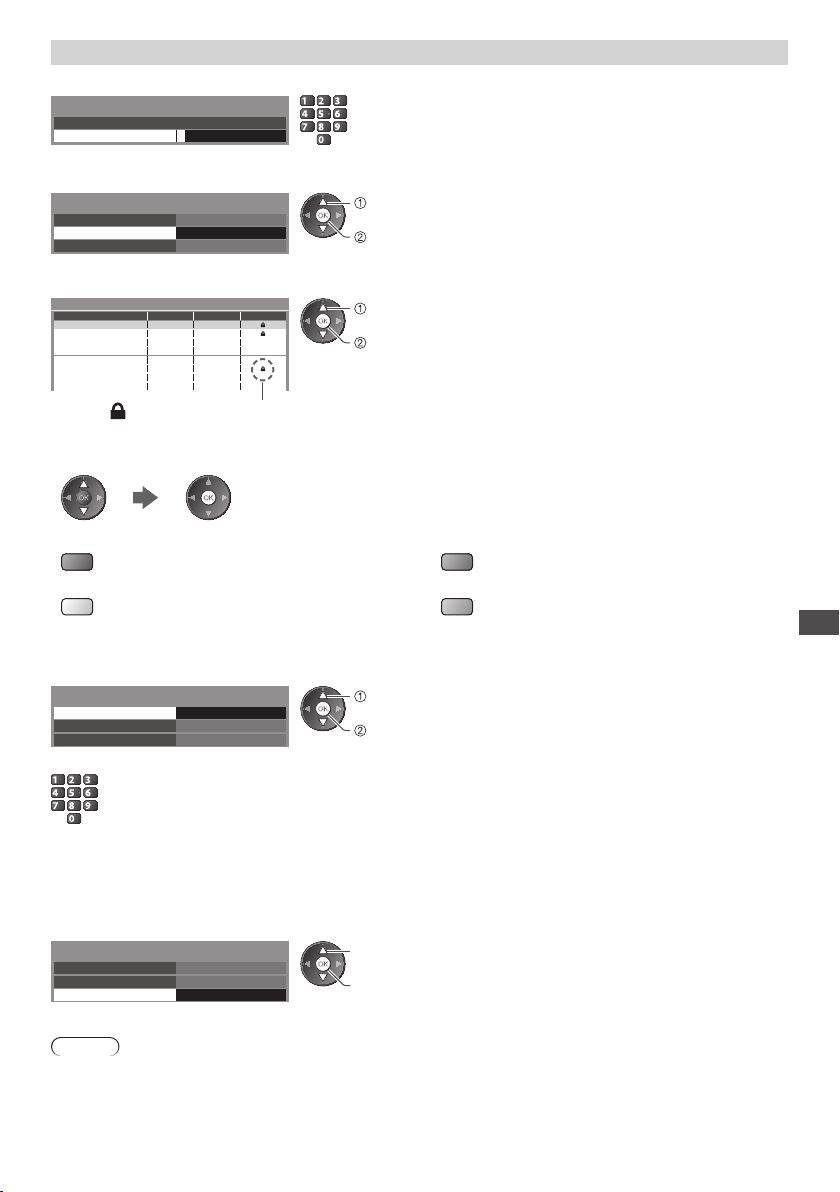

Control channel audience [Child Lock]

Enter the PIN number (4 digits)

1

Child Lock-PIN Entry

Please enter new PIN

PIN

* * * *

ghi

2 Select [Child Lock List]

Child Lock

C hange PIN

C hild Lock List

P arental Rating

Access
N o limit

3 Select the channel / input to be locked

Child Lock List - TV and AV Sorting 123...

N ame I nput

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1
2 *****

AV1
AV2

T o cancel

•

Select the locked channel / input

DVB-C
DVB-

T
DVB-T
A nalogue
A nalogue
A nalogue
External
External

: Appears when the channel / input is locked

Type

Free TV
Free TV
Free TV
A nalogue
A nalogue
A nalogue
AV
AV

L ock

abc def

jkl

tuvpqrs

E nter the PIN number twice at first setting.

•

mno

M ake a note of the PIN number in case you forget it.

•

wxyz

“0000” may be stored as the default PIN number which depends on

•

the country you select (p.12).

select

access

select

lock

T o sort channel names in alphabetical order

•

T o cancel all locks

•

T o lock all

•

(red) (green)

T o jump to the top of the next input

•

(yellow) (blue)

■ To change the PIN number

1 . Select [Change PIN]

Child Lock

C hange PIN

C hild Lock List
P arental Rating

Access

N o limit

select

access

2 . Enter a new PIN number twice

abc def

jkl

ghi

mno

tuvpqrs

wxyz

■ To set Parental Rating

T he availability of this function depends on the country you select (p.12).

•

If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to watch
(depending on the broadcast

Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock

C hange PIN
C hild Lock List

P arental Rating

Note

Setting [Shipping Condition] (p.50) erases the PIN number and all settings.

•

N o limit

er).

select

access / store

Child Lock

47

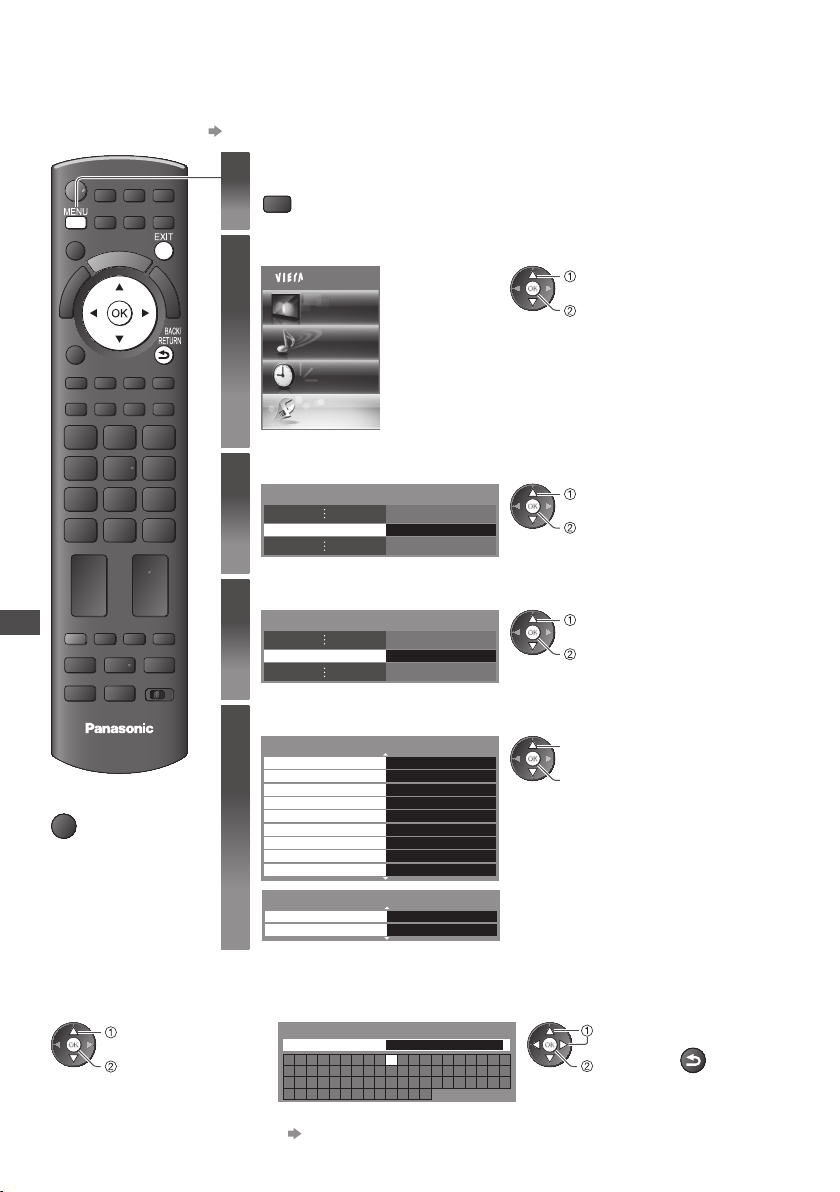

Input Labels

F or easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected
to any equipment.

T o select the input mode (p.26)

•

Display the menu

1

MENU

Select [Setup]

2

Main Menu


Sound

Timer

select

access

Setup

Access D isplay Settings

DVD
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
DVB-C

A nalogue

select

access

select

access

1/2

2/2

select

access / store

T he labels you set will be displayed in [Input
Selection] menu (p.26), [T V Selection] menu
(p.17) or banner.

If [Skip] is selected, you cannot select the

•

mode.

Input Labels

TV

■

To return to T V

EXIT

Select [Display Settings]

3

Select [Input Labels]

4

Display Settings

I nput Labels Access

Select an input terminal

5

Input Labels

AV1
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
DVB-C

Input Labels

DVB-T DVB-T
A nalogue

■ User input

Y ou can name each input mode freely.

1 Select [User input] 2 Set characters (maximum : ten characters) 3 Store

select

set

48

select

access

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.97)

BACK/

RETURN

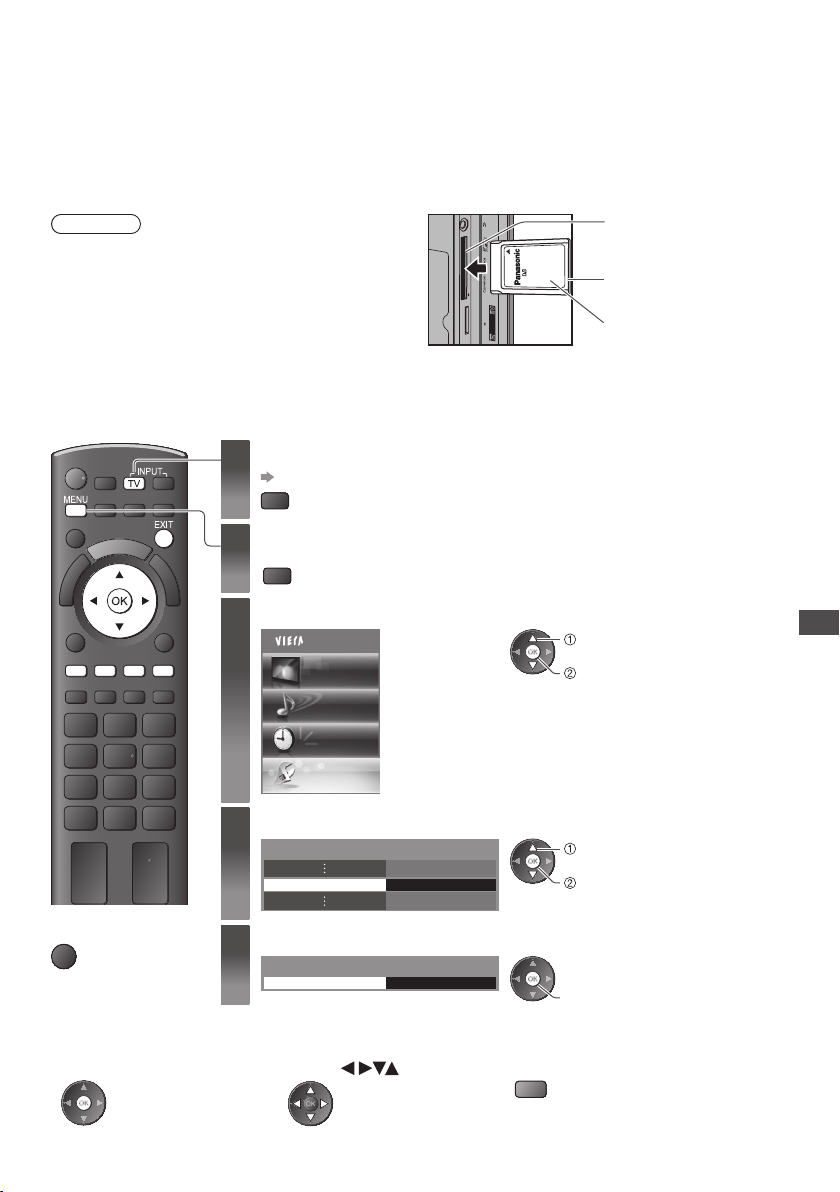

Using Common Interface

T he Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

T his function may not be available in some countries or regions.

•

V ideo and audio signals may not be output depending on broadcasts or services.

•

Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV
channels).
Please use only the approved CI module by the broadcaster.
C onsult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

Turn Off Mains power On / Off switch whenever inserting or

•

removing the CI module.
If a view card and a card reader come as a set, first insert the

•

card reader, then insert the view card into the card reader.
I nsert the module in the correct direction.

•

Insert the CI module (optional)

T he features that appear on screen are dependent on the contents of the selected CI module.

•

N ormally encrypted channels will appear. Follow the on screen operation guide.

•

If encrypted channel does not appear, perform below.
F or more details, see the manual of the CI module, or check with the broadcaster.

•

Select DVB-C or DVB-T

1

(p.17)

TV

Display the menu

2

MENU

Select [Setup]

3

Main Menu


Sound

CI slot

R emove the cover before

•

using CI slot.

I nsert or remove straightly
and completely

CI module

Side of the TV

select

access

Using Common Interface

Timer

Setup

M odule inserted

■

To return to T V

EXIT

Select [Common Interface]

4

C ommon Interface Access

Access Common Interface

5

Common Interface

Slot 1:

■ How to operate services by following the on screen operation guide

Example :

Select, go

•

O n screen operation guide may not correspond to the remote control buttons.

•

Symbol :

•

select

access

access

C oloured characters

•

Coloured button

49

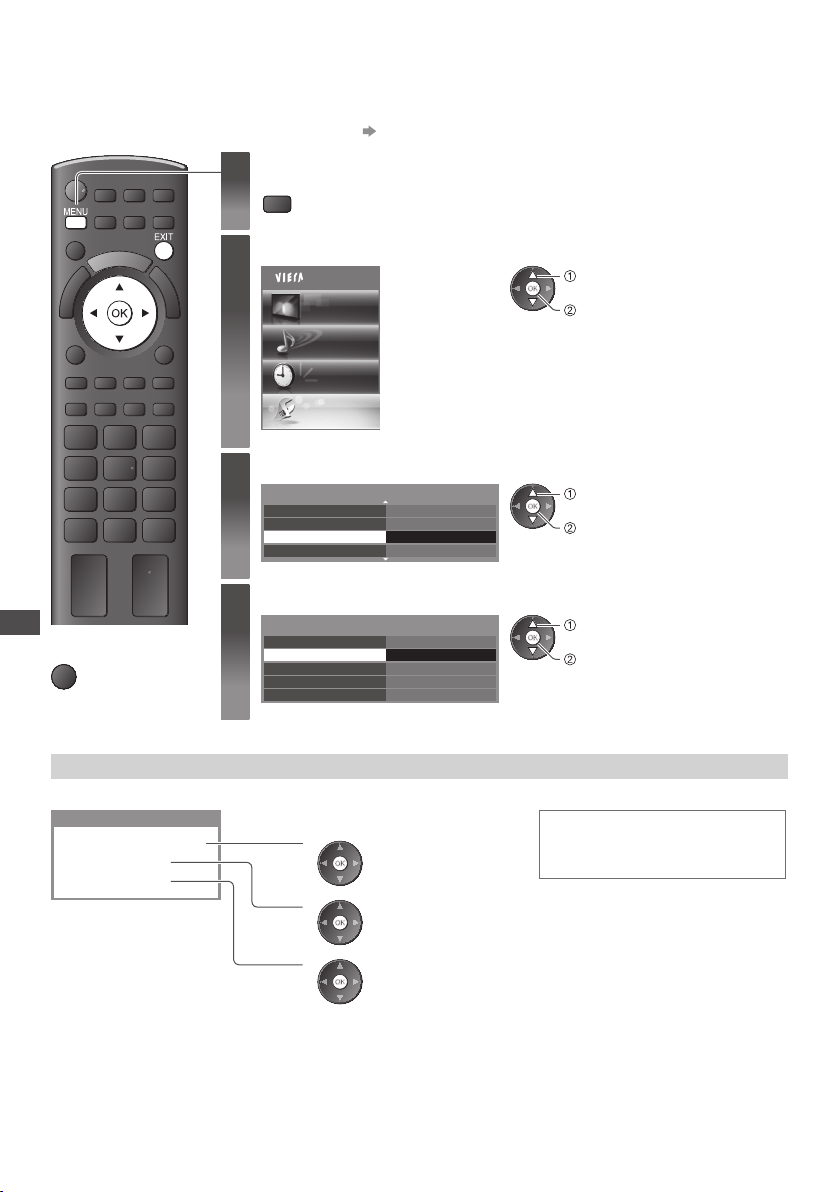

Shipping Condition

R esets the TV to its original condition, i.e. no channels tuned in.
All settings other than [USB HDD Setup] are reset (channels, picture, sound settings, etc.).

T o retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p.37, 38)

•

Display the menu

1

MENU

Select [Setup]

2

Main Menu


Sound

Timer

select

access

em Menu

ettings

em Update

Setup

Access Syst

E nglish(UK)
Access

2/2

select

access

select

access

■

Shipping Condition

EXIT

To return to T V

Select [System Menu]

3

N etwork Setup
DivX® VOD

O ther S

Select [Shipping Condition]

4

System Menu

U SB Keyboard Layout

Shipping Condition

Syst
Software Licence
System Information

Restore Settings [Shipping Condition]

Check the message and initialise 2 Follow the on screen instructions

1

Shipping Condition

All tuning data will be erased

Are you sure ?

Are you sure ?

1

(Confirm)

2

(Confirm)

3

(Start [Shipping Condition])

Reset to Factory Shipping Condition

[Auto Setup] will automatically start

•

when Mains power On / Off switch is
next turned On. (p.12)

Completed.

Please switch o TV.

50

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations
of the TV.

If there is an update available, a notification banner is displayed when the channel has the update information.

T o download

•

Y ou can update any new software automatically or update manually.

1

2

If you choose not to download

•

EXIT

Display the menu

MENU

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

select

access

select

access

■

To return to T V

EXIT

Select [System Menu]

3

System Menu Access

Select [System Update]

4

System Menu

System Update Access

Update TV’s software system [System Update]

■ To update automatically

Select [Auto Update Search in Standby]

System Update

Auto Update Search in Standby

Syst

em Update Search Now

If System Update is performed, the software will be updated (it
may change TV functions).
If you do not wish to do so, set [Auto Update Search in Standby]
to [Off].

Off

select

access / store

Every time you set, the TV automatically performs a

•

search in standby and downloads an update, if any
software updates are available.

T he automatic updating is performed under the

•

following conditions :

•

Standby (TV turned Off with the remote control)

•

R ecording of Timer Programming, Direct TV
Recording or One Touch Recording is not in
progress.

■ To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

Syst

em Update Search Now

Off
Access

select

access

Note

D ownload may take for about 60 minutes.

•

During software download and update, DO NOT switch Off the TV.

•

T he message might be the notification beforehand. In this case, the schedule information (the date that the new version

•

can be used) will appear. You can set the reservation for update. T he update will not start when the TV is set to Off.

several minutes) and displays a
corresponding message if any

3 Download

Updating the TV Software

51

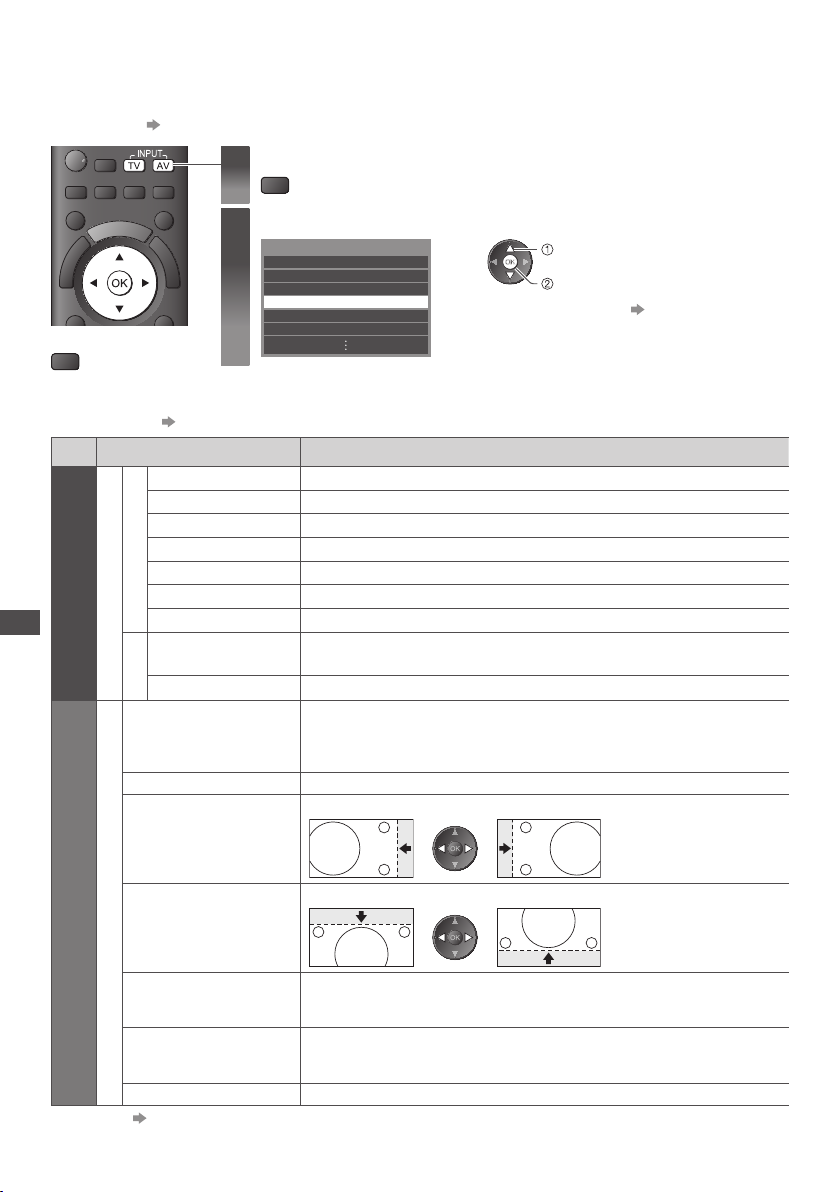

Displaying PC Screen on TV

T he screen of the PC connected to the TV can be displayed on the TV.
Y ou can also listen to PC sound with the audio cable connected.

T o connect PC (p.90)

•

Select the external input

1

AV

Select [PC]

2

Input Selection

AV1
AV2
COMPONENT

PC

■

To return to T V

TV

HDMI1
HDMI2

PC menu setting

T o make settings “How to Use Menu Functions” (p. 29)

•

Menu

Advanced Settings


Displaying PC Screen on TV

PC Setup

Setup

O ther items (p.30-36)

•

F or HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable

•

(p.96).

52

Item Adjustments / Configurations (options)

R-Gain Adjusts the white balance of bright red area

White Balance

G-Gain Adjusts the white balance of bright green area

B-Gain Adjusts the white balance of bright blue area

R-Cutoff Adjusts the white balance of dark red area

Cutoff Adjusts the white balance of dark green area

G-

B-Cutoff Adjusts the white balance of dark blue area

Reset to Defaults Press the OK button to reset to the default White Balance

Gamma

Gamma

Reset to Defaults Press the OK button to reset to the default Gamma

Input Resolution

Clock Set to the minimum level if noise occurs

H-pos

V-pos

Clock Phase

Sync

Reset to Defaults Press the OK button to reset to the default PC Setup settings

Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]

Please note the numerical values are reference for the adjustment.

•

Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels), XGA (1,024 × 768 pixels),

•

WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)
O ptions change depending on signals

•

Adjusts horizontal position

Adjusts vertical position

Eliminates flicker and distortion

Adjust after Clock adjustment

•

Set to the minimum level if noise occurs

•

C hooses another synchronous signal if the image is distorted [H & V] / [On Green]

[H & V] : by the horizontal and vertical signals from your PC
[On Green] : by the green signal from your PC (if available)

select

access

C orresponding signals (p.98)

•

If [H-freq.] or [V-freq.] is shown in red, the signals

•

may not be supported.

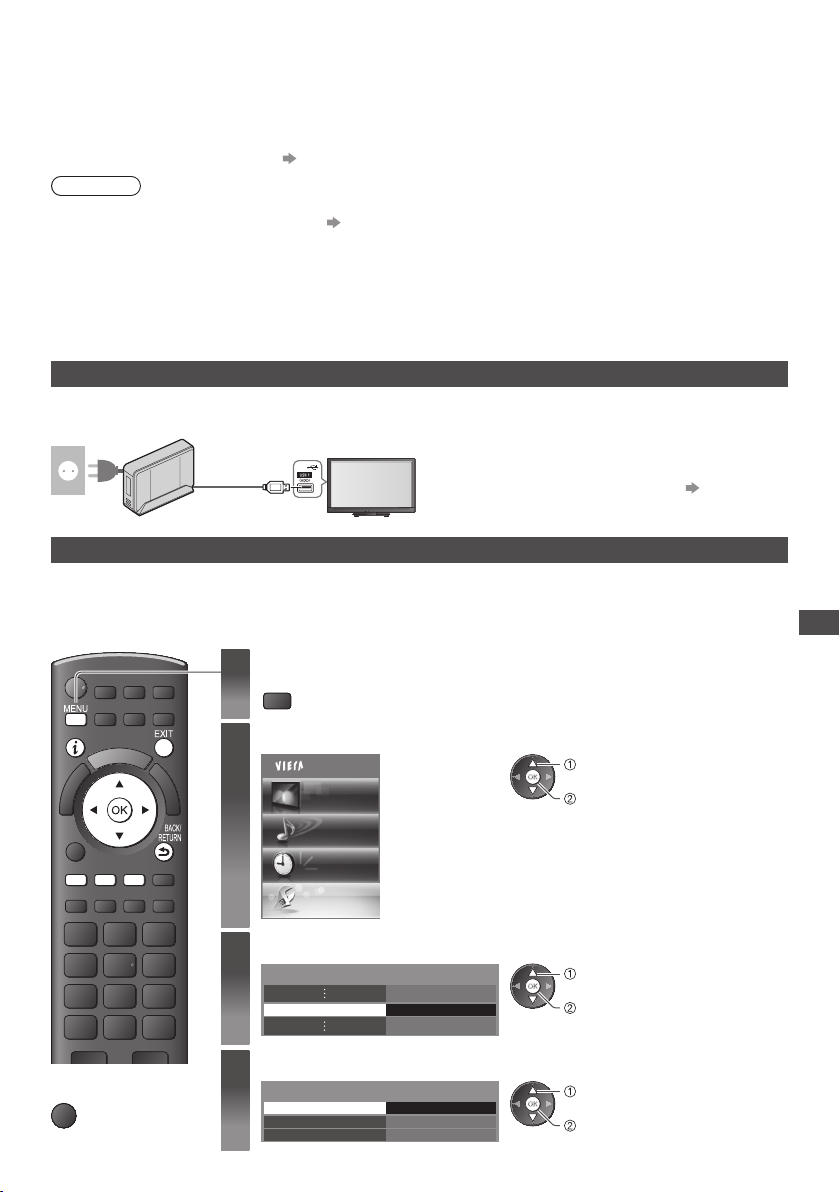

USB HDD Recording

Y ou can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

A nalogue TV programme cannot be recorded to the USB HDD.

•

T he data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.

•

N ot all the programmes can be recorded depending on the broadcaster and service provider.

•

F or more information of the USB HDD (p.95)

•

Caution

All data in the USB HDD will be erased in the following cases :

•

•

When formatting the USB HDD with this TV “Setting for USB HDD” (see below)

•

When formatting the USB HDD to use on PC

When the TV is repaired due to a malfunction, you may have to format the USB HDD again with this TV to use it. (All data will

•

be erased when formatting.)
I n order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools

•

may be necessary to format on your PC. For details, refer to the manual of the USB HDD.)
T he data recorded to the USB HDD with this TV can only be played back on this TV. You cannot play back its contents with

•

another TV (including the TV of the same model number) or any PCs.

USB HDD connection

C onnect the USB HDD to the USB 1 port.

socket outlet

U SB cable

U SB HDD

Setting for USB HDD

F ormat and setup the USB HDD with this TV in order to use it for recording.

B efore the settings, connect the USB HDD (see above) and be sure to turn on the USB HDD.

•

Y ou cannot change the settings for the USB HDD while recording is in progress.

•

Please note that USB HDD will be formatted and all data in it will be erased when you format it.

•

Display the menu

1

MENU

Select [Setup]

2

Main Menu


Sound

B e sure to connect the USB HDD to the socket outlet.

•

D o not turn off or disconnect the USB HDD during

•

operation. It may cause malfunction of the drive or damage
the recorded data.

T o remove the USB HDD safely from the TV (p.19, 54)

•

select

access

USB HDD Recording

■

To return to T V

EXIT

Timer

Select [Recording Setup]

3

R ecording Setup Access

Select [USB HDD Setup] and set

4

Recording Setup

U SB HDD Setup

O ne Touch Recording
REW LIVE

Setup

Access

TV

180 minutes
Off

select

access

select

access

53

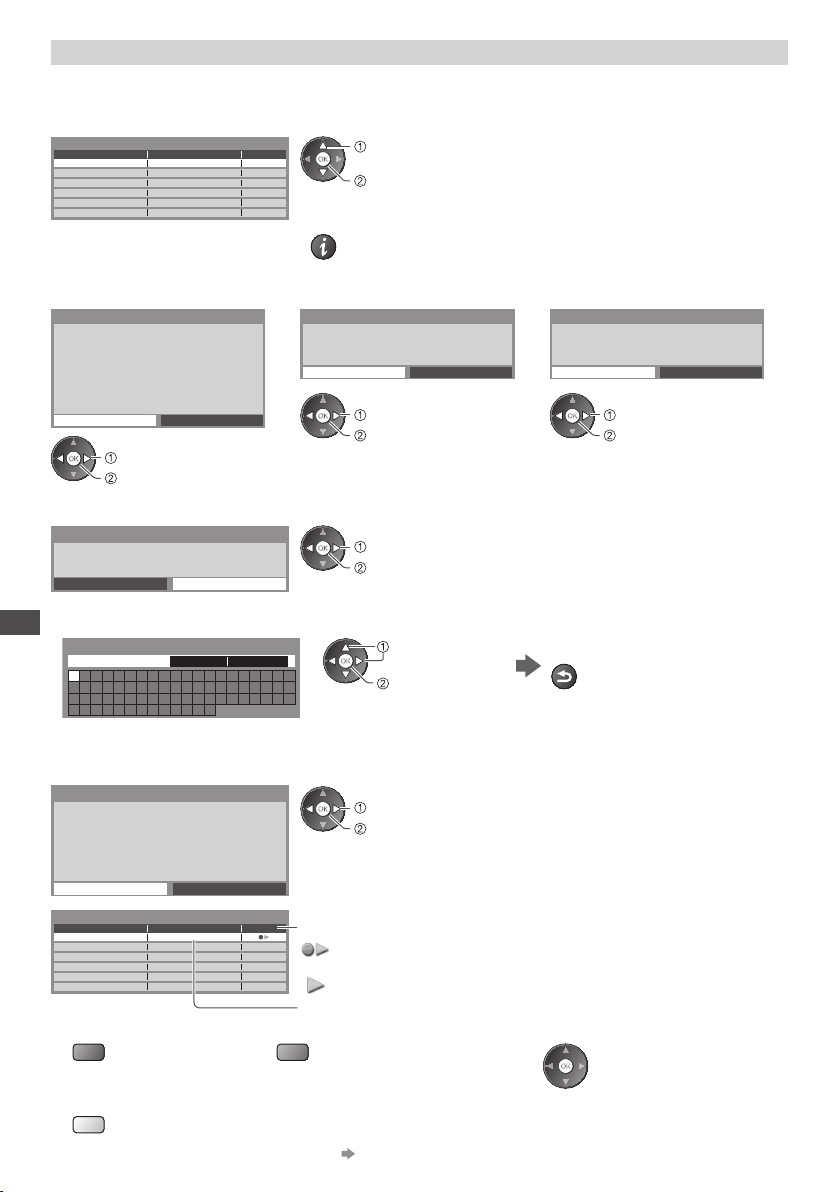

Setup the USB HDD [USB HDD Setup]

All the USB devices recognised as a mass storage device will be listed.

Y ou can only choose one USB HDD for recording at a time.

•

1 Select the USB HDD for recording and start setup

USB HDD Setup

Product N ame

USB Drive A

USB Flash Disk

select

access

Some USB HDD may not be displayed.

•

F or the information of the highlighted device

•

2 Caution and confirmation of using USB HDD

Select [Yes] to proceed

USB HDD Formatting

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the USB

HDD may not be available with your repaired TV.

Continue?

Yes N o

select [Yes]

set

USB HDD Formatting

To use this device for recording,

it must be formatted rst.

Yes N o

select [Yes]

set

Continue?

USB HDD Formatting

This device will be formatted and

all contents deleted.

Yes N o

select [Yes]

set

Are you sure?

3 Confirmation of USB HDD name

USB HDD Formatting

N ame :

USB Drive A

Edit name?

Y es N o

The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].

Set characters Store

USB HDD Recording

USB HDD

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

USB HDD 1

select

set

select

set

Y ou can set characters by using numeric buttons.

•

BACK/

RETURN

4 Confirmation to enable USB HDD for recording

If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB
HDD for recording.

USB HDD Formatting

USB HDD Setup

Do you want to enable this

device now for recording?

When disconnecting any USB device,
always use the "Safely Remove USB" function
in the USB HDD Device Setup menu to avoid

any corruption of recorded content.

Y es N o

Product N ame

USB Drive A

USB Flash Disk

USB HDD 1

T o format

•

(red) (green)

T o remove the USB HDD safely from the TV

•

(yellow)

T o set “ Safely remove USB” in other conditions (p. 19)

•

54

select [Yes]

set

M ode

T he USB HDD is available for recording / playing back.

:

O nly one USB HDD on the list can be available for recording.
T he USB HDD is available for playing back.

:

U SB HDD name is displayed

T o edit USB HDD name

•

T o change the mode

•

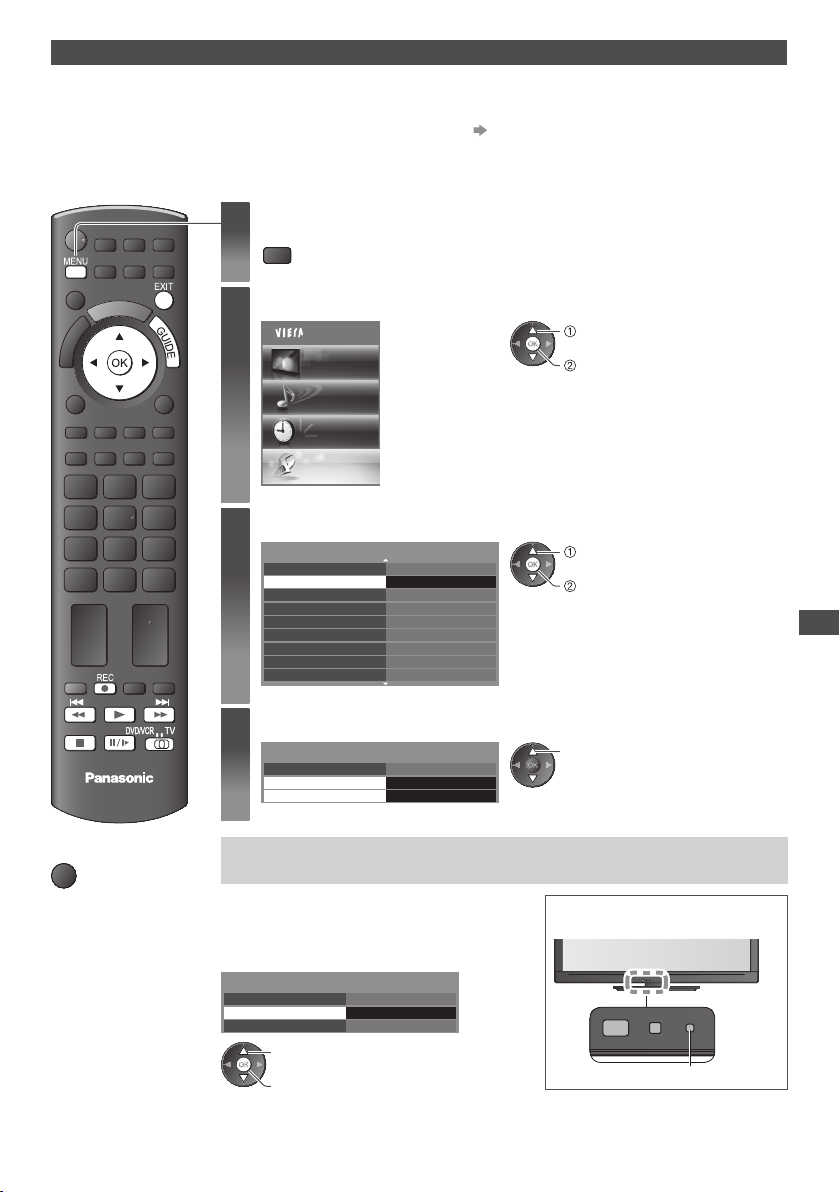

Recording the TV programme to USB HDD

Y ou can record the current programme immediately by using [One Touch Recording].
Y ou can also record the current programme constantly for the selected period by using [REW LIVE TV] so that you can go back
or pause the current programme.

E nsure the connection and setup are completed before start recording (p.53, 54)

•

E nsure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may not work

•

properly.
If the remaining capacity of the USB HDD is run out, the recording cannot be done.

•

Display the menu

1

MENU

Select [Setup]

2

Main Menu


Sound

Timer

select

access

TV

■

To return to T V

EXIT

ettings

Setup

1/2

tup

TV

Access

180 minutes
Off

select

access

select

Select [Recording Setup]

3

Eco Navigation

R ecording Se

L ink S
C hild Lock
DVB-C Tuning Menu
L anguage
D isplay Settings
C ommon Interface
N etwork Setup

Select [One Touch Recording] or [REW LIVE TV]

4

Recording Setup

U SB HDD Setup

O ne Touch Recording
REW LIVE

One touch direct TV recording - What you see is What you record
[One Touch Recording]

R ecording the current programme in the USB HDD
immediately.

Select the maximum recording time
[30] / [60] / [90] / [120] / [180] (minutes)

Recording Setup

U SB HDD Setup

O ne Touch Recording

REW LIVE

TV

select

access / store

180 minutes
Off

LED will turn to orange (flash) while
One Touch Recording is in progress.

USB HDD Recording

LED

55

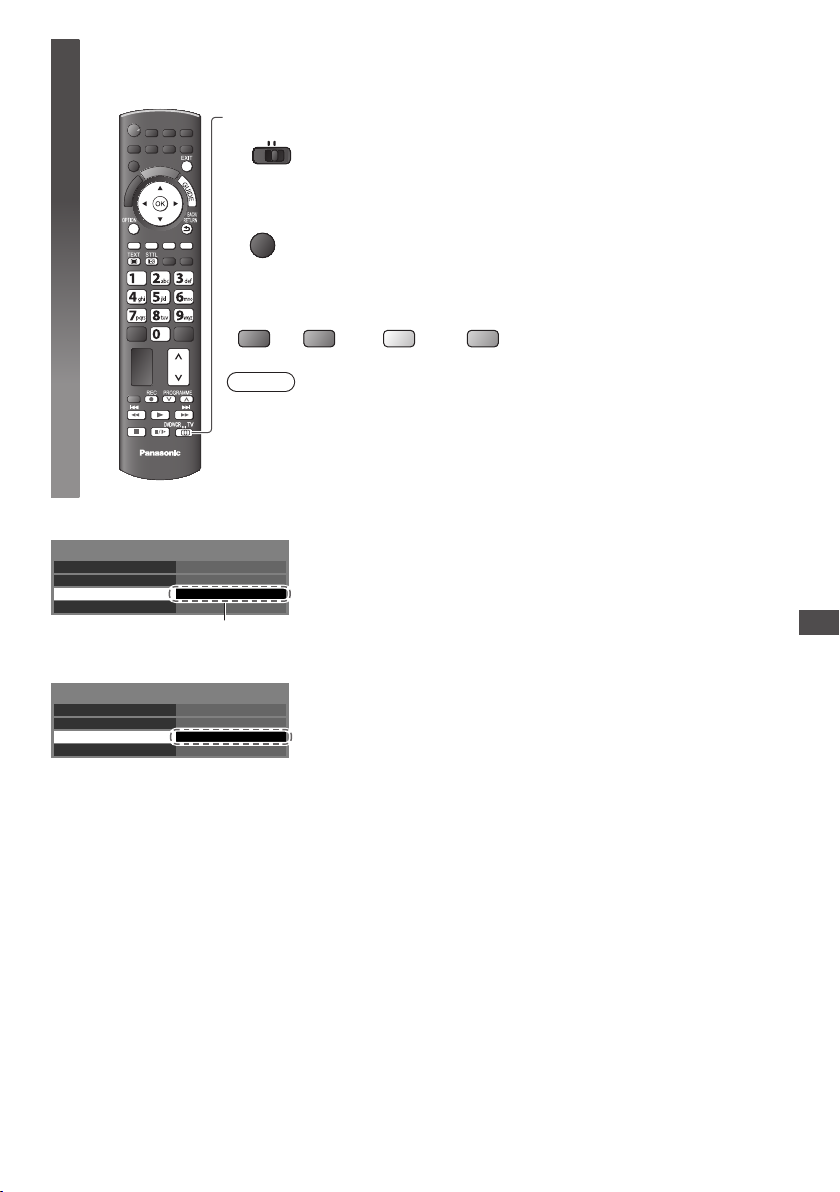

■ To start One Touch Recording

Set the position to “TV” Start

DVD/VCR

TV

N o other channel can be selected while the recording is in progress.

•

REC

■ To stop recording on the way

DVD/VCR

TV

or

G

U

I

D

E

EXIT

■ To playback or delete the recorded contents “Recorded TV mode” (p.65)

Even if One Touch Recording is in progress, you can playback all the contents. However, the recording may not work properly

•

while playback.

Record constantly [REW LIVE TV]

R ecording the current programme constantly.

Select [Auto] to start REW LIVE TV

Recording Setup

U SB HDD Setup
O ne Touch Recording

REW LIVE

TV

180 minutes
Auto

select

access / store

When you select [Auto], the recording will start automatically.

•

If the other recording is in progress, TV signal condition is bad or when any images

•

are not displayed, this recording will not start.

■ To operate the REW LIVE TV

Set the position to “TV”

DVD/VCR

TV

T o pause

•

USB HDD Recording

After pausing or searching backward, the following buttons are available to operate.

•

search backward

playback / pause

search forward

stop (stops the current operation and
goes back to live TV)

To search backward (up to 90 minutes)

•

(Press and hold)

search backward /

forward

(Press and hold)

pause /

playback

playback

stops the current

operation and

■ To stop the REW LIVE TV

Recording Setup

U SB HDD Setup
O ne Touch Recording

REW LIVE

TV

REW LIVE TV will be stopped and the recorded content deleted automatically in the following conditions :

•

(Even if REW LIVE TV stops for the following conditions, as long as the setting is [Auto], the new recording will start
automatically in a condition that makes the recording available.)

•

selected other channels

•

selected locked channel

•

selected invalid channel

•

no TV signal

•

w hen the other recording starts

•

w hen the TV is turned off or standby

Off

Auto

select [Off ]

If you stop the REW LIVE TV, the recorded content for the REW LIVE TV will be

•

deleted.

stop

goes back to

liveTV

56

Using Media Player

M edia Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and recorded
contents on the formatted USB HDD.
VIERA IMAGE VIEWER is the function of the easy viewing for phot
simply inserting into the SD Card slot.

P hoto mode : Still pictures recorded by digital cameras will be displayed.
V ideo mode : (For SD Card
R ecorded TV mode : (For USB HDD) TV programmes recorded in the USB HDD with this TV
Music mode : D igital music data will be played back.

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 33). To use
HDMI2 with ARC function, connect an amplifier that has ARC function (p. 81) and set to use theatre speakers (p. 88).
[Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is

•

shown “**/**/****”.
T he picture may not appear correctly on this TV depending on the recording equipment used.

•

D isplay may take some time when there are many files and folders.

•

P artly degraded files might be displayed at a reduced resolution.

•

P icture setting may not work depending on the conditions.

•

T he folder and file names may be different depending on the digital camera or digital video camera used.

•

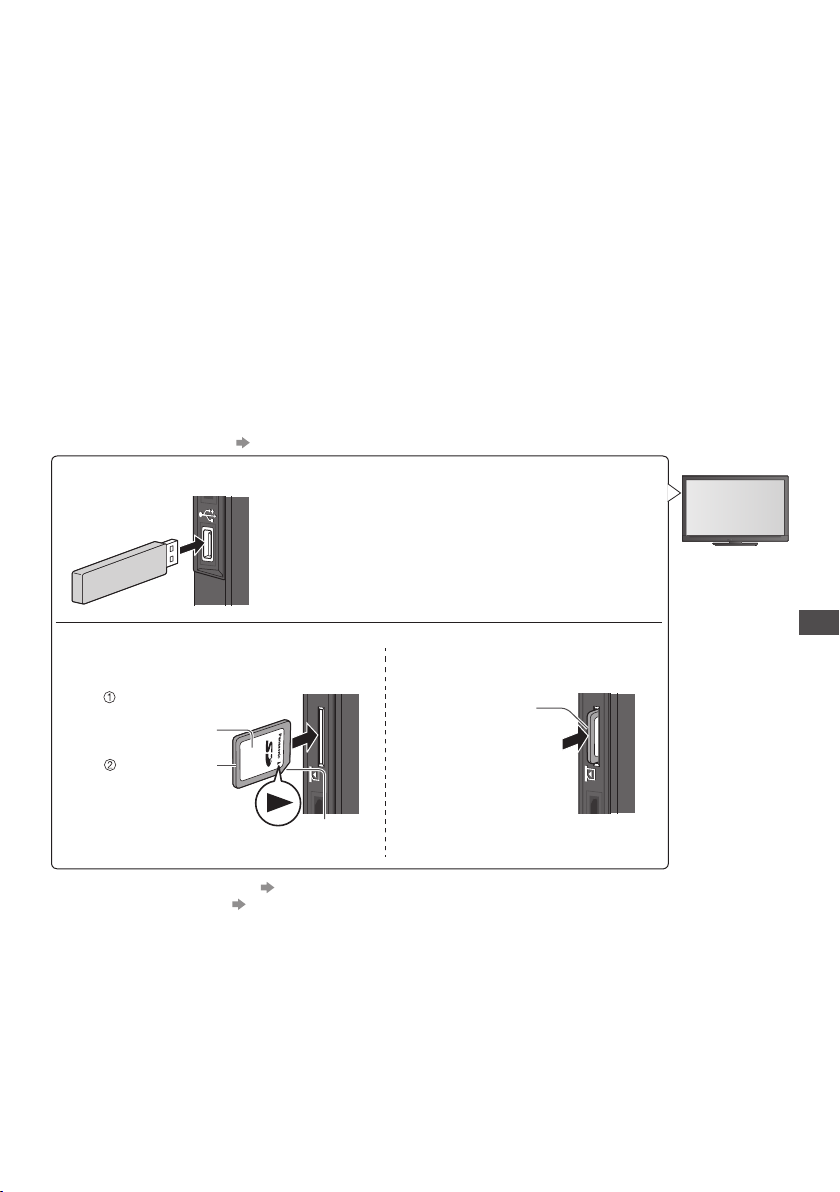

To insert or remove the SD Card / USB Flash Memory

F or the USB HDD Connection (p.53)

•

or USB Flash Memory) Moving pictures recorded by digital video cameras will be played back.

■ USB Flash Memory

I nsert or remove straightly and completely.

•

B efore removing the USB Flash Memory, ensure to perform

•

“Safely remove USB” (p.19).
C onnect to the USB 1, 2 or 3 port.

•

os or videos recorded on an SD Card on the TV screen by

will be played back.

■ SD Card

To insert the SD Card To remove the SD Card

Gently insert the

SD Card label surface

facing front.

Push until a click

F or the information of the devices “Devices for recording or playing back” (p.95)

•

F or the supported file format “Supported file format in Media Player and media servers” (p. 93, 94)

•

is heard

Cutout

Push the centre of

the card

Using Media Player

57

Starting Media Player

Insert the SD Card or USB Flash Memory to the TV

1

(p. 57)

T o play back contents in the USB HDD, check the connection and settings are

•

completed.

Start Media Player

2

Media Player

Signal output from all AV terminals will be

Select the device you want to access to

3

M edia Player

Drive Select

EXIT
Select
RETURN

Access

SD Card

Selected device name

(p. 53, 54)

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

SD Card

USB HDD1 USB Flash...

Also possible by pressing following buttons.

•

SD CARD

AV “Watching External Inputs” (p.26)

select

access

If two or more devices are not connected,

•

this step will be skipped.

Using Media Player

EXIT

TV

■

To return to T V

SD CARD

or

■

To return to the
previous screen

BACK/

RETURN

Select the content

4

M edia Player

C ontents Select

EXIT
Select
RETURN

Access

SD Card

P hoto Video Music

Note

Y ou can also access each mode directly by using VIERA TOOLS.

•

“How to Use VIERA TOOLS” (p. 28)

[Recorded TV ] is available for contents recorded with this TV on the USB HDD.

•

Select the appropriate device and content for playing back each file.

•

Y ou can use the following buttons during playback.

•

Set the position to “TV”

DVD/VCR

TV

58

R ecorded TV

select

access

[Photo]  “Photo mode” (p.59)
[Video]  “Video mode” (p.63)
[Music]  “Music mode” (p.67)
[Recorded TV ] 

“Recorded TV mode” (p.65)

Photo mode

P hoto mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.

T he thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [All photos]

Media Player Photo

All photos

SD Card

select [Change Size]

change

Selected device name

■

To return to T V

EXIT

SD CARD

or

■

To return to the
previous screen

BACK/

RETURN

V iew

Select

Slideshow View Select Drive Select Contents Selec t

: Error display

T o change the back ground music “Photo Settings” (p.60)

•

T o display the information of the highlighted photo

•

F ile name

D ate

P ixel

T o change the size of photos on a thumbnail screen

•

OPTION

EXIT
RETURN


23/10/2010

1600X1200

I nfo

OPTION

O ption Menu

1/48

F ile number / Total file number

■ To sort by folder, recorded date or recorded month

1 Display the view selection

(green)

2 Select the sort type

F older view

Sort by Date

Sort by Month

select

access

3 Select one of the sorted groups to display the thumbnail of the selected group

Media Player Photo

23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010

24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010

[Folder view] :

D isplays the thumbnail grouped by folder

T he files which are not into a folder will be collected to the folder named “/”.

•

[Sort by Date] :

D isplays the thumbnail grouped by the same date

T he group of the photos without recorded date is shown as [Unknown].

•

[Sort by Month] :

D isplays the thumbnail grouped by the same month

T he group of the photos without recorded date is shown as [Unknown].

•

Sor t by Date

select

thumbnail of the selected group

Using Media Player

Access

Select RETURN

Slideshow View Select C ontents Select

T o return to the thumbnail of all photos

•

(green)

I nfo

EXIT

OPTION

O ption Menu

Drive Select

SD Card

select

[All photos]

access

T o display the information of the highlighted group

•

F older name

Number of files

23/10/2010

Group number /

1/12

Total group number

3

F older name, date or month

59

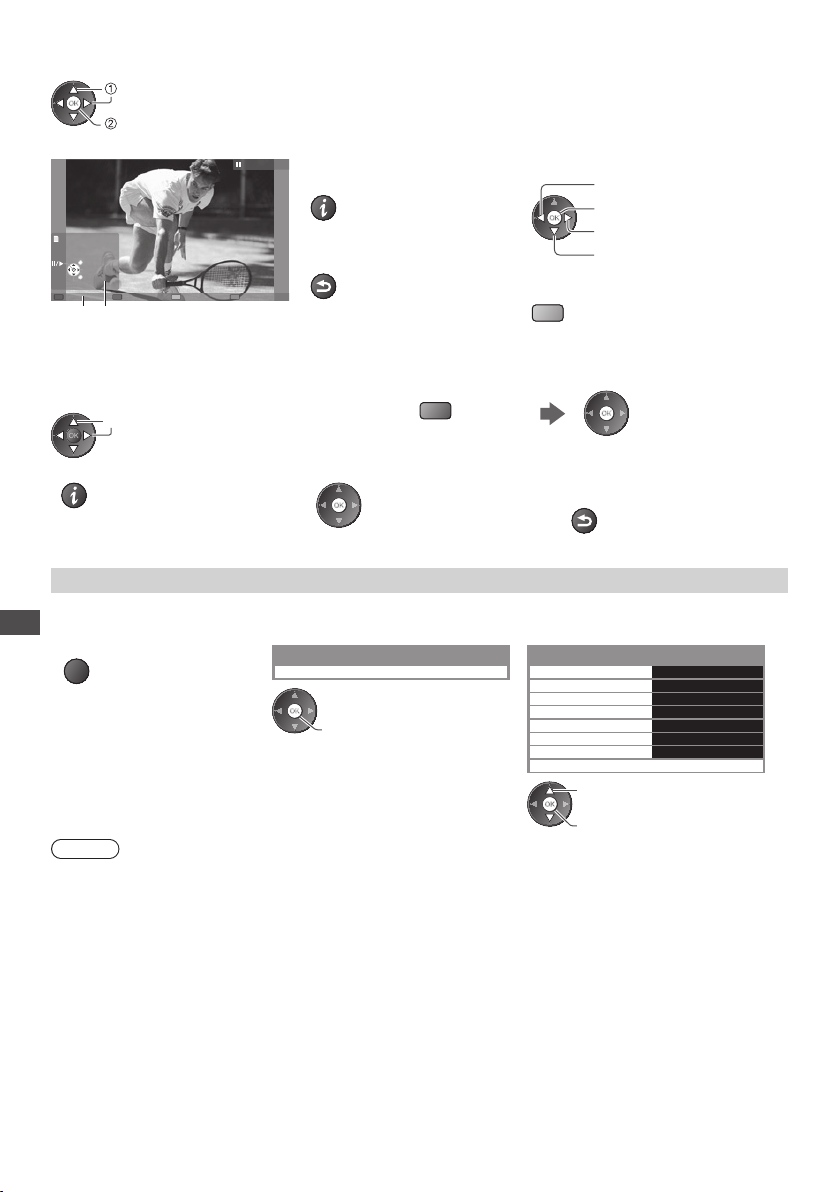

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example :

Single view

EXIT
Select
RETURN

Stop

O peration guide

Single view

R otate

T o display / hide the operation

•

guide

T o return to thumbnail

•

BACK/

RETURN

T o operate Single view

•

T o rotate 90°

•

T o the previous photo

Slideshow

T o the next photo

Stop
(return to thumbnail)

(blue)

[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.

1 Select the file from the thumbnail of photos

for the first view

select

T o display / hide the operation guide

•

T o pause (return to Single view)

•

2 Start Slideshow

(red)

T o return to thumbnail

•

BACK/

RETURN

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu 2 Selec t [Slideshow Settings] 3 Select the items and set

Using Media Player

OPTION

Option Menu

Slideshow Settings

access

Slideshow Settings

Frame Off
C olour Effect
Transition Effect
Screen Mode
Burst Playback
I nterval
R epeat
B ack Ground Music

select

Off
F ade
N ormal
Off
5 seconds
O n

Note

P icture quality may become lower depending on the slideshow settings.

•

P icture setting may not work depending on the slideshow settings.

•

60

access / store

Menu

Frame

Colour Effect

Slideshow Settings

Transition Effect

Screen Mode

Burst Playback

Interval

Repeat Slideshow repeat [Off] / [On]

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow

[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] /
[Gallery] / [Cinema]
[Multi] :

9 photos are displayed orderly at once.

[Collage] :

E ach photo is displayed at a random position and random scale.

[Drift (+ calendar)] / [Drift] :

P hotos are displayed like flow images.

Y ou can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Gallery (+ calendar)] / [Gallery] :

T he various sizes of photos in the frame are displayed.

Y ou can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Cinema] :

P hotos are displayed like old films (sepia tone)

Selects the colour effect of phot

[Off] / [Sepia] / [Gray scale]

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : T he next photo fades in gradually.

: T he next photo slides and appears from the left side.

[Slide]
[Dissolve] : E ach photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or

[Random] : Each transition is selected at random.

T his function is available when [Frame] is set to [Off].

•

Selects whether enlarged or normal viewing on Single view and Slideshow

[Normal] / [Zoom]

T his function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or

•

[Cinema].
T his function is not available when [Transition Effect] is set to [Motion].

•

D epending on the photo size, it may not be fully enlarged to fill the screen, e.g.

•

portrait style picture.

Selects whether to display burst photos in a fast-paced slideshow mode

[Off] / [On]

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

T his function is not available when [Transition Effect] is set to [Motion].

•

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

T his function is not available when [Transition Effect] is set to [Motion].

•

os on Single view and Slideshow

moving down.

Using Media Player

61

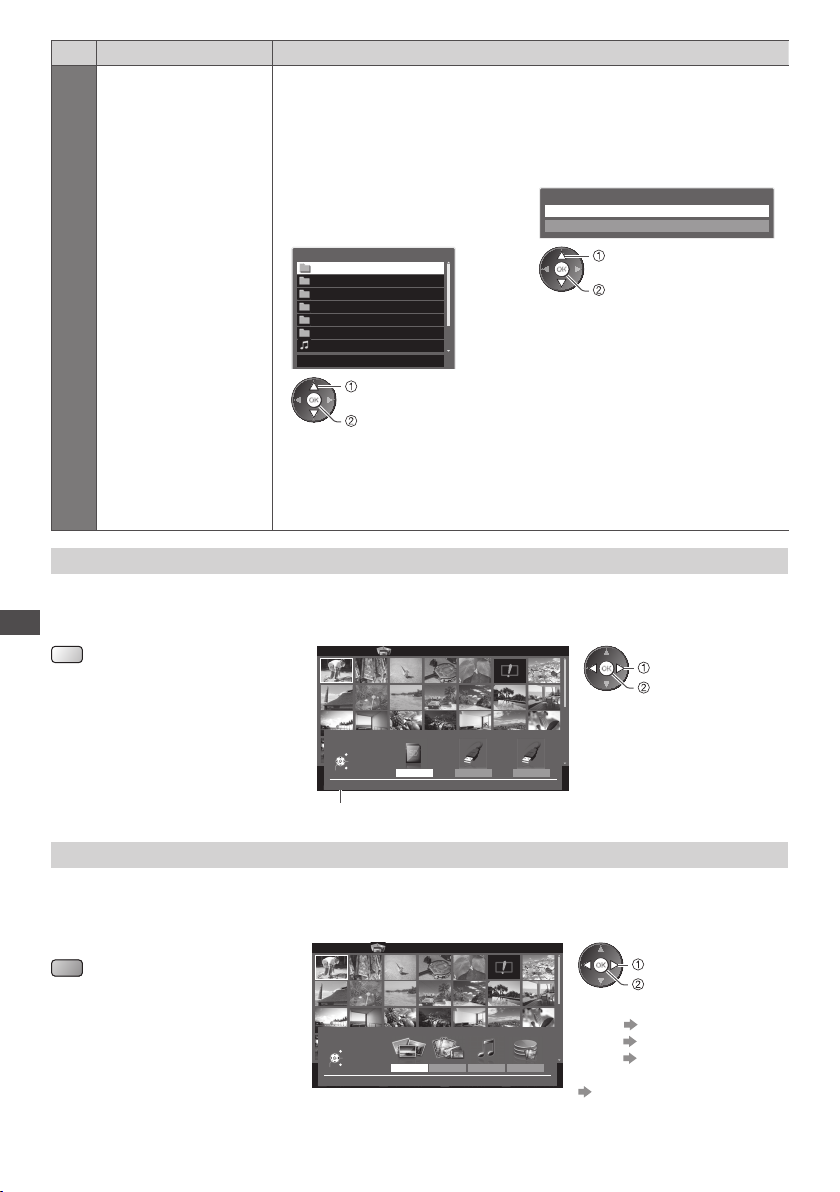

Menu

Item Adjustments / Configurations (alternatives)

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]

[Type1], [ Type2] and [ Type3] are the fixed music each installed in this TV.

•

[User] : Music data in the device registered by yourself will be played back.

To register the music

1. Select the music file 2. Select [File] or [Folder]

Slideshow Settings

Back Ground Music

D epending on the condition of the
device, select folders until you reach the
desired music file.

Back Ground Music

PRIVATE

DCIM
MISC
001photo
002photo
003music
01 song.mp3

Type1

select

access

If no music has been registered or the device which has the registered music is

•

removed, no sound will be produced.

[Auto] : Music data stored in the root folder of the current device will be played back

randomly.

If there is no available music data, no sound will be produced.

•

Register Slideshow BGM?

F ile

F older

[File] : The selected music file will be

[Folder] : All the music in the folder which

Change the device

Y ou can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

Using Media Player

(yellow)

2 Select the device you want to access to

Media Player Photo

All photos

select

set

registered as back ground music.

contains the selected music file
will be registered as back ground
music.

select

access

Drive Select

EXIT
Select
RETURN

V iew

EXIT

Select RETURN

SD Card

Access

SD Card

Slideshow View Select Drive Select Contents Selec t

Selected device name

Change the contents

Y ou can switch to the other mode of Media Player from the thumbnail view.

T he mode can be switched in the current device.

•

1 While the thumbnail is displayed,

display the contents selection

(blue)

2 Select the contents

Media Player Photo

C ontents Select

EXIT
Select
RETURN

V iew

EXIT

Select RETURN

P hoto Video Music

Access

SD Card

Slideshow View Select Drive Select Contents Selec t

62

I nfo

OPTION

I nfo

OPTION

USB HDD1 USB Flash...

All photos

Recorded TV

SD Card

select

access

[Photo] “Photo mode” (p.59)
[Video] “Video mode” (p.63)
[Music] “Music mode” (p.67)

SD Card

[Recorded TV ]

“Recorded TV mode” (p.65)

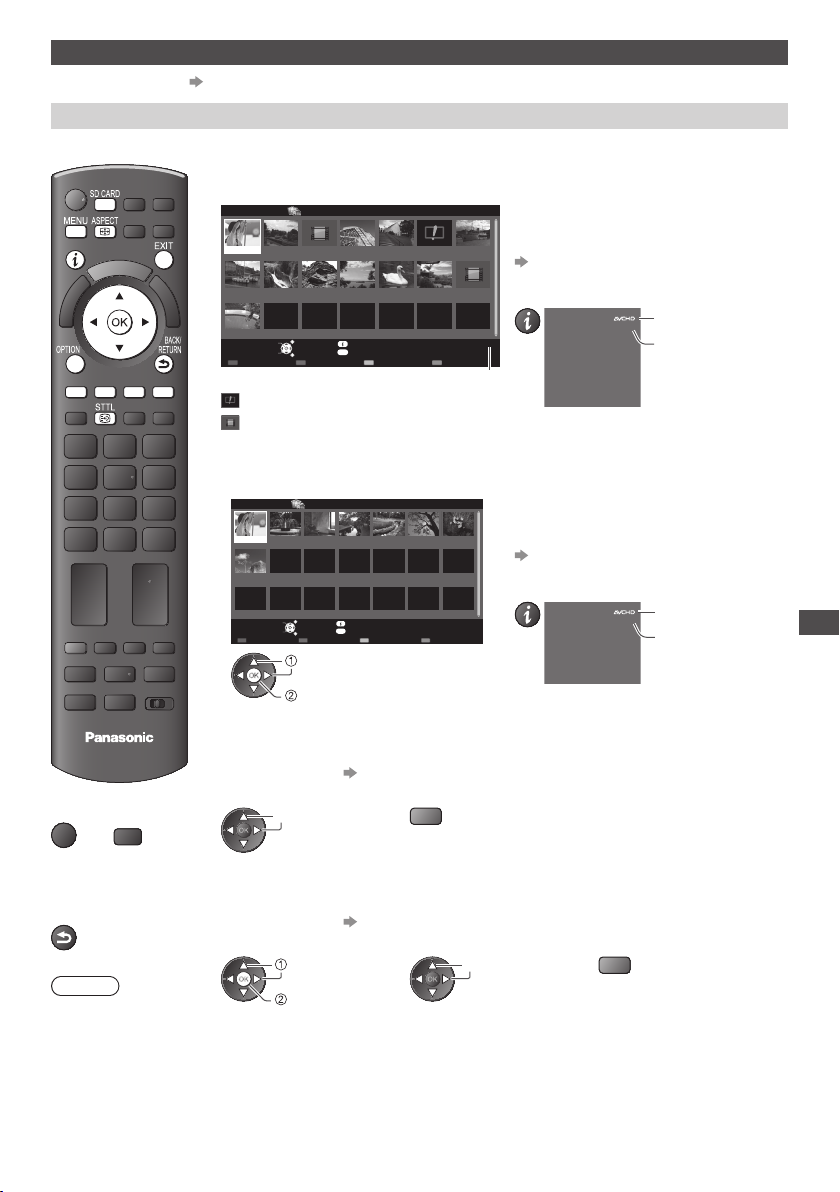

Video and Recorded TV mode

Supported file format (p.93)

•

Video mode

(For SD Card or USB Flash Memory)

T he thumbnail of video titles in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Title view]

Media Player Video

Trip1 Trip2Trip3Trip4Trip5RoomNature1

Nature3Nature4Nature5Nature6

2010_9

Access

EXIT
RETURN

Select

Play Contents Select

: Error display

: T he file does not support thumbnail view.

T o view the scenes of the title

•

Select the title

Example : Thumbnail - [Scene view]

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Play

Select RETURN

Play

EXIT

select

access

I nfo

OPTIONOPTION

O ption Menu

Drive Select

Selected device name

Title view > Trip1

I nfo

OPTION

O ption Menu

Drive Select

2010_4 2010_7Nature2

C ontents Select

Title view

T he preview will start when the title is
highlighted if it supports a preview.

T o turn off the preview

•

 “Video Setup” (p.64)
T o display the information of the highlighted

•

title

SD Card

T itle

D ate & Time

19/02/2010 11:21

Number of scenes

Duration

00h15m39s

T he preview will start when the scene is
highlighted if it supports a preview.

T o turn off the preview

•

“Video Setup” (p.64)

T o display the information of the highlighted

•

scene

SD Card

Scene

D ate & Time

Duration

Trip1_1

19/02/2010 11:21

00h04m12s

F ile format

1/15

Trip1

T itle number /
Total title number

8

F ile format

1/8

Scene number /
Total scene number

Using Media Player

TV

■

To return to T V

EXIT

SD CARD

or

■

To return to the
previous screen

BACK/

RETURN

Note

T he structure of titles

•

and scenes may vary
depending on the digital
video camera used.

■ Playback from Title view

Playback of the selected title will start.

T o repeat playback “Video Setup” (p.64)

•

1 Select the title 2 Start playback

select

(red)

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback will start from the selected scene to the end of the title.

T o repeat playback “Video Setup” (p.64)

•

1 Select the title 2 Select the scene 3 Start playback

select

access

select

(red)

63

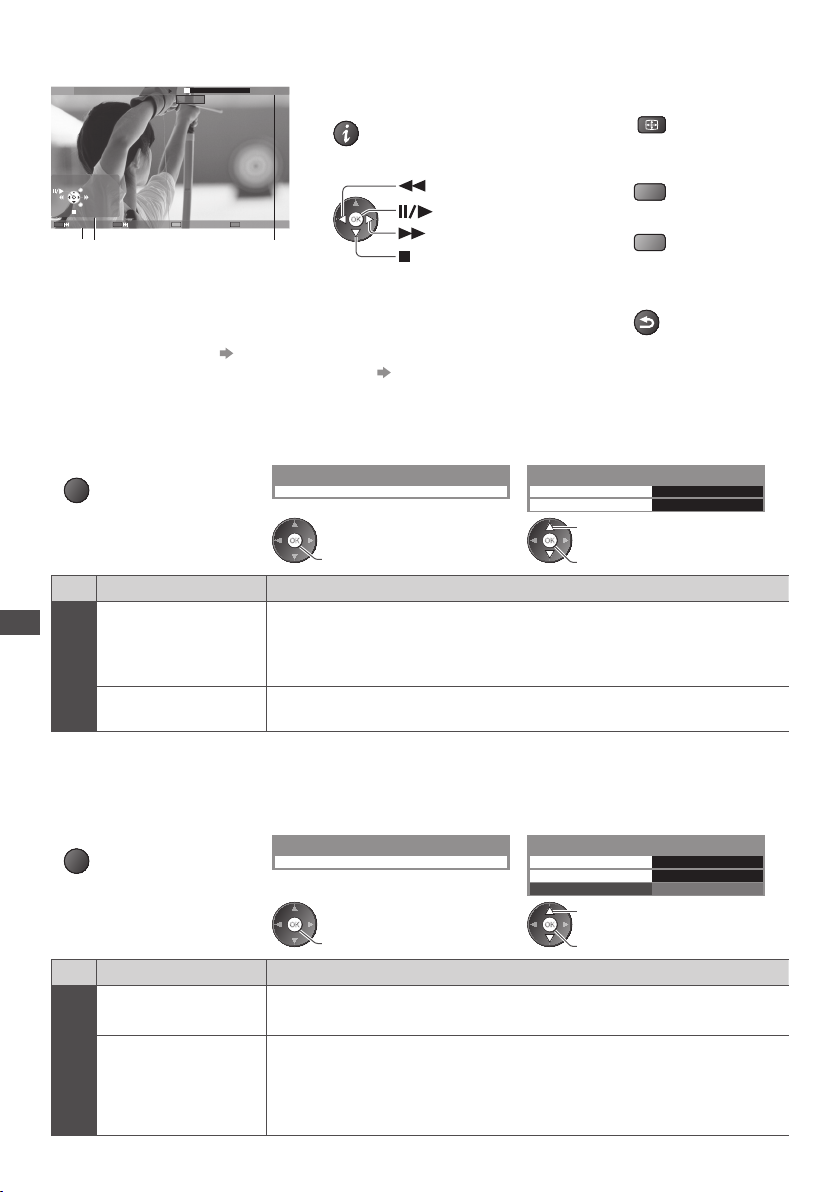

■ How to operate in the playback

Example : Playback

SD 19/02/2010 11:21 00:15:39

EXIT

RETURN

O peration guide

00:02:05

I nformation banner

T o display / hide the operation guide and

•

information banner

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

■ To change the device “Change the device” (p.62)

■ To change the content in the current device “Change the contents” (p.62)

■ Video Setup

Setup the settings for Video mode.

1 Display the option menu

in the thumbnail view

OPTION

Menu

Video Setup

Using Media Player

Video Preview

Item Adjustments / Configurations (alternatives)

2 Select [ Video Setup] 3 Selec t the items and set

Option Menu

V ideo Setup

access

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off]

•

to resolve this.

T o change aspect

•

ASPECT

T o the previous title /

•

scene

T o the next title / scene

•

T o return to thumbnail

•

Video Setup Menu

V ideo Preview O n
R epeat

select

access / store

(red)

(green)

BACK/

RETURN

Off

Repeat Playback repeat within the title or selected file (depending on the content) [Off] / [On]

■ Confirm or change the current status

Y ou can confirm or change the current status of the content.

M enu items and selectable options vary depending on the content.

•

1 Display the option menu

during playback

OPTION

Menu

Video Setup

Multi Audio

Aspect Change

64

Item Adjustments / Configurations (alternatives)

2 Select [ Video Setup] 3 Selec t the items and set

Option Menu

V ideo Setup

access

Allows you to select between selectable sound tracks (if available)

I t may take several seconds to change the sound.

•

[Aspect1] : Displays the content enlarged without distortion
[Aspect2] : D isplays the content full-screen
[Original] : Displays the content original size

Y ou can also change the aspect using the ASPECT button.

•

A spect change may not work depending on the content.

•

Video Setup Menu

Multi Audio Stereo
A spect Change

R epeat

select

access / store

A spect1
Off

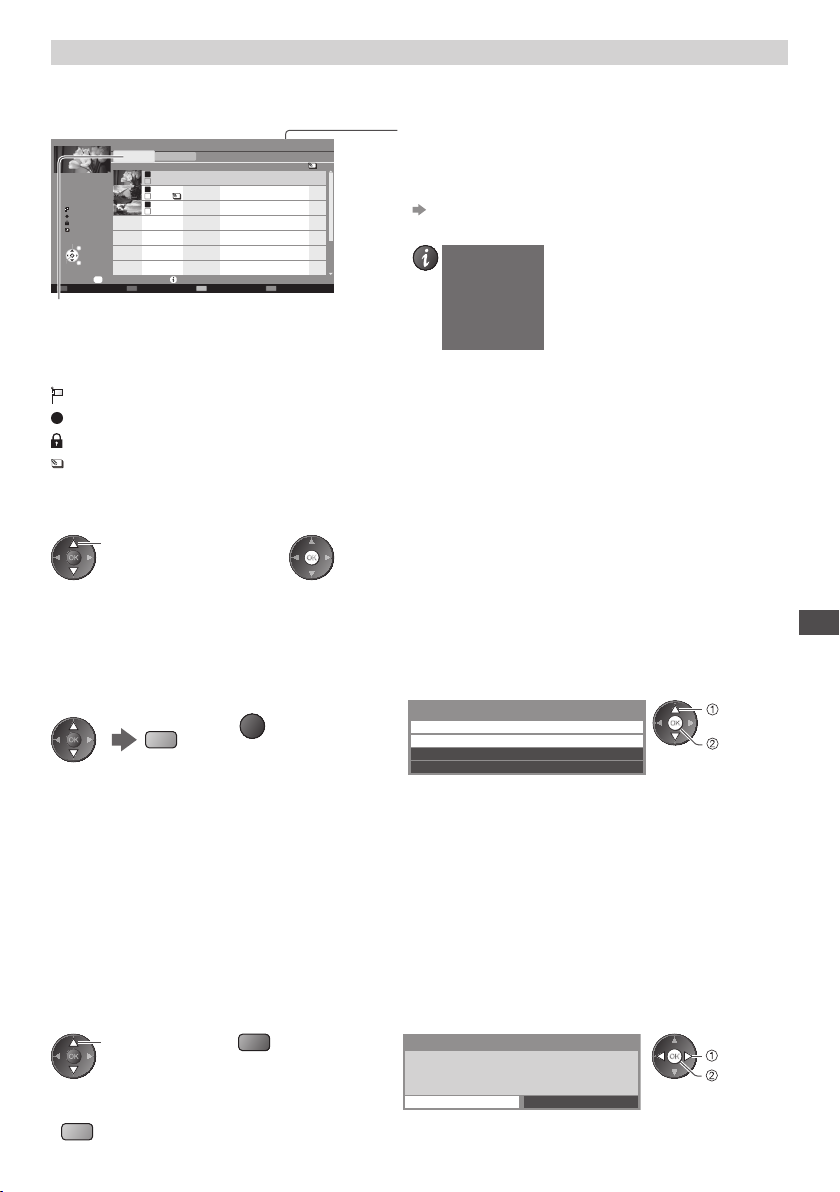

Recorded TV mode

(For USB HDD)

C ontents list of the USB HDD will be displayed.

Example : Contents list

Duration

Not V iewed
Recording now
Protected
Grouped

Select

Play

Delete

EXIT
Select

RETURN

00:00

OPTION

Media Player

Option Menu

All

R ecorded T

N ot Viewed

C hannel Title D ate

BBC 1D

T hu 28/10

M on 10/1

ITVD

Sa

BBC 2

Info

V

R emaining Capacity 500GB (50%)

Das Erste

12:00

News

13:30

t 15/1

Cinema

13:50

Chapter List Select

USB HDD 1

1

3

1D

[All] :
All the recorded contents are listed.
[Not Viewed] :
C ontents not played back are listed.

: C ontent not played back (Once you playback the content, this icon will disappear.)

: C ontent under recording (You can playback this content even if under recording.)

: Protected content cannot be deleted.

: Two or more contents are grouped.

R emaining capacity of the HDD

T his value may not be accurate depending on the condition.

•

Y ou can also access the contents list directly by using VIERA

•

TOOLS.

 “How to Use VIERA TOOLS” (p.28)

T o display the information of the highlighted content

•

- Channel
DVB-T, BBC 1

- Title
Das Erste

- Date & Time
T hu 28/10/2010 12:00

- Duration
00:20

■ Playback the content from the list

1 Select the content 2 Start playback

select

If you stopped the last playback on the way, the confirmation screen

•

asking whether you wish to start from the last stopped part or beginning
will be displayed. Select your desired option.
If the content has multiple programmes with the different parental

•

ratings, the highest restriction is valid for the content. Once you unlock
the restriction, all the programmes in the content can be played back.

■ To edit recording content

1 Select and tick the

content to edit

(blue)

[Create Group] :
Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group].
[Release Group] :
Select the created group you want to release, and then select [Release Group]. (To release several groups at once, tick all the
desired groups.)
[Exclude from Group] :
Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the
group, select it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.)
[Change Protect Status] :
Select the content you want to protect to delet
protection. (To change the status of several contents at once, tick all the desired contents.)

2 Display the option menu

OPTION

e, and then select [Change Protect Status]. Perform the same way to cancel the

3 Select the item and edit

Option Menu

Create Group
R elease Group

Exclude from Group
C hange Protect Status

Chapter List

select

edit

■ Delete the selected content

1 Select the content 2 Delete the content 3 Confirm

select

T o select two or more

•

contents

(blue)

(red)

Delete

Are you sure you want to delete?

select

set

N o Y es

Using Media Player

65

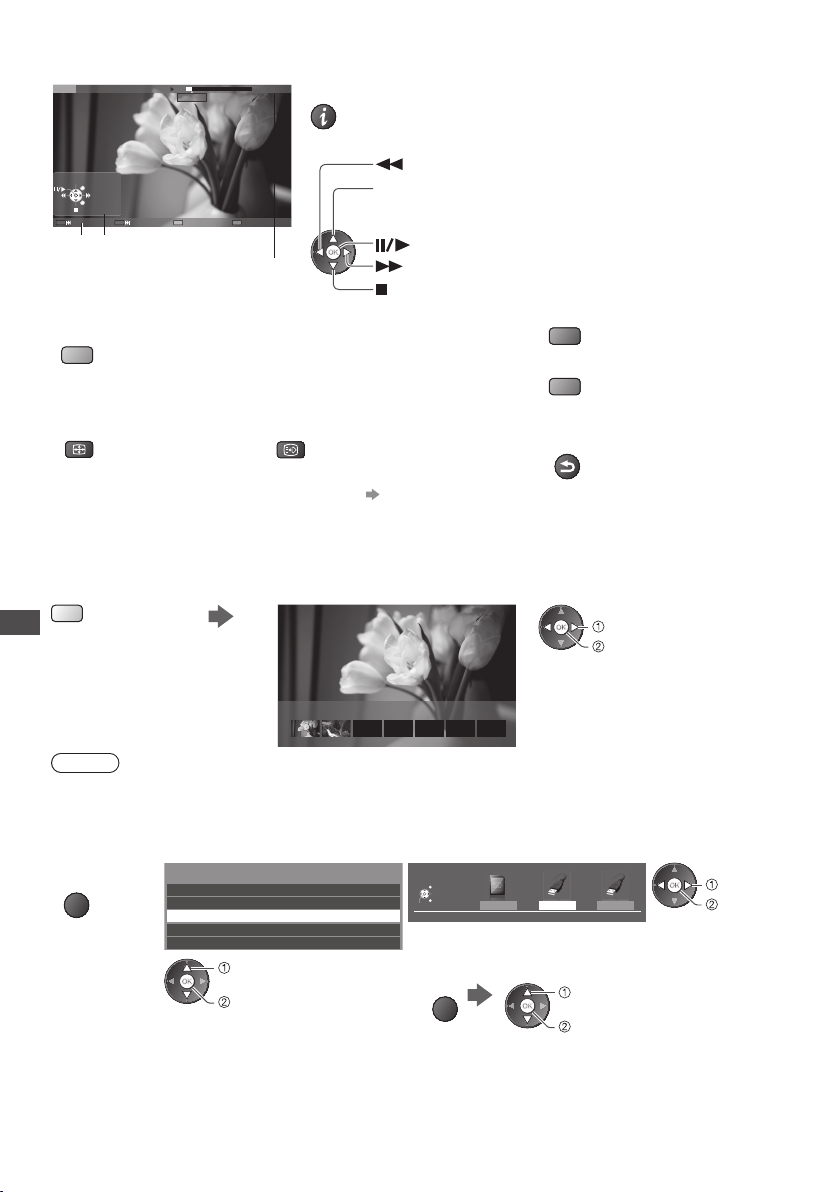

■ How to operate in the playback

Example : Playback

Das ErsteUSB00:15:39

M anual skip

EXIT

RETURN

O peration guide

T o repeat between the starting point “A” and finishing point “B”

•

Set “A” and “B” in order

(blue)

T o change aspect

•

ASPECT

T o confirm or change the current status (if available) “Display the selectable settings for the current status” (p.19)

•

00:02:05

Chapter List A-B repeat

I nformation banner

•

T he points will be reset by pressing this button again or
other operations.

T o display / hide the operation guide and information banner

•

T o operate the playback

•

T o display the subtitle (if available)

•

STTL

Rewind

[Manual skip]

Press to skip forward about 30 seconds

•

Press and hold to skip backward about 15 seconds

•

Pause / Playback

F ast forward

Stop

T o the previous chapter

•

T o the next chapter

•

T o return to list

•

RETURN

(red)

(green)

BACK/

■ Chapter List

Y ou can start playback from the chapter list you select.

A recorded content is automatically divided into chapters (about five minutes for each).

•

T he chapter list is not displayed while the selected content is being recorded.

•

T o play back from the chapter list

(yellow)

Using Media Player

select

playback

C hapter List

00:00:00 00:05:00

Note

D epending on the recorded programmes, some playback operations may not work properly.

•

■ Change the device

Y ou can change to the other device directly in the same mode if two or more devices are connected.

1 Display the

option menu

OPTION

66

2 Select [Drive Select]

Option Menu

Create Group
R elease Group

Drive Select

C ont

ents Select

C hange Protect Status

select

access

3 Select the device you want to access to

Drive Select

EXIT
Select
RETURN

SD Card

Access

U SB HDD1

If you select the SD Card or USB Flash Memory, also change the
contents to enjoy photo, video or music.

T o change the content

•

OPTION

USB HDD1 USB Flash...

select [Contents Select]

access

select

access

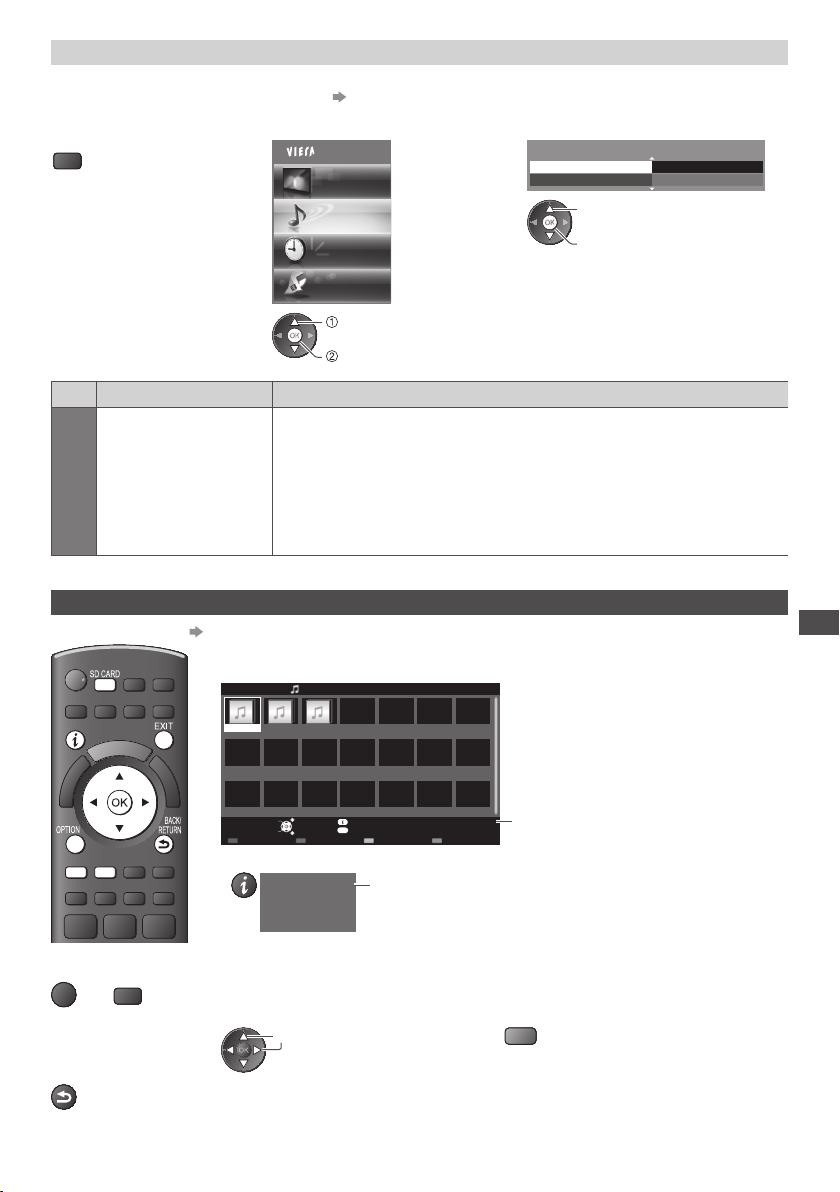

Audio output Settings

Y ou can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

T o confirm or change the current sound status “Confirm or change the current status” (p.64)

•

1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set

MENU

Main Menu

access


Sound

Timer

S

select

etup

SPDIF Selection

R eset to Defaults

select

access / store

Auto
R eset

2/2

Menu

Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Music mode

Supported file format (p.93)

•

■

To return to T V

EXIT

SD CARD

or

■

To return to the
previous screen

BACK/

RETURN

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream.

DTS is output as DTS.
MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

T he thumbnail of music folders in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Folder view]

Media Player Music

My Music_1 My Music_2 My Music_3

Access

Select

Play Folder Contents Select

T o display the information of the highlighted folder

•

F older name

Number of files

EXIT
RETURN

My Music_1

I nfo

OPTION

O ption Menu

Drive Select

1/3

F older number / Total folder number

11

Folder view

SD Card

Selected device name

■ Playback from Folder view

All the files in the selected folder will be played back.

1 Select the folder 2 Start playback

select

(red)

Using Media Player

67

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

Example : Thumbnail - File view

select

access

Media Player Music

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_9 My Song_10 My Song_11My Song_8

Folder view > My Music_1

(red)

Play

Select RETURN

Play Folder

EXIT

select

OPTION

I nfo
O ption Menu

Drive Select

•

SD Card

C ontents Select

T o display the information of the highlighted file

T itle

My Song_1

Album

My Music_1

Artist

My Favourite

Track No.

Duration

00h03m29s

■ How to operate in the playback

Example : Playback

Using Media Player

O peration guide

EXIT

RETURN

My Song_9
My Favourite
My Music_1

00:02.43 / 00:05.44

T o display / hide the operation guide

•

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

■ To change the device “Change the device” (p.62)

■ To change the content in the current device “Change the contents” (p.62)

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu 2 Selec t [Music Setup] 3 Set

OPTION

Option Menu

Music Setup

select

1/11

F ile number / Total file number

1

•

•

•

Music Setup Menu

R epeat O ne

select

T o the previous track

(red)

T o the next track

(green)

T o return to thumbnail

BACK/

RETURN

68

access

access / store

[Folder] : Playback repeat within the

selected folder

[One] : Playback repeat of the selected

one file

Using Network Services (DLNA / VIERA Connect)

DLNA®

T his TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient
to use on a home network. To learn more, visit www.dlna.org.
I t allows you to share phot
installed, DIGA Recorder etc.) connected to your home network, and enjoy the contents on the TV screen.
I t also allows you to control the TV with the DLNA Certified equipment connected to your home network. (DLNA Remote
Control)

F or the supported file format (p. 93, 94)

•

AVCHD and DivX files are not supported by DLNA functions of this TV, but can be played by Media Player (p. 57).

•

■ Media server

Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC.
“ Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server

software that has been tested for compatibility with this TV (current as of January, 2011). Any other server software have not
been tested with this TV, therefore compatibility and performance cannot be assured.

Windows 7

•

T he setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.
TwonkyMedia server

•

“TwonkyMedia server” is the product of PacketVideo Corporation.
T o obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia.
Additional fees may be charged to obtain server software.

Note

F or more information about the server software, please consult each software company.

•

When server software for the media server is installed on the PC, the data may be at risk of being accessed by other

•

people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at
home when not using a router.

To use a DLNA compatible DIGA Recorder as a media server

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media
servers.

Please refer to the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.

•

■ DLNA Remote Control

Y ou can control the TV with the DLNA Certified equipment.

T o use this function, set the [Network Link Settings] (p. 71)

•

“ Windows 7” is the OS that has been tested for compatibility of this TV (current as of January, 2011). For the operations,

•

refer to the help functions of Windows 7.

os, videos and music stored in the DLNA Certified media server (for example, PC with windows 7

Using Network Services (DLNA / VIERA Connect)

Network connection

Network setup

DLNA operations

 “Example 1” or “Example 2” in “Network connections” (p. 70)

(p. 71 - 75)

(p. 76 - 79)

VIERA Connect

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.

T his TV has no full browser function and all features of websites may not be available.

•

Network connection

Network setup

VIERA Connect operations

 “Example 1” or “Example 3” in “Network connections” (p. 70)

(p. 71 - 75)

(p. 16)

69

Network connections

T o use only DLNA features, you can operate the features without broadband network environment.
T o use VIERA Connect features, you need a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on

•

this TV. Read the manual of the equipment.
R equired speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is

•

not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Wired connection

Internet

LAN cable (Shielded)

Wireless connection

Wireless LAN Adaptor and Extension cable

“Optional accessories” (p. 6)

C onnect to the USB 1, 2 or 3 port.

•

E nsure to use a LAN straight cable for this connection.

•

If your modem has no broadband router functions, use a broadband router.

•

If your modem has broadband router functions but there are no vacant ports, use a hub.

•

E nsure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

•

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

•

Access point

M odem

Hub or Router

DLNA Certified
mediaserver
(for example, PC,
DIGARecorder, etc.)

Example 2

Using Network Services (DLNA / VIERA Connect)

(For DLNA)

Y ou can connect the TV and the equipment directly to use DLNA features.

DLNA Certified mediaserver
(for example, PC,
DIGARecorder, etc.)

LAN cable (Shielded)

E nsure to use a LAN cross cable for this connection.

•

Example 3

(For VIERA Connect)

Y ou can connect the TV and the telecommunication equipment directly to use VIERA Connect features.

Note

C ontact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network

•

equipment.
C onfirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications

•

company. Depending on the contracts, additional fees may be charged or multiple connections to the int
impossible.

LAN cable (Shielded)

Internet

70

ernet may be

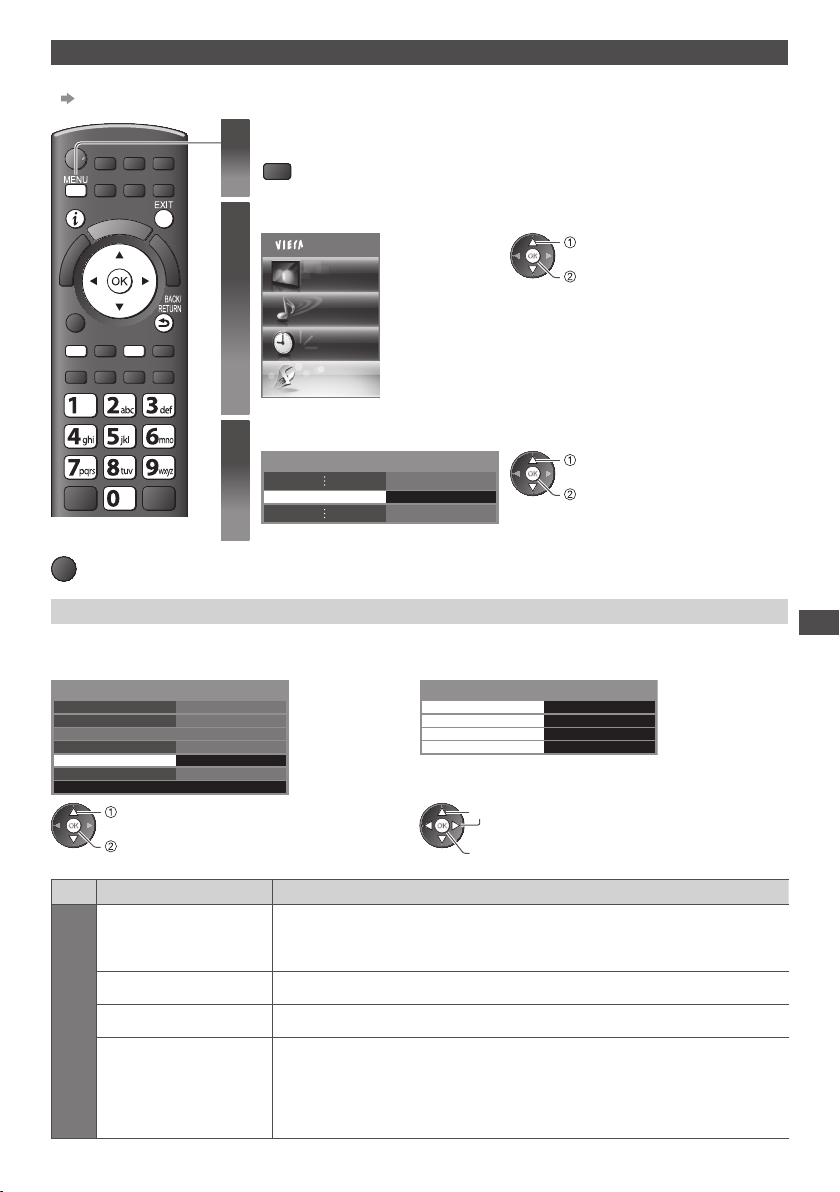

Network Setup

E nsure the connections are completed before starting Network Setup.

•

“Network connections” (p.70)

Display the menu

1

MENU

Select [Setup]

2

Main Menu


Sound

Timer

select

access

Setup

access

■

To return to T V

EXIT

Select [Network Setup]

3

N etwork Setup Access

Network Link settings

Sets the link settings to control this TV from the network equipment via the network.

1 Select [Network Link Settings] 2 Select the items and set

Network Setup

C onnection Test
N etwork Type Wired

Access Point Settings

IP/DNS Settings

N etwork Link Settings

Software Update
MAC Address

select

access

Menu

Network Link Settings

VIERA Name

DLNA Remote Control E nables to control the TV using Windows 7 via the network [Off] / [On]

DLNA Remote Volume E nables to control the volume of the TV using Wi

Network Remote Control

Access

ab-cd-ef-gh-ij-kl

Item Adjustments / Configurations (alternatives)

Sets your favourite name for this TV

T his name will be used as the name of this TV on the screen of the other network

•

equipment.

E nables to control the TV from the network equipment (Smartphone, etc.) [Off ] / [On]

D epending on the area, this function may not be available. For details, consult your

•

local Panasonic dealer.
F or more information of this function, visit the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

Network Link Settings

VIERA Name

Remote Control

DLNA
DLNA Remote Volume
N etwork Remote Control

select

access / store

VIERA

O n
O n
O n

ndows 7 via the network [Off] / [On]

select

Using Network Services (DLNA / VIERA Connect)

71

Wired connection settings

T his setting is for the network connection by using the LAN cable.

1 Select [Network Type] and set to [Wired]

Network Setup

C onnection Test

N etwork T

ype

Access Point S

ettings

IP/DNS Settings
N etwork Link Settings
Software Update
MAC Address

Wired

ab-cd-ef-gh-ij-kl

select

access / store

If you make the network connection like “Example 2” (p.70), you do not have to
set [Acquire DNS Address], [Proxy] and [Proxy Port].

2 Select [IP/DNS Settings] and set the items

Network Setup

select

IP/DNS Settings Access

access

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS].
Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)

T he available settings are displayed automatically.

IP/DNS Settings

Acquire IP Address Auto

IP Address
Subnet Mask
G ateway

Acquire DNS A

ddress

DNS A

ddress

Proxy Settings

Auto

•

M anual settings
([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])

select

access / store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

3 Select [Proxy Settings] and set the items

select

access

After settings, return to [Network Setup] screen

BACK/

RETURN

Using Network Services (DLNA / VIERA Connect)

IP/DNS Settings

Acquire IP Address

IP Address
Subnet Mask
G ateway

Acquire DNS Address

DNS Address

Proxy

Settings

Auto

Auto

Access

•

■ [Proxy]

Sets Proxy address.

T his is the address of the relay server that is connected to the target server instead of the browser and sends data to the

•

browser. Setting is required if specified by the provider.

1 . Select [Proxy] 2. Enter the address 3 . Store

Proxy Settings

Proxy

Proxy

Port

0

select

Proxy

H ost

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

BACK/

RETURN

access

•

set

Y ou can set characters by using numeric
buttons.

■ [Proxy Port]

Sets Proxy port number.

T his number is also specified by the provider with the Proxy address.

•

1 . Select [Proxy Port] 2. Move the cursor and enter the number

select

m ove

72

Proxy Settings

Proxy

Proxy

Port

0

abc def

jkl

ghi

mno

tuvpqrs

wxyz

4 Select [Connection Test] and access to test

Network Setup

C onnection Test

N etwork T

ype

Access Point Settings

IP/DNS Settings
N etwork Link Settings
Software Update
MAC Address

Connection Test

C heck network cable connection.
C heck acquired IP address.
C heck for devices using same IP address.
C heck gateway connection.
C heck server connection.

Access
Wired

ab-cd-ef-gh-ij-kl

•

: succeeded

select

access

P erforms automatic testing of the network connection for the TV. (It takes a
while to test.)

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections, and then perform this function again.

Wireless connection settings

T his setting is for the network connection by using the Wireless LAN Adaptor. ( Wireless connection)

C onfirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of

•

the access point.

1 Select [Network Type] and set to [Wireless]

Network Setup

C onnection Test

N etwork T

ype

Access Point S

ettings
IP/DNS Settings
N etwork Link Settings
Software Update
MAC Address

Wireless

ab-cd-ef-gh-ij-kl

select

access / store

2 Select [Access Point Settings]

Network Setup

C onnection Test
N etwork Type

Access Point S

ettings

IP/DNS S

ettings
N etwork Link Settings
Software Update
MAC Address

Wireless
Access

ab-cd-ef-gh-ij-kl

•

select

access

When the access point is already set, [Current Settings] screen will be displayed.
To change the settings, select [No] on this screen and go to the next step.

3 Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

Search for access point

M anual

select

access

F or details of each connection type (p.74,75)

•

After settings, return to [Network Setup] screen

•

Using Network Services (DLNA / VIERA Connect)

73

4 Select [Connection Test] and access to test

Network Setup

C onnection Test Access

N etwork T

ype
Access Point Settings
IP/DNS Settings
N etwork Link Settings
Software Update
MAC Address

Connection Test

C heck access point connection.
C heck acquired IP address.
C heck for devices using same IP address.
C heck gateway connection.
C heck server connection.

Wireless

ab-cd-ef-gh-ij-kl

access

P erforms automatic testing of the network connection for the TV. (It takes a while
to test.)

: succeeded

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections, and then perform this function again.
If you continue to have difficulty, please contact your internet service provider.

■ [WPS(Push button)]

WPS(Push button)

1) Please press the ‘WPS’ button on the access
point until its light ashes.

2) When the light is ashing select ‘Connect’ on
TV.

If you are unsure, please check the instruction
manual of the access point.

C onnect

press the WPS button on the access point until the light flashes

E nsure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

■ [WPS(PIN)]

1 Select your desired access point

Available Access Points

N o. Wireless type E ncrypt Reception

SSID

1

Access Point A
Access Point B

2

Access Point C

3

T o search access points again

•

Using Network Services (DLNA / VIERA Connect)

(yellow)

11n(2.4GHz)
11n(5GHz)
11n(5GHz)

E nsure that your access point supports WPS for this setup.

•

F or the information of the highlighted access point

•

2 Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the
access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the
settings on the access point.

C onnect

■ [Search for access point]

Access points found automatically are listed.

1 Select your desired access point

Available Access Points

N o. Wireless type E ncrypt Reception

SSID

1

Access Point A
Access Point B

2

Access Point C

3

T o search access points again

•

(yellow)

11n(2.4GHz)
11n(5GHz)
11n(5GHz)

: Encrypted access point

F or the information of the highlighted

•

access point

select

c onnect the Wireless LAN Adaptor and the access point

select

access

T o set manually

•

(red)

select

access

T o set manually

•

(red)

74

2 Access the encryption key input mode

Encryption Key Setting

C onnection will be made with the following settings:-
SSID : Access Point A
Authentication type : WPA- PSK
E ncryption type : TKIP

Please input the encryption key.

E ncryption key

If the selected access point is not encrypted, the confirmation screen will be

•

displayed. It is recommended to select the encrypted access point.

3 Enter the encryption key of the access point (Set characters one by one)

Access Point Settings

E ncryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

select

•

set

Y ou can set characters by using numeric
buttons.

Store

BACK/

RETURN

4 Select [ Yes]

Access Point Settings

E ncryption key is set to:-
XXXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Y es

N o

select

confirm

T o re-enter the encryption key, select [No].

•

■ [Manual]

Y ou can setup SSID, authentication type, encryption type, and encryption key manually.
F ollow the on screen instructions and set manually.

When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES]

•

for the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:-
XXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Yes

N o

Authentication Type Settings

C onnection will be made with the following
settings:-

SSID : XXXXXXX

Please select the authentication type.

WPA2-PSK

WPA

-P SK

Shared key

O pen

Using Network Services (DLNA / VIERA Connect)

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Select [Software Update]

Network Setup

C onnection Test
N etwork Type

Access Point Settings

IP/DNS Settings
N etwork Link Settings

Software Update

MAC Address

Note

Network Setup

MAC Address

Wired

Access

ab-cd-ef-gh-ij-kl

ab-cd-ef-gh-ij-kl

•

[MAC Address]

•

select

access

F ollow the on screen instructions

MAC address is a unique address that identifies hardware in the network.
(for information only)

75

Using DLNA® features

E nsure the preparation of media server, network connections and network settings are completed.

•

“Media server” (p.69), “Network connections” (p.70), [Network Setup] (p.71 -75)

Display icons of the feature

1

2

T

O

A

O

R

L

E

S

I

V

Select [Media Server]

select

access

Using Network Services (DLNA / VIERA Connect)

EXIT

■

To return to T V

■

To return to the
previous screen

BACK/

RETURN

Select one of the media servers you want to access

3

Example : Media server list

Media Server

A

SERVER1

5

SERVER2

g

SERVER3
DIGA

Select

EXIT

RETURN

Access

Info

OPTION

Option Menu

Available media servers

M edia Server

select

access

T o display the information of the highlighted media

•

4

server

T otal listed number

Select the file

4

Example : File list

Media Server

SERVER1

P000102 2010-10-05 09:54
P000135

Pixel

P000180

3648x2736

Format

P000214

JPEG

P000251
P000276
P000293
V100025

Select

V100042

EXIT

M10054
M10078

RETURN

View

OPTION

Option Menu

Slideshow

2010-11-20 13:18
2010-12-07 11:31
2010-12-10 15:20
2010-12-19 12:39
2010-12-25 14:06
2011-01-06 13:52
2011-01-12 15:56
2011-01-20 10:08
2011-01-28 14:48
2011-02-09 19:58

Info

28

select

access

D epending on the condition of media server, you may

•

need to select the folder before selecting the file.
T o display the information of the highlighted file

•

Note

N on-playable files are also listed but cannot be selected.

•

Turn the TV off, and then on again when changing or reconnecting the network

•

connection.
Y ou can use the following buttons during playback.

•

Set the position to “TV”

DVD/VCR

TV

76

For photo file

A

[Single view]

Example :

Single view

EXIT
Select
RETURN

Stop

O peration guide

- Photos are displayed one at a time.

Single view

R otate

T o display / hide the operation guide

•

T o operate Single view

•

T o the previousphoto

T o the next photo

Slideshow

Stop
(return to list)

[Slideshow] - Slideshow will complete when all photos have been viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow

select

T o display / hide the operation guide

•

T o pause (return to Single view)

•

(red)

•

T o return to list

For video file

Playback

Example : Playback

MEDIA SERVER

M anual skip

O peration guide

- Playback will start.

19/02/2010 11:21 00:15:39

EXIT

RETURN

00:02:05

I nformation banner

T o display / hide the

•

operation guide and
information banner

T o the previous content

•

(red)

T o the next content

•

(green)

T o change aspect

•

SPECT

T o operate the playback

•

T o return to list

•

BACK/

RETURN

[Manual skip]

Press to skip forward about 30

•

seconds
Press and hold to skip backward

•

about 15 seconds

Stop

T o return to list

•

BACK/

RETURN

T o rotate 90°

•

(blue)

BACK/

RETURN

Rewind

Pause / Playback

F ast forward

Using Network Services (DLNA / VIERA Connect)

For music file

Playback

Example : Playback

O peration guide

- Playback will start

EXIT

RETURN

My Song_9
My Favourite
My Music_1

00:02.43 / 00:05.44

T o display / hide the operation guide

•

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

T o the previous track

•

(red)

T o the next track

•

(green)

T o return to list

•

BACK/

RETURN

77

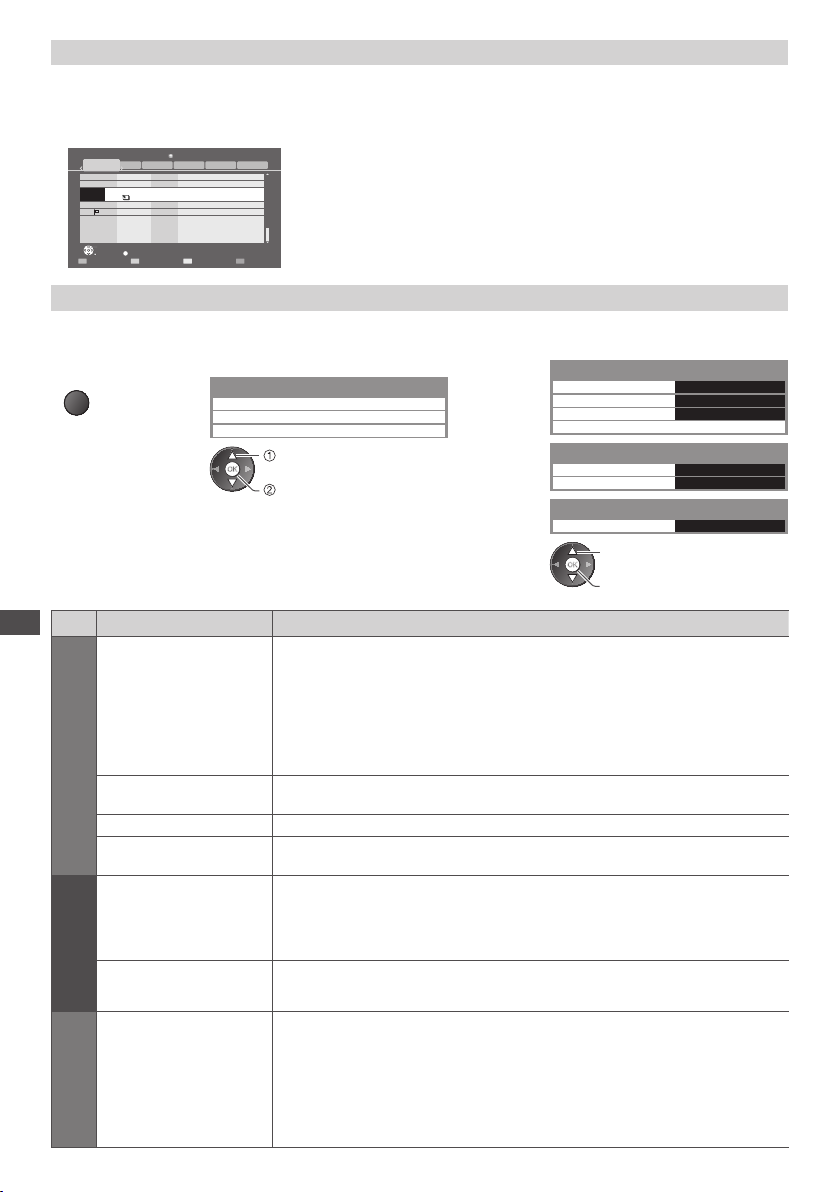

For DIGA Recorder

Control the DIGA Recorder

T he screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with
this TV remote control according to the operation guide.

Example :

DIRECT NAVIGATOR (Grouped Titles)

All

Bibel TV Bibel TV das Gespräch

HDD

Liberty TV FR Journal Télévisé / Météo

19.08(Wed)

AV1

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

18.08(Tue)

WDR aktuell

WDR aktuell

WDR Aachen

WDR Wuppertal

Time Remaining 36:17 (DR)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

B efore operating, register this TV on the DIGA Recorder.

•

F or details, read the manual of the DIGA Recorder.

•

OK
RETURN

OPTION

Page 005/005

Delete TitleSelect

Option menu for each content

Setup the settings for Photo, Video and Music file operations.

1 Display the option

menu

OPTION

Menu

Using Network Services (DLNA / VIERA Connect)

Slideshow Settings

Transition Effect

Interval

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Video Setup

Video Preview

2 Select [Slideshow Settings], [ Video Setup] or

[Music Setup]

Option Menu

Slideshow Settings
V ideo Setup
Music Setup

select

access

Item Adjustments / Configurations (alternatives)

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : The next photo fades in gradually.
[Slide] : The next photo slides and appears from the left side.
[Dissolve] : Each photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or

[Random] : Each transition is selected at random.

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

T his function is not available when [Transition Effect] is set to [Motion].

•

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3]

Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]

Image may not be displayed for an instant in the thumbnail screen. Set the preview

•

[Off] to resolve this.

moving down.

3 Select the items and set

Slideshow Settings

Transition Effect F ade
I nterval 5 seconds
R epeat O n
B ack Ground Music

Video Setup Menu

V ideo Preview O n
R epeat

Music Setup Menu

R epeat O ne

select

access / store

Off

78

Repeat Playback repeat within the selected file [Off] / [On]

Music Setup

Repeat

Playback repeat [Off] / [Folder] / [One]
[Folder] : Playback repeat within the selected folder
[One] : Playback repeat of the selected one file

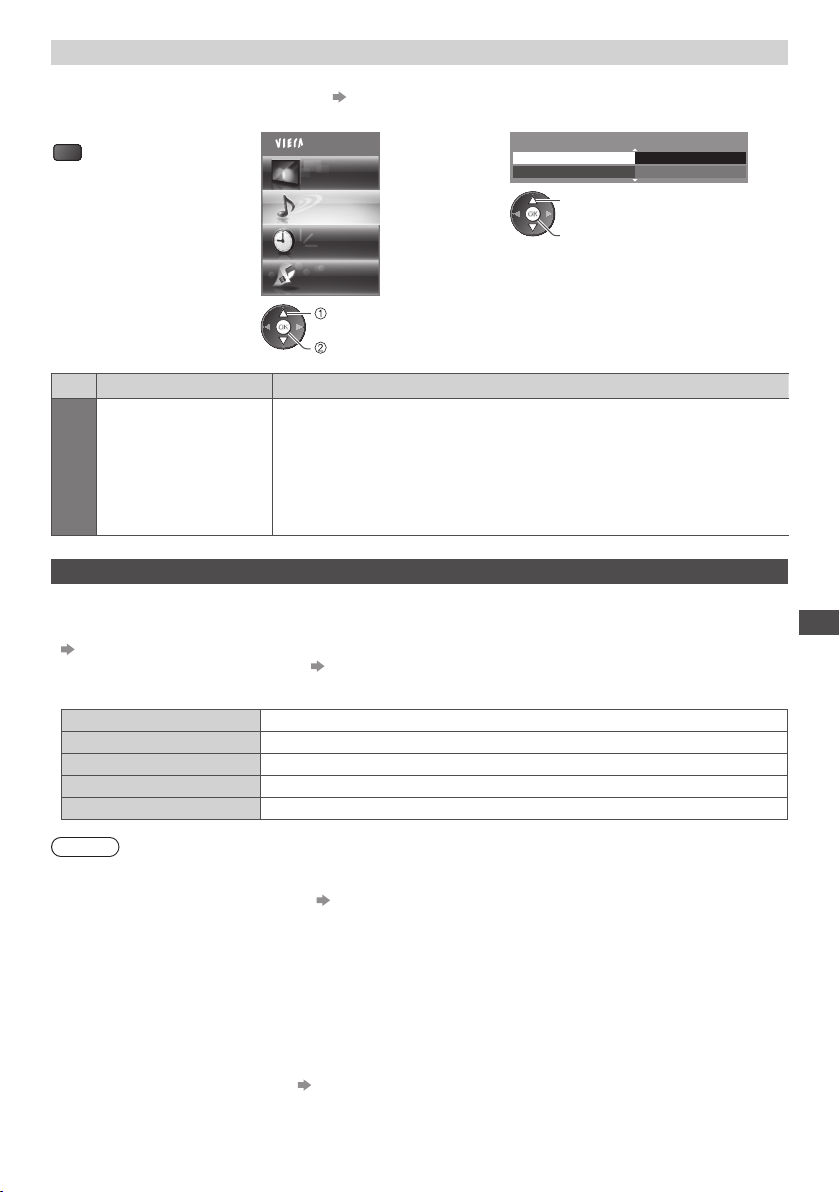

Audio output settings (for video contents)

Y ou can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

T o confirm or change the current sound status “Confirm or change the current status” (p.64)

•

1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set

MENU

Main Menu

access


Sound

Timer

S

etup

select

SPDIF Selection

R eset to Defaults

select

access / store

Auto
R eset

2/2

Menu

Sound

SPDIF Selection

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream.
MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

VIERA Connect

Y ou can access VIERA Connect and enjoy various network contents.

VIERAConnect requires a broadband internet connection. Dial-up internet connections cannot be used.

•

E nsure the network connections and network settings are completed.

•

“Network connections” (p.70), [Network Setup] (p.71-75)

F or details about VIERA Connect operation “Using “VIERA Connect”” (p. 16)

•

Setup menu (Items in [Setup] may change without notice.)

•

Customize HomeScreen C hanges the position of each services on VIERAConnect home screen

My Account C onfirms or removes the account information of the TV you entered on VIERA Connect

Lock Sets to restrict access to some services

eep Sets beep sound On or Off when operating VIERAConnect

B

Notices D isplays the information of VIERAConnect

Note

B e sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated,

•

you will not be able to use VIERAConnect.
Y ou can update the software later manually [Software Update] in [Network Setup] (p.75)
VIERAConnect home screen is subject to change without notice.

•

T he services through VIERAConnect are operated by their respective service providers, and service may be discontinued

•

either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the
continuity of the services.
Some content may be inappropriate for some viewers.

•

Some content may only be available for specific countries and may be presented in specific languages.

•

D epending on the connection environment, the internet connection may be slow or may not be successful.

•

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 33). To use
HDMI2 with ARC function, connect an amplifier that has ARC function (p. 81) and set to use theatre speakers (p. 88).
Y ou can restrict access to VIERAConnect [Child Lock] (p.46)

•

Turn the TV off, and then on again when changing or reconnecting the network connection.

•

Using Network Services (DLNA / VIERA Connect)

79

Link Functions (Q-Link / VIERALink)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p.82)

VIERALink (HDAVI Control™) connects the TV and the equipment with VIERALink function, and enables easy control,
convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting.

Y ou can use Q-Link and VIERALink functions together.

T his TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of

•

HDAVI Control. Please refer to the manual of the equipment to confirm the version.
VIERALink features may be available even with other manufacturers’ equipment supporting HDMI CEC.

•

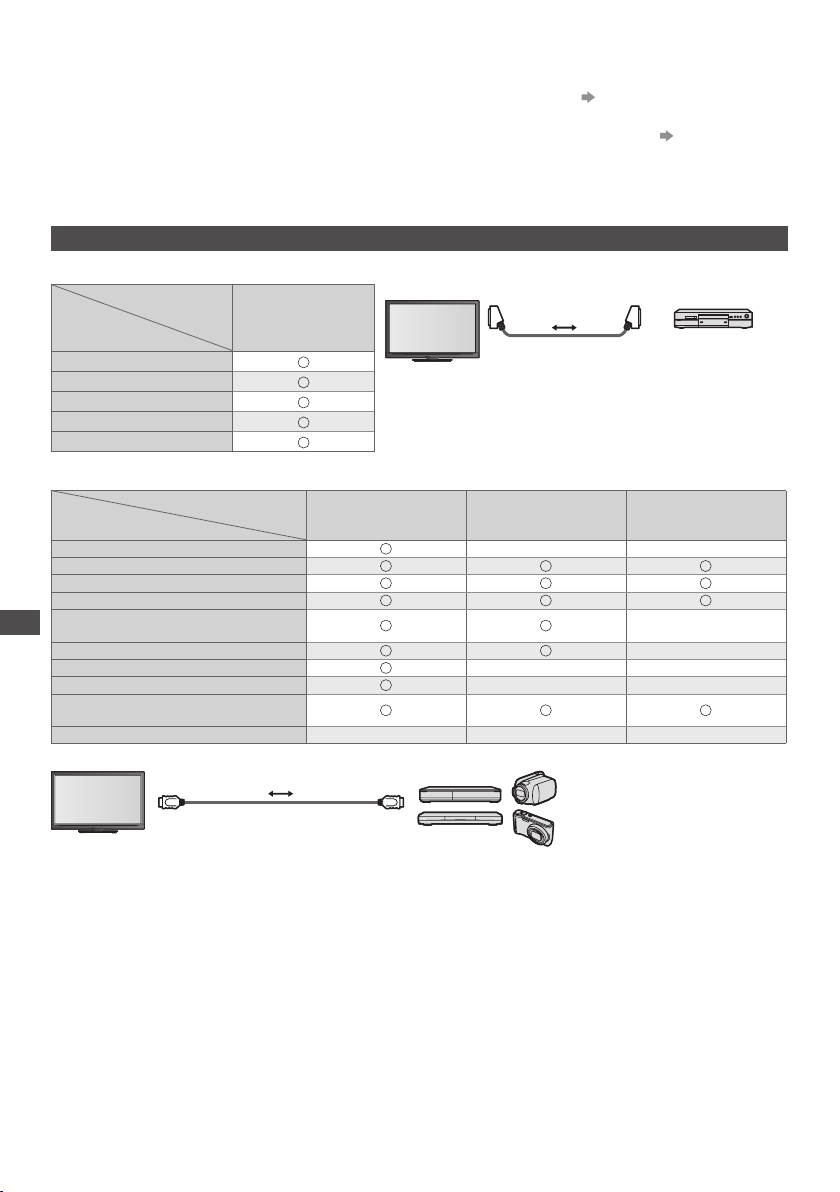

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection)

C onnected equipment

F eatures
Preset download
E asy playback
P ower on link
P ower off link
D irect TV Recording

DVD Recorder / VCR

with Q-Linkfunction

Connection

SCART cable

U se fully wired SCART cable.

•

C onnect the DVD Recorder / VCR supporting Q-Link to the TV’s AV1

•

terminal via a SCART cable.

VIERA Link (HDMI connection)

F eatures
Preset download
E asy playback
P ower on link
P ower off link
R educe unnecessary power consumption
in standby

Link Functions (Q-Link / VIERALink)

Auto standby for unnecessary equipment
P ause Live TV programme
D irect TV Recording
C ontrol the menu of the connected
equipment by VIERA remote control
Speaker control – – –

Connection

C onnected equipment

HDMI cable

DIGA Recorder with
VIERALink function

5

∗2 ∗

3

∗

3

∗

4

∗2 ∗

2

∗

1

∗

DVD Player / Blu-ray Disc

Player with VIERALink

function

– –

3

∗

3

∗

– –
– –

1

∗

DIGA Recorder / DVD Player /
Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function

(p.83 - 88)

DVD Recorder / VCR
with Q-Link function

HD Video Camera/
LUMIXCamera with
VIERALink function

–

–

1

∗

U se fully wired HDMI compliant cable.

•

C onnect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

•

A bout HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

•

80

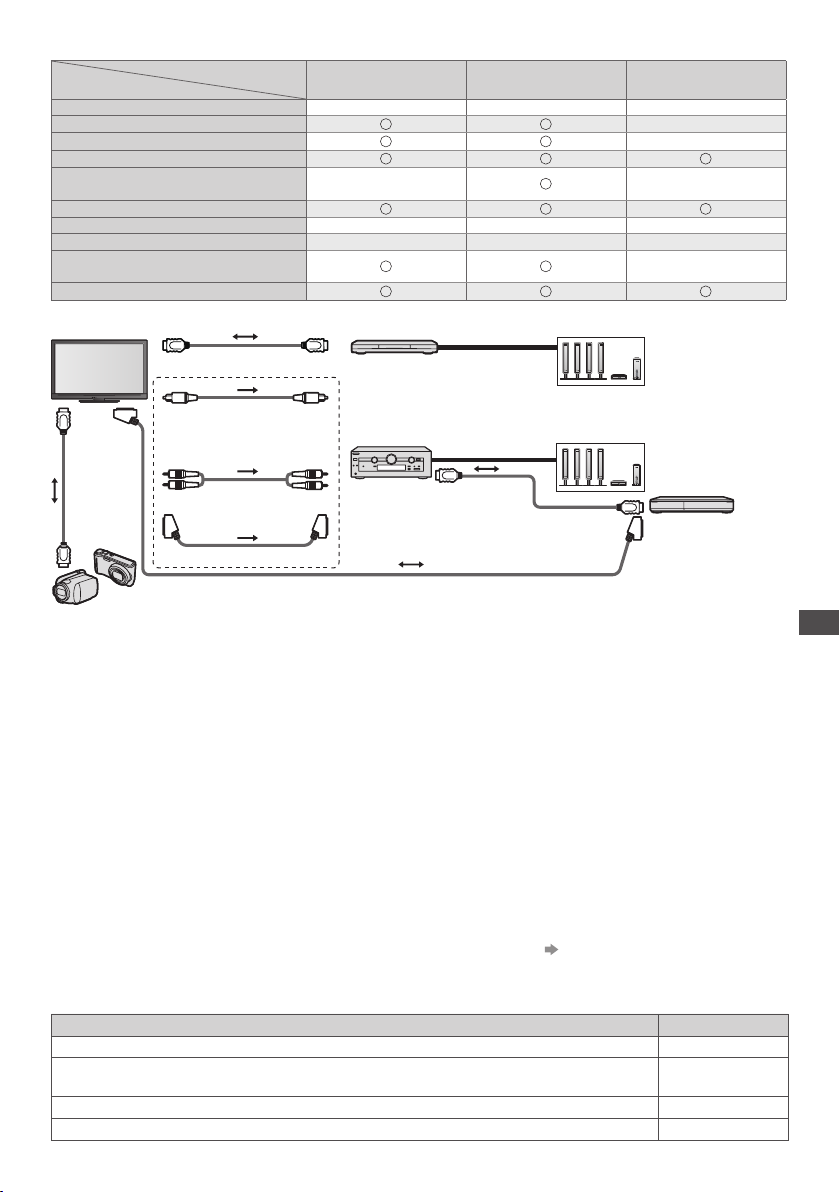

VIERA Link (HDMI and Audio out connections)

F eatures
Preset download – – –

E asy playback
P ower on link
P ower off link
R educe unnecessary power consumption
in standby
Auto standby for unnecessary equipment
P ause Live TV programme – – –
D irect TV Recording – – –
C ontrol the menu of the connected
equipment by VIERA remote control
Speaker control

Connection

HDMI
cable

HD Video Camera / LUMIXCamera with VIERALink function

U se fully wired HDMI compliant cable.

•

C onnect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

•

U se fully wired SCART cable.

•

If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set

•

[AV1 out] to [Monitor] in the Setup Menu (p. 33).
U se the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.

•

∗

1 : Available with the equipment which has “HDAVI Control 2 or

later” function.

∗

2 : Available with the equipment which has “HD

later” function.

∗

3 : Available with the equipment which has “HDAVI Control 4 or

later” function.

∗

4 : Available with DIGA Recorder which has HDD.

∗

5 : This function is available regardless of the version of HDAVI

Control when the recorder supports Q-Link and is connected
via SCART cable.

C onnected equipment

HDMI cable

O ptical digital

audio cable

or

RCA cable

or

SCART cable

Player theatre with

VIERALink function

6

∗

–

7

∗3 ∗

1

∗

T o use Player theatre / Blu-ray Disc theatre :

•

Player theatre / Blu-ray Disc
theatre with VIERALink function

T o use Amplifier :

•

Amplifier with
VIERALink function

8

∗

SCART cable

AVI Control 3 or

Blu-ray Disc theatre with

VIERALink function

∗

6 : While playing a disc

∗

7 : Except for watching a disc

∗

8 : If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable
(Optical digital audio cable, RCA cable or SCART
cable). In this case, connect the equipment to the TV’s
HDMI2 terminal via an HDMI cable.

Amplifier with VIERALink

function

6

∗

3

∗

7

∗3 ∗

1

∗

Speaker system

Speaker system

HDMI cable

DIGARecorder with
VIERALink function

–
–

–

3

∗

–

Link Functions (Q-Link / VIERALink)

VIERA Link Control of compatible equipment ([VIERA Link Control] p.86)

T able below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.

•

T his includes connections to equipment already connected to the TV.
F or example, DIGA Recorder connected to Amplifier which is connected to the TV

Type of the equipment M aximum number

R ecorder (DIGA Recorder, etc.) 3

Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player
theatre, Blu-ray Disc theatre, etc.)

dio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1

Au

Tuner (Set top box, etc.) 4

via an HDMI cable.

3

81

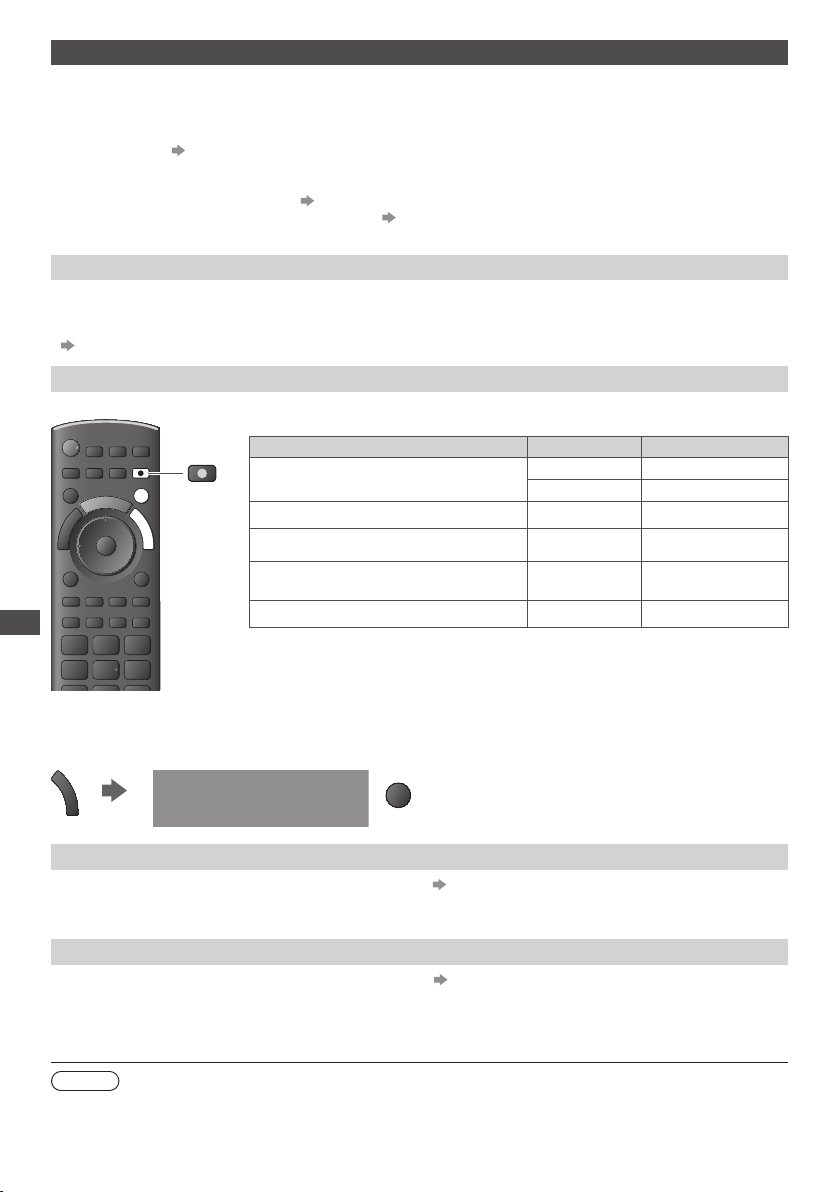

Q-Link

EXIT

DIRECT TV REC

G

U

I

D

E

Preparations

C onnect the DVD Recorder / VCR with the following logos :

•

“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”,
“Megalogic (a trademark of Grundig Corporation)”
Q-Link connection (p.80)

•

U se fully wired SCART cable.

•

Set up the DVD Recorder / VCR. Read the manual of the recorder.

•

Q-Link terminal setup in the Setup Menu [AV1 out] (p.33)

•

D ownload preset - channel, language, country settings “Preset download” (see below)

•

, “SMARTLINK (a trademark of Sony Corporation)”

Features available

Preset download

C hannel, language, country settings can be downloaded to the recorder.

DVB-C channel settings cannot be downloaded.

•

T o download settings

•

 [Download] (p.34) or [Auto Setup] (p.38) or “Auto Setup” - when first using the TV (p.12,13)

Direct TV Recording - What you see is What you record

R ecording the current programme in DVD Recorder / VCR immediately.

DIRECT TV REC

Link Functions (Q-Link / VIERALink)

Available conditions :

•

P icture source M ode R ecording from

A nalogue

DVB TV TV monitor out

AV (watching recorder’s tuner) AV Recorder’s tuner

AV (watching recorder’s external input) A

AV (watching TV ’s external input) AV TV monitor out

When Direct TV Recording is performed, the recorder is automatically turned on if it is in

•

Standby mode.
C hanging channel or turning off the TV is available while the recorder is recording from its

•

own tuner.
C hanging channel is not available while the recorder is recording from the TV tuner.

•

TV TV monitor out

AV Recorder’s tuner

V

externalinput

■ To stop recording

Unlock the tuner

G

U

I

D

E

Tuner Locked

Press EXIT to unlock and stop recording

EXIT

R ecorder’s

Power on link and Easy playback

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p.34)

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned
on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p.34)

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not
active.)

T his function will work even if the TV enters Standby mode automatically by auto power standby function.

•

Note

Some recorders are not applicable. Read the manual of the recorder.

•

82

VIERA Link “ ”

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

T his TV supports “HDAVI Control 5” function.
C onnections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables
allow you to interface them automatically (p.80,81).
T hese features are limit

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the connected

•

equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI

•

CEC (Consumer Electronics Control), is a unique function that we have developed and added.
A s such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

•

A bout applicable Panasonic equipment, consult your local Panasonic dealer.

•

ed to models incorporating “HDAVI Control” and “VIERA Link”.

∗

Preparations

C onnect the equipment supporting VIERA Link.

•

VIERA Link connection (p.80,81)

•

U se fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.

•

R ecommended Panasonic’s HDMI cable part number :

•

RP-CDHS15 (1.5 m)

U se fully wired SCART cable.

•

Set up the connected equipment. Read the manual of the equipment.

•

F or optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.

•

D ownload preset - channel, language, country / region settings “Preset download” (see below)

•

Set [VIERA Link] [On] in the Setup Menu [VIERA Link] (p.33)

•

Set up the TV

•

 After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p.26), and make sure that an image is displayed
correctly.

T his setup should be done each time when the following conditions occur :

•

f or the first time

•

w hen adding or reconnecting equipment

•

w hen changing setup

•

RP-CDHS30 (3.0 m)

•

RP-CDHS50 (5.0 m)

Features available

Preset download

C hannel, language, country / region settings can be downloaded to the recorder.

DVB-C channel settings cannot be downloaded.

•

T o download settings

•

 [Download] (p.34) or [Auto Setup] (p.38) or “Auto Setup” - when first using the TV (p.12,13)

Easy playback

Automatic input switching - When the connected equipment is operated, input mode is switched automatically. When it is
stopped operating, input mode is returned.

Power on link

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p.34)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is
automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p.34)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

T his function will work even if the TV enters Standby mode automatically by auto power standby function.

•

Link Functions (Q-Link / VIERALink)

83

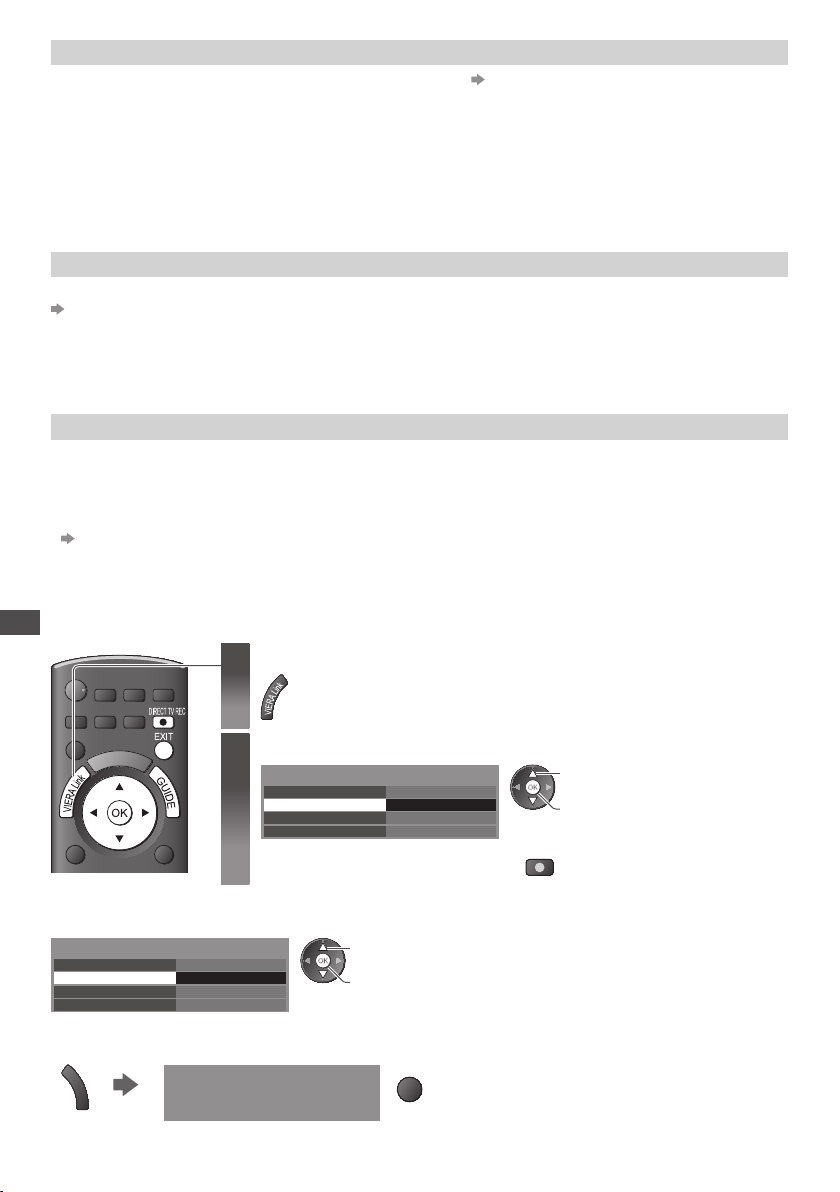

Reduce unnecessary power consumption in standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p.34)

T he power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with
the TV On / Off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in
Standby mode of the connected equipment is automatically minimised.
When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make
startup time early.

T his function is effective if the connected equipment can change the power consumption in Standby mode and is set to

•

higher consumption.
T his function will work when [Power off Link] is set to [On].

•

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function

[Intelligent Auto Standby] (p.34)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the
power consumption. For example, when the input mode is switched from HDMI, when Speaker Selection is changed to [TV]

(except for watching a disc).

If you select [On (With reminder)], the on screen message will be displayed to be noticed before working this function.

•

T his function may not work properly depending on the connected equipment. If required, set to [Off ].

•

Direct TV Recording - What you see is What you record [Direct TV Rec]

R ecording the current programme in DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect DIGA

•

Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case
connect DIGA Recorder to HDMI1.
If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)
If you wish to record the programme which DIGA Recorder does not support, SCART connection is required and the

•

programme is recorded by Q-Link function (p.82).
D epending on the programme, SCART connection may be required to record.

•

C hanging channel or turning off the TV is available while the recorder is recording from its own tuner.

•

C hanging channel is not available while the recorder is recording from the TV tuner.

•

Link Functions (Q-Link / VIERALink)

Display [VIERA Link Menu]

1

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu

P ause Live TV

D irect TV

Rec

VIERA Link Control
Speaker Selection

Y ou can also stop recording directly.

•

Unlock the tuner

G

U

I

D

E

84

Select [Direct TV Rec] and start recording

2

VIERA Link Menu

P ause Live TV

D irect TV

Rec

VIERA Link Control
Speaker Selection

Start
Stop
R ecorder
H ome Cinema

Press EXIT to unlock and stop recording

Tuner Locked

Start
Start
R ecorder
H ome Cinema

select

access / stop

EXIT

select

access / start

Y ou can also start recording directly.

•

DIRECT TV REC

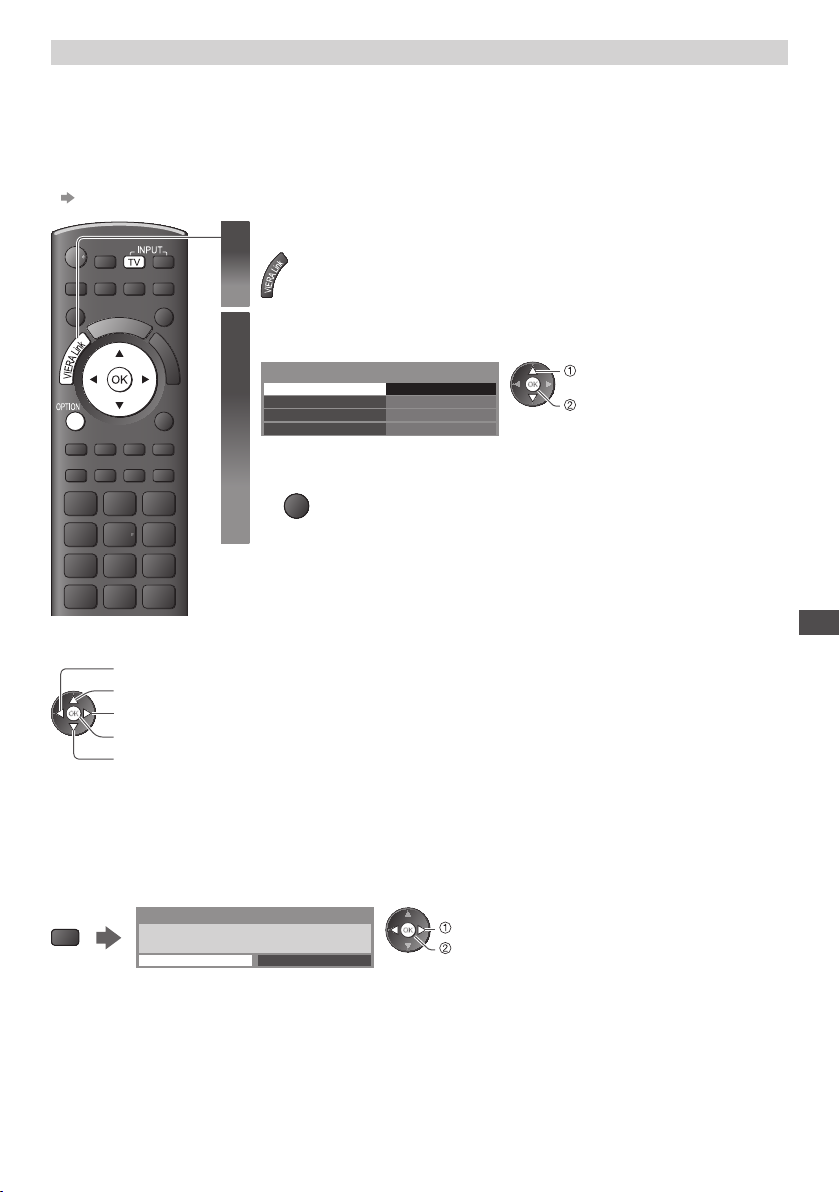

Pause Live TV programme [Pause Live TV]

Y ou can pause the live TV programme and resume later.
L ive TV programme will be recorded on HDD of the connected DIGA Recorder.

T his function is available with DIGA Recorder which has HDD.

•

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect DIGA

•

Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two
recorders, in this case connect DIGA Recorder which has HDD to HDMI1.
If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)

Display [VIERA Link Menu]

1

Select [Pause Live TV] and pause

2

T he TV picture will be paused.

VIERA Link Menu

P ause Live TV

D irect TV

Rec
VIERA Link Control
Speaker Selection

L ive TV programme is recorded on HDD from where it was paused.

•

If the paused TV picture disappears after a few minutes.

•

OPTION

(The paused picture will be restored)

F ollow the operation guide to operate Pause Live TV function.

•

Start
Start
R ecorder
H ome Cinema

select

pause

■ To operate Pause Live TV

search backward

pause

search forward

playback

stop

If you stop playback, the recorded

•

programme will be deleted from
HDD.

O perations may be different depending on the recorder. In this case,

•

follow the operation guide or read the manual of the recorder.

■ To return to Live TV

( Stop playback of Pause Live TV / cancel pause)

Select [Yes]

Pause Live TV

TV

If you stop playback or cancel pause, the recorded programme will be deleted from HDD.

•

Stop Pause Live TV?

Y es

N o

select

stop

Link Functions (Q-Link / VIERALink)

85

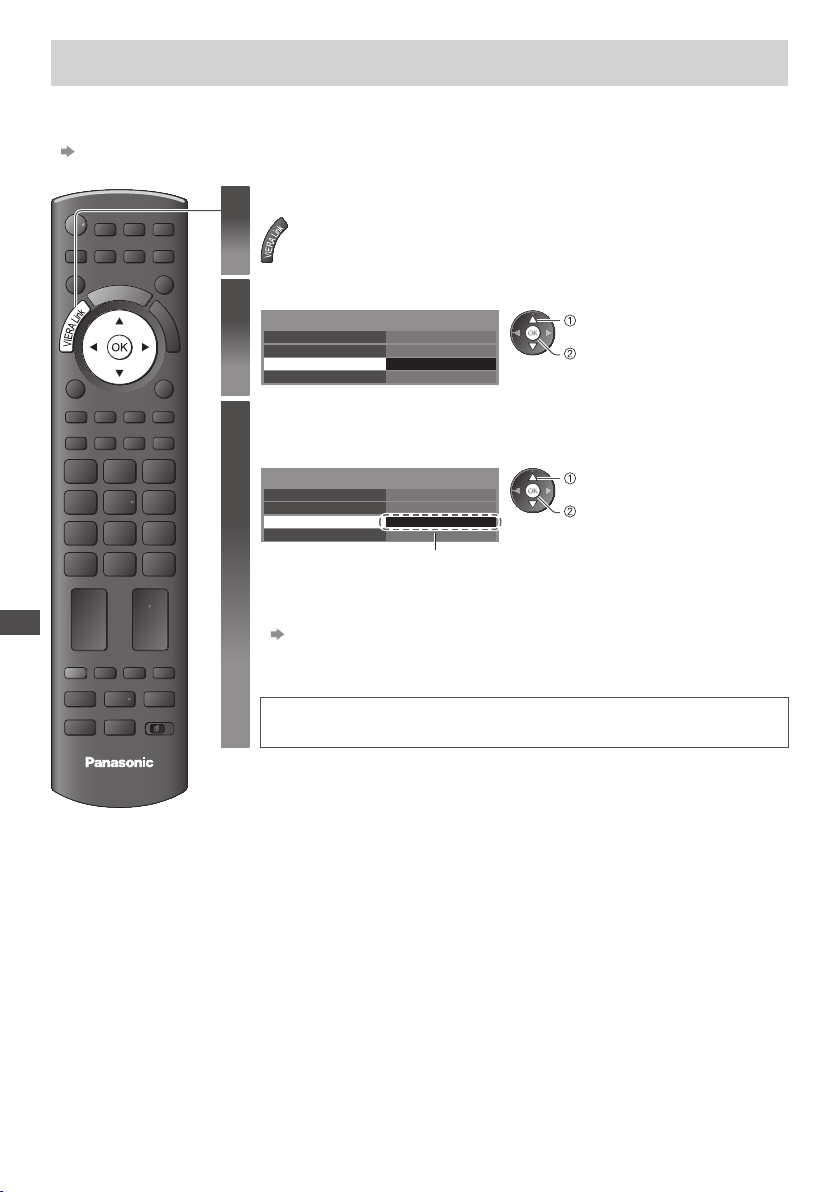

Control the menu of the connected equipment by VIERA remote control
[VIERA Link Control]

Y ou can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s
signal receiver).

If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)

F or details of the operations for the connected equipment, read the manual of the equipment.

•

Display [VIERA Link Menu]

1

Select [VIERA Link Control]

2

Link Functions (Q-Link / VIERALink)

VIERA Link Menu

P ause Live TV
D irect TV Rec

VIERA Link Control

Speaker Selection

Select the equipment you want to access

3

T he type of the connected equipment is displayed.
Select the type of the equipment and access.

VIERA Link Menu

P ause Live TV
D irect TV Rec

VIERA Link Control

Speaker Selection

[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] /
[Digital Camera] / [Other]

Y ou can also access directly by using VIERATOOLS

•

 “How to Use VIERA TOOLS” (p.28)

T he displayed item may vary depending on the connected equipment.

•

[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.

•

[Other] means Tuner set top box.

•

The menu of the accessed equipment

(Input mode will be changed automatically)

Start
Start
R ecorder
H ome Cinema

Start
Start
R ecorder
H ome Cinema

select

access

select

store

86

TV

Operate the menu of the equipment

4

Available VIERA remote control buttons :
(Depending on the connected equipment)

1 Set the position to “TV”

DVD/VCR

TV

2 Follow the operation guide

T o display the operation guide

•

OPTION

If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be
displayed.

When the key words are displayed on colour bar

•

(red) (green) (yellow) (blue)

Note

Some operations may not be available depending on the equipment. In this case use its own

•

remote control to operate the equipment.

TV

■ If multiple recorders or players are connected

VIERA Link Menu

P ause Live TV
D irect TV Rec

VIERA Link Control

Speaker Selection

Start
Start
R ecorder2
H ome Cinema

[Recorder1-3 / Player1-3]

T he number is given from the TV’s lower HDMI terminal number connected to the
same type equipment. For example, two recorders to HDMI2 and HDMI3, in this
case the recorder connected to HDMI2 is displayed as [Recorder1], and the recorder
connected to HDMI3 is displayed as [Recorder2].

■ If you access non-VIERALink equipment

VIERA Link Menu

P ause Live TV
D irect TV Rec

VIERA Link Control

Speaker Selection

Start
Start
R ecorder
H ome Cinema

T he type of the connected equipment is displayed.
Y ou can access the menu of the equipment. But you cannot operate it. Use its own
remote control to operate the equipment.

Link Functions (Q-Link / VIERALink)

87

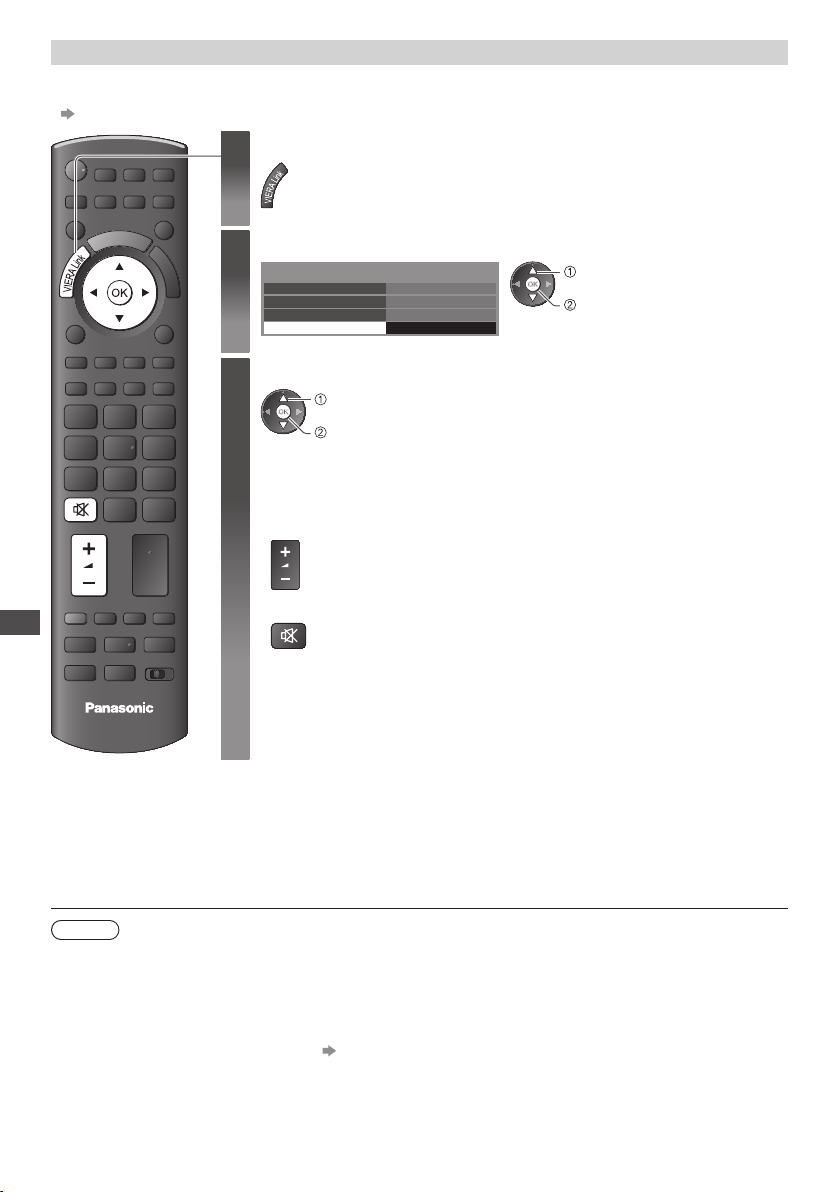

Speaker control [Speaker Selection]

Y ou can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.80,81), “Preparations” (p.83)

Display [VIERA Link Menu]

1

Select [Speaker Selection]

2

Link Functions (Q-Link / VIERALink)

TV

VIERA Link Menu

P ause Live TV
D irect TV Rec
VIERA Link Control

Speaker Selection

Set to [Home Cinema] or [TV]

3

select

store

Start
Start
R ecorder
H ome Cinema

[Home Cinema]

Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in
Standby mode and the sound is from theatre speakers connected to the equipment.

V olume up / down

•

Mute

•

T he sound of TV speakers is mute.

•

When the equipment is turned off, TV speakers will be active.

•

[TV]

TV speakers are active.

select

access

Multi-channel sound

If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect
with HDMI cable and Optical digital audio cable (p.81), and then select [Home Cinema]. If your
Amplifier has “HDAVIControl 5” function, you can connect only with HDMI cable. In this case,
connect your Amplifier to the TV’s HDMI2 terminal.
T o enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from
the DIGA Recorder to the Amplifier (p.81).

Note

T hese functions may not work properly depending on the connected equipment.

•

Image or sound may not be available for the first few seconds when input mode is switched.

•

E asy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. Read the

•

manual of the equipment.
“HDAVI Control 5” is the newest standard (current as of December, 2010) for HDAVI Control compatible equipment. This

•

standard is compatible with conventional HDAVI equipment.
T o confirm this TV’s version of HDAVI Control [System Information] (p.36)

•

88

External Equipment

T hese diagrams show our recommendations for connection of your TV to various pieces of equipment.
F or other connections, consult the instructions for each piece of equipment, the table (p.91), and the specifications (p.102,

103).

To record / playback

T errestrial aerial

or

RF cable

R ear of the TV

Fully wired SCART cable

DVD Recorder / VCR

To watch satellite broadcasts

Fully wired HDMI

compliant cable

Set top box

To watch DVDs

(Listening)

DVD Player

(Viewing)

HDMI equipment

Recorder / Player

Fully wired HDMI

compliant cable

HDMI connection (p.96)

•

Camcorder

Fully wired

SCART cable

External Equipment

89

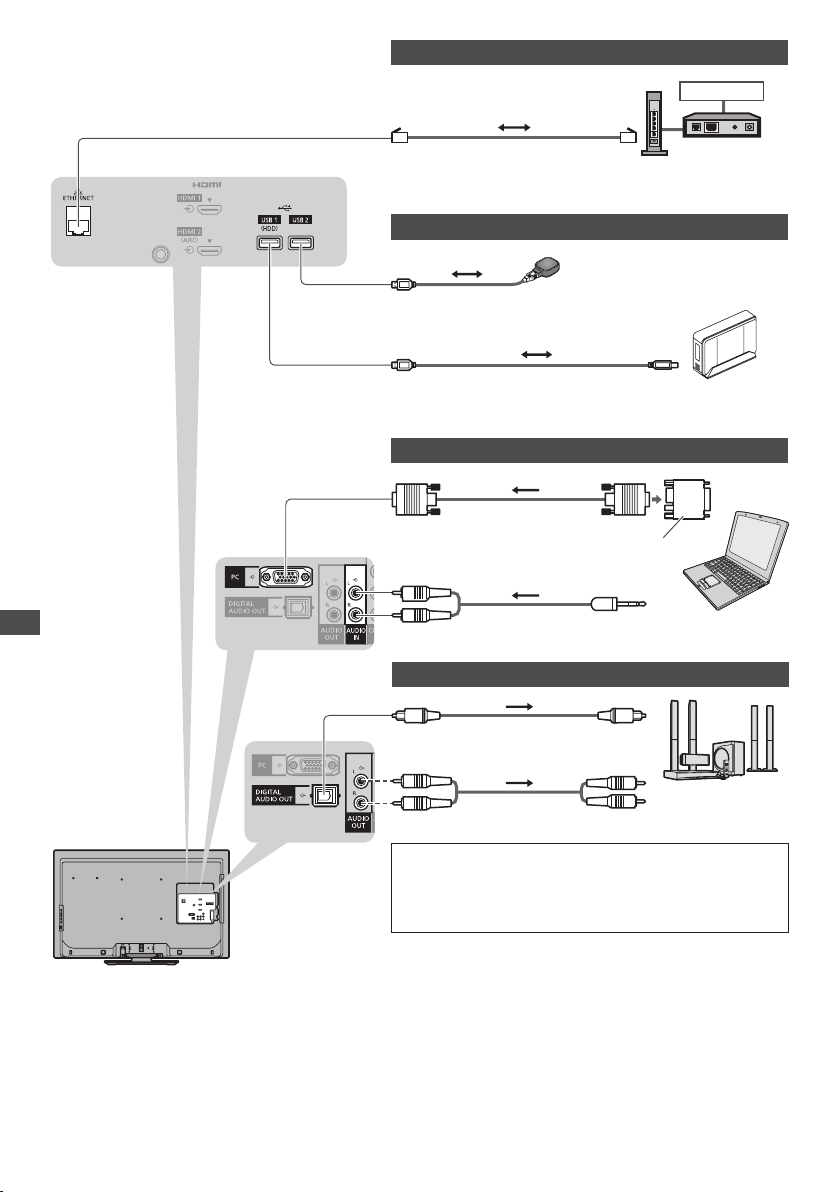

Network (wired)

Internet

LAN cable (Shielded)

Hub or Router

Modem

USB devices

Wireless LAN Adaptor

U SB cable

USB HDD

P C

(Viewing)

C onversion adaptor

( if necessary)

(Listening)

External Equipment

Computer

To listen with speakers

90

R ear of the TV

O ptical digital audio cable

RCA cable

T o enjoy the sound from the external equipment in
multi-channel sound (e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier.
F or the connections, read the manuals of the equipment and
amplifier.

or

Amplifier with

speaker system

Camcorder / Game equipment

Side panel of

the TV

Headphones

(M3 stereo mini plug)

T o adjust volume

•

[Headphone Volume] (p.32)

Types of connectable equipment to each terminal

AV1

Recording/ Playback

(equipment)

AV2

(Viewing)

(Listening)

Terminal

COMPONENT

AUDIO OUT

AUDIO OUT

DIGITAL

Camcorder

Game equipment

ETHERNET

HDMI 1 - 4

USB 1 - 3

T o record / playback videocassettes/ DVDs
(VCR / DVD Recorder)

T o watch satellite broadcasts (Set top box)

T o watch DVDs (DVD Player)

T o watch camcorder images (Video camera)

T o play games (Game equipment)

T o use amplifier with speaker system

T o use network services

U SB HDD Recording

Q-Link

VIERA Link

(with HDMI)

D irect TV Recording

: Recommended Connection

∗

1 : Use HDMI1 for automatic input switching.

∗

2 : Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return

Channel) function.

∗

3 :

Use USB 1 port for connecting the USB HDD.

1

∗

2

∗

External Equipment

3

∗

91

Technical Information

A u t o A s p e c t

T he optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p.20)

Aspect Control Signal

[ WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal
is found.

T he aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
T his function will work in any aspect mode.

Aspect Control Signal

Control signal

through SCART (pin8) /

HDMI terminal

Technical Information

Input terminal Input signal format

DVB-C
DVB-T
PAL B, G, H, I
PAL D, K
SECAM B, G

C able
RF

AV1 / AV2
(Composite)

COMPONENT

HDMI1
HDMI2
HDMI3
HDMI4

SECAM L, L’
SECAM D, K
PAL 525/60 6.5 MHz –
PAL 525/60 6.0 MHz –
PAL 525/60 5.5 MHz –
M .NTSC 6.5 MHz –
M .NTSC 6.0 MHz –
M .NTSC 5.5 MHz –
PAL
SECAM
PAL 525/60 –
M .NTSC –
NTSC –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p –
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
1,125 (1,080) / 60p, 50p, 24p –

Widescreen signal

(WSS)

Auto mode

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal
through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen) to determine.

T his process may take several minutes, depending on the darkness of the image.
L etterbox detection :
If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to
fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

T he ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top and bottom

•

of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the

•

VCR. Read the manual of the VCR.

92

Supported file format in Media Player and media servers

■ Photo

Format File extension

JPEG .jpg

∗

1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology

Industries Association (JEITA)

∗

2 : Exchangeable Image File - image file format used by digital cameras

Image resolution

(pixel)

8 × 8
to
30,719 × 17,279

Details / Restrictions

1

∗

DCF

and EXIF

Sub-sampling : 4:4:4, 4:2:2, 4:2:0

Progressive JPEG is not supported.

•

2

∗

standards

■ Video

Container File extension Video codec Audio codec Details / Restrictions

SD-Video .mod

AVCHD .mts H .264 Dolby Digital

AVI

MKV .mkv H.264 BP / MP / HP

A SF

MP4 .mp4 H.264 BP / MP / HP

MOV .mov

P S

T S

∗

3 : Some products of before the year 2004 may not be available. The compatibility with future products is not guaranteed.

.avi

.divx

.asf

.wmv

.mpg

.mpeg

.ts

.tp

MPEG1

MPEG2

DIV3 DIV4

DIVX DX50

DIV6 XviD

MPEG4 SP / ASP

Windows Media
Video Ver. 9

VC-1

M otionJPEG

H .264 BP / MP / HP

MPEG1

MPEG2

MPEG2

H .264

MPEG

D olby Digital

MPEG

MP3

D olby Digital

MPEG

MP3

D olby Digital

DTS core

WMA

AAC

MP3

D olby Digital

L inear PCM (RAW /
TWOS / SOWT)

AAC

MP3

D olby Digital

MPEG

MP3

L inear PCM

AAC

MP3

D olby Digital

D olby Digital Plus

HE-AAC

SD-Video Standard Ver. 1.3
(Entertainment Video Profile)

T he data may not be available if a folder

•

structure on the device is modified.

AVCHD Standard

T he data may not be available if a folder

•

structure on the device is modified.

C ertified to play DivX Plus HD video file

•

in Media Player
F or details of DivX “DivX” (p. 94)

C opy-protected files cannot be played

•

back.
WMA Pro and WMA Lossless are not

•

supported.

T his TV supports this container recorded

•

by Panasonic products.
F or details, read the manual of the
products.

T his TV supports Motion JPEG recorded

•

by Panasonic LUMIX Camera
T his TV is not available for playing back

•

Motion JPEG with the media server.

–

T his container can be played back only

•

with the media server.

3

∗

.

Technical Information

93

■ Music

Codec File extension Restrictions

MP3 .mp3 –

AAC .m4a

WMA .wma

Note

Some files may not be played back even if they fulfill these conditions.

•

D o not use two-byte characters or other special codes for data.

•

T he device may become unusable with this TV if the file or folder names are changed.

•

DivX

D ivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content.
ABOUT DIVX VIDEO :
D ivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video.
V isit divx.com for more information and software tools to convert your files into DivX video.

Subtitle text file of DivX

Subtitles format - MicroDVD, SubRip, TMPlayer

T he DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file

•

extensions.
If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority :

•

“.srt”, “.sub”, “ .txt”.
T o confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option

•

Menu.
D epending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or

•

the subtitles may not be displayed at all.

Note

D epending on how you make SD Card, USB Flash Memory or the media server, files and folders may not be displayed in the

•

order you numbered.
D epending on how you create the files and the structure of folders, the files and folders may not be displayed.

•

When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.

•

ABOUT DIVX VIDEO-ON-DEMAND :
T his DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more information on how to
complete your registration.

To show DivX VOD registration code

[DivX® VOD] in the Setup Menu (p.36)

If you want to generate the new registration code, you have to deregister the present registration code.

•

After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX® VOD] in the Setup
Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be

Technical Information

able to play any contents that you purchased using the present registration code.
Y ou will obtain the new registration code by pressing the OK button on the deregistration code screen.
If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able to play this

•

content. ([Your device is not authorized to play this DivX protected video.] is displayed.)

Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of
remaining plays is zero. ([

When playing this content, the number of remaining plays is reduced by one in the following conditions :

•

•

If you exit the current application.

•

If you play the other content.

•

If you go to the next or previous content.

This DivX rental has expired.] is displayed.)

C opy-protected files cannot be played back.

•

C opy-protected files cannot be played back.

•

WMA Pro and WMA Lossless are not supported.

•

94

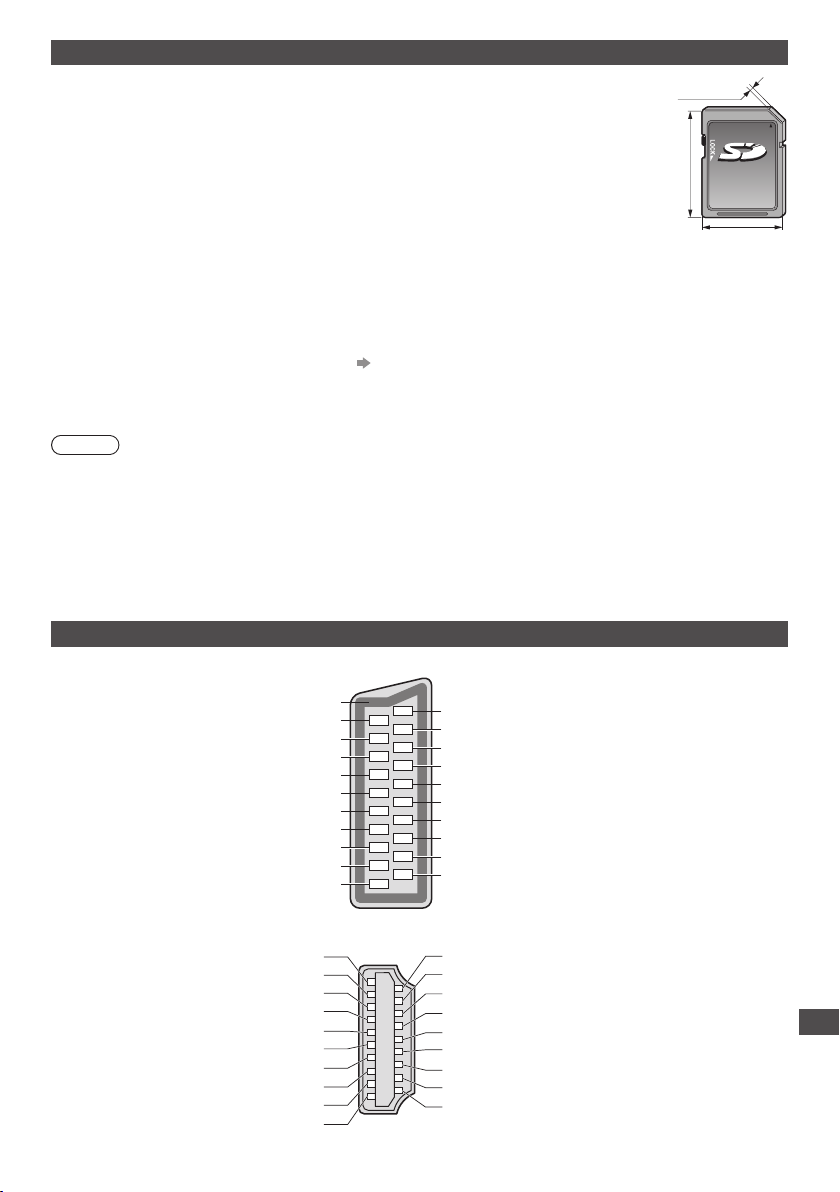

Devices for recording or playing back

■ SD Card (for playing back in Media Player)

C ard format : SDXC Card - exFAT

C ompliant card type (maximum capacity) : SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB),

If miniSD Card is used, insert / remove it together with the adaptor.

•

C heck the latest information on the card type at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/
U se an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

•

SDHC Card / SD Card - FAT16 or FAT32

miniSD Card (2 GB) (requiring miniSD adaptor)

■ USB Flash Memory (for playing back in Media Player)

U SB Flash Memory format : FAT16, FAT32 or exFAT

A USB HDD formatted by PC is not supported in Media Player.

•

2 .1 mm

32 mm

■ USB HDD (for recording the digital TV programmes with this TV and playing back in Media Player)

T he capacity of USB HDD that have been tested for the performance with this TV : From 160 GB to 3 TB

C onnect the USB HDD to the socket outlet to record and play back properly with this TV.

•

F ormat the USB HDD with this TV in order to use it. (p. 53)

•

R egarding the performance, not all USB HDDs are guaranteed. Check the USB HDDs that have been tested for the

•

performance with this TV at the following website. (English only)
http://panasonic.jp/support/global/cs/tv/

Note

D ata modified with a PC may not be displayed.

•

D o not remove the device while the TV is accessing data (this can damage device or TV).

•

D o not touch the pins on the device.

•

D o not subject the device to a high pressure or impact.

•

I nsert the device in the correct direction (otherwise, device or TV may be damaged).

•

Electrical interference, static electricity, or erroneous operation may damage the data or device.

•

B ack up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV.

•

(Panasonic is not liable for any deterioration or damage of recorded data.)

SCART and HDMI terminal information

AV1 SCART terminal (RGB, VIDEO, Q-Link)

R ed in 15

20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -­ 10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)

18 +5V Power
16 SDA
14 Utility
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield

Socket Earth 21

CVBS out (video) 19

CVBS earth 17

R ed earth 13

Green in 11

Green earth 9

Blue in 7

Blue earth 5
Audio out (L) 3
Audio out (R) 1

HDMI terminal

H ot Plug Detect 19

DDC/CEC Ground 17

SCL 15

CEC 13

TMDS Clock Shield 11

TMDS Data0− 9
TMDS Data0+ 7

TMDS Data1 Shield 5

TMDS Data2− 3
TMDS Data2+ 1

24 mm

Technical Information

95

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non­compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.
HDMI-compatible equipment
equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
A bout connections, see “External Equipment” ( p.89).

1

∗

with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game

Applicable HDMI features

I nput audio signal :

•

2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
I nput video signal :

•

480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p.98)
M atch the output setting of the digital equipment.
I nput PC signal :

•

“Input signal that can be displayed” (p.98)
M atch the output setting of the PC.

DVI connection

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable
DVI to HDMI adaptor cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 / 3 : use AUDIO IN terminals
/ HDMI4 : use AV2 audio terminals).

Note

Audio settings can be made on the [HDMI1 / 2 / 3 / 4 Input] in the Sound Menu. (p.33)

•

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

•

T hese HDMI connectors are “type A”.

•

T hese HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

•

Equipment having no digital output terminal may be connected to the input terminal of “COMPONENT” or “VIDEO” to receive

•

analogue signals.
T his TV incorporates HDMI™ technology.

•

∗1 : The HDMI logo is displayed on HDMI-compliant equipment.
∗2 : Audio Return Channel (ARC) is a function to be able to send digital sound signals via an HDMI cable.
∗3 :

Enquire at your local digital equipment retailer shop.

VIERA Link (HDAVI Control 5)

•

[VIERA Link] (p.83)
C ontent Type

•

D eep Colour

•

Audio Return Channel

•

(HDMI2 terminal only)

∗

2

3

∗

. When the

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

PC signals that can be input : Horizontal scanning frequency 31 to 69kHz; vertical scanning frequency 59 to 86Hz (more than

•

1,024 signal lines could result in incorrect display of the image).
A PC adaptor is not necessary for the DOS/V-compliant D-sub 15-pin connector.

•

Note

Some PC models cannot be connected to this TV.

•

When using PC, set the colour display quality of PC to the

•

highest position.

Technical Information

F or details of the applicable PC signals

•

“Input signal that can be displayed” (p.98)
D-sub 15-pin connector signal

•

M ax. display resolution

•

4:3 1,440 × 1,080 pixels
16:9 1,920 × 1,080 pixels

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R

G

B

NC (not connected)

GND (Ground)

GND (Ground)

GND (Ground)

GND (Ground)

NC (not connected)

GND (Ground)

96

NC (not connected)

NC (not connected)

HD

VD

NC (not connected)

USB connection

I t is recommended to connect the USB HDD or USB Flash Memory directly to the TV’s USB ports.

•

Some USB devices or USB HUB may not be used with this TV.

•

Y ou cannot connect any devices by using USB card reader.

•

Y ou cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD.

•

Additional information for USB devices may be on the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

USB Keyboard

T he USB Keyboard which requires the driver is not supported.

•

T o change the language type [USB Keyboard Layout] (p.36)

•

C haracters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout

•

setting.
Some of the keys of USB keyboards may correspond to the operation of the remote control.

•

USB Keyboard Remote Control USB Keyboard Remote Control

↑ / ↓ / ← / →

E nter OK F3 MENU

B ackspace BACK/RETURN F4 INPUT (AV)

E sc EXIT F5 / F6 Channel Down / Up

0 - 9 / Character Numeric buttons F7 / F8 Volume Down / Up

F1 GUIDE F9 / F10 / F11 / F12 Coloured buttons

Cu

rsor buttons F2 VIERA TOOLS

Gamepad

C heck the gamepads that have been tested for the performance with this TV at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/
Some of the keys of gamepads correspond to the operation of the remote control.

•

Example :

1

Select Start

1011

2

7 69 8

Remote Control Remote Control

1 Volume Up / Down 7
2 Channel Up / Down 8 EXIT

3

3 GUIDE

4
5

4 OK
5 BACK/RETURN 10 MENU

6 VIERA Connect 11 Cursor buttons

9

VIERA TOOLS

INPUT
(AV)

Characters table for numeric buttons

Y ou can enter characters by using numeric buttons for free input items.

User input

N ame

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

C haracters table :

Numeric

buttons

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

1234567 891011

. 1!: #+- *_ ( )

abc2ABC

d e f3DEF

g hi4GHI

jkl5JKL

m no6MNO

p qr s 7PQRS

t uv8TUV

wx y z 9W XYZ

Space 0

abc def

Press the numeric button repeatedly until you reach the

jkl

ghi

mno

desired character.

tuvpqrs

wxyz

T he character is set automatically if you leave for 1 second.

•

Y ou can also set the character by pressing the OK button or other

•

numeric buttons within 1 second.

The number of times to press

Technical Information

97

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI

525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1,125 (1,080) / 60i, 50i
1,125 (1,080) / 60p, 50p, 24p

Signal name COMPONENT HDMI

Mark : Applicable input signal

PC (from D-sub 15P)

640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @75 Hz
800 × 600 @60 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
852 × 480 @60 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,280 × 768 @60 Hz
1,280 × 1,024 @60 Hz
1,366 × 768 @60 Hz
M acintosh13” (640 × 480)
M acintosh16” (832 × 624)
M acint

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

31.47

31.47 59.94

37.50 75.00

37.88 60.32

46.88 75.00

53.67 85.06

31.44 59.89

48.36 60.00

56.48 70.07

60.02 75.03

68.68 85.00

47.70 60.00

63.98 60.02

48.39 60.04

35.00 66.67

49.

osh21” (1,152 × 870)

A pplicable input signal for PC is basically compatible to VESA standard timing.

73 74.55

68.68 75.06

PC (from HDMI terminal)

640 × 480 @60 Hz 31.47
1,280 × 720 @60 Hz 45.00 60.00
1,920 × 1,080 @60 Hz 67.50 60.00

Note

Signals other than above may not be displayed properly.

•

Technical Information

T he above signals are reformatted for optimal viewing on your display.

•

PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with

•

sufficient clarity.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

A pplicable input signal for PC is basically compatible to HDMI standard timing.

70.07

60.00

98

FA Q s

B efore requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.

Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in
Analogue mode/ Some channels cannot be tuned

C heck the position, direction and connection of the aerial.

•

C heck [Signal Condition](p.41). If [Signal Quality] is displayed in red, the DVB signal is weak.

•

Weather conditions will affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during

•

good weather, the high pressure can cause poor reception of some channels.
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases,

•

despite good reception of analogue channels.
Turn the TV off with the Mains power On / Off switch, and then on again.

•

If problem persists, consult your local dealer or service provider for the availability of services.

•

No programmes shown on TV Guide

C heck the digital transmitter.

•

Adjust the direction of the aerial to another transmitter installed nearby.

•

C heck the analogue broadcast. If the image quality is poor, check the aerial and consult your local dealer.

•

Neither image nor sound is produced

I s the TV in AV mode?

•

C heck the correct input mode is selected.

•

C heck the mains lead is plugged into the socket outlet and the TV is turned on.

•

C heck the Picture Menu (p.30,31) and volume.

•

C heck all required cables and connections are firmly in place.

•

Auto aspect

Auto aspect is designed to provide you with the best ratio to fill the screen. (p.92)

•

Press the ASPECT button if you would like to change the aspect ratio manually. (p.20)

•

Black and white picture

C heck that the output of the external equipment matches the input of the TV.

•

When connecting with SCART, ensure the output setting of the external equipment is not S-Video.

Input mode, i.e. EC/AV1 remains on the screen

Press the button to clear these.

•

Press again to redisplay.

Q-Link function does not work

C onfirm SCART cable and connection.

•

Also set [AV1 out] in the Setup Menu. (p.33)

[VIERA Link] function does not work and an error message appears

C onfirm the connection. (p.80,81)

•

Turn the connected equipment on and then switch the TV on. (p.83)

•

Recording does not start immediately

C heck the settings of the recorder. For details, read the manual of the recorder.

•

There may be red, blue, green and black spots on the screen

T his is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high

•

precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a
fixed point of red, green, blue or black. Please note this does not affect the performance of your LCD.

Frequently Asked Questions

99

Chaotic image, noisy

Screen

No image can be displayed

Blurry or distorted image

(no sound or low volume)

Unusual image is displayed

Sound

No sound is produced

Sound level is low or sound
is distorted

Sound is unusual

HDMI

Pictures from external
equipment are unusual
when the equipment is
connected via HDMI

Cannot connect to the
network

Network

Cannot select the file during
DLNA operations

Cannot operate
VIERAConnect

The TV does not switch On

Frequently Asked Questions

The TV goes into Standby
mode

The remote control does not
work or is intermittent

Other

Parts of the TV become hot

The LCD panel moves
slightly when it is pushed
with a finger
Clattered sound might be
heard

Problem Actions

Set [P-NR] in the Picture Menu (to remove noise). (p.30)

•

C heck nearby electrical products (car, m otorcycle, fluorescent lamp).

•

I s [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum?

•

(p.30)

R eset channels. (p.37,38)

•

Turn the TV Off with Mains power On / Off switch, then turn it On again.

•

If the problem persists, initialise all settings [Shipping Condition] (p.50)

•

I s “Sound mute” active? (p.8)

•

I s the volume set to the minimum?

•

Sound signal reception may be deteriorated.

•

Set [MPX] (p.32) in the Sound Menu to [Mono]. (Analogue only)

•

Set the sound setting of the connected equipment to “2ch L.PCM”.

•

C heck the [HDMI1 / 2 / 3 / 4 Input] setting in the Sound Menu. (p.33)

•

If digital sound connection has a problem, select analogue sound connection.

•

(p.96)

C heck the HDMI cable is connected properly. (p.89)

•

Turn the TV and equipment Off, then turn them On again.

•

C heck an input signal from the equipment. (p.98)

•

U se equipment compliant with EIA/CEA-861/861D.

•

C heck the LAN cable or Wireless LAN Adaptor is connected properly. (p.70)

•

C heck the connections and settings. (p.70 - 75)

•

C heck the network equipment and network environment.

•

T he router may not be set to issue IP address automatically. If the network

•

administrator prefers to allocate an IP address, set an IP address manually. (p.72)
T he router may be using MAC address filtering (security setting).

•

C onfirm the MAC Address of this TV (p.75) and set the router to be able to use it.
If the problem persists, consult your Internet Service Provider or telecommunications

•

company.

I s media server of the connected equipment prepared? (p.69)

•

C heck applicable data format. (p.93)

•

C heck the connections and settings. (p.70 - 75)

•

T he server or connected line might be busy now.

•

C heck the mains lead is plugged into the socket outlet.

•

Auto power standby function is activated. (p.9)

•

T he TV enters Standby mode about 30 minutes after analogue broadcasting ends.

•

Are the batteries installed correctly? (p.7)

•

H as the TV been switched On?

•

T he batteries may be running low. Replace them.

•

P oint the remote control directly at the front of the T V (within about 7 m and a 30

•

degree angle of the front of the TV).
Situate the TV away from sunshine or other sources of bright light not to shine on

•

the TV’s remote control signal receiver.

Even when the temperature of parts of the front, top and rear panels has risen, these

•

temperature rises will not pose any problems in terms of performance or quality.

T here is some flexibility around the panel to prevent damage to the panel.

•

T he panel might move slightly when it is pushed with a finger, and clattered sound

•

might be heard. This is not a malfunction.

100
