Panasonic TX-L32X3E Schematic

ORDER No. PCZ1107117CE

Service Manual

LCD Television

TX-L32X3E

TX-LR32X3

GLP26 Chassis

Specifications

Power Source: 220-240V AC, 50 Hz

Rated Power Consumption: 51W

Stand-by Power Consumption: 0.30W (Without monitor out recording) 13W (With monitor out recording)

Aerial Impedance: 75 unbalanced, Coaxial Type

Receiving System: DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264)) DVB-C Digital cable services (MPEG2 and MPEG4-AVC PAL-I/H, B/G, D/K

SECAM B/G, D/K, L/L’

PAL-525/60 (AV only)

M.NTSC (AV only) NTSC (AV only)

Receiving Chanels: VHF E2-E12 VHF H1-H2 ( ITALY )

VHF A-H ( ITALY ) UHF E21-E69

CATV (S01-S05) CATV S1-S10(M1-M10)

CATV S11-S20 (U1-U10) CATV S21-S41 (HYPERBAND) VHF R1-R2 VHF R3-R5 VHF R6-R12

Aerial - Rear:

Operating Conditions: Temperature: 0°C  35°C

Humidity: 20%  80% RH (non condensing)

Intermediate Frequency:

VHF/UHF

(H.264))

and

Video/Audio

2

Video 38.9MHz, 33.9MHz

Audio 33.4MHz (B/G), 33.16MHz (A2)

33.05MHz (NICAM B/G, D/K, L)

32.4MHz (D/K), 32.66MHz (CZ STEREO)

40.4MHz (L

Colour 34.47MHz (PAL)

’), 39.75MHz (L’NICAM)

34.5MHz, 34.65MHz (SECAM)

38.3MHz, 38.15MHz (SECAM L

’)

Terminals: AV1 IN Video (21 pin) 1V p-p 75

Audio (21 pin) 500mV rms 10k RGB (21 pin) 0.7V p-p 75

AV1 OUT Video (21 pin) 1V p-p 75 Audio (21 pin) 500mV rms 1k

AV2 IN Video (RCAx1) 1V p-p 75

Audio (RCAx2) 500mV rms 10k (used for HDMI1/2_AV2 audio IN)

COMPONENT Video (RCAx3) Y:1V p-p 75 (including synchronization)

Pb, Pr: ±0.35V p-p 75

HDMI1, HDMI2 Type A Connectors

HDMI 2: HDMI (Version 1.4 with Audio Return Channel) This TV supports “HDAVI Control 5” function.

DIGITAL AUDIO OUT PCM / Dolby digital / DTS, Fiber optic

L32X3E LR32X3

CARD SLOT SD CARD slot x1 SD CARD slot x1 Common interface slot (complies with CI Plus)x1 Common interface slot x1

LCD screen: VVX32H119G00 1366 x 768, 16:9 Visible Diagonal 800mm

Audio Output: 20W (2 x 10W), 10% THD Headphones: 3.5mm, 8 Impedance Accessories supplied : Remote Control 2 x R6 (UM3) Batteries

Dimensions:

Height: Width: Depth:

Including TV stand 514mm 769mm 230mm

TV set only 480mm 769mm 75mm

Mass:

Including TV stand 12.0kg

TV set only 9.5kg

Specifications are subject to change without notice.

Mass and dimensions shown are approximate.

Warning

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products deal within this service information by anyone else could result in serious injury or death.

Safety Precautions





4

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

4. Always ensure cover label TBM4GU113 is correctly replaced before returning to customer (see Fig.1).

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V,

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

COLD WATER PIPE (EARTH GROUND)

TO APPLIANCES EXPOSED METAL PARTS

Resistance values in ohms ()

V: Voltmetr or oscilloscope (r.m.s. or peak reading)

NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms

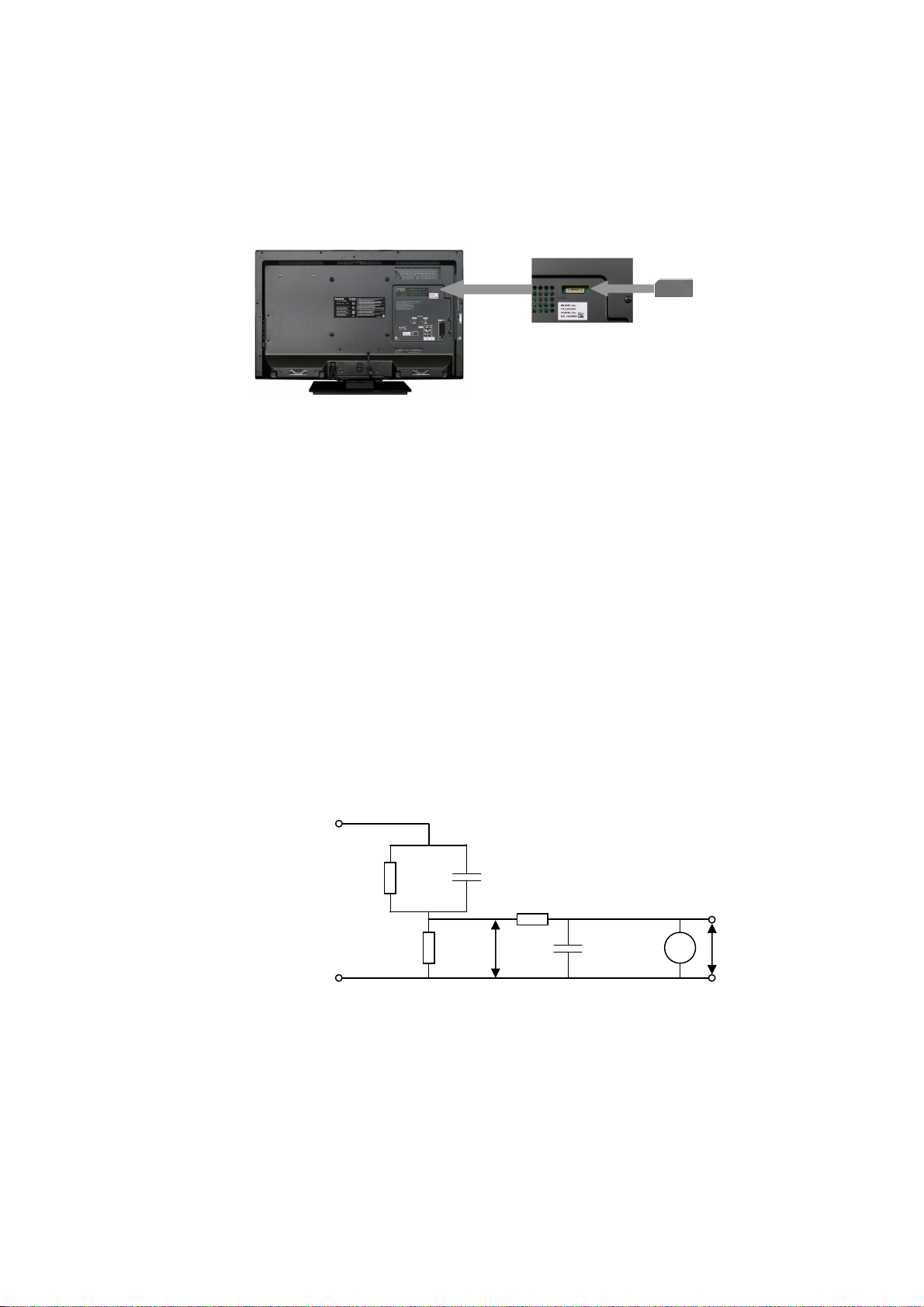

Measuring network for TOUCH CURRENTS

=1500

R

S

Input resistance: 1M Input capacitance:200pF Frequency range: 15Hz to 1MHz and d.c.respectively

R0=500

Fig. 2

Fig. 1

=0.22F

C

S

10k

U1 (V)

F

0.022

V

U2 (V)

Prevention of Electrostatic Discharge (ESD) to Electrostatically

5

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

There are special components used in this equipment which are important for safety. These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

About lead free solder (PbF)

6

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

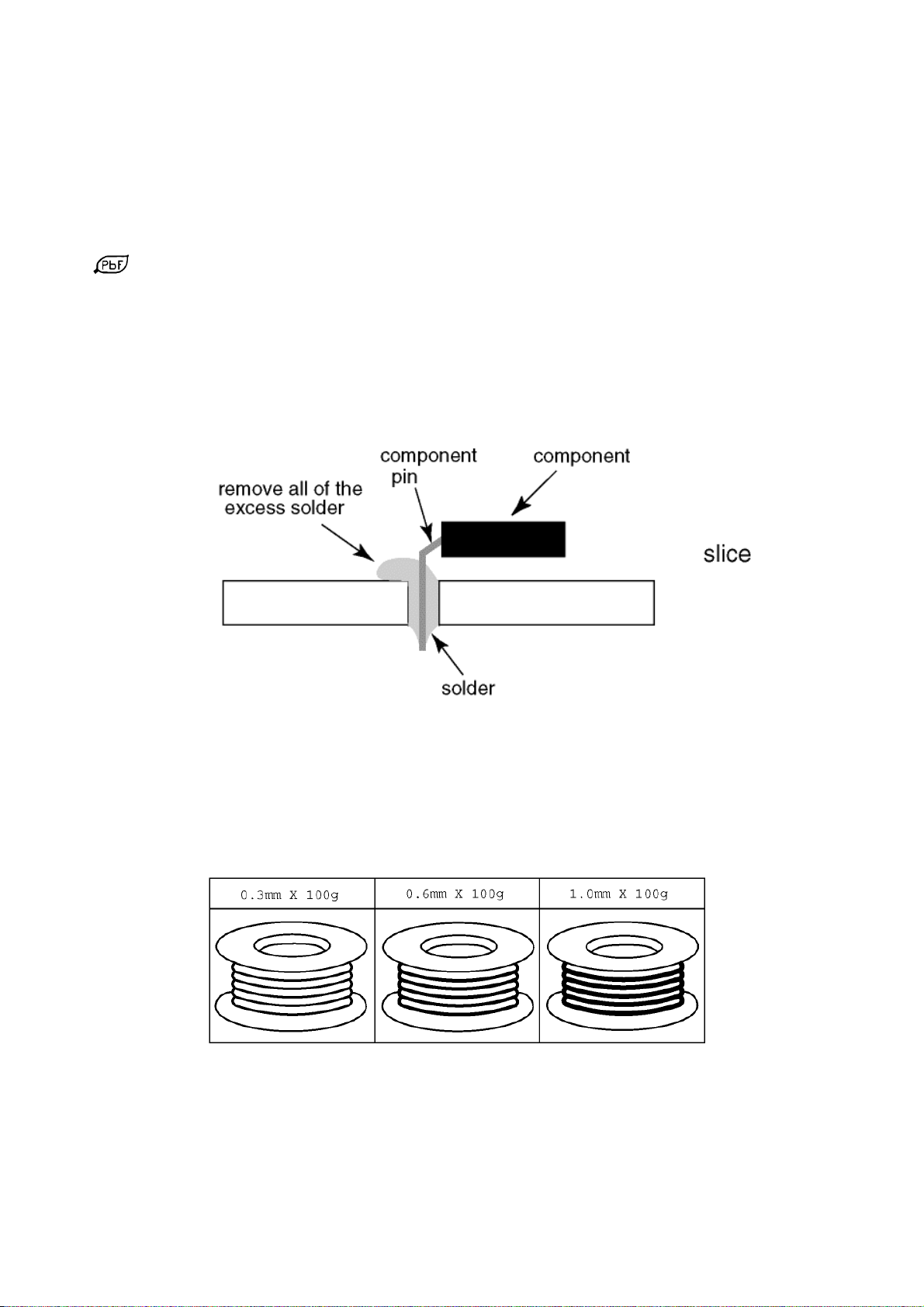

 Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

 Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

 After applying PbF solder to double layered boards, please check the component side for excess solder which may

flow onto the opposite side. (see Fig.3)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.3

Fig.4

Applicable Signals

7

Component (Y, Pb, Pr), HDMI

Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name COMPONENT HDMI

525 (480) / 60i,60p * * 625 (576) / 50i, 50p * *

750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p * 1,125 (1,080) / 24p *

PC (from HDMI terminal)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640  480 @60 Hz 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Note:

 Signals other than above may not be displayed properly.  The above signals are reformatted for optimal viewing on your display.  PC signal is magnified or compressed for display, so that it may not be possible to show fine detail

with sufficient clarity.

31.47 60.00

Service Hints

/4pcs/

8

How to remove the backcover

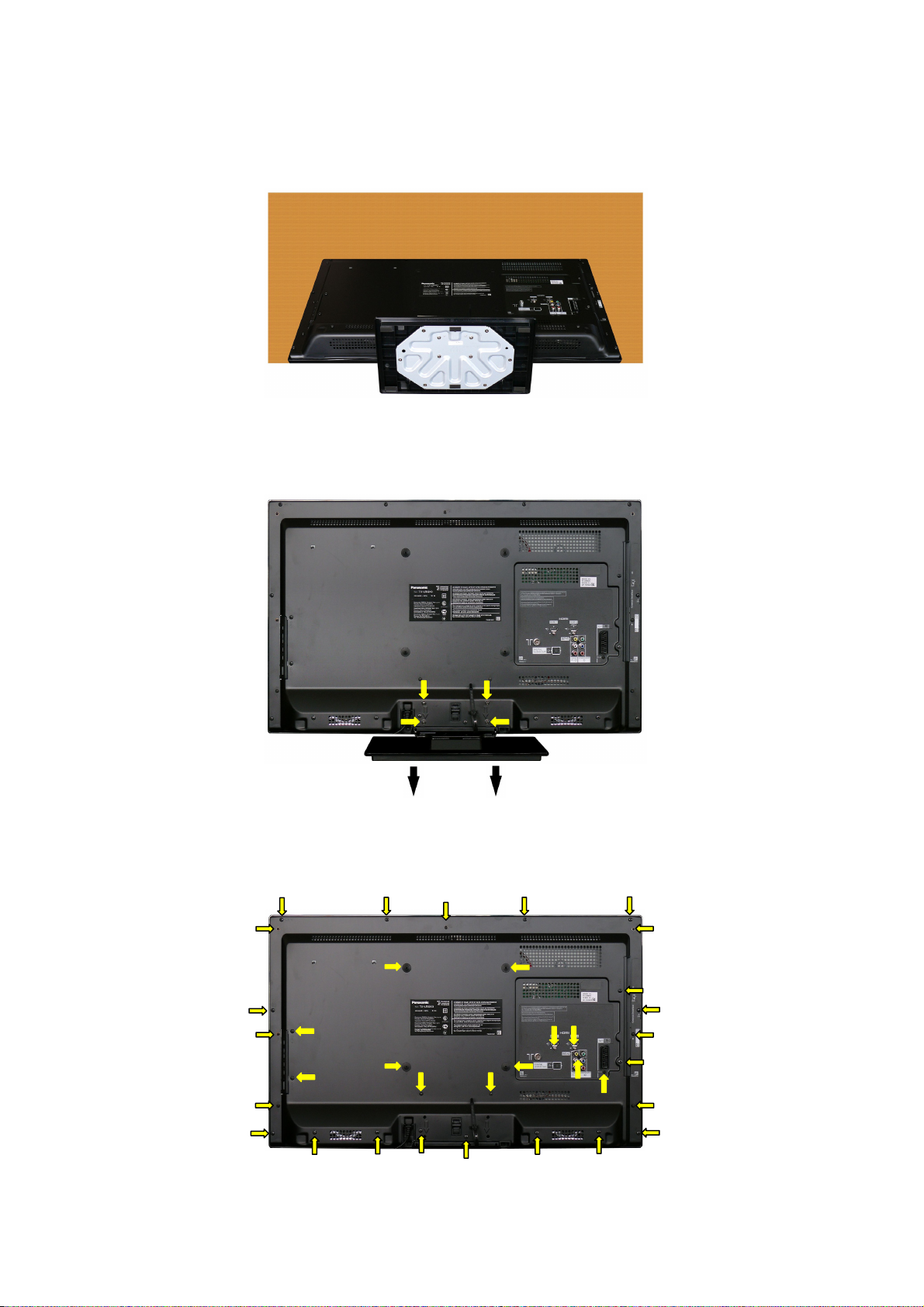

Lay the main unit face down. (see Fig.5)

Fig.5

Remove the 4 fixing screws and the pedestal assembly. (see Fig.6)

Fig.6

Remove the 31 fixing screws, 4 caps and the backcover. (see Fig.7)

(1)

(2)

(1)

(5)

(2)

(1)

Fig.7

(1)

SCREWS

XYN4+F30FJK

(1)

(2)

SCREWS

(1) XTB4+15JFJK /18pcs/

(5)

(4)

(5)

(3)

(1)

(2) THEJ0389 /9pcs/ (3) XTV3+10GFJK /2pcs/

(1)

(4) XYN3+F6FN /2pcs/

(1)

(5) TKKL5521 /4pcs/

(2)

(1)

(2)

(1)

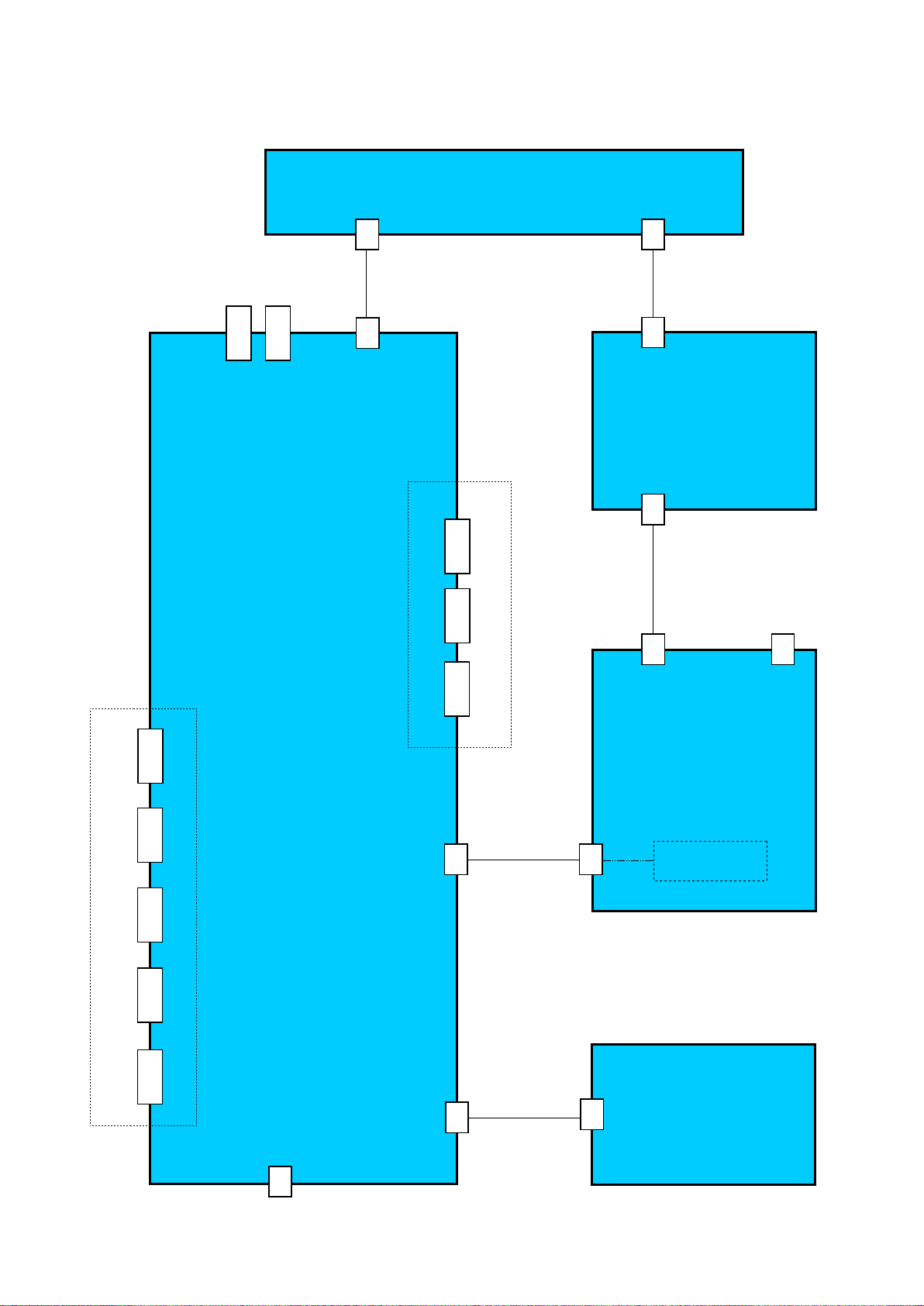

Chassis Board Layout

9

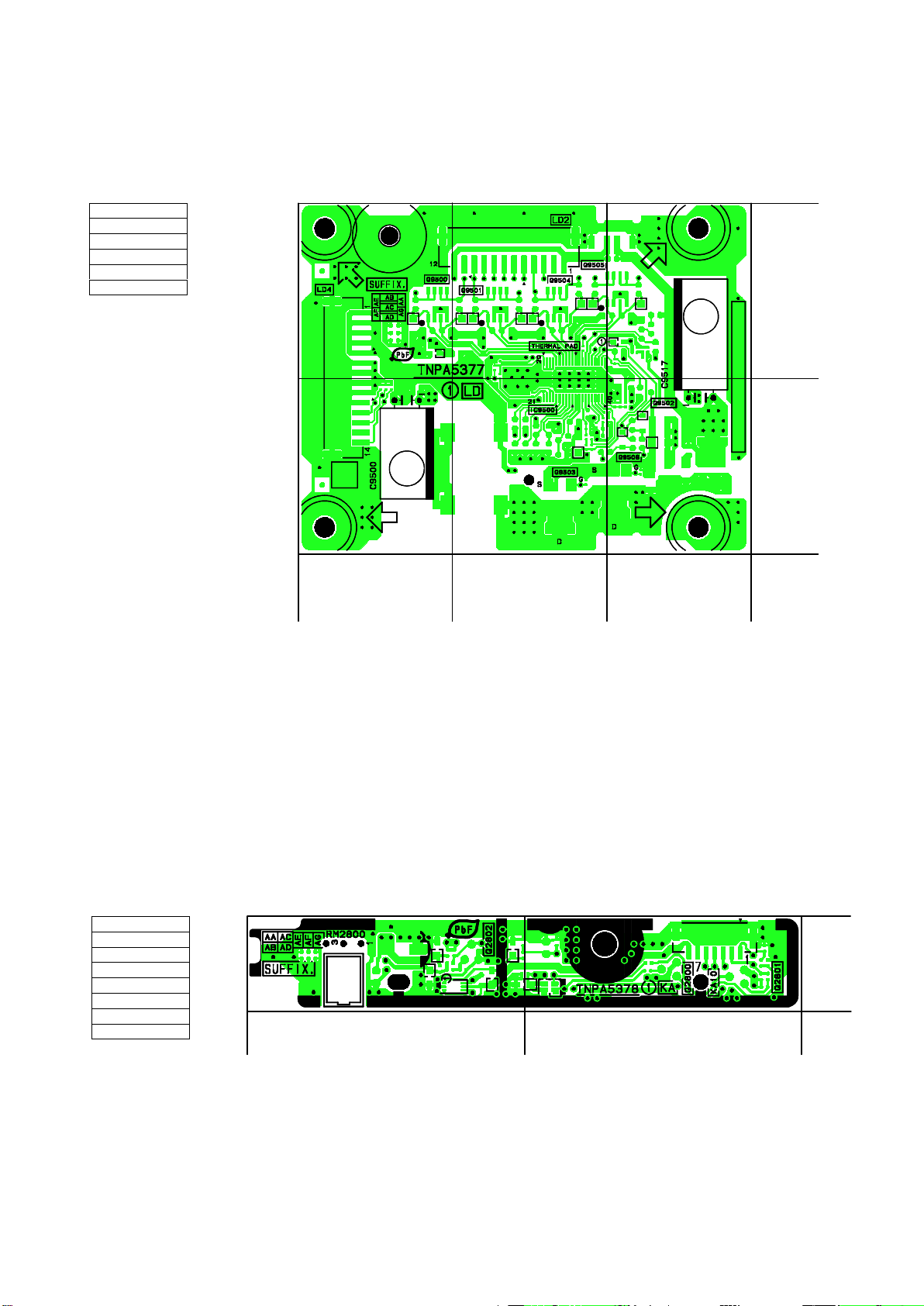

P-BOARD

LD-BOARD

KA-BOARD

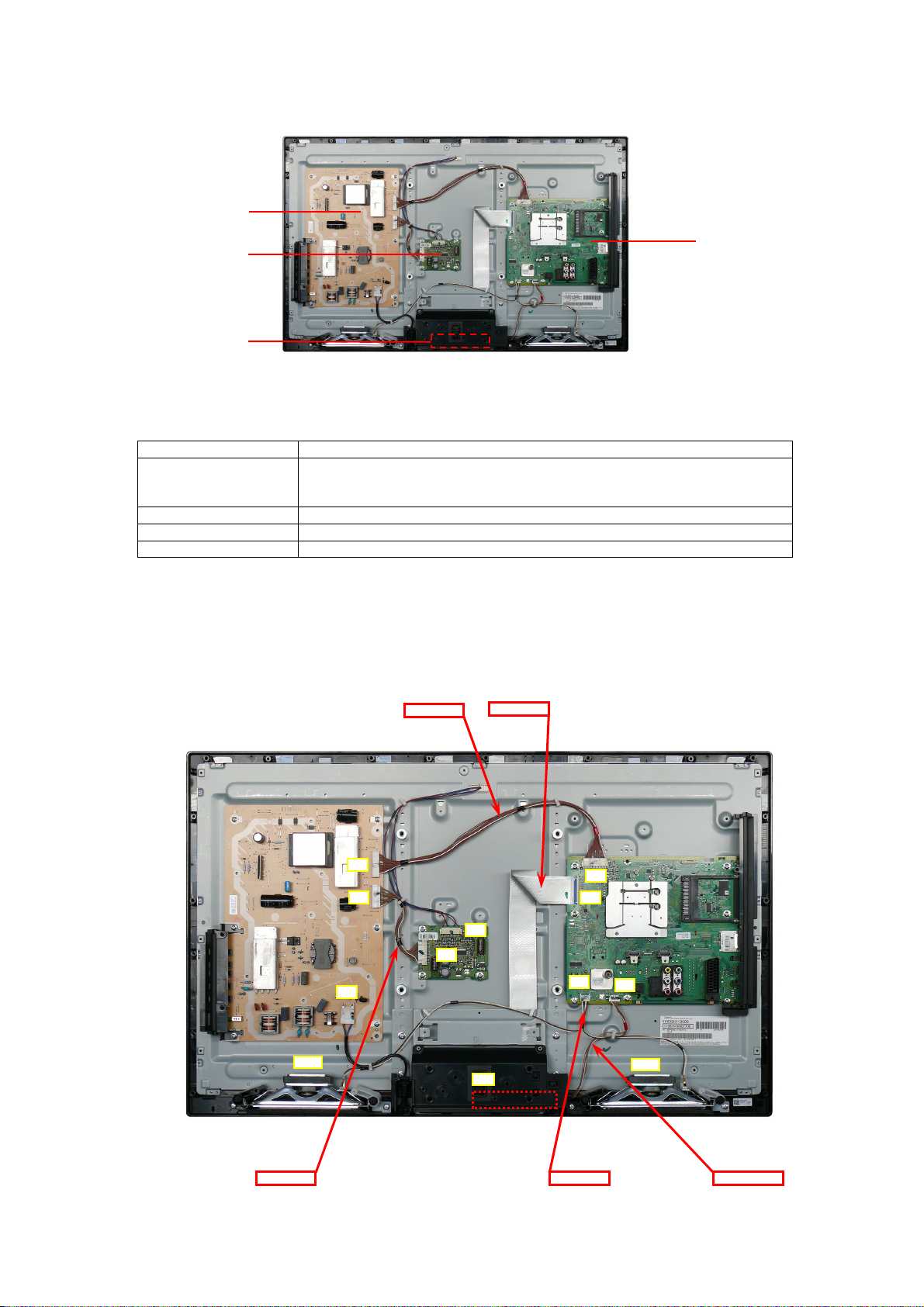

Board Name Function

A-Board AV Terminal, HDMI, Digital Audio Out, SD Card, CI slot,

KA-Board Remote Receiver, Power and Timer LED, C.A.T.S

P-Board Main Input, Power Supply, Key Control, Power Switch

LD-Board LED Driver

A-BOARD

TV tuner, Peaks_sLD2, AV Switch, Speaker out,

EEPROM, Flash Memory, DDR SDRAM

Location of Lead Wiring

To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.

A09-P2 WIRE

LVDS FFC

P2

P4

LD2

LD4

P1

A12

A09

A15

A10

SP_R

KA10

SP_L

A10-KA10 WIRE P4-LD4 WIRE A12-SPK WIRE

Technical Description

10

Specification of KEY for CI Plus, DTCP-IP and One-to-One General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by sLD2 IC (IC8000) when SELF CHECK was done and are stored in both sLD2 IC

(IC8000) and EEPROM (IC8902). Three KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

Replacement of ICs:

When sLD2 IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, sLD2 IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data.

How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press the STATUS button on the remote

control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

Model and Keys:

Model No.

TX-L32X3E Yes None None TX-LR32X3 None None None

CI PLUS DTCP-IP

Keys

One-to-One

(for USB Rec.)

Setting Inspection

11

Voltage Confirmation

A board

Description Test point Voltage

SUB3.3V TP8615 3.21V - 3.45V SUB 1.5 V TP8101 1.47V - 1.56V SUB1.2V TP8100 1.26V – 1.33V SUB5V CN0102 /pin1/ 4.8V – 5.2V

P board

Description Test point Voltage* Voltage**

24V (PANEL) TP7514 / TP7515 16V TP7503 / TP7504 TUNER5V8 TP7502 / TP7501 5.7V ± 0.3V 5.7V ± 0.3V PFC TP7201 and GND TP7203

* Connect AC 230V to P1 connector ** Connect DC 2.5V to TV_SUB_ON P2 connector – pin 8 /TP7505/ from voltage divider.

<1V <1V

<340V

24V ± 1.2V

16.1V ± 0.7V

400V ± 15V

Self Check

p

12

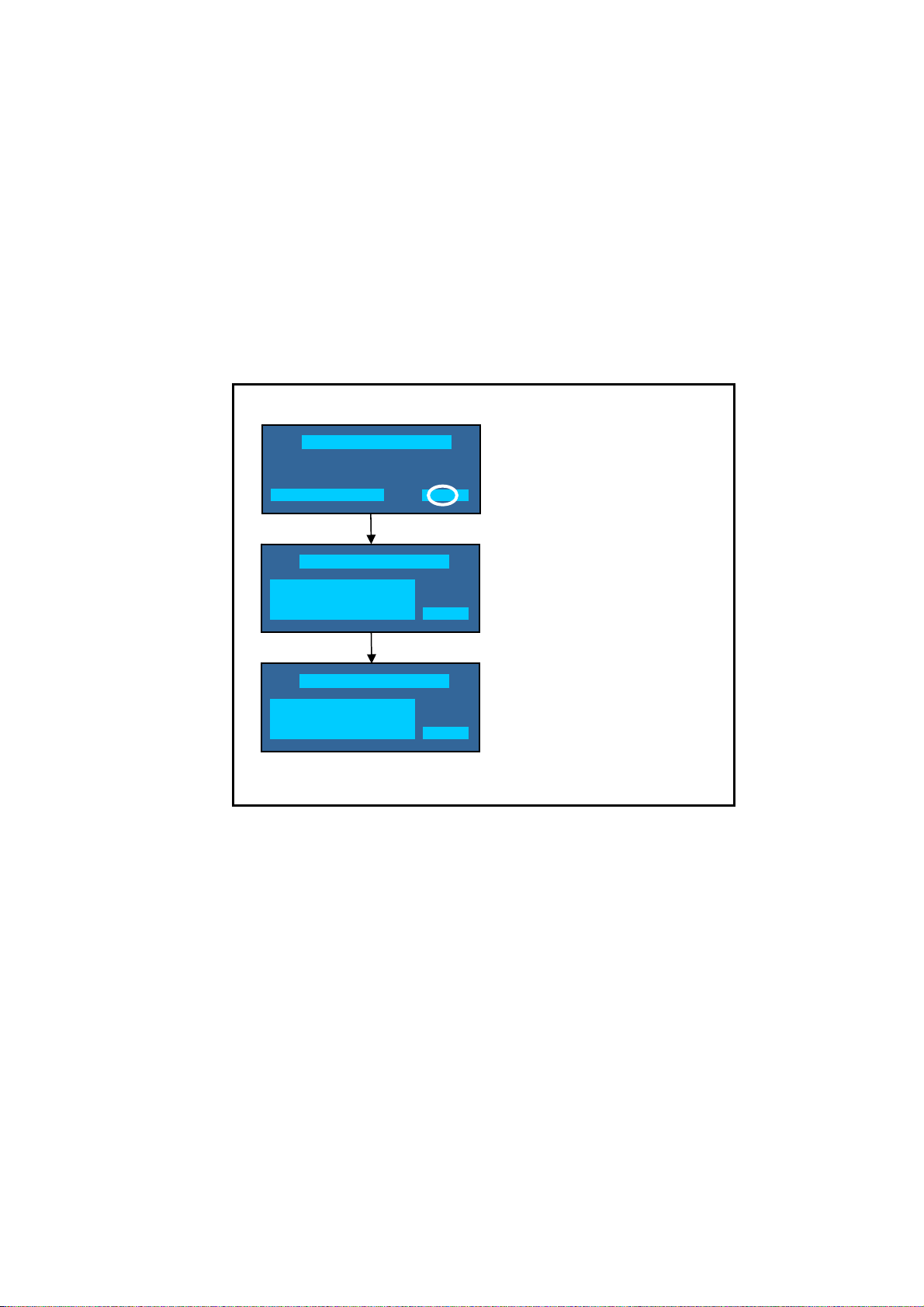

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep

pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,

switch off the TV set at the power button.

TX-L32X3E

TX-LR32X3

TUN TU4801 TUNER A-Board STBY IC8000 Peaks-sLD2 A-Board MEM1 IC8901 STM EEPROM A-Board MEM2 IC8902 EEPROM PEAKS sLD2 A-Board AVSW IC3001 AUDIO VIDEO SWITCH A-Board T-CON-EEP IC8000 SLD2 A-Board T-CON-DCDC IC4150 DC/DC CONVERTER A-Board T-CON-DAC IC4120 TCON GAMMA DAC A-Board *ID IC8902 EEPROM PEAKS sLD2 A-Board

* Displayed for E model only

32HD Panasonic 2011LCD

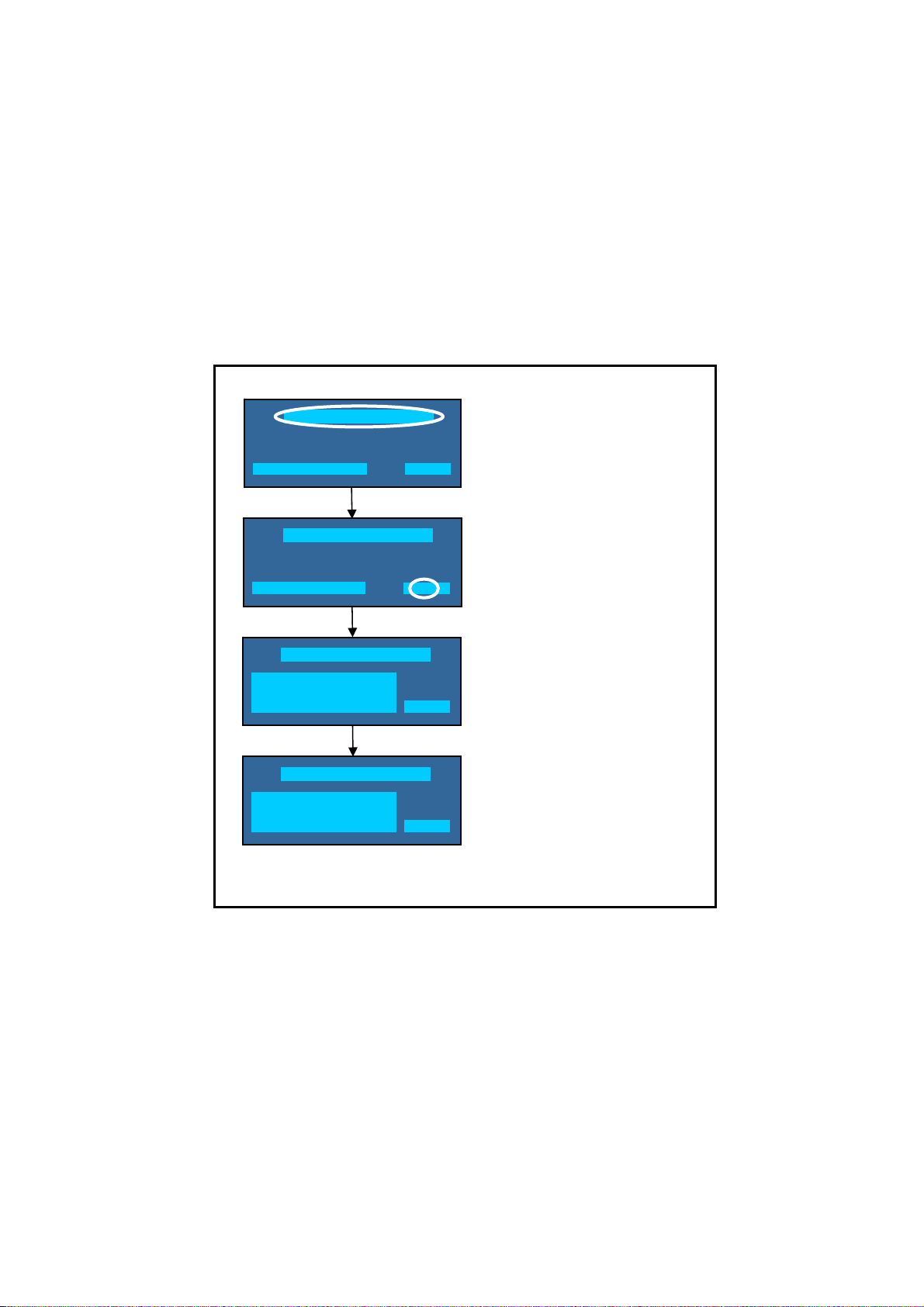

Self Check Com

TUN O.K. STBY O.K. MEM1 O.K. MEM2 O.K.. AVSW O.K. T-CON-EE O.K. T-CON-DCDC O.K. T-CON-DAC O.K. ID O.K.

32HD Panasonic 2011LCD

Self Check Com

TUN O.K. STBY O.K. MEM1 O.K. MEM2 O.K.. AVSW O.K. T-CON-EEP O.K. T-CON-DCDC O.K. T-CON-DAC O.K.

PEAKS-SOFT 1.112 PEAKS-EEP 01.00.0010 LSI-PACKAGE 1.71e LSI-RELEASE 1.01 STBY-SOFT 1.00.00 STBY-EEP 1.00.0000 STBY-ROMCORR 0.00.00

PEAKS-SOFT 1.112 PEAKS-EEP 01.00.0012 LSI-PACKAGE 1.71e LSI-RELEASE 1.01 STBY-SOFT 1.00.00 STBY-EEP 1.00.0000 STBY-ROMCORR 0.00.00

lete

SUM C5B6

MODEL ID 08 03476100 00000004

SUM C4CD

MODEL ID 08 034c6100 00000004

Display Ref. No. Description P.C.B.

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

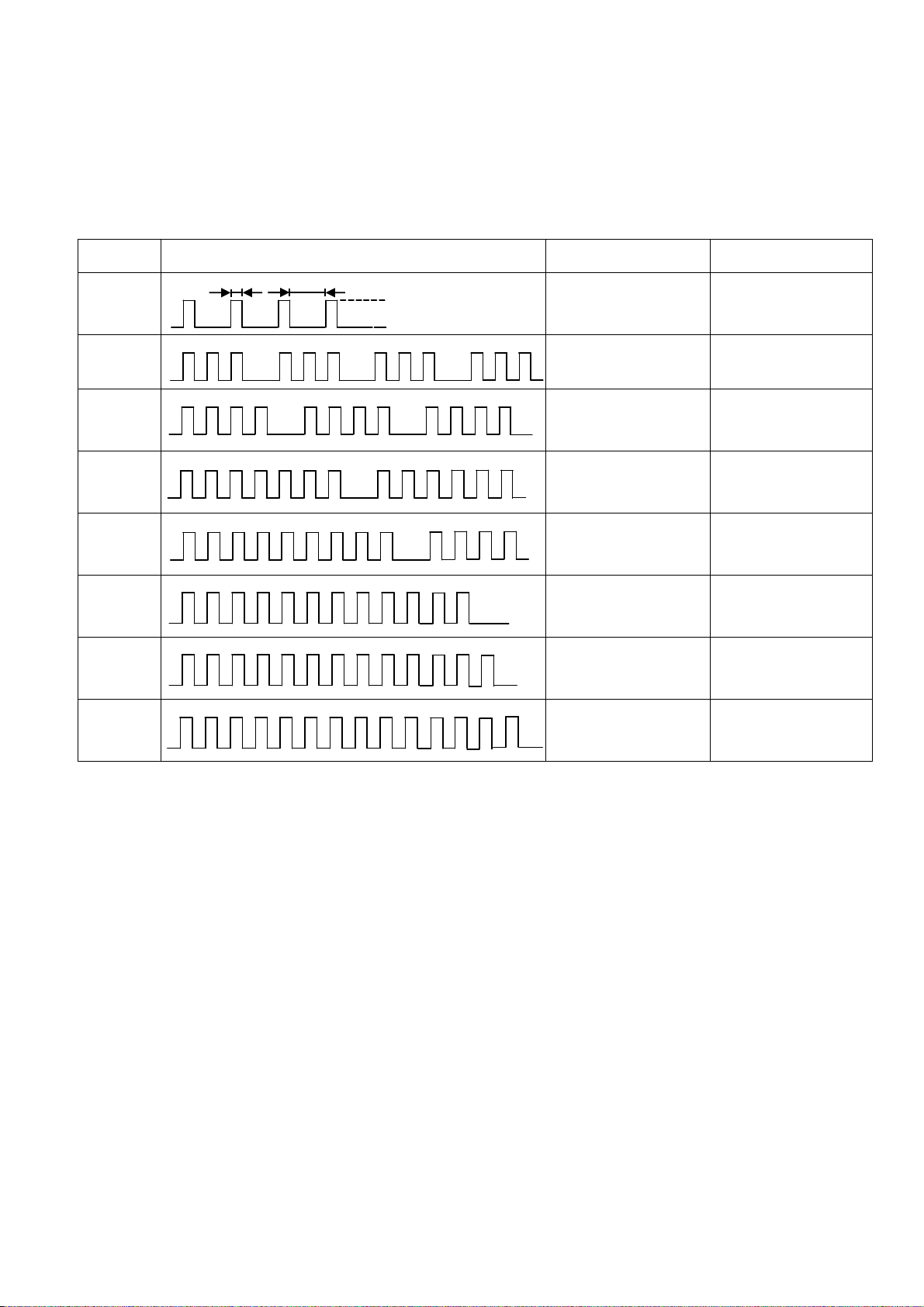

Power LED blinking timing chart

13

1. Subject Information of LED Flashing timing chart.

2. Contents When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by number of blinking of the Power LED on the front panel of the unit.

Blinking

times

Once

1 BL_SOS

3

4

Blinking timing Contents Check point

4 sec

Light

No Light

SOS

SUB12V_SENSE_SOS

A BOARD P BOARD

LD BOARD

A BOARD

A BOARD P BOARD

7

9

12

13

14

SUB3.3V_SENSE_SOS

SOUND_SOS

BE(sLD2)SOS A BOARD

EMERGENCY _SOS A BOARD

IROM_SOS A-BOARD

A BOARD

A BOARD P BOARD

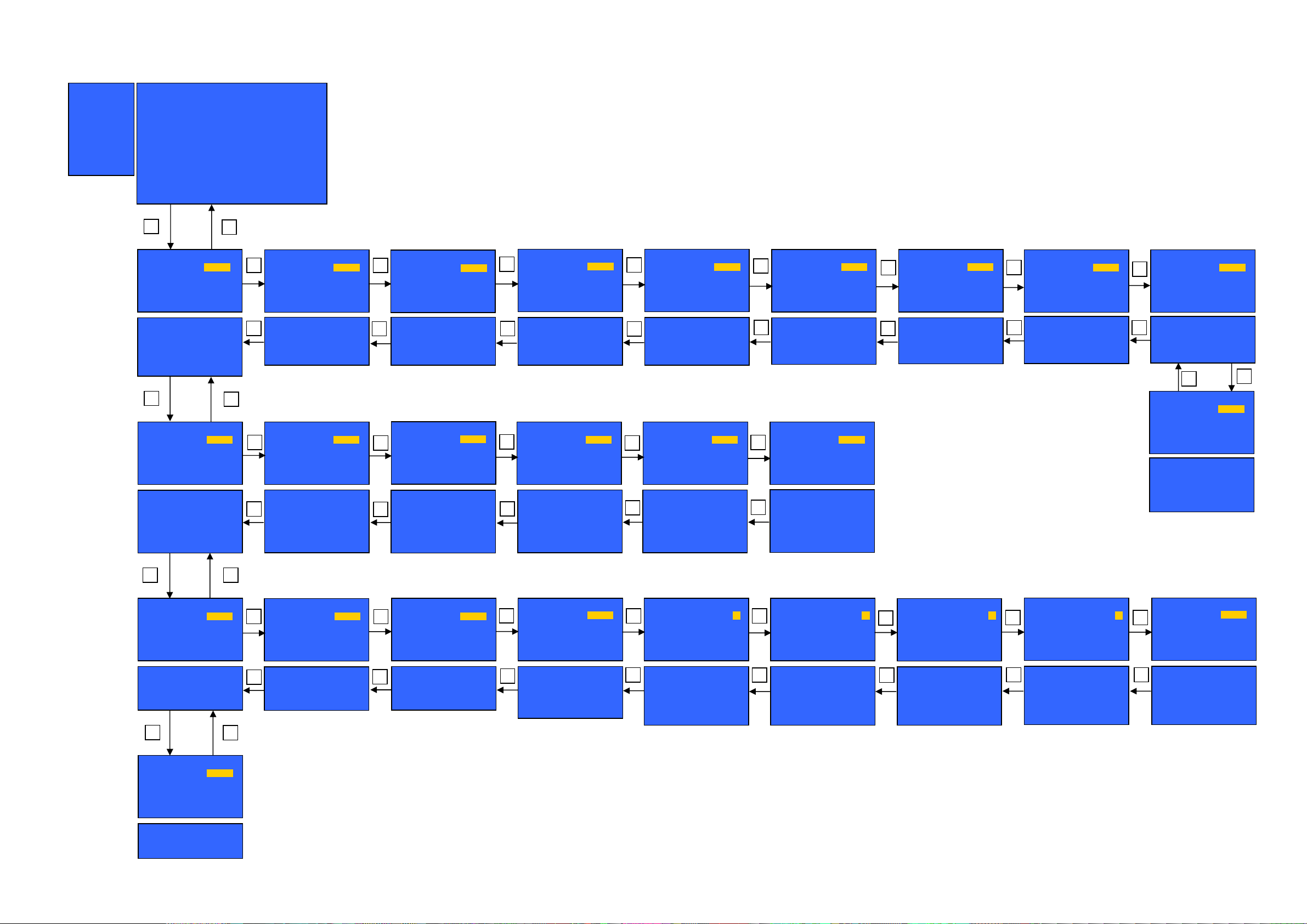

Service Mode Function

14

MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Menu

How to enter SERVICE

While pressing (-/v) button on the TV unit, press on the remote control for 3 times within 2 seconds. Note:

To exit from Service mode, press the exit button on remote control.

0

Service

A

V

15

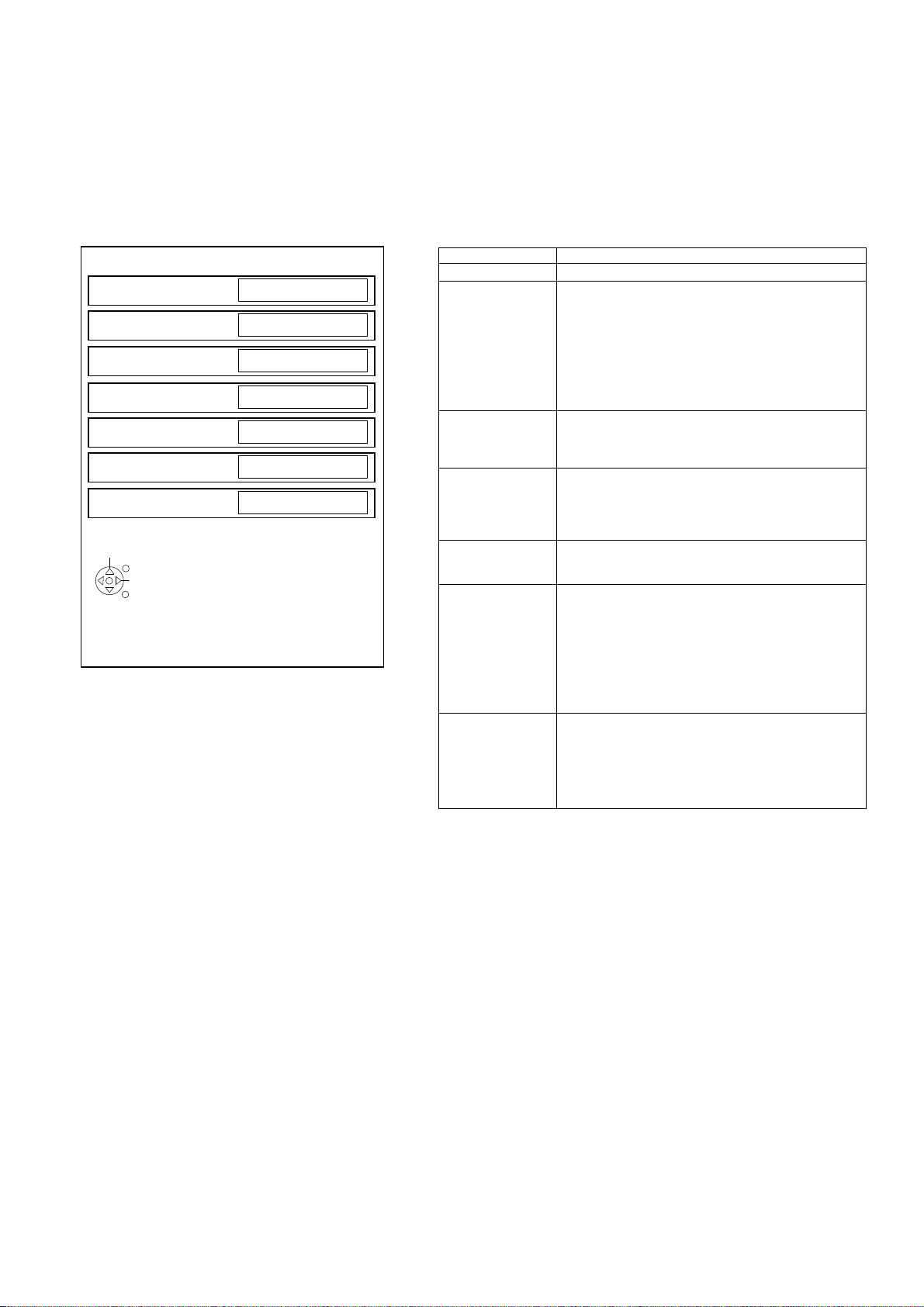

SERVICE ADJUST WB-ADJ OPTION SRV-TOOL

Peaks SOFT 1.112 OPTION 1 84 Peaks EEP 01.00.0012 OPTION 2 ee

S e r v i c e 1

LSI PACKAGE 1.71e OPTION 3 01 LSI DATA 1.00.01 OPTION 4 00 STBY SOFT 1.00.00 MODEL ID 08 STBY EEP 1.00.0000 034c6100 STBY ROMCOR 0.00.00 00000004 R/E Cnt 000/000 INV Cnt 0000

1

ADJUST DYNAMIC CONTRAST YMAX

1,2:MAIN SELECT 3,4:SUB SELECT 9:PICTURE MENU SELECT YELLOW:AUTO ADJUST VOL :ADJUST OK :WRITE

1

WB-ADJ DYNAMIC R-GAIN

BEFORE 76 METHOD 02

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT 7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ

1

OPTION DYNAMIC Boot

1,2:MAIN SELECT 3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST

1

SRV-TOOL DYNAMIC

1,2:MAIN SELECT 9:PICTURE MENU SELECT OK:ENTER

000

76

ROM

00

2

3

4

2

3

4

2

3

4

2

ADJUST DYNAMIC COLOR

1,2:MAIN SELECT 3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

WB-ADJ DYNAMIC G-GAIN

BEFORE 80 METHOD 02

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT 7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ

OPTION DYNAMIC STBY-SET

1,2:MAIN SELECT 3,4:SUB SELECT 9:PICTURE MENU SELECT OK :POWER OFF

3F

80

00

216

DJUST DYNAMIC

3

TINT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

WB-ADJ DYNAMIC B-GAIN

3

BEFORE 65 METHOD 02

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ

OPTION DYNAMIC Emergency

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST

Key Command

 Press the 3/4 button to change the adjustment values or function.  Press the 1/2 button to step up/down through the functions and adjustments  Press the numerical button VOLUME (+/-) to change of each option item.  Press the OK button after each adjustment has been made to store the required values.

65

ON

00

ADJUST DYNAMIC

3

SUB-BRT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

WB-ADJ DYNAMIC R-CENT

3

BEFORE 7D METHOD 02

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ

OPTION DYNAMIC Y/C Delay

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

800

7D

DJUST DYNAMIC

3

BACKLGT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

WB-ADJ DYNAMIC G-CENT

3

BEFORE 80 METHOD 02

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ

OPTION DYNAMIC OPT 1

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

200

80

00010100

DJUST DYNAMIC

H-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

WB-ADJ DYNAMIC B-CENT

3

BEFORE 8F METHOD 02

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ

OPTION DYNAMIC OPT 2

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

8F

11101110

DJUST DYNAMIC

0

H-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK:WRITE

OPTION DYNAMIC OPT 3

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

0

00010000

ADJUST DYNAMIC V-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

OPTION DYNAMIC OPT 4

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

00000000

DJUST DYNAMIC

0

V-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE

4

DJUST DYNAMIC

VCOM BEFORE 000

1,2:MAIN SELECT 3,4:SUB SELECT 5 :FLICKER PATTERN 9 :PICTURE MENU SELECT OK :WRITE

OL :ADJUST

OPTION DYNAMIC EDID-CLK

3

HDMI 1

1,2:MAIN SELECT

4

3,4:SUB SELECT 7 :HDMI SELECT 9 :PICTURE MENU SELECT OK:WRITE

0

3

000

MID

Service Tool Mode

16

How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

Display of TD2Microcode version

Display of Flash ROM maker code

Display of SOS History

SRV-TOOL

TD2Microcode:005a0910 Flash ROOM: AD – F1 PTCT:00.00.00.00.00 Time 00051:30 On/Off 0000042

Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2 This indication will be cleared by [Self/check indication and forced to factory shipment setting].

nd

occurrence after shipment, 1st occurrence after shipment.

Power ON Time, On/Off

Note: To display TIME/COUNT menu, highlight position, then press MUTE for 3sec. Time: Cumulative power on time, indicated hour: minute by decimal. On/Off: Number of On/Off switching by decimal. Note: This indication will not be cleared by either of the self-checks or any other command.

Exit

Disconnect the AC cord from wall outlet or switch off the power with [Power] button on the main unit.

POWER ON TIME/COUNT Press [MUTE] button (3sec)

Hotel Mode

17

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol.[Down] + [REMOTE] : AV (3 times)

Then, the Hotel mode setup menu is displayed.

Hotel mode

Initial INPUT

Initial POS

Off

Initial VOL Level

Maximum VOL Level

Button Lock

Remote Lock

Off

100

Off

Select

EXIT

Change

RETURN

3. To exit the “Hotel mode” menu press the EXIT button on remote control.

4. Explain the Hotel mode setup menu.

ITEM Function

Hotel Mode Select hotel mode ON/OFF

Initial INPUT Select input signal modes.

Initial POS Select programme number.

Initial VOL Level Adjust the volume when each time power is

Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock Select remote control key conditions.

Set the input, when each time power is switched on. Selection: Off/Analog /DVB-C/DVB-T/AV1/AV2/Component/ HDMI1/HDMI2 *Off: give priority to the last memory. However, Euro Model is compulsorily set to TV. *AVnS/AVnC: only Euro model selectable * PC:selectable with VGA option

Selection: Off/0 to 99 *Off: give priority to the last memory

switched on. Selection/Range: Off/0 to 100 *Off: give priority to the last memory Adjust maximum volume. Range: 0 to 100

Selection: Off/SETUP/MENU/ALL *Off: altogether valid *Setup: only F-key is invalid

(Tuning guide (menu) can not be selected.)

*MENU: only F-key is invalid

(only Volume/Mute can be selected.)

*All: altogether invalid.

Selection: Off/SETUP/MENU *Off: altogether valid *Setup: only Setup menu is invalid MENU: Picture/Sound/Setup menu are invalid

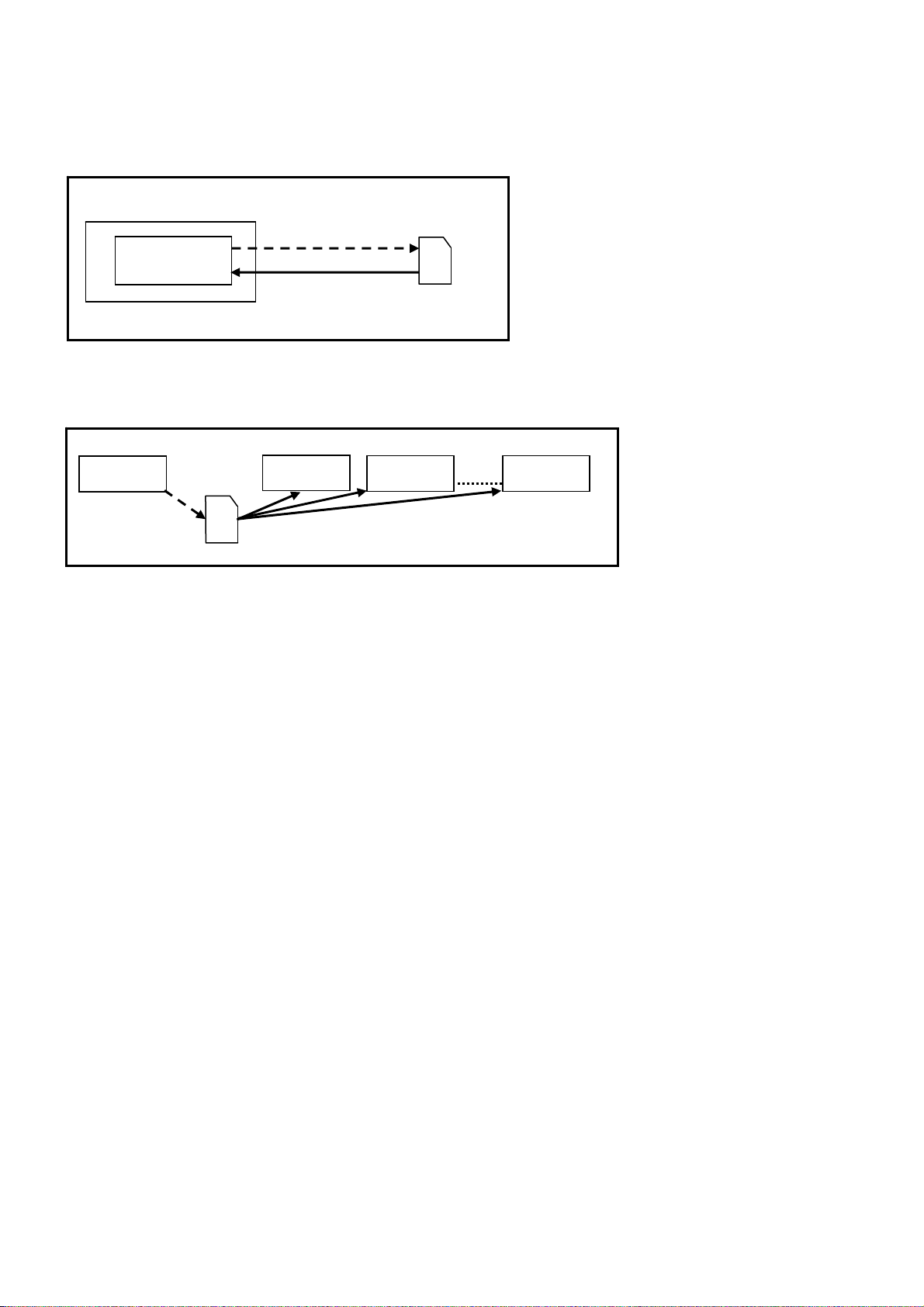

Data Copy by SD Card

18

Purpose a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

TV

A-board

(Before exchanging)

Copy to SD card

(After exchanging)

Copy back from SD card

SD

Following data can be copied. User setting data (inc. Hotel mode setting data) Channel scan data Adjustment and factory preset data

b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and the copy to other TVs.

Master TV

Copy to SD card

SD

Other TV

Copy from SD card

Other TV

Following data can be copied. User setting data (inc. Hotel mode setting data) Channel scan data

Preparation

Make pwd file as startup file for (a) or (b) in an empty SD card.

1. Insert an empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name (a) or (b) and press ENTER.

File name:

(a) For Board replacement: boardreplace.pwd (b) For Hotel: hotel.pwd

Note: Please make only one file to prevent the operation error. No any other file should be in SD card.

Data Copy from TV set to SD Card

19

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement: 2770

(b) For Hotel: 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note: Following new folder will be created in SD card for data from TV set.

(a) For Board replacement: user_setup (b) For Hotel: hotel

Please do not remove the SD card

Data copy has been successful

Data Copy(Board replacement )

Input password

Data Copy(Board replacement )

Input password

Data Copy(Board replacement )

Copy TV to SD card

Please wait for a while

Data Copy(Board replacement )

Performing

Please remove SD card

Data copy (Board replacement) or (Hotel)

-----

Input Password

2770 or 4850

-----

Performing

GETTING

Completion

FINISH

Data Copy from SD Card to TV set

20

1. Turn on the TV set.

2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement: 2771 (b) For Hotel: 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement: Data will be deleted after copying (Limited one copy). (b) For Hotel: Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data for board replacement does not work.

2. This function can be effective among the same model numbers.

Data Copy(Board replacement )

Input Password

Input password

Performing

Data Copy(Board replacement )

Copy SD card to TV

Please wait for a while

Please do not remove the SD card

Data Copy(Board replacement )

Performing

Data copy has been successful

Please remove SD card

Input Password

2771 or 4851

-----

Performing

WRITING

Completion

FINISH

Option Bytes Description

21

OPTION1

OPTION2

OPTION3

OPTION4

b1 TEXT Ch Refresh ON (1) / OFF (0) b2 ID-1 ON (1) / OFF (0) b3 Macrovision Auto-judge ON (1) / OFF (0) b4 Surround enable low bit ON (1) / OFF (0) b5 Surround enable high bit ON (1) / OFF (0) b7 TINT_Component_HDMI ON (1) / OFF (0)

b0 Adjust gain enable ON (1) / OFF (0) b1 A2 BG enable (5.5MHz) ON (1) / OFF (0) b2 A2 DK1 enable (6.26MHz) ON (1) / OFF (0) b3 A2 DK3 enable (5.742MHz) ON (1) / OFF (0) b4 NICAM scan ON (1) / OFF (0) b5 NICAM BG enable (5.5MHz) ON (1) / OFF (0) b6 NICAM I enable (6.0MHz) ON (1) / OFF (0) b7 NICAM DK enable (6.5MHz) ON (1) / OFF (0)

b0 NICAM priority ON (1) / OFF (0) b1 Starhub scan enable (Singapore) ON (1) / OFF (0) b3 A2 DK2 enable ON (1) / OFF (0)

Inhibition of countermeasure

b4

for SIF signal drop b5 Get onid from physical CH (CHINA) ON (1) / OFF (0) b6 SSU search enable for HOTEL model ON (1) / OFF (0) b7 SASO mute (ASIA) ON (1) / OFF (0)

b2 3DYC color motion detect ON (1) / OFF (0) b4 SHOP banner enable ON (1) / OFF (0) b6 PIP ON (1) / OFF (0)

Enable work around for Polsat b7

CAM problem

ON (1) / OFF (0)

Adjustment Method

22

Sub-Contrast/White Balance Adjustment

Instrument Name Connect to Remarks

1. Remote controller

2. LCD WB meter (Minolta CA-210 or equivalent)

3. Comunication jig

4. Computer for external control

Procedure Remarks

Subcontrast adjustment

1. Receive PAL colour bar (100% white) RF signal.

2. Enter “Contrast” adj. In SERVICE mode.

3. Start adjusting by using Yellow Key.

4. If the adjustment finished normally, the letter of Contrast will change from red to black.

White Balance adjustment

1. Procedure basically performs checking using the production software and make automatic adjustment using external computer.

2. It adjusts in the mode of: Colour balance Normal

Viewing Mode Dynamic

Normal Highlight x: 0.303  0.010 y: 0.321  0.010

Normal Lowlight x: 0.303  0.010 y: 0.321  0.010

Correlation can be also taken by CS-1000A or equivalent

Let the panel standfor more than 3 hours at more than 20 C. Basically perform adjustment in the ambient environment of room temperature more than 20 C. The aging time is more than20 min at above room temperature.

Applied signal

100% full colour bar

0.7V p-p white peak 85% modulation

100% WHITE

50% GRAY

Wiring Diagram

23

SERVICE

LCD PANEL

TUNER

DIGITAL

AUDIO OUT

D3050

CN0102

TU4801

A-BOARD

A15

JK1070

JK8850

Side Terminals

JK1052

CI SLOT

SD SLOT

HP

LD4 LD2

P4

LD-BOARD

MAIN IN

P1

YUV, Vin

AUDIOin

HDMI2

JK1021

HDMI1

JK1020

RCA

JK1001B

JK1003

AV scart

Rear Terminals

A12

SP

A09

A10

P2

KA10

KEY

KEY CONTROL

P-BOARD

KA-BOARD

SP_L

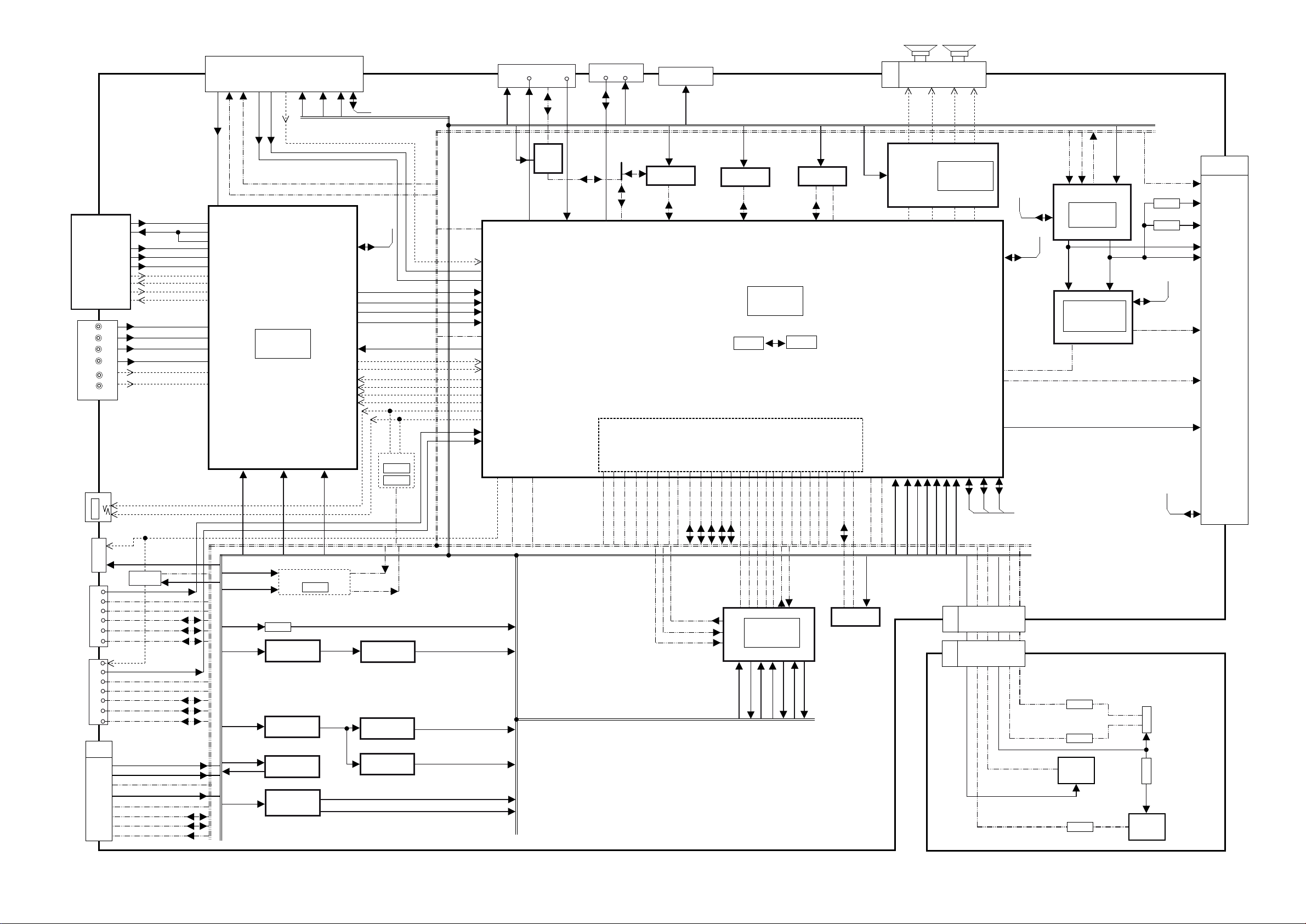

Block Diagram (1/2)

24

A-BOARD

[EXCHANGE UNIT]

12

VIDEO_OUT

SP_R

TUNER

TU4801

7

11

IFAGC

FE_XRST

5

IFD1

4

IFD2

13

SIF_OUT

2

SUB5V

6

SUB1.8V

10

SUB3.3V

IIC_0

CI SLOT

JK1070

17,18 51,52

SUB_CI_5V

SD CARD SLOT

JK8850

SUB3.3V

SERVICE

CN0102

SUB5V

2 3

1

A12

L+ L- R+ R-

4

AV2_VIN 20

AV2_VOUT 19

AV2_RED/C 15

AV2_GREEN 11

AV2_BLUE 7

JK1003

AV2_LIN 6

AV2_LOUT 3

AV2_RIN 2

AV 21PIN SCART

AV2_ROUT 1

Y

PB

PR

Y,PB,PR

L

V

JK1001B

R L

IN

AUDIO

L

R

JK1052

HP_LOUT

HP_ROUT

IECOUT

YPBPR_Y

YPBPR_PB

YPBPR_PR

VIN

PC_LIN

PC_RIN

IFAGC

5 CVBSIN4 17 CVBSIN1/Y1 38 Y/Y+C/CVBSOUT4

37 SAGCVBSOUT4 11 R2/CIN1 13 G2/YIN2 15 B2/CIN2 64 L4IN 54 L2OUT

65 R4IN 53 R2OUT

95 CYIN1

93 PBIN1

97 PRIN1

[C1AB00003384]

7 CVBSIN3

70 L7IN

71 R7IN

18,24,

36,86

SUB5V

SUB9V

IC3001

AVSW

45,80

G/CY/CVBSout1

B/PB/Cout1

R/PRout1

CVBSout

CVBSin1 23

96

SUB3.3V

R4out

L4out

L1IN

R1IN

L2IN R2IN

31

33 35

46

49 50

58 59 60

61

IIC3

MAIN_Y/CVBS

MAIN_PB

MAIN_PR

RGB_CVBS

DVB_CVBS

AV_R

AV_L

AUDIOOUT_L AUDIOOUT_R TV_L TV_R

HP_MUTE

Q4971

Q4972

HP_MUTE

FE_XRST

IFAGC

HP_LOUT

HP_ROUT

RX0

RX1

SUB3.3V

TS-OUT

HSBCLKOUT HSSYNCOUT HSVALOUT HSDOUT[0;7]

AC9 SIF I/F

AF8

TUNER I/F

AE8

AB15

AA16

Video Input

AB16

AB14

TUNER CTRL

AE10

AE9

Video Output

AA13

Audio Input

AA14

AF13

AB13 AC12

Audio Output

AB12

AD13

AE13

HDMI I/F

AA11

N5

IECOUT

ARC_OFF

IC8403

HS0BCLKIN HS0SYNCIN HS0VALIN HS0DIN[0;7]

output

TS Par

PANEL

PWM

PWM_A_IN

TS-IN

input

TS Par

CPU BUS

SD CARD I/F

SYSTEM BUS

AI

KEY1

PANEL_VCC_ON

SUB3.3V

IC8900

NAND FLASH

NAND I/F

HPD1

HPD0

5VDET0

PWM_POW_ON

5VDET1

DDC_SDA_0

STM

DDC_SCL_1

DDC_SDA_1

DDC_SCL_0

SUB1.5V

IC8201

DDR3

DDR3 I/F

A-Chip

CEC0

TV_SOS

SOUN_SOS

IC8000

[MN2WS0177C]

sLD2

BL_SOS

STB_RST

PEAKSRST

LCD_TV_SUB_ON

D-Chip

BL_ON

REMOTE

SUB3.3V

IC8902

EEPROM sLD2

I2C

SOS

R_LED_ON

G_LED_ON

EEP_WP

V1

STM_IIC

P15V

COMMON I/O PORT

AVDD_ENB

STM_EEP_WP

32,33,34

19,20,35,36

8

L+ L- R+ R-

V5

AUDIO PWM

STB1.2V

SUB1.2V

SUB3.3V

TCON_EEP_WP

25,26,27

28,29,30

9

V6 Y3

21,22,23

IC4900

[C1AB00003457]

AUDIO AMP

10 11

Y2

TCON

C3,A3,B3,D4,B2,C4

LVDS I/F

L1,L2,L6,L5,K1,K2,K6,K5

J5,H5,G2,G1,G3,F3,F1,F2

STB3.3V

SUB1.5V

SUB1.8V

HDMI3.3V

TUNER I2C

I2C

IIC3

IIC1

TCON15.6V

AVDD_ENB

PANEL_VCC_ON

SOS_SENSE

18

IIC0

IIC_0

B1

[C0DBAYY00868]

1,2

DVDD2.5V

9

TCON GAMMA DAC

17

LD

9,10,15

14

17

31,32

IC4150

TCON DC/DC

7,8

AVDD12.6V

7

IC4120

[C0FBBY000086]

TCON_EEP_WP

VOFF2_-6V

Q4151

VON31V

Q4150

DVDD2.5V

AVDD12.6V

IIC0

VRF1;VRF2;VRF3 VRF4;VRF5;VRF6 VRF8;VRF9;

VRF10;VRF11;

VRF12;

VCOM

LPR,POLL

POLR,CPV

GDATA_2,1

A15

57

6

7

44-42

49-46

9,10,11 12,13,14

52,53

54,55 56

50,51

41,40 5,2

4,3

TO LCD PANEL

IIC0

TCLK1_N,P TD1_N,P;TE1_N,P TF1_N,P

TCLK2_N,P TD2_N,P;TE2_N,P TF2_N,P

IIC0

38,37 35,34,32,31 29,28

26,25 23,22,20,19 17,16

Digital

Audio Out

HDMI1

HDMI2

A09

3,4,5

TO P2

D3050

RX0

HPD0

5VDET0

DDC_SDA_0

JK1020

DDC_SCL_0

CEC0

RX1

HPD1

5VDET1

DDC_SDA_1

JK1021

DDC_SCL_1

CEC0

1

7

8

10

11

12

13

SUB3.3V

P15V

KEY1

BL_SOS

ARC SW

ARC1_SW

5.8VS

LCD_TV_SUB_ON

STB5.8V

BL_ON

PWM_A_OUT

ARC_OFF

SUB3.3V

TCON15.6V

VON31V

P15V

STB5.8V

STB5V

DCDCIN_P15V

L4150

2

Vin

2

Vin

3,4

5

Vout

20

SOS SENSE

IC8700

REG

IC8701

REG

IC5416

REG

IC8100

DCDC

Vin

AVDD_ENB

Q4153

3

SW

4

Vo1

9

Vo2

SW

SOS_SENSE

SUB3.3V IC8702

SUB5V

6

1

1,4

Vin

IC8404

IC8706

REG

STM_IIC

IC8901

EEPROM STM

STB3.3V

SUB3.3V

7

A10

7

KA10

SUB3.3V

AI

REMOTE

4

5

4

AI

REMOTE

STB3.3V

3

STB3.3V

R_LED_ON

G_LED_ON

1

2

1 2

R_LED_ON

G_LED_ON

REMOTE

1

Q2800

Q2801

SN2800

PHOTO IC

3,5

Q2802

STB3.3V

D2800A

R2806

RM2800

LED RECEIVER

KA-BOARD

HP_MUTE

SOS_SENSE

8

28

12

IC5000

[AN34043AAVF]

ANALOG ASIC

2

14 30

5.8VS

SUB5V

SUB9V

23

18

STB1.2V

31

STB5V

32

STB3.3V

19

TCON15.6V

1

Vout

5

Vout

3

Vout

SUB1.8V

SUB_CI_5V

HDMI3.3V

SUB1.2V

SUB1.5V

PWM_A_OUT

PWM_A_IN

PWM_POW_ON

17

3

4

5

1 6

P15V

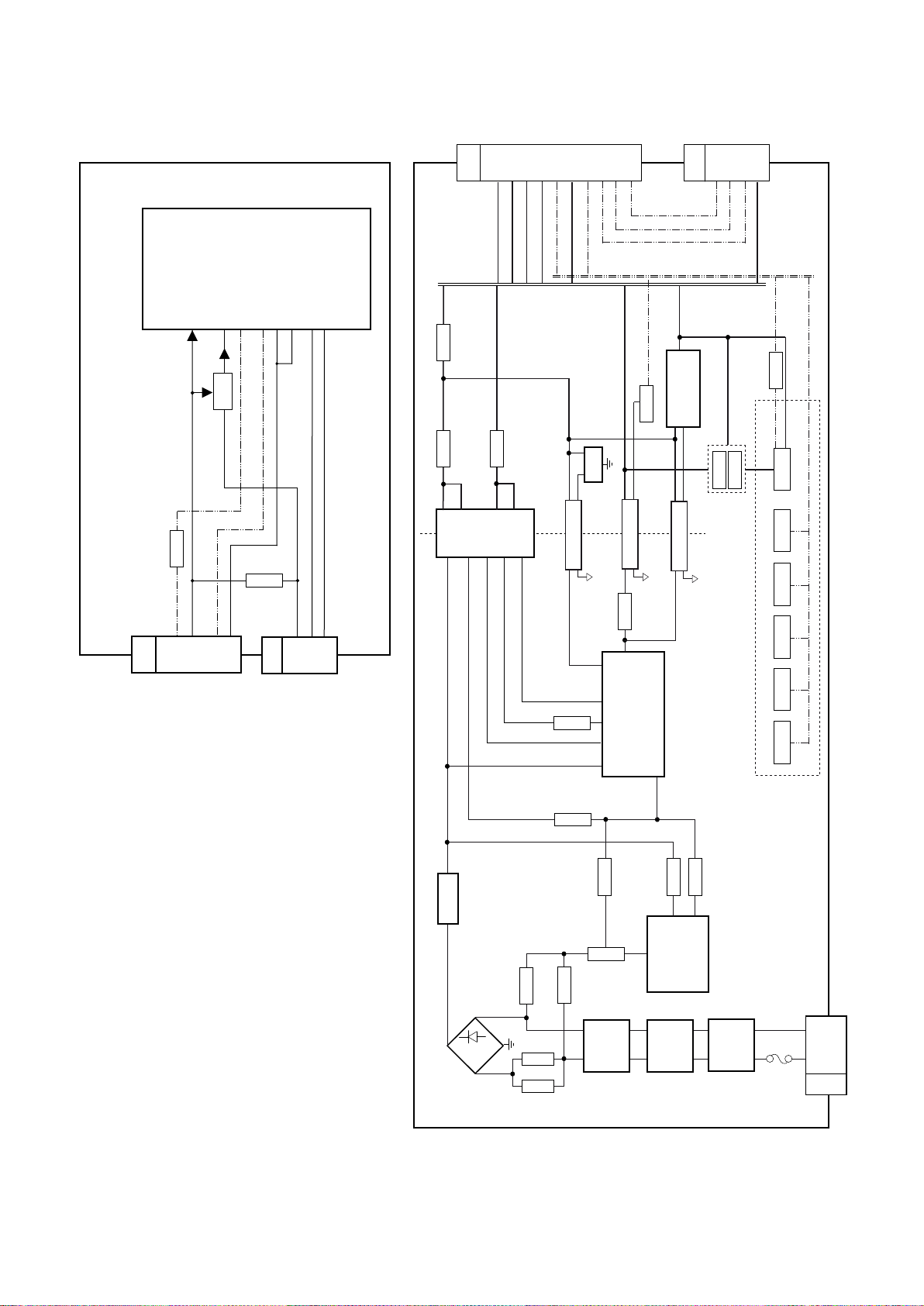

Block Diagram (2/2)

MAIN IN

~

+

-

25

DC/DC

IC9500

LED DRIVER

Q9502

1

LED24V

OVP

2

7 (OVP)

DC/DC

STB

8

17-20

PWM

D9500

23-21

9-10

11-12

16V

Q7504

D7502

10

T7301

P2

1,2

TUNER 6V_5.8VS

24V

16V

4

16V

TO A09

5

6

16V

TV_SUB_ON

8

STB5.8V

9

121314

11

PWM

KEY1

BL_ON

BL_SOS

STB5.8V

TV_SUB_ON

P4

TUNER 6V

1SW

TO LD4

3

1,2

PWM

BL_ON

BL_SOS

4

14-10

24V

KEY1

TV_SUB_ON

Q7502

DC/DC

converter

IC7601

Q7501

11EN

12VIN

D7501

IC7502

13

9

1

17

14

4

6

7

Photo coupler

PC7301

Photo coupler

PC7302

Photo coupler

PC7303

Q7507

Q7506

SW7401

SW7402SW7403SW7406SW7407 SW7404

LD-BOARD

LD4

VCC24V

LED_SOS

11

1-5

TO P4

BL - ON

12

PWM

14

Anode

LED 6_7

8,9

1,12

LD2

TO PANEL

LED 2_3

4,5

T7201

3 1

D7102

P-BOARD

D7303

CF7101

CF7102

D7326

Q7343

D7302

Q7202

D7202

LF7103

4 1

Q7312

VREF

11FB

10

G2 19D1_s2

20

14VW

23D2

2

Line Filter

3

PWM

IC7301

Controller

8Vcc

2COMP

4 1

Q7201

7OUT

IC7201

Line Filter

LF7102

Q7301

VCC

8

Control IC

Power Factor

2

4 1

3

2

Line Filter

LF7101

3

KEY CONTROL

F7101

P1

2

1

Parts Location

26

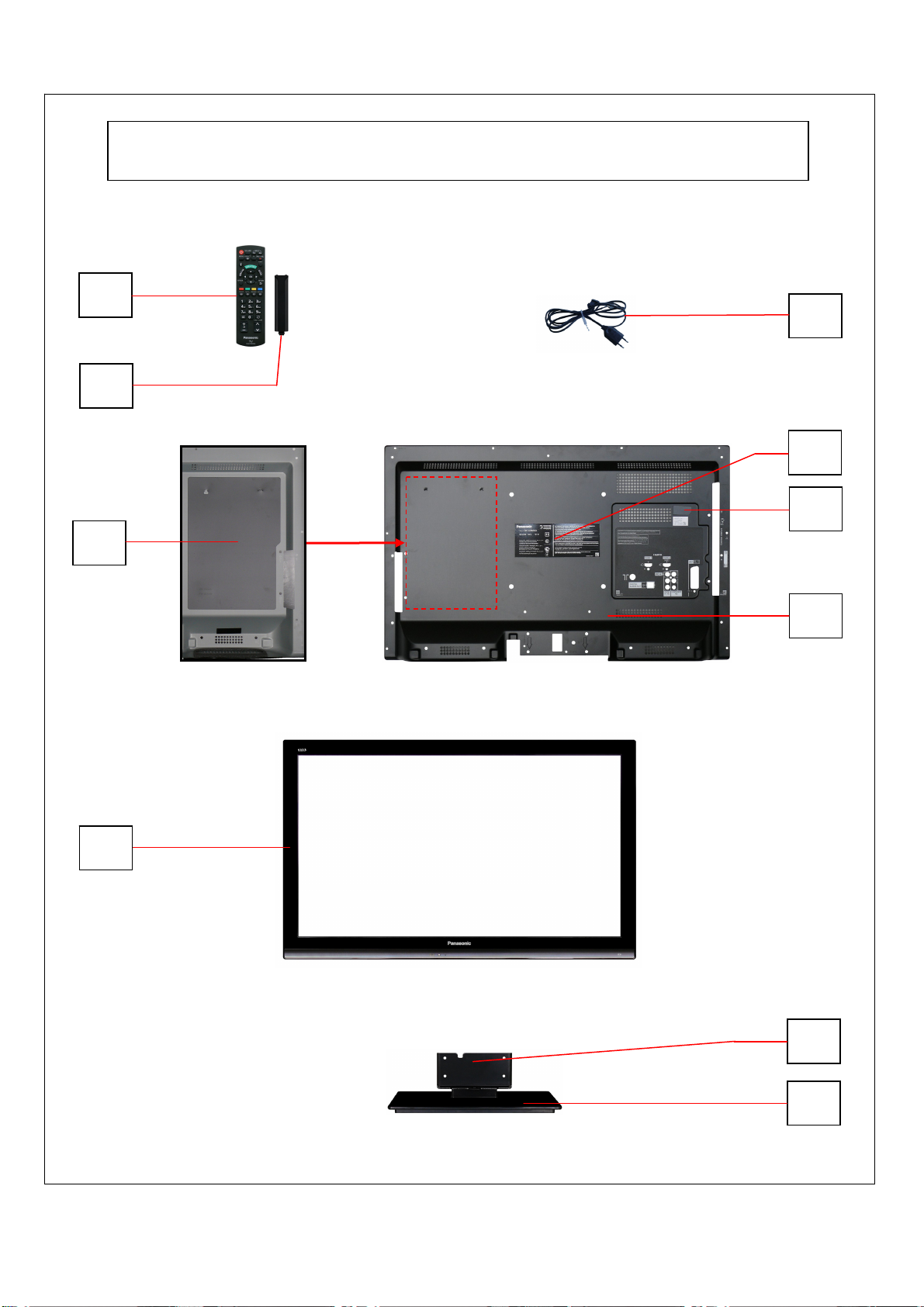

The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.

26

24

NOTE:

18

25

5

13

20

8

4

3

Parts Location

27

The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.

22

14

21

17

NOTE:

23

7

6

12

10

2

9

11

19

15

10

2

9

16

1

Replacement Parts List

28

Components Identified by mark have special characteristics important for safety.

In case of ordering these spare parts, please always add the complete Model-Type number to your order.

RTL (Retention Time Limited) Note:

* When replacing any of these components, use only manufacturers specified parts.

The marking (RTL) indicates that the Retention Time is Limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the assembly will no longer be available.

Important Safety Notice

X

The marking (X) indicates that board should be exchanged for service.

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

COMMON PARTS

EXPLODED VIEW

TUNER DVB-T/T2/C 1 ENGS7302D5F

SPEAKER UNIT 2 L0AA16C00007

PEDESTAL ASSY 3 TBL5ZA0050

PEDESTAL FIX ASSY 4 TBL5ZX0189

COVER LABEL 5 TBM4GU113

POWER BUTTON 6 TBX0E50200

SIDE AV BRACKET 7 TKP0EA00301

BACK COVER 8 TKU0E8001

SP BRACKET L 9 TKX4GA04901

SP BRACKET R 10 TKX4GA05001

METAL BRACKET BOTTOM 11 TKZ4GX5051

BARRIER LCD ASSY 12 TMK0EX047

BARRIER BC ASSY 13 TMK0EX048

LD P.C.B. 14 TNPA5377AA

KA P.C.B. 15 TNPA5378AB

HEAT SINK 16 TUC2AJ5005

CONTROL PANEL ASSY 17 TXAKP01PQUEA

AC CORD 18 TXASX01PVUE

BOTTOM COVER ASSY 19 TXFKX01PRUE

CABINET ASSY 20 TXFKY5Z0198

P P.C.B. 21 TZRNP01PAUB

LCD PANEL 22 VVX32H119G00

MISCELLANEOUS COMPONENTS

BATTERY . R6DB/2P

SIDE AV LABEL . TBM0E2709

REAR AV LABEL . TBM0E2711

SCREW . THE4GJ001J

SCREW . THEJ036J

SCREW . THEJ0389

M6_CAP . TKKL5521

LED PANEL . TKP4GA06901

SPEAKER SPONGE . TMK0EG033

CLAMPER . TMME268

CLAMPER . TMME397

SPACER . TMME398

PROTECTION SHEET . TPE0E4043

POLYBAG_PEDESTAL . TPE0E9004

BAG . TPE0E9008

LABEL . TQF0EM3534

SCREW . XTB4+15JFJ

SCREW . XTB4+15JFJK

SCREW . XTV3+10GFJK

RTL

SCREW . XTW3+10TFJ

SCREW .XYN3+C8FJ

SCREW . XYN4+F30FJK

BOTTOM CUSHION BOTCUS TPD0E2169

CARTON CARTON TPC0EA09201

THERMAL PAD FA01 TMKK431

THERMAL PAD DDR FA03 TMKK432

TOP CUSHION TOPCUS TPD0E1163

I.C.s

AUDIO VIDEO SWITCHIC3001 C1AB00003384

TCON GAMMA DAC IC4120 C0FBBY000086

DC/DC CONVERTER IC4150 C0DBAYY00868

AUDIO AMPLIFIER IC4900 C1AB00003457

ANALOG ASIC IC5000 AN34043AAVF

REGULATOR IC5416 C0DBGYY00281

POWER FACTOR CONTROLIC7201 C0DBBYY00033

PWM CONTROLLER IC7301 C5HAZYY00014

REGULATOR IC7502 C0DBZYY00486

DC/DC CONVERTER IC7601 C0DBAYY00922

PEAKS_SLD2 IC8000 MN2WS0177C

DC/DC CONVERTER IC8100 C0DBAYY00715

DDR SDRAM IC8201 C3ABTY000026

BUFFER IC8403 C0JBAZ003032

POWER SWITCH IC IC8404 C0DBZYY00382

REGULATOR IC8700 C0DBAYY00915

REGULATOR IC8701 C0DBAYY00915

REGULATOR IC8702 C0DBAFG00029

REGULATOR IC8706 C0DBGYY00887

NAND FLASH MEMORY IC8900 TVRS074AH

LED DRIVER WITH DC/DCIC9500 C0ZBZ0001816

PHOTO COUPLER PC7301 B3PAA0000363

PHOTO COUPLER PC7302 B3PAA0000363

PHOTO COUPLER PC7303 B3PAA0000363

RC RECEIVER RM2800 PNJ4815M01TV

PHOTO IC DIODE SN2800 B3JB00000078

FUSES

FUSE HOLDER F7101-2 K3GE1ZZ00001

FUSE HOLDER F7101-1 K3GE1ZZ00001

FUSE F7101 K5D502BNA005

FUSE PA4150 K5H1622A0031

FUSE PA4151 ERBSE1R50U

FUSE PA4152 ERBSE1R50U

FUSE PA7503 K5H502YA0063

FUSE PA7504 K5H502YA0063

FUSE PA7601 K5H502YA0063

DIODES

DIODE D0917 DZ2J062M0L

DIODE D1000 B0JCCD000020

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

29

VARISTOR D2005 EZJZ0V120JA

ZENER DIODE D2007 DZ2J140M0L

LED DIODE D2800A B3AGB0000065

DIODE D3130 DA2J10100L

DIODE D4001 DA2J10100L

DIODE D4150 B0JCDE000006

DIODE D4151 B0JDCE000017

DIODE D4152 B0JCDE000006

DIODE D4153 B0JCDE000006

DIODE D4154 B0JCDE000006

ZENER DIODE D4155 B0BC03200003

DIODE D4156 DA2J10100L

DIODE D4157 DA2J10100L

DIODE D4159 B0JCDE000006

DIODE D4160 B0JCDE000006

DIODE D4161 B0JCDE000006

DIODE D4162 B0JCDE000006

DIODE D4163 DZ2J200M0L

ZENER DIODE D4165 B0BC01000035

DIODE D4166 DA2J10100L

DIODE D4167 DA2J10100L

DIODE D4168 DA2J10100L

ZENER DIODE D4169 B0BC4R700007

ZENER DIODE D4170 DZ2J047M0L

DIODE D4171 DA2J10100L

DIODE D4172 B0JCPE000004

ZENER DIODE D4173 B0BC17000001

ZENER DIODE D4174 B0BC022A0007

DIODE D4175 DA2J10100L

DIODE D4500 B0JCCE000008

DIODE D4604 B0JCCD000020

DIODE D4649 B0JCCD000020

DIODE D5172 B0BC01700015

DIODE D5173 DA2J10100L

DIODE D5174 B0BC010A0007

DIODE D5175 DA2J10100L

ZENER DIODE D5180 DZ2J033M0L

DIODE D5480 B0JCCD000020

VARISTOR D7101 ERZV10V621C2

DIODE D7102 B0FBAT000018

DIODE D7202 B0ADCJ000100

DIODE D7203 B0JAME000091

DIODE D7204 B0JAME000091

DIODE D7205 B0HASR000018

ZENER DIODE D7207 DZ2J068M0L

DIODE D7208 DA2J10100L

DIODE D7209 B0BC02500002

DIODE D7302 B0HAGQ000001

DIODE D7303 B0HAGQ000001

DIODE D7325 B0BC02500002

DIODE D7326 DA2J10100L

DIODE D7327 DA2J10100L

DIODE D7328 DA2J10100L

DIODE D7329 B0ACDJ000014

DIODE D7330 B0ACDJ000014

ZENER DIODE D7331 B0BC4R000002

DIODE D7332 B0HAGQ000001

DIODE D7333 B0JAME000126

DIODE D7334 B0ADCJ000100

DIODE D7335 DZ2J180M0L

DIODE D7336 B0BC03300012

DIODE D7337 B0BC02500002

DIODE D7338 B0BC02500002

DIODE D7339 B0BC02500002

DIODE D7341 B0BC02500002

DIODE D7342 DA2J10100L

DIODE D7343 DA2J10100L

DIODE D7501 B0JBSL000047

TRANSISTORS

TRANSFORMERS

COILS

DIODE D7502 B0JBSL000047

DIODE D7507 B0ADCJ000100

DIODE D7508 DA2J10100L

DIODE D7600 B0JCPE000038

ZENER DIODE D8703 B0BC6R600005

ZENER DIODE D8705 B0BC6R600005

DIODE D8716 DA2J10100L

DIODE D8720 B0JCMD000066

DIODE D9500 B0FCAM000001

ZENER DIODE D9505 B0BC03900015

ZENER DIODE D9506 B0BC03900015

ZENER DIODE D9507 B0BC03900015

ZENER DIODE D9508 B0BC03900015

ZENER DIODE D9510 B0BC6R600005

DIODE D9520 DB2J41100L

DIODE D9522 B0ECKM000053

TRANSISTOR Q0900 DSA200100L

TRANSISTOR Q2800 B1ABCE000015

TRANSISTOR Q2801 B1ABCE000015

TRANSISTOR Q2802 B1ABCE000015

TRANSISTOR Q3102 B1ABCF000231

TRANSISTOR Q3103 B1ABCF000231

TRANSISTOR Q4150 DSC500100L

TRANSISTOR Q4151 DSA500100L

TRANSISTOR Q4152 DSA500100L

TRANSISTOR Q4153 B1ABCF000231

TRANSISTOR Q4154 B1CFQD000001

TRANSISTOR Q4600 B1ABCF000231

TRANSISTOR Q4604 B1ABCF000231

TRANSISTOR Q4750 B1HFCEA00001

TRANSISTOR Q4751 B1ADCE000022

TRANSISTOR Q4971 B1AAFB000002

TRANSISTOR Q4972 B1AAFB000002

TRANSISTOR Q4973 DSA2001S0L

TRANSISTOR Q4974 DSC2001S0L

TRANSISTOR Q7201 B1CERR000057

TRANSISTOR Q7202 B1HFCFA00020

TRANSISTOR Q7301 B1ADCE000022

TRANSISTOR Q7308 B1ADGJ000008

TRANSISTOR Q7309 B1ABGF000019

TRANSISTOR Q7310 B1ABCF000231

TRANSISTOR Q7311 B1ABCF000231

TRANSISTOR Q7312 B1ADCE000022

TRANSISTOR Q7313 B1CBGD000001

TRANSISTOR Q7314 B1ABCF000231

TRANSISTOR Q7501 B1ABCF000231

TRANSISTOR Q7502 B1ABCF000231

TRANSISTOR Q7503 B1CHRE000008

TRANSISTOR Q7504 B1CHRE000008

TRANSISTOR Q7506 B1CHRE000008

TRANSISTOR Q7507 B1ABCF000231

TRANSISTOR Q8100 B1MBEDA00027

TRANSISTOR Q8102 B1MBEDA00027

TRANSISTOR Q9502 DSC200100L

TRANSISTOR Q9503 B1CFRM000024

TRANSFORMER T7201 G4DYA0000289

TRANSFORMER T7301 G4DYA0000284

COIL L2001 J0JYC0000065

COIL L2750 J0JYC0000065

COIL L2751 J0JYC0000065

COIL L2752 J0JYC0000065

COIL L2754 J0JYC0000065

COIL L3002 G1C100MA0072

COIL L3108 J0JCC0000287

FILTERS

30

CRYSTALS

RESISTORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CHIP INDUCTOR L3111 J0JYC0000331

CHIP INDUCTOR L3112 J0JYC0000331

CHIP INDUCTOR L3113 J0JYC0000331

CHIP INDUCTOR L3116 J0JYC0000331

CHIP INDUCTOR L3117 J0JYC0000331

CHIP INDUCTOR L3118 J0JYC0000331

COIL L3121 J0JCC0000287

COIL L4150 J0JHC0000046

COIL L4151 G1C100MA0426

COIL L4152 J0JHC0000077

COIL L4153 G1C220MA0234

COIL L4200 J0JHC0000046

CHIP INDUCTOR L4700 J0JYC0000068

CHIP INDUCTOR L4701 J0JYC0000068

CHIP INDUCTOR L4702 J0JYC0000068

CHIP INDUCTOR L4703 J0JYC0000068

COIL L4800 G1CR39J00009

COIL L4801 G1CR39J00009

COIL L4802 J0JGC0000020

COIL L4803 J0JGC0000020

COIL L4804 J0JGC0000020

CHIP INDUCTOR L4808 J0JCC0000278

COIL L4900 G1C150MA0426

COIL L4901 G1C150MA0426

COIL L4902 G1C150MA0426

COIL L4903 G1C150MA0426

COIL L4904 J0JHC0000078

COIL L4905 J0JHC0000078

COIL L4906 J0JHC0000078

COIL L4907 J0JHC0000078

FILTER L7201 J0JKB0000034

FILTER L7209 J0JKB0000034

FILTER L7302 J0JKB0000034

FILTER L7306 J0JKB0000034

COIL L7502 J0JKA0000024

COIL L7503 J0JKA0000024

COIL L7504 J0JKA0000024

COIL L7505 J0JKA0000024

COIL L7600 G0C270MA0049

COIL L8003 J0JCC0000287

COIL BLM18PG121SN1DL8005 J0JHC0000045

COIL BLM18PG121SN1DL8006 J0JHC0000045

COIL BLM18PG121SN1DL8007 J0JHC0000045

COIL L8009 J0JKC0000021

COIL L8015 J0JCC0000287

COIL L8016 J0JCC0000287

COIL L8100 G1C4R7MA0416

COIL L8102 G1C3R3MA0425

COIL L8700 G1C6R8MA0416

COIL L8701 G1C100MA0416

COIL L9500 G1C470MA0490

COI

L L9501 G1C470MA0490

COIL BLM21PG600SN1DL9503 J0JHC0000075

FILTER FL4002 EXC28CE201U

FILTER FL4006 EXC28CE201U

FILTER FL4009 EXC28CE201U

FILTER FL4010 EXC28CE201U

LINE FILTER LF7101 G0B650H00002

LINE FILTER LF7102 G0B103H00013

LINE FILTER LF7103 G0B103H00013

CRYSTAL X8300 H0J245500113

THERMISTCF7101 D4CAY8R20001 - - 8R2 Ω

THERMISTCF7102 D4CAY8R20001 - - 8R2 Ω

SMDJS0033 D0GAR00J0005 .063W 5% 0 Ω

SMDJS7402 D0GDR00J0004 .125W 5% 0 Ω

SMDJS7404 D0GDR00J0004 .125W 5% 0 Ω

SMDJS7502 D0GDR00J0004 .125W 5% 0 Ω

SMDR0800 D0GA472JA023 .063W 5% 4K7 Ω

SMDR0900 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0901 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0902 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0903 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0904 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0905 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0906 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0907 D0GA272JA023 .063W 5% 2K7 Ω

SMDR0910 EXB28V472JX 28V 5% 4K7 Ω

SMDR0911 D0GA473JA015 .063W 5% 47K Ω

SMDR0912 D0GAR00J0005 .063W 5% 0 Ω

SMDR0913 D0GAR00J0005 .063W 5% 0 Ω

SMDR0918 D0GA220JA023 .063W 5% 22 Ω

SMDR0919 D0GA220JA023 .063W 5% 22 Ω

SMDR0920 D0GA220JA023 .063W 5% 22 Ω

SMDR0921 D0GA220JA023 .063W 5% 22 Ω

SMDR0922 D0GA220JA023 .063W 5% 22 Ω

SMDR0923 D0GA220JA023 .063W 5% 22 Ω

SMDR0924 D0GA220JA023 .063W 5% 22 Ω

SMDR0925 D0GA220JA023 .063W 5% 22 Ω

SMDR0930 D0GA220JA023 .063W 5% 22 Ω

SMDR0931 D0GA220JA023 .063W 5% 22 Ω

SMDR0932 D0GA220JA023 .063W 5% 22 Ω

SMDR0933 D0GA220JA023 .063W 5% 22 Ω

SMDR0934 D0GA680JA023 .063W 5% 68 Ω

SMDR0935 D0GA680JA023 .063W 5% 68 Ω

SMDR0936 D0GA680JA023 .063W 5% 68 Ω

SMDR0937 D0GA680JA023 .063W 5% 68

SM

DR0938 D0GA680JA023 .063W 5% 68 Ω

SMDR0939 D0GA680JA023 .063W 5% 68 Ω

SMDR0940 D0GA680JA023 .063W 5% 68 Ω

SMDR0941 D0GA680JA023 .063W 5% 68 Ω

SMDR0942 D0GA680JA023 .063W 5% 68 Ω

SMDR0943 D0GA680JA023 .063W 5% 68 Ω

SMDR0944 D0GA101JA015 .063W 5% 100 Ω

SMDR0945 D0GA102JA023 .063W 5% 1K Ω

SMDR0947 D0GA680JA023 .063W 5% 68 Ω

SMDR0948 D0GA680JA023 .063W 5% 68 Ω

SMDR0949 D0GA680JA023 .063W 5% 68 Ω

SMDR0951 D0GA473JA015 .063W 5% 47K Ω

SMDR0952 D0GA102JA023 .063W 5% 1K Ω

SMDR0962 D0GA680JA023 .063W 5% 68 Ω

SMDR0963 D0GA680JA023 .063W 5% 68 Ω

SMDR0964 D0GA680JA023 .063W 5% 68 Ω

SMDR0965 D0GA680JA023 .063W 5% 68 Ω

SMDR0966 D0GA680JA023 .063W 5% 68 Ω

SMDR0967 D0GA680JA023 .063W 5% 68 Ω

SMDR1000 D0GA331JA023 .063W 5% 330 Ω

SMDR1001 D1BB7151A055 0.1W 1% 7K15 Ω

SMDR1004 D0GA103JA015 .063W 5% 10K Ω

SMDR1005 D0GA102JA023 .063W 5% 1K Ω

SMDR1006 D0GA182JA023 .063W 5% 1K8 Ω

FIXEDR1007 EXB28V473JX - 5% 47K Ω

SMDR1304 D0GA473JA015 .063W 5% 47K Ω

SMDR1308 D0GA103JA015 .063W 5% 10K Ω

SMDR2005 D0GAR00J0005 .063W 5% 0 Ω

SMDR2006 D0GA101JA015 .063W 5% 100 Ω

SMDR2009 D0GA101JA015 .063W 5% 100 Ω

SMDR2012 D0GA222JA023 .063W 5% 2K2 Ω

SMDR2018 D0GA473JA015 .063W 5% 47K Ω

SMDR2019 D0GA473JA015 .063W 5% 47K Ω

SMDR2752 D0GDR00J0004 .125W 5% 0 Ω

SM

DR2753 D0GDR00J0004 .125W 5% 0 Ω

SMDR2772 D0GAR00J0005 .063W 5% 0 Ω

Ω

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

31

SMDR2795 D0GAR00J0005 .063W 5% 0 Ω

SMDR2796 D0GAR00J0005 .063W 5% 0 Ω

SMDR2800 D1BA9530A014 .063W 1% 953 Ω

SMDR2801 D0GA473JA015 .063W 5% 47K Ω

SMDR2802 D0GA223JA023 .063W 5% 22K Ω

SMDR2803 D0GA473JA015 .063W 5% 47K Ω

SMDR2804 D0GA103JA015 .063W 5% 10K Ω

SMDR2805 D1BA2261A014 .063W 1% 2K26 Ω

SMDR2806 D0GA470JA023 .063W 5% 47 Ω

SMDR2807 D0GA562JA023 .063W 5% 5K6 Ω

SMDR2808 D0GA184JA023 .063W 5% 180K Ω

SMDR2809 D0GA103JA015 .063W 5% 10K Ω

SMDR2810 D0GA104JA023 .063W 5% 100K Ω

SMDR2811 D0GA103JA015 .063W 5% 10K Ω

SMDR2826 D0GAR00J0005 .063W 5% 0 Ω

SMDR3001 D0GA102JA023 .063W 5% 1K Ω

SMDR3002 D0GA122JA023 .063W 5% 1K2 Ω

SMDR3014 D0GA221JA023 .063W 5% 220 Ω

SMDR3030 D0GA101JA015 .063W 5% 100 Ω

SMDR3121 EXB28V221JX .031W 5% 220 Ω

SMDR3125 D0GAR00J0005 .063W 5% 0 Ω

SMDR3129 D0GA104JA023 .063W 5% 100K Ω

SMDR3137 D1BD75R0A066 .125W 1% 75 Ω

SMDR3141 D1BF75R0A011 0.25W 1% 75 Ω

SMDR3142 D1BF75R0A011 0.25W 1% 75 Ω

SMDR3143 D1BF75R0A011 0.25W 1% 75 Ω

SMDR3147 D1BF75R0A011 0.25W 1% 75 Ω

SMDR3148 D0GAR00J0005 .063W 5% 0 Ω

SMDR3155 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR3156 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR3157 EXB28V221JX .031W 5% 220 Ω

SMDR3163 D0GA104JA023 .063W 5% 100K Ω

SMDR3164 D0GA104JA023 .063W 5% 100K Ω

SMDR3167 D0GA473JA015 .063W 5% 47K Ω

SM

DR3168 D0GA473JA015 .063W 5% 47K Ω

SMDR3171 D0GA222JA023 .063W 5% 2K2 Ω

SMDR3172 D0GA222JA023 .063W 5% 2K2 Ω

SMDR3173 EXB28V221JX .031W 5% 220 Ω

SMDR3174 D0GA221JA023 .063W 5% 220 Ω

SMDR3175 D0GA221JA023 .063W 5% 220 Ω

SMDR3179 D0GA331JA023 .063W 5% 330 Ω

SMDR3180 D0GA331JA023 .063W 5% 330 Ω

SMDR3181 D1BD75R0A066 .125W 1% 75 Ω

SMDR3182 D1BD75R0A066 .125W 1% 75 Ω

SMDR3183 D1BD75R0A066 .125W 1% 75 Ω

SMDR3186 D0GA473JA015 .063W 5% 47K Ω

SMDR3187 D0GA473JA015 .063W 5% 47K Ω

SMDR3192 EXB28V820JX OTHER 5% 82 Ω

SMDR3202 D1BF75R0A011 0.25W 1% 75 Ω

SMDR3204 D1BA2152A014 .063W 1% 21K5 Ω

SMDR3206 D1BA1302A014 .063W 1% 13K Ω

SMDR3208 D0GA273JA023 .063W 5% 27K Ω

SMDR3211 D0GA220JA023 .063W 5% 22 Ω

SMDR3212 D0GA680JA023 .063W 5% 68 Ω

SMDR3221 D1BF75R0A011 0.25W 1% 75 Ω

SMDR4000 EXB28VR000X 0W - 0 Ω

SMDR4001 D0GAR00J0005 .063W 5% 0 Ω

SMDR4024 D0GA103JA015 .063W 5% 10K Ω

SMDR4025 EXB28V103JX .031W 5% 10K Ω

SMDR4027 EXB28V103JX .031W 5% 10K Ω

SMDR4029 EXB28VR000X 0W - 0 Ω

SMDR4120 D0GAR00J0005 .063W 5% 0 Ω

SMDR4121 EXB28V100JX 28V 5% 10 Ω

SMDR4122 EXB28V100JX 28V 5% 10 Ω

SMDR4123 D0GA223JA023 .063W 5% 22K Ω

SMDR4124 D0GA473JA015 .063W 5% 47K Ω

SMDR4125 D0GA100JA023 .063W 5% 10 Ω

SMDR4126 D0GA100JA023 .063W 5% 10 Ω

4560 D0GA273JA023 .063W 5% 27K Ω

SM

DR4127 D0GA100JA023 .063W 5% 10 Ω

SMDR4128 D0GA100JA023 .063W 5% 10 Ω

SMDR4146 D0GAR00J0005 .063W 5% 0 Ω

SMDR4150 D0GD391JA052 .125W 5% 390 Ω

SMDR4151 D1BA2201A014 .063W 1% 2K2 Ω

SMDR4152 D1BA3002A014 .063W 1% 30K Ω

SMDR4153 D1BA20010002 .063W 1% 2K Ω

SMDR4154 D1BA1002A014 .063W 1% 10K Ω

SMDR4155 D1BA1002A014 .063W 1% 10K Ω

SMDR4157 D1BA1001A014 .063W 1% 1K Ω

SMDR4158 D0GD271JA052 .125W 5% 270 Ω

SMDR4159 D1BA3301A014 .063W 1% 3K3 Ω

SMDR4160 D1BA3301A014 .063W 1% 3K3 Ω

SMDR4161 D1BA3601A014 .063W 1% 3K6 Ω

SMDR4162 D1BA2201A014 .063W 1% 2K2 Ω

SMDR4166 D0GA223JA023 .063W 5% 22K Ω

SMDR4167 D0GA473JA015 .063W 5% 47K Ω

SMDR4168 D0GA103JA015 .063W 5% 10K Ω

SMDR4169 D0GA103JA015 .063W 5% 10K Ω

SMDR4170 D0GA103JA015 .063W 5% 10K Ω

SMDR4171 D1BA3002A014 .063W 1% 30K Ω

SMDR4172 D1BA1203A014 .063W 1% 120K Ω

SMDR4173 D0GA103JA015 .063W 5% 10K Ω

SMDR4178 D1BA2202A014 .063W 1% 22K Ω

SMDR4181 D1BA1302A014 .063W 1% 13K Ω

SMDR4182 D0GA182JA023 .063W 5% 1K8 Ω

SMDR4184 D0GBR00J0004 0.1W 5% 0 Ω

SMDR4206 D1BA2202A014 .063W 1% 22K Ω

SMDR4264 EXB28VR000X 0W - 0 Ω

SMDR4265 EXB28VR000X 0W - 0 Ω

SMDR4266 EXB28VR000X 0W - 0 Ω

SMDR4267 EXB28VR000X 0W - 0 Ω

SMDR4524 D0GA103JA015 .063W 5% 10K Ω

SMDR

SMDR4602 D0GA103JA015 .063W 5% 10K Ω

SMDR4607 D0GA220JA023 .063W 5% 22 Ω

SMDR4608 D0GA103JA015 .063W 5% 10K Ω

SMDR4609 D0GA103JA015 .063W 5% 10K Ω

FIXEDR4610 EXB28V473JX - 5% 47K Ω

SMDR4611 D0GA102JA023 .063W 5% 1K Ω

FIXEDR4623 EXB28V473JX - 5% 47K Ω

SMDR4631 D0GA103JA015 .063W 5% 10K Ω

SMDR4635 D0GA103JA015 .063W 5% 10K Ω

FIXEDR4636 EXB28V473JX - 5% 47K Ω

SMDR4638 D0GA103JA015 .063W 5% 10K Ω

SMDR4639 D0GA102JA023 .063W 5% 1K Ω

SMDR4659 D0GAR00J0005 .063W 5% 0 Ω

SMDR4750 D0GA220JA023 .063W 5% 22 Ω

SMDR4751 D0GA151JA023 .063W 5% 150 Ω

SMDR4752 D0GA151JA023 .063W 5% 150 Ω

SMDR4754 D0GA560JA023 .063W 5% 56 Ω

SMDR4755 D0GA102JA023 .063W 5% 1K Ω

SMDR4756 D0GA473JA015 .063W 5% 47K Ω

SMDR4757 D0GA103JA015 .063W 5% 10K Ω

SMDR4760 D0GA151JA023 .063W 5% 150 Ω

SMDR4800 D0GA103JA015 .063W 5% 10K Ω

SMDR4801 D0GAR00J0005 .063W 5% 0 Ω

SMDR4802 D0GAR00J0005 .063W 5% 0 Ω

SMDR4803 D0GAR00J0005 .063W 5% 0 Ω

SMDR4804 D0GAR00J0005 .063W 5% 0 Ω

SMDR4805 D0GA102JA023 .063W 5% 1K Ω

SMDR4910 D0GA100JA023 .063W 5% 10 Ω

SMDR4911 D0GA100JA023 .063W 5% 10 Ω

SMDR4912 D0GA100JA023 .063W 5% 10 Ω

SMDR4913 D0GA103JA015 .063W 5% 10K Ω

SMDR4914 EXB28V220JX .031W 5% 22 Ω

SMDR4915 D0GF3R3JA048 0.1W 5% 3R3 Ω

SM

DR4916 D0GF3R3JA048 0.1W 5% 3R3 Ω

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

32

SMDR4917 D0GF3R3JA048 0.1W 5% 3R3 Ω

SMDR4918 D0GF3R3JA048 0.1W 5% 3R3 Ω

SMDR4919 D0GFR00J0005 0.25W 5% 0 Ω

SMDR4921 D0GA103JA015 .063W 5% 10K Ω

SMDR4970 D1BB1403A055 0.1W 1% 140K Ω

SMDR4971 D1BB1403A055 0.1W 1% 140K Ω

SMDR4972 D0GA103JA015 .063W 5% 10K Ω

SMDR4973 D0GA103JA015 .063W 5% 10K Ω

SMDR4974 D0GD272JA052 .125W 5% 2K7 Ω

SMDR4978 D0GA101JA015 .063W 5% 100 Ω

SMDR4979 D0GA101JA015 .063W 5% 100 Ω

SMDR4980 D0GA473JA015 .063W 5% 47K Ω

SMDR4981 D0GA473JA015 .063W 5% 47K Ω

SMDR4982 D0GA105JA023 .063W 5% 1M Ω

SMDR4984 D0GA473JA015 .063W 5% 47K Ω

SMDR4985 D0GA103JA015 .063W 5% 10K Ω

SMDR4988 D0GF102JA048 0.1W 5% 1K Ω

SMDR5002 D0GA683JA023 .063W 5% 68K Ω

SMDR5003 D0GA123JA023 .063W 5% 12K Ω

SMDR5006 D0GA563JA023 .063W 5% 56K Ω

SMDR5007 D0GA223JA023 .063W 5% 22K Ω

SMDR5012 D1BA1502A014 .063W 1% 15K Ω

SMDR5018 D0GAR00J0005 .063W 5% 0 Ω

SMDR5020 D0GA473JA015 .063W 5% 47K Ω

SMDR5030 D0GA103JA015 .063W 5% 10K Ω

SMDR5032 D0GA101JA015 .063W 5% 100 Ω

SMDR5033 D0GA101JA015 .063W 5% 100 Ω

SMDR5034 D1BA5602A014 .063W 1% 56K Ω

SMDR5035 D0GAR00J0005 .063W 5% 0 Ω

SMDR5100 D0GA101JA015 .063W 5% 100 Ω

SMDR5104 D0GA103JA015 .063W 5% 10K Ω

SMDR5152 D0GA222JA023 .063W 5% 2K2 Ω

SMDR5173 D0GAR00J0005 .063W 5% 0 Ω

SMDR5175 D0GA680JA023 .063W 5% 68 Ω

SM

DR5176 D0GAR00J0005 .063W 5% 0 Ω

SMDR5178 D0GAR00J0005 .063W 5% 0 Ω

SMDR5179 D0GA153JA023 .063W 5% 15K Ω

SMDR5180 D0GA683JA023 .063W 5% 68K Ω

SMDR5181 D0GA103JA015 .063W 5% 10K Ω

SMDR5607 D0GA103JA015 .063W 5% 10K Ω

SMDR5609 D0GA103JA015 .063W 5% 10K Ω

SMDR6953 D0GAR00J0005 .063W 5% 0 Ω

SMDR6956 D0GAR00J0005 .063W 5% 0 Ω

SMDR6957 D0GAR00J0005 .063W 5% 0 Ω

SMDR7101 ERJ14YJ105U 0.5W 5% 1M Ω

SMDR7102 ERJ14YJ105U 0.5W 5% 1M Ω

SMDR7103 ERJ14YJ105U 0.5W 5% 1M Ω

METALR7105 D0B1106JA033 1W 5% 10M Ω

METALR7201 ERX1SJR22V 1W 5% R22 Ω

METALR7202 ERX1SJR22V 1W 5% R22 Ω

SMDR7203 D0GD683JA052 .125W 5% 68K Ω

CARBONR7205 ERDS1TJ391T 0.5W 5% 390 Ω

SMDR7206 D0GD393JA052 .125W 5% 39K Ω

SMDR7207 D0GD470JA052 .125W 5% 47 Ω

CARBONR7208 ERDS1TJ220 0.5W 5% 22 Ω

SMDR7209 D0GD104JA052 .125W 5% 100K Ω

METALR7210 ERX1SJR22V 1W 5% R22 Ω

SMDR7215 D1BD1202A066 .125W 1% 12K Ω

SMDR7216 D1BD3302A066 .125W 1% 33K Ω

SMDR7219 D1BD7503A066 .125W 1% 750K Ω

SMDR7221 D0GD683JA052 .125W 5% 68K Ω

SMDR7231 D0GD104JA052 .125W 5% 100K Ω

SMDR7232 D0GD472JA052 .125W 5% 4K7 Ω

SMDR7233 D0GD103JA052 .125W 5% 10K Ω

SMDR7234 D0GD103JA052 .125W 5% 10K Ω

SMDR7235 D1BD4701A066 .125W 1% 4K7 Ω

SMDR7240 ERJ8ENF1504V 0.25W 1% 1M5 Ω

SMDR7241 ERJ8ENF1504V 0.25W 1% 1M5 Ω

SMDR7242 ERJ8ENF1504V 0.25W 1% 1M5 Ω

SMDR7243 D1BD6803A066 .125W 1% 680K Ω

SMDR7244 D1BD5102A066 .125W 1% 51K Ω

SMDR7301 D0GD223JA052 .125W 5% 22K Ω

SMDR7302 D0GD103JA052 .125W 5% 10K Ω

SMDR7303 D0GD470JA052 .125W 5% 47 Ω

SMDR7305 D1BD1803A066 .125W 1% 180K Ω

SMDR7313 D1BD1803A066 .125W 1% 180K Ω

SMDR7314 D1BD1203A066 .125W 1% 120K Ω

SMDR7330 D0GDR00J0004 .125W 5% 0 Ω

SMDR7331 D0GD301JA052 .125W 5% 300 Ω

SMDR7332 ERJ12YJ474U 0.5W 5% 470K Ω

SMDR7333 ERJ12YJ474U 0.5W 5% 470K

SM

DR7353 D0GD301JA052 .125W 5% 300 Ω

SMDR7354 D0GD113JA052 .125W 5% 11K Ω

SMDR7355 D0GD100JA052 .125W 5% 10 Ω

SMDR7356 D0GD301JA052 .125W 5% 300 Ω

SMDR7357 D0GD104JA052 .125W 5% 100K Ω

CARBONR7358 ERDS1TJ222T 0.5W 5% 2K2 Ω

SMDR7359 D0GD104JA052 .125W 5% 100K Ω

METALR7360 ERX1SJ1R0V 1W 5% 1 Ω

SMDR7361 D0GD105JA052 .125W 5% 1M Ω

SMDR7362 D0GD821JA052 .125W 5% 820 Ω

SMDR7364 D0GD103JA052 .125W 5% 10K Ω

SMDR7365 D0GD103JA052 .125W 5% 10K Ω

SMDR7367 D0GD152JA052 .125W 5% 1K5 Ω

SMDR7376 D0GD223JA052 .125W 5% 22K Ω

SMDR7377 D0GD103JA052 .125W 5% 10K Ω

METALR7380 ERX1SJR22V 1W 5% R22 Ω

METALR7381 ERX1SJR22V 1W 5% R22 Ω

SMDR7387 D0GD152JA052 .125W 5% 1K5 Ω

SMDR7388 D0GD162JA052 .125W 5% 1K6 Ω

SMDR7389 D0GD162JA052 .125W 5% 1K6 Ω

SMDR7392 D0GD392JA052 .125W 5% 3K9 Ω

SMDR7393 D0GD101JA052 .125W 5% 100 Ω

SMDR7394 D0GD101JA052 .125W 5% 100 Ω

SMDR7395 D0GD103JA052 .125W 5% 10K Ω

SMDR7396 ERJ8ENF2204V 0.25W 1% 2M2 Ω

SMDR7397 ERJ8ENF2204V 0.25W 1% 2M2 Ω

SMDR7398 ERJ8ENF2204V 0.25W 1% 2M2 Ω

SMDR7399 ERJ8ENF2204V 0.25W 1% 2M2 Ω

SMDR7402 D1BD6651A066 .125W 1% 6K65 Ω

SMDR7406 D1BD1741A066 .125W 1% 1K74 Ω

SMDR7407 D0GDR00J0004 .125W 5% 0 Ω

SMDR7408 D1BD7151A066 .125W 1% 7K15 Ω

SMDR7409 D1BD1432A066 .125W 1% 14K3 Ω

SMDR7501 D0GD102JA052 .125W 5% 1K Ω

SM

DR7502 D0GD102JA052 .125W 5% 1K Ω

SMDR7503 D0GD472JA052 .125W 5% 4K7 Ω

SMDR7504 D0GD103JA052 .125W 5% 10K Ω

SMDR7505 D0GD222JA052 .125W 5% 2K2 Ω

SMDR7513 D1BD3321A066 .125W 1% 3K32 Ω

SMDR7514 D0GD103JA052 .125W 5% 10K Ω

SMDR7515 D1BD1822A066 .125W 1% 18K2 Ω

SMDR7516 D0GD153JA052 .125W 5% 15K Ω

SMDR7517 D0GD153JA052 .125W 5% 15K Ω

SMDR7518 D0GD153JA052 .125W 5% 15K Ω

SMDR7519 D0GD303JA052 .125W 5% 30K Ω

SMDR7524 D0GD473JA052 .125W 5% 47K Ω

SMDR7527 D0GD153JA052 .125W 5% 15K Ω

SMDR7528 D0GD153JA052 .125W 5% 15K Ω

SMDR7529 D0GD472JA052 .125W 5% 4K7 Ω

SMDR7530 D0GD103JA052 .125W 5% 10K Ω

SMDR7531 D0GD103JA052 .125W 5% 10K Ω

SMDR7532 D0GD103JA052 .125W 5% 10K Ω

SMDR7535 D0GD473JA052 .125W 5% 47K Ω

SMDR7600 D0GD473JA052 .125W 5% 47K Ω

SMDR7601 D0GD105JA052 .125W 5% 1M Ω

Ω

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

33

SMDR7603 D1BD7872A066 .125W 1% 78K7 Ω

SMDR7604 D1BD2212A066 .125W 1% 22K1 Ω

SMDR7605 D0GD473JA052 .125W 5% 47K Ω

SMDR7606 D0GD683JA052 .125W 5% 68K Ω

SMDR8001 D0GA331JA023 .063W 5% 330 Ω

SMDR8100 D1BB1271A087 0.1W 0.5 1K27 Ω

SMDR8102 D1BB2101A087 0.1W 0.5 2K1 Ω

SMDR8104 D1BB6200A087 0.1W 0.5 620 Ω

SMDR8106 D1BB2001A087 0.1W 0.5 2K Ω

SMDR8108 D0GB100JA065 0.1W 5% 10 Ω

SMDR8110 D0GB100JA065 0.1W 5% 10 Ω

SMDR8114 D0GA243JA023 .063W 5% 24K Ω

SMDR8118 D0GA183JA023 .063W 5% 18K Ω

SMDR8200 D1BA2400A014 .063W 1% 240 Ω

SMDR8203 D1BA1001A014 .063W 1% 1K Ω

SMDR8205 D1BA1001A014 .063W 1% 1K Ω

SMDR8206 D1BA1001A014 .063W 1% 1K Ω

SMDR8208 D1BA1001A014 .063W 1% 1K Ω

SMDR8217 D0GA111JA023 .063W 5% 110 Ω

SMDR8219 D1BA2400A014 .063W 1% 240 Ω

SMDR8221 D0GA103JA015 .063W 5% 10K Ω

SMDR8223 EXB28V330JX .031W 5% 33 Ω

SMDR8224 D1BA1001A014 .063W 1% 1K Ω

SMDR8225 D1BA1001A014 .063W 1% 1K Ω

SMDR8301 D0GA681JA023 .063W 5% 680 Ω

SMDR8302 D0GA360JA023 .063W 5% 36 Ω

SMDR8303 D0GA360JA023 .063W 5% 36 Ω

SMDR8304 D1BA6201A014 .063W 1% 6K2 Ω

SMDR8305 D1BA6201A014 .063W 1% 6K2 Ω

SMDR8306 D0GA243JA023 .063W 5% 24K Ω

SMDR8400 D0GA680JA023 .063W 5% 68 Ω

SMDR8401 D0GA680JA023 .063W 5% 68 Ω

SMDR8402 D0GA680JA023 .063W 5% 68 Ω

SMDR8403 D0GA680JA023 .063W 5% 68 Ω

SM

DR8404 D0GA680JA023 .063W 5% 68 Ω

SMDR8405 D0GA680JA023 .063W 5% 68 Ω

SMDR8406 EXB2HV121JV .063W 5% 120 Ω

SMDR8407 EXB2HV680JV .063W 5% 68 Ω

SMDR8408 EXB2HV680JV .063W 5% 68 Ω

SMDR8409 EXB28V680JX .031W 5% 68 Ω

SMDR8410 EXB2HV680JV .063W 5% 68 Ω

SMDR8411 EXB2HV680JV .063W 5% 68 Ω

SMDR8418 D0GA103JA015 .063W 5% 10K Ω

SMDR8421 EXB2HV101JV .063W 5% 100 Ω

SMDR8424 D0GA223JA023 .063W 5% 22K Ω

SMDR8425 D0GA223JA023 .063W 5% 22K Ω

SMDR8426 D0GA473JA015 .063W 5% 47K Ω

SMDR8427 D0GA473JA015 .063W 5% 47K Ω

SMDR8429 D0GA103JA015 .063W 5% 10K Ω

SMDR8433 D0GA103JA015 .063W 5% 10K Ω

SMDR8434 D0GA103JA015 .063W 5% 10K Ω

SMDR8435 D0GA223JA023 .063W 5% 22K Ω

SMDR8436 EXB2HV101JV .063W 5% 100 Ω

CHIP RESR8437 EXB2HV473JV .063W 5% 47K Ω

SMDR8438 EXB2HV103JV .063W 5% 10K Ω

SMDR8440 D0GA103JA015 .063W 5% 10K Ω

SMDR8441 D0GA103JA015 .063W 5% 10K Ω

SMDR8442 D0GA103JA015 .063W 5% 10K Ω

SMDR8447 D0GA103JA015 .063W 5% 10K Ω

SMDR8592 D0GAR00J0005 .063W 5% 0 Ω

SMDR8606 D0GA472JA023 .063W 5% 4K7 Ω

SMDR8607 D0GA472JA023 .063W 5% 4K7 Ω

SMDR8624 D0GA560JA023 .063W 5% 56 Ω

SMDR8625 D0GA560JA023 .063W 5% 56 Ω

SMDR8626 D0GA560JA023 .063W 5% 56 Ω

SMDR8627 D0GA560JA023 .063W 5% 56 Ω

SMDR8628 D0GA560JA023 .063W 5% 56 Ω

SMDR8629 D0GA560JA023 .063W 5% 56 Ω

8817 D0GA103JA015 .063W 5% 10K Ω

SM

DR8630 D1HG1038A002 .063W 5% 10K Ω

SMDR8632 EXB28V560JX .031W 5% 56 Ω

SMDR8634 EXB28V560JX .031W 5% 56 Ω

SMDR8636 D0GA220JA023 .063W 5% 22 Ω

SMDR8639 D0GA103JA015 .063W 5% 10K Ω

SMDR8640 D0GA103JA015 .063W 5% 10K Ω

SMDR8641 D0GAR00J0005 .063W 5% 0 Ω

SMDR8642 D0GBR00J0004 0.1W 5% 0 Ω

SMDR8647 D0GA103JA015 .063W 5% 10K Ω

SMDR8648 D0GA103JA015 .063W 5% 10K Ω

SMDR8649 D0GA103JA015 .063W 5% 10K Ω

SMDR8650 D0GA103JA015 .063W 5% 10K Ω

SMDR8651 D0GA103JA015 .063W 5% 10K Ω

SMDR8653 D0GA103JA015 .063W 5% 10K Ω

SMDR8670 D0GA103JA015 .063W 5% 10K Ω

SMDR8671 D0GA103JA015 .063W 5% 10K Ω

SMDR8672 D0GA103JA015 .063W 5% 10K Ω

SMDR8673 D0GA103JA015 .063W 5% 10K Ω

SMDR8700 D1BB2402A055 0.1W 1% 24K Ω

SMDR8701 D1BB6041A055 0.1W 1% 6K04 Ω

SMDR8702 D0GA390JA023 .063W 5% 39 Ω

SMDR8703 D1BB4301A055 0.1W 1% 4K3 Ω

SMDR8704 D1BB2002A055 0.1W 1% 20K Ω

SMDR8705 D1BB3001A055 0.1W 1% 3K Ω

SMDR8706 D0GA390JA023 .063W 5% 39 Ω

SMDR8707 D1BB5601A055 0.1W 1% 5K6 Ω

SMDR8717 D0GAR00J0005 .063W 5% 0 Ω

SMDR8755 D0GA104JA023 .063W 5% 100K Ω

SMDR8773 D0GAR00J0005 .063W 5% 0 Ω

SMDR8774 D0GAR00J0005 .063W 5% 0 Ω

SMDR8811 D0GA103JA015 .063W 5% 10K Ω

SMDR8813 D0GA103JA015 .063W 5% 10K Ω

SMDR8816 D0GA102JA023 .063W 5% 1K Ω

SMDR

SMDR8818 D0GA103JA015 .063W 5% 10K Ω

SMDR8819 D0GA103JA015 .063W 5% 10K Ω

SMDR8820 D0GA103JA015 .063W 5% 10K Ω

SMDR8821 D0GA103JA015 .063W 5% 10K Ω

SMDR8822 D0GA103JA015 .063W 5% 10K Ω

SMDR8823 D0GA102JA023 .063W 5% 1K Ω

SMDR8824 D0GA103JA015 .063W 5% 10K Ω

SMDR8825 D0GA103JA015 .063W 5% 10K Ω

SMDR8860 D0GA103JA015 .063W 5% 10K Ω

SMDR8909 D0GA222JA023 .063W 5% 2K2 Ω

SMDR8910 D0GA103JA015 .063W 5% 10K Ω

SMDR8914 D0GA472JA023 .063W 5% 4K7 Ω

SMDR8915 EXB2HV680JV .063W 5% 68 Ω

SMDR8916 EXB2HV680JV .063W 5% 68 Ω

SMDR8917 EXB2HV680JV .063W 5% 68 Ω

SMDR8920 EXB28V680JX .031W 5% 68 Ω

SMDR8921 EXB28V680JX .031W 5% 68 Ω

SMDR8922 D0GA680JA023 .063W 5% 68 Ω

SMDR8923 D0GA680JA023 .063W 5% 68 Ω

SMDR8924 D0GA680JA023 .063W 5% 68 Ω

SMDR8925 EXB28V680JX .031W 5% 68 Ω

SMDR8927 D0GA680JA023 .063W 5% 68 Ω

SMDR8963 D0GA103JA015 .063W 5% 10K Ω

SMDR8964 D0GA103JA015 .063W 5% 10K Ω

SMDR8965 EXB28V103JX .031W 5% 10K Ω

SMDR8966 D0GAR00J0005 .063W 5% 0 Ω

SMDR9502 D0GDR00J0004 .125W 5% 0 Ω

SMDR9503 D0GDR00J0004 .125W 5% 0 Ω

SMDR9504 D0GDR00J0004 .125W 5% 0 Ω

SMDR9505 D0GDR00J0004 .125W 5% 0 Ω

SMDR9506 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR9507 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR9508 D1BD3R30A066 .125W 1% 3R3 Ω

SM

DR9509 D1BD3R30A066 .125W 1% 3R3 Ω

CAPACITORS

34

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR9510 D0GA473JA015 .063W 5% 47K Ω

SMDR9511 D1BA2152A014 .063W 1% 21K5 Ω

SMDR9512 D1BA1102A014 .063W 1% 11K Ω

SMDR9513 D1BA2322A014 .063W 1% 23K2 Ω

SMDR9514 D0GA331JA023 .063W 5% 330 Ω

SMDR9515 D1BA4703A014 .063W 1% 470K Ω

SMDR9516 D0GA473JA015 .063W 5% 47K Ω

SMDR9517 D0GA203JA023 .063W 5% 20K Ω

SMDR9520 D0GFR20JA020 0.25W 5% R2 Ω

SMDR9521 D0GFR20JA020 0.25W 5% R2 Ω

SMDR9523 D0GD304JA052 .125W 5% 300K Ω

SMDR9524 D0GD244JA052 .125W 5% 240K Ω

SMDR9525 D0GD203JA052 .125W 5% 20K Ω

SMDR9526 D0GA134JA023 .063W 5% 130K Ω

SMDR9527 D0GA203JA023 .063W 5% 20K Ω

SMDR9528 D0GD220JA059 0.25W 5% 22 Ω

SMDR9529 D0GA473JA015 .063W 5% 47K Ω

SMDR9534 D0GDR00J0004 .125W 5% 0 Ω

SMDR9535 D0GDR00J0004 .125W 5% 0 Ω

SMDR9536 D0GDR00J0004 .125W 5% 0 Ω

SMDR9537 D0GDR00J0004 .125W 5% 0 Ω

SMDR9540 D0GD1R0JA052 .125W 5% 1 Ω

SMDR9541 D0GDR00J0004 .125W 5% 0 Ω

SMDR9542 D0GAR00J0005 .063W 5% 0 Ω

SMDR9543 D0GAR00J0005 .063W 5% 0 Ω

SMDR9544 D0GAR00J0005 .063W 5% 0 Ω

SMDR9547 D0GAR00J0005 .063W 5% 0 Ω

SMDR9548 D0GA101JA015 .063W 5% 100 Ω

SMDR9549 D0GA101JA015 .063W 5% 100 Ω

SMDR9552 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR9553 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR9554 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR9555 D1BD3R30A066 .125W 1% 3R3 Ω

SMDR9556 D0GD100JA059 0.25W 5% 10 Ω

SM

DR9705 D0GBR00J0004 0.1W 5% 0 Ω

SMDVJ8905 D0GA680JA023 .063W 5% 68 Ω

SMDVJ8906 D0GA680JA023 .063W 5% 68 Ω

S.M.CAPC0061 F1G1H1020008 50V 1nF

S.M.CAPC0064 F1G1H1020008 50V 1nF

S.M.CAPC0065 F1G1H1020008 50V 1nF

S.M.CAPC0066 F1G1H1020008 50V 1nF

S.M.CAPC0073 F1G1H1020008 50V 1nF

S.M.CAPC0077 F1G1H1020008 50V 1nF

S.M.CAPC0078 F1G1H1020008 50V 1nF

S.M.CAPC0079 F1G1H1020008 50V 1nF

S.M.CAPC0080 F1G1H1020008 50V 1nF

S.M.CAPC0081 F1G1H1020008 50V 1nF

S.M.CAPC0082 F1G1H1020008 50V 1nF

S.M.CAPC0904 F1G1C104A077 16V 100nF

S.M.CAPC1000 F1G1E1030005 25V 10nF

S.M.CAPC2003 F1G1H1020008 50V 1nF

S.M.CAPC2005 F1G1C104A077 16V 100nF

S.M.CAPC2007 F1G1H1020008 50V 1nF

S.M.CAPC2008 F1K1E106A136 25V 10µF

S.M.CAPC2009 F1G1C104A077 16V 100nF

S.M.CAPC2013 F1G1C1030008 16V 10nF

S.M.CAPC2014 F1G1H1020008 50V 1nF

S.M.CAPC2016 F1G1H1020008 50V 1nF

S.M.CAPC2750 F1G1C104A077 16V 100nF

S.M.CAPC2751 F1G1H1020008 50V 1nF

S.M.CAPC2752 F1G1H1020008 50V 1nF

S.M.CAPC2753 F1G1H1020008 50V 1nF

S.M.CAPC2754 F1G1H1020008 50V 1nF

S.M.CAPC2755 F1G1H1020008 50V 1nF

S.M.CAPC2775 F1G1H101A565 50V 100pF

ELECTC2801 F2G0J470A019 6.3V 47µF

C3121 F2H1A101A040 10V 100µF

S.M.CAPC2802 F1G1C1030008 16V 10nF

CERAMICC2805 F1H1C104A041 16V 100nF

S.M.CAPC3001 F1G1A105A047 10V 1000nF

S.M.CAPC3002 F1G1A105A047 10V 1000nF

S.M.CAPC3003 F1G1C104A077 16V 100nF

S.M.CAPC3004 F1G1C104A077 16V 100nF

S.M.CAPC3005 F1G1A105A047 10V 1000nF

S.M.CAPC3006 F1G1A105A047 10V 1000nF

S.M.CAPC3011 F1J1A106A043 10V 10µF

S.M.CAPC3016 F1G1C104A077 16V 100nF

S.M.CAPC3018 F1G1C104A077 16V 100nF

S.M.CAPC3019 F1G1C104A077 16V 100nF

S.M.CAPC3020 F1J1A106A043 10V 10µF

S.M.CAPC3028 F1J1A106A087 10V 10µF

S.M.CAPC3084 F1J1A106A043 10V 10µF

S.M.CAPC3085 F1J1A106A043 10V 10µF

S.M.CAPC3086 F1J1A106A043 10V 10µF

S.M.CAPC3101 F1J1A106A043 10V 10µF

S.M.CAPC3108 F1G1E333A091 25V 33nF

S.M.CAPC3109 F1G1E333A091 25V 33nF

ELECTC3120 F2H1A101A040 10V 100µF

ELECT

S.

M.CAPC3124 F1J1A106A043 10V 10µF

S.M.CAPC3130 F1J1A106A043 10V 10µF

S.M.CAPC3131 F1J1A106A043 10V 10µF

S.M.CAPC3132 F1J1A106A043 10V 10µF

S.M.CAPC3135 F1G1H5610004 50V 560pF

S.M.CAPC3136 F1G1H5610004 50V 560pF

S.M.CAPC3139 F1G1H5610004 50V 560pF

S.M.CAPC3140 F1G1H5610004 50V 560pF

S.M.CAPC3145 F1J1A106A043 10V 10µF

S.M.CAPC3146 F1J1A106A043 10V 10µF

S.M.CAPC3147 F1J1A106A043 10V 10µF

S.M.CAPC3148 F1J1A106A043 10V 10µF

S.M.CAPC3151 F1G1A105A047 10V 1000nF

S.M.CAPC3152 F1G1A105A047 10V 1000nF

S.M.CAPC3155 F1G1H5610004 50V 560pF

S.M.CAPC3156 F1G1H5610004 50V 560pF

S.M.CAPC3157 F1G1A105A047 10V 1000nF

S.M.CAPC3158 F1G1A105A047 10V 1000nF

S.M.CAPC3163 F1G1E333A091 25V 33nF

S.M.CAPC3164 F1G1E333A091 25V 33nF

S.M.CAPC3172 F1G1A105A047 10V 1000nF

S.M.CAPC3173 F1G1A105A047 10V 1000nF

S.M.CAPC3174 F1G1A105A047 10V 1000nF

S.M.CAPC3175 F1G1A105A047 10V 1000nF

S.M.CAPC3178 F1J1A106A043 10V 10µF

S.M.CAPC3179 F1J1A106A043 10V 10µF

S.M.CAPC4120 F1H1H104A970 50V 100nF

S.M.CAPC4121 F1H1H104A970 50V 100nF

S.M.CAPC4122 F1G1C104A077 16V 100nF

S.M.CAPC4123 F1G1C104A077 16V 100nF

S.M.CAPC4124 F1G1C104A077 16V 100nF

S.M.CAPC4125 F1G1C104A077 16V 100nF

S.M.CAPC4126 F1G1C104A077 16V 100nF

S.M.CAPC4127 F1G1C104A077 16V 100nF

S.M.CAPC4128 F1J1A106A087 10V 10µF

S.M.CAPC4129 F1G1C104A077 16V 100nF

S.M.CAPC4130 F1G1C104A077 16V 100nF

S.M.CAPC4131 F1G1C104A077 16V 100nF

S.M.CAPC4132 F1G1C104A077 16V 100nF

S.M.CAPC4133 F1G1C104A077 16V 100nF

S.M.CAPC4134 F1H1C105A145 16V 1000nF

S.M.CAPC4150 F1J1E475A251 25V 4700nF

S.M.CAPC4151 F1G1C104A077 16V 100nF

S.M.CAPC4152 F1J1E105A231 25V 1µF

S.M.CAPC4153 F1H1H104A970 50V 100nF

S.M.CAPC4154 F1H1H104A970 50V 100nF

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

35

S.M.CAPC4155 F1H1H473A918 50V 47nF

S.M.CAPC4156 F1H1H473A918 50V 47nF

S.M.CAPC4157 F1H1H473A918 50V 47nF

S.M.CAPC4158 F1H1H104A970 50V 100nF

S.M.CAPC4159 F1H1H473A918 50V 47nF

S.M.CAPC4160 F1H1H104A970 50V 100nF

S.M.CAPC4161 F1J1E105A231 25V 1µF

S.M.CAPC4162 F1H1H104A970 50V 100nF

S.M.CAPC4163 F1K1E106A136 25V 10µF

S.M.CAPC4164 F1K1E106A136 25V 10µF

S.M.CAPC4165 F1K1E225A085 25V 2.2µF

S.M.CAPC4166 F1K1E225A085 25V 2.2µF

S.M.CAPC4167 F1K1E225A085 25V 2.2µF

S.M.CAPC4168 F1K1E225A085 25V 2.2µF

S.M.CAPC4169 F1H1H104A970 50V 100nF

S.M.CAPC4170 F1G1A105A047 10V 1000nF

S.M.CAPC4172 F1J1A475A087 10V 4.7µF

S.M.CAPC4173 F1G1E472A086 25V 4.7nF

S.M.CAPC4174 F1G1H560A565 50V 56pF

SMDC4175 F1J1C475A170 16V 4700nF

SMDC4176 F1J1C475A170 16V 4700nF

SMDC4177 F1J1C475A170 16V 4700nF

SMDC4178 F1J1C475A170 16V 4700nF

S.M.CAPC4179 F1G1E472A086 25V 4.7nF

S.M.CAPC4180 F1G1A105A047 10V 1000nF

S.M.CAPC4181 F1J1E475A251 25V 4700nF

S.M.CAPC4182 F1J1E475A251 25V 4700nF

S.M.CAPC4187 F1K0J1060017 6.3V 10µF

S.M.CAPC4188 F1K0J1060017 6.3V 10µF

S.M.CAPC4201 F1J1C475A217 16V 4700nF

S.M.CAPC4202 F1J1A106A087 10V 10µF

CERAMICC4205 F1H1H103A219 50V 10nF

S.M.CAPC4206 F1J1A106A087 10V 10µF

S.M.CAPC4504 F1G1A105A047 10V 1000nF

S.M.CAPC4750 F1G1A105A047 10V 1000nF

S.M.CAPC4800 F1G1A105A047 10V 1000nF

S.M.CAPC4801 F1G1A105A047 10V 1000nF

S.M.CAPC4802 F1G1H220A565 50V 22pF

S.M.CAPC4803 F1G1C104A077 16V 100nF

S.M.CAPC4804 F1G1C104A077 16V 100nF

S.M.CAPC4805 F1G1C104A077 16V 100nF

S.M.CAPC4806 F1G1C104A077 16V 100nF

S.M.CAPC4807 F1J1A106A043 10V 10µF

S.M.CAPC4808 F1G1C104A077 16V 100nF

S.M.CAPC4809 F1J1A106A043 10V 10µF

S.M.CAPC4810 F1G1C104A077 16V 100nF

S.M.CAPC4811 F1J1A106A043 10V 10µF

S.M.CAPC4812 F1G1C104A077 16V 100nF

S.M.CAPC4881 F1G1H100A565 50V 10pF

S.M.CAPC4882 F1G1H100A565 50V 10pF

S.M.CAPC4887 F1G1C104A077 16V 100nF

S.

M.CAPC4888 F1G1C104A077 16V 100nF

S.M.CAPC4907 F1K1E106A136 25V 10µF

S.M.CAPC4909 F1J1E105A231 25V 1µF

S.M.CAPC4910 F1K1E106A136 25V 10µF

S.M.CAPC4911 F1H1H104A970 50V 100nF

S.M.CAPC4912 F1J1E105A231 25V 1µF

S.M.CAPC4913 F1H1H104A970 50V 100nF

S.M.CAPC4914 F1J1E105A231 25V 1µF

S.M.CAPC4915 F1H1H104A970 50V 100nF

S.M.CAPC4916 F1K1E106A136 25V 10µF

S.M.CAPC4917 F1H1H104A970 50V 100nF

S.M.CAPC4918 F1J1E105A231 25V 1µF

S.M.CAPC4921 F1J1E4740001 25V 470nF

S.M.CAPC4922 F1J1E4740001 25V 470nF

S.M.CAPC4924 F1J1E4740001 25V 470nF

S.M.CAPC4925 F1J1E4740001 25V 470nF

S.M.CAPC4926 F1H1H223A219 50V 22nF

5477 F1H1A105A025 10V 1µF

S.M.CAPC4927 F1H1H223A219 50V 22nF

S.M.CAPC4928 F1H1H223A219 50V 22nF

S.M.CAPC4929 F1H1H223A219 50V 22nF

S.M.CAPC4930 F1H1H223A219 50V 22nF

S.M.CAPC4931 F1H1H223A219 50V 22nF

S.M.CAPC4932 F1H1H223A219 50V 22nF

S.M.CAPC4933 F1H1H223A219 50V 22nF

S.M.CAPC4934 F1G1H1020008 50V 1nF

S.M.CAPC4935 F1G1H1020008 50V 1nF

S.M.CAPC4936 F1G1H1020008 50V 1nF

S.M.CAPC4937 F1G1H1020008 50V 1nF

S.M.CAPC4970 F1J1A106A087 10V 10µF

S.M.CAPC4971 F1J1A106A087 10V 10µF

ELECTC4972 F2H1A101A040 10V 100µF

ELECTC4973 F2H1A101A040 10V 100µF

S.M.CAPC4977 F1K1E106A136 25V 10µF

S.M.CAPC4978 F1K1E106A136 25V 10µF

S.M.CAPC5000 F1H1A105A025 10V 1µF

ELECTC5001 F2H0J1010009 6.3V 100µF

S.M.CAPC5002 F1H1A105A025 10V 1µF

S.M.CAPC5004 F1H1A105A025 10V 1µF

S.M.CAPC5006 F1J1E105A231 25V 1µF

S.M.CAPC5007 F1G1H1020008 50V 1nF

S.M.CAPC5012 F1H1A105A025 10V 1µF

S.M.CAPC5020 F1G1C104A077 16V 100nF

S.M.CAPC5021 F1G1A105A047 10V 1000nF

S.M.CAPC5022 F1G1A105A047 10V 1000nF

S.M.CAPC5026 F1H1C105A145 16V 1000nF

S.M.CAPC5150 F1G1C273A081 16V 27nF

CERAMICC5151 F1H1H103A219 50V 10nF

S.M.CAPC5152 F1G1H1020008 50V 1nF

S.M.CAPC5153 F1G1H1020008 50V 1nF

S.M.CAPC5476 F1H1A105A025 10V 1µF

S.M.CAPC

CERAMICC7102 F1A2E471A003 250V 470pF

CERAMICC7103 F1A2E471A003 250V 470pF

METALC7104 F0CAF224A124 275V 220nF

METALC7105 F0CAF224A124 275V 220nF

CERAMICC7107 F1A2E471A003 250V 470pF

S.M.CAPC7201 F1J1H222A721 50V 2.2nF

S.M.CAPC7203 F1J1H102A721 50V 1nF

S.M.CAPC7204 F1J1H104A717 50V 100nF

S.M.CAPC7205 F1J1E224A136 25V 220nF

S.M.CAPC7206 F1J1H1030007 50V 10nF

S.M.CAPC7207 F1J1H1030007 50V 10nF

S.M.CAPC7208 F1J1H474A757 50V 470nF

S.M.CAPC7209 F1J1H104A717 50V 100nF

CERAMICC7213 F1A3A471A060 1KV 470pF

PLASTICC7214 F0CZZ1050007 OTHER 1000nF

S.M.CAPC7218 F1J1H1030007 50V 10nF

S.M.CAPC7219 F1J1H2240009 50V 220nF

CERAMICC7220 F1A3A471A060 1KV 470pF

S.M.CAPC7221 F1J1H102A721 50V 1nF

ELECTC7301 F2A2W8200012 450V 82µF

S.M.CAPC7302 F1J1H102A721 50V 1nF

PLASTICC7314 F0C2K273A046 800V 27nF

S.M.CAPC7320 F1J1E223A226 25V 22nF

S.M.CAPC7321 F1J1H221A709 50V 220pF

ELECTC7322 F2A1V4710023 35V 470µF

S.M.CAPC7323 F1J1H104A717 50V 100nF

S.M.CAPC7324 F1J1H221A709 50V 220pF

S.M.CAPC7325 F1J1E105A231 25V 1µF

S.M.CAPC7326 F1J1H104A717 50V 100nF

S.M.CAPC7327 F1J1E223A226 25V 22nF

S.M.CAPC7328 F1J1E105A231 25V 1µF

ELECTC7501 F2A1V1820031 35V 1800µF

ELECTC7502 F2A1E1820025 25V 1800µF

S.M.CAPC7513 F1J1C475A217 16V 4700nF

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

36

S.M.CAPC7514 F1J1H474A757 50V 470nF

S.M.CAPC7516 F1J1H104A717 50V 100nF

S.M.CAPC7521 F1J1H104A717 50V 100nF

S.M.CAPC7523 F1J1E105A231 25V 1µF

S.M.CAPC7600 F1K1E106A136 25V 10µF

S.M.CAPC7601 F1K1E106A136 25V 10µF

S.M.CAPC7602 F1J1E224A136 25V 220nF

S.M.CAPC7604 F1J1E105A231 25V 1µF

S.M.CAPC7606 F1K1E106A136 25V 10µF

S.M.CAPC7607 F1J1E223A226 25V 22nF

S.M.CAPC7608 F1J1H222A721 50V 2.2nF

S.M.CAPC7610 F1J1H472A702 50V 4.7nF

S.M.CAPC7611 F1J1E105A231 25V 1µF

S.M.CAPC8001 F1J1A106A087 10V 10µF

S.M.CAPC8004 F1G1C104A077 16V 100nF

S.M.CAPC8005 F1G1C104A077 16V 100nF

S.M.CAPC8006 F1G1C104A077 16V 100nF

S.M.CAPC8009 F1J1A106A087 10V 10µF

S.M.CAPC8011 F1G1C104A077 16V 100nF

S.M.CAPC8014 F1G1A105A047 10V 1000nF

S.M.CAPC8015 F1G1A105A047 10V 1000nF

S.M.CAPC8016 F1G1C104A077 16V 100nF

S.M.CAPC8019 F1J1A106A087 10V 10µF

S.M.CAPC8023 F1G1C104A077 16V 100nF

S.M.CAPC8024 F1J1A106A087 10V 10µF

S.M.CAPC8025 F1J1A106A087 10V 10µF

S.M.CAPC8026 F1J0G2260001 4V 22µF

S.M.CAPC8028 F1G1C104A077 16V 100nF

S.M.CAPC8029 F1G1C104A077 16V 100nF

S.M.CAPC8031 F1G1C104A077 16V 100nF

S.M.CAPC8034 F1G1C104A077 16V 100nF

S.M.CAPC8035 F1G1C104A077 16V 100nF

S.M.CAPC8037 F1J1A106A087 10V 10µF

S.M.CAPC8041 F1G1C104A077 16V 100nF

S.M.CAPC8042 F1J1A106A087 10V 10µF

S.M.CAPC8044 F1G1C104A077 16V 100nF

S.M.CAPC8046 F1G1C104A077 16V 100nF

S.M.CAPC8047 F1G1C104A077 16V 100nF

S.M.CAPC8050 F1G1C104A077 16V 100nF

S.M.CAPC8051 F1G1C104A077 16V 100nF

S.M.CAPC8053 F1G1C104A077 16V 100nF

S.M.CAPC8054 F1G1C104A077 16V 100nF

S.M.CAPC8055 F1G1H1020008 50V 1nF

S.M.CAPC8100 F1G1E682A123 25V 6.8nF

S.M.CAPC8102 F1J1A475A087 10V 4.7µF

S.M.CAPC8104 F1H1C105A145 16V 1000nF

S.M.CAPC8106 F1G1C223A081 16V 22nF

S.M.CAPC8108 F1G1C104A077 16V 100nF

S.M.CAPC8110 F1G1C104A077 16V 100nF

S.M.CAPC8112 F1K1E106A136 25V 10µF

S.M.CAPC8114 F1K1E106A136 25V 10µF

S.

M.CAPC8116 F1K1E106A136 25V 10µF

S.M.CAPC8118 F1K1E106A136 25V 10µF

S.M.CAPC8120 F1J0G2260001 4V 22µF

S.M.CAPC8122 F1J0G2260001 4V 22µF

S.M.CAPC8124 F1J0G2260001 4V 22µF

S.M.CAPC8126 F1J0G2260001 4V 22µF

S.M.CAPC8128 F1J0G2260001 4V 22µF

S.M.CAPC8200 F1G1C104A077 16V 100nF

S.M.CAPC8205 F1G1C104A077 16V 100nF

S.M.CAPC8206 F1G1C104A077 16V 100nF

S.M.CAPC8207 F1J1A106A087 10V 10µF

S.M.CAPC8208 F1G1C104A077 16V 100nF

S.M.CAPC8210 F1G1C104A077 16V 100nF

S.M.CAPC8212 F1G1C104A077 16V 100nF

S.M.CAPC8215 F1G1C104A077 16V 100nF

S.M.CAPC8225 F1G1C104A077 16V 100nF

S.M.CAPC8300 F1G1H6R0A732 50V 6pF

8715 F1J1A106A087 10V 10µF

TERMINALS AND LINKS

S.M.CAPC8301 F1G1H7R0A732 50V 7pF

S.M.CAPC8302 F1G1C104A077 16V 100nF

S.M.CAPC8303 F1G1C104A077 16V 100nF

S.M.CAPC8304 F1G1C104A077 16V 100nF

S.M.CAPC8305 F1G1A105A047 10V 1000nF

S.M.CAPC8306 F1G1A105A047 10V 1000nF

S.M.CAPC8307 F1G1A105A047 10V 1000nF

S.M.CAPC8308 F1G1A105A047 10V 1000nF

S.M.CAPC8309 F1G1A105A047 10V 1000nF

S.M.CAPC8310 F1G1A105A047 10V 1000nF

S.M.CAPC8311 F1G1A105A047 10V 1000nF

S.M.CAPC8401 F1G1C104A077 16V 100nF

S.M.CAPC8402 F1K0J226A049 6.3V 22µF

S.M.CAPC8403 F1K0J226A049 6.3V 22µF

S.M.CAPC8406 F1G1C104A077 16V 100nF

S.M.CAPC8407 F1G1C104A077 16V 100nF

S.M.CAPC8411 F1G1C104A077 16V 100nF

S.M.CAPC8619 F1G1C104A077 16V 100nF

S.M.CAPC8620 F1G1C104A077 16V 100nF

S.M.CAPC8627 F1G1C104A077 16V 100nF

S.M.CAPC8628 F1J1A106A087 10V 10µF

S.M.CAPC8629 F1G1C104A077 16V 100nF

S.M.CAPC8700 F1G1C1030008 16V 10nF

S.M.CAPC8702 F1J1A106A043 10V 10µF

S.M.CAPC8703 F1J1A106A043 10V 10µF

S.M.CAPC8705 F1G1E1030005 25V 10nF

S.M.CAPC8707 F1G1C1030008 16V 10nF

S.M.CAPC8708 F1J1A106A043 10V 10µF

S.M.CAPC8709 F1J1A106A043 10V 10µF

S.M.CAPC8710 F1J1A106A043 10V 10µF

S.M.CAPC8711 F1G1C223A081 16V 22nF

S.M.CAPC8712 F1G1H272A571 50V 2.7nF

S.M.CAPC8714 F1J1A475A087 10V 4.7µF

S.M.CAPC

S.M.CAPC8716 F1G1C104A077 16V 100nF

S.M.CAPC8717 F1G1C104A077 16V 100nF

S.M.CAPC8721 F1K1E106A136 25V 10µF

S.M.CAPC8722 F1K1E106A136 25V 10µF

S.M.CAPC8723 F1K1E106A136 25V 10µF

S.M.CAPC8724 F1K1E106A136 25V 10µF

S.M.CAPC8764 F1H1A105A025 10V 1µF

S.M.CAPC8765 F1H1A105A025 10V 1µF

S.M.CAPC8769 F1G1C223A081 16V 22nF

S.M.CAPC8772 F1J1A106A043 10V 10µF

S.M.CAPC8773 F1J1A106A043 10V 10µF

S.M.CAPC8900 F1G1C104A077 16V 100nF

S.M.CAPC8901 F1G1C104A077 16V 100nF

S.M.CAPC8902 F1G1C104A077 16V 100nF

S.M.CAPC8903 F1G1C104A077 16V 100nF

ELECTC9500 F2A1V4710079 35V 470µF

S.M.CAPC9501 F1K1H225A118 50V 2200nF

S.M.CAPC9502 F1H1C474A143 16V 470nF

S.M.CAPC9503 F1G1E1030005 25V 10nF

S.M.CAPC9505 F1G1E1030005 25V 10nF

S.M.CAPC9506 F1J1A475A087 10V 4.7µF

S.M.CAPC9507 F1H1C474A143 16V 470nF

S.M.CAPC9513 F1J1H182A721 50V 1.8nF

S.M.CAPC9514 F1J1H182A721 50V 1.8nF

S.M.CAPC9515 F1J1H182A721 50V 1.8nF

S.M.CAPC9516 F1J1H182A721 50V 1.8nF

ELECTC9517 F2A2C5600001 160V 56µF

S.M.CAPC9524 F1L2E1040002 250V 100nF

PLUG . K4AD01A00003

TERMINAL . K4AD01D00008

15P CONNECTOR A09 K1KY15BA0324

A09-P2 WIRE A09-P2 TXJA09PAUB-2

SWITCHES

37

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

7P CONNECTOR A10 K1KY07AA0719

A10-KA10 WIRE A10-KA10 TXJA10PAUB-2

4P CONNECTOR A12 K1KA04BA0055

A12-SPK WIRE A12-SPK TXJA12PAUB-1

60P CONNECTOR A15 K1MY60B00005

LVDS WIRE A15-PAN TSX0E207

14P CONNECTOR CN0102 K1KA14A00248

OPTICAL LINK D3050 K7AAAY000011

YUV_AUDIO IN_V INJK1001B K1U608A00002

SCART TERMINAL JK1003 K1FY121A0012

HDMI TERMINAL JK1020 K1FY119D0015

HDMI TERMINAL JK1021 K1FY119D0015

HP TERMINAL JK1052 K2HC1YYB0063

CI SLOT JK1070 K1NA68B00056

SD SLOT JK8850 K1NA12E00016

7P CONNECTOR KA10 K1KA07B00135

12P CONNECTOR LD2 K1KY12BA0322

14P CONNECTOR LD4 K1KY14BA0302

2P CONNECTOR P1 K1KA02B00295

16P CONNECTOR P2 K1KY16BA0311

14P CONNECTOR P4 K1KA14BA0311

P4-LD4 WIRE P4-LD4 TXJLEDPAUB-2

SWITCH SW 7401 K0F122A00203

SWITCH SW 7402 EVQ11G05R

SWITCH SW 7403 EVQ11G05R

SWITCH SW 7404 EVQ11G05R

SWITCH SW 7406 EVQ11G05R

SWITCH SW 7407 EVQ11G05R

RESISTORS

DIFFERENCES FOR MODEL TX--LR32X3

EXPLODED VIEW

INSTRUCTION BOOKS

I.C.s

RESISTORS

SMDJS0003 D0GAR00J0005 .063W 5% 0 Ω

X

A P.C.B. 23 A-LR32X3

BATTERY COVER OF RC 24 BAT-C-0666

MODEL LABEL 25 TBM0E2697

REMOTE CONTROL 26 N2QAYB000666

KAZAKHSTAN . TQB0E21729

RUSSIAN . TQB0E2172L

UKRAINIAN . TQB0E2172Y

EEPROM STM IC8901 STMLR32X3

EEPROM SLD2 IC8902 X24CLR32X3

SMDJS0012 D0GAR00J0005 .063W 5% 0 Ω

RTL

DIFFERENCES FOR MODEL TX--L32X3E

EXPLODED VIEW

A P.C.B. 23 A-L32X3E

BATTERY COVER OF RC 24 BAT-C-0487

MODEL LABEL 25 TBM0E2695

REMOTE CONTROL 26 N2QAYB000487

INSTRUCTION BOOKS

GERMAN . TQB0E2171A

DUTCH . TQB0E2171B

ITALIAN . TQB0E2171C

FRENCH . TQB0E2171D

SPANISH . TQB0E2171E

SWEDISH . TQB0E2171F

NORWEGIAN . TQB0E2171G

FINNISH . TQB0E2171H

LITHUANIAN . TQB0E2171I

PORTUGUESE . TQB0E2171J

DANISH . TQB0E2171K

BULGARIAN . TQB0E2171M

ROMANIAN . TQB0E2171N

LATVIAN . TQB0E2171O

POLISH . TQB0E2171P

HUNGARIAN . TQB0E2171Q

CZECH . TQB0E2171R

GREEK . TQB0E2171S

TURKISH . TQB0E2171T

ENGLISH . TQB0E2171U

CROATIAN . TQB0E2171V

SLOVAKIAN . TQB0E2171W

CD . TQB0E2171X

ESTONIAN . TQB0E2171Z

I.C.s

EEPROM STM IC8901 STML32X3E

EEPROM SLD2 IC8902 X24CL32X3E

X

RTL

Schematic Diagrams

38

NOTE

1. RESISTOR All resistors are carbon ¼W resistor, unless marked otherwise. Unit of resistance is OHM () (k=1,000, M=1,000,000)

2. CAPACITORS All capacitors are ceramic 50V unless marked otherwise. Unit of capacitance is F unless otherwise stated.

3. COIL Unit of inductance is H, unless otherwise stated.

4. TEST POINT Test Point Position

5. EARTH SYMBOL

Chassis Earth (Cold)

Line Earth (Hot)

6. VOLTAGE MEASUREMENT Voltage is measured by a D.C. voltmeter. Measurement conditions are as follows: Power source 220V-240V AC, 50 Hz Receiving Signal Colour Bar signal (RF) All customer controls Maximum position

7.

Indicates the Video signal path

Indicates the Audio signal path

These schematic diagrams are the latest at time of printing and are subject to change without notice.

REMARKS

a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard.

b. Do not short circuit the hot and cold circuits as electrical components may be damaged.

c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause

fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before removing the chassis.

NOTE

1. The Power Supply Circuit contains a circuit area, which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications in the schematic diagram. All circuits, except the Power Circuit, are COLD.

Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturers' specified parts.

IMPORTANT SAFETY NOTICE

10

39

11

A B C D E F G H I J K L M N O P Q

1

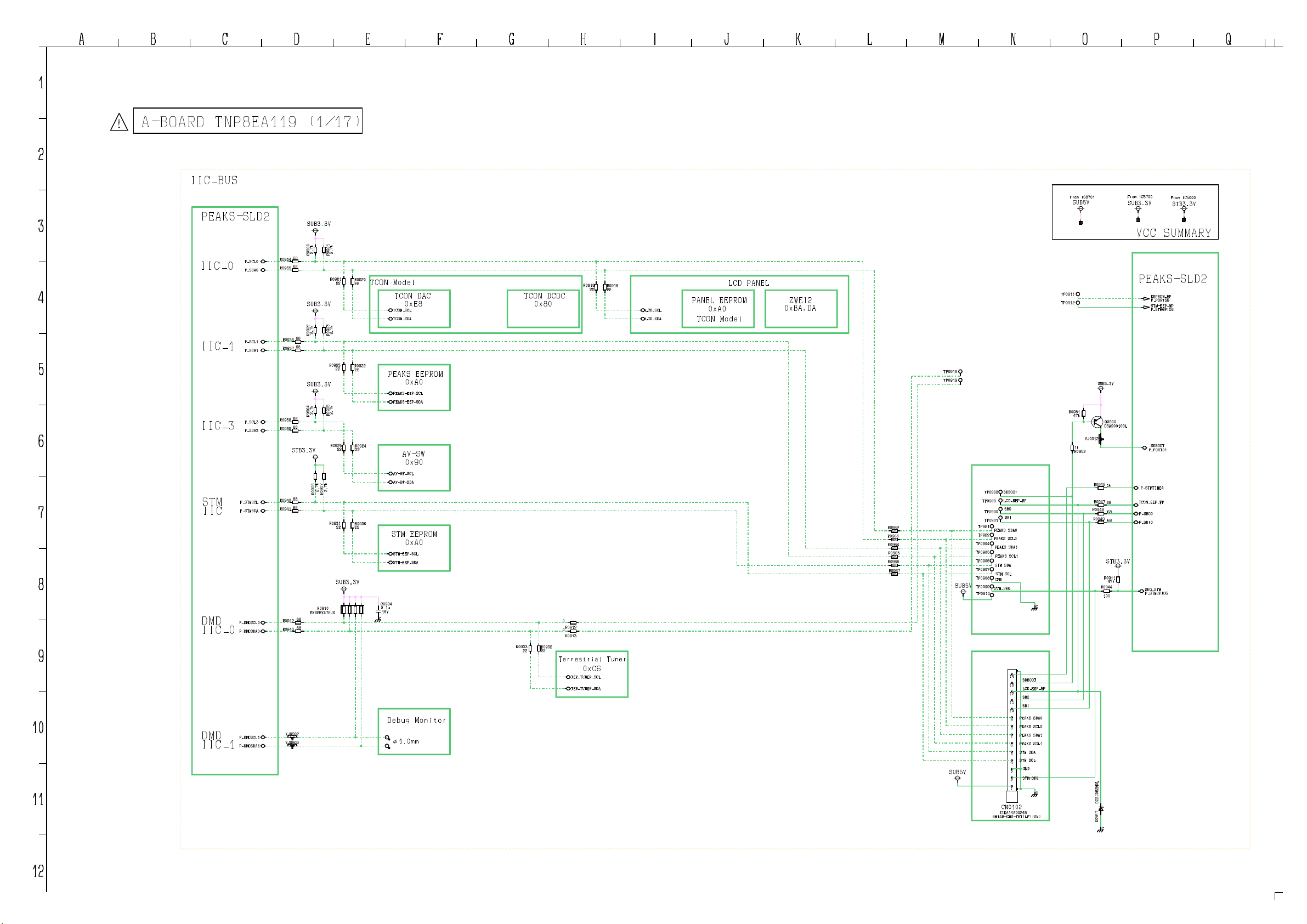

A-BOARD TNP8EA119 (1/17)

I

2

IIC_BUS

SUB3.3V

Q0900 DSA200100L

S

1k

68

STB3.3V

R0911

R0944

100

DZ2J062M0L

D0917

C

68

47k

From IC8700

SUB3.3V

VCC SUMMARY

PEAKS-SLD2

EEPROM_WP P_PORT36

STM-EEP_WP P_STMGPIO8

SDBOOT

P_PORT01

P_STMTIME4

TCON_EEP_WP

P_SBO0

P_SBI0

SRQ_STM P_STMGPIO3

From IC5000

STB3.3V

From IC8701

SUB5V

PEAKS-SLD2

3

IIC_0

P_SCL0

P_SDA0

4

IIC_1

P_SCL1

P_SDA1

5

IIC_3

P_SCL3

P_SDA3

6

STM

7

IIC

P_STMSCL

P_STMSDA

8

DMD IIC_0

P_DMDSCL0

P_DMDSDA0

9

DMD IIC_1

P_DMDSCL1

P_DMDSDA1

SUB3.3V

2.7k

R0901

R0900

68

R0934

68

R0935

R0921

R0920

22

TCON Model

SUB3.3V

2.7k

R0902

R0903

68

R0936

68

R0937

R0923

R0922

22

SUB3.3V

2.7k

R0905

R0904

68

R0938

68

R0939

R0925

R0924

22

STB3.3V

2.7k

R0906

68

R0940

68

R0941

22

2.7k

R0907

R0931

R0930 22

22

TCON DAC

0xE8

TCON_SCL

TCON_SDA

PEAKS EEPROM

0xA0

PEAKS-EEP_SCL

PEAKS-EEP_SDA

AV-SW

0x90

AV-SW_SCL

AV-SW_SDA

STM EEPROM

0xA0

STM-EEP_SCL

STM-EEP_SDA

TCON DCDC

0x80

R0919

R0918

22

LCD_SCL

LCD_SDA

PANEL EEPROM

SUB3.3V

C0904

R0910

EXB28V472JX

68

R0942

68

R0943

0.1u 16V

C

R0933

22

0

R0912

0

R0913

R0932 22

0xA0

TCON Model

LCD PANEL

ZWEI2

0xBA,DA

TP0911

TP0912

TP0918

TP0919

R0951

47k

VJ0912

1k R0952

SDBOOT

TP0903

LCD_EEP_WP

TP0920

SBO

TP0900

SBI

TP0901

SUB5V

TP0904

TP0905

TP0906

TP0907

TP0908

TP0909

TP0910

TP921

PEAKS SDA0

TP922

PEAKS SCL0

PEAKS SDA1

PEAKS SCL1

STM SDA

STM SCL

GND

STM_SRQ

C

R0962

68

R0963

68

R0964

68

R0965

68

R0966

68

R0967

68

R0945

R0947

R0948

R0949

Terrestrial Tuner

VJ0902

VJ0903

0xC6

TER_TUNER_SCL

TER_TUNER_SDA

Debug Monitor

S

1.0mm

SUB5V

14

13

12

11

10

PEAKS SDA0

9

PEAKS SCL0

8

PEAKS SDA1

7

PEAKS SCL1

6

STM SDA

5

STM SCL

4

3

2

1

CN0102

K1KA14A00248

BM14B-GHS-TBT(LF)(SN)

SDBOOT

LCD_EEP_WP

SBO

SBI

GND

STM_SRQ

C

12

A B C D E F G H I J K L M N O P Q

40

1

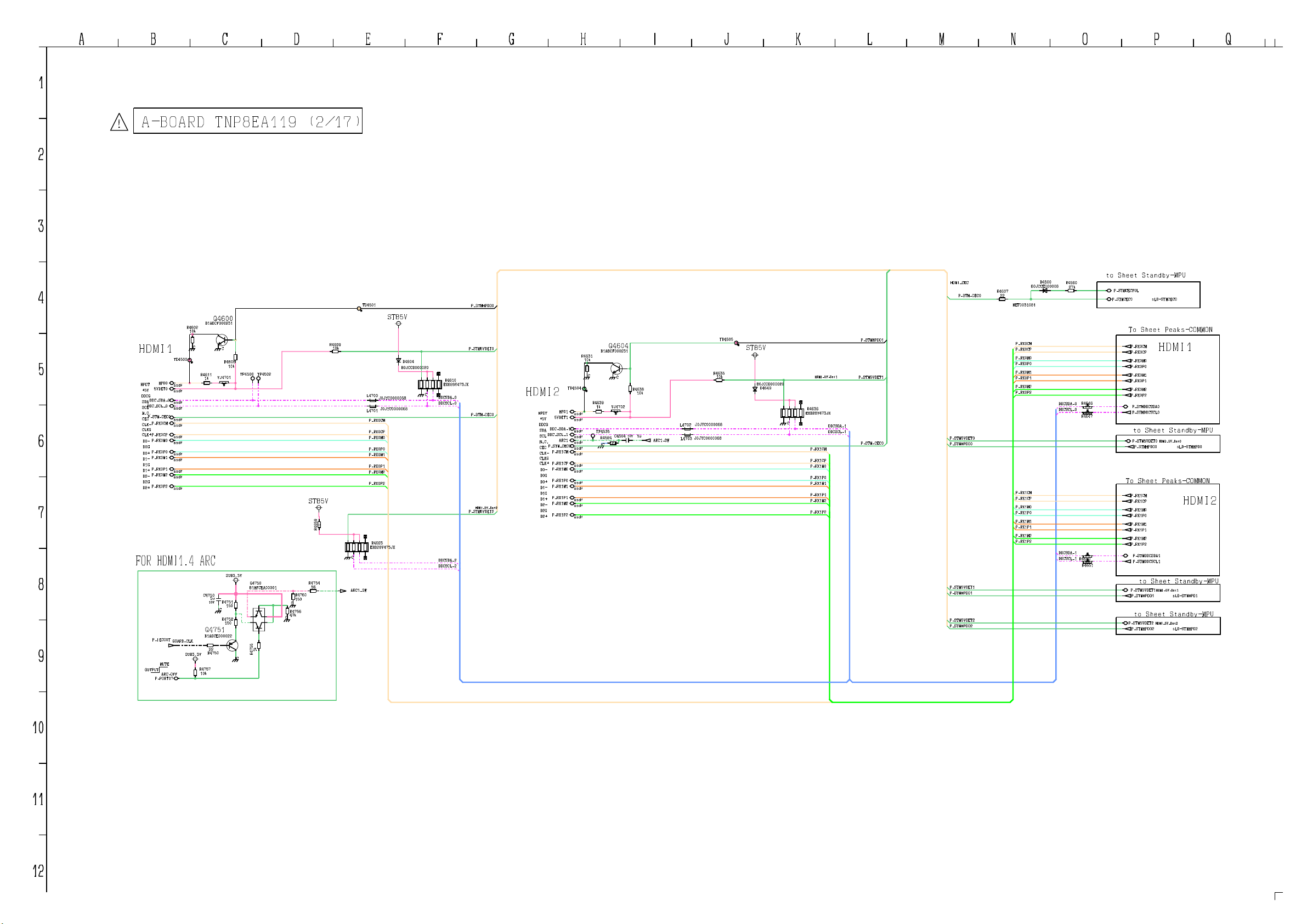

A-BOARD TNP8EA119 (2/17)

I

2

3

S

R4646

S

R4647

S

R4650

R4651

to Sheet Standby-MPU

P_STMCECPUL

P_STMCEC0

sLD-STMCECO

To Sheet Peaks-COMMON

P_RX0CM P_RX0CP

P_RX0M0 P_RX0P0

P_RX0M1 P_RX0P1

P_RX0M2 P_RX0P2

P_STMDDCSDA0 P_STMDDCSCL0

to Sheet Standby-MPU

P_STM5VDET0

P_STMHPDO0

To Sheet Peaks-COMMON

P_RX1CM P_RX1CP

P_RX1M0 P_RX1P0

P_RX1M1 P_RX1P1

P_RX1M2 P_RX1P2

P_STMDDCSDA1 P_STMDDCSCL1

to Sheet Standby-MPU

P_STM5VDET1

HDMI_5V_Det1

P_STMHPDO1

to Sheet Standby-MPU

P_STM5VDET2

HDMI_5V_Det2

P_STMHPDO2

HDMI1

HDMI_5V_Det0

sLD-STMHPD1

sLD-STMHPD2

sLD-STMHPD0

HDMI2

D4500

DDCSDA_0 DDCSCL_0

DDCSDA_1 DDCSCL_1

R4560

27k

HDMI_CEC

4

Q4600

B1ABCF000231

R4602

10k

STB5V

R4754

56

R4609

0

R4659

C

HDMI1

TD4500

5

HPD0

HPDT

DDCG

6

+5V

SDA SCL N.C. CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

DDC_SDA_0

DDC_SCL_0

P_STM_CEC0

P_RX0CM

P_RX0CP P_RX0M0

P_RX0P0 P_RX0M1

P_RX0P1 P_RX0M2

P_RX0P2

5VDET0

asdf asdf

asdf

C

R4608

10k

TP4500

R4611

VJ4701

1k

S

TP4502

7

FOR HDMI1.4 ARC

SUB3.3V

Q4750

8

P_IECOUT

9

OUTPUT

P_PORT07

MUTE

ARC_OFF

GUARD_CLK

SUB3.3V

C4750

Q4751

B1ADCE000022

R4757 10k

1u

10V

22

R4750

B1HFCEA00001

R4751

150

C

R4752

150

1k

R4755

C

R4760

150

C

R4756 47k

C

TD4501

P_STMHPDO0

STB5V

J0JYC0000068

TD4505

STB5V

R4635

10k

B0JCCD000020

D4649

HDMI_5V_Det1

R4636

EXB28V473JX

C

P_RX1CM

P_RX1CP P_RX1M0

P_RX1P0 P_RX1M1

P_RX1P1 P_RX1M2

P_RX1P2

10k

D4604

B0JCCD000020

C

ARC1_SW

L4700

L4701

P_RX0CM

P_RX0CP P_RX0M0

P_RX0P0 P_RX0M1

P_RX0P1 P_RX0M2

P_RX0P2

R4623

EXB28V473JX

J0JYC0000068

DDCSDA_0 DDCSCL_0

DDCSDA_2 DDCSCL_2

R4610

EXB28V473JX

P_STM5VDET0

P_STM_CEC0

HDMI_5V_Det2

P_STM5VDET2

HDMI2

HPDT

+5V

DDCG

SDA SCL N.C. CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

5VDET1

DDC_SDA_1

DDC_SCL_1

P_STM_CEC0

P_RX1CM

P_RX1CP P_RX1M0

P_RX1P0 P_RX1M1

P_RX1P1 P_RX1M2

P_RX1P2

TD4504

HPD1

asdf asdf

ARC1

asdf asdf asdf

asdf asdf

asdf

Q4604

B1ABCF000231

R4631

10k

C

R4638

R4639

1k

TP4535

R4524

C

10k

VJ4702

S

ARC1_SW

L4702

L4703

10V

C4504

1u

10k

DDCSDA_1 DDCSCL_1

P_STMHPDO1

P_STM5VDET1

P_STM_CEC0

P_STM5VDET0 P_STMHPDO0

P_STM5VDET1 P_STMHPDO1

P_STM5VDET2 P_STMHPDO2

R4607

B0JCCE000008

22

NET0031081

P_RX0CM P_RX0CP

P_RX0M0 P_RX0P0

P_RX0M1 P_RX0P1

P_RX0M2 P_RX0P2

P_RX1CM P_RX1CP

P_RX1M0 P_RX1P0

P_RX1M1 P_RX1P1

P_RX1M2 P_RX1P2

10

11

12

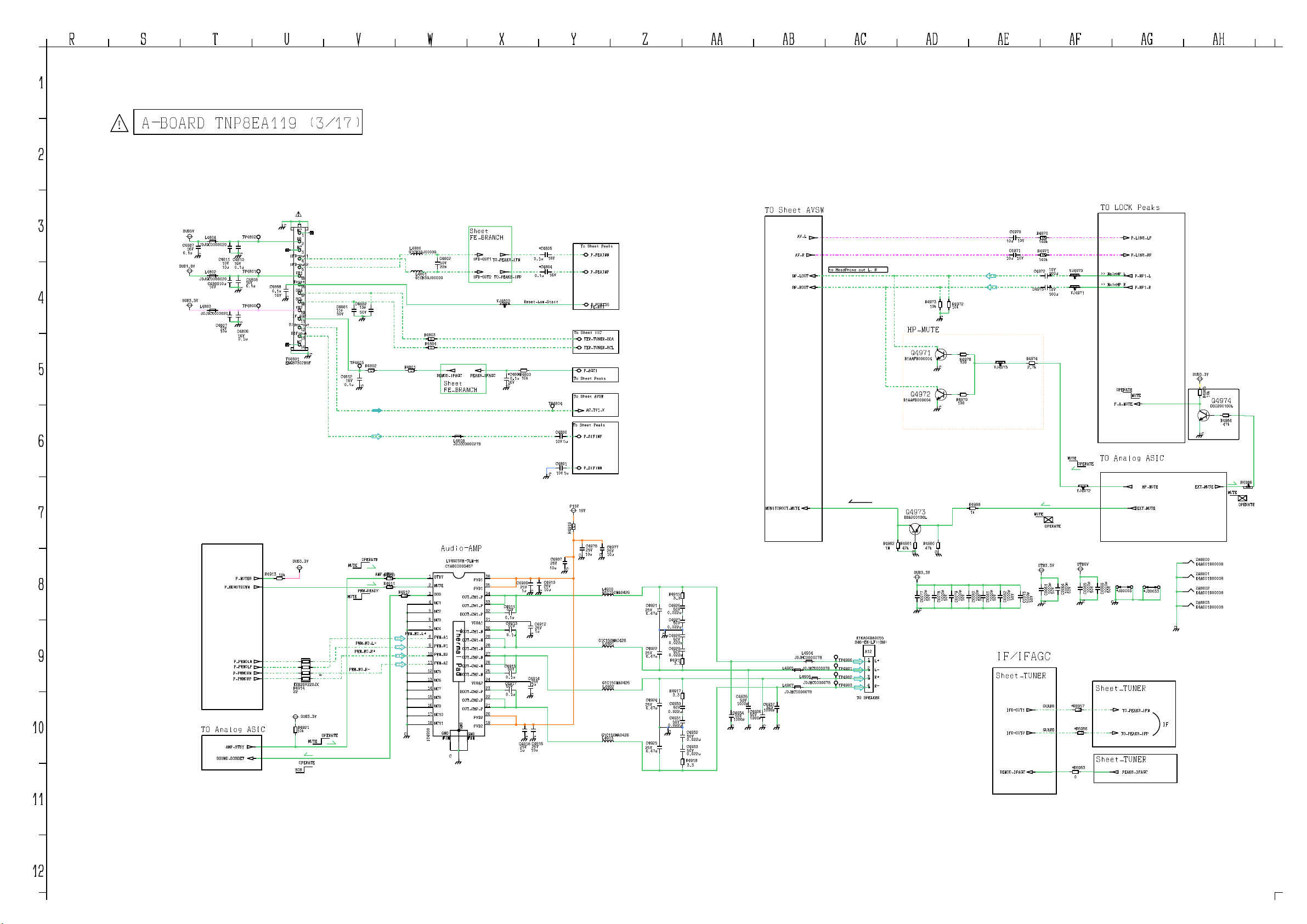

A-BOARD TNP8EA119 (3/17)

I

R S T U V W X Y Z AA AB AC AD AE AF AG AH

41

1

2

10

1000p

VJ4970

VJ4971

50V

*R6957

*R6953

S

*R6956

0

OPERATE

VJ4972

STB5V

0

S

50V

1000p

C0065

C

0

TO LOCK Peaks

P_LIN1_LP

P_LIN1_RP

>> MainHP L

>> MainHP R

OPERATE

P_A_MUTE

TO Analog ASIC

*JS0003

50V

1000p

C0066

C

Sheet_TUNER

TO_PEAKS_IFN

TO_PEAKS_IFP

Sheet_TUNER

PEAKS_IFAGC

MUTE

P_HP1_L

P_HP1_R

EXT_MUTE

HP_MUTE

*JS0033

SUB3.3V

10k

R4985

Q4974

DSC2001S0L

R4984

47k

C

S

EXT_MUTE

ZA8800 K4AD01D00008

ZA8801 K4AD01D00008

ZA8802 K4AD01D00008

ZA8803 K4AD01D00008

C

R4986

MUTE

OPERATE

IF

C4934

50V

1000p

C4935

50V

1000p

TO Sheet AVSW

MONITOROUT_MUTE

C4937

50V

1000p

C4936 50V 1000p

C

L4905

L4907

J0JHC0000078

AV_L

AV_R

HP_LOUT

HP_ROUT

L4904

J0JHC0000078

L4906

J0JHC0000078

to HeadPhone out L, R

K1KA04BA0055

S4B-EH(LF)(SN)

TP4900

TP4901

TP4902

TP4903

TO SPEAKER

C4970

R4970

1%

10V

10u

R4973

R4972

10k

C

140k

C4971

R4971

1%

10V

140k

10V

C4972

+

100u

+

C4973

10V 100u

HP_MUTE

Q4971

B1AAFB000004

Q4972

B1AAFB000004

Q4973

DSA2001S0L

R4980

R4981

R4982

1M

A12

1

L+

2

L-

3

R+

4

R-

47k

SUB3.3V

1000p

C0077

C

R4978 100

C

R4979

100

C

R4988

1k

CC

50V

1000p

C0078

50V

1000p

C0081

C0079

C0080

S

VJ4973

50V

1000p

C0082

IF/IFAGC

Sheet_TUNER

IFD-OUT1

IFD-OUT2

DEMOD_IFAGC

R4974

2.7k

MUTE

OPERATE

STB3.3V

50V

1000p

C0064

C0061

50V

C0073

1000p

C

GUARD

S

C

3

4

SUB1.8V

SUB5V

C4887

0.1u

SUB3.3V

L4804

J0JGC0000020

16V

C

L4802

J0JGC0000020

C4809

10V

L4803

J0JGC0000020

TP4802

C

C4811

C4810

10V

16V

10u

0.1u TP4801

C4808 16V

10u

0.1u

C

TP4800

C

C4807

10V 10u

C4806

16V

0.1u

5

6

7

P_MUTEB

8

9

P_NSHUTDOWN

P_PWM0LN P_PWM0LP

P_PWM0RN P_PWM0RP

TO Analog ASIC

AMP_STBY

SOUND_SOSDET

NC

1

BB

2

NC

3

IFD-out1

4

IFD-out2

5

VB1

6

15

Reset

7

16

C4888

SDA

0.1u 16V

8

17

C

SCL

9

18

VB2

10

19

IF_AGC

11

Video-out

12

SIF-out

13

NC

14

C TU4801 ENGS7302D5F

SUB3.3V

R4913

10k

<

EXB28V220JX R4914 22

SUB3.3V

R4921

10k

OPERATE

MUTE

OPERATE

SOS

C4882

C4881

10p

50V

C

TP4803

R4802

0

C4812

16V

0.1u C

OPERATE

MUTE

AMP_STBY

PWM_READY

MUTE

PWM_WO_L-

PWM_WO_R+

PWM_WO_R-

L4800

G1CR39J00009

L4801 G1CR39J00009

R4803

0

R4804

0

R4801

0

DEMOD_IFAGC

R4910

10

R4911

10

R4912

10

PWM_WO_L+

C

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

IC4900

STBY

MUTE

SOS

NC1

NC2

NC3

NC4

PWM_A1

PWM_B1

PWM_B2

PWM_A2

NC5

NC6

NC7

NC8

NC9

NC10

NC11

C4802 50V

22p

Sheet FE_BRANCH

L4808 J0JCC0000278

Audio-AMP

LV4923VH-TLM-H

C1AB00003457

Thermal Pad

GND

FIN FIN

C

OUT_CH1_P

BOOT_CH1_P

BOOT_CH1_N

OUT_CH1_N

OUT_CH2_N

BOOT_CH2_N

BOOT_CH2_P

OUT_CH2_P

GND

Sheet FE_BRANCH

IFD-OUT1

IFD-OUT2

PEAKS_IFAGC

36

PVD1

35

PVD1

34

33

32

31

VDDA1

30

29

28

27

26

25

24

VDDA2

23

22

21

20

PVD2

19

PVD2

TO_PEAKS_IFN

TO_PEAKS_IFP

VJ4800

S

C4911

C4915

16V

TP4804

C

25V 10u

To Sheet Peaks

P_FEAINN

P_FEAINP

P_PORT35 FE_RST

To Sheet IIC

TER_TUNER_SDA

TER_TUNER_SCL

P_AGCI

To Sheet Peaks

To Sheet AVSW

AC_TV1_V

To Sheet Peaks

C4800

P_SIFINP

10V

1u

C4801

P_SIFINN

10V

1u

P15V

16V

0

R4919

C4978

C4977

25V

10u

C

C4907

L4900

G1C150MA0426

L4901

G1C150MA0426 L4902

G1C150MA0426 L4903

R4915

3.3

C4921

C4926

50V

25V

0.022u

0.47u

C4927

50V

0.022u

C

C4928

50V

0.022u

C4922

C4929

50V

25V

0.022u

0.47u R4916

3.3

R4917

3.3

C4924

C4930

25V

50V

0.47u

0.022u

C4931

50V

0.022u

C

C4932 50V

R4918

0.022u

C4933 50V

0.022u

3.3

C4925 25V

0.47u

C C

*C4805

0.1u

*C4804

0.1u

Reset_Low_Start

*C4803

*R4800

10k

0.1u 16V C

C4910

C4909

25V

10u

1u

C

50V

0.1u C4913

C4912

50V

25V 1u

C

0.1u

50V

0.1u

C4914

25V

C4917

1u

50V

0.1u

C

CCC

C4916

C4918

25V

10u

1u

11

12

A B C D E F G H I J K L M N O P Q

42

1

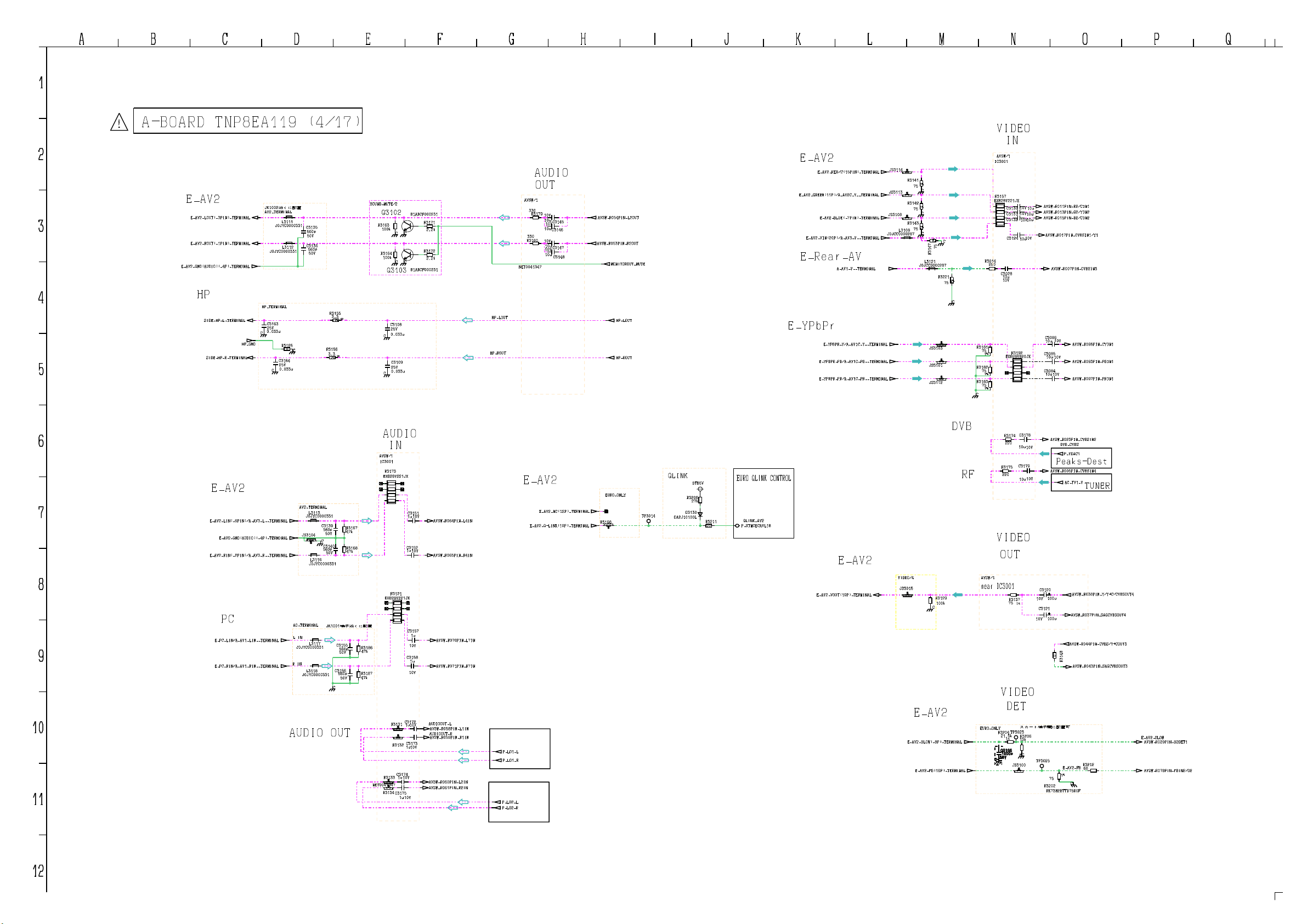

A-BOARD TNP8EA119 (4/17)

I

2

AUDIO

OUT

HP_LOUT

AVSW/1

R3180

NET0041347

330

R3179

10V 10u

C3145

10V

10u

C3146

330

10V

10u

C3147

10V 10u

C3148

AVSW_R054PIN_L2OUT

AVSW_R053PIN_R2OUT

MONITOROUT_MUTE

HP_LOUT

HP_ROUT

E_AV2

E_AV2_LOUT(_3PIN)_TERMINAL

3

E_AV2_ROUT(_1PIN)_TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

4

HP

SIDE_HP_L_TERMINAL

SIDE_HP_R_TERMINAL

5

HP_GND

JK1002 z u AV2_TERMINAL

L3111

J0JYC0000331

L3112

J0JYC0000331

HP_TERMINAL

C3163 25V

0.033u

C

R3125

C3164 25V

0.033u

C

C3135

560p 50V

C3136

560p

50V

R3155

3.3

1%

0

C

R3156

3.3 <

1%

SOUND_MUTE/2

Q3102

B1ABCF000231

C3109 25V

0.033u

C C

C

B1ABCF000231

R3171

2.2k

R3172

2.2k

HP_ROUT

R3163

100k

R3164

100k

Q3103

<

C3108 25V

0.033u

C

E_AV2

E_AV2_RED/C(15PIN)_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV2_BLUE(_7PIN)_TERMINAL

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

E_Rear_AV

E_YPbPr

E_YPBPR_Y/A_AV1C_Y__TERMINAL

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

A_AV1_V__TERMINAL

JS3114

JS3113

JS3108

L3108

J0JCC0000287

S

R3141

1%

75

C

S

R3142

1%

75

C

S

R3143

1%

75

C

1%

C

75

R3147

L3121

J0JCC0000287

R3221

1%

75

C

S

JS3103

S

JS3101

S

JS3112

VIDEO

IN

AVSW/1

IC3001

R3157

EXB28V221JX

C3130 C3131 C3132

C3124

R3014

220

C3028

10u 10V

R3181

75

1%

EXB28V820JX

R3182

75

1%

R3183

75

1%

C

AVSW_R011PIN_R2/CIN1

10V

10u

AVSW_R013PIN_G2/YIN2

10V

10u

AVSW_R015PIN_B2/CIN2

10u

10V

AVSW_R017PIN_CVBSIN1/Y1

10V

10u

AVSW_R007PIN_CVBSIN3

C3086

10V

10u

R3192

AVSW_R095PIN_CYIN1

C3085

10u

10V

AVSW_R093PIN_PBIN1

C3084

10u

10V

AVSW_R097PIN_PRIN1

10

11

6

E_AV2

AV2_TERMINAL

L3113

7

E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL

J0JYC0000331

JS3104

S

L3116

J0JYC0000331

C3139

R3167

560p

47k

50V

C

C3140

R3168

560p

47k

50V

8

PC

E_PC_LIN/A_AV1_LIN__TERMINAL

9

E_PC_RIN/A_AV1_RIN__TERMINAL

AO_TERMINAL

JK1001 [ q z u

L IN

L3117

J0JYC0000331

R IN

L3118

J0JYC0000331

AUDIO OUT

C3155

560p 50V

C3156

560p

50V

C

IN

AVSW/1 IC3001

R3173

EXB28V221JX

C3151

10V

1u

AVSW_R064PIN_L4IN

C3152 1u

10V

AVSW_R065PIN_R4IN

R3121

EXB28V221JX

C3157

1u

AVSW_R070PIN_L7IN

R3186 47k

R3187 47k

NET0041047

10V

C3158

1u

AVSW_R071PIN_R7IN

10V

C3172

R3131

R3132

R3133

S

R3134

C3175

AUDIOOUT_L

S

1u

10V

AVSW_R058PIN_L1IN

S

AUDIOOUT_R AVSW_R059PIN_R1IN

C3173

1u

10V

C3174

1u

10V

AVSW_R060PIN_L2IN AVSW_R061PIN_R2IN

1u

10V

P_LO1_L

P_LO1_R

P_LO2_L P_LO2_R

E_AV2

E_AV2_NC(12P)_TERMINAL

E_AV2_Q-LINK(10P)_TERMINAL

R3198

EURO_ONLY

S

TP3014

QLINK

DA2J10100L

R3211

22

EURO QLINK CONTROL

QLINK_AV2

P_STMCECAVL1B

STB5V

R3208

27k

D3130

E_AV2

VIDEO/4

JS3015

E_AV2_VOUT(19P)_TERMINAL

S

E_AV2

E_AV2_SLOW(_8P)_TERMINAL

E_AV2_FB(16P)_TERMINAL

AUDIO

DVB

RF

AVSW/1

R3129 100k

C

near IC3001

EURO_ONLY

R3174

220

R3175

220

VIDEO

OUT

R3137 75

VIDEO

DET

TP3023

R3204

21.5k

1%

C3166

1000p

50V

C

C3178

10u

10V

C3179

10V

10u

10V

1%

10V

X J [ g [ q z u

R3206 13k

C

1%

TP3025

JS3100

S

AVSW_R023PIN_CVBSIN2

AVSW_R005PIN_CVBSIN4

C3120

+

100u

C3121

+

100u

75

R3202

RK73H2BTTD75R0F

DVB_CVBS

P_VDAC1

Peaks-Dest

AC_TV1_V

TUNER

AVSW_R038PIN_Y/Y+C/CVBSOUT4

AVSW_R037PIN_SAGCVBSOUT4

AVSW_R044PIN_CVBS/Y+COUT3

0

R3148

AVSW_R043PIN_SAGCVBSOUT3

R3212

E_AV2_FB

68

1%

C

E_AV2_SLOW

AVSW_R020PIN_S2DET1

AVSW_R078PIN_FBIN2/O2

12

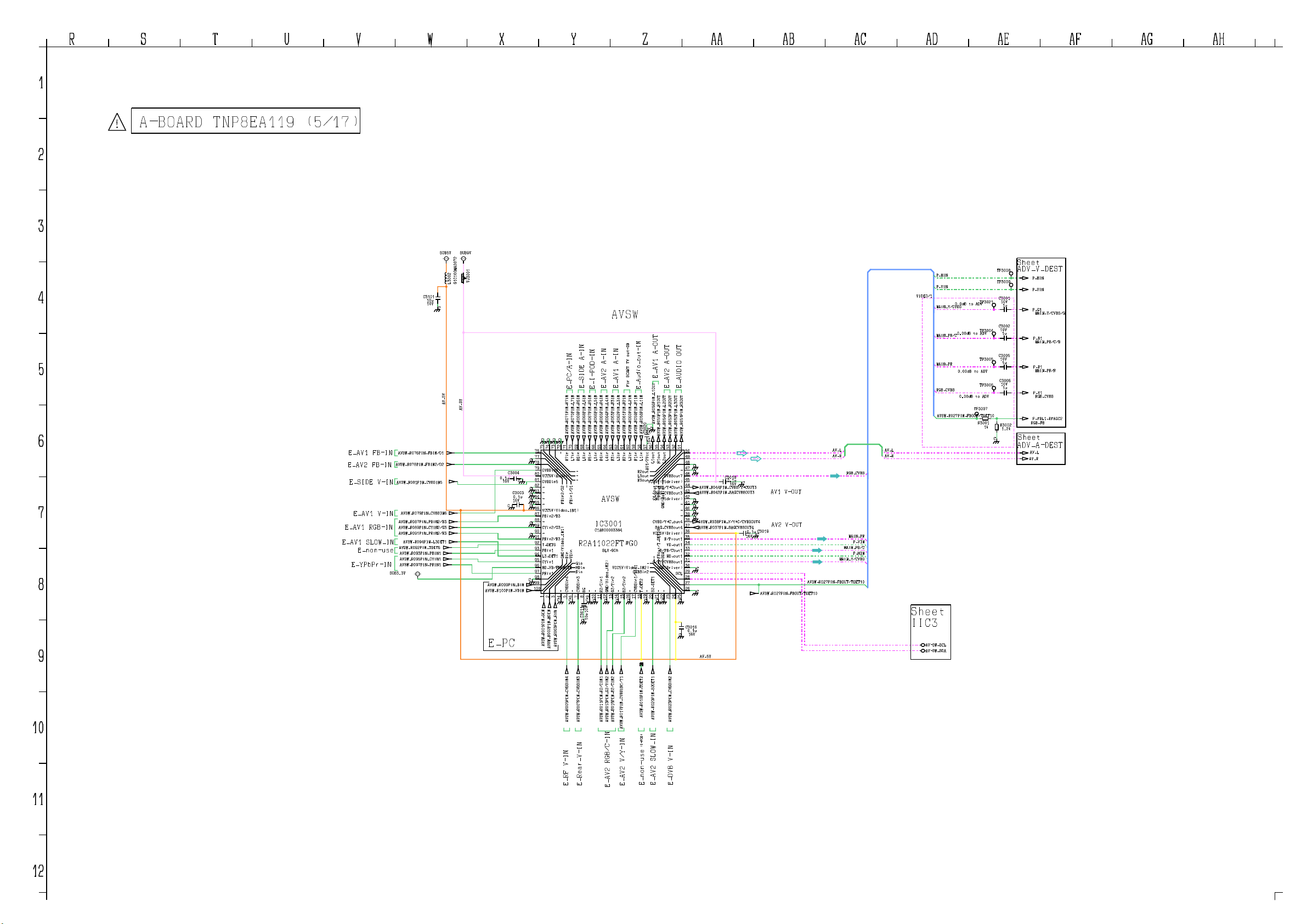

A-BOARD TNP8EA119 (5/17)

I

R S T U V W X Y Z AA AB AC AD AE AF AG AH

43

1

2

3

SUB9VSUB5V

VIDEO/1

P_HIN

P_VIN

MAIN_Y/CVBS

0.0dB to ADV

TP3021

P

VJ3001

L3002

G1C100MA0072

C3101

4

10u 10V

C

AVSW

TP3004

0.00dB to ADV

MAIN_PB/C

0.00dB to ADV

TP3007

TP3005

TP3006

R3001

1k

Sheet IIC3

AV-SW_SCL AV-SW_SDA

MAIN_PR

RGB_CVBS

AVSW_R027PIN_FBOUT/TDET10

5

E_SIDE A-IN

E_AV2 A-IN

E_PC/A-IN

AV_5V

AV_9V

AVSW_R070PIN_L7IN

AVSW_R069PIN_R6IN

AVSW_R071PIN_R7IN

CC

C

C C C C

C

76 77 78 79

CVBSin6

80

VCC9V(Audio)

81

CVBSin5

82

-

83

-

84

-

85

-

86

VCC5V(Video_IN1)

87

PBin2/B3

88

-

89

CYin2/G3

90

-

91

PRin2/R3

92

T_DET6

93

PBin1

94

L3_DET1

95

CYin1

96

HD_VD/FBKMUTE

97

PRin1

98

100

1

AVSW_R001PIN_GIN

C

72-73-74-75

-

FBin1/O1

FBin2/O2

R2A11022FT#G0

GND(Video_IN1)99Bin

VDin

Gin HDin Rin

CVBSin46-7CVBSin38BG9-10-11R2/Cin112GND(Video_IN2)13G2/Yin214-15B2/Cin216-17CVBSin1/Yin118T_DET219-20S2_DET121-22-

2

3

4-5

C

C3011

C

AVSW_R003PIN_RIN

AVSW_R002PIN_HDIN

6

E_AV1 FB-IN

E_AV2 FB-IN

E_SIDE V-IN

7

E_AV1 V-IN

E_AV1 RGB-IN

E_AV1 SLOW_IN

E_non-use

E_YPbPr-IN

8

AVSW_R076PIN_FBIN/O1

AVSW_R078PIN_FBIN2/O2

AVSW_R081PIN_CVBSIN5

AVSW_R079PIN_CVBSIN6

AVSW_R087PIN_PBIN2/B3 AVSW_R089PIN_CYIN2/G3 AVSW_R091PIN_PRIN2/R3

AVSW_R094PIN_L3DET1

AVSW_R092PIN_TDET6

AVSW_R093PIN_PBIN1 AVSW_R095PIN_CYIN1 AVSW_R097PIN_PRIN1

SUB3.3V

0.1u 16V

AVSW_R099PIN_BIN

AVSW_R100PIN_VDIN

C3004

C

C3003

0.1u 16V

C

E_PC

E_AV1 A-IN

E_I-POD-IN

AVSW_R067PIN_R5IN

AVSW_R063PIN_R3IN

AVSW_R068PIN_L6IN

AVSW_R065PIN_R4IN

AVSW_R064PIN_L4IN

AVSW_R062PIN_L3IN

AVSW_R066PIN_L5IN

AVSW

IC3001

C1AB00003384

SLV:90h

VCC5V(Video_IN2)

C

C C

C

10V

10u

9

For SCART TV out-IN

E_Audio_out-IN

C3020

AVSW_R060PIN_L2IN

AVSW_R061PIN_R2IN

AVSW_R059PIN_R1IN

AVSW_R058PIN_L1IN

57

58

L1in59R1in60L2in61R2in62L3in63R3in64L4in65R4in66L5in67R5in68L6in69R6in70L7in71R7in

R2out L3out R3out

CVBSin2

C

E_AV1 A-OUT

AVSW_R056PIN_L1OUT

C 10V

AVSW_R055PIN_R1OUT

10u

AU1/2Vcc

VCC9V(75driver)

CVBS/Y+Cout3 SAG_CVBSout3

R4out50L4out

GND(75driver)

CVBS/Y+C_out4

SAG_CVBSout4

VCC5V(Driver)

B/PB/Cout1

-27FBout/T_DET1028SDA

G/CY/CVBSout1

GND(Driver)

C

E_AV2 A-OUT

E_AUDIO OUT

AVSW_R052PIN_L3OUT

AVSW_R053PIN_R2OUT

AVSW_R054PIN_L2OUT

52

53

54

51

L2out55R1out56L1out

-

CVBSout7

-

GND(Audio)

-

R/Prout1

VD_out1

HD_out1

SCL

23

24

25

C

AVSW_R051PIN_R3OUT

49 48

C

47

C

46 45 44

AVSW_R044PIN_CVBS/Y+COUT3

43

AVSW_R043PIN_SAGCVBSOUT3

42

C

41

C

40

C

39

C

38

AVSW_R038PIN_Y/Y+C/CVBSOUT4

37

AVSW_R037PIN_SAGCVBSOUT4

36 35 34 33 32 31 30

C

29

26

C

C3016

0.1u 16V

AV_5V

AV_L AV_R

C3018

0.1u C

16V

C3019

0.1u C

16V

AVSW_R027PIN_FBOUT/TDET10

AV1 V-OUT

AV2 V-OUT

AVSW_R027PIN_FBOUT/TDET10

RGB_CVBS

MAIN_PR

MAIN_PB/C

MAIN_Y/CVBS

AV_L AV_R

P_VIN

P_HIN

C

TP3008

TP3009

C3001

C3002

C3005

10V

C3006

10V

R3002

1u

1.2k

Sheet ADV_V_DEST

P_HIN

P_VIN

P_G1

MAIN_Y/CVBS/G

P_B1

MAIN_PB/C/B

P_R1

MAIN_PR/R

P_V1

RGB_CVBS

P_FBL1_RFAGC2

RGB_FB

Sheet ADV_A-DEST

AV_L

AV_R

10

11

12

AVSW_R007PIN_CVBSIN3

AVSW_R005PIN_CVBSIN4

E_RF V-IN

E_Rear_V-IN

AVSW_R015PIN_B2/CIN2

AVSW_R013PIN_G2/YIN2

AVSW_R011PIN_R2/CIN1

AVSW_R017PIN_CVBSIN1/Y1

E_AV2 V/Y-IN

E_AV2 RGB/C-IN

AVSW_R018PIN_TDET2

AVSW_R020PIN_S2DET1

(I-POD)

E_non-use

E_AV2 SLOW_IN

AVSW_R023PIN_CVBSIN2

E_DVB V-IN

10

44

A B C D E F G H I J K L M N O P Q

1

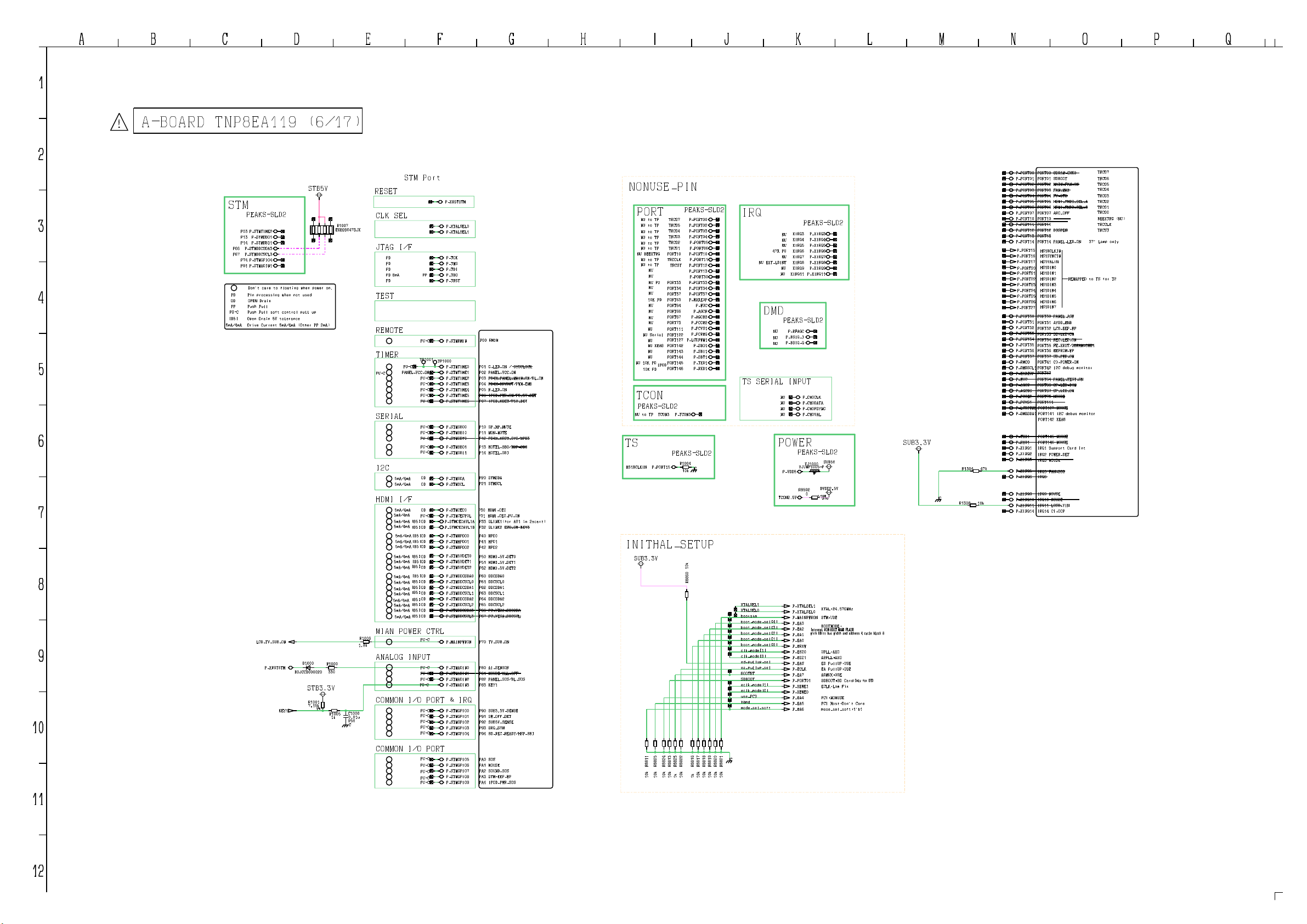

A-BOARD TNP8EA119 (6/17)

I

2

37" Lamp only

REMAPPED to TS for T2

TRCD7

TRCD6 TRCD5 TRCD4

TRCD3 TRCD2 TRCD1 TRCD0

BEEXTRG (NU) TRCCLK TRCST

P_PORT00

PORT00 SDRAM_CHK0

P_PORT01

STM Port

STB5V

STM

PEAKS-SLD2

3

4

P_STMTIME2

P03

P_STMSBO1

P13

P_STMSBI1

P14

P_STMDDCSDA3

P66

P_STMDDCSCL3

P67

P_STMGPIO4

P74

P_STMADIN1

P81

Don't care to floating when power on.

PD

Pin processing when not used

OD

OPEN Drain Push Pull

PP

PU-C

Push Pull soft control pull up

[B5]

Open Drain 5V tolerance

Drive Current 5mA/4mA (Other PP 2mA)

5mA/4mA

R1007

EXB28V473JX

5

RESET

CLK SEL

JTAG I/F

PD PD PD PD PD

TEST

REMOTE

TIMER

PU-C

PANEL_VCC_ON

PU-C

TP1001

PU-C PU-C PU-C PU-C PU-C

P_XRSTSTM

P_XTALSEL0 P_XTALSEL1

P_TCK P_TMS P_TDI P_TDO

PP8mA

P_TRST

P00 RMIN

P01 G_LED_ON / SYSCLOCK P02 PANEL_VCC_ON P03 PD4H_PANEL_MAIN_ON/BL_ON P04 PD4H_DRVRST/PWM_EMB P05 R_LED_ON P06 IPOD_PWR_ON/P3.3V_DET P07 IPOD_XDET/P5V_DET

TP1000

P_STMRMIN

P_STMTIME0 P_STMTIME1 P_STMTIME2 P_STMTIME3 P_STMTIME4 P_STMTIME5 P_STMTIME6

SERIAL

P_STMSBO0

PU-C

P_STMSBI0

PU-C

P_STMSBT0

5mA/4mA 5mA/4mA

PU-C

P_STMSBO1

PU-C PU-C

P_STMSBI1

OD

P_STMSDA P_STMSCL

OD

6

I2C

P10 SP_HP_MUTE P11 MON_MUTE P12 PD4H_XRST_SYS/HPD3

P13 HOTEL_SBO/HSP_SBO P14 HOTEL_SBI

P20 STMSDA P21 STMSCL

HDMI I/F

5mA/4mA

7

8

LCD_TV_SUB_ON

9

P_XRSTSTM

D1000

B0JCCD000020

R1000

R1006

1.8k

330

5mA/4mA

[B5]

5mA/4mA 5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

[B5]

5mA/4mA

MIAN POWER CTRL

ANALOG INPUT

STB3.3V

R1001

7.15k

KEY1

1%

R1005

1k

COMMON I/O PORT & IRQ

C1000

0.01u 25V C

COMMON I/O PORT

P_STMCEC0 P_STMCECPUL

P_STMHPDO0 P_STMHPDO1 P_STMHPDO2

P_STM5VDET0 P_STM5VDET1 P_STM5VDET2

P_STMDDCSDA0 P_STMDDCSCL0 P_STMDDCSDA1 P_STMDDCSCL1 P_STMDDCSDA2 P_STMDDCSCL2 P_STMDDCSDA3 P_STMDDCSCL3

P_MAINPWRON

P_STMADIN0 P_STMADIN1 P_STMADIN2 P_STMADIN3

P_STMGPIO0 P_STMGPIO1 P_STMGPIO2 P_STMGPIO3 P_STMGPIO4

P_STMGPIO5 P_STMGPIO6 P_STMGPIO7 P_STMGPIO8 P_STMGPIO9

P30 HDMI_CEC P31 HDMI_CEC_PU_ON

P33 QLINK1(for AV1 in 2scart) P32 QLINK2 ECO_ON KEY3

P40 HPD0 P41 HPD1 P42 HPD2

P50 HDMI_5V_DET0 P51 HDMI_5V_DET1 P52 HDMI_5V_DET2

P60 DDCSDA0 P61 DDCSCL0 P62 DDCSDA1 P63 DDCSCL1 P64 DDCSDA2 P65 DDCSCL2 P66 PC_VESA_DDCSDA P67 PC_VESA_DDCSCL

P70 TV_SUB_ON

P80 AI_SENSOR P81 NOUSE/ALL_OFF P82 PANEL_SOS/BL_SOS P83 KEY1

P90 SUB3.3V_SENSE P91 SW_OFF_DET P92 SUB5V_SENSE P93 SRQ_STM P94 SD_REC_READY/HSP_SBI

PA0 SOS PA1 NOUSE PA2 SOUND_SOS PA3 STM-EEP_WP PA4 IPOD_PWR_SOS

OD

PU-C

P_STMCECAVL1A

OD

P_STMCECAVL1B

OD

OD OD OD

OD OD OD OD OD OD OD OD

PU-C

PU-C PU-C PU-C

PU-C

PU-C PU-C PU-C PU-C PU-C

PU-C

PU-C PU-C

NONUSE_PIN

PORT

TRCD7

NU to TP

TRCD5

NU to TP

TRCD4

NU to TP

TRCD3

NU to TP

TRCD2

NU to TP

TRCD1

NU to TP

PORT10NU BEEXTRG TRCCLKNU to TP

NU to TP

TRCST NU NU

PORT33

NU PU NU

PORT34

NU

PORT37 PORT63

10K PD

PORT64

NU

PORT66

NU

PORT67

NU

PORT73

NU

PORT111

NU

PORT122

NU Serial

PORT127

NU

PORT142

XEABNU

PORT143

NU

PORT144

NU

PORT145

NU 10K PD

IPOD

PORT146

10K PD

TCON

PEAKS-SLD2

TS

HS1BCLKIN

P_PORT15

TCON3

P_TCON3

PEAKS-SLD2

R1004

10k

INITHAL_SETUP

SUB3.3V

R8813

R8822

R8824

R8825

R8823

R8811

10k

1k

10k

PEAKS-SLD2

P_PORT00 P_PORT02 P_PORT03 P_PORT04

P_PORT05 P_PORT06

P_PORT10

P_PORT11 P_PORT12 P_PORT13

P_PORT30 P_PORT33 P_PORT34 P_PORT37 P_WAKEUP

P_WUC

P_AGCR P_AGCBS P_PCCE2 P_PCVS1 P_PCREG

P_LCDPWM1

P_SBO1

P_SBI1

P_SBT1

P_TXD1

P_RXD1

C

10k

R8860

R8817

R8816

10k

1k

IRQ

NU EXT_LDINT

DMD

47K PU

NU

NU NU

NU NU NU

NU

PEAKS-SLD2

XIRQ3 XIRQ4 XIRQ5 XIRQ6 XIRQ7 XIRQ8 XIRQ9

XIRQ11

PEAKS-SLD2

P_RFAGC P_BSIQ_I P_BSIQ_Q

P_XIRQ3 P_XIRQ4 P_XIRQ5 P_XIRQ6 P_XIRQ7 P_XIRQ8 P_XIRQ9

P_XIRQ11

TS SERIAL INPUT

P_CH0CLK

NU

P_CH0DATA

NU

P_CH0PSYNC

NU

P_CH0VAL

NUNU to TP

POWER

PEAKS-SLD2

SUB5V

VJ1000

VJUMP1005-P

P_VDD5

P

DVDD2.5V

R8592

0

TCON2.5V

XTALSEL1 XTALSEL0 bootstm boot_mode_sel[4] boot_mode_sel[3] boot_mode_sel[2] boot_mode_sel[1] boot_mode_sel[0] clk_mode[1] clk_mode[0] ed_pullup_sel ea_pullup_sel BOOTBT SDBOOT eclk_mode[1] eclk_mode[0] use_PCI hbmd mode_sel_soft

C

R8820

R8819

R8818

R8821

10k

1/16W

1.0 x 0.5

P_XTALSEL1

XTAL:24.576MHz

P_XTALSEL0 P_MAINPWRON

STM:USE

P_EA3

BOOTMODE:

P_EA2

Internal ROM BOOT NAND FLASH with 8Bits bus width and address 4 cycle block 8

P_EA1 P_EA0 P_ERXW P_ESZ0

UPLL:AXO

P_ESZ1

A2PLL:AXO

P_EAS

ED PullUP:USE

P_ECLK

EA PullUP:USE

P_EA7

ADMUX:USE

P_PORT01

SDBOOT:SD Card

P_XEWE1

ECLK:Low Fix P_XEWE0 P_EA4

PCI:NONUSE P_EA5

PCI Host:Don't Care P_EA6

mose_sel_soft:1'b1

Only for DT0

SUB3.3V

R1304

47k

C

R1308

10k

P_PORT02 P_PORT03 P_PORT04 P_PORT05 P_PORT06 P_PORT07 P_PORT10 P_PORT11 P_PORT12 P_PORT13 P_PORT14

P_PORT15 P_PORT16 P_PORT17

P_PORT20 P_PORT21 P_PORT22 P_PORT23 P_PORT24 P_PORT25 P_PORT26 P_PORT27

P_PORT30 P_PORT31 P_PORT32 P_PORT33 P_PORT34 P_PORT35 P_PORT36 P_PORT37 P_RMCO P_DMDSCL1 P_WAKEUP P_WUC P_AGCR P_AGCBS P_PCCE2 P_PCVS1 P_LCDPWM1 P_DMDSDA1

P_TXD1 P_RXD1 P_XIRQ1 P_XIRQ2 P_XIRQ3

P_XIRQ5 P_XIRQ6

P_XIRQ9 P_XIRQ10 P_XIRQ11 P_XIRQ14

PORT01 SDBOOT PORT02 MAIN_FAN_ON PORT03 FAN_MAX PORT04 FV_STS PORT05 HDMI_TMDS_SEL_A PORT06 HDMI_TMDS_SEL_B PORT07 ARC_OFF PORT10 PORT11 PORT12 DISPEN PORT13 PORT14 PANEL_LED_ON

HS1BCLKIN HS1SYNCIN HS1VALIN HS1DIN0 HS1DIN1 HS1DIN2 HS1DIN3 HS1DIN4 HS1DIN5 HS1DIN6 HS1DIN7

PORT30 PANEL_AGW

PORT31 AVDD_ENB PORT32 LCD_EEP_WP PORT33 SD_LED_ON PORT34 REC_LED_ON PORT35 FE_XRST/SDRAM_CHK1 PORT36 EEPROM_WP PORT37 SD_PWR_ON PORT41 CI_POWER_ON PORT42 I2C debug monitor PORT63

PORT64 PANEL_TEST_ON PORT66 SP_LED_DIM PORT67 SP_LED_ON PORT73 NOUSE PORT111 PORT127 NOUSE PORT141 I2C debug monitor PORT142 XEAB

PORT145 NOUSE PORT146 NOUSE IRQ1 Support Card Int

IRQ2 POWER_DET IRQ3 NOUSE

IRQ5 FAN_SOS IRQ6

IRQ9 NOUSE IRQ10 NOUSE IRQ11 LOSD_VIN IRQ14 CI_OCP

11

12

A B C D E F G H I J K L M N O P Q

45

1

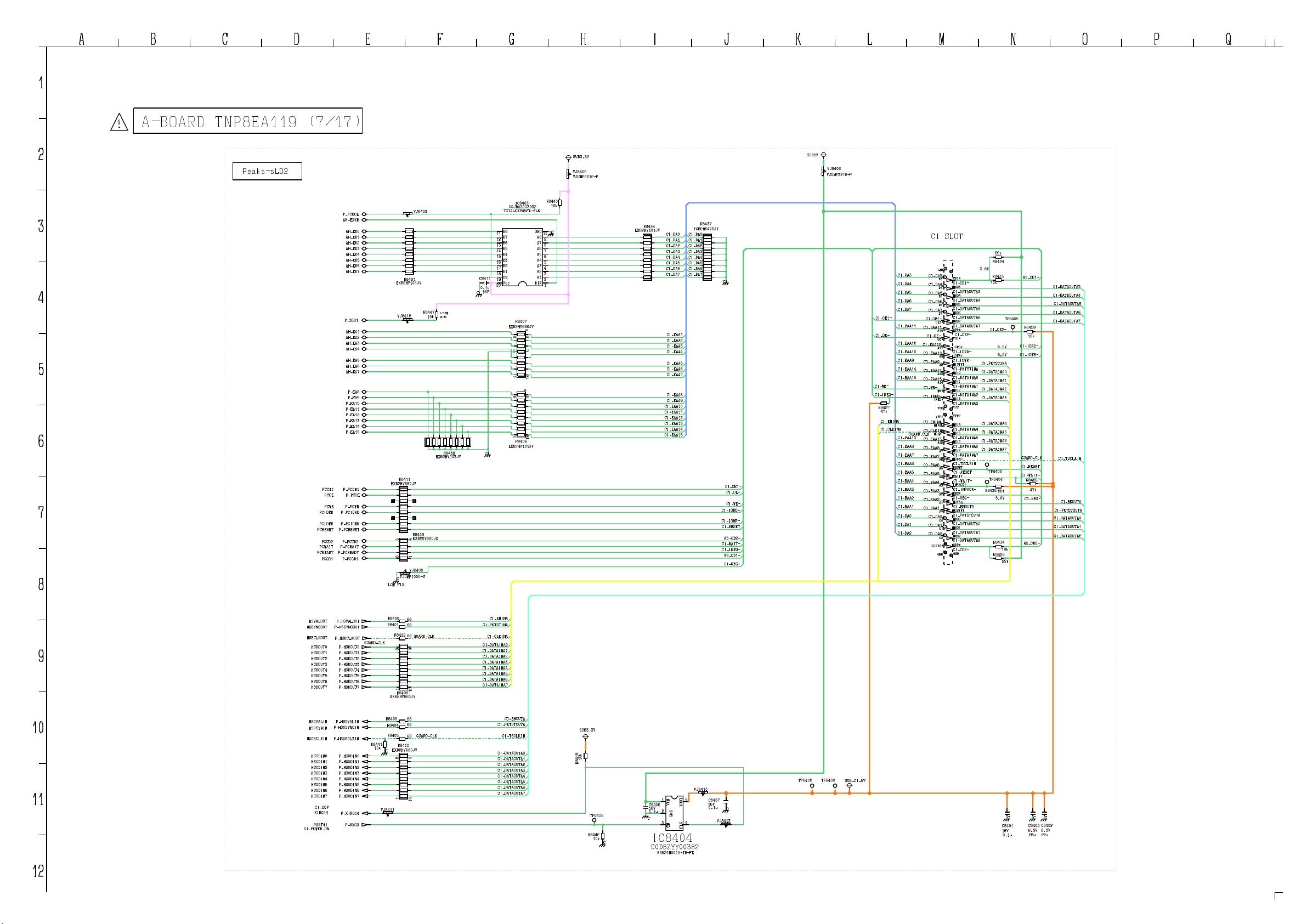

A-BOARD TNP8EA119 (7/17)

I

2

Peaks-sLD2

IC8403

C0JBAZ003032

P_PCDOE

3

AH_ERXW

AH_ED0 AH_ED1 AH_ED2 AH_ED3 AH_ED4 AH_ED5 AH_ED6 AH_ED7

S

R8421

EXB2HV101JV

VJ8403

TC74LCX245FK-ELK

GND

B8

11

B7

12

B6

13

B5

14

B4

15

B3

16

B2

17

B1

18

OE

C8411

19

Vcc

20

0.1u 16V

C

A8 A7 A6 A5 A4 A3 A2 A1

DIR

SUB3.3V

VJ8409

P

VJUMP2012-P

R8440

10k

R8436

C

10

9 8 7 6 5 4 3 2 1

EXB2HV101JV

CI_DA0 CI_DA1 CI_DA2 CI_DA3 CI_DA4 CI_DA5 CI_DA6 CI_DA7

EXB2HV473JV CI_DA0 CI_DA1 CI_DA2 CI_DA3 CI_DA4 CI_DA5 CI_DA6 CI_DA7

R8437

C

4

R8447

R8409 EXB28V680JX

1 4

VJ8400

10k

1/16W

1.0 x 0.5

R8438

EXB2HV103JV

R8407

EXB2HV680JV

<

916

1 8

<

916

1 8 R8406

EXB2HV121JV

C

CI_EAA1 CI_EAA2 CI_EAA3 CI_EAA4 CI_EAA10

CI_EAA5 CI_EAA6 CI_EAA7

CI_EAA8

CI_EAA9 CI_EAA10 CI_EAA11 CI_EAA12 CI_EAA13 CI_EAA14 CI_EAA15

CI_CE1-

CI_OE-

CI_WE-

CI_IORD-

CI_IOWRCI_RESET

AS_CD2CI_WAITCI_IREQ-

AS_CD1-

CI_REG-

P_SBO1

AH_EA1 AH_EA2 AH_EA3 AH_EA4

AH_EA5 AH_EA6

5

AH_EA7

P_EA10 P_EA11 P_EA12 P_EA13 P_EA14 P_EA15

P_EA8 P_EA9

VJ8412

S

6

R8411

P_PCCE1

PCCE1

P_PCOE

PCOE

P_PCWE

PCWE

P_PCIORD

7

PCIORD

PCIOWR

PCRESET

PCWAIT

PCREADY

P_PCIOWR

P_PCRESET

P_PCCD2

PCCD2

P_PCWAIT

P_PCREADY

P_PCCD1

PCCD1

8

EXB2HV680JV

LOW FIX

58

VJUMP1005-S

C

S

SUB5V

VJ8406

P

VJUMP3216-P

CI SLOT

22k

3.8V

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_DATAINA2

CI_DATAINA3

CI_DATAINA4

CI_DATAINA5

CI_DATAINA6

CI_DATAINA7

TP8403

TP8404

R8435

R8424

R8433

10k

CI_CE2-

R8434

R8425

AS_CD1-

CI_DATAOUTA3

CI_DATAOUTA4

CI_DATAOUTA5

R8429

10k

GUARD_CLK

CI_RESET

CI_WAIT-

R8426

CI_REG-

AS_CD2-

CI_DATAOUTA6

CI_DATAOUTA7

CI_TSCLKIN

47k

CI_ENOUTA

CI_PKTSTOUTA

CI_DATAOUTA0

CI_DATAOUTA1

CI_DATAOUTA2

TP8405

CI_IORD-

5.0V

CI_IOWR-5.0V

22k

5.0V

10k

22k

CI_CE1-

CI_OE-

CI_WE-

CI_IREQ-

R8427

47k

CI_ENINA

CI_CLKINA

CI_DA3

CI_DA4

CI_DA5

CI_DA6

CI_DA7

CI_EAA11

CI_EAA12

CI_EAA9

CI_EAA14

CI_EAA15

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_DA0

CI_DA1

CI_DA2

GUARD_CLK

CI_CE1-

CI_EAA11

CI_OE-

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

CI_WE-

CI_IREQ-

CI_ENINA

CI_CLKINA

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_DA3

CI_DA4

CI_DA5

CI_DA6

CI_DA7

CI_DA0

CI_DA1

CI_DA2

IOIS16#

1

GND

35

CD1#

D3

CI_CD1-

MDO3

D4

CI_DATAOUTA3

MDO4

D5

CI_DATAOUTA4

MDO5

D6

CI_DATAOUTA5

MDO6

D7

CI_DATAOUTA6

MDO7

CE1#

CI_DATAOUTA7

CE2#

A10

CI_CE2-

VS1#

OE#

IORD#

A11

CI_IORD-

IOWR#

A9

CI_IOWR-

MISTRT

A8

CI_PKTSTINA

MDI0

A13

CI_DATAINA0

MDI1

A14

CI_DATAINA1

MDI2

WE#

CI_DATAINA2

MDI3

IREQ#

CI_DATAINA3

17

VCC

51

18

VPP2

VPP1

52

MDI4

MIVAL

CI_DATAINA4

MDI5

MCLKI

CI_DATAINA5

MDI6

A12

CI_DATAINA6

MDI7

A7

CI_DATAINA7

MCLKO

A6

CI_TSCLKIN

RESET

A5

CI_RESET

WAIT#

A4

CI_WAIT-

INPACK#

A3

CI_INPACK-

REG#

A2

CI_REG-

MOVAL

A1

CI_ENOUTA

MOSTRT

A0

CI_PKTSTOUTA

MDO0

D0

CI_DATAOUTA0

MDO1

D1

CI_DATAOUTA1

MDO2

D2

CI_DATAOUTA2

33

CD2#

CI_CD2-

34

GND

68

10

11

12

R8400

P_HSVALOUT

HSVALOUT

P_HSSYNCOUT

HSSYNCOUT

HSBCLKOUT

P_HSBCLKOUT

GUARD_CLK

P_HSDOUT0

HSDOUT0

P_HSDOUT1

HSDOUT1

P_HSDOUT2

9

HSDOUT2 HSDOUT3 HSDOUT4 HSDOUT5 HSDOUT6 HSDOUT7

HS0VALIN

HS0SYNIN

HS0BCLKIN

HS0DIN0 HS0DIN1 HS0DIN2 HS0DIN3 HS0DIN4 HS0DIN5 HS0DIN6 HS0DIN7

PORT41

CI_POWER_ON

CI_OCP XIRQ14

P_HSDOUT3 P_HSDOUT4 P_HSDOUT5 P_HSDOUT6 P_HSDOUT7

P_HS0VALIN

P_HS0SYNCIN

P_HS0BCLKIN

P_HS0DIN0 P_HS0DIN1 P_HS0DIN2 P_HS0DIN3 P_HS0DIN4 P_HS0DIN5 P_HS0DIN6 P_HS0DIN7

P_XIRQ14

R8441

P_RMCO

68

R8401

68

R8402

68

GUARD_CLK CI_CLKINA

916

1 8

R8408

EXB2HV680JV

R8405

68 68

R8404

R8403

68

R8410

10k

EXB2HV680JV

C

916

1 8

VJ8411

S

CI_ENINA

CI_PKTSTINA

CI_DATAINA0 CI_DATAINA1 CI_DATAINA2 CI_DATAINA3 CI_DATAINA4 CI_DATAINA5 CI_DATAINA6 CI_DATAINA7

CI_ENOUTA

CI_PKTSTOUTA

CI_TSCLKINGUARD_CLK

CI_DATAOUTA0 CI_DATAOUTA1 CI_DATAOUTA2 CI_DATAOUTA3 CI_DATAOUTA4 CI_DATAOUTA5 CI_DATAOUTA6 CI_DATAOUTA7

SUB3.3V

R8418

10k

TP8400TP8402

VJ8410

1

VIN

C8406 16V

2

TP8406

R8442

10k

C

0.1u

C

3

EN

IC8404

C0DBZYY00382

R5524N001A-TR-FE

P

5

C8407

16V

VOUT

0.1u

GND

4

FLG

VJ8413

C

P

SUB_CI_5V

C

C8401 16V

0.1u

C

C8402

C8403

6.3V

6.3V 22u

22u

10

46

A B C D E F G H I J K L M N O P Q

1

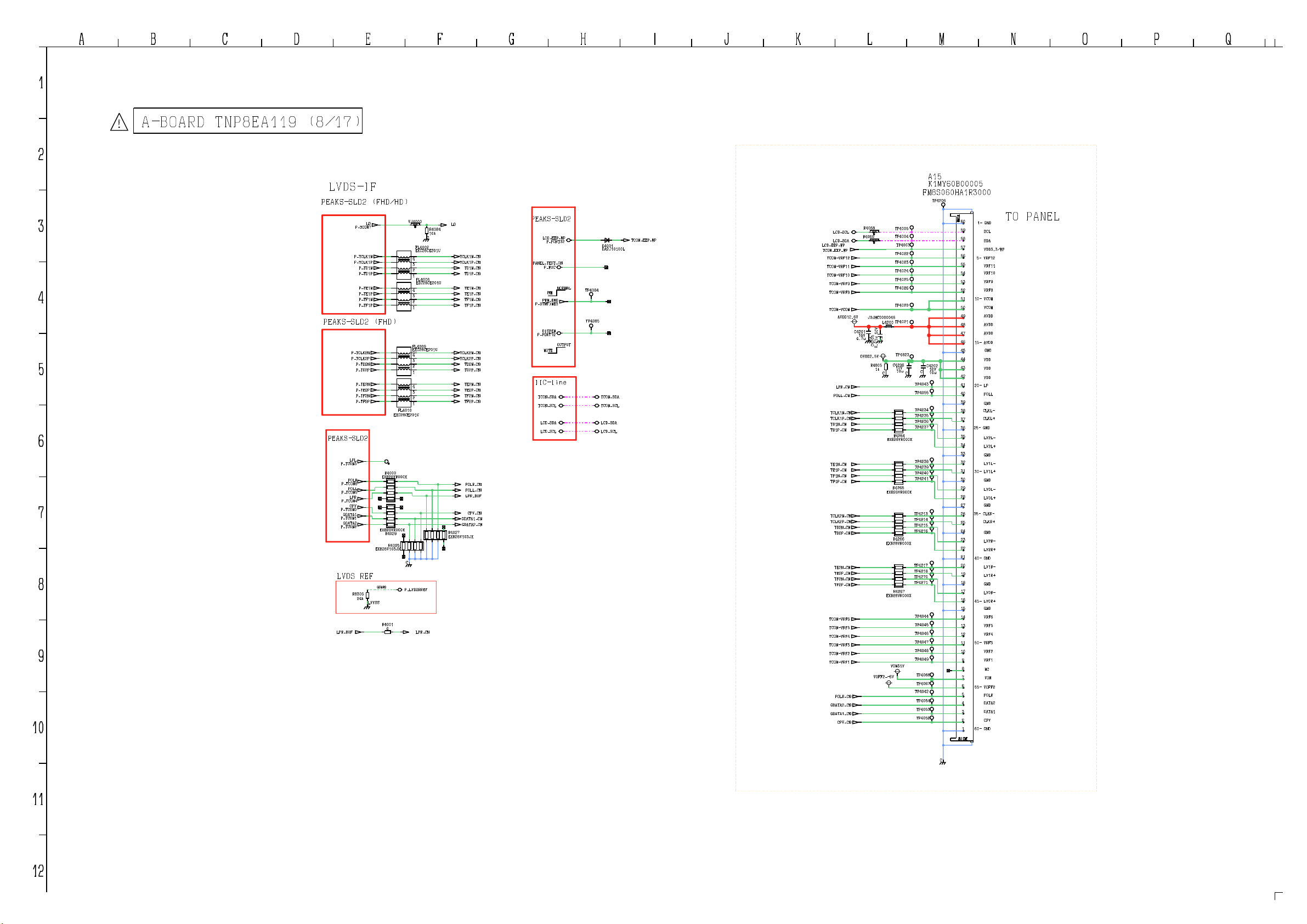

A-BOARD TNP8EA119 (8/17)

I

2

A15

TP4003

10V 10u

C

K1MY60B00005

FM8S060HA1R3000

TP4206

C4202

10V

C

10u

TP4043

TP4055

TP4234 TP4235 TP4236 TP4237

TP4238 TP4239 TP4240 TP4241

TP4213 TP4214 TP4215 TP4216

TP4217 TP4218 TP4270 TP4271

TP4044

TP4045

TP4046

TP4047

TP4048

TP4049

TP4066

TP4067

TP4042

TP4054

TP4053

TP4052

TERM

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SIDE

1- GND

5- VRF12

10- VCOM

15- AVDD

20- LP

25- GND

30- LV1L+

35- CLKR-

40- GND

45- LV0R+

50- VRF3

55- VOFF2

60- GND

SCL

SDA

VDD3.3/WP

VRF11

VRF10

VRF9

VRF8

VCOM

AVDD

GND

VDD

POLL

GND

CLKL-

CLKL+

LV2L-

LV2L+

GND

LV1L-

GND

LV0L-

LV0L+

GND

CLKR+

GND

LV2R-

LV2R+

LV1R-

LV1R+

GND

LV0R-

GND

VRF6

VRF5

VRF4

VRF2

VRF1

NC

VON

POLR

DATA2

DATA1

CPV

TO PANEL

LVDS-IF

PEAKS-SLD2 (FHD/HD)

LD

3

4

P_TCON7

P_TCLK1N P_TCLK1P

P_TD1N P_TD1P

P_TE1N P_TE1P P_TF1N P_TF1P

VJ4000

S

FL4002 EXC28CE201U

4 3 2 1

FL4006 EXC28CE201U

4 3 2 1

LD R4024 10k

C

TCLK1N_CN TCLK1P_CN

TD1N_CN TD1P_CN

TE1N_CN TE1P_CN TF1N_CN TF1P_CN

PEAKS-SLD2 (FHD)

FL4009

R4000

EXB28VR000X

R4029

R4025

FL4010

EXC28CE201U

C

EXC28CE201U 4 3 2 1

4 3 2 1

R4027 EXB28V103JX

TCLK2N_CN TCLK2P_CN

TD2N_CN TD2P_CN

TE2N_CN TE2P_CN TF2N_CN

POLR_CN POLL_CN LPR_BUF

GDATA1_CN

GDATA2_CN

CPV_CN

P_TCLK2N P_TCLK2P

P_TD2N

5

6

7

P_TD2P

P_TE2N P_TE2P P_TF2N P_TF2P TF2P_CN

PEAKS-SLD2

LPL

P_TCON3

POLR

P_TCON6

POLL

P_TCON5

LPR

P_TCON4

CPV

P_TCON0

GDATA1

P_TCON1

GDATA2

P_TCON2

EXB28V103JX

LVDS REF

8

LPR_BUF

GUARD

R8306

24k

LVVSS C

P_LVDSRREF

R4001

0

LPR_CN

9

PEAKS-SLD2

LCD_EEP_WP

P_PORT32

PANEL_TEST_ON

P_WUC

PWM

PWM_ENB

P_STMTIME3

DISPEN

P_PORT12

MUTE

IIC-line

TCON_SDA

TCON_SCL

LCD_SDA

LCD_SCL

NORMAL

OUTPUT

TP4084

TP4085

D4001 DA2J10100L

TCON_SDA

TCON_SCL

LCD_SDA

LCD_SCL

TCON_EEP_WP

LCD_EEP_WP

TCON_EEP_WP

TCON-VRF12

TCON-VRF11

TCON-VRF10

TCON-VRF9

TCON-VRF8

TCON-VCOM

TCON-VRF6

TCON-VRF5

TCON-VRF4

TCON-VRF3

TCON-VRF2

TCON-VRF1

LCD_SCL

LCD_SDA

AVDD12.6V

LPR_CN

POLL_CN

TCLK1N_CN TCLK1P_CN TD1N_CN TD1P_CN

TE1N_CN TE1P_CN TF1N_CN TF1P_CN

TCLK2N_CN TCLK2P_CN

TD2N_CN TD2P_CN

TE2N_CN TE2P_CN TF2N_CN TF2P_CN

POLR_CN

GDATA2_CN

GDATA1_CN

CPV_CN

R4068

TP4005

S

TP4004

R4069

S

TP4022

TP4023

TP4024

TP4025

TP4026

TP4020

J0JHC0000046

TP4021

L4200

C4201

50V

16V

4.7u

C

C4205

0.01u

R4805

1k

VOFF2_-6V

C

EXB28VR000X

TP4823

C4206

R4264

R4265

R4266

R4267

VON31V

DVDD2.5V

C

11

12

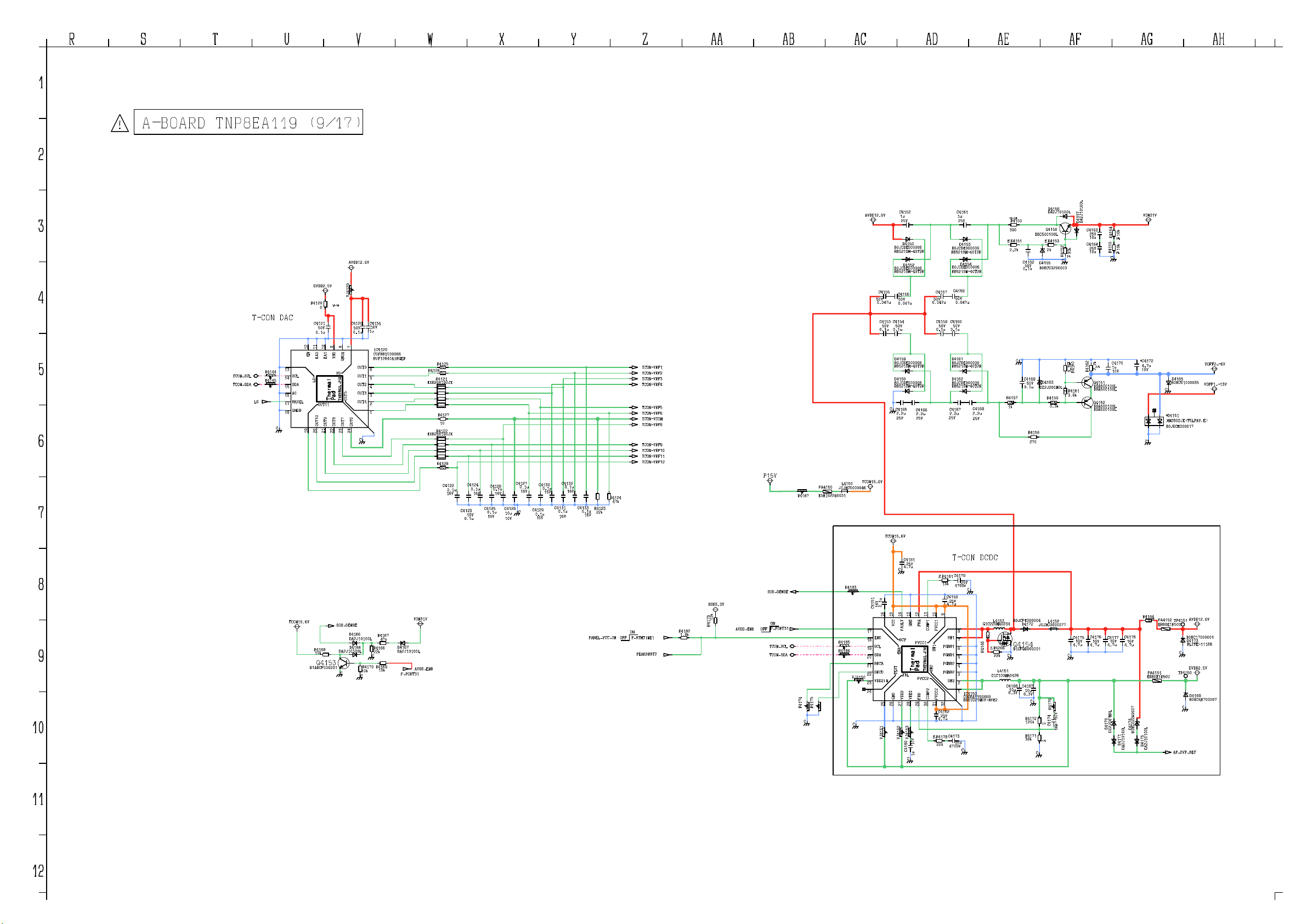

A-BOARD TNP8EA119 (9/17)

I

R S T U V W X Y Z AA AB AC AD AE AF AG AH

47

1

2

D4156

AVDD12.6V

C4152

1u 25V

3

D4150

B0JCDE000006

TCON15.6V

50V

C4155

0.047u

C4153

0.1u

50V

C

TCON15.6V

RB521SM-40T2R

D4152 B0JCDE000006 RB521SM-40T2R

C4156 50V

0.047u

C4154

50V

0.1u

D4159 B0JCDE000006 RB521SM-40T2R

D4160 B0JCDE000006 RB521SM-40T2R

C4165

2.2u

25V

C4166

2.2u 25V

AVDD12.6V

DVDD2.5V

4

T-CON DAC

5

TCON_SCL

TCON_SDA

R4144

S

R4145

S

LD

C

R4120

0

C4121

50V

0.1u

12

EN

13

SCL

14

LD

SDA

15

A0

16

BKSEL

17

OUT11

GNDD

18

OUT1021OUT9

19

20

6

7

1.0 x 0.5

9

VSD10EA111EA0

VS

Thermal

Pad

OUT823OUT724OUT6

22

VJ4120

C4120

8

7

GNDA

OUT5

THERMAL_PAD

P

C4134

16V

50V

1u

0.1u

IC4120 C0FBBY000086

BUF12840AIRGER

OUT0

6

OUT1

5

OUT2

4

OUT3

3

OUT4

2

1

C

R4125

R4126

R4121

EXB28V100JX

R4122

EXB28V100JX

R4128

10 10

R4127

10

C4124

C4122

0.1u

16V

C4123

16V

0.1u

C4127

C4126

0.1u

0.1u 16V

16V

C4125

C4128

C

0.1u

10u

16V

10V

C4132

C4130

0.1u

0.1u 16V

16V

C4131

C4133

C4129

0.1u

0.1u 16V

16V

R4123

0.1u

22k

16V

TCON-VRF1 TCON-VRF2 TCON-VRF3 TCON-VRF4

TCON-VRF5 TCON-VRF6 TCON-VCOM TCON-VRF8

TCON-VRF9 TCON-VRF10 TCON-VRF11 TCON-VRF12

P15V

P

R4124

47k

R4187

PA4150

K5H1622A0031

L4150

J0JHC0000046

50V

0.047u

C4161

1u

25V

D4153 B0JCDE000006 RB521SM-40T2R

D4154 B0JCDE000006

RB521SM-40T2R

C4159

C4157

50V

0.047u

C4158

C4160

50V

0.1u

D4161 B0JCDE000006 RB521SM-40T2R

D4162 B0JCDE000006 RB521SM-40T2R

C4168

C4167

2.2u

25V

2.0 x 1.25

R4150

390

R4151

1%

2.2k

R4157

1%

1k

DA2J10100L

D4157

Q4150

DSC500100L

R4153

1%

2k

C4162

D4155

50V

B0BC03200003

0.1u

C

C4169

D4163

50V

0.1u

DZ2J200M0L

R4159

R4158

270

DA2J10100L

C4163

25V 10u

C4164

25V 10u

30k

R4152

1%

C

1%

3.3k

R4160

1%

R4161

3.6k

1%

3.3k

R4162

1%

2.2k

Q4151 DSA500100L DSA500100L

Q4152 DSA500100L DSA500100L

C

VON31V

10k

R4154

1%

10k

R4155

1%

*C4172

C4170

4.7u

1u

10V

C

D4165 B0BC01000035

C

*D4151

HN2S02JE(T5LPAV,E)

B0JDCE000017

VOFF2_-6V

VOFF1_-13V

10

11

12

FBA13GND

Pad

10

SW1

THERMAL_PAD

SW2

R4178

1%

22k

R4181

1%

13k

C4150

25V

4.7u

9

PVCC111COMP1

SW1

PGND1

PGND2

SW2

32

C4182

25V

4.7u

C4173

4700p

T-CON DCDC

C4179

25V

4700p

C

8

7

6

5

4

3

2

1

IC4150 C0DBAYY00868 BD81021MUV-HVE2

25V

C

L4153

G1C220MA0234

0

R4206

1%

R4146

22k

G1C100MA0426

R4184

C4178

4.7u

D4171

DA2J10100L

16V

D4174

B0BC022A0007

D4175

<

0

PA4151

ERBSE1R50U

DA2J10100L

B0JCPE000004

Q4154

B1CFQD000001

C

L4151

C4188

10u

6.3V

L4152

D4172

J0JHC0000077

C4176

C4175

4.7u

C

C4187

10u

6.3V

C

R4179

50V

R4172 120k

1%

C4174

56p

R4171 30k

1%

C

C4177

16V

4.7u

D4170

DZ2J047M0L

PA4152 ERBSE1R50U

TP4151

C

TP4150

AP_OVP_DET

AVDD12.6V

B0BC17000001 D4173 RLZTE-1118B

DVDD2.5V

D4169 B0BC4R700007

C

C4181

25V

4.7u

C

8

SUB3.3V

10k

R4173

D4167 DA2J10100L

P_PORT31

VON31V

AVDD_ENB

PANEL_VCC_ON OFF

ON

P_STMTIME1

PEAKSRST2

R4182

1.8k

TCON15.6V

9

R4168 10k

Q4153

B1ABCF000231

SOS_SENSE

DA2J10100L

C

D4166

DA2J10100L

D4168

R4167

47k

R4166 22k

C

R4170

R4169

10k

C

AVDD_ENB

SOS_SENSE

ON P_PORT31

OFF

TCON_SCL

TCON_SDA

PPP

R4174

C

R4183

S

0.1u

16V

C4151

16

17

END

18

R4185

R4186

R4175

SCL

S

19

SDA

S

20

SRCA

21

SRCD

22

VJ4150

VDD2IN

P

23

24

25

C

VJ4151

12

14

15

VCC

FAULT

SCP

PVCC1

ENA

Thermal

TEST

FBL

PVCC2

GND27VDD228VREG29FBD30COMP231PVCC2

26

P

VJ4153

VJ4152

10V

C4180

1u

C

A B C D E F G H I J K L M N O P Q

48

1

IC5000 AN34043A

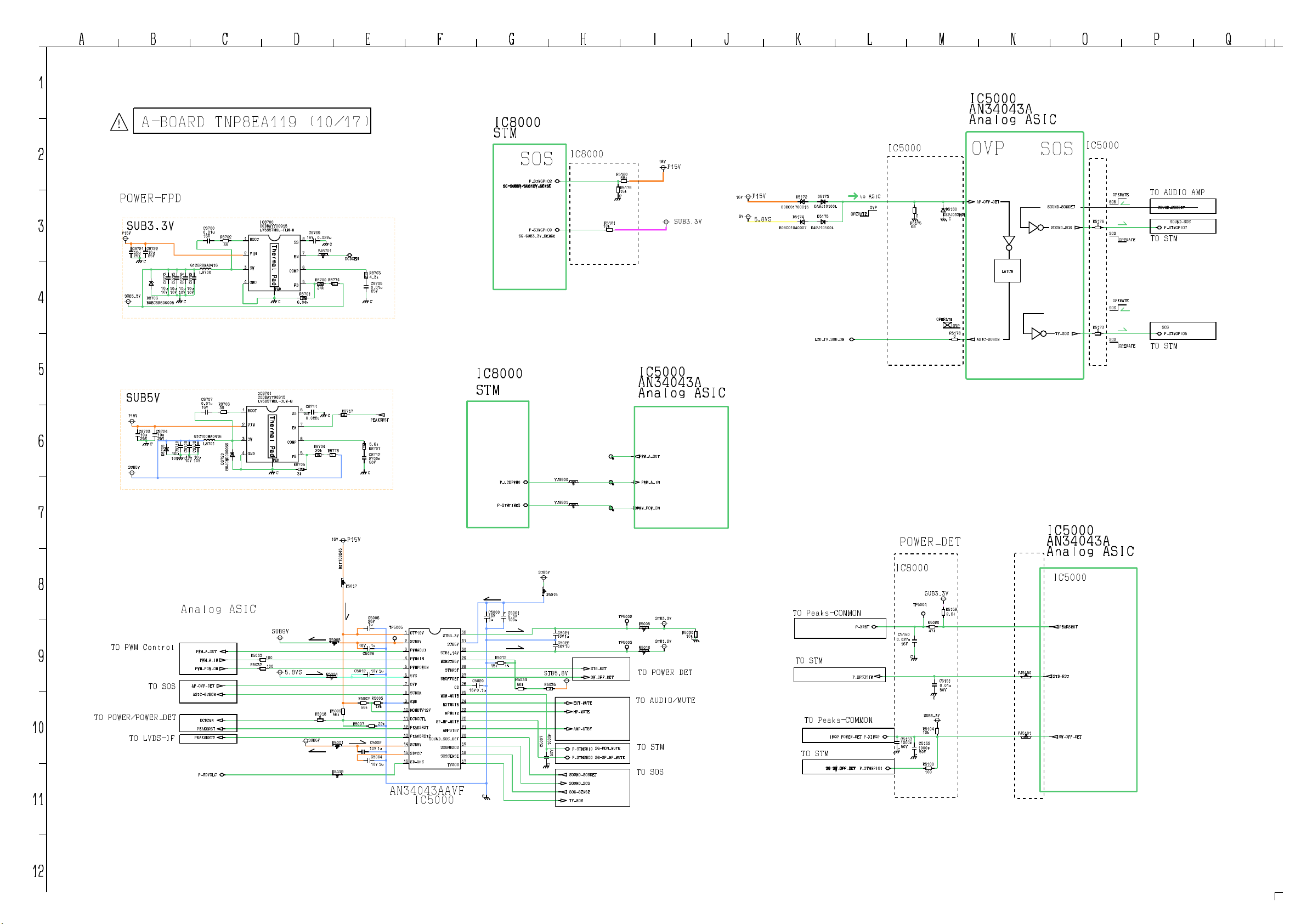

A-BOARD TNP8EA119 (10/17)

I

IC8000 STM

to ASIC

IC5000

OVP

C

R5175

68

OPERATE

2

SOS

P_STMGPIO2

SG-SUB5V/SUB12V_SENSE

POWER-FPD

IC8700

3

4

SUB3.3V

P15V

C8721

10u 25V

SUB3.3V

C8722

10u 25V

C

D8703 B0BC6R600005

C8773

10u 10V

C8700

0.01u 16V

R8702

39

G1C6R8MA0416

L8700

C8703

C8772

C8702

10u

10V

C

1

2

3

4

BOOT

VIN

SW

GND

C0DBAYY00915 LV5857MXL-TLM-H

Thermal Pad

PAD

C8769

16V

0.022u

8

SS

EN

COMP

FB

C

VJ8701

7

S

6

5

R8701

1%

6.04k

DCDCEN

R8703

1%

R8774

R8700

1%

0

24k

4.3k

C8705

0.01u 25V

C

P_STMGPIO0

SG-SUB3.3V_SENSE

IC8000

16V

R5180

68k

R5179 15k C

R5181

10k

P15V

SUB3.3V

P15V

16V

6V

5.8VS

B0BC01700015

B0BC010A0007

D5173

D5172

DA2J10100L

D5175

D5174

DA2J10100L

LCD_TV_SUB_ON

OPERATE

Analog ASIC

OVP

D5180

DZ2J033M0L

C

OVP

R5178

0

AP_OVP_DET

ASIC-SUBON

TV_SOS

IC5000

R5176

0

R5173

0

SOS

OPERATE

TO AUDIO AMP

SOUND_SOSDET

SOUND_SOS

P_STMGPIO7

TO STM

SOS

P_STMGPIO5

TO STM

SOS

SOUND_SOSDET

SOUND_SOS

LATCH

10

11

5

IC8701

B0JCMD000066

1

2

3

4

BOOT

VIN

SW

GND

C0DBAYY00915 LV5857MXL-TLM-H

Thermal Pad

PAD

C8711

8

SS

16V

0.022u

7

EN

6

COMP

5

FB

R8705

1%

C

3k

R8717

0

C

R8704

20k

R8773

1%

0

1%

PEAKSRST

5.6k R8707

C8712 2700p 50V

C

SUB5V

P15V

C8723

C8724

10u

25V

6

C

D8705

SUB5V

C8707

0.01u

R8706

16V

39

G1C100MA0416

L8701

C8709

C8710

C8708

10u

10V

C 10V

10V

D8720

IC8000

STM

P_LCDPWM0

P_STMTIME3

VJ9900

VJ9901

S

IC5000 AN34043A Analog ASIC

PWM_A_OUT

PWM_A_IN

PWM_POW_ON

7

VJ5150

VJ5101

S

IC5000 AN34043A Analog ASIC

IC5000

PEAKSRST

STB_RST

SW_OFF_DET

16V

P15V

NET100245

P

8

Analog ASIC

SUB9V

TO PWM Control

9

TO SOS

TO POWER/POWER_DET

TO LVDS-IF

PWM_A_OUT

PWM_A_IN

PWM_POW_ON

AP_OVP_DET

ASIC-SUBON

DCDCEN

PEAKSRST

PEAKSRST2

P_SDVOLC

R5033

100

R5032

100

5.8VS

SUB5V

R5017

C5000

C5006 25V 1u

TP5005

1

R5008

P

R5004

P

R5006

R5018

56k

0

R5001

P

R5019

S

1u

16V

C5026

C5012

10V

R5003

R5002

68k

R5007 22k

C5002

10V

C5004

10V

12k

DTV12V

2

SUB9V

3

PWMAOUT

4

PWMAIN

5

PWMPOWON

1u

6

5VS

7

OVP

8

SUBON

9

GND

10

MONDTV12V

11

DCDCCTL

12

PEAKSRST

13

PEAKSRST2

14

SUB5V

1u

15

SDVCC

16

SD_UHS

1u

STB3.3V

STB1.14V

MONSTB5V

SWOFFDET

MON_MUTE

EXTMUTE

SP_HP_MUTE

AMPSTBY

SOUND_SOS_DET

SOUNDSOS

SOSSENSE

STB5V

STBRST

CD

HPMUTE

TVSOS

AN34043AAVF

IC5000

10V 1u

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

R5012

1%

15k

C5020

16V

0.1u

C

STB5V

P

R5015

+

C5001

6.3V

100u

C5021 10V

1u

C5022

1u

10V

STB5.8V

R5034

R5035

56k

0

EXT_MUTE

HP_MUTE

AMP_STBY

1000p

C5007

P_STMSBI0

50V

P_STMSBO0

C

SOUND_SOSDET

SOUND_SOS

SOS_SENSE

TV_SOS

STB_RST

SW_OFF_DET

SG-MON_MUTE

SG-SP_HP_MUTE

TP5002

TP5003

TO AUDIO/MUTE

TO STM

TO SOS

STB3.3V

R5005

P

STB1.2V

R5010

P

TO POWER DET

R5030

10k

C

TO Peaks-COMMON

TO STM

TO Peaks-COMMON

IRQ2 POWER_DET

TO STM

SG-SW_OFF_DET

P_XRST

P_XRSTSTM

P_XIRQ2

P_STMGPIO1

POWER_DET

IC8000

SUB3.3V

TP5004

C5150

0.027u 16V

C

SUB3.3V

R5104 10k

C5153 1000p

C5152

50V

1000p

C

50V

C

R5100

100

R5152

2.2k

R5020

47k

C5151

0.01u 50V

C

12

A B C D E F G H I J K L M N O P Q

49

1

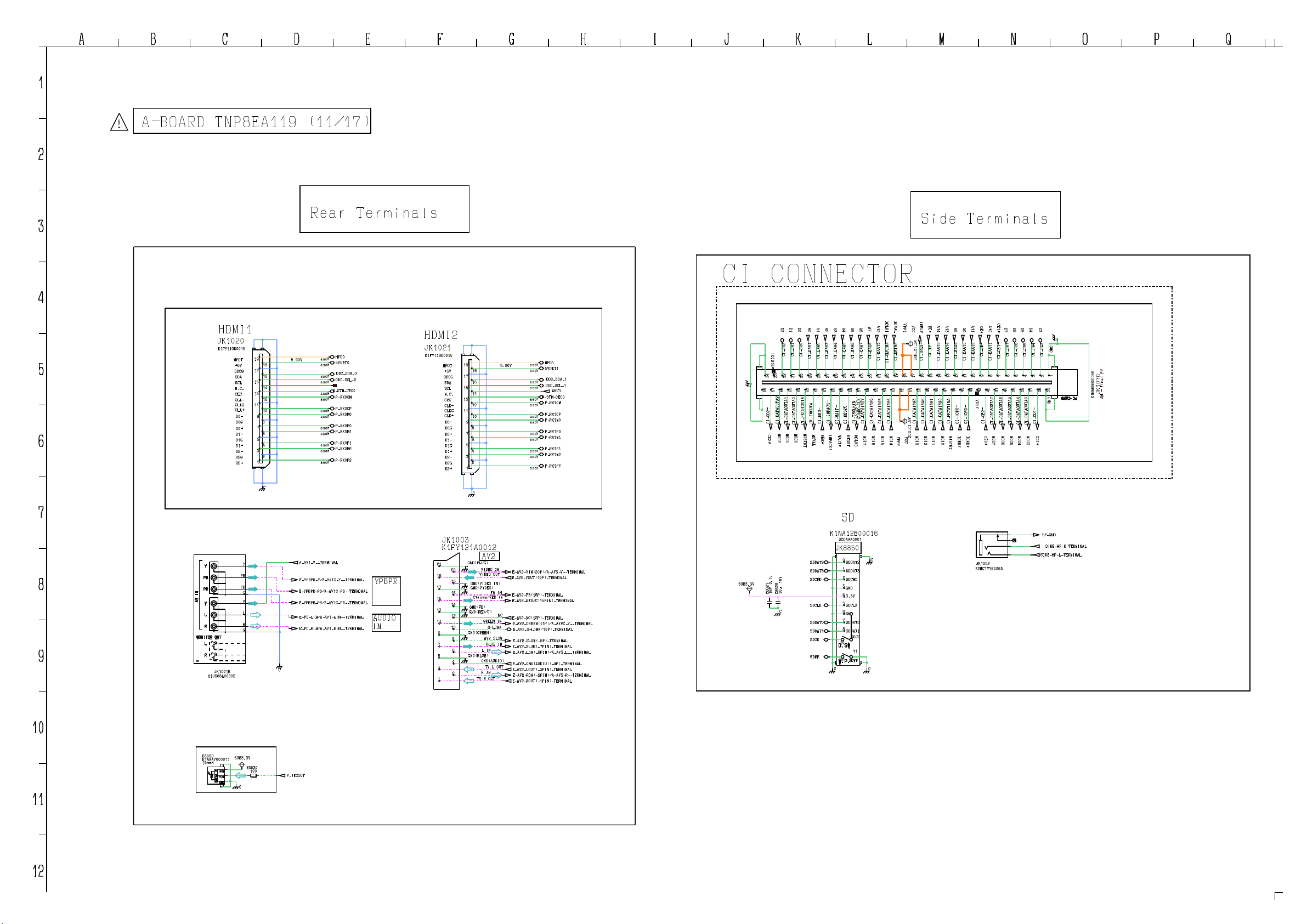

A-BOARD TNP8EA119 (11/17)

I

2

Rear Terminals

3

Side Terminals

CI CONNECTOR

4

MIVAL

CI_CLKINA

CI_DATAINA4

MDI4

CI_ENINA

VPP2

IREQ#

VPP1

VCC

SUB_CI_5V

CI_IREQ-

CI_DATAINA2

CI_DATAINA3

MDI3

MDI2

WE#

CI_WE-

CI_DATAINA1

MDI1

A14

CI_EAA15

CI_DATAINA0

MDI0

A13

CI_EAA14

CI_PKTSTINA

MISTRT

A8

A9

CI_EAA9

CI_IOWR-

IOWR#

CI_EAA10

CI_IORD-

IORD#

A11

OE#

CI_EAA12

1011121314151617181920212223242526272829303132

VS1#

JK1052 K2HC1YYB0063

CI_OE-

CI_CE2-

CE2#

A10

CI_EAA11

CI_DATAOUTA7

MDO7

CE1#

CI_CE1-

CI_DATAOUTA6

MDO6

D7

CI_DA7

CI_DATAOUTA5

MDO5A3MDO3

D6

CI_DA6

MDO4

D5

D4

CI_DA5

CI_DATAOUTA4

CI_DATAOUTA3

D3

GND

CI_DA4

CI_DA3

35363738394041424344454647484950515253545556575859606162636465

GND

CI_CD1-

CD1#

HP_GND

SIDE_HP_R_TERMINAL

SIDE_HP_L_TERMINAL

C

123456789

JK1070

PC-CARD

K1NA68B00056

JM - Final P#

D0

D1

A0

HDMI1

JK1020

K1FY119D0015

5

6

19

HPDT

+5V

17

DDCG

SDA

15

SCL N.C.

13

CEC CLK-

11

CLKG CLK+

9

D0D0G

7

D0+ D1-

5

D1G D1+

3

D2D2G

1

D2+

5.00V

18

16

14

12

10

8

6

4

2

C

HPD0

asdf

5VDET0

asdf

DDC_SDA_0

asdf

DDC_SCL_0

asdf

P_STM_CEC0

asdf

P_RX0CM

asdf

P_RX0CP

asdf

P_RX0M0

asdf

P_RX0P0

asdf

P_RX0M1

asdf

P_RX0P1

asdf

P_RX0M2

asdf

P_RX0P2

asdf

HDMI2

JK1021

K1FY119D0015

19

HPDT

+5V

17

DDCG SDA

15

SCL N.C.

13

CEC CLK-

11

CLKG CLK+

9

D0D0G

7

D0+ D1-

5

D1G D1+

3

D2D2G

1

D2+

5.00V

18

16

14

12

10

8

6

4

2

C

HPD1

asdf

5VDET1

asdf

DDC_SDA_1

asdf

DDC_SCL_1

asdf

ARC1

P_STM_CEC0

asdf

P_RX1CM

asdf

P_RX1CP

asdf

P_RX1M0

asdf

P_RX1P0

asdf

P_RX1M1

asdf

P_RX1P1

asdf

P_RX1M2

asdf

P_RX1P2

asdf

D2

IOIS16#

33

34

C

67

68

CI_CD2-

CI_DATAOUTA2

MDO2

CD2#

CI_DA2

66

CI_DATAOUTA1

MDO1

CI_DA0

CI_DA1

CI_DATAOUTA0

CI_PKTSTOUTA

MOSTRT

MDO0

A1

CI_EAA1

CI_ENOUTA

MOVAL

CI_EAA2

CI_REG-

REG#

A2

CI_EAA3

CI_INPACK-

INPACK#

7

SDDAT2

SDDAT3

SDCMD

SDCLK

SDDAT0

SDDAT1

SDCD

SDWP

K1NA12E00016

C

JK1003 K1FY121A0012

A_AV1_V__TERMINAL

E_YPBPR_Y/A_AV1C_Y__TERMINAL

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

E_PC_LIN/A_AV1_LIN__TERMINAL

E_PC_RIN/A_AV1_RIN__TERMINAL

C

YPBPR

AUDIO

IN

JK1001B

Y

PB

PR

G

V

L

R G

Y

PB

8

9

PR

AV IN

V

L

R

MONITOR OUT

L

R

<

K1U608A00002

21

19

17

15

13

11

9

7

5

3

1

AV2

GND(PLUG)

C

VIDEO IN

20

18

GND(VIDEO IN)

C

GND(VIDEO)

C

16

Chroma/RED in

14

GND(FB)

C

GND(RED/C)

C

12

10

GND(GREEN)

C

8

6

GND(BLUE)

C

4

2

TV R OUT

VIDEO OUT

GREEN IN

AV2 SLOW

BLUE IN

L IN

GND(AUDIO)

TV L OUT

R IN

FB IN

NC

Q-LINK

E_AV2_VIN(20P)/A_AV3_V__TERMINAL E_AV2_VOUT(19P)_TERMINAL

E_AV2_FB(16P)_TERMINAL E_AV2_RED/C(15PIN)_TERMINAL

E_AV2_NC(12P)_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV2_Q-LINK(10P)_TERMINAL

E_AV2_SLOW(_8P)_TERMINAL E_AV2_BLUE(_7PIN)_TERMINAL E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL E_AV2_LOUT(_3PIN)_TERMINAL

E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL

E_AV2_ROUT(_1PIN)_TERMINAL

SUB3.3V

0.1u

16V

10u 10V

C8627

C8628

C

A4

CI_EAA4

CI_WAIT-

WAIT#

SD

SCDAAA0201

JK8850

9

1

2

3

4

5

6

7

8

10

D.SW

12

W.P.

CI_EAA5

CI_RESET

RESET

SDDAT2

SDDAT3

SDCMD

GND

3.3V

SDCLK

GND

SDDAT0

SDDAT1

SDWP

A5

CI_EAA6

CI_TSCLKIN

MCLKO

SDCD

11

A6

CI_EAA7

GUARD_CLK

CI_DATAINA7

MDI7

A7

CI_EAA8

CI_DATAINA6

MDI6

C

CI_EAA13

CI_DATAINA5

MDI5

MCLKI

A12

10

11

12

D3050 K7AAAY000011 15mmH

DRIVE IC

SUB3.3V

R3030

VCC

100

Vin

GND

C

P_IECOUT

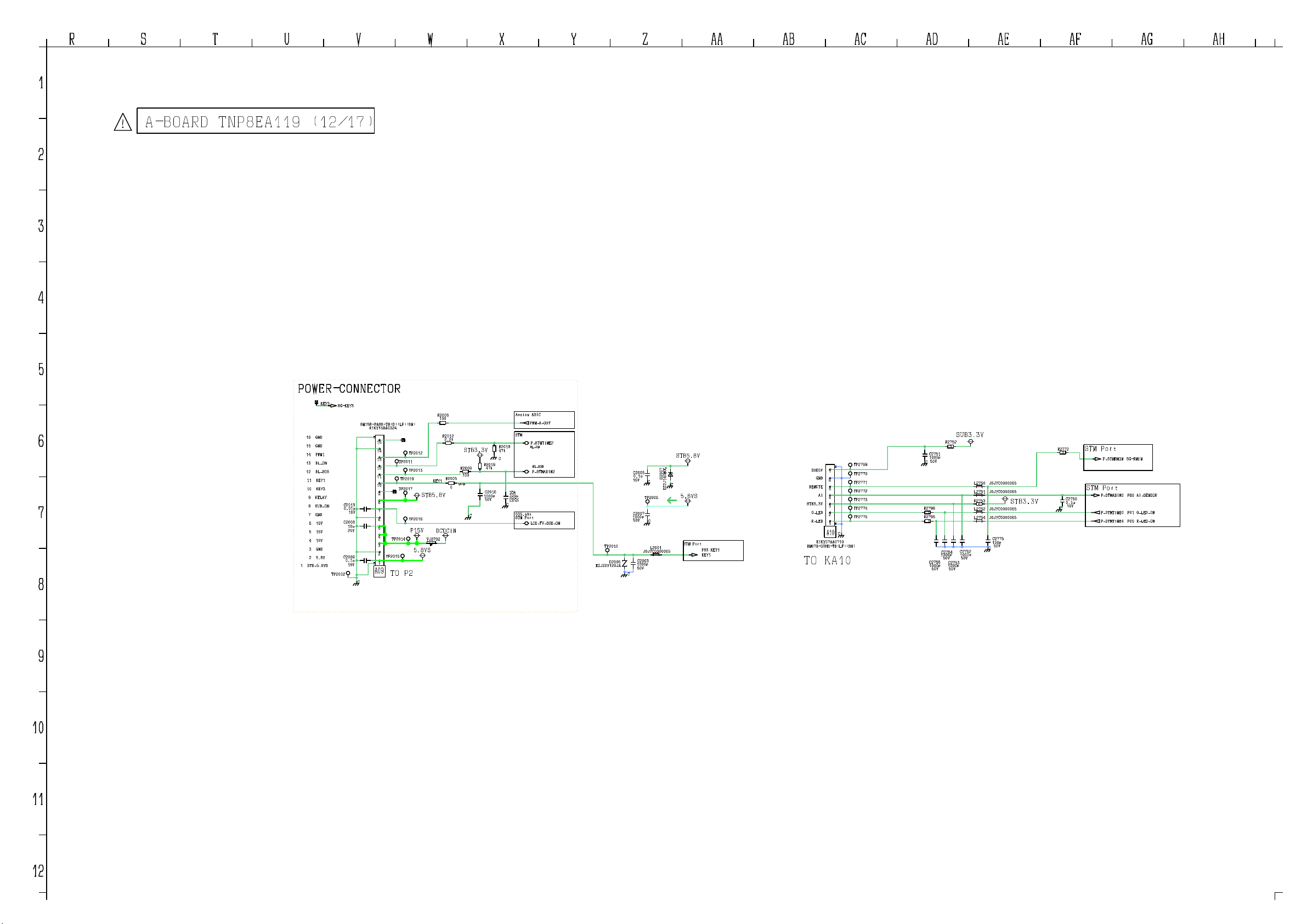

A-BOARD TNP8EA119 (12/17)

I

R S T U V W X Y Z AA AB AC AD AE AF AG AH

50

1

2

3

4

5

POWER-CONNECTOR

KEY3

SG-KEY3

SM15B-PASS-TB(D)(LF)(SN)

6

7

16 GND

15 GND

14 PWM1

13 BL_ON

12 BL_SOS

11 KEY1

10 KEY3

9 RELAY

8 SUB_ON

7 GND

6 16V

5 16V

4 16V

3 GND

2 5.8V

1 STB_5.8VS

TP2002

8

K1KY15BA0324

15

14

13

TP2011

12

11

TP2019

10

TP2017

9

C2013

0.01u

C2008

C2009

8

7

16V

6

10u

5

25V

4

TP2014

3

2

0.1u 16V

TP2015

1

A09

TO P2

C

TP2012

TP2013

TP2016

P15V

5.8VS

STB5.8V

VJ8702

P

R2006

KEY1

DCDCIN

100

R2012

2.2k

STB3.3V

R2009

100

R2005

1.0 x 0.5

0

C

Analog ASIC

PWM_A_OUT

STM

P_STMTIME2

BL_ON

R2018 47k

C

R2019

47k

C2016

1000p

50V

BL_SOS

P_STMADIN2

50V

C2014

1000p

C

005.sht STM Port

LCD_TV_SUB_ON

EZJZ0V120JA

TP2010

C2005

0.1u 16V

C2007 1000p 50V

J0JYC0000065

C2003

D2005

1000p 50V

C

TP2006

STB5.8V

D2007

C

DZ2J140M0L

5.8VS

C

L2001

STM Port

P83 KEY1 KEY1

SUB5V

GND

REMOTE

AI P80 AI_SENSOR

STB3.3V

G_LED

R_LED

K1KY07AA0719

BM07B-GVHS-TB(LF)(SN)

TO KA10

A10

TP2769

7

TP2770

6

TP2771

5

TP2772

4

TP2773

3

TP2774

2

TP2775

1

C

R2796

R2795

SUB3.3V

R2752

0

C2751 1000p

50V

C

L2750 J0JYC0000065

L2751 J0JYC0000065

R2753

0

C2754 1000p

C2755 1000p

50V

L2752 J0JYC0000065

L2754 J0JYC0000065

C2752 1000p

50V

C2753 1000p

50V

STB3.3V

0

C2775 100p

50V

C

R2772

STM Port

0

C2750

0.1u 16V

C

STM Port

P_STMADIN0

P_STMTIME0

P_STMTIME4

P_STMRMIN

SG-RMIN

P01 G_LED_ON

P05 R_LED_ON

9

10

11

12

A B C D E F G H I J K L M N O P Q

51

1

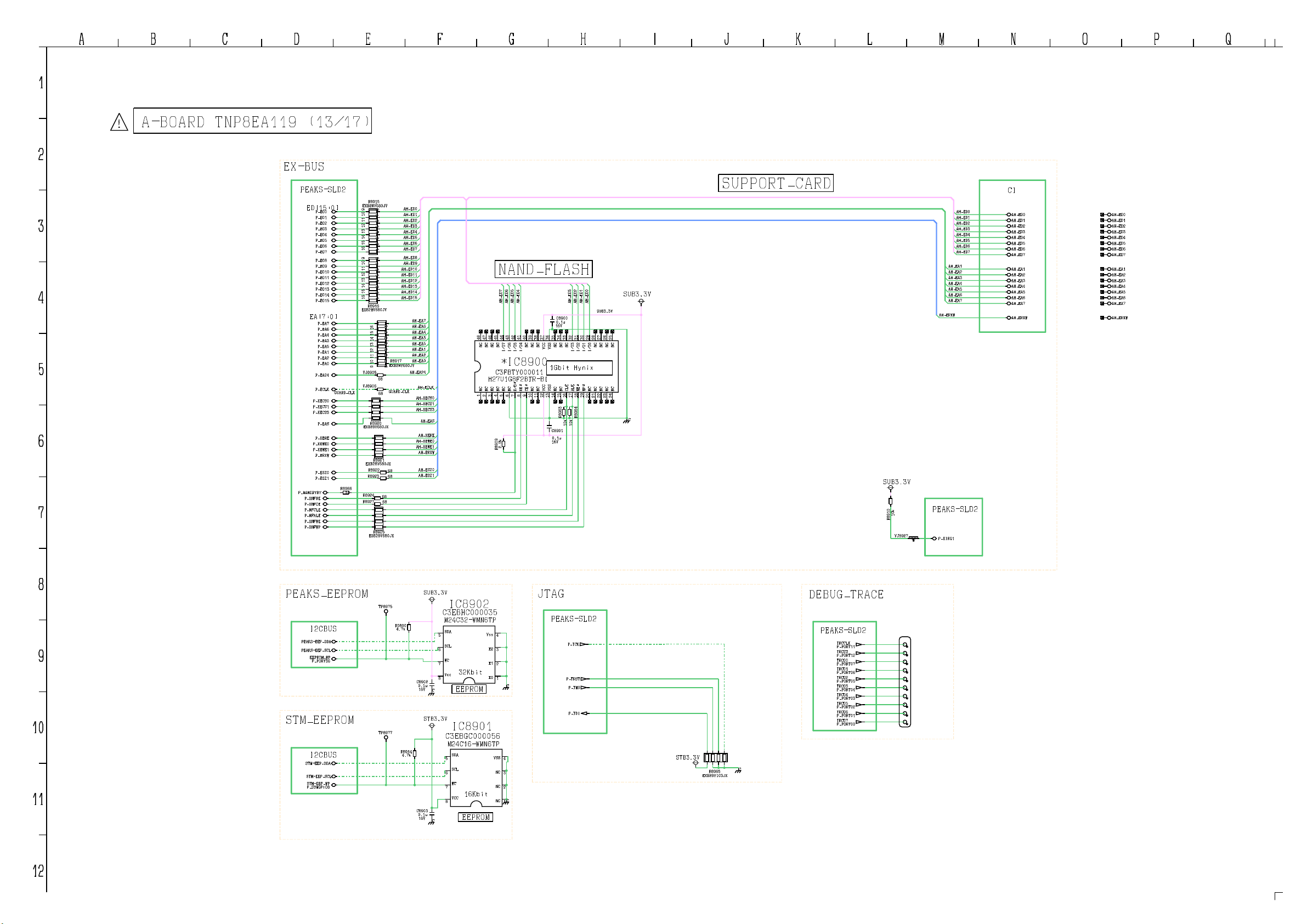

A-BOARD TNP8EA119 (13/17)

I

2

EX-BUS

PEAKS-SLD2

R8915

EXB2HV680JV

GUARD_CLK

R8966

910111213141516

R8916

EXB2HV680JV

VJ8905

VJ8906

R8920

EXB28V680JX

R8922

R8923

0

R8924

R8927

EXB28V680JX

ED[15:0]

P_ED0 P_ED1 P_ED2

P_NANDRYBY

P_XNFRE P_XNFCE P_NFCLE P_NFALE P_XNFWE P_XNFWP

P_ED3 P_ED4 P_ED5 P_ED6 P_ED7

P_ED8 P_ED9 P_ED10 P_ED11 P_ED12 P_ED13 P_ED14 P_ED15

EA[7:0]

P_EA7 P_EA6 P_EA4 P_EA3 P_EA5 P_EA1 P_EA2 P_EA0

P_EA24

P_ECLK

P_XECS0 P_XECS1 P_XECS3

P_EAS

P_XERE P_XEWE0 P_XEWE1

P_ERXW

P_ESZ0

P_ESZ1

3

4

5

6

7

AH_ED0 AH_ED1 AH_ED2 AH_ED3 AH_ED4 AH_ED5 AH_ED6 AH_ED7

1 2 3 4 5 6 7 8

AH_ED8

AH_ED9 AH_ED10 AH_ED11 AH_ED12 AH_ED13 AH_ED14 AH_ED15

1 2 3 4 5 6 7 8

AH_EA7

12345678

AH_EA6 AH_EA4 AH_EA3 AH_EA5 AH_EA1 AH_EA2 AH_EA0

R8917

EXB2HV680JV

9 1011 12 13 1415 16

R8921

R8925

AH_EA24

68

68 68

GUARD_CLK

68 68

AH_ECLK

AH_XECS0 AH_XECS1 AH_XECS3

AH_EAS

AH_XERE AH_XEWE0 AH_XEWE1

AH_ERXW

AH_ESZ0

AH_ESZ1

NAND_FLASH

AH_ED6

AH_ED7

AH_ED4

AH_ED5

45NC46NC47NC48

NC

*IC8900

C3FBTY000011

H27U1G8F2BTR-BI

1NC2NC3NC4NC5NC6NC7

R/B#8RE#9CE#10NC11NC12VCC13VSS14NC15NC16CLE17ALE18WE#19WP#20NC21NC22NC23NC24NC

2.2k

R8909

AH_ED3

AH_ED2

AH_ED0

AH_ED1

C8900

0.1u

16V

33NC34NC35NC36

38NC39NC40NC41

VSS37VCC

I/O442I/O543I/O644I/O7

SUB3.3V

25NC26NC27NC28NC29

I/O030I/O131I/O232I/O3

1Gbit Hynix

R8963

R8964

10k

C8901

0.1u 16V

C

SUPPORT_CARD

SUB3.3V

10k

R8910

VJ8927

S

AH_ED0 AH_ED1 AH_ED2 AH_ED3 AH_ED4 AH_ED5 AH_ED6 AH_ED7

AH_EA1 AH_EA2 AH_EA3 AH_EA4 AH_EA5 AH_EA6 AH_EA7

AH_ERXW

PEAKS-SLD2

P_XIRQ1

CI

AH_ED0 AH_ED1 AH_ED2 AH_ED3 AH_ED4 AH_ED5 AH_ED6 AH_ED7

AH_EA1 AH_EA2 AH_EA3 AH_EA4 AH_EA5 AH_EA6 AH_EA7

AH_ERXW

AH_ED0 AH_ED1 AH_ED2 AH_ED3 AH_ED4 AH_ED5 AH_ED6 AH_ED7

AH_EA1 AH_EA2 AH_EA3 AH_EA4 AH_EA5 AH_EA6 AH_EA7

AH_ERXW

10

11

12

8

PEAKS_EEPROM

TP8975

I2CBUS

PEAKS-EEP_SDA

PEAKS-EEP_SCL

9

EEPROM_WP

P_PORT36

STM_EEPROM

TP8977

I2CBUS

STM-EEP_SDA

STM-EEP_SCL

STM-EEP_WP P_STMGPIO8

SUB3.3V

IC8902

C3EBHC000035

C8902

0.1u

16V

M24C32-WMN6TP

SDA

5

SCL

6

WC

7

Vcc

8

C

32Kbit

EEPROM

Vss

4

E2

3

E1

2

E0

1

R0800

4.7k

STB3.3V

IC8901

C3EBGC000056

R8914

4.7k

M24C16-WMN6TP

SDA

5

SCL

6

WC

7

VCC

8

C8903

0.1u

16V

C

16Kbit

EEPROM

VSS

4

NC

3

NC

2

NC

1

JTAG

DEBUG_TRACE

PEAKS-SLD2

P_TCK

C

P_TRST

P_TMS

P_TDI

STB3.3V

C

R8965

EXB28V103JX

C

TRCCLK P_PORT11

TRCST P_PORT12

TRCD0 P_PORT07

TRCD1 P_PORT06

TRCD2 P_PORT05

TRCD3 P_PORT04

TRCD4 P_PORT03

TRCD5 P_PORT02

TRCD6 P_PORT01

TRCD7 P_PORT00

A B C D E F G H I J K L M N O P Q

52

1

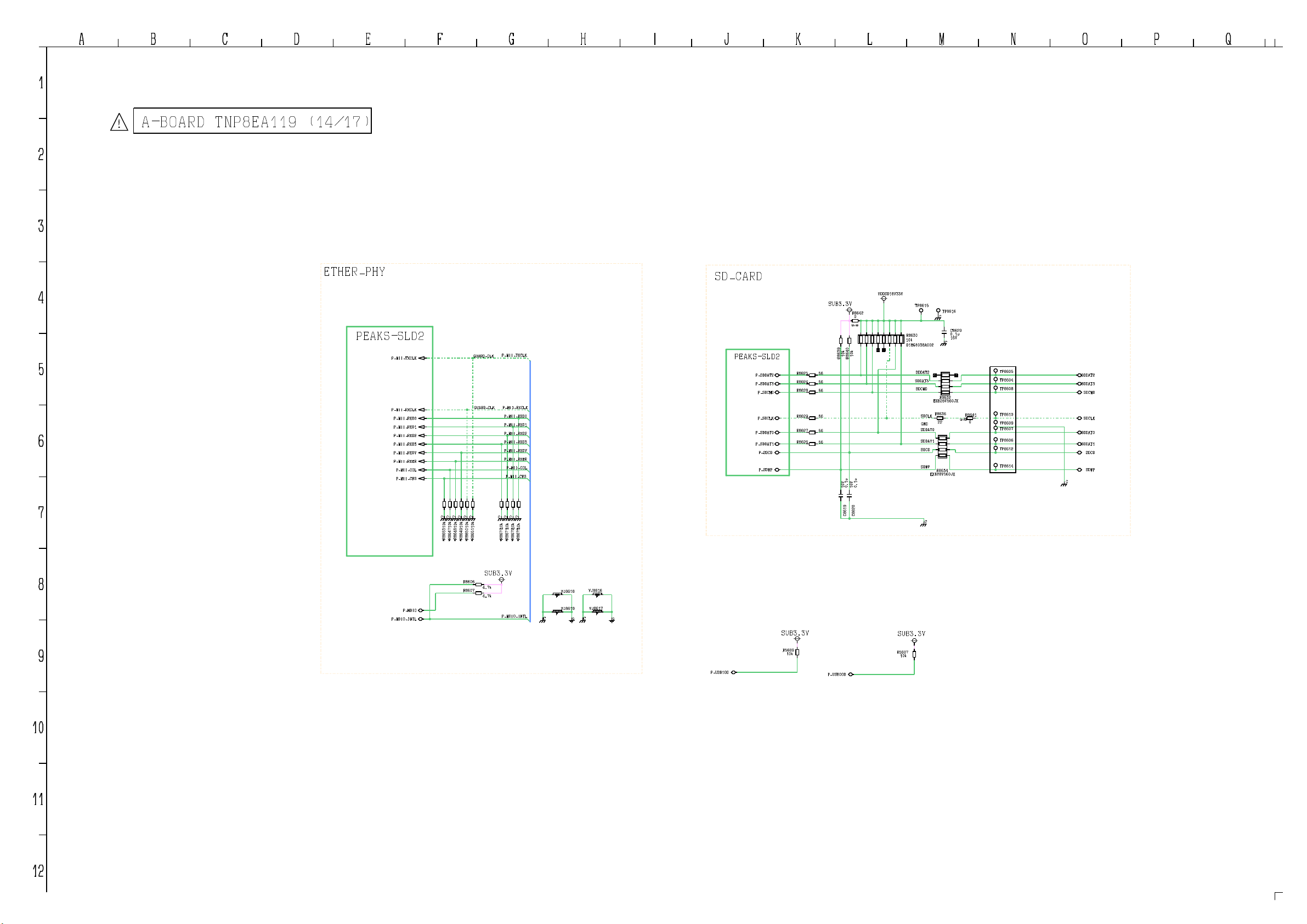

A-BOARD TNP8EA119 (14/17)

I

2

3

ETHER_PHY

4

PEAKS-SLD2

P_MII_TXCLK

GUARD_CLK

5

10k

*R8651

SUB3.3V

4.7k

P_MII_RXCLKGUARD_CLK

P_MII_RXD0

P_MII_RXD1

P_MII_RXD2

P_MII_RXD3

P_MII_RXDV

P_MII_RXER

P_MII_COL

P_MII_CRS

10k

*R8670

*R8671

P_MDIO_INTL

10k

*R8672

10k

*R8673

VJ8616

VJ8618

P

VJ8619

P

C

P

VJ8617

P

C

GG

P_MII_RXCLK

P_MII_RXD0

P_MII_RXD1

P_MII_RXD2

6

7

8

P_MII_RXD3

P_MII_RXDV

P_MII_RXER

P_MII_COL

P_MII_CRS

P_MDIO_INTL

P_MDIO

C C CC C

C C C

C C

10k

*R8648

*R8650

*R8649

*R8653

*R8647

R8606

R8607

9

SD_CARD

P_USB1OD

PEAKS-SLD2

P_SDDAT2

P_SDDAT3

P_SDCMD

P_SDCLK

P_SDDAT0

P_SDDAT1

P_SDCD

P_SDWP

SUB3.3V

R5609

10k

SUB3.3V

10k

R8639

R8625

56

R8624

56

R8628

56

R8629

56

R8627

56

R8626

56

16V

VDDSD18V33V

TP8615

SDDAT2

SDDAT3

SDCMD

SDCLK

GND

SDDAT0

SDDAT1

SDCD

SDWP

C

R8632

EXB28V560JX

R8636

22

R8634

EXB28V560JX

TP8616

C8629

0.1u 16V

C

1.0 x 0.5

TP8605

TP8604

TP8608

R8641

TP8610

0

TP8609 TP8607

TP8606

TP8612

TP8614

SDDAT2

SDDAT3

SDCMD

SDCLK

SDDAT0

SDDAT1

SDCD

SDWP

C

R8642

0

1.6 x 0.8

10k

R8640

0.1u

16V

C8620

C8619

R8630

10k

D1HG1038A002

SUB3.3V

R5607

10k

P_USB0OD

10

11

12

A B C D E F G H I J K L M N O P Q

53

1

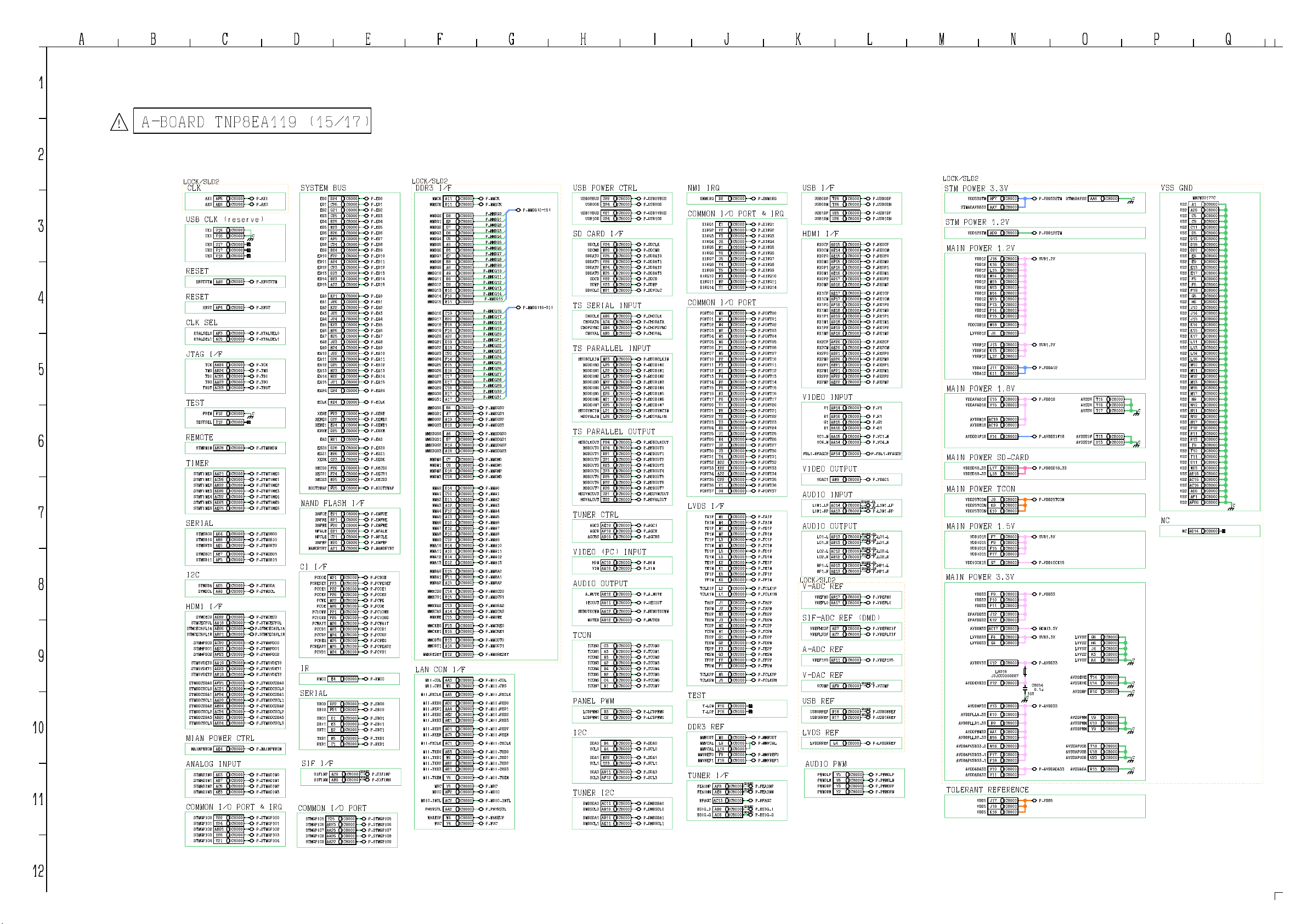

A-BOARD TNP8EA119 (15/17)

I

2

10

11

LOCK/SLD2

CLK

IC8000AF6AXI

P_AXI

IC8000AE6AXO

P_AXO

USB CLK (reserve)

3

IC8000U16UXI IC8000V16UXI

C

IC8000U17UXO IC8000V17UXO IC8000V18UXO

RESET

IC8000AA9XRSTSTM

P_XRSTSTM

4

RESET

IC8000AF4XRST

P_XRST

CLK SEL

IC8000AF3XTALSEL0

P_XTALSEL0

IC8000AC5XTALSEL1

P_XTALSEL1

JTAG I/F

IC8000AA24TCK

P_TCK

IC8000AB24TMS

5

P_TMS

IC8000AC25TDI

P_TDI

IC8000AA23TDO

P_TDO

IC8000AC23TRST

P_TRST

TEST

IC8000R12FPEN

C

IC8000T12TESTSEL

6

REMOTE

IC8000AB26STMRMIN

P_STMRMIN

TIMER

IC8000AA21STMTIME0

P_STMTIME0

IC8000AC26STMTIME1

P_STMTIME1

IC8000AB22STMTIME2

P_STMTIME2

IC8000AD26STMTIME3

P_STMTIME3

IC8000AC22STMTIME4

P_STMTIME4

IC8000AD25STMTIME5

P_STMTIME5

IC8000AE25STMTIME6

7

SERIAL

P_STMTIME6

IC8000AD4STMSBO0

P_STMSBO0

IC8000AB8STMSBI0

P_STMSBI0

IC8000AE5STMSBT0

P_STMSBT0

IC8000AE7STMSBO1

P_STMSBO1

IC8000AF5STMSBI1

P_STMSBI1

I2C

IC8000AD5STMSDA

8

P_STMSDA

IC8000AA8STMSCL

P_STMSCL

HDMI I/F

IC8000AD22STMCEC0

P_STMCEC0

IC8000AA18STMCECPUL

P_STMCECPUL

IC8000AE26STMCECAVL1A IC8000AD7VREFHSIF

P_STMCECAVL1A

IC8000AB21STMCECAVL1B

P_STMCECAVL1B

IC8000AC20STMHPDO0

P_STMHPDO0

IC8000AE23STMHPDO1

P_STMHPDO1

IC8000AF23STMHPDO2

9

P_STMHPDO2

IC8000AA19STM5VDET0

P_STM5VDET0

IC8000AD23STM5VDET1

P_STM5VDET1

IC8000AB19STM5VDET2

P_STM5VDET2

IC8000AF25STMDDCSDA0

P_STMDDCSDA0

IC8000AC21STMDDCSCL0

P_STMDDCSCL0

IC8000AF24STMDDCSDA1

P_STMDDCSDA1

IC8000AA20STMDDCSCL1

P_STMDDCSCL1

IC8000AE24STMDDCSDA2

P_STMDDCSDA2

IC8000AC24STMDDCSCL2

P_STMDDCSCL2

IC8000AB20STMDDCSDA3

P_STMDDCSDA3

IC8000AD24STMDDCSCL3

P_STMDDCSCL3

MIAN POWER CTRL

IC8000AE4MAINPWRON

P_MAINPWRON

ANALOG INPUT

IC8000AD3STMADIN0

P_STMADIN0

IC8000AB7STMADIN1

P_STMADIN1

IC8000AC6STMADIN2

P_STMADIN2

IC8000AE3STMADIN3

P_STMADIN3

COMMON I/O PORT & IRQ

IC8000Y22STMGPIO0

P_STMGPIO0

IC8000Y24STMGPIO1

P_STMGPIO1

IC8000AB25STMGPIO2

P_STMGPIO2

IC8000Y26STMGPIO3

P_STMGPIO3

IC8000Y21STMGPIO4

P_STMGPIO4

SYSTEM BUS

NAND FLASH I/F

CI I/F

IR

SERIAL

SIF I/F

COMMON I/O PORT

IC8000Y25STMGPIO5 IC8000AB23STMGPIO6 IC8000AA25STMGPIO7 IC8000AA26STMGPIO8 IC8000AA22STMGPIO9

IC8000D24ED0

P_ED0

IC8000C26ED1

P_ED1

IC8000G21ED2

P_ED2

IC8000C25ED3

P_ED3

IC8000B25ED4

P_ED4

IC8000E23ED5

P_ED5

IC8000B26ED6

P_ED6

IC8000A25ED7

P_ED7

IC8000C24ED8

P_ED8

IC8000B24ED9

P_ED9

IC8000F22ED10

P_ED10

IC8000A24ED11

P_ED11

IC8000C23ED12

P_ED12

IC8000D23ED13

P_ED13

IC8000B23ED14

P_ED14

IC8000A23ED15

P_ED15

IC8000K21EA0

P_EA0

IC8000J26EA1

P_EA1

IC8000K22EA2

P_EA2 P_EA3

IC8000J24EA4

P_EA4

IC8000K23EA5

P_EA5

IC8000H26EA6

P_EA6

IC8000H25EA7

P_EA7

IC8000J23EA8

P_EA8

IC8000H24EA9

P_EA9

IC8000J22EA10

P_EA10

IC8000G26EA11

P_EA11

IC8000G25EA12

P_EA12

IC8000H23EA13

P_EA13

IC8000H22EA14

P_EA14

IC8000J21EA15

P_EA15

IC8000G24EA24

P_EA24

IC8000K24ECLK

P_ECLK

IC8000F23XERE

P_XERE

IC8000G22XEWE0

P_XEWE0

IC8000E24XEWE1

P_XEWE1

IC8000D25ERXW

P_ERXW

IC8000H21EAS

P_EAS

IC8000D26ESZ0

P_ESZ0

IC8000E26ESZ1

P_ESZ1

IC8000G23XEDK

P_XEDK

IC8000F26XECS0

P_XECS0

IC8000F24XECS1

P_XECS1

IC8000E25XECS3

P_XECS3

IC8000F25BOOTSWAP

P_BOOTSWAP

IC8000E21XNFCE

P_XNFCE

IC8000B21XNFRE

P_XNFRE

IC8000F20XNFWE

P_XNFWE

IC8000D21NFALE

P_NFALE

IC8000C21NFCLE

P_NFCLE

IC8000E20XNFWP

P_XNFWP

IC8000A21NANDRYBY

P_NANDRYBY

IC8000N21PCDOE

P_PCDOE

IC8000P23PCRESET

P_PCRESET

IC8000P22PCCE1

P_PCCE1

IC8000P26PCCE2

P_PCCE2

IC8000N22PCWE

P_PCWE

IC8000N26PCOE

P_PCOE

IC8000P21PCIOWR

P_PCIOWR

IC8000P25PCIORD

P_PCIORD

IC8000M26PCWAIT

P_PCWAIT

IC8000N23PCCD1

P_PCCD1

IC8000M24PCCD2

P_PCCD2

IC8000N25PCREG

P_PCREG

IC8000M25PCREADY

P_PCREADY

IC8000N24PCVS1

P_PCVS1

IC8000E4RMCO

P_RMCO

IC8000D22SBO0

P_SBO0

IC8000F21SBI0

P_SBI0

IC8000D1SBO1

P_SBO1

IC8000E3SBI1

P_SBI1

IC8000E2SBT1

P_SBT1

IC8000E5TXD1

P_TXD1

IC8000C1RXD1

P_RXD1

GUARD

IC8000AC9SIFINP

P_SIFINP

GUARD

IC8000AB9SIFINN

P_SIFINN

P_STMGPIO5 P_STMGPIO6 P_STMGPIO7 P_STMGPIO8 P_STMGPIO9

LOCK/SLD2

DDR3 I/F

LAN CON I/F

USB POWER CTRL

IC8000A11MMCK IC8000B11MMXCK

P_MMXCK

P_MMDQ0

IC8000D8MMDQ0

P_MMDQ1

IC8000E8MMDQ1

P_MMDQ2

IC8000D7MMDQ2

P_MMDQ3

IC8000D6MMDQ3

P_MMDQ4

IC8000C6MMDQ4

P_MMDQ5

IC8000A5MMDQ5

P_MMDQ6

IC8000B5MMDQ6

P_MMDQ7

IC8000E7MMDQ7

P_MMDQ8

IC8000B8MMDQ8

P_MMDQ9

IC8000A8MMDQ9

P_MMDQ10

IC8000A9MMDQ10

P_MMDQ11

IC8000B9MMDQ11

P_MMDQ12

IC8000D9MMDQ12

P_MMDQ13

IC8000E10MMDQ13

P_MMDQ14

IC8000F10MMDQ14

P_MMDQ15

IC8000E11MMDQ15

P_MMDQ16

IC8000C19MMDQ16

P_MMDQ17

IC8000B20MMDQ17

P_MMDQ18

IC8000E18MMDQ18

P_MMDQ19

IC8000F18MMDQ19

P_MMDQ20

IC8000A20MMDQ20

P_MMDQ21

IC8000D19MMDQ21

P_MMDQ22

IC8000E19MMDQ22

P_MMDQ23

IC8000C20MMDQ23

P_MMDQ24

IC8000F14MMDQ24

P_MMDQ25

IC8000E15MMDQ25

P_MMDQ26

IC8000E16MMDQ26

P_MMDQ27

IC8000C17MMDQ27

P_MMDQ28

IC8000D17MMDQ28

P_MMDQ29

IC8000C16MMDQ29

P_MMDQ30

IC8000B17MMDQ30

P_MMDQ31

IC8000A17MMDQ31

IC8000B6MMDQS0

P_MMDQS0

IC8000A7MMDQS1

P_MMDQS1

IC8000A19MMDQS2

P_MMDQS2

IC8000B18MMDQS3

P_MMDQS3

IC8000A6MMXDQS0

P_MMXDQS0

IC8000B7MMXDQS1

P_MMXDQS1

IC8000B19MMXDQS2

P_MMXDQS2

IC8000A18MMXDQS3

P_MMXDQS3

IC8000C7MMDM0

P_MMDM0

IC8000C8MMDM1

P_MMDM1

IC8000D18MMDM2

P_MMDM2

IC8000C18MMDM3

P_MMDM3

IC8000D14MMA0

P_MMA0

IC8000C10MMA1

P_MMA1

IC8000D11MMA2

P_MMA2

IC8000A12MMA3

P_MMA3

IC8000F12MMA4

P_MMA4

IC8000A13MMA5

P_MMA5

IC8000D10MMA6

P_MMA6

IC8000E12MMA7

P_MMA7

IC8000B10MMA8

P_MMA8

IC8000C12MMA9

P_MMA9

IC8000B14MMA10

P_MMA10

IC8000A10MMA11

P_MMA11

IC8000E14MMA12

P_MMA12

IC8000D12MMA13

P_MMA13

IC8000D15MMBA0

P_MMBA0

IC8000F11MMBA1

P_MMBA1

IC8000A15MMBA2

P_MMBA2

IC8000C14MMXCS0

P_MMXCS0

IC8000B15MMXCS1

P_MMXCS1

IC8000C13MMXRAS

P_MMXRAS

IC8000A14MMXCAS

P_MMXCAS

IC8000C15MMXWE

P_MMXWE

IC8000F13MMCKE0

P_MMCKE0

IC8000B16MMCKE1

P_MMCKE1

IC8000B13MMODT0

P_MMODT0

IC8000A16MMODT1

P_MMODT1

IC8000B12MMXRESET

P_MMXRESET

IC8000AA3MII_COL

P_MII_COL

IC8000W5MII_CRS

P_MII_CRS

IC8000AA5MII_RXCLK

P_MII_RXCLK

IC8000AD2MII_RXD0

P_MII_RXD0

IC8000AA4MII_RXD1

P_MII_RXD1

IC8000AE2MII_RXD2

P_MII_RXD2

IC8000AE1MII_RXD3

P_MII_RXD3

IC8000AD1MII_RXDV

P_MII_RXDV

IC8000AC3MII_RXER

P_MII_RXER

IC8000AC1MII_TXCLK

P_MII_TXCLK

IC8000AB3MII_TXD0

P_MII_TXD0

IC8000W6MII_TXD1

P_MII_TXD1

IC8000AB2MII_TXD2

P_MII_TXD2

IC8000AB1MII_TXD3

P_MII_TXD3

IC8000Y6MII_TXEN

P_MII_TXEN

IC8000Y5MDC

P_MDC

IC8000AF2MDIO

P_MDIO

IC8000AC2MDIO_INTL

P_MDIO_INTL

IC8000AA2PHYRSTL

P_PHYRSTL

IC8000W4WAKEUP

P_WAKEUP

IC8000Y4WUC

P_WUC

P_MMDQ[0-15]

P_MMDQ[16-31]

SD CARD I/F

TS SERIAL INPUT

TS PARALLEL INPUT

TS PARALLEL OUTPUT

TUNER CTRL

VIDEO (PC) INPUT

AUDIO OUTPUT

TCON

PANEL PWM

I2C

TUNER I2C

IC8000U22USB0VBUS

P_USB0VBUS

IC8000T24USB0OD

P_USB0OD

IC8000V21USB1VBUS

P_USB1VBUS

IC8000U24USB1OD

P_USB1OD

IC8000V24SDCLK

P_SDCLK

IC8000W26SDCMD

P_SDCMD

IC8000V25SDDAT0

P_SDDAT0

IC8000V26SDDAT1

P_SDDAT1

IC8000W24SDDAT2

P_SDDAT2

IC8000W25SDDAT3

P_SDDAT3

IC8000V22SDCD

P_SDCD

IC8000V23SDWP

P_SDWP

IC8000W21SDVOLC

P_SDVOLC

IC8000AB6CH0CLK

P_CH0CLK

IC8000AC4CH0DATA

P_CH0DATA

IC8000AB4CH0PSYNC

P_CH0PSYNC

IC8000AB5CH0VAL

P_CH0VAL

IC8000M23HS0BCLKIN

P_HS0BCLKIN

IC8000L25HS0DIN0

P_HS0DIN0

IC8000L22HS0DIN1

P_HS0DIN1

IC8000L23HS0DIN2

P_HS0DIN2

IC8000M22HS0DIN3

P_HS0DIN3

IC8000L24HS0DIN4

P_HS0DIN4

IC8000K26HS0DIN5

P_HS0DIN5

IC8000M21HS0DIN6

P_HS0DIN6

IC8000K25HS0DIN7

P_HS0DIN7

IC8000L21HS0SYNCIN

P_HS0SYNCIN

IC8000L26HS0VALIN

P_HS0VALIN

IC8000P24HSBCLKOUT

P_HSBCLKOUT

IC8000R24HSDOUT0

P_HSDOUT0

IC8000R21HSDOUT1

P_HSDOUT1

IC8000T21HSDOUT2

P_HSDOUT2

IC8000R23HSDOUT3

P_HSDOUT3

IC8000T23HSDOUT4

P_HSDOUT4

IC8000R25HSDOUT5

P_HSDOUT5

IC8000R22HSDOUT6

P_HSDOUT6

IC8000R26HSDOUT7

P_HSDOUT7

IC8000U21HSSYNCOUT

P_HSSYNCOUT

IC8000T22HSVALOUT

P_HSVALOUT

IC8000AE10AGCI

P_AGCI

IC8000AF10AGCR

P_AGCR

IC8000AD10AGCBS

P_AGCBS

IC8000AC10HIN

P_HIN

IC8000AA10VIN

P_VIN

IC8000AE12A_MUTE

P_A_MUTE

IC8000AA11IECOUT

P_IECOUT

IC8000AA12NSHUTDOWN

P_NSHUTDOWN

IC8000AD12MUTEB

P_MUTEB

IC8000C3TCON0

P_TCON0

IC8000A3TCON1

P_TCON1

IC8000B3TCON2

P_TCON2

IC8000A2TCON3

P_TCON3

IC8000D4TCON4

P_TCON4

IC8000B2TCON5

P_TCON5

IC8000C4TCON6

P_TCON6

IC8000B1TCON7

P_TCON7

IC8000D3LCDPWM0

P_LCDPWM0

IC8000C2LCDPWM1

P_LCDPWM1

IC8000B4SDA0

P_SDA0

IC8000A4SCL0

P_SCL0

IC8000W22SDA1

P_SDA1

IC8000Y23SCL1

P_SCL1

IC8000AB11SDA3

P_SDA3

IC8000AF12SCL3

P_SCL3

IC8000AC11DMDSDA0

P_DMDSDA0

IC8000AB10DMDSCL0

P_DMDSCL0

IC8000AD11DMDSDA1

P_DMDSDA1

IC8000AE11DMDSCL1

P_DMDSCL1

NMI IRQ

IC8000D2XNMIRQ

COMMON I/O PORT & IRQ

IC8000E1XIRQ1 IC8000V2XIRQ2 IC8000V3XIRQ3 IC8000U6XIRQ4 IC8000W1XIRQ5 IC8000T6XIRQ6 IC8000U5XIRQ7 IC8000V4XIRQ8 IC8000T5XIRQ9 IC8000W3XIRQ10 IC8000W2XIRQ11 IC8000Y1XIRQ14

COMMON I/O PORT

IC8000M6PORT00IC8000J25EA3 IC8000N1PORT01 IC8000N4PORT02 IC8000N2PORT03 IC8000N3PORT04 IC8000N6PORT05 IC8000P1PORT06 IC8000N5PORT07 IC8000P2PORT10 IC8000P3PORT11 IC8000R1PORT12 IC8000P4PORT13 IC8000R2PORT14 IC8000P5PORT15 IC8000R3PORT16 IC8000P6PORT17 IC8000T1PORT20 IC8000R5PORT21 IC8000T2PORT22 IC8000T3PORT23 IC8000R6PORT24 IC8000U1PORT25 IC8000R4PORT26 IC8000U2PORT27 IC8000U3PORT30 IC8000T4PORT31 IC8000B22PORT32 IC8000E22PORT33 IC8000A22PORT34 IC8000C22PORT35 IC8000V1PORT36 IC8000U4PORT37

LVDS I/F

IC8000M5TA1P IC8000M4TA1N IC8000M1TB1P IC8000M2TB1N IC8000L3TC1P IC8000M3TC1N IC8000L5TD1P IC8000L6TD1N IC8000K2TE1P IC8000K1TE1N IC8000K5TF1P IC8000K6TF1N

IC8000L2TCLK1P IC8000L1TCLK1N

IC8000J1TA2P IC8000J2TA2N IC8000H3TB2P IC8000J3TB2N IC8000H2TC2P IC8000H1TC2N IC8000G1TD2P IC8000G2TD2N IC8000F3TE2P IC8000G3TE2N IC8000F2TF2P IC8000F1TF2N

IC8000H5TCLK2P IC8000J5TCLK2N

TEST

IC8000R16T_L0N IC8000P16T_L0P

DDR3 REF

IC8000M9MMRODT IC8000L9MMVCAL IC8000L10MMVCAL IC8000F8MMVREF0 IC8000F16MMVREF1

TUNER I/F

GUARD

IC8000AF8FEAINP

GUARD

IC8000AE8FEAINN

IC8000AC13RFAGC

GUARD

IC8000AD8BSIQ_I

GUARD

IC8000AC8BSIQ_Q

P_XNMIRQ

P_XIRQ1 P_XIRQ2 P_XIRQ3 P_XIRQ4 P_XIRQ5 P_XIRQ6 P_XIRQ7 P_XIRQ8 P_XIRQ9 P_XIRQ10 P_XIRQ11 P_XIRQ14

P_PORT00 P_PORT01 P_PORT02 P_PORT03 P_PORT04 P_PORT05 P_PORT06 P_PORT07 P_PORT10 P_PORT11 P_PORT12 P_PORT13 P_PORT14 P_PORT15 P_PORT16 P_PORT17 P_PORT20 P_PORT21 P_PORT22 P_PORT23 P_PORT24 P_PORT25 P_PORT26 P_PORT27 P_PORT30 P_PORT31 P_PORT32 P_PORT33 P_PORT34 P_PORT35 P_PORT36 P_PORT37

P_TA1P P_TA1N P_TB1P P_TB1N P_TC1P P_TC1N P_TD1P P_TD1N P_TE1P P_TE1N P_TF1P P_TF1N

P_TCLK1P P_TCLK1N

P_TA2P P_TA2N P_TB2P P_TB2N P_TC2P P_TC2N P_TD2P P_TD2N P_TE2P P_TE2N P_TF2P P_TF2N

P_TCLK2P P_TCLK2N

P_MMRODT P_MMVCAL

P_MMVREF0 P_MMVREF1

P_FEAINP P_FEAINN

P_RFAGC

P_BSIQ_I P_BSIQ_Q

USB I/F

IC8000T25USB0DP IC8000T26USB0DN

IC8000U25USB1DP IC8000U26USB1DN

HDMI I/F

IC8000AD15RX0CP IC8000AE14RX0CM IC8000AE15RX0P0 IC8000AF15RX0M0 IC8000AF16RX0P1 IC8000AE16RX0M1 IC8000AD17RX0P2 IC8000AD16RX0M2

IC8000AE17RX1CP IC8000AF17RX1CM IC8000AF18RX1P0 IC8000AE18RX1M0 IC8000AD19RX1P1 IC8000AD18RX1M1 IC8000AE19RX1P2 IC8000AF19RX1M2

IC8000AF20RX2CP IC8000AE20RX2CM IC8000AD21RX2P0 IC8000AD20RX2M0

IC8000AF21RX2M1 IC8000AF22RX2P2 IC8000AE22RX2M2

VIDEO INPUT

IC8000AB14V1

IC8000AB16R1 IC8000AB15G1 IC8000AA16B1

IC8000AA15VC1_N IC8000AA14VC4_N

IC8000AF14FBL1_RFAGC2

VIDEO OUTPUT

IC8000AE9VDAC1

AUDIO INPUT

IC8000AC14LIN1_LP IC8000AA13LIN1_RP

AUDIO OUTPUT

IC8000AF13LO1_L IC8000AB13LO1_R

IC8000AC12LO2_L IC8000AB12LO2_R

IC8000AD13HP1_L

LOCK/SLD2

V-ADC REF

IC8000AE13HP1_R

IC8000AB17VREFH0 IC8000AA17VREFL0

SIF-ADC REF (DMD)

IC8000AC7VREFLSIF

A-ADC REF

IC8000AF11VREF1V5

V-DAC REF

IC8000AF9VCOMP

USB REF

IC8000R18USB0RREF IC8000R17USB1RREF

LVDS REF

IC8000L4LVDSRREF

AUDIO PWM

P_USB0DP P_USB0DN

P_USB1DP P_USB1DN

P_RX0CP P_RX0CM P_RX0P0 P_RX0M0 P_RX0P1 P_RX0M1 P_RX0P2 P_RX0M2

P_RX1CP P_RX1CM P_RX1P0 P_RX1M0 P_RX1P1 P_RX1M1 P_RX1P2 P_RX1M2

P_RX2CP P_RX2CM P_RX2P0 P_RX2M0 P_RX2P1 P_RX2M1 P_RX2P2 P_RX2M2

P_V1

P_R1 P_G1 P_B1

P_VC1_N P_VC4_N

P_FBL1_RFAGC2

P_VDAC1

GUARD_SL

P_LIN1_LP

GUARD_SR

P_LIN1_RP

GUARD_SL

P_LO1_L

GUARD_SR

P_LO1_R

GUARD_SL

P_LO2_L

GUARD_SR

P_LO2_R

GUARD_SL

P_HP1_L

GUARD_SR

P_HP1_R

P_VREFH0 P_VREFL0

P_VREFHSIF P_VREFLSIF

P_VREF1V5

GUARD_V

P_VCOMP

GUARD

P_USB0RREF

GUARD

P_USB1RREF

P_LVDSRREF

IC8000V5PWM0LP

P_PWM0LP

IC8000V6PWM0LN

P_PWM0LN

IC8000Y3PWM0RP

P_PWM0RP

IC8000Y2PWM0RN

P_PWM0RN

LOCK/SLD2

STM POWER 3.3V

STM POWER 1.2V

MAIN POWER 1.2V

MAIN POWER 1.8V

MAIN POWER SD_CARD

MAIN POWER TCON

MAIN POWER 1.5V

MAIN POWER 3.3V

J0JCC0000287

TOLERANT REFERENCE

VSS GND

IC8000AF7VDD33STM

IC8000AA7STMADAVDD33

IC8000AD9VDD12STM

IC8000J16VDD12 IC8000K16VDD12 IC8000L15VDD12 IC8000M14VDD12 IC8000M15VDD12 IC8000N13VDD12 IC8000N14VDD12 IC8000N15VDD12 IC8000P13VDD12 IC8000P14VDD12 IC8000P15VDD12

IC8000M18VDDUSB12

IC8000J6LVVDD12

IC8000J13VDDR12 IC8000K13VDDR12 IC8000L12VDDR12

IC8000J11VDDA12 IC8000K11VDDA12

IC8000U15VDDAVAD18 IC8000V15VDDAVAD18

IC8000AC18AVDDH18 IC8000AC19AVDDH18

IC8000V14AVDDSIF18

IC8000L17VDDSD18_33 IC8000L18VDDSD18_33

IC8000J9VDD25TCON IC8000K9VDD25TCON IC8000K10VDD25TCON

P_VDD33STMP_MMCK

P_VDD12STM

SUB1.2V

P_VDDA12

P_VDD18

P_AVDDSIF18

P_VDDSD18_33

P_VDD25TCON

IC8000AA6STMADAVSS

C

IC8000T15AVSSV IC8000T16AVSSV IC8000T17AVSSV

C

IC8000T13AVSSSIF IC8000U13AVSSSIF

C

MN2WS0177C

A1VSS

IC8000 IC8000A26VSS IC8000C5VSS IC8000C9VSS IC8000C11VSS IC8000D5VSS IC8000D13VSS IC8000D16VSS IC8000D20VSS IC8000E6VSS IC8000E9VSS IC8000E13VSS IC8000E17VSS IC8000F5VSS IC8000F6VSS IC8000F19VSS IC8000G5VSS IC8000H6VSS IC8000J10VSS IC8000J14VSS IC8000J15VSS IC8000K14VSS IC8000K15VSS IC8000K17VSS IC8000L11VSS IC8000L13VSS IC8000L14VSS IC8000L16VSS IC8000M10VSSIC8000AE21RX2P1 IC8000M11VSS IC8000M12VSS IC8000M13VSS IC8000M16VSS IC8000M17VSS IC8000N9VSS IC8000N10VSS IC8000N11VSS IC8000N12VSS IC8000N17VSS IC8000P12VSS IC8000R11VSS IC8000R13VSS IC8000T9VSS IC8000T10VSS IC8000T11VSS IC8000U11VSS IC8000W23VSS IC8000AB18VSS IC8000AC15VSS IC8000AC16VSS IC8000AD6VSS IC8000AF1VSS IC8000AF26VSS

C

NC

IC8000F7VDDIO15 IC8000F9VDDIO15 IC8000F15VDDIO15 IC8000F17VDDIO15

IC8000G7VDDIOCK15

IC8000P9VDD33 IC8000P10VDD33 IC8000P11VDD33

IC8000J12DPAVDD33 IC8000K12DPAVDD33

IC8000AC17AVDDH33

IC8000F4LVVDD33 IC8000G4LVVDD33

IC8000U12AVDDV33

L8016

IC8000V12AVDDEVE33

IC8000V13AVDDHP33

IC8000R10AVDDPLLA_33

IC8000R9AVDDPLLD1_33

IC8000AA1AVDDPWM33 IC8000N16AVDDPLLD2_33

IC8000N18AVDDAPUSB33_0

IC8000P17AVDDAPUSB33_1 IC8000P18AVDDAPUSB33_1

IC8000V10AVDDADA33 IC8000V11AVDDADA33

IC8000J17VDD5 IC8000J18VDD5 IC8000K18VDD5

SUB1.5V

P_VDDIOCK15

P_VDD33

HDMI3.3V

SUB3.3V

P_AVDD33

C8054

0.1u

16V

C

P_AVDD33

P_AVDDADA33

P_VDD5

IC8000G6LVVSS IC8000H4LVVSS IC8000J4LVVSS IC8000K3LVVSS IC8000K4LVVSS

C

IC8000T14AVSSEVE IC8000U14AVSSEVE

C

IC8000R14AVSSHP

C

IC8000U9AVSSPWM IC8000U10AVSSPWM IC8000V9AVSSPWM

C

IC8000T18AVSSAPUSB IC8000U18AVSSAPUSB IC8000U23AVSSAPUSB

C

IC8000R15AVSSADA

C

IC8000AD14NC

12

A B C D E F G H I J K L M N O P Q

54

1

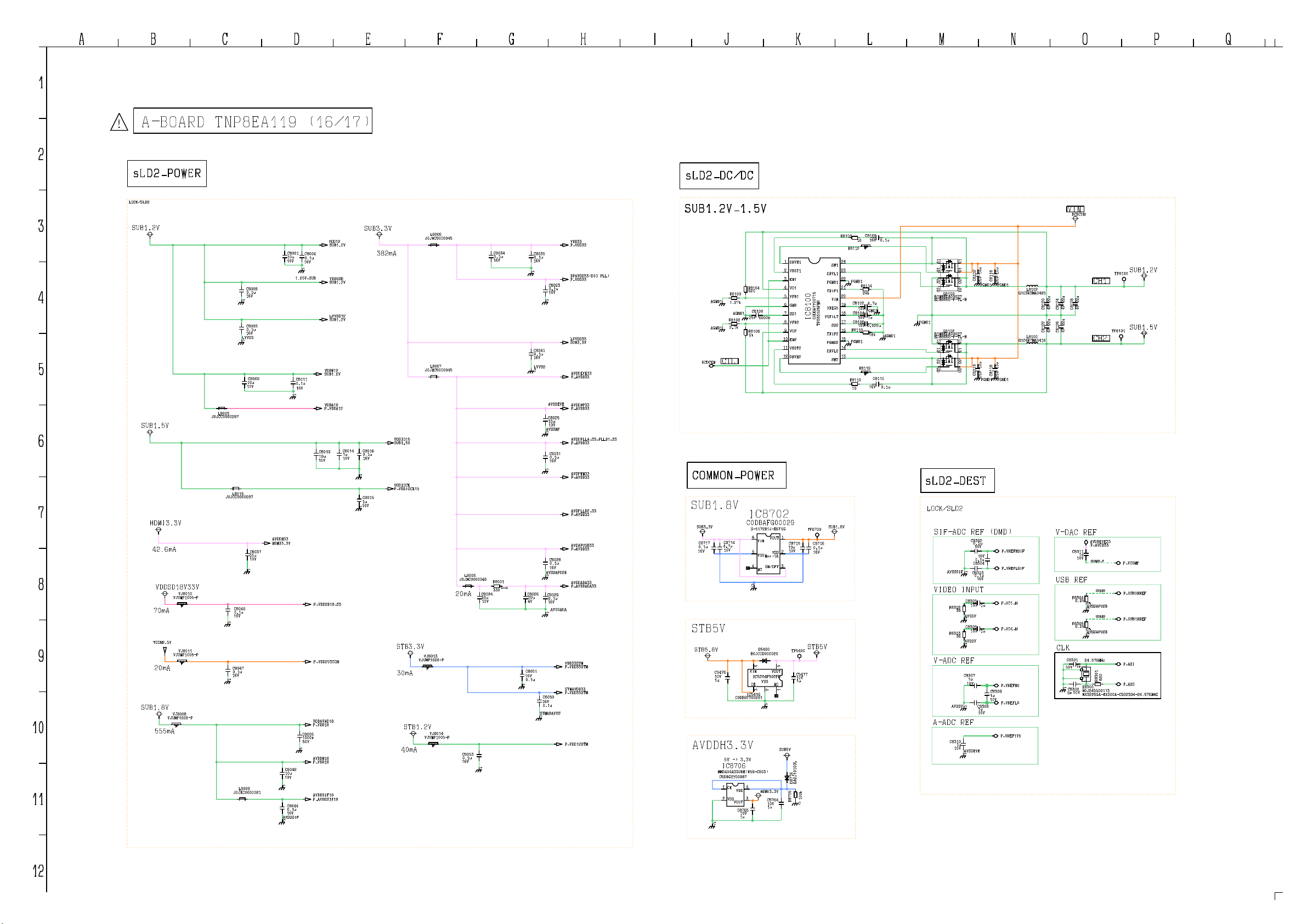

A-BOARD TNP8EA119 (16/17)

I

2

sLD2_POWER

sLD2_DC/DC

10

11

LOCK/SLD2

SUB1.2V_1.5V

3

4

5

SUB1.2V

L8003

J0JCC0000287

VDD12

C8001 10u 10V

C8006

0.1u 16V

C

C8005

0.1u

16V LVVSS C

C8009 10u

10V

1.25V_SUB

C8011

0.1u 16V

C

SUB1.2V

C8004

0.1u

16V

C

VDDUSB SUB1.2V

LVVDD12 SUB1.2V

VDDR12 SUB1.2V

VDDA12 P_VDDA12

SUB1.5V

6

L8015

J0JCC0000287

7

8

9

HDMI3.3V

42.6mA

SUB1.8V

VDDSD18V33V

VJUMP1005-P

70mA

TCON2.5V

VJUMP1005-P

20mA

VJ8008

VJUMP1608-P

555mA

AVDDH33 HDMI3.3V

C8037 10u 10V

C

VJ8010

P

VJ8011

P

C8046

0.1u 16V

C

C8047

0.1u 16V

C

J0JKC0000021

C8042 10u 10V

L8009

C

AVSSSIF C

C8019 10u

10V

P_VDDSD18_33

P_VDD25TCON

VDDAVAD18 P_VDD18

C8055 1000p 50V

C

AVDDH18 P_VDD18

AVDDSIF18 P_AVDDSIF18

C8044

0.1u 16V

SUB3.3V

382mA

VDDIO15

C8014

1u 10V

C

SUB1.5V

C8016

0.1u 16V

VDDIOCK P_VDDIOCK15

C8015 1u 10V

STB3.3V

30mA

40mA

STB1.2V

J0JHC0000045

VJ8013

VJUMP1608-P

P

VJUMP1005-P

L8006

L8007

VJ8014

C8108

R8108

16V

0.1u

V5FILT

DRVL1

PGND1

TRIP1

VREG5

TRIP2

PGND2

DRVL2

SUB1.8V

10

P

R8112

24

SW1

23

22

PGND1

R8114

21

24k

20

VIN

C8102

4.7u

19

10V

PGND1

18

C8104

1u16V

17

C8106

SS2

16V

0.022u

R8118

16

18k

15

PGND1

14

13

SW2

R8110

AGND1

R8116

P

C8110

16V

0.1u

10

PGND1

S1G1S2G2

Q8100 B1MBEDA00027 ECH8666-P-TL-H

Q8102 B1MBEDA00027 ECH8666-P-TL-H

S1G1S2G2

10u25V

10u

C8112

C8116

25V PGND1

PGND1

D2 D2 D1 D1

10u25V

D2 D2 D1 D1

C8114

C8118

PGND1

L8102

G1C3R3MA0425

L8100

G1C4R7MA0416

10u

25V PGND1

sLD2_DEST

LOCK/SLD2

SIF-ADC REF (DMD)

VIDEO INPUT

V-ADC REF

A-ADC REF

AVSSSIF

R8302

R8303

C8310

C8302

0.1u 16V

P_VREFHSIF

16V

0.1u

C8304

C

C8305

36

AVSSV C

C8306

36

AVSSV C

C8307

1u

10V

AVSSV

C

1u

10V

AVSSEVE C

P_VREFLSIF

C8303

0.1u

16V

P_VC1_N

1u10V

P_VC4_N

1u10V

P_VREFH0

C8309 1u 10V

P_VREFL0

C8308

1u 10V

P_VREF1V5

VDD33

C8023

0.1u

16V

C

AVSSEVE

C8025

10u

10V AVSSHP C

C8031

0.1u 16V

C

C8028

0.1u 16V

AVSSAPUSB C

C8029

0.1u

16V

AVSSADA

C

P_VDD33

DPAVDD33(DIO PLL) P_VDD33

LVVDD33 SUB3.3V

AVDDEVE33 P_AVDD33

AVDDHP33 P_AVDD33

AVDDPLLA_33_PLLD1_33 P_AVDD33

AVDPWM33 P_AVDD33

AVDPLLD2_33 P_AVDD33

AVDAPUSB33 P_AVDD33

AVDDADA33 P_AVDDADA33

R8100

AGND1

1.27k

AGND1

R8102

2.1k

AGND1

DCDCEN

CTL

COMMON_POWER

SUB1.8V

SUB3.3V

C8714

C8717

4.7u

0.1u 10V

16V

R8104 620

C8100

25V

6800p

R8106 2k

IC8702

C0DBAFG00029

S-1172B1J-E6T1G

6

VOUT

VIN

5

VSS

Max:1A

4

ON/OFF

NC

C

1

DRVH1

2

VBST1

3

EN1

4

VO1

5

VFB1

6

GND

7

SS1

C0DBAYY00715

IC8100

8

VFB2

9

10

11

12

1

2

3

TPS53125PWR

VO2

EN2

VBST2

DRVH2

TP8700

C8715

C8716

10u

0.1u

10V

16V

J0JHC0000045

20mA

C8034

0.1u

16V

L8005

R8001

1.0 x 0.5

330 C8024 10u 10V

C8035

0.1u

16V

C

C8041

0.1u

16V

LVVSS C

C8026

22u

4V

STB5V

TP5400

5

C5477 10V 1u

1NC2

SUB5V

D8716

DA2J10100L

100k

R8755

C

CE

VSS

C0DBGYY00281

VDD

VOUT

C8765

10V 1u

B0JCCD000020

VIN

XC6204F502PR

CE

IC5416

4

3

D5480

4

3

VSS

HDMI3.3V

VOUT

C

C8764

10V 1u

STB5.8V

VDD33STM

C8050 16V

0.1u

STMADAVSS C

P_VDD33STM

STMAVDD33 P_VDD33STM

P_VDD12STM

C5476 10V 1u

AVDDH3.3V

5V -> 3.3V

IC8706

MM3404A33URE(R59-C803)

C0DBGYY00887

1

2

C

C8051 16V

0.1u

C

P

C8053

0.1u 16V

C

22u

4V

C8120

22u

4V

C8122

VIN

DCDCIN

22u

4V

C8124

C8128

22u

4V

C8126

V-DAC REF

C8311

10V

USB REF

R8304

6.2k

R8305

6.2k

CLK

C8301

7p

50V

C

C8300

50V

6p

TP8100

CH1

22u

4V

TP8101

CH2

AVDDEVE33

P_AVDD33

1u

GUARD_V

GUARD

1%

AVSSAPUSB C

GUARD

1%

AVSSAPUSB C

24.576MHz

680

R8301

X8300 H0J245500113 NX3225GA-EXS00A-CG02394-24.576MHZ

SUB1.2V

SUB1.5V

P_VCOMP

P_USB0RREF

P_USB1RREF

P_AXI

P_AXO

12

A B C D E F G H I J K L M N O P Q

55

1

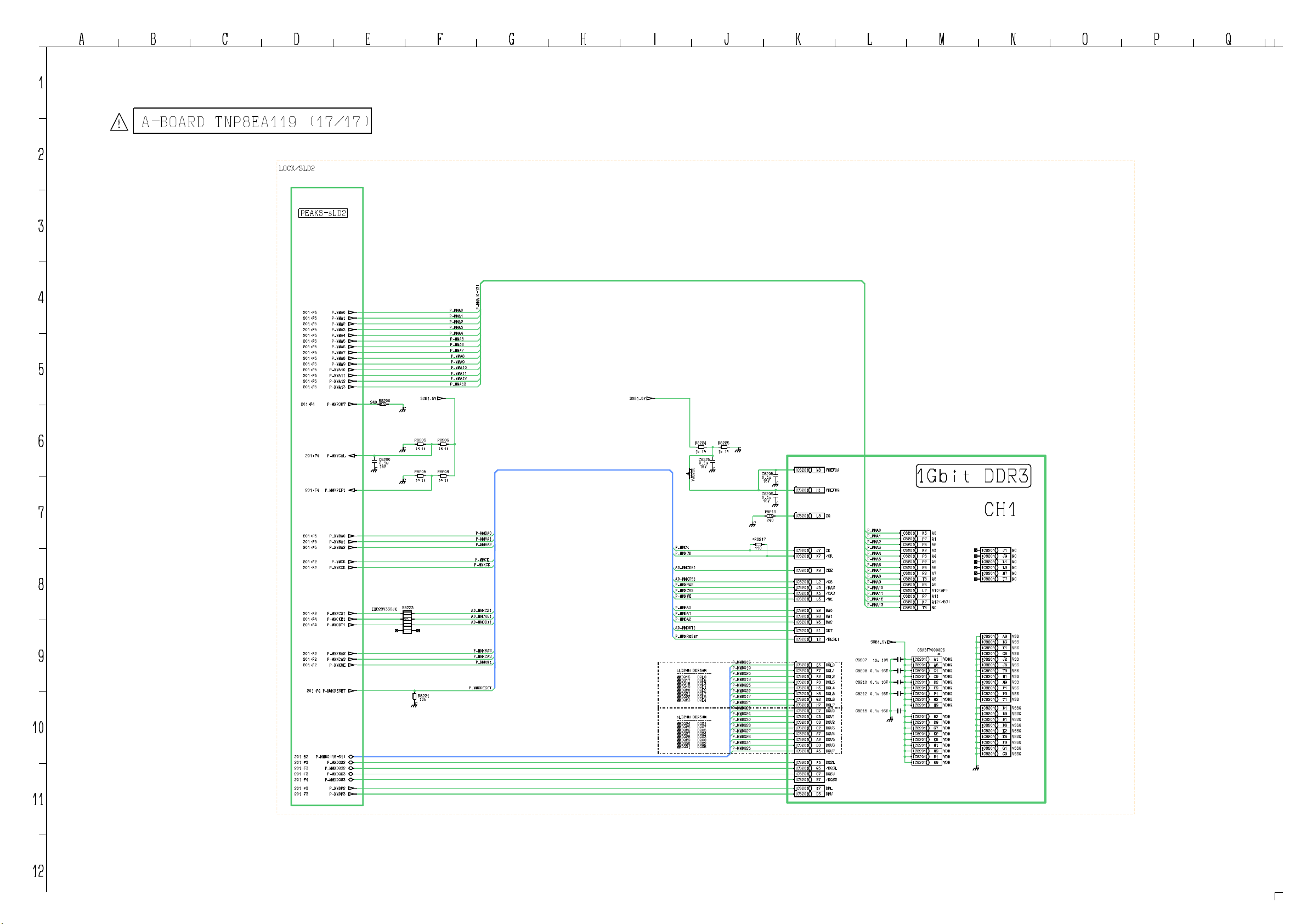

A-BOARD TNP8EA119 (17/17)

I

10

11

2

LOCK/SLD2

PEAKS-sLD2

3

4

P_MMA0201:F5 P_MMA1201:F5 P_MMA2201:F5 P_MMA3201:F5 P_MMA4201:F5 P_MMA5201:F5 P_MMA6201:F5 P_MMA7201:F5 P_MMA8201:F5 P_MMA9201:F5

5

6

P_MMA10201:F5 P_MMA11201:F5 P_MMA12201:F5 P_MMA13201:F5

R8200

240

P_MMRODT201:F4

P_MMVCAL201:F4

P_MMVREF1201:F4

1%

C8200

0.1u 16V

C

SUB1.5V

C

R8206

R8203

1%

C C

C

1k

R8208

R8205

1%

1k

7

P_MMBA0201:F5 P_MMBA1201:F5 P_MMBA2201:F5

P_MMCK201:F2

P_MMXCK201:F2

8

R8223 P_MMXCS1201:F2 P_MMCKE1201:F4 P_MMODT1201:F4

P_MMXRAS201:F2

9

P_MMXCAS201:F2

P_MMXWE201:F2

P_MMXRESET201:F4

P_MMDQ[16-31]201:E2

P_MMDQS2201:F3

P_MMXDQS2201:F3

P_MMDQS3201:F3

P_MMXDQS3201:F4

P_MMDM2201:F3 P_MMDM3201:F3

EXB28V330JX

33

R8221

10k

C

P_MMA0 P_MMA1 P_MMA2 P_MMA3 P_MMA4 P_MMA5 P_MMA6 P_MMA7

P_MMA8 P_MMA9 P_MMA10 P_MMA11 P_MMA12

P_MMA13

P_MMBA0 P_MMBA1 P_MMBA2

P_MMCK P_MMXCK

AD_MMXCS1 AD_MMCKE1 AD_MMODT1

P_MMXRAS P_MMXCAS

P_MMXWE

P_MMXRESET

P_MMA[0-13]

SUB1.5V

P

P_MMCK P_MMXCK

AD_MMCKE1

AD_MMXCS1 P_MMXRAS P_MMXCAS P_MMXWE

P_MMBA0 P_MMBA1 P_MMBA2

AD_MMODT1

P_MMXRESET

sLD2 DDR3

--------------MMDQ16 DQL0 MMDQ17 DQL6 MMDQ18 DQL3 MMDQ19 DQL1 MMDQ20 DQL2 MMDQ21 DQL7 MMDQ22 DQL5 MMDQ23 DQL4

sLD2 DDR3

--------------MMDQ24 DQU1 MMDQ25 DQU7 MMDQ26 DQU5 MMDQ27 DQU4 MMDQ28 DQU3 MMDQ29 DQU0 MMDQ30 DQU2 MMDQ31 DQU6

R8224

1k

VJ8205

R8225

1%

1k

C8225

0.1u 16V

C

P_MMDQ16 P_MMDQ19 P_MMDQ20 P_MMDQ18 P_MMDQ23 P_MMDQ22 P_MMDQ17 P_MMDQ21 P_MMDQ29 P_MMDQ24 P_MMDQ30 P_MMDQ28 P_MMDQ27 P_MMDQ26 P_MMDQ31 P_MMDQ25

C

*R8217

C8205

0.1u

C8206

0.1u

110

16V

R8219

1%

240

C

IC8201=M8 VREFCA

IC8201=H1 VREFDQ

IC8201=L8 ZQ

IC8201=J7 CK IC8201=K7 /CK

IC8201=K9 CKE

IC8201=L2 /CS IC8201=J3 /RAS IC8201=K3 /CAS IC8201=L3 /WE

IC8201=M2 BA0 IC8201=N8 BA1 IC8201=M3 BA2

IC8201=K1 ODT

IC8201=T2 /RESET

IC8201=E3 DQL0 IC8201=F7 DQL1 IC8201=F2 DQL2 IC8201=F8 DQL3 IC8201=H3 DQL4 IC8201=H8 DQL5 IC8201=G2 DQL6 IC8201=H7 DQL7 IC8201=D7 DQU0 IC8201=C3 DQU1 IC8201=C8 DQU2 IC8201=C2 DQU3 IC8201=A7 DQU4 IC8201=A2 DQU5 IC8201=B8 DQU6 IC8201=A3 DQU7

IC8201=F3 DQSL IC8201=G3 /DQSL IC8201=C7 DQSU IC8201=B7 /DQSU

IC8201=E7 DML IC8201=D3 DMU

1Gbit DDR3

CH1

P_MMA0

IC8201=N3 A0

P_MMA1

IC8201=P7 A1

P_MMA2

IC8201=P3 A2

P_MMA3

IC8201=N2 A3

P_MMA4

IC8201=P8 A4

P_MMA5

IC8201=P2 A5

P_MMA6

IC8201=R8 A6

P_MMA7

IC8201=R2 A7

P_MMA8

IC8201=T8 A8

P_MMA9

IC8201=R3 A9

P_MMA10

IC8201=L7 A10(AP)

P_MMA11

IC8201=R7 A11

P_MMA12

IC8201=N7 A12(/BC)

P_MMA13

IC8201=T3 NC

SUB1.5V

C8207

10V

10u

16V

0.1u

C8208

16V

0.1u

C8210

16V

0.1u

C8212

16V

0.1u

C8215

C

C3ABTY000026

=

IC8201

A1 VDDQ IC8201=A8 VDDQ IC8201=C1 VDDQ IC8201=C9 VDDQ IC8201=D2 VDDQ IC8201=E9 VDDQ IC8201=F1 VDDQ IC8201=H2 VDDQ IC8201=H9 VDDQ

IC8201=B2 VDD IC8201=D9 VDD IC8201=G7 VDD IC8201=K2 VDD IC8201=K8 VDD IC8201=N1 VDD IC8201=N9 VDD IC8201=R1 VDD IC8201=R9 VDD

IC8201=J1 NC IC8201=J9 NC IC8201=L1 NC IC8201=L9 NC IC8201=M7 NC IC8201=T7 NC

IC8201=A9 VSS IC8201=B3 VSS IC8201=E1 VSS IC8201=G8 VSS IC8201=J2 VSS IC8201=J8 VSS IC8201=T9 VSS IC8201=M1 VSS IC8201=M9 VSS IC8201=P1 VSS IC8201=P9 VSS IC8201=T1 VSS

IC8201=B1 VSSQ IC8201=B9 VSSQ IC8201=D1 VSSQ IC8201=D8 VSSQ IC8201=E2 VSSQ IC8201=E8 VSSQ IC8201=F9 VSSQ IC8201=G1 VSSQ IC8201=G9 VSSQ

C

12

A B C D E F G H I J K L M N O P Q

56

1

L7209

C7213 470p

1kV

*

S

1

<

8

FB

IC7201

COMP

C0DBBYY00033

RT

FA5590N-A2-TE1

RTZC

C7220

470p

1kV

8

C7209

VCC

50V

0.1u

7

OUT

6

GND

5

IS

C7201

50V

2200p

JS7203

0

<

*Q7201

B1CERR000057

47

D7203

B0JAME000091

B0BC02500002

TK12A60D(LS1PAV2,Q

D7209

D7204

B0JAME000091

R7209

100k

R7208

22

1/2W

R7205 390

R7207

R7210

0.22

1W

T P d C i j

<

D7205

* *

B0HASR000018

FMN-1106SLF638D

L7201 EXCELDR35V

<

J0JKB0000034

*

2

JS7210

0

R7201

R7202

0.22

1W

<

R7240

JS7201

0

1.5M

1%

3.2 x 1.6

R7241

1.5M

1%

3.2 x 1.6

R7242

1.5M

1%

3.2 x 1.6

R7219

750k

1%

R7243

680k

1%

R7244

51k

1%

R7215

12k

1%

R7216

33k

1%

R7235

4.7k

1%

0.22

1W

D7208

C7221

D7207

1000p

DZ2J068M0L

50V

C7218

1

0.01u 50V

2.0 x 1.25

R7387

2.0 x 1.25

R7388

2.0 x 1.25

R7389

DA2J10100L

1.6k

TP7203

TP7201TP7205

+

1.5k

1.6k

R7231 100k

R7393 100

2.0 x 1.25

EXCELSA39V

TP7204

R7234

10k

*C7301

F2A2W8200011 82u 450V

R7232

4.7k

Q7202

B1HFCFA00020

L7208

EXCELSA39V

1W

D7333

B0JAME000058

B0JAME000126

R7381 0.221WR7380 0.22

C7219

0.22u 50V

L7207

H1

R7233

10k

H1

25V

EXCELDR35V

J0JKB0000034

*T7201

G4DYA0000289

*

2

3

NC

NP

NCNCNCNCNC

4

567

1

2

3

4

C7207

R7206

0.01u 39k

50V

D7202

B0ADCJ000100

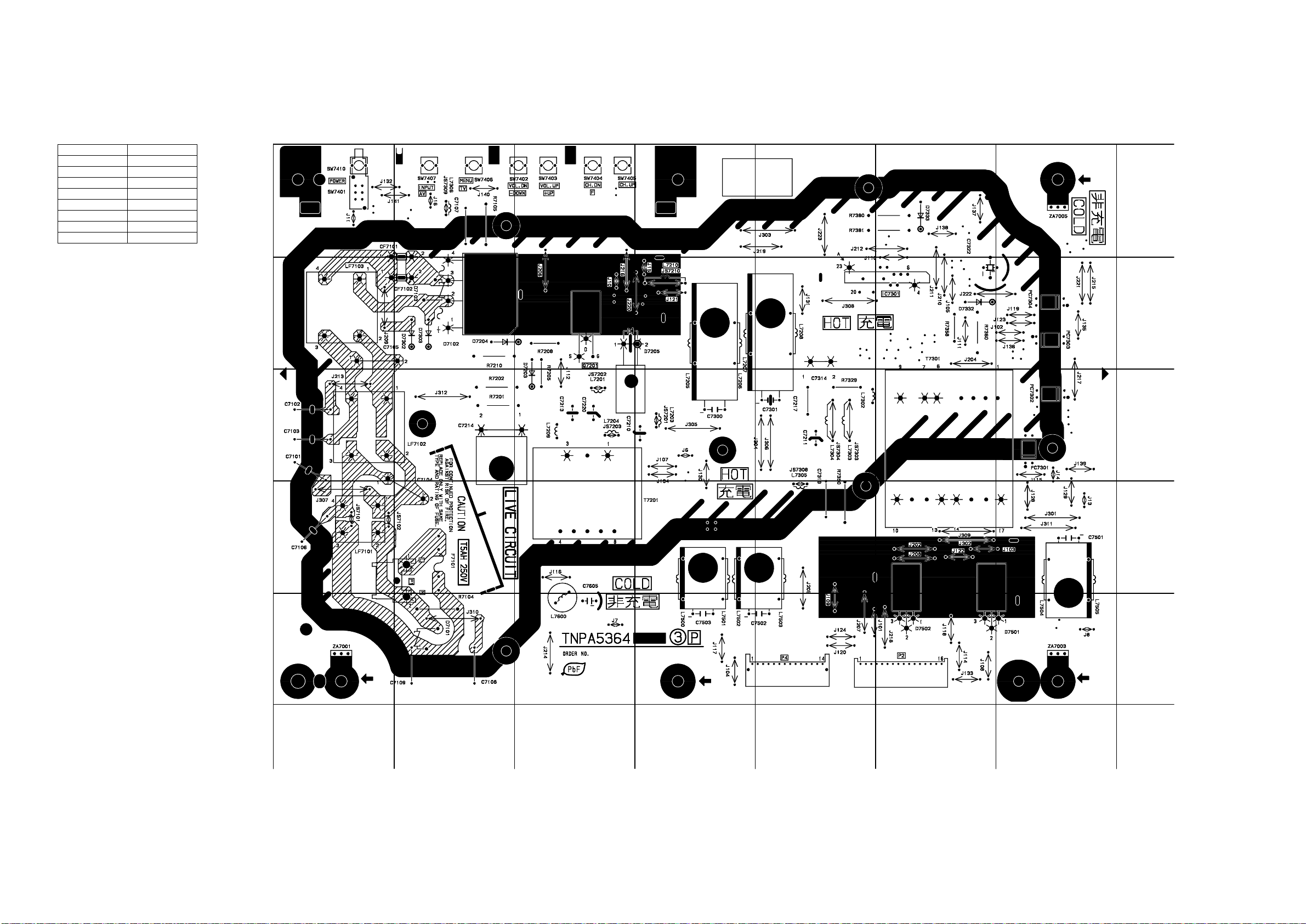

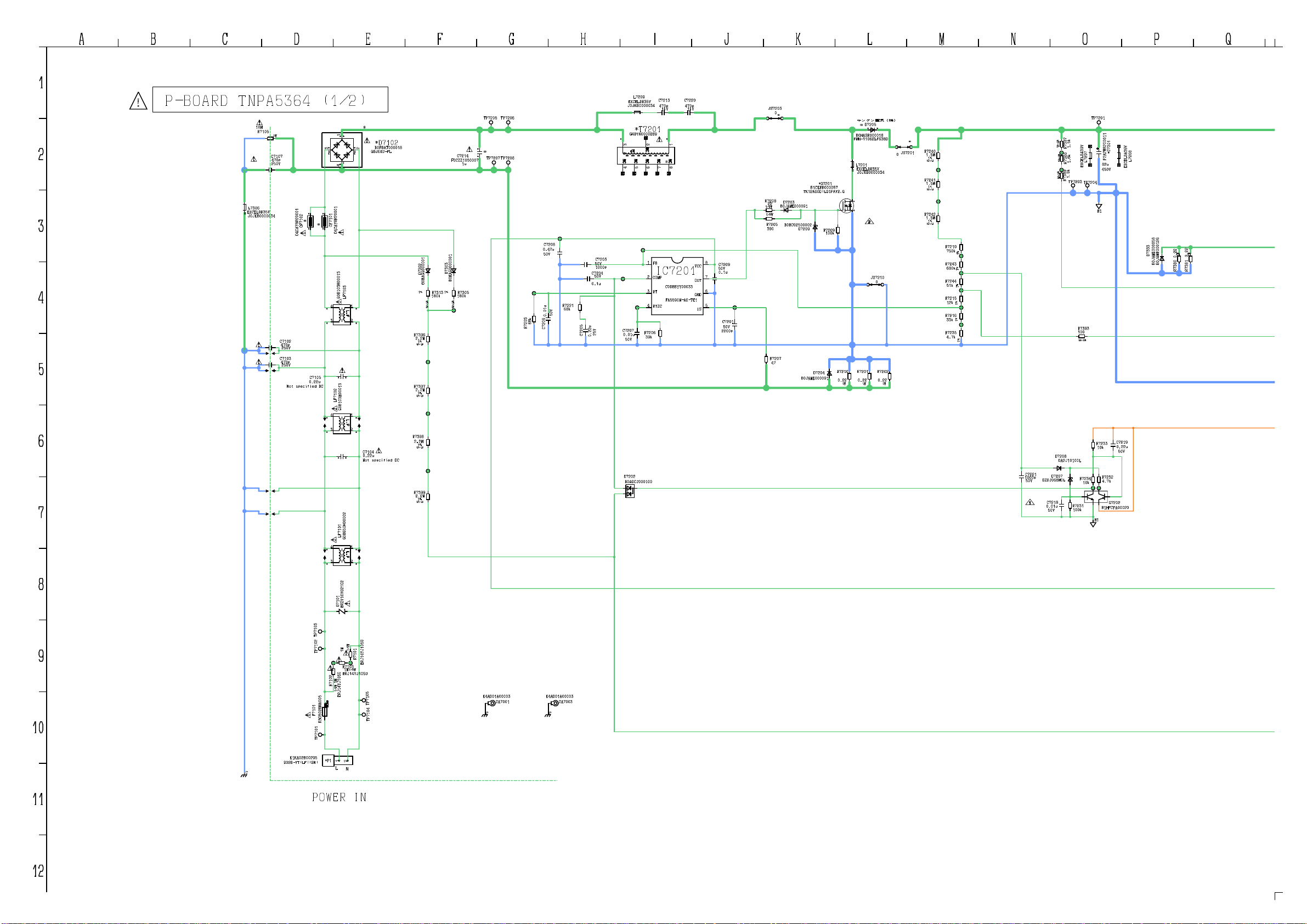

P-BOARD TNPA5364 (1/2)

I

S

10M

R7105

1W

*

3

<

CF7102

D4CAY8R20001

S

0.22u

`

=

CF7101

* *

4

*

3

*

C7105

4

*

3

*

2

S

L7306

EXCELDR35V

<

J0JKB0000034

C7107 470p 250V

3

4

C7102

470p

S

250V

C7103

470p

S

250V

5

Not specified DC

6

+

1

*

-

*

4

D4CAY8R20001

S

G0B103H00013

LF7103

S

* *

LF7102

G0B103H00013

S

* *

*

`

1

*

2

*

1

*

2

*

<

S

2

GBJ6KU-FL

C7104

0.22u Not specified DC

*D7102

B0FBAT000018

S

R7398

R7396

2.2M

3.2 x 1.6

R7397

2.2M

3.2 x 1.6

2.2M

3.2 x 1.6

R7399

2.2M

3.2 x 1.6

D7302

1%

B0HAGQ000001

R7313 180k

2.0 x 1.25

D7303

1%

C7214

F0CZZ1050007

1u

B0HAGQ000001

R7305

180k

2.0 x 1.25

S

TP7206

<

* *

TP7207

TP7208

C7208

0.47u 50V

50V

0.01u

68k

R7203

C7206

C7203 50V 1000p

C7204

50V

0.1u

R7221

68k

C7205

0.22u

7

LF7101

G0B650H00002

S

1

4

*

L.FL.FL.F

2

3

*

10

11

12

8

D7101

S

ERZV10V621C2

TP7103

1/2W

1M

TP7102

S

R7101

9

K1KA02B00295

C

S02B-VT(LF)(SN)

S

1M

R7102

1/2W

ERJ14YJ105U

NEED

HOLDER

F7101

S

K5D502BNA005

TP7101

1

*P1

L

POWER IN

R7103

1/2W

1M

ERJ14YJ105U

2

N

ERJ14YJ105U

TP7105

TP7104

K4AD01A00003

ZA7001

K4AD01A00003

CC

ZA7003

R S T U V W X Y Z AA AB AC AD AE AF AG AH

S

57

*SW7402

EVQ11G05R

24V

*R7407

0

<

PUSH

C

4.7u

16V

0.47u 50V

30k

D7507

B0ADCJ000100

Q7503

B1CHRE000005

TPC8116-H(T2LMAT,Q

TP7513

Q7504

B1CHRE000005

TPC8116-H(T2LMAT,Q

TP7518

TP7517

TP7516

TP7519

R7516

C7513

15k

R7518

15k

*C7514

R7517

15k

*R7519

16V

TP7512

PA7504 K5H502Y00004 CCP2B100TTE

*SW7401

K0F122A00203

K5H502YA0063 CCP2B100DTTE

*R7527

15k

*PA7503

*C7523

*R7528

25V

15k

1u

*Q7507

B1ABCF000231

C

*JS7402

*JS7404

0

R7532

R7531

10k

*Q7506

B1CHRE000005

TPC8116-H(T2LMAT,Q

2.0 x 1.25

*R7529

4.7k

2.0 x 1.25

*R7530 10k

0

TP7515

C7521

TP7502

TP7508

TP7506

TP7505

50V

0.1u

TP7501

TP7514

TP7511

TP7510

TP7509

24V

14

24V

13

24V

12

24V

11

24V

10

GND

9

GND

8

GND

7

GND

6

GND

5

BL_SOS

4

BL_ON

3

<

2

PWM

1

P4

S14B-PASK-2(LF)(SN)

K1KA14BA0311

P4 to LD4

GND

16

GND

15

PWM

14

BL_ON

13

BL_SOS

12

KEY1

11

USA KEY3

10

USA RELAY

9

TV_SUB_ON

8

GND

7

16V

6

16V

5

16V

4

GND

3

TUNER6V

2

USA 5VS

/ ASIA NC

1

P2

K1KY16BA0311 104108-1610

10k

0

*JS7502

2

TP7503

TP7504

P2 to A09

L7505

EXCELSA39V

*SW7403

C

*R7409

14.3k

*R7402

6.65k

EVQ11G05R

R7515

18.2k

1%

R7513

3.32k

1%

10

NS16-2

11 12

NS16-1

13

14

NS24-2

15 16

NP4

NS24-1

17

MM1431CURE(R59-A806)

*R7408

7.15k

*R7406

*SW7407

*

2.0 x 1.25

R7502

1.74k

EVQ11G05R

C

1k

1%

D7502

B0JBSL000047

***

D7501

B0JBSL000047

IC7502

C0DBZMC00006

*SW7406

EVQ11G05R

F2A1E1820027

EXCELSA39V

L7504

EXCELSA39V

R7501

1k

*SW7404

EVQ11G05R

+

*C7502

1800u

L7502

2.0 x 1.25

+

ANODE

CATHODE

3

25V

*C7501 1800u

35V

F2A1V1820032

C7516

0.1u 50V

4

1NC2

REFERENCE

L7503

EXCELSA39V

R7514

10k

1

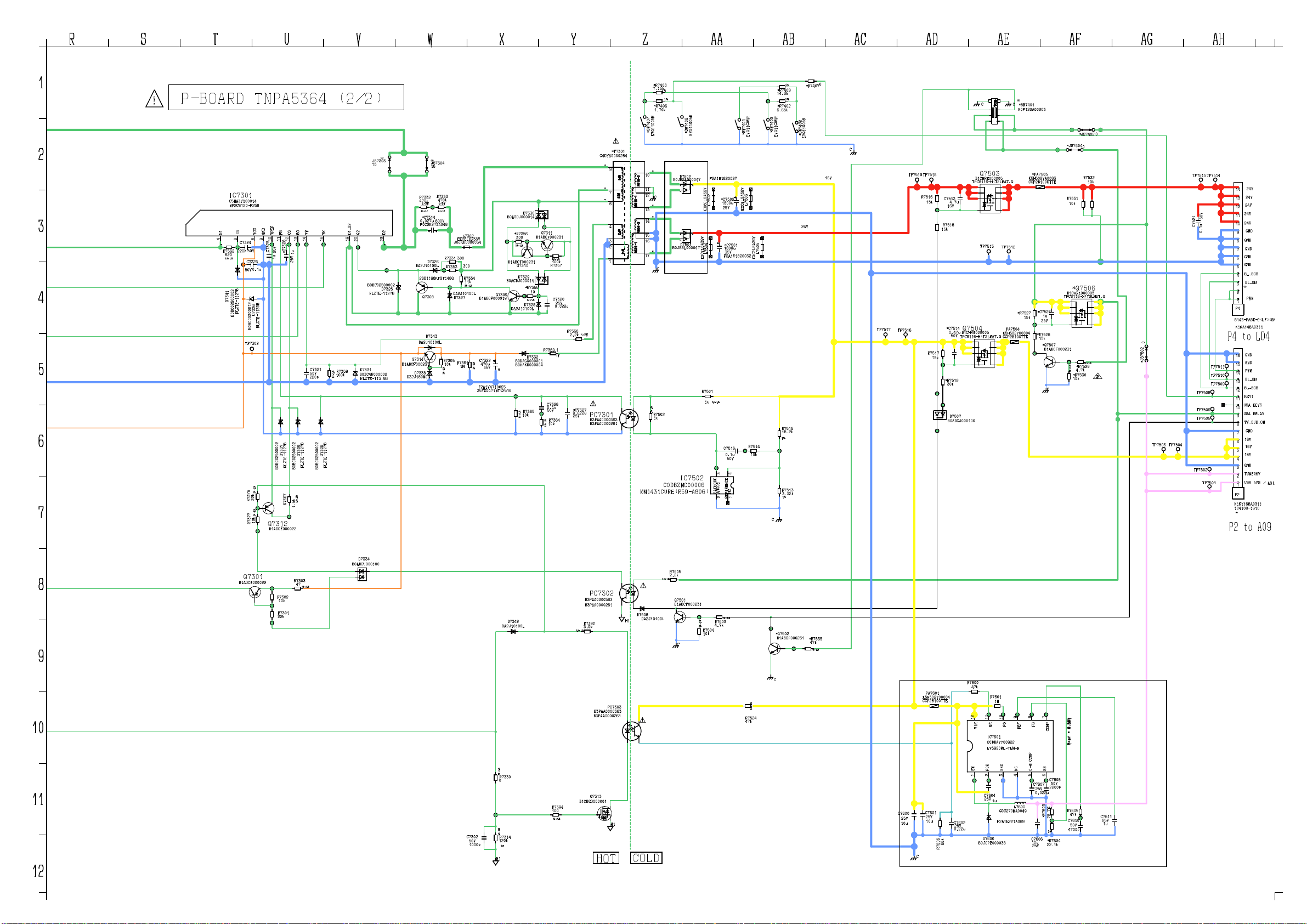

P-BOARD TNPA5364 (2/2)

I

*T7301

G4DYA0000284

*

9

NP1

*

NP2

7

*

6

4

NP3

3 2

1

1/2W

2.2k

S

*C7327

0.022u

PC7301

25V

B3PAA0000363 B3PAA0000261

19

D1_S220G2

B0BC02500002

RLZTE-1127B

D7331 B0BC4R000002 RLZTE-113.9B

JS7303 15

<

D2

23

*

D7325

Q7314

B1ABCF000231

DZ2J180M0L

R7332 470k

1/2W

4.5 x 3.2

*C7314

0.027u F0C2K273A046

DA2J10100L

2SB1198KFST146Q

Q7308

D7343

DA2J10100L

D7335

< JS7304 15

R7333

470k

1/2W

4.5 x 3.2

800V

* *

D7326

R7331 300

R7353

R7395

10k

2.0 x 1.25

L7302

EXCELDR35V

J0JKB0000034

300

R7354 11k

2.0 x 1.25

DA2J10100L D7327

R7361

1M

B1ABGF000019

C7322

470u

35V

2.0 x 1.25

F2A1V4710023

35YXG471MT12516

D7330

B0ACDJ000014

Q7311

*R7356

B1ABCF000231

300

2.0 x 1.25

100k

R7357

*R7355

10

C7320

2.0 x 1.25

25V

D7328

0.022u

R7358

R7360 1

1W

D7332

C7326

0.1u 50V

R7365

10k

R7364

10k

2.0 x 1.25

B1ABCF000231

Q7310

D7329

B0ACDJ000014

Q7309

DA2J10100L

+

B0HAGQ000001 B0HAKR000004

=

2

IC7301

C5HAZYY00014 MP2C6120-F238

3

4

5

S1

4

*

R7362

820

2.0 x 1.25

D7341

6IS8

C7324

220p

50V

RLZTE-1127B

B0BC02500002

TP7302

50V

C7323

0.1u

B0BC03300012

VCC9GND10VREF11FB12CS13BO14VW16VH

C7325

25V

*C7328

1u

25V

D7336

RLZTE-1133B

C7321 50V 220p

2.0 x 1.25

R7359 100k

6

D7339

RLZTE-1127B

B0BC02500002

2.0 x 1.25

1.5k

D7338

RLZTE-1127B

B0BC02500002

D7337

RLZTE-1127B

B0BC02500002

2.0 x 1.25

22k

R7376

7

R7377

10k

2.0 x 1.25

Q7312

B1ADCE000022

R7367

10

11

12

D7334

B0ADCJ000100

Q7301

8

B1ADCE000022

R7303

47

2.0 x 1.25

R7302

10k

R7301 22k

D7342

DA2J10100L

2.0 x 1.25

PC7302

B3PAA0000363 B3PAA0000261

R7392

3.9k

H1

S

D7508

DA2J10100L

2.0 x 1.25

R7505

2.2k

Q7501 B1ABCF000231

2.0 x 1.25

R7503

4.7k

2.0 x 1.25

R7504

10k

C

*Q7502

B1ABCF000231

*R7535

47k

2.0 x 1.25

9

C

PA7601

K5H502Y00004

PC7303

B3PAA0000363

B3PAA0000261

2.0 x 1.25

R7330 0

Q7313

B1CBGD000001

R7394 100

2.0 x 1.25

C7302

2.0 x 1.25

R7314 120k

50V

1000p

1%

H1

HOT

S

H1

COLD

2.0 x 1.25

R7524 47k

CCP2B100TTE

C7601

C7600

25V

10u

C

R7600

47k

R7601

1M

7

8FB9

10PG11EN12

VIN

IC7601 C0DBAYY00922

LV5990ML-TLM-H

1SW2

C7604 25V

C7602

25V

0.22u

D7600

68k

R7606

B0JCPE000038

REF

PDR3GND4NC5C-HICCUP6SS

C7607

25V

1u

G0C270MA0049

F2A1E221A089

0.022u

L7600

C7606 10u

25V

1%

*R7603

*R7604

COMP

Vref = 0.50V

C7608

50V

2200p

R7605

47k

78.7k

1%

22.1k

C7611

C7610

4700p

25V

50V

1u

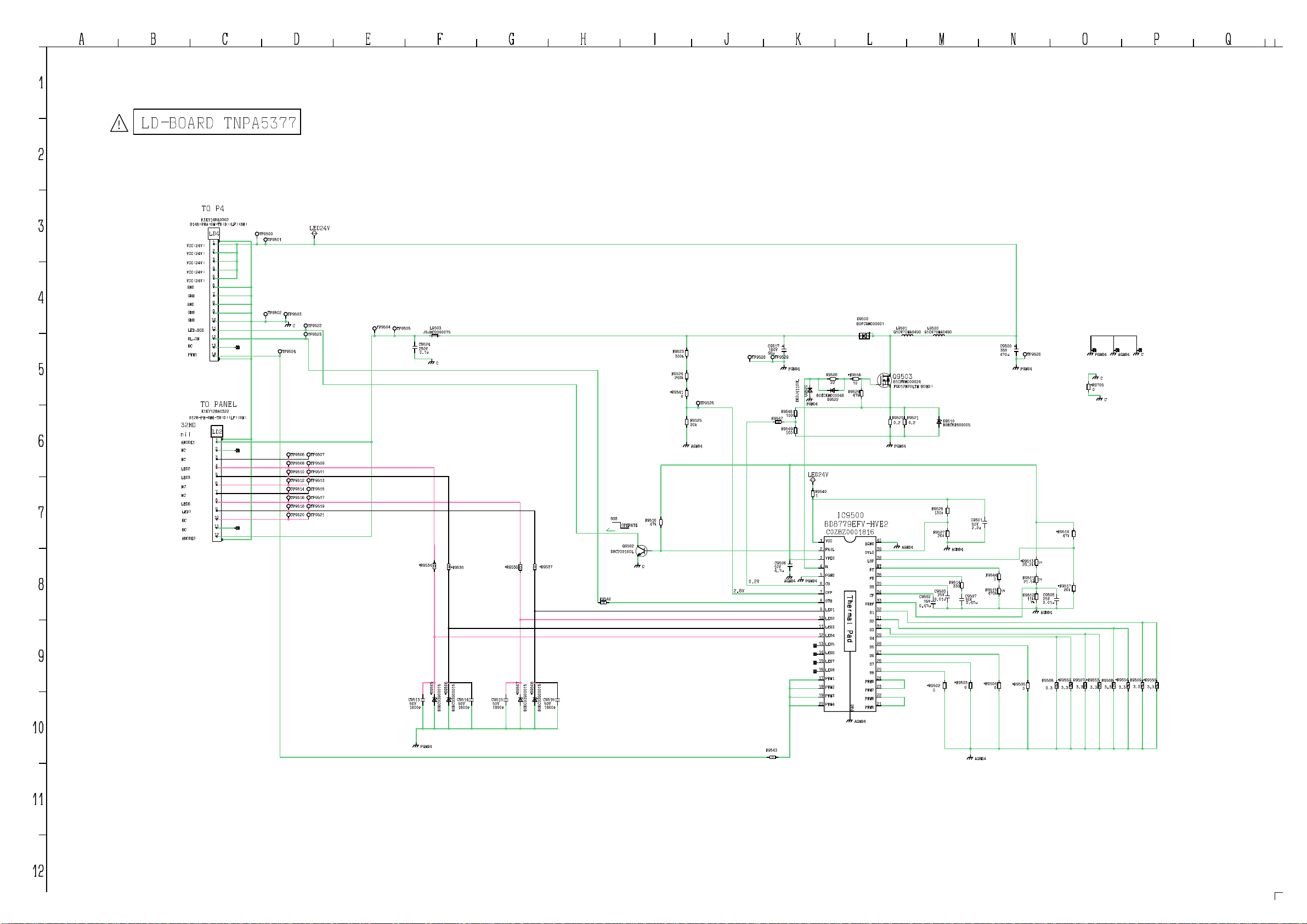

LD-BOARD TNPA5377

I

10

58

A B C D E F G H I J K L M N O P Q

1

2

TO P4

K1KY14BA0302

3

4

S14B-PHA-SM-TB(D)(LF)(SN)

LD4

1

VCC(24V)

2

VCC(24V)

3

VCC(24V)

4

VCC(24V)

5

VCC(24V)

6

GND

7

GND

8

GND

9

GND

10

GND

11

LED_SOS

12

BL_ON

13

NC

14

PWM1

TP9500

TP9501

TP9502

5

TO PANEL

K1KY12BA0322

S12B-PH-SM4-TB(D)(LF)(SN)

32HD

LD2

nil

6

7

ANODE1

NC

LED2

LED3

NC

LED6

LED7

NC

ANODE2

1

2

3

4

5

6

7

8

9

10

11

12

8

9

TP9503

C

TP9524

TP9506 TP9507

TP9508 TP9509

TP9510 TP9511

TP9512 TP9513

TP9514 TP9515

TP9516

TP9518

TP9520

LED24V

TP9522

TP9523

TP9517

TP9519

TP9521

TP9504

TP9505

D9500

J0JHC0000075

C9524 250V

0.1u

L9503

+

C9517

R9523

*R9541

300k

R9524

240k

0

TP9525

R9525 20k

AGND4

C

160V

56u

TP9528 TP9529

R9547

PGND4

D9520

B0ECKM000048

DB2J41100L

PGND4

R9548

100

0

R9549

100

B0FCAM000001

R9528

*R9556

22

10

R9529

47k

D9522

G1C470MA0490

Q9503

B1CFRM000024

R9520

0.2

L9501

FQD12N20LTM(ROHS)

R9521

0.2

PGND4

L9500

G1C470MA0490

D9510 B0BC6R600005

+

C9500 35V

TP9526

470u

PGND4

*R9705

AGND4

PGND4

C

0

C

LED24V

R9540 1

R9526

130k

R9527

AGND4

C9503

C9502

0.01u

16V

0.47u

*R9502

0

C9501

50V

20k

25V

2.2u

AGND4

*R9513

23.2k

R9511

0

1%

R9512

*R9505

0

330

*R9503

R9544

R9515

470k C9507 16V

0.47u

*R9504

0

AGND4

R9514

*R9516

47k

1%

21.5k *R9517

20k

C9505

11k

25V

1%

0.01u

AGND4

*R9554

R9509

R9507

*R9552

*R9553

R9506

1%

3.3

R9508

1%

3.3

*R9555

1%

3.3

SOS

DSC200100L

*R9534

0

*R9535

*D9505

*D9506

B0BC03900015

C9514

50V 1800p

B0BC03900015

C9513 50V 1800p

PGND4

*R9536

C9515

50V 1800p

0

*D9507

*D9508

B0BC03900015

*R95370

C9516

50V 1800p

B0BC03900015

R9542

0

OPERATE

Q9502

R9510

47k

C

C9506 10V

4.7u

0.2V

AGND4

2.8V

R9543

0

BD8779EFV-HVE2

1

VCC

2

FAIL

3

VREG

4

N

5

PGND

PGND4

6

CS

7

OVP

8

STB

9

LED1

10

LED2

11

LED3

12

LED4

13

LED5

14

LED6

15

LED7

16

LED8

17

PWM1

18

PWM2

19

PWM3

20

PWM4

IC9500

C0ZBZ0001816

Thermal Pad

PAD

40

AGND

39

UVLO

38

LSP

37

41

RT

36

FB

35

SS

34

CP

33

VREF

32

S1

31

S2

30

S3

29

S4

28

S5

27

S6

26

S7

25

S8

24

PWM8

23

PWM7

22

PWM6

21

PWM5

AGND4

11

12

A B C D E F G H I J K L M N O P Q

59

1

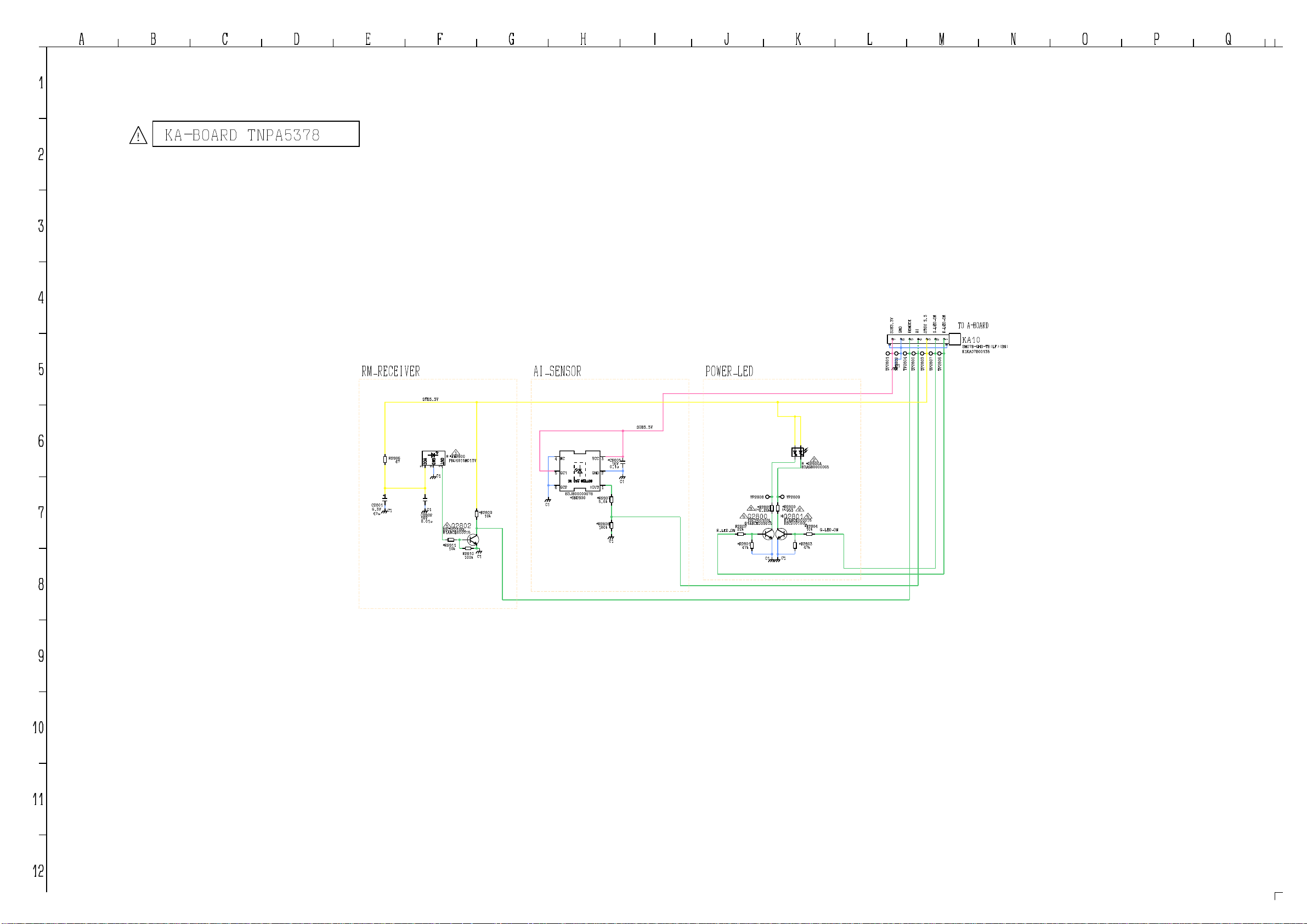

KA-BOARD TNPA5378

I

2

3

4

TO A-BOARD

G_LED_ON

REMOTE

STBY 3.3

R_LED_ON

AI

GND

SUB3.3V

C1

TP2804

TP2801

TP2800

5

POWER_LEDAI_SENSORRM_RECEIVER

TP2802

TP2803

TP2807

TP2806

1234567

KA10

SM07B-GHS-TB(LF)(SN) K1KA07B00135

STB3.3V

SUB3.3V

6

<

*RM2800

VCC

GND

R2806

47

+

C2801

6.3V

C1

7

47u

OUT

PNJ4815M01TV

123

C1

C2802 16V

0.01u

DSC200100L

B1ABCE000015

*R2811

Q2802

10k

*R2809

10k

R2810

C1

100k

NC

GC1

GC2

B3JB00000078

*SN2800

VCC

GND

BOTTOM PAD NC

IOUT

*R2807

*R2808

3

*C2805

16V

0.1u

2

C1

1

5.6k

180k

C1

R_LED_ON

R2802

22k

*R2801

TP2808

Q2800

DSC200100L

B1ABCE000015

47k

1%

*R2805

2.26k

C1

4

5

6

C1

TP2809

*R2800

1%

953

*Q2801

B1ABCE000015

DSC200100L

C1

R

*R2803

G

<

*D2800A

B3AGB0000065

*R2804

10k

47k

G_LED_ON

8

9

10

11

12

Conductor Views

IC’S

IC8900 5D

IC4120 1D

IC4150 2D

TRAN’S

IC4900 1B

Q0900 4B

IC5000 4D

Q4150 2E

IC5416 1E

Q4151 2E

IC8000 2C

Q4152 2E

IC8201 3D

Q4154 2D

IC8404 4D

Q4604 3C

IC8700 3E

Q4973 5D

IC8701 2E

Q8100 3D

IC8702 2A

Q8102 3D

60

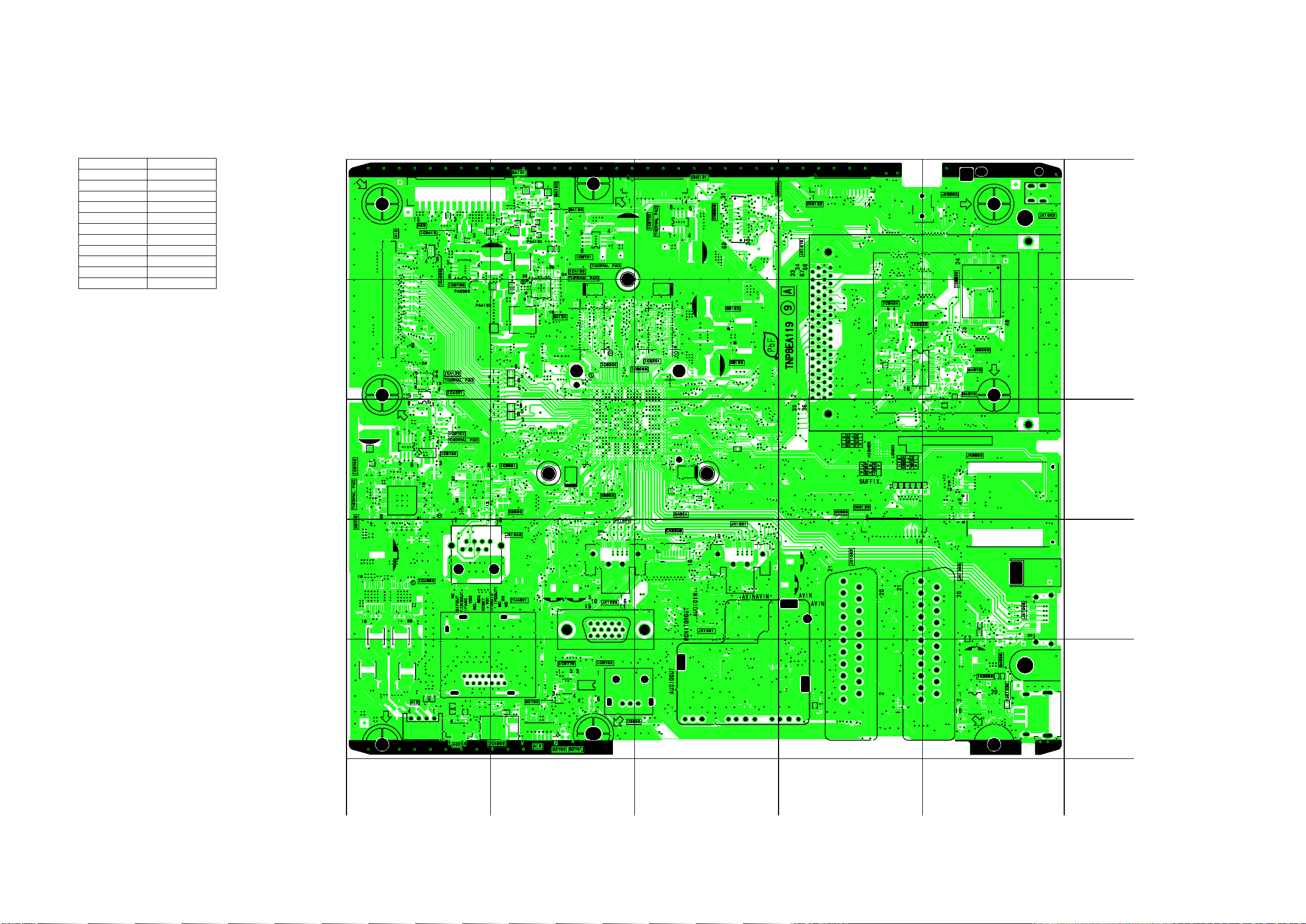

A-BOARD TNP8EA119 - TOP

E

D

C

B

A

1 2 3 4 5

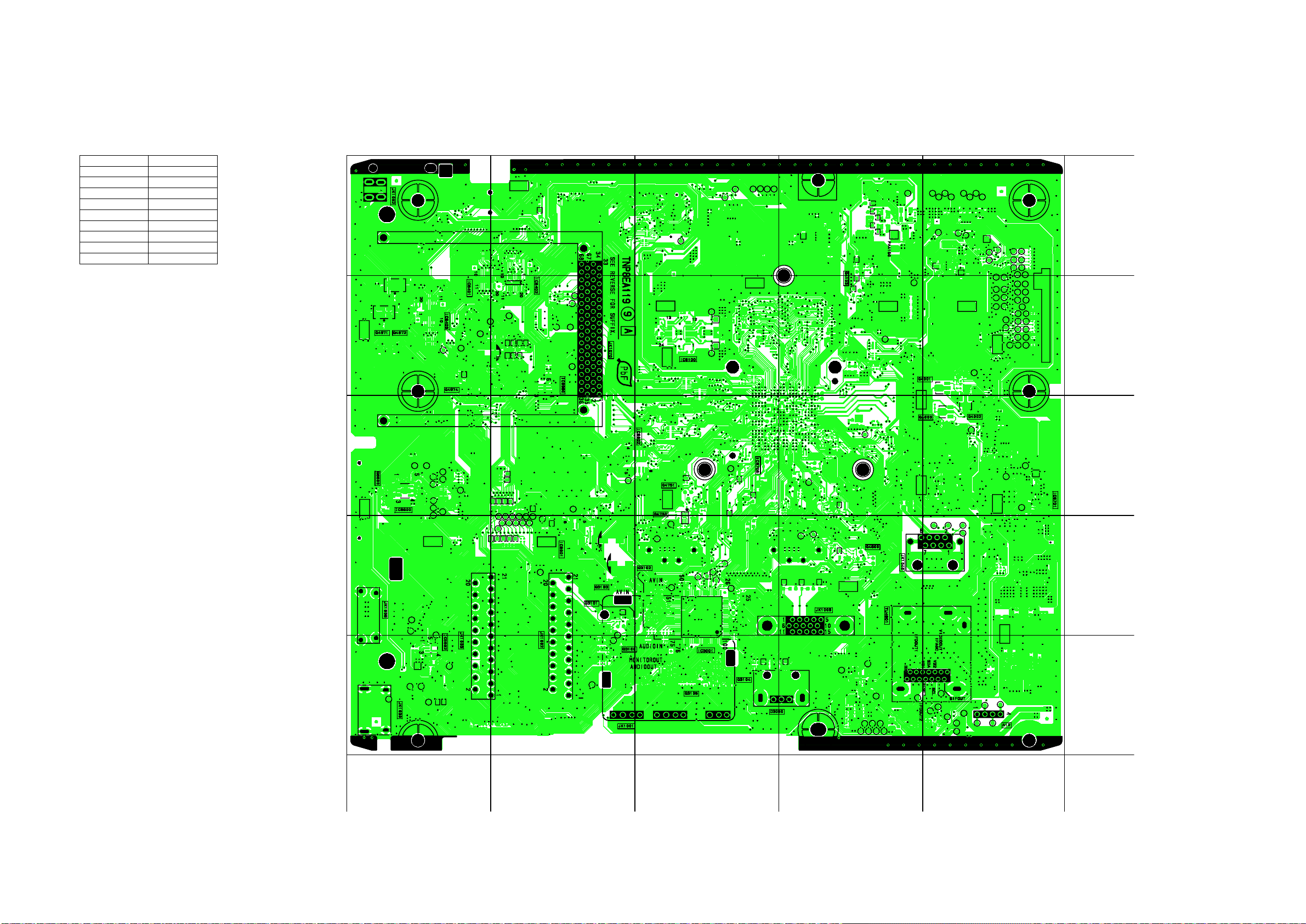

A-BOARD TNP8EA119 - BOTTOM

IC’S

TRAN’S

IC3001 3B

Q3102 3B

IC8100 3D

Q3103 4B

IC8403 5D

Q4153 2D

IC8706 3C

Q4600 2B

IC8901 4B

Q4750 3B

IC8902 3C

Q4751 3C

Q4971 5D

Q4972 5D

Q7974 5D

61

E

D

C

B

A

5 4 3 2 1

IC’S

D7204 6B

IC7301 2B

D7205 4B

D7302 6B

TRAN’S

D7303 6B

Q7201 5B

D7332 2B

D7333 2A

DIODE’S

D7501 2E

D7101 6E

D7502 2E

D7203 5C

1 2 3

4 5 6

7

D

C

62

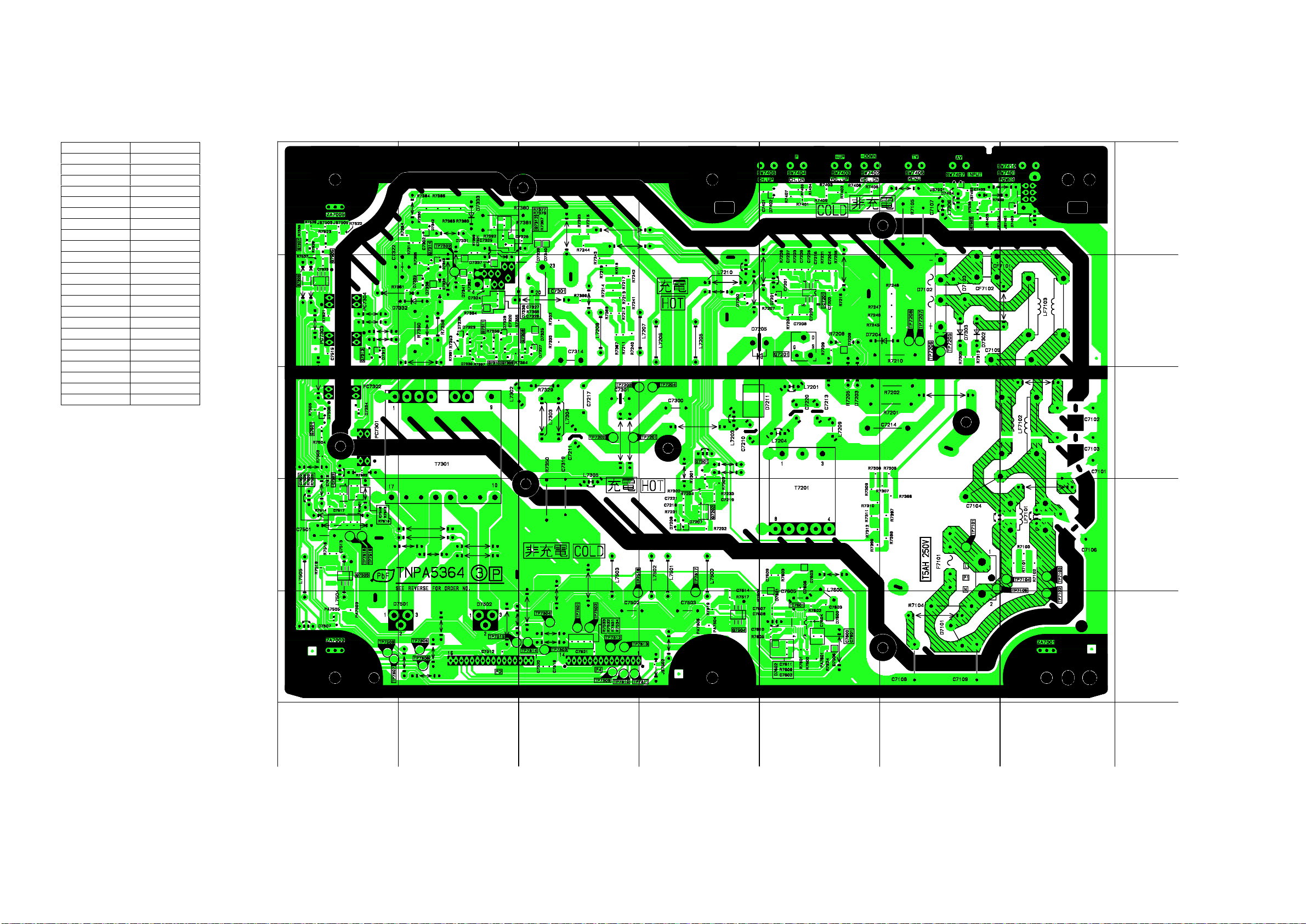

P-BOARD TNPA5364 - TOP

A

B

E

IC’S

D7202 4B

IC7201 5B

D7207 4D

IC7502 1D

D7208 4D

IC7601 5E

D7209 5B

D7325 3B

TRAN’S

D7326 2B

Q7202 4D

D7327 3B

Q7301 4C

D7328 2B

Q7308 3B

D7329 2B

Q7309 2B

D7330 2B

Q7310 2B

D7331 2A

Q7311 2B

D7334 1C

Q7312 3A

D7335 2B

Q7313 1B

D7336 2B

Q7314 2A

D7337 2B

Q7501 1C

D7338 3B

Q7502 6A

D7339 3A

Q7503 1D

D7341 2B

Q7504 4E

D7342 2A

Q7506 1B

D7343 2B

Q7507 1A

D7507 1E

D7508 1C

DIODE’S

D7600 5E

D7102 6B

7 6 5

4 3 2

1

E

C

A

63

P-BOARD TNPA5364 - BOTTOM

B

D

LD-BOARD TNPA5377 - TOP

IC’S

IC9500 2B

TRAN’S

Q9502 3B

Q9503 2B

IC’S

RM2800 1A

SN2800 1A

TRAN’S

Q2800 2A

Q2801 2A

Q2802 1A

64

A

B

KA-BOARD TNPA5378 - TOP

1 2 3

1

2

A

Panasonic TX-L32X3E Schematic

Specifications

CONTENTS

Safety Precautions

Applicable Signals

Service Hints

Chassis Board Layout

Location of Lead Wiring

Technical Description

Setting Inspection

Self Check

Service

Service Tool Mode

Hotel Mode

Data Copy by SD Card

Data Copy from TV set to SD Card

Data Copy from SD Card to TV set

Option Bytes Description

Adjustment Method

Wiring Diagram

Block Diagram (1/2)

Block Diagram (2/2)

Parts Location

Replacement Parts List

Schematic Diagrams

Conductor Views
