Page 1
Operating Instructions
LCD Television
Model No. TX-L32X10L
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Page 2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
2
Notice for DVB functions
Any functions related to DVB (Digital Video Broadcasting) will work in areas where
DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial broadcasting are
received or where DVB-C (MPEG2 and MPEG4-AVC
are supplied.
Consult your local dealer with coverage areas or your cable provider to access.
This TV does not support digital teletext (MHEG) functions.
DVB functions may not be available in some countries.
Some functions may not be available in some countries.
Some functions may not be available with some cable provider.
This TV has the capability for DVB specifications. But future DVB services cannot
be guaranteed.
(H.264)) digital cable services
Page 3
Contents
media excitement
Enjoy rich multi-media
SD Card
Camcorder
Personal
computer
Amplifier with
Speaker system
VCR
Sales and Support
Information
Customer Care Centre
For customers within the UK: • 0844 844 3852
For customers within the Republic of Ireland: • 01 289 8333
Visit our website for product information •
Direct Sales at Panasonic UK
For customers: • 0844 844 3856
Order accessory and consumable items for your product •
with ease and confidence by phoning our
Customer Care Centre
Monday Thursday 9:00am 5:30pm,
Friday 9:30am 5:30pm (Excluding public holidays).
Or go on line through our Internet Accessory ordering •
application at www.panasonic.co.uk.
Most major credit and debit cards accepted.•
All enquiries transactions and distribution facilities are •
provided directly by Panasonic UK Ltd.
It couldn’t be simpler!•
Also available through our Internet is direct shopping for •
a wide range of finished products, take a browse on our
website for further details.
Interested in purchasing an extended guarantee?
Please call 0870 240 6284
or visit www.panasonic.co.uk/guarantee.
DVD Recorder
Set top box
DVD player
Be Sure to Read
Safety Precautions ············································ 4
(Warning / Caution)
Notes
································································· 5
Maintenance ······················································ 5
Quick Start Guide
Accessories / Options ········· 6
Identifying Controls ············· 8
Basic Connection ············· 10
Auto Setup ························ 12
Enjoy your TV!
Basic Features
Watching TV ···················································· 14
Using TV Guide ··············································· 18

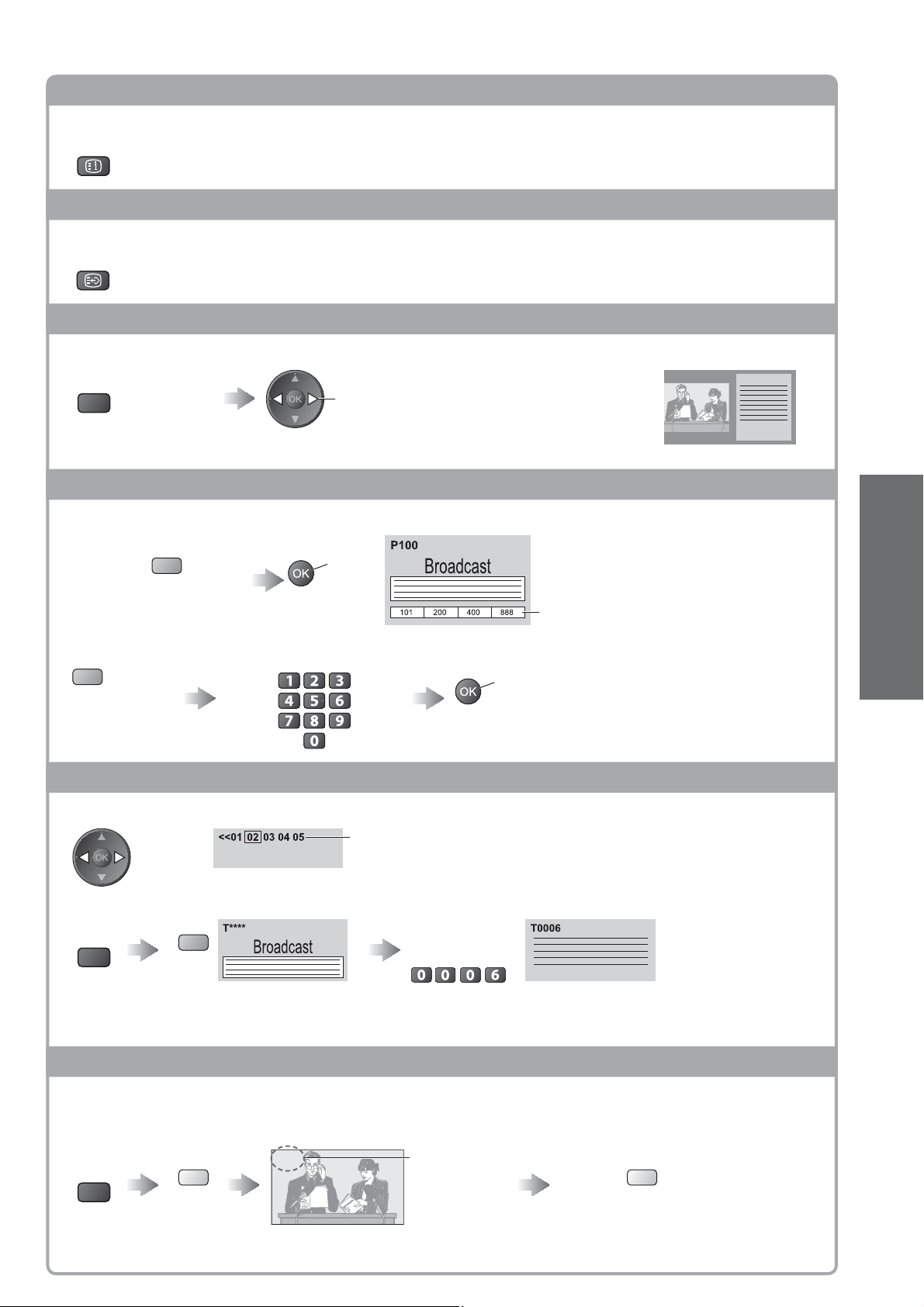

Viewing Teletext ··············································· 20

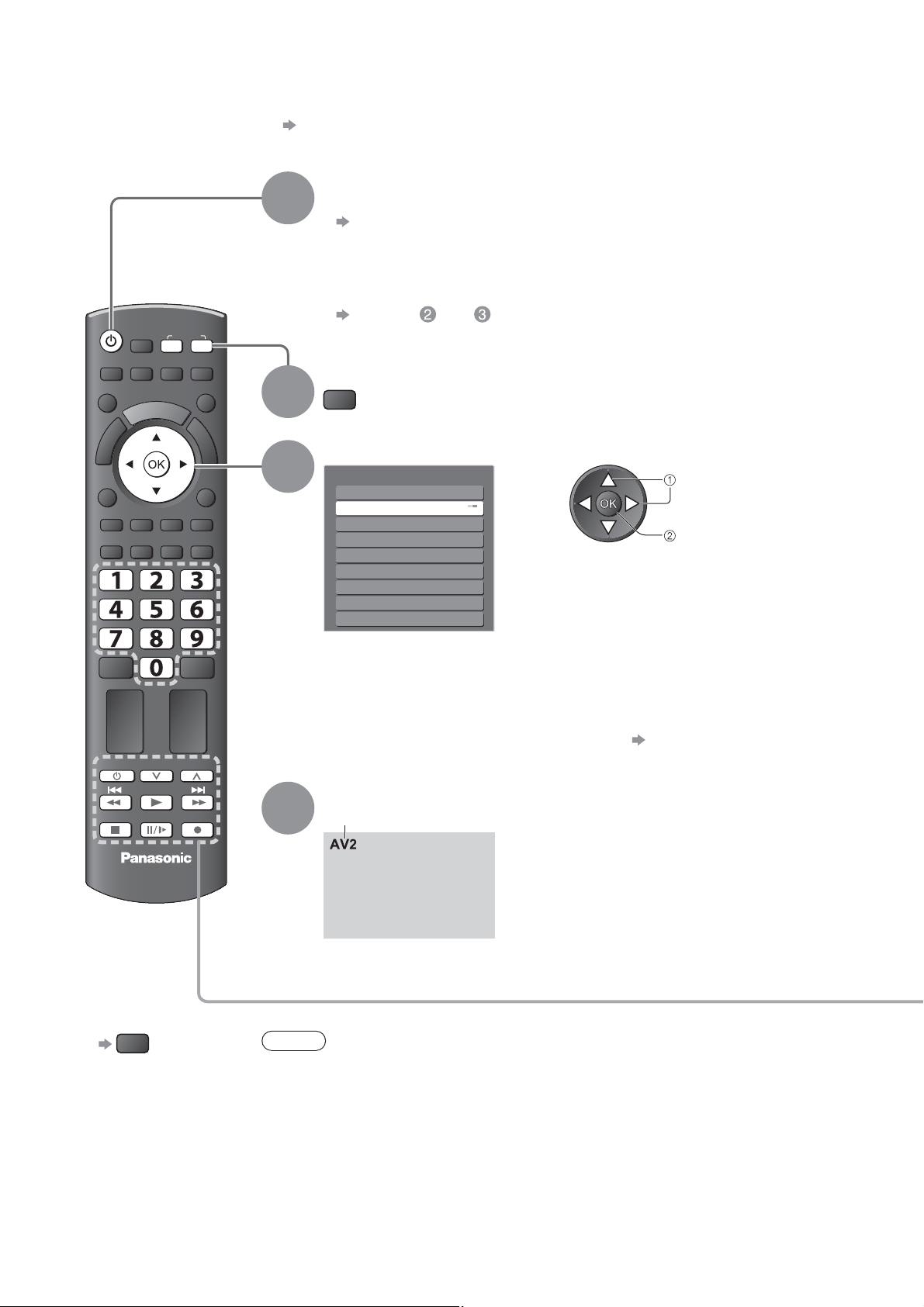

Watching External inputs
································· 22

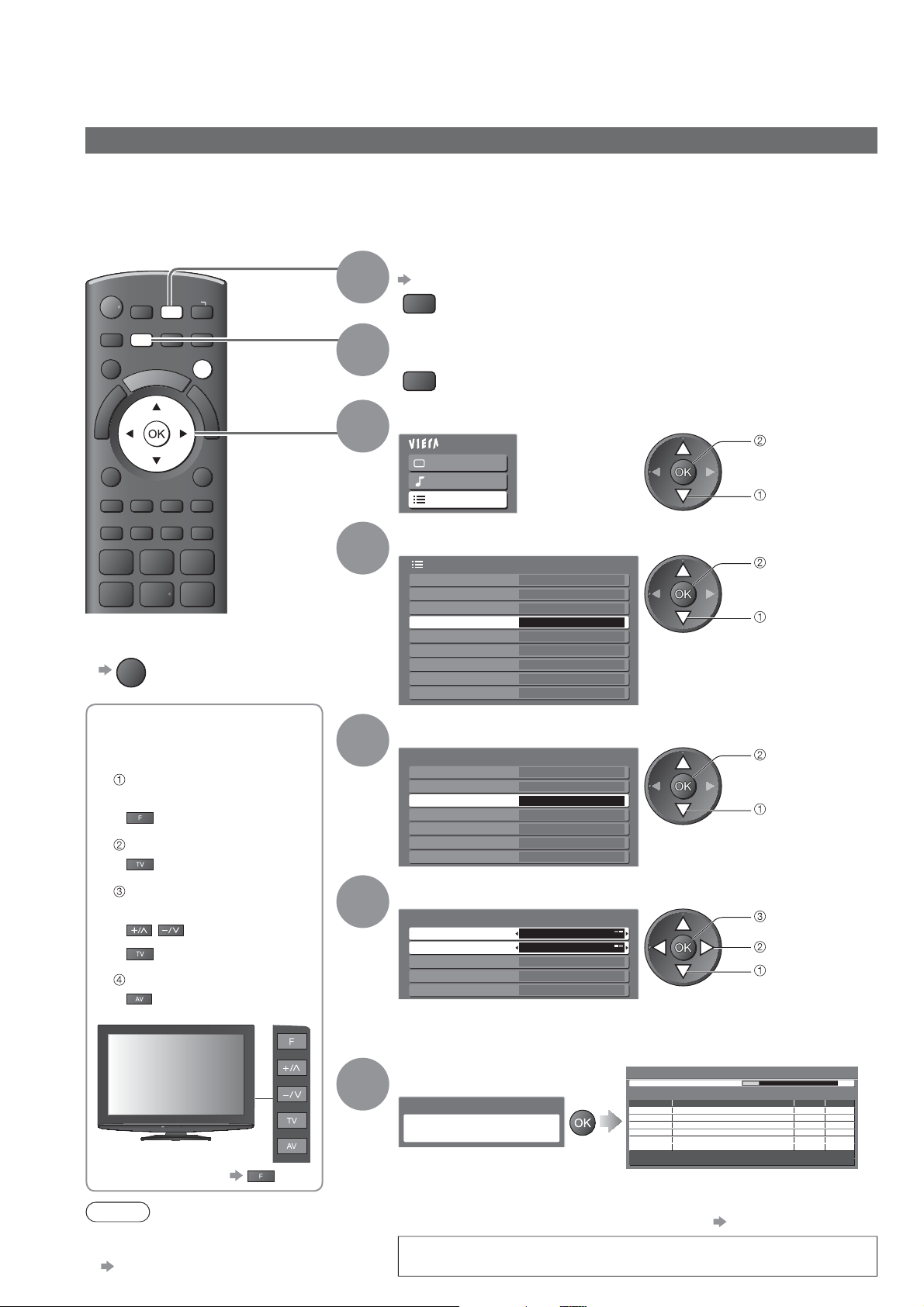

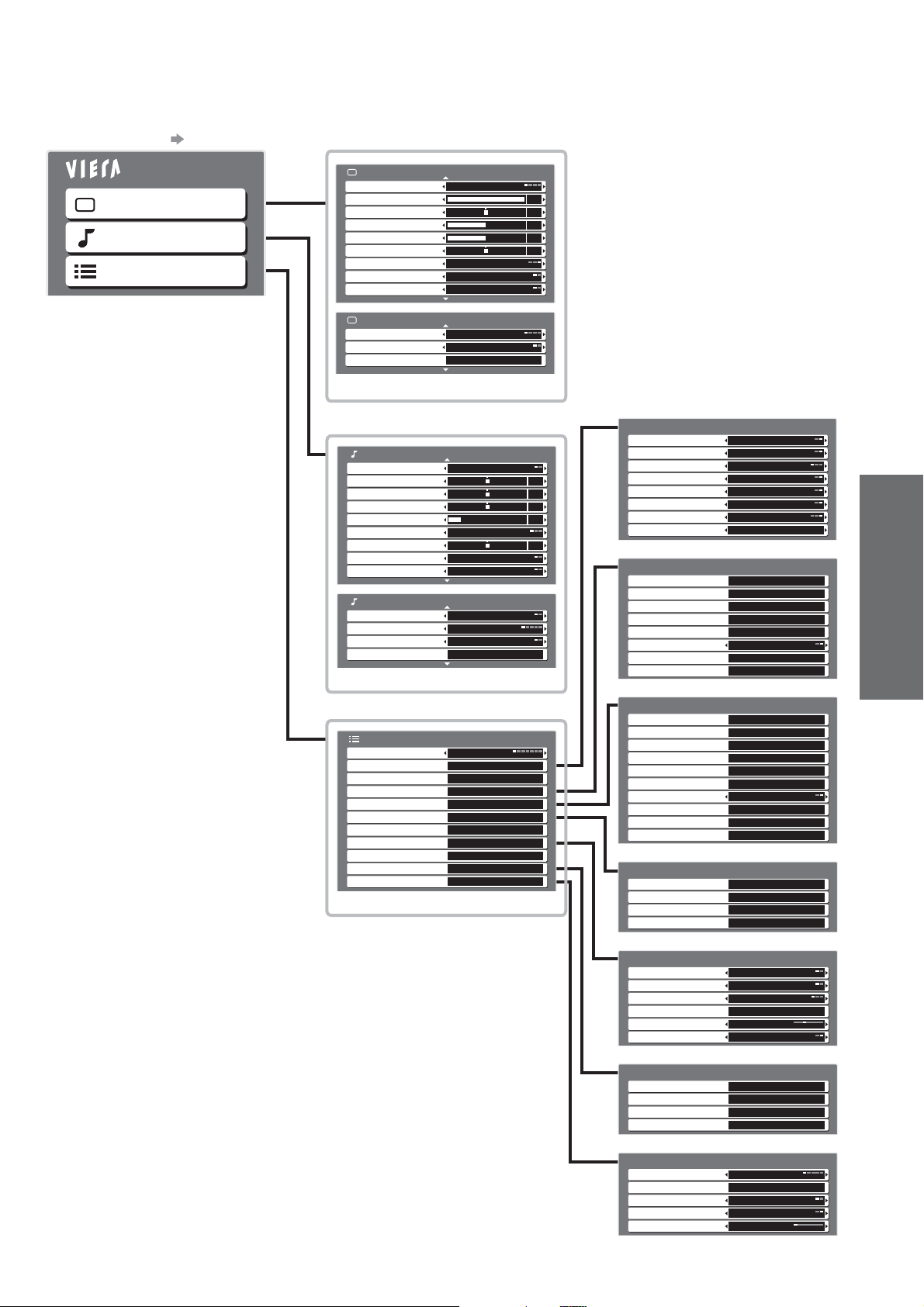

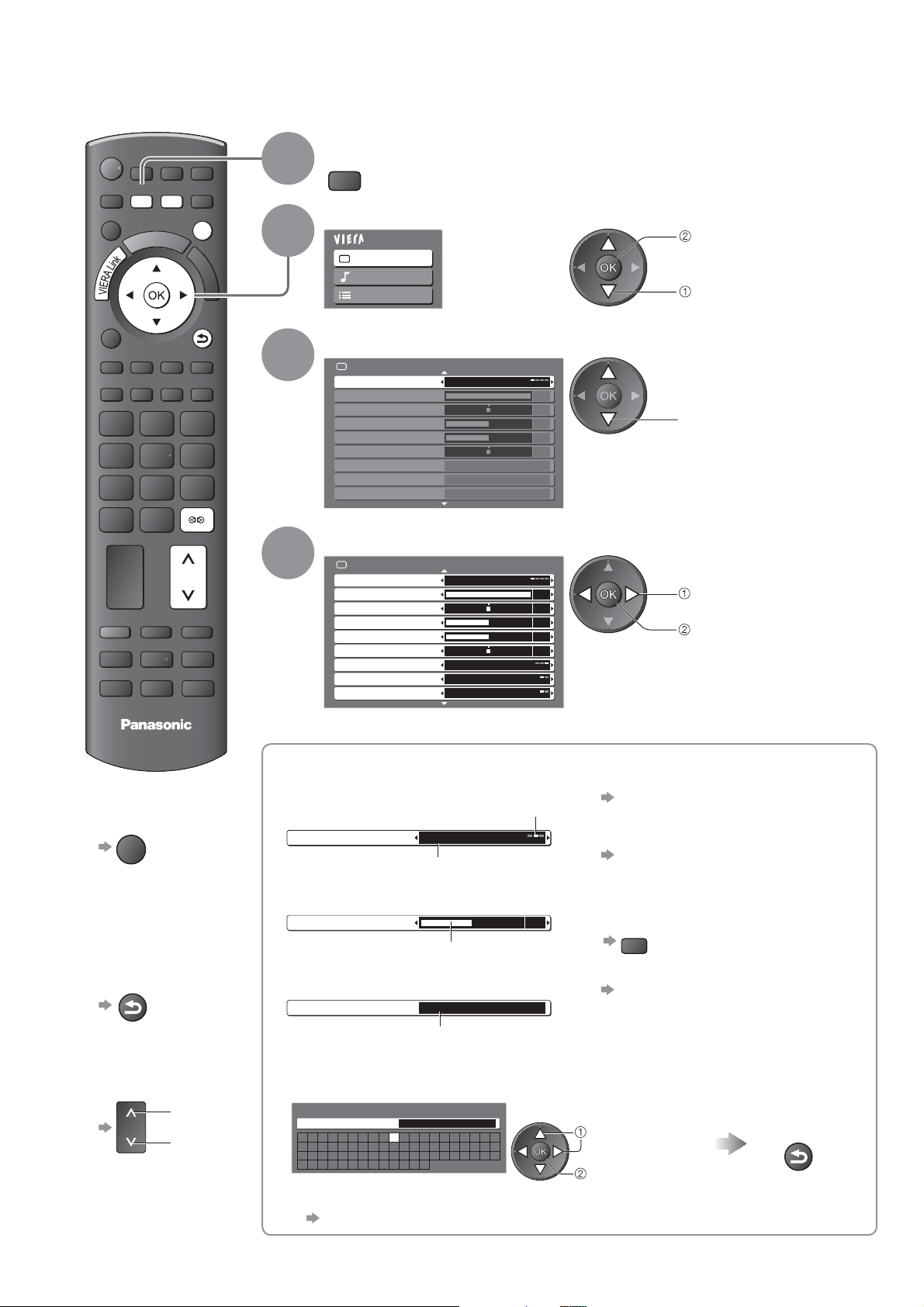

How to Use Menu Functions ··························· 24
(picture, sound quality, etc.)
Advanced Features

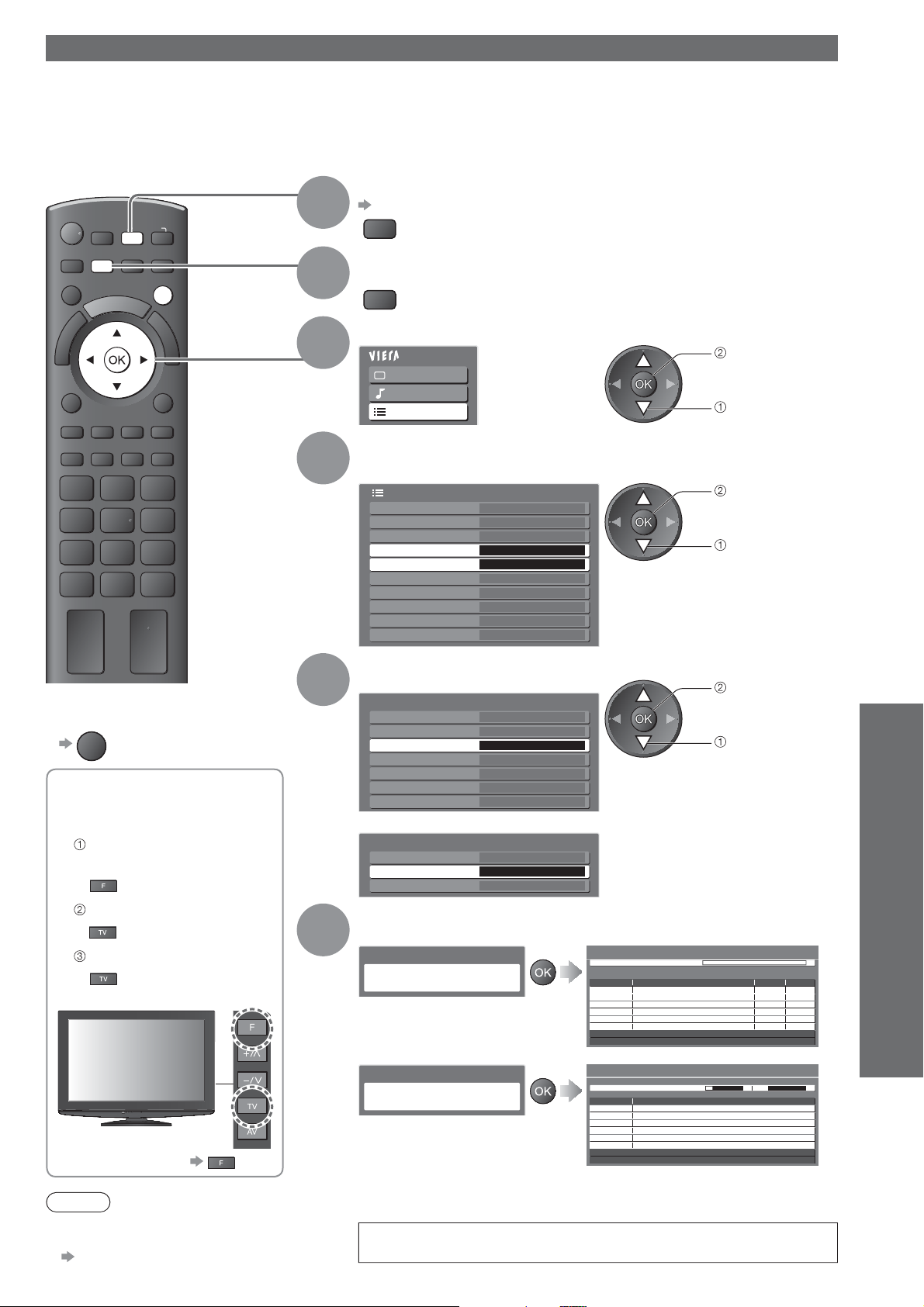

Retuning from Setup Menu ····························· 30

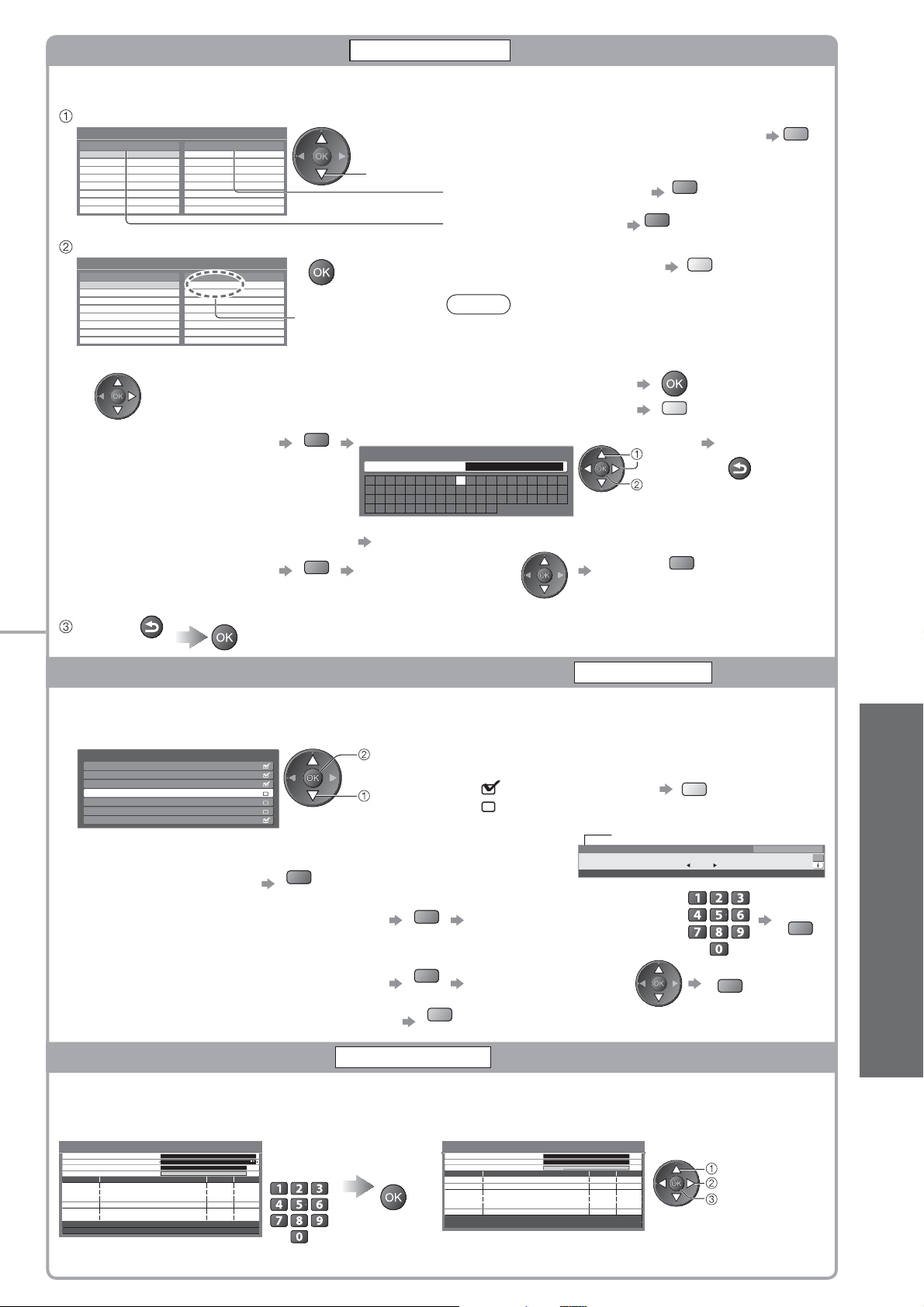

Tuning and Editing Channels (DVB)
················ 32

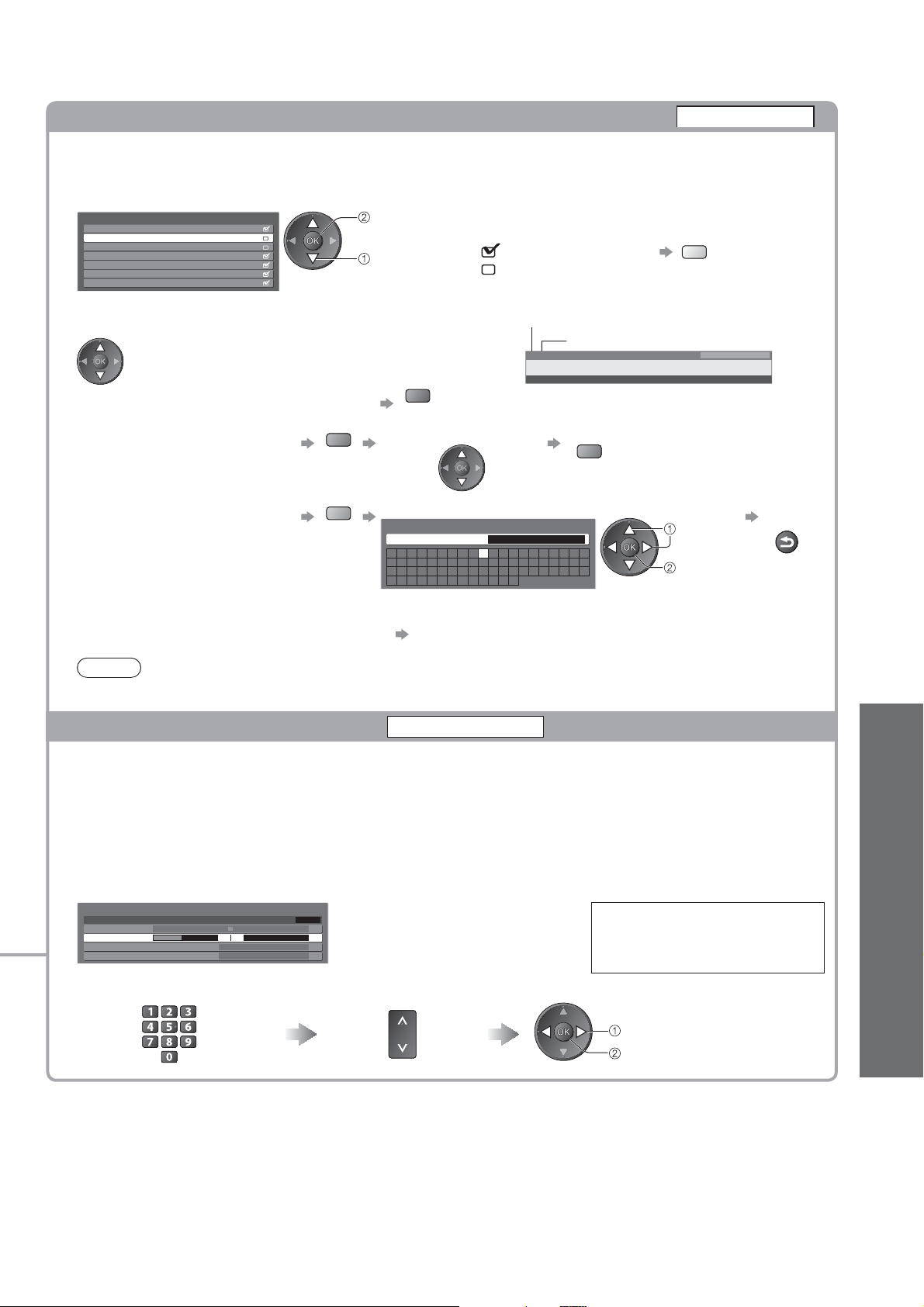

Tuning and Editing Channels (Analogue) ········ 34
Child Lock ························································ 36
Using Common Interface
································· 37
·········································· 38
Shipping Condition
Updating the TV Software
······························· 39
Input Labels ····················································· 40

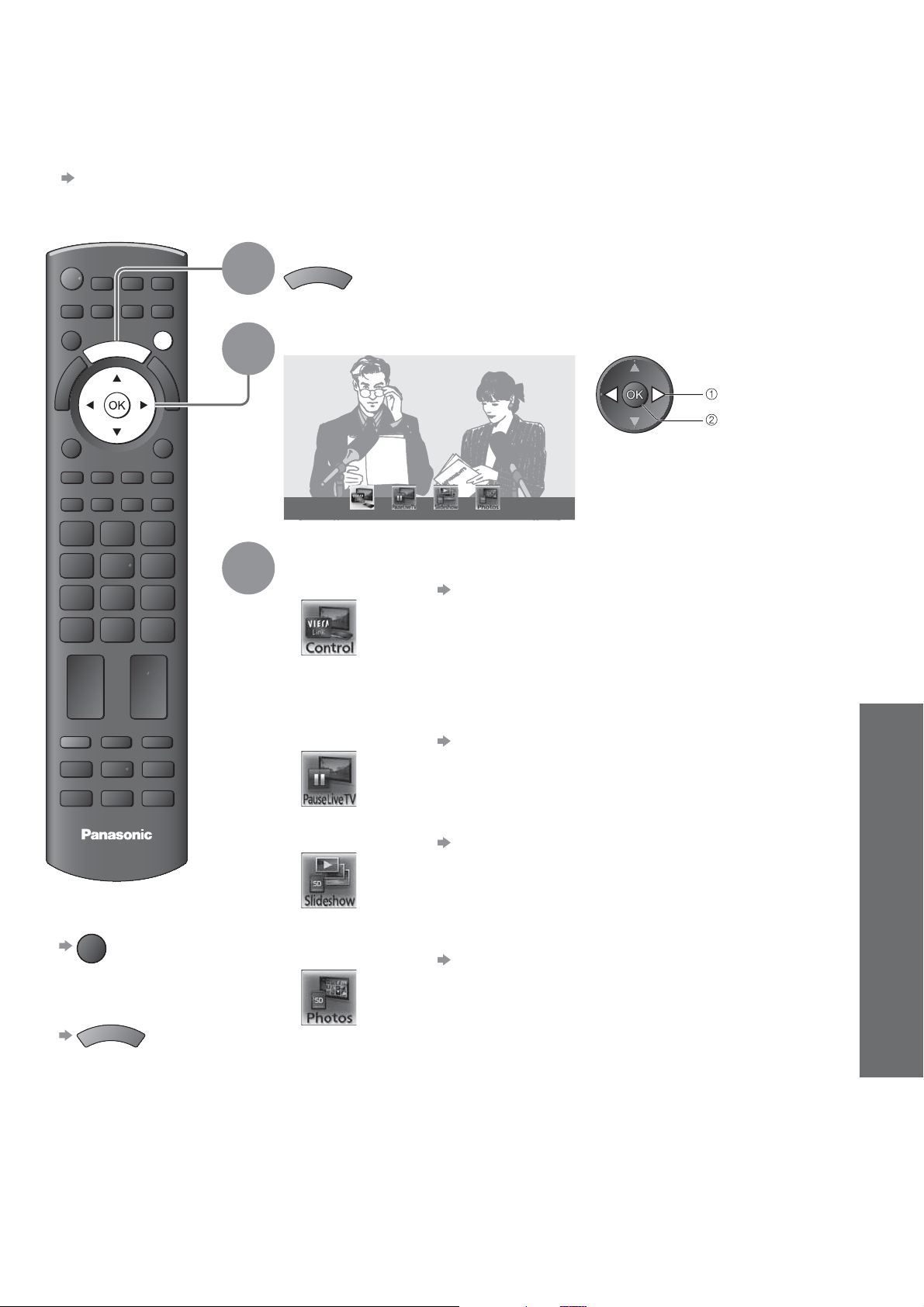

How to Use VIERA TOOLS ····························· 41

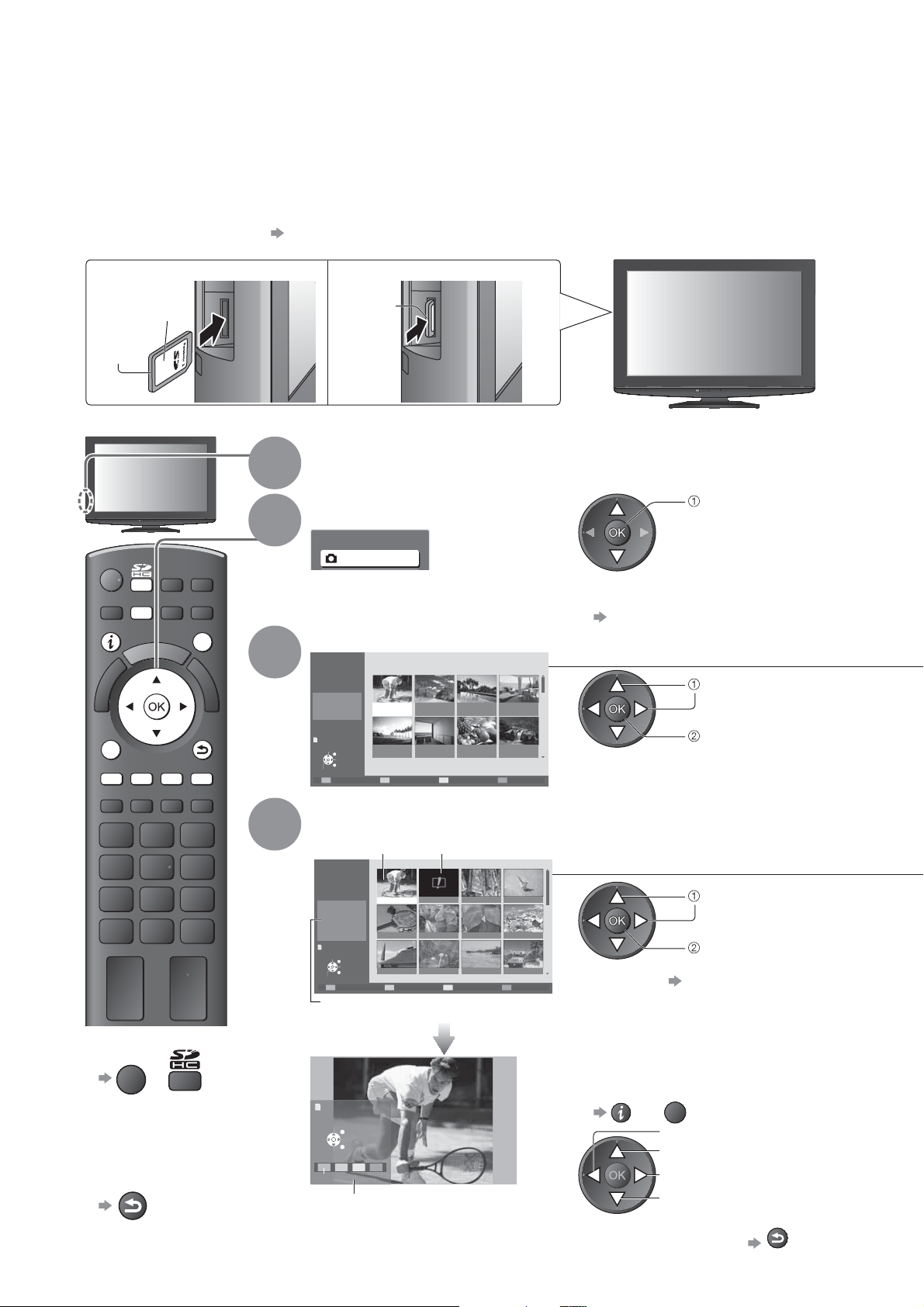

Viewing from SD Card
····································· 42
(VIERA IMAGE VIEWER)

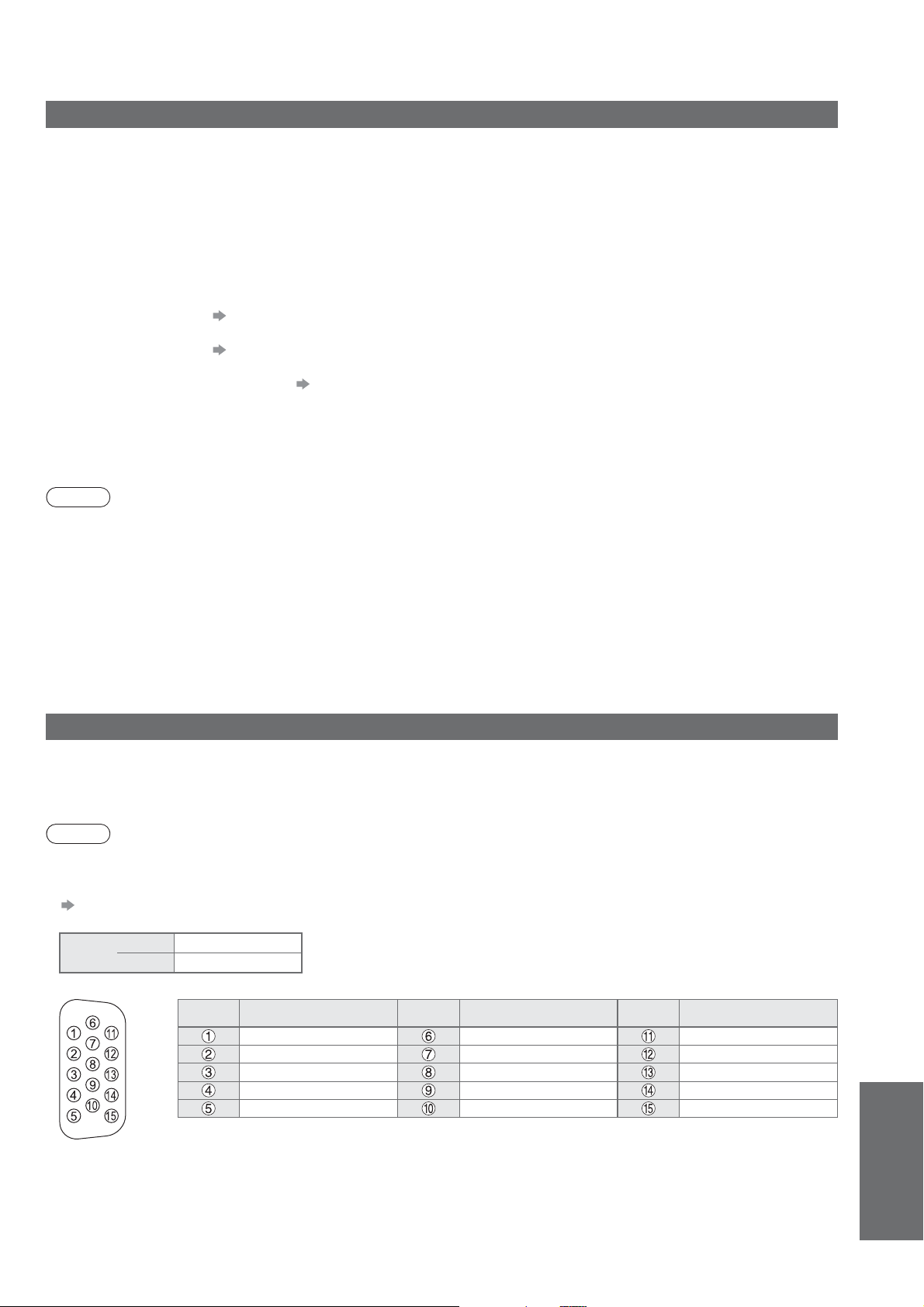

Displaying PC Screen on TV ··························· 45
Link Functions ················································ 46
(Q-Link / VIERA Link)
External Equipment
········································· 54
Quick Start Guide
Viewing Advanced FAQs, etc.
Up to 60,000 hours LCD Panel Lifetime
The LCD display panel used in the 2009 VIERA TV
range is rated for up to 60,000 hours.
This measurement is based on the time taken for the brightness of
the panel to reduce to half of it’s maximum level.
The time taken to reach this level may vary depending on the image
content and the environment where the TV is used.
Malfunctions are not taken into account.
FAQs, etc.

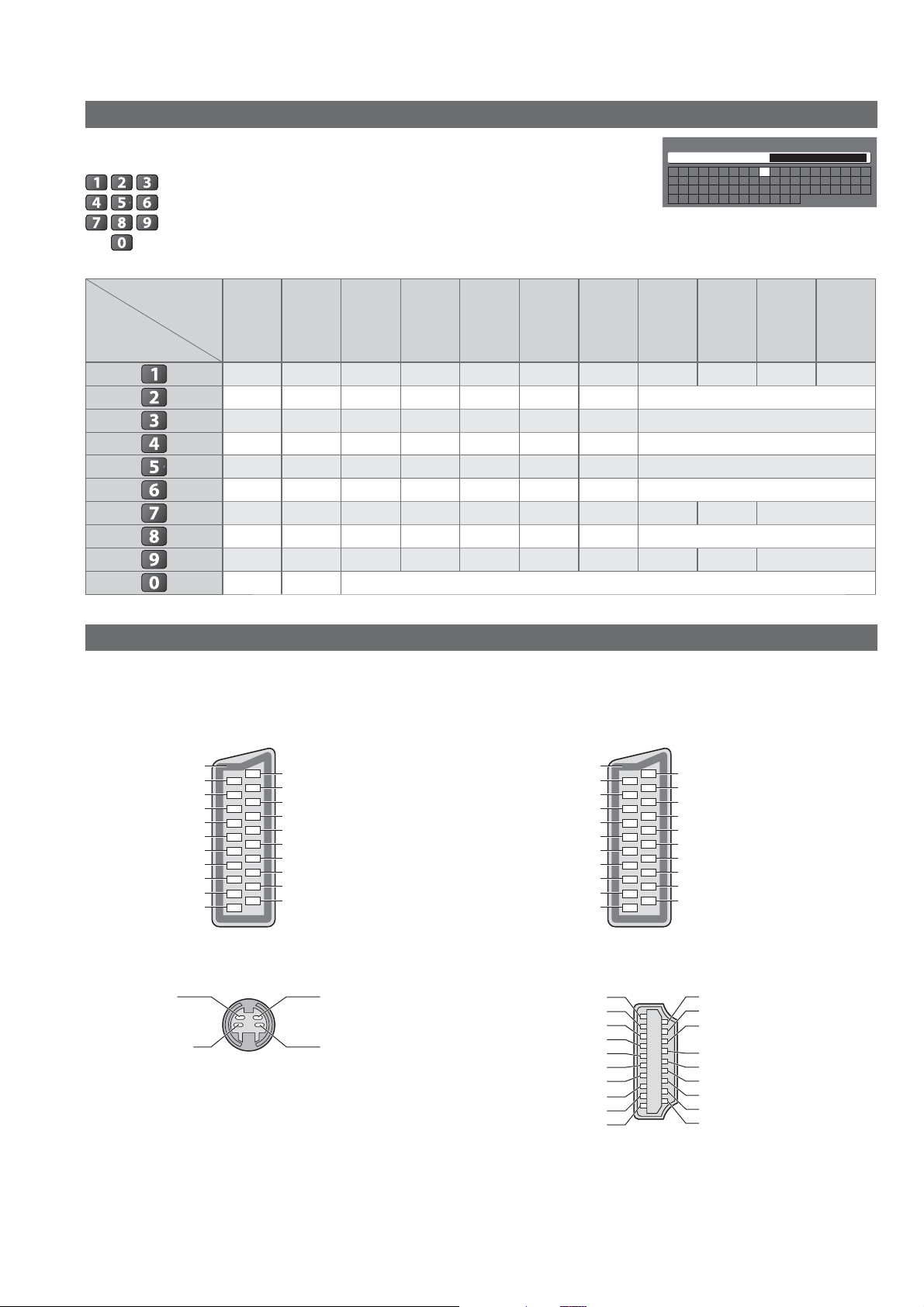

Technical Information ······································ 56
FAQs ······························································· 61
Specifications
·················································· 63
Licence ···························································· 64
3
Page 4
Safety Precautions
Warning & Caution
Handling the mains plug
and lead
Ensure that the mains plug is easily
accessible at all times. The On / Off
switch on this model does not fully
disconnect the TV from the mains supply.
Remove the mains plug from the wall
socket when the TV is not used for a
prolonged period of time.
Do not expose to direct
sunlight and other
sources of heat
Avoid exposing the TV to direct sunlight
and other sources of heat. To prevent fire
never place any type of candle or naked
flame on top or near the TV.
Do not place the TV on
sloped or unstable
surfaces
The TV may fall off or tip over.
Power source
This TV is designed to operate on 220-240 V, 50 Hz AC.
Do not remove the cover
NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock)
Have the TV checked, adjusted, or repaired at your local Panasonic dealer.
Do not remove the rear cover as live parts are accessible
when it is removed. There are no user serviceable parts inside.
Do not expose your ears to excessive
volume from the headphones
Irreversible damage can be caused.
To prevent fall and injury, remove TV from its
fixed wall position when it is no longer in use.
R emove the mains plug from the wall socket before
connecting or disconnecting leads.
AC 220-240 V
50 Hz
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted
in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local Panasonic dealer.
If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be
removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock
if the cut off mains plug is inserted into any 13 amp socket.
If a new mains plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –
Blue: Neutral Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your mains plug, proceed as follows.
The wire which is coloured BLUE must be connected to the terminal in the mains plug
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the mains plug which is
marked with the letter L or coloured RED.
Under no circumstances should either of these wires be connected to the Earth terminal of the
three pin mains plug, marked with the letter E or the earth symbol
How to replace the fuse
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit
securely into the mains plug (see example 1).
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse,
then press the fuse cover down securely (see example 2).
or the BSI mark on the body of the fuse.
ASA
Example 1
.
Example 2
4
Page 5
Do not expose to
rain or excessive
moisture
To prevent damage which might
result in electric shock or fire,
do not expose this TV to rain or
excessive moisture.
This TV must not be exposed to
dripping or splashing water and
objects filled with liquid, such as
vases, must not be placed on top
of or above the TV.
Do not block the rear
ventilation openings
Ventilation should not be impeded
by covering the ventilation
openings with items such as
newspapers, tablecloths and
curtains.
Allow sufficient
space around the TV
for radiated heat
Minimum distance
10
10
When using the pedestal, keep the
space between the bottom of the
TV and the floor surface.
In case of using Wall-hanging
bracket, follow the manual of it.
10
10
(cm)
Use only the
dedicated pedestals /
mounting equipment
Using an unapproved pedestal or
other fixtures may make the TV
unstable, risking injury. Be sure to
ask your local Panasonic dealer to
perform setup.
Use approved pedestals / mounts
(p. 6).
Notes
Auto power standby function
If no signal is received and no operation is performed in Analogue
TV mode for 30 minutes, the TV will automatically go to standby
mode.
Keep the TV away from these types of equipment
Electronic equipment
In particular, do not place video equipment near the TV
(electromagnetic interference may distort images / sound).
Equipment with an infrared sensor
This TV also emits infrared rays (this may affect operation of
other equipment).
Transport only in upright position
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth
dampened with clean water or diluted neutral detergent (1 part
detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe
the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may
be easily damaged.
Do not tap or scratch the surface with your fingernail or other hard
object.
Take care not to subject the surface to insect repellent, solvent,
thinner, or other volatile substances (this may degrade surface
quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water
containing a small amount of neutral detergent. Then, wring the cloth
and wipe the surface clean with it. Finally, wipe the surface clean with
a dry cloth.
Caution
Take care not to subject the TV’s surfaces to detergent. (A liquid
inside the TV could lead to product failure.)
Take care not to subject surfaces to insect repellent, solvent,
thinner, or other volatile substances (this may deteriorate the
surface by peeling the paint).
Do not allow the cabinet and pedestal to make contact with a rubber
or PVC substance for a long time.
Mains plug
Do not allow children
to handle SD Card
As with a small object, SD Card
can be swallowed by young
children. Please remove SD Card
immediately after use.
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and
dust may lead to fire or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories Check that you have the accessories and items shown
INPUT
Remote Control
N2QAYB000328
TV AV
ASPECT
MENU
N
T
O
A
O
R
E
I
V
k
n
i
L
A
R
E
I
V
OPTION
TEXT
STTL
INDEXHOLD
PROGRAMME
TV
Batteries for the
DIRECT TV REC
EXIT
L
S
G
U
I
D
Remote Control (2)
E
RETURN
REC
R6 (UM3)
Clamper
Cleaning cloth
p. 8
Operating Instructions
Pedestal
TBLA0408
Pan European Guarantee Card
p. 7
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
young children accidentally. Keep these parts out of reach of young children.
Optional accessories
Wall-hanging bracket
TY-WK3L2RW
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
Screw for fixing the TV onto the
Rear of the TV
200 mm
200 mm
wall-hanging bracket
(not supplied with the TV)
Depth of screw:
minimum 9 mm, maximum 12 mm
Holes for wall-hanging
bracket installation
Assembly screw
for Pedestal (4)
XYM4+C10FJK
M4 × 10
(View from the side)
6
WARNING!
Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the
consumer. Any damage resulting from not having a professional installer mount your unit will void your warranty.
Always be sure to ask a qualified technician to carry out set-up.
Incorrect fitting may cause equipment to fall, resulting in injury and product damage.
Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which
typically give off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in
the wall before hanging bracket.
Installing / removing remote’s batteries
Pull
1
Hook
2
Note the correct
polarity (+ or -)
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
Do not mix old and new batteries.
Do not mix different battery types (such as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
open
Close
Page 7
Attaching the pedestal
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest
Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be
strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal
injury may result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
Quick Start Guide
Accessories / Options
Securing the TV
Use only the supplied assembly screws to fasten securely.
Make sure that the screws are securely tightened.
Carry out the work on a horizontal and level surface.
Arrow mark
Foam mat or
thick soft cloth
Holes for pedestal installation
7
Page 8
Accessories / Options
SD CARD
HDMI 3
AV3
R
L
V
S-V
Using the clamper
To tighten:
To loosen:
Rear of the TV
Do not bundle the RF cable and mains lead together (could cause distorted image).
Fix cables with clampers as necessary.
When using the optional accessory, follow the option’s assembly manual to fix cables.
Keep the
knob pressed
Identifying Controls
TV
AV3 terminals
(p. 54)
Headphones
jack (p. 54)
Function select
Volume / Contrast / Brightness / Colour / Sharpness /
•
Tint (NTSC mode) / Bass / Treble / Balance / Auto
Setup (p. 30 and p. 31)
Increases or decreases the programme position
by one. When a function is already displayed,
press to increase or decrease the selected
function. When in Standby mode, switches TV On.
Changes the
input mode
8
CI Slot
(p. 37)
HDMI3 terminal
(p. 54)
SD Card slot
(p. 42)
Mains power On / Off switch
Switch On to turn on the TV or turn
•
the TV to standby mode by the remote control
Recording LED
Standby for Direct TV Recording: orange
Power LED
Standby: red
•
On: green
When using the remote control, indicates the TV has received a command.
•
C.A.T.S. (Contrast Automatic Tracking System) sensor
Senses brightness to adjust picture quality in “Eco mode”
•
in Picture Menu (p. 26)
Remote control signal receiver
Do not place any objects between the TV remote control signal receiver and remote control.
•
Page 9
Identifying Controls
Remote Control
VIERA IMAGE VIEWER (p. 42)
Switches to SD Card viewing mode
Standby On / Off switch
Switches TV On or Off standby
Aspect (p. 16)
Changes aspect ratio from Aspect Selection
list
Also possible by pressing this button
repeatedly until you reach the desired aspect
Main Menu (p. 24)
Press to access Picture, Sound and
Setup Menus
Channel / Programme Information
Displays channel and programme
information
(p. 15)
VIERA Link Menu (p. 50)
Accesses VIERA Link Menu
OK
Confirms selections and choices
Press after selecting channel positions
to quickly change channel
Option Menu (p. 17)
Easy setting for viewing and
sound options
Coloured buttons
Used for the selection, navigation and
operation of various functions
ASPECT
L
A
R
E
I
V
OPTION
TEXT
k
n
i
MENU
R
E
I
V
STTL
INPUT
TV AV
DIRECT TV REC
N
T
O
A
O
L
S
INDEX HOLD
EXIT
G
U
I
D
E
RETURN
Input mode selection
TV - switches DVB-C / DVB-T / Analogue
mode (p. 14)
AV - switches to AV input mode from Input
Selection list (p. 22)
Direct TV Recording (p. 48 and p. 50)
Records programme immediately in
DVD Recorder / VCR with Q-Link or
VIERA Link connection
Normalise (p. 24)
Resets picture and sound settings to their
default levels
Exit
Returns to the normal viewing screen
VIERA TOOLS (p. 41)
Displays some special function icons and
accesses easily
Guide (p. 18)
Displays TV Guide
Cursor buttons
Makes selections and adjustments
Return
Returns to the previous menu / page
Hold
Freeze / unfreeze picture (p. 15)
Holds the current teletext page (teletext
mode) (p. 20)
Quick Start Guide
Identifying Controls
Accessories / Options
Teletext (p. 20)
Switches to teletext mode
Subtitles (p. 16)
Displays subtitles
Numeric buttons
Changes channel and teletext pages
Sets characters
When in Standby mode, switches TV On
Sound Mute
Switches sound mute On or Off
Volume Up / Down
PROGRAMME
REC
TV
Index (p. 21)
Returns to the teletext index page
(teletext mode)
Surround (p. 27)
Switches Surround sound
Channel Up / Down
Selects channel in sequence
Connected equipment operations
(p. 23 and p. 52)
9
Page 10
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1
Connecting aerial
TV only TV, DVD Recorder or VCR
Rear of the TV Rear of the TV
Terrestrial
aerial
Example 2
Connecting DVD Recorder / VCR
AC 220-240 V
50 Hz
Mains lead
AV1 AV2
AUDIO
AUDIO
Y
IN
OUT
P
B
LRL
P
R
PC
R
COMPONENT
RGB
VIDEO
RGB
VIDEO
S VIDEO
RF cable
AUDIO
OUT
R
PC
AUDIO
Y
IN
P
B
LRL
P
R
COMPONENT
AV1 AV2
RGB
VIDEO
Mains lead
RGB
VIDEO
S VIDEO
Terrestrial
aerial
AC 220-240 V
50 Hz
CableCable
Note
Connect to the TV’s AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 48).
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using
HDMI cable (p. 54).
p. 46
Q-Link connection
VIERA Link connection
p. 46 and p. 47
Read the manual of the equipment too.
SCART cable
(fully wired)
DVD Recorder or VCR
RF OUT
RF IN
RF cable
RF cable
10
Page 11
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
DIGITAL
AUDIO
OUT
PC
AUDIO
OUT
R
AUDIO
Y
IN
P
B
LRL
P
R
COMPONENT
Mains lead
AV1 AV2
RGB
VIDEO
RGB
VIDEO
S VIDEO
AV2
AC 220-240 V
50 Hz
RF cable
Quick Start Guide
Terrestrial
aerial
Cable
Basic Connection
Fully wired HDMI
compliant cable
Set top box
SCART cable
(fully wired)
SCART cable
(fully wired)
DVD Recorder
or VCR
RF OUT
RF IN
RF cable
11
Page 12
Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before
starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
Select the language
OSD Language
Deutsch
English
Français
Italiano
Español
Português
Nederlands
Dansk
Svenska
Norsk
Suomi
Türkçe
Polski
eština
Magyar
Slovenina
Român
Srpski
Hrvatski
Slovenšina
Latviešu
eesti keel
Lietuvi
Select your country
Country
Germany
Austria
France
Italy
Spain
Portugal
Switzerland
Malta
Andorra Greece
Denmark
Sweden
Norway
Finland
Luxembourg
Belgium
Netherlands
Turkey
Hungary
Slovakia
Slovenia
Lithuania
Poland
Czech
Estonia
Ireland
E.Eu
select
set
select
set
ASPECT
OPTION
TEXT
MENU
R
E
I
V
STTL
INPUT
DIRECT TV REC
N
T
O
A
O
L
S
INDEX HOLD
AVTV
EXIT
G
U
I
D
E
RETURN
1
2
3
REC
TV
PROGRAMME
4
Auto Setup starts
Auto Setup will start to search for TV
channels and store them.
The sorted channel order depends upon
the TV signal, the broadcasting system
and reception conditions.
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
If Q-Link, VIERA Link or similar technology
(p. 48) compatible recorder is connected,
channel, language, country / region
settings are automatically downloaded to
the recorder.
If downloading has failed, you can
download later by the menu item.
“Download” (p. 28)
Select “Home”
Please select your viewing environment.
Home Shop
Auto Setup is now complete and your TV is ready for viewing.
To check channel list at-a-glance
“Using TV Guide” (p. 18 and p. 19)
To edit channels
“Tuning and Editing Channels”
select
set
(p. 32 - 35)
12
Page 13
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu.
How to use remote control
Move the cursor / select the menu item
Access the menu / store settings after
adjustments have been made or options
RETURN
Move the cursor / adjust levels / select from
a range of options
Return to the previous menu
have been set
MENU
Open the main menu
EXIT
Exit the menu system and return to the
normal viewing screen
ON SCREEN HELP Instructions box - Operation guide
(example: Sound Menu)
Sound Menu 1/2
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
MPX Stereo
Select
EXIT
Change
RETURN
Over 30cm
Stereo
Page up
Page down
0
0
0
11
0
Operation guide will help you.
Note
If tuning has failed “Auto Setup” (p. 30 and p. 31)
To initialize all settings “Shipping Condition” (p. 38)
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
with Mains power On / Off switch.
Quick Start Guide
Auto Setup
Auto Setup varies depending on the country you select
DVB-C Network ID Selection
(if you select “Sweden”)
DVB-C Network ID Selection
Network ID Network Name
Searching
set
select network
Analogue Auto Setup DVB-T Auto Setup
Auto Setup
Scan
This will take about 3 minutes.
CH Channel Name
29
33 BBC1
Analogue: 2
CH 1 H: 21 4199
Searching
Region Selection
(if you select “Finland”)
Region Selection
Anjalankoski
if you select a country
except “Portugal”, “Poland”,
(
“Hungary”, “Ireland” and “E.Eu”
Auto Setup - DVB-T and Analogue
DVB-T Scan CH 5 69
Analogue Scan CH 2 H: 21 4199
This will take about 6 minutes.
CH Channel Name Type Quality
62 CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
Free TV: 4 Pay TV: 0 Radio: 0 Data: 0
If you select “Shop” by mistake
Return to viewing environment selection by
pressing the RETURN button.
Automatic Demo
Off On
RETURN
Helsinki
Turku
Eurajoki
Tampere
Lahti
Lapua
Jyväskylä
Mikkeli
Kuopio
Koli
Oulu
Rovaniemi
select region
set
Searching
Analogue: 0
Select “Home”
Please select your viewing environment.
Home Shop
)
Search Mode
if you select
(
“Sweden” or “Finland”
Search Mode
All Channels Free Channels
)
select mode
set
DVB-C Auto Setup
if you select
(
“Sweden” or “Finland”
DVB-C Auto Setup
Progress 0% 100%
Analogue Scan 21 68
This will take about 3 minutes.
No. Channel Name Type Quality
1 CBBC Channel Free TV 10
2 BBC Radio Wales Free TV 10
3 E4 Free TV 10
Free TV: 3 Pay TV: 0 Radio: 0
Searching
)
Auto Setup is complete
If you set to “Off” or “On” in this menu the
TV will be in “Shop” viewing environment.
To return to “Home” viewing environment
initialise all settings by accessing
Shipping Condition.
“Shipping Condition” (p. 38)
select
set
13
Page 14
Watching TV
Turn power on
(Press for about 1 second)
Select the mode
TV
The selectable modes vary depending on the country you select (p. 12).
If “TV Selection” menu is not displayed, press the TV button to switch the
mode.
ASPECT
MENU
R
E
I
V
1
2
INPUT
TV
N
EXIT
T
O
A
O
L
S
Mains power On / Off switch should be On. (p. 8)
TV Selection
DVB-C
DVB-T
Analogue
watch
select
OPTION
TEXT
STTL
REC
TV
BACK/
RETURN
INDEX
HOLD
PROGRAMME
DVD/VCR
TV
Volume
3
1 BBC ONE WALES
Coronation Street
20 : 00 - 20 : 55
All DVB-T Channels
20:35
Change category
For info press
Now
Information banner appears whenever you select a
channel
For details p. 15
Also possible to select the mode pressing the TV button repeatedly on the
remote control or side panel of the TV. (p. 8)
Select a channel
up
down
To select from the Channel List
or
All DVB-T Channels
6
Cartoon Nwk
7
BBC Radio Wales
8
BBC Radio Cymru
1
BBC ONE Wales
2
BBC THREE
3
BBCi
4
CBBC Channel
To select a more than two-digit channel
position number, e.g. 399
select channel
watch
14
Note
To watch pay-TV
“Using Common
Interface”
(p. 37)
Select a channel using Information banner (p. 15)
Possible to confirm the channel name and programme before changing channels.
Display Information banner if it is
not displayed
While the banner is displayed,
select the channel
select channel
watch
Possible to set display timeout in
“Banner Display Timeout” (p. 29).
Select a channel using TV Guide (p. 18)
Possible to confirm the TV Guide (EPG or Channel List) before changing channels.
This function may not be available in some countries.
Display TV Guide Select the channel
G
U
I
D
E
select
watch
Page 15
Other useful functions
Hold
Freeze / unfreeze picture
Display Information banner
Display Information banner
Also appears when changing a channel
Channel position and name
Example (DVB):
1 ZDF
Programme
Programme Start / Finish time
Example (Analogue):
3 ITV
itv1
CH23
Encrypted
Channel number
To confirm another tuned
channel name
To watch the channel listed in the banner
Coronation Street
20 : 00 - 20 : 55
Radio
19:35
SubtitlesAD
All Analogue Channels
HOLD
Channel type (if it is Radio or Data channel)
Encrypted Dolby D +
Features available / Message meanings
For info press
Stereo 45
Category
To change the category
blue
Current time
20:35Radio
Now
All DVB-T Channels
Change category
For info press
45
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
Dolby D +, Dolby D
Dolby Digital Plus or Dolby Digital audio track
Viewing
Watching TV
Information on the next programme
(DVB)
EXIT
To hide
Extra information
(DVB) (press again to hide the banner)
To set display timeout
“Banner Display Timeout” (p. 29)
Subtitle service available
Teletext service available
Multiple audio available
Multiple video available
Stereo, Mono
Audio mode
1 - 90
Off Timer remaining time
For settings
p. 17
15
Page 16
Watching TV
Other useful functions
Display subtitles
Display / hide subtitles (if available)
To change the language for DVB (if available)
STTL
“Preferred Subtitles” (p. 29)
Note
If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page
(p. 21). Press the EXIT button to return to TV mode.
Aspect
Change the aspect ratio (image size)
Enjoy viewing the image at its optimum size and aspect.
Normally programmes have the Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the
aspect ratio automatically according to the Aspect Control Signal (p. 56).
If you would like to change the aspect ratio manually
Display Aspect Selection list While the list is displayed, select the mode
ASPECT
To change the mode using the ASPECT button only
ASPECT
Aspect Selection list
(Press repeatedly until you reach the desired mode)
Aspect selection
Auto
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select
Change
EXIT
RETURN
store
select
ASPECT
Auto
The best ratio is chosen and the image expanded to fill the screen.
For details
16:9 4:3 Full
p. 56
Directly displays the image at 16:9
without distortion (anamorphic).
14:9 Zoom1
Displays the image at the standard 14:9
without distortion.
Just Zoom2
Displays a 4:3 image full-screen.
Stretching is only noticeable at the left
and right edges.
4:3 Zoom3
Displays the image at the standard 4:3
without distortion.
Note
Only “16:9” and “4:3 Full” are available in HD channels.
Only “16:9” and “4:3” are available in PC input mode.
Not available when the subtitle function is active.
Not available in teletext service.
Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
Displays a 4:3 image enlarged
horizontally to fit the screen.
HD signal only
Displays a 16:9 letterbox or 4:3 image
without distortion.
Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.
Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion. At
16:9, displays the image at its maximum
(with slight enlargement).
16
Page 17
Other useful functions
Display the selectable settings for the current programme
To change
change
select
Teletext Character Set
Sets the teletext language
Check or change the current
programme status instantly
Multi Video (DVB mode)
Allows you to select the image (if available)
OPTION
Setup Menu (p. 29)
Multi Audio (DVB mode)
Allows you to select between alternative language for
sound tracks (if available)
Teletext Language (DVB mode)
Allows you to select between alternative language for
teletext (if available)
Sub Channel (DVB mode)
Allows you to select the multifeed programme - sub
channel (if available)
Subtitle Language (DVB mode)
Allows you to select the language in which subtitles
MPX (Analogue mode)
Sound Menu (p. 27)
Volume Correction
Adjusts volume of individual channel or input mode
should appear (if available)
Note
Also possible to change the settings in Menu list (p. 26 - 29).

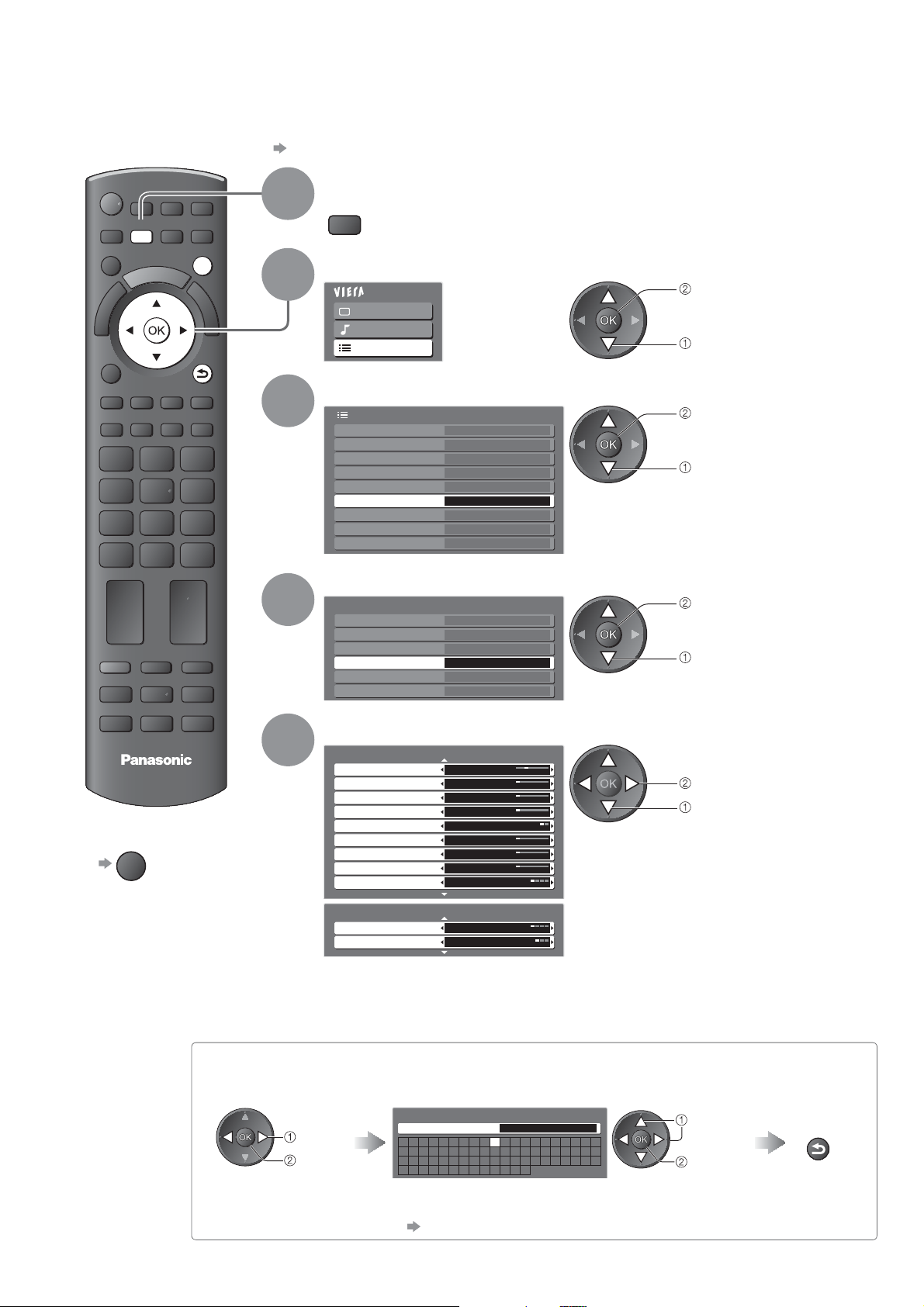

Off Timer
Turn the TV off automatically after a fixed period
Display the menu Select “Setup” Select “Off Timer” and set the time
MENU
Main Menu
Sound
Setup
access
select
To cancel Set to “Off” or turn the TV off.
To display the remaining time Information banner (p. 15)
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-T Tuning Menu
Language
Display Settings
Common Interface
System Menu
Other Settings
Viewing
set
select
Watching TV
Note
When the remaining time is within 3 minutes, the remaining time will flash on the screen.
17
Page 18
Using TV Guide
TV GuideElectronic Programme Guide (EPG) provides an on-screen listing of the programmes
currently broadcast and the forthcoming broadcasts over the next seven days (depending on the
broadcasters).
This function varies depending on the country you select (p. 12).
DVB-T and Analogue channels are displayed on the same TV Guide screen.
Analogue channels will be listed after DVB-T channels but there will be no programme listings. “D” means DVB-T
channel and “A” means Analogue channel.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time
before the TV Guide is completely shown.
Select the mode
ASPECT
OPTION
TEXT
MENU
STTL
INPUT
AV
TV
DIRECT TV REC
N
EXIT
RETURN
INDEX HOLD
1
2
TV Guide
time
Example:
Wed 24/10/2007
10:46
Select channel
View
-24 hours +24 hours Prog.Type Category
Advertisement
p. 14
TV
View TV Guide
G
U
I
D
E
Current date and time
TV Guide date
TV Guide: Landscape
Wed 24th
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
1
D
7
D
14
D
70
D
72
D
105
D
719
D Rugby 15 To 1 The Bill
EXIT
Select programme
RETURN
19:30
Time: 20:00 20:30 21:00
Eastender DIY SOS The Bill Red Cap
BBC ONE
BBC THREE
Hot Wars Holiday Program
E4 Emmerdal. Coronation Street The Bill
BBC FOUR 10 O’ clock News BBC Pepsi Char. Good bye
BBC 2W Panorama Spring watch Coast
BBCi I’m A Celebrity Pop Idol News
BBC Radi
Landscape (Displays by channel)
Channel position and name
To change the layout (Landscape / Portrait)
view “Landscape” to see many channels
view “Portrait” to see one channel at a time
Programme
All Types All Channels
Info
GUIDE
Change display mode
OPTION
Select Advert
Page up
Page down
Example:
Wed 24/10/2007
10:46
Select programme
View
D 1 BBC ONE D
19:30~20:00
20:00~20:30
20:30~21:00
21:00~22:00
22:30~23:00
23:00~23:30
23:00~00:00
EXIT
Select channel
RETURN
G
U
I
D
E
TV Guide: Portrait
Wed 24th
7 BBC THREE
Eastender
DIY SOS
The Bill
Red Cap
Live junction
POP 100
Rugby
Info
GUIDE
Change display mode
OPTION
Select Advert
+24 hours Prog.Type Category
All Types All Channels
D 14 E4 D 70 BBC FOUR
Portrait (Displays by time)
Page up
Page down
To return to TV
EXIT
PROGRAMME
TV
To the previous day
(DVB mode)
red
To watch the programme
Select the programme or channel
select
watch
To view a
channel list of
the selected type
(DVB mode)
yellow
To view a
channel list
of the selected
category
blue
Prog.Type
All Types
All Types
Movie
News
.
.
.
.
.
Categor y
Categor y
All Service s
All Channels
All Channels
All DVB-T Channels
All Analogue Channels
Free Channels
Pay Channels
TV
Radio
Favourites1
Favourites2
Favourites3
Favourites4
To the next day
(DVB mode)
green
To view details of the
programme (DVB mode)
Select the programme
select
Press again to
return to TV Guide.
(Type list)
select type
view
(Category list)
Only Analogue channels are listed
select category
view
To list favourite channels p. 33
18
Page 19
Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or
Analogue mode
The postcode entry or update is required. Follow the message’s instructions.
Also possible to setup manually from the Setup Menu
“Update” / “Postcode” in “GUIDE Plus+ Settings” (p. 29)
Enter your postcode when using this function for the first time. If you enter an incorrect postcode for your
area, or no postcodes are entered, advertisement may not be displayed correctly.
OPTION
Display advertisement information
To change advertisements
To return to TV Guide
OPTION
or
RETURN
To display the latest advertisement “Update” in “GUIDE Plus+ Settings” (p. 29)
Note
To update the information continuously, the TV must be left in Standby mode at night.
Depending on the country you select, TV Guide may not be supported
In this case, Channel List will appear.
All Analogue Channels
Cartoon Nwk
6
7
BBC Radio Wales
8
Channel List
BBC Radio Cymru
1
BBC ONE Wales
2
BBC THREE
3
BBCi
4
CBBC Channel
Select
View
EXIT
RETURN
Page up
Page down
select channel
watch
Viewing
Using TV Guide
19
Page 20
Viewing Teletext
Analogue teletext
Analogue teletext services
Teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FLOF (FASTEXT) mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
Fast overview of the teletext information available
Easy to use step-by-step selection of the topical subject
Page status information at the bottom of the screen
Available page up / down
To select among subject blocks
To select next subject within the subject block
(After the last subject, it moves to the next subject block.)
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 21)
To change mode “Teletext” in the Setup Menu (p. 29)
DIRECT TV REC
MENU
N
EXIT
BACK/
RETURN
ASPECT
OPTION
1
red
green
blue
Switch to Teletext
TEXT
Displays the
index page
(content varies
depending on the
broadcasters)
yellow
Current
page
number
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Colour bar
Time / date
Select the page
TEXT STTL
INDEX HOLD
2
To adjust contrast
To return to TV
Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU
red
To rehide
FULL / TOP / BOTTOM
MENU
green
(Expand the TOP half) (Expand the BOTTOM half)
up
green
or
down
MENU
red
or
(Corresponds to the colour bar)
yellow blue
As the blue bar is displayed
(Press three times)
EXIT
red
(TOP) (BOTTOM) Normal (FULL)
20
HOLD
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD
To resume
HOLD
Page 21
INDEX
Return to the main index page
INDEX
Call up a favourite page
View a favourite page stored
STTL
Call up the page stored on the blue button (List mode).
Factory setting is “P103”.
View in multi window
Watch TV and Teletext in two windows at once
MENU
(press twice)
Operations can be made only in Teletext screen.
Select Picture and text On or Off
Store frequently viewed pages
Store frequently viewed pages in the colour bar
As page is
displayed
To change stored pages
Coloured button
you want to
change
Corresponding
coloured button
Enter new page number
press
and
hold
The number changes to white.
press
and
hold
View sub page
View sub page (Only when teletext is more than one page)
Appears at top of
the screen
To view specific sub page
Enter the
MENU
blue
Sub pages:
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
4-digit number
example: P6
(List mode only)
Viewing
Viewing Teletext
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
MENU
The news page provides a function that indicates arrival of latest news (“News Flash”).
yellow
Changes to TV screen temporarily
P108
(You cannot change the channel.)
Appears when
updating is
completed
View the updated page
yellow
21
Page 22
Watching External inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.
To connect the equipment p. 10, 11 and 54
The Remote Control is capable of operating some functions of selected external equipment.
Turn the TV on
1
INPUT
TV AV
2
3
When connecting with SCART as example 2 or 3 (p. 10 and p. 11)
Receives input signals automatically when playback starts
Input signals are automatically identified by the SCART (pin 8)
terminal.
This function is also available for HDMI connections (p. 54).
If input mode is not switched automatically
Perform and
Check the setup of the equipment.
Display the Input select menu
AV
Select the input mode connected to the equipment
Input Selection
AV1
AV2/S
AV3/S
COMPONENT
PC
HDMI1
HDMI2
HDMI3
TV
select
watch
You can also select the input using the AV button on the remote
control or the side panel of the TV.
Press the button repeatedly until the desired input is selected.
In order to switch between AV2/AV3 and AV2S/AV3S, move the
indicator by pressing left and right cursor button.
You can label or skip each input mode
“Input Labels” (p. 40)
PROGRAMME
Skipped inputs will not be displayed when the AV button is pressed.
View
REC
TV
To return to TV
TV
4
Note
If the external equipment has an aspect adjustment function, set to “16:9”.
For details, see the manual of the equipment or ask your local dealer.
Displays the selected mode
22
Page 23

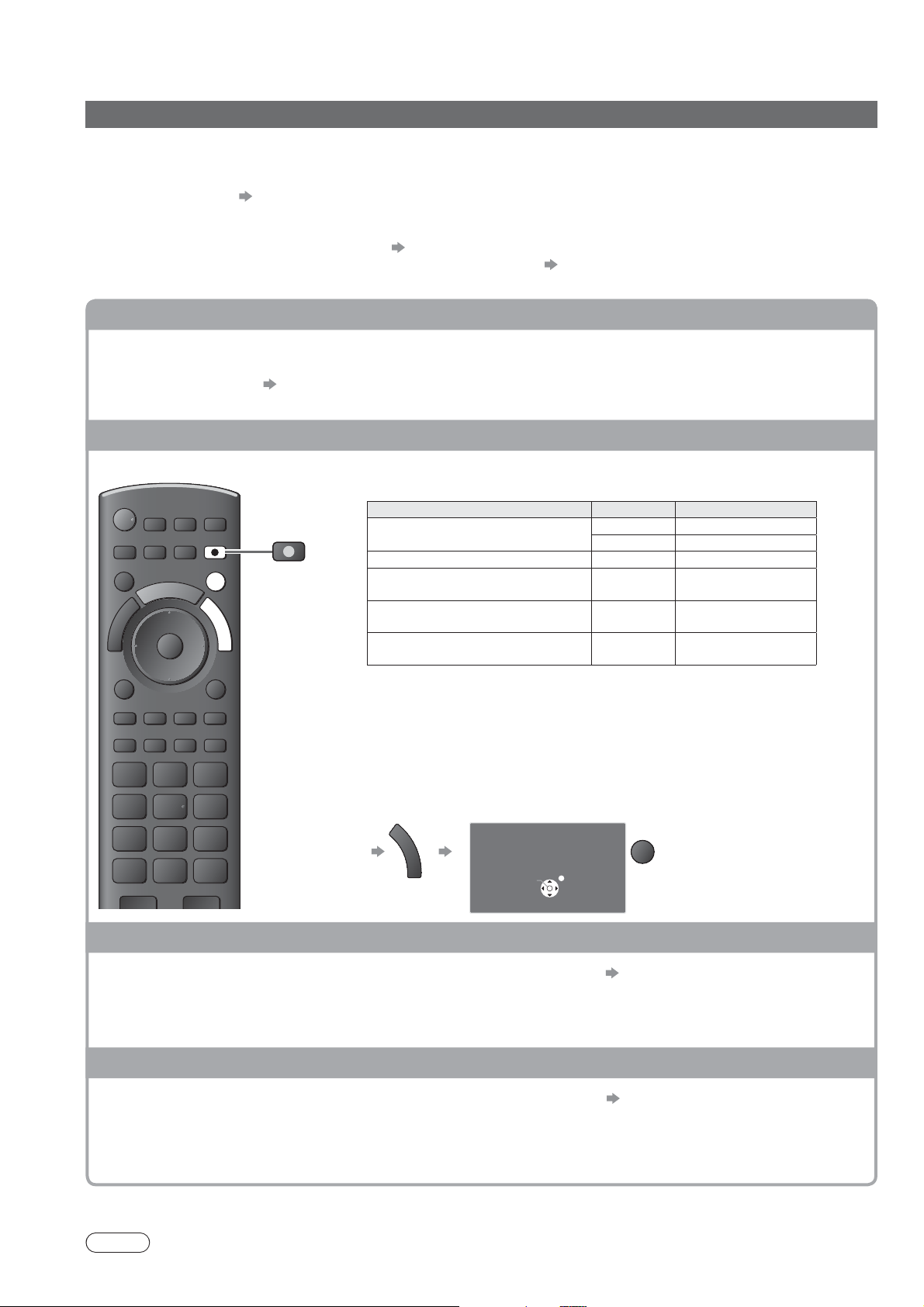

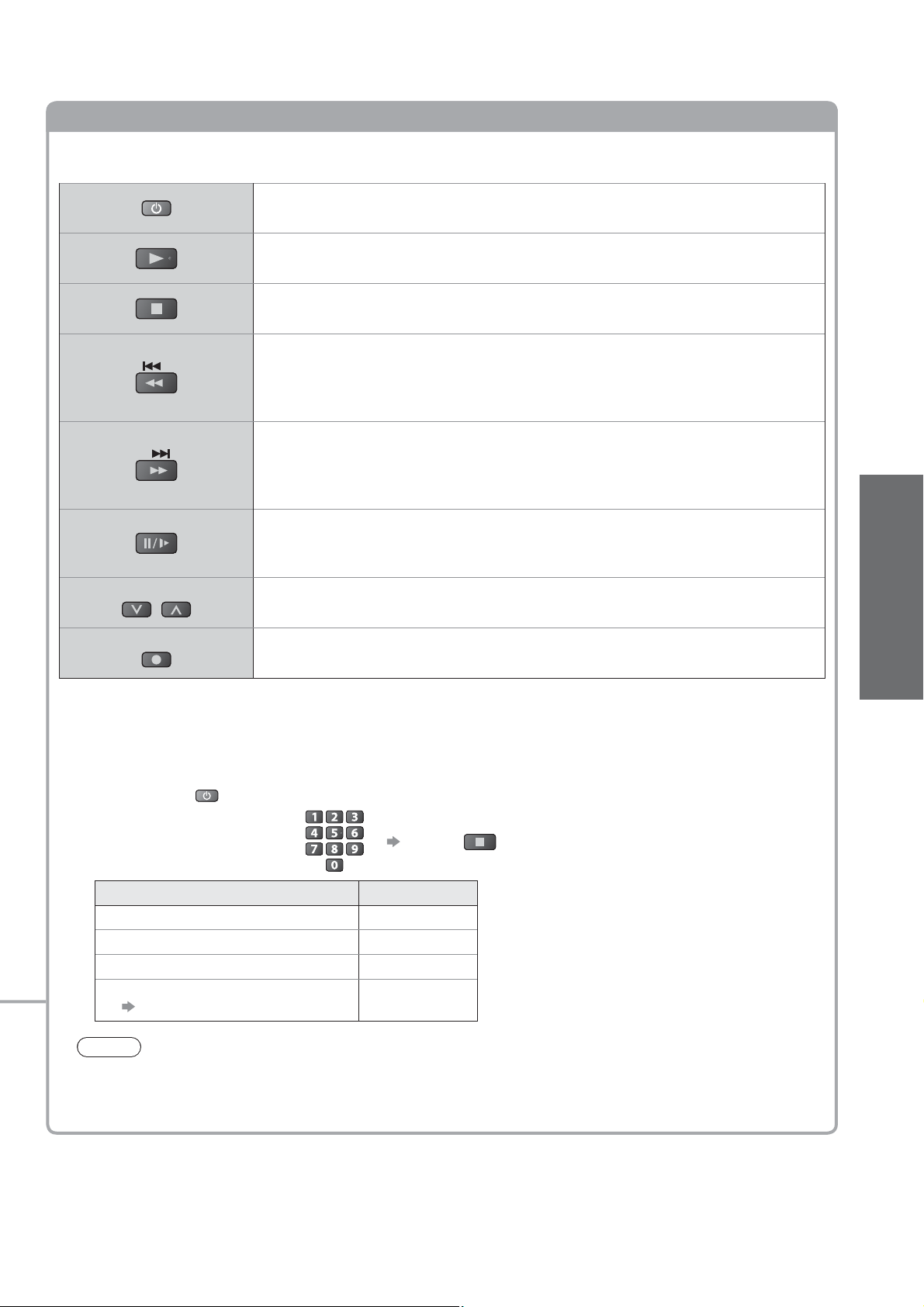

Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV
remote control.
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
PROGRAMME
REC
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
If you operate the connected equipment in VIERA Link (p. 56), select the code 73.
Press and hold during the following operations
Enter the appropriate code,
see table below
Type of the equipment Code
DVD Recorder, DVD Player 70 (default)
Player theatre, Blu-ray Disc theatre 71
VCR 72
The equipment using in VIERA Link
“VIERA Link Control” (p. 56)
Channel Up / Down
Select channel
Record
Start recording
Press
73
Viewing
Watching External inputs
Note
Confirm if the remote control works correctly after changing the code.
The codes may be reset to default values if batteries are replaced.
Some operations may not be possible on some equipment models.
23
Page 24
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
ASPECT
OPTION
TEXT STTL
@
ghi
MENU
INPUT
AVTV
DIRECT TV REC
N
EXIT
RETURN
INDEX HOLD
abc def
jkl
mno
tuvpqrs
wxyz
1
2
3
MENU
Select the menu
Main Menu
Sound
Setup
(example: Picture Menu)
Select the item
Picture Menu 1/2
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
Eco Mode Off
Displays the functions that can be set
(varies according to the input signal)
60
0
30
5
0
(example: Picture Menu)
access
select
select
REC
PROGRAMME
TV
To return to TV
at any time
EXIT
To return to the
previous
screen
RETURN
Adjust or select
4
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
Eco Mode Off
(example: Picture Menu)
Choose from among
alternatives
Number and positions of alternatives
Colour Balance Normal
Changed
Adjust using the slide bar
Sharpness
Moved
Go to the next screen
Child Lock Access
1/2
60
0
30
5
0
To reset the settings
change
store or access
( Required by
some functions)
To reset the picture settings only
“Reset to Defaults” in the Picture
Menu (p. 26)
To reset the sound settings only
“Reset to Defaults” in the Sound
Menu (p. 27)
To reset the picture and sound settings
5
together
N
Also volume level and
(
aspect mode are reset
)
To initialize all settings
“Shipping Condition” in the
Setup Menu (p. 29)
24
To change
menu pages
up
down
Displays the next screen
Enter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 58)
Set characters one by one Store
select
set
RETURN
Page 25
Overview
How to operate p. 24
Only available items can be selected.
Main Menu
Sound
Setup
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
Eco Mode Off
Picture Menu
P-NR Off
3D-COMB Off
Reset to Defaults Reset
60
30
(p. 26)
Sound Menu 1/2
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
MPX Stereo
Sound Menu
SPDIF Selection Auto
MPEG Optical Level 0dB
HDMI1 Input Digital
Reset to Defaults Reset
Over 30cm
Stereo
11
(p. 27)
Setup Menu
Off Timer Off
Link Settings Access
Child Lock Access
DVB-C Tuning Menu Access
DVB-T Tuning Menu Access
Analogue Tuning Menu Access
Language Access
Display Settings Access
Common Interface
System Menu
Other Settings Access
Access
Access
(p. 28 and p. 29)
1/2
0
5
0
2/2
Link Settings
VIERA Link
Q-Link AV2
AV2 out TV
0
0
0
0
2/2
Power on Link
Power off Link
Standby Power Save
Intelligent Auto Standby On (No reminder)
Download Access
DVB-C Tuning Menu
Favourites Edit Access
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Add DVB-T HD Channels
On
On
On
On
Access
Access
Access
Access
On
Access
Access
(p. 28)
Viewing
(p. 28, 30, 32, 33)
DVB-T Tuning Menu
Favourites Edit Access
Channel List
Auto Setup
Manual Tuning
Update Channel List
Favourite Network Access
New Channel Message
Signal Condition
Add HD Channels
Add DVB-C Channels
Access
Access
Access
Access
On
Access
Access
Access
How to Use Menu Functions
(picture, sound quality, etc.)
(p. 28, 31 - 33)
Analogue Tuning Menu
Channel List Access
Auto Setup
Manual Tuning
Add DVB-T Channels
Access
Access
Access
(p. 29, 31, 35)
Display Settings
Preferred Subtitle Type
Teletext TOP
Teletext Character Set West
Input Labels Access
Banner Display Timeout
Playing Time Display
Standard
3 seconds
On
(p. 29)
System Menu
Shipping Condition
System Update
Software Licence
System Information Access
Access
Access
Access
(p. 29, 38, 39)
Other Settings
AV Colour System Auto
Guide Plus+ Settings
Power Save
Picture Overscan
Time Zone Auto
Access
Off
On
(p. 29)
25
Page 26
How to Use Menu Functions
Menu list
Menu
Item Adjustments / Configurations (alternatives)
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Tint
Basic picture mode (Dynamic / Normal / Cinema / Game)
Set for each input signal
Dynamic :
Normal : Recommended for viewing under normal ambient room lighting conditions
Cinema : For watching movies in a darkened room producing a cinema-like picture
Game : Fast response signal specifically to provide suitable images for playing games
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste
For NTSC signal reception only
Provides enhanced picture contrast and sharpness when viewing in a bright room
Not valid on TV mode
A continuous record of time spent using Game mode can be displayed in
the top right of the screen.
“Playing Time Display” (p. 29)
Colour Balance
Colour Management
Eco Mode
P-NR
3D-COMB
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
Automatically adjusts colours to vivid ones (Off / On)
Not valid on PC signal
Adjusts picture settings automatically dependent on ambient lighting conditions
(Off / On)
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
Not valid on PC signal
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen
Set to “On” to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
Not valid on RGB, S-Video, Component, PC, HDMI and SD Card
26
Reset to Defaults
Press the OK button to reset the present Picture Viewing Mode to the default settings
Page 27
Menu
Item Adjustments / Configurations (alternatives)
Mode
Bass
Treble
Balance
Headphone Volume
Surround
Volume Correction
Speaker Distance to
Wall
Sound
Basic sound mode (Music / Speech)
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones
Surround sound settings (Off / V-Audio / V-Audio Surround)
V-Audio: Provides a dynamic enhancer of width to simulate improved spatial effects
V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate
improved spatial effects
Switching is also possible by the Surround button on the remote control (p. 9).
Adjusts the volume of individual channel or input mode
Adjusts the low frequency sound (Over 30cm / Up to 30cm)
If the back space between the TV and wall is over 30 cm, “Over 30cm” is
recommended.
If the back space between the TV and wall is within 30 cm, “Up to 30cm” is
recommended.
Viewing
MPX
SPDIF Selection
MPEG Optical Level
HDMI1 / 3 Input
Select stereo / monaural (Mono / Stereo)
Normally: Stereo
Stereo signal cannot be received: Mono
M1 / M2: Available while mono signal is transmitted
Analogue mode only
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT
terminal (Auto / PCM)
Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream.
HE-AAC and MPEG are output as PCM.
PCM : Digital output signal is fixed to PCM.
DVB mode only
Normally, MPEG sound is larger comparing with the other types of audio track
You can adjust the audio level of MPEG output from DIGITAL AUDIO OUT terminal as
the initial setting (0 / -2 / -4 / -6 / -8 / -10 / -12dB)
DVB mode only
Select to fit the input signal (Digital / Analogue) (p. 59)
Digital : HDMI cable connection
Analogue : HDMI-DVI adapter cable connection
HDMI input mode only
HDMI2 terminal is for digital signal only
No setting for HDMI2 available
How to Use Menu Functions
(picture, sound quality, etc.)
Reset to Defaults
A different menu will be displayed while PC or SD Card is used. (p. 43 - 45)
Only available items can be selected.
Press the OK button to reset the present Sound Mode to the default settings
27
Page 28
How to Use Menu Functions
Menu list
Menu
Item Adjustments / Configurations (alternatives)
Off Timer
VIERA Link
Q-Link
AV1 / AV2 out
Link Settings
Power on Link
Power off Link
Standby Power Save
Intelligent Auto
Standby
Download
Sets the time the TV automatically turns Off
(Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Sets to use VIERA Link functions (Off / On) (p. 49)
Selects which AV terminal is to be used for data communication between this TV
and a compatible recorder (AV1 / AV2) (p. 48)
Select the connected terminal to the recorder even it is not compatible with
Q-Link.
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
Monitor: Image displayed on screen
Component, PC and HDMI signals cannot be outputted.
Sets to use Power on Link function (Off / On) (p. 48 and p. 49)
Sets to use Power off Link function (Off / On) (p. 48 and p. 49)
Controls the power consumption in Standby mode of the connected equipment to
reduce the consumption (Off / On) (p. 50)
This function is available when “VIERA Link” is set to “On” and “Power off Link” is
set to “On”.
Makes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 50
This function is available when “VIERA Link” is set to “On”.
Downloads channel, language, country / region settings to a Q-Link or VIERA Link
compatible equipment connected to the TV
DVB-C channel setting cannot be downloaded.
)
Child Lock
DVB-C Tuning Menu
Setup
DVB-T Tuning Menu
Favourites Edit
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel
Message
Signal Condition
Add DVB-T HD
Channels
Favourites Edit
Channel List
Auto Setup
Manual Tuning
Update Channel List
Locks a channel / AV input to prevent access to it (p. 36)
Creates list of favourite DVB-C channels (p. 33)
Skips the unwanted DVB-C channels or edits DVB-C channels (p. 33)
Automatically sets the DVB-C channels supplied (p. 30)
Sets the DVB-C channels manually (p. 33)
Updates DVB-C Channel List with keeping your settings (p. 32)
Selects whether to give a notification message when a new DVB-C channel is found
(p. 32)
Checks the DVB-C signal condition (p. 32)
Retunes all TV channels to add DVB-T HD channels
All the previous tuning settings are erased.
Use this function if DVB-T HD services start in your area.
Creates list of favourite DVB-T channels (p. 33)
Skips the unwanted DVB-T channels or edits DVB-T channels (p. 33)
Automatically sets the DVB-T channels received in the area (p. 31)
Sets the DVB-T channels manually (p. 33)
Updates DVB-T Channel List with keeping your settings (p. 32)
28
Favourite Network
New Channel
Message
Signal Condition
Add HD Channels
Add DVB-C Channels
Selects your favourite network for each broadcasters
Selects whether to give a notification message when a new DVB-T channel is found
(p. 32)
Checks the DVB-T signal condition (p. 32)
Retunes all TV channels to add HD channels
All the previous tuning settings are erased.
Use this function if HD services start in your area.
Retunes all TV channels to add DVB-C channels
All the previous tuning settings are erased.
Use this function if DVB-C services supply.
Page 29
Menu
Analogue Tuning Menu
Item Adjustments / Configurations (alternatives)
Channel List
Skips the unwanted Analogue channels or edits Analogue channels (p. 35)
Auto Setup
Manual Tuning
Add DVB-T Channels
OSD Language
Language
Preferred Audio 1 / 2
Preferred Subtitles
1 / 2
Preferred Teletext
Preferred Subtitle
Type
Display Settings
Teletext
Teletext Character
Set
Input Labels
Setup
Banner Display Timeout
Playing Time Display
Common Interface
System Menu
Shipping Condition
Automatically sets the Analogue channels received in the area (p. 31)
Sets the Analogue channels manually (p. 35)
Retunes all TV channels to add DVB-T channels
All the previous tuning settings are erased.
Use this function if DVB-T services start in your area.
Changes language for on-screen displays
Selects the first and second preferred language for DVB multi audio (depending on
the broadcaster)
Selects the first and second preferred language for DVB subtitles (depending on the
broadcaster)
To display subtitles
p. 16
Selects the preferred language for DVB teletext service (depending on the broadcaster)
Selects the preferred subtitle type (Standard / Hard of Hearing)
“Hard of Hearing” provides aids in understanding and enjoyment with DVB
subtitles (depending on the broadcaster).
“Preferred Subtitles 1 / 2” in “Language” are given priority.
Teletext display mode (TOP (FLOF) / List) (p. 20)
Selects teletext language (West / East1 / East2)
West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Labels or skips each input terminal (p. 40)
Sets how long the Information banner (p. 15) stays on screen
(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)
Set to “On” to display a continuous record of time spent using Game mode
(Off / On)
This function is available when “Game” is selected in “Viewing Mode” (p. 26).
Uses include to watch pay-TV (p. 37)
Resets all settings, for example, when moving house (p. 38)
Viewing
How to Use Menu Functions
(picture, sound quality, etc.)
System Update
Software Licence
System Information
AV Colour System
GUIDE Plus+
Settings
Other Settings
Update
Postcode
System
Information
Power Save
Picture Overscan
Time Zone
A different menu will be displayed while PC or SD Card is used. (p. 43 - 45)
Only available items can be selected.
If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment (p. 13).
To return to “Home” viewing environment initialise all settings by accessing Shipping Condition.
”Shipping Condition” (p. 38)
Downloads new software to TV (p. 39)
Displays the software licence information
Displays the system information of this TV
Selects optional colour system based on video signals in AV mode
(Auto / PAL / SECAM / M.NTSC / NTSC)
Performs the update of the GUIDE Plus+ schedule and advertising informations for
the GUIDE Plus+ system (p. 19)
Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 19)
Displays the system information of the GUIDE Plus+ system
Reduces brightness of picture to economise on power consumption (Off / On)
Selects the screen area displaying the image (Off / On)
On : Enlarged the image to hide the edge of the image.
Off : Displayed the image in the original size.
Set to “On” if noise is generated on the edge of the screen.
This function is available when aspect is set to Auto (16:9 signal only) or 16:9.
This function can be memorized separately for SD (Standard definition) and HD
(High definition) signals.
Adjusts the time data
The time data will be corrected based on GMT.
Set to “Auto” to adjust the time automatically according to your area.
29
Page 30
Retuning from Setup Menu
Auto Setup retunes all channels automatically.
DVB-C channels
Automatically retune all the DVB-C channels supplied.
This function is available if DVB-C channel tuning is already performed.
Only DVB-C channels are retuned.
All the previous tuning settings are erased.
If a Child Lock PIN number (p. 36) has been set, it must be entered.
Select DVB-C
p. 14
TV
Display the menu
MENU
Select “Setup”
Main Menu
Sound
Setup
Select “DVB-C Tuning Menu”
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-C Tuning Menu Access
Language
Display Settings
Common Interface
System Menu
Other Settings
access
select
access
select
ASPECT
OPTION
TEXT STTL
To return to TV
EXIT
MENU
R
E
I
V
INPUT
TV
DIRECT TV REC
N
T
O
A
O
L
S
INDEX HOLD
AV
EXIT
G
U
I
D
E
BACK/
RETURN
1
2
3
4
30
For Auto Setup, using
the buttons on the side
panel of the TV (p. 8)
Press repeatedly until
“Auto Setup” appears
Access “Auto Setup”
Set the search mode
and scan mode
(select the item)
(set)
Start “Auto Setup”
To return to TV
Note
If tuning has not been done
completely
“Manual Tuning” (p. 33)
5
6
7
Select “Auto Setup”
DVB-C Tuning Menu
Favourites Edit
Channel List
Auto Setup Access
Manual Tuning
Update Channel List
New Channel Message On
Signal Condition
access
select
Set the search mode and scan mode
DVB-C Auto Setup Settings
Free ChannelsSearch Mode
Scan Mode
Symbol Rate
Quick
AutoFrequency
Auto
AutoNetwork ID
Full: scans the whole frequency range
Quick: scans the suitable frequency in your country
Normally set Frequency, Symbol Rate and Network ID “Auto”.
Start Auto Setup
DVB-C Auto Setup
All DVB-C tuning data will be erased
DVB-C Auto Setup
Progress 0% 100%
Analogue Scan 21 68
This will take about 3 minutes.
No. Channel Name Type Quality
1 CBBC Channel Free TV 10
2 BBC Radio Wales Free TV 10
3 E4 Free TV 10
Free TV: 3 Pay TV: 0 Radio: 0
Settings are made automatically
Depending on the country you select (p. 12), “Favourite Network
Selection” or “Region Selection” is required p. 13
When the operation is completed, the channel at the lowest
position will be displayed.
store
set
select
Searching
Page 31
DVB-T or Analogue channels
Automatically retune all DVB-T or Analogue channels received in the area.
DVB-T Auto Setup is available if DVB-T channel tuning is already performed.
Only DVB-T channels are retuned in DVB-T mode.
Only Analogue channels are retuned in Analogue mode.
All the previous tuning settings are erased.
If a Child Lock PIN number (p. 36) has been set, it must be entered.
Select DVB-T or Analogue
p. 14
TV
Display the menu
MENU
Select “Setup”
Main Menu
Sound
Setup
ASPECT
OPTION
MENU
R
E
I
V
TV
N
T
O
A
O
L
INPUT
AV
DIRECT TV REC
EXIT
S
G
U
I
D
E
BACK/
RETURN
1
2
3
access
select
TEXT STTL
INDEX HOLD
To return to TV
EXIT
For Auto Setup, using
the buttons on the side
panel of the TV (p. 8)
Press repeatedly until
“Auto Setup” appears
Access “Auto Setup”
Start “Auto Setup”
4
5
6
Select “DVB-T Tuning Menu” or
“Analogue Tuning Menu”
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-T Tuning Menu
Analogue Tuning Menu
Language
Display Settings
Common Interface
System Menu
Other Settings
Access
Access
“DVB-T Tuning Menu” is
available in DVB-T mode only.
“Analogue Tuning Menu” is
available in Analogue mode
only.
Select “Auto Setup”
DVB-T:
DVB-T Tuning Menu
Favourites Edit
Channel List
Auto Setup Access
Manual Tuning
Update Channel List
New Channel Message On
Signal Condition
Analogue:
Analogue Tuning Menu
Channel List
Auto Setup Access
Manual Tuning
Start Auto Setup
DVB-T:
DVB-T Auto Setup
All DVB-T tuning data will be erased
Analogue:
Analogue Auto Setup
All analogue tuning data will be erased
DVB-T Auto Setup
Progress CH 5 69
This will take about 3 minutes.
CH Channel Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
Free TV: 4 Pay TV: 0 Radio: 0 Data: 0
Analogue Auto Setup
This will take about 3 minutes.
CH Channel Name
CH 29
CH 33
Retuning from Setup Menu
access
select
access
select
Advanced
Searching
CH 1 H: 21 4199Scan
To return to TV
Note
If tuning has not been done
completely
“Manual Tuning” (p. 33 and p. 35)
Analogue: 2
Searching
Settings are made automatically
The channel, language, country / region settings are downloaded to
a Q-Link or VIERA Link compatible equipment connected to the TV.
When the operation is completed, the channel at channel
position “1” will be displayed.
31
Page 32

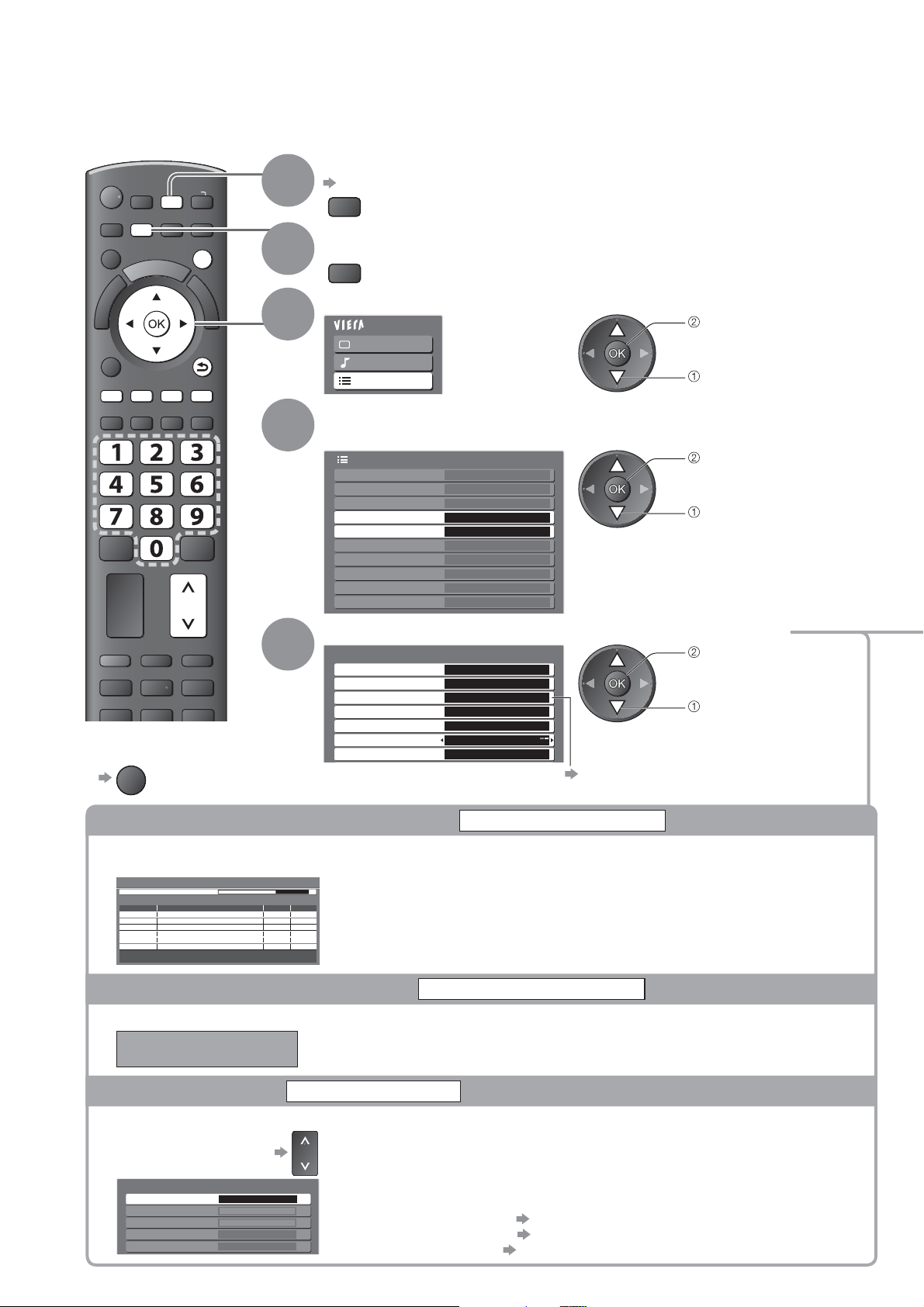

Tuning and Editing Channels
(DVB)
You can retune channels or make your favourite channel lists, skip unwanted channels, etc.
Select DVB-C or DVB-T
p. 14
TV
Display the menu
MENU
Select “Setup”
Main Menu
Sound
Setup
Select “DVB-C Tuning Menu” or
“DVB-T Tuning Menu”
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-C Tuning Menu Access
DVB-T Tuning Menu Access
Language
Display Settings
Common Interface
System Menu
Other Settings
“DVB-C Tuning Menu” is available in
DVB-C mode only.
“DVB-T Tuning Menu” is available in
DVB-T mode only.
access
select
access
select
MENU
TV
INPUT
1
EXIT
2
3
RETURN
4
Select one of the following functions and set
DVB-C Tuning Menu
Favourites Edit Access
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Access
Access
Access
Access
On
Access
The function items vary depending on
the country you select (p. 12).
“Retuning from Setup Menu”
To return to TV
EXIT
5
(p. 30 and p. 31)
Update DVB channel automatically
Update Channel List
You can add new channels, delete removed channels, update channel name and position automatically to
Channel List.
DVB-T Update Channel List
Progress CH 5 68
Analogue Scan 21 68
This will take about 3 minutes.
CH Channel Name Type Quality
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
Searching
Display a notification message
Channel List is updated with keeping your settings in Favourites Edit,
Channel List, Child Lock, etc.
New Channel Message
Selects whether to give a notification message when a new DVB channel is found. (Off / On)
New channels found!
Press OK to update channel list
Press EXIT to ignore.
Selecting OK will perform “Update Channel List”.
access
select
32
Check DVB signal
Signal Condition
Selects a channel and checks the DVB signal condition.
To change the channel
DVB-C Signal Condition
Channel Name 70 CBBC Channel
Signal Quality
Signal Strength
Network Name
Parameter
010
010
Wenvoe
802 MHz, 6340 KS/s
A good Signal Strength is not an indication of suitable signal for DVB
reception. Please use the Signal Quality indicator as follows:
Signal Quality:
Green bar
Good
Yellow bar
Poor
Red bar
Bad (Check the Terrestrial aerial or cable)
Page 33
List favourite DVB channels
Favourites Edit
Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4).
The DVB Favourites lists are available from “Category” in the Information banner (p. 15) and the TV Guide (p. 18).
Select a channel to list
DVB-C Favourites Editor Sorting 123...
All DVB-C Channels
BBC One Wales
1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
Favourites1
select
To sort channel names in alphabetical order
To display other Favourites
To change the category
green
red
blue
Add it to the Favourites list
DVB-C Favourites Editor Sorting 123...
All DVB-C Channels
BBC One Wales
1 BBC One Wales1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
Favourites1
A channel is added
To add all channels to the list
Note
Channel position numbers can be swapped in
Channel List.
yellow
To edit Favourites list
To delete the channel
Select the field of Favourites to edit and:
To name the Favourites
red
Set characters one by one Store
User input
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 58)
To delete all channels
O P Q R S T
7 8 9 ! : #
o p q r s t
yellow
select
set
RETURN
Tuning and Editing Channels
To move the channel
green
Select the new position Confirm
green
RETURN
Store
Skip unwanted DVB channels, Edit DVB Channels
Channel List
You can hide unwanted DVB channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and reveal / hide
All DVB-C Channels
70
CBBC Channel
72
Cartoon Nwk
105
BBCi
719
BBC Radio Wales
720
BBC Radio Cymru
1
BBC ONE Wales
7
BBC THREE
To edit channels
You can also edit each channel in Channel List.
To change the category
To swap the channel position (if available)
To move the channel position (if available)
To sort channel names in alphabetical order
Sorting 123...
red
reveal / hide
select
green
green
blue
To reveal all channels
: reveal
: hide (skip)
Channel position
1 ZDF
Coronation Street
19 : 30 - 20 : 00
Enter the new position number
Select the new position
yellow
Now
19:35
Store
green
All DVB-C Channels
Change category
For info press
Store
green
(DVB)
Advanced
Set DVB channel manually
Manual Tuning
Normally use “Auto Setup” or “Update Channel List” to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
All channels found will be added to the Channel List.
DVB-C:
DVB-C Manual Tuning
Frequency
Symbol Rate
Signal Quality 0 10
Analogue Scan 21 68
Signal Strength 0 10
No. Channel Name Type New
Free TV: 0 Pay TV: 0 Radio: 0
Stopped
362,00 MHz
Auto
Enter the
frequency
Search
Set Symbol Rate, and then perform this function.
Normally set Symbol Rate “Auto”.
DVB-T:
DVB-T Manual Tuning
Frequency
Signal Quality 0 10
Analogue Scan 21 68
Signal Strength 0 10
No. Channel Name Type New
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
Stopped
474,00[CH21]
MHz
Set where the level of “Signal Quality” becomes the
maximum.
select channel
adjust frequency
search
33
Page 34

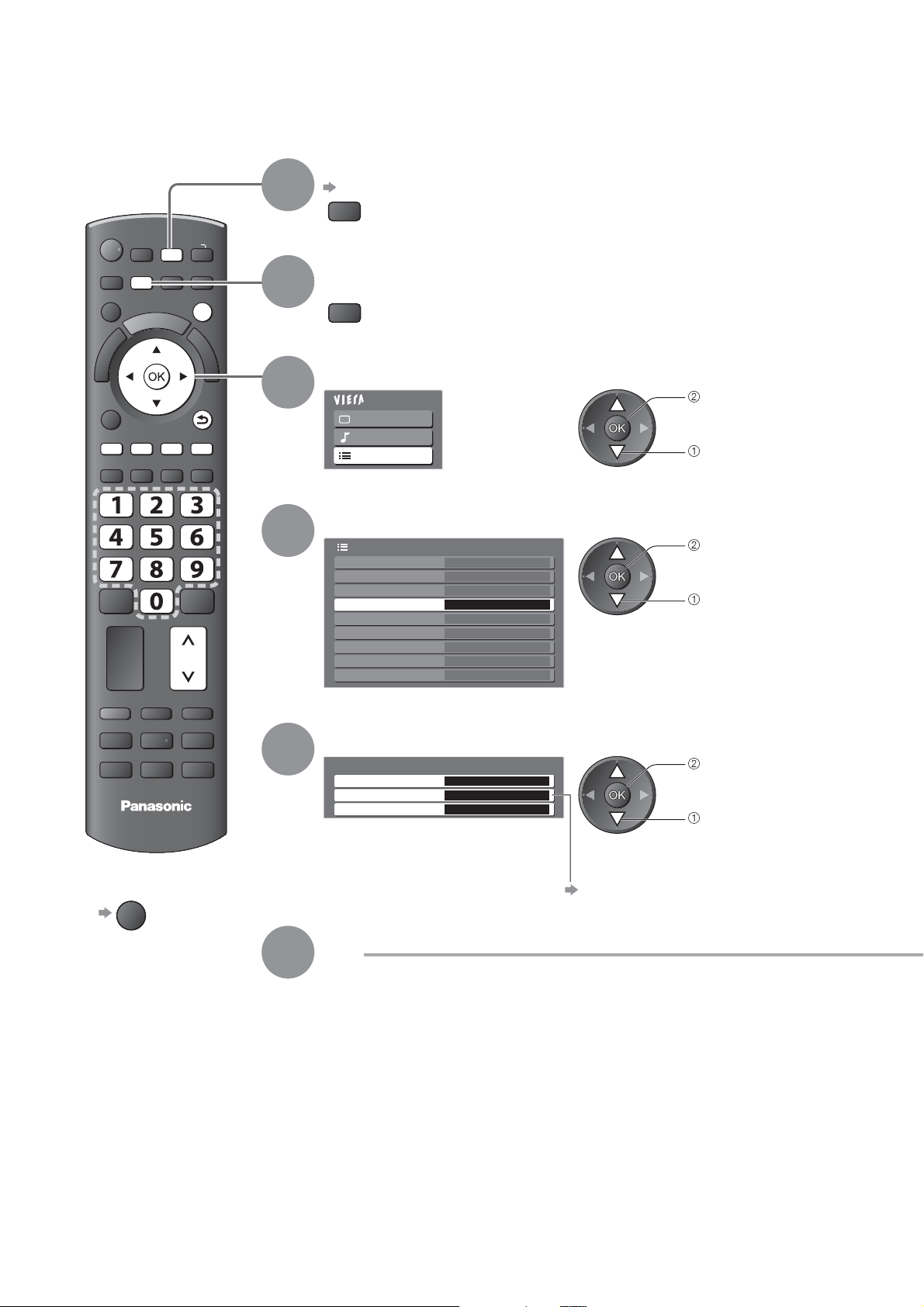

Tuning and Editing Channels
(Analogue)
You can retune channels or skip unwanted channels, edit channels etc.
Select Analogue
p. 14
TV
Display the menu
MENU
Select “Setup”
Main Menu
Sound
Setup
access
select
MENU
TV
INPUT
EXIT
RETURN
1
2
3
TV
To return to TV
EXIT
4
5
6
Select “Analogue Tuning Menu”
Setup Menu
Off Timer Off
Link Settings
Child Lock
Analogue Tuning Menu Access
Language
Display Settings
Common Interface
System Menu
Other Settings
Select one of the following functions
Analogue Tuning Menu
Channel List Access
Auto Setup
Manual Tuning
Access
Access
The function items vary depending on
the country you select (p. 12).
“Retuning from Setup Menu” (p. 31)
Set
access
select
access
select
34
Page 35
Skip unwanted Analogue channels, Edit Analogue channels
Channel List
You can hide unwanted Analogue channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and reveal / hide
Analogue Channel List
BBC1
1
2
*****
3
*****
4
5
6
7
reveal / hide
select
: reveal
: hide (skip)
To reveal all channels
yellow
To edit channels
You can also edit each channel in Channel List.
Select a channel to edit and:
To retune each channel (Manual Tuning)
To move the channel position
To rename the channel name
green
blue
Note
If a VCR is connected only with the RF cable, edit “VCR”.
Set Analogue channel manually
Channel position
Channel name
Radio
SubtitlesAD TXT
For info press
45Multi Audio
(see below)
red
3 ITV
itv
CH23
Mute Encrypted
All Analogue Channels
23:35
Select the new position Store
green
Set characters one by one Store
Edit channel name
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
select
set
RETURN
(maximum: five characters)
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 58)
Manual Tuning
Tuning and Editing Channels
(Analogue)
Fine Tuning
Use to make small adjustments to the tuning of an individual programme (affected by weather conditions,
etc.)
Manual Tuning
Set Analogue channel manually after Auto Setup.
Set Sound System and Colour System, and then perform this function.
Normally set Colour System “Auto”.
If a VCR is connected only with the RF cable, select channel position “0”.
Analogue Manual Tuning
1 BBC1
Fine Tuning
Manual Tuning 1 99 4121
Sound System
Colour System Auto
SC1
CH33
CH33
Select the channel position Select the channel Search and store
SC1: PAL B, G, H / SECAM B, G
SC2: PAL I
SC3: PAL D, K / SECAM D, K
F: SECAM L, L’
search
store
Advanced
35
Page 36

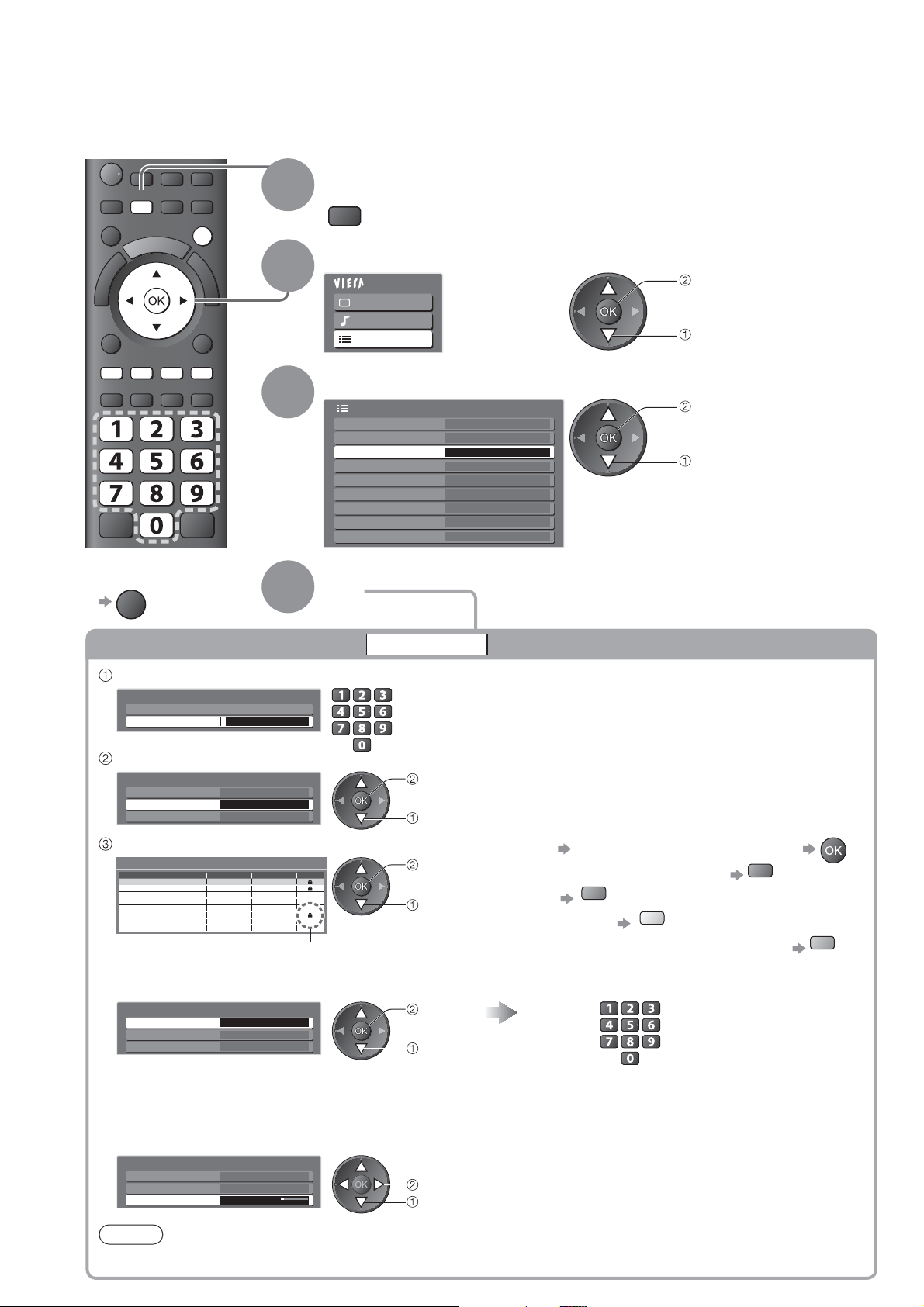

Child Lock
You can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can
watch it.
Display the menu
MENU
EXIT
1
2
3
MENU
Select “Setup”
Main Menu
Sound
Setup
Select “Child Lock”
Setup Menu
Off Timer Off
Link Settings
Child Lock Access
DVB-T Tuning Menu
Language
Display Settings
Common Interface
System Menu
Other Settings
access
select
access
select
To return to TV
EXIT
4
Control channel audience
Set
Child Lock
Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN * * * *
Enter the PIN number twice at first setting.
Make a note of the PIN number in case you forget it.
“0000” may be stored as the default PIN number which
depends on the country you select (p. 12).
Select “Child Lock List”
Child Lock
Change PIN
Child Lock List
Parental Rating No Limit
Access
Select the channel / input to be locked
Child Lock List - TV and AV
Name Input LockType
101
BBC 1 Wales DVB-C FreeTV
BBC THREE DVB-T LockFreeTV
7
E4 DVB-T LockFreeTV
14
VCR Analogue LockAnalogue
BBC1 Analogue LockAnalogue
1
***** Analogue LockAnalogue
2
AV1 External LockAV
AV2/ S
External LockAV
Appears when the channel / input is locked
Sorting 123...
access
select
lock
select
To cancel Select the locked channel / input
To jump to the top of the next input
To lock all
To cancel all locks
green
yellow
red
To sort channel names in alphabetical order
blue
To change the PIN number
Select “Change PIN” Enter a new PIN number twice
Child Lock
Change PIN Access
Child Lock List
Parental Rating No Limit
access
select
To set Parental Rating
The availability of this function depends on the country you select (p. 12).
If the DVB programme has the rated information for over the selected age, you have to enter the PIN number
to watch (depending on the broadcaster).
Select “Parental Rating” and set an age for the restriction of programmes.
Child Lock
Change PIN
Child Lock List
Parental Rating No Limit
set
select
36
Note
Setting “Shipping Condition” (p. 38) erases the PIN number and all settings.
Page 37

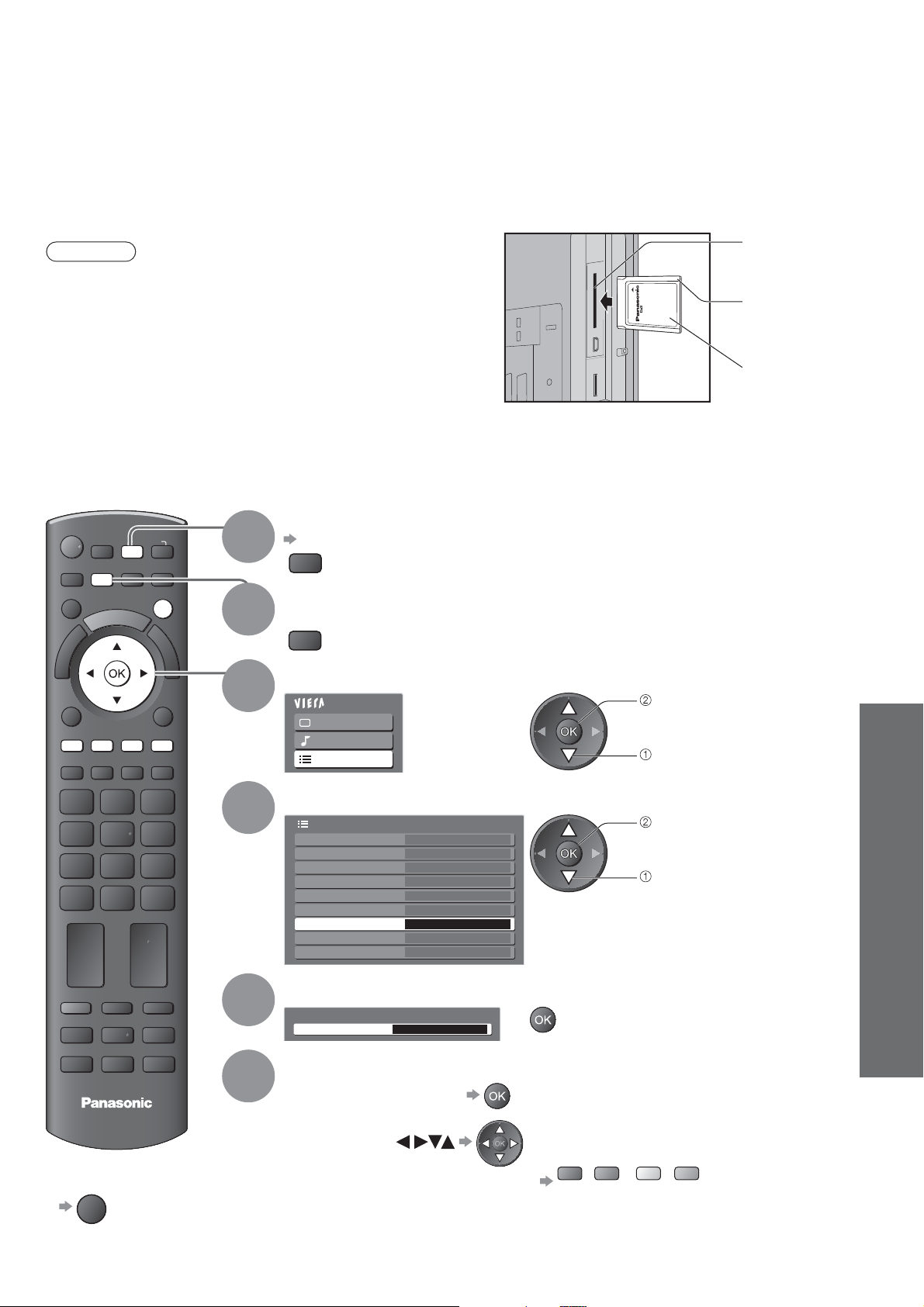

Using Common Interface
The Common Interface Module menu provides access to software contained on Common Interface (CI)
Modules.
This function may not be available in some countries or regions.
Although CI module may enable you to view some services, this TV does not guarantee all services (e.g.
pay-TV).
Please use only the approved CI module by the broadcaster.
Consult your local Panasonic dealer or broadcasters for more information and conditions of the services.
Caution
Turn Off Mains power On / Off switch whenever inserting or
removing the CI module.
If a view card and a card reader come as a set, first insert the
card reader, then insert the view card into the card reader.
Insert the module in the correct direction.
CI slot
Remove the
cover before
using CI slot.
Insert or
remove
straightly and
completely
CI module
Insert the CI module (optional)
The features that appear on screen are dependent on the contents of the selected CI module.
Normally pay-TV channels will appear. Follow the on screen operation guide.
If pay-TV channel does not appear, perform below.
For more details, see the manual of the CI module, or check with the broadcaster.
Select DVB-C or DVB-T
MENU
INPUT
TV
1
EXIT
2
p. 14
TV
Display the menu
MENU
Select “Setup”
3
Main Menu
Sound
Setup
Select “Common Interface”
4
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-T Tuning Menu
Language
Display Settings
Common Interface
System Menu
Other Settings
Access
Side of the TV
access
select
access
select
Using Common Interface
Child Lock
Advanced
To return to TV
EXIT
TV
5
6
Access Common Interface
Common Interface
Slot 1:
Module inserted
Follow the on screen operation guide
For example: select, go
Coloured characters
On screen operation guide may not correspond to the remote control
buttons.
red green yellow blue
37
Page 38

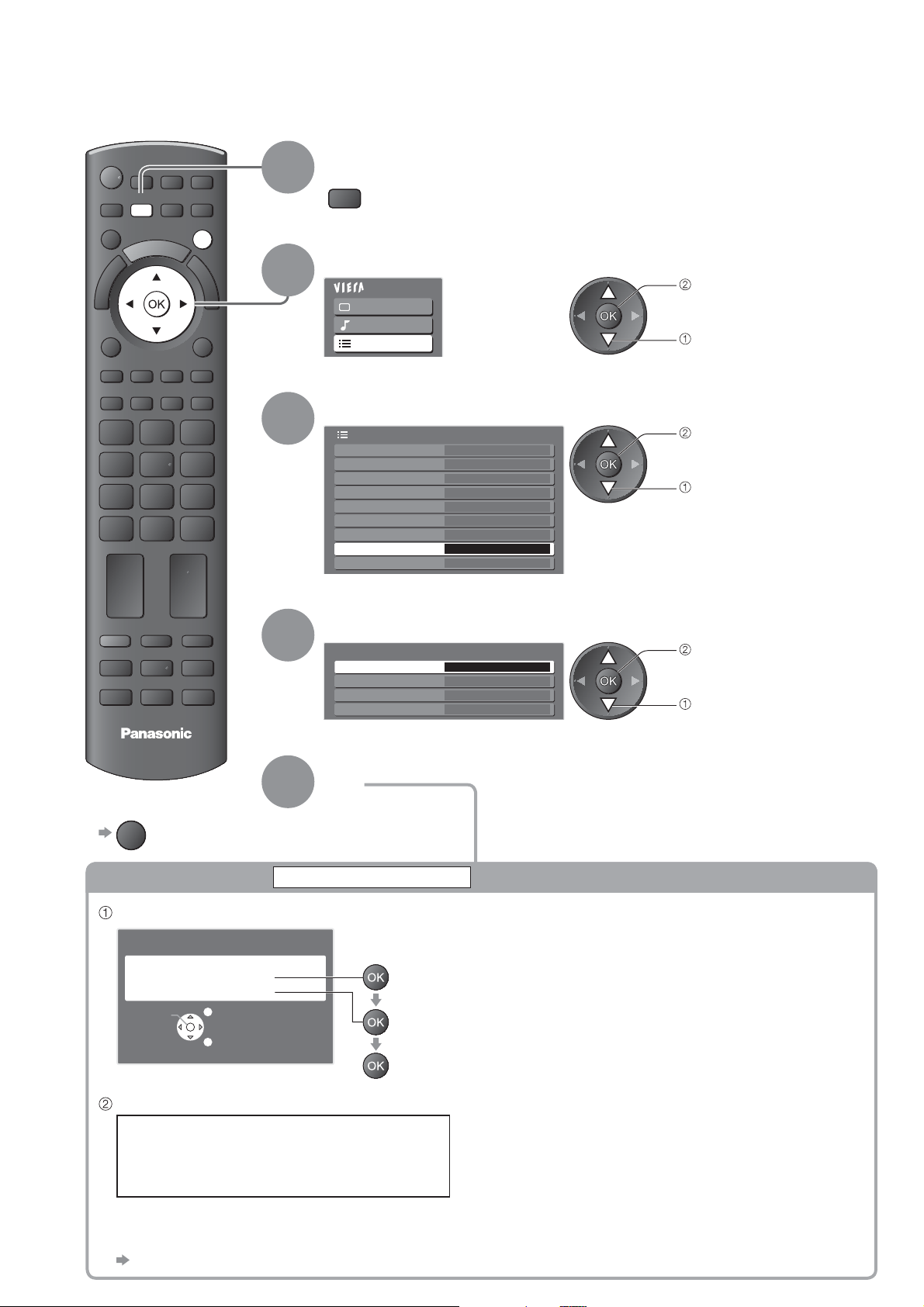

Shipping Condition
Resets the TV to its original condition, i.e. no channels tuned in.
All settings are reset (channels, picture, sound settings, etc.).
Display the menu
1
MENU
EXIT
2
3
MENU
Select “Setup”
Main Menu
Sound
Setup
Select “System Menu”
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-T Tuning Menu
Language
Display Settings
Common Interface
System Menu
Other Settings
Access
access
select
access
select
Select “Shipping Condition”
4
TV
To return to TV
EXIT
Restore Settings
Check the message and initialise
Shipping Condition
All tuning data will be erased
Confirm
Are you sure?
Are you sure?
EXIT
RETURN
5
Shipping Condition
System Menu
Set
Shipping Condition
System Update
Software Licence
System Information
(confirm)
(confirm)
(start Shipping Condition)
access
Access
select
38
Follow the on-screen instructions
Reset to Factory Shipping Condition
Completed.
Please switch off TV.
“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)
To retune TV channels only, e.g. after moving house
“Retuning from Setup Menu” (p. 30 and p. 31)
Page 39

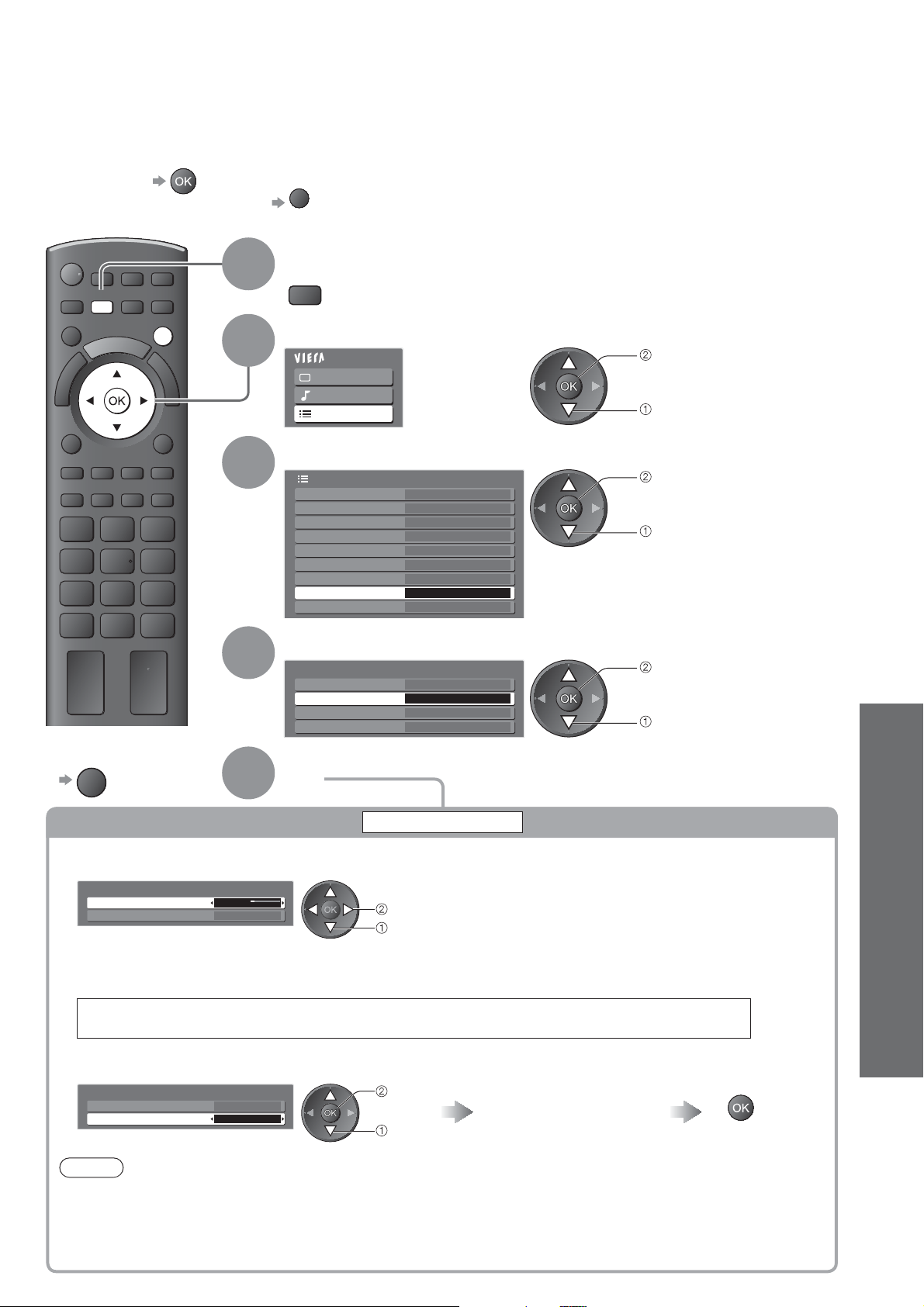

Updating the TV Software
From time to time, a new version of software may become available for download to enhance the
performance or operations of the TV.
If there is an update available, a notification banner is displayed when the channel has the update
information.
To download
If you choose not to download
You can update any new software automatically or update manually.
1
MENU
EXIT
2
EXIT
Display the menu
MENU
Select “Setup”
Main Menu
Sound
Setup
access
select
Select “System Menu”
3
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-T Tuning Menu
Language
Display Settings
Common Interface
System Menu
Other Settings
Access
access
select
Select “System Update”
4
To return to TV
EXIT
Update TV’s software system
5
System Menu
Shipping Condition
System Update
Software Licence
System Information
Set
Access
System Update
To update automatically
Select “Auto Update Search in Standby”
System Update
Auto Update Search in Standby
System Update Search Now
If System Update is performed, the software will be updated (it may change TV functions).
If you do not wish to do so, set “Auto Update Search in Standby” to “Off”.
Off
set
select
Every time you set, the TV automatically performs a
search in standby and downloads an update, if any
software updates are available.
The automatic updating is performed under the
following conditions:
Standby (TV turned Off with the remote control)•
Recording is not in progress.•
access
select
Updating the TV Software
Shipping Condition
Advanced
To update immediately
Select “System Update Search Now” Download
System Update
Auto Update Search in Standby
System Update Search Now
Off
Access
access
select
Searches for an update
(for several mins.) and
displays a corresponding
message if any
Note
Download may take for about 60 mins.
During software download and update, DO NOT switch Off the TV.
The message might be the notification beforehand. In this case, the schedule information (the date that the
new version can be used) will appear. You can set the reservation for update. The update will not start when
the TV is set to Off.
39
Page 40
Input Labels
For easier identification and selection of the input mode, you can label each input mode or skip terminal
that is not connected to any equipment.
To select the input mode p. 22
Display the menu
1
MENU
EXIT
2
RETURN
3
MENU
Select “Setup”
Main Menu
Sound
Setup
Select “Display Settings”
Setup Menu
Off Timer Off
Link Settings
Child Lock
DVB-T Tuning Menu
Language
Display Settings Access
Common Interface
System Menu
Other Settings
access
select
access
select
To return to TV
EXIT
TV
4
5
Select “Input Labels”
Display Settings
Preferred Subtitle Type
Teletext TOP
Teletext Character Set West
Input Labels Access
Banner Display Timeout
Playing Time Display
Standard
3 seconds
On
access
select
Select a input terminal and set
Input Labels
AV1 DVD
AV2/S AV2/S
AV3/S AV3/S
COMPONENT COMPONENT
PC PC
HDMI1 HDMI1
HDMI2 HDMI2
HDMI3 HDMI3
DVB-C DVB-C
Input Labels
DVB-T DVB-T
Analogue Analogue
The labels you set will be displayed in “Input Selection” menu (p. 22),
“TV Selection” menu (p. 14) or banner.
If “Skip” is selected, you cannot select the mode.
1/2
set
select
2/2
40
User input
You can name each input mode freely.
Select “User input” Set characters one by one Store
select
access
User input
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
select
set
(maximum: ten characters)
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 58)
RETURN
Page 41
How to Use VIERA TOOLS
You can access some special features easily by using the VIERA TOOLS function.
For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings
are completed.
“Summary of Q-Link and VIERA Link features” (p. 50 and p. 51), “Preparations” (p. 53)
After connection, turn the equipment on and then switch the TV on.
Display icons of the feature
T
O
A
O
R
L
E
S
1
EXIT
T
O
A
O
R
L
E
S
I
V
2
I
V
Select a feature
VIERA Link Control
select
access
How to Use VIERA TOOLS
To return to TV
EXIT
To remove
icons
E
I
V
Follow the operations of each feature
3
VIERA Link Control “VIERA Link Control” (p. 52)
When more than two pieces of compatible equipment are connected a
selection screen will be displayed.
Please select the correct description and access.
Pause Live TV
“Pause Live TV” (p. 51)
Input Labels
Advanced
TV
T
O
A
O
R
L
S
Slideshow “Slideshow” (p. 43)
Slideshow will use all of the photos on the SD Card.
Photos
“Photo View” (p. 42)
41
Page 42
Viewing from SD Card
(VIERA IMAGE VIEWER)
Still images recorded by digital cameras will be displayed.
During the operation, sound signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals.
But no video signals are output.
“Date” shows the date on which the recording was made by the digital camera or digital video camera. The file
without record of the date is shown “**/**/****”.
p. 57
For details on SD Cards
To insert the SD Card To remove the SD Card
Push until
a click is
heard
ASPECT
MENU
V
OPTION
TEXT STTL
Label
surface
T
O
A
R
E
I
INDEX HOLD
INPUT
TV AV
DIRECT TV REC
N
EXIT
O
L
S
G
U
I
D
E
RETURN
1
2
3
4
Press the
centre of
the card
Insert the SD Card
Select “Photo View”
access
SD Card
Photo View
You can also access directly by using
VIERA TOOLS
“How to Use VIERA TOOLS” (p. 41)
Select the folder to display the thumbnail
Photo View Mode
Folder view
1/23
Folder name
100_PANA
Number of pictures
38 pictures
Select
EXIT
Select
RETURN
View
100_PANA
38 pictures
201_PANA
7 pictures
All pictures
101_PANA
3 pictures
ROOM
1 picture
200_PANA
102_PANA
20 pictures
14 pictures
Nature
Fruit
14 pictures
18 pictures
(Folder view)
The files which are not into a folder will
be collected to the folder named “/”.
select
thumbnail
Select the file from the thumbnail to be viewed
Selected
Photo View Mode
Folder view
100_PANA
1/38
File name
p1010001
Date
23/10/2008
Pixel
1600 x 1200
Select
EXIT
Select
RETURN
View
Slideshow Sort by Month Sort by Date
Selected photo
information is displayed
Error display
(images that could not be loaded, etc.)
p1010004p1010003p1010002p1010001
p1010008p1010007p1010006p1010005
p1010012p1010011p1010010p1010009
Slideshow p. 43
(Thumbnail)
select
single view
42
To return to TV
EXIT
or
To return to the
previous
screen
RETURN
Single view
Rotate
EXIT
Select
List
Rotate
Slideshow
Operation guide
(Single view)
Displayed one at a time
To display / hide the operation guide
OPTION
or
To the previous photo
Rotate 90 (anti-clockwise)
To the next photo
Rotate 90 (clockwise)
RETURN
To return to thumbnail
Page 43

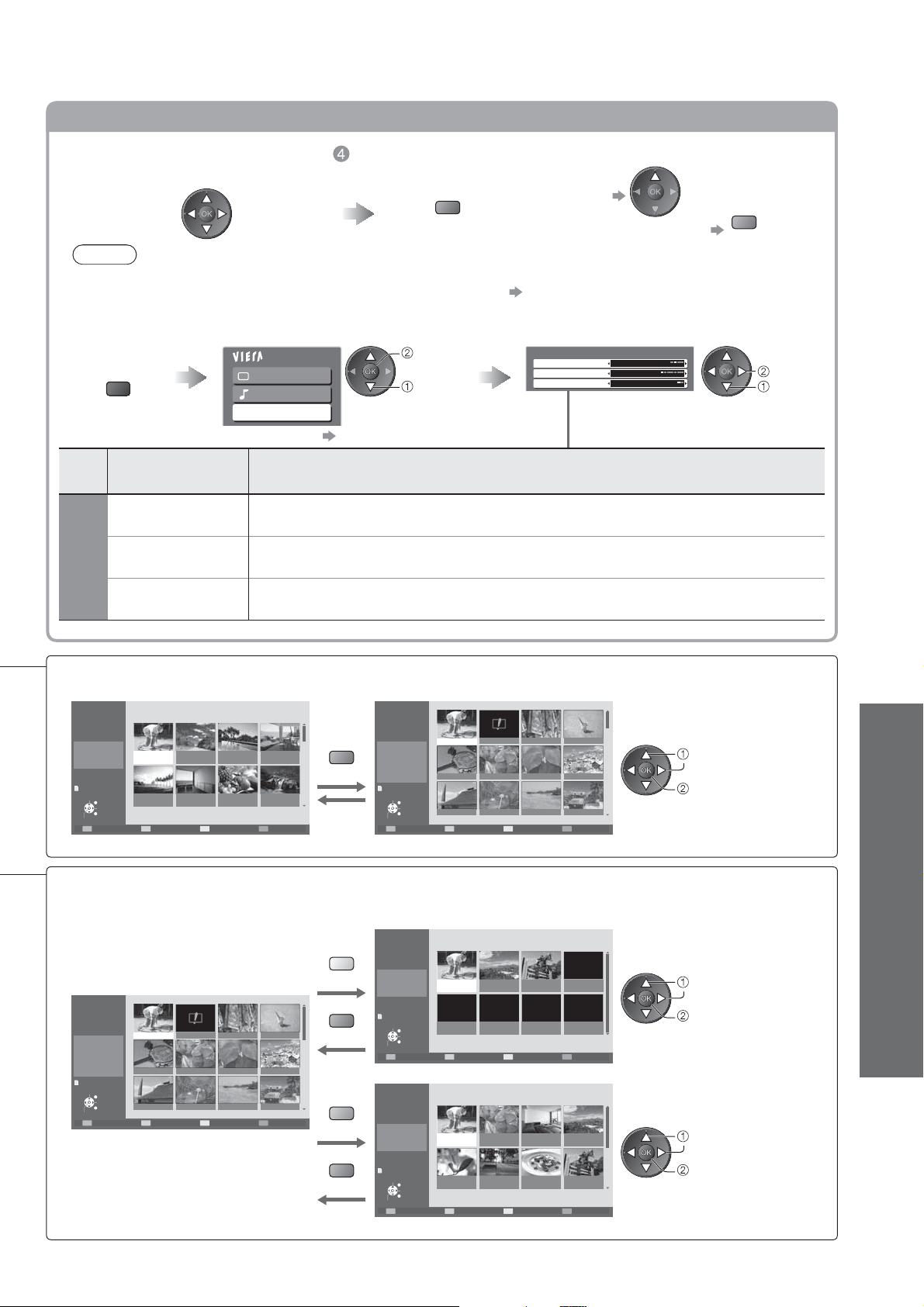

Slideshow
n
Start Slideshow (operate in step )
Select the photo for the first view Start Slideshow
To pause
red
Note
Slideshow is done within the thumbnail.
You can also start slideshow directly by using VIERA TOOLS “How to Use VIERA TOOLS” (p. 41)
Slideshow settings (operate in Photo View Mode)
Display the
menu
MENU
Menu Item Adjustments / Configurations (alternatives)
Select “Viewing Setup” Select the items and set
Main Menu
Sound
Viewing Setup
Other Items p. 26 and p. 27
access
select
To return to Single view
Viewing Setup
Back Ground Music Type1
Interval 5 seconds
Repeat Off
gree
Viewing from SD Card (VIERA IMAGE VIEWER)
set
select
Viewing
Setup
Back Ground Music
Selects the back ground music during the slideshow (Off / Type1 / Type2 / Type3)
Interval Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)
Repeat Slideshow repeat (Off / On)
To display all the photos
Display the thumbnail of all the photos in SD Card.
Photo View Mode
Folder view
Folder name
100_PANA
Number of pictures
38 pictures
Select
EXIT
Select
RETURN
View
1/23
200_PANA
102_PANA
101_PANA
100_PANA
38 pictures
3 pictures
14 pictures
20 pictures
green
Nature
201_PANA
7 pictures
All pictures
ROOM
1 picture
Fruit
18 pictures
14 pictures
(Folder view)
Photo View Mode
All pictures
1/175
File name
p1010001
Date
23/10/2008
Pixel
1600 x 1200
Select
EXIT
Select
RETURN
View
Slideshow Folder view Sort by Month Sort by Date
(Thumbnail - All pictures)
To sort by date or month recorded
Display the list of groups sorted by the same date or the same month.
The group of the photos without record of the date is shown as “Unknown”.
Photo View Mode
100_PANA
Sort by Month
1/3
Month
Oct 2008
Number of pictures
18 pictures
Select
EXIT
Select
RETURN
View
Photo View Mode
100_PANA
Sort by Date
Date
23/10/2008
Number of pictures
5 pictures
Select
EXIT
Select
RETURN
View
Oct 2008
18 pictures
All pictures
15 pictures
5 pictures
Dec 2008
Nov 2008
(Sort by Month)
1/10
26/10/2008
25/10/2008
23/10/2008
5 pictures
10/11/2008
1 picture
All pictures
8 pictures
20/11/2008
10 pictures
5 pictures
25/11/2008
1 picture
(Sort by Date)
Photo View Mode
Folder view
100_PANA
1/38
File name
p1010001
Date
23/10/2008
Pixel
1600 x 1200
Select
EXIT
Select
RETURN
View
Slideshow Sort by Month Sort by Date
(Thumbnail)
yellow
p1010004p1010003p1010002p1010001
p1010008p1010007p1010006p1010005
p1010012p1010011p1010010p1010009
green
blue
green
p1010004p1010003p1010002p1010001
select
p1010008p1010007p1010006p1010005
single view
p1010012p1010011p1010010p1010009
Advanced
select
08/11/2008
3 pictures
02/12/2008
2 pictures
thumbnail of the
selected group
select
thumbnail of the
selected group
43
Page 44

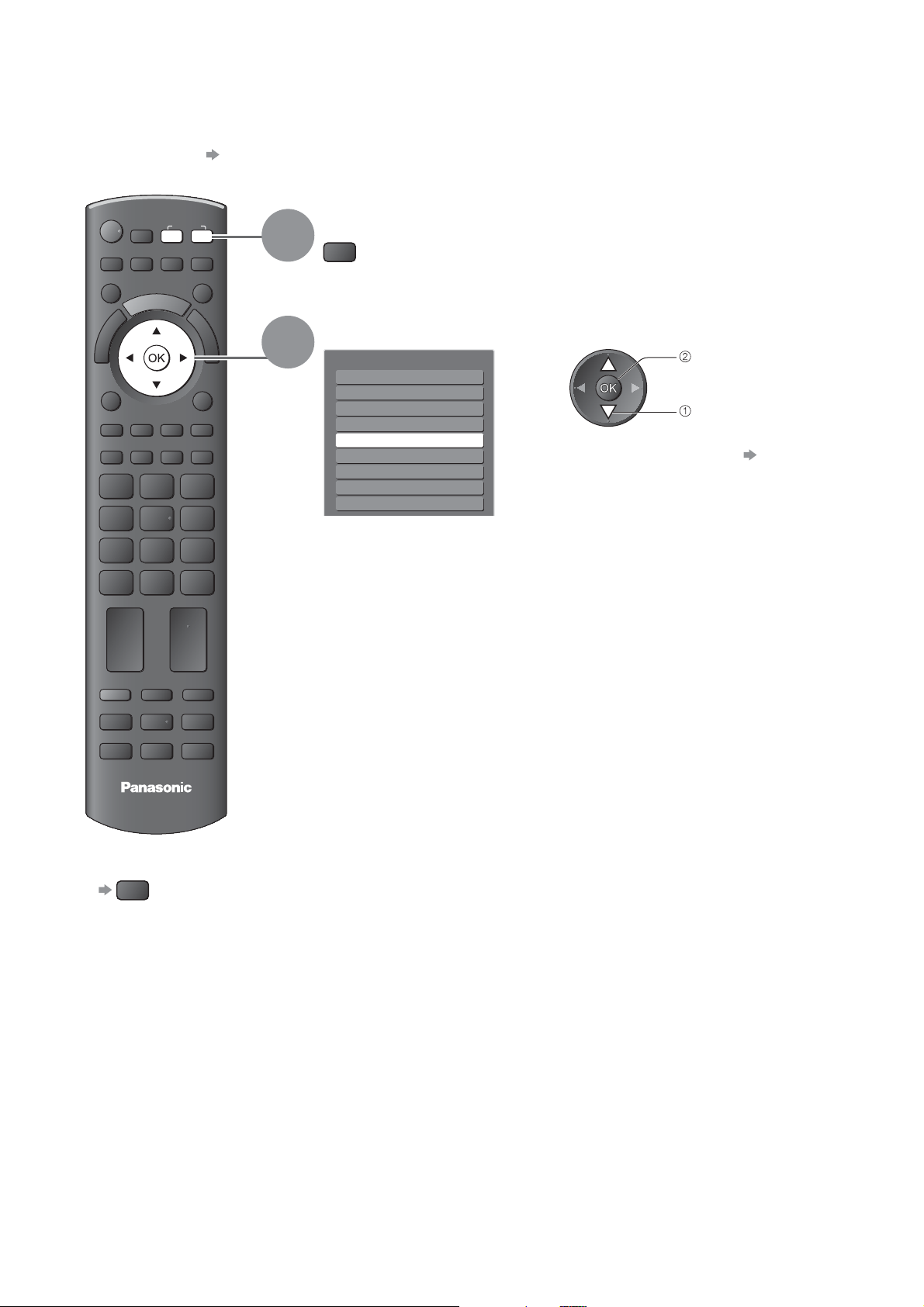

Displaying PC Screen on TV
The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.
To connect PC p. 54
ASPECT
OPTION
TEXT STTL
MENU
R
E
I
V
INPUT
DIRECT TV REC
N
T
O
A
O
L
S
INDEX HOLD
AVTV
EXIT
G
U
I
D
E
BACK/
RETURN
1
2
Select the external input
AV
Select “PC”
Input Selection
AV1
AV2/S
AV3/S
COMPONENT
PC
HDMI1
HDMI2
HDMI3
TV
access
select
Corresponding signals p. 60
If “H-freq.” or “V-freq.” is shown in red,
the signals may not be supported.
REC
PROGRAMME
DVD/VCR
TV
TV
To return to TV
TV
44
Page 45

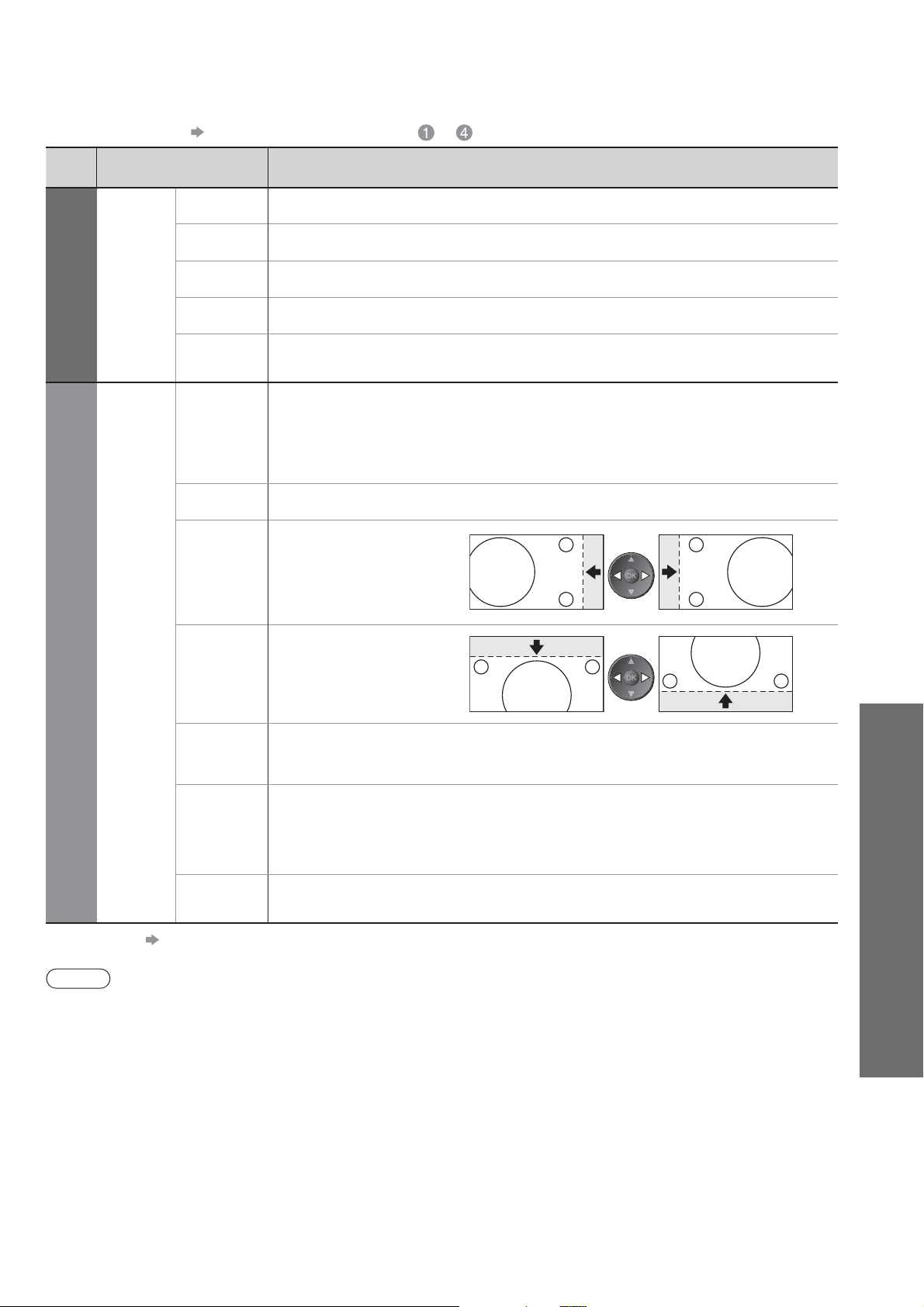

PC menu setting (changed as desired)
To make settings “How to Use Menu Functions” to (p. 24)
Menu Item Adjustments / Configurations (options)
R-Gain Adjusts the white balance for red areas
Advanced
PC
Settings
Setup
PC
Setup
G-Gain Adjusts the white balance for green areas
B-Gain Adjusts the white balance for blue areas
Gamma Switches the gamma curve (2.0 / 2.2 / 2.5)
Reset to
Defaults
Input
Resolution
Clock Set to the minimum level if noise occurs
H-pos
V-pos
Press the OK button to reset to the default Advanced PC Settings
Switches to a wide view
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)
Options change depending on signals
Adjusts horizontal position
Adjusts vertical position
Displaying PC Screen on TV
Clock Phase
Sync
Reset to
Defaults
Other items p. 26 - 29
Note
For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using HDMI cable
(p. 59).
Eliminates flicker and distortion
Set to the minimum level if noise occurs
Adjust after Clock adjustment
Chooses another synchronous signal if the image is distorted (H & V / On Green)
H & V : by the horizontal and vertical signals from your PC
On Green : by the green signal from your PC (if available)
Press the OK button to reset to the default PC Setup settings
Advanced
45
Page 46

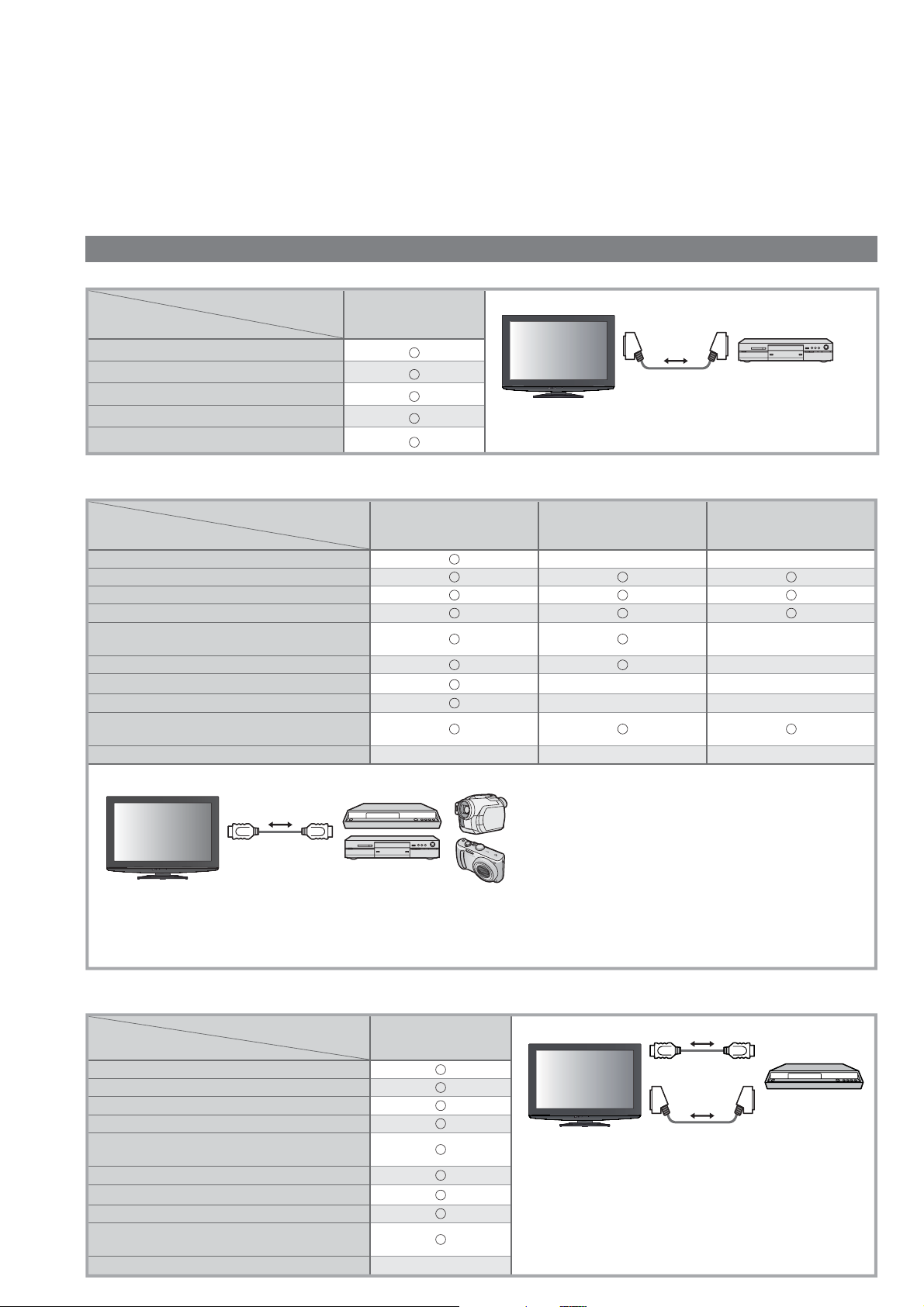

Q-Link
Link Functions
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 48)
VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and
enables easy control, convenient recording, playback, energy saving, creating home theatre, etc.,
without complicated setting. (p. 49 - 53)
You can use Q-Link and VIERA Link functions together.
This TV supports “HDAVI Control 4” function. But available features are depending on the connected equipment’s
version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.
Summary of Q-Link and VIERA Link features
Q-Link (SCART connection only)
Connected equipment
Features
Preset download
Easy playback
Power on link
Power off link
Direct TV Recording
VIERA Link (HDMI connection only)
Connected equipment
Features
Preset download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control
Connection
DVD Recorder / VCR
with
Q-Link connection
DIGA Recorder with
VIERA Link function
–––
(
VIERA Link
)
Connection
SCART cable
DVD Recorder / VCR
with Q-Link function
Use fully wired SCART cable.
Connect the DVD Recorder / VCR supporting Q-Link
to the TV’s AV1 or AV2 terminal via a SCART cable.
DVD Player /
Blu-ray Disc Player with
2
3
1
2
4
2
1
VIERA Link function
––
3
1
––
––
1
HD Video Camera /
LUMIX Camera with
VIERA Link function
–
–
1
46
HDMI cable
Use fully wired HDMI compliant cable.
Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable.
About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the
equipment.
VIERA Link (HDMI and SCART connections)
Connected equipment
Features
Preset download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control
DIGA Recorder with
VIERA Link function
3
1
2
4
2
1
–
DIGA Recorder / DVD Player / Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function
Connection
HDMI cable
DIGA Recorder
with VIERA Link
SCART cable
function
Use fully wired HDMI compliant cable.
Connect the equipment supporting VIERA Link to
the TV’s HDMI1, HDMI2 or HDMI3 terminal via
an HDMI cable.
Use fully wired SCART cable.
Connect the equipment supporting VIERA Link to
the TV’s AV1 or AV2 terminal via a SCART cable.
Page 47

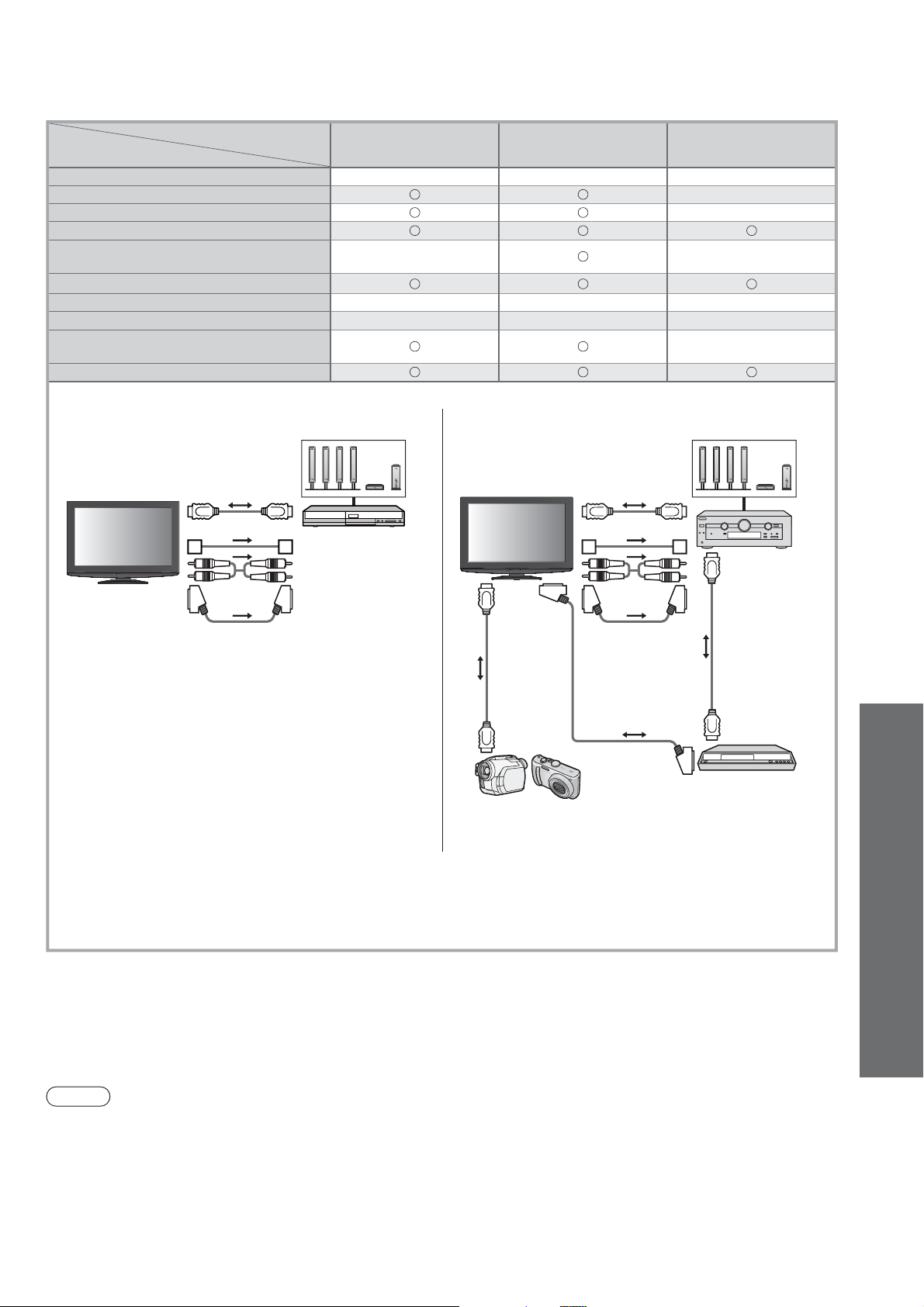

VIERA Link (HDMI and Audio out connections)
Connected equipment
Features
Preset download
Easy playback
Power on link –
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme –––
Direct TV Recording –––
Control the menu of the connected
equipment by VIERA remote control
Speaker control
Connection
To use Player theatre / Blu- ray Disc theatre: To use Amplifier:
Speaker system
Player theatre with
VIERA Link function
–––
5
–
1
6
1
Blu-ray Disc theatre with
VIERA Link function
5
3
1
6
1
Amplifier with
VIERA Link function
–
–
1
–
Speaker system
(Q-Link / VIERA Link)
HDMI cable
Player theatre /
Blu-ray Disc theatre
with VIERA Link
function
HDMI cable
Amplifier with
VIERA Link
function
Link Functions
Optical digital
audio cable
or
RCA cable
or
SCART cable
HDMI
cable
HD Video Camera /
LUMIX Camera with
VIERA Link function
Use fully wired HDMI compliant cable.
Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable.
Use fully wired SCART cable.
Connect the equipment supporting VIERA Link to the TV’s AV1 or AV2 terminal via a SCART cable.
Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV.
1: Available with the equipment which has “HDAVI Control 2 or later” function.
2: Available with the equipment which has “HDAVI Control 3 or later” function.
3: Available with the equipment which has “HDAVI Control 4” function.
4: Available with DIGA Recorder which has HDD.
5: while playingback a disc
6: except for watching a disc
Optical digital
audio cable
or
RCA cable
or
SCART cable
SCART cable
HDMI
cable
DIGA Recorder with
VIERA Link function
Advanced
Note
VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.
47
Page 48
Q-Link
Link Functions
Q-Link
Preparations
Connect the DVD Recorder / VCR with the following logos:
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
Q-Link connection p. 46
Use fully wired SCART cable.
Set up the DVD Recorder / VCR. Read the manual of the recorder.
Q-Link terminal setup in the Setup Menu “Q-Link” (p. 28), “AV1 / AV2 out” (p. 28)
Download preset - channel, language, country / region settings “Preset download” (see below)
Features available
Preset download
Channel, language, country / region settings can be downloaded to the recorder.
DVB-C channel setting cannot be downloaded.
To download settings
Direct TV Recording - What you see is What you record
Recording the current programme in DVD Recorder / VCR immediately.
DIRECT TV REC
EXIT
G
U
I
D
E
“Download” (p. 28) or “Auto Setup” (p. 31) or “Auto Setup” - when first using the TV
(p. 12)
Available conditions:
Current mode Using tuner How to record
DIRECT TV REC
Analogue
DVB TV TV monitor out
AV
( watching recorder’s tuner)
AV
( watching recorder’s external input)
AV
( watching TV’s external input)
When Direct TV Recording is performed, the recorder is automatically
turned on if it is in Standby mode.
Changing channel or turning off the TV is available while the recorder is
recording from its own tuner.
Changing channel is not available while the recorder is recording from
the TV tuner.
(
VIERA Link
TV TV monitor out
Recorder Recorder’s tuner
Recorder Recorder’s tuner
–
– TV monitor out
)
external input
Recorder’s
48
To stop recording
Unlock the tuner
G
U
I
D
E
Tuner Locked
Please stop recording to operate
Continue
Unlock
EXIT
Power on link and Easy playback
Set Power on Link “On” in the Setup Menu to use this function “Power on Link” (p. 28)
When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment
are activated, the TV is turned on and input mode is switched automatically so that you can view the
content. (Only when the TV is in Standby mode.)
Power off link
Set Power off Link “On” in the Setup Menu to use this function “Power off Link” (p. 28)
When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the
videocassette or disc is not active.)
This function will work even if the TV enters standby mode automatically by Off Timer function or auto power
standby function.
“DATA LOGIC” (a trademark of Metz Corporation)•
“Easy Link” (a trademark of Philips Corporation)•
Note
Some recorders are not applicable. Read the manual of the recorder.
“Megalogic” (a trademark of Grundig Corporation)•
“SMARTLINK” (a trademark of Sony Corporation)•
Page 49
VIERA Link “ Control™”
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 4” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically (p. 46 and p. 47).
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
About applicable Panasonic equipment, consult your local Panasonic dealer
or refer to the URL: www.panasonic.co.uk
Preparations
Connect the equipment supporting VIERA Link.
VIERA Link connection p. 46 and p. 47
Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.
Recommended Panasonic’s HDMI cable part number:
RP-CDHG10 (1.0 m)•
RP-CDHG15 (1.5 m)•
RP-CDHG20 (2.0 m)•
Use fully wired SCART cable.
Set up the connected equipment. Read the manual of the equipment.
For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the
recorder.
Download preset - channel, language, country / region settings “Preset download” (see below)
Set VIERA Link On in the Setup Menu
“VIERA Link” (p. 28)
Set up the TV
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 22), and make sure that an image is displayed
correctly.
This setup should be done each time when the following conditions occur:
for the first time•
when adding or reconnecting equipment•
when changing setup•
RP-CDHG30 (3.0 m)•
RP-CDHG50 (5.0 m)•
(Q-Link / VIERA Link)
Link Functions
Features available
Preset download
Channel, language, country / region settings can be downloaded to the recorder.
DVB-C channel setting cannot be downloaded.
To download settings “Download” (p. 28) or “Auto Setup” (p. 31) or “Auto Setup” - when first using the TV
(p. 12)
Easy playback
Automatic Input switching - When the connected equipment is operated, input mode is switched
automatically. When it is stopped operating, input mode is returned.
Power on link
Set Power on Link “On” in the Setup Menu to use this function “Power on Link” (p. 28)
When the connected equipment starts playback or direct navigator / function menu for the equipment
are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)
Power off link
Set Power off Link “On” in the Setup Menu to use this function “Power off Link” (p. 28)
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
This function will work even if the TV enters standby mode automatically by Off Timer function or auto power
standby function.
Advanced
49
Page 50

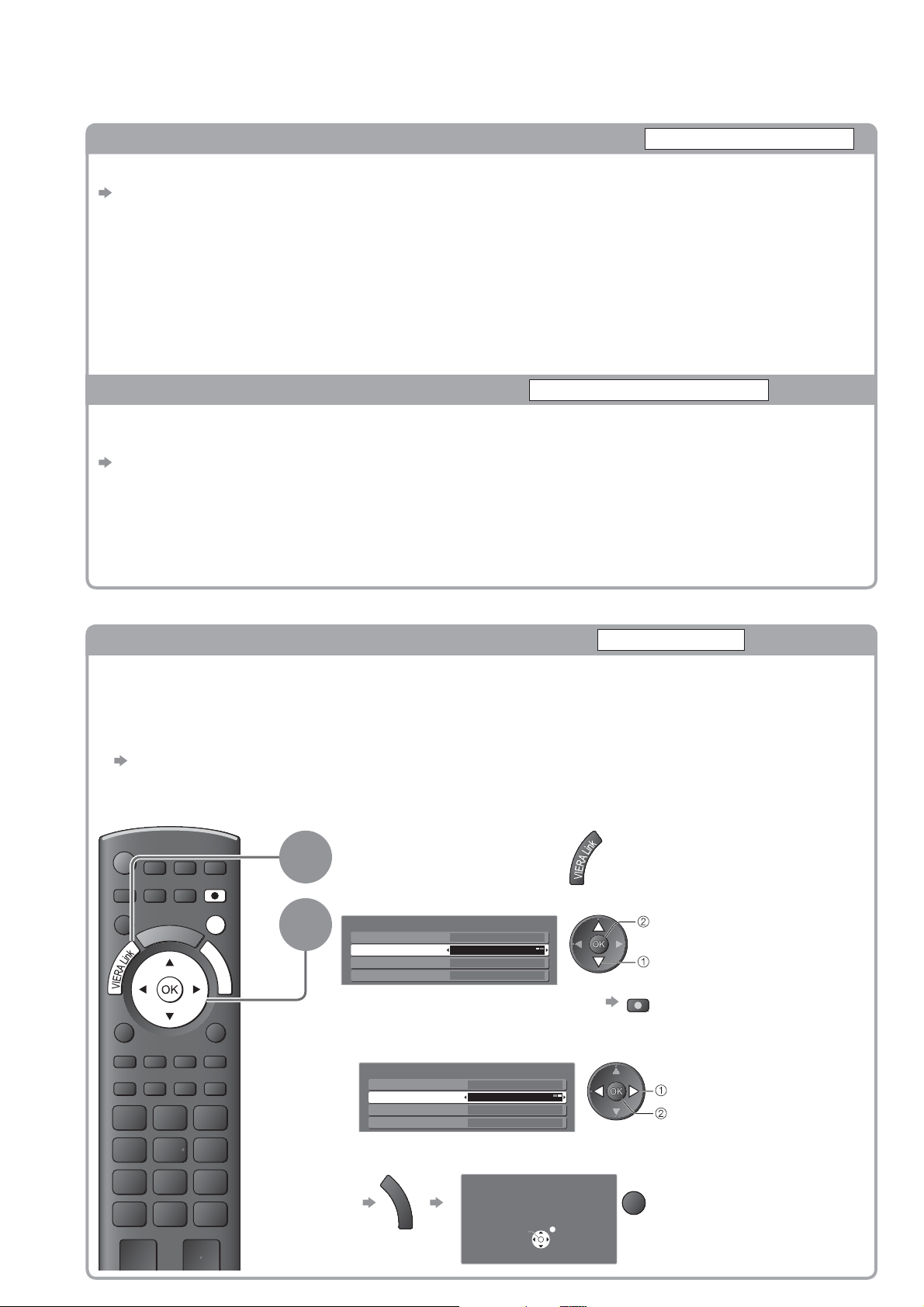

Link Functions
Features available
Q-Link
(
VIERA Link
)
Reduce unnecessary power consumption in standby
Standby Power Save
Set Standby Power Save “On” in the Setup Menu to use this function
“Standby Power Save” (p. 28)
The power consumption in Standby mode of the connected equipment is controlled higher or lower in
synchronization with the TV On / Off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power
consumption in Standby mode of the connected equipment is automatically minimized.
When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is
increased to make startup time early.
This function is effective if the connected equipment can change the power consumption in Standby mode
and is set to higher consumption.
This function will work when “Power off Link” is set to “On”.
Auto standby for unnecessary equipment
Intelligent Auto Standby
Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to
use this function
“Intelligent Auto Standby” (p. 28)
When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically
to reduce the power consumption. For example, when the input mode is switched from HDMI, when Speaker
Selection is changed to “TV” (except for watching a disc).
If you select “On (With reminder)”, the on screen message will be displayed to be noticed before working this
function.
This function may not work properly depending on the connected equipment. If required, set to “Off”.
Features available (Using VIERA Link Menu)
Direct TV Recording - What you see is What you record
Direct TV Rec
Recording the current programme in DIGA Recorder immediately.
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
connect DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2
for two recorders, in this case connect DIGA Recorder to HDMI1.
If you cannot operate, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 46 and p. 47), “Preparations” (p. 49)
SCART connection is required to record the DVB-C programme.
Changing channel or turning off the TV is available while the recorder is recording from its own tuner.
Changing channel is not available while the recorder is recording from the TV tuner.
Display “VIERA Link Menu”
1
DIRECT TV REC
EXIT
G
U
I
2
D
E
Select “Direct TV Rec” and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
You can also start recording directly
Start
Recorder
Home Cinema
Home Cinema
start
select
DIRECT TV REC
To stop recording
Select “Stop” in “Direct TV Rec” and access
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
You can also stop recording directly.
Unlock the tuner
G
U
I
D
E
Stop
Recorder
Home Cinema
Home Cinema
Tuner Locked
Please stop recording to operate
Continue
Unlock
select
stop
EXIT
50
Page 51

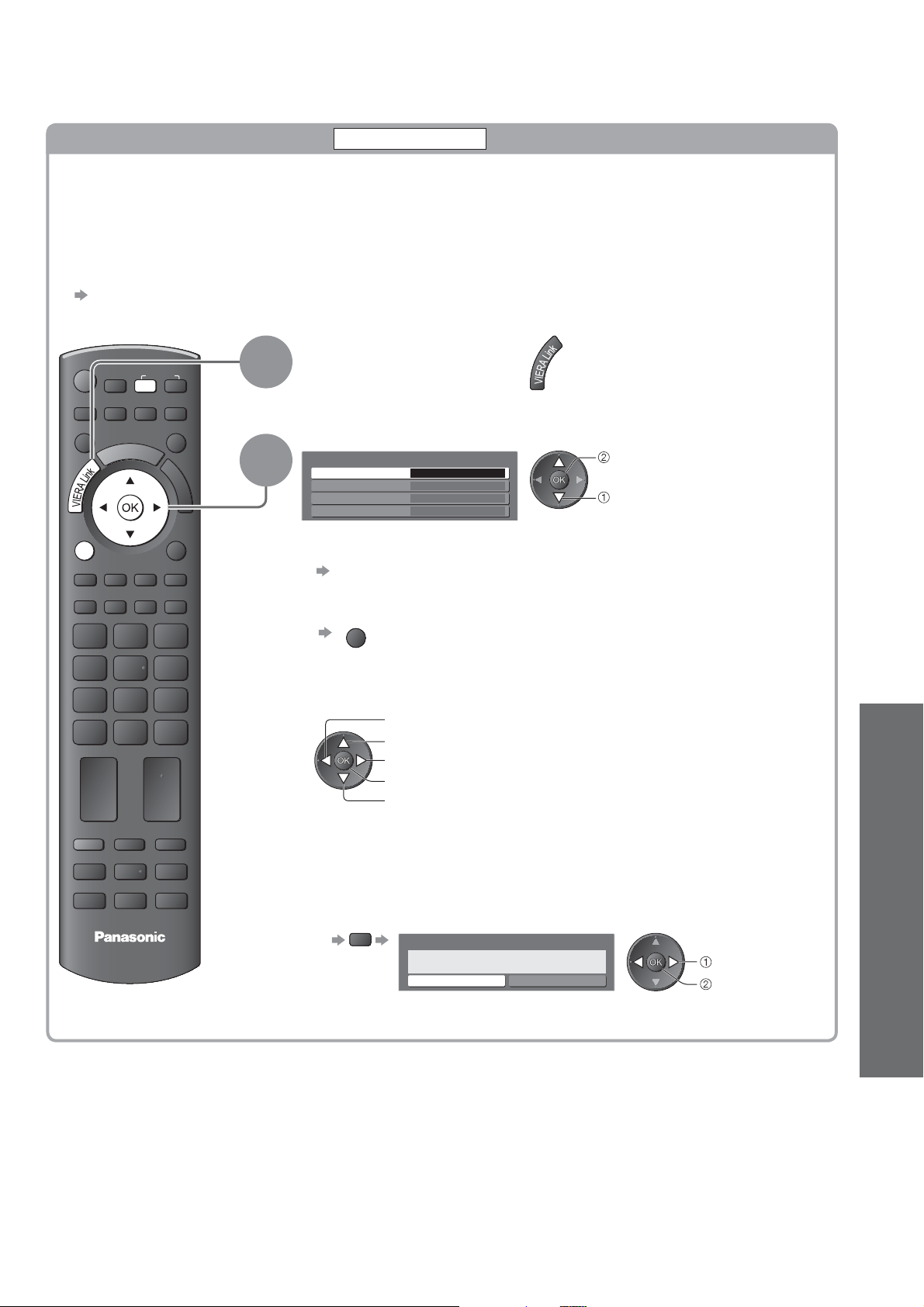

Features available (Using VIERA Link Menu)
Pause Live TV programme
Pause Live TV
You can pause the live TV programme and resume later.
Live TV programme will be recorded on HDD of the connected DIGA Recorder.
This function is available with DIGA Recorder which has HDD.
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
connect DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use
HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder which has HDD to HDMI1.
If you cannot operate, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 46 and p. 47), “Preparations” (p. 49)
Access and pause the live TV programme
Display “VIERA Link Menu”
INPUT
TV
1
Select “Pause Live TV” and pause
pause
select
OPTION
2
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Access
Start
Recorder
Home Cinema
Home Cinema
The TV picture will be paused.
You can also pause directly by using VIERA TOOLS
“How to Use VIERA TOOLS” (p. 41)
Live TV programme is recorded on HDD from where it was paused.
If the paused TV picture disappears after a few minutes
OPTION
Follow the operation guide to operate Pause Live TV function.
(the paused picture will be restored)
(Q-Link / VIERA Link)
Link Functions
TV
To operate Pause Live TV
search backward
pause
search forward
playback
stop
If you stop playback, the recorded programme
will be deleted from HDD.
Operations may be different
depending on the recorder. In this
case, follow the operation guide or
read the manual of the recorder.
To return to Live TV
(stop playback of Pause Live TV / cancel pause)
Select “Yes”
TV
If you stop playback or cancel pause, the recorded programme will be
deleted from HDD.
Pause Live TV
Stop Pause Live TV?
Yes No
Advanced
select
stop
51
Page 52

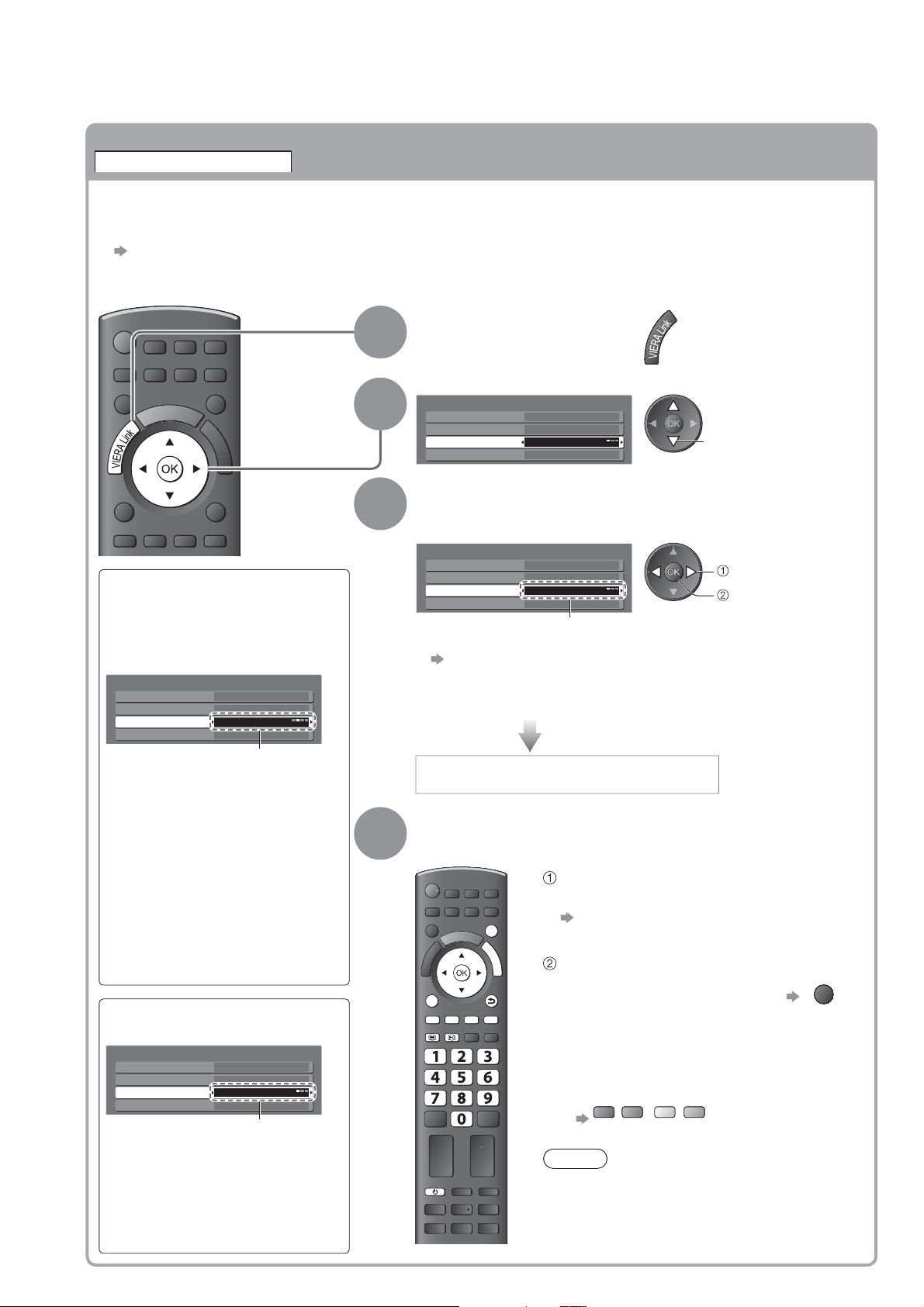

Q-Link
Link Functions
Features available (Using VIERA Link Menu)
Control the menu of the connected equipment by VIERA remote control
VIERA Link Control
You can control some functions of the connected equipment with this TV remote control (point the
remote control at the TV’s signal receiver).
If you cannot operate, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 46 and p. 47), “Preparations” (p. 49)
For details of the operations for the connected equipment, read the manual of the equipment.
Access and operate the menu of the equipment
Display “VIERA Link Menu”
(
VIERA Link
)
1
Select “VIERA Link Control”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Start
Recorder
Home Cinema
Home Cinema
select
Select the equipment you want to access
The type of the connected equipment is displayed.
Select the type of the equipment and access.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema / Video Camera / LUMIX / Other
You can also access directly by using VIERA TOOLS
“How to Use VIERA TOOLS” (p. 41)
“Home Cinema” means Player theatre, Blu-ray Disc theatre or
Recorder theatre.
“Other” means Tuner set top box.
The menu of the accessed equipment
(Input mode will be changed automatically)
Start
Recorder
Home Cinema
Home Cinema
select
access
Operate the menu of the equipment
Available VIERA remote control buttons:
(depending on the connected equipment)
Set the code of the remote control
to “73”
“How to change the code for the type
of the equipment” (p. 25)
Follow the operation guide
To display the operation guide
If other manufacturers’ equipment is
accessed, Setup / Contents Selection
menu may be displayed.
When the key words are displayed on
colour bar
red green yellow blue
OPTION
OPTION
TEXT STTL
EXIT
G
U
I
D
E
RETURN
Note
Some operations may not be available
depending on the equipment. In this case
use its own remote control to operate the
equipment.
If multiple recorders or
players are connected
You can connect up to three
recorders or players at the
same time.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Start
Recorder2
Home Cinema
Home Cinema
Recorder1-2 / Player1-2
The number is given from
the TV’s lower HDMI terminal
number connected to the same
type equipment. For example,
two recorders to HDMI1
and HDMI2, in this case the
recorder connected to HDMI1
is displayed as “Recorder1”,
and the recorder connected
to HDMI2 is displayed as
“Recorder2”.
If you access
non-VIERA Link equipment
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Start
Recorder
Home Cinema
Home Cinema
The type of the connected
equipment is displayed.
You can access the menu
of the equipment. But you
cannot operate it. Use its own
remote control to operate the
equipment.
2
3
4
52
Page 53

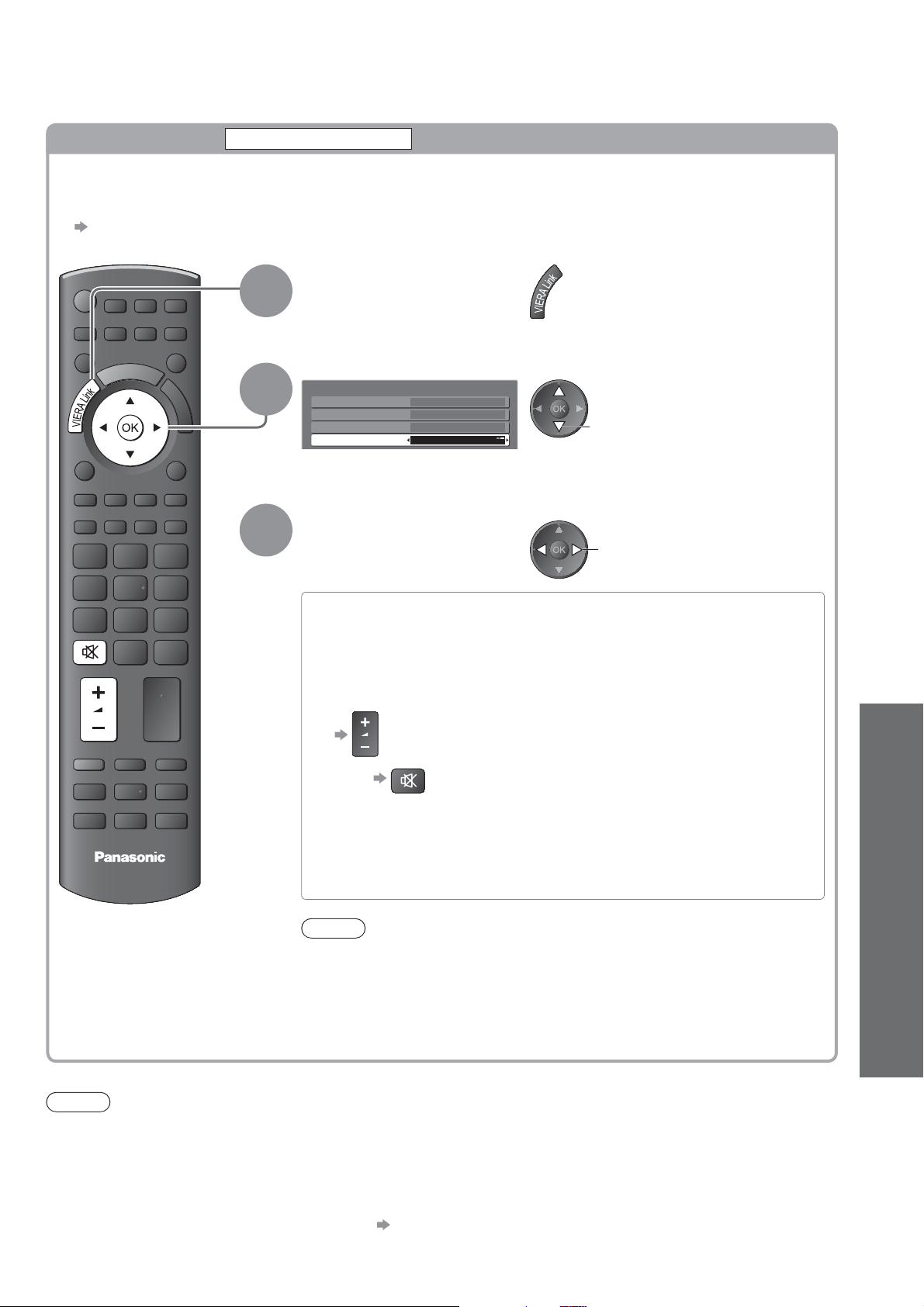

Features available (Using VIERA Link Menu)
Speaker control
You can control the theatre speaker with this TV remote control (point the remote control at the TV’s
signal receiver).
If you cannot operate, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 46 and p. 47), “Preparations” (p. 49)
Access and control the speaker volume
Speaker Selection
Display “VIERA Link Menu”
1
Select “Speaker Selection”
VIERA Link Menu
2
3
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Set to “Home Cinema” or “TV”
Start
Recorder
Home Cinema
Home Cinema
select
set
(Q-Link / VIERA Link)
Link Functions
TV
Home Cinema
Player theatre, Blu-ray Disc theatre or Amplifier will be
automatically turned on if it is in Standby mode and the sound is
from theatre speakers connected to the equipment.
Volume up / down
Volume slide bar will be displayed when
(
adjusting the volume of the equipment.
Mute
The sound of TV speakers is mute.
When the equipment is turned off, TV speakers will be active.
TV
TV speakers are active.
Note
If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch)
via an Amplifier, connect with HDMI cable and Optical digital audio cable
(p. 47), and then select “Home Cinema”.
To enjoy the sound from the DIGA Recorder in multi-channel sound,
connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 47).
)
Advanced
Note
These functions may not work properly depending on the connected equipment.
Image or sound may not be available for the first few seconds when Input mode is switched.
Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier.
Read the manual of the equipment.
“HDAVI Control 4” is the newest standard (current as of December, 2008) for HDAVI Control compatible
equipment. This standard is compatible with conventional HDAVI equipment.
To confirm this TV’s version of HDAVI Control “System Information” (p. 29)
53
Page 54

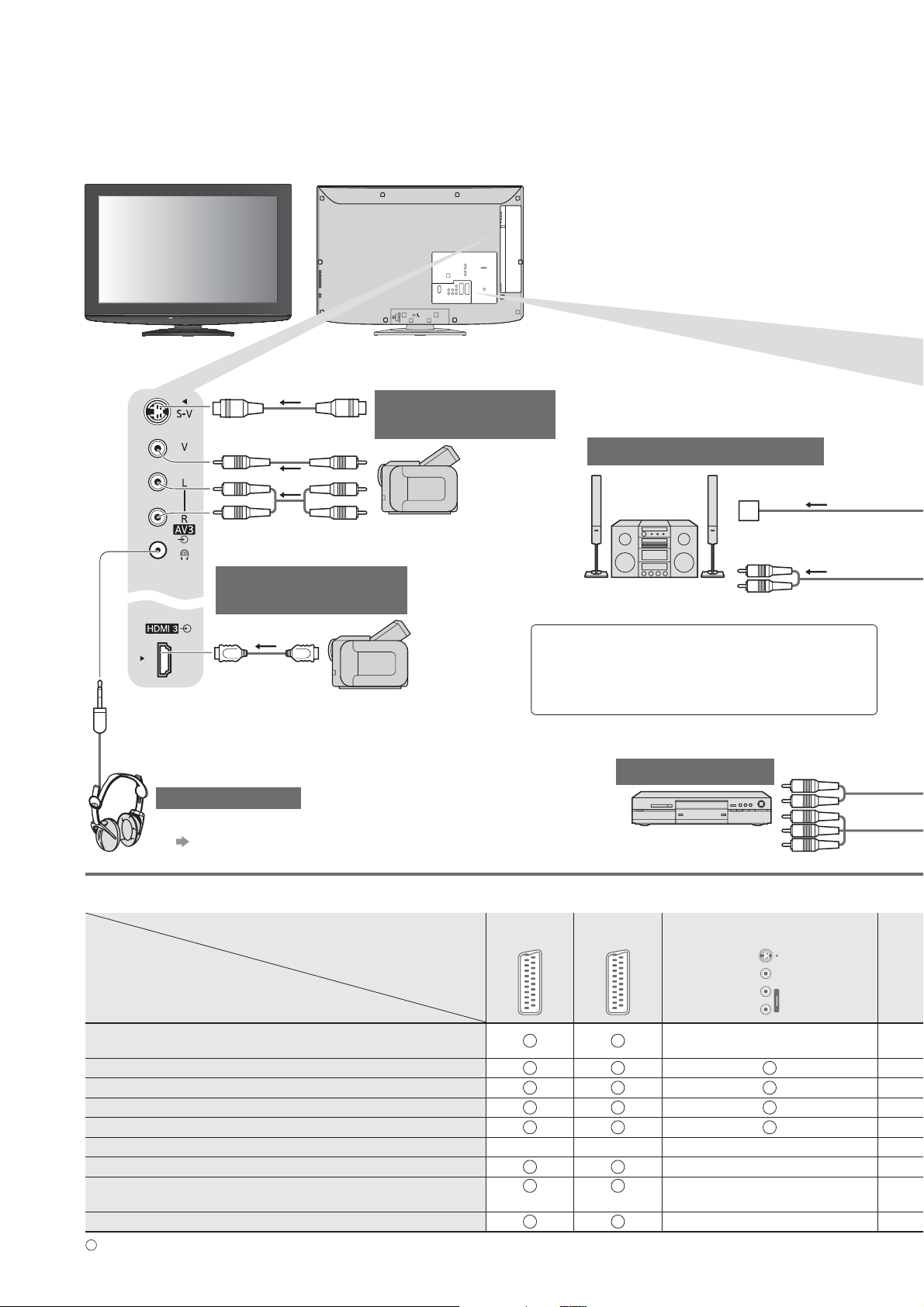

External Equipment
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifications (p. 63).
Camcorder /
(S-VIDEO)
or
(VIDEO)
Game equipment
To listen with speakers
HDMI equipment
Fully wired HDMI
compliant cable
( M3 stereo
mini plug)
Headphones
To adjust volume
“Headphone Volume” in the Sound Menu (p. 27)
Types of connectable equipment to each terminal
Recording / Playback
(equipment)
(AUDIO)
Camcorder /
Terminal
Optical digital
audio calbe
Ampli er with
speaker system
To enjoy the sound from the external equipment
in multi-channel sound (e.g. Dolby Digital
5.1ch), connect the equipment to the amplifier.
For the connections, read the manuals of the
equipment and amplifier.
RCA cable
To watch DVDs
DVD player
AV1 AV2 AV3 (Side panel of TV)
S-V
V
L
R
54
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use amplifier with speaker system
Q-Link
VIERA Link
Direct TV Recording
: Recommended Connection
(with HDMI) (with HDMI)
Page 55

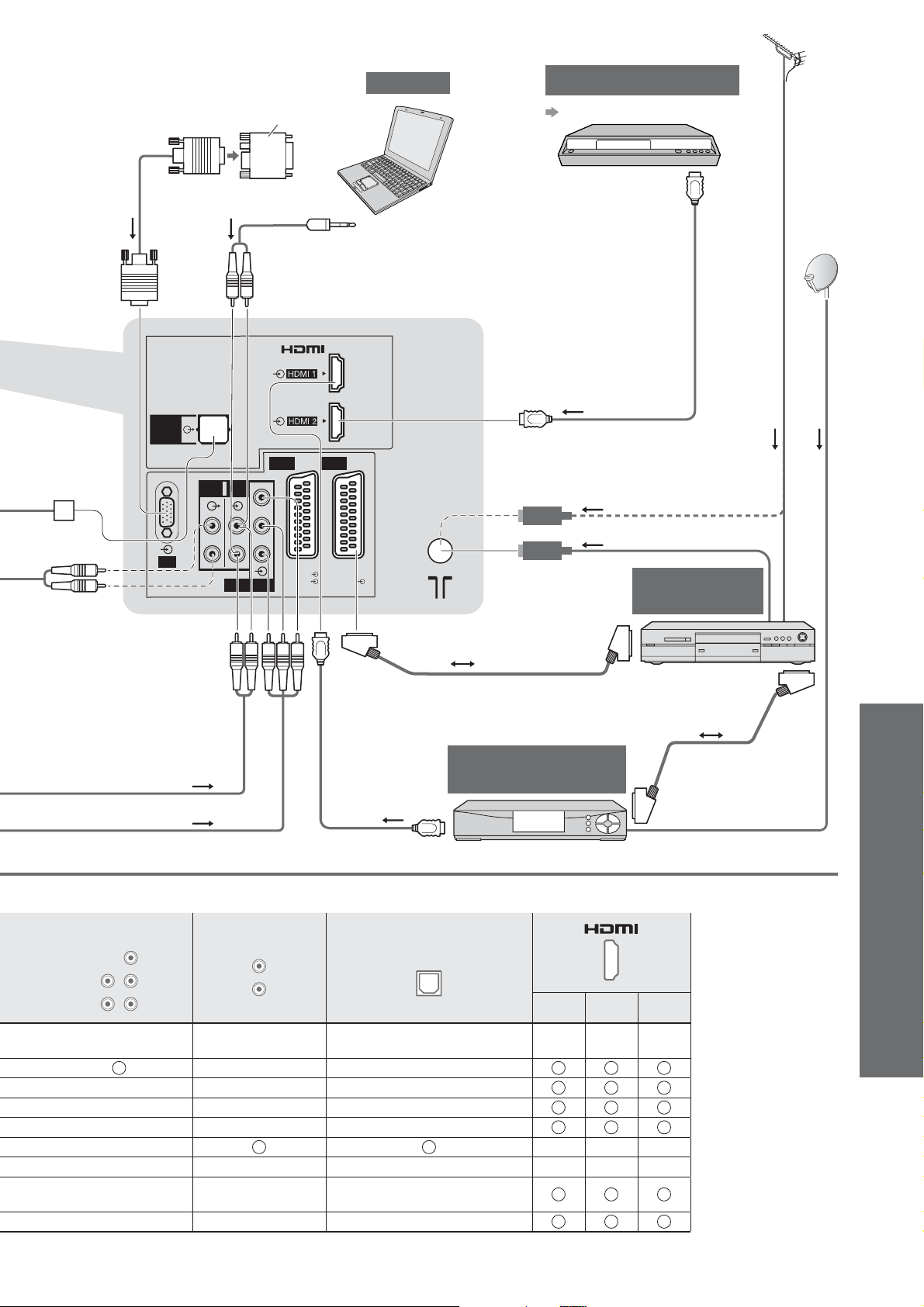

(Viewing)
DIGITAL
AUDIO
OUT
PC
Conversion adapter
(if necessary)
(Listening)
AV1 AV 2
AUDIO
AUDIO
OUT
R
Y
IN
PB
LRL
P
R
COMPONENT
RGB
VIDEO
RGB
VIDEO
S VIDEO
PC
Computer
HDMI equipment
“HDMI connection” (p. 59)
DVD Recorder
Fully wired HDMI
compliant cable
To record /
playback
RF cable
Terrestrial
aerial
or
External Equipment
(Listening)
(Viewing)
COMPONENT
Y
L
P
B
R
P
R
AUDIO OUT
L
R
Fully wired
HDMI compliant
cable
To watch satellite
DIGITAL AUDIO OUT
SCART cable
broadcasts
Set top box
123
DVD Recorder /
VCR
SCART cable
Advanced
55
Page 56
Technical Information
Auto Aspect
The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 16)
Aspect Control Signal
“WIDE” will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART /
HDMI terminal is found.
The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
This function will work in any aspect mode.
Aspect Control Signal
Input terminal Input signal format
DVB-T
PAL B, G, H, I
PAL D, K
SECAM B, G
SECAM L, L’
RF
Cable
AV1 (Composite)
AV2 (Composite or S-Video)
AV3 (Composite or S-Video)
COMPONENT
HDMI1
HDMI2
HDMI3
SECAM D, K
PAL 525/60 6.5 MHz –
PAL 525/60 6.0 MHz –
PAL 525/60 5.5 MHz –
M.NTSC 6.5 MHz –
M.NTSC 6.0 MHz –
M.NTSC 5.5 MHz –
DVB-C
PAL
SECAM
PAL 525/60 –
M.NTSC –
NTSC –
525 (480) / 60i –
525 (480) / 60p –
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p –
750 (720) / 50p –
1,125 (1,080) / 60i –
1,125 (1,080) / 50i –
525 (480) / 60i –
525 (480) / 60p –
625 (576) / 50i –
625 (576) / 50p –
750 (720) / 60p –
750 (720) / 50p –
1,125 (1,080) / 60i –
1,125 (1,080) / 50i –
1,125 (1,080) / 60p –
1,125 (1,080) / 50p –
1,125 (1,080) / 24p –
Auto mode
Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS,
Control signal through SCART / HDMI terminal, Letterbox detection, or Justify to fill the screen) to determine.
This process may take several minutes, depending on the darkness of the image.
Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the
best ratio and expands the image to fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.
Note
The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top
and bottom of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
tracking of the VCR. Read the manual of the VCR.
Widescreen signal
(WSS)
Control signal
through SCART (pin8) / HDMI terminal
56
Page 57
SD Card
Cautions in handling SD Card
Do not remove the card while the TV is accessing data (this can damage card or TV).
Do not touch the pins on the back of the card.
Do not subject the card to a high pressure or impact.
Insert the card in the correct direction (otherwise, card may be damaged).
Electrical interference, static electricity, or erroneous operation may damage the data or card.
Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of
the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)
Data format for Card browsing
Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF
Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)
Max. number of files - 9,999
Image resolution - 160 × 120 to 10,000,000
Compliant card type (maximum capacity): SDHC Card (32 GB), SD Card (2 GB), miniSD Card (2 GB)
(requiring miniSD adapter)
If miniSD Card is used, insert / remove it together with the adapter.
Check the latest information on the card type at the following website. (English only)
http://panasonic.co.jp/pavc/global/cs/
DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).
Note
Format the card with the recording equipment.
The picture may not appear correctly on this TV depending on the recording equipment used.
Display may take some time when there are many files and folders.
This function cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).
A data modified with a PC may not be displayed.
Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.
Partly degraded files might be displayed at a reduced resolution.
All “.JPG” extension datas in the card will be read in Photo View Mode.
The folder and file names may be different depending on the digital camera used.
Do not use two-byte characters or other special codes.
The card may become unusable with this TV if the file or folder names are changed.
and EXIF standards
On screen messages
Message Meaning / Action
Cannot read file
No SD card inserted Confirm SD Card is inserted correctly.
No valid file to play The card has no data.
Over 9999 pictures found
(max. is 9999)
The file is broken or unreadable.
The TV does not support the format.
(For the applicable formats and data, see above.)
Technical Information
Maximum valid number of photos is 9,999.
FAQs, etc.
57
Page 58
Technical Information
Characters table for numeric buttons
You can enter characters by using numeric buttons for free input items.
Press the numeric button repeatedly until you reach the desired character.
The character is set automatically if you leave for one second.
You can also set the character by pressing the OK button or
other numeric buttons within one second.
Characters table:
The number of
times to
Numeric
press
buttons
1234567891011
.1! :#+-*_()
abc2ABC
de f 3DEF
ghi4GHI
jkl5JKL
mno6MNO
pqr s7PQRS
tuv8TUV
wxyz9WXYZ
Space 0
User input
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
SCART, S-VIDEO and HDMI terminal information
AV1 SCART terminal
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
AV3 S-VIDEO 4 pin terminal HDMI terminal
Chrominance in Luminance in
Chrominance earth Luminance earth
AV2 SCART terminal
(RGB, VIDEO, S-VIDEO, Q-Link)
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO
switching.
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in, S.C. - in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield 11
TMDS Data0 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2 3
TMDS Data2+ 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
18 +5V Power
16 SDA
14 Reserved
(in cable but N.C. on device)
12 TMDS Clock
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1
4 TMDS Data1+
2 TMDS Data2 Shield
58
Page 59
HDMI connection
HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying
with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the
equipment.
HDMI-compatible equipment (1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can
be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 54).
Applicable HDMI features
Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p. 60)
Match the output setting of the digital equipment.
Input PC signal : “Input signal that can be displayed” (p. 60)
Match the output setting of the PC.
VIERA Link (HDAVI Control 4) :
“VIERA Link” (p. 49)
DVI connection
If the external equipment has only a DVI output, connect to the HDMI1 / 3 terminal via a DVI to HDMI adapter
cable (2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use
COMPONENT-AUDIO terminals / HDMI3: use AV3 audio terminals).
Note
Audio settings can be made on the “HDMI1 / 3 Input” in the Sound Menu. (p. 27)
HDMI2 terminal is for digital audio signal only.
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
These HDMI connectors are “type A”.
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
protection.
An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
“S-VIDEO”, or “VIDEO” to receive analogue signals.
(1): The HDMI logo is displayed on HDMI-compliant equipment.
(2): Enquire at your local digital equipment retailer shop.
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.
Note
Some PC models cannot be connected to this TV.
When using PC, set the colour display quality of PC to the highest position.
For details of the applicable PC signals
“Input signal that can be displayed” (p. 60)
Max. display resolution
Aspect
D-sub 15-pin connector signal
4:3
16:9
1,024 × 768 pixels
1,366 × 768 pixels
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
Technical Information
FAQs, etc.
59
Page 60
Technical Information
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p
PC (from D-sub 15P) Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 768 @60 Hz 47.70 60.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06
PC (from HDMI terminal) Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Note
Signals other than above may not be displayed properly.
The above signals are reformatted for optimal viewing on your display.
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient
clarity.
60
Page 61
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow
images (noise)
Check the position, direction, and connection
of the aerial.
Neither image nor sound is
produced
Is the TV in AV mode?
Check the correct AV input mode is selected.
Check the mains lead is plugged into the
socket outlet.
Has the TV been turned On?
Check the Picture Menu (p. 26) and volume.
Check all required SCART cables and
connections are firmly in place.
Auto aspect
Auto aspect is designed to provide you with
the best ratio to fill the screen. (p. 56)
Press the ASPECT button if you would like to
change the aspect ratio manually (p. 16).
S-Video / black and white
Check that the output of the external
equipment matches the input of the TV. If
the output of the external equipment is set to
S-Video, the TV must also be set to S-Video
(p. 22).
No programmes shown on
TV Guide
Check the digital transmitter.
Adjust the direction of the aerial to another
transmitter installed nearby.
Check the analogue broadcast.
If the image quality is poor, check the aerial
and consult your nearest dealer.
Remains channel number, input
mode, etc. on the TV screen
-I.e. EC/AV1
Press the button to clear these.
Press again to redisplay.
Q-Link function does not work
Confirm SCART cable and connection.
Also set “AV1 / AV2 out” in the Setup Menu (p. 28).
“VIERA Link” function does
not work and an error message
appears
Confirm the connection. (p. 46 and p. 47)
Turn the connected equipment on and then switch the
TV on. (p. 49)
Recording does not start
immediately
Check the settings of the recorder. For details, read the
manual of the recorder.
There may be red spots, blue
spots, green spots and black
spots on the screen
This is a characteristic of liquid crystal panels and is
not a problem. The liquid crystal panel is built with
very high precision technology giving you fine picture
details.
Occasionally, a few non-active pixels may appear on
the screen as a fixed point of red, green, blue or black.
Please note this does not affect the performance of
your LCD.
Frequently Asked Questions
Technical Information
FAQs, etc.
61
Page 62
FAQs
Problem Actions
Chaotic image, noisy
Set “P-NR” in the Picture Menu (to remove noise). (p. 26)
Check nearby electrical products
(car, motorcycle, fluorescent lamp).
Screen
No image can be displayed
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
Sound
No sound is produced
Sound level is low
or sound is distorted
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in
Digital Channel
some cases, despite good reception of analogue channels.
Interference or
frozen / disappearing image in
DVB mode
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
(p. 26)
Reset channels. (p. 30 and p. 31)
Turn the TV Off with Mains power On / Off switch, then turn it On
again.
If the problem persists, perform “Shipping Condition” (p. 38).
Is “Sound mute” active? (p. 9)
Is the volume set to the minimum?
Sound signal reception may be deteriorated.
Set “MPX” (p. 27) in the Sound Menu to “Off”.
(Analogue only)
Check “Signal Condition” (p. 32).
If “Signal Quality” or “Signal Strength” are displayed in red, the
signal is weak.
Check aerial or cable. If problem persists, consult your local dealer.
Weather conditions will affect signal reception (heavy rain, snow,
etc.), in particular in poor reception areas. Even during good weather
the high pressure can cause poor reception of some channels.
Turn the TV off with the Mains power On / Off switch, then turn it On
again.
Some channels
cannot be tuned
Sound is unusual
HDMI
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
The TV does not switch On
The TV goes into
“Standby mode”
Other
The remote control does not work
or is intermittent
The LCD panel moves slightly
when it is pushed with a finger
Clattered sound might be heard
Check the aerial or cable.
Consult your local dealer.
Set the sound setting of the connected equipment to
“2ch L.PCM”.
Check the “HDMI1 / 3 Input” setting in the Sound Menu. (p. 27)
If digital sound connection has a problem, select analogue sound
connection. (p. 59)
Check the HDMI cable is connected properly. (p. 54)
Turn the TV and equipment Off, then turn them On again.
Check an input signal from the equipment. (p. 60)
Use an equipment compliant with EIA/CEA-861/861B.
Check the mains lead is plugged into the socket outlet.
Off Timer function is activated.
The TV enters “Standby mode” about 30 mins. after analogue
broadcasting ends.
Are the batteries installed correctly? (p. 6)
Has the TV been switched On?
The batteries may be running low. Replace them.
Point the remote control directly at the front of the TV (within a
30 degree angle of the front of the TV).
Situate the TV away from sunshine or other sources of bright light
not to shine on the TV’s remote control signal receiver.
There is some flexibility around the panel to prevent damage to the
panel.
The panel might move slightly when it is pushed with a finger, and
clattered sound might be heard. This is not a malfunction.
62
An error message appears
Follow the message’s instructions.
If the problem persists, contact the authorized Service Centre.
Page 63
Specifications
TX-L32X10L
Power Source AC 220-240 V, 50 Hz
Power Consumption 114 W
Power Consumption in
Standby mode
Display
panel
Aspect Ratio 16:9
Visible screen size
Number of pixels 1,049,088 (1,366 (W) × 768 (H))
Sound
Speaker 160 mm × 42 mm × 2 pcs, 8
Audio Output 20 W (10 W + 10 W), 10% THD
Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals
Receiving Systems /
Band name
Aerial input VHF / UHF
Operating Conditions
Connection Terminals
AV1 (SCART terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
AV2 (SCART terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 :)
AV3
COMPONENT
Others
Output
Dimensions ( W × H × D )
Mass
S-VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 :) C:0.286 V[p-p] (75 :)
AUDIO L - R
VIDEO
AUDIO L - R
HDMI
1 / 2 / 3
PC
Card slot SD Card slot × 1
AUDIO L - R
DIGITAL
AUDIO OUT
0.3 W (Without monitor out recording)
13 W (With monitor out recording)
80 cm (diagonal)
697 mm (W) × 392 mm (H)
:
VGA, SVGA, XGA
SXGA ······ (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
PAL B, G, H, I, SECAM B, G, SECAM L, L’
VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) VHF A - J (IRELAND) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69
PAL 525/60 Playback of NTSC tape from some PAL Video re cord ers (VCR)
DVB-T Digital terrestrial services
DVB-C Digital cable services
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC (AV input only) Playback from NTSC Video recorders (VCR)
TV signals may not be received in some areas.
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
RCA PIN Type × 2 0.5 V[rms]
Y 1.0 V[p-p] (including synchronization)
P
B, PR ±0.35 V[p-p]
RCA PIN Type × 2 0.5 V[rms]
TYPE A Connectors
This TV supports “HDAVI Control 4” function.
HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 :)
HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
RCA PIN Type × 2 0.5 V[rms] (high impedance)
PCM / Dolby Digital, Fiber optic
798 mm × 551 mm × 217 mm (With Pedestal)
798 mm × 511 mm × 93 mm (TV only)
13.0 kg Net (With Pedestal)
11.5 kg Net (TV only)
Frequently Asked Questions
Specifications
FAQs, etc.
Note
Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
This equipment complies with the EMC standards listed below.
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.
63
Page 64
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products
and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products
and used batteries, please take them to applicable collection points, in accordance with your national legislation and the
Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your
waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or
dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the
Directive for the chemical involved.
Licence
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
VGA is a trademark of International Business Machines Corporation.
Macintosh is a registered trademark of Apple Inc., USA.
S-VGA is a registered trademark of the Video Electronics Standard Association.
SDHC Logo is a trademark.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
HDAVI Control™ is a trademark of Panasonic Corporation.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3) subject of
various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc.
and/or its related affiliates.
GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE
FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES
BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Panasonic (U. K.) Ltd.
Willoughby Road, Bracknell, Berks RG12 8FP
Web Site : http://www.panasonic.net
© Panasonic Corporation 2009
Printed in Czech Republic
Loading...
